is a Gram-negative, facultative intracellular pathogen and the causative agent of Legionnaire’s disease. The latter could lead to severe pneumonia and even death, if not treated at an early stage [1
]. Untreated immunosuppressed patients have a 40% to 60% chance of fatality [4
]. L. pneumophila
is ubiquitously found in natural and human-made fresh water reservoirs and distribution systems. The natural hosts of L. pneumophila
are amoebae and replication occurs within the hosts after phagocytosis. L. pneumophila
infections occur when contaminated airborne water droplets are inhaled into the lung allowing the bacteria to reach the alveolar mucosa [3
]. Recently, the molecular basis of biofilm formation by L. pneumophila
was reported along with the role of other microbial species in L. pneumophila
biofilm colonization [6
]. Bacterial aggregates of L. pneumophila
have been reported to have the ability to resist various host defenses and colonize their biofilm environment efficiently [7
]. Recent studies have hypothesized that Legionella
collagen-like (Lcl) protein induced the auto-aggregation process in a divalent-cation-dependent manner. The isolates from Legionella
species which did not produce Lcl, were deficient in auto-aggregation [7
The extracellular matrix of alveolar mucosa contains multiple proteinaceous and non-protein components that are thought to play critical roles in the etiology and pathogenesis of Legionnaire’s disease. One of these components, the sulfated glycosaminoglycans (GAGs), includes heparan sulfate, chondroitin sulfate, and keratan sulfate. The sulfated GAGs are negatively-charged heteropolysaccharides expressed in all mammalian tissues. Enzymatically-generated structural patterns and the degree of sulfation in GAGs determine their specific interactions with protein ligands. Chondroitin sulfate and fucose were reported to bind to Lcl using enzyme-linked immunoassays (ELISAs) [8
]. In order to shed light on the interaction of GAGs with Lcl protein, we have assessed the adhesin-ligand interactions from a perspective of electrochemical impedance spectroscopy (EIS) and surface plasmon resonance (SPR). SPR is a widely used analytical tool for studying interactions between ligands and analytes. The sensitivity and simplicity of SPR provide many advantages in applications such as drug screening as well as biomolecular interaction studies [10
]. In this report, Lcl proteins were immobilized as ligands onto the gold sensor chip surface, where they could interact with the incoming GAGs as adhesins. The real-time data were collected and formulated into the kinetic information of the affinity (KD
) between Lcl and GAGs. Similarly, EIS is also a well-established electro-analytical method to investigate biomolecular interactions. Previous studies have employed EIS in studying protein interactions in neurodegenerative diseases, as well as biological analysis [12
]. As for this EIS-based study, Lcl proteins were immobilized onto a gold screen-printed electrode surface, where the binding of GAGs was determined by following the changes in the charge-transfer resistance values of the Randles’ equivalent circuit [12
]. Together, both SPR and EIS offered a cost-effective and rapid approach to study protein-GAG interactions with high sensitivity and low sample consumption.
2. Materials and Methods
Recombinant, N-terminus His-tagged Lcl proteins were prepared following the procedures as reported by C. Guyard and co-workers [6
]. Designs and constructs of Lcl proteins were kindly donated by C. Guyard (BIOASTER, Microbiology Technology Institute, Lyon, France). HEPES, sodium chloride, EDTA, nickel (II) chloride, 3,3′-dithiobis (sulfosuccinimidyl) propionate, N
-(5-amino-1-carboxypentyl) iminodiacetic acid (ANTA), sodium phosphate monobasic (NaH2
; 99%), sodium phosphate dibasic (Na2
; 99.0%), and ethanol-amine were purchased from Sigma-Aldrich (Oakville, ON, Canada). All other reagents and chemicals were of analytical grade.
2.1. Surface Plasmon Resonance (SPR)
SPR-based analyses were performed using a Biacore X100 (GE Healthcare, Chicago, IL, USA) with a Series S NTA sensor chip on a dextran support. All measurements were conducted at 25 °C and all the solutions were sterile filtered (0.2 μm) before injection into the flow cells. SPR running buffer was composed of 0.01 M HEPES (pH 7.4), 0.15 M NaCl, 0.05 mM EDTA with 0.05% surfactant P20. The nickel solution contained 0.5 mM NiCl2 in running buffer. The regeneration solution was composed of 0.01 M HEPES (pH 8.3), 0.15 M NaCl, 0.35 M EDTA, and 0.05% surfactant P20.
Two flow cells of the sensor chip were used, one (reference flow cell, FC-1) to detect non-specific binding and background subtraction for the other one (detection flow cell, FC-2), which had the immobilized Lcl protein. The system was washed extensively with regeneration buffer for 180 s at a flow rate of 10 μL/min, followed by a wash with running buffer at 30 μL/min until the baseline became stable. As shown in Scheme 1
, the solution of Ni2+
was injected into both flow cells at 10 μL/min for 60 s to saturate the NTA surface with Ni2+
. His-tagged Lcl protein in running buffer (1 μM) was exposed to FC-2 at 10 μL/min for 1080 s. The GAGs were injected into both flow cells at 1 μM, at a flow rate of 30 μL/min for 120 s, for each cycle. The setup was automated using the Biacore X100 Evaluation software (GE Healthcare, Chicago, IL, USA). All interaction measurements as well as the control measurements with blank buffer solution before and after each injection of analytes were performed in triplicate.
2.2. Electrochemical Impedance Spectroscopy (EIS)
A gold compact-disc electrode was constructed and used as the working electrode in EIS measurements as reported by Veloso et al. [18
]. The electrodes were prepared using Kodak™ (Rochester, NY, USA) gold preservation archival grade CDs, consisting of a 50–100 nm gold film on a photosensitive layer on top of a polycarbonate disc. The protective polymer, coating the gold surface, was removed with the application of 5 mL of concentrated nitric acid on the CD surface for 10 min. The polymer and excess nitric acid was rinsed with distilled water. The CD gold surface was cut into rectangular chips with dimensions of 1 cm width × 2 cm length. An insulating tape with a hole of 2 mm2
area was glued on the gold surface to isolate the working area [18

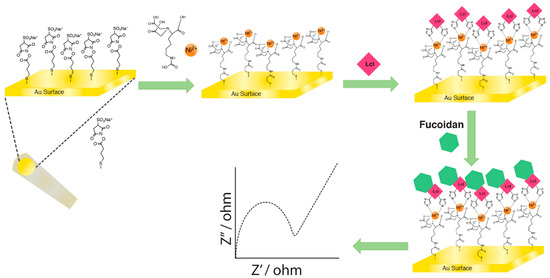

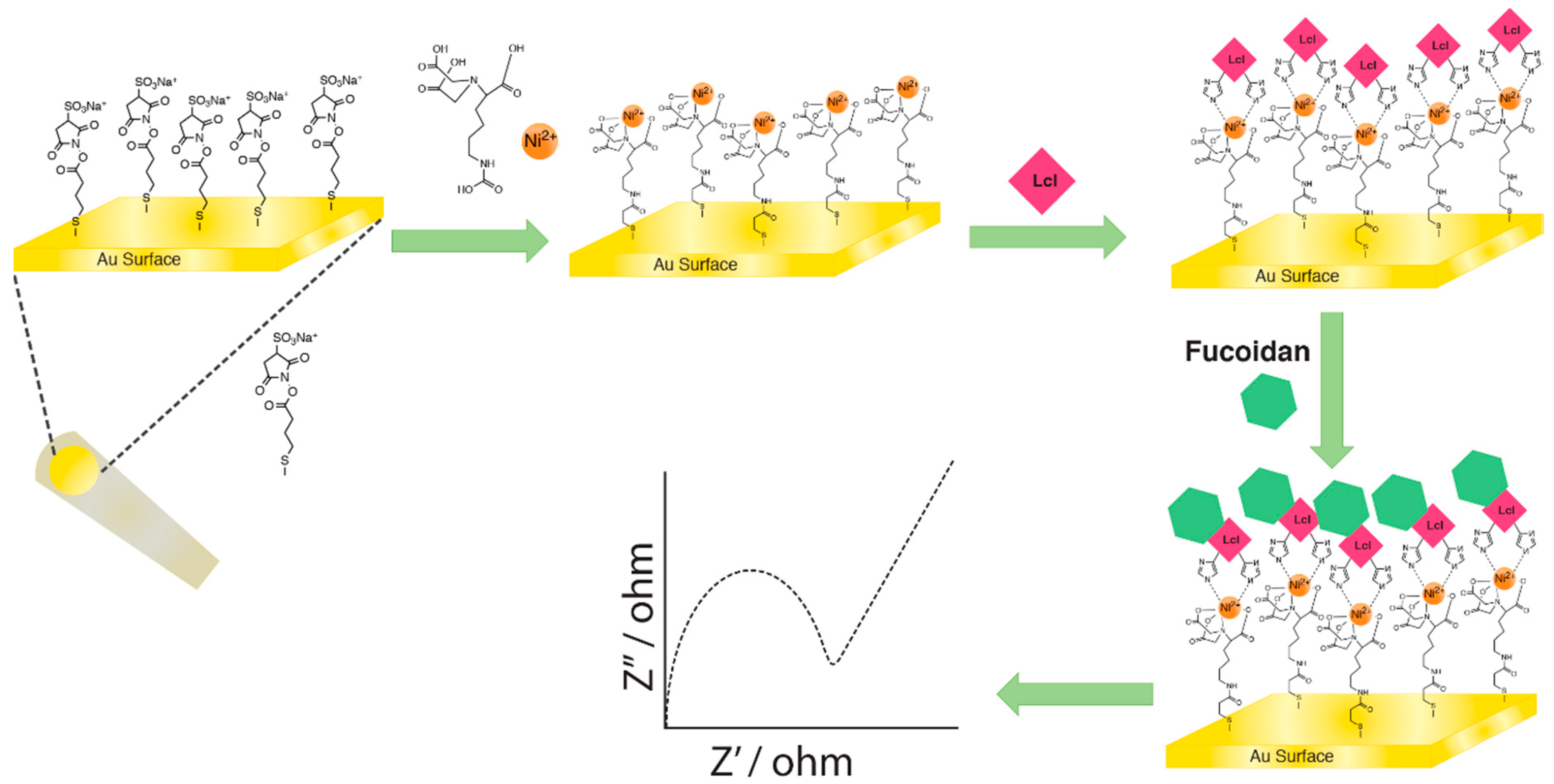

]. As shown in Scheme 2
, the immobilization of His-tagged proteins onto the gold CD chips was accomplished by the Ni2+
/NTA complex, which was linked to the gold surface using a homobifunctional linker, 3,3′-dithiobis (sulfosuccinimidyl) propionate (DTSSP) [20
Immobilization of the DTSSP layer was accomplished by depositing an aliquot (20 μL) of 2 mM DTSSP in 100 mM Na2
(pH 8.5) onto the gold surface overnight at 4 °C, followed by a rinse with Na2
to remove excess DTSSP [20
]. The formation of Ni2+
/NTA complex (5 μM NiCl2
, 2 μM NTA in 100 mM Na2
, pH 8.5, incubated for 4 h) was achieved by depositing an aliquot (20 μL) of the Ni2+
/NTA solution on the electrode surface for overnight incubation at room temperature 25 °C. After rinsing off the excess Ni2+
/NTA solution with Na2
, 0.1 M ethanolamine was used to block the unreacted N-hydroxy (sulfo)succinimide active esters for 1 h at room temperature, which was then rinsed off with 50 mM phosphate-buffered saline (PBS, pH 7.4) with 100 mM NaCl [17
]. An aliquot (20 µL) of the His-tagged Lcl protein (1 μM in 0.01 M HEPES (pH 7.4), 0.15 M NaCl, 0.05 mM EDTA with 0.05% surfactant P
20) was then added to the electrode surface and incubated overnight at room temperature, followed by rinsing with HEPES buffer (pH 7.4). This sensor chip will be referred to as “control”, on which analytes were further exposed to test for non-specific binding. GAGs at 1 μM were then deposited onto the surface and incubated overnight at room temperature, which was then rinsed with HEPES buffer (pH 7.4). Triplicate sensors of each GAGs and controls were prepared to obtain the mean data and uncertainties of the measurements. Electrochemical measurements were conducted using a µAutolab-III potentiostat (Metrohm Autolab BV, Utrecht, The Netherlands) in a three-electrode configuration consisted of a gold CD working electrode, Ag/AgCl reference electrode (in 3 M KCl) and a platinum counter electrode. EIS measurements were performed using the Frequency Response Analysis (FRA) system software, over a frequency range of 0.1 to 100,000 Hz with 0.005 V amplitude (rms). A Randles equivalent circuit model was employed to fit the impedance data using FRA in order to determine the changes in charge transfer resistance (RCT
) due to the modifications on the electrode surface. An increase in RCT
generally results from the binding of biomolecules to the surface due to the increase in resistance for transfer of electrons from the solution to the electrode surface.
3. Results and Discussion

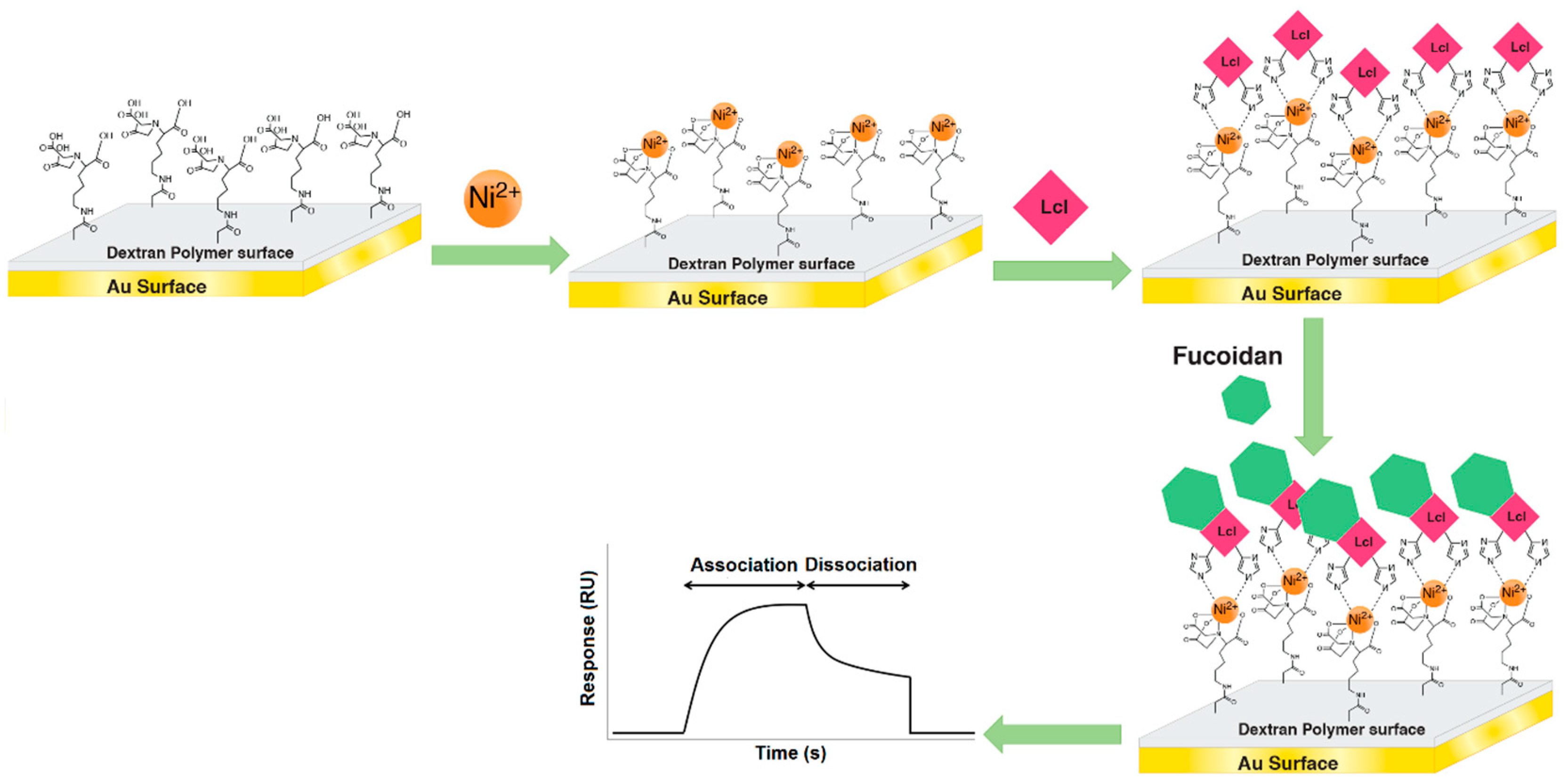

His-tagged Lcl proteins were attached to the Ni-NTA surface (Supplementary Figure S2
) on the sensor chips to allow further interactions with the analytes. As the GAGs were exposed to the surface-immobilized Lcl protein, the SPR angle shifted, which, in turn, increased the response unit. When the flow of GAGs was stopped, blank buffer solution would be exposed to the chip surface to wash away the unbound and non-specifically attached molecules. The resulting response would be the net increase due to the specific interaction of the GAGs with Lcl protein. The sensorgram in Figure 1

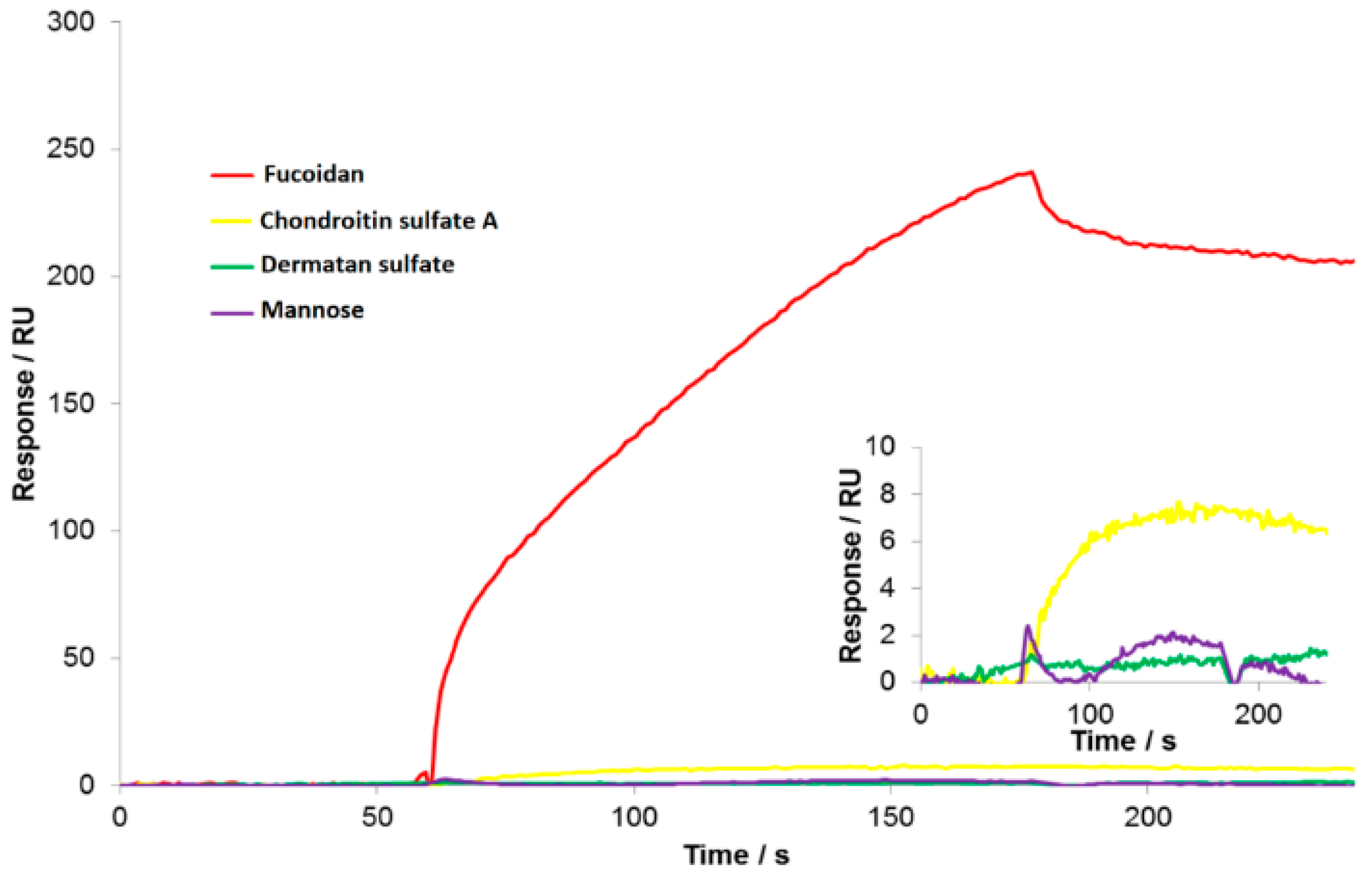

shows the real-time response data, which was used to calculate the value of KD
using the Biacore Evaluation Software™. Fucoidan, a close analog to fucose, was observed to give a significantly large signal increase relative to the other GAGs. This is a result of the strong interaction between fucoidan and Lcl, and the relatively larger in size of fucoidan (50 kDa) in contrast to the rest of the GAGs used in this study. Both mannose and dermatan sulfate showed significantly small signal response, which fell in the noise range, and the shape of SPR response was indicative of no or negligible interaction with the surface-bound Lcl proteins.
The binding affinity (KD
) was calculated from SPR data for the binding of fucoidan, chondroitin sulfate A, dermatan sulfate, and mannose to the Lcl protein immobilized on the sensor chip. The values with dermatan sulfate and mannose were so large that it exceeded the limits of the software, indicating a very low affinity interaction, and thus, labeled as “not detectable”. Mannose was used as a negative control, as it was not expected to have any affinity towards Lcl protein due to the lack of negatively charged sulfate groups. Fucoidan, as shown on Figure 2
a, a close analog to fucose, which is found commonly in human lung epithelial cells, was tested as a positive control. Fucoidan measurements displayed a very strong affinity with a KD
value of 18 ± 2.1 nM. Chondroitin sulfate A also displayed a strong affinity with a KD

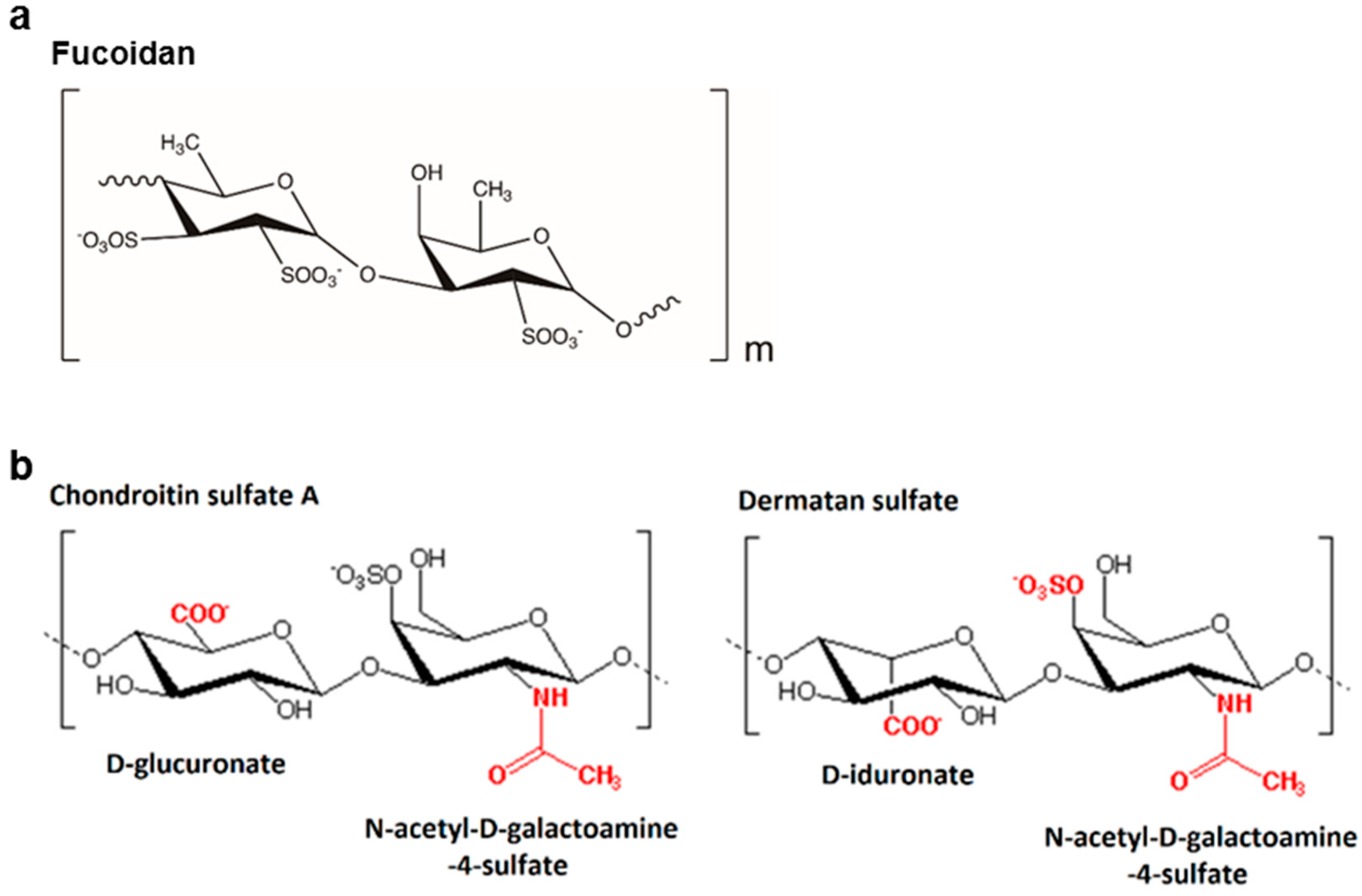

value of 173 ± 24 nM. Although chondroitin sulfate A and dermatan sulfate both have the negatively charged carboxyl groups, they differ in the position of carboxyl group replacing D-glucuronate with D-iduronate as shown in Figure 2
b. We hypothesized that the presence of D-iduronate in dermatan sulfate hindered its interaction with Lcl. Furthermore, in order to support specificity of such interactions, fucoidan and chondroitin sulfate A were injected onto a non-Lcl immobilized, Ni2+
-activated NTA sensor chip. The resulting response is shown in Supplementary Figure S1
to demonstrate the non-specific interactions of the analytes on the sensor chip.
For EIS measurements, the incubation of GAGs with the Lcl-modified gold electrode surfaces allowed the attachment of GAGs to the protein. Followed by a wash with buffer solution, the non-specifically bound molecules were removed from the surface to avoid false positive signals for the EIS measurements. As shown in Figure 3
, both mannose and dermatan sulfate showed negligible EIS signals similar to those of the blank samples (no analyte), indicating that these molecules did not have a significant affinity to the surface-bound Lcl proteins and were easily rinsed away by the buffer. Fucoidan and chondroitin sulfate A showed a significant increase in the EIS signals after thorough rinsing, demonstrating a strong binding that occurred between Lcl proteins and GAGs on the electrode surface.
The EIS data fitting parameters in Table 1
demonstrated that our results were in agreement with the ones observed using SPR, with fucoidan showing the highest charge transfer resistance, indicating the strong attachment of the molecules to the electrode surface. The unbound analytes were rinsed off from the surface and showed negligibly low changes in charge transfer resistance (15.62 Ω and 16.10 Ω, respectively) in comparison with the blank sample measurements.
Both the SPR and EIS data were in agreement with the previously reported ELISA-based results by Guyard and co-workers [8
] in terms of relative affinities between Lcl proteins with GAGs. Currently, our group is studying various parameters for discovering the exact pathway and mechanism in which L. pneumophila
can attach to the host cells. Biomolecules, including heparan sulfate, collagen, and fibronectin, are also under investigation using the described SPR and EIS techniques in this report. These biomolecules are also common components of the extracellular matrix, which can play an important role in the interaction of Lcl proteins with the host cells during an infection.
