Open AccessArticle
Sensors 2018, 18(8), 2597; https://doi.org/10.3390/s18082597

Distributed Deformation Monitoring for a Single-Cell Box Girder Based on Distributed Long-Gage Fiber Bragg Grating Sensors

1
Department of Civil Engineering, Fuzhou University, Fuzhou 350108, China
2
Hebei Province Key Laboratory of Evolution and Control of Mechanical Behavior in Traffic Engineering Structure, Shijiazhuang Tiedao University, Shijiazhuang 050043, China
*
Author to whom correspondence should be addressed.
Received: 6 June 2018 / Revised: 4 August 2018 / Accepted: 6 August 2018 / Published: 8 August 2018
(This article belongs to the Special Issue Smart Sensors and Smart Structures)
Full-Text   |   PDF [7956 KB, uploaded 8 August 2018]   |

Abstract

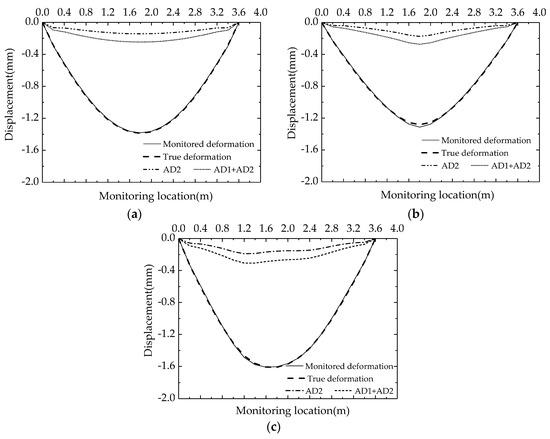

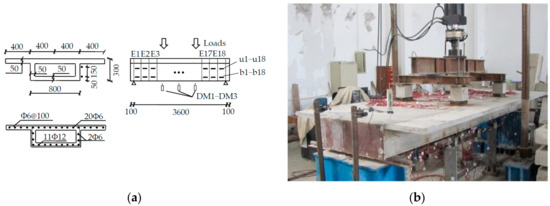

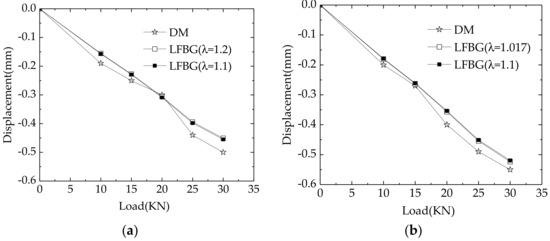

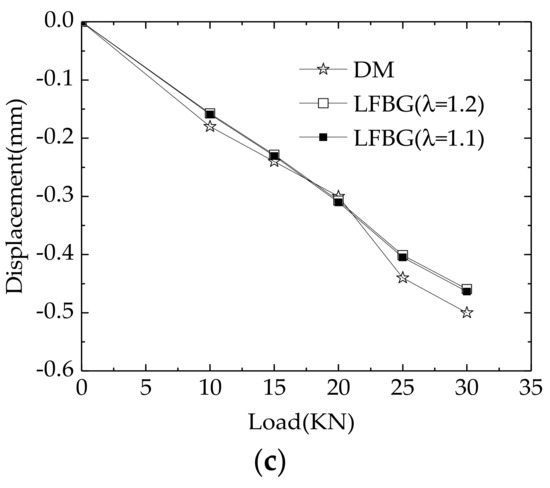

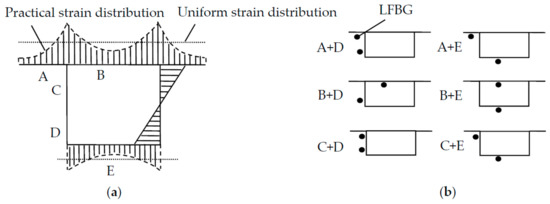

Distributed deformation based on fiber Bragg grating sensors or other kinds of strain sensors can be used to monitor bridges during operation. However, most research on distributed deformation monitoring has focused on solid rectangular beams rather than box girders—a kind of typical hollow beam widely employed in actual bridges. The deformation of a single-cell box girder contains bending deflection and also two additional deformations respectively caused by shear lag and shearing action. This paper revises the improved conjugated beam method (ICBM) based on the long-gage fiber Bragg grating (LFBG) sensors to satisfy the requirements for monitoring the two additional deformations in a single-cell box girder. This paper also proposes a suitable LFBG sensor placement in a box girder to overcome the influence of strain fluctuation on the flange caused by the shear lag effect. Results from numerical simulations show that the theoretical monitoring errors of the revised ICBM are typically 0.3–1.5%, and the maximum error is 2.4%. A loading experiment for a single-cell box gilder monitored by LFBG sensors shows that most of the practical monitoring errors are 6–8% and the maximum error is 11%. View Full-Text
Keywords: deformation monitoring; distributed monitoring; single-cell box girder; long-gage strain; long-gage fiber Bragg grating; strain distribution; shear lag effect; shear action deformation monitoring; distributed monitoring; single-cell box girder; long-gage strain; long-gage fiber Bragg grating; strain distribution; shear lag effect; shear action
Figures

Figure 1
