High Dynamic Range Imaging at the Quantum Limit with Single Photon Avalanche Diode-Based Image Sensors
Previous Article in Journal
Edge-Aware Unidirectional Total Variation Model for Stripe Non-Uniformity Correction
Article Menu
Issue 4 (April) cover image

Export Article

Open AccessArticle
Sensors 2018, 18(4), 1165; https://doi.org/10.3390/s18041165

A Flexible Sensing Unit Manufacturing Method of Electrochemical Seismic Sensor

1,2,†
,
3,†
,
1,2,* , 1,2
,
1,2
,
1,2
,
1,2
,
1,2
and
4
1
University of Chinese Academy of Sciences, Beijing 100049, China
2
Institute of Electronics, Chinese Academy of Sciences, Beijing 100010, China
3
Tsinghua University, Beijing 100084, China
4
Affiliated High School of Peking University, Beijing 100080, China
These authors contributed equally to this work.
*
Author to whom correspondence should be addressed.
Received: 24 February 2018 / Revised: 7 April 2018 / Accepted: 9 April 2018 / Published: 11 April 2018
(This article belongs to the Section Physical Sensors)
Full-Text   |   PDF [8344 KB, uploaded 3 May 2018]   |

Abstract

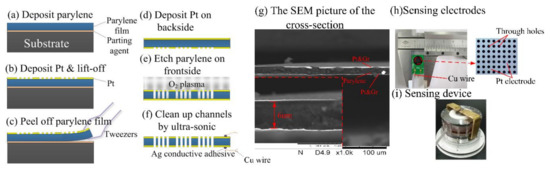

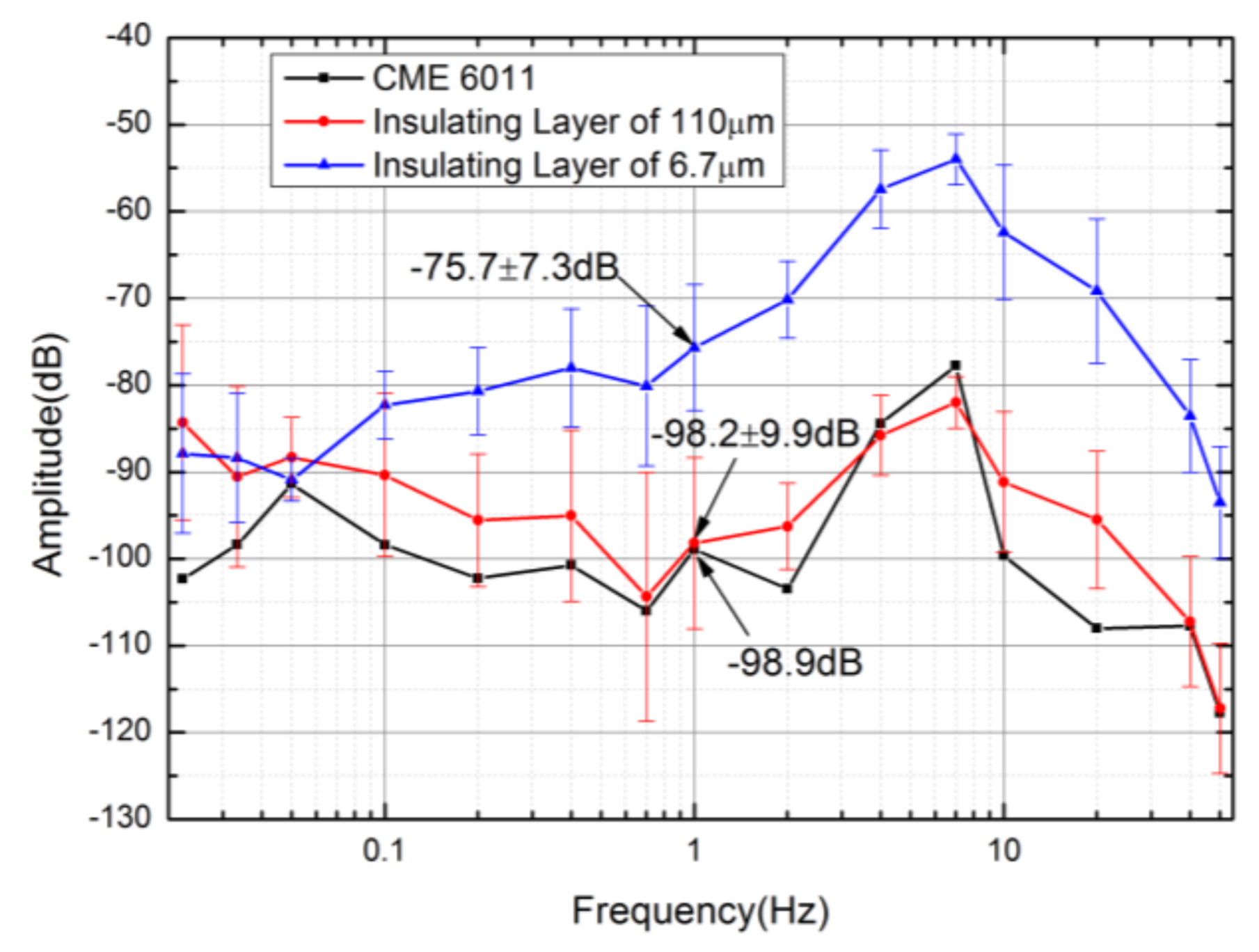

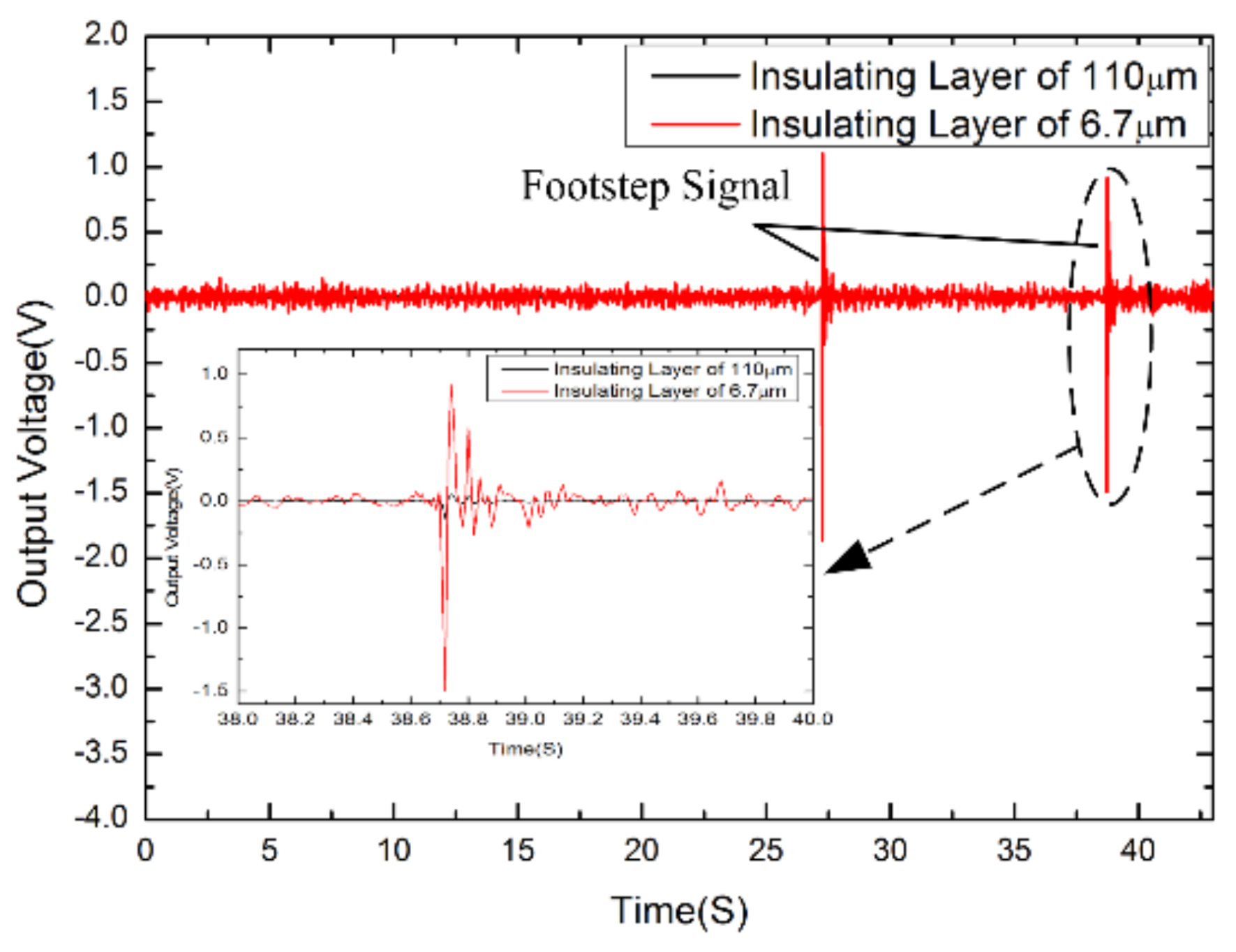

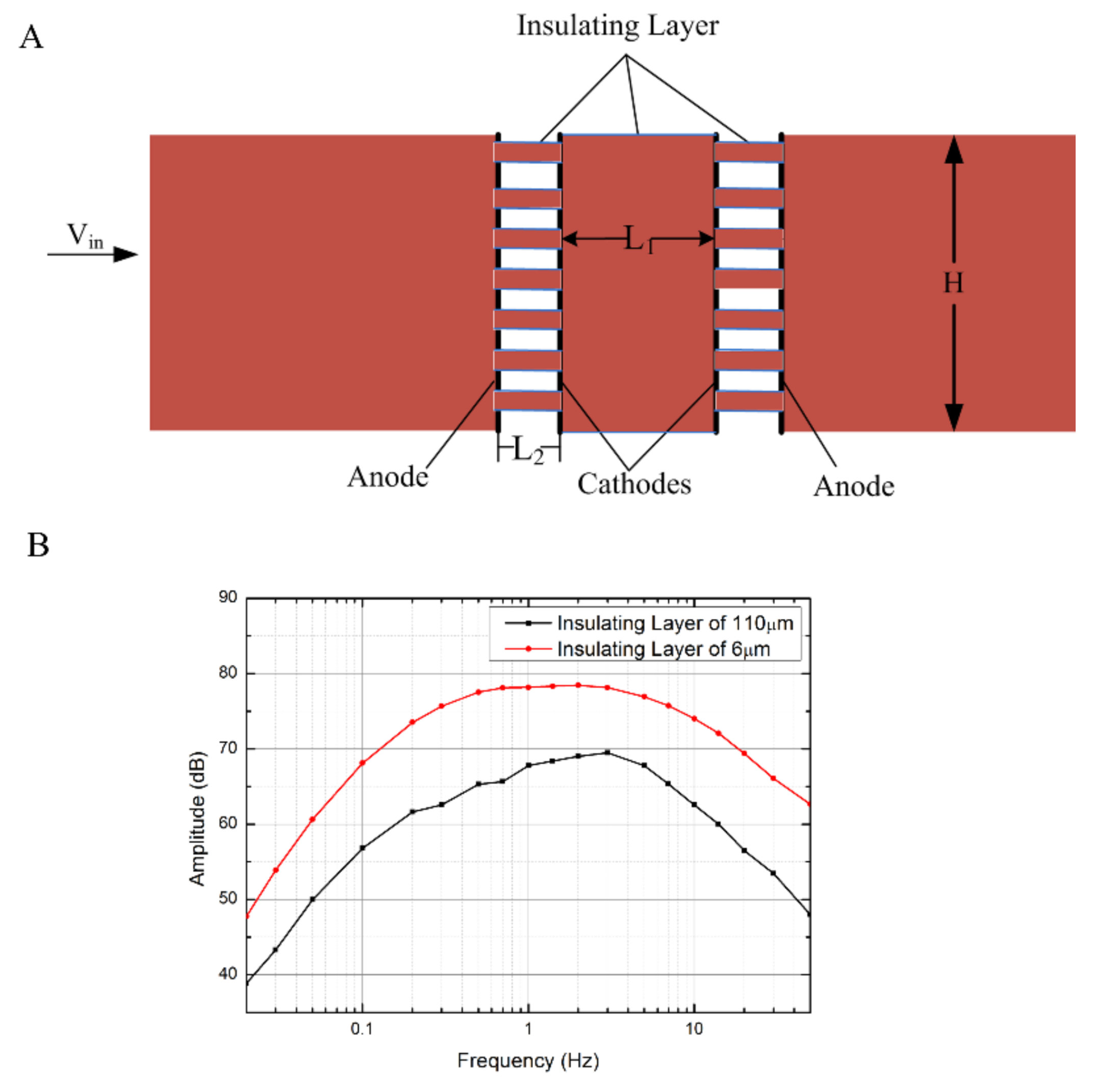

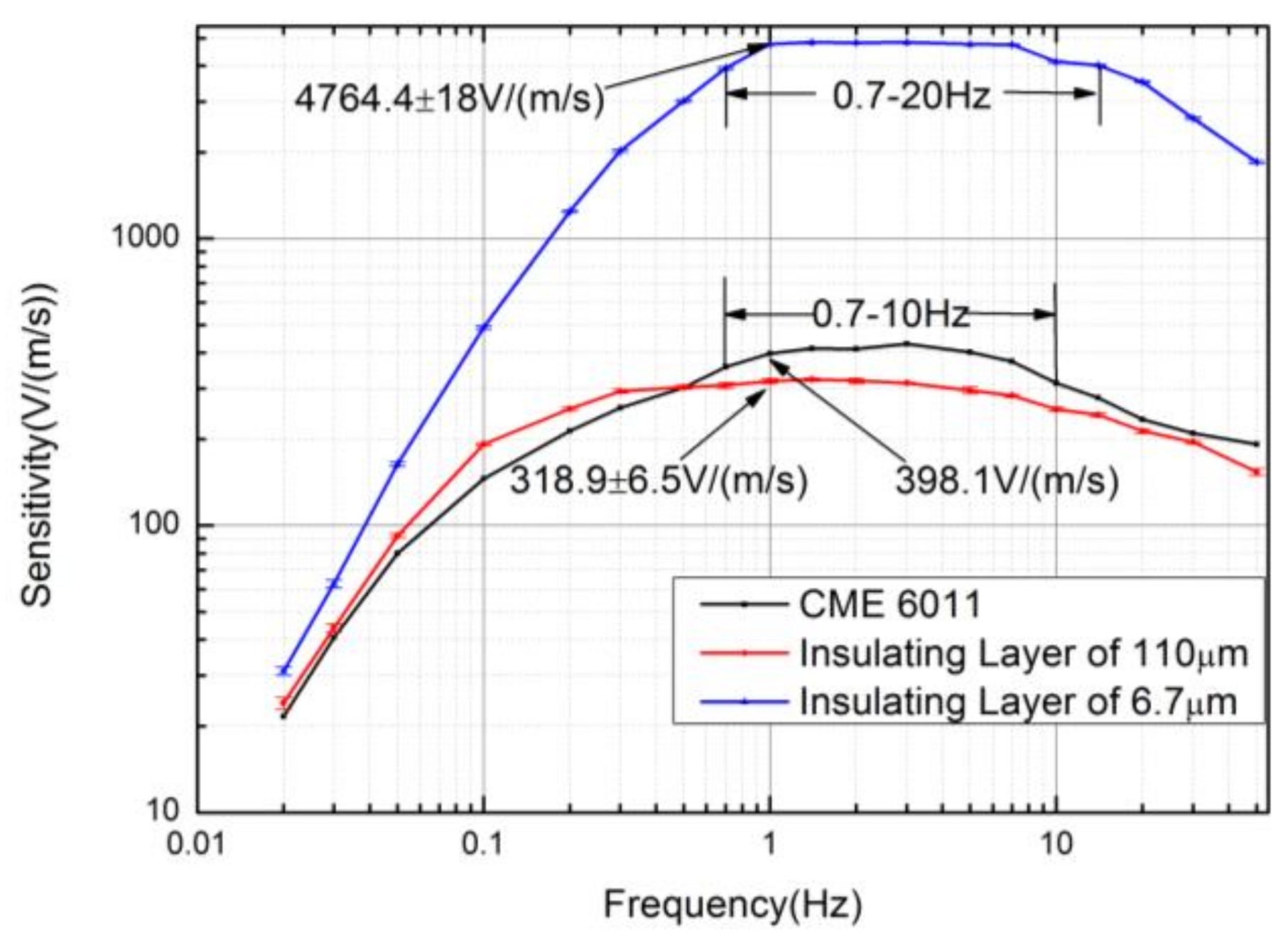

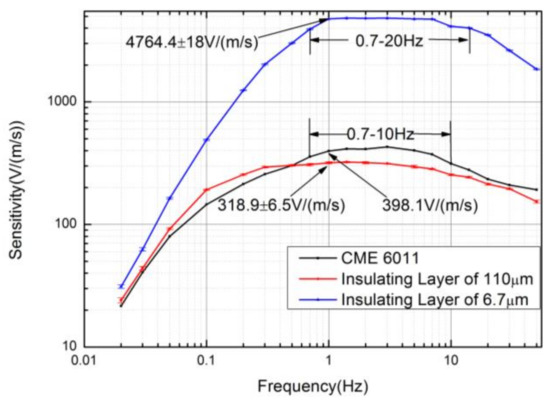

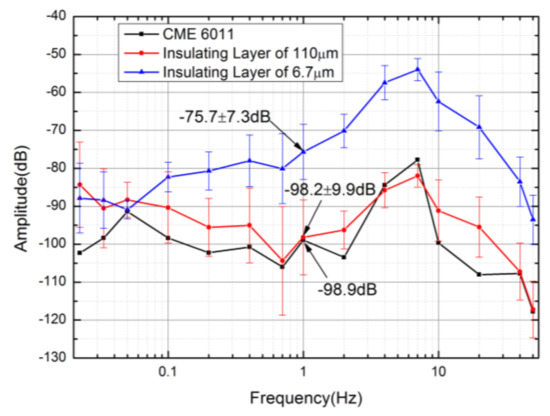

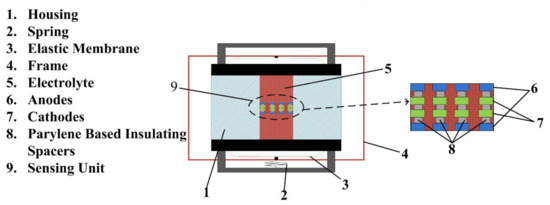

This paper presents an electrochemical seismic sensor in which paraylene was used as a substrate and insulating layer of micro-fabricated electrodes, enabling the detection of seismic signals with enhanced sensitivities in comparison to silicon-based counterparts. Based on microfabrication, paralene-based electrochemical seismic sensors were fabricated in which the thickness of the insulating spacer was 6.7 μm. Compared to silicon-based counterparts with ~100 μm insulating layers, the parylene-based devices produced higher sensitivities of 490.3 ± 6.1 V/(m/s) vs. 192.2 ± 1.9 V/(m/s) at 0.1 Hz, 4764.4 ± 18 V/(m/s) vs. 318.9 ± 6.5 V/(m/s) at 1 Hz, and 4128.1 ± 38.3 V/(m/s) vs. 254.5 ± 4.2 V/(m/s) at 10 Hz. In addition, the outputs of the parylene vs. silicon devices in response to two transit inputs were compared, producing peak responses of 2.97 V vs. 0.22 V and 2.41 V vs. 0.19 V, respectively. Furthermore, the self-noises of parylene vs. silicon-based devices were compared as follows: −82.3 ± 3.9 dB vs. −90.4 ± 9.4 dB at 0.1 Hz, −75.7 ± 7.3 dB vs. −98.2 ± 9.9 dB at 1 Hz, and −62.4 ± 7.7 dB vs. −91.1 ± 8.1 dB at 10 Hz. The developed parylene-based electrochemical seismic sensors may function as an enabling technique for further detection of seismic motions in various applications. View Full-Text
Keywords: electrochemical seismic sensor; parylene substrate; sensitivity increasing; noise level electrochemical seismic sensor; parylene substrate; sensitivity increasing; noise level
Figures

Figure 1
