# Duopoly Price Competition in Wireless Sensor Network-Based Service Provision

^{1}

^{2}

^{3}

^{4}

^{5}

^{6}

^{7}

^{*}

^{†}

## Abstract

**:**

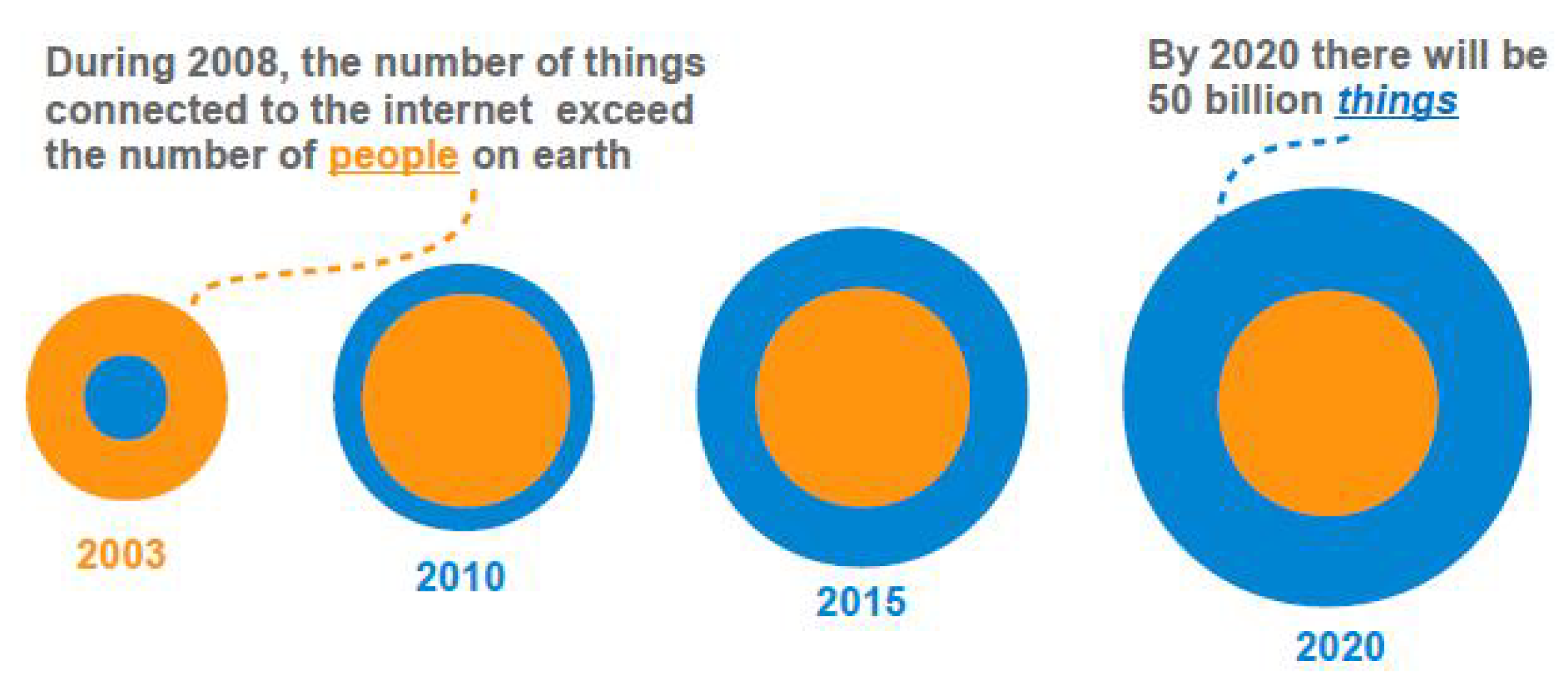

## 1. Introduction

- We study price competition in an IoT market, where two SPs compete to provide WSNs-based services to a common of end users. As different types of end users generally have different requirements for the quality of services [25], we take end users’ different willingness-to-pay (WTP) for service quality into consideration.
- We model the relationship between the two SPs and end users in the IoT market as a two-stage Stackelberg game (SG), where the two SPs set the prices for their services in the first stage. Then, based on the qualities and prices of the offered services of the two SPs, the end users make decisions to subscribe or not to services from one of the two SPs in the second stage. We note that although in [15] the relationship between the network operator and the SPs, and the relationship between SPs and users are both modelled as a two-stage SG, the solution methods in each stage are different from our work.
- In SG, the two SPs set the prices for their services sequentially, while in noncooperative strategic game (NSG), the two SPs set the prices for their services simultaneously. Different from many of the existing works that only consider SG, in this paper, we consider two competition scenarios between the two SPs, i.e., a NSG and SG, respectively. A unique equilibrium is achieved in each of the two scenarios.
- Numerical results are performed to verify the theoretical analysis. Our numerical analysis show that both SPs can obtain more profits if they offer services with better qualities. SP1 can attract more users in the SG scenario while SP2 can attract more user in the NSG scenario, and both SPs get more profits in the SG scenario. We also present the analysis on cost factors to show how they impact the profits of the two SPs.

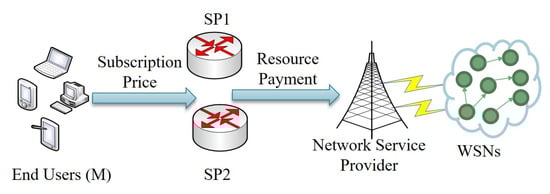

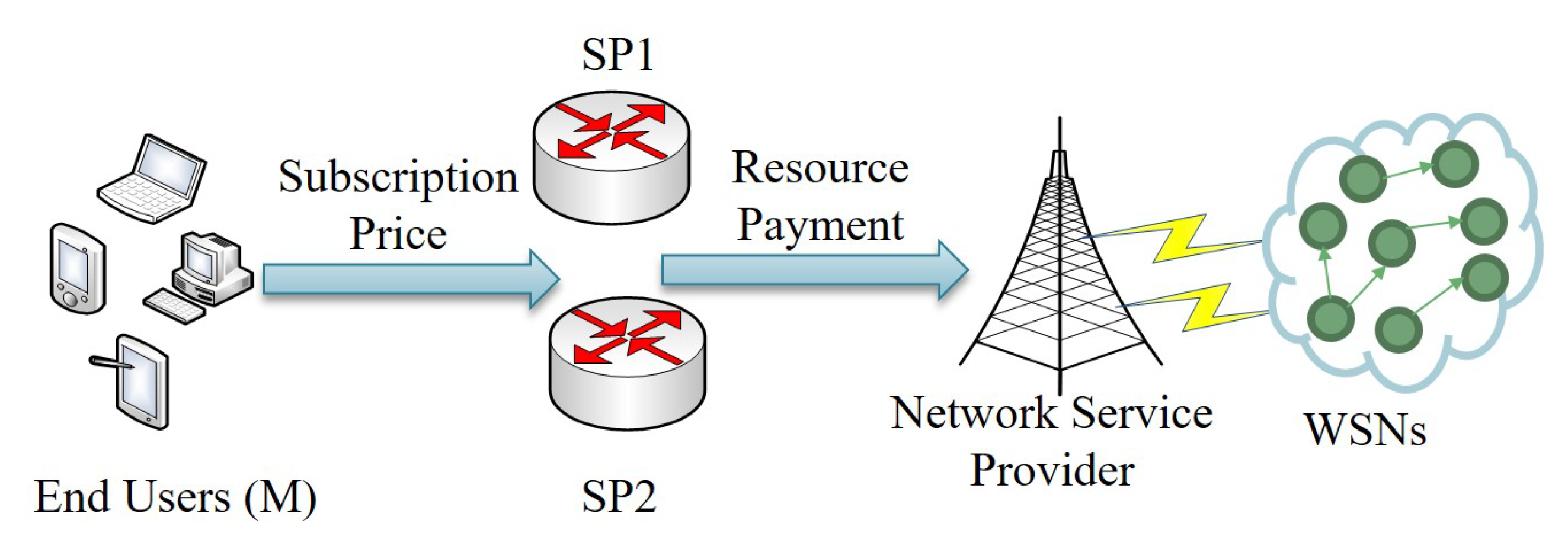

## 2. System Model

**Remark**

**1.**

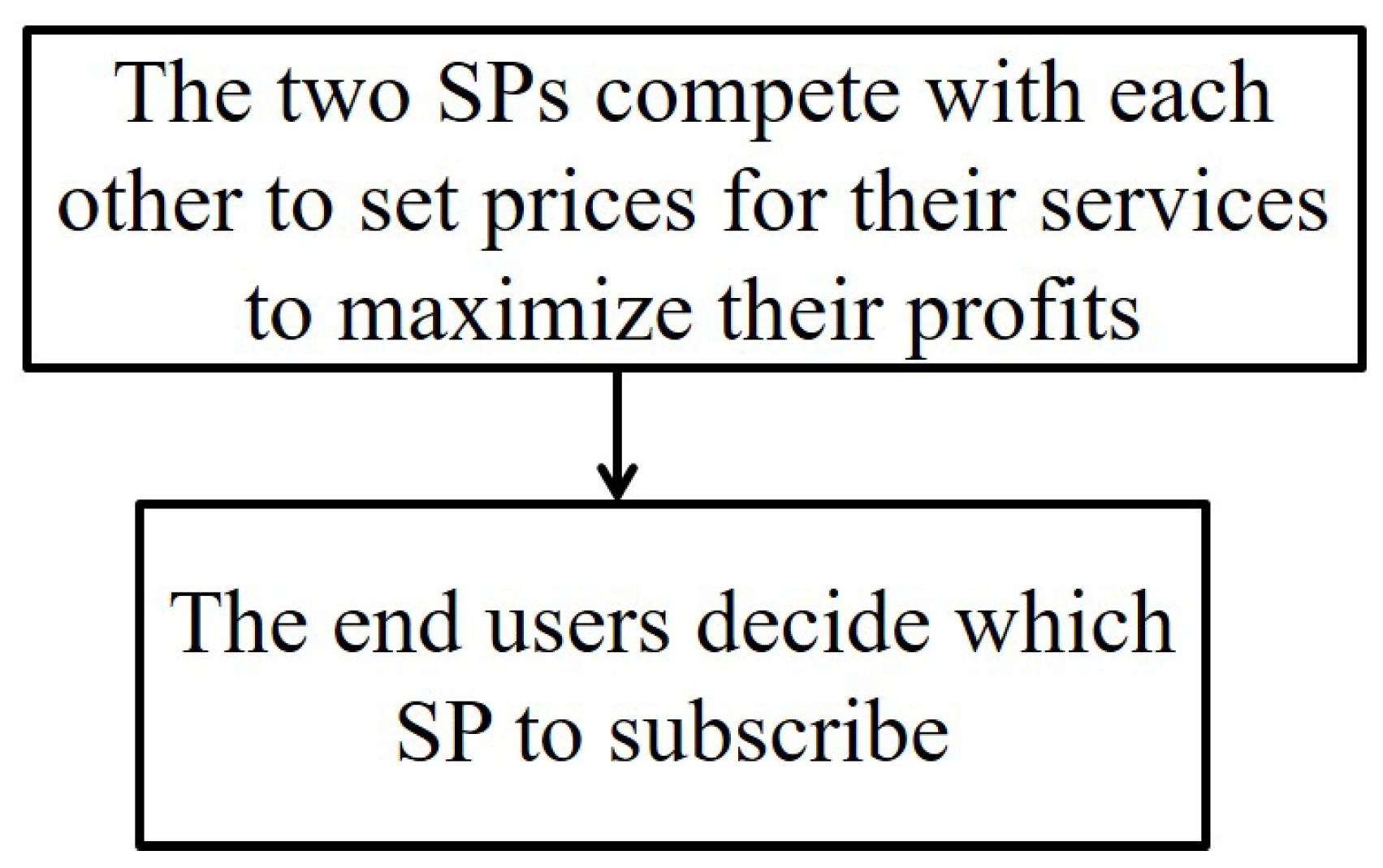

## 3. Duopoly Competitive IoT Market

- It will join SP1 if ${U}_{k,1}({\theta}_{k},{p}_{1})>{U}_{k,2}({\theta}_{k},{p}_{2})$, and ${U}_{k,1}({\theta}_{k},{p}_{1})>0$, which requires ${\theta}_{k}>{\theta}^{*}$ and ${\theta}_{k}>{\theta}_{1}$;
- It will join SP2 if ${U}_{k,2}({\theta}_{k},{p}_{2})>{U}_{k,1}({\theta}_{k},{p}_{1})$, and ${U}_{k,2}({\theta}_{k},{p}_{2})>0$, which requires ${\theta}_{2}<{\theta}_{k}<{\theta}^{*}$;
- It will join neither of the two SPs if ${U}_{k,1}({\theta}_{k},{p}_{1})<0$, and ${U}_{k,2}({\theta}_{k},{p}_{2})<0$, which requires ${\theta}_{k}<{\theta}_{1}$ and ${\theta}_{k}<{\theta}_{2}$.

**Proposition**

**1.**

- (1)
- (2)
- If ${\theta}_{1}<{\theta}^{*}$, which leads to $\frac{{R}_{1}}{{p}_{2}}<\frac{{R}_{2}}{{p}_{1}}$, from which we get ${\theta}_{2}<{\theta}_{1}<{\theta}^{*}$. According to Equations (7) and (8), we have ${F}_{1}=F\left({\theta}^{*}\right)$ and ${F}_{2}=F\left({\theta}^{*}\right)-F\left({\theta}_{2}\right)$;

**Players**: SP1 and SP2 are the two players in the game;**Strategies**: SP1 and SP2 determine subscription prices ${p}_{1}$ and ${p}_{2}$, respectively;**Payoff**: The profits of SPs, which will be defined later by ${\pi}_{1}={p}_{1}{N}_{1}$ and ${\pi}_{2}={p}_{2}{N}_{2}$.

#### 3.1. Nash Equilibrium in the Duopoly IoT Market

#### 3.2. Noncooperative Strategic Game (NSG)

**Problem1:**

**Problem2:**

**Proposition**

**2.**

**Corollary**

**1.**

#### 3.3. Stackelberg Game (SG)

**Problem3:**

**Problem4:**

**Proposition**

**3.**

**Corollary**

**2.**

**Proposition**

**4.**

**Corollary**

**3.**

## 4. Simulation Results

#### 4.1. Parameter Setting

#### 4.2. Impact of Quality of Data Rate

#### 4.3. Impact of Cost Factor

## 5. Conclusions

## Author Contributions

## Acknowledgments

## Conflicts of Interest

## Abbreviations

IoT | Internet of Things |

WSNs | Wireless Sensor Networks |

SPs | service providers |

NSG | noncooperative strategic game |

SG | Stackelberg game |

WTP | willingness-to-pay |

## Appendix A. Users’ Joining Decision Policies

## Appendix B. Proof of Proposition 2

## Appendix C. Proof of Proposition 3

**Problem5:**

## Appendix D. Proof of Proposition 4

**Problem6:**

## References

- Miorandi, D.; Sicari, S.; Pellegrini, F.D.; Chlamtac, I. Internet of things: Vision, applications and research challenges. Ad Hoc Netw.
**2012**, 10, 1497–1516. [Google Scholar] [CrossRef] - Huang, M.; Liu, Y.; Zhang, N.; Xiong, N.; Liu, A.; Zeng, Z.; Song, H. A services routing based caching scheme for cloud assisted CRNs. IEEE Access
**2018**, 6, 15787–15805. [Google Scholar] [CrossRef] - Dong, M.; Ota, K.; Liu, A.; Guo, M. Joint optimization of lifetime and transport delay under reliability constraint wireless sensor networks. IEEE Trans. Parall. Distrib.
**2016**, 9, 225–236. [Google Scholar] [CrossRef] - Guijarro, L.; Pla, V.; Vidal, J.R.; Naldi, M. Game theoretical analysis of service provision for the Internet of Things based on sensor virtualization. IEEE Trans. J. Sel. Areas Commun.
**2017**, 35, 691–706. [Google Scholar] [CrossRef] - Cisco. Cisco Global Cloud Index: Forecast and Methodology, 2015–2020; White Paper; Cisco: San Jose, CA, USA, 2015. [Google Scholar]
- Zhang, W.; Fan, R.; Wen, Y.; Liu, F. Energy Optimal Wireless Data Transmission for Wearable Devices: A Compression Approach. IEEE Trans. Veh. Technol.
**2018**, 64, 9605–9618. [Google Scholar] [CrossRef] - Guijarro, L.; Pla, V.; Vidal, J.R.; Naldi, M.; Mahmoodi, T. Wireless Sensor Network-Based Service Provisioning by a Brokering Platform. Sensors
**2017**, 17, 1115. [Google Scholar] [CrossRef] [PubMed] - Sun, W.; Guijarro, L.; Pla, V.; Vidal, J.R. Joint resource and price competition in wireless sensor network-based service provision. In Proceedings of the 14th IEEE Annual Consumer Communications & Networking Conference (CCNC 2017), Las Vegas, NV, USA, 8–11 August 2017; pp. 254–259. [Google Scholar]
- Niyato, D.; Hoang, D.T.; Luong, N.C.; Wang, P.; Kim, D.; Han, A. Smart data pricing models for the Internet of Things: A bundling strategy approach. IEEE Netw.
**2016**, 30, 18–25. [Google Scholar] [CrossRef] - Perera, C.; Zaslavsky, A.; Christen, P.; Georgakopoulos, D. Sensing as a service model for smart cities supported by Internet of Things. Trans. Emerg. Telecommun. Technol.
**2014**, 25, 81–93. [Google Scholar] [CrossRef] - Zhou, Z.; Gong, J.; He, Y.; Zhang, Y. Software defined machine-to-machine communication for smart energy management. IEEE Commun. Mag.
**2017**, 55, 52–60. [Google Scholar] [CrossRef] - Li, G.; Wu, J.; Li, J.; Zhou, Z.; Guo, L. SLA-Aware Fine-Grained QoS Provisioning for Multi-Tenant Software-Defined Networks. IEEE Access
**2018**, 6, 159–170. [Google Scholar] [CrossRef] - Niyato, D.; Lu, X.; Wang, P.; Kim, D.; Han, A. Economics of Internet of Things: An information market approach. IEEE Wirel. Commun.
**2016**, 23, 136–145. [Google Scholar] [CrossRef] - Guijarro, L.; Pla, V.; Vidal, J.; Naldi, M. Maximum-profit two-sided pricing in service platforms based on wireless sensor networks. IEEE Wirel. Commun. Lett.
**2016**, 5, 8–11. [Google Scholar] [CrossRef] - Sanchis-Cano, A.; Romero, J.; Sacoto-Cabrera, E.J.; Guijarro, L. Economic feasibility of wireless sensor network-based service provision in a duopoly setting with a monopolist operator. Sensors
**2017**, 17, 2727. [Google Scholar] [CrossRef] [PubMed] - Liu, X.; Dong, M.; Ota, K.; Hung, P.; Liu, A. Service pricing decision in cyber-physical systems: insights from game theory. IEEE Trans. Serv. Comput.
**2016**, 9, 186–198. [Google Scholar] [CrossRef] - Ren, S.; Park, K.; Schaar, M. Entry and spectrum sharing scheme selection in femtocell communications markets. IEEE/ACM Trans. Netw.
**2013**, 21, 218–232. [Google Scholar] [CrossRef] - Zhang, C.; Gu, B.; Yamori, K.; Xu, S.; Tanaka, Y. Duopoly competition in time-dependent pricing for improving revenue of network service providers. IEICE Trans. Commun.
**2013**, E96-B, 2964–2975. [Google Scholar] [CrossRef] - Elias, J.; Martignon, F.; Chen, L.; Altman, L. Joint operator pricing and network selection game in cognitive radio networks: Equilibrium, system dynamics and price of anarchy. IEEE Trans. Veh. Technol.
**2013**, 62, 4576–4589. [Google Scholar] [CrossRef] - Dong, M.; Liu, X.; Qian, Z.; Liu, F.; Wang, T. QoE-ensured price competition model for emerging mobile networks. IEEE Wirel. Commun.
**2015**, 22, 50–57. [Google Scholar] [CrossRef][Green Version] - Tang, L.; Chen, H. Joint pricing and capacity planning in the iaas cloud market. IEEE Trans. Cloud Comput.
**2017**, 5, 158–171. [Google Scholar] [CrossRef] - Li, H.; Dong, M.; Ota, K.; Guo, M. Pricing and repurchasing for big data processing in multi-clouds. IEEE Trans. Emerg. Top. Comput.
**2016**, 4, 266–277. [Google Scholar] [CrossRef] - Ardagna, D.; Panicucci, B.; Passacantando, M. Generalized nash equilibria for the service provisioning problem in cloud systems. IEEE Trans. Serv. Comput.
**2013**, 6, 429–442. [Google Scholar] [CrossRef] - Liu, X.; Dong, M.; Liu, Y.; Liu, A.; Xiong, N. Construction Low Complexity and Low Delay CDS for Big Data Code Dissemination. Complexity
**2018**, 2018, 5429546. [Google Scholar] [CrossRef] - Su, Z.; Xu, Q.; Luo, J.; Pu, H. A Secure Content Caching Scheme for Disaster Backup in Fog Computing Enabled Mobile Social Networks. IEEE Trans. Ind. Inform.
**2018**, 14, 4579–4589. [Google Scholar] [CrossRef] - Liu, Z.; Tsuda, T.; Watanabe, H.; Ryuo, S.; Iwasawa, N. Data driven cyber-physical system for landslide detection. Mobile Netw. Appl.
**2018**, 1–12. [Google Scholar] [CrossRef] - Wu, J.; Dong, M.; Ota, K.; Li, J.; Guan, Z. Big Data Analysis-Based Secure Cluster Management for Optimized Control Plane in Software-Defined Networks. IEEE Trans. Netw. Serv. Manag.
**2018**, 15, 27–38. [Google Scholar] [CrossRef] - Zhou, Z.; Liao, H.; Gu, B.; Saidul Huq, K.; Mumtaz, S.; Rodrigue, J. Robust Mobile Crowd Sensing: When Deep Learning Meets Edge Computing. IEEE Netw.
**2018**, 32, 54–60. [Google Scholar] [CrossRef] - Fudenberg, D.; Tirole, J. Game Theory; MIT Press: Cambridge, MA, USA, 1991. [Google Scholar]
- Feng, Y.; Li, B.; Li, B. Price competition in an oligopoly market with multiple iaas cloud providers. IEEE Trans. Comput.
**2014**, 63, 59–73. [Google Scholar] [CrossRef] - Zhou, Z.; Tan, L.; Gu, B.; Zhang, Y.; Wu, J. Bandwidth Slicing in Software-Defined 5G: A Stackelberg Game Approach. IEEE Veh. Technol. Mag.
**2018**, 13, 102–109. [Google Scholar] [CrossRef] - Zhou, Z.; Yu, H.; Xu, C.; Zhang, Y.; Mumtaz, S.; Rodriguez, J. Dependable content distribution in d2d-based cooperative vehicular networks: A big data-integrated coalition game approach. IEEE Trans. Intell. Transp.
**2018**, 19, 953–964. [Google Scholar] [CrossRef] - Su, Z.; Hui, Y.; Xu, Q.; Yang, T.; Liu, J.; Jia, Y. An Edge Caching Scheme to Distribute Content in Vehicular Networks. IEEE Trans. Veh. Technol.
**2018**, 67, 5346–5356. [Google Scholar] [CrossRef] - Zhang, C.; Gu, B.; Yamori, K.; Xu, S.; Tanaka, Y. Oligopoly competition in time-dependent pricing for improving revenue of network service providers with complete and incomplete information. IEICE Trans. Commun.
**2015**, 98, 20–32. [Google Scholar] [CrossRef]

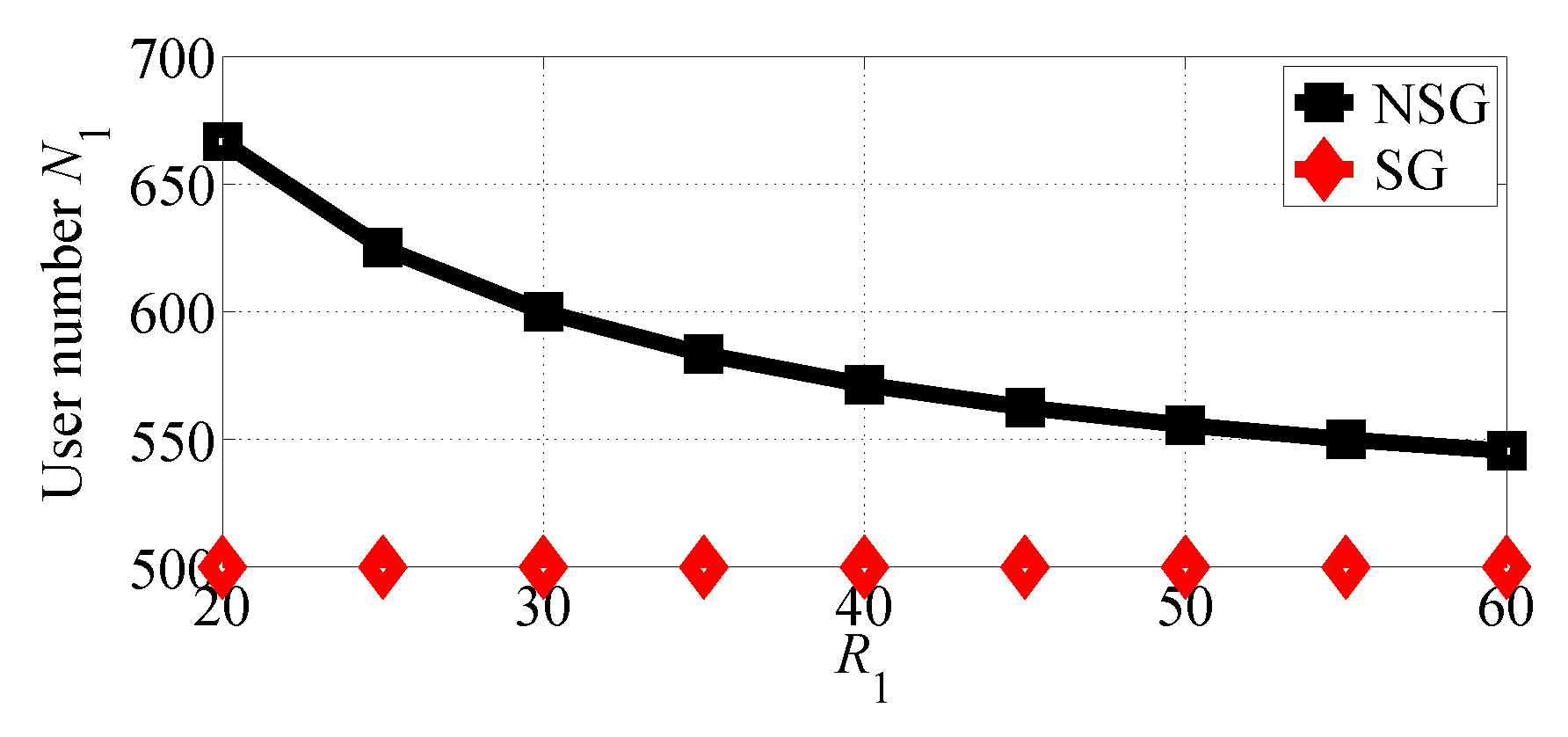

**Figure 4.**The number of users that choose SP1 with varying ${R}_{1}$ in the two competition scenarios for ${R}_{1}>{R}_{2}$.

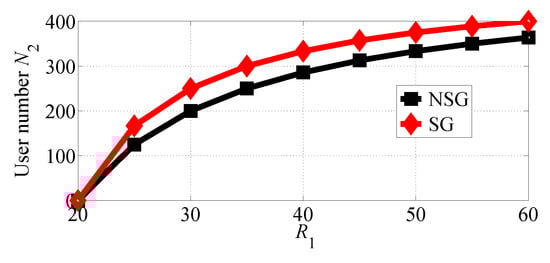

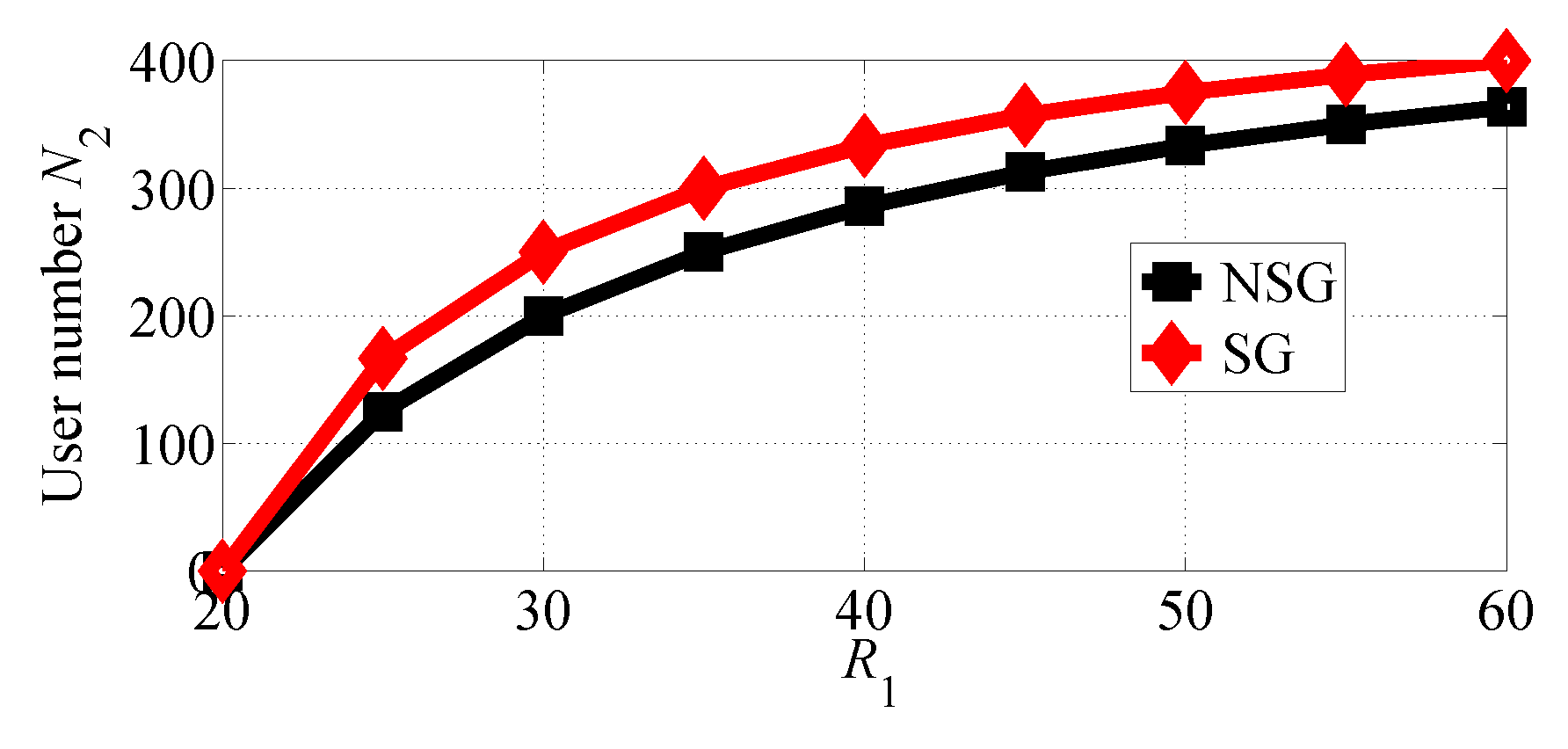

**Figure 5.**The number of users that choose SP2 with varying ${R}_{1}$ in the two competition scenarios for ${R}_{1}>{R}_{2}$.

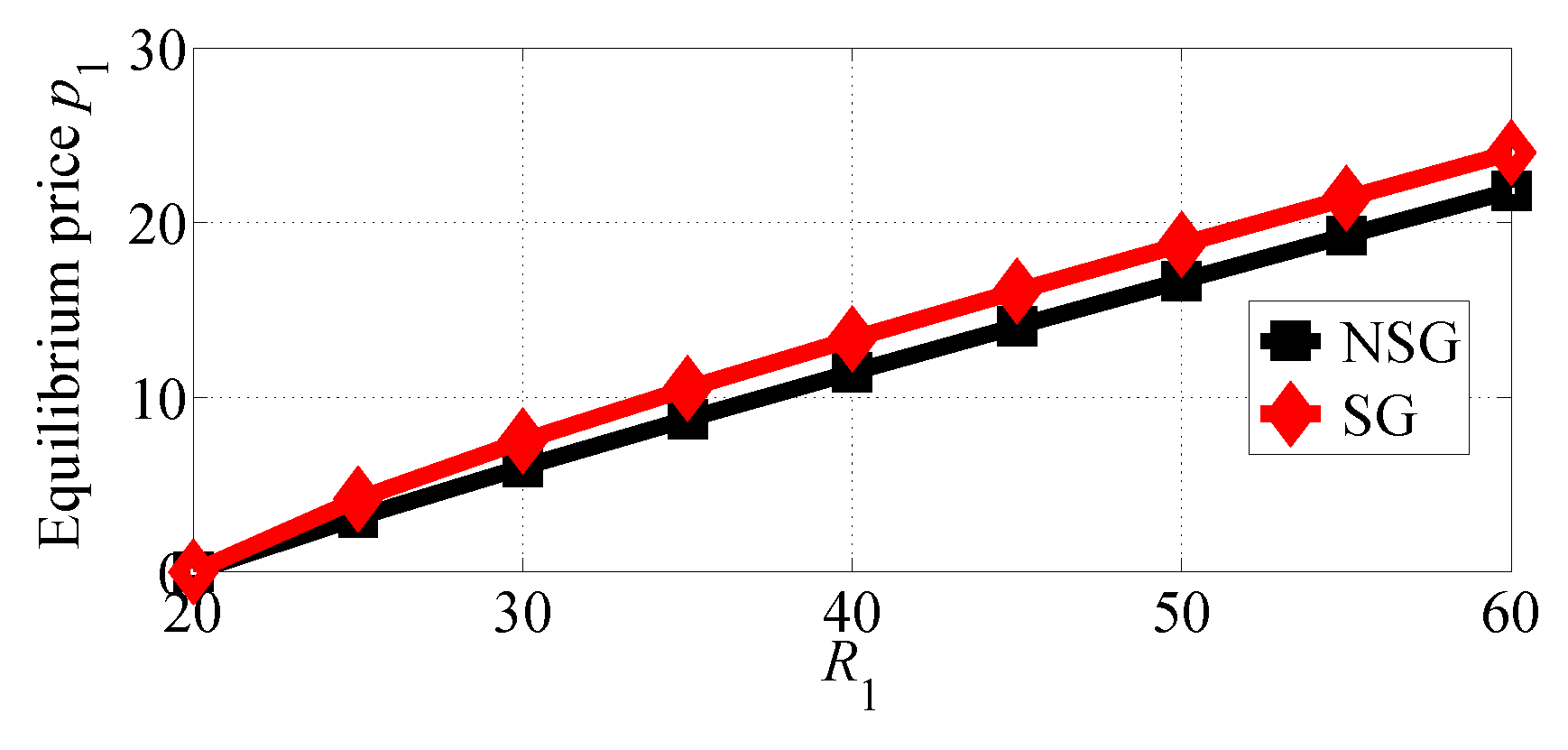

**Figure 6.**The equilibrium price of SP1 with varying ${R}_{1}$ in the two competition scenarios for ${R}_{1}>{R}_{2}$.

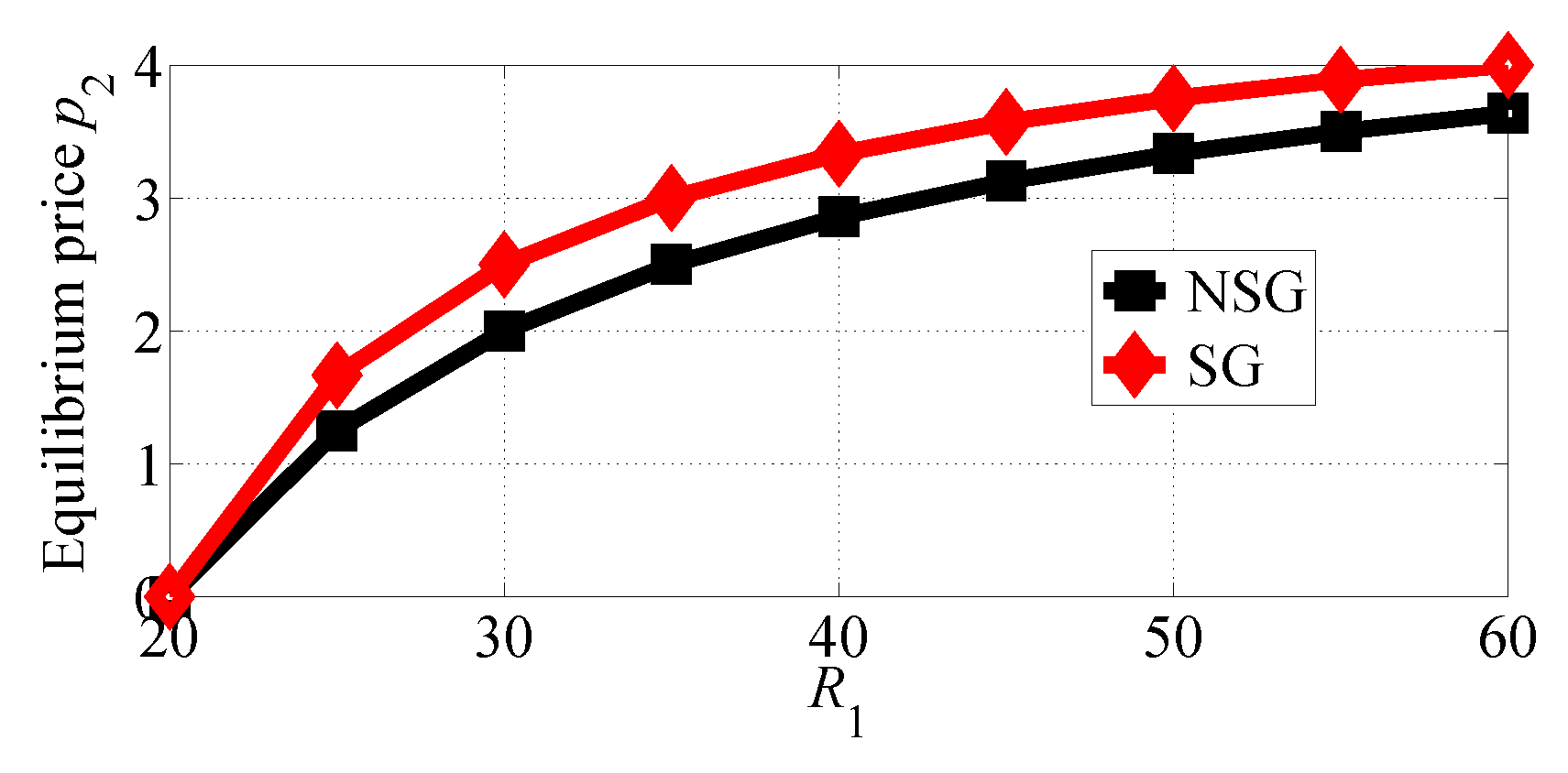

**Figure 7.**The equilibrium price of SP2 with varying ${R}_{1}$ in the two competition scenarios for ${R}_{1}>{R}_{2}$.

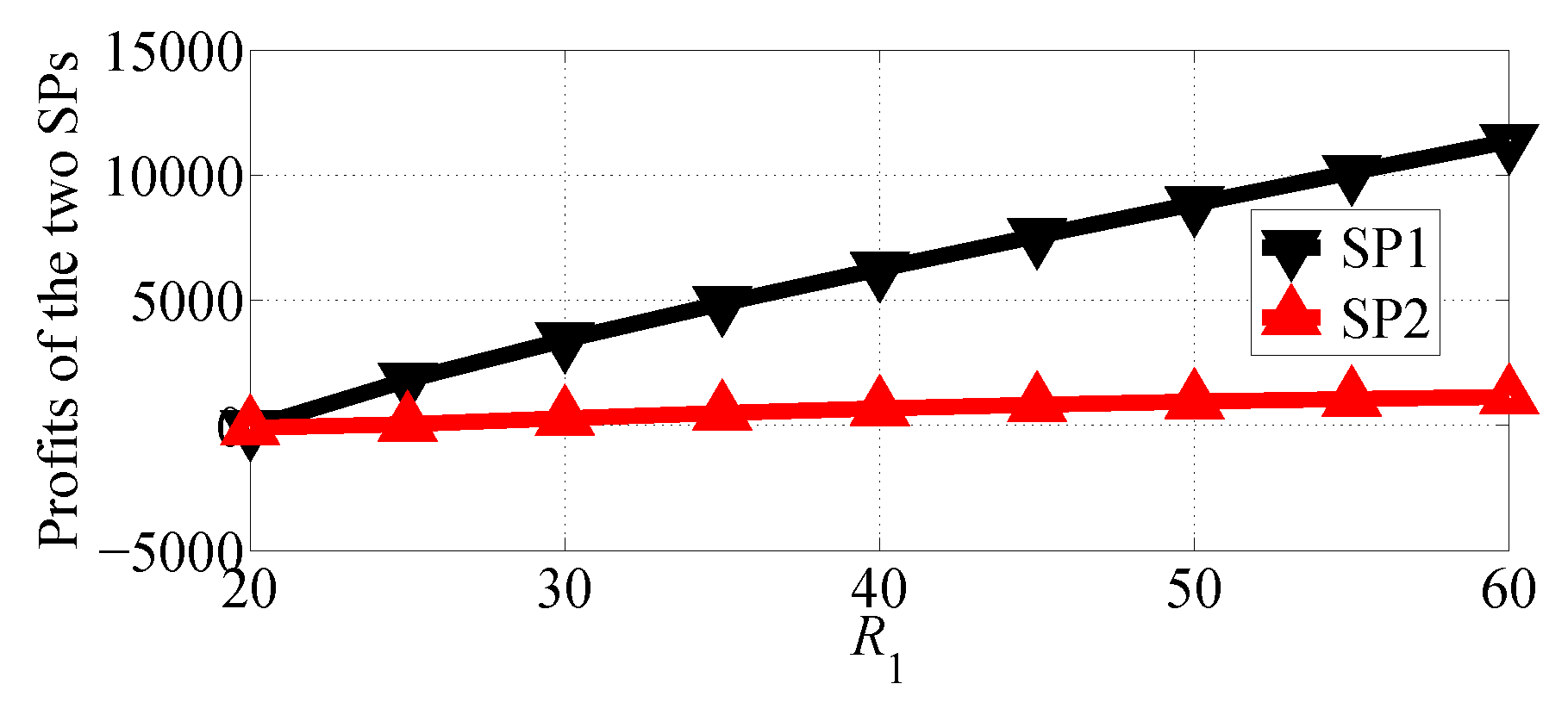

**Figure 8.**Comparing the profits of the two SPs with varying ${R}_{1}$ in the NSG scenario for ${R}_{1}>{R}_{2}$.

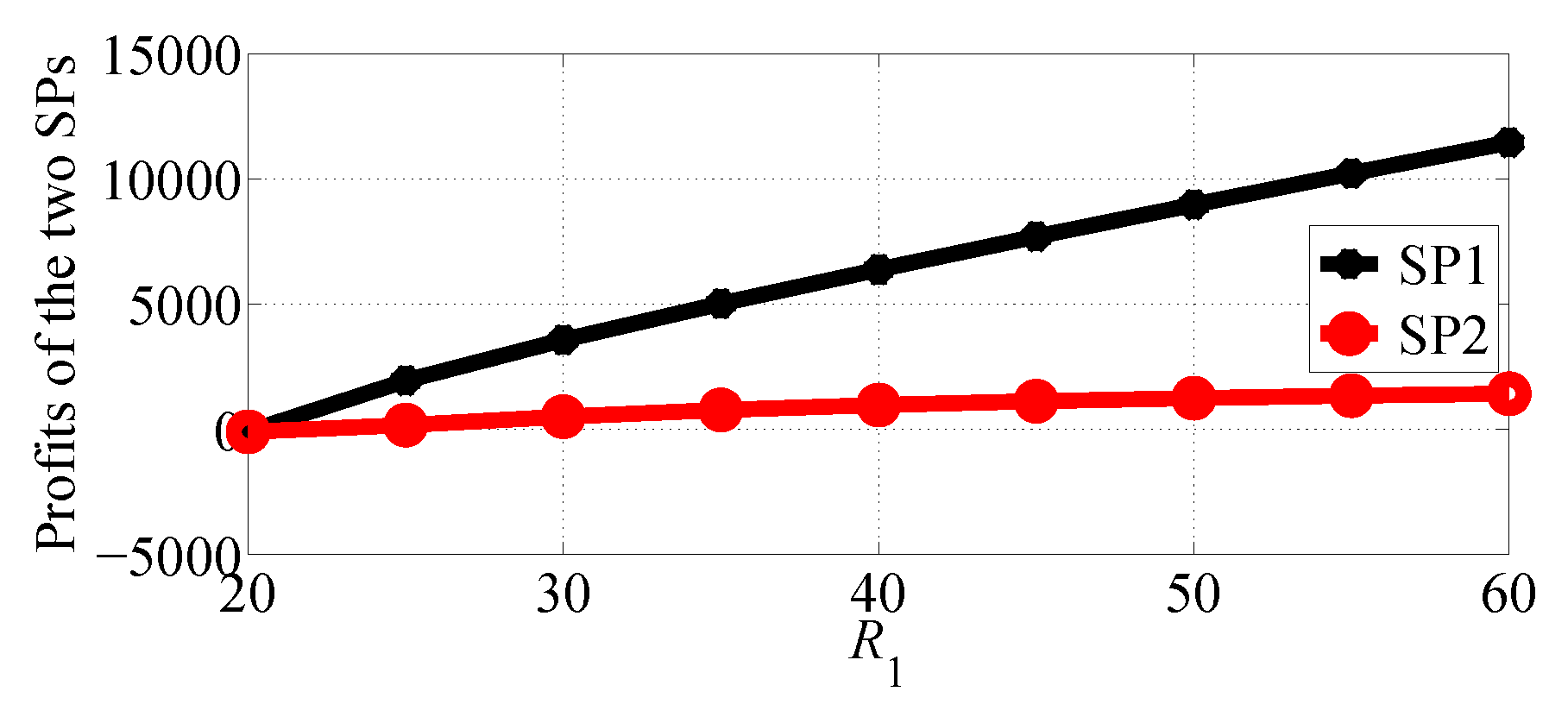

**Figure 9.**Comparing the profits of the two SPs with varying ${R}_{1}$ in the SG scenario for ${R}_{1}>{R}_{2}$.

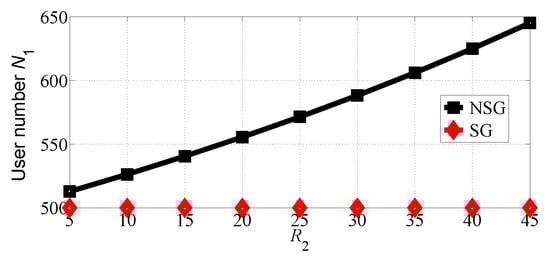

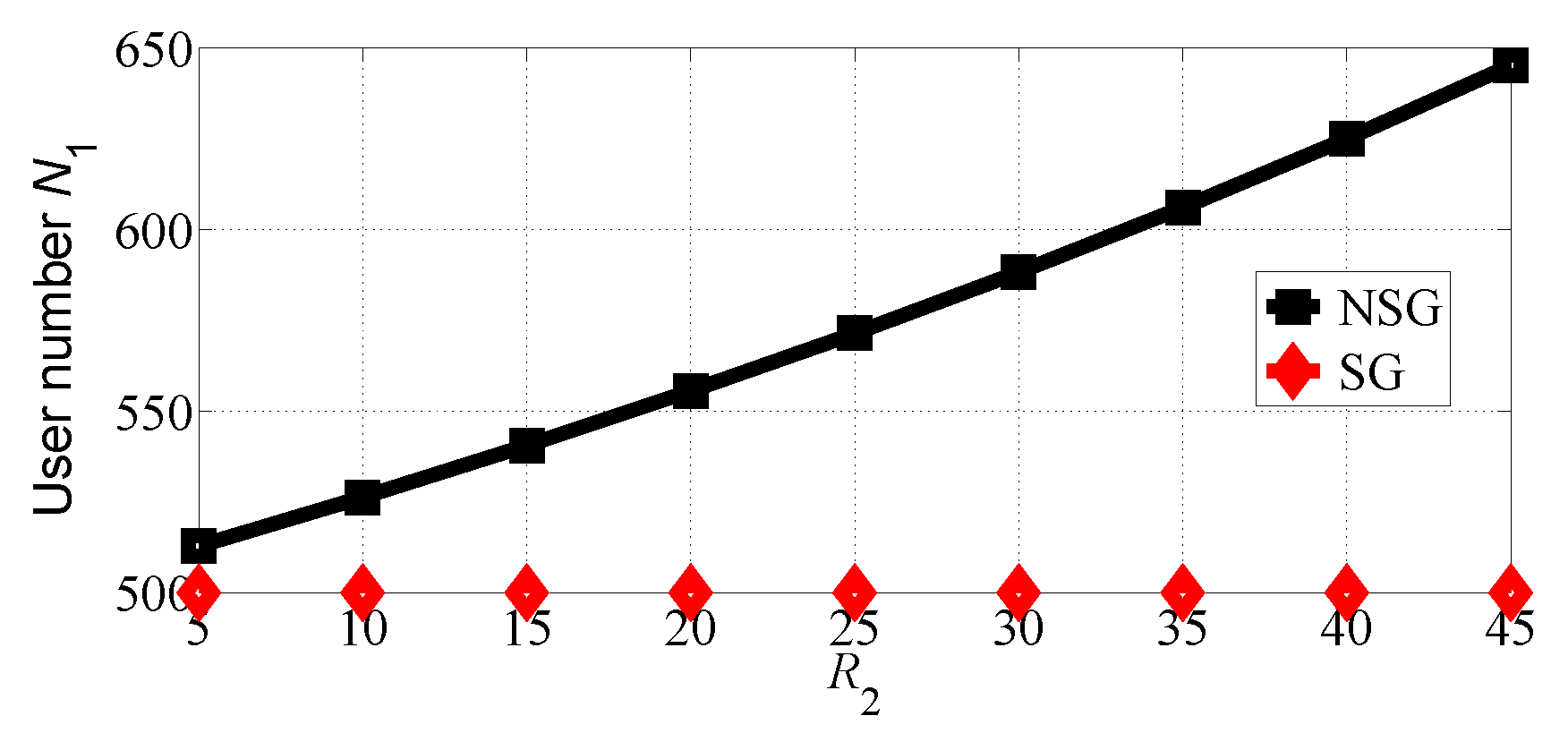

**Figure 10.**The number of users that choose SP1 with varying ${R}_{2}$ in the two competition scenarios for ${R}_{1}>{R}_{2}$.

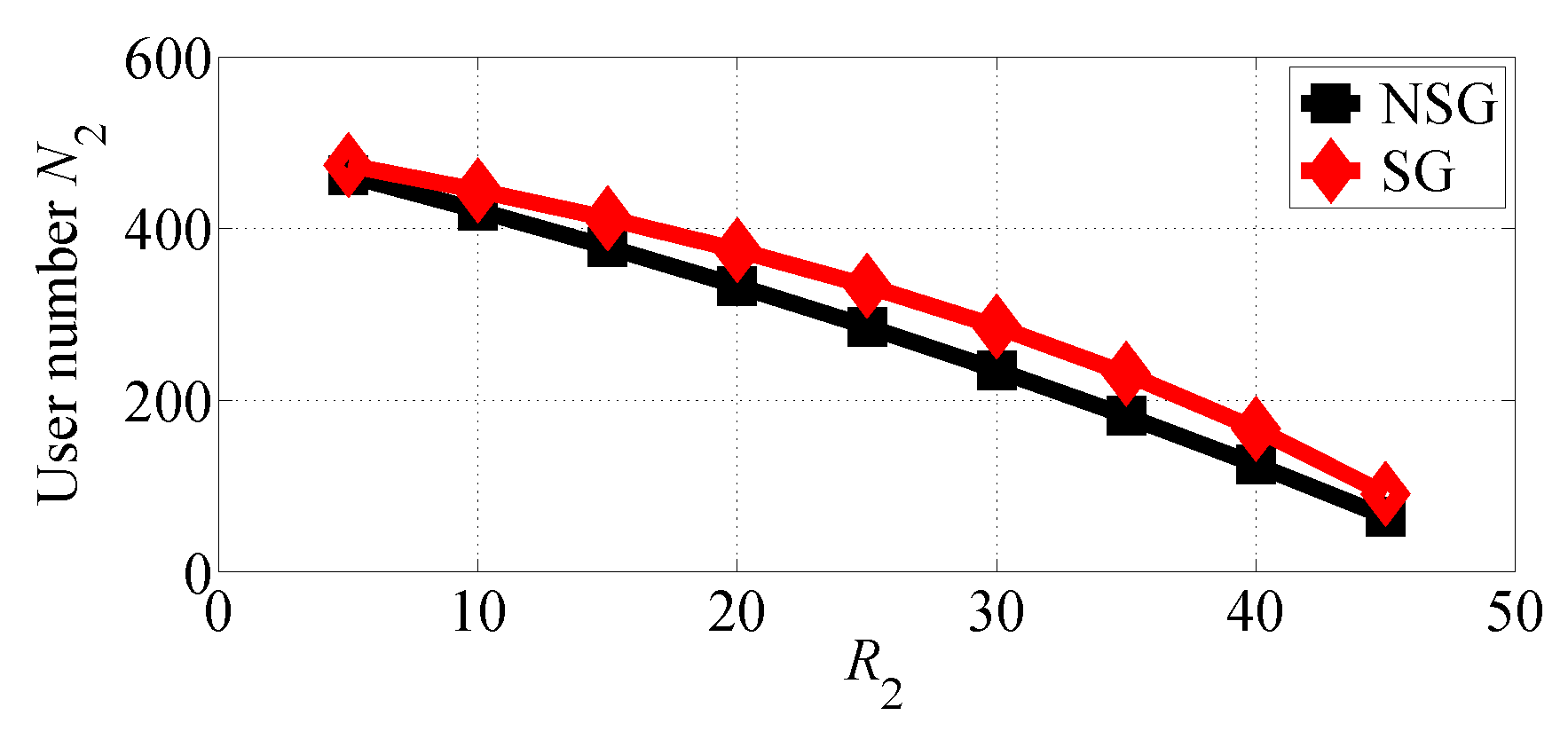

**Figure 11.**The number of users that choose SP2 with varying ${R}_{2}$ in the two competition scenarios for ${R}_{1}>{R}_{2}$.

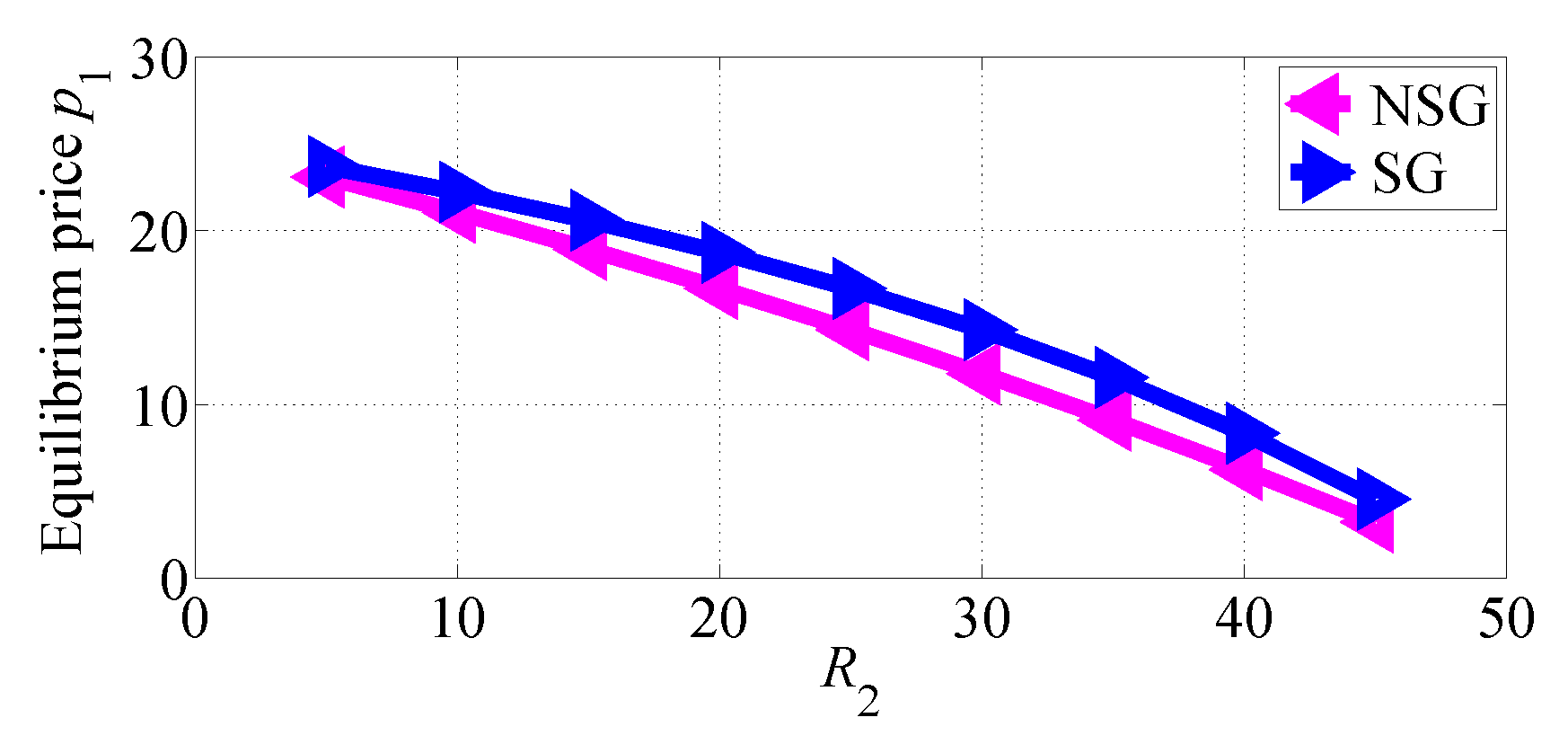

**Figure 12.**The equilibrium price of SP1 varies with ${R}_{2}$ increasing in the two competition scenarios for ${R}_{1}>{R}_{2}$.

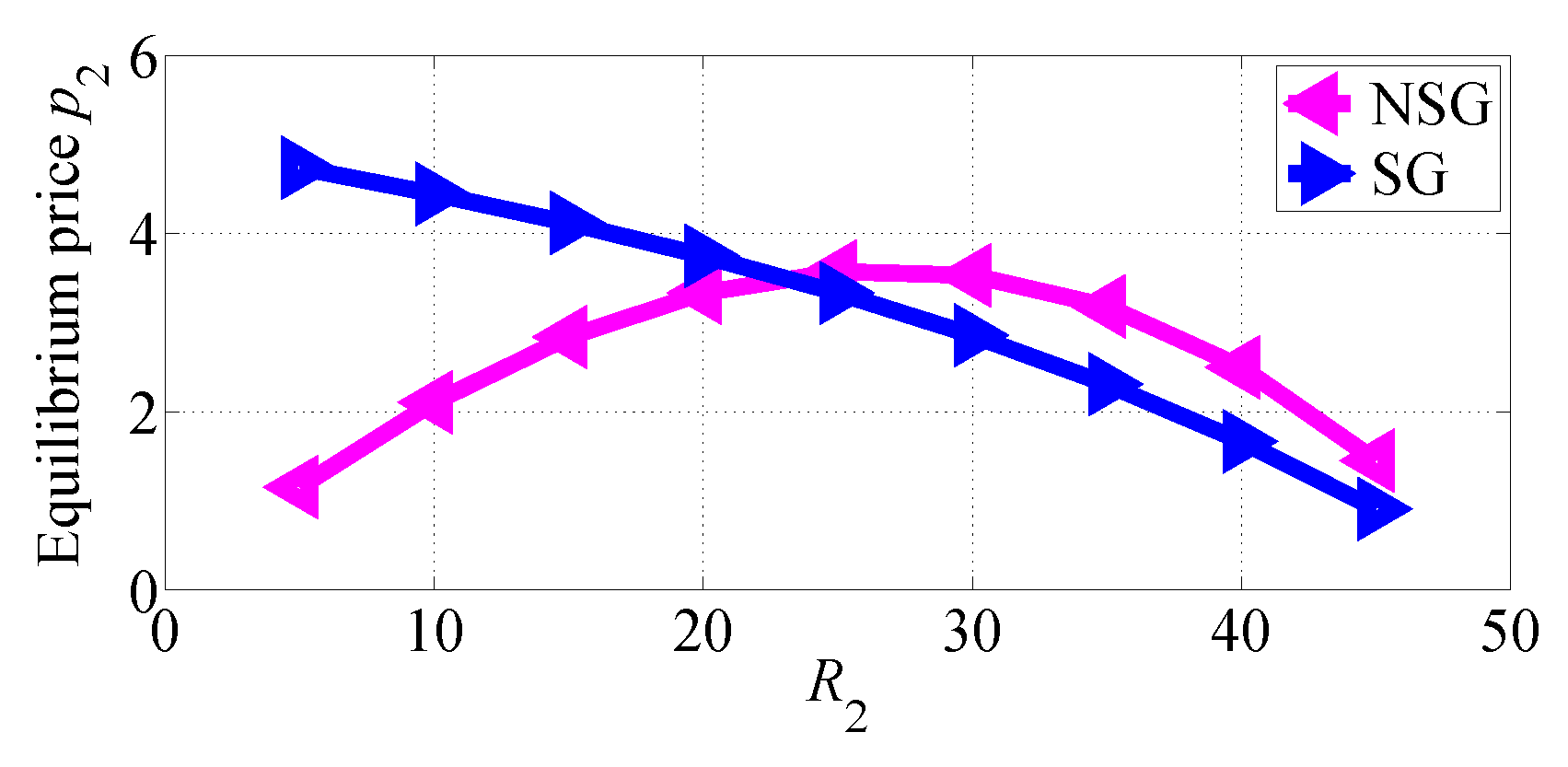

**Figure 13.**The equilibrium price of SP2 varies with ${R}_{2}$ increasing in the two competition scenarios for ${R}_{1}>{R}_{2}$.

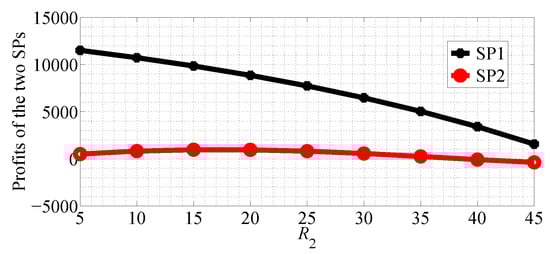

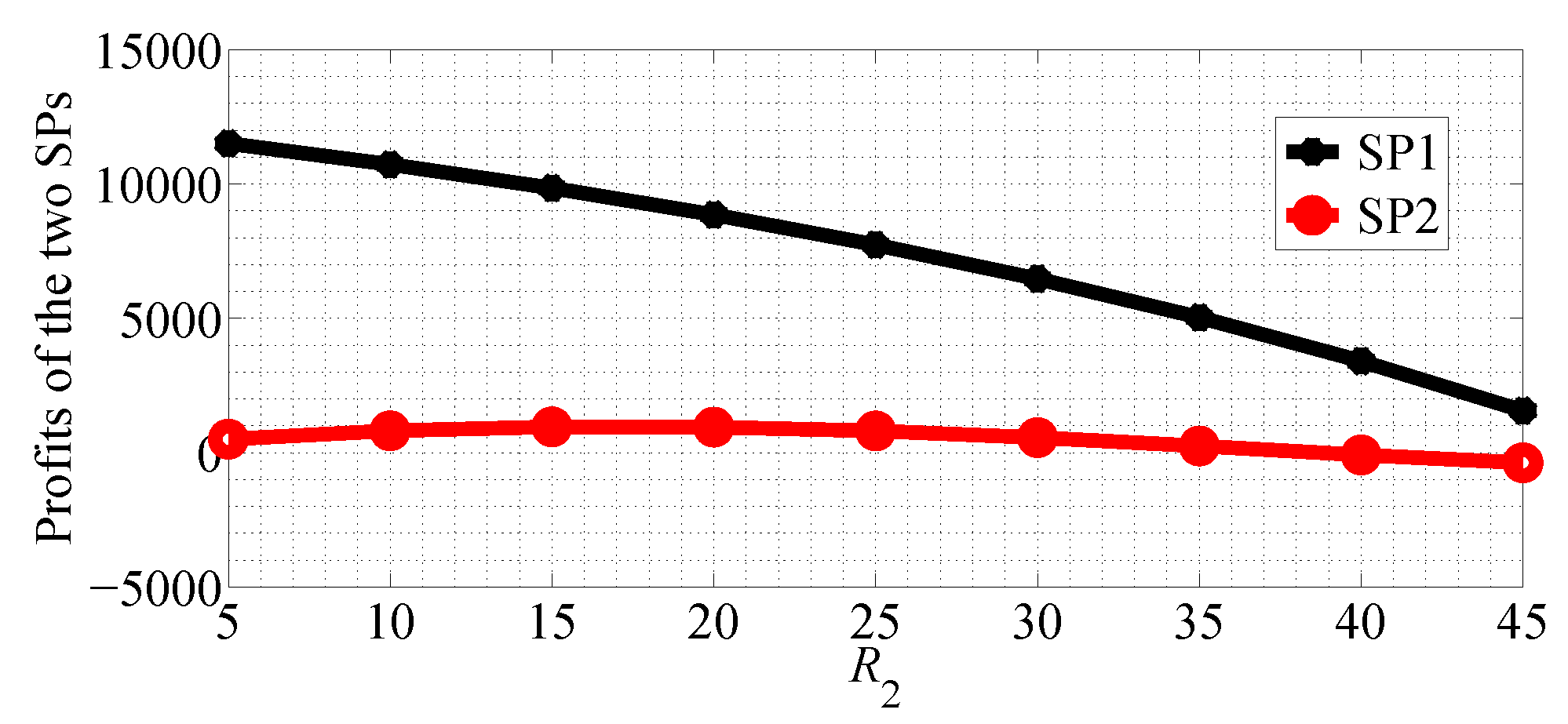

**Figure 14.**Comparing the profits of the two SPs with ${R}_{2}$ increasing in the NSG scenario for ${R}_{1}>{R}_{2}$.

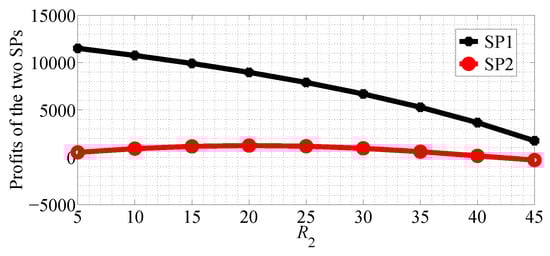

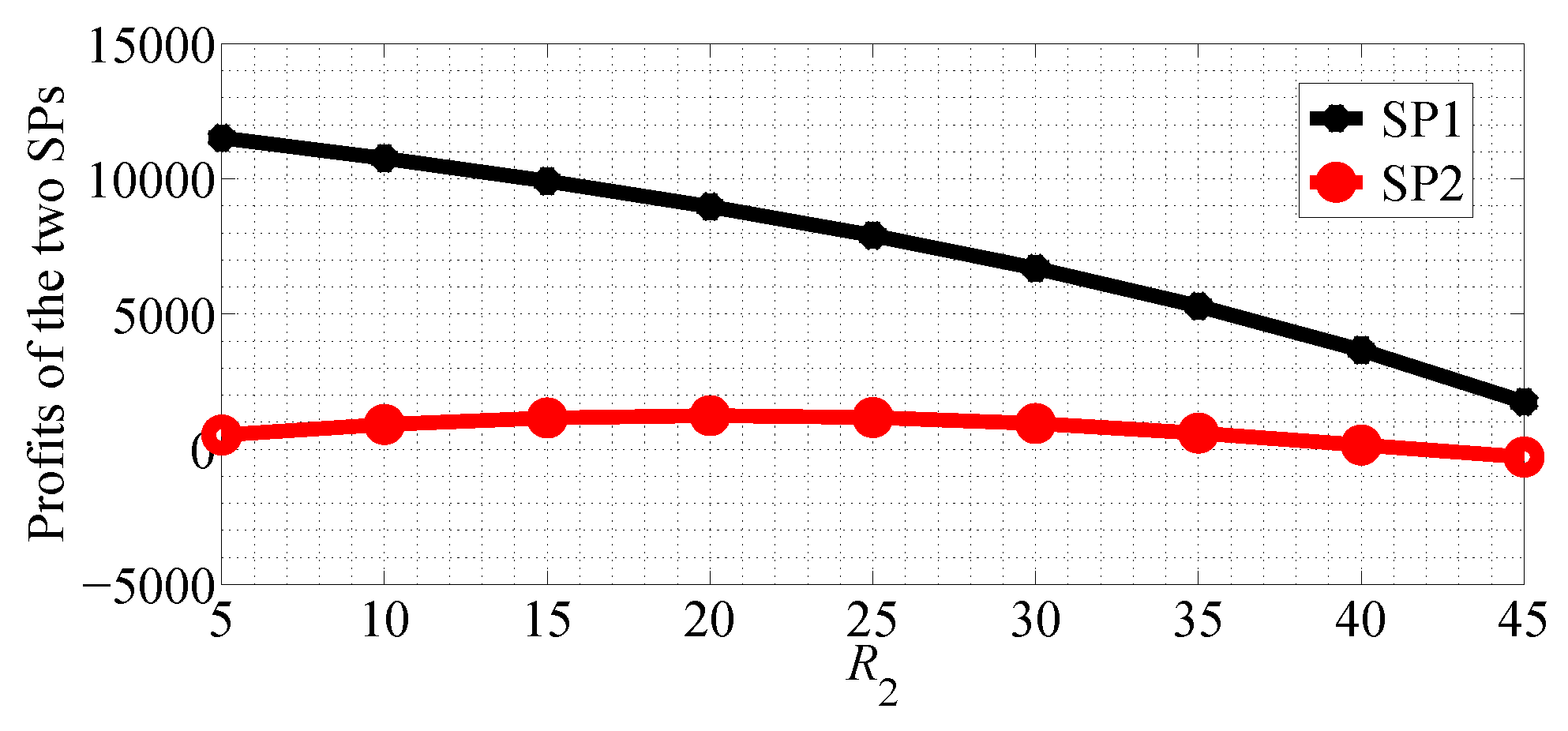

**Figure 15.**Comparing the profits of the two SPs with ${R}_{2}$ increasing in the SG scenario for ${R}_{1}>{R}_{2}$.

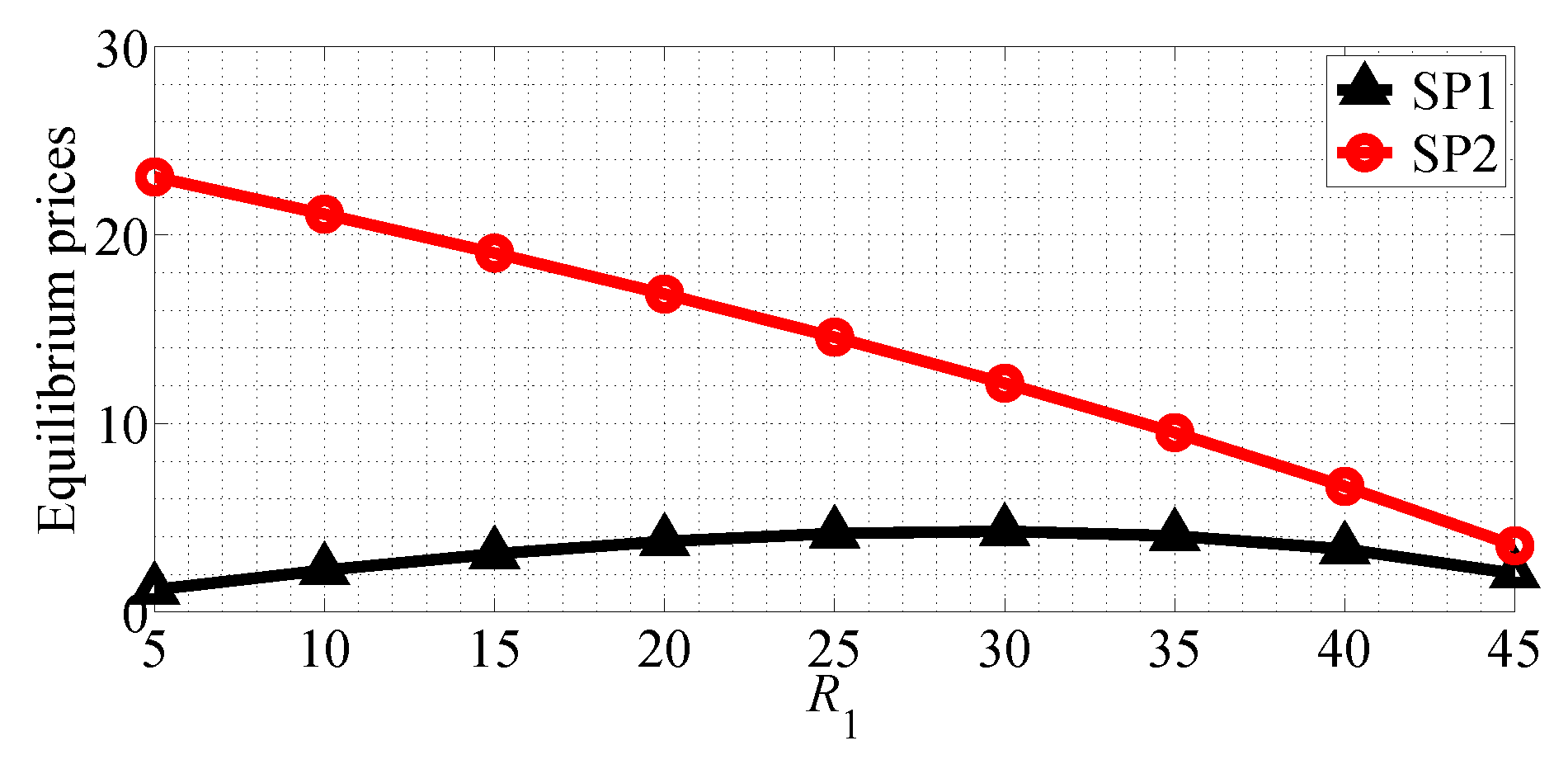

**Figure 16.**The equilibrium prices of the two SPs with varying ${R}_{1}$ in the SG scenario for ${R}_{1}<{R}_{2}$.

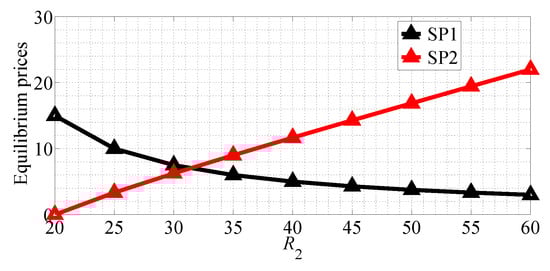

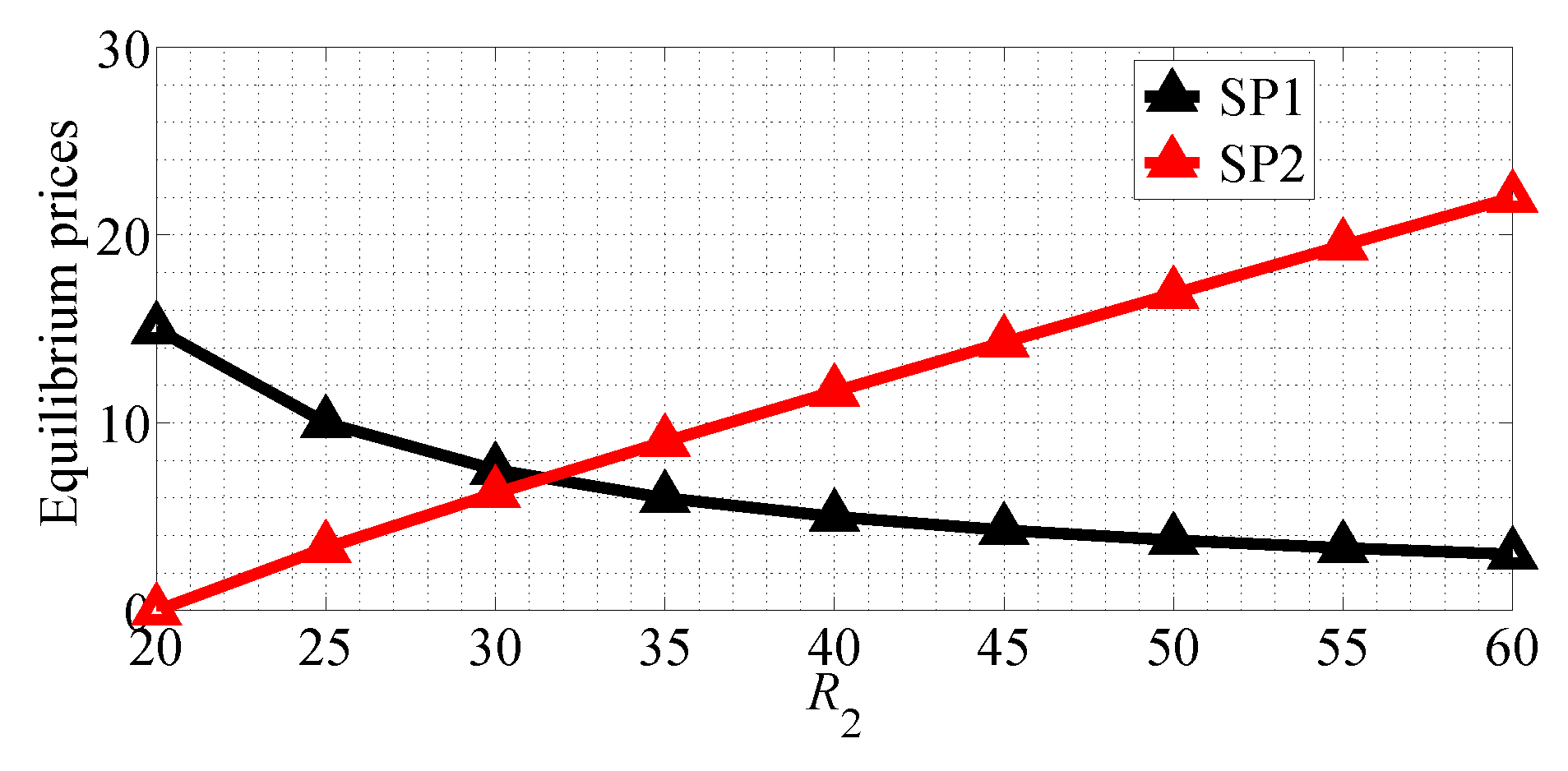

**Figure 17.**The equilibrium prices of the two SPs with varying ${R}_{2}$ in the SG scenario for ${R}_{1}<{R}_{2}$.

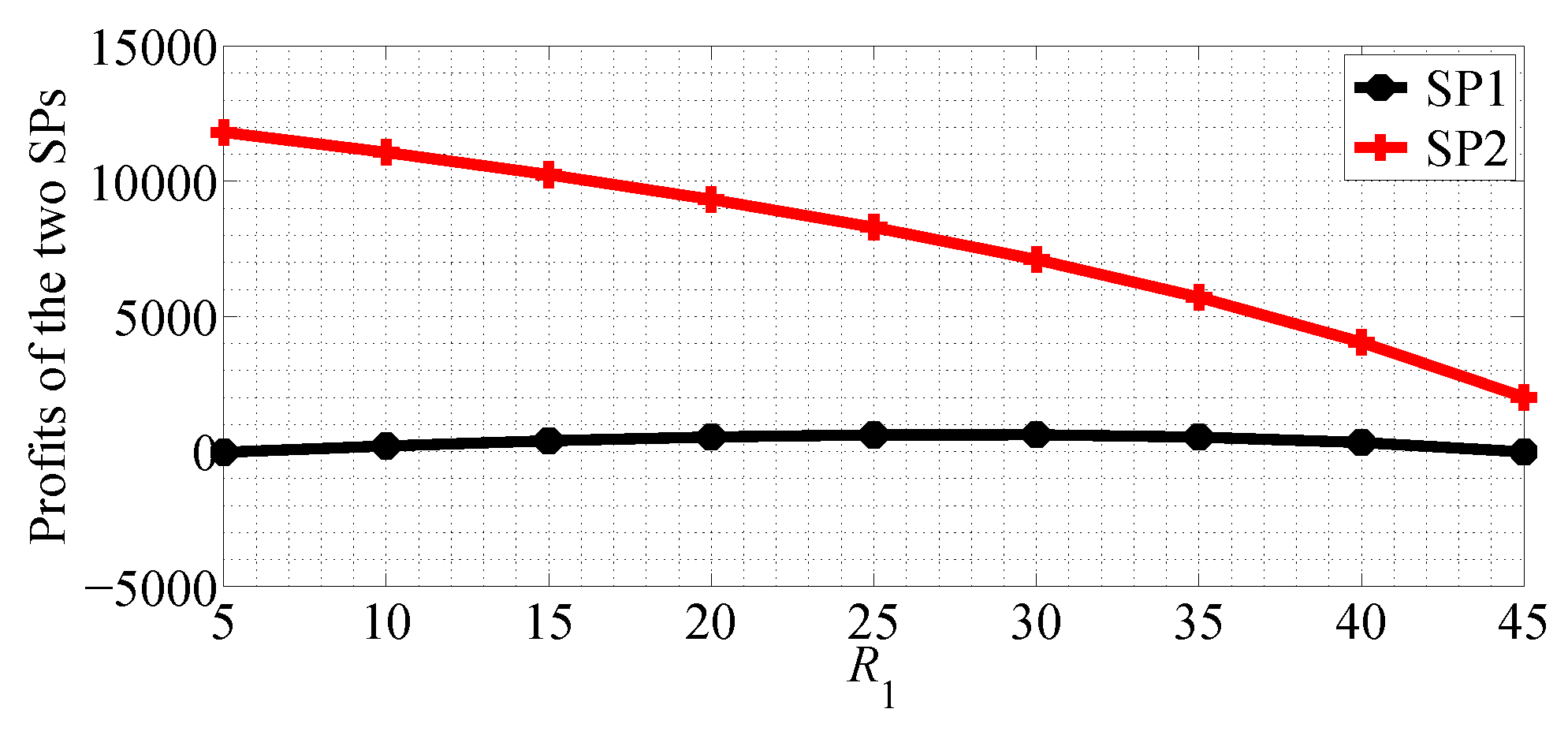

**Figure 18.**The profits of the two SPs with varying ${R}_{1}$ in the SG scenario for ${R}_{1}<{R}_{2}$.

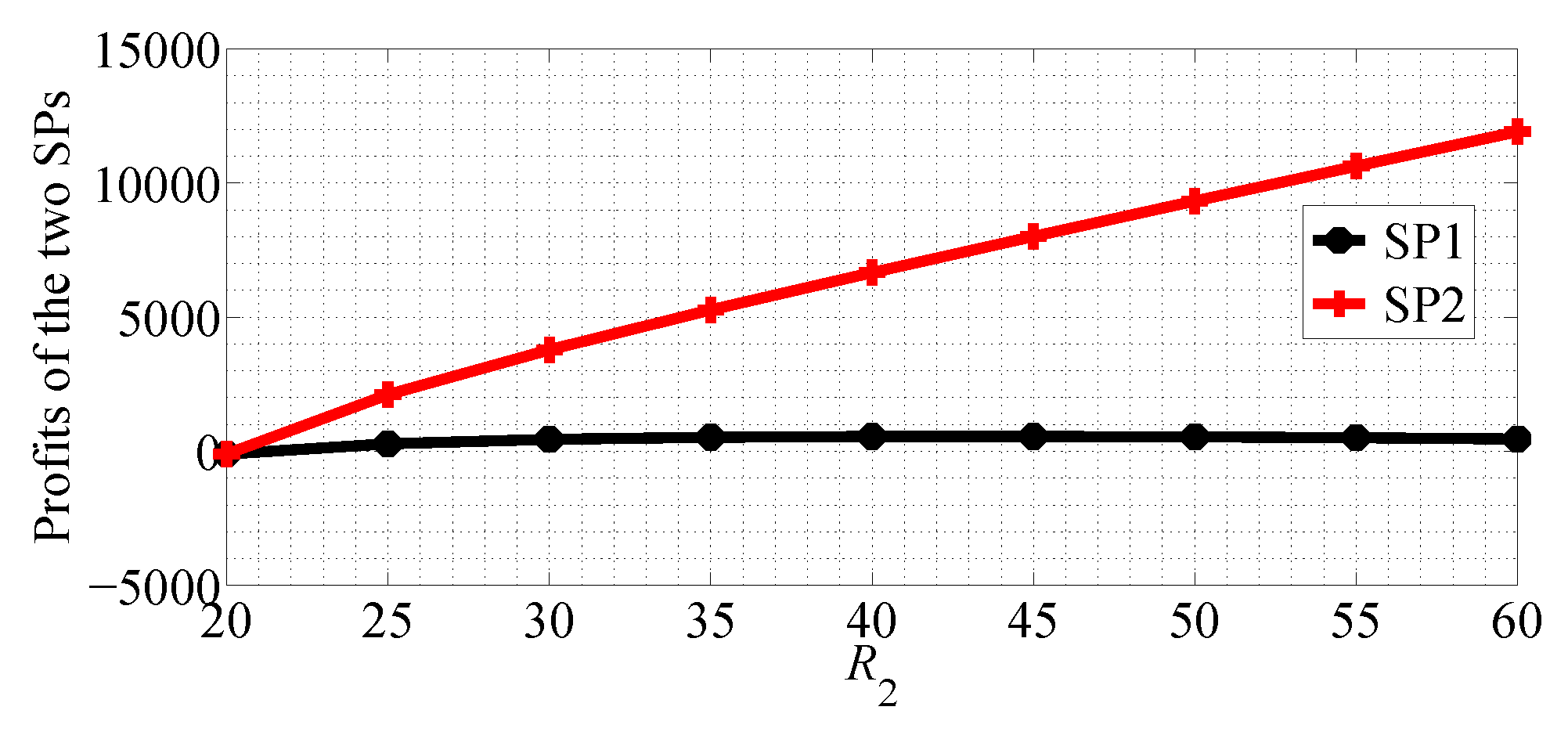

**Figure 19.**The profits of the two SPs with varying ${R}_{2}$ in the SG scenario for ${R}_{1}<{R}_{2}$.

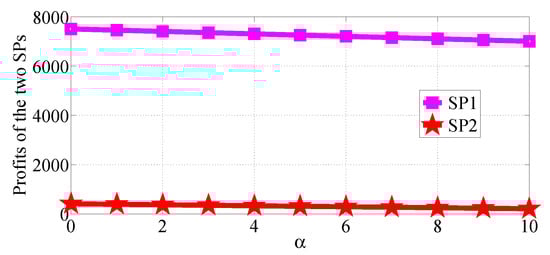

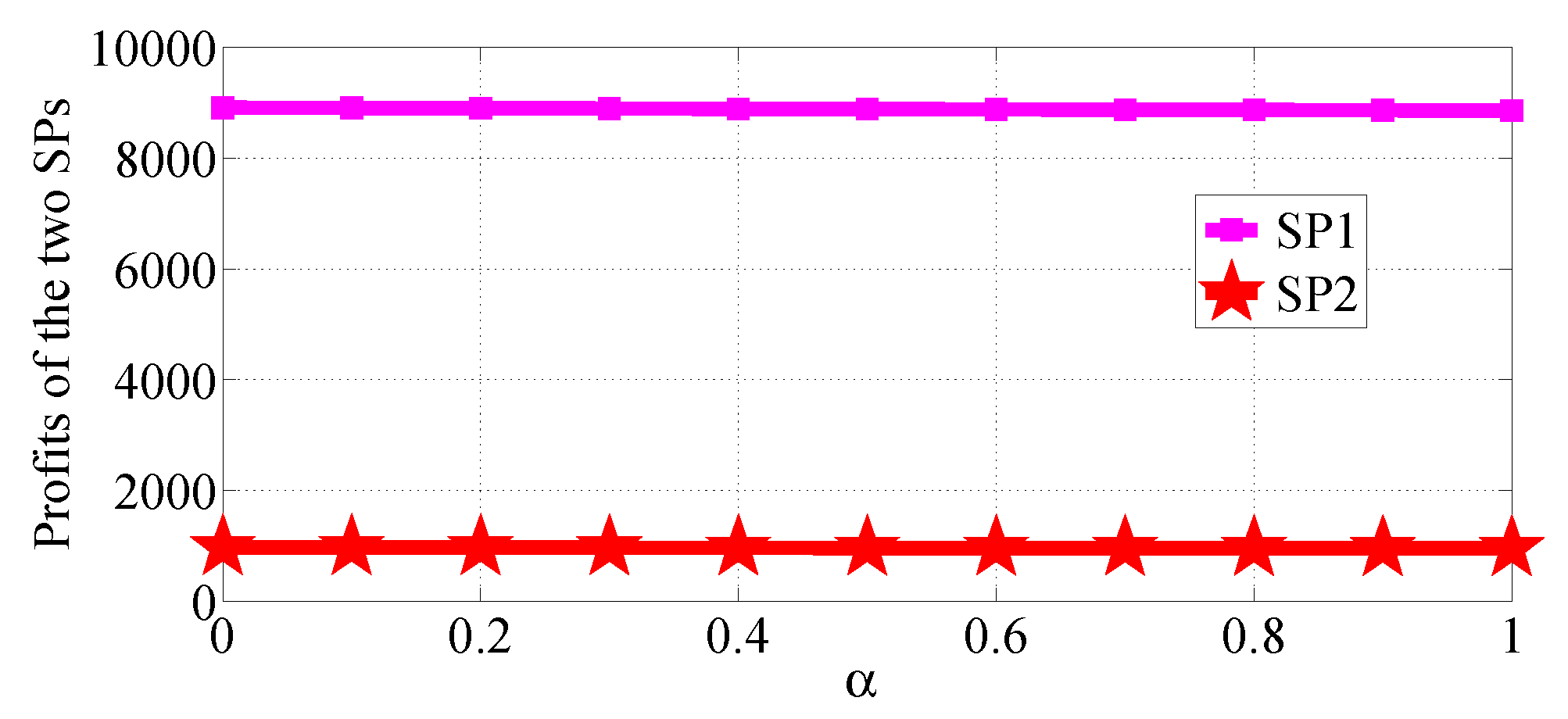

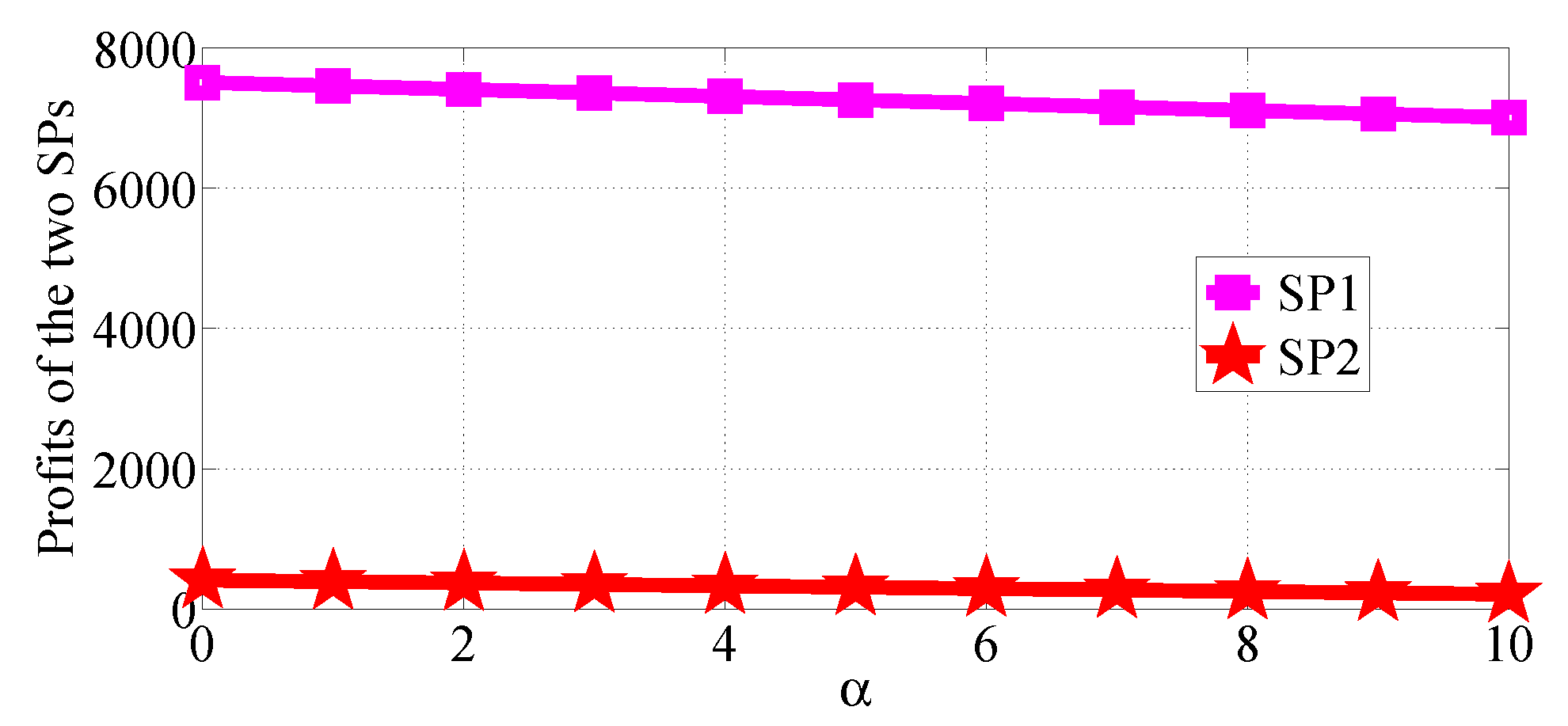

**Figure 20.**The impact of $\alpha $ on the profits of the two SPs in the NSG scenario for ${R}_{1}>{R}_{2}$.

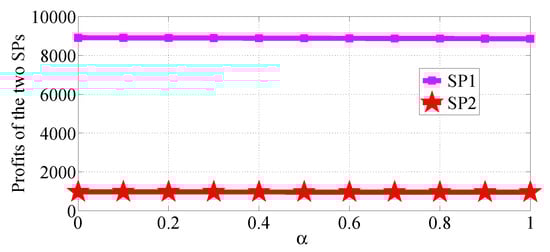

**Figure 21.**The impact of $\alpha $ on the profits of the two SPs in the SG scenario for ${R}_{1}>{R}_{2}$.

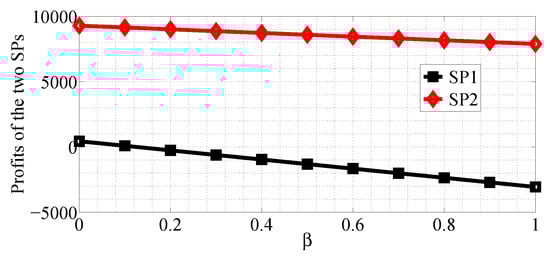

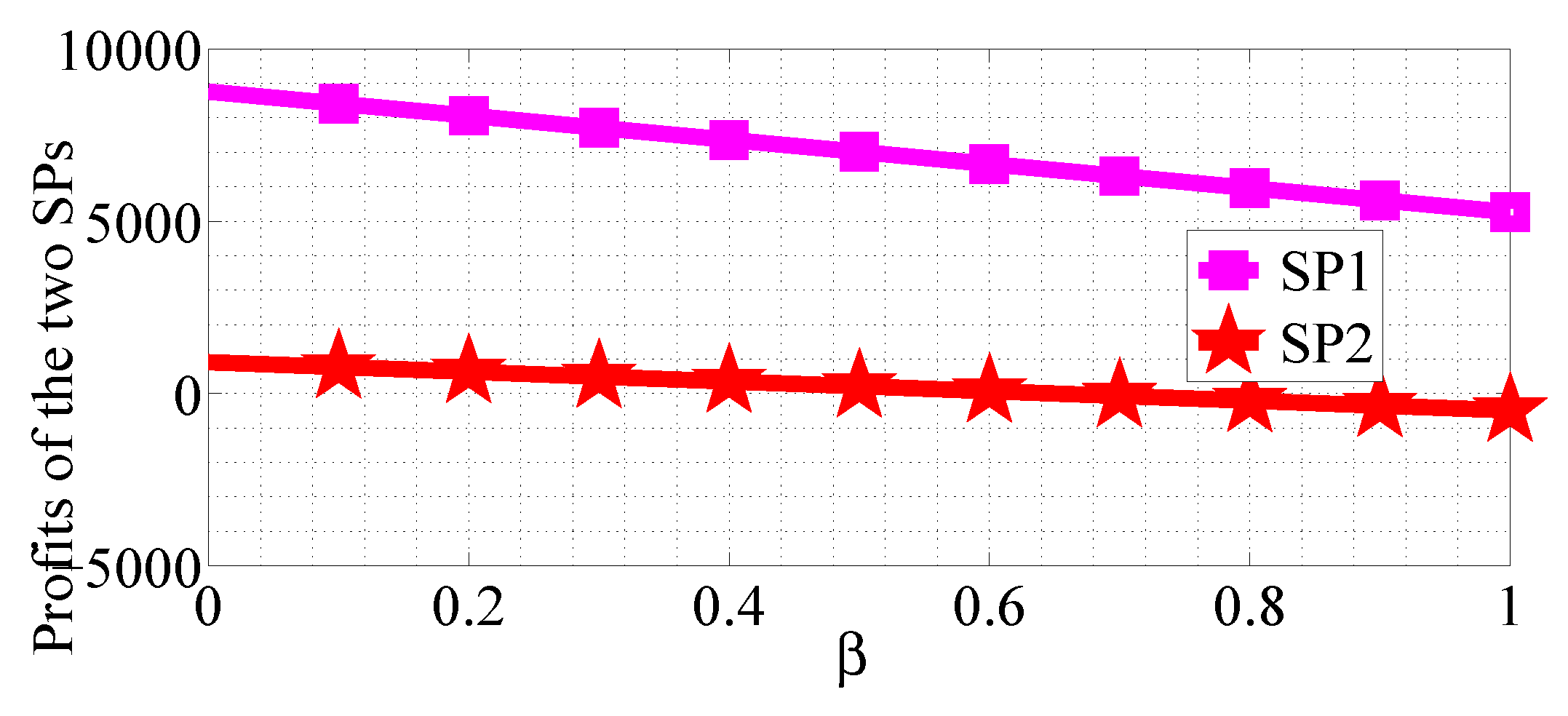

**Figure 22.**The impact of $\beta $ on the profits of the two SPs in the NSG scenario for ${R}_{1}>{R}_{2}$.

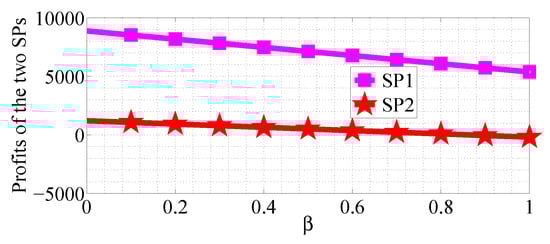

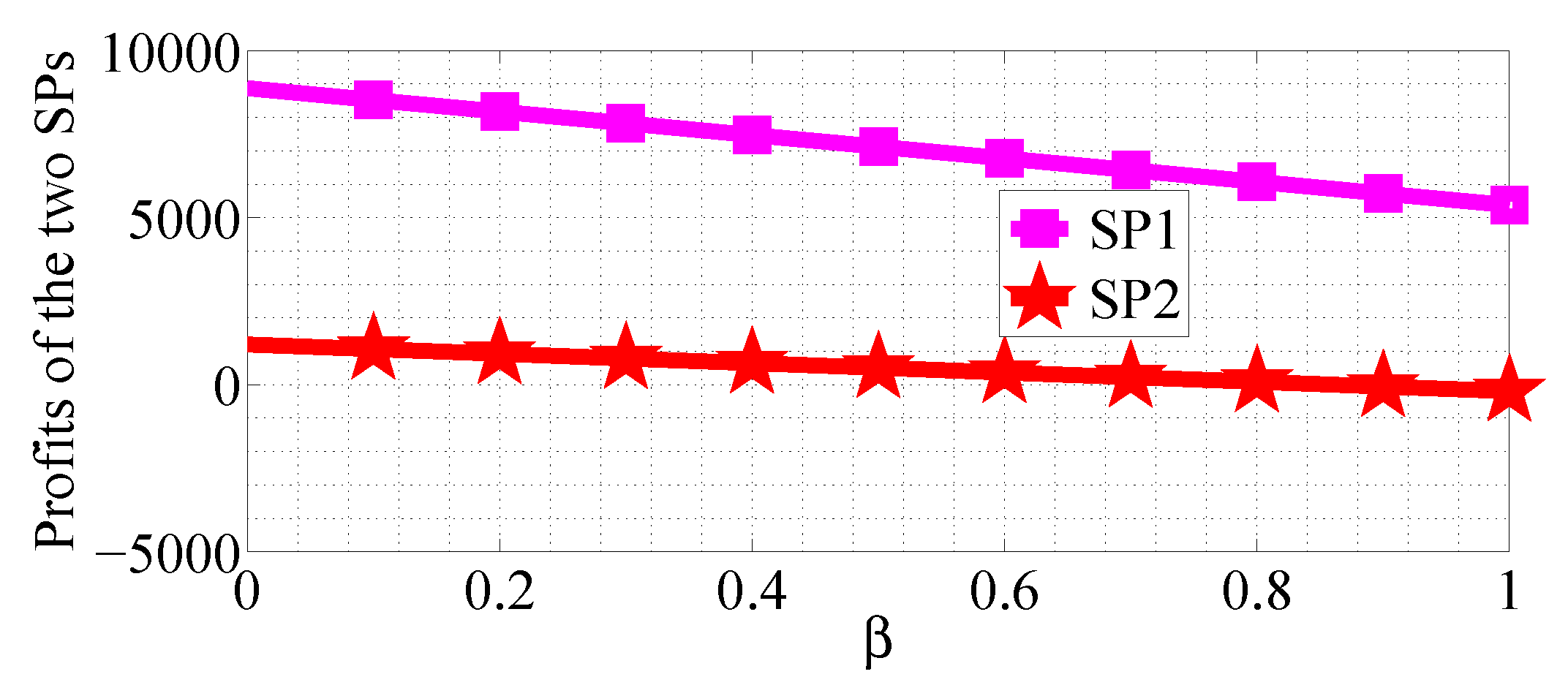

**Figure 23.**The impact of $\beta $ on the profits of the two SPs in the SG scenario for ${R}_{1}>{R}_{2}$.

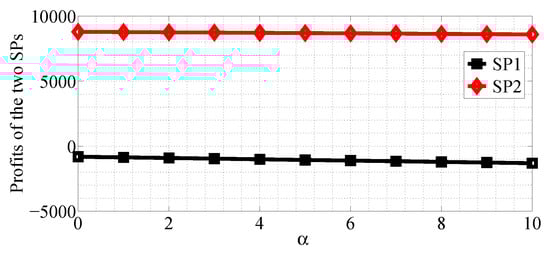

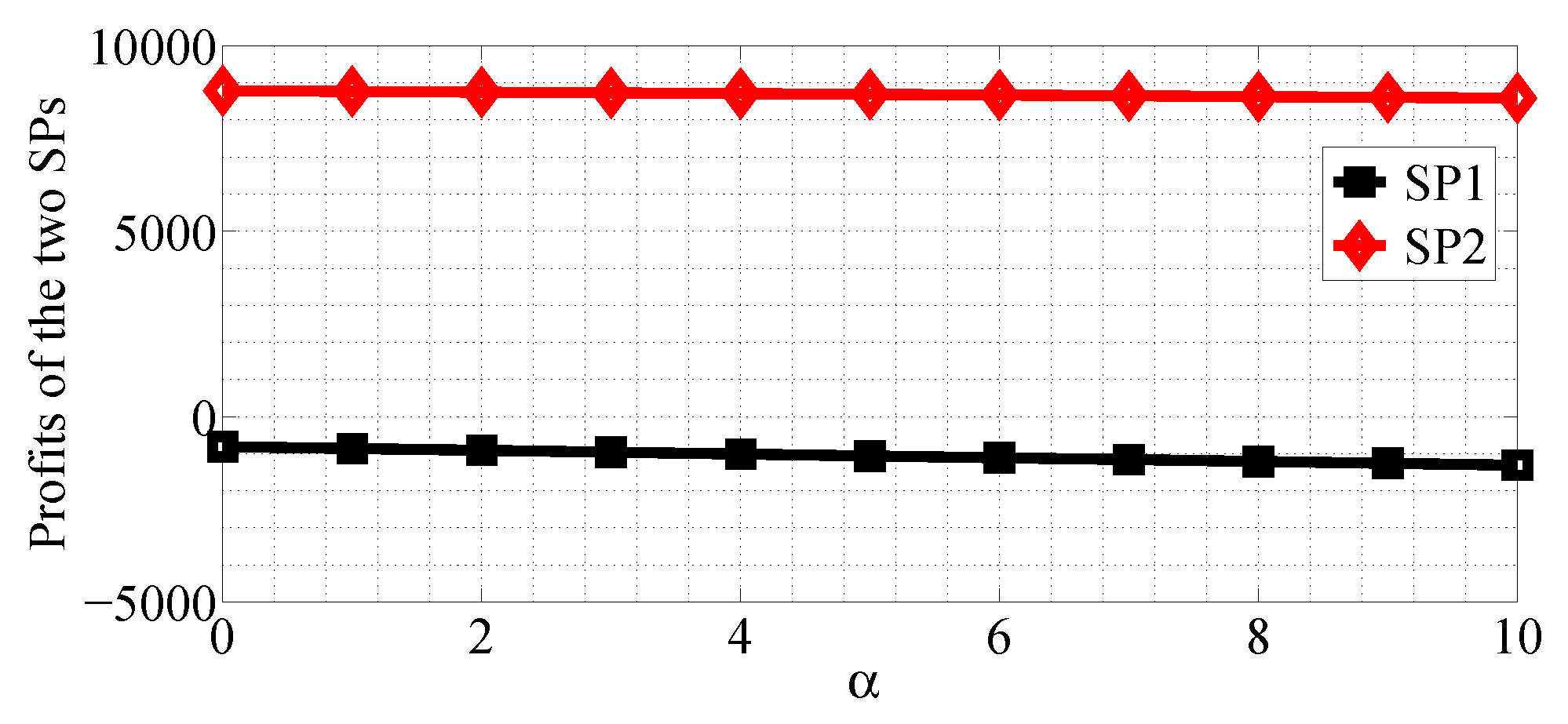

**Figure 24.**The impact of $\alpha $ on the profits of the two SPs in the SG scenario for ${R}_{1}<{R}_{2}$.

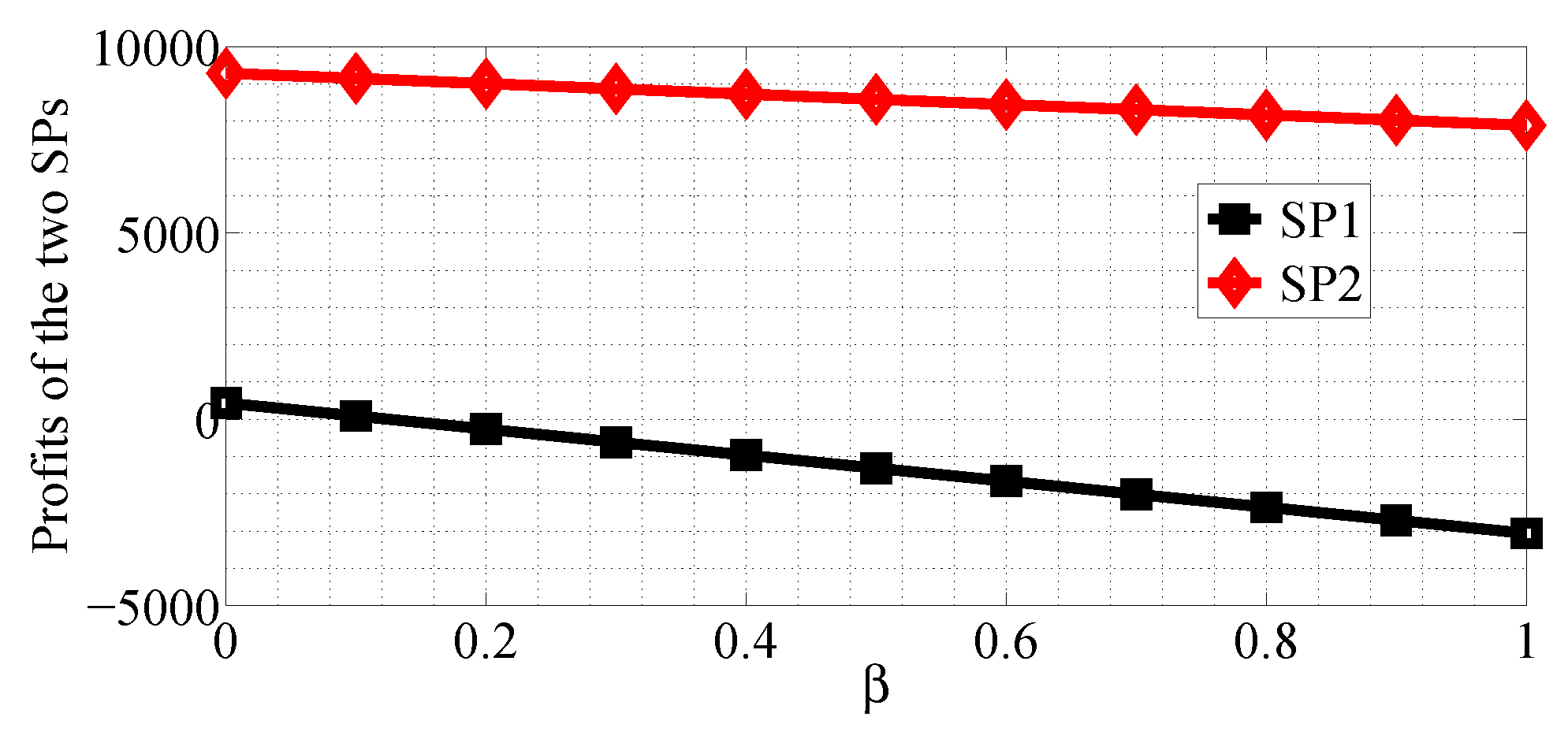

**Figure 25.**The impact of $\beta $ on the profits of the two SPs in the SG scenario for ${R}_{1}<{R}_{2}$.
