Matching SDN and Legacy Networking Hardware for Energy Efficiency and Bounded Delay †
Abstract
:1. Introduction
2. Related Work
3. SDN Application Design
3.1. Background and Problem Statement
- The ideal algorithm considers that the switch individually decides for each packet which port will be used to forward it, based on the instantaneous occupation of the ports, a packet-level operation. SDN does not allow forwarding each packet individually, since its data plane works at the flow level, applying the same actions to the packets of a flow once a matching rule is found in its flow table (i.e., forwarding the packets to the same port). In addition to the action prescribed by the flow rule, the counters associated with the port are updated.
- The current queue occupation of each port is used to determine the forwarding port. Unfortunately, this state variable is not usually provided by SDN switches (e.g., it is not considered in OpenFlow).
3.2. Designing the SDN Application

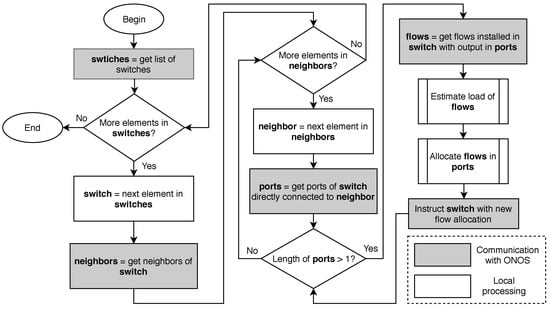

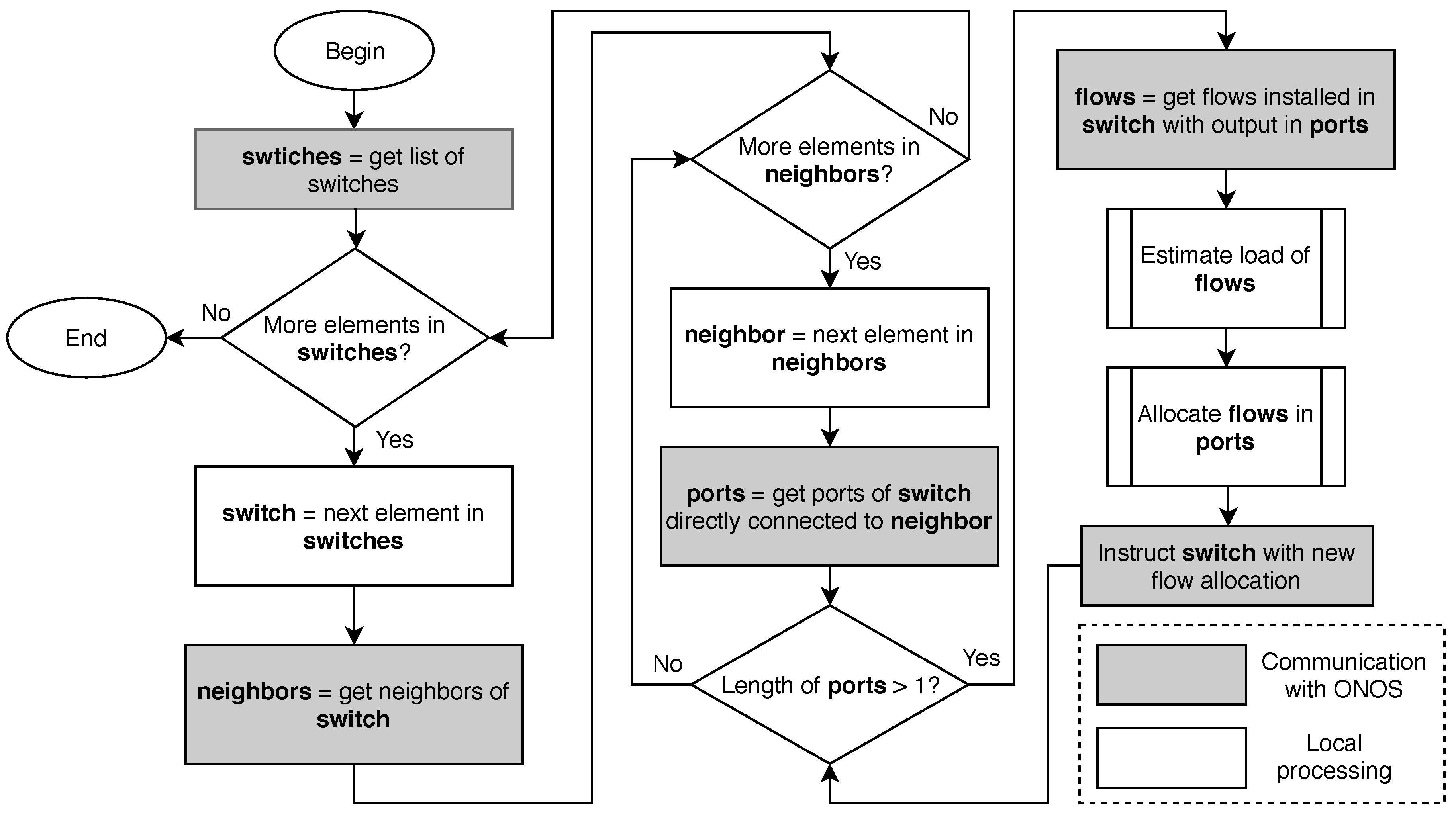

- Retrieve the list of switches.
- For each switch, identify the neighbors of the switch (i.e., the switches that a link to it).
- For each neighbor, retrieve the ports in the switch that are connected with the neighbor.
- If there is more than one port (i.e., there is a bundle between the two switches), retrieve the flows installed in the switch that forward packets to a port of this bundle.
- Predict the rate of each flow; that is to say, the amount of traffic that the flow will transmit in the next interval.
- Compute a new allocation for these flows to the ports of the bundle in a way that energy consumption is minimized.
- Instruct the switch to modify the flow rules that have changed their allocation.

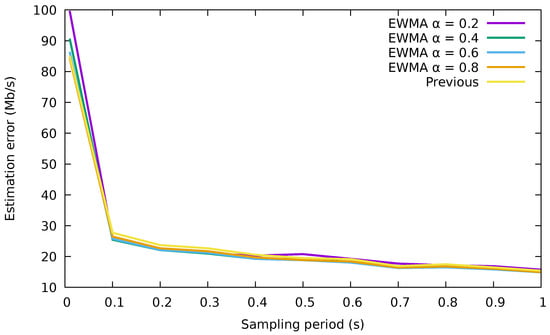

3.3. Flow Rate Prediction
- The measured value in the previous interval.

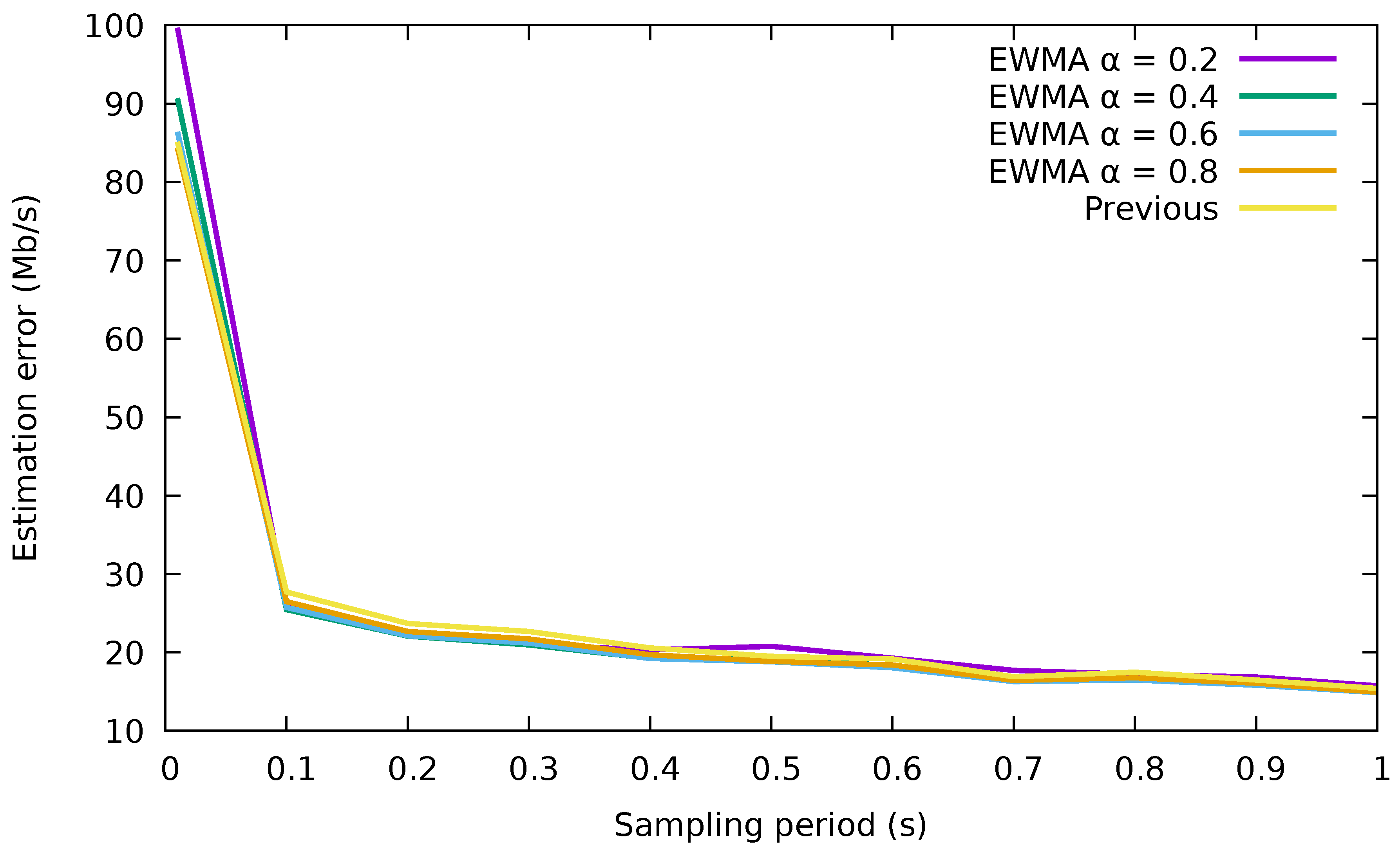

- An exponentially-weighted moving average (EWMA) with the measured rates of the flow in past intervals. The estimated rate is:
3.4. Flow Allocation Algorithm

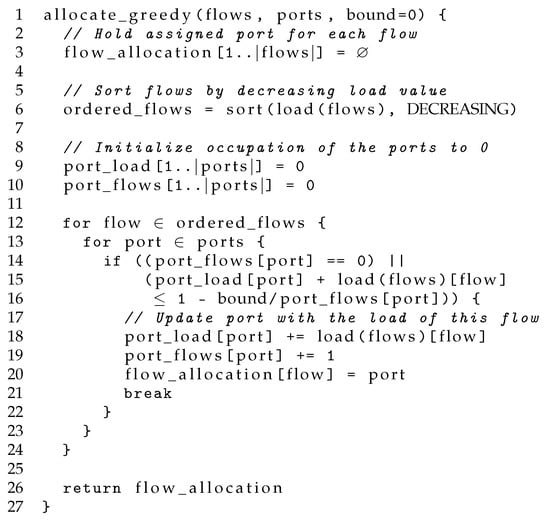

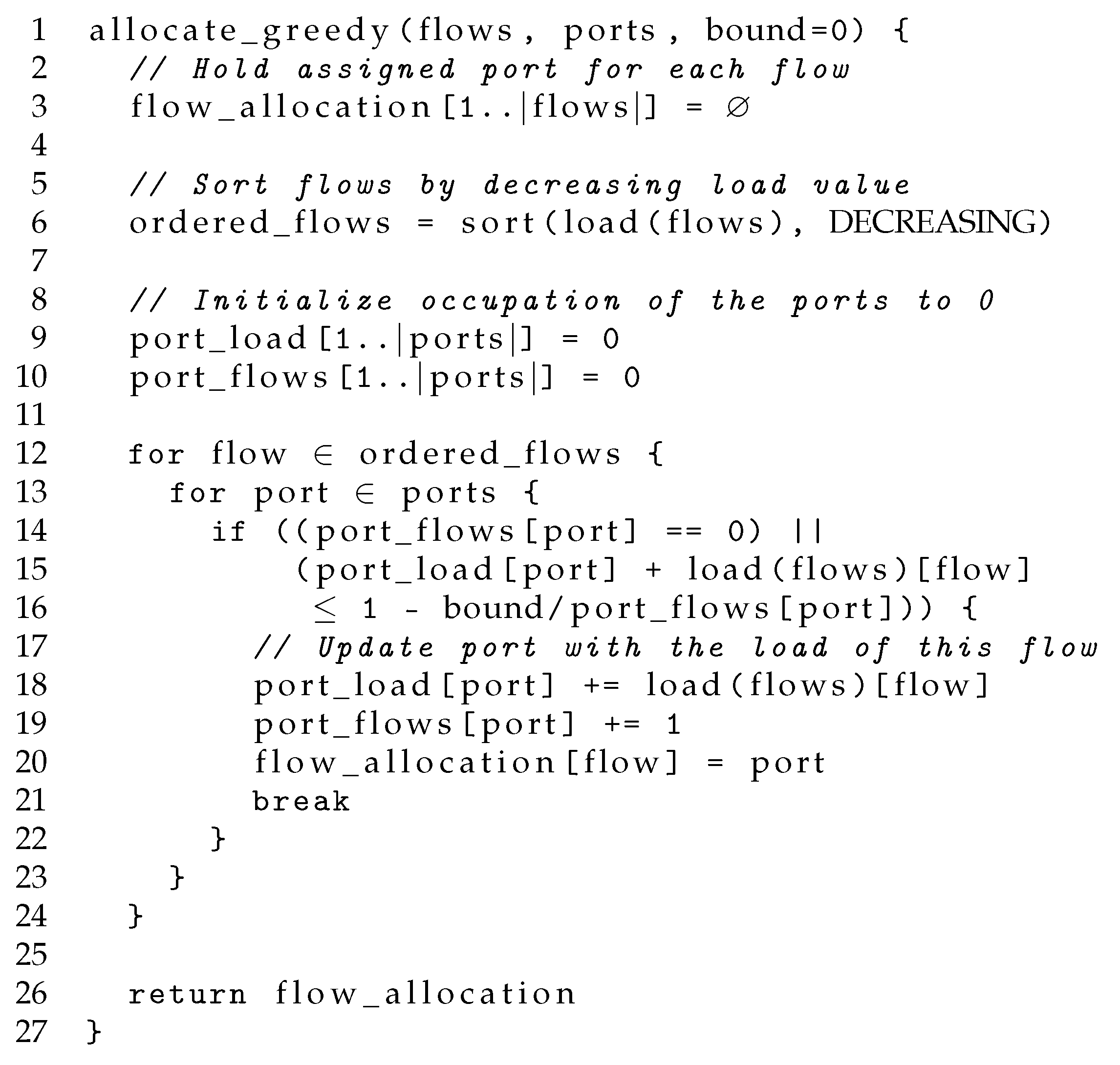

3.4.1. Greedy Algorithm
3.4.2. Bounded Greedy Algorithm

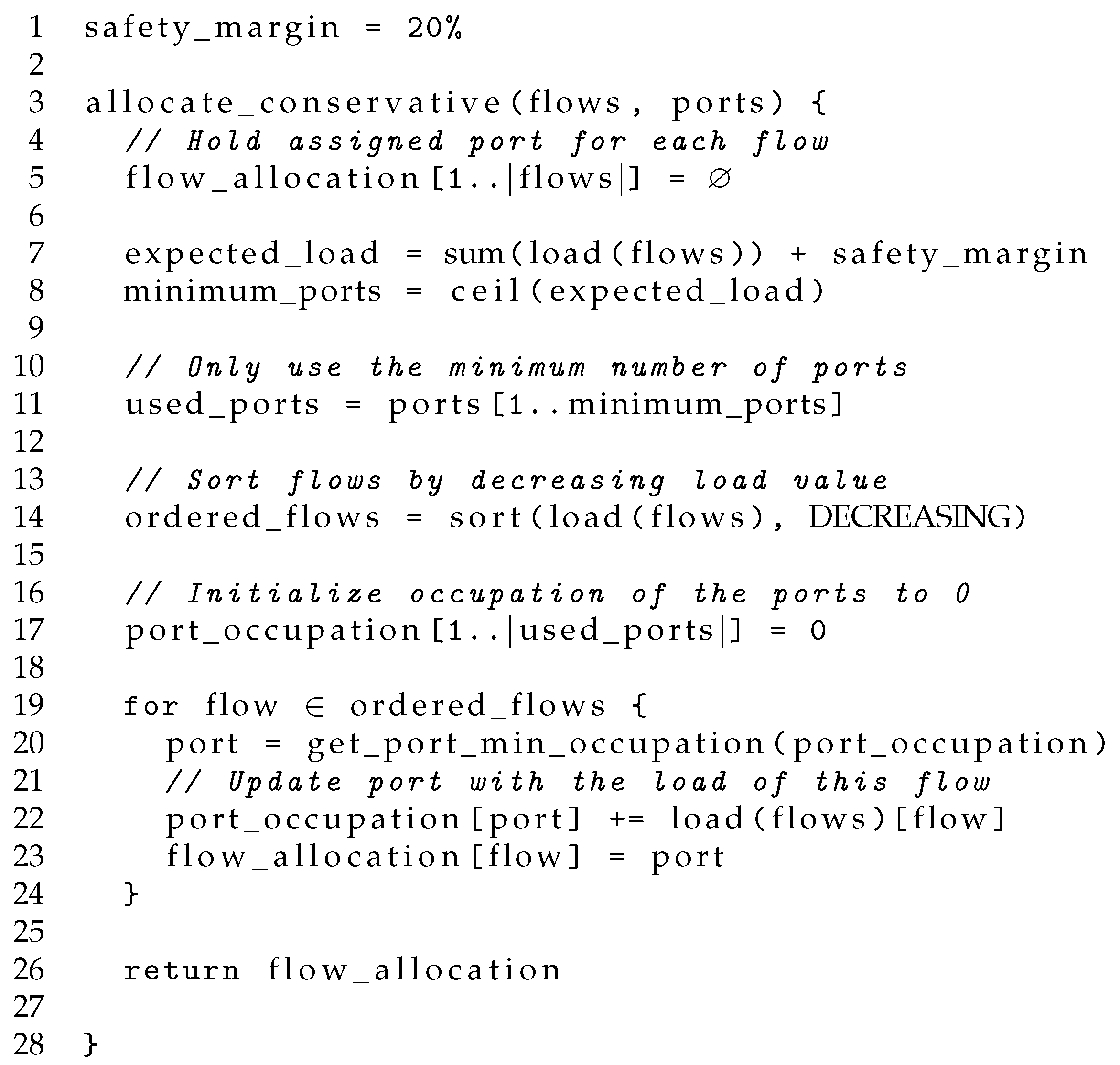

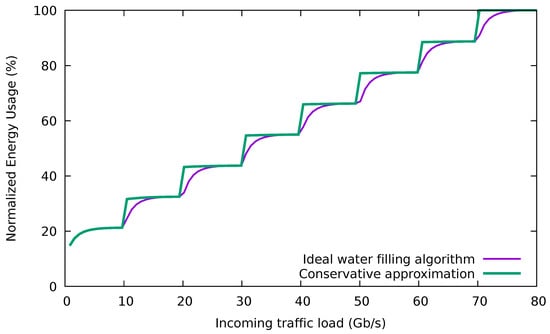

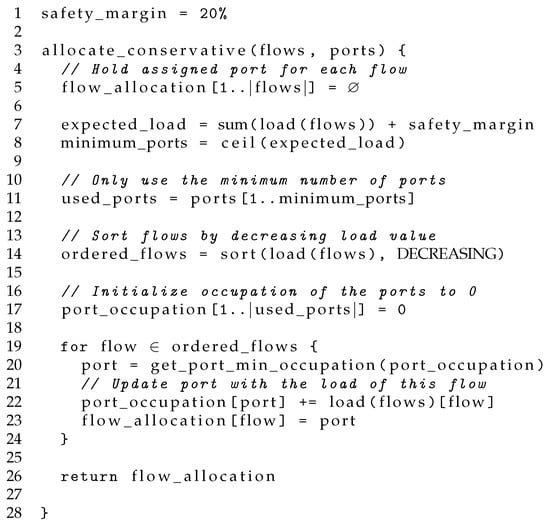

3.4.3. Conservative Algorithm
4. Energy-Efficient Algorithms with Bounded Delay
4.1. Spare Port Algorithm
- In the first phase, the energy-saving algorithm is directly applied without modifications, but only to the best-effort flows.
- In the second phase, the remaining low-latency flows are assigned to the least occupied port among those in the bundle.
- If the traffic demand is so high such that all the ports in the bundle must be dedicated to best-effort flows, low-latency traffic will not be forwarded through a single port. As a result, both low-latency and best-effort traffic will be treated in the same way, without meeting the needs of premium traffic.

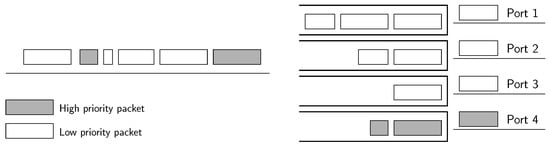

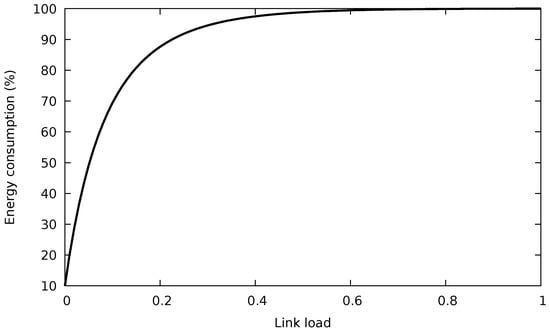

- If the amount of low-latency traffic is significant, the energy consumption of the spare port can drastically increase because of the energy profile of an EEE link, which rises very quickly with the port occupation (cf. Figure 1).
4.2. Two Queues Algorithm
- The first phase consists of directly applying the unmodified energy-efficient algorithm described in Section 3 to the whole set of flows, both including low-latency and best-effort, treated equally. The whole set of flows is allocated in a few ports.

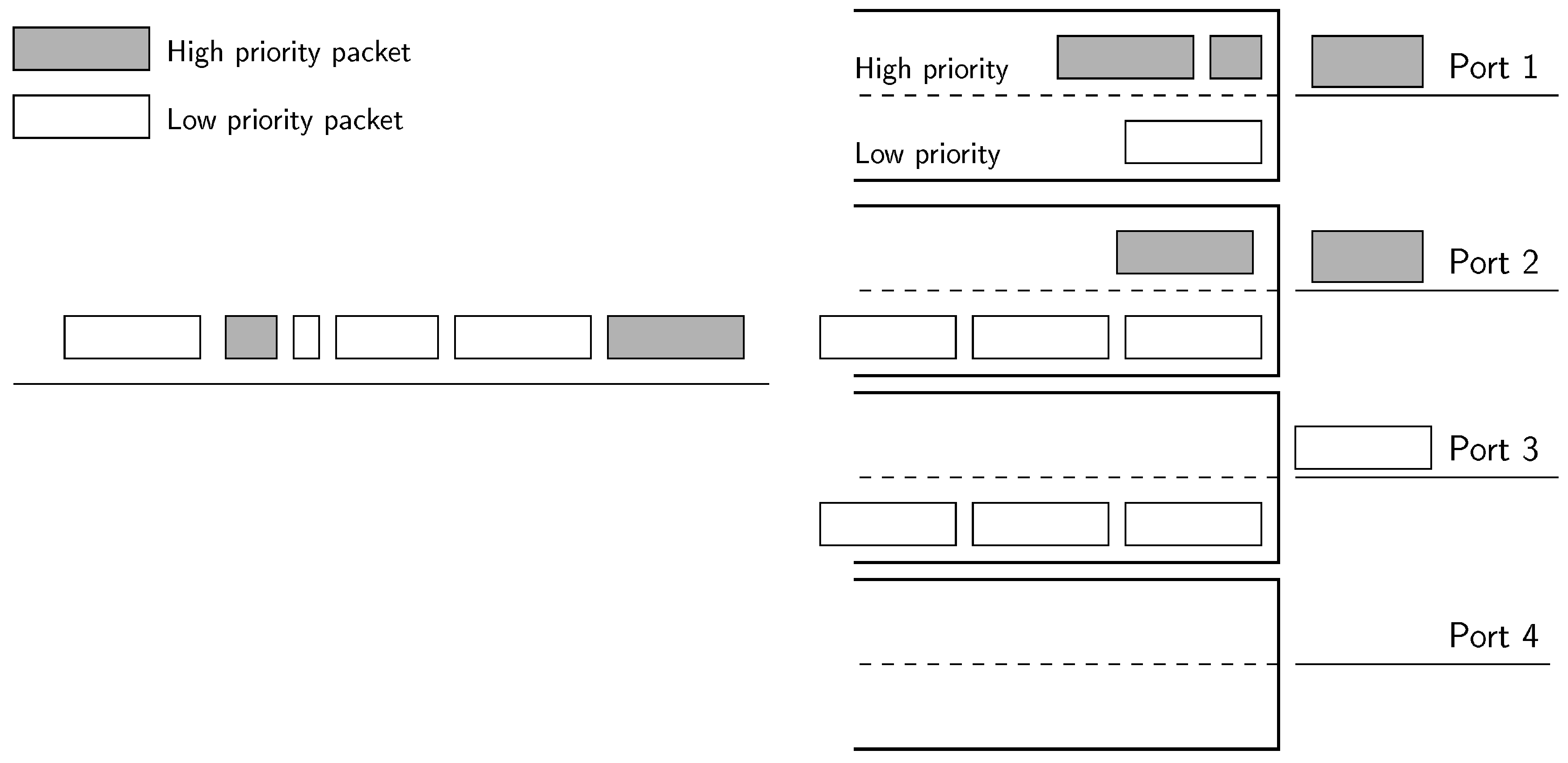

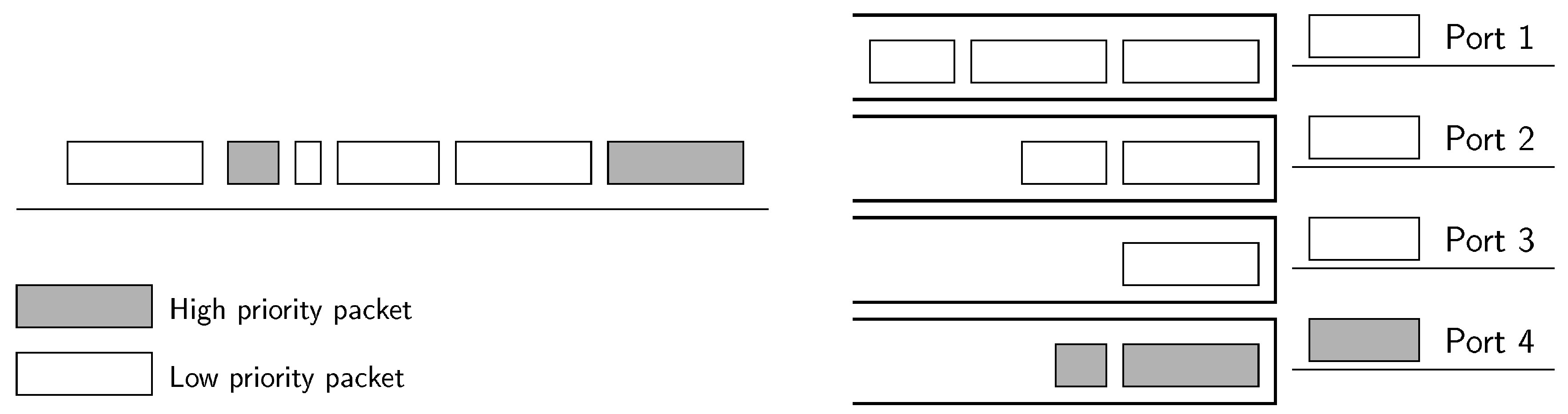

- The second phase sets the queue inside the assigned port for every flow. Low-latency flows are assigned to the high-priority queue of the ports, whilst best-effort flows are assigned to the low-priority queue.
5. Results

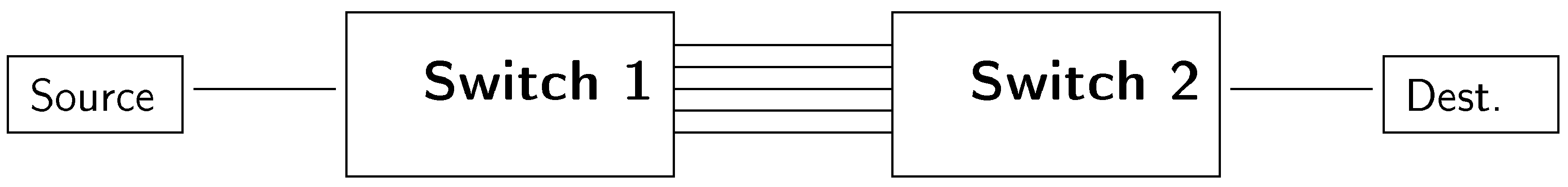

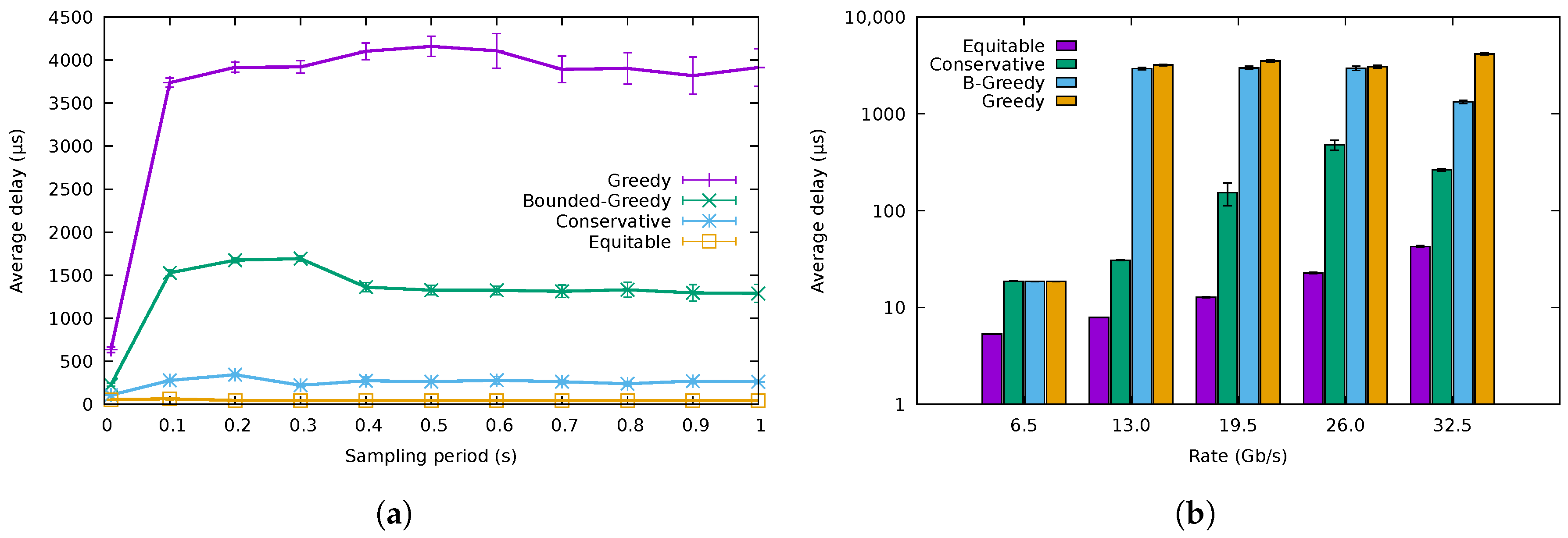

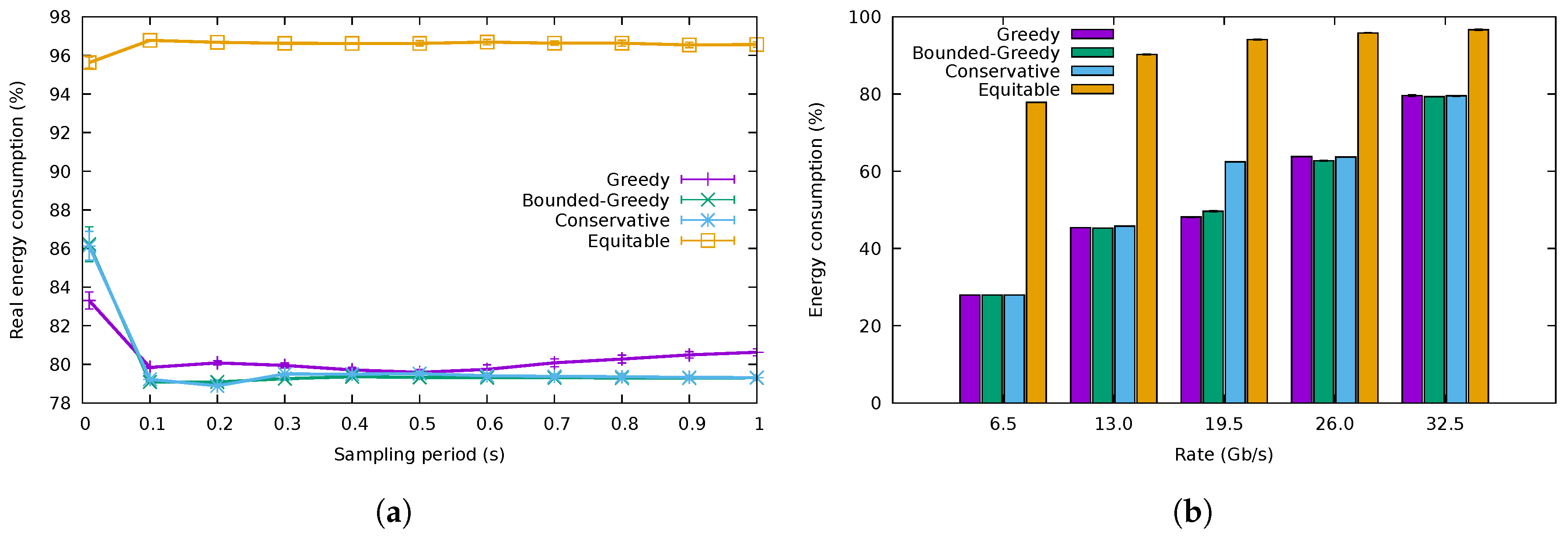

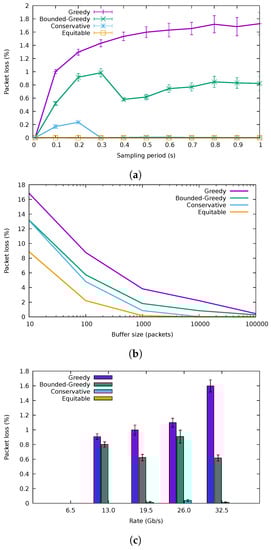

5.1. Flow Allocation Algorithms

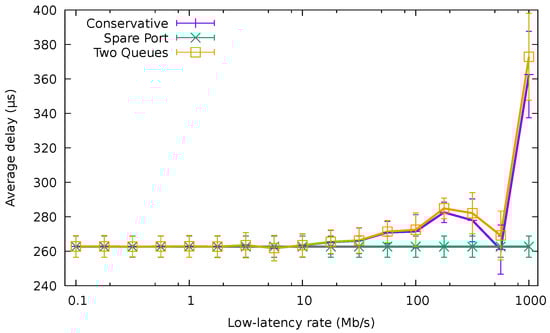

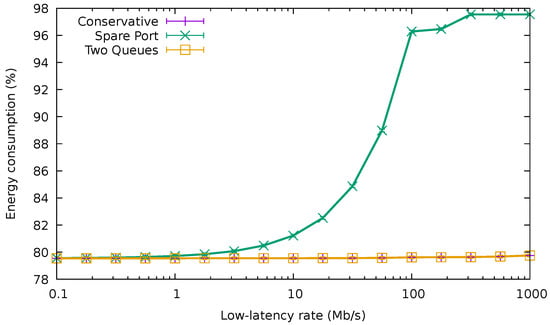

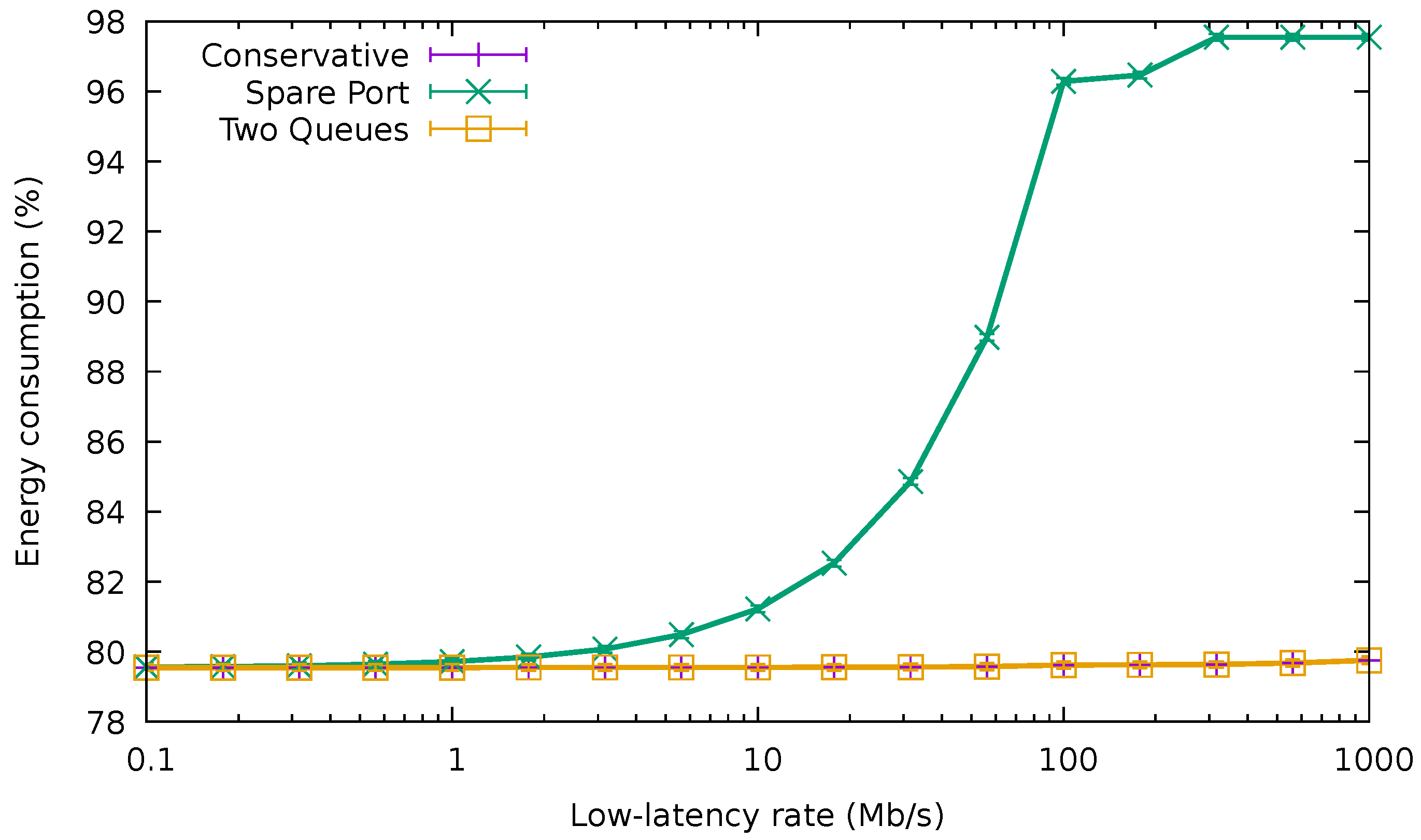

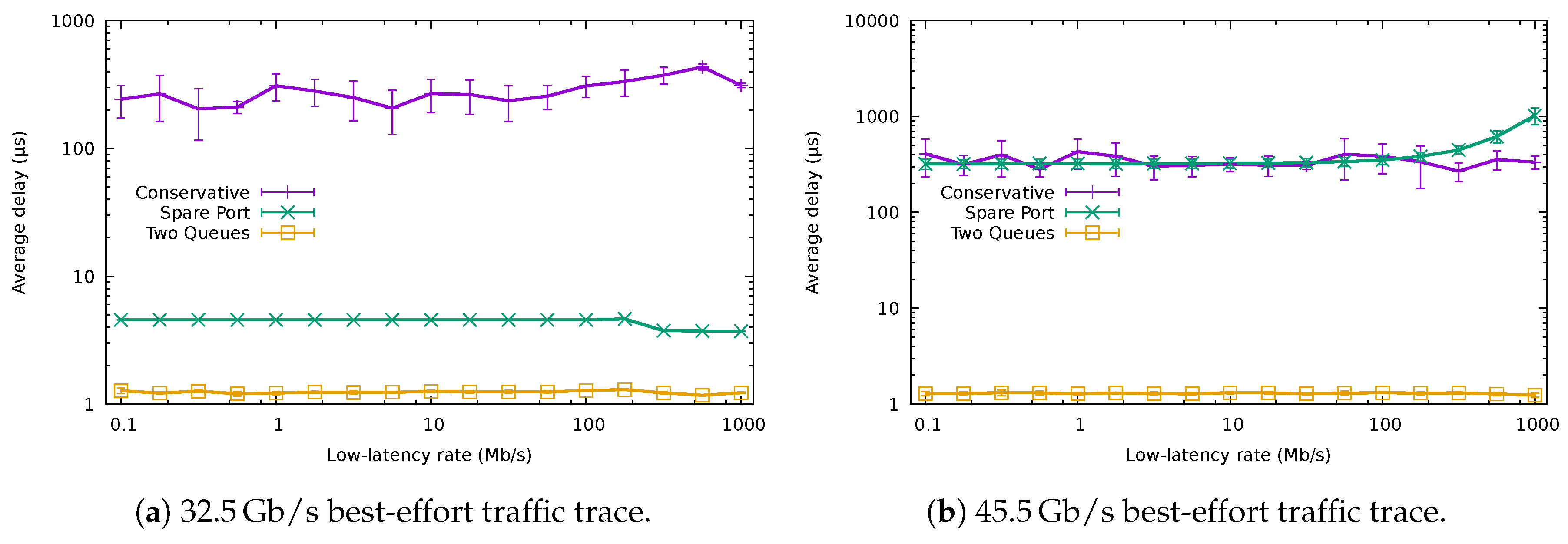

5.2. QoS-Aware Algorithms

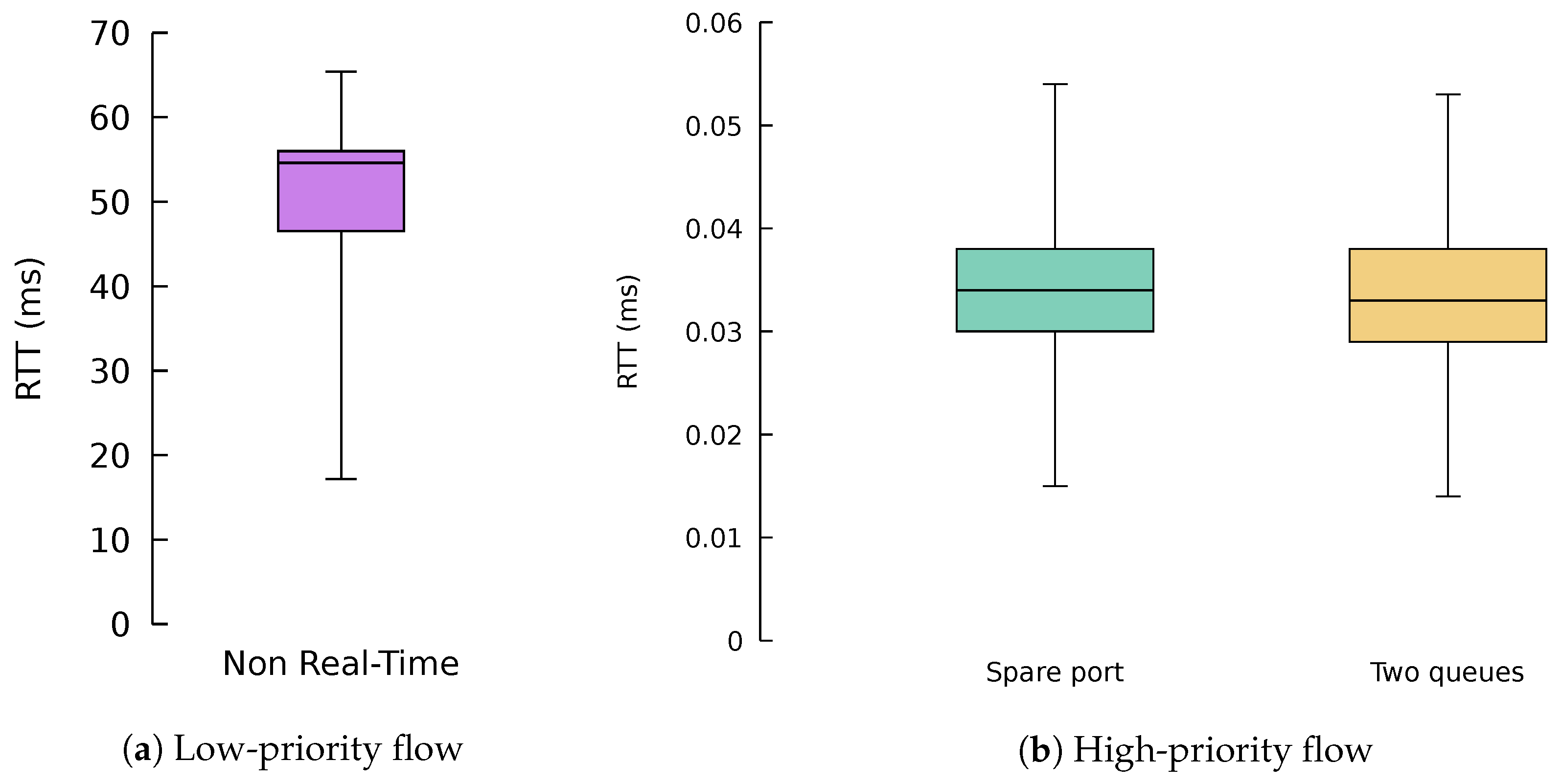

5.3. ONOS Application Results
5.4. Discussion
6. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
