Amphiphilic Fluorine-Containing Block Copolymers as Carriers for Hydrophobic PtTFPP for Dissolved Oxygen Sensing, Cell Respiration Monitoring and In Vivo Hypoxia Imaging with High Quantum Efficiency and Long Lifetime

by
Jiaze Li
1,2,
Yuan Qiao
2,
Tingting Pan
2,
Ke Zhong
2,
Jiaxing Wen
2,
Shanshan Wu
2,3,
Fengyu Su
4,* and
Yanqing Tian
2,*
1
School of Materials Science and Engineering, Harbin Institute of Technology, Nangang District, Harbin 150001, China
2
Department of Materials Science and Engineering, Southern University of Science and Technology, Xili, Nanshan District, Shenzhen 518055, China
3
Light Chemical Technology College, Guangdong Industry Polytechnic, Haizhu District, Guangzhou 510300, China
4
SUSTech Academy for Advanced Interdisciplinary Studies, Southern University of Science and Technology, Xili, Nanshan District, Shenzhen 518055, China
*
Authors to whom correspondence should be addressed.
Sensors 2018, 18(11), 3752; https://doi.org/10.3390/s18113752
Submission received: 3 October 2018 / Revised: 27 October 2018 / Accepted: 29 October 2018 / Published: 2 November 2018
(This article belongs to the Section Chemical Sensors)
Browse Figures
Versions Notes

Abstract

:
New amphiphilic star or multi-arm block copolymers with different structures were synthesized for enabling the use of hydrophobic oxygen probe of platinum (II)-tetrakis (pentafluorophenyl) porphyrin (PtTFPP) for bioanalysis. The amphiphilic star polymers were prepared through the Atom Transfer Radical Polymerization (ATRP) method by using hydrophilic 4-arm polyethylene glycol (4-arm-PEG) as an initiator. Among the five block copolymers, P1 series (P1a, P1b, and P1c) and P3 possess fluorine-containing moieties to improve the oxygen sensitivity with its excellent capacity to dissolve and carry oxygen. A polymer P2 without fluorine units was also synthesized for comparison. The structure-property relationship was investigated. Under nitrogen atmosphere, high quantum efficiency of PtTFPP in fluorine-containing micelles could reach to 22% and long lifetime could reach to 76 μs. One kind of representative PtTFPP-containing micelles was used to detect the respiration of Escherichia coli (E. coli) JM109 and macrophage cell J774A.1 by a high throughput plate reader. In vivo hypoxic imaging of tumor-bearing mice was also achieved successfully. This study demonstrated that using well-designed fluoropolymers to load PtTFPP could achieve high oxygen sensing properties, and long lifetime, showing the great capability for further in vivo sensing and imaging.

Graphical Abstract

1. Introduction

Dissolved oxygen (DO) is crucial to environment, industry, life technology, and human health, etc. Hypoxia [1] (≤0.5% O2, usually at tumor environments) is relevant to cancer, stroke [2], arteriosclerosis [3], Parkinsonism [4], Alzheimer’s disease [5], etc. It has been reported that oxygen played an important role when methyl group from DNA was removed by enzymes. Otherwise, hypermethylation could result in abnormal cell behavior and rapid growth of tumors [6]. At the gene level, the hypoxia-inducible factor-1α (HIF-1α) maintained the in vivo oxygen homeostasis [7,8]. On the other hand, hypoxia can also influence clinical surgery such as radiotherapy, because low-level oxygen condition will decrease the radiation efficiency [9]. Until now, DO sensing and imaging have remained to be a challenge in biology, medicine, the environment and the food industry. There are several ways to detect dissolved oxygen such as Clark electrodes [10], Winkler titration [11] and optical sensors [12]. The first two methods have been developed maturely, but there are still limitations. Clark electrode can only measure the relative oxygen content of air and samples [13], while Winkler titration is unsuitable for real-time continuous oxygen detection [14], and both approaches consume oxygen during detection. Phosphorescence based optical oxygen analysis makes up for the shortfalls of the first two methods with the following characters: (1) noninvasive and reversible sensing; (2) without oxygen consumption; (3) high sensitivity to oxygen with fast responses; and (4) capable for single cell level sensing. These properties gave huge potentials for phosphorescence oxygen sensing in biological application [15,16,17].
Metalloporphyrin derivatives are typical oxygen sensors possessing excellent optical stability and significant oxygen quenching properties. For instance, platinum (II)-tetrakis (pentafluorophenyl) porphyrin (PtTFPP) as one of the best oxygen probes has a long lifetime and super photo bleaching resistance [18]. However, PtTFPP is extremely hydrophobic, resulting in its unsuitableness for in vitro and further in vivo dissolved oxygen sensing. In order to enable the application of PtTFPP and its derivatives for biostudies, scientists have explored a few approaches along this direction, including the generation of nanoparticles with the assistance of conjugated polymers [19,20], the conjugation of PtTFPP-derivatives into the main-chain of conjugated polymers [21,22,23], and the encapsulation of the porphyrin probe into the micelles formed from amphiphilic block or graft copolymers [24], etc. We have been using the micelle approach to transfer PtTFPP into aqueous solution for oxygen sensing by using linear block copolymer and graft copolymers [25,26,27]. However, there is no systematical investigation of structure-property relationships.
Considering the abundance of polymer structures, herein we extended this study to multi-arm block copolymers. A modified 4-arm polyethylene glycol (4-Arm-PEG) as a hydrophilic chain was used as an initiator to polymerize three kinds of monomers to achieve five kinds of block copolymers with different structures. We chose two kinds of fluorine-containing monomers with different fluorine-units for hydrophobic chains and one fluorine-free monomer (styrene) for comparison. Thus structure-properties can be evaluated. The use of multi-arm block copolymers is due to their good stability, high drug loading ratios and long in vivo circulation time [28,29]. On the other hand, fluorine is super hydrophobic. It has been reported that micelles formed from fluorine-containing amphiphilic polymers exhibited high stability and nontoxicity which can be used as protein drug carriers [30]. Based on the former research on perfluorocarbon oxyglobin, fluorine has greater capacity to dissolve, carry and permeate oxygen [31]. Besides, the presence of halide substituents could increase the photostability of metalloporphyrins [32]. Therefore, these fluorine-containing amphiphilic block copolymers are expected to have excellent compatibility with the fluorine-containing PtTFPP to achieve high quantum efficiencies of the PtTFPP in aqueous solution as well as high oxygen sensitivity. After evaluating the structure-properties relationship, representative micelles will be used for cell respiration monitoring and in vivo hypoxia imaging.

2. Materials and Methods

2.1. Materials and Reagents

PtTFPP was purchased from Frontier Scientific (Logan, UT, USA). Hexafluorobutyl methacrylate (HFMA) stabilized with hydroquinone monomethyl ether (MEHQ) and α-bromoisobutyryl bromide were acquired from TCI (Tokyo, Japan). Styrene stabilized with 4-tert-buytlcatechol (TBC) and trifluoroethyl methacrylate (TFEMA) stabilized with MEHQ were obtained from Aladdin (Shanghai, China). The 4-arm-PEG-OH, 4-(2-hydroxyethyl)-1-piperazineethanesulfonic acid (HEPES), 1,1,4,7,7-pentamethyl-diethylenetriamin (PMDETA), and CuBr were purchased from Creative PEGWorks (Chapel Hill, NC, USA), Sigma-Aldrich (St. Louis, MO, USA), Energy Chemical (Shanghai, China), and J & K Scientific Ltd. (Shanghai, China), respectively. All the monomers used for polymerization were purified by passing through a basic Al2O3 column to remove the stabilizer before used. The monocyte macrophage J774A.1 cell line was provided by GuangZhou Jennio Biotech Co., Ltd. (Guangzhou, China). The human breast adenocarcinoma cell line MCF-7 was obtained from Shanghai Zhong Qiao Xin Zhou Biotechnology Co., Ltd (Shanghai, China).

2.2. Instruments

Water 1515 gel permeation chromatography (GPC) coupled with a refractive index (RI) detector (Waters, Milford, MA, USA) and nuclear magnetic resonance spectroscopy (NMR) (Bruker Avance III 400M, Karlsruhe, Germany) were used to determine relative molecular weights of polymers. Dynamic light scattering (DLS) (Malvern Nano ZS, Malvern, WR, UK) was used to measure the diameters of micelles. Fluorescence Spectrofluorophotometer (PerkinElmer LS 55, Shelton, CT, USA) was applied to measure photo-luminescence intensities. A gas manipulator (Alicat Scientific Instrument, Tucson, AZ, USA, measuring error: <1%) was used for controlling the exact gas percentage during phosphorescence measurements. Transient Absorption Spectrometer (FLS 980, Edinburch Instruments Ltd., Livingston, UK) was used to detect phosphorescence lifetimes. A Plate Reader (BioTek Cytation 3, Winooski, VT, USA) was used for toxicity test and respiration measurements of Escherichia coli (E. coli) and cells.

2.3. Synthesis of Macroinitiator 4-Arm-PEG-Br and Amphiphilic Star Polymers

Macroinitiator 4-arm-PEG-Br (Scheme 1): 5.0 g (0.5 mmol) of 4-Arm-PEG-OH and 0.7 mL (5 mmol) of Et3N were added into 100 mL of ultra-dry dichloromethane (DCM). A total of 0.6 mL (5 mmol) of α-Bromoisobutyryl bromide was dissolved in 25 mL of anhydrous DCM and slowly dropped into the mixture solution in an ice bath under stirring. After 24 h, the mixed solution was precipitated in ice cooled ether to get the macroinitiator. The crude product was dissolved in water (pH = 9) and extracted by dry DCM to remove the triethylamine hydrochloride thoroughly. Yield: 79%. 1H NMR (400 MHz, CDCl3, δ (ppm)): 4.33 (t, 2 H, -CH2OCO-), 3.64 (m, 230 H, -OCH2CH2O-), 1.94 (s, 6 H, -CCH3-). Mn(NMR) = 10,940, Mn(GPC) = 3960, Mw(GPC)/Mn(GPC) = 1.1.
P1a: A total of 0.266 g (0.025 mmol) of the 4-arm-PEG-Br and 10 mg (0.1 mmol) of CuCl were added into a Schlenk tube, and the Schlenk tube was vacuumed for 15 min. A solution of 0.58 mL (5 mmol) of trifluoroethyl methacrylate and 20 μL (0.1 mmol) of PMDETA in 3 mL of anisole was slowly injected into the Schlenk tube. After three times freeze-thaw procedure to remove residual oxygen, the Schlenk tube was placed in a 70 °C oil bath for 24 h. After the polymeric solution was passed through neutral Al2O3 column to remove copper, the polymer was obtained by precipitating in excess cold n-hexane to get P1a with a yield of 50%. 1H NMR (400 MHz, CDCl3, δ (ppm)): 4.34 (s, 76 H, -OCH2CF3-); 3.64 (m, 230 H, -OCH2CH2O-). Mn(NMR) = 33,790, Mn(GPC) = 5340, Mw(GPC)/Mn(GPC) = 1.3.
P1b was obtained by the same method as P1a, except the feed ratio of monomer to the macroinitiator was 400:1. Yield: 44%. 1H NMR (400 MHz, CDCl3, δ (ppm)): 4.34 (s, 112 H, -OCH2CF3-); 3.64 (m, 230 H, -OCH2CH2O-). Mn(NMR) = 45,880, Mn(GPC) =7650, Mw(GPC)/Mn(GPC) = 1.2.
P1c was attained by the same way as P1a, except the feed ratio of monomers to the macroinitiator was 600:1. Yield: 40%. 1H NMR (400 MHz, CDCl3, δ (ppm)): 4.34 (s, 154 H, -OCH2CF3-); 3.64 (m, 230 H, -OCH2CH2O-). Mn(NMR) = 62,680, Mn(GPC) =10,710, Mw(GPC)/Mn(GPC) = 1.3.
P2 was synthesized through the same method as P1a, however using styrene as the monomer and the reaction temperature was set at 110 °C. Yield: 26%. 1H NMR (400 MHz, CD2Cl2, δ (ppm)): 6.46–7.08 (m, 171 H, ArH); 3.58 (m, 230 H, -OCH2CH2O-). Mn(NMR) = 24,780, Mn(GPC) = 6280, Mw(GPC)/Mn(GPC) = 1.2.
P3 was acquired by the same method as P1a, however using hexafluorobutyl methacrylate as the monomer and the reaction temperature was set at 80 °C. Yield: 48%. 1H NMR (400 MHz, CDCl3, δ (ppm)): 4.85 (m, 49 H, -CHF-); 4.35 (s, 96 H, -OCH2-); 3.64 (m, 230 H, -OCH2CH2O-). Mn (NMR) = 59,220, Mn(GPC) = 8370, Mw(GPC)/Mn(GPC) = 1.5.

2.4. Preparation of Micelles with PtTFPP

A total of 30 mg of each polymer in 1.2 mL of tetrahydrofuran (THF) and 2 mg of PtTFPP in 200 µL of THF were mixed then added slowly into 6 mL of deionized water under fast stirring. The solutions were dialyzed against water for 2 days. Then, the solutions were passed through 0.45 μm filter membranes and stored in a brown bottle at 4 °C for further use. For biological application, the micelles were dialyzed again against HEPES solution for 2 days. The micelles formed from P1a, P1b, P1c, P2 and P3 were named as M1a, M1b, M1c, M2 and M3, respectively. The concentration of PtTFPP packed in micelles was detected by UV-Vis Absorption Spectra.

2.5. Critical Micelle Concentrations Determination of Block Polymers

As there is no luminescent group in these amphiphilic polymers, we used pyrene approach to determine the critical micelle concentrations (CMC) of the block copolymers. The fluorescence spectrum of pyrene has five peaks [33,34]. The intensity ratio of the first peak (373 nm) to the third peak (384 nm) will decrease with the decline of solution polarity. Thus, CMC was measured by mixing pyrene in different concentrations of polymer solutions, and the I373/I384 value will decrease to a constant when and the pyrene transferred from water to micelles, which means the formation of pyrene-containing micelles.

2.6. Quantum Efficiency Determination

Quantum efficiency measurement was carried out under nitrogen atmosphere. As is reported in former literature, quantum efficiency of PtTFPP in DCM is 0.088 [35]. Setting this value as a reference, we can calculate PtTFPP-containing micelles’ quantum efficiencies by using the emission intensity and absorbance of PtTFPP in micelles and in DCM, respectively (Equation (1)).
η s = η r ( A r A s ) ( I s I r ) ( n s 2 n r 2 ) .
In the Equation (1) [36], ηr is the quantum efficiency of PtTFPP in DCM; nr is the refractive index of DCM (nr = 1.424); ns is the refractive index of water (ns = 1.333); Ar and As indicate the absorbance of reference and samples respectively; Ir and Is indicate the phosphorescence intensities of reference and samples, respectively.

2.7. Response to Oxygen

Due to the special oxygen quenching property of PtTFPP, higher oxygen concentration results in lower emission intensity. A total of 3 mL of Micelle solution was placed in a quartz cell, oxygen concentration was adjusted by bubbling mixed gases of oxygen and nitrogen with various ratios into the micelle solutions. Emission spectra were measured under an excitation wavelength of 405 nm.

2.8. Response Time Measurement

Similar to the oxygen titration, we detected the dynamic relationship between phosphorescence intensity and time through phosphorescence spectra (excitation: 405 nm; emission: 650 nm). We defined the response time as the time corresponding to the intensity that 95% of the difference between maximum intensity and minimum intensity when the atmosphere switched between 100% oxygen and 100% nitrogen.

2.9. Phosphorescence Lifetime Determination

A Transient Absorption Spectrometer was used to measure the phosphorescence decay time of PtTFPP-containing micelles under air and nitrogen respectively.

2.10. E. coli Culture

E. coli JM109 was cultivated in Luria-Bertani (LB) medium at 37 °C under shaking. Through measuring the E. coli optical density (OD) value (from 0.1 to 1) at 600 nm by UV-Vis Absorption Spectrometer, the density of E. coli was obtained. OD600 of 1 equals to 5 × 108 cfu/mL. Appropriate densities were diluted with LB medium.
During toxicity measurement, several densities of E. coli were added into a 96-well plate. The micelles added into each well contained 10 μg/mL of PtTFPP. The wells without sensors were set as the control group. The experiment was executed through a plate reader at 37 °C with an oil seal. In another group of parallel experiments, 4 × 107 cfu/mL of E. coli was added to another 96-well plate, while different concentrations of the PtTFPP-containing micelles were added.
In the respiration detection, we also used a plate reader to collect the changes in phosphorescence intensity over time among different densities of E. coli. At the early stage of the experiment, the emission intensity will decrease due to the temperature equilibrating issue or temperature effect [26,27], so we stabilized the samples for 20 min before the detection.

2.11. Cell Culture

J774A.1 cells were cultured in a mixture medium containing 89.1% of Dulbecco’s modified eagle medium (DMEM) medium, 9.9% of fetal bovine serum (FBS) and 1% of penicillin-streptomycin. After being cultivated at 37 °C in 5% of CO2 incubator, cells were vaccinated on 96-well plates for toxicity and respiration experiments.
MCF-7 cells were cultured in the same medium as J774A.1. After being cultivated at 37 °C in 5% of CO2 incubator, MCF-7 cells were used for tumor formation in the animal experiment.

2.12. Mice Culture and In Vivo Imaging

Female Balb/c nude mice were purchased from Beijing Vital River Laboratory Animal Technology Co., Ltd. and fed in a Specific Pathogen Free (SPF) animal facility. A total of 100 μL of MCF-7 cells (1 × 107 cells/mL) were injected into the left hind leg of each Balb/c nude mouse. Two weeks after MCF-7 cells injection, tumor imaging was carried on through an In Vivo Imaging System. Before imaging, the PtTFPP-containing micelles were injected into the tumor and subcutis of mice, respectively.
The animal experiment followed the Guidelines for the Care and Use of Research Animals established by the Southern University of Science and Technology Laboratory Animal Center (SUSTC-JY2018078).

3. Results and Discussion

3.1. Design and Synthesis of Block Copolymers

A few kinds of 4-arm amphiphilic block copolymers were synthesized (Scheme 1). These amphiphilic block copolymers can form micelles for encapsulating hydrophobic PtTFPP into their micelles to enable the application of PtTFPP in aqueous conditions. Some studies revealed that the micelles formed from multi-arm block copolymers may exhibit more morphologies and assemblies than linear polymers [37,38] as well as better stability and longer in vivo cycle time [28,29]. Herein we explore whether these amphiphilic 4-arm block copolymers can be used for systemically studying structure-property relationships in the field of oxygen sensing and for cell metabolism related research. For understanding structure-property relationships, five block copolymers were synthesized. P1a, P1b, P1c, and P3 possess fluorine moieties. The side-chain of P3 possesses more fluorine units than those of P1 series. P2 does not contain fluorine moieties. Polymers with fluorine units are expected to have better compatibility with the hydrophobic fluorine-containing-PtTFPP to achieve high quantum efficiency and also for excellent sensitivity. Hydrophobic-hydrophilic ratios were also tuned to see whether these ratios have influences on photo-physical properties by using P1a, P1b, and P1c as three typical polymers. The block copolymers were synthesized by using ATRP—a kind of controlled living polymerization [39,40,41]. Through the tuning monomers and/or monomer/macroinitiator molar ratios, five different polymers were synthesized successfully. The polymers were characterized by using NMR and GPC. Their typical 1H NMR spectra and 19F NMR spectra were given in Figure 1, Supplementary Figures S1 and S2. Detailed data of these polymers were given in Table 1.

3.2. Critical Micelle Concentrations Determination

The CMC is an important factor for micelle formation and stability. CMCs of these polymers were determined by using the traditional Pyrene-encapsulation approach that we mentioned in the experiments section. Through the determination of pyrene’s aggregations in micelles by observing its excimer formation and ratios, CMCs were determined to be 5.7 to 10.5 µg/mL (Table 1), slightly affected by polymer structures. The ranges of CMC were comparable to some reported linear block copolymers [42], showing that these multi-arm bock copolymers’ micelles exhibit similar stability with other common linear block copolymers. Structure influences on the CMCs were observed. Longer hydrophobic segments induced slightly larger CMC as compared within the P1 series. Most likely, the length of PEG may uneasily stabilize the longer hydrophobic segments in P1 series, to result in higher CMC in higher molecular weight polymers.

3.3. Micelle Preparation and Their Photophysical Properties

The preparation of micelles was illustrated in Figure 2. The hydrophobic segments of the polymers formed micellar cores and the hydrophilic PEG segments formed hydrophilic shells to encapsulate the hydrophobic PtTFPP in the micellar cores. This approach enabled the application of PtTFPP in aqueous solutions.
The DLS was used to measure micelles diameters (Figure 3). Detailed data were given in Table 2. It was found that the micelles’ diameters were in the range of 122 to 163 nm. P1c has the lowest encapsulation efficiency for PtTFPP, although it has the highest molecular weights among the P1 series polymers. This might be due to the poor solubility of P1c in water with the longest hydrophobic chain. Additionally, the encapsulation efficiency for PtTFPP for all the three P1 series polymers is smaller than the polymers with polystyrene chains (P2) and longer alkyl chains with more fluorine units (P3), showing the polymer structures’ influence on sensing probes loading.
Quantum efficiencies of the PtTFPP molecules in these micelles could be achieved as high as 22.3% by using the fluorine-containing polymers P1 series. Among the five polymers, P2’s micelles without fluorine moieties possess the lowest quantum efficiency of 11.8%. This comparison indicates the advantage of the use of the fluorine-containing polymers for achieving high quantum efficiency of PtTFPP in aqueous solutions. This result was also supported by the long lifetime of the PtTFPP in fluorine-containing micelles (70–76 μs for P1a, P1b, P1c, and P3 under nitrogen, Table 2 and Figure S3), because of the high hydrophobicity and compatibility of the fluorine moieties in the hydrophobic side-chains with the fluorine-containing PtTFPP. Previous studies showed that the phosphorescence lifetime of a well-designed nano-metal organic framework (MOF) probe which contained Pt(II)-porphyrin ligand as an O2 sensitive part and Rhodamine B isothiocyanate ligand as an O2-insensitive part was 28.1 μs under deoxygenated atmosphere [43]; a conjugated Pdots with fluorescence resonance energy transfer (FRET) exhibited 33.7 μs phosphorescence lifetime under nitrogen [21]; and an intracellular nanoparticle probe composed of cationic polymer as shell and PtTFPP as core possessed 70 μs hypoxia phosphorescence lifetime attributed to the excellent loading property of the purchased polymer [44]. Lehner et al. reported an oxygen sensing device which embedded PtTFPP in a polymer matrix to improve the lifetime of PtTFPP to 90 µs, however, it is bulk material instead of nanoparticle [45]. Therefore, the lifetime in the range of 70–76 µs reported here is among the longest ones in the known literature, showing the advantage of the use of fluorine-containing multi-arm block copolymers. On the other hand, previously we reported that PtTFPP in micelles could achieve high quantum efficiency of 20–23%, however through FRET enhancement [27,30].
It is worth noting here that metalloporphyrin’s hydrophobicity results in their difficulty for application in water. Previous studies showed that water-soluble platinum porphyrins’ quantum efficiency was less than 1% in water [46]. Dendrimer’s approach was utilized to prevent the interaction of the platinum porphyrin units with water to achieve high quantum efficiency of 7.3% [47], however, dendrimers require long synthesis steps and a further purification process. Ruslan et al. reported the use of conjugated polymer nanoparticles to achieve high quantum yield of 18% of platinum porphyrin-derivatives [23].
Therefore, through the above discussion, this study showed the advantage of using fluorine-derived multi-arm amphiphilic block copolymers for transferring hydrophobic PtTFPP into aqueous system for oxygen sensing.

3.4. Oxygen Sensing Properties

The micelles’ response to oxygen was measured by adjusting the DO concentrations through the bubbling mixed oxygen and nitrogen into the micellar solutions. Figure 4A showed the representative oxygen responses by using the micelles formed from P3 and PtTFPP (M3) at 25 °C. It was found that with the increase of oxygen concentration, the emission intensity decreased. Since most biological application was carried out at 37 °C, the sensing response was also measured at 37 °C, and a similar phenomenon was observed (Figure S4). The responses followed the linear Stern-Volmer equation (Equation (2) and Figure 4B), where I0 is PtTFPP’s maximum intensity at 650 nm under nitrogen; I is the intensity at 650 nm under various DO concentrations, KSV is the Stern-Volmer constant, [O2] is the dissolved oxygen concentration.
I 0 I = 1 + K S V [ O 2 ] .
Similar to other oxygen sensors [48], the sensitivity at 37 °C was higher than that at 25 °C, because of the more interaction activity of the oxygen molecules with the probe of PtTFPP at higher temperature. The sensitivity (I0/I100) using the intensity ratio under nitrogen and oxygen was given in Table 2 also. It can be found that the sensitivity of the micelles with fluorine-containing polymers is higher than that of P2 without fluorine moieties, further exhibiting the suitableness and advantage of the fluorine-containing amphiphilic block copolymers as carriers for PtTFPP for sensing.
The lifetime of the PtTFPP in micelles was also evaluated briefly under air and hypoxia conditions, respectively. Figure S3E showed the representative changes of the P3 micelles, the lifetime of M3 was 18 μs under the air condition and 76 μs under the nitrogen condition (Table 2). Therefore, these PtTFPP-containing micelles formed from 4-arm fluoropolymers were suitable for long lifetime imaging which possesses high contrast, high sensitivity, no autofluorescence and no background interference [49].
Sensors’ response time was evaluated by alternating the oxygenated and deoxygenated conditions through the bubbling of nitrogen and oxygen into the solutions. Figure 5 showed the representative response time and reversibility test by using micelles M3. The response time from the deoxygenated condition to oxygenated condition at 95% equilibrium (t95) was 27 s, while the reverse one was 198 s (t95-r). The t95s for these micelles (27–34 s, Table 2) were generally in accordance with those of 24–34 s reported by using other micelles previously [26,27]. We also measured M3‘s response time with glucose oxidase (Figure S5). The result showed that when the activities of glucose oxidase (GOx) were 400, 100, 5, 2.5 and 1 U/mL, the times of that M3 required to reach maximum intensity were 6 s, 20 s, 50 s, 90 s, 350 s, respectively. Results showed that when the enzyme concentration is high enough, the response of M3 to oxygen consumption is very fast. The integration of the gas-equilibration and glucose-oxidation methods demonstrated that our sensor is sensitive to real-time oxygen concentration changes.

3.5. The Use of the Sensors for Monitoring Cellular Respiration

3.5.1. Monitoring the Oxygen Consumption during the Growth of E. coli and the Cytotoxicity Evaluation

M3 was added into the LB cell culture medium with different densities of E. coli JM109 cells to monitor the oxygen consumption during the cell growth. For accomplishing the experiment faster, a thin layer of mineral oil was added on the top of the LB medium to eliminate the exchange of oxygen in the medium with air. The contrast experiment without the use of mineral oil was also performed and experimental data were given in Figure S6. Figure 6A showed the time-dependent emission intensity changes with the use of mineral oil, respectively. Higher cells induced earlier phosphorescence intensity changes and reached emission maximum within a shorter time; while the phosphorescence intensity without E. coli was not increased. Figure 6B showed the corresponding oxygen concentration changes. E. coli with a higher density consumed oxygen faster, showing the capacity of the micelles for cell respiration monitoring.
Micelles’ potential cytotoxicity to E. coli was evaluated by monitoring cell density changes with and without sensors. Figure 7A gave the cell growth curve with a consistent PtTFPP concentration (10 μg/mL) at different E. coli densities. Figure 7B plotted the E. coli growth curve with a defined E. coli density but using various sensors concentrations. No E. coli growth inhibition was observed, showing the nontoxicity of the sensor to E. coli.

3.5.2. Monitoring Cell Respiration of J774A.1 Cells

We also extended the sensor’s application to mammalian cells by using J774A.1 as a representative cell line. Figure 8 showed the time and cell concentration-dependent emission intensity changes. Similar to the phenomenon of E. coli, higher cell numbers induced faster oxygen consumption. Cell cytotoxicity was evaluated by using 3-(4,5-dimethyl-2-thiazolyl)-2,5-diphenyl-2-H-tetrazolium bromide (MTT) assay (Figure 9). No obvious cell cytotoxicity was observed.

3.6. In Vivo Hypoxia Imaging

Besides the use of the sensors for in vitro studies, we explored whether the sensors are suitable for in vivo hypoxia imaging. The mouse was intratumorally injected 50 μL (contained 0.3 mg/mL of PtTFPP and 1.9 mg/mL of P3) of M3 (Figure S7 showed M3 injection did not influence the change trend of mice’s weight within 7 days, so M3 was nontoxic to tumor-bearing mice). After anesthesia, the phosphorescence image and intensity were gained by In Vivo Imaging System (Figure 10). Region of interest (ROI) 1 is the tumor region and ROI 2 is the normal region. It can be seen that the phosphorescence image at ROI 1 is much brighter. The phosphorescence intensity from ROI 1 is 1.6 times higher than that of ROI 2. This result demonstrated that the phosphorescence signal from oxygen sensors at the hypoxia site is stronger than the normal sites, indicating the sensors can be used for tumor diagnosis and imaging because the oxygen concentration at tumor sites are often under the hypoxia situation [50]. Moreover, the phosphorescence imaging lasted for at least 10 min without obvious decay of the phosphorescence signal after M3 injection (Figure S8), indicating that the PtTFPP possessed excellent in vivo stability and strong phosphorescence signal after being encapsulated by P3. Thus, the sensors reported here might be capable for in vivo tumor imaging. It is expected that the further use of the sensors can be extended to measure the intravascular oxygen contents, which will be more instructive to cancer prevention and cancer clinical analysis.

4. Conclusions

Five amphiphilic multi-arm block polymers were synthesized successfully and used to encapsulate the hydrophobic oxygen probe PtTFPP in their micelles. This method enabled the use of PtTFPP in the biological environment. Further, high quantum efficiency as high as 22.3% and/or long lifetime as long as 76 µs of the PtTFPP molecules in micelles under nitrogen were achieved without chemical modification of the PtTFPP. Structure influences on photophysical properties were observed among the five polymers. The results showed that the fluorine-containing micelles exhibit greater oxygen sensitivity and longer phosphorescence lifetime than the micelles formed from the fluorine-free block copolymers due to the synergy of fluorine moieties. Representative micelles M3 formed from P3 and PtTFPP were used for the monitoring of E. coli JM109 and macrophage J774A.1. cells’ respiration. Hypoxic tumor imaging of Balb/c nude mice was carried out successfully by using micelles M3. An obvious difference was found between the tumor and normal region because of the hypoxia condition in the tumor site. This study reported new oxygen sensors, elucidated structure influences on the photophysical properties of PtTFPP and oxygen sensing properties, and demonstrated the real-time monitoring cell respiration and in vivo hypoxia imaging at tumor sites. It is expected that this approach can be extended to other sensors and imaging probes for new multifunctional materials for further applications in clinical diagnoses and cancer therapy by taking the advantages of the materials’ biocompatibility, nontoxicity, non-invasive measurements, and long phosphorescence lifetime.

Supplementary Materials

The following are available online at https://www.mdpi.com/1424-8220/18/11/3752/s1, Figures S1–S8: title.

Author Contributions

J.L. designed and performed most of the experiments, and wrote the draft; Y.Q. and T.P. helped with some cell respiration measurements; K.Z. and J.W. participated in some oxygen titration experiments; S.W. and F.S. participated in the discussions; Y.T. revised this manuscript and guided the design and discussion.

Funding

This research was funded by the National Natural Science Foundation of China (21574061, 21604036, 21774054), Special Funds for Shenzhen’s Scientific and Technological Innovation (Grant No. GRCK2017042410542096), Student’s Platform for Innovation and Entrepreneurship Training Program (Grant No. 2018S11), and the High-Level university construction fund for SUSTech (G01256018).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Vaupel, P.; Hoeckel, M.; Mayer, A. Detection and characterization of tumor hypoxia using PO2 histography. Antioxid. Redox Signal. 2007, 9, 1221–1235. [Google Scholar] [CrossRef] [PubMed]
  2. Iwai, T.; Obara, K.; Ito, C.; Furukawa, H.; Oka, J.-I. Hydroxyobtustyrene protects neuronal cells from chemical hypoxia-induced cell death. J. Nat. Med. 2018, 72, 915–921. [Google Scholar] [CrossRef] [PubMed]
  3. Koehler, U.; Hildebrandt, O.; Kroenig, J.; Grimm, W.; Otto, J.; Hildebrandt, W.; Kinscherf, R. Chronic hypoxia and cardiovascular risk. Clinical significance of different forms of hypoxia. Herz 2018, 43, 291–297. [Google Scholar] [CrossRef] [PubMed]
  4. Schramm, A.; Grunewald, S.; Lorenz, R.; Classen, J.; Naumann, M. Parkinsonism due to bilateral basal ganglia lesions following mastocytosis-induced hypoxia. J. Neurol. 2004, 251, 1270–1272. [Google Scholar] [CrossRef] [PubMed]
  5. Salminen, A.; Kauppinen, M.; Kaamiranta, K. Hypoxia/ischemia activate processing of amyloid precursor protein: Impact of vascular dysfunction in the pathogenesis of Alzheimer’s disease. J. Neurochem. 2017, 140, 536–549. [Google Scholar] [CrossRef] [PubMed]
  6. Thienpont, B.; Steinbacher, J.; Zhao, H.; D’Anna, F.; Kuchnio, A.; Ploumakis, A.; Ghesquiere, B.; Van Dyck, L.; Boeckx, B.; Schoonjans, L.; et al. Tumour hypoxia causes DNA hyper-methylation by reducing TET activity. Nature 2016, 537, 63–68. [Google Scholar] [CrossRef] [PubMed]
  7. Sun, X.; He, G.; Qing, H.; Zhou, W.; Dobie, F.; Cai, F.; Staufenbiel, M.; Huang, L.E.; Song, W. Hypoxia facilitates Alzheimer’s disease pathogenesis by up-regulating BACE1 gene expression. Proc. Natl. Acad. Sci. USA 2006, 103, 18727–18732. [Google Scholar] [CrossRef] [PubMed]
  8. Semenza, G.L. Oxygen sensing, hypoxia-inducible factors, and disease pathophysiology. Annu. Rev. Pathol. Mech. Dis. 2014, 9, 47–71. [Google Scholar] [CrossRef] [PubMed]
  9. Giaccia, A.J.; Simon, M.C.; Johnson, R. The biology of hypoxia: The role of oxygen sensing in development, normal function, and disease. Genes Dev. 2004, 18, 2183–2194. [Google Scholar] [CrossRef] [PubMed]
  10. Kinoshita, K. Electrochemical Oxygen Technology; Wiley: New York, NY, USA, 1992. [Google Scholar]
  11. Winkler, L.W. Die bestimmung des im wasser gelösten sauerstoffes. Eur. J. Inorg. Chem. 1888, 21, 2843–2854. [Google Scholar] [CrossRef]
  12. Han, B.H.; Manners, I.; Winnik, M.A. Phosphorescence quenching of dyes adsorbed to silica thin-layer chromatography plates. Anal. Chem. 2005, 77, 8075–8085. [Google Scholar] [CrossRef] [PubMed]
  13. Moos, R. Solid State Gas Sensors–Industrial Application; Fleischer, M., Lehmann, M., Eds.; Springer: Berlin/Heidelberg, Germany, 2011; pp. 173–188. [Google Scholar]
  14. Wang, X.; Wolfbeis, O.S. Optical methods for sensing and imaging oxygen: Materials, spectroscopies and applications. Chem. Soc. Rev. 2014, 43, 3666–3761. [Google Scholar] [CrossRef] [PubMed]
  15. Yoshihara, T.; Hirakawa, Y.; Hosaka, M.; Nangaku, M.; Tobita, S. Oxygen imaging of living cells and tissues using luminescent molecular probes. J. Photochem. Photobiol. C 2017, 30, 71–95. [Google Scholar] [CrossRef]
  16. Pereira, N.A.M.; Laranjo, M.; Casalta-Lopes, J.; Serra, A.C.; Pineiro, M.; Pina, J.; Sergio Seixas de Melo, J.; Senge, M.O.; Botelho, F.M.; Martelo, L.; et al. Platinum (II) ring-fused chlorins as near-infrared emitting oxygen sensors and photodynamic agents. ACS Med. Chem. Lett. 2017, 8, 310–315. [Google Scholar] [CrossRef] [PubMed]
  17. Zeng, Y.; Liu, Y.; Shang, J.; Ma, J.; Wang, R.; Deng, L.; Guo, Y.; Zhong, F.; Bai, M.; Zhang, S.; et al. Phosphorescence monitoring of hypoxic microenvironment in solid-tumors to evaluate chemotherapeutic effects using the hypoxia-sensitive Iridium (III) coordination compound. PLoS ONE 2015, 10, e0121293. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Eastwood, D.; Gouterma, M. Porphyrins XVIII luminescence of (Co), (Ni), Pd, Pt complexes. J. Mol. Spectrosc. 1970, 35, 359–375. [Google Scholar] [CrossRef]
  19. Sun, K.; Tang, Y.; Li, Q.; Yin, S.; Qin, W.; Yu, J.; Chiu, D.T.; Liu, Y.; Yuan, Z.; Zhang, X.; et al. In vivo dynamic monitoring of small molecules with implantable polymer-dot transducer. ACS Nano 2016, 10, 6769–6781. [Google Scholar] [CrossRef] [PubMed]
  20. Sakadzic, S.; Roussakis, E.; Yaseen, M.A.; Mandeville, E.T.; Srinivasan, V.J.; Arai, K.; Ruvinskaya, S.; Devor, A.; Lo, E.H.; Vinogradov, S.A.; et al. Two-photon high-resolution measurement of partial pressure of oxygen in cerebral vasculature and tissue. Nat. Methods 2010, 7, 755–759. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Zhao, Q.; Zhou, X.; Cao, T.; Zhang, K.Y.; Yang, L.; Liu, S.; Liang, H.; Yang, H.; Li, F.; Huang, W. Fluorescent/phosphorescent dual-emissive conjugated polymer dots for hypoxia bioimaging. Chem. Sci. 2015, 6, 1825–1831. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Shi, H.; Ma, X.; Zhao, Q.; Liu, B.; Qu, Q.; An, Z.; Zhao, Y.; Huang, W. Ultrasmall phosphorescent polymer dots for ratiometric oxygen sensing and photodynamic cancer therapy. Adv. Funct. Mater. 2014, 24, 4823–4830. [Google Scholar] [CrossRef]
  23. Dmitriev, R.I.; Borisov, S.M.; Duessmann, H.; Sun, S.; Mueller, B.J.; Prehn, J.; Baklaushev, V.P.; Klimant, I.; Papkovsky, D.B. Versatile conjugated polymer nanoparticles for high-resolution O2 imaging in cells and 3D tissue models. ACS Nano 2015, 9, 5275–5288. [Google Scholar] [CrossRef] [PubMed]
  24. Lemon, C.M.; Karnas, E.; Han, X.; Bruns, O.T.; Kempa, T.J.; Fukumura, D.; Bawendi, M.G.; Jain, R.K.; Duda, D.G.; Nocera, D.G. Micelle-encapsulated quantum dot-porphyrin assemblies as in vivo two-photon oxygen sensors. J. Am. Chem. Soc. 2015, 137, 9832–9842. [Google Scholar] [CrossRef] [PubMed]
  25. Su, F.; Alam, R.; Mei, Q.; Tian, Y.; Youngbull, C.; Johnson, R.H.; Meldrum, D.R. Nanostructured oxygen sensor–using micelles to incorporate a hydrophobic platinum porphyrin. PLoS ONE 2012, 7, e33390. [Google Scholar] [CrossRef] [PubMed]
  26. Zou, X.; Pan, T.; Jiang, J.; Li, G.; Song, C.; Sun, R.; Yang, Z.; Sun, D.; Hou, C.; Chen, M.; et al. Poly(epsilon-caprolactone)-containing graft copolymers for ratiometric extracellular oxygen sensing. Sens. Actuator B Chem. 2017, 248, 108–118. [Google Scholar] [CrossRef]
  27. Zhao, Q.; Pan, T.; Xiang, G.; Mei, Z.; Jiang, J.; Li, G.; Zou, X.; Chen, M.; Sun, D.; Jiang, S.; et al. Highly efficient ratiometric extracellular oxygen sensors through physical incorporation of a conjugated polymer and PtTFPP in graft copolymers. Sens. Actuator B Chem. 2018, 273, 242–252. [Google Scholar] [CrossRef]
  28. Matyjaszewski, K.; Miller, P.J.; Pyun, J.; Kickelbick, G.; Diamanti, S. Synthesis and characterization of star polymers with varying arm number, length, and composition from organic and hybrid inorganic/organic multifunctional initiators. Macromolecules 1999, 32, 6526–6535. [Google Scholar] [CrossRef]
  29. Ren, J.M.; McKenzie, T.G.; Fu, Q.; Wong, E.H.H.; Xu, J.; An, Z.; Shanmugam, S.; Davis, T.P.; Boyer, C.; Qiao, G.G. Star Polymers. Chem. Rev. 2016, 116, 6743–6836. [Google Scholar] [CrossRef] [PubMed]
  30. Liu, G.; Fan, W.; Li, L.; Chu, P.K.; Yeung, K.W.K.; Wu, S.; Xu, Z. Novel anionic fluorine-containing amphiphilic self-assembly polymer micelles for potential application in protein drug carrier. J. Fluor. Chem. 2012, 141, 21–28. [Google Scholar] [CrossRef]
  31. Westbrook, A.W.; Ren, X.; Moo-Young, M.; Chou, C.P. Application of hydrocarbon and perfluorocarbon oxygen vectors to enhance heterologous production of hyaluronic acid in engineered bacillus subtilis. Biotechnol. Bioeng. 2018, 115, 1239–1252. [Google Scholar] [CrossRef] [PubMed]
  32. Lee, W.W.S.; Wong, K.Y.; Li, X.M.; Leung, Y.B.; Chan, C.S.; Chan, K.S. Halogenated platinum porphyrins as sensing materials for luminescence-based oxygen sensors. J. Mater. Chem. 1993, 3, 1031–1035. [Google Scholar] [CrossRef]
  33. Rosen, M.J.; Mathias, J.H.; Davenport, L. Aberrant aggregation behavior in cationic gemini surfactants investigated by surface tension, interfacial tension, and fluorescence methods. Langmuir 1999, 15, 7340–7346. [Google Scholar] [CrossRef]
  34. Chen, C.-Y.; Kim, T.H.; Wu, W.-C.; Huang, C.-M.; Wei, H.; Mount, C.W.; Tian, Y.; Jang, S.-H.; Pun, S.H.; Jen, A.K.Y. pH-dependent, thermosensitive polymeric nanocarriers for drug delivery to solid tumors. Biomaterials 2013, 34, 4501–4509. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Lai, S.W.; Hou, Y.J.; Che, C.M.; Pang, H.L.; Wong, K.Y.; Chang, C.K.; Zhu, N.Y. Electronic spectroscopy, photophysical properties, and emission quenching studies of an oxidatively robust perfluorinated platinum porphyrin. Inorg. Chem. 2004, 43, 3724–3732. [Google Scholar] [CrossRef] [PubMed]
  36. Joshi, H.S.; Jamshidi, R.; Tor, Y. Conjugated 1,10-phenanthrolines as tunable fluorophores. Angew. Chem. Int. Ed. 1999, 38, 2722–2725. [Google Scholar] [CrossRef]
  37. Khanna, K.; Varshney, S.; Kakkar, A. Miktoarm star polymers: Advances in synthesis, self-assembly, and applications. Polym. Chem. 2010, 1, 1171–1185. [Google Scholar] [CrossRef]
  38. Ge, Z.; Liu, S. Supramolecular self-assembly of nonlinear amphiphilic and double hydrophilic block copolymers in aqueous solutions. Macromol. Rapid Commun. 2009, 30, 1523–1532. [Google Scholar] [CrossRef] [PubMed]
  39. Matyjaszewski, K. Atom transfer radical polymerization (ATRP): Current status and future perspectives. Macromolecules 2012, 45, 4015–4039. [Google Scholar] [CrossRef]
  40. Palmiero, U.C.; Sponchioni, M.; Manfredini, N.; Maraldi, M.; Moscatelli, D. Strategies to combine ROP with ATRP or RAFT polymerization for the synthesis of biodegradable polymeric nanoparticles for biomedical applications. Polym. Chem. 2018, 9, 4084–4099. [Google Scholar] [CrossRef]
  41. Boyer, C.; Corrigan, N.A.; Jung, K.; Diep, N.; Thuy-Khanh, N.; Adnan, N.N.M.; Oliver, S.; Shanmugam, S.; Yeow, J. Copper-mediated living radical polymerization (atom transfer radical polymerization and copper (0) mediated polymerization): From fundamentals to bioapplications. Chem. Rev. 2016, 116, 1803–1949. [Google Scholar] [CrossRef] [PubMed]
  42. Jones, M.C.; Leroux, J.C. Polymeric micelles—A new generation of colloidal drug carriers. Eur. J. Pharm. Biopharm. 1999, 48, 101–111. [Google Scholar] [CrossRef]
  43. Xu, R.; Wang, Y.; Duan, X.; Lu, K.; Micheroni, D.; Hu, A.; Lin, W. Nanoscale Metal-organic frameworks for ratiometric oxygen sensing in live cells. J. Am. Chem. Soc. 2016, 138, 2158–2161. [Google Scholar] [CrossRef] [PubMed]
  44. Fercher, A.; Borisov, S.M.; Zhdanov, A.V.; Klimant, I.; Papkovsky, D.B. Intracellular O2 sensing probe based on cell-penetrating phosphorescent nanoparticles. ACS Nano 2011, 5, 5499–5508. [Google Scholar] [CrossRef] [PubMed]
  45. Lehner, P.; Larndorfer, C.; Garcia-Robledo, E.; Larsen, M.; Borisov, S.M.; Revsbech, N.-P.; Glud, R.N.; Canfield, D.E.; Klimant, I. LUMOS—A Sensitive and Reliable Optode System for Measuring Dissolved Oxygen in the Nanomolar Range. PLoS ONE 2015, 10, e0128125. [Google Scholar] [CrossRef] [PubMed]
  46. O’Riordan, T.C.; Fitzgerald, K.; Ponomarev, G.V.; Mackrill, J.; Hynes, J.; Taylor, C.; Papkovsky, D.B. Sensing intracellular oxygen using near-infrared phosphorescent probes and live-cell fluorescence imaging. Am. J. Physiol.-Reg. Integr. Comp. Physiol. 2007, 292, R1613–R1620. [Google Scholar] [CrossRef] [PubMed]
  47. Esipova, T.V.; Karagodov, A.; Miller, J.; Wilson, D.F.; Busch, T.M.; Vinogradov, S.A. Two new “protected” oxyphors for biological oximetry: Properties and application in tumor imaging. Anal. Chem. 2011, 83, 8756–8765. [Google Scholar] [CrossRef] [PubMed]
  48. Tian, Y.; Shumway, B.R.; Meldrum, D.R. A new cross-linkable oxygen sensor covalently bonded into poly(2-hydroxyethyl methacrylate)-co-polyacrylamide thin film for dissolved oxygen sensing. Chem. Mater. 2010, 22, 2069–2078. [Google Scholar] [CrossRef] [PubMed]
  49. Baggaley, E.; Botchway, S.W.; Haycock, J.W.; Morris, H.; Sazanovich, I.V.; Williams, J.A.G.; Weinstein, J.A. Long-lived metal complexes open up microsecond lifetime imaging microscopy under multiphoton excitation: From FLIM to PLIM and beyond. Chem. Sci. 2014, 5, 879–886. [Google Scholar] [CrossRef]
  50. Vaupel, P.; Harrison, L. Tumor hypoxia: Causative factors, compensatory mechanisms, and cellular response. Oncologist 2004, 9, 4–9. [Google Scholar] [CrossRef] [PubMed]
Sensors 18 03752 sch001 550

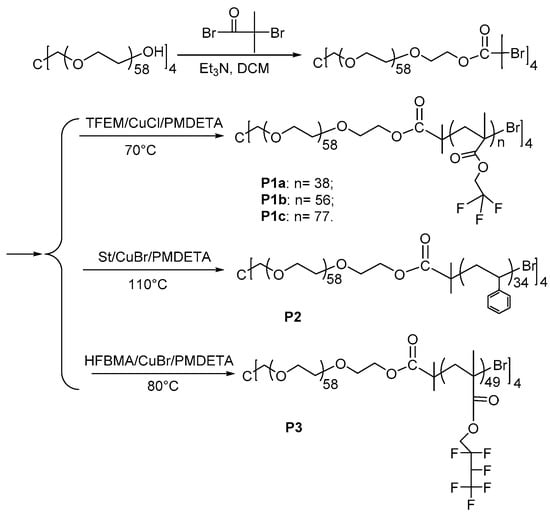

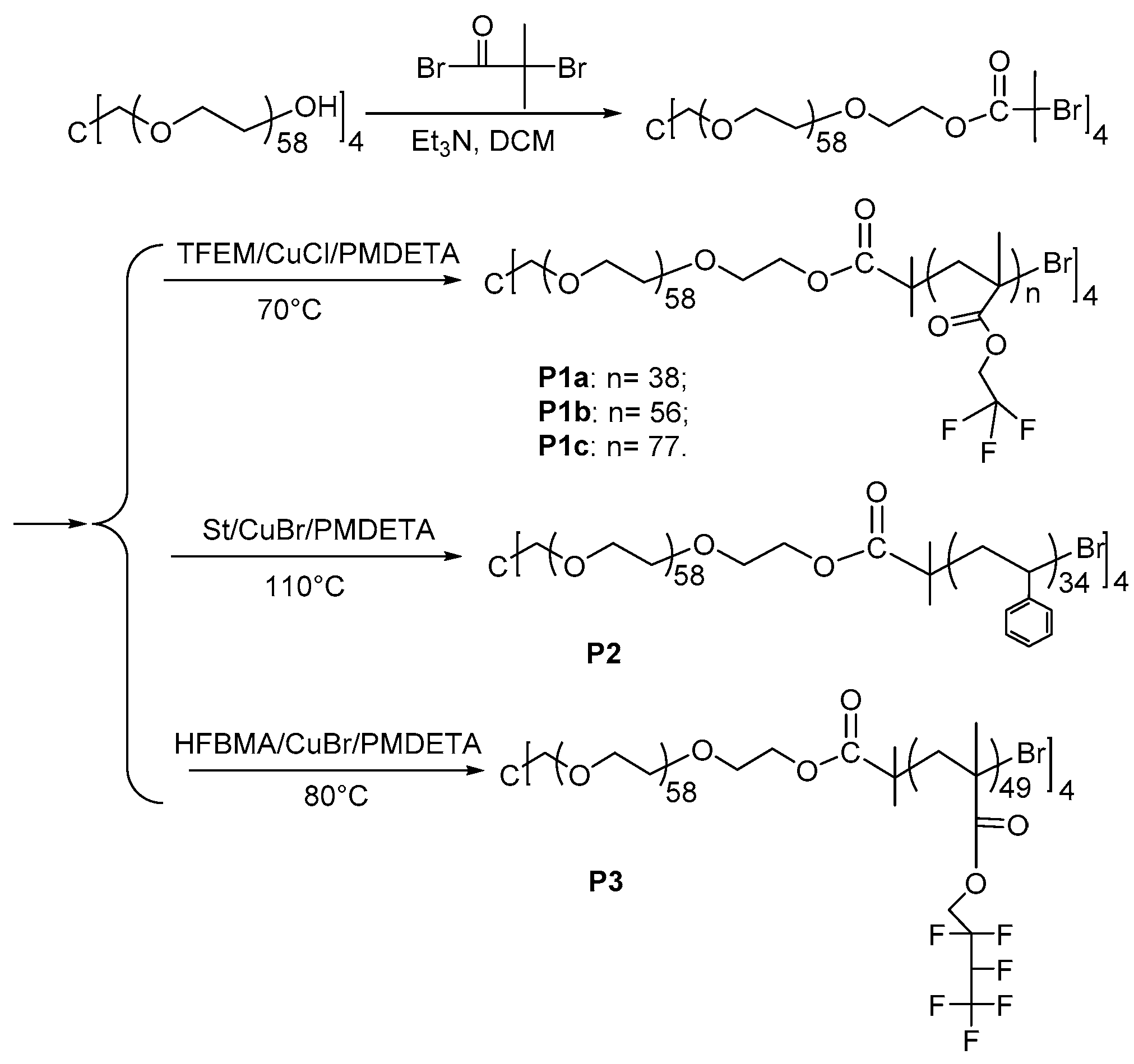

Scheme 1. Synthesis of 4-arm-PEG- Br macroinitiator and its star block copolymers.
Scheme 1. Synthesis of 4-arm-PEG- Br macroinitiator and its star block copolymers.
Sensors 18 03752 sch001
Sensors 18 03752 g001 550

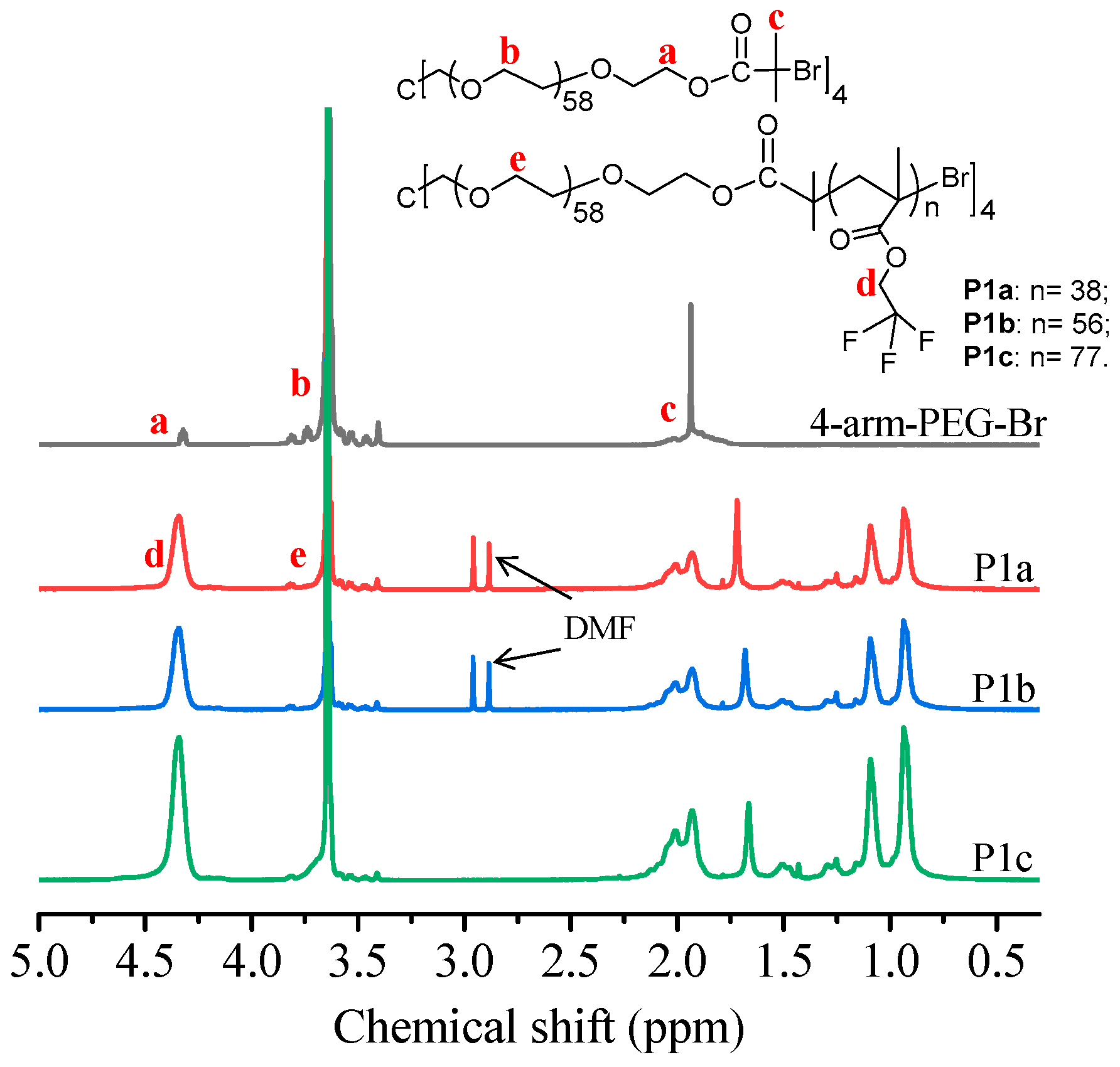

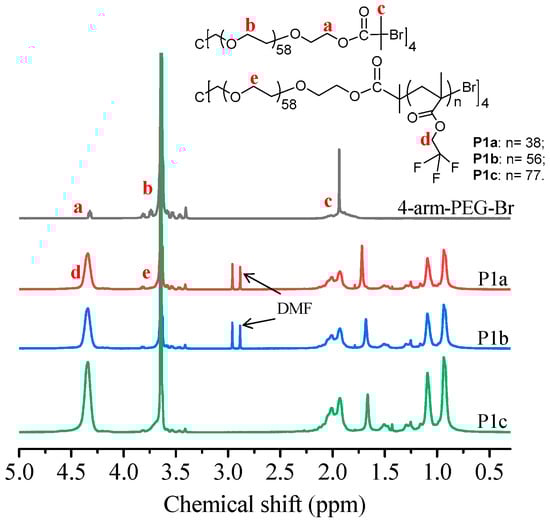

Figure 1. 1H NMR spectra of 4-arm-PEG-Br, P1a, P1b, and P1c.
Figure 1. 1H NMR spectra of 4-arm-PEG-Br, P1a, P1b, and P1c.
Sensors 18 03752 g001
Sensors 18 03752 g002 550

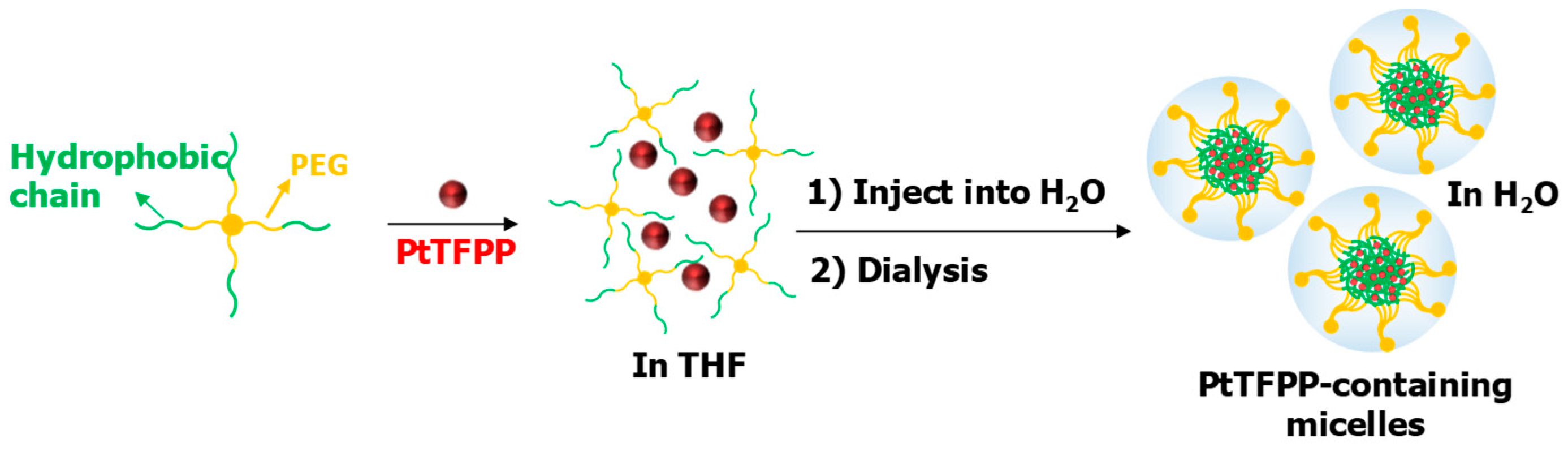

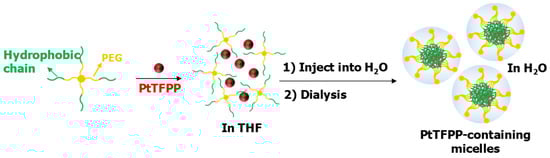

Figure 2. The preparation process of micelles.
Figure 2. The preparation process of micelles.
Sensors 18 03752 g002
Sensors 18 03752 g003 550

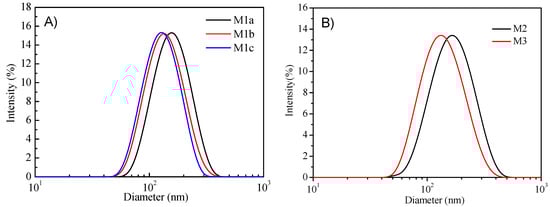

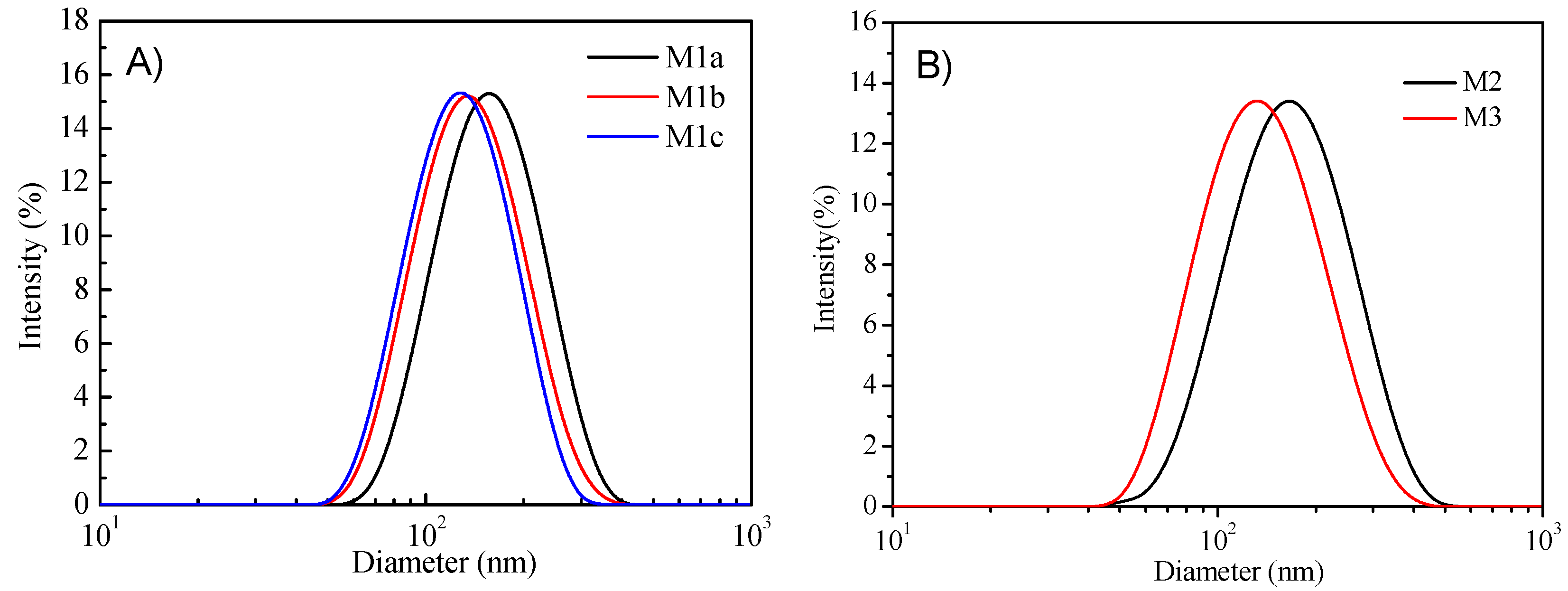

Figure 3. Dynamic light scattering (DLS) results of the PtTFPP-containing micelles: M1b, M1c (A) and M2, M3 (B).
Figure 3. Dynamic light scattering (DLS) results of the PtTFPP-containing micelles: M1b, M1c (A) and M2, M3 (B).
Sensors 18 03752 g003
Sensors 18 03752 g004 550

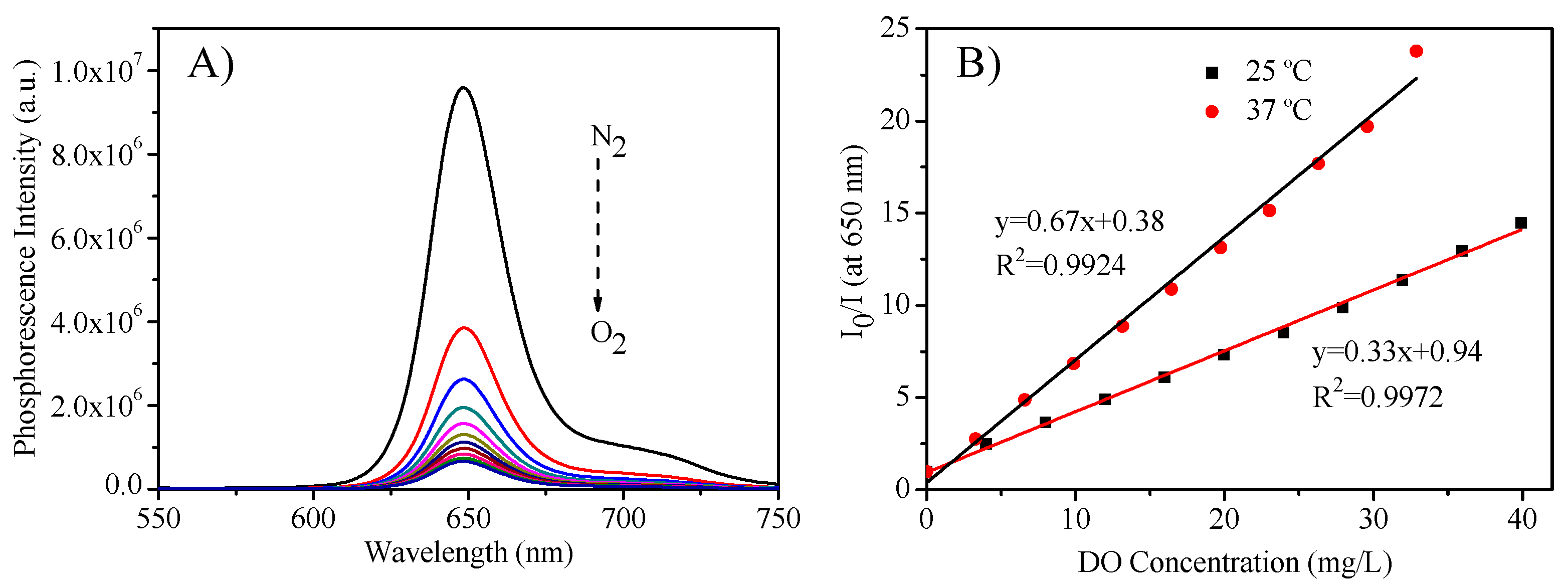

Figure 4. (A): Oxygen responses of M3 at 25 °C; (B): Stern-Volmer plot of M3 to oxygen at 25 °C and 37 °C. I0 is PtTFPP maximum phosphorescence intensity at 650 nm under hypoxia condition; I is the intensity at 650 nm under various dissolved oxygen (DO) concentrations.
Figure 4. (A): Oxygen responses of M3 at 25 °C; (B): Stern-Volmer plot of M3 to oxygen at 25 °C and 37 °C. I0 is PtTFPP maximum phosphorescence intensity at 650 nm under hypoxia condition; I is the intensity at 650 nm under various dissolved oxygen (DO) concentrations.
Sensors 18 03752 g004
Sensors 18 03752 g005 550

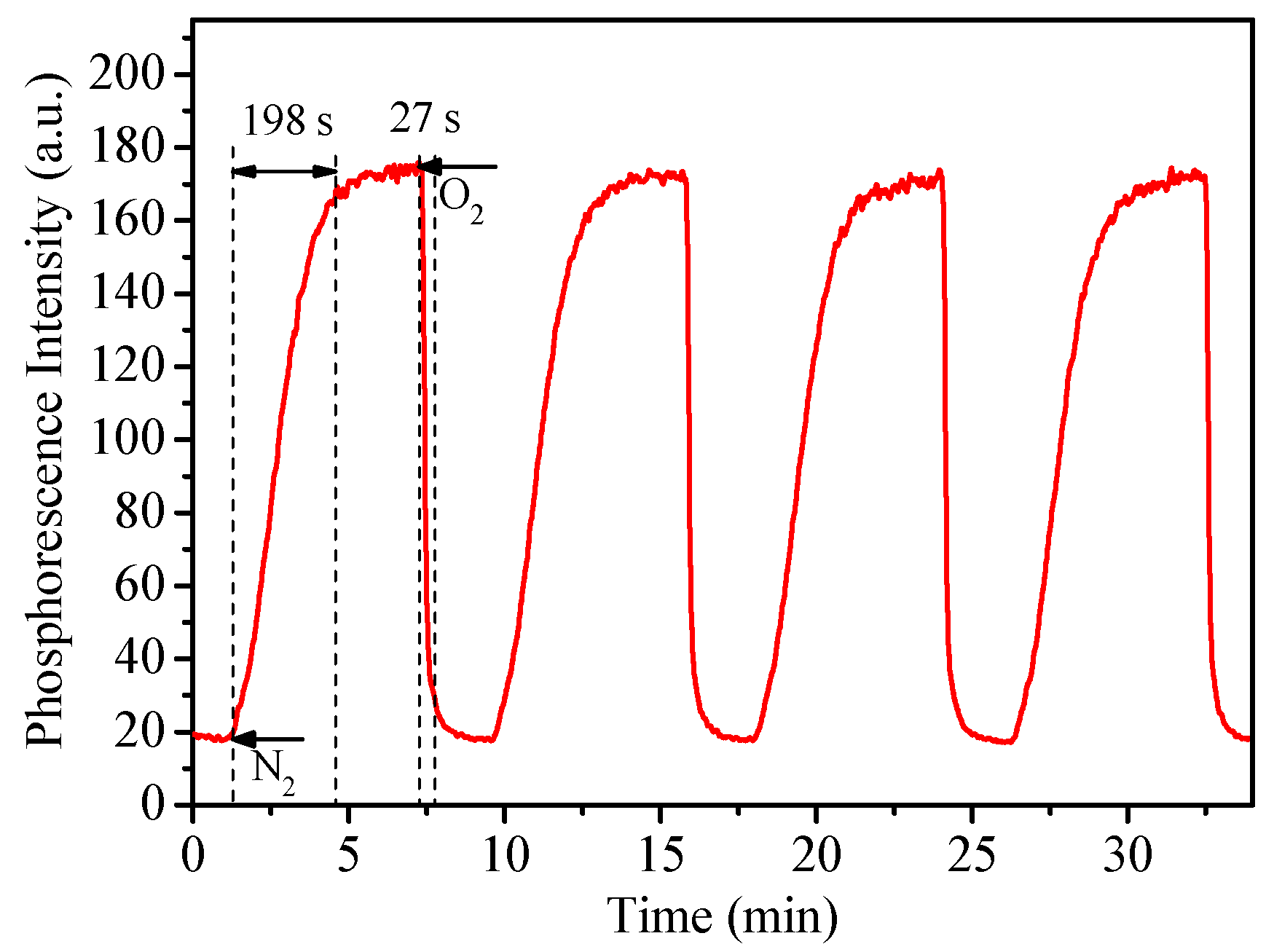

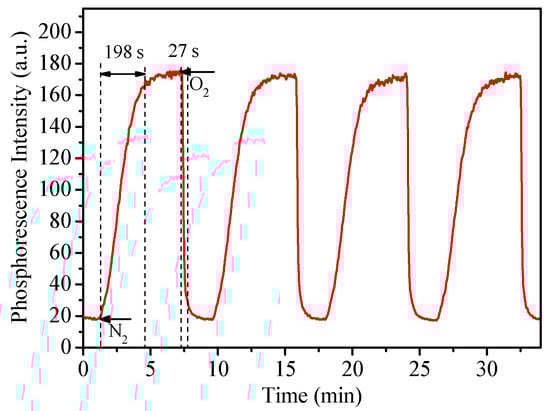

Figure 5. Dynamic phosphorescence intensity curve of M3 when the atmosphere switches between 100% of oxygen and 100% of nitrogen.
Figure 5. Dynamic phosphorescence intensity curve of M3 when the atmosphere switches between 100% of oxygen and 100% of nitrogen.
Sensors 18 03752 g005
Sensors 18 03752 g006 550

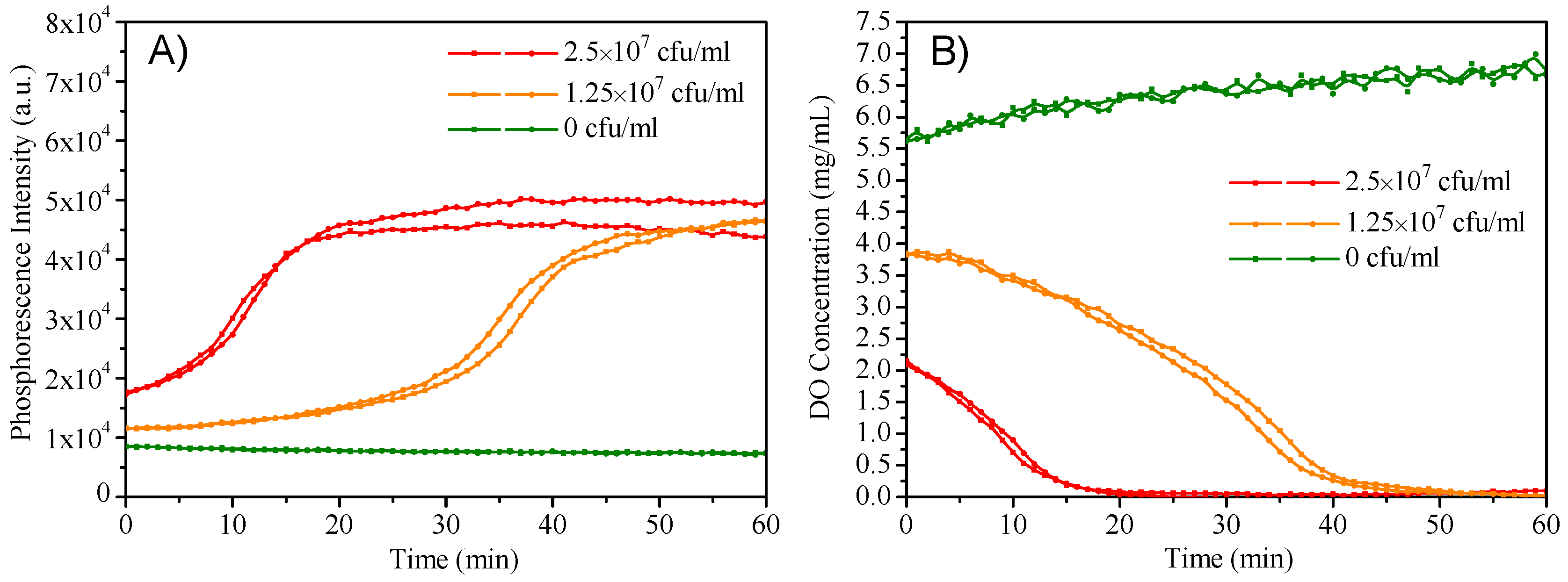

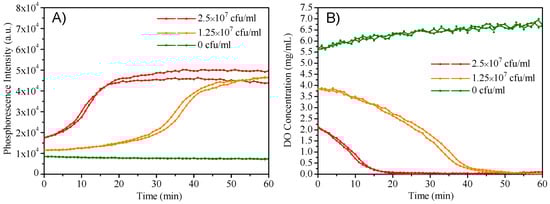

Figure 6. (A): Dynamic phosphorescence intensity curve of M3 measured by plate reader to determine the E. coli respiration. (B): Extracellular oxygen consumption by E. coli.
Figure 6. (A): Dynamic phosphorescence intensity curve of M3 measured by plate reader to determine the E. coli respiration. (B): Extracellular oxygen consumption by E. coli.
Sensors 18 03752 g006
Sensors 18 03752 g007 550

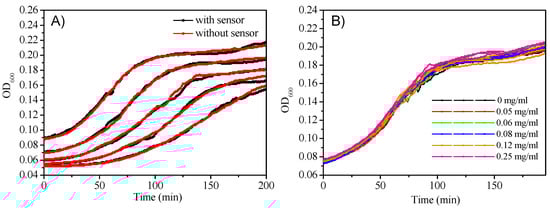

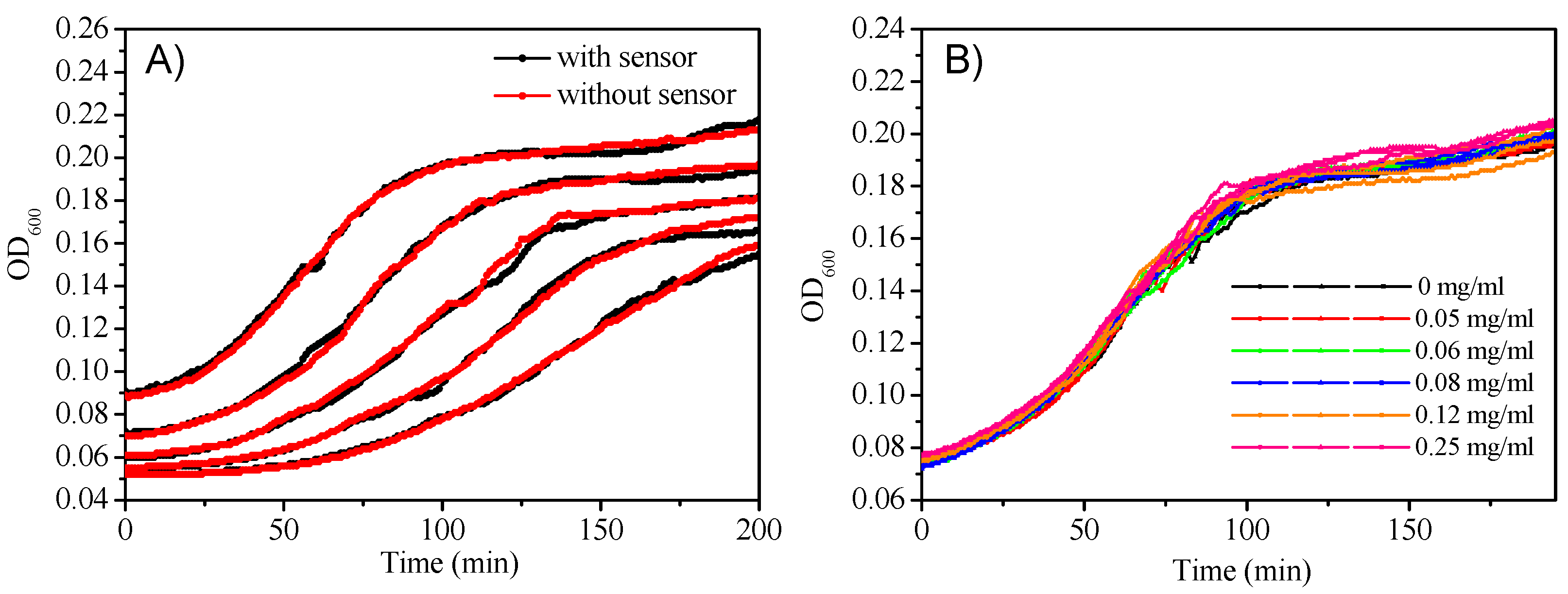

Figure 7. (A): Cell growth of E. coli with and without M3 monitored by OD600; (B): Cell growth of E. coli with a consistent of cell density however different concentrations of M3 monitored by OD600.
Figure 7. (A): Cell growth of E. coli with and without M3 monitored by OD600; (B): Cell growth of E. coli with a consistent of cell density however different concentrations of M3 monitored by OD600.
Sensors 18 03752 g007
Sensors 18 03752 g008 550

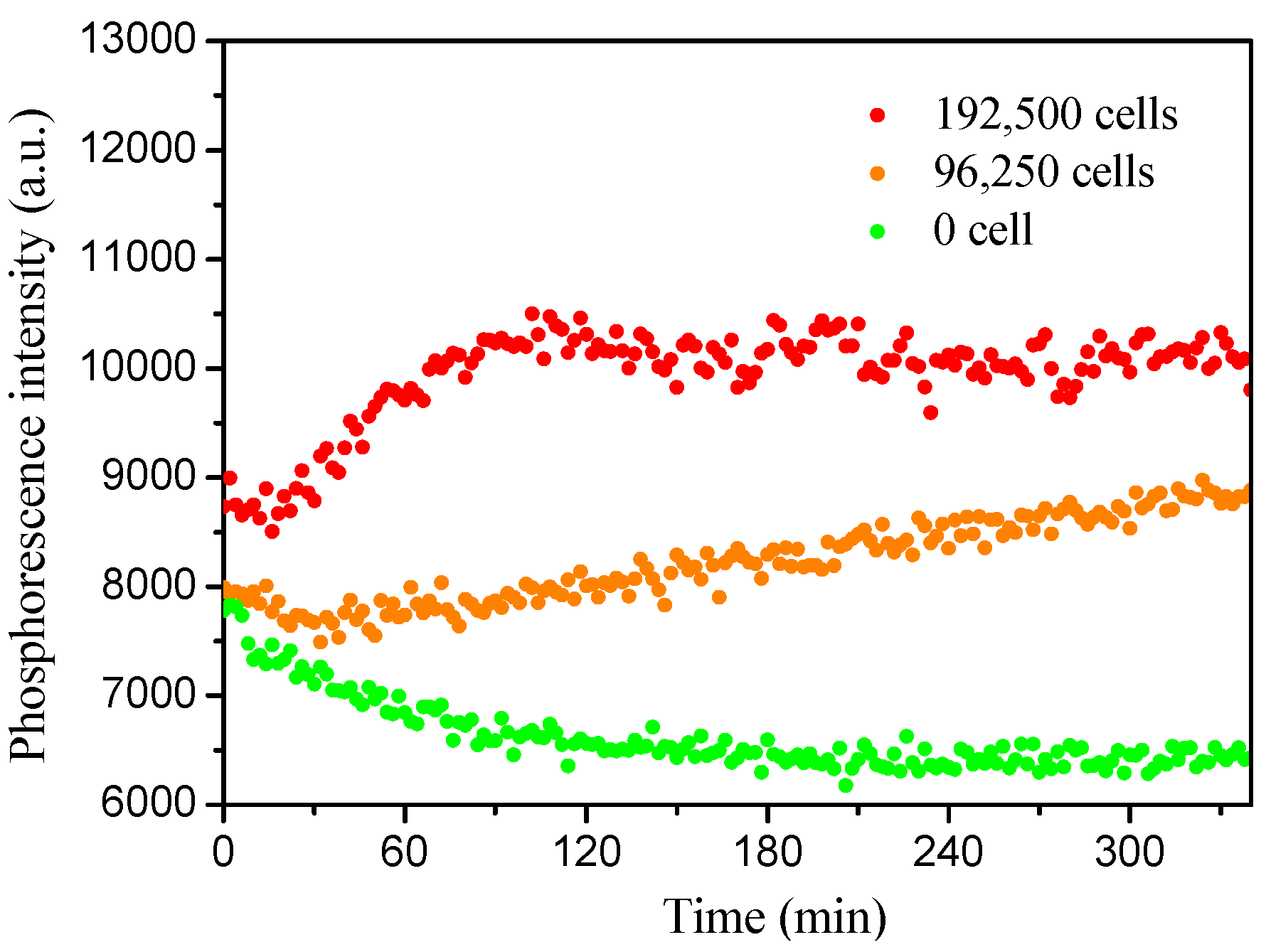

Figure 8. Cell respiration measurements of macrophages J774A.1 cells. Each well contained 10 μg/mL of PtTFPP in M3 and was sealed with mineral oil. The phosphorescence intensity (excitation: 405 nm, emission: 650 nm) was measured by a plate reader at 37 °C.
Figure 8. Cell respiration measurements of macrophages J774A.1 cells. Each well contained 10 μg/mL of PtTFPP in M3 and was sealed with mineral oil. The phosphorescence intensity (excitation: 405 nm, emission: 650 nm) was measured by a plate reader at 37 °C.
Sensors 18 03752 g008
Sensors 18 03752 g009 550

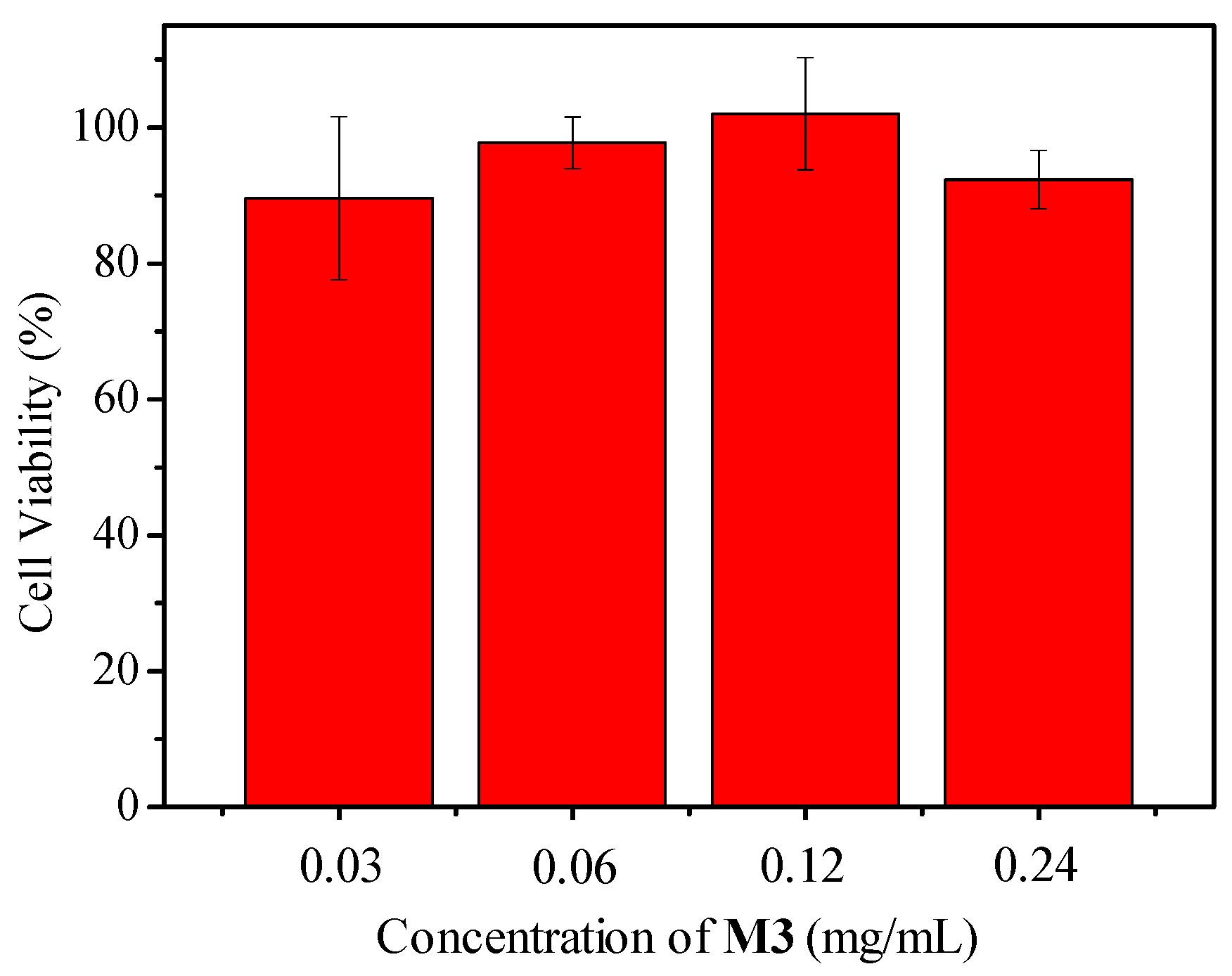

Figure 9. Viability of J774A.1 cells to different M3 concentrations (0.24 mg/mL of M3 contained 0.04 mg/mL of PtTFPP) after 24 h cell internalization measured by MTT assay. Initial cell concentration was 10,000 cells per well in a 96 well plate. Each measurement was repeated five times.
Figure 9. Viability of J774A.1 cells to different M3 concentrations (0.24 mg/mL of M3 contained 0.04 mg/mL of PtTFPP) after 24 h cell internalization measured by MTT assay. Initial cell concentration was 10,000 cells per well in a 96 well plate. Each measurement was repeated five times.
Sensors 18 03752 g009
Sensors 18 03752 g010 550
Figure 10. In vivo imaging of a tumor-bearing nude mouse after injection of M3, collocating with a bandpass filter (excitation: 430 ± 15 nm, emission: 640 ± 10 nm). ROI 1 was tumor and ROI 2 was normal skin.
Figure 10. In vivo imaging of a tumor-bearing nude mouse after injection of M3, collocating with a bandpass filter (excitation: 430 ± 15 nm, emission: 640 ± 10 nm). ROI 1 was tumor and ROI 2 was normal skin.
Sensors 18 03752 g010
Table
Table 1. Yields, conversions and characters of the star polymers.
Table 1. Yields, conversions and characters of the star polymers.
Yield (%)Conv. (%)Mn(NMR)Mn(GPC)Mw/MnCMC (μg/mL)
4-arm-PEG-Br79-10,94039601.1-
P1a507633,79053401.36.9
P1b445645,88076501.28.8
P1c405162,68010,7101.310.5
P2263424,78062801.25.7
P3484959,22083701.56.0
NMR = nuclear magnetic resonance spectroscopy; GPC = gel permeation chromatography.
Table
Table 2. Characterization of the five kinds of PtTFPP-containing micelles.
Table 2. Characterization of the five kinds of PtTFPP-containing micelles.
MicellesDiameter (nm)aPDI Con (Polymer) (mg/mL)Con (PtTFPP) (mg/mL) bEncapsulation Efficiency (wt%)Quantum Efficiency (%)cI0/I100d Response Time (s)e Lifetime (μs)
25 °C37 °Ct95-rt95AirN2
M1a1630.310.860.144219.51525178292173
M1b1420.270.380.133922.31527204312272
M1c1220.340.340.061821.51128191302970
M21450.171.110.319311.8810163342566
M31260.151.900.309016.71424198271876
a Polymer dispersity index (PDI) is used to describe the molecular size distribution. b PtTFPP concentration in micelles was measured by referring PtTFPP absorption standard curve. c Phosphorescence intensity ratio under 100% N2 to 100% O2. d The values reported here are only applicable to the discussion of the system in this paper. e Micelles phosphorescence lifetime in air and N2 atmosphere respectively. Con: The abbreviation of concentration.

Share and Cite

MDPI and ACS Style

Li, J.; Qiao, Y.; Pan, T.; Zhong, K.; Wen, J.; Wu, S.; Su, F.; Tian, Y. Amphiphilic Fluorine-Containing Block Copolymers as Carriers for Hydrophobic PtTFPP for Dissolved Oxygen Sensing, Cell Respiration Monitoring and In Vivo Hypoxia Imaging with High Quantum Efficiency and Long Lifetime. Sensors 2018, 18, 3752. https://doi.org/10.3390/s18113752

AMA Style

Li J, Qiao Y, Pan T, Zhong K, Wen J, Wu S, Su F, Tian Y. Amphiphilic Fluorine-Containing Block Copolymers as Carriers for Hydrophobic PtTFPP for Dissolved Oxygen Sensing, Cell Respiration Monitoring and In Vivo Hypoxia Imaging with High Quantum Efficiency and Long Lifetime. Sensors. 2018; 18(11):3752. https://doi.org/10.3390/s18113752

Chicago/Turabian Style

Li, Jiaze, Yuan Qiao, Tingting Pan, Ke Zhong, Jiaxing Wen, Shanshan Wu, Fengyu Su, and Yanqing Tian. 2018. "Amphiphilic Fluorine-Containing Block Copolymers as Carriers for Hydrophobic PtTFPP for Dissolved Oxygen Sensing, Cell Respiration Monitoring and In Vivo Hypoxia Imaging with High Quantum Efficiency and Long Lifetime" Sensors 18, no. 11: 3752. https://doi.org/10.3390/s18113752

APA Style

Li, J., Qiao, Y., Pan, T., Zhong, K., Wen, J., Wu, S., Su, F., & Tian, Y. (2018). Amphiphilic Fluorine-Containing Block Copolymers as Carriers for Hydrophobic PtTFPP for Dissolved Oxygen Sensing, Cell Respiration Monitoring and In Vivo Hypoxia Imaging with High Quantum Efficiency and Long Lifetime. Sensors, 18(11), 3752. https://doi.org/10.3390/s18113752

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
