Sensors 2017, 17(12), 2926; https://doi.org/10.3390/s17122926

Choice of Magnetometers and Gradiometers after Signal Space Separation

1
Laboratory of Cognitive and Computational Neuroscience (UCM-UPM), Centre for Biomedical Technology, 28223 Madrid, Spain
2
Biomedical Research Networking Center in Bioengineering Biomaterials and Nanomedicine (CIBER-BBN), Av. Monforte de Lemos 3-5, 28029 Madrid, Spain
3
Department of Basic Psychology II, Faculty of Psychology, Universidad Complutense de Madrid, 28223 Madrid, Spain
4
Department of Industrial Engineering, Instituto Universitario de Neurociencia, Universidad de La Laguna, 38205 Tenerife, Spain
*
Author to whom correspondence should be addressed.
Received: 27 September 2017 / Revised: 10 December 2017 / Accepted: 13 December 2017 / Published: 16 December 2017
Full-Text   |   PDF [2427 KB, uploaded 16 December 2017]   |

Abstract

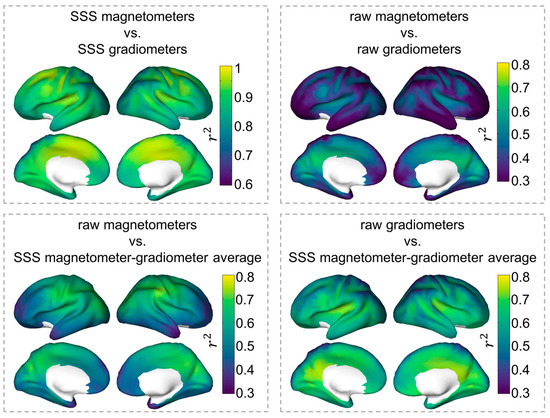

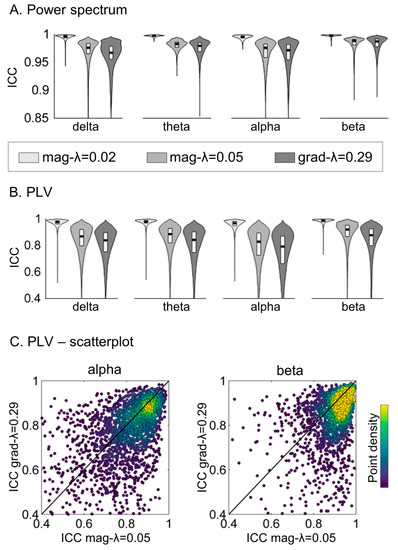

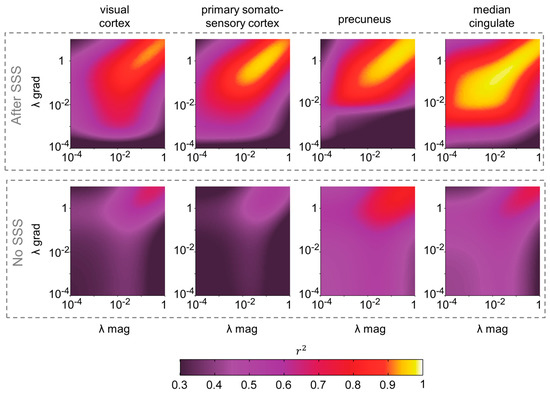

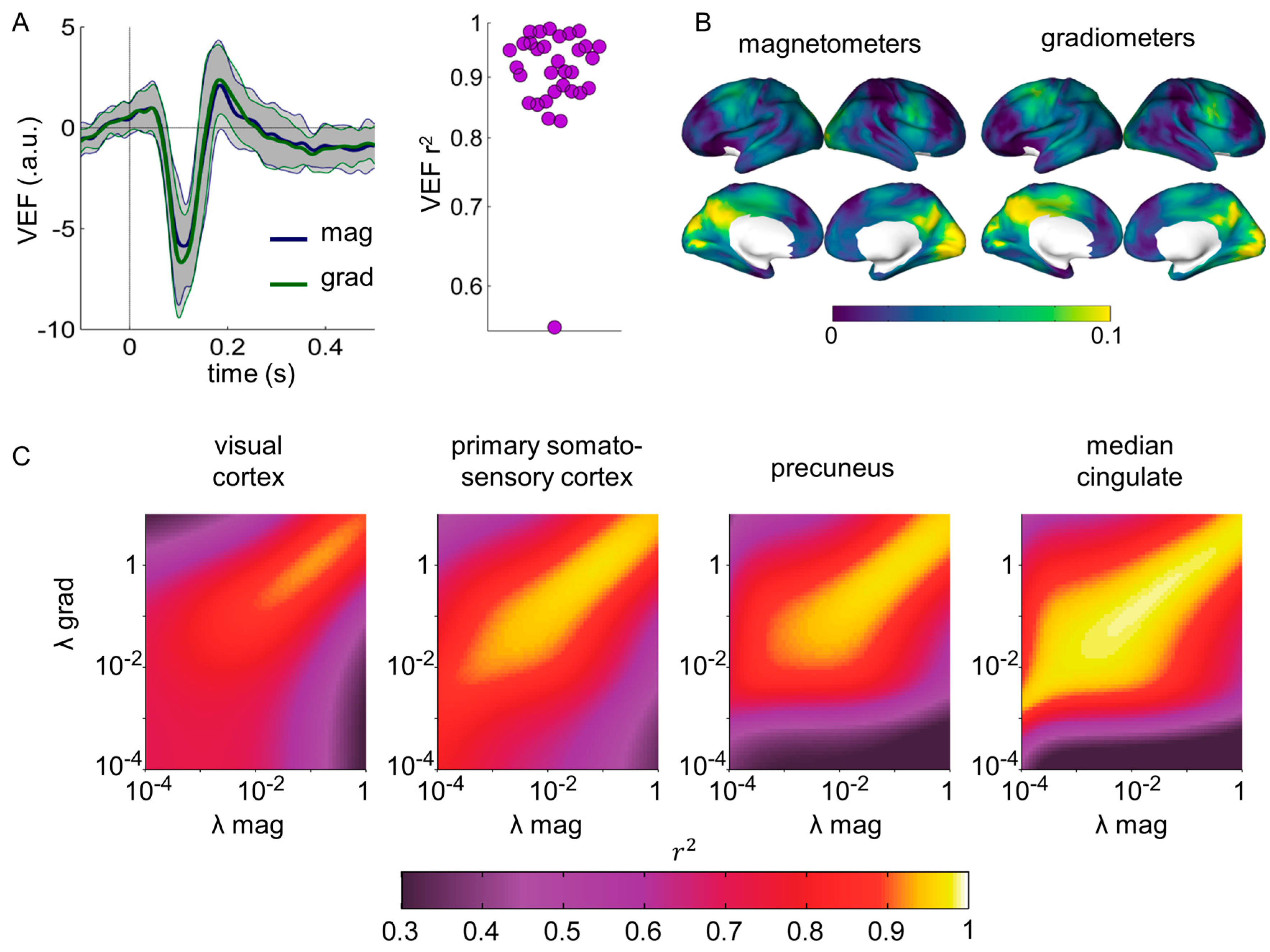

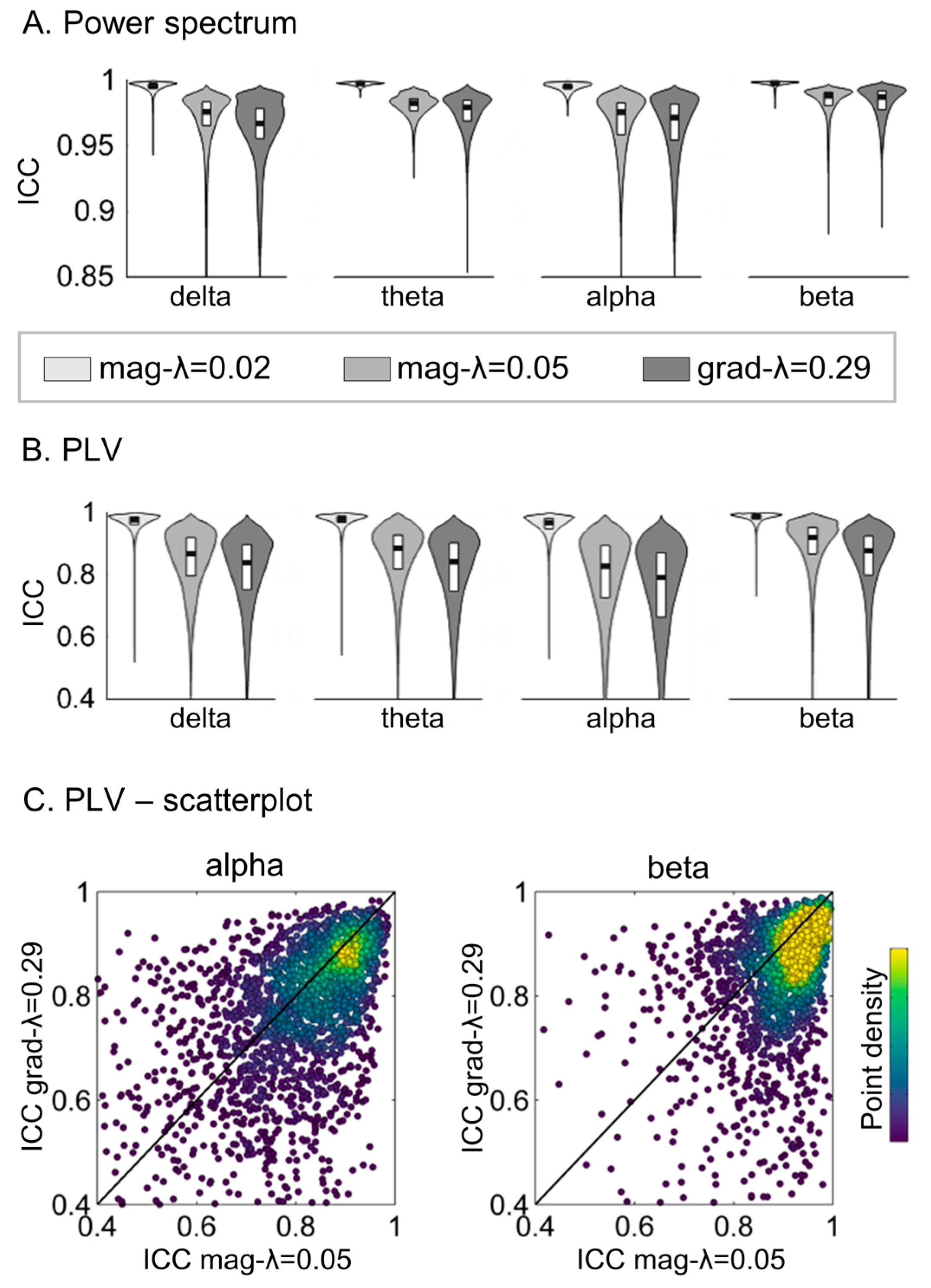

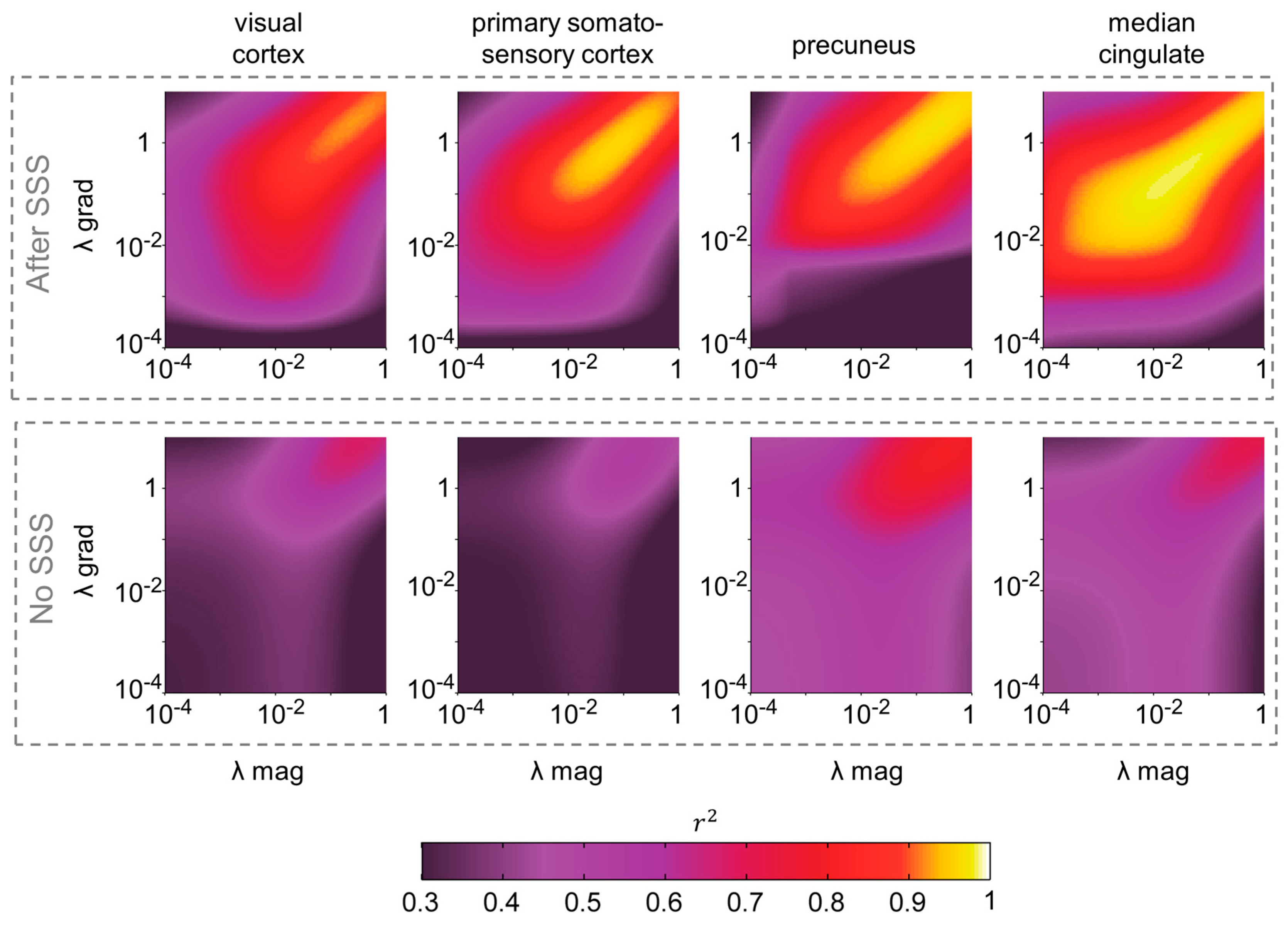

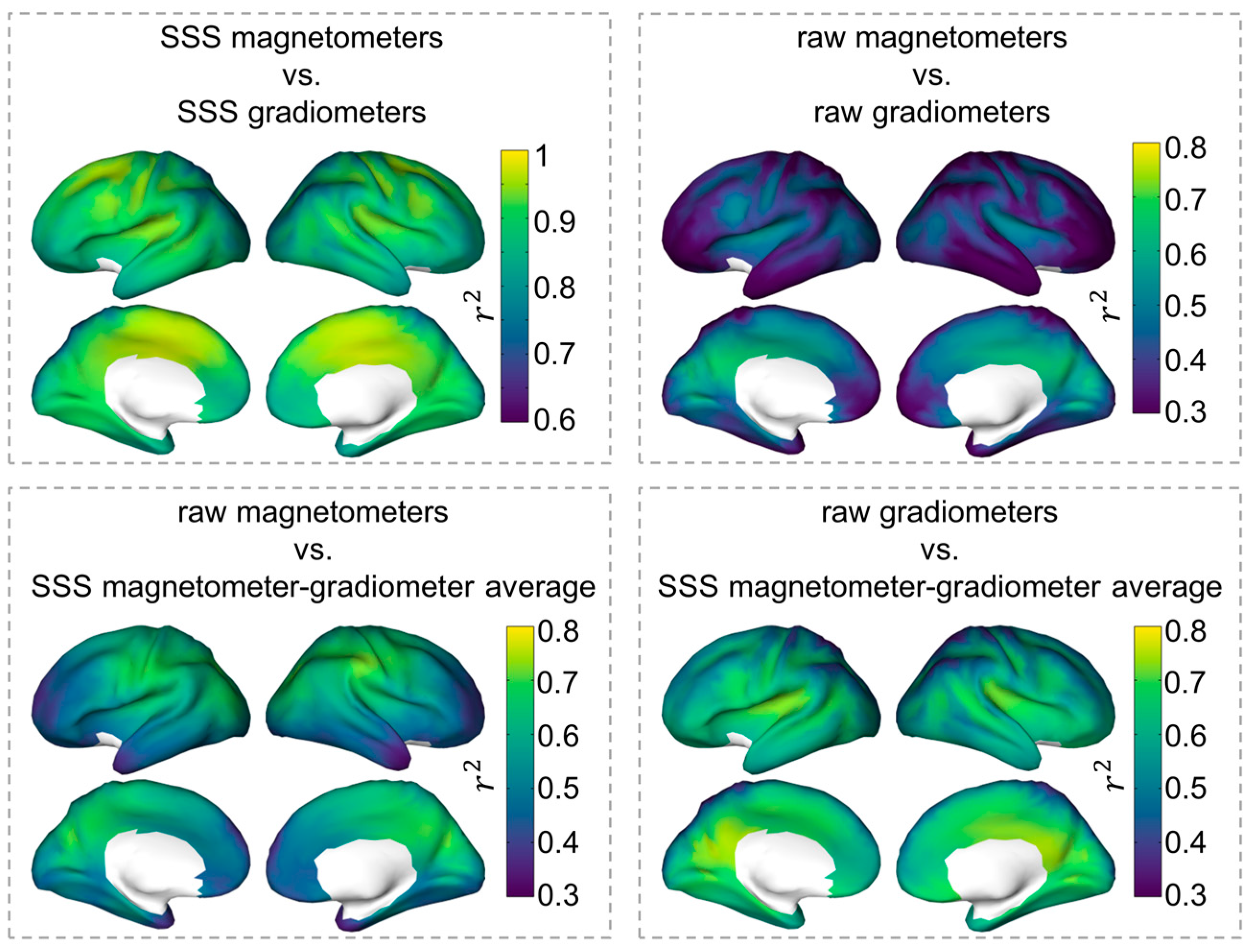

Background: Modern Elekta Neuromag MEG devices include 102 sensor triplets containing one magnetometer and two planar gradiometers. The first processing step is often a signal space separation (SSS), which provides a powerful noise reduction. A question commonly raised by researchers and reviewers relates to which data should be employed in analyses: (1) magnetometers only, (2) gradiometers only, (3) magnetometers and gradiometers together. The MEG community is currently divided with regard to the proper answer. Methods: First, we provide theoretical evidence that both gradiometers and magnetometers result from the backprojection of the same SSS components. Then, we compare resting state and task-related sensor and source estimations from magnetometers and gradiometers in real MEG recordings before and after SSS. Results: SSS introduced a strong increase in the similarity between source time series derived from magnetometers and gradiometers (r2 = 0.3–0.8 before SSS and r2 > 0.80 after SSS). After SSS, resting state power spectrum and functional connectivity, as well as visual evoked responses, derived from both magnetometers and gradiometers were highly similar (Intraclass Correlation Coefficient > 0.8, r2 > 0.8). Conclusions: After SSS, magnetometer and gradiometer data are estimated from a single set of SSS components (usually ≤ 80). Equivalent results can be obtained with both sensor types in typical MEG experiments. View Full-Text
Keywords: magnetoencephalography; signal space separation; magnetometer; gradiometer; beamforming; regularization magnetoencephalography; signal space separation; magnetometer; gradiometer; beamforming; regularization
