# Structural Health Monitoring of Above-Ground Storage Tank Floors by Ultrasonic Guided Wave Excitation on the Tank Wall

^{1}

^{2}

^{*}

## Abstract

**:**

## 1. Introduction

## 2. Related Work

#### 2.1. Above-Ground Storage Tank Floor Inspection

#### 2.2. Dispersion Curve Calculation for Above-Ground Storage Tank

^{®}Core™ CPU and 16 GB of RAM. The computation time is around 0.01 s per frequency, including the calculation of energy velocity.

## 3. Numerical Investigation

#### 3.1. Numerical Simulation

_{0}) were in the range of 3.125–3.13 mm and calculated as follows,

#### 3.2. Numerical Results

## 4. Experimental Validation

## 5. Conclusions

## Acknowledgments

## Author Contributions

## Conflicts of Interest

## References

- Rose, J.L. Successes and challenges in ultrasonic guided waves for NDT and SHM. In Proceedings of the National Seminar & Exhibition on Non-Destructive Evaluation, Tiruchirappalli, India, 10–12 December 2009. [Google Scholar]
- Worlton, D.C. Ultrasonic Testing with Lamb Waves; Technical Report; General Electric Co., Hanford Atomic Products Operation: Richland, WA, USA, 1956. [Google Scholar]
- Igor’A, V. Rayleigh and Lamb waves: Physical Theory and Applications; Springer: New York, NY, USA, 2013; ISBN 978-1-4899-5683-5. [Google Scholar]
- Alleyne, D.N.; Cawley, P. The practical excitation and measurement of lamb waves using piezoelectric transducers. Rev. Prog. Quant. Nondestruct. Eval.
**1994**, 13, 181–188. [Google Scholar] - Mudge, P.J.; Lank, A.M.; Alleyne, D.N. A long range method of detection of corrosion under insulation in process pipework. J. JSNDI
**1997**, 46, 314–319. [Google Scholar] - Mažeika, L.; Kažys, R.; Raišutis, R.; Šliteris, R. Long-range Ultrasonic Non-destructive Testing of Fuel Tanks. In Proceedings of the 9th European Conference on NDT. DGZfP-Proceedings BB 103-CD, Berlin, Germany, 25–29 September 2006; pp. 1–8. [Google Scholar]
- Chang, J.I.; Lin, C. A study of storage tank accidents. J. Loss Prev. Process Ind.
**2006**, 19, 51–59. [Google Scholar] [CrossRef] - Raišutis, R.; Kažys, R.; Mažeika, L.; Šliteris, R. Application of the ultrasonic transmission tomography for inspection of the petroleum tank floor. Ultragarsas Ultrasound
**2007**, 62, 26–32. [Google Scholar] - Lowe, P.S.; Sanderson, R.M.; Boulgouris, N.V.; Haig, A.G.; Balachandran, W. Inspection of cylindrical stuctures using the first longitudinal guided wave mode in isolation for higher flaw sensitivity. IEEE Sens. J.
**2016**, 16, 706–714. [Google Scholar] [CrossRef] - Anderson, M.T.; Kunerth, D.C.; Davidson, J.R. Nondestructive Examination Technologies for Inspection of Radioactive Waste Storage Tanks; Idaho National Engineering Laboratory Materials Physics Department: Idaho Falls, ID, USA, 1995.
- Smart Material Corp. Macro Fiber Composite—MFC. Smart Material Corp., 2003–2017. Available online: http://www.smart-material.com/MFC-product-main.html (accessed on 16 January 2017).
- Mažeika, L.; Kažys, R.; Raišutis, R.; Šliteris, R. Ultrasonic guided wave tomography for the inspection of the fuel tank floor. Int. J. Mater. Prod. Technol.
**2007**, 41, 128–139. [Google Scholar] [CrossRef] - Rose, J.L. Standing on the Shoulders of Giants: An Example of Guided Wave Inspection. Mater. Eval.
**2002**, 60, 53–59. [Google Scholar] - Yu, L.; Tian, Z. Case study of guided wave propagation in a one-side water-immersed steel plate. Case Stud. Nondestruct. Test. Eval.
**2015**, 3, 1–8. [Google Scholar] [CrossRef] - Croxford, A.J.; Moll, J.; Wilcox, P.D.; Michaels, J.E. Efficient temperature compensation strategies for guided wave structural health monitoring. Ultrasonics
**2010**, 50, 517–528. [Google Scholar] [CrossRef] [PubMed] - Feng, Z.; Wang, W.; Tong, W.; Yuan, K.; Han, Z.; Chen, Y. Storage tank floor and wall defect in-situ inspection with ultrasonic guided wave technique. In Proceedings of the 8th International Pipeline Conference, Calgary, AB, Canada, 27 September–1 October 2010; pp. 229–232. [Google Scholar]
- Lowe, M.J.S. Matrix techniques for modelling ultrasonic waves in multi-layered media. IEEE Trans. Ultrason. Ferroelectr. Freq. Control
**1995**, 47, 525–542. [Google Scholar] [CrossRef] - Duan, W.; Kirby, R. A numerical model for the scattering of elastic waves from a non-axisymmetric defect in a pipe. Finite Elem. Anal. Des.
**2015**, 100, 28–40. [Google Scholar] [CrossRef] - Duan, W.; Kirby, R.; Mudge, P.; Gan, T. A one dimensional numerical approach for computing the eigenmodes of elastic waves in buried pipelines. J. Sound Vib.
**2016**, 384, 177–193. [Google Scholar] [CrossRef] - Towfighi, S.; Kundu, T.; Ehsani, M. Elastic wave propagation in circumferential direction in anisotropic cylindrical curved plates. J. Appl. Mech.
**2002**, 69, 283–291. [Google Scholar] [CrossRef] - Gravenkamp, H.; Birk, C.; Song, C. Computation of dispersion curves for embedded waveguides using dashpot boundary condition. J. Acoust. Soc. Am.
**2014**, 135, 1127–1138. [Google Scholar] [CrossRef] [PubMed] - Mace, B.R.; Duhamel, D.; Brennan, M.J.; Hinke, L. Finite element prediction of wave motion in structural waveguides. J. Acoust. Soc. Am.
**2005**, 117, 2835–2843. [Google Scholar] [CrossRef] [PubMed] - Mazzotti, M.; Bartoli, I.; Marzani, A.; Viola, E. A 2.5D boundary element formulation for modeling damped waves in arbitrary cross-section waveguides and cavities. J. Comput. Phys.
**2013**, 248, 363–382. [Google Scholar] [CrossRef] - Duan, W.; Kirby, R.; Mudge, P. On the scattering of elastic waves from a non-axisymmetric defect in a coated pipe. Ultrasonics
**2016**, 65, 228–241. [Google Scholar] [CrossRef] [PubMed] - Abaqus-SIMULIA. 2013. Available online: http://abaqus.software.polimi.it/v6.13/books/stm/default.htm (accessed on 4 November 2017).
- Lowe, P.S.; Sanderson, R.; Boulgouris, N.V.; Gan, T. Hybrid active focusing with adaptive dispersion for higher defect sensitivity in guided wave inspection of cylindrical structures. Nondestruct. Test. Eval.
**2016**, 31, 219–234. [Google Scholar] [CrossRef] - Alleyne, D.N.; Lowe, M.J.S. The reflection of guided waves from circumferencial notches in the pipe. ASME J.
**1998**, 65, 635–641. [Google Scholar] [CrossRef] - Haig, A.G.; Sanderson, R.M.; Mudge, P.J.; Balachandran, W. Macro-fibre composite actuators for the transduction of Lamb and horizontal shear ultrasonic guided waves. Insight-Non-Destruct. Test. Cond. Monit.
**2013**, 55, 72–77. [Google Scholar] [CrossRef] - Wilcox, P.; Lowe, M.J.S.; Cawley, P. Mode and transducer selection for long range lamb wave inspection. J. Intell. Mater. Syst. Struct.
**2001**, 12, 553–565. [Google Scholar] [CrossRef] - Lowe, P.S.; Sanderson, R.; Pedram, K.; Boulgouris, N.V.; Mudge, P. Inspection of pipelines using the first longitudinal guided wave mode. Phys. Procedia
**2015**, 70, 338–342. [Google Scholar] [CrossRef]

**Figure 1.**Dispersion curves for a 6.25 mm thick steel plate (

**a**) phase velocity and (

**b**) energy velocity.

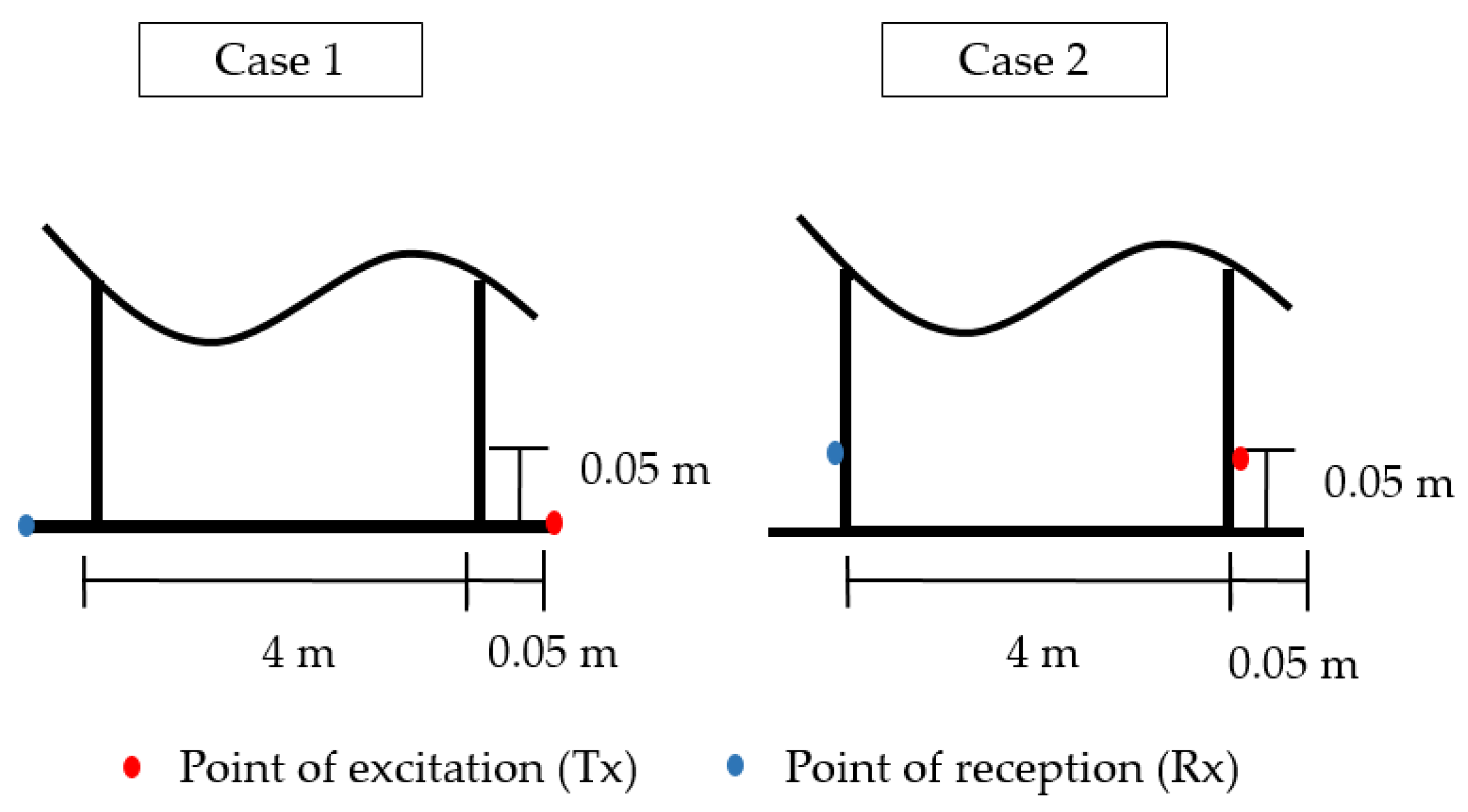

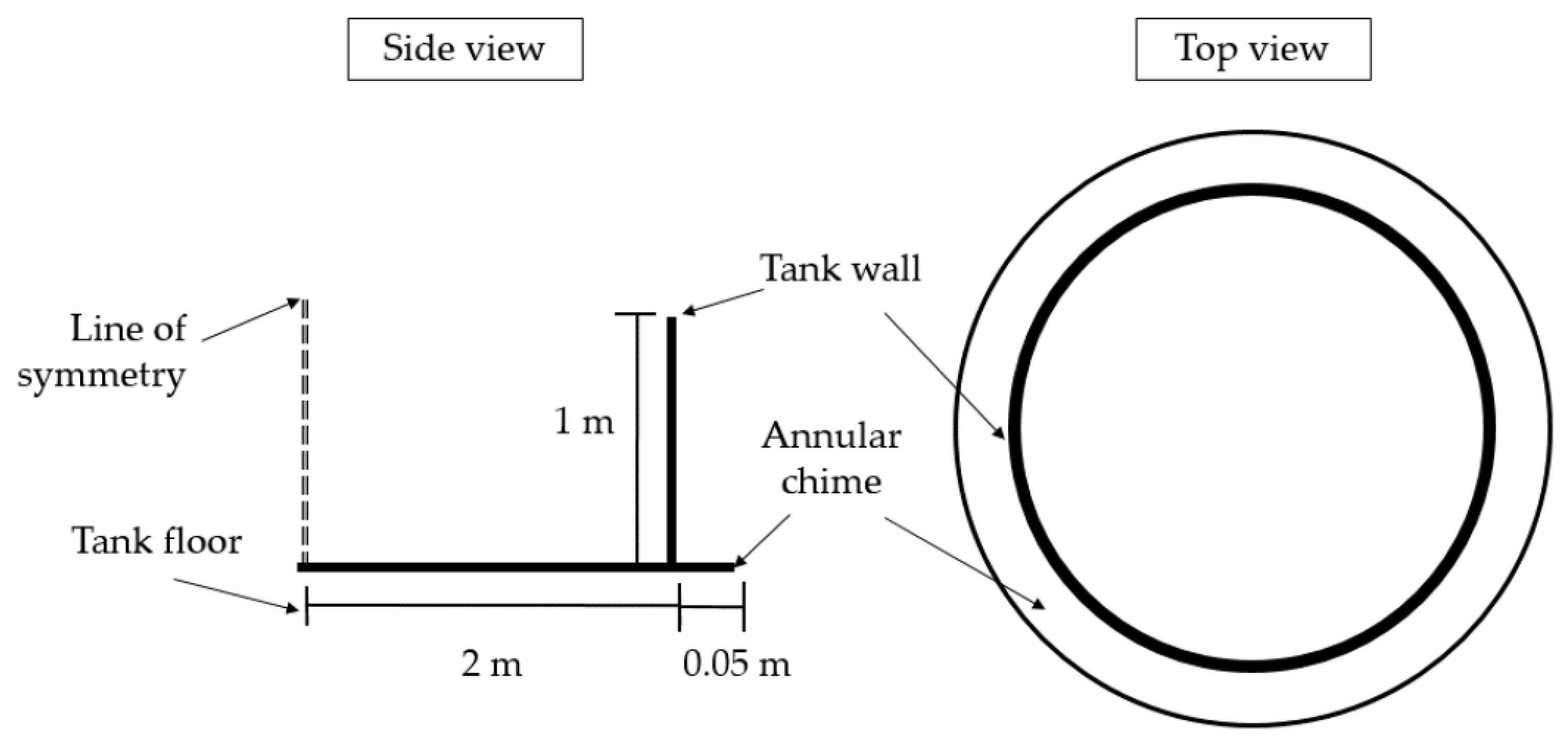

**Figure 3.**Layout of the Finite Element Analysis (FEA) model and the point of excitation and reception of both the cases studied.

**Case 1**: excitation and reception from the tank floor; and

**Case 2**: excitation and reception from the tank wall.

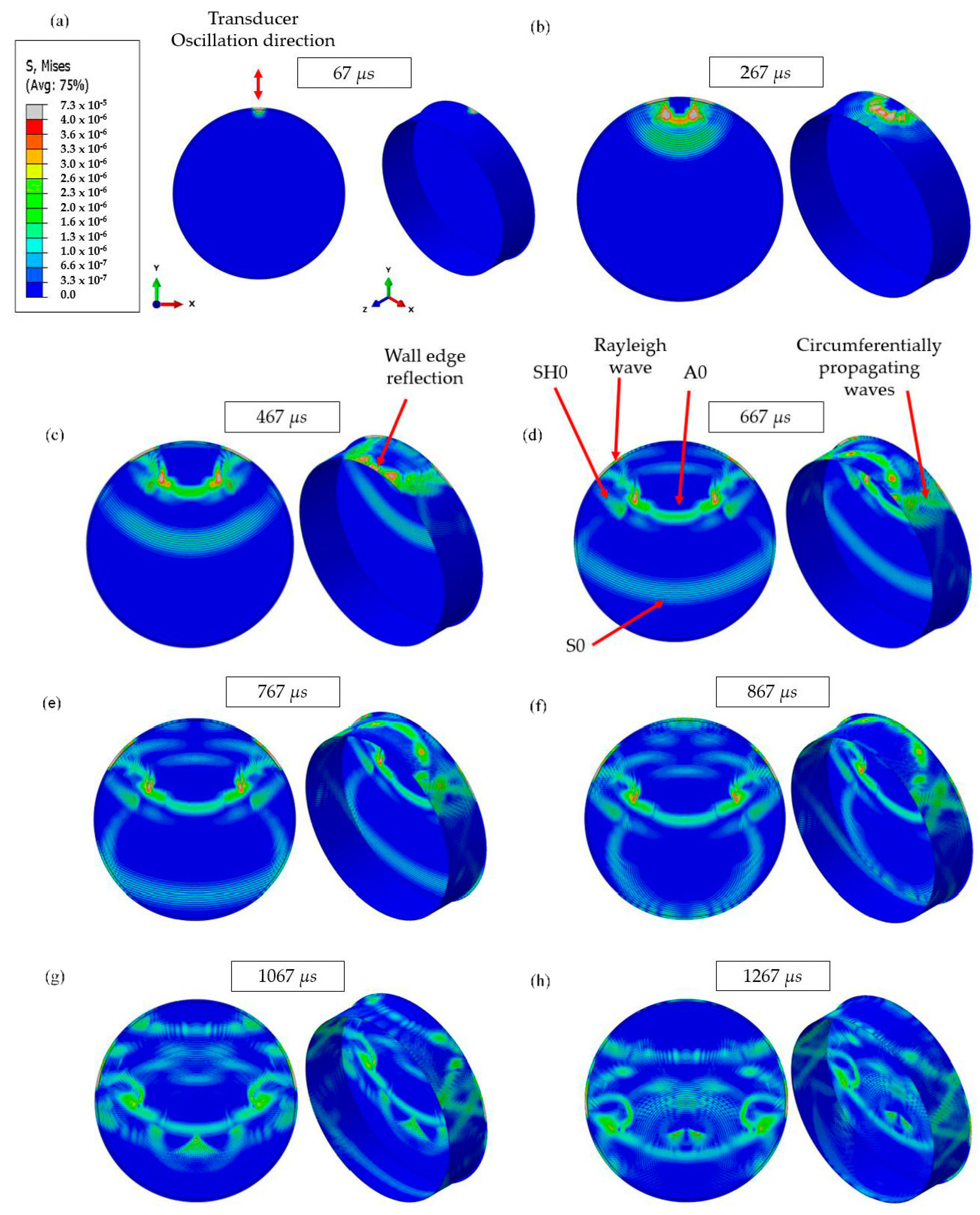

**Figure 4.**FEA results: wave propagation at different time increments on a steel 4.1 m diameter, 1 m wall tank at 60 kHz (the tank annular chime is used as the point-of-excitation as illustrated in Figure 3—case 1), and the color scale represents the Von-Mises stress. (

**a**) 67 µs, (

**b**) 267 µs, (

**c**) 467 µs, (

**d**) 667 µs, (

**e**) 767 µs, (

**f**) 867 µs, (

**g**) 1067 µs, (

**h**) 1267 µs.

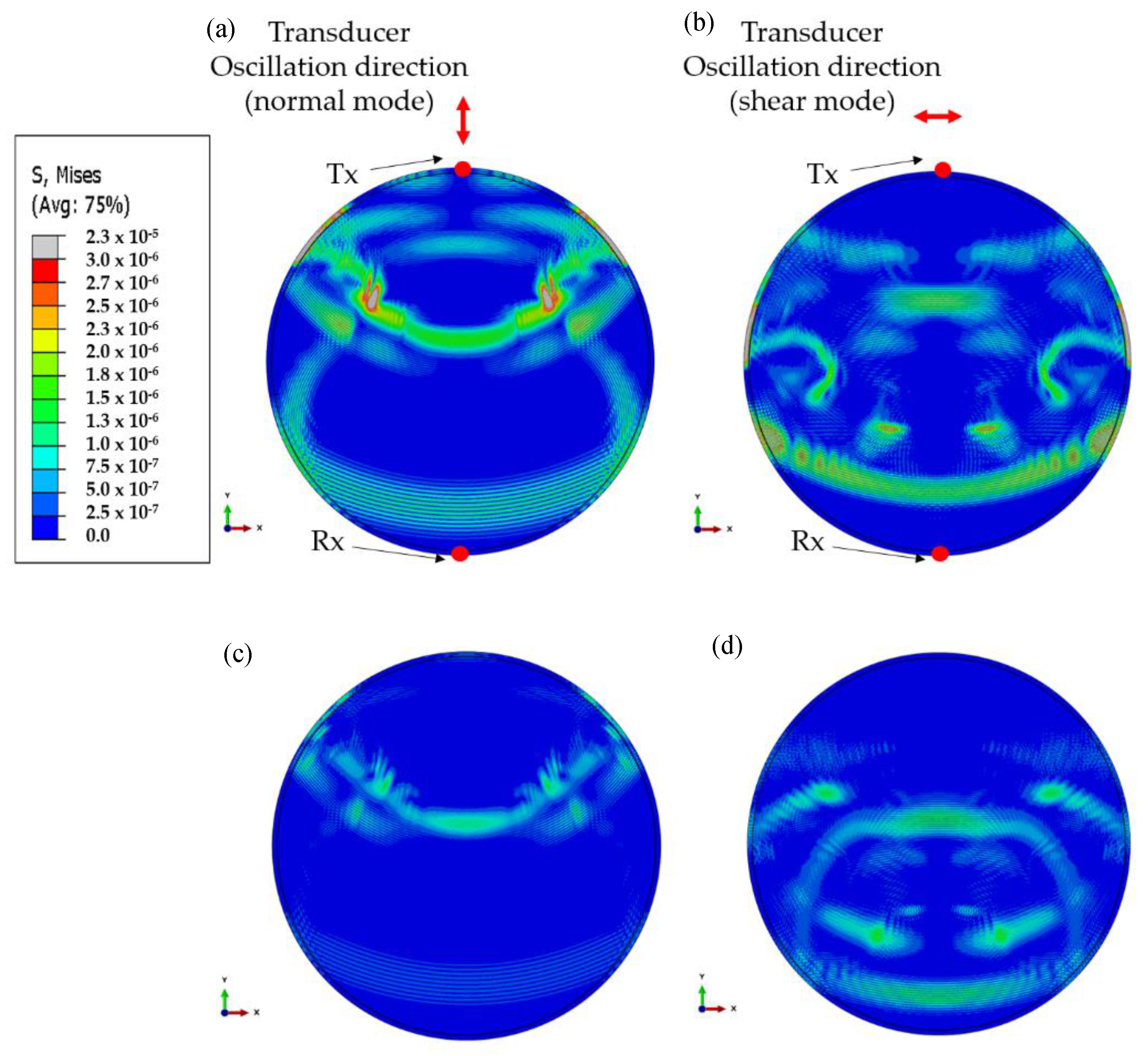

**Figure 6.**FEA results (Von Mises stress) of ultrasonic guided wave excitation on tank annular chime and tank wall: applied (

**a**) normal stress; (

**b**) shear stress on tank chime; (

**c**) normal stress; and (

**d**) shear stress on tank wall.

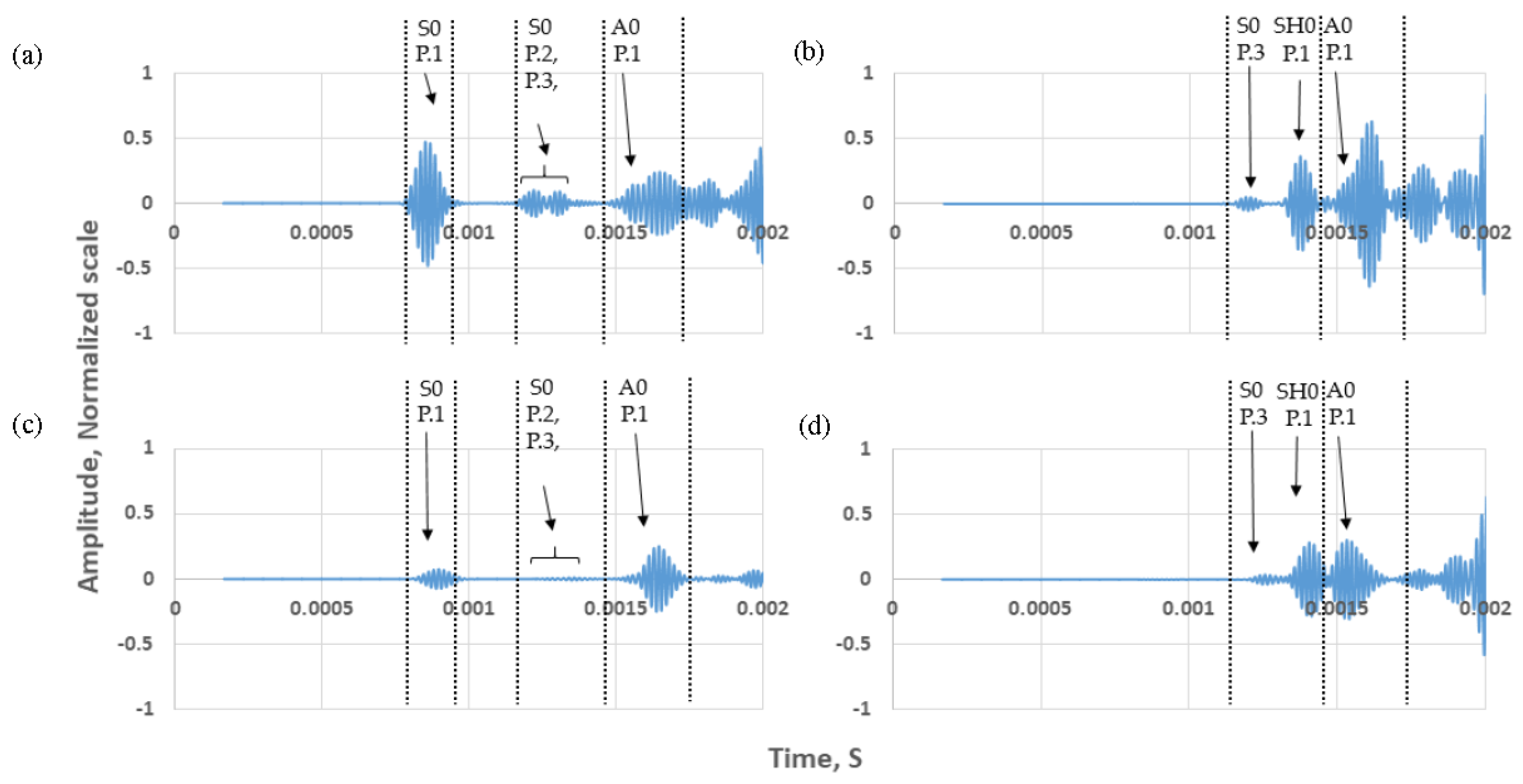

**Figure 7.**Normalized time-domain results for both excitation on the tank annular chime and wall; monitored waveforms are labelled according to the Path ID in Table 1. Case 1: (

**a**) normal mode, (

**b**) shear mode; and Case 2: (

**c**) normal mode, (

**d**) shear mode. Results are normalized to the maximum of all 4 signals.

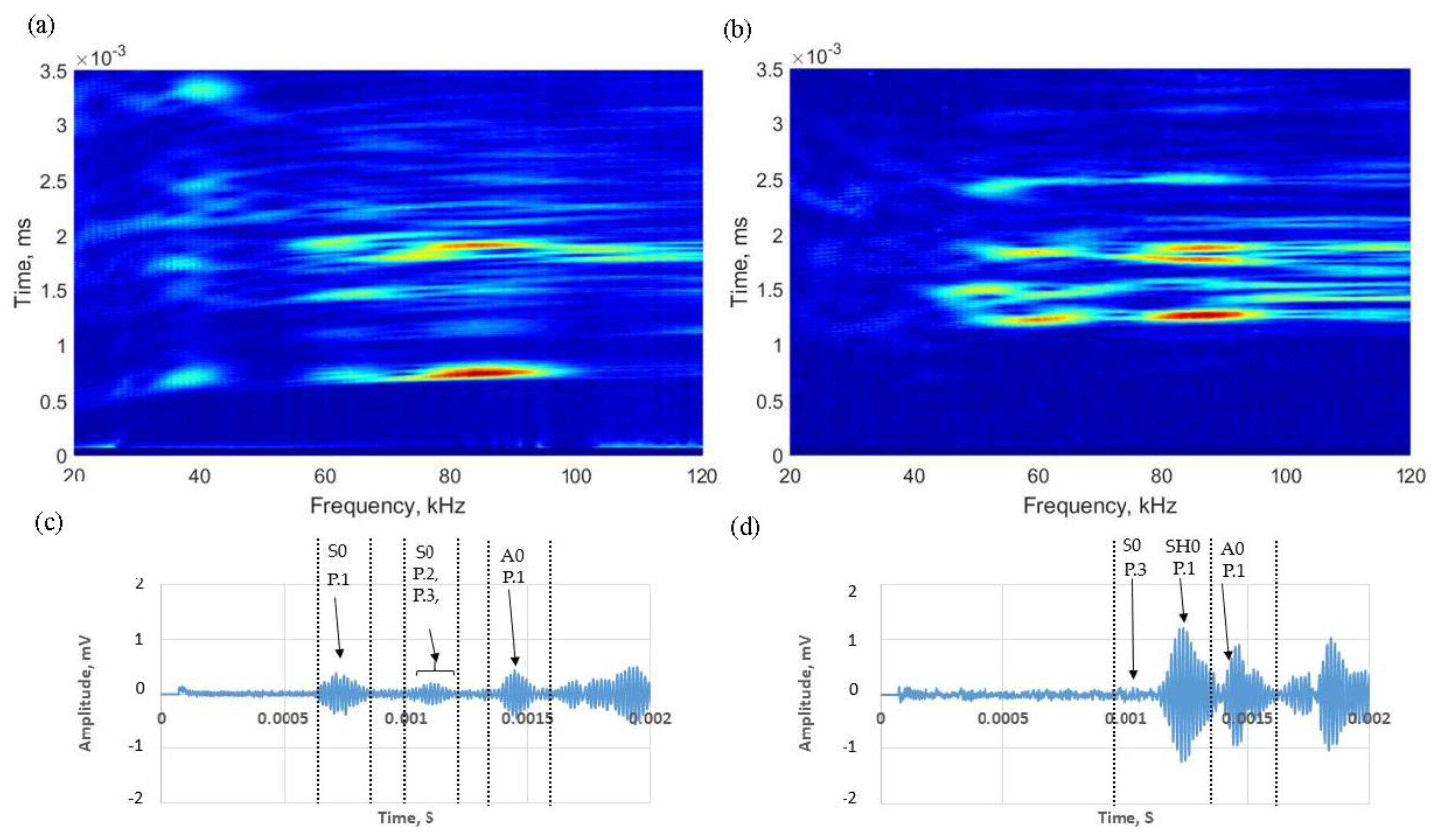

**Figure 8.**Experimental results: contour plot of the frequency sweep (

**a**) in-plane; (

**b**) shear transducers attached on the tank floor to excite guided waves for tank floor inspection with corresponding time-domain representation at 60 kHz; (

**c**) in-plane; and (

**d**) shear.

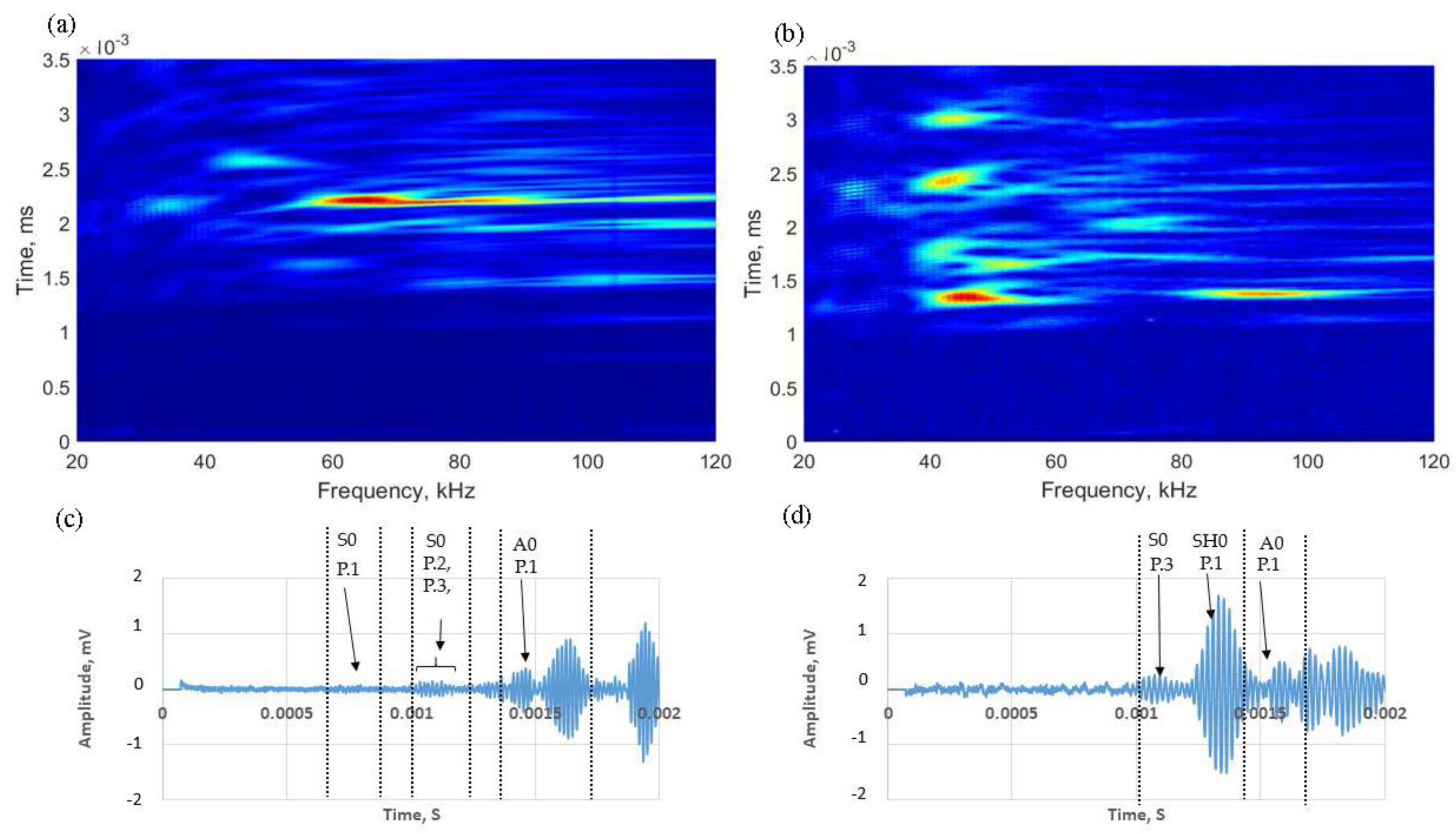

**Figure 9.**Experimental results: contour plot of the frequency sweep (

**a**) in-plane; (

**b**) shear transducers attached on the tank wall to excite guided waves for tank floor inspection with corresponding time-domain representation at 45 kHz; (

**c**) in-plane; (

**d**) shear.

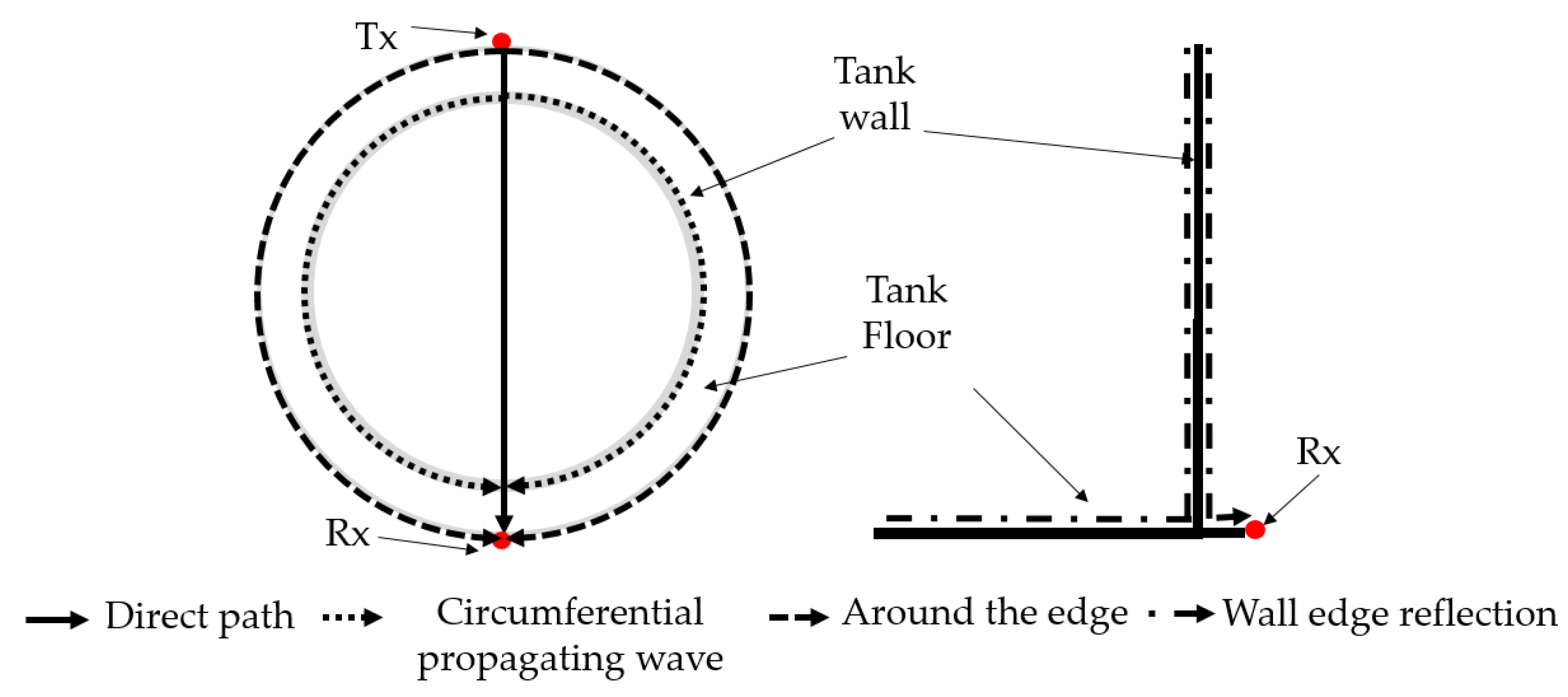

**Table 1.**Wave paths and analytical Time-of-Arrival (ToA) of potential signals for wave excitation on the tank floor.

Path ID | Path | Distance (m) | ToA ^{1} |
---|---|---|---|

P.1 | Direct path | 4.1 | S0—759 µs |

SH0—1281 µs | |||

A0—1576 µs | |||

P.2 | Wall edge reflection | 6.1 | S0—1138 µs |

SH0—1921 µs | |||

A0—2365 µs | |||

P.3 | Circumferential propagating waves | 6.3 | S0—1166 µs |

P.4 | Around the edge (Rayleigh wave) | 6.5 | 2241 µs |

^{1}Based on the dispersion curves in Figure 1, velocity of S0—5.4 km/s, SH0—3.2 km/s, A0—2.6 km/s.

Case | Mode of Interest | Mode of Excitation | Normalized Amplitude |
---|---|---|---|

1 | S0 | Tank floor | 0.43 |

2 | S0 | Tank wall | 0.05 |

1 | SH0 | Tank floor | 0.33 |

2 | SH0 | Tank wall | 0.25 |

Frequency (kHz) | SNR (dB) | Variation (dB) | SNR (dB) | Variation (dB) | ||
---|---|---|---|---|---|---|

Case 1-S0 | Case 2-S0 | Case 1-SH0 | Case 2-SH0 | |||

40 | 16.5 | 5 | −11.5 | 8.4 | 13.8 | 5.4 |

45 | 9.2 | 1.4 | −7.8 | 13.7 | 21.1 | 7.4 |

50 | 8.1 | 0.4 | −7.7 | 15.9 | 17.4 | 1.5 |

55 | 8.9 | 0.9 | −8 | 19.1 | 16.9 | −2.2 |

60 | 13.1 | 1.9 | −11.2 | 18.1 | 12.4 | −5.7 |

65 | 18.9 | 1.5 | −17.4 | 17.6 | 9.3 | −8.3 |

70 | 17.5 | 4.2 | −13.3 | 11.1 | 6.4 | −4.7 |

**Table 4.**Comparison of theoretical, numerical, and experimental ToA of modes of interest (P.1—direct path).

Frequency (kHz) | Theoretical (µs) | Numerical (µs) | Experimental (µs) | Theoretical to Numerical Error (%) | Theoretical to Experimental Error (%) |
---|---|---|---|---|---|

S0 | 759 | 776 | 723 | 2.2 | 4.7 |

SH0 | 1281 | 1299 | 1242 | 1.4 | 3 |

A0 | 1576 | 1593 | 1533 | 1 | 2.7 |
