Sensors 2017, 17(11), 2460;

BeiDou Geostationary Satellite Code Bias Modeling Using Fengyun-3C Onboard Measurements

1,2,* , 1,2,* , 1
GNSS Research Center, Wuhan University, 129 Luoyu Road, Wuhan 430079, China
Collaborative Innovation Center of Geospatial Technology, 129 Luoyu Road, Wuhan 430079, China
Authors to whom correspondence should be addressed.
Received: 23 August 2017 / Revised: 23 October 2017 / Accepted: 25 October 2017 / Published: 27 October 2017
(This article belongs to the Section Remote Sensors)
Full-Text   |   PDF [6095 KB, uploaded 27 October 2017]   |

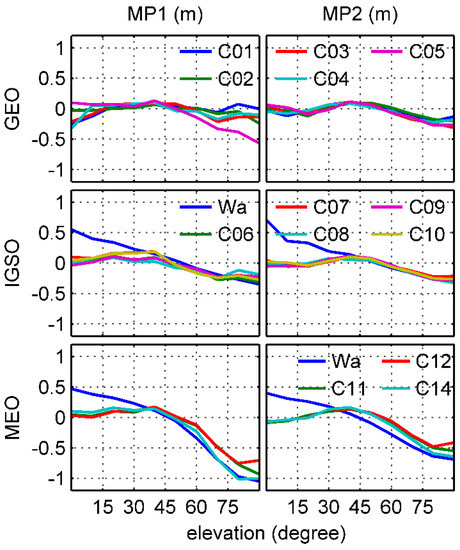

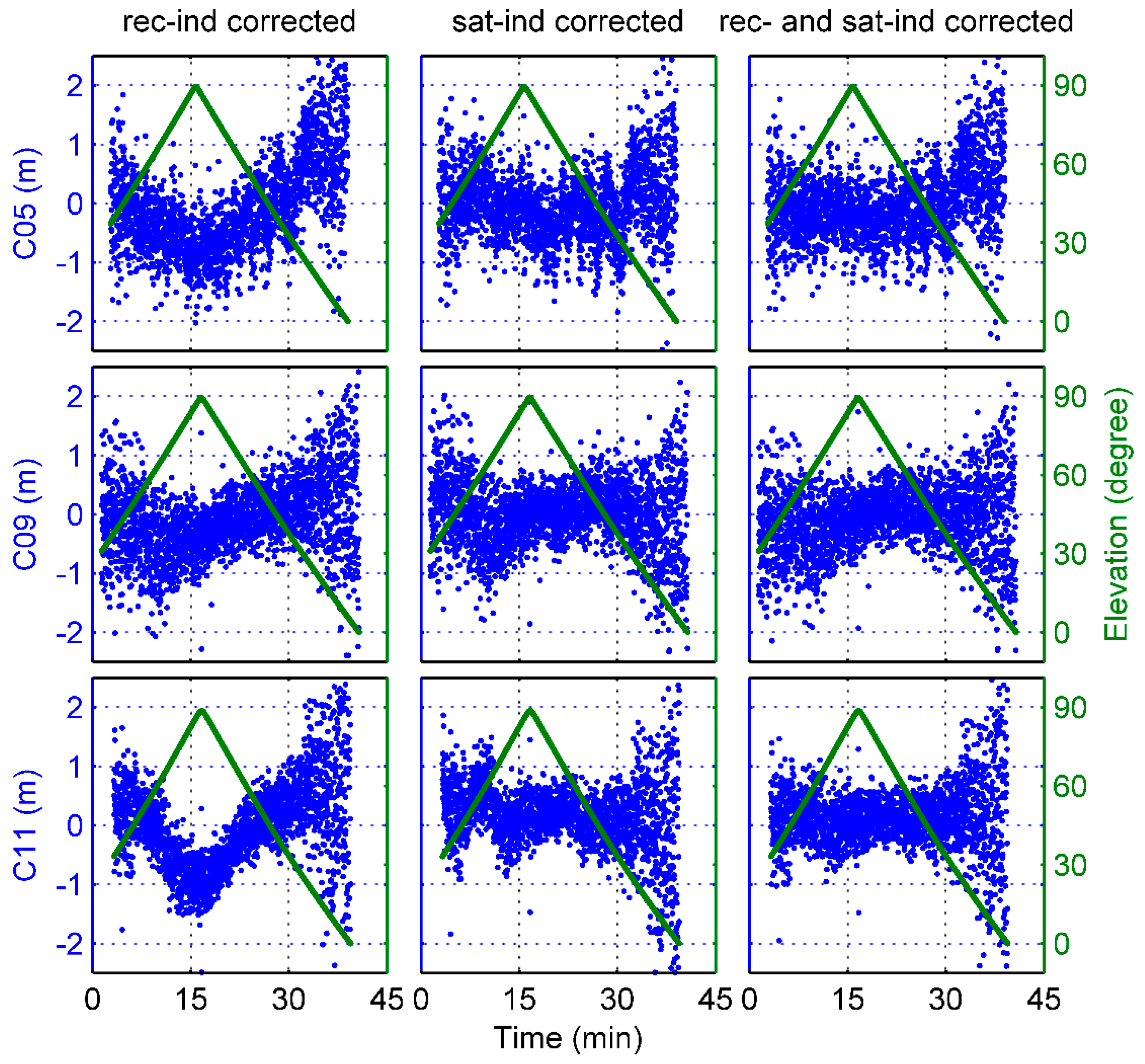

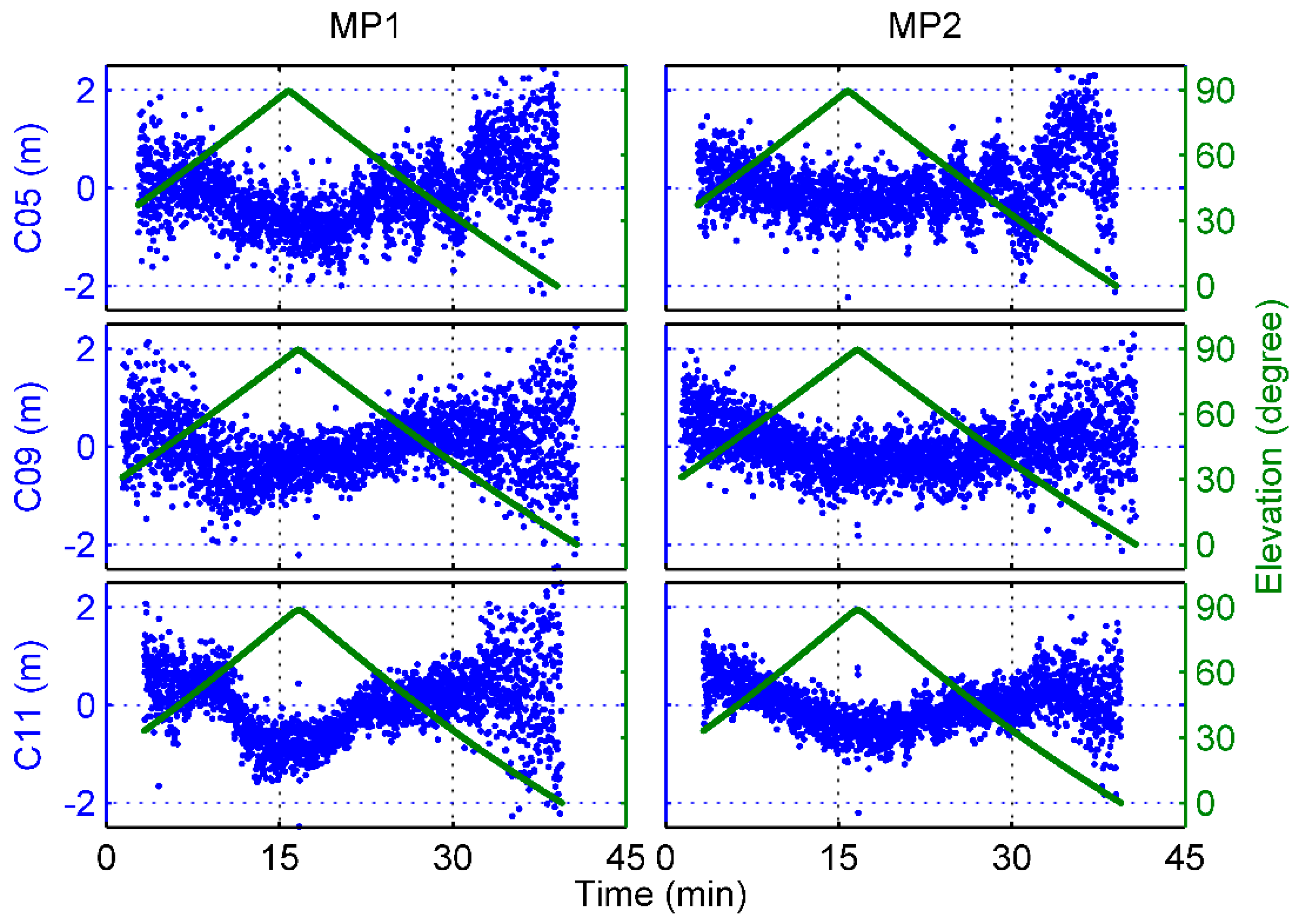

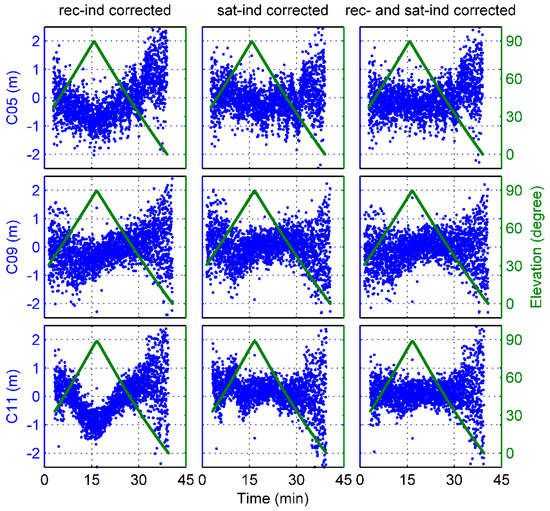

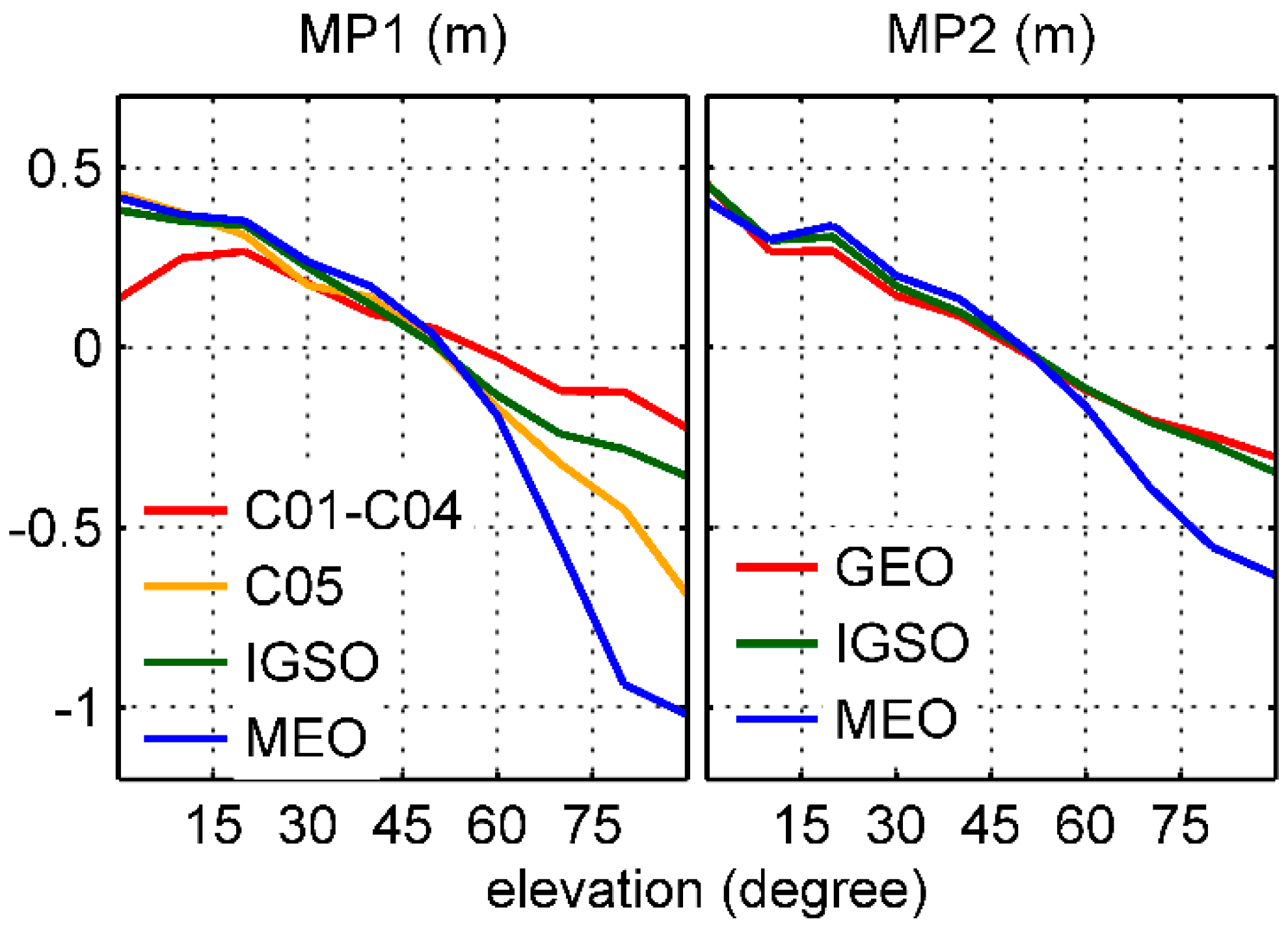

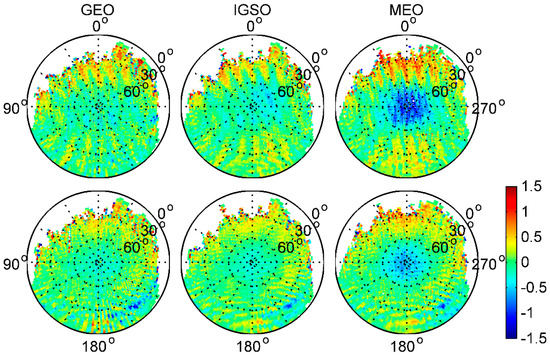

This study validated and investigated elevation- and frequency-dependent systematic biases observed in ground-based code measurements of the Chinese BeiDou navigation satellite system, using the onboard BeiDou code measurement data from the Chinese meteorological satellite Fengyun-3C. Particularly for geostationary earth orbit satellites, sky-view coverage can be achieved over the entire elevation and azimuth angle ranges with the available onboard tracking data, which is more favorable to modeling code biases. Apart from the BeiDou-satellite-induced biases, the onboard BeiDou code multipath effects also indicate pronounced near-field systematic biases that depend only on signal frequency and the line-of-sight directions. To correct these biases, we developed a proposed code correction model by estimating the BeiDou-satellite-induced biases as linear piece-wise functions in different satellite groups and the near-field systematic biases in a grid approach. To validate the code bias model, we carried out orbit determination using single-frequency BeiDou data with and without code bias corrections applied. Orbit precision statistics indicate that those code biases can seriously degrade single-frequency orbit determination. After the correction model was applied, the orbit position errors, 3D root mean square, were reduced from 150.6 to 56.3 cm. View Full-Text
Keywords: BeiDou code biases; Fengyun-3C; onboard BeiDou; single-frequency orbit determination BeiDou code biases; Fengyun-3C; onboard BeiDou; single-frequency orbit determination

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).

Share & Cite This Article

MDPI and ACS Style

Jiang, K.; Li, M.; Zhao, Q.; Li, W.; Guo, X. BeiDou Geostationary Satellite Code Bias Modeling Using Fengyun-3C Onboard Measurements. Sensors 2017, 17, 2460.
