Open AccessArticle
Sensors 2017, 17(10), 2306; https://doi.org/10.3390/s17102306

Mechanical and Electrical Noise in Sense Channel of MEMS Vibratory Gyroscopes

1,2
,
1,2
,
1,2
and
1,2,*
1
School of Instrument Science and Engineering, Southeast University, Nanjing 210096, China
2
Key Laboratory of Micro-Inertial Instruments and Advanced Navigation Technology, Ministry of Education, Nanjing 210096, China
*
Author to whom correspondence should be addressed.
Received: 28 August 2017 / Revised: 5 October 2017 / Accepted: 7 October 2017 / Published: 11 October 2017
(This article belongs to the Special Issue MEMS Resonators)
Full-Text   |   PDF [32829 KB, uploaded 11 October 2017]   |

Abstract

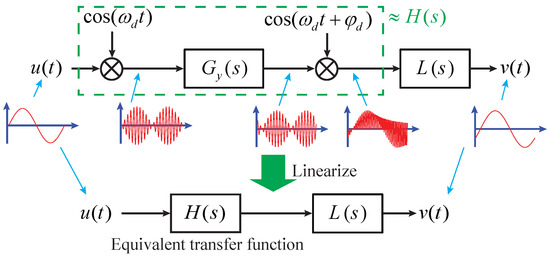

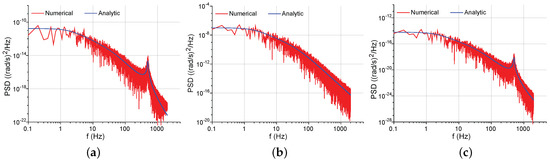

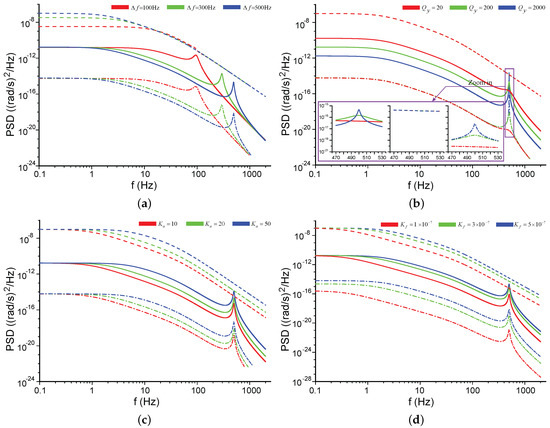

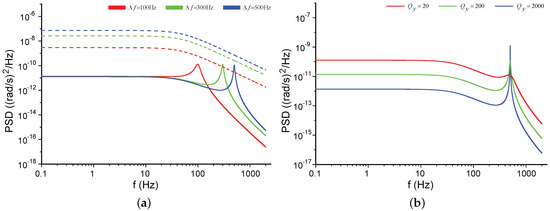

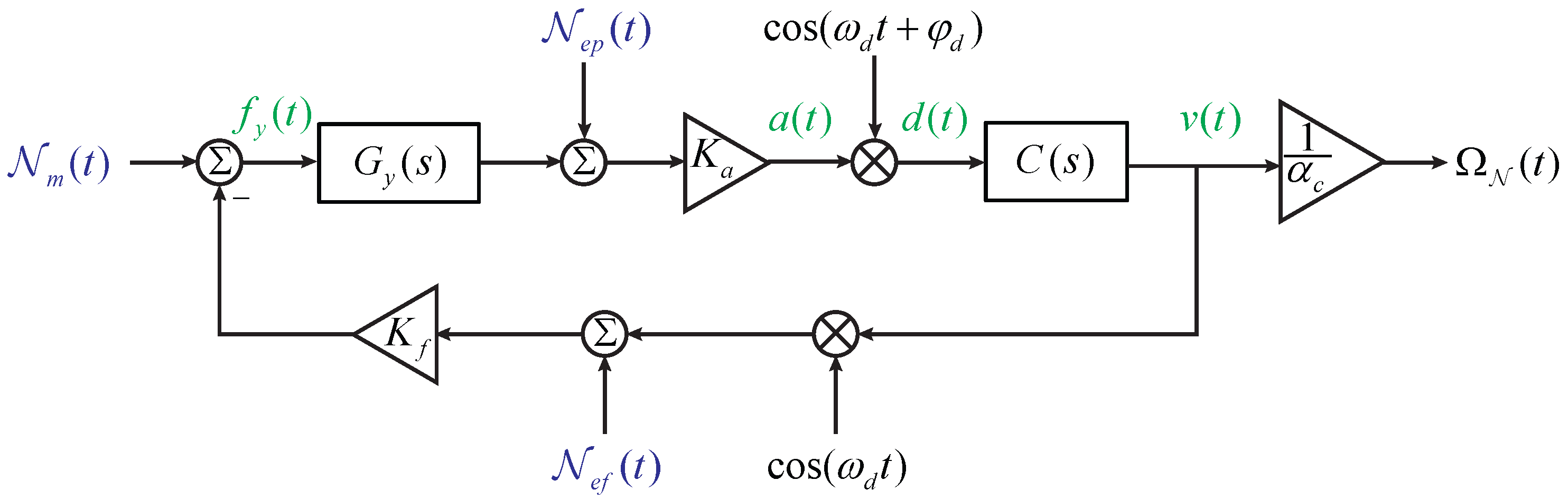

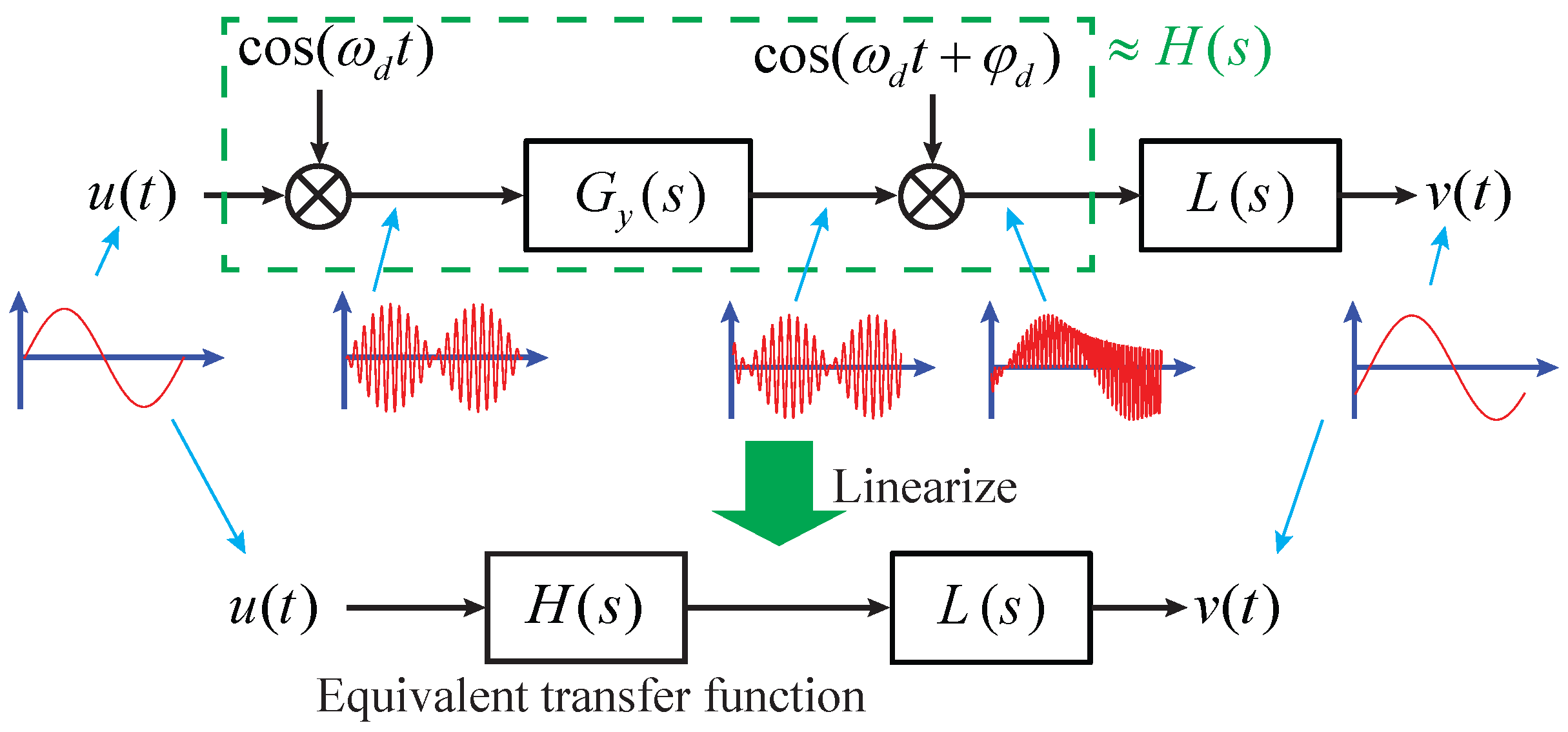

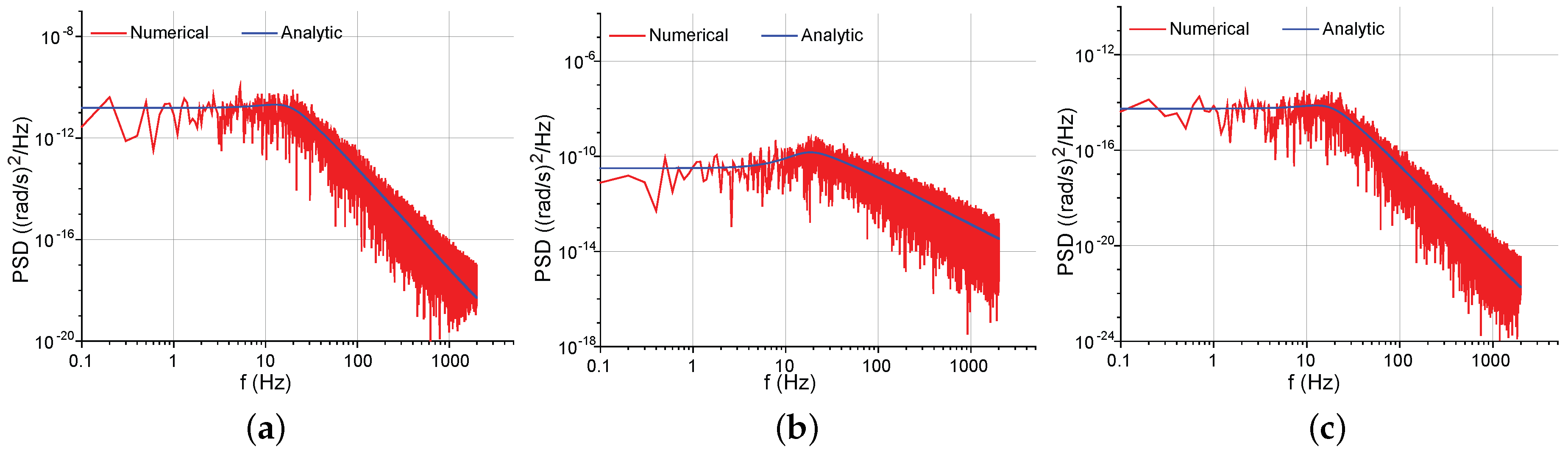

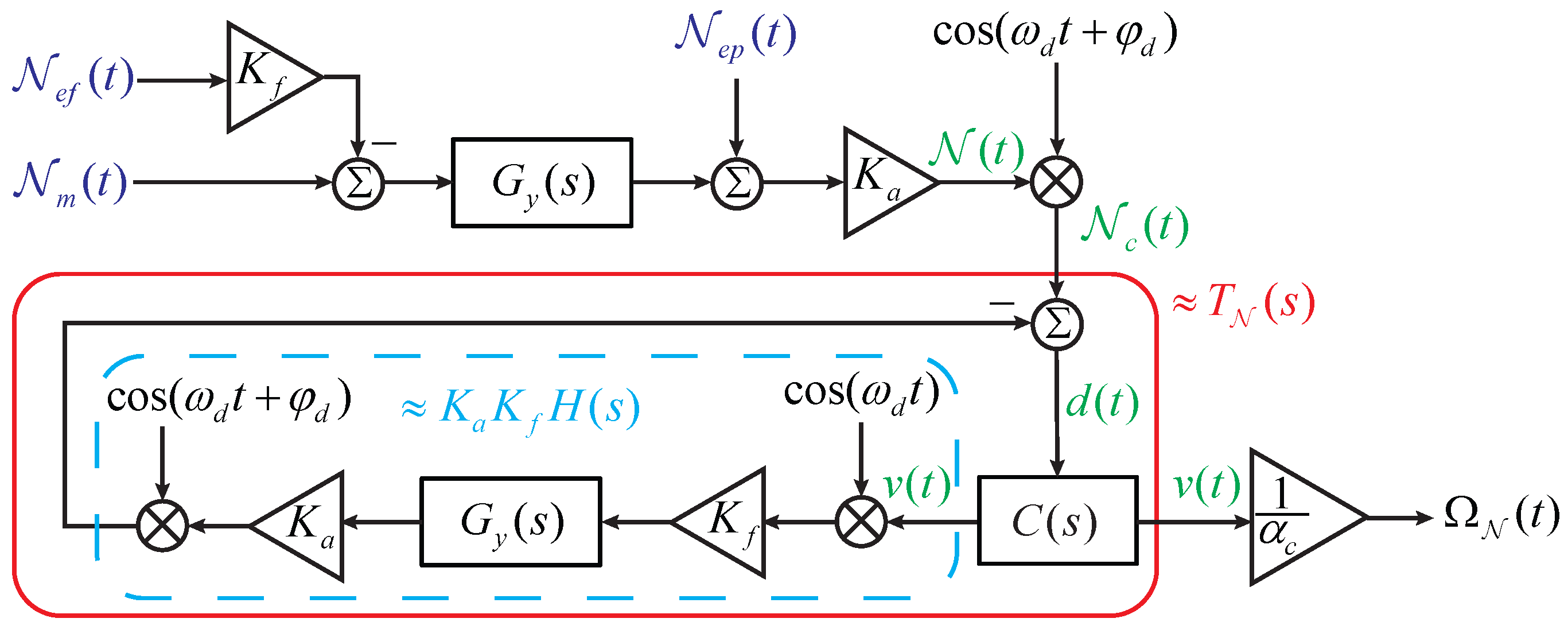

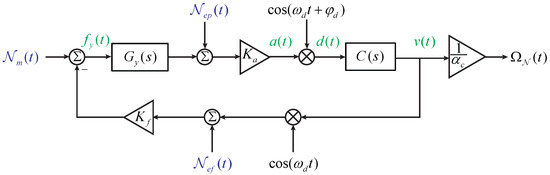

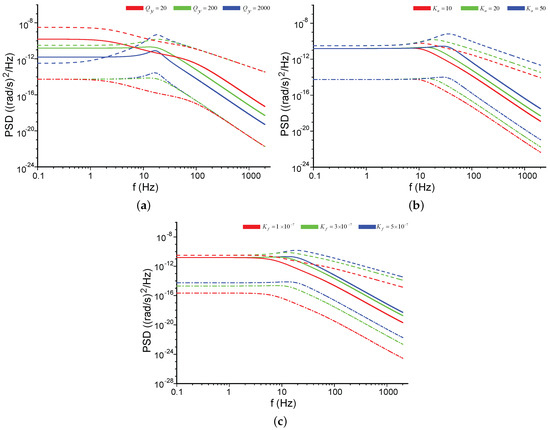

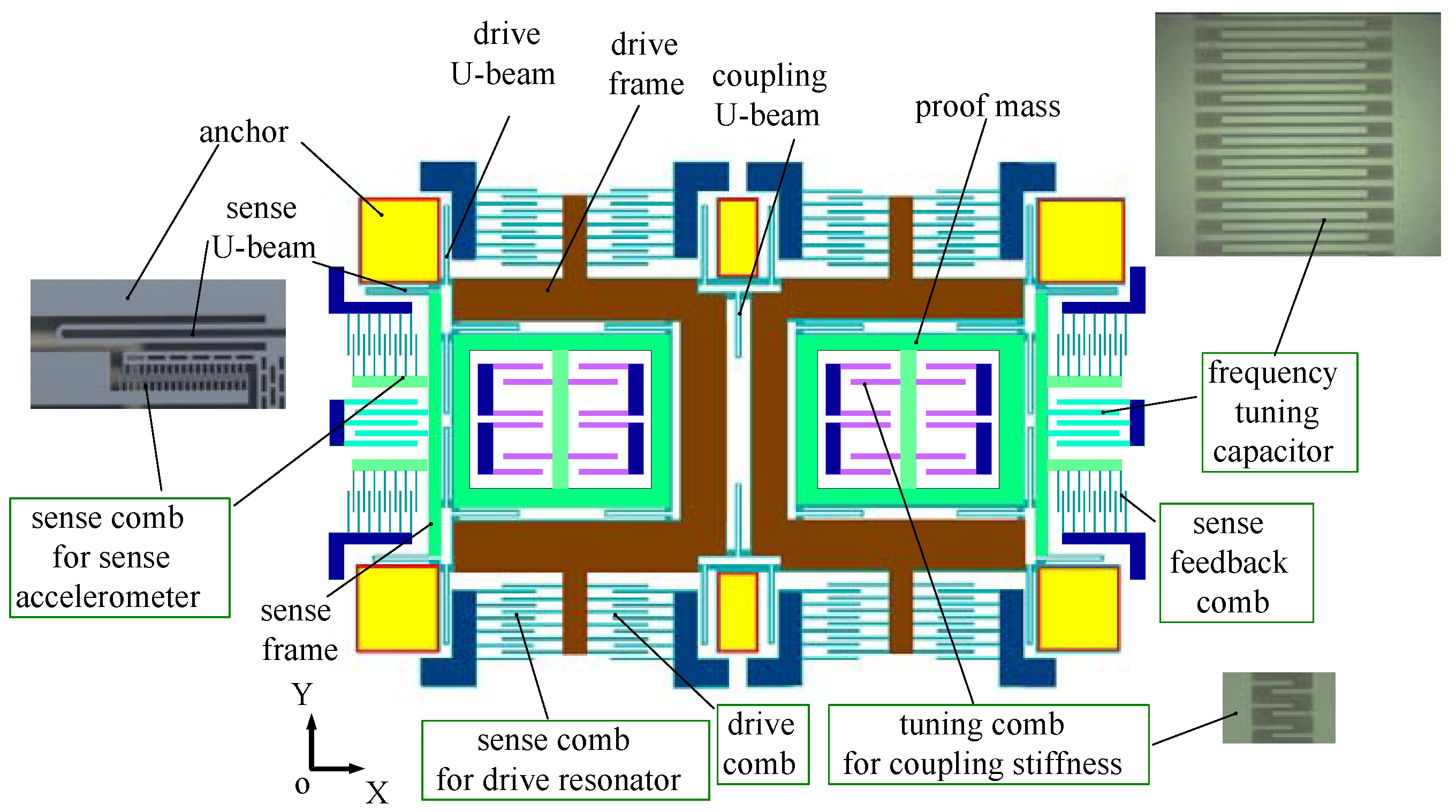

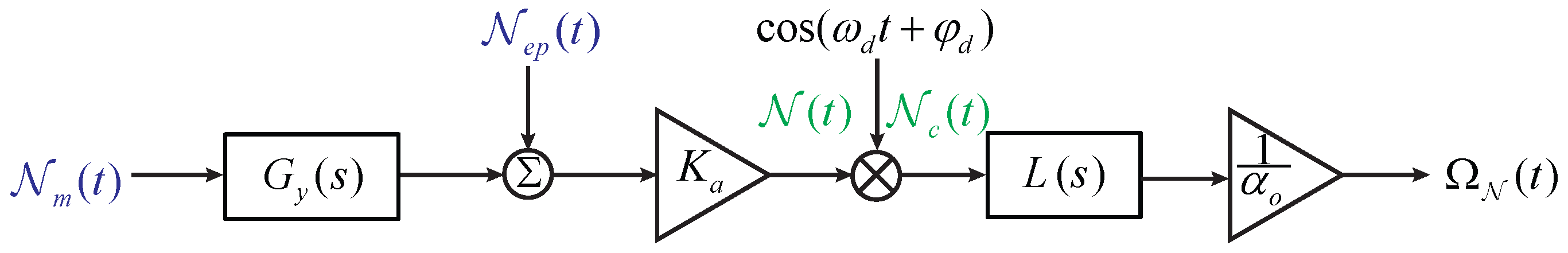

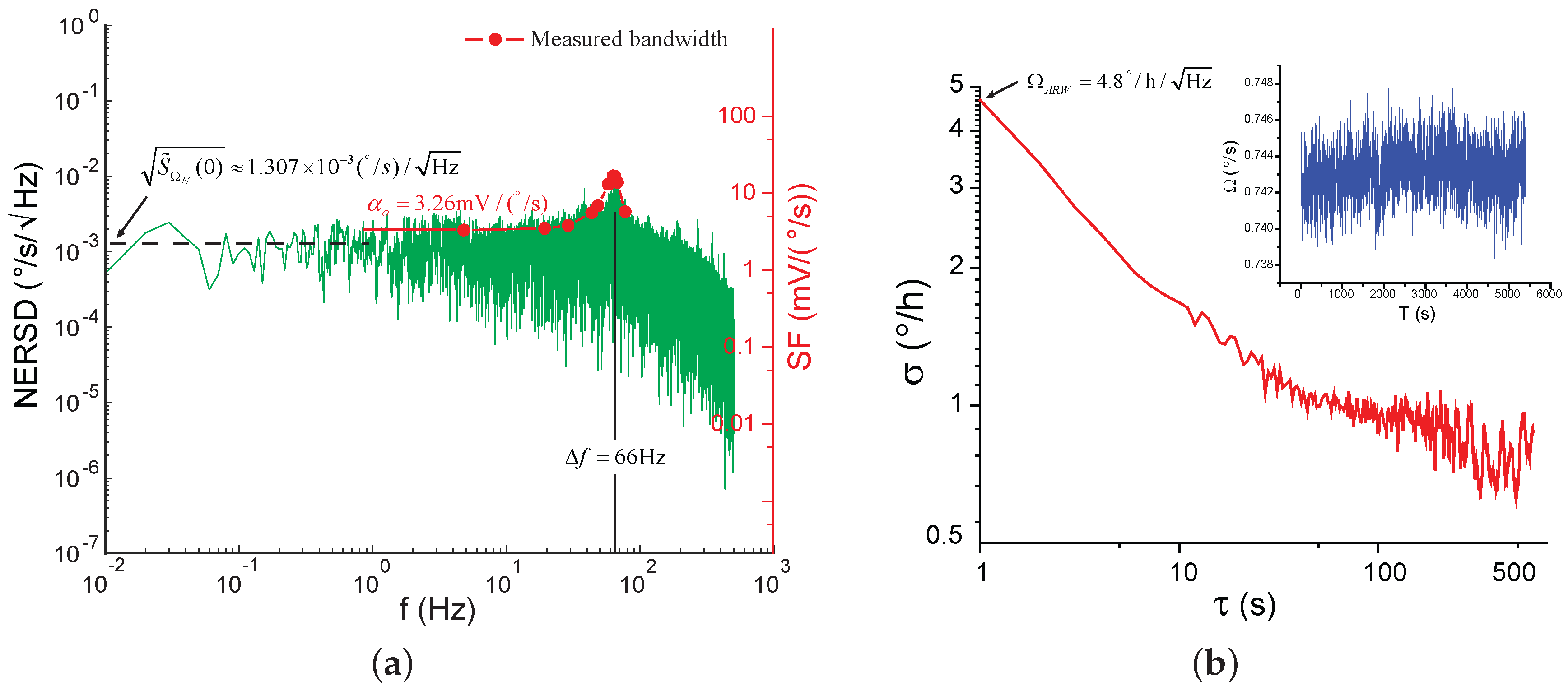

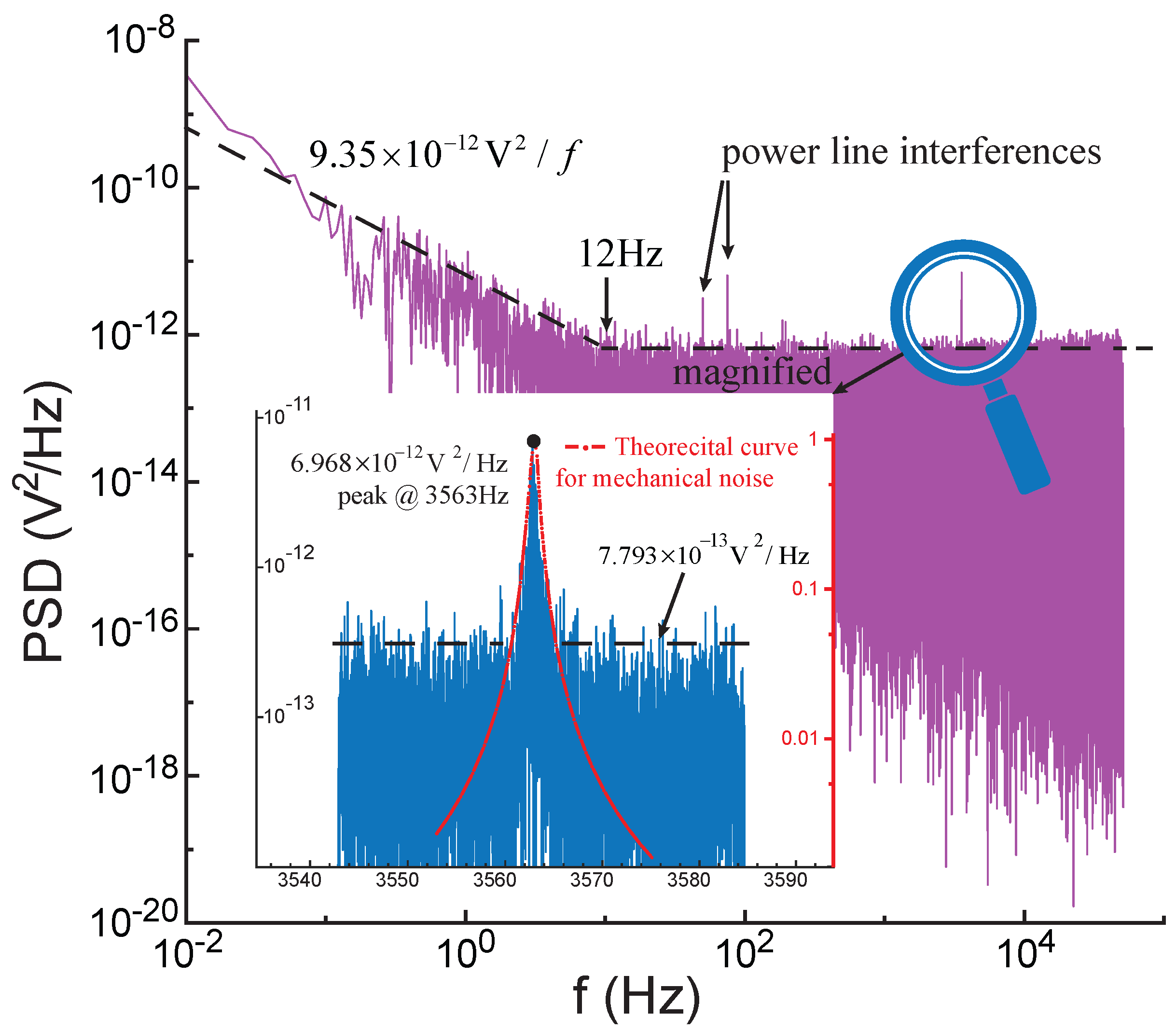

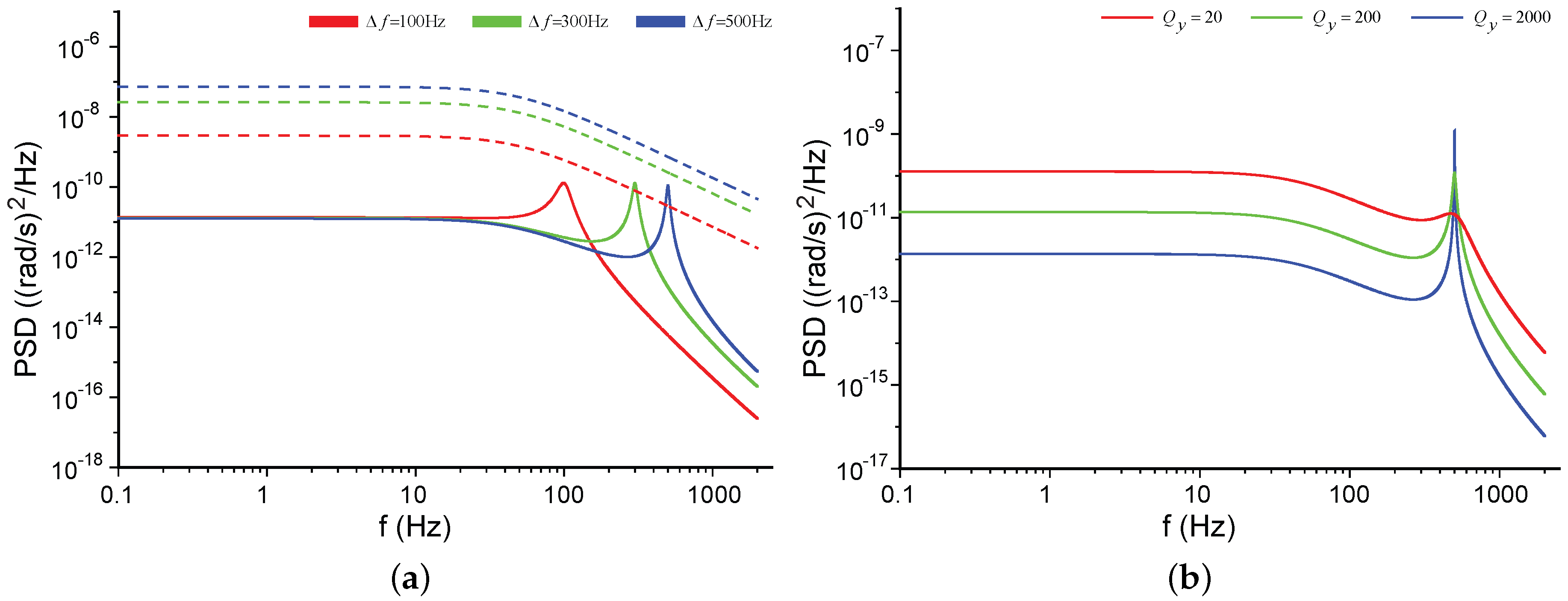

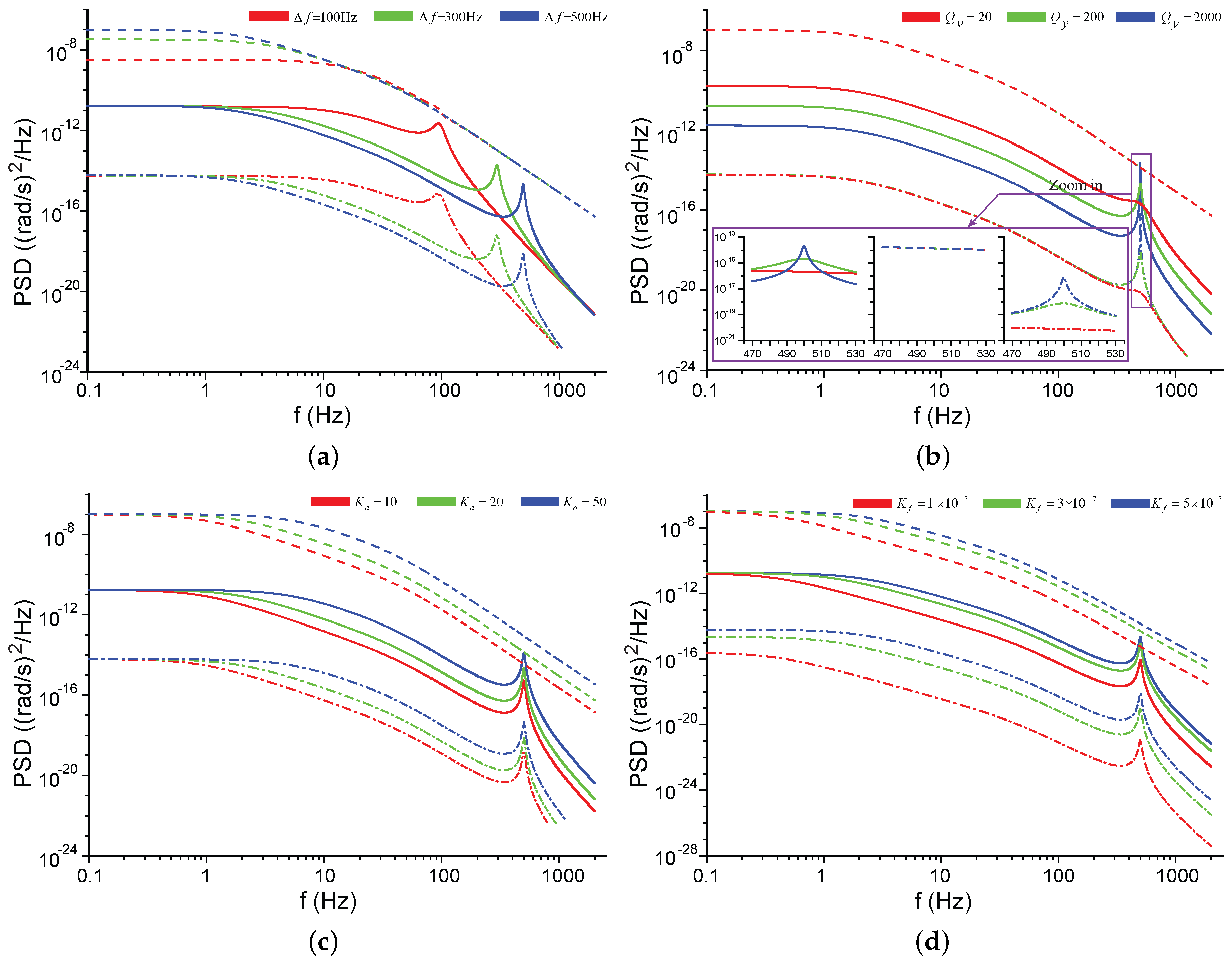

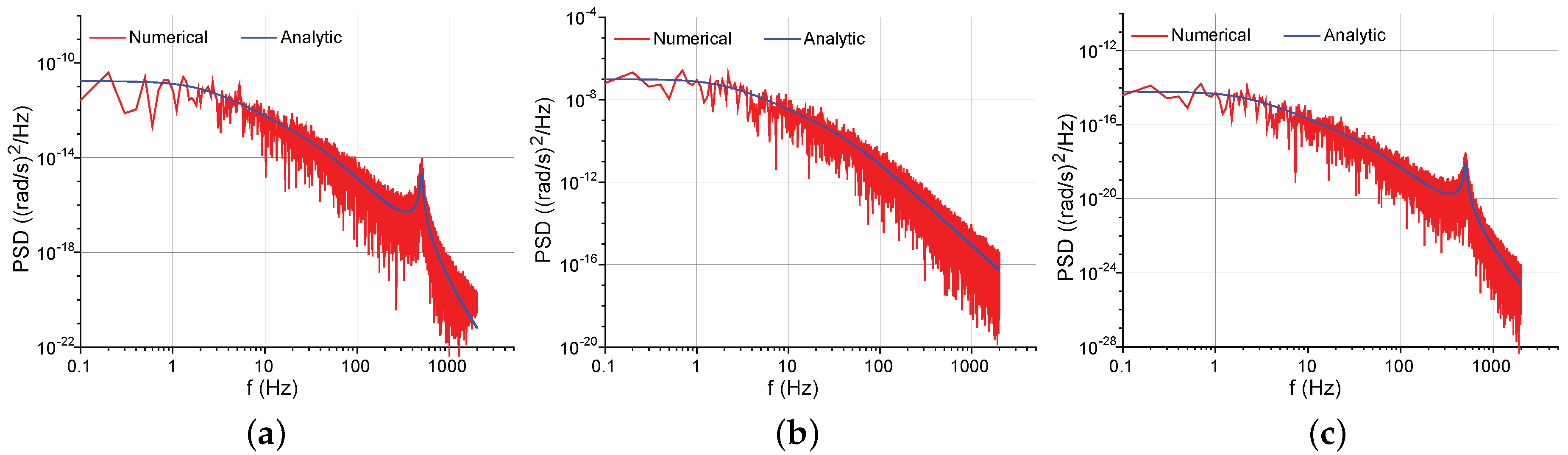

This paper presents a theoretical analysis of mechanical and electrical noise in the sense channel of micro-electromechanical systems (MEMS) vibratory gyroscopes. Closed-form expressions for the power spectral density (PSD) of the noise equivalent rate (NER) of gyroscopes in the open-loop and the force-rebalance operations are derived by using an averaged PSD model and an equivalent transfer function. The obtained expressions are verified through numerical simulations, demonstrating close agreements between the analytic and the numerical models. Based on the derived expressions for the PSD of the NER, the impacts of the modal frequency split, quality factor, and the gain of the feedback forcer, as well as the gain of the signal conditioning circuit, on the gyroscope noise characteristics are theoretically analyzed. In addition, the angle random walk (ARW) and the standard deviation of the NER are also discussed through the PSD models. Finally, the effects of the loop closing, the mode matching, and the gain of the feedback forcer on the PSD of the NER were verified via a MEMS vibratory gyroscope with a tunable modal frequency split. View Full-Text
Keywords: angle random walk; force-rebalance; MEMS vibratory gyroscope; mode matching; noise analysis; noise equivalent rate; power spectral density; open-loop angle random walk; force-rebalance; MEMS vibratory gyroscope; mode matching; noise analysis; noise equivalent rate; power spectral density; open-loop
Figures

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
