High-Precision Hysteresis Sensing of the Quartz Crystal Inductance-to-Frequency Converter

Abstract

A new method for the automated measurement of the hysteresis of the temperature-compensated inductance-to-frequency converter with a single quartz crystal is proposed. The new idea behind this method is a converter with two programmable analog switches enabling the automated measurement of the converter hysteresis, as well as the temperature compensation of the quartz crystal and any other circuit element. Also used is the programmable timing control device that allows the selection of different oscillating frequencies. In the proposed programmable method two different inductances connected in series to the quartz crystal are switched in a short time sequence, compensating the crystal’s natural temperature characteristics (in the temperature range between 0 and 50 °C). The procedure allows for the measurement of the converter hysteresis at various values of capacitance connected in parallel with the quartz crystal for the converter sensitivity setting at selected inductance. It, furthermore, enables the measurement of hysteresis at various values of inductance at selected parallel capacitance (sensitivity) connected to the quartz crystal. The article shows that the proposed hysteresis measurement of the converter, which converts the inductance in the range between 95 and 100 μH to a frequency in the range between 1 and 200 kHz, has only 7 × 10⁻¹³ frequency instability (during the temperature change between 0 and 50 °C) with a maximum 1 × 10⁻¹¹ hysteresis frequency difference.

1. Introduction

Nowadays, inductance-to-frequency conversion has become increasingly used in a large variety of applications that are designed for the measurement of a number of physical measurands, such as mechanical displacement (position), pressure, nanopositioning, strain sensing, eccentric motion, biosensors, in medical and electromagnetic material properties measurements, and quartz crystal microbalance [1,2,3]. High-resolution inductance-to-frequency conversion, in particular, is a well-established technique in microscale converters for material properties sensing. It represents a universal transduction mechanism for the measurements in which the inductance changes need to be measured with great precision. The hysteresis of the converter in such measurements plays a very important role.

Recent research studies have focused mainly on the sensor methods that would make precise measurements with the help of an inductance change in the range well below some μH possible. In such measurements both inductive resolution and inductance-to-frequency converter hysteresis play a vital role. The problem of temperature drift was addressed by one of the studies with an analog-digital mixed-measurement method based on the two-dimensional look-up table. Designed for inductive proximity sensors (IPS) widely used in position detection, the method reduced the measurement error caused by temperature drift, but unlike this study it works in the mH inductive range and is not linear [4]. Change in the sensor’s resonant frequency can also be used to detect the pressure wirelessly. In the implantable passive LC pressure sensor proposed by an interesting study, the inductance and capacitance elements of the sensor were designed independently and separated by a thermally-insulating material, which was conducive to reducing the influence of the temperature on the inductance element of the sensor. The linearity and repeatability errors achieved were 95.3%, and 5.5%, respectively, as a function of pressure at 800 °C [5]. Apart from temperature, passive LC sensors can be used to monitor pressure and harmful gases in harsh environments. The paper discusses the advantages and disadvantages of various sensor types and establishes that, for the measurement of multifunction sensors (because of the mutual inductance among multiple parameters), precise readout of multiple parameters requires a complex decoupling method. In addition, current passive LC sensors exhibit some degree of temperature drift [6]. With silicon’s better thermal material properties, silicon micromachined pressure sensors are widely used. The thermal mismatching between the sensing element and packaging may generate stresses on the transducer of a sensing element and create thermal hysteresis and voltage shift during temperature cycling (a very low voltage is involved). In the paper, finite element analyses and experimental tests were conducted to reduce the thermal stress and thermal hysteresis for differential pressure sensors [7].

Other research used a displacement-to-frequency transducer based on the variation of a coil inductance when a magnetic core is partially or completely inserted inside. Studies of the thermal stability of the transducer have been performed with the maximum frequency variation of 24 Hz-equivalent to 21 μm (below the sensor accuracy 33.5 Hz-equivalent to 28 μm). However, no temperature analysis of the influence of the flexible core on the frequency variation was made [8]. The sensing principle of an ink-jet printed eddy current position sensor has been thoroughly studied and validated by a paper that used both simulations and measurements. The results showed that the design of the sensor is very dependent on the limitations of the fabrication, especially the printing of conductors. Additionally, the temperature influence of the oscillator has not been taken into account [9]. Another paper presents a temperature and strain monitoring system for a magnetic actuator based on the magnetostrictive material Terfenol-D (Tb0.3 Dy0.7Fe1.92) with four fiber Bragg sensors. This system allows making the appropriate hysteresis compensation on the strain measurement due to temperature drift. The paper, however, does not analyze the temperature hysteresis influence of the electronic amplifier circuit and fiber Bragg sensor [10]. Small inductance changes measured at the frequency of 4.999 MHz can be detected with high sensitivity in the temperature range between 10 °C to 40 °C. The main advantage of this method lies in a considerable reduction of the temperature influence of the AT-cut crystal frequency change in the temperature range between 10 °C and 40 °C through a switching method. The method, however, has not researched the hysteresis influence brought about by the switching method [11]. The above methods looked for ways either of how to detect temperature influence or how to compensate it, but they have not made any significant analysis with regard to the sensors’ (electronic circuits) hysteresis influence on the measurement error.

The novelty in this work is the automated measurement of the quartz crystal inductance-to-frequency converter characteristics and hysteresis through the switching between the measuring inductance and the reference one using an analog multiplexer (MUX) switch. To set the capacitance in the first place, an analog single-pole single-throw (SPST) switch for the switching of additional parallel capacitances to the quartz crystal is used. In addition, a programmable switching control device for the converter hysteresis measurement was added. The use of all of these elements improves the quality of converter characteristics and hysteresis measurement, the frequency sensitivity of the converter, compensates the quartz crystal non-linear self-temperature frequency characteristic, as well as any parasitic capacitances of the oscillator circuit, and enables a very stable converter functioning in an extended temperature range. A switching mode oscillator, furthermore, strongly reduces the influence of the supply voltage on the output signal oscillating frequency, and foresees the functioning of the sensitive inductance element.

Additional comparisons to some other methods [12,13,14] for the conversion of inductance to frequency and hysteresis detection reveal that the newly-proposed method also proves to have high dynamic stability during the temperature changes in the extended operating range when the temperature varies between 0 and 50 °C. With regard to the temperature, the method makes possible a stable functioning of small inductance change measurement and conversion to a frequency signal (without any additional lock-in amplifier, host system, or temperature sensor).

2. Switching Mode Inductance-to-Frequency Converter

2.1. Switching Converter Principle

A quartz crystal inductance-to-frequency converter uses the principle of switching between two inductances connected in series, changing in this way the quartz crystal series resonance frequency. The purpose of this switching is the temperature compensation of the serial resonance frequency, which is temperature-dependent due to the quartz temperature dependency. It additionally compensates any other influence, such as parasitic capacitances and inductances, aging of the elements, etc., with the help of an additional reference inductance [11].

The operation of a quartz crystal (frequently explained using the familiar “Equivalent Circuit”) is illustrated in Figure 1a,b representing an electrical depiction of the quartz crystal unit [15,16,17]. By connecting the inductance L_L with its own resistance R_L, the quartz crystal series resonance frequency can be changed from 0 to 200 kHz.

The quartz series resonance frequency without the inductance L_L (which has its own resistance R_L) connected in series is determined by Equation (1):

$$f_0=\frac{1}{2\mathsf{\pi }\cdot \sqrt{L\cdot C}}$$

(1)

For the connection of the quartz crystal with inductance L_L in series, an equation with equivalent impedance can be written. If we define the frequency ratio Ω = ω/ω_o, which depends on ω_o = 1/$\sqrt{L\cdot C}$, and take into account ω_o L = 1/ω_o C, then the impedance change in the vicinity of the resonance frequency is described by Equation (2) in the range of change Ω = 0.998–1.038 [15,16,17]:

$$\stackrel{\_}{Z}\left(\mathsf{\Omega }\right)=R\frac{1+j\frac{{\mathsf{\omega }}_{0}L}{R}\left(\mathsf{\Omega }-\frac{1}{\mathsf{\Omega }}\right)}{1+\frac{C_0}{C}\left(1-{\mathsf{\Omega }}^2\right)+j\frac{C_0}{C}\cdot \frac{R}{{\mathsf{\omega }}_{0}L}\cdot \mathsf{\Omega }}+j\frac{\mathsf{\Omega }\cdot L_L}{\sqrt{L\cdot C}}+R_L$$

(2)

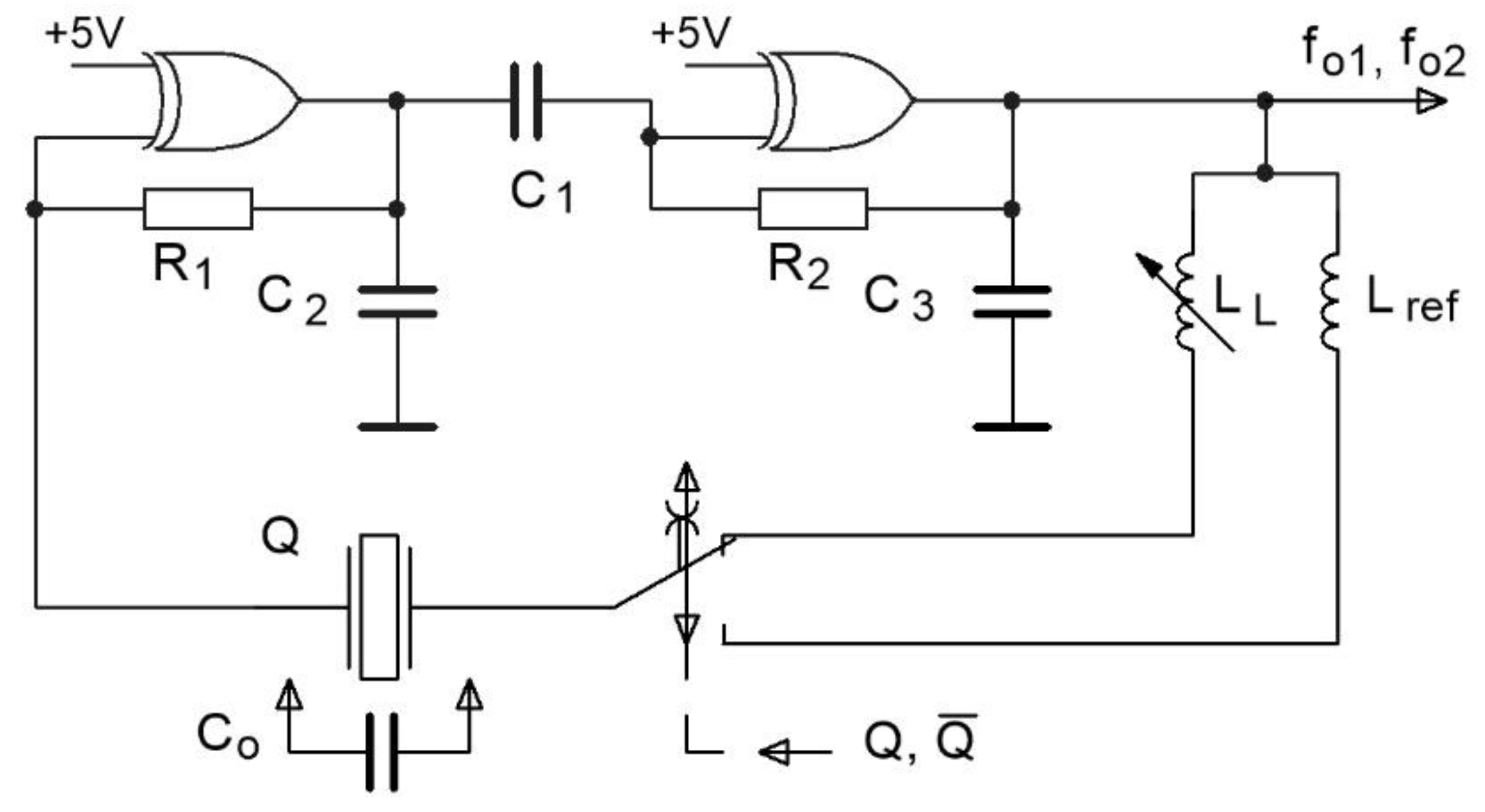

Figure 2 depicts the oscillator circuit switching between the reference inductance L_ref in series with the quartz crystal and the measuring inductance L_L in series with the quartz crystal. The switching between these two inductances produces two new resonance frequencies f₀₁ and f₀₂ at the output. Switching signals $Q$ and $\overline{Q}$ are digital signals 1 or 0.

The pulling range between the switching of inductances L_L and L_ref with the signals $Q$ and $\overline{Q}$ (Figure 2) can be written with Equation (3) [15,16,17]:

$$D_{L_L,L_{ref}}=\frac{f_{01L_L}-f_{02Lref}}{f_{02Lref}}$$

(3)

The change of resonance frequency f₀₁ (Figure 2) produced by the influence of inductance L_L is expressed with Equation (4) [15,16,17]:

$$f_{01}=\frac{1+\frac{C}{2\left(C_0-\frac{1}{{{\mathsf{\omega }}_0}^2\cdot L_L}\right)}}{2\mathsf{\pi }\cdot \sqrt{L\cdot C}}$$

(4)

The change of resonance frequency f₀₂ (Figure 2) produced by the influence of inductance L_ref is described in Equation (5) [15,16,17]:

$$f_{02}=\frac{1+\frac{C}{2\left(C_0-\frac{1}{{{\mathsf{\omega }}_0}^2\cdot L_{ref}}\right)}}{2\mathsf{\pi }\cdot \sqrt{L\cdot C}}$$

(5)

2.2. Converter Hysteresis Measurement Principle

The new idea of the converter hysteresis measurement method described in this article is the use of a specific switching mode oscillator with additionally-connected inductances in series with the quartz crystal alternating between L₁–L₇ and L_ref (Figure 3). Additional shunt capacitances C₁₀–C₁₂ are connected together with the SPST analog switch in parallel to the quartz crystal for the experimental stepwise increase (sensitivity settings) of the capacitance C₀. Conversion inductances L₁–L₇ and reference inductance L_ref are connected to the quartz crystal alternately (switching mode) in series. They enable a significant reduction of the temperature influence (both are on the same temperature) on the oscillator frequency change because of the switching mode oscillator. Capacitance C_set is used here for accurate setting of the initial frequency of the oscillator. To switch the frequencies from f₀₁ to f₀₇ the NI myDAQ (National Instruments, Austin, TX, USA) programmable device and the LabVIEW (LW) software (National Instruments, Austin, TX, USA) are used. The switching is performed through the switching (switching table of the eight-channel analog MUX switch) of digital signals (wires S₁–S₃). With the help of the reference frequency f_r (from an oven-controlled crystal oscillator (OCXO18T5S)), pulse width module (PWM), and low-pass filter (LP) frequencies f_01–07 (≅4 MHz) are converted to the range between 1 and 200 kHz, which is suitable for further signal processing. The signal corresponding to the frequency difference between the oscillator frequencies f_01–07 and reference frequency f_r enters the LP filter (which is a pulse width modulated signal) [18,19,20]. At the passive LP filter (with the response time of 3 μs) output, the triangular signal (with the initial setting frequency of 5 kHz depending on C_set, L_ref, and f_r = 4 MHz) is produced (frequency difference between f_0Lref and f_r). This signal is then converted to a rectangular signal by a signal transforming circuit representing the output signal f_out of the inductance-to-frequency converter. The output frequency f_out thus represents the temperature and any other influence-compensated signal which is synchronously measured with regard to the switching frequency. The latter can change in the range f_Switch = 1–20 Hz [10]. Capacitances C₂ and C₃ serve to suppress the spurious responses to avoid crystal oscillation at higher frequencies, and C₄ reduces the high frequency noise of the oscillator in the channel A of the HM 8122 programmable counter [21]. Channel A of the programmable counter measures the frequency f_01-07 in relation to the digital signals (wires S₁–S₃), while channel B measures the frequency difference f_out = f_01-07 − f_r or f_0Lref − f_r depending on the switching digital state (wires S₁–S₃).

For every switching between one of the inductances L_1–7 and L_ref (by changing digital signals sent by wires S₁–S₃), a positive impulse from NI myDAQ triggers the frequency measurement on the counter (external trigger). In this way, the frequency counter measures frequency synchronously with the LW programmable digital signal changes (wires S₁–S₃). Moreover, the LW software driver also makes it possible to statistically evaluate the number of performed consecutive measurements.

The quartz stray capacitance C₀ comprises pin-to-pin parallel capacitance at the crystal pins, plus any parasitic capacitances. The typical value of the quartz stray capacitance is between 1.5 pF and 5 pF. The connection of an additional stray capacitance connected in parallel (by SPST analog switch controlled by digital signals sent by wires IN₁–IN₃) to the quartz crystal for capacitive load settings, and of inductance L_1–7 in series with the quartz crystal expands the possibility of the measurement of the inductance-to-frequency converter hysteresis where the stable oscillation and high sensitivity are one of this method’s major advantages [22,23,24].

2.3. Temperature Compensation

Temperature compensation of the inductance-to-frequency converter is achieved via the oscillator’s switching method, which reduces the influence of short-term temperature instability and long-term instability (aging), representing the oscillator frequency variation as a function of time. The short-term stability of a quartz crystal depends on the actual oscillator design and is totally controlled by the quartz crystal at a low drive level (<10 μW) [25]. Long-term stability changes with years and is naturally greater during the first part of the crystal unit life. The aging rates of the best cold weld crystals are less than ±1 ppm/year (0–50 °C) [22].

The principle of temperature compensation is explained below through the example of two switchings between the inductances L_L and L_ref (as illustrated on Figure 2), where inductance L_L represents the inductance L₁ in Figure 3 [11]. When inductances L₁ and L_ref are the same, f₀₁ and f₀₂ remain almost the same depending on the quartz crystal resonant frequency f₀, quartz crystal temperature characteristics Δf₀ (T), its aging Δf₀ (t), and the L₁ and L_ref inequality, as well as the Δf₀ (ΔC_0p) change. However, when inductances L₁ and L_ref are different, the frequencies f₀₁ and f₀₂ are different and depend on the quartz crystal series resonant frequency f₀, quartz crystal temperature characteristics Δf₀ (T), its aging Δf₀ (t), inductances Δf₀ (L₂) and Δf₀ (L_ref), as well as the Δf₀ (ΔC_0p) change. In the case of the difference of the two frequencies f₀₁ and f₀₂, Δf₀ (T), Δf₀ (t), and Δf₀ (ΔC_0p) are strongly reduced because only one temperature quartz characteristic is involved [11].

f₀—quartz crystal series resonant frequency

f_r—reference frequency

Δf_c—counter error

L and C—mechanical behavior of the crystal element

L_n—conversion inductance (n = 1–7)

L_ref—reference inductance

C₀—quartz crystal parallel capacitance

C_0p—all actual parallel parasitic capacitances connected to the quartz crystal

T—temperature

t—time

The output frequency f_out (Figure 3) depends on the selection of digital signals sent by wires S₁–S₃ (frequency f_01-07) and reference frequency f_r and can be expanded to (in case Z₁ = R₁ + jωL₁ to Z₇ = R₇ + jωL₇ and Z_ref = R_ref + jωL_ref, whereby when dealing with small inductance values, resistances R_1-7 and R_ref can be ignored):

$$\begin{gathered} f_{out1}=f_{01}-f_r=f_0+\Delta f_0\left(T_1\right)+\Delta f_0\left(t_1\right)+\Delta f_0\left(C_{0p}\right)+\Delta f_0\left(L_n\right)-(f_r\left(T_1\right) \\ +\Delta f_r\left(T_1\right))+\Delta f_{c1}\left(t_1\right) \end{gathered}$$

(6)

$$\begin{gathered} f_{out2}=f_{02}-f_r=f_0+\Delta f_0\left(T_2\right)+\Delta f_0\left(t_2\right)+\Delta f_0\left(C_{0p}\right)+\Delta f_0\left(L_{ref}\right)-(f_r\left(T_2\right) \\ +\Delta f_r\left(T_2\right))+\Delta f_{c2}\left(t_2\right) \end{gathered}$$

(7)

where Δf_r (T) in Equations (6) and (7) represents the temperature instability of the reference oscillator signal and Δf_c (t) a counter error [16,17]. The joining of f₀ and Δf₀ (L_n) gives Equation (8). Which represents f₀₁:

$$f_{01}=\frac{1+\frac{C}{2\left(C_{0p}-\frac{1}{{{\mathsf{\omega }}_0}^2\cdot L_n}\right)}}{2\mathsf{\pi }\cdot \sqrt{L\cdot C}}+\Delta f_0\left(T_1\right)+\Delta f_0\left(t_1\right)$$

(8)

$${\mathsf{\omega }}_0=2\mathsf{\pi }{f}_0$$

(9)

The joining of f₀ and Δf₀ (L_ref) gives Equation (10) which represents f₀₂:

$$f_{02}=\frac{1+\frac{C}{2\left(C_{0p}-\frac{1}{{{\mathsf{\omega }}_0}^2\cdot L_{ref}}\right)}}{2\mathsf{\pi }\cdot \sqrt{L\cdot C}}+\Delta f_0\left(T_2\right)+\Delta f_0\left(t_2\right)$$

(10)

At every switch between two inductances, the frequency f_out is measured synchronously by the HM 8122 programmable counter (Figure 3) and its value is transferred to the LW software calculating the difference between the two frequencies. This gives the frequency difference in Equations (11) and (12), representing the temperature-compensated value of the output frequency f_out , depending almost uniquely on the difference between the ΔL_n and ΔL_ref change. This means that Δf_out (L_n) is virtually independent of the quartz crystal temperature characteristics Δf₀ (T). The quartz aging Δf₀ (t) is practically compensated and can be ignored as the measurements are short and consecutive (a few milliseconds). Due to the switching of the frequencies f₀₁ and f₀₂, the output frequency f_out also highly reduces the auxiliary reference frequency f_r temperature instability Δf_r (T):

$$\begin{gathered} \Delta f_{out}\left(L_n\right)=\left[f_{01}-(f_r\left(T_1\right)+\Delta f_r\left(T_1\right)+\Delta f_{c1}\left(t_1\right))\right] \\ -\left[f_{02}-(f_r\left(T_2\right)+\Delta f_r\left(T_2\right)+\Delta f_{c2}\left(t_2\right))\right] \end{gathered}$$

(11)

The reference frequency f_r is OCXO18T5S oven-controlled crystal oscillator (4 MHz) with the frequency stability of ±0.01 ppm in the temperature range 0° ± 60 °C following the warm-up time of 1 min [25,26,27]. The f_r (T) is compensated in Equation (11). Equation (12) is formed taking into account that the counter error Δf_c (t) is different at every switching for the time t₁ and t₂:

$$\begin{gathered} \Delta f_{out}\left(L_n\right)=\left[\frac{\frac{C}{2\left(C_{0p}-\frac{1}{{{\mathsf{\omega }}_0}^2\cdot L_n}\right)}}{\begin{array}{c}2\mathsf{\pi }\cdot \sqrt{L\cdot C}\end{array}}\right]-\Delta f_0\left(T_1\right)-\Delta f_r\left(T_1\right)+\Delta f_{c1}\left(t_1\right) \\ -\left[\frac{\frac{C}{2\left(C_{0p}-\frac{1}{{{\mathsf{\omega }}_0}^2\cdot L_{ref}}\right)}}{\begin{array}{c}2\mathsf{\pi }\cdot \sqrt{L\cdot C}\end{array}}\right]+\Delta f_0\left(T_2\right)+\Delta f_r\left(T_2\right)-\Delta f_{c2}\left(t_2\right) \end{gathered}$$

(12)

The proposed method (Figure 3) allows the AT-cut crystal temperature characteristics compensation (under 0.00001 Hz) in the range between 0 and 50 °C for the crystal cut angle 0′ through the switching circuit and significantly reduces its influence to a minimum.

2.4. The Shortcoming of the Temperature Compensation

The temperature compensation should take into account that due to the converter switching mode, L_n and L_ref are “alternatively” connected in series to the crystal in the oscillator in various sequences. The frequencies f₀₁ and f₀₂ given by Equations (8) and (10) have different times t₁ and t₂ (one after the other) depending on the digital control signals (wires S₁–S₃). This means that the subtraction in Equation (12) is not performed exactly point-to-point in time. It should be mentioned that the approach has some limitations in terms of the switching times and the time-speed of the events, i.e., temperature changes, whose effects can be cancelled. If these changes are sufficiently steep, temperature-related terms (Δf₀ (T₁) and Δf₀ (T₂) in Equations (8) and (10) are not equal, so they are not fully counterbalanced in Equation (12)) may not be cancelled in Equation (8). As a result, the lineal first-order approximations of Equations (6) and (7) are no longer valid, which means that the influence of other terms is also non-negligible.

Frequency changes of the counter error Δf_c1 (t) and Δf_c2 (t) in Equations (6) and (7) are undefined, and presented here as a part of these equations. They, in fact, include both the counter measurement error and oscillator noise because it is very difficult to differentiate between the two. The frequency measurement errors can differ in every single measurement. Different oscillator noises (phase modulated (PM), jitter, and thermal Johnson) are all included in Δf_c (t) [21]. The switching mode method, first and foremost, compensates (considerably reduces) quartz crystal temperature influence. This influence is significantly greater than those of the noise and counter accuracy.

The frequency measurement time depends on the gate time of the HM 8122 programmable counter and that of the LW software, as well as on the speed of the instrumentation IEEE 488 interface bus. To generate digital control signals (S₁–S₃) and perform synchronous measurements, an additional electronic circuit NI myDAQ (Figure 3) was added. The switching signal switching between f₀₁ and f₀₂ is simultaneously used as an external signal triggering the HM 8122 programmable counter (frequency measurement (channel A and channel B). The counter synchronously measures the sequence frequency f₀₁ (channel A) (the time of one measurement is determined by the counter gate time, which cannot be less than 1 ms) and frequency f_out (channel B). Similarly, the frequencies f₀₂ and f_out are sequentially measured on the counter channel A and B in the next switching sequence, and LW software calculates the frequency difference between Equations (8) and (10). For every two frequencies measured by the counter, LW software calculates the frequency difference (Equation (12)).

The maximum variation temperature/time (ΔT/Δt) limit for which the compensation is still achieved is determined by the response times of the converter, LW software, and HM 8122 counter measurement time. Converter response f₀ versus inductance variation is determined by the eight-channel analog MUX switching time (the values for the ON and OFF mode are 59 ns and 60 ns, respectively), and the low-pass filter time constant, which is 3 μs (passive LP filter first-order (τ = R_LP · C_LP)). If we take into account the response time of the two switches for one temperature-compensated inductance measurement, the converter response time is ≥10 μs. Due to LW software communication with the HM 8122 programmable counter and the time needed for the measurement (the time for one frequency measurement in the channel A or B is 1 ms) of the two frequencies by the counter, the minimum response time is not less than 2.1 ms. The maximum variation temperature/time (ΔT/Δt) limit for which the compensation is still achieved is determined by the dynamic frequency measurement error value during the time of both f₀₁ and f₀₂ signal period, i.e., within 2.1 ms (two consecutive measurements).

2.5. Experimental Setup

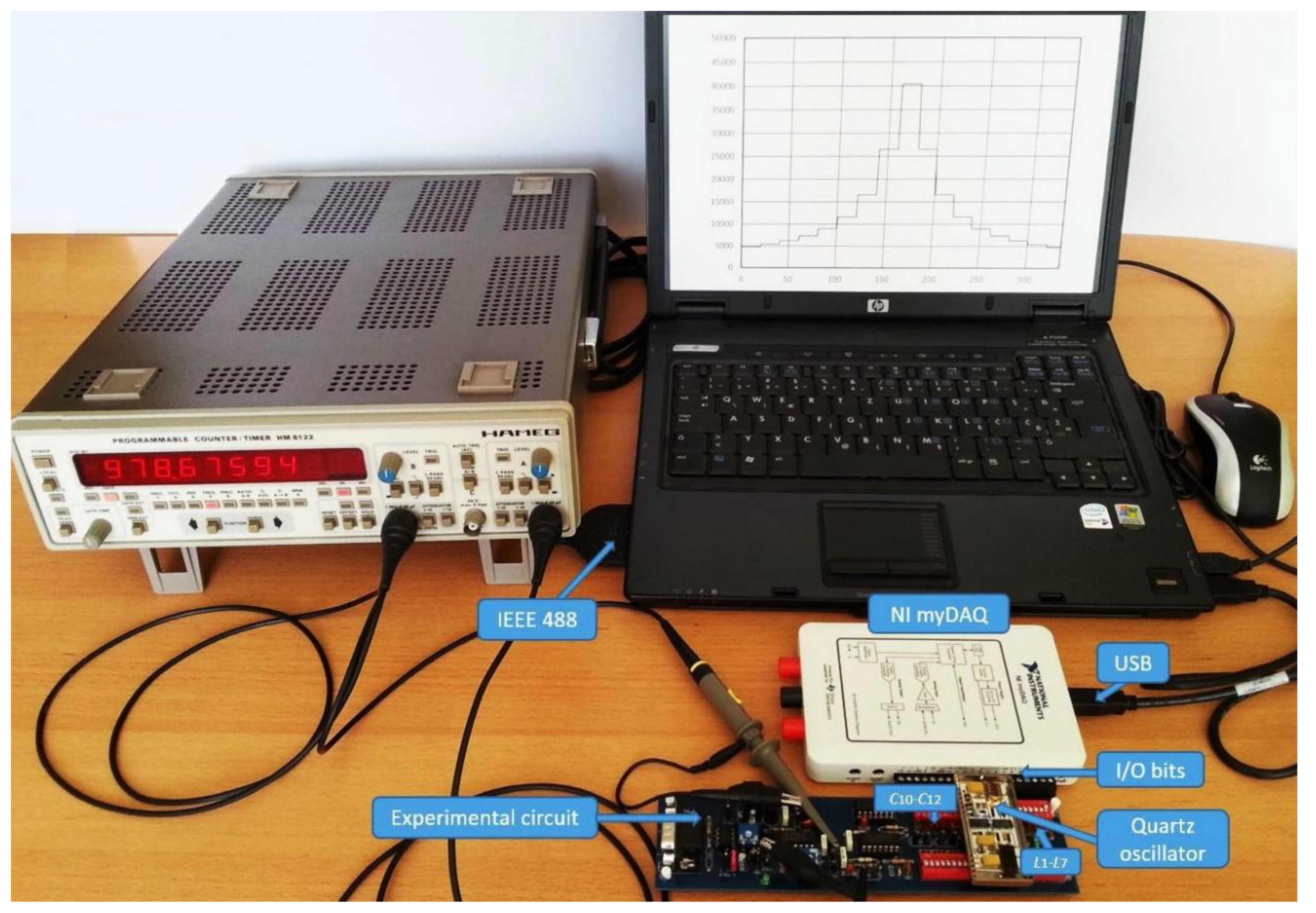

In this experiment, a prototype of a switching inductance-to-frequency converter circuit was constructed guaranteeing physically-stable conditions of the converter elements (Figure 4). A control switching logic was applied to the experimental oscillator circuit (eight-channel analog switch MUX) for the switching of the inductance L_1–7, L_ref and capacitance (SPST analog switch) C₁₀–C₁₂ (Figure 3). The circuit also includes an OCXO oscillator (Figure 4), producing a frequency-stable reference rectangular signal, and pulse-width modulator (XOR logic gate) producing at the output a pulse-width modulated signal. A low-pass filter filters the frequency difference f₀₁–f_r in the first logic state of the switching (S₁–S₃) and the frequency difference f₀₂ − f_r in the second logic state of the switching (S₁–S₃). The signal transformer transforms the voltage triangular signal to the voltage rectangular signal. The quartz oscillator is produced with SMD technology on Al₂O₃ because of good temperature stability and is placed into a metal housing. This design was used to achieve as stable parasitic capacitances and inductances in the circuits as possible. The quartz crystal Q (Figure 3) used in the experiment was AT-cut crystal with a frequency change of −2.5 ppm at T = 0 °C and 1.5 ppm at T = 50 °C depending on the reference temperature point T_ref = 25 °C. The data of the electrical quartz crystal (f₀ = 4 MHz) equivalent circuit elements are R = 10 Ohm, C = 25 fF, L = 64 mH, C_o = 4 pF, and quality Q = 80 k. The values in the quartz crystal equivalent circuit were measured by an HP4194A impedance/gain-phase analyzer. Experimental circuits is connected to the NI myDAQ device with digital outputs for the control of the eight-channel analog switch MUX and a SPST analog switch. The NI myDAQ device is further connected to the computer via USB port. This enables automated changing of inductances L_1–7 at the input of the inductance-to-frequency converter and switching between L_1–7 and L_ref and the setting of the converter sensitivity with capacitances C₁₀–C₁₂ (Figure 3). This mode of operation ensures stable parasitic capacitances and inductances, as well as repeatability of the experimental results [28,29].

The HM 8122 programmable counter is connected to the computer via the IEEE 488 interface bus. The measurement probes are connected directly to output pins f_out and f_01–07 of the experimental circuit. Moreover, the LW software performs the switching of the oscillator frequency from f₀₁ to f₀₇ via NI myDAQ device, reads the frequency data for each f_0n from the counter via the IEEE 488 interface bus, and processes the data.

3. Experimental Results

To obtain good experimental results, a stable oscillator circuit in the inductance-to-frequency converter is of crucial importance. Therefore, the factors affecting frequency stability of the converter, such as wide operating temperature range, the use of various types of crystals, and drive level should be considered. Stability of the electronic circuit depends upon the quartz crystal temperature stability, the circuit type and quality of the elements. It is noteworthy to mention that an oscillator with a good start-up, i.e., with a reliable crystal oscillation during the start and later on, is a must.

3.1. Inductance-Frequency Characteristics of the Converter

Figure 5 shows oscillator’s frequency characteristics f_01–07 with regard to the change of the inductance L_n = L₁ to L₇ and a comparison of the characteristics for various C₁₀–C₁₂ (for the selection of various sensitivities) connected in parallel to the quartz crystal Q (Figure 3). L_n values are set by Ni myDAQ and are in steps of 0 μH, 12 μH, 25.4 μH, 48 μH, 75 μH, 85 μH, 95 μH, 97.5 μH, and 100 μH. Within the switcher range (L_n = 95–100 μH) the inductance-frequency characteristics is almost linear. In the range L_n = 95–100 μH, the capacitance C₁₀ = 1 pF records the sensitivity of 23.12 kHz/μH, C₁₁ = 3 pF records the sensitivity of 31.58 kHz/μH, and when C₁₂ = 5 pF, the sensitivity is 39.26 kHz/μH (Figure 5). When only the quartz crystal’s natural C_o capacitance is present in the circuit, the sensitivity is 17.95 kHz/μH. However, for this particular experiment, the capacitors C_10–12 and inductances L_n with tolerance of 0.1% were specially selected by the measurement with an HP 4194A impedance/gain phase analyzer.

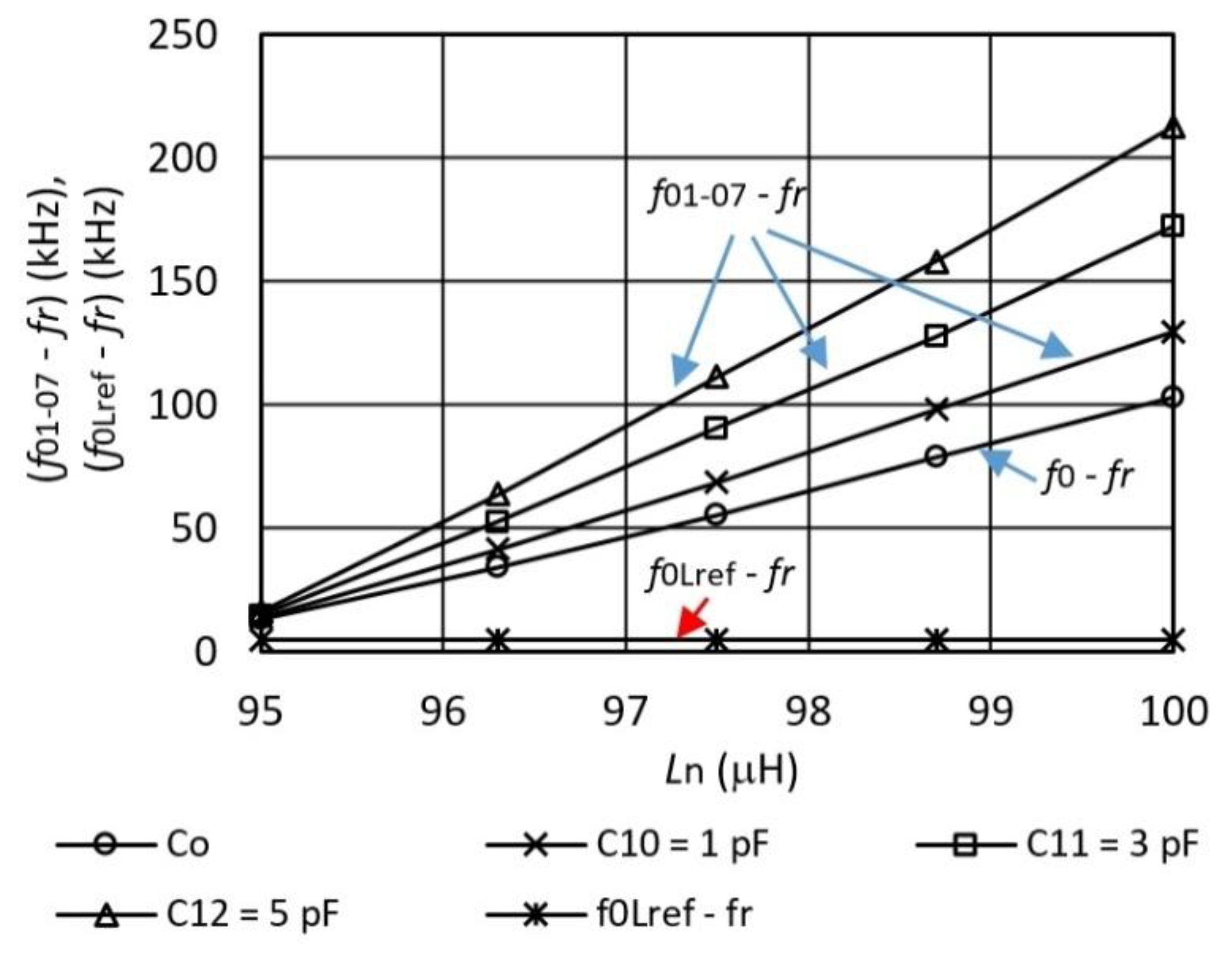

Figure 6 shows in greater detail inductance-frequency characteristics in the range of inductance-frequency switcher operation when the inductance is changed in the range L_n = 95–100 μH. By using a switching multiplexer (and switching signals sent by wires S₁–S₃) (Figure 3), where various inductances L_n are switched, we get characteristics f_01–07 − f_r and f_0Lref − f_r. Depicted are three different characteristics for three different capacitance values C₁₀–C₁₂, which are switched with the digital signals sent by wires IN₁–IN₃ (in the range 1, 3, and 5 pF) and characteristics C₀ (when the crystal does not have any additionally connected capacitance in parallel). Frequency difference f_0Lref − f_r = 5 kHz is determined by the reference inductance L_ref (Figure 3) and the OCXO reference oscillator, and serves for the transformation of the signal in the lower frequency range and for the temperature compensation. Frequency signal f_out represents the time duration of one switching f_01-07 − f_r and in the next one f_0Lref − f_r. The difference of frequencies (f_01-07 − f_r) − (f_0Lref − f_r) in the sequence of two switchings is then calculated by the computer and represents the final switcher’s inductance-frequency characteristics. Thus, the most sensitive characteristics are obtained at C₁₂ = 5 pF. The greatest frequency difference of (f_01-07 − f_r) − (f_0Lref − f_r) at the sensitivity of 39.26 kHz/μH is ≅200 kHz.

Figure 7 shows the measurement of the hysteresis error if the inductance L_n is set in steps between 0 μH and 100 μH (frequencies f_01-07up) and back from 100 μH to 0 μH (frequencies f_07–01down). The influences of the temperature, oscillator element aging, and the influences of parasitic capacitances are reduced to a minimum because in the frequency difference ((f_01-07up − f_r) − (f_0Lref − f_r)) − ((f_07-01down − f_r) − (f_0Lref − f_r)) remains only (f_01-07up − f_07-01down), which represents the hysteresis measurement for three capacitances (C₁₀, C₁₁ and C₁₂). Also shown are the hysteresis characteristics for C₀ only, without any additionally-connected capacitances in parallel to the quartz crystal. The hysteresis influence on Figure 7 is visible because, by increasing the value of inductance L_n, the hysteresis (frequency difference (f_01-07up − f_07-01down)) difference increases. There are three regions A, B, and C shown in Figure 7. In the (A) region, the hysteresis frequency difference for all three capacitance values is C_10-12 ≤ 1·10⁻¹², in the (B) region of inductance L_n = 25–75 μH, the frequency difference is ≅1×10⁻¹² and in the (C) region (L_n = 75–99 μH ) there is a maximum value (Max) of frequency difference at L_n = 99 μH and it is 9 × 10⁻¹² at the value of capacitance C₁₂ = 5 pF (at maximum sensitivity of the inductance-to-frequency switcher).

3.2. Temperature/Frequency Stability of the Switching Converter

If the converter is influenced by a temperature changing from 0 to 50 °C, the switching mode extended dynamic frequencies change f_01-07 − f_r and f_0Lref − f_r is approximately the same, and it decreases as shown in Figure 8. For every state f_01-07 − f_r and f_0Lref − f_r consecutive measurements were made. The temperature control was performed by Weiss SB1 160 programmable climate chamber (Weiss Umwelttechnik GmbH, Stuttgart, Germany). The dotted trend line points to the change of direction of both frequency differences (decreases). These results demonstrate that the temperature influence on the frequency differences f_01-07 − f_r and frequency f_0Lref − f_r (in the time span between 0 and 240 s) changes the frequency difference in the same size class (Diff 1, Diff 2). Given that the frequency change is almost the same at 0 °C and 50 °C (Figure 8), the temperature influence is reduced to minimum. The temperature in the immediate vicinity of the crystal was measured by the NI USB-TC01 thermocouple measurement device. The frequency shift shown in Figure 8 between f_01-7 − f_r and f_0Lref − f_r depends on the difference between L_n and L_ref (L_n = 95.01 μH and L_ref = 95 μH).

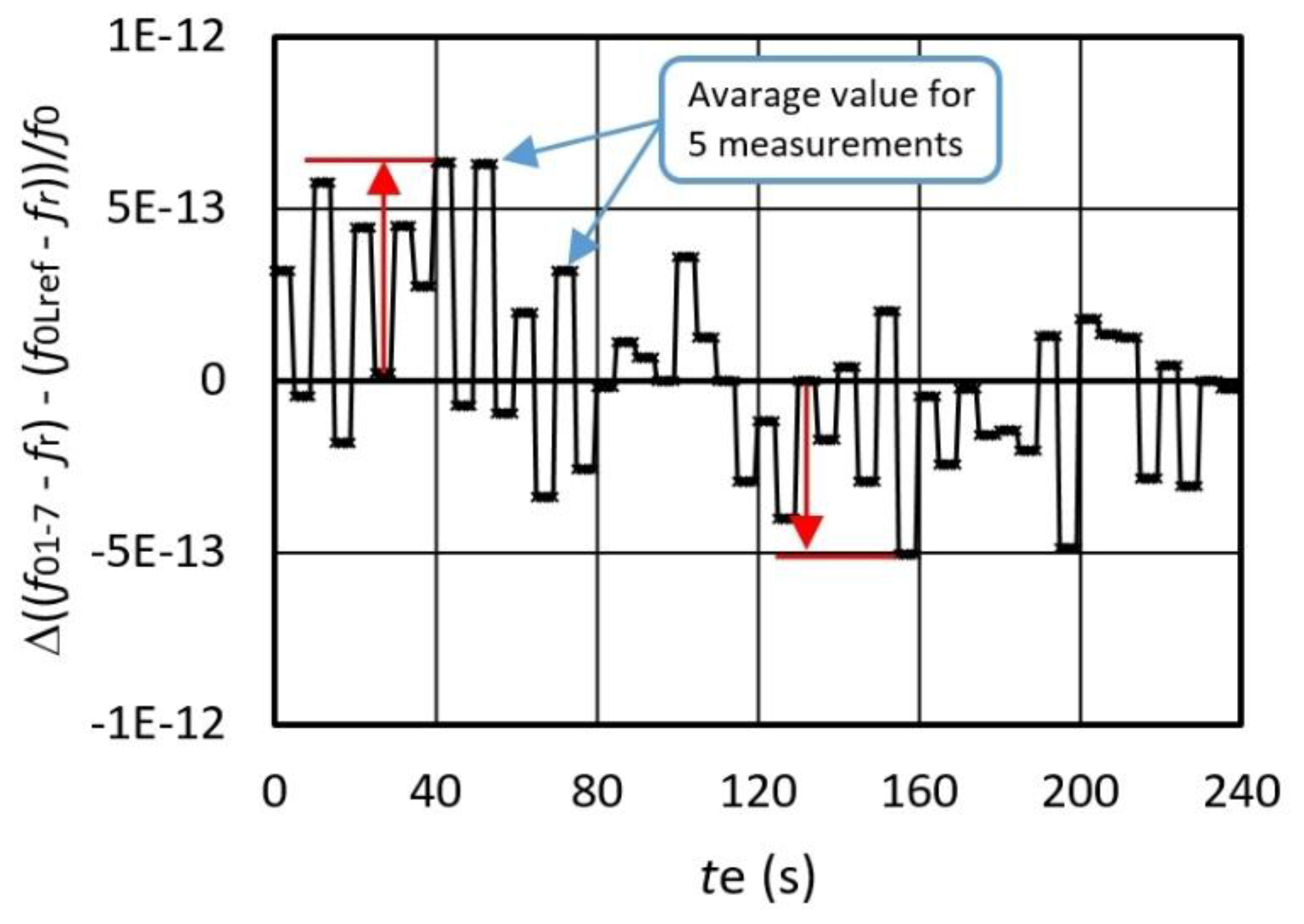

Figure 9 illustrates the frequency variation for Δf_out = Δ ((f_01-07 − f_r) − (f_0Lref − f_r))/f₀ at the frequency difference ≅558 Hz (f_0Lref − f_r = 5 kHz (Figure 8)) determined by the fixed values L_n and L_ref (L_n = 95.01 μH, L_ref = 95 μH) in the time span t = 0–240 s during the temperature change 0–50 °C. Deduction of frequencies (between f_01-7 − f_r and f_0Lref − f_r) in relation to the synchronization signal is performed by LW software in sequence at different times t_e. The differences between f_01-7 − f_r and f_0Lref − f_r show a high-frequency dynamic stability in the range ±7 × 10⁻¹³ (as pointed by arrows on Figure 9).

4. Discussion

This switching method makes possible a high-precision measurement of accurate characteristics and hysteresis of the inductance-to-frequency converter through experimental automated approach.

Due to almost instant comparison (that lasts only a few milliseconds) of the measured inductance with the reference one, the environment temperature remains virtually unchanged. In case of two consecutive inductance measurements and the conversion to frequency (at dynamic environment temperature changes), the temperature influence is also reduced to a minimum, as shown by the results. The frequency difference of two consecutive switchings namely lasts only a few milliseconds (Figure 8 and Figure 9). An automated approach of changing inductance with the help of an analog MUX switch (Figure 3) ensures that during the switchings there are no additional changing influences of parasitic inductances and capacitances. The SPST analog switch plays a similar role, changing the load capacitance and, as a result, the sensitivity of the inductance-to-frequency converter.

If the output converter frequency sensitivity of 39.26 kHz is in the range L_n = 95–100 μH at C₁₂ = 5 pF (Figure 6), the supply voltage stability is 5 V ± 0.01 V, the HM8122 counter accuracy of ±5 × 10⁻⁹ (through the working temperature range from 10 to 40 °C, and the frequency reference f_r stability is 0.005 ppm, then the frequency stability at the output is f_out = ±7 × 10⁻¹³, which gives the converter a resolution of ±2 pH in the temperature range between 0 and 50 °C. Thus, the output frequency stability proves the applicability of the automated hysteresis measurement method of the inductance-to-frequency converter in the pH range.

5. Conclusions

The proposed measurement method enables temperature compensation and stable hysteresis measurement of an inductance-to-frequency converter. The greatest advantage of the proposed method is that the programmable timing control device allows for the selection of different oscillating frequencies. The method simultaneously compensates not only for the stray capacitances and inductances, but also for the crystal’s natural temperature characteristics. Moreover, it enables additional software-managed decreasing of the inductance and any parasitic capacitance minimizing external influences.

The hysteresis measurement results clearly show that the oscillator switching method for high-precision inductance-to-frequency conversion opens up new possibilities through the compensation of the main oscillating element self-temperature and minimization of other frequency variation influences (such as aging, the influence of the supply voltage on the oscillating circuit, as well as the reference frequency temperature instability). The method can be applied in many different fields, such as nanorobotics, mechatronics, magnetic material properties measurement, biosensor technology, as well as in specific fields of physics.
