Vision-Based SLAM System for Unmanned Aerial Vehicles

Department of Automatic Control, Technical University of Catalonia UPC, Barcelona 08036, Spain
Department of Computer Science, CUCEI, University of Guadalajara, Guadalajara 44430, Mexico
Authors to whom correspondence should be addressed.
Academic Editor: Gonzalo Pajares Martinsanz
Sensors 2016, 16(3), 372;
Received: 8 December 2015 / Revised: 7 March 2016 / Accepted: 9 March 2016 / Published: 15 March 2016
(This article belongs to the Special Issue State-of-the-Art Sensors Technology in Spain 2015)
PDF [2090 KB, uploaded 15 March 2016]

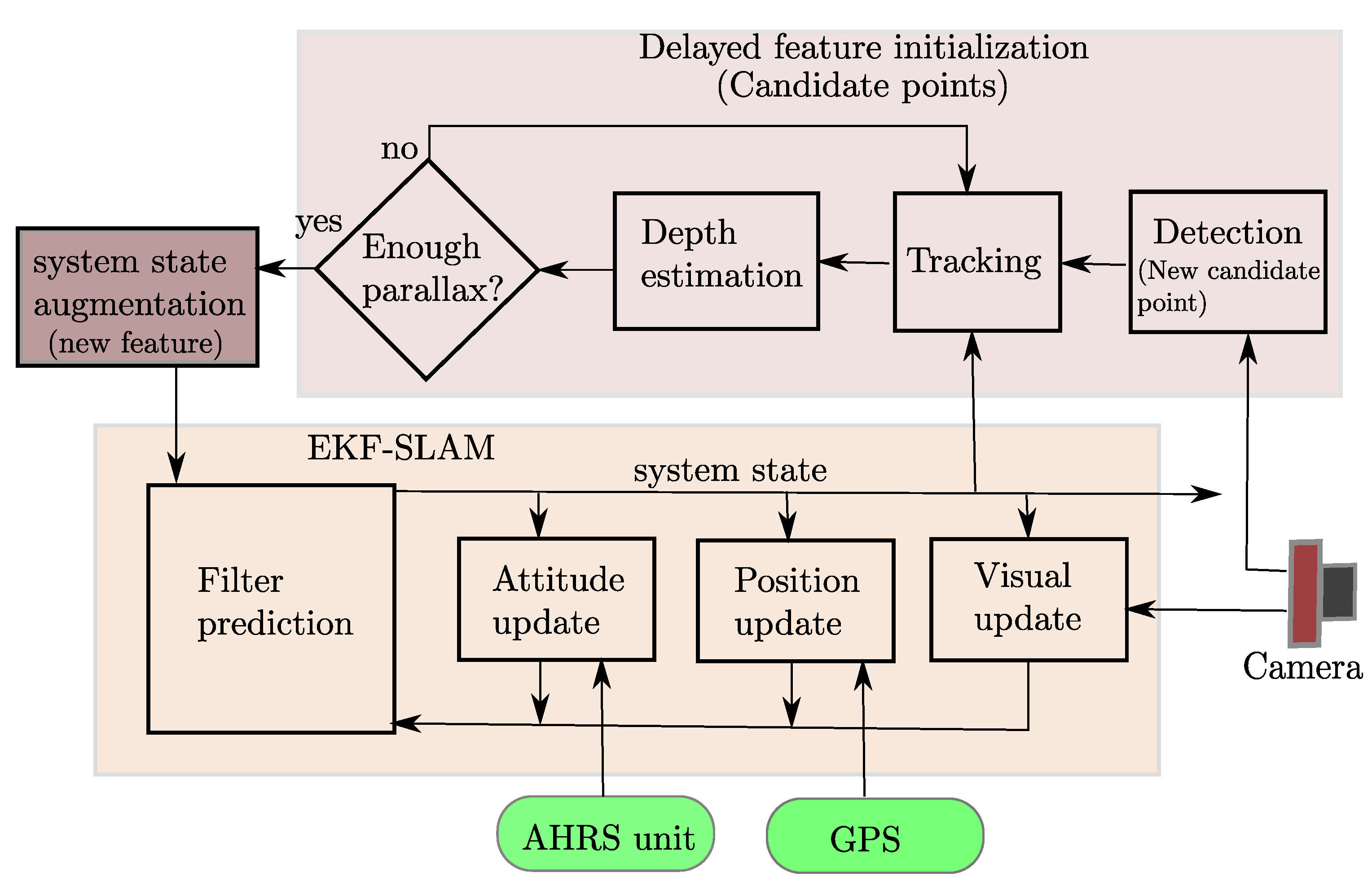

The present paper describes a vision-based simultaneous localization and mapping system to be applied to Unmanned Aerial Vehicles (UAVs). The main contribution of this work is to propose a novel estimator relying on an Extended Kalman Filter. The estimator is designed in order to fuse the measurements obtained from: (i) an orientation sensor (AHRS); (ii) a position sensor (GPS); and (iii) a monocular camera. The estimated state consists of the full state of the vehicle: position and orientation and their first derivatives, as well as the location of the landmarks observed by the camera. The position sensor will be used only during the initialization period in order to recover the metric scale of the world. Afterwards, the estimated map of landmarks will be used to perform a fully vision-based navigation when the position sensor is not available. Experimental results obtained with simulations and real data show the benefits of the inclusion of camera measurements into the system. In this sense the estimation of the trajectory of the vehicle is considerably improved, compared with the estimates obtained using only the measurements from the position sensor, which are commonly low-rated and highly noisy. View Full-Text
Keywords: state estimation; unmanned aerial vehicle; monocular vision; localization; mapping state estimation; unmanned aerial vehicle; monocular vision; localization; mapping

Figure 1

This is an open access article distributed under the Creative Commons Attribution License which permits unrestricted use, distribution, and reproduction in any medium, provided the original work is properly cited (CC BY 4.0).
Printed Edition Available!
A printed edition of this Special Issue is available here.

Share & Cite This Article

MDPI and ACS Style

Munguía, R.; Urzua, S.; Bolea, Y.; Grau, A. Vision-Based SLAM System for Unmanned Aerial Vehicles. Sensors 2016, 16, 372.
