Body-Based Gender Recognition Using Images from Visible and Thermal Cameras
Abstract
:1. Introduction
- This is the first study using both the visible light and thermal images of the full human body for gender recognition.
- Based on the detected boxes of body in both visible and thermal images, the features for gender recognition are extracted from the visible light and thermal image. This is accomplished by using the histogram of oriented gradient (HoG) method with principal component analysis (PCA) in order to reduce the feature dimension, processing time, and the effects of noise on the extracted features.
- Gender classification using the features from visible light and thermal images are made by using two different SVMs classifiers.
- A score level fusion is performed to combine the two classification scores by the two SVMs using another SVM classifier in order to recognize the gender of human.
Category | Method | Strength | Weakness |
---|---|---|---|
Fingerprint-based gender recognition | Using fingerprint image for gender recognition [6,10,11]. | High accuracy | Requires the cooperation of users. The accuracy is affected by quality and the resolution of fingerprint image. |
Face-based gender recognition | Using human face for gender recognition [7,8,9,10,11]. | High accuracy | Requires the cooperation of users. It’s very hard to recognize gender for very young people. |
Body-based gender recognition | Using only visible images of human body for gender recognition [3,12], with 3D shape model [13,14]. | Does not require the cooperation of users. | Recognition accuracy is strongly affected by illumination conditions, body poses, the random appearance of image texture on body region such as clothes, accessories etc. Recognition accuracy is lower than using face-based gender recognition approach. |
Combining the visible and thermal images of human body using score level fusion using SVM for gender recognition (Proposed Method) | Does not require the cooperation of users. Enhances the recognition result compared to the systems that use only visible images for gender recognition. Reduces the affects by illumination condition, the body poses, the random appearance of image texture on boy region such as clothes, accessories etc. | Requires longer processing time than singly visible images. Recognition accuracy is still lower than using face-based gender recognition approach. |
2. Proposed Method

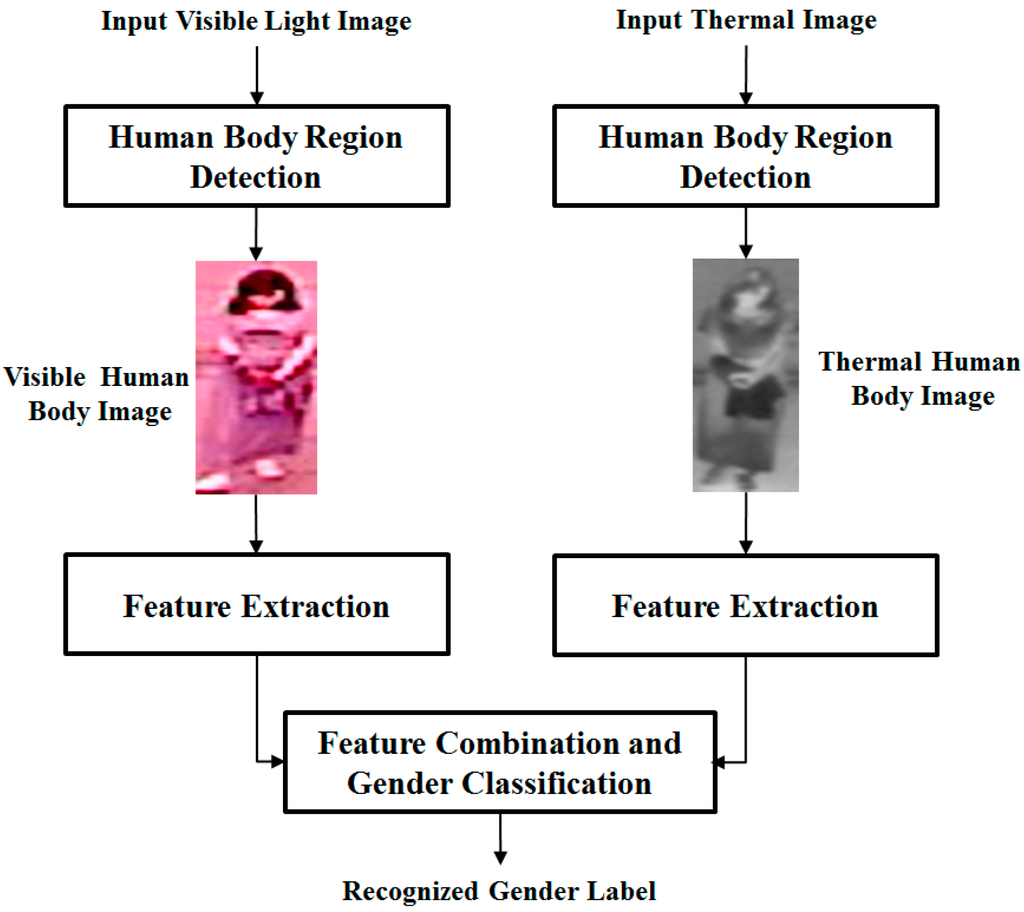

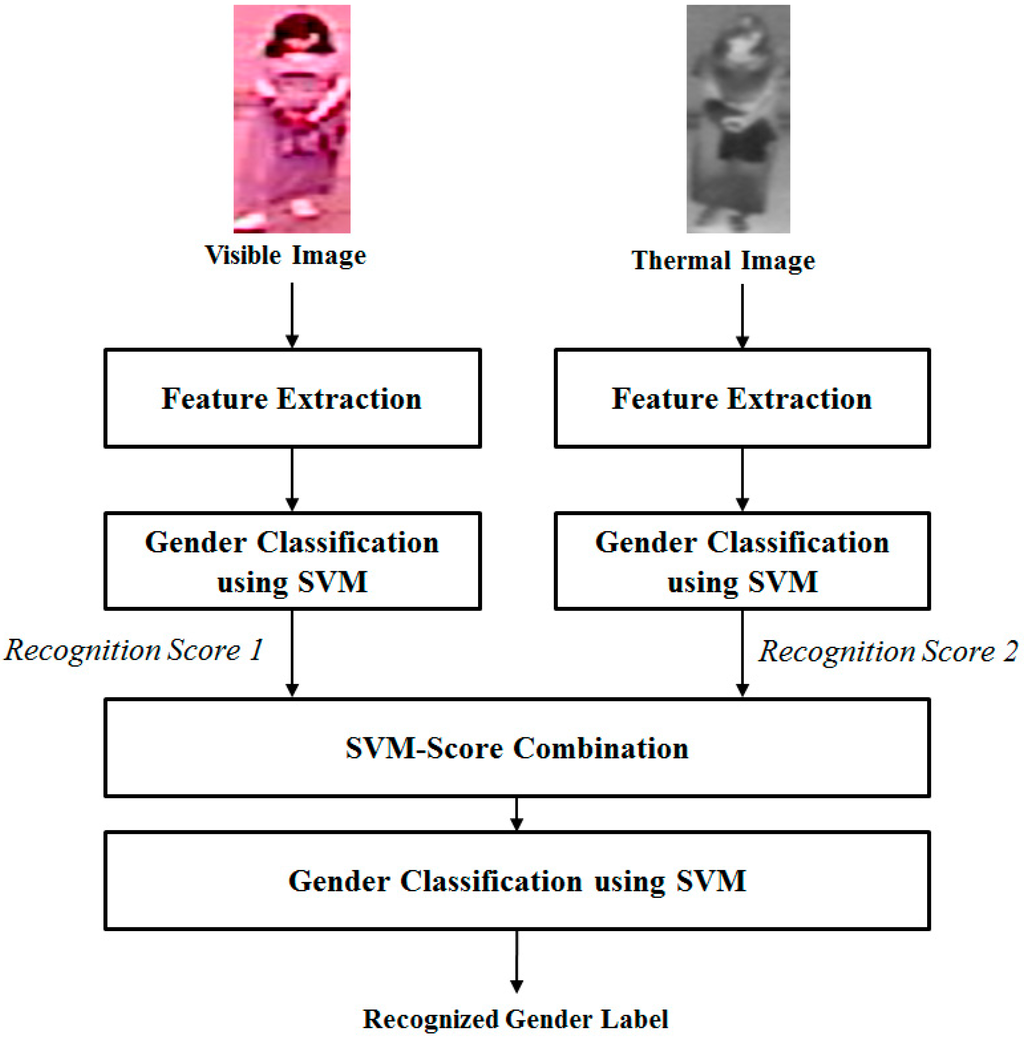

2.1. Overview of the Proposed Method

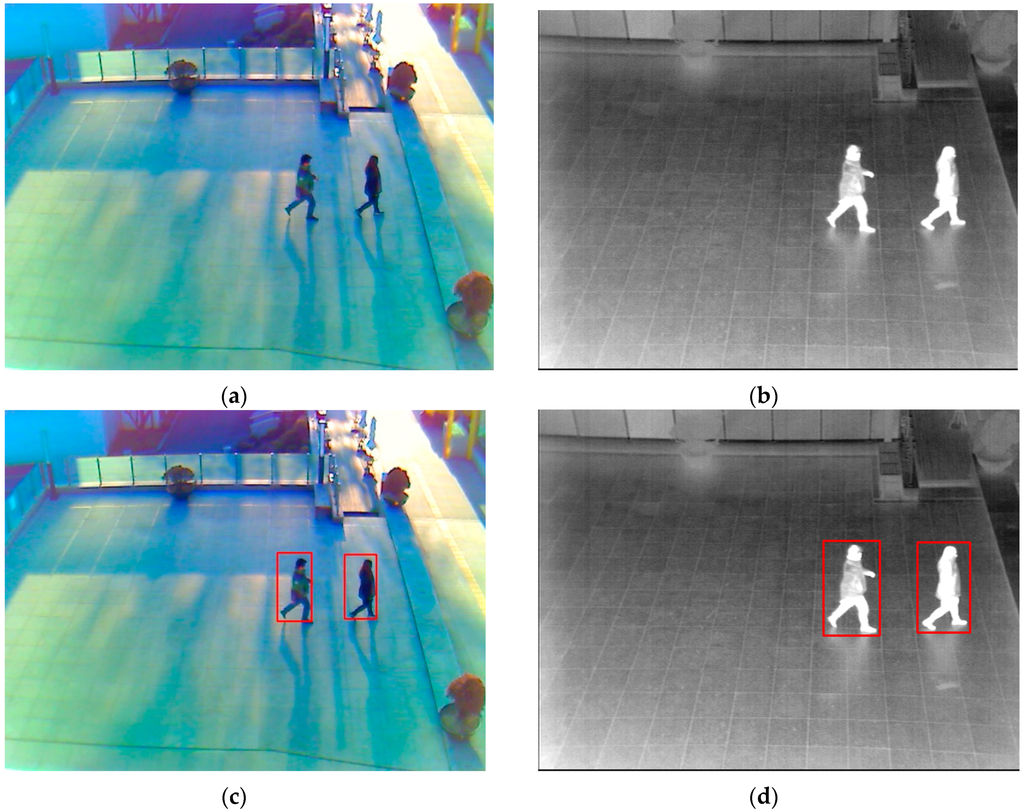

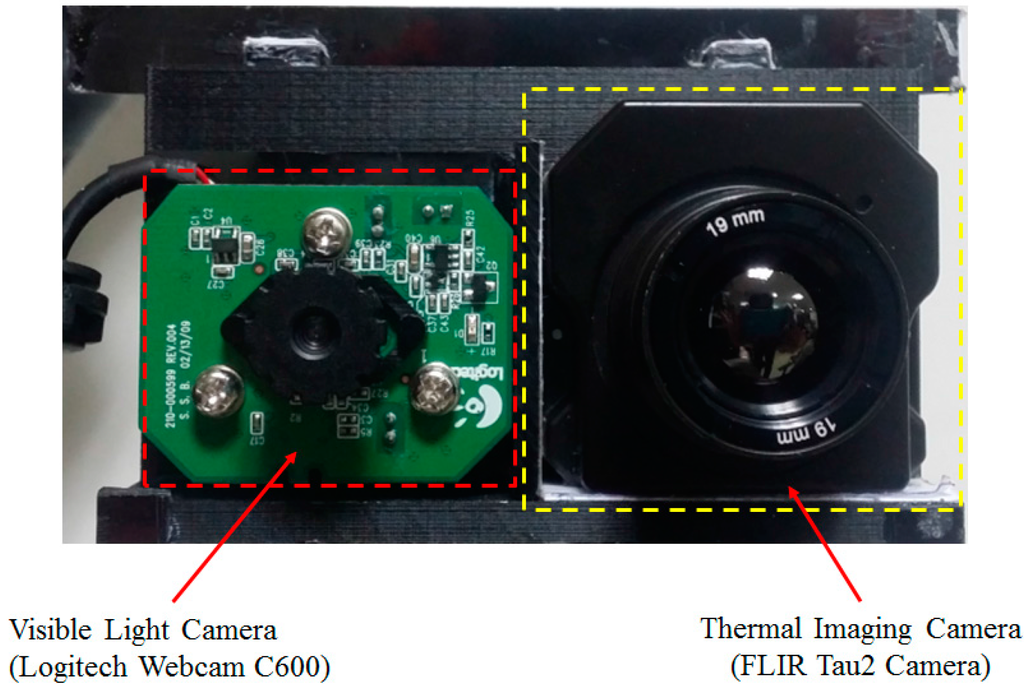

2.2. Image Acquisition and Human Detection from Image Sequences
2.3. Feature Extraction Methods for Gender Recognition
2.3.1. Histogram of Oriented Gradient

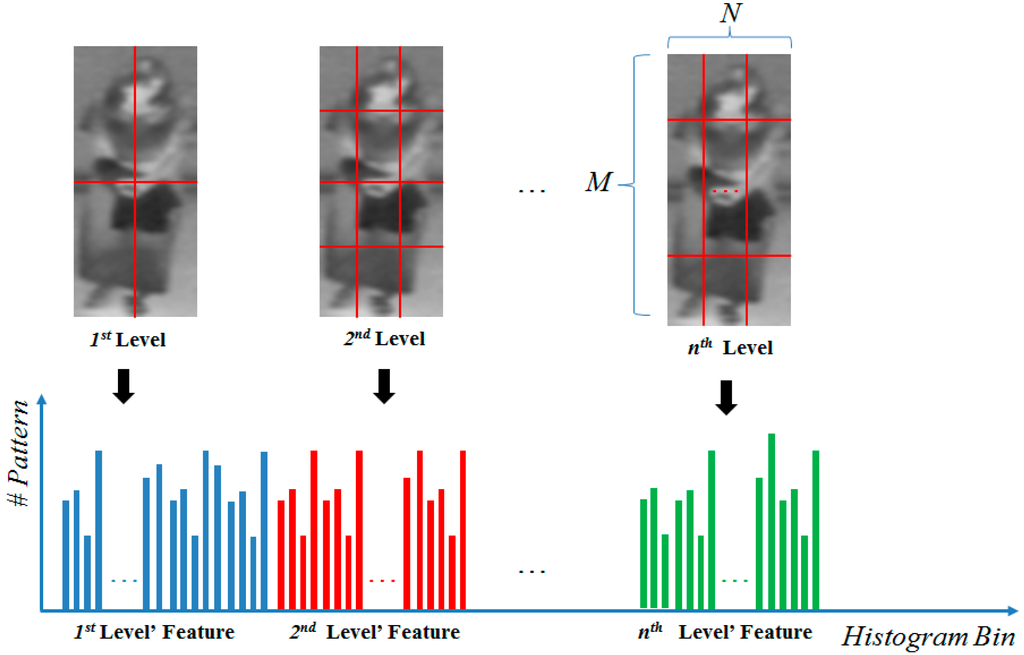

2.3.2. Multi-Level Local Binary Pattern

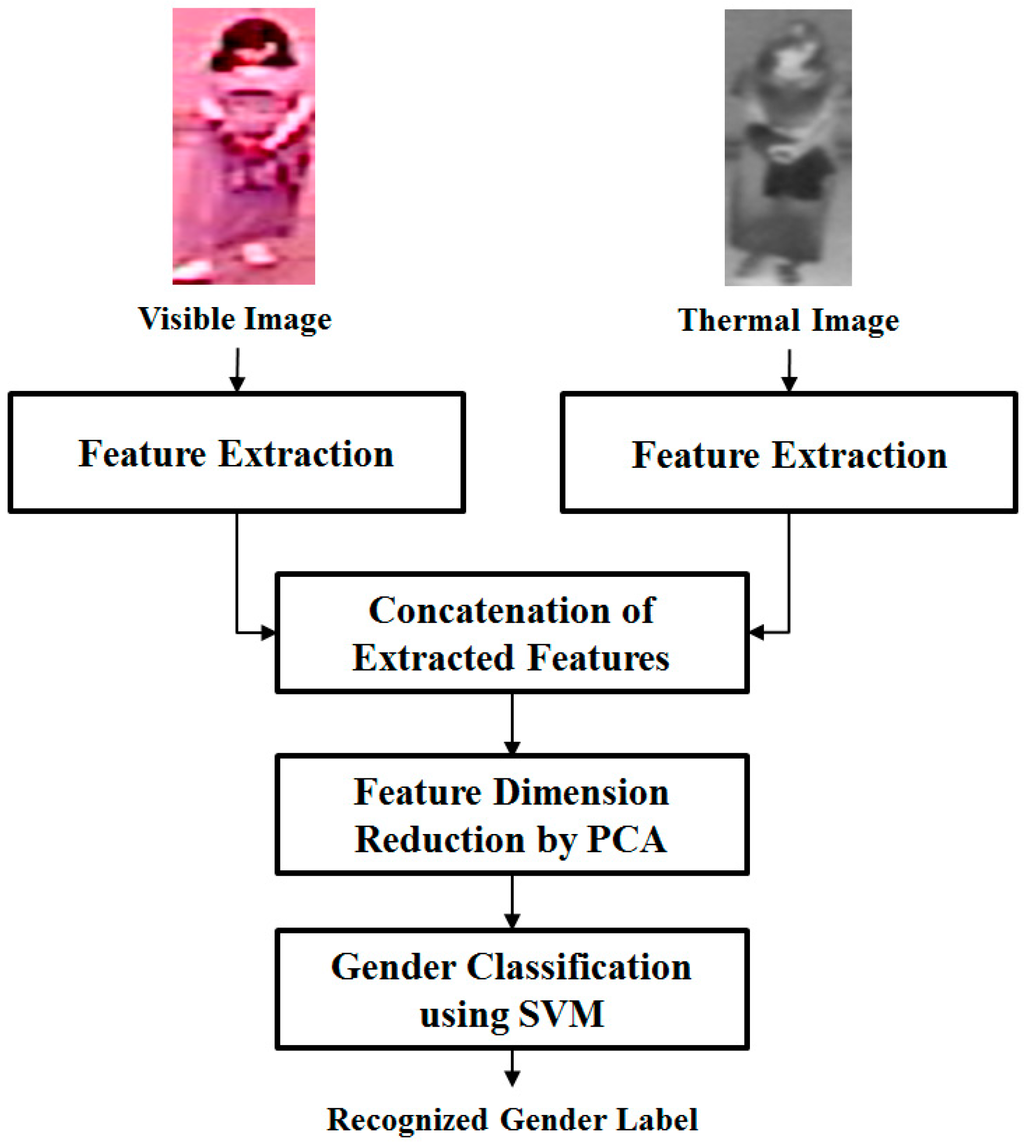

2.3.3. Feature Combination and Gender Recognition Using SVM
3. Experimental Results

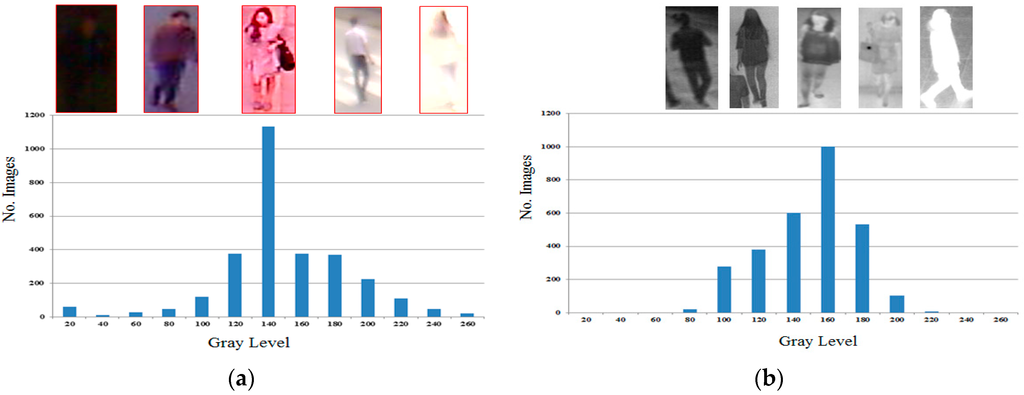

3.1. Description of the Database, Performance Measurement and Experimental Setup
Database | Visible Database | Thermal Database | (Visible + Thermal) Database | |
---|---|---|---|---|
Number of persons | 103 (66 males/37 females) | 103 (66 males/37 females) | 103 (66 males/37 females) | |
Number of Images | 2926 | 2926 | 5852 |
Database | Training Sub-Database | Testing Sub-Database | The Entire Database |
---|---|---|---|
Number of persons | 83 (53 males/30 females) | 20 (13 males/7 females) | 103 (66 males/37 females) |
3.2. Gender Recognition Using Our Proposed Method
Methods | Linear Kernel | RBF Kernel | |||||
---|---|---|---|---|---|---|---|
EER | FAR | GAR | EER | FAR | GAR | ||
Using only visible images for recognition | Using HoG feature | 19.639 | 10.000 | 58.099 | 16.540 | 10.000 | 62.758 |
15.000 | 69.920 | 15.000 | 79.878 | ||||
19.642 | 80.364 | 16.542 | 83.461 | ||||
20.000 | 80.440 | 20.000 | 88.051 | ||||
25.000 | 85.697 | 25.000 | 91.716 | ||||
Using MLBP feature | 27.105 | 20.000 | 62.790 | 25.088 | 15.000 | 57.506 | |
25.000 | 69.676 | 20.000 | 66.359 | ||||
27.107 | 72.897 | 25.094 | 74.918 | ||||
30.000 | 77.793 | 30.000 | 80.778 | ||||
35.000 | 81.359 | 35.000 | 86.088 | ||||
Using only thermal images for recognition | Using HoG feature | 23.459 | 15.000 | 60.002 | 19.583 | 10.000 | 57.027 |
20.000 | 67.192 | 15.000 | 65.791 | ||||
23.518 | 76.600 | 19.605 | 80.439 | ||||
25.000 | 79.049 | 20.000 | 80.669 | ||||
30.000 | 83.499 | 25.000 | 89.815 | ||||
Using MLBP feature | 24.002 | 15.000 | 61.901 | 20.572 | 10.000 | 55.929 | |
20.000 | 68.824 | 15.000 | 68.506 | ||||
24.019 | 76.014 | 20.580 | 79.436 | ||||
25.000 | 76.771 | 25.000 | 85.236 | ||||
30.000 | 81.354 | 30.000 | 90.097 |
Method | Linear Kernel | RBF Kernel | ||||
---|---|---|---|---|---|---|
EER | FAR | GAR | EER | FAR | GAR | |
Using HoG feature | 19.553 | 10.000 | 61.445 | 15.946 | 10.000 | 73.050 |
15.000 | 70.169 | 15.000 | 80.534 | |||
19.605 | 80.498 | 16.192 | 84.299 | |||
20.000 | 80.790 | 20.000 | 89.341 | |||
25.000 | 84.764 | 25.000 | 92.250 | |||
Using MLBP feature | 21.022 | 15.000 | 63.366 | 18.126 | 10.000 | 60.993 |
20.000 | 76.482 | 15.000 | 73.669 | |||
21.043 | 78.999 | 18.155 | 81.902 | |||
25.000 | 83.096 | 20.000 | 84.426 | |||
30.000 | 87.075 | 25.000 | 89.898 |
Feature Extraction Method | The 1st SVM Kernel | The 2nd SVM Kernel | Recognition Accuracy | ||
---|---|---|---|---|---|
EER | FAR | GAR | |||
Using HoG feature | Linear | Linear | 17.891 | 15.000 | 75.063 |
17.892 | 82.111 | ||||
20.000 | 84.353 | ||||
25.000 | 88.862 | ||||
RBF | 17.628 | 15.000 | 75.143 | ||
17.667 | 82.411 | ||||
20.000 | 84.696 | ||||
25.000 | 89.035 | ||||
RBF | Linear | 15.158 | 10.000 | 65.884 | |
15.000 | 83.988 | ||||
15.254 | 84.937 | ||||
20.000 | 93.900 | ||||
RBF | 14.672 | 10.000 | 71.395 | ||
14.754 | 85.410 | ||||
15.000 | 85.410 | ||||
20.000 | 94.422 | ||||
Using MLP feature | Linear | Linear | 20.835 | 15.000 | 71.802 |
20.000 | 76.199 | ||||
21.068 | 79.397 | ||||
25.000 | 83.019 | ||||
RBF | 20.755 | 15.000 | 63.043 | ||
20.000 | 76.298 | ||||
21.068 | 79.559 | ||||
25.000 | 84.419 | ||||
RBF | Linear | 17.857 | 10.000 | 59.592 | |
15.000 | 75.281 | ||||
17.892 | 82.178 | ||||
20.000 | 85.796 | ||||
RBF | 17.642 | 10.000 | 57.442 | ||
15.000 | 75.895 | ||||
17.667 | 82.383 | ||||
20.000 | 86.253 |

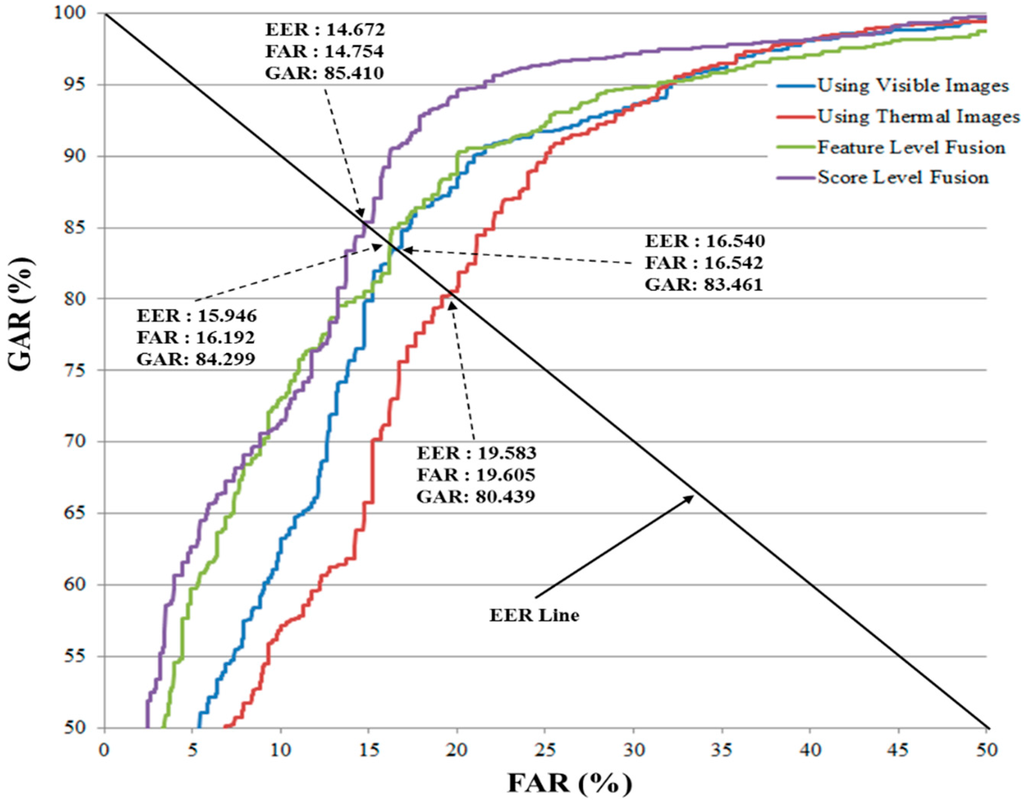

Visible Light Image (Conventional Method Using Single Visible Light Images) | Thermal Image (Conventional Method Using Single Thermal Images) | (Visible Light + Thermal) Images | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Feature Level Fusion | Score Level Fusion (Proposed Method) | ||||||||||
EER | FAR | GAR | EER | FAR | GAR | EER | FAR | GAR | EER | FAR | GAR |
16.540 | 10.000 | 62.758 | 19.583 | 10.000 | 57.027 | 15.946 | 10.000 | 73.050 | 14.672 | 5.000 | 62.693 |
15.000 | 79.878 | 15.000 | 65.791 | 15.000 | 80.534 | 10.000 | 71.395 | ||||
16.542 | 83.461 | 19.605 | 80.439 | 16.192 | 84.299 | 14.754 | 85.410 | ||||
20.000 | 88.051 | 20.000 | 80.669 | 20.000 | 89.341 | 15.000 | 85.410 | ||||
25.000 | 91.716 | 25.000 | 89.815 | 25.000 | 92.250 | 20.000 | 94.422 |
Human Body Detection | Feature Extraction Using HoG (Two Images) | Feature Dimension Reduction (PCA) (Two Images) | The 1st SVM Layer | The 2nd SVM Layer | Total |
---|---|---|---|---|---|
23.1300 | 1.6335 | 2.7548 | 0.0700 | 0.0065 | 27.5948 |

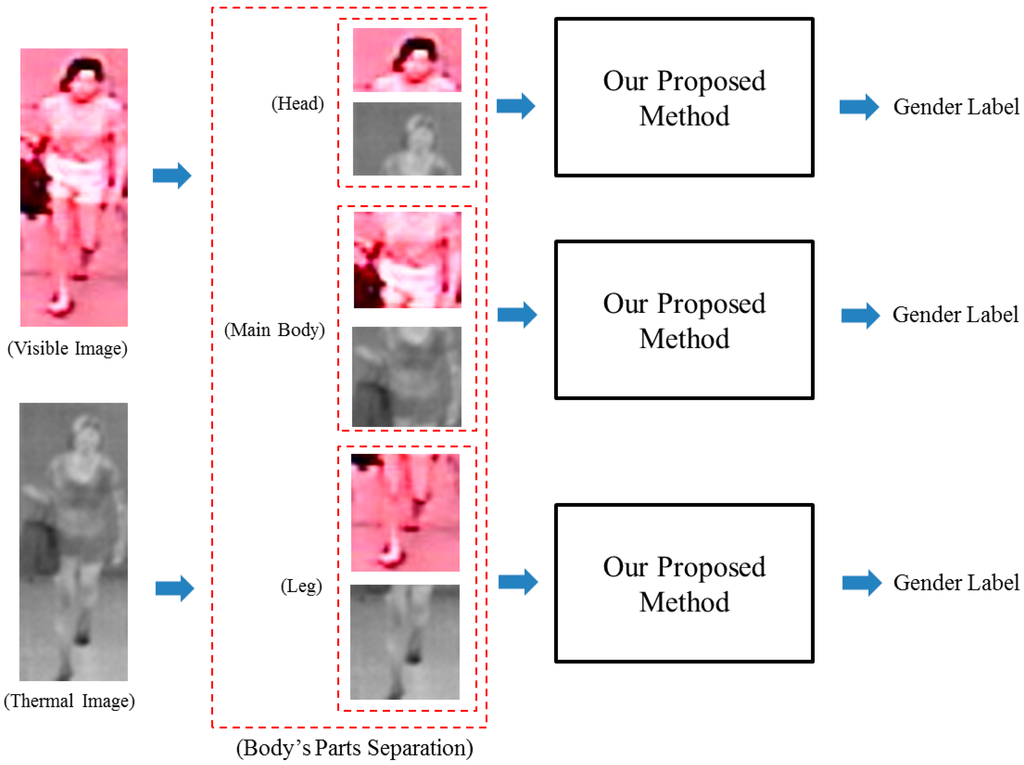

Body’s Part | Head Part | Main Body Part | Leg Part | ||||||
---|---|---|---|---|---|---|---|---|---|
EER | FAR | GAR | EER | FAR | GAR | EER | FAR | GAR | |
Using Visible Image | 18.238 | 10.000 | 65.670 | 25.788 | 20.000 | 64.472 | 25.175 | 20.000 | 66.787 |
15.000 | 75.548 | 25.000 | 73.242 | 25.000 | 74.298 | ||||
18.242 | 81.767 | 25.794 | 74.217 | 25.256 | 74.906 | ||||
20.000 | 83.931 | 30.000 | 79.404 | 30.000 | 79.806 | ||||
25.000 | 88.913 | 35.000 | 85.630 | 35.000 | 84.513 | ||||
Using Thermal Image | 22.779 | 15.000 | 66.376 | 26.845 | 20.000 | 62.066 | 27.414 | 20.000 | 61.674 |
20.000 | 71.566 | 25.000 | 69.666 | 25.000 | 69.402 | ||||
22.856 | 77.298 | 26.982 | 73.291 | 27.419 | 72.592 | ||||
25.000 | 82.200 | 30.000 | 77.203 | 30.000 | 75.261 | ||||
30.000 | 87.841 | 35.000 | 83.998 | 35.000 | 78.912 | ||||
Our Proposed Method | 15.620 | 10.000 | 70.668 | 20.386 | 15.000 | 65.923 | 22.591 | 15.000 | 67.983 |
15.000 | 83.506 | 20.000 | 76.988 | 20.000 | 73.893 | ||||
15.679 | 84.440 | 20.580 | 79.808 | 22.631 | 77.448 | ||||
20.000 | 88.997 | 25.000 | 84.182 | 25.000 | 79.688 | ||||
25.000 | 92.181 | 30.000 | 88.564 | 30.000 | 84.863 |
4. Conclusions
Acknowledgments
Author Contributions
Conflicts of Interest
References
