Sensors 2016, 16(12), 2155; https://doi.org/10.3390/s16122155

Article
A Sensitive and Label-Free Pb(II) Fluorescence Sensor Based on a DNAzyme Controlled G-Quadruplex/Thioflavin T Conformation
Biometrology Laboratory, Division of Chemistry and Ionizing Radiation Measurement Technology, Shanghai Institute of Measurement and Testing Technology, Shanghai 201203, China
*
Author to whom correspondence should be addressed.
Academic Editor: Huangxian Ju
Received: 3 October 2016 / Accepted: 24 November 2016 / Published: 16 December 2016

Abstract

:
Pb(II) can cause serious damaging effects to human health, and thus, the study of Pb2+ detection methods to sensitively and selectively monitor Pb(II) pollution has significant importance. In this work, we have developed a label-free fluorescence sensing strategy based on a Pb(II) DNAzyme cleavage and the ThT/G-quadruplex complex. In the presence of Pb(II), a G-rich tail was cut and released from the substrate strand, which then would form a G-quadruplex structure by combination with ThT dye. The fluorescence signal increase was then measured for sensitive Pb(II) quantification with a limit of detection of 0.06 nM. Our sensor also demonstrated high selectivity against six different metal ions, which is very important for the analysis of complex samples.
Keywords:
DNAzyme; heavy metal ions; lead ion; thioflavin T (ThT)

1. Introduction

Many heavy metal ions such as lead, mercury, arsenic and chromium are highly toxic elements which can cause a number of serious threats to human health and the environment [1,2,3,4,5]. Among all the metal ions, Pb2+ is one of the four metals that have the most damaging effects on human health. It can enter the human body through uptake of food, water and air, and cause serious health problems, including disruption of the biosynthesis of haemoglobin and anaemia, kidney damage, brain damage, diminished learning abilities of children and behavioral disruptions of children [4].
In order to protect human health from these threats, the study of sensitive, selective and low-cost Pb2+ detection methods to monitor lead ion pollution in many fields, including environmental, water, food safety, etc., has been of significant importance over the past decades. Recently, many different strategies have been developed toward efficient Pb2+ analysis, including classical atomic absorption spectrometry (AAS) [6,7,8], inductively coupled plasma mass spectrometry (ICP-MS) [9,10], and inductively coupled plasma atomic emission spectrometry (ICP-AES) [11,12]. Unfortunately, most of these methods require complicated sample pretreatment, multiple analysis steps or expensive equipment, hindering their application in on-site or real-time analysis.
Metal-specific DNAzymes are a class of well-characterized DNAzymes that cleave an oligonucleotide substrate containing one ribonucleotide at the cleavage site in the presence of a particular metal ion [13,14,15,16,17]. As oligonucleotides, high stability DNAzymes can be conveniently synthesized at low cost and DNAzyme-based sensors have demonstrated a series of advantages such as fast analysis, nondestructive detection and the capability of providing in situ and real-time information [18,19,20], and thus they have been widely recognized as promising candidates for the development of metal ion sensors. Recently, the research on Pb2+ sensors based on Pb2+-specific DNAzymes has attracted plenty of research interest. For instance, Lu’s group [3] reported a colorimetric Pb2+ biosensor based on the DNAzyme-directed assembly of gold nanoparticles. Xiao et al. [21] developed an electrochemical Pb2+ sensor via an electrode-bound DNAzyme assembly and achieved part-per-billion (nanomolar) sensitivity. Cropek’s group [22] reported a microchip-based lead sensor with a lead-specific DNAzyme and fluorescent tags which translated the cleavage events to measurable, optical signals proportional to Pb2+ concentration. However, most of the fluorescent Pb2+ biosensors need a covalently labeled fluorophore/quencher on the DNAzyme strand, often leading to complicated synthetic routes, high cost, low synthetic yield and even serious interference with DNAzyme cleavage [23,24]. Most recently, some groups have reported their inspiring progress in the development of label-free Pb2+ biosensors, yet the limit of detection (LOD) still remains a challenge for us [25,26,27,28].
Thioflavin T (ThT) is a commercial fluorescent dye, which is capable of binding to the G-quadruplex structure, generating an increased fluorescence signal, and it has been successfully utilized in several highly sensitive and label-free fluorescent biosensors [29,30,31,32]. In this work, we designed a novel DNAzyme analysis system by tailing a G-rich sequence onto the substrate strand. In the presence of Pb2+, DNAzyme cleaved the substrate strand and released the G-rich part which subsequently combined with ThT and formed a G-quadruplex structure for an obviously enhanced fluorescent signal. Our strategy achieved excellent selectivity of Pb2+ over six different metal ions, and the limit of detection (LOD) of Pb2+ was 0.06 nM and the linear range was from 10 nM to 10 μM Pb2+.

2. Materials and Methods

2.1. Materials

Pb2+-specific DNAzyme (Pb-DNAzyme) and the substrate strand DNA (Pb-sub) were synthesized and purified by TaKaRa Biotech. Co., Ltd. (Dalian, China), and the DNA sequences are shown as follows:
  • Pb-DNAzyme:
    5′-CCAAAGTGCTCCGAGCCGGTCGAAGTGAAACC-3′
  • Pb-Sub:
    5′-GGGTTGGGCGGGATGGGTTTCACTrAGGCACTTTGGGTAGGG-3′, (rA represents an adenosine ribonucleotide).
Pb(NO3)2, Cu(NO3)2, Cd(NO3)2, Co(NO3)2, Mn(NO3)2, Ni(NO3)2, Hg(NO3)2 were 1 g/L certified reference materials (CRMs) obtained from the Shanghai Institute of Measurement and Testing Technology (Shanghai, China). 4-(2-Hydroxyethyl)-1-piperazineethane sulfonic acid (HEPES) and 3,6-dimethyl-2-(4-dimethylaminophenyl) benzothiazolium cation (ThT) were purchased from Sigma-Aldrich (St. Louis, MO, USA). All reagents were of analytical grade and all solutions were prepared using ultrapure water (18.2 MΩ·cm resistivity).

2.2. Apparatus

Fluorescence spectra were measured on a F-7000 spectrophotometer (Hitachi, Tokyo, Japan) equipped with a 150 W xenon lamp excitation source, using a quartz cell of 10 mm path length. The excitation wavelength was 425 nm, and the emission spectrum was from 450 nm to 600 nm. The slits for excitation and emission were 2.5 nm. A nanodrop 2000 spectrophotometer (Thermo Scientific, Waltham, MA, USA) was used to quantify the oligonucleotides by measuring the UV absorbance at 260 nm (OD260).

2.3. DNAzyme-Based Fluorescence Sensor for Pb2+

Pb2+ solutions were prepared in ultrapure water of a series of concentrations, and then 0.3 μM Pb-DNAzyme, 0.2 μM Pb-sub DNA, 50 mM KCl and 10 mM HEPES buffer were added, and then the mixture was incubated in 37 °C air bath for 2 h to firstly form the substrate-enzyme complex DNAzyme and then perform the DNAzyme cleavage. After the cleavage, 20 μM ThT was added to react with the G-rich sequence at 37 °C for 30 min to form the ThT/G-quadruplex complex. Finally, the fluorescence signal at 490 nm was measured.

3. Results

3.1. The Principle of Pb2+ Detection

The label-free fluorescent strategy for Pb2+ sensing based on the DNAzyme and the ThT/G-quadruplex complex is shown schematically in Figure 1. The sensing system consists of a DNAzyme strand (Pb-DNAzyme), a substrate strand (Pb-sub), and a single, ribo-adenine (rA, indicated as a red point in Figure 1) between them. The substrate strand is tailed with a G-rich sequence at the 5′ end, and most importantly, part of the G-rich sequence hybridized to the DNAzyme strand, inhibiting the formation of G-quadruplex structure. In the presence of Pb2+ ions, Pb-sub is cleaved at the rA site, and thus released the G-rich strand to form a G-quadruplex structure under the combination of ThT dye. Finally, an obviously enhanced fluorescence signal was obtained, and the increase in the fluorescence intensity was calculated as the signal gain for Pb2+ quantification through F-F0, where F0 and F are the fluorescence intensity before and after Pb2+ DNAzyme reaction, respectively. CD Spectrum (Figure S1) and polyacrylamidegel electrophoresis results (Figure S3) demonstrated the formation of G-quadruplex, and when we increased the time of DNAzyme cleavage, the signal gain (F-F0) increased until it reached a plateau at 2 h (Figure S2).

3.2. Optimization of the Detection Conditions

As a DNAzyme-based analysis, the reaction temperature is a key characteristic in the system. Our results showed that when we raised the reaction temperature from 4 °C to 37 °C, the signal gain (F-F0) increased more than 2000 times (from 0.02 to 52.17) (Figure 2), because the higher temperature improved the DNAzyme activity, and promoted the reaction kinetics of the liquid phase reaction system. Meanwhile, the unspecific DNA secondary structure was eliminated under higher temperature to suppress the background noise.
Next, in order to verify the influence of DNAzyme amount, the cleavage reaction was performed with different DNAzyme final concentrations. After 2 h incubation with and without Pb2+ (100 nM), the fluorescence signal gain was compared (Figure 3). As the results show, the signal gain obviously increased as the concentration of Pb-DNAzyme increased from 0.1 to 0.3 μM, because more DNAzyme provided higher cleavage efficiency, generating a higher signal gain, However, when the concentration of Pb-DNAzyme exceeded 0.3 μM, the signal gain decreased slightly, maybe because too much background fluorescent signal was produced due to unspecific cleavage, even without the combination with Pb2+. As a result, we chose 0.3 μM as the optimized Pb-DNAzyme concentration in our analysis.
ThT dye was very important for the fluorescence signal generation, through recognizing and intercalating into the G-quadruplex structure after the G-rich sequence was cleaved by DNAzyme from the Pb-sub strand, although, like with many other fluorescent DNA intercalators, if too much dye is added, a higher background fluorescence signal might happen because of its unspecific binding to the double strand DNA or other DNA second structures. In order to improve the signal-to-noise ratio, we investigated the relationship between ThT concentration and the fluorescence signal, while all other experiment conditions were fixed including the final concentration of Pb-sub strand (0.2 μM) and Pb-DNAzyme strand (0.3 μM).
As shown in Figure 4, the fluorescence signal gain increased obviously as the ThT concentration increased from 2 to 20 μM. However, when the concentration of ThT is higher than 20 μM, the fluorescence signal gain decreased, mainly due to the increase of the fluorescent background. Thus, 20 μM ThT was used as an optimized condition in all our following analysis.

3.3. Quantification of Pb2+

In order to investigate the sensitivity, a series of Pb2+ solutions were prepared with different concentrations and then analyzed by our Pb2+ sensor. Figure 5A shows the fluorescence spectra of ThT/G-quadruplex in the presence of Pb2+ from 10 to 1000 nM. As the concentration of Pb2+ increased, the fluorescence intensity increased obviously, indicating successful DNAzyme cleavage of the Pb-Fl/Pb-Sub duplex and the formation of ThT/G-quadruplex structure.
As Figure 5B shows, the fluorescence signal gain has a good linear relationship with the base 10 log of Pb2+ concentration from 10 nM to 1000 nM: F = 31.6857lg[Pb2+] − 43.1832, where the [Pb2+] is the concentration of Pb2+. The background signal F0 was 69.91 ± 1.23 when a blank sample was analyzed. The limit of detection (LOD) was thus calculated to be 0.06 nM, using the 3δ (3 × 1.23) in the fitting equation.

3.4. Specificity of Pb2+ Analysis

To challenge the specificity for the Pb2+ sensor, we then investigated the response of ThT/G-quadruplex towards several other divalent metal ions including Cu2+, Hg2+, Co2+, Ni2+, Cd2+ and Mn2+ under the same analysis condition. As shown in Figure 6, our sensor generated a significant fluorescence enhancement for 100 nM Pb2+, which is 8~100 times higher than for the other ions, and the signal gain for some of the interfering ions was only negligible. Our results thus demonstrated that our sensing system had a high selectivity to Pb2+ over other metal ions.
Our DNAzyme-based sensor represents a new progress in the family of label-free Pb2+ sensors. It is an easy-to-operate sensor with 0.06 nM sensitivity that exceeds most of the previously reported label-free Pb2+ sensors by several orders of magnitude (Table 1). We also note that this sensor showed a wider and practical linear range from 10 nM to 1 μM.

4. Conclusions

In this work, we constructed a novel Pb2+ fluorescence sensor, based on a DNAzyme directed G-quadruplex/ThT conformation. Our results demonstrated the excellent sensing performance of the DNAzyme when Pb2+ was added. The sensitivity was 0.06 nM which is much lower than EPA-defined maximal contamination level for Pb2+ in drinking water (72 nM) and is, to our knowledge, quite competitive among all the reported label-free Pb2+ sensors. The analysis was conveniently performed in one tube in two simple steps, avoiding unnecessary contamination and oxidation, thus our quantification results were so stable that the relative standard deviations (RSD) were all below 5% except for only the RSD for 10 nM Pb2+ (11%). Importantly, good selectivity was achieved compared with six different metal ions, indicating a great potential application of our sensor for assays in complex samples.

Supplementary Materials

The following are available online at https://www.mdpi.com/1424-8220/16/12/2155/s1. Figure S1. CD spectrum of different samples. Figure S2. A time-dependent amplification of the fluorescence sensor for 50 nM Pb2+ detection. Figure S3. Polyacrylamidegel electrophoresis results of different samples. Figure S4. Original data for the optimization result of the analysis temperature (A) 4 °C; (B) 25 °C; (C) 37 °C in the presence of 1 μM Pb2+. Figure S5. Original data of 100 nM Pb2+ sensing in the presence of different concentration of Pb-DNAzyme: (A) 0.1 μM; (B) 0.2 μM; (C) 0.3 μM; (D) 0.5 μM. Figure S6. Original data of 100 nM Pb2+ sensing using different concentration of ThT: (A) 2 μM; (B) 5 μM; (C) 10 μM; (D) 20 μM; (E) 30 μM; (F) 50 μM.

Acknowledgments

The authors would like to thank the financial support from the National Natural Science Foundation of China (No. 21305091) and the General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China (2014QK141).

Author Contributions

G.L., Y.W. and L.W. designed the experiments and wrote the main manuscript text, Y.W., L.W.; L.L. and L.X. performed the experiments. All authors reviewed the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Raj, S.; Shankaran, D.R. Curcumin based biocompatible nanofibers for lead ion detection. Sens. Actuators B Chem. 2016, 226, 318–325. [Google Scholar] [CrossRef]
  2. Shang, Y.; Zhang, Y.; Li, P.; Lai, J.; Kong, X.-Y.; Liu, W.; Xiao, K.; Xie, G.; Tian, Y.; Wen, L. DNAzyme tunable lead (II) gating based on ion-track etched conical nanochannels. Chem. Commun. 2015, 51, 5979–5981. [Google Scholar] [CrossRef] [PubMed]
  3. Liu, J.; Lu, Y. A colorimetric lead biosensor using DNAzyme-directed assembly of gold nanoparticles. J. Am. Chem. Soc. 2003, 125, 6642–6643. [Google Scholar] [CrossRef] [PubMed]
  4. Kwon, J.Y.; Jang, Y.J.; Lee, Y.J.; Kim, K.M.; Seo, M.S.; Nam, W.; Yoon, J. A highly selective fluorescent chemosensor for Pb2+. J. Am. Chem. Soc. 2005, 127, 10107–10111. [Google Scholar] [CrossRef] [PubMed]
  5. Wen, Y.Q.; Peng, C.; Li, D.; Zhuo, L.; He, S.J.; Wang, L.H.; Huang, Q.; Xu, Q.H.; Fan, C.H. Metal ion-modulated graphene-DNAzyme interactions: Design of a nanoprobe for fluorescent detection of lead(II) ions with high sensitivity, selectivity and tunable dynamic range. Chem. Commun. 2011, 47, 6278–6280. [Google Scholar] [CrossRef] [PubMed]
  6. Behbahani, M.; Hassanlou, P.G.; Amini, M.M.; Omidi, F.; Esrafili, A.; Farzadkia, M.; Bagheri, A. Application of solvent-assisted dispersive solid phase extraction as a new, fast, simple and reliable preconcentration and trace detection of lead and cadmium ions in fruit and water samples. Food Chem. 2015, 187, 82–88. [Google Scholar] [CrossRef] [PubMed]
  7. Barbosa, V.M.P.; Barbosa, A.F.; Bettini, J.; Luccas, P.O.; Figueiredo, E.C. Direct extraction of lead (II) from untreated human blood serum using restricted access carbon nanotubes and its determination by atomic absorption spectrometry. Talanta 2016, 147, 478–484. [Google Scholar] [CrossRef] [PubMed]
  8. Ma, R.; Van Mol, W.; Adams, F. Determination of cadmium, copper and lead in environmental samples. An evaluation of flow injection on-line sorbent extraction for flame atomic absorption spectrometry. Anal. Chim. Acta 1994, 285, 33–43. [Google Scholar] [CrossRef]
  9. Jackson, S.E.; Pearson, N.J.; Griffin, W.L.; Belousova, E.A. The application of laser ablation-inductively coupled plasma-mass spectrometry to in situ U-Pb zircon geochronology. Chem. Geol. 2004, 211, 47–69. [Google Scholar] [CrossRef]
  10. Liang, Q.; Jing, H.; Gregoire, D.C. Determination of trace elements in granites by inductively coupled plasma mass spectrometry. Talanta 2000, 51, 507–513. [Google Scholar] [CrossRef]
  11. Elfering, H.; Andersson, J.T.; Poll, K.G. Determination of organic lead in soils and waters by hydride generation inductively coupled plasma atomic emission spectrometry. Analyst 1998, 123, 669–674. [Google Scholar] [CrossRef]
  12. Ochsenkühn-Petropoulou, M.; Ochsenkühn, K.M. Comparison of inductively coupled plasma-atomic emission spectrometry, anodic stripping voltammetry and instrumental neutron-activation analysis for the determination of heavy metals in airborne particulate matter. Fresenius’ J. Anal. Chem. 2001, 369, 629–632. [Google Scholar] [CrossRef]
  13. Liu, J.; Cao, Z.; Lu, Y. Functional nucleic acid sensors. Chem. Rev. 2009, 109, 1948–1998. [Google Scholar] [CrossRef] [PubMed]
  14. Liu, J.; Lu, Y. A DNAzyme catalytic beacon sensor for paramagnetic Cu2+ ions in aqueous solution with high sensitivity and selectivity. J. Am. Chem. Soc. 2007, 129, 9838–9839. [Google Scholar] [CrossRef] [PubMed]
  15. Liu, J.; Brown, A.K.; Meng, X.; Cropek, D.M.; Istok, J.D.; Watson, D.B.; Lu, Y. A catalytic beacon sensor for uranium with parts-per-trillion sensitivity and millionfold selectivity. Proc. Natl. Acad. Sci. USA 2007, 104, 2056–2061. [Google Scholar] [CrossRef] [PubMed]
  16. Hollenstein, M.; Hipolito, C.; Lam, C.; Dietrich, D.; Perrin, D.M. A highly selective DNAzyme sensor for mercuric ions. Angew. Chem. Int. Ed. 2008, 47, 4346–4350. [Google Scholar] [CrossRef] [PubMed]
  17. Lan, T.; Furuya, K.; Lu, Y. A highly selective lead sensor based on a classic lead DNAzyme. Chem. Commun. 2010, 46, 3896–3898. [Google Scholar] [CrossRef] [PubMed]
  18. Zhao, L.Y.; Gu, W.; Zhang, C.L.; Shi, X.H.; Xian, Y.Z. In situ regulation nanoarchitecture of Au nanoparticles/reduced graphene oxide colloid for sensitive and selective SERS detection of lead ions. J. Colloid Interface Sci. 2016, 465, 279–285. [Google Scholar] [CrossRef] [PubMed]
  19. Zhang, X.-B.; Wang, Z.; Xing, H.; Xiang, Y.; Lu, Y. Catalytic and Molecular Beacons for Amplified Detection of Metal Ions and Organic Molecules with High Sensitivity. Anal. Chem. 2010, 82, 5005–5011. [Google Scholar] [CrossRef] [PubMed]
  20. Kim, J.H.; Han, S.H.; Chung, B.H. Improving Pb2+ detection using DNAzyme-based fluorescence sensors by pairing fluorescence donors with gold nanoparticles. Biosens. Bioelectron. 2011, 26, 2125–2129. [Google Scholar] [CrossRef] [PubMed]
  21. Xiao, Y.; Rowe, A.A.; Plaxco, K.W. Electrochemical detection of parts-per-billion lead via an electrode-bound DNAzyme assembly. J. Am. Chem. Soc. 2007, 129, 262–263. [Google Scholar] [CrossRef] [PubMed]
  22. Dalavoy, T.S.; Wernette, D.P.; Gong, M.; Sweedler, J.V.; Lu, Y.; Flachsbart, B.R.; Shannon, M.A.; Bohn, P.W.; Cropek, D.M. Immobilization of DNAzyme catalytic beacons on PMMA for Pb 2+ detection. Lab Chip 2008, 8, 786–793. [Google Scholar] [CrossRef] [PubMed]
  23. Chiuman, W.; Li, Y. Efficient signaling platforms built from a small catalytic DNA and doubly labeled fluorogenic substrates. Nucleic Acids Res. 2007, 35, 401–405. [Google Scholar] [CrossRef] [PubMed]
  24. Du, Y.; Li, B.; Wang, E. “Fitting” Makes “Sensing” Simple: Label-Free Detection Strategies Based on Nucleic Acid Aptamers. Accounts Chem. Res. 2013, 46, 203–213. [Google Scholar] [CrossRef] [PubMed]
  25. Huang, Y.; Yan, J.; Fang, Z.; Zhang, C.; Bai, W.; Yan, M.; Zhu, C.; Gao, C.; Chen, A. Highly sensitive and selective optical detection of lead(II) using a label-free fluorescent aptasensor. RSC Adv. 2016, 6, 90300–90304. [Google Scholar] [CrossRef]
  26. Li, T.; Wang, E.; Dong, S. Lead(II)-induced allosteric G-quadruplex DNAzyme as a colorimetric and chemiluminescence sensor for highly sensitive and selective Pb2+ detection. Anal. Chem. 2010, 82, 1515–1520. [Google Scholar] [CrossRef] [PubMed]
  27. Li, C.; Liu, K.; Lin, Y.; Chang, H. Fluorescence detection of Lead(II) ions through their induced catalytic activity of DNAzymes. Anal. Chem. 2011, 83, 225–230. [Google Scholar] [CrossRef] [PubMed]
  28. Fu, T.; Ren, S.L.; Gong, L.; Meng, H.M.; Cui, L.; Kong, R.M.; Zhang, X.B.; Tan, W.H. A label-free DNAzyme fluorescence biosensor for amplified detection of Pb2+-based on cleavage-induced G-quadruplex formation. Talanta 2016, 147, 302–306. [Google Scholar] [CrossRef] [PubMed]
  29. Chen, J.; Lin, J.; Zhang, X.; Cai, S.; Wu, D.; Li, C.; Yang, S.; Zhang, J. Label-free fluorescent biosensor based on the target recycling and Thioflavin T-induced quadruplex formation for short DNA species of c-erbB-2 detection. Anal. Chim. Acta 2014, 817, 42–47. [Google Scholar] [CrossRef] [PubMed]
  30. Mohanty, J.; Barooah, N.; Dhamodharan, V.; Harikrishna, S.; Pradeepkumar, P.I.; Bhasikuttan, A.C. Thioflavin T as an Efficient Inducer and Selective Fluorescent Sensor for the Human Telomeric G-Quadruplex DNA. J. Am. Chem. Soc. 2013, 135, 367–376. [Google Scholar] [CrossRef] [PubMed]
  31. Gabelica, V.R.; Maeda, R.; Fujimoto, T.; Yaku, H.; Murashima, T.; Sugimoto, N.; Miyoshi, D. Multiple and cooperative binding of fluorescence light-up probe thioflavin t with human telomere DNA G-Quadruplex. Biochemistry 2013, 52, 5620–5628. [Google Scholar] [CrossRef] [PubMed]
  32. Faverie, A.R.; Guédin, A.; Bedrat, A.; Yatsunyk, L.A.; Mergny, J.-L. Thioflavin T as a fluorescence light-up probe for G4 formation. Nucleic Acids Res. 2014. [Google Scholar] [CrossRef]
Figure 1. Illustration of the label-free fluorescent sensing strategy based on the Pb2+-DNAzyme and ThT/G-quadruplex complex.
Figure 1. Illustration of the label-free fluorescent sensing strategy based on the Pb2+-DNAzyme and ThT/G-quadruplex complex.
Sensors 16 02155 g001

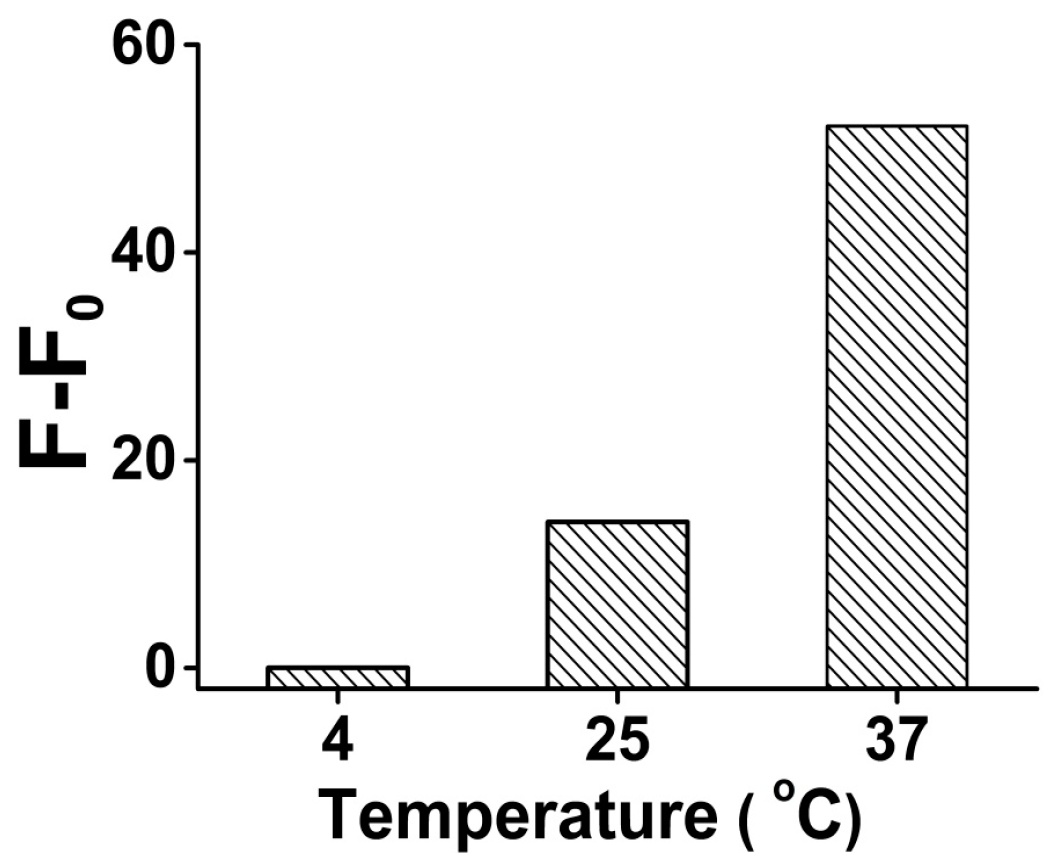

Figure 2. The optimization result of the analysis temperature for Pb2+ sensing in the presence of 1 μM Pb2+. Original data for the optimization result of the analysis temperature shown in Figure S4.
Figure 2. The optimization result of the analysis temperature for Pb2+ sensing in the presence of 1 μM Pb2+. Original data for the optimization result of the analysis temperature shown in Figure S4.
Sensors 16 02155 g002

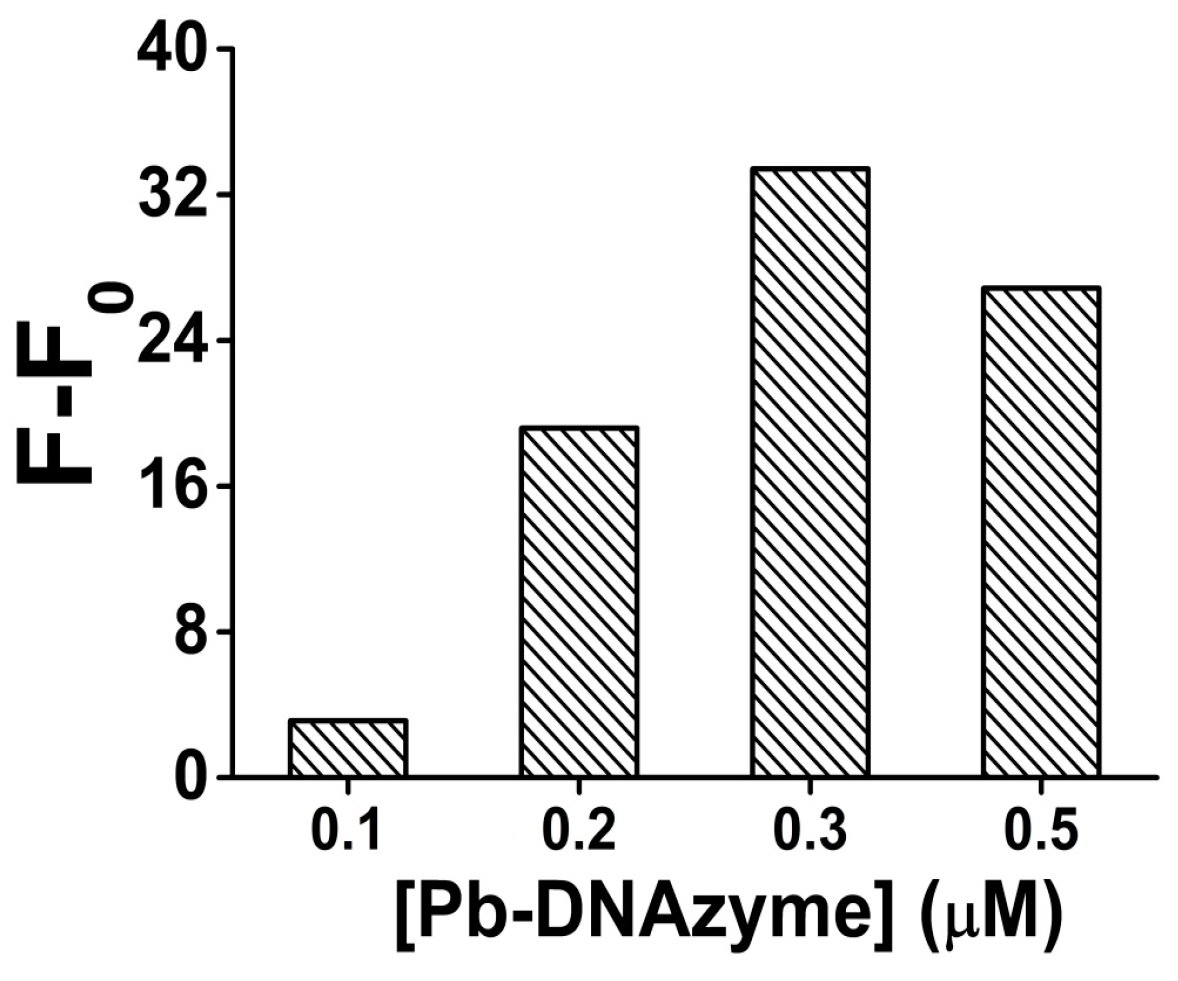

Figure 3. The optimization result of the Pb-DNAzyme concentration for Pb2+ sensing in the presence of 100 nM Pb2+. [Pb-DNAzyme] is the concentration of Pb-DNAzyme. Original data for the optimization result of the Pb-DNAzyme concentration for Pb2+ sensing shown in Figure S5.
Figure 3. The optimization result of the Pb-DNAzyme concentration for Pb2+ sensing in the presence of 100 nM Pb2+. [Pb-DNAzyme] is the concentration of Pb-DNAzyme. Original data for the optimization result of the Pb-DNAzyme concentration for Pb2+ sensing shown in Figure S5.
Sensors 16 02155 g003
Figure 4. The optimization result of ThT concentration for Pb2+ sensing in the presence of 100 nM Pb2+. [ThT] is the concentration of ThT. Original data for the optimization result of ThT concentration for Pb2+ sensing shown in Figure S6.
Figure 4. The optimization result of ThT concentration for Pb2+ sensing in the presence of 100 nM Pb2+. [ThT] is the concentration of ThT. Original data for the optimization result of ThT concentration for Pb2+ sensing shown in Figure S6.
Sensors 16 02155 g004
Figure 5. Quantification results of Pb2+: (A) The fluorescence spectra of ThT/G-quadruplex in the presence of Pb2+ from 10 to 1000 nM; (B) Plot for the concentration of Pb2+ vs. fluorescence signal gain. Error bars show the standard deviations of measurements taken from independent experiments with at least three distinct sensors.
Figure 5. Quantification results of Pb2+: (A) The fluorescence spectra of ThT/G-quadruplex in the presence of Pb2+ from 10 to 1000 nM; (B) Plot for the concentration of Pb2+ vs. fluorescence signal gain. Error bars show the standard deviations of measurements taken from independent experiments with at least three distinct sensors.
Sensors 16 02155 g005
Figure 6. Investigation results of the specificity of the Pb2+ sensor. The concentration of all the metal ion solutions was 100 nM. All the analysis experiments were performed under the same condition.
Figure 6. Investigation results of the specificity of the Pb2+ sensor. The concentration of all the metal ion solutions was 100 nM. All the analysis experiments were performed under the same condition.
Sensors 16 02155 g006
Table 1. Comparison of similar Pb2+ sensors.
Table 1. Comparison of similar Pb2+ sensors.
DNA ProbeLinear RangeDetection LimitDetection MethodsDetection TimeReaction SystemReference
G-quadruplex1 ng/mL –1 mg/mL,
R2 = 0.992
1 ng/mL (4.83 nM)Fluorescence0.5 hDsDNA’s conformational changes/PicoGreen[25]
Allosteric G-quadruplex DNAzyme1 nM –316 nM,
R2 = 0.980
1 nMChemiluminescence2 hluminol-H2O2[26]
DNAzymes/AUR0 nM–1000 nM,
R2 = 0.95
0.4 nMFluorescence3.5 hG4/hemin/H2O2/AUR catalytic system[27]
G-quadruplex DNAzyme5 nM–100 nM,
R2 = 0.996
3 nMFluorescence3.5 hcatalytic beacons/G4/ZnPPIX[28]
G-quadruplex DNAzyme10 nM–1000 nM,
R2 = 0.997
0.06 nMFluorescence2.5 hG4/ThTThis work
