Article

Methodological Comparison between a Novel Automatic Sampling System for Gas Chromatography versus Photoacoustic Spectroscopy for Measuring Greenhouse Gas Emissions under Field Conditions

by
Alexander J. Schmithausen
1,*,
Manfred Trimborn
1,2 and
Wolfgang Büscher
1
1
Institute of Agricultural Engineering, University of Bonn, 53115 Bonn, Germany
2
Institute of Crop Science and Resource Conservation (INRES), University of Bonn, 53115 Bonn, Germany
*
Author to whom correspondence should be addressed.
Sensors 2016, 16(10), 1638; https://doi.org/10.3390/s16101638
Submission received: 18 August 2016 / Accepted: 29 September 2016 / Published: 3 October 2016
(This article belongs to the Special Issue Sensors for Environmental Monitoring 2016)

Abstract

:
Trace gases such as nitrous oxide (N2O), methane (CH4), and carbon dioxide (CO2) are climate-related gases, and their emissions from agricultural livestock barns are not negligible. Conventional measurement systems in the field (Fourier transform infrared spectroscopy (FTIR); photoacoustic system (PAS)) are not sufficiently sensitive to N2O. Laser-based measurement systems are highly accurate, but they are very expensive to purchase and maintain. One cost-effective alternative is gas chromatography (GC) with electron capture detection (ECD), but this is not suitable for field applications due to radiation. Measuring samples collected automatically under field conditions in the laboratory at a subsequent time presents many challenges. This study presents a sampling designed to promote laboratory analysis of N2O concentrations sampled under field conditions. Analyses were carried out using PAS in the field (online system) and GC in the laboratory (offline system). Both measurement systems showed a good correlation for CH4 and CO2 concentrations. Measured N2O concentrations were near the detection limit for PAS. GC achieved more reliable results for N2O in very low concentration ranges.

1. Introduction

Emissions of greenhouse gases (GHGs) from agriculture livestock have global significance and potential long-term consequences. Ruminants produce climate-related gases and pollutants [1]. Measurement systems for registering air emissions provide an important overview of the source of emissions and the options for mitigating them. The main focus in agriculture is on climate-related GHGs such as carbon dioxide (CO2), methane (CH4), and nitrous oxide (N2O). N2O has a much higher CO2 equivalence factor (298) than CH4 (25) [2]. CH4 is mainly generated in the digestive system of ruminants and is ejected by eructation, but it also accrues during the storage of barn manure and via application to the soil [3]. N2O emissions are also produced by microbial nitrification and denitrification through ammonium and nitrate arising from urine and feces out of the barn [4]. N2O emissions are part of organic manure management; however, there is limited information about N2O emissions originating from animals and the barn area [5]. Data concerning naturally ventilated barns, which are the most popular design in modern intensive dairy production, is lacking.
The infrared photoacoustic system (PAS) is a common method for long-term gas measurements under field conditions. The photoacoustic multi gas analyzer (Innova 1412, LumaSense, Ballerup, Denmark) has been used in previous agricultural studies addressing gas emission. Measurements in naturally ventilated dairy barns cause a high air ventilation rate, which dilutes the trace gases. N2O appears in lower concentrations than other climate-related gases, resulting in a low detection rate. Uncertainties with regard to the detection limit of a photoacoustic analyzer have been described by other authors [6,7]. For PAS, there are also interferences such as water vapor. Analyses made using gas chromatography (GC) (N2O and CO2 with an electron capture detector (ECD) and CH4 with a flame ionization detector (FID)) are more accurate. The ECD has a ß-emitter with 63Ni isotope; therefore, the GC device is not portable and must be installed in a laboratory. For this reason, a system capable of taking many gas samples for long-term measurements under field conditions is needed to greatly reduce required manual sampling.
The trace gases CH4 and CO2 can be used to evaluate both techniques [8]. Good correlations of CH4 and CO2 concentration by PAS and GC indicate whether this high-resolution system also works with N2O.
Consequently, the aims of this study were to:
(a).
measure the climate-related gases CO2, CH4, and N2O with two different measurement systems (online and offline) under field conditions;
(b).
validate the measurements of online (infrared photoacoustic) and offline (gas chromatography) techniques to improve the best method of N2O detection.

2. Materials and Methods

2.1. Analysis of Gas Concentrations

2.1.1. Photoacoustic Technique

The concentrations of CO2, CH4, and N2O gases in the collected air samples were measured using a 1412 photoacoustic multi gas analyzer and a 1303 multiplexer (to switch between the sections) (LumaSense Technologies SA, Ballerup, Denmark). Table 1 shows the detection limits calculated by threefold standard deviation of the calibration chart after the last calibration by the manufacturer. Additional settings of the measurement software are the compensation of water and cross interference.

2.1.2. Chromatographic Technique

Samples were analyzed using a gas chromatograph from SRI Instruments (8610 C, SRI Instruments, Torrance, CA, USA). N2O and CO2 were analyzed using an electron capture detector (ECD) (Table 1). For CH4, a flame ionization detector (FID) was used in accordance with [9,10]. The detection limits for GC were calculated from the threefold standard deviation of multiple analyses of standard gases with ambient concentrations of CO2, CH4, and N2O (Table 1).

2.2. Experimental Setup

Gas Sampling System
Trace gases emitted from a naturally ventilated dairy barn (68 m × 34 m) were measured to calculate the emission rates. To calculate emission rates, a quantitative measurement technique to analyze the respective trace gases was needed. The air exchange rate was also important to calculate the emission rate. Equation (1) shows the calculation for the emission rate ( m ˙ x ) based on volume flow rate ( V ˙ ) and the gas concentration inside ( C x i n ) and outside ( C x o u t ) the barn:
m ˙ x = V ˙ × ( C x i n C x o u t ) .
This study focuses on the quantitative acquisition of trace gas concentrations. Therefore, the barn building was divided into three separate air sections. Section 1 and Section 2 (S1, S2) were equipped with a slatted floor, while Section 3 (S3) was equipped with a solid floor system. Two sampling points were installed outside the barn to measure gas concentrations in the background air (B1, B2). The background air was measured at the windward side of the barn, while the gas concentrations in the outgoing air of the equally divided sections were measured at the leeward side (Figure 1). Eight sampling points were merged to form one aggregate sample for each section. The sampling points were located 4 m above the feed alley and were equipped with filter orifices to protect them from dust (Figure 2a).
The air samples from the dairy barn were pumped continuously using vacuum pumps (ME 2C, Vacuubrand GmbH + Co. KG, Wertheim, Germany) with a suction capacity of 33 L/min through 100-m PTFE (polytetrafluoroethylene) tubes into five separate sampling bottles (600 mL, Figure 3). Samples were taken from the online and offline systems independently. The online system worked with the multiport INNOVA 1303 made by the manufacturer of the photoacoustic analyzer (Figure 3). The online system had an interval of 60 s for each sample and thus required 5 min for the complete sample cycle.
The offline system consisted of magnetic valve switches and a liquid handler system (Liquid Handler GX-271, Gilson, Middleton, WI, USA). This system fills up gas samples into evacuated headspace vials (20 mL) (Figure 3). The system had a capacity for 165 vials (specially customized). Based on the XYZ-technique, it is a compact and space-saving system for measuring under field conditions. The GX-271 sampler is a commercial system controlled by manufacturer software (TRILUTION LH 3.0, Gilson, Inc.). The liquid handler was programmed to prick the evacuated vials after a default time interval. For the offline system, this interval was also 60 s for five samples. One sampling interval was implemented every three hours. The headspace vials were evacuated in the laboratory, so the GX-271 sampler only had to prick the needle into the rubber septum of the vial (Figure 2b). All tubes from the offline system were continuously purged using a micro gas sampling pump (KNF NM P830, KNF Neuberger GmbH, Freiburg im Breisgau, Germany). A pressure control valve was installed (KNF FDV 31, KNF Neuberger GmbH) between the sampling pump and the waste valve to bridge periods of overpressure (Figure 3). Both the online system (serial port, COM 1) and offline system (RJ45 interface) were controlled by the same computer and through remote servicing via the internet. To operate the electrical contacts, the Gilson 506C System Interface (serial port, COM 2) was used. Figure 4 shows the circuit diagram for the 3/2-way magnetic valves of the GX-271 sampler. The magnetic valves were switched for each sampling point (sampling bottles; Figure 3). This is similar to the multiport INNOVA 1303 online system. Figure 4 provides an example of sampling in Section 1. First, the sampling pump was supplied with electricity (a6); second, the 3/2-way magnetic valves were switched (a5, a2, a1) to reach the correct sampling bottle. Magnetic valve a4 was also opened to flush the entire tube system with the selected sampling air. The wait instruction (b1) was the same as the time needed to flush the tube system (20 s). The instruction “move to zone” (c1) made the arm of the GX-271 move to the defined glass vial and prick in. The glass vial was filled over a period of 20 s (b2). Subsequently, magnetic valve a4 was switched for 5 s (b3) to release the overpressure within the vial. Immediately afterwards, the needle was pulled out of the vial (c2), and all electrical contacts were set to off (a6, a5, a2, a1, a4) until the next measurement was started (b4).

2.3. Data Measuring and Evaluation

The GHGs were measured via the PAS (online system) from the same sampling point approximately every five minutes. The offline system measured every three hours at the same interval as the online system. To make the data coherent, the log file data from both systems were analyzed and compared with regard to time. Only time differences less than 30 s were included in the evaluation. Offline system sampling every three hours afforded the opportunity to take eight samples per day (capacity of 165 vials and five sampling points) for four days of sampling. This was needed for later long-term measurements of N2O in naturally ventilated barns. Data for this study were collected in October 2015 over a representative period of three days from four sampling points (B1, S1, S2, B2). Four samples were taken daily at three-hour intervals (eight samples per day). The 96 samples provided a basis for comparing both systems.

2.4. Statistical Methods

The statistical software SPSS Statistics 23.0 (IBM, New York, NY, USA, 2015) was used to compare the measured concentrations. The data was checked relative to the normal distribution (Kolmogorow–Smirnov test). A Student’s t-test and the Wilcoxon test were used to identify significant differences between the detection techniques. Statistical significance was achieved on reaching a least significant difference (LSD) value of 95% confidence (p < 0.05). Regression analysis uses the coefficient of determination (R2) to calculate significance levels.
We hypothesized that the GC technique is more accurate for measuring low concentrations of N2O, whereas the PAS system is easier to handle and has shorter response times for measuring gas concentrations.

3. Results

3.1. Data Evaluation

Gas concentrations with a wide range of variability are required to compare measuring systems. In this study, these variability of the gas concentrations were caused by different sampling points and the switching between background sample and exhaust air of the barn. The large variability in gas concentrations was caused by changes in the rate of air exchange as a result of wind velocity and the animal activity. Figure 5 shows the typical diurnal variations of CO2 concentration over the measurement period in the naturally ventilated barn. The CO2 concentration in Section 1 allows a comparative overview of PAS and GC. This is the natural situation and not an artefact of the measurement technique.

3.2. Results for the Sampled Gases

Table 2 presents the average concentrations of CH4, CO2, and N2O gases from a total of 96 values (n = 96). For PAS, the concentration ranges were 3.03–29.15 ppm, 414.9–1035.3 ppm, and 0.16–0.39 ppm for CH4, CO2, and N2O, respectively. For GC, the concentration ranges were 2.26–35.78 ppm, 397.10–960.82 ppm, and 0.34–0.49 ppm for CH4, CO2, and N2O, respectively. The mean concentration determined by PAS showed a zero-point drift, especially for CH4 and N2O (Table 2; Figure 6). N2O concentration (measured by PAS) was obviously lower than the concentration in ambient air (0.35–0.36 ppm).

3.3. Comparison of Measurements Obtained with PAS and GC

Figure 6 shows the concentrations of CH4, CO2, and N2O in air samples collected via PAS and GC. CH4 and CO2 concentrations showed good correlation between PAS and GC (R2 = 0.88 and 0.82; p < 0.01). The N2O concentration measured by PAS and GC measurement systems showed no correlation (R2 = 0.00008; p > 0.05). In addition, CH4 measurements taken via PAS showed a zero-point drift, but there was a near 1:1 relation (R2 = 0.88) between the CH4 concentrations measured using PAS and GC (Figure 6a). In the lower dispersion of the values, the concentration range of CO2 was more pronounced (R2 = 0.82) compared with CH4 (Figure 6b). Data collected using PAS showed a higher dispersion than those collected using GC. The majority of N2O values using PAS were still below the environmental (background) concentration of 0.35 ppm in a range of 0.16–0.39 (Figure 6c). This was attributed to the zero-point drift of the PAS.

4. Discussion

Different gas concentrations were measured using PAS and GC. The correlation for CH4 (R2 = 0.88) between PAS and GC was relatively high, indicating that both techniques are suitable for CH4 analysis. For this reason, the CH4 concentration was used to test the functionality of the offline sampling system. The concentration of CO2 was also well correlated (R2 = 0.82), similar to [11]. This is because the variance of CH4 and CO2 concentrations were large enough (Table 2). CO2 concentration were at a range of 600 ppm (Figure 6b). This is clearly higher than the detection limit of the CO2 concentration using PAS (12 ppm) and GC (50 ppm). Such an approach results in a good correlation between PAS and GC. For N2O concentration, PAS and GC did not correlate (R2 = 0.00008). The mean N2O measured via PAS (0.284 ppm) was seven times higher than the PAS detection limit. However, despite all settings of the PAS software (water and cross interference), detecting interferences between gases cannot be excluded. GC analysis of N2O concentration in the laboratory was more precise, because the GC detection limit is 0.01 ppm (Table 1). The variability of N2O concentration by PAS could suggest that these differences in concentration are caused by emission rates from the barn, whereas the values by GC show a low variability and are close to the ambient air concentration (Figure 6c). This is obviously a misinterpretation of emission rates by PAS. Similar results for N2O measurements with PAS have been confirmed in the literature [6,7]. Jungbluth [12] observed more variation in N2O compared with CH4 due to low N2O concentrations. Therefore, the offline system described here is an attractive alternative technique for collecting samples under field conditions for subsequent laboratory analysis. Overall, the average CH4 concentration measured using PAS was 42% lower than that measured using GC. This underestimation of CH4 by PAS has also been described by [12,13]. Another point to consider when using PAS is the humidity (such as condensed water) in the tube system. Cortus [9] mentioned the influence of humidity on gas concentrations lower than 20 ppm. For this reason, the last 15 m of the tube system is heated to minimize the influence of temperature and condensation [14].
Because of the zero-point drift, especially for CH4, frequent calibration of the measurement system is recommended. There were more deviations (SD) in the lower concentration ranges than the higher ones. A drift of 0.5 ppm (SD) below a concentration of 5 ppm represents an average relative error of 500%. In the lower concentration ranges, the dispersion of CO2 values was more pronounced (R2 = 0.82) than CH4 values (R2 = 0.88) (Figure 6b). This is due to the weak analysis of CO2 by GC-ECD. Other GC detectors, such as a methanizer combined with a FID, are more sensitive to CO2 but were not available in this study.
Future studies should collect more measurements, and PAS should be calibrated by time. In addition, calibration gases should be used to test the accuracy of the technique [15,16]. It is also important to evaluate the analyzers selected for GHG measurements and conduct tests to ensure the chosen analyzers consider the different variations [17]. GC is a known system that is used to classify and validate other measurement techniques such as PAS and cavity ring-down spectroscopy [18]. Partly differences between PAS and GC can be caused by interference of diverse reasons. Therefore, it is important to use additional settings like cross and water compensation when measuring with PAS. Furthermore, additional accurate laboratory measurements with test gases are necessary.

5. Conclusions/Outlook

This study has demonstrated that many N2O samples can be taken under field conditions, which are analyzed in laboratory. These values from laboratory are more accurate and can therefore be used to adjust the values measured by PAS. Both PAS and GC yielded comparable CH4 concentrations. However, N2O results gathered with GC were more precise than those gathered with PAS. The PAS detection of N2O is only 25% of GC. The GC is calibrated by threefold standard deviation with CO2, CH4, and N2O as standard gases. Qualitative measurements to generate emission calculation are important for relevant environmental monitoring.
In future studies with the same offline GC system, it is conceivable that sulfur hexafluoride (SF6) can be sampled as a tracer within the barn to calculate the ventilation rate of the building via the tracer gas technique applied by [19,20]. Concentrations of SF6 can be measured by GC and ECD down to the parts per thousand (ppt) range.

Acknowledgments

The authors thank the Chamber of North-Rhine Westphalia where the measurements were carried out in cooperation. This investigation was funded by the German Research Foundation, DFG, reference number BU 1235/8-1, Germany.

Author Contributions

Alexander J. Schmithausen and Manfred Trimborn conceived and designed the experiments; Alexander J. Schmithausen performed the experiments; Alexander J. Schmithausen and Manfred Trimborn analyzed the data; Alexander J. Schmithausen and Manfred Trimborn contributed reagents/materials/analysis tools; Wolfgang Büscher reviewed the work and provided valuable feedback; Alexander J. Schmithausen wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. FAO (Food and Agriculture Organization). Livestock’s Long Shadow—Environmental Issues and Options. Available online: http://www.fao.org/docrep/010/a0701e/a0701e00.HTM (accessed on 15 August 2016).
  2. IPCC (Intergovernmental Panel on Climate Change). Climate Change 2007: The Physical Science Basis; Solomon, S., Qin, D., Manning, M., Chen, Z., Marquis, M., Averyt, K.B., Tignor, M., Miller, H.L., Eds.; Cambridge University Press: Cambridge, UK, 2007; p. 996. [Google Scholar]
  3. Fernandez, R.; Emele, L. Approximated EU GHG Inventory: Proxy GHG Emission Estimates for 2014. Available online: http://www.eea.europa.eu/publications/approximated-eu-ghg-inventory-2014 (accessed on 15 August 2016).
  4. Opio, C.; Gerber, P.; Mottet, A.; Falcucci, A.; Tempio, G.; MacLeod, M.; Vellinga, T.; Henderson, B.; Steinfeld, H. Greenhouse Gas Emissions from Ruminant Supply Chains—A Global Life Cycle Assessment. Available online: http://www.fao.org/docrep/018/i3461e/i3461e.pdf (accessed on 15 August 2016).
  5. USEPA (US Environmental Protection Agency). Inventory of U.S. Greenhouse Gas Emissions and Sinks: 1990–2014. Available online: http://www.epa.gov/climatechange/ghgemissions/usinventoryreport.html (accessed on 15 August 2016).
  6. Place, S.E.; Pan, Y.; Zhao, Y.; Mitloehner, F.M. Construction and operation of a ventilated hood system for measuring greenhouse gas and volatile organic compound emissions from cattle. Animals 2011, 1, 433–446. [Google Scholar] [CrossRef] [PubMed]
  7. Ngwabie, N.M.; Jeppsson, K.H.; Nimmermark, S.; Swensson, C.; Gustafsson, G. Multi-location measurements of greenhouse gases and emission rates of methane and ammonia from a naturally-ventilated barn for dairy cows. Biosyst. Eng. 2009, 103, 68–77. [Google Scholar] [CrossRef]
  8. Samer, M.; Müller, H.J.; Fiedler, M.; Ammon, C.; Gläser, M.; Berg, W.; Sanftleben, P.; Brunsch, R. Developing the 85Kr tracer gas technique for air exchange rate measurements in naturally ventilated animal buildings. Biosyst. Eng. 2011, 109, 276–287. [Google Scholar] [CrossRef]
  9. Cortus, E.L.; Jacobson, L.D.; Hetchler, B.P.; Heber, A.J.; Bogan, B.W. Methane and nitrous oxide analyzer comparison and emissions from dairy freestall barns with manure flushing and scraping. Atmos. Environ. 2015, 100, 57–65. [Google Scholar] [CrossRef]
  10. Clemens, J.; Trimborn, M.; Weiland, P.; Amon, B. Mitigation of greenhouse gas emissions by anaerobic digestion of cattle slurry. Agric. Ecosyst. Environ. 2006, 112, 171–177. [Google Scholar] [CrossRef]
  11. Nicoloso da, R.S.; Bayer, C.; Denega, G.L.; de Oliveira, P.A.V.; Higarashi, M.M.; Corrêa, J.C.; dos Lopes, L.S. Gas chromatography and photoacoustic spectroscopy for the assessment of soil greenhouse gases emissions. Ciênc. Rural St. Maria 2013, 43, 262–269. [Google Scholar] [CrossRef]
  12. Jungbluth, T.; Hartung, E.; Brose, G. Greenhouse gas emissions from animal houses and manure stores. Nutr. Cycl. Agroecosyst. 2001, 60, 133–145. [Google Scholar] [CrossRef]
  13. Hassouna, M.; Robin, P.; Charpiot, A.; Edouard, N.; Meda, B. Infrared photoacoustic spectroscopy in animal houses: Effect of non-compensated interferences on ammonia, nitrous oxide and methane air concentrations. Biosyst. Eng. 2013, 114, 318–326. [Google Scholar] [CrossRef]
  14. Wu, W.; Zhang, G.; Kai, P. Ammonia and methane emissions from two naturally ventilated dairy cattle buildings and the influence of climatic factors on ammonia emissions. Atmos. Environ. 2012, 61, 232–243. [Google Scholar] [CrossRef]
  15. Wulf, S.; Maeting, M.; Clemens, J. Application technique and slurry co-fermentation effects on ammonia, nitrous oxide, and methane emissions after spreading: II. Greenhouse gas emissions. J. Environ. Qual. 2002, 31, 1795–1801. [Google Scholar] [CrossRef] [PubMed]
  16. Kang, S.; Kim, S.; Kang, S.; Lee, J.; Cho, C.S.; Sa, J.H.; Jeon, E.C. A study on N2O measurement characteristics using Photoacoustic Spectroscopy (PAS). Sensors 2014, 14, 14399–14410. [Google Scholar] [CrossRef] [PubMed]
  17. Zhao, Y.; Pan, Y.; Rutherford, J.; Mitloehner, F.M. Estimation of the interference in multi-gas measurements using infrared photoacoustic analyzers. Atmosphere 2012, 3, 246–265. [Google Scholar] [CrossRef]
  18. Christiansen, J.R.; Outhwaite, J.; Smukler, S.M. Comparison of CO2, CH4 and N2O soil-atmosphere exchange measured in static chambers with cavity ring-down spectroscopy and gas chromatography. Agric. For. Meteorol. 2015, 211, 48–57. [Google Scholar] [CrossRef]
  19. Schrade, S.; Zeyer, K.; Gygax, L.; Emmenegger, L.; Hartung, E.; Keck, M. Ammonia emissions and emission factors of naturally ventilated dairy housing with solid floors and an outdoor exercise area in Switzerland. Atmos. Environ. 2012, 47, 183–194. [Google Scholar] [CrossRef]
  20. Lengers, B.; Schiefler, I.; Büscher, W. A comparison of emission calculations using different modeled indicators with 1-year online measurements. Environ. Monit. Assess. 2013, 185, 9751–9762. [Google Scholar] [CrossRef] [PubMed]

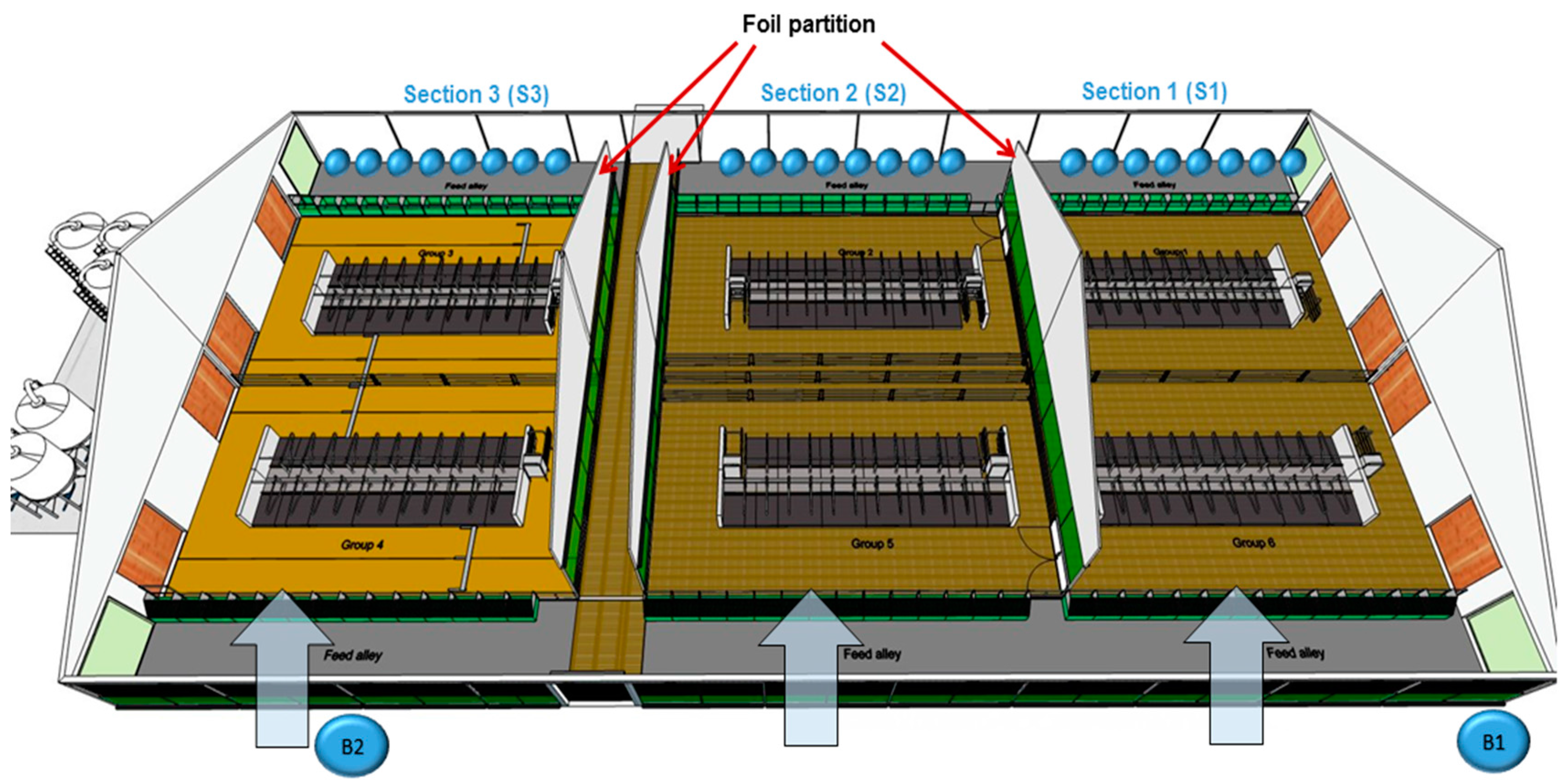

Figure 1. Top view of the barn (68 m × 34 m) showing the three different sections with the sampling points at the lee side of the barn (S1, S2, S3) and the background sampling points (B1, B2).
Figure 1. Top view of the barn (68 m × 34 m) showing the three different sections with the sampling points at the lee side of the barn (S1, S2, S3) and the background sampling points (B1, B2).
Sensors 16 01638 g001
Figure 2. (a) The sampling point at the leeward side of the barn to measure gas concentrations. (b) The offline system (Gilson, GX-271 sampler) with evacuated glass vials.
Figure 2. (a) The sampling point at the leeward side of the barn to measure gas concentrations. (b) The offline system (Gilson, GX-271 sampler) with evacuated glass vials.
Sensors 16 01638 g002
Figure 3. Schematic diagram of the experimental setup. Online: infrared photoacoustic measurement in real time; offline: samples analyzed using gas chromatography in the laboratory.
Figure 3. Schematic diagram of the experimental setup. Online: infrared photoacoustic measurement in real time; offline: samples analyzed using gas chromatography in the laboratory.
Sensors 16 01638 g003

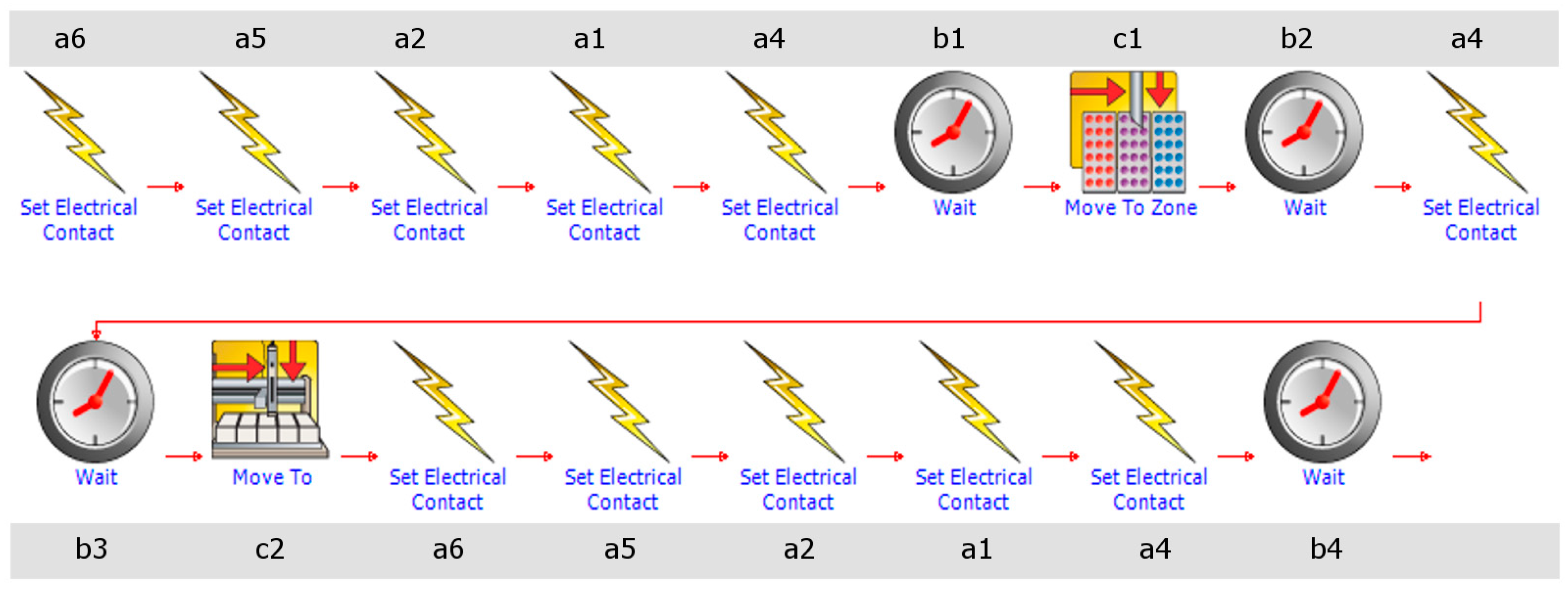

Figure 4. A schematic circuit diagram of the offline system (Gilson Sampler GX-271; Software: TRILUTION LH 3.0, Gilson, Inc.); (a: electrical circuit of the magnet valves and the sampling pump; b: wait times between the processes; c: order from the software to move the arm of the GX-271 in the x-, y-, or z-direction).
Figure 4. A schematic circuit diagram of the offline system (Gilson Sampler GX-271; Software: TRILUTION LH 3.0, Gilson, Inc.); (a: electrical circuit of the magnet valves and the sampling pump; b: wait times between the processes; c: order from the software to move the arm of the GX-271 in the x-, y-, or z-direction).
Sensors 16 01638 g004

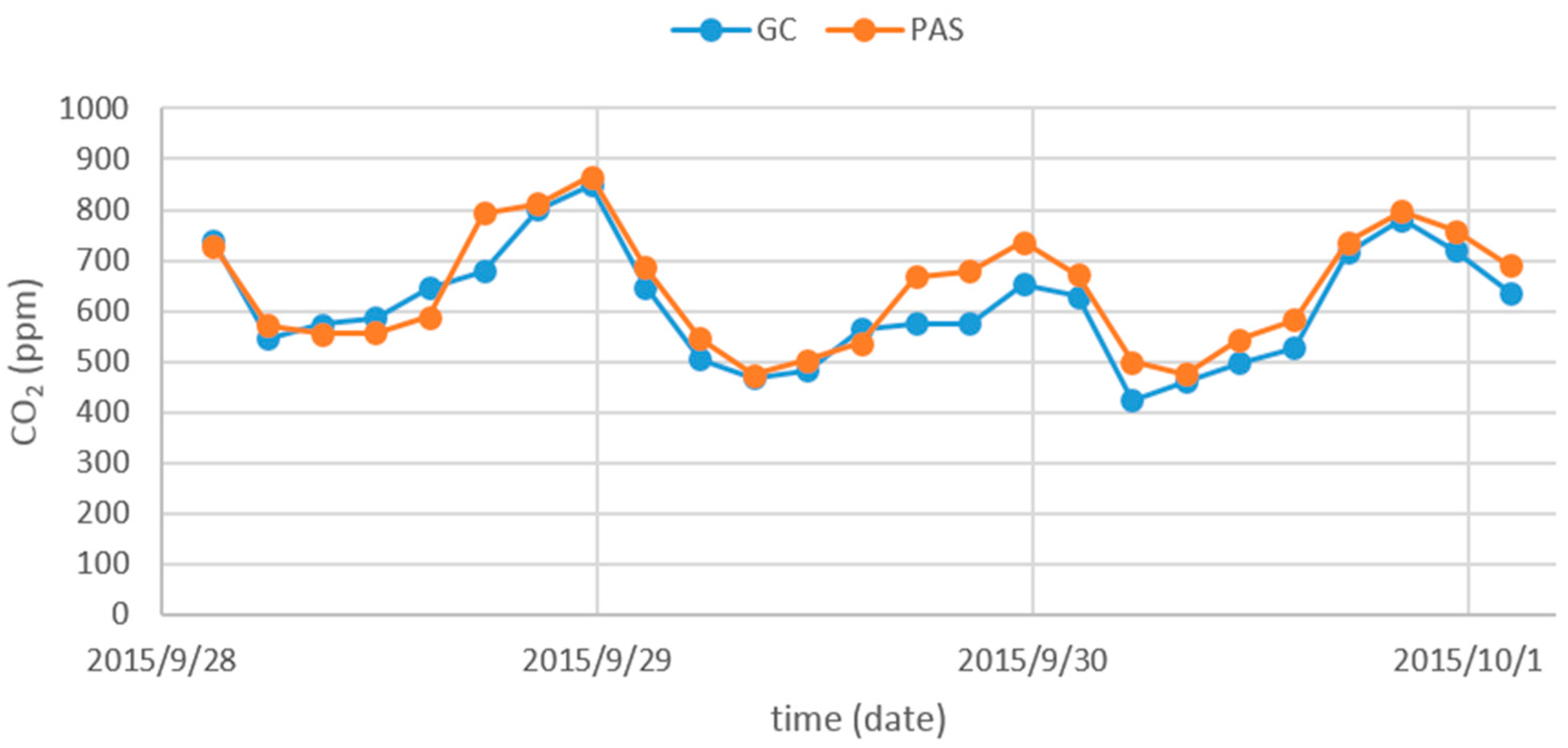

Figure 5. Absolute concentration of CO2 measured by GC and PAS.
Figure 5. Absolute concentration of CO2 measured by GC and PAS.
Sensors 16 01638 g005

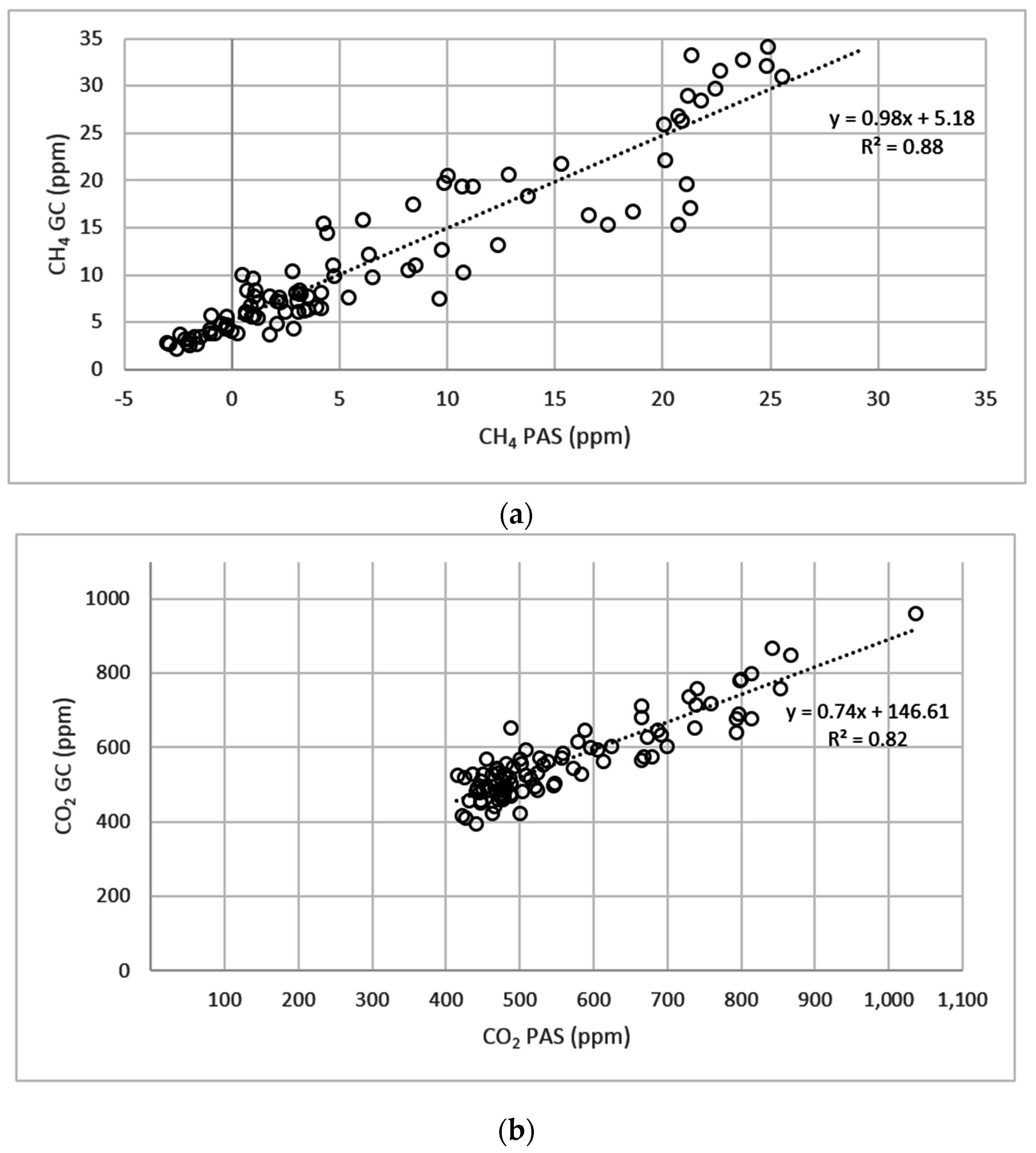

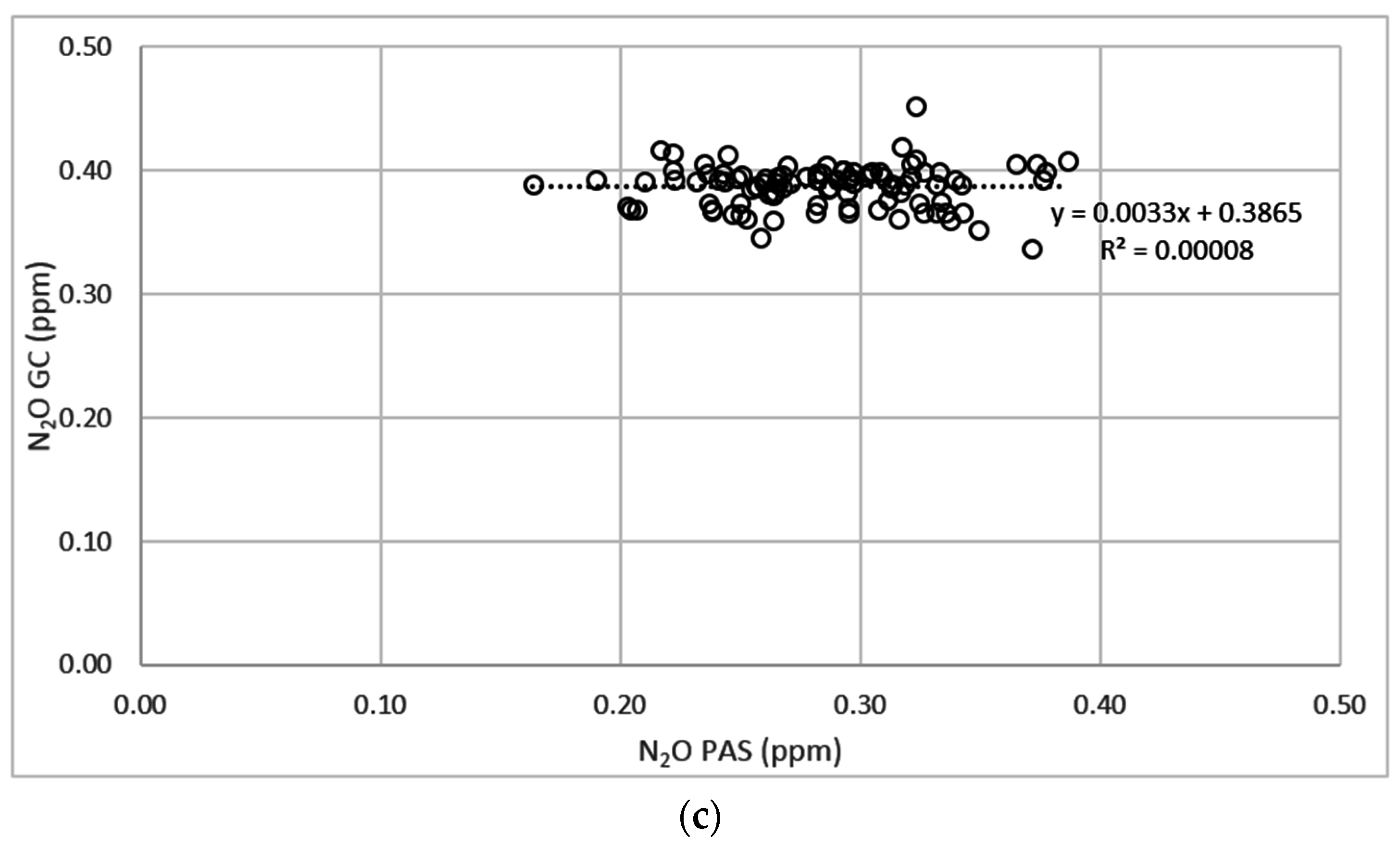

Figure 6. Correlation among CH4 (a), CO2 (b), and N2O (c) concentrations detected using photoacoustic spectroscopy (PAS) and gas chromatography (GC).
Figure 6. Correlation among CH4 (a), CO2 (b), and N2O (c) concentrations detected using photoacoustic spectroscopy (PAS) and gas chromatography (GC).
Sensors 16 01638 g006aSensors 16 01638 g006b
Table 1. Comparison of the gas analyzers used for detecting CO2, CH4, and N2O with the infrared photoacoustic system (PAS) and gas chromatography (GC).
Table 1. Comparison of the gas analyzers used for detecting CO2, CH4, and N2O with the infrared photoacoustic system (PAS) and gas chromatography (GC).
DivisionPASGC
manufacturerLumaSense Technologies, Ballerup, DenmarkSRI Instruments, Torrance, CA, USA
analyzer modelINNOVA 14128610c
detection methodinfrared photoacousticECD & FID
target gas/detection limitCO2 12 ppmCO2 50 ppm
CH4 0.55 ppmCH4 0.08 ppm
N2O 0.04 ppmN2O 0.01 ppm
NH3 0.3 ppmNH3 incapable
response time1 min (on site)8 min (in laboratory)
Table 2. Analysis of gas concentrations using the PAS and GC techniques.
Table 2. Analysis of gas concentrations using the PAS and GC techniques.
Method of AnalysisMeasured GasesMeasured Concentration (ppm)
n = 96MeanSEM
PASCH46.830.87
CO2559.6313.34
N2O0.2840.005
GCCH411.870.91
CO2563.2110.96
N2O0.3890.002
