On the Use of a Low-Cost Thermal Sensor to Improve Kinect People Detection in a Mobile Robot
Abstract: Detecting people is a key capability for robots that operate in populated environments. In this paper, we have adopted a hierarchical approach that combines classifiers created using supervised learning in order to identify whether a person is in the view-scope of the robot or not. Our approach makes use of vision, depth and thermal sensors mounted on top of a mobile platform. The set of sensors is set up combining the rich data source offered by a Kinect sensor, which provides vision and depth at low cost, and a thermopile array sensor. Experimental results carried out with a mobile platform in a manufacturing shop floor and in a science museum have shown that the false positive rate achieved using any single cue is drastically reduced. The performance of our algorithm improves other well-known approaches, such as C4 and histogram of oriented gradients (HOG).
The deployment of robots as assistants, guides, tutors or social companions in real human environments poses two main challenges: on the one hand, robots must be able to perform tasks in complex, unstructured environments, and on the other hand, robots must interact naturally with humans.
A requirement for natural human-robot interaction is the robot's ability to accurately and robustly detect humans to generate the proper behavior. In this article, the service proposed for the mobile robot is to detect people. This would later allow the robot to decide whether or not to approach the closest person at a given distance with whom to interact. This “engaging” behavior can be useful in potential robot services, such as a tour guide, healthcare or information provider. Once the target person has been chosen, the robot plans a trajectory and navigates to the desired position. To achieve the objectives of our work, the robot must first be able to detect human presence in its vicinity. This must be accomplished without assuming that the person faces the direction of the robot (the robot operates proactively) or wears specific clothing (feasible in an industrial environment, but not in a museum, for instance).
The primary requirement of this research has been to investigate the development of a human detection system based on low-cost sensing devices. Recently, research on sensing components and software led by Microsoft has provided useful results for extracting the human pose and kinematics Shotton et al. , with the Kinect motion sensor device Kin . Kinect offers visual and depth data at a significantly low cost. While the Kinect is a great innovation for robotics, it has some limitations. First, the depth map is only valid for objects that are further than 80 cm away from the sensing device. A recent study about the resolution of the Kinect by Khoshelham and Elberink  proves that for mapping applications, the object must be in the range of 1–3 m in order to reduce the effect of noise and low resolution. Second, the Kinect uses an IRprojector with an IR camera, which means that sunlight could negatively affect it, taking into account that the Sun emits in the IR spectrum. As a consequence, the robot is expected to deal with environments that are highly dynamic, cluttered and frequently subject to illumination changes.
To cope with this, our work is based on the hypothesis that the combination of a Kinect and a thermopile array sensors (low-cost Heimann HTPAthermal sensor Hei ) can significantly improve the robustness of human detection. Thermal vision helps to overcome some of the problems related to color vision sensors, since humans have a distinctive thermal profile compared to non-living objects (therefore, human pictures are not considered as positive), and there are no major differences in appearance between different persons in a thermal image. Another advantage is that the sensor data does not depend on light conditions, and people can also be detected in complete darkness. As a drawback, some phantom detections near heat sources, such as industrial machines or radiators, may appear. Therefore, it is a promising research direction to combine the advantages of different sensing sources, because each modality has complementary benefits and drawbacks, as has been shown in other works Bellotto and Hu , St-Laurent et al. , M. Hofmann and Rigoll , Johnson and Bajcsy , Zin et al. .
Additional requirements for our application arise from the fact that the low-cost thermal sensor provides a low resolution image and, therefore, does not allow us to build accurate models for detecting people. Moreover, in order to have a high reaction capability, we are looking for solutions that allow parallel processing of all the input data instead of sequentially.
Therefore, the chosen approach is:
To combine machine learning paradigms with computer vision techniques in order to perform image classification: first, we apply transformations using computer vision techniques, and second, we perform classification using machine learning paradigms.
To construct a hierarchical classifier combining the three sensor source data (images) to improve person detection accuracy.
We have evaluated the system in two different real scenarios: a manufacturing shop floor, where machines and humans share the space while performing production activities, and a science museum with different elements exposed, people moving around and strong illumination changes, due to weather conditions. Experimental results seem promising considering that the percentage of wrong classifications using only Kinect-based detection algorithms is drastically reduced.
The rest of the paper is organized as follows: In Section II, related work in the area of human detection is presented. We concentrate mainly on work done using machine learning for people detection. Section III describes the proposed approach and Section IV, the experimental evaluation. Section V shows experimental results and Section VI, conclusions and future work.
2. Related Work
People detection and tracking systems have been studied extensively because of the increasing demand for advanced robots that must integrate natural human-robot interaction (HRI) capabilities to perform some specific tasks for the humans or in collaboration with them. A complete review on people detection is beyond the scope of this work; extensive work can be found in Schiele  and Cielniak . We focus on the recent related work.
To our knowledge, two approaches are commonly used for detecting people on a mobile robot: (1) vision-based techniques; and (2) combining vision with other modalities, normally range sensors, such as laser scanners or sonars, like in Wilhelm et al. , Scheutz et al. , Martin et al. . Martin et al. use a skin color-based detector in a omnidirectional camera and leg profile detectors based on sonar and a laser range-finder to generate specific probability-based hypotheses about detected people and combine these probability distributions by covariance intersection.
The computer vision literature is rich in people detection approaches in color or intensity images. Most approaches focus on a particular feature: the face Hjelmas and Low , Yang et al. , the head, Murphy-Chutorian and Trivedi , the upper body or the torso, Kruppa et al. , Xia et al. , the entire body, Dalal and Triggs , Viola et al. , Wu et al. , just the legs, Papageorgiou and Poggio  or multimodal approaches that integrate motion information Bellotto and Hu . All methods for detecting and tracking people in color images on a moving platform face similar problems, and their performance depends heavily on the current light conditions, viewing angle, distance to people and variability of the appearance of people in the image.
Apart from cameras, the most common devices used for people tracking are laser sensors. The common aspect in all these approaches is to use distance information to find the human person and then to combine with a visual search for faces or human bodies. Martínez-Otzeta et al.  present a system for detecting legs and follow a person only with laser readings. A probabilistic model of leg shape is implemented, along with a Kalman filter for robust tracking. This work is extended using thermal information in Susperregi et al. , using a particle filter to build a people following behavior in a robot. Martinez-Mozos et al.  address the problem of detecting people using multiple layers of 2D laser range scans. Other implementations, such as Bellotto and Hu , also use a combination of face detection and laser-based leg detection and use laser range-finders to detect people as moving objects. The drawbacks of these approaches arise when a person position does not allow one to be distinguished (in lateral position to the robot or near a wall), in scenarios with slim objects (providing leg-like scans). Using only depth images, Zhu and Fujimura  proposed a human pose estimation method with Bayesian tracking that is able to detect, label and track body parts. A more promising approach is combining more than one sensory cue. Most existing combined vision-thermal based methods, in St-Laurent et al. , M. Hofmann and Rigoll , Johnson and Bajcsy , Zin et al. , concern non-mobile applications in video monitoring applications and especially for pedestrian detection, where the pose of the camera is fixed. Some works Gundimada et al.  show the advantages of using thermal images for face detection. They suggest that the fusion of both visible- and thermal-based face recognition methodologies yields better overall performance.
To the authors knowledge, there are few published works on using thermal sensor information to detect humans on mobile robots. Extensive work can be mainly found in the pedestrian detection area Meis et al. , Li et al. . The main reason for the limited number of applications using thermal vision so far is probably the relatively high price of this kind of sensor. Treptow et al.  and Treptow et al.  show the use of thermal sensors and grey scale images to detect people in a mobile robot. They build an elliptic contour model and a feature-based model detector to track a person in the thermal image using a particle filter. Guan et al.  propose a head-shoulder detection based on a stereo-camera fused with the hair and face identified from the thermal-based sensor. Correa et al.  use face detection based on sate-of-the-art detectors (LBPHistograms) in thermal and visual images for people detection and recognition. These approaches are based on thermal images that require a good resolution in order to build these models, which is not applicable to the low-cost (low-resolution) thermal sensor used in this work.
A drawback of most of these approaches is the sequential integration of the sensory cues; people are firstly detected by thermal information only and are subsequently verified by visual or auditory cues. Thus, any misdetection using the thermal information cannot be recovered using the other sensors.
Most of the above-mentioned approaches have used predefined body model features for the detection of people. Few works considered the application of learning techniques. Arras et al.  proposed using supervised learning to create a people detector with the most informative features (AdaBoost). Martinez-Mozos et al.  built classifiers able to detect a particular body part, such as a head, an upper body or a leg, using laser data. These classifiers are learned using a supervised approach based on AdaBoost. The final person detector is composed of a probabilistic combination of the outputs from the different classifiers. Current research in the use of RGB-Dsensors combining color and depth information is extensive; recent works focus on object recognition using color and depth. Lai et al.  demonstrated in a 300 object dataset that combining color and depth information substantially improves the quality of results. Mozos et al.  presented a new approach to categorize indoor places using an RGB-D sensor. They built feature vectors combining grey scale images and depth information, which are provided as the input to support vector machines (SVMs) and random forests classifiers, achieving average correct classification rates above 92%. Spinello and Arras Spinello and Arras  proposed a new adaptive image and depth data fusion architecture for robust object detection. This architecture allows one to obtain an optimal combination of object detectors, depending on the quality of the sensory cues. This fusion method is applied to people detection, achieving an 87.4% detection rate in their experimental setup.
In a previous work Susperregi et al. , as the first stage of the present work, a combination of computer vision transformations with machine learning algorithms to use vision and thermal sensor readings to detect if a person is on the view point of the robot was introduced. At that point, the combination was a voting approach; thus, we propose the hierarchical approach in this work.
3. Proposed Approach

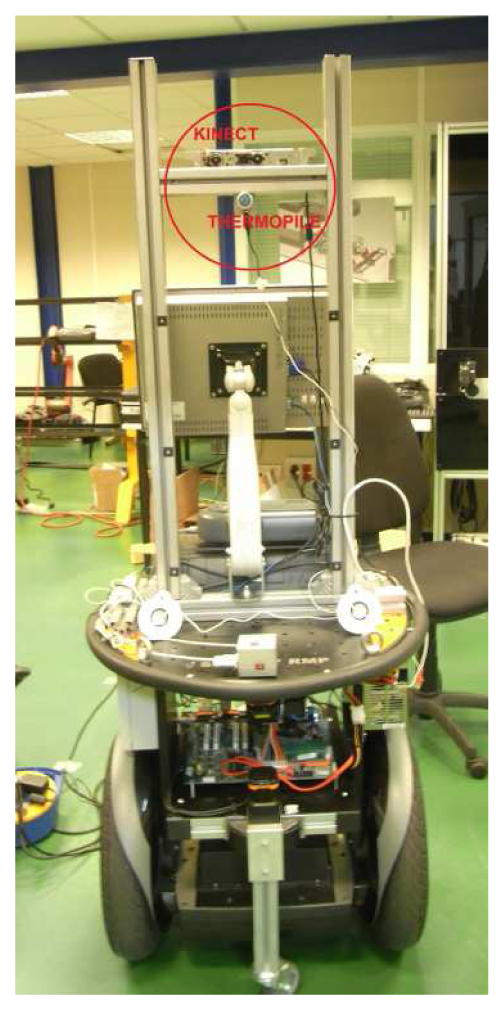

We propose a multimodal approach, which is characterized by the processing and filtering of sensory cues. The proposed detection system is based on an HTPA thermal sensor developed by Heimann Hei  and a Kinect sensor, mounted on top of an RMPSegway mobile platform, which is shown in Figure 1.

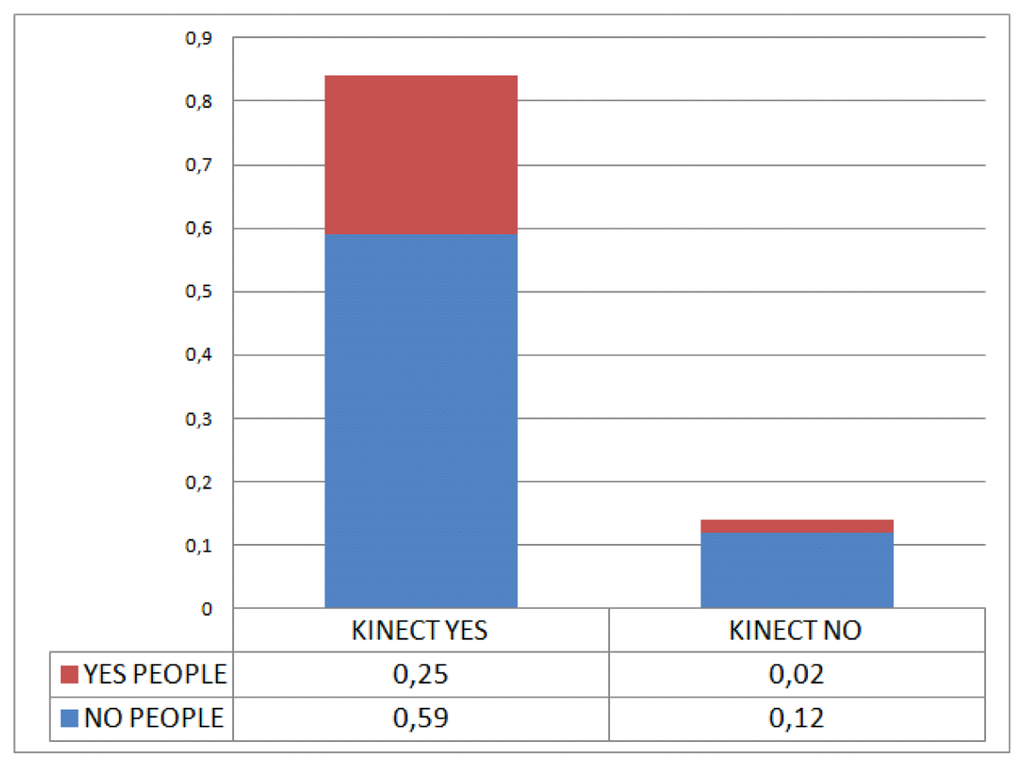

Some preliminary experiments confirm the low people detection ratio achieved by the Kinect sensor-based algorithms Shotton et al.  in the mobile platform. Figure 2 shows the detection ratio achieved using the dataset collection.The low detection ratio is mainly explained by the algorithms being intended to work for a static camera and not one mounted to a mobile platform.

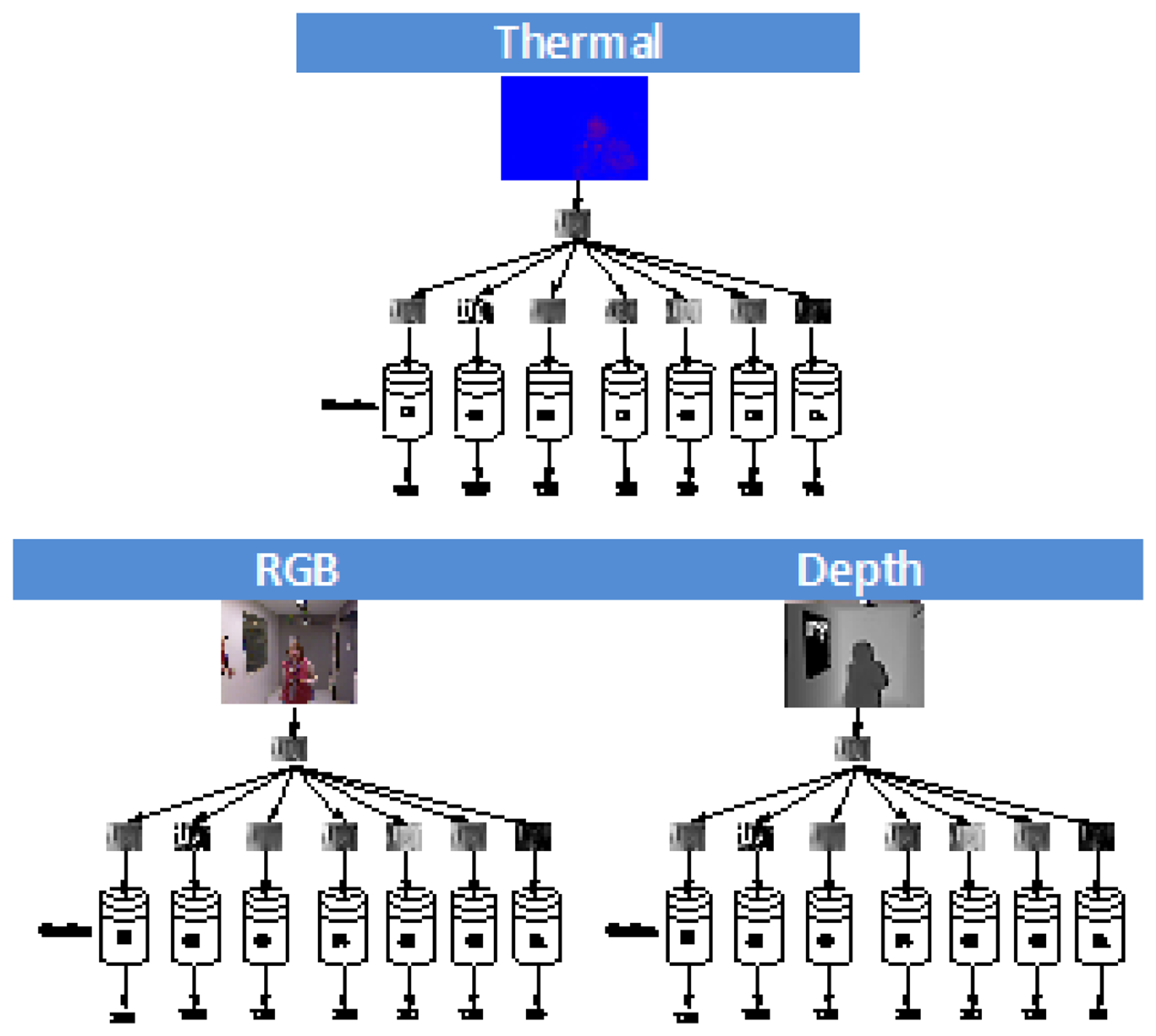

We aim to apply a new approach to combine machine learning (ML) paradigms with computer vision techniques in order to perform a binary image classification. Our approach is divided into three phases: sensor data prefiltering using computer vision techniques, classification using ML and a combination of classifiers.
Computer vision transformations: In order to have several descriptors of the images, different computer vision transformations over the original images are performed to enrich the input database. The main goal of this phase is to have variability in the features extracted for the same pixel, so that different values are obtained for the same pixel positions; in fact, the information provided by a collection of image transformations is analyzed. As has been mentioned before, we aim to use three input images (color, depth, temperature) to construct a classifier. In this way, and for each of the three data sources, a set of preprocessed images is obtained, one for each of the transformations used.
To achieve this, we combine some standard image-related algorithms (edge detection, Gaussian filter, binarization, and so on) in order to obtain different image descriptors, and afterwards, we apply some standard machine learning classifiers, taking into account the pixel values of the different modifications of the pictures. Figure 3 shows an example, in which some of the transformations are used. From the original training database collected, a new training database is obtained for each of the computer vision transformation used, summing up a total of 24 databases for each sensor.
In the classification phase, the system learns a classifier from a hand-labeled dataset of images (the above-mentioned original and transformed images). Five well-known ML supervised classification algorithms with completely different approaches to learning and a long tradition in classification tasks are used: IB1, Naive-Bayes, Bayesian Network, C4.5 and SVM.
Fusion phase: Finally, the goal of our fusion process is to maximize the benefits of each modality by intelligently fusing their information and by overcoming the limitations of each modality alone.
3.1. Data Acquisition and Transformation
As stated before, three kinds of data sources are used coming from the Kinect sensor and the thermopile array.

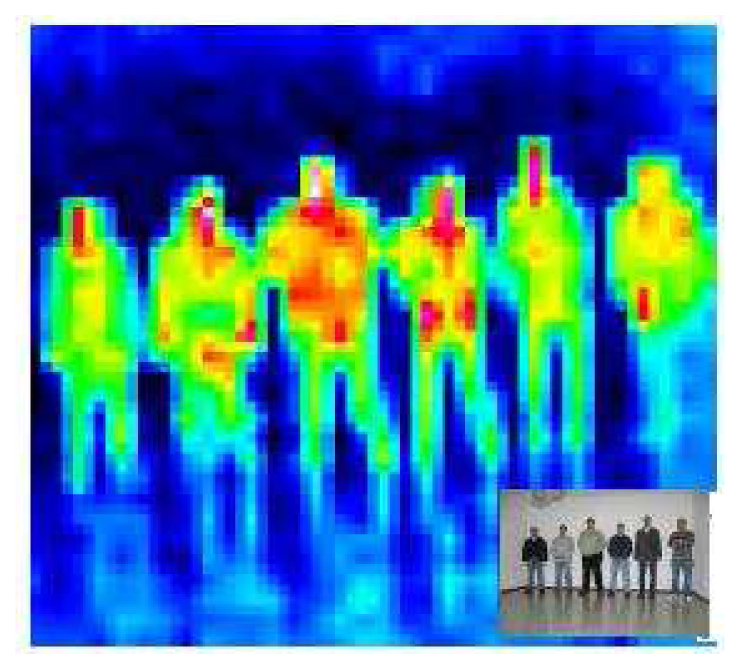

The HTPA allows for the measurement of the temperature distribution of the environment, where very high resolutions are not necessary, such as person detection, surveillance of temperature critical surfaces, hotspot or fire detection, energy management and security applications. The thermopile array can detect infrared radiation; we convert this information into an image in which each pixel corresponds to a temperature value. The sensor only offers a 32 × 31 image, which allows for a rough resolution of the environment temperature, as is shown in Figure 4. People present a thermal profile different from their surrounding environment. The temperature detected in the pixel corresponding to a person is usually around 37 Celsius degrees, with some tendency of being a bit lower, due to the presence of hair or clothes over the skin.
The benefits of this technology are the very small power consumption, as well as the high sensitivity of the system.
Kinect provides depth data, which we transform into depth images; it uses near-infrared light to illuminate the subject, and the sensor chip measures the disparity between the information received by the two IR sensors. It provides a 640 × 480 distance (depth) map in real time (30 fps).
In addition to the depth sensor, the Kinect also provides a traditional 640 × 480 RGB image.
In order to calibrate both sensors' data, the following have to be considered:
Horizontal FOV: It is known that the Kinect horizontal FOV (RGB) is 62.7 degrees for 640 pixels, while the thermopile horizontal FOV is 38 degrees for 32 pixels. As the thermopile center is vertically aligned with the Kinect center, it covers the 387.8788 (640 * 38 / 62.7) central horizontal pixels of the Kinect RGB image; so, it covers the pixels in the range ([126.06–513.94]).
Vertical FOV: In the vertical range, following the same proportions as in the horizontal range, the thermopile covers 375.7603 (12.1213 * 31) Kinect RGB vertical pixels, which means that, if the sensors' centers were to be in the same place, the thermopile would cover the pixels in the range (52.11985, 427.88015). As the thermopile is located over the Kinect, the pixels in the range (0, 370) are covered.
3.1.1. Computer Vision Transformations

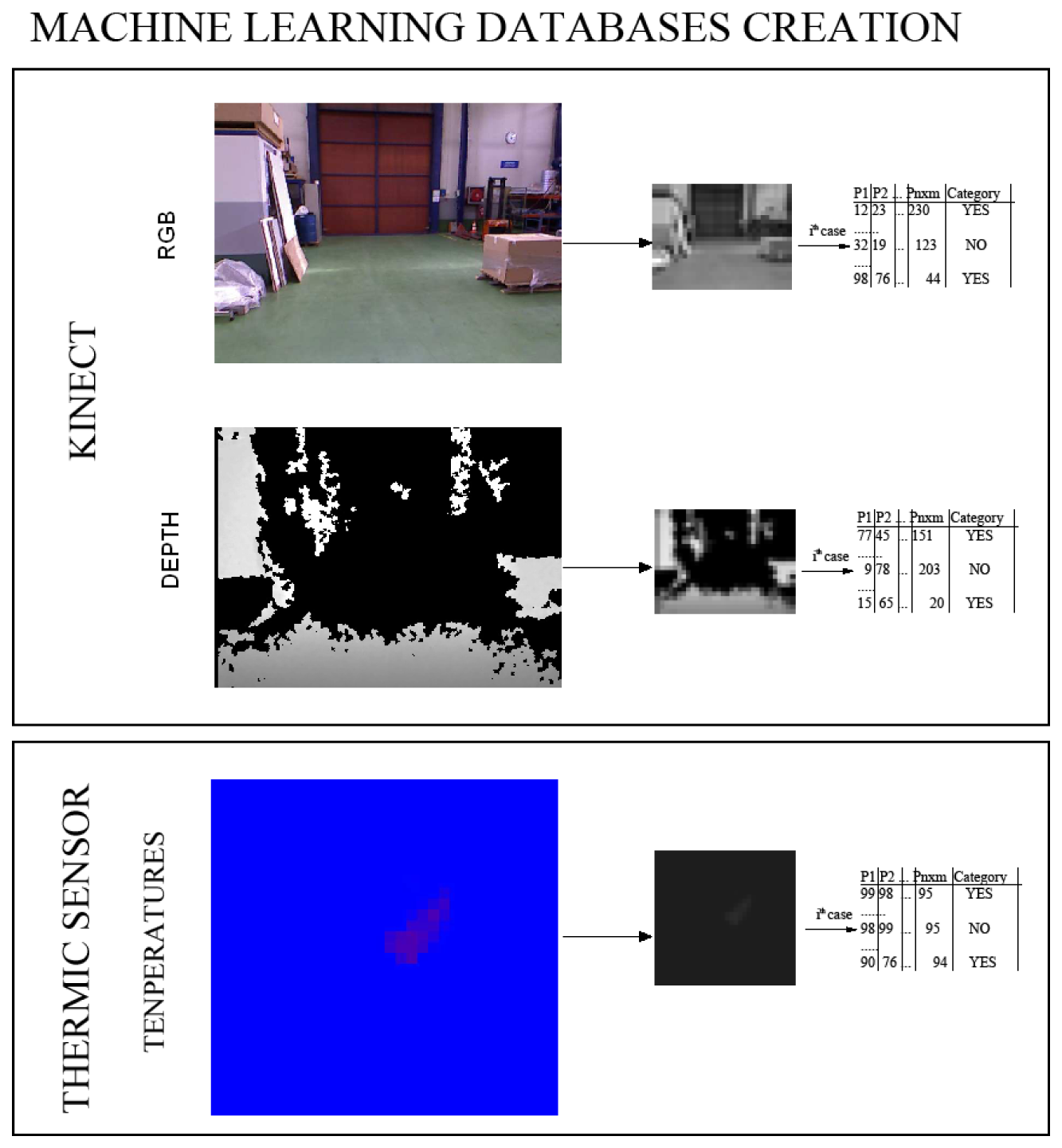

The three data sources acquired in parallel (image, distance, temperature) are used to build a classifier, whose goal is to identify whether a person is in the view-scope of the robot or not. Figure 5 shows an example of the three different images obtained; each original image is scaled to 32 × 24 and converted to gray scale. The value of each pixel position in the matrix is considered as a predictor variable within the machine learning database construction, summing up n × m features, m being the column number and n, the row number in the image. Each image corresponds to a single row in the generated database.
In order to have different descriptors of the images, modifications over the original images are performed. The databases contain people in different pose and scales in order to introduce variability and to provide robustness under translations, rotation or scale changes; see Figure 6.
We have selected some of the most common transformations, in order to show the benefits of the proposed approach, making use of simple algorithms. Table 1 presents the collection of transformations used, as well as a brief description of each one of them. It is worth pointing out the fact that any other CVtransformation could be used apart from the selected ones.
3.2. Machine Learning Classifiers
Five well-known ML supervised classification algorithms with completely different learning approaches and a long tradition in different classification tasks are used: IB1, Naive-Bayes, Bayesian Network, C4.5 and SVM. Later, the goal of our fusion process is to maximize the benefits of each modality by intelligently fusing their information and by overcoming the limitations of each modality alone.
The IB1 Aha et al.  is a case-based, nearest-neighbor classifier. To classify a new test sample, all training instances are stored, and the nearest training instance regarding the test instance is found; its class is retrieved to predict this as the class of the test instance.
The Naive-Bayes (NB) rule Cestnik  uses the Bayes theorem to predict the class for each case, assuming that the predictive attributes are independent given the category. To classify a new sample characterized by d attributes, X = (X1, X2, …, Xd), the NB classifier applies the following rule:
A Bayesian network, belief network or directed acyclic graphical model is a probabilistic graphical model that represents a set of random variables and their conditional independencies via a directed acyclic graph (DAG). For example, a Bayesian network could represent the probabilistic relationships between diseases and symptoms. Given symptoms, the network can be used to compute the probabilities of the presence of various diseases. There are many classifiers based on the probability theory. Most of them use ideas from the Bayes theorem and try to obtain the class whose a posteriori probability is greater given the values of the predictor variables of the case to be classified. In other words, probabilistic classifiers give to the new case the most likely class for the values its variables have. In this paper, we have used Bayesian Networks as classification models, proposed by Sierra et al. .
The C4.5 Quinlan  represents a classification model by a decision tree. It is run with the default values of its parameters. The tree is constructed in a top-down way, dividing the training set and beginning with the selection of the best variable in the root of the tree. The selection of the best feature is performed by the maximization of a splitting criterion, which is based on an informatics theoretic approach. For each continuous attribute, a threshold that maximizes the splitting criterion is found by sorting the cases of the dataset on their values of the attribute: every pair of adjacent values suggests a threshold in their midpoint, and the threshold that yields the best value of the splitting criterion is selected. A descendant of the root node is then created for each possible value of the selected feature, and the training cases are sorted to the appropriate descendant node. The entire process is then recursively repeated using the training cases associated with each descendant node to select the best feature to test at that point in the tree. The process stops at each node of the tree when all cases in that point of the tree belong to the same category or the best split of the node does not surpass a fixed chi-square significancy threshold. Then, the tree is simplified by a pruning mechanism to avoid overspecialization.
Support Vector Machines (SVMs)
SVMs are a set of related supervised learning methods used for classification and regression. Considering a two-class problem where the input data of each class is viewed as an n-dimensional vector, an SVM will construct a separating hyperplane in that space, one which maximizes the margin between the two datasets. To calculate the margin, two parallel hyperplanes are constructed, one on each side of the separating hyperplane, which are “pushed up against” the two datasets. Intuitively, a good separation is achieved by the hyperplane that has the largest distance to the neighboring data points of both classes, since, in general, the larger the margin, the lower the generalization error of the classifier Meyer et al. .
3.3. Combination of Classifiers/Sensors
In order to finally classify the targets as containing a human or not, the estimation of the RGB-D-based classifiers is combined with the estimation of the temperature-based classifier. After building the individual classifiers (5 × 24 = 120 for each cue), the aim is to combine the output of different classifiers to obtain a more robust final people detector.
The last step is to combine the results of the best three classifier obtained, one for each input image type (intensity, depth, temperature). To achieve this, we use the hierarchical classifier approach by Martínez-Otzeta et al. , Sierra et al.  in which the decision of each of the three single classifiers is combined in a tree mode in order to increase the overall accuracy. Figure 7 shows the typical approach used to perform a classification with this multiclassifier approach.
We have used this multiclassifier to combine the different sensors, selecting, at each step, the classifier learned in this type of image that increases the accuracy the most. One of the reasons we do that is mainly related to the computational load: using only three classifiers, one for each sensor, we can make the needed preprocess in parallel, obtaining a faster answer. In this way, the resulting model can operate in real time, a mandatory feature for the task to be accomplished.
4. Experimental Evaluation
In this section, we present the experimental evaluation of our approach carried out using data collected with a mobile robot in two scenarios: a manufacturing plant and a science museum. The results obtained using other approaches are relevant to assess whether the method presented is competitive enough and, therefore, worth continuing in the proposed direction. We have compared our approach with other relevant approaches in people detection, such as the histogram of oriented gradients (HOG) and the C4 algorithm.
HOGs are a kind of feature descriptors, which compute the number of occurrences of a gradient orientation (histogram) in portions of an image. In their seminal work, Dalal and Triggs  focused on the problem of pedestrian detection in static images, though the technique could be applied to other domains, as well.
A more recent people detection algorithm, C4 Wu et al. , detects humans using contour cues, a cascade classifier and the CENTRIST visual descriptor. The authors claim that C4 has shown a competitive recognition rate when compared to HOG; the algorithm uses contour information for human detection, and it is extremely fast. We have decided to collect the recognition rate this algorithm offers in the databases with which we are working.
It is worth mentioning that we are evaluating only the detection accuracy, although these algorithms can also provide people tracking capabilities.
4.1. Experimental Data
To obtain positive and negative examples in both scenarios, the robot was operated in two unconstrained indoor environments (the manufacturing plant and the science museum). At the same time, image data was collected with a frequency of 1 Hz. The images were hand-labeled as positive examples if people were visually detected in the image and as negative examples, otherwise.
4.1.1. Dataset in Manufacturing Scenario

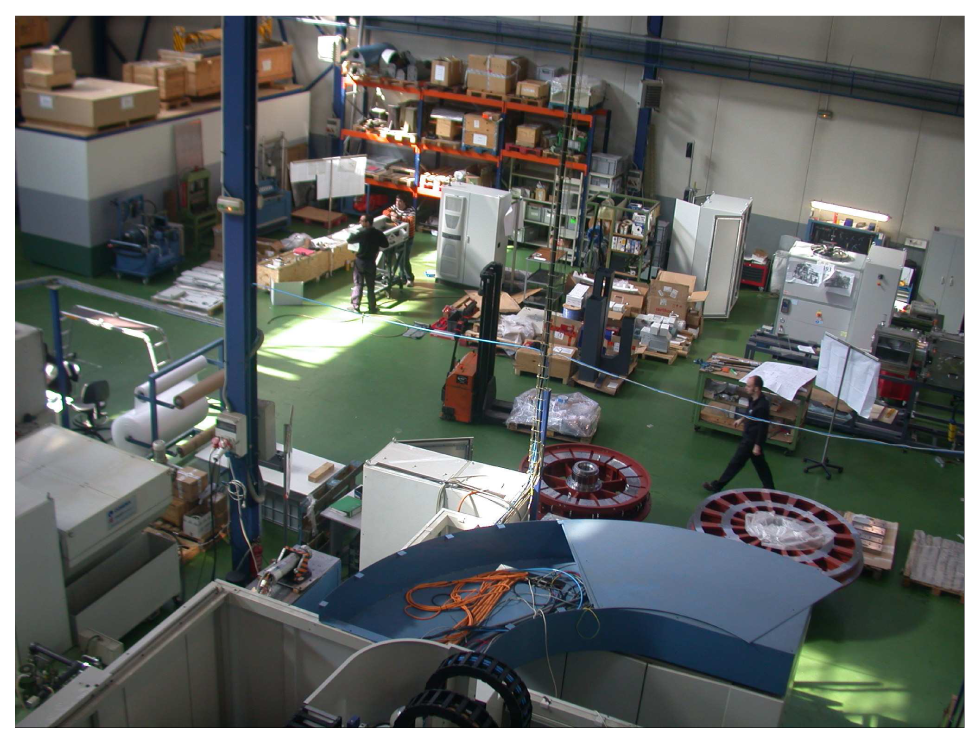

The manufacturing plant located at IK4-TEKNIKER is a real manufacturing shop floor, where machines and humans share the space during production activities. The shop floor, as seen in Figure 8, can be characterized as an industrial environment, with high ceilings, fluorescent light bulbs, high windows, etc. The lighting conditions change from one day to another and even in different locations along the path covered by the robot.

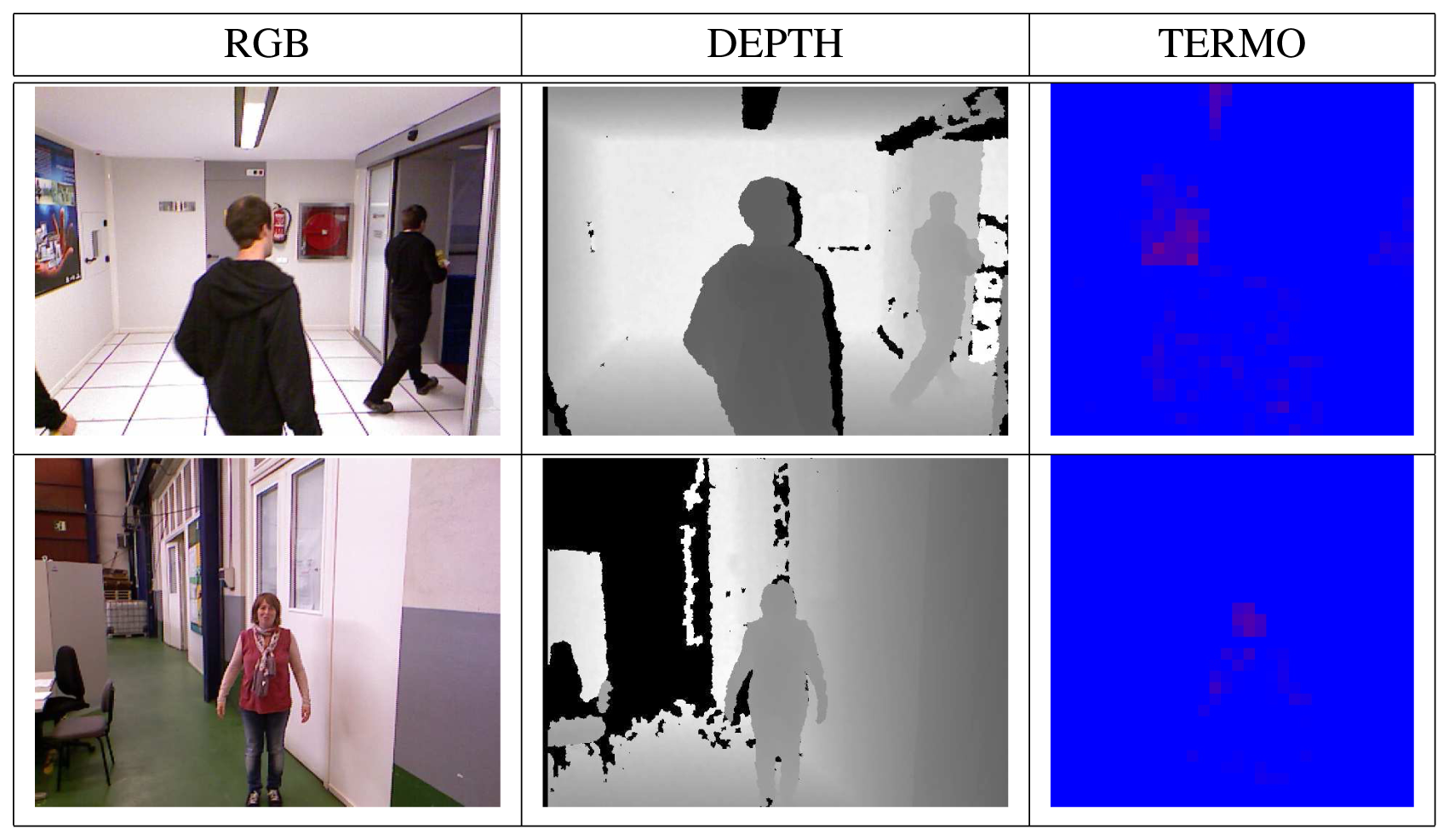

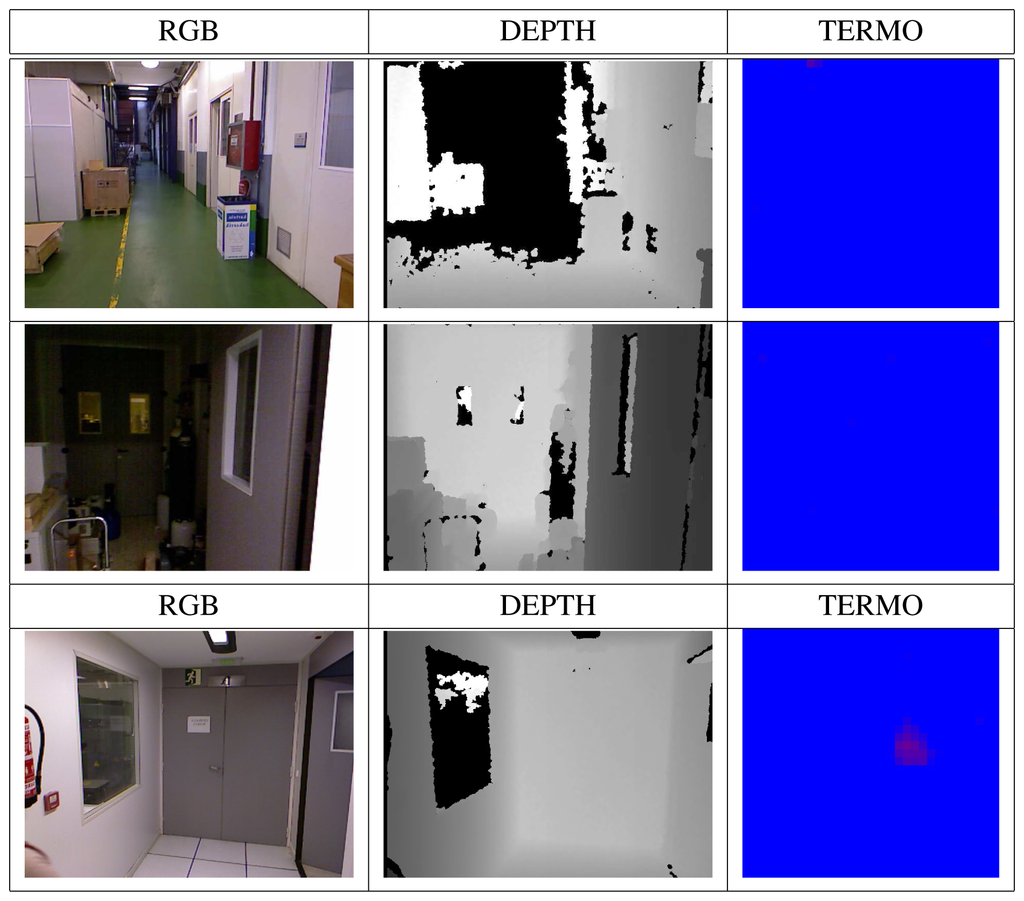

The dataset is composed of 1,064 samples. The input to the supervised algorithms is composed of 301 positive and 763 negative examples. The set of positive examples contains people at different positions and dressed with different clothing in a typical manufacturing environment. The set of negative examples is composed of images with no human presence and containing other objects, such as machines, tables, chairs, walls, etc.Figures 6 and 9 show some database samples. It has to be noticed that the thermal images shown in the third column of the figures do not always discriminate the presence of a person, due to the existence of hot elements in the plant (which could produce false positives) or, on the contrary, the clothing of a given person who is not looking at the robot, which could give a false negative case.
4.1.2. Dataset in Science Museum: EUREKA!
The EUREKA! Science Museum is the second scenario in which the robot has been evaluated to identify the presence of people. Figure 10 shows some images taken by the robot; the lighting conditions also affect the image treatment, as there are crystal corridors in the museum. In addition, there are some aesthetic elements that can be detected as persons.
This dataset is composed of 619 samples (392 positive and 227 negative). The positive/negative distribution is different compared with the previous dataset, in order to better appreciate the generalization capabilities of the approaches used.
4.1.3. Experimental Methodology
These are the steps of the experimental phase:
Collect a database of images that contains three data types that are captured by the two sensors: 640 × 480 depth map, 640 × 480 RGB image and 32 × 31 thermopile array.
Reduce the image sizes from 640 × 480 pixels to 32 × 24 pixels, and convert color images to gray-scale ones.
For each image, apply 23 computer vision transformations (see Table 1), obtaining 23 transformed images for each image type. Thus, we have 24 datasets for each image type.
Build 120 classifiers, applying 5 machine learning algorithms for each image type training dataset (5 × 24) and using 10-fold cross-validation Stone .
Apply 10-fold cross-validation using 5 different classifiers for each of the previous databases, summing up a total of 3 × 24 × 5 = 360 validations.
In each node of the hierarchical multiclassifier, select the classifier with the lowest error rate.
Make a final decision combining the results of the classifiers.
The performance of the people detection system is evaluated in terms of detection rates (accuracy) and false positives/negatives. True positives (TPs) are the people images detected from the ground truth. False negatives (FNs) are the people images not detected from the ground truth, and false positives (FPs) are images detected as people that do not appear in the ground truth. The performance evaluation is done with the following score:

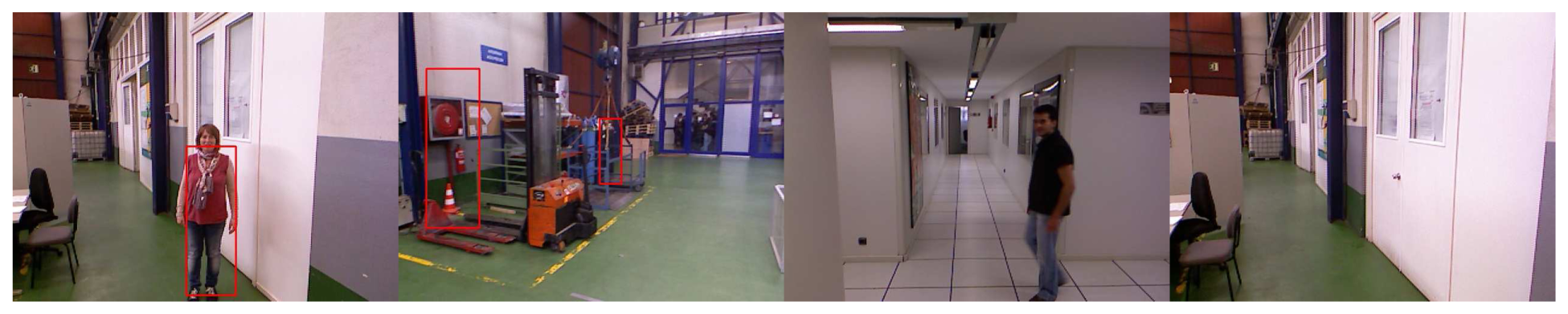

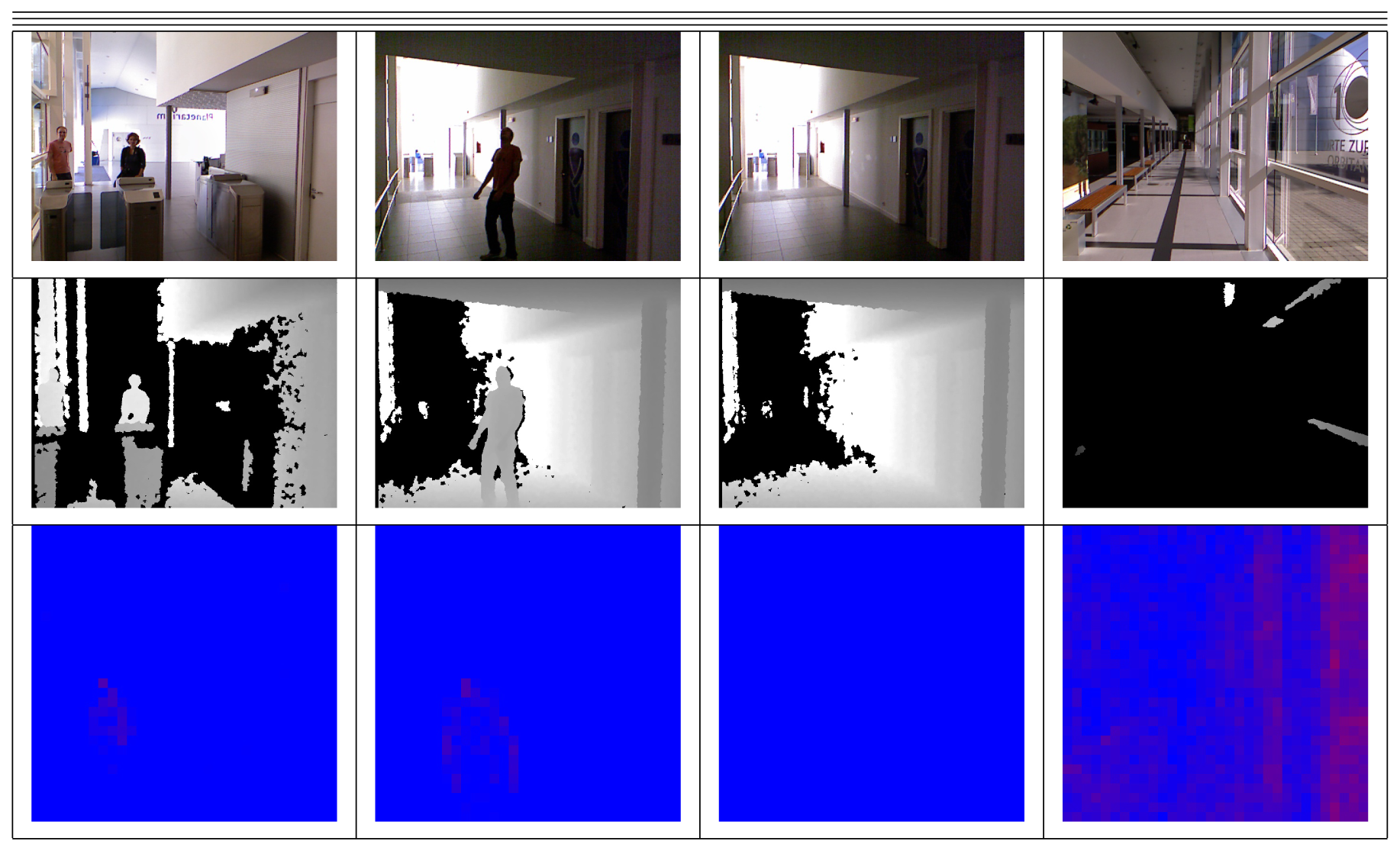

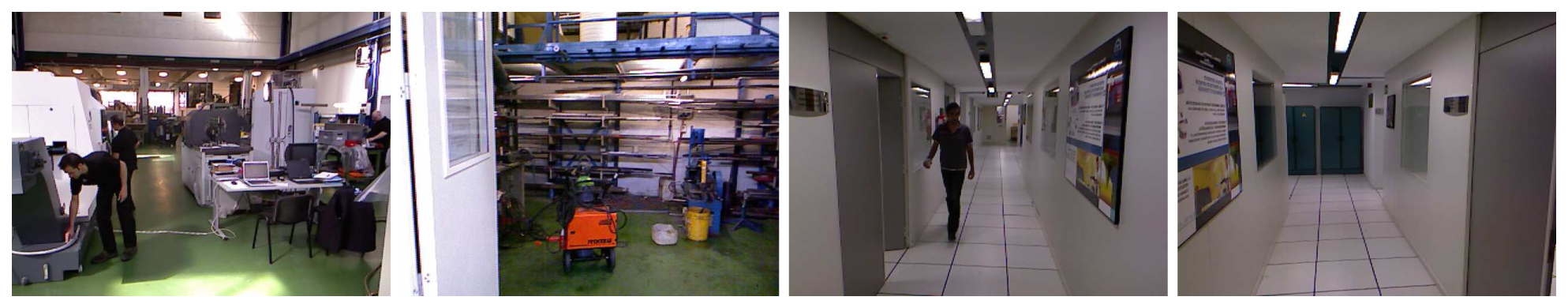

Figures 11 and 12 show some examples of the kind of results obtained by our approach and the C4 method, respectively.
In order to make a fast classification (a real-time response is expected), we first transform, as mentioned above, the color images to gray-scale 32 × 24, and reduce, as well, the size of the infrared images to a 32 × 24 size matrix. Hence, we have to deal with 768 predictor variables, instead of 307, 200 × (three colors) of the original images taken by the Kinect camera.
First of all, we have used the five classifiers using the reduced original databases (32×24 for intensity and depth, 31 × 31 for thermal pictures). Table 2 shows the 10-fold cross-validation accuracy obtained using the input images without transformation. The best result is 92.11% for the thermal image original database, using SVM as the classifier. The real-time Kinect's algorithms accuracy for the same images was quite poor (37.50%), as the robot was moving. As a matter of fact, that has been the main motivation of the presented research.
The same accuracy validation process has been applied to each image transformation on each image format. Table 3 shows the results obtained by each classifier on the resulting transformed 23-image databases. The best result is obtained by the C4.5 classifier after transforming the images using Transformation 7 (Gaussian one). This classifier is selected as the best intensity-based classifier to be combined with the other two best classifiers.
After performing the validation over the depth images, the results shown in Table 4 are obtained. The best result is obtained again by the C4.5 classifier after transforming the images using Transformation 7 (Gaussian one), with a 92.82 accuracy. This classifier is selected as the distance image (depth) one to take part in the final combination.
Finally, the classifiers are applied to the thermal images, obtaining the results shown in Table 5. In this case, we obtain the best result (93.52) for the SVM classifier, and for two of the used transformations (Transf.8 (Lat) and Transf. 9 (Linear-stretch)). Moreover, the obtained results are identical for both paradigms, so any of them can be used in the final combination, obtaining indistinct results.
5.2. Science Museum
The same process has been applied to the science museum dataset. Table 6 shows the results obtained with the original intensity images. The best result (87.08) is obtained for the intensity images using the K-NNalgorithm. For Depth data, the best result (79.16) is obtained by means of a Bayesian Network classifier, while for the Thermal data, the K-NN classifier obtains 80.45 as the best result.
When the transformations are applied, an increment in the obtained accuracy is achieved for all the data sources and all the classifiers used. The obtained results are shown in Table 7; once again, the best result is obtained for the intensity images using the K-NN algorithm (90.79), using the sixth transformation; using Depth data, the best result (80.94) is obtained by the Bayesian Network classifier after the 12th CV transformation, while for the Thermal data, the K-NN classifier obtains 84.49 as the best result, combined with the sixth transformation.
5.2.1. Bayesian Network Structure
Bayesian Networks are paradigms used to represent the joint probability of a set of (discrete) variables. As stated before, they can be used as classifiers in a supervised classification problem, and in this case, the existence of a variable of interest has to be taken into account: that corresponding to the class. It is worth mentioning that the Bayesian Network classifier takes as predictor variables the pixels of the images.
As can be seen, the Bayesian Network structure can be very complex, and it is necessary to put emphasis on those nodes belonging to the so-called Markov Blanket of the Class node, composed of its parents, its direct descendants and the parents of those descendants.
5.3. Hierarchical Multiclassifier

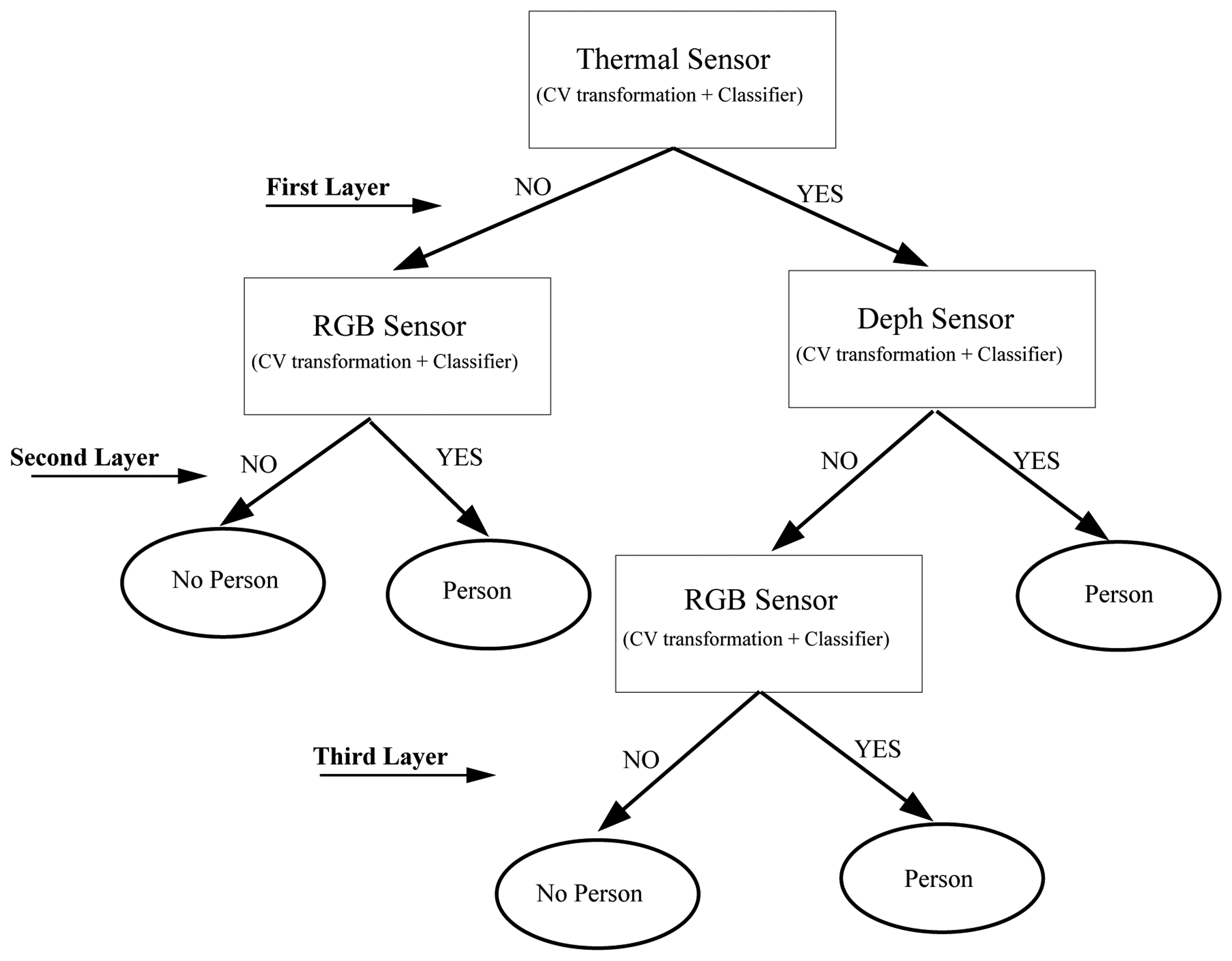

The last step is to combine the three best classifiers obtained, one for each sensor. This has been done using a hierarchical multiclassifier Martínez-Otzeta et al. . A tree-shaped classifier is constructed. The decision of each node is performed by a single classifier, learned for the corresponding data. We have decided to specialize each node for one sensor data type (among the three used), and thus, this sensor type data is not to be used in the nodes below. Figure 13 shows an example of the multiclassifier used. As can be seen, in this example, the top node (also known as the root of the tree) is devoted to the thermal sensor data. For this data, the best (CV Transformation, Classifier) pair is selected. To continue with the classifier construction, for each of the arcs of the tree, a database is needed in order to learn the corresponding classifier, which aims to correct some of the errors made by its top node model.
To do this, using a 10-fold cross-validation, the cases classified as No person are selected, and the corresponding cases of the other two sensors are used to obtain the best CV transformation and the combination of classifiers. The example assumes that the best results are obtained using the intensity data for some CV transformation and classifier.
The construction of the multiclassifier continues in this manner, a new case selection is performed for the images classified as containing persons (right side) and for the images classified as not containing persons (left side). In this example, when images are labeled as No person by the root node (thermal data), trying to outperform, through the depth data, the results obtained using the intensity data to correct some errors made by the thermal data, no improvements are obtained. Thus, the depth sensor is not used on the right side of the tree, i.e., the results given by the intensity based classifier are the final answer of the multiclassifier. On the left side of this example, the best results are obtained using data from the depth sensor (with a corresponding transformation and classifier CV); a new experiment is performed to correct some errors, and these are corrected using the intensity-based classifier. Therefore, to classify a new case, when the paradigm based on the thermal sensor classifies as Person, but the depth sensor classifier gives No person, the RGB sensor classifier sets the final decision.
Table 8 shows the results obtained using each cue as the root node. As can be seen, in the IK4-TEKNIKER database, the best obtained accuracy is 96.74%, using the thermal sensor data to construct the root node classifier. It significantly improves the result of the best previous classifiers (93.52) for the thermal images. The best classifier obtained for the EUREKA! database has a 94.99% of well-classified cases, which outperforms as well the best previous result (90.79) as well.
5.4. Results Obtained by HOG
To obtain HOG-based proposals, we use the GPUimplementation in OpenCV. The detector can process 640 × 480 images in 5–10 Hz. The full body detections are obtained from the model trained on our databases.
Table 9 shows the results obtained by the HOG algorithm. The results indicate that the best accuracy is obtained for the intensity images provided by Kinect (72.24%), followed by the application to the depth cue, an approach similar to HODSpinello Spinello and Arras  with a false negative rate of 72.78%. With the thermal images, 99.87% of images are classified as not containing any person.
5.5. Results Obtained by C4
Table 10 shows the results obtained by the C4 algorithm; original images have been used, as the results using the reduced size are very poor.
As can be seen, the best accuracy is obtained for the intensity images provided by Kinect (77.00%), with a false negative rate of 17.80%. With the thermal images, as the size is too small (32 × 31) the method is not adequate and classifies all the images as not containing any person.
6. Conclusions and Future Work
This paper has presented a people detection system for mobile robots using an RGB-D and thermal sensor fusion. The system uses a hierarchical classifier combination of computer vision and machine learning paradigms to decide if a person is in the view-scope of the robot or not. This approach has been designed to manage three kinds of input images, color, depth and temperature, to detect people. We have provided an experimental evaluation of its performance. On the one hand, we have shown that the person detection accuracy is improved, while decreasing the FPR by cooperatively classifying the feature matrix computed from the input data. On the other hand, experimental results have shown that our approach performs well, comparing with state-of-the-art people detection algorithms in the datasets used. This work serves as an introduction to the potential of multi-sensor fusion in the domain of people detection in mobile platforms.
In the near future, we envisage:
evaluating the system in other scenarios, comparing with current state-of-the-art approaches.
using input feature selection that is invariant under translations or changes in scale; improving results, adding more sophisticated transformation and applying other computer vision paradigms, such as key point detectors (SIFT, etc.) or geometrical shape constraints (wavelets, etc.).
extending the detection algorithms in order to distinguish single and multiple people in the image.
improving people detection by: using other detection algorithms (HOG, C4) and motion information as the input; using other stacking combination approaches for classifiers.
developing trackers combining/fusing visual cues using particle filter strategies, including face recognition, in order to track people or gestures; integrating with robot navigation planning ability to explicitly consider humans in the loop during robot movement.
optimizing implementations in order to achieve high detection speeds to use in real-time applications.
This work was supported by Kutxa Obra Social in the project, KtBot. Work partially funded by the Institute of Intelligent Systems and Numerical Applications in Engineering (SIANI) and the Computer Science Department at ULPGC. The Basque Government Research Team grant and the University of the Basque Country UPV/EHU, under grant UFI11/45 (BAILab) are acknowledged.
Conflicts of Interest
The authors declare no conflict of interest.
- Shotton, J.; Fitzgibbon, A.; Cook, M.; Sharp, T.; Finocchio, M.; Moore, R.; Kipma, A.; Blake, A. Real-Time Human Pose Recognition in Parts from a Single Depth Image. Proceedings of the Computer Vision and Pattern Recognition, Colorado Springs, CO, USA, 20–25 June 2011.
- Kinect Sensor. Available online: http://en.wikipedia.org/wiki/Kinect (accessed on 10 June 2013).
- Khoshelham, K.; Elberink, S.O. Accuracy and resolution of kinect depth data for indoor mapping applications. Sensors 2012, 12, 1437–1454. [Google Scholar]
- Heimann Sensor. Available online: http://www.heimannsensor.com/index.php (accessed on 20 March 2013).
- Bellotto, N.; Hu, H. A bank of unscented Kalman filters for multimodal human perception with mobile service robots. Int. J. Soc. Robot. 2010, 2, 121–136. [Google Scholar]
- St-Laurent, L.; Prévost, D.; Maldague, X. Thermal Imaging for Enhanced Foreground-background Segmentation. Proceedings of the The 8th Quantitative Infrared Thermography (QIRT) Conference, Padova, Italy, 27–30 June 2006.
- Hofmann, M.; Kaiser, M.; Aliakbarpour, H.; Rigoll, G. Fusion of Multi-Modal Sensors in a Voxel Occupancy Grid for Tracking and Behaviour Analysis. Proceedings of the 12th International Workshop on Image Analysis for Multimedia Interactive Services (WIAMIS), Delft, Netherlands, 13–15 April 2011.
- Johnson, M.J.; Bajcsy, P. Integration of Thermal and Visible Imagery for Robust Foreground Detection in Tele-immersive Spaces. Proceedings of the 11th International Conference on Information Fusion, Cologne, Germany, 30 June–3 July 2008.
- Zin, T.T.; Takahashi, H.; Toriu, T.; Hama, H. Fusion of Infrared and Visible Images for Robust Person Detection. Image Fusion, 2011. InTech, Available online: http://www.intechopen.com/articles/show/title/fusion-of-infrared-and-visible-images-for-robust-person-detection. [Google Scholar]
- Schiele, B. Visual People Detection—Different Models, Comparison and Discussion. Proceedings of the IEEE International Conference on Robotics and Automation (ICRA), Kobe, Japan, 12–17 May 2009.
- Cielniak, G. People Tracking by Mobile Robots using Thermal and Colour Vision. Ph.D. Thesis, Department of Technology Orebro University, Orebro, Sweden, 2007. [Google Scholar]
- Wilhelm, T.; Böhme, H.J.; Gross, H.M. Sensor Fusion for Vision and Sonar Based People Tracking on a Mobile Service Robot. Proceedings of the International Workshop on Dynamic Perception, Bochum, Germany, 14–15 November 2002.
- Scheutz, M.; McRaven, J.; Cserey, G. Fast, Reliable, Adaptive, Bimodal People Tracking for Indoor Environments. Proceedings of the 2004 IEEE/RSJ International Conference on Intelligent Robots and Systems, Sendai, Japan, 28 September–2 October 2004; pp. 1347–1352.
- Martin, C.; Schaffernicht, E.; Scheidig, A.; Gross, H. Multi-modal sensor fusion using a probabilistic aggregation scheme for people detection and tracking. Robot. Auton. Syst. 2006, 54, 721–728. [Google Scholar]
- Hjelmas, E.; Low, B.K. Face detection: A survey. Comput. Vision Image Underst. 2001, 83, 236–274. [Google Scholar]
- Yang, M.H.; Kriegman, D.; Ahuja, N. Detecting faces in images: A survey. Trans. Patt. Anal. Mach. Intell. 2002, 24, 34–58. [Google Scholar]
- Murphy-Chutorian, E.; Trivedi, M.M. Head pose estimation in computer vision: A survey. IEEE Trans. Patt. Anal. Mach. Intell. 2009, 31, 607–626. [Google Scholar]
- Kruppa, H.; Castrillón-Santana, M.; Schiele, B. Fast and Robust Face Finding via Local Context. Proceedings of the Joint EEE Internacional Workshop on Visual Surveillance and Performance Evaluation of Tracking and Surveillance, Nice, France, 11–12 October 2003; pp. 157–164.
- Xia, L.; Chen, C.C.; Aggarwal, J.K. Human Detection Using Depth Information by Kinect. Proceedings of the International Workshop on Human Activity Understanding from 3D Data in Conjunction with CVPR, Colorado Springs, CO, USA, 20–25 June 2011.
- Dalal, N.; Triggs, B. Histograms of Oriented Gradients for Human Detection. Proceedings of the International Conference on Computer Vision & Pattern Recognition, San Diego, CA, USA, 25–25 June 2005.
- Viola, P.; Jones, M.J.; Snow, D. Detecting Pedestrians Using Patterns of Motion and Appearance. Proceedings of the International Conference on Computer Vision, Nice, France, 14–17 October 2003; pp. 734–741.
- Wu, J.; Geyer, C.; Rehg, J.M. Real-time Human Detection Using Contour Cues. Proceedings of the ICRA'11, Shangai, China, 9–11 May 2011; pp. 860–867.
- Papageorgiou, C.; Poggio, T. A trainable system for object detection. Int. J. Comput. Vision 2000, 38, 15–33. [Google Scholar]
- Martínez-Otzeta, J.M.; Ibarguren, A.; Ansuategui, A.; Susperregi, L. Laser based people following behaviour in an emergency environment. Lect. Note. Comput. Sci. 2009, 5928, 33–42. [Google Scholar]
- Susperregi, L.; Martinez-Otzeta, J.M.; Ansuategui, A.; Ibarguren, A.; Sierra, B. RGB-D, laser and thermal sensor fusion for people following in a mobile robot. Int. J. Adv. Robot. Syst. 2013. [Google Scholar] [CrossRef]
- Martinez-Mozos, O.; Kurazume, R.; Hasegawa, T. Multi-part people detection using 2D range data. Int. J. Soc. Robot. 2010, 2, 31–40. [Google Scholar]
- Bellotto, N.; Hu, H. Multisensor Data Fusion for Joint People Tracking and Identification with a Service Robot. Proceedings of the IEEE International Conference on Robotics and Biomimetics ROBIO, Tianjin, China, 14–18 December 2007; pp. 1494–1499.
- Zhu, Y.; Fujimura, K. Bayesian 3D Human Body Pose Tracking from Depth Image Sequences. Proceedings of the ACCV (2), Xi'an, Chinav, 23–27 September 2009; pp. 267–278.
- Gundimada, S.; Asari, V.K.; Gudur, N. Face recognition in multi-sensor images based on a novel modular feature selection technique. Inf. Fusion 2010, 11, 124–132. [Google Scholar]
- Meis, U.; Oberlander, M.; Ritter, W. Reinforcing the Reliability of Pedestrian Detection in Far-Infrared Sensing. Proceedings of the 2004 IEEE Intelligent Vehicles Symposium, Parma, Italy, 14–17 June 2004; pp. 779–783.
- Li, W.; Zheng, D.; Zhao, T.; Yang, M. An Effective Approach to Pedestrian Detection in Thermal Imagery. Proceedings of the ICNC. IEEE Maui, HI, USA, 30 January–2 February 2012; pp. 325–329.
- Treptow, A.; Cielniak, G.; Duckett, T. Active People Recognition using Thermal and Grey Images on a Mobile Security Robot. Proceedings of the 2005 IEEE/RSJ International Conference on Intelligent Robots and Systems, Edmonton, Canada, 2–6 August 2005.
- Treptow, A.; Cielniak, G.; Duckett, T. Real-time people tracking for mobile robots using thermal vision. Robot. Auton. Syst. 2006, 54, 729–739. [Google Scholar]
- Guan, F.; Li, L.Y.; Ge, S.S.; Loh, A.P. Robust human detection and identification by using stereo and thermal images in human-robot interaction. Int. J. Inf. Acquis. 2007, 4, 1–22. [Google Scholar]
- Correa, M.; Hermosilla, G.; Verschae, R.; del Solar, J.R. Human detection and identification by robots using thermal and visual information in domestic environments. J. Intell. Robot. Syst. 2012, 66, 223–243. [Google Scholar]
- Arras, K.O.; Martinez-Mozos, O.; Burgard, W. Using Boosted Features for Detection of People in 2D Range Scans. Proceedings of the IEEE International Conference on Robotics and Automation, Roma, Italy, 10–14 April 2007.
- Lai, K.; Bo, L.; Ren, X.; Fox, D. A Large-scale Hierarchical Multi-view RGB-D Object Dataset. Proceedings of the ICRA, Shanghai, China, 9–13 May 2011; pp. 1817–1824.
- Mozos, O.M.; Mizutani, H.; Kurazume, R.; Hasegawa, T. Categorization of Indoor Places Using RGB-D Sensors. Proceedings of the The 8th Joint Workshop on Machine Perception and Robotics, Fukuaka, Japan, 16–17 October 2012.
- Spinello, L.; Arras, K.O. Leveraging RGB-D Data: Adaptive Fusion and Domain Adaptation for Object Detection. Proceedings of the International Conference in Robotics and Automation, St, Paul, MN, USA, 14–18 May 2012.
- Susperregi, L.; Sierra, B.; Martínez-Otzeta, J.M.; Lazkano, E.; Ansuategui, A. A layered learning approach to 3D multimodal people detection using low-cost sensors in a mobile robot. Adv. Intell. Soft Comput. 2012, 153, 27–33. [Google Scholar]
- Shotton, J.; Fitzgibbon, A.; Cook, M.; Sharp, T.; Finocchio, M.; Moore, R.; Kipman, A.; Blake, A. Real-time Human Pose Recognition in Parts from Single Depth Images. Proceedings of the CVPR, Colorado Springs, CO, USA, 21–23 June 2011.
- Aha, D.; Kibler, D.; Albert, M. Instance-based learning algorithms. Mach. Learn. 1991, 6, 37–66. [Google Scholar]
- Cestnik, B. Estimating Probabilities: A Crucial Task in Machine Learning. 6 August 1990; pp. 147–149.
- Sierra, B.; Lazkano, E.; Jauregi, E.; Irigoien, I. Histogram distance-based Bayesian Network structure learning: A supervised classification specific approach. Decis. Support Syst. 2009, 48, 180–190. [Google Scholar]
- Quinlan, J. C4.5: Programs for Machine Learning; Morgan Kaufmann Publishers: San Francisco, CA, USA, 1993. [Google Scholar]
- Meyer, D.; Leisch, F.; Hortnik, K. The support vector machine under test. Neurocomputing 2003, 55, 169–186. [Google Scholar]
- Martínez-Otzeta, J.M.; Sierra, B.; Lazkano, E.; Astigarraga, A. Classifier hierarchy learning by means of genetic algorithms. Patt. Recog. Lett. 2006, 27, 1998–2004. [Google Scholar]
- Sierra, B.; Serrano, N.; Larrañaga, P.; Plasencia, E.J.; Inza, I.; Jiménez, J.J.; Revuelta, P.; Mora, M.L. Using Bayesian networks in the construction of a bi-level multi-classifier. A case study using intensive care unit patients data. Artif. Intell. Med. 2001, 22, 233–248. [Google Scholar]
- Dalal, N.; Triggs, B. Histograms of Oriented Gradients for Human Detection. Proceedings of the IEEE Computer Society Conference on Computer Vision and Pattern Recognition, San Diego, CA, USA, 20–26 June 2005; pp. 886–893.
- Stone, M. Cross-validatory choice and assessment of statistical prediction. J. R. Stat. Soc. B. 1974, 36, 111–147. [Google Scholar]
- Spinello, L.; Arras, K.O. People Detection in RGB-D Data. Proceedings of the International Conference on Intelligent Robots and Systems (IROS), San Francisco, CA, USA, 25–30 September 2011.
|Transf.1||Convolve||Apply a convolution kernel to the image|
|Transf. 2||Despeckle||Reduce the speckles within an image|
|Transf. 3||Edge||Apply a filter to detect edges in the image|
|Transf. 4||Enhance||Apply a digital filter to enhance a noisy image|
|Transf. 5||Equalize||Perform histogram equalization to an image|
|Transf. 6||Gamma||Perform a gamma correction|
|Transf. 7||Gaussian||Reduce image noise and reduce detail levels|
|Transf. 8||Lat||Local adaptive thresholding|
|Transf. 9||Linear-Str.||Linear with saturation histogram stretch|
|Transf. 10||Median||Apply a median filter to the image|
|Transf. 11||Modulate||Vary the brightness, saturation and hue|
|Transf. 12||Negate||Replace each pixel with its complementary color|
|Transf. 13||Radial-blur||Radial blur the image|
|Transf. 14||Raise||Lighten/darken image edges to create a 3D effect|
|Transf. 15||Selective-blur||Selectively blur pixels within a contrast threshold|
|Transf. 16||Shade||Shade the image using a distant light source|
|Transf. 17||Sharpen||Sharpen the image|
|Transf. 18||Shave||Shave pixels from the image edges|
|Transf. 19||Sigmoidal||Increase the contrast|
|Transf. 20||Transform||Affine transform image|
|Transf. 21||Trim||Trim image edges|
|Transf. 22||Unsharp||Sharpen the image|
|Transf. 23||Wave||Alter an image along a sine wave|
|Intensity||87.24 Transf.4||73.02 Transf.15||83.52 Transf.6||90.79 Transf.6||85.14 Transf.5|
|Depth||80.94 Transf.12||65.75 Transf.4||75.44 Transf.17||78.03 Transf.6||75.61 Transf.15|
|Thermal||82.39 Transf.4||74.34 Transf.2||80.61 Transf.3||84.49 Transf.6||79.16 Transf.8|
|Database||Source||First Layer||Second Layer||Third Layer|
© 2013 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).
Share and Cite
Susperregi, L.; Sierra, B.; Castrillón, M.; Lorenzo, J.; Martínez-Otzeta, J.M.; Lazkano, E. On the Use of a Low-Cost Thermal Sensor to Improve Kinect People Detection in a Mobile Robot. Sensors 2013, 13, 14687-14713. https://doi.org/10.3390/s131114687
Susperregi L, Sierra B, Castrillón M, Lorenzo J, Martínez-Otzeta JM, Lazkano E. On the Use of a Low-Cost Thermal Sensor to Improve Kinect People Detection in a Mobile Robot. Sensors. 2013; 13(11):14687-14713. https://doi.org/10.3390/s131114687Chicago/Turabian Style
Susperregi, Loreto, Basilio Sierra, Modesto Castrillón, Javier Lorenzo, Jose María Martínez-Otzeta, and Elena Lazkano. 2013. "On the Use of a Low-Cost Thermal Sensor to Improve Kinect People Detection in a Mobile Robot" Sensors 13, no. 11: 14687-14713. https://doi.org/10.3390/s131114687
