Benthic Foraminifera Diversity of the Abyssal Northwest Atlantic

Abstract

The species diversity of benthic foraminifera at four abyssal working areas in the Labrador Sea, Labrador Basin, and Southwest of the Azores is documented. One hundred and fifty taxa (forty-three not assigned to a species) were found and their diversity was recorded. One hundred and twenty-four taxa (fifteen not assigned to a species) were illustrated with optical and/or SEM (Scanning Electron Microscope) images on twelve plates. The material was sampled during RV Sonne cruise SO286 as part of IceDivA2 (Icelandic marine Animals meets Diversity along latitudinal gradients in the deep sea of the Atlantic Ocean 2). IceDivA2 investigated the biodiversity within key groups of the marine benthic abyssal habitats of the North Atlantic. Thirty-two samples from four sliced and three full cores, from six stations sampled with a MUC (Multiple corer), were analyzed. Given low sedimentation rates in such environments the material is assumed to be of Holocene to late Pleistocene age. Due to the scarcity of living specimens this study was based on total assemblages. Four species-based clusters are identified, which correspond to the four working areas. The samples of each cluster show specific characteristics markedly different from those of the samples of the other clusters. It indicates that abyssal faunas are heterogeneous. Three clusters are dominated by Epistominella exigua (Brady, 1884), which is recorded as not rare to dominant in many abyssal plains worldwide. The faunal differences are manifested in the long tail of less important species and differing abundances of E. exigua.

1. Introduction

1.1. Importance of Abyssal Ecosystems and Their Foraminifera

More than 50% of the surface of the Earth is covered by abyssal ocean deeper than 2000 m. Long regarded as a desert-like ecosystem it is known since the expeditions by HMS Lightning, HMS Porcupine, and HMS Challenger from 1869 to 1876 that the deep sea is a highly diverse habitat. To date it is still largely unexplored [1]. The IceDivA2 expedition SO286 was launched to record deep sea marine biodiversity west of the Mid-Atlantic Ridge [2]. Benthic foraminifera are an important component of the benthos with increasing water depth and may account for 50% of the biomass on abyssal plains [3]. In this study the biodiversity of foraminifera at six stations of the abyssal northwestern Atlantic was recorded and investigated.

There is no universal agreement on depth divisions in the oceans, even in the field of foraminifera. Some authors view habitats at depths below 4000 m as abyssal [3,4], while others draw the line between bathyal and abyssal at 2000 m [5,6]. In this study we refer to depths which the samples were from as abyssal (2508 m to 3685 m).

1.2. What Are Foraminifera?

Foraminifera are single-celled, eukaryote organisms bearing a shell and are described as amoeboid protists. They build one or more chambers. Their name refers to the openings (Latin: foramen), which connect the chambers and to the external environment. While important parts of the cell and plasma are protected within the shell, plasma and plasma strings extend outside of the shell to catch food. Foraminifera are secondary producers and feed on organic matter with a wide range of strategies. Besides fresh water habitats they are abundant in all marine environments from the upper intertidal zone to deep ocean trenches. Planktonic foraminifera drift in open marine environments at different water depths. Benthic foraminifera inhabit the seafloor from hard to soft grounds, and from positions on top of the water–debris interval to several centimeters within the sediment. In the marine realm, foraminifera build robust shells, which if not dissolved or crushed accumulate in the sediment and leave a fossil record [4,7]. More than 49,000 fossil and recent species are described, of which almost 9000 are recorded as recent [8]. The identification of taxa is almost exclusively based on morphological features such as wall material and chamber arrangement. DNA data are only known for a small number of recent species and their consideration in taxonomy is still being debated [9]. This study is based exclusively on the morphological approach. To clarify the identifications 124 taxa are illustrated on Appendix A Figure A1, Figure A2, Figure A3, Figure A4, Figure A5, Figure A6, Figure A7, Figure A8, Figure A9, Figure A10, Figure A11 and Figure A12.

1.3. Previous Studies

The foraminiferal biodiversities in the APLA (=abyssal plains of the Labrador Sea, Labrador Basin, and until latitude 35° N) are relatively unexplored. In Brady’s classic HMS challenger report from 1884 [10] the presence of 24 benthic taxa is reported from abyssal stations 64 and 70 southwest of the Azores. Cushman’s eight part series on Foraminifera of the Atlantic [11,12,13,14,15,16,17,18] based partly on Flint [19] lack any notion as the APLA were not sampled. In 1953 Phleger et al. reported modern and near modern full foraminiferal assemblages from the North Atlantic in cores of 0.5 m to 19.5 m lengths. It included seven stations from west of the Azores ranging from water depths of 2640 m to 4940 m and from one station at the eastern limit of the Labrador Basin at 47°24′ N, 30°03′ W from 3383 m depth [20]. They focused on planktonic taxa and report that the scarcity of benthic taxa hindered a detailed interpretation. Nonetheless they gave for each of the eight stations counting data for 16 to 20 taxa of the surface layers. They also made drawings of the taxa. They concluded that most deep water benthics are geographically widespread in the oceans reflecting uniform conditions in the deep. 1974 Schnitker characterized faunas in the whole abyssal West Atlantic between the latitudes 35° N and 65° N as Epistominella exigua (Brady, 1884) dominated and connected it with Arctic Bottom Waters [21,22]. For the APLA his findings were based on samples from 14 stations and none in the Labrador Sea. A species distribution list was not given. Distribution data on benthic foraminifera for four stations of the beginning of the APLA at the Nova Scotia rise were given in a study of arenaceous foraminifera in the Northwest Atlantic by Schröder from 1986 [23]. The APLA assemblages were characterized as E. exigua dominated and associated with Antarctic Bottom Water coming from the south. The arenaceous taxa were illustrated. Bilodeau et al. [24] used 13 foraminiferal taxa for their study of water mass changes in the Labrador Sea and Irminger Basin. The seven stations 6–9 and 14–16 are in the APLA. At five stations the surface samples were dominated by E. exigua/Oridorsalis umbonatus (Reuss, 1851), at one by Nuttallides umbonifer (Cushman, 1933), and at another by Cibicidoides wuellerstorfi (Schwager, 1866). The dominance of E. exigua was interpreted as indicative of North East Atlantic Deep Water and that of C. wuellerstorfi as indicative of North West Atlantic Deep Water. Illustrations of 42 taxa from six stations in the APLA were given in an image dataset from 2019 [25]. A list of taxa and distribution data per station were not given.

1.4. Focus of This Study

So far comprehensive distribution data for the APLA, spreading over more than 2.5 million km², are only given for four stations. This study documents the benthic foraminiferal biodiversities from six more stations (

Table 1. Details for the stations of RV Sonne cruise SO286 where the investigated material was sampled.

Station	Working Area	Longitude	Latitude	Depth	Device	Sediment	Facies
SO286_21	Labrador Sea	58°14.422′	54°13.075′	3391 m	MUC	soft mud	globigerina ooze
SO286_42	Labrador Basin	51°58.255′	38°59.534′	3685 m	MUC	soft mud	globigerina ooze
SO286_65	Azores SW	37°00.025′	35°29.491′	3193 m	MUC	soft mud	globigerina ooze
SO286_66	Azores SW	37°00.032′	35°29.441′	3192 m	MUC	soft mud	globigerina ooze
SO286_67	Azores SW	37°00.037′	35°29.382′	3209 m	MUC	soft mud	globigerina ooze
SO286_75	Seamount	37°13.922′	35°32.316′	2508 m	MUC	soft mud	globigerina ooze

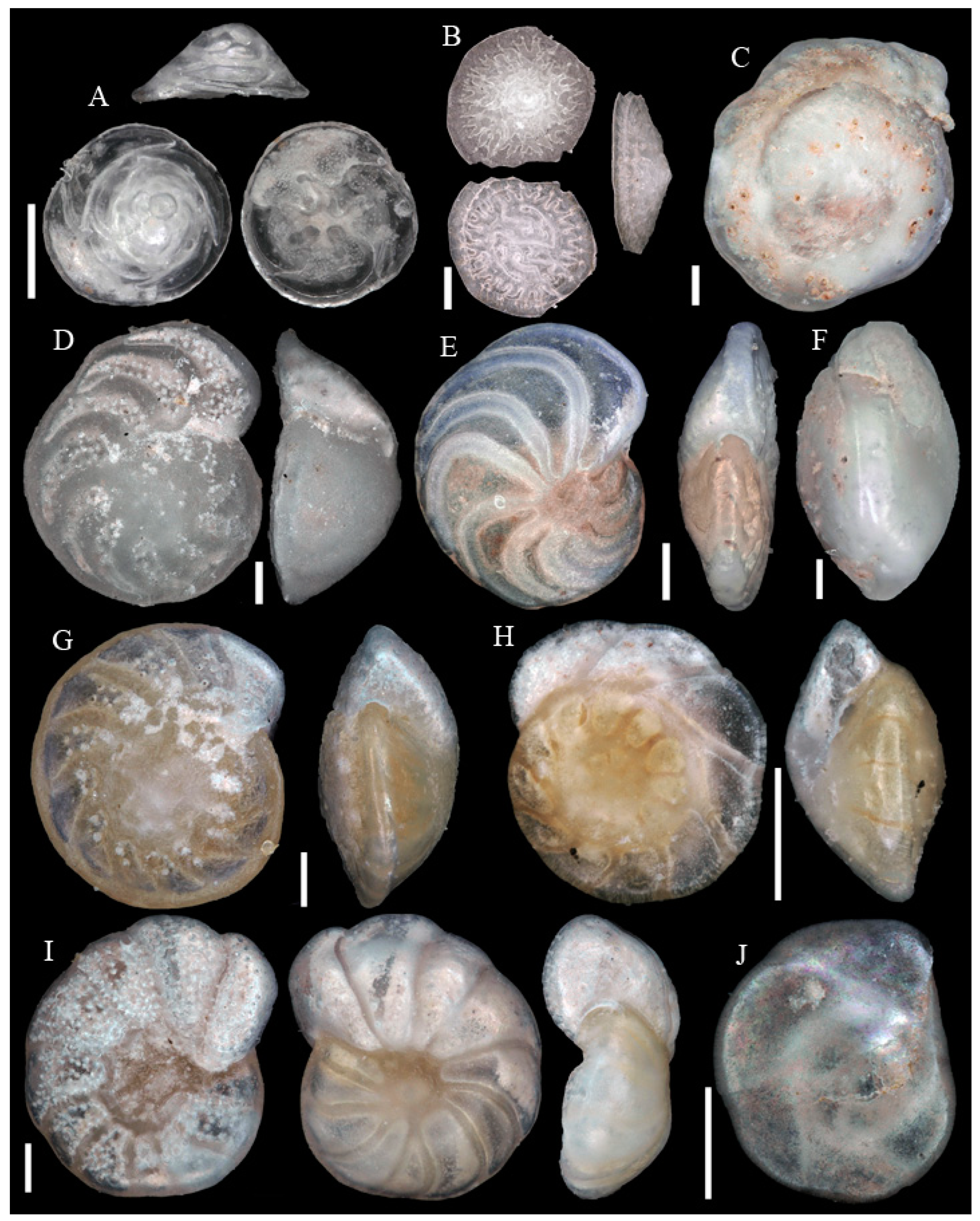

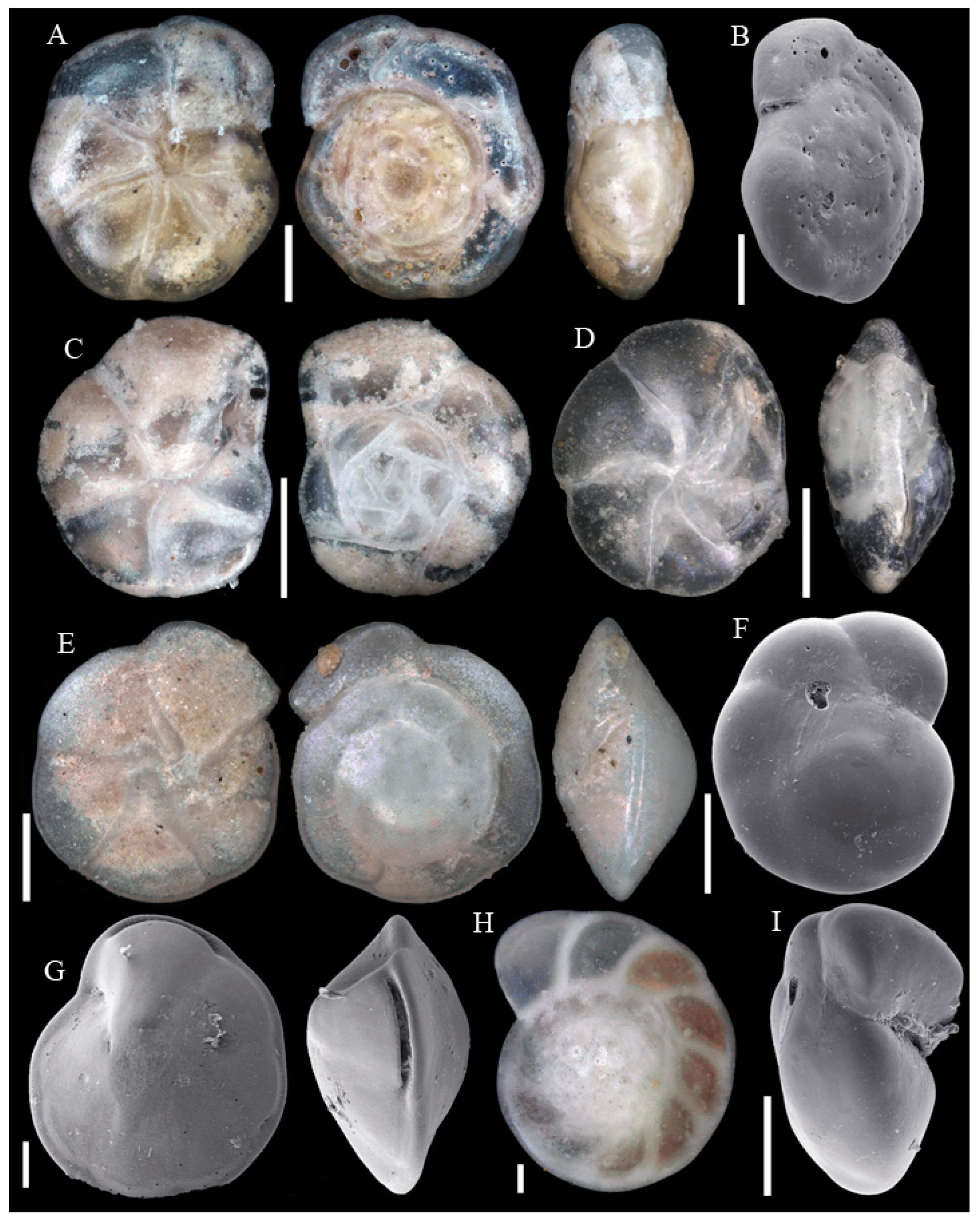

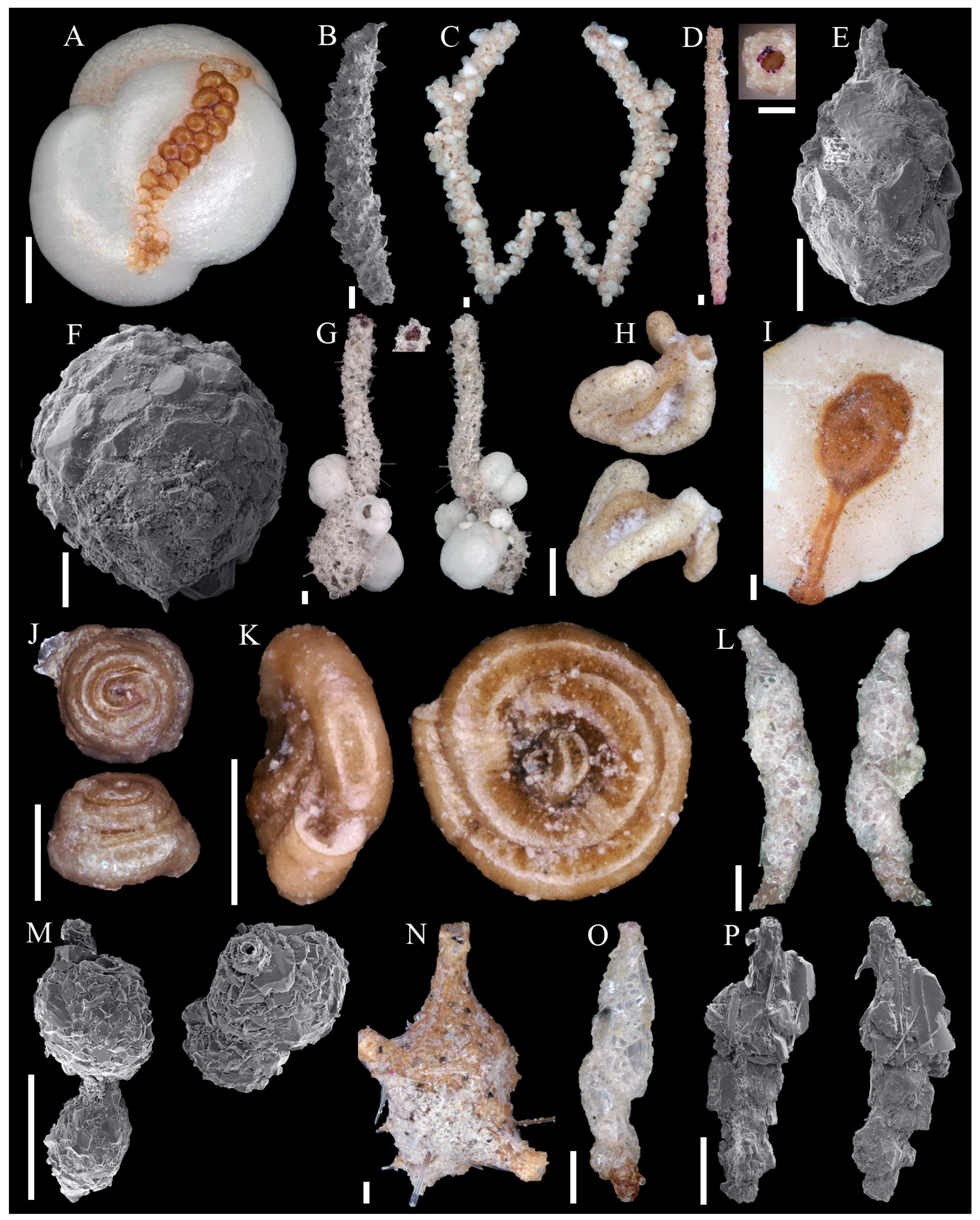

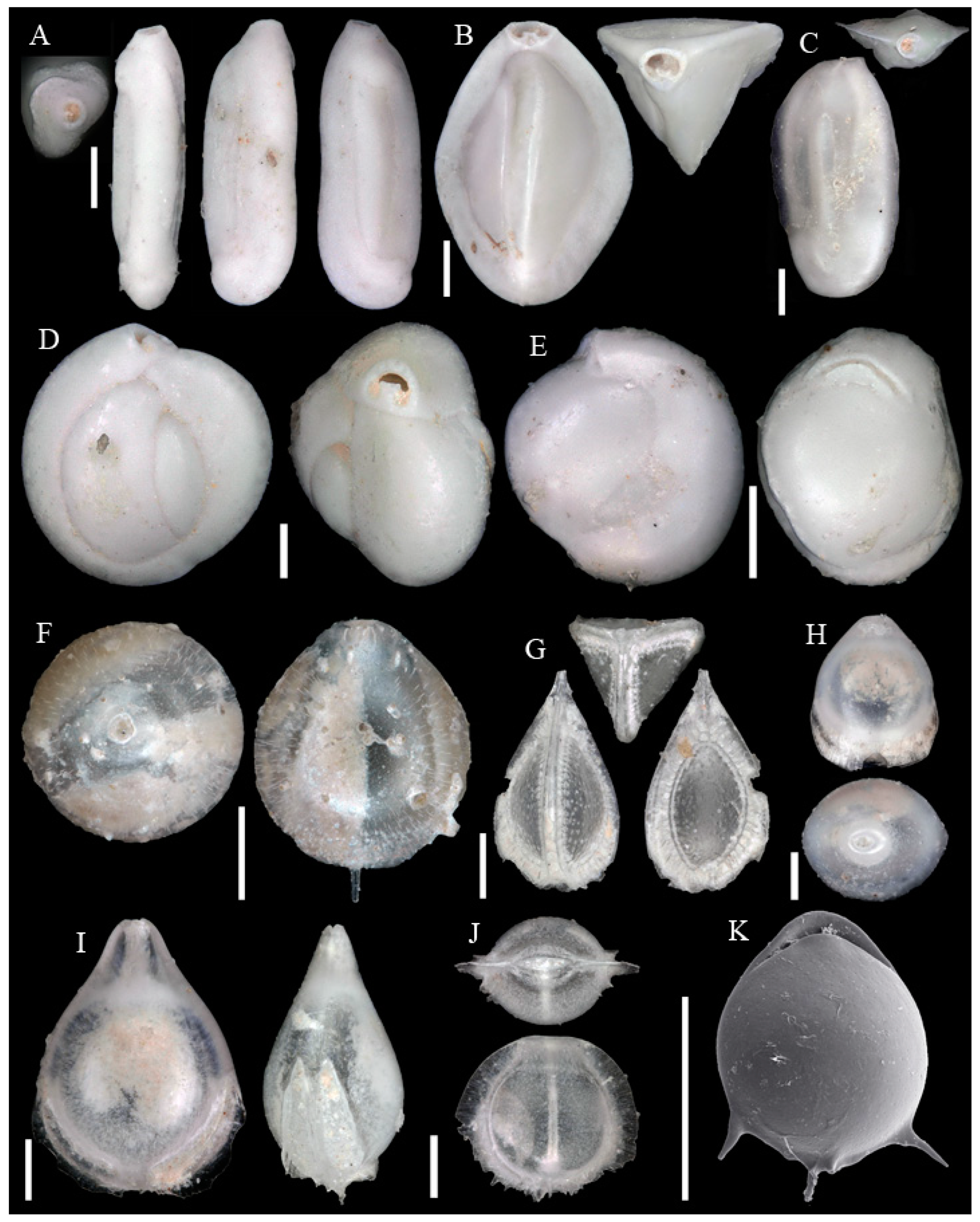

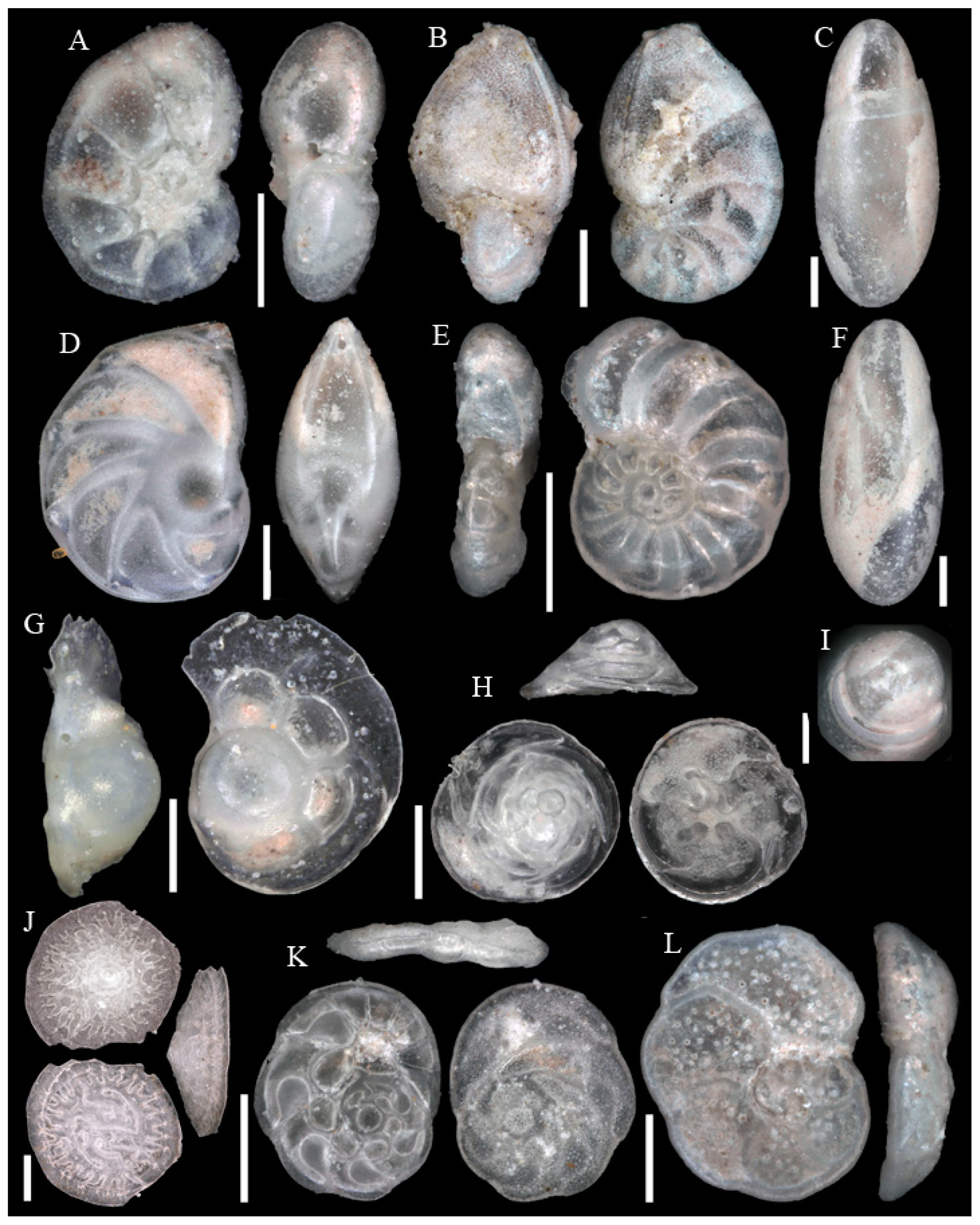

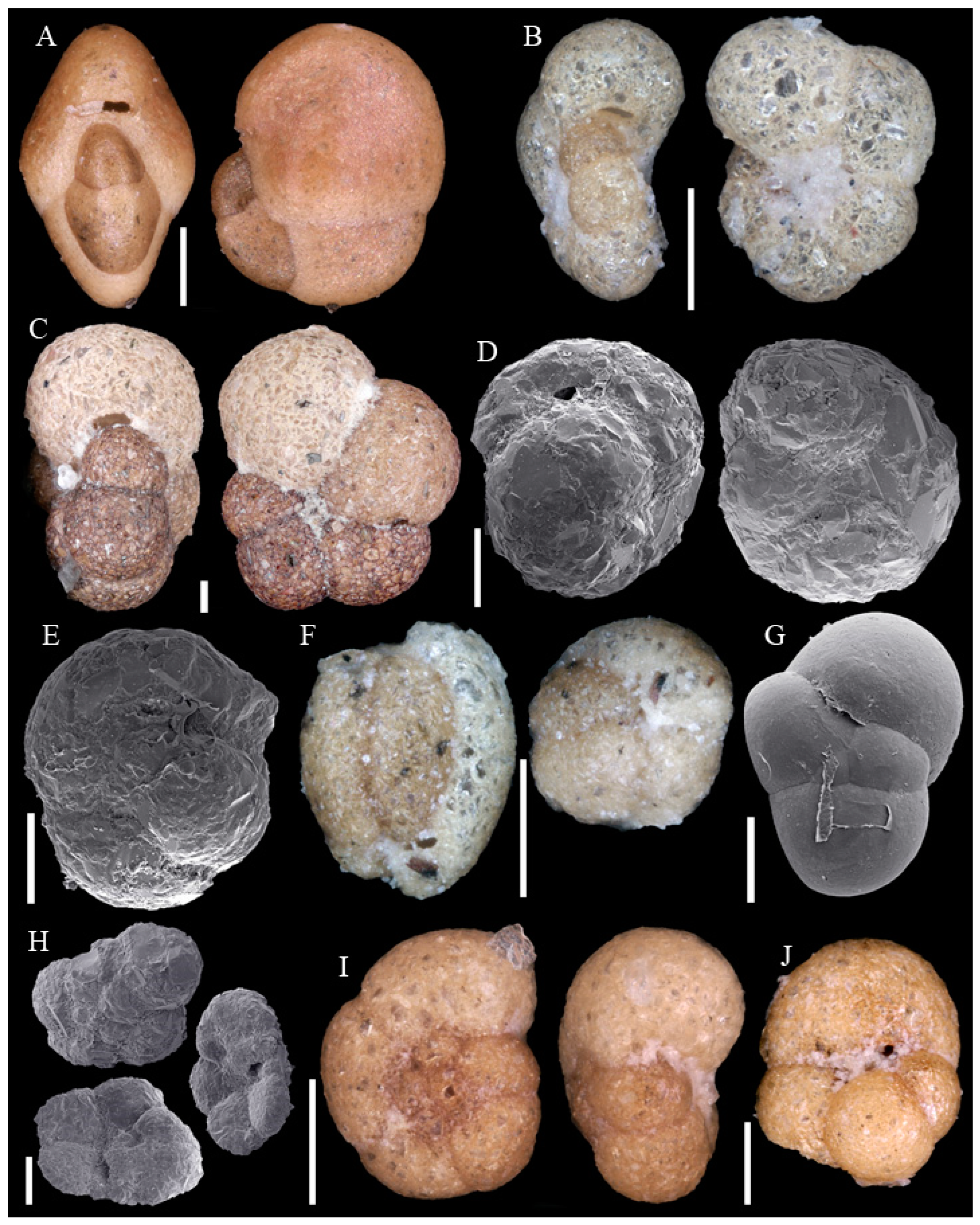

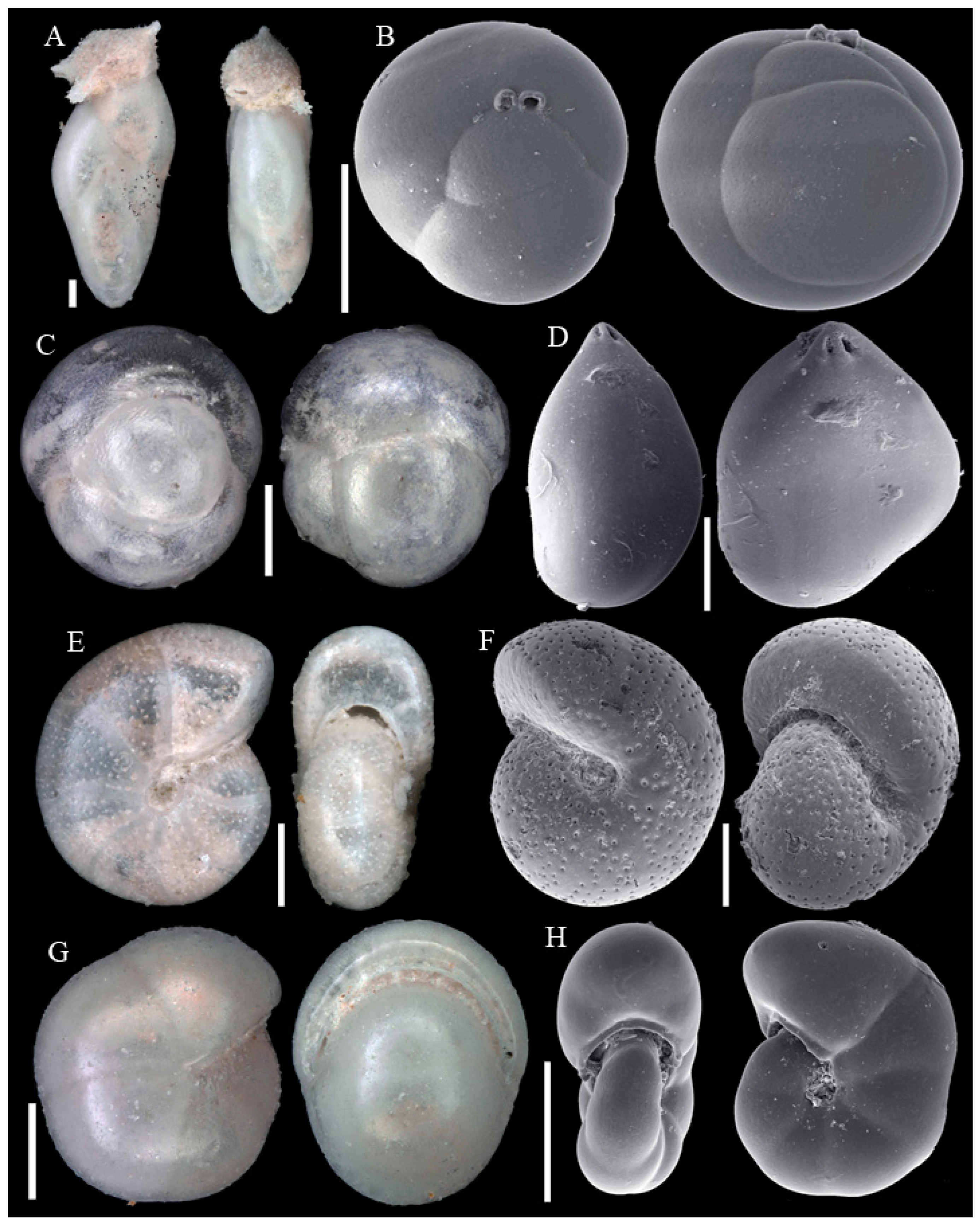

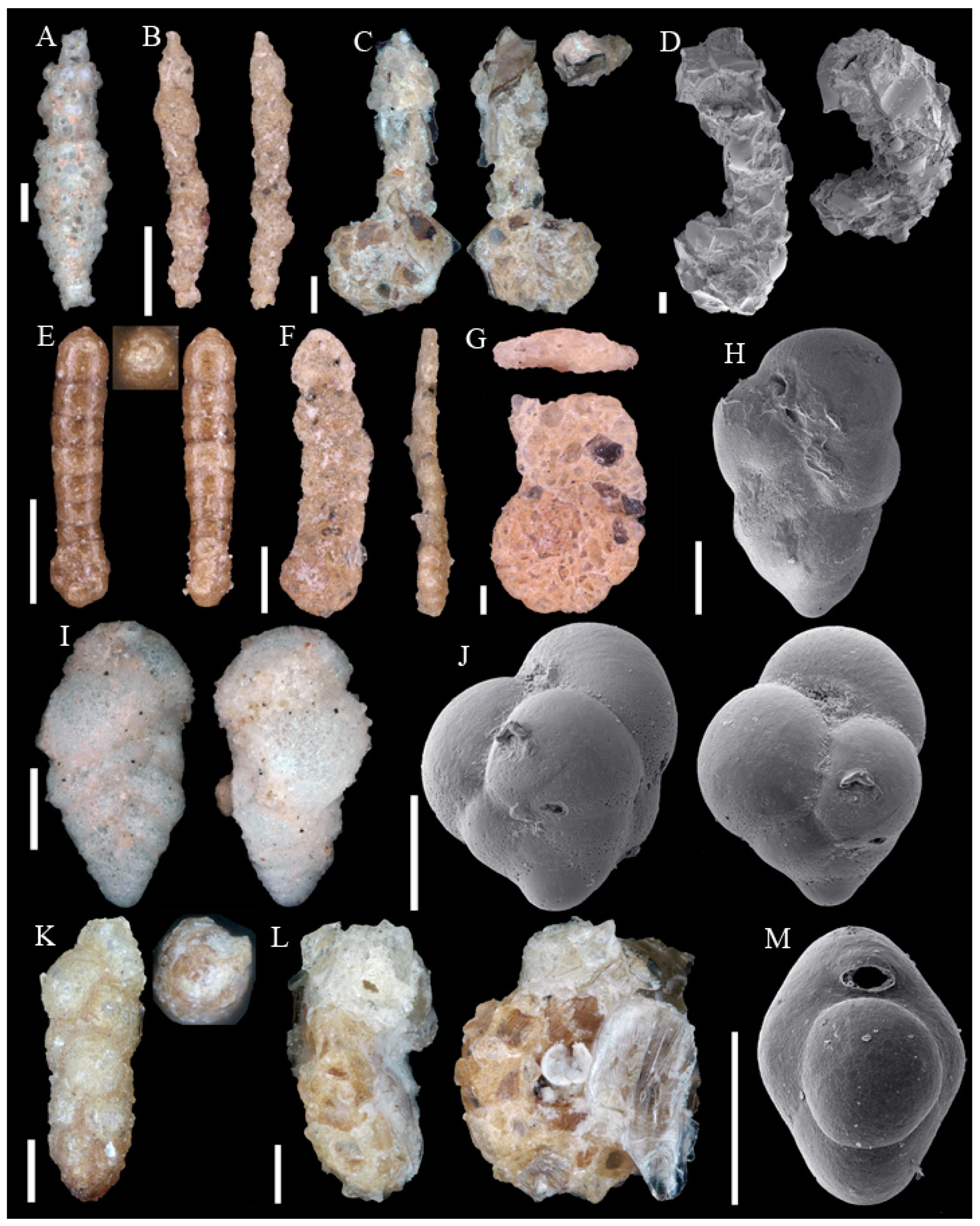

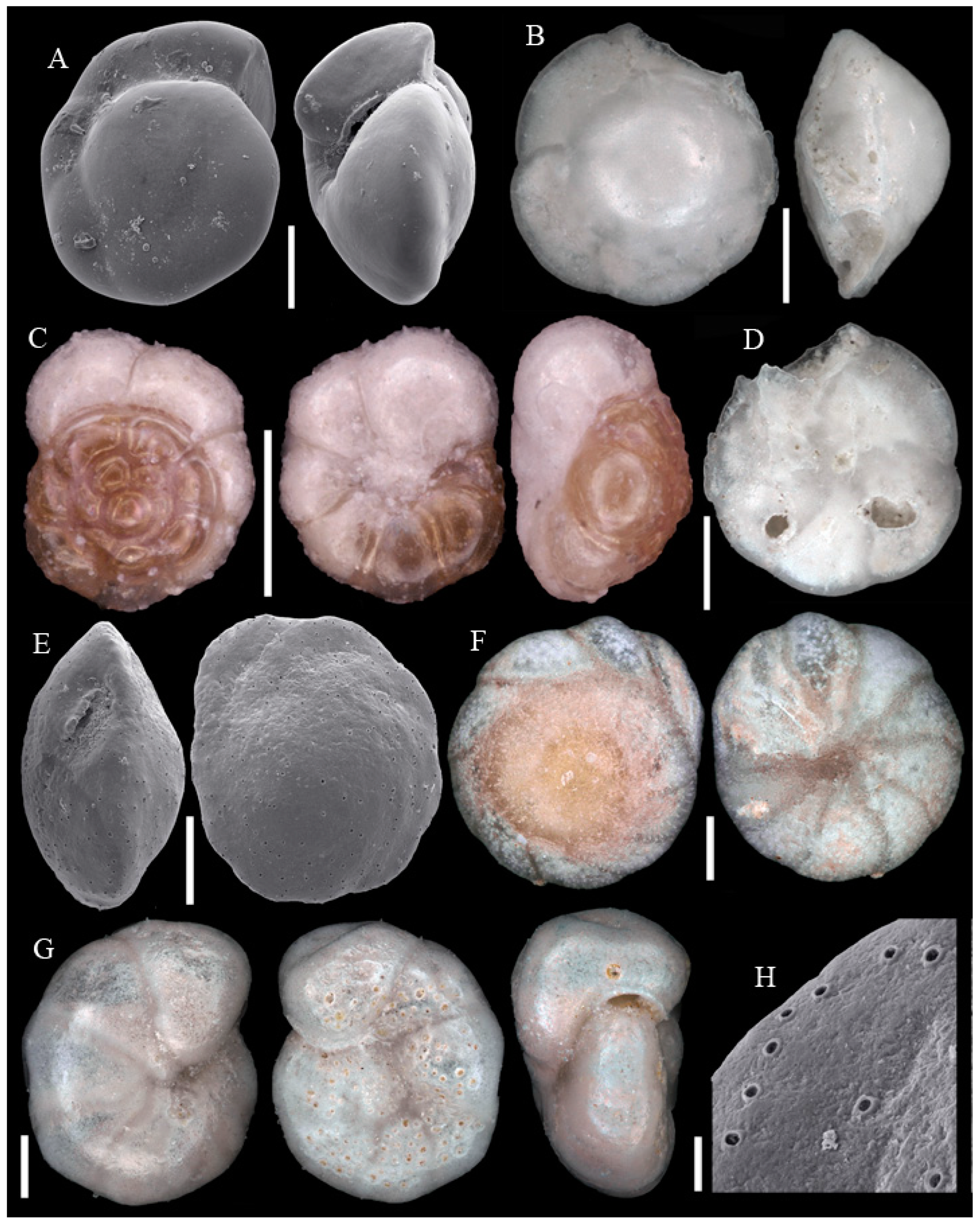

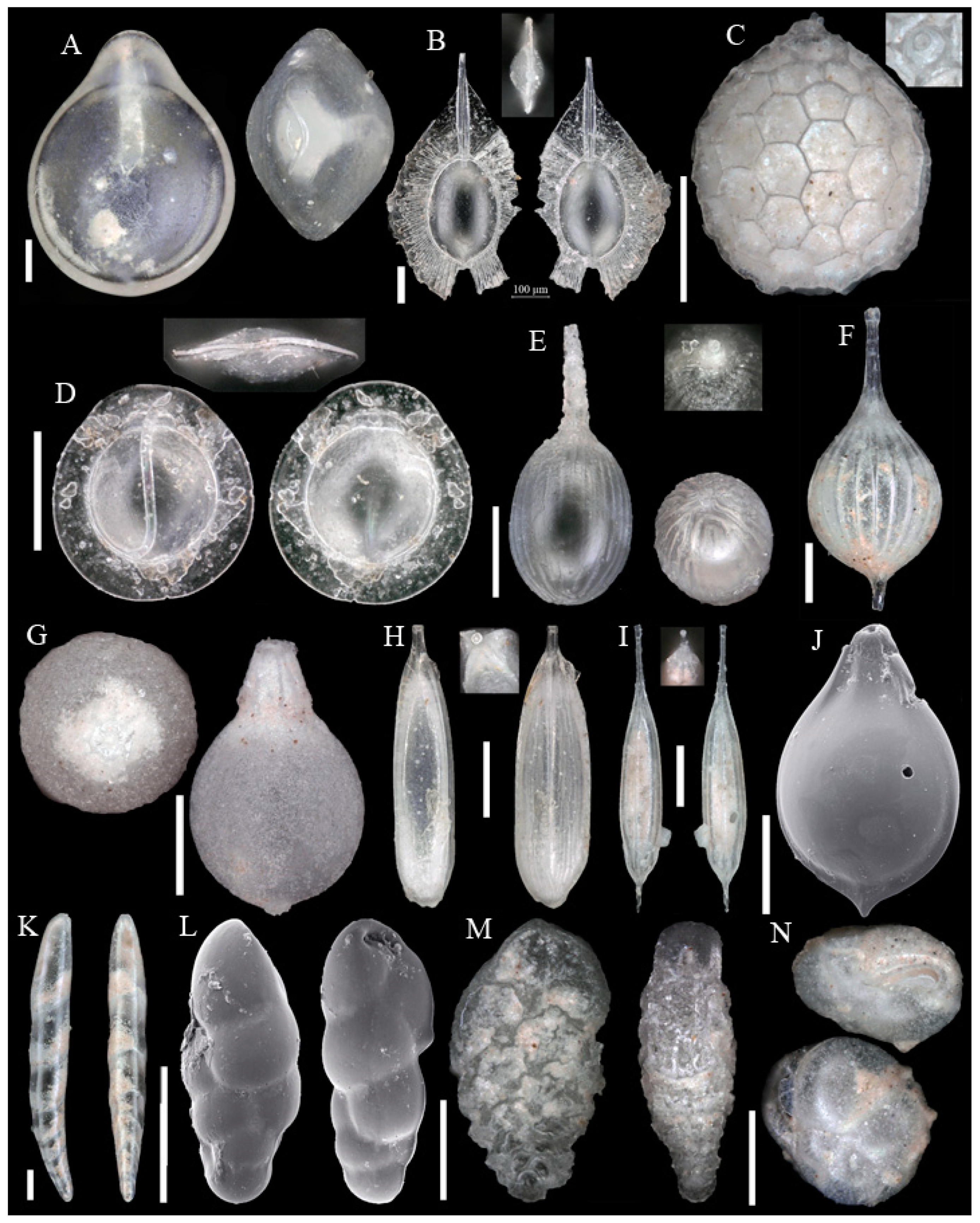

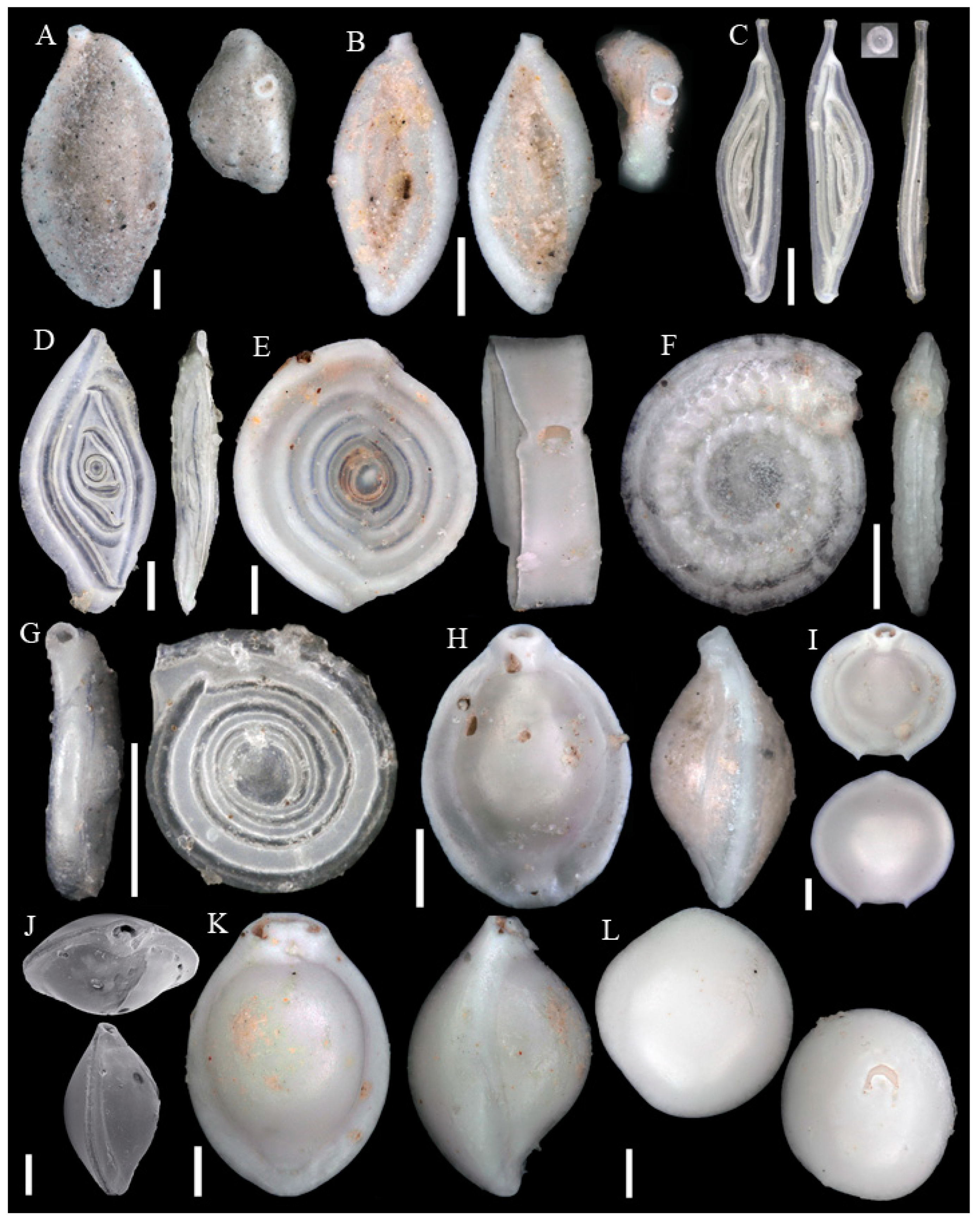

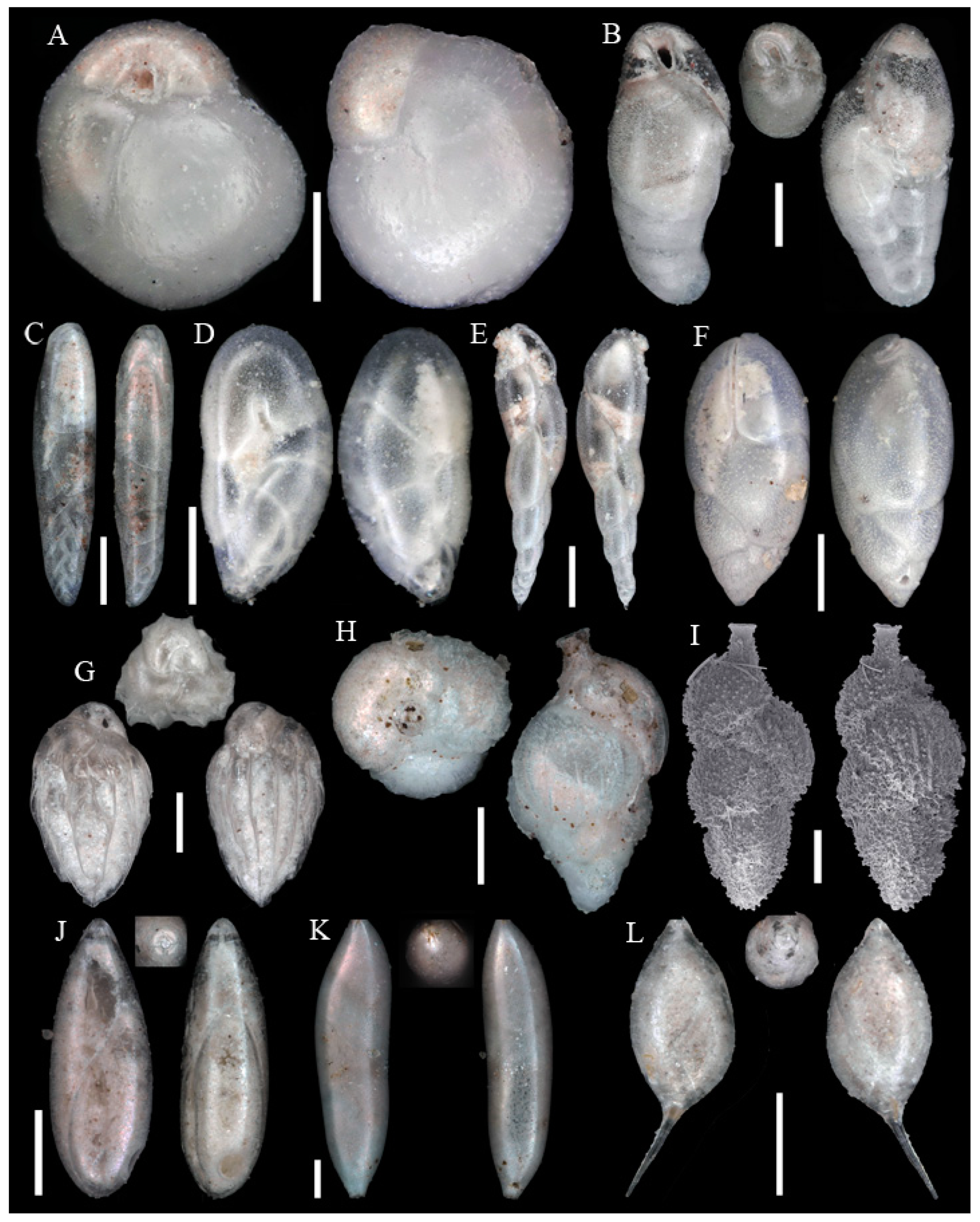

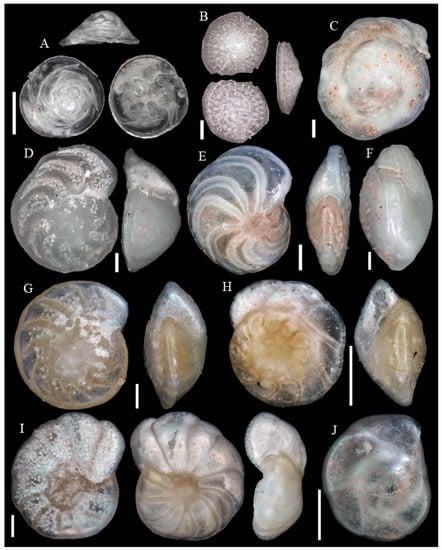

, Supplementary Materials Tables S1 and S2). Distribution lists of all taxa are given per sample and one hundred and twenty four taxa are illustrated (Supplementary Materials Tables S1 and S2, Appendix A Figure A1, Figure A2, Figure A3, Figure A4, Figure A5, Figure A6, Figure A7, Figure A8, Figure A9, Figure A10, Figure A11 and Figure A12). Cluster analysis was applied to reveal the faunal similarities and distances between samples and between stations.

2. Materials and Methods

2.1. Materials

The investigated material consisted of thirty-two samples from seven cores (Appendix A

Table A1. Details for the investigated samples of RV Sonne cruise SO286. Slice in cm. ASW = Southwest of the Azores; C = Core; Dev = Device; Go = Globigerina ooze; MUC = Multicorer. Abbreviations: Lat = Latitude; Lon = Longitude; LB = Labrador Basin; LS = Labrador Sea; Sed = Sediment type; SM = Seamount; smu = soft mud; Sta = Station SO286_; WA = Working Area.

Sample	Sta	C	Slice	WA	Lon	Lat	Depth	Dev	Sed	Facies
SO286_21_02	21	5	0–2	LS	58°14.422′	54°13.075′	3391 m	MUC	smu	Go
SO286_21_04	21	5	2–4	LS	58°14.422′	54°13.075′	3391 m	MUC	smu	Go
SO286_21_06	21	5	4–6	LS	58°14.422′	54°13.075′	3391 m	MUC	smu	Go
SO286_21_08	21	5	6–8	LS	58°14.422′	54°13.075′	3391 m	MUC	smu	Go
SO286_21_10	21	5	8–10	LS	58°14.422′	54°13.075′	3391 m	MUC	smu	Go
SO286_21_15	21	5	10–15	LS	58°14.422′	54°13.075′	3391 m	MUC	smu	Go
SO286_21_20	21	5	15–20	LS	58°14.422′	54°13.075′	3391 m	MUC	smu	Go
SO286_42_02	42	1	0–2	LB	51°58.255′	38°59.534′	3685 m	MUC	smu	Go
SO286_42_04	42	1	2–4	LB	51°58.255′	38°59.534′	3685 m	MUC	smu	Go
SO286_42_06	42	1	4–6	LB	51°58.255′	38°59.534′	3685 m	MUC	smu	Go
SO286_42_08	42	1	6–8	LB	51°58.255′	38°59.534′	3685 m	MUC	smu	Go
SO286_42_10	42	1	8–10	LB	51°58.255′	38°59.534′	3685 m	MUC	smu	Go
SO286_42_15	42	1	10–15	LB	51°58.255′	38°59.534′	3685 m	MUC	smu	Go
SO286_42_20	42	1	15–20	LB	51°58.255′	38°59.534′	3685 m	MUC	smu	Go
SO286_42_25	42	1	20–25	LB	51°58.255′	38°59.534′	3685 m	MUC	smu	Go
SO286_42_30	42	1	25–30	LB	51°58.255′	38°59.534′	3685 m	MUC	smu	Go
SO286_65_02	65	9	full	ASW	37°00.025′	35°29.491′	3193 m	MUC	smu	Go
SO286_65_02	65	11	full	ASW	37°00.025′	35°29.491′	3193 m	MUC	smu	Go
SO286_66_02	66	18	full	ASW	37°00.032′	35°29.441′	3192 m	MUC	smu	Go
SO286_67_02	67	11	0–2	ASW	37°00.037′	35°29.382′	3209 m	MUC	smu	Go
SO286_67_04	67	11	2–4	ASW	37°00.037′	35°29.382′	3209 m	MUC	smu	Go
SO286_67_06	67	11	4–6	ASW	37°00.037′	35°29.382′	3209 m	MUC	smu	Go
SO286_67_08	67	11	6–8	ASW	37°00.037′	35°29.382′	3209 m	MUC	smu	Go
SO286_67_10	67	11	8–10	ASW	37°00.037′	35°29.382′	3209 m	MUC	smu	Go
SO286_75_02	75	11	0–2	SM	37°13.922′	35°32.316′	2508 m	MUC	smu	Go
SO286_75_04	75	11	2–4	SM	37°13.922′	35°32.316′	2508 m	MUC	smu	Go
SO286_75_06	75	11	4–6	SM	37°13.922′	35°32.316′	2508 m	MUC	smu	Go
SO286_75_08	75	11	6–8	SM	37°13.922′	35°32.316′	2508 m	MUC	smu	Go
SO286_75_10	75	11	8–10	SM	37°13.922′	35°32.316′	2508 m	MUC	smu	Go
SO286_75_15	75	11	10–15	SM	37°13.922′	35°32.316′	2508 m	MUC	smu	Go
SO286_75_20	75	11	15–20	SM	37°13.922′	35°32.316′	2508 m	MUC	smu	Go
SO286_75_25	75	11	20–25	SM	37°13.922′	35°32.316′	2508 m	MUC	smu	Go

), which were collected with a multicorer (MUC) at six stations (Table 1) in the APLA during the expedition SO286 of RV Sonne in November–December 2021 [1]. The MUC tube had a diameter of 10 cm.

The water depths of the stations range from 2508 m to 3685 m. The sampling was done in four working areas: Area Labrador Sea with stations SO286_21; Area Labrador Basin with station SO286_42; Area Azores SW with stations SO286_65, _66, and _67 and Area Seamount with station SO286_75. A map with the stations is given in Figure 1. The material is stored at the Foraminifera.eu Lab facility.

2.2. Methods

On board, three of the MUC-cores were packed in full in labeled plastic bags and frozen at −20 °C. Four of the MUC-cores were cut from the sediment surface down to 10 cm depth in slices of 2 cm thickness, and then in slices of 5 cm thickness. A list of the samples is given in Appendix A Table A1. Each slice was packed in a labeled plastic bag and frozen at −20 °C. At this temperature it was stored and transported to the Foraminifera.eu lab and stored there at −18 °C. Each material packed in a single plastic bag, either being a full core or a slice, is referred to as sample. The densities of foraminifera (amount of specimens) per 100 g were calculated by weighing the frozen samples in total, the dried retained part, the washed-, dried part, the analyzed share, and the specimens count. The details are given in Appendix A

Table A2. Weights, amounts and density of specimens for samples of RV Sonne cruise SO286. Slice in cm from top of the core. Abbreviations: a-4 = at −4° C; Asa = Amount of specimens alive; Ast = Amount of specimens dead and alive; c = calculated; Dsa = Density of specimens alive per 100 g; Dst = Density of specimens alive and dead per 100 g; m = measured; Pa = Part analysed; Pr = Part retained; wf = washed fraction >125 µm and <2000 µm; Ssa = Subsample alive; Sst = Subsampled dead and alive; Wg = Weight in gram.

Measure		Wg	Wg	Wg	Wg	Wg	Wg	Wg	Asa	Dsa	Wg	Ast	Dst
Part		whole	Pa	Pr	Pa	Pr	Pa	Ssa	Ssa	Ssa	Sst	Sst	Sst
Phase		a-4	a-4	a-4	dry	dry	dry	dry	dry	dry	dry	dry	dry
Fraction		full	full	full	full	full	wf	wf	wf	full	wf	wf	full
Sample	Slice	c	m	m	c	m	m	m	m	c	m	m	c
Column		1	2	3	4	5	6	7	8	9	10	11	12
Calculation		2 + 3			5/3*2					8/7*6/4			11/10*6/4
SO286_21_02	0–2	157.2	119.1	38.1	41.0	13.1	3.7	0.1	5	5	0.1	161	145
SO286_21_04	2–4	153.3	134.9	18.4	41.1	5.6	3.5	0.1	2	2	0.1	153	130
SO286_21_06	4–6	116.7	92.5	24.2	39.8	10.4	7.6	0.1	1	2	0.1	152	290
SO286_21_08	6–8	203.9	167.7	36.2	90.8	19.6	4.7	0.1	0	0	0.1	161	83
SO286_21_10	8–10	158.1	137.1	21.0	78.3	12.0	4.5	0.1	0	0	0.1	153	88
SO286_21_15	10–15	372.6	334.3	38.3	178.9	20.5	9.6	0.1	0	0	0.1	163	87
SO286_21_20	15–20	301.1	227.0	74.1	123.5	40.3	7.0	0.2	0	0	0.2	155	44
SO286_42_02	0–2	126.0	85.8	40.2	43.5	20.4	24.1	0.2	1	3	0.2	158	438
SO286_42_04	2–4	179.4	130.2	49.2	55.0	20.8	36.4	0.1	0	0	0.1	160	1059
SO286_42_06	4–6	193.1	153.6	39.5	75.8	19.5	43.1	0.1	2	11	0.1	157	893
SO286_42_08	6–8	174.1	147.5	26.6	70.4	12.7	43.6	0.1	0	0	0.1	153	948
SO286_42_10	8–10	210.2	161.5	48.7	85.6	25.8	50.1	0.1	0	0	0.1	155	907
SO286_42_15	10–15	326.8	278.5	48.3	148.2	25.7	84.7	0.1	0	0	0.1	154	880
SO286_42_20	15–20	288.3	232.7	55.6	138.5	33.1	85.3	0.1	0	0	0.1	158	973
SO286_42_25	20–25	418.1	349.2	68.9	198.2	39.1	63.4	0.1	0	0	0.1	159	1017
SO286_42_30	25–30	191.9	156.5	35.4	81.8	18.5	47.6	0.2	0	0	0.2	152	442
SO286_65_09	full core	178.2	160.9	17.3	79.1	8.5	49.0	0.3	1	2	0.3	152	314
SO286_65_11	full core	220.8	185.7	35.1	98.9	18.7	56.3	0.4	4	6	0.4	154	219
SO286_66	full core	602.1	568.5	33.6	311.3	18.4	167.4	0.5	0	0	0.5	156	168
SO286_67_02	0–2	209.8	138.8	71.0	73.7	37.7	39.2	0.4	4	5	0.4	159	211
SO286_67_04	2–4	258.9	215.3	43.6	114.6	23.2	66.4	0.3	0	0	0.3	157	303
SO286_67_06	4–6	274.8	221.2	53.6	128.3	31.1	69.6	0.3	0	0	0.3	154	278
SO286_67_08	6–8	180.9	138.3	42.6	68.8	21.2	45.2	0.4	0	0	0.4	150	246
SO286_67_10	8–10	228.1	187.8	40.3	101.6	21.8	63.4	0.6	0	0	0.6	157	163
SO286_75_02	0–2	207.1	167.0	40.1	77.9	18.7	28.9	0.3	4	5	0.3	154	190
SO286_75_04	2–4	182.4	145.1	37.3	78.2	20.1	26.7	0.3	0	0	0.3	154	175
SO286_75_06	4–6	122.5	80.2	42.3	44.6	23.5	14.3	0.3	0	0	0.3	151	161
SO286_75_08	6–8	172.4	134.1	38.3	70.4	20.1	23.5	0.4	0	0	0.4	159	133
SO286_75_10	8–10	236.1	205.3	30.8	114.0	17.1	32.5	0.4	0	0	0.4	154	110
SO286_75_15	10–15	433.8	361.1	72.7	246.4	49.6	65.3	0.3	0	0	0.3	157	139
SO286_75_20	15–20	527.6	456.4	71.2	255.1	39.8	107.1	0.3	0	0	0.3	159	223
SO286_75_25	20–25	453.4	366.1	87.3	205.1	48.9	118.2	0.2	0	0	0.2	155	447

. The not retained part of the sample was brought to room temperature of about 18 °C and stained for 24 h with rose Bengal dye, to differentiate between living and nonliving specimens. Then the sample was gently washed over a 125 µm meshed sieve, the residue was dried under cover for 7 days and split into fractions of between 0.1–0.2 g using a micro splitter. The chosen fraction >125 µm falls into the range commonly used for studies of recent foraminiferal assemblages [26]. It avoids misidentifications of smaller and juvenile specimens and facilitates the microscopic work. Pieces of broken specimens may have also been washed away through the 125 µm sieve. Their number was negligible. Specimens were not counted if more than 25% of test was missing. The Asa (Amount of specimens alive) was very low (Appendix A Table A2) and the study was based on total assemblages.

Sample SO286_67_08 was used to decide on the number of specimens to be counted in order to achieve an adequate assessment of the diversity. After counting 300 specimens in sample SO286_67_08 a total of 52 species were found. The 45 most abundant species were found after counting 150 specimens (Figure 2). They account for 98.0% of all specimens (Figure 3). This was seen as sufficient to assess diversity for the purposes of this study. Fractions were analyzed using a stereo microscope until at least 150 benthic specimens were found and identified to the species level. The last fraction was analyzed in full, which resulted in higher counts than 150. The counts and the derived aggregated data were stored and calculated in Microsoft Excel 2013.

The identification of the taxa was based upon Cushman [11,12,13,14,15,16,17,18], Schröder [23], Schmiedl [27], Stefanoudis [28], Tikhonova et al. [25], and Ellis & Messina [29]. The nomenclature was adjusted to that of the World Foraminifera Database [8].

For scanning electron microscope images, selected specimens were placed on stubs in the Foraminifera.eu Lab. They were coated with gold and imaged using a VEGA3-TESCAN scanning microscope (SEM) at Senckenberg am Meer. Photomicrographs of selected specimens were taken with a Keyence VHX 900F digital microscope in the Foraminifera.eu Lab.

Statistical parameters and the cluster analysis were calculated with PAST (PAlaeontological STatistics) data analysis package version 4.05 [30,31]. The species richness and diversity is based on the counts of specimens on the species level per sample (Supplementary Table S1). They were used to calculate the indices Fisher’s alpha (α), Pielou’s equitability (J) and Shannon (H) [32,33,34]. The Fisher’s alpha index (α) describes the relationship between the number of species and the number of specimens by assuming that species abundance follows a log distribution [4]. It is a measure of diversity. Pielou’s equitability (J) describes how specimens are divided between species and ranges between 0 and 1. It is a measure of evenness. The Shannon H index takes into account both the number of species and the evenness of distribution. For one specimen it is 0 and rises with the number of species and the evenness of the assemblage.

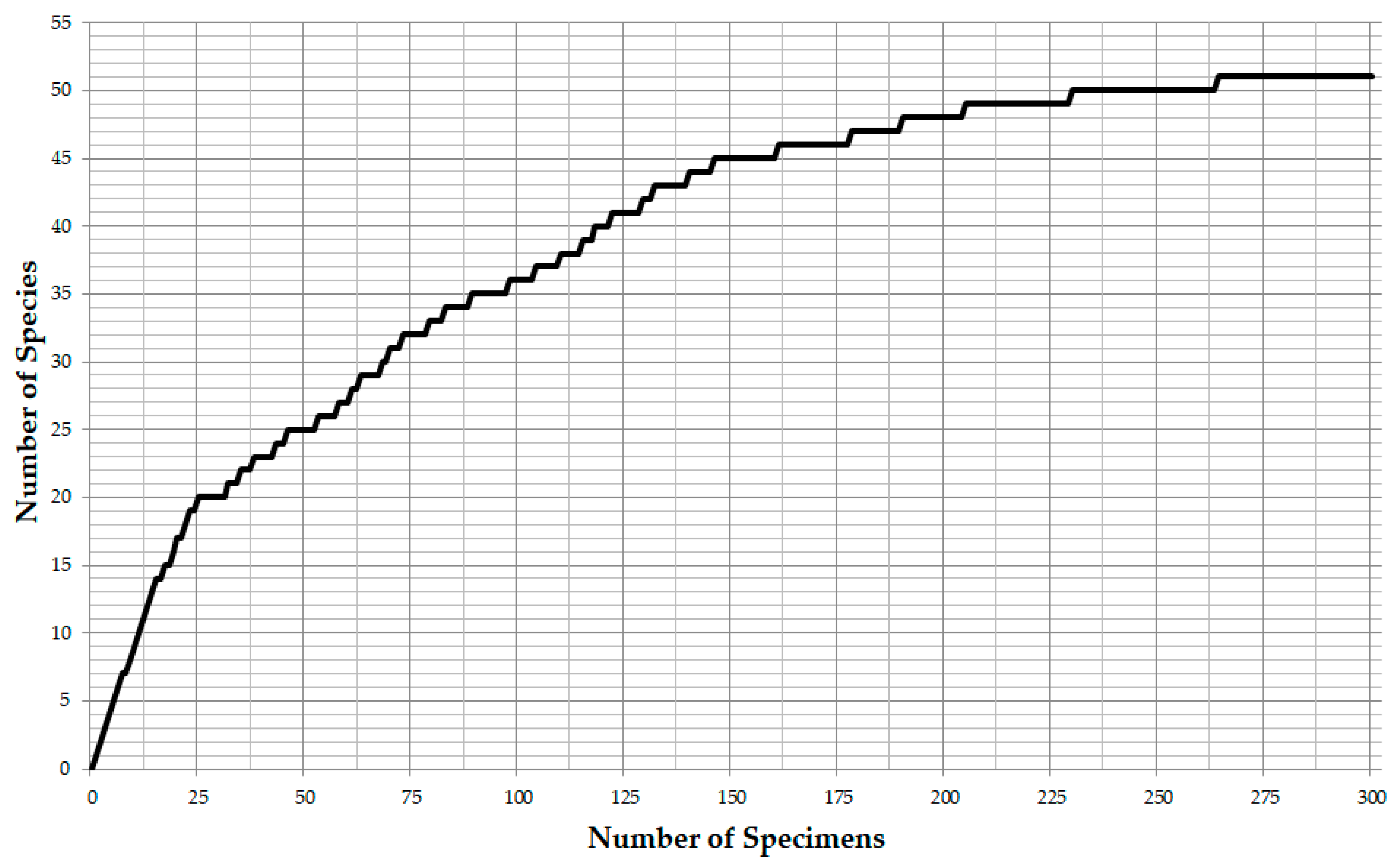

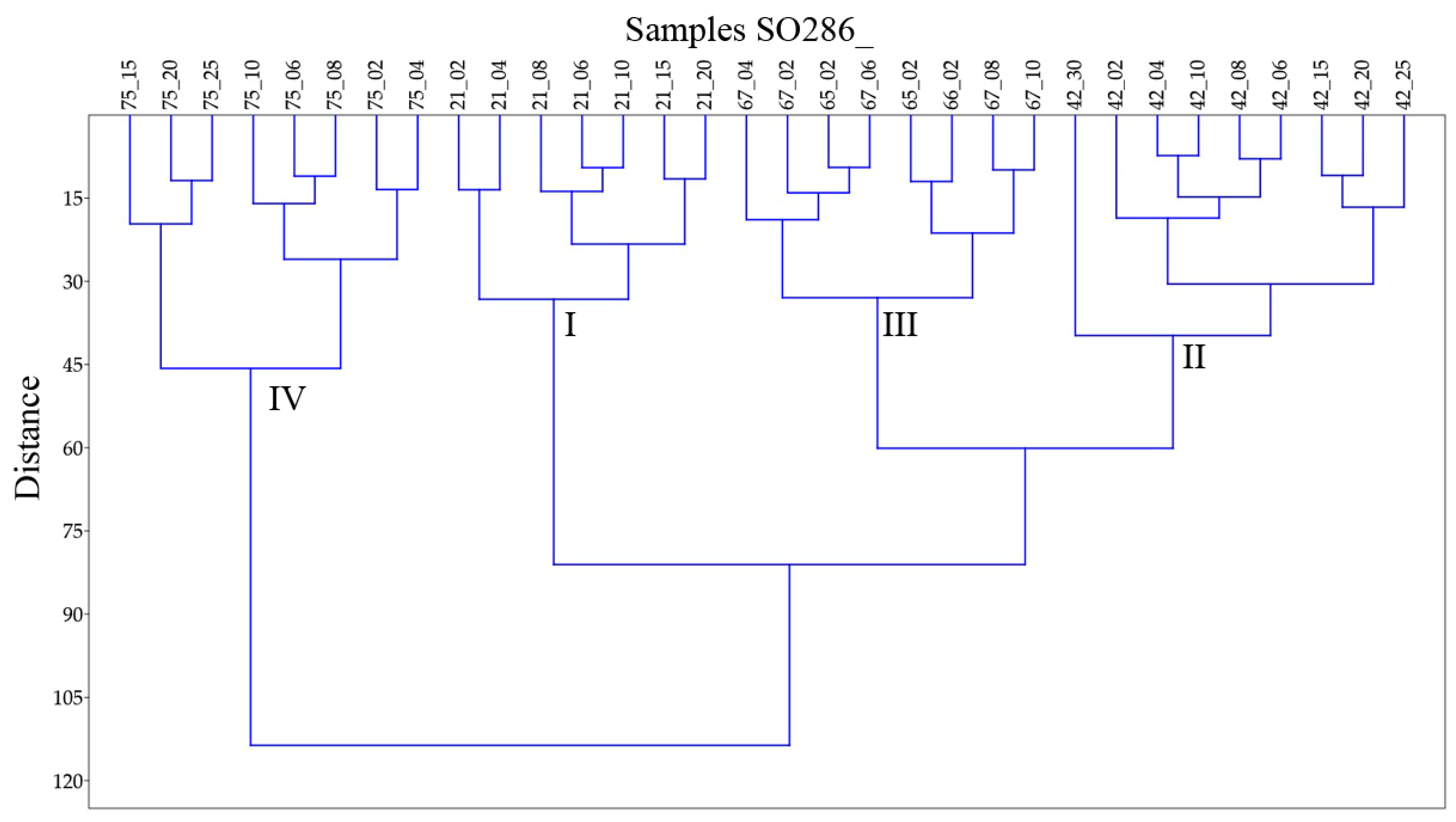

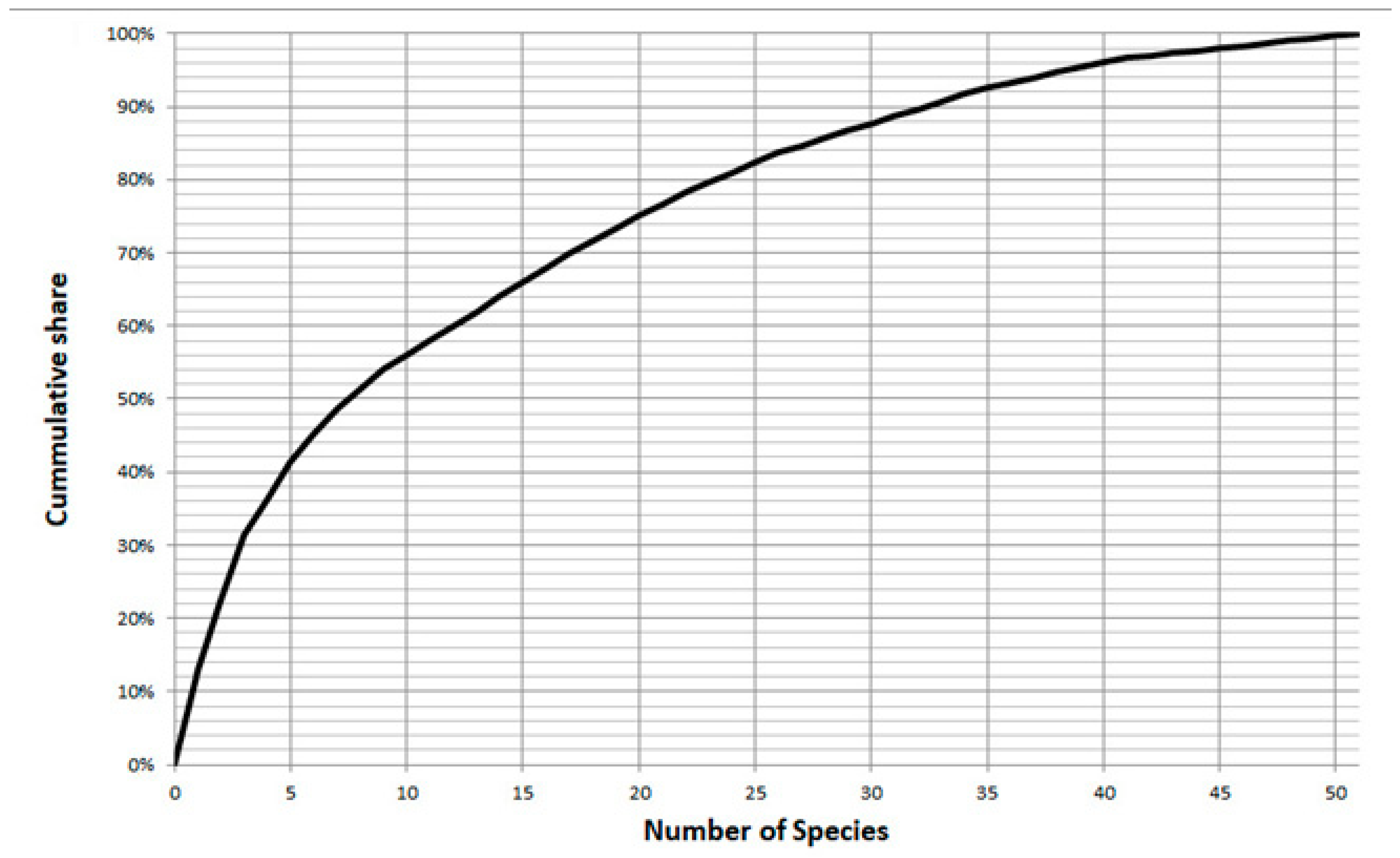

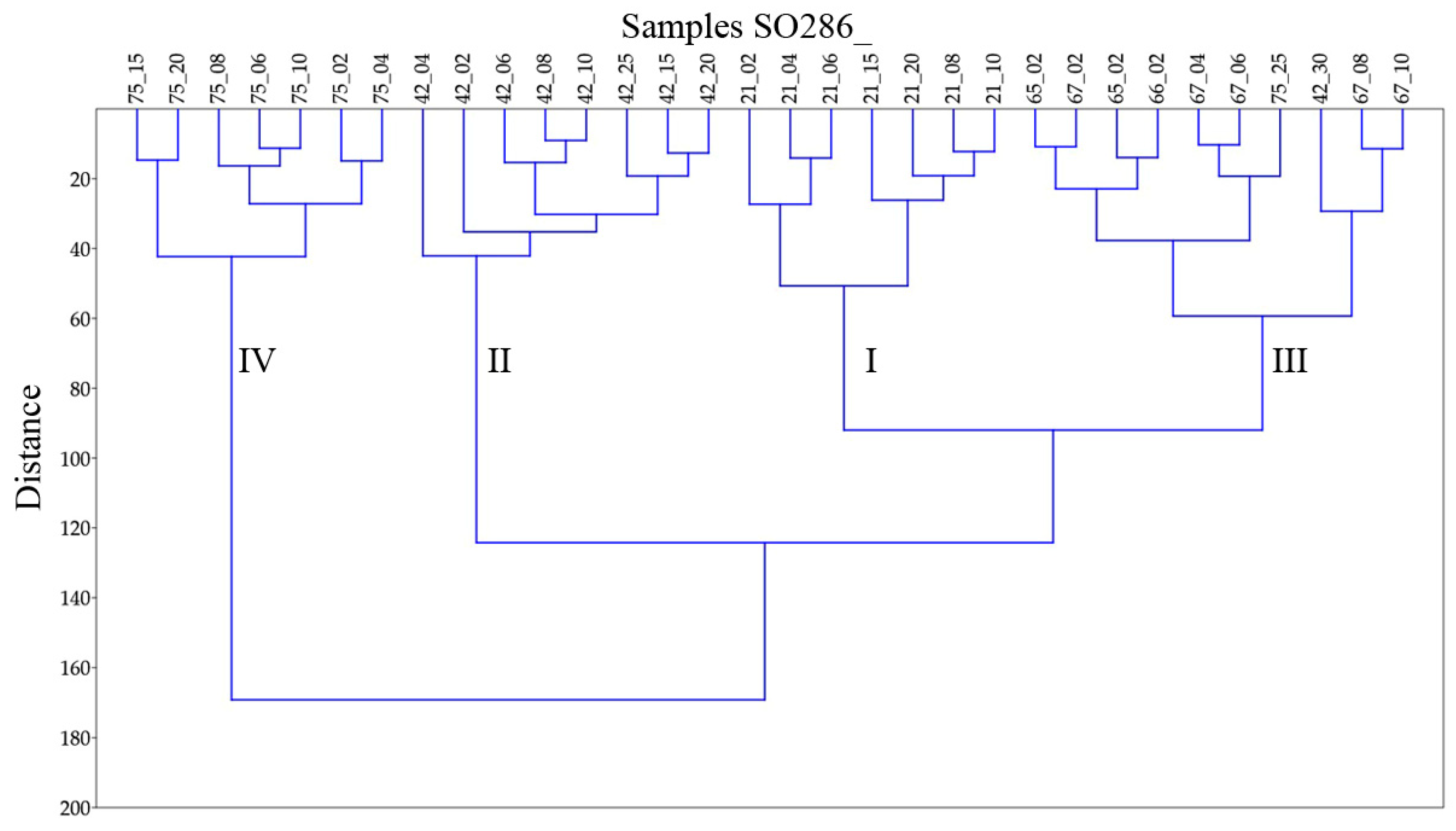

The assemblages were clustered using the hierarchical cluster analysis in Q-mode with Ward’s method algorithm [35] based on the counts of specimens per species per sample (Supplementary Table S1). For faunal interpretations the counts were aggregated according to the type of wall material and life position. The wall material of the genera in this study was either organic, agglutinated, porcelaneous or calcareous as described in [36]. The life position was either epifaunal, infaunal, both, or unknown as described per species or genus in [4,37].

3. Results

3.1. Identified Taxa

Based on the identification of 4986 benthic foraminiferal specimens from 32 samples to species level, a total of 150 foraminiferal species were found. These taxa belong to 12 orders and 92 genera (

Table 2. Benthic foraminiferal orders and number of genera and species recognized in samples from 6 stations of RV Sonne cruise SO286 in abyssal plains of the Labrador Sea, Labrador Basin, southwest of the Azores and at the flanks of a seamount southwest of the Azores.

Order/Wall Material	Number of Genera	Number of Species
Astrorhizida	6	7
Hormosinida	3	6
Lituolida	13	21
Spirillinida (agglutinated)	3	4
Textulariida	4	4
Not assigned to a taxon	1	1
Subtotal Agglutinated	30	43
Miliolida	12	23
Subtotal Porcellaneous	12	23
Nodosariida	3	10
Polymorphinida	9	19
Robertinida	2	2
Rotaliida	33	48
Spirillinida (hyaline)	1	2
Vaginulinida	1	3
Subtotal Hyaline	49	84
Allogromiida	1	1
Subtotal Organic	1	1
Total	92	150

). The species list is given in Appendix A

Table A3. List of modern benthic foraminiferal species recognized in samples from six stations of RV Sonne cruise SO286 in abyssal plains of the Labrador Sea, Labrador Basin and southwest of the Azores. * = not figured.

Abditodentrix pseudothalmanni (Boltovskoy & Guissani de Kahn, 1981)	Eggerella bradyi (Cushman, 1911)
Adercotryma glomeratum (Brady, 1878)	Epistominella exigua (Brady, 1884)
Alabaminella weddellensis (Earland, 1936)	Eponides repandus (Fichtel & Moll, 1798)
Ammobaculites agglutinans (d’Orbigny, 1846)	Eratidus foliaceus (Brady, 1881)
Ammobaculites crassaformis Zheng, 1988	Eubuliminella exilis (Brady, 1884)
Ammobaculites filiformis Earland, 1934	Eusphaeroidina inflata Ujiié, 1990
Ammobaculites ? sp.	Favulina hexagona (Williamson, 1848)
Ammodiscus sp. *	Fissurina castanea (Flint, 1899)
Ammoglobigerina globulosa (Cushman, 1920)	Fissurina granifera trimarginata (Buchner, 1940)
Ammolagena clavata (Jones & Parker, 1860)	Fissurina orbignyana var. rhumbleri Buchner, 1940
Ammomassilina alveoliniformis (Millett, 1898)	Fissurina staphyllearia Schwager, 1866
Anomalinoides globulosus (Chapman & Parr, 1937)	Fissurina sp. 1
Aschemonella scabra Brady, 1879	Fissurina sp. 2 *
Bolivina sp. *	Fissurina sp. 3 *
Bulimina buchiana d’Orbigny, 1846	Fissurina sp. 4 *
Buzasina galeata (Brady, 1881)	Fursenkoina texturata (Brady, 1884)
Buzasina ringens (Brady, 1879)	Galwayella trigonoornata (Brady, 1881)
Cassidulina reniforme Nørvang, 1945	Gavelinopsis sp.
Cassidulina sp. *	Glaphyrammina americana (Cushman, 1910)
Chilostomella oolina Schwager, 1878	Globocassidulina subglobosa (Brady, 1881)
Cibicides pachyderma (Rzehak, 1886)	Glomospira charoides (Jones & Parker, 1860)
Cibicides refulgens Montfort, 1808	Glomospira gordialis (Jones & Parker, 1860)
Cibicidoides cicatricosus (Schwager, 1866)	Guttulina communis (d’Orbigny, 1826)
Cibicidoides mundulus (Brady, Parker & Jones, 1888)	Gyroidina sp. 1
Cibicidoides wuellerstorfi (Schwager, 1866)	Gyroidina sp. 2
Cibicidoides sp. 1 *	Hansenisca soldanii (d’Orbigny, 1826)
Cibicidoides sp. 2 *	Hoeglundina elegans (d’Orbigny, 1826)
Cibicidoides sp. 3 *	Hormosinelloides guttifer (Brady, 1884)
Cibicidoides sp. 4 *	Hyalinea balthica (Schröter, 1783)
Cornuloculina inconstans (Brady, 1879)	Hyperammina elongata Brady, 1878
Cornuspira carinata (Costa, 1856)	Ioanella tumidula (Brady, 1884)
Cribrostomoides jeffreysii (Williamson, 1858)	Karreriella bradyi (Cushman, 1911)
Cribrostomoides sphaerilocula (Cushman, 1910)	Karrerulina conversa (Grzybowski, 1901)
Cribrostomoides subglobosus (Cushman, 1910)	Laevidentalina haueri (Neugeboren, 1856)
Cribrostomoides sp. *	Laevidentalina sp. *
Cystammina pauciloculata (Brady, 1879)	Lagena striata (d’Orbigny, 1839)
Discorbinella complanata (Sidebottom, 1918)	Lagena sulcata (Walker & Jacob, 1798)
Lagena wiesneri Parr, 1950	Pyrulina angusta (Egger, 1857)
Lagena sp. 1	Pyrulina cylindroides (Roemer, 1838)
Lagena sp. 2	Pyrulina fusiformis (Roemer, 1838)
Lagena sp. 3 *	Pyrulina sp. *
Lagena sp. 4 *	Quinqueloculina venusta Karrer, 1868
Lagenammina arenulata (Skinner, 1961)	Quinqueloculina vulgaris d’Orbigny, 1826
Lagenosolenia incomposita Patterson & Pettis, 1986	Quinqueloculina sp. 1 *
Lagnea radiata (Seguenza, 1862)	Quinqueloculina sp. 2 *
Laticarinina pauperata (Parker & Jones, 1865)	Quinqueloculina sp. 3 *
Lenticulina convergens (Bornemann, 1855)	Quinqueloculina sp. 4 *
Lenticulina sp. 1 *	Recurvoides contortus Earland, 1934
Lenticulina sp. 2 *	Reophax scorpiurus de Montfort, 1808
Lobatula lobatula (Walker & Jacob, 1798)	Reophax sp. 1
Melonis affinis (Reuss, 1851)	Reophax sp. 2 *
Melonis pompiloides (Fichtel & Moll, 1798)	Reophax sp. 3
Miliolinella subrotunda (Montagu, 1803)	Rhizammina algaeformis Brady, 1879
Nonionellina labradorica (Dawson, 1860)	Robertinoides bradyi (Cushman & Parker, 1936)
Nuttallides decorata (Phleger & Parker, 1951)	Rutherfordoides rotundatus (Parr, 1950)
Oolina globosa (Montagu, 1803)	Rutherfordoides rotundiformis (McCulloch, 1977)
Oridorsalis umbonatus (Reuss, 1851)	Saccorhiza ramosa (Brady, 1879)
Oridorsalis sp. *	Sigmoilopsis schlumbergeri (Silvestri, 1904)
Patellina corrugata Williamson, 1858	Siphotextularia rolshauseni Phleger & Parker, 1951
Patellina simplissima (McCulloch, 1977)	Sphaeroidina bulloides d’Orbigny in Deshayes, 1828
Placopsilinella aurantiaca Earland, 1934	Spiroloculina excavata d’Orbigny, 1846
Portatrochammina sp.	Spirophthalmidium acutimargo (Brady, 1884)
Procerolagena gracilis (Williamson, 1848)	Spirosigmoilina pusilla (Earland, 1934)
Protoglobobulimina sp.	Subreophax aduncus (Brady, 1882)
Psammosphaera fusca Schulze, 1875	Tolypammina schaudinni Rhumbler, 1904
Pseudononion granuloumbilicatum Zheng, 1979	Triloculina oblonga (Montagu, 1803)
Pseudopolymorphina novangliae (Cushman, 1923)	Triloculina trihedra Loeblich & Tappan, 1953
Pullenia bulloides (d’Orbigny, 1826)	Triloculina sp. *
Pullenia quinqueloba (Reuss, 1851)	Tritaxis heronalleni Mikhalevich, 1972
Pyrgo lucernula (Schwager, 1866)	Trochammina sp. 1 *
Pyrgo murrhina (Schwager, 1866)	Trochammina sp. 2 *
Pyrgo simplex (d’Orbigny, 1846)	Uvigerina sp. 1
Pyrgo williamsoni (Silvestri, 1923)	Uvigerina sp. 2
Pyrgo sp. *	Uvigerina sp. 3 *
Pyrgoella sp.	Agglutinated tube not assigned to the order Astrorhizida

, the counts in Supplementary Table S1, and their shares in the samples in Supplementary Table S2.

3.2. Identified Assemblages

The hierarchical cluster analysis in Q-mode with Ward’s method algorithm distinguished four main clusters, which correspond with the four working areas (Figure 4). Besides of SO286_75_25 and SO826_42_30 all samples of one core are clustered together. The clusters show specific characteristics in diversity, evenness, and species composition, which are discussed in the following text based on

Table 3. Main characteristics of the four clusters shown in Figure 4. The underlying data for diversity and evenness are given in Appendix A Table A4, for species names and importance, life position and wall material in Supplementary Materials Tables S1 and S2 and for density in Appendix A Table A2.

Cluster		I		II		III		IV
Corresponding with station SO286_		21		42		65,66,67		75
Area		Labrador Sea		Labrador Basin		SW of Azores		Seamount
Dominant species		E. exigua O. umbonatus		E. exigua O. umbonatus		E. exigua		None
Subsidiary important species		H. elongata		G. communis		C. wuellerstorfi		A. pseudothalmanni
		C. wuellerstorfi				Melonis group		G. subglobosa
		P. quinqueloba
		Mean	Range	Mean	Range	Mean	Range	Mean	Range
Share in %	E. exigua	23.3	6.8–32.9	39.0	30.4–50.6	22.7	13.3–29.9	5.9	3.2–9.1
Share in %	O. umbonatus	10.5	5.9–19.0	13.6	8.9–18.4	3.2	0.0–7.9	1.8	0.0–2.6
Share in %	A. pseudothalmanni	0.0	0.0	0.0	0.0	0.6	0.0–1.9	11.8	2.5–19.5
Share in %	G. subglobosa	0.1	0.0–0.6	0.0	0.0	1.9	0.0–9.7	10.4	6.5–15.1
Diversity	Fisher’s alpha (α)	14.6	10.5–18.4	14.1	10.6–17.3	23.3	16.0–30.1	25.9	22.7–33.8
Evenness	Equitability (J)	0.83	0.77–0.93	0.73	0.63–0.79	0.87	0.81–0.93	0.92	0.90–0.94
Div. + Even.	Shannon (H)	2.98	2.59–3.44	2.60	2.28–2.86	3.37	3.01–3.62	3.62	3.49–3.72
Life Position	Epifaunal	65%	50%–76%	80%	70%–83%	59%	49%–67%	37%	33%–42%
Life Position	Infaunal	15%	6%–22%	10%	7%–17%	25%	17%–33%	39%	35%–44%
Life Position	Unknown/Both	21%	13%–32%	10%	8%–13%	16%	10%–22%	23%	16%–29%
Wall Material	Organic	4%	3%–7%	1%	0%–1%	0%	0%–1%	0%	0%–1%
Wall Material	Agglutinated	27%	19%–45%	9%	5%–17%	7%	3%–17%	5%	2%–8%
Wall Material	Porcelaneous	4%	2%–8%	6%	4%–8%	11%	7%–16%	16%	9%–24%
Wall Material	Calcareous	65%	48%–74%	85%	74%–90%	82%	68%–88%	80%	74%–88%
Density per g		124	44–290	889	438–1059	279	163–447	189	110–223

.

Cluster I corresponding with the Labrador Sea (Figure 4) is dominated by the species Epistominella exigua and Oridorsalis umbonatus. Further important species are Hyperammina elongata Brady, 1878, Cibicidoides wuellerstorfi, and Pullenia quinqueloba (Reuss, 1851) (Table 3, Supplementary Materials Table S2). The diversity and share of infaunal species are significantly lower than in the clusters southwest of the Azores and similar to those of cluster II. With 27% the share of agglutinates, it is 3 to 5 times higher as in the other clusters (Table 3). Cluster II corresponds with the Labrador Basin except for sample SO286_42_30 (Figure 4). It resembles cluster I in dominant species, low diversity, and low shares of infaunal species. The dominance of Epistominella exigua is more significant, which results in the lowest evenness of all clusters. The only further species of importance is Guttulina communis (d’Orbigny, 1826) (Table 3, Supplementary Materials Table S2).

Cluster III corresponds with the area southwest of the Azores with the exemption of samples SO286_42_30 and SO286_75_25 (Figure 4). It is dominated by the species Epistominella exigua. Further important species are Cibicidoides wuellerstorfi and the Melonis group (Table 3, Supplementary Materials Table S2). In comparison to clusters I and II the mean diversity measure α is more than 50% higher, and the mean shares of infaunal species and porcelaneous species are twice as high. Cluster IV comprises all samples from station SO286_75 in the area Seamount with the exemption of sample SO286_75_25 (Figure 4). It is characterized by a high evenness of J = 0.92. The most abundant species Abditodentrix pseudothalmanni (Boltovskoy & Guissani de Kahn, 1981) and Globocassidulina subglobosa (Brady, 1881) have a relatively low mean share of 11.8% and 10.4% respectively (Table 3). The mean diversity is slightly higher than in cluster III. In comparison to the other clusters the share of infaunal species is significantly higher and that of porcelaneous species is higher (Table 3).

The exceptional samples SO286_42_30 and SO286_75_25 are both from the bottom of their cores and differ significantly from the samples up in the core. In sample SO286_42_30 the dominant species are together more than halved in abundance and partly replaced by Uvigerina sp. 2 and Pullenia quinqueloba, which are of little significance higher in the core (Supplementary Materials Tables S1 and S2). The evenness of J = 0.88 is much higher than J = 0.73 in the rest of the core (Appendix A

Table A4. Diversity measures of the clusters I–IV in samples from six stations of RV Sonne cruise SO286 in abyssal plains of the Labrador Sea, Labrador Basin and southwest of the Azores.

Sample	Cluster	Number of Taxa	Fisher’s Alpha (α)		Equitability (J)		Shannon (H)
			Single	Mean	Single	Mean	Single	Mean
SO286_21_02	I	40	17.05	14.60	0.93	0.83	3.44	2.98
SO286_21_04	I	41	18.35		0.86		3.20
SO286_21_06	I	39	16.97		0.88		3.23
SO286_21_08	I	36	14.40		0.81		2.92
SO286_21_10	I	34	13.55		0.80		2.81
SO286_21_15	I	31	11.35		0.78		2.69
SO286_21_20	I	29	10.52		0.77		2.59
SO286_42_02	II	35	13.93	14.14	0.77	0.73	2.74	2.60
SO286_42_04	II	37	15.10		0.63		2.28
SO286_42_06	II	40	17.33		0.74		2.73
SO286_42_08	II	29	10.60		0.76		2.57
SO286_42_10	II	33	12.84		0.71		2.47
SO286_42_15	II	36	14.78		0.75		2.70
SO286_42_20	II	33	12.70		0.70		2.45
SO286_42_25	II	38	15.82		0.79		2.86
SO286_42_30	III	40	17.69	23.26	0.88	0.87	3.24	3.37
SO286_65_09	III	42	19.19		0.81		3.01
SO286_65_11	III	45	21.38		0.84		3.19
SO286_66	III	38	16.00		0.85		3.10
SO286_67_02	III	48	23.36		0.87		3.36
SO286_67_04	III	55	30.10		0.90		3.61
SO286_67_06	III	50	25.72		0.88		3.44
SO286_67_08	III	49	25.32		0.93		3.62
SO286_67_10	III	48	23.58		0.89		3.45
SO286_75_02	IV	49	24.81	25.86	0.90	0.92	3.49	3.62
SO286_75_04	IV	58	33.84		0.92		3.72
SO286_75_06	IV	49	25.19		0.93		3.62
SO286_75_08	IV	49	24.21		0.93		3.62
SO286_75_10	IV	48	23.92		0.92		3.57
SO286_75_15	IV	47	22.73		0.93		3.60
SO286_75_20	IV	50	25.09		0.94		3.68
SO286_75_25	III	49	24.69	^	0.91	^	3.52	^

). In sample SO286_75_25 the dominant species Epistominella exigua has a share of 20%, whereas above its share ranges from 3% to 9%. (Supplementary Materials Tables S1 and S2). The share of epifaunal species is about 40% higher than in the samples higher in the core.

3.3. Trends in the Assemblages down the Cores

Only the samples from station SO286_21 show a clear trend down the core. The diversity declines from α = 17.05 in the top layer to α = 10.52 in the lowest part, as well as the evenness from J = 0.93 to J = 0.77 (Appendix A Table A4). The share of epifaunal taxa rises down the core from 50.3% to 76.1%, and that of calcareous species from 48.4% to 73.5% (Supplementary Materials Table S1). Such trends are not observable in the other cores. The exceptional samples SO286_42_30 and SO286_75_25 show, as already discussed, an abrupt change in their species composition in the deepest slice.

4. Discussion

4.1. Limitations and Advantages of This Study

The results of this study are biased by taphonomic effects. It is known that organic walled specimens rapidly decay and thin walled agglutinated forms easily disintegrate [38]. This caused the lack of organic walled taxa in the investigated material besides of a few Placopsilinella aurantiaca Earland, 1934, which were well preserved. It will also have caused an underestimation of agglutinated taxa. The key species E. exigua may not be satisfactorily sampled if the >125 µm fraction is studied, as there might be smaller adult specimens [39].

As the number of specimens alive was very low (Appendix A Table A2) this study is based on total assemblages (dead and alive faunas). The composition of a live fauna reflects the conditions at the time of collection, which is influenced by seasonality and other momentary biases, whereas here material is time averaged. For abyssal plains the rate of sedimentation is known to be very low as the sediment is almost exclusively of organic origin. For example for the North East Atlantic rates between 0.14 cm and 3.2 cm per 1000 years are reported [40]. The investigated slices of 2 cm may represent up to about 14,000 years and those of 5 cm up to about 35,000 years. The studied faunas are interpreted to represent the overall faunal composition in the Holocene and late Pleistocene.

Biological productivity in abyssal plains is reported to be very low, but the biological activity can still create a bioturbated sediment mixed layer of 5–11 cm [40]. Lower parts of the core may also be affected by bioturbation in the timespan when they built the top sediment. Trends in the assemblages down the core will not only reflect faunal changes over time but are also influenced by bioturbation and taphonomic loss. In this study it is concluded that only the samples from station SO286_21 show a clear trend towards lower diversity and higher shares of epifaunal and calcareous taxa down the core. Furthermore the abrupt changes in the faunal composition of the deepest slices in core SO286_42 and SO286_75 are seen as indicative of a change in environmental conditions. In contrast to the limited results for the down core investigations the faunal compositions between the working areas are shown to differ substantially. Four explicitly separate clusters were found (Figure 4) with specific characteristics (Table 3).

The density of benthic foraminifera was measured for each sample by determining their amount in 1 g of dry sediment (Dst in Appendix A Table A2). Due to the taphonomic loss and chosen size fraction its usability as a proxy for biological productivity is seen as rather limited though. Most of the living fauna might be neglected. The lowest density was found in the material from the Labrador Sea and the highest in that of the Labrador Basin. An abrupt change was again found for the deepest slices in core SO286_42 and SO286_75 with a significantly lower and respectively higher density than in the rest of the cores. It indicates that the chosen density measures give additional information. Their usability would need an analysis, which goes beyond of this study.

4.2. Benthic Foraminiferal Associations Dominated by Epistominella exigua

Clusters I-III are characterized by E. exigua dominated associations. A dominance of this epifaunal species is reported from abyssal areas in the Iceland Basin, Irminger Sea, Labrador Sea, Norwegian, and Greenland Seas by [24]. They are reported from abyssal zones worldwide: Norway, NE Atlantic, NW Africa, SW of Azores, Sierra Leone rise, North and Southwest Indian Ocean, Andaman Sea, Pacific Deep Water areas, Nazca Plate, East Pacific Rise, Weddell Sea, Ross Sea, South Sandwich, Amundsen Sea [39], lower parts of the Walvis Ridge, and the Southwest African continental margin, the Angola and Cape Basins, [27] and in general for Southern, Indian, and Atlantic oceans [5]. These faunas have been linked to seasonal detrital carbon flux rather than water masses [41]. They are found at lower bathyal to abyssal but not hadal depths [4,5]. The variations in abundances of E. exigua are described to be significant [24] and are correlated to its opportunistic behavior towards detritus flux [4]. Clusters I and II are codominated by O. umbonatus, which is also reported to be an opportunistic, epifaunal species of the deep-sea [4]. In Cluster III E. exigua is still dominant and is accompanied by the frequent and also epifaunal C. wuellerstorfi. The share of infaunal species and diversity α are though double as high as in clusters I and II (Table 3), which indicate a different environmental setting.

The cluster analysis of the subsidiary fauna excluding E. exigua and O. umbonatus reveals a hundred percent correlation of faunal clusters with the four working areas (Figure 5). The clusters are markedly distinct from each other, which indicates that abyssal faunas are quite heterogeneous and not as uniform as expected. The number of dominant species in the studied material is though very limited and followed by a long tail of less abundant species. This observation is consistent with previous studies of abyssal habitats [4,39]. According to Pawlowski et al. [42] E. exigua, O. umbonatus and C. wuellerstorfi show high genetic similarity. A sample transect from the abyssal Labrador Sea through the Labrador Basin towards the Mid-Atlantic Ridge would be required to draw further conclusions.

4.3. Benthic Foraminiferal Associations with High Evenness and Lacking Dominant Species

Cluster IV corresponds with the working area Seamount. It has the greatest distance to the other clusters (Figure 5). The mean diversity α, mean evenness J and share of infaunal species is highest among the clusters (Table 3). There are no dominant species and E. exigua and O. umbonatus only play a minor role. The most important species A. pseudothalmanni and G. subglobosa just have a share of 11.8% and 10.4% respectively (Table 3, Supplementary Materials Table S2). The reason for the faunal differences are seen in the different habitat. It is situated at the lower flank of a seamount and more than 690 m above the other working stations. The most abundant species A. pseudothalmanni is recorded as a cosmopolitan species from mid-bathyal to upper abyssal depths [5,43]. G. subglobosa as the second most abundant species is recorded worldwide from outer shelves, slopes and seamounts (Distribution map in [8]). To draw further conclusions it would be necessary to investigate more than just one point on this seamount flank.

5. Conclusions

The foraminiferal faunas of the abyssal North Atlantic are understudied and documented. In this study the faunas at four working areas in the Labrador Sea, Labrador Basin, and southwest of the Azores are for the first time documented and analyzed. One hundred and fifty benthic foraminiferal taxa are identified in counts of 4986 specimens from six cores of ten to thirty cm lengths. One hundred and twenty four taxa are illustrated with optical and/or SEM images on twelve plates.

Four species-based clusters are identified with hierarchical cluster analysis in Q-mode, which correspond to the four working areas. Each cluster is time averaged over periods of ten thousands of years and the observed faunas are not obscured by seasonal or other momentary biases. The clusters show explicitly distinct characteristics, which indicate that abyssal faunas are not uniform but heterogeneous. Three clusters are dominated by Epistominella exigua, which is recorded for many abyssal plains worldwide. The faunal differences are manifested in the long tail of less important species and differing abundances of E. exigua. Further studies are needed to get a more detailed picture for the abyssal Northwest Atlantic and understand the driving factors for biodiversity patterns.
