Article

Ecology and Biology of the Rare Endemic Land Leech Xerobdella anulata (Xerobdellidae)

1
Division of Zoology, Department of Biology, Faculty of Science, University of Zagreb, Rooseveltov trg 6, 10000 Zagreb, Croatia
2
Varaždin City Museum, Šetalište Josipa Jurja Strossmayera 3, 42000 Varaždin, Croatia
3
Division of Botany, Department of Biology, Faculty of Science, University of Zagreb, Marulićev trg 20, 10000 Zagreb, Croatia
*
Author to whom correspondence should be addressed.
Diversity 2022, 14(9), 701; https://doi.org/10.3390/d14090701
Submission received: 2 August 2022 / Revised: 9 August 2022 / Accepted: 21 August 2022 / Published: 24 August 2022

Abstract

:
The genus Xerobdella contains three species of land leeches confined to the Palearctic region, one of which is X. anulata (Autrum, 1958), an exceptionally rare endemic of the Dinaric Alps. In the current study, we provide new data and a literature overview on this rarely encountered species, presenting its currently known distribution, providing additional data on its morphology and, for the first time, presenting comprehensive data on its habitat preferences and seasonal dynamics. Additionally, we provide novel DNA barcodes for the Dinaric land leech and compare the obtained sequences with the related X. lecomtei. Altogether, 22 specimens of X. anulata were collected using pitfall traps in three habitat types: managed forests with adjacent meadows and a primeval forest in the Dinaric Alps of Croatia. We report the first finding of X. anulata in open habitats, which harbored most of the specimens. Our findings show that X. anulata exhibits surface activity, highlighting the effectiveness of pitfall traps in sampling such elusive taxa, with perspectives for future morphological, phenological and even molecular research.

1. Introduction

Leeches from the genus Xerobdella (Frauenfeld, 1868) are endemic to the Palearctic region and are the only known land leeches in Europe. They constitute a separate line from the tropical land leeches Haemadipsidae and represent a distinct family of land leeches (Xerobdellidae), according to Borda and Siddall [1], Kutschera et al. [2] and Trontelj et al. [3]. The genus contains three species: Xerobdella lecomtei (Frauenfeld, 1868), Xerobdella anulata (Autrum, 1958) and Xerobdella praealpina [4,5]. The known distribution of X. lecomtei borders the distribution of X. praealpina, the former occurring in the Eastern Alps and the latter inhabiting south-eastern parts of the Alps (both are found in Austria, Italy and Slovenia) [6,7]. In contrast, X. anulata is confined to the western parts of the Balkans (Dinaric Alps) [7].
Living specimens of the genus Xerobdella are brown to black with a pale ventral side, but become pale when preserved (e.g., in alcohol, formalin) [2,7,8]. They are characterized by body segments with five annuli, a pair of oral palps and four pairs of eyespots [4,9]. Since all three species are rather similar in general appearance [6], only a few morphological features can be used for identification. In particular, the species differ in the position and spacing of male and female and/or accessory female gonopores. The spacing of male and female gonopores clearly separates the three species; in X. lecomtei they are separated by three-and-a-half (rarely three) annuli, in X. anulata by four-five annuli and in X. praealpina by six-and-a-half annuli [4,7]. The latter species can be further distinguished by the accessory pore situated only half an annulus behind the female gonopore, while the spacing is three-and-a-half annuli in both X. lecomtei and X. anulata [7].
Despite being initially described as sanguivorous, e.g., X. lecomtei has been considered a parasite on salamanders [9], the blood-feeding habits of Xerobdella leeches have been put into question by some authors [7]. The members of this genus seem to have a rather diverse diet, encompassing various soil invertebrates such as earthworms and snails [9]. It was noticed that they can also predate on dipteran larvae (e.g., Chironomidae, Mycetophilidae) that feed on the leaf litter where the Xerobdella species burrow during the day [10]. These leeches can also be found under stones and tree bark, preferring microhabitats with higher moisture and lower temperatures (optimal 10–15 °C) [10,11]. They are active at night but are rarely encountered on the surface [10].
The Dinaric land leech (X. anulata) was the second species described in the genus, from a specimen found in Sarajevo, Bosnia and Herzegovina [5,12]. It is exceedingly rare [4,7,13] and, consequently, there is a lack of data on its biology, ecology and distribution. Therefore, the main objectives of this paper are: (1) to present the currently known distribution of X. anulata, (2) to give additional information on its morphology, (3) to provide first comprehensive data on its habitat preferences and seasonal activity and (4) to explore the phylogenetic relationships between X. anulata and X. lecomtei.

2. Materials and Methods

2.1. Study Area

The study was carried out in the managed Dinaric beech–fir forests (ass. Omphalodo-Fagetum, alliance Aremonio-Fagion) and adjacent meadows in the Gorski Kotar region, near the Ravna Gora settlement (5,499,767, 5,022,169; 945 m a. s. l., Figure 1a) and in the primeval Dinaric beech–fir forest in the Lika region, Čorkova Uvala (5,539,788, 4,975,054; 967 a. s. l., Figure 1b). These forests are developed on limestone and dolomite bedrock [14]. The Dinaric beech–fir mixed forests, covering 12% of total forest area in Croatia (CRONIF), are managed by selective logging. Uneven-aged forest management, known as a “close-to-nature” management system, naturally establishes a selection stand structure, supporting permanent vegetation cover, preventing soil erosion and preserving plant diversity [15,16]. Čorkova Uvala, one of the best-preserved beech–fir forests in Croatia, is located in the Plitvice Lakes National Park, covering an area of 29,685 ha [17]. The managed forests and adjacent montane meadows of alliance Arrhenanthetion elatioris are developed on leached soils (ass. Alchemillo-Trisetetum and ass. Festuco-Agrostietum). Both studied regions are characterized by a temperate humid climate with warm summers, with a mean annual temperature of 7.2 °C and mean annual precipitation of 1840.9 mm (data for Parg in the Gorski Kotar region) [18,19].

2.2. Sampling and Identification

Land leeches were sampled with pitfall traps primarily set for soil invertebrates in managed and primeval forests. Additionally, adjacent meadows were sampled in the area of the managed forests, with a total of 18 sampling sites (for details about the sampling design please see Brigić et al. [20]). In the primeval forest, four sampling sites were set. At each sampling site, five plastic traps (volume 0.5 dm3; depth 13.5 cm; diameter 9.4 cm) were placed 5 m apart in a linear transect. In total, 110 pitfall traps were set. The traps were partially filled with a solution of wine vinegar, ethanol and water (1:1:1), which served as an attractant and a preservative. To reduce the surface tension of the liquid, a few drops of neutrally smelling detergent were added. The traps were dug into the soil up to their rims and a brown plastic roof was placed above each trap to protect them from litter and rain (Figure 1c). The traps were emptied once a month, between April and November 2009 and 2010.
Leeches were identified to the species level according to Autrum [8] and Minelli [4]. We measured total body length (mm) and maximum width (mm) using an eyepiece micrometer on a Zeiss Stemi 2000 microscope, Carl Zeiss Microscopy, Jena, Germany. Additionally, in each specimen we counted the annuli separating the male and the female gonopores. Photographs of the specimens were taken using a Zeiss Axiocam 208 color attached to a Discovery V8 stereomicroscope, Carl Zeiss Microscopy, Jena, Germany. All sampled specimens were kept in 75% ethyl alcohol and deposited in the Varaždin City Museum, Natural History Department, Varaždin, Croatia.

2.3. Molecular Identification

Small parts of tissue (about 1 mm3) were excised from the flanks of the bodies of 22 specimens. Total DNA was isolated using the Chelex method and protocols described in Casquet et al. [21]. A polymerase chain reaction (PCR) was performed to amplify the DNA barcode region of the mitochondrial COI gene, using “universal primers” LCO 1490 and HCO 2198 [22]. PCR amplifications were conducted using DreamTaq PCR Master Mix (2X; includes DreamTaq DNA Polymerase, 2X DreamTaq buffer, dATP, dCTP, dGTP and dTTP (0.4 mM each) and 4 mM MgCl2), 200 nM of each primer and 1 μL of DNA template. The total volume of the PCR mixture was 15 μL. PCRs were carried out with an initial denaturation step at 95 °C for 3 min, followed by 35 cycles of denaturation at 95 °C for 1 min, annealing at 46 °C for 1 min, elongation at 72 °C for 1 min and a final elongation step at 72 °C for 10 min. The PCR products were checked using (1%) agarose gel electrophoresis. The enzymatic purification of the PCR products was conducted using Antarctic Phosphatase and Exonuclease I (New England Biolabs, Ipswich, MA, USA). Sequencing of the PCR products was performed by Macrogen Inc. (Seoul, South Korea) using the same primers that were used for the gene amplification. The purified PCR products were sequenced on an ABI 3730XL DNA Analyzer (Applied Biosystems, Foster City, CA, USA). Sequence trace files were analysed using SEQUENCHER (version 5.3; Gene Codes Corp., Ann Arbor, MI, USA).

2.4. Vegetation and Soil Analysis

Vegetation was sampled using phytosociological relevés according to the standard Central European methodology [23], with expanded cover-abundance scale [24]. Plant nomenclature follows Euro + Med PlantBase [25].
On each monthly visit to the study sites, we measured, following environmental variables, near each pitfall trap: (1) soil temperature (°C) at 5 cm and 10 cm depth, using a P300 Dostmann electronic thermometer (Dostmann Electronic, Wertheim, Germany) and (2) soil moisture (%) using a FieldScout TDR100 soil moisture meter (Spectrum Technologies, Inc., Bridgend, UK). In the laboratory, we measured soil pH in water with a ratio of 1:2.5 (w/v= 10 g substrate/25 mL H2O) using a WTW pH 330i meter (Xylem Analytics, Weilheim, Germany).

2.5. Data Analysis

2.5.1. Distribution

Data on the distribution of X. anulata were obtained from field studies and the literature data. For each record, the following data were provided: country, biogeographical region, locality with the name of the geographical region in brackets (e.g., Gorski Kotar, Zagorje), date and data source. For certain records, exact dates are missing as they were not provided in the cited literature. Additionally, we provided the habitat type and number of specimens documented in the literature. Distribution data are presented and discussed in terms of three biogeographical regions: Alpine, Continental and Mediterranean (according to EEA [26]). All records were georeferenced using the Register of Geographical Names [27] and Google Maps. Distribution maps were created in QGIS 3.4.6.

2.5.2. Soil Properties

Soil properties measured both in situ (temperature at 5 and 10 cm depth and moisture) and in the laboratory (pH) were displayed as mean values with standard deviation per habitat type.

2.5.3. Seasonal Activity

Seasonal distribution is based on a two-year sampling study using pitfall traps (see Section 2.2) and data obtained from the literature, which are based on hand collecting. The number of individuals were pooled per month.

2.5.4. Phylogenetic Analysis

COI sequences were used to infer DNA-based species’ identification of Xerobdella specimens collected in the present study. Obtained sequences in the present study were analyzed together with COI sequences of Xerobdella and outgroup leech species from the GenBank base (https://www.ncbi.nlm.nih.gov/genbank/ (accessed on 17 July 2022). Newly obtained sequences in the present study were deposited in the GenBank base under accession numbers (Acc. No.) OP270246–OP270248.
Evolutionary analyses were conducted in MEGA7 [28]. Estimates of evolutionary divergence between the sequences were calculated using the Kimura 2-parameter model (K2P) [29]. The rate variation among the sites was modeled using a gamma distribution (shape parameter = 1). Divergence is presented by the number of base substitutions per site between the sequences. Standard error estimates were obtained by a bootstrap procedure (100 replicates).
The phylogenetic reconstruction was inferred using the Maximum Likelihood (ML) method based on the K2P and the Neighbor-Joining (NJ) method based on the evolutionary distances computed using the K2P model [30]. ML initial tree(s) for the heuristic search were obtained automatically by applying Neighbor-Join and BioNJ algorithms to a matrix of pairwise distances estimated using the Maximum Composite Likelihood approach, and then selecting the topology with a superior log likelihood value. A discrete gamma distribution was used to model evolutionary rate differences among the sites (five categories (+G, parameter = 0.6856)). The tree is drawn to scale, with branch lengths measured in the number of substitutions per site.

3. Results and Discussion

3.1. Distribution

Xerobdella anulata occurs in two biogeographical regions of Croatia: Alpine and Continental (Figure 2a, Table A1 (in the Appendix A)). In total, it has been recorded at seven localities and most findings are confined to the Alpine biogeographical region. In the Continental biogeographical region of Croatia, the species was found at a single locality, 56 years ago (Table A1) [31].
According to present knowledge, X. anulata is distributed in five countries: Slovenia (Figure 2b, Table A1) [11], Croatia [8,31], Bosnia and Herzegovina [11], Serbia [7] and Montenegro [32]. In terms of biogeography, most findings are documented for the Alpine biogeographical region, with only two records from the Continental biogeographical region (Figure 2b, Table A1).
The species was recorded from 462 to 1505 m a. s. l. [7,8,31], with most records confined to higher altitudes between 700 m and 1100 m a. s. l.

3.2. Morphology

In our sample, the total body length of adult specimens was 24.6 mm on average, ranging from 17.4 to 36.2, whereas the maximum body width was 3.0 mm on average, with a range of 1.7 to 4.7 mm. In juveniles, the average total body length was 15.7 mm, with a range of 10.8 to 23.3 mm, while the maximum body width was 1.0 mm on average, ranging from 0.9 to 1.2 mm. The specimens could be unequivocally identified as X. anulata based on the number of annuli separating the male and female gonopores [31]; male and female gonopores were separated by four (in six individuals), four-and-a-half (in three individuals) to five annuli (in nine individuals) (Figure 3a). In all specimens with a four-annuli separation, both male and female gonopores were situated in the furrows between the annuli, whereas in specimens with a four-and-a-half annuli separation, the male gonopore was situated in the middle of an annulus and the female gonopore in the furrow. On the other hand, most specimens with a five-annuli separation had both male and female gonopores situated on their respective annuli (thus separated by ½ annulus + four whole annuli + ½ annulus), but in at least one specimen the gonopores were situated in furrows (separated by five whole annuli). An anterior body part with four pairs of eyespots and a pair of oral palps is shown in Figure 3b and Figure 6.

3.3. Habitat

In total, 22 specimens of X. anulata (19 adults and three juveniles) were sampled within two years of sampling (Table A1). Most specimens were sampled in the meadows, followed by managed Dinaric beech–fir forests, while only one specimen was caught in the primeval Dinaric beech–fir forest (Table 1, Table A1). Species-rich meadows are maintained by forest logging and have been used for a long period of time as hay meadows or pastures (Table 1). Contrary to our findings, X. anulata has previously been found solely in forests belonging to various plant associations (Table A1) [31]. Some forests are humid, such as Lamio orvalae-Fagetum sylvaticae, Omphalodo-Fagetum and Blechno-Abietetum, while others, such as Helleboro nigri-Pinetum sylvestris, develop on a dry shallow rendzina on the dolomite substrate. Recently, it was found in Serbia for the first time, above a stream in a mixed deciduous–coniferous forest, in the part dominated by beech trees [7]. Thus, our findings from the Dinaric beech–fir forests corroborate previous findings [8,31], while our records from the surrounding meadows also show that X. anulata is not strictly restricted to the forests.

3.4. Soil Properties

The main feature of the soil cover in the studied areas is the highly pronounced spatial variability, with different soil types. Thus, black soil on limestone (calcomelanosol) and brown soil on limestone and dolomite (calcocambisol) are formed [14].
Mean soil temperature, at both 5 and 10 cm below the surface, increases in all studied habitats from May to August and its values decrease again in the subsequent months (Figure 4a,b). The opposite pattern is documented for soil moisture in all studied habitat types (Figure 4c). The greatest difference between the maximum summer and the minimum autumn soil temperature at 5 cm below the surface was recorded in the meadow (18.2 °C). These differences were less pronounced in the studied forests and the temperature ranges recorded in the managed and primeval forests were 13 °C and 9 °C, respectively. Similar patterns are documented for soil temperatures at 10 cm depth (Figure 4b). The greatest difference between the maximum autumn and the minimum summer soil moisture was documented in the meadow (75.9%), followed by the managed forest (54.6%). In the primeval forest, the difference between the maximum autumn and the minimum autumn soil moisture was less pronounced (38%), most likely due to skeletal soil. In May, when most of the specimens of X. anulata were recorded, the mean soil temperature at 5 cm depth reached 10 °C in all studied habitat types and the soil was relatively moist, above 40%, with the exception of the primeval forest (28%; Figure 4c).
Soils in managed forests (mean ± SD, 5.86 ± 0.78; range: 4.95–6.80) and meadows (5.98 ± 0.57; range: 5.21–7.15) were acidic, with mean values above 5.5. However, in the primeval forest (4.48 ± 0.50; range: 4.00–5.00) the soil was strongly acidic, with a mean value below 5.5. Thus, it seems that X. anulata can tolerate acidic conditions, related to dense leaf litter layers in the primeval forest and decomposition.

3.5. Seasonal Distribution

The maximum seasonal activity was observed in May, while the number of individuals strongly decreased later in the season, with no specimens recorded after August (Figure 5). The plot is based on the literature data, with altogether 16 hand-collected specimens over a 50-year period, and two years of consecutive field studies using pitfall traps with in total 22 individuals sampled. These results highlight two important facts: (1) land leech X. anulata exhibits surface activity and (2) pitfall traps are more effective in land leech sampling than hand collecting. The surface activity of X. anulata is expressed early in the season (May), while it is extremely difficult to encounter the species later in the season, despite favorable climatic conditions (lower temperature, higher humidity; Figure 4). An additional search for the species, conducted by the first author at the beginning of July 2014 at the sites where it had been previously recorded, met with no success even after eight hours of soil sieving. It is possible that the species hides beneath the stones and tree bark later in the year, a behavior previously reported by Reisinger [10] at the beginning of the vegetation season. Additionally, the species might hide in deeper soil layers, as it was found in the soil at 5 cm depth while setting up pitfall traps (Brigić, personal observation). Continuous sampling, one of the greatest advantages of pitfall traps, makes them particularly useful for sampling invertebrates occurring in low densities [33]. In the current case, this method proves to be successful in sampling taxa rarely found in nature, which are thus particularly prone to under sampling.

3.6. Feeding Habits

In one of the pitfall traps, we found a specimen of X. anulata feeding on microdrile oligochaete of the family Enchytraeidae (Figure 6). Similar feeding habits have been documented in other studies, where land leeches were reported feeding on earthworms [2,9,10]. With a diet encompassing primarily such ground-dwelling invertebrates [2], it is likely that these leeches emerge from their burrows and exhibit surface activity (see Seasonal distribution, above) in the evening to forage, when the surface activity of their preferred prey is the highest [34]. Therefore, active searches for X. anulata during the night, in combination with pitfall trapping, might additionally increase sampling efficiency and result in larger datasets required to expand our knowledge on this elusive species and its habits.

3.7. Phylogenetic Relationships

We obtained three identical sequences from three X. anulata specimens collected by three different pitfall traps (separated by 25–50 m) at the same site in the Dinaric beech–fir forest near Ravna Gora, Gorski Kotar region. The newly generated sequences present the first DNA barcodes of this species. Only two COI sequences of genus Xerobdella were available in the GenBank base and both were designated as X. lecomtei (Acc. No. EF125040, Kutschera et al. [2]; Acc. No. EU100099, Borda et al. [9]). In total, the phylogenetic reconstruction involved five sequences of Xerobdella and two sequences of outgroup species. The trees were rooted with sequences of Mesobdella gemmata (Acc. No. EU100097, Borda et al. [9]) and Hirudo medicinalis (Acc. No. EU100093, Borda et al. [9]).
The K2P values between the morphologically identified species X. anulata and X. lecomtei ranged from 3.26% to 4.88%. The maximum distance of 4.88 ± 1% was observed between X. lecomtei from Austria (Acc. No. EF125040) and X. anulata from Croatia (sequenced in the present study). The lowest K2P distance of 2.63 ± 0.7% was observed between X. lecomtei from Austria (Acc. No. EF125040) and X. lecomtei from Slovenia (Acc. No. EU100099). The ML tree with the highest log likelihood (−2160.07) is shown in Figure 7. The percentage of replicate trees in which the associated taxa clustered together in the bootstrap test (100 replicates) are shown next to the branches [35]. There was a total of 698 positions in the final dataset.
Three new sequences belong to a single haplotype and form a supported group on the phylogenetic tree (Figure 7). The observed K2P difference of 3.26% to 4.88% between X. anulata and X. lecomtei in our dataset is at the lower margin of the interspecific threshold of 4–8% K2P distance for freshwater Glossiphonia leeches in the Western Balkans, as defined by Jovanović et al. [36]. Nevertheless, in the same study, morphologically well-defined species G. balcanica and G. complanata differed with a mean K2P interspecific distance of only 3.17%, possibly resulting from the small number of G. balcanica sequences used [36]. Accordingly, molecular data obtained from only a few specimens of X. anulata from a single population are likely insufficient to clarify the taxonomic status of this species and resolve the phylogenetic relationships within the genus Xerobdella. Such an undertaking should encompass a larger series collected from numerous populations of all three Xerobdella species (X. anulata, X. lecomtei, X. praealpina) throughout their respective distribution areas, most importantly including type material or fresh specimens collected from type localities.

4. Conclusions

In conclusion, X. anulata most commonly inhabits humid forests, but our results show that it also occurs in humid montane meadows and less humid forest habitats. It is more likely to occur in microhabitats with higher moisture contents and in acidic to neutral soils. Dinaric beech–fir forests cover approximately 150,000 ha in the Dinaric mountains of Croatia [14], thus it is likely that the species has a much wider distribution than previously thought. Further research is required to validate the full range of this species’ habitat preferences. Our findings also indicate that future efforts should focus on collecting X. anulata in the spring, considering the observed activity peak in May and June. Importantly, we provide the first evidence that X. anulata exhibits surface activity, probably associated with foraging for the preferred prey such as oligochaetes; accordingly, pitfall trapping with a sufficient sampling effort and duration (i.e., a high number of traps exposed continuously throughout the season) proves to be an efficient method for sampling these rare leeches, with great potential for obtaining substantially larger datasets in the future. The current study also shows that, although COI sequences were successfully obtained from only a few specimens (3 out of 22), even the samples collected over 10 years ago in a solution of wine vinegar, ethanol and water (1:1:1) and afterwards stored in 75% ethanol at room temperature can still be suitable for molecular analysis. This is an encouraging prospect for phylogenetic research on rare and under-sampled taxa such as Xerobdella leeches.

Author Contributions

Conceptualization, A.B., F.R. and M.J.; methodology, A.B. and M.J.; validation, M.K. and A.A.; formal analysis, A.B. and M.J.; investigation, A.B. and A.A.; resources, A.B.; data curation, A.B., M.J. and K.M.; writing—original draft preparation, A.B., F.R., M.J. and M.K.; visualization, A.B., M.J., K.M. and F.R.; supervision, A.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author. The data are not publicly available due to the authors’ policy of saving data for future publications.

Acknowledgments

We are grateful to Dario Brigić, Stjepan, Denis and Filip Križanić and Marija Starčević for their help with field sampling. Resources utilized in this study were obtained, in part, through a Croatian Scientific Foundation grant awarded to A.B. (DinDRY project), grant number UIP-2020-02-5385. We would like to thank the reviewers for improving the quality of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

Table A1. List of known records of the Dinaric land leech (Xerobdella anulata).
Table A1. List of known records of the Dinaric land leech (Xerobdella anulata).
CountryBiogeographical RegionLocationHabitat TypePlant Association, Based on Historic Literature DataValid Name of Plant AssociationNumber of IndividualsDateData Source
CroatiaAlpineBabin potok, Vrhovine (Lika region)ForestHelleboreto-PinetumHelleboro nigri-Pinetum sylvestris Horvat 1958111.5.1962[31]
CroatiaAlpineBabin potok, Vrhovine (Lika region)ForestHelleboreto-PinetumHelleboro nigri-Pinetum sylvestris Horvat 1958230.5.1963[31]
CroatiaAlpineBabin potok, Vrhovine (Lika region)ForestPiceetum dolomiticumSuballiance Vaccinio-Piceeion111.5.1962[31]
CroatiaAlpineBabin potok, Vrhovine (Lika region)ForestPiceetum dolomiticumSuballiance Vaccinio-Piceeion126.6.1962[31]
CroatiaContinentalCesergradska Gora, Klanjec (Hrvatsko zagorje region)ForestFagetum croaticum montanumLamio orvalae-Fagetum sylvaticae (Horvat 1938) Borhidi 1963119.5.1962[31]
CroatiaAlpineBijeli Vrh, Vrhovine (Lika region)ForestFagetum croaticum abietetosumOmphalodo-Fagetum (Tregubov 1957/Marinček et al. 1993)226.4.1963[31]
CroatiaAlpineBijeli Vrh, Vrhovine (Lika region)ForestFagetum croaticum abietetosumOmphalodo-Fagetum (Tregubov 1957/Marinček et al. 1993)129.5.1963[31]
CroatiaAlpineFrk, Crni Lug (Gorski kotar region)ForestBlechno-AbietetumBlechno-Abietetum Horvat /1938/1950117.7.1964[31]
CroatiaAlpineSnježnik (Gorski kotar region)ForestFagetum croaticum subalpinumRanunculo platanifolii-Fagetum Marinček et al. 1993119.8.1964[31]
CroatiaAlpineSnježnik (Gorski kotar region)ForestPinetum mugho croaticumHyperico grisebachii-Pinetum mugi (Horvat 1938) ex Zupančič et al. 2004228.5.1964[31]
CroatiaAlpineSnježnik (Gorski kotar region)ForestPinetum mugho croaticumHyperico grisebachii-Pinetum mugi (Horvat 1938) ex Zupančič et al. 2004118.8.1964[31]
CroatiaAlpineBukovica, Ravna gora (Gorski kotar region)Managed forest Omphalodo-Fagetum (Tregubov 1957/Marinček et al. 1993)313.5.2009New data
CroatiaAlpineBukovica, Ravna gora (Gorski kotar region)Managed forest Omphalodo-Fagetum (Tregubov 1957/Marinček et al. 1993)629.5.2010New data
CroatiaAlpineBukovica, Ravna gora (Gorski kotar region)Meadow Alchemillo-Trisetetum Horvat 1962, Festuco-Agrostetum Horvat 1962610.6.2009New data
CroatiaAlpineBukovica, Ravna gora (Gorski kotar region)Meadow Alchemillo-Trisetetum Horvat 1962, Festuco-Agrostetum Horvat 1962313.5.2009New data
CroatiaAlpineBukovica, Ravna gora (Gorski kotar region)Meadow Alchemillo-Trisetetum Horvat 1962, Festuco-Agrostetum Horvat 1962329.5.2010New data
CroatiaAlpineČorkova uvala, NP Plitvice Lakes (Lika region)Primeval forest Omphalodo-Fagetum (Tregubov 1957/Marinček et al. 1993)112.6.2009New data
SerbiaContinentalRastište, Tara Mt.Forest -224.5.2019[7]
SloveniaAlpineSnežnikForest ---[11]
Bosnia and HerzegovinaAlpineBjelašnicaForest ---[11]
Bosnia and HerzegovinaAlpineSarajevoForest ---[11]
MontenegroAlpinePlužine, Piva River- --8.5.2018[32]

References

  1. Borda, E.; Siddall, M.E. Arhynchobdellida (Annelida: Oligochaeta: Hirudinida): Phylogenetic Relationships and Evolution. Mol. Phylogenet. Evol. 2004, 30, 213–225. [Google Scholar] [CrossRef] [PubMed]
  2. Kutschera, U.; Pfeiffer, I.; Ebermann, E. The European Land Leech: Biology and DNA-Based Taxonomy of a Rare Species That Is Threatened by Climate Warming. Naturwissenschaften 2007, 94, 967–974. [Google Scholar] [CrossRef] [PubMed]
  3. Trontelj, P.; Sket, B.; Steinbrück, G. Molecular Phylogeny of Leeches: Congruence of Nuclear and Mitochondrial RDNA Data Sets and the Origin of Bloodsucking. J. Zool. Syst. Evol. Res. 1999, 37, 141–147. [Google Scholar] [CrossRef]
  4. Minelli, A. Hirudinea. In Fauna d’Italia; Calderini: Bologna, Italia, 1979; ISBN 978-88-7019-020-5. [Google Scholar]
  5. Soós, Á. Az Európai Szárazföldi Piócákról (Hirudinoidea: Xerobdellidae). Különlenyomat Az Állattani Közlemények 1973, 60, 103–109. [Google Scholar]
  6. Jueg, U. Xerobdella praealpina Minelli, 1971 (Hirudinea, Xerobdellidae) in Österreich und Slowenien. Lauterbornia 2015, 79, 145–149. [Google Scholar]
  7. Grosser, C. First Record of Xerobdella anulata Autrum, 1958 (Hirudinida: Xerobdellidae) from Serbia. Biol. Serb. 2020, 42, 10–13. [Google Scholar] [CrossRef]
  8. Autrum, H. Hirudinea, Egel. In Die Tierwelt Mitteleuropas, 1st ed.; Brohmer, P., Ehrmann, P., Ulmer, G., Eds.; Quelle & Meyer: Leipzig, Germany, 1958. [Google Scholar]
  9. Borda, E.; Oceguera-Figueroa, A.; Siddall, M.E. On the Classification, Evolution and Biogeography of Terrestrial Haemadipsoid Leeches (Hirudinida: Arhynchobdellida: Hirudiniformes). Mol. Phylogenet. Evol. 2008, 46, 142–154. [Google Scholar] [CrossRef]
  10. Reisinger, E. Lebensweise und Verbreitung des Europäischen Landblutegels (Xerobdella lecomtei Frauenfeld). Carinthia II. 141 1951, 61, 110–124. [Google Scholar]
  11. Sket, B. K Poznavanju favne pijavk (Hirudinea) v Jugoslaviji; Razprave, Razred za Prirodoslovne in Medicinske vede; Slovenska Akademija znanosti in umetnosti: Ljubljana, Slovenia, 1968; Volume 4. [Google Scholar]
  12. Soós, Á. Milyen Pióca Fajok Várhatók Még a Magyar Faunában? Különlenyomat az Állattani Közlemények 1964, 51, 125–133. [Google Scholar]
  13. Soós, Á. A Zoogeographical Sketch of the Fresh-Water and Terrestrial Leeches (Hirudinoidea). Opusc. Zool. Budapest 1970, 10, 313–323. [Google Scholar]
  14. Vukelić, J.; Mikac, S.; Baričević, D.; Bakšić, D.; Rosavec, R. Šumska staništa i šumske zajednice u Hrvatskoj; Nacionalna Ekološka Mreža; Državni zavod za zaštitu Prirode: Zagreb, Republika Hrvatska, 2008; p. 263. [Google Scholar]
  15. Jelaska, S.D. Floristic and Ecological Characteristics of the Beech-Fir Virgin Forest in Croatia. In Proceedings of the Scientific Symposium “Virgin Forest Ecosystems of Dinaric Karst and Nature-Based Forest Management in Croatia”, Zagreb, Croatia, 27–28 September 2007; Matić, S., Anić, I., Eds.; Croatian Academy of Science and Art: Zagreb, Croatia, 2009; pp. 91–100. [Google Scholar]
  16. Vukelić, J.; Mikac, S. Znanstvena analiza značajki prašuma sjevernog Velebita i uspostavljanje monitoringa kao polazišta za praćenje promjena u šumskim staništima, posebice unutar Ekološke Mreže NATURA 2000; Šumarski fakultet Sveučilišta u Zagrebu: Zagreb, Croatia, 2010. [Google Scholar]
  17. Alegro, A.; Papp, B.; Szurdoki, E.; Šegota, V.; Šapić, I.; Vukelić, J. Contributions to the Bryophyte Flora of Croatia III. Plitvička Jezera National Park and Adjacent Areas. Studia Bot. Hung. 2014, 45, 49–65. [Google Scholar] [CrossRef] [Green Version]
  18. Šegota, T.; Filipčić, A. Köppenova podjela klima i hrvatsko nazivlje. Geoadria 2017, 8, 17–37. [Google Scholar] [CrossRef] [Green Version]
  19. Zaninović, K.; Gajić-Čapka, M.; Perčec Tadić, M.; Vučetić, M.; Milković, J.; Bajić, A.; Cindric, K.; Cvitan, L.; Katušin, Z.; Kaučić, D.; et al. Klimatski atlas Hrvatske—Climate Atlas of Croatia: 1961–1990. 1971–2000; Meteorological and Hydrological Service of Croatia: Zagreb, Croatia, 2008. [Google Scholar]
  20. Brigić, A.; Starčević, M.; Hrašovec, B.; Elek, Z. Old Forest Edges May Promote the Distribution of Forest Species in Carabid Assemblages (Coleoptera: Carabidae) in Croatian Forests. Eur. J. Entomol. 2014, 111, 715–725. [Google Scholar] [CrossRef] [Green Version]
  21. Casquet, J.; Thebaud, C.; Gillespie, R.G. Chelex without Boiling, a Rapid and Easy Technique to Obtain Stable Amplifiable DNA from Small Amounts of Ethanol-stored Spiders. Mol. Ecol. Resour. 2012, 12, 136–141. [Google Scholar] [CrossRef]
  22. Folmer, O.; Black, M.; Hoehn, W.; Lutz, R.; Vrijenhoek, R. DNA Primers for Amplification of Mitochondrial Cytochrome c Oxidase Subunit I from Diverse Metazoan Invertebrates. Mol. Mar. Biol. Biotechnol. 1994, 3, 294–299. [Google Scholar]
  23. Braun-Blanquet, J. Pflanzensoziologie, Grundzüge Der Vegetationskunde, 3rd ed.; Springer: Berlin/Heidelberg, Germany, 1964; ISBN 978-3-7091-8111-9. [Google Scholar]
  24. Barkman, J.J.; Doing, H.; Segal, S. Kritische Bemerkungen und Vorschläge zur Quantitativen Vegetationsanalyse. Acta Bot. Neerl. 1964, 13, 394–419. [Google Scholar] [CrossRef]
  25. Euro+Med PlantBase—The Information Resource for Euro-Mediterranean Plant Diversity. Available online: http://ww2.bgbm.org/EuroPlusMed/ (accessed on 18 May 2022).
  26. EEA (European Environment Agency). 2010. Available online: http://www.eea.europa.eu/soer/europe-and-the-world (accessed on 18 May 2022).
  27. Croatian Geodetic Administration (CGA). Središnji registar prostornih jedinica RH (GIS Shapefileovi); Central Registry of Spatial Units in the Republic of Croatia (GIS Shapefiles): Zagreb, Croatia, 2022. [Google Scholar]
  28. Kumar, S.; Stecher, G.; Tamura, K. MEGA7: Molecular Evolutionary Genetics Analysis Version 7.0 for Bigger Datasets. Mol. Biol. Evol. 2016, 33, 1870–1874. [Google Scholar] [CrossRef] [Green Version]
  29. Kimura, M. A Simple Method for Estimating Evolutionary Rates of Base Substitutions through Comparative Studies of Nucleotide Sequences. J. Mol. Evol. 1980, 16, 111–120. [Google Scholar] [CrossRef]
  30. Saitou, N.; Nei, M. The Neighbor-Joining Method: A New Method for Reconstructing Phylogenetic Trees. Mol. Biol. Evol. 1987, 4, 406–425. [Google Scholar]
  31. Dresscher, G.N.; Engel, H.; Van Der Spoel, S. Neue Fundorte und Variabilität der Xerobdella anulata Autrum, 1958 (Hirudinea, Haemadipsidae). Beaufortia Misc. Publ. Zool. Mus. Univ. Amst. 1966, 162, 213–219. [Google Scholar]
  32. Marinković, N.; Zorić, K.; Atanacković, A.; Tubić, B.; Paunović, M.; Pešić, V.; Raković, M. First Record of Terrestrial Leech Xerobdella anulata Autrum, 1958 from Montenegro. In Proceedings of the 49th Annual Conference of the Serbian Water Pollution Control Society Water 2020 Conference Proceedings, Serbian Water Pollution Control Society, Trebinje, Bosnia and Herzegovina, 19–20 November 2020; pp. 167–170, ISBN 978-86-916753-7-0. [Google Scholar]
  33. Melbourne, B.A. Bias in the Effect of Habitat Structure on Pitfall Traps: An Experimental Evaluation. Austral. Ecol. 1999, 24, 228–239. [Google Scholar] [CrossRef] [Green Version]
  34. Nuutinen, V.; Butt, K.R.; Jauhiainen, L.; Shipitalo, M.J.; Sirén, T. Dew-Worms in White Nights: High-Latitude Light Constrains Earthworm (Lumbricus terrestris) Behaviour at the Soil Surface. Soil Biol. Biochem. 2014, 72, 66–74. [Google Scholar] [CrossRef]
  35. Felsenstein, J. Confidence Limits on Phylogenies: An Approach Using the Bootstrap. Evolution 1985, 39, 783–791. [Google Scholar] [CrossRef] [PubMed]
  36. Jovanović, M.; Haring, E.; Sattmann, H.; Grosser, C.; Pešić, V. DNA Barcoding for Species Delimitation of the Freshwater Leech Genus Glossiphonia from the Western Balkan (Hirudinea, Glossiphoniidae). Biodivers. Data J. 2021, 9, e66347. [Google Scholar] [CrossRef]

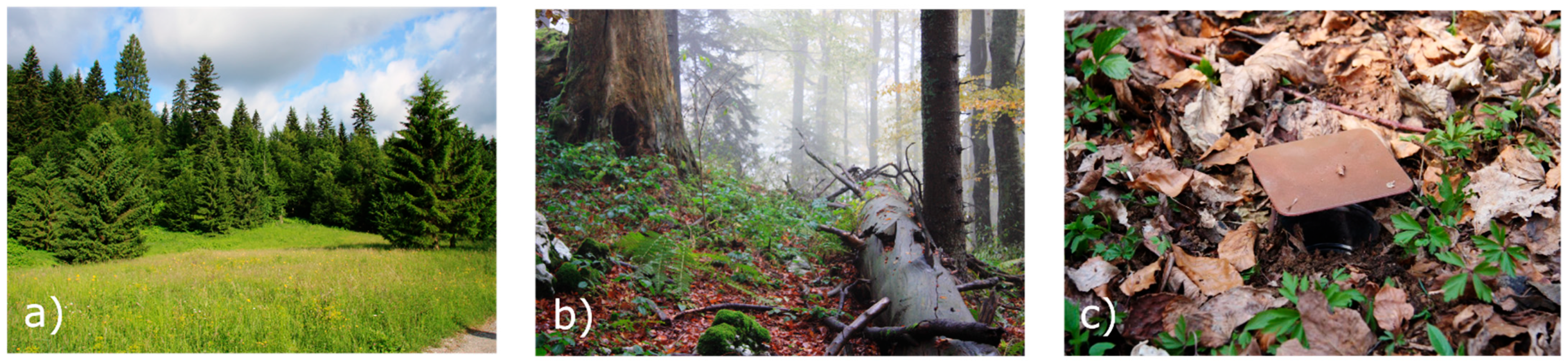

Figure 1. (a) managed Dinaric beech–fir forest and adjacent meadow, (b) the primeval Čorkova Uvala Dinaric beech–fir forest, (c) pitfall trap installed at one of the sampling sites in the Dinaric beech–fir forest, Croatia.
Figure 1. (a) managed Dinaric beech–fir forest and adjacent meadow, (b) the primeval Čorkova Uvala Dinaric beech–fir forest, (c) pitfall trap installed at one of the sampling sites in the Dinaric beech–fir forest, Croatia.
Diversity 14 00701 g001

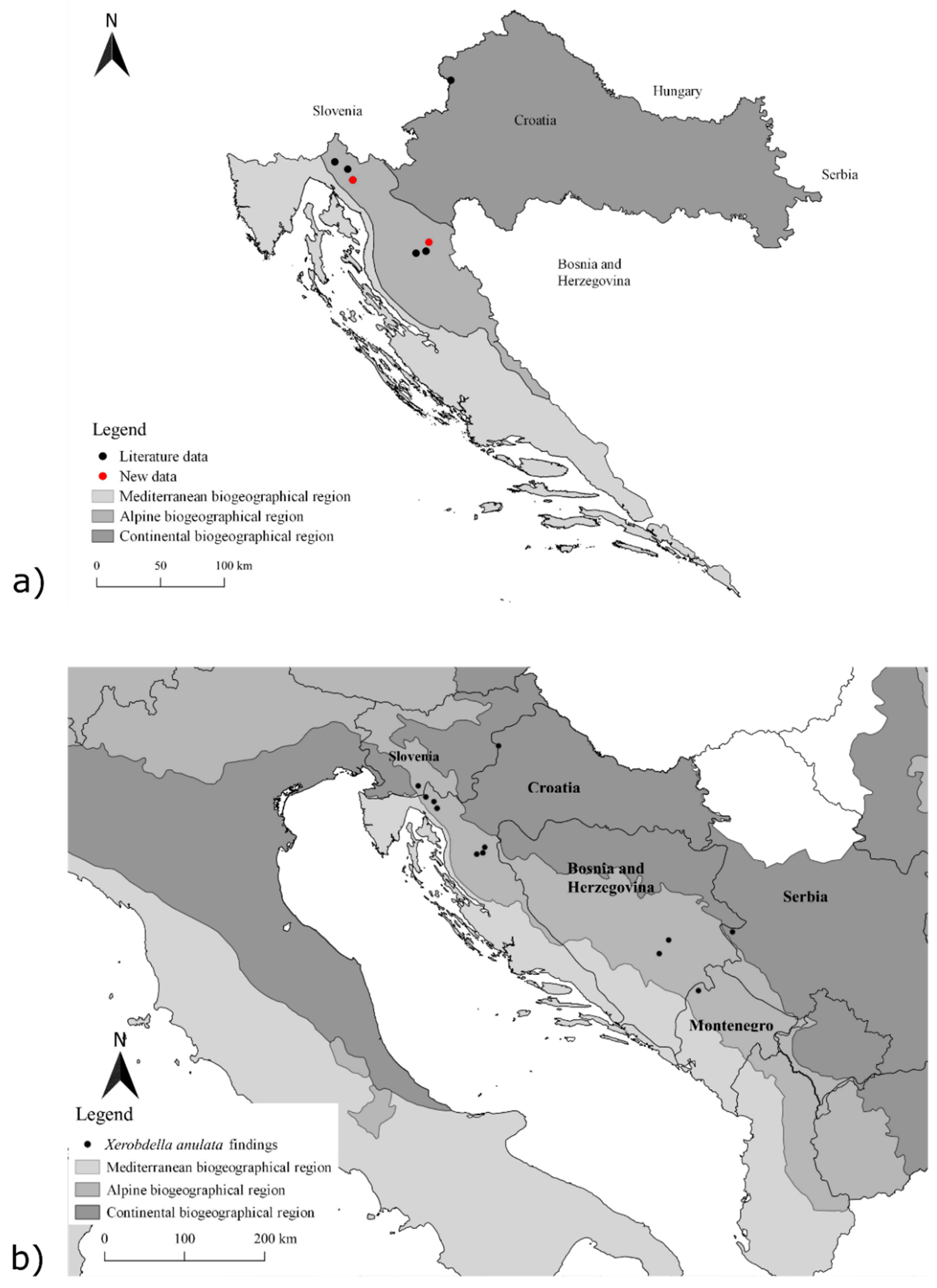

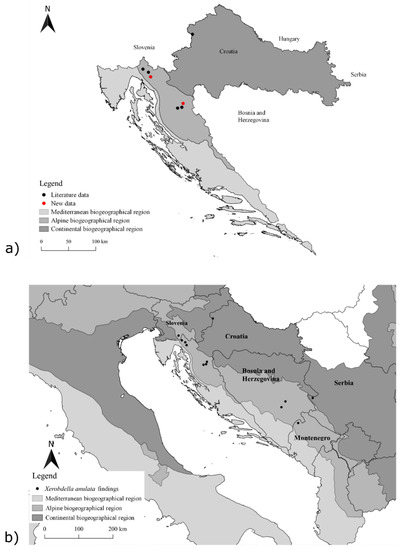

Figure 2. (a) Distribution of the Dinaric land leech (Xerobdella anulata) in Croatia, based on the historic literature data and new findings; (b) currently known distribution of the Dinaric land leech (X. anulata) in Europe, with respect to biogeographical regions.
Figure 2. (a) Distribution of the Dinaric land leech (Xerobdella anulata) in Croatia, based on the historic literature data and new findings; (b) currently known distribution of the Dinaric land leech (X. anulata) in Europe, with respect to biogeographical regions.
Diversity 14 00701 g002

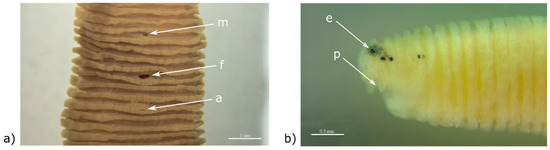

Figure 3. (a) Gonopores in the Dinaric land leech (Xerobdella anulata) from Croatia, (b) lateral view of the anterior body part. Legend: m—male gonopore, f—female gonopore, a—accessory female gonopore, e—eyespot, p—oral palp.
Figure 3. (a) Gonopores in the Dinaric land leech (Xerobdella anulata) from Croatia, (b) lateral view of the anterior body part. Legend: m—male gonopore, f—female gonopore, a—accessory female gonopore, e—eyespot, p—oral palp.
Diversity 14 00701 g003

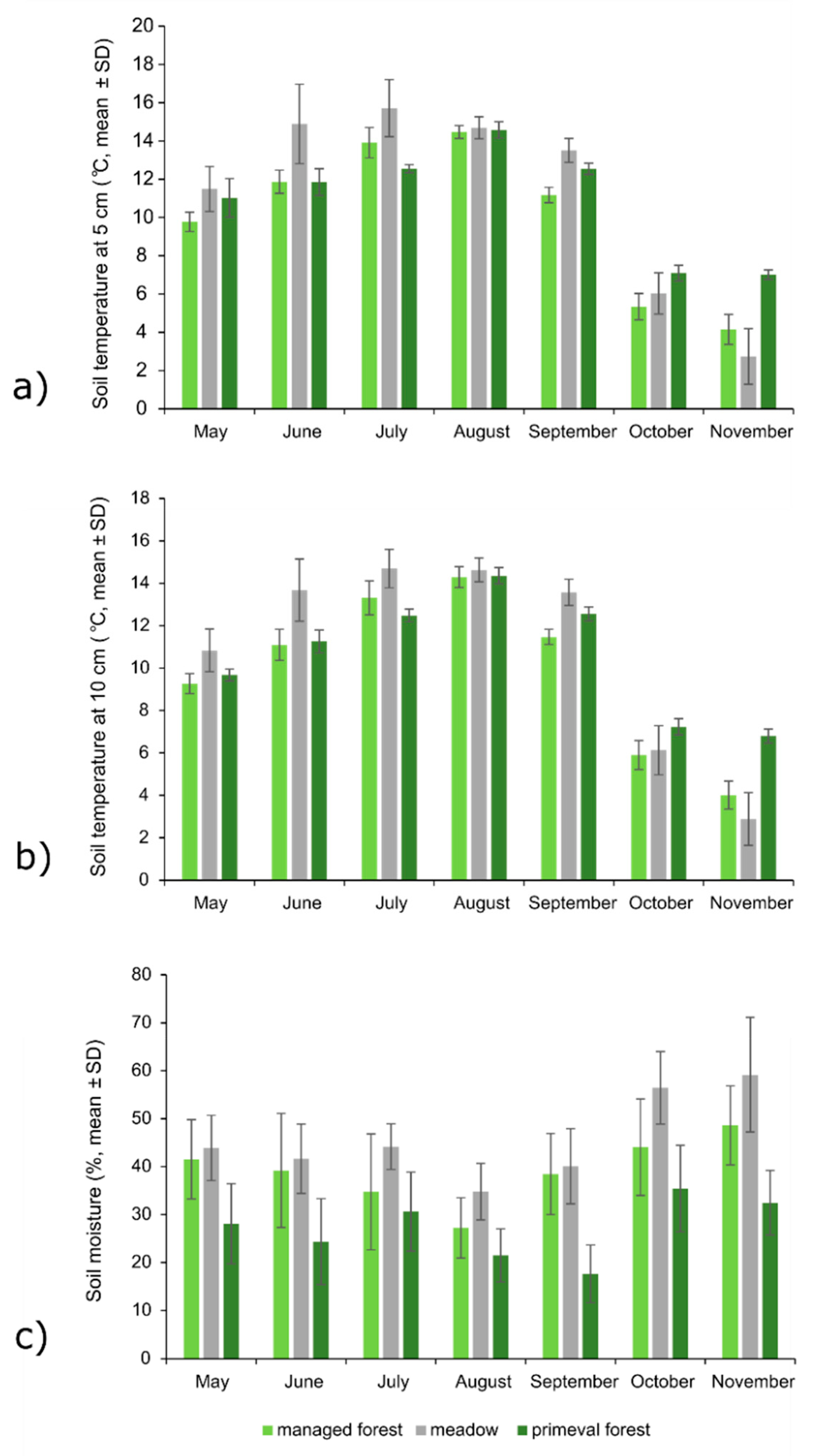

Figure 4. (a) Soil temperature measured at 5 cm below the surface, (b) soil temperature measured at 10 cm below the surface, (c) soil moisture measured at 15 cm below the surface. Soil properties were measured during the vegetation season of 2009, in the Gorski Kotar and Lika regions (Croatia), with the following number of measurements per habitat type: n (managed forest) = 126, n (meadow) = 168, n (primeval forest) = 84.
Figure 4. (a) Soil temperature measured at 5 cm below the surface, (b) soil temperature measured at 10 cm below the surface, (c) soil moisture measured at 15 cm below the surface. Soil properties were measured during the vegetation season of 2009, in the Gorski Kotar and Lika regions (Croatia), with the following number of measurements per habitat type: n (managed forest) = 126, n (meadow) = 168, n (primeval forest) = 84.
Diversity 14 00701 g004

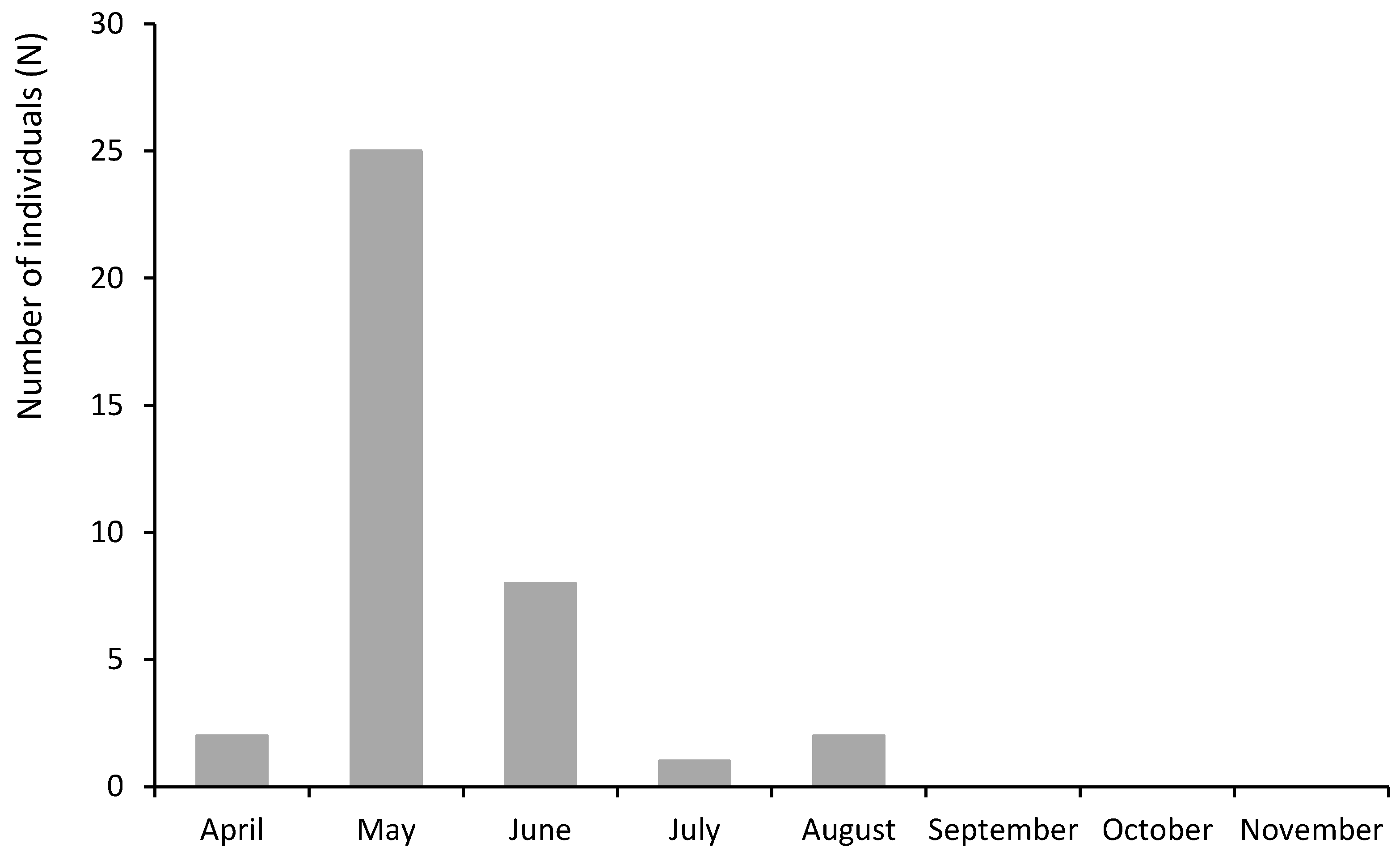

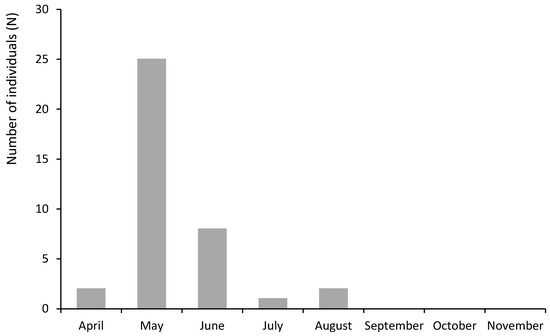

Figure 5. Seasonal dynamics of the Dinaric land leech (Xerobdella anulata) based on the literature data and field studies using pitfall traps. The numbers of individuals are pooled per month.
Figure 5. Seasonal dynamics of the Dinaric land leech (Xerobdella anulata) based on the literature data and field studies using pitfall traps. The numbers of individuals are pooled per month.
Diversity 14 00701 g005

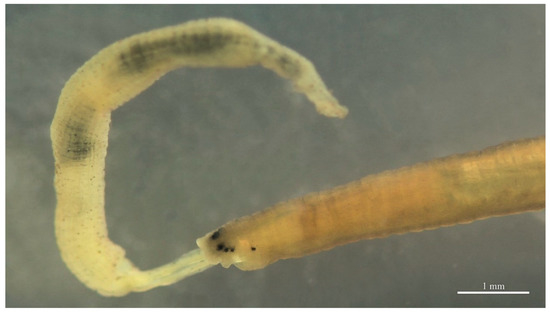

Figure 6. Dinaric land leech (Xerobdella anulata; right) feeding on a microdrile oligochaete of the family Enchytraeidae.
Figure 6. Dinaric land leech (Xerobdella anulata; right) feeding on a microdrile oligochaete of the family Enchytraeidae.
Diversity 14 00701 g006

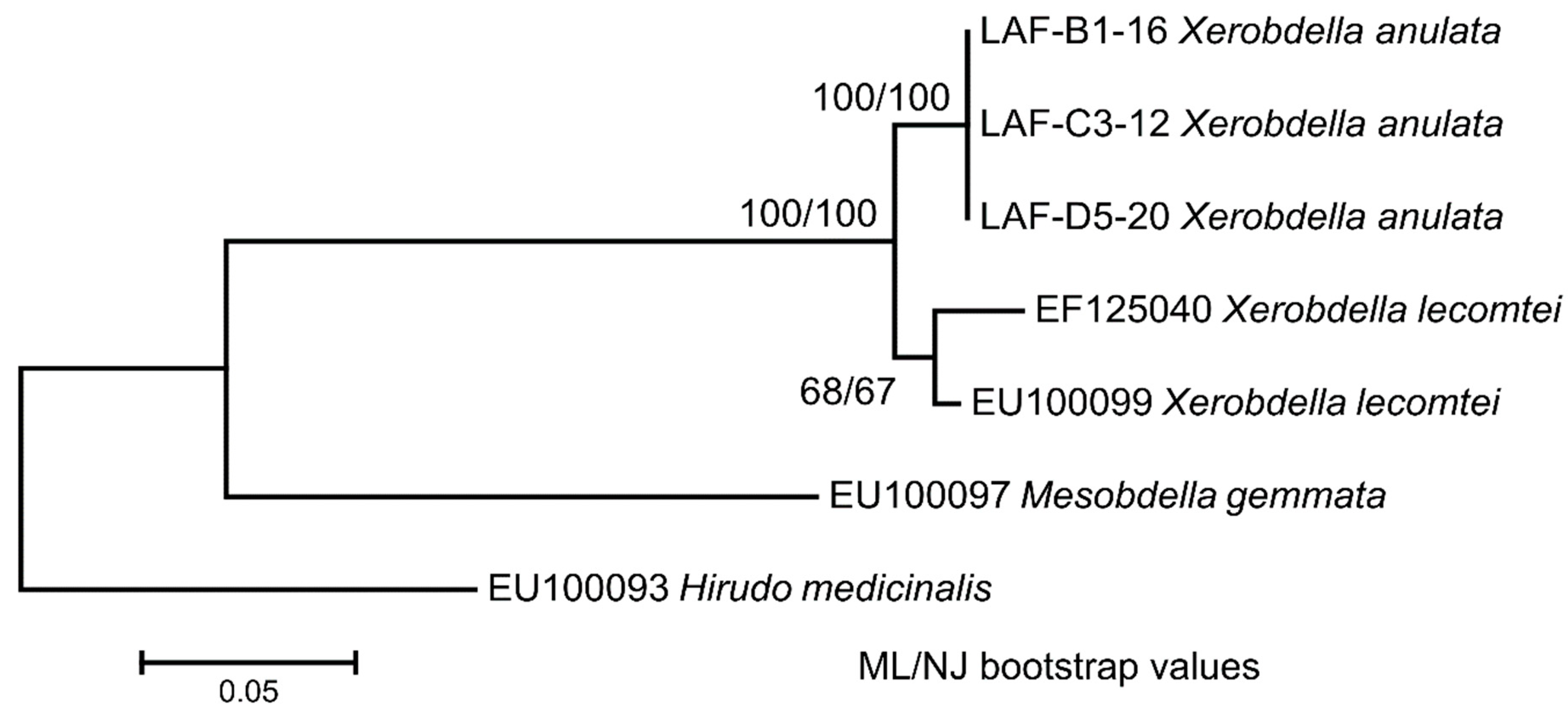

Figure 7. Molecular phylogenetic analysis using the maximum likelihood method. The ML tree is drawn to scale, with branch lengths measured in the number of substitutions per site. Bootstrap support of ML and Neighbor-Joining (NJ) trees are shown next to the branches.
Figure 7. Molecular phylogenetic analysis using the maximum likelihood method. The ML tree is drawn to scale, with branch lengths measured in the number of substitutions per site. Bootstrap support of ML and Neighbor-Joining (NJ) trees are shown next to the branches.
Diversity 14 00701 g007
Table 1. Results of the vegetation analysis in the studied habitats in Gorski Kotar and Lika regions (Croatia). Numerical values for plant species richness were obtained from a total of two sites in the managed forest, three sites in the meadow and four sites in the primeval forest.
Table 1. Results of the vegetation analysis in the studied habitats in Gorski Kotar and Lika regions (Croatia). Numerical values for plant species richness were obtained from a total of two sites in the managed forest, three sites in the meadow and four sites in the primeval forest.
Vegetation AnalysisManaged ForestMeadowPrimeval Forest
Plant associationsOmphalodo-Fagetum/Tregubov 1957/Marinček et al. 1993Alchemillo-Trisetetum Horvat 1962, Festuco-Agrostetum Horvat 1962Omphalodo-Fagetum /Tregubov 1957/Marinček et al. 1993
Tree layer
Dominant speciesFagus sylvatica L. Fagus sylvatica L.
Abies alba Mill. Abies alba Mill.
Picea abies (L.) H. Karst. A. pseudoplatanus
Acer pseudoplatanus L. Fraxinus excelsior L.
Sorbus aucuparia L.
Plant species richness (total)5 10
Shrub layer
Dominant speciesF. sylvatica Acer pseudoplatanus L.
A. alba
Rhamnus alpinus L. spp. Fallax
Rubus hirtus Waldst. et. Kit.
Daphne mezereum L.
Lonicera xylosteum L.
Lonicera nigra L.
Rubus idaeus L.
Daphne laureola L.
Plant species richness (total)14 26
Herb layer
Dominant species Omphalodes verna MoenchFestuca pratensis Huds.Dryopteris filix-mas (L.) Scott.
Allium ursinum L.Festuca rupicola Heuff.Cardamine kitaibelii Becherer
Galium odoratum (L.) Scop.Brachypodium pinnatum (L.) P. Beauv.Stellaria nemorum L. ssp. glochidiosperma Murb.
Oxalis acetosella L.Dactylis glomerata L.
Anemone nemorosa L.Galium mollugo L.
Cardamine trifolia L.Briza media L.
Lamium orvala L.Centaurea nigrescens Willd.
Achillea millefolium L.
Plant species richness (total)389239
