Crystal Structures of Two 4-Alkyl-8-hydroxyquinolines

Abstract

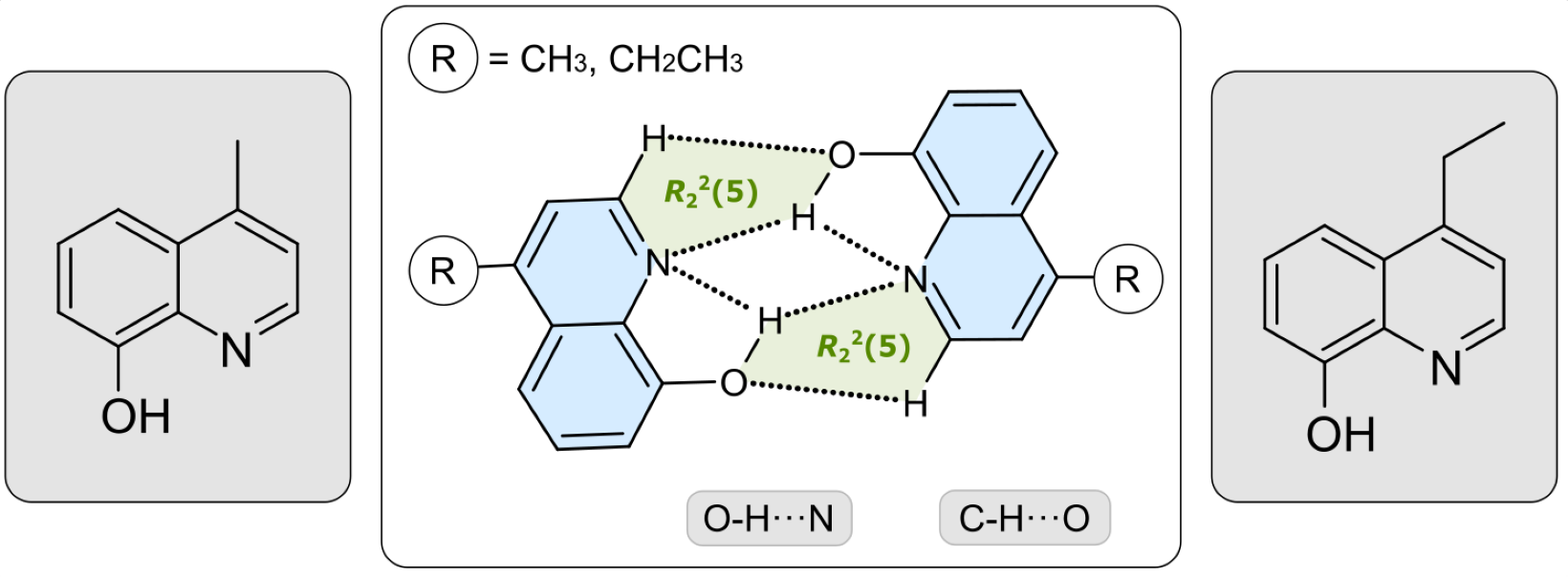

4-Methyl- (1) and 4-ethyl-8-hydroxyquinoline (2) crystallize from a mixture of diethyl ether and chloroform in the triclinic space group P$\overline{1}$. X-ray analysis reveals that both compounds form discrete molecular dimers stabilized by intermolecular O-H∙∙∙N and C-H∙∙∙O hydrogen bonds, resulting in $R_2^2\left(5\right)$ cyclic synthons. This pattern of hydrogen bonds is further stabilized by intramolecular O-H∙∙∙N bonds so that the quinoline nitrogen atom acts as a bifurcated binding site. The dimers exhibit a planar geometry and arrange into layer-like structures held together by π∙∙∙π stacking and van der Waals forces. While the fundamental bonding motifs are similar, the increased steric demand of the ethyl group in compound 2 induces a shift in the crystallographic orientation of the layers and alters the degree of π-overlap compared to the methyl-substituted analogue 1.

1. Introduction

8-Hydroxyquinoline and its derivatives are heterocyclic compounds with a remarkable range of applications reaching from metallurgy and material sciences to medicinal chemistry (for some examples, see References [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21]). Due to the close proximity of the ring nitrogen atom and the hydroxy group, this scaffold exhibits excellent chelating properties against a wide variety of metal ions. Consequently, 8-hydroxyquinolines can be used as reagents for the separation, detection and quantification of metal ions in analytical chemistry [5], as extractants in metallurgy [6,7,8], as corrosion inhibitors [9], in organic light-emitting diode materials [10,11,12,13], as building blocks of artificial receptors and other supramolecular systems [14,15,16], and in drug development [17,18,19,20,21].

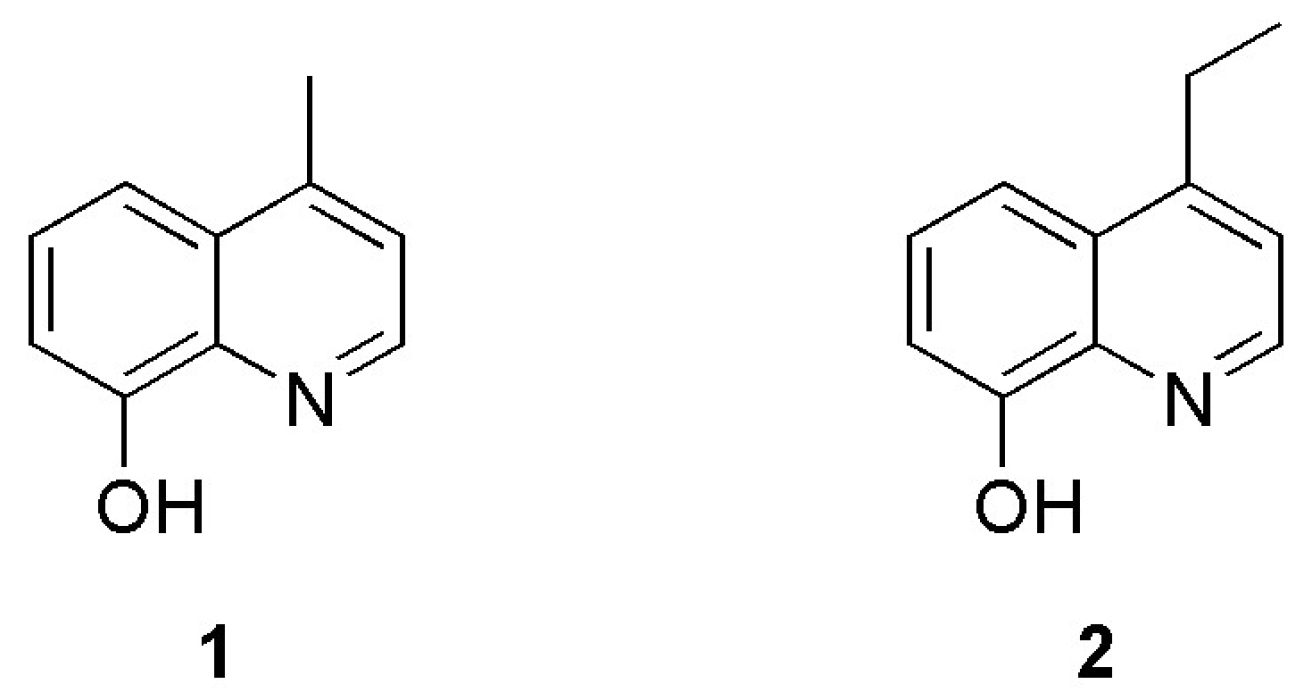

In addition to using 8-hydroxyquinoline for the construction of artificial receptors [15], we have also employed 8-hydroxyquinoline derivatives, including those with alkyl or alkanoyl groups in the 5-position, as ligands for indium ions. Our investigations included solvent extraction experiments [22] and the formation of crystalline indium complexes [23]. More recently, our studies have focused on 4-substituted 8-hydroxyquinoline derivatives. In this work we describe the crystal structures of two 4-alkyl-substituted 8-hydroxyquinolines 1 and 2 (see Figure 1). We discuss the supramolecular patterns as well as the similarities and differences between both crystal structures.

Although some crystal structures of 4-alkyl-8-hydroxyquinolines in complexes with various ions are known, often in combination with other ligand molecules [24,25,26], their characterization as free ligands has not yet been described. However, it should be noted that derivatives containing an aminoalkyl or nitroalkenyl group in the 4-position, such as 4-(2-aminopropyl)quinolin-8-ol and 4-(2-nitroprop-1-en-1-yl)quinolin-8-ol, have been reported in the literature [27].

2. Results and Discussion

2.1. Synthesis of 4-Methyl- (1) and 4-ethyl-8-hydroxyquinoline (2)

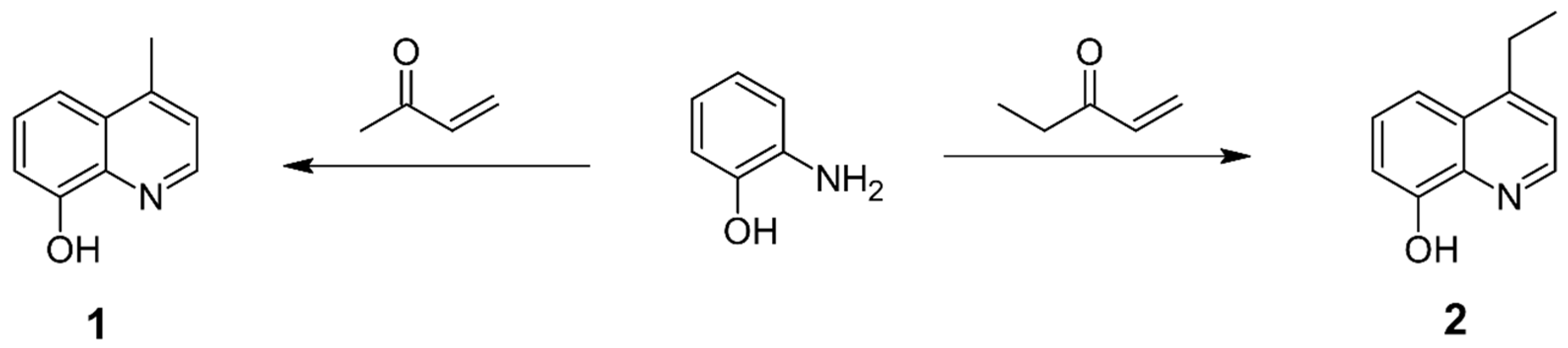

The quinoline scaffold was prepared by heating 2-aminophenol and the corresponding vinyl ketone in a Doebner–Miller reaction, using a slightly modified version of the procedures described in the literature [13,28]. A two-phase system containing concentrated hydrochloric acid and toluene (v/v 2:1), based on the work of Matsugi et al. [29], was employed to reduce the acid-catalyzed polymerization of the carbonyl compound in the reaction mixture, resulting in a more straightforward purification process. First, toluene and other steam-volatile compounds were removed from the crude product by steam distillation. The remaining acidic mixture was then neutralized with a dilute sodium hydroxide solution and steam-distilled again to obtain the product as white, high-purity solids with yields of 26% (1) and 18% (2), see Scheme 1.

2.2. Structural Elucidation

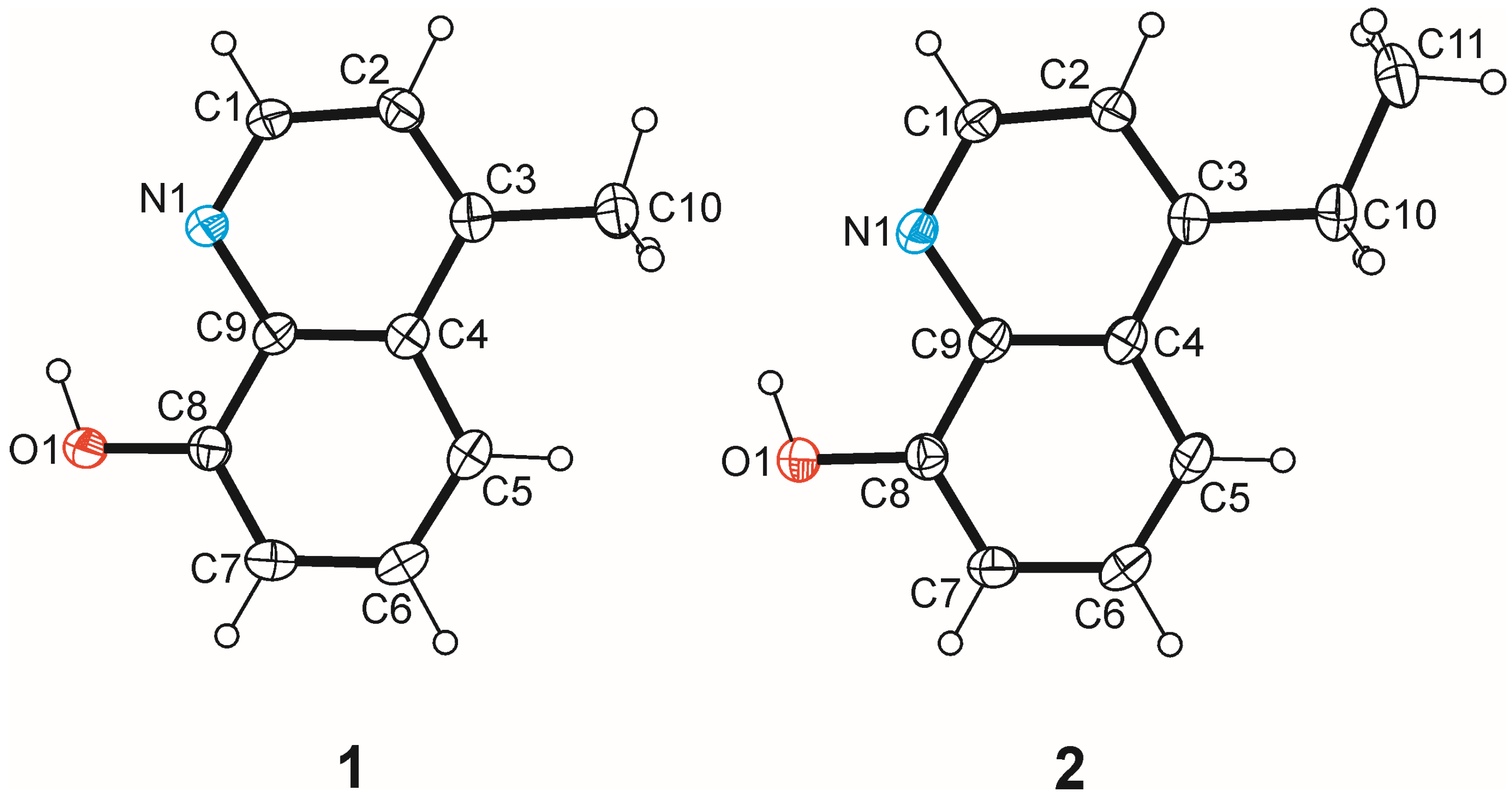

The two alkyl-substituted 8-hydroxquinolines 1 and 2 crystallize from a mixture of diethyl ether and chloroform (v/v = 1:1) as colorless platelets and needles, respectively. Their molecular structures are shown in Figure 2. Both compounds crystallize in the triclinic space group P$\overline{1}$, each with one molecule in the asymmetric unit of the cell. The distance between the hydroxy hydrogen atom and the nitrogen atom indicates the presence of intramolecular O-H∙∙∙N bonds [d(H∙∙∙N) 2.25(2), 2.27(2) Å].

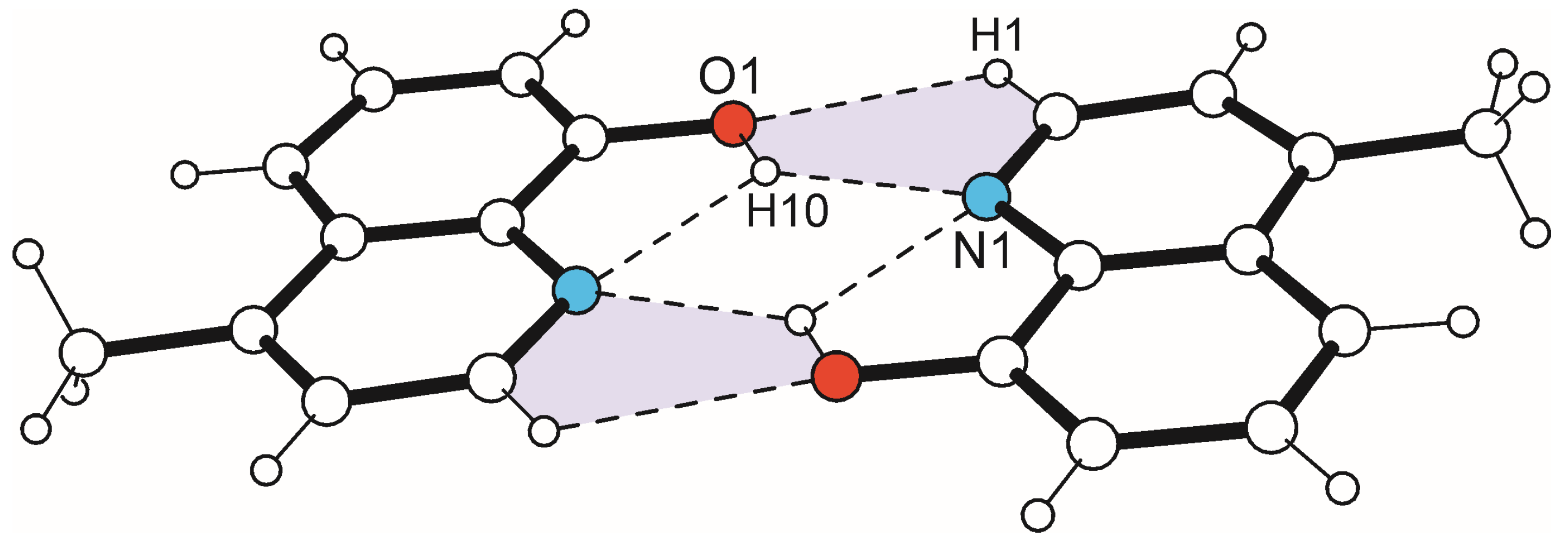

Each of the crystal structures is composed of discrete molecular dimers held together by strong O-H∙∙∙N hydrogen bonds [d(H∙∙∙N) 2.17(2), 2.18(2) Å; ∠(O-H∙∙∙N) 135(2), 134(2)°] and weaker C-H∙∙∙O bonds [30,31,32,33,34,35] [d(H∙∙∙O) 2.45, 2.53 Å; ∠(C-H∙∙∙O) 117, 113°], the latter of which are formed with the participation of the arene hydrogen atom H(1). These hydrogen bonds create a pair of cyclic synthons of the structure $R_2^2\left(5\right)$ [36,37]. Taking into account the intramolecular hydrogen bond mentioned above, the nitrogen atom of the quinoline unit acts as a bifurcated binding site. The structure of the molecular dimer is shown exemplarily for compound 1 in Figure 3.

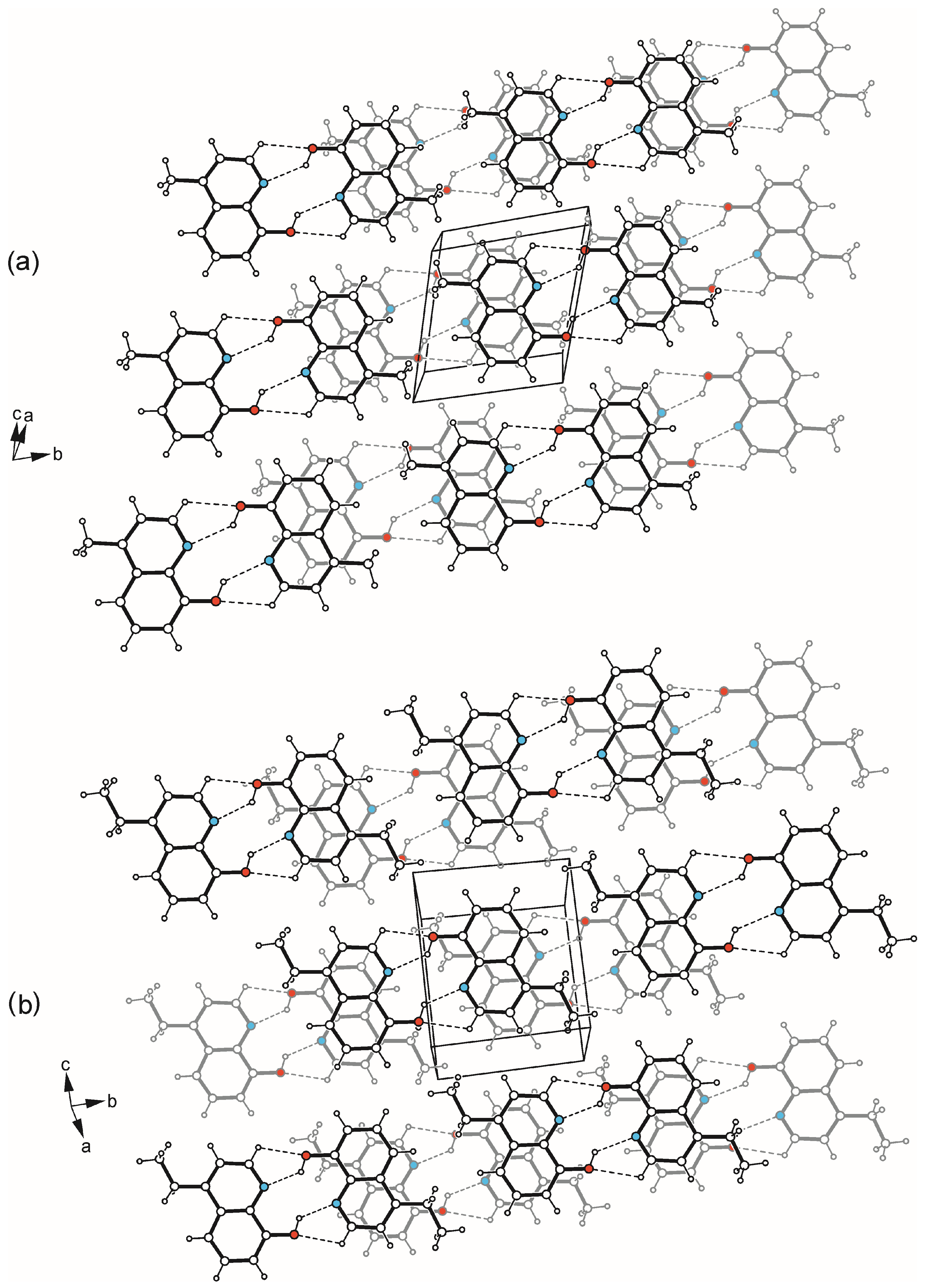

According to the planar geometry of these dimers, both crystal structures exhibit a layer-like packing arrangement. Since the outer region of these dimers is formed by the hydrophobic molecular units, only van der Waals forces exist between the molecular dimers within a given layer. A view of the crystal structures in the direction of their layer normal (Figure 4) shows that π∙∙∙π stacking forces [38,39] between the bicyclic units of the molecules contribute significantly to the stabilization of the crystal structures in the direction of the stacking axis of the molecular layers.

However, a comparison of the two crystal structures reveals differences, which are also reflected in the different cell dimensions. While the molecular layers present in the crystal of compound 1 extend parallel to the crystallographic 212 plane, those in the crystal structure of compound 2 run parallel to the 211 plane. A view at the sections of the molecular layers of 1 and 2 shown in Figure S1 also reveals differences. Apparently, the increased steric demand of the ethyl group in 2 induces a layer structure that differs from that of compound 1. In addition, the information in

Table 1. Non-covalent interactions in the crystal structures of 1 and 2.

Atoms	Distance (Å)		Angle (°)	Slippage (Å)
D-H∙∙∙A π∙∙∙π	D∙∙∙A Cg∙∙∙Cg	H∙∙∙A	D-H∙∙∙A
1
O(1)-H(10)···N(1)	2.735(2)	2.25(2)	114(2)
O(1)-H(10)···N(1)	2.869(3)	2.17(2)	135(2)
C(1)-H(1)···O(1)	3.002(3)	2.45	117
Cg(A)···Cg(A) a	3.556(3)			1.063
Cg(B)···Cg(B) a	3.631(2)			1.234
Cg(A)···Cg(B) a	3.719(3)			1.504
2
O(1)-H(10)···N(1)	2.740(2)	2.27(2)	114(2)
O(1)-H(10)···N(1)	2.859(2)	2.18(2)	134(2)
C(1)-H(1)···O(1)	3.033(2)	2.53	113
Cg(A)···Cg(A) a	3.662(2)			1.167
Cg(B)···Cg(B) a	3.728(2)			1.345
Cg(A)···Cg(B) a	3.753(2)			1.491

^a Cg means the centroid (center of gravity) of the aromatic ring. 1, 2: Ring A: N(1),C(1)…C(4),C(9); ring B: C(4)…C(9).

on the π∙∙∙π stacking forces present in the crystal structures indicates a different degree of overlap between the quinoline groups of adjacent molecules.

3. Materials and Methods

3.1. Synthesis and Crystallization of 4-Alkyl-8-hydroxyquinolines 1 and 2

4-Methyl-8-hydroxyquinoline (1) and 4-ethyl-8-hydroxyquinoline (2) were synthesized according to the pathway shown in Scheme 1. The synthetic procedure, melting points and NMR spectroscopic data are given in the Supporting Information.

Recrystallization of the compounds from a saturated, hot 1:1-mixture of diethyl ether and chloroform yielded suitable crystals for X-ray structure analysis upon cooling. The crystallographic data are given below and in the Supporting Information (Tables S1 and S2).

Crystal Data for 1: C₁₀H₉NO (M = 159.18 g/mol): triclinic, space group P$\overline{1}$, a = 7.396(5) Å, b = 7.622(5) Å, c = 8.321(5) Å, α = 63.82(5)°, β = 67.22(5)°, γ = 70.21(6)°, V = 380.1 ų, Z = 2, T = 183, μ(MoK_α) = 0.09 mm⁻¹, D_calc = 1.391 g/cm³, 6897 reflections measured (2.8° ≤ θ ≤ 25.7°), 1446 unique (R_int = 0.0295), which were used in all calculations. The final R was 0.0412 [I > 2σ(I)] and wR was 0.1160.

Crystal Data for 2: C₁₁H₁₁NO (M = 173.21 g/mol): triclinic, space group P$\overline{1}$, a = 7.448(3) Å, b = 7.522(3) Å, c = 7.953(3) Å, α = 93.77(3)°, β = 91.95(3)°, γ = 106.82(3)°, V = 380.1 ų, Z = 2, T = 183, μ(MoK_α) = 0.09 mm⁻¹, D_calc = 1.354 g/cm³, 8463 reflections measured (2.6° ≤ θ ≤ 26.0°), 1663 unique (R_int = 0.0363), which were used in all calculations. The final R was 0.0488 [I > 2σ(I)] and wR was 0.1368.

3.2. X-Ray Structure Analysis

The data sets of the structures were recorded at a temperature of 183 K on a STOE diffractometer (MoK_α radiation, λ = 0.71073 Å) equipped with an image plate system IPDS-2 (STOE & Cie. GmbH, Darmstadt, Germany). Indexing and integration of the reflections was performed using the IPDS software in the X-AREA program suite [40]. Data reduction and absorption correction were performed using the X-RED program [41]. Preliminary structure models were created using direct methods (SHELXT2018/2 [42] employing the program XSTEP-32 [43]) and then refined by full-matrix least-squares calculations based on F² for all reflections using the program SHELXL [44]. All non-hydrogen atoms were refined anisotropically. With the exception of the O-H hydrogen atoms, all other H atoms are included in the structure models in calculated positions and were refined as constrained to bonding atoms. The graphical representation of the molecular structures was performed using the program ORTEP-III [45].

4. Conclusions

The studies reveal that hydrogen-bonded dimers constitute a characteristic structural motif in the crystal structures of 4-alkyl-substituted 8-hydroxyquinolines 1 and 2, as previously reported for unsubstituted 8-hydroxyquinoline [46]. The dimers are stabilized by strong O-H∙∙∙N hydrogen bonds and weaker C-H∙∙∙O interactions, forming a pair of cyclic synthons of the structure $R_2^2\left(5\right)$. Considering the additional intramolecular O-H∙∙∙N hydrogen bond, the quinoline nitrogen atom acts as a bifurcated binding site.

While the primary hydrogen-bonding motifs remain consistent in 1 and 2, the crystal structures demonstrate that the supramolecular arrangement is sensitive to the nature of the alkyl substituent. Even minor alterations, such as replacing a methyl group with an ethyl group, can result in changes to the layer arrangement and π-overlap, demonstrating the sensitivity of the supramolecular architecture to subtle steric modifications.
