Communication

Synthesis of Pentacycloundecane (PCUD) Based Spiro-Pyrano-Cage Framework via Ring-Closing Metathesis

Department of Chemistry, Indian Institute of Technology, Bombay 400076, India
*
Author to whom correspondence should be addressed.
Molbank 2023, 2023(1), M1567; https://doi.org/10.3390/M1567
Received: 24 December 2022 / Revised: 16 January 2023 / Accepted: 18 January 2023 / Published: 23 January 2023
(This article belongs to the Collection Heterocycle Reactions)

Abstract

:
Here, we demonstrate a short synthetic route to pyrano cage systems containing pentacycloundecane units by employing ring-closing metathesis (RCM) as a key step. These cage systems were constructed starting with readily available starting materials by adopting atomic economic processes such as cycloadditions (Diels-Alder reaction and [2+2] cycloaddition), Grignard addition, and olefin metathesis. The key building block, such as hexacyclic cage dione, was prepared from 1,4-naphthoquinone derivative and freshly cracked 1,3-cyclopentadiene. Some of these heterocyclic motifs are useful in biological chemistry and valuable as key synthons for high-energy-density materials.

1. Introduction

Heterocycles have attracted interest from the scientific community because of their biological activities against various diseases [1]. They are considered promising candidates that are available from natural sources, show applications in medicinal chemistry and pharmaceutics, play a prominent role in the synthesis of agrochemicals, and act as key synthons for the design of pharmacophores in modern drug chemistry [2]. Amongst the known heterocyclic compounds, cage-containing heterocyclic scaffolds are found in applications of bioorganic chemistry, material science, and supramolecular chemistry [3,4,5]. Cage polycycles bearing heteroatoms in their molecular architecture act as ligands and are also suitable for chelation with metal ions [6]. These are also considered core frameworks for energetic and photonic/electronic materials [7]. Furthermore, functionalized hetero cages exhibit medicinal properties and act as valuable candidates for pharmaceutical applications [8,9]. Additionally, some of the cage scaffolds (16) depicted in Figure 1 were constructed by employing novel synthetic approaches. These heterocyclic cages are used as chiral ligands (1) [10] and supramolecules (23) [11,12], and some of those (46) display interesting activities against tuberculosis, anti-Parkinson activity, and neurodegenerative diseases [13,14,15].
In view of the literature reports and valuable applications of cage polycycles, we are actively involved in developing new methods and simple synthetic strategies for cage frameworks. During the last two decades, we have demonstrated various new synthetic routes to diverse and functionalized cage molecules by employing cycloaddition and olefin metathesis protocols as key steps [16]. Several reports are available for the synthesis of oxa-cage molecules in the literature [17]. Some of these strategies to create hetero-cages rely on tandem cyclization, transannular cyclization, base-promoted rearrangement, dehydration of diols, intramolecular, and alkene-oxirane photocycloaddition [17]. As part of our ongoing research focused on designing intricate molecules based on metathesis, here we conceived a ring-closing metathesis (RCM) approach to construct functionalized hetero-cage systems [18,19,20]. In this regard, we identified cage dione 13 [21,22] as a useful starting material for the design of a target compound such as 17.

2. Results and Discussion

Our journey towards the synthesis of the hexacyclic dione 13 [21,22] began with the preparation of the DA precursor, such as the dihydronaphthalene-1,4-dione 11, from inexpensive and commercially available hydroquinone 7 (Scheme 1). In this context, the [4+2] cycloaddition of 1,4-benzoquinone 8 prepared from the hydroquinone 7 was treated with 2,3-dimethyl 1,3-butadiene under reflux conditions in anhydrous benzene to give the cycloadduct 9. Aromatization of cycloadduct 9 in the presence of dil. HCl at room temperature furnished the diol 10.
Subsequent oxidation of the hydroquinone 10 in the presence of MnO2 gave the quinone derivative 11 (Scheme 1) [15]. Having prepared the DA precursor 11, cage dione 13 was prepared via [4+2] cycloaddition and intramolecular [2+2] photocycloaddition. In this context, cycloaddition of the quinone 11 was accomplished by reacting with a freshly cracked 1,3-cyclopentadiene at 0 °C, delivering the desired cycloadduct 12 and furthering the DA adduct 12 and undergoing [2+2] photocycloaddition through UV irradiation with a 125 W-homemade lamp, producing the hexacyclic cage dione 13 (Scheme 1). The structure of cage dione 13 was confirmed by 1H NMR and 13C NMR data.
In view of our interest in designing new polycyclic systems containing heteroatoms via metathesis and other protocols [23,24,25,26,27,28,29], we intended to synthesize our target compound 17. In this regard, the cage dione 13 was treated with the commercially available allyl magnesium bromide in dry ether to deliver the diallyl cage diol 14 along with another hemiketal derivative 15 by transannular cyclization. Next, the cage diol 14, on allylation with the NaH in the presence of allyl bromide in dry DMF, gave the triallyl cage compound 16 (Scheme 2). Subsequent ring-closing metathesis of triallyl compound 16 with the G-I catalyst under rt conditions produced the cage derivative 17. Finally, hydrogenation of the compound 17 with hydrogen in the presence of 10% palladium on activated charcoal in dry EtOAc gave the saturated cage system 18 with a 90% yield (Scheme 2). The structures of cage heterocycles 17 and 18 were fully characterized on the basis of 1H NMR, 13C NMR, and DEPT-135 NMR spectroscopic data and finally supported by the mass spectra HRMS values.
The 1H NMR spectrum of the cage spiro-pyran derivative 17 displayed the presence of one singlet (-OH proton) at δ 6.96 (1H), which indicates the proton of alcohol, one doublet at δ 5.66 (1H), and three multiplets at δ 5.06 (2H), δ 5.80 (1H), and δ 6.01 (1H), which represents the olefinic proton of allylic carbon and the spiro-pyran ring. In addition, the 13C NMR spectrum of 17 shows the four characteristic peaks (olefinic carbon) at δ 135.1, 123.9, 123.8, and 116.2 ppm of allyl carbon, and the spiro-pyran ring system represents the –CH and –CH2 carbon (Figure 2). In the 1H NMR spectrum of compound 18, the one singlet (-OH proton) at δ 6.96 (1H) indicates the proton of alcohol, and the multiplet at δ 0.91 (4H) represents two –CH2 carbons adjacent to the quaternary carbon of -OH. In addition, the 13C NMR spectrum of compound 18 also shows two peaks at δ 81.6 and 76.8 that represent the quaternary carbon and at δ 65.1 that represent the -CH2 carbon adjacent to the oxygen in the spiro-pyrane ring. In the spectra of cage spiro-pyran derivative 18, it shows the two olefinic peaks of the cyclohexane ring, and the other peaks of the allyl carbon and spiro-pyran rings are missing, which shows the reduction of double bonds. So, we clearly identified cage spiro-pyran derivative 17 and hydrogenated spiro-pyrane product 18 based on chemical shift values (1H and 13C). The NMR spectra of all of these are provided in the Supplementary Materials.

3. Materials and Methods

3.1. General Information

Allylmagnisium bromide, dicyclopentadiene, hydroquinone, and other essential reagents, chemicals, and solvents are used as such, obtained from commercial suppliers, without any further purifications. The reaction progress was monitored by thin-layer chromatographic technique (TLC; Type-A, B, or C) using appropriate mobile phase (EtOAc/petroleum ether), and observation was conducted by UV, iodine exposure, and immersion in KMnO4 solution. In all cases, column purification was performed with 100–200 mesh silica gel with a suitable solvent system. All IR samples were recorded with DCM and chloroform as solvents on the Nicolet Impact-400 FTIR spectrometer. Nuclear magnetic resonance (NMR) spectra (1H, 13C and DEPT 135) have been recorded on 400 and 500 MHz spectrometers (Bruker), with CDCl3 solvent and chemical shifts (δ ppm) reported to be relative to an internal standard such as TMS. The J values (coupling constants) are given in Hz. Mass spectra (HRMS) have been recorded in positive ion electrospray ionization (ESI, Q-TOF) mode. Compounds 11 and 13 were synthesized via the literature methods [21,22], and the spectral data are consistent with the reported values.

3.2. Synthesis and Characterization

3.2.1. Synthesis of Cage Diol 14 via Grignard Addition

To a solution of cage dione 13 (200 mg, 0.78 mmol) in dry THF (10 mL), commercially available allylmagnesium bromide (1.0 M in THF, 6 equiv.) was added dropwise at 0 °C and the reaction mixture was stirred at rt for 1 h. After completion of the reaction (TLC monitoring), the reaction mixture was quenched with saturated aq. NH4Cl solution (5 mL) and the aqueous layer was extracted with EtOAc (3 × 10 mL). The solvent was removed under reduced pressure, and the crude product was purified by column chromatography (100–200 silica gel) using 5–10% EtOAc–petroleum ether as an eluent to afford compound 15 (for data, see the supplementary material). Further elution of column chromatography afforded the desired compound 14. Off white solid; Yield: 186 mg (70%); M.P. 177–179 °C; IR (Neat) 3227, 2932, 2203, 2118, 1608, 1442, 1264, 1092, 919, 802 cm−1; 1H NMR (500 MHz, CDCl3) δ 1.02 (d, J = 10.5 Hz, 1H), 1.44 (d, J = 10.5 Hz, 1H), 1.73–1.68 (m, 8H), 1.85 (s, 2H), 2.02–1.97 (m, 2H), 2.26–2.19 (m, 8H), 5.12–5.07 (m, 4H), 5.35 (bs, 1H), 5.99–5.90 (m, 2H) ppm; 13C NMR (125 MHz, CDCl3) δ 133.9, 126.0, 117.6, 77.9, 51.2, 48.7, 43.1, 43.0, 42.0, 34.5, 32.6, 20.3 ppm; HRMS (ESI, Q-TOF): m/z calcd for C23H31O2[M + H]+: 339.2319 found 339.2318.

3.2.2. Synthesis of Cage Triallyl Derivative 16

To a suspension of sodium hydride (3 equiv.) in dry DMF (10 mL), the compound 14 (100 mg, 0.29 mmol) was added, and the reaction mixture was stirred for 10 min at rt. Allyl bromide (6 equiv.) was then added, and stirring was continued for 10 min at the same temperature. After completion of the reaction (TLC monitoring), the reaction mixture was diluted with saturated aq. NH4Cl (5 mL), and the aqueous layer was then extracted with EtOAc (3 × 10 mL). The organic layer was washed with brine and dried over Na2SO4. The solvent was removed under reduced pressure, and the crude product was purified by column chromatography (100–200 silica gel) using 1–3% EtOAc–petroleum ether as eluent to afford the desired compounds 16. Colorless liquid; Yield: 106 mg (95%); IR (Neat) 3338, 3073, 2929, 2861, 1732, 1638, 1439, 1280, 1161, 1069,1050, 993, 914, 737 cm−1; 1H NMR (500 MHz, CDCl3) δ 1.04 (d, J = 10.5 Hz, 1H), 1.45 (d, J = 10.5 Hz, 1H), 1.73 (s, 6H), 1.85–1.82 (m, 3H), 2.21–2.15 (m, 2H), 2.38–2.32 (m, 6H), 2.54 (dd, J = 15.9, 5.8 Hz, 1H), 4.05 (dd, J = 11.6, 5.5 Hz, 1H), 4.15 (dd, J = 11.7, 5.3 Hz, 1H), 5.28–5.02 (m, 8H), 5.86–5.79 (m, 2H), 6.05–5.91 (m, 2H), 6.61 (d, J = 2.5 Hz, 1H); 13C NMR (125 MHz, CDCl3) δ 135.2, 134.3, 133.3, 127.0, 125.4, 117.2, 116.9, 116.0, 83.3, 77.1, 66.1, 52.4, 51.7, 49.4, 48.2, 43.6, 43.5, 42.7, 42.1, 39.02, 34.6, 34.1, 32.4, 20.29, 20.25 ppm; HRMS (ESI, Q-TOF): m/z calcd for C26H35O2[M + H]+: 379.2632 found 379.2630.

3.2.3. Synthesis of Compound Cage Spiro-Pyran 17 via RCM Protocol

To a stirred solution of compounds 16, such as RCM precursor (50 mg, 0.13 mmol, 1 equiv.) in dry DCM (15 mL), which was degassed with nitrogen for 10 min, was added Grubbs catalyst (G-I, 10 mol%). Then the reaction mixture was stirred at room temperature for 10 h. After completion of the reaction (reaction progress was monitored by TLC), the solvent was removed under reduced pressure, and the crude reaction mixture was purified by silica gel column chromatography using 5% EtOAc/petroleum ether as an eluent to give 17. Colorless liquid; Yield: 42 mg (90%); IR (Neat): 3435, 2335, 1647, 1266, 1049 cm−1; 1H NMR (500 MHz, CDCl3) δ 1.03 (d, J = 10.5 Hz, 1H), 1.45 (d, J = 10.5 Hz, 1H), 1.77–1.72 (m, 6H), 1.93–1.83 (m, 4H), 2.33–2.21 (m, 8H), 2.46–2.44 (m, 1H), 4.28 (s, 2H), 5.07–5.05 (m, 2H), 5.66 (d, J = 10.5 Hz, 1H), 5.82–5.79 (m, 1H), 6.04–5.99 (m, 2H), 6.96 (d, J = 2.1 Hz, 1H),; 13C NMR (125 MHz, CDCl3) δ 135.1, 126.9, 125.4, 123.9, 123.8, 116.2, 79.9, 64.7, 51.9, 50.6, 49.4, 47.2, 43.7, 43.38, 43.30, 42.8, 42.2, 34.5, 34.4, 32.6, 30.9, 20.3, 20.2 ppm; HRMS (ESI) calcd for C24H31O2[M + H]+: 351.2319 found 351.2319.

3.2.4. Hydrogenation of Cage Spiro-Pyran 17

To a stirred solution of compound 17 (50 mg, 0.11 mmol, 1 equiv) in dry EtOAc (5 mL), 10 mol% Pd/C was added. Then the resulting reaction mixture was stirred at room temperature for 1 h under a hydrogen atmosphere (1 atm). After the completion of the reaction by the TLC evident, the reaction mixture was filtered through a Celite pad and washed with ethyl acetate (10 mL). The combined washings and filtrate were evaporated under vacuo and the resulting crude residue was purified by silica gel column chromatography using 3% EtOAc/petroleum ether as an eluent to afford hydrogenated product 18. Colorless liquid; Yield: 36 mg (90%); IR (neat, cm−1): υmax = 3304, 2995, 2869, 1453, 1265, 1159, 1071, 1035; 1H NMR (500 MHz, CDCl3): δ 0.92–0.89 (m, 4H), 1.66–1.03 (m, 16H), 1.73 (s, 6H), 1.83–1.79 (m, 1H), 2.26–2.18 (m, 4H), 2.80–2.78 (m, 1H), 3.86–3.72 (m, 2H), 6.96 (bs, 1H) ppm; 13C NMR (125.7 MHz, CDCl3): δ 126.7, 125.2, 81.6, 76.8, 65.1, 52.1, 51.0, 48.8, 43.9, 43.4, 43.2, 42.8, 42.4, 39.8, 34.6, 33.2, 32.6, 32.5, 30.7, 25.5, 20.3, 18.6, 15.6, 15.0 ppm; HRMS (ESI, Q-ToF): m/z calcd for C24H35O2 [M + H]+: 355.2632, found: 355.2628.

4. Conclusions

In summary, we successfully synthesized pyrano-cage compounds 17 and 18 containing a PCUD skeleton via RCM. We utilized cycloaddition reactions, Grignard addition, and olefin metathesis as key steps. The target compound synthesis was accomplished using readily available materials such as a 1,4-naphthoquinone derivative and dicyclopentadiene. These heterocyclic scaffolds may have applications in other areas.

Supplementary Materials

The following supporting information can be downloaded online. 1H, 13C, and DEPT NMR spectra of all new compounds.

Author Contributions

Investigation, data curation, writing—original draft preparation, S.R.C., M.S. and S.K.; resources, writing—review and editing, S.R.C. and S.K.; conceptualization, data curation, writing—original draft preparation, S.R.C. and S.K. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Defense Research and Development Organization (DRDO; ARDB/01/1041849/M/I), New Delhi, India.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article and the supplementary material.

Acknowledgments

S.R.C. and M.S. thank the UGC-New Delhi for the award of a research fellowship and the IRCC-IIT Bombay for the financial support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Gomstyan, A. Heterocycles in drugs and drug discovery. Chem. Heterocycl. Compd. 2012, 48, 7–10. [Google Scholar]
  2. Katritzky, A.R. Advances in Heterocyclic Chemistry; Academic Press: New York, NY, USA, 1963. [Google Scholar]
  3. Geldenhuys, W.J.; Malan, S.F.; Bloomquist, J.R.; Marchand, A.P.; Van der Schyf, C.J. Pharmacology, and structure-activity relationships of bioactive polycyclic cage compounds: A focus on pentacycloundecane derivatives. Med. Res. Rev. 2005, 25, 21–48. [Google Scholar] [CrossRef]
  4. Kotha, S.; Cheekatla, S.R.; Lal, S.; Mallick, L.; Kumbhakarna, N.; Chowdhury, A.; Namboothiri, I.N.N. Pentacycloundecane (PCUD)-Based Cage Frameworks as Potential Energetic Materials: Syntheses and Characterization. Asian J. Org. Chem. 2020, 9, 2116–2126. [Google Scholar] [CrossRef]
  5. Marchand, A.P.; McKim, S.A.; Kumar, K.A. Synthesis and alkali metal picrate extraction capabilities of novel, cage-functionalized diazacrown ethers. Effects of host preorganization on avidity and selectivity toward alkali metal picrates in solution. Tetrahedron 1998, 54, 13421. [Google Scholar] [CrossRef]
  6. Levitskaia, T.G.; Moyer, B.A.; Bonnesen, P.V.; Marchand, A.P.; Krishnudu, K.; Chen, Z.; Huang, Z.; Kruger, H.G.; Mckim, A.S. Novel Approach to Sodium Hydroxide Separation:  Synergistic Pseudo-Hydroxide Extraction by a Fluorinated Alcohol and Cage-Functionalized Crown Ethers. J. Am. Chem. Soc. 2001, 123, 12099. [Google Scholar] [CrossRef]
  7. Lebedeva, M.A.; Chamberlain, T.W.; Khlobystov, A.N. Harnessing the Synergistic and Complementary Properties of Fullerene and Transition-Metal Compounds for Nanomaterial Application. Chem. Rev. 2015, 115, 11301. [Google Scholar] [CrossRef]
  8. Wilkinson, S.M.; Gunosewoyo, H.; Barron, M.L.; Boucher, A.; McDonnell, M.; Turner, P.; Morrison, D.E.; Bennett, M.R.; McGregor, I.S.; Rendina, L.M.; et al. The First CNS-Active Carborane: A Novel P2X7 Receptor Antagonist with Antidepressant Activity. ACS Chem. Neurosci. 2014, 5, 335–339. [Google Scholar] [CrossRef]
  9. Onajole, O.K.; Coovadia, Y.; Kruger, H.G.; Maguire Pillay, M.; Govender, T. Novel polycyclic ‘cage’-1,2-diamines as potential anti-tuberculosis agents. Eur. J. Med. Chem. 2012, 54, 1–9. [Google Scholar] [CrossRef] [PubMed]
  10. Boyle, G.A.; Govender, T.; Kruger, H.G.; Maguire, G.E.M. Synthesis of chiral pentacyclo-undecane ligands and their use in the enantioselective alkylation of benzaldehyde with diethylzinc. Tetrahedron Asymmetry 2004, 15, 2661. [Google Scholar] [CrossRef]
  11. Williams, S.M.; Brodbelt, J.S.; Marchand, A.P.; Cal, D.; Mlinarié-Majerski, K. Metal Complexation of Thiacrown Ether Macrocycles by Electrospray Ionization Mass Spectrometry. Anal. Chem. 2002, 74, 4423–4433. [Google Scholar] [CrossRef] [PubMed]
  12. Marchand, A.P.; Hazlewood, A.; Huang, Z.; Vadlakonda, S.K.; Rocha, J.-D.R.; Power, T.D.; Mlinaric-Majerski, K.; Klaic, L.; Kragol, G.; Bryan, J.C. Stabilization of a K+-(bis-Cage-Annulated 20-Crown-6) Complex by Bidentate Picrate. Struct. Chem. 2003, 14, 279–288. [Google Scholar] [CrossRef]
  13. Govender, T.; Kruger, H.G.; Makatini, M.; Onajole, O.K. Synthesis and NMR elucidation of pentacyclo-undecane diamine derivatives as potential anti-tuberculosis drugs. Struct. Chem. 2008, 19, 719–726. [Google Scholar] [CrossRef]
  14. Banister, S.D.; Moussa, I.A.; Jordan, M.J.T.; Coster, M.J.; Kassiou, M. Oxo-bridged isomers of aza-trishomocubane sigma (σ) receptor ligands: Synthesis, in vitro binding, and molecular modeling. Bioorg. Med. Chem. Lett. 2010, 20, 145–148. [Google Scholar] [CrossRef]
  15. Joubert, J.; Geldenhuys, W.J.; Van der Schyf, C.J.; Oliver, D.W.; Kruger, H.G.; Govender, T.; Malan, S.F. Polycyclic Cage Structures as Lipophilic Scaffolds for Neuroactive Drugs. Chem. Med. Chem. 2012, 7, 375–384. [Google Scholar] [CrossRef] [PubMed]
  16. Kotha, S.; Cheekatla, S.R.; Meshram, M. Design and Synthesis of Cage Molecules as High Energy Density Materials for Aerospace Applications. ChemCatChem. 2020, 12, 6131–6172. [Google Scholar] [CrossRef]
  17. Gharpure, S.J.; Porwal, S.K. Synthesis of Oxa-, Aza- and Thia-Bowls and Cages. Org. Prep. Proc. Int. 2013, 45, 81–153. [Google Scholar] [CrossRef]
  18. Kotha, S.; Cheekatla, S.R.; Chinnam, A.K.; Jain, T. Design and synthesis of polycyclic bisindoles via Fischer indolization and ring-closing metathesis as key steps. Tetrahedron Lett. 2016, 57, 5605–5607. [Google Scholar] [CrossRef]
  19. Kotha, S.; Saifuddin, M.; Ali, R.; Sreevani, G. Spiro annulation of cage polycycles via Grignard reaction and ring-closing metathesis as key steps. Beilstein J. Org. Chem. 2015, 11, 1367–1372. [Google Scholar] [CrossRef]
  20. Kotha, S.; Cheekatla, S.R.; Mhatre, D.S. Ring-Closing Metathesis Approach to Cage Propellanes Containing Oxepane and Tetrahydrofuran Hybrid System. Synthesis 2017, 49, 5339–5350. [Google Scholar] [CrossRef]
  21. Kotha, S.; Manivannan, E. Synthesis of functionalized cis-syn-cis triquinanes. Indian J. Chem. Sect. B 2002, 41, 808–811. [Google Scholar]
  22. Kotha, S.; Cheekatla, S.R. Synthesis of cage [4.4.2]propellanes and D3-trishomocubanes bearing spiro linkage. J. Chem. Sci. 2018, 130, 171. [Google Scholar] [CrossRef]
  23. Mehta, G.; Rao, K.S. Reductive carbon-carbon cleavage in caged systems. A new general synthesis of linearly fused cis-syn-cis-triquinanes. J. Org. Chem. 1985, 50, 5537–5543. [Google Scholar] [CrossRef]
  24. Kotha, S.; Manivannan, E.; Sreenivasachary, N.; Ganesh, T.; Deb, A.C. Spiro-Annulation via Ring Closing Metathesis Reaction. Synlett. 1999, 1999, 1618–1620. [Google Scholar] [CrossRef]
  25. Kotha, S.; Krishna, N.G.; Halder, S.; Misra, S. A synergistic approach to polycyclics via a strategic utilization of Claisen rearrangement and olefin metathesis. Org. Biomol. Chem. 2011, 9, 5597–5624. [Google Scholar] [CrossRef] [PubMed]
  26. Kotha, S.; Halder, S. Ethyl Isocyanoacetate as a Useful Glycine Equivalent. Synlett 2010, 2010, 337–354. [Google Scholar] [CrossRef]
  27. Lannoye, G.; Kotha, S.; Wehrli, S.; Cook, J.M.; Weiss, U. General approach to the synthesis of polyquinenes via the Weiss reaction. 6. Progress toward the synthesis of dicyclopentapentalenes. J. Org. Chem. 1988, 53, 2327–2340. [Google Scholar] [CrossRef]
  28. Kotha, S.; Meshram, M.; Khedkar, P.; Banerjee, S.; Deodhar, D. Recent applications of ring-rearrangement metathesis in organic synthesis. Beilstein J. Org. Chem. 2015, 11, 1833–1864. [Google Scholar] [CrossRef] [PubMed]
  29. Kotha, S.; Shah, V.R.; Mandal, K. Formation of Arenes via Diallylarenes: Strategic Utilization of Suzuki–Miyaura Cross-Coupling, Claisen Rearrangement and Ring-Closing Metathesis. Adv. Synth. Catal. 2007, 349, 1159–1172. [Google Scholar] [CrossRef]

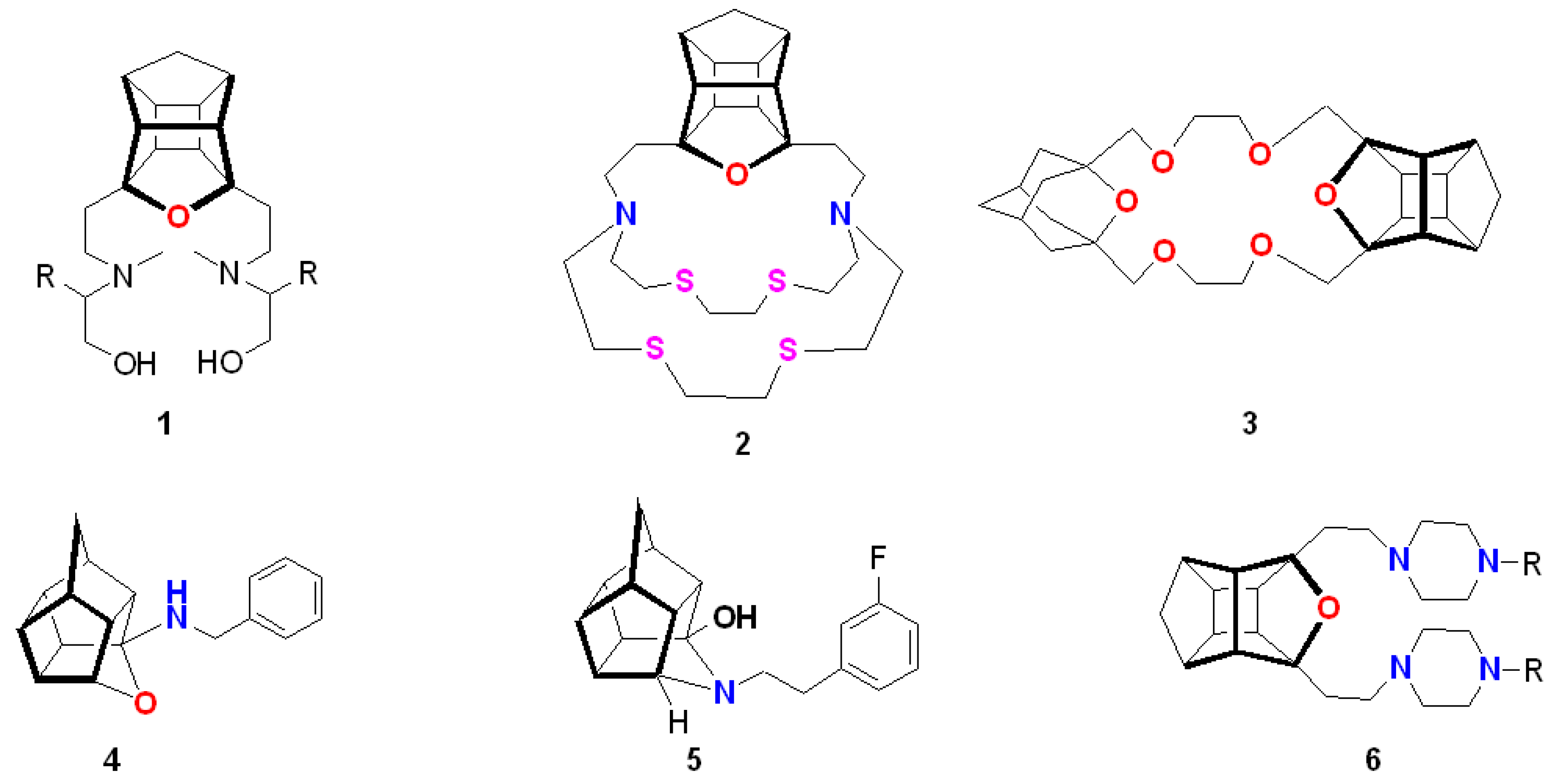

Figure 1. Examples of hetero-cages 16 useful in various fields.
Figure 1. Examples of hetero-cages 16 useful in various fields.
Molbank 2023 m1567 g001

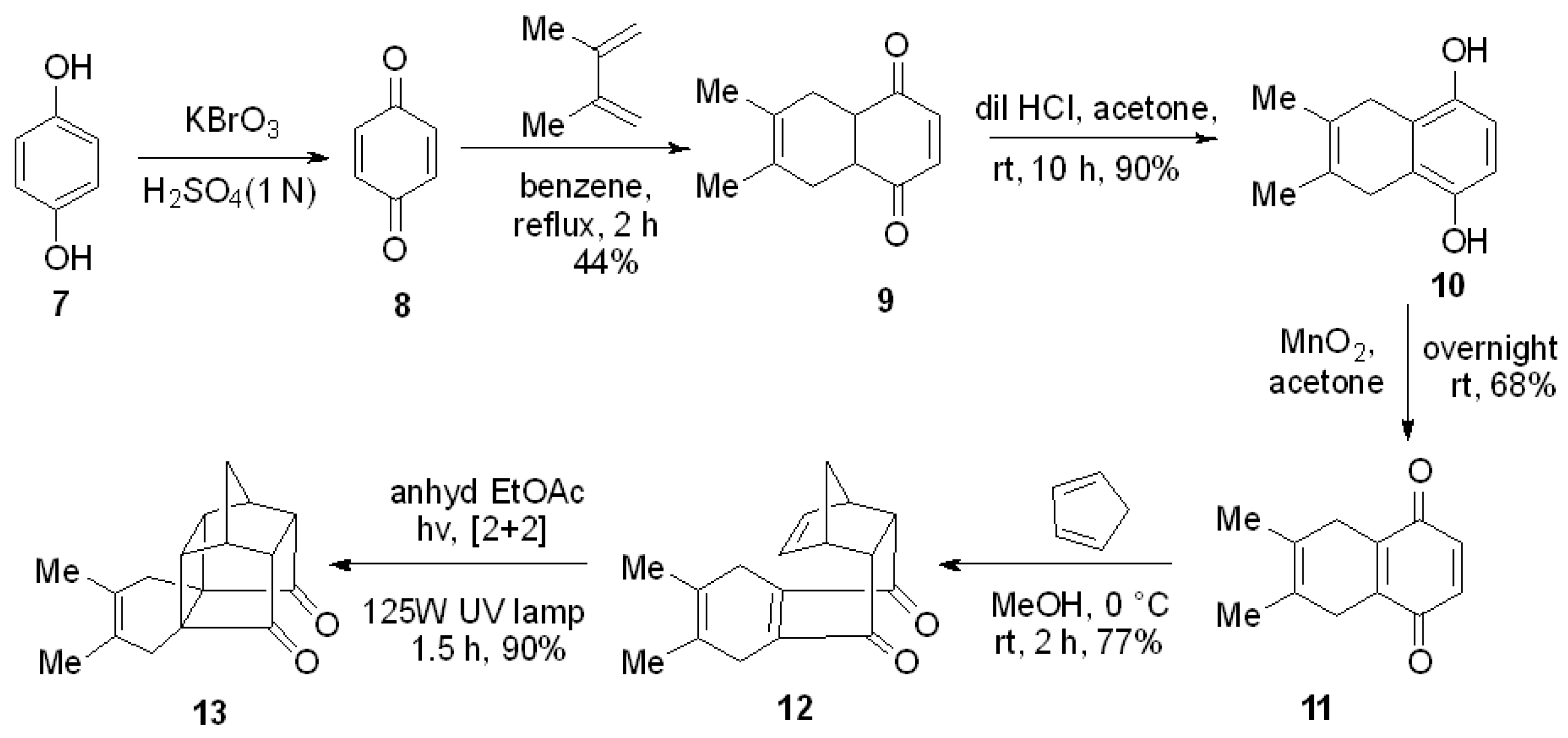

Scheme 1. Synthesis of hexacyclic cage system 13.
