77Se and 13C NMR Characterization of Selenium Cyanides

1
Laboratório de Síntese Orgânica Limpa–LASOL, CCQFA, Universidade Federal de Pelotas–UFPel, P.O. Box 354, Pelotas 96010-900, RS, Brazil
2
Departamento de Química, Centro de Ciências Naturais e Exatas, Universidade Federal de Santa Maria-UFSM, Av. Roraima, Santa Maria 97105-340, RS, Brazil
*
Authors to whom correspondence should be addressed.
Molbank 2022, 2022(4), M1485; https://doi.org/10.3390/M1485
Received: 7 October 2022 / Revised: 3 November 2022 / Accepted: 4 November 2022 / Published: 7 November 2022
(This article belongs to the Section Structure Determination)

Abstract

:
Here, we describe a magnetic resonance spectroscopy characterization of selenium cyanide compounds, Se(CN)2, Se2(CN)2 and Se3(CN)2. Selenim-77 and carbon-13 nuclides were used to provide data of these species at room temperature. This is the first structural characterization performed using NMR for Se3(CN)2, while only low-temperature analyses have been conducted so far for Se(CN)2 and Se2(CN)2. Based on these limitations, a characterization study was deemed mandatory, especially from a synthetic chemistry point of view. In addition to these analyses, we carried out a purity assessment for Se3(CN)2 according to the melting point parameter along with a solubility evaluation.

1. Introduction

Selenium cyanides are a class of inorganic compounds restricted to Se(CN)2, Se2(CN)2 and Se3(CN)2 [1,2,3,4,5]. Among them is triselenium dicyanide (TSD), which demonstrates a synthetic utility in organic synthesis by allowing the electrophilic SeCN moiety to be inserted into more complex structures (Scheme 1) [6,7,8], and can be used for medicinal chemistry (Scheme 1).
For example, Kachanov and co-workers developed in 2004 a simple method for the introduction of the SeCN moiety in different aromatic amines containing free para-position indoles and some active methylene as substrates, furnishing the corresponding selenocyanates compounds in good yields [6]. More recently, Myrboh and co-workers reported a direct and efficient one-step protocol for the selenocyanation of aryl methyl ketones/styryl methyl ketones by selenium dioxide and malononitrile to obtain the desired α-carbonyl selenocyanates, where TSD was employed as a selenocyanating agent formed in situ [8].
Although the in situ generation of TSD represents a fast and efficient pathway by which to insert the SeCN moiety [9], to expand its use in organic synthesis, it is necessary to access the isolated form, mainly due to the presence of unreacted SeO2 in the reaction medium of the one-pot approach. Consequently, the thermal and moisture sensitiveness of TSD can affect the purification step and the isolated yield and prevent mass and NMR characterizations. In this sense, an X-ray diffraction study of TSD confirmed its triselenide bridge structure, in which it was observed that the CN groups are eclipsed [10]. However, X-ray is not an experimental protocol suitable for purity assessment and/or reaction monitoring.
TSD can be easily prepared via the exothermic reaction between malononitrile and selenium dioxide using DMSO as a solvent [6]. However, no further characterization has been obtained due its poor solubility in organic solvents, [10] and only X-ray crystal and solid-state nuclear magnetic resonance (NMR) analyses have been described [4,5,10,11]. On the other hand, Se(CN)2 is stable, while Se2(CN)2 rapidly disproportionates [6,11]. Additionally, there are 77Se and 13C NMR analyses of Se(CN)2 and Se2(CN)2 species, but they were collected at low temperatures [10,12], which hamper a selenium chemical shift comparison for a mechanism evaluation and product identification.
In view of these limitations regarding the chemistry of selenium cyanides, and because most of the reactions with TSD have been carried out at room temperature [6,7,8], we report here the characterization of Se(CN)2, Se2(CN)2 and Se3(CN)2 by 77Se and 13C NMR spectroscopies in DMSO-d6 solvent at room temperature (25 °C). In order to better understand the practical synthetic methodology used to access TSD from the reaction between malononitrile and selenium dioxide, we also evaluated the solubility and purification step by measuring the TSD melting point (MP) and collecting infrared (IR) absorption data.

2. Results

Se(CN)2 and Se2(CN)2 were prepared according to Woollins and co-workers’ methodology (see the Experimental Section) [10]. Se3(CN)2 (TSD) was prepared according to Kaminskii and co-workers’ procedure (see the Experimental Section) [6]. The NMR analyses were performed at 25 °C, immediately after their preparation, due to the instability and/or disproportionation of selenium cyanide compounds. The samples were prepared by dissolving 5.0 mg of the compound in 0.75 μL of the solvent. The purity of TSD was evaluated by measuring its melting point after five distinct protocols: washing with water, recrystallization in benzene, washing with ethanol, washing with dichloromethane and without any treatment (see the Experimental Section). Additionally, the solubility of TSD was evaluated in distinct deuterated solvents (CDCl3, D2O, Py-d5, benzene-d6, D3COD, D3CCN and DMSO- d6). TSD was partially soluble in D3COD, D3CCN and DMSO-d6. Centrifugation was necessary to remove the solid after partial solubilization in the deuterated solvent. Additionally, an infrared spectrum was collected to confirm the presence of the selenium cyanide species and compare it with the literature [10,11].

3. Discussion

The use of NMR spectroscopy to follow a reaction is an effective way to provide evidence for a mechanism [13,14]. NMR can provide structural details about the reactions, visualizing the consumption of starting materials and/or the formation of products, along with kinetic information obtained from the easy quantitative NMR evaluation. Additionally, to obtain more information regarding the reactivity of selenium species, 77Se nuclide in NMR analysis is an important tool to for the structural elucidation of products and chemical intermediates [14]. Based on these features, our main idea was to acquire information on the 77Se NMR chemical shifts of selenium cyanides, especially TSD, once it could be used to understand the reactivity of this species in the functionalization of heterocycles (Scheme 1) [6,7,8]. For this purpose, we prepared TSD, employing SeO2 (0.34 mmol) in the reaction with malononitrile (0.17 mmol) in 750 µL of DMSO-d6 (Scheme 2) [6], and then the 77Se{1H} NMR experiment was performed (Figure 1). It is important to mention that the NMR sample of TSD was centrifuged to eliminate the elemental selenium residue (Figure S1).
The recorded TSD 77Se{1H} NMR spectrum presented two signals, at δ = 390.7 and 261.3 ppm, which characterize the two types of selenium-77 nuclides in Se3(CN)2 (Figure 1). In the 13C{1H} NMR spectrum, we observed a signal of carbon-13 at δ = 102.0 ppm; however, another lower signal at δ = 104.0 ppm was also present (Figure 2). To understand the 77Se and 13C NMR profiles, Se(CN)2 and Se2(CN)2 were prepared and analyzed using NMR spectroscopy (Scheme 2) [10]. At the beginning, we performed the 77Se{1H} NMR experiments for these selenium cyanide compounds using DMSO-d6 as a solvent. Se(CN)2 presented a selenium-77 signal at δ = 440.6 ppm, while Se2(CN)2 demonstrated a signal at δ = 261.1 ppm (Figure 1). As can be seen in the 77Se NMR spectra, the lower signal frequency of Se3(CN)2 was similar to that of the Se2(CN)2 compound, while the higher signal frequency was not close to that observed in the selenium-77 chemical shift of the Se(CN)2 species.
Next, the 13C{1H} NMR spectra of Se(CN)2 and Se2(CN)2 were acquired (Figure 2). The 13C-NMR spectrum of Se(CN)2 presented a signal at δ = 103.7 ppm, while Se2(CN)2 showed two signals, at δ = 101.97 and 104.08 ppm. According to the literature, Se2(CN)2 disproportionates to the Se(CN)2 species, which can be visualized by the presence of the peak at δ = 104.08 ppm, due the higher stability of Se(CN)2 [10]. Considering that Se2(CN)2 has an identical selenium-77 chemical shift with Se3(CN)2 (~261 ppm, Figure 1), we assume that the carbon-13 signal at δ = 104.48 ppm in the TSD spectrum was due to the presence of Se(CN)2, once the chemical shifts were similar. Additionally, other possible structures involving isoselenocyanides can be excluded, as observed by infrared (IR) spectroscopy, in which there were no other CN bands (Figures S10–S12) [11]. TSD was isolated, and then the solubility was checked in CDCl3, D2O, Py-d5, benzene-d6, D3COD and D3CCN deuterated solvents. Although TSD was soluble only in D3COD and D3CCN solvents, the 77Se{1H} NMR experiment of TSD in D3COD did not show signals, and the solution color changed to red (Figure S2). The 77Se{1H} NMR spectrum of TSD in D3CCN demonstrated a variation in the selenium-77 chemical shifts in both 77Se NMR signals for a higher frequency region than in DMSO-d6 (Figure S9: δ = 452.8 and 279.4 ppm).
Although it was possible to characterize all selenium cyanides, the purity of TSD should be evaluated before its proper use as a starting material in organic synthesis. An alternative protocol to check the purity of the TSD compound involves its melting point (MP), which is a practical procedure with a low cost and is properly described in the literature (133–134 °C) [6]. In this sense, TSD was prepared according to Kaminskii and co-workers’ procedure [6], and then different purification protocols were evaluated, as can be seen in Table 1. According to the melting point study, the crude product had a distinct MP (Table 1, entry 1), possibly due to the presence of Se(CN)2 along with the Se3(CN)2 starting material, as visualized in the 77Se{1H} NMR spectrum. When the yellow solid was washed with ethanol, the solid became red, exactly as observed in the solubility study, and the measured MP was 132–135 °C (Table 1, entry 4). The solid obtained after washing with water and dichloromethane also presented distinct MPs (Table 1; entries 2 and 5). Only after recrystallization with benzene did the obtained TSD present the correct MP (Table 1, entry 3).
Regarding the MP measures, small variations in their values were not sufficiently precise to assess the purity of the prepared TSD. Thus, 77Se NMR analyses were performed as well to confirm the purity of the TSD after purification. As can be seen in the Supplementary Materials (Figures S10 and S11), the 77Se NMR spectra collected after procedures of entries 2 and 3 (Table 1) demonstrate a great amount of Se(CN)2, while the methodology of entry 4 (Table 1) did not show signals in the spectrum. Finally, when TSD was washed with dichloromethane, the 77Se{1H} NMR spectrum confirmed the higher purity of this selenium cyanide species. Although the MP experiment can be used to evaluate the synthetic protocol used to obtain TSD (Table 1), 77Se NMR spectroscopy is the best choice to confirm its purity.
Once selenium cyanides were synthesized, the NMR experiments were immediately performed due to their instability and/or disproportionation [10,11]. Moreover, the use of TSD in situ minimizes costs and time; nonetheless, depending on the synthetic condition, it could be necessary to isolate TSD. In this case, a careful purification should be carried out once TSD disproportionates easily at room temperature under heating. Additionally, the presence of impurities, such as SeO2 (Figures S10 and S11; selenium chemical shift δ around 808 ppm), is observed in the purification protocols (Table 1, entries 2 and 3); this accelerates the degradation process, during which the TSD solid rapidly becomes dark. Regarding the sensitivity to light, changes in the prepared TSD were not observed when it was exposed to light. The infrared (IR) analyses were also performed for all the selenium cyanide species, with the following vibrations for Se3(CN)2 being observed: strong nitrile stretching at 2130 cm−1 and a weak band at 1646 cm−1 along with a broad unassigned band at 3442 cm−1 [10], which could be due to water and/or impurities, as observed in the 13C{1H} NMR spectrum (Figure S8). Se(CN)2 and Se2(CN)2 IR analyses corroborated the literature [10], in which the main bands, such as CN at 2137 and 2139 cm−1, and Se-CN at 668 and 671 cm−1, respectively, could be observed with other band combinations.

4. Materials and Methods

The nuclear magnetic resonance (NMR) data were collected on a Bruker Avance III HD spectrometer operating at 400.0 MHz for 1H, 100 MHz for 13C and 76.0 MHz for 77Se. The concentration of all samples was approximately 5.0 mg/0.7 mL of deuterated solvent. NMR data were recorded at 25 °C, with chemical shifts δ reported in parts per million and coupling constants J in Hertz. The 77Se{1H} NMR spectra were referenced to diphenyl diselenide (δ = 463.0 ppm) using the substitution method (IUPAC) and the 13C{1H} NMR spectra were referenced to DMSO-d6 (δ = 39.51 ppm). All data were analyzed using MNova 7.1.1 (2012) software. The infrared analyses were performed with a Fourier Transformed Infrared Bruker Alpha-P spectrometer in the attenuated total reflection mode, and the samples were submitted to KI and placed on the crystal surface obtaining the IR spectra from an average of 24 scans at the range of 4000–1500 cm−1.
All solvents and reagents (SeO2 and malononitrile) are commercially available (Sigma Aldrich®, St. Louis, MI, USA) and were used without any previous treatment.

5. Conclusions

In conclusion, we have characterized the selenium cyanide species, Se(CN)2, Se2(CN)2 and Se3(CN)2, using NMR (at 25 °C) and IR spectroscopies. This is an important contribution, as it facilitates the characterization of these starting materials, especially by 77Se NMR spectroscopy, spreading their application in organic synthesis and assisting the elucidation of reaction mechanisms through the identification of organoselenium products, byproducts and chemical intermediates. Additionally, we have demonstrated the utility of the melting point parameter to assess the purity of the triselenium dicyanide species in a simple and low-cost procedure. The aggregation of different types of data, as well as the solubility and stability results described here, are imperative to providing new applications for the selenium cyanide species.

Supplementary Materials

The following are available online. Figures S1–S14: 13C and 77Se NMR spectra, FT-IR spectrum along with the synthetic and purification procedures. Table S1: Melting points results.

Author Contributions

M.S.S. designed and conceived the whole NMR experiment and wrote and reviewed the manuscript; E.J.L. wrote, reviewed and edited the manuscript; J.M.A., S.S.F. and F.P. developed the synthetic methodology and performed the reactions. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by CNPq (grant no. 422645/2021-4), FAPERGS (grant no. 21/2551-0002136-5 and 21/2551-0002094-6) and FINEP and partially financed by the Coordenação de Aperfeiçoamento de Pessoal de Nivel Superior (CAPES), Brazil—Finance Code 001.

Data Availability Statement

The data presented in this study are available in the Supplementary Materials of this article.

Acknowledgments

The authors are grateful for the financial support and scholarships from the Brazilian agencies.

Conflicts of Interest

The authors declare no conflict of interest.

Sample Availability

Samples of the compound Se3(CN)2 are available from the authors.

References

  1. Hazel, A.C. The crystal structures of selenium dicyanide and sulphur dicyanide. Acta Crystallogr. 1963, 16, 843–844. [Google Scholar] [CrossRef]
  2. Linke, K.-H.; Lemmer, F.Z. Röntgenographische Kristallstrukturanalyse von Selendicyanid. Anorg. Allg. Chem. 1966, 345, 211–216. [Google Scholar] [CrossRef]
  3. Birckenbach, L.; Kellermann, K. Pseudo halogene (II): 1. The fulminic acid-residuals. 2. The equilibrium between iodine, selenocyanogen and of corresponding silver salts. 3. Polypseudo halogenide. Ber. Dtsch. Chem. Ges. 1925, 58, 2377–2386. [Google Scholar] [CrossRef]
  4. Aksnes, O.; Foss, O. The Structure of Selenium Diselenocyanate. Acta Chem. Scand. 1954, 8, 702–703. [Google Scholar] [CrossRef]
  5. Aksnes, O.; Foss, O. The Crystal Structure of Selenium Diselenocyanate. Acta Chem. Scand. 1954, 8, 1787–1795. [Google Scholar] [CrossRef]
  6. Kachanov, A.V.; Slabko, O.Y.; Baranova, O.V.; Shilova, E.V.; Kaminskii, V.A. Triselenium dicyanide from malononitrile and selenium dioxide. One-pot synthesis of selenocyanates. Tetrahedron Lett. 2004, 45, 4461–4463. [Google Scholar] [CrossRef]
  7. Redon, S.; Kosso, A.R.O.; Broggi, J.; Vanelle, P. Easy and efficient selenocyanation of imidazoheterocycles using triselenodicyanide. Tetrahedron Lett. 2017, 58, 2771–2773. [Google Scholar] [CrossRef]
  8. Myrboh, B.; Shangpliang, O.R.; Lipon, M.T.; Wanniang, K.; Marpna, D.I. Selenocyanation of Aryl and Styryl Methyl Ketones in the Presence of Selenium Dioxide and Malononitrile: An Approach for the Synthesis of α-Carbonyl Selenocyanates. J. Org. Chem. 2021, 86, 1980–1986. [Google Scholar] [CrossRef]
  9. Thurow, S.; Abenante, L.; Anghinoni, J.M.; Lenardão, E.J. Selenium as a Versatile Reagent in Organic Synthesis: More than Allylic Oxidation. Curr. Org. Synth. 2022, 19, 331–365. [Google Scholar] [CrossRef] [PubMed]
  10. Burchell, C.J.; Kilian, P.; Slawin, A.M.Z.; Woollins, J.D. E2(CN)2 (E = S, Se) and related compounds. Inorg. Chem. 2006, 45, 710–716. [Google Scholar] [CrossRef] [PubMed]
  11. Cataldo, F. 13C NMR and FT-IR spectra of thiocyanogen, S2(CN)2, selenocyanogen, Se2(CN)2, and related compounds. Polyhedron 2000, 19, 681–688. [Google Scholar] [CrossRef]
  12. Fritz, S.; Lentz, D.; Szwak, M. Synthesis and Structure Determination of Selenium(IV) Cyanides. Eur. J. Inorg. Chem. 2008, 4683–4686. [Google Scholar] [CrossRef]
  13. Foley, D.A.; Dunn, A.L.; Zell, M.T. Reaction monitoring using online vs tube NMR spectroscopy: Seriously different results. Magn. Reson. Chem. 2016, 54, 451–456. [Google Scholar] [CrossRef] [PubMed]
  14. Silva, M.S.; Alves, D.; Hartwig, D.; Jacob, R.G.; Perin, G.; Lenardão, E.J. Selenium-NMR Spectroscopy in Organic Synthesis: From Structural Characterization Toward New Investigations. Asian J. Org. Chem. 2021, 10, 91–128. [Google Scholar] [CrossRef]

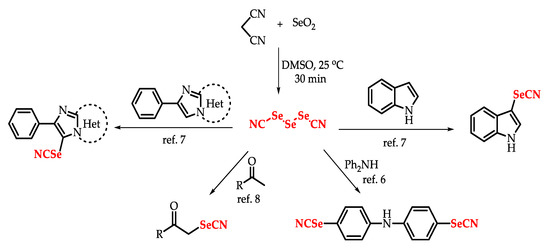

Scheme 1. Functionalization of organic compounds by Se3(CN)2 prepared in situ.
Scheme 1. Functionalization of organic compounds by Se3(CN)2 prepared in situ.
Molbank 2022 m1485 sch001

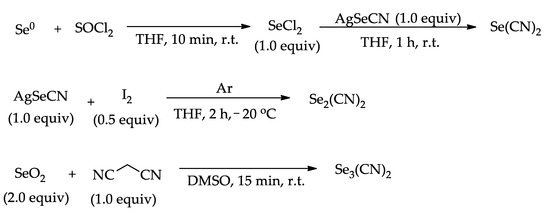

Scheme 2. Synthesis of Se(CN)2, Se2(CN)2. and Se3(CN)2 species.
Scheme 2. Synthesis of Se(CN)2, Se2(CN)2. and Se3(CN)2 species.
Molbank 2022 m1485 sch002
Figure 1. 77Se{1H} NMR experiments of Se(CN)2 (red), Se2(CN)2. (green) and Se3(CN)2 (blue) in DMSO-d6.
Figure 1. 77Se{1H} NMR experiments of Se(CN)2 (red), Se2(CN)2. (green) and Se3(CN)2 (blue) in DMSO-d6.
Molbank 2022 m1485 g001

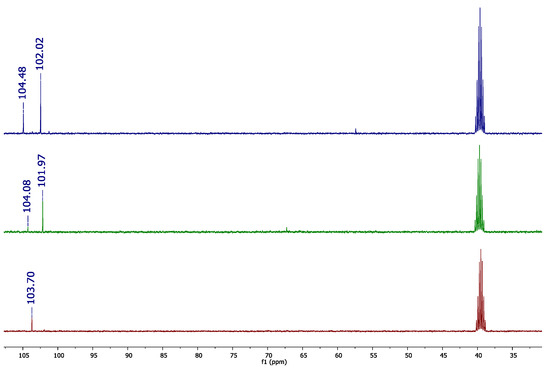

Figure 2. 13C{1H} NMR spectra of Se(CN)2 (red), Se2(CN)2 (green) and Se3(CN)2 (blue) in DMSO-d6.
Figure 2. 13C{1H} NMR spectra of Se(CN)2 (red), Se2(CN)2 (green) and Se3(CN)2 (blue) in DMSO-d6.
Molbank 2022 m1485 g002
Table 1. Melting points of TSD employing distinct purification protocols a.
Table 1. Melting points of TSD employing distinct purification protocols a.
EntryPurification ProtocolReferenceMelting Point (°C)
1---6134–136
2Washed with water7134–136
3Recrystallized in benzene6133–134
4Washed with ethanol---132–135
5Washed with dichloromethane---130–131
a The melting point experiments were performed in triplicate.
