Molbank 2019, 2019(4), ; https://doi.org/10.3390/M1086

Communication
Synthesis of 2-Cyanopyrimidines
1
Department of Life Sciences, School of Sciences, European University Cyprus, 6 Diogenis Str., Engomi, P.O. Box 22006, 1516 Nicosia, Cyprus
2
Department of Chemistry, University of Cyprus, P.O. Box 20537, 1678 Nicosia, Cyprus
*
Author to whom correspondence should be addressed.
Received: 26 September 2019 / Accepted: 21 October 2019 / Published: 22 October 2019

Abstract

:
4,6-Dichloro-2-(methylthio)pyrimidine (7) was converted to 4-chloro-6-methoxy-2-(methylthio)pyrimidine (15) and 4,6-dimethoxy-2-(methylthio)pyrimidine (14). Chlorination of the latter with N-chlorosuccinimide (NCS) affords 5-chloro-4,6-dimethoxy-2-(methylthio)pyrimidine (16) in 56% yield. Both methylthiopyrimidines 15 and 14 were converted in two steps to 4-chloro-6-methoxypyrimidine-2-carbonitrile (13) and 4,6-dimethoxypyrimidine-2-carbonitrile (12), respectively, after oxidation to sulfones and displacement of the sulfinate group with KCN. 4,6-Dimethoxypyrimidine-2-carbonitrile (12) was chlorinated with NCS to give 5-chloro-4,6-dimethoxypyrimidine-2-carbonitrile (10) in 53% yield. All new compounds were fully characterized.
Keywords:
heterocycle; pyrimidine; nucleophilic displacement; chlorination

1. Introduction

Pyrimidines are important aromatic N-heterocycles that are found in nature, for example, as components of pyrimidine nucleotides and vitamin B1 (thiamine). Not surprisingly, the chemistry of pyrimidines has been investigated for over a century and numerous reviews have appeared [1]. Pyrimidines are also present in many drugs such as the CNS depressant phenobarbital, the anti-HIV agent zidovudine and the hyperthyroidism drug propylthiouracil (Figure 1). Additional pharmaceutical applications include uses as diuretics [2], anti-inflammatory [3], anti-malarial [4], and anti-tumor [5] agents.
Our interest in pyrimidines began with 4,5,6-trichloropyrimidine-2-carbonitrile (1), which was isolated as an unexpected minor product (1–5%) from the reaction of tetracyanoethene (TCNE) with SCl2 during the preparation of 2-(3,5-dichloro-4H-1,2,6-thiadiazin-4-ylidene)malononitrile (2) [6] (Scheme 1). To obtain access to larger quantities of trichloropyrimidine 1, so that its chemistry could be investigated, we pursued various independent syntheses.
To date, our most efficient synthesis of pyrimidine 1 starts from the highly reactive tetrachlorothiadiazine 3 via perchloro-9-thia-1,5,8,10-tetraazaspiro[5.5]undeca-1,4,7,10-tetraene (4) in a 53% overall yield [7] (Scheme 1).
Below we report an alternative effort to prepare pyrimidine 1 that failed but did lead to the preparation of several new poly-substituted pyrimidines.
A retrosynthetic analysis of trichloropyrimidine 1 revealed that the cyano-group could be introduced by a nucleophilic displacement of a suitable leaving group in the C2 position by cyanide. Such a group could be sulfinate 5 that can be prepared by oxidation of thioether 6. The latter could be formed by C5 chlorination of the readily available starting pyrimidine 7 (Scheme 2).
In two alternative retrosynthetic strategies, pyrimidine 1 could be formed by 4,6-dihydroxy-pyrimidine 8 or 4-hydroxypyrimidine 9 (Scheme 3). These compounds could be formed by deprotection of the respective ethers 10 and 11. The presence of alkoxy groups in the C5 and C6 positions would enable the easier chlorination of the C5 in precursors 12 and 13 due to the electron-donating character of these groups. The cyano groups could be introduced in a similar manner to that described above from thioethers 14 and 15, which could be formed from chloride displacement of dichloropyrimidine 7.

2. Results and Discussion

As described above, our independent synthesis began from the known 4,6-dichloro-2-(methylthio)pyrimidine (7) that was prepared in two steps and 92% overall yield from thiobarbituric acid [8]. This starting material was selected because of the availability of the starting thiobarbituric acid and the high yield of its transformation to dichloropyrimidine 7. The latter has a versatile thioether group at C2 that can be displaced by cyanide and chlorides at the C4,6 positions. Early efforts to chlorinate the C5 position of dichloropyrimidine 7 with either NCS in AcOH, at ca. 117 °C, refluxing PCl5/POCl3 or neat PCl5 in a sealed tube at ca. 130 °C failed, giving only recovered starting material. Tentatively, this was attributed to the electron-deficient nature of the ring in the presence of the C4/6 electronegative chlorine atoms.
As such, we ‘activated’ the pyrimidine C5 position towards electrophilic chlorination by displacing one or both chlorides by the strong electron-releasing alkoxides. The substitution reaction is known [9,10], but by slightly modifying the reaction procedure to involve a more concentrated reaction mixture we reduced the literature reaction time from 18 h to 2 h and obtained a high yield of methoxypyrimidine 15 (Scheme 4). Similarly, for the preparation of dimethoxy-pyrimidine 14, elevating the reaction temperature to ca. 65 °C from 20 °C also led to shorter reaction time (2 h vs. 18 h) and a high yield of 14 (Scheme 4).
Attempted C5 chlorination of the methoxypyrimidine 15 using either NCS or PCl5 as chlorinating agents failed to give a complex mixture of products, but fortunately, dimethoxy-pyrimidine 14 reacted smoothly with NCS in AcOH to give the new 5-chloropyrimidine 16 in a moderate 56% yield (Scheme 5, see the supplementary materials for NMR spectra).
Encouraged by this result, we then proceeded to functionalize the C2 ring position. Oxidation of the thioether moiety in both pyrimidines 15 and 14 was performed by MCPBA (2 equiv), in DCM, at ca. 0 °C, to give sulfones 17 and 18, respectively in excellent yields (Scheme 6). For comparison, the literature procedure for the preparation of methoxypyrimidine 17 used the oxidant oxone and obtained 78% yield of product 17 [11], whereas for dimethoxypyrimidine 18, MCPBA was used at a temperature of ca. 30 °C giving a 67% yield of product 18 [12]. Subsequent displacement of the sulfinate with KCN in MeCN yielded the new 2-cyanopyrimidines 13 and 12 in 27 and 83% yields, respectively (Scheme 6, see the supplementary materials for NMR spectra).
Unfortunately, attempts to chlorinate cyanopyrimidine 13 failed but the chlorination of dimethoxypyrimidine 12 was successful and gave the new 5-chloropyrimidine 10 a potential precursor to trichloropyrimidine 1 (Scheme 7, see SI for NMR spectra). Disappointingly, the subsequent step of demethylation required to reach the target compound failed. In more detail, the reaction of chloropyrimidine 10 with BBr3 (5 equiv) in DCM at ca. 20 °C gave a complex mixture of products, while the use of TMSI in MeCN at ca. 82 °C led to degradation of the starting material to give tentatively acyclic side-products.
Although this study has not yielded the desired trichloropyrimidine 1, it has given access to four new polyfunctionalized pyrimidines that could be of use for the further investigation of the chemistry and properties of pyrimidines.

3. Materials and Methods

The reaction mixture was monitored by TLC using commercial glass-backed thin-layer chromatography (TLC) plates (Merck Kieselgel 60 F254). The plates were observed under UV light at 254 and 365 nm. Dichloromethane (DCM) and acetonitrile (MeCN) were distilled over CaH2 before use. The 1 M and 3 M solutions of sodium methoxide (MeONa) in methanol (MeOH) were freshly prepared by the reaction of sodium metal with MeOH. The melting point was determined using a PolyTherm-A, Wagner & Munz, Kofler Hotstage Microscope apparatus (Wagner & Munz, Munich, Germany). The solvent used for recrystallization is indicated after the melting point. The UV-vis spectrum was obtained using a Perkin-Elmer Lambda-25 UV-vis spectrophotometer (Perkin-Elmer, Waltham, MA, USA), and inflections are identified by the abbreviation “inf”. The IR spectrum was recorded on a Shimadzu FTIR-NIR Prestige-21 spectrometer (Shimadzu, Kyoto, Japan) with Pike Miracle Ge ATR accessory (Pike Miracle, Madison, WI, USA) and strong, medium and weak peaks are represented by s, m and w, respectively. 1H and 13C NMR spectra were recorded on a Bruker Avance 500 spectrometer [at 500 and 125 MHz, respectively, (Bruker, Billerica, MA, USA)]. Deuterated solvents were used for homonuclear lock and the signals are referenced to the deuterated solvent peaks. Attached proton test (APT) NMR studies were used for the assignment of the 13C peaks as CH3, CH2, CH, and Cq (quaternary). The MALDI-TOF mass spectrum (+ve mode) was recorded on a Bruker Autoflex III Smartbeam instrument (Bruker). The elemental analysis was run by the London Metropolitan University Elemental Analysis Service. 4,6-dichloro-2-(methylthio)pyrimidine (7) was prepared according to the literature procedure [8].
4-Chloro-6-methoxy-2-(methylthio)pyrimidine (15)
To a stirred mixture of 4,6-dichloro-2-(methylthio)pyrimidine (7) (585 mg, 3.00 mmol) in MeOH (15 mL) at ca. 20 °C was added in one portion a solution of MeONa 1 M in MeOH (3.30 mL, 3.30 mmol). The mixture was protected with a CaCl2 drying tube and stirred at this temperature until complete consumption of the starting material (TLC, 2 h). Et2O (20 mL) and NaHCO3 sat. (10 mL) were then added, the two layers separated, and the aqueous layer extracted with a further 10 mL of Et2O. The combined organic phases were then dried over Na2SO4, filtered, and evaporated in vacuo to give the title compound 15 (518 mg, 91%) as a colorless oil; Rf 0.31 (n-hexane/DCM, 70:30), δH(500 MHz; CDCl3) 6.41 (1H, s, CH), 3.96 (3H, s, OCH3), 2.55 (3H, s, SCH3), identical to the one reported [11].
4,6-Dimethoxy-2-(methylthio)pyrimidine (14)
To a stirred mixture of 4,6-dichloro-2-(methylthio)pyrimidine (7) (780 mg, 4.00 mmol) in MeOH (15 mL) at ca. 20 °C was added in one portion a solution of MeONa 3 M in MeOH (2.93 mL, 8.80 mmol). The mixture was protected with a CaCl2 drying tube and heated to ca. 65 °C until complete consumption of the starting material (TLC, 2 h). DCM (10 mL) was then added, the mixture adsorbed onto silica, and chromatography (n-hexane/DCM 70:30) gave the title compound 14 (717 mg, 96%) as yellow plates, mp 53–54 °C (from n-hexane/−40 °C, lit. 53–54 °C [13]); Rf 0.18 (n-hexane/DCM, 70:30); δH(500 MHz; CDCl3) 5.71 (1H, s, CH), 3.92 (6H, s, OCH3), 2.54 (6H, s, SCH3), identical to the one reported [14].
5-Chloro-4,6-dimethoxy-2-(methylthio)pyrimidine (16)
To a stirred mixture of 4,6-dimethoxy-2-(methylthio)pyrimidine (14) (93.1 mg, 0.500 mmol) in AcOH (1 mL) at ca. 20 °C was added in one portion N-chlorosuccinimide (73.4 mg, 0.55 mmol). The mixture was protected with a CaCl2 drying tube and stirred at this temperature until complete consumption of the starting material (TLC, 24 h). DCM (10 mL) was then added, the mixture adsorbed onto silica, and chromatography (n-hexane/DCM 70:30) gave the title compound 16 (61.6 mg, 56%) as colorless needles, mp 128–129 °C (from n-hexane/−40 °C); Rf 0.46 (n-hexane/DCM, 70:30); (found: C, 37.94; H, 4.12; N, 12.53. C7H9ClN2O2S requires C, 38.10; H, 4.11; N, 12.69%); λmax(DCM)/nm 258 inf (log ε 4.11), 267 (4.16); vmax/cm−1 2963w and 2930w (C-H), 1560m, 1555s, 1493m, 1458w, 1389m, 1358s, 1335w, 1319m, 1290m, 1269m, 1186m, 1182m, 1126s, 1070m, 926m, 770m; δH(500 MHz; CDCl3) 4.03 (6H, s, OCH3), 2.53 (3H, s, SCH3); δC(125 MHz; CDCl3) 167.5 (Cq), 165.1 (Cq), 95.2 (Cq), 55.0 (CH3), 14.4 (CH3); m/z (MALDI-TOF) 221 (M+-H + 2, 33%), 220 (M+, 75), 219 (M+ − H, 100), 206 (12).
4-Chloro-6-methoxy-2-(methylsulfonyl)pyrimidine (17)
To a stirred mixture of 4-chloro-6-methoxy-2-(methylthio)pyrimidine (15) (572 mg, 3.00 mmol) in DCM (10 mL) cooled in an ice-bath to ca. 0 °C was added in one portion m-chloroperbenzoic acid of 77% purity (1.344 g, 6.000 mmol). The mixture was protected with a CaCl2 drying tube and stirred at this temperature until complete consumption of the starting material (TLC, 1 h). Et2O (20 mL) and Na2CO3 sat. (10 mL) were then added, the two layers separated, and the aqueous layer extracted with a further 10 mL of Et2O. The combined organic phases were then dried over Na2SO4, filtered, and evaporated in vacuo to give the title compound 17 (634 mg, 95%) as colorless needles, mp 85–86 °C (from n-hexane/−40 °C, lit. 87–88 °C [11]); Rf 0.22 (n-hexane/DCM, 20:80); δH(500 MHz; CDCl3) 6.92 (1H, s, CH), 4.10 (3H, s, OCH3), 3.33 (3H, s, SO2CH3); identical to the one reported [11].
4,6-Dimethoxy-2-(methylsulfonyl)pyrimidine (18)
To a stirred mixture of 4,6-dimethoxy-2-(methylthio)pyrimidine (14) (186 mg, 1.00 mmol) in DCM (5 mL) cooled in an ice-bath to ca. 0 °C was added in one portion m-chloroperbenzoic acid of 77% purity (448 g, 3.000 mmol). The mixture was protected with a CaCl2 drying tube and stirred at this temperature until complete consumption of the starting material (TLC, 1 h). Et2O (20 mL) and Na2CO3 sat. (10 mL) were then added, the two layers separated, and the aqueous layer extracted with a further 10 mL of Et2O. The combined organic phases were then dried over Na2SO4, filtered and evaporated in vacuo to give the title compound 18 (124 mg, 98%) as colorless plates, mp 125–126 °C (from EtOH, lit. 126–128 °C [13]); Rf 0.74 (DCM); δH(500 MHz; CDCl3) 6.18 (1H, s, CH), 4.03 (6H, s, OCH3), 3.32 (3H, s, SO2CH3); identical to the one reported [13].
4-Chloro-6-methoxypyrimidine-2-carbonitrile (13)
To a stirred mixture of 4-chloro-6-methoxy-2-(methylsulfonyl)pyrimidine (17) (223 mg, 1.00 mmol) in MeCN (5 mL) at ca. 20 °C was added in one portion 18-crown-6 (26 mg, 0.10 mmol) followed by KCN (195 mg, 3.00 mmol). The mixture was protected with a CaCl2 drying tube and stirred at this temperature until complete consumption of the starting material (TLC, 18 h). Et2O (20 mL) and H2O (10 mL) were then added, the two layers separated, and the aqueous layer extracted with a further 10 mL of Et2O. The combined organic phases were then dried over Na2SO4, filtered, and the mixture adsorbed onto silica and chromatography (n-hexane/DCM 20:80) gave the title compound 13 (48 mg, 27%) as colorless needles, mp 69–70 °C (from n-hexane/−40 °C); Rf 0.67 (n-hexane/DCM 20:80); (found: C, 42.65; H, 2.40; N, 24.63. C6H4ClN3O requires C, 42.50; H, 2.38; N, 24.78%); λmax(DCM)/nm 241 (log ε 3.59), 262 (3.41); vmax/cm−1 3084w (C-H), 1562s, 1533m, 1518m, 1470m, 1396m, 1360s, 1341m, 1244w, 1190m, 1130s, 1038s, 978s, 945m, 880m, 862m, 770w; δH(500 MHz; CDCl3) 6.95 (1H, s, CH), 4.06 (3H, s, OCH3); δC(125 MHz; CDCl3) 170.8 (Cq), 161.3 (Cq), 143.5 (Cq), 114.6 (Cq), 111.1 (CH), 55.7 (CH3); m/z (MALDI-TOF) 170 (M+-H + 2, 20%), 169 (M+, 40), 168 (M+ − H, 100), 132 (36).
4,6-Dimethoxypyrimidine-2-carbonitrile (12)
To a stirred mixture of 4,6-dimethoxy-2-(methylsulfonyl)pyrimidine (18) (218 mg, 1.00 mmol) in MeCN (5 mL) at ca. 20 °C was added in one portion 18-crown-6 (26 mg, 0.10 mmol) followed by KCN (195 mg, 3.00 mmol). The mixture was protected with a CaCl2 drying tube and stirred at this temperature until complete consumption of the starting material (TLC, 24 h). Et2O (20 mL) and H2O (10 mL) were then added, the two layers separated, and the aqueous layer extracted with a further 10 mL of Et2O. The combined organic phases were then dried over Na2SO4, filtered, and the mixture adsorbed onto silica and chromatography (n-hexane/DCM 60:40) gave the title compound 12 (138 mg, 83%) as colorless needles, mp 113–114 °C (from n-hexane/−40 °C); Rf 0.31 (n-hexane/DCM, 60:40); (found: C, 50.77; H, 4.35; N, 25.26. C7H7N3O2 requires C, 50.91; H, 4.27; N, 25.44%); λmax(DCM)/nm 259 (log ε 3.69); vmax/cm−1 3094w, 3003w, 2926w and 2849w (C-H), 1591s, 1566m, 1530m, 1468m, 1387m, 1352m, 1202s, 1173m, 1059s, 984m, 964m, 864m, 772m; δH(500 MHz; CDCl3) 6.20 (1H, s, CH), 3.98 (6H, s, OCH3); δC(125 MHz; CDCl3) 171.2 (Cq), 142.6 (Cq), 115.5 (Cq), 94.1 (CH), 54.9 (CH3); m/z (MALDI-TOF) 166 (MH+, 100%), 165 (M+, 25), 164 (M+ − H, 51), 162 (55).
5-Chloro-4,6-dimethoxypyrimidine-2-carbonitrile (10)
To a stirred mixture of 4,6-dimethoxypyrimidine-2-carbonitrile (12) (50.0 mg, 0.303 mmol) in AcOH (2 mL) at ca. 20 °C was added in one portion N-chlorosuccinimide (121 mg, 0.908 mmol). The mixture was protected with a CaCl2 drying tube and stirred at ca. 117 °C until complete consumption of the starting material (TLC, 24 h). Et2O (20 mL) and H2O (10 mL) were then added, the two layers separated, and the aqueous layer extracted with a further 10 mL of Et2O. The combined organic phases were then dried over Na2SO4, filtered, and the mixture adsorbed onto silica and chromatography (n-hexane/DCM 60:40) gave the title compound 10 (31.8 mg, 53%) as colorless needles, mp 145–147 °C (from n-hexane/−40 °C); Rf 0.48 (n-hexane/DCM, 60:40); (found: C, 41.96; H, 2.89; N, 20.96. C7H6ClN3O2 requires C, 42.12; H, 3.03; N, 21.05%); λmax(DCM)/nm 278 (log ε 3.66), 290 (3.45); vmax/cm−1 3003w, 2980w and 2918w (C-H), 1572s, 1566s, 1545w, 1524w, 1493w, 1462m, 1443w, 1385m, 1373s, 1362m, 1294m, 1182m, 1126s, 1088w, 1076w, 1013w, 968m, 914m, 781s, 741w, 712m; δH(500 MHz; CDCl3) 4.09 (6H, s, OCH3); δC(125 MHz; CDCl3) 166.0 (Cq), 138.5 (Cq), 115.1 (Cq), 104.4 (Cq), 56.1 (CH3); m/z (MALDI-TOF) 202 (MH+ + 2, 34%), 201 (M+ + 2,29), 200 (M+,38), 199 (M+, 100), 192 (41), 156 (10).

Supplementary Materials

The following are available online, 1H and 13C NMR spectra.

Author Contributions

P.A.K. and A.S.K. conceived the experiments; A.S.K. designed and performed the experiments, analyzed the data and wrote the paper.

Funding

The research was funded by the Cyprus Research Promotion Foundation (Grants: ΣΤΡΑΤΗΙΙ/0308/06, NEKYP/0308/02 ΥΓΕΙΑ/0506/19 and ΕΝΙΣΧ/0308/83).

Acknowledgments

The authors thank the following organizations and companies in Cyprus for generous donations of chemicals and glassware: the State General Laboratory, the Agricultural Research Institute, the Ministry of Agriculture, MedoChemie Ltd., Medisell Ltd. and Biotronics Ltd. Furthermore, we thank the A. G. Leventis Foundation for helping to establish the NMR facility at the University of Cyprus.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. Brown, D.J. Pyrimidines and their Benzo Derivatives. In Comprehensive Heterocyclic Chemistry; Katritzky, A.R., Rees, C.W., Eds.; Pergamon Press: Oxford, UK, 1984; Volume 3, pp. 57–155. [Google Scholar]
  2. Ukrainets, I.V.; Tugaibei, I.A.; Bereznykova, N.L.; Karvechenko, V.N.; Turov, A.V. 4-Hydroxy-2-quinolones 144. Alkyl-, arylalkyl-, and arylamides of 2-hydroxy-4-oxo-4H-pyrido[1,2-a]pyrimidine-3-carboxylic acid and their diuretic properties. Chem. Heterocycl. Com. 2008, 44, 565–575. [Google Scholar] [CrossRef]
  3. Amr, A.E.; Nermien, M.S.; Abdulla, M.M. Synthesis, reactions, and anti-inflammatory activity of heterocyclic systems fused to a thiophene moiety using citrazinic acid as synthon. Monatsh. Chem. 2007, 138, 699–707. [Google Scholar] [CrossRef]
  4. Gorlitzer, K.; Herbig, S.; Walter, R.D. Indeno[1,2-d]pyrimidin-4-yl-amines. Pharmazie 1997, 52, 670–672. [Google Scholar]
  5. Wagner, E.; Al-Kadasi, K.; Zimecki, M.; Sawka-Dobrowolska, W. Synthesis and pharmacological screening of derivatives of isoxazolo[4,5-d]pyrimidine. Eur. J. Med. Chem. 2008, 43, 2498–2504. [Google Scholar] [CrossRef] [PubMed]
  6. Koutentis, P.A.; Rees, C.W. Reaction of tetracyanoethylene with SCl2; new molecular rearrangements. J. Chem. Soc. Perkin Trans. 2000, 1089–1094. [Google Scholar] [CrossRef]
  7. Kalogirou, A.S.; Manoli, M.; Koutentis, P.A. Two-step conversion of 3,4,4,5-tetrachloro-4H-1,2,6-thiadiazine into 4,5,6-trichloropyrimidine-2-carbonitrile. Tetrahedron Lett. 2017, 58, 2618–2621. [Google Scholar] [CrossRef]
  8. Raboisson, P.; Belfrage, A.; Classon, B.; Lindquist, K.; Nilsson, K.; Rosenquist, A.; Samuelson, B.; Wahling, H. Pyrimidine Substituted Macrocyclic HCV Inhibitors. U.S. Patent WO2008/095999A1, 14 August 2008. [Google Scholar]
  9. Seganish, W.M.; Fischmann, T.O.; Sherborne, B.; Matasi, J.; Lavey, B.; McElroy, W.T.; Tulshian, D.; Tata, J.; Sondey, C.; Garlisi, C.G.; et al. Discovery and Structure Enabled Synthesis of 2,6-Diaminopyrimidin-4-one IRAK4 Inhibitors. ACS Med. Chem. Lett. 2015, 6, 942–947. [Google Scholar] [CrossRef] [PubMed]
  10. Dixson, J.A.; Murugesan, N.; Barnes, K.D. Herbicidal Substituted Benzoylsulfonamides. U.S. Patent US5149357A, 22 September 1992. [Google Scholar]
  11. Huang, T.-H.; Zhou, S.-S.; Wu, X.; An, L.; Yin, X.-X. Convenient synthesis of 2-(methylsulfonyl)pyrimidine derivatives. Synth. Commun. 2018, 48, 714–720. [Google Scholar] [CrossRef]
  12. Zhang, J.; Zhang, L.; Zhou, Y.; Guo, Y.-L. A novel pyrimidine-based stable-isotope labeling reagent and its application to quantitative analysis using matrix-assisted laser desorption/ionization mass spectrometry. J. Mass Spectrom. 2007, 42, 1514–1521. [Google Scholar] [CrossRef] [PubMed]
  13. Xu, D.; Zhu, X.; Xu, H.; Wang, Z. A facile synthesis of 4,6-dimethoxy-2-methylsulfonylpyrimidine. Asian J. Chem. 2014, 26, 313–314. [Google Scholar] [CrossRef]
  14. Thomann, A.; Eberhard, J.; Allegretta, G.; Empting, M.; Hartmann, R.W. Mild and Catalyst-Free Microwave-Assisted Synthesis of 4,6-Disubstituted 2-Methylthiopyrimidines–Exploiting Tetrazole as an Efficient Leaving Group. Synlett 2015, 26, 2606–2610. [Google Scholar] [CrossRef]

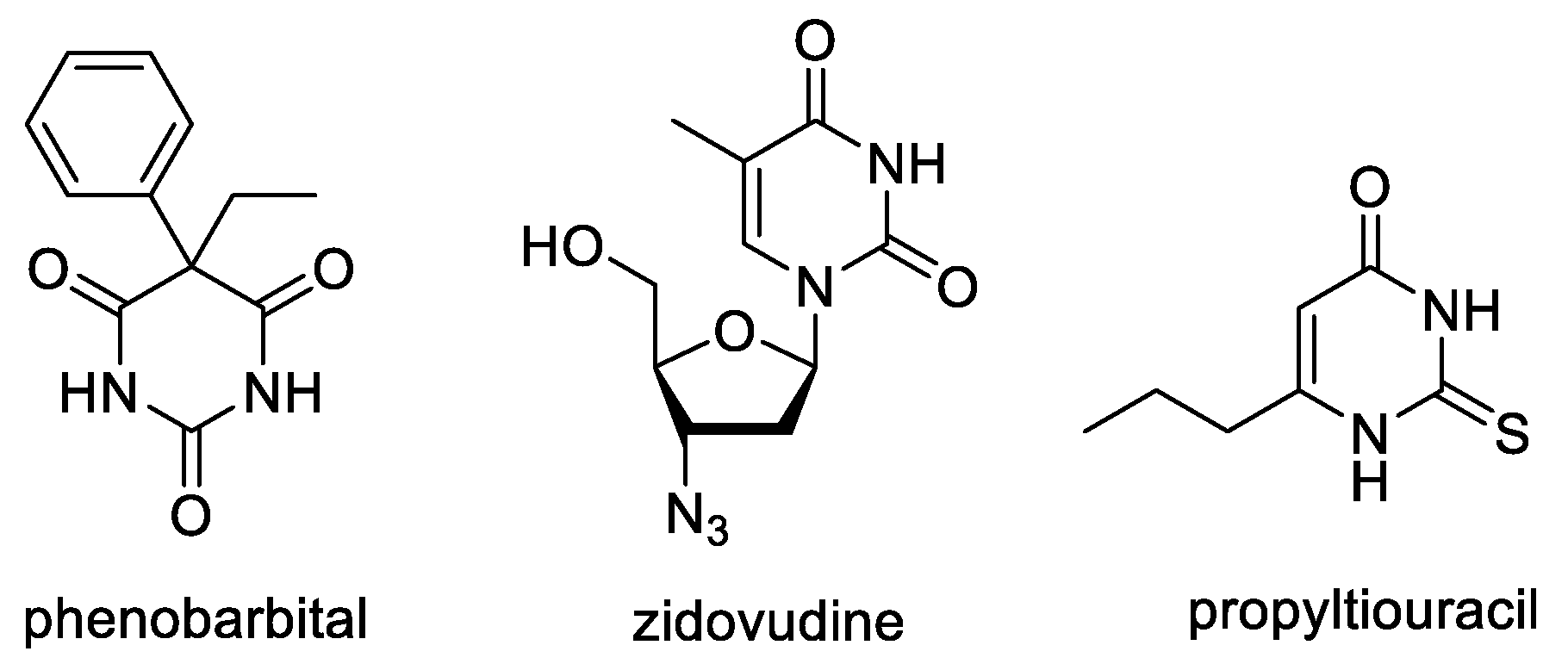

Figure 1. Pyrimidine containing drugs.
Figure 1. Pyrimidine containing drugs.
Molbank 2019 m1086 g001
Scheme 1. Preparation of trichloropyrimidine 1 from TCNE and from tetrachlorothiadiazine 3 [6,7].
Scheme 1. Preparation of trichloropyrimidine 1 from TCNE and from tetrachlorothiadiazine 3 [6,7].
Molbank 2019 m1086 sch001

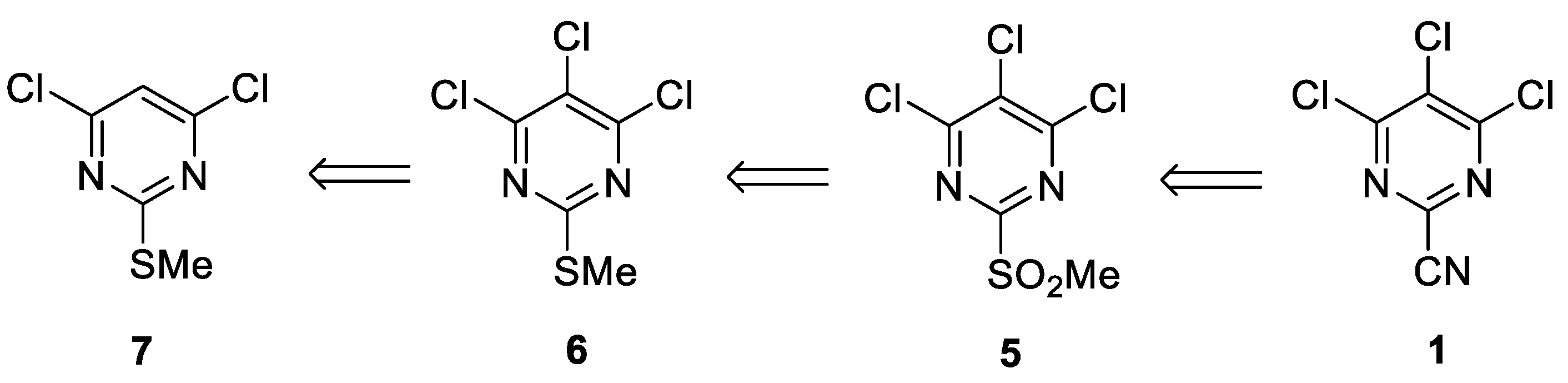

Scheme 2. Retrosynthetic analysis of trichloropyrimidine 1.
Scheme 2. Retrosynthetic analysis of trichloropyrimidine 1.
Molbank 2019 m1086 sch002

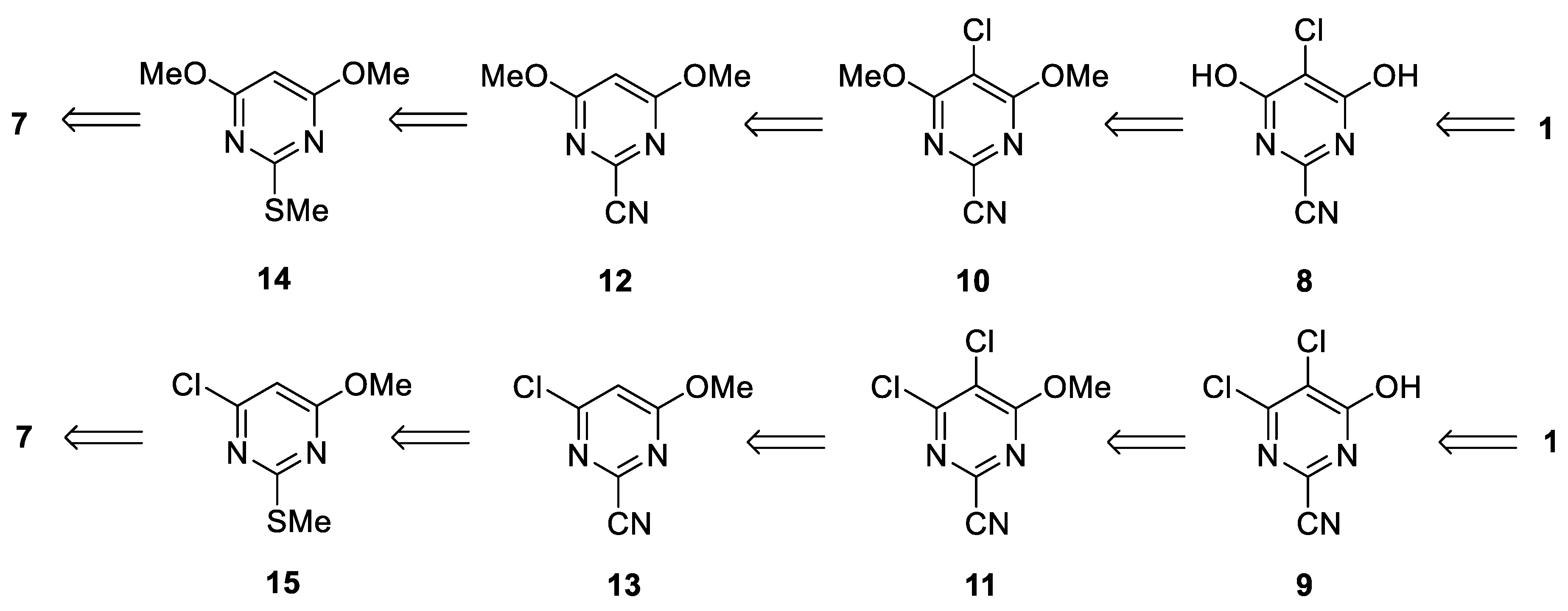

Scheme 3. Alternative retrosynthetic analysis via methoxypyrimidines 14 and 15.
Scheme 3. Alternative retrosynthetic analysis via methoxypyrimidines 14 and 15.
Molbank 2019 m1086 sch003

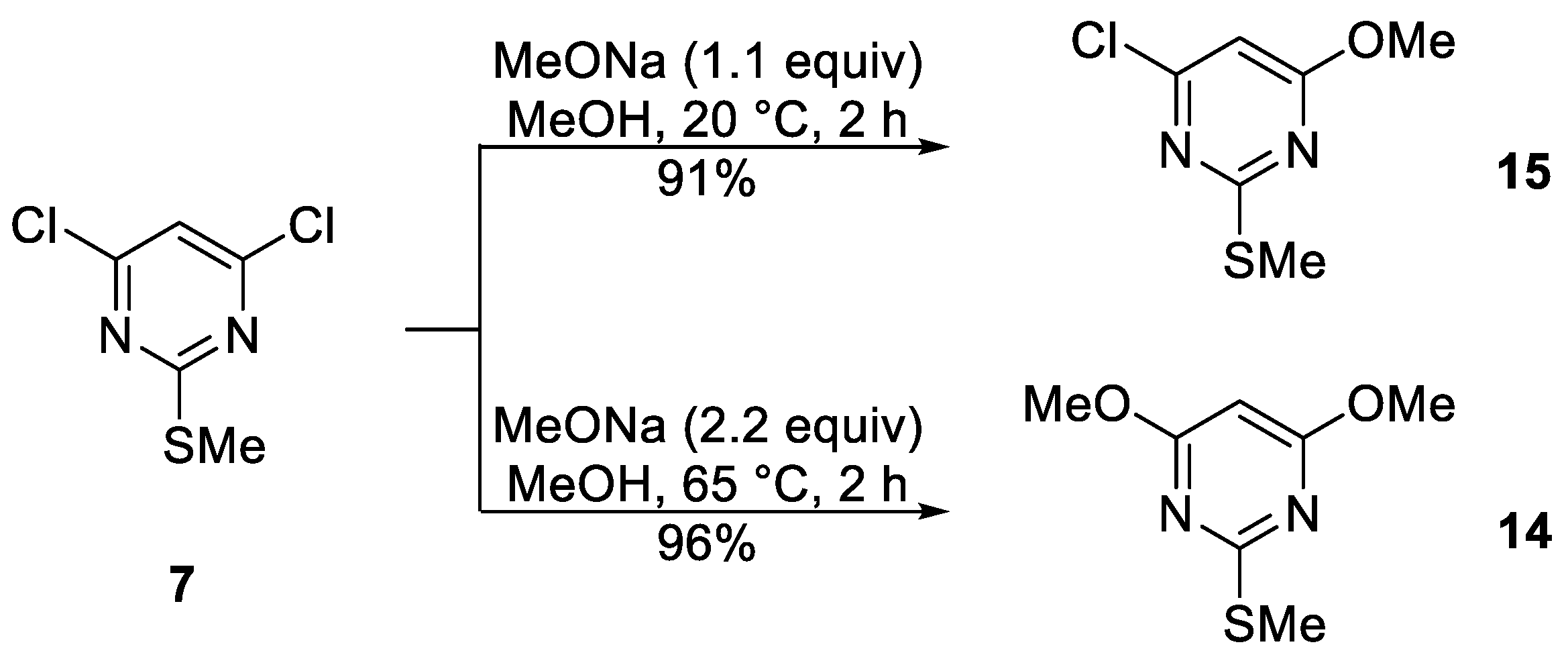

Scheme 4. Preparation of methoxypyrimidines 14 and 15.
Scheme 4. Preparation of methoxypyrimidines 14 and 15.
Molbank 2019 m1086 sch004

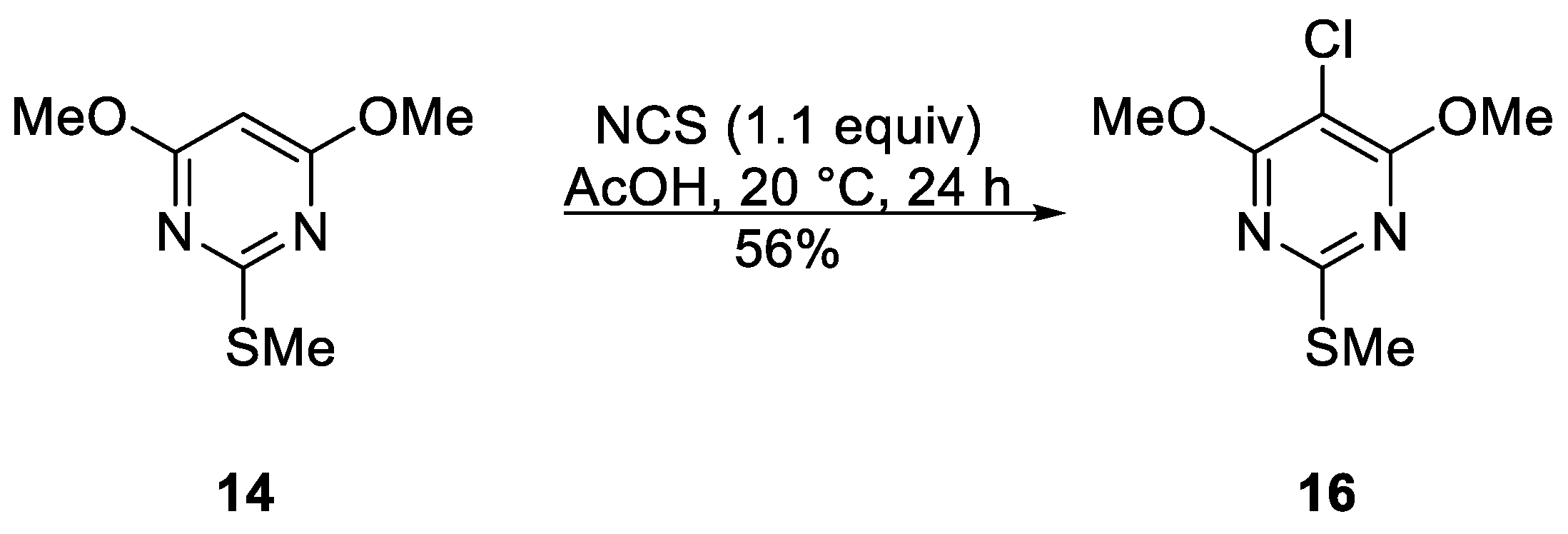

Scheme 5. Preparation of 5-chloro-4,6-dimethoxy-2-(methylthio)pyrimidine (16).
Scheme 5. Preparation of 5-chloro-4,6-dimethoxy-2-(methylthio)pyrimidine (16).
Molbank 2019 m1086 sch005

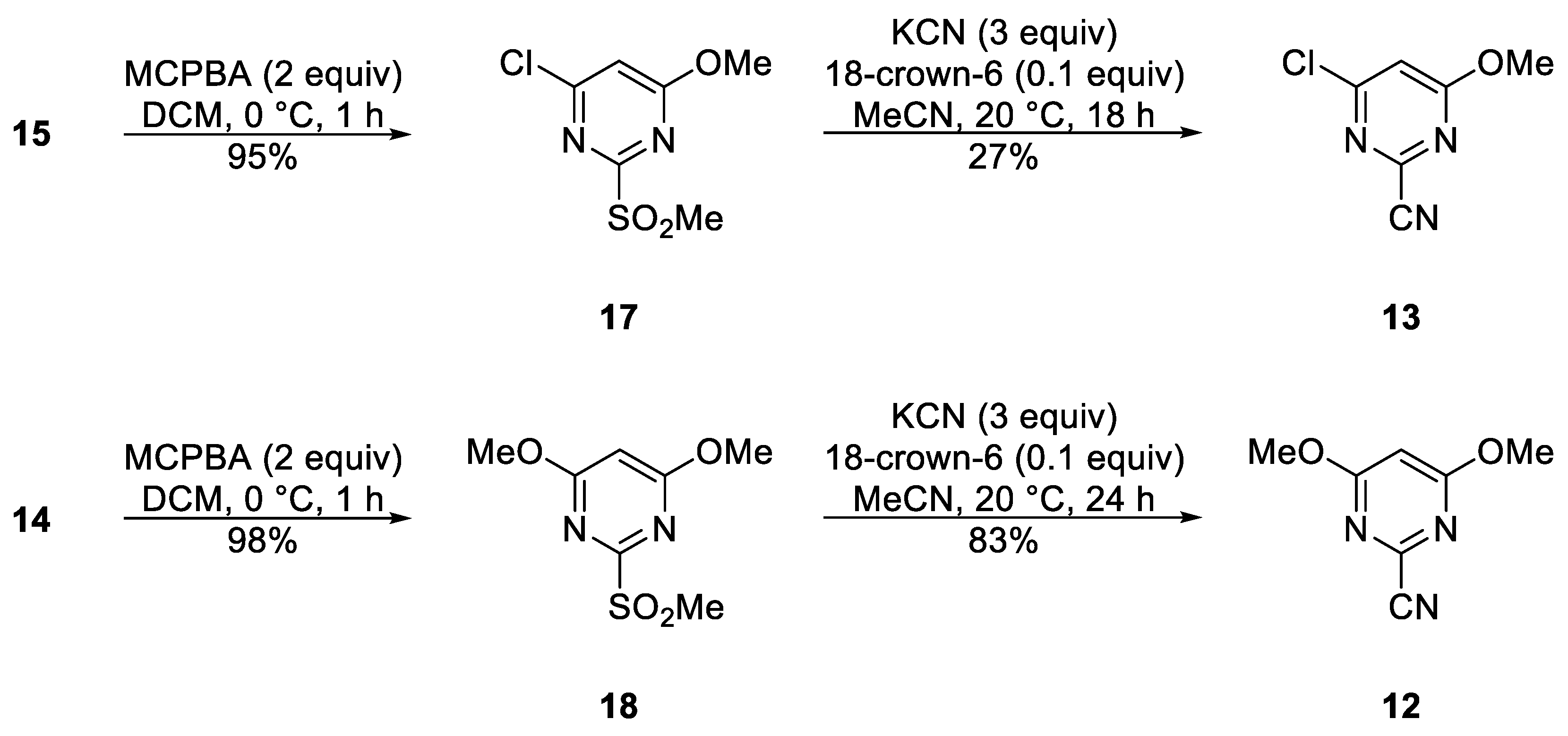

Scheme 6. Preparation of 4-chloro-6-methoxypyrimidine-2-carbonitrile (13) and 4,6-dimethoxypyrimidine-2-carbonitrile (12).
Scheme 6. Preparation of 4-chloro-6-methoxypyrimidine-2-carbonitrile (13) and 4,6-dimethoxypyrimidine-2-carbonitrile (12).
Molbank 2019 m1086 sch006

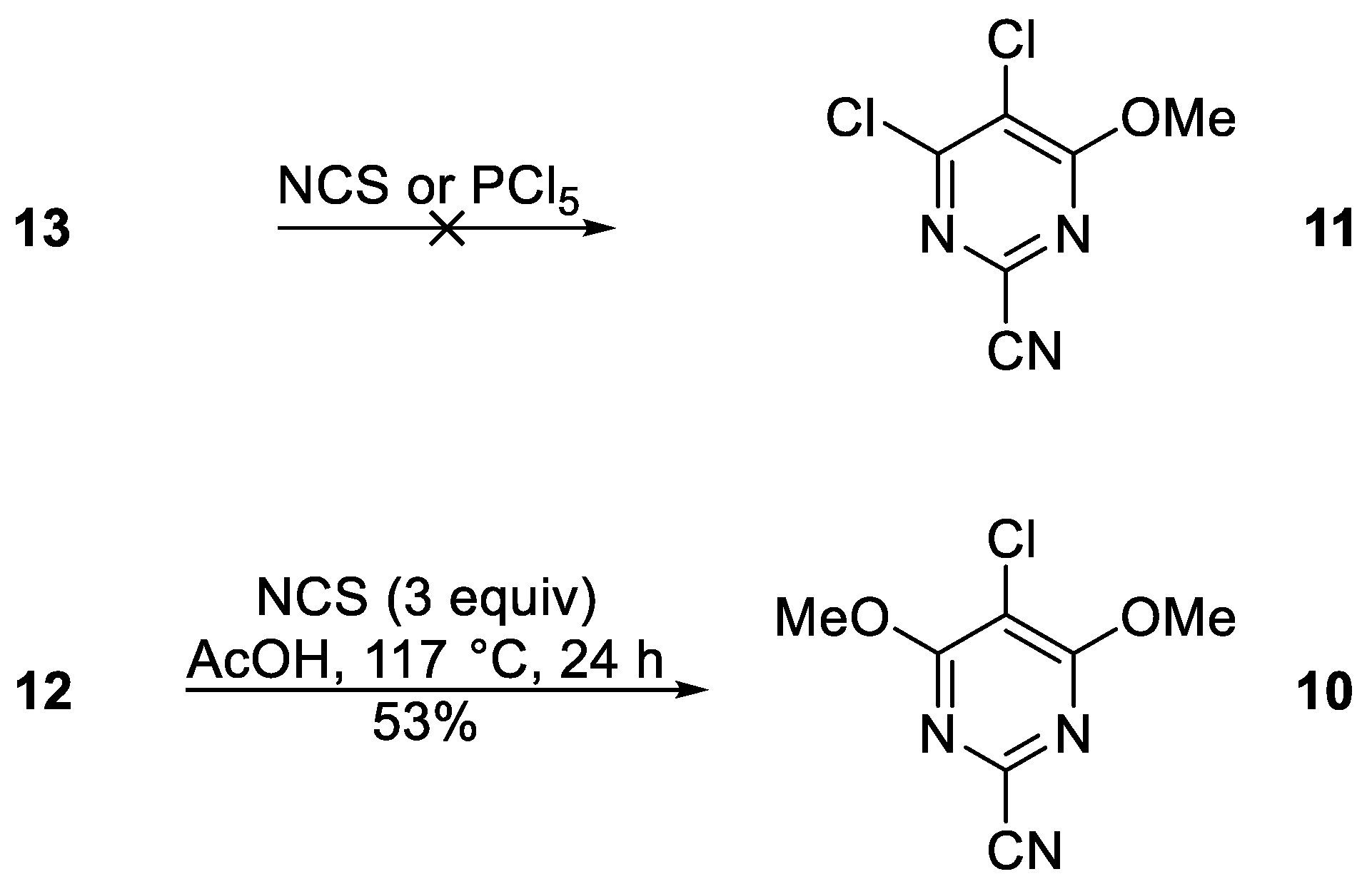

Scheme 7. Preparation of 5-chloro-4,6-dimethoxypyrimidine-2-carbonitrile (10).
Scheme 7. Preparation of 5-chloro-4,6-dimethoxypyrimidine-2-carbonitrile (10).
Molbank 2019 m1086 sch007
