Molbank 2019, 2019(2), ; https://doi.org/10.3390/M1064

Short Note
5,5′-Thiobis(3-methoxy-4H-1,2,6-thiadiazin-4-one)
1
Department of Life Sciences, School of Sciences, European University Cyprus, 6 Diogenis Str., Engomi, P.O. Box 22006, 1516 Nicosia, Cyprus
2
Department of Chemistry, University of Cyprus, P.O. Box 20537, 1678 Nicosia, Cyprus
*
Author to whom correspondence should be addressed.
Received: 23 May 2019 / Accepted: 8 June 2019 / Published: 9 June 2019

Abstract

:
The reaction of 3-chloro-5-methoxy-4H-1,2,6-thiadiazin-4-one (9) with Na2S·9H2O (0.5 equiv) in tetrahydrofuran (THF) at ca. 20 °C for 20 h gives 5,5′-thiobis(3-methoxy-4H-1,2,6-thiadiazin-4-one) (10) in a 44% yield as yellow needles. The compound was fully characterized.
Keywords:
heterocycle; 1,2,6-thiadiazine; sulfide; nucleophilic displacement

1. Introduction

4H-1,2,6-thiadiazines are a class of heterocycles that do not occur in nature but have interesting applications: some 5-substituted 3-chloro-4H-1,2,6-thiadiazines show plant antifungal activity [1,2,3,4,5], while others display liquid crystalline or near-infrared dye behavior [6,7]. Moreover, certain 4H-1,2,6-thiadiazines were proposed to be precursors to radical anions for organic magnetic and conducting materials [8]. π-conjugated polymers of 1,2,6-thiadiazines were proposed by both Woodward [9] and Rees [10,11,12] as potentially stable substitutes to the superconductor poly(sulfur nitride) (SN)x. Recently, 4H-1,2,6-thiadiazines were characterized by resonance Raman (RR), absorption (UV-vis) and photoluminescence (PL) spectroscopies in order to better understand their optical properties [13]. Amino-substituted 1,2,6-thiadiazinones were shown to behave as narrow spectrum calcium/calmodulin-dependent protein kinase kinase 2 (CaMKK2) inhibitors [14], demonstrating potential applications of the system in medicinal chemistry. A recent review describes the chemistry of non-S oxidized 1,2,6-thiadiazines [15].
As part of our ongoing interest with 1,2,6-thiadiazines, we investigated the synthesis of a thioamide functional group onto the 1,2,6-thiadiazine ring. Thioamide-containing azaarenes including pyridines and pyrimidines have numerous uses in medicinal chemistry. For example, pyridine 1 was a weak AChE inhibitor [16], pyridine 2 was investigated as a metaloenzyme inhibitor [17], while pyridine 3 is a reverse transcriptase inhibitor and is useful as an anti-HIV agent [18] (Figure 1).
1,2,6-thiadiazines could act as isosters to other 6-membered hetarenes; therefore, the formation of a thioamide onto the thiadiazine could offer a new scaffold for the synthesis of biologically active molecules. Some related amide-containing thiadiazines have been prepared, such as thiadiazinone 5, which can exist in the tautomeric form 5′ by the displacement of the C-5 chloride of dichlorothiadiazinone 4 with hydroxide [19] (Scheme 1). Moreover, an attempt to deprotect benzyloxy derivative 6 led to the benzyl group migration to the N-2 position, yielding amide 7 along with the deprotected thiadiazine 8′ [20] (Scheme 1).

2. Results and Discussion

The above reactions showing the displacement of the C-5 chloride of dichlorothiadiazinone 4 with hydroxide [19], or other oxygen nucleophiles [15], prompted us to investigate the use of sulfide as a nucleophile that could afford the desired thiadiazine–thioamide. It is worthy of note that 3-chloro-1,2,6-thiadiazines are prone to ring-opening reactions in the presence of thiophilic reagents such as phosphines, halides and nucleophilic sulfur [15].
We chose 3-chloro-5-methoxy-4H-1,2,6-thiadiazin-4-one (9) as the starting material, as the electron donating ability of the methoxy group should make the ring sulfur less prone to thiophilic attack, while the methoxy group also acted as a protecting group to avoid the formation of oligomers or polymers. Methoxy-substituted thiadiazines can readily be transformed to analogous triflates [20]. In our efforts, we failed to obtain the desired thioamide; however, from the reaction of thiadiazine 9 with Na2S in THF at ca. 20 °C, we isolated 5,5′-thiobis(3-methoxy-4H-1,2,6-thiadiazin-4-one) (10) as the only product in a 44% yield (Scheme 2, see Supplementary Materials for NMR spectra). This compound represents the first non-S-oxidized bis-1,2,6-thiadiazine sulfide. Moreover, compound 10 itself is a new chemotype with potential value in the medicinal chemistry sector. Several drugs contain heterocyclic sulfide moieties; e.g., the immunosuppressive Azathioprine.
This study shows that thiadiazine sulfides can be readily synthesized, which can open up the investigation of their chemistry and properties.

3. Materials and Methods

The reaction mixture was monitored by thin layer chromatography (TLC) using commercial glass-backed TLC plates (Merck Kieselgel 60 F254). The plates were observed under UV light at 254 and 365 nm. Tetrahydrofuran (THF) was distilled over CaH2 before use. The melting point was determined using a PolyTherm-A, Wagner & Munz, Kofler–Hotstage Microscope apparatus (Wagner & Munz, Munich, Germany). The solvent used for recrystallization is indicated after the melting point. The UV-vis spectrum was obtained using a Perkin-Elmer Lambda-25 UV-vis spectrophotometer (Perkin-Elmer, Waltham, MA, USA) and inflections are identified by the abbreviation “inf”. The IR spectrum was recorded on a Shimadzu FTIR-NIR Prestige-21 spectrometer (Shimadzu, Kyoto, Japan) with the Pike Miracle Ge ATR accessory (Pike Miracle, Madison, WI, USA) and strong, medium and weak peaks are represented by s, m and w, respectively. 1H and 13C NMR spectra were recorded on a Bruker Avance 500 machine (at 500 and 125 MHz, respectively (Bruker, Billerica, MA, USA)). Deuterated solvents were used for homonuclear lock and the signals are referenced to the deuterated solvent peaks. Attached proton test (APT) NMR studies identified carbon multiplicities, which are indicated by (s), (d), (t) and (q) notations. The MALDI-TOF mass spectrum (+ve mode) was recorded on a Bruker Autoflex III Smartbeam instrument (Bruker). The elemental analysis was run by the London Metropolitan University Elemental Analysis Service. 3-chloro-5-methoxy-4H-1,2,6-thiadiazin-4-one (9) was prepared according to the procedure in the literature [21].

5,5′-Thiobis(3-methoxy-4H-1,2,6-thiadiazin-4-one) (10)

One portion of Na2S·9H2O (60.1 mg, 0.25 mmol) was added to a stirred mixture of 3-chloro-5-methoxy-4H-1,2,6-thiadiazin-4-one (9) (89.3 mg, 0.500 mmol) in THF (5 mL) at ca. 20 °C. The mixture was protected with a CaCl2 drying tube and stirred at this temperature until the complete consumption of the starting material (TLC, 20 h). Dichloromethane (DCM, 10 mL) was then added and the mixture adsorbed onto silica, and chromatography (n-hexane/t-BuOMe 50:50) gave the title compound 10 (35 mg, 44%) as yellow needles, mp 147–149 °C (from c-hexane); Rf 0.25 (n-hexane/t-BuOMe, 50:50); (found: C, 30.26; H, 1.92; N, 17.71. C8H6N4O4S3 requires C, 30.18; H, 1.90; N, 17.60%); λmax(DCM)/nm 304 (log ε 4.15), 362 (4.24); vmax/cm−1 2936 w (C-H), 1659 m, 1624 s, 1541 m, 1520 m, 1481 w, 1456 w, 1443 w, 1339 s, 1227 m, 1217 m, 1204 m, 1078 w, 991 s, 949 m, 914 w, 870 w, 833 m, 800 m, 791 m; δH(500 MHz; CDCl3) 4.00 (3H, s, OCH3); δC(125 MHz; CDCl3) 158.9 (s), 156.1 (s), 155.0 (s), 55.0 (q); m/z (MALDI-TOF) 319 (MH+, 100%), 318 (M+, 22), 301 (59), 286 (57), 273 (42), 261 (49), 232 (48), 212 (67), 143 (48).

Supplementary Materials

The following are available online, mol file, 1H and 13C NMR spectra.

Author Contributions

P.A.K. Koutentis conceived the experiments; A.S.K. Kalogirou designed and performed the experiments, analyzed the data and wrote the paper.

Funding

This research was funded by the Cyprus Research Promotion Foundation (Grants: ΣΤΡΑΤΗΙΙ/0308/06, NEKYP/0308/02 ΥΓΕΙΑ/0506/19 and ΕΝΙΣΧ/0308/83).

Acknowledgments

The authors thank the following organizations and companies in Cyprus for generous donations of chemicals and glassware: the State General Laboratory, the Agricultural Research Institute, the Ministry of Agriculture, MedoChemie Ltd., Medisell Ltd. and Biotronics Ltd. Furthermore, we thank the A. G. Leventis Foundation for helping to establish the NMR facility at the University of Cyprus.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, and in the decision to publish the results.

References

  1. Peake, C.J.; Harnish, W.N.; Davidson, B.L. Mono-5-substituted-3-chloro-4H-1,2,6-thiadiazin-4-one antifungal agents. U.S. Patent 4,097,594A, 27 June 1978. [Google Scholar]
  2. Peake, C.J.; Harnish, W.N.; Davidson, B.L. Mono-5-substituted-thio-3-chloro-4H-1,2,6-thiadiazin-4-one antifungal agents. U.S. Patent 4,100,281A, 27 June 1978. [Google Scholar]
  3. Peake, C.J.; Harnish, W.N.; Davidson, B.L. 3-Chloro-5-(optionally substituted heterocycloxy)-4H-1,2,6-thiadiazin-4-one antifungal agents. U.S. Patent 4,143,138, 3 March 1979. [Google Scholar]
  4. Peake, C.J.; Harnish, W.N.; Davidson, B.L. Mono-5-substituted-3-chloro-4H-1,2,6-thiadiazin-4-one antifungal agents. U.S. Patent 4,201,780, 6 May 1980. [Google Scholar]
  5. Portnoy, R.C. Thiadiazinone Plant Disease Control Agents. U.S. Patent 4,497,807A, 5 February 1985. [Google Scholar]
  6. Gómez, T.; Macho, S.; Miguel, D.; Neo, A.G.; Rodríguez, T.; Torroba, T. Cyclopentathiadiazines, Cyclohepta- and Cyclopentadithiazoles: New Materials and a Rich Heterocyclic Chemistry of Cyclic Enaminonitriles. Eur. J. Org. Chem. 2005, 5055–5066. [Google Scholar] [CrossRef]
  7. Macho, S.; Miguel, D.; Neo, A.G.; Rodríguez, T.; Torroba, T. Cyclopentathiadiazines, new heterocyclic materials from cyclic Enaminonitriles. Chem. Commun. 2005, 334–336. [Google Scholar] [CrossRef] [PubMed]
  8. Lonchakov, A.V.; Rakitin, O.A.; Gritsan, N.P.; Zibarev, A.V. Breathing Some New Life into an Old Topic: Chalcogen-Nitrogen π-Heterocycles as Electron Acceptors. Molecules 2013, 18, 9850–9900. [Google Scholar] [CrossRef] [PubMed]
  9. Cava, M.P.; Lakshmikantham, M.V.; Hoffmann, R.; Williams, R.M.R.B. Woodward’s unfinished symphony: Designing organic superconductors (1975–79). Tetrahedron 2011, 67, 6771–6797. [Google Scholar] [CrossRef]
  10. Koutentis, P.A.; Rees, C.W.; White, A.J.P.; Williams, D.J. Reaction of tetracyanoethylene with SCl2; new molecular rearrangements. Chem. Commun. 2000, 303–304. [Google Scholar] [CrossRef]
  11. Koutentis, P.A.; Rees, C.W. Reaction of tetracyanoethylene with SCl2; new molecular rearrangements. J. Chem. Soc. Perkin Trans. 1 2000, 1089–1094. [Google Scholar] [CrossRef]
  12. Koutentis, P.A.; Rees, C.W. Cyclisation chemistry of 4H-1,2,6-thiadiazines. J. Chem. Soc. Perkin Trans. 1 2000, 2601–2607. [Google Scholar] [CrossRef]
  13. Theodorou, E.; Ioannidou, H.A.; Ioannou, T.A.; Kalogirou, A.S.; Constantinides, C.P.; Manoli, M.; Koutentis, P.A.; Hayes, S.C. Spectroscopic characterization of C-4 substituted 3,5-dichloro-4H-1,2,6-thiadiazines. RSC Adv. 2015, 51, 18471–18481. [Google Scholar] [CrossRef]
  14. Asquith, C.R.M.; Godoi, P.H.; Couñago, R.M.; Laitinen, T.; Scott, J.W.; Langendorf, C.G.; Oakhill, J.S.; Drewry, D.H.; Zuercher, W.J.; Koutentis, P.A.; et al. 1,2,6-Thiadiazinones as Novel Narrow Spectrum Calcium/Calmodulin-Dependent Protein Kinase Kinase 2 (CaMKK2) Inhibitors. Molecules 2018, 23, 1221. [Google Scholar] [CrossRef] [PubMed]
  15. Kalogirou, A.S.; Koutentis, P.A. The chemistry of non-S-oxidised 4H-1,2,6-thiadiazines. Targets Heterocycl. Syst. 2018, 22, 82–118. [Google Scholar] [CrossRef]
  16. Samadi, A.; Marco-Contelles, J.; Soriano, E.; Álvarez-Pérez, M.; Chioua, M.; Romero, A.; González-Lafuente, L.; Gandía, L.; Roda, J.M.; López, M.G.; et al. Multipotent drugs with cholinergic and neuroprotective properties for the treatment of Alzheimer and neuronal vascular diseases. I. Synthesis, biological assessment, and molecular modeling of simple and readily available 2-aminopyridine-, and 2-chloropyridine-3,5-dicarbonitriles. Bioorg. Med. Chem. 2010, 18, 5861–5872. [Google Scholar] [CrossRef] [PubMed]
  17. Adamek, R.N.; Credille, C.V.; Dick, B.L.; Cohen, S.M. Isosteres of hydroxypyridinethione as drug-like pharmacophores for metalloenzyme inhibition. J. Biol. Inorg. Chem. 2018, 23, 1129–1138. [Google Scholar] [CrossRef] [PubMed]
  18. Hoffman, J.M.; Smith, A.M.; Rooney, C.S.; Fisher, T.E.; Wai, J.S.; Thomas, C.M.; Bamberger, D.L.; Barnes, J.L.; Williams, T.M.; Jones, J.H.; et al. Synthesis and Evaluation of 2-Pyridinone Derivatives as HIV-1-Specific Reverse Transcriptase Inhibitors. 3-[2-(Benzoxazol-2-yl)ethyl]-5-ethyl-6-methylpyridin-2(lfl)-one and Analogues. J. Med. Chem. 1993, 36, 953–966. [Google Scholar] [CrossRef] [PubMed]
  19. Ioannidou, H.A.; Kizas, C.; Koutentis, P.A. Selective Stille Coupling Reactions of 3-Chloro-5-halo(pseudohalo)-4H-1,2,6-thiadiazin-4-ones. Org. Lett. 2011, 13, 5886–5889. [Google Scholar] [CrossRef] [PubMed]
  20. Ioannidou, H.A.; Koutentis, P.A. Synthesis of asymmetric 3,5-diaryl-4H-1,2,6-thiadiazin-4-ones via Suzuki–Miyaura and Stille coupling reactions. Tetrahedron 2012, 68, 7380–7385. [Google Scholar] [CrossRef]
  21. Geevers, J.; Trompen, W.P. Synthesis and reactions of 3,5-dichloro-4H-1,2,6-thiadiazin-4-one. Recl. Trav. Chim. Pays-Bas 1974, 93, 270–272. [Google Scholar] [CrossRef]

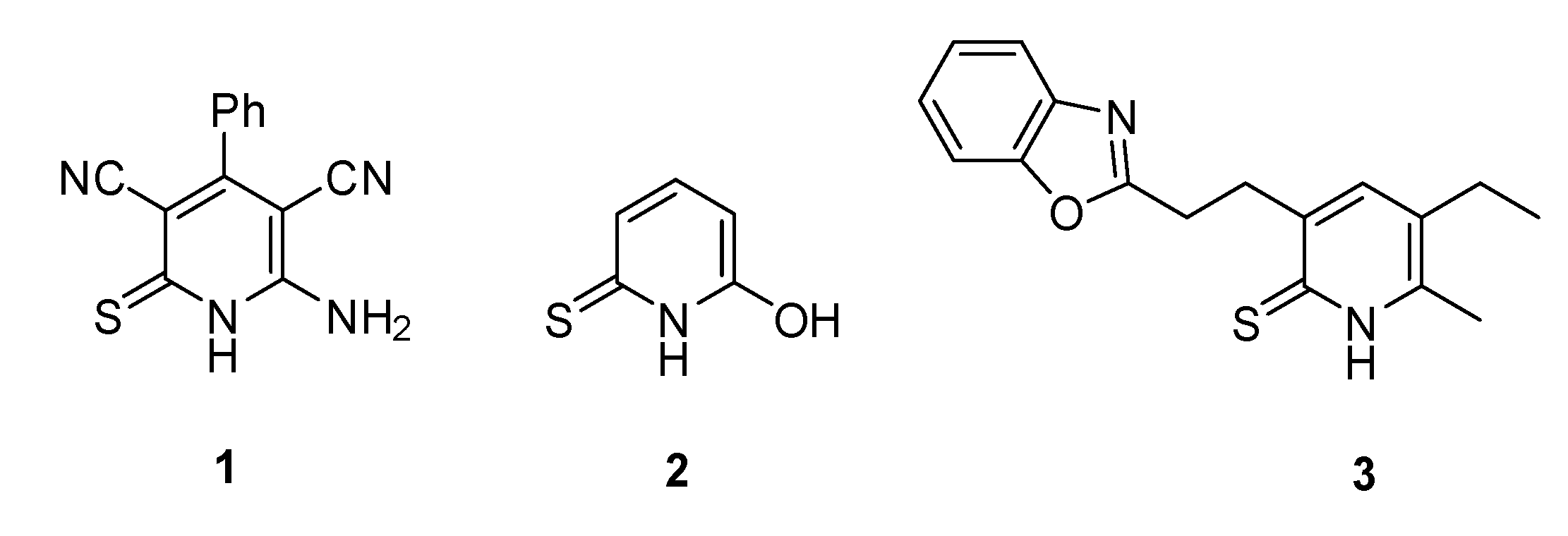

Figure 1. Biologically active thioamide-containing azaarenes.
Figure 1. Biologically active thioamide-containing azaarenes.
Molbank 2019 m1064 g001

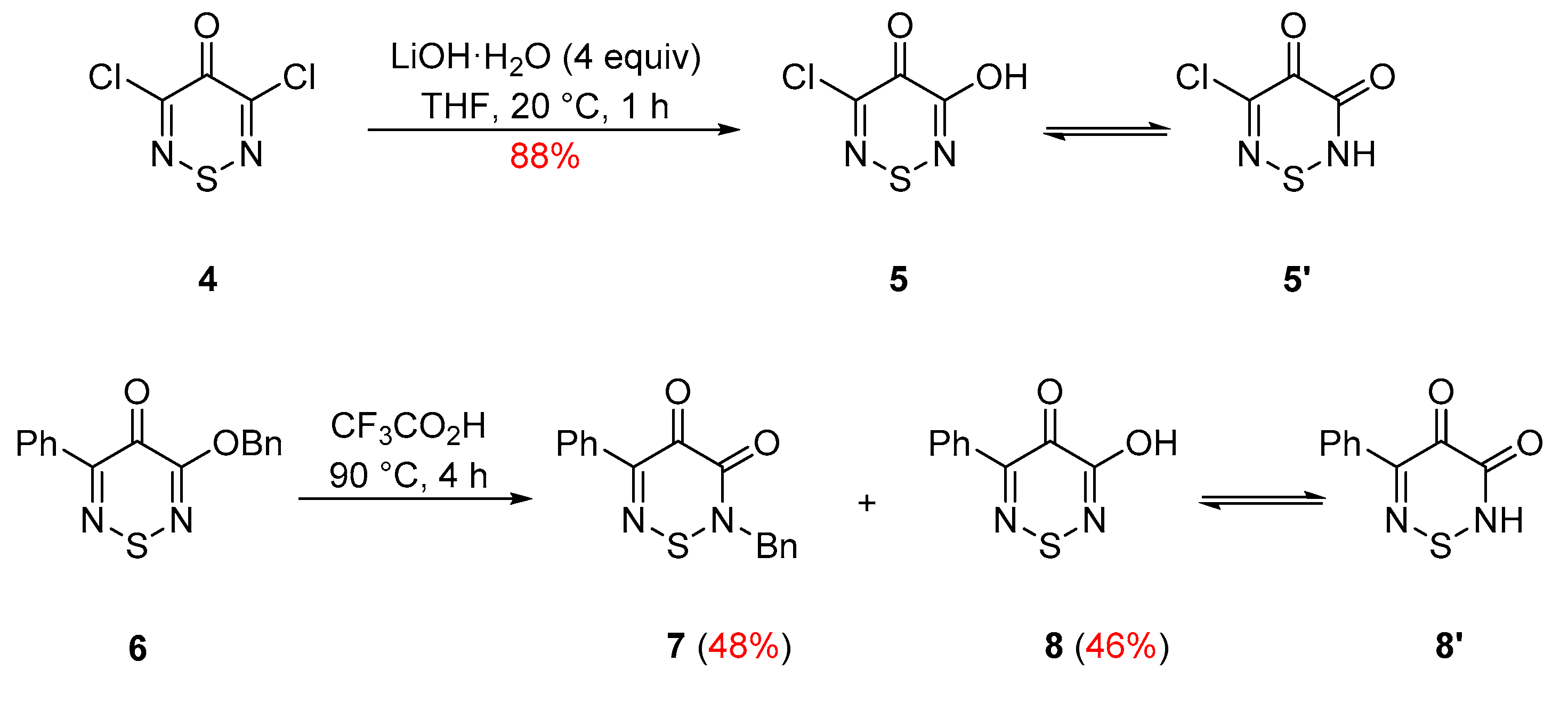

Scheme 1. Synthesis of amide-containing thiadiazines.
Scheme 1. Synthesis of amide-containing thiadiazines.
Molbank 2019 m1064 sch001

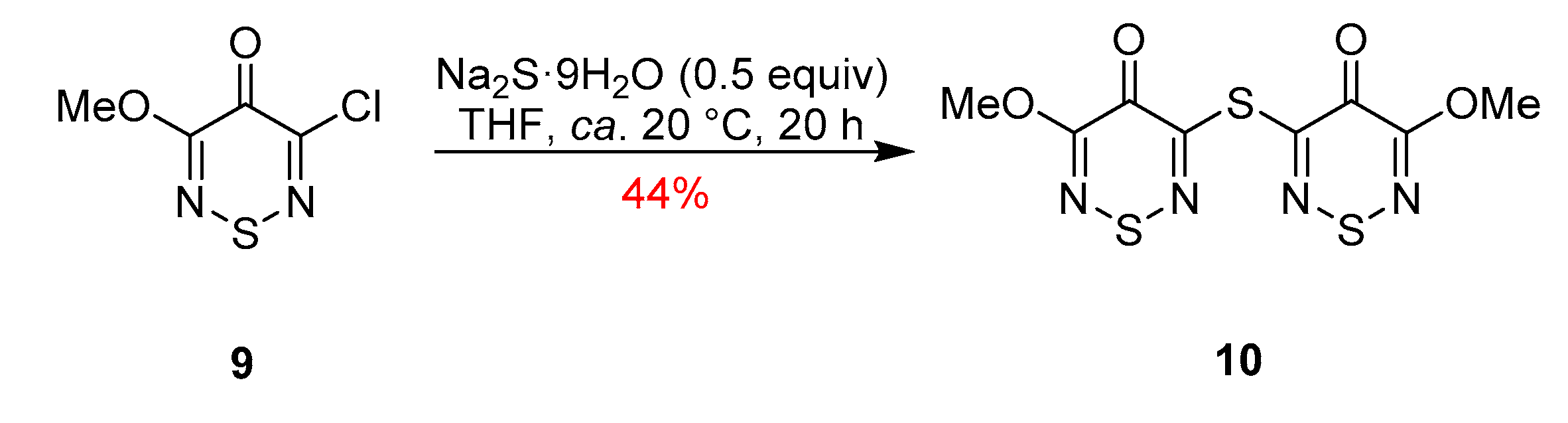

Scheme 2. Synthesis of 5,5′-thiobis(3-methoxy-4H-1,2,6-thiadiazin-4-one) (10).
Scheme 2. Synthesis of 5,5′-thiobis(3-methoxy-4H-1,2,6-thiadiazin-4-one) (10).
Molbank 2019 m1064 sch002
