5,6,7,8-Tetrafluoro-1-(2-nitrophenyl)-3-phenyl-1H-benzo[e][1,3,4]oxadiazine
Department of Chemistry, University of Cyprus, P.O. Box 20537, 1678 Nicosia, Cyprus
*
Author to whom correspondence should be addressed.
Received: 13 May 2018 / Accepted: 16 May 2018 / Published: 16 May 2018

Abstract

:
Treating 1-fluoro-2-nitrobenzene (6) with N′-pentafluorophenylbenzohydrazide (7) and K2CO3 (1.1 equiv) in EtOH at ca. 110 °C (sealed tube) for 24 h affords 5,6,7,8-tetrafluoro-1-(2-nitrophenyl)-3-phenyl-1H-benzo[e][1,3,4]oxadiazine (5) (36%) and N′-(2-nitrophenyl)-N′-(perfluorophenyl)benzohydrazide (3) (37%). The X-ray crystallography of 5,6,7,8-tetrafluoro-1-(2-nitrophenyl)-3-phenyl-1H-benzo[e][1,3,4]oxadiazine (5) is provided. Microwave irradiation (100 W) of perfluorophenylbenzohydrazide 3 with K2CO3 (1.1 equiv) in THF at ca. 120 °C (sealed tube, 80 PSI) for 3 h gives oxadiazine 5 (85%), while reduction of the nitro group using Sn (4 equiv) in glacial acetic acid at ca. 20 °C for 30 min, followed by cyclodehydration at ca. 118 °C for 20 min and treatment with 2 M NaOH for 24 h resulted in 1-(perfluorophenyl)-3-phenyl-1,2,4-benzotriazin-4-yl (4) with 93% yield.
Keywords:
cyclisation; nucleophilic aromatic substitution; oxadiazine; halonitrobenzene; hydrazide; benzotriazine; organic radical

1. Introduction

1,3,4-Oxadiazines exhibit a broad array of biological activities such as cardiovascular, antitumor, antibacterial, antimicrobial, acricidal, insecticidal, plant-growth regulating, chitin biosynthesis inhibitors and monoamine oxidase inhibition [1]. The synthesis, chemistry and applications have been extensively reviewed up to 2008 [2]. Recently, isoquinoline-fused analogues displayed antibacterial activity [3,4], quinoline-fused analogues showed antitumour behavior [5], while quinoxalino- and pyrimido-fused analogues showed anti-cancer behavior [6,7].
A classical route to benzo-fused 1,3,4-oxadiazines involves the intramolecular cyclisation of N′-(2-halophenyl)benzohydrazides first reported by Elliot and Gibson (Scheme 1) [8,9].
During our work on the chemistry of 1,2,4-benzotriazinyl radicals [10,11,12,13,14,15,16,17,18,19,20], we needed to prepare N′-(2-nitrophenyl)-N′-(perfluorophenyl)benzohydrazide (3) for the synthesis of 1-(perfluorophenyl)-3-phenyl-1,2,4-benzotriazin-4-yl (4) (Scheme 2).
Herein, we describe our preparation of N′-(2-nitrophenyl)-N′-(perfluorophenyl)benzo-hydrazide (3) which ‘unexpectedly’ led to a new fluoro-substituted 4H-1,3,4-benzoxadiazine: 5,6,7,8-tetrafluoro-1-(2-nitrophenyl)-3-phenyl-1H-benzo[e][1,3,4]oxadiazine (5).

2. Results and Discussion

Treating 1-fluoro-2-nitrobenzene (6) with N′-(perfluorophenyl)benzohydrazide (7) and potassium carbonate (1.1 equiv) in EtOH heated to 110 °C (sealed tube) for 24 h gave 5,6,7,8-tetrafluoro-1-(2-nitrophenyl)-3-phenyl-1H-benzo[e][1,3,4]oxadiazine (5) [Rf 0.72 (n-hexane/DCM, 50:50)] and N′-(2-nitrophenyl)-N′-(perfluorophenyl)benzohydrazide (3) [Rf 0.57 (n-hexane/t-BuOMe, 50:50)], in 36 and 37% yields, respectively (Scheme 3).
Spectroscopic data on compound 5 revealed no ν(N-H) or ν(C=O) stretches in the IR spectra and only nine aromatic H resonances and no NH signal in the 1H NMR spectra (DMSO-d6). Furthermore, 13C NMR spectra revealed a fluorine splitting pattern consistent with a 1,2-disubstituted tetrafluorobenzene and the absence of an amide C=O signal. MALDI-TOF data (m/z 403) and elemental analysis supported the formula of C19H9F4N3O3. The data supported the proposed structure of 5,6,7,8-tetrafluoro-1-(2-nitrophenyl)-3-phenyl-1H-benzo[e][1,3,4]oxadiazine (5) which was also supported by single crystal XRD studies (Figure 1).
5,6,7,8-Tetrafluoro-1-(2-nitrophenyl)-3-phenyl-1H-benzo[e][1,3,4]oxadiazine (5) crystallized in the centrosymmetric P-1 triclinic space group. The 1,3,4-oxadiazine moiety was in a shallow boat geometry, where N1 and O1 (crystallographic numbering) deviated from the plane by 18.4° and 16.4°, respectively. The N-(2-nitrophenyl) substituent twisted out of the benzoxadiazine plane by 70.3°, while the phenyl at C7 (crystallographic numbering) remained in the benzoxadiazine plane.
The desired N′-(2-nitrophenyl)-N′-(perfluorophenyl)benzohydrazide (3) was isolated as pale yellow needles and was more polar [Rf 0.57 (n-hexane/t-BuOMe, 50:50)] than the analogous non-fluorinated N′-(2-nitrophenyl)-N′-phenylbenzohydrazide [Rf 0.27 (n-hexane/DCM, 50:50)] [10]. IR spectroscopy, indicated a weak amine stretch at ν(N-H) 3185 cm−1 and a medium intensity carbonyl stretch at ν(C=O) 1672 cm−1, while in the NMR spectra the carboxamide group appeared at δH 11.83 (CONH) and δC 165.5 (CONH).
When the above reaction was run for longer reaction times (48 h), the reaction mixture became more complex (by TLC). Lower temperatures (ca. 20–50 °C) yielded only traces of the benzohydrazide 3 (~5–10% by TLC) and mainly unreacted starting materials, even after 72 h. At temperatures above 60 °C, both products appeared (by TLC) and the reaction was complete after 24 h, but the yields remained similar. Combinations of other solvents (MeCN, DMF) and/or bases (Et3N, Hünig’s base) did not afford either products 3 or 5. The use of microwave conditions (100 W, 120 °C, 80 PSI) also did not improve the yields.
The above formation of the oxadiazine 5 was attributed to an in-situ cyclisation of perfluoro-phenylbenzohydrazide 3 but attempts to verify this by treating benzohydrazide 3 with K2CO3 (1.1 equiv) in EtOH at ca. 110 °C (sealed tube) for 24 h yielded only traces of the oxadiazine 5 and a complex reaction mixture. Interestingly, the use of microwave irradiation (100 W) to heat the reaction mixture to ca. 120 °C at 80 PSI gave a similarly complex reaction mixture (by TLC) but in a shorter reaction time of only 1 h. Fortunately, under these conditions (MW 100 W, 120 °C, 80 PSI), replacing EtOH by anhydrous tetrahydrofuran (THF) afforded after 3 h the oxadiazine 5 with 85% yield (Scheme 4).
Reduction of the nitro group of the benzohydrazide 3, using Sn (4 equiv) in glacial acetic acid at ca. 20 °C for 30 min, followed by cyclodehydration at ca. 118 °C for 20 min and subsequent treatment with 2 M NaOH solution for 24 h resulted in the anticipated radical 4 with 93% yield (34% overall yield from hydrazide 7) (Scheme 5, Path A). The latter was prepared more effectively with 61% yield (45% overall yield from hydrazide 7) via an alternative aza-Wittig protocol involving the phosphoranimine 8 and the azoketone 9 (Scheme 5, Path B) [11].

3. Materials and Methods

3.1. General Methods

All chemicals were commercially available except those whose synthesis is described. Tetrahydrofuran (THF) was dried over Na/benzophenone. Reactions were protected from moisture with CaCl2 drying tubes. All volatiles were removed under reduced pressure. All reaction mixtures and column eluents were monitored by thin-layer chromatography (TLC) using commercial glass-backed thin layer chromatography (TLC) plates (Merck Kieselgel 60 F254, Darmstadt, Germany). The plates were observed under UV light at 254 and 365 nm. The technique of dry flash chromatography [21] was used throughout for all prep-scale chromatographic separations and employed Merck Silica Gel 60 (less than 0.063 mm). Melting and decomposition points were determined using a PolyTherm-A, Wagner & Munz, Kofler hot-stage microscope apparatus (Wagner and Munz, Munich, Germany). The solvents used for recrystallisation are indicated after the respective melting points. UV/vis spectra were obtained using a Perkin-Elmer Lambda-25 UV/vis spectrophotometer (Perkin-Elmer, Waltham, MA, USA), and inflections are identified by the abbreviation ‘inf’. IR spectra were recorded on a Shimadzu FTIR-NIR Prestige-21 spectrometer (Shimadzu, Kyoto, Japan) with a Pike Miracle Ge ATR accessory (Pike Miracle, Madison, WI, USA) and strong, medium and weak peaks are represented by s, m and w, respectively. 1H and 13C NMR spectra were recorded on a Bruker Avance 500 machine (at 500 and 125 MHz, respectively) (Bruker, Billerica, MA, USA). Deuterated solvents were used for homonuclear lock and the signals are referenced to the deuterated solvent peaks. APT (Advance Proton Test) NMR studies identified carbon multiplicities, which are indicated by (s), (d), (t) and (q) notations. MALDI-TOF (Matrix Assisted Laser Desorption/Ionization-Time of Flight) mass spectra (+ve mode) were conducted on a Bruker Autoflex III Smartbeam instrument (Bruker). Elemental analyses were run by the London Metropolitan University Elemental Analysis Service. N′-Pentafluorophenylbenzohydrazide (7) was prepared according to a literature procedure [22]. X-Ray crystallographic data were collected on an Oxford-Diffraction Supernova diffractometer (Rigaku Corporation, Tokyo, Japan), equipped with a CCD area detector utilizing Mo-Kα radiation (λ = 0.71073 Å). A suitable crystal was attached to glass fibers using paratone-N oil and transferred to a goniostat where they were cooled for data collection. Unit cell dimensions were determined and refined by using 3817 (3.35° ≤ θ ≤ 29.52°) reflections. Empirical absorption corrections (multi-scan based on symmetry-related measurements) were applied using CrysAlis RED software [23]. The structures were solved by direct method and refined on F2 using full-matrix least squares using SHELXL2014 [24]. Software packages used: CrysAlis CCD [23] for data collection, CrysAlis RED [23] for cell refinement and data reduction, WINGX [25] for geometric calculations and DIAMOND [26] for molecular graphics. The non-H atoms were treated anisotropically. The hydrogen atoms were placed in calculated, ideal positions and refined as riding on their respective carbon atoms.
X-Ray crystal refinement data (5) (CCDC-1842283): C19H9F4N3O3, M = 403.29, triclinic, space group P-1, a = 6.7377(7) Å, b = 7.1634(8) Å, c = 17.7391(11) Å, α = 94.898(7)°, β = 93.481(7)°, γ = 108.268(9)°, V = 806.58(14) Å3, Z = 2, T = 100(2) K, ρcalcd = 1.661 g cm−3, 2θmax = 29.5. Refinement of 262 parameters on 2441 independent reflections out of 3817 measured reflections (Rint = 0.0616) led to R1 = 0.0679 [I > 2σ(I)], wR2 = 0.1407 (all data) and S = 1.063 with the largest difference peak and hole of 0.313 and −0.289 e−3, respectively. Crystallographic data for 5 have been deposited with the Cambridge Crystallographic Data Centre with the deposit number CCDC-1842283. The data can be obtained free of charge via www.ccdc.cam.ac.uk/data_request/cif (or from the Cambridge Crystallographic Data Centre, 12 Union Road, Cambridge CB2 1EZ, UK; Fax: +44-1223-336033; or e-mail: [email protected]).

3.2. 5,6,7,8-Tetrafluoro-1-(2-nitrophenyl)-3-phenyl-1H-benzo[e][1,3,4]oxadiazine (5)

A stirred mixture of 1-fluoro-2-nitrobenzene (6) (0.527 mL, 5.0 mmol), N′-(perfluorophenyl)-benzohydrazide (7) (1.662 g, 5.5 mmol) and powdered K2CO3 (0.760 g, 5.5 mmol) in EtOH (4 mL), sealed in a thick walled glass pressure tube was heated at ca. 110 °C for 24 h. The mixture was then allowed to cool to ca. 20 °C, diluted with DCM (10 mL), filtered through Celite, rinsed with additional DCM and the volatiles were removed in vacuo. The residue was chromatographed (n-hexane/DCM, 50:50) to yield the title compound 5 (722.2 mg, 36%) as orange cubes; m.p. (hot-stage) 175.0‒176.0 °C (EtOH); m.p. (DSC) onset: 179.9 °C, peak max: 180.7 °C (EtOH); Rf 0.72 (n-hexane/DCM, 50:50); found: C, 56.54; H, 2.17; N, 10.33. C19H9F4N3O3 requires C, 56.59; H, 2.25; N, 10.42%; λmax(DCM)/nm 243 (log ɛ 4.66), 360 (3.82); νmax/cm−1 1603w, 1518s, 1510s, 1493s, 1451m, 1364m, 1327s, 1298w, 1279w, 1258m, 1155m, 1130m, 1096m, 1067s, 1042m, 1026m, 961m, 891s, 878w, 858m, 814m, 776m, 772s, 743m, 706m; δH (500 MHz, DMSO-d6) 8.07 (1H, dd, J = 8.3, 1.2 Hz), 7.86 (1H, d, J = 8.0 Hz), 7.82 (1H, ddd, J = 7.5, 7.5, 1.5 Hz), 7.75–7.73 (2H, m), 7.61–7.57 (2H, m), 7.54–7.51 (2H, m); δC (125 MHz, DMSO-d6) one CF resonance missing, 145.1 (s), 144.3 (s), 138.2 (dm, 1JCF = 242.5 Hz), 136.4 (dm, 1JCF = 218.8 Hz), 136.3 (s), 134.6 (dm, 1JCF = 227.5 Hz), 133.9 (d), 131.9 (d), 128.9 (d), 128.1 (d), 127.6 (d, 2JCF = 13.8 Hz), 126.9 (s), 126.8 (d), 125.8 (d), 125.0 (d), 118.2 (d, 2JCF = 10.0 Hz); m/z (MALDI-TOF) 404 (MH+, 74%), 403 (M+, 100), 253 (39), 104 (22). Further elution (n-hexane/t-BuOMe, 50:50) gave N′-(2-nitrophenyl)-N′-(perfluoro-phenyl)benzohydrazide (3) (782.9 mg, 37%) as light yellow needles; m.p. (hot-stage) 220.3‒222.1 °C (EtOH); m.p. (DSC) onset: 223.0 °C, peak max: 223.1 °C (EtOH); Rf 0.57 (n-hexane/t-BuOMe, 50:50); found: C, 53.74; H, 2.30; N, 9.76. C19H10F5N3O3 requires C, 53.91; H, 2.38; N, 9.93%; λmax(DCM)/nm 256 (log ε 4.40), 280 inf (4.09), 360 (3.44); νmax/cm−1 3185w (N-H), 1672m, 1667m, 1605w, 1518s, 1514s, 1483m, 1346m, 1335m, 1279m, 1221w, 1094w, 1069m, 1013m, 1005m, 986m, 928m, 916m, 824m, 806m, 776m, 756w; δH (500 MHz, DMSO-d6) 11.83 (1H, s, NH), 7.90–7.86 (3H, m), 7.68 (1H, ddd, J = 8.0, 8.0, 1.2 Hz), 7.61 (1H, ddd, J = 7.2, 2.3, 2.3 Hz), 7.55‒7.50 (2H, m), 7.43 (1H, dd, J = 8.4, 0.9 Hz), 7.28 (1H, ddd, J = 7.8, 1.0 Hz); δC (125 MHz, DMSO-d6) 165.5 (s, C=O), 142.6 (dm, 1JCF = 249.8 Hz), 139.4 (s), 138.5 (dm, 1JCF = 249.8 Hz), 138.4 (s), 137.2 (dm, 1JCF = 249.8 Hz), 134.2 (d), 132.5 (d), 131.1 (s), 128.6 (d), 127.6 (d), 125.5 (d), 123.6 (d), 120.2 (d), 119.6–119.4 (m, C-CF); m/z (MALDI-TOF) 424 (MH+, 54%), 405 (27), 403 (100).

3.3. Conversion of N′-(2-Nitrophenyl)-N′-(perfluorophenyl)benzohydrazide (3) into 5,6,7,8-Tetrafluoro-1-(2-nitrophenyl)-3-phenyl-1H-benzo[e][1,3,4]oxadiazine (5)

A stirred suspension of N′-(2-nitrophenyl)-N′-(perfluorophenyl)benzohydrazide (3) (15.0 mg, 0.035 mmol) and K2CO3 (5.30 mg, 1.1 mmol) in anhydrous tetrahydrofuran (1.5 mL) in a sealed vial was inserted in a CEM Discovery microwave reactor and irradiated (100 W) to ca. 120 °C for 3 h at 80 PSI (551.58 kPa). Upon completion, the reaction vessel was air cooled to ca. 20 °C and the residue was chromatographed (n-hexane/DCM, 50:50) to yield 5,6,7,8-tetrafluoro-1-(2-nitrophenyl)-3-phenyl-1H-benzo[e][1,3,4]oxadiazine (5) (12.0 mg, 85%) as orange cubes; m.p. (hot-stage) 175.0‒176.0 °C (EtOH); Rf 0.72 (n-hexane/DCM, 50:50); λmax(DCM)/nm 243 (log ɛ 4.66), 360 (3.82); δH (500 MHz, DMSO-d6) 8.07 (1H, dd, J = 8.3, 1.2 Hz), 7.86 (1H, d, J = 8.0 Hz), 7.82 (1H, ddd, J = 7.5, 7.5, 1.5 Hz), 7.75–7.73 (2H, m), 7.61–7.57 (2H, m), 7.54–7.51 (2H, m); identical to that described above.

3.4. 1-(Perfluorophenyl)-3-phenyl-1,2,4-benzotriazin-4-yl (4)

To a vigorously stirred suspension of N′-(2-nitrophenyl)-N′-(perfluorophenyl)benzohydrazide (3) (0.4233 g, 1.0 mmol) in acetic acid (5 mL) at ca. 20 °C, Sn powder (0.475 g, 4.0 mmol) was added in one portion and the reaction mixture was stirred for 30 min and subsequently heated at ca. 118 °C for 20 min. The mixture was then allowed to cool to ca. 20 °C, diluted with DCM (50 mL) and washed with 2 M NaOH (50 mL). To the organic phase, 2 M NaOH (50 mL) was added and the biphasic mixture was left to stir at ca. 20 °C for 24 h. The organic phase was again separated, washed with H2O (2 × 50 mL), dried (MgSO4) and the volatiles were removed in vacuo. Recrystallization of the residue (c-hexane) yielded the title compound 4 as black cubes; m.p. (hot-stage) 192.4‒193.0 °C (lit. [11] 188.6‒190.1 °C); λmax(CH2Cl2)/nm 268 (log ε 4.61), 322 (3.66), 375 (3.76), 423 inf (3.40), 455 inf (3.17), 486 (3.10), 565 inf (2.78); νmax/cm−1 1514s, 1491w, 1391s, 1244w, 1198w, 1177w, 1146w, 1121w, 1076m, 1069w, 1028m, 989s, 928m, 783m, 760s, 735m; m/z (MALDI-TOF) 375 (MH+, 25%), 374 (M+, 100); identical to an authentic sample.

Supplementary Materials

The following are available online at https://www.mdpi.com/1422-8599/2018/2/M997/s1, cif file for compound 5, 1H and 13C-NMR spectra for new compounds 3 and 5 (PDF).

Author Contributions

G.A.Z. carried out the synthetic studies; A.K. collected the X-ray data; G.A.Z and P.A.K. conceptually designed the study, wrote and edited the manuscript.

Funding

This research was funded by Cyprus Research Promotion Foundation grant number NEKYP/0308/02 and the University of Cyprus “PhD Scholarships 2015–16”.

Acknowledgments

G.A.Z. thanks the University of Cyprus “PhD Scholarships 2015–16” for financial support. The authors also thank the Cyprus Research Promotion Foundation (Grant: NEKYP/0308/02) and the following organizations and companies in Cyprus for generous donations of chemicals and glassware: The State General Laboratory, the Agricultural Research Institute, the Ministry of Agriculture, MedoChemie Ltd., Medisell Ltd. and Biotronics Ltd. Furthermore, we thank the A.G. Leventis Foundation for helping to establish the NMR facility at the University of Cyprus.

Conflicts of Interest

The authors declare no conflict of interest. The founding sponsors had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Ke, S.; Cao, X.; Liang, Y.; Wang, K.; Yang, Z. Synthesis and Biological Properties of Dihydro-Oxadiazine-Based Heterocyclic Derivatives. Mini-Rev. Med. Chem. 2011, 11, 642–657. [Google Scholar] [CrossRef] [PubMed]
  2. Pfeiffer, W.-D. 1,3,4-Oxadiazines and 1,3,4-Thiadiazines. In Comprehensive Heterocyclic Chemistry III; Katritzky, A.R., Ramsden, C.A., Scriven, E.F.V., Taylor, R.J.K., Eds.; Pergamon Press: Oxford, UK, 2008. [Google Scholar]
  3. Eissa, F.M.; Abdelghany, A.R. New 1,3,4-Oxadiazinoisoquinoline Methine Cyanine Dyes: Synthesis, Photosensitivity and Antibacterial Activity. J. Heterocycl. Chem. 2016, 53, 429–436. [Google Scholar] [CrossRef]
  4. Eissa, F.M. Preparation, Antibacterial Activity and Absorption Spectra of Pyrazolo-Oxadiazine Cyanine Dyes. J. Chin. Chem. Soc. 2009, 56, 843–849. [Google Scholar] [CrossRef]
  5. Lipunova, G.N.; Nosova, É.V.; Sidorova, L.P.; Charushin, V.N. Synthesis and antitumor activity of fluorinated derivatives of [i,j]-annelated quinolones. Pharm. Chem. J. 2011, 45, 208–210. [Google Scholar] [CrossRef]
  6. Mousavi, S.-H.; Atapour-Mashhad, H.; Bakavoli, M.; Shiri, A.; Akbarzadeh, M.; Tayarani-Najaran, Z. Pyrimidooxadiazine and triazolopyrimidooxadiazine derivatives: Synthesis and cytotoxic evaluation in human cancer cell lines. Russ. J. Bioorg. Chem. 2015, 41, 201–208. [Google Scholar] [CrossRef]
  7. Bakavoli, M.; Rahimizadeh, M.; Shiri, A.; Akbarzadeh, M.; Mousavi, S.-H.; Tayarani-Najaran, Z.; Atapour-Mashhad, H.; Nikpour, M. Synthesis of new derivatives of 3-aryl-1,5-dimethyl-1H-[1,2,4]triazolo[4′,3′:1,2]pyrimido[4,5-e][1,3,4]oxadiazines as potential antiproliferative agents. J. Heterocycl. Chem. 2011, 48, 183–187. [Google Scholar] [CrossRef]
  8. Elliott, A.J.; Gibson, M.S. A new synthesis of 4H-1,3,4-benzoxadiazines. J. Chem. Soc. Perkin Trans. 1. 1972, 2915–2917. [Google Scholar] [CrossRef]
  9. Elliott, A.J.; Gibson, M.S.; Kayser, M.M.; Pawelchak, G.A. Smiles Rearrangement in Hydrazonyl Systems: Extension of a Recent 4H-1,3,4-Benzoxadiazine Synthesis. Can. J. Chem. 1973, 51, 4115–4121. [Google Scholar] [CrossRef]
  10. Berezin, A.A.; Zissimou, G.; Constantinides, C.P.; Beldjoudi, Y.; Rawson, J.M.; Koutentis, P.A. Route to Benzo- and Pyrido-fused 1,2,4-Triazinyl Radicals via N′-(Het)aryl-N′-[2-nitro(het)aryl]hydrazides. J. Org. Chem. 2014, 79, 314–327. [Google Scholar] [CrossRef] [PubMed]
  11. Savva, A.C.; Zissimou, G.A.; Mirallai, S.I.; Berezin, A.A.; Demetriades, M.; Constantinides, C.P.; Nicolaides, C.; Trypiniotis, T.; Koutentis, P.A. Preparation of Blatter Radicals via Aza-Wittig Chemistry: The Reaction of N-Arylimino-phosphoranes and 1-(Het)aroyl-2-aryldiazenes. J. Org. Chem. 2017, 82, 7564–7575. [Google Scholar] [CrossRef] [PubMed]
  12. Keane, L.-A.J.; Mirallai, S.I.; Sweeney, M.; Carty, M.P.; Zissimou, G.A.; Berezin, A.A.; Koutentis, P.A.; Aldabbagh, F. Anti-cancer Activity of Phenyl and Pyrid-2-yl 1,3-Substituted Benzo[1,2,4]triazin-7-ones and Stable Free Radical Precursors. Molecules 2018, 23, 574. [Google Scholar] [CrossRef] [PubMed]
  13. Karekla, G.; Papagiorgis, P.; Panayi, N.; Zissimou, G.A.; Constantinides, C.P.; Koutentis, P.A.; Itskos, G.; Hayes, S.C. Emission from the stable Blatter radical. New J. Chem. 2017, 41, 8604–8613. [Google Scholar] [CrossRef]
  14. Constantinides, C.P.; Berezin, A.; Zissimou, G.A.; Manoli, M.; Leitus, G.; Koutentis, P.A. The suppression of columnar π-stacking in 3-adamantyl-1-phenyl-1,4-dihydrobenzo[e][1,2,4]triazin-4-yl. Molecules 2016, 21, 636. [Google Scholar] [CrossRef] [PubMed]
  15. Morgan, I.S.; Mansikkamäki, A.; Zissimou, G.A.; Koutentis, P.A.; Rouzières, M.; Clérac, R.; Tuononen, H.M. Coordination Complexes of a Neutral 1,2,4-Benzotriazinyl Radical Ligand: Synthesis, Molecular and Electronic Structures, and Magnetic Properties. Chem. Eur. J. 2015, 21, 15843–15853. [Google Scholar] [CrossRef] [PubMed]
  16. Constantinides, C.P.; Berezin, A.A.; Zissimou, G.A.; Manoli, M.; Leitus, G.M.; Bendikov, M.; Probert, M.R.; Rawson, J.M.; Koutentis, P.A. A Magnetostructural Investigation of an Abrupt Spin-Transition for 1-Phenyl-3-trifluoromethyl-1,4-dihydro-benzo[e][1,2,4]triazin-4-yl. J. Am. Chem. Soc. 2014, 136, 11906–11909. [Google Scholar] [CrossRef] [PubMed]
  17. Constantinides, C.P.; Berezin, A.A.; Manoli, M.; Leitus, G.M.; Zissimou, G.A.; Bendikov, M.; Rawson, J.M.; Koutentis, P.A. Structural, Magnetic and Computational Correlations of Some Imidazolo-fused 1,2,4-Benzotriazinyl Radicals. Chem. Eur. J. 2014, 20, 5388–5396. [Google Scholar] [CrossRef] [PubMed]
  18. Demetriou, M.; Berezin, A.A.; Koutentis, P.A.; Krasia-Christoforou, T. Benzotriazinyl-Mediated Controlled Radical Polymerisation of Styrene. Polym. Int. 2014, 63, 674–679. [Google Scholar] [CrossRef]
  19. Constantinides, C.P.; Berezin, A.A.; Manoli, M.; Leitus, G.M.; Bendikov, M.; Rawson, J.M.; Koutentis, P.A. Effective Exchange Coupling in Alternating-Chains of a π-Extended 1,2,4-Benzotriazin-4-yl. New J. Chem. 2014, 38, 949–954. [Google Scholar] [CrossRef]
  20. Berezin, A.A.; Koutentis, P.A. Ring contraction of 1,3-diphenylbenzo[1,2,4]triazinyl radicals to 1,2-diphenylbenzimidazoles. Org. Biomol. Chem. 2014, 12, 1641–1648. [Google Scholar] [CrossRef] [PubMed]
  21. Harwood, L.M. “Dry-Column” Flash Chromatography. Aldrichimica Acta 1985, 18, 25–25. [Google Scholar]
  22. Herkes, F.E. Synthesis of tetrafluorobenzothiazoles and tetrafluoro-4H-1,3,4-benzothiadiazines. J. Fluorine Chem. 1979, 13, 1–21. [Google Scholar] [CrossRef]
  23. CrysAlis CCD and CrysAlis RED, version 1.171.32.15; Oxford Diffraction Ltd.: Abingdon/Oxford, UK, 2008.
  24. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. C Struct. Chem. 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed]
  25. Farrugia, L.J. WinGX suite for single crystal small molecule crystallography. J. Appl. Crystallogr. 1999, 32, 837–838. [Google Scholar] [CrossRef]
  26. Brandenburg, K. DIAMOND, version 3.1d; Crystal Impact GbR: Bonn, Germany, 2006. [Google Scholar]
Scheme 1. Route to benzo-fused 1,3,4-oxadiazines 2 via the intramolecular cyclisation of N′-(2-halophenyl)benzohydrazides 1 first reported by Elliot and Gibson [8,9].
Scheme 1. Route to benzo-fused 1,3,4-oxadiazines 2 via the intramolecular cyclisation of N′-(2-halophenyl)benzohydrazides 1 first reported by Elliot and Gibson [8,9].
Molbank 2018 m997 sch001

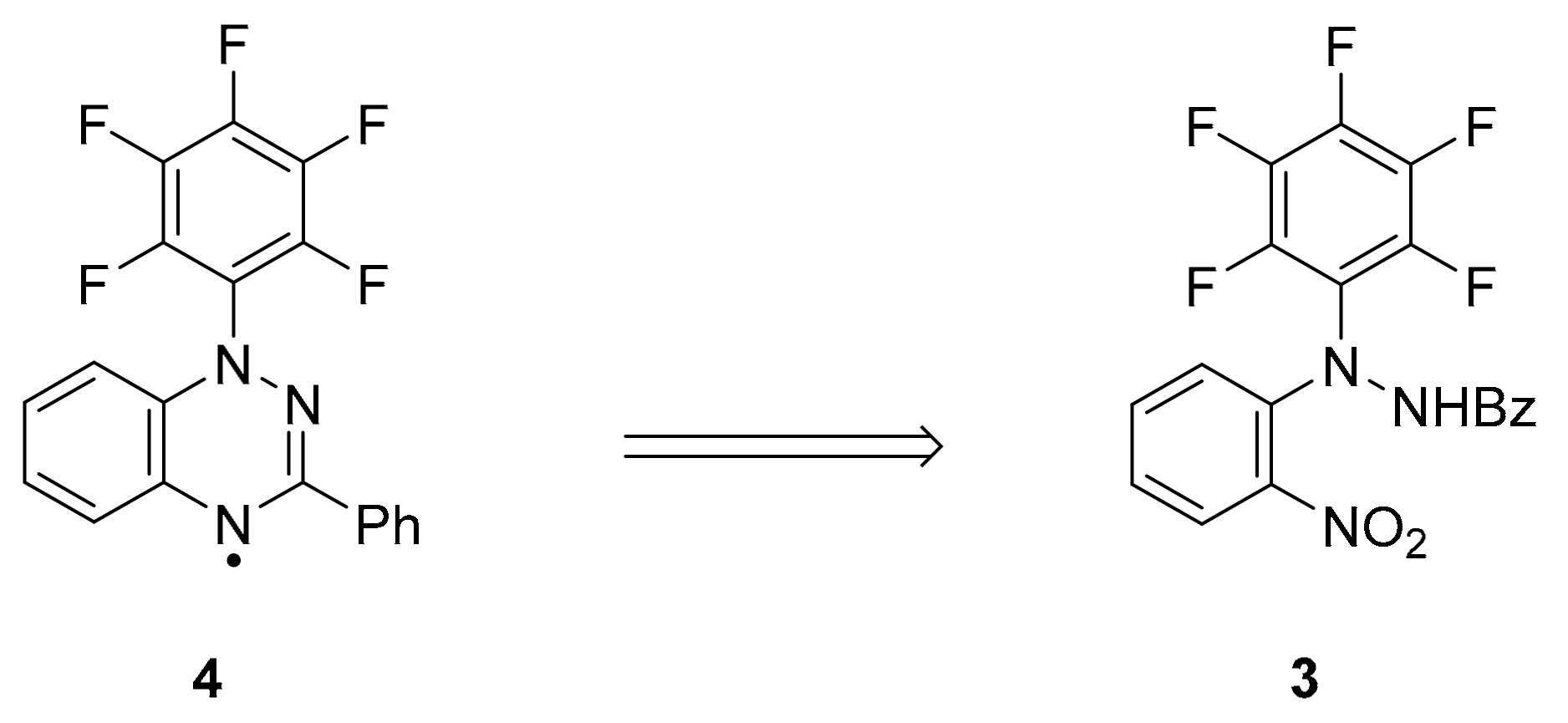

Scheme 2. Structure of 1-(perfluorophenyl)-3-phenyl-1,2,4-benzotriazin-4-yl (4) and its precursor N′-(2-nitrophenyl)-N′-(perfluorophenyl)benzohydrazide (3).
Scheme 2. Structure of 1-(perfluorophenyl)-3-phenyl-1,2,4-benzotriazin-4-yl (4) and its precursor N′-(2-nitrophenyl)-N′-(perfluorophenyl)benzohydrazide (3).
Molbank 2018 m997 sch002

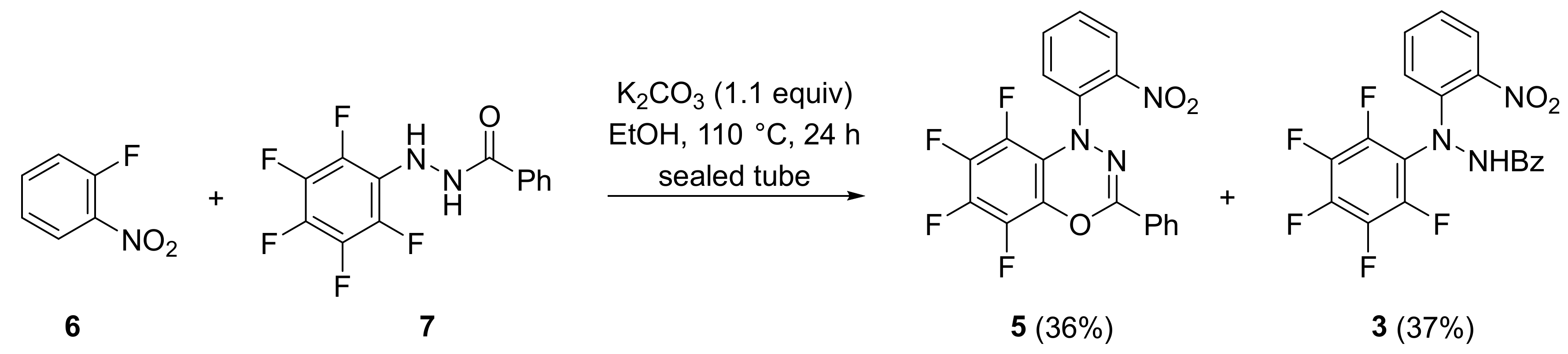

Scheme 3. Reaction of 1-fluoro-2-nitrobenzene (6) with N′-(perfluorophenyl)benzohydrazide (7): Preparation of 5,6,7,8-tetrafluoro-1-(2-nitrophenyl)-3-phenyl-1H-benzo[e][1,3,4]oxadiazine (5) and N′-(2-nitrophenyl)-N′-(perfluorophenyl)benzohydrazide (3).
Scheme 3. Reaction of 1-fluoro-2-nitrobenzene (6) with N′-(perfluorophenyl)benzohydrazide (7): Preparation of 5,6,7,8-tetrafluoro-1-(2-nitrophenyl)-3-phenyl-1H-benzo[e][1,3,4]oxadiazine (5) and N′-(2-nitrophenyl)-N′-(perfluorophenyl)benzohydrazide (3).
Molbank 2018 m997 sch003
Figure 1. ORTEP view of 5,6,7,8-tetrafluoro-1-(2-nitrophenyl)-3-phenyl-1H-benzo[e][1,3,4]oxadiazine (5) (CCDC-1842283). 50% Probability ellipsoids. Hydrogens omitted for clarity. Crystallographic numbering shown.
Figure 1. ORTEP view of 5,6,7,8-tetrafluoro-1-(2-nitrophenyl)-3-phenyl-1H-benzo[e][1,3,4]oxadiazine (5) (CCDC-1842283). 50% Probability ellipsoids. Hydrogens omitted for clarity. Crystallographic numbering shown.
Molbank 2018 m997 g001

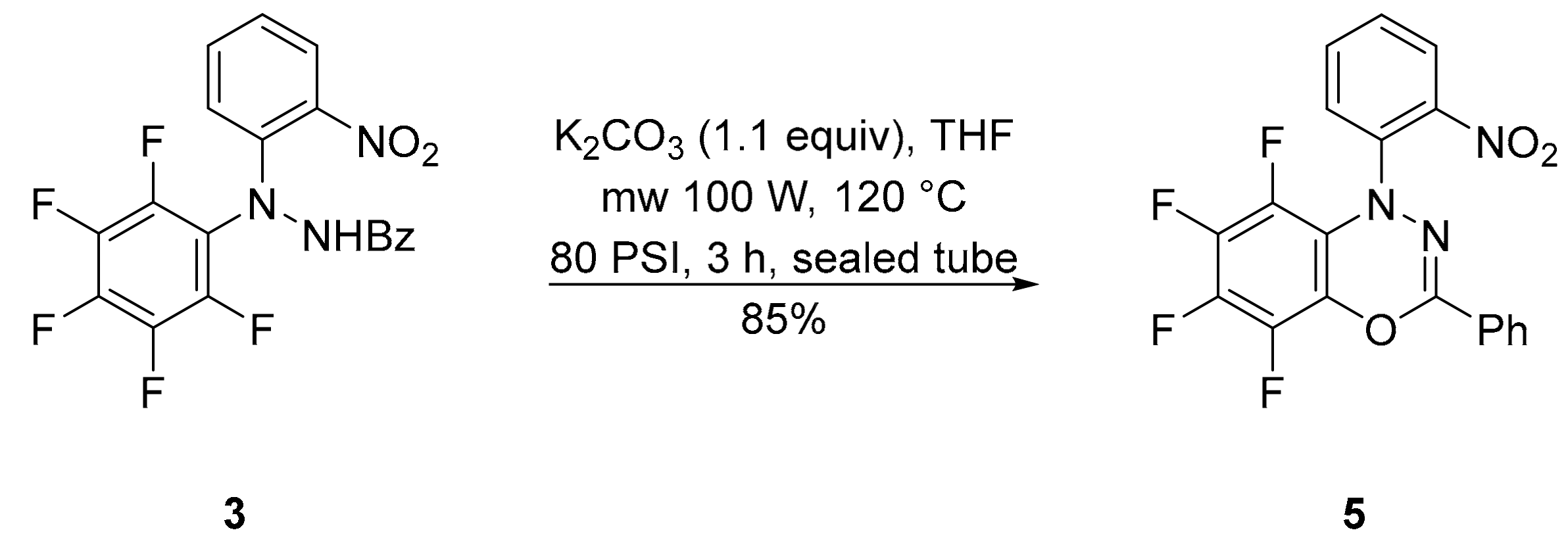

Scheme 4. Conversion of N′-(2-nitrophenyl)-N′-(perfluorophenyl)benzohydrazide (3) into 5,6,7,8-tetrafluoro-1-(2-nitrophenyl)-3-phenyl-1H-benzo[e][1,3,4]oxadiazine (5).
Scheme 4. Conversion of N′-(2-nitrophenyl)-N′-(perfluorophenyl)benzohydrazide (3) into 5,6,7,8-tetrafluoro-1-(2-nitrophenyl)-3-phenyl-1H-benzo[e][1,3,4]oxadiazine (5).
Molbank 2018 m997 sch004

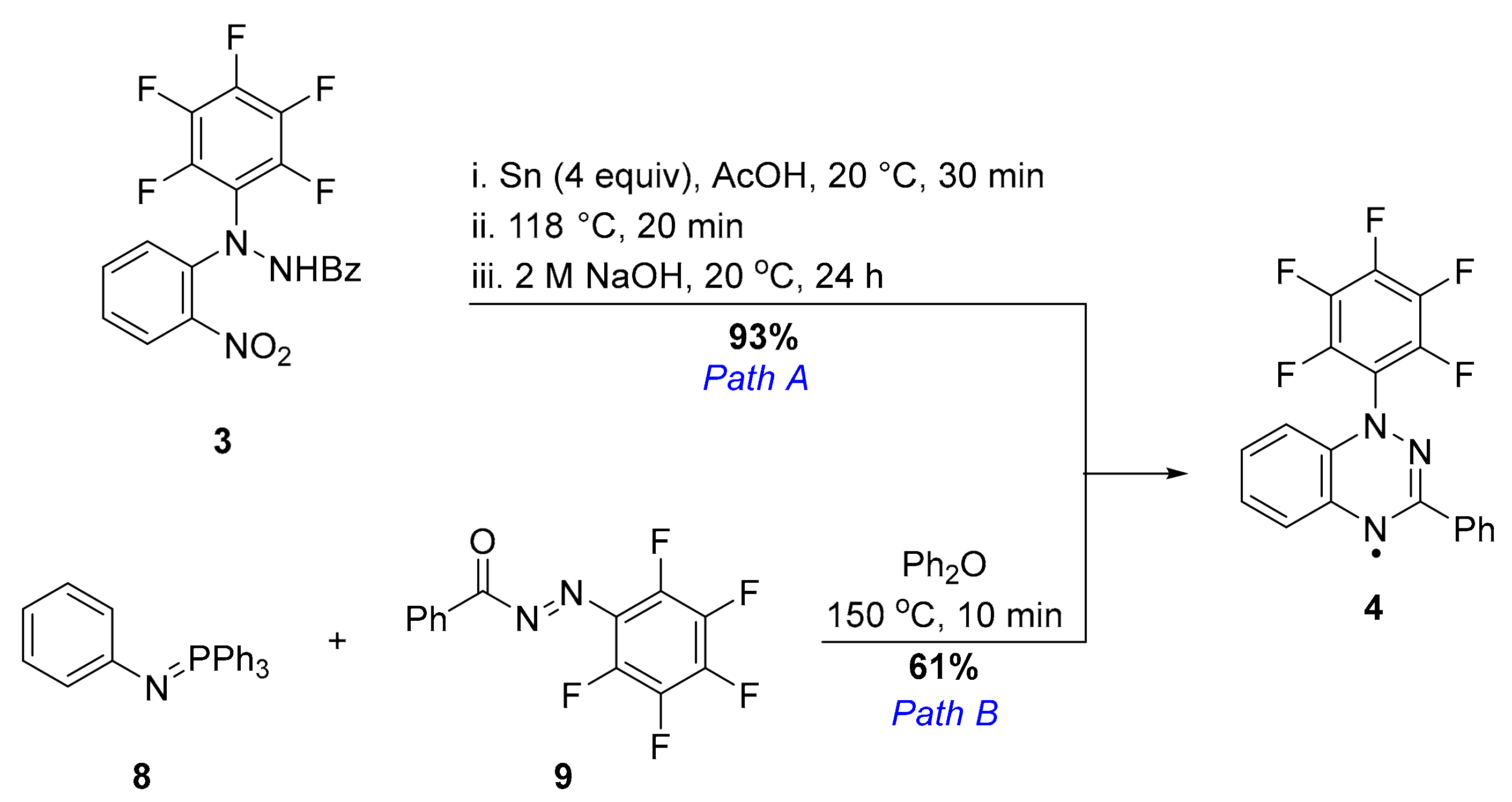

Scheme 5. Synthesis of radical 4: (a) Path A: via Reduction of N′-(2-nitrophenyl)-N′-(perfluorophenyl)benzohydrazide (3); and (b) via Path B: Aza-Wittig protocol.
