2-Bromo-N¹, N¹, N⁴, N⁴-tetramethyl-benzene-1,4-diamine

Compound 3 has been reported in a patent¹ as a catalyst for hydrogen peroxide bleaching in photographic processing methods, but no synthesis or spectroscopic data are available in the chemical literature. We report here the synthesis and characterization of the compound.

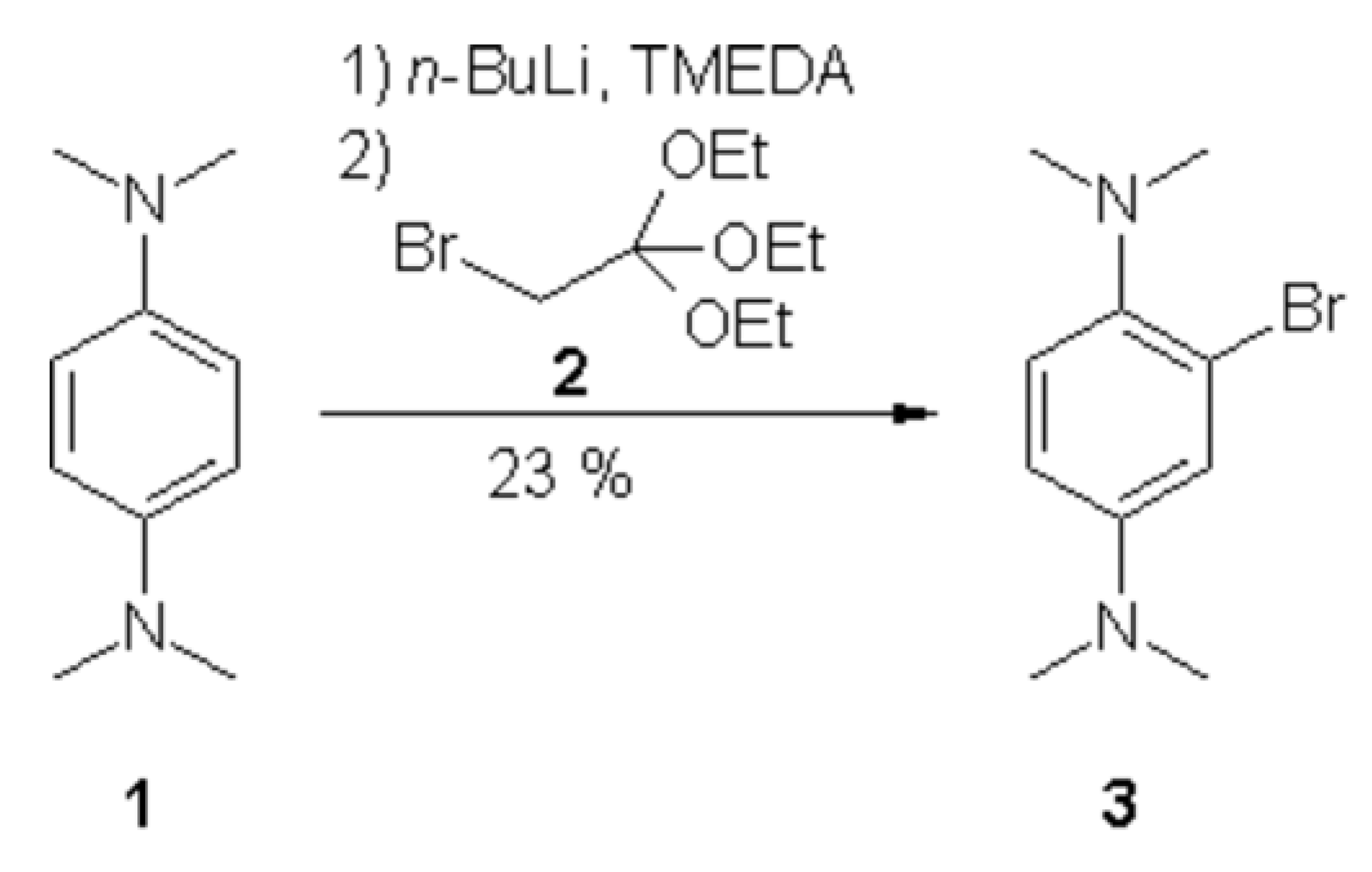

A mixture of N,N,N',N'-tetramethyl-benzene-1,4-diamine (3.1 g, 18.9 mmol) (1), n-BuLi (22.7 mmol, 16.2 ml; 1.4 mol/L in hexane) and TMEDA (2.8 ml, 18.9 mmol) was heated to reflux for 45 min. A white precipitate is observed. The reaction mixture was cooled down to 0 °C, the solvent was decanted from the residue and 50 ml of THF were added. After addition of 2-bromo-1,1,1-triethoxy-ethane (5.0 g, 21 mmol) (2) the reaction mixture was heated to reflux for 15 min and stirred at room temp. overnight. The reaction was quenched with aqueous sat. NH₄Cl solution (100 ml), diluted with ethyl acetate, the organic phase was washed with water, dried over Na₂SO₄ and the solvent was removed in vacuo. The crude product was purified by column chromatography on silica [petrol ether (60/70) / ethyl acetate 3:1; R_f = 0.56] to yield 1.03 g (23 %) of 3; brown solid, mp. 35 °C.

IR (KBr): 2979 cm⁻¹, 2937, 2890, 2853, 2821, 2788, 1605, 1507, 942, 811, 678.

UV/Vis (CH₃CN): lmax (log e) = 210 nm (4.333), 266 (4.147), 322 (3.445).

¹H NMR (400 MHz, CDCl₃): d = 2.70 (s, 6H), 2.88 (s, 6H), 6.65 (dd, 3J = 8.8 Hz, 4J = 2.9 Hz, 1H), 6.94 (d, 4J = 2.9 Hz, 1H), 7.02 (d, 3J = 8.8 Hz, 1H).

¹³C NMR (100 MHz, CDCl₃): d = 40.81 (+), 44.92 (+), 112.49 (+), 117.65 (+), 120.90 (C_quat), 121.06 (+), 141.71 (C_quat), 147.91 (C_quat).

MS (70 eV), m/z (%): 242 (100) [M⁺], 227 (76) [M+-CH₃].
