Next Article in Journal
Acute Seizure Susceptibility and Chronic Vascular Malformation in a Developmental Mouse Model of Sturge–Weber Syndrome
Previous Article in Journal
Low-Cost and Rapid Production of Calcium Formate from Cockle Shell Waste for Sustainable Waste Recycling
Previous Article in Special Issue
Exploring Antibacterial Properties of Mechanochemically Synthesized MgAl2O4 Spinel Nanoparticles for Dental and Medical Applications


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
IJMS
Volume 27
Issue 8
10.3390/ijms27083521
ijms-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite question_answer Discuss in SciProfiles
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Porcine Skin-Derived Silver Nanoparticles: A Novel Green Synthesis Approach and Molecular Characterization of Their Antimicrobial Potential

by
Kyoung Ran Kim
1,†,
Bummo Koo
1,†,
Min Woo Lee
2,
Hyeong-Dong Kim
2,
Jong Ryeul Sohn
3 and
Suhng Wook Kim
1,2,3,*
1
Department of Health and Safety Convergence Science, Graduate School, Korea University, 145 Anam-ro, Seoul 02841, Republic of Korea
2
School of Health and Environmental Science, College of Health Science, Korea University, 145 Anam-ro, Seoul 02841, Republic of Korea
3
Graduate School of Particulate Matter Specialization, Korea University, 145 Anam-ro, Seoul 02841, Republic of Korea
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Int. J. Mol. Sci. 2026, 27(8), 3521; https://doi.org/10.3390/ijms27083521
Submission received: 18 March 2026 / Revised: 6 April 2026 / Accepted: 9 April 2026 / Published: 15 April 2026
(This article belongs to the Special Issue Antimicrobial Nanoparticles: Mechanisms, Applications, and Future Directions)
Browse Figures
Versions Notes

Abstract

Silver nanoparticles (AgNPs) are widely recognized for their potent antibacterial properties and diverse biomedical applications. While conventional synthesis methods typically rely on chemical-reducing agents that may pose risks to human health and the environment, this study proposes an eco-friendly green synthesis approach utilizing porcine skin extracts. The extracts were prepared through thermal treatment and filtration to serve as a biological reducing agent. Successful synthesis was validated using dynamic light scattering, Fourier transform infrared (FTIR) spectroscopy, UV–Vis spectroscopy, and scanning electron microscopy (SEM). Furthermore, the antimicrobial efficacy of the synthesized AgNPs was evaluated against multidrug-resistant microorganisms, demonstrating significant growth inhibition across various antibiotic-resistant strains. These findings suggest that porcine skin—a readily available bioresource—is a promising precursor for the sustainable production of AgNPs with broad-spectrum antimicrobial potential.

1. Introduction

Antibiotics, which are antimicrobial agents capable of inhibiting or eradicating microbial proliferation, are extensively employed not only for the therapeutic management of bacterial infections in both human and animal populations, but also for non-medical applications. Recently, due to climate change and environmental pollution, the prevalence of antibiotic-resistant microorganisms has increased [1]. Strong antibacterial agents are required for the treatment of antibiotic-resistant microorganisms; however, these agents may affect the normal flora of the human body, adversely affecting health and placing physical and economic burdens on patients. Therefore, there is an emerging need for novel and eco-friendly antibacterial agents [2,3,4]. AgNPs are well-known materials. Research on the antibacterial and antifungal properties of AgNPs is currently underway [5,6,7]. Hence, AgNPs have applications in biomedical fields, such as biosensors and antimicrobials [8]. In addition, AgNPs are often coated with other materials to prevent microbial infections in public settings and in daily life.
Currently, there are three main methods for synthesizing AgNPs: physical, chemical, and green synthesis. Physical methods, such as high-energy ball milling [9], inert gas condensation [10], laser pyrolysis [11], and electrospinning [12], are typically used to produce high-purity AgNPs with a narrow size distribution.
Chemical methods for synthesizing AgNPs are versatile and can produce AgNPs with a wide range of properties; however, the chemical-reducing agents used in these methods are detrimental to human health and the environment [13,14,15,16,17,18]. Examples of reducing agents currently used to synthesize AgNPs include gamma rays [19,20,21], hydrazine [22], and sodium borohydride [23]. Gamma radiation can cause lethal damage to genes and proteins [24,25]. Hydrazine is toxic via the oral route, skin contact, and inhalation, and may cause skin burns, serious eye damage, and respiratory irritation. Sodium borohydride can cause burns, blindness, and skin damage upon contact, and can result in soil contamination through water pollution [19,20,23,26,27,28,29,30,31,32,33,34].
To overcome this problem, methods for synthesizing nanoparticles from natural products have been developed. This method is known as green synthesis. Green synthetic methods that use naturally occurring materials as reducing agents are environmentally friendly and have the potential to produce AgNPs with novel properties. This eco-friendly approach involves synthesizing metallic nanoparticles using various natural sources such as starch, leaves, roots, flowers, fruits, honey, bacteria, fungi, algae, and microbial enzymes, and is currently receiving extensive research attention [35,36,37,38].
More recently, sophisticated bio-inspired platforms, such as polydopamine-based systems, have emerged as highly efficient and sustainable templates for the controlled synthesis of metallic nanoparticles, further expanding the scope of green nanotechnology beyond traditional plant extracts [39].
However, while green synthesis of AgNPs has predominantly utilized plant extracts, this study shifts the focus toward waste valorization by utilizing porcine skin—a major byproduct of the livestock and food processing industries. Globally, the accumulation of animal-derived waste presents significant environmental challenges. By repurposing this bioresource, we not only reduce the environmental burden but also convert a low-value byproduct into a high-value functional material [40].
Distinct from conventional plant-based green synthesis, the present study explores the potential of animal-derived bioresources by utilizing porcine skin extracts as an eco-friendly reducing agent. Herein, we report the successful synthesis of porcine skin-derived AgNPs and provide a comprehensive assessment of their antimicrobial efficacy against a broad range of both susceptible and multidrug-resistant pathogens.

2. Results and Discussion

2.1. Green-Synthesized AgNPs Using Porcine Skin

2.1.1. Chromatic Changes in Porcine Skin Induced by AgNO3 Treatment

To observe the chromatic changes of silver nitrate, porcine skin was treated with AgNO3 solutions. When 10, 50, and 100 mM AgNO3 solutions were applied to pre-washed porcine skin, a distinct color change was observed within 2 h. This coloration intensified in a concentration-dependent manner (Figure 1A). Specifically, the 10 mM treatment resulted in a light brown hue after 2 h, which darkened to a deep brown after 24 h (Figure 1B). These results suggest that endogenous components within the porcine skin reduced the silver ions, leading to the observed pigmentation. These observations indicate the reduction in silver ions and the formation of nanoparticles.
Although the chromatic changes were visually observed, nanoparticle formation was quantitatively monitored using UV-Vis spectroscopy through the evolution of characteristic LSPR peaks.

2.1.2. Preparation of Porcine Skin Extract and Synthesis of AgNPs

The unfiltered porcine skin extract exhibited high turbidity visible to the naked eye (Figure 2A), whereas the extract filtered through a 0.2 µm syringe filter appeared relatively clear (Figure 2B). The filtered extract was subsequently employed as a reducing agent for the synthesis of AgNPs. The reduction in Ag+ ions to Ag0 was indicated by a distinct color transition from transparent to brown. When AgNO3 was mixed with the extract at a 1:1 ratio, the resulting AgNPs displayed a deep brown color (Figure 2C). The intensity of this coloration is primarily attributed to the Localized Surface Plasmon Resonance (LSPR) effect, which is a characteristic optical property of silver nanoparticles. The environmental sustainability of the proposed synthesis method is rooted in the principle of waste valorization. While the extraction of porcine skin components involves a thermal treatment at 80 °C, this energy expenditure is strategically offset by the elimination of hazardous chemical-reducing agents such as hydrazine and sodium borohydride. Conventional chemical synthesis methods often rely on these substances, which are known to be toxic via skin contact and inhalation, and can lead to significant soil and water contamination. By repurposing porcine skin—a major industrial byproduct—this approach mitigates the environmental burden of biological waste disposal.

2.2. Characterization of Synthesized AgNPs Using Porcine Skin Extracts

2.2.1. UV-Vis Analysis of Optical Properties

To monitor the formation of AgNPs in real-time, the UV-Vis spectral changes in the reaction mixture were recorded at 1 min intervals (Figure 3). At the initial stage of the reaction (1 min), the absorbance in the visible range was minimal, indicating the precursor state. However, as the reaction progressed under UV irradiation, a characteristic Localized Surface Plasmon Resonance (LSPR) peak—which is sensitive to nanoparticle size and shape [41]—emerged near 450 nm and its intensity increased rapidly up to 5 min. This spectral evolution provides direct evidence of the successful and progressive bio-reduction in silver ions Ag+ into metallic nanoparticles (Ag0) mediated by the porcine skin extract.

2.2.2. DLS Analysis of Particle Size Distribution

DLS was used to measure the size of the synthesized colloidal particles and confirm their physical, chemical, and biological properties [42]. The synthesized hydrodynamic diameter of AgNPs exhibited low Z-Average (162.1 nm) and PDI (0.214) (Figure 4). The PDI is dimensionless, and the best value obtained from a monodisperse sample is close to 0.05, while the range where the distribution algorithm works best is 0.08 to 0.7 [43]. The synthesized AgNPs exhibited a polydispersity index (PDI) of 0.214, which was lower than 0.7, confirming their superior quality.

2.2.3. SEM Analysis of AgNP Morphology

SEM is typically used to observe the morphology, shape, size, and aggregation of the synthesized nanoparticles [44]. Morphological characterization of the AgNPs was confirmed at 10.0 kV under 50,000× magnification (Figure 5A). SEM revealed that the synthesized AgNPs had a predominantly spherical morphology, with an average particle diameter of 19 nm. The significant discrepancy between the SEM-derived diameter (19 nm) and the DLS-measured Z-average (162.1 nm) is attributed to the fundamental differences in the physical principles of these two characterization techniques. While SEM provides a direct visualization of the dried metallic core, DLS calculates the size based on the Brownian motion of particles in a liquid phase, reflecting the thickness of the protein corona or capping layer formed by the porcine skin-derived biomolecules [45]. Notably, AgNPs did not show any significantly larger aggregates, demonstrating the effectiveness of porcine skin extracts as both a proficient reductant and a capping agent in the synthesis of AgNPs.

2.2.4. Component Analysis of Porcine Skin Extracts via FTIR Spectroscopy

In FTIR analysis (Figure 6), the peak at 1635.62 cm−1 corresponds to C=O stretching vibrations of amide and carboxyl functional groups, suggesting the presence of soluble proteins and peptides likely derived from collagen-rich porcine skin tissues during thermal extraction at 80 °C [46]. This interpretation is consistent with previous reports showing that thermal degradation of animal skin collagen yields gelatinous peptides that effectively stabilize metallic nanoparticles [40]. The FTIR spectrum also exhibits a broad absorption band at 3272.68 cm−1 corresponding to O–H stretching vibrations of alcohols and phenols, which may also indicate N–H stretching associated with proteinaceous components. The weak peak at 2111.87 cm−1 is attributed to the stretching vibration of the C≡C bond in the alkynyl group. These functional groups, including hydroxyl, amide, and carboxyl groups, are known to participate in the reduction in Ag+ ions and stabilization of nanoparticles. Therefore, the FTIR results suggest that soluble proteins like collagen present in porcine skin extract may contribute to both the reduction in Ag+ ions and the stabilization of nanoparticles during the biosynthesis of AgNPs. These observations support the role of biomolecules derived from porcine skin extract in the green synthesis of AgNPs.

2.3. Determination of Biological Activities of Green-Synthesized AgNPs

2.3.1. Antifungal Effect of Green-Synthesized AgNPs on Planktonic Candida Species

Candida species are normal human microbiota that can colonize human tissues and organs, such as the mouth, throat, gut, and vagina, without causing infection [47]. However, under certain conditions, Candida albicans can become a pathogenic fungus, causing infections ranging from serious superficial mucosal infections to life-threatening systemic infections. Therefore, we evaluated the antifungal activity of AgNPs synthesized from porcine skin extracts against Candida strains.
To assess the antifungal effects and MIC50 of AgNPs, Candida species were treated with AgNPs at concentrations ranging from 0.5 to 256 μg/mL. AgNP concentrations from 4 to 256 μg/mL demonstrated an antifungal effect (Figure 7).
The MIC50 of AgNPs against Candida albicans was 8 μg/mL. The MIC50 for Candida guilliermondii, fluconazole-resistant Candida albicans, and fluconazole-resistant Candida tropicalis was 16 μg/mL. The MIC50 range for various Candida species was observed to range from 8 to 16 μg/mL, supporting the broad-spectrum antifungal efficacy of AgNPs against both antibiotic-susceptible and antibiotic-resistant fungi, as shown in Table 1.
In addition, no antimicrobial activity was observed in the negative control (deionized water), confirming that the observed inhibitory effects were solely attributable to the synthesized AgNPs.

2.3.2. Antibacterial Effect of Green-Synthesized AgNPs

  • Antibacterial Effect and MIC50 of Green-Synthesized AgNPs on Gram-Positive Bacteria
The antibacterial activity of AgNPs synthesized from porcine skin extracts was evaluated against six Gram-positive bacterial strains: Staphylococcus aureus (S. aureus), Staphylococcus haemolyticus (S. haemolyticus), Enterococcus faecalis (E. faecalis), Methicillin-resistant Staphylococcus aureus (MRSA), vancomycin-resistant E. faecalis, and vancomycin-resistant E. gallinarum. The bacteria were exposed to AgNP concentrations ranging from 0.5 to 256 μg/mL. AgNPs at concentrations of 4–256 µg/mL exhibited an antibacterial effect against both antibiotic-susceptible and antibiotic-resistant bacteria (Figure 8). The MIC50 values for S. aureus, S. haemolyticus, E. faecalis, MRSA, and vancomycin-resistant E. gallinarum were all 8 µg/mL. Only the MIC50 for vancomycin-resistant E. faecalis was confirmed to be 16 µg/mL (Table 2). The potent antimicrobial activity of the synthesized AgNPs against MDR strains, such as MRSA and VRE, is particularly noteworthy. Given that these pathogens exhibit high-level resistance to conventional antibiotics like methicillin and vancomycin, the MIC50 values of 8~16 µg/mL obtained in this study demonstrate the potential of porcine skin-derived AgNPs as a robust alternative where standard therapies fail [48].
The bactericidal mechanism of AgNPs is not fully understood; however, it is likely that they act similarly to other antimicrobial agents by disrupting cell wall synthesis, protein synthesis, nucleic acid synthesis, and metabolic pathways [49].
According to research investigating the antibacterial mechanism of AgNPs against S. aureus, a representative Gram-positive bacterium, AgNPs damage the structure of the bacterial cell membrane, inhibit cell respiration, and modulate the abundance of certain enzymes [50]. Treatment of S. aureus with AgNPs resulted in cell wall breakdown, release of cellular contents, and depletion of the cytoplasm, whereas the untreated S. aureus cells retained their smooth surface and typical coccal morphology [50]. These findings provide evidence supporting the potent antibacterial activity of AgNPs.
2.
Antibacterial Effect and MIC50 of Green-Synthesized AgNPs on Gram-Negative Bacteria
Nine strains of Gram-negative bacteria, including Salmonella enterica serovar Typhi (S. Typhi), Salmonella enterica serovar Choleraesuis (S. Choleraesuis), Escherichia coli (E. coli), Stenotrophomonas maltophilia (S. maltophilia), Serratia marcescens (S. marcescens), Pseudomonas aeruginosa (P. aeruginosa), Acinetobacter baumannii (A. baumannii), Multidrug-resistant Pseudomonas aeruginosa (MRPA), and Multidrug-resistant Acinetobacter baumannii (MRAB), were used to measure the antibacterial activity of AgNPs synthesized from porcine skin extracts. The bacteria were exposed to AgNP concentrations ranging from 0.5 to 256 μg/mL. AgNPs at concentrations of 2–256 µg/mL exhibited an antibacterial effect against both antibiotic-susceptible and resistant bacteria (Figure 9). The MIC50 values for all tested Gram-negative bacteria were 8 µg/mL (Table 3). Thus, the antibacterial effects of AgNPs were observed in both antibiotic-susceptible and antibiotic-resistant Gram-negative bacteria. These findings demonstrate the antibacterial effect of AgNPs synthesized using porcine skin extracts against Gram-negative bacterial strains.
The antimicrobial activity of AgNPs against Gram-negative bacteria, including E. coli, a typical Gram-negative bacterium, has been extensively studied. Exposure to antibacterial concentrations of AgNPs resulted in the accumulation of envelope protein precursors in E. coli cells, suggesting that AgNPs target the bacterial membrane and dissipate proton motive forces [51]. When AgNPs enter a bacterial cell, they form a low-molecular-weight region inside the bacteria, causing the bacteria to conglomerate and protect their DNA. As a result, the nanoparticles preferentially attack the respiratory chain and induce cell division, ultimately leading to cell death [52].

3. Materials and Methods

3.1. Preparation of Porcine Skin Extract

Porcine skin was obtained from a local market (Seoul, Republic of Korea) and washed with deionized water (DW). For the color change observation, the skin samples were reacted directly with AgNO3 solutions at concentrations of 10, 50, and 100 mM. Separately, to prepare the porcine skin extract, 5 g of untreated porcine skin was minced and mixed with 100 mL of secondary DW. The mixture was then incubated at 80 °C for 30 min using a constant temperature water bath. Subsequently, the mixture was centrifuged (1524 microcentrifuge, LaboGene, Seoul, Republic of Korea) at 8000 rpm for 15 min. The resulting supernatant was collected and filtered twice through 0.2 µm syringe filters (Minisart, Sartorius, Aubagne, France).

3.2. Green Synthesis of AgNPs

A 1 mM solution of silver nitrate (AgNO3, Sigma-Aldrich, St. Louis, MO, USA) was mixed with the filtered porcine skin extracts at a 1:1 ratio. The mixture was incubated at room temperature with mild agitation for 48 h in the dark. To ensure that the observed biological effects were solely due to the AgNPs and not residual extract components, a rigorous purification process was performed. The synthesized AgNPs were centrifuged at 13,000 rpm for 15 min. The resulting AgNP pellet was washed with deionized water (DW), and this washing process was repeated three times to thoroughly remove any remaining biological molecules from the porcine skin extract. Finally, the purified AgNPs were reconstituted in DW (or freeze-dried to obtain a powder for precise concentration control) and stored at 4 °C for subsequent experimental use. A control solution (Negative Control) was prepared using deionized water or AgNO3 solution without the addition of porcine skin extracts to confirm the baseline.

3.3. Characterization of Green-Synthesized AgNPs

The absorbance of the AgNPs was measured at 300–700 nm using a UV-Vis spectrophotometer (EVOLUTION60S, Thermo Fisher Scientific, Inc., Waltham, MA, USA). Colloidal stability was assessed by dynamic light scattering (DLS) with a Zetasizer Nano S90 System (Malvern, UK) to measure the particle size distribution [53,54]. The size and morphology of the synthesized AgNPs were analyzed by SEM. SEM images were obtained using a JSM-6701F SEM instrument from JEOL Ltd. (Tokyo, Japan) at 10 kV accelerating voltage. A colloidal AgNP solution was then applied to a cover glass. After fixing the cover glass coated with AgNPs in 2.5% glutaraldehyde overnight, the cover glass was washed with phosphate-buffered saline (PBS) to begin dehydration. Dehydration was performed using a graded series of ethanol (30%, 50%, 70%, 90%, 95%, and 100%) for 15 min each. The samples were dried with ethanol and cover-slipped in a dryer for 24 h. The dried samples were coated with platinum using an automatic magnetron sputter-coating system (JEOL, Ltd., Japan), and the synthesis of AgNPs was observed using SEM. The AgNPs in the captured images were manually traced and quantified using the public-domain software ImageJ (version 1.54, National Institutes of Health, Bethesda, MD, USA) and its specific tools.
FTIR spectroscopy was used to identify functional groups and chemical bonds associated with the porcine skin extract and the surface capping agents on the synthesized AgNPs. The AgNPs synthesized using porcine skin extracts were filtered through a syringe filter and analyzed using an FTIR spectrometer (Spectrum 100, PerkinElmer, Norwalk, CT, USA) over the range of 4000–400 cm−1.

3.4. Analysis of the Antifungal Effect of Green-Synthesized AgNPs

3.4.1. Incubation of Fungal Species

Four strains of Candida species were cultured in yeast extract peptone dextrose (YPD) medium at 37 °C for 24 h. After cultivation, cells were harvested by centrifugation at 5000 rpm for 5 min, and the supernatant was discarded. The cell pellet was washed twice with 1× PBS and resuspended in RPMI 1640 medium (Sigma-Aldrich). The cell concentration was adjusted to 1 × 106 cells/mL.

3.4.2. Antifungal Activity Analysis of AgNPs Against Candida Species

The concentration of AgNPs was adjusted in a range from 0.5 to 256 μg/mL through a two-fold serial dilution method, and subsequently dispensed into 96-well flat-bottomed microtiter plates. In total, 98 μL of the adjusted Candida species solution (Table 4) and 2 μL of AgNPs were added to a 96-well plate. The 96-well plates were incubated at 37 °C for 24 h. After incubation, the cells in each well were resuspended by pipetting to remove the effect of the precipitated cells on absorbance, which was measured at 630 nm using a microplate reader (ChroMate Microplate Reader, Awareness Technology, Palm City, FL, USA). The MIC50 was defined as the lowest culture concentration at which the absorbance decreased below 50% of the control.

3.5. Analysis of the Antimicrobial Effect of Green-Synthesized AgNPs

3.5.1. Incubation of Bacteria

The bacteria were divided into two groups: Gram-positive and Gram-negative. Six strains of Gram-positive bacteria and nine strains of Gram-negative bacteria were selected to evaluate the antibacterial activity of the AgNPs, as listed in Table 5. The selected Gram-positive and Gram-negative bacteria were cultured in Luria–Bertani (LB) broth (Difco Laboratories, Detroit, MI, USA) at 37 °C for 24 h. After incubation, the culture solution was washed twice with 1× PBS. The concentration of bacterial cells was adjusted to 0.5 McFarland (1–2 × 108 CFU/mL) using Mueller–Hinton broth (Difco Laboratories, Detroit, MI, USA).

3.5.2. Antibacterial Activity Analysis of AgNPs Against Bacterial Strains

The concentration of AgNPs was adjusted in a range from 0.5 to 256 μg/mL through a two-fold serial dilution method, and subsequently dispensed into 96-well flat-bottomed microtiter plates. In total, 188 μL of Mueller–Hinton broth, 10 μL of bacterial cell suspension, and 2 μL of AgNPs were added to a 96-well plate. The 96-well plates were incubated at 37 °C for 24 h. After incubation, the cells in each well were resuspended by pipetting to remove the effect of the precipitated cells on absorbance, which was measured at 630 nm using a microplate reader. The MIC50 was defined as the lowest culture concentration at which the absorbance decreased below 50% of the control.

3.6. Statistical Analysis

Each experiment was performed in triplicate (n = 3). All results are presented as the means ± standard deviation (SD). Statistical analysis was performed using one-way analysis of variance (ANOVA) with Dunnett’s multiple comparison test using GraphPad Prism 9.5.1 software (Boston, MA, USA). In all analyses, p < 0.05 was considered statistically significant, * p < 0.05, ** p < 0.01, and *** p < 0.001, compared to the control group.

4. Conclusions

In the present study, AgNPs were successfully synthesized using an eco-friendly green approach with porcine skin extracts as a reducing agent. The synthesized AgNPs exhibited a predominantly spherical morphology with an average diameter of 19 nm and demonstrated potent, broad-spectrum antimicrobial activity against both susceptible and multidrug-resistant pathogens, including MRSA, VRE, and Candida species (MIC50: 8–16 μg/mL). These findings highlight that porcine skin—a readily available bioresource—can be effectively repurposed to produce high-quality AgNPs, offering a sustainable and cost-effective strategy for utilizing animal by-products to address the global challenge of antibiotic resistance. To minimize variability, standardized extraction conditions were applied; however, further studies are required to assess batch-to-batch reproducibility and scalability under different biological source conditions. While the present findings support the immediate functional stability of the synthesized AgNPs under experimental conditions, further investigations are necessary to evaluate their long-term stability (shelf-life) and biocompatibility in complex biological systems. Future research will focus on detailed cytotoxicity assessments and comprehensive physicochemical characterization—including X-ray diffraction (XRD) and energy-dispersive X-ray spectroscopy (EDS) to confirm crystallinity and elemental composition—to ensure the safety of these nanoparticles for clinical and environmental applications. Overall, this waste-to-resource strategy provides a robust foundation for sustainable nanotechnology and the development of effective antimicrobial agents.

Author Contributions

Conceptualization, H.-D.K. and S.W.K.; methodology, K.R.K., B.K. and M.W.L.; validation, K.R.K. and B.K.; Formal Analysis, K.R.K. and B.K.; Investigation, K.R.K., B.K. and H.-D.K.; writing—original draft preparation, K.R.K., B.K. and S.W.K.; writing—review and editing, K.R.K., B.K. and S.W.K.; visualization, K.R.K. and B.K.; supervision, J.R.S. and S.W.K.; project administration, S.W.K.; funding acquisition, S.W.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding author.

Acknowledgments

This research was supported by the Particulate Matter Management Specialized Graduate Program through the Korea Environmental Industry & Technology Institute (KEITI), funded by the Ministry of Climate, Energy and Environment (MCEE).

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Burnham, J.P. Climate Change and Antibiotic Resistance: A Deadly Combination. Ther. Adv. Infect. Dis. 2021, 8, 1–7. [Google Scholar] [CrossRef]
  2. Borase, H.P.; Salunke, B.K.; Salunkhe, R.B.; Patil, C.D.; Hallsworth, J.E.; Kim, B.S.; Patil, S.V. Plant Extract: A Promising Biomatrix for Ecofriendly, Controlled Synthesis of Silver Nanoparticles. Appl. Biochem. Biotechnol. 2014, 173, 1–29. [Google Scholar] [CrossRef] [PubMed]
  3. Fahimirad, S.; Ajalloueian, F.; Ghorbanpour, M. Synthesis and Therapeutic Potential of Silver Nanomaterials Derived from Plant Extracts. Ecotoxicol. Environ. Saf. 2019, 168, 260–278. [Google Scholar] [CrossRef]
  4. Shanmugam, J.; Dhayalan, M.; Savaas Umar, M.R.; Gopal, M.; Ali Khan, M.; Simal-Gandara, J.; Cid-Samamed, A. Green Synthesis of Silver Nanoparticles Using Allium Cepa Var. Aggregatum Natural Extract: Antibacterial and Cytotoxic Properties. Nanomaterials 2022, 12, 1725. [Google Scholar] [CrossRef] [PubMed]
  5. Xiu, Z.; Zhang, Q.; Puppala, H.L.; Colvin, V.L.; Alvarez, P.J.J. Negligible Particle-Specific Antibacterial Activity of Silver Nanoparticles. Nano Lett. 2012, 12, 4271–4275. [Google Scholar] [CrossRef] [PubMed]
  6. Salomoni, R.; Léo, P.; Montemor, A.; Rinaldi, B.; Rodrigues, M. Antibacterial Effect of Silver Nanoparticles in Pseudomonas Aeruginosa. Nanotechnol. Sci. Appl. 2017, 10, 115–121. [Google Scholar] [CrossRef]
  7. Franci, G.; Falanga, A.; Galdiero, S.; Palomba, L.; Rai, M.; Morelli, G.; Galdiero, M. Silver Nanoparticles as Potential Antibacterial Agents. Molecules 2015, 20, 8856–8874. [Google Scholar] [CrossRef]
  8. Prabhu, S.; Poulose, E.K. Silver Nanoparticles: Mechanism of Antimicrobial. Int. Nano Lett. 2012, 2, 32–41. [Google Scholar] [CrossRef]
  9. Salah, N.; Habib, S.S.; Khan, Z.H.; Memic, A.; Azam, A.; Alarfaj, E.; Zahed, N.; Al-Hamedi, S. High-Energy Ball Milling Technique for ZnO Nanoparticles as Antibacterial Material. Int. J. Nanomed. 2011, 6, 863–869. [Google Scholar] [CrossRef]
  10. Pérez-Tijerina, E.; Gracia Pinilla, M.; Mejía-Rosales, S.; Ortiz-Méndez, U.; Torres, A.; José-Yacamán, M. Highly Size-Controlled Synthesis of Au/Pd Nanoparticles by Inert-Gas Condensation. Faraday Discuss. 2008, 138, 353–362. [Google Scholar] [CrossRef]
  11. D’Amato, R.; Falconieri, M.; Gagliardi, S.; Popovici, E.; Serra, E.; Terranova, G.; Borsella, E. Synthesis of Ceramic Nanoparticles by Laser Pyrolysis: From Research to Applications. J. Anal. Appl. Pyrolysis 2013, 104, 461–469. [Google Scholar] [CrossRef]
  12. Zhang, C.-L.; Yu, S.-H. Nanoparticles Meet Electrospinning: Recent Advances and Future Prospects. Chem. Soc. Rev. 2014, 43, 4423. [Google Scholar] [CrossRef]
  13. Colman, B.P.; Espinasse, B.; Richardson, C.J.; Matson, C.W.; Lowry, G.V.; Hunt, D.E.; Wiesner, M.R.; Bernhardt, E.S. Emerging Contaminant or an Old Toxin in Disguise? Silver Nanoparticle Impacts on Ecosystems. Environ. Sci. Technol. 2014, 48, 5229–5236. [Google Scholar] [CrossRef]
  14. Tortella, G.R.; Rubilar, O.; Durán, N.; Diez, M.C.; Martínez, M.; Parada, J.; Seabra, A.B. Silver Nanoparticles: Toxicity in Model Organisms as an Overview of Its Hazard for Human Health and the Environment. J. Hazard. Mater. 2020, 390, 121974. [Google Scholar] [CrossRef]
  15. McGillicuddy, E.; Murray, I.; Kavanagh, S.; Morrison, L.; Fogarty, A.; Cormican, M.; Dockery, P.; Prendergast, M.; Rowan, N.; Morris, D. Silver Nanoparticles in the Environment: Sources, Detection and Ecotoxicology. Sci. Total Environ. 2017, 575, 231–246. [Google Scholar] [CrossRef]
  16. Zheng, Y.; Hou, L.; Liu, M.; Newell, S.E.; Yin, G.; Yu, C.; Zhang, H.; Li, X.; Gao, D.; Gao, J.; et al. Effects of Silver Nanoparticles on Nitrification and Associated Nitrous Oxide Production in Aquatic Environments. Sci. Adv. 2017, 3, e1603229. [Google Scholar] [CrossRef]
  17. Liu, J.; Jiang, G. Silver Nanoparticles in the Environment; Liu, J., Jiang, G., Eds.; Springer: Berlin/Heidelberg, Germany, 2015. [Google Scholar]
  18. Yu, S.; Yin, Y.; Liu, J. Silver Nanoparticles in the Environment. Environ. Sci. Process. Impacts 2013, 15, 78–92. [Google Scholar] [CrossRef]
  19. Kim, H.-A.; Park, J.-S.; Choi, J.-B.; Lim, Y.-M.; Nho, Y.-C. Synthesis, Characterization and Antibacterial Activity of Silver Nanoparticles in Poly(Vinyl Alcohol) Prepared by Gamma-Ray. Irradiat. Polym. Korea 2012, 36, 71–75. [Google Scholar] [CrossRef]
  20. Dhayagude, A.C.; Das, A.; Joshi, S.S.; Kapoor, S. γ-Radiation Induced Synthesis of Silver Nanoparticles in Aqueous Poly (N-Vinylpyrrolidone) Solution. Colloids Surf. A Physicochem. Eng. Asp. 2018, 556, 148–156. [Google Scholar] [CrossRef]
  21. Chen, P.; Song, L.; Liu, Y.; Fang, Y. Synthesis of Silver Nanoparticles by γ-Ray Irradiation in Acetic Water Solution Containing Chitosan. Radiat. Phys. Chem. 2007, 76, 1165–1168. [Google Scholar] [CrossRef]
  22. Milardović, S. Synthesis and Electrochemical Characterization of AgNP Ink Suitable for Inkjet Printing. Int. J. Electrochem. Sci. 2018, 13, 11136–11149. [Google Scholar] [CrossRef]
  23. Río Segade, S.; Tyson, J.F. Determination of Inorganic Mercury and Total Mercury in Biological and Environmental Samples by Flow Injection-Cold Vapor-Atomic Absorption Spectrometry Using Sodium Borohydride as the Sole Reducing Agent. Spectrochim. Acta Part B At. Spectrosc. 2003, 58, 797–807. [Google Scholar] [CrossRef]
  24. Shahidi, M.; Mozdarani, H.; Bryant, P.E. Radiation Sensitivity of Leukocytes from Healthy Individuals and Breast Cancer Patients as Measured by the Alkaline and Neutral Comet Assay. Cancer Lett. 2007, 257, 263–273. [Google Scholar] [CrossRef]
  25. Sudprasert, W.; Navasumrit, P.; Ruchirawat, M. Effects of Low-Dose Gamma Radiation on DNA Damage, Chro-mosomal Aberration and Expression of Repair Genes in Human Blood Cells. Int. J. Hyg. Environ. Health 2006, 209, 503–511. [Google Scholar] [CrossRef]
  26. Chang, S.; Kang, B.; Dai, Y.; Chen, D. Synthesis of Antimicrobial Silver Nanoparticles on Silk Fibers via γ-Radiation. J. Appl. Polym. Sci. 2009, 112, 2511–2515. [Google Scholar] [CrossRef]
  27. Hernández-Gordillo, A.; Arroyo, M.; Zanella, R.; Rodríguez-González, V. Photoconversion of 4-Nitrophenol in the Presence of Hydrazine with AgNPs-TiO 2 Nanoparticles Prepared by the Sol-Gel Method. J. Hazard. Mater. 2014, 268, 84–91. [Google Scholar] [CrossRef]
  28. Seo, W.S.; Kim, T.H.; Sung, J.S.; Song, K.C. Synthesis of Silver Nanoparticles by Chemical Reduction Method. Korean Chem. Eng. Res. 2004, 42, 78–83. [Google Scholar]
  29. Street, J.J.; Johnston, C.H.; Ou, L.T.; Mansell, R.S.; Bloom, S.A. Environmental Interactions of Hydrazine Fuels in Soil/Water Systems; ESL-TR-88-24; Air Force Engineering and Services Center: Tyndall AFB, FL, USA, 1988; Volume 4.
  30. Zhang, X.-Y.; Yang, Y.-S.; Wang, W.; Jiao, Q.-C.; Zhu, H.-L. Fluorescent Sensors for the Detection of Hydrazine in Environmental and Biological Systems: Recent Advances and Future Prospects. Coord. Chem. Rev. 2020, 417, 213367. [Google Scholar] [CrossRef]
  31. Sahiner, N.; Sengel, S.B. Environmentally Benign Halloysite Clay Nanotubes as Alternative Catalyst to Metal Na-noparticles in H 2 Production from Methanolysis of Sodium Borohydride. Fuel Process. Technol. 2017, 158, 1–8. [Google Scholar] [CrossRef]
  32. Staples, C.A.; Williams, J.B.; Craig, G.R.; Roberts, K.M. Fate, Effects and Potential Environmental Risks of Ethylene Glycol: A Review. Chemosphere 2001, 43, 377–383. [Google Scholar] [CrossRef]
  33. Dobson, S. Concise International Chemical Assessment Document 22: Ethylene Glycol: Environmental Aspects; WHO: Geneva, Switzerland, 2000. [Google Scholar]
  34. Staples, C.A.; Boatman, R.J.; Cano, M.L. Ethylene Glycol Ethers: An Environmental Risk Assessment. Chemosphere 1998, 36, 1585–1613. [Google Scholar] [CrossRef]
  35. Shah, M.; Fawcett, D.; Sharma, S.; Tripathy, S.; Poinern, G. Green Synthesis of Metallic Nanoparticles via Biological Entities. Materials 2015, 8, 7278–7308. [Google Scholar] [CrossRef]
  36. Salem, S.S.; Fouda, A. Green Synthesis of Metallic Nanoparticles and Their Prospective Biotechnological Applications: An Overview. Biol. Trace Elem. Res. 2021, 199, 344–370. [Google Scholar] [CrossRef]
  37. Choi, J.S.; Lee, J.W.; Shin, U.C.; Lee, M.W.; Kim, D.J.; Kim, S.W. Inhibitory Activity of Silver Nanoparticles Synthesized Using Lycopersicon esculentum against Biofilm Formation in Candida Species. Nanomaterials 2019, 9, 1512. [Google Scholar] [CrossRef]
  38. Choi, J.S.; Jung, H.C.; Baek, Y.J.; Kim, B.Y.; Lee, M.W.; Kim, H.D.; Kim, S.W. Antibacterial Activity of Green-Synthesized Silver Nanoparticles Using Areca Catechu Extract against Antibiotic-Resistant Bacteria. Nanomaterials 2021, 11, 205. [Google Scholar] [CrossRef]
  39. d’Alessandro, N.; Coccia, F.; Vitali, L.A.; Mascitti, A.; Tonucci, L. Cu-ZnO Embedded in a Polydopamine Shell for the Generation of Antibacterial Surgical Face Masks. Molecules 2024, 29, 4512. [Google Scholar] [CrossRef]
  40. Salaheldin, H.I.; Negm, A.; Osman, G.E.H. Porcine skin gelatin-silver nanocomposites: Synthesis, characterisation, cell cytotoxicity, and antibacterial properties. IET Nanobiotechnol. 2017, 11, 957–964. [Google Scholar] [CrossRef]
  41. Petryayeva, E.; Krull, U.J. Localized Surface Plasmon Resonance: Nanostructures, Bioassays and Biosensing—A Review. Anal. Chim. Acta 2011, 706, 8–24. [Google Scholar] [CrossRef]
  42. Shukla, N.; Liu, C.; Jones, P.M.; Weller, D. FTIR Study of Surfactant Bonding to FePt Nanoparticles. J. Magn. Magn. Mater. 2003, 266, 178–184. [Google Scholar] [CrossRef]
  43. Tosi, M.M.; Ramos, A.P.; Esposto, B.S.; Jafari, S.M. Dynamic Light Scattering (DLS) of Nanoencapsulated Food Ingredients. In Characterization of Nanoencapsulated Food Ingredients; Elsevier: Amsterdam, The Netherlands, 2020; pp. 191–211. [Google Scholar]
  44. Fissan, H.; Ristig, S.; Kaminski, H.; Asbach, C.; Epple, M. Comparison of Different Characterization Methods for Nanoparticle Dispersions before and after Aerosolization. Anal. Methods 2014, 6, 7324. [Google Scholar] [CrossRef]
  45. Verma, P.; Maheshwari, S.K. Preparation of sliver and selenium nanoparticles and its characterization by dynamic light scattering and scanning electron microscopy. J. Microsc. Ultrastruct. 2018, 6, 182–187. [Google Scholar]
  46. Belbachir, K.; Noreen, R.; Gouspillou, G.; Petibois, C. Collagen types analysis and differentiation by FTIR spectroscopy. Anal. Bioanal. Chem. 2009, 395, 829–837. [Google Scholar] [CrossRef]
  47. Talapko, J.; Juzbašić, M.; Matijević, T.; Pustijanac, E.; Bekić, S.; Kotris, I.; Škrlec, I. Candida albicans—The Virulence Factors and Clinical Manifestations of Infection. J. Fungi 2021, 7, 79. [Google Scholar] [CrossRef]
  48. Kasithevar, M.; Periakaruppan, P.; Muthupandian, S.; Mohana, M. Antibacterial efficacy of silver nanoparticles against multi-drug resistant clinical isolates from post-surgical wound infections. Microb. Pathog. 2017, 107, 327–334. [Google Scholar] [CrossRef]
  49. Tenover, F.C. Mechanisms of Antimicrobial Resistance in Bacteria. Am. J. Med. 2006, 119, S3–S10. [Google Scholar] [CrossRef]
  50. Li, W.-R.; Xie, X.-B.; Shi, Q.-S.; Duan, S.-S.; Ouyang, Y.-S.; Chen, Y.-B. Antibacterial Effect of Silver Nanoparticles on Staphylococcus Aureus. BioMetals 2011, 24, 135–141. [Google Scholar] [CrossRef]
  51. Lok, C.-N.; Ho, C.-M.; Chen, R.; He, Q.-Y.; Yu, W.-Y.; Sun, H.; Tam, P.K.-H.; Chiu, J.-F.; Che, C.-M. Proteomic Analysis of the Mode of Antibacterial Action of Silver Nanoparticles. J. Proteome Res. 2006, 5, 916–924. [Google Scholar] [CrossRef]
  52. Rai, M.; Yadav, A.; Gade, A. Silver Nanoparticles as a New Generation of Antimicrobials. Biotechnol. Adv. 2009, 27, 76–83. [Google Scholar] [CrossRef]
  53. Stetefeld, J.; McKenna, S.A.; Patel, T.R. Dynamic Light Scattering: A Practical Guide and Applications in Biomedical Sciences. Biophys. Rev. 2016, 8, 409–427. [Google Scholar] [CrossRef]
  54. Bhui, D.K.; Bar, H.; Sarkar, P.; Sahoo, G.P.; De, S.P.; Misra, A. Synthesis and UV–Vis Spectroscopic Study of Silver Nanoparticles in Aqueous SDS Solution. J. Mol. Liq. 2009, 145, 33–37. [Google Scholar] [CrossRef]
Ijms 27 03521 g001

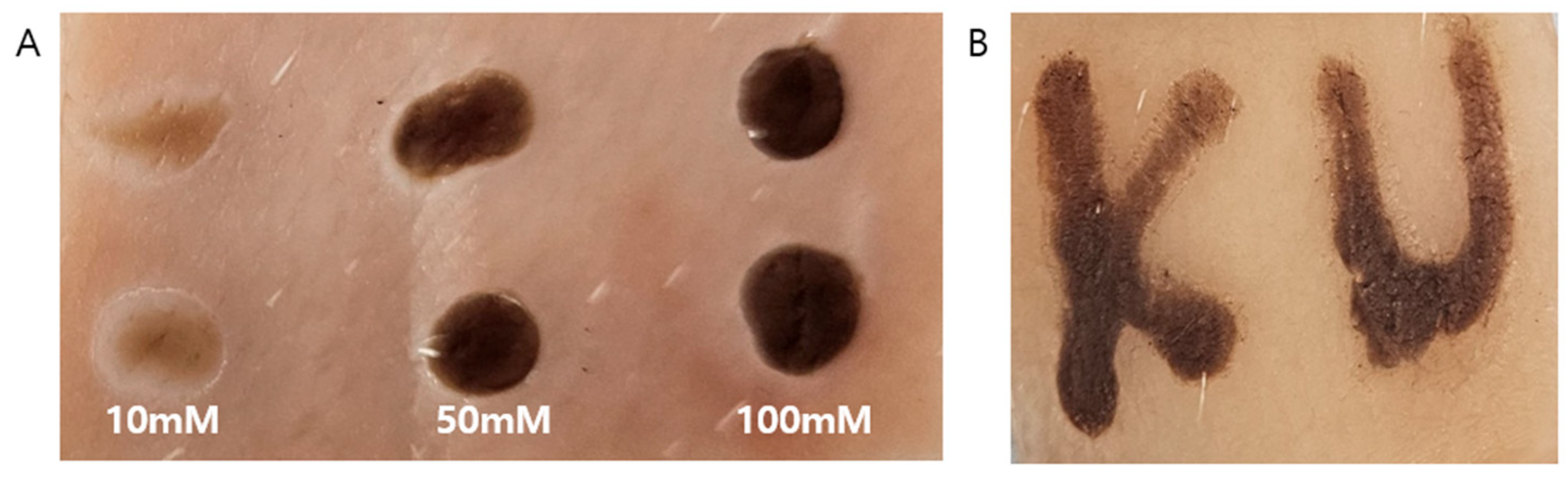

Figure 1. (A) AgNO3 solutions at concentrations of 10, 50, and 100 mM were reacted with porcine skin for 2 h; (B) a 10 mM AgNO3 solution was applied to porcine skin and reacted for 24 h.
Figure 1. (A) AgNO3 solutions at concentrations of 10, 50, and 100 mM were reacted with porcine skin for 2 h; (B) a 10 mM AgNO3 solution was applied to porcine skin and reacted for 24 h.
Ijms 27 03521 g001
Ijms 27 03521 g002

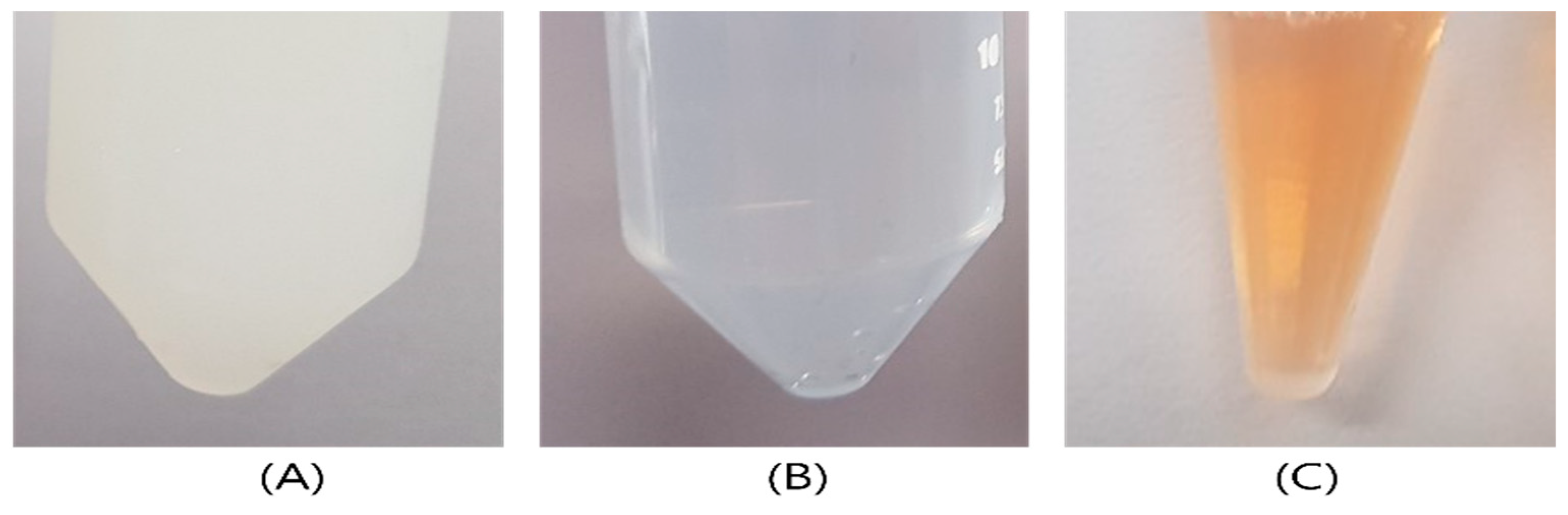

Figure 2. Visual analysis of porcine skin extracts and AgNPs with filtered porcine skin extracts. (A) Porcine skin extracts without any filtration. (B) Porcine skin extracts filtered twice with a syringe filter (0.2 µm), (C) AgNPs synthesized using porcine skin extracts with a syringe filter.
Figure 2. Visual analysis of porcine skin extracts and AgNPs with filtered porcine skin extracts. (A) Porcine skin extracts without any filtration. (B) Porcine skin extracts filtered twice with a syringe filter (0.2 µm), (C) AgNPs synthesized using porcine skin extracts with a syringe filter.
Ijms 27 03521 g002
Ijms 27 03521 g003

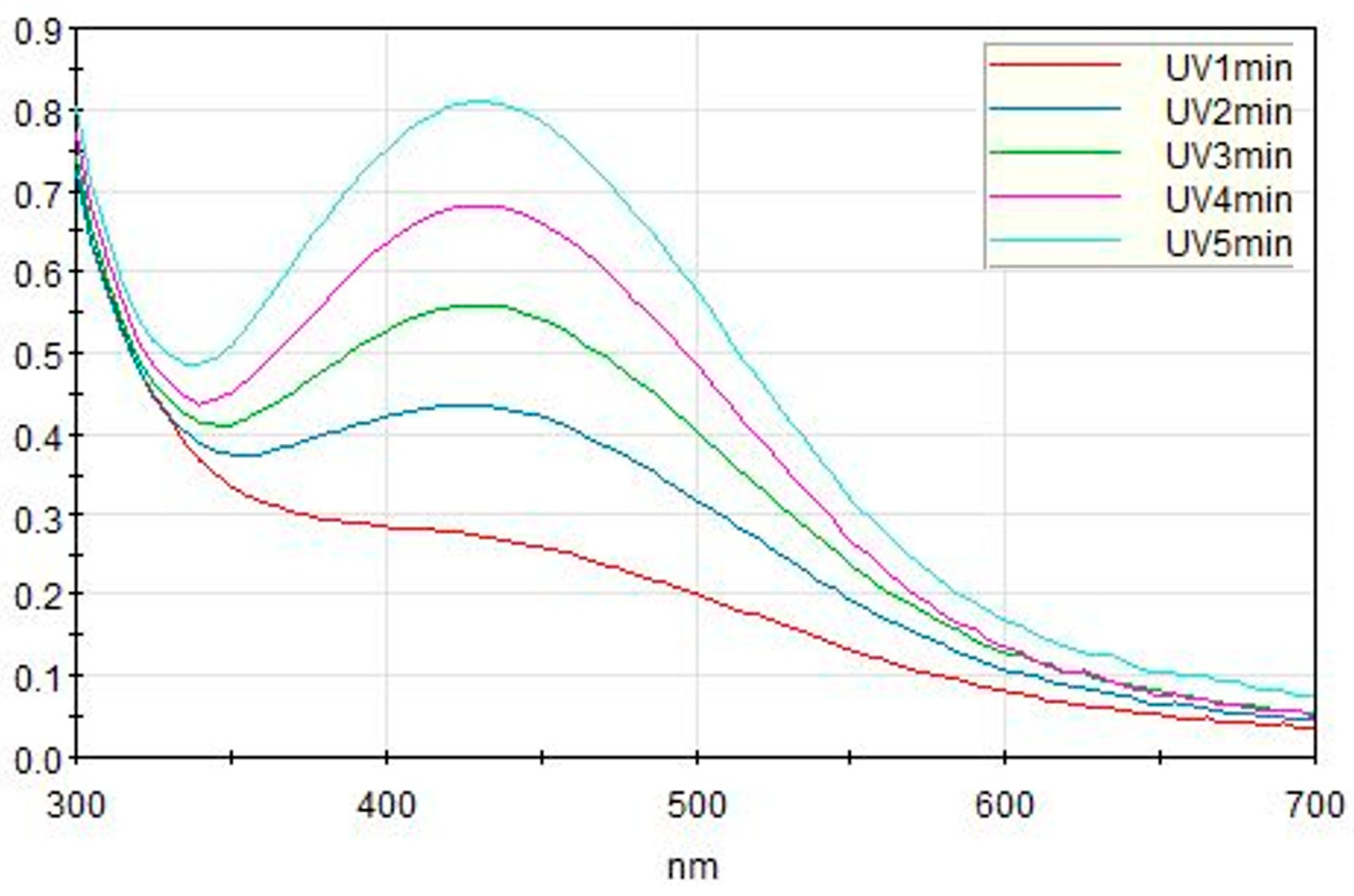

Figure 3. Time-dependent UV-Vis absorption spectra of AgNPs synthesized using porcine skin extracts. The curves show the progression of the reaction from 1 to 5 min, where the emergence and intensification of the peak at ~450 nm confirm the continuous formation and growth of AgNPs.
Figure 3. Time-dependent UV-Vis absorption spectra of AgNPs synthesized using porcine skin extracts. The curves show the progression of the reaction from 1 to 5 min, where the emergence and intensification of the peak at ~450 nm confirm the continuous formation and growth of AgNPs.
Ijms 27 03521 g003
Ijms 27 03521 g004

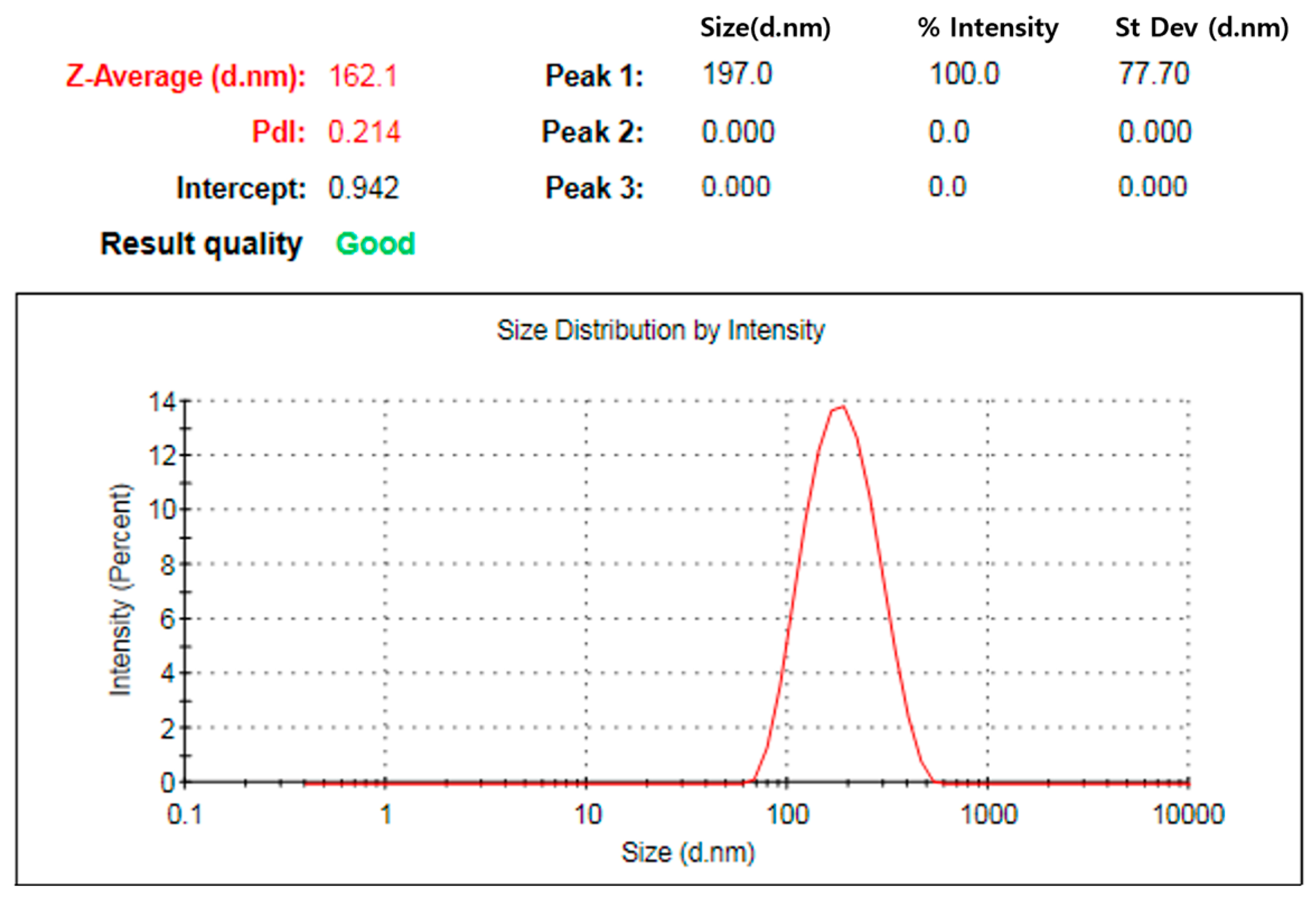

Figure 4. DLS analysis of AgNPs synthesized using porcine skin extracts.
Figure 4. DLS analysis of AgNPs synthesized using porcine skin extracts.
Ijms 27 03521 g004
Ijms 27 03521 g005

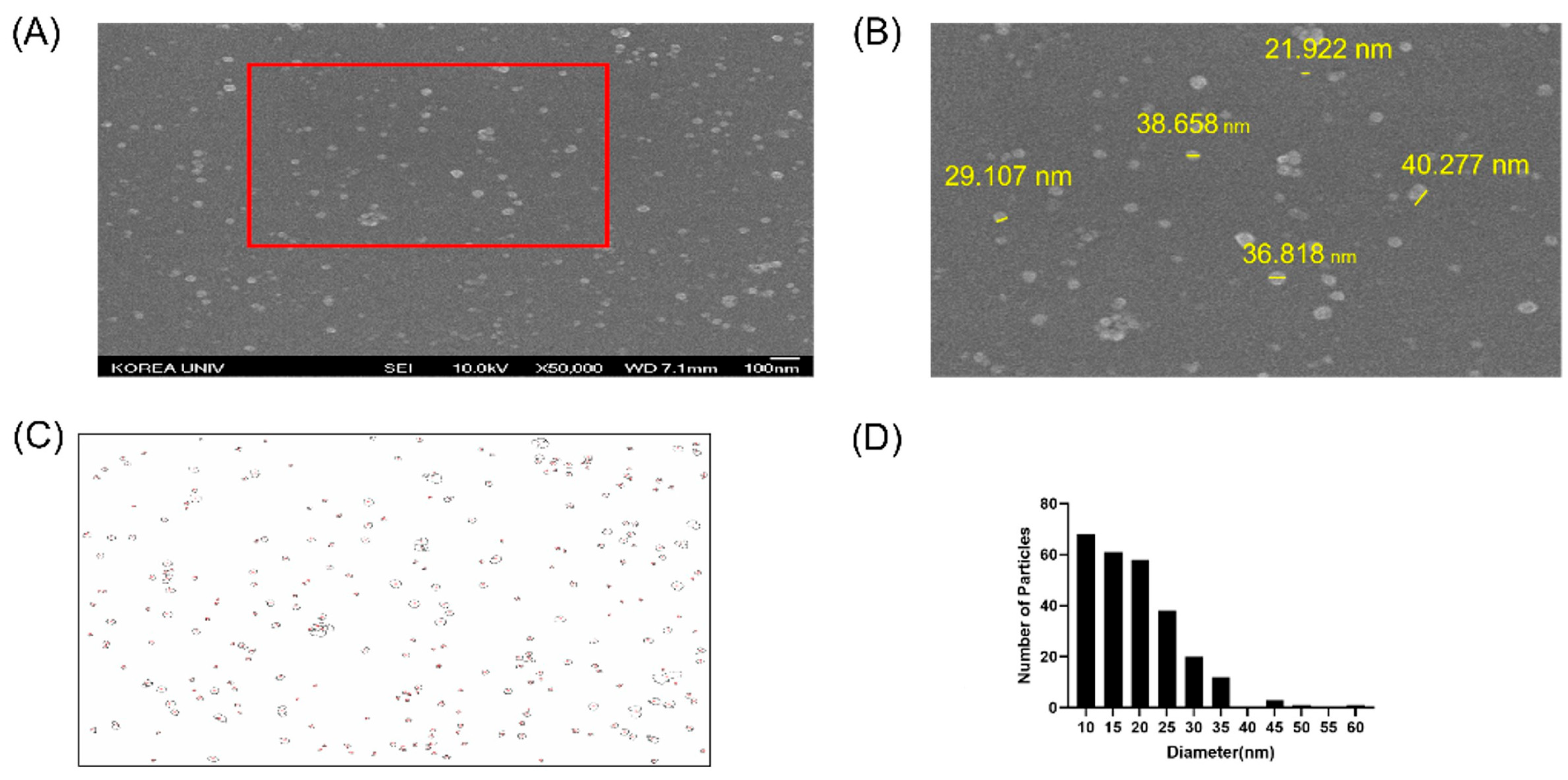

Figure 5. Morphological characterization of AgNPs by SEM. (A) AgNPs at 50,000× magnification. (B) Particle size of AgNPs via ImageJ calculations. (C) Final image employed to measure particle size. (D) Size distribution of AgNP diameters.
Figure 5. Morphological characterization of AgNPs by SEM. (A) AgNPs at 50,000× magnification. (B) Particle size of AgNPs via ImageJ calculations. (C) Final image employed to measure particle size. (D) Size distribution of AgNP diameters.
Ijms 27 03521 g005
Ijms 27 03521 g006

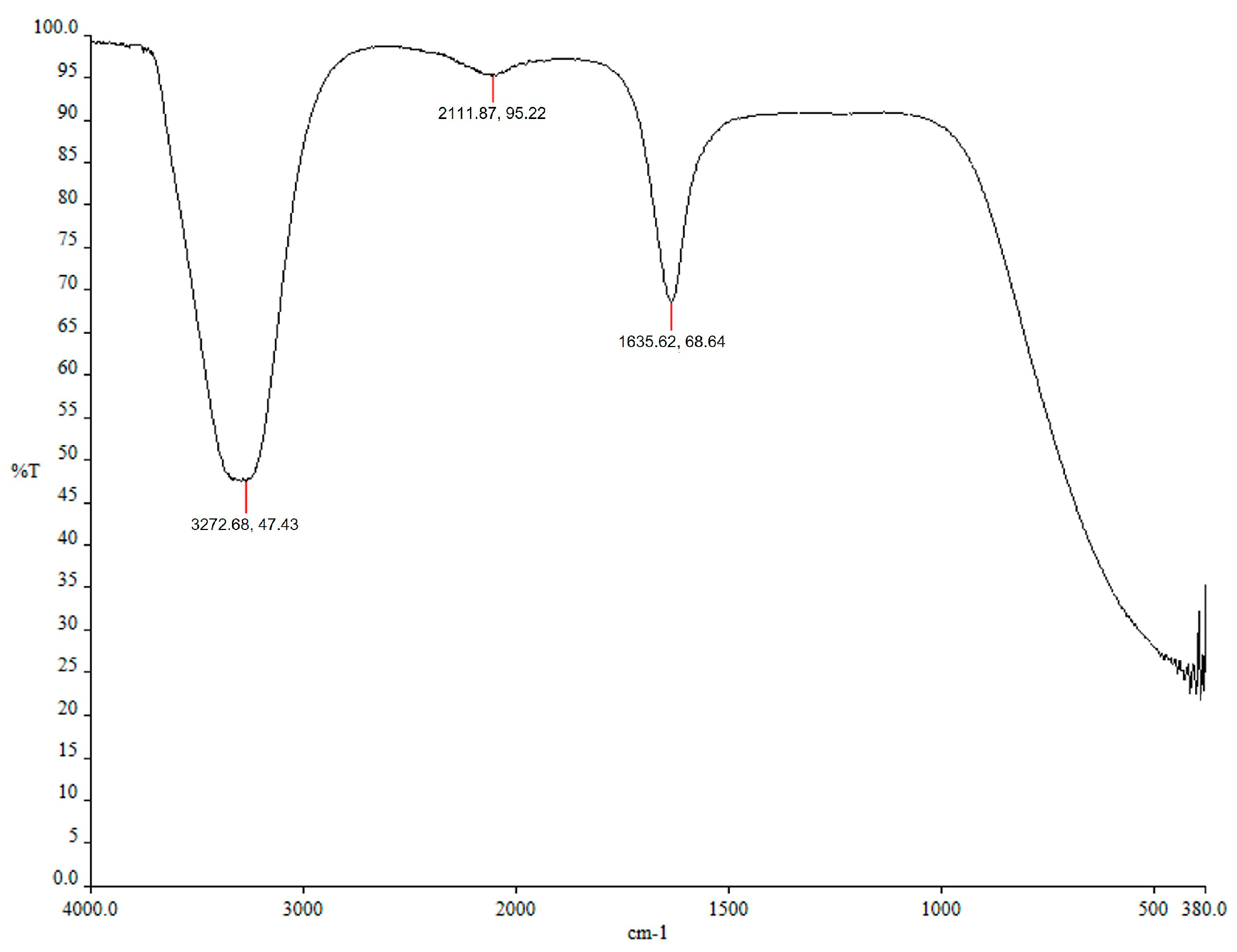

Figure 6. FTIR absorbance peaks of AgNPs synthesized using porcine skin extracts filtered with a syringe filter.
Figure 6. FTIR absorbance peaks of AgNPs synthesized using porcine skin extracts filtered with a syringe filter.
Ijms 27 03521 g006
Ijms 27 03521 g007

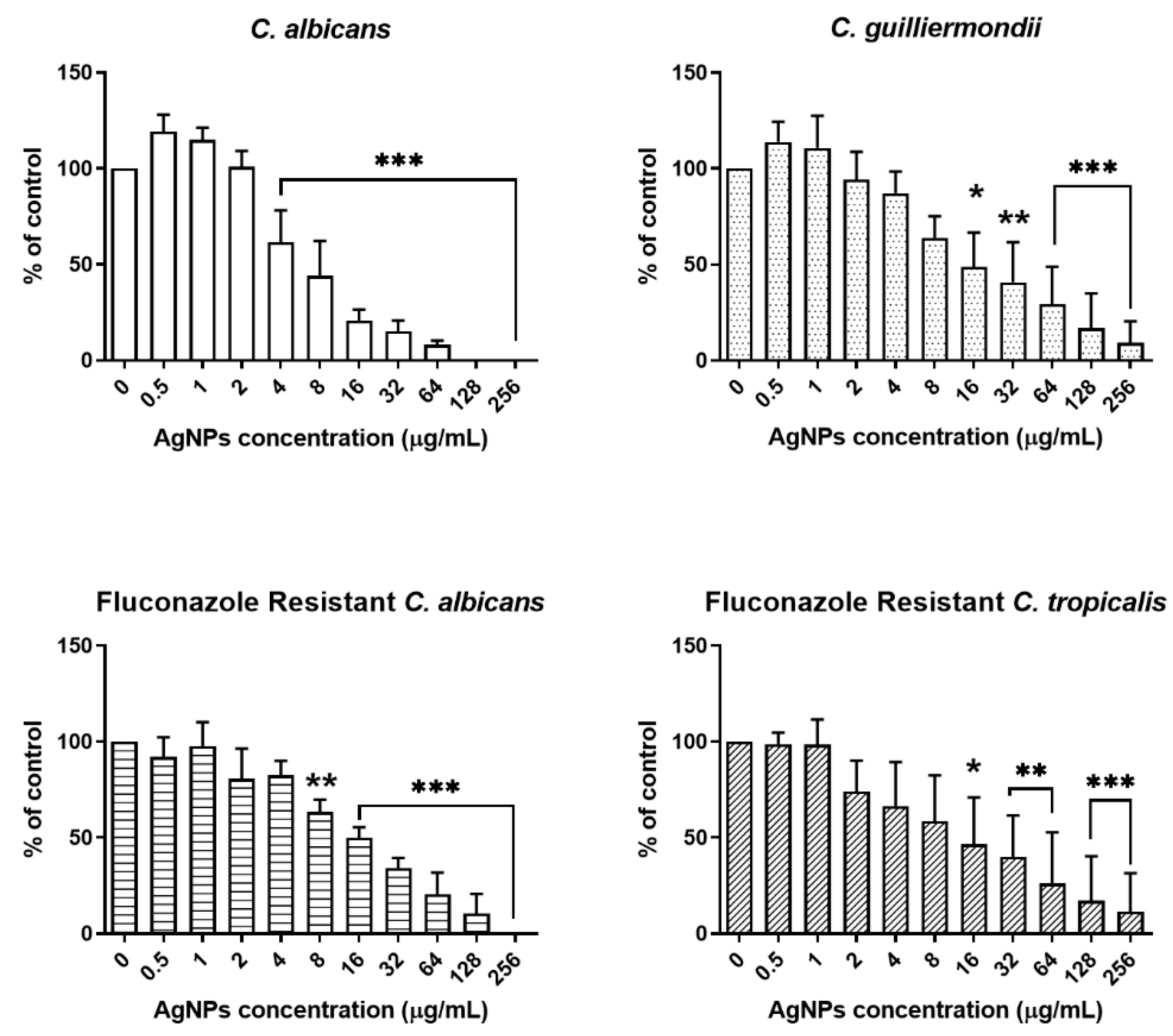

Figure 7. Antifungal activity of AgNPs against Candida species. All Candida species were treated with AgNPs concentrations ranging from 0.5 to 256 μg/mL. All experiments were performed in triplicate, and statistical significance was determined using one-way ANOVA followed by Dunnett’s post hoc test. * p < 0.05, ** p < 0.01, and *** p < 0.001.
Figure 7. Antifungal activity of AgNPs against Candida species. All Candida species were treated with AgNPs concentrations ranging from 0.5 to 256 μg/mL. All experiments were performed in triplicate, and statistical significance was determined using one-way ANOVA followed by Dunnett’s post hoc test. * p < 0.05, ** p < 0.01, and *** p < 0.001.
Ijms 27 03521 g007
Ijms 27 03521 g008

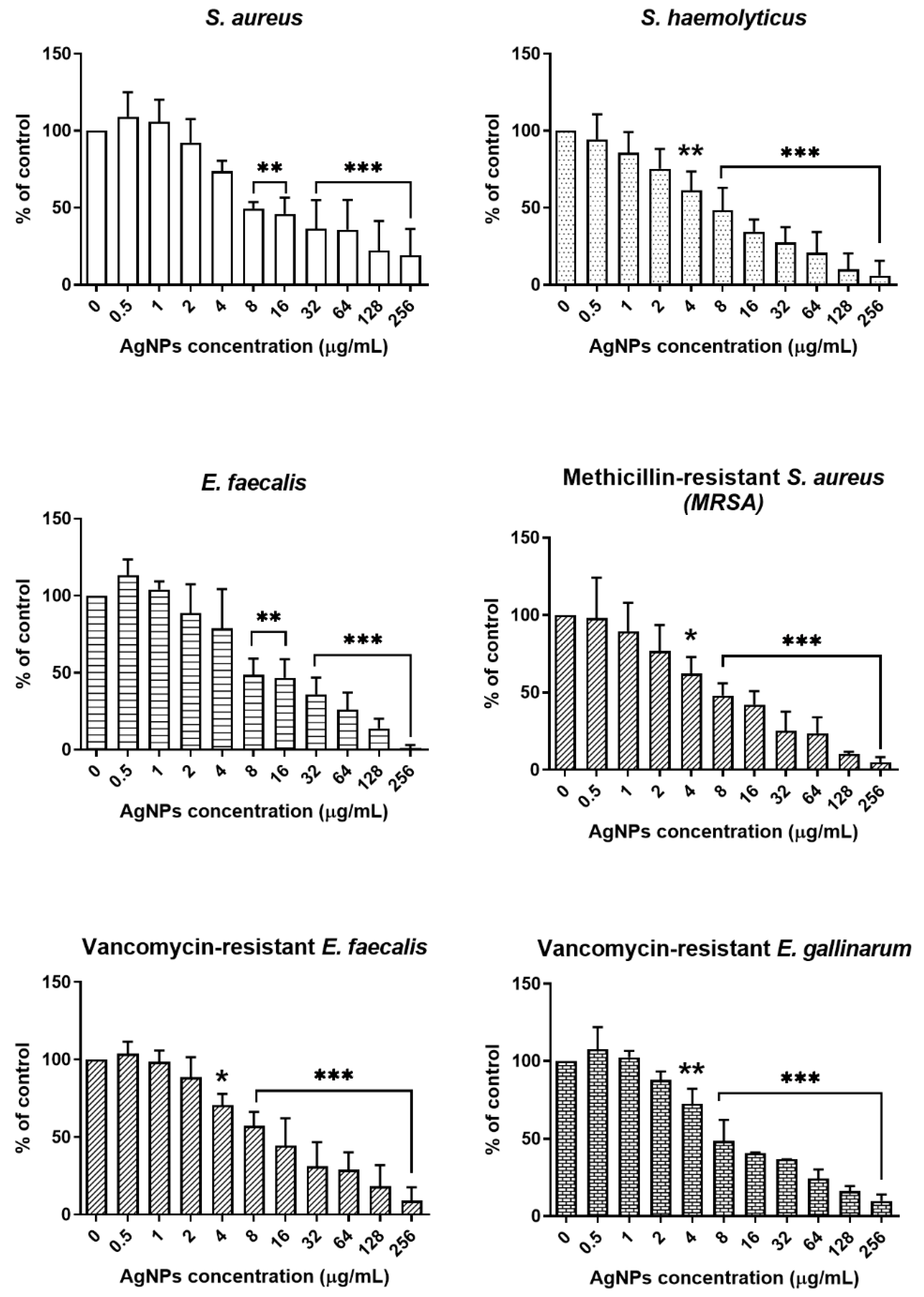

Figure 8. Antibacterial activity of AgNPs against Gram-positive bacteria. All Gram-positive bacterial strains were treated with AgNP concentrations ranging from 0.5 to 256 μg/mL. The data are expressed as mean ± SD (n = 3). Statistical analysis was performed using one-way ANOVA with Dunnett’s post hoc test. * p < 0.05, ** p < 0.01, and *** p < 0.001.
Figure 8. Antibacterial activity of AgNPs against Gram-positive bacteria. All Gram-positive bacterial strains were treated with AgNP concentrations ranging from 0.5 to 256 μg/mL. The data are expressed as mean ± SD (n = 3). Statistical analysis was performed using one-way ANOVA with Dunnett’s post hoc test. * p < 0.05, ** p < 0.01, and *** p < 0.001.
Ijms 27 03521 g008
Ijms 27 03521 g009aIjms 27 03521 g009b

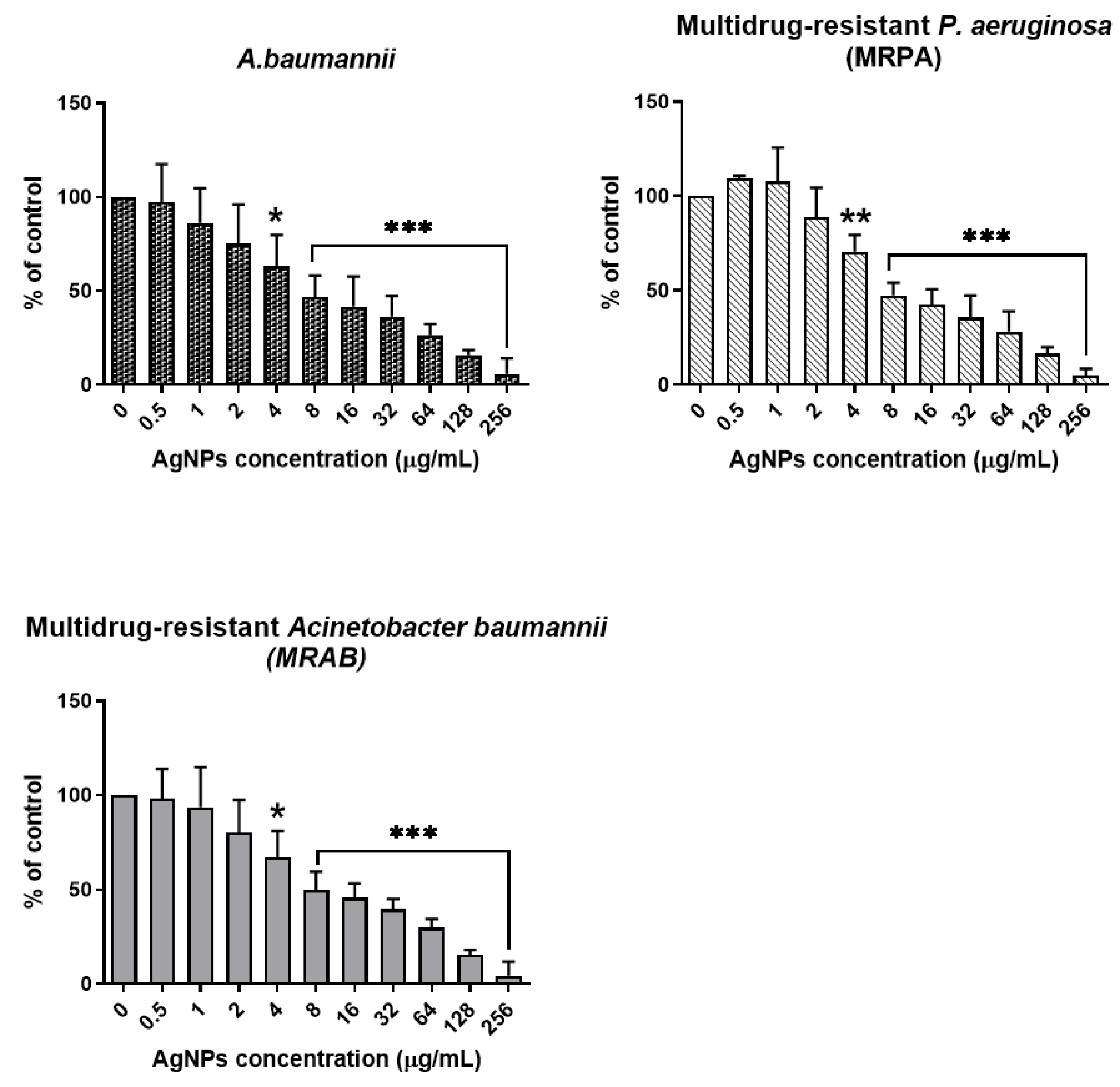

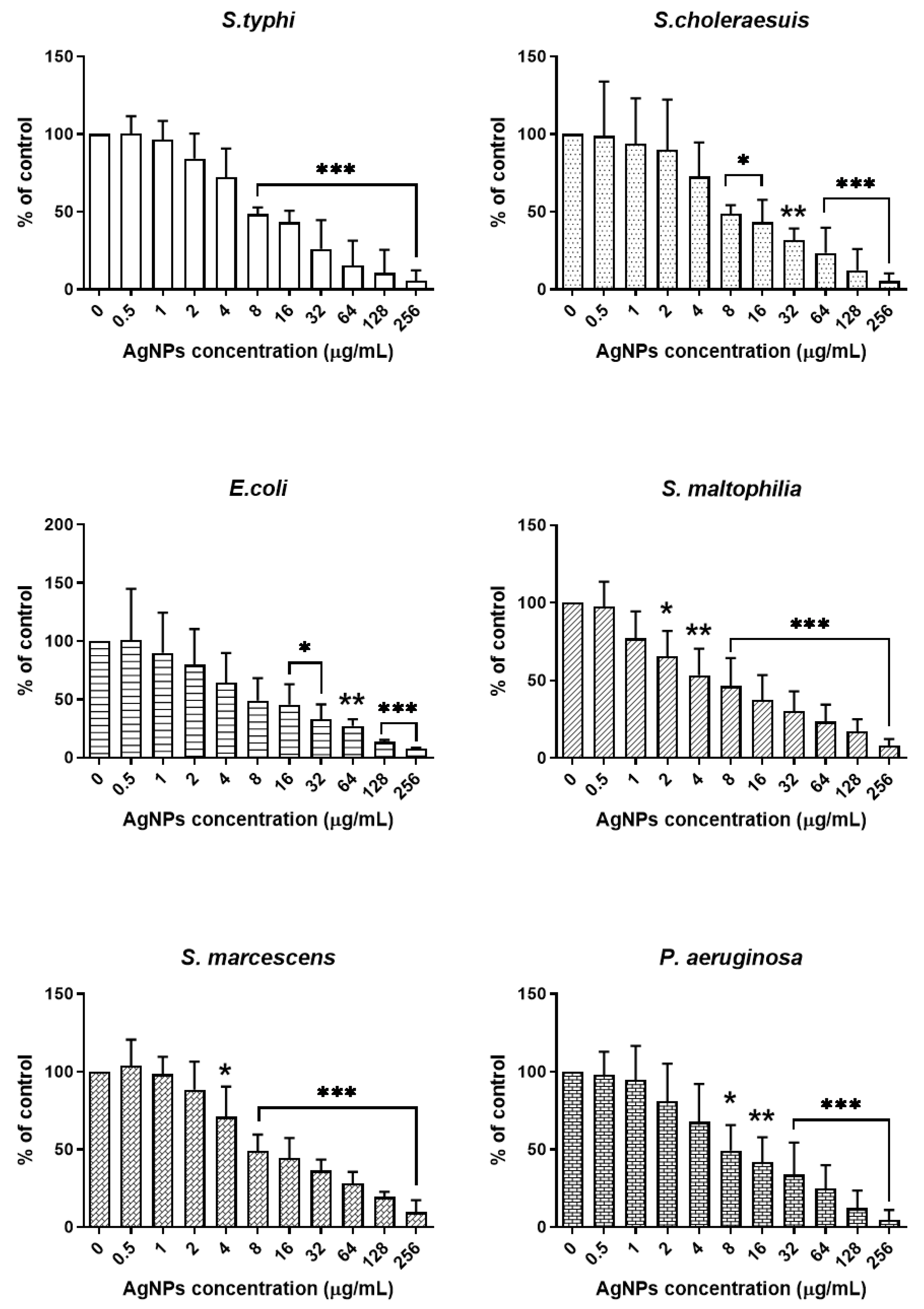

Figure 9. Antibacterial activity of AgNPs against Gram-negative bacteria. All Gram-negative bacterial strains were treated with AgNP concentrations ranging from 0.5 to 256 μg/mL. The data are expressed as mean ± SD (n = 3). Statistical analysis was performed using one-way ANOVA with Dunnett’s post hoc test. * p < 0.05, ** p < 0.01, and *** p < 0.001.
Figure 9. Antibacterial activity of AgNPs against Gram-negative bacteria. All Gram-negative bacterial strains were treated with AgNP concentrations ranging from 0.5 to 256 μg/mL. The data are expressed as mean ± SD (n = 3). Statistical analysis was performed using one-way ANOVA with Dunnett’s post hoc test. * p < 0.05, ** p < 0.01, and *** p < 0.001.
Ijms 27 03521 g009aIjms 27 03521 g009b
Table 1. MIC50 of AgNPs against Candida species.
Table 1. MIC50 of AgNPs against Candida species.
Antibiotic (Fluconazole)FungusMIC50
SusceptibleCandida albicans8 µg/mL
Candida guilliermondii16 µg/mL
ResistantCandida albicans16 µg/mL
Candida tropicalis16 µg/mL
Table 2. MIC50 of AgNPs against Gram-positive bacteria.
Table 2. MIC50 of AgNPs against Gram-positive bacteria.
AntibioticBacterial StrainsMIC50
SusceptibleStaphylococcus aureus8 µg/mL
Staphylococcus haemolyticus8 µg/mL
Enterococcus faecalis8 µg/mL
ResistantVancomycin-resistant Enterococcus faecalis16 µg/mL
Vancomycin-resistant Enterococcus gallinarum8 µg/mL
Methicillin-resistant Staphylococcus aureus (MRSA)8 µg/mL
Table 3. MIC50 of AgNPs against Gram-negative bacteria.
Table 3. MIC50 of AgNPs against Gram-negative bacteria.
AntibioticBacterial StrainsMIC50
SusceptibleSalmonella enterica serovar Typhi8 µg/mL
Salmonella enterica serovar Choleraesuis8 µg/mL
Escherichia coli8 µg/mL
Stenotrophomonas maltophilia8 µg/mL
Serratia marcescens8 µg/mL
Pseudomonas aeruginosa8 µg/mL
Acinetobacter baumannii8 µg/mL
ResistantMultidrug-resistant Pseudomonas aeruginosa (MRPA)8 µg/mL
Multidrug-resistant Acinetobacter baumannii (MRAB)8 µg/mL
Table 4. Candida species used in the antifungal assay.
Table 4. Candida species used in the antifungal assay.
AntibioticFungusStrain
Fluconazole-susceptible fungiCandida albicans (C. albicans)ATCC 90028
Candida guilliermondii (C. guilliermondii)KCMF 20104
Fluconazole-resistant fungiCandida albicans (C. albicans)KCMF 20017
Candida tropicalis (C. tropicalis)KCMF 20197
Table 5. Bacterial strains used in the antibacterial assay.
Table 5. Bacterial strains used in the antibacterial assay.
BacteriumStrain
Gram-positive bacteriaStaphylococcus aureus (S. aureus)KCCM 40881
Staphylococcus haemolyticus (S. haemolyticus)KCCM 42267
Enterococcus faecalis (E. faecalis)KCTC 3206
Vancomycin-resistant Enterococcus faecalis (VRE E. faecalis)CCARM 5025
Vancomycin-resistant Enterococcus gallinarum (VRE E. gallinarum)CCARM 5026
Methicillin-resistant Staphylococcus aureus (MRSA)CCARM 3089
Gram-negative bacteriaSalmonella enterica serovar Typhi (S. Typhi)ATCC 700931
Salmonella enterica serovar Choleraesuis (S. Choleraesuis)ATCC 13312
Escherichia coli (E. coli)KCCM 11234
Stenotrophomonas maltophilia (S. maltophilia)KCCM 40270
Serratia marcescens (S. marcescens)KCCM 11809
Pseudomonas aeruginosa (P. aeruginosa)KCTC 1637
Acinetobacter baumannii (A. baumannii)KCTC 2508
Multidrug-resistant Pseudomonas aeruginosa (MRPA)CCARM 2092
Multidrug-resistant Acinetobacter baumannii (MRAB)CCARM 12005
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Kim, K.R.; Koo, B.; Lee, M.W.; Kim, H.-D.; Sohn, J.R.; Kim, S.W. Porcine Skin-Derived Silver Nanoparticles: A Novel Green Synthesis Approach and Molecular Characterization of Their Antimicrobial Potential. Int. J. Mol. Sci. 2026, 27, 3521. https://doi.org/10.3390/ijms27083521

AMA Style

Kim KR, Koo B, Lee MW, Kim H-D, Sohn JR, Kim SW. Porcine Skin-Derived Silver Nanoparticles: A Novel Green Synthesis Approach and Molecular Characterization of Their Antimicrobial Potential. International Journal of Molecular Sciences. 2026; 27(8):3521. https://doi.org/10.3390/ijms27083521

Chicago/Turabian Style

Kim, Kyoung Ran, Bummo Koo, Min Woo Lee, Hyeong-Dong Kim, Jong Ryeul Sohn, and Suhng Wook Kim. 2026. "Porcine Skin-Derived Silver Nanoparticles: A Novel Green Synthesis Approach and Molecular Characterization of Their Antimicrobial Potential" International Journal of Molecular Sciences 27, no. 8: 3521. https://doi.org/10.3390/ijms27083521

APA Style

Kim, K. R., Koo, B., Lee, M. W., Kim, H.-D., Sohn, J. R., & Kim, S. W. (2026). Porcine Skin-Derived Silver Nanoparticles: A Novel Green Synthesis Approach and Molecular Characterization of Their Antimicrobial Potential. International Journal of Molecular Sciences, 27(8), 3521. https://doi.org/10.3390/ijms27083521

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
