Next Article in Journal
A Co-Expressed Cluster of Genes in the Anterior Brain of Female Crickets Activated by a Species-Specific Calling Song
Previous Article in Journal
Modern Quantum Chemistry Methodology for Predicting 31P Nuclear Magnetic Resonance Chemical Shifts


Search for Articles:
Title / Keyword
Author / Affiliation / Email
Journal
Article Type


Advanced Search

Section
Special Issue
Volume
Issue
Number
Page

Journals
IJMS
Volume 27
Issue 2
10.3390/ijms27020705
ijms-logo
Submit to this Journal Review for this Journal Propose a Special Issue
► Article Menu

Article Menu

share Share announcement Help format_quote Cite
first_page
settings
Order Article Reprints
Font Type:
Arial Georgia Verdana
Font Size:
Aa Aa Aa
Line Spacing:
Column Width:
Background:
Article

Highly Efficient Photocatalytic Degradation of Bisphenol A Under UV–Visible Light Irradiation Using Au/Zn3In2S6 Schottky Junction Photocatalyst

by
Di Chen
1,
Aoyun Meng
2,
Zhen Li
2,3,* and
Jinfeng Zhang
4,*
1
Key Laboratory of Molecular Biology on Infectious Disease, Ministry of Education, Chongqing Medical University, Chongqing 400016, China
2
College of Food Science and Engineering, Anhui Science and Technology University, Chuzhou 239000, China
3
Anhui Province Key Laboratory of Functional Agriculture and Functional Food, Anhui Science and Technology University, Chuzhou 239000, China
4
College of Physics and Electronic Engineering, Huaibei Normal University, Huaibei 235000, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2026, 27(2), 705; https://doi.org/10.3390/ijms27020705 (registering DOI)
Submission received: 26 November 2025 / Revised: 25 December 2025 / Accepted: 28 December 2025 / Published: 10 January 2026
(This article belongs to the Section Physical Chemistry and Chemical Physics)
Browse Figures
Versions Notes

Abstract

Designing and constructing heterojunctions has emerged as a pivotal strategy for improving the photocatalytic efficiency of semiconductors. In this study, we report the controlled synthesis of an Au/Zn3In2S6 Schottky junction through a combination of hydrothermal and in situ photodeposition methods. The structural, morphological, and photoelectrochemical properties of the catalyst were meticulously characterized using a suite of techniques including X-ray diffraction (XRD), scanning electron microscopy (SEM), transmission electron microscopy (TEM), diffuse reflectance spectroscopy (DRS), X-ray photoelectron spectroscopy (XPS), photoelectrochemical (PEC) measurements, and electron spin resonance (ESR) spectroscopy. The optimized 3% Au/Zn3In2S6 composite exhibited a remarkable enhancement in both photocatalytic activity and stability, achieving a 90.4% removal of bisphenol A (BPA) under UV–visible light irradiation within 100 min. The corresponding first-order reaction rate constant was approximately 1.366 h−1, nearly 4.37 times greater than that of the pristine Zn3In2S6. This substantial improvement can be attributed to several key factors, including increased BPA adsorption, enhanced light absorption, and the efficient charge separation facilitated by the Au/Zn3In2S6 heterojunction. Photogenerated holes, superoxide radicals, and hydroxyl radicals were identified as the primary reactive species responsible for the BPA degradation. This work highlights the potential of metal-modified semiconductors for advanced photocatalytic applications, offering insights into the design of highly efficient materials for environmental remediation.

1. Introduction

In recent decades, growing concerns over environmental issues, particularly water pollution caused by pharmaceutical and industrial wastewater [1,2,3,4,5,6], which is closely linked to the occurrence of various diseases [7], have driven the demand for the development of new environmental remediation technologies [8,9,10,11,12,13]. Among various organic pollutants, bisphenol A (BPA), an endocrine-disrupting environmental hormone, stands out as one of the most difficult pollutants to treat due to its colorless nature, widespread presence in natural water, and resistance to decomposition [14,15,16,17,18,19,20]. As a result, BPA has attracted considerable attention in recent years. Among the various methods for BPA removal, semiconductor photocatalysis has emerged as a promising solution due to its environmentally friendly, solar-light-driven process that offers safety and sustainability [21,22,23,24,25,26,27]. Therefore, the exploration of semiconductor photocatalysts for efficient BPA degradation has become a major research focus [28,29,30,31,32,33,34].
Building upon the success of previous photocatalytic materials, Zn3In2S6 (ZIS6), an n-type semiconductor with visible-light responsiveness, has garnered significant attention in recent years as a potential photocatalyst due to its advantages, such as easy preparation, low-dimensional structure, tunable bandgap, and the possibility for surface modifications [35,36,37,38,39,40]. ZIS6 has already shown promise in various applications, including photocatalytic hydrogen production, hydrogen peroxide synthesis, selective oxidation-coupled hydrogen production, CO2 reduction, and pollutant degradation. However, the photocatalytic performance of pristine ZIS6 is often limited by the rapid recombination of photogenerated electrons and holes [41,42,43]. To enhance its photocatalytic activity, numerous strategies have been proposed, with the construction of heterojunctions being one of the most effective approaches for promoting the separation and migration of photogenerated charges [44,45,46,47,48,49,50,51,52].
Recently, Li et al. reported a strategy for tailoring redox active sites with dual-interfacial electric fields to enhance photocatalytic biomass valorization and hydrogen production. This strategy significantly improved the overall photocatalytic performance, demonstrating its versatility in various photocatalytic processes [53]. On the other hand, the study on Au/Cu-Zn3In2S6 decoupling of carrier pathways through bulk hole trapping and surface hot electron accumulation demonstrates the advantages of this approach in enhancing photocatalytic hydrogen peroxide production. The Au/Cu-Zn3In2S6 system, fabricated via a unique heterostructure design, exhibited significantly enhanced photocatalytic activity, showcasing its potential in energy and environmental applications [54]. Clearly, the design and construction of heterojunctions remain an effective strategy for enhancing photocatalytic efficiency [55,56,57,58,59].
In this work, we first prepared the Au/Zn3In2S6 (Au/ZIS6) heterojunction and applied it for the first time to BPA degradation. A Schottky junction was formed at the interface between ZIS6 and Au due to the difference in Fermi levels, which significantly inhibited charge recombination within ZIS6. The incorporation of gold was chosen due to its ability to enhance light absorption through surface plasmon resonance, promote efficient charge separation, and improve the adsorption of BPA, all of which significantly boost the photocatalytic activity of ZIS6. Au modification facilitated BPA adsorption and enhanced light absorption. The enhancement in BPA adsorption can be attributed to the strong interaction between the Au nanoparticles and BPA molecules, facilitated by the localized surface plasmon resonance (LSPR) effect. This effect increases the surface charge density and improves the catalyst’s interaction with BPA, leading to higher adsorption efficiency. The photocatalyst was comprehensively characterized using a range of techniques, including X-ray diffraction (XRD), scanning electron microscopy (SEM), transmission electron microscopy (TEM), diffuse reflectance spectroscopy (DRS), X-ray photoelectron spectroscopy (XPS), and photoelectrochemical (PEC) measurements. These characterizations confirmed the successful formation of the Au/ZIS6 heterojunction and revealed insights into its improved photocatalytic activity. The optimized 3% Au/ZIS6 composite exhibited significantly enhanced photocatalytic activity and stability for BPA degradation, achieving 90.4% BPA removal under UV–visible light irradiation within 100 min. The first-order reaction rate constant was approximately 1.366 h−1, approximately 4.37 times higher than that of the pristine ZIS6. This improvement is attributed to the enhanced BPA adsorption, increased light absorption, and efficient charge separation facilitated by the Au/ZIS6 heterojunction. Photogenerated holes, superoxide radicals, and hydroxyl radicals were identified as the primary reactive species responsible for the degradation of BPA.

2. Results and Discussion

2.1. Material Preparation Flowchart

Figure 1a illustrates the synthesis of the Au/ZIS6 composite via a two-step process. Initially, ZIS6 was synthesized using a modified hydrothermal method, followed by the in situ photodeposition of gold (Au) nanoparticles onto the ZIS6 surface. This method leads to the formation of the Au/ZIS6 heterostructure. The SEM images in Figure 1b–d reveal the spherical morphology of the Au/ZIS6 composite, with each sphere composed of interlaced nanosheets, suggesting a hierarchical structure. The TEM image in Figure 1f provides further confirmation of this structure, demonstrating the intricate morphology of the composite. The SEM mapping in Figure 1e shows that Zn, In, S, and Au are uniformly distributed throughout the composite, confirming the homogeneous incorporation of Au into the ZIS6 matrix. At a higher magnification, Figure 1g shows that the Au nanoparticles are uniformly distributed across the nanosheet surface, ensuring efficient incorporation of Au into the ZIS6 matrix. The HRTEM image in Figure 1h displays well-defined lattice fringes, confirming the high crystallinity of the composite. Notably, the lattice spacing of 0.190 nm corresponds to the (110) plane of ZIS6, and the 0.204 nm spacing is attributed to the (200) plane of the Au nanoparticles, thus providing strong evidence for the successful formation of the Au/ZIS6 heterojunction. The size of the Au nanoparticles, as measured from the HRTEM images, is approximately 10 nm, and the above results further support the successful incorporation of Au into the composite.

2.2. XPS Analysis

The chemical states of ZIS6 and Au/ZIS6 were analyzed using XPS, with the results shown in Figure 2. In Figure 2a, the peaks at 1021.45 eV, 1021.38 eV and 1044.58 eV, 1044.51 eV correspond to the binding energies of Zn 2p3/2 and Zn 2p1/2, confirming the presence of zinc in both ZIS6 and Au/ZIS6 composites. In Figure 2b, the peaks at 445.02 eV, 444.94 eV and 452.62 eV, 452.54 eV are attributed to the In 3d5/2 and In 3d3/2 levels, indicating that indium exists as In3+ in both materials. In Figure 2c, the peaks at 161.61 eV, 161.31 eV and 162.92 eV, 162.62 eV correspond to the binding energies of S 2p3/2 and S 2p1/2, confirming the presence of sulfur in the composites. Finally, in Figure 2d, the XPS peaks at 83.62 eV and 87.32 eV correspond to the binding energies of Au 4f7/2 and Au 4f5/2, suggesting the presence of elemental gold in the Au/ZIS6 composite.
Ijms 27 00705 g001

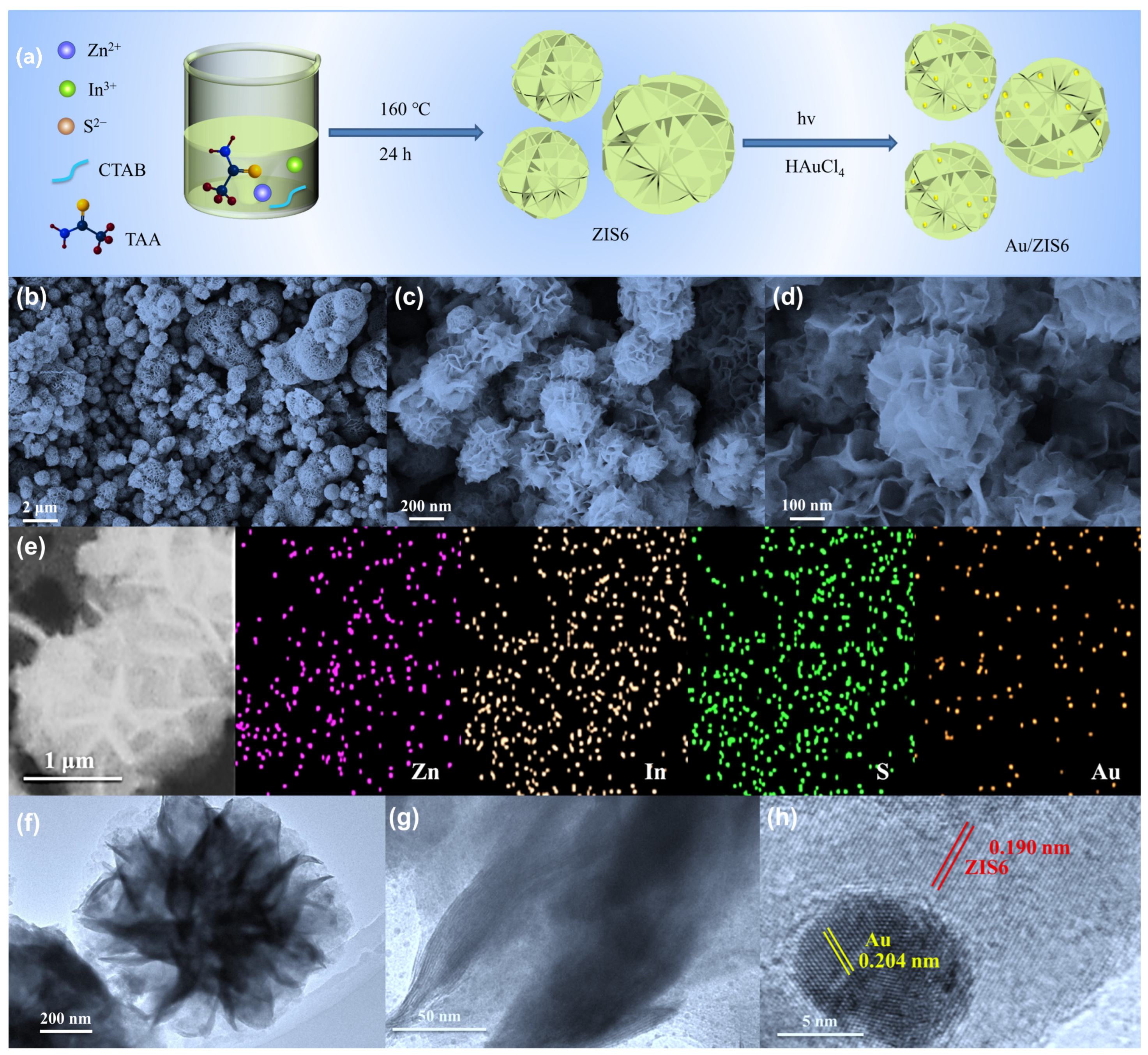

Figure 1. (a) The schematic diagram of the synthesis of Au/ZIS6. (b–d) SEM images of Au/ZIS6 at different magnifications. (e) SEM mapping of Au/ZIS6. (f–h) TEM images of Au/ZIS6 at different magnifications, with (g) showing the HRTEM image.
Figure 1. (a) The schematic diagram of the synthesis of Au/ZIS6. (b–d) SEM images of Au/ZIS6 at different magnifications. (e) SEM mapping of Au/ZIS6. (f–h) TEM images of Au/ZIS6 at different magnifications, with (g) showing the HRTEM image.
Ijms 27 00705 g001
Ijms 27 00705 g002

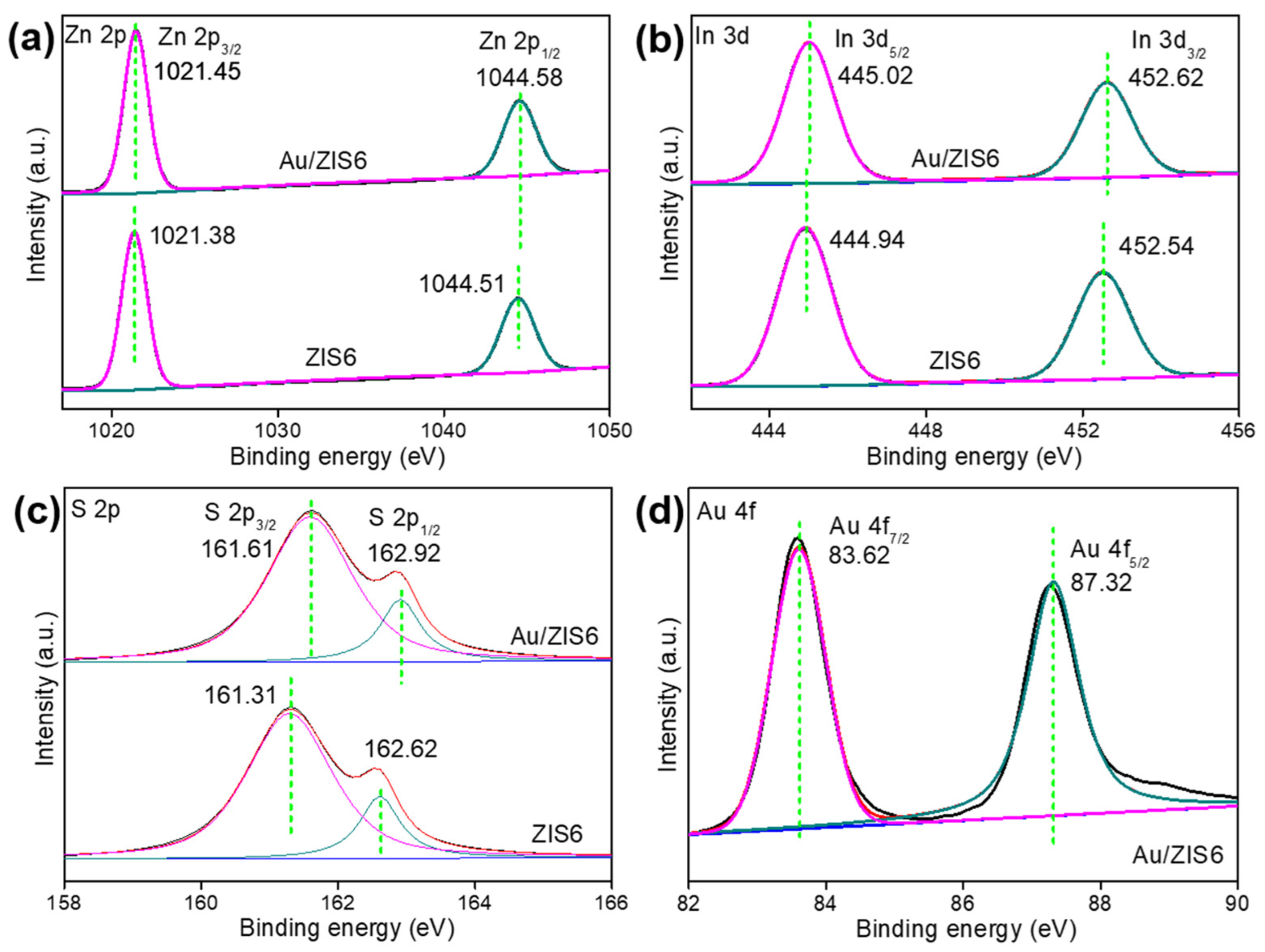

Figure 2. XPS spectra of ZIS6 and Au/ZIS6: (a) Zn 2p, (b) In 3d, (c) S 2p and (d) Au 4f.
Figure 2. XPS spectra of ZIS6 and Au/ZIS6: (a) Zn 2p, (b) In 3d, (c) S 2p and (d) Au 4f.
Ijms 27 00705 g002
Furthermore, by comparing the specific peak values of the pure materials and the composites, the observed binding energy shifts further support the formation of a Schottky structure between the Au nanoparticles and the ZIS6 semiconductor. Compared to the pure materials, the Zn 2p, In 3d, and S 2p peaks in the composite shift to higher binding energies, indicating electron transfer from the semiconductor to the metal, confirming the formation of the Schottky structure in the Au/ZIS6 composite.

2.3. Physical Properties and Band Structure Analysis

Further characterization by XRD analysis (Figure 3a) reveals that ZIS6 crystallizes in the hexagonal phase of Zn3In2S6 (PDF#65-4003), with characteristic diffraction peaks at 26.9°, 28.2°, 46.9°, and 55.7° corresponding to the (011), (102), (110), and (022) planes of the hexagonal ZIS6 structure, respectively. This confirms the high crystallinity of ZIS6 in its pure form. Notably, no distinct peaks from Au are observed in the XRD pattern of the Au/ZIS6 composite. This absence is likely due to the uniform dispersion of Au nanoparticles at low concentrations within the ZIS6 matrix, as indicated by inductively coupled plasma (ICP) results showing the Au content in the 3% Au/ZIS6 composite to be 1.56%. These findings suggest that the Au nanoparticles are effectively integrated into the ZIS6 framework, likely forming a stable heterojunction without significantly altering the overall crystalline structure of ZIS6.
The UV–vis DRS shown in Figure 3b illustrate a significant enhancement in the light absorption of ZIS6 upon loading with Au. This is further evidenced by a decrease in the band gap from 2.89 eV to 2.58 eV after Au deposition, indicating that the Au nanoparticles help extend the absorption spectrum of ZIS6 into the visible light range. This narrowing of the band gap is advantageous for photocatalytic applications, as it allows the composite to absorb a broader range of the solar spectrum. The Mott–Schottky (M-S) plots (Figure 3d) reveal positive slopes for both ZIS6 and Au/ZIS6, confirming their n-type semiconductor behavior. The flat band potential of ZIS6 is −0.82 V, and that of Au/ZIS6 is −0.76 V (vs. normal hydrogen electrode (NHE)), with the difference being attributed to the influence of Au on the electronic structure of ZIS6. Based on the flat band potential, the conduction band positions for ZIS6 and Au/ZIS6 are calculated to be −0.92 V and −0.86 V, respectively. The valence band positions are 1.97 V for ZIS6 and 1.72 V for Au/ZIS6. These positions suggest that both ZIS6 and Au/ZIS6 are capable of generating superoxide radicals (·O2−) via the reduction of oxygen by photogenerated electrons, which plays a crucial role in the photocatalytic degradation of organic pollutants. The optimized electronic structure and enhanced light absorption indicate that Au/ZIS6 is a highly efficient photocatalyst for applications in environmental remediation and energy conversion.

2.4. Analysis of Photocatalytic Activity and Cycling Stability

The photocatalytic activities of ZIS6 and Au/ZIS6 composites were rigorously evaluated by their ability to degrade BPA under UV–visible light irradiation. As depicted in Figure 4a, the photolysis experiment shows that BPA does not undergo any significant degradation in the absence of a photocatalyst, confirming that the photocatalytic activity is solely attributed to the materials under investigation. Upon incorporating Au into the ZIS6 matrix, the composite’s ability to adsorb BPA increases, although the primary enhancement is observed in the photocatalytic degradation. Specifically, the 3% Au/ZIS6 composite exhibits the highest photocatalytic efficiency, achieving a remarkable 90.4% BPA degradation after 100 min of light exposure. This improvement can be attributed to the formation of a Schottky junction at the interface between Au and ZIS6. The Schottky junction not only improves the charge separation efficiency but also facilitates the rapid transfer of photogenerated electrons to the conduction band of ZIS6, thereby preventing charge recombination. Kinetic analysis (Figure 4b) reveals that the degradation of BPA follows first-order kinetics, with the first-order rate constant for 3% Au/ZIS6 being 1.366 h−1, which is approximately 4.37 times higher than that of pure ZIS6 (As indicated by the red arrow in Figure 4c). This significant enhancement in photocatalytic performance is consistent with the increased efficiency of charge carrier separation and the enhanced redox activity at the Au-ZIS6 interface.
Additionally, the stability of the Au/ZIS6 composite was evaluated through a series of photocatalytic cycles. As shown in Figure 4d, the photocatalytic efficiency of Au/ZIS6 remains almost unchanged after four cycles, indicating excellent cycle stability. The structural integrity and morphology of the composite were further confirmed by XRD (Figure 4e) and SEM (Figure 4f) analyses, which show no significant changes in either the crystalline phase or surface morphology after multiple photocatalytic cycles. These results suggest that the Au/ZIS6 composite not only possesses high photocatalytic activity but also exhibits outstanding stability, making it an ideal candidate for long-term applications in the degradation of persistent organic pollutants such as BPA. The incorporation of Au enhances the charge dynamics at the interface and stabilizes the overall photocatalytic system, paving the way for its potential use in large-scale environmental remediation processes.
Ijms 27 00705 g004
Figure 4. (a,b) Photocatalytic activities and (c) reaction rate constants of ZIS6 and Au/ZIS6 hybrids with different weight ratios of Au for photocatalytic degradation of BPA under UV–visible light. (d) Recycle tests of 3%Au/ZIS6 for photocatalytic degradation of BPA under UV–visible light. (e) XRD patterns of 3%Au/ZIS6 before and after reaction. (f) SEM image of 3%Au/ZIS6 after reaction.
Figure 4. (a,b) Photocatalytic activities and (c) reaction rate constants of ZIS6 and Au/ZIS6 hybrids with different weight ratios of Au for photocatalytic degradation of BPA under UV–visible light. (d) Recycle tests of 3%Au/ZIS6 for photocatalytic degradation of BPA under UV–visible light. (e) XRD patterns of 3%Au/ZIS6 before and after reaction. (f) SEM image of 3%Au/ZIS6 after reaction.
Ijms 27 00705 g004

2.5. Electrochemical Analysis

Enhanced light absorption and improved BPA adsorption significantly promote the photocatalytic activity of ZIS6 and its composites. However, the critical factor for boosting photocatalytic efficiency lies in inhibiting the recombination of photogenerated charges and enhancing their separation and migration. These processes are essential for improving the overall photocatalytic performance. PEC tests were carried out to examine the charge transfer and separation dynamics in the Au/ZIS6 composite.
As shown in Figure 5a, the impedance spectrum of Au/ZIS6 shows a smaller arc radius compared to pure ZIS6, indicating that the introduction of Au improves the conductivity of the ZIS6 semiconductor. This enhancement in conductivity facilitates faster electron transfer and contributes to the enhanced photocatalytic activity. Additionally, the photocurrent measurements (Figure 5b) reveal that the Au/ZIS6 composite exhibits significantly stronger photocurrent responses compared to ZIS6 alone. This suggests that Au nanoparticles not only improve the separation of photogenerated electrons and holes but also promote their efficient migration, thus reducing charge recombination. The enhanced charge dynamics in the Au/ZIS6 composite result in improved photocatalytic performance, confirming that Au/ZIS6 exhibits superior photocatalytic efficiency due to its ability to efficiently separate and transfer charges under light irradiation.

2.6. Free Radical Scavenging and ESR Analysis

To further investigate the active species responsible for the photocatalytic degradation of BPA by Au/ZIS6, a series of trapping agent experiments were conducted. Specifically, isopropanol (IPA), ammonium oxalate (OA), and p-benzoquinone (BQ) were used as scavengers for ·OH, h+, and ·O2−, respectively. As shown in Figure 6a, the trapping agent experiments indicate that the addition of IPA, OA, and BQ all led to a partial reduction in the photocatalytic degradation efficiency of BPA by Au/ZIS6. The degradation efficiencies were 90.4%, 80.1%, 46.9%, and 40.3% for Normal, IPA, OA, and BQ, respectively, confirming that ·OH, h+, and ·O2− are the primary active species involved in the degradation process. Among these, ·O2− is identified as the most important species, followed by h+, and ·OH. This hierarchy of active species highlights the predominant role of ·O2− in driving the photocatalytic reaction.
To verify the presence of these active species, ESR spectroscopy was employed. The ESR spectra in Figure 6b,c clearly show the formation of ·O2− and ·OH under light irradiation, confirming their involvement in the photocatalytic process. Furthermore, the photogenerated h+ were detected using the diphenylpicrylhydrazyl (DPD) method, as shown in Figure 6d, indicating that Au/ZIS6 also generates h+ under light exposure. Additionally, the production of H2O2 in the Au/ZIS6 system, observed in Figure 6d, suggests that ·OH originates from the photolysis of H2O2. The relatively small valence band position of Au/ZIS6 (1.72 V vs. NHE) limits the ability of photogenerated holes to oxidize water into ·OH, as the oxidation potential for H2O/OH− is 2.4 V. This indicates that H2O2 plays a crucial role in the generation of ·OH in the photocatalytic system.

2.7. Analysis of Charge Transfer and Catalytic Mechanisms

The photocatalytic degradation mechanism of BPA by Au/ZIS6 is depicted in Figure 7. When Au comes into contact with ZIS6, a Schottky junction forms at the interface due to the difference in their work functions—Au having a larger work function (5.1 eV) compared to ZIS6 (4.6 eV). This disparity leads to the downward shift in the Fermi level (EF) of Au relative to ZIS6, resulting in the formation of a Schottky barrier (Figure 7b). This Schottky junction is critical for enhancing photocatalytic efficiency, as it aids in the effective separation of photogenerated e− and h+ pairs. The junction facilitates the migration of e− to the Au nanoparticles, preventing their recombination with h+, thus significantly improving charge separation efficiency and extending the lifetime of photogenerated carriers, which are key to efficient photocatalytic processes.
Upon light irradiation, e− in the conduction band (CB) of ZIS6 are excited and transferred to the Au nanoparticles, where they are captured by molecular oxygen (O2) to form ·O2−. These ·O2− radicals are highly reactive and can further react with water to generate hydrogen peroxide (H2O2), which, upon decomposition, produces ·OH. The photogenerated h+ in the valence band (VB) of ZIS6 also play a significant role in BPA degradation. These h+ can directly oxidize BPA or react with O2 to generate more ·OH. The combined actions of h+, ·O2−, and ·OH lead to the breakdown of BPA, breaking the molecular bonds and ultimately converting it into environmentally benign products such as CO2 and H2O. The efficient generation and involvement of reactive oxygen species (ROS) such as ·O2− and ·OH under visible light irradiation are crucial for the complete degradation of BPA and the overall photocatalytic performance of the Au/ZIS6 composite.
The formation of the Schottky junction also optimizes the band structure of ZIS6, making it more responsive to visible light and enabling the composite to absorb a broader spectrum of light. By facilitating charge separation and improving charge carrier dynamics, the Au/ZIS6 composite exhibits enhanced photocatalytic activity compared to pure ZIS6. This mechanism underscores the synergistic role of the Schottky junction and the generation of ROS in boosting the photocatalytic degradation of organic pollutants, paving the way for more efficient and sustainable photocatalytic systems for environmental remediation.

3. Materials and Methods

3.1. Chemicals

Gold chloride trihydrate (HAuCl4·3H2O, ≥99.9%), thioacetamide (CH3CSNH2, ≥99.0%), indium chloride tetrahydrate (InCl3·4H2O, ≥99.99%), zinc sulfate heptahydrate (ZnSO4·7H2O, ≥99.5%), hexadecyltrimethylammonium bromide (CTAB, 99%), bisphenol A (C15H16O2, ≥99.0%), p-benzoquinone (C6H4O2, ≥99.5%), ammonium oxalate monohydrate (NH4)2C2O4·H2O, ≥99.8%), isopropanol (IPA, 99.7%), 2,2,6,6-tetramethylpiperidine-1-oxyl (TEMPO, 97%), and 5-dimethyl-1-pyrroline-N-oxide (DMPO, 97%) were purchased from Shanghai Aladdin Biochemical Technology Co., Ltd. (Shanghai, China). All chemicals were used as received without further purification.

3.2. Preparation Procedures of Zn3In2S6 and Au/Zn3In2S6

The ZIS6 photocatalyst was synthesized using a modified hydrothermal method as reported [56]. Specifically, 3 mmol of ZnSO4·7H2O, 2 mmol of InCl3·4H2O, 12 mmol of CH3CSNH2, and 0.6 g of CTAB were dissolved in 30 mL of ethanol under vigorous stirring. The resulting mixture was then transferred to a Teflon-lined stainless steel autoclave and heated at 160 °C for 24 h. After the reaction, the precipitate was washed multiple times with anhydrous ethanol and deionized water, then dried in a vacuum oven at 60 °C.
For the preparation of 1% Au/ZIS6, 100 mg of ZIS6 was dispersed in 50 mL of ethanol. The HAuCl4 solution was then added dropwise into the suspension under vigorous stirring. The mixture was illuminated with a 300 W Xenon lamp (wavelength range 300 nm to 800 nm, MC-PF300C, Merry Change Technology Co., Ltd., Beijing, China) for 4 h. Finally, the precipitate was washed several times with anhydrous ethanol and deionized water and dried in a vacuum oven at 60 °C.

3.3. Characterizations

The as-prepared samples were characterized using several techniques, including XRD (Bruker D8 Advance, Karlsruhe, Germany), XPS (ESCALAB 250, VG Scientific, Hailsham, UK), field emission scanning electron microscopy (FESEM, FEI Nova Nano 230, Thermo Fisher Scientific, Hillsboro, OR, USA), TEM (FEI Tecnai G2-20, Hillsboro, OR, USA), and high-resolution transmission electron microscopy (HRTEM, FEI Tecnai G2-20, Hillsboro, OR, USA). UV–visible DRS (UV–vis DRS) were measured using a UV–vis spectrophotometer (Shimadzu UV-3600, Shimadzu Corporation, Kyoto, Japan) with BaSO4 (Shanghai Aladdin Biochemical Technology Co., Ltd., Shanghai, China) as the reference. Photogenerated electrons, holes, superoxide radicals, and hydroxyl radicals were detected by electron paramagnetic resonance (EPR, Bruker A300, Wissembourg, Germany). PEC tests were conducted on a CHI-660E (Chen Hua Instruments Co., Ltd., Shanghai, China) electrochemical workstation using a three-electrode system. To prepare the working electrode, a slurry was made by mixing 10 mg of the catalyst with 10 μL of 5% Nafion and 0.1 mL of ethyl alcohol. The resulting mixture was then coated onto an ITO glass substrate (1.0 cm2) to form the electrode. The photoelectrochemical current was recorded under simulated solar light illumination to evaluate the photocatalytic performance. A 300 W Xenon lamp (MC-PF300C, Merry Change Technology Co., Ltd., Beijing, China) with a wavelength range of 300 nm to 800 nm was used as the UV–visible light source. The distance between the light source and the sample was maintained at 10 cm during the photocatalytic measurements to ensure consistent light intensity and accurate results.

3.4. Photocatalytic Performance Test

The photocatalytic activity for BPA degradation was evaluated in a photocatalytic reaction system (JA-GHX1, Jingao Technology Co., Ltd., Hebei, China). In a typical experiment, 10 mg of photocatalyst and 30 mL of 10 ppm BPA solution were placed in a sealed quartz reactor. After achieving adsorption–desorption equilibrium under dark conditions for 30 min, the suspension was irradiated with UV–visible light (wavelength range 300 nm to 800 nm) from a 300 W Xe lamp. The concentration of BPA in the aqueous solution was monitored using a Shimadzu UV-3600 UV–vis-NIR spectrometer (Kyoto, Japan). The exact wavelength used for obtaining the quantitative data for analyte kinetics was 276 nm, which corresponds to the absorption peak of BPA. The photocatalytic degradation efficiency of BPA was calculated using the following formula:
Degradation efficiency = (1 − Ct/C0) × 100%,
where C0 is the initial concentration of BPA before illumination and Ct is the concentration after irradiation for time t. The kinetic constant (k) of the photocatalysts was determined from the following equation:
ln (Ct/C0) = −kt.

4. Conclusions

The Au/Zn3In2S6 (Au/ZIS6) Schottky junction photocatalyst exhibits exceptional photocatalytic performance for BPA degradation under UV–visible light, driven by the unique formation of a Schottky junction at the Au/ZIS6 interface. This design is a significant innovation, as it not only enhances charge separation and inhibits recombination, but also boosts light absorption and promotes efficient BPA adsorption. Gold nanoparticles play a key role in optimizing these processes, extending the photocatalytic activity into the visible light spectrum. The identification of superoxide radicals (·O2−), photogenerated holes (h+), and hydroxyl radicals (·OH) as the primary reactive species further highlights the mechanistic advancement in photocatalytic degradation. This work provides new insights into the design of metal-modified semiconductors, emphasizing the pivotal role of gold in advancing photocatalytic efficiency for environmental remediation.

Author Contributions

Conceptualization, Z.L. and J.Z.; methodology, D.C. and A.M.; software, D.C.; validation, A.M. and D.C.; formal analysis, A.M.; investigation, D.C.; resources, Z.L. and J.Z.; data curation, D.C.; writing—original draft preparation, D.C.; writing—review and editing, Z.L. and J.Z.; visualization, A.M.; supervision, Z.L. and J.Z.; project administration, Z.L.; funding acquisition, J.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the Visiting Scholar Research Program for Outstanding Young Backbone Talents of Anhui Province’ Universities (no. gxgnfx2021119), the Anhui Province Discipline (specialty) Professional Leader Cultivation Project (no. DTR2024015), the Natural Science Research Project for Colleges and Universities in Anhui Province (no. 2023AH051861).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The original contributions presented in this study are included in the article. Further inquiries can be directed to the corresponding authors.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Alalm, M.G.; Djellabi, R.; Meroni, D.; Pirola, C.; Bianchi, C.L.; Boffito, D.C. Toward Scaling-Up Photocatalytic Process for Multiphase Environmental Applications. Catalysts 2021, 11, 562. [Google Scholar] [CrossRef]
  2. Castilla-Caballero, D.; Sadak, O.; Martinez-Diaz, J.; Martinez-Castro, V.; Machuca-Martinez, F.; Hernandez-Ramirez, A.; Vazquez-Rodriguez, S.; Gunasekaran, S. Solid-state photocatalysis for plastics abatement: A review. Mat. Sci. Semicon. Proc. 2022, 149, 106890. [Google Scholar] [CrossRef]
  3. Du, M.Z.; Liu, W.; Liu, N.; Ling, Y.; Kang, S.F. Mechanisms of noble metal-enhanced ferroelectric spontaneous polarized photocatalysis. Nano Energy 2024, 124, 109495. [Google Scholar] [CrossRef]
  4. Hu, C.; Tu, S.C.; Tian, N.; Ma, T.Y.; Zhang, Y.H.; Huang, H.W. Photocatalysis Enhanced by External Fields. Angew. Chem. Int. Ed. 2021, 133, 16445–16464. [Google Scholar] [CrossRef]
  5. Lee, M.; Koziel, J.A.; Li, P.Y.; Jenks, W.S. Mitigation of Air Pollutants by UV-A Photocatalysis in Livestock and Poultry Farming: A Mini-Review. Catalysts 2022, 12, 782. [Google Scholar] [CrossRef]
  6. Liu, N.; Sun, Z.; Zhang, H.; Klausen, L.H.; Moonhee, R.; Kang, S.F. Emerging high-ammonia-nitrogen wastewater remediation by biological treatment and photocatalysis techniques. Sci. Total Environ. 2023, 875, 162603. [Google Scholar] [CrossRef]
  7. Zhou, D.; Zhang, Z.; Pan, L.; Wang, Y.; Yang, J.; Gao, Y.; Song, Y. Sucrose-Powered Liposome Nanosensors for Urinary Glucometer-Based Monitoring of Cancer. Angew. Chem. Int. Ed. 2024, 63, e202404493. [Google Scholar] [CrossRef]
  8. Masjidin, N.N.D.; Joseph, C.G.; Taufiq-Yap, Y.H.; Abdullah, A.Z.; Shoparwe, N.F.; Affandi, N.A.; Nga, J.L.H. Elimination of Recalcitrant Pollutants from Aquaculture Effluent via Photolysis and Photocatalysis Treatment Processes: A Review Paper. Environ. Eng. Manag. J. 2023, 22, 1–15. [Google Scholar] [CrossRef]
  9. Mikaeili, F.; Gilmore, T.; Gouma, P.I. Photochemical Water Splitting via Transition Metal Oxides. Catalysts 2022, 12, 1303. [Google Scholar] [CrossRef]
  10. Mu, C.X.; Lv, C.Y.; Meng, X.C.; Sun, J.H.; Tong, Z.F.; Huang, K.L. In Situ Characterization Techniques Applied in Photocatalysis: A Review. Adv. Mater. Interfaces 2023, 10, 2201842. [Google Scholar] [CrossRef]
  11. Roopashree, B.N.; Gurushantha, K.; Nagaraju, K.; Meena, S. Recent Review on S-Scheme Photocatalysis. Water Air Soil Pollut. 2024, 235, 570. [Google Scholar]
  12. Saraswat, V.; Singh, P. Exploring the photocatalytic efficacy of carbonaceous materials in drug degradation: A contemporary review. Chem. Pap. 2024, 78, 5169–5190. [Google Scholar] [CrossRef]
  13. Zhang, Y.F.; Tang, Y.X.; Yang, X.Y.; Feng, D.Z.; Feng, B.; Guan, R.Q.; Che, G.B. Magnetic Field-Assisted Photocatalysis: Mechanisms, Devices, and Applications. Small Methods 2025, 9, 2402041. [Google Scholar] [CrossRef]
  14. Costa, M.J.D.; Araújo, J.V.S.; Moura, J.K.L.; Moreno, L.H.D.; Pereira, P.A.; Santos, R.D.; Moura, C.V.R. A Brief Review of Detection and Removal of Bisphenol A in Aqueous Media. Water Air Soil Pollut. 2022, 233, 362. [Google Scholar] [CrossRef]
  15. Ighalo, J.O.; Kurniawan, S.B.; Khongthaw, B.; Buhari, J.; Chauhan, P.K.; Georgin, J.; Franco, D.S.P. Bisphenol A (BPA) toxicity assessment and insights into current remediation strategies. RSC Adv. 2024, 14, 35128–35162. [Google Scholar] [CrossRef] [PubMed]
  16. John, K.I.; Omorogie, M.O.; Bayode, A.A.; Adeleye, A.T.; Helmreich, B. Environmental microplastics and their additives-a critical review on advanced oxidative techniques for their removal. Chem. Pap. 2023, 77, 657–676. [Google Scholar] [CrossRef]
  17. Kumar, R.; Kumar, D.; Lokhande, P.E.; Kadam, V.; Jagtap, C.; Vedapathak, A.S.; Singh, K.; Mishra, Y.K.; Kaushik, A. Emergence of perovskites oxides as advanced Photocatalysts for energy and environmental remediation applications. Coordin. Chem. Rev. 2025, 534, 216556. [Google Scholar] [CrossRef]
  18. Latosinska, J.; Grdulska, A. A Review of Methods for the Removal of Endocrine-Disrupting Compounds with a Focus on Oestrogens and Pharmaceuticals Found in Wastewater. Appl. Sci. 2025, 15, 6514. [Google Scholar] [CrossRef]
  19. Mojiri, A.; Zhou, J.L.; Farahani, S. Advancements in photocatalysis and machine learning for bisphenol A (BPA) degradation in aquatic systems: A critical review. J. Clean. Prod. 2025, 518, 145919. [Google Scholar] [CrossRef]
  20. Ologundudu, O.T.; Msagati, T.A.M.; Popoola, O.E.; Edokpayi, J.N. Bisphenol A in Selected South African Water Sources: A Critical Review. ACS Omega 2025, 10, 6279–6293. [Google Scholar] [CrossRef]
  21. Cai, Y.S.; Xiao, F.X. Revisiting MXenes-based Photocatalysis Landscape: Progress, Challenges, and Future Perspectives. Acta Phys.-Chim. Sin. 2024, 40, 230604. [Google Scholar] [CrossRef]
  22. Chandrapal, R.R.; Bakiyaraj, G. Rational Design of Heterojunction Photocatalyst for Pollutant Degradation (Dyes)—A Review. Water Air Soil Pollut. 2024, 235, 376. [Google Scholar] [CrossRef]
  23. Chen, Z.F.; Meng, Z.F.; Zhang, Z.G.; Ma, W.F. MXene-Polymer Nanocomposites for High-Efficiency Photocatalytic Antibiotic Degradation Review: Microstructure Control, Environmental Adaptability and Future Prospects. Polymers 2025, 17, 2630. [Google Scholar] [CrossRef] [PubMed]
  24. Ding, H.W.; Peng, B.; Wang, Z.H.; Han, Q.F. Advances in Metal or Nonmetal Modification of Bismuth-Based Photocatalysts. Acta Phys.-Chim. Sin. 2024, 40, 2305048. [Google Scholar] [CrossRef]
  25. Dong, H.J.; Qu, C.H.; Li, C.M.; Hu, B.; Li, X.; Liang, G.J.; Jiang, J.Z. Recent advances of covalent organic frameworks-based photocatalysts: Principles, designs, and applications. Chin. J. Catal. 2025, 70, 142–206. [Google Scholar] [CrossRef]
  26. Isa, A.T.; Hafeez, H.Y.; Mohammed, J.; Ndikilar, C.E.; Suleiman, A.B.; Kafadi, A.D.G. Photocatalytic performance of MXenes co-catalyst in hydrogen (H2) production via photocatalytic water splitting: A review. J. Alloys Compd. 2024, 1005, 175951. [Google Scholar] [CrossRef]
  27. Jabbar, Z.H.; Graimed, B.H.; Ammar, S.H.; Sabit, D.A.; Najim, A.A.; Radeef, A.Y.; Taher, A.G. The latest progress in the design and application of semiconductor photocatalysis systems for degradation of environmental pollutants in wastewater: Mechanism insight and theoretical calculations. Mat. Sci. Semicon. Proc. 2024, 173, 108153. [Google Scholar] [CrossRef]
  28. Wei, J.; Luo, D.; Shi, M.; Yuan, Q.; Wang, M.; Huang, Y.; Ni, Y. Ultrathin Carbon Nitride Nanosheets Exfoliated and In Situ Modified with a Nickel Bis(Chelate) Complex for Boosting Photocatalytic Performances. Inorg. Chem. 2023, 62, 10973–10983. [Google Scholar] [CrossRef] [PubMed]
  29. Li, W.; Gong, Q.; Zhao, Q.; Wu, Q.; Niu, C.; Jiao, L.; Hao, E. Synthesis, Photophysical and Redox Properties of Highly Stable Radicals of Nickel(II) Bis(2-aminophenyl)-azadipyrromethene. Inorg. Chem. 2025, 64, 9114–9123. [Google Scholar] [CrossRef]
  30. Jagadeeswararao, M.; Galian, R.E.; Perez-Prieto, J. Photocatalysis Based on Metal Halide Perovskites for Organic Chemical Transformations. Nanomaterials 2024, 14, 94. [Google Scholar] [CrossRef]
  31. Kavan, L. Electrochemistry and band structure of semiconductors (TiO2, SnO2, ZnO): Avoiding pitfalls and textbook errors. J. Solid State Electr. 2024, 28, 829–845. [Google Scholar] [CrossRef]
  32. Li, Q.; Wang, C.H.; Yao, H.X.; He, C.M.; Guo, C.F.; Hu, Y. Cocatalysts for photocatalysis: Comprehensive insight into interfacial charge transfer mechanism by energy band theory. Coordin. Chem. Rev. 2025, 535, 216652. [Google Scholar] [CrossRef]
  33. Pasindu, V.; Munaweera, I. Harnessing atomic-scale defect engineering in 2D photocatalysts: Synergistic integration of nanocomposite architectures for bandgap tuning and charge transfer optimization. RSC Adv. 2025, 15, 34191–34210. [Google Scholar] [CrossRef]
  34. Wei, S.H.; Hou, R.P.; Zhu, Q.; Shakir, I.; Fang, Z.B.; Duan, X.F.; Xu, Y.X. Hybrid materials based on covalent organic frameworks for photocatalysis. InfoMat 2025, 7, e12646. [Google Scholar] [CrossRef]
  35. Chen, S.Y.; Wu, Z.K.; Cheng, X.Y.; Chen, L.; Chen, Y.N.; Guo, Y.N.; Wang, C.H.; Shang, Q.K. Efficient photocatalytic degradation of phenolic pollutants using MIL-100(Fe)@Zn3In2S6 Z-scheme heterojunction. Colloids Surf. A 2025, 707, 135884. [Google Scholar] [CrossRef]
  36. Ding, C.S.; Ruan, X.W.; Xu, M.H.; Meng, D.P.; Fang, G.Z.; Jiao, D.X.; Zhang, W.; Leng, J.; Jiang, Z.F.; Ba, K.K.; et al. Step-Scheme SnO2/Zn3In2S6 Catalysts for Solar Production of Hydrogen Peroxide From Seawater. Small 2024, 20, e2406959. [Google Scholar] [CrossRef] [PubMed]
  37. Gunawan, D.; Stern, T.; Zhang, J.J.; Yuwono, J.A.; Pan, J.; Li, Q.Y.; Yu, H.L.; Gunawan, M.; Hocking, R.K.; Toe, C.Y.; et al. Scalable solar-driven reforming of alcohol feedstock to H2 using Ni/Zn3In2S6 photocatalyst. Chem. Eng. J. 2025, 513, 162965, Erratum in Chem. Eng. J. 2025, 515, 163701. [Google Scholar] [CrossRef]
  38. Jin, H.J.; Liu, Q.; Naghizadeh, M.; Guan, L.; Dong, S.Y.; Huang, T.L. Zn3In2S6/Bi3O4Br nanoflowers with oxygen vacancies and heterojunctions: A strategy for enhanced nitrofurazone photodegradation. J. Colloid Interf. Sci. 2025, 687, 279–292. [Google Scholar] [CrossRef] [PubMed]
  39. Katsamitros, A.; Karamoschos, N.; Sygellou, L.; Andrikopoulos, K.S.; Tasis, D. Construction of Hierarchical 2D-3D@3D Zn3In2S6@CdS Photocatalyst for Boosting Degradation of an Azo Dye. Molecules 2025, 30, 1409. [Google Scholar] [CrossRef]
  40. Luan, W.Q.; Yan, Y.Y.; Wang, J.X.; Zong, Y.X.; Zhao, R.Y.; Han, J.S.; Wang, L. Fabrication of In-doped CdSe/Zn3In2S6 type II heterojunction composite for efficient photocatalytic hydrogen evolution. Sep. Purif. Technol. 2025, 356, 129907. [Google Scholar] [CrossRef]
  41. Su, K.; Yin, W.Q.; Liu, X.F.; Cai, S.H.; He, P.; Xiao, Y.; Ren, T.Y. Fabricating NiCoP/Zn3In2S6 type II heterojunction photocatalyst for boosted photocatalytic hydrogen evolution performance. Inorg. Chem. Commun. 2025, 178, 114488. [Google Scholar] [CrossRef]
  42. Wang, H.Y.; Li, M.K.; You, Z.M.; Chen, Y.H.; Liu, Y. An innovative Zn3In2S6/ZnIn2S4 homojunction photocatalyst with enhanced interfacial charge transfer for the highly efficient degradation of tetracycline under visible radiation. J. Environ. Manag. 2024, 365, 121605. [Google Scholar] [CrossRef]
  43. Wang, J.T.; Gao, M.C.; Xu, M.Y.; Chu, Q.; Gong, Y.Y.; Meng, M.Y.; Cui, H.C.; Feng, Y.Y. Construction of multi-functional S-Vacancy-Zn3In2S6/Bi-MOF S-scheme heterojunction containing interfacial chemical bonds for the efficient photocatalytic production of H2O2 and excellent photocatalytic degradation of OTC and TC. Colloid. Surf. A 2024, 702, 135169. [Google Scholar] [CrossRef]
  44. Zhang, C.; Cheng, X.; Zhao, R.; Fu, M.; Wang, M.; Chen, Z.; Zhang, C.; Li, X. Enhanced Antibiotic Removal via Magnetic Ni@ZIF-8 Composite Nanotubes: Synergistic Adsorption, Facile Recovery and Adsorption Mechanism. Sep. Purif. Technol. 2025, 363, 131988. [Google Scholar] [CrossRef]
  45. Wang, Z.; Liu, Y.; Deng, Y.; Wang, H.; Han, S.; Wang, Y.; Zhang, X.; Liu, X. Functionalization of 2H-MoS with Pt Nanoclusters for HER in Alkaline Solutions and Supercapacitors. Langmuir 2025, 41, 14265–14274. [Google Scholar] [CrossRef] [PubMed]
  46. Xu, N.; Liu, S.; Xu, Q.; Yuan, P.; Zhang, P.; Zhuo, S.; Zhu, C.; Du, J. Facile Synthesis of Porous Graphitic Carbon Nitride Modulated by Up-Conversion Carbon Quantum Dots for Visible Light-Triggered Photocatalysis towards Bacteria Inactivation. Appl. Catal. A 2024, 673, 119586. [Google Scholar] [CrossRef]
  47. Meng, A.Y.; Li, W.; Li, Z.H.; Xiong, G.Y.; Pu, X.Y.; Zhang, J.F.; Li, Z. S-scheme heterojunction BiOBr/Cd8.05Zn1.95S10-DETA nanocomposite photocatalyst for enhanced and stable degradation of dichlorvos. Surf. Interfaces 2025, 68, 106697. [Google Scholar] [CrossRef]
  48. Li, W.; Meng, A.Y.; Li, Z.; Zhang, J.F.; Fu, J.W. S-scheme CeO2/Cd7.23Zn2.77S10-DETA heterojunctions for superior cocatalyst-free visible-light photocatalytic hydrogen evolution. J. Cent. South Univ. 2024, 31, 4572–4585. [Google Scholar] [CrossRef]
  49. Meng, A.Y.; Yang, R.Q.; Li, W.; Li, Z.; Zhang, J.F. Enhanced photocatalytic hydrogen production through tuning charge transfer in TiO2/CdSxSe1−x-DETA nanocomposites with S-scheme heterojunction structure. J. Mater. 2025, 11, 100919. [Google Scholar]
  50. Li, W.; Meng, A.; Li, C.; Sun, Y.; Zhang, J.; Li, Z. Enhanced efficiency and stability in the degradation of triazophosphorus pesticides by Al6Si2O13/WO2.72 nanocomposites through synergistic action of S-scheme heterojunction and oxygen vacancies. J. Colloid Interface Sci. 2025, 677, 704–717. [Google Scholar] [CrossRef] [PubMed]
  51. Shen, Z.; Mao, S.; Jing, H.; Xu, Y.; Zhang, Q.; Belfiore, L.A.; Tang, J. Study of nanoscale three-dimensional Au/GaN Schottky junctions: Fabrication, morphology, and optoelectronic properties. Appl. Surf. Sci. 2024, 642, 158627. [Google Scholar] [CrossRef]
  52. Che, Y.; Weng, B.; Li, K.; He, Z.; Chen, S.; Meng, S. Chemically bonded nonmetallic LSPR S-scheme hollow heterostructure for boosting photocatalytic performance. Appl. Catal. B Environ. Energy 2025, 361, 124656. [Google Scholar] [CrossRef]
  53. Li, S.; Meng, S.; Zhang, H.; Puente-Santiago, A.R.; Wang, Z.; Chen, S.; Muñoz-Batista, M.J.; Zheng, Y.M.; Weng, B. Tailoring Redox Active Sites with Dual-Interfacial Electric Fields for Concurrent Photocatalytic Biomass Valorization and H2 Production. Adv. Funct. Mater. 2025, e13682. [Google Scholar] [CrossRef]
  54. Ruan, X.; Ding, C.; Leng, J.; Jiao, D.; Zhang, X.; Xu, M.; Meng, D.; Cui, X.; Zheng, Z.; Zhu, Y.; et al. Decoupling of Carrier Pathways in Au/Cu-Zn3In2S6 Through Bulk Hole Trapping and Surface Hot Electron Accumulation Enhances Photocatalytic Hydrogen Peroxide Production. Adv. Mater. 2025, 37, e11422. [Google Scholar] [CrossRef] [PubMed]
  55. Li, W.; Meng, A.Y.; Li, Z.H.; Xiong, G.Y.; Li, Z.; Zhang, J.F. CeO2/WO2.72 nanocomposites with S-scheme heterojunctions and oxygen vacancies for enhanced photocatalytic degradation of dichlorvos. J. Mater. Sci. Technol. 2026, 242, 200–212. [Google Scholar] [CrossRef]
  56. Meng, S.; Ye, X.; Zhang, J.; Fu, X.; Chen, S. Effective use of photogenerated electrons and holes in a system: Photocatalytic selective oxidation of aromatic alcohols to aldehydes and hydrogen production. J. Catal. 2018, 367, 159–170. [Google Scholar] [CrossRef]
  57. Yu, C.; Di, G.; Li, Q.; Guo, X.; Wang, L.; Gong, Q.; Wei, Y.; Zhao, Q.; Jiao, L.; Hao, E. Multicomponent Diversity-Oriented Access to Boronic-Acid-Derived Pyrrolide Salicyl-Hydrazone Fluorophores with Strong Solid-State Emission. Inorg. Chem. 2024, 63, 21397–21409. [Google Scholar] [CrossRef]
  58. Wang, H.; Cai, F.; Feng, D.; Zhou, L.; Li, D.; Wei, Y.; Feng, Z.; Zhang, J.; He, J.; Wu, Y. Synthesis, Crystal Structure, Photophysical Property and Bioimaging Application of a Series of Zn(II) Terpyridine Complexes. J. Mol. Struct. 2019, 1194, 157–162. [Google Scholar] [CrossRef]
  59. Wang, Z.; Wu, J.; Liu, L.; Wu, W.; Wang, Y.; Huang, H.; Deng, F.; Liu, X. Platinum Cluster Decoration on Hollow Carbon Spheres for High-Efficiency Hydrogen Evolution Reaction. Langmuir 2024, 40, 15031–15037. [Google Scholar] [CrossRef]
Ijms 27 00705 g003
Figure 3. (a) XRD, (b) UV–vis DRS, (c) band-gap energies and (d) M-S plots of ZIS6 and Au/ZIS6.
Figure 3. (a) XRD, (b) UV–vis DRS, (c) band-gap energies and (d) M-S plots of ZIS6 and Au/ZIS6.
Ijms 27 00705 g003
Ijms 27 00705 g005
Figure 5. (a) EIS and (b) photocurrent spectra of ZIS6 and 3%Au/ZIS6.
Figure 5. (a) EIS and (b) photocurrent spectra of ZIS6 and 3%Au/ZIS6.
Ijms 27 00705 g005
Ijms 27 00705 g006

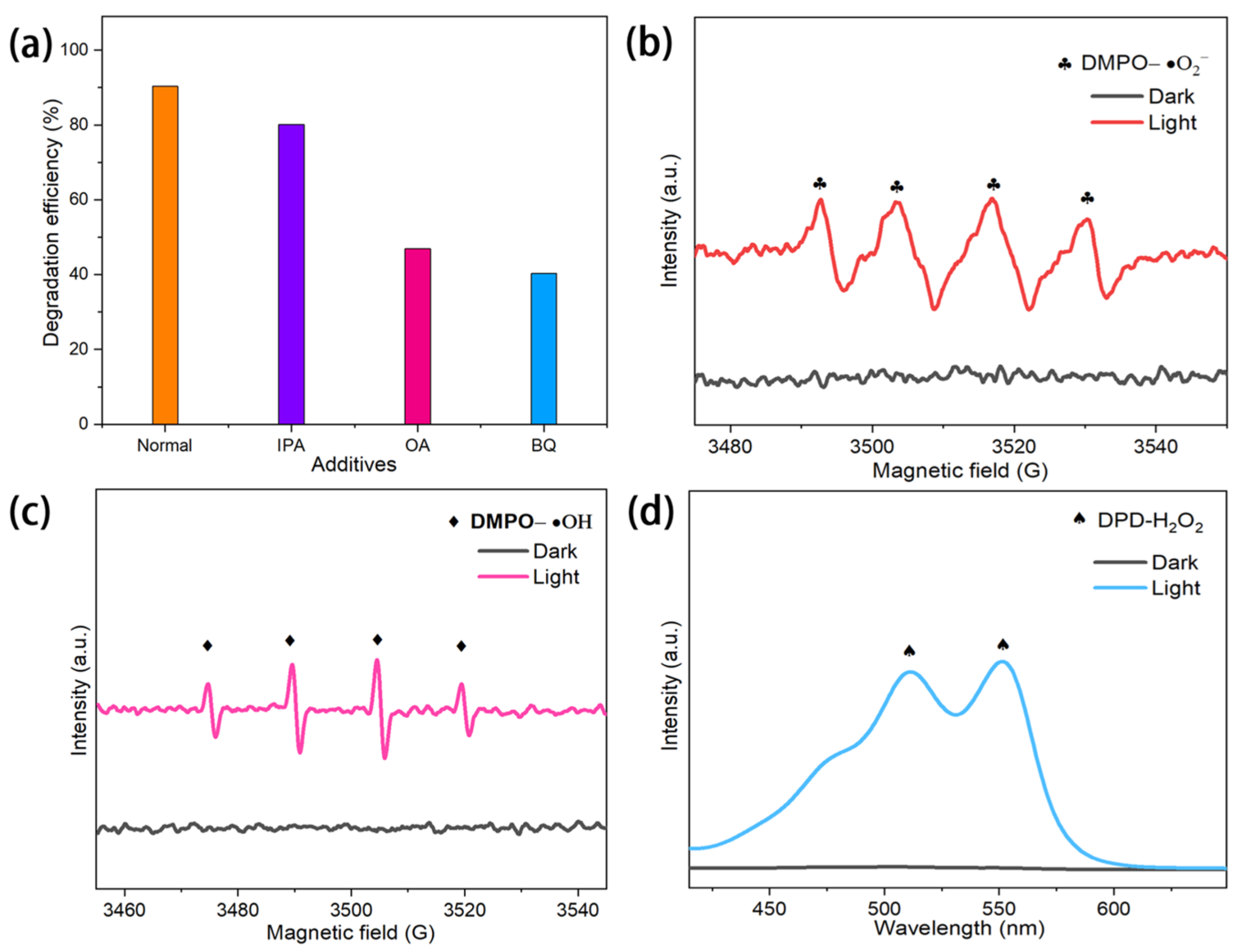

Figure 6. (a) Photocatalytic degradation efficiency of BPA with trapping agents. (b) ESR spectra of ·O2− under light and dark conditions. (c) ESR spectra of ·OH under light and dark conditions. (d) H2O2 detection in the Au/ZIS6 system under light and dark conditions.
Figure 6. (a) Photocatalytic degradation efficiency of BPA with trapping agents. (b) ESR spectra of ·O2− under light and dark conditions. (c) ESR spectra of ·OH under light and dark conditions. (d) H2O2 detection in the Au/ZIS6 system under light and dark conditions.
Ijms 27 00705 g006
Ijms 27 00705 g007

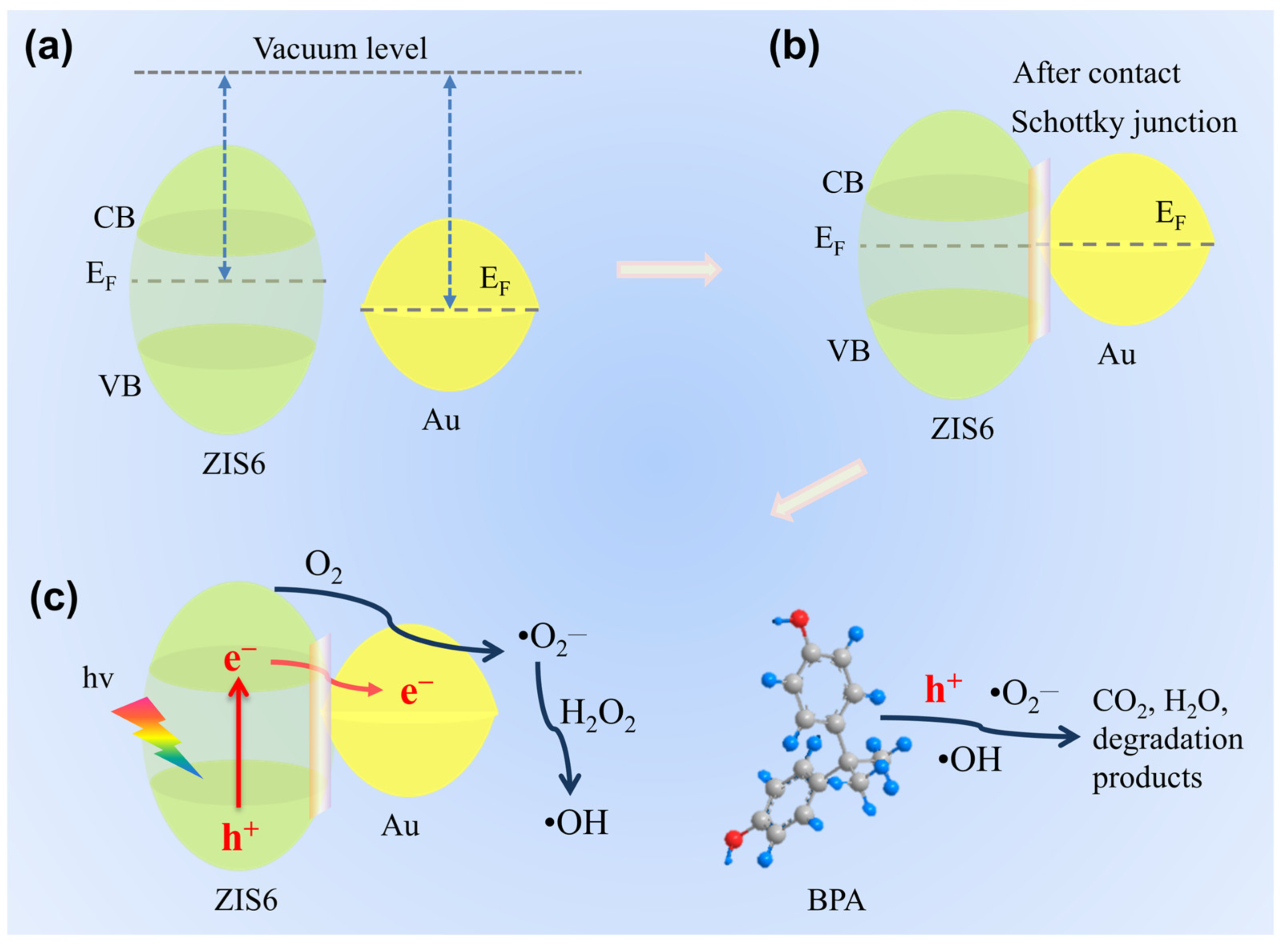

Figure 7. Energy level lineup diagrams for ZIS6 and Au (a) before and (b) after contact. (c) Schematic diagram illustrating the charge transfer and the photocatalytic mechanism for BPA degradation.
Figure 7. Energy level lineup diagrams for ZIS6 and Au (a) before and (b) after contact. (c) Schematic diagram illustrating the charge transfer and the photocatalytic mechanism for BPA degradation.
Ijms 27 00705 g007
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Chen, D.; Meng, A.; Li, Z.; Zhang, J. Highly Efficient Photocatalytic Degradation of Bisphenol A Under UV–Visible Light Irradiation Using Au/Zn3In2S6 Schottky Junction Photocatalyst. Int. J. Mol. Sci. 2026, 27, 705. https://doi.org/10.3390/ijms27020705

AMA Style

Chen D, Meng A, Li Z, Zhang J. Highly Efficient Photocatalytic Degradation of Bisphenol A Under UV–Visible Light Irradiation Using Au/Zn3In2S6 Schottky Junction Photocatalyst. International Journal of Molecular Sciences. 2026; 27(2):705. https://doi.org/10.3390/ijms27020705

Chicago/Turabian Style

Chen, Di, Aoyun Meng, Zhen Li, and Jinfeng Zhang. 2026. "Highly Efficient Photocatalytic Degradation of Bisphenol A Under UV–Visible Light Irradiation Using Au/Zn3In2S6 Schottky Junction Photocatalyst" International Journal of Molecular Sciences 27, no. 2: 705. https://doi.org/10.3390/ijms27020705

APA Style

Chen, D., Meng, A., Li, Z., & Zhang, J. (2026). Highly Efficient Photocatalytic Degradation of Bisphenol A Under UV–Visible Light Irradiation Using Au/Zn3In2S6 Schottky Junction Photocatalyst. International Journal of Molecular Sciences, 27(2), 705. https://doi.org/10.3390/ijms27020705

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
