Undifferentiated Carcinoma with Osteoclast-like Giant Cells of the Pancreas: Molecular Genetic Analysis of 13 Cases

Abstract

Undifferentiated carcinoma with osteoclast-like giant cells (UCOGC) of the pancreas is a rare malignancy regarded as a subvariant of pancreatic ductal carcinoma (PDAC) characterized by variable prognosis. UCOGC shows a strikingly similar spectrum of oncogenic DNA mutations to PDAC. In the current work, we analyzed the landscape of somatic mutations in a set of 13 UCOGC cases via next-generation sequencing (NGS). We detected a spectrum of pathogenic or likely pathogenic mutations similar to those observed in PDAC following previously published results (10 KRAS, 9 TP53, 4 CDKN2A, and 1 SMAD4, CIC, GNAS, APC, ATM, NF1, FBXW7, ATR, and FGFR3). Our results support the theory that UCOGC is a variant of PDAC, despite its unique morphology; however, a UCOGC-specific genomic signature as well as predictive markers remain mainly unknown. Programmed death ligand 1 (PD-L1) status remains an important predictive marker based on previous studies.

1. Introduction

Undifferentiated carcinoma with osteoclast-like giant cells (UCOGC) of the pancreas is regarded as a rare variant of pancreatic ductal adenocarcinoma (PDAC), according to the recent WHO classification [1], comprising about 0.4% of pancreatic carcinomas [2]. The first UCOGC description was published in 1954 by Sommers et al. [3]. Fourteen years later, Rosai labeled the lesion a “carcinoma simulating giant cell tumor of bone” [4]. UCOGC is characterized by specific morphology and variable prognosis. The tumor consists of three cell types: (1) neoplastic cytokeratin-positive mononuclear cells with nuclear atypia and pleomorphism, (2) non-neoplastic mononuclear histiocytes, and (3) non-neoplastic osteoclast-like multinucleated giant cells, present in variable amount, often in the vicinity of hemorrhage and necrosis. In the case of characteristic morphology, UCOGC diagnosis is based on histopathological examination [5]. However, despite their different morphology, the DNA mutational profiles in UCOGCs show surprising similarities with those of conventional PDAC [6], including the frequent activation of KRAS and deactivation of SMAD4, TP53, and CDKN2A [7,8,9]. The carcinogenesis of PDAC encompasses a cascade of molecular events, including telomere shortening, activating mutations in KRAS, inactivating mutations or the epigenetic silencing of p16/CDKN2A, and inactivating mutations in TP53 and SMAD4. These cumulative alterations drive the progression from pancreatic intraepithelial neoplasia (PanIn) formation to the development of invasive adenocarcinoma [10]. NGS studies have reinforced the significance of recurrent mutations in four pivotal driver genes (KRAS, TP53, SMAD4, CDKN2A), each of which is disrupted in over 50% of PDACs, underscoring their central role within core signaling pathways [11]. The whole-genome sequencing of PDAC revealed 93% KRAS-, 74% TP53-, 35% CDKN2A-, and 31% SMAD4-mutated cases [12].

From a clinical point of view, UCOGC is characterized by mostly poor prognosis [13,14], but there are reports describing “unexpected long survivors” with a better prognosis compared to patients with PDAC [2,15]. A recent meta-analysis involving 69 patients revealed that UCOGC exhibits a notably superior prognosis in contrast to both PDAC and undifferentiated carcinoma (UC) lacking osteoclastic giant cells [16]. Hence, it is necessary to differentiate UCOGC from UC histologically, owing to the substantial prognostic variance [17]. Luchini et al. demonstrated that a crucial determinant of prognosis is the coexistence of a PDAC within UCOGC. Their findings revealed a median overall survival of 36 months for pure UCOGC, contrasting with 15 months for UCOGC accompanied by PDAC [6]. In recent years, there have been few studies documenting significant programmed death ligand 1 (PD-L1) expression in undifferentiated pancreatic carcinoma compared to PDAC [18] and the aggressive behavior of UCOGCs expressing PD-L1 compared to PD-L1-negative UCOGCs [19,20]. The aim of our study was to perform a molecular genetic analysis by the next-generation sequencing (NGS) of thirteen UCOGC cases that were analyzed by immunohistochemistry in our previous study [20]. Of these previously published cases, one was excluded due to insufficient material amount, and one new case was acquired.

2. Results

We isolated DNA from thirteen formalin-fixed paraffin-embedded (FFPE) tissue samples, and after an integrity check (PCR amplification of gene segments sized 100, 200, 300, 400, and 600 bp), we detected only 100 bp PCR products indicating DNA degradation in four samples. In six samples, we detected control PCR products of sizes 100 and 200 bp, and only in three samples, we observed amplification products larger than 200 bp in the control. All thirteen FFPE samples were examined by the NGS panel, and in only three samples, we could not achieve sufficient coverage due to DNA degradation in the archival FFPE tissue material. These were the samples where the control amplification showed only 100 bp products. For these three samples, we conducted NGS analysis with parameters set at a minimum coverage of 50 and a minimum variant frequency of 25% (samples ID2, ID3, and ID9).

As part of the repetition and validation of the NGS panel, we re-examined two FFPE tissue samples (samples ID4 and ID10). We found the same variants in ID4 (TP53, KRAS, CDKN2A, and SMAD4). In sample ID10, we found identical mutations in the TP53 and CHEK2 genes. Distinct findings in the ERBB2, PDGFRA, and MTOR genes (variants of uncertain significance) are attributed to the presence of variants at low percentages (6–7%); these findings may also be because all cases involve larger deletions (88–117 bp) that might be less detectable using NGS chemistry with 2 × 75 v3 reads. We primarily employ the given NGS panel and subsequent analysis for the detection of SNVs/Indels.

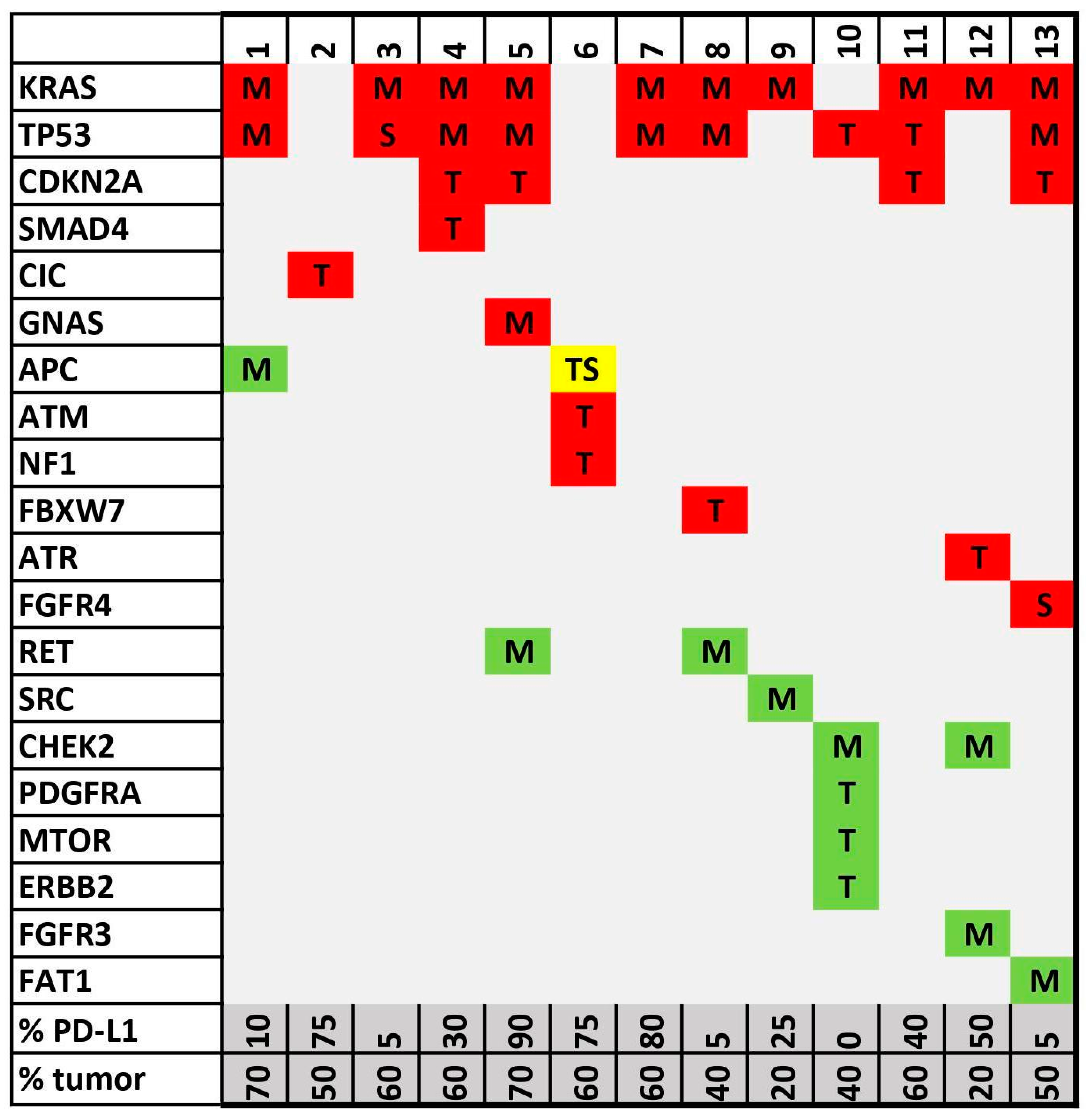

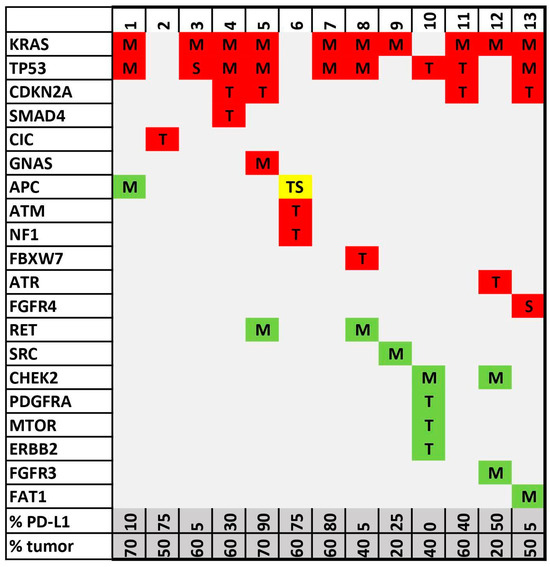

Using the NGS custom panel, we found the following pathogenic or likely pathogenic mutations: ten KRAS, nine TP53, four CDKN2A, and one SMAD4, CIC, GNAS, APC, ATM, NF1, FBXW7, ATR, and FGFR4 (Figure 1). From the cohort, twelve cases were considered PD-L1-positive and one case PD-L1-negative, which does not allow meaningful statistical analysis.

The most frequent KRAS mutations were found in exon 2 codon 12, specifically 6× p.Gly12Asp, 3× p.Gly12Val, and 1× p.Gly12Arg.

All results with clinical–pathological parameters and PD-L1 expression profiles are listed in

Table 1. Summary of all examined variables.

ID	Diagnosis	Specimen	Tumor Size (mm)	pTNM Stage at Surgery	Death	Survival/Follow-Up Time (Months)	Adjuvant Therapy	% of Tumor Cells	PD-L1 Positivity of Tumor Cells	Pathogenic/ Likely Pathogenic	Uncertain Significance
1	UCOGC+PDAC	Resection	30 mm	T2N1	Yes	5.7	Chemotherapy	70%	10%	KRAS, TP53	APC
2	UCOGC	Resection	70 mm	T3N1	Yes	1.2	No	50%	75%	CIC
3	UCOGC	Resection	90 mm	T3N0	Yes	8.6	Unknown	60%	5%	KRAS, TP53
4	UCOGC	Resection	18 mm	T1cN0	No	56.4	Chemotherapy	60%	30%	TP53, KRAS, CDKN2A, SMAD4
5	UCOGC	Resection	60 mm	T3N1	No	58.3	Chemotherapy	70%	90%	TP53, KRAS, GNAS, CDKN2A	RET
6	UCOGC	Lymph node metastasis	unknown	TXN1	Yes	4.4	Unknown	60%	75%	APC, ATM, NF1	APC
7	UCOGC+PDAC	Resection	110 mm	T3N1	Yes	5.6	Unknown	60%	80%	KRAS, TP53
8	UCOGC	Resection	140 mm	T3NXM1	Yes	0.1	No	40%	5%	TP53, KRAS, FBXW7	RET
9	UCOGC	Liver metastasis	>100 mm	T4NXM1	Yes	3.6	Unknown	20%	25%	KRAS	SRC
10	UCOGC	Resection	35 mm	T2N0M1	Yes	171	Chemotherapy, radiotherapy	40%	0%	TP53	CHEK2, PDGFRA/MTOR/ERBB
11	UCOGC+IPMN	Resection	9 mm UCOGC, 60 mm IPMN	T1bN0	No	89	No	60%	40%	KRAS, TP53 CDKN2A
12	UCOGC+IPMN	Resection	5 mm UCOGC 70 mm IPMN	T1aN0	No	49	Chemotherapy	20%	50%	KRAS, ATR	CHEK2, FGFR3
13	UCOGC+PDAC	Needle biopsy UCOGC+PDAC	34 mm	T2N1	Unknown	Unknown	Unknown	50%	5%	KRAS, TP53, CDKN2A, FGFR4	FAT1

. Detailed NGS findings using VarSome Clinical software (version 11.7, Saphetor, Lausanne, Switzerland) are summarized in Supplementary Materials.

3. Discussion

Due to the rarity of UCOGC, only a few studies have focused on the genetic background of this peculiar neoplasia. The findings from genomic articles on UCOGC, including this study, are summarized in Table 2.

Luchini et al. performed the whole exome sequencing (WES) of eight UCOGC, which led to the identification of the same canonical oncogenic mutation (KRAS) and tumor suppressor gene alterations (TP53, CDKN2A, SMAD4) as reported in PDAC; the KRAS mutational spectrum documented by Luchini et al. in all examined UCOGC cases (4× p.Gly12Val, 3× p.Gly12Asp, and 1× p.Gly12Arg) [6] was very similar to this study (6x p.Gly12Asp, 3x p.Gly12Val, and 1× p.Gly12Arg). Imai et al. examined mutational profiles in three UCOGC cases, finding KRAS mutations in all cases, similar to our data (2× p.Gly12Asp and 1× p.Gly12Val) [21]. Deckard-Janatpour described KRAS mutations in five of six UCOGC cases and mutated p53 immunoprofiles in five of ten cases [22]. On the other hand, Lukáš et al. describe p53 and KRAS wild-type status in two UCOGC cases [23]. Analyzing four UCOGC cases and using a tissue microdissection technique, Sakai et al. found the KRAS mutation in both pleomorphic neoplastic UCOGC cells and epithelial cells of associated PDAC [24].

In this study, we used a custom panel focused on common solid tumor-related genes and examined a few more cases; to the best of our knowledge, this is the largest UCOGC cohort examined by NGS published to date. Our findings of ten KRAS, nine TP53, four CDKN2A, and one SMAD4, CIC, GNAS, APC, ATM, NF1, FBXW7, ATR, and FGFR3 as pathogenic or likely pathogenic mutations within UCOGC mirrors the mutational spectrum described in PDAC (93% KRAS, 74% TP53, 35% CDKN2A, and 31% SMAD4) [12]. The identification of a similar spectrum of undifferentiated carcinoma (UDC) and UCOGC of the pancreas and PDAC led to the classification of these as variants of PDAC [1,25,26,27,28]. Interestingly, Luchini et al. found non-synonymous somatic missense mutations in serpin peptidase inhibitor clade A member (SERPINA) 3, melanoma-associated antigen (MAGE) B4, glioma-associated oncogene (GLI) 3, multiple epidermal growth factor-like domains protein (MEGF) 8 (each mutated in two patients), and TTN (mutated in three tumors) [6]. Of note, we found pathogenic mutations APC, ATM, and NF1 in one single UCOGC case—the aforementioned mutations have not been hitherto described in the literature. Yang discovered concomitant KRAS and BRCA2 mutations in one UCOGC case using WES [29]; of note, 17% of PDAC have some “BRCAness” genetic signatures associated with homologous recombination deficiency (BRCA2, BRCA1, PALB2, ATM, and RAD51) [30]. In our dataset, there was one case with a pathogenic or likely pathogenic ATM mutation. Theoretically, patients with pancreatic cancer of any histological type showing signatures of “BRCAness” may benefit from poly-ADP-ribose polymerase (PARP) inhibitor (e.g., olaparib) biological therapy [30]. In our cohort, there was one case with an FGFR3 alteration of unknown significance. In the FIGHT-101 clinical trial, one of five patients with pancreatic cancer showed a partial response to anti-FGFR1-3 treatment (pemigatinib); this case was positive for FGFR2::USP33 fusion [31]. The study mentioned above delineates clinical outcomes across different tumors characterized by FGFR fusions/rearrangements and mutations. However, the therapeutic efficacy for the patients in our sample is uncertain, given that we only identified FGFR3 variants of unknown significance. Although OncoKB indicates FDA approval for erdafitinib in FGFR3-mutated bladder cancer, there are currently no FDA-approved treatments tailored specifically to patients with FGFR3 oncogenic mutant pancreatic cancer [32].

Table 2. Summary of genomic articles focused on UCOGC DNA mutational profiles obtained from FFPE tissue.

Authors	Year	UCOGC n=	Method	Mutated Genes (Pathogenic), Number of Cases
Present study	2024	13	Illumina MiSeq, NGS custom panel	10× KRAS, 9× TP53, 4× CDKN2A, 1× SMAD4, CIC, GNAS, APC, ATM, NF1, FBXW7, ATR, FGFR3
Yang et al. [27]	2020	1	Whole exome sequencing	1× KRAS, 1× BRCA2
Luchini et al. [6]	2017	8	Illumina HiSeq, whole exome sequencing	8× KRAS, 7× TP53, 3× TTN, 2× CDKN2A, SERPINA3, MAGEB4, GLI3, MEGF8, 1× SMAD4
Lukáš et al. [23]	2006	2	PCR	2× KRAS wild type, 2× TP53 wild type
Sedivy et al. [28]	2005	1	PCR	1× KRAS
Sakai et al. [24]	2000	3	PCR	3× KRAS
Imai et al. [21]	1999	3	PCR	3× KRAS
Deckard-Janatpour et al. [22]	1998	6	PCR	5× KRAS
Westra et al. [25]	1998	5	PCR	4× KRAS
Hoorens et al. [26]	1998	1	PCR	1× KRAS

Table 2. Summary of genomic articles focused on UCOGC DNA mutational profiles obtained from FFPE tissue.

Authors	Year	UCOGC n=	Method	Mutated Genes (Pathogenic), Number of Cases
Present study	2024	13	Illumina MiSeq, NGS custom panel	10× KRAS, 9× TP53, 4× CDKN2A, 1× SMAD4, CIC, GNAS, APC, ATM, NF1, FBXW7, ATR, FGFR3
Yang et al. [27]	2020	1	Whole exome sequencing	1× KRAS, 1× BRCA2
Luchini et al. [6]	2017	8	Illumina HiSeq, whole exome sequencing	8× KRAS, 7× TP53, 3× TTN, 2× CDKN2A, SERPINA3, MAGEB4, GLI3, MEGF8, 1× SMAD4
Lukáš et al. [23]	2006	2	PCR	2× KRAS wild type, 2× TP53 wild type
Sedivy et al. [28]	2005	1	PCR	1× KRAS
Sakai et al. [24]	2000	3	PCR	3× KRAS
Imai et al. [21]	1999	3	PCR	3× KRAS
Deckard-Janatpour et al. [22]	1998	6	PCR	5× KRAS
Westra et al. [25]	1998	5	PCR	4× KRAS
Hoorens et al. [26]	1998	1	PCR	1× KRAS

One case in our study displayed pathogenic ATR mutation, while the upregulation of the ATR pathway may play a role in resistance to PARP inhibitors in ovarian cancer cell lines. Patients with an ATR-mutated tumor profile may hypothetically benefit from anti-ATR treatment (berzosertib, ceralasertib). To date, there are ongoing clinical trials focused on anti-ATR combined with PARP inhibitors in advanced solid tumors [33]. Moreover, Sato et al. reported that ATM, ATR (each mutated in a single case in our cohort), and CHK1 can drive PD-L1 expression [34]. Accordingly, ATR or CHK1 inhibition decreases PD-L1 expression and may facilitate the T-cell-mediated killing of the tumor cell [35,36], which may be of particular interest in UCOGC characterized by frequent PD-L1 expression. While the PARP inhibitor talazoparib in combination with enzalutamide is FDA approved for the treatment of select patients with ATR-mutant metastatic castration-resistant prostate cancer, no ATR-targeted therapy for pancreatic cancer was identified in the OncoKB database [32]. Interestingly, the single patient in our dataset has exhibited long recurrence-free survival without the need for specific therapy to date.

Like in conventional PDAC, KRAS and TP53 were the most frequent alterations identified in our dataset. The therapeutic efficacy of adagrasib and sodagrasib has been reported for patients with KRAS p.Gly12Cys mutant pancreatic adenocarcinoma [32]. However, our dataset did not include any patients with KRAS p.Gly12Cys mutation; instead, we observed mutations only in p.Gly12Asp, p.Gly12Val, and p.Gly12Arg. Furthermore, the therapeutic impact of this treatment in UCOGC compared to PDAC remains a subject of debate.

There has been extensive and enduring research focused on restoring the physiological activity of the p53 protein. The objective is to maintain cell cycle homeostasis and programmed cell death, either through the induction of synthetic lethality in TP53-mutated cells or by revitalizing p53 functionality [37]. TP53 transcription products emerge as promising targets for cancer therapy, given that TP53 mutations are present in approximately 50% of malignant tumors and are absent in physiological tissues. The first substance identified for restoring the transcriptional activity of mutated p53, CP-31398, was documented in 1999 and demonstrated efficacy in murine experiments [38]. Subsequently, multiple drugs with similar mechanisms have been discovered. Over the past decade, numerous cell line tests and clinical trials involving anti-p53 treatments have been conducted, yielding equivocal clinical outcomes [39].

The analyzed cohort exhibits high variability in survival time, ranging from 0.1 to 171 months. The patient with the shortest survival succumbed to postoperative complications, and subsequent follow-up lacks sufficient information regarding tumor prognostics. Conversely, the patient with the longest survival had PD-L1-negative UCOGC, a condition associated with a relatively favorable prognosis, as previously reported after merging data from two studies [20]. A limitation of this study is the small cohort size, reflecting the overall rarity of this particular tumor type.

Despite several genetic studies on UCOGC, the knowledge of a specific genetic marker of this particular tumor is still insufficient; larger datasets are hard to obtain because of the rarity of this tumor. Diagnosis is often feasible histologically, but further research on potential therapy targets is needed. In recent years, PD-L1 has been discovered as frequently expressed in undifferentiated pancreatic carcinoma [18] and as a significant negative survival predictor in UCOGC [19,20], whilst the exceedingly rare PD-L1-negative UCOGCs display a good prognosis. Besides PD-L1 expression, an associated glandular (ductal) component has been described as an adverse prognostic factor [2]. Two cases of UCOGC that were treated successfully with anti-PD-L1 drugs were recently described; in one case, pembrolizumab therapy was administered due to positive PD-L1 immunohistochemistry [40], and in another case, due to high tumor mutational burden (TMB) [41]. An association between PD-L1 expression and p53 mutation has been described [19] but has not been confirmed by our group [20].

4. Materials and Methods

4.1. Sample Selection

A group of 13 patients (9 male, 4 female, age 50–76 years) with surgically treated or biopsied pancreatic UCOGC diagnosed histologically in three involved institutions between 2003 and 2019 was enrolled in the study. Among the cases, 10 specimens were pancreatectomies, 2 cases were metastasectomies (1 lymph node metastasis and 1 liver metastasis), and 1 case was a needle biopsy. Among the 10 pancreatectomy cases, 7 patients displayed regional lymph node metastasis at the time of surgery. In the 2 cases with metastasectomies, specimens from lymphadenectomy and liver metastasectomy during explorative laparotomy without pancreas resection were used. In the cohort, there were 8 pure UCOGCs, 3 UCOGCs mixed with PDAC, and 2 UCOGCs mixed with intraductal papillary mucinous neoplasm (IPMN) of the pancreas. No patient received immunotherapy, while some patients received adjuvant chemotherapy and radiotherapy. The assignments of specific diagnosis, stage, follow-up, immunohistochemistry, and NGS profile are listed in Table 1. Representative blocks with FFPE tumor tissue were used for both immunohistochemistry and molecular examination. Clinical data about survival and disease progression were collected.

4.2. Immunohistochemistry

For immunohistochemistry, 4 μm thick tissue sections were stained using a Dako Autostainer Link 48 IHC Stainer w/ PT Link (Agilent Technologies, Santa Clara, CA, USA) using Dako PD-L1 IHC 22C3 pharmDx diagnostic kit (Dako, Agilent Technologies, Santa Clara, CA, USA) following the manufacturer’s instructions. The slides were counterstained with hematoxylin. Stained slides were dehydrated and covered in a xylene-based mounting medium. All immunohistochemical examinations were assessed using a microscope by two experienced routine pathologists (JH and RM, Figure 2). PD-L1 was considered positive when membranous staining occurred in > 1% of neoplastic cells as the tumor proportion score (TPS) following standard recommendations [42] as described in our previous publication [20]. In cases of discordant findings using a multihead microscope, a PD-L1-positive percentage was numbered manually using CaseViewer software (version 2.4, 3DHistech, Budapest, Hungary) in digital histology scan.

4.3. Next Generation Sequencing

For molecular analysis, FFPE tissue sections from representative UCOGC tissue were used. In the case of tumors mixed with PDAC or IPMN, only the UCOGC component was microdissected. The DNA was extracted from eight to ten 5 µm thick sections employing the QIAamp FFPE Tissue Kit (Qiagen, Hilden, Germany). The concentrations of DNA were measured using a Qubit 3 Fluorometer with the Qubit dsDNA BR Assay Kit (Invitrogen, Thermo Fisher Scientific, Wilmington, DE, USA). The integrity and amplifiability of DNA extracted from FFPE tissue were checked according to the Biomed-2 recommendation [43]. We designed a custom NGS panel (Agilent Technologies, Santa Clara, USA) to detect Single Nucleotide Variants (SNVs) and Indels in 73 genes associated with solid tumors. The NGS custom panel was designed to cover genes crucial in pancreatic carcinogenesis according to a previously published panel [44]. The preparation of the NGS libraries was performed using the protocol for Illumina paired-end multiplexed library preparation, which involved enzymatic fragmentation and the SureSelectXT Library Preparation and Capture System (SureSelect XT Target Enrichment, Agilent Technologies). The NGS library was sequenced on the MiSeq instrument using the 2 × 75 v3 kit (Illumina, San Diego, CA, USA). The resulting FASTQ data underwent quality control checks and trimming. Indexing, mapping, alignment, and classification were accomplished through Varsome Clinical software (version 11.7, Saphetor, Lausanne, Switzerland) [45], utilizing the hg38 reference genome. The minimum frequency of variants was set to 5%, minimum coverage 100 reads.

4.4. List of Genes in Custom NGS Panel

AKT1, ALK, APC, ARAF, ARID1A, ARID1B, ATM, ATR, BRAF, BRCA1, BRCA2, CCND1, CDK12, CDKN2A, CDKN2B, CIC, CSF1R, CTNNB1, DDR2, EGFR, ERBB2, ESR1, FAT1, FBXW7, FGFR1, FGFR2, FGFR3, FGFR4, GATA3, GNA11, GNAQ, GNAS, H3-3A, H3C2, HDAC2, CHEK1, CHEK2, IDH1, IDH2, KEAP1, KIT, KRAS, MAP2K1, MDM2, MDM4, MET, MTOR, MYB, MYC, MYCN, NF1, NOTCH1, NRAS, NTRK1, NTRK2, NTRK3, PALB2, PDGFRA, PIK3CA, PIK3R1, POLE, PTEN, PTCH1, PTPN11, RB1, RET, ROS1, SMAD4, SMARCA4, SMARCB1, SRC, STK11, TP53.

5. Conclusions

No somatic genetic aberrations were identified that were obviously associated with either patient prognosis or PD-L1 status. From the standpoint of this analysis, there appears to be a justification for conducting PD-L1 immunohistochemistry as a routine procedure in UCOGC cases, together with a detailed genetic analysis focused on oncogenic and druggable molecular genetic signatures in all pancreatic cancers, regardless of histological subtype. Further data are required to clarify any potential correlations between pathogenic mutations, histological subtypes, and prognosis in pancreatic cancer.
