OsMADS1 Regulates Grain Quality, Gene Expressions, and Regulatory Networks of Starch and Storage Protein Metabolisms in Rice

Liu, Zhijian; Li, Penghui; Yu, Lan; Hu, Yongzhi; Du, Anping; Fu, Xingyue; Wu, Cuili; Luo, Dagang; Hu, Binhua; Dong, Hui; Jiang, Haibo; Ma, Xinrong; Huang, Weizao; Yang, Xiaocheng; Tu, Shengbin; Li, Hui

doi:10.3390/ijms24098017

Open AccessArticle

OsMADS1 Regulates Grain Quality, Gene Expressions, and Regulatory Networks of Starch and Storage Protein Metabolisms in Rice

by

Zhijian Liu

^1,2,†,

Penghui Li

^1,†,

Lan Yu

^1,3,

Yongzhi Hu

^1,3,

Anping Du

¹

,

Xingyue Fu

^1,2,

Cuili Wu

^1,3,

Dagang Luo

⁴,

Binhua Hu

⁵,

Hui Dong

⁶,

Haibo Jiang

¹,

Xinrong Ma

¹,

Weizao Huang

¹,

Xiaocheng Yang

³,

Shengbin Tu

^1,2 and

Hui Li

^1,*

¹

Chengdu Institute of Biology, Chinese Academy of Sciences, Chengdu 610041, China

²

University of Chinese Academy of Sciences, Beijing 100049, China

³

College of Ecology and Environment, Chengdu University of Technology, Chengdu 610059, China

⁴

Crop Research Institute, Sichuan Academy of Agricultural Sciences, Chengdu 610066, China

⁵

Biotechnology and Nuclear Technology Research Institute, Sichuan Academy of Agricultural Sciences, Chengdu 610066, China

⁶

State Key Laboratory of Crop Genetics and Germplasm Enhancement, Nanjing Agricultural University, Nanjing 210095, China

^*

Author to whom correspondence should be addressed.

^†

These authors contributed equally to this work.

Int. J. Mol. Sci. 2023, 24(9), 8017; https://doi.org/10.3390/ijms24098017

Submission received: 26 February 2023 / Revised: 22 April 2023 / Accepted: 26 April 2023 / Published: 28 April 2023

(This article belongs to the Special Issue Molecular Research in Rice)

Download

Browse Figures

Review Reports Versions Notes

Abstract

:

OsMADS1 plays a vital role in regulating floret development and grain shape, but whether it regulates rice grain quality still remains largely unknown. Therefore, we used comprehensive molecular genetics, plant biotechnology, and functional omics approaches, including phenotyping, mapping-by-sequencing, target gene seed-specific RNAi, transgenic experiments, and transcriptomic profiling to answer this biological and molecular question. Here, we report the characterization of the ‘Oat-like rice’ mutant, with poor grain quality, including chalky endosperms, abnormal morphology and loose arrangement of starch granules, and lower starch content but higher protein content in grains. The poor grain quality of Oat-like rice was found to be caused by the mutated OsMADS1^Olr allele through mapping-by-sequencing analysis and transgenic experiments. OsMADS1 protein is highly expressed in florets and developing seeds. Both OsMADS1-eGFP and OsMADS1^Olr-eGFP fusion proteins are localized in the nucleus. Moreover, seed-specific RNAi of OsMADS1 also caused decreased grain quality in transgenic lines, such as the Oat-like rice. Further transcriptomic profiling between Oat-like rice and Nipponbare grains revealed that OsMADS1 regulates gene expressions and regulatory networks of starch and storage protein metabolisms in rice grains, hereafter regulating rice quality. In conclusion, our results not only reveal the crucial role and preliminary mechanism of OsMADS1 in regulating rice grain quality but also highlight the application potentials of OsMADS1 and the target gene seed-specific RNAi system in improving rice grain quality by molecular breeding.

Keywords:

OsMADS1; grain quality; starch metabolism; seed storage protein metabolism; rice

1. Introduction

Rice (Oryza sativa L.) is one of the top three staple crops worldwide, which feeds over half of the global population. Like yield, grain quality is one of the most concerning key agronomic traits for rice consumers, sellers, processors, producers, and breeders, which largely determines the taste, nutritional value, and price of rice. The rice grain quality is mainly composed of milling quality, appearance quality, cooking and sensory quality, and nutrition quality [1], which is comprehensively controlled by a series of key regulatory genes and environmental factors. Thus, mapping and cloning key genes regulating grain quality from important rice germplasm resources, studying and uncovering the corresponding regulatory mechanisms, and subsequent application of these genes in breeding for rice grain quality are indispensable and helpful for scientists and breeders to develop superior-quality rice varieties.

Some transcription factors, such as MADS-box family members known to regulate inflorescence and spikelet development in rice, are also thought to be related to grain quality regulation, but the detailed underlying regulatory mechanisms are still to be explored. It is interesting that some MADS-box genes such as OsMADS1, OsMADS6, and OsMADS7 are specifically and highly expressed both in panicles and seeds [2], suggesting these genes could also be related to the regulation of seed development and grain quality formation. This deduction was partly confirmed by the abnormal phenotypes in OsMADS6 mutant with both abnormal floral organs and shriveled seeds in which the grain quality, starch filling, and expressions of ADP-glucose pyrophosphorylase genes were decreased, but the seed protein content was increased [3]. In addition, another MADS-box gene, OsMADS29, was found to be specifically expressed in seeds, including nucellus, dorsal-vascular trace, embryo, and endosperm. OsMADS29-RNAi (OsMADS29-RNA interference) plants exhibited suppressed starch biosynthesis and reduced grain-filling rate, loosely packed starch granules, and shrunken grains. Expression of OsMADS29 is induced by auxin, and OsMADS29 transcription factor regulates degradation of maternal tissues, including ovule, by directly binding to the downstream programmed cell death genes in these maternal tissues, thereby controlling subsequent seed development and affecting the grain quality formation [4]. In addition, Zhang et al. [5] reported that high temperature at the early filling stage greatly induced the expression of OsMADS7 and suppression of it in rice endosperm stabilized amylose content, possibly by maintaining a relatively low filling rate and high expression of the encoding gene of GBSS I (granule-bound starch synthase I) under high-temperature stress.

Furthermore, extensive studies have revealed that another class E floral homeotic gene of the MADS-box family, OsMADS1, plays important roles in regulating floral organ development in rice by regulating the floral meristem specification and floral organ identity [6,7,8,9]. Several recent studies further found out that OsMADS1 also controls grain shape by interactions with G-protein (guanine nucleotide-binding protein) subunits, including DEP1 (dense and erect panicle 1) and GS3 (grain size 3) to collaboratively regulate expressions of underlying downstream target genes related to grain shape and development [10,11,12,13].

After the first OsMADS1 mutant, lhs1 (leafy hull sterile1) was reported by Kinoshita et al. [14], at least 11 mutants and four NILs (Near-isogenic lines) of OsMADS1 including lhs1 [7,14], nsr (naked seed rice) [8], NF1019, ND2920, NE3043 and NG778 [6], osmads1-z [9], afo (abnormal floral organs) [15], ohms1 (open hull and male sterile 1) [16], cy15 [17] and Olr (Oat-like rice) [10], NIL (SLG) [13], WYJ7 (Wuyungeng No. 7)-lgy3-dep1–1, RD23-lgy3-gs3 and PA64S (Peiai 64S)/9311 (Yangdao No. 6)-lgy3-gs3 [11] have been reported so far. Thereinto, Olr is a spontaneous and severe OsMADS1 mutant, which was named for its unique grain shape, which highly resembles oat grains. Olr displayed abnormal floral organs, open hulls formed by remarkably elongated leafy lemmas and paleae, occasionally formed conjugated twin brown rice, aberrant grain shape, low seed setting rate, slow grain-filling rate, low 1000-brown rice weight, and extremely low yield [10].

However, it’s interesting that the grain quality was only analyzed in NIL (SLG) [13], WYJ7-lgy3-dep1–1, RD23-lgy3-gs3, PA64S/9311-lgy3-gs3 [11], which may be partly due to unavailable seeds caused by sterility or extremely low fertility of these mutants. These four rice NILs carry the same mutated allele of OsMADS1, OsMADS1^lgy3/OsLG3b^SLG, but the effect of this allele on the grain quality of these NILs was divided into two distinct categories. There is no significant difference in chalkiness between grains of NIL (SLG) and its receptor parent Nipponbare, which indicates that OsLG3b^SLG did not affect grain quality in Nipponbare [13]. However, WYJ7-lgy3-dep1–1, RD23-lgy3-gs3, and PA64S/9311-lgy3-gs3 grains all displayed lower chalkiness compared with their respective receptor parent, WYJ7, RD23, and LYPJ (Liangyoupeijiu, PA64S/9311), which indicates that OsMADS1^lgy3 affected and improved grain quality in WYJ7, RD23, and LYPJ [11]. Interestingly, the question of whether OsMADS1 regulates grain quality is still contradictory and obscure.

Thus, it is necessary to analyze the grain quality of more mutants or accessions carrying different mild, moderate, or severe OsMADS1 alleles to confirm whether OsMADS1 regulates grain quality and further uncover the regulatory mechanism. In this study, we analyzed the grain quality of the OsMADS1^Olr mutant (Olr) and identified a correlation between the mutation in the OsMADS1 gene and the chalkiness phenotype. The Olr mutant displays poor grain quality with chalky endosperms, abnormal morphology, and loose arrangement of starch granules, with lower starch content but higher protein content in grains. Moreover, OsMADS1 has a crucial role in regulating rice quality by coordinating gene expressions and regulatory networks of starch and storage protein metabolisms in rice grains. Therefore, this study also highlighted the application potentials of OsMADS1 and the target gene seed-specific-RNAi system in rice breeding to develop superior-quality rice varieties.

2. Results

2.1. Olr Exhibits Pleiotropic and Heritable Phenotypes of Chalky Endosperms and Abnormal Grain Shape

Our previous study revealed that Olr exhibits abnormal grain shape and long grains determined by elongated open lemmas and paleae, which is accompanied by lower 1000-brown rice weight and slower grain-filling rate [10]. To explore if the appearance quality of Olr grains was also affected, we initially analyzed the appearance quality of endosperms between Olr and the control variety, Nip (Nipponbare), which exhibits normal grain quality as well as grain shape and is a wildly used model variety in rice. Compared with Nip, endosperms of Olr are not only apparently smaller but also exhibit more grain chalkiness with opaque white-core in the inner endosperm, as indicated by an extremely significant and higher percentage of endosperms with chalkiness and degree of endosperm chalkiness (Figure 1A–C). Furthermore, the Olr displayed stable and heritable Olr phenotypes with chalky endosperms and abnormal grain shape in every generation in Sichuan and Hainan provinces in China by field observation, indicating the pleiotropic phenotypes are heritable and controlled by genetic factors.

2.2. The Chalky Endosperms of Olr Are Caused by Abnormal Morphology and Loose Arrangement of Starch Granules

Further cross-section analysis of Olr and Nip brown rice by dissecting microscope revealed that although both of their outer endosperms are translucent and similar to each other, the inner endosperm of Olr displayed a chalky white-core (Figure 1D,H). Scanning electron microscope analysis showed that the chalky inner area in Olr endosperm has relatively lower electron density than the translucent Nip endosperm and translucent outer area of Olr endosperm, which suggests that the shape and arrangement of starch granules in the chalky inner area of Olr endosperm may be affected (Figure 1E,I). A magnified view reveals that in contrast to the tightly arranged larger polyhedral starch granules of translucent endosperm in Nip, some small polyhedral and spherical starch granules arranged loosely with large air spaces were observed in the chalky endosperm of Olr (Figure 1F,G,J,K). It suggests that not only the morphology and arrangement of starch granules but also the formation of starch granules were affected in the chalky endosperm of Olr. Therefore, the occurrence of chalkiness in Olr endosperms was caused by the abortive or compromised formation of starch granules, resulting in abnormal morphology and loose arrangement of starch granules.

2.3. The Grain Quality of Olr with Relatively Lower Starch Content but Higher Protein Content Is Linked with Its Grain Shape

Subsequently, the starch and storage protein contents of brown rice from Olr, Nip, and their progeny plants were determined. The percentages of total starch, amylose, and amylopectin contents of Olr brown rice are 86.66 ± 0.74%, 20.43 ± 0.15%, and 66.23 ± 0.81%, which are lowered by 10.51%, 4.55%, and 12.35% than that of the Nip brown rice. By contrast, the Olr brown rice accumulated an extremely high content of storage protein, which is 14.13 ± 0.07%, and increased by 51.77% than that of the Nip brown rice (Table 1). These results that starch and storage protein contents were changed in Olr grains imply that metabolism and accumulation of starch and storage protein may also be changed. It is likely that decreased starch content but increased storage protein content affected normal formation, morphology, and arrangement of starch granules, thereby causing chalk endosperms and poor grain quality of Olr.

To figure out whether changes in grain quality, including starch and storage protein contents in Olr grains, were linked with its abnormal grain shape, a linkage analysis between the two traits was performed. We measured the starch and storage protein contents of brown rice from plans of F₂ and F₃ segregating populations derived from a cross combination between Olr and Nip. If the two traits are linked with each other that indicates that they are caused by the same mutated gene in Olr. However, the two traits are caused by different genes. The test results were very similar to the comparison of starch and storage protein contents between Olr and Nip. Both F₂ and F₃ plants showing Olr phenotypes with poor grain quality and abnormal grain shape exhibited extremely lower contents of total starch, amylose, and amylopectin but extremely higher content of storage protein as a whole, compared with that of both F₂ and F₃ plants showing normal grain quality and grain shape, respectively. For example, compared with the plants showing normal phenotypes in the F₃ population, the percentage contents of total starch, amylose, and amylopectin in brown rice from plants showing Olr phenotypes are 75.71 ± 1.53%, 15.95 ± 0.04%, and 59.76 ± 1.49%, which is lowered by 14.28%, 11.19%, and 15.07% respectively. However, these F₃ plants showing Olr phenotypes accumulated an extremely high content of storage protein in the brown rice, which is 14.90 ± 0.03%, and increased by 97.09% compared with that of F₃ plants showing normal phenotypes (Table 1). These results collectively indicate that the grain quality of Olr, with relatively lower starch content but higher protein content, is linked with its grain shape. We further speculated that both the poor grain quality and abnormal grain shape of Olr were caused by the pleiotropic effects of the same mutated gene, OsMADS1^Olr [10].

2.4. OsMADS1 Has a Direct Role in Controlling Grain Quality

In order to examine whether the poor grain quality of Olr was caused by the mutated OsMADS1^Olr gene, we tried several times to perform a complementation test by expressing the wild-type OsMADS1 gene in Olr and finally obtained positive transgenic plants (Figure 2). The grain shape of the eight T₀ positive plants was partly recovered with a closed hull, shortened grain length, and grain width, which is similar to the normal rice grains of Nip (Figure 2A). In the Nip and T₀ negative control plant, the 174-bp genomic fragment of the endogenous wild-type OsMADS1 and mutated OsMADS1^Olr gene were identified by PCR test. By contrast, both the 174-bp genomic fragment of the endogenous mutated OsMADS1^Olr gene and the 84-bp cDNA fragment of the exogenous wild-type OsMADS1 gene (cDNA) harbored by the pUbi::OsMADS1 vector were identified in these eight T₀ positive plants (Figure 2B,C). Further statistical analysis showed that grain length, grain width, grain length-to-width ratio, and grain thickness of these eight T₀ positive plants were significantly decreased than those of the T₀ negative control plant but more similar to the normal rice grains of Nip as a whole (Figure 2D,E).

These results showed that the grain shape of Olr was rescued by introducing the wild-type OsMADS1 gene, which confirmed that the abnormal grain shape of Olr was caused by its mutated OsMADS1^Olr gene. However, we were unable to know whether the poor grain quality of Olr was recovered or not due to spikelet sterility or failure in the germination of occasionally produced several seeds of the transgenic plants. As shown in Figure 2, both control plants and six of the eight T₀ positive plants (C-28, C-30, C-3, C-4, C-5, and C-10) were sterile; only C-9 and C-6 plants occasionally produced several seeds but failed to germinate (Figure 2A, indicated by white arrows).

When the flowering and grain-filling stages are in the summer seasons, the seed-setting rate of Olr mutant is around 15% in Chengdu city, Sichuan province of China in different years. However, both T₀ control and positive plants exhibited spikelet sterility or extremely low fertility (0.36% of C-9 and 1.05% of C-6 plants, respectively). So, we speculated that spikelet sterility or extremely low fertility of these T₀ plants could be possibly attributed to the relatively cold weather in late October, early and middle November in Chengdu during the flowering, grain filling, and seed development stages of these plants (Figure S1).

To study if OsMADS1 has a direct role in controlling grain quality, we further used an OsMADS1 seed-specific RNAi system and analyzed the grain appearance quality of descendant lines of pOsTip3 (tonoplast intrinsic protein 3)::OsMADS1-RNAi plants in details. Compared with wild-type plants (Nip), the three homozygous pOsTip3::OsMADS1-RNAi T₃ lines (SRi11, SRi14, and SRi16) showed a slightly darker brown color in the T₄ brown rice (Figure 3A–D). Furthermore, all these three lines exhibited more chalkiness, indicated by consistently and greatly increased percentage of brown rice with chalkiness, percentage of endosperms with chalkiness, and degree of endosperm chalkiness than that of wild-type plants (Figure 3I–K). Thus, seed-specific RNAi of the OsMADS1 gene resulted in poor grain appearance quality in the transgenic lines, which is consistent with the poor grain quality of Olr and further indicates that OsMADS1 has a direct role in regulating grain quality in rice.

2.5. Verifying the Causal Gene of Grain Quality Phenotype in Olr through Mapping-by-Sequencing

Liu et al. [11] reported that three NILs of the mutated OsMADS1^lgy3 gene, WYJ7-lgy3-dep1–1, RD23-lgy3-gs3 and PA64S/9311-lgy3-gs3, all displayed improved grain quality, which is contradictory with the poor grain quality of Olr and OsMADS1 seed-specific RNAi. To confirm whether the poor grain quality of Olr was indeed caused by the OsMADS1^Olr gene, we further mapped and isolated the causal gene using the mapping-by-sequencing method based on a constructed F₂ segregating population by a cross between Olr and Nip. Two pooled DNA libraries from maternal plant Olr (MO-bulk) and parental plants Nip (PN-bulk), and another two groups of their F₂ progeny plants showing Olr phenotypes (O-bulk) or normal phenotypes (N-bulk) were constructed, and sequenced. Screened SNPs (single nucleotide polymorphisms) between Olr and Nip were used to calculate the SNP-index of O-bulk and N-bulk and the corresponding ∆(SNP-index) between the two bulks. Then, linkage maps between SNPs and the candidate causal gene in the 12 chromosomes of rice were constructed by the SNP-index and ∆(SNP-index) and were subsequently used to identify the location of the candidate causal gene (Section 4.7.).

Both an SNP-index peak of 1.0 and a corresponding SNP-index trough of 0.37 were simultaneously identified at the same location within the same 2.15 interval (5.26–7.41 Mb) of rice chromosome 3 in the SNP-index plots of O-bulk and N-bulk, respectively. The corresponding ∆(SNP-index) peak between O-bulk and N-bulk is 0.63 and located at the same location within the 2.15 interval above the 99% confidence interval. Therefore, the causal candidate gene of Olr grain quality was identified in the 5.26–7.41 Mb interval of rice chromosome 3 (Figure 4A,B). Within the 2.15 Mb candidate region, four candidate causal SNPs distributed in three candidate genes were identified according to a series of stringent screening criteria (Table S2 and Figure 4C).

In the three candidate genes, OsMADS1 (Os03g0215400) was previously reported to regulate flower development and grain shape [7,11]. Further protein expression pattern of OsMADS1 showed that its expressions were negligible in flag leaves but high in both florets and developing seeds. Furthermore, OsMADS1 exhibited a continuously decreasing expression pattern in developing seeds from 1–6 to 12–18 DAF seeds (Figure 4E). This result suggests the possibility that OsMADS1 is involved in the regulation of seed development and grain quality formation.

In the mutated OsMADS1^Olr allele of Olr, the 80th SNP mutated from G to A in the first exon, further verified by sequencing, resulting in the amino acid mutation of the 27th amino acid in the MADS-box domain of the encoding OsMADS1 protein from conserved and nonpolar G (glycine) to polar D (aspartic acid) (Figure 4C,D). Subsequent 3D protein structure prediction and comparison showed that the structure of the mutated 27th aspartic acid and its side chain in the MADS-box domain of OsMADS1^Olr was altered compared with that of the wild-type OsMADS1 protein (Figure 5A–D). This result suggests that mutation of the aspartic acid in the OsMADS1^Olr protein may affect its protein structure, including the MADS-box domain, thereby affecting the binding ability to its target genes and normal regulatory roles to seed development and grain quality formation. In addition, we detected the subcellular localization of OsMADS1-eGFP (OsMADS1-enhanced green fluorescent protein) and OsMADS1^Olr-eGFP fusion proteins in rice protoplasts and found out that both of them were localized in the nucleus (Figure 5E–P), which is not only consistent with the nucleus localization of MADS-box transcription factors but also indicates that mutation in the MADS-box domain of OsMADS1^Olr didn’t affect its nucleus localization. Collectively, these results confirmed that OsMADS1^Olr is the causal gene of the poor grain quality in Olr.

2.6. Overview of mRNA-Seq Results of Developing Grains from Nip and Olr

To explore the gene regulatory networks and mechanism of OsMADS1 in regulating rice grain quality, we performed a comprehensive transcriptomic analysis in developing grains between Nip and Olr by Illumina high-throughput transcriptome sequencing. Overview of mRNA-seq results indicate that the mRNA-seq data with sufficient and high-quality reads, high mapping ratios of these reads to the Nip reference genome, and good correlation and similarity within biological replicates can be used for the downstream gene expression detection and differentially expressed gene analysis (Tables S3 and S4, and Figure S2).

2.7. Identification and Analysis of Differentially Expressed Genes (DEGs) between Nip and Olr Grains

DEGs analysis in developing grains between Olr and Nip was subsequently performed to explore the gene regulatory networks and mechanism of OsMADS1 in regulating rice grain quality. The numbers of DEGs and FPKM (Fragments per kilobase of transcript per million mapped reads) values of the corresponding genes obtained from grain samples at 1 DAF, 6 DAF, 12 DAF, 18 DAF, and 24 DAF between Nip and Olr were listed in Table S5 and Dataset S1, respectively. Overall, the numbers of upregulated DEGs are all lower than the numbers of downregulated DEGs in NS01_vs_OS01, NS06_vs_OS06, NS12_vs_OS12, NS18_vs_OS18, and NS24_vs_OS24 comparison groups, with a total of 13,550 upregulated and 20,822 downregulated DEGs of the five comparison groups (Table S5). We further analyzed the DEGs using a Venn diagram to explore unique, common, and specific DEGs in different comparison groups and disjointed subgroups. In the comparison groups between Nip and Olr, 16294 unique DEGs (7635 upregulated and 9775 downregulated) and 1619 common DEGs (336 upregulated and 1268 downregulated) were identified (Figure S3). Collectively, the results of the Venn diagram (Figure S3) and statistics of DEGs (Table S5) are consistent with each other, which reflects the different transcriptomic profiles of developing grains between Olr and Nip.

2.8. GO and KEGG Enrichment Analysis of DEGs between Nip and Olr Grains

To isolate related GO (Gene Ontology) terms and KEGG (Kyoto Encyclopedia of Genes and Genomes) pathways of OsMADS1 in regulating rice grain quality, GO and KEGG functional enrichment analysis was employed for DEGs between Nip and Olr samples. In summary, the enriched GO terms and KEGG pathways are mutually corroborated and complementary to each other in general, and some KEGG pathways overlap with part of the GO terms, especially in the GO BP (biological processes) and GO MF (molecular functions) terms. Furthermore, the enriched GO terms and KEGG pathways were concentrated in the functional categories, including carbon fixation and nitrogen assimilation, carbon and nitrogen metabolism, synthesis and transport of carbohydrate and amino acid, synthesis, processing, transport, and accumulation of starch as well as proteins. Moreover, these enriched functional categories are closely involved in the synthesis, metabolism, and accumulation of starch and storage protein in rice grains, which suggests that OsMADS1 likely controls the starch and storage protein contents as well as grain quality through these enriched functional categories (Figure S4A–D).

2.9. Analysis of the Dynamic Gene Expression Patterns between Nip and Olr Grains

We found out that the identified 30 Nip and 36 Olr robust clusters showed diverse temporal expression profiles by self-organizing maps (SOM) analysis (Figures S5 and S6). More GO items and KEGG pathways were enriched in the 36 Olr robust clusters than that in the 30 Nip robust clusters by GO and KEGG functional enrichment analysis (Datasets S2 and S3). Further identified storage protein-related GO items and KEGG pathways were found to be closely involved in the biological processes and metabolic pathways of synthesis, processing, transport, and accumulation of storage protein in grains (Datasets S4 and S5). Furthermore, identified starch-related GO items and KEGG pathways were mainly related to starch synthesis, metabolism, and regulation. Interestingly, these starch-related GO items, KEGG pathways, and corresponding genes are predominantly enriched in the No. 5 robust cluster of Nip, and the most abundant in the No. 25 robust cluster of Olr, separately (Datasets S6 and S7). The No. 25 robust cluster in Olr showed overall lower gene expression levels than that of the No. 5 robust cluster in Nip. This result is well consistent with our previous results that Olr exhibited a slower grain-filling rate and lower dry weight accumulation than that of Nip during grain development, which resulted in the remarkably lower 1000-brown rice weight of Olr (Figure S6A,B) [10]. Considering all these results and the fact that starch accounts for up to about 80% of the grain weight of rice, it suggests that the lower starch content, abnormal morphology and loose arrangement of starch granules, lighter 1000-brown rice weight, and poor appearance quality of Olr grains than that of Nip grains is related to the differences of expression patterns of starch related genes between them during grain development.

2.10. Analysis of Gene Expressions and Regulatory Networks of Starch Metabolism Pathways between Olr and Nip Grains

We analyzed gene expressions in starch metabolism pathways between Olr and Nip grains and found out that expressions of the 20 starch biosynthesizing genes in Olr were downregulated compared with Nip as a whole (Figure 6 and Table S6). Thereinto, OsAGPS1, OsAGPS2 (ADP-glucose pyrophosphorylase small subunit 1, 2), OsAGPL1, and OsAGPL2 (ADP-glucose pyrophosphorylase large subunit 1, 2) encode the subunits of ADP-glucose pyrophosphorylase, which is the rate-limiting enzyme of the starch biosynthesis pathway. All these four genes displayed downregulated expressions as a whole. In addition, transcripts of OsSUT2, OsGPT1, and OsBT1, which encode the sucrose transporter 2, glucose-6P translocator 1, and ADP-glucose transporter 1, respectively, were decreased in Olr grains on average. Interestingly, the negative regulatory gene RSR1 of starch biosynthesis showed obviously upregulated expression, but expressions of the other six positive regulatory genes, including RSR1 and OsNF-YB1, were apparently downregulated in Olr grains as a whole. By contrast, about two-thirds (67.27%) of the gene expression ratio grids in the starch degradation pathway displayed upregulated expression levels in Olr grains (Figure 6A,B). On the whole, the mutation of OsMADS1 in Olr resulted in an overall decline but an increase in gene expressions in starch biosynthesis and degradation pathways. Thereby, it may reduce the starch biosynthesis but increase the starch degradation, leading to lower starch content and poor grain quality of Olr. Collectively, we concluded that OsMADS1 could control grain quality by coordinating gene expressions and regulatory networks of starch metabolism pathways in rice grains.

2.11. Analysis of Gene Expressions and Regulatory Networks of Storage Protein Biosynthesis and Accumulating Pathways between Olr and Nip Grains

We further analyzed gene expressions in storage protein biosynthesis and accumulating pathways between Olr and Nip grains and found out that except for GluB2 (glutelin precursor B2), all the rest 11 glutelin precursor and one globulin genes exhibited obviously upregulated expressions at 6 DAF and 12 DAF grains in Olr. On the whole, expressions of prolamins genes were upregulated at 6 DAF grains. However, the 11 downstream genes controlling seed storage protein processing, trafficking, and accumulation displayed relatively smaller expression changes. On the whole, expression levels of the 26 seed storage protein biosynthesizing and regulating genes were downregulated at 1 DAF, 18 DAF, and 24 DAF grains but upregulated at 6 DAF and 12 DAF grains, with 84.00% and 73.07% upregulated genes, respectively. Expressions of these genes in 1 DAF grains in both Olr and Nip are relatively very low (Figure 7 and Table S7). However, seed storage protein accumulation can be detected at 4 DAF grains and increases quickly from 6 DAF to 12 DAF grains and continues to increase slowly from 12 DAF grains until the grains are at a mature stage [18]. Thus, mutation of OsMADS1 in Olr resulted in upregulation of gene expressions and disruption of regulatory networks of the seed storage protein biosynthesis during its quick accumulation stage, which may result in increased seed storage protein content and poor grain quality of Olr grains. Taking all these results together, we concluded that OsMADS1 could control grain quality by coordinating gene expressions and regulatory networks of starch and seed storage protein metabolism pathways in rice. Furthermore, expression patterns of OsMADS1 and other 12 DEGs involved in seed storage protein biosynthesis and regulation in Olr and Nip grains were very similar between qRT-PCR results and mRNA-seq data, which validated the mRNA-seq results (Figure 8; Figure S7).

3. Discussion

In this study, we preliminarily reveal that OsMADS1 regulates grain quality, gene expressions, and regulatory networks of starch and storage protein metabolisms in rice (Figure 9). However, it is very interesting that the functions of OsMADS1 in regulating grain quality are contradictory and obscure in previous studies. The report of Liu et al. [11] indicates that wild-type OsMADS1 negatively regulates grain quality in WYJ7, RD23, and LYPJ. By contrast, the report of Yu et al. [13] indicates that OsMADS1 does not affect grain quality. On the other hand, our results in this study showed that OsMADS1 positively regulates grain quality (Figure 1 and Figure 3).

However, it is very interesting that the regulatory role of OsMADS1 in grain quality is seemingly contrary between our results (Figure 1 and Figure 3) and the report of Liu et al. [11]. Firstly, these seemingly contradictory results may be partly derived from the differences in mutation types and resulted in effects on the gene functions between mutated OsMADS1^lgy3 and OsMADS1^Olr alleles. The OsMADS1 protein contains a MADS-box domain located in the N-terminal region of the protein and is responsible for the DNA binding with target genes, I region (Intervening region) and K-box domain (Keratin-like domain) mainly involved in dimerization and protein-protein interactions, and the C-terminal region implicated in transcriptional activation and higher-order complex formation [2]. The mutated OsMADS1^lgy3/OsLG3b^SLG allele encodes an alternatively spliced mutated protein OsMADS1^lgy3, in which the terminal 37 residues were truncated, and an additional 5 residues were added to its predicted C domain [11,12,13]. This mutation in the C-terminal region of OsMADS1^lgy3 did not affect the interactions with its interacting proteins, such as DEP1, and the DNA-binding affinity to its target genes, such as OsMADS55 and OsPIN1a, but largely abolished the transactivation activity to its target genes such as OsMADS55 and OsPIN1a [11], which could thereby change and affect the regulatory functions of OsMADS1^lgy3 to grain development and quality. On the other hand, the I region, K-box domain, and C-terminal region were normal, but the 27th conserved glycine in the MADS-box domain was mutated to aspartic acid in OsMADS1^Olr protein (Figure 4D), which could affect its 3D protein structure (Figure 5A–D) and the DNA-binding affinity to its target genes and thereby change and affect the regulatory functions of OsMADS1^Olr to spikelet and grain development as well as grain quality. Thus, the differences in mutation types and resulted in effects on the gene functions between mutated OsMADS1^lgy3 and OsMADS1^Olr alleles may partly cause the differences in grain quality between the three NILs of OsMADS1^lgy3 (WYJ7-lgy3-dep1–1, RD23-lgy3-gs3 and PA64S/9311-lgy3-gs3) and Olr mutant harboring the OsMADS1^Olr.

In the regulation processes of grain quality by OsMADS1^lgy3 or OsMADS1^Olr allele, it needs other cofactors or interacting proteins to form the transcription complex to regulate expressions of a large number of downstream grain quality-related target genes. The OsMADS1^lgy3 and OsMADS1^Olr are individually carried by the three NILs and Olr with different genetic backgrounds. Therefore, it is likely that OsMADS1^lgy3 and OsMADS1^Olr have some different cofactors, interacting proteins, and downstream target genes, and some genes encoding these cofactors and interacting proteins may also have different spatial and temporal expression patterns in different backgrounds. Therefore, the differences in components and their contents between OsMADS1^lgy3 and OsMADS1^Olr transcription complex in different backgrounds could result in the different effects of gene functions in regulating grain quality between OsMADS1^lgy3 and OsMADS1^Olr alleles.

The three NILs of OsMADS1^lgy3 displayed improved grain quality accompanied by normal spikelet fertility, longer grain length, and increased yield. On the other hand, the Olr mutant harboring OsMADS1^Olr exhibited decreased grain quality and the abnormal grain shape. Furthermore, OsMADS1^lgy3 is a useful allele in rice breeding, but OsMADS1^Olr is not likely to be used in rice breeding directly. These results revealed that compared with the mild OsMADS1^lgy3 allele, OsMADS1^Olr is a more severe allele. In addition, this study and previous results indicate that OsMADS1 plays critical and dual roles in regulating grain quality and grain shape [10,11,12,13].

Moreover, it also plays balanced regulatory roles in controlling grain shape, which regulates the specification of the lemma and palea and simultaneously acts as an inhibitor of overdevelopment of the lemma, palea, and grain length to maintain the balanced development of rice grains. Overexpression of wild-type OsMADS1 in Nip resulted in decreased grain length and smaller grain size but suppression of OsMADS1 expression in Nip caused increased grain length and bigger grain size [11]. The dual and balanced regulatory roles of OsMADS1 may also exist in the regulation of both grain quality and grain shape in rice and could be partly realized by coordinating the regulation of grain quality and grain shape. Li et al. [19] reported that the appearance quality attribute, grain chalkiness, is positively correlated with the grain shape attribute, grain width. Therefore, the compromise in gene function in the mild mutated allele OsMADS1^lgy3 may result in the re-establishment and maintenance of a better balance and homeostasis to regulate grain quality and grain shape, which finally leads to the improvement of grain quality and longer grain length in WYJ7-lgy3-dep1–1, RD23-lgy3-gs3 and PA64S/9311-lgy3-gs3 NILs. Conversely, a serious impact on gene function in the severely mutated allele OsMADS1^Olr may damage the normal regulatory roles of OsMADS1 and break down the balance and homeostasis to regulate grain quality and grain shape, which finally causes the poor grain quality and abnormal grain shape in Olr.

In conclusion, the opposite and seemingly contradictory effects between OsMADS1^lgy3 and OsMADS1^Olr alleles on the grain quality in NIL (SLG), WYJ7-lgy3-dep1–1, RD23-lgy3-gs3, PA64S/9311-lgy3-gs3 and Olr can be partly explained and may be caused by the differences of mutation types and resulted in effects on the gene functions of OsMADS1 alleles, influences of different genetic backgrounds to the gene functions of OsMADS1 alleles, dual and balanced regulatory roles of OsMADS1 alleles in regulating grain quality and the grain shape.

Our results showed that OsMADS1 controls grain quality by regulating starch and seed storage protein metabolism in rice. However, the detailed molecular regulatory mechanism still remains to be explored. Bello et al. [20] reported that two NF-Y type transcription factors, OsNF-YB1 and NF-YC12 (nuclear transcription factor Y subunit C-12), bind to each other and sequentially bind to another Helix-loop-helix transcription factor bHLH144 (basic helix-loop-helix protein 144) to form a heterotrimer complex NF-YB1-YC12-bHLH144, in which NF-YC12 and bHLH144 maintain NF-YB1 stability from the degradation mediated by ubiquitin/26S proteasome, while NF-YB1 directly binds to the G-box (CACGTG) domain of Wx (Waxy, granule-bound starch synthase I gene) promoter and activates Wx transcription, hence to regulate rice grain quality. There is also the possibility that OsMADS1 and other transcription factors can form heterodimerization and transcription complex to jointly regulate transcriptions of some downstream grain quality-related target genes to regulate grain quality. Our results showed that concurrently and overall decreased expressions of OsMADS1, OsNF-YB1, OsNF-YC12, bHLH144, and starch biosynthesizing genes in the developing grains of Olr is consistent with the reduced starch content in Olr grains, which partly supports this possibility.

Furthermore, in contrast to the positive regulators of starch biosynthesis, OsNF-YB1, OsNF-YC12, and bHLH144, another transcription factor RSR1 was reported to be a negative regulator of starch biosynthesis, and its expressions were obviously reduced in developing grains of Olr [21] (Figure 6). These results suggest that OsMADS1 may have the dual regulatory roles of activating or/and suppressing expressions of different starch and seed storage protein-related genes in grains by binding or interacting with some of the positive or/and negative regulators such as OsNF-YB1, OsNF-YC12, bHLH144, and RSR1 to accurately regulate starch and seed storage protein biosynthesis, hereafter accurately controlling grain quality. Our results showed that in developing grains of Olr, expressions of starch biosynthesizing and regulating genes were suppressed, but expressions of starch-degrading genes were promoted as a whole, and the seed storage protein biosynthesis regulating genes were suppressed at 1 DAF, 18 DAF, and 24 DAF but promoted at 6 DAF and 12 DAF in general (Figure 6 and Figure 7), which is consistent with this deduction.

On the other hand, RISBZ1 and RPBF encode a rice basic leucine zipper transcription factor and a rice prolamin box binding factor, respectively, which not only interact with each other to regulate expressions of seed storage protein genes through GCN4 Motif and thereby regulate storage protein biosynthesis but also regulate expressions of some of the starch biosynthesizing genes such as Wx [22,23]. Thus, similar to RISBZ1 and RPBF, there is also the possibility that OsMADS1 can regulate expressions of both starch, seed storage protein metabolizing, and related genes to collaboratively regulate starch and seed storage protein metabolism, thereby controlling grain quality.

4. Materials and Methods

4.1. Plant Materials and Growth Conditions

The ‘Olr (Oat-like rice)’ is a stably hereditable and recessive mutant caused by a spontaneous mutation, which was originally discovered in the paddy field in 2001 [10]. The japonica cv. Nip (Nipponbare) was used as a control of Olr in the comparative phenotypic and transcriptomic analyses during grain development because its original wild type is unknown. Nip was also used as the transgenic recipient and wild-type control in the OsMADS1 seed-specific RNAi (pOsTip3::OsMADS1-RNAi) transgenic experiment. The detailed method for constructing the pOsTip3::OsMADS1-RNAi transgenic lines was described in the study of Li et al. [10]. Olr, Nip, the F₂ and F₃ progeny plants derived from a cross combination of Olr/Nip were used for the determination of starch and protein contents in grains. Field-grown rice plants were grown under normal paddy conditions during natural growing seasons in an isolated experimental plot in Chengdu city, Sichuan province of China.

4.2. Measurement of Starch, Amylose, Amylopectin, and Protein Content

Brown rice from Nip, Olr, F_2, and F₃ progeny plants of Olr and Nip were milled into fine flour by using a flour mill. The fine flour from each of the samples was subsequently used for the determination of the starch, amylose, amylopectin, and protein contents. Starch content, amylose content, and amylopectin contents were determined by using the starch assay kits Megazyme K-TSTA and K-AMYL (Megazyme, Wicklow, Ireland) as described by Wei et al. [24]. The protein content of the samples was determined following the method described by Kang et al. [25].

4.3. Vector Construction and Rice Transformation

For the construction of the pUbi::OsMADS1 vector used to express the wild-type OsMADS1 gene in Olr to rescue its poor grain quality, the wild-type OsMADS1 cDNA was cloned from Nip and was inserted into the binary vector pCUbi1390 [26] at the BamH I site and the Spe I site. Then, the pUbi::OsMADS1 vector was transformed into the Olr calli to obtain T₀ transgenic plants by Agrobacterium tumefaciens (EHA105)-mediated transformation [27]. The corresponding primers developed for constructing the pUbi::OsMADS1 vector are listed in Table S8.

4.4. Transcriptome Samples Collection and Treatment

Nip and Olr grains at representative time points during grain development consisting of 1 DAF, 6 DAF, 12 DAF, 18 DAF, and 24 DAF were collected from field-grown rice plants. For all grain samples at each time point, three biological replicates were harvested from Nip and Olr plants. Harvested samples were immediately frozen in liquid nitrogen and stored at −80 °C. Then all samples frozen by drikold were shipped to Basebio Biotechnology Co., Ltd. (Chengdu 610041, China) for sample quality testing, cDNA library construction, transcriptome sequencing, and initial data analysis.

4.5. Transcriptome Data Analysis

The sequencing quality of obtained raw data with the fastq format of each sample was assessed using the FastQC tool (https://www.bioinformatics.babraham.ac.uk/projects/fastqc/, accessed on 27 April 2023). Subsequently, the clean reads of each sample with high quality were aligned to the rice reference genome sequence (Nipponbare rice genome IRGSP-1.0) using the Tophat2 software (v2.1.1, Center for Bioinformatics and Computational Biology, University of Maryland, College Park, MD, USA) [28]. For transcript quantification, HTSeq-count script (v2.0.2, https://pypi.org/project/HTSeq/, accessed on 27 April 2023) was then used to obtain the calculated reads count and FPKM (fragments per kilobase of transcript per million mapped reads) value for every single transcript of every gene in each sample. To test the correlation of different samples and the similarity of biological replicates, the PCA (Principal Component Analysis) and sample-to-sample correlation analysis were used. DEGs testing was analyzed using DESeq R packages according to the manual. Raw count data was prepared by custom perl script based on the results of eXpress software and was imported into the DESeq framework. The FDRs (False Discovery Rates) were controlled using the Benjamini–Hochberg method at an FDR of 5% [29]. For analyzing the overlapping DEGs, Venn diagram analysis was employed [30]. Functional enrichment analysis of DEGs is based on the hypergeometric test. The obtained DEGs between Olr and Nip grain samples were annotated by the databases of GO and KEGG and subsequently subjected to GO and KEGG significant enrichment analysis to identify starch and storage protein-related GO functional categories and KEGG pathways [31,32]. SOMs were constructed to identify and compare the expression patterns of DEGs between Olr and Nip grains by using SOM R packages. Subsequently, temporal expression profiles of the obtained robust clusters were constructed based on the extracted characteristic values of the gene expression levels in the robust clustering maps by the SOMs analysis [33].

4.6. Grain Appearance Quality Analysis and Microscope Observation

Mature grains were harvested and naturally dried, then stored at room temperature. Grains of Nip and Olr were dehulled using a rice huller or manually. Then brown rice of Nip and Olr was ground into white rice (endosperms) using a rice polisher. The appearance quality of these white rice, including the percentage of endosperms with chalkiness and degree of endosperm chalkiness, was analyzed using a rice quality analyzer (TPMZ-A, Zhejiang Top Cloud-agri Technology Co., Ltd., Hangzhou, China).

Brown rice grains of Nip and Olr were transversely cut in the middle using a dissecting blade. Then the corresponding half-brown rice grains were mounted on stubs, and the transverse sections of these samples were first observed under a dissecting microscope (SMZ745T, Nikon, Tokyo, Japan). Then each of the same observed samples was mounted on a stub, and the transverse section was coated with gold and subsequently observed under an SEM (Inspect S50, FEI Company, Hillsboro, OR, USA) with an accelerating voltage of 20.00 kV. The transverse sections of the brown rice grains with or without chalkiness and the corresponding starch granules were observed and photographed under the SEM.

4.7. Mapping-by-Sequencing the Causal Gene of Grain Quality Phenotype in Olr

For mapping and cloning the causal gene through the mapping-by-sequencing method, we initially constructed an F₂ segregating population by a cross between Olr (maternal plant) and Nip (paternal plant) [10]. Then, the maternal bulk DNA (OM-bulk) and paternal bulk DNA (NP-bulk) of the parental plants were prepared by extracting and mixing equal amounts (500 ng total DNA) of DNA samples from nine individual plants of Olr and Nip. In addition, DNA samples were extracted from 152 individual plants showing Olr grain shape (O-bulk), and another 152 individual plants showing normal grain shape (N-bulk) in the F₂ segregating population; and the two groups of DNA samples were mixed with the equal amount (500 ng total DNA) of the 152 DNA samples in each group, and finally to be served as the O-bulk and N-bulk, respectively. Then, the DNA samples frozen by drikold were shipped to Shanghai OE Biotech Inc. (Shanghai 201100, China) for DNA library construction, high throughput sequencing, and initial data analysis.

Pooled libraries with insert sizes of around 350–500 bp were prepared and sequenced on a HiSeq X™ Ten system (Illumina, San Diego, CA, USA) by using 150-base paired-end sequencing. In addition, the short reads obtained from the four samples were aligned to the reference genome of the japonica cv. Nip (IRGSP-1.0) using BWA software (version 0.7.17, Wellcome Trust Sanger Institute, Wellcome Trust Genome Campus, Cambridge, UK) [34]. Alignment files were converted to SAM/BAM files using SAMtools and applied to the SNP-calling.

Unique SNP sites were filtered (ratio ≥ 0.8) in both maternal bulk (OM-bulk) and paternal bulk (NP-bulk) by comparing the two bulks. The intersections among unique SNP sites from the two maternal & paternal bulks and SNP sites of the progeny bulks (O-bulk and N-bulk) were taken. Then the SNP index of the screened SNP sites was calculated. SNP-index = Number of the reads with the SNP derived from the maternal plant, Olr/(Number of the reads with the SNP derived from the maternal plant, Olr + Number of the reads with the SNP derived from the paternal plant, Nip). If SNP-index = 0, it indicates that all the reads of the SNP were derived from the paternal plant, Nip; but if SNP-index = 1, it indicates that all the reads of the SNP were derived from the maternal plant, Olr.

Sliding window analysis was subsequently applied to calculate the SNP-index of O-bulk and N-bulk and to calculate the ∆(SNP-index) between O-bulk and N-bulk (O-bulk—N-bulk) based on a 1 Mb interval with a 10 kb sliding window. The SNP-index plots (O-bulk and N-bulk), ∆(SNP-index) plot (O-bulk—N-bulk), as well as the corresponding linkage maps, were simultaneously drawn and constructed. For the ∆(SNP-index) plot, the 99% (p < 0.01) and 95% (p < 0.05) statistical confidence intervals were set under the null hypothesis of no causal gene, or QTL was identified within the confidence intervals.

Location and further screening of the candidate causal SNPs and corresponding candidate genes were based on the criteria that SNP-index in paternal bulk (PN-bulk) is 0.00, SNP-index in maternal bulk (MO-bulk) is no less than 0.85, SNP-index in O-bulk is 1.00, SNP-index in N-bulk ranges from 0.30 to 0.40, the corresponding Δ(SNP-index) between O-bulk and N-bulk ranges from 0.60 to 0.70, the SNP is located within the gene which either caused missense mutation or stop codon of the encoding protein. The screened candidate causal SNPs, positions, corresponding candidate genes, location of mutations within genes, effects on amino acid changes, and predicted gene functions were annotated using SnpEff software (version 5.1, https://pcingola.github.io/SnpEff/, accessed on 27 April 2023).

4.8. Immunoblot Analysis

The proteins were extracted from the flag leaves, florets, and seeds of rice using the Lysis Buffer [50 mM Tris-HCl, pH 7.5; 150 mM NaCl; 1 mM EDTA; 10% glycerol; 2 mM Na₃VO₄; 25 mM glycerophosphate; 10 mM NaF; 0.05–0.1% Tween20; 1 × Protease Inhibitor Cocktail (MedChemExpress, Shanghai, China); 1 mM PMSF]. The obtained protein lysates were immunoblotted with the OsMADS1 antibody (Catalog No.: A20328; ABclonal Technology Co., Ltd., Wuhan, China), and the abundance of HSP82 protein detected by the HSP82 antibody (Beijing Protein Innovation Co., Ltd., Beijing, China) was used as an internal control.

4.9. Three-Dimensional Protein Structure Prediction

The 3D protein structure prediction of wild-type OsMADS1 and mutated OsMADS1^Olr proteins was performed using the PyMOL molecular visualization program (https://pymol.org/2/, accessed on 27 April 2023).

4.10. Protein Subcellular Localization

The full-length CDS (coding sequence) of wild-type OsMADS1 and mutated OsMADS1^Olr was amplified from the Nipponbare and Oat-like rice cDNA using the PCR primers listed in Table S8. The verified CDS fragments of OsMADS1 and OsMADS1^Olr were cloned in the frame in front of the eGFP CDS in the pJIT163-P35S::eGFP vector to construct the pJIT163-P35S::OsMADS1-eGFP and pJIT163-P35S::OsMADS1^Olr-eGFP transient overexpression vector driven by the 35S promoter. P35S::OsMADS1-eGFP or pJIT163-P35S::OsMADS1^Olr-eGFP vector was transferred into and transiently expressed in rice protoplasts using the methods as described previously [35,36]. The eGFP fluorescent signals were detected using a confocal laser-scanning microscope (Leica TCS SP8, Wetzlar, Germany).

4.11. qRT-PCR Analysis

To verify the Illumina comprehensive transcriptomic data, the same batch of samples for preparation of the Illumina sequencing libraries was used to analyze the expression profiles of storage protein-related genes in Nip and Olr by qRT-PCR analysis. The qRT-PCR analysis, including cDNA synthesis, was performed following the method described by Li et al. (2020) [10]. The OsActin gene in rice was used as an endogenous control. The relative gene expression levels were calculated by using the 2^−ΔΔCT algorithm. The primers used in the qRT-PCR analysis are listed in Table S9.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24098017/s1.

Author Contributions

H.L., S.T., X.Y., H.D., H.J. and X.M. conceived and designed the research; Z.L., P.L., L.Y., H.L., Y.H., X.F., C.W., D.L. and B.H. performed the experiments; Z.L., P.L., L.Y., H.L., Y.H., A.D., X.F., C.W., D.L., B.H., H.D. and W.H. analyzed the data; Z.L., P.L., L.Y. and H.L. wrote the manuscript; H.L., Z.L., P.L., L.Y., A.D., H.J., X.M., W.H., X.Y. and S.T. reviewed and revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by grants from the Strategic Priority Research Program of the Chinese Academy of Sciences (Precision Seed Design and Breeding, XDA24020304), the Key Programs for International Science & Technology Cooperation from Science and Technology Department of Sichuan Province, China (Grant No. 2021YFH0052, 2019YFH0043, 2020YFH0003 and 2020YFH0172), the ‘One Belt and One Road’ Project of International Partners Program from Bureau Of International Cooperation, Chinese Academy of Science (Grant No. 151751KYSB20180006), the Projects of Alliance of International Science Organizations (ANSO) (Grant No. ANSO-PA-2020-09 and ANSO-TP-2020-03), the Science and Technology Support Project of Sichuan Province, China (Grant No. 2021YFYZ0027), and the Accurate Identification Project of Crop Germplasm from Sichuan Provincial Finance Department, Key Research and Development Program of Science and Technology Project of Sichuan Province (Grant No. 2021YFYZ0020). The APC was funded by the Key Programs for International Science & Technology Cooperation from the Science and Technology Department of Sichuan Province, China (Grant No. 2021YFH0052).

Institutional Review Board Statement

No applicable.

Informed Consent Statement

No applicable.

Data Availability Statement

The raw reads of RNA-seq in this study are available under the accession number PRJNA798442 at the National Center for Biotechnology Information (NCBI).

Acknowledgments

We owe special thanks to: Xiaoming Zheng and Yulong Ren (Institute of Crop Sciences, Chinese Academy of Agricultural Sciences, Beijing 100081, China), Shengyang Wu (Institute of Botany, Chinese Academy of Sciences, Beijing 100093, China), Guiai Jiao and Xiangjin Wei (State Key Laboratory of Rice Biology, China National Rice Research Institute, Hangzhou 310006, China), Long Zhang (Yangzhou University, Yangzhou 225009, China), Zhigang Pu (Biotechnology and Nuclear Technology Research Institute, Sichuan Academy of Agricultural Sciences, Chengdu 610066, China), Songhu Wang, Hai Long, Junjun Liang, Zhifen Pan, Qiao Li, Ling Guo, Yangxuan Liu, Longxiang Lu, Yong Zhuang, Lu Yue and Dexin Li (Chengdu Institute of Biology, Chinese Academy of Sciences, Chengdu 610041, China), Zehou Liu (Crop Research Institute, Sichuan Academy of Agricultural Sciences, Chengdu 610066, China) and Xiang Tao (Sichuan Normal University, Chengdu 610101, China) for providing valuable suggestions and comments to improve this work; Yuanzhi Cheng (Basebio biotechnology Co., Ltd., Chengdu 610041, China) for the transcriptome sequencing and initial data analysis; Qingyun Tan, Chuanmin Zeng and Yifei Xie (Chengdu Institute of Biology, Chinese Academy of Sciences, Chengdu 610041, China) for the management of field experiments; Fen Wang (Shuangliu district meteorological bureau of Chengdu, Chengdu 610200, China) for providing the meteorological data; Cui Yu, Yuhuan Geng and Can Chen (Chengdu Institute of Biology, Chinese Academy of Sciences, Chengdu 610041, China) for providing supports and assistances to this work.

Conflicts of Interest

The authors declare no conflict of interest.

References

Zhou, H.; Xia, D.; He, Y. Rice grain quality—Traditional traits for high quality rice and health-plus substances. Mol. Breed. 2019, 40, 1. [Google Scholar] [CrossRef]
Arora, R.; Agarwal, P.; Ray, S.; Singh, A.K.; Singh, V.P.; Tyagi, A.K.; Kapoor, S. MADS-box gene family in rice: Genome-wide identification, organization and expression profiling during reproductive development and stress. BMC Genom. 2007, 8, 242. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Zhang, J.; Nallamilli, B.R.; Mujahid, H.; Peng, Z. OsMADS6 plays an essential role in endosperm nutrient accumulation and is subject to epigenetic regulation in rice (Oryza sativa). Plant J. 2010, 64, 604–607. [Google Scholar] [CrossRef]
Yin, L.L.; Xue, H.W. The MADS29 transcription factor regulates the degradation of the nucellus and the nucellar projection during rice seed development. Plant Cell 2012, 24, 1049–1065. [Google Scholar] [CrossRef] [Green Version]
Zhang, H.; Xu, H.; Feng, M.; Zhu, Y. Suppression of OsMADS7 in rice endosperm stabilizes amylose content under high temperature stress. Plant Biotechnol. J. 2018, 16, 18–26. [Google Scholar] [CrossRef] [Green Version]
Agrawal, G.K.; Abe, K.; Yamazaki, M.; Miyao, A.; Hirochika, H. Conservation of the E-function for floral organ identity in rice revealed by the analysis of tissue culture-induced loss-of-function mutants of the OsMADS1 gene. Plant Mol. Biol. 2005, 59, 125–135. [Google Scholar] [CrossRef] [PubMed]
Jeon, J.-S.; Jang, S.; Lee, S.; Nam, J.; Kim, C.; Lee, S.-H.; Chung, Y.-Y.; Kim, S.-R.; Lee, Y.H.; Cho, Y.-G.; et al. Leafy Hull Sterile1 is a homeotic mutation in a rice MADS box gene affecting rice flower development. Plant Cell 2000, 12, 871–884. [Google Scholar] [CrossRef] [Green Version]
Chen, Z.X.; Wu, J.G.; Ding, W.N.; Chen, H.M.; Wu, P.; Shi, C.H. Morphogenesis and molecular basis on naked seed rice, a novel homeotic mutation of OsMADS1 regulating transcript level of AP3 homologue in rice. Planta 2006, 223, 882–890. [Google Scholar] [CrossRef]
Hu, Y.; Liang, W.; Yin, C.; Yang, X.; Ping, B.; Li, A.; Jia, R.; Chen, M.; Luo, Z.; Cai, Q.; et al. Interactions of OsMADS1 with floral homeotic genes in rice flower development. Mol. Plant 2015, 8, 1366–1384. [Google Scholar] [CrossRef]
Li, P.; Li, H.; Liu, Z.; Zhuang, Y.; Wei, M.; Gu, Y.; Liu, Y.; Sun, X.; Tang, Y.; Yue, L.; et al. Characterization of the ‘Oat-Like Rice’ caused by a novel allele OsMADS1^Olr reveals vital importance of OsMADS1 in regulating grain shape in Oryza sativa L. Rice 2020, 13, 73. [Google Scholar] [CrossRef]
Liu, Q.; Han, R.; Wu, K.; Zhang, J.; Ye, Y.; Wang, S.; Chen, J.; Pan, Y.; Li, Q.; Xu, X.; et al. G-protein βγ subunits determine grain size through interaction with MADS-domain transcription factors in rice. Nat. Commun. 2018, 9, 852. [Google Scholar] [CrossRef] [Green Version]
Wang, C.; Tang, S.; Zhan, Q.; Hou, Q.; Zhao, Y.; Zhao, Q.; Feng, Q.; Zhou, C.; Lyu, D.; Cui, L.; et al. Dissecting a heterotic gene through GradedPool-Seq mapping informs a rice-improvement strategy. Nat. Commun. 2019, 10, 2982. [Google Scholar] [CrossRef] [Green Version]
Yu, J.; Miao, J.; Zhang, Z.; Xiong, H.; Zhu, X.; Sun, X.; Pan, Y.; Liang, Y.; Zhang, Q.; Abdul Rehman, R.M.; et al. Alternative splicing of OsLG3b controls grain length and yield in japonica rice. Plant Biotechnol. J. 2018, 16, 1667–1678. [Google Scholar] [CrossRef] [Green Version]
Kinoshita, T.; Hidano, Y.; Takahashi, M. A mutant ‘long hull sterile’ found out in the rice variety, ‘Sorachi’—Genetical studies on rice plant. LXVII Mem. Fac. Agric. Hokkaido Univ. 1976, 10, 247–268. [Google Scholar]
Wang, K.; Tang, D.; Hong, L.; Xu, W.; Huang, J.; Li, M.; Gu, M.; Xue, Y.; Cheng, Z. DEP and AFO regulate reproductive habit in rice. PLoS Genet. 2010, 6, e1000818. [Google Scholar] [CrossRef] [Green Version]
Sun, L.; Zhang, Y.; Zhang, P.; Yang, Z.; Zhan, X.; Shen, X.; Zhang, Z.; Hu, X.; Xuan, D.; Wu, W.; et al. K-Domain splicing factor OsMADS1 regulates open hull male sterility in rice. Rice Sci. 2015, 22, 207–216. [Google Scholar]
Zhang, J.; Cai, Y.; Yan, H.; Jin, J.; You, X.; Wang, L.; Kong, F.; Zheng, M.; Wang, G.; Jiang, L.; et al. A critical role of OsMADS1 in the development of the body of the palea in rice. J. Plant Biol. 2018, 61, 11–24. [Google Scholar] [CrossRef]
Yamagata, H.; Sugimoto, T.; Tanaka, K.; Kasai, Z. Biosynthesis of storage proteins in developing rice seeds. Plant Physiol. 1982, 70, 1094–1100. [Google Scholar] [CrossRef] [Green Version]
Li, S.G.; Li, H.Y.; Zhou, K.D.; Ma, Y.Q. Genetic analysis on exterior quality traits in hybrid rice. J. Southwest Agric. Univ. 1995, 17, 197–201. [Google Scholar]
Bello, B.K.; Hou, Y.; Zhao, J.; Jiao, G.; Wu, Y.; Li, Z.; Wang, Y.; Tong, X.; Wang, W.; Yuan, W.; et al. NF-YB1-YC12-bHLH144 complex directly activates Wx to regulate grain quality in rice (Oryza sativa L.). Plant Biotechnol. J. 2019, 17, 1222–1235. [Google Scholar] [CrossRef] [Green Version]
Fu, F.F.; Xue, H.W. Coexpression analysis identifies Rice Starch Regulator1, a rice AP2/EREBP family transcription factor, as a novel rice starch biosynthesis regulator. Plant Physiol. 2010, 154, 927–938. [Google Scholar] [CrossRef]
Yamamoto, M.P.; Onodera, Y.; Touno, S.M.; Takaiwa, F. Synergism between RPBF Dof and RISBZ1 bZIP activators in the regulation of rice seed expression genes. Plant Physiol. 2006, 141, 1694–1707. [Google Scholar] [CrossRef] [Green Version]
Schmidt, R.; Schippers, J.H.; Mieulet, D.; Watanabe, M.; Hoefgen, R.; Guiderdoni, E.; Mueller-Roeber, B. SALT-RESPONSIVE ERF1 is a negative regulator of grain filling and gibberellin-mediated seedling establishment in rice. Mol. Plant 2014, 7, 404–421. [Google Scholar] [CrossRef] [Green Version]
Wei, X.; Jiao, G.; Lin, H.; Sheng, Z.; Shao, G.; Xie, L.; Tang, S.; Xu, Q.; Hu, P. GRAIN INCOMPLETE FILLING 2 regulates grain filling and starch synthesis during rice caryopsis development. J. Integr. Plant Biol. 2017, 59, 134–153. [Google Scholar] [CrossRef] [Green Version]
Kang, H.G.; Park, S.; Matsuoka, M.; An, G. White-core endosperm floury endosperm-4 in rice is generated by knockout mutations in the C₄-type pyruvate orthophosphate dikinase gene (OsPPDKB). Plant J. 2005, 42, 901–911. [Google Scholar] [CrossRef] [Green Version]
Peng, H.; Zhang, Q.; Li, Y.; Lei, C.; Zhai, Y.; Sun, X.; Sun, D.; Sun, Y.; Lu, T. A putative leucine-rich repeat receptor kinase, OsBRR1, is involved in rice blast resistance. Planta 2009, 230, 377–385. [Google Scholar] [CrossRef]
Hiei, Y.; Ohta, S.; Komari, T.; Kumashiro, T. Efficient transformation of rice (Oryza sativa L.) mediated by Agrobacterium and sequence analysis of the boundaries of the T-DNA. Plant J. 1994, 6, 271–282. [Google Scholar] [CrossRef] [Green Version]
Kim, D.; Pertea, G.; Trapnell, C.; Pimentel, H.; Kelley, R.; Salzberg, S.L. TopHat2: Accurate alignment of transcriptomes in the presence of insertions, deletions and gene fusions. Genome Biol. 2013, 14, 3053–3065. [Google Scholar] [CrossRef] [Green Version]
Benjamini, Y.; Hochberg, Y. Controlling the false discovery rate: A practical and powerful approach to multiple testing. J. R. Statist. Soc. 1995, 57, 289–300. [Google Scholar] [CrossRef]
Chen, H.; Boutros, P. VennDiagram: A package for the generation of highly-customizable Venn and Euler diagrams in R. BMC Bioinform. 2011, 12, 35. [Google Scholar] [CrossRef] [Green Version]
Ashburner, M.; Ball, C.A.; Blake, J.A.; Botstein, D.; Butler, H.; Cherry, J.M.; Davis, A.P.; Dolinski, K.; Dwight, S.S.; Eppig, J.T.; et al. Gene ontology: Tool for the unification of biology. Nat. Genet. 2000, 25, 25–29. [Google Scholar] [CrossRef] [Green Version]
Kanehisa, M.; Goto, S. KEGG: Kyoto encyclopedia of genes and genomes. Nucleic Acids Res. 2000, 28, 27–30. [Google Scholar] [CrossRef]
Zhang, J.; Chen, L.; Fu, C.; Wang, L.; Liu, H.; Cheng, Y.; Li, S.; Deng, Q.; Wang, S.; Zhu, J.; et al. Comparative transcriptome analyses of gene expression changes triggered by Rhizoctonia solani AG1 IA infection in resistant and susceptible rice varieties. Front. Plant Sci. 2017, 8, 1422. [Google Scholar] [CrossRef] [Green Version]
Li, H.; Durbin, R. Fast and accurate short read alignment with Burrows-Wheeler transform. Bioinformatics 2009, 25, 1754–1760. [Google Scholar] [CrossRef] [Green Version]
Yoo, S.D.; Cho, Y.H.; Sheen, J. Arabidopsis mesophyll protoplasts: A versatile cell system for transient gene expression analysis. Nat. Protoc. 2007, 2, 1565–1572. [Google Scholar] [CrossRef] [Green Version]
Zhuang, Y.; Liu, Y.; Li, Y.; Wei, M.; Tang, Y.; Li, P.; Liu, Z.; Li, H.; Huang, W.; Wang, S. SALT-INDUCED CHLOROPLAST PROTEIN (SCP) is involved in plant tolerance to salt stress in Arabidopsis. J. Plant Biol. 2019, 62, 429–435. [Google Scholar] [CrossRef]

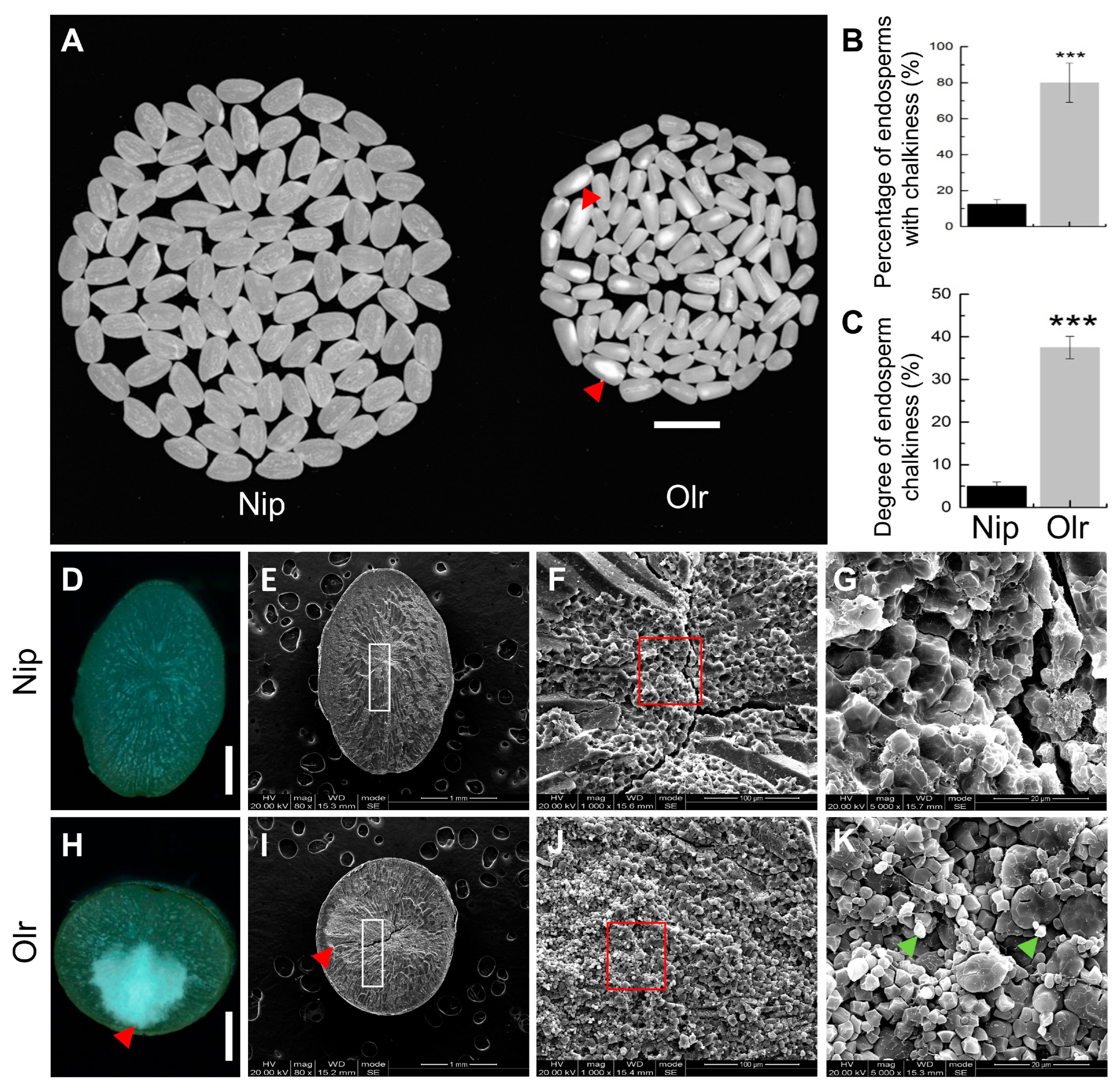

Figure 1. Comparative analysis of appearance quality in endosperms and starch granules in brown rice between Nip and Olr. (A–C) Appearance quality of Nip and Olr endosperms; (A) appearance of endosperms, (B) percentage of endosperms with chalkiness, (C) degree of endosperm chalkiness. (D–K) Comparative observation and analysis of chalkiness (D,E,H,I) and starch granules (F,G,J,K) in the transverse sections of Nip (D–G) and Olr (H,K) brown rice by dissecting microscope (D,H) and SEM (E–G,I–K). (F,G,J,K) Comparison of starch granules between the chalkiness area in the Olr brown rice (J,K) and the corresponding area without chalkiness of Nip (F,G). (F,G) Enlarged view of the white rectangle in (E) (Nip) and (I) (Olr). (G,K) Further enlarged view of the red rectangle in (F) (Nip) and (J) (Olr), which shows enlarged starch granules; Small, irregular, and loosely packed starch granules are indicated by green arrowheads in (K). Red arrowheads indicate chalkiness (A,H,I). SEM: Scanning electron microscope. Bars: 1 cm (A), 1 mm (D,E,H,I), 100 μm (F,J), 20 μm (G,K). Data are given as mean ± SD [n = 3 replicates (each replicate consists of about 200 endosperms in (B,C)]. Student’s t-test: *** p < 0.001.

Figure 2. Rescue of the Olr grain shape by complementation of the OsMADS1 gene. (A) Comparison of grain shape among Nip, T₀ negative control plant (Control, Olr genetic background) and positive plants (C-28, C-30, C-3, C-9, C-4, C-5, C-6, and C-10). The T₀ negative control plant doesn’t harbor the exogenous wild-type OsMADS1 gene (cDNA) because the exogenous pUbi::OsMADS1 vector failed to be transformed into the calli of Olr by Agrobacterium tumefaciens (EHA105)-mediated transformation. White arrows indicate fertile seeds. Bars: 10 mm. (B) PCR confirmation of T₀-positive transgenic plants. The gDF and cDF indicate the DNA fragments amplified from mutated OsMADS1^Olr genomic DNA (gDNA) of Olr and cDNA fragments amplified from wild-type OsMADS1 cDNA derived from Nip (cDNA), with the gc-F/gc-R primer pair as shown in (C). (C) PCR primers (Table S1) used to identify T₀-positive transgenic plants in (B). Black arrowhead indicates the mutation site in OsMADS1^Olr gene. Black arrows indicate gc-F and gc-r primers. ATG and TGA represent the start codon and stop codon, respectively. Exons are shown as black or green closed boxes; introns are shown as black straight lines; and UTRs (untranslated regions) are marked with open boxes. (D,E) Comparison of grain length, grain width, grain length-to-width ratio, grain thickness, and seed setting rate among Nip (D), T₀-negative control plant (Control), and positive plants (C-28, C-30, C-3, C-9, C-4, C-5, C-6, and C-10) (E). Data in (D,E) is given as mean ± SD [n = 30 for grain length, grain width, grain length-to-width ratio, and grain thickness; n = 10 for seed setting rate]. Student’s t-test: * p < 0.05, *** p < 0.001.

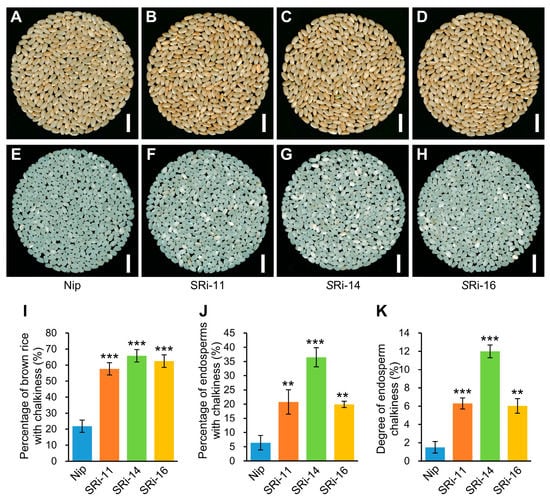

Figure 3. Decreased grain appearance quality of OsMADS1 seed-specific RNAi lines. (A–H) Comparisons of grain chalkiness of brown rice (A–D) and endosperms (E–H) between homozygous T₃ OsMADS1 seed-specific RNAi (pOsTip3::OsMADS1-RNAi) lines (SRi11, SRi14, and SRi16) and wild-type plants (Nip). T₄ seeds generated from the corresponding T₃ plants were analyzed. Bars: 10 mm (A–H). (I–K) Comparisons of percentage of brown rice with chalkiness (I), percentage of endosperms with chalkiness (J), and degree of endosperm chalkiness (K) between OsMADS1 seed-specific RNAi lines and wild-type plants. Data are given as mean ± SD [n = 6 × 100 brown rice grains for each line in (I); n = 3 × about 200 endosperms for each line in (J,K)]. Student’s t-test: ** p < 0.01, *** p < 0.001.

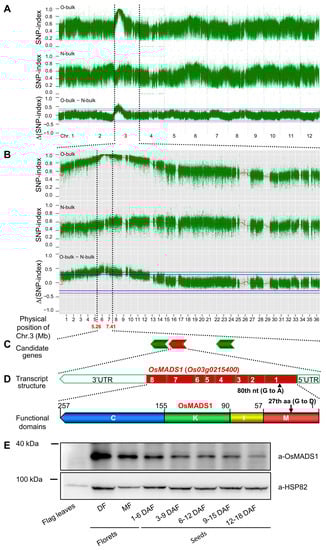

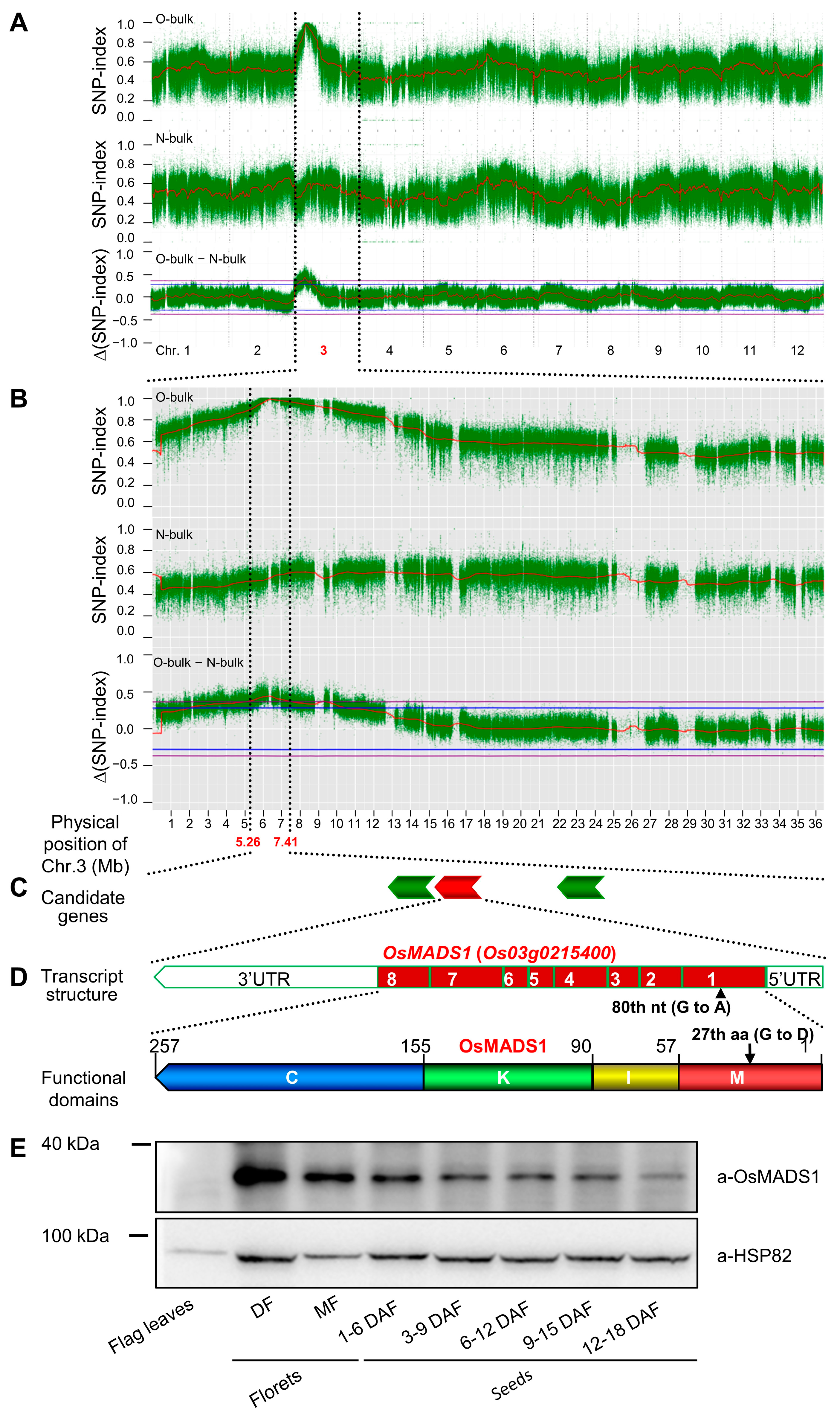

Figure 4. Mapping-by-sequencing the causal gene of grain quality phenotype in Olr. (A,B) Mapping of the causal gene in the 5.26~7.41 Mb interval of chromosome 3. Dense and green spots in the upper and middle plots of (A,B) represent the single nucleotide polymorphism (SNP)-index of O-bulk (bulk DNA sample extracted from 152 F₂ individual plants showing Olr phenotypes) and N-bulk (bulk DNA sample extracted from 152 F₂ individual plants showing normal phenotypes), respectively; while dense and green spots in the lower plots of (A,B) represent the ∆(SNP-index) between O-bulk and N-bulk (O-bulk—N-bulk). Red curved lines mean the average SNP-index (O-bulk and N-bulk) or ∆(SNP-index) calculated based on a 1 Mb interval with a 10 kb sliding window. Purple and blue straight lines in the ∆(SNP-index) plots (A,B) mark the 99% (p < 0.01), and 95% (p < 0.05) statistical confidence intervals under the null hypothesis of no gene or QTL (quantitative trait locus) was identified within the confidence intervals. Chr. indicates chromosome. (C,D) Schematic representation of transcript structure of OsMADS1 gene (C) and the encoding protein (D). Closed red boxes and open boxes indicate exons and UTRs (untranslated regions), respectively; black arrowhead represents the 80th nucleotide substitution site in the mutated OsMADS1^Olr allele; nt means nucleotide (C). M, I, K, and C indicate the MADS-box domain, I region, K-box domain, and C-terminal region of OsMADS1 protein, respectively; black arrow indicates the 27th amino acid substitution site in the MADS-box of the mutated OsMADS1^Olr protein; aa represents amino acid (D). (E) Protein expression pattern of OsMADS1 by immunoblot analysis. Protein lysates from flag leaves, florets, and seeds of Nipponbare were immunoblotted with the OsMADS1 antibody (a-OsMADS1). An abundance of HSP82 (heat shock protein 82) detected by the HSP82 antibody (a-HSP82) was used as an internal control. Protein molecular weight markers are denoted by kDa. DF, developing florets; MF, mature florets; DAF, days after fertilization.

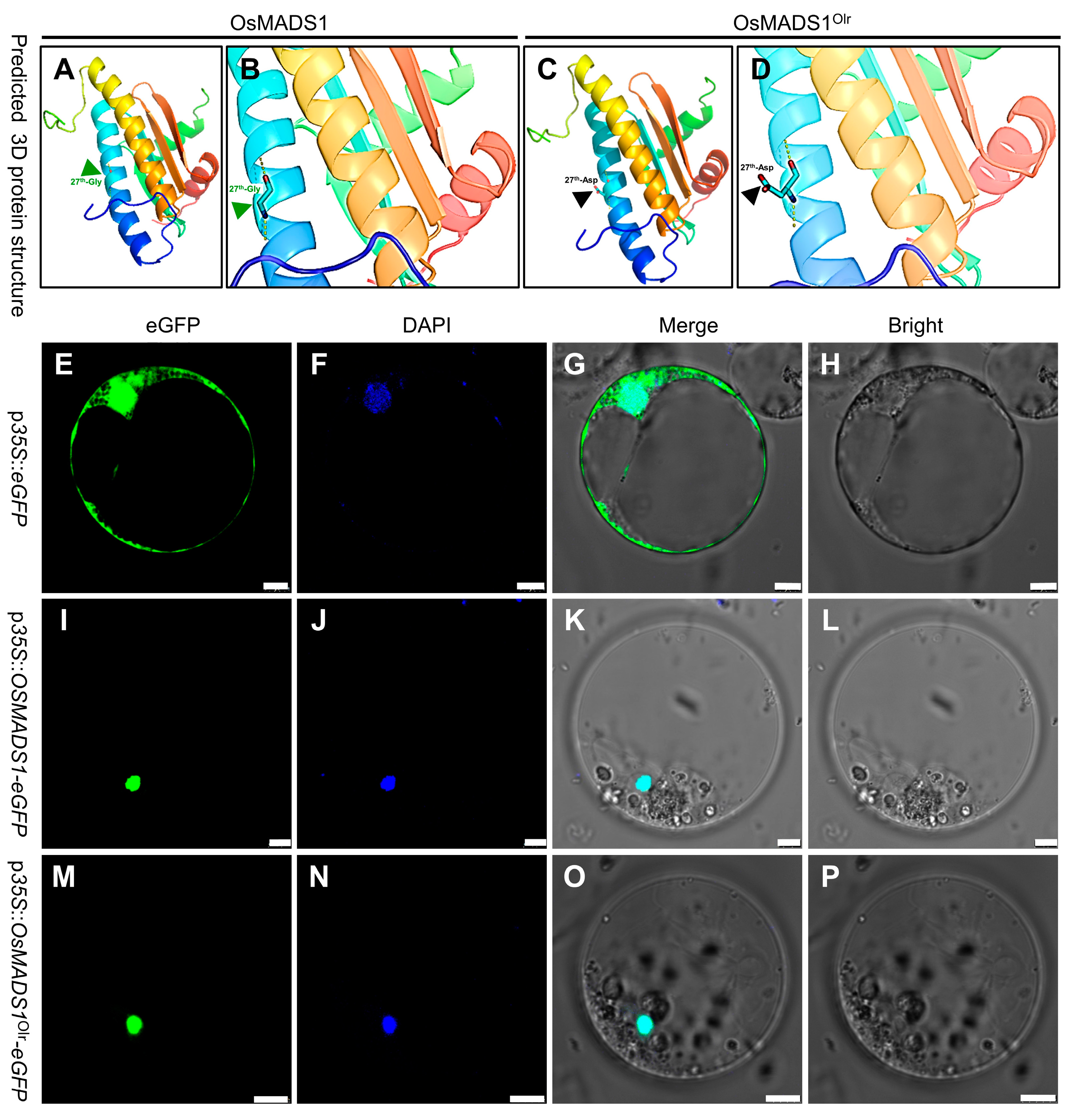

Figure 5. Three-dimensional (3D) structure prediction and subcellular localization of OsMADS1 and OsMADS1^Olr proteins. (A,C) 3D protein structure prediction of wild-type OsMADS1 (A) and mutated OsMADS1^Olr (C). (B,D) Enlarged view of the 27th amino acid site in the MADS-box domain for target DNA binding of OsMADS1 (B) and OsMADS1^Olr (D). Blue arrowhead (A,B) and black arrowhead (C,D) indicate the wild-type glycine (27th-Gly) and mutated aspartic acid (27th-Asp) at the 27th amino acid site in the MADS-box domain of OsMADS1 and OsMADS1^Olr, respectively. (E–P) Subcellular localization of OsMADS1-eGFP and OsMADS1^Olr-eGFP fusion proteins in rice protoplasts. The nuclear affinity dye DAPI (4′,6-diamidino-2-phenyl-indole) was used as a nuclear marker. Bars: 5 μm (E–P).

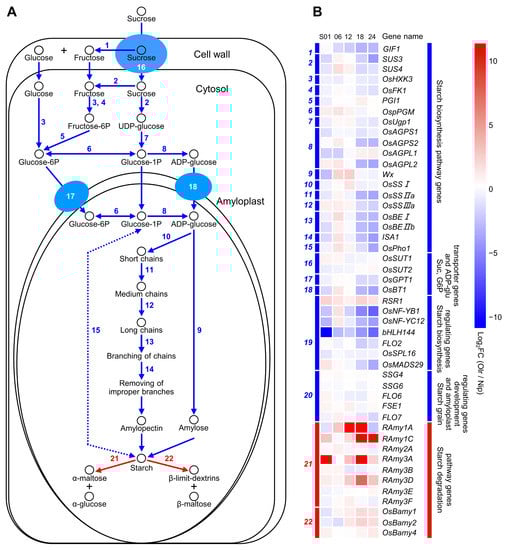

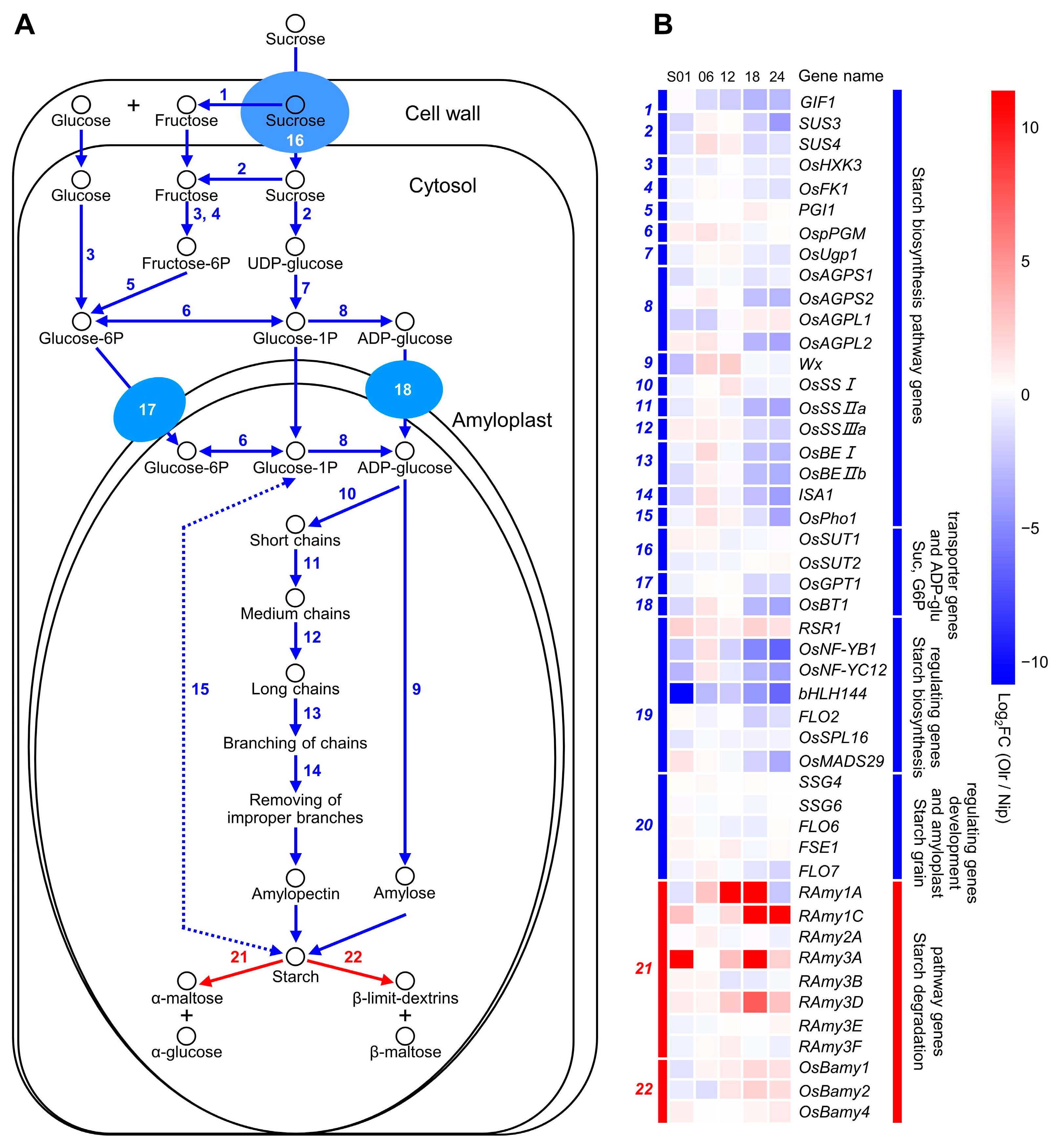

Figure 6. Starch metabolism pathways and related genes expression analysis between Olr and Nip grains. (A) Starch biosynthesis and degradation pathways in rice grains. Schematic diagram shows starch biosynthesis and degradation pathways in endosperm cells. Solid and dotted arrows indicate the steps of verified and predicted enzyme-catalyzed reactions, respectively. Single-headed and double-headed arrows indicate irreversible and reversible reactions, respectively. Numbers in Roman type beside the arrows represent the enzyme (enzymes) encoding by corresponding gene (genes) catalyzes (catalyze) this step of reaction. Steps of enzyme-catalyzed reactions and corresponding enzymes in the starch biosynthesis and degradation pathways are marked in blue and red, respectively. Blue ellipses and attached arrows show sucrose, glucose-6P, and ADP-glucose (ADP-glu) transporters encoded by corresponding genes in the starch biosynthesis pathways, and corresponding transport steps, respectively. (B) Expression analysis of starch biosynthesis, degradation, and related regulating genes between Olr and Nip during grain development. Blue and red bars encoded by italic numbers marked by the same colors in the left panel of the heatmap indicate the encoding gene (genes) of the enzyme (enzymes) which catalyzes (catalyze) the corresponding step (steps) of enzyme-catalyzed reactions in the starch biosynthesis and degradation pathways in (A), as well as the regulating genes of starch biosynthesis, starch granules, and amyloplast development. Names of these genes are listed on the right side of the heatmap. Blue and red bars in the right panel of the heatmap indicate these genes are divided into the starch biosynthesis pathway genes, sucrose, glucose-6P and ADP-glucose transporter genes, starch biosynthesis, starch granules and amyloplast development regulating genes, and starch degradation pathway genes, respectively. In addition, detailed information on these genes, including accession numbers, encoding enzymes (or proteins), and catalytic reactions (or regulatory functions), are summarized in Table S6. Color grids of genes in the heatmap and color scale at the upper right indicate the value of log2 fold change (FC) of genes between Olr and Nip [Log2FC (Olr/Nip)], thereby red and blue color representing upregulated and downregulated expression of genes in Olr compared with that of Nip. S01, S06, S12, S18, and S24 indicate 1 DAF, 6 DAF, 12 DAF, 18 DAF, and 24 DAF grains, respectively. DAF: days after fertilization.

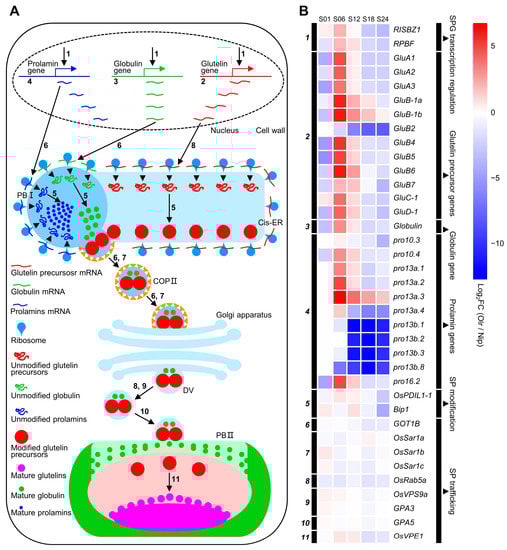

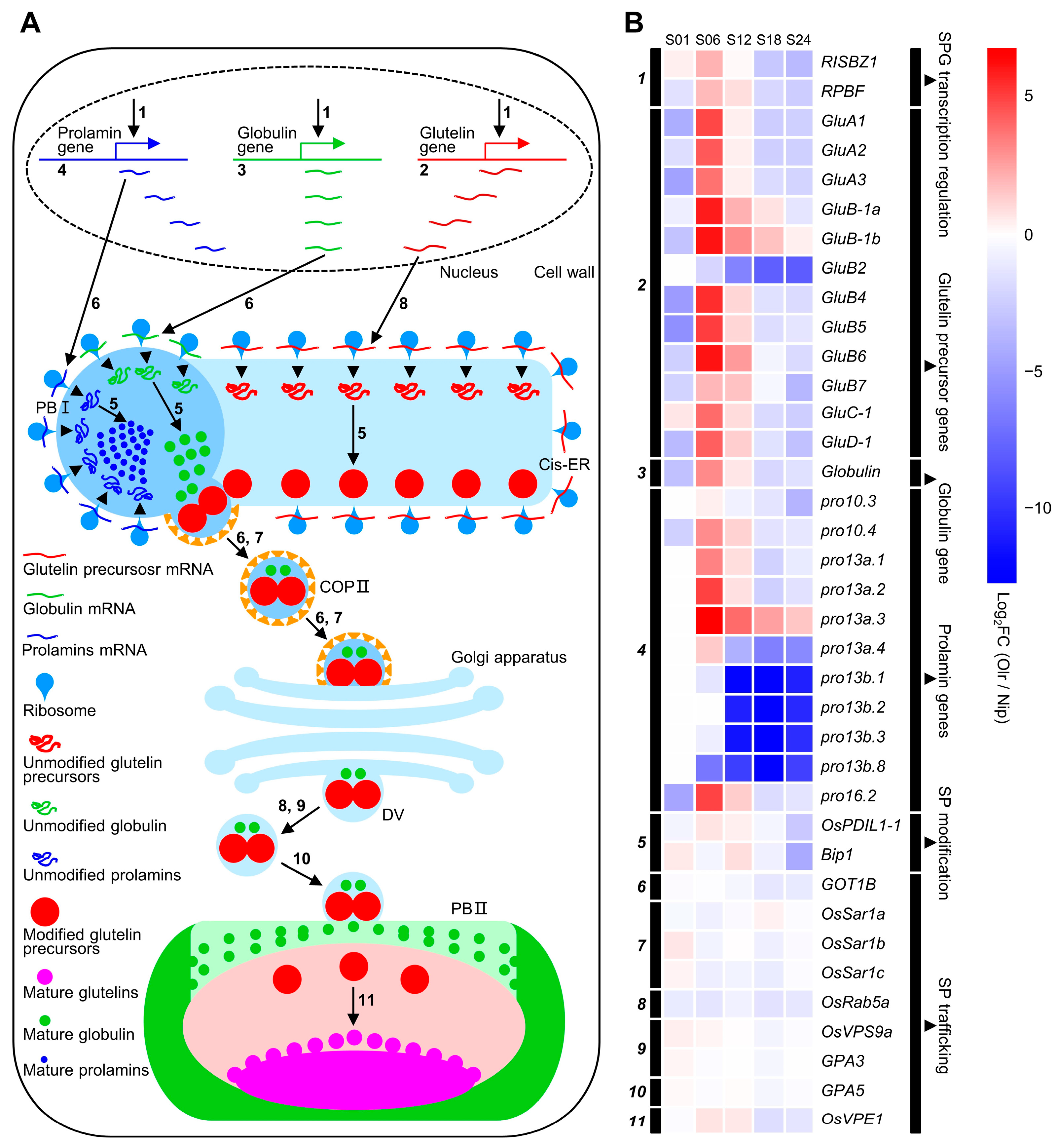

Figure 7. Seed storage protein biosynthesis and accumulation pathways, and related genes expression analysis between Olr and Nip grains. (A) Seed storage protein biosynthesis, processing, trafficking, and regulating pathways in rice grains. Arrows indicate the seed storage protein biosynthesis, processing, trafficking, accumulating, and regulating steps. Numbers in Roman type beside the arrows represent the protein (proteins) encoding by corresponding gene (genes) in (B), which regulates (regulate) this step. Cis-ER: cisternal endoplasmic reticulum; COP II: coat protein complex II; DV: dense vesicle; PB I: protein body I; PB II: protein body II. (B) Expression analysis of seed storage protein biosynthesis, trafficking, and regulating genes between Olr and Nip during grain development. Black bars encoded by italic numbers in the left panel of the heatmap indicate the encoding gene (genes) of the protein (proteins) which regulates (regulate) transcriptions of seed storage protein genes, controls (control) biosynthesis, processing, trafficking, or accumulation of seed storage protein in (A). Names of these genes are listed on the right side of the heatmap. Black bars in the right panel of the heatmap indicate these genes are divided into transcription factor genes which regulate seed storage protein genes transcription, glutelin precursor, globulin, and prolamin encoding genes, as well as seed storage protein modifying and trafficking genes. Detailed information on these genes, including accession numbers, encoding proteins, and regulatory functions, is summarized in Table S7. Color grids of genes in the heatmap and color scale at the upper right indicate the value of log2 FC of genes between Olr and Nip [Log2 FC (Olr/Nip)], thereby red and blue color representing upregulated and downregulated expression of genes in Olr compared with that of Nip. S01, S06, S12, S18, and S24 indicate 1 DAF, 6 DAF, 12 DAF, 18 DAF, and 24 DAF grains, respectively. DAF: days after fertilization; SP: seed storage protein; SPG: seed storage protein gene.

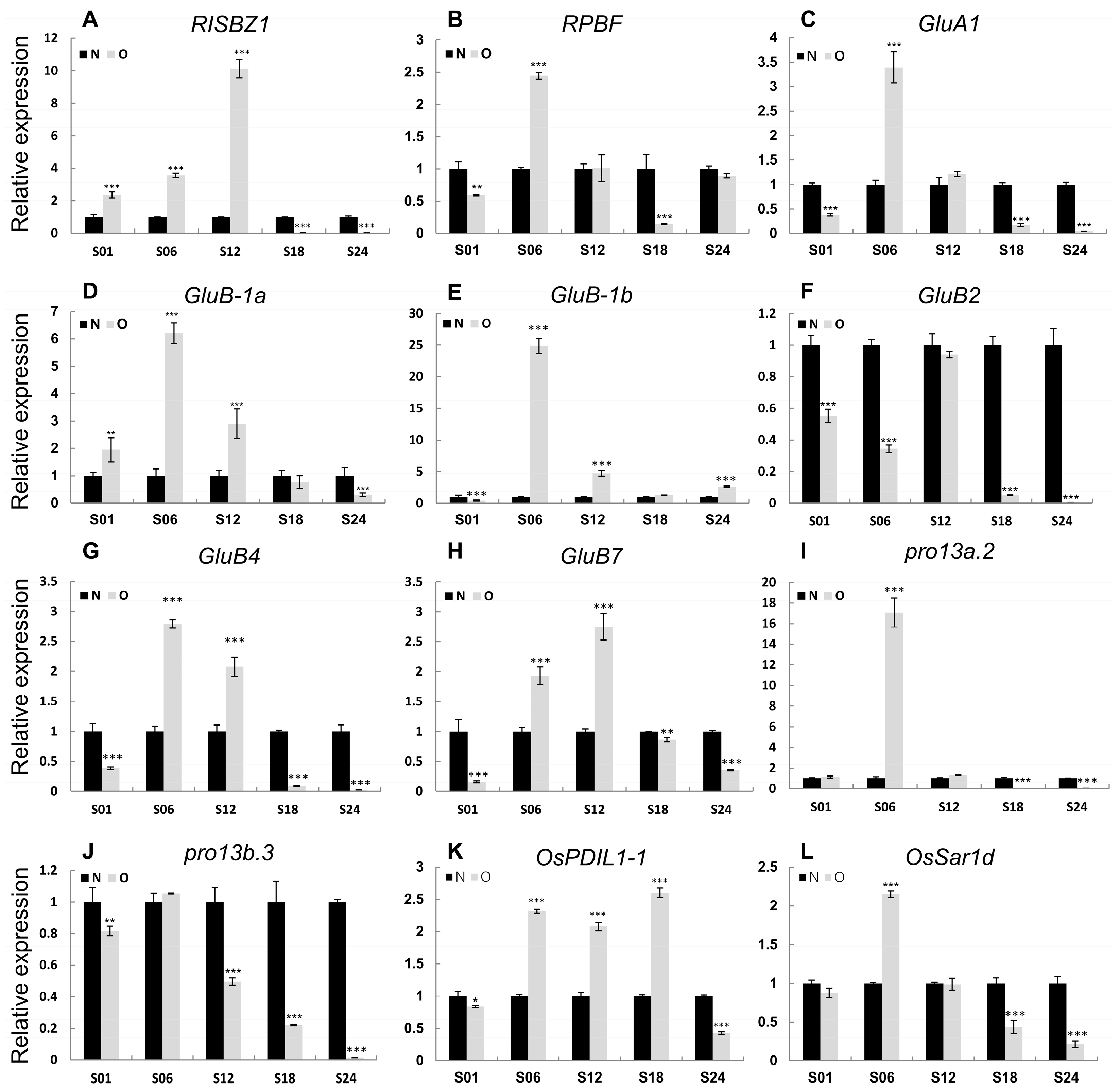

Figure 8. Validation of the comprehensive transcriptomic data by qRT-PCR analysis. (A,I) Expression patterns of representative transcriptional regulatory genes of storage protein (A,B), glutelin encoding genes (C–H), prolamin encoding genes (I,J), storage protein modification (K), and trafficking (L) genes in Olr and Nip grains. The value of OsActin mRNA was used as an internal control for data normalization, and the expression levels of genes in Nip at S01 time point were set as 1. N: Nip; O: Olr. S01, S06, S12, S18, and S24 indicate 1 DAF, 6 DAF, 12 DAF, 18 DAF, and 24 DAF grains, respectively. DAF: days after fertilization. Data are given as mean ± SD of three replicates. Student’s t-test: * p < 0.05, ** p< 0.01, *** p < 0.001.

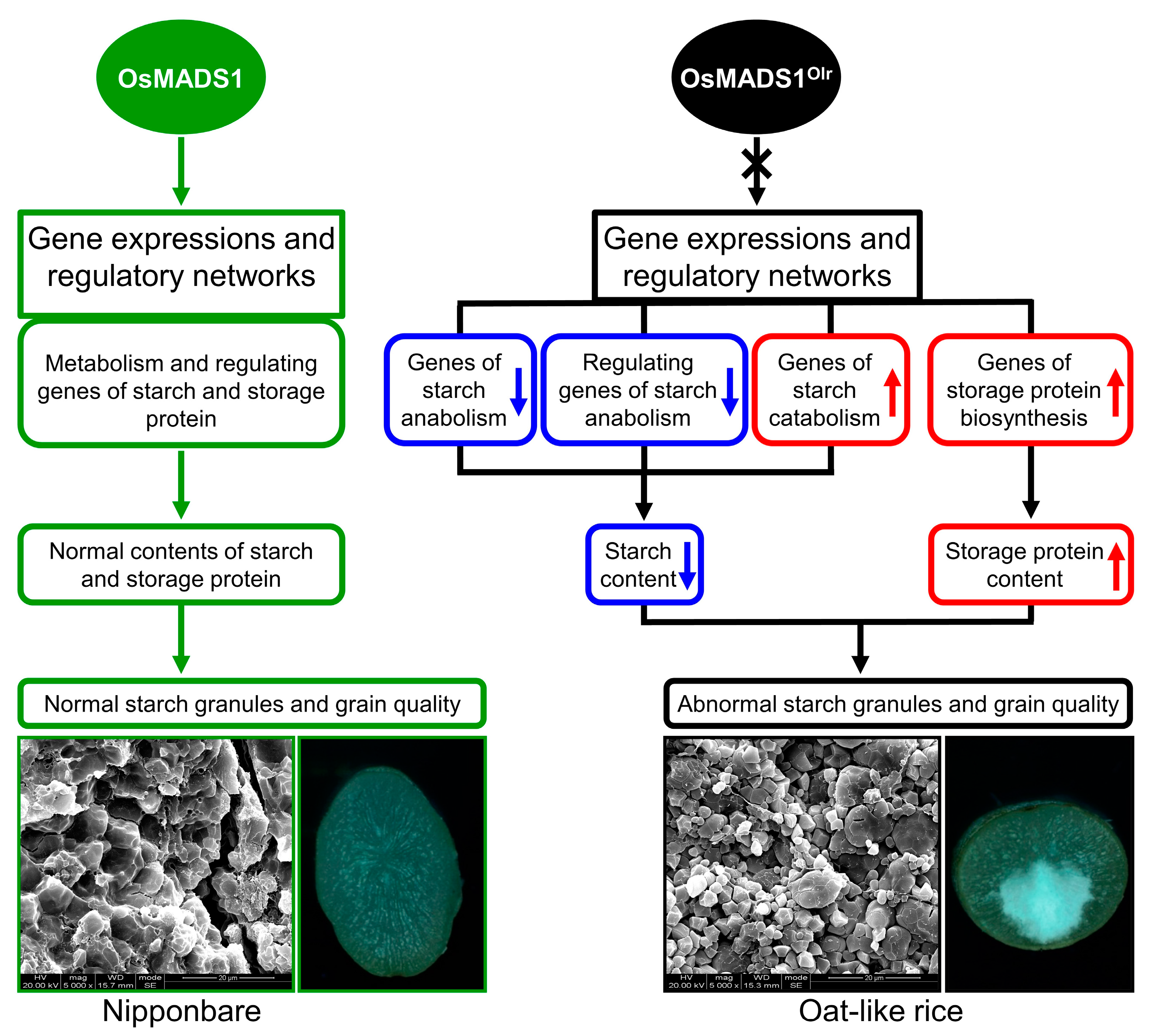

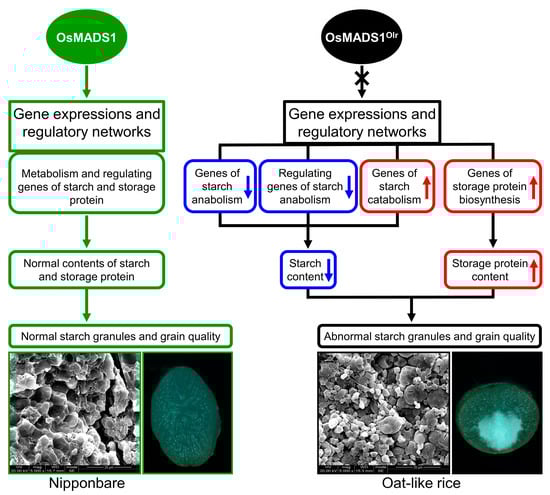

Figure 9. A proposed model depicting how OsMADS1 regulates grain quality, gene expressions, and regulatory networks of starch and storage protein metabolisms in rice.

Table 1. Starch and protein contents of brown rice from Nip, Olr, and their progeny plants.

Sample Name	Starch Content (%)	Amylose Content (%)	Amylopectin Content (%)	Protein Content (%)
Nip	86.66 ± 0.74	20.43 ± 0.15	66.23 ± 0.81	9.31 ± 0.05
Olr	77.55 ± 1.21 ***	19.50 ± 0.38 *	58.05 ± 0.83 ***	14.13 ± 0.07 ***
F₂ plants showing normal phenotypes	88.10 ± 2.65	17.23 ± 2.89	70.87 ± 0.30	8.79 ± 1.78
F₂ plants showing Olr phenotypes	82.03 ± 0.15 ***	15.55 ± 0.08	66.47 ± 1.50 ***	13.11 ± 0.63 ***
F₃ plants showing normal phenotypes	88.32 ± 0.13	17.96 ± 0.09	70.36 ± 0.20	7.56 ± 0.05
F₃ plants showing Olr phenotypes	75.71 ± 1.53 ***	15.95 ± 0.04 ***	59.76 ± 1.49 ***	14.90 ± 0.03 ***

F₂ and F₃ plants were derived from a cross between Olr and Nip. Olr phenotypes indicate poor grain quality with chalky endosperms and abnormal grain shape with lower 1000-brown rice weight and slower grain-filling rate exhibited in Olr grains; normal phenotypes indicate normal grain quality and grain shape in Nip grains. Data are given as mean ± SD of the percentage of starch content, amylose content, amylopectin content, and protein content in the dry basis of each sample. Student’s t-test: * p < 0.05, *** p < 0.001.

Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

© 2023 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).

Share and Cite

MDPI and ACS Style

Liu, Z.; Li, P.; Yu, L.; Hu, Y.; Du, A.; Fu, X.; Wu, C.; Luo, D.; Hu, B.; Dong, H.; et al. OsMADS1 Regulates Grain Quality, Gene Expressions, and Regulatory Networks of Starch and Storage Protein Metabolisms in Rice. Int. J. Mol. Sci. 2023, 24, 8017. https://doi.org/10.3390/ijms24098017

AMA Style

Liu Z, Li P, Yu L, Hu Y, Du A, Fu X, Wu C, Luo D, Hu B, Dong H, et al. OsMADS1 Regulates Grain Quality, Gene Expressions, and Regulatory Networks of Starch and Storage Protein Metabolisms in Rice. International Journal of Molecular Sciences. 2023; 24(9):8017. https://doi.org/10.3390/ijms24098017

Chicago/Turabian Style

Liu, Zhijian, Penghui Li, Lan Yu, Yongzhi Hu, Anping Du, Xingyue Fu, Cuili Wu, Dagang Luo, Binhua Hu, Hui Dong, and et al. 2023. "OsMADS1 Regulates Grain Quality, Gene Expressions, and Regulatory Networks of Starch and Storage Protein Metabolisms in Rice" International Journal of Molecular Sciences 24, no. 9: 8017. https://doi.org/10.3390/ijms24098017

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Menu

OsMADS1 Regulates Grain Quality, Gene Expressions, and Regulatory Networks of Starch and Storage Protein Metabolisms in Rice

Abstract

1. Introduction

2. Results

2.1. Olr Exhibits Pleiotropic and Heritable Phenotypes of Chalky Endosperms and Abnormal Grain Shape

2.2. The Chalky Endosperms of Olr Are Caused by Abnormal Morphology and Loose Arrangement of Starch Granules

2.3. The Grain Quality of Olr with Relatively Lower Starch Content but Higher Protein Content Is Linked with Its Grain Shape

2.4. OsMADS1 Has a Direct Role in Controlling Grain Quality

2.5. Verifying the Causal Gene of Grain Quality Phenotype in Olr through Mapping-by-Sequencing

2.6. Overview of mRNA-Seq Results of Developing Grains from Nip and Olr

2.7. Identification and Analysis of Differentially Expressed Genes (DEGs) between Nip and Olr Grains

2.8. GO and KEGG Enrichment Analysis of DEGs between Nip and Olr Grains

2.9. Analysis of the Dynamic Gene Expression Patterns between Nip and Olr Grains

2.10. Analysis of Gene Expressions and Regulatory Networks of Starch Metabolism Pathways between Olr and Nip Grains

2.11. Analysis of Gene Expressions and Regulatory Networks of Storage Protein Biosynthesis and Accumulating Pathways between Olr and Nip Grains

3. Discussion

4. Materials and Methods

4.1. Plant Materials and Growth Conditions

4.2. Measurement of Starch, Amylose, Amylopectin, and Protein Content

4.3. Vector Construction and Rice Transformation

4.4. Transcriptome Samples Collection and Treatment

4.5. Transcriptome Data Analysis

4.6. Grain Appearance Quality Analysis and Microscope Observation

4.7. Mapping-by-Sequencing the Causal Gene of Grain Quality Phenotype in Olr

4.8. Immunoblot Analysis

4.9. Three-Dimensional Protein Structure Prediction

4.10. Protein Subcellular Localization

4.11. qRT-PCR Analysis

Supplementary Materials

Author Contributions

Funding

Institutional Review Board Statement

Informed Consent Statement

Data Availability Statement

Acknowledgments

Conflicts of Interest

References

Share and Cite

Article Metrics

Article Access Statistics

Further Information

Guidelines

MDPI Initiatives

Follow MDPI
