High-Order Harmonics Generation in MoS2 Transition Metal Dichalcogenides: Effect of Nickel and Carbon Nanotube Dopants

Mottamchetty Venkatesh
Vyacheslav V. Kim
Ganjaboy S. Boltaev
Srinivasa Rao Konda
Peter Svedlindh
Wei Li
1 and
Rashid A. Ganeev
GPL Photonics Laboratory, State Key Laboratory of Applied Optics, Changchun Institute of Optics, Fine Mechanics and Physics, Chinese Academy of Sciences, Changchun 130033, China
Department of Materials Science and Engineering, Uppsala University, P.O. Box 35, SE-75103 Uppsala, Sweden
Laboratory of Nonlinear Optics, University of Latvia, Jelgavas 3, LV-1004 Riga, Latvia
Institute of Fundamental and Applied Research, TIIAME National Research University, Kori Niyoziy 39, Tashkent 100000, Uzbekistan
Faculty of Physics and Matematics, Chirchik State Pedagogical University, 104 Amir Temur, Chirchik 111700, Uzbekistan
Department of Physics, Voronezh State University, 394006 Voronezh, Russia
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(7), 6540;
Submission received: 28 February 2023 / Revised: 21 March 2023 / Accepted: 29 March 2023 / Published: 31 March 2023
(This article belongs to the Collection Feature Papers in Materials Science)


The transition metal dichalcogenides have instigated a lot of interest as harmonic generators due to their exceptional nonlinear optical properties. Here, the molybdenum disulfide (MoS2) molecular structures with dopants being in a plasma state are used to demonstrate the generation of intense high-order harmonics. The MoS2 nanoflakes and nickel-doped MoS2 nanoflakes produced stronger harmonics with higher cut-offs compared with Mo bulk and MoS2 bulk. Conversely, the MoS2 with nickel nanoparticles and carbon nanotubes (MoS2-NiCNT) produced weaker coherent XUV emissions than other materials, which is attributed to the influence of phase mismatch. The influence of heating and driving pulse intensities on the harmonic yield and cut-off energies are investigated in MoS2 molecular structures. The enhanced coherent extreme ultraviolet emission at ~32 nm (38 eV) due to the 4p-4d resonant transitions is obtained from all aforementioned molecular structures, except for MoS2-NiCNT.

1. Introduction

Transition metal dichalcogenides (TMDs), such as molybdenum disulfide (MoS2), are hexagonal semiconductors with transition metal atoms held together by a weak Wander Waals force between two layers of chalcogen atoms. 2D-TMDs are a developing class of materials with properties that make them particularly appealing for fundamental research and search of novel physical phenomena [1,2,3,4,5]. These materials are very compact, with some layers on a 2D atomic scale, and have a direct bandgap. As a result, they can provide a solid interface with the incident photon and have advantageous properties like broadband absorption, transparency, and high carrier mobility. The interest in 2D TMDs, particularly MoS2 monolayers, resulted in a variety of applications [6,7,8,9,10,11]. The bandgap of TMDs depends on the number of layers and the type of dopants. Studying the modified morphological, linear, and nonlinear optical properties of 2D TMDs is a significant research topic as they can be utilized in evolving next-generation high-performance optical devices.
Additionally, TMDs like molybdenum disulfide (MoS2) have received greater attention because of their large direct bandgap in few-layered material, leading to an increase in the nonlinear optical properties as compared to the bulk material [12,13]. MoS2 has exceptional characteristics like tunable bandgap, strong photoluminescence, carrier dynamics at ultrashort time scale, saturable absorption, strong spin-orbit coupling, etc. [3,13]. These outstanding properties of MoS2 created a potential to develop next-generation valleytronic, spintronic, optoelectronic, and electronic devices such as transistors, flexible sensors, optical limiters, mode-lockers, and Q-switches for ultrafast lasers, energy harvesting devices, etc. TMD/organic molecule heterostructures showed enhancement of photoluminescence (PL) intensity and charge carrier mobility leading to potential candidates for next-generation optoelectronic devices. Habib et al. performed density functional theory on TMD/organic molecules to study their interfacial and electronic properties [6]. Their study reveals modulation of electronic properties i.e., reduction of work function associated with charge transfer between layers of heterostructures has applications in LEDs. A study by Kumar et al. revealed that MoS2 nanosheets could be used as gas sensors and catalysts by creating sulfur monovacancies [7].
MoS2 is a molecular semiconducting material, which generates intense PL and second-order harmonic using the dopants [14,15]. Stavrou et al. reported control of the crystalline phase of MoS2 and WS2, which provides an efficient strategy for 2D nanostructures with tailored nonlinear optical properties for specific optoelectronic and photonic applications [16]. These materials have a variety of nonlinear optical properties that can be easily tailored by changing the chalcogen atom. Moreover, resonant harmonic at the wavelength λ = 32 nm is generated from plasmas of molybdenum species [17,18].
The conversion efficiency of high-order harmonics is a key issue when considering the practical applications of such extreme ultraviolet (XUV) sources. Hence, to increase the yield and cut-off energy of harmonics, different schemes like resonance-induced enhancement, quasi-phase matching of harmonics, application of multi-particle species, optimization of laser parameters, use of polarization structured beams, multicolor excitation, etc. have been introduced [19,20,21,22,23,24,25,26,27,28].
Recently, the role of dopants on high-order harmonics generation (HHG) from plasmas of ZnO molecular structures and CsPbBr3 2D nanocrystals are investigated [29,30,31,32]. The dopant percentage affected the nonlinear optical properties of those structures, which resulted in enhancing and diminishing the yield of high-order harmonics. Moreover, the intense coherent XUV emission was generated from molecular semiconductors by doping with chromium and changing the dopants [33,34]. Similarly, one can expect that, in the case of MoS2 samples, the dopants enhance the low- and high-order nonlinear optical properties of these structures. Moreover, there are no studies on the influence of dopants on high-order harmonics and resonant harmonic (at 32 nm) emitted from molecular structures like MoS2 TMDs.
In this work, the MoS2 two-dimensional molecular materials having various dopants like nickel nanoparticles (NPs) and carbon nanotubes (CNT) are used as the media for high-order harmonics generation to produce intense extreme ultraviolet pulses along with the characterization of material properties. We study the effect of ions, NPs, and CNT on the harmonic cut-off and the yield of single resonant harmonic generated from MoS2 molecular plasmas. The cut-off photon energies and harmonic yield efficiencies of materials are ascertained by varying the intensities of driving (DP) and heating pulses (HP). The role of nickel NPs in enhancing the nonlinear optical properties of MoS2 and high-order harmonic yield is revealed by carrying out the Z-scan studies. The present work provides a path towards the recognition of TMDs as the efficient XUV harmonic source, which can find applications in the areas of attosecond science, lithography, spectroscopy, and imaging (i.e., with nanoscale resolutions), etc.

2. Results

2.1. HHG and Z-Scan Measurements Using Mo-Contained Molecular Plasmas and Suspensions

The high-order harmonic spectroscopy of molecular and atomic semiconductors uncovers the influence of resonance phenomenon at particular harmonic order and the specimen components’ effect on harmonic yield. We selected the molecular species (MoS2 semiconducting TMDs) to reveal the effect of any hidden resonance process on the yield of harmonic orders. The morphology, optical, and electrochemical properties of MoS2 nanoflakes (NFs), MoS2- Ni, and MoS2-NiCNT molecular targets were described in [35]. Those results demonstrated that the bandgap of MoS2 NFs is increased and decreased with the addition of the nickel NPs and carbon nanotubes, respectively. The bandgap variation results from the formation of smaller-sized flakes, perturbation of electronic energy of levels, and band edge shift in flakes. Moreover, the X-diffraction measurements depicted the absence of diffraction peaks from added constituents in MoS2-Ni, and MoS2-NiCNT samples [35]. Thus, those results demonstrated that MoS2 NFs are the major constituents in MoS2-Ni, and MoS2-NiCNT samples whereas nickel NPs and carbon nanotubes influence the electronic, optical, and catalytic properties of MoS2 NFs. We used nickel NPs and CNT composites as the dopants of MoS2 material because of their ability to enhance the nonlinear optical properties and recombination cross-section of delocalized π-electron cloud, which results in the enhanced harmonic generation [28,30,31,36].
In HHG experiments, the fundamental pulse intensity must be beyond the barrier (above-barrier) suppression intensity (BSI) of targets to efficiently generate high-order harmonics. BSI is defined as the threshold laser intensity required to ionize the electron from the nucleus and formulated as ~3.8 × 109 IP4/Z2 W/cm2, where Z is an atomic number of ions and IP is an ionization potential. At the focus area, the minimum employed intensities of picosecond HP and femtosecond DP were 2.1 × 109 W/cm2 and 1.3 × 1014 W/cm2, respectively. The targets are kept away from the focus of HPs to reduce the probability of craters formation (see Materials and Methods section). The first (and second) IP of Mo and MoS2 are 7.09 eV (16.1 eV) and 5.28 eV, respectively. The calculated BSI for Mo, Mo+, and MoS2 are ~9.6 × 1012 W/cm2, ~6.4 × 1013 W/cm2, and ~3 × 1012 W/cm2, which are lower than the minimum DP intensities. Thus, the employed intensities allow for generating high-order harmonics from the laser-induced plasmas containing ions and neutrals of molybdenum-contained molecular targets.
The obtained HHG spectra from the laser-induced plasmas of studied molecular materials at 7.3 × 109 W/cm2 (HPs) and 4.7 × 1014 W/cm2 (DPs) are illustrated in Figure 1a. For better understanding, the harmonic intensities of low-order harmonics from all ablated targets are depicted as bar diagrams in Figure 2a. The harmonic cut-offs from Mo bulk, MoS2 bulk, MoS2 NFs, MoS2-Ni, and MoS2-NiCNT plasma plumes are extended up to 31H (48.05 eV), 31H (48.05 eV), 33H (51.1 eV), 37H (57.34 eV), and 29H (44.9 eV), respectively. The obtained harmonic plateau regions of Mo bulk, MoS2 bulk, MoS2-NFs, MoS2-Ni, and MoS2-NiCNT are 13H-17H, 11H-17H, 11H-15H, 9H-13H, and 9H-13H, respectively. The observed harmonic cut-off from the atomic Mo bulk laser-induced plasma is consistent with previously reported results [18,19]. The observed cut-off energy from the plasma produced on MoS2 molecular bulk target is similar to the same on Mo atomic bulk target, whereas the total harmonic yield in the former case was ~10% lesser concerning the latter case.
The total harmonic yield obtained from laser-induced plasmas of MoS2 NFs and MoS2-Ni targets is 1.4 and 2 times larger than from the plasma produced on the MoS2 bulk target. The total harmonic yield in that case means a summation of the peak values of all harmonics obtained from targets. The MoS2-Ni plasma allowed the generation of the total harmonic yield which is 1.5 times larger compared to the MoS2 NFs case. The main differences between nanoflakes and bulk targets are the material dimension and large surface-to-volume ratio. The MoS2 nanoflake’s surface texture has the potential to absorb a larger amount of heating radiation compared to the bulk material. Hence, the illumination of NFs by HPs results in a higher rate of particle ejection in plasma or, in other words, denser plasma concerning the ablation of the bulk target. The harmonic yield is proportional to the density of plasma particles. Correspondingly, the harmonic intensity induced by MoS2 NFs should be larger than the same by bulk MoS2. We did not compare the harmonic intensity by weight of different MoS2-containing samples. We observed that the harmonic intensity from MoS2 NFs was higher compared to the ablated MoS2 bulk at the same driving and heating pulse intensities. We attribute this result to the nanoflake’s surface texture, which has the potential to absorb a larger amount of heating radiation compared with the bulk material.
The inclusion of particles as the dopants in MoS2 molecular structures enhances their performance as electronic and optoelectronic devices by modifying their low-order nonlinear optical properties [13,37,38,39,40]. The engineering of selenium doping in MoS2 demonstrated an enhanced second harmonic generation due to an increase in the second-order nonlinear susceptibility of this structure. The titanium, vanadium, and nickel doping enhanced the photosensitivity and electrical conductivity in 2D-MoS2 molecular materials. The third-order nonlinear absorption coefficient and strong nonlinear photoluminescence were exhibited from the silver NPs embedded in MoS2 TMDs. Moreover, Ni-doped CdS thin films and ZnS NPs produced enhanced third harmonic generation compared to the undoped species due to enhanced third-order nonlinear optical properties. Thus the knowledge of the low-order optical nonlinearities of such species becomes crucial for the determination of the potential application of those properties in different areas of optoelectronics, as well as for the determination of the relation between their low- and high-order optical nonlinearities. Below, we present the studies of the low-order nonlinear optical properties of MoS2 NFs and MoS2-Ni suspensions by applying the femtosecond Z-scan technique at 800 nm wavelength using 1.63 × 1011 W/cm2 intensity of DPs to observe any correlation with the high-order nonlinear optical properties of those doped molecular species determined during HHG experiments.
The Z-scan measurements were performed at the excitation pulse intensity 269 GW/cm2 in the colloidal suspensions obtained by ultrasonic dispersion of the samples in distilled water. The measured normalized transmittances of the laser pulses propagated through the samples using open-aperture and closed-aperture Z-scan arrangements are shown in Figure 1b,c, respectively. The solid curves correspond to the theoretical fits of the experimental data. The equations used for theoretical fits are taken from [41].
The reverse saturable absorption and the combination of two-photon absorption and nonlinear refraction were observed in the studied samples (MoS2 NFs and MoS2-Ni suspensions) in the cases of open- and closed-aperture Z-scan arrangements, respectively. The measured two-photon absorption coefficients and nonlinear refractive indices of MoS2 NFs (and MoS2-Ni) were 1.3 × 10−11 (1.5 × 10−11) cm/W and 5.2 × 10−16 (6.9 × 10−16) cm2/W, respectively. The Z-scans of samples showed that the nonlinear refractive indices and nonlinear absorption coefficients increased in the case of nickel dopants, which might be due to the localized surface plasmon-induced charge transfer. Interestingly, the enhanced harmonic intensity produced from MoS2-Ni correlates with a larger nonlinear absorption coefficient and refractive index compared to MoS2 NFs. The enhanced nonlinear absorption property of MoS2-Ni may increase the absorption of HP, which allows the formation of denser plasma. Correspondingly, stronger harmonics will be produced from the denser plasmas. Moreover, the characterization of these samples revealed that the presence of nickel NPs leads to the formation of smaller-sized NFs [35]. Earlier, the HHG experiments using small-sized NPs demonstrated a higher yield of harmonics compared with the larger-sized NPs due to enhanced surface-to-volume ratio leading to the increase of absorption [42]. In the case of larger-sized NPs, the inner atoms do not provide the harmonics due to the absorption of the XUV emission and screening of the accelerated electrons. Overall, the presence of nickel NPs affected the plasma density and MoS2 NFs dimensions, which cause the generation of stronger high-order harmonics.
The total harmonic yields from MoS2 NFs and MoS2-Ni plasmas were 2.5 and 1.7 times larger than those produced from MoS2-NiCNT plasma. One can conclude that the addition of multi-walled CNT decreases the harmonic yield. Macroscopically, the harmonic yield is influenced by the interference of the harmonics emitted from every molecular, atomic, and ionic source of the target. Whether it is constructive or destructive interference depends on the phases of generated harmonics from different sources. Typically, single-walled CNTs have a wall diameter of 2.5 nm. The multi-walled CNTs (MWCNTs) can be regarded as a group of single-walled CNTs having broader diameter distribution. As mentioned above, the diameter of our MWCNTs was in the range of 250–500 nm. Hence, the total harmonic signal from MWCNTs can be considered as a combination of the harmonics obtained from different walls of the tubes. In our experiments, the MWCNTs were not aligned in the preferred direction or orientation, which may influence the phases of the harmonics emitted from them. The differently aligned MWCNTs emitted harmonics having different phases, which modified the total harmonic yield emitted from MoS2-NiCNT. Notice that the aligned MWCNTs produced stronger third-harmonic emission than nonaligned MWCNTs [43]. Hence, the reduction in harmonic yield from MoS2-NiCnt plasmas compared with MoS2 NFs and MoS2-Ni plasmas can be attributed to the destructive interference of harmonics in the former case.

2.2. Resonance-Enhanced Harmonic Generation

The resonant and suppressed harmonics were observed at around ~32 nm and ~38 nm from all Mo-contained materials except for MoS2-NiCNT (Figure 1a). The bar diagrams in Figure 2b represent the resonant harmonic intensity (25H) and neighboring longer-wavelength harmonics (21H and 23H). The four-step model explains the resonant-induced enhancement of single harmonic [44]. The resonant harmonic generation from Mo-contained materials is due to the influence of 4p-4d resonant transitions from the single- and double-ionized Mo [17]. The suppression of harmonics at 33–34 eV (~21H of 800 nm DP) in laser-induced plasmas of Mo materials (expect MoS2-NiCNT) is attributed to the contribution from the destructive interference of 4p-4d transitions with 4d orbital recombination. The behavior of resonant transitions with recombined orbitals is important in HHG because macroscopically, its yield depends on the interference of high-order harmonics generated from every ionic and atomic source.
The resonant harmonic (25H) generated in Mo plasma was 11 and 1.7 times more intense than 21H and 27H, respectively. The resonant harmonic intensity in the case of ablated Mo is ~2 times stronger in comparison with MoS2 laser-induced plasmas. Moreover, the yields of resonant neighboring harmonics (23H, 27H, 29H) generated from MoS2 are also smaller compared with Mo plasma. Hence, our results show that the plasmas from the targets containing sulfide ions produce a less intense resonant harmonic, which indicates that those ions affect the favorable conditions of resonance-induced enhancement of a single harmonic.
The resonant harmonic transitions are tailored by the driving beam characteristics (wavelength, intensity, etc.) and components present in HHG media. HHG in molecular plasmas containing oxides, phosphides, and selenides produces reduced or no resonant harmonics [45]. One can suggest that the detuning/shifting of the resonant transition reduces the oscillator strength (gf) of this transition. Hence, the decreased resonant harmonic yield in our case might be due to the modification of the 4p-4d resonant transitions influenced by sulfide ion, which may diminish the gf of the transition thus leading to the decay of the enhancement of single harmonic. At the same time, MoS2 plasma allows the generation of 21H, which is comparable with the case of Mo plasma when a similar suppressed harmonic was produced. This result shows that the influence of sulfide ions on the destructive bonding between 4p-4d resonant transitions and recombination to the 4d orbitals is negligible. For a detailed explanation of this effect, simulations need to be performed using the time-dependent density functional theory, which is out of the scope of the present article. Overall, the presence of sulfide ions in MoS2 plasma produced less intense resonant harmonic photons and lesser total harmonic yield once compared with the Mo plasma.
The resonant harmonic (25H) generated in MoS2-Ni plasma was 2.5 and 1.4 times stronger compared with 25H produced in MoS2 NFs and bulk MoS2 plasmas, respectively. Meantime, the resonant harmonic generated in MoS2 bulk, MoS2 NFs, and MoS2-Ni plasmas was 4, 7, and 8 times stronger than 21H emitted from the same plasmas. The suppressed harmonic intensity (21H) produced from ablated targets corresponds to the following dependence: MoS2-NiCNT > MoS2-Ni > MoS2 NFs > Mo bulk ≅ MoS2 bulk.
The enhanced 21H intensity from MoS2-Ni and MoS2 NFs plasmas compared with the plasmas produced on bulk Mo and MoS2 bulks might be due to higher plasma density leading to a larger concentration of the electrons recombined with the atoms and molecules while emitting 38 nm radiation, despite of the destructive interference of contributions from 4p-4d transitions with 4d orbitals. On the other hand, we did not observe the enhanced resonant harmonic and the suppressed 21H compared with the remaining higher-order spectrum in the case of MoS2-NiCNT plasmas. Moreover, the harmonic cut-off from MoS2-NiCNT was restricted to 27.5 nm (29H), which is the lowest cut-off compared to other Mo-contained materials used in our HHG experiments.
The presence of misaligned MWCNTs in the target may either detune or shift the resonant harmonic transition. This modification will lead to either reduction or increase of the gf of this transition, which might lead to a generation of featureless harmonic distribution (i.e., without the enhancement of 25H) or demonstration of stronger enhancement of this single harmonic or other harmonics. The detuning or shifting of transition may occur due to the alternation of the refractive index of plasma at the resonant wavelength, which can lead to the modification in the phases of the interacting waves (i.e., 25H from different components of MoS2-NiCNT plasma). The characteristic study of MoS2-NiCNT [35] revealed that the addition of MWCNTs into MoS2-Ni leads to a change in electrical and optical properties of MoS2 NFs by (i) the creation of new energy levels and (ii) band edge shift in NFs due to interaction between the carbon and sulfur atoms in MoS2 NFs. Hence, the addition of CNTs influenced the resonant optical transition, as well as modified the selection rules between the 4p-4d orbitals presented in MoS2 NFs, which might lead to the generation of high-order harmonic spectra without the resonance characteristics for XUV photon at ~32 nm.
Meanwhile, the intensity of 38 nm (21H, 33 eV) emission from laser-induced MoS2-NiCNT plasma was 2, 1.7, and 1.3 times stronger compared with the same from MoS2 bulk, MoS2 NFs, and Mo bulk plasmas, respectively. The enhancement of 21H from MoS2-NiCNT plasma compared with other materials can be considered as a result of the suppression of destructive interference of the contributions from the 4p-4d resonant transitions and its recombination with the 4d orbitals by modification in optical/electrical properties of MoS2 NFs due to presence of differently aligned CNTs in targets.
Overall, the MoS2-Ni is a good source for emitting the intense coherent XUV photons at 32 nm and other harmonic wavelengths as compared to other targets used in our HHG experiments.

2.3. Effect of Driving and Heating Pulse Intensities on HHG in Ablated Molecular Structures

The resonant amplification of a single harmonic due to the presence of strong ionic transitions in HHG media, as well as the total harmonic yield, can be influenced by the electric field of DPs. Hence, we studied the effect of DPs on the resonant harmonic and total harmonic yield. The dependences of high-order harmonic spectra from the plasmas comprising different Mo-contained molecular materials at various intensities of DP and HP are shown in Figure 3. For better understanding, the total harmonic yields and cut-off photon energies at various intensities of DP and HP are summarized in Figure 4a,b, respectively.
The harmonic cut-offs and intensities increased with the growth of DP and HP intensities. As per harmonic cut-off law, the maximum harmonic photon energy is defined by the relation EC = IP + 3.17 UP where IP is ionization potential and UP is a ponderomotive potential (UP ≈ 9.33 × 10−14 2 [W/cm2 × µm2]; here I is a DP intensity measured in W/cm2 and λ is the wavelength of DP measured in micrometers). One can see that cut-off energy depends on the DP wavelength and intensity. The increase in HP intensity creates higher particle density in the plasmas. Thus the enhancement in the harmonic yield and cut-off energies from Mo-contained plasmas with an increase of HP and DP intensities is attributed to the higher plasma density and ponderomotive potential, respectively.
At 2.1 × 109 W/cm2 (HP) and 1.3 × 1014 W/cm2 (DP) intensities, Mo bulk-contained plasma is unable to produce 32 nm (38 eV) resonant harmonic photons. Conversely, at these intensities, MoS2 NFs and MoS2-Ni produced resonant harmonic photons with their neighboring harmonics. The observed result is due to the insignificant amount of Mo ions present in plasma from Mo bulk, because of the higher ablation threshold compared to MoS2 NFs and MoS2-Ni targets. Moreover, the latter targets have higher nonlinear absorption. Therefore, at lower HP intensities, MoS2 NFs, and MoS2-Ni targets might generate larger plasma concentrations compared to the Mo bulk. Notice that, at higher DP and HP intensities, the plasma produced on the bulk Mo allowed a generation of the enhanced resonant harmonic and the neighboring high-order harmonics compared to the MoS2 bulk (Figure 4a). As stated earlier, it is probably due to the detuning or shifting of resonant harmonic transition or alteration of selection rules by the presence of sulfide ion in MoS2 plasmas, which influenced its total harmonic yield.

3. Discussion

MoS2 NFs and Nickel-doped MoS2 NFs allow the generation of the highest harmonic yield compared with Mo, MoS2 bulk, and MoS2-NiCnt at different employed intensities of HP and DP (see Figure 4a), which is complementary to the result discussed in Section 2.1. Overall, MoS2-Ni generated intense high-order harmonics at different HP and DP intensities.
As said before, the featureless and gradually decreasing pattern of harmonics from MoS2-NiCnt laser plasmas is due to the presence of randomly aligned CNTs influenced 4p-4d resonant transition and its interference with 4d orbitals.
Our studies showed that MoS2-NiCnt plasma produced the lowest harmonic yield and cut-off, while the MoS2-Ni plasma emitted the highest yield and cut-off energy for generating harmonics. Hence, the ablation of MoS2 NFs doped with nickel NPs can be employed as an effective plasma medium for HHG and demonstration of resonance enhancement at λ = 32 nm. Meanwhile, the stability of harmonics and the number of shots that can be obtained from the target before the harmonic intensity starts to decrease are the important parameters for efficient HHG. Considering those factors the bulk target is more beneficial compared to powder samples. Keeping these factors into consideration, the cylindrical rotating targets are used for the generation of stable high-order harmonics [46]. Hence, making thin films of MoS2-Ni or keeping powder samples on a motorized rotating mount can produce stable harmonics, which can find potential applications in coherent diffractive imaging and attosecond spectroscopy.
Ni is easily oxidized, which means that the Ni NPs can be coated with NiO. The question arises how would this oxide impact the harmonic resonant? One can assume the oxidization of Ni NPs decorated on the MoS2 nanoflakes. The harmonic intensity depends on the plasma density, which in turn depends on the characteristics of components (ions, neutrals, composites of Ni, MoS2, and S, etc.). However, there will be lesser availability of NiO (ionization potential is 10.7 eV) in the plasma because the employed heating pulse intensity is higher than the barrier suppression intensity of NiO. Additionally, the nickel NPs attached to the surface of MoS2 nanoflakes are exposed for oxidization. Hence, the high-order harmonics generation from the MoS2-Ni composite is mainly from the ions and neutrals of MoS2, Ni, and, to some extent, Mo and S. Correspondingly, the resonance enhancement from the Mo-containing species in plasma will not be affected by the presence of the oxidized Ni.
A similar conclusion has been reported in the case of In and In2O3 plasmas [45]. Strong enhancement of single harmonic from the indium plasma in the 62 nm range was, to some extent, suppressed once the indium oxide plasma was applied for HHG. However, the conditions of the latter plasma were changed once stronger ablation was used to the In2O3 target, leading to the enhancement of a single (13th) harmonic of the 800 nm pump propagating through such plasma. An analogous conclusion was reported in [47].
The MoS2-Ni is a semiconductor-metal (more precisely, semiconductor-oxide-metal, if Ni is oxidized) heterostructure. It has been reported that this kind of heterostructure can cause charge transfer between two (three, if Ni is oxidized) materials [48]. In laser-induced plasmas, the quantum tunneling effect enhances the resonant electron transfer cross-section in strongly coupled plasmas [49]. In our case, resonant harmonic generation is due to the influence of 4p-4d resonant transitions from the single- and double-ionized Mo component in plasma [17] rather than from MoOySx (before and after Ni depositions), MoSx, and NiSx (after Ni deposition appeared in XPS spectra [48]). Wang et al. [48] claimed that the intensity of oxidization is reduced after Ni deposition. The reduction in oxidization may increase the higher harmonic intensity.
Ni doping in MoS2 introduces an additional energy level [50]. The enhanced PL spectrum can be observed by tuning the incident wavelength. The decrease of PL with the growth of concentration of MoS2-CNT and blue shift in PL spectrum was reported in [51]. Moreover, PL spectrum of MoS2-BN nanotubes becomes diminished and blueshifted by adding single-walled CNT [52]. Therefore, the Ni dopants enhance the PL spectrum in MoS2 nanoflakes whereas the CNT quenches it. Moreover, the CNT shifts the peak of photoluminescence to the blue side.
The earlier report [35] has shown that the absorption mechanism is significantly varied by doping MoS2 with NiO NPs and MWCNTs, which might lead to variations in the PL intensity. They have shown that the PL yield is enhanced in molybdenum disulfide (MoS2)/perylene-3,4,9,10-tetracarboxylic dianhydride (MoS2/PTCDA) heterostructure due to reduced bang gap and reduced screening of electrons. Moreover, the shift of PL peak was observed in this heterostructure compared to the individual species due to the electron hybridization in MoS2 /PTCDA heterostructure. It was determined that the PL intensity is increased and the peak is blue-shifted with the increase in thickness of PTCDA organic molecule. One can expect that PL spectrum for MoS2-Ni becomes blueshifted due to an increase in the bandgap compared to the pristine few-layered MoS2 nanosheets. Recently, TMD/organic molecule heterostructures show the enhancement of PL intensity and charge carrier mobility thus allowing considering them as potential candidates for the next generation of optoelectronic devices [6].
As mentioned, HHG in the molecular plasmas containing oxides, phosphides, and selenides produced a reduced harmonic intensity. To know the exact effect of charge transfer on harmonics, high-order harmonic experiments are needed to be performed from the films as HHG medium rather than from the laser-induced plasmas. Hence, our experiments do not provide information about the charge transfer effect on the resonant harmonic generation from MoS2-Ni. In summary, HHG from laser-induced plasmas depends on the plasma components and their density. The plasma density is higher in MoS2-Ni compared to other materials since enhanced absorption leads to the production of denser plasma and stronger harmonics.
HHG spectroscopy is proven to be a useful tool for the investigation of molecular, atomic, and electronic structures of materials, as well as the analysis of the dynamics of their properties in the ultrashort time scale [53,54,55,56,57]. For spectroscopic applications, a generated bunch of high-order harmonics should be separated, which requires sophisticated XUV filters and gratings. The resonant harmonic generation diminishes the requirement for harmonic separation [58,59,60,61,62]. The demonstration of resonance-induced enhancement of harmonic in present studies can provide further insight into the amendments of harmonic yield and the developments of high-order nonlinear spectroscopy.
The present work comprises the ablation of atomic, molecular, and complex targets for the formation of the optimal conditions for plasma formation to efficiently generate high-order harmonics. The first consideration of the comparative properties of such plasmas was reported in [63] where the high-order harmonics were analyzed from the plasma plumes prepared on the surfaces of complex targets. The studies of In–Ag targets showed that the characteristics of the high-order harmonics from the double-target plume were the same as those from the single-target plasmas. For the chromium–tellurium plasma, the enhancements of the 29th and 27th harmonics were obtained, thus indicating the appearance of the enhancement properties from both components of the double-target plasma. Those comparative studies also showed higher enhancement of a single harmonic in the case of atomic plasma (Sb) comparing to the molecular one (InSb). The additional component can only decrease the enhancement factor of the medium, due to the change in the oscillator strength and spectral distribution of the transitions involved in the resonance enhancement of the specific harmonic order. Our present studies allowed further consideration of the complex plasmas thus underlining a distinction of different mechanisms suppressing or enhancing HHG efficiency in comparison with the atomic plasmas of similar elemental content.

4. Materials and Methods

Earlier, the synthesis procedure and characterization of studied samples were reported in [35]. The synthesis of MoS2 NFs with dopants is shown in Figure 5.

4.1. Synthesis of Nickel Oxide Nanoparticles

All of the used chemicals (N-dimethylformamide (DMF), nickel acetate (Ni (CH3CO2)22H2O), sodium hydroxide (NaOH), and sulfuric acid (H2SO4)) were purchased from Sigma-Aldrich. Without any additional processing, all of these reactants and solvents were utilized as received. We prepared the aqueous solutions using deionized water as well as ultrapure, double-distilled water.
Nickel oxide NPs were produced by chemically reducing nickel acetate with polyethylene glycol as a stabilizing agent. In this synthesis procedure, as a first step, we mixed 1 M aqueous solution of nickel acetate with polyethylene glycol (PEG) for 60 min while continuously stirring. A 1 M NaOH aqueous solution was filled into a burette tube in the vertical column and dispensed drop by drop into the nickel acetate/PEG mixture while continuously stirring. The resulting solution was then centrifuged at 5000 rpm for 10 min with 200 mL of deionized water before being stored in a glass vial for later use. The average sizes of the NiO NPs embedded in MoS2 were in the range of 20–50 nm depending on the conditions of synthesis. These measurements were carried out during the SEM and TEM analysis of similar samples reported in Ref. [35].

4.2. Synthesis of Multiwalled Carbon Nanotubes

The multi-walled CNTs were synthesized through the chemical vapor deposition (CVD) technique on the Al-Cu-Fe surface. Ethylene (C2H4) was used as a carbon source in the CVD approach used to create the MWCNT on the Al-Cu-Fe substrate. The CVD chamber was evacuated and heated in an atmosphere of argon and hydrogen (Ar:H2 = 10:1) at a pressure of about 250 mbar. The MWCNTs were developed at 1072 K for around 20 min. Then the furnace was turned off and allowed to cool down to room temperature under the argon atmosphere. The black deposition inside the quartz tube was taken out and thoroughly washed with HCl:HNO3 (1:3 ratio) for 10 min followed by washing with distilled water for 60 min. Notice that an approximately similar procedure was reported in Ref. [64].

4.3. Synthesis of Few-Layer MoS2 and NiO Nanoparticles-Decorated MoS2

Few-layer MoS2 nanosheet sample was created by mechanically exfoliating bulk MoS2 powder (99.999% purity, Sigma Aldrich) in DMF solvent using a pressurized ultrasonic reactor. In brief, 50 mg MoS2 powder was suspended in 500 mL DMF and exfoliated for 10 h using intense ultrasonication. 2 mL of the supernatant of NiO NPs was added to the MoS2/DMF solution and exfoliated for another 10 h. Finally, the prepared solutions were filtered through 0.22 µm porous filter membranes and washed several times with deionized water. The final sample was vacuum dried for 12 h at 80 °C before being stored in cleaned airtight glass containers for further characterization and application.
Earlier, Lai et al. analyzed the optical, structural, vibrational, compositional, and morphological properties of a few-layered MoS2, as well as the NiO NPs and MWCNTs embedded on a few-layered pristine MoS2 [35]. Particularly, these samples show peaks at 410.3 and 384.4 cm−1 in their Raman spectra, which represent the A1g, E12g, and E1g vibrational modes of the hexagonal structure of MoS2. The Raman spectra of NiO NPs- and MWCNT-decorated MoS2 nanoflakes have shown strong peaks at 1349.5 cm−1 and 1604.0 cm−1 corresponding to the G-band related to the C-C bonds and D-band related to the defects in CNTs, respectively. Scanning electron microscopy and transmission electron microscopy confirmed the presence of Ni NPs and MWCNTs on the MoS2 NFs surfaces [35]. As mentioned, the average sizes of Ni NPs were in the range of 20–50 nm. The diameters of MWCNT were in the range of 250–500 nm. These species were attached to the surface of 1–4 μm MoS2 NFs. We did not measure the PL spectra of NiO, CNTs, and MoS2 flakes.

4.4. HHG and Z-Scan Methods

The experimental setup for the generation of high-order harmonics from the above-described molecular materials is presented in Figure 6a. The picosecond (800 nm, 200 ps, 1 kHz; Spitfire Ace, Spectra-Physics) pulses were used as HP for ablating the samples in the experiment. The femtosecond (800 nm, 35 fs, 1 kHz; Spitfire Ace, Spectra-Physics) laser pulses were used as DP for the generation of harmonics from the laser-induced plasmas produced on the surfaces of targets. The picosecond and femtosecond pulses were obtained from the same laser, by reflecting a small fraction of the uncompressed beam (~200 ps) before the compressor stage. The HP was focused using a spherical 300-mm focal length lens (L1) on the target (T) placed inside the vacuum chamber to create a laser-induced plasma. The DP was delayed by 83 ns concerning the picosecond HP and focused into the laser-induced plasmas using a spherical 500-mm focal length lens (L2) from the orthogonal direction to produce high-order harmonics. The DP propagated 0.2 mm above the target surface. The target and DP focusing positions are varied concerning the optical axis of DP and laser-induced plasmas, respectively, to determine the conditions for the highest yield of harmonics.
The generated harmonics and residual fundamental radiation propagated through the differential pump chamber (DPC) and slits before entering an XUV spectrometer. The spectrometer consisted of a gold-coated cylindrical mirror (CM), a 1200 lines/mm flat field grating (FFG) with variable line spacing (Hitachi), and a microchannel plate (MCP, Hamamatsu). The images present on the phosphor screen of MCP were collected by a CCD camera (Thorlabs) coupled with a laptop to acquire information about the intensities and spectra of generated harmonics in the XUV region. The target chamber and XUV spectrometer were maintained at 10−5 mbar. Figure 6c illustrates the typical two-dimensional color plots of harmonics generated from different molecular plasmas. The second diffraction patterns from grating are observed on either side of the odd harmonics (i.e., between 9H-13H) in HHG spectra. It is well known that even harmonics are absent in HHG spectra from laser-induced plasmas when using the single-color DPs due to the isotropy of the HHG medium leading to the absence of the nonlinear even-order susceptibilities. The further analysis of these harmonic spectra will be explained in the following section.
Molybdenum, molybdenum disulfide, molybdenum disulfide nanoflakes, molybdenum disulfide nanoflakes doped with nickel NPs, and molybdenum disulfide nanoflakes decorated with nickel NPs and multi-walled CNTs were used as targets of variable molecular consistency to produce laser-induced plasmas and to study the influence of the nickel and CNT on the nonlinear optical properties and generated harmonics from the Mo-contained molecular materials.
The Mo metallic sheet of dimensions 4 mm × 4 mm and thickness 1 mm was used for ablation and atomic plasma formation. The MoS2 bulk molecular target was prepared in the form of a pellet having dimensions 10 mm × 10 mm with a thickness of 1 mm using a hydraulic press. The MoS2 NFs, MoS2-Ni, and MoS2-NiCNT targets were prepared by impinging the powdered samples on the double-sided tape (i.e., the glue of double-sided tape) attached to a glass substrate. The sizes of these targets were 4 mm × 4 mm. Notice that ablated glass substrate did not produce harmonics.
We also studied the low-order nonlinear optical properties of those materials using the Z-scan technique by illuminating the suspended molecular samples using femtosecond laser pulses. The schematic of closed- and open-aperture configurations of the Z-scan scheme is illustrated in Figure 6b. The 800 nm, 35 fs pulses were focused into a 2 mm thick quartz cell containing molecular suspensions using the convex lens having a focal length of 400 mm. The quartz cell was moved along the z-axis direction of beam propagation by controlling the movement of the translation stage through a motor controller. The reflected and transmitted parts of the propagated laser light from the glass slide were used to measure the sample’s low-order nonlinear optical properties using open- and closed-aperture schemes. In the case of an open-aperture scheme, the reflected beam was collected directly by silicon photodiode PD2 (PDA110A-EC, Thorlabs), whereas, in a closed-aperture configuration, only 10% of transmitted light was collected through an iris placed in front of photodiode PD1.
The accuracy of Z-scan measurements depends on the characteristics of the input beam profile. Therefore, we measured the laser profile using a CCD camera. The measured laser profile was close to the Gaussian shape. The full width at half maximum of laser diameter at the focus was 38 µm. The closed and open aperture methods were used to measure the nonlinear absorption coefficients and nonlinear refractive indices of molecular samples, respectively, using 800 nm laser radiation.

5. Conclusions

In conclusion, we demonstrated the generation of high-order harmonics and resonance-enhanced harmonic (at ~32 nm) from the laser-induced plasmas of MoS2 NFs doped with nickel NPs while analyzing different Mo-containing laser-induced plasmas. The characteristics of high-order harmonics were investigated by varying the DP and HP intensities. MoS2 NFs doped with nickel generated the strongest coherent XUV emission than other targets. The harmonic enhancement was attributed to the increase in plasma density of MoS2 NFs doped with nickel. The harmonics generation in MoS2-NiCNT plasmas was weaker as compared with other employed targets. The randomly aligned CNTs influenced the harmonic phase leading to destructive interference, which caused a reduction in harmonic yield. Further, the resonant harmonic at ~32 nm was produced from all targets except for the MoS2-NiCNT. The most intense resonant harmonic was obtained in the case of MoS2-Ni plasma. The absence of resonant harmonic from MoS2-NiCNT might be due to the detuning of resonant ionic transition due to modification of the optical properties of MoS2 NFs by carbon nanotubes. The 38 nm harmonic intensity from MoS2-NiCNT plasmas was stronger compared to the one generated in other targets. This feature was attributed to the suppression of destructive interference of 4p-4d transition contributions and recombination with 4d orbitals due to the presence of carbon nanotubes in the target. The present studies elucidate an approach for using various transition metal dichalcogenides with dopants to produce intense coherent XUV radiation.

Author Contributions

Conceptualization: R.A.G. Methodology: M.V. Formal analysis and investigation: M.V., V.V.K., G.S.B. and S.R.K. Writing—original draft preparation: M.V. and R.A.G. Writing—review and editing: P.S., W.L. and R.A.G. All authors have read and agreed to the published version of the manuscript.


This research was funded by The Innovation Grant of Changchun Institute of Optics, Fine Mechanics and Physics (CIOMP), Jilin Provincial Science and Technology Development Project (YDZJ202102CXJD002), Development Program of the Science and Technology of Jilin Province (20200802001GH), Chinese Academy of Sciences President’s International Fellowship Initiative (2021PM0036, 2022VMA0012), European Regional Development Fund (, World Bank Project (REP-04032022-206).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data underlying the results presented in this paper is not publicly available at this time but may be obtained from the author upon reasonable request.


The coauthors acknowledge Subhash Singh, University of Rochester, USA, for providing the samples used for these studies.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Lopez-Sanchez, O.; Lembke, D.; Kayci, M.; Radenovic, A.; Kis, A. Ultrasensitive photodetectors based on monolayer MoS2. Nat. Nanotechnol. 2013, 8, 497–501. [Google Scholar] [CrossRef] [PubMed]
  2. Srivastava, Y.K.; Chaturvedi, A.; Manjappa, M.; Kumar, A.; Dayal, G.; Kloc, C.; Singh, R. MoS2 for ultrafast all-optical switching and modulation of THz fano metaphotonic devices. Adv. Opt. Mater. 2017, 5, 1700762. [Google Scholar] [CrossRef]
  3. Nguyen, C.V.; Hieu, N.N.; Muoi, D.; Duque, C.A.; Feddi, E.; Nguyen, H.V.; Phuong, L.T.T.; Hoi, B.D.; Phuc, H.V. Linear and nonlinear magneto-optical properties of monolayer MoS2. J. Appl. Phys. 2018, 123, 034301. [Google Scholar] [CrossRef]
  4. Sun, X.; Zhang, B.; Li, Y.; Luo, X.; Li, G.; Chen, Y.; Zhang, C.; He, J. Tunable ultrafast nonlinear optical properties of graphene/MoS2 van der Waals heterostructures and their application in solid-state bulk lasers. ACS Nano 2018, 12, 11376–11385. [Google Scholar] [CrossRef]
  5. Zhang, J.; Du, L.; Feng, S.; Zhang, R.W.; Cao, B.; Zou, C.; Chen, Y.; Liao, M.; Zhang, B.; Yang, S.A.; et al. Enhancing and controlling valley magnetic response in MoS2/WS2 heterostructures by all-optical route. Nat. Commun. 2019, 10, 4226. [Google Scholar] [CrossRef] [Green Version]
  6. Habib, M.R.; Wang, W.; Khan, A.; Khan, Y.; Obaidulla, S.M.; Pi, X.; Xu, M. Theoretical study of interfacial and electronic properties of transition metal dichalcogenides and organic molecules based van der Waals heterostructures. Adv. Theory Simul. 2020, 3, 2000045. [Google Scholar] [CrossRef]
  7. Kumar, R.R.; Habib, M.R.; Khan, A.; Chen, P.-C.; Murugesan, T.; Gupta, S.; Anbalagan, A.K.; Tai, N.-H.; Lee, C.-H.; Lin, H.-N. Sulfur monovacancies in liquid-exfoliated MoS2 nanosheets for NO2 gas sensing. ACS Appl. Nano Mater. 2021, 4, 9459–9470. [Google Scholar] [CrossRef]
  8. Liu, T.; Liu, Q.; Hong, R.; Shi, Y.; Tao, C.; Wang, Q.; Lin, H.; Han, Z.; Zhang, D. Cu2O induced the enhancement of nonlinear absorption of MoS2 thin film. J. Alloys Compd. 2021, 886, 161137. [Google Scholar] [CrossRef]
  9. Liu, H.-Q.; Yao, C.-B.; Jiang, C.-H.; Wang, X. Preparation, modification and nonlinear optical properties of semiconducting MoS2 and MoS2/ZnO composite film. Opt. Laser Technol. 2021, 138, 106905. [Google Scholar] [CrossRef]
  10. Balaei, M.; Karimzadeh, R.; Saghaei, H.; Ghayeb-Zamharir, S. The effect of laser wavelength and concentration on the optical limiting response of exfoliated MoS2 in the NMP solvent. Eur. Phys. J. Plus. 2021, 136, 296. [Google Scholar] [CrossRef]
  11. Zha, F.; Chu, H.; Pan, Z.; Pan, H.; Zhao, S.; Yang, M.; Li, D. Large-scale few-layered MoS2 as a saturable absorber for Q-switching operation at 2.3 µm. Opt. Lett. 2022, 47, 3271. [Google Scholar] [CrossRef]
  12. Lu, C.; Luo, M.; Ge, Y.; Huang, Y.; Zhao, Q.; Zhou, Y.; Xu, X. Layer-dependent nonlinear optical properties of WS2, MoS2, and Bi2S3 films synthesized by chemical vapor deposition. ACS Appl. Mater. Interfaces 2022, 14, 2390–2400. [Google Scholar] [CrossRef] [PubMed]
  13. Autere, A.; Jussila, H.; Dai, Y.; Wang, Y.; Lipsanen, H.; Sun, Z. Nonlinear optics with 2D layered materials. Adv. Mater. 2018, 30, 1705963. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Pham, V.P.; Yeom, G.Y. Recent advances in doping of molybdenum disulfide: Industrial applications and future prospects. Adv. Mater. 2016, 28, 9024–9059. [Google Scholar] [CrossRef] [PubMed]
  15. Le, C.T.; Clark, D.J.; Ullah, F.; Jang, J.I.; Senthilkumar, V.; Sim, Y.; Seong, M.-J.; Chung, K.-H.; Kim, J.W.; Park, S.; et al. Impact of selenium doping on resonant second-harmonic generation in monolayer MoS2. ACS Photonics 2016, 4, 38–44. [Google Scholar] [CrossRef]
  16. Stavrou, M.; Chazapis, N.; Nikoli, E.; Arenal, R.; Tagmatarchis, N.; Couris, S. Crystalline phase effects on the nonlinear optical response of MoS2 and WS2 nanosheets: Implications for photonic and optoelectronic applications. ACS Appl. Nano Mater. 2022, 5, 16674–16686. [Google Scholar] [CrossRef]
  17. Kim, V.V.; Boltaev, G.S.; Iqbal, M.; Abbasi, N.A.; Al-Harmi, H.; Wahyutama, I.S.; Sato, T.; Ishikawa, K.L.; Ganeev, R.A.; Alnaser, A.S. Resonance enhancement of harmonics in the vicinity of 32 nm spectral range during propagation of femtosecond pulses through the molybdenum plasma. J. Phys. B Atomic Mol. Opt. Phys. 2020, 53, 195401. [Google Scholar] [CrossRef]
  18. Boltaev, G.S.; Ganeev, R.A.; Kim, V.V.; Zhang, K.; Venkatesh, M.; Guo, C. Time-dependent optimization of laser-produced molecular plasmas through high-order harmonic generation. Phys. Plasmas 2019, 26, 100703. [Google Scholar] [CrossRef]
  19. Lee, D.G.; Kim, J.H.; Hong, K.H.; Nam, C.H. Coherent control of high-order harmonics with chirped femtosecond laser pulses. Phys. Rev. Lett. 2001, 87, 243902. [Google Scholar] [CrossRef] [Green Version]
  20. Fareed, M.A.; Strelkov, V.V.; Singh, M.; Thire, N.; Mondal, S.; Schmidt, B.E.; Legare, F.; Ozaki, T. Harmonic generation from neutral manganese atoms in the vicinity of the giant autoionization resonance. Phys. Rev. Lett. 2018, 121, 023201. [Google Scholar] [CrossRef] [Green Version]
  21. Singh, M.; Fareed, M.A.; Laramée, A.; Isgandarov, E.; Ozaki, T. Intense vortex high-order harmonics generated from laser-ablated plume. Appl. Phys. Lett. 2019, 115, 231105. [Google Scholar] [CrossRef]
  22. Venkatesh, M.; Ganeev, R.A.; Kim, V.V.; Boltaev, G.S.; Sapaev, I.B.; Liang, J.; Yu, J.; Li, W. Application of vector beams for enhanced high-order harmonics generation in laser-induced plasmas. Opt. Express 2022, 30, 17080–17093. [Google Scholar] [CrossRef]
  23. Rothhardt, J.; Hadrich, S.; Demmler, S.; Krebs, M.; Fritzsche, S.; Limpert, J.; Tunnermann, A. Enhancing the macroscopic yield of narrow-band high-order harmonic generation by Fano resonances. Phys. Rev. Lett. 2014, 112, 233002. [Google Scholar] [CrossRef] [Green Version]
  24. Boltaev, G.S.; Iqbal, M.; Abbasi, N.A.; Kim, V.V.; Ganeev, R.A.; Alnaser, A.S. Enhanced XUV harmonics generation from diatomic gases using two orthogonally polarized laser fields. Sci. Rep. 2021, 11, 5534. [Google Scholar] [CrossRef]
  25. Boltaev, G.S.; Ganeev, R.A.; Strelkov, V.V.; Kim, V.V.; Zhang, K.; Venkatesh, M.; Guo, C. Resonance-enhanced harmonics in mixed laser-produced plasmas. Plasma Res. Express 2019, 1, 035002. [Google Scholar] [CrossRef]
  26. Rosenthal, N.; Marcus, G. Discriminating between the role of phase matching and that of the single-atom response in resonance plasma-plume high-order harmonic generation. Phys. Rev. Lett. 2015, 115, 133901. [Google Scholar] [CrossRef] [PubMed]
  27. Ganeev, R.A.; Boltaev, G.S.; Kim, V.V.; Venkatesh, M.; Zvyagin, A.I.; Smirnov, M.S.; Ovchinnikov, O.V.; Wöstmann, M.; Zacharias, H.; Guo, C. High-order harmonic generation using quasi-phase matching and two-color pump in the plasmas con taining molecular and alloyed metal sulfide quantum dots. J. Appl. Phys. 2019, 126, 193103. [Google Scholar] [CrossRef]
  28. Venkatesh, M.; Ganeev, R.A.; Ivanov, D.S.; Boltaev, G.S.; Kim, V.V.; Liang, J.; Samokhvalov, A.A.; Kabashin, A.V.; Klimentov, S.M.; Garcia, M.E.; et al. High-order harmonic generation in Au nanoparticle-contained plasmas. Nanomaterials 2020, 10, 234. [Google Scholar] [CrossRef] [Green Version]
  29. Konda, S.R.; Soma, V.R.; Banavoth, M.; Ketavath, R.; Venkatesh, M.; Lai, Y.H.; Li, W. High harmonic generation from laser-induced plasmas of Ni-doped CsPbBr3 nanocrystals: Implications for extreme ultraviolet light sources. ACS Appl. Nano Mater. 2021, 4, 8292–8301. [Google Scholar] [CrossRef]
  30. Venkatesh, M.; Ganeev, R.A.; Rao, K.S.; Boltaev, G.S.; Zhang, K.; Srivastava, A.; Bindra, J.K.; Singh, S.; Kim, V.V.; Maurya, S.K.; et al. Influence of gadolinium doping on low- and high-order nonlinear optical properties and transient absorption dynamics of ZnO nanomaterials. Opt. Mater. 2019, 95, 109241. [Google Scholar] [CrossRef]
  31. Konda, S.R.; Ganeev, R.A.; Kim, V.V.; Ketavath, R.; Yu, J.; Li, W. High-order harmonics generation in nanosecond-pulses-induced plasma containing Ni-doped CsPbBr3 perovskite nanocrystals using chirp-free and chirped femtosecond pulses. Nanotechnology 2022, 34, 055705. [Google Scholar] [CrossRef] [PubMed]
  32. Konda, S.R.; Soma, V.R.; Ganeev, R.A.; Banavoth, M.; Ketavath, R.; Li, W. Third-order optical nonlinearities and high-order harmonics generation in Ni-doped CsPbBr3 nanocrystals using single- and two-color chirped pulses. J. Mater. Sci. 2022, 57, 3468–3485. [Google Scholar] [CrossRef]
  33. Nefedova, V.E.; Fröhlich, S.; Navarrete, F.; Tancogne-Dejean, N.; Franz, D.; Hamdou, A.; Kaassamani, S.; Gauthier, D.; Nicolas, R.; Jargot, G.; et al. Enhanced extreme ultraviolet high-harmonic generation from chromium-doped magnesium oxide. Appl. Phys. Lett. 2021, 118, 201103. [Google Scholar] [CrossRef]
  34. Wang, Z.; Park, H.; Lai, Y.H.; Xu, J.; Blaga, C.I.; Yang, F.; Agostini, P.; DiMauro, L.F. The roles of photo-carrier doping and driving wavelength in high harmonic generation from a semiconductor. Nat. Commun. 2017, 8, 1686. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Lai, B.; Singh, S.C.; Bindra, J.K.; Saraj, C.S.; Shukla, A.; Yadav, T.P.; Wu, W.; McGill, S.A.; Dalal, N.S.; Srivastava, A.; et al. Hydrogen evolution reaction from bare and surface-functionalized few-layered MoS2 nanosheets in acidic and alkaline electrolytes. Mater. Today Chem. 2019, 14, 100207. [Google Scholar] [CrossRef]
  36. Ganeev, R.A.; Naik, P.A.; Singhal, H.; Chakera, J.A.; Kumar, M.; Joshi, M.P.; Srivastava, A.K.; Gupta, P.D. High-order harmonic generation in carbon-nanotube-containing plasma plumes. Phys. Rev. A 2011, 83, 013820. [Google Scholar] [CrossRef]
  37. Liang, Y.; Li, P.; Zhu, B.; Gu, Y. Highly improved nonlinear optical responses of reduced graphene oxide via the decoration of Ni doped ZnS nanoparticles. Phot. Nanostruct. Fundam. Appl. 2022, 50, 101004. [Google Scholar] [CrossRef]
  38. Chtouki, T.; El Kouari, Y.; Kulyk, B.; Louardi, A.; Rmili, A.; Erguig, H.; Elidrissi, B.; Soumahoro, L.; Sahraoui, B. Spin-coated nickel doped cadmium sulfide thin films for third harmonic generation applications. J. Alloys Compd. 2017, 696, 1292–1297. [Google Scholar] [CrossRef] [Green Version]
  39. Guo, B.; Xiao, Q.L.; Wang, S.H.; Zhang, H. 2D layered materials: Synthesis, nonlinear optical properties, and device applications. Laser Phot. Rev. 2019, 13, 1800327. [Google Scholar] [CrossRef]
  40. Sun, X.; Chu, L.; Ren, F.; Jia, Y.; Chen, F. Plasmon-enhanced third-order optical nonlinearity of monolayer MoS2. Appl. Phys. Lett. 2022, 120, 193101. [Google Scholar] [CrossRef]
  41. Sheik-Bahae, M.; Said, A.A.; Wei, T.H.; Hagan, D.J.; Stryland, E.W.V. Sensitive measurement of optical nonlinearities using a single beam. IEEE J. Quantum Electron. 1990, 26, 760–769. [Google Scholar] [CrossRef] [Green Version]
  42. Konda, S.R.; Lai, Y.H.; Li, W. Improvement of high-order harmonics from silver plasma plumes induced by femtoseconds laser pulses. Opt. Laser Technol. 2022, 146, 107602. [Google Scholar] [CrossRef]
  43. Stanciu, C.; Ehlich, R.; Petrov, V.; Steinkellner, O.; Herrmann, J.; Hertel, I.V.; Slepyan, G.Y.; Khrutchinski, A.A.; Maksimenko, S.A.; Rotermund, F.; et al. Experimental and theoretical study of third-order harmonic generation in carbon nanotubes. Appl. Phys. Lett. 2002, 81, 4064–4066. [Google Scholar] [CrossRef]
  44. Strelkov, V. Role of autoionizing state in resonant high-order harmonic generation and attosecond pulse production. Phys. Rev. Lett. 2010, 104, 123901. [Google Scholar] [CrossRef]
  45. Ganeev, R.A.; Boltaev, G.S.; Kim, V.V.; Iqbal, M.; Kuroda, H.; Alnaser, A.S. Distinction in resonance properties of the atomic and molecular contained plasmas used for high-order harmonics generation of ultrafast laser pulses. J. Appl. Phys. 2021, 129, 043103. [Google Scholar] [CrossRef]
  46. Hutchison, C.; Ganeev, R.A.; Witting, T.; Frank, F.; Okell, W.A.; Tisch, J.W.G.; Marangos, J.P. Stable generation of high-order harmonics of femtosecond laser radiation from laser produced plasma plumes at 1 kHz pulse repetition rate. Opt. Lett. 2012, 37, 2064–2066. [Google Scholar] [CrossRef]
  47. Elouga Bom, L.B.; Ganeev, R.A.; Abdul-Hadi, J.; Vidal, F.; Ozaki, T. Intense multi microjoule high-order harmonics generated from neutral atoms of In2O3 nanoparticles. Appl. Phys. Lett. 2009, 94, 111108. [Google Scholar] [CrossRef]
  48. Wang, X.; Kim, S.Y.; Wallace, R.M. Interface chemistry and band alignment study of Ni and Ag contacts on MoS. ACS Appl. Mater. Interfaces 2021, 13, 15802–15810. [Google Scholar] [CrossRef]
  49. Hong, W.-P.; Jung, Y.-D. Characteristics of the resonant charge transfer in strongly coupled plasmas including quantum and shielding effects. J. Plasma Phys. 2016, 82, 455820101. [Google Scholar] [CrossRef]
  50. Ko, T.-S.; Huang, C.-C.; Lin, D.-Y. Optical and transport properties of Ni-MoS2. Appl. Sci. 2016, 6, 227. [Google Scholar] [CrossRef] [Green Version]
  51. Jeon, I.; Kutsuzawa, D.; Hashimoto, Y.; Yanase, T.; Nagahama, T.; Shimada, T.; Matsuo, Y. Multilayered MoS2 nanoflakes bound to carbon nanotubes as electron acceptors in bulk heterojunction inverted organic solar cells. Org. Electron. 2015, 17, 275–280. [Google Scholar] [CrossRef]
  52. Liu, M.; Hisama, K.; Zheng, Y.; Maruyama, M.; Seo, S.; Anisimov, A.; Inoue, T.; Kauppinen, E.I.; Okada, S.; Chiashi, S.; et al. Photoluminescence from single-walled MoS2 nanotubes coaxially grown on boron nitride nanotubes. ACS Nano 2021, 15, 8418–8426. [Google Scholar] [CrossRef]
  53. Itatani, J.; Levesque, J.; Zeidler, D.; Niikura, H.; Pépin, H.; Kieffer, J.C.; Corkum, P.B.; Villeneuve, D.M. Tomographic imaging of molecular orbitals. Nature 2004, 432, 867–871. [Google Scholar] [CrossRef] [PubMed]
  54. Kraus, P.M.; Zürch, M.; Cushing, S.K.; Neumark, D.M.; Leone, S.R. The ultrafast X-ray spectroscopic revolution in chemical dynamics. Nat. Rev. Chem. 2018, 2, 82–94. [Google Scholar] [CrossRef] [Green Version]
  55. Geneaux, R.; Marroux, H.J.B.; Guggenmos, A.; Neumark, D.M.; Leone, S.R. Transient absorption spectroscopy using high harmonic generation: A review of ultrafast X-ray dynamics in molecules and solids. Philos. Trans. R. Soc. London, Ser. A 2019, 377, 20170463. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Li, J.; Lu, J.; Chew, A.; Han, S.; Li, J.; Wu, Y.; Wang, H.; Ghimire, S.; Chang, Z. Attosecond science based on high harmonic generation from gases and solids. Nat. Commun. 2020, 11, 2748. [Google Scholar] [CrossRef]
  57. Borrego-Varillas, R.; Lucchini, M.; Nisoli, M. Attosecond spectroscopy for the investigation of ultrafast dynamics in atomic, molecular and solid-state physics. Rep. Prog. Phys. 2022, 85, 066401. [Google Scholar] [CrossRef]
  58. Ganeev, R.A.; Suzuki, M.; Baba, M.; Kuroda, H.; Ozaki, T. Strong resonance enhancement of a single harmonic generated in the extreme ultraviolet range. Opt. Lett. 2006, 31, 1699–1701. [Google Scholar] [CrossRef]
  59. Ganeev, R.; Witting, T.; Hutchison, C.; Frank, F.; Tudorovskaya, M.; Lein, M.; Okell, W.; Zaïr, A.; Marangos, J.; Tisch, J.J. Isolated sub-fs XUV pulse generation in Mn plasma ablation. Opt. Express 2012, 20, 25239–25248. [Google Scholar] [CrossRef]
  60. Ganeev, R.A.; Witting, T.; Hutchison, C.; Strelkov, V.V.; Frank, F.; Castillejo, M.; Lopez-Quintas, I.; Abdelrahman, Z.; Tisch, J.W.G.; Marangos, J.P. Comparative studies of resonance enhancement of harmonic radiation in indium plasma using multicycle and few-cycle pulses. Phys. Rev. A 2013, 88, 033838. [Google Scholar] [CrossRef] [Green Version]
  61. Strelkov, V.V. Attosecond-pulse production using resonantly enhanced high-order harmonics. Phys. Rev. A 2016, 94, 063420. [Google Scholar] [CrossRef] [Green Version]
  62. Khokhlova, M.A.; Emelin, M.Y.; Ryabikin, M.Y.; Strelkov, V.V. Polarization control of quasimonochromatic XUV light produced via resonant high-order harmonic generation. Phys. Rev. A 2021, 103, 043114. [Google Scholar] [CrossRef]
  63. Ganeev, R.A.; Milošević, D.B. Comparative analysis of the high-order harmonic generation in the laser ablation plasmas prepared on the surfaces of complex and atomic targets. J. Opt. Soc. Am. B 2008, 25, 1127–1134. [Google Scholar] [CrossRef]
  64. Rezaee, S.; Ghaderi, A.; Boochani, A.; Solaymani, S. Synthesis of multiwalled carbon nanotubes on Cu-Fe nano-catalyst substrate. Results Phys. 2017, 7, 3640–3644. [Google Scholar] [CrossRef]

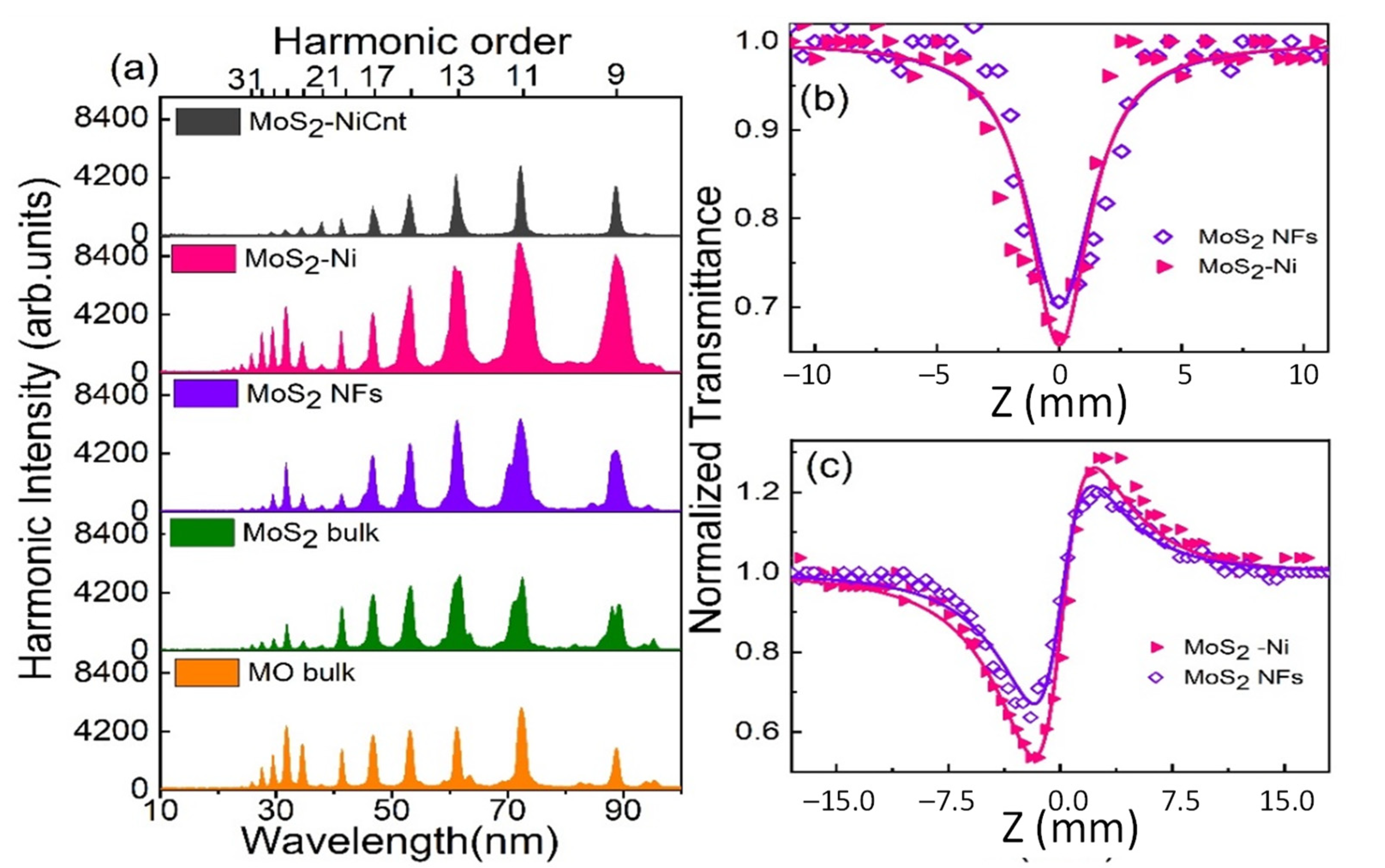

Figure 1. (a) Harmonic spectra from picosecond laser-induced plasmas of Mo-related materials. (b,c) Z-scans of MoS2 NFs and MoS2-Ni suspensions. (b) Open-aperture measurements. (c) Closed-aperture measurements. Solid curves in (b,c) show the corresponding theoretical fits.
Figure 1. (a) Harmonic spectra from picosecond laser-induced plasmas of Mo-related materials. (b,c) Z-scans of MoS2 NFs and MoS2-Ni suspensions. (b) Open-aperture measurements. (c) Closed-aperture measurements. Solid curves in (b,c) show the corresponding theoretical fits.
Ijms 24 06540 g001
Figure 2. Bar diagrams of harmonic yield obtained from Mo-related materials at (a) 9, 11, and 13 H (b) 21, 23, and 25 H. X = MoS2.
Figure 2. Bar diagrams of harmonic yield obtained from Mo-related materials at (a) 9, 11, and 13 H (b) 21, 23, and 25 H. X = MoS2.
Ijms 24 06540 g002

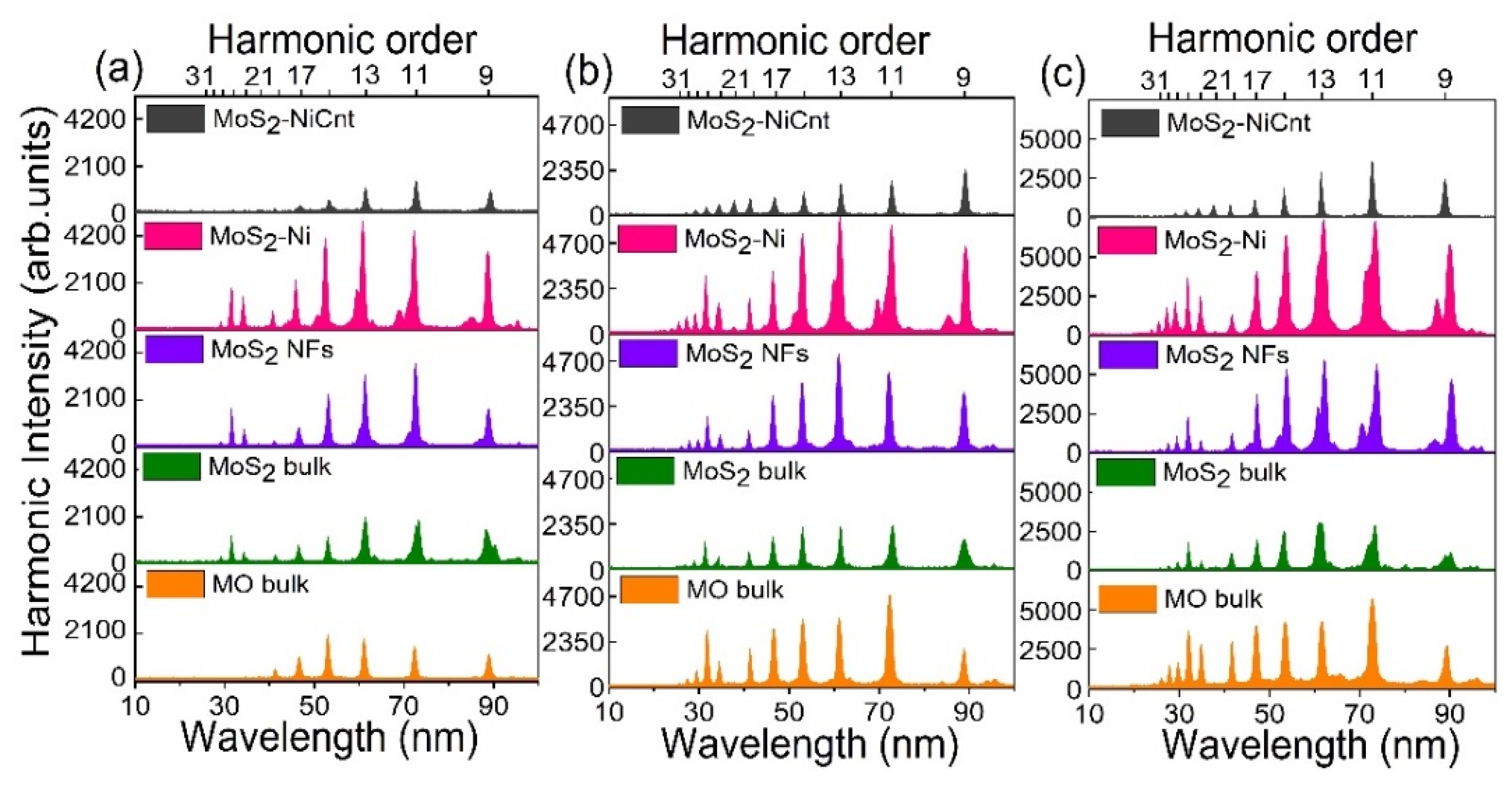

Figure 3. Harmonic spectra from Mo-contained plasmas at different intensities of picosecond HPs and femtosecond DPs. (a) 2.1 × 109 W/cm2 and 1.3 × 1014 W/cm2. (b) 3.4 × 109 W/cm2 and 2.5 × 1014 W/cm2. (c) 5.4 × 109 W/cm2 and 3.4 × 1014 W/cm2.
Figure 3. Harmonic spectra from Mo-contained plasmas at different intensities of picosecond HPs and femtosecond DPs. (a) 2.1 × 109 W/cm2 and 1.3 × 1014 W/cm2. (b) 3.4 × 109 W/cm2 and 2.5 × 1014 W/cm2. (c) 5.4 × 109 W/cm2 and 3.4 × 1014 W/cm2.
Ijms 24 06540 g003
Figure 4. (a) Harmonic cut-offs and (b) harmonic yields at various intensities of heating and driving pulses (I: 2.1 × 109 W/cm2 and 1.3 × 1014 W/cm2; II: 3.4 × 109 W/cm2 and 2.5 × 1014 W/cm2; III: 5.4 × 109 W/cm2 and 3.4 × 1014 W/cm2; IV: 7.3 × 109 W/cm2 and 4.7 × 1014 W/cm2, X: MoS2).
Figure 4. (a) Harmonic cut-offs and (b) harmonic yields at various intensities of heating and driving pulses (I: 2.1 × 109 W/cm2 and 1.3 × 1014 W/cm2; II: 3.4 × 109 W/cm2 and 2.5 × 1014 W/cm2; III: 5.4 × 109 W/cm2 and 3.4 × 1014 W/cm2; IV: 7.3 × 109 W/cm2 and 4.7 × 1014 W/cm2, X: MoS2).
Ijms 24 06540 g004

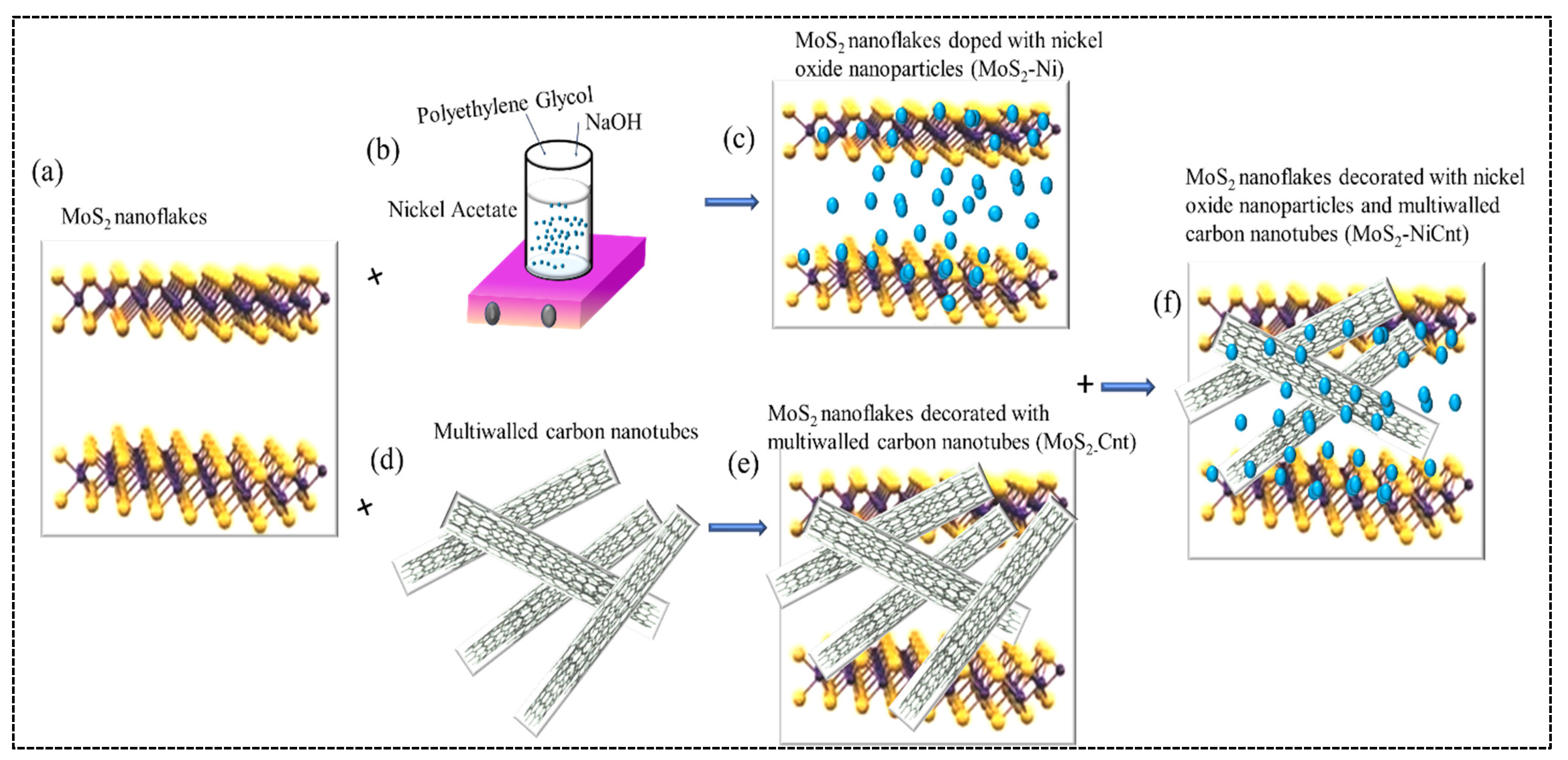

Figure 5. (a) Schematic illustration of a few-layer MoS2. (b) The synthesis scheme of Ni nanoparticles. (c) Schematic illustration of the doping of NiO NPs in MoS2 nanoflakes. (d) Multiwalled carbon nanotubes. (e) MoS2 nanoflakes decorated with multi-walled carbon nanotubes. (f) MoS2 nanoflakes decorated with NiO NPs and multi-walled carbon nanotubes.
Figure 5. (a) Schematic illustration of a few-layer MoS2. (b) The synthesis scheme of Ni nanoparticles. (c) Schematic illustration of the doping of NiO NPs in MoS2 nanoflakes. (d) Multiwalled carbon nanotubes. (e) MoS2 nanoflakes decorated with multi-walled carbon nanotubes. (f) MoS2 nanoflakes decorated with NiO NPs and multi-walled carbon nanotubes.
Ijms 24 06540 g005

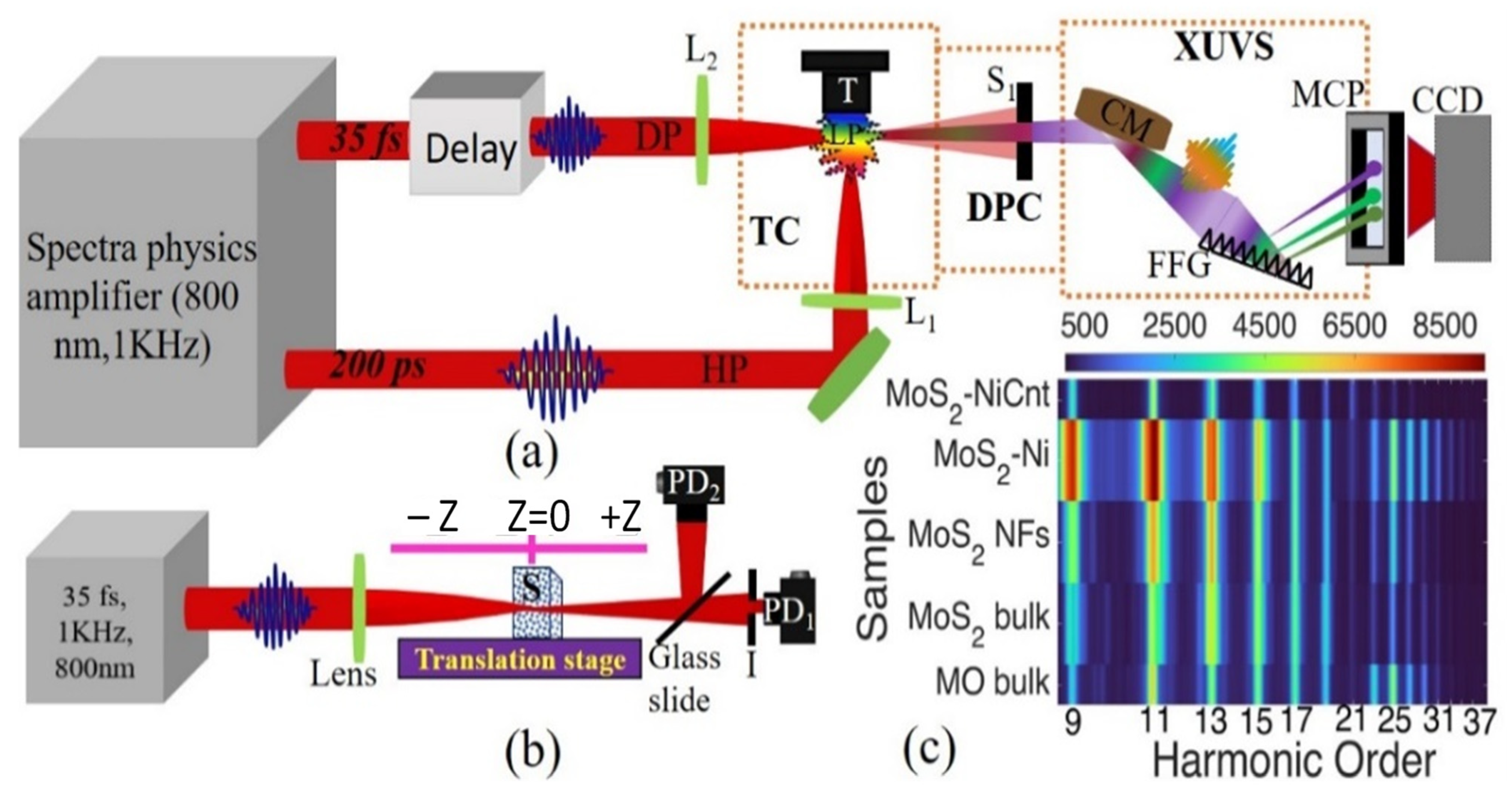

Figure 6. (a) Schematic for high-order harmonics generation in plasma. HP: heating pulses; DP: driving femtosecond pulses; L1,2: focusing lenses; T: target; TC: target chamber; LP: laser plasma; DPC: differential pump chamber; S1: slit; XUVS: extreme ultraviolet spectrometer; MCP: micro-channel plate; CCD: CCD camera; CM: cylindrical gold-coated mirror; FFG: flat-field grating; Delay: optical delay line. (b) Schematic for Z-Scan studies. PD1,2: Photodiodes, S: Samples, I: iris. (c) 2d color plots of harmonic spectra obtained from the molybdenum-contained materials using picosecond HP.
Figure 6. (a) Schematic for high-order harmonics generation in plasma. HP: heating pulses; DP: driving femtosecond pulses; L1,2: focusing lenses; T: target; TC: target chamber; LP: laser plasma; DPC: differential pump chamber; S1: slit; XUVS: extreme ultraviolet spectrometer; MCP: micro-channel plate; CCD: CCD camera; CM: cylindrical gold-coated mirror; FFG: flat-field grating; Delay: optical delay line. (b) Schematic for Z-Scan studies. PD1,2: Photodiodes, S: Samples, I: iris. (c) 2d color plots of harmonic spectra obtained from the molybdenum-contained materials using picosecond HP.
Ijms 24 06540 g006
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Venkatesh, M.; Kim, V.V.; Boltaev, G.S.; Konda, S.R.; Svedlindh, P.; Li, W.; Ganeev, R.A. High-Order Harmonics Generation in MoS2 Transition Metal Dichalcogenides: Effect of Nickel and Carbon Nanotube Dopants. Int. J. Mol. Sci. 2023, 24, 6540.

AMA Style

Venkatesh M, Kim VV, Boltaev GS, Konda SR, Svedlindh P, Li W, Ganeev RA. High-Order Harmonics Generation in MoS2 Transition Metal Dichalcogenides: Effect of Nickel and Carbon Nanotube Dopants. International Journal of Molecular Sciences. 2023; 24(7):6540.

Chicago/Turabian Style

Venkatesh, Mottamchetty, Vyacheslav V. Kim, Ganjaboy S. Boltaev, Srinivasa Rao Konda, Peter Svedlindh, Wei Li, and Rashid A. Ganeev. 2023. "High-Order Harmonics Generation in MoS2 Transition Metal Dichalcogenides: Effect of Nickel and Carbon Nanotube Dopants" International Journal of Molecular Sciences 24, no. 7: 6540.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
