Mycobacterium vaccae NCTC 11659, a Soil-Derived Bacterium with Stress Resilience Properties, Modulates the Proinflammatory Effects of LPS in Macrophages

by
Evan M. Holbrook
1,
Cristian A. Zambrano
1,
Caelan T. O. Wright
2,
Elizabeth M. Dubé
3,
Jessica R. Stewart
3,
William J. Sanders
2,
Matthew G. Frank
3,
Andrew S. MacDonald
4,
Stefan O. Reber
5 and
Christopher A. Lowry
1,3,6,7,8,9,10,*
1
Department of Integrative Physiology, University of Colorado Boulder, Boulder, CO 80309, USA
2
Department of Molecular, Cellular, and Developmental Biology, University of Colorado Boulder, Boulder, CO 80309, USA
3
Department of Psychology and Neuroscience, University of Colorado Boulder, Boulder, CO 80309, USA
4
Lydia Becker Institute of Immunology and Inflammation, University of Manchester, Manchester M13 9NT, UK
5
Laboratory for Molecular Psychosomatics, Department of Psychosomatic Medicine and Psychotherapy, Ulm University Medical Center, 89081 Ulm, Germany
6
Center for Neuroscience and Center for Microbial Exploration, University of Colorado, Boulder, CO 80309, USA
7
Department of Physical Medicine and Rehabilitation and Center for Neuroscience, University of Colorado Anschutz Medical Campus, Aurora, CO 80045, USA
8
Veterans Health Administration, Rocky Mountain Mental Illness Research Education and Clinical Center (MIRECC), The Rocky Mountain Regional Veterans Affairs Medical Center (RMRVAMC), Aurora, CO 80045, USA
9
Military and Veteran Microbiome Consortium for Research and Education (MVM-CoRE), Aurora, CO 80045, USA
10
Senior Fellow, inVIVO Planetary Health, of the Worldwide Universities Network (WUN), West New York, NJ 07093, USA
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(6), 5176; https://doi.org/10.3390/ijms24065176
Submission received: 30 December 2022 / Revised: 15 February 2023 / Accepted: 20 February 2023 / Published: 8 March 2023
(This article belongs to the Special Issue Modulation of Microbiota-Gut-Brain Axis in the Disorders of Brain and Mind)
Browse Figures
Review Reports Versions Notes

Abstract

:
Inflammatory conditions, including allergic asthma and conditions in which chronic low-grade inflammation is a risk factor, such as stress-related psychiatric disorders, are prevalent and are a significant cause of disability worldwide. Novel approaches for the prevention and treatment of these disorders are needed. One approach is the use of immunoregulatory microorganisms, such as Mycobacterium vaccae NCTC 11659, which have anti-inflammatory, immunoregulatory, and stress-resilience properties. However, little is known about how M. vaccae NCTC 11659 affects specific immune cell targets, including monocytes, which can traffic to peripheral organs and the central nervous system and differentiate into monocyte-derived macrophages that, in turn, can drive inflammation and neuroinflammation. In this study, we investigated the effects of M. vaccae NCTC 11659 and subsequent lipopolysaccharide (LPS) challenge on gene expression in human monocyte-derived macrophages. THP-1 monocytes were differentiated into macrophages, exposed to M. vaccae NCTC 11659 (0, 10, 30, 100, 300 µg/mL), then, 24 h later, challenged with LPS (0, 0.5, 2.5, 250 ng/mL), and assessed for gene expression 24 h following challenge with LPS. Exposure to M. vaccae NCTC 11659 prior to challenge with higher concentrations of LPS (250 ng/mL) polarized human monocyte-derived macrophages with decreased IL12A, IL12B, and IL23A expression relative to IL10 and TGFB1 mRNA expression. These data identify human monocyte-derived macrophages as a direct target of M. vaccae NCTC 11659 and support the development of M. vaccae NCTC 11659 as a potential intervention to prevent stress-induced inflammation and neuroinflammation implicated in the etiology and pathophysiology of inflammatory conditions and stress-related psychiatric disorders.

1. Introduction

Inflammatory conditions, such as allergic asthma, and conditions in which inflammation is considered a risk factor, e.g., stress-related psychiatric disorders including anxiety disorders, mood disorders, and trauma- and stressor-related disorders, such as posttraumatic stress disorder (PTSD) [1,2], are prevalent and are a significant cause of disability worldwide [3,4]. One strategy to reduce the risk of these conditions would be to use anti-inflammatory or immunoregulatory approaches to mitigate inflammatory responses [5,6]. As posited by the “Hygiene” hypothesis or “Old Friends” hypothesis, industrialized nations have higher rates of chronic low-grade inflammation, inflammatory diseases, and psychiatric disorders due to urbanization resulting in decreased exposures to immunoregulatory microorganisms (i.e., microorganisms that promote a balanced expression of regulatory and effector T cells) [7,8]. Indeed, growing up on a farm provides protection against allergic asthma [8], while healthy young persons raised in a city, without daily exposure to pets for the first 15 years of life, respond to a psychosocial stressor with exaggerated increases in numbers of circulating peripheral blood mononuclear cells (PBMCs) and increases in circulating concentrations of interleukin 6 (IL-6), a proinflammatory cytokine, relative to those who were raised on farms in close proximity to farm animals [9].
One mechanism that has been implicated in exaggerated inflammation in the context of both allergic asthma and stress-related psychiatric disorders is the recruitment of inflammatory monocytes to the airways or central nervous system [1,10,11,12]. Monocyte-derived macrophages in house dust mite-allergic mice or persons with asthma have an inflammatory phenotype, characterized by increased IL-6 and IL-12 production [13]. Likewise, studies in rodents have shown that IL-6 is increased in individuals that respond to psychosocial stress with a susceptible phenotype following subsequent chronic stress exposure. Indeed, individual variability in ex vivo stimulated IL-6 from leukocytes prior to stress exposure predicts stress susceptibility versus resilience [14,15]. Furthermore, the transfer of hematopoietic progenitor cells from stress-susceptible mice to IL-6-deficient mice was sufficient to transfer a stress-susceptible phenotype, highlighting the importance of bone marrow-derived leukocytes to psychosocial stress-induced anxiety-like defensive behavioral responses and depressive-like responses [15]. In particular, monocytes were elevated in individuals that developed a susceptible phenotype after stress exposure, and monocyte numbers were negatively correlated with behavioral responses [15,16]. In clinical populations, circulating monocyte numbers, relative abundance, or inflammatory gene expression patterns in monocytes have been associated with risk of anxiety disorders [17], mood disorders [18,19,20,21], and suicide risk [18,19,22], and have been identified among top-ranking features predicting future PTSD symptoms [23]. Furthermore, monocytes from persons with depression show an altered response to lipopolysaccharide (LPS) [24].
Studies in persons with a diagnosis of depression have shown elevated circulating concentrations of other proinflammatory cytokines, including IL-12, a heterodimer between IL-12p35 and IL-12p40, encoded by IL12A and IL12B, respectively. For example, individuals with depression have elevated plasma IL-12 concentrations relative to healthy controls [25,26,27,28], which are decreased after treatment [25,26,27]. Likewise, the ratio of IL-12 to anti-inflammatory cytokines, such as transforming growth factor β1 (TGF-β1), is decreased following antidepressant treatment [26]. Indeed, meta-analyses of inflammatory markers in depression reveal increases in a diverse range of proinflammatory cytokines, including IL-12 [29,30]. Finally, treatment with tumor necrosis factor (TNF) and IL-12/IL-23 blockers can improve depressive symptoms in persons with inflammatory disease [31].
One strategy, therefore, is to develop interventions that restore adequate anti-inflammatory and immunoregulatory responses and, thus, reduce the risk of immune-mediated conditions and stress-related psychiatric disorders, in which inflammation is a risk factor. One of these immunoregulatory interventions is Mycobacterium vaccae (M. vaccae) NCTC 11659, which has anti-inflammatory, immunoregulatory, and stress-resilience properties (for review, see [5]. However, little is known about how M. vaccae NCTC 11659 affects specific immune cell targets, including monocyte-derived macrophages that can drive inflammatory and neuroinflammatory responses and, thus, increase risk of immune-mediated conditions and stress-related psychiatric disorders [1,16,32]. Monocytes that differentiate into macrophages with a proinflammatory bias [1], or exosomes derived from these cells [33,34], can infiltrate the central nervous system (CNS) and induce an inflammatory neuroimmune environment, which is a risk factor for the development of stress-related psychiatric disorders, including anxiety disorders, mood disorders, and trauma- and stressor-related disorders, such as PTSD [1,32]. However, macrophages with an anti-inflammatory bias that infiltrate the CNS are vital in CNS repair [35,36] and might be key in suppressing inappropriate inflammation in the CNS. In line with recommendations to avoid the use of the terms “resting” and “activated” innate immune cells, and dichotomous “M1-like” and “M2-like” categorization of these cells [37,38,39,40,41], here we simply refer to proinflammatory or anti-inflammatory bias, or polarization of macrophages, and describe the specific changes in gene expression.
This study used a whole-cell, heat-killed preparation of M. vaccae NCTC 11659 [IMM-201]. M. vaccae NCTC 11659 is a saprophytic environmental bacterium with anti-inflammatory and immunoregulatory properties. The original strain, designated R877, was isolated by Dr. John L. Stanford and Roger C. Paul (University College London and Middlesex Hospital Medical School, London), from mud in the Kyoga Nile valley near Lake Kyoga in Uganda [42]. Multiple single-colony isolations were conducted by John Stanford and John M. Grange to clone a stable rough variant of M. vaccae R877, designated R877R. The rough variant was deposited as M. vaccae NCTC 11659 and a heat-killed preparation of M. vaccae NCTC 11659 was initially evaluated in clinical studies of leprosy and tuberculosis (for review, see [5]. Subsequent studies in mice demonstrated that immunization with M. vaccae NCTC 11659 provided long-term protection from allergic airway inflammation in a manner dependent on induction of regulatory T cells (Treg) and production of anti-inflammatory cytokines, including IL-10 and TGF-β1 ([43]; for review, see [5,44]. We have since described in detail the effects of immunization with a heat-killed preparation of M. vaccae NCTC 11659 to prevent: (1) stress-induced increases in spontaneous colitis; (2) stress-induced exaggeration of secretion of proinflammatory cytokines, including IL-6, from mesenteric lymph node cells treated with anti-CD3 antibody ex vivo; and (3) stress-induced increases in anxiety-like defensive behavioral responses [45,46,47,48,49,50,51,52,53,54,55], including effects relevant to three of the four major diagnostic criteria for PTSD (see Supplementary Table S4 in [45]; see Table 1 in [56].
We set out to determine if M. vaccae NCTC 11659 could shift human monocyte-derived macrophages to a less inflammatory phenotype that would respond to subsequent immune challenges with LPS with a bias toward anti-inflammatory responses, characterized by increased ratios of genes encoding anti-inflammatory cytokines, i.e., IL-10 and TGF-β1, to proinflammatory cytokines, i.e., IL-12 and IL-23 [57,58]. For a list of abbreviations for all gene symbols, see Supplemental S1.

2. Results

2.1. Cell Viability

Cell viability was assessed using flow cytometry gating of live singlets based on forward and side scatter (FSC/SSC), which revealed no effect of either M. vaccae NCTC 11659 or LPS on cell viability (see Supplemental Results S2.1, Figure S1, and Supplemental Materials and Methods S3 in the Supplementary Material). Sample sizes are listed in Table S1. This was supported by an assessment of ACTB mRNA expression using real-time reverse transcription quantitative-polymerase chain reaction (real-time RT-PCR), which revealed no consistent effects of either M. vaccae NCTC 11659 or LPS on cell viability as assessed by the expression of this reference gene (see Section 2.3 below).

2.2. Effects of Heat-Killed M. vaccae NCTC 11659 (300 µg/mL) and LPS (250 ng/mL) on Gene Expression Using NanoString nCounter® Inflammation v2 Panel

To determine if there was any effect of treatment condition on reference genes, we analyzed counts of the six reference genes standardized using negative and positive control probes (i.e., CTLC, GAPDH, GUSB, HPRT1, PGK1, and TUBB). Two-way ANOVA revealed main effects for M. vaccae NCTC 11659, LPS, or interactions between these factors for each of the six reference genes (see Supplemental Results S2.2 and Figure S2 in the Supplementary Material). Thus, all normalization was done using Removing Unwanted Variation-III (RUV-III), specifically designed to address this issue in the NanoString nCounter gene expression assay [59].

2.2.1. Effects of LPS

Previous studies have shown that LPS (Escherichia coli 0111:B4) is a potent inducer of inflammation in human monocyte-derived macrophages [60]. After 24 h of exposure to 250 ng/mL LPS, 107 of the 249 inflammation-related genes in the CodeSet (i.e., 43%) were differentially expressed (p < 0.05 and fold change either less than –1.5 or greater than 1.5) within the BBS vehicle groups between LPS conditions (i.e., BBS/250 ng/mL LPS vs. BBS/RPMI 1640 vehicle). Of these 107 differentially expressed genes, 57 were upregulated and 50 were downregulated (Figure S3). A detailed table of all differentially expressed genes can be found in Table S2 in the Supplementary Material.
Overall, the response to LPS was consistent with previous studies showing that the majority of genes responsive to LPS in THP-1-derived macrophages contain known or putative NF-κB sites, including CCL3, CCL4, CXCL1, CXCL2, CXCL8 (IL8), CXCL10, CXCR4, IL1RN [61]. As LPS signals through the toll-like receptor 4 (TLR4)-MD-2 complex [62], the differentially expressed genes found in the Toll-Like Receptor Signaling KEGG pathway, including TLR4, can be found in Figure S4 in the Supplementary Material.

2.2.2. Effects of M. vaccae NCTC 11659

Previous studies have reported that M. vaccae NCTC 11659, in the absence of subsequent stress exposure or LPS challenge, has an “adjuvant-like” effect in vivo, for example, increasing bronchopulmonary Il1b, Il6, and Tnf mRNA expression 12 h to 3 days following intratracheal administration [63], increasing secretion of IL-6 from mesenteric lymph node cells stimulated with anti-CD3 antibody in vitro [46], and increasing hippocampal Il6 mRNA expression [45]. After 48 h of exposure to 300 µg/mL M. vaccae NCTC 11659, 120 of the 249 endogenous genes in the CodeSet (i.e., 48%) were differentially expressed (p < 0.05 and fold change either less than –1.5 or greater than 1.5) within the RPMI 1640 vehicle groups between M. vaccae NCTC 11659 conditions (i.e., 300 µg/mL M. vaccae NCTC 11659/RPMI 1640 vehicle vs. BBS/RPMI 1640 vehicle). Of these 120 differentially expressed genes, 68 were upregulated and 52 were downregulated (Figure 1A). A detailed table of all differentially expressed genes can be found in Table S3 in the Supplementary Material. M. vaccae NCTC 11659 increased IL10, which suppresses NFκB signaling in human monocytes [64,65]. Notably, M. vaccae NCTC 11659 has been shown previously to signal through activation of human TLR2 [66] and here exposure to M. vaccae NCTC 11659 upregulated RAC1, involved in the suppression of NF-κB signaling following activation of TLR2/TLR1 or TLR2/TLR6, which in turn would be expected to downregulate the expression of BCL2, BCL2A1, BCL2L1, BIRC2, BIRC3, CCL4, CCL4L1, CCL4L2, CFLAR, CXCL1, CXCL2, CXCL3, CXCL8 (IL-8), GADD45A, GADD45B, GADD45G, IL1B, IL-6, IL-12A, IL-12B, NFKB2, NFKBIA, PTGS2, TNF, TNFAIP3, TRAF1, TRAF2, VCAM1, and XIAP. Indeed, exposure to M. vaccae NCTC 11659 downregulated a large number of genes downstream of NFκB signaling, including BCL2L1, BIRC2, CCL3, CXCL3, IL12B, PTGS2, TNF, TNFAIP3, and TRAF2 responses to the subsequent challenge with LPS (see below). OASL, downstream of STAT1 and STAT2 signaling, was also strongly downregulated (Figure 1A). As M. vaccae NCTC 11659 signals through toll-like receptor 2 (TLR2) [66], the differentially expressed genes found in the Toll-Like Receptor Signaling KEGG pathway, including TLR2, can be found in Figure S5 in the Supplementary Material.

2.2.3. Effects of M. vaccae NCTC 11659 in LPS-Challenged Cells

Previous studies have shown that immunization with M. vaccae NCTC 11659 attenuates stress-induced exaggeration of inflammatory gene expression in vivo [45,46]. Following forty-eight hours of exposure to 300 µg/mL M. vaccae NCTC 11659 or vehicle and 24 h of exposure to 250 ng/mL LPS, 115 of the 249 genes in the CodeSet (i.e., 46%) were differentially expressed (p < 0.05 and fold change either less than −1.5 or greater than 1.5) within the LPS groups between M. vaccae NCTC 11659 conditions (i.e., 300 µg/mL M. vaccae NCTC 11659/250 ng/mL LPS vs. BBS/250 ng/mL LPS). Out of these 115 differentially expressed genes, 52 were upregulated and 63 were downregulated (Figure 1B). A detailed table of all differentially expressed genes can be found in Table S4 in the Supplementary Material. Consistent with a downregulation of TNF and CREB1, MAP2K4, MAP3K5, RIPK1, TRADD, and TRAF2 (involved in transcriptional responses to TNF signaling) in M. vaccae NCTC 11659 exposed, LPS-challenged macrophages, a number of genes downstream of TNF signaling were also downregulated, including CCL2, CXCL10, CSF1, PTGS2, and TNFAIP3. In contrast, genes involved in IL-10/STAT3 signaling were upregulated, including IL10 and IL10RB, while IL-10 responsive genes, e.g., IL1A, IL12B, IRF7, STAT1 and TNF [67,68], were downregulated. This is consistent with previous studies showing that, at the transcriptional level, IL-10 attenuates expression of a subset of genes activated by TLR signaling, accounting for 20–25% of mRNAs induced after LPS stimulation including Il1a, Il12b, Il18, and Tnf [69]. The effects of M. vaccae NCTC 11659 in LPS-challenged cells on differentially expressed genes found in the Toll-Like Receptor Signaling KEGG pathway can be found in Figure S6 in the Supplementary Material.

2.2.4. Effects of LPS in M. vaccae NCTC 11659-Exposed Cells

When the effects of LPS were evaluated among M. vaccae NCTC 11659-exposed cells, i.e., M. vaccae NCTC 11659/LPS challenge versus M. vaccae NCTC 11659/RPMI 1640 exposed cells, 148 of the 249 genes in the CodeSet (i.e., 59%) were differentially expressed (p < 0.05 and fold change either less than –1.5 or greater than 1.5) between the LPS groups within M. vaccae NCTC 11659 conditions (i.e., 300 µg/mL M. vaccae NCTC 11,659/250 ng/mL LPS vs. 300 µg/mL M. vaccae NCTC 11659/RPMI 1640). Of these 148 differentially expressed genes, 65 were upregulated and 83 were downregulated (Figure S7). A detailed table of all differentially expressed genes can be found in Table S5 in the Supplemental Information. Among M. vaccae NCTC 11659-exposed cells, the LPS challenge resulted in the downregulation of a number of genes involved in proinflammatory responses, particularly NF-κB responsive genes including BCL2L1, BIRC2, IL-12B, NFKB2, NFKBIA, TNF, TNFAIP3, and TRAF2. The effects of LPS in M. vaccae NCTC 11659-exposed cells on the differentially expressed genes found in the Toll-Like Receptor Signaling KEGG pathway can be found in Figure S8 in the Supplementary Material.

2.2.5. Effects of Heat-Killed M. vaccae NCTC 11659 (30 µg/mL) and LPS on Gene Expression Using NanoString nCounter® Inflammation Panel

For a description of the effects of exposure of THP-1-derived macrophages to a lower concentration of M. vaccae NCTC 11659 (30 µg/mL) (see Figures S9–S11 and Tables S6–S8 in the Supplementary Material).

2.2.6. Summary of NanoString nCounter Inflammation Panel

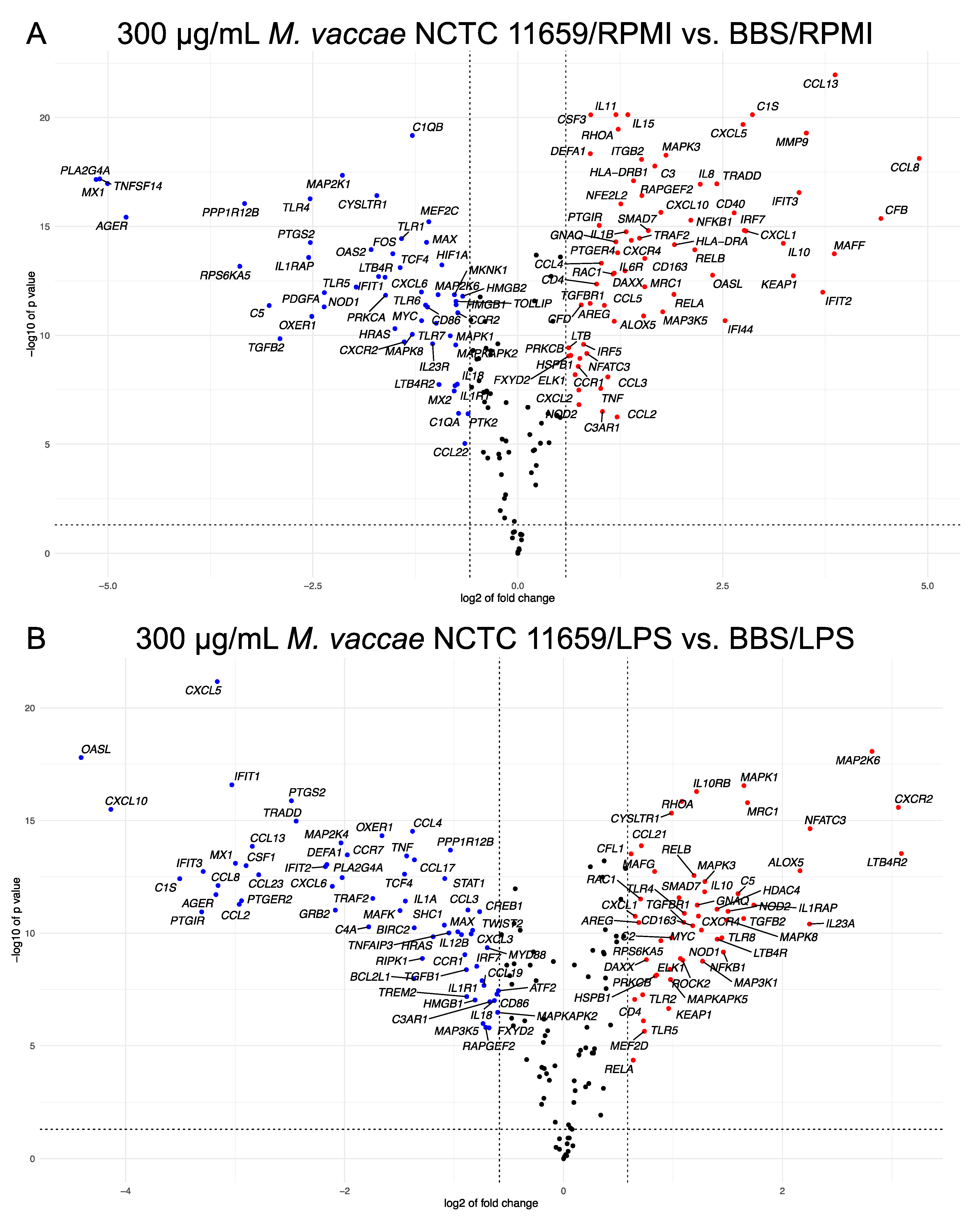

As data from the NanoString nCounter Inflammation Panel suggested that M. vaccae NCTC 11659 upregulated IL10 expression and downregulated IL12B expression in LPS-challenged macrophages, and the anti-inflammatory effects of M. vaccae NCTC 11659 in vivo have been shown to depend on IL-10 and TGF-β1 signaling, we followed up in detail to assess the effects of M. vaccae NCTC 11659 and LPS on IL10, TGFB1, IL12A, IL12B, and IL23A using real-time RT-PCR.

2.3. Validation of Effects of Heat-Killed M. vaccae NCTC 11659 and LPS on IL12A, IL12B, IL23A, IL10, and TGFB1 mRNA Expression Using Real-Time RT-PCR

Here we describe results from experiments designed to measure the expression of genes encoding major inflammatory cytokines in macrophages by extracting total RNA from THP-1 monocyte-derived macrophages and performing real-time PCR as described above. Analysis of the housekeeping gene, ACTB, for differential expression across treatment groups found no meaningful differences in expression (Figure S12 in the Supplemental Information). Overall, similar effects of M. vaccae NCTC 11659 and LPS were observed on IL12A, IL12B, IL23A, IL10, and TGFB1 mRNA expression using real-time RT-PCR as in Experiment 1 (Figures S13 and S14).

2.4. Effects of Heat-Killed M. vaccae NCTC 11659 and LPS on IL10:IL12A mRNA Expression Ratio

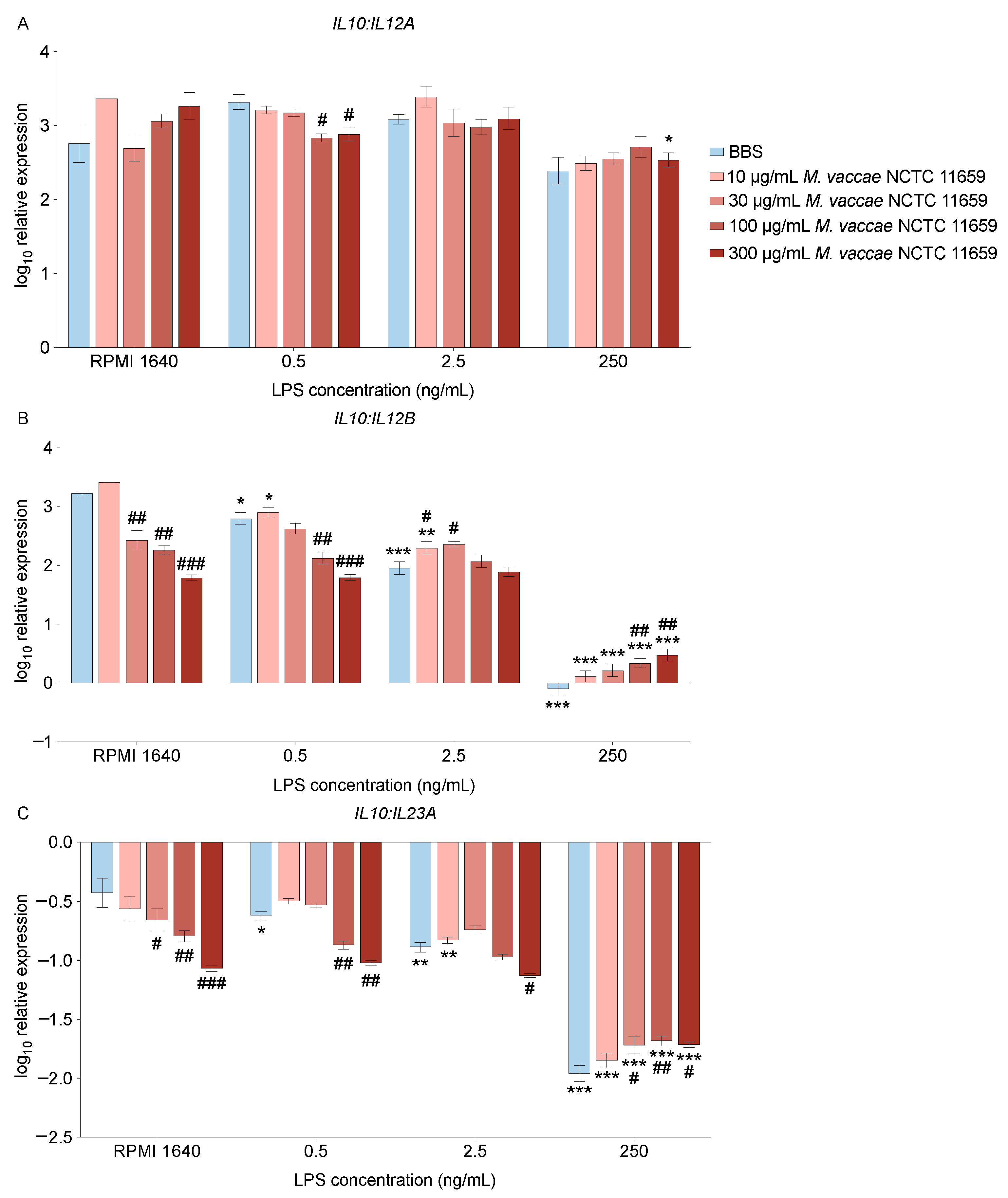

Expression levels of IL12A, IL12B, IL23A, and IL10 are important in their own right to characterize the immune environment, but the ratio between anti-inflammatory and inflammatory cytokines in the environment is an important feature of macrophage polarization [70]. For example, high expression of IL-12 and IL-23, but low expression of IL-10, is characteristic of macrophages with proinflammatory polarization [57,58]. In contrast, high expression of IL-10, but low expression of IL-12, is characteristic of macrophages with an anti-inflammatory polarization, particularly macrophages implicated in anti-inflammatory and immunoregulatory effects [57,58]. This suggests that the ratios of IL10 to IL12A, IL12B, and IL23A may be meaningful measures of macrophage polarization. The ratio of IL10 to IL12A expression was calculated in THP-1 monocyte-derived macrophages after incubating them with various concentrations of M. vaccae NCTC 11659 and LPS as described below. In line with the low expression of IL12A mRNA in the vehicle (0 ng/mL LPS) condition, 70% of IL10:IL12A mRNA expression ratio data were real-time PCR non-detects (Table S9 in the Supplementary Material). Analysis of the IL10:IL12A mRNA expression ratio revealed an M. vaccae NCTC 11659 × LPS interaction (F(12, 102) = 2.461, p < 0.01); there was no main effect of M. vaccae NCTC 11659 (F(4, 102) = 1.51, p = 0.21), but there was a significant main effect of LPS (F(3, 102) = 27.20, p < 0.001). In BBS/vehicle-treated THP-1 monocyte-derived macrophages, IL10 mRNA expression was approximately three-fold greater than IL12A mRNA expression (Figure 2A). Exposure of THP-1 monocyte-derived macrophages to higher concentrations of M. vaccae NCTC 11659 in the presence of 0.5 ng/mL LPS decreased the IL10:IL12A mRNA expression ratio (Figure 2A), whereas exposure of THP-1 monocyte-derived macrophages to the highest concentration of M. vaccae NCTC 11659 (300 µg/mL) in the presence of 250 ng/mL LPS increased the IL10:IL12A mRNA expression ratio (Figure 2A). Exposure of THP-1 monocyte-derived macrophages to LPS in the absence of M. vaccae NCTC 11659 did not affect the IL10:IL12A mRNA expression ratio (Figure 2A). Post hoc p values for planned pairwise comparisons can be found in Table S10 in the Supplementary Material.

2.4.1. IL10:IL12B mRNA Expression Ratio

In line with data from the NanoString nCounter platform, both M. vaccae NCTC 11659 and LPS had pronounced effects on IL10:IL12B mRNA expression in THP-1 monocyte-derived macrophages. The ratio of IL10 to IL12B expression was calculated in THP-1 monocyte-derived macrophages after incubating them with various concentrations of M. vaccae NCTC 11659 and LPS as described above. Analysis of the IL10:IL12B mRNA expression ratio revealed an M. vaccae NCTC 11659 × LPS interaction (F(12, 120) = 14.19, p < 0.001) as well as main effects of M. vaccae NCTC 11659 (F(4, 120) = 23.92, p < 0.001) and LPS (F(3, 120) = 660.7, p < 0.001). Exposure of THP-1 monocyte-derived macrophages to M. vaccae NCTC 11659 in the absence of LPS and in the presence of 0.5 ng/mL LPS decreased the IL10:IL12B mRNA expression ratio in a concentration-dependent manner (Figure 2B). Likewise, exposure of THP-1 monocyte-derived macrophages to LPS in the absence of M. vaccae NCTC 11659 decreased the IL10:IL12B mRNA expression ratio in a concentration dependent manner. In contrast, at the higher concentrations of LPS (2.5 ng/mL and 250 ng/mL) pretreatment with M. vaccae NCTC 11659 increased the IL10:IL12B mRNA expression ratio (Figure 2B). Post hoc p values for planned pairwise comparisons can be found in Table S10 in the Supplementary Material.

2.4.2. IL10:IL23A mRNA Expression Ratio

The ratio of IL10 to IL23A expression was calculated in THP-1 monocyte-derived macrophages after incubating them with various concentrations of M. vaccae NCTC 11659 and LPS as described above. Analysis of the IL10:IL23A mRNA expression ratio revealed an M. vaccae NCTC 11659 × LPS interaction (F(12, 139) = 8.57, p < 0.001) as well as main effects of M. vaccae NCTC 11659 (F(4, 139) = 23.15, p < 0.001) and LPS (F(3, 139) = 438.9, p < 0.001). Exposure of THP-1 monocyte-derived macrophages to M. vaccae NCTC 11659 in the absence of LPS or in the presence of low concentrations of LPS (0.5 and 2.5 ng/mL) decreased the IL10:IL23A mRNA expression ratio in a concentration-dependent manner (Figure 2C). Exposure of THP-1-derived macrophages to LPS in the absence of M. vaccae NCTC 11659 decreased the IL10:IL23A mRNA expression ratio in a concentration-dependent manner (Figure 2C). Pretreatment with M. vaccae NCTC 11659 increased the IL10:IL23A mRNA expression ratio at the highest concentration of LPS (250 ng/mL; Figure 2C). Post hoc p values for planned pairwise comparisons can be found in Table S10 in the Supplementary Material.

2.4.3. TGFB1:IL12A, TGFB1:IL12B, and TGFB1:IL23A mRNA Expression Ratios

As mentioned above, expression levels of IL12A, IL12B, IL23A, and TGFB1 are important in their own right to characterize the immune environment, but the ratio between anti-inflammatory and inflammatory cytokines in the environment is an important feature of macrophage polarization. For example, high expression of IL-12, but low expression of TGF-β1, is characteristic of macrophages with a proinflammatory bias [57,58]. In contrast, high expression of TGF-β1, but low expression of IL-12, is characteristic of macrophages with an anti-inflammatory bias, particularly macrophages implicated in anti-inflammatory and immunosuppressive effects [57,58]. This suggests that the ratio of TGFB1 to IL12A, IL12B, and IL23A may be a meaningful measure of macrophage polarization. The ratio of TGFB1 to IL12A expression was calculated in THP-1 monocyte-derived macrophages after incubating them with various concentrations of M. vaccae NCTC 11659 and LPS as described above. The analysis revealed similar effects of M. vaccae NCTC 11659 and LPS on these ratios as the IL10:IL12A, IL10:IL12B, and IL10:IL23A mRNA expression ratios (Figure S15A–C). Post hoc p values for planned pairwise comparisons can be found in Table S10 in the Supplementary Material.

3. Discussion

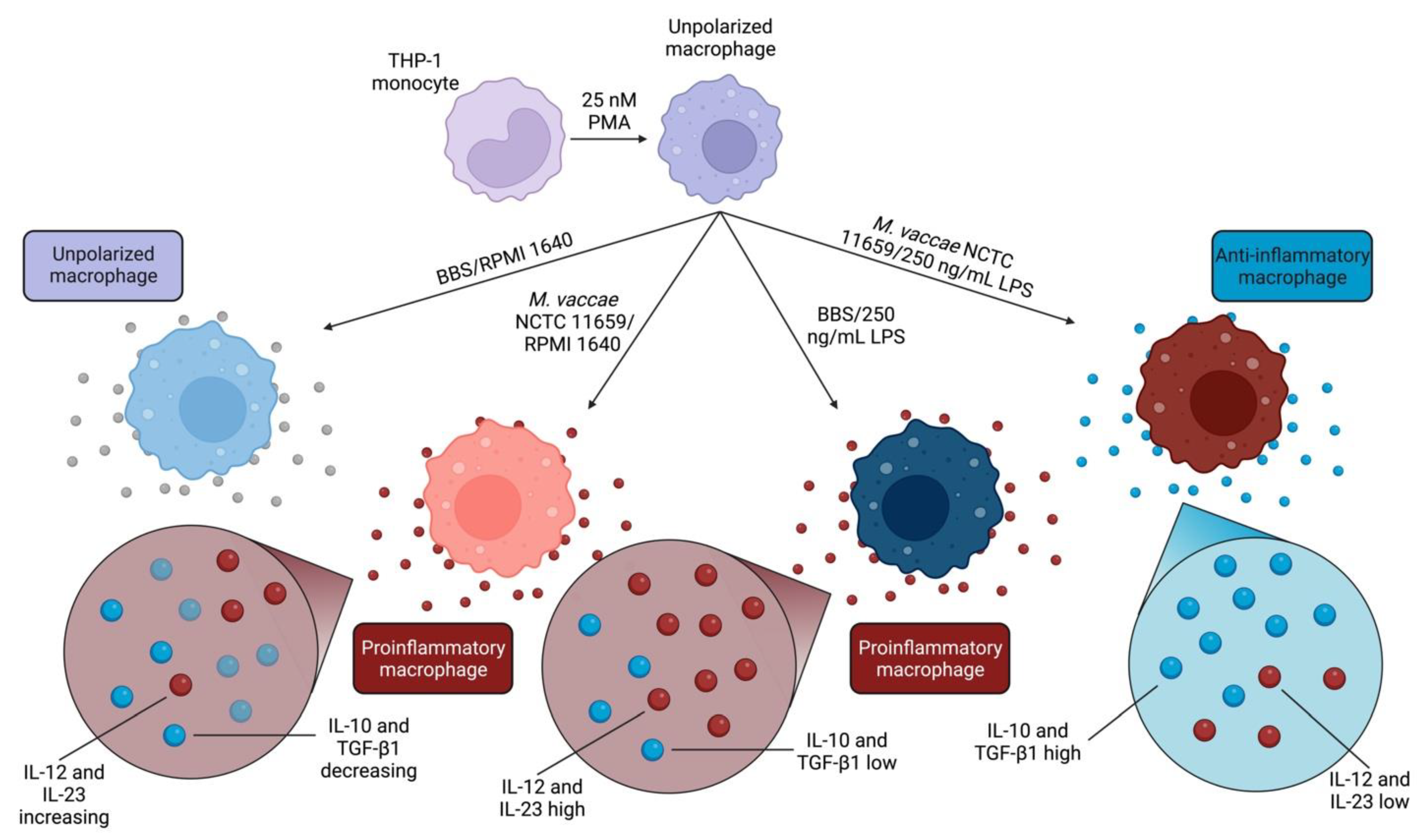

Here we report evidence that M. vaccae NCTC 11659, a soil-derived bacterium with anti-inflammatory, immunoregulatory, and stress resilience properties, modulates the proinflammatory effects of LPS with M. vaccae NCTC 11659 inducing “adjuvant-like” effects in the absence of LPS or at low concentrations of LPS (0, 0.5 ng/mL) and mitigating the effects of LPS at higher concentrations of LPS (250 ng/mL). These data suggest that M. vaccae NCTC 11659 might function to induce an anti-inflammatory or immunoregulatory phenotype under hyper-inflammatory conditions, which are observed in response to allergic airway inflammation, in response to extreme trauma or stress, or in individuals with a diagnosis of trauma- and stressor-related disorders, such as PTSD [71]. M. vaccae NCTC 11659 alone had adjuvant-like effects, based on increases in proinflammatory cytokine mRNA expression and decreases in anti-inflammatory to proinflammatory cytokine mRNA ratios in the absence of subsequent LPS challenge, or challenge with a low concentration of LPS (0.5 ng/mL). LPS alone was a reliable stimulator of inflammation based on concentration-dependent increases in proinflammatory cytokine mRNA expression and decreased anti-inflammatory to proinflammatory cytokine mRNA expression. Interestingly, pretreatment with M. vaccae NCTC 11659 prior to LPS challenge resulted in attenuation of LPS-induced exaggeration of inflammation based on decreased proinflammatory cytokine mRNA levels and increased anti-inflammatory to proinflammatory cytokine mRNA ratios. Specifically, at the highest concentration of LPS (250 ng/mL), pretreatment with M. vaccae NCTC 11659 shifted THP-1 monocyte-derived macrophages from a proinflammatory phenotype (IL10 low and IL12B high) toward an anti-inflammatory phenotype (IL10 high and IL12B low).

3.1. M. vaccae NCTC 11659 Had “Adjuvant-like” Effects on THP-1 Monocyte-Derived Macrophages

Acute effects of M. vaccae NCTC 11659 on human monocyte-derived macrophages, in the absence of subsequent LPS stimulation, were largely proinflammatory when assessed 48 h later, shifting macrophages toward a proinflammatory macrophage phenotype. This is evidenced by concentration-dependent increases in IL12B and IL23A mRNA expression, hallmark cytokines of proinflammatory macrophages that together encode IL-23, a heterodimeric cytokine of IL-12p40 (encoded by IL12B) and IL-23p19 (encoded by IL23A) [58], and concentration-dependent decreases in the IL10:IL12B, IL10:IL23A, TGFB1:IL12B, and TGFB1:IL23A mRNA expression ratios [58] in human THP-1 monocyte-derived macrophages. The administration of M. vaccae NCTC 11659 alone, therefore, seems to act as its own adjuvant (i.e., ensuring immune activation before subsequent immune challenge). These effects are consistent with previous studies of M. vaccae NCTC 11659 in vivo. For example, in a murine model of allergic airway inflammation, intra-tracheal administration of M. vaccae NCTC 11659 increases pulmonary Il1b, Il6, and Tnf mRNA expression acutely, 12 h to 3 days following injection. In a mouse model of chronic psychosocial stress, administration of M. vaccae NCTC 11659, in single-housed control animals (i.e., not exposed to subsequent chronic psychosocial stress), M. vaccae NCTC 11659 increases IL-6 secretion, and the IL-6:IL-10 ratio, in freshly isolated mesenteric lymph node cells stimulated with anti-CD3 antibody in vitro, assessed over one month following the final immunization with M. vaccae NCTC 11659, suggesting that adjuvant-like effects of M. vaccae NCTC 11659 can be long-lasting [46]. Similarly, in a model of inescapable stress in rats, administration of M. vaccae NCTC 11659 to home-cage control animals increases hippocampal Il6 mRNA expression, assessed one week after the final immunization [45]. Together, the in vitro data reported here are consistent with previous studies demonstrating that, in the absence of subsequent psychosocial stress, inescapable stress, or immunological challenge, M. vaccae NCTC 11659 has persistent adjuvant-like effects.

3.2. Lipopolysaccharide (LPS) Was a Reliable Stimulator of Inflammatory Cytokine mRNA Expression in THP-1 Monocyte-Derived Macrophages

As expected, exposure of human monocyte-derived macrophages to LPS, in a concentration-dependent manner, shifted macrophages toward a proinflammatory macrophage phenotype. Similar to the administration of M. vaccae NCTC 11659 alone, LPS stimulation in the absence of M. vaccae NCTC 11659 increased IL12B and IL23A mRNA expression in a concentration-dependent manner (again, characteristic of proinflammatory macrophages) and decreased the IL10:IL12B, IL10:IL23A, TGFB1:IL12B, and TGFB1:IL23A mRNA expression ratios in a concentration-dependent manner in human THP-1 monocyte-derived macrophages. LPS stimulation at the higher concentrations studied (i.e., 2.5 ng/mL and 250 ng/mL) was a reliable stimulator of inflammatory cytokine mRNA expression and may be most relevant to how psychosocial stressors or immune stimulation with LPS are reliable stimulators of inflammatory cytokine mRNA expression in human monocyte-derived macrophages, as previously demonstrated [1].

3.3. Treatment with M. vaccae NCTC 11659 Prior to Immune Stimulation with LPS Resulted in Attenuation of an LPS-Induced Proinflammatory Phenotype in THP-1 Monocyte-Derived Macrophages

Exposure to M. vaccae NCTC 11659 attenuated subsequent proinflammatory responses to immune stimulation with LPS. Unlike how M. vaccae NCTC 11659 stimulated a proinflammatory response in the absence of LPS challenge, M. vaccae NCTC 11659, in a concentration-dependent manner, attenuated proinflammatory responses to subsequent LPS challenge. This is evidenced by the attenuation of LPS-induced inflammatory responses, such as attenuating LPS-induced increases in IL12B and IL23A mRNA expression. In addition, exposure to M. vaccae NCTC 11659 attenuated LPS-induced decreases in the IL10:IL12B, IL10:IL23A, TGFB1:IL12B, and TGFB1:IL23A mRNA expression ratios in human THP-1-derived macrophages. These reported effects are potentially relevant for previously reported effects of M. vaccae NCTC 11659 to attenuate allergic airway inflammation in a murine model of allergic airway inflammation, or to attenuate stress-induced inappropriate, highly inflammatory responses. These effects are consistent with what has been described in vivo [5,43,44,45,46,72]) and may represent a form of innate immune tolerance.

3.4. Treatment with M. vaccae NCTC 11659 Prior to Immune Stimulation with LPS Resulted in the Promotion of an Anti-Inflammatory Phenotype and Inhibition of LPS-Induced Immune Activation in THP-1 Monocyte-Derived Macrophages

We report evidence supporting the hypothesis that M. vaccae NCTC 1169 induces features of macrophages involved in anti-inflammatory, immunoregulatory, and immunosuppressive effects [58,73]. M. vaccae NCTC 11659 did not directly upregulate IL10 or TGFB1 mRNA expression in cells subsequently challenged with LPS; however, it increased the mRNA expression ratios of IL10:IL12B, IL10:IL23A, TGFB1:IL12B, and TGFB1:IL23A upon subsequent immune stimulation with LPS. These findings have implications on how macrophages stimulated with M. vaccae NCTC 11659 may locally modulate T cell responses in the tissue, promoting immunoregulation directly at the site of inflammation [73]. A graphical illustration of our reported effects of M. vaccae NCTC 11659 and LPS on THP-1 monocyte-derived macrophages can be found in Figure 3.

3.5. Limitations

One limitation of our reported findings was the low expression of IL12A mRNA in THP-1 monocyte-derived macrophages, resulting in real-time RT-PCR non-detects (Cq > 40) that were excluded from the analysis. This resulted in low IL12A sample sizes, particularly in the RPMI 1640 condition, which affected the analysis of IL12A mRNA as well as the IL10:IL12A and TGFB1:IL12A mRNA ratios. The low IL12A expression in the RPMI 1640 condition is likely due to the lack of IFN-γ stimulation, an inducer of IL12A transcription especially important in macrophages [70,74,75]. Of course, as is common with in vitro studies, we were also limited by only specific cell types being present in the culture (only monocytes and macrophages), so cell-to-cell interactions could not directly be studied, such as T cell differentiation. Furthermore, human PMA-differentiated THP-1-derived macrophages may not accurately represent human monocyte-derived macrophages, as it has been shown that these cell types can differ in terms of LPS and IFN-γ-induced cytokine, chemokine, and growth factor secretion [76], although differences may be dependent on the specific protocol used [77]. For example, studies of mycobacterial infection have found that PMA-differentiated THP-1-derived macrophages and human monocyte-derived macrophages respond similarly in terms of bacterial uptake, viability and host response to drug-susceptible and drug-resistant mycobacterial infections [78]. Further, the THP-1 cell line used was isolated from a single person (i.e., a 1-year-old male that had acute monocytic leukemia); thus, the extent to which our reported findings can be generalized to monocyte-derived macrophages in females, or other populations, cannot be inferred from these data. In addition, our reported findings were limited by measuring gene expression at a single timepoint. Therefore, it cannot be inferred that our conclusions apply to other timepoints, especially considering the temporally dynamic functions of the genes measured [79]. Finally, it will be important to confirm that transcriptional changes observed here are associated with changes in protein synthesis and release, again, taking into account the temporal dynamics of the response.

3.6. Clinical Implications

Previous studies suggest that inappropriate inflammation is a clinical feature of allergic asthma and a risk factor for the development of anxiety disorders, mood disorders, and trauma- and stressor-related disorders, such as PTSD (for review, see [56]. For example, elevated biomarkers of inflammation have been identified as risk factors for the future development of PTSD following exposure to trauma [23,80], and persons with a diagnosis of PTSD have decreased Treg [81] and enhanced spontaneous production of proinflammatory cytokines from PBMCs [82]. Meanwhile, persons with a diagnosis of PTSD have increased serum concentrations of LPS, lipopolysaccharide-binding protein (LBP; a biomarker of “leaky gut”), and HMGB1, a damage-associated molecular pattern (DAMP) [71], leading the authors to suggest that “Going forward, additional investigations to evaluate the microbiota and approaches to modify the intestinal microenvironment may be a useful adjunct approach to complement existing treatments for PTSD.” The present study suggests that M. vaccae NCTC 11659 is a candidate for mitigating the physiological and psychological impacts of allergic asthma and stress-related psychiatric disorders, which can be highly comorbid [83,84].

3.7. Future Directions

Future directions include assessing the impact of M. vaccae NCTC 11659 on LPS activation of human primary monocytes isolated from donor PBMCs, compared to human PBMC monocyte-derived macrophages. This would enable confirmation of THP-1 work in human primary cells, with multiple donor testing possible. Future directions also include the assessment of additional genes using real-time RT-PCR, such as ARG1, a hallmark of macrophages with an anti-inflammatory phenotype, co-culturing THP-1 monocyte-derived macrophages with naïve T cells to directly assess the effects of M. vaccae NCTC 11659 on T cell differentiation and function, and assessment of the effects of M. vaccae NCTC 11659 on immune activation by immune challenges other than LPS. Furthermore, future studies should determine if M. vaccae NCTC 11659 effects are generalizable to other rapidly growing mycobacteria, or molecular constituents of M. vaccae NCTC 11659 that have been shown to have anti-inflammatory effects in macrophages, such as 10(Z)-hexadecenoic acid [85]. Likewise, it will be important to determine to what extent these results can be replicated in vivo. In mice, future studies should examine bone marrow-derived monocyte education following administration of M. vaccae NCTC 11659 in vivo, which could be informative in relation to understanding monocyte/innate immune cell differentiation, priming, and trained immunity, versus tolerance in the bone marrow compartment [86].

3.8. Conclusions

In 2013, in an article titled, “Harnessing monocyte-derived macrophages to control central nervous system pathologies: no longer ‘if’ but ‘how’” Shechter and Schwartz wrote, “Taken together, these recent advances reveal a dramatic therapeutic opportunity for controlled harnessing of macrophages for repair of the damaged CNS following acute insults, in neurodegenerative conditions, and in psychiatric disorders” [35]. We feel that the current study highlights how microbe-based interventions might, in the near term, prove to be novel and effective approaches to the realization of these dramatic therapeutic opportunities.

4. Materials and Methods

4.1. Experimental Design

4.1.1. Experiment 1, NanoString Platform

The overall experimental design for Experiment 1 is illustrated in Figure S16A in the Supplementary Material. Briefly, in Experiment 1, human THP-1 monocyte-derived macrophages were exposed to heat-killed preparations of M. vaccae NCTC 11659 (30 µg/mL or 300 µg/mL) or sterile borate-buffered saline (BBS) vehicle. Twenty-four hours later, the THP-1 monocyte-derived macrophages were challenged with lipopolysaccharide (LPS; Escherichia coli 0111:B4; 250 ng/mL) or RPMI 1640 vehicle. Finally, 24 h later, total RNA was extracted and assessed using the NanoString Platform. A timeline of Experiment 1 can be found in Figure S16A in the Supplementary Material.

4.1.2. Experimental Design: Experiment 2, Real-Time RT-PCR Validation

The overall experimental design for Experiment 2 is illustrated in Figure S16B. Briefly, in Experiment 2, human THP-1 monocyte-derived macrophages were exposed to heat-killed preparations of M. vaccae NCTC 11659 (10 µg/mL, 30 µg/mL, 100 µg/mL, or 300 µg/mL) or sterile borate-buffered saline (BBS) vehicle. Twenty-four hours later, the THP-1 monocyte-derived macrophages were challenged with lipopolysaccharide (LPS; Escherichia coli 0111:B4; 0.5 ng/mL, 2.5 ng/mL, or 250 ng/mL) or RPMI 1640 vehicle. Finally, 24 h later, total RNA was extracted and assessed using real-time RT-PCR. A timeline of Experiment 2 can be found in Figure S16B in the Supplementary Material.

4.2. M. vaccae NCTC 11659 Preparation

After 24 h in fresh, non-PMA media, the THP-1 monocyte-derived macrophages were challenged with 30 or 300  μ g/mL concentrations (Experiment 1) or 10, 30, 100, or 300  μ g/mL concentrations (Experiment 2) of M. vaccae NCTC 11659 using sterile BBS to dilute from a 10 mg/mL stock (batch ENG#1, BioElpida, Lyon, France) to the desired concentration of M. vaccae NCTC 11659. Stocks were swirled each time before pipetting into the wells to ensure the suspension was distributed equally. M. vaccae NCTC 11659 treatment consisted of adding 20 µL of either sterile BBS (vehicle) or 0.26, 0.78, 2.60, or 7.80 mg/mL M. vaccae NCTC 11659 stocks for the 10, 30, 100, or 300 µg/mL concentrations of M. vaccae NCTC 11659, respectively.

4.3. Cell Culture and M. vaccae NCTC 11659 and LPS Exposures

THP-1 cells are a human monocyte cell line isolated from peripheral blood from a 1-year-old human male that had acute monocytic leukemia. THP-1 cells (TIB-202TM, American Type Culture Collection (ATCC), Manassas, VA, USA) were cultured in T75 cell culture flasks (Cat. No. 229520, CELLTREAT Scientific Products, Pepperell, MA, USA) in 5% CO2 at 37 °C in a humidified incubator in RPMI 1640 media (Cat. No. 10-043-CV, Corning Cellgro, Manassas, VA, USA) containing 10% fetal bovine serum (FBS; Cat. No. F9423, Sigma-Aldrich, Saint Louis, MO, USA), 5 mM 2-mercaptoethanol (Cat. No. 190242, MP Biomedicals, Irvine, CA, USA), and 100 U/mL penicillin/100  μ g/mL streptomycin (Cat. No. 15140-122, Gibco, Waltham, MA, USA). The media were replaced every 3 days through centrifugation (500× g for 5 min at room temperature), followed by aspiration of supernatant and resuspension of cells in fresh media. Cells were resuspended at a concentration of 200,000 cells/mL each time the media were replaced.

4.3.1. THP-1 Cell Differentiation

THP-1 cells were plated in a 24-well plate (Cat. No. 0030722019, Eppendorf, Hamburg, Germany) in a volume of 0.5 mL at a concentration of 400,000 cells/mL to obtain 200,000 cells in each well. To generate monocyte-derived macrophages, THP-1 cells were cultured in media containing 25 nM (15.4 ng/mL) phorbol 12-myristate 13-acetate (PMA, Cat. No 194804, MP Biomedicals) for 72 h. PMA stocks were prepared at 400 µM using 100% dimethyl sulfoxide (DMSO) as a solvent (Cat. No. D2650, Sigma-Aldrich). After 72 h in PMA-media, the media were replaced, and cells were cultured for 24 h in fresh, non-PMA media. The same culture conditions of 5% CO2 at 37 °C in a humidified incubator were used during this protocol.

4.3.2. M. vaccae NCTC 11659

M. vaccae NCTC 11659 was provided as a 10 mg/mL stock suspension in sterile BBS; strain National Collection of Type Cultures (NCTC) 11659, batch C079-ENG#1, provided by BioElpida (Lyon, France). After 24 h in fresh, non-PMA media, the THP-1 monocyte-derived macrophages were challenged with 10, 30, 100, or 300  μ g/mL concentrations of M. vaccae NCTC 11659 using sterile BBS to dilute from a 10 mg/mL stock (batch ENG#1, BioElpida, Lyon, France) to the desired concentration of M. vaccae NCTC 11659. Stocks were swirled each time before being pipetted into the wells to ensure the suspension was distributed equally. M. vaccae NCTC 11659 treatment consisted of adding 20 µL of either sterile BBS (vehicle) or 0.26, 0.78, 2.60, or 7.80 mg/mL M. vaccae NCTC 11659 stocks for the 10, 30, 100, or 300 µg/mL concentrations of M. vaccae NCTC 11659, respectively.

4.3.3. LPS

After 24 h of incubation of THP-1 monocyte-derived macrophages with different concentrations of M. vaccae NCTC 11659 or sterile BBS vehicle, cells were then exposed to LPS or vehicle in the same media containing the bacteria and were cultured for an additional 24 h in a humidified incubator at 5% CO2 and 37 °C. Cells were cultured in the following: (1) Experiment 1, either a 0 (vehicle), or a 250 ng/mL concentration of LPS (Escherichia coli 0111:B4, Cat. No. L2630, Sigma-Aldrich); or (2) Experiment 2, either a 0 (RPMI 1640 vehicle), 0.5, 2.5, or 250 ng/mL concentration of LPS (Escherichia coli 0111:B4, Cat. No. L2630, Sigma-Aldrich). LPS was suspended in RPMI 1640 medium at an initial concentration of 1 mg/mL to make desired stock solutions for the 0.5, 2.5, and 250 ng/mL concentrations of LPS. The LPS challenge consisted of adding 5 µL of either RPMI 1640 vehicle or 0.0525, 0.2625, or 26.25 µg/mL LPS stocks for the 0 (vehicle), 0.5, 2.5, or 250 ng/mL concentrations of LPS, respectively. The 0.0525, 0.2625, and 26.25 µg/mL stocks for the 0.5, 2.5, and 250 ng/mL concentrations of LPS were prepared fresh from a 1 mg/mL stock of LPS right before the LPS challenge.

4.4. NanoString Gene Expression Analysis

The NanoString CodeSet used was the nCounter Human Inflammation v2 Panel (Item No. 115000072; XT-CSO-HIN2-12, NanoString Technologies, Seattle, WA, USA). The NanoString nCounter® Inflammation Panel is a multiplex gene expression analysis platform that includes 255 genes that represent a broad range of pathways related to inflammation including apoptosis, epidermal growth factor (EGF) signaling, interleukin signaling, Ras signaling, T cell receptor signaling, and toll-like receptor signaling. The CodeSet included 249 inflammation-related genes and 6 housekeeping genes. A number of previous studies have used the nCounter Human Inflammation v2 Panel (e.g., [87,88,89,90,91,92,93]). Total RNA was extracted using QIAGEN RNeasy spin columns according to the manufacturer-issued instructions (Cat. No. 74104, QIAGEN, Germantown, MD, USA). Once dissolved in nuclease-free water, RNA was quantified using a NanoDrop One machine (Cat. No. ND-ONE-W, ThermoFisher Scientific, Madison, WI, USA), diluted to 10 ng/mL, and frozen at −80 °C before submitting samples to the Veterans Health Administration, Rocky Mountain Regional Veterans Affairs Medical Center (RMRVAMC) Core Equipment facility for further processing according to the manufacturer-issued instructions.

4.5. Real-Time RT-PCR

After centrifuging 24-well cell culture plates at 500× g for 5 min at 4 °C, supernatants were collected and total RNA was harvested from differentiated cells using a standard method of phenol–chloroform extraction [94]. Briefly, after collecting 500 µL of supernatant from each well, 0.5 mL of TRIzol® (Cat. No. 15596-026, Invitrogen, Waltham, MA, USA) was added to each well and plates were frozen at −80 °C for 3 days until they were processed further. After thawing the plates and extracting the aqueous layer using chloroform separation, but before the RNA was precipitated with isopropanol, 10 µg of glycogen (Cat. No. AM9510, Invitrogen) was added to the aqueous layer to increase the total RNA yield from precipitation. Once dissolved in nuclease-free water, the RNA was quantified, and purity was assessed (A260/A280 ratio) using a NanoDrop One machine (Cat. No. ND-ONE-W, ThermoFisher Scientific). cDNA synthesis was conducted with SuperScript IITM (Cat. No. 18064-014, Invitrogen) following manufacturer instructions using approximately 500 ng of the total RNA. Two  μ L of cDNA was used as template material. Real-time RT-PCR was conducted in duplicate using the CFX96 Touch Real-Time PCR Detection System (Cat. No. 1845097, Bio-Rad, Hercules, CA, USA) and SYBR Green master mix (Cat. No. 204145, QIAGEN, Hilden, Germany). All genes that were analyzed were normalized using the gene ACTB, encoding beta-actin. Real-time RT-PCR data were represented as a fold increase over the lowest amount of mRNA expressed for each gene using the delta-delta Ct method. Real-time RT-PCR was performed with an independent set of cells separate from those used for flow cytometry. Sample sizes for real-time RT-PCR are listed in Table S9 in Supplementary Material. Low sample sizes in the 0 ng/mL LPS condition were typically a result of PCR non-detects in the presence of low expression of target genes under BBS/RPMI 1640 vehicle conditions.

Primers

cDNA sequences were obtained from Genbank at the National Center for Biotechnology Information (NCBI; www.ncbi.nlm.nih.gov (accessed on 8 August 2019)). Primer sequences (Table S11 in Supplementary Material) were designed using the PrimerQuestTM Tool from the Integrated DNA Technologies (IDT) website (https://www.idtdna.com/pages (accessed on 8 August 2019)). Sequence specificity was tested using the Basic Local Alignment Search Tool at NCBI [95]. Primers were obtained from IDT. Primer specificity was verified by melt curve analyses. All primers were designed to span exon/exon boundaries and thus exclude amplification of genomic DNA.

4.6. Statistical Analysis

The data were analyzed as described below.

4.6.1. NanoString nCounter® Inflammation Panel

An analysis of reference genes in the NanoString platform revealed that treatment conditions altered the expression of all six reference genes in the nCounter Human Inflammation v2 Panel, resulting in inadequate normalization. As the “accuracy and reliability of gene expression results are dependent upon the proper normalization of the data against internal reference genes” [59,96], it was not possible to use the standard normalization methods within nSolver and ROSALIND ®. Instead, all normalization was done using Removing Unwanted Variation-III (RUV-III), specifically designed to address this issue in the NanoString nCounter gene expression assay [59]. RUV-III normalized data were imported into ROSALIND®. Normalized data were analyzed by ROSALIND® (https://rosalind.bio/ (accessed on 15 November 2022)) with a HyperScale architecture developed by ROSALIND®, Inc. (San Diego, CA, USA). The limma R library [97] was used to calculate fold changes and p-values in ROSALIND®. The statistical software program R was used to make volcano plots using the ggplot2 and ggrepel packages.

4.6.2. Real-Time RT-PCR

Real-time RT-PCR data were represented as either the relative gene expression (i.e., relative to the lowest expression of the gene of interest) or the ratio of one gene’s expression to another gene’s expression. Relative gene expression was calculated using the 2−ΔΔCt method and the ratio of one gene to another gene was calculated by finding the Cq difference between the two genes and raising this value to the power of 2. For a detailed methodology of how mRNA expression ratios were calculated, see the supplementary files. Real-time RT-PCR data were analyzed using a two-way ANOVA followed by Dunnett’s test, if appropriate, at a two-tailed alpha level of 0.05 using a single pooled error term for Dunnett’s test. Specifically, in the presence of a main effect of M. vaccae NCTC 11659, planned pairwise comparisons between the BBS control condition and each concentration of M. vaccae NCTC 11659 (10 µg/mL, 30 µg/mL, 100 µg/mL, or 300 µg/mL) were conducted within the RPMI 1640 or LPS conditions (0.5 ng/mL, 2.5 ng/mL, or 250 ng/mL). In the presence of a main effect of LPS, planned pairwise comparisons between the RPMI 1640 control condition and each concentration of LPS (0.5 ng/mL, 2.5 ng/mL, or 250 ng/mL) were conducted within the BBS or M. vaccae NCTC 11659 conditions (10 µg/mL, 30 µg/mL, 100 µg/mL, or 300 µg/mL). In the presence of a significant interaction between M. vaccae NCTC 11659 and LPS, both types of planned pairwise comparisons were made.

4.6.3. Software

Generating real time RT-PCR relative expression values and real time RT-PCR statistical analysis was conducted using Python (version no. 3.8.1). All Python code is available on GitHub at https://github.com/evho3333/Statistical-Analysis.git (accessed on 8 July 2022).

Supplementary Materials

The supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms24065176/s1.

Author Contributions

Conceptualization, C.T.O.W., M.G.F., A.S.M., S.O.R. and C.A.L.; Methodology, E.M.H. and C.A.Z.; Software, E.M.H.; Formal analysis, E.M.H.; Investigation, E.M.H., C.A.Z., E.M.D., J.R.S. and W.J.S.; Data curation, E.M.H.; Writing—original draft, E.M.H. and C.A.L.; Writing—review & editing, E.M.H., C.A.Z., C.T.O.W., E.M.D., J.R.S., W.J.S., M.G.F., A.S.M., S.O.R. and C.A.L.; Supervision, C.A.L.; Project administration, C.A.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research did not receive any specific grant from funding agencies in the public, commercial, or not-for-profit sectors. We are grateful for support from an anonymous donor provided through Benefunder, which supported this project. Publication of this article was funded in part by the University of Colorado Boulder Libraries Open Access Fund.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

All data presented are available in the Supplementary Material.

Acknowledgments

Christopher A. Lowry is supported by the Colorado Office of Economic Development and International Trade (OEDIT) Advanced Industries Accelerator Program, the Department of the Navy, Office of Naval Research Multidisciplinary University Research Initiative (MURI) Award, the Institute for Cannabis Research—CSU-Pueblo, and the National Center for Complementary and Integrative Health.

Conflicts of Interest

C.A.L. and A.S.M. serve on the Scientific Advisory Board of Immodulon Therapeutics, Ltd. C.A.L. is Cofounder, Board Member, and Chief Scientific Officer of Mycobacteria Therapeutics Corporation, and is a member of the faculty of the Integrative Psychiatry Institute, Boulder, Colorado, and The Institute for Brain Potential, Los Banos, California. All other authors report no conflict of interest.

Abbreviations

ATCCAmerican Type Culture Collection
BBSborate-buffered saline
CNScentral nervous system
DCdendritic cell
DMSOdimethyl sulfoxide
EDTAethylenediaminetetraacetic acid
FBSfetal bovine serum
IL-6interleukin 6
IL-10interleukin 10
IL-12interleukin 12
IL-23interleukin 23
LPSlipopolysaccharide
NCBINational Center for Biotechnology Information
NCTCNational Collection of Type Cultures
PBMCperipheral blood mononuclear cell
PBSphosphate-buffered saline
PMAphorbol 12-myristate 13-acetate
RNAribonucleic acid
RT-PCRreverse transcription polymerase chain reaction
RUV-IIIRemoving Unwanted Variation-III
TGF-β1transforming growth factor beta 1
TLR1toll-like receptor 1
TLR2toll-like receptor 2
TLR4toll-like receptor 4
TLR6toll-like receptor 6
TNFtumor necrosis factor
Tregregulatory T cell

References

  1. Miller, A.H.; Raison, C.L. The role of inflammation in depression: From evolutionary imperative to modern treatment target. Nat. Rev. Immunol. 2016, 16, 22–34. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Rohleder, N. Stimulation of systemic low-grade inflammation by psychosocial stress. Psychosom. Med. 2014, 76, 181–189. [Google Scholar] [CrossRef] [PubMed]
  3. COVID-19 Mental Disorders Collaborators. Global prevalence and burden of depressive and anxiety disorders in 204 countries and territories in 2020 due to the COVID-19 pandemic. Lancet 2021, 398, 1700–1712. [Google Scholar] [CrossRef] [PubMed]
  4. Koenen, K.C.; Ratanatharathorn, A.; Ng, L.; McLaughlin, K.A.; Bromet, E.J.; Stein, D.J.; Karam, E.G.; Meron Ruscio, A.; Benjet, C.; Scott, K.; et al. Posttraumatic stress disorder in the World Mental Health Surveys. Psychol. Med. 2017, 47, 2260–2274. [Google Scholar] [CrossRef]
  5. Amoroso, M.; Langgartner, D.; Lowry, C.A.; Reber, S.O. Rapidly growing Mycobacterium species: The long and winding road from tuberculosis vaccines to potent stress-resilience agents. Int. J. Mol. Sci. 2021, 22, 12938. [Google Scholar] [CrossRef]
  6. Ellul, P.; Mariotti-Ferrandiz, E.; Leboyer, M.; Klatzmann, D. Regulatory T cells as supporters of psychoimmune resilience: Toward immunotherapy of major depressive disorder. Front. Neurol. 2018, 9, 167. [Google Scholar] [CrossRef]
  7. Rook, G.A.W.; Lowry, C.A. Evolution, Biodiversity and a Reassessment of the Hygiene Hypothesis; Rook, G.A.W., Lowry, C.A., Eds.; Springer Nature Switzerland AG: Cham, Switzerland, 2022. [Google Scholar] [CrossRef]
  8. von Mutius, E. From observing children in traditional upbringing to concepts of health. In Evolution, Biodiversity and a Reassessment of the Hygiene Hypothesis; Rook, G.A.W., Lowry, C.A., Eds.; Springer Nature Switzerland AG: Cham, Switzerland, 2022; pp. 1–26. [Google Scholar]
  9. Böbel, T.S.; Hackl, S.B.; Langgartner, D.; Jarczok, M.N.; Rohleder, N.; Rook, G.A.; Lowry, C.A.; Gündel, H.; Waller, C.; Reber, S.O. Less immune activation following social stress in rural vs. urban participants raised with regular or no animal contact, respectively. Proc. Natl. Acad. Sci. USA 2018, 115, 5259–5264. [Google Scholar] [CrossRef] [Green Version]
  10. Draijer, C.; Peters-Golden, M. Alveolar macrophages in allergic asthma: The forgotten cell awakes. Curr. Allergy Asthma Rep. 2017, 17, 12. [Google Scholar] [CrossRef] [Green Version]
  11. Lee, Y.G.; Jeong, J.J.; Nyenhuis, S.; Berdyshev, E.; Chung, S.; Ranjan, R.; Karpurapu, M.; Deng, J.; Qian, F.; Kelly, E.A.; et al. Recruited alveolar macrophages, in response to airway epithelial-derived monocyte chemoattractant protein 1/CCl2, regulate airway inflammation and remodeling in allergic asthma. Am. J. Respir. Cell Mol. Biol. 2015, 52, 772–784. [Google Scholar] [CrossRef] [Green Version]
  12. Zasłona, Z.; Przybranowski, S.; Wilke, C.; van Rooijen, N.; Teitz-Tennenbaum, S.; Osterholzer, J.J.; Wilkinson, J.E.; Moore, B.B.; Peters-Golden, M. Resident alveolar macrophages suppress, whereas recruited monocytes promote, allergic lung inflammation in murine models of asthma. J. Immunol. 2014, 193, 4245–4253. [Google Scholar] [CrossRef] [Green Version]
  13. Lechner, A.; Henkel, F.D.; Hartung, F.; Bohnacker, S.; Alessandrini, F.; Gubernatorova, E.O.; Drutskaya, M.S.; Angioni, C.; Schreiber, Y.; Haimerl, P.; et al. Macrophages acquire a TNF-dependent inflammatory memory in allergic asthma. J. Allergy Clin. Immunol. 2021, 149, 2078–2090. [Google Scholar] [CrossRef]
  14. Hodes, G.E.; Ménard, C.; Russo, S.J. Integrating interleukin-6 into depression diagnosis and treatment. Neurobiol. Stress 2016, 4, 15–22. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Hodes, G.E.; Pfau, M.L.; Leboeuf, M.; Golden, S.A.; Christoffel, D.J.; Bregman, D.; Rebusi, N.; Heshmati, M.; Aleyasin, H.; Warren, B.L.; et al. Individual differences in the peripheral immune system promote resilience versus susceptibility to social stress. Proc. Natl. Acad. Sci. USA 2014, 111, 16136–16141. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Reader, B.; Jarrett, B.; McKim, D.; Wohleb, E.; Godbout, J.; Sheridan, J. Peripheral and central effects of repeated social defeat stress: Monocyte trafficking, microglial activation, and anxiety. Neuroscience 2015, 289, 429–442. [Google Scholar] [CrossRef] [Green Version]
  17. Sharma, A.; Verbeke, W.J.M.I. Understanding importance of clinical biomarkers for diagnosis of anxiety disorders using machine learning models. PLoS ONE 2021, 16, e0251365. [Google Scholar] [CrossRef] [PubMed]
  18. Schiweck, C.; Claes, S.; Van Oudenhove, L.; Lafit, G.; Vaessen, T.; de Beeck, G.O.; Berghmans, R.; Wijkhuijs, A.; Müller, N.; Arolt, V.; et al. Childhood trauma, suicide risk and inflammatory phenotypes of depression: Insights from monocyte gene expression. Transl. Psychiatry 2020, 10, 296. [Google Scholar] [CrossRef]
  19. Nowak, W.; Grendas, L.N.; Sanmarco, L.M.; Estecho, I.G.; Arena, R.; Eberhardt, N.; Rodante, D.E.; Aoki, M.P.; Daray, F.M.; Silva, E.A.C.; et al. Pro-inflammatory monocyte profile in patients with major depressive disorder and suicide behaviour and how ketamine induces anti-inflammatory M2 macrophages by NMDAR and mTOR. Ebiomedicine 2019, 50, 290–305. [Google Scholar] [CrossRef] [Green Version]
  20. Seidel, A.; Arolt, V.; Hunstiger, M.; Rink, L.; Behnisch, A.; Kirchner, H. Major depressive disorder is associated with elevated monocyte counts. Acta Psychiatr. Scand. 1996, 94, 198–204. [Google Scholar] [CrossRef]
  21. Lynall, M.E.; Turner, L.; Bhatti, J.; Cavanagh, J.; de Boer, P.; Mondelli, V.; Jones, D.; Drevets, W.C.; Cowen, P.; Harrison, N.A.; et al. Peripheral blood cell-stratified subgroups of inflamed depression. Biol. Psychiatry 2020, 88, 185–196. [Google Scholar] [CrossRef] [Green Version]
  22. Serafini, G.; Parisi, V.M.; Aguglia, A.; Amerio, A.; Sampogna, G.; Fiorillo, A.; Pompili, M.; Amore, M. A specific inflammatory profile underlying suicide risk? Systematic review of the main literature findings. Int. J. Environ. Res. Public Health 2020, 17, 2393. [Google Scholar] [CrossRef] [Green Version]
  23. Schultebraucks, K.; Qian, M.; Abu-Amara, D.; Dean, K.; Laska, E.; Siegel, C.; Gautam, A.; Guffanti, G.; Hammamieh, R.; Misganaw, B.; et al. Pre-deployment risk factors for PTSD in active-duty personnel deployed to Afghanistan: A machine-learning approach for analyzing multivariate predictors. Mol. Psychiatry 2020, 26, 5011–5022. [Google Scholar] [CrossRef] [PubMed]
  24. Lisi, L.; Camardese, G.; Treglia, M.; Tringali, G.; Carrozza, C.; Janiri, L.; Russo, C.D.; Navarra, P. Monocytes from depressed patients display an altered pattern of response to endotoxin challenge. PLoS ONE 2013, 8, e52585. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Kim, Y.-K.; Suh, I.-B.; Kim, H.; Han, C.-S.; Lim, C.-S.; Choi, S.-H.; Licinio, J. The plasma levels of interleukin-12 in schizophrenia, major depression, and bipolar mania: Effects of psychotropic drugs. Mol. Psychiatry 2002, 7, 1107–1114. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Lee, K.M.; Kim, Y.K. The role of IL-12 and TGF-beta1 in the pathophysiology of major depressive disorder. Int. Immunopharmacol. 2006, 6, 1298–1304. [Google Scholar] [CrossRef] [PubMed]
  27. Sutcigil, L.; Oktenli, C.; Musabak, U.; Bozkurt, A.; Cansever, A.; Uzun, O.; Sanisoglu, S.Y.; Yesilova, Z.; Ozmenler, N.; Ozsahin, A.; et al. Pro- and anti-inflammatory cytokine balance in major depression: Effect of sertraline therapy. J. Immunol. Res. 2007, 2007, 76396. [Google Scholar] [CrossRef] [Green Version]
  28. Syed, S.A.; Beurel, E.; Loewenstein, D.A.; Lowell, J.A.; Craighead, W.E.; Dunlop, B.W.; Mayberg, H.S.; Dhabhar, F.; Dietrich, W.D.; Keane, R.W.; et al. Defective inflammatory pathways in never-treated depressed patients are associated with poor treatment response. Neuron 2018, 99, 914–924.e3. [Google Scholar] [CrossRef] [Green Version]
  29. Köhler, C.A.; Freitas, T.H.; Maes, M.; de Andrade, N.Q.; Liu, C.S.; Fernandes, B.S.; Stubbs, B.; Solmi, M.; Veronese, N.; Herrmann, N.; et al. Peripheral cytokine and chemokine alterations in depression: A meta-analysis of 82 studies. Acta Psychiatr. Scand. 2017, 135, 373–387. [Google Scholar] [CrossRef] [Green Version]
  30. Osimo, E.F.; Pillinger, T.; Rodriguez, I.M.; Khandaker, G.M.; Pariante, C.M.; Howes, O.D. Inflammatory markers in depression: A meta-analysis of mean differences and variability in 5166 patients and 5083 controls. Brain Behav. Immun. 2020, 87, 901–909. [Google Scholar] [CrossRef]
  31. Eder, L.; Ogdie, A.; Zhong, Y. Blockage of TNFa and IL-12/23 improves depressive symptoms in patients with psoriatic arthritis—Analysis of clinical trial data. In Proceedings of the 2019 ACR/ARP Annual Meeting, Atlanta, GA, USA, 8–13 November 2019. [Google Scholar]
  32. Flux, M.C.; Lowry, C.A. Inflammation as a mediator of stress-related psychiatric disorders. In Neurobiology of Brain Disorders: Biological Basis of Neurological and Psychiatric Disorders; Zigmond, M.J., Wiley, C.A., Chesselet, M.-F., Eds.; Academic Press, Elsevier: Cambridge, MA, USA, 2023; pp. 885–911. [Google Scholar] [CrossRef]
  33. Saeedi, S.; Israel, S.; Nagy, C.; Turecki, G. The emerging role of exosomes in mental disorders. Transl. Psychiatry 2019, 9, 122. [Google Scholar] [CrossRef] [Green Version]
  34. Wang, G.; Jin, S.; Ling, X.; Li, Y.; Hu, Y.; Zhang, Y.; Huang, Y.; Chen, T.; Lin, J.; Ning, Z.; et al. Proteomic profiling of LPS-induced macrophage-derived exosomes indicates their involvement in acute liver injury. Proteomics 2018, 19, e1800274. [Google Scholar] [CrossRef]
  35. Shechter, R.; Schwartz, M. Harnessing monocyte-derived macrophages to control central nervous system pathologies: No longer ‘if’ but ‘how’. J. Pathol. 2013, 229, 332–346. [Google Scholar] [CrossRef] [PubMed]
  36. Zuo, Z.; Qi, F.; Yang, J.; Wang, X.; Wu, Y.; Wen, Y.; Yuan, Q.; Zou, J.; Guo, K.; Bin Yao, Z. Immunization with Bacillus Calmette-Guérin (BCG) alleviates neuroinflammation and cognitive deficits in APP/PS1 mice via the recruitment of inflammation-resolving monocytes to the brain. Neurobiol. Dis. 2017, 101, 27–39. [Google Scholar] [CrossRef]
  37. Escartin, C.; Galea, E.; Lakatos, A.; O’Callaghan, J.P.; Petzold, G.C.; Serrano-Pozo, A.; Steinhäuser, C.; Volterra, A.; Carmignoto, G.; Agarwal, A.; et al. Reactive astrocyte nomenclature, definitions, and future directions. Nat. Neurosci. 2021, 24, 312–325. [Google Scholar] [CrossRef]
  38. Guilliams, M.; Ginhoux, F.; Jakubzick, C.; Naik, S.H.; Onai, N.; Schraml, B.U.; Segura, E.; Tussiwand, R.; Yona, S. Dendritic cells, monocytes and macrophages: A unified nomenclature based on ontogeny. Nat. Rev. Immunol. 2014, 14, 571–578. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Murray, P.J.; Allen, J.E.; Biswas, S.K.; Fisher, E.A.; Gilroy, D.W.; Goerdt, S.; Gordon, S.; Hamilton, J.A.; Ivashkiv, L.B.; Lawrence, T.; et al. Macrophage activation and polarization: Nomenclature and experimental guidelines. Immunity 2014, 41, 14–20. [Google Scholar] [CrossRef] [Green Version]
  40. Paolicelli, R.C.; Sierra, A.; Stevens, B.; Tremblay, M.-E.; Aguzzi, A.; Ajami, B.; Amit, I.; Audinat, E.; Bechmann, I.; Bennett, M.; et al. Microglia states and nomenclature: A field at its crossroads. Neuron 2022, 110, 3458–3483. [Google Scholar] [CrossRef]
  41. Yuste, R.; Hawrylycz, M.; Aalling, N.; Aguilar-Valles, A.; Arendt, D.; Armañanzas, R.; Ascoli, G.A.; Bielza, C.; Bokharaie, V.; Bergmann, T.B.; et al. A community-based transcriptomics classification and nomenclature of neocortical cell types. Nat. Neurosci. 2020, 23, 1456–1468. [Google Scholar] [CrossRef] [PubMed]
  42. Stanford, J.L.; Paul, R.C. A preliminary report on some studies of environmental mycobacteria from Uganda. Ann. Soc. Belg. Med. Trop. 1973, 53, 389–393. [Google Scholar] [PubMed]
  43. Zuany-Amorim, C.; Sawicka, E.; Manlius, C.; Le Moine, A.; Brunet, L.R.; Kemeny, D.M.; Bowen, G.; Rook, G.; Walker, C. Suppression of airway eosinophilia by killed Mycobacterium vaccae-induced allergen-specific regulatory T-cells. Nat. Med. 2002, 8, 625–629. [Google Scholar] [CrossRef] [PubMed]
  44. Hunt, J.R.; Martinelli, R.; Adams, V.C.; Rook, G.A.; Brunet, L.R. Intragastric administration of Mycobacterium vaccae inhibits severe pulmonary allergic inflammation in a mouse model. Clin. Exp. Allergy 2005, 35, 685–690. [Google Scholar] [CrossRef]
  45. Loupy, K.M.; Cler, K.E.; Marquart, B.M.; Yifru, T.W.; D’Angelo, H.M.; Arnold, M.R.; Elsayed, A.I.; Gebert, M.J.; Fierer, N.; Fonken, L.K.; et al. Comparing the effects of two different strains of mycobacteria, Mycobacterium vaccae NCTC 11659 and M. vaccae ATCC 15483, on stress-resilient behaviors and lipid-immune signaling in rats. Brain Behav. Immun. 2021, 91, 212–229. [Google Scholar] [CrossRef] [PubMed]
  46. Reber, S.O.; Siebler, P.H.; Donner, N.C.; Morton, J.T.; Smith, D.G.; Kopelman, J.M.; Lowe, K.R.; Wheeler, K.J.; Fox, J.H.; Hassell, J.E., Jr.; et al. Immunization with a heat-killed preparation of the environmental bacterium Mycobacterium vaccae promotes stress resilience in mice. Proc. Natl. Acad. Sci. USA 2016, 113, E3130–E3139. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Amoroso, M.; Böttcher, A.; Lowry, C.A.; Langgartner, D.; Reber, S.O. Subcutaneous Mycobacterium vaccae promotes resilience in a mouse model of chronic psychosocial stress when administered prior to or during psychosocial stress. Brain Behav. Immun. 2020, 87, 309–317. [Google Scholar] [CrossRef] [PubMed]
  48. Bowers, S.J.; Lambert, S.; He, S.; Lowry, C.A.; Fleshner, M.; Wright, K.P., Jr.; Turek, F.W.; Vitaterna, M.H. Immunization with a heat-killed bacterium, Mycobacterium vaccae NCTC 11659, prevents the development of cortical hyperarousal and a PTSD-like sleep phenotype after sleep disruption and acute stress in mice. Sleep 2021, 44, zsaa271. [Google Scholar] [CrossRef]
  49. Fonken, L.K.; Frank, M.G.; D’Angelo, H.M.; Heinze, J.D.; Watkins, L.R.; Lowry, C.A.; Maier, S.F. Mycobacterium vaccae immunization protects aged rats from surgery-elicited neuroinflammation and cognitive dysfunction. Neurobiol. Aging 2018, 71, 105–114. [Google Scholar] [CrossRef]
  50. Fox, J.H.; Hassell, J.E.; Siebler, P.H.; Arnold, M.R.; Lamb, A.K.; Smith, D.G.; Day, H.E.; Smith, T.M.; Simmerman, E.M.; Outzen, A.A.; et al. Preimmunization with a heat-killed preparation of Mycobacterium vaccae enhances fear extinction in the fear-potentiated startle paradigm. Brain Behav. Immun. 2017, 66, 70–84. [Google Scholar] [CrossRef]
  51. Foxx, C.L.; Heinze, J.D.; González, A.; Vargas, F.; Baratta, M.V.; Elsayed, A.I.; Stewart, J.R.; Loupy, K.M.; Arnold, M.R.; Flux, M.C.; et al. Effects of immunization with the soil-derived bacterium Mycobacterium vaccae on stress coping behaviors and cognitive performance in a “two hit” stressor model. Front. Physiol. 2021, 11, 524833. [Google Scholar] [CrossRef]
  52. Frank, M.G.; Fonken, L.K.; Dolzani, S.D.; Annis, J.L.; Siebler, P.H.; Schmidt, D.; Watkins, L.R.; Maier, S.F.; Lowry, C.A. Immunization with Mycobacterium vaccae induces an anti-inflammatory milieu in the CNS: Attenuation of stress-induced microglial priming, alarmins and anxiety-like behavior. Brain Behav. Immun. 2018, 73, 352–363. [Google Scholar] [CrossRef]
  53. Hassell, J.E.; Baratta, M.V.; Fallon, I.P.; Siebler, P.H.; Karns, B.L.; Nguyen, K.T.; Gates, C.A.; Fonken, L.K.; Frank, M.G.; Maier, S.F.; et al. Immunization with a heat-killed preparation of Mycobacterium vaccae NCTC 11659 enhances auditory-cued fear extinction in a stress-dependent manner. Brain Behav. Immun. 2023, 107, 1–15. [Google Scholar] [CrossRef]
  54. Hassell, J.E.; Fox, J.H.; Arnold, M.R.; Siebler, P.H.; Lieb, M.W.; Schmidt, D.; Spratt, E.J.; Smith, T.M.; Nguyen, K.T.; Gates, C.A.; et al. Treatment with a heat-killed preparation of Mycobacterium vaccae after fear conditioning enhances fear extinction in the fear-potentiated startle paradigm. Brain Behav. Immun. 2019, 81, 151–160. [Google Scholar] [CrossRef]
  55. Loupy, K.M.; Arnold, M.R.; Hassell, J.E.; Lieb, M.W.; Milton, L.N.; Cler, K.E.; Fox, J.H.; Siebler, P.H.; Schmidt, D.; Noronha, S.I.; et al. Evidence that preimmunization with a heat-killed preparation of Mycobacterium vaccae reduces corticotropin-releasing hormone mRNA expression in the extended amygdala in a fear-potentiated startle paradigm. Brain Behav. Immun. 2019, 77, 127–140. [Google Scholar] [CrossRef]
  56. Dawud, L.M.; Holbrook, E.M.; Lowry, C.A. Evolutionary aspects of diverse microbial exposures and mental health: Focus on “Old Friends” and stress resilience. In Current Topics in Behavioral Neurosciences, Microorganisms and Mental Health; Savitz, J., Yolken, R.H., Eds.; Springer Cham.: Berlin/Heidelberg, Germany, 2022; Volume 61, pp. 93–117. [Google Scholar] [CrossRef]
  57. Mantovani, A.; Sica, A.; Sozzani, S.; Allavena, P.; Vecchi, A.; Locati, M. The chemokine system in diverse forms of macrophage activation and polarization. Trends Immunol. 2004, 25, 677–686. [Google Scholar] [CrossRef] [PubMed]
  58. Viola, A.; Munari, F.; Sánchez-Rodríguez, R.; Scolaro, T.; Castegna, A. The metabolic signature of macrophage responses. Front. Immunol. 2019, 10, 1462. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  59. Molania, R.; Gagnon-Bartsch, J.A.; Dobrovic, A.; Speed, T.P. A new normalization for Nanostring nCounter gene expression data. Nucleic Acids Res. 2019, 47, 6073–6083. [Google Scholar] [CrossRef] [Green Version]
  60. Alasoo, K.; Martinez, F.O.; Hale, C.; Gordon, S.; Powrie, F.; Dougan, G.; Mukhopadhyay, S.; Gaffney, D.J. Transcriptional profiling of macrophages derived from monocytes and iPS cells identifies a conserved response to LPS and novel alternative transcription. Sci. Rep. 2015, 5, srep12524. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Sharif, O.; Bolshakov, V.N.; Raines, S.; Newham, P.; Perkins, N.D. Transcriptional profiling of the LPS induced NF-kappaB response in macrophages. BMC Immunol. 2007, 8, 1. [Google Scholar] [CrossRef] [Green Version]
  62. Park, B.S.; Lee, J.-O. Recognition of lipopolysaccharide pattern by TLR4 complexes. Exp. Mol. Med. 2013, 45, e66. [Google Scholar] [CrossRef] [Green Version]
  63. Lowry, C.; Hollis, J.; de Vries, A.; Pan, B.; Brunet, L.; Hunt, J.; Paton, J.; van Kampen, E.; Knight, D.; Evans, A.; et al. Identification of an immune-responsive mesolimbocortical serotonergic system: Potential role in regulation of emotional behavior. Neuroscience 2007, 146, 756–772. [Google Scholar] [CrossRef] [Green Version]
  64. Driessler, F.; Venstrom, K.; Sabat, R.; Asadullah, K.; Schottelius, A.J. Molecular mechanisms of interleukin-10-mediated inhibition of NF-kappaB activity: A role for p50. Clin. Exp. Immunol. 2004, 135, 64–73. [Google Scholar] [CrossRef] [PubMed]
  65. Wang, P.; Wu, P.; Siegel, M.I.; Egan, R.W.; Billah, M.M. Interleukin (IL)-10 inhibits nuclear factor kappa B (NF kappa B) activation in human monocytes. IL-10 and IL-4 suppress cytokine synthesis by different mechanisms. J. Biol. Chem. 1995, 270, 9558–9563. [Google Scholar] [CrossRef] [Green Version]
  66. Le Bert, N.; Chain, B.M.; Rook, G.; Noursadeghi, M. DC priming by M. vaccae inhibits Th2 responses in contrast to specific TLR2 priming and is associated with selective activation of the CREB pathway. PLoS ONE 2011, 6, e18346. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Conaway, E.A.; de Oliveira, D.C.; McInnis, C.M.; Snapper, S.B.; Horwitz, B.H. Inhibition of inflammatory gene transcription by IL-10 is associated with rapid suppression of lipopolysaccharide-induced enhancer activation. J. Immunol. 2017, 198, 2906–2915. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Murray, P.J. The primary mechanism of the IL-10-regulated antiinflammatory response is to selectively inhibit transcription. Proc. Natl. Acad. Sci. USA 2005, 102, 8686–8691. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  69. Lang, R.; Patel, D.; Morris, J.J.; Rutschman, R.L.; Murray, P.J. Shaping gene expression in activated and resting primary macrophages by IL-10. J. Immunol. 2002, 169, 2253–2263. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  70. Ma, X.; Yan, W.; Zheng, H.; Du, Q.; Zhang, L.; Ban, Y.; Li, N.; Wei, F. Regulation of IL-10 and IL-12 production and function in macrophages and dendritic cells. F1000Res 2015, 4. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  71. Voigt, R.M.; Zalta, A.K.; Raeisi, S.; Zhang, L.; Brown, J.M.; Forsyth, C.B.; Boley, R.A.; Held, P.; Pollack, M.H.; Keshavarzian, A. Abnormal intestinal milieu in post-traumatic stress disorder is not impacted by treatment that improves symptoms. Am. J. Physiol. Gastrointest. Liver Physiol. 2022, 323, G61–G70. [Google Scholar] [CrossRef]
  72. Zuany-Amorim, C.; Manlius, C.; Trifilieff, A.; Brunet, L.R.; Rook, G.; Bowen, G.; Pay, G.; Walker, C. Long-term protective and antigen-specific effect of heat-killed Mycobacterium vaccae in a murine model of allergic pulmonary inflammation. J. Immunol. 2002, 169, 1492–1499. [Google Scholar] [CrossRef] [Green Version]
  73. Schmidt, A.; Zhang, X.M.; Joshi, R.N.; Iqbal, S.; Wahlund, C.; Gabrielsson, S.; Harris, R.A.; Tegner, J. Human macrophages induce CD4(+)Foxp3(+) regulatory T cells via binding and re-release of TGF-beta. Immunol. Cell Biol. 2016, 94, 747–762. [Google Scholar] [CrossRef] [Green Version]
  74. Grohmann, U.; Belladonna, M.L.; Vacca, C.; Bianchi, R.; Fallarino, F.; Orabona, C.; Fioretti, M.C.; Puccetti, P. Positive regulatory role of IL-12 in macrophages and modulation by IFN-gamma. J. Immunol. 2001, 167, 221–227. [Google Scholar] [CrossRef] [Green Version]
  75. Ma, X.; Chow, J.M.; Gri, G.; Carra, G.; Gerosa, F.; Wolf, S.F.; Dzialo, R.; Trinchieri, G. The interleukin 12 p40 gene promoter is primed by interferon gamma in monocytic cells. J. Exp. Med. 1996, 183, 147–157. [Google Scholar] [CrossRef] [Green Version]
  76. Tedesco, S.; De Majo, F.; Kim, J.; Trenti, A.; Trevisi, L.; Fadini, G.P.; Bolego, C.; Zandstra, P.W.; Cignarella, A.; Vitiello, L. Convenience versus biological significance: Are PMA-differentiated THP-1 cells a reliable substitute for blood-derived macrophages when studying in vitro polarization? Front. Pharmacol. 2018, 9, 71. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  77. Daigneault, M.; Preston, J.A.; Marriott, H.M.; Whyte, M.K.B.; Dockrell, D.H. The identification of markers of macrophage differentiation in PMA-stimulated THP-1 cells and monocyte-derived macrophages. PLoS ONE 2010, 5, e8668. [Google Scholar] [CrossRef] [PubMed]
  78. Madhvi, A.; Mishra, H.; Leisching, G.; Mahlobo, P.; Baker, B. Comparison of human monocyte derived macrophages and THP1-like macrophages as in vitro models for M. tuberculosis infection. Comp. Immunol. Microbiol. Infect. Dis. 2019, 67, 101355. [Google Scholar] [CrossRef] [PubMed]
  79. Chanput, W.; Mes, J.; Vreeburg, R.A.M.; Savelkoul, H.F.J.; Wichers, H.J. Transcription profiles of LPS-stimulated THP-1 monocytes and macrophages: A tool to study inflammation modulating effects of food-derived compounds. Food Funct. 2010, 1, 254–261. [Google Scholar] [CrossRef]
  80. Eraly, S.A.; Nievergelt, C.M.; Maihofer, A.X.; Barkauskas, D.A.; Biswas, N.; Agorastos, A.; O’Connor, D.T.; Baker, D.G. Assessment of plasma C-reactive protein as a biomarker of posttraumatic stress disorder risk. JAMA Psychiatry 2014, 71, 423–431. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  81. Sommershof, A.; Aichinger, H.; Engler, H.; Adenauer, H.; Catani, C.; Boneberg, E.-M.; Elbert, T.; Groettrup, M.; Kolassa, I.-T. Substantial reduction of naïve and regulatory T cells following traumatic stress. Brain Behav. Immun. 2009, 23, 1117–1124. [Google Scholar] [CrossRef] [Green Version]
  82. Gola, H.; Engler, H.; Sommershof, A.; Adenauer, H.; Kolassa, S.; Schedlowski, M.; Groettrup, M.; Elbert, T.; Kolassa, I.-T. Posttraumatic stress disorder is associated with an enhanced spontaneous production of pro-inflammatory cytokines by peripheral blood mononuclear cells. BMC Psychiatry 2013, 13, 40. [Google Scholar] [CrossRef] [Green Version]
  83. Allgire, E.; McAlees, J.W.; Lewkowich, I.P.; Sah, R. Asthma and posttraumatic stress disorder (PTSD): Emerging links, potential models and mechanisms. Brain Behav. Immun. 2021, 97, 275–285. [Google Scholar] [CrossRef]
  84. Wisnivesky, J.P.; Becker, J.H.; Ankam, J.; Markowitz, S.B.; Doernberg, M.; Dickens, B.; Busse, P.; Crowley, L.; Federman, A.; Katz, C.; et al. The relationship between post-traumatic stress disorder and self-management behaviors in World Trade Center workers with asthma. J. Allergy Clin. Immunol. Pract. 2021, 10, 242–249. [Google Scholar] [CrossRef]
  85. Smith, D.G.; Martinelli, R.; Besra, G.S.; Illarionov, P.A.; Szatmari, I.; Brazda, P.; Allen, M.A.; Xu, W.; Wang, X.; Nagy, L.; et al. Identification and characterization of a novel anti-inflammatory lipid isolated from Mycobacterium vaccae, a soil-derived bacterium with immunoregulatory and stress resilience properties. Psychopharmacology 2019, 236, 1653–1670. [Google Scholar] [CrossRef]
  86. Divangahi, M.; Aaby, P.; Khader, S.A.; Barreiro, L.B.; Bekkering, S.; Chavakis, T.; van Crevel, R.; Curtis, N.; DiNardo, A.R.; Dominguez-Andres, J.; et al. Trained immunity, tolerance, priming and differentiation: Distinct immunological processes. Nat. Immunol. 2021, 22, 2–6. [Google Scholar] [CrossRef]
  87. Kared, H.; Tan, S.W.; Lau, M.C.; Chevrier, M.; Tan, C.; How, W.; Wong, G.; Strickland, M.; Malleret, B.; Amoah, A.; et al. Immunological history governs human stem cell memory CD4 heterogeneity via the Wnt signaling pathway. Nat. Commun. 2020, 11, 1–17. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  88. Mohr, L.; Toufektchan, E.; von Morgen, P.; Chu, K.; Kapoor, A.; Maciejowski, J. ER-directed TREX1 limits cGAS activation at micronuclei. Mol. Cell 2021, 81, 724–738.e3. [Google Scholar] [CrossRef] [PubMed]
  89. Nance, K.D.; Gamage, S.T.; Alam, M.; Yang, A.; Levy, M.J.; Link, C.N.; Florens, L.; Washburn, M.P.; Gu, S.; Oppenheim, J.J.; et al. Cytidine acetylation yields a hypoinflammatory synthetic messenger RNA. Cell Chem. Biol. 2022, 29, 312–320.e7. [Google Scholar] [CrossRef] [PubMed]
  90. Ng, I.H.W.; Chan, K.W.-K.; Tan, M.J.A.; Gwee, C.P.; Smith, K.M.; Jeffress, S.J.; Saw, W.-G.; Swarbrick, C.M.D.; Watanabe, S.; Jans, D.A.; et al. Zika virus NS5 forms supramolecular nuclear bodies that sequester importin-α and modulate the host immune and pro-inflammatory response in neuronal cells. ACS Infect. Dis. 2019, 5, 932–948. [Google Scholar] [CrossRef]
  91. Schuliga, M.; Pechkovsky, D.; Read, J.; Waters, D.W.; Blokland, K.; Reid, A.; Hogaboam, C.; Khalil, N.; Burgess, J.; Prêle, C.M.; et al. Mitochondrial dysfunction contributes to the senescent phenotype of IPF lung fibroblasts. J. Cell. Mol. Med. 2018, 22, 5847–5861. [Google Scholar] [CrossRef]
  92. Siddique, A.S.; Corney, D.C.; Mangray, S.; Lombardo, K.A.; Chen, S.; Marwaha, A.S.; Resnick, M.B.; Herzlinger, M.; Matoso, A. Clinicopathologic and gene expression analysis of initial biopsies from patients with eosinophilic esophagitis refractory to therapy. Hum. Pathol. 2017, 68, 79–86. [Google Scholar] [CrossRef]
  93. Thome, A.D.; Faridar, A.; Beers, D.R.; Thonhoff, J.R.; Zhao, W.; Wen, S.; Pascual, B.; Masdeu, J.C.; Appel, S.H. Functional alterations of myeloid cells during the course of Alzheimer’s disease. Mol. Neurodegener. 2018, 13, 61. [Google Scholar] [CrossRef] [Green Version]
  94. Chomczynski, P.; Sacchi, N. Single-step method of RNA isolation by acid guanidinium thiocyanate-phenol-chloroform extraction. Anal. Biochem. 1987, 162, 156–159. [Google Scholar] [CrossRef]
  95. Altschul, S.F.; Madden, T.L.; Schäffer, A.A.; Zhang, J.; Zhang, Z.; Miller, W.; Lipman, D.J. Gapped BLAST and PSI-BLAST: A new generation of protein database search programs. Nucleic Acids Res. 1997, 25, 3389–3402. [Google Scholar] [CrossRef] [Green Version]
  96. NanoString Technologies. Reference Genes for Normalization of Expression Data; NanoString Technologies, Inc.: Seattle, WA, USA, 2009. [Google Scholar]
  97. Ritchie, M.E.; Phipson, B.; Wu, D.; Hu, Y.; Law, C.W.; Shi, W.; Smyth, G.K. limma powers differential expression analyses for RNA-sequencing and microarray studies. Nucleic Acids Res. 2015, 43, e47. [Google Scholar] [CrossRef] [PubMed]
Ijms 24 05176 g001 550
Figure 1. Volcano plots illustrating that (A) among THP-1-derived macrophages subsequently exposed to RPMI 1640 vehicle for 24 h, M. vaccae NCTC 11659 induced both proinflammatory and anti-inflammatory markers in human THP-1-derived macrophages and (B) among THP-1-derived macrophages subsequently challenged with 250 ng/mL lipopolysaccharide (LPS) for 24 h, M. vaccae NCTC 11659 shifted THP-1-derived macrophages toward an anti-inflammatory bias, for example, with increased IL10, IL10RB, TGFB2, TGFBR1, MRC1 and decreased IL12B expression. The x-axis is the log base 2 of the fold change and the y-axis is the negative log base 10 of the p-value. Each dot in the figure represents a specific gene. The blue dots in the upper left quadrant of the volcano plot represent the genes that were expressed at lower levels in the (A) 300  μ g/mL M. vaccae NCTC 11659/RPMI 1640 vehicle group or (B) 300  μ g/mL M. vaccae NCTC 11659/LPS group relative to the BBS vehicle/RPMI 1640 vehicle group or BBS vehicle/LPS group, respectively. The red dots in the upper right quadrant of the volcano plot represent the genes that were expressed at higher levels in the (A) 300  μ g/mL M. vaccae NCTC 11659/RPMI 1640 vehicle group or (B) 300  μ g/mL M. vaccae NCTC 11659/LPS group relative to the BBS vehicle/RPMI 1640 vehicle group or BBS vehicle/LPS group, respectively. The black dots represent genes that were not differentially expressed between the groups (i.e., the absolute value of the log base 2 of fold change < 1.5 or p-value > 0.05). The dashed vertical lines represent log base 2-fold changes of approximately –0.6 or 0.6 (i.e., genes with an absolute fold change of at least 1.5). The horizontal dashed line is the negative log base 10 of the adjusted p-value alpha level of 0.05. The volcano plot was generated using the ggplot2 and ggrepel packages. See Supplemental S1. List of abbreviations for all gene symbols for a complete list of definitions of gene symbols (Supplementary Material S1).
Figure 1. Volcano plots illustrating that (A) among THP-1-derived macrophages subsequently exposed to RPMI 1640 vehicle for 24 h, M. vaccae NCTC 11659 induced both proinflammatory and anti-inflammatory markers in human THP-1-derived macrophages and (B) among THP-1-derived macrophages subsequently challenged with 250 ng/mL lipopolysaccharide (LPS) for 24 h, M. vaccae NCTC 11659 shifted THP-1-derived macrophages toward an anti-inflammatory bias, for example, with increased IL10, IL10RB, TGFB2, TGFBR1, MRC1 and decreased IL12B expression. The x-axis is the log base 2 of the fold change and the y-axis is the negative log base 10 of the p-value. Each dot in the figure represents a specific gene. The blue dots in the upper left quadrant of the volcano plot represent the genes that were expressed at lower levels in the (A) 300  μ g/mL M. vaccae NCTC 11659/RPMI 1640 vehicle group or (B) 300  μ g/mL M. vaccae NCTC 11659/LPS group relative to the BBS vehicle/RPMI 1640 vehicle group or BBS vehicle/LPS group, respectively. The red dots in the upper right quadrant of the volcano plot represent the genes that were expressed at higher levels in the (A) 300  μ g/mL M. vaccae NCTC 11659/RPMI 1640 vehicle group or (B) 300  μ g/mL M. vaccae NCTC 11659/LPS group relative to the BBS vehicle/RPMI 1640 vehicle group or BBS vehicle/LPS group, respectively. The black dots represent genes that were not differentially expressed between the groups (i.e., the absolute value of the log base 2 of fold change < 1.5 or p-value > 0.05). The dashed vertical lines represent log base 2-fold changes of approximately –0.6 or 0.6 (i.e., genes with an absolute fold change of at least 1.5). The horizontal dashed line is the negative log base 10 of the adjusted p-value alpha level of 0.05. The volcano plot was generated using the ggplot2 and ggrepel packages. See Supplemental S1. List of abbreviations for all gene symbols for a complete list of definitions of gene symbols (Supplementary Material S1).
Ijms 24 05176 g001
Ijms 24 05176 g002 550
Figure 2. Heat-killed M. vaccae NCTC 11659 modulates lipopolysaccharide (LPS)-induced exaggeration of inflammation in THP-1 monocyte-derived macrophages by increasing the ratio of IL10 mRNA expression to IL12B and IL23A mRNA expression, encoding the subunits of the heterodimeric cytokine, IL-23. Gene expression was measured using real-time reverse transcription polymerase chain reaction (RT-PCR) and is represented relative to the highest Cq value for each gene. Data represent means ± SEM. Numbers on the x-axis indicate the concentration of LPS in ng/mL. Data were analyzed using a two-way ANOVA followed by Dunnett’s multiple comparisons test using a single pooled error value from all 20 treatment groups, if appropriate, at a two-tailed alpha level of 0.05. Darker colors represent sequentially higher concentrations of M. vaccae NCTC 11659. * p < 0.05, ** p < 0.01, *** p < 0.001, effect of LPS, within the same M. vaccae NCTC 11659 condition, using the RPMI 1640 groups as the comparison groups. # p < 0.05, ## p < 0.01, ### p < 0.001, effect of M. vaccae NCTC 11659, within the same LPS condition, using the BBS condition as the comparison group. (A) IL10:IL12A mRNA expression ratio upon challenge with different concentrations of M. vaccae NCTC 11659 and LPS. (B) IL10:IL12B mRNA expression ratio upon challenge with different concentrations of M. vaccae NCTC 11659 and LPS. (C) IL10:IL23A mRNA expression ratio upon challenge with different concentrations of M. vaccae NCTC 11659 and LPS. Abbreviations: BBS, borate-buffered saline; LPS, lipopolysaccharide; NCTC, National Collection of Type Cultures. Sample sizes can be found in Table S9 in the Supplemental Information.
Figure 2. Heat-killed M. vaccae NCTC 11659 modulates lipopolysaccharide (LPS)-induced exaggeration of inflammation in THP-1 monocyte-derived macrophages by increasing the ratio of IL10 mRNA expression to IL12B and IL23A mRNA expression, encoding the subunits of the heterodimeric cytokine, IL-23. Gene expression was measured using real-time reverse transcription polymerase chain reaction (RT-PCR) and is represented relative to the highest Cq value for each gene. Data represent means ± SEM. Numbers on the x-axis indicate the concentration of LPS in ng/mL. Data were analyzed using a two-way ANOVA followed by Dunnett’s multiple comparisons test using a single pooled error value from all 20 treatment groups, if appropriate, at a two-tailed alpha level of 0.05. Darker colors represent sequentially higher concentrations of M. vaccae NCTC 11659. * p < 0.05, ** p < 0.01, *** p < 0.001, effect of LPS, within the same M. vaccae NCTC 11659 condition, using the RPMI 1640 groups as the comparison groups. # p < 0.05, ## p < 0.01, ### p < 0.001, effect of M. vaccae NCTC 11659, within the same LPS condition, using the BBS condition as the comparison group. (A) IL10:IL12A mRNA expression ratio upon challenge with different concentrations of M. vaccae NCTC 11659 and LPS. (B) IL10:IL12B mRNA expression ratio upon challenge with different concentrations of M. vaccae NCTC 11659 and LPS. (C) IL10:IL23A mRNA expression ratio upon challenge with different concentrations of M. vaccae NCTC 11659 and LPS. Abbreviations: BBS, borate-buffered saline; LPS, lipopolysaccharide; NCTC, National Collection of Type Cultures. Sample sizes can be found in Table S9 in the Supplemental Information.
Ijms 24 05176 g002
Ijms 24 05176 g003 550
Figure 3. Graphical representation of the macrophage polarization phenotype of four treatment groups as described above. Proinflammatory polarization was observed in treatment groups challenged with either M. vaccae NCTC 11659 followed by RPMI 1640 vehicle or borate-buffered saline (BBS) vehicle followed by 250 ng/mL lipopolysaccharide (LPS) (as evidenced by IL10:IL12B, IL10:IL23A, TGFB1:IL12B, and TGFB1:IL23A ratios). An anti-inflammatory polarization was observed in the treatment groups challenged with M. vaccae NCTC 11659 followed by 250 ng/mL LPS. Abbreviations: IL-10, interleukin 10; IL-12, interleukin 12; IL-23, interleukin 23; LPS, lipopolysaccharide; PMA, phorbol 12-myristate 13-acetate; TGF-β1, transforming growth factor beta 1. Figure made with biorender.com.
Figure 3. Graphical representation of the macrophage polarization phenotype of four treatment groups as described above. Proinflammatory polarization was observed in treatment groups challenged with either M. vaccae NCTC 11659 followed by RPMI 1640 vehicle or borate-buffered saline (BBS) vehicle followed by 250 ng/mL lipopolysaccharide (LPS) (as evidenced by IL10:IL12B, IL10:IL23A, TGFB1:IL12B, and TGFB1:IL23A ratios). An anti-inflammatory polarization was observed in the treatment groups challenged with M. vaccae NCTC 11659 followed by 250 ng/mL LPS. Abbreviations: IL-10, interleukin 10; IL-12, interleukin 12; IL-23, interleukin 23; LPS, lipopolysaccharide; PMA, phorbol 12-myristate 13-acetate; TGF-β1, transforming growth factor beta 1. Figure made with biorender.com.
Ijms 24 05176 g003
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Holbrook, E.M.; Zambrano, C.A.; Wright, C.T.O.; Dubé, E.M.; Stewart, J.R.; Sanders, W.J.; Frank, M.G.; MacDonald, A.S.; Reber, S.O.; Lowry, C.A. Mycobacterium vaccae NCTC 11659, a Soil-Derived Bacterium with Stress Resilience Properties, Modulates the Proinflammatory Effects of LPS in Macrophages. Int. J. Mol. Sci. 2023, 24, 5176. https://doi.org/10.3390/ijms24065176

AMA Style

Holbrook EM, Zambrano CA, Wright CTO, Dubé EM, Stewart JR, Sanders WJ, Frank MG, MacDonald AS, Reber SO, Lowry CA. Mycobacterium vaccae NCTC 11659, a Soil-Derived Bacterium with Stress Resilience Properties, Modulates the Proinflammatory Effects of LPS in Macrophages. International Journal of Molecular Sciences. 2023; 24(6):5176. https://doi.org/10.3390/ijms24065176

Chicago/Turabian Style

Holbrook, Evan M., Cristian A. Zambrano, Caelan T. O. Wright, Elizabeth M. Dubé, Jessica R. Stewart, William J. Sanders, Matthew G. Frank, Andrew S. MacDonald, Stefan O. Reber, and Christopher A. Lowry. 2023. "Mycobacterium vaccae NCTC 11659, a Soil-Derived Bacterium with Stress Resilience Properties, Modulates the Proinflammatory Effects of LPS in Macrophages" International Journal of Molecular Sciences 24, no. 6: 5176. https://doi.org/10.3390/ijms24065176

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
