Review

Polyoxometalates Impact as Anticancer Agents

by
Fátima Carvalho
1 and
Manuel Aureliano
2,3,*
1
Faculdade de Medicina e Ciências Biomédicas (FMCB), Universidade do Algarve, Campus de Gambelas, 8005-139 Faro, Portugal
2
Faculdade de Ciências e Tecnologia (FCT), Universidade do Algarve, 8005-139 Faro, Portugal
3
Centro de Ciências do Mar (CCMar), Universidade do Algarve, 8005-139 Faro, Portugal
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(5), 5043; https://doi.org/10.3390/ijms24055043
Submission received: 1 February 2023 / Revised: 24 February 2023 / Accepted: 28 February 2023 / Published: 6 March 2023
(This article belongs to the Special Issue Novel Biosystems in Toxicology and Pharmacology)
Browse Figures
Review Reports Versions Notes

Abstract

:
Polyoxometalates (POMs) are oxoanions of transition metal ions, such as V, Mo, W, Nb, and Pd, forming a variety of structures with a wide range of applications. Herein, we analyzed recent studies on the effects of polyoxometalates as anticancer agents, particularly their effects on the cell cycle. To this end, a literature search was carried out between March and June 2022, using the keywords “polyoxometalates” and “cell cycle”. The effects of POMs on selected cell lines can be diverse, such as their effects in the cell cycle, protein expression, mitochondrial effects, reactive oxygen species (ROS) production, cell death and cell viability. The present study focused on cell viability and cell cycle arrest. Cell viability was analyzed by dividing the POMs into sections according to the constituent compound, namely polyoxovanadates (POVs), polyoxomolybdates (POMos), polyoxopaladates (POPds) and polyoxotungstates (POTs). When comparing and sorting the IC50 values in ascending order, we obtained first POVs, then POTs, POPds and, finally, POMos. When comparing clinically approved drugs and POMs, better results of POMs in relation to drugs were observed in many cases, since the dose required to have an inhibitory concentration of 50% is 2 to 200 times less, depending on the POMs, highlighting that these compounds could become in the future an alternative to existing drugs in cancer therapy.

1. Introduction

The application of metals such as platin (Pt), lithium (Li), tungsten (W), gold (Au), and vanadium (V), among others, within chemical species, complexes, compounds and/or nanoparticles in biology has been a rapidly growing branch of science [1,2,3,4,5,6,7]. Besides platinum compounds, bio-active metal-based complexes, clusters such as gold compounds and polyoxometalates (POMs), and metal-based nanoparticles have shown anticancer, antiviral, and antibacterial activities, among others [1,2,3,4,5,6,7,8,9,10,11,12,13].
Regarding biomedical applications, the number of articles on POMs has tripled in the last decade [10], as illustrated by the well-studied polyoxovanadates (POVs) [14,15,16,17,18]. In fact, POMs are known to target several proteins such as aquaporins and P-type ATPases [11,13], although many other proteins and/or enzymes involved in many biochemical processes have been proposed to be affected [14,15,16,17,18,19]. The isopolyoxovanadate decavanadate (V10) is perhaps the most widely studied POV in biology, affecting several biochemical and cellular processes [14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32].

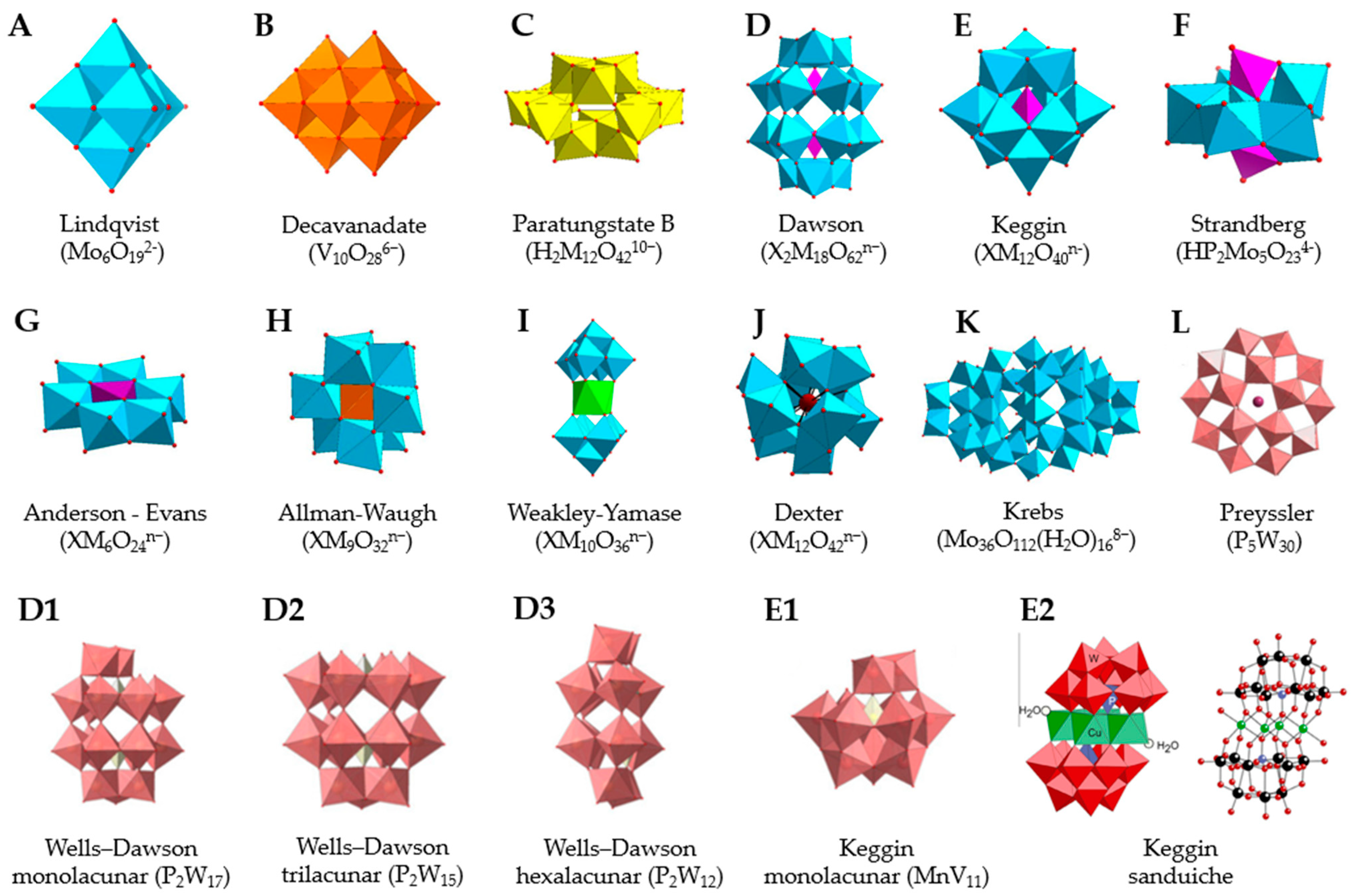

Polyoxometalates (POMs) are oxoanions of transition metal ions, such as V, Mo, W, Nb, and Pd, forming a variety of structures with a wide range of applications [10,12,15,16]. They may also include other elements in their structure such as P (phosphorus) or As (arsenic), among others, and may have one of the main metallic oxoanions absent and/or replaced by other metals, such as Co (cobalt) or Mn (manganese), resulting in versatile structures (Figure 1), which give them a wide variety of chemical and physical properties [21].
From the structure of a type of POM (polyoxometalate), such as Keggin or Dawson, (Figure 1D1–3,E1), it is possible to find lacunar derivatives, through the removal of one or more metal oxoanions. There are other compounds that can be formed from the structure of a type of Keggin POM, e.g., the sandwich type (Figure 1E2), which generally have two trilacunar anions separated by a belt of metallic cations.
In addition to the wide variety of chemical and physical properties, as mentioned before, this diversity of structures gives polyoxometalates numerous applications in several areas, such as environmental, chemical and industrial. Their effects are well known, mainly in catalysis, prevention of corrosion, and macromolecular crystallography, among others. Their usefulness in biomedicine [17,34,35] is also highlighted, namely through their antiviral [36,37,38] activity, where in the last two years, in the face of the world pandemic due to the SARS-CoV virus (severe acute respiratory syndrome coronavirus), studies have been carried out in an attempt to use POMs to help in fighting COVID-19 [39]. They are still useful in antitumor activities [40,41,42,43,44], and are antibacterial [16] and anti-inflammatory [45]. Additionally, they can also be used in biomedical engineering [46,47] in order to improve and develop innovative approaches to be applied in the prevention, diagnosis and therapy of diseases such as Alzheimer’s [48,49,50] and diabetes [51], where they tend to be demonstrated as potential drugs. In fact, the pharmacological action of POMs has sparked interest in them being potential candidates for therapeutic applications.
Since the beginning of the 21st century, and particularly recently, Aureliano’s research group and collaborators have been publishing review papers, editorials, chapters and regular papers regarding metal complexes and/or POMs biological functions and their applications [10,15,16,18,19,21,22,23,26,52,53,54,55,56]. Herein, POMs biological effects were further highlighted as possible anticancer agents in the near future. Among these effects, even though studies are scarce and the mechanisms of action are unclear, the cell cycle is particularly focused on. Still, POMs may thus be used as a potential strategy in the future as antitumor drugs with specific actions, which suggest the blockage of various cellular mechanisms such as the cell cycle.

2. Results and Discussion

2.1. Types of POMs

Of the selected articles, 18 compounds were found under study, belonging to four types of POMs, depending on their fundamental compound: POVs (polioxovanadates, polyoxometalates containing vanadium); those containing molybdenum (POMos, polyoxomolybdates); the POMs containing palladium (POPds, polyoxopaladates); and finally those containing tungsten (POTs, polyoxotungstates).
Starting with the POVs it was found that: (1) compounds with the molecular formula Na4Co6V10O28.18H2O (abbreviation CoV10), Na3(12H2O)H3V10O28.2H2O (abbreviation NaV10) an isopolyoxometalate with a decavanadate (V10) a well known type of structure [57]; (2) the POV with the formula K12[V18O42(H2O)]·6H2O (abbreviation V18) being a vanadium [58] with a Keggin structure; and (3) the compound 6{V5O9Cl(COO)4} (abbreviation VMOP-31) [59] with a Lindqvist’s type of structure.
Following the molybdenum compounds, we found the compound with the molecular formula K2Na[AsIIIMo6O21(O2CCH2NH3)3]·6H2O, also designated in the article by compound 1, in order to facilitate [60], better known as arsenomolybdate with an Anderson–Evans structure, involved in a silica nanosphere (K2Na[AsIIIMo6O21(O2CCH2NH3)3]·6H2O (abbreviation POM@SiO2) [61]; K2Na2[γ-Mo8O26(O2CCH2NH3)2]·6H2O, designated as compound 2, which are heteropolymolybdates [62]; with a Strandberg structure the [{4,4′-H2bpy}{4,4′-Hbpy}2{H2P2Mo5O23}].5H2O [63]; and finally, the [(Cu(pic)2)2(Mo8O26)]·8H2O [64].
There are also PONMs or polyoxopaladates, with the molecular formulas and respective abbreviations: Na8[Pd13As8O34(OH)6]·42H2O (abbreviation Pd13), Na4[SrPd12O6(OH)3(PhAsO3)6(OAc)3]2NaOAc·32H2O (abbreviation SrPd12), Na6[Pd13(PhAsO3)8]·23H2O (Pd13L), Na12[SnIVO8Pd12(PO4)8]·43H2O (abbreviation SnPd12), Na12[PbIVO8Pd12(PO4)8]·38H2O (abbreviation PbPd12) [65].
Lastly, the POMs that have the compound tungsten (POTs). We started with K7Na3[Cu4(H2O)2(PW9O34)2]20H2O (abbreviation PW9Cu) which has a Dawson structure [33]. Following a homochiral polyoxometalate {CoSb6O4(H2O)3[Co(hmta)SbW8O31]3}15−(1, hmta = hexamethylenetetramine) [66]; a tri-organic germanotungstate polyoxometalate-tin-substitute [67] {(n-Bu)Sn(OH)}3GeW9O34]4−·26H2O PAC-320 that has been shown to be an inhibitor of histone deacetylase (HDACi) [68] and has a Keggin structure. Finally, the POT {[Na(H2O)4][Na0.7Ni5.3(imi)2(Himi)(H2O)2(SbW9O33)2]} 10H2O, designated as compound 1 and H3[(CH3)4N]4[Na0.7Co5.3(imi)2(Himi)(H2O)2(SbW9O33)2] 12H2O, also known as compound 2 [67], whose structure is a hybrid Keggin sandwich.

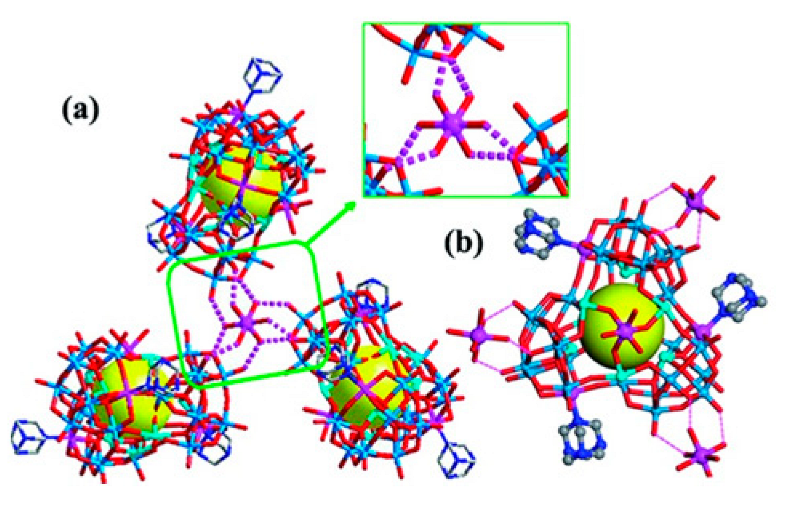

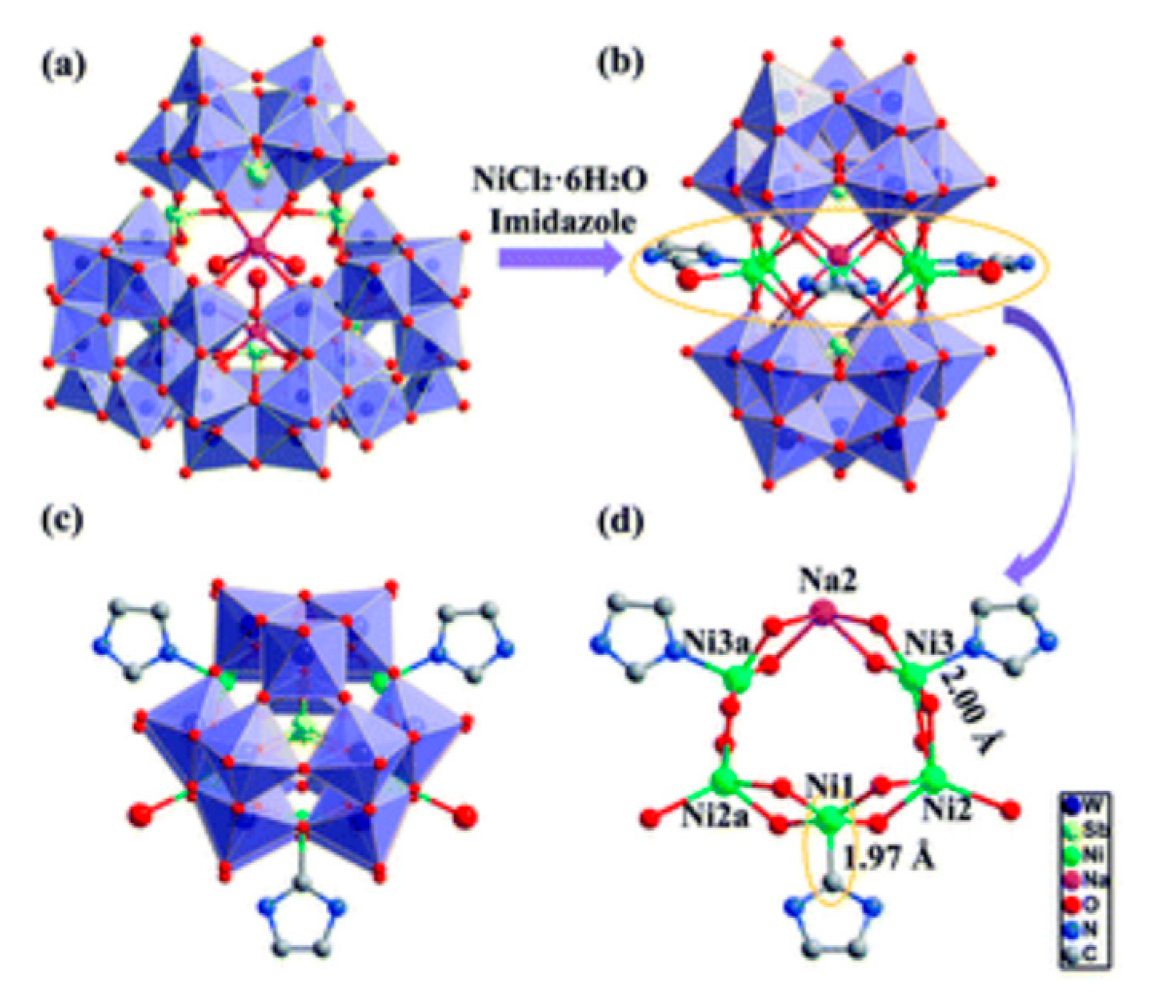

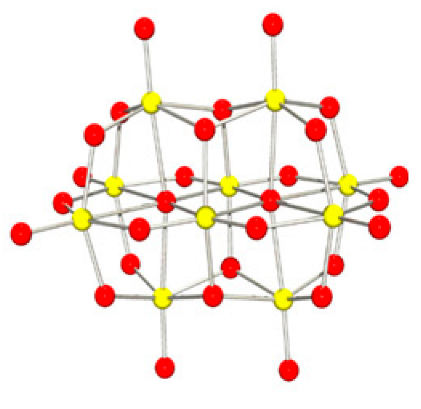

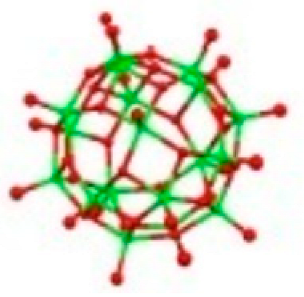

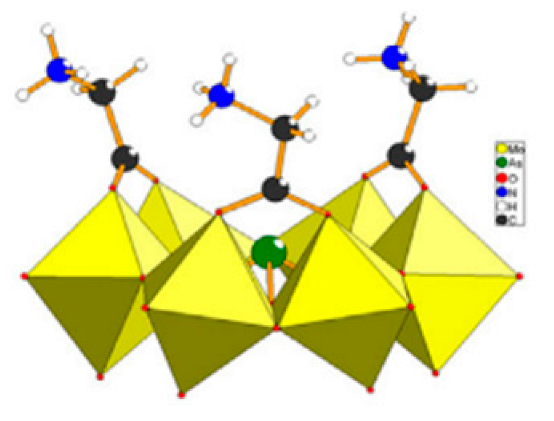

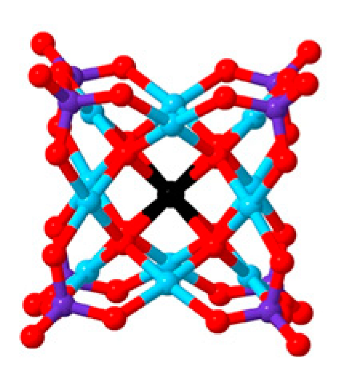

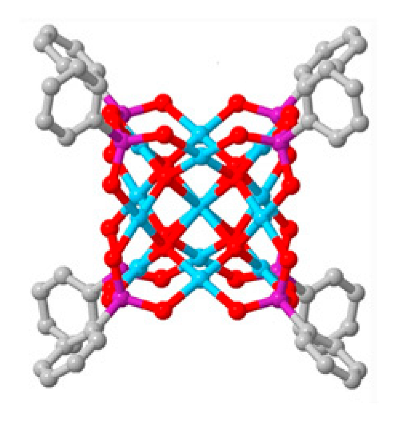

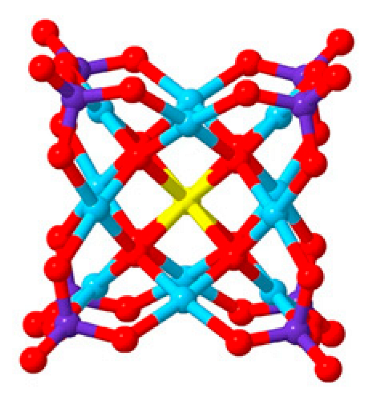

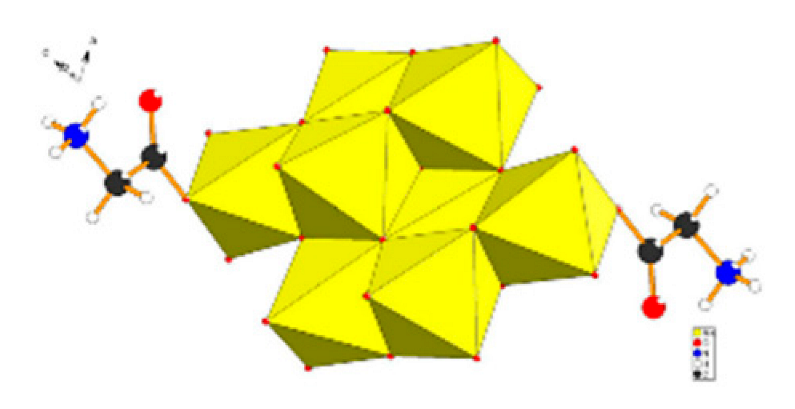

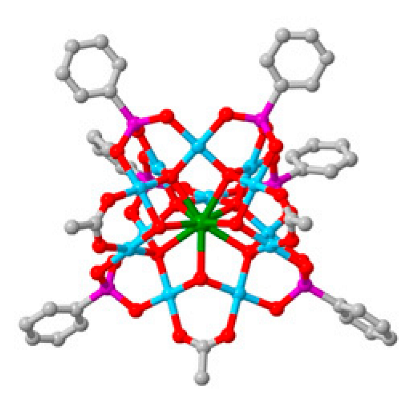

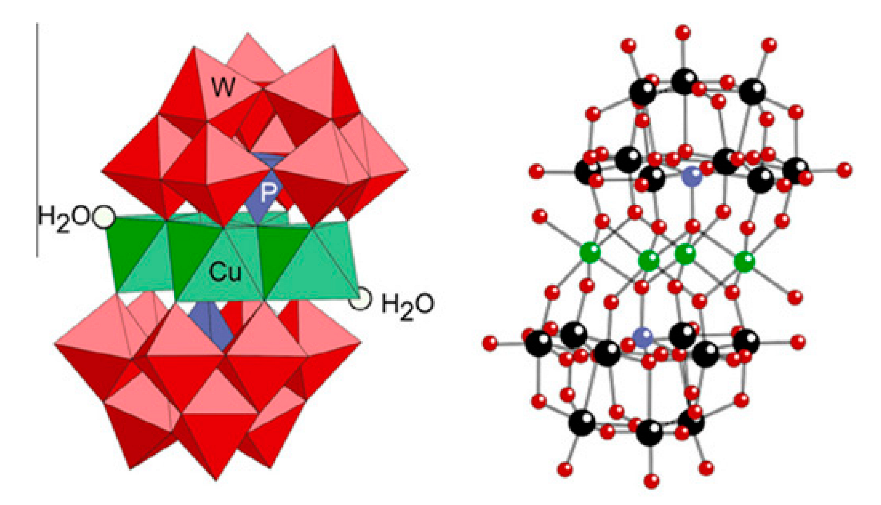

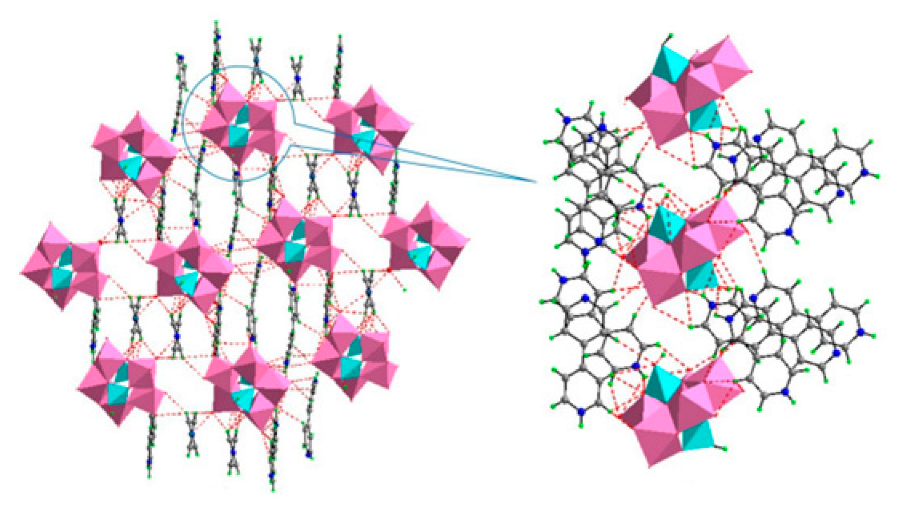

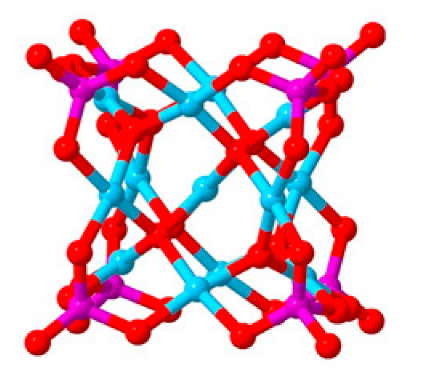

The 18 compounds are represented below, in the form of a table, with the division of the POMs by main component and in the order in which they appear in the periodic table, i.e., vanadium (V); molybdenum (Mo); palladium (Pd) and tungsten (W), according to their increasing atomic number, as presented above. Each compound is presented in Table 1 with its designation, that is, its molecular formula or abbreviation when existing; the structure with the respective illustration; the type of structure; bibliographic reference and POM of the 13 selected articles (Table 1).

2.2. Types of Cancers

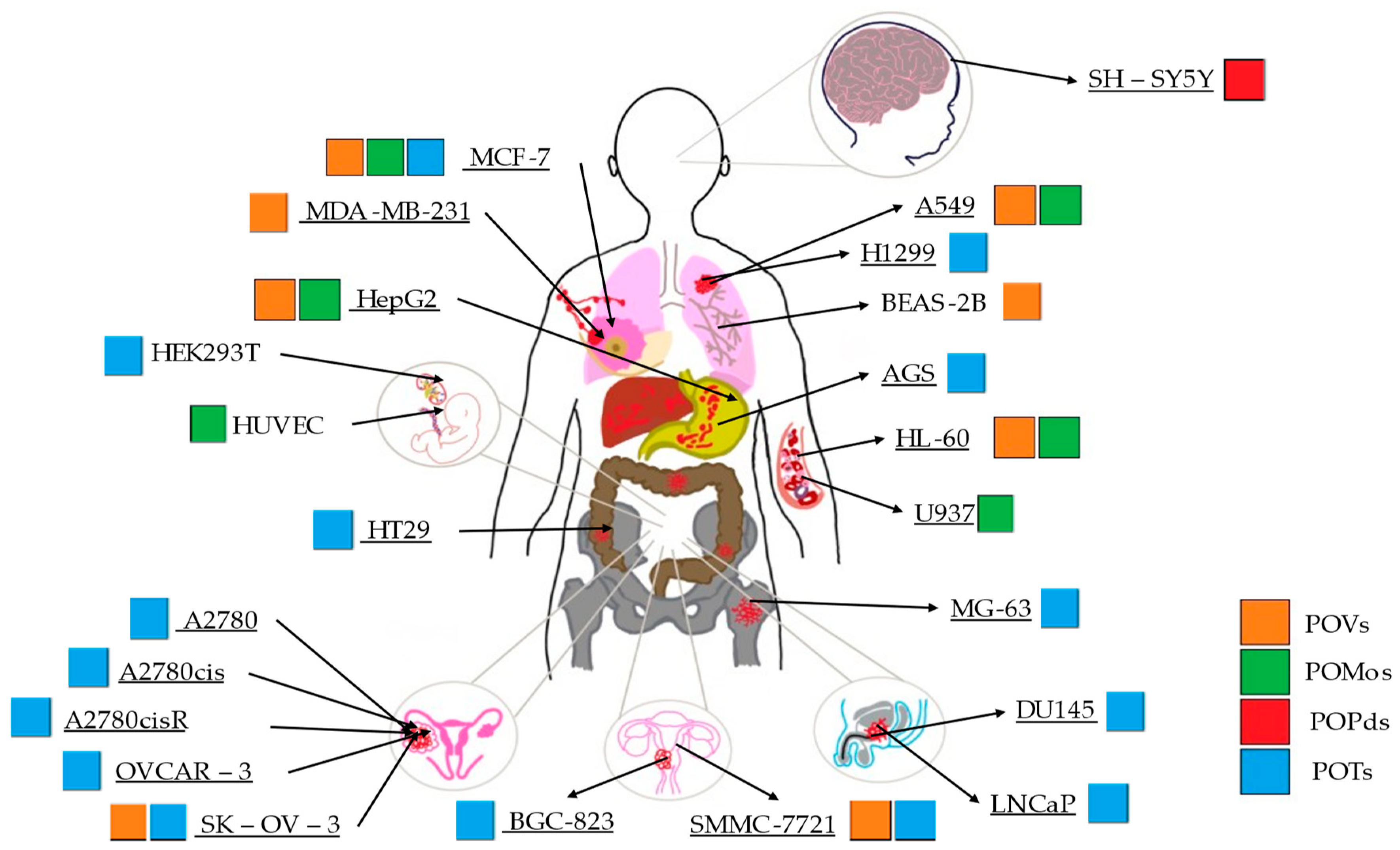

In these articles, several types of cancer were studied, and sometimes an article analyzed more than one type of cancer. These were namely gastric, colon, liver, lung, ovary, breast, prostate, leukemia, osteosarcoma, neuroblastoma and human hepatocellular carcinoma (Figure 2).

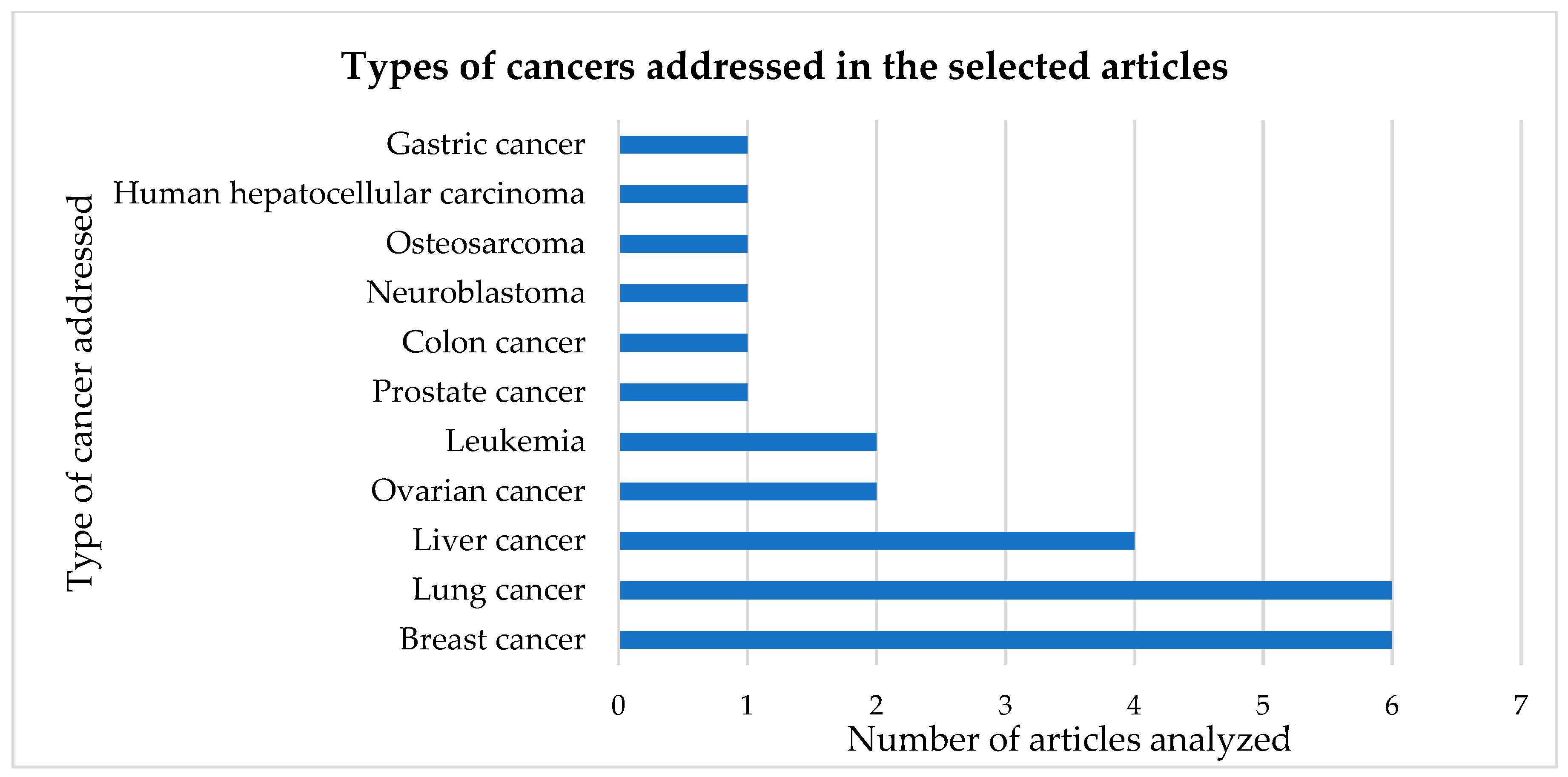

Through the analysis of Figure 2, it can be observed that the most studied types of cancer were lung and breast cancer, with six articles each, followed by liver cancer, covered in four articles.

2.3. POMs Effects

In the 13 articles, various effects of the selected POMs were analyzed, such as protein expression, mitochondrial effects, reactive oxygen species (ROS) production, cell cycle arrest, cell death, cell viability and anticancer activity, in vivo, or the antibacterial activity (Figure 3).

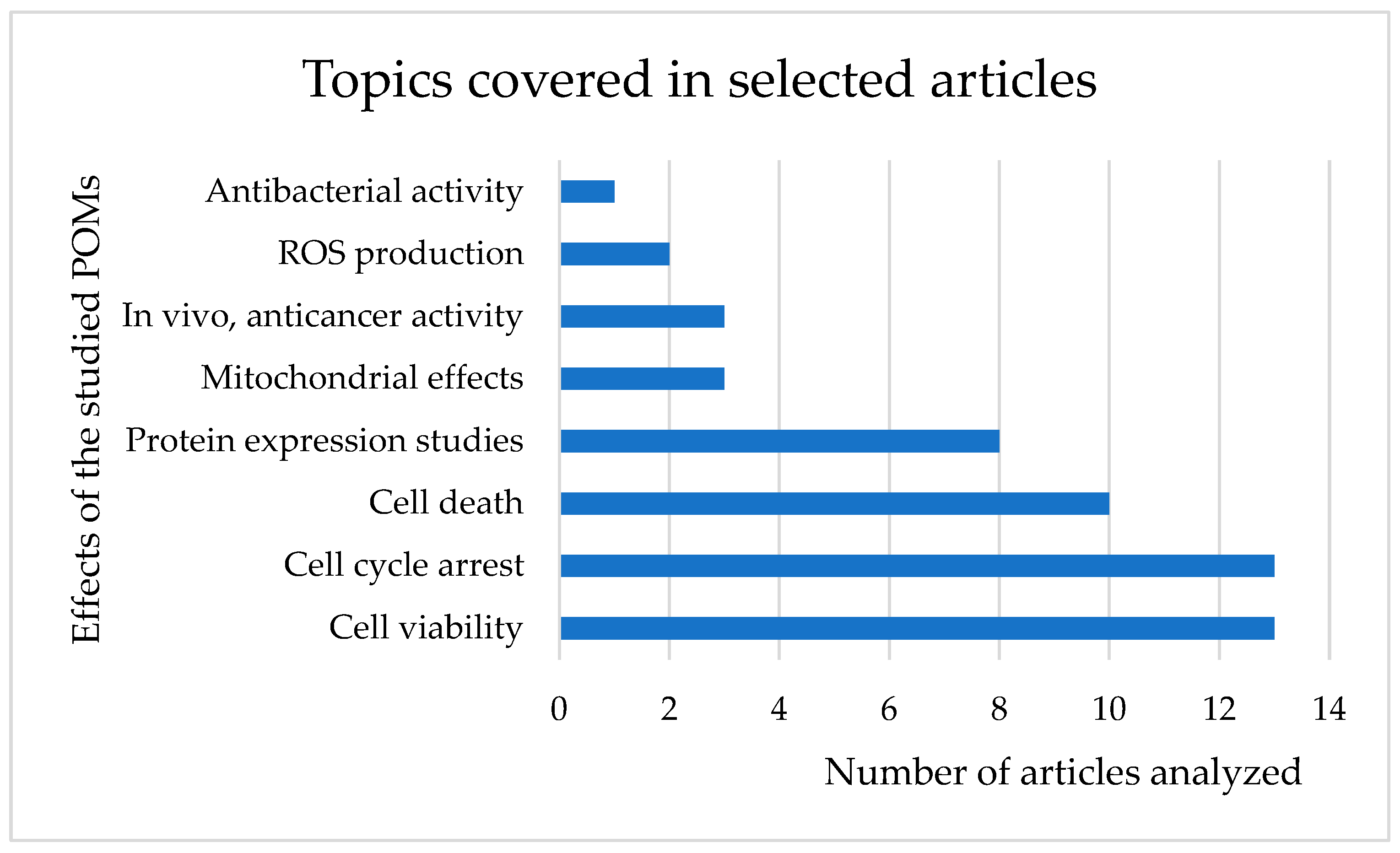

As seen in Figure 3, not all articles addressed all the effects of POMs, and there were effects addressed only in one article, such as antibacterial activity, analyzed in Escherichia coli (E. coli) regarding the effects of [(Cu(pic)2)2(Mo8O26)].8H2O, where it was shown to be quite effective with a minimum inhibitory concentration of approximately 135 μg/mL, which is the lowest value reported so far for any octamolybdate-based POM [64]. ROS production was also analyzed, as well as mitochondrial effects and protein expression in two, three and eight articles, respectively (Figure 3).
The production of ROS was verified in two articles, one of them with compounds containing noble metals (PONMs) [65]. The determination of the levels of superoxide ion produced was verified after 2 and 4 h of treatment. For this purpose, the dihydroethidium (DHE) method was used to detect cytosolic O2, which is not fluorescent but, being oxidized to O2−, emits fluorescence. Through the method presented above, it was observed that the polyoxopaladate Pd13 induced about 30% of increased production of superoxide ion (O2−) at 4h after treatment. Furthermore, the polyoxopaladates Pd13, SnPd12 and PbPd12 induced oxidative stress of HL-60 cells (human leukemia cells) resulting in an increase in the total production of reactive oxygen species [65].
Among the three articles selected for those that studied mitochondrial effects, the present study focused on the use of PAC-320. It was observed that with its use, in DU145 cells (human prostate tumor cells) there was a loss of MMP (mitochondrial membrane potential—ΔΨm). Consequently, cytochrome c is released in the cytosol, stimulating caspases that are associated apoptosis. Hence, it was deduced that apoptotic cell death was caused by the mitochondria-mediated pathway [68]. The same compound discussed above was one of the eight that referred to the study of protein expression. PAC-320 also inhibits the enzymatic activity of HDAC (histone deacetylases) 1, 2, 4, 5 and 6, but to a lesser extent HDAC 3 [68].
Only three articles performed in vivo studies in order to confirm or refute the anticancer activity of POMs. Of these three studies, Mus musculus (mice) were selected as an animal model. In one of these articles, nude mice with DU145 lineage (human prostate cancer cell line) were selected [68]. After this, these mice were divided into groups where each group was injected with a different compound. One group received a solution containing the compound PAC-320 (50 mg/kg) and another NaB (sodium butyrate) (1 g/kg). Others received SAHA (suberoylanilide acid, Vorinostat, an HDACi inhibitor, which was approved in October 2006 by the US Food and Drug Administration (FDA) for the treatment of cutaneous manifestations of T-cell lymphoma (CTCL) in patients with progressive, persistent or recurrent disease after two systemic therapies) [70], with a concentration of 40 mg/kg. All groups were injected daily for 16 days [68].
Through the results obtained, it was observed that the group treated with PAC-320 did not show a noticeable effect on body weight. In this group, the inhibition of the growth of prostate tumors was on average 69.2% compared to the control, treated with the vehicle alone (DMSO), while treatment with the drug SAHA or the compound NaB was inhibited by 55.5% and 64.2%, respectively. The weight of the tumors was reduced on the 17th day, when they were dissected [68]. To our knowledge, the precise mechanism of action responsible for the prostate tumor inhibition is yet to be clarified. In fact, although several putative mechanisms against cancer were recently reviewed [10,15,18], how the POM chemistry is specifically affecting the growth inhibition of prostate tumors needs further understanding.
In another study, over 12 consecutive days, mice with H22 liver tumor (Hepatoma-22, mouse liver tumor cell line) were administered treatments intraperitoneally, one with a saline solution (negative control group); cisplatin (CDDP or cis-diaminodichloroplatinum or cis-Pt) was used as the positive control group at a dose of 3 mg/kg. CDDP is a well-known platinum-based chemotherapy drug that is used to treat many types of cancer, including sarcomas, some carcinomas (e.g., small cell lung cancer and ovary cancer), lymphomas and germ cell tumors. Others received the studied compound, VMOP-31, at a dose of 12.5, 25 and 50 mg/kg [59]. On the 14th day, when they were excised, VMOP-31 led to a decrease in tumor weight compared to the saline group, but similar to that of the cisplatin group. Tumor inhibition rates of VMOP-31 at doses of 12.5, 25 and 50 mg/kg were determined to be 32.7, 39.6 and 56.4%, respectively [59]. Cisplatin has a tumor inhibition rate of 58.4%, which is comparable to the VMOP-31 tumor inhibition rate at 50 mg/kg. In this study, it was also observed that the body weight of the mice increased continuously, except for those in the cisplatin group, where the weight decreased continuously, which indicates that cisplatin has side effects [59].
Finally, we identified a study where 10 mice were randomly assigned and injected with mouse liver tumor cells (Hep-A-22) on their backs [57]. After 7 days of tumor cell administration, the mice were treated by intraperitoneal injections of CoV10 solutions with increasing concentrations (2, 6 and 12 mg/kg) [57], which were continued for 14 days. On the other hand, control mice were treated with saline solution for 2 weeks, under the same conditions that were used for animals treated with the CoV10 compound. As a result, it was observed that the average tumor weight with a concentration of 2 mg/kg with the CoV10 solution was 1.750 g [57], about 1.40-times lower than the average weight of the control group (2.440 g). As for the control group, compared with the value obtained (1.490 g) at a concentration of 12 mg/kg, a value about 1.6-times lower was observed. Comparing the control to a dose of 20 mg/kg of the approved drug, 5-Fu (fluorouracil is a widely used medicine in oncology, being therefore a base for a large part of current chemotherapy regimens to treat a wide spectrum of cancers), the mean tumor weight value was 0.477 g, i.e., 5.1-times lower. Note that here the dose used is higher than the dose used with the POM. Perhaps the higher dose of the drug justifies it being more harmful in reducing the weight of the mice, proving to be more toxic [57]. Furthermore, from the animal body weight data, it was found that CoV10 could decrease body weight less than the 5-Fu dose, thus showing less toxicity. It can also be seen that the inhibiting effect of the medium dose is better than that of the higher dosage (12 mg/kg). The reason may be that higher dosages of CoV10 can affect the function of immune organs, leading to decreased immune capacity [57].
However, several studies demonstrate that the oral administration of POMs is presumed safe and poses a low risk of potential health risks. Furthermore, for potential antidiabetic POTs it was concluded that the hepatotoxic and nephrotoxic effects could be considered as mild. Thus, besides POMs presenting higher antitumor activity and lower toxicity in in vitro and in vivo experiments, they have also been described as promising agents in the treatment of infectious diseases, diabetes and Alzheimer’s disease [69,71,72,73].

2.3.1. Cell Viability

As discussed above, it was found that 13 articles analyzed cell death and that all selected articles refer to the effects of POMs on cell viability, and where cell cycle arrest was given (Figure 3). In these articles, the IC50 values (POM concentration that inhibits 50% of cell viability) of the various POMs selected in each article in the respective cell lines studied were analyzed. To understand which POM had the lowest IC50, a comparison was made, through a table containing the IC50 of the various compounds and the strains in which each one was applied, after exposure of 24, 48 and 72 h to POVs, POMos, POPds and POTs. The cell lines within each division were ordered alphabetically from A–Z (Table 2).
Five vanadium POMs were studied, from three POVs that were analyzed in eight cell lines (Table 2, Figure 4). Among these POVs, it was observed in the MCF-7 lineage (human breast cancer cell line) that the best IC50 was 0.53 µM at 72 h, achieved with the POV VMOP-31 [59] and corresponding to the best value of the polyoxovanadates. When comparing this value to V18 (45.95 µM) [58], in the same strain, whether at 24, 48 or 72 h, it always presents better results, being about 30 times (more potent) for 24 h. With CoV10, the SMMC-7721 lineage (human papillomavirus-related endocervical adenocarcinoma cell line) resulted in a value of <0.26 µg/mL [57], which proved to be about 73- to 196-times more efficient than NaV1O compounds (18.90 µg/mL) and Co(Ac)2 (50.90 µg/mL) [57], such as in SK-OV-3 (human ovarian cancer cell line). For this strain, the best value is <0.24 µg/mL, when compared to the compounds NaV10 (9.56 µg/mL) and Co(Ac)2 (44.90 µg/mL), that is, CoV10 [57] was about 40- to 187-times more efficient than these compounds. These values cannot be compared with those of other vanadium compounds, since the measurement units are not the same.
In polyoxometalates containing molybdenum, six compounds were analyzed in six cell lines (Figure 4). It is observed in Table 2 that the A549 line (human lung cancer cell line) showed the best IC50 value to be 25 µM at 24 h, with the hybrid compound of structure Anderson–Evans (Figure 1G) and formula [(Cu(pic)2)2(Mo8O26)]·8H2O (Table 1). This same compound also showed a similar value (21.56 µM) in the HepG2 lineage (Human liver cancer cell line) at 48 h. Furthermore, in breast cancer, this compound showed a similar inhibition potency (24.24 µM) [71]. In the MCF-7 lineage, the compound K2Na[AsIIIMo6O21(O2CCH2NH3)3]·6H2O (POM@SiO2) with the same structure as the previous one, but inserted in silica nanoparticles (see structure in Table 1), presented the best IC50 value (1.70 µg/mL) at 72 h [61], however this cannot be compared, as they have different measurement units.
Of the five palladium-containing PONMs [65], all were studied in the same cell line SH-SY5Y (three times cloned subline from neuroblastoma cell line SK-N-SH (ATCC HTB-11). It was verified that the PONM that showed a better value both at 24 and 48 h was Pd13 (Table 1), with values of 7.20 and 4.40 µM, respectively, when compared to their hybrids containing phenyl groups (63.80 and 21.40 µM for Pd13L, 75.80 and 76.70 µM for SrPd12) [65], i.e., between 5 and 9 times for the first and between 11 and 17 times for the second, as the first was less efficient.
Regarding tungsten-containing compounds with effects on cell viability, eight compounds addressed in 15 different cell lines were found (Table 2, Figure 4). With POTs, in the A2780 and A2780cis lineage (human ovarian cancer cell line and the same lineage but resistant to cisplatin), the best values were obtained at 72 h with the compound [Co(H2O)6{CoSb6O4(H2O)3[Co(hmta)SbW8O31]3}]13− which presents a homochiral, sandwich-like structure (Table 1), and were, respectively, 0.77 and 4.35 µM [66]. This was 6-times more efficient in the non-resistant cell line when compared with lines resistant to cisplatin treatment. In the AGS lineage (human stomach cancer cell line), the best value was 1.42 µM [67], for the hybrid compound that is a part of the sandwich, C25N10Na0.7Co5.3O76Sb2W18, and was the best result in this group of POMs.
On the other hand, on the BGC-823 cell line (human papillomavirus-related endocervical adenocarcinoma cell line), the best IC50 was found at 48 h with the pure inorganic compound {Sb8W36} [67]. For the transformed human embryonic kidney cell line (HEK293T), the hybrid C25N10Na0.7Co5.3O76Sb2W18 had the value of 103.09 µM at 48 h [67] and in the line OVCAR-3 (human ovarian cancer cell line), the best value was obtained at 72 h with POM [Co(H2O)6{CoSb6O4(H2O)3[Co(hmta)SbW8O31]3}]13− being 1.78 µM [66]. Comparing the effects of tungsten-containing POMs on the AGS, BGC-823 and HEK293T cell lines, studied at 48h, it was found that the POTs are more efficient (in ascending order) in the AGS (1.42 µM), BGC-823 (8.68 µM) and HEK293T (103.09 µM) [67]. Thus, compound 2 is 73-times more potent in the transformed human embryonic kidney cell line when compared to the human stomach cancer cell line. Relative to the first POM referred to, at 72 h, a 2-fold greater efficacy was observed in the human ovarian cancer cell line A2780 (0.77 µM), compared to OVCAR-3 (1.78 µM) [66]. It was also found in the A549 lineage (human lung tumor lines) that the most effective compound was [Co(H2O)6{CoSb6O4(H2O)3[Co(hmta)SbW8O31]3}]13− with a value of 12.75 µM [66] at 72 h, which was lower when compared to a value of 39.75 µM [67], found at 48 h, with the compound C25N10Na1.7Ni5.3O82Sb2W18. However, as previously observed in studies where they tested at 24, 48 and 72 h (increasing incubation time), the IC50 value tends to decrease.
In order to analyze whether antitumor drugs or POMs would be the most efficient, it was verified which drugs were tested in these strains and their respective IC50 values (Table 3). In Table 3, the lowest value among the approved drugs was 14.85 µM in the U937 strain, at 24 h, using the drug ATRA. While in relation to compounds, the lower value belongs to NaB, being 1.20 µM in the DU145 strain, at 72 h, which is about 14-times lower than the lowest value of the tested drugs. As for the cell viability of medically approved drugs or compounds, only cell lines of human origin were used.
When comparing the cell viability of clinically approved drugs and POMs, it was observed, for example, a value of 49.79 µM using the drug MTX [60] (Table 3), and a value of 1.53 µM using the compound VMOP-31 [59], in the MCF-7 strain (breast cancer cell line) at 24 h (Table 2). It was verified that the IC50 value of the POM is lower, suggesting that the effects of POMs can overcome those of drugs. In fact, the dose necessary to have an inhibitory concentration of 50% is about 33-times lower than the dose that will be needed with a clinically approved drug.
Some drugs were tested in the strains mentioned above, such as ATRA (all-trans retinoid, also known as tretinoin), which is a drug used for the treatment of acne and acute promyelocytic leukemia (PML), having been tested in the HL-60 and U937 [60]. CDDP was tested on SH-SY5Y [65], MG-63 [33], AGS and BCG-823 [67] strains. The drug MTX (methotrexate), formerly known as amethopterin, a chemotherapeutic agent and immune system suppressor, used to treat cancer (cancer of the breast, leukemia, lung cancer, lymphoma, gestational trophoblastic disease and osteosarcoma), autoimmune diseases (i.e., psoriasis, rheumatoid arthritis and Crohn’s disease) and in ectopic pregnancy and for medical abortions, was analyzed here in the lines HepG2, A549 and MCF-7 [63].
It was found with the drug ATRA that the lowest IC50 value was 14.85 µM in the U937 strain, whereas a value of 20.76 µM was found in the HL-60 strain [60], both at 24 h. Cisplatin, at 24 h, is more effective in the SH-SY5Y strain (28.40 µM) [65], when compared to MG-63 (43.00 µM) [33]. On the other hand, at 48 h the lowest value was 5.78 µM in BCG-823 [67], conversely to the SH-SY5Y (11.60 µM) and AGS (17.44 µM) strains [67]. Finally, for the drug MTX at 24 h, the effect in the lines by order of increasing IC50 were A549 (26.93 µM), HepG2 (42.03 µM) and MCF-7 (49.79 µM) [63].
When comparing TSA (trichostatin A, an organic compound that serves as an antifungal antibiotic and selectively inhibits the histone deacetylase (HDAC) enzyme families of class I and II mammals) with NaB, in the LNCaP and DU145 strains at 72 h, it is concluded that in both strains the NaB compound has the advantage, showing values of 3.46 and 1.20 µM, compared to 98.14 and 59.45 µM [68] for TSA, for the same strains. It was also found that the antitumor activity of V18 was stronger than that of 5-Fu at 48 h for concentrations of 250 and 500 µM [58].
Moreover, taking in consideration the high IC50 values for POMs at normal cells compared to cancer cells, it is established that these compounds showed high selectivity towards the cancer cell lines [69]. Therefore, POMs selectively target cancer cells while sparing healthy cells, showing themselves to be promising agents in the treatment of cancer. In fact, POMs are expected to develop into the next generation of anticancer drugs [15,73].

2.3.2. Effect of POMs on the Cell Cycle

Similarly to the cell viability discussed above, the effects of POMs on the cell cycle were also discussed in all articles selected (Figure 5). Particularly within the effects of compounds on the cell cycle, we wanted to highlight where each one interrupts the cycle. In Figure 5, the percentage of numbers of articles in which each phase of the cell cycle stagnated was summarized, referring to each POM and lines in which they were tested. Table 4 shows a better precision of the action of POMs in the arrest of the cell cycle of the different lineages studied. It was also verified that there are lines in which, depending on the POM used, the cell cycle phase where they stop can be different, such as the SMMC-7721 and MCD-7 cell lines, which are in the G2/M phase and in the S phase, respectively. Globally, 56% of the POMs stopped the cell cycle in the S phase (red), which is during DNA synthesis, whereas 36% blocked the G2/M phase (green), that is, when the transition from interphase to onset of mitosis occurs. While the G1 phase is characteristic of the maturation in proteins and RNA (ribonucleic acid) synthesis, it was still only 8% of the POMs, namely in the compound K2Na[AsIIIMo6O21(O2CCH2NH3)3]6H2O [60], represented with the color yellow, that arrested the cell cycle at this stage. It is also verified that different POMs can stop the cell cycle in several phases (Figure 5).

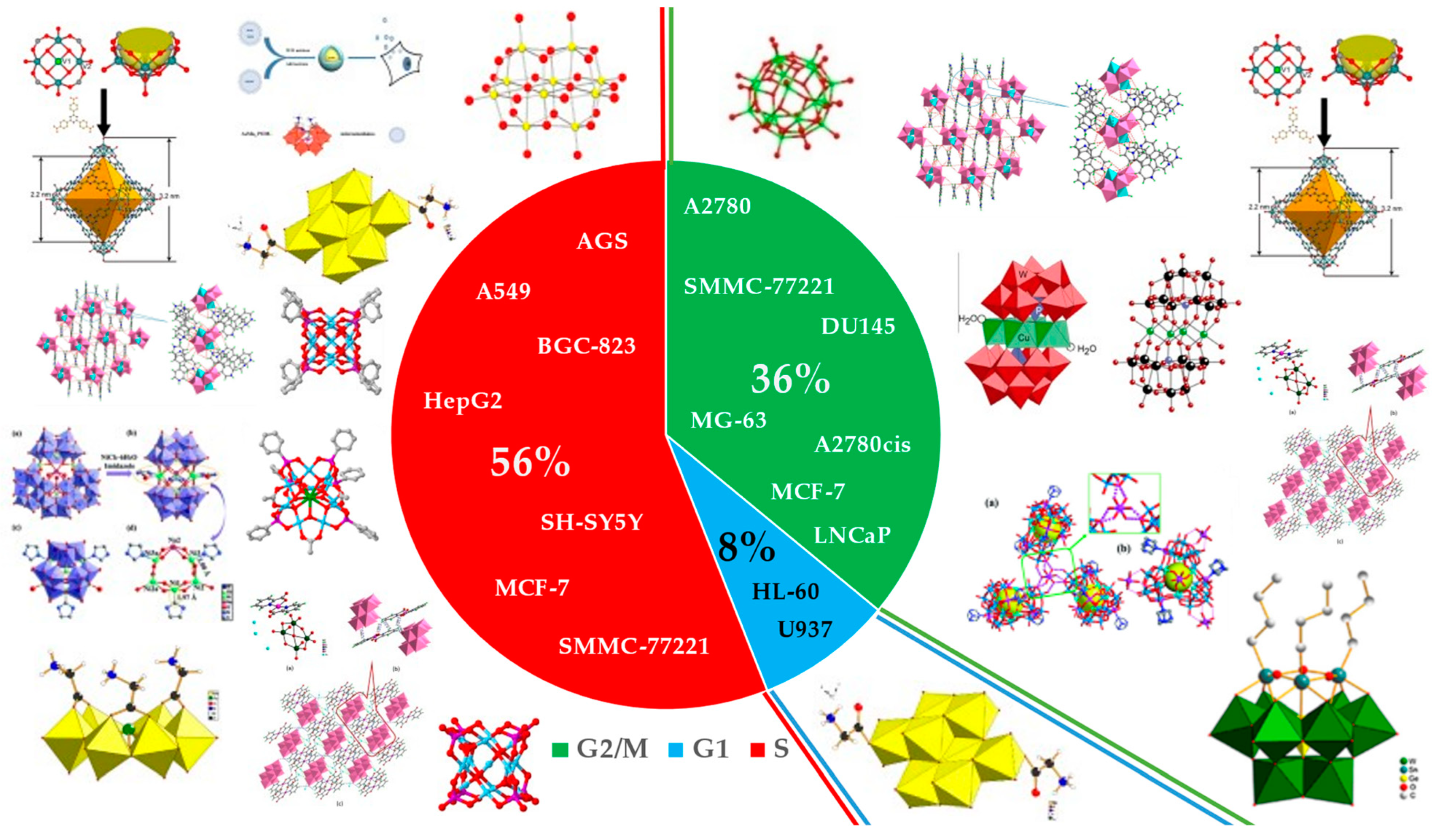

In order to analyze in detail which type of POM affected the different phases of the cell cycle in the respectively studied lines, a table was prepared, with the division of the phases of the cell cycle that were blocked by corresponding POMs and respective cell lines (Table 4).
It should be noted that in the articles where several POMs were studied, cell cycle arrest was only tested for the compound that showed the greatest efficacy. Likewise, of the cell lines analyzed, only those that had presented the best efficacy values were focused on, to verify cell arrest. Therefore, in Table 4, when in relation to Table 2, we verified a smaller number of POMs and cell lines analyzed, namely, three POVs in two cell lines and six POMos in four lines, with the majority being the study of the A549 line, human lung cancer cell line. There were only three POPds for the neuroblastoma line (SH-SY5Y), and finally we found four POTs for seven cell lines, all distinct from each other (Table 4). As estimated, in these studies the concentrations at which compounds have an effect on the cell cycle are close or below the IC50 previously determined and are described in Table 2.
As can be seen, the S phase is predominant under the action of the POMs with 14 of them, followed by the G2/M phase with nine polyoxometalates, and two in the G1 phase. It is also verified that VMOP-31 is the only one that has the ability to stop the cell cycle of SMMC-77221 cells in two distinct cell phases, namely S and G2/M [59]. On the other hand, it is also clear that the breast cancer cell line (MCF-7) on several compounds has its arrest in the G2/M phase, with the exception of the molybdenum compound involved in silica nanoparticles (K2Na[AsIIIMo6O21(O2CCH2NH3 )3]·6H2O (POM@SiO2)), stopping in the S phase [61].
Most of the proposed modes of action for antitumor POMs were recently reviewed [15]. Among these mechanisms, it was shown that POMs are able to affect DNA by interacting directly with it [15,58]. POMs were also suggested to cleave the phosphodiester bond and to affect DNA synthesis [15,74]. However, to our knowledge the processes responsible for the POMs effects that cause cell cycle arrest, as well as the effects in the cell cycle checkpoints, are unknown. For instance, the precise mechanism of action responsible for the POMs effects in DNA synthesis and/or in mitosis during the cell cycle process still needs to be deduced and needs further clarification.

3. Conclusions

In this review paper, bibliographic research was carried out with the keywords “polyoxometalates” AND “cell cycle”. Thirteen articles were selected on the effect of POMs with anticancer activities, namely in gastric, colon, liver, lung, ovary, breast, prostate, leukemia, osteosarcoma, neuroblastoma and human hepatocellular carcinoma. The types of cancer in which the articles most focused on were lung and breast cancer, with six articles each, followed by liver cancer, covered in four articles. The effects of POMs on cancer cells can be diverse, such as their interaction in the cell cycle, protein expression, mitochondrial effects, ROS production and cell viability. In the present study, we focused mainly on cell viability and cell cycle arrest, since all selected articles analyzed these two effects.
Cell viability was analyzed by dividing the POMs into sections according to the constituent compound, namely POVs, POMos, POPds and POTs. When the IC50 values were compared and sorted in ascending order, it was found that the POV (VMOP-31) at 24, 48 and 72 h presented, respectively, the lowest values of 1.52, 0.63, and 0.53 µM, in the MCF-7 (human breast cancer cell line). In clinically approved drugs, the lowest IC50 value was found to be 5.78 µM in the BCG-823 lineage at 48h using cisplatin. When comparing drugs and POMs, better results of POMs were observed. In many cases, the POMs dose required to have an inhibitory concentration of 50% is 2- to 200-times lower than the dose that would be necessary with a clinically approved drug. Therefore, POMs are future potential candidates for cancer therapeutic applications.
In addition to the cell viability, the effect of POMs on cell cycle arrest is highlighted. For the majority of the POMs, cell cycle arrest occurs mostly in the S phase (56%), where DNA synthesis occurs, whereas 36% blocks the G2/M phase. Fewer POMs interfere with the G1 phase (8%), that is, at the beginning of the cell cycle. Although the mechanism of action, directly and/or indirectly, responsible for the POMs cell cycle arrest is still to be deduced and clarified, the scientific evidence described above strengthens the potential use of such metallodrugs in anticancer therapy in the near future.

Author Contributions

Conceptualization, M.A.; Formal analysis, M.A.; Funding acquisition, M.A.; Investigation, F.C. and M.A.; Methodology, F.C. and M.A.; Supervision, M.A.; Writing–original draft, F.C. and M.A.; Writing–review & editing, F.C. and M.A. All authors have read and agreed to the published version of the manuscript.

Funding

This study received Portuguese national funds from FCT - Foundation for Science and Technology through projects UIDB/04326/2020, UIDP/04326/2020 and LA/P/0101/2020 (M.A.).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data is available in the original research papers.

Acknowledgments

The authors thanks to Neuza Fernandes and Rafael Polman for the English revision of the article.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

5-FuFluorouracil
A2780human ovarian cancer cell line
A2780ciscisplatin-resistant human ovarian cancer cell line
A2780cisRcisplatin-resistant human ovarian cancer cell line
A549human lung cancer cell line
Acactinium
AGShuman stomach cancer cell line
Asarsenic
BEAS-2Bnon-tumor human epithelial cell line of the bronchial epithelium
BGC-823endocervical adenocarcinoma cell line related to human papillomavirus
Cocobalt
CoV10Na4Co6V10O28.18H2O
CT26murine colorectal carcinoma cell line that is from a BALB/c mouse.
CDDPcisplatin or cis-diamminedichloroplatinum(II)
CDKcyclin dependent kinase
CDKN2Acyclin-dependent kinase inhibitor 2A
DHEdihydroethidium
DHR-123dihydrorhodamine-123 oxidation test
DNAdeoxyribonucleic acid
DU145human prostate cancer cell line
ΔΨmmitochondrial membrane potential
E. coliEscherichia coli
H1299non-small cell lung carcinoma human cell line
H22hepatoma-22, Mouse liver tumor cell line
HDACIhistone Deacetylase Inhibitor
Hep-A-22mouse liver cancer lineage
HEK-293Ttransformed human embryonic kidney cell line
HepG2human hepatocarcinoma cell line
HL-60human leukemia cell line
HPOMsheteropolyoxometalates
HT29human colon adenocarcinoma cell line
HUVEC human umbilical vein endothelial cells
IC5050% inhibitory concentration
LNCaPandrogen-sensitive prostate adenocarcinoma human cell line
MC3T3-E1osteoblast precursor cell line sub-line derived from Mus musculus (Mouse) calvaria
MCF-7human breast cancer cell line
MDA-MB-231human breast cancer epithelial cell lineage
MG-63cell that has fibroblast morphology isolated from the bone of a patient with osteosarcoma
MMPmitochondrial membrane potential
Mnmanganese
Momolybdenum
MoO42−molybdate
Nasodium
NaBsodium butyrate
Nbniobium
O2−anion superoxide
OVCAR-3human ovarian cancer cell line
Pphosphor
PAC-320{(n-Bu)Sn(OH)}3GeW9O34]4−·26H2O
PbPd12Na12[PbIVO8Pd12(PO4)8]·38H2O
Pd13Na8[Pd13As8O34(OH)6].42H2O
Pd13LNa6[Pd13(PhAsO3)8]·23H2O
POMpolyoxometalate
POM@Sio2K2Na[AsIIIMo6O21(O2CCH2NH3)3]·6H2O
POMspolyoxometalates
POMospolyoxomolybdates
PONMsnoble polyoxo metalates
POPspolyoxopaladates
POVspolyoxovanadates
POTs polyoxotungstates
PSphosphatidylserine
PW9CuK7Na3[Cu4(H2O)2(PW9034)2]20H2O
ROSoxigen-reactive species
SAHAsuberoylanilide acid—Vorinostat
SARS-CoVsevere acute respiratory syndrome coronavirus
SH-SY5Ysubline cloned three times from neuroblastoma cell line SK-N-SH (ATCC HTB-11)
SK-OV-3ovarian cancer human epithelial cell line
SMMC-7721endocervical adenocarcinoma cell line related to human papillomavirus
SnPd12Na12[SnIVO8Pd12(PO4)8]·43H2O
SrPd12Na4[SrPd12O6(OH)3(PhAsO3)6(OAc)3] 2NaOAc·32H2O
Tatantalum
Tctechnetium
U937histiocytic lymphoma human cell line
UMR106epithelial cell isolated from the bone of a mouse with osteosarcoma
Vvanadium
V18K12[V18O42(H2O)] 6H2O
VMOP-316{V5O9Cl(COO)4}
Wtungsten

References

  1. Peña, Q.; Wang, A.; Zaremba, O.; Shi, Y.; Scheeren, H.W.; Metselaar, J.M.; Kiessling, F.; Pallares, R.M.; Wuttke, S.; Lammers, T. Metallodrugs in Cancer Nanomedicine. Chem. Soc. Rev. 2022, 51, 2544–2582. [Google Scholar] [CrossRef] [PubMed]
  2. Ochoa, E.L.M. Lithium as a Neuroprotective Agent for Bipolar Disorder: An Overview. Cell. Mol. Neurobiol. 2022, 42, 85–97. [Google Scholar] [CrossRef] [PubMed]
  3. Vosahlikova, M.; Roubalova, L.; Cechova, K.; Kaufman, J.; Musil, S.; Miksik, I.; Alda, M.; Svoboda, P. Na+/K+-ATPase and Lipid Peroxidation in Forebrain Cortex and Hippocampus of Sleep-Deprived Rats Treated with Therapeutic Lithium Concentration for Different Periods of Time. Prog. Neuropsychopharmacol. Biol. Psychiatry 2020, 102, 109953. [Google Scholar] [CrossRef] [PubMed]
  4. Bertinat, R.; Westermeier, F.; Gatica, R.; Nualart, F. Sodium Tungstate: Is It a Safe Option for a Chronic Disease Setting, Such as Diabetes? J. Cell. Physiol. 2019, 234, 51–60. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Silva, M.J.S.A.; Gois, P.M.P.; Gasser, G. Unveiling the Potential of Transition Metal Complexes for Medicine: Translational in Situ Activation of Metal-Based Drugs from Bench to in Vivo Applications. ChemBioChem 2021, 22, 1740–1742. [Google Scholar] [CrossRef]
  6. Ścibior, A.; Pietrzyk, Ł.; Plewa, Z.; Skiba, A. Vanadium: Risks and Possible Benefits in the Light of a Comprehensive Overview of Its Pharmacotoxicological Mechanisms and Multi-Applications with a Summary of Further Research Trends. J. Trace. Elem. Med. Biol. 2020, 61, 126508. [Google Scholar] [CrossRef]
  7. Yeo, C.; Ooi, K.; Tiekink, E. Gold-Based Medicine: A Paradigm Shift in Anti-Cancer Therapy? Molecules 2018, 23, 1410. [Google Scholar] [CrossRef] [Green Version]
  8. Soria-Carrera, H.; Atrián-Blasco, E.; de la Fuente, J.M.; Mitchell, S.G.; Martín-Rapún, R. Polyoxometalate–Polypeptide Nanoassemblies as Peroxidase Surrogates with Antibiofilm Properties. Nanoscale 2022, 14, 5999–6006. [Google Scholar] [CrossRef]
  9. Soria-Carrera, H.; Franco-Castillo, I.; Romero, P.; Martín, S.; Fuente, J.M.; Mitchell, S.G.; Martín-Rapún, R. On-POM Ring-Opening Polymerisation of N-Carboxyanhydrides. Angew. Chem. Int. Ed. Engl. 2021, 60, 3449–3453. [Google Scholar] [CrossRef]
  10. Aureliano, M.; Marques-da-Silva, D.; Serrano, A.; Martins, J.; Faleiro, L.; Fonseca, C.; Fraqueza, G.; Lagoa, R. Chapter 7, Polyoxometalates with anticancer, antibacterial and antiviral activities. In Polyoxometalates: Advances, Properties, and Applications, 1st ed.; Rubio, L.R., Artetxe, B., Gutiérrez-Zorrilla, J.M., Vilas, J.L., Eds.; Jenny Stanford Publishing: Singapore, 2022; ISBN 9781003277446/9789814968140. [Google Scholar]
  11. Pimpão, C.; da Silva, I.V.; Mósca, A.F.; Pinho, J.O.; Gaspar, M.M.; Gumerova, N.I.; Rompel, A.; Aureliano, M.; Soveral, G. The Aquaporin-3-Inhibiting Potential of Polyoxotungstates. Int. J. Mol. Sci. 2020, 21, 2467. [Google Scholar] [CrossRef] [Green Version]
  12. Gumerova, N.; Krivosudský, L.; Fraqueza, G.; Breibeck, J.; Al-Sayed, E.; Tanuhadi, E.; Bijelic, A.; Fuentes, J.; Aureliano, M.; Rompel, A. The P-Type ATPase Inhibiting Potential of Polyoxotungstates. Metallomics 2018, 10, 287–295. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Fraqueza, G.; Fuentes, J.; Krivosudský, L.; Dutta, S.; Mal, S.S.; Roller, A.; Giester, G.; Rompel, A.; Aureliano, M. Inhibition of Na+/K+- and Ca2+-ATPase Activities by Phosphotetradecavanadate. J. Inorg. Biochem. 2019, 197, 110700. [Google Scholar] [CrossRef] [PubMed]
  14. Aureliano, M.; Fraqueza, G.; Berrocal, M.; Cordoba-Granados, J.J.; Gumerova, N.I.; Rompel, A.; Gutierrez-Merino, C.; Mata, A.M. Inhibition of SERCA and PMCA Ca2+-ATPase Activities by Polyoxotungstates. J. Inorg. Biochem. 2022, 236, 111952. [Google Scholar] [CrossRef] [PubMed]
  15. Bijelic, A.; Aureliano, M.; Rompel, A. Polyoxometalates as Potential Next-Generation Metallodrugs in the Combat Against Cancer. Angew. Chem. Int. Ed. Engl. 2019, 58, 2980–2999. [Google Scholar] [CrossRef] [Green Version]
  16. Bijelic, A.; Aureliano, M.; Rompel, A. The Antibacterial Activity of Polyoxometalates: Structures, Antibiotic Effects and Future Perspectives. Chem. Comm. 2018, 54, 1153–1169. [Google Scholar] [CrossRef] [Green Version]
  17. Čolović, M.B.; Lacković, M.; Lalatović, J.; Mougharbel, A.S.; Kortz, U.; Krstić, D.Z. Polyoxometalates in Biomedicine: Update and Overview. Curr. Med. Chem. 2020, 27, 362–379. [Google Scholar] [CrossRef]
  18. Aureliano, M.; Gumerova, N.I.; Sciortino, G.; Garribba, E.; Rompel, A.; Crans, D.C. Polyoxovanadates with Emerging Biomedical Activities. Coord. Chem. Rev. 2021, 447, 214143. [Google Scholar] [CrossRef]
  19. Aureliano, M.; Gumerova, N.I.; Sciortino, G.; Garribba, E.; McLauchlan, C.C.; Rompel, A.; Crans, D.C. Polyoxidovanadates’ Interactions with Proteins: An Overview. Coord. Chem. Rev. 2022, 454, 214344. [Google Scholar] [CrossRef]
  20. Guedes, G.; Wang, S.; Santos, H.A.; Sousa, F.L. Polyoxometalate Composites in Cancer Therapy and Diagnostics. Eur. J. Inorg. Chem. 2020, 2020, 2121–2132. [Google Scholar] [CrossRef]
  21. Aureliano, M. The Future Is Bright for Polyoxometalates. BioChem 2022, 2, 8–26. [Google Scholar] [CrossRef]
  22. Aureliano, M. Decavanadate: A Journey in a Search of a Role. Dalton Trans. 2009, 9093. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Aureliano, M.; Fraqueza, G.; Ohlin, C.A. Ion Pumps as Biological Targets for Decavanadate. Dalton Trans. 2013, 42, 11770. [Google Scholar] [CrossRef]
  24. Crans, D.C.; Smee, J.J.; Gaidamauskas, E.; Yang, L. The Chemistry and Biochemistry of Vanadium and the Biological Activities Exerted by Vanadium Compounds. Chem. Rev. 2004, 104, 849–902. [Google Scholar] [CrossRef] [PubMed]
  25. Aureliano, M.; Crans, D.C. Decavanadate (V10O286-) and Oxovanadates: Oxometalates with Many Biological Activities. J. Inorg. Biochem. 2009, 103, 536–546. [Google Scholar] [CrossRef] [PubMed]
  26. Sciortino, G.; Aureliano, M.; Garribba, E. Rationalizing the Decavanadate(V) and Oxidovanadium(IV) Binding to G-Actin and the Competition with Decaniobate(V) and ATP. Inorg. Chem. 2021, 60, 334–344. [Google Scholar] [CrossRef]
  27. Treviño, S.; Díaz, A.; Sánchez-Lara, E.; Sanchez-Gaytan, B.L.; Perez-Aguilar, J.M.; González-Vergara, E. Vanadium in Biological Action: Chemical, Pharmacological Aspects, and Metabolic Implications in Diabetes Mellitus. Biol. Trace Elem. Res. 2019, 188, 68–98. [Google Scholar] [CrossRef] [Green Version]
  28. Treviño, S.; González-Vergara, E. Metformin-Decavanadate Treatment Ameliorates Hyperglycemia and Redox Balance of the Liver and Muscle in a Rat Model of Alloxan-Induced Diabetes. New J. Chem. 2019, 43, 17850–17862. [Google Scholar] [CrossRef]
  29. Treviño, S.; Velázquez-Vázquez, D.; Sánchez-Lara, E.; Diaz-Fonseca, A.; Flores-Hernandez, J.Á.; Pérez-Benítez, A.; Brambila-Colombres, E.; González-Vergara, E. Metforminium Decavanadate as a Potential Metallopharmaceutical Drug for the Treatment of Diabetes Mellitus. Oxid. Med. Cell. Longev. 2016, 2016, 6058705. [Google Scholar] [CrossRef] [Green Version]
  30. Sánchez-Lombardo, I.; Sánchez-Lara, E.; Pérez-Benítez, A.; Mendoza, Á.; Bernès, S.; González-Vergara, E. Synthesis of Metforminium(2+) Decavanadates—Crystal Structures and Solid-State Characterization. Eur. J. Inorg. Chem. 2014, 2014, 4581–4588. [Google Scholar] [CrossRef]
  31. Chatkon, A.; Chatterjee, P.B.; Sedgwick, M.A.; Haller, K.J.; Crans, D.C. Counterion Affects Interaction with Interfaces: The Antidiabetic Drugs Metformin and Decavanadate. Eur. J. Inorg. Chem. 2013, 2013, 1859–1868. [Google Scholar] [CrossRef]
  32. Sánchez-Lara, E.; Treviño, S.; Sánchez-Gaytán, B.L.; Sánchez-Mora, E.; Eugenia Castro, M.; Meléndez-Bustamante, F.J.; Méndez-Rojas, M.A.; González-Vergara, E. Decavanadate Salts of Cytosine and Metformin: A Combined Experimental-Theoretical Study of Potential Metallodrugs against Diabetes and Cancer. Front. Chem. 2018, 6, 402. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. León, I.E.; Porro, V.; Astrada, S.; Egusquiza, M.G.; Cabello, C.I.; Bollati-Fogolin, M.; Etcheverry, S.B. Polyoxometalates as Antitumor Agents: Bioactivity of a New Polyoxometalate with Copper on a Human Osteosarcoma Model. Chem. Biol. Interact. 2014, 222, 87–96. [Google Scholar] [CrossRef] [PubMed]
  34. Yamase, T. Polyoxometalates Active against Tumors, Viruses, and Bacteria. Prog. Mol. Subcell. Biol. 2013, 54, 65–116. [Google Scholar] [CrossRef] [PubMed]
  35. Van Rompuy, L.S.; Parac-Vogt, T.N. Interactions between Polyoxometalates and Biological Systems: From Drug Design to Artificial Enzymes. Curr. Opin. Biotechnol. 2019, 58, 92–99. [Google Scholar] [CrossRef] [PubMed]
  36. Wang, S.; Sun, W.; Hu, Q.; Yan, H.; Zeng, Y. Synthesis and Evaluation of Pyridinium Polyoxometalates as Anti-HIV-1 Agents. Bioorg. Med. Chem. Lett. 2017, 27, 2357–2359. [Google Scholar] [CrossRef]
  37. Francese, R.; Civra, A.; Rittà, M.; Donalisio, M.; Argenziano, M.; Cavalli, R.; Mougharbel, A.S.; Kortz, U.; Lembo, D. Anti-Zika Virus Activity of Polyoxometalates. Antiviral. Res. 2019, 163, 29–33. [Google Scholar] [CrossRef] [PubMed]
  38. Enderle, A.G.; Bosso, M.; Groß, R.; Heiland, M.; Bollini, M.; Culzoni, M.J.; Kirchhoff, F.; Münch, J.; Streb, C. Increased in Vitro Anti-HIV Activity of Caffeinium-Functionalized Polyoxometalates. ChemMedChem 2021, 16, 2727–2730. [Google Scholar] [CrossRef] [PubMed]
  39. Shahabadi, N.; Mahdavi, M.; Zendehcheshm, S. Can Polyoxometalates (POMs) Prevent of Coronavirus 2019-NCoV Cell Entry? Interaction of POMs with TMPRSS2 and Spike Receptor Domain Complexed with ACE2 (ACE2-RBD): Virtual Screening Approaches. Inform. Med. Unlocked 2022, 29, 100902. [Google Scholar] [CrossRef] [PubMed]
  40. Raza, R.; Matin, A.; Sarwar, S.; Barsukova-Stuckart, M.; Ibrahim, M.; Kortz, U.; Iqbal, J. Polyoxometalates as Potent and Selective Inhibitors of Alkaline Phosphatases with Profound Anticancer and Amoebicidal Activities. Dalton Trans. 2012, 41, 14329. [Google Scholar] [CrossRef] [PubMed]
  41. Liu, J.C.; Wang, J.F.; Han, Q.; Shangguan, P.; Liu, L.L.; Chen, L.J.; Zhao, J.W.; Streb, C.; Song, Y.F. Multicomponent Self-Assembly of a Giant Heterometallic Polyoxotungstate Supercluster with Antitumor Activity. Angew. Chem. Int. Ed. Engl. 2021, 60, 11153–11157. [Google Scholar] [CrossRef] [PubMed]
  42. Fu, L.; Gao, H.; Yan, M.; Li, S.; Li, X.; Dai, Z.; Liu, S. Polyoxometalate-Based Organic–Inorganic Hybrids as Antitumor Drugs. Small 2015, 11, 2938–2945. [Google Scholar] [CrossRef] [PubMed]
  43. Zheng, W.; Yang, L.; Liu, Y.; Qin, X.; Zhou, Y.; Zhou, Y.; Liu, J. Mo Polyoxometalate Nanoparticles Inhibit Tumor Growth and Vascular Endothelial Growth Factor Induced Angiogenesis. Sci. Technol. Adv. Mater. 2014, 15, 035010. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  44. Boulmier, A.; Feng, X.; Oms, O.; Mialane, P.; Rivière, E.; Shin, C.J.; Yao, J.; Kubo, T.; Furuta, T.; Oldfield, E.; et al. Anticancer Activity of Polyoxometalate-Bisphosphonate Complexes: Synthesis, Characterization, in Vitro and in Vivo Results. Inorg. Chem. 2017, 56, 7558–7565. [Google Scholar] [CrossRef]
  45. Li, D.; Gao, X.; Gu, J.; Tian, Y.; Liu, Y.; Jin, Z.; Yan, D.; Chen, Y.G.; Zhu, X. A Novel Application of Ti-Substituted Polyoxometalates: Anti-Inflammatory Activity in OVA-Induced Asthma Murine Model. Bioinorg. Chem. Appl. 2016, 2016, 3239494. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Zhang, S.; Li, M.; Zhang, Y.; Wang, R.; Song, Y.; Zhao, W.; Lin, S. A Supramolecular Complex Based on a Gd-Containing Polyoxometalate and Food-Borne Peptide for MRI/CT Imaging and NIR-Triggered Photothermal Therapy. Dalton Trans. 2021, 50, 8076–8083. [Google Scholar] [CrossRef]
  47. Pérez-Álvarez, L.; Ruiz-Rubio, L.; Artetxe, B.; Vivanco, M.d.M.; Gutiérrez-Zorrilla, J.M.; Vilas-Vilela, J.L. Chitosan Nanogels as Nanocarriers of Polyoxometalates for Breast Cancer Therapies. Carbohydr. Polym. 2019, 213, 159–167. [Google Scholar] [CrossRef]
  48. Ma, M.; Gao, N.; Sun, Y.; Du, X.; Ren, J.; Qu, X. Redox-Activated Near-Infrared-Responsive Polyoxometalates Used for Photothermal Treatment of Alzheimer’s Disease. Adv. Healthc. Mater. 2018, 7, 1800320. [Google Scholar] [CrossRef]
  49. Li, M.; Guan, Y.; Zhao, A.; Ren, J.; Qu, X. Using Multifunctional Peptide Conjugated Au Nanorods for Monitoring β-Amyloid Aggregation and Chemo-Photothermal Treatment of Alzheimer’s Disease. Theranostics 2017, 7, 2996–3006. [Google Scholar] [CrossRef]
  50. Gao, N.; Sun, H.; Dong, K.; Ren, J.; Duan, T.; Xu, C.; Qu, X. Transition-Metal-Substituted Polyoxometalate Derivatives as Functional Anti-Amyloid Agents for Alzheimer’s Disease. Nat. Commun. 2014, 5, 3422. [Google Scholar] [CrossRef] [Green Version]
  51. Bâlici, Ş.; Şuşman, S.; Rusu, D.; Nicula, G.Z.; Soriţău, O.; Rusu, M.; Biris, A.S.; Matei, H. Differentiation of Stem Cells into Insulin-Producing Cells under the Influence of Nanostructural Polyoxometalates. J. Appl. Toxicol. 2016, 36, 373–384. [Google Scholar] [CrossRef]
  52. Amante, C.; De Sousa-Coelho, A.L.; Aureliano, M. Vanadium and Melanoma: A Systematic Review. Metals 2021, 11, 828. [Google Scholar] [CrossRef]
  53. Fonseca, C.; Aureliano, M. Biological Activity of Gold Compounds against Viruses and Parasitosis: A Systematic Review. BioChem 2022, 2, 145–159. [Google Scholar] [CrossRef]
  54. Aureliano, M.; Mitchell, S.G.; Yin, P. Editorial: Emerging polyoxometalates with biological, biomedical, and health applications. Front. Chem. 2022, 10, 977317. [Google Scholar] [CrossRef] [PubMed]
  55. De Sousa-Coelho, A.L.; Aureliano, M.; Fraqueza, G.; Serrao, G.; Goncalves, J.; Sanchez-Lombardo, I.; Link, W.; Ferreira, B.I. Decavanadate and metformin-decavanadate effects in human melanoma cells. J. Inorg. Biochem. 2022, 235, 111915. [Google Scholar] [CrossRef]
  56. Faleiro, L.; Marques, A.; Martins, J.; Jordão, L.; Nogueira, I.; Gumerova, N.I.; Rompel, A.; Aureliano, M. The Preyssler-Type Polyoxotungstate Exhibits Anti-Quorum Sensing, Antibiofilm, and Antiviral Activities. Biology 2022, 11, 994. [Google Scholar] [CrossRef]
  57. Zhai, F.; Wang, X.; Li, D.; Zhang, H.; Li, R.; Song, L. Synthesis and Biological Evaluation of Decavanadate Na4Co(H2O)6V10O28·18H2O. Biomed. Pharmacother. 2009, 63, 51–55. [Google Scholar] [CrossRef]
  58. Qi, W.; Zhang, B.; Qi, Y.; Guo, S.; Tian, R.; Sun, J.; Zhao, M. The Anti-Proliferation Activity and Mechanism of Action of K12[V18O42(H2O)]·6H2O on Breast Cancer Cell Lines. Molecules 2017, 22, 1535. [Google Scholar] [CrossRef] [Green Version]
  59. Zheng, Y.; Gan, H.; Zhao, Y.; Li, W.; Wu, Y.; Yan, X.; Wang, Y.; Li, J.; Li, J.; Wang, X. Self-Assembly and Antitumor Activity of a Polyoxovanadate-Based Coordination Nanocage. Chem-Eur. J. 2019, 25, 15326–15332. [Google Scholar] [CrossRef]
  60. Li, C.; Cao, H.; Sun, J.; Tian, R.; Li, D.; Qi, Y.; Yang, W.; Li, J. Antileukemic Activity of an Arsenomolybdate in the Human HL-60 and U937 Leukemia Cells. J. Inorg. Biochem. 2017, 168, 67–75. [Google Scholar] [CrossRef]
  61. Cao, H.; Li, C.; Qi, W.; Meng, X.; Tian, R.; Qi, Y.; Yang, W.; Li, J. Synthesis, Cytotoxicity and Antitumour Mechanism Investigations of Polyoxometalate Doped Silica Nanospheres on Breast Cancer MCF-7 Cells. PLoS ONE 2017, 12, e0181018. [Google Scholar] [CrossRef] [Green Version]
  62. Li, C.; Qi, W.; Cao, H.; Qi, Y.; Zhang, S.; Xu, S.; Sun, J.; Guo, S. BSA-Binding Properties and Anti-Proliferative Effects of Amino Acids Functionalized Polyoxomolybdates. Biomed. Pharmacother. 2016, 79, 78–86. [Google Scholar] [CrossRef] [PubMed]
  63. Joshi, A.; Gupta, R.; Singh, B.; Sharma, D.; Singh, M. Effective Inhibitory Activity against MCF-7, A549 and HepG2 Cancer Cells by a Phosphomolybdate Based Hybrid Solid. Dalton Trans. 2020, 49, 7069–7077. [Google Scholar] [CrossRef] [PubMed]
  64. Joshi, A.; Gupta, R.; Vaghasiya, K.; Verma, R.K.; Sharma, D.; Singh, M. In Vitro Anti-Tumoral and Anti-Bacterial Activity of an Octamolybdate Cluster-Based Hybrid Solid Incorporated with a Copper Picolinate Complex. ACS Appl. Bio. Mater. 2020, 3, 4025–4035. [Google Scholar] [CrossRef] [PubMed]
  65. Isakovic, A.M.; Čolović, M.B.; Ma, T.; Ma, X.; Jeremic, M.; Gerić, M.; Gajski, G.; Misirlic-Dencic, S.; Kortz, U.; Krstić, D. Selected Polyoxopalladates as Promising and Selective Antitumor Drug Candidates. J. Biol. Inorg. Chem. 2021, 26, 957–971. [Google Scholar] [CrossRef] [PubMed]
  66. Zhang, Z.M.; Duan, X.; Yao, S.; Wang, Z.; Lin, Z.; Li, Y.G.; Long, L.S.; Wang, E.B.; Lin, W. Cation-Mediated Optical Resolution and Anticancer Activity of Chiral Polyoxometalates Built from Entirely Achiral Building Blocks. Chem. Sci. 2016, 7, 4220–4229. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  67. Zhao, H.; Tao, L.; Zhang, F.; Zhang, Y.; Liu, Y.; Xu, H.; Diao, G.; Ni, L. Transition Metal Substituted Sandwich-Type Polyoxometalates with a Strong Metal-C (Imidazole) Bond as Anticancer Agents. Chem. Commun. 2019, 55, 1096–1099, Correction in Chem. Commun. 2020, 56, 2364. [Google Scholar]
  68. Dong, Z.; Yang, Y.; Liu, S.; Lu, J.; Huang, B.; Zhang, Y. HDAC Inhibitor PAC-320 Induces G2/M Cell Cycle Arrest and Apoptosis in Human Prostate Cancer. Oncotarget 2018, 9, 512–523. [Google Scholar] [CrossRef] [Green Version]
  69. Dong, Z.; Tan, R.; Cao, J.; Yang, Y.; Kong, C.; Du, J.; Zhu, S.; Zhang, Y.; Lu, J.; Huang, B.; et al. Discovery of Polyoxometalate-Based HDAC Inhibitors with Profound Anticancer Activity in Vitro and in Vivo. Eur. J. Med. Chem. 2011, 46, 2477–2484. [Google Scholar] [CrossRef]
  70. Mann, B.S.; Johnson, J.R.; Cohen, M.H.; Justice, R.; Pazdur, R. FDA Approval Summary: Vorinostat for Treatment of Advanced Primary Cutaneous T-Cell Lymphoma. Oncologist 2007, 12, 1247–1252. [Google Scholar] [CrossRef]
  71. Wang, X.; Wei, S.; Zhao, C.; Li, X.; Jin, J.; Shi, X.; Su, Z.; Li, J.; Wang, J. Promising application of polyoxometalates in the treatment of cancer, infectious diseases and Alzheimer’s disease. J. Biol. Inorg. Chem. 2022, 27, 405–419. [Google Scholar] [CrossRef] [PubMed]
  72. Qu, X.; Xu, K.; Zhao, C.; Song, X.; Li, J.; Li, L.; Nie, W.; Bao, H.; Wang, J.; Niu, F.; et al. Genotoxicity and acute and subchronic toxicity studies of a bioactive polyoxometalate in Wistar rats. BMC Pharmacol. Toxicol. 2017, 18, 26. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Dinčić, M.; Čolović, M.B.; Sarić Matutinović, M.; Ćetković, M.; Kravić Stevović, T.; Mougharbel, A.S.; Todorović, J.; Ignjatović, S.; Radosavljević, B.; Milisavljević, M.; et al. In vivo toxicity evaluation of two polyoxotungstates with potential antidiabetic activity using Wistar rats as a model system. RSC Adv. 2020, 10, 2846–2855. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Steens, N.; Ramadan, A.M.; Absillis, G.; Parac-Vogt, T.N. Hydrolytic cleavage of DNA-model substrates promoted by polyoxidovanadates. Dalton Trans. 2010, 39, 585–592. [Google Scholar] [CrossRef]
Ijms 24 05043 g001 550
Figure 1. Examples of POM structures. (A)—Lindqvist (Mo6O192−); (B)—Isopolyoxometalate (V10O286−); (C)—Paratungstate B (H2M12O4210−); (D)—Dawson (X2M18O62n−); (E)—Keggin (XM12O40n−); (F)—Strandberg (HP2Mo5O234−); (G)—Anderson–Evans (XM6O24n−); (H)—Allman–Waugh (XM9O32n−); (I)—Weakley–Yamase (XM10O36n−); (J)—Dexter (XM12O42n−); (K)—Krebs (Mo36O112(H2O)168−); (L)—Preyssler (P5W30) [21]. Lacunar POM-like structures, Dawson: (D1)—Wells–Dawson Monocular (P2W17) [21]; (D2)—Wells–Dawson trilacunar (P2W15) [21]; (D3)—Wells–Dawson hexalacunar (P2W12) [21] and Keggin type: (E1)—Keggin monolacular (MnV11) [21] and (E2)—Keggin sandwich [33]. Adapted with copyright permission from MDPI and Elsevier, respectively from references [21,33].
Figure 1. Examples of POM structures. (A)—Lindqvist (Mo6O192−); (B)—Isopolyoxometalate (V10O286−); (C)—Paratungstate B (H2M12O4210−); (D)—Dawson (X2M18O62n−); (E)—Keggin (XM12O40n−); (F)—Strandberg (HP2Mo5O234−); (G)—Anderson–Evans (XM6O24n−); (H)—Allman–Waugh (XM9O32n−); (I)—Weakley–Yamase (XM10O36n−); (J)—Dexter (XM12O42n−); (K)—Krebs (Mo36O112(H2O)168−); (L)—Preyssler (P5W30) [21]. Lacunar POM-like structures, Dawson: (D1)—Wells–Dawson Monocular (P2W17) [21]; (D2)—Wells–Dawson trilacunar (P2W15) [21]; (D3)—Wells–Dawson hexalacunar (P2W12) [21] and Keggin type: (E1)—Keggin monolacular (MnV11) [21] and (E2)—Keggin sandwich [33]. Adapted with copyright permission from MDPI and Elsevier, respectively from references [21,33].
Ijms 24 05043 g001
Ijms 24 05043 g002 550
Figure 2. Number of articles for the different types of cancers studied.
Figure 2. Number of articles for the different types of cancers studied.
Ijms 24 05043 g002
Ijms 24 05043 g003 550
Figure 3. Number of articles in which each effect of the selected POMs was analyzed.
Figure 3. Number of articles in which each effect of the selected POMs was analyzed.
Ijms 24 05043 g003
Ijms 24 05043 g004 550
Figure 4. Illustration of the 23 human cell lines tested in the study of cell viability of different types of POMs. A total of 20 tumor lineages are underlined and 3 are not underlined, which are non-tumor cell lines. The color scheme is representative of each type of POM studied: POVs in orange, POMos in green, POPds in red and POTs in blue.
Figure 4. Illustration of the 23 human cell lines tested in the study of cell viability of different types of POMs. A total of 20 tumor lineages are underlined and 3 are not underlined, which are non-tumor cell lines. The color scheme is representative of each type of POM studied: POVs in orange, POMos in green, POPds in red and POTs in blue.
Ijms 24 05043 g004
Ijms 24 05043 g005 550
Figure 5. Percentage of the number of articles in which each cell cycle arrest occurred, referring to each POM used and respective cell lines. Color code: red—S phase [57,59,61,62,63,64,65,67]; green—G2/M [33,58,59,63,64,66,68] phase; and blue—G1 phase [60]. Reproduced from Refs. [63,66] with permission from the Royal Society of Chemistry. Reproduced from Refs. [33,57,60,62,71] with permission from Elsevier. Reproduced from Ref. [59] with permission from Wiley. Reproduced from Ref. [61] with permission from Plosone. Reproduced from Ref. [64] with permission from American Chemical Society. Reproduced from Ref. [65] with permission from Springer. Reproduced from Ref. [66] with permission from the Royal Society of Chemistry.
Figure 5. Percentage of the number of articles in which each cell cycle arrest occurred, referring to each POM used and respective cell lines. Color code: red—S phase [57,59,61,62,63,64,65,67]; green—G2/M [33,58,59,63,64,66,68] phase; and blue—G1 phase [60]. Reproduced from Refs. [63,66] with permission from the Royal Society of Chemistry. Reproduced from Refs. [33,57,60,62,71] with permission from Elsevier. Reproduced from Ref. [59] with permission from Wiley. Reproduced from Ref. [61] with permission from Plosone. Reproduced from Ref. [64] with permission from American Chemical Society. Reproduced from Ref. [65] with permission from Springer. Reproduced from Ref. [66] with permission from the Royal Society of Chemistry.
Ijms 24 05043 g005
Table
Table 1. Representation of the formula, structure and type of the POMs referred to in the selected articles.
Table 1. Representation of the formula, structure and type of the POMs referred to in the selected articles.
POM
Formula (Abbreviation)		StructureStructure TypeRef.
POVs
Na4Co6V10O28.18H2O
(CoV10)
Na3(12H2O)H3V10O28.2H2O
(NaV10)		Ijms 24 05043 i001Decavanadate[23,57]
K12[V18O42(H2O)] 6H2O
(V18)		Ijms 24 05043 i002Keggin[58]
6{V5O9Cl(COO)4}
(VMOP-31)		Ijms 24 05043 i003Lindqvist[59]
POMos
K2Na[AsIIIMo6O21(O2CCH2NH3)3] 6H2O—(compound 1)Ijms 24 05043 i004Anderson–Evans[62]
K2Na2[γ-Mo8O26(O2CCH2NH3)2] 6H2O—(compound 2)Ijms 24 05043 i005
[{4,4′-H2bpy}{4,4′-Hbpy}2{H2P2Mo5O23}].5H2OIjms 24 05043 i006Strandberg[63]
[(Cu(pic)2)2(Mo8O26)]·8H2OIjms 24 05043 i007Anderson–Evans[64]
K2Na[AsIIIMo6O21(O2CCH2NH3)3]·6H2O (POM@SiO2)Ijms 24 05043 i008Anderson–Evans[61,62]
K2Na[AsIIIMo6O21(O2CCH2NH3)3]·6H2OIjms 24 05043 i009Anderson–Evans[60,62]
POPds
Na8[Pd13As8O34(OH)6].42H2O (Pd13)Ijms 24 05043 i010Unidentified[65]
Na4[SrPd12O6(OH)3(PhAsO3)6(OAc)3] 2NaOAc·32H2O
(SrPd12)		Ijms 24 05043 i011
Na6[Pd13(PhAsO3)8]·23H2O
(Pd13L)		Ijms 24 05043 i012
Na12[SnIVO8Pd12(PO4)8]·43H2O
(SnPd12)		Ijms 24 05043 i013
Na12[PbIVO8Pd12(PO4)8]·38H2O
(PbPd12)		Ijms 24 05043 i014
POTs
K7Na3[Cu4(H2O)2(PW9034)2]20H2O (PW9Cu)Ijms 24 05043 i015Keggin sandwich[33]
{CoSb6O4(H2O)3[Co(hmta)SbW8O31]3}15Ijms 24 05043 i016Homochiral[66]
{(n-Bu)Sn(OH)}3GeW9O34]4−·26H2O
(PAC-320)		Ijms 24 05043 i017Keggin[68,69]
H2[(CH3)4N]4− {[Na(H2O)4][Na0.7Ni5.3(imi)2(Himi)(H2O)2(SbW9O33)2]} 10H2O
(C25N10Na1.7Ni5.3O82Sb2W18) H3[(CH3)4N]4[Na0.7Co5.3(imi)2(Himi)(H2O)2(SbW9O33)2] 12H2O
(C25N10Na0.7Co5.3O76Sb2W18) 		Ijms 24 05043 i018Keggin sandwich[67]
Table
Table 2. IC50 values (µM) of the different POMs studied in the respective cell lines.
Table 2. IC50 values (µM) of the different POMs studied in the respective cell lines.
Formula or AbbreviationCell LineIC50 (µM)Ref.
24 h48 h72 h
POVs
VMOP-31A5492.640.740.55[59]
BEAS-2B15.463.131.84
HL-6014.662.041.61
V18MCF-745.9511.9512.49[58]
VMOP-31MCF-71.520.630.53[59]
V18MDA-MB-231>500360.32135.66[58]
CoV10SK-OV-3 <0.24 *[57]
NaV10SK-OV-3 18.90 *
Co(Ac)2SK-OV-3 50.90 *
CoV10SMMC-7721 <0.26 *
NaV10SMMC-7721 9.56 *
Co(Ac)2SMMC-7721 44.90 *
VMOP-31SMMC-77212.661.170.75[59]
POMos
K2Na[AsIIIMo6O21(O2CCH2NH3)3] 6H2OA549332.87 180.40[62]
K2Na2[γ-Mo8O26(O2CCH2NH3)2] A5491072.02 330.18
[{4,4′-H2bpy}{4,4′-Hbpy}2{H2P2Mo5O23}].5H2O454925.17 [63]
[(Cu(pic)2)2(Mo8O26)] 8H2OA549 25.00 [64]
[{4,4′-H2bpy}{4,4′-Hbpy}2{H2P2Mo5O23}].5H2OHepG233.79 [63]
[(Cu(pic)2)2(Mo8O26)]·8H2OHepG2 21.56 [64]
K2Na[AsIIIMo6O21(O2CCH2NH3)3] 6H2OHL-608.610.1319.49[60]
HUVEC889.18
K2Na[AsIIIMo6O21(O2CCH2NH3)3]·6H2O (POM@SiO2)MCF-740.00 *10.80 *1.70 *[61]
[{4,4′-H2bpy}{4,4′-Hbpy}2{H2P2Mo5O23}].5H2OMCF-732.11 [63]
[(Cu(pic)2)2(Mo8O26)] ·8H2OMCF-7 24.24 [64]
K2Na[AsIIIMo6O21(O2CCH2NH3)3] 6H2OU93714.505.652.73[60]
POPds
PbPd12SH-SY5Y>>100>>100 [65]
Pd13SH-SY5Y7.204.40
Pd13LSH-SY5Y63.8021.40
SnPd12SH-SY5Y>>100>>100
SrPd12SH-SY5Y75.8076.70
POTs
[Co(H2O)6{CoSb6O4(H2O)3[Co(hmta)SbW8O31]3}]13− A2780 0.77[66]
{Sb9W21}A2780 4.44
[Co(H2O)6{CoSb6O4(H2O)3[Co(hmta)SbW8O31]3}]13− A2780cis 4.35
{Sb9W21}A2780cis 29.02
[Co(H2O)6{CoSb6O4(H2O)3[Co(hmta)SbW8O31]3}]13− A549 12.65
C25N10Na1.7Ni5.3O82Sb2W18 A549 39.75 [67]
C25N10Na1.7Ni5.3O82Sb2W18 AGS 1.75
C25N10Na0.7Ni5.3O76Sb2W18AGS 1.42
{Sb8W36}AGS 2.86
{SbW9}AGS 26.22
C25N10Na1.7Ni5.3O82Sb2W18 BGC-823 22.27
C25N10Na0.7Ni5.3O76Sb2W18 BGC-823 20.51
{Sb8W36}BGC-823 8.68
{SbW9}BGC-823 188.28
[Co(H2O)6{CoSb6O4(H2O)3[Co(hmta)SbW8O31]3}]13− CT26 14.72[66]
PAC-320DU145 4.55[68]
[Co(H2O)6{CoSb6O4(H2O)3[Co(hmta)SbW8O31]3}]13− HT29 15.60[66]
C25N10Na1.7Ni5.3O82Sb2W18 H1299 63.23 [67]
C25N10Na1.7Ni5.3O82Sb2W18 HEK293T 114.76
C25N10Na0.7Ni5.3O76Sb2W18HEK293T 103.09
C25N10Na1.7Ni5.3O82Sb2W18 HepG2 42.98
PAC-320LNCaP 5.64[68]
PW9CuMC3T3-E192.00 [33]
[Co(H2O)6{CoSb6O4(H2O)3[Co(hmta)SbW8O31]3}]13− MCF-7 12.24[66]
PW9CuMG-6322.00 [33]
[Co(H2O)6{CoSb6O4(H2O)3[Co(hmta)SbW8O31]3}]13− OVCAR-3 1.78[66]
{Sb9W21}OVCAR-3 8.80[67]
[Co(H2O)6{CoSb6O4(H2O)3[Co(hmta)SbW8O31]3}]13− SK-OV-3 15.02[66]
C25N10Na1.7Ni5.3O82Sb2W18 SMMC-7721 48.29 [67]
PW9CuUMR10681.00 [33]
* Note: IC50 values in the table marked with (*) are measured in µg/mL.
Table
Table 3. IC50 (µM) of the different antitumor drugs in the respective cell lines.
Table 3. IC50 (µM) of the different antitumor drugs in the respective cell lines.
CompoundCell LineIC50 µMRef.
24 h48 h72 h
ATRAHL-6020.76 [60]
U93714.85
CisplatinSH-SY5Y28.4011.60 [65]
MG-6343.00 [33]
AGS 17.44 [67]
BGC-823 5.78
MTXHepG242.03 [63]
A54926.93
MCF-749.79
TSALNCaP 98.14[68]
NaB 3.46
TSADU145 59.45
NaB 1.20
Table
Table 4. Effect of POMs and their cell lines on cell cycle arrest.
Table 4. Effect of POMs and their cell lines on cell cycle arrest.
CompoundCell LineCell Cycle Arrest Ref
G1SG2/M
POVs
VMOP-31SMMC-77221 Ijms 24 05043 i019Ijms 24 05043 i020[59]
CoV10SMMC-77221 Ijms 24 05043 i021 [57]
V18MCF-7 Ijms 24 05043 i022[58]
POMos
K2Na[AsIIIMo6O21(O2CCH2NH3)3] 6H2O—1A549 Ijms 24 05043 i023 [62]
K2Na2[γ-Mo8O26(O2CCH2NH3)2]—2A549 Ijms 24 05043 i024
[{4,4′-H2bpy}{4,4′-Hbpy}2{H2P2Mo5O23}].5H2OA549 Ijms 24 05043 i025 [63]
HepG2 Ijms 24 05043 i026
MCF-7 Ijms 24 05043 i027
[(Cu(pic)2)2(Mo8O26)] 8H2OA549 Ijms 24 05043 i028 [64]
HepG2 Ijms 24 05043 i029
MCF-7 Ijms 24 05043 i030
K2Na[AsIIIMo6O21(O2CCH2NH3)3] 6H2OHL-60Ijms 24 05043 i031 [60]
U937Ijms 24 05043 i032
POM@SiO2MCF-7 Ijms 24 05043 i033 [61]
POPds
Pd13SH-SY5Y Ijms 24 05043 i034 [65]
Pd13L Ijms 24 05043 i035
SrPd12 Ijms 24 05043 i036
POTs
[Co(H2O)6{CoSb6O4(H2O)3[Co(hmta)SbW8O31]3}]13− (1)A2780 Ijms 24 05043 i037[66]
A2780cis Ijms 24 05043 i038
C25N10Na1.7Ni5.3O82Sb2W18—1AGS Ijms 24 05043 i039 [67]
BGC-823 Ijms 24 05043 i040
PAC-320DU145 Ijms 24 05043 i041[68]
LNCaP Ijms 24 05043 i042
PW9CuMG-63 Ijms 24 05043 i043[33]
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Carvalho, F.; Aureliano, M. Polyoxometalates Impact as Anticancer Agents. Int. J. Mol. Sci. 2023, 24, 5043. https://doi.org/10.3390/ijms24055043

AMA Style

Carvalho F, Aureliano M. Polyoxometalates Impact as Anticancer Agents. International Journal of Molecular Sciences. 2023; 24(5):5043. https://doi.org/10.3390/ijms24055043

Chicago/Turabian Style

Carvalho, Fátima, and Manuel Aureliano. 2023. "Polyoxometalates Impact as Anticancer Agents" International Journal of Molecular Sciences 24, no. 5: 5043. https://doi.org/10.3390/ijms24055043

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
