Article

Selenium Dibromide Click Chemistry: The Efficient Synthesis of Novel Selenabicyclo[3.3.1]nonene-2 and -nonane Derivatives

by
Maxim V. Musalov
*,
Svetlana V. Amosova
and
Vladimir A. Potapov
A. E. Favorsky Irkutsk Institute of Chemistry, Siberian Division of The Russian Academy of Sciences, 1 Favorsky Str., Irkutsk 664033, Russia
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(24), 17485; https://doi.org/10.3390/ijms242417485
Submission received: 26 November 2023 / Revised: 10 December 2023 / Accepted: 13 December 2023 / Published: 14 December 2023
(This article belongs to the Special Issue New Chemo-, Regio- and Stereoselective Reactions and Methods in Organic Synthesis)
Browse Figures
Versions Notes

Abstract

:
Highly efficient and convenient methods for the preparation of 35 novel derivatives of 9-selenabicyclo[3.3.1]nonane and 9-selenabicyclo[3.3.1]nonene-2 in high yields based on the adduct of the transannular addition of SeBr2 to 1,5-cyclooctadiene were developed. The methods for the amination of the adduct made it possible to obtain both diamino selenabicyclo[3.3.1]nonane derivatives and their dihydrobromide salts in one step in 88–98% yields. The methods meet the criteria of click chemistry. Compounds with high glutathione peroxidase mimetic activity were found among water-soluble dihydrobromide salts. The selective reaction of 2,6-dibromo-9-selenabicyclo[3.3.1]nonane with acetonitrile to form 6-bromo-9-selenabicyclo[3.3.1]nonene-2 was discovered. The latter compound served as a promising starting material to give rise to the new class of selenabicyclo[3.3.1]nonene-2 derivatives, e.g., 6-alkoxy-9-selenabicyclo[3.3.1]nonenes were obtained in 94–99% yields.

1. Introduction

After the discovery of an essential biological role of selenium, the organic chemistry and biochemistry of this element began to develop rapidly. A number of organoselenium species were found in the human body, including selenoamino acids and selenium-containing enzymes, which were identified as important biocatalysts [1,2,3,4,5,6,7,8,9].
The selenium-containing enzyme glutathione peroxidase (GPx) plays a key role as a biocatalyst in the effective reduction of harmful reactive oxygen species in the human body [1,2,3,4,5,6,7,8]. Many types of biological activity of organoselenium compounds are closely related to their ability to scavenge these species including peroxides in the body [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15].
Currently, the interest of scientists in the biochemistry of selenium is growing with the discovery of new organoselenium compounds, exhibiting various biological activities [16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37], including anti-HIV [16,17,18], anticancer [19,20,21,22,23,24,25,26,27,28], antibacterial [29,30,31] and glutathione peroxidase mimetic properties [32,33,34,35,36,37].

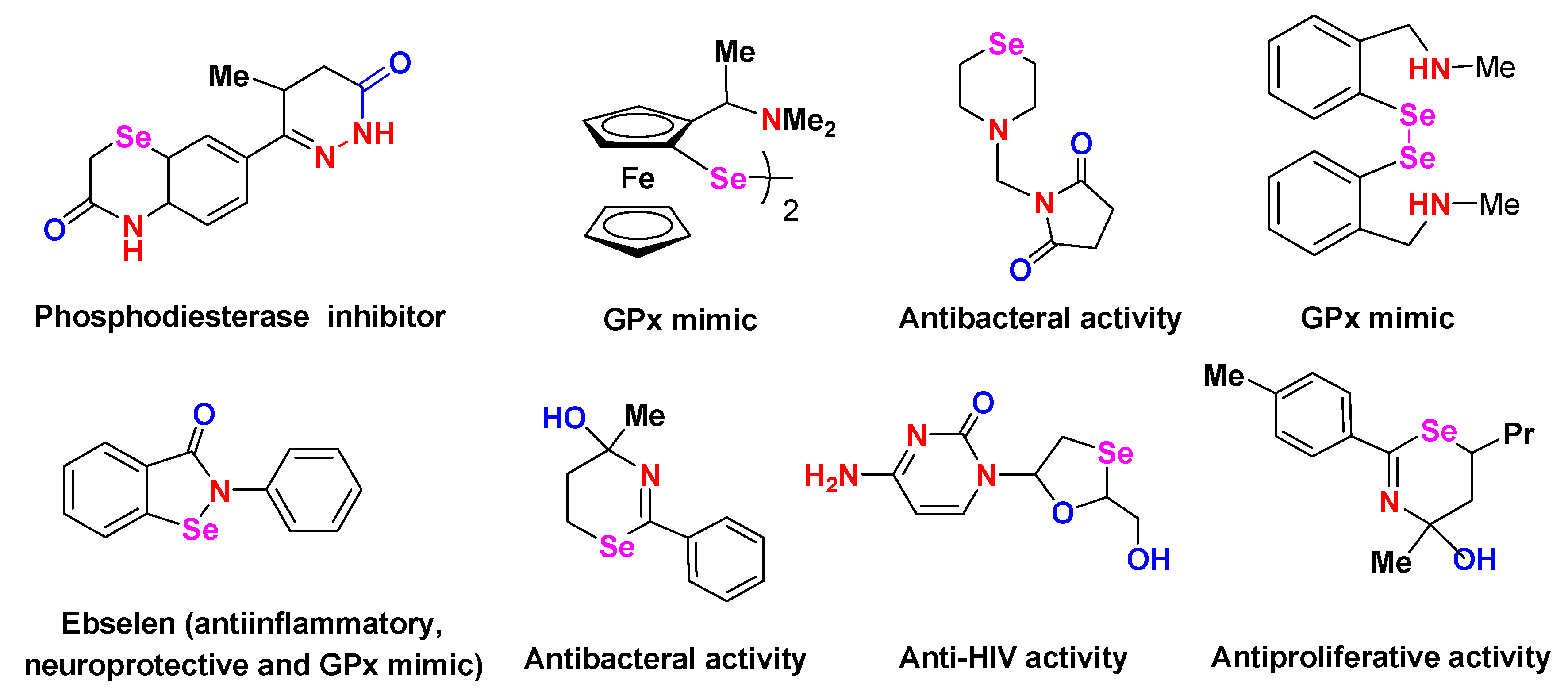

The presence of nitrogen-containing groups in organoselenium compounds is favorable for the manifestation of biological activity (Figure 1). Many Se/N heterocycles exhibit various kinds of biological activity [16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44]. Some examples of functionalized organoselenium compounds with N-containing substituents, exhibiting biological activity, including GPx mimetic properties, are presented in Figure 1 [17,18,19,20,21,32].
Ebselen is the first organoselenium drug with anti-inflammatory, neuroprotective and GPx mimetic properties [38,39,40,41,42,43,44]. Ebselen exhibits antiviral activity against SARS-CoV-2, and this Se/N heterocycle has undergone clinical trials in COVID-19 patients [42,43,44]. A number of organoselenium compounds show antiviral activity [11,12,13,14,15,16,17,18,42,43,44].
Adamantane derivatives, containing amino groups, are active against various types of viruses. Special attention to these derivatives was made in a review on antiviral drugs [45]. Adamantane derivatives and their analogs continue to be intensively explored.
A comprehensive review on the medicinal chemistry of adamantane derivatives demonstrated great potential of this class of compounds for the discovery of new drugs [46]. The high lipophilicity of the adamantane derivatives ensures the easy penetration of the drug through the blood–brain barrier [45,46]. In addition, due to this property, the amantadine derivatives can exhibit antispasmodic properties. The first adamantane derivative to be used as a medicine was amantadine (Figure 2). It was originally used as an antiviral drug effective against the influenza A2 virus. Its antiparkinsonian effect was later discovered [45,46]. Memantine is an NMDA antagonist used in the treatment of Alzheimer’s disease, but is also being tested in clinical trials as a possible therapy for a number of other conditions, including HIV-associated dementia and multiple sclerosis (Figure 2) [46]. Rimantadine is a drug active against influenza viruses and it used for the treatment and prevention of influenza (Figure 2). Tromantadine is active against Herpes viruses (Figure 2). Other active adamantane derivatives that are active ingredients in drugs include dopamantine, vildagliptin and carmantadine [45,46]. It has been established that adamantane analogues containing oxygen atoms in the tricyclic fragment of adamantane (oxaadamantanes) inhibit the replication of SARS-CoV-2 viruses [46].
One of the aims of this research is to synthesize new heterocyclic compounds, containing selenium atoms and amino groups in the form of hydrobromides, that can be structurally close to adamantane drugs (Figure 2). The presence of the selenium atom may impart a new beneficial effect to this lipophilic scaffold (e.g., GPx mimetic properties) along with possible antiviral activity.
An important direction in the field of organoselenium chemistry is the intensive development of the chemistry of selenium dichloride and dibromide—new bifunctional electrophilic reagents that make it possible to carry out new reactions and synthesize new classes of organoselenium compounds [47,48,49,50,51,52,53,54,55,56,57,58]. It is known that these reagents are disproportionate in solutions and can not be isolated in pure form [59]. In 2003, we first demonstrated the possibility of the selective synthesis of organoselenium compounds using selenium dihalides [47,48]. These reagents, generated from elemental selenium and immediately involved in situ in further reactions, can be successfully used to obtain various types of organoselenium compounds, including selenium heterocycles [47,48,49,50,51,52,53,54,55,56,57,58]. The possibility of the generation of selenium dibromide from elemental selenium and bromine was shown for the first time [47,48]. New cyclization, annulation, annulation/functionalization and selenocyclofunctionalization reactions using selenium dichloride and dibromide were recently developed [48,56,57,58].

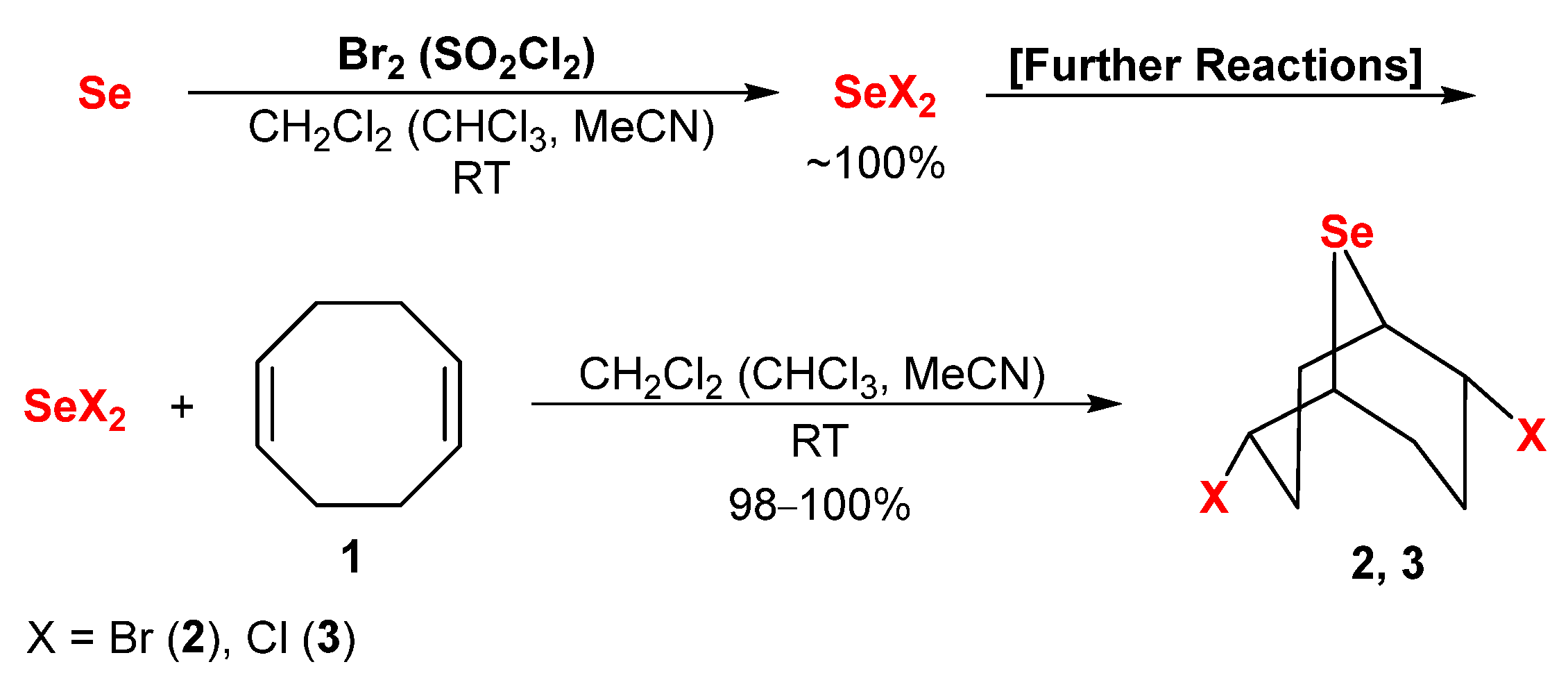

We obtained the adduct of the transannular addition of selenium dichloride to 1,5-cyclooctadiene, which was used in collaborative studies with researchers at the Scripps Research Institute to estimate the anchimeric assistance effect of the selenium atom compared with that of the sulfur atom [56]. The rates of nucleophilic substitution reactions in 2,6-dichloro-9-thia- and 2,6-dichloro-9-selenabicyclo[3.3.1]nonanes were measured in these studies. It was found that the anchimeric assistance effect of the selenium atom is approximately two orders of magnitude greater than the effect of the anchimeric assistance of sulfur [56].
Sharpless, one of the founders of click chemistry [60], and coworkers used 2,6-dichloro-9-thiabicyclo[3.3.1]nonane in several studies for the preparation of various 9-thiabicyclo[3.3.1]nonane derivatives and considered this compound “a privileged, bivalent scaffold for the display of nucleophilic components” [61] and the click chemistry reagent, which provided the efficient and selective synthesis of the target products including compounds with biological activity [61,62,63]. Inter alia, fragmentable oligocationic compounds, which can be used for drug delivery and gene delivery into the cells, were obtained based on these compounds [63]. Selenium analogs, 2,6-dihalo-9-selenabicyclo[3.3.1]nonanes, show higher reactivity compared to 2,6-dichloro-9-thiabicyclo[3.3.1]nonane and can be also considered as the click chemistry reagents.
In connection with the coronavirus epidemic, safe vaccination and the reduction or elimination of undesirable post-vaccination reactions of the body are of particular importance. Compounds with high GPx mimetic activity can be used as metabolic correctors on the vaccination process, which reduce or eliminate the pathological reactions of the body including oxidative stress during the vaccination and post-vaccination period.
We recently synthesized 2,6-dipyridinium-9-selenabicyclo[3.3.1]nonane dibromide, which was found to be a prospective drug for metabolic correction in the vaccination and post-vaccination period [64]. This is the result of the joint research with the Irkutsk Anti-Plague Research Institute of Siberia and the Far East. The introduction of this compound into the body of experimental animals significantly reduces the development of pathological reactions [64]. It is worth noting that 2,6-dipyridinium-9-selenabicyclo[3.3.1]nonane dibromide and other selenabicyclo[3.3.1]nonane derivatives do not exhibit toxicity [64]. Thus, it is relevant to search for new organoselenium compounds with high GPx mimetic activity, which can also be used as metabolic correctors in the vaccination process, in the series of selenabicyclo[3.3.1]nonane derivatives.

2. Results and Discussion

The aim of this research is to develop efficient syntheses of novel functionalized (especially diamino) derivatives of 9-selenabicyclo[3.3.1]nonane, which are promising candidates for the manifestation of GPx mimetic activity. The use of click chemistry principles is an important feature of this work. Prospective metabolic correctors of the vaccination process and possible antiviral agents (Figure 2) can be found among 9-selenabicyclo[3.3.1]nonane derivatives with high GPx activity. Like the adamantane framework, the structure of 9-selenabicyclo[3.3.1]nonane has high lipophilic properties, and diamino derivatives of 9-selenabicyclo[3.3.1]nonane can be considered structurally close to adamantane antiviral drugs (Figure 2) [45,46]. Additionally, high GPx activity can import additional beneficial effects to these products.
Earlier, we developed the transannular addition of selenium dihalides to cyclooctadiene 1, which proceeded with high selectivity and afforded 2,6-dibromo- and 2,6-dichloro-9-selenabicyclo[3.3.1]nonanes 2 and 3 in near-quantitative yields (Scheme 1) [56,57].
To study the amination reaction of compound 2, various amines were chosen: diethylamine, diallylamine, morpholine, piperidine, pyrrolidine, allylamine, isopropylamine, diisopropylamine, butylamine, isobutylamine, tert-butylamine, benzylamine, phenylamine and 2-vinyloxyethylamine. We began our study of the amination with the reaction of compound 2 with secondary amines, which usually gives monoalkylated products.
The reaction of diethylamine with compound 2 proceeded smoothly at room temperature in methylene chloride to give product 4 in 90% yield in the form of dihydrobromide (Scheme 2).
The reaction of unsaturated diallylamine with compound 2 in methylene chloride was sluggish, but when the reaction was carried out in acetonitrile, product 5 was obtained in 93% yield (Scheme 2). Thus, diallylamine is less nucleophilic than diethylamine and reacts efficiently in acetonitrile, which is a more polar solvent compared to methylene chloride. Products 4 and 5 were formed as precipitates, which easily separated from the reaction mixture by filtration.
The morpholine, piperidine and pyrrolidine cycles are present in many drugs and can be considered the pharmacophore groups. Morpholine, piperidine and pyrrolidine were successfully involved in the nucleophilic substitution reaction with compound 2 to form corresponding dihydrobromide products 6–8 in 91–95% yields (Scheme 3).
Primary amines usually react with two equivalents of alkyl halide and it is difficult to carry out the monoalkylation. However, we succeeded in the development of the alkylation of compound 2 with two equivalents of primary amines with the formation of products with secondary amine groups in the form of dihydrobromide. In this case, it was necessary to use more acetonitrile (compared to the reactions in Scheme 2 and Scheme 3) to prevent “crosslinking”, i.e., the reaction of one molecule of primary amine with two molecules of compound 2. Various primary amines such as allylamine, isopropylamine, butylamine, isobutylamine, tert-butylamine, benzylamine and phenylamine were involved in the reaction with compound 2, affording corresponding diamino dihydrobromide derivatives 9–15 in high yields (Scheme 4).
The main part of the primary amines gave the products 9–14 in 91–96% yields. In the case of tert-butylamine, the yield of the product 15 was slightly lower (88%).
The products in the form of dihydrobromide salts (Scheme 2, Scheme 3 and Scheme 4) precipitated from the reaction mixture and can be easy isolated by filtration. It should be emphasized that these products did not require additional purification. The compounds obtained were generally white, beige, yellowish or slightly orange-tinted powders.
Compounds, containing vinyloxy groups, are valuable intermediates for organic synthesis, capable of electrophilic addition and polymerization. The amine functionalized with the vinyloxy group 2-vinyloxyethylamine reacted with compound 2 to form the product 16 in 94% yield (Scheme 5).
2-Vinyloxyethylamine was obtained by the vinylation of 2-hydroxyethylamine with acetylene in the presence of an alkali.
A very convenient and effective method for obtaining corresponding diamino derivatives as free bases was developed. Performing the reaction in acetonitrile in the presence of sodium or potassium carbonate ensures the selective formation of the corresponding diamino products due to the selective neutralization of hydrobromide with these basic reagents. Sodium or potassium carbonate was added at the beginning of the process after the amine was added to the reaction mixture. It should be noted that the possible formation of unsaturated products by the dehydrobromination reaction with the carbonates was not observed.
The reaction of 2-vinyloxyethylamine with compound 2 in acetonitrile at room temperature in the presence of sodium carbonate gave 2,6-bis(2-vinyloxyethylamino)-9-selenabicyclo[3.3.1]nonane 17 as a bifunctional free base in 91% yield (Scheme 5).
We suppose that the products 16 and 17, containing two vinyloxy groups, can be useful monomers in oligomerization or polymerization reactions to produce new materials, containing a 9-selenabicyclo[3.3.1]nonane scaffold and ammonium or amino groups. These very interesting products can be also involved in further functionalization reactions of vinyloxy or amino groups.
It was found that, to obtain the corresponding diamine derivatives with high yields, it is necessary to use sodium or potassium carbonate in a 1.5–2-fold excess compared to stoichiometric quantities.
This method has proved to be very effective in the case of both primary and secondary amines. The reaction of isopropylamine, allylamine, butylamine, isobutylamine, tert-butylamine, benzylamine and phenylamine with compound 2 was carried out in the Na2CO3/acetonitrile system at room temperature, affording corresponding 2,6-diamino derivatives 18–24 in 90–96% yields (Scheme 6).
Secondary amines such as diethylamine, diisopropylamine and diallylamine were efficiently involved in the reaction with compound 2 in acetonitrile at room temperature in the presence of sodium carbonate to form corresponding 2,6-diamino derivatives 25–27 in 93–97% yields (Scheme 7).
When the reaction of morpholine, piperidine and pyrrolidine with compound 2 was carried out in acetonitrile at room temperature in the presence of sodium or potassium carbonate, corresponding 2,6-diamino derivatives 28–30 were obtained in 91–95% yields (Scheme 8).
We succeeded in the preparation of product 31, containing two unsubstituted amino groups, by reacting compound 2 with ammonia in a two-phase system: methylene chloride-10% aqueous ammonia solution containing potassium carbonate. The reaction mixture was allowed to stir for 40 h at room temperature. Despite these very simple conditions, the target product 31 was obtained in 81% yield (Scheme 9).
A higher yield of product 31 was achieved starting from diazido derivative 32, which was obtained from compound 2 and sodium azide in aqueous acetonitrile. The reduction of diazido derivative 32 with triphenylphosphine in THF followed by the hydrolysis afforded the target product 31 in 90% yield (Scheme 9).
It should be emphasized that the developed methods demonstrate the valuable features of click chemistry: high yields of target products, simple reaction conditions (room temperature), accessible starting materials, broad-scope reactions (ammonia, both primary and secondary amines with various substituents: Et, Bu, i-Bu, i-Pr, t-Bu, Bn, Ph, morpholine, piperidine, pyrrolidine and 2-vinyloxyethylamine) and convenient isolation procedures (no additional purification of the products required).
It is worth noting that the adducts of selenium dibromide with simple alkenes 33–35 do not undergo nucleophilic substitution with amines. We found that the reactions of diethyl, diisopropyl and triethylamine with the SeBr2-alkene adducts 33–35 led to the formation of parent alkenes (Scheme 10). We assume that under the action of the amines, a process occurs that is the reverse reaction of the addition of selenium dibromide to alkenes. However, the use of compound 2 made it possible to carry out the nucleophilic substitution reactions with amines.
The reaction of dibromo compound 2 with triethylamine, which is more basic than other amines, proceeded non-selectively and was accompanied by dehydrobromination with the formation of a mixture of products. We found that the dehydrobromination of product 2 can be carried out more selectively by heating this compound in acetonitrile, which plays the role of a soft dehydrobromination reagent in this case. Heating compound 2 in acetonitrile made it possible to eliminate selectively one hydrobromide molecule from one molecule of compound 2 with the formation of the CH=CH moiety and to obtain a very interesting product, containing one double bond and one bromine atom: 6-bromo-9-selenabicyclo[3.3.1]nonene-2 (36).
Refluxing compound 2 in acetonitrile (~82 °C) for 3 h gave nonene 36 in about 50% yield, but the selectivity of this reaction was low and it was difficult to purify the target product. It was found that it is preferable to carry out the heating reaction at a lower temperature (55–65 °C) with an increase in the reaction time to 12 h. Under these conditions, the target product 36 was selectively obtained in 90% yield and could be easily purified (Scheme 11).
This remarkable reaction makes it possible to develop the convenient synthesis of 6-bromo-9-selenabicyclo[3.3.1]nonene-2 (36), which serves as a promising starting material in further transformations and the preparation of a number of selenabicyclo[3.3.1]nonene derivatives.
The reactions of monobromide 36 with alkylamines and ammonia, under the same condition as in the previous reactions with compound 2, gave mixtures of products. However, we succeeded in the preparation of 6-azido-9-selenabicyclo[3.3.1]nonene-2 37 and corresponding amino derivative 38. Monobromide 36 was converted to azide 37 via the reaction with sodium azide in aqueous acetonitrile and then the obtained azide was reduced with triphenylphosphine in THF followed by a hydrolysis (Scheme 12). As a result, 6-amino-9-selenabicyclo[3.3.1]nonene-2 (38) was obtained in 88% yield.
A very convenient and selective synthesis of alkoxy derivatives of selenabicyclo[3.3.1]nonene 39–42 in 94–99% yield was developed by nucleophilic substitutions of bromine in compound 36 by alcohols. We found that the alkoxylation reaction proceeded efficiently in acetonitrile in the presence of weakly basic sodium bicarbonate at room temperature (Scheme 13).
Filtration followed by the solvent removal resulted in the pure target products 39–42, which did not require additional purification. This reaction also meets the criteria of click chemistry.
The resulting 9-selenabicyclo[3.3.1]nonene-2 derivatives represent a new, very promising class of organoselenium heterocyclic compounds. The presence of the double bond and very active bromine atom opens new possibilities for functionalization. We plan to develop the chemistry of this new class of compounds using bromo derivative 36 as a starting material, as well as other approaches.
The high reactivity of compounds 2 and 36 is determined by the strong anchimeric assistance effect of the selenium atom [56]. It is assumed that the nucleophilic substitution of the bromine atom in compounds 2 and 36 proceeds via the formation of corresponding seleniranium intermediates [56]. We suppose that the dehydrobromination of compound 2 (Scheme 11) occurs as an anti-process, which is facilitated by acetonitrile as a polar solvent. Acetonitrile also exhibits the properties of a weak base in this reaction. The selenium atom is in an anti-position relative to the bromine atom and the anti-elimination of hydrobromide in the Br-CH-CH-Se group does not occur. However, there is a hydrogen atom in an anti-position to the bromine atom in the Br-CH-CH2- fragment and the elimination proceeds selectively in this fragment.
Acetonitrile was found to be a solvent of choice for these nucleophilic reactions (Scheme 2, Scheme 3, Scheme 4, Scheme 5, Scheme 6, Scheme 7, Scheme 8, Scheme 11, Scheme 12 and Scheme 13). Like DMSO and DMF, acetonitrile is an aprotic bipolar solvent, which considerably facilitated nucleophilic substitutions. However, unlike DMSO and DMF, acetonitrile has a lower boiling point (~82 °C) and can be easily removed from the reaction mixture. The products can be purified from acetonitrile in a vacuum, but doing the same using DMSO or DMF as a solvent is very difficult.
The selenium atom is sterically accessible in the rigid configuration of the 9-selenabicyclo[3.3.1]nonane framework and its derivatives are very promising compounds for the manifestation of GPx mimetic activity. The obtained water-soluble dihydrobromide products were investigated as GPx mimics. The oxidation of dithiothreitol with tert-butyl hydroperoxide in deuterated water was used as the model reaction [65,66,67,68,69,70]. The synthesized products played the role of catalysts (10% mol). The progress of the redox reaction was monitored by 1H NMR spectroscopy at room temperature after mixing the reagents and a tested product (tert-butyl hydroperoxide, dithiothreitol, 0.025 mmol; a tested product, 0.0025 mmol; D2O, 0.5 mL). The results obtained for most active products are presented in Figure 3.
The catalytic activities of the dihydrobromide products were estimated by the measurement of half-lives (T1/2), representing the time required to oxidize half of the dithiotreitol to its disulfide (this is a generally accepted methodology [65,66,67,68,69,70]). It was found that compounds 4 and 10, containing diethylamino and isopropylamino groups, showed the greatest activity of approximately the same value among the tested compounds (Figure 3). The activity of the products 6 and 14 with pyrrolidine and phenylamino substituents were also very high and about the same value. The half-lives (T1/2) of these four products were in the range of 30–35 min. The comparison of the activity of these products, 4, 6, 10 and 14, with known data [65,66,67,68,69,70] allows us to consider them compounds with high activity. Less active were compounds 9 and 12, containing allylamino (T1/2 = 61 min) and isobutylamino (T1/2 = 86 min) groups. The other products showed T1/2 > 100 min.
The amino groups can exhibit electronic and steric effects, influencing the main catalytic center—the selenium atom in compounds 4–16. We assume that the obtained results show the importance of the steric factor for this family of compounds. Diethylamino and isopropylamino substituents show low steric hindrance at the selenium atom, which can participate in the catalytic cycle. This is also true for the pyrrolidine and phenylamino substituents, which exhibit lower steric effects compared to that of the piperidine and morpholine groups. It is worth noting that the phenylamino group has a flat configuration.
We suppose that the catalytic cycle [65,66,67,68,69,70] includes the formation of intermediate selenoxides, which are formed by the oxidation of the products with tert-butyl hydroperoxide. The selenoxides are very reactive intermediates, which oxidase dithiotreitol to its cyclic disulfide with the formation of water and the regeneration of the catalysts [67]. This process is energetically very favorable.
The structural assignments of the synthesized compounds were made using 1H, 13C and 77Se NMR spectroscopy including two-dimensional experiments and were confirmed by elemental analysis. The structures of selenabicyclo[3.3.1]nonene-2 derivatives were proved by NMR spectroscopy including COSY, HMBC and HSQC experiments.
When heated in a vacuum (1 mm Hg), the obtained compounds decompose at temperatures above 100–110 °C and it is hardly possible to measure their boiling point.

3. Materials and Methods

3.1. General Information

The 1H (400.1 MHz), 13C (100.6 MHz) and 77Se (76 MHz) NMR spectra were recorded on a Bruker DPX-400 spectrometer (Bruker BioSpin GmbH, Rheinstetten, Germany) in CDCl3 (referred to the residual solvent peaks of CDCl3, δ = 7.27 and 77.16 ppm for 1H and 13C NMR, respectively) peaks, δ = 7.27 and 77.16 ppm for 1H and 13C NMR, respectively), DMSO-d6 (referred to the residual solvent peaks of DMSO-d6, δ = 2.50 and 39.50 ppm for 1H and 13C NMR, respectively), and D2O (referred to the external standard, hexamethyldisiloxane, δ = 0.055 and 1.97 ppm for 1H and 13C NMR, respectively). The 77Se NMR spectra were referred to dimethyl selenide as standard. The NMR spectra can be found in Supplementary Materials. IR spectra were recorded on a Vertex 70 spectrometer (Bruker BioSpin GmbH, Rheinstetten, Germany). Elemental analysis was performed on a Thermo Scientific Flash 2000 Elemental Analyzer (Thermo Fisher Scientific Inc., Milan, Italy). Melting points were determined on a Kofler Hot-Stage Microscope PolyTherm A apparatus (Wagner & Munz GmbH, München, Germany). The distilled organic solvents and degassed water were used in syntheses.

3.2. The Synthesis of Dihydrobromide Salts 4–8 from Secondary Amines

2,6-Bis(diethylamino)-9-selenabicyclo[3.3.1]nonane dihydrobromide (4). A solution of diethylamine (0.15 g, 2.05 mmol) in methylene chloride (1 mL) was added dropwise to a solution of compound 2 (0.3 g, 0.86 mmol) in methylene chloride (4 mL) with stirring at room temperature. The reaction mixture was stirred overnight (16 h) at room temperature. Cold hexane (5 mL) was added to the mixture. The formed precipitate was filtered off, washed with cold hexane and dried in a vacuum giving the product (382 mg, 90% yield) as a white powder, mp 184–185 °C.
1H NMR (400 MHz, D2O, ppm): δ 0.69 (t, 12H, CH3), 1.44–1.60 (m, 2H, CH2), 1.73–1.81 (m, 2H, CH2), 1.92–2.02 (m, 2H, CH2), 2.03–2.12 (m, 2H, CH2), 2.59–2.71 (m, 4H, CH2N), 2.76–2.87 (m, 4H, CH2N), 2.88–2.93 (m, 2H, CHSe), 3.56–3.62 (m, 2H, CHN).
13C NMR (100 MHz, D2O, ppm): δ 8.0 (CH3), 8.3 (CH3), 23.2 (CH2), 24.0 (CHSe), 28.6 (CH2), 43.5 (CH2N), 44.4 (CH2N), 64.1 (CHN).
IR (KBr): 3728, 2922, 2765, 2629, 2490, 1632, 1567, 1466, 1418, 1373, 1304, 1177, 1094, 1038, 925, 842, 791 cm−1.
Anal. calcd for C16H34N2Br2Se (493.22): C 38.96, H 6.95, N 5.68, Br 32.40, Se 16.01%. Found: C 39.12, H 7.08, N 5.52, Br 32.76, Se 15.87%.
2,6-Bis(diallylamino)-9-selenabicyclo[3.3.1]nonane dihydrobromide (5). A solution of diallylamine (0.2 g, 2.06 mmol) in acetonitrile (1 mL) was added dropwise to a mixture of compound 2 (0.3 g, 0.86 mmol) and acetonitrile (4 mL) with stirring at room temperature. The reaction mixture was stirred overnight (16 h) at room temperature. Cold hexane (5 mL) was added to the mixture. The formed precipitate was filtered off, washed with cold acetonitrile and dried in a vacuum, giving the product (435 mg, 93% yield) mp 161–162 °C as a white powder.
1H NMR (400 MHz, D2O, ppm): δ 1.51–1.65 (m, 2H, CH2), 1.78–1.87 (m, 2H, CH2), 1.92–2.04 (m, 2H, CH2), 2.09–2.16 (m, 2H, CH2), 2.92–2.95 (m, 2H, CHSe), 3.20–3.46 (m, 8H, CH2N), 3.60–3.66 (m, 2H, CHN), 5.00–5.06 (m, 8H, CH=CH2), 5.29–5.40 (m, 4H, CH=CH2).
13C NMR (100 MHz, D2O, ppm): δ 22.6 (CHSe), 23.3 (CH2), 27.9 (CH2), 50.9 (CH2N), 51.3 (CH2N), 63.9 (CHN), 124.3 (CH=CH2), 124.8 (CH=CH2), 125.9 (CH=CH2).
IR (KBr): 3728, 3437, 2947, 2798, 2735, 2423, 2219, 1884, 1645, 1570, 1439, 1168, 1095, 991, 940, 875, 612, 523, 417 cm−1.
Anal. calcd for C20H34N2Br2Se (541.26): C 44.38, H 6.33, N 5.18, Br 29.53, Se 14.59%. Found: C 44.65, H 6.19, N 4.98, Br 29.80, Se 14.81%.
2,6-Bis(1-pyrrolidinyl)-9-selenabicyclo[3.3.1]nonane dihydrobromide (6) was obtained under the same conditions as compound 5 in 95% yield as a beige powder, mp 218–219 °C.
1H NMR (400 MHz, D2O, ppm): δ 1.36–1.54 (m, 10H, CH2CH2N, CH2), 1.73–1.80 (m, 2H, CH2), 1.86–1.96 (m, 2H, CH2), 1.98–2.05 (m, 2H, CH2), 2.71–2.85 (m, 10H, CH2N, CHSe), 3.34–3.40 (m, 2H, CHN).
13C NMR (100 MHz, D2O, ppm): δ 22.2 (CH2CH2N), 25.0 (CH2), 25.9 (CHSe), 27.5 (CH2), 52.3 (CH2N), 67.4 (CHN).
IR (KBr): 3728, 2926, 2880, 2669, 2584, 2479, 1630, 1405, 1169, 1016, 972, 895, 671, 574 cm−1.
Anal. calcd for C16H30N2Br2Se (489.19): C 39.28, H 6.18, N 5.73, Br 32.67, Se 16.14%. Found: C 39.56, H 5.99, N 5.57, Br 32.44, Se 16.38%.
2,6-Bis(1-piperidinyl)-9-selenabicyclo[3.3.1]nonane dihydrobromide (7) was obtained under the same conditions as compound 5 in 94% yield as a beige powder, mp 129–130 °C.
1H NMR (400 MHz, D2O, ppm): δ 0.88–0.98 (m, 2H, CH2CH2CH2N), 1.15–1.26 (m, 6H, CH2CH2CH2N), 1.33–1.45 (m, 4H, CH2CH2N), 1.51–1.63 (m, 2H, CH2), 1.83–2.02 (m, 4H, CH2), 2.06–2.14 (m, 2H, CH2), 2.39–2.51 (m, 4H, CH2N), 2.97–3.04 (m, 2H, CHSe), 3.05–3.19 (m, 4H, CH2N), 3.50–3.58 (m, 2H, CHN).
13C NMR (100 MHz, D2O, ppm): δ 21.2 (CH2CH2CH2N), 22.7 (CH2CH2N), 23.1 (CHSe), 23.8 (CH2), 28.5 (CH2), 50.2 (CH2N), 51.6 (CH2N), 67.7 (CHN).
IR (KBr): 3436, 2941, 2639, 2536, 1632, 1454, 1366, 1292, 1199, 1146, 1101, 1013, 930, 717, 557, 451 cm−1.
Anal. calcd for C18H34N2Br2Se (517.24): C 41.80, H 6.63, N 5.42, Br 30.90, Se 15.27%. Found: C 42.07, H 6.46, N 5.42, Br 31.14, Se 14.98%.
2,6-Dimorpholinyl-9-selenabicyclo[3.3.1]nonane dihydrobromide (8) was obtained under the same conditions as compound 5 in 91% yield as a beige powder, mp 173–174 °C.
1H NMR (400 MHz, DMSO-d6, ppm): δ 2.16–2.32 (m, 6H, CH2), 2.73–2.86 (m, 2H, CH2), 3.02–3.20 (m, 4H, CH2N), 3.51–3.63 (m, 6H, CH2N, CHSe), 3.74–4.02 (m, 10H, CHN, CH2O).
13C NMR (100 MHz, D2O, ppm): δ 22.5 (CHSe), 23.3 (CH2), 28.1 (CH2), 49.3 (CH2N), 63.8 (CH2O), 68.8 (CHN).
IR (KBr): 3728, 3417, 2913, 2676, 2604, 2458, 2249, 2073, 1634, 1416, 1267, 1181, 1127, 1019, 921, 653, 600, 518, 460 cm−1.
Anal. calcd for C16H30N2O2Br2Se (521.19): C 36.87, H 5.80, N 5.37, Br 30.66, Se 15.15%. Found: C 37.11, H 5.68, N 5.56, Br 30.87, Se 14.87%.

3.3. The Synthesis of Dihydrobromide Salts 9–16 from the Primary Amines

2,6-Bis(allylamino)-9-selenabicyclo[3.3.1]nonane dihydrobromide (9). A solution of allylamine (0.117 g, 2.05 mmol) in acetonitrile (1 mL) was added dropwise to a mixture of compound 2 (0.347 g, 1 mmol) and acetonitrile (9 mL) with stirring at room temperature. The reaction mixture was stirred overnight (20 h) at room temperature. Cold hexane (5 mL) was added to the mixture. The formed precipitate was filtered off, washed with cold acetonitrile and dried in a vacuum, giving the product (437 mg, 95% yield) mp 230–231 °C as a white powder.
1H NMR (400 MHz, D2O, ppm): δ 1.55–1.68 (m, 2H, CH2), 1.82–1.90 (m, 2H, CH2), 2.01–2.11 (m, 2H, CH2), 2.14–2.20 (m, 2H, CH2), 2.86–2.90 (m, 2H, CHSe), 3.24–3.34 (m, 4H, CH2N), 3.67–3.72 (m, 2H, CHN), 5.03–5.13 (m, 4H, CH=CH2), 5.43–5.54 (m, 2H, CH=CH2).
13C NMR (100 MHz, D2O, ppm): δ 25.0 (CH2), 25.2 (CHSe), 27.1 (CH2), 47.2 (CH2N), 59.5 (CHN), 123.8 (CH=CH2), 127.6 (CH=CH2).
Anal. calcd for C14H26N2Br2Se (461.14): C 36.46, H 5.68, N 6.07, Br 34.65, Se 17.12%. Found: C 36.63, H 5.81, N 5.89, Br 34.38, Se 16.86%.
2,6-Bis(isopropylamino)-9-selenabicyclo[3.3.1]nonane dihydrobromide (10) was obtained under the same conditions as compound 9 in 91% yield as a white powder, mp 230–231 °C.
1H NMR (400 MHz, D2O, ppm): δ 0.80 (d, 6H, CH3), 0.82 (d, 6H, CH3), 1.52–1.65 (m, 2H, CH2), 1.66–1.74 (m, 2H, CH2), 1.92–2.02 (m, 2H, CH2), 2.03–2.10 (m, 2H, CH2), 2.76–2.79 (m, 2H, CHSe), 3.03–3.13 (m, 2H, CHCH3), 3.66–3.72 (m, 2H, CHN).
13C NMR (100 MHz, D2O, ppm): δ 18.0 (CH3), 18.1 (CH3), 24.5 (CH2) 24.6 (CHSe), 26.6 (CH2), 47.2 (CH3CH), 56.6 (CH2CHN).
Anal. calcd for C14H30N2Br2Se (465.17): C 36.15, H 6.50, N 6.02, Br 34.35, Se 16.97%. Found: C 35.87, H 6.31, N 5.86, Br 34.12, Se 17.26%.
2,6-Bis(butylamino)-9-selenabicyclo[3.3.1]nonane dihydrobromide (11) was obtained under the same conditions as compound 9 in 96% yield as a white powder, mp 229–230 °C.
1H NMR (400 MHz, D2O, ppm): δ 0.44 (t, 6H, CH3), 0.87–0.96 (m, 4H, CH2), 1.14–1.23 (m, 4H, CH2), 1.50–1.63 (m, 2H, CH2), 1.74–1.85 (m, 2H, CH2), 1.95–2.16 (m, 4H, CH2), 2.56–2.70 (m, 4H, CH2N), 2.82–2.87 (m, 2H, CHSe), 3.62–3.67 (m, 2H, CHN).
13C NMR (100 MHz, D2O, ppm): δ 12.8 (CH3), 19.3 (CH2), 24.9 (CH2), 25.0 (CHSe), 27.0 (CH2), 27.6 (CH2), 45.0 (CH2N), 60.2 (CHN).
Anal. calcd for C16H34N2Br2Se (493.22): C 38.96, H 6.95, N 5.68, Br 32.40, Se 16.01%. Found: C 39.23, H 7.13, N 5.85, Br 32.61, Se 15.83%.
2,6-Bis(isobutylamino)-9-selenabicyclo[3.3.1]nonane dihydrobromide (12) was obtained under the same conditions as compound 9 in 93% yield as a white powder, mp 220–221 °C.
1H NMR (400 MHz, D2O, ppm): δ 0.47 (d, 6H, CH3), 0.49 (d, 6H, CH3), 1.45–1.54 (m, 2H, CH3CH), 1.55–1.65 (m, 2H, CH2), 1.73–1.80 (m, 2H, CH2), 1.92–2.02 (m, 2H, CH2), 2.04–2.12 (m, 2H, CH2), 2.40–2.49 (m, 4H, CH2N), 2.83–2.86 (m, 2H, CHSe), 3.60–3.66 (m, 2H, CHN).
13C NMR (100 MHz, D2O, ppm): δ 18.8 (CH3), 18.9 (CH3), 24.3 (CH2), 24.4 (CHSe), 25.2 (CH2), 26.6 (CH3CH), 51.9 (CH2N), 60.5 (CHN).
IR (KBr): 3996, 3737, 2922, 2789, 2531, 2419, 2339, 2212, 2101, 1958, 1846, 1631, 1578, 1440, 1283, 1157, 1004, 947, 882, 522, 437 cm−1.
Anal. calcd for C16H34N2Br2Se (493.22): C 38.96, H 6.95, N 5.68, Br 32.40, Se 16.01%. Found: C 39.01, H 6.99, N 5.63, Br 32.28, Se 16.11%.
2,6-Bis(benzylamino)-9-selenabicyclo[3.3.1]nonane dihydrobromide (13) was obtained under the same conditions as compound 9 in 94% yield, mp 205–206 °C.
1H NMR (400 MHz, CDCl3, ppm): δ 2.25–2.51 (m, 4H, CH2), 2.61–2.74 (m, 2H, CH2), 3.16–3.28 (m, 2H, CH2), 3.40–3.49 (m, 2H, CHSe), 3.94–4.00 (m, 2H, CHN), 4.14–4.24 (m, 4H, CH2N), 7.42–7.49 (m, 6H, CHAr), 7.74–7.82 (m, 4H, CHAr).
13C NMR (100 MHz, CDCl3, ppm): δ 25.4 (CH2), 25.7 (CHSe), 28.1 (CH2), 48.2 (CH2N), 59.2 (CHN), 129.0 (CHAr), 129.3 (CHAr), 130.2 (CAr), 130.5 (CHAr).
IR (KBr): 3437, 2946, 2740, 2345, 2051, 1982, 1580, 1455, 1291, 1211, 1159, 1101, 971, 850, 750, 696, 578, 485, 402 cm−1.
Anal. calcd for C22H30N2Br2Se (561.25): C 47.08, H 5.39, N 4.99, Br 28.47, Se 14.07%. Found: C 47.04, H 5.41, N 5.04, Br 28.32, Se 14.11%.
2,6-Bis(phenylamino)-9-selenabicyclo[3.3.1]nonane dihydrobromide (14) was obtained under the same conditions as compound 9 in 91% yield as a beige white powder, mp 212–215 °C.
1H NMR (400 MHz, DMSO-D6, ppm): δ 2.07–2.18 (m, 4H, CH2), 2.44–2.56 (m, 2H, CH2), 2.84–2.90 (m, 2H, CH2), 3.00–3.06 (m, 2H, CHSe), 4.23–4.31 (m, 2H, CHN), 7.31–7.36 (m, 2H, CHAr), 7.45–7.53 (m, 8H, CHAr).
13C NMR (100 MHz, DMSO-D6, ppm): δ 25.5 (CH2), 25.6 (CHSe), 27.5 (CH2), 63.3 (CHN), 122.3 (CHAr), 127.5 (CHAr), 130.0 (CHAr), 135.7 (CAr).
Anal. calcd for C20H26N2Br2Se (533.20): C 45.05, H 4.91, N 5.25, Br 29.97, Se 14.81%. Found: C 45.16, H 4.93, N 5.27, Br 29.84, Se 14.96%.
2,6-Bis(tert-butylamino)-9-selenabicyclo[3.3.1]nonane dihydrobromide (15) was obtained under the same conditions as compound 9 in 88% yield as a white powder, mp 238–239 °C.
1H NMR (400 MHz, D2O, ppm): δ 0.83 (s, 18H, CH3), 1.64–1.75 (m, 4H, CH2), 1.88–1.97 (m, 2H, CH2), 1.98–2.07 (m, 2H, CH2), 2.60–2.65 (m, 2H, CHSe), 3.68–3.75 (m, 2H, CHN).
13C NMR (100 MHz, D2O, ppm): δ 25.5 (CH3), 26.5 (CH2), 27.4 (CHSe), 27.5 (CH2), 57.5 (CN), 59.5 (CHN).
Anal. calcd for C16H34N2Br2Se (493.22): C 38.96, H 6.95, N 5.68, Br 32.40, Se 16.01%. Found: C 39.00, H 6.95, N 5.65, Br 32.32, Se 16.09%.
2,6-Bis(2-vinyloxyethylamino)-9-selenabicyclo[3.3.1]nonane dihydrobromide (16) was obtained under the same conditions as compound 9 in 94% yield as a yellowish powder, mp 177–178 °C.
1H NMR (400 MHz, D2O, ppm): δ 1.46–1.58 (m, 2H, CH2), 1.69–1.77 (m, 2H, CH2), 1.88–1.99 (m, 2H, CH2), 2.00–2.07 (m, 2H, CH2), 2.78–2.81 (m, 2H, CHSe), 2.87–2.91 (m, 4H, CH2N), 3.45–3.49 (m, 2H, CH2O), 3.61–3.65 (m, 4H, CHN, CH2=CH), 3.74–3.78 (m, 2H, CH2=CH), 5.92–5.98 (m, 2H, CH2=CH).
13C NMR (100 MHz, D2O, ppm): δ 24.8 (CH2), 24.8 (CHSe), 27.0 (CH2), 44.1 (CH2N), 60.5 (CHN), 62.7 (CH2O), 88.4 (CH2=CH), 150.6 (CH2=CH).
IR (KBr): 3342, 2941, 2817, 2452, 2204, 1870, 1619, 1547, 1445, 1399, 1325, 1195, 1067, 1003, 929, 821, 589, 475 cm−1.
Anal. calcd for C16H30N2Br2SeO2 (521.19): C 36.87, H 5.80, N 5.37, Br 30.66, Se 15.15%. Found: C 36.98, H 5.81, N 5.40, Br 30.54, Se 15.29%.

3.4. The Synthesis of the Free Base Compounds 17–24 from the Primary Amines

2,6-Bis(2-vinyloxyethylamino)-9-selenabicyclo[3.3.1]nonane (17). A solution of 2-vinyloxyethylamine (0.18 g, 2.07 mmol) in acetonitrile (1 mL) was added dropwise to a mixture of compound 2 (0.347 g, 1 mmol) and acetonitrile (11 mL) followed by the addition of powdered Na2CO3 (0.3 g, 3.5 mmol) with stirring at room temperature. The reaction mixture was stirred overnight (20 h) at room temperature. The main part of the solvent was removed on a rotary evaporator and water (10 mL) and methylene chloride (15 mL) were added. The aqueous phase was extracted with methylene chloride (3 × 15 mL). The organic phase was dried over Na2SO4 and the solvent was removed on a rotary evaporator. The residue was dried in a vacuum, giving the product (327 mg, 91% yield) as a grey oil.
1H NMR (400 MHz, CDCl3, ppm): δ 1.39–1.50 (m, 2H, CH2), 1.70–1.77 (m, 2H, CH2), 1.98–2.08 (m, 2H, CH2), 2.35–2.43 (m, 2H, CH2), 2.63–2.69 (m, 2H, CHSe), 2.74–2.80 (m, 4H, CH2N), 3.16–3.22 (m, 2H, CHN), 3.54–3.62 (m, 4H, CH2O), 3.79–3.83 (m, 2H, CH2=CH), 3.96–4.03 (m, 2H, CH2=CH), 6.25–6.32 (m, 2H, CH2=CH).
13C NMR (100 MHz, CDCl3, ppm): δ 27.3 (CH2), 29.0 (CHSe), 30.3 (CH2), 45.3 (CH2N), 59.4 (CHN), 67.2 (CH2O), 86.4 (CH2=CH), 151.3 (CH2=CH).
Anal. calcd for C16H28N2SeO2 (359.36): C 53.48, H 7.85, N 7.80, Se 21.97%. Found: C 53.54, H 8.01, N 7.67, Se 22.08%.
2,6-Bis(isopropylamino)-9-selenabicyclo[3.3.1]nonane (18) was obtained under similar conditions as compound 17 as a grey oil, yield: 95%.
1H NMR (400 MHz, CDCl3, ppm): δ 0.73 (d, 6H, CH3), 0.75 (d, 6H, CH3), 1.23–1.37 (m, 2H, CH2), 1.58–1.68 (m, 2H, CH2), 1.90–2.03 (m, 2H, CH2), 2.23–2.31 (m, 2H, CH2), 2.62–2.66 (m, 2H, CHSe), 2.67–2.73 (m, 2H, CHCH3), 3.13–3.20 (m, 2H, CHN).
13C NMR (100 MHz, CDCl3, ppm): δ 22.3 (CH3), 23.8 (CH3), 27.6 (CH2), 29.1 (CHSe), 31.0 (CH2), 44.1 (CH3CH), 56.2 (CH2CHN).
Anal. calcd for C14H28N2Se (303.34): C 55.43, H 9.30, N 9.23, Se 26.03%. Found: C 55.24, H 9.22, N 9.20, Se 25.81%.
2,6-Bis(allylamino)-9-selenabicyclo[3.3.1]nonane (19) was obtained under similar conditions as compound 17 as a grey oil, yield: 93%.
1H NMR (400 MHz, CDCl3, ppm): δ 1.35–1.45 (m, 2H, CH2), 1.64–1.72 (m, 2H, CH2), 1.95–2.03 (m, 2H, CH2), 2.32–2.39 (m, 2H, CH2), 2.69–2.74 (m, 2H, CHSe), 2.97–3.12 (m, 4H, CH2N), 3.14–3.19 (m, 2H, CHN), 4.83–4.98 (m, 4H, CH=CH2), 5.60–5.72 (m, 2H, CH=CH2).
13C NMR (100 MHz, CDCl3, ppm): δ 27.4 (CH2), 29.0 (CHSe), 30.3 (CH2), 49.0 (CH2N), 58.7 (CHN), 115.3 (CH=CH2), 136.8 (CH=CH2).
Anal. calcd for C14H24N2Se (299.31): C 56.18, H 8.08, N 9.36, Se 26.38%. Found: C 56.42, H 7.90, N 9.22, Se 26.41%.
2,6-Bis(butylamino)-9-selenabicyclo[3.3.1]nonane (20) was obtained under similar conditions as compound 17 as a grey oil, yield: 95%.
1H NMR (400 MHz, CDCl3, ppm): δ 0.71 (t, 6H, CH3), 1.09–1.19 (m, 4H, CH2), 1.20–1.31 (m, 4H, CH2), 1.36–1.48 (m, 2H, CH2), 1.67–1.76 (m, 2H, CH2), 1.95–2.07 (m, 2H, CH2), 2.31–2.42 (m, 4H, CH2N, CH2), 2.44–2.51 (m, 2H, CH2N), 2.74–2.79 (m, 2H, CHSe), 3.12–3.19 (m, 2H, CHN).
13C NMR (100 MHz, CDCl3, ppm): δ 13.7 (CH3), 20.2 (CH2), 27.5 (CH2), 29.1 (CHSe), 30.4 (CH2), 32.2 (CH2), 46.2 (CH2N), 59.6 (CHN).
Anal. calcd for C16H32N2Se (331.40): C 57.99, H 9.73, N 8.45, Se 23.83%. Found: C 58.04, H 9.77, N 8.41, Se 23.87%.
2,6-Bis(isobutylamino)-9-selenabicyclo[3.3.1]nonane (21) was obtained under similar conditions as compound 17 as a grey oil, yield: 92%.
1H NMR (400 MHz, CDCl3, ppm): δ 0.70 (d, 6H, CH3), 0.72 (d, 6H, CH3), 1.35–1.55 (m, 4H, CH3CH, CH2), 1.66–1.73 (m, 2H, CH2), 1.96–2.08 (m, 2H, CH2), 2.21–2.28 (m, 4H, CH2N), 2.35–2.41 (m, 2H, CH2), 2.72–2.76 (m, 2H, CHSe), 3.10–3.15 (m, 2H, CHN).
13C NMR (100 MHz, CDCl3, ppm): δ 20.4 (CH3), 20.5 (CH3), 27.5 (CH2), 28.4 (CH2), 29.3 (CHSe), 30.6 (CH3CH), 54.7 (CH2N), 59.6 (CHN). 77Se NMR (76 MHz, CDCl3): 303.8.
Anal. calcd for C16H32N2Se (331.40): C 57.99, H 9.73, N 8.45, Se 23.83%. Found: C 58.22, H 9.81, N 8.61, Se 23.68%.
2,6-Bis(benzylamino)-9-selenabicyclo[3.3.1]nonane (22) was obtained under similar conditions as compound 17 as a grey oil, yield: 96%.
1H NMR (400 MHz, CDCl3, ppm): δ 1.60–1.75 (m, 2H, CH2), 1.92–2.00 (m, 2H, CH2), 2.18–2.28 (m, 2H, CH2), 2.63–2.69 (m, 2H, CH2), 2.98–3.02 (m, 2H, CHSe), 3.42–3.48 (m, 2H, CHN), 3.74–3.89 (m, 4H, CH2N), 7.24–7.26 (m, 2H, CHAr), 7.28–7.36 (m, 8H, CHAr).
13C NMR (100 MHz, CDCl3, ppm): δ 27.6 (CH2), 29.2 (CHSe), 30.4 (CH2), 50.7 (CH2N), 59.1 (CHN), 126.7 (CHAr), 127.8 (CHAr), 128.1 (CHAr), 140.4 (CAr).
Anal. calcd for C22H28N2Se (399.43): C 66.15, H 7.07, N 7.01, Se 19.77%. Found: C 65.96, H 6.97, N 7.16, Se 19.89%.
2,6-Bis(phenylamino)-9-selenabicyclo[3.3.1]nonane (23) was obtained under similar conditions as compound 17 as a beige powder, mp 196–197 °C, yield: 95%.
1H NMR (400 MHz, CDCl3, ppm): δ 1.76–1.88 (m, 2H, CH2), 2.10–2.18 (m, 2H, CH2), 2.28–2.39 (m, 2H, CH2), 2.57–2.64 (m, 2H, CH2), 3.17–3.20 (m, 2H, CHSe), 4.27–4.34 (m, 2H, CHN), 6.54–6.69 (m, 4H, CHAr), 6.72–6.78 (m, 2H, CHAr), 7.18–7.25 (m, 4H, CHAr).
13C NMR (100 MHz, CDCl3, ppm): δ 28.1 (CH2), 28.3 (CHSe), 30.5 (CH2), 55.7 (CHN), 113.9 (CHAr), 118.1 (CHAr), 129.6 (CHAr), 146.0 (CAr).
IR (KBr): 3417, 3366, 3014, 2910, 1926, 1600, 1502, 1429, 1309, 1260, 1152, 1103, 947, 893, 752, 693, 509 cm−1.
Anal. calcd for C20H24N2Se (371.38): C 64.68, H 6.51, N 7.54, Se 21.26%. Found: C 64.63, H 6.49, N 7.58, Se 21.31%.
2,6-Bis(tert-butylamino)-9-selenabicyclo[3.3.1]nonane (24) was obtained under similar conditions as compound 17 as a grey oil, yield: 91%.
1H NMR (400 MHz, CDCl3, ppm): δ 1.05 (s, 18H, CH3), 1.52–1.65 (m, 2H, CH2), 1.74–1.81 (m, 2H, CH2), 2.11–2.21 (m, 2H, CH2), 2.62–2.71 (m, 4H, CHSe, CH2), 3.33–3.40 (m, 2H, CHN).
13C NMR (100 MHz, CDCl3, ppm): δ 28.8 (CH2), 30.1 (CH3), 32.9 (CHSe), 33.3 (CH2), 51.2 (CN), 54.8 (CHN).
Anal. calcd for C16H32N2Se (331.40): C 57.99, H 9.73, N 8.45, Se 23.83%. Found: C 58.14, H 9.90, N 8.59, Se 24.04%.

3.5. The Synthesis of Free Base Compounds 25–30 from the Secondary Amines

2,6-Bis(diethylamino)-9-selenabicyclo[3.3.1]nonane (25). A solution of diethylamine (0.131 g, 1.8 mmol) in acetonitrile (1 mL) was added dropwise to a mixture of compound 2 (0.3 g, 0.86 mmol) and acetonitrile (9 mL) followed by the addition of powdered Na2CO3 (0.28 g, 3.26 mmol) with stirring at room temperature. The reaction mixture was stirred overnight (20 h) at room temperature. The main part of the solvent was removed on a rotary evaporator and water (10 mL) and methylene chloride (15 mL) were added. The aqueous phase was extracted with methylene chloride (3 × 15 mL). The organic phase was dried over Na2SO4 and the solvent was removed on a rotary evaporator. The residue was dried in a vacuum, giving the product (278 mg, 97% yield) as a grey oil.
1H NMR (400 MHz, CDCl3, ppm): δ 0.88 (t, 12H, CH3), 1.71–1.79 (m, 2H, CH2), 1.88–1.99 (m, 2H, CH2), 2.16–2.26 (m, 2H, CH2), 2.46–2.66 (m, 10H, CH2N, CH2), 2.91–2.94 (m, 2H, CHSe), 3.28–3.33 (m, 2H, CHN).
13C NMR (100 MHz, CDCl3, ppm): δ 13.0 (CH3), 27.2 (CH2) 29.2 (CHSe), 30.6 (CH2), 43.3 (CH2N), 62.0 (CHN).
Anal. calcd for C16H32N2Se (331.40): C 57.99, H 9.73, N 8.45, Se 23.83%. Found: C 58.32, H 9.92, N 8.62, Se 23.64%.
2,6-Bis(diallylamino)-9-selenabicyclo[3.3.1]nonane (26) was obtained under similar conditions as compound 25 as a grey oil, yield: 94%.
1H NMR (400 MHz, CDCl3, ppm): δ 1.81–1.90 (m, 2H, CH2), 1.94–2.07 (m, 2H, CH2), 2.24–2.34 (m, 2H, CH2), 2.62–2.69 (m, 2H, CH2), 2.99–3.03 (m, 2H, CHSe), 3.16–3.30 (m, 8H, CH2N), 3.43–3.49 (m, 2H, CHN), 5.02–5.15 (m, 8H, CH=CH2), 5.72–5.84 (m, 4H, CH=CH2).
13C NMR (100 MHz, CDCl3, ppm): δ 27.0 (CH2), 29.3 (CHSe), 30.7 (CH2), 53.0 (CH2N), 61.9 (CHN), 116.4 (CH=CH2), 136.6 (CH=CH2).
Anal. calcd for C20H32N2Se (379.44): C 63.31, H 8.50, N 7.38, Se 20.81%. Found: C 63.19, H 8.62, N 7.54, Se 21.01%.
2,6-Bis(diisopropyl)-9-selenabicyclo[3.3.1]nonane (27) was obtained under similar conditions as compound 25 as a grey oil, yield: 95%.
1H NMR (400 MHz, CDCl3, ppm): δ 1.01 (d, 12H, CH3), 1.06 (d, 12H, CH3), 1.69–1.75 (m, 2H, CH2), 2.26–2.37 (m, 2H, CH2), 2.42–2.51 (m, 2H, CH2), 2.65–2.69 (m, 2H, CHSe), 2.69–2.74 (m, 2H, CH2), 3.16–3.28 (m, 4H, CHCH3), 3.63–3.68 (m, 2H, CHN).
13C NMR (100 MHz, CDCl3, ppm): δ 22.4 (CH3), 24.4 (CH3), 29.6 (CH2), 32.7 (CHSe), 35.7 (CH2), 45.8 (CHCH3), 57.4 (CHN).
IR (film): 3718, 3434, 2960, 1611, 1457, 1360, 1183, 1135, 1083, 1014, 909, 857, 653, 569, 493 cm−1.
Anal. calcd for C20H40N2Se (387.50): C 61.99, H 10.40, N 7.23, Se 20.38%. Found: C 62.14, H 10.48, N 7.11, Se 20.43%.
2,6-Bis(1-pyrrolidinyl)-9-selenabicyclo[3.3.1]nonane (28) was obtained under similar conditions as compound 25 as a white powder, mp 109–110 °C, yield: 95%.
1H NMR (400 MHz, CDCl3, ppm): δ 1.72–1.79 (m, 8H, CH2CH2N), 1.90–2.00 (m, 2H, CH2), 2.14–2.25 (m, 2H, CH2), 2.51–2.57 (m, 8H, CH2N), 2.62–2.68 (m, 2H, CH2), 2.74–2.80 (m, 2H, CHN), 2.99–3.02 (m, 2H, CHSe).
13C NMR (100 MHz, CDCl3, ppm): δ 23.2 (CH2CH2N), 28.4 (CH2), 29.6 (CHSe), 29.7 (CH2), 51.9 (CH2N), 67.7 (CHN). 77Se NMR (76 MHz, CDCl3, ppm): δ 347.1.
IR (KBr): 3434, 2932, 2775, 1631, 1424, 1354, 1305, 1257, 1197, 1125, 1040, 948, 893, 592 cm−1.
Anal. calcd for C16H28N2Se (327.37): C 58.70, H 8.62, N 8.56, Se 24.12%. Found: C 58.73, H 8.61, N 8.58, Se 24.06%.
2,6-Bis(1-piperidinyl)-9-selenabicyclo[3.3.1]nonane (29) was obtained under similar conditions as compound 25 as a white powder, mp 105–106 °C, yield: 93%.
1H NMR (400 MHz, CDCl3, ppm): δ 1.40–1.47 (m, 4H, CH2CH2CH2N), 1.52–1.61 (m, 8H, CH2CH2N), 1.86–2.07 (m, 4H, CH2), 2.23–2.33 (m, 2H, CH2), 2.52–2.62 (m, 8H, CH2N), 2.69–2.75 (m, 2H, CH2), 3.03–3.08 (m, 2H, CHN), 3.14–3.18 (m, 2H, CHSe).
13C NMR (100 MHz, CDCl3, ppm): δ 24.9 (CH2CH2CH2N), 26.6 (CH2CH2N), 27.2 (CH2), 28.6 (CHSe), 30.7 (CH2), 51.3 (CH2N), 66.8 (CHN).
IR (KBr): 3991, 2929, 2850, 2786, 2523, 1655, 1440, 1376, 1306, 1259, 1099, 1036, 978, 900, 786, 732, 617 cm−1.
Anal. calcd for C18H32N2Se (355.42): C 60.83, H 9.07, N 7.88, Se 22.22%. Found: C 60.58, H 8.97, N 8.04, Se 22.01%.
2,6-Dimorpholinyl-9-selenabicyclo[3.3.1]nonane (30) was obtained under similar conditions as compound 25 as a yellowish powder, mp 139–140 °C, yield: 91%.
1H NMR (400 MHz, CDCl3, ppm): δ 1.71–1.84 (m, 2H, CH2), 1.87–1.95 (m, 2H, CH2), 2.12–2.21 (m, 2H, CH2), 2.50–2.53 (m, 8H, CH2N), 2.62–2.69 (m, 2H, CH2), 2.84–2.90 (m, 2H, CHN), 3.05–3.08 (m, 2H, CHSe), 3.64–3.69 (m, 8H, CH2O).
13C NMR (100 MHz, CDCl3, ppm): δ 27.0 (CH2), 27.3 (CHSe), 29.1 (CH2), 50.7 (CH2N), 65.9 (CHN), 67.4 (CH2O).
IR (KBr): 2945, 2857, 2794, 1638, 1449, 1273, 1191, 1115, 987, 925, 878, 792, 712, 657, 612, 513 cm−1.
Anal. calcd for C16H28N2O2Se (359.36): C 53.48, H 7.85, N 7.80, Se 21.97%. Found: C 53.72, H 7.98, N 7.66, Se 22.10%.

3.6. The Synthesis of Diamino Derivative 31

2,6-Diamino-9-selenabicyclo[3.3.1]nonane (31). To a solution of diazide 32 [67] (271 mg, 1 mmol) in THF (4 mL), PPh3 was added (1040 mg, 4 mmol) at room temperature. After stirring at room temperature for 2 h and at 40–50 °C for 6 h, H2O (360 mg) was added at the same temperature. The mixture was stirred at 40–50 °C for 8 h and 50–60 °C for 2 h; the solvent was removed on a rotary evaporator and the residue was subjected to column chromatography (eluent: hexane, then hexane/chloroform 8:1, then hexane/chloroform 4:1), giving the product (197 mg, 90% yield) as a colorless oil.
1H NMR (400 MHz, CDCl3, ppm): δ 1.41 (s, 4H, NH2), 1.57–1.69 (m, 2H, CH2), 1.91–1.97 (m, 2H, CH2), 2.21–2.31 (m, 2H, CH2), 2.61–2.67 (m, 2H, CH2), 2.68–2.71 (m, 2H, CHSe), 3.60–3.65 (m, 2H, CHN).
13C NMR (100 MHz, CDCl3, ppm): δ 27.1 (CH2), 32.2 (CHSe), 32.8 (CH2), 53.7 (CHN).
77Se NMR (76 MHz, CDCl3, ppm): δ 309.3.
IR (film): 3351, 3280, 2924, 2687, 2214, 1583, 1480, 1362, 1265, 1092, 909, 731, 643, 491 cm−1.
Anal. calcd for C8H16N2Se (219.19): C 43.84, H 7.36, N 12.78, Se 36.02%. Found: C 43.69, H 7.26, N 12.89, Se 35.74%.
The Synthesis of diamine 31 from compound 2. A solution of compound 2 (0.347 g, 1 mmol) in methylene chloride (10 mL) was added to a 10% solution of ammonia (15 mL) containing K2CO3 (1 g). The reaction mixture was stirred for 48 h at room temperature. The organic phase was separated, dried over Na2SO4, and the solvent was removed on a rotary evaporator. The residue was subjected to column chromatography (eluent: hexane, then hexane/chloroform 8:1, then hexane/chloroform 4:1), giving the product (178 mg, 81% yield).

3.7. The Synthesis of Selenabicyclo[3.3.1]nonene-2 Derivatives 36–42

6-Bromo-9-selenabicyclo[3.3.1]nonene-2 (36). A solution of compound 2 (0.694 g, 2 mmol) in acetonitrile (10 mL) was heated at 55–65 °C with stirring for 12 h. Acetonitrile was removed on a rotary evaporator. The residue was analyzed by NMR, which showed an 80% conversion of compound 2, and subjected to column chromatography (eluent: hexane, then hexane/chloroform 8:1), giving the product (383 mg, 90% yield based on consumed compound 2).
1H NMR (400 MHz, CDCl3, ppm): δ 2.10–2.17 (m, 1H, CH2), 2.22–2.29 (m, 2H, CH2), 2.31–2.40 (m, 1H, CH2), 2.58–2.71 (m, 2H, CH2), 3.39–3.44 (m, 2H, CHSe), 5.08–5.14 (m, 1H, CHBr), 5.86–5.95 (m, 1H, CH=CH), 5.96–6.02 (m, 1H, CH=CH).
13C NMR (100 MHz, CDCl3, ppm): δ 25.7 (CH2), 28.0 (CH2), 30.9 (CHSe), 33.7(CHSe), 36.0 (CH2), 59.9 (CHBr), 128.0 (CH=CH), 132.0 (CH=CH). 77Se NMR (76 MHz, CDCl3, ppm): δ 336.1.
Anal. calcd for C8H11BrSe (266.04): C 36.12, H 4.17, Br 30.03, Se 29.68%. Found: C 36.14, H 4.18, Br 29.97, Se 29.81%.
6-Azido-9-selenabicyclo[3.3.1]non-2-ene (37). A solution of sodium azide (1 g, 15.4 mmol) in water (5.3 mL) was added dropwise to a mixture of compound 36 (0.532 g, 2 mmol) and acetonitrile (8 mL) with stirring at room temperature. The reaction mixture was stirred overnight (16 h) at room temperature. Acetonitrile was removed on a rotary evaporator and the residue was extracted with methylene chloride (3 × 10 mL). The organic phase was dried over CaCl2, the solvent was removed on a rotary evaporator and the residue was dried in a vacuum, giving the product (433 mg, 95% yield) as a grey oil.
1H NMR (400 MHz, CDCl3, ppm): δ 1.67–1.79 (m, 1H, CH2), 1.85–1.93 (m, 1H, CH2), 2.14–2.32 (m, 3H, CH2), 2.51–2.60 (m, 1H, CH2), 3.20–3.25 (m, 1H, CHSe), 3.32–3.37 (m, 1H, CHSe), 4.21–4.27 (m, 1H, CHN), 5.87–5.94 (m, 2H, CH=CH).
13C NMR (100 MHz, CDCl3, ppm): δ 24.5 (CH2), 25.6 (CH2) 27.3 (CHSe), 30.3 (CHSe), 34.0 (CH2), 65.4 (CHN), 128.4 (HC=CH), 131.9 (HC=CH). 77Se NMR (76 MHz, CDCl3, ppm): δ 330.2.
IR (film): 3309, 2918, 2474, 2089, 1648, 1433, 1365, 1254, 1157, 1112, 1001, 949, 883, 700, 617, 557 cm−1.
Anal. calcd for C8H11N3Se (228.15): C 42.12, H 4.86, N 18.42, Se 34.61%. Found: C 42.17, H 4.88, N 18.36, Se 34.71%.
6-Amino-9-selenabicyclo[3.3.1]nonene-2 (38). To a solution of azide 37 (228 mg, 1 mmol) in THF (3 mL), PPh3was added (524 mg, 2 mmol) at room temperature. After stirring at room temperature for 4 h and at 40–50 °C for 4 h, H2O (180 mg) was added at the same temperature. The mixture was stirred at room temperature for 8 h and 50–60 °C for 2 h, the solvent was removed on a rotary evaporator and the residue was subjected to column chromatography (eluent: hexane, then hexane/chloroform 8:1, then hexane/chloroform 4:1), giving the product (178 mg, 88% yield).
1H NMR (400 MHz, CDCl3, ppm): δ 1.45 (s, 2H, NH2), 1.64–1.76 (m, 2H, CH2), 1.96–2.07 (m, 2H, CH2), 2.19–2.28 (m, 2H, CH2), 2.59–2.66 (m, 2H, CH2), 2.65–2.72 (m, 2H, CHSe), 3.58–3.64 (m, 1H, CHN), 5.87–5.94 (m, 2H, CH=CH.
13C NMR (100 MHz, CDCl3, ppm): δ 25.2 (CH2), 25.9 (CH2), 27.8 (CH2), 33.8 (CHSe), 34.0 (CHSe), 54.9 (CHN), 128.4 (HC=CH), 131.9 (HC=CH). 77Se NMR (76 MHz, CDCl3): 276.4.
IR (film): 3351, 3011, 2925, 1958, 1647, 1571, 1448, 1339, 1278, 1117, 946, 867, 694, 648, 556 cm−1.
Anal. calcd for C8H13NSe (202.156): C 47.53, H 6.48, N 6.93, Se 39.06%. Found: C 47.79, H 6.29, N 7.08, Se 38.84%.
6-Methoxy-9-selenabicyclo[3.3.1]nonene-2 (39). Methanol (0.4 mL) and NaHCO3 (0.05 g) were added to a solution of bromide 36 (133 mg, 0.5 mmol) in acetonitrile (2 mL). The mixture was stirred overnight (20 h) at room temperature and filtered. The solvent was on a rotary evaporator and the residue was dried in a vacuum to give the product as a colorless oil (yield: 107 mg, 99%), which did not require additional purification.
1H NMR (400 MHz, CDCl3, ppm): δ 1.54–1.65 (m, 1H, CH2), 1.83–1.91 (m, 1H, CH2), 2.16–2.31 (m, 3H, CH2), 2.43–2.52 (m, 1H, CH2), 3.28–3.33 (m, 1H, CHSe), 3.35–3.42 (m, 4H, CHSe, CH3), 3.78–3.84 (m, 1H, CHO), 5.85–5.92 (m, 2H, CH=CH).
13C NMR (100 MHz, CDCl3, ppm): δ 25.1 (CH2), 25.8 (CH2) 26.5 (CHSe), 29.3 (CHSe), 34.9 (CH2), 55.9 (CH3), 82.4 (CHO), 128.5 (HC=CH), 132.1 (HC=CH). 77Se NMR (76 MHz, CDCl3, ppm): δ 257.1.
Anal. calcd for C9H14OSe (217.17): C 49.77, H 6.50, Se 36.36%. Found: C 49.69, H 6.32, Se 36.41%.
6-Ethoxy-9-selenabicyclo[3.3.1]nonene-2 (40) was obtained under similar conditions as compound 39 as a colorless oil, yield: 97%.
1H NMR (400 MHz, CDCl3, ppm): δ 1.54–1.65 (m, 1H, CH2), 1.83–1.91 (m, 1H, CH2), 2.16–2.31 (m, 3H, CH2), 2.43–2.52 (m, 1H, CH2), 3.28–3.33 (m, 1H, CHSe), 3.35–3.42 (m, 4H, CHSe, CH3), 3.78–3.84 (m, 1H, CHO), 5.84–5.92 (m, 2H, CH=CH).
13C NMR (100 MHz, CDCl3, ppm): δ 15.9 (CH3), 25.5 (CH2), 25.8 (CH2) 26.6 (CHSe), 30.0 (CHSe), 35.0 (CH2), 63.5 (CH2O), 80.7 (CHO), 128.4 (HC=CH), 132.1 (HC=CH). 77Se NMR (76 MHz, CDCl3, ppm): δ 259.4.
Anal. calcd for C10H16OSe (231.19): C 51.95, H 6.98, Se 34.15%. Found: C 51.82, H 6.89, Se 34.17%.
6-Isobutoxy-9-selenabicyclo[3.3.1]nonene-2 (41) was obtained under similar conditions as compound 39 as a colorless oil, yield: 94%.
1H NMR (400 MHz, CDCl3): δ 0.89–0.92 (m, 6H, CH3), 1.55–1.67 (m, 1H, CH2), 1.76–1.88 (m, 2H, CH2, CHCH3), 2.14–2.36 (m, 3H, CH2), 2.42–2.50 (m, 1H, CH2), 3.18–3.22 (m, 1H, CHSe), 3.27–3.34 (m, 3H, CHSe, CH2O), 3.81–3.87 (m, 1H, CHO), 5.83–5.91 (m, 2H, CH=CH).
13C NMR (100 MHz, CDCl3): δ 19.5 (CH3), 19.6 (CH3), 25.4 (CH2), 25.8 (CH2) 26.6 (CHSe), 28.9 (CH3CH), 30.0 (CHSe), 35.0 (CH2), 75.3 (CH2O), 80.9 (CHO), 128.4 (HC=CH), 132.1 (HC=CH). 77Se NMR (76 MHz, CDCl3, ppm): δ 257.5.
Anal. calcd for C12H20OSe (259.25): C 55.59, H 7.78, O 6.17, Se 30.46%. Found: C 55.64, H 7.80, Se 30.58%.
6-Butoxy-9-selenabicyclo[3.3.1]nonene-2 (42) was obtained under similar conditions as compound 39 as a colorless oil, yield: 95%.
1H NMR (400 MHz, CDCl3): δ 0.92 (t, 3H, CH3), 1.33–1.44 (m, 2H, CH2), 1.49–1.60 (m, 2H, CH2), 1.60–1.67 (m, 1H, CH2), 1.80–1.86 (m, 1H, CH2), 2.14–2.36 (m, 3H, CH2), 2.42–2.50 (m, 1H, CH2), 3.26–3.30 (m, 1H, CHSe), 3.30–3.34 (m, 1H, CHSe), 3.41–3.46 (m, 2H, CH2O), 3.53–3.59 (m, 2H, CH2O), 3.84–3.89 (m, 1H, CHO), 5.84–5.91 (m, 2H, CH=CH).
13C NMR (100 MHz, CDCl3): δ 14.0 (CH3), 19.5 (CH2), 25.5 (CH2) 25.8 (CHSe), 26.6 (CH2), 30.0 (CHSe), 32.4 (CH2), 35.0 (CH2), 68.1 (CH2O), 80.8 (CHO), 128.4 (HC=CH), 132.1 (HC=CH). 77Se NMR (76 MHz, CDCl3, ppm): δ 330.6.
Anal. calcd for C12H20OSe (259.25): C 55.59, H 7.78, Se 30.46%. Found: C 55.56, H 7.74, Se 30.59%.

4. Conclusions

The efficient and selective synthesis of 6-bromo-9-selenabicyclo[3.3.1]nonene-2 was developed by the remarkable reaction of 2,6-dibromo-9-selenabicyclo[3.3.1]nonane with acetonitrile. Azido-, amino- and alkoxy-9-selenabicyclo[3.3.1]nonene-2 derivatives were obtained in 88–99% yields based on the azidation and alkoxylation reactions of 6-bromo-9-selenabicyclo[3.3.1]nonene-2. The 9-selenabicyclo[3.3.1]nonene-2 derivatives are a new class of organoselenium heterocyclic compounds and are prospective intermediates for organic synthesis.
The methods of amination of 2,6-dibromo-9-selenabicyclo[3.3.1]nonane are characterized by high yields of target products (88–98%), high selectivity and simple reaction conditions (room temperature), broad-scope reactions (ammonia, both primary and secondary amines with various substituents (Et, i-Pr, Bu, i-Bu, t-Bu, PhCH2, Ph, morpholine, piperidine, pyrrolidine and 2-vinyloxyethylamine) and convenient isolation procedures. The products were isolated from the reaction mixture by filtration (dihydrobromide salts) or by solvent removing (free base diamino derivatives) and did not require additional purifications. These methods meet the criteria of click chemistry.
Four water-soluble dihydrobromide compounds, containing diethylamino, isopropylamino, phenylamino and pyrrolidine substituents, were found to exhibit high GPx mimetic activity.

Supplementary Materials

The supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms242417485/s1.

Author Contributions

Conceptualization, M.V.M. and S.V.A.; Methodology, M.V.M. and V.A.P.; Validation, M.V.M. and V.A.P.; Formal analysis, S.V.A. and V.A.P.; Investigation, M.V.M. and V.A.P.; Data curation, S.V.A. and V.A.P.; Writing—original draft preparation, M.V.M.; Writing—review and editing, V.A.P. All authors have read and agreed to the published version of the manuscript.

Funding

This study was funded by Russian Science Foundation (grant No 22-13-00339).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Acknowledgments

The authors thank Baikal Analytical Center SB RAS for providing the instrumental equipment for structural investigations. We are grateful to Svetlana A. Zhivet’eva and Tatyana I. Yaroshenko for their experimental assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Santi, C.; Tidei, C.; Scalera, C.; Piroddi, M.; Galli, F. Selenium Containing Compounds from Poison to Drug Candidates: A Review on the GPx-like Activity. Curr. Chem. Biol. 2013, 7, 25. [Google Scholar] [CrossRef]
  2. Chuai, H.; Zhang, S.Q.; Bai, H.; Li, J.; Wang, Y.; Sun, J.; Wen, E.; Zhang, J.; Xin, M. Small molecule selenium-containing compounds: Recent development and therapeutic applications. Eur. J. Med. Chem. 2021, 223, 113621. [Google Scholar] [CrossRef] [PubMed]
  3. Hou, W.; Dong, H.; Zhang, X.; Wang, Y.; Su, L.; Xu, H. Selenium as an emerging versatile player in heterocycles and natural products modification. Drug Discov. Today 2022, 27, 2268. [Google Scholar] [CrossRef] [PubMed]
  4. Lenardão, E.J.; Santi, C.; Sancineto, L. Bioactive Organoselenium Compounds and Therapeutic Perspectives. In New Frontiers in Organoselenium Compounds; Springer International Publishing: Cham, Switzerland, 2018; pp. 99–143. [Google Scholar]
  5. Santi, C. (Ed.) Organoselenium Chemistry: Between Synthesis and Biochemistry; Bentham Science Publishers: Sharjah, United Arab Emirates, 2014; 563p. [Google Scholar]
  6. Nogueira, C.W.; Zeni, G.; Rocha, J.B.T. Organoselenium and organotellurium compounds: Toxicology and pharmacology. Chem. Rev. 2004, 104, 6255–6286. [Google Scholar] [CrossRef] [PubMed]
  7. Thomé, G.R.; Oliveira, V.A.; Schetinger, M.R.C.; Saraiva, R.A.; Souza, D.; Rodrigues, O.E.D.; Rocha, J.B.T.; Ineu, R.P.; Pereira, M.E. Selenothymidine protects against biochemical and behavioral alterations induced by ICV-STZ model of dementia in mice. Chem. Biol. Interact. 2018, 294, 135–143. [Google Scholar] [CrossRef] [PubMed]
  8. Tiekink, E.R.T. Therapeutic potential of selenium and tellurium compounds: Opportunities yet unrealized. Dalton Trans. 2012, 41, 6390–6395. [Google Scholar] [CrossRef] [PubMed]
  9. Mugesh, G.; du Mont, W.W.; Sies, H. Chemistry of biologically important synthetic organoselenium compounds. Chem. Rev. 2001, 101, 2125–2179. [Google Scholar] [CrossRef] [PubMed]
  10. Schwarz, K.; Foltz, C.M. Selenium as an integral part of factor 3 against dietary necrotic liver degeneration. J. Am. Chem. Soc. 1957, 79, 3292–3293. [Google Scholar] [CrossRef]
  11. Ninomiya, M.; Garud, D.R.; Koketsu, M. Biologically significant selenium-containing heterocycles. Coord. Chem. Rev. 2011, 255, 2968–2990. [Google Scholar] [CrossRef]
  12. Rotruck, J.T.; Pope, A.L.; Ganther, H.E.; Swanson, A.B.; Hafeman, D.G.; Hoekstra, W.G. Selenium: Biochemical role as a component of glutathione peroxidase. Science 1973, 179, 588–590. [Google Scholar] [CrossRef]
  13. Banerjee, B.; Koketsy, M. Recent developments in the synthesis of biologically relevant selenium-containing scaffolds. Coord. Chem. Rev. 2017, 339, 104–127. [Google Scholar] [CrossRef]
  14. Tucci, A.R.; da Rosa, R.M.; Rosa, A.S.; Augusto Chaves, O.; Ferreira, V.N.S.; Oliveira, T.K.F.; Coutinho Souza, D.D.; Borba, N.R.R.; Dornelles, L.; Rocha, N.; et al. Antiviral Effect of 5’-Arylchalcogeno-3-aminothymidine Derivatives in SARS-CoV-2 Infection. Molecules 2023, 28, 6696. [Google Scholar] [CrossRef] [PubMed]
  15. Ruberte, A.C.; Sanmartin, C.; Aydillo, C.; Sharma, A.K.; Plano, D. Development and Therapeutic Potential of Selenazo Compounds. J. Med. Chem. 2020, 63, 1473–1489. [Google Scholar] [CrossRef] [PubMed]
  16. Chu, C.K.; Ma, L.; Olgen, S.; Pierra, C.; Du, J.; Gumina, G.; Gullen, E.; Cheng, Y.-C.; Schinazi, R.F. Synthesis and Antiviral Activity of Oxaselenolane Nucleosides. J. Med. Chem. 2000, 43, 3906–3912. [Google Scholar] [CrossRef] [PubMed]
  17. Sancineto, L.; Mariotti, A.; Bagnoli, L.; Marini, F.; Desantis, J.; Iraci, N.; Santi, C.; Pannecouque, C.; Tabarrini, O. Design and Synthesis of DiselenoBisBenzamides (DISeBAs) as Nucleocapsid Protein 7 (NCp7) Inhibitors with anti-HIV Activity. J. Med. Chem. 2015, 58, 9601–9614. [Google Scholar] [CrossRef] [PubMed]
  18. Iraci, N.; Tabarrini, O.; Santi, C.; Sancineto, L. NCp7: Targeting a multitask protein for next-generation anti-HIV drug development. Part 2. Noncovalent inhibitors and nucleic acid binders. Drug Discov. Today 2018, 23, 687–695. [Google Scholar] [CrossRef] [PubMed]
  19. Gandin, V.; Khalkar, P.; Braude, J.; Fernandes, A.P. Organic selenium compounds as potential chemotherapeutic agents for improved cancer treatment. Free Radic. Biol. Med. 2018, 127, 80–97. [Google Scholar] [CrossRef] [PubMed]
  20. Braga, A.L.; Rafique, J. Synthesis of biologically relevant small molecules containing selenium. Part B. Anti-infective and anticancer compounds. In Patai’s Chemistry of Functional Groups. Organic Selenium and Tellurium Compounds; Rappoport, Z., Ed.; John Wiley and Sons: Chichester, UK, 2013; Volume 4, pp. 1053–1117. [Google Scholar]
  21. Alvarez-Pérez, M.; Ali, W.; Mar’c, M.; Handzlik, J.; Domínguez-Álvarez, E. Selenides and Diselenides: A Review of Their Anticancer and Chemopreventive Activity. Molecules 2018, 23, 628. [Google Scholar] [CrossRef]
  22. Misra, S.; Boylan, M.; Selvam, A.; Spallholz, J.E.; Björnstedt, M. Redox-active selenium compounds—From toxicity and cell death to cancer treatment. Nutrients 2015, 7, 3536–3556. [Google Scholar] [CrossRef]
  23. De Souza, D.; Mariano, D.O.C.; Nedel, F.; Schultze, E.; Campos, V.F.; Seixas, F.; da Silva, R.S.; Munchen, T.S.; Ilha, V.; Dornelles, L.; et al. New organochalcogen multitarget drug: Synthesis and antioxidant and antitumoral activities of chalcogenozidovudine derivatives. J. Med. Chem. 2015, 58, 3329–3339. [Google Scholar] [CrossRef]
  24. Bartolini, D.; Sancineto, L.; Fabro de Bem, A.; Tew, K.D.; Santi, C.; Radi, R.; Toquato, P.; Galli, F. Selenocompounds in Cancer Therapy: An Overview. In Advances in Cancer Research; Academic Press: Cambridge, MA, USA, 2017; Volume 136, pp. 259–302. [Google Scholar]
  25. Bhattacharya, A.; Seshadri, M.; Oven, S.D.; Tóth, K.; Vaughan, M.M.; Rustum, Y.M. Tumor vascular maturation and improved drug delivery induced by methylselenocysteine leads to therapeutic synergy with anticancer drugs. Clin. Cancer Res. 2008, 14, 3926–3932. [Google Scholar] [CrossRef] [PubMed]
  26. Ecker, A.; Ledur, P.C.; da Silva, R.S.; Leal, D.B.R.; Rodrigues, O.E.D.; Ardisson-Araújo, D.; Waczuk, E.P.; da Rocha, J.B.T.; Barbosa, N.V. Chalcogenozidovudine Derivatives with Antitumor Activity: Comparative Toxicities in Cultured Human Mononuclear Cells. Toxicol. Sci. 2017, 160, 30–46. [Google Scholar] [CrossRef] [PubMed]
  27. Da Rosa, R.M.; Piccoli, B.C.; da Silva, F.D.; Dornelles, L.; Rocha, J.B.T.; Sonego, M.S.; Begnini, K.R.; Collares, T.; Seixas, F.K.; Rodrigues, O.E.D. Synthesis, antioxidant and antitumoral activities of 5′-arylchalcogeno-3-aminothymidine (ACAT) derivatives. Med. Chem. Commun. 2017, 8, 408–414. [Google Scholar] [CrossRef] [PubMed]
  28. Spengler, G.; Gajdács, M.; Marc, M.; Domínguez-Álvarez, E.; Sanmartín, C. Organoselenium Compounds as Novel Adjuvants of Chemotherapy Drugs—A Promising Approach to Fight Cancer Drug Resistance. Molecules 2019, 24, 336. [Google Scholar] [CrossRef] [PubMed]
  29. Macegoniuk, K.; Grela, E.; Palus, J.; Rudzinska-Szostak, E.; Grabowiecka, A.; Biernat, M.; Berlicki, Ł. 1,2-Benzisoselenazol-3(2H)-one Derivatives As a New Class of Bacterial Urease Inhibitors. J. Med. Chem. 2016, 59, 8125–8133. [Google Scholar] [CrossRef] [PubMed]
  30. Al-Rubaie, A.Z.; Al-Jadaan, S.A.S.; Muslim, S.K.; Saeed, E.A.; Ali, E.T.; Al-Hasani, A.K.J.; Al-Salman, H.N.K.; Al-Fadal, S.A.M. Synthesis, characterization and antibacterial activity of some new ferrocenyl selenazoles and 3,5-diferrocenyl-1,2,4-selenadiazole. J. Organomet. Chem. 2014, 774, 43–47. [Google Scholar] [CrossRef]
  31. Dhau, J.S.; Singh, A.; Singh, A.; Sooch, B.S.; Brandão, P.; Félix, V. Synthesis and antibacterial activity of pyridylselenium compounds: Self-assembly of bis(3-bromo-2-pyridyl)diselenide via intermolecular secondary and π⋯π stacking interactions. J. Organomet. Chem. 2014, 766, 57–66. [Google Scholar] [CrossRef]
  32. Bhabak, K.P.; Mugesh, G. Functional Mimics of Glutathione Peroxidase: Bioinspired Synthetic Antioxidants. Acc. Chem. Res. 2010, 43, 1408–1419. [Google Scholar] [CrossRef]
  33. Gladyshev, V.N.; Hatfield, D.L. Selenocysteine-Containing Proteins in Mammals. J. Biomed. Sci. 1999, 6, 151–160. [Google Scholar] [CrossRef]
  34. Dhalla, N.S.; Elmoselhi, A.B.; Hata, T.; Makino, N. Status of myocardial antioxidants in ischemia-reperfusion injury. Cardiovasc. Res. 2000, 47, 446–456. [Google Scholar] [CrossRef]
  35. Bjørklund, G.; Shanaida, M.; Lysiuk, R.; Antonyak, H.; Klishch, I.; Shanaida, V.; Peana, M. Selenium: An Antioxidant with a Critical Role in Anti-Aging. Molecules 2022, 27, 6613. [Google Scholar] [CrossRef] [PubMed]
  36. Cai, Z.; Zhang, J.; Li, H. Selenium, aging and aging-related diseases. Aging Clin. Exp. Res. 2019, 31, 1035–1047. [Google Scholar] [CrossRef] [PubMed]
  37. Alehagen, U.; Opstad, T.B.; Alexander, J.; Larsson, A.; Aaseth, J. Impact of Selenium on Biomarkers and Clinical Aspects Related to Ageing. A Review. Biomolecules 2021, 11, 1478. [Google Scholar] [CrossRef] [PubMed]
  38. Parnham, M.J.; Sies, H. The early research and development of ebselen. Biochem. Pharmacol. 2013, 86, 1248–1253. [Google Scholar] [CrossRef] [PubMed]
  39. Wang, L.; Yang, Z.; Fu, J.; Yin, H.; Xiong, K.; Tan, Q.; Jin, H.; Li, J.; Wang, T.; Tang, W.; et al. Ethaselen: A potent mammalian thioredoxin reductase 1 inhibitor and novel organoselenium anticancer agent. Free Radic. Biol. Med. 2012, 52, 898–908. [Google Scholar] [CrossRef] [PubMed]
  40. Selvakumar, K.; Shah, P.; Singh, H.B.; Butcher, R.J. Synthesis, Structure, and Glutathione Peroxidase-Like Activity of Amino Acid Containing Ebselen Analogues and Diaryl Diselenides. Chem. Eur. J. 2011, 17, 12741–12755. [Google Scholar] [CrossRef] [PubMed]
  41. Sarma, B.K.; Mugesh, G. Glutathione Peroxidase (GPx)-like Antioxidant Activity of the Organoselenium Drug Ebselen:  Unexpected Complications with Thiol Exchange Reactions. J. Am. Chem. Soc. 2005, 127, 11477–11485. [Google Scholar] [CrossRef]
  42. Azad, G.K.; Tomar, R.S. Ebselen, a promising antioxidant drug: Mechanisms of action and targets of biological pathways. Mol. Biol. Rep. 2014, 41, 4865–4879. [Google Scholar] [CrossRef]
  43. Jin, Z.; Du, X.; Xu, Y.; Deng, Y.; Liu, M.; Zhao, Y.; Zhang, B.; Li, X.; Zhang, L.; Peng, C.; et al. Structure of Mpro from SARS-CoV-2 and discovery of its inhibitors. Nature 2020, 582, 289–293. [Google Scholar] [CrossRef]
  44. Weglarz-Tomczak, E.; Tomczak, J.M.; Talma, M.; Burda-Grabowska, M.; Giurg, M.; Brul, S. Identification of ebselen and its analogues as potent covalent inhibitors of papain-like protease from SARS-CoV-2. Sci. Rep. 2021, 11, 3640. [Google Scholar] [CrossRef]
  45. De Clercq, E.; Li, G. Approved Antiviral Drugs over the Past 50 Years. Clin. Microbiol. Rev. 2016, 29, 695–747. [Google Scholar] [CrossRef] [PubMed]
  46. Wanka, L.; Iqbal, K.; Schreiner, P.R. The Lipophilic Bullet Hits the Targets: Medicinal Chemistry of Adamantane Derivatives. Chem. Rev. 2013, 113, 3516–3604. [Google Scholar] [CrossRef] [PubMed]
  47. Potapov, V.A.; Amosova, S.V.; Belozerova, O.V.; Albanov, A.I.; Yarosh, O.G.; Voronkov, M.G. Synthesis of 3,6-dihalo-4,4-dimethyl-1,4-selenasilafulvenes. Chem. Heterocycl. Compd. 2003, 39, 549–550. [Google Scholar] [CrossRef]
  48. Potapov, V.A.; Musalov, M.V.; Musalova, M.V.; Amosova, S.V. Recent Advances in Organochalcogen Synthesis Based on Reactions of Chalcogen Halides with Alkynes and Alkenes. Curr. Org. Chem. 2016, 20, 136–145. [Google Scholar] [CrossRef]
  49. Patra, A.; Bendikov, M.; Chand, S. Poly(3,4-ethylenedioxyselenophene) and Its Derivatives: Novel Organic Electronic Materials. Acc. Chem. Res. 2014, 47, 1465–1474. [Google Scholar] [CrossRef] [PubMed]
  50. Kumar, P.; Kashid, V.S.; Mague, J.T.; Balakrishna, M.S. An efficient approach for the synthesis of functionalized selenoethers and selenacalix[4]thiophenes, {2,5-(μ-Se)(3,4-dialkoxythiophene)}4. Tetrahedron Lett. 2014, 55, 5232–5235. [Google Scholar] [CrossRef]
  51. Martins, G.M.; Back, D.F.; Kaufman, T.S.; Silveira, C.C. SeCl2-Mediated Approach Toward Indole-Containing Polysubstituted Selenophenes. J. Org. Chem. 2018, 83, 3252–3264. [Google Scholar] [CrossRef]
  52. Arsenyan, P. A simple method for the preparation of selenopheno[3,2-b] and [2,3-b]thiophenes. Tetrahedron Lett. 2014, 55, 2527–2529. [Google Scholar] [CrossRef]
  53. Sarbu, L.G.; Hopf, H.; Jones, P.G.; Birsa, L.M. Selenium halide-induced bridge formation in [2.2]paracyclophanes. Beilstein J. Org. Chem. 2014, 10, 2550–2555. [Google Scholar] [CrossRef]
  54. Volkova, Y.M.; Makarov, A.Y.; Zikirin, S.B.; Genaev, A.M.; Bagryanskaya, I.Y.; Zibarev, A.V. 3,1,2,4-Benzothiaselenadiazine and related heterocycles. Mendeleev Commun. 2017, 27, 19–22. [Google Scholar] [CrossRef]
  55. Abakumov, G.A.; Piskunov, A.V.; Cherkasov, V.K.; Fedushkin, I.L.; Ananikov, V.P.; Eremin, D.B.; Gordeev, E.G.; Beletskaya, I.P.; Averin, A.D.; Bochkarev, M.N.; et al. Organoelement chemistry: Promising growth areas and challenges. Russ. Chem. Rev. 2018, 87, 393–507. [Google Scholar] [CrossRef]
  56. Accurso, A.A.; Cho, S.-H.; Amin, A.; Potapov, V.A.; Amosova, S.V.; Finn, M.G. Thia-, Aza-, and Selena[3.3.1]bicyclononane Dichlorides: Rates vs Internal Nucleophile in Anchimeric Assistance. J. Org. Chem. 2011, 76, 4392–4395. [Google Scholar] [CrossRef] [PubMed]
  57. Potapov, V.A.; Amosova, S.V.; Abramova, E.V.; Musalov, M.V.; Lyssenko, K.A.; Finn, M.G. 2,6-Dihalo-9-selenabicyclo[3.3.1]nonanes and their complexes with selenium dihalides: Synthesis and structural characterization. New J. Chem. 2015, 39, 8055–8059. [Google Scholar] [CrossRef]
  58. Musalov, M.V.; Yakimov, V.A.; Potapov, V.A.; Amosova, S.V.; Borodina, T.N.; Zinchenko, S.V. A novel methodology for the synthesis of condensed selenium heterocycles based on the annulation and annulation–methoxylation reactions of selenium dihalides. New J. Chem. 2019, 43, 18476–18483. [Google Scholar] [CrossRef]
  59. Lamoureux, M.; Milne, J. Selenium chloride and bromide equilibria in aprotic solvents; A 77Se NMR study. Polyhedron 1990, 9, 589–595. [Google Scholar] [CrossRef]
  60. Kolb, H.C.; Finn, M.G.; Sharpless, K.B. Click chemistry: Diverse chemical function from a few good reactions. Angew. Chem. Int. Ed. 2001, 40, 2004–2021. [Google Scholar] [CrossRef]
  61. Converso, A.; Burow, C.; Marzinzik, A.; Sharpless, K.B.; Finn, M.G. 2,6-Dichloro-9-thiabicyclo[3.3.1]nonane: A Privileged, Bivalent Scaffold for the Display of Nucleophilic Components. J. Org. Chem. 2001, 66, 4386–4392. [Google Scholar] [CrossRef]
  62. Diaz, D.D.; Converso, A.; Sharpless, K.B.; Finn, M.G. 2,6-Dichloro-9-thiabicyclo[3.3.1]nonane: Multigram Display of Azide and Cyanide Components on a Versatile Scaffold. Molecules 2006, 11, 212–218. [Google Scholar] [CrossRef]
  63. Geng, Z.; Finn, M.G. Fragmentable Polycationic Materials Based on Anchimeric Assistance. Chem. Mater. 2016, 28, 146–152. [Google Scholar] [CrossRef]
  64. Yurieva, O.V.; Dubrovina, V.I.; Potapov, V.A.; Musalov, M.V.; Starovoitova, T.P.; Ivanova, T.A.; Gromova, A.V.; Shkaruba, T.T.; Balakhonov, S.V. Effect of Synthetic Organoselenium Drug on the Degree of Pathological Changes in the Organs of White Mice Immunized with Tularemia and Brucellosis Vaccines. Bull. Exp. Biol. Med. 2019, 168, 66–69. [Google Scholar] [CrossRef]
  65. Kumakura, F.; Mishra, B.; Priyadarsini, K.I.; Iwaoka, M. A Water-Soluble Cyclic Selenide with Enhanced Glutathione Peroxidase-Like Catalytic Activities. Eur. J. Org. Chem. 2010, 2010, 440–445. [Google Scholar] [CrossRef]
  66. McNeil, N.M.R.; Press, D.J.; Mayder, D.M.; Garnica, P.; Doyle, L.M.; Back, T.G. Enhanced Glutathione Peroxidase Activity of Water-Soluble and Polyethylene Glycol-Supported Selenides, Related Spirodioxyselenuranes, and Pincer Selenuranes. J. Org. Chem. 2016, 81, 7884–7897. [Google Scholar] [CrossRef] [PubMed]
  67. Musalov, M.V.; Potapov, V.A. Click chemistry of selenium dihalides: Novel bicyclic organoselenium compounds based on selenenylation/bis-functionalization reactions and evaluation of glutathione peroxidase-like activity. Int. J. Mol. Sci. 2022, 23, 15629. [Google Scholar] [CrossRef] [PubMed]
  68. Back, T.G.; Moussa, Z. Diselenides and Allyl Selenides as Glutathione Peroxidase Mimetics. Remarkable Activity of Cyclic Seleninates Produced In Situ by the Oxidation of Allyl ω-Hydroxyalkyl Selenides. J. Am. Chem. Soc. 2003, 125, 13455–13460. [Google Scholar] [CrossRef] [PubMed]
  69. Back, T.G.; Moussa, Z. Remarkable Activity of a Novel Cyclic Seleninate Ester as a Glutathione Peroxidase Mimetic and Its Facile in Situ Generation from Allyl 3-Hydroxypropyl. J. Am. Chem. Soc. 2002, 124, 12104–12105. [Google Scholar] [CrossRef] [PubMed]
  70. Back, T.G.; Dyck, B.P. A Novel Camphor-Derived Selenenamide That Acts as a Glutathione Peroxidase Mimetic. J. Am. Chem. Soc. 1997, 119, 2079–2083. [Google Scholar] [CrossRef]
Ijms 24 17485 g001
Figure 1. Examples of biologically active functionalized organoselenium compounds with nitrogen-containing groups: ebselen [38,39,40,41,42,43,44] and compounds with antibacterial [11], anti-HIV [16], and antiproliferative [11] activities, phosphodiesterase inhibitor [11], and GPx mimics [32].
Figure 1. Examples of biologically active functionalized organoselenium compounds with nitrogen-containing groups: ebselen [38,39,40,41,42,43,44] and compounds with antibacterial [11], anti-HIV [16], and antiproliferative [11] activities, phosphodiesterase inhibitor [11], and GPx mimics [32].
Ijms 24 17485 g001
Ijms 24 17485 g002
Figure 2. Adamantane drugs and the 2,6-diamino selenabicyclo[3.3.1]nonane derivatives obtained in this work.
Figure 2. Adamantane drugs and the 2,6-diamino selenabicyclo[3.3.1]nonane derivatives obtained in this work.
Ijms 24 17485 g002
Ijms 24 17485 sch001
Scheme 1. Synthesis of 2,6-dihalo-9-selenabicyclo[3.3.1]nonanes 2 and 3.
Scheme 1. Synthesis of 2,6-dihalo-9-selenabicyclo[3.3.1]nonanes 2 and 3.
Ijms 24 17485 sch001
Ijms 24 17485 sch002
Scheme 2. The synthesis of compounds 4 and 5.
Scheme 2. The synthesis of compounds 4 and 5.
Ijms 24 17485 sch002
Ijms 24 17485 sch003
Scheme 3. The synthesis of the products 6–8 from cyclic amines and compound 2.
Scheme 3. The synthesis of the products 6–8 from cyclic amines and compound 2.
Ijms 24 17485 sch003
Ijms 24 17485 sch004
Scheme 4. The synthesis of compounds 9–15 from primary amines and compound 2.
Scheme 4. The synthesis of compounds 9–15 from primary amines and compound 2.
Ijms 24 17485 sch004
Ijms 24 17485 sch005
Scheme 5. The synthesis of compounds 16 and 17.
Scheme 5. The synthesis of compounds 16 and 17.
Ijms 24 17485 sch005
Ijms 24 17485 sch006
Scheme 6. The synthesis of the products 18–24 from primary amines and compound 2.
Scheme 6. The synthesis of the products 18–24 from primary amines and compound 2.
Ijms 24 17485 sch006
Ijms 24 17485 sch007
Scheme 7. The synthesis of compounds 25–27.
Scheme 7. The synthesis of compounds 25–27.
Ijms 24 17485 sch007
Ijms 24 17485 sch008
Scheme 8. The synthesis of compounds 28–30.
Scheme 8. The synthesis of compounds 28–30.
Ijms 24 17485 sch008
Ijms 24 17485 sch009
Scheme 9. Two methods for the preparation of compound 31.
Scheme 9. Two methods for the preparation of compound 31.
Ijms 24 17485 sch009
Ijms 24 17485 sch010
Scheme 10. The reactions of the SeBr2-alkene adducts with amines.
Scheme 10. The reactions of the SeBr2-alkene adducts with amines.
Ijms 24 17485 sch010
Ijms 24 17485 sch011
Scheme 11. The synthesis of 6-bromo-9-selenabicyclo[3.3.1]nonene-2 (36).
Scheme 11. The synthesis of 6-bromo-9-selenabicyclo[3.3.1]nonene-2 (36).
Ijms 24 17485 sch011
Ijms 24 17485 sch012
Scheme 12. The synthesis of 6-amino-9-selenabicyclo[3.3.1]nonene-2 (38).
Scheme 12. The synthesis of 6-amino-9-selenabicyclo[3.3.1]nonene-2 (38).
Ijms 24 17485 sch012
Ijms 24 17485 sch013
Scheme 13. The synthesis of 6-alkoxy-9-selenabicyclo[3.3.1]nonenes-2 39–42.
Scheme 13. The synthesis of 6-alkoxy-9-selenabicyclo[3.3.1]nonenes-2 39–42.
Ijms 24 17485 sch013
Ijms 24 17485 g003
Figure 3. The evaluation of the GPx mimetic activity of compounds 4, 6, 9, 10, 12 and 14.
Figure 3. The evaluation of the GPx mimetic activity of compounds 4, 6, 9, 10, 12 and 14.
Ijms 24 17485 g003
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Musalov, M.V.; Amosova, S.V.; Potapov, V.A. Selenium Dibromide Click Chemistry: The Efficient Synthesis of Novel Selenabicyclo[3.3.1]nonene-2 and -nonane Derivatives. Int. J. Mol. Sci. 2023, 24, 17485. https://doi.org/10.3390/ijms242417485

AMA Style

Musalov MV, Amosova SV, Potapov VA. Selenium Dibromide Click Chemistry: The Efficient Synthesis of Novel Selenabicyclo[3.3.1]nonene-2 and -nonane Derivatives. International Journal of Molecular Sciences. 2023; 24(24):17485. https://doi.org/10.3390/ijms242417485

Chicago/Turabian Style

Musalov, Maxim V., Svetlana V. Amosova, and Vladimir A. Potapov. 2023. "Selenium Dibromide Click Chemistry: The Efficient Synthesis of Novel Selenabicyclo[3.3.1]nonene-2 and -nonane Derivatives" International Journal of Molecular Sciences 24, no. 24: 17485. https://doi.org/10.3390/ijms242417485

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
