First 24-Membered Macrocyclic 1,10-Phenanthroline-2,9-Diamides—An Efficient Switch from Acidic to Alkaline Extraction of f-Elements

Pavel S. Lemport
Valentine S. Petrov
Petr I. Matveev
Uliana M. Leksina
Vitaly A. Roznyatovsky
Igor P. Gloriozov
Alexandr V. Yatsenko
Viktor A. Tafeenko
Pavel V. Dorovatovskii
Viktor N. Khrustalev
Gleb S. Budylin
Evgeny A. Shirshin
Vitaliy Yu. Markov
Alexey A. Goryunkov
Vladimir G. Petrov
Yuri A. Ustynyuk
1 and
Valentine G. Nenajdenko
Department of Chemistry, Lomonosov Moscow State University, Leninskie Gory 1 bld. 3, Moscow 119991, Russia
National Research Center “Kurchatov Institute”, Moscow 123182, Russia
Department of Inorganic Chemistry, Peoples’ Friendship University of Russia (RUDN University), Moscow 115419, Russia
N.D. Zelinsky Institute of Organic Chemistry of Russian Academy of Sciences, Moscow 119991, Russia
Laboratory of Clinical Biophotonics, Biomedical Science and Technology Park, Sechenov First Moscow State Medical University, Moscow 119991, Russia
Faculty of Physics, M.V. Lomonosov Moscow State University, Moscow 119991, Russia
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2023, 24(12), 10261;
Submission received: 23 May 2023 / Revised: 13 June 2023 / Accepted: 15 June 2023 / Published: 17 June 2023
(This article belongs to the Special Issue Advanced Ligands for Coordination Chemistry)


A reaction of acyl chlorides derived from 1,10-phenanthroline-2,9-dicarboxylic acids with piperazine allows the preparation of the corresponding 24-membered macrocycles in good yield. The structural and spectral properties of these new macrocyclic ligands were thoroughly investigated, revealing promising coordination properties towards f-elements (Am, Eu). It was shown that the prepared ligands can be used for selective extraction of Am(III) from alkaline–carbonate media in presence of Eu(III) with an SFAm/Eu up to 40. Their extraction efficiency is higher than calixarene-type extraction of the Am(III) and Eu(III) pair. Composition of macrocycle–metal complex with Eu(III) was investigated by luminescence and UV-vis spectroscopy. The possibility of such ligands to form complexes of L:Eu = 1:2 stoichiometry is revealed.

1. Introduction

Macrocyclic compounds are a hot topic in many fields of chemistry and related sciences [1,2,3,4]. In particular, macrocycles are promising ligands for applied radiochemistry and radiopharmacy [5,6]. For example, crown esters are key compounds for the selective separation of strontium-90 and caesium-137 [7,8]. Calix[n]arenes are actively being investigated as extractants for the isolation of An(III) and Cs(I) from alkaline solutions of high-level nuclear waste (HLW), which is one of the problems of nuclear heritage in Russia (Federal State Unitary Enterprise “Mayak Production Association”, Ozersk) and in the USA (Hanford, Savannah River and Oak Ridge) [9,10,11,12]. Pillar[5]arenes [13] and modified calix[4]arenes are being investigated to isolate alpha-emitting long-lived radionuclides from spent nuclear fuel (SNF) reprocessing solutions [14,15].
Strategies for the effective design of macrocyclic compounds are constantly being improved [16,17]. 1,10-Phenanthroline is one of the most commonly used nitrogen-containing building blocks for the construction of ligands for coordination and organometallic chemistry [18,19]. For example, new fluorescent chemosensors for various metal ions can be developed based on this heterocyclic core [20,21,22,23]. A number of macrocycles containing a fragment of 1,10-phenanthroline have been described. For example, ligands of the “Phen-O-Ar-” type (Figure 1) have been studied as selective complexing agents for copper ions [24,25].
Polyamine macrocycles “Phen-CH2-NH-” are known to behave as multifunctional receptors for nucleotide anions [20,21,26,27,28]. Phenanthroline macrocycles containing acetylene fragments were described, as well as mixed heterocyclic systems in which either pyrrole fragments are present or two phenanthroline rings are connected through heteroatoms [29]. Some of these macrocycles demonstrated valuable properties. For example, macrocycles combining fragments of porphyrin and 1,10-phenanthroline are an efficient fluorescent sensor for Mg(II) ions [23]. Some phenanthroline macrocycles are efficient ligands, having been used in catalytic systems [30] for azide-alkyne cycloaddition, as decarboxylation catalysts of 2-cyano-2-phenylpropanoic acid [31,32] and as DNA intercalators [33] to inhibit the enzyme that controls the continuous growth of the tumor. Some examples of phenanthroline-derived macrocycles are given in Figure 1.
So far, a wide range of compounds has been tested for the isolation of various HLW components: carbomoylphosphinoxides and diglycolamides carrying “hard” oxygen atoms as binding centers; bis-triazinyl-substituted heterocyclic compounds with “soft” nitrogen atoms as binding centers and various mixed N,O-donor ligands [34,35,36,37].
Diamides of 1,10-phenanthroline-2,9-dicarboxylic acid have been found highly selective extractants for the separation of actinides and lanthanides for the processing and disposal of SNF [38]. We found in the literature only one example [39] of a macrocyclic 1,10-phenanthroline-2,9-diamide 7 (Figure 1). This work is devoted to the study of the synthesis of new macrocyclic 24-membered 1,10-phenanthroline-2,9-diamides, the investigation of their structure and extraction properties toward Am(III)/Eu(III) pair.

2. Results and Discussion

2.1. Synthesis and Structure of Macrocyclic Ligands

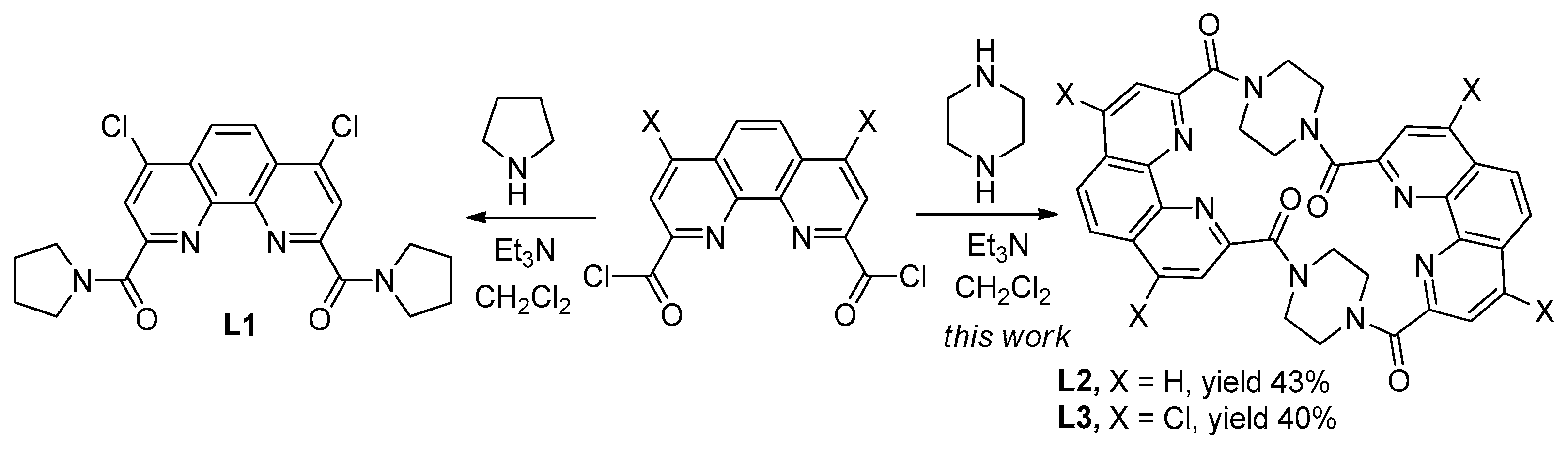

The extraction properties of 1,10-phenanthroline-2,9-dicarboxylic acid diamides toward f-elements can be customized by varying the structure of diamide fragments and the modification of the phenanthroline core [40,41,42,43,44,45,46,47,48]. We demonstrated earlier valuable properties of diamides prepared from cyclic amines [40,41,42]. For example, pyrrolidine-derived ligand L1 (Scheme 1) demonstrated advanced properties in this row [41]. In this study, piperazine was chosen as the starting amine to construct two first representatives of 24-membered macrocyclic phenanthrolinediamides L2 and L3. These new macrocycles were prepared in 43% and 40% yield, respectively (Scheme 1). Macrocycles L2 and L3 are white powders decomposing without melting at temperatures above 400 °C. They are slightly soluble in chloroform and methylene chloride, and markedly soluble in DMSO and DMF. Measuring the solubility of L2 and L3 in acetonitrile, chloroform and 3-nitrobenzotrifluoride (F-3), as well as evaluating their lipophilicity showed that L3 has a noticeable solubility in F-3 and acceptable lipophilicity (Table 1) for performing the extraction tests (see Section 2.3). Therefore, most attention in this study was focused on ligand L3. The structures of L2 and L3 were studied both in the solid state (IR spectroscopy and X-ray diffraction) and in solutions (NMR spectroscopy and dynamic light scattering).

2.1.1. Spectral Analysis

In the IR spectra of L2 and L3, the CO-bands appear in the range from 1625 to 1640 cm−1 (see Figures S1 and S2 in ESI) and are split which suggests the existence of different conformers of L2 and L3.

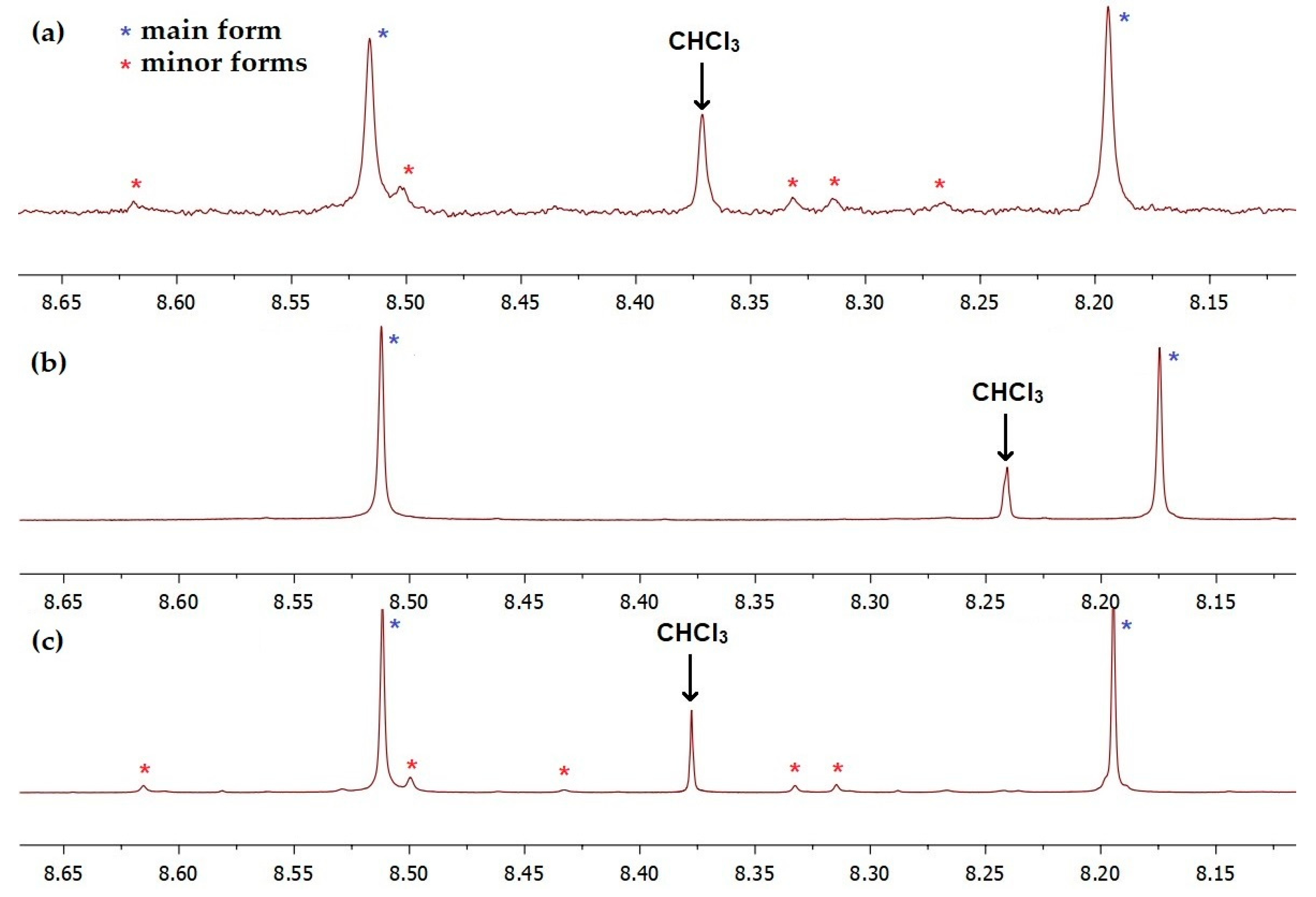

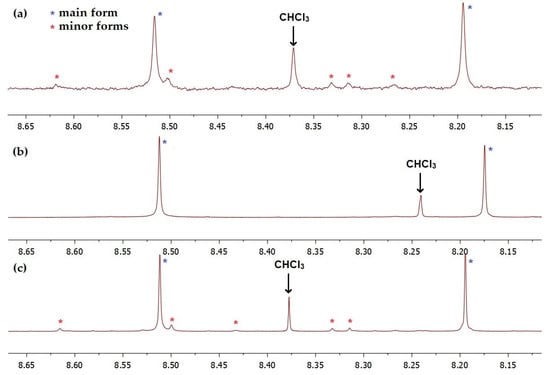

The 1H NMR spectrum of the macrocycle L3 in DMF at 25 °C (Figure 2), along with the signals of the main substance (marked with blue asterisks), contain additional signals of lower intensity (marked with red asterisks). With gradual heating of the sample, the broadening of all spectrum signals occurs. At 70 °C, they merge and shift towards a stronger field. The observed changes in the spectrum are completely reversible. This behavior indicates that L3 in solution exists as an equilibrium mixture of conformers, the interconversions of which proceed fairly quickly on the NMR time scale. This behavior of L3 and other macrocycles of this type is quite expected. Their structures contain two conformationally labile piperazine fragments, which can take chair and bath (boat) conformations, as well as four fairly conformationally labile O=C-Ar bonds. In references [40,48], we have previously observed conformational transitions at room temperature due to hindered rotation along O=C-Ar bonds in solutions of 1,10-phenanthroline-2,9-dicarboxylic acid diamides of an open structure. For more NMR spectra of macrocycles L2 and L3, see ESI (Figures S3 and S4). HRMS and MALDI analyses further confirm the composition of macrocycles L2 and L3 (see Figures S5–S7 in ESI).
The tendency of macrocycles L2 and L3 to self-aggregation will be discussed in Section 2.1.3 [49,50,51].

2.1.2. Crystal Structures of L2 and L3 Solvates

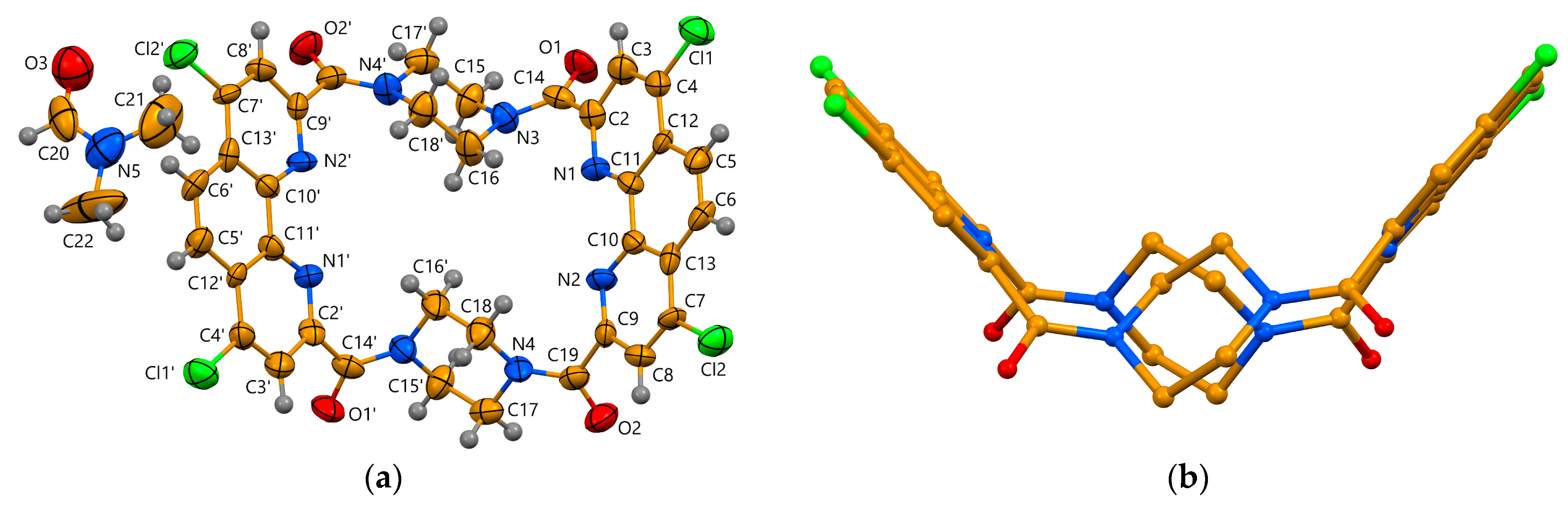

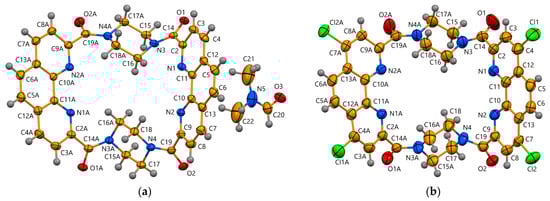

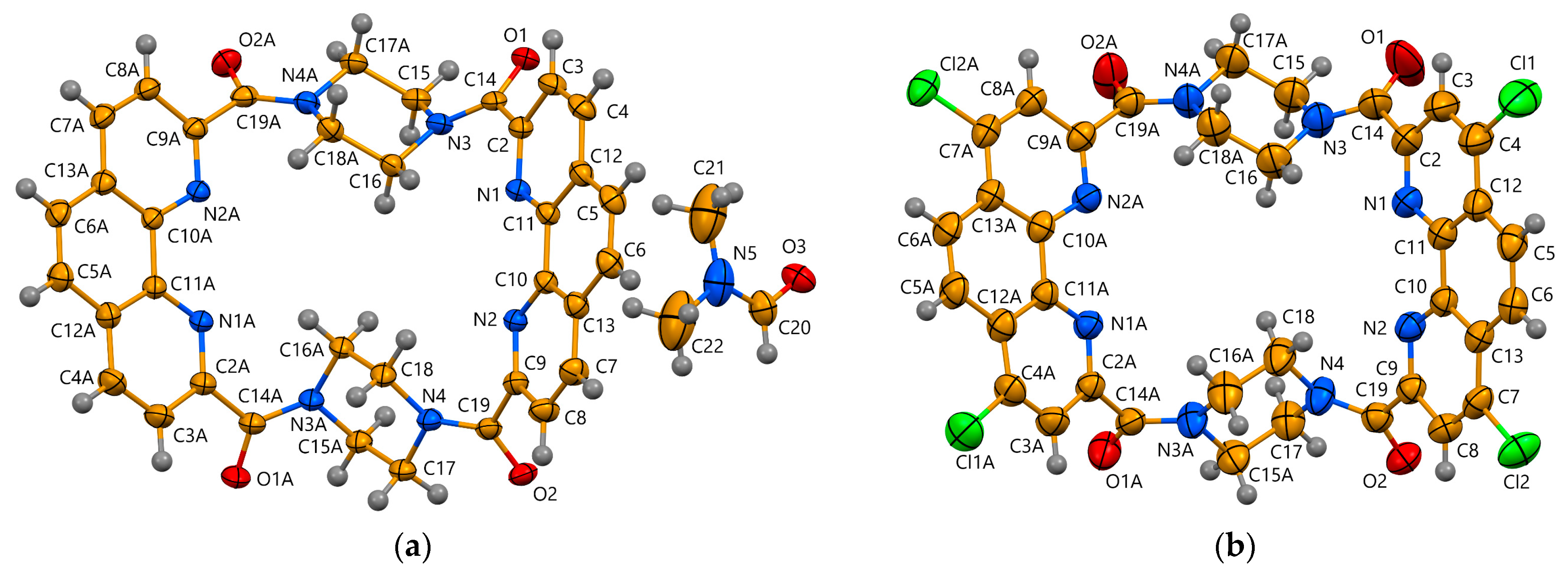

The structure of macrocycles L2 and L3 was unambiguously confirmed by X-ray analysis. Recrystallization of L2 from DMF gave single crystals of L2· as a solvate with DMF, whereas recrystallization of L3 from chloroform and DMF gave crystals of L3· solvated with CHCl3 and DMF, respectively. All solvate molecules were partially or completely disordered. Crystallographic characteristics of these solvates and the results of their structure determination are presented in Table S1 (see ESI). The molecular structures of the studied compounds are presented in Figure 3 and Figure 4.
In all structures, the bond dimensions are within the expected ranges [52]. In L2•xDMF and L3•yDMF, the phenanthroline fragments are essentially planar, with dihedral angles subtended by mean planes of pyridine rings being within the range from 0.5(3) to 1.46(9)°, whereas in L3•zCHCl3, one of these fragments (N1…N2) is almost planar, but another one (N1A...N2A) deviates from planarity, with dihedral angles formed by the mean planes of pyridine rings of 2.4(2) and 10.6(2)°, respectively. All macrocyclic molecules are bent, the dihedral angles formed by the mean planes of two phenanthroline fragments being 85.74(4), 90.0(1) and 84.6(1)° for L2•xDMF, L3•zCHCl3 and L3•yDMF, respectively (see Figure 4b). The amide oxygen atoms located at the greatest distance from each other form the basal plane of macrocyclic molecules.
In all three structures, the piperazine rings adopt chair conformations, but they link the phenanthroline fragments in a different manner. In L3•yDMF, the macrocyclic molecule lies at the crystallographic two-fold axis, in L2•xDMF, the molecular geometry is close to C2 symmetry, whereas in L3•zCHCl3, the molecular structure is close to Cs symmetry, with the mirror pseudoplane passing through the centers of phenanthroline fragments. The corresponding conformational transformation of macrocyclic molecule can be considered as a result of a 180-degree turn of one piperazine ring around the N···N direction. It should be noted that the L3 molecule adopting the Cs conformation has the largest bending angle.

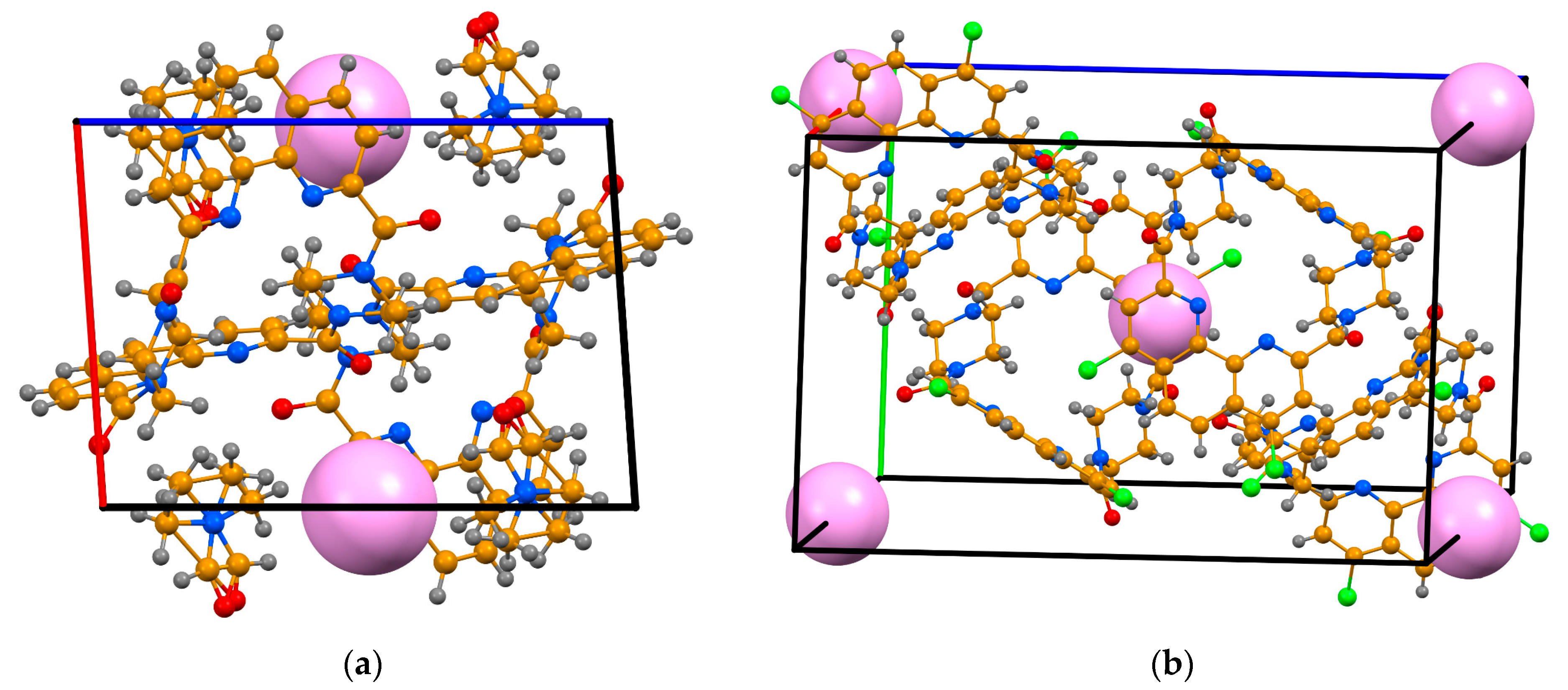

The three-dimensional structures of the studied macrocyclic molecules in crystals are stabilized due to the non-classic hydrogen bonds of C-H···O type and, in some cases, by stacking interactions between the aromatic rings. In L2•xDMF, each molecule is linked to six neighbors by hydrogen bonds (Figure S8, Table S2). In addition, the inversion-related molecules (symmetry operations 2 − x, 2 − y, 1 − z and 1 − x, 1−y, 2 − z) are joined by stacking interactions into chains along the [1 1 −1] direction (Figure S9). In L3•zCHCl3, the molecules are joined by C-H···O contacts into chains along the b-axis direction (Figure S10 and Table S2). Significant stacking interactions are absent from this structure. In L3•yDMF, the molecules of L3 are connected by C-H···O contacts into layers parallel to (0 1 0) (Figure S11). Furthermore, stacking interactions join the pairs of inversion-related molecules (symmetry operation −x, 1 − y, 1 − z) into dimers (Figure S12). The macrocyclic molecules are not tightly packed in the crystals, and all structures contain voids filled by solvent molecules. In the triclinic (Z = 2) crystal structure of L2•xDMF, there is only one void of 478 Å3 per unit cell centered at 0.0, 0.5, 0.5. In the monoclinic (Z = 4) crystal structure of L3•zCHCl3, there are two symmetry-related voids per unit cell, each of 565.5 Å3 (Figure 5b).

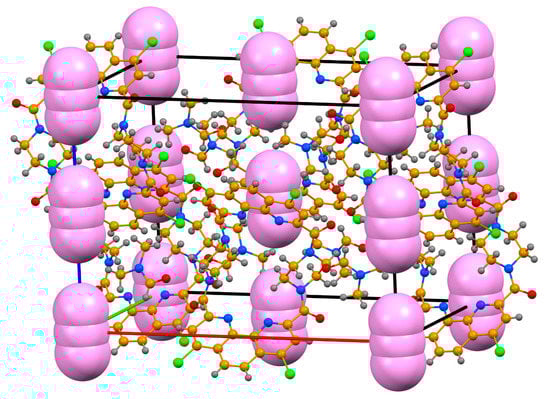

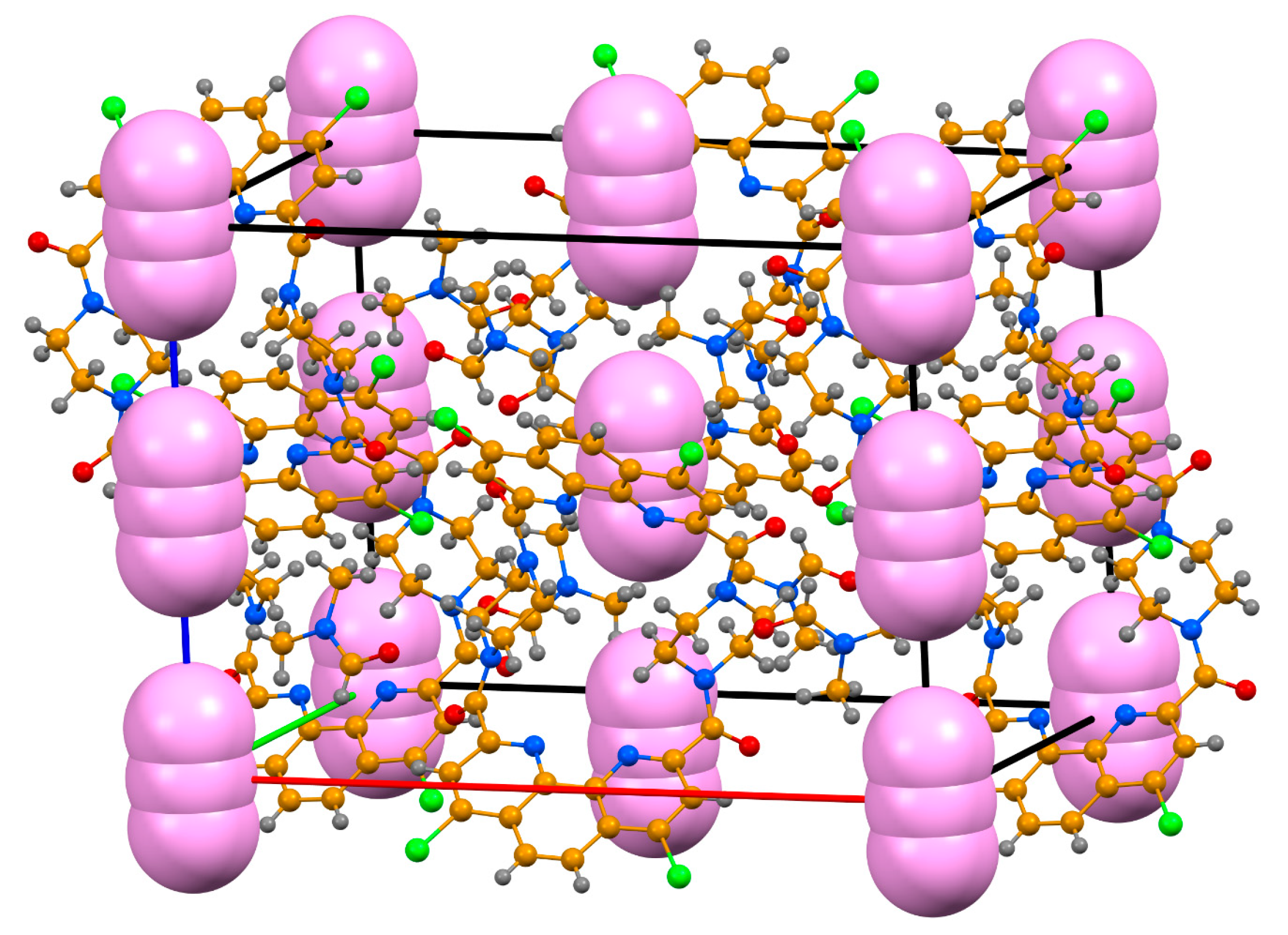

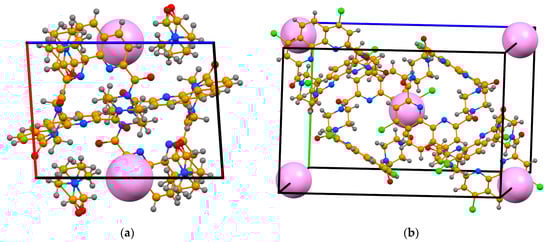

In the orthorhombic (Z = 4) crystal structure of L3•yDMF, there are four symmetry-related voids per unit cell, each of 157.4 Å3. The voids are elongated along the b-axis direction (Figure 6).

2.1.3. Dynamic Light Scattering (DLS)

Previously, the formation of aggregates has repeatedly been shown for many macrocyclic systems [49,50,51,53,54]. DLS is a commonly used method to measure hydrodynamic diameters of proteins, nanoparticles, micelles, and emulsions from several nanometers up to several micrometers [55]. This method is based on the measurement of dynamic fluctuations in light scattering intensity caused by the Brownian motion of particles. The determination of the diffusion coefficients of particles can be obtained by the analysis of the intensity fluctuations. From the diffusion coefficient measurements, one can determine the Stokes hydrodynamic radius via the Stokes–Einstein equation [56].

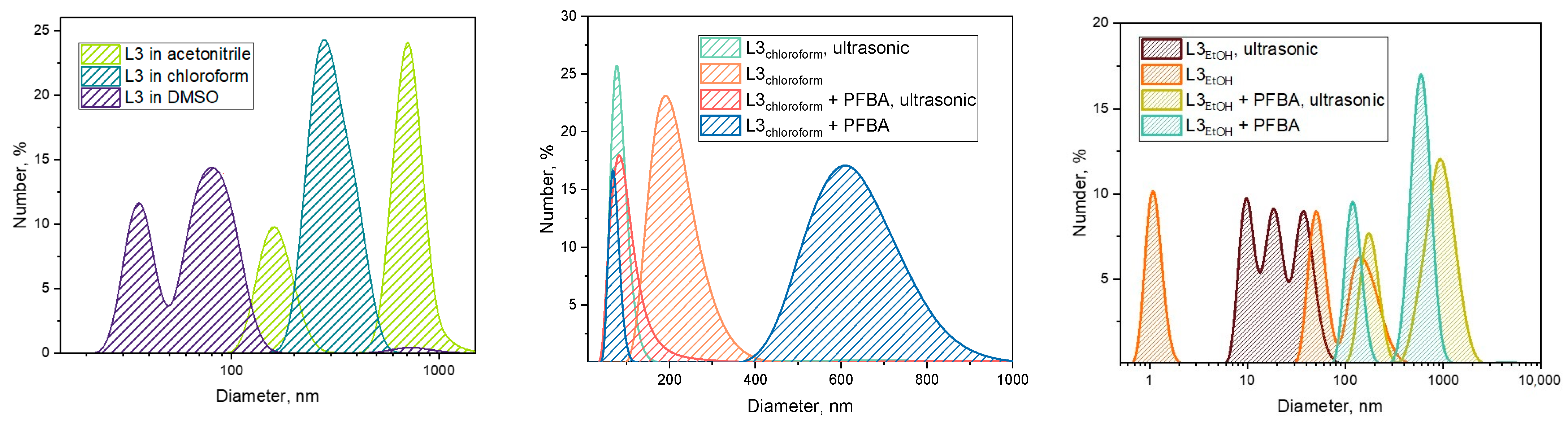

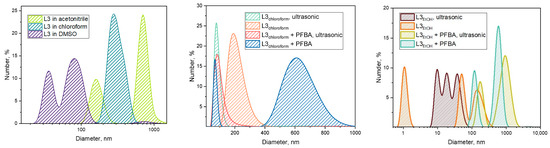

The behavior of macrocycle L3 in solution was investigated in the different solvents: F-3, chloroform, acetonitrile, DMSO. In F-3, the size of particles was studied more thoroughly to realize what form of the particles takes part in the solvent extraction process (see Section 2.3). The distribution diagrams were obtained such as average results from three scans of one solution. The ultrasonic treatment of the organic phases based on different solvents leads to different results. We investigated the size distribution of L3 solutions via DLS with all of the solvents used in our work. As can be seen from Figure 7, in all cases, the macrocycle forms clusters (L3)n where the value of n can vary very widely.
Apparently, the macrocycle in a solution has been performed with molecules’ aggregates with a median size of 80 nm, while a single L3 molecule has a diameter of about 2 nm, according to XRD studies. It was found that the way the macrocycle was isolated affects the clusters size. Depending on the solvents used (e.g., ethanol, chloroform) the size and number of types of aggregates differed. The size of aggregates was decreased after ultrasonic enforcing. It should be noted that ethanol media increase the polydispersity of the samples. In this case, the DLS analysis becomes more complicated and decreases in accuracy. The presence of pentafluorobenzoic acid (PFBA) strongly affects the aggregation and size distribution of the (L3)n particles and should be considered in cases when PFBA is used for solvent extraction as phase compatibilizer. In our extraction experiments (see Section 2.3), the average size of L3-aggregated particles was in the range of 400 to 800 nm (Figure 7). Thus, using the DLS method, we have shown that the studied macrocycle L3 is subject to self-assembly. In addition to the ultrasonic effect, the size of the associates is strongly influenced by both the type of solvent and the presence of PFBA in the system. The DLS cumulative fits the age given in Figures S13–S25 in ESI.

2.2. Complexation of L3 with Eu(III) Trinitrate in Acetonitrile Solutions

To study the coordination properties of new macrocyclic ligand L3, its complexation with Eu(III) trinitrate in acetonitrile was investigated by luminescence and spectrophotometric titration methods. L3 contains two coordination cavities; so, theoretically, it can bind two metal cations. As a consequence, the experimental data were processed taking into account the formation of metal/ligand stoichiometries of 1:1 and 2:1. The investigation of Eu(III) fluorescence in the system “acetonitrile—L3—europium nitrate” was carried out under excitation at 300 nm. At this wavelength, the Eu(III) nitrate solution in acetonitrile is practically not excited, and the excitation of the complexes is due to the transfer of excitation energy from the ligand to the europium cation. Thus, the fluorescence bands in the range 570–720 nm (ESI, Figure S26) correspond exclusively to Eu(III)-ligand complexes.
The observed peaks in the fluorescence spectrum correspond to the following transitions: 695 nm—5D07F4, 650 nm—5D07F3, 616 nm—5D07F2, 592 nm—5D07F1 and 579 nm (5D07F0) [57]. It is known [58] that by changing the type and number of ligands in europium (III) complexes in aqueous solutions, including in titration, the line corresponding to the 5D07F4 transition at 695 nm can change shape [59].

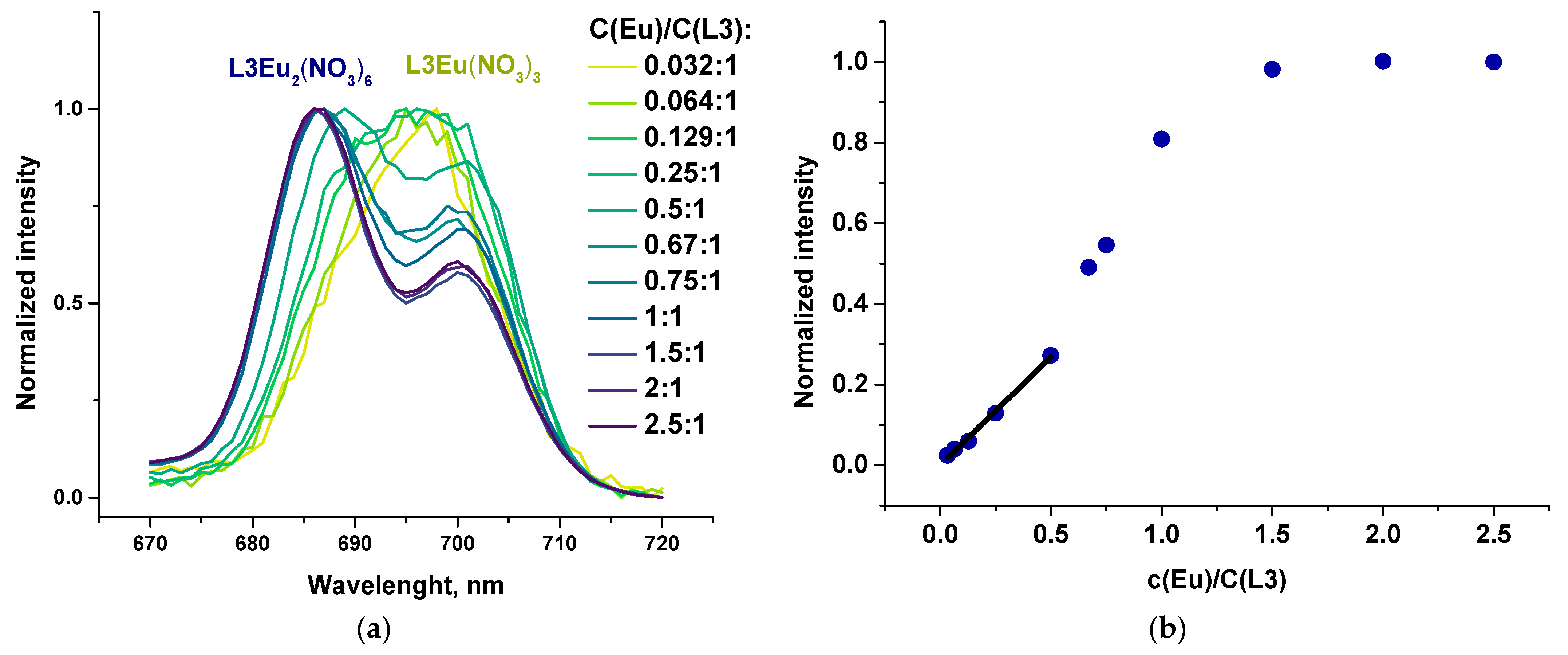

Figure 8a shows the region of the fluorescence spectrum in the range 660–730 nm, corresponding to this transition, with normalization from zero to one in this range: Inorm = (I − Imin)/(Imax − Imin). As the nitrate complex in the absence of L3 does not excite and does not luminesce, the band shape observed at the lowest concentration of europium (the yellow-green line in Figure 8a) that is at a large excess of ligand corresponds to the first stoichiometry—L3:Eu 1:1. As the relative concentration of europium increases, the band shape changes, indicating the formation of a new complex, which corresponds to stoichiometry L3:Eu 1:2 and is observed in excess of europium(III) (the dark blue line in Figure 8a). The spectra at intermediate concentrations are a weighted sum of the spectra observed at the highest and lowest concentration of europium, as there is a gradual shift in the equilibrium ratio of the concentrations of these two forms.
The dependence of the maximum intensity of the spectrum (line 616 nm) on the concentration of europium, when normalized to a value at maximum concentration, is shown in Figure 8b. The intensity dependence in Figure 8b shows that the concentration range in question can be divided into three regions: (1) initial linear growth 0:1–0.5:1; (2) growth at an increasing rate in the concentration range 0.5:1–1:1; and (3) plateau in the range 1:1-2.5:1. This dependence can be explained as follows. In the first area, there is a complex of presumably L3:Eu 1:1 stoichiometry; and the second region corresponds to the formation of a second complex with a higher quantum yield of luminescence. As the intensity curve in this area runs above the linear extrapolation of the intensity growth for the first complex (the dotted line in Figure 8b).
Changes in the maximum intensity corresponding to the transition 5D07F2, and changes in the shape of the strip 5D07F4 occur in sync.
In addition to the visible changes described above, there are also some that are less pronounced. In particular, the fluorescence band maximum corresponding to the transition 5D07F2 is shifted from 616 to 618 nm. The third region corresponds to the saturated complex concentration that does not change with Eu(III) addition due to the exhaustion of ligand binding sites (Figure 8b). Thus, the dependences of the fluorescence intensity and the changes in the shape of the spectra, observed when the ratio of the europium(III) concentration to the ligand is in the range 0.03:1–2.5:1 changes, confirm the formation of two complexes, L3•Eu(NO3)3 and L3•[Eu(NO3)3]2.

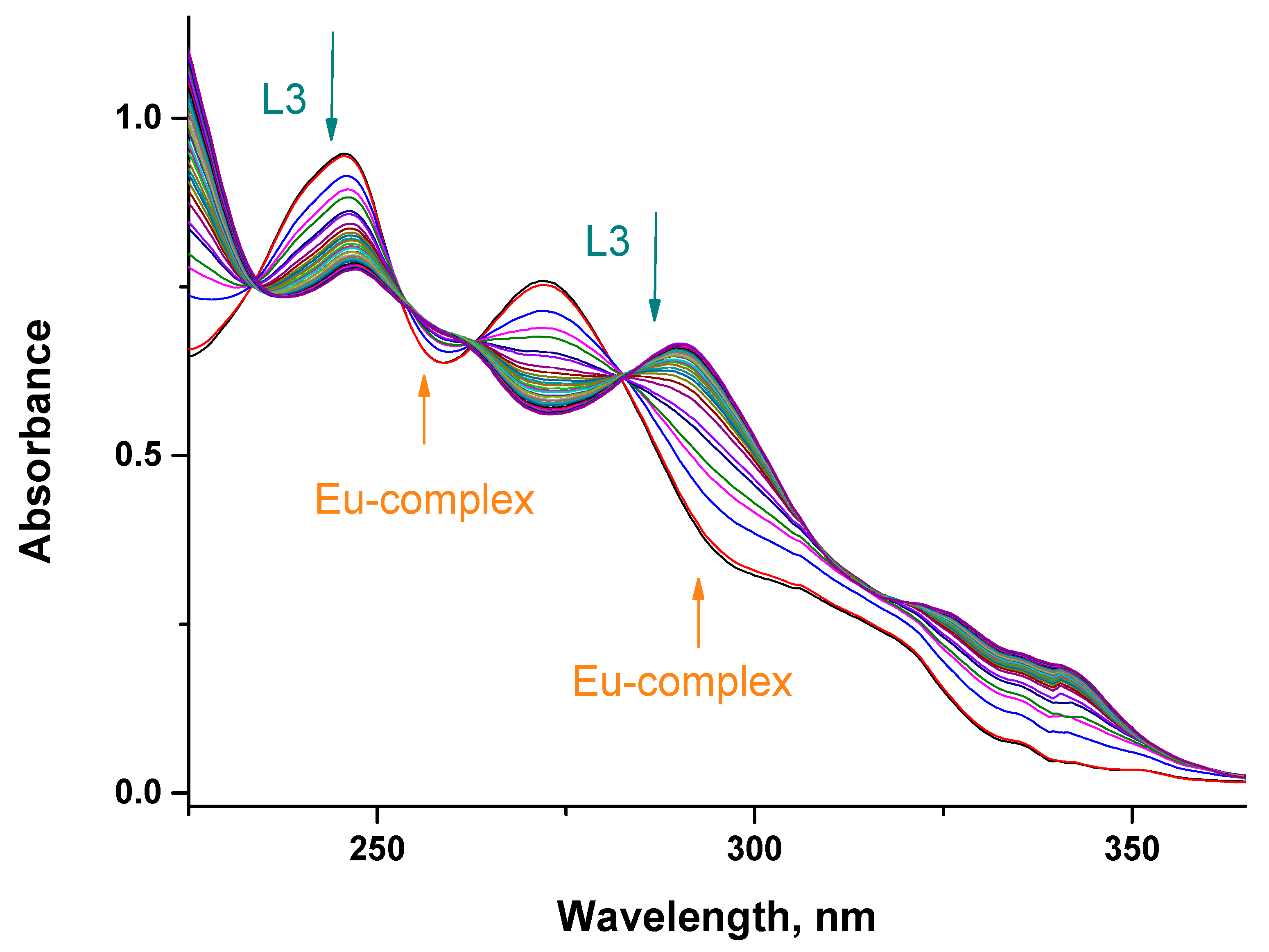

We performed spectrophotometric titration of L3 with europium nitrate in acetonitrile (Figure 9).
The absorption maximum for the complex L3•Eu(NO3)3 occurs at 291 nm. We processed the titration data in the HypSpec2014 program and calculated the binding constants, obtaining logβ values for L3•Eu(NO3)3 and L3•[Eu(NO3)3]2 equal to 5.61 ± 0.05 and 8.45 ± 0.06, respectively. The values of the binding constants for the 1:1 complexes of the macrocyclic ligand L3 and linear diamide L1 are close [40]. A comparatively low complexation constant for the second tetradentate binding site of L3 ( l o g K 2 = l o g β 2 : 1 l o g β 1 : 1 = 2.84 ) is probably caused by steric hindrance.

2.3. Solvent Extraction of Am(III) and Eu(III)

In the initial extraction tests, it was found that the third phase is formed when the solution of L3 in F-3 is brought in contact with water. This is probably a consequence of the amphiphilicity of the L3 and its propensity to self-aggregate. To prevent the formation of the third phase we used organosoluble pentafluorobenzoic acid (PFBA) with a pKa of 1.48 [60]. The addition of anion-generating compounds is a common practice in the study of solvent extraction [14,61,62].
First, we conducted a blank experiment in order to establish the extracting ability of the PFBA itself. When using 0.5 mol/L PFBA solution in F-3, no extraction of Am(III) and Eu (III) was observed in either the acidic nor in the alkaline medium.

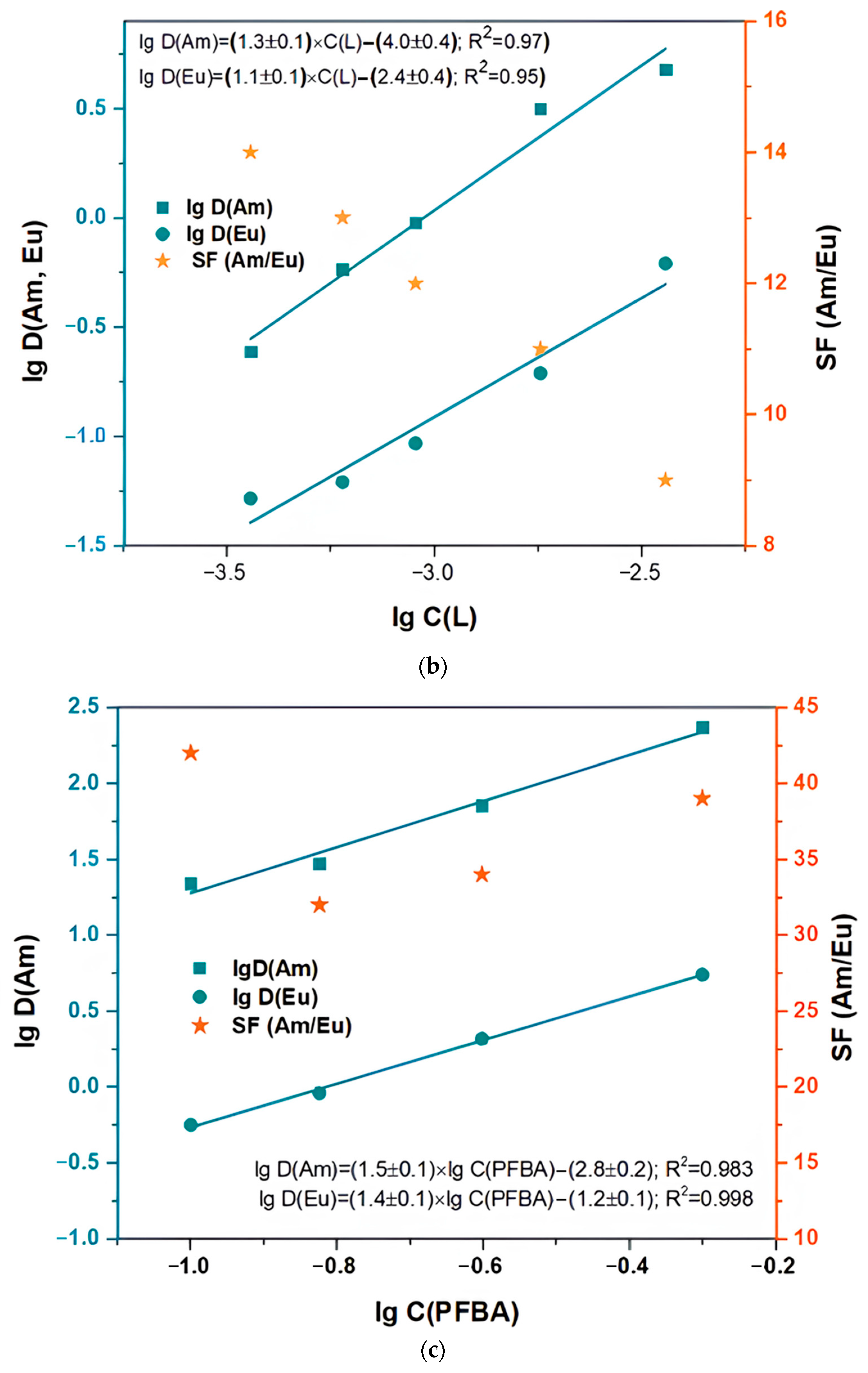

Next, we performed extraction experiments from nitric acid solutions (3 mol/L) and highly alkaline–carbonate media (pH = 11.0–13.8). Previously acyclic diamides of N-heterocyclic acids have exhibited efficient and selective extraction of Am(III) from the nitric acid. However, the distribution coefficient for the macrocycle L3 was only DAm ≈ 0.01 in nitric acid solutions. In addition, we observed a significant increase in the extraction time. In a study of complexation, we found that the binding constants to europium nitrate have close values for L1 and L3. So, this decrease in the distribution ratios may be due to the lower concentration of L3 (0.002 mol/L in solution versus 0.01–0.05 mol/L for L1 [41]). Improving the solubility of this class of compounds will further enable this class of compounds to be used for the extraction of americium from nitric acid solutions.

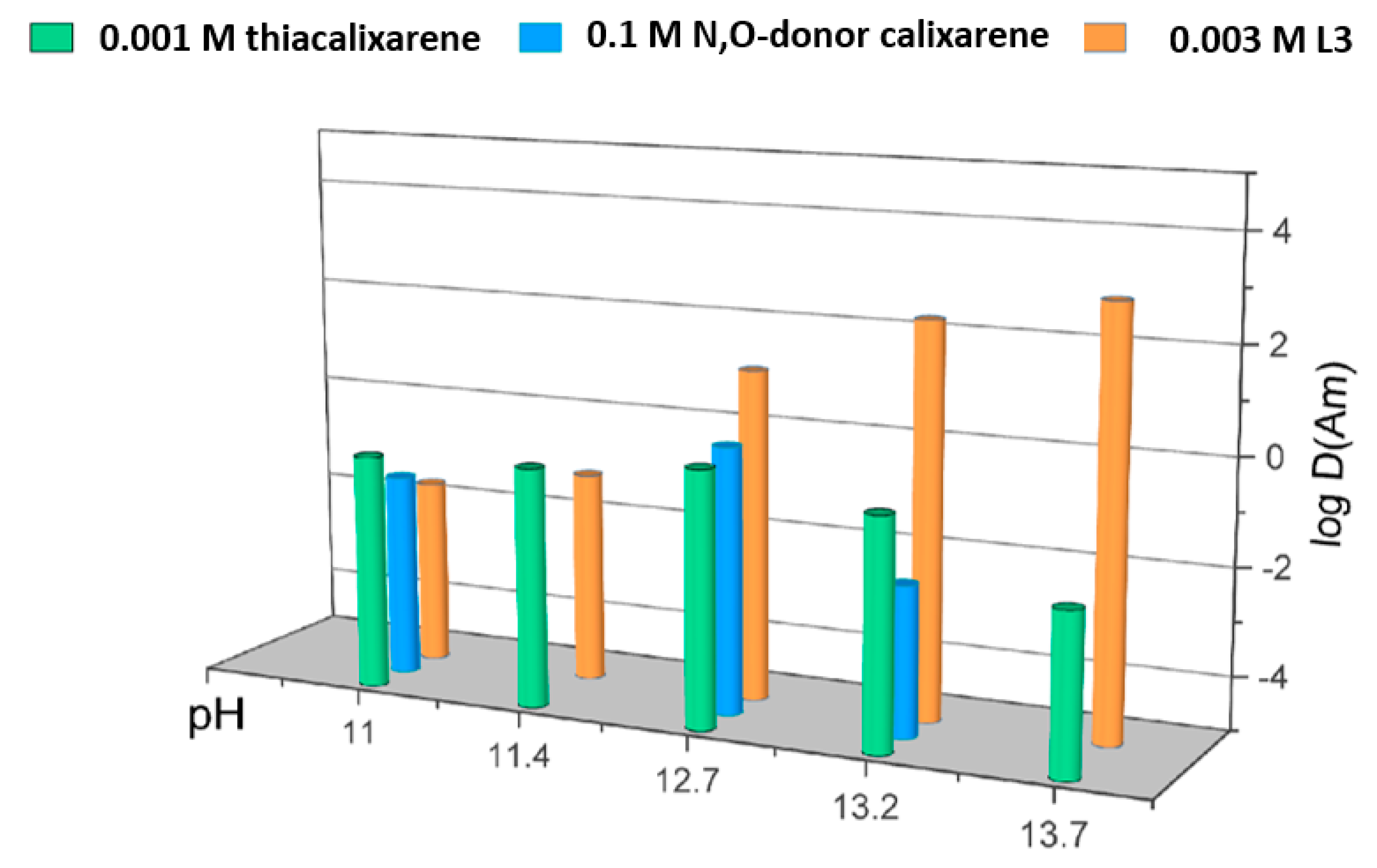

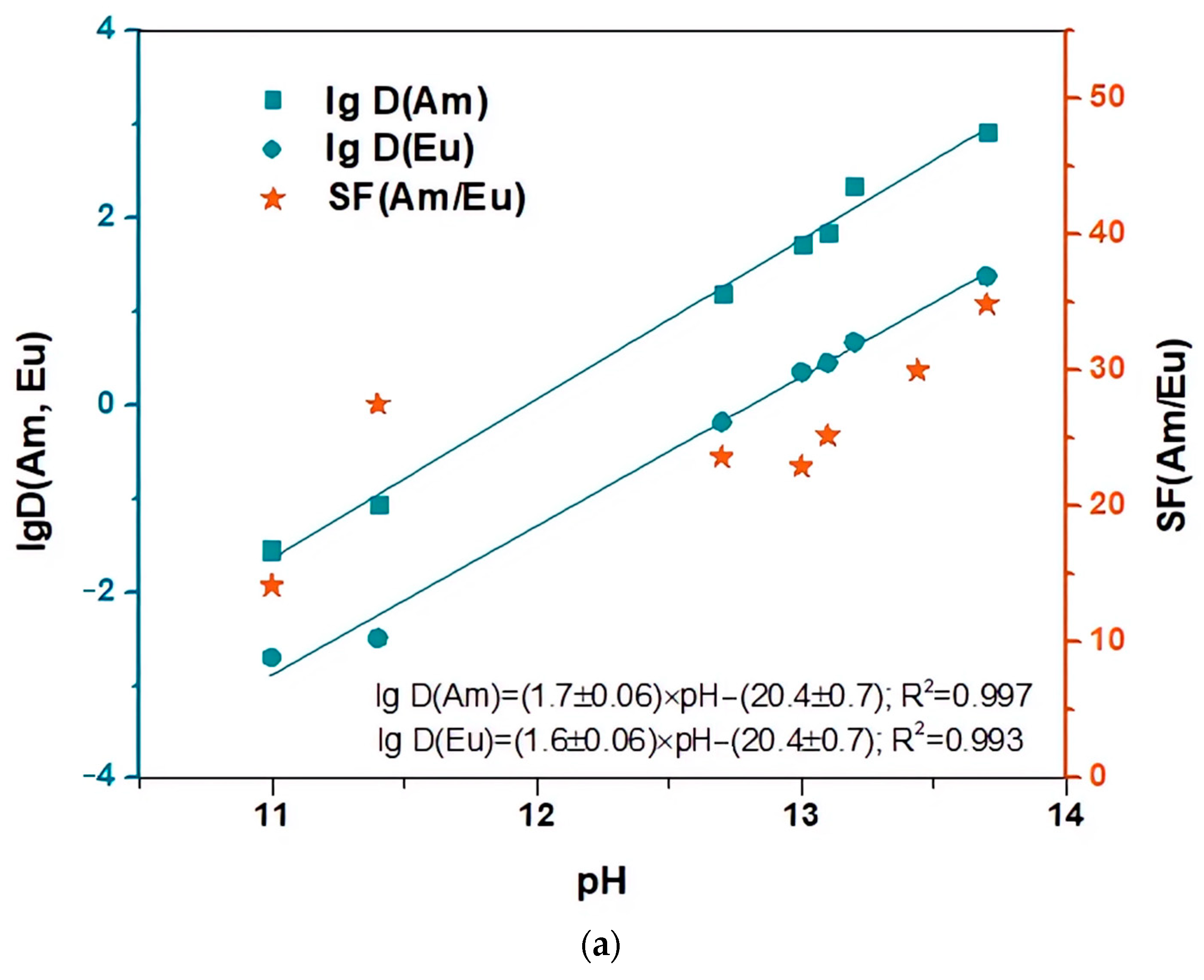

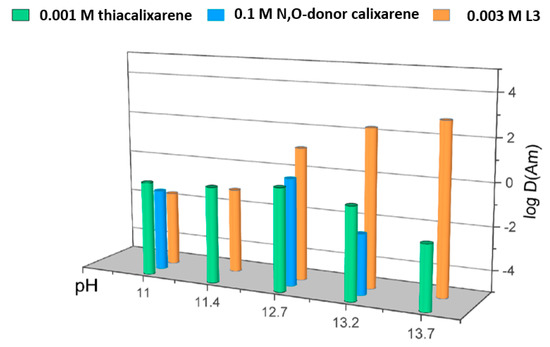

A practically important result was obtained in the extraction from alkaline–carbonate media. We studied the effect of pH, PFBA and ligand concentrations in solution on the extraction of Am(III) and Eu(III). The effective extraction of Am(III) was observed: the distribution ratios were in the range 1–100. It should also be noted that high SFAm/Eu selectivity factors in the range of 10–40 are observed under these conditions (Figure 10). Based on the slope analysis data, one can see the formation of a 1:1 complex where both OH and PFBA act as counter-anions.
Thus, efficient extraction is observed only when extracting from alkaline–carbonate solution and in the presence of PFBA. We compared the effectiveness of the extraction system based on macrocycle L3 with the rare literature of examples based on calixarenes [63] under identical conditions. To our delight, the proposed new system is not inferior in its characteristics to the best representatives of this class, such as brominated tetrahydroxy-p-tert-butylthiacalix[4]arene (Figure 11).
To elucidate the reasons for the peculiarities of the extraction behavior of L3, we carried out DFT modelling of the structures and formation energies of its complexes with lanthanum nitrate and hydroxonium ion (see ESI) (Equations (1) and (2)).
L + La(NO3)3 = LLa(NO3)3
L + (H3O)+ = [L(H3O)]+

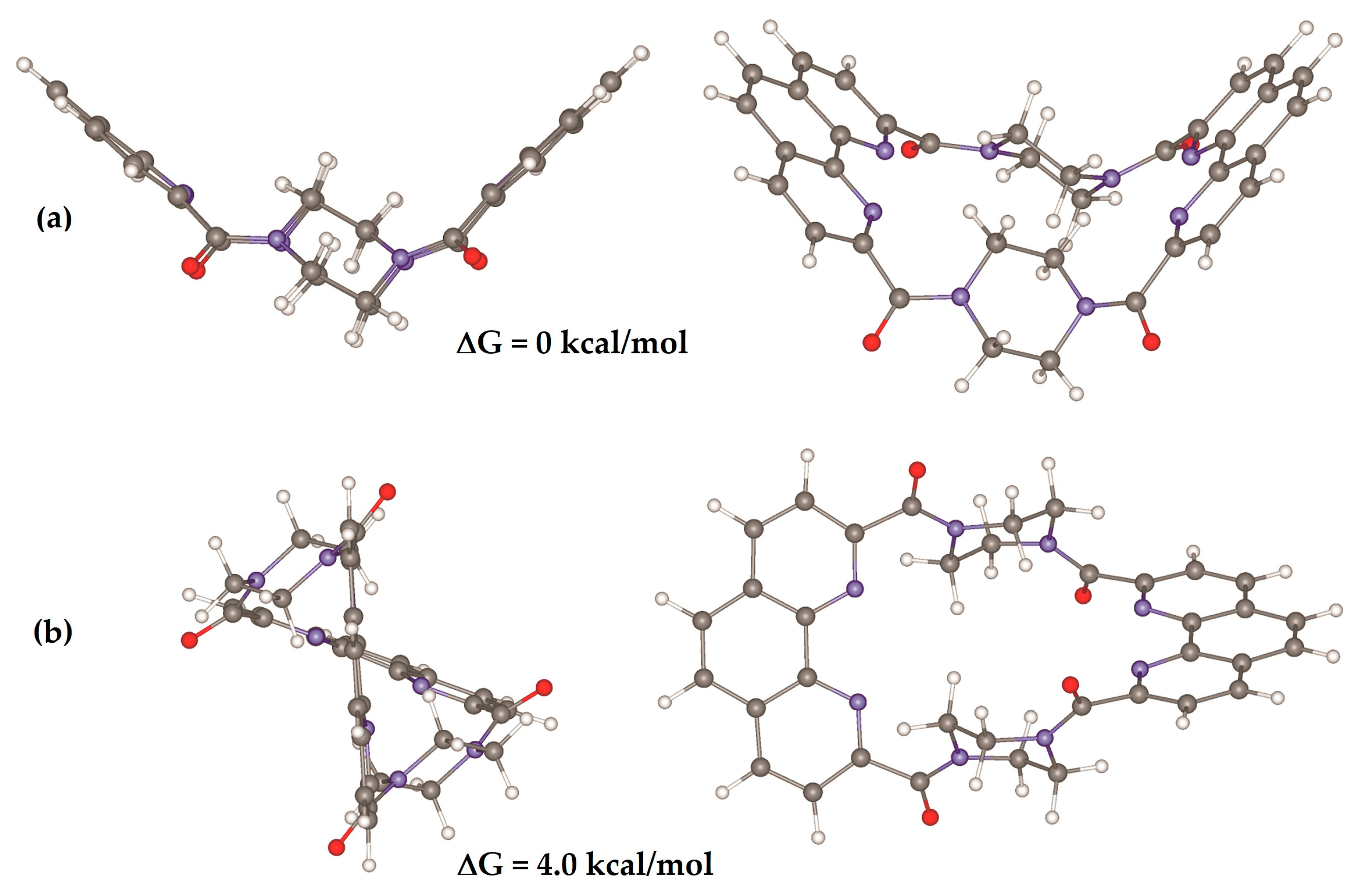

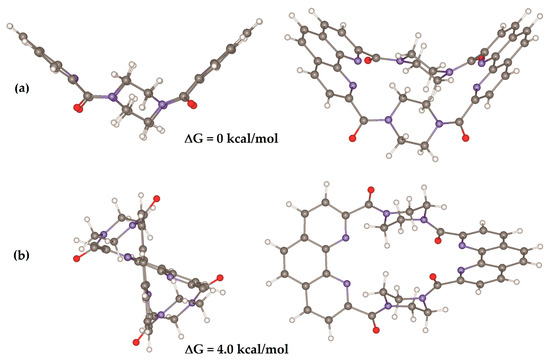

The calculations showed that the most stable L3 conformer (major conformer) has a highly symmetrical bowl structure in which both piperazine rings are in the chair conformation. This geometry (Figure 12a) is very close to that observed in the crystal (Figure 4a). Differences in bond lengths and bond angles obtained in the calculation and in the L3 X-ray diffraction analysis do not exceed ±0.05Å and ±6°, respectively.
To bind the La3+ cation, the macrocycle must acquire a geometry in which there is at least one planar fragment with the syn orientation of both amide carbonyls, capable of acting as the N,N′,O,O′-tetradentate ligand. The potential energy surface (PES) of L3, as shown by our calculations, contains several local minima that meet this requirement. Among them, the most stable is the conformer whose structure is shown in Figure 12b. It is very likely that one of the minor conformers whose signals were observed in the 1H NMR spectrum has such a structure (Figure 2).

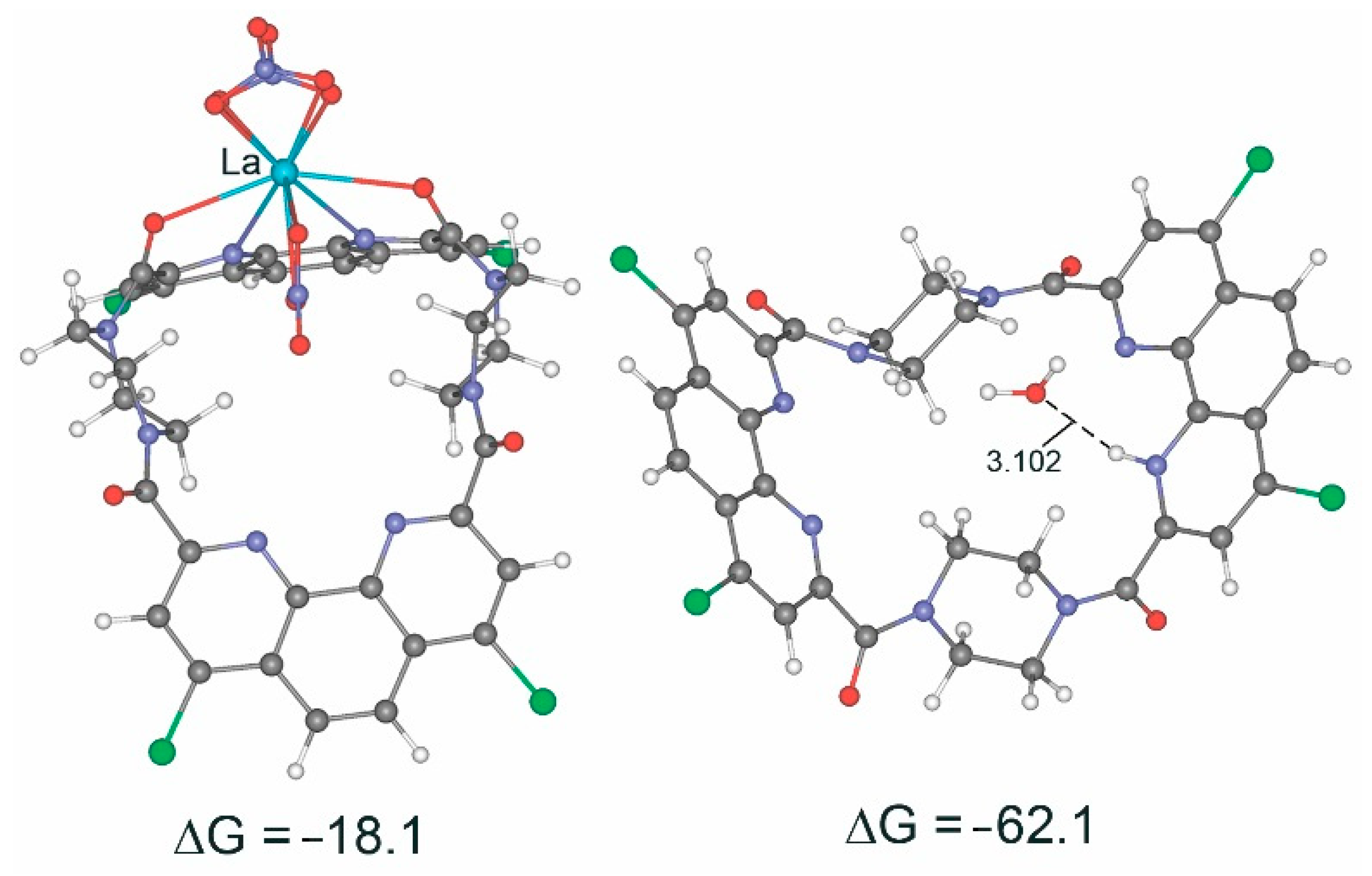

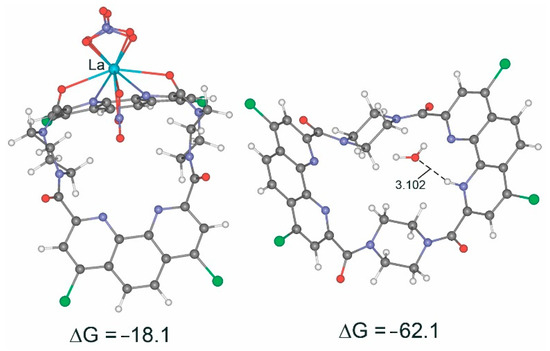

The calculated structures of complex L3La(NO3)3 and complex [L3(H3O)]+ are shown in Figure 13. The calculated ∆G of complex L3La(NO3)3 formation is −18.1 kcal/mol. This is much less than the ∆G energies for the formation of other 1,10-phenanthroline-2,9-dicarboxamides complexes with lanthanum nitrate, which vary in the range from −36 to −44 kcal/mol [40,41,42,43,44,45]. The energy of L3 preorganization, which must be expended in order for the formation of complex L3La(NO3)3 to become possible, was found as high as 19.6 kcal/mol. It was calculated as a difference between the energy of a ligand in a complex and the energy of the major conformer of the ligand.
In an acid medium, the formation of a complex with a metal cation and the protonation of L3 are two competing reactions. The formation of [L3(H3O)]+ proceeds without the participation of oxygen atoms of the amide groups due to only nitrogen atoms of the phenantroline core (Figure 13). It does not require considerable structural reorganization of L3. The formation energy is much higher (−62.1 kcal/mol) than the energy of complexation with La(NO3)3. Thus, the results of the calculations allow us to find reasons for the peculiarities of the extraction behavior of L3. In an acidic medium, the energy of preorganization of the rigid structure of the macrocycle L3 hinders the formation of the complex with a metal cation. The energetic preference for the formation of the complex with the hydroxonium ion makes this direction preferable. However, the switch to an alkaline medium and the addition of hydrophobic C6F5COO anions to the system facilitates the transfer of the resulting complexes with L3 to the organic phase to make extraction efficient.

3. Materials and Methods

3.1. General Information

Chemical reagents such as Eu(NO3)3·6H2O and other inorganic/organic reagents and solvents were of analytical grade. Deuterated solvents for NMR spectra registration were purchased from commercial sources and used without further purification. 3-Nitrobenzotrifluoride (“F-3”) analytical grade was purchased from P&M Invest (Moscow, Russia) and was used as a solvent in the extraction experiments without further purification. All syntheses were performed in an argon-inert atmosphere. Dichloromethane was purified by distillation over calcium hydride prior to use. Triethylamine was purified by simple distillation, previously held for 12 h over sodium hydroxide. NMR spectra were recorded using standard 5 mm sample tubes on an Agilent 400-MR spectrometer with operating frequencies of 400.1 MHz (1H) and 100.6 MHz (13C). IR spectra in the solid state were recorded on a Nicolet iS5 FTIR spectrometer (Thermo Fisher Scientific, Waltham, MA, USA) using an internal reflectance attachment with diamond optical element−attenuated total reflection (ATR) with a 45° angle of incidence. When the resolution was 4 cm−1, the number of scans was 32. Positive ion MALDI mass spectra were registered using a Bruker AutoFlex II reflector time-of-flight device (N2 laser, 337 nm, 2.5 ns pulse). Trans-2-[3-(4-tert-butylphenyl)-2-methyl-2-propenylidene]malononitrile (DCTB, ≥98%, Aldrich, St. Louis, MO, USA) was used as a matrix, the matrix-to-analyte molar ratio in spotted probes being above 1000/1. HRMS ESI−mass spectra were recorded on the MicroTof Bruker Daltonics and Orbitrap Elite instruments. The luminescence measurements were performed on a Fluoromax-4 spectrofluorometer (Jobin Ivon). Excitation of the complexes was performed at a wavelength of 300 nm, the spectral slit width was 0.1 nm. Registration of spectra was carried out in the range of 370–720 nm, and the spectral slit registration width was 1 nm. A BS-7 filter was used to cut off the second order of scattered excitation radiation. UV-Vis absorption spectra were recorded at temperature 25.0 ± 0.1 °C in the wavelength range of 300–600 nm on a spectrophotometer (Shimadzu UV 1800) with a thermostatic attachment (Shimadzu TCC-100) using quartz cuvettes with an optical path length of 10 mm.
A series of samples with varying europium concentration and fixed ligand concentration were prepared to evaluate the coordination changes in the europium–ligand system. The ligand concentration was chosen to be 10−5 mol/L and the europium concentration varied between 0.032 and 2.5 × 10−5 mol/L. The cuvette size (2 mm along the excitation beam) was chosen to eliminate the effect of an internal filter.
Single crystals of L3•CHCl3 were obtained upon slow isothermal (25 °C) recrystallization of L3 from chloroform. Single crystals L2•DMF and L3•DMF were obtained by heating the suspension of 3 mg of corresponding macrocycle in 1 mL of DMF to complete the dissolution, followed by cooling the resulting solution to room temperature. X-ray diffraction data for single crystals of L3•CHCl3 and L3•DMF were collected at 295 K with a Stadi Vari diffractometer (Stoe, Darmstadt, Germany) using Cu Kα radiation (=1.54186 Å). The structures were determined using SHELXT [64] and refined with SHELXL [65] programs. All non-hydrogen atoms were refined in anisotropic approximation, whereas hydrogen atoms were positioned geometrically and refined isotropically using the riding model. Absorption correction was performed using the multiscan algorithm [66]. The single-crystal X-ray diffraction data for L2•DMF were collected on the ‘Belok/XSA’ beamline of the Kurchatov Synchrotron Radiation Source (National Research Center ‘Kurchatov Institute’, Moscow, Russian Federation) using a Rayonix SX165 CCD detector at λ = 0.75270 Å. A total of 720 images for two different orientations of the crystal were collected using an oscillation range of 1.0° and φ scanning mode. The data were indexed and integrated using the utility iMOSFLM from the CCP4 program suite [67] and then scaled and corrected for absorption using the Scala program [68]. In L2•DMF only one DMF molecule was localized, and disorder was also observed for it in the 85:15 ratio. In L3•CHCl3, both solvate chloroform molecules were disordered. In L3•DMF, only two of three DMF molecules were localized. In order to account for X-ray scattering by disordered molecules, we used the SQUEEZE option of the PLATON program [69].
CCDC 2247968 (for L2•2.75DMF), 2170206 (for L3•2CHCl3) and 2247971 (for L3•3DMF) contain the supplementary crystallographic data for this paper.
Dynamic light scattering (DLS) was performed at 25 °C with C(L3) = 3.2 × 10−3 mol·L−1 on a Malvern Instruments Zetasizer Nano-Z instrument (U.K.) for the characterization of the size of the particles in the solution. The 4 mW He-Ne 633 nm laser was used to illuminate the sample, the intensity of light scattered at an angle of 173° was measured by the avalanche photodiode. Hydrodynamic diameters of the particles were estimated from the auto-correlation function, using the Cumulants method. The size distribution curves were obtained through a Non-Negative Least Square (NNLS) method [70] The holding time of the samples was similar to the preparation conditions for the extraction experiment—1 h at room temperature. The experiment was conducted three times for each system.

3.2. Synthesis of the Macrocycles

In a 1 L flask in the argon atmosphere, a dry CH2Cl2 (200 mL) solution of piperazine (2 mmol, 172.3 mg) and triethylamine (5 mmol, 0.7 mL) in CH2Cl2 (200 mL) and a solution of corresponding acyldichloride (2 mmol) in 200 mL of dry CH2Cl2 were simultaneously added dropwise at room temperature under stirring. Then, the reaction mixture was stirred at ambient temperature for 72 h. Next, the reaction mixture was concentrated in vacuo, washed with water (3 × 100 mL), dried over sodium sulfate, and the solvent was distilled off. The residue was purified by flash chromatography using CH2Cl2/EtOH (3/1) mixture as an eluent, yielding the desired macrocycle L2 or L3.
Macrocycle L2
Ijms 24 10261 i001
Yield 43% (274 mg), off-white solid, T.decomp. > 400 °C. Rf (CH2Cl2/ethanol 3:1) = 0.2. 1H NMR (400 MHz, CDCl3) δ, ppm: 8.39 (d, J = 8.3 Hz, 4H), 8.09 (d, J = 8.3 Hz, 4H), 7.88 (s, 4H), 4.41–4.23 (m, 4H), 4.19–4.04 (m, 8H), 3.93–3.77 (m, 4H); 1H NMR (400 MHz, DMSO-d6) δ, ppm: 8.63 (d, J = 8.3 Hz, 4H), 8.08 (s, 4H), 7.96 (d, J = 8.3 Hz, 4H), 4.09–3.91 (m, 8H), 3.89–3.78 (m, 4H), 3.70–3.58 (m, 4H); 13C NMR (101 MHz, DMSO-d6) δ, ppm: 167.4 (C=O), 153.1 (Phen-C2,9), 143.3 (Phen-C1′,10′), 137.8 (Phen-C4,7), 128.8 (Phen-C4′,6′), 127.4 (Phen-C5,6), 123.3 (Phen-C3,8), 46.9 (CH2), 41.5 (CH2); IR (cm−1) 3046, 3013, 2916 (C-H stretching vibrations), 1633, 1622, 1617 (C=O), 1549, 1505, 1470, 1446, 1425 74 (C=C, C=N); HRMS (ESI-TOF) (m/z) [M+H]+ calculated for C36H29N8O4 637.2306, found 637.2257.
Macrocycle L3
Ijms 24 10261 i002
Yield 40% (310 mg), off-white solid, T.decomp. > 400 °C. Rf (CH2Cl2/ethanol 3:1) = 0.4. 1H NMR (400 MHz, CDCl3) δ, ppm: 8.44 (s, 4H, Phen-CH5,6), 8.21 (s, 4H, Phen-CH3,8), 4.34–4.18 (m, 4H, CH2), 4.16–4.00 (m, 8H, CH2), 3.94–3.75 (m, 4H, CH2); 1H NMR (400 MHz, DMSO-d6) δ, ppm: 8.43 (s, 4H), 8.22 (s, 4H), 4.11–3.85 (m, 8H), 3.86–3.70 (m, 4H), 3.69–3.54 (m, 4H); 13C NMR (101 MHz, DMSO-d6) δ, ppm: 166.5 (C=O), 154.3(Phen-C2,9), 144.8 (Phen-C1′,10′), 143.4 (Phen-C4,7), 127.0 (Phen-C4′,6′), 124.6 (Phen-C3,8), 124.5 (Phen-C5,6), 55.3 (CH2), 47.2 (CH2); IR (cm−1) 3047, 2977, 2926 (C-H stretching vibrations), 1641, 1635 (C=O), 1573, 1533, 1463, 1447 (C=C, C=N); HRMS (ESI-TOF) (m/z) [M+NH4]+ calculated for C36H28Cl4N9O4 792.0984, found 792.0979; MALDI (m/z) [M+H2O]- calculated for C36H25Cl4N8O5 791.0678, found 791.064.

3.3. Solvent Extraction Experiments

The experiment conditions were as follows: 1—organic phase: L3/PFBA/F3, aqueous phase: Am/Eu spike/pH 1 (0.1M HNO3); 2—organic phase: L3/PFBA/F3, aqueous phase: Am/Eu spike/pH 2 (0.01M HNO3). The extraction experiment was provided in the Eppendorf test tube, the volume of organic and aqueous phase was 500 µL. After shaking with the vortex shaker for 5 min at room temperature, the phases were separated by centrifugation at 14,000 rpm for 30 s. A total of 350 µL of both phases was taken for radionuclides determination. The extraction regularity was studied with trace amounts of 241Am and 152Eu. The amounts of the radionuclides in both phases were determined radiometrically from the γ-radiation of the corresponding radionuclide. Content of 241Am (Eγ = 59.5 keV) and 152Eu (Eγ = 121.8 keV) was determined by gamma spectrometry using a high-pure germanium detector GR 3818 (Canberra Ind.)
The sample measurement time was chosen so that the uncertainty of radiometric measurements was within 10%. The distribution ratios were calculated by the formula D = Aorg/Aaq, where A is the specific activity of the radionuclide in the organic or aqueous phase.

3.4. DFT Calculations

First-principles DFT (GGA PBE), scalar-relativistic theory [71] and a relativistic full-electron basis set of TZ quality were used in the calculations. The stationary points were identified by the analysis of Hessians. The statistical formulae for a rigid rotator and harmonic oscillator were used to calculate thermodynamic functions (Gibbs energy, G) at 298.15 K. The atomic charges were calculated according to Hirshfeld [72]. All calculations were performed using the PRIRODA-19 program developed by D.N. Laikov [73,74].

4. Conclusions

A new class of macrocyclic compounds has been obtained, the structural features of it most likely representing L3 in the solid phase have been investigated by the X-ray diffraction method. Using the DLS method, we have shown that the studied macrocycle L3 is subject to self-assembly. In addition to the ultrasonic effect, the size of the associates is strongly influenced by both the type of solvent and the presence of PFBA in the system. Luminescent titration of the L3 with europium nitrate in acetonitrile was carried out. The formation of EuL3(NO3)3 and Eu2L3(NO3)6 complexes was observed. By spectrophotometric titration, the complexation constants were determined: it was found that the first complexation constant coincides with the constant for the acyclic analogue L1. The conditions for effective Am(III) and Eu(III) extraction by the macrocycle L3 from alkaline–carbonate media were found. The separation factor for Am(III)/Eu(III) was up to 40. The efficiency and selectivity of L3 toward Am(III)/Eu(III) separation exceeded the efficiency and selectivity of other previously described macrocycles—calixarenes. The experimental data are in perfect agreement with results of DFT calculation, predicting that in acidic media, the most favorable process is the protonation of the macrocyclic ligand but not the formation of complex with a metal cation. This compound can be seen as a starting platform for further development of extraction systems for the extraction of f-elements from alkaline–carbonate solutions.

Supplementary Materials

The supporting information can be downloaded at

Author Contributions

Conceptualization, P.S.L. and P.I.M.; investigation, V.S.P., U.M.L. and V.A.R.; synthesis, V.S.P.; NMR spectra recording and interpretation, V.A.R., V.S.P. and Y.A.U.; solvent extraction, U.M.L. and P.I.M.; XRD analysis, A.V.Y., V.A.T., P.V.D. and V.N.K.; computations, I.P.G. and Y.A.U.; DLS analysis, V.G.P., U.M.L. and P.I.M.; mass-spectrometry, V.Y.M.; luminescence spectroscopy, G.S.B. and E.A.S.; data curation, A.A.G. and V.G.P.; writing—original draft preparation, P.S.L., P.I.M. and Y.A.U.; writing—review and editing, V.G.N.; supervision, V.G.P., Y.A.U. and V.G.N.; funding acquisition, P.S.L. and Y.A.U. All authors have read and agreed to the published version of the manuscript.


This research was funded by Russian Science Foundation (grant no. 21-73-10067) and Russian Ministry of Science and Education (grant no. 075-15-2022-1107).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Samples of the compounds are not available from the authors.


The authors acknowledge support from the M. V. Lomonosov Moscow State University Program of Development. This publication has been prepared with support of the RUDN University Strategic Academic Leadership Program.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Driggers, E.M.; Hale, S.P.; Lee, J.; Terrett, N.K. The exploration of macrocycles for drug discovery—An underexploited structural class. Nat. Rev. Drug Discov. 2008, 7, 608–624. [Google Scholar] [CrossRef] [PubMed]
  2. Wessjohann, L.A.; Ruijter, E.; Garcia-Rivera, D.; Brandt, W. What can a chemist learn from nature’s macrocycles? A Brief, Conceptual View. Mol. Divers. 2005, 9, 171–186. [Google Scholar] [CrossRef] [PubMed]
  3. Jyothi, R.K.; Lee, J.-Y. The role of macrocyclic compounds in the extraction and possible separation of platinum and rhodium from chloride solutions. Sci. Rep. 2016, 6, 27668. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Yudin, A.K. Macrocycles: Lessons from the distant past, recent developments, and future directions. Chem. Sci. 2015, 6, 30–49. [Google Scholar] [CrossRef] [Green Version]
  5. Mewis, R.E.; Archibald, S.J. Biomedical applications of macrocyclic ligand complexes. Coord. Chem. Rev. 2010, 254, 1686–1712. [Google Scholar] [CrossRef]
  6. Tsionou, M.I.; Knapp, C.E.; Foley, C.A.; Munteanu, C.R.; Cakebread, A.; Imberti, C.; Eykyn, T.R.; Young, J.D.; Paterson, B.M.; Blower, P.J.; et al. Comparison of macrocyclic and acyclic chelators for gallium-68 radiolabelling. RSC Adv. 2017, 7, 49586–49599. [Google Scholar] [CrossRef] [Green Version]
  7. Mcalister, D.R.; Rush, E.; Silvestri, D.; Horwitz, E.P. Extraction of Selected Metal Ions with Mixtures of N,N,N’,N’-tetra-n-octyldiglycolamide and 4,4′(5′)-di-t-butylcyclohexano 18-crown-6. Solvent Extr. Ion Exch. 2021, 39, 184–203. [Google Scholar] [CrossRef]
  8. Vasiliev, A.N.; Ostapenko, V.S.; Lapshina, E.V.; Ermolaev, S.V.; Danilov, S.S.; Zhuikov, B.L.; Kalmykov, S.N. Recovery of Ra-223 from natural thorium irradiated by protons. Radiochim. Acta 2016, 104, 539–547. [Google Scholar] [CrossRef]
  9. Kuzovkina, E.V.; Lavrinovich, E.A.; Novikov, A.P.; Stepanova, E.S.; Karavan, M.D.; Smirnov, I.V. Kinetics of americium and europium extraction by tert-butylthiacalix[4]arene from alkaline media. J. Radioanal. Nucl. Chem. 2017, 311, 1983–1989. [Google Scholar] [CrossRef]
  10. Smirnov, I.V.; Shirokova, V.S.; Yumaguen, A.Z.; Logunov, M.V. Extraction of Strontium and Yttrium from Alkaline Carbonate Media with Functionalized Calix[8]arenes. Radiochemistry 2018, 60, 248–254. [Google Scholar] [CrossRef]
  11. Smirnov, I.V.; Karavan, M.D.; Istomina, N.M.; Kozlov, P.V.; Voroshilov, Y.A. Hydroxycalix[6]arenes with p-isononyl substituents for alkaline HLW processing. J. Radioanal. Nucl. Chem. 2020, 326, 675–681. [Google Scholar] [CrossRef]
  12. Mohapatra, P.K.; Verma, P.K.; Prabhu, D.R.; Raut, D.R. Extraction of 137Cs from Acidic Feed by Centrifugal Contactors Using a Solution of Calix[4]arene-bis-1,2-benzo-crown-6 in Phenyltrifluoromethyl Sulphone. Nucl. Technol. 2019, 205, 1119–1125. [Google Scholar] [CrossRef]
  13. Wu, L.; Fang, Y.; Jia, Y.; Yang, Y.; Liao, J.; Liu, N. Pillar[5]arene-based diglycolamides for highly efficient separation of americium(iii) and europium(iii). Dalton Trans. 2014, 43, 3835–3838. [Google Scholar] [CrossRef]
  14. Cai, Y.; Ansari, S.A.; Fu, K.; Zhu, B.; Ma, H.; Chen, L.; Conradson, S.D.; Qin, S.; Fu, H.; Mohapatra, P.K.; et al. Highly efficient actinide(III)/lanthanide(III) separation by novel pillar[5]arene-based picolinamide ligands: A study on synthesis, solvent extraction and complexation. J. Hazard. Mater. 2021, 405, 124214. [Google Scholar] [CrossRef]
  15. Nath, P.; Bhattacharyya, A.; Sharma, J.N.; Manohar, S. The recovery of strontium from acidic medium using novel strontium selective extractant: An experimental and DFT study. J. Hazard. Mater. 2020, 397, 122476. [Google Scholar] [CrossRef]
  16. Sengupta, S.; Mehta, G. Macrocyclization via C–H functionalization: A new paradigm in macrocycle synthesis. Org. Biomol. Chem. 2020, 18, 1851–1876. [Google Scholar] [CrossRef]
  17. Mortensen, K.T.; Osberger, T.J.; King, T.A.; Sore, H.F.; Spring, D.R. Strategies for the Diversity-Oriented Synthesis of Macrocycles. Chem. Rev. 2019, 119, 10288–10317. [Google Scholar] [CrossRef]
  18. Bencini, A.; Lippolis, V. 1,10-Phenanthroline: A versatile building block for the construction of ligands for various purposes. Coord. Chem. Rev. 2010, 254, 2096–2180. [Google Scholar] [CrossRef]
  19. Alreja, P.; Kaur, N. Recent advances in 1,10-phenanthroline ligands for chemosensing of cations and anions. RSC Adv. 2016, 6, 23169–23217. [Google Scholar] [CrossRef]
  20. Aragoni, M.C.; Arca, M.; Bencini, A.; Biagini, S.; Blake, A.J.; Caltagirone, C.; Demartin, F.; Filippo, G.; Devillanova, F.A.; Garau, A.; et al. Interaction of mixed-donor macrocycles containing the 1,10-phenanthroline subunit with selected transition and post-transition metal ions: Metal ion recognition in competitive liquid-liquid solvent extraction of Cu(II), Zn(II), Pb(II), Cd(II), Ag(I), and Hg(II). Inorg. Chem. 2008, 47, 8391–8404. [Google Scholar] [CrossRef]
  21. Bazzicalupi, C.; Bencini, A.; Biagini, S.; Bianchi, A.; Faggi, E.; Giorgi, C.; Marchetta, M.; Totti, F.; Valtancoli, B. Polyamine Receptors Containing Dipyridine or Phenanthroline Units: Clues for the Design of Fluorescent Chemosensors for Metal Ions. Chem. Eur. J. 2009, 15, 8049–8063. [Google Scholar] [CrossRef] [PubMed]
  22. Casula, A.; Nairi, V.; Fernández-Moreira, V.; Laguna, A.; Lippolis, V.; Garau, A.; Gimeno, M.C. Re(i) derivatives functionalised with thioether crowns containing the 1,10-phenanthroline subunit as a new class of chemosensors. Dalton Trans. 2015, 44, 18506–18517. [Google Scholar] [CrossRef] [PubMed]
  23. Ishida, M.; Naruta, Y.; Tani, F. A Porphyrin-Related Macrocycle with an Embedded 1,10-Phenanthroline Moiety: Fluorescent Magnesium(II) Ion Sensor. Angew. Chem. Int. Ed. 2010, 49, 91–94. [Google Scholar] [CrossRef] [PubMed]
  24. Brandl, T.; Kerzig, C.; Pleux, L.; Prescimone, A.; Wenger, O.S.; Mayor, M. Improved Photostability of a CuI Complex by Macrocyclization of the Phenanthroline Ligands. Chem. Eur. J. 2020, 26, 3119–3128. [Google Scholar] [CrossRef] [PubMed]
  25. Wang, X.-Y.; Ao, Y.-F.; Wang, Q.-Q.; Wang, D.-X. Synthesis, Structure, Property, and Dinuclear Cu(II) Complexation of Tetraoxacalix[2]arene[2]phenanthrolines. Inorg. Chem. 2018, 57, 13461–13469. [Google Scholar] [CrossRef]
  26. Bencini, A.; Bianchi, A.; Giorgi, C.; Valtancoli, B. Fluorescent Chemosensors Based upon Macrocyclic Polyamines Containing Aromatic Sectors. J. Incl. Phenom. Macrocycl. Chem. 2001, 41, 87–93. [Google Scholar] [CrossRef]
  27. Bencini, A.; Bianchi, A.; Fornasari, P.; Giorgi, C.; Paoletti, P.; Valtancoli, B. Cd(II) complexation in aqueous solution with dipyridine- and phenanthroline-containing polyamine macrocycles. Polyhedron 2002, 21, 1329–1335. [Google Scholar] [CrossRef]
  28. Cruz, C.; Delgado, R.; Drew, M.G.B.; Felix, V. Evaluation of the Binding Ability of a Novel Dioxatetraazamacrocyclic Receptor that Contains Two Phenanthroline Units:  Selective Uptake of Carboxylate Anions. J. Org. Chem. 2007, 72, 4023–4034. [Google Scholar] [CrossRef]
  29. Nadeem, S.; Shah, M.R.; Ali, Q.; Hussain, Z. One Pot Synthesis of 1,10-Phenanthroline-based Shape-Persistent Flourescent Macrocycle Using Sonogashira Coupling. Lett. Org. Chem. 2015, 12, 504–510. [Google Scholar] [CrossRef]
  30. Wang, K.; Yee, C.-C.; Au-Yeung, H.Y. Facile syntheses of [3]-, [4]- and [6]catenanes templated by orthogonal supramolecular interactions. Chem. Sci. 2016, 7, 2787–2792. [Google Scholar] [CrossRef] [Green Version]
  31. Berrocal, J.A.; Biagini, C.; Mandolini, L.; Stefano, S.D. Coupling of the Decarboxylation of 2-Cyano-2-phenylpropanoic Acid to Large-Amplitude Motions: A Convenient Fuel for an Acid–Base-Operated Molecular Switch. Angew. Chem. Int. Ed. 2016, 55, 6997–7001. [Google Scholar] [CrossRef] [Green Version]
  32. Mohankumar, M.; Holler, M.; Meichsner, E.; Nierengarten, J.-F.; Niess, F.; Sauvage, J.-P.; Delavaux-Nicot, B.; Leoni, E.; Monti, F.; Malicka, J.M.; et al. Heteroleptic Copper(I) Pseudorotaxanes Incorporating Macrocyclic Phenanthroline Ligands of Different Sizes. J. Am. Chem. Soc. 2018, 140, 2336–2347. [Google Scholar] [CrossRef]
  33. Krapcho, A.P.; Sparapani, S.; Leenstra, A.; Seitz, J.D. Displacement reactions of 2-chloro- and 2,9-dichloro-1,10-phenanthroline: Synthesis of a sulfur-bridged bis-1,10-phenanthroline macrocycle and a 2,2′-amino-substituted-bis-1,10-phenanthroline. Tetrahedron Lett. 2009, 50, 3195–3197. [Google Scholar] [CrossRef]
  34. Matveev, P.; Mohapatra, P.K.; Kalmykov, S.N.; Petrov, V. Solvent extraction systems for mutual separation of Am(III) and Cm(III) from nitric acid solutions. A review of recent state-of-the-art. Solvent Extr. Ion Exch. 2021, 39, 679–713. [Google Scholar] [CrossRef]
  35. Evsiunina, M.V.; Matveev, P.I.; Kalmykov, S.N.; Petrov, V.G. Solvent Extraction Systems for Separation of An(III) and Ln(III): Overview of Static and Dynamic Tests. Moscow Univ. Chem. Bull. 2021, 76, 287–315. [Google Scholar] [CrossRef]
  36. Zsabka, P.; Wilden, A.; Van Hecke, K.; Modolo, G.; Verwerft, M.; Cardinaels, T. Beyond U/Pu separation: Separation of americium from the highly active PUREX raffinate. J. Nucl. Mater. 2023, 581, 154445. [Google Scholar] [CrossRef]
  37. Yang, X.; Xu, L.; Zhang, A.; Xiao, C. Organophosphorus Extractants: A Critical Choice for Actinides/Lanthanides Separation in Nuclear Fuel Cycle. Chem. Eur. J. 2023, 29, e202300456. [Google Scholar] [CrossRef]
  38. Leoncini, A.; Huskens, J.; Verboom, W. Ligands for f-element extraction used in the nuclear fuel cycle. Chem. Soc. Rev. 2017, 46, 7229–7273. [Google Scholar] [CrossRef]
  39. Colombo, F.; Annunziata, R.; Raimondi, L.; Benaglia, M. Synthesis of new enantiomerically pure macrocycles containing phenanthroline subunits. Chirality 2006, 18, 446–456. [Google Scholar] [CrossRef]
  40. Lemport, P.S.; Evsiunina, M.V.; Matveev, P.I.; Petrov, V.S.; Pozdeev, A.S.; Khult, E.K.; Nelyubina, Y.V.; Isakovskaya, K.L.; Roznyatovsky, V.A.; Gloriozov, I.P.; et al. 2-Methylpyrrolidine derived 1,10-phenanthroline-2,9-diamides: Promising extractants for Am(iii)/Ln(iii) separation. Inorg. Chem. Front. 2022, 9, 4402–4412. [Google Scholar] [CrossRef]
  41. Lemport, P.S.; Matveev, P.I.; Yatsenko, A.V.; Evsiunina, M.V.; Petrov, V.S.; Tarasevich, B.N.; Roznyatovsky, V.A.; Dorovatovskii, P.V.; Khrustalev, V.N.; Zhokhov, S.S.; et al. The impact of alicyclic substituents on the extraction ability of new family of 1,10-phenanthroline-2,9-diamides. RSC Adv. 2020, 10, 26022–26033. [Google Scholar] [CrossRef] [PubMed]
  42. Gutorova, S.V.; Matveev, P.I.; Lemport, P.S.; Trigub, A.L.; Pozdeev, A.S.; Yatsenko, A.V.; Tarasevich, B.N.; Konopkina, E.A.; Khult, E.K.; Roznyatovsky, V.A.; et al. Structural Insight into Complexation Ability and Coordination of Uranyl Nitrate by 1,10-Phenanthroline-2,9-diamides. Inorg. Chem. 2022, 61, 384–398. [Google Scholar] [CrossRef] [PubMed]
  43. Gutorova, S.V.; Matveev, P.I.; Lemport, P.S.; Novichkov, D.A.; Gloriozov, I.P.; Avagyan, N.A.; Gudovannyy, A.O.; Nelyubina, Y.V.; Roznyatovsky, V.A.; Petrov, V.G.; et al. Solvation-Anionic Exchange Mechanism of Solvent Extraction: Enhanced U(VI) Uptake by Tetradentate Phenanthroline Ligands. Inorg. Chem. 2023, 62, 487–496. [Google Scholar] [CrossRef] [PubMed]
  44. Ustynyuk, Y.A.; Zhokhova, N.I.; Gloriozov, I.P.; Matveev, P.I.; Evsiunina, M.V.; Lemport, P.S.; Pozdeev, A.S.; Petrov, V.G.; Yatsenko, A.V.; Tafeenko, V.A.; et al. Competing Routes in the Extraction of Lanthanide Nitrates by 1,10-Phenanthroline-2,9-diamides: An Impact of Structure of Complexes on the Extraction. Int. J. Mol. Sci. 2022, 23, 15538. [Google Scholar] [CrossRef]
  45. Avagyan, N.A.; Lemport, P.S.; Evsiunina, M.V.; Matveev, P.I.; Aksenova, S.A.; Nelyubina, Y.V.; Yatsenko, A.V.; Tafeenko, V.A.; Petrov, V.G.; Ustynyuk, Y.A.; et al. Pyrrolidine-Derived Phenanthroline Diamides: An Influence of Fluorine Atoms on the Coordination of Lu(III) and Some Other f-Elements and Their Solvent Extraction. Int. J. Mol. Sci. 2023, 24, 5569. [Google Scholar] [CrossRef]
  46. Petrov, V.S.; Avagyan, N.A.; Lemport, P.S.; Matveev, P.I.; Evsiunina, M.V.; Roznyatovsky, V.A.; Tarasevich, B.N.; Isakovskaya, K.L.; Ustynyuk, Y.A.; Nenajdenko, V.G. 1,10-Phenanthroline-2,9-dicarboxylic acid diamides: Synthesis, structure, and solubility. Russ. Chem. Bull. 2023, 72, 697–705. [Google Scholar] [CrossRef]
  47. Ustynyuk, Y.A.; Lemport, P.S.; Roznyatovsky, V.A.; Lyssenko, K.A.; Gudovannyy, A.O.; Matveev, P.I.; Khult, E.K.; Evsiunina, M.V.; Petrov, V.G.; Gloriozov, I.P.; et al. First Trifluoromethylated Phenanthrolinediamides: Synthesis, Structure, Stereodynamics and Complexation with Ln(III). Molecules 2022, 27, 3114. [Google Scholar] [CrossRef]
  48. Avagyan, N.A.; Lemport, P.S.; Lysenko, K.A.; Gudovannyy, A.O.; Roznyatovsky, V.A.; Petrov, V.S.; Vokuev, M.F.; Ustynyuk, Y.A.; Nenajdenko, V.G. First Example of Fluorinated Phenanthroline Diamides: Synthesis, Structural Study, and Complexation with Lanthanoids. Molecules 2022, 27, 4705. [Google Scholar] [CrossRef]
  49. La, D.D.; Dang, T.D.; Le, P.C.; Bui, X.T.; Chang, S.W.; Chung, W.J.; Kim, S.C.; Nguyen, D.D. Self-assembly of monomeric porphyrin molecules into nanostructures: Self-assembly pathways and applications for sensing and environmental treatment. Environ. Technol. Innov. 2023, 29, 103019. [Google Scholar] [CrossRef]
  50. Zeng, F.; Liao, J.; Ding, M.-H.; Ou, G.-C. Self-assembled macrocycle that binds polycyclic aromatic hydrocarbons. Dye. Pigment. 2021, 192, 109430. [Google Scholar] [CrossRef]
  51. Ghorai, A.; Achari, B.; Chattopadhyay, P. Self-assembly of cyclic peptides and peptidomimetic macrocycles: Linking structure with function. Tetrahedron 2016, 72, 3379–3387. [Google Scholar] [CrossRef]
  52. Allen, F.H.; Kennard, O.; Watson, D.G.; Brammer, L.; Orpen, A.G.; Taylor, R. Tables of bond lengths determined by X-ray and neutron diffraction. Part 1. Bond lengths in organic compounds. J. Chem. Soc. Perkin Trans. 2 1987, 12, S1–S19. [Google Scholar] [CrossRef]
  53. Service, R.F. How Far Can We Push Chemical Self-Assembly? Science 2005, 309, 95. [Google Scholar] [CrossRef] [Green Version]
  54. Wu, X.; Wang, P.; Turner, P.; Lewis, W.; Catal, O.; Thomas, D.S.; Gale, P.A. Tetraurea Macrocycles: Aggregation-Driven Binding of Chloride in Aqueous Solutions. Chem 2019, 5, 1210–1222. [Google Scholar] [CrossRef]
  55. Fan, W.; Yan, W.; Xu, Z.; Ni, H. Formation mechanism of monodisperse, low molecular weight chitosan nanoparticles by ionic gelation technique. Colloids Surf. B Biointerfaces 2012, 90, 21–27. [Google Scholar] [CrossRef]
  56. Johnson, C.S.; Gabriel, A. Laser Light Scattering; Dover Publications Inc.: New York, NY, USA, 1994. [Google Scholar]
  57. Gracheva, N.N.; Romanchuk, A.Y.; Smirnov, E.A.; Meledina, M.A.; Garshev, A.V.; Shirshin, E.A.; Fadeev, V.V.; Kalmykov, S.N. Am(III) sorption onto TiO2 samples with different crystallinity and varying pore size distributions. Appl. Geochem. 2014, 42, 69–76. [Google Scholar] [CrossRef]
  58. Lochhead, M.J.; Wamsley, P.R.; Bray, K.L. Luminescence Spectroscopy of Europium(III) Nitrate, Chloride, and Perchlorate in Mixed Ethanol-Water Solutions. Inorg. Chem. 1994, 33, 2000–2003. [Google Scholar] [CrossRef]
  59. Kharcheva, A.V.; Charyshnikova, Z.A.; Borisova, N.E.; Sumyanova, T.B.; Farat, O.K.; Kharitonov, D.A.; Patsaeva, S.V. New luminescent pH-responsive europium complex for multimodal sensing in extremely wide pH range. J. Lumin. 2022, 243, 118678. [Google Scholar] [CrossRef]
  60. Prakash, G.K.S.; Hu, J. “Pentafluorobenzoic Acid” in e-EROS Encyclopedia of Reagents for Organic Synthesis; John Wiley & Sons: Hoboken, NJ, USA, 2005. [Google Scholar] [CrossRef]
  61. Herbst, R.S.; Law, J.D.; Todd, T.A.; Romanovskii, V.N.; Babain, V.A.; Esimantovski, V.M.; Zaitsev, B.N.; Smirnov, I.V. Development and testing of a cobalt dicarbollide based solvent extraction process for the separation of cesium and strontium from acidic tank waste. Sep. Sci. Technol. 2002, 37, 1807–1831. [Google Scholar] [CrossRef]
  62. Li, C.; Wu, L.; Chen, L.; Yuan, X. Highly efficient extraction of actinides with pillar[5]arene-derived diglycolamides in ionic liquid via a unique mechanism involving competitive host-guest interactions. Dalton Trans. 2016, 45, 19299–19310. [Google Scholar] [CrossRef]
  63. Smirnov, I.V.; Stepanova, E.S. Extraction of Americium with Substituted Calix[4]Arenes from Alkaline Solutions. Procedia Chem. 2016, 21, 203–210. [Google Scholar] [CrossRef]
  64. Sheldrick, G.M. SHELXT—Integrated space-group and crystal-structure determination. Acta Crystallogr. A 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Crystallogr. C 2015, 71, 3–8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  66. Blessing, R.H. An empirical correction for absorption anisotropy. Acta Crystallogr. Sect. A Found. Crystallogr. 1995, 51, 33–38. [Google Scholar] [CrossRef] [PubMed]
  67. Battye, T.G.G.; Kontogiannis, L.; Johnson, O.; Powell, H.R.; Leslie, A.G.W. iMOSFLM: A new graphical interface for diffraction-image processing with MOSFLM. Acta Cryst. D 2011, 67, 271–281. [Google Scholar] [CrossRef] [Green Version]
  68. Evans, P.R. Scaling and assessment of data quality. Acta Cryst. D 2006, 62, 72–82. [Google Scholar] [CrossRef]
  69. Spek, A.L. CheckCIF validation ALERTS: What they mean and how to respond. Acta Crystallogr. E 2020, 76, 1–11. [Google Scholar] [CrossRef] [Green Version]
  70. Lawson, C.L.; Hanson, R.J. Solving Least Squares Problems; Prentice-Hall: Englewood Cliffs, NJ, USA, 1995. [Google Scholar]
  71. Dyall, K.G. An exact separation of the spin-free and spin-dependent terms of the Dirac–Coulomb–Breit Hamiltonian. J. Chem. Phys. 1994, 100, 2118–2127. [Google Scholar] [CrossRef]
  72. Laikov, D.N. Atomic basis functions for molecular electronic structure calculations. Theor. Chem. Acc. 2019, 138, 40. [Google Scholar] [CrossRef] [Green Version]
  73. Hirshfeld, F.L. Bonded-atom fragments for describing molecular charge densities. Theor. Chim. Acta 1977, 44, 129–138. [Google Scholar] [CrossRef]
  74. Laikov, D.N.; Ustynyuk, Y.A. PRIRODA-04: A quantum-chemical program suite. New possibilities in the study of molecular systems with the application of parallel computing. Russ. Chem. Bull. 2005, 54, 820–826. [Google Scholar] [CrossRef]

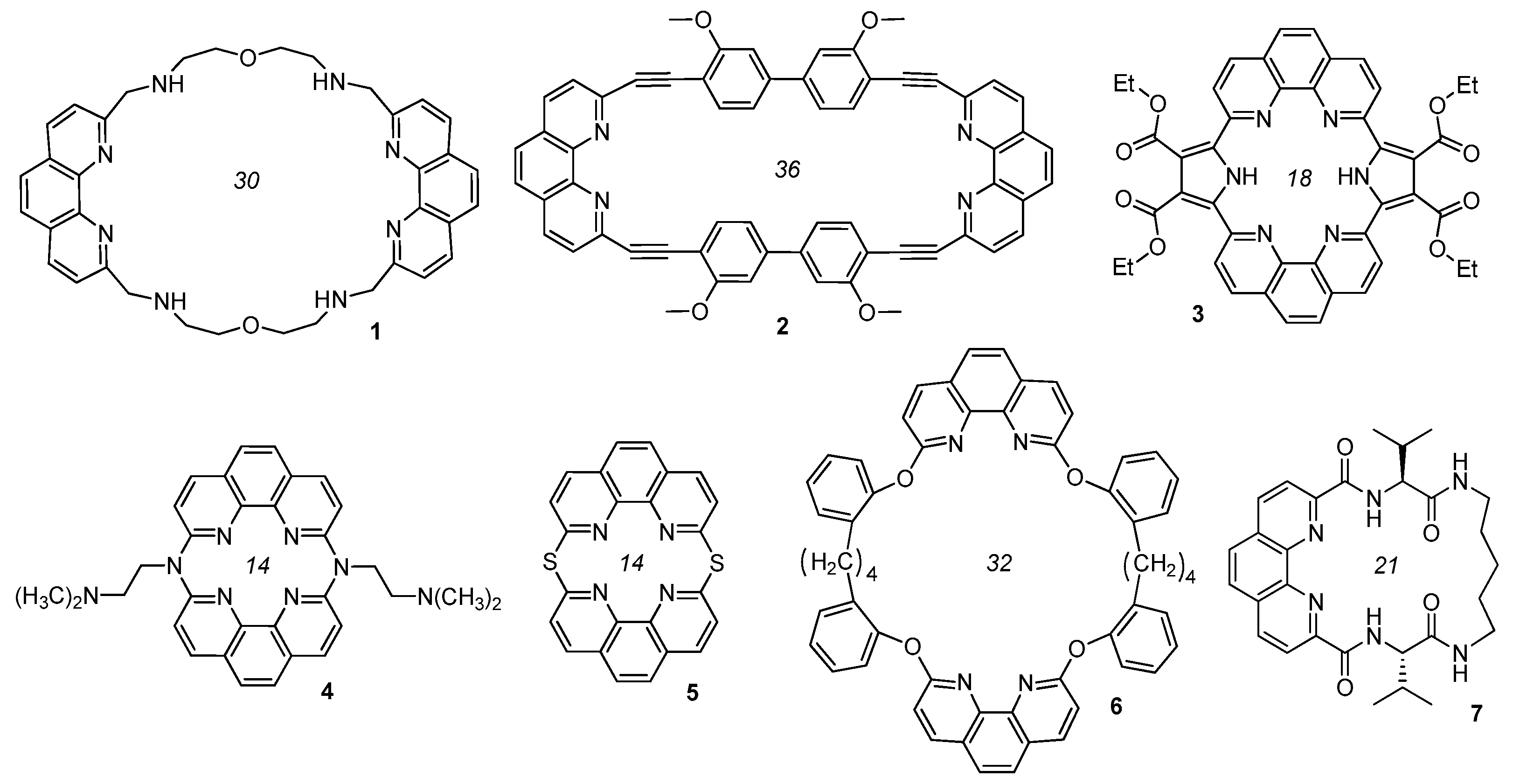

Figure 1. Some examples of macrocycles based on 1,10-phenanthroline core.
Figure 1. Some examples of macrocycles based on 1,10-phenanthroline core.
Ijms 24 10261 g001
Scheme 1. Synthesis of macrocycles L2 and L3.
Scheme 1. Synthesis of macrocycles L2 and L3.
Ijms 24 10261 sch001
Figure 2. 1H NMR (400.1 MHz) spectra of L3 in DMF-d7 (a) after sample preparation, 25 °C; (b) at 70 °C; and (c) after cooling down to 25 °C.
Figure 2. 1H NMR (400.1 MHz) spectra of L3 in DMF-d7 (a) after sample preparation, 25 °C; (b) at 70 °C; and (c) after cooling down to 25 °C.
Ijms 24 10261 g002
Figure 3. An ellipsoid (50% probability) plot of (a) L2•xDMF and (b) L3•zCHCl3 showing the atom labelling. Disordered DMF and CHCl3 molecules were removed by SQUEEZE.
Figure 3. An ellipsoid (50% probability) plot of (a) L2•xDMF and (b) L3•zCHCl3 showing the atom labelling. Disordered DMF and CHCl3 molecules were removed by SQUEEZE.
Ijms 24 10261 g003
Figure 4. An ellipsoid (50% probability) plot of (a) L3•yDMF showing the atom labelling and (b) the bend of macrocyclic molecules exemplified by L3•yDMF. Disordered DMF molecules were removed by SQUEEZE. Atoms marked with apostrophes are related to others by the C2 axis (−x, y, 3/2 − z).
Figure 4. An ellipsoid (50% probability) plot of (a) L3•yDMF showing the atom labelling and (b) the bend of macrocyclic molecules exemplified by L3•yDMF. Disordered DMF molecules were removed by SQUEEZE. Atoms marked with apostrophes are related to others by the C2 axis (−x, y, 3/2 − z).
Ijms 24 10261 g004
Figure 5. Voids in the crystal structure of (a) L2•xDMF and (b) L3•zCHCl3 presented by pink spheres.
Figure 5. Voids in the crystal structure of (a) L2•xDMF and (b) L3•zCHCl3 presented by pink spheres.
Ijms 24 10261 g005
Figure 6. Elongated voids in the crystal structure of L3•yDMF presented by combinations of pink spheres.
Figure 6. Elongated voids in the crystal structure of L3•yDMF presented by combinations of pink spheres.
Ijms 24 10261 g006
Figure 7. Size-distribution of L3 in solutions: left—L3 particles size in acetonitrile, chloroform and DMSO; center—L3 recrystallized from chloroform in F-3 diluent; right—L3 recrystallized from ethanol in F-3 diluent. PFBA = pentafluorobenzoic acid.
Figure 7. Size-distribution of L3 in solutions: left—L3 particles size in acetonitrile, chloroform and DMSO; center—L3 recrystallized from chloroform in F-3 diluent; right—L3 recrystallized from ethanol in F-3 diluent. PFBA = pentafluorobenzoic acid.
Ijms 24 10261 g007
Figure 8. Changes in the stoichiometry of the europium complexes observed on the fluorescence spectra. (a) Normalized fluorescence spectrum in the region of 670–720 nm upon 300 nm excitation; (b) normalized dependence of line intensity in the region of 616 nm on concentration (blue circles). The solid line corresponds to a linear interpolation of the initial part of the concentration dependence.
Figure 8. Changes in the stoichiometry of the europium complexes observed on the fluorescence spectra. (a) Normalized fluorescence spectrum in the region of 670–720 nm upon 300 nm excitation; (b) normalized dependence of line intensity in the region of 616 nm on concentration (blue circles). The solid line corresponds to a linear interpolation of the initial part of the concentration dependence.
Ijms 24 10261 g008
Figure 9. UV-Vis titration of ligand L3 (2.5 × 10−5 mol/L, CH3CN) by Eu(NO3)3·6H2O (1.0 × 10−3 mol/L, CH3CN).
Figure 9. UV-Vis titration of ligand L3 (2.5 × 10−5 mol/L, CH3CN) by Eu(NO3)3·6H2O (1.0 × 10−3 mol/L, CH3CN).
Ijms 24 10261 g009
Figure 10. Dependence of lgD and SFAm/Eu for the L3 macrocycle-based extraction system when varying the ligand concentration, PFBA and pH value. (a) pH value, organic phase—2 mmol/L (L3), c(PFBA) = 0.5 mol/L; (b) lg(C(1)), pH = 13, c(PFBA) = 0.5 mol/L; (c) lgC(PFBA), pH = 13.1, 2 mmol/L (L3). Solvent—F-3, T = 25 ± 1 °C, c(Na2CO3) = 0.5 mol/L.
Figure 10. Dependence of lgD and SFAm/Eu for the L3 macrocycle-based extraction system when varying the ligand concentration, PFBA and pH value. (a) pH value, organic phase—2 mmol/L (L3), c(PFBA) = 0.5 mol/L; (b) lg(C(1)), pH = 13, c(PFBA) = 0.5 mol/L; (c) lgC(PFBA), pH = 13.1, 2 mmol/L (L3). Solvent—F-3, T = 25 ± 1 °C, c(Na2CO3) = 0.5 mol/L.
Ijms 24 10261 g010aIjms 24 10261 g010b
Figure 11. Comparison with calixarenes [63]. Diluent—F-3, T = 25 ± 1 °C.
Figure 11. Comparison with calixarenes [63]. Diluent—F-3, T = 25 ± 1 °C.
Ijms 24 10261 g011
Figure 12. DFT-calculated structure of macrocycle L2: (a) major conformer and (b) a probable structure of one of its minor conformers.
Figure 12. DFT-calculated structure of macrocycle L2: (a) major conformer and (b) a probable structure of one of its minor conformers.
Ijms 24 10261 g012
Figure 13. DFT-optimized structures of L3La(NO3)3 and L3[(H3O)+(NO3)] complexes.
Figure 13. DFT-optimized structures of L3La(NO3)3 and L3[(H3O)+(NO3)] complexes.
Ijms 24 10261 g013
Table 1. Solubility of macrocycles L2 and L3.
Table 1. Solubility of macrocycles L2 and L3.
CodeXSolubility, mol·L−1LogP **
L2H<1 × 10−5~1 × 10−4~7 × 10−4−3.78 ± 1.65
L3Cl~1 × 10−4~2 × 10−3~3 × 10−3−1.00 ± 1.66
* 3-Nitro-benzofluoride. ** The LogP values given in Table 1 were predicted using ACD/LogP software (ACD/Labs Release: 10.0 Product Version: 10.01).
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Lemport, P.S.; Petrov, V.S.; Matveev, P.I.; Leksina, U.M.; Roznyatovsky, V.A.; Gloriozov, I.P.; Yatsenko, A.V.; Tafeenko, V.A.; Dorovatovskii, P.V.; Khrustalev, V.N.; et al. First 24-Membered Macrocyclic 1,10-Phenanthroline-2,9-Diamides—An Efficient Switch from Acidic to Alkaline Extraction of f-Elements. Int. J. Mol. Sci. 2023, 24, 10261.

AMA Style

Lemport PS, Petrov VS, Matveev PI, Leksina UM, Roznyatovsky VA, Gloriozov IP, Yatsenko AV, Tafeenko VA, Dorovatovskii PV, Khrustalev VN, et al. First 24-Membered Macrocyclic 1,10-Phenanthroline-2,9-Diamides—An Efficient Switch from Acidic to Alkaline Extraction of f-Elements. International Journal of Molecular Sciences. 2023; 24(12):10261.

Chicago/Turabian Style

Lemport, Pavel S., Valentine S. Petrov, Petr I. Matveev, Uliana M. Leksina, Vitaly A. Roznyatovsky, Igor P. Gloriozov, Alexandr V. Yatsenko, Viktor A. Tafeenko, Pavel V. Dorovatovskii, Viktor N. Khrustalev, and et al. 2023. "First 24-Membered Macrocyclic 1,10-Phenanthroline-2,9-Diamides—An Efficient Switch from Acidic to Alkaline Extraction of f-Elements" International Journal of Molecular Sciences 24, no. 12: 10261.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
