Review

Metal Coordination Enhances Chalcogen Bonds: CSD Survey and Theoretical Calculations

by
Antonio Frontera
* and
Antonio Bauza
*
Departament de Química, Universitat de les Illes Balears, Crta. de Valldemossa km 7.5, 07122 Palma de Mllorca, Baleares, Spain
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(8), 4188; https://doi.org/10.3390/ijms23084188
Submission received: 21 February 2022 / Revised: 2 April 2022 / Accepted: 7 April 2022 / Published: 10 April 2022
(This article belongs to the Collection Feature Papers in 'Physical Chemistry and Chemical Physics')
Browse Figures
Versions Notes

Abstract

:
In this study the ability of metal coordinated Chalcogen (Ch) atoms to undergo Chalcogen bonding (ChB) interactions has been evaluated at the PBE0-D3/def2-TZVP level of theory. An initial CSD (Cambridge Structural Database) inspection revealed the presence of square planar Pd/Pt coordination complexes where divalent Ch atoms (Se/Te) were used as ligands. Interestingly, the coordination to the metal center enhanced the σ-hole donor ability of the Ch atom, which participates in ChBs with neighboring units present in the X-ray crystal structure, therefore dictating the solid state architecture. The X-ray analyses were complemented with a computational study (PBE0-D3/def2-TZVP level of theory), which shed light into the strength and directionality of the ChBs studied herein. Owing to the new possibilities that metal coordination offers to enhance or modulate the σ-hole donor ability of Chs, we believe that the findings presented herein are of remarkable importance for supramolecular chemists as well as for those scientists working in the field of solid state chemistry.

1. Introduction

Since the beginning of the 21st century, the ability of elements from Groups 13–18 covalently bound to electron withdrawing groups (EWG) to favorably interact with Lewis bases (e.g., lone pair donors, π-systems and anions) has been subject of extensive investigation [1,2,3,4,5,6,7,8,9,10,11,12,13]. It all began with the standardization of the electropositive site to describe the main features of the hydrogen bonding (HB) interaction and from there, it became common to name the noncovalent interactions (NCIs) between nucleophile and electrophile sites (known as σ-holes) by using the name of the group to which the electrophilic atom belongs [14,15]. In this context, the International Union of Pure and Applied Chemistry (IUPAC) have already recommended the terms halogen bond (HaB) [16] and chalcogen bond (ChB) [17] for naming the NCIs encompassing atoms from groups 17 and 18, respectively. Furthermore, a specific name is given to each group, being aerogen or noble gas bonding (NgB, group 18) [12], pnictogen bonding (PnB, group 15), [18,19] tetrel bonding (TtB, group 14) [20], and triel bonding (TrB, group 13) [7]. Furthermore, elements from groups 7, 8, 11 and 12 acting as Lewis acids have recently received the names of matere bonding (MaB, group 7) [21], osme bonding (OmB, group 8) [22], spodium bonding (SpB, group 12) [23] and regium or coinage bonding (CiB, group 11) [24,25,26,27].
The use of σ-holes as an alternative to HB interactions has been reported in many studies belonging to a broad spectrum of fields, such as host-guest chemistry, catalysis, supramolecular chemistry, membrane transport, crystal engineering, etc. [28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43,44,45]. In addition, comparisons have been made to unveil similarities and differences between σ-hole interactions and the HB in both energetic and geometric characteristics [46,47,48,49,50,51].
Nowadays a remarkable progress has been achieved regarding the supramolecular chemistry of chalcogen bonding, particularly in regulating and fine tuning novel chemical systems for applications in crystal engineering, supramolecular chemistry, catalysis, transport of anions and functional materials [3,9,10,42]. As a common feature among the σ-hole family of interactions, the physical nature of the ChB is mainly based on electrostatics, while dispersion forces, polarization, charge-transfer, orbital delocalization and π-conjugation are also potential contributors to the ChB formation and strengthening [52,53,54,55]. In this context, two key features of the ChB interaction are both the strength and directionality. The former is related to the difference between the sum of van der Waals radii of the interacting atoms (ΣrvdW (Ch···A), where A = Lewis base) and the experimental Ch···A distance. The latter is related to the location of a σ-hole (opposite to the R–Ch bond), hence, the strength of the interaction is maximized at a ∠R–Ch···A angle of 180°, representing a measure of the directionality. In a parallel way to other σ-hole based interactions, both the strength and directionality of ChBs mainly depend on several factors:
Ch atom involved: Conversely to HB, the σ-hole donor ability varies upon modification of the Ch atom [39,56,57]. In Table 1 are gathered the atomic polarizabilities (α) and van der Waals radii (RvdW) of the chalcogen elements from period 2 to 5. As noted, the atomic α value becomes higher from 3.0 a.u. in O to 25.9 a.u. in Te. Interestingly, the difference in the atomic polarizability between O and S is noticeable (around 4 times higher for S), whilst the variations between S and Se or Se and Te are of lesser magnitude.
R groups attached to the Ch atom: The substituents (R) effect to the Ch···A bond features have been analysed from a theoretical perspective [58,59,60,61,62], evidencing that EWG enhance the strength of the ChB through the formation of larger and deeper σ-hole(s). Conversely, the use of electron-donating groups (EDG) resulted in a weakening of the interaction. Both types of substituents have been used to correlate structure-property functions, as well as a source of stabilization of the secondary coordination sphere in metal complexes. Figure 1 shows several Molecular Electrostatic Potential (MEP) surfaces of the –CH3 and –CF3 substituted Selenium and Tellurium derivatives. As noted, two σ-holes are located on each Ch atom on the extension of the C–Se and C–Te bonds and their MEP values become more positive ongoing from Se to Te, in agreement with the atomic polarizabilities discussed above. Moreover, the use of strong EWG (e.g., –CF3) increases the potential of the σ-hole, thus enhancing the σ-hole donor ability of the Ch atom and strengthening the interaction. Finally, using EDG as substituents of the Lewis base can also enhance the ChB interaction by increasing the nucleophilicity of the electron rich moiety [63,64].
Interacting partner (A): A variety of classical nucleophile species (e.g., lone pair bearing chalcogen, pnictogen or halogen atoms), including metal ions with available dz2 (Rh+, Ni2+, Pt2+, Pd2+) or dx2 − y2(Au+) orbitals can act as electron donor moieties to form strong ChBs [68,69,70,71,72,73,74,75]. Moreover, in a similar fashion to aromatic π-systems, the chelate ring has also been observed to participate as a ChB acceptor in intermolecular ChBs [76].
In this article, we illustrate several X-ray structures to highlight that ChBs in metal complexes can be used as an effective tool in crystal engineering and in the generation of functional materials. Particularly, we have focused our attention on a divalent Ch moiety coordinated to a metal center, which certainly increases the R–Ch σ-hole, leading to new opportunities to use ChBs as a supramolecular tool in coordination chemistry [77,78]. To illustrate this idea, two examples have been selected (see Figure 2), where a bidentate Se/Te ligand is coordinated to a Pd2+ ion in addition to two chloride ions in a square planar geometry. Upon coordination, there is one Se/Te σ-hole still available to undergo ChB interactions, which exhibits an enhanced electrostatic potential (up to 14 kcal/mol) compared to the uncoordinated ligand.
In this context, the Cambridge Structural Database (CSD) [79] has been inspected and a series of selected examples where Se or Te atoms coordinated to square planar metal coordinated behave as an electrophilic center (chalcogen bond donor) have been discussed. In a parallel way to X-ray analysis, the presence of intermolecular chalcogen bonding in metal organic complexes has been also analyzed from a theoretical perspective. The selection of square planar complexes instead of octahedral is to prevent steric effects that may hamper the formation of ChB interactions, as represented in Scheme 1. We believe this review article will attract the attention of both theoreticians and experimentalists to investigate the ChBs in coordination compounds, which can be used as a new synthon in crystal engineering and improve the functional properties of materials.

2. Computational Methods

Calculations regarding the supramolecular complexes have been carried out at the PBE0 [80,81]-D3 [82]/def2-TZVP [66] level of theory using the program Turbomole 7.2 (Karlsruhe, Germany) [67]. The binding energy values (ΔEBSSE) were calculated as the energy difference between the optimized structures of the complex and isolated monomers following the supermolecule approximation (ΔEcomplex = Ecomplex − EmonomerA − EmonomerB). Using the Gaussian 16 software [83], the MEP surfaces of compounds Ch(CH3)2, Ch(CF3)2, [PdCl2{1,2-C6H4Ch(CH3)2}] and 1,2-C6H4Ch(CH3)2 (Ch = Se and Te) have been computed at the MP2 [65]/def2-TZVP level of theory.
To compute the contribution of the Chalcogen bond contacts (in kcal/mol) the following equations were used [84]:
Eint = 0.375 × V(r) − 0.5655 (for those ChBs involving Se)
Eint = 0.556 × V(r) + 0.6445 (for those ChBs involving Te)
Finally, the Bader’s “Atoms in molecules” theory [85,86] has been used to analyze and describe the interactions discussed in this work using the AIMall calculation package [87]. The PBE0/def2-TZVP level of theory was used for the wavefunction analysis as well as for the NBO charge analysis (also using Gaussian-16 software).

3. Results and Discussion

3.1. CSD Search

We have inspected the CSD and found 103 structures where either divalent Se or Te is coordinated to square planar metal centers, which were in all cases Pt or Pd. No examples with other typical square planar metals like Ni and Rh were found. Remarkably, in 73 out of 103 structures, we detected the existence of ChB interactions, using the following geometric criteria: Ch···X distance shorter than the sum of van der Waals radii plus 0.2 Å (ΣRvdw + 0.2) and ∡ R–Ch···X greater than 160 degrees (X = O, C, Pt, Pd, Cl and I). Table S1 compiles the CSD reference codes, geometric features and donor-acceptor atoms. Most of the hits are observed for Se (40 structures) and chloride as electron donor (52 structures). Other electron donors are Br, I, O and C-atoms belonging to electron rich aromatic rings. Interestingly, we have also observed some structures where it is the metal center that acts as electron donor (3 for Pd and 3 for Pt). The geometric features, energies and characterization of the ChBs are provided in the following sections.

3.2. Selenium Derivatives

3.2.1. Oxygen as Electron Donor

Figure 3a shows a self-assembled dimer that is formed in the solid state of dichloro-(2,3:7,8-bis(methylenedioxy)-selenanthrene-Se,Se′)-platinum(II) (refcode DUWMEN [88]). It can be observed that one O-atom of the methylenedioxy group is located opposite to the C–Se bond, thus forming a ChB. The MEP surface (Figure 3b) of this compound reveals the existence of three σ-holes opposite to the three covalent bonds, including the coordination Pt–Se bond. It can be observed that the intensity of the σ-hole opposite to the C–Se bond is large, which is quite unexpected considering the electronegativity of carbon (C–Se bond is not much polarized). This is explained by the coordination of Se to the Pt that increases the Lewis acidity of the Se-atom. It can be also observed that the approximation of the O-atom to the Se could not be possible for a hypothetical octahedral complex due to the presence of an apical ligand.
Two additional examples showing Ch···O contacts with a clear structure directing role are shown in Figure 4. Both complexes present the same ligand [2-(phenyl((2-(phenylselanyl)ethyl)imino)methyl)phenolato], coligand (chloride) and the difference resides in the transition metal (Pd for XUFHEM [89] and Pt for XUFHIQ [89]). Both structures form very similar self-assembled dimers in the solid state where two symmetrically equivalent Se···O contacts are established. Both dimers also present metal···metal (M···M) interactions with distances shorter than 3.45 Å. The Se···O distances are shorter in XUFHEM (Figure 4a) structure, likely influenced by the shorter Pd···Pd distance. The directionality of the ChBs is worse (with respect to linearity) than the observed in DUWMEN structure (Figure 4b), which is also due to the restriction imposed by the M···M interaction.

3.2.2. Halogen as Electron Donor

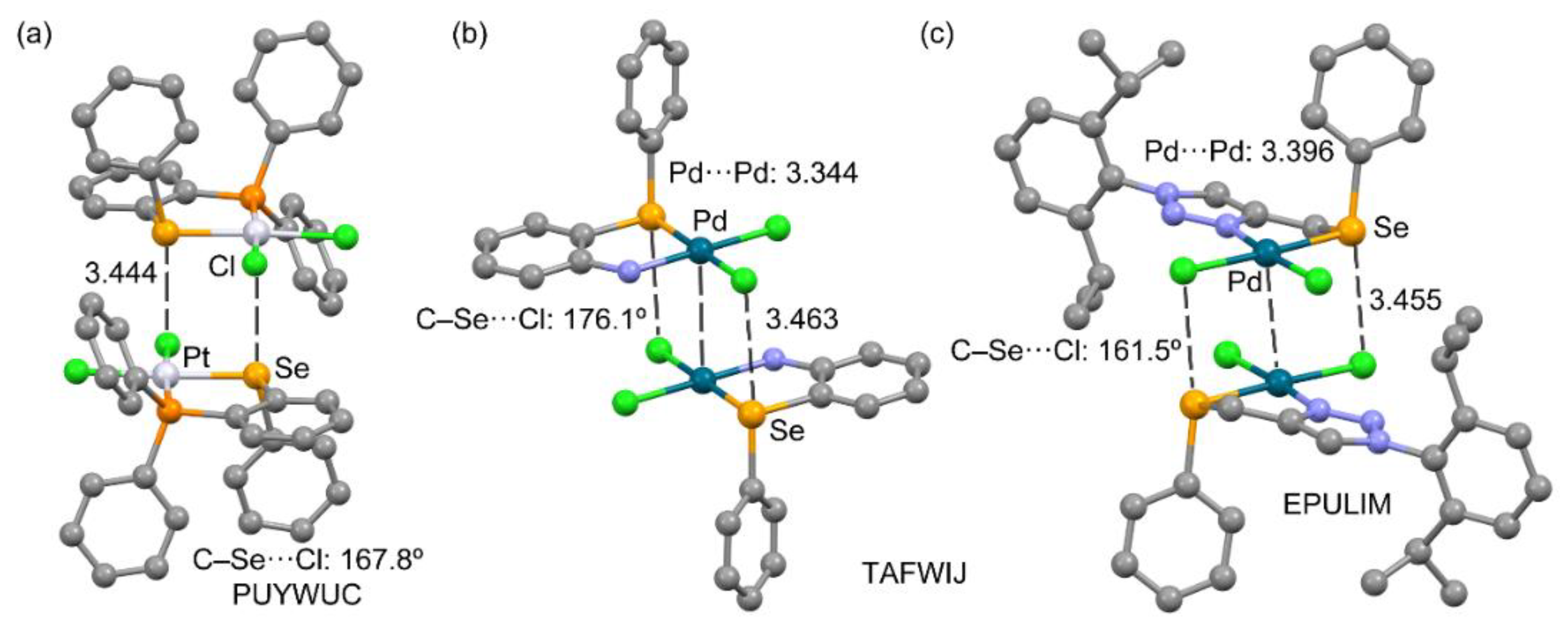

As commented above, most hits from the CSD search present an halogen atom as electron donor, basically because chloride is widely used in the synthesis of Pd and Pt complexes. Figure 5a highlights a self-assembled dimer that is formed in the solid state of (1,2-bis(phenylseleno)benzene)-dichlorido-palladium(II) (refcode XILFEE [90]), selected as representative X-ray structure with Se···Cl contacts. It can be observed that the chloride ligands are located opposite to the C–Se bonds, thus forming four concurrent ChBs and one Pd···Pd contact. The MEP surface of this compound (see Figure 5b) reveals the existence of two σ-holes opposite to (i) one C–Se covalent bond and (ii) to one Pt–Se coordination bond. The second C–Se σ-hole is buried by the large negative belt of Cl. It can be observed that the MEP value at the σ-hole opposite to the Pd–Se bond is larger likely due to the contribution of the nearby C–H bond.

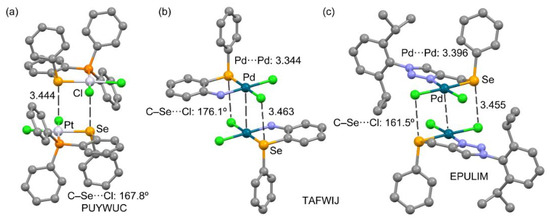

Three additional examples showing Ch···Cl contacts are represented in Figure 6, in all cases the adducts are self-assembled dimers. In the dimer of dichloro-(diphenyl(2-(phenylselanyl)phenyl)phosphine)-platinum (PUYWUC [91], Figure 6a), the Pt···Pt interaction is not established and the formation of the dimer is dominated by ChBs. In the other two structures (refcodes TAFWIJ [92], Figure 6b and EPULIM [93], Figure 6c), Pd···Pd interactions coexist with the Se···Cl contacts. Among them, TAFWIJ structure is the one exhibiting the highest directionality (∡C–Se···Cl = 176.1°) and the shortest M···M distance.

3.2.3. Carbon as Electron Donor

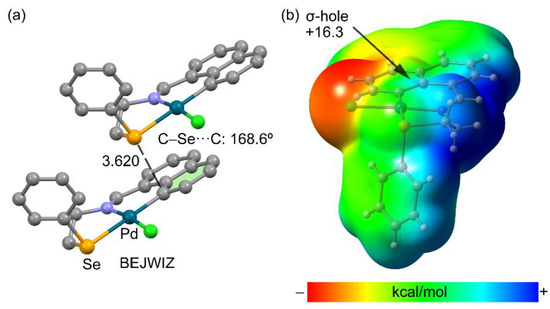

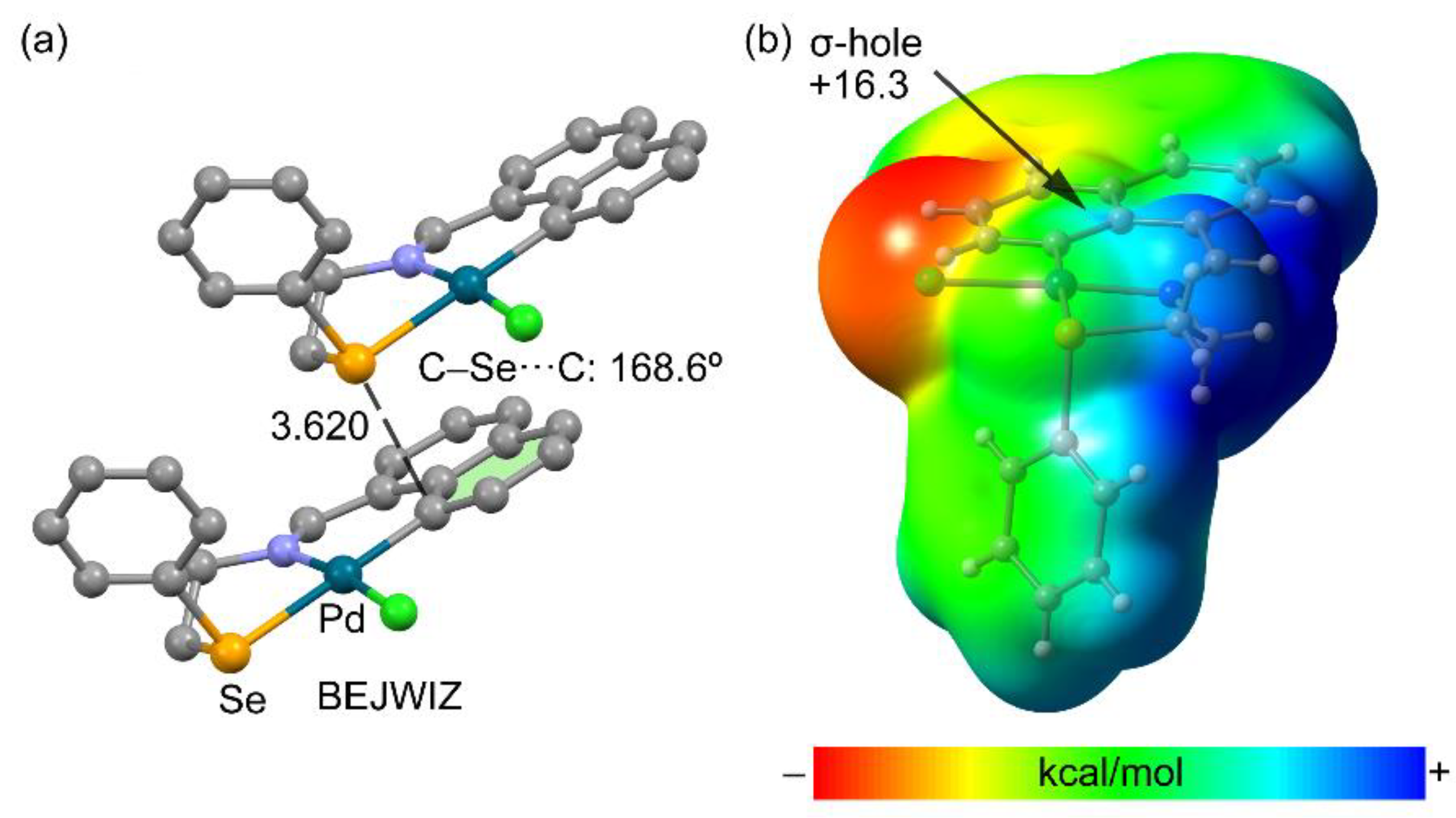

Figure 7a shows a dimer extracted from an 1D supramolecular assembly that propagates in the crystal packing of chloro-[8-({[2-(phenylselanyl)ethyl]imino}methyl)naphthalen-1-yl]-palladium(II) complex (refcode BEJWIZ [94]). The C-atom bonded to the Pd is located opposite to the C–Se bond, thus playing the electron donor role in this ChB interaction, which is facilitated by the anionic nature of this C-atom. The MEP surface (Figure 7b) shows a small σ-hole opposite to the C–Se bond that merges with the large blue region under the influence of the methylene group.

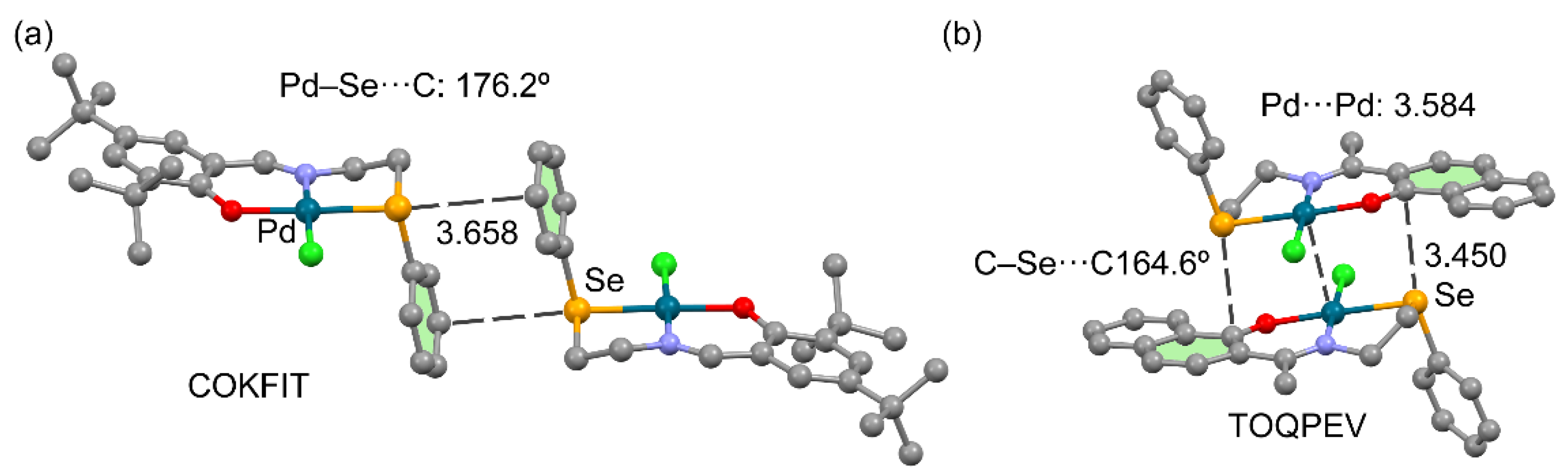

Other two examples of X-ray structures exhibiting Se···C contacts, where the electron donor C-atom belongs to an aromatic system, are given in Figure 8. It is interesting to highlight that for chloro-(2,4-di-t-butyl-6-(((2-(phenylselanyl)ethyl)imino)methyl)phenolato)-palladium(II) structure (Figure 8a, refcode COKFIT [95]), the self-assembled dimer does not present M···M interactions and the C-atom is located opposite to the Pd–Se bond. Therefore, in this compound, the third σ-hole at the Se-atom that emerges upon Pd-complexation is responsible for the formation of the dimers. In this example, the ChBs are the only forces governing the assembly. For the other example (TOQPEV [96], Figure 8b), in addition to the ChBs opposite to the C–Se bonds, an M···M interaction is established further supporting the formation of the self-assembled dimer. Curiously, the Pd–Se···C ChBs (dimer of COKFIT) are more directional than the C–Se···C (dimer of TOPQEV). To our knowledge, there are not previous examples in the literature of M–CH···X ChBs, where the electron rich atom is opposite to a M–Ch bond. This interesting and unexplored topic deserves further investigation by the scientific community.

3.2.4. Metal as Electron Donor

The role of metal centers in d8 or d10 configuration as electron donors has been recently analyzed for halogen bonding interactions [97]. However, similar investigations for chalcogen bonding are unprecedented. In this section, we show several examples where Pt or Pd act as electron donors in ChBs. Figure 9a shows a self-assembled dimer observed in the solid state of refcode VUGWOK [98]. The Pd is located opposite to the C–Se bond, thus acting as electron donor in the ChB interaction. The MEP surface (Figure 9b) shows a small σ-hole opposite to the Pd–Se bond (+8.1 kcal/mol) and a more intense one opposite to a C–Se bond (+16.9 kcal/mol).

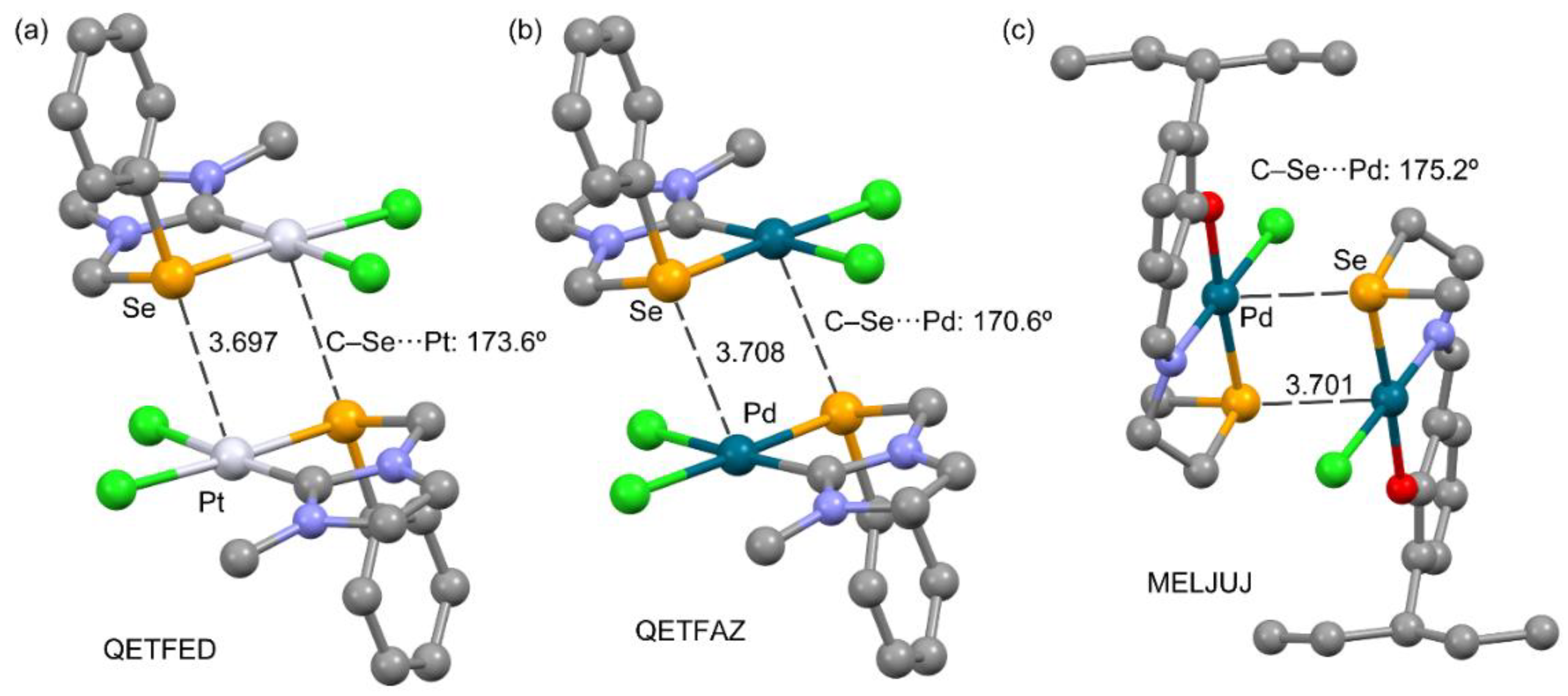

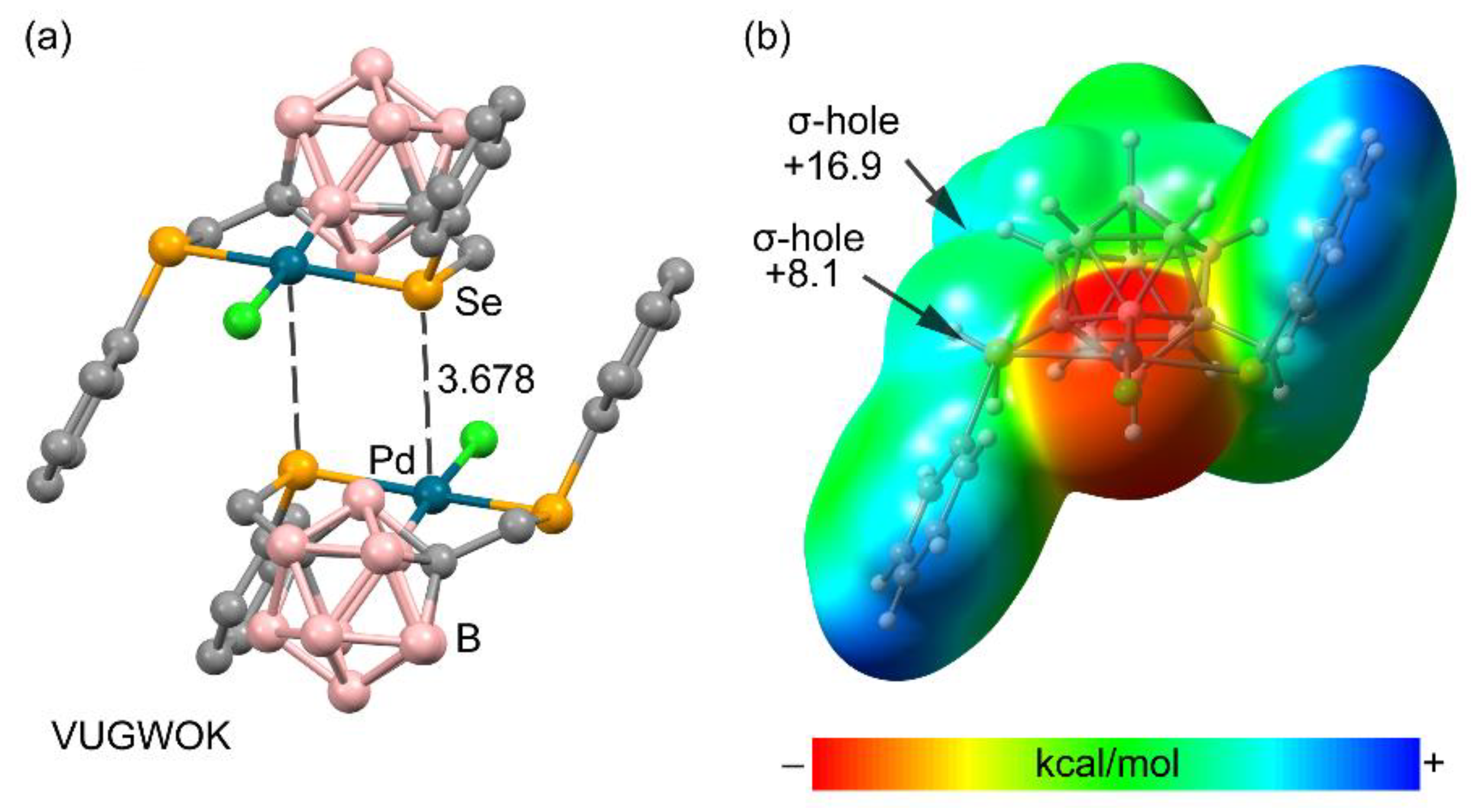

Other three interesting examples of X-ray structures exhibiting Se···M (M = Pt, Pd) are depicted in Figure 10. It is worthy to comment that the C–Se···M angle is in all cases higher than 170°, thus confirming the strong directionality of the interaction and that the nucleophilic metal center (filled dz2 orbital) is pointing to the σ-hole opposite to the C–Se bond. For the three selected examples (QETFED [99] (Figure 10a), QETFAZ [99] (Figure 10b) and MELJUJ [100] (Figure 10c)) the distances are similar (around 3.7 Å). Finally, in Table 2, the list of CSD codes including compound names and formulas of the Se involving dimers is given.

3.3. Tellurium Derivatives

In case of tellurium complexes, the CSD search shows that there are no examples involving oxygen as electron donor. In most of the hits, the electron donor is a halogen atom (Cl, Br or I), a π-system or a metal center (Pd and Pt) as discussed in the following sections.

3.3.1. Halogen as Electron Donor

Figure 11a highlights a self-assembled dimer that is formed in the X-ray packing of bis(benzenetellurenyl iodide)-di-iodo-palladium(II) (refcode CUHMOJ [101]), selected as representative structure showing Te···I contacts. It can be observed that the iodide ligands are located approximately opposite to the C–Te bonds (∡C–Te···I = 161.1°), thus forming four concurrent ChBs and one Pd···Pd contact (3.402 Å). The MEP surface of this compound (see Figure 11b) reveals the existence of two σ-holes opposite to (i) one C–Te covalent bond and (ii) to a Pd–Te coordination bond. The third σ-hole (expected opposite to the I–Te bond) is completely covered by the large and negative belt of I. It can be observed that the MEP value at the σ-hole opposite to the Pd–Te bond is smaller (+15.7 kcal/mol) than that opposite to the C–I bond (+18.8 kcal/mol).
Three additional examples showing Te···Cl, Br contacts are represented in Figure 12, where all three form self-assembled dimers in the solid state that are relevant in the crystal packing. In the dimer of dichloro-[1-(2-{[2,6-di-isopropylphenyl]tellanyl}phenyl)-N,N-dimethylmethanamine]-palladium(II) (CODTEX [102]), the M···M interaction is not established and the dimer formation is basically dominated by Te···Cl ChBs that are less directional (157°) compared to those previously described for Se (Figure 12a). It is known that the directionality of ChBs decreases on going from S to Te because the size of the σ-hole is larger in the more polarizable Ch atoms. In the other two structures represented in Figure 12 (refcodes JAGZIA [103] (Figure 12b) and TAPYEO [104] (Figure 12c)), Pd···Pd and Pt···Pt interactions coexist with the Te···Br and Te···Cl contacts, respectively. JAGZIA structure is the one with higher directionality (∡C–Te···Br = 171.7°) and shorter M···M distance (3.568 Å) whilst TAPYEO exhibits longer M···M distance (3.730 Å) and smaller angle (∡C–Te···Cl = 154.7°).

3.3.2. Carbon as Electron Donor

We have found only two structures in the database showing Te···C interactions, which are represented in Figure 13, refcodes SIDDAL [105] and WIXSEB [106]. In the former the chloro-(2-(1-((2-((4-methoxyphenyl)tellanyl)ethyl)amino)ethyl)phenolato)-palladium(II) forms discrete dimers with short Pd···Pd distance (3.203 Å) reinforced by short and directional Te···Cl contacts (see Figure 13a) using the σ-hole opposite to the CAromatic–Te bond. In addition, these dimers self-assemble via the formation of ChBs using the σ-hole opposite the Caliphatic–Te bond where the electron donor C-atom belongs to the aromatic system, with longer distances (3.871 Å) and smaller angles (∡C–Te···C = 166.7°). In the other example (WIBSEX [106] (Figure 13b)) only one type of ChB is established with shorter Te···C distance (3.465 Å) and better directionality (∡C–Te···C = 172.5°) compared to the SIDDAL dimer.

3.3.3. Metal as Electron Donor

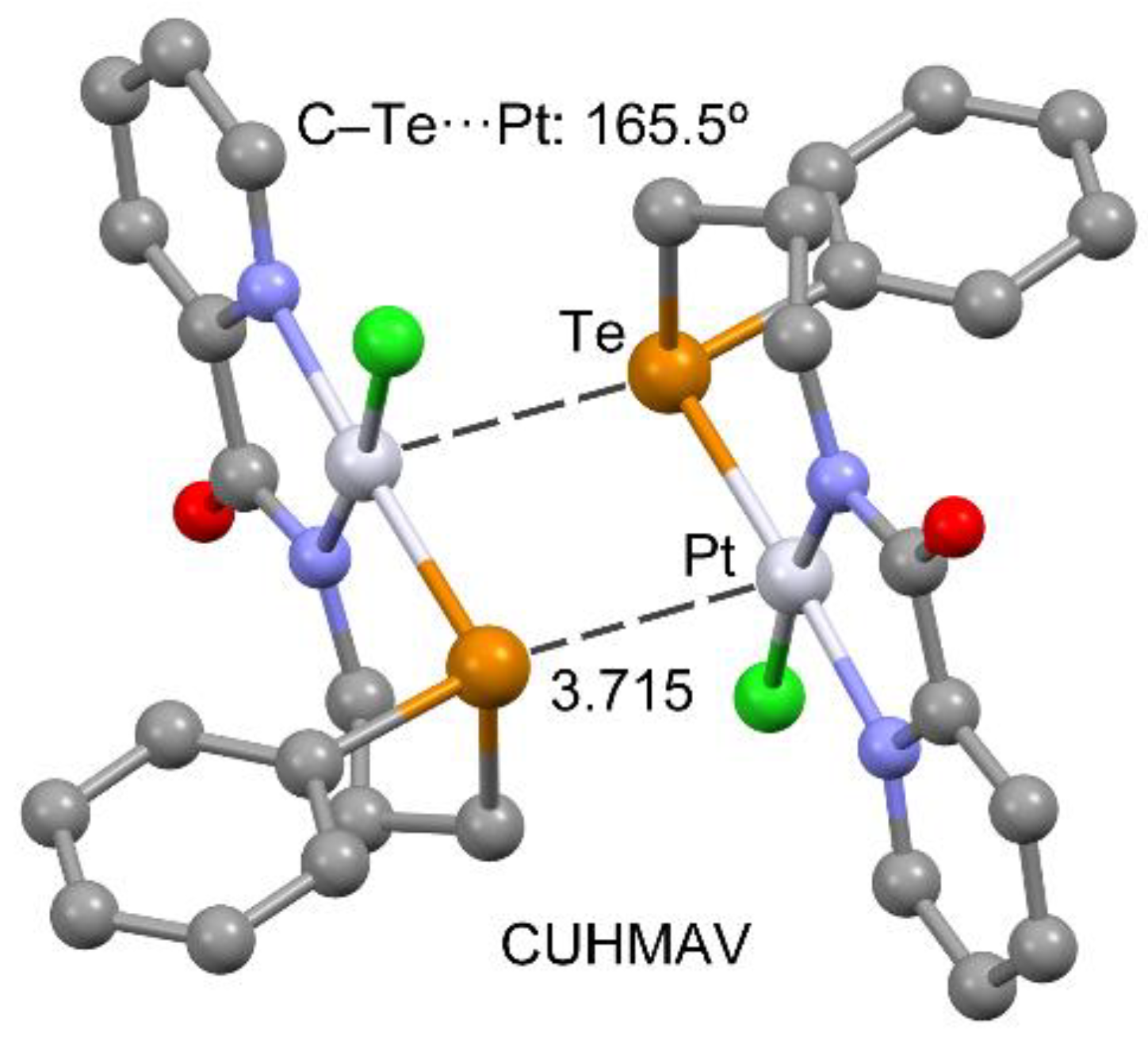

For tellurium, we have also found the interesting Ch···d8[M] ChB interaction commented above in two structures (M = Pt). Figure 14a shows a self-assembled dimer observed in the solid state of one of both (refcode ABOREP [107]). The Pt is located opposite to the C–Te bond, thus acting as electron donor in the ChB interaction. The MEP surface of chloro-(4-(2-(phenyltelluro)ethylimino)pentan-2-onato-N,O,Te)-platinum(II) complex (see Figure 14b) shows three σ-holes opposite to the three covalent bonds. The σ-hole opposite to the Caliphatic–Te bond presents the lowest value (+9.4 kcal/mol) while the other two exhibit similar and significantly larger MEP values (+21.9 and +25.1 kcal/mol) because they are under the influence of the CH bonds.
The other example of X-ray structure exhibiting Te···Pt ChBs is depicted in Figure 15, that corresponds to chloro-(N-(3-(phenyltellanyl)propyl)pyridine-2-carboxamidato)-platinum(II) complex (refcode CUHMAV [101]). It also forms self-assembled dimers in the solid state where the Pt atom is positioned opposite to the Ar–Te bond (3.715 Å). The directionality (∡C–Te···Pt = 165.5°) of the ChB interactions suggests that the nucleophilic dz2 orbital of Pt is pointing to the tellurium σ-hole, as it has been demonstrated for halogen bonded complexes [97]. Finally, in Table 3, the list of CSD codes including compound names and formulas of the Se involving dimers is given.

4. Theoretical Study

4.1. Energetic Study

With the purpose to shed light on the nature and directionality of the ChBs studied herein we have performed a computational study on three selected dimers (XILFEE, MELJUJ and CUHMOJ). In Table 4 the binding energies (ΔEBSSE) and the contribution of the Chalcogen bond contacts (derived from the V(r) predictor) (ΔEChB), equilibrium distances (d) as well as the value of the density at the bond critical point that characterizes the interaction (ρ·102) are included.
Firstly, the energetics, in all three calculated structures, large and attractive interaction energy values (ranging from −24.5 to −32.0 kcal/mol) were obtained, which involve the chalcogen bonding interactions as well as other noncovalent forces (e.g., hydrogen bonding, metal···metal interactions or π-π stacking). These results agree with very recent reports on similar supramolecular assemblies [108]. Secondly, the chalcogen bonding energies also achieved negative and attractive values (ranging from −2.7 to −7.9 kcal/mol). Finally, the NBO charges analyses resulted in positive values in the case of the ChB donor atom (Se/Te) of around 0.80e and negative ones in the case of the ChB acceptor atom (Cl, O and I), ranging between −0.2 and −0.6e.

4.2. AIM Analysis

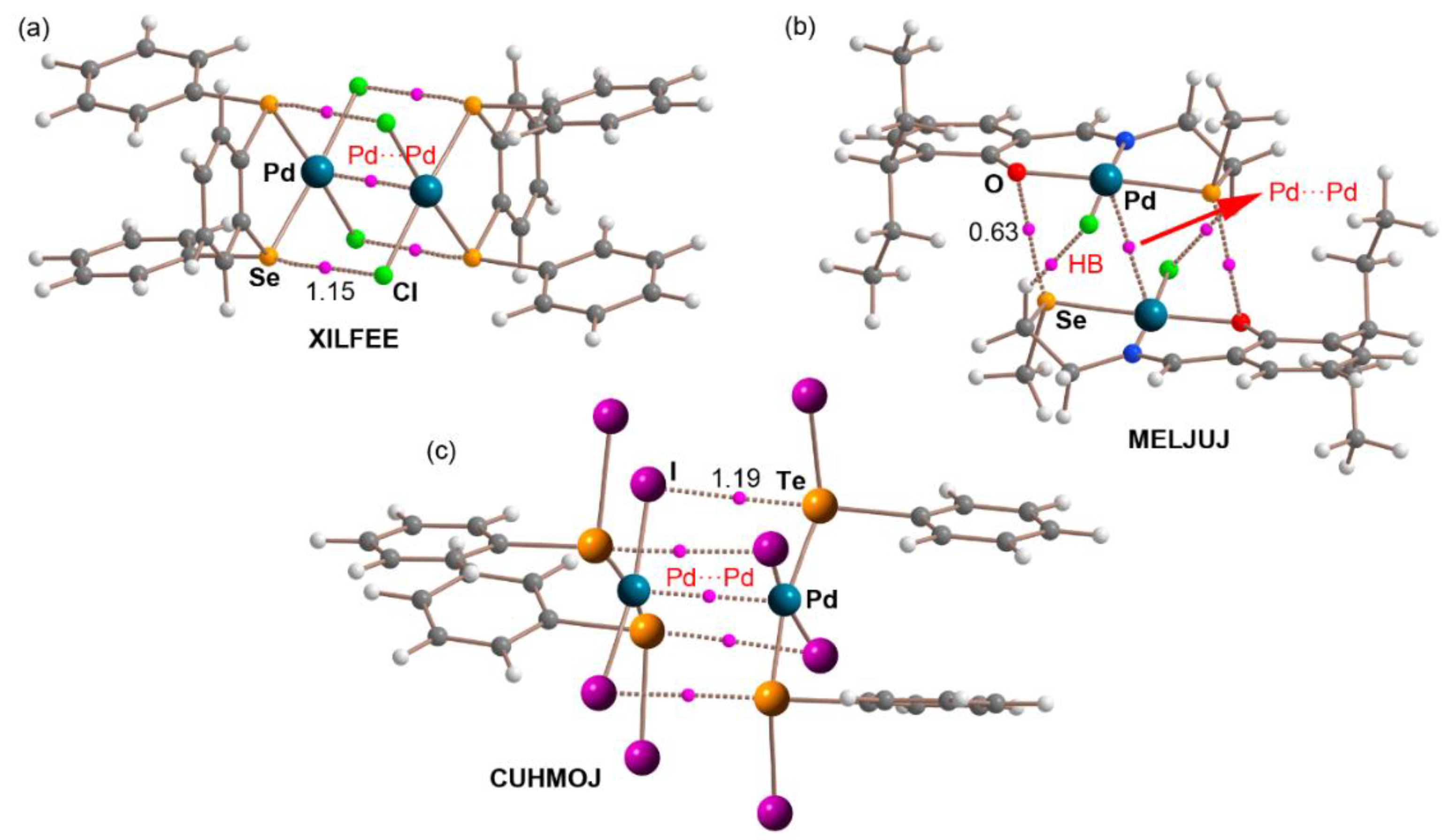

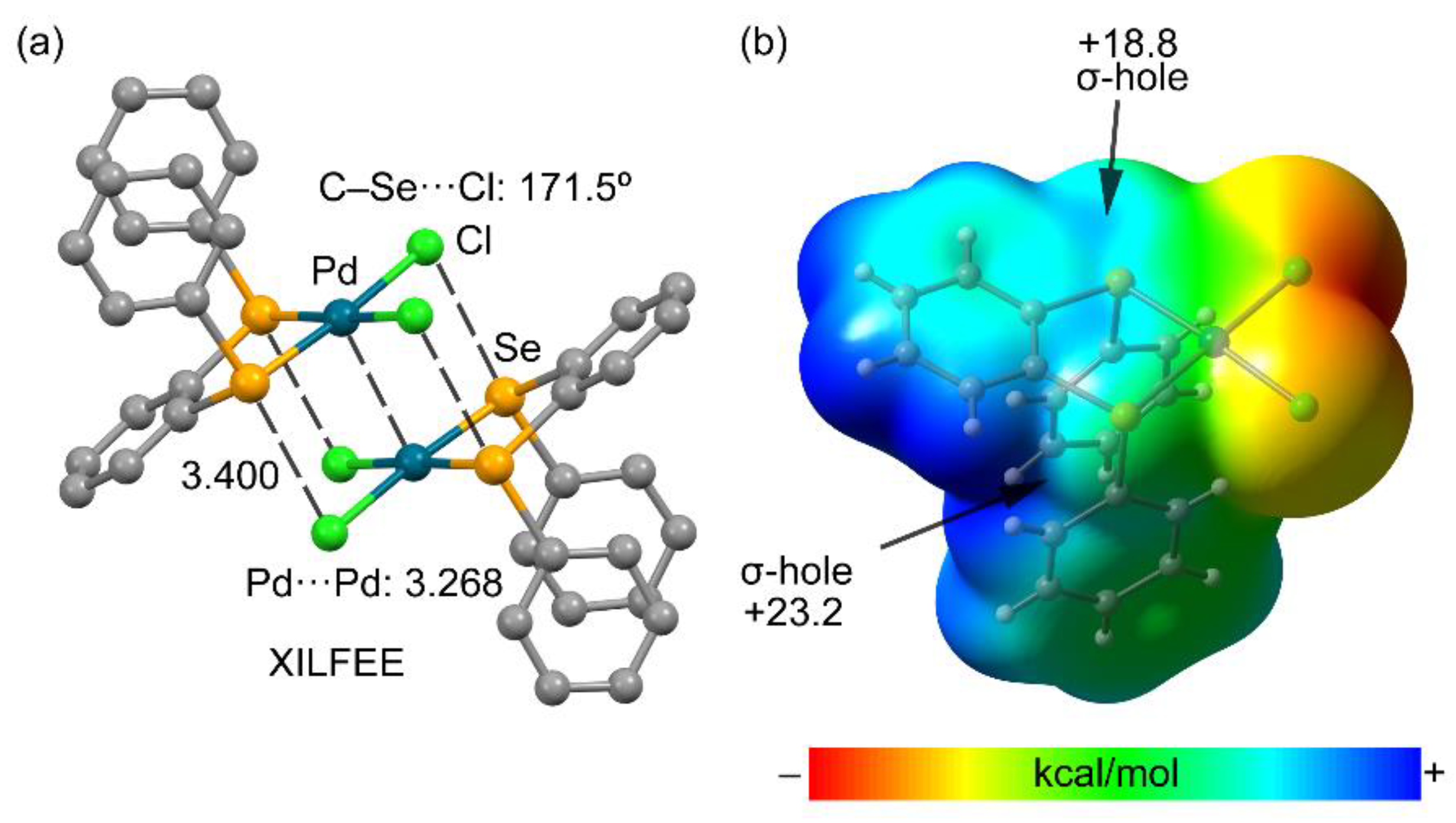

Figure 16a shows the QTAIM analysis of the XILFEE self-assembled dimer. The existence of the four Se···Cl ChBs is confirmed by the presence of four bond CPs and bond paths interconnecting the Se and Cl atoms. The QTAIM analysis also confirms the presence of a Pd···Pd interaction, characterized by a bond CP and bond path connecting both atoms. The dimerization energy is very large (−32.0 kcal/mol) due to the coexistence of five contacts, thus validating the structure directing role of such interactions in the solid state.
On the other hand, in Figure 16b the QTAIM analysis of the MELJUJ structure is shown. As noticed, the presence of two Se···O ChBs is confirmed by the existence of two bond CPs and bond paths interconnecting the Se and O atoms. This result differs from the X-ray crystal structure, which exhibited a Se···Pd ChB. In addition, the existence of ancillary hydrogen bonding (HB) interactions between the CH groups from the aliphatic chain of the ligand and the chloride atoms was also confirmed by means of a bond CP and a bond path connecting both moieties. The dimerization energy is also large (−31.5 kcal/mol) due to the existence of both ChB and HB interactions, which contribute to the formation and stabilization of this supramolecular assembly.

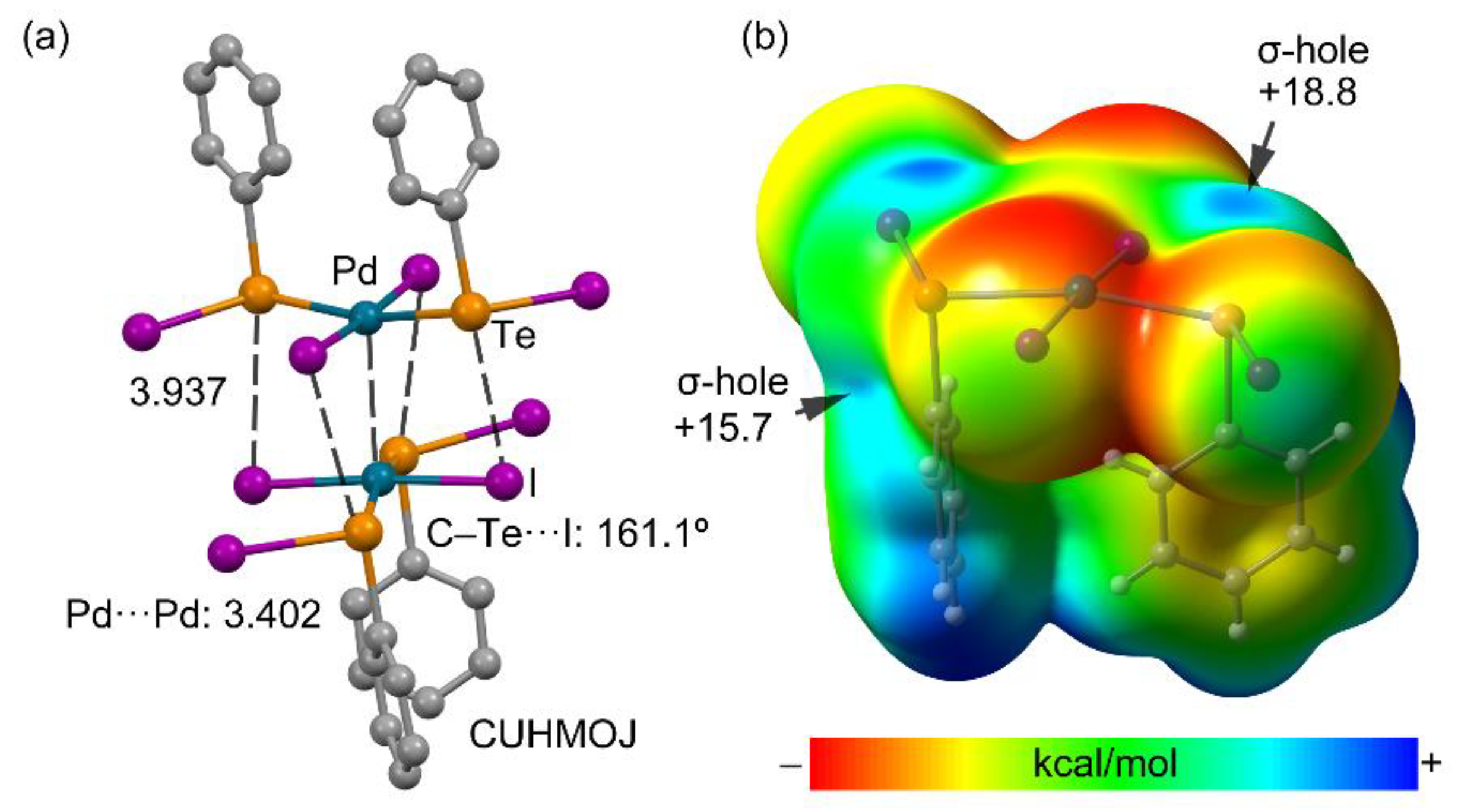

Finally, Figure 16c shows the QTAIM analysis of the CUHMOJ self-assembled dimer. The existence of the four Te···I ChBs is corroborated by the presence of four bond CPs and bond paths interconnecting the Te and I atoms. The QTAIM analysis also evidences a Pd···Pd interaction, characterized by a bond CP and bond path connecting both atoms. The dimerization energy is large (−24.5 kcal/mol) due to the coexistence of five contacts, thus further supporting the structure directing role of such interactions in the solid state. The interaction energy is smaller (in absolute value) than that observed for the XILFEE dimer (see Figure 16a) described above, where a similar combination of interactions is observed. This is likely due to the fact that chloride is better electron donor than iodide (the MEP value at the negative belt is larger).

5. Concluding Remarks

In this review article, the CSD has been inspected to demonstrate the existence and strong directing role of ChBs interaction involving metal coordinated Se and Te atoms. The formation of the coordination bond has a double effect. First, it provides an additional σ-hole to the Se or Te atoms and, secondly, increases their Lewis base acidity, thus reinforcing their ability to establish ChBs. We have provided several examples of structures retrieved from the CSD that evidence the structure directing role of such interactions. Moreover, the energetic features of the ChBs have been computed and the interactions characterized by using the QTAIM. In some of these examples, the electron donor system is the metal center (Pd or Pt). This result is significant, since Ch···d8[M] interactions have not been studied before, as far as our knowledge extends. More investigation is thus needed in this direction, since it can be relevant in several fields like supramolecular chemistry, crystal engineering, coordination chemistry and supramolecular catalysis.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms23084188/s1.

Author Contributions

Conceptualization, A.F. and A.B.; methodology, A.F. and A.B.; software, A.F. and A.B.; investigation, A.F. and A.B.; writing—original draft preparation, A.B. and A.F., writing—review and editing, A.F. and A.B., visualization, A.F. and A.B., project administration, A.F.; funding acquisition, A.F. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the MICIU/AEI of Spain (project PID2020-115637GB-I00 FEDER funds).

Data Availability Statement

Crystallographic data used in this study can be obtained from the Cambridge Structural Database (CSD). https://www.ccdc.cam.ac.uk/solutions/csd-core/components/csd/ (accessed on 12 February 2022).

Acknowledgments

We thank the “Centre de Tecnologies de la Informació” (CTI), Universitat de les Illes Balears for computational facilities.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Pizzi, A.; Pigliacelli, C.; Bergamaschi, G.; Gori, A.; Metrangolo, P. Biomimetic engineering of the molecular recognition and self-assembly of peptides and proteins via halogenation. Coord. Chem. Rev. 2020, 411, 213242. [Google Scholar] [CrossRef]
  2. Daolio, A.; Scilabra, P.; Terraneo, G.; Resnati, G. C(sp3) atoms as tetrel bond donors: A crystallographic survey. Coord. Chem. Rev. 2020, 413, 213265. [Google Scholar] [CrossRef]
  3. von der Heiden, D.; Vanderkooy, A.; Erdélyi, M. Halogen bonding in solution: NMR spectroscopic approaches. Coord. Chem. Rev. 2020, 407, 213147. [Google Scholar] [CrossRef]
  4. Gill, H.; Gokel, M.R.; McKeever, M.; Negin, S.; Patel, M.B.; Yin, S.; Gokel, G.W. Supramolecular pore formation as an antimicrobial strategy. Coord. Chem. Rev. 2020, 412, 213264. [Google Scholar] [CrossRef]
  5. Xu, Y.; Szell, P.M.J.; Kumar, V.; Bryce, D.L. Solid-state NMR spectroscopy for the analysis of element-based non-covalent interactions. Coord. Chem. Rev. 2020, 411, 213237. [Google Scholar] [CrossRef]
  6. Wang, W.; Zhang, Y.; Jin, W.J. Halogen bonding in room-temperature phosphorescent materials. Coord. Chem. Rev. 2020, 404, 213107. [Google Scholar] [CrossRef]
  7. Grabowski, S.J. Triel bond and coordination of triel centres–Comparison with hydrogen bond interaction. Coord. Chem. Rev. 2020, 407, 213171. [Google Scholar] [CrossRef]
  8. Fromm, K.M. Chemistry of alkaline earth metals: It is not all ionic and definitely not boring! Coord. Chem. Rev. 2020, 408, 213192. [Google Scholar] [CrossRef]
  9. Fourmigué, M.; Dhaka, A. Chalcogen bonding in crystalline diselenides and selenocyanates: From molecules of pharmaceutical interest to conducting materials. Coord. Chem. Rev. 2020, 403, 213084. [Google Scholar] [CrossRef]
  10. Scheiner, S.; Michalczyk, M.; Zierkiewicz, W. Coordination of anions by noncovalently bonded σ-hole ligands. Coord. Chem. Rev. 2020, 405, 213136. [Google Scholar] [CrossRef]
  11. Taylor, M.S. Anion recognition based on halogen, chalcogen, pnictogen and tetrel bonding. Coord. Chem. Rev. 2020, 413, 213270. [Google Scholar] [CrossRef]
  12. Bauzá, A.; Frontera, A. σ/π-Hole noble gas bonding interactions: Insights from theory and experiment. Coord. Chem. Rev. 2020, 404, 213112. [Google Scholar] [CrossRef]
  13. Biot, N.; Bonifazi, D. Chalcogen-bond driven molecular recognition at work. Coord. Chem. Rev. 2020, 413, 213243. [Google Scholar] [CrossRef]
  14. Cavallo, G.; Metrangolo, P.; Pilati, T.; Resnati, G.; Terraneo, G. Naming interactions from the electrophilic site. Cryst. Growth. Des. 2014, 14, 2697–2702. [Google Scholar] [CrossRef]
  15. Terraneo, G.; Resnati, G. Bonding Matters. Cryst. Growth. Des. 2017, 17, 1439–1440. [Google Scholar] [CrossRef] [Green Version]
  16. Desiraju, G.R.; Ho, P.S.; Kloo, L.; Legon, A.C.; Marquardt, R.; Metrangolo, P.; Politzer, P.; Resnati, G.; Rissanen, K. Definition of the halogen bond (IUPAC Recommendations 2013). Pure. Appl. Chem. 2013, 85, 1711–1713. [Google Scholar] [CrossRef]
  17. Aakeroy, C.B.; Bryce, D.L.; Desiraju, G.R.; Frontera, A.; Legon, A.C.; Nicotra, F.; Rissanen, K.; Scheiner, S.; Terraneo, G.; Metrangolo, P. Definition of the chalcogen bond (IUPAC Recommendations 2019). Pure. Appl. Chem. 2019, 91, 1889–1892. [Google Scholar] [CrossRef]
  18. Zahn, S.; Frank, R.; Hey-Hawkins, E.; Kirchner, B. Pnicogen bonds: A new molecular linker? Chem. Eur. J. 2011, 17, 6034–6038. [Google Scholar] [CrossRef]
  19. Alkorta, I.; Elguero, J.; Frontera, A. Not only hydrogen bonds: Other noncovalent interactions. Crystals 2020, 10, 180. [Google Scholar] [CrossRef] [Green Version]
  20. Bauzá, A.; Mooibroek, T.J.; Frontera, A. Tetrel Bonding Interaction: Rediscovered Supramolecular Force? Angew. Chem. Int. Ed. 2013, 52, 12317–12321. [Google Scholar] [CrossRef]
  21. Daolio, A.; Pizzi, A.; Terraneo, G.; Frontera, A.; Resnati, G. σ-Holes Allow for Attractive Anion· anion Interactions Involving Perrhenate, Permanganate, and Pertechnetate Anions. ChemPhysChem 2021, 22, 2281–2285. [Google Scholar] [CrossRef] [PubMed]
  22. Daolio, A.; Pizzi, A.; Calabrese, M.; Terraneo, G.; Bordignon, S.; Frontera, A.; Resnati, G. Molecular Electrostatic Potential and Noncovalent Interactions in Derivatives of Group 8 Elements. Angew. Chem. Int. Ed. 2021, 60, 20723–20727. [Google Scholar] [CrossRef] [PubMed]
  23. Bauzá, A.; Alkorta, I.; Elguero, J.; Mooibroek, T.J.; Frontera, A. Spodium Bonds: Noncovalent Interactions Involving Group 12 Elements. Angew. Chem. Int. Ed. 2020, 59, 17482–17487. [Google Scholar] [CrossRef] [PubMed]
  24. Stenlid, J.H.; Johansson, A.J.; Brinck, T. σ-Holes and σ-lumps direct the Lewis basic and acidic interactions of noble metal nanoparticles: Introducing regium bonds. Phys. Chem. Chem. Phys. 2018, 20, 2676–2692. [Google Scholar] [CrossRef] [Green Version]
  25. Daolio, A.; Pizzi, A.; Terraneo, G.; Ursini, M.; Frontera, A.; Resnati, G. Anion⋅⋅⋅Anion Coinage Bonds: The Case of Tetrachloridoaurate. Angew. Chem. Int. Ed. 2021, 60, 14385–14389. [Google Scholar] [CrossRef]
  26. Frontera, A.; Bauzá, A. Regium–π bonds: An Unexplored Link between Noble Metal Nanoparticles and Aromatic Surfaces. Chem. Eur. J. 2018, 24, 7228–7234. [Google Scholar] [CrossRef]
  27. Terrón, A.; Buils, A.; Mooibroek, T.J.; Barceló, M.; García-Raso, A.; Fiol, J.J.; Frontera, A. Synthesis, X-ray characterization and regium bonding interactions of a trichlorido (1-hexylcytosine) gold (III) complex. Chem. Commun. 2020, 56, 3524–3527. [Google Scholar] [CrossRef]
  28. Politzer, P.; Lane, P.; Concha, M.C.; Ma, Y.; Murray, J.S. An overview of halogen bonding. J. Mol. Model. 2007, 13, 305–311. [Google Scholar] [CrossRef]
  29. Metrangolo, P.; Resnati, G. Halogen bonding: A paradigm in supramolecular chemistry. Chem. Eur. J. 2001, 7, 2511–2519. [Google Scholar] [CrossRef]
  30. Metrangolo, P.; Neukirch, H.; Pilati, T.; Resnati, G. Halogen bonding based recognition processes: A world parallel to hydrogen bonding. Acc. Chem. Res. 2005, 38, 386–395. [Google Scholar] [CrossRef]
  31. Metrangolo, P.; Meyer, F.; Pilati, T.; Resnati, G.; Terraneo, G. Halogen bonding in supramolecular chemistry. Angew. Chem. Int. Ed. 2008, 47, 6114–6127. [Google Scholar] [CrossRef] [PubMed]
  32. Metrangolo, P.; Resnati, G. (Eds.) Halogen Bonding: Fundamentals and Applications; Springer: Heidelberg, Germany, 2008. [Google Scholar]
  33. Politzer, P.; Murray, J.S.; Clark, T. Halogen bonding: An electrostatically-driven highly directional noncovalent interaction. Phys. Chem. Chem. Phys. 2010, 12, 7748–7757. [Google Scholar] [CrossRef] [PubMed]
  34. Erdélyi, M. Halogen bonding in solution. Chem. Soc. Rev. 2012, 41, 3547–3557. [Google Scholar] [CrossRef] [PubMed]
  35. Beale, T.M.; Chudzinski, M.G.; Sarwar, M.G.; Taylor, M.S. Halogen bonding in solution: Thermodynamics and applications. Chem. Soc. Rev. 2013, 42, 1667–1680. [Google Scholar] [CrossRef] [PubMed]
  36. Politzer, P.; Murray, J.S.; Clark, T. Halogen bonding and other σ-hole interactions: A perspective. Phys. Chem. Chem. Phys. 2013, 15, 11178–11189. [Google Scholar] [CrossRef]
  37. Metrangolo, P.; Resnati, G. (Eds.) Halogen Bonding II Impact on Materials Chemistry and Life Sciences; Springer International Publishing AG: Heidelberg, Germany, 2015. [Google Scholar]
  38. Gilday, L.C.; Robinson, S.W.; Barendt, T.A.; Langton, M.J.; Mullaney, B.R.; Beer, P.D. Halogen bonding in supramolecular chemistry. Chem. Rev. 2015, 115, 7118–7195. [Google Scholar] [CrossRef]
  39. Cavallo, G.; Metrangolo, P.; Milani, R.; Pilati, T.; Priimagi, A.; Resnati, G.; Terraneo, G. The halogen bond. Chem. Rev. 2016, 116, 2478–2601. [Google Scholar] [CrossRef] [Green Version]
  40. Mahmudov, K.T.; Kopylovich, M.N.; Guedes da Silva, M.F.C.; Pombeiro, A.J.L. Chalcogen bonding in synthesis, catalysis and design of materials. Dalton. Trans. 2017, 46, 10121–10138. [Google Scholar] [CrossRef] [Green Version]
  41. Gleiter, R.; Haberhauer, G.; Werz, D.B.; Rominger, F.; Bleiholder, C. From noncovalent chalcogen–chalcogen interactions to supramolecular aggregates: Experiments and calculations. Chem. Rev. 2018, 118, 2010–2041. [Google Scholar] [CrossRef]
  42. Vogel, L.; Wonner, P.; Huber, S.M. Chalcogen bonding: An overview. Angew. Chem. Int. Ed. 2019, 58, 1880–1891. [Google Scholar] [CrossRef]
  43. Scheiner, S. The pnicogen bond: Its relation to hydrogen, halogen, and other noncovalent bonds. Acc. Chem. Res. 2013, 46, 280–288. [Google Scholar] [CrossRef] [PubMed]
  44. del Bene, J.E.; Alkorta, I.; Elguero, J. The Pnicogen Bond in Review: Structures, Binding Energies, Bonding Properties, and Spin-Spin Coupling Constants of Complexes Stabilized by Pnicogen Bonds; Scheiner, S., Ed.; Noncovalent Forces; Springer: Heidelberg, Germany, 2015; pp. 191–264. [Google Scholar]
  45. Brammer, L. Halogen bonding, chalcogen bonding, pnictogen bonding, tetrel bonding: Origins, current status and discussion. Faraday. Discuss. 2017, 203, 485–507. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Politzer, P.; Murray, J.S.; Lane, P. σ-Hole bonding and hydrogen bonding: Competitive interactions. Int. J. Quantum. Chem. 2007, 107, 3046–3052. [Google Scholar] [CrossRef]
  47. Zhu, S.; Xing, C.; Xu, W.; Jin, G.; Li, Z. Halogen bonding and hydrogen bonding coexist in driving self-assembly process. Cryst. Growth. Des. 2004, 4, 53–56. [Google Scholar] [CrossRef]
  48. Priimagi, A.; Cavallo, G.; Forni, A.; Gorynsztejn-Leben, M.; Kaivola, M.; Metrangolo, P.; Milani, R.; Shishido, A.; Pilati, T.; Resnati, G. Halogen Bonding versus Hydrogen Bonding in Driving Self-Assembly and Performance of Light-Responsive Supramolecular Polymers. Adv. Funct. Mater. 2012, 22, 2572–2579. [Google Scholar] [CrossRef] [Green Version]
  49. Mukherjee, A.; Tothadi, S.; Desiraju, G.R. Halogen bonds in crystal engineering: Like hydrogen bonds yet different. Acc. Chem. Res. 2014, 47, 2514–2524. [Google Scholar] [CrossRef]
  50. Scheiner, S. Forty years of progress in the study of the hydrogen bond. Struct. Chem. 2019, 30, 1119–1128. [Google Scholar] [CrossRef]
  51. Corradi, E.; Meille, S.V.; Messina, M.T.; Metrangolo, P.; Resnati, G. Halogen Bonding versus Hydrogen Bonding in Driving Self-Assembly Processes. Angew. Chem. Int. Ed. 2000, 39, 1782–1786. [Google Scholar] [CrossRef]
  52. Bauzá, A.; Mooibroek, T.J.; Frontera, A. The Bright Future of Unconventional σ/π-Hole Interactions. ChemPhysChem 2015, 16, 2496–2517. [Google Scholar] [CrossRef]
  53. Politzer, P.; Murray, J.S.; Clark, T.; Resnati, G. The σ-hole revisited. Phys. Chem. Chem. Phys. 2017, 19, 32166–32178. [Google Scholar] [CrossRef]
  54. Pascoe, D.J.; Ling, K.B.; Cockroft, S.L. The origin of chalcogen-bonding interactions. J. Am. Chem. Soc. 2017, 139, 15160–15167. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Gurbanov, A.V.; Kuznetsov, M.L.; Mahmudov, K.T.; Pombeiro, A.J.L.; Resnati, G. Resonance Assisted Chalcogen Bonding as a New Synthon in the Design of Dyes. Chem. Eur. J. 2020, 26, 14833–14837. [Google Scholar] [CrossRef] [PubMed]
  56. Priimagi, A.; Cavallo, G.; Metrangolo, P.; Resnati, G. The Halogen Bond in the Design of Functional Supramolecular Materials: Recent Advances. Acc. Chem. Res. 2013, 46, 2686–2695. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Riley, K.E.; Murray, J.S.; Fanfrlík, J.; Řezáč, J.; Solá, R.J.; Concha, M.C.; Ramos, F.M.; Politzer, P. Halogen bond tunability I: The effects of aromatic fluorine substitution on the strengths of halogen-bonding interactions involving chlorine, bromine, and iodine. J. Mol. Model. 2011, 17, 3309–3318. [Google Scholar] [CrossRef] [PubMed]
  58. Adhikari, U.; Scheiner, S. Substituent Effects on Cl···N, S···N, and P···N Noncovalent Bonds. J. Phys. Chem. A 2012, 116, 3487–3497. [Google Scholar] [CrossRef]
  59. Adhikari, U.; Scheiner, S. Effects of Charge and Substituent on the S···N Chalcogen Bond. J. Phys. Chem. A 2014, 118, 3183–3192. [Google Scholar] [CrossRef] [Green Version]
  60. Azofra, L.M.; Scheiner, S. Substituent Effects in the Noncovalent Bonding of SO2 to Molecules Containing a Carbonyl Group. The Dominating Role of the Chalcogen Bond. J. Phys. Chem. A 2014, 118, 3835–3845. [Google Scholar] [CrossRef]
  61. Esrafili, M.D.; Mohammadirad, N. Substituent effects incooperativity of chalcogen bonds. Mol. Phys. 2015, 113, 3282–3290. [Google Scholar] [CrossRef]
  62. Gonzalez-Alvarez, M.; Alzuet, G.; Borras, J.; Agudo, L.C.; Garcia-Granda, S.; Montejo-Bernando, J.M. Comparison of Protective Effects against Reactive Oxygen Species of Mononuclear and Dinuclear Cu(II) Complexes with N-Substituted Benzothiazolesulfonamides. Inorg. Chem. 2005, 44, 9424–9433. [Google Scholar] [CrossRef]
  63. Gao, L.; Wu, J.-Y.; Li, M.-Y.; Zhang, L.; Zhang, P.; Wu, Q.-F.; Cai, X.-Q.; Chen, F.-T.; Zhang, S.-S. A New Copper(I) Iodide Coordination polymer Incorporating Cu2I2 Double-stranded Stair: Synthesis, Crystal Structure and Luminescent Property. Chin. J. Struct. Chem. 2013, 32, 885–889. [Google Scholar]
  64. Gomila, R.M.; Mooibroek, T.J.; Frontera, A. In A combined theoretical and CSD perspective on σ-hole interactions with tetrels, pnictogens, chalcogens, halogens, and noble gases. In Hot Topics in Crystal Engineering; Elsevier: Amsterdam, The Netherlands, 2021. [Google Scholar] [CrossRef]
  65. Weigend, F.; Häser, M. RI-MP2: First derivatives and global consistency. Theor. Chem. Acc. 1997, 97, 331–340. [Google Scholar] [CrossRef]
  66. Weigend, F.; Ahlrichs, R. Balanced basis sets of split valence, triple zeta valence and quadruple zeta valence quality for H to Rn: Design and assessment of accuracy. Phys. Chem. Chem. Phys. 2005, 7, 3297–3305. [Google Scholar] [CrossRef] [PubMed]
  67. Ahlrichs, R.; Bar, M.; Haser, M.; Horn, H.; Kolmel, C. Electronic Structure Calculations on Workstation Computers-the Program System turbomole. Chem. Phys. Lett. 1989, 162, 165–169. [Google Scholar] [CrossRef]
  68. Ivanov, D.M.; Novikov, A.S.; Ananyev, I.V.; Kirina, Y.V.; Kukushkin, V.Y. Halogen bonding between metal centers and halocarbons. Chem. Commun. 2016, 52, 5565–5568. [Google Scholar] [CrossRef] [Green Version]
  69. Bikbaeva, Z.M.; Ivanov, D.M.; Novikov, A.S.; Ananyev, I.V.; Bokach, N.A.; Kukushkin, V.Y. Electrophilic–Nucleophilic Dualism of Nickel(II) toward Ni···I Noncovalent Interactions: Semicoordination of Iodine Centers via Electron Belt and Halogen Bonding via σ-Hole. Inorg. Chem. 2017, 56, 13562–13578. [Google Scholar] [CrossRef]
  70. Baykov, S.V.; Dabranskaya, U.; Ivanov, D.M.; Novikov, A.S.; Boyarskiy, V.P. Pt/Pd and I/Br Isostructural Exchange Provides Formation of C–I···Pd, C–Br···Pt, and C–Br···Pd Metal-Involving Halogen Bonding. Cryst. Growth. Des. 2018, 18, 5973–5980. [Google Scholar] [CrossRef]
  71. Dabranskaya, U.; Ivanov, D.M.; Novikov, A.S.; Matveychuk, Y.V.; Bokach, N.A.; Kukushkin, V.Y. Metal-Involving Bifurcated Halogen Bonding C–Br···η2(Cl–Pt). Cryst. Growth. Des. 2019, 19, 1364–1376. [Google Scholar] [CrossRef]
  72. Rozhkov, A.V.; Ivanov, D.M.; Novikov, A.S.; Ananyev, I.V.; Bokach, N.A.; Kukushkin, V.Y. Metal-involving halogen bond Ar–I⋯[dz2PtII] in a platinum acetylacetonate complex. CrystEngComm 2020, 22, 554–563. [Google Scholar] [CrossRef]
  73. Katlenok, E.A.; Haukka, M.; Levin, O.V.; Frontera, A.; Kukushkin, V.Y. Supramolecular Assembly of Metal Complexes by (Aryl)I⋯dz2 [PtII] Halogen Bonds. Chem. Eur. J. 2020, 26, 7692–7701. [Google Scholar] [CrossRef]
  74. Nemec, V.; Lisac, K.; Bedeković, N.; Fotović, L.; Stilinović, V.; Cinčić, D. Crystal engineering strategies towards halogen-bonded metal–organic multi-component solids: Salts, cocrystals and salt cocrystals. CrystEngComm 2021, 23, 3063–3083. [Google Scholar] [CrossRef]
  75. Eliseeva, A.A.; Ivanov, D.M.; Rozhkov, A.V.; Ananyev, I.V.; Frontera, A.; Kukushkin, V.Y. Bifurcated Halogen Bonding Involving Two Rhodium(I) Centers as an Integrated σ-Hole Acceptor. JACS Au 2021, 1, 354–361. [Google Scholar] [CrossRef] [PubMed]
  76. Rozhkov, A.V.; Katlenok, E.A.; Zhmykhova, M.V.; Ivanov, A.Y.; Kuznetsov, M.L.; Bokach, N.A.; Kukushkin, V.Y. Metal-Involving Chalcogen Bond. The Case of Platinum(II) Interaction with Se/Te-Based σ-Hole Donors. J. Am. Chem. Soc. 2021, 143, 15701–15710. [Google Scholar] [CrossRef] [PubMed]
  77. Lee, L.M.; Elder, P.J.W.; Dube, P.A.; Greedan, J.E.; Jenkins, H.A.; Britten, J.F.; Vargas-Baca, I. The size of the metal ion controls the structures of the coordination polymers of benzo-2,1,3-selenadiazole. CrystEngComm 2013, 15, 7434–7437. [Google Scholar] [CrossRef]
  78. Milios, C.J.; Ioannou, P.V.; Raptopoulou, C.P.; Papaefstathiou, G.S. Crystal Engineering with 2,1,3-benzoselenadiazole and Mercury(II) Chloride. Polyhedron 2009, 28, 3199–3202. [Google Scholar] [CrossRef]
  79. Groom, C.R.; Bruno, I.J.; Lightfoot, M.P.; Ward, S.C. The Cambridge Structural Database. Acta. Cryst. 2016, B72, 171–179. [Google Scholar]
  80. Adamo, C.; Barone, V. Toward reliable density functional methods without adjustable parameters: The PBE0 model. J. Chem. Phys. 1999, 110, 6158–6169. [Google Scholar] [CrossRef]
  81. Ernzerhof, M.; Scuseria, G.E. Assessment of the Perdew–Burke–Ernzerhof exchange-correlation functional. J. Chem. Phys. 1999, 110, 5029–5050. [Google Scholar] [CrossRef] [Green Version]
  82. Grimme, S.; Antony, J.; Ehrlich, S.; Krieg, H. A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu. J. Chem.Phys. 2010, 132, 154104–154119. [Google Scholar] [CrossRef] [Green Version]
  83. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Petersson, G.A.; Nakatsuji, H.; et al. Revision, B.01; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  84. Bauzá, A.; Frontera, A. Halogen and Chalcogen Bond Energies Evaluated Using Electron Density Properties. ChemPhysChem 2020, 21, 26–31. [Google Scholar] [CrossRef]
  85. Bader, R.F.W. Atoms in Molecules: A Quantum Theory; Clarendon Press: Oxford, UK, 1990. [Google Scholar]
  86. Bader, R.F.W. A quantum theory of molecular structure and its applications. Chem. Rev. 1991, 91, 893–928. [Google Scholar] [CrossRef]
  87. Todd, A.; Keith, T.K. (Eds.) AIMAll (Version 13.05.06); Gristmill Software: Overland Park, KS, USA, 2013. [Google Scholar]
  88. Behrens, U.; Berges, P.; Bieganowski, R.; Hinrichs, W.; Schiffling, C.; Klar, G. Cyclic Ligands with Fixed Co-ordination Geometry. Part 5. Complexes of Thianthrene and Selenanthrene with d8 and dl0 Systems. Structures of the 1:1 Complexes of Tetra-alkoxyselenanthrenes with Plaitinum(II) and Mercury(II) Chlorides. J. Chem. Res. 1986, 326, 2801. [Google Scholar]
  89. Kumar, A.; Agarwal, M.; Singh, A.K.; Butcher, R.J. Palladium(II), platinum(II), ruthenium(II) and mercury(II) complexes of potentially tridentate Schiff base ligands of (E, N, O) type (E=S, Se, Te): Synthesis, crystal structures and applications in Heck and Suzuki coupling reactions. Inorg. Chim. Acta. 2009, 362, 3208–3218. [Google Scholar] [CrossRef]
  90. Takeda, N.; Isobe, T.; Sasamori, T.; Tokitoh, N. [1,2-Bis (phenyl seleno) benzene] dichlorido palladium(II). Acta. Cryst. E 2007, 63, m2546. [Google Scholar] [CrossRef]
  91. Cunningham, T.J.; Elsegood, M.R.J.; Kelly, P.F.; Smith, M.B.; Staniland, P.M. Versatile routes to selenoether functionalised tertiary phosphines. Dalton. Trans. 2010, 39, 5216–5218. [Google Scholar] [CrossRef] [Green Version]
  92. Ritch, J.S.; Charette, B.J. An Experimental and Computational Comparison of Phosphorus and Selenium-Based Ligands for Catalysis. Can. J. Chem. 2016, 94, 386. [Google Scholar] [CrossRef] [Green Version]
  93. Kumar, S.; Saleem, F.; Singh, A.K. ‘Click’ generated 1,2,3-triazole based organosulfur/selenium ligands and their Pd(ii) and Ru(ii) complexes: Their synthesis, structure, and catalytic applications. Dalton. Trans. 2016, 45, 11445–11458. [Google Scholar] [CrossRef]
  94. Bhaskar, R.; Sharma, A.K.; Yadav, M.K.; Singh, A.K. Sonogashira (Cu and amine free) and Suzuki coupling in air catalyzed via nanoparticles formed in situ from Pd(ii) complexes of chalcogenated Schiff bases of 1-naphthaldehyde and their reduced forms. Dalton. Trans. 2017, 46, 15235–15248. [Google Scholar] [CrossRef]
  95. Kumar, U.; Dubey, P.; Singh, V.V.; Prakash, O.; Singh, A.K. Sterically hindered selenoether ligands: Palladium(II) complexes as catalytic activators for Suzuki–Miyaura coupling. RSC. Adv. 2014, 4, 41659–41665. [Google Scholar] [CrossRef]
  96. Kumar, A.; Agarwal, M.; Singh, A.K. Schiff bases of 1′-hydroxy-2′-acetonaphthone containing chalcogen functionalities and their complexes with and (p-cymene)Ru(II), Pd(II), Pt(II) and Hg(II): Synthesis, structures and applications in C–C coupling reactions. J. Organomet. Chem. 2008, 693, 3533–3545. [Google Scholar] [CrossRef]
  97. Ivanov, D.M.; Bokach, N.A.; Kukushin, V.Y.; Frontera, A. Metal Centers as Nucleophiles: Oxymoron of Halogen Bond-Involving Crystal Engineering. Chem. Eur. J. 2022, 28, e202103173. [Google Scholar] [PubMed]
  98. Spokoyny, A.M.; Reuter, M.G.; Stern, C.L.; Ratner, M.A.; Seideman, T.; Mirkin, C.A. Carborane-Based Pincers: Synthesis and Structure of SeBSe and SBS Pd(II) Complexes. J. Am. Chem. Soc. 2009, 131, 9482–9483. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  99. Klauke, K.; Gruber, I.; Knedel, T.O.; Schmolke, L.; Barthel, J.; Breitzke, H.; Buntkowsky, G.; Janiak, C. Silver, Gold, Palladium, and Platinum N-heterocyclic Carbene Complexes Containing a Selenoether-Functionalized Imidazol-2-ylidene Moiety. Organometallics 2018, 37, 298–308. [Google Scholar] [CrossRef]
  100. Kostas, I.D.; Steele, B.R.; Terzis, A.; Amosova, S.V.; Martynov, A.V.; Makhaeva, N.A. New Palladium Complexes with S-or Se-Containing Schiff-Base Ligands as Efficient Catalysts for the Suzuki-Miyaura Cross-Coupling Reaction of Aryl Bromides with Phenylboronic Acid under Aerobic Conditions. Eur. J. Inorg. Chem. 2006, 2006, 2642–2646. [Google Scholar] [CrossRef]
  101. Kirsten, L.; Schwade, V.D.; Selter, L.; Hagenbach, A.; Piquini, P.C.; Lang, E.S.; Abram, U. Pt, Pd and Hg Complexes with Potentially Tridentate Telluroether Ligands. Eur. J. Inorg. Chem. 2015, 2015, 3748–3757. [Google Scholar] [CrossRef]
  102. Gupta, A.; Deka, R.; Srivastava, K.; Singh, H.B.; Butcher, R.J. Synthesis of Pd(II) complexes of unsymmetrical, hybrid selenoether and telluroether ligands: Isolation of tellura-palladacycles by fine tuning of intramolecular chalcogen bonding in hybrid telluroether ligands. Polyhedron 2019, 172, 95–103. [Google Scholar] [CrossRef]
  103. Kemmitt, T.; Levason, W.; Webster, M. Chelating ditelluroether complexes of palladium and platinum: Synthesis and multinuclear NMR studies. Structure of dibromo(meso-1,3-bis(phenyltelluro)propane)palladium(II): [Pd{meso-PhTe(CH2)3TePh}Br2]. Inorg. Chem. 1989, 28, 692–696. [Google Scholar] [CrossRef]
  104. Singh, A.K.; Srivastava, V.; Dhingra, S.K.; Drake, J.E.; Bailey, J.H.E. cis-Dichloro[2-(4-ethoxyphenyltelluro)ethyl methyl sulfide-S,Te]platinum(II) cis-PtCl2[Te(C6H4OC2H5)CH2CH2(CH3)S]. Acta Cryst. C 1992, 48, 655–657. [Google Scholar] [CrossRef]
  105. Kumar, R.; Singh, P.A.K.; Drake, J.E.; Hursthouse, M.B.; Little, M.E. Tellurium-chlorine secondary interactions in palladium(II) complex of MeOC6H4TeCH2CH2NHCH(CH3)C6H4-2-OH resulting in self-assembled bimolecular aggregates with short palladium-palladium distances. Struct. Chem. 2007, 18, 203–207. [Google Scholar]
  106. Menon, S.C.; Panda, A.; Singh, H.B.; Butcher, R.J. Synthesis and single crystal X-ray structure of the first cationic Pd(ii) complex of a tellurium-containing polyaza macrocycle: Contrasting reactions of Pd(ii) and Pt(ii) with a 22-membered macrocyclic Schiff base. Chem. Commun. 2000, 143–144. [Google Scholar] [CrossRef]
  107. Milton, M.D.; Singh, J.D.; Butcher, R.J. Synthesis of β-ketoenamine donors having O, N, Se/Te donor functionalities and their reaction chemistry with Pd(II) and Pt(II) metal ions. Tetrahedron. Lett. 2004, 45, 6745–6747. [Google Scholar] [CrossRef]
  108. Gomila, R.M.; Bauzá, A.; Frontera, A. Enhancing chalcogen bonding by metal coordination. Dalton. Trans. 2022. [Google Scholar] [CrossRef] [PubMed]
Ijms 23 04188 g001 550
Figure 1. MEP surfaces (MP2 [65]/def2-TZVP [66] level of theory) of the Ch(CH3)2 and Ch(CF3)2 (Ch = Se and Te) molecules. The energy values at concrete points of the surface are given in kcal/mol (0.001 a.u.). The calculations have been performed by means of the Turbomole 7.0 software (Karlsruhe, Germany) [67].
Figure 1. MEP surfaces (MP2 [65]/def2-TZVP [66] level of theory) of the Ch(CH3)2 and Ch(CF3)2 (Ch = Se and Te) molecules. The energy values at concrete points of the surface are given in kcal/mol (0.001 a.u.). The calculations have been performed by means of the Turbomole 7.0 software (Karlsruhe, Germany) [67].
Ijms 23 04188 g001
Ijms 23 04188 g002 550

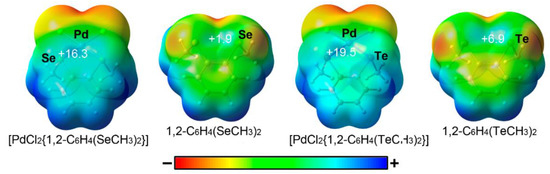

Figure 2. MEP surfaces of [PdCl2{1,2-C6H4(ChCH3)2}] and 1,2-C6H4(ChCH3)2 (Ch = Se and Te) molecules. The energy values at concrete points of the surface are given in kcal/mol (0.001 a.u.).
Figure 2. MEP surfaces of [PdCl2{1,2-C6H4(ChCH3)2}] and 1,2-C6H4(ChCH3)2 (Ch = Se and Te) molecules. The energy values at concrete points of the surface are given in kcal/mol (0.001 a.u.).
Ijms 23 04188 g002
Ijms 23 04188 sch001 550
Scheme 1. Schematic representation of a ChB interaction in a Ch-coordinated octahedral (left) and square planar (right) complex.
Scheme 1. Schematic representation of a ChB interaction in a Ch-coordinated octahedral (left) and square planar (right) complex.
Ijms 23 04188 sch001
Ijms 23 04188 g003 550
Figure 3. (a) Partial view of refcode DUWMEN structure. Distance in Å. H-atoms omitted for clarity. (b) MEP surface (isodensity 0.001 a.u.) of DUWMEN. The energies at the σ-holes are indicated in kcal/mol.
Figure 3. (a) Partial view of refcode DUWMEN structure. Distance in Å. H-atoms omitted for clarity. (b) MEP surface (isodensity 0.001 a.u.) of DUWMEN. The energies at the σ-holes are indicated in kcal/mol.
Ijms 23 04188 g003
Ijms 23 04188 g004 550
Figure 4. Partial views of the refcodes XUFHEM (a) and XUFHIQ (b) structures. Distances in Å. H-atoms omitted for clarity.
Figure 4. Partial views of the refcodes XUFHEM (a) and XUFHIQ (b) structures. Distances in Å. H-atoms omitted for clarity.
Ijms 23 04188 g004
Ijms 23 04188 g005 550
Figure 5. (a) Partial view of refcode XILFEE structure. Distances in Å. H-atoms omitted for clarity. (b) MEP surface (isodensity 0.001 a.u.) of XILFEE. The energies at the σ-holes are indicated in kcal/mol.
Figure 5. (a) Partial view of refcode XILFEE structure. Distances in Å. H-atoms omitted for clarity. (b) MEP surface (isodensity 0.001 a.u.) of XILFEE. The energies at the σ-holes are indicated in kcal/mol.
Ijms 23 04188 g005
Ijms 23 04188 g006 550
Figure 6. Partial views of the X-ray structures of PUYWUC (a), TAFWIJ (b) and EPULIM (c). Distances in Å. H-atoms omitted for clarity.
Figure 6. Partial views of the X-ray structures of PUYWUC (a), TAFWIJ (b) and EPULIM (c). Distances in Å. H-atoms omitted for clarity.
Ijms 23 04188 g006
Ijms 23 04188 g007 550
Figure 7. (a) Partial view of refcode BEJWIZ structure. Distance in Å. H-atoms omitted for clarity. (b) MEP surface (isodensity 0.001 a.u.) of BEJWIZ. The energies at the σ-holes are indicated in kcal/mol.
Figure 7. (a) Partial view of refcode BEJWIZ structure. Distance in Å. H-atoms omitted for clarity. (b) MEP surface (isodensity 0.001 a.u.) of BEJWIZ. The energies at the σ-holes are indicated in kcal/mol.
Ijms 23 04188 g007
Ijms 23 04188 g008 550
Figure 8. Partial views of the X-ray structures of refcodes COKFIT (a) and TOQPEV (b). Distances in Å. H-atoms omitted for clarity.
Figure 8. Partial views of the X-ray structures of refcodes COKFIT (a) and TOQPEV (b). Distances in Å. H-atoms omitted for clarity.
Ijms 23 04188 g008
Ijms 23 04188 g009 550
Figure 9. (a) Partial view of refcode VUGWOK structure. Distance in Å. H-atoms omitted for clarity. (b) MEP surface (isodensity 0.001 a.u.) of VUGWOK. The energies at the σ-holes are indicated in kcal/mol.
Figure 9. (a) Partial view of refcode VUGWOK structure. Distance in Å. H-atoms omitted for clarity. (b) MEP surface (isodensity 0.001 a.u.) of VUGWOK. The energies at the σ-holes are indicated in kcal/mol.
Ijms 23 04188 g009
Ijms 23 04188 g010 550
Figure 10. Partial views of the X-ray structures of refcodes QETFED (a), QETFAZ (b) and MELJUJ (c). Distances in Å. H-atoms omitted for clarity.
Figure 10. Partial views of the X-ray structures of refcodes QETFED (a), QETFAZ (b) and MELJUJ (c). Distances in Å. H-atoms omitted for clarity.
Ijms 23 04188 g010
Ijms 23 04188 g011 550
Figure 11. (a) Partial view of refcode CUHMOJ structure. Distances in Å. H-atoms omitted for clarity. (b) MEP surface (isodensity 0.001 a.u.) of CUHMOJ. The energies at the σ-holes are indicated in kcal/mol.
Figure 11. (a) Partial view of refcode CUHMOJ structure. Distances in Å. H-atoms omitted for clarity. (b) MEP surface (isodensity 0.001 a.u.) of CUHMOJ. The energies at the σ-holes are indicated in kcal/mol.
Ijms 23 04188 g011
Ijms 23 04188 g012 550
Figure 12. Partial views of the X-ray structures of CODTEX (a), JAGZIA (b) and TAPYEO (c). Distances in Å. H-atoms omitted for clarity.
Figure 12. Partial views of the X-ray structures of CODTEX (a), JAGZIA (b) and TAPYEO (c). Distances in Å. H-atoms omitted for clarity.
Ijms 23 04188 g012
Ijms 23 04188 g013 550
Figure 13. Partial views of the X-ray structures of refcodes SIDDAL (a) and WIXSEB (b). Distances in Å. H-atoms omitted for clarity.
Figure 13. Partial views of the X-ray structures of refcodes SIDDAL (a) and WIXSEB (b). Distances in Å. H-atoms omitted for clarity.
Ijms 23 04188 g013
Ijms 23 04188 g014 550
Figure 14. (a) Partial view of refcode ABOREP structure. Distances in Å. H-atoms omitted for clarity. (b) MEP surface (isodensity 0.001 a.u.) of ABOREP. The energies at the σ-holes are indicated in kcal/mol.
Figure 14. (a) Partial view of refcode ABOREP structure. Distances in Å. H-atoms omitted for clarity. (b) MEP surface (isodensity 0.001 a.u.) of ABOREP. The energies at the σ-holes are indicated in kcal/mol.
Ijms 23 04188 g014
Ijms 23 04188 g015 550
Figure 15. Partial views of the X-ray structures of refcode CUHMAV. Distance in Å. H-atoms omitted for clarity.
Figure 15. Partial views of the X-ray structures of refcode CUHMAV. Distance in Å. H-atoms omitted for clarity.
Ijms 23 04188 g015
Ijms 23 04188 g016 550
Figure 16. Distribution of intermolecular bond CPs (colored in pink)and bond paths regarding XILFEE (a), MELJUJ (b) and CUHMOJ (c) dimers. The value of the density at the bond CP is given in a.u. (ρ·100). Pd···Pd and ancillary HB interactions are highlighted in red.
Figure 16. Distribution of intermolecular bond CPs (colored in pink)and bond paths regarding XILFEE (a), MELJUJ (b) and CUHMOJ (c) dimers. The value of the density at the bond CP is given in a.u. (ρ·100). Pd···Pd and ancillary HB interactions are highlighted in red.
Ijms 23 04188 g016
Table
Table 1. Atomic polarizabilities (α, a.u.) calculated at the MP2/def2-TZVP level of theory of chalcogen (Ch) elements and their van der Waals radii (RvdW, Å).
Table 1. Atomic polarizabilities (α, a.u.) calculated at the MP2/def2-TZVP level of theory of chalcogen (Ch) elements and their van der Waals radii (RvdW, Å).
ChαRvdW
O3.01.52
S11.81.80
Se17.51.90
Te25.92.06
Table
Table 2. List of CSD codes, compound names and formulas of the Se involving dimers.
Table 2. List of CSD codes, compound names and formulas of the Se involving dimers.
CSD CodeNameFormula
DUWMENdichloro-(2,3:7,8-bis(methylenedioxy)-selenanthrene-Se,Se′)-platinum(II) acetone solvateC14H8Cl2O4PtSe2, C3H6O
XUFHEMchloro-(2-(phenyl((2-(phenylselanyl-kSe)ethyl)imino-kN)methyl)phenolato-kO)-palladium(II)C21H18ClNOPdSe
XUFHIQchloro-(2-(phenyl((2-(phenylselanyl-kSe)ethyl)imino-kN)methyl)phenolato-kO)-platinum(II)C21H18ClNOPtSe
XILFEE(1,2-bis(phenylseleno)benzene)-dichlorido-palladium(II)C18H14Cl2PdSe2
PUYWUCcichloro-(diphenyl(2-(phenylselanyl)phenyl)phosphine)-platinumC24H19Cl2PPtSe
TAFWIJdichloro-(2-(phenylselanyl)aniline)-palladium(II) acetonitrile solvateC12H11Cl2NPdSe, C2H3N
EPULIMdichloro-(1-(2,6-di-isopropylphenyl)-4-((phenylselanyl)methyl)-1H-1,2,3-triazole)-palladium(II)C21H25Cl2N3PdSe
BEJWIZchloro-[8-({[2-(phenylselanyl)ethyl]imino}methyl)naphthalen-1-yl]-palladium(II)C19H16ClNPdSe
COKFITchloro-(2,4-di-t-butyl-6-(((2-(phenylselanyl)ethyl)imino)methyl)phenolato)-palladium(II)C23H30ClNOPdSe
TOQPEVchloro-(2-(1-(2-(phenylselanyl)ethylimino)ethyl)-1-naphtholato-N,O,Se)-palladium(II)C20H18ClNOPdSe
VUGWOKchloro-(1,7-bis(phenylselenomethyl)-1,7-dicarba-closo-dodecaborate-B,S,S′)-palladium(II)C16H23B10ClPdSe2
QETFEDdichloro-(1-methyl-3-[(phenylselanyl)methyl]-imidazol-2-ylidene)-platinum(II) acetonitrile solvateC11H12Cl2N2PtSe, 0.5(C2H3N)
QETFAZdichloro-(1-methyl-3-[(phenylselanyl)methyl]-imidazol-2-ylidene)-palladium(II) acetonitrile solvateC11H12Cl2N2PdSe, 0.5(C2H3N)
MELJUJchloro-((2-((2-methylselanyl)ethyl)iminomethyl)-6-(1-ethylpropyl)phenolato)-palladium(II)C15H22ClNOPdSe
Table
Table 3. List of CSD codes, compound names and formulas of the Te involving dimers.
Table 3. List of CSD codes, compound names and formulas of the Te involving dimers.
CSD CodeNameFormula
CUHMOJbis(benzenetellurenyl iodide)-di-iodo-palladium(II)C12H10I4PdTe2
CODTEXdichloro-[1-(2-{[2,6-di-isopropylphenyl]tellanyl}phenyl)-N,N-dimethylmethanamine]-palladiumC21H29Cl2NPdTe
JAGZIAdibromo-(meso-1,3-bis(phenyltelluro)propane)-palladium(II)C15H16Br2PdTe2
TAPYEOcis-Dichloro-(2-(4-ethoxyphenyl-telluro)ethyl(methyl)sulfido)-platinum(II)C11H16Cl2OPtSTe
SIDDALchloro-(2-(1-((2-((4-methoxyphenyl)tellanyl)ethyl)amino)ethyl)phenolato)-palladium(II) dichloromethane solvateC17H20ClNO2PdTe, 0.5(CH2Cl2)
WIXSEB(μ2-N-(o-phenylene)methyllidene)-N′-((3-formyl-o-phenylene)methylidene)-platinum(II)-tellurium hexafluorophosphateC23H19N2OPtTe+, F6P−
ABOREPchloro-(4-(2-(phenyltelluro)ethylimino)pentan-2-onato-N,O,Te)-platinum(II)C13H16ClNOPtTe
CUHMAVchloro-(N-(3-(phenyltellanyl)propyl)pyridine-2-carboxamidato)-platinum(II)C15H15ClN2OPtTe
Table
Table 4. Binding energies and the contribution of the Chalcogen bond contacts (ΔEBSSE and ΔEChB in kcal/mol, respectively), equilibrium distances (d, in Å), C–Ch···X (X = Cl, O and I), angle (∠, in °) and value of the density at the bond critical point (ρ 102, in a.u.) for XILFEE, MELJUJ and CUHMOJ optimized dimers. The NBO charges of both chalcogen bond donor (QD) and acceptor (QA) atoms are also indicated in e.
Table 4. Binding energies and the contribution of the Chalcogen bond contacts (ΔEBSSE and ΔEChB in kcal/mol, respectively), equilibrium distances (d, in Å), C–Ch···X (X = Cl, O and I), angle (∠, in °) and value of the density at the bond critical point (ρ 102, in a.u.) for XILFEE, MELJUJ and CUHMOJ optimized dimers. The NBO charges of both chalcogen bond donor (QD) and acceptor (QA) atoms are also indicated in e.
CSD CodeΔEBSSEΔEChBd∠ρ 102QD (e)QA (e)
XILFEE−32.0−7.9 a3.359165.61.150.78−0.42
MELJUJ−31.5−2.7 a3.445 c170.6 c0.630.70−0.64
CUHMOJ−24.5−4.8 b3.724178.91.190.79−0.15
a Values obtained using the equation Eint = 0.375 * V(r) − 0.5655 from reference [86]. b Values obtained using the equation Eint = 0.556 × V(r) + 0.6445 from reference [86]. c Values measured to the Pd-O bond centroid.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Frontera, A.; Bauza, A. Metal Coordination Enhances Chalcogen Bonds: CSD Survey and Theoretical Calculations. Int. J. Mol. Sci. 2022, 23, 4188. https://doi.org/10.3390/ijms23084188

AMA Style

Frontera A, Bauza A. Metal Coordination Enhances Chalcogen Bonds: CSD Survey and Theoretical Calculations. International Journal of Molecular Sciences. 2022; 23(8):4188. https://doi.org/10.3390/ijms23084188

Chicago/Turabian Style

Frontera, Antonio, and Antonio Bauza. 2022. "Metal Coordination Enhances Chalcogen Bonds: CSD Survey and Theoretical Calculations" International Journal of Molecular Sciences 23, no. 8: 4188. https://doi.org/10.3390/ijms23084188

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
