Genome-Wide Analysis of the MYB-Related Transcription Factor Family in Pepper and Functional Studies of CaMYB37 Involvement in Capsaicin Biosynthesis

by
Yi Liu
1,2,†,
Zhishuo Zhang
1,2,†,
Ke Fang
2,
Qingyun Shan
2,
Lun He
2,
Xiongze Dai
2,
Xuexiao Zou
1,2,* and
Feng Liu
1,2,*
1
Longping Branch, Graduate School of Hunan University, Changsha 410125, China
2
Key Laboratory for Vegetable Biology of Hunan Province, Engineering Research Center for Germplasm Innovation and New Varieties Breeding of Horticultural Crops, College of Horticulture, Hunan Agricultural University, Changsha 410125, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to the work.
Int. J. Mol. Sci. 2022, 23(19), 11667; https://doi.org/10.3390/ijms231911667
Submission received: 10 August 2022 / Revised: 22 September 2022 / Accepted: 28 September 2022 / Published: 1 October 2022
(This article belongs to the Special Issue Vegetable Genetics and Genomics)
Browse Figures
Versions Notes

Abstract

:
Chili pepper is an important economic vegetable worldwide. MYB family gene members play an important role in the metabolic processes in plant growth and development. In this study, 103 pepper MYB-related members were identified and grouped into nine subfamilies according to phylogenetic relationships. Additionally, a total of 80, 20, and 37 collinear gene pairs were identified between pepper and tomato, pepper and Arabidopsis, and tomato and Arabidopsis, respectively. We performed promoter cis-element analysis and showed that CaMYB-related members may be involved in multiple biological processes such as growth and development, secondary metabolism, and circadian rhythm regulation. Expression pattern analysis indicated that CaMYB37 is significantly more enriched in fruit placenta, suggesting that this gene may be involved in capsaicin biosynthesis. Through VIGS, we confirmed that CaMYB37 is critical for the biosynthesis of capsaicin in placenta. Our subcellular localization studies revealed that CaMYB37 localized in the nucleus. On the basis of yeast one-hybrid and dual-luciferase reporter assays, we found that CaMYB37 directly binds to the promoter of capsaicin biosynthesis gene AT3 and activates its transcription, thereby regulating capsaicin biosynthesis. In summary, we systematically identified members of the CaMYB-related family, predicted their possible biological functions, and revealed that CaMYB37 is critical for the transcriptional regulation of capsaicin biosynthesis. This work provides a foundation for further studies of the CaMYB-related family in pepper growth and development.

1. Introduction

Transcription factors play an important role in regulating plant growth and development [1]. MYB transcription factors are ubiquitous in eukaryotes and comprise one of the largest transcription factor families [2,3]. Members of the MYB family are involved in the regulation of plant growth, development, and metabolism. For example, overexpression of EgMYB2 in tobacco leads to increased lignin content and secondary cell-wall thickening [4]. MYB transcription factors in tea plants may regulate theanine synthesis in different organs and tissues [5]. Arabidopsis MYB12 closely regulates the content of flavonols [6]. In apple, MdMYB1 interacts with transcription factor MdGSTF6 to regulate anthocyanin synthesis and transport [7]. In apple, MdMYB6 also inhibits the biosynthesis of anthocyanins by reducing the contents of UDP-glucose and UDP-galactose [8]. In R2R3-MYB-type transcriptional activator WP1, the C-terminal acidic activation motif can directly regulate the expression of carotenoid biosynthesis genes, such as MtLYCb [9]. MYB transcription factors usually interact with transcription factors such as WD40 and bHLH to regulate the biosynthesis of anthocyanins. PacMYBA binds to the promoters of DFR, ANS, and UFGT after interacting with several bHLH family members in sweet cherry [10]. Silencing BvMYB1 in sugar beet can downregulate the expression of genes related to betaine biosynthesis and reduce pigmentation [11].
A typical MYB transcription factor contains one or more MYB domains. The MYB domain is characterized by three helices [12], in which the two C-terminal helices form a helix–turn–helix structure (HTH) [13]. The HTH structure recognizes the target motif C/TAACG/TG and provides specificity of MYB [14]. The N-terminal first helix contains a DNA-binding region and is usually composed of several tandem nonrepetitive R structures, with each R structure containing about 51 amino acids. The transcriptional regulatory region at the C-terminus is highly diverse. This may explain the diversified functions of MYB transcription factors [15]. According to the number of tandem structures of DNA-binding domains, the MYB transcription factor family can be divided into four subfamilies: 1R-MYB (MYB-Related), R2R3-MYB, 3R-MYB, and 4R-MYB. The R2R3 subfamily has the largest number of members, followed by the 1R subfamily [3].
Capsicum, a crop that originates from tropical regions of Latin America, is an important member of the nightshade family along with tomato, tobacco, potato, and petunia [16]. Pepper has important economic value and is grown worldwide [17]. Pepper has five domesticated species, which are highly different in their spiciness [18]. The spiciness mainly comes from capsaicinoids, economically important alkaloids [19,20]. Capsaicinoids are specifically synthesized in the glandular cells of the fruit placenta and then transported to other organs [21]. About 24 species of capsaicinoids have been identified, of which capsaicin (Cap) and dihydrocapsaicin (DhCap) account for over 90% of the total content and are the main determinants of spiciness [22]. The spicy taste produced by eating chili is essentially the burning sensation caused by the binding of capsaicin to the capsaicin receptor TRPV1 in the human neurosensory system [23]. Purified capsaicinoids have an important pharmaceutical, military, and food processing role [24]. Capsaicinoids can be synthesized through two intermate pathways. Phenylalanine is catalyzed by a series of enzymes to derive vanillylamine, and the key enzymes involved in this pathway are phenylalanine ammonialyase (PAL), cinnamic acid hydrolase (C4H), p-coumaric acid hydrolase (C3H), caffeic acid transmethoxylase (CoMT), aminotransferase (AMT), β-ketoacyl-ACP synthase (Kas), etc. Valine is catalyzed by a series of enzymes to derive branched-chain fatty acids of 8-methyl-6-nonene-CoA. The key enzymes involved in this pathway are branched-chain amino-acid transferase (BCAT) and isovalerate dehydrogenase (IVD), acyl transportin (ACL), acyl-ACP-thioesterase (FatA), and acyl-CoA synthase (ACS). 8-methyl-6-nonenoyl-CoA and vanillylamine form capsaicin catalyzed by capsaicin synthase (CS) [21,22,25].
Previous studies showed that R2R3-MYB genes are involved in the regulation of biocapsaicin synthesis. For instance, MYB31 upregulates CBGs functions to increase capsaicin accumulation by promoting the expression level [18]. Silencing MYB48 reduced the expression of key capsaicin biosynthetic enzymes, including AT3 and KAS, and affected the biosynthesis of capsaicin [26]. However, little is known about how CaMYB-related genes regulate capsaicin biosynthesis.
In this study, we identified 103 CaMYB-related members in the pepper genome and revealed their chromosomal locations, phylogenetic relationships, promoter cis-elements, and expression patterns. Transcriptome analysis showed that CaMYB37 was specifically expressed in the fruit placenta and flower. Silencing of CaMYB37 resulted in a significant decrease in the capsaicin content. Y1H and dual-luciferase reporter assays proved that CaMYB37 can directly bind to the AT3 promoter and activate its transcription, thereby promoting capsaicin biosynthesis. This study provides a foundation for further research on the functional mechanism of CaMYB-related family members involved in pepper growth, development, and metabolism.

2. Results

2.1. Identification and Protein Characterization of the CaMYB-Related Family

A total of 103 CaMYB-related genes and 132 SlMYB-related genes were obtained for further analysis (Supplementary Table S1). CaMYB-related proteins range from 101 amino acids (Capana04g000348) to 1260 amino acids (Capana09g002226), with the isoelectric point PI ranging from 4.53 (Capana05g000377) to 11.39 (Capana05g001626), and the MW molecular weight ranging from 11.3 kDa (Capana04g000348) to 140.9 kDa (Capana09g002226) (Supplementary Table S2).

2.2. Chromosomal Localization of the CaMYB-Related Family

All 103 CaMYB-related transcription factors are named according to their chromosomal location (CaMYB1–CaMYB103) (Figure 1). According to published genome sequences, 94 CaMYB-related genes are distributed on 12 chromosomes (91%), whereas 9 CaMYB-related genes stayed on as yet unmapped scaffolds. Most CaMYB-related genes are clustered at the two ends of the chromosome, while fewer genes are distributed in the middle of the chromosome.

2.3. Duplication Analysis of Members of the CaMYB-Related Family

To further explore the evolutionary relationship between MYB-related genes in different species, we analyzed the gene pairs within pepper and those with tomato and Arabidopsis (Figure 2). The intraspecific collinearity of pepper showed that six gene pairs may have undergone segmental duplication in evolution: CaMYB48/CaMYB21, CaMYB46/CaMYB35, CaMYB54/CaMYB46, CaMYB82/CaMYB79, CaMYB63/CaMYB17, and CaMYB81/CaMYB80. The number of MYB-related gene pairs between pepper and tomato (80) was higher than that between pepper and Arabidopsis (20) and between tomato and Arabidopsis (37). This finding indicates that tomato and pepper are more closely related. We found that 64 CaMYB-related genes were collinear with 63 SlMYB-related genes, most of which were one-to-one, such as CaMYB44/SlMYB71; CaMYB34/SlMYB47. We also found one-to-many cases: CaMYB21/(SlMYB29, SlMYB67) and CaMYB89/(SlMYB92, SlMYB131). Many-to-one cases also existed such as (CaMYB63, CaMYB17)/SlMYB11 and (CaMYB79, CaMYB82)/SlMYB101. These results indicate that MYB-related genes may have evolved from the same ancestor; accordingly, they possess similar functions and, thus, are evolutionarily conserved (Supplementary Table S3).

2.4. Structure and Motif Analysis of CaMYB-Related Family

A total of 103 CaMYB-related genes were divided into nine subfamilies according to the phylogenetic relationship and with reference to the classification of the Arabidopsis MYB-related family (Figure 3a). The gene structure analysis showed that the CaMYB-related genes have 0–22 introns, among which CaMYB71 has the most introns (22) (Figure 3b). Ten conserved motifs (motifs 1–10) were identified in CaMYB-related members (Supplementary Figure S1). Each family member contained 1–6 motifs (Supplementary Figure S2). Members within the same subfamily had similar motifs. Except for individual members in subgroup VII, the remaining members contained motif 2, which is an important part of the conserved domain of the CaMYB-related family. A few subfamily members had unique motifs. For example, all genes in subfamily I contained motif 7, which was not found in other subfamily members. These genes may have unique functions.

2.5. Cis-Element Analysis of CaMYB-Related Family

The 2000 bp promoter sequences of the CaMYB-related genes were extracted, and the cis-regulatory elements (REs) in the promoters were predicted using the PLANTCARE online website (http://bioinformatics.psb.ugent.be/webtools/plantcare/html/, accessed on 5 May 2022). We identified 51 REs in the promoters of CaMYB-related genes. Among these, 20 REs are involved in light responses, such as G-box, CARE, and DRE1. Sixteen REs are involved in the regulation of abscisic acid (ABA), jasmonic acid (JA), and salicylic acid (SA) signaling pathways, including ACE, MYC, and ERE. The remaining REs are involved in biological processes such as stress responses, cell development, and metabolic regulation (Figure 4).
In parallel, we closely examined the promoters of the 103 CaMYB-related genes. Fifty-eight promoters contain elements involved in the regulation of flavonoid biosynthesis (TGACG), and 95 promoters contain palisade mesophyll cell differentiation-related elements (AREs). Elements involved in circadian rhythm control (LTR) in plants were identified in 25 promoters; 13 promoters contain WRE/STRE, a necessary element for anaerobic induction regulation, whereas 10 promoters contain hypoxia-specific induction element CGTCA motif. A total of 55, 60, and 23 promoters contain the CGTCA motif, GT1 motif, and TGA element, respectively, which are involved in the drought stress process (Supplementary Table S4). The above results indicate that the diversification of CaMYB-related family gene functions plays an important role in plant growth and development.

2.6. Expression Patterns of CaMYB-Related Genes in Various Tissues

We obtained transcriptome data of CaMYB-related genes in different tissues from previous studies and plotted the expression heatmap (Figure 5, Supplementary Table S5). Some CaMYB-related genes were expressed throughout all developmental stages and tissues, such as CaMYB20/CaMYB27/CaMYB30/CaMYB63/CaMYB100, while some displayed unique expression patterns. For example, CaMYB52/CaMYB60/CaMYB99 were highly expressed in leaves, while CaMYB14/CaMYB23/CaMYB24 were enriched throughout floral development, and CaMYB22 was restricted to the early stage of floral development. Similarly, while CaMYB13 was highly expressed throughout seed development, CaMYB15 was restricted to late developmental stages. These unique expression patterns reflect their functions in different biological and developmental processes. In this study, we focused on CaMYB37, which is specifically and highly expressed in developing placenta. We speculated that CaMYB37 may play an important role in regulating capsaicin biosynthesis.

2.7. Homology and Subcellular Localization of CaMYB37

A phylogenetic tree was constructed by comparing the protein sequence of CaMYB37 with homologous protein sequences from other species (such as tomato and Arabidopsis 15 species). We found that CaMYB37 is closely related to SlMYB37 and StMYB37 (Figure 6a). However, there are few studies on the function of MYB37 in Solanaceae. Subcellular localization analysis of CaMYB37 was conducted in N. benthamiana leaves. As shown in Figure 6b, 35S:CaMYB37-GFP colocalizes with HY5, which is used as a marker for nuclear proteins. Therefore, CaMYB37 is localized in the nucleus.

2.8. Silencing CaMYB37 Reduces the Expression of CBGs and Capsaicin Content

Gene silencing of CaMYB37 in pepper cultivar ‘S8′ was performed using virus-induced gene silencing (VIGS). After about 1 month, the pepper plants injected with the PDS solution turned white, indicating that the VIGS test was successful (Figure 7a). The fruit placentas at 16 days after flowering were selected for qRT-PCR verification (Figure 7b). Compared with control plants, the expression levels of CaMYB37 and capsaicin synthesis genes including AMT, 4CL, and AT3 were significantly decreased. At the same time, the contents of Cap and DhCap in fruit placentas at 45 days after flowering were determined. The contents of Cap and DhCap were significantly reduced in the placentas of pTRV2-CaMYB37 plants compared with those in control pTRV2 plants (Figure 7c). Therefore, we can conclude that CaMYB37 activates the expression of key CBGs and leads to increased capsaicin content in pepper.

2.9. CaMYB37 Binds to Capsaicin Synthesis Genes and Activates Their Transcription

The AT3 gene encodes capsaicin synthase, which catalyzes the synthesis of capsaicin from vanillylamine and 8-methyl-6-nonenoyl-CoA [27]. According to the PLANTCARE online tool, MYB, MBS, and other elements may be bound by the MYB proteins in the 2000 bp promoter sequence upstream of AT3. Therefore, a yeast one-hybrid experiment (Y1H) was performed to verify whether CaMYB37 binds to the AT3 promoter. Yeast strain Y1HGOLD (pGADT7-CaMYB37) was co-transformed with pAbAi-AT3, and the transformants survived on selective medium lacking leucine and containing AbA, suggesting that CaMYB37 binds to the promoter of AT3 (Figure 8a). To validate this observation, we performed a dual-luciferase assay (Figure 8c). The ratio of LUC to REN in tobacco leaves injected with 62SK-MYB37 and pro AT3-LUC increased 2.5-fold relative to the negative control (62SK and proAT3-LUC) (Figure 8d). The results indicate that CaMYB37 directly binds to the promoter of AT3 and activates its expression in the pepper placenta.

3. Discussion

The MYB-related family has been reported to be involved in a wide range of biological processes such as circadian rhythm, hypocotyl elongation, meristem formation, and secondary metabolism [28,29,30,31,32]. The MYB-related family has been identified in Arabidopsis [15], tomato [33], rice [34], wheat [35], watermelon [36], eggplant [37], and other species. Previously, 235 CaMYB genes were identified in pepper [38]. Here, we used bioinformatics to identify members of the MYB-related family in pepper and analyze their evolutionary relationships, chromosomal locations, promoter elements, and expression patterns in various pepper tissues. A family member, CaMYB37, which is specifically expressed in pepper fruit placentas and flowers, was identified on the basis of transcriptome data. Gene silencing, yeast one-hybrid, and dual-luciferase reporter assays showed that CaMYB37 regulates capsaicin biosynthesis by binding to the AT3 promoter and activating its expression. In this study, the systematic analysis and functional verification of MYB-related family members can provide a foundation for the further exploration of CaMYB-related transcription factors in regulating pepper growth and development.
We identified 103 CaMYB-related members in the pepper genome. According to the taxonomy and phylogenetic relationship of Arabidopsis members, pepper MYB-related genes were divided into nine subgroups. Subfamilies III and IV consist only of pepper members. This may indicate the unique functions of these genes evolved in pepper [39]. In terms of gene structure, obvious differences were found in the number of exons among members of different CaMYB-related subfamily members, which may have led to functional differentiation during evolution. However, the number of exons within members of the same subfamily was not very different, indicating that the functions of these genes are conserved to a certain extent. The promoter sequences of the CaMYB-related genes contain various types of elements, such as light response, drought stress, and circadian rhythm regulation. Various types of elements have indicated that the CaMYB-related genes may play an important role in pepper growth, development, and stress response [40].
Homologous genes in the same branch of the evolutionary tree usually have certain similarities in plant functions. Many studies have been conducted on Arabidopsis MYB-related genes, allowing us to predict the function of the corresponding CaMYB-related homologous genes according to the known function of Arabidopsis MYB-related genes. AtMYB-related members of subfamily II are involved in the regulation of circadian rhythms in Arabidopsis thaliana, dormant germination of plant seeds, and flower bud development. For example, AT5G37260, AT1G18330, and AT3G10113 contain motifs 2, 1, and 5, respectively, and they are arranged in the same order. Previous studies have shown that AT1G18330 (EPR1) encodes a nuclear-localized protein regulated by phytochromes A and B. Overexpression of EPR1 increased far-red light-induced cotyledon opening and delayed flowering. AT5G37260 (RVE2), RVE7, and gibberellin 3-oxidase 2 (GA3ox2) act downstream of FHY3, and the transcriptional cascade composed of phyB-FHY3-RVE2/RVE7/SPT-GA3ox2 can transmit ambient light signals to regulate seed dormancy and germination [41]. AT2G46410 (CPC), AT1G01380 (ETC1), AT2G30420 (ETC2), AT4G01060 (CPL3), and AT5G53200 (TRY) in subfamily VII mediate the differentiation of root hair cells, affecting the density of root hairs, development of trichomes in plants, and development of the waxy layer of the mustard epidermis [42]. The same subgroup of genes CaMYB53, CaMYB61, and CaMYB76 may also be involved in the regulation of pepper root hair density and fruit epidermal cell development. AT5G47390 (MYBH) and AT1G70000 (MYBD) affect the accumulation of the secondary metabolite anthocyanin [43]. CaMYB1 of the same subfamily has similar gene domain structures; hence, CaMYB1 may regulate anthocyanin synthesis in pepper.
Capsaicin is an important alkaloid that exists specifically in pepper, and the placenta is the main tissue producing capsaicin. Several studies have shown that R2R3-MYB family members regulate capsaicin synthesis in the placenta. For example, the R2R3-MYB-type transcription factor MYB31 encoding Cap1 is specifically expressed in pepper placenta. However, no placental-specific expression has been found in other Solanaceae members such as tomato or potato, indicating that the tissue specificity of MYB31 may be a consequence of capsaicin production unique to pepper placenta [18]. MYB31 can directly upregulate the expression of CBGs in the placenta to increase capsaicin content. In another study, the transcriptome analysis showed that the expression of the R2R3-MYB transcription factor CaMYB108 was higher in pepper fruits and flowers than in other tissues. Gene silencing (VIGS) and temporal overexpression assays of CaMYB108 showed that this transcription factor was positively correlated with the content of capsaicin [44]. In the present study, through bioinformatic predictions, we identified CaMYB37, which was specifically expressed in the placenta. Our functional and molecular studies showed that CaMYB37 promotes capsaicin biosynthesis by positively regulating the expression of several key capsaicin biosynthetic genes. Therefore, whether the identified seed-specific expression genes CaMYB15 and CaMYB13, flower-specific expression genes CaMYB23/CaMYB24, and leaf-specific expression genes CaMYB52/CaMYB60/CaMYB99 play an important role in the development of corresponding tissues deserves further study.

4. Materials and Methods

4.1. Identification of the CaMYB-Related Gene Family

Pepper and tomato gene and protein sequences were downloaded from the SGN website (https://solgenomics.net/, accessed on 5 May 2022). The Arabidopsis MYB-related protein sequences were downloaded from the TAIR website (https://www.Arabidopsis.org/, accessed on 1 May 2022). HMMER 3.0 [45] was used to screen tomato and pepper protein sequences containing the complete MYB domain (PF00249), with thresholds set at E-values of <1 × 10−5. Candidate sequences were further screened using the SMART website (http://smart.embl-heidelberg.de/, accessed on 1 May 2022) and the NCBI database (http://www.ncbi.nlm.nih.gov/, accessed on 1 May 2022), thereby retaining sequences containing the complete MYB domain. Candidate gene sequences were used for further analyses.

4.2. Phylogenetic Analysis and Classification of the CaMYB-Related Gene Family

The protein sequences of Arabidopsis thaliana and pepper MYB-related family members were subjected to multiple sequence alignment using ClustalW 2.0 [46]. A phylogenetic tree was constructed using the neighbor-joining (NJ) method in MEGA 7.0 with the following parameter settings: 1000 bootstrap values, Poisson model, and pairwise deletion [47]. The members of the CaMYB-related family were divided into different subfamilies based on AtMYB taxonomy and bootstrapping values in the phylogenetic tree.

4.3. Protein Properties, Conserved Motifs, and Gene Structures of CaMYB-Related Family

CaMYB-related proteins were uploaded to the ExPaSy website (http://web.expasy.org, accessed on 3 May 2022) to calculate the isoelectric point (PI) and molecular weight (MW). At the same time, MEME v5.1.1 (http://meme-suite.org/, accessed on 3 May 2022) was used to identify the conserved motifs of the CaMYB-related proteins. The optimal motif length was 100–200 residues, the number of motifs was 10, and the remaining parameters remained unchanged [48]. The gene structure and intron number of the pepper and tomato genes were determined with reference to the annotation files. Gene structure maps were drawn using TBtools v1.098765 [49].

4.4. Chromosomal Location and Gene Duplication Analysis of CaMYB-Related Family

MapGene2 (http://mg2c.iask.in/mg2c_v2.0/, accessed on 4 May 2022) was used to determine the location of the CaMYB-related genes on the chromosomes. MCScanX was used to identify MYB-related gene pairs in tomato, Arabidopsis, and pepper, as well as intraspecific gene pairs in pepper. The parameters were set as follows: match score of 50, match size of 5, gap score of −3, and E-value of 1 × 10−10. A collinearity graph was drawn using Circos software v0.69 (accessed on 5 May 2022) [50].

4.5. Analysis of cis-Elements in the Promoters of CaMYB-Related Genes

The 2000 bp upstream promoter sequences of the CaMYB-related genes were extracted using the SeqKit v0.13.0 software (accessed on 5 May 2022) [51]. After uploading the promoter sequences to PlantCARE [52] for online analysis, predicted promoter cis-elements were sorted and classified.

4.6. Expression Pattern Analysis of CaMYB-Related Genes

Previously reported transcriptome data were used to analyze the expression patterns of CaMYB-related genes in multiple organs and tissues of pepper [53]. The FPKM value (fragments per kilobase of transcript per million mapped reads) represents the expression level of each gene, which was converted to log2 (FPKM + 1). A heatmap was drawn after normalizing the data using R v3.6.1 (accessed on 7 May 2022).

4.7. Quantitative Real-Time PCR (qRT-PCR)

The fruit stage used in the experiment was 16 days after pollination [18]. Total RNA from ‘S8′ placenta was extracted using the TransZol kit (TransGen Biotech, Inc., Beijing, China). Each group of samples was repeated three times. Extracted RNA was reverse-transcribed using HiScriptIIQ RT SuperMix, and the product from the previous step was used in the qPCR (+gDNA wiper) vazyme kit (Vazyme, Piscataway, NJ, USA). qRT-PCR experiments were performed using a LightCycler® 96 real-time PCR machine. The reaction volume was 20 µL, and the program was as follows: pre-denaturation at 95 °C for 30 s, 95 °C for 10 s, and 60 °C for 30 s, over 40 cycles, followed by 95 °C for 15 s, 60 °C for 60 s, and 95 °C for 15 s. Gene expression level was calculated using the 2−ΔΔCt method [54]. qRT-PCR primers (PAL/C4H/CoMTa/AMT/Kasla/BCAT/BCKDH/FatA/Acl/AT3/KR/Actin2) were from the previous study [18]. The qRT-PCR primers of CaMYB37 were designed by Primer5 software, and the specificity of primers was confirmed using Primer-BLAST (NCBI). The melting curve and standard curve were supplemented to check the amplification efficiency of qRT-PCR primers (CaMYB37) (Supplementary Table S6). The internal reference gene for gene expression levels was Actin2 [18]. Actin2 encodes an actin expressed during reproductive development. The gene primers used in this study are list in Supplementary Table S6.

4.8. Subcellular Localization

First, a subcellular localization expression vector was constructed. After double-enzyme digestion of the pSuper1300-eGFP plasmid, the obtained fragment was homologously recombined with the gene CDS sequence and then transformed into DH5α competent cells. A single colony was picked and shaken for sequencing, and the extracted plasmid was transferred into Agrobacterium competent GV3101. Agrobacterium liquid PCR test strips were expanded in LB medium containing kanamycin and rifampicin antibiotics. After 12 h, the OD600 was detected as 0.8–1. The sample was centrifuged at 3000 rpm for 8 min, resuspended in buffer (10 mM MES, 10 mM MgCl2, 100 mM AS), and incubated at 28 °C for 3 h in the dark. pSuper1300-CaMYB37-eGFP and the nuclear marker HY5-mCherry were transiently co-transformed into Nicotiana benthamiana leaves. The infected tobacco was cultured in an artificial climate chamber (day/night temperature 18/22 °C, light/dark 8/16 h). After 48 h, the fluorescence was detected using a laser confocal microscope and photographed (LSM800, Zeiss, Jena, Germany).

4.9. Extraction and Detection of Capsaicin and Dihydrocapsaicin

The capsaicin and dihydrocapsaicin contents in ‘S8′ placenta were extracted and detected using liquid chromatography tandem mass spectrometry (LC–MS/MS). The fruit stage used in the experiment was 45 days after pollination [18]. Cryopreserved pepper placenta samples were collected and ground into a powder with a grinder. About 0.1 g of the powder sample was weighed into a 2 mL centrifuge tube, before adding 1.0 mL of methanol extract; then, ultrasonic extraction was performed at 4 °C, and the process was repeated three times. The leaching solution was centrifuged at 10,000 rpm for 10 min, concentrated with nitrogen, and dissolved in 200 µL of methanol. All samples were purified by solid-phase extraction (SPE) using an Oasis HLB RP column (30 mg, 1 mL), washed with 1 mL of 100% MeOH and 1 mL of deionized water, and then eluted with 1 mL of methanol to obtain the analytical solution. The analytical solution was then blown dry with constant nitrogen at 40 °C and redissolved in 100 μL of methanol. The diluted samples were analyzed using UPLC–MS/MS. Using the external standard method, the peak areas of all the detected samples were substituted into the standard curve equation for calculation. The absolute contents of capsaicin and dihydrocapsaicin in the actual samples were obtained. All assays were performed in triplicate.

4.10. Virus-Induced Gene Silencing

First, a gene silencing expression vector was constructed. The coding sequence of the CaMYB37 gene was uploaded to the SGN VIGS website (https://vigs.solgenomics.net/, accessed on 15 May 2022). A specific 300 bp sequence was selected for cloning. PDS (Phytoene desaturase) was used as an indicative control gene. We digested the pTRV2 vector and performed ligation transformation. Subsequent experiments were performed after the vector was verified to be correct. First, the bacteria were shaken before injection and resuspended when the OD value was approximately 1.0. The resuspended solution was allowed to stand for 4 h in the dark environment at 25 °C and then mixed. The pTRV1 bacterial solution and the bacterial solution containing pTRV2 or pTRV2-CaMYB37 were mixed at a 1:1 ratio to prepare for inoculation. The pepper seedlings were subjected to drought treatment for 2 days when the cotyledons were fully expanded, and no true leaves were formed. A disposable syringe was used to inject the mixture into the backs of the capsicum cotyledons. The injected peppers were returned to an artificial climate chamber for cultivation.

4.11. Yeast One-Hybrid

The Y1HGold yeast strain was used to prepare competent yeast (the Y1HGold strain was purchased from the company). The CaMYB37 coding sequence was ligated into the PGADT7 (AD) vector using homologous recombination. Specific primers were designed to amplify the promoter sequence of the capsaicin synthesis gene AT3. The AT3 promoter sequence was ligated to the pAbAi vector, linearized, and transformed into competent yeast cells. The correctly sequenced pAbAi-AT3 vector can screen for the minimum inhibitory concentration of Aureobasidin A (AbA) according to plaque growth. This screening concentration was considered suitable for subsequent one-to-one interaction experiments. The abovementioned Y1HGold (pBait-AbAi) strain was inoculated on SD/−Ura solid plates, and positive plaques with diameters of 2–3 mm were selected and propagated in YPDA liquid medium. The AD-CaMYB37 plasmid and AD empty plasmid were transformed into the Y1HGold strain and spread on SD/Leu plates. Positive yeast plaques were inoculated onto SD/−Leu+AbA plates. After 3–5 days, plaque growth was observed.

4.12. Dual-Luciferase Reporter Gene Assay

Two types of vectors were constructed for the Dual-Luc reporter gene detection experiments. The cloned AT3 promoter sequence was ligated into a pGreenIIo800 vector. The coding sequence (CDS) region of cloned CaMYB37 was ligated into the pGreenII62-sk vector. The two vectors were transformed, and the tested bacterial liquid was expanded and cultured in LB medium containing kanamycin and rifampicin. The samples were cultured until the OD600 value reached 1. After centrifugation for 5 min at 5000 rpm, the bacteria were collected. The cells were resuspended in an MES solution (10 mM MES, 10 mM MgCl2, and 100 mM AS). The suspension was then mixed in the dark for 4 h (pGreenII0800:pGreenII62-sk = 1:9). A 1 mL syringe was used to inject the back of the leaves (tobacco seedlings were approximately 1 month old). The injection dose of each leaf in the control and experimental groups remained the same (1 mL). After injection, the tobacco plants were treated in the dark for 48 h. Fluorescence was observed using an in vivo imager. The leaves injected with the mixed solution were sampled using a hole punch, quick-frozen in liquid nitrogen, and ground. Enzyme activity was detected using a dual-luciferase reporter assay system kit. The primer pairs used for the yeast one-hybrid and dual-luciferase reporter assays are listed in Supplementary Table S1.

4.13. Statistical Analysis

Data were analyzed using GraphPad Prism software (version 7; San Diego, CA, USA) and the Student’s t-test for significance in all assays. Error bars indicate means ± SEs. “*” means significant difference (p < 0.05). “**” means extremely significant difference (p < 0.01).

5. Conclusions

In conclusion, we systematically identified and analyzed CaMYB-related family members. Through bioinformatic prediction, we identified placental-specific CaMYB37. We provided functional and molecular evidence that CaMYB37 regulates capsaicin biosynthesis by binding to the AT3 promoter and activating its expression. The results provide reference for further study on the role of CaMYB-related genes in pepper growth and development.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/ijms231911667/s1.

Author Contributions

Validation, Y.L., Z.Z., F.L., X.D. and X.Z.; data curation, Z.Z., Y.L. and X.Z.; writing—review and editing, Z.Z., X.D., F.L. and X.Z.; investigation, Y.L., Z.Z., K.F., Q.S. and L.H.; funding acquisition, X.Z. and F.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (U21A20230, U19A2028 and 32130097), the Science and Technology Innovation Program of Hunan Province, China (2021NK1006).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in insert article or supplementary material here.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Riaño-Pachón, D.M.; Ruzicic, S.; Dreyer, I.; Mueller-Roeber, B. PlnTFDB: An integrative plant transcription factor database. BMC Bioinform. 2007, 8, 42. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Anton, I.A.; Frampton, J. Tryptophans in myb proteins. Nature 1988, 336, 719. [Google Scholar] [CrossRef] [PubMed]
  3. Dubos, C.; Stracke, R.; Grotewold, E.; Weisshaar, B.; Martin, C.; Lepiniec, L. MYB transcription factors in Arabidopsis. Trends Plant Sci. 2010, 15, 573–581. [Google Scholar] [CrossRef] [PubMed]
  4. Goicoechea, M.; Lacombe, E.; Legay, S.; Mihaljevic, S.; Rech, P.; Jauneau, A.; Lapierre, C.; Pollet, B.; Verhaegen, D.; Chaubet-Gigot, N.; et al. EgMYB2, a new transcriptional activator from Eucalyptus xylem, regulates secondary cell wall formation and lignin biosynthesis. Plant J. 2005, 43, 553–567. [Google Scholar] [CrossRef] [Green Version]
  5. Zhang, S.; Chen, Y.; He, X.; Du, J.; Zhang, R.; Ma, Y.; Hu, X.; Zhang, Z.; Chen, Q.; Wan, X. Identification of MYB transcription factors regulating theanine biosynthesis in tea plant using omics-based gene coexpression analysis. J. Agric. Food Chem. 2020, 68, 918–926. [Google Scholar] [CrossRef]
  6. Mehrtens, F.; Kranz, H.; Bednarek, P.; Weisshaar, B. The Arabidopsis transcription factor MYB12 is a flavonol-specific regulator of phenylpropanoid biosynthesis. Plant Physiol. 2005, 138, 1083–1096. [Google Scholar] [CrossRef] [Green Version]
  7. Jiang, S.; Chen, M.; He, N.; Chen, X.; Wang, N.; Sun, Q.; Zhang, T.; Xu, H.; Fang, H.; Wang, Y.; et al. MdGSTF6, activated by MdMYB1, plays an essential role in anthocyanin accumulation in apple. Hortic. Res. 2019, 6, 40. [Google Scholar] [CrossRef] [Green Version]
  8. Xu, H.; Zou, Q.; Yang, G.; Jiang, S.; Fang, H.; Wang, Y.; Zhang, J.; Zhang, Z.; Wang, N.; Chen, X. MdMYB6 regulates anthocyanin formation in apple both through direct inhibition of the biosynthesis pathway and through substrate removal. Hortic. Res. 2020, 7, 72. [Google Scholar] [CrossRef]
  9. Meng, Y.; Wang, Z.; Wang, Y.; Wang, C.; Zhu, B.; Liu, H.; Ji, W.; Wen, J.; Chu, C.; Tadege, M.; et al. The MYB activator WHITE PETAL1 associates with MtTT8 and MtWD40-1 to regulate carotenoid-derived flower pigmentation in Medicago truncatula. Plant Cell 2019, 31, 2751–2767. [Google Scholar] [CrossRef] [Green Version]
  10. Shen, X.; Zhao, K.; Liu, L.; Zhang, K.; Yuan, H.; Liao, X.; Wang, Q.; Guo, X.; Li, F.; Li, T. A role for PacMYBA in ABA-regulated anthocyanin biosynthesis in red-colored sweet cherry cv. Hong Deng (Prunus avium L.). Plant Cell Physiol. 2014, 55, 862–880. [Google Scholar] [CrossRef]
  11. Hatlestad, G.J.; Sunnadeniya, R.M.; Akhavan, N.A.; Gonzalez, A.; Goldman, I.L.; McGrath, J.M.; Lloyd, A.M. The beet R locus encodes a new cytochrome P450 required for red betalain production. Nat. Genet. 2012, 44, 816–820. [Google Scholar] [CrossRef] [PubMed]
  12. Feller, A.; Machemer, K.; Braun, E.L.; Grotewold, E. Evolutionary and comparative analysis of MYB and bHLH plant transcription factors. Plant J. 2011, 66, 94–116. [Google Scholar] [CrossRef] [PubMed]
  13. Stracke, R.; Werber, M.; Weisshaar, B. The R2R3-MYB gene family in Arabidopsis thaliana. Curr. Opin. Plant Biol. 2001, 4, 447–456. [Google Scholar] [CrossRef]
  14. Rosinski, J.A.; Atchley, W.R. Molecular evolution of the Myb family of transcription factors: Evidence for polyphyletic origin. J. Mol. Evol. 1998, 46, 74–83. [Google Scholar] [CrossRef]
  15. Jin, H.; Martin, C. Multifunctionality and diversity within the plant MYB-gene family. Plant Mol. Biol. 1999, 41, 577–585. [Google Scholar] [CrossRef]
  16. Kim, S.; Park, M.; Yeom, S.I.; Kim, Y.M.; Lee, J.M.; Lee, H.A.; Seo, E.; Choi, J.; Cheong, K.; Kim, K.T.; et al. Genome sequence of the hot pepper provides insights into the evolution of pungency in Capsicum species. Nat. Genet. 2014, 46, 270–278. [Google Scholar] [CrossRef]
  17. Alappat, B.; Alappat, J. Anthocyanin Pigments: Beyond Aesthetics. Molecules 2020, 25, 5500. [Google Scholar] [CrossRef]
  18. Zhu, Z.; Sun, B.; Cai, W.; Zhou, X.; Mao, Y.; Chen, C.; Wei, J.; Cao, B.; Chen, C.; Chen, G.; et al. Natural variations in the MYB transcription factor MYB31 determine the evolution of extremely pungent peppers. New Phytol. 2019, 223, 922–938. [Google Scholar] [CrossRef]
  19. Usman, M.G.; Rafii, M.Y.; Ismail, M.R.; Malek, M.A.; Latif, M.A. Capsaicin and dihydrocapsaicin determination in chili pepper genotypes using ultra-fast liquid chromatography. Molecules 2014, 19, 6474–6488. [Google Scholar] [CrossRef] [Green Version]
  20. Wu, S.; Zeng, J.; Xie, H.; Ng, S.H. Capsaicin determination and chili sauce discrimination using low-cost and portable electrochemical sensors based on all graphite pencil electrodes. Anal. Methods 2016, 8, 7025–7029. [Google Scholar] [CrossRef]
  21. Suzuki, T.; Fujiwake, H.; Iwai, K. Intracellular localization of capsaicin and its analogues, capsaicinoid, in Capsicum fruit 1. Microscopic investigation of the structure of the placenta of Capsicum annuum var. annuum cv. Karayatsubusa. Plant Cell Physiol. 1980, 21, 839–853. [Google Scholar] [CrossRef]
  22. Mazourek, M.; Pujar, A.; Borovsky, Y.; Paran, I.; Mueller, L.; Jahn, M.M. A dynamic interface for capsaicinoid systems biology. Plant Physiol. 2009, 150, 1806–1821. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Wahyuni, Y.; Ballester, A.-R.; Sudarmonowati, E.; Bino, R.J.; Bovy, A.G. Metabolite biodiversity in pepper (Capsicum) fruits of thirty-two diverse accessions: Variation in health-related compounds and implications for breeding. Phytochemistry 2011, 72, 1358–1370. [Google Scholar] [CrossRef] [PubMed]
  24. Meléndez-Martínez, A. An overview of carotenoids, apocarotenoids, and vitamin A in agro-food, nutrition, health, and disease. Mol. Nutr. Food Res. 2019, 63, 1–43. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Estrada, B.; Bernal, M.A.; Díaz, J.; Pomar, F.; Merino, F. Fruit development in capsicum annuum: Changes in capsaicin, lignin, free phenolics, and peroxidase patterns. J. Agric. Food Chem. 2000, 48, 6234–6239. [Google Scholar] [CrossRef] [PubMed]
  26. Sun, B.; Zhou, X.; Chen, C.; Chen, C.; Chen, K.; Chen, M.; Liu, S.; Chen, G.; Cao, B.; Cao, F.; et al. Coexpression network analysis reveals an MYB transcriptional activator involved in capsaicinoid biosynthesis in hot peppers. Hortic. Res. 2020, 7, 162. [Google Scholar] [CrossRef]
  27. Stewart, C., Jr.; Kang, B.C.; Liu, K.; Mazourek, M.; Moore, S.L.; Yoo, E.Y.; Kim, B.D.; Paran, I.; Jahn, M.M. The Pun1 gene for pungency in pepper encodes a putative acyltransferase. Plant J. 2005, 42, 675–688. [Google Scholar] [CrossRef]
  28. Lu, S.X.; Knowles, S.M.; Andronis, C.; Ong, M.S.; Tobin, E.M. CIRCADIAN CLOCK ASSOCIATED1 and LATE ELONGATED HYPOCOTYL function synergistically in the circadian clock of Arabidopsis. Plant Physiol. 2009, 150, 834–843. [Google Scholar] [CrossRef] [Green Version]
  29. Matsui, K.; Umemura, Y.; Ohme-Takagi, M. AtMYBL2, a protein with a single MYB domain, acts as a negative regulator of anthocyanin biosynthesis in Arabidopsis. Plant J. 2008, 55, 954–967. [Google Scholar] [CrossRef]
  30. Rawat, R.; Takahashi, N.; Hsu, P.Y.; Jones, M.A.; Schwartz, J.; Salemi, M.R.; Phinney, B.S.; Harmer, S.L. REVEILLE8 and PSEUDO-REPONSE REGULATOR5 form a negative feedback loop within the Arabidopsis circadian clock. PLoS Genet. 2011, 7, e1001350. [Google Scholar] [CrossRef]
  31. Kerstetter, R.A.; Bollman, K.; Taylor, R.A.; Bomblies, K.; Poethig, R.S. KANADI regulates organ polarity in Arabidopsis. Nature 2001, 411, 706–709. [Google Scholar] [CrossRef] [PubMed]
  32. Izhaki, A.; Bowman, J.L. KANADI and class III HD-Zip gene families regulate embryo patterning and modulate auxin flow during embryogenesis in Arabidopsis. Plant Cell 2007, 19, 495–508. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Lin, Q.; Hamilton, W.; Merryweather, A. Cloning and initial characterization of 14 myb-related cDNAs from tomato (Lycopersicon esculentum cv. Ailsa Craig). Plant Mol. Biol. 1996, 30, 1009–1020. [Google Scholar] [CrossRef] [PubMed]
  34. Yanhui, C.; Xiaoyuan, Y.; Kun, H.; Meihua, L.; Jigang, L.; Zhaofeng, G.; Zhiqiang, L.; Yunfei, Z.; Xiaoxiao, W.; Xiaoming, Q.; et al. The MYB transcription factor superfamily of Arabidopsis: Expression analysis and phylogenetic comparison with the rice MYB family. Plant Mol. Biol. 2006, 60, 107–124. [Google Scholar] [CrossRef]
  35. Zhang, L.; Zhao, G.; Jia, J.; Liu, X.; Kong, X. Molecular characterization of 60 isolated wheat MYB genes and analysis of their expression during abiotic stress. J. Exp. Bot. 2011, 63, 203–214. [Google Scholar] [CrossRef] [Green Version]
  36. Qing, X.U.; Jie, H.E.; Jianhui, D.O.N.G.; Xiaojin, H.O.U.; Zhang, X. Genomic survey and expression profiling of the MYB gene family in watermelon. Hortic. Plant J. 2018, 4, 1–15. [Google Scholar]
  37. Li, D.; Qian, J.; Li, W.; Yu, N.; Gan, G.; Jiang, Y.; Li, W.; Liang, X.; Chen, R.; Mo, Y.; et al. A high-quality genome assembly of the eggplant provides insights into the molecular basis of disease resistance and chlorogenic acid synthesis. Mol. Ecol. Resour. 2021, 21, 1274–1286. [Google Scholar] [CrossRef]
  38. Arce-Rodríguez, M.L.; Martínez, O.; Ochoa-Alejo, N. Genome-wide identification and analysis of the MYB transcription factor gene family in chili pepper (Capsicum spp.). Int. J. Mol. Sci. 2021, 22, 2229. [Google Scholar] [CrossRef]
  39. Qian, W.F.; Liao, B.Y.; Chang, A.Y.F.; Zhang, J.Z. Maintenance of duplicate genes and their functional redundancy by reduced expression. Trends Genet. 2010, 26, 425–430. [Google Scholar] [CrossRef] [Green Version]
  40. Islam, S.; Sajib, S.D.; Jui, Z.S.; Arabia, S.; Islam, T.; Ghosh, A. Genome-wide identification of glutathione S-transferase gene family in pepper, its classification, and expression profiling under different anatomical and environmental conditions. Sci. Rep. 2019, 9, 9101. [Google Scholar] [CrossRef] [Green Version]
  41. Kuno, N.; Møller, S.G.; Shinomura, T.; Xu, X.; Chua, N.H.; Furuya, M. The novel MYB protein EARLY-PHYTOCHROME-RESPONSIVE1 is a component of a slave circadian oscillator in Arabidopsis. Plant Cell 2003, 15, 2476–2488. [Google Scholar] [CrossRef] [PubMed]
  42. Liu, S.; Yang, L.; Li, J.; Tang, W.; Li, J.; Lin, R. FHY3 interacts with phytochrome B and regulates seed dormancy and germination. Plant Physiol. 2021, 187, 289–302. [Google Scholar] [CrossRef]
  43. Nguyen, N.H.; Jeong, C.Y.; Kang, G.H.; Yoo, S.D.; Hong, S.W.; Lee, H. MYBD employed by HY5 increases anthocyanin accumulation via repression of MYBL 2 in Arabidopsis. Plant J. 2015, 84, 1192–1205. [Google Scholar] [CrossRef] [Green Version]
  44. Sun, B.; Zhu, Z.; Chen, C.; Chen, G.; Cao, B.; Chen, C.; Lei, J. Jasmonate-inducible R2R3-MYB transcription factor regulates capsaicinoid biosynthesis and stamen development in Capsicum. J. Agric. Food Chem. 2019, 67, 10891–10903. [Google Scholar] [CrossRef] [PubMed]
  45. Eddy, S.R. Profile hidden Markov models. Bioinformatics 1998, 14, 755–763. [Google Scholar] [CrossRef] [Green Version]
  46. Larkin, M.A.; Blackshields, G.; Brown, N.P.; Chenna, R.; McGettigan, P.A.; McWilliam, H.; Valentin, F.; Wallace, I.M.; Wilm, A.; Lopez, R.; et al. Clustal W and Clustal X version 2.0. Bioinformatics 2007, 23, 2947–2948. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Tamura, K.; Dudley, J.; Nei, M.; Kumar, S. MEGA4: Molecular Evolutionary Genetics Analysis (MEGA) software version 4.0. Mol. Biol. Evol. 2007, 24, 1596–1599. [Google Scholar] [CrossRef] [PubMed]
  48. Hu, B.; Jin, J.; Guo, A.-Y.; Zhang, H.; Luo, J.; Gao, G. GSDS 2.0: An upgraded gene feature visualization server. Bioinformatics 2015, 31, 1296–1297. [Google Scholar] [CrossRef] [Green Version]
  49. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An integrative toolkit developed for interactive analyses of big biological data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef]
  50. Krzywinski, M.; Schein, J.; Birol, I.; Connors, J.; Gascoyne, R.; Horsman, D.; Jones, S.J.; Marra, M.A. Circos: An information aesthetic for comparative genomics. Genome Res. 2009, 19, 1639–1645. [Google Scholar] [CrossRef] [Green Version]
  51. Shen, W.; Le, S.; Li, Y.; Hu, F. SeqKit: A cross-platform and ultrafast toolkit for FASTA/Q file manipulation. PLoS ONE 2016, 11, e0163962. [Google Scholar] [CrossRef] [PubMed]
  52. Lescot, M.; Déhais, P.; Thijs, G.; Marchal, K.; Moreau, Y.; Van de Peer, Y.; Rouzé, P.; Rombauts, S. PlantCARE, a database of plant cis-acting regulatory elements and a portal to tools for in silico analysis of promoter sequences. Nucleic Acids Res. 2002, 30, 325–327. [Google Scholar] [CrossRef] [PubMed]
  53. Liu, F.; Yu, H.; Deng, Y.; Zheng, J.; Liu, M.; Ou, L.; Yang, B.; Dai, X.; Ma, Y.; Feng, S.; et al. PepperHub, an informatics hub for the chili pepper research community. Mol. Plant 2017, 10, 1129–1132. [Google Scholar] [CrossRef] [PubMed]
  54. Schmittgen, T.D.; Livak, K.J. Analyzing real-time PCR data by the comparative C(T) method. Nat. Protoc. 2008, 3, 1101–1108. [Google Scholar] [CrossRef] [PubMed]
Ijms 23 11667 g001 550

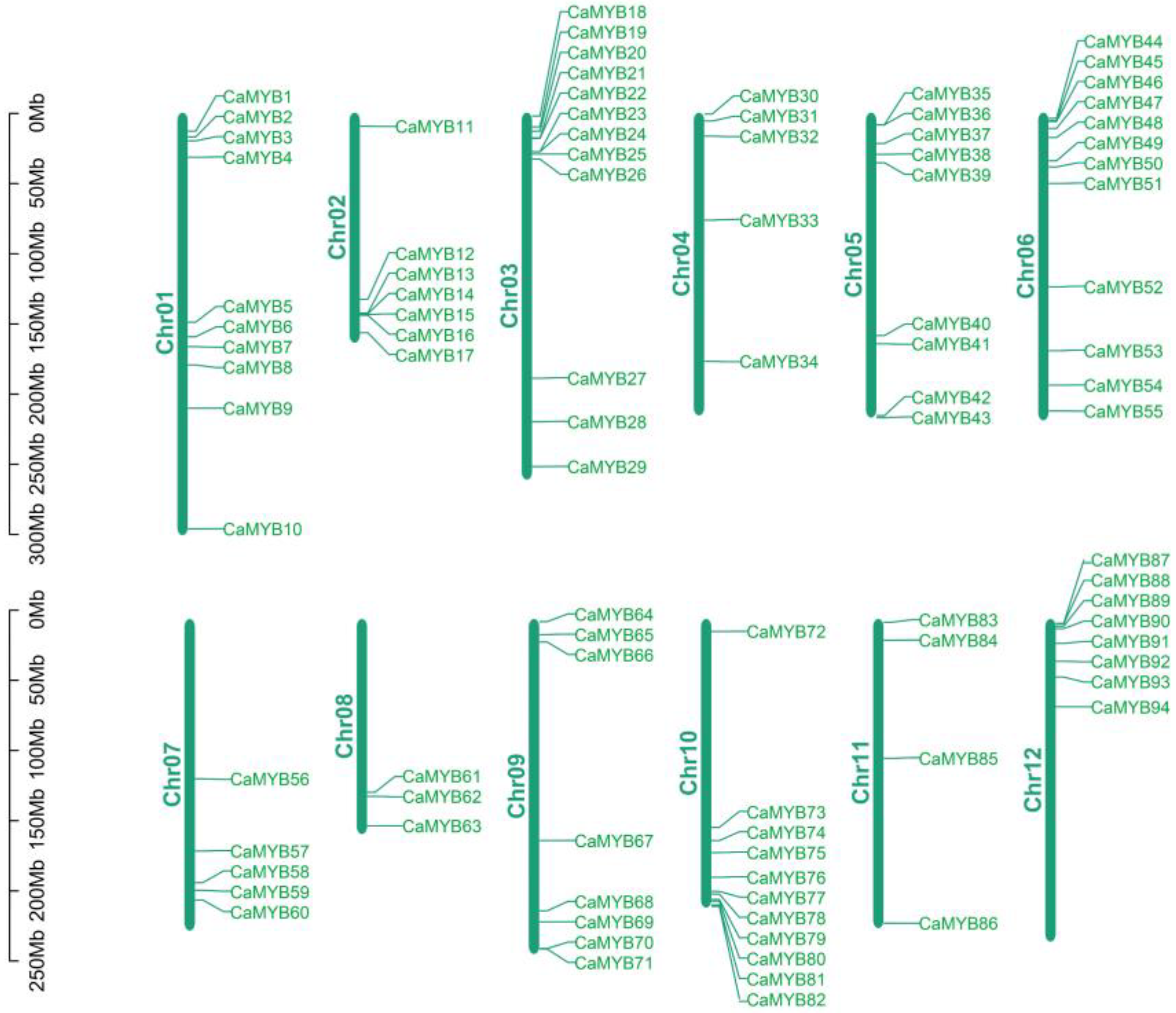

Figure 1. Chromosomal locations of CaMYB-related genes.
Figure 1. Chromosomal locations of CaMYB-related genes.
Ijms 23 11667 g001
Ijms 23 11667 g002 550

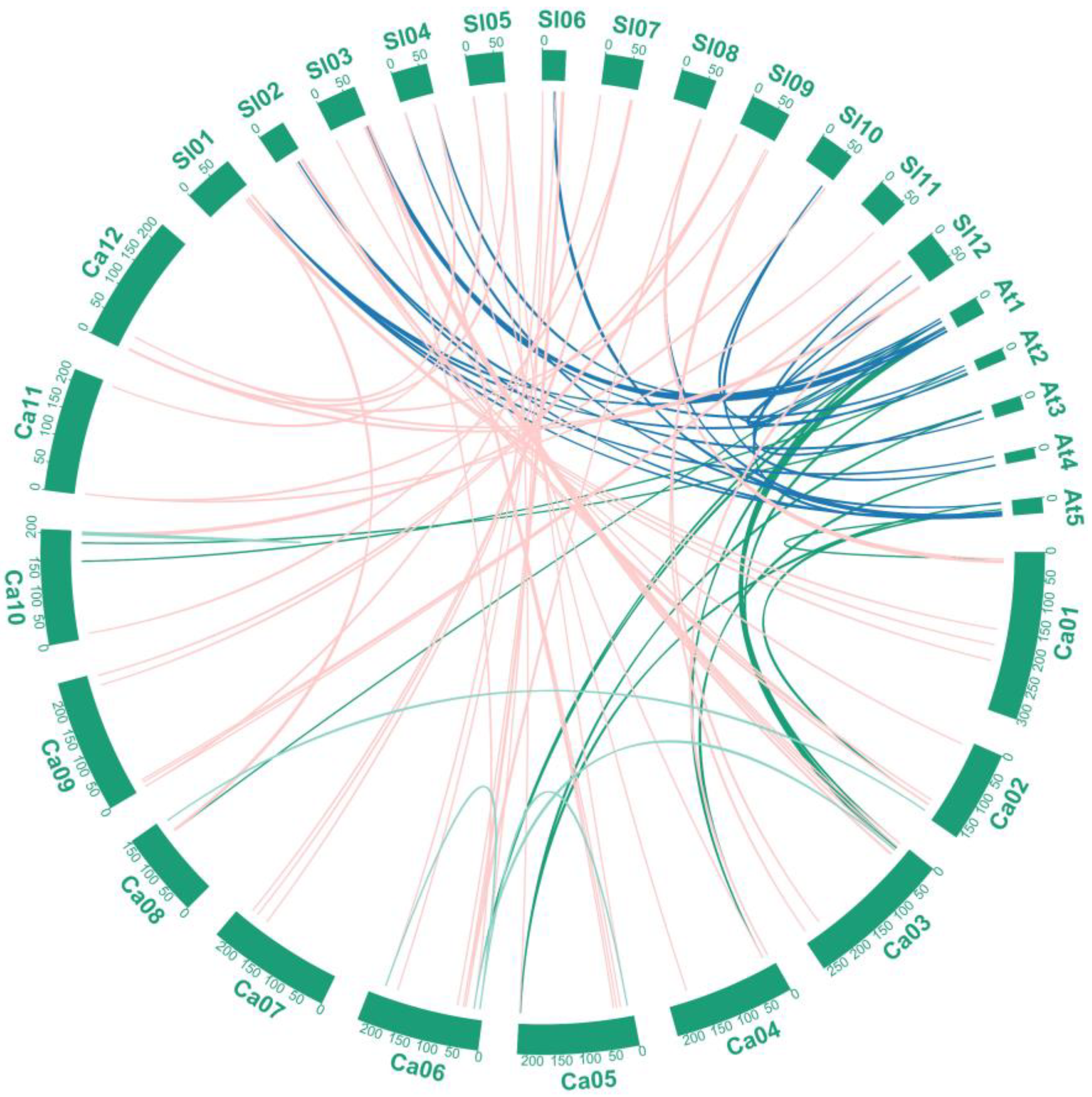

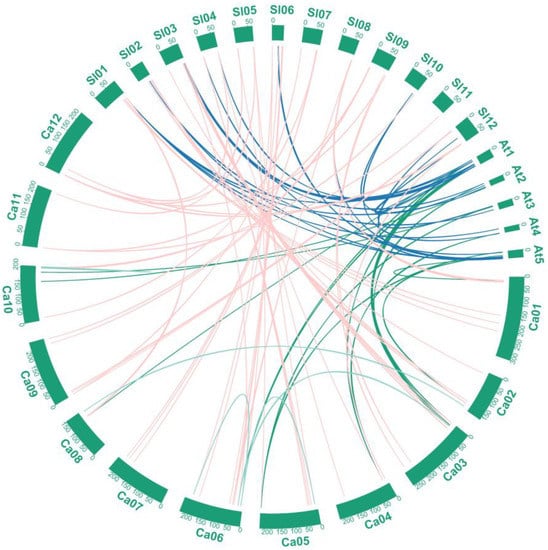

Figure 2. Collinear analysis of CaMYB-related genes among pepper (Ca), Arabidopsis (At), and tomato (Sl). Blue, green, pink, and blue-green lines represent the collinear gene pairs between chromosomes of tomato and Arabidopsis, Arabidopsis and pepper, tomato and pepper, and pepper and pepper, respectively. Chromosome numbers are located above the chromosomes.
Figure 2. Collinear analysis of CaMYB-related genes among pepper (Ca), Arabidopsis (At), and tomato (Sl). Blue, green, pink, and blue-green lines represent the collinear gene pairs between chromosomes of tomato and Arabidopsis, Arabidopsis and pepper, tomato and pepper, and pepper and pepper, respectively. Chromosome numbers are located above the chromosomes.
Ijms 23 11667 g002
Ijms 23 11667 g003 550

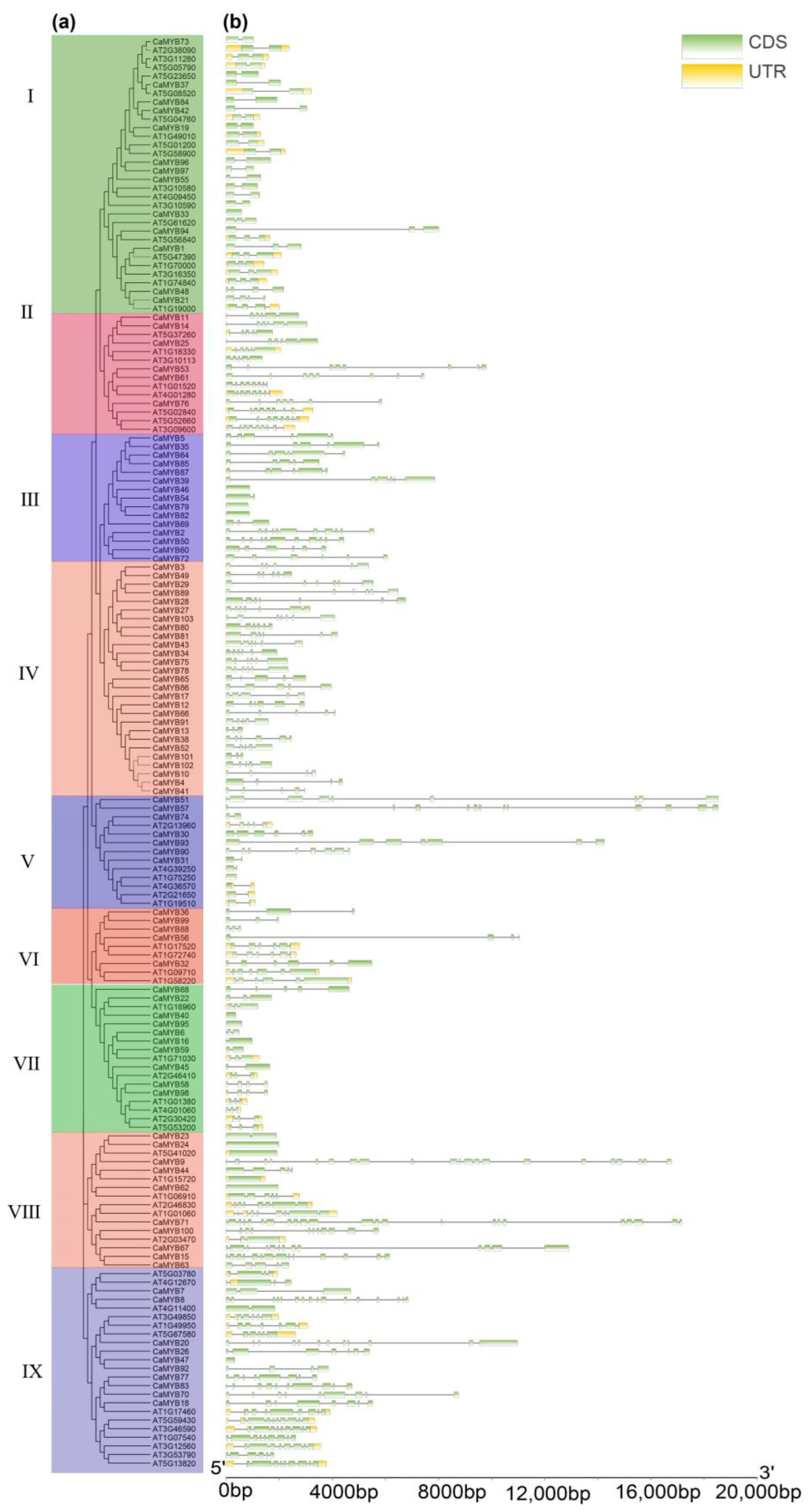

Figure 3. Phylogenetic relationship and gene structure of CaMYB-related and AtMYB-related families. (a) Unrooted phylogenetic tree of CaMYB-related and AtMYB-related proteins constructed using neighbor-joining method (NJ). (b) Gene structure. Green squares represent introns of genes, yellow squares represent uncoded UTR regions, and black lines represent exons.
Figure 3. Phylogenetic relationship and gene structure of CaMYB-related and AtMYB-related families. (a) Unrooted phylogenetic tree of CaMYB-related and AtMYB-related proteins constructed using neighbor-joining method (NJ). (b) Gene structure. Green squares represent introns of genes, yellow squares represent uncoded UTR regions, and black lines represent exons.
Ijms 23 11667 g003
Ijms 23 11667 g004 550

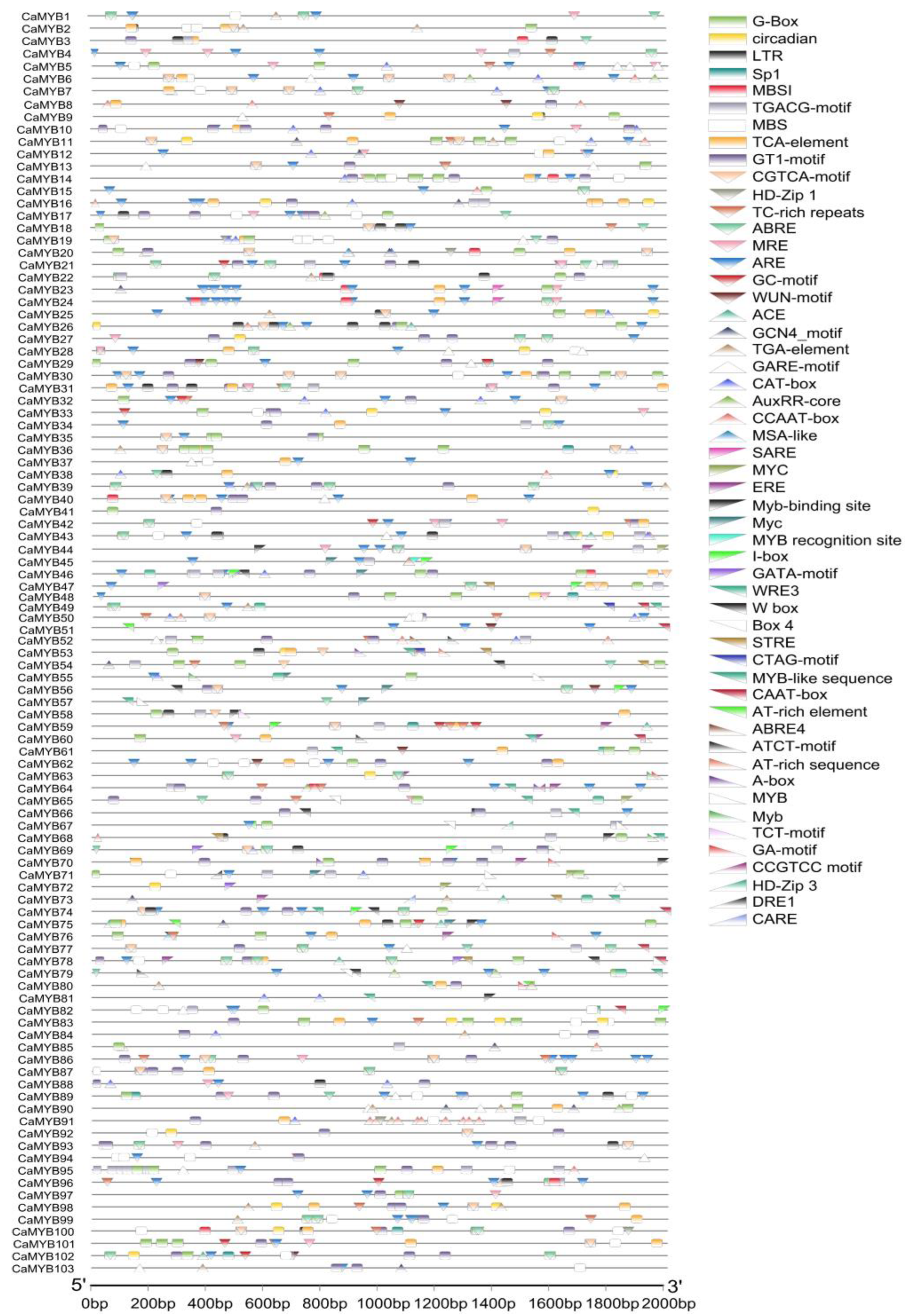

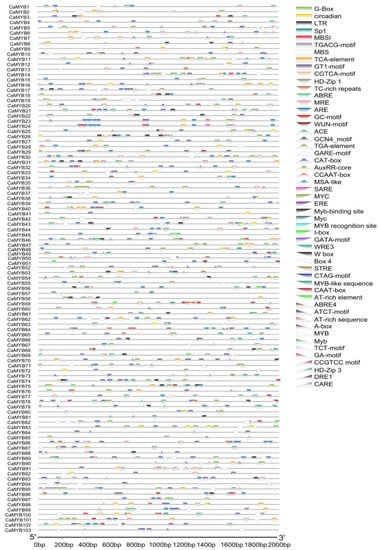

Figure 4. cis-Element analysis of CaMYB-related family. Different shapes and colors represent different elements.
Figure 4. cis-Element analysis of CaMYB-related family. Different shapes and colors represent different elements.
Ijms 23 11667 g004
Ijms 23 11667 g005 550

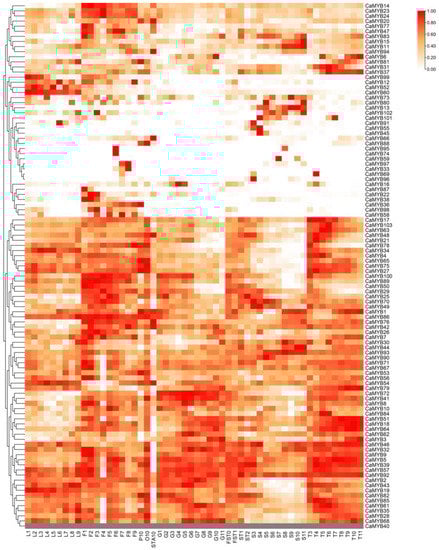

Figure 5. Expression patterns of CaMYB-related genes in different tissues and organs of pepper based on transcriptome data. L, F, O, G, S, and T represent the leaf, flower, ovary, pulp, seed, and placenta, respectively. ST denotes early seed and placenta, FST denotes early whole fruit, P10 denotes petal, and STA denotes stamen. Dark colors indicate high expression levels, and light colors indicate low expression levels.
Figure 5. Expression patterns of CaMYB-related genes in different tissues and organs of pepper based on transcriptome data. L, F, O, G, S, and T represent the leaf, flower, ovary, pulp, seed, and placenta, respectively. ST denotes early seed and placenta, FST denotes early whole fruit, P10 denotes petal, and STA denotes stamen. Dark colors indicate high expression levels, and light colors indicate low expression levels.
Ijms 23 11667 g005
Ijms 23 11667 g006 550

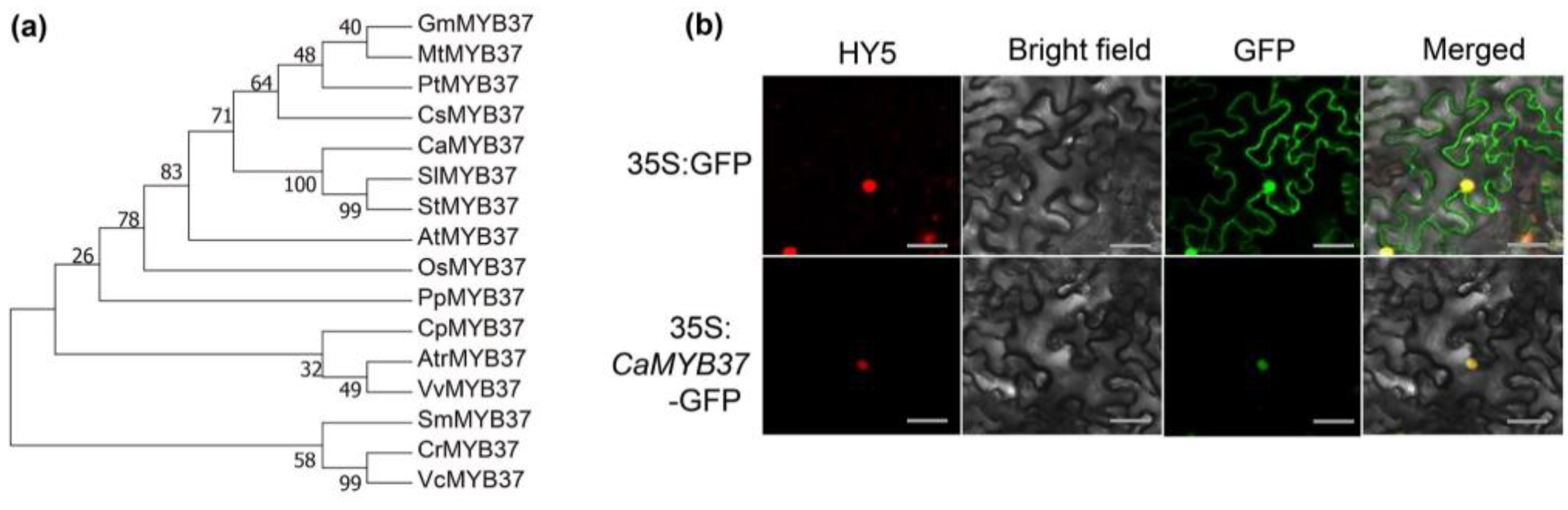

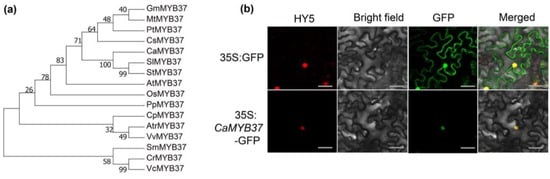

Figure 6. Phylogenetic analysis and subcellular localization of CaMYB37. (a) Phylogenetic analysis of amino-acid sequences of CaMYB37 in 16 plants. (b) Subcellular localization of the CaMYB37 protein in N. benthamiana leaves. Green fluorescent protein (GFP) signals indicated that CaMYB37 was localized in the nucleus. HY5 was used as a nuclear marker. Scale bar, 15 μm.
Figure 6. Phylogenetic analysis and subcellular localization of CaMYB37. (a) Phylogenetic analysis of amino-acid sequences of CaMYB37 in 16 plants. (b) Subcellular localization of the CaMYB37 protein in N. benthamiana leaves. Green fluorescent protein (GFP) signals indicated that CaMYB37 was localized in the nucleus. HY5 was used as a nuclear marker. Scale bar, 15 μm.
Ijms 23 11667 g006
Ijms 23 11667 g007 550

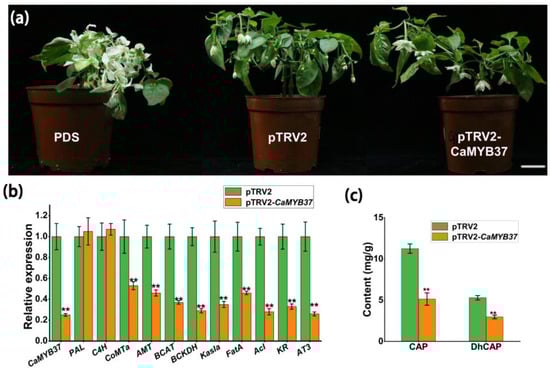

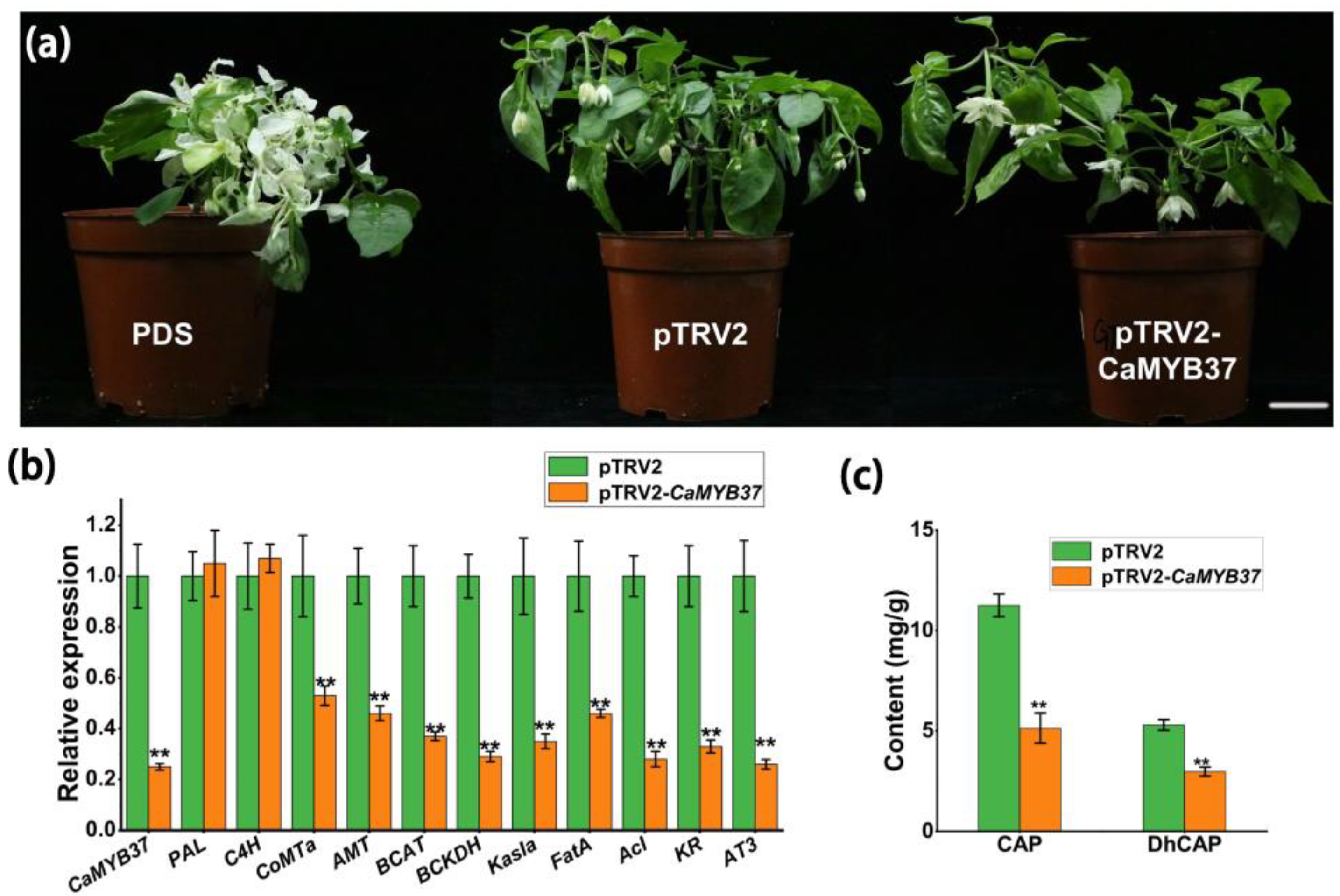

Figure 7. Expression level of CBGs/CaMYB37 and contents of CaP/DhCaP in the control (empty vector) and CaMYB37-silenced fruit placenta. (a) Phenotypes of control, pTRV2-PDS, and pTRV2-CaMYB37 plants. Scale bars, 10 cm. (b) Relative expression of CaMYB37 and CBGs in the placenta at developmental stage 16 DPA in the CaMYB37-silenced fruit compared to levels in the control. The relative expression levels of the CBGs and CaMYB37 in the control were set to 1, and those in the CaMYB37-silenced fruit placenta were measured relative to the control. (c) Contents of CaP and DhCaP in the control and CaMYB37-silenced fruit placenta. Error bars indicate means ± SEs (n = 3). ** means extremely significant difference (p < 0.01).
Figure 7. Expression level of CBGs/CaMYB37 and contents of CaP/DhCaP in the control (empty vector) and CaMYB37-silenced fruit placenta. (a) Phenotypes of control, pTRV2-PDS, and pTRV2-CaMYB37 plants. Scale bars, 10 cm. (b) Relative expression of CaMYB37 and CBGs in the placenta at developmental stage 16 DPA in the CaMYB37-silenced fruit compared to levels in the control. The relative expression levels of the CBGs and CaMYB37 in the control were set to 1, and those in the CaMYB37-silenced fruit placenta were measured relative to the control. (c) Contents of CaP and DhCaP in the control and CaMYB37-silenced fruit placenta. Error bars indicate means ± SEs (n = 3). ** means extremely significant difference (p < 0.01).
Ijms 23 11667 g007
Ijms 23 11667 g008 550

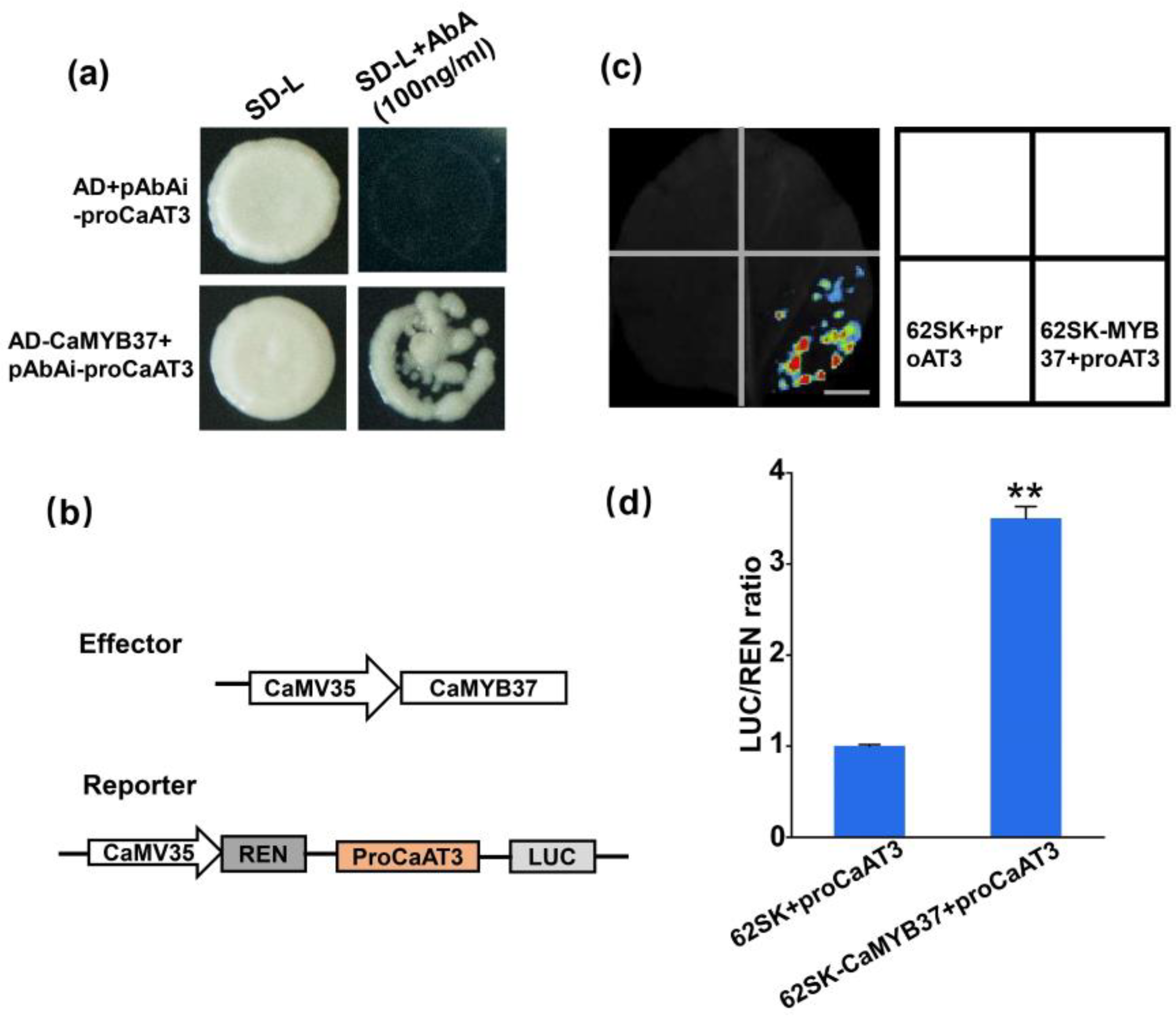

Figure 8. CaMYB37 binds to the promoter of AT3 and promotes its transcription. (a) DNA-binding potential of CaMYB37 with the promoter of AT3 in yeast. SD/−L, medium lacking leucine. (b) Vectors for dual luciferase experiments. (c) LUC images of tobacco leaves after transient infiltration. Scale bars, 1 cm. (d) Enzyme activity detections in dual luciferase assays. Error bars indicate means ± SEs (n = 6). ** means extremely significant difference (p < 0.01).
Figure 8. CaMYB37 binds to the promoter of AT3 and promotes its transcription. (a) DNA-binding potential of CaMYB37 with the promoter of AT3 in yeast. SD/−L, medium lacking leucine. (b) Vectors for dual luciferase experiments. (c) LUC images of tobacco leaves after transient infiltration. Scale bars, 1 cm. (d) Enzyme activity detections in dual luciferase assays. Error bars indicate means ± SEs (n = 6). ** means extremely significant difference (p < 0.01).
Ijms 23 11667 g008
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Liu, Y.; Zhang, Z.; Fang, K.; Shan, Q.; He, L.; Dai, X.; Zou, X.; Liu, F. Genome-Wide Analysis of the MYB-Related Transcription Factor Family in Pepper and Functional Studies of CaMYB37 Involvement in Capsaicin Biosynthesis. Int. J. Mol. Sci. 2022, 23, 11667. https://doi.org/10.3390/ijms231911667

AMA Style

Liu Y, Zhang Z, Fang K, Shan Q, He L, Dai X, Zou X, Liu F. Genome-Wide Analysis of the MYB-Related Transcription Factor Family in Pepper and Functional Studies of CaMYB37 Involvement in Capsaicin Biosynthesis. International Journal of Molecular Sciences. 2022; 23(19):11667. https://doi.org/10.3390/ijms231911667

Chicago/Turabian Style

Liu, Yi, Zhishuo Zhang, Ke Fang, Qingyun Shan, Lun He, Xiongze Dai, Xuexiao Zou, and Feng Liu. 2022. "Genome-Wide Analysis of the MYB-Related Transcription Factor Family in Pepper and Functional Studies of CaMYB37 Involvement in Capsaicin Biosynthesis" International Journal of Molecular Sciences 23, no. 19: 11667. https://doi.org/10.3390/ijms231911667

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
