Article

Modified Fluoroquinolones as Antimicrobial Compounds Targeting Chlamydia trachomatis

1
University of Engineering and Technology, Vietnam National University, Hanoi (VNUH), Vietnam
2
Université Paris Cité, CNRS, ITODYS, F-75013 Paris, France
3
Department of Molecular Biology, Umeå University, SE-901 87 Umeå, Sweden
4
Centre National de Référence de la Résistance aux Antibiotiques, Centre Hospitalier Universitaire de Besançon, F-25030 Besançon, France
5
Chrono-Environnement, UMR 6249, CNRS Faculté de Médecine-Pharmacie, Université Bourgogne-Franche Comté, F-25000 Besançon, France
6
Faculté de Médecine Xavier Bichat, Université Paris Cité, INSERM U1149, F-75018 Paris, France
7
Department of Clinical Microbiology, Umeå University, SE-901 85 Umeå, Sweden
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2022, 23(12), 6741; https://doi.org/10.3390/ijms23126741
Received: 25 May 2022 / Revised: 13 June 2022 / Accepted: 14 June 2022 / Published: 16 June 2022
(This article belongs to the Special Issue Chlamydia trachomatis Pathogenicity and Disease)

Abstract

:
Chlamydia trachomatis causes the most common sexually transmitted bacterial infection and trachoma, an eye infection. Untreated infections can lead to sequelae, such as infertility and ectopic pregnancy in women and blindness. We previously enhanced the antichlamydial activity of the fluoroquinolone ciprofloxacin by grafting a metal chelating moiety onto it. In the present study, we pursued this pharmacomodulation and obtained nanomolar active molecules (EC50) against this pathogen. This gain in activity prompted us to evaluate the antibacterial activity of this family of molecules against other pathogenic bacteria, such as Neisseria gonorrhoeae and bacteria from the ESKAPE group. The results show that the novel molecules have selectively improved activity against C. trachomatis and demonstrate how the antichlamydial effect of fluoroquinolones can be enhanced.

Graphical Abstract

1. Introduction

Chlamydia trachomatis (C. trachomatis), a Gram-negative bacterium, is the pathogen responsible for a sexually transmitted bacterial infection (STI) affecting more than 200 million people per year [1] and the eye infection, trachoma [2]. Unless treated promptly, sexually transmitted chlamydia can lead to infertility and ectopic pregnancy in women and ocular and respiratory infections in newborns. Trachoma is the cause of blindness in 1.9 million people [2] and over 30 million people were treated with antibiotics in 2020 to control the infection [3].
C. trachomatis is a strict intracellular bacterium. Therefore, it can only multiply in a parasitophorous inclusion located in the cytosol of a eukaryotic cell. Intracellular C. trachomatis is protected from antibiotics that fail to reach sufficiently high intracellular concentrations, leaving few treatment options available [4].
Iron acquisition is a key step during C. trachomatis development in the host cell [5,6]. Indeed, the growth of this pathogen is iron-dependent [6,7,8]. In vitro and in vivo studies have shown that iron chelators of the acylsalicylidene hydrazone type have an effect against Chlamydia, with a minimum bactericidal concentration (MBC) of 25–50 μM [9]. This inhibition is removed when iron (iron sulfate or chloride, holotransferrin and hololactoferrin) is added to the medium. Moreover, this inhibition appears to be specific to iron, as the introduction of other metal cations (Ca2+, Mn2+, Mg2+ and Zn2+) does not affect the growth of C. trachomatis.
We were interested in the relationship between the bacterial iron requirements and the possibility of inhibiting the growth of this bacterium [7,8,10]. In this context, we first synthesized compounds with a central 4-amino-3-isoxazolidinone nucleus, since D-cycloserine, a 3-isoxazolidonone derivative, is active against C. trachomatis, but with an unknown mechanism of action. In order to reach compounds more potent than D-cycloserine, we grafted onto it known iron-chelating moieties, such as catechol or 8-hydroxyquinoline groups, to deplete iron from the bacterial environment and successfully obtained active compounds [11]. Furthermore, with the aim of improving the moderate antichlamydial activity of ciprofloxacin, a potent, broad-spectrum commercially available antibiotic, we prepared a ciprofloxacin conjugate 1 using 8-hydroxyquinoline to try to obtain compounds with dual activity: iron chelation and antibiotic efficiency (Figure 1) [12]. The conjugate 1 was found to be more active than ciprofloxacin [13]. These results have opened up the possibility of preparing new derivatives of ciprofloxacin, even more active than the parent antibiotic, which would complete the therapeutic arsenal available to fight this bacterium.
In line with our previous results, we modified compound 1‘s structure in order to improve its antichlamydial activity. For this, we considered modifying the lipophilicity of the compounds, their global flexibility or their ability to complex iron. Indeed, we: (i) lengthened the carbon chain via its hydroxyl function; (ii) replaced the amide moiety, known to confer structural rigidity and resistance to hydrolysis with a more flexible methylene group; (iii) modified the position of the antibiotic on the 8-hydroxyquinoline heterocycle to affect its iron-chelating potency; (iv) assessed other fluoroquinolones never tested against this pathogen for their putative antichlamydial activity.
Moreover, with STIs, chlamydial and gonococcal infections often coexist. Neisseria gonorrhoeae (gonococci) is a bacterial pathogen responsible for gonorrhoea, the second most common bacterial STI after C. trachomatis, which is also responsible for infertility and blinding eye infections [1]. N. gonorrhoeae, previously readily curable with many classes of antibiotics, including ciprofloxacin [14], is now considered as a multidrug-resistant organism due to its decreasing susceptibility to last-resort treatments and increasing difficulty in infection treatment [15]. The gain in bactericidal activity observed against C. trachomatis with compound 1, compared to that of the parent antibiotic, ciprofloxacin, encouraged us to look at the antigonococcal activity of this family of compounds.
Finally, the broad-spectrum antibiotic activity of fluoroquinolones led us to evaluate the ability of these compounds to inhibit bacteria from the ESKAPE group, pathogenic bacteria frequently involved in healthcare-associated infections that are difficult to treat (E. faecium, S. aureus, K. pneumoniae, A. baumannii, P. aeruginosa and Enterobacter species).

2. Results and Discussion

2.1. Organic Synthesis

To increase the antibacterial activity of the previously published compound 1, we synthesized several derivatives following different approaches. First, we alkylated the hydroxyl function on the quinoline heterocycle in order to increase lipophilicity (Scheme 1). Then, we prepared an isomer of compound 1, modifying the position of the covalent bond between the antibiotic and the quinoline moiety, from position C-2 to C-7 (Figure 2). We also replaced the latter using indole, another nitrogen heterocycle (Scheme 2). Finally, we synthesized two fluoroquinolones already published but with unknown antichlamydial activity, 8-methoxyciprofloxacin [16] and desmethylofloxacin (Figure 3) [17].
Several ciprofloxacin derivatives (R = Me, Pr, Bu, Bn) were prepared, as presented in Scheme 1. This strategy successively includes an alkylation of the 2-methylquinolin-8-ol, an oxidation of the methyl group to the corresponding carboxylic acid and the coupling of the latter with ciprofloxacin.
We adapted the procedures described by Qu et al. [18] or Terazzi et al. [19] to obtain compounds 2b–d. For this, we introduced potassium iodide during the reaction of 2-methylquinolin-8-ol with the appropriate halides, using a base (K2CO3) in N,N-dimethylformamide (DMF) or acetone to afford the alkyl derivatives in 2b–d good yields (89–99%).
Oxidation using selenium dioxide in 1,4-dioxane [18,19] afforded compounds 3b–d. A first attempt was made to use potassium permanganate to oxidize aldehydes 3b,c following the work of Qu et al. [18] without success. The alternative use of potassium hydrogen persulfate (Oxone®) [20] provided acids 4b and 4c with yields of 52% and 63%, respectively. The yield was increased to 91% when a mixture of sulfamic acid (H2NSO3H) and sodium chlorite (NaClO2) was used to obtain 4d.
Peptide coupling of the commercially available 8-methoxyquinoline-2-carboxylic acid or compounds 4b–d to ciprofloxacin led to compounds 5a–d with good yields (71–92%). This reaction was carried out using O-(benzotriazol-1-yl)-N,N,N′,N′-tetramethyluronium tetrafluoroborate (TBTU) and N,N-diisopropylethylamine (DIEA).
According to the work published in 2020 where we demonstrated the important link between the carbonyl group position of the 8-hydroxyquinoline moiety and its iron-chelating properties [21], we synthesized compound 6 (Figure 2) using ciprofloxacin and 8-hydroxyquinoline-7-carboxylic acid with TBTU and DIEA at 80 °C.
The introduction of an indole instead of the 8-hydroxyquinoline moiety was also evaluated. Compounds are presented in Scheme 2; these were obtained from the corresponding carboxylic acid and ciprofloxacin, as previously described for compound 1, except for 10. To get this compound, indole was first acylated with oxalyl chloride before undergoing a reaction with ciprofloxacin to provide the final compound [22].
The purpose of the synthesis of compound 14 was to study the influence of the modification of the coupling position of 8-hydroxyquinoline with ciprofloxacin. The synthesis of 14 is outlined in Scheme 3. Following the protocol described by Yang et al. [23], commercially available 8-hydroxyquinoline was first chloromethylated to give 5-chloromethyl-8-hydroxyquinoline 13. Then, 13 was reacted with ciprofloxacin to give compound 14. In water, the reaction gave a yield of 37% and reached 84% when DMF was used instead.
Iron-chelating and antibacterial properties of the compounds synthesized were then investigated.

2.2. Iron-Chelating Properties

To study the putative link between the iron-chelating properties of this family of compounds and their enhanced antibacterial activity, we used absorption spectrophotometry. As compounds 5a–d present an alkylated hydroxyl function in the quinoline moiety, they are not able to complex iron through this entity. We confirmed in SI that 5a, as a model, only presents the previously described fluoroquinolone-chelating properties (i.e., through ciprofloxacin carboxylate and keto groups) [13].
Compounds 1 and 6 were compared according to their ability to complex iron (III). Complexation experiments were performed in a H2O/DMSO (1:1; v/v) mixture.
In theory, three potential sites for metal complexation can be identified in compound 6: (i) between the carboxylate and the keto groups on the ciprofloxacin moiety (fluoroquinolone); (ii) between the hydroxyl and the carbonyl groups; or (iii) the nitrogen and hydroxyl functions on the 8-hydroxyquinoline part.
At pH 7, during iron exchange experiments between the Fe-nitrilotriacetic complex (Fe-NTA) and compound 6, two isosbestic points at 256 and 342 nm and two ligand-to-metal charge-transfer (LMCT) bands appear at 435 nm and 570 nm (Figure 4). According to the plots of absorbance at these wavelengths, a single iron complex with a stoichiometry of one metal for one ligand is formed. In contrast to what was observed for compound 1, two LMCT bands exist when iron is present and these bands are blue-shifted when the pH value increases, as already reported for hydroxyquinoline derivatives [13].
In order to compare the chelation mode of compounds 1 and 6, the corresponding LMCT bands, observed at pH 7, are listed in Table 1 below.
In general, a similar mode of chelation most often results in analogous spectral modifications, such as the appearance of similar or even identical LMCT bands. We previously compared compound 1’s LMCT bands with that of ciprofloxacin to conclude that compound 1 probably complexes the metal through its fluoroquinolone entity rather than through its 8-hydroxyquinoline group [13]. The spectral behavior of compound 6 is different, as two LMCT bands are observed at this pH. Moreover, the corresponding wavelengths are close to those observed when iron is added to a solution of 8-hydroxyquinoline (HQ, Table 1). Thus, compound 6 appears to chelate iron through its hydroxyquinoline part rather than through its fluoroquinolone moiety.
In an attempt to quantify the results, the absorption spectra (Figure 3) were analyzed by SPECFIT, which gives exchange constants for FeNTA and the Fe3+-1 or Fe3+-6 complexes (log K11). The calculated values of 4.23 ± 0.09 and 5.61 ± 0.15 obtained for compound 1 and 6, respectively, suggest a higher affinity of compound 6 for the metal.

2.3. Antibacterial Activity

Compound 1’s derivatives were investigated for antichlamydial activity in HeLa cells infected with C. trachomatis serovar L2 454/Bu. We first determined the MIC of all compounds and, due to technical limitations, MIC was defined as at least 95% growth inhibition.
Several of the novel analogs were more potent than ciprofloxacin, which was used as reference compound (Table 2).
The results highlight the following elements: the alkylation of the 8-hydroxyquinoline is favorable to the activity (5a, 5b, 5d), unlike replacing 8-hydroxyquinoline with an indole motif (compounds 7–12).
In parallel, we evaluated the ability of two fluoroquinolones, 15, 8-methoxyciprofloxacin [24] and 16, desmethylofloxacin, with the previously unknown antichlamydial activity (Figure 4).
15 was more efficient (MIC = 0.125 µM) in inhibiting chlamydial growth than ciprofloxacin (MIC = 0.5 µM). We hypothesize that the introduction of the 8-hydroxyquinoline motif on 15 may result in even more potent compounds.
In contrast, the weak activity of 16 suggests the importance of the methyl group found in ofloxacin, a fluoroquinolone with potent antichlamydial activity (Figure 4) [25]. Others have shown that newer fluoroquinolones have further improved activity against C. trachomatis, since sitafloxacin and tosufloxacin are more potent than ciprofloxacin and levofloxacin (the optical S-(-) isomer of ofloxacin) [26] and moxifloxacin is more potent than ofloxacin [27]. Our data further validated the idea that pre-existing fluoroquinolones can still be modified to improve their activity against C. trachomatis.
The most potent compounds (1, 5a, 5b, 5d, 6, 14 and 15) were selected for further study against C. trachomatis. We measured their effects on progeny reinfection and obtained their MBC and 50% effective concentrations (Table 3) using Chlamydia trachomatis serovar L2 454/Bu, expressing the fluorescent red protein mCherry and detected without immunostaining [28]. The MBC value was similar to the MIC value for each compound (Table 1), with, at the most, one dilution step difference, confirming the bactericidal mode of action of these analogs. The EC50 values were in the nanomolar range and distinguished the activities of the different compounds more in detail (Table 3). The most potent compound was 6, which had an EC50 of 13 nM.
In drug design, compound lipophilicity is a key parameter during early preclinical development [29]. As C. trachomatis is an intracellular bacterium, efficient antimicrobials must be able to cross several hydrophobic biological membranes (host cell, bacterial inclusion and bacterial wall membranes). The important ability of macrolides, such as azithromycin, to concentrate within host cells is probably related to their lipophilic behavior and their usefulness against C. trachomatis infection. Lipophilicity is often expressed as a partition coefficient (log P), which expresses how much a molecule dissolves in two non-miscible compartments: an organic/hydrophobic compartment and water. In our study, to establish the possible link between this property and the antibacterial activity of the molecules synthesized, cLog P was calculated with ChemDraw Ultra 13.0.0.3015 software.
Surprisingly, for the alkylated molecules, 5a, 5b and 5d, no positive correlation is observed between their antibacterial activities and their calculated lipophilicities (Table 3), suggesting that other parameters are implicated in their good antibacterial activities.
We then tested antimicrobial compounds both in the presence (200 µM) and absence of iron (III) citrate to see if excess iron reduced the effect of the compounds against chlamydial infection. Indeed, several compounds, through their 8-hydroxyquinoline moiety, exhibit cation-chelating properties. Compounds belonging to the indole series 712 were not tested as they were not believed to complex iron through their indole frameworks. Results presented in Table 4 indicate that there is a difference only for 6 in the inhibition of C. trachomatis infection depending on the addition of iron. It is interesting to observe that 6 is the most potent compound in the absence of an excess of iron and the least potent in the presence of an excess of this metal. We demonstrated that a carbonyl group positioned on carbon 7 of the 8-hydroxyquinoline moiety leads to high iron-chelating properties [21]. 6 is expected to be a more potent iron chelator than 1, its C2-isomer, at pH 7.4, and it is, therefore, more susceptible to modulations in the iron concentration in its environment. This experimental observation suggests that either the mechanism of action of this molecule is dual, with both iron deprivation of the cell and fluoroquinolone activity, or the 6/iron(III) complex has a reduced capacity to reach its target and exert its inhibitory action.
A visualization of the immunostained Chlamydia inclusions (red immunostaining) treated with 6 at 0.125 µM is shown in Figure 5. The difference between the two images demonstrates that excess iron (III) citrate reduces the effect of 6, as illustrated by the large number of visible Chlamydia inclusions.
To estimate the cell toxicity of the most potent compounds against HeLa cells, a neutral red uptake assay was performed. The results are shown in Table 5 as cell viability in percent relative to the DMSO-treated control. Table 5 indicates that all compounds except 12 show low toxicity towards HeLa cells at 10 µM.
The new generation fluoroquinolone, sitafloxacin, has improved its activity against N. gonorrhoeae compared to ciprofloxacin, and has also overcome ciprofloxacin resistance in this bacterium [30]. We were interested in whether the novel antimicrobial compounds in this study also had improved activity against N. gonorrhoeae and evaluated their potency against different strains. The WHO reference strains, WHO P (susceptible to ciprofloxacin) and WHO G (low-level resistance to ciprofloxacin), were used. MIC and MBC values are presented in Table 2 and show that ciprofloxacin remains the most effective compound against this pathogen. We can note that compound 14 exhibits significant activity and that it is the only one to have a methylene-type linker between the hydroxyquinoline entity and the fluoroquinolone moiety. N. gonorrhoeae is dependent on iron for its growth and we added 200 µM iron (III) citrate to see if it reduced the effect of 8-hydroxyquinoline-containing compounds on this bacterium. In contrast to C. trachomatis, excess iron (III) did not change the MIC of 6 (0.5 µM). Thus, the 6-iron (III) complex probably accesses the molecular target in N. gonorrhoeae, as well as in 6 alone. N. gonorrhoeae has high-affinity systems for iron acquisition, for example, by the uptake of hematin [31] that is included in the culture medium. The fastidious broth used for N. gonorrhoeae culture also contained 0.13 µM iron (II) sulfate and the iron deprivation effect of 6 may be overridden by effective iron acquisition by N. gonorrhoeae. Compounds 1, 5a and 14 had lower MICs than 6 and were also not affected by excess iron (III) citrate.
The ciprofloxacin-resistant strain WHO-G was cross-resistant to all the compounds tested, indicating that the fluoroquinolone mode of action was retained for all and that these modifications did not overcome the resistance mechanisms.
Regarding bacteria from the ESKAPE group, experiments were first carried out on different bacterial species frequently encountered in human infections. As shown in Table 6 and Table 7, some compounds have interesting micromolar activities against Staphylococcus aureus (1, 5a, 6) and E. coli (1, 5a). However, as for N. gonorrhoeae, the ciprofloxacin-resistant Staphylococcus aureus ATCC700699 was cross-resistant to these new molecules. These results show that, although it is essential to identify new compounds active against the bacteria responsible for nosocomial infections, obtaining such compounds by modifying current antibiotic classes remains a challenge.

3. Materials and Methods

3.1. Organic Synthesis

3.1.1. Materials and Methods

All commercially available reagents were used without further purification. To control the progress of a reaction, thin-layer chromatography was performed on plastic TLC sheets of silica gel 60 F254 (layer thickness 0.2 mm) from Merck. The structures of all compounds were verified by IR, 1H and 13C NMR spectra and HRMS. A Kofler Hot Bench (Wagner Munz™) with a wide temperature range (+50 °C to + 260 °C) was used for melting point determination. IR spectra were recorded on a PerkinElmer Spectrum 100 FT-IR spectrometer and NMR spectra were recorded in an appropriate deuterated solvent on a Bruker AC 400 spectrometer at 400.15 MHz for 1H and 100.62 MHz for 13C. The chemical shifts, in ppm, are referenced to the residual solvent signal. Coupling constants (J) are given in Hertz (Hz), chemical shifts in ppm and peak multiplicities are designated as usual. High-resolution mass spectra (HRMS) were recorded on a Waters spectrometer using electrospray ionization-TOF (ESI-TOF; Waters, Guyancourt, France) at the Centre de recherche de Gif, Équipe de Spectrométrie de Masse, Institut de Chimie des Substances Naturelles (Gif-sur-Yvette, France).

3.1.2. Experimental Procedures

The experimental synthesis protocols are available in the Supplementary Materials (SM) section of this manuscript.

3.2. Metal Chelation

3.2.1. Stock Solutions

Solutions of compound 1, or its derivatives, at 10−2 M in DMSO were prepared first. A 1 × 10−4 M solution of 1 (or its derivatives) in H2O/DMSO mixture (1:1, v/v) in HCl at pH 2 or in HEPES buffer (50 mM HEPES, 150 mM KCl) at pH 7 was used to perform the complexation experiments. FeCl3 and FeNTA solutions were prepared in acidic media (pH 2) or as previously described in [32], respectively.

3.2.2. Spectrophotometric Measurements

Affinity constants [33] were determined by means of the SPECFIT32 Global Analysis program from measurements performed on a Cary 4000 spectrophotometer at 25.0 ± 0.5 °C.

3.3. Antibacterial Activity

3.3.1. C. trachomatis

  • Cell culture and Chlamydia propagation
HeLa 229 cells (CCL-2.1; ATCC) were cultured at 37 °C (5% CO2) in a RPMI-1640 medium (HyClone) with 25 mM HEPES and 2 mM L-glutamine, supplemented with 10% fetal bovine serum (FBS) (Sigma-Aldrich, St Louis, MI, USA). C. trachomatis serovar L2 454/Bu (VR902B; ATCC) or transformed C. trachomatis serovar L2 454/Bu (VR902B; ATCC) expressing the fluorescent red protein mCherry (CT L2 mCherry) [28] were cultured in HeLa cells. C. trachomatis elementary bodies were purified, as described by Caldwell et al. [34], and stored at −80 °C in SPG (10 mM sodium phosphate, 5 mM L-glutamic acid and 0.25 M sucrose).
To determine the minimum inhibitory concentrations (MIC) of the compounds, 15,000 HeLa cells were seeded in flat-bottomed 96-well plates (Falcon) and infected 24 h later with C. trachomatis L2 454/Bu in HBSS (Hank’s Buffered Saline Solution) at a multiplicity of infection (MOI) of 0.25. After one hour of incubation at 37 °C (5% CO2), HBSS was replaced by a cell culture medium containing compounds in two-fold dilution and 0.5% DMSO. Compounds were tested in triplicate. The cells were fixed with methanol after 18 h and immunostained, as previously described, with a polyclonal rabbit anti-EB antibody [35], Alexa fluor 647-conjugated donkey anti-rabbit IgG (Jackson ImmunoResearch) and 1 µM 4′,6-diamidino-2-phenylindole (DAPI). C. trachomatis inclusion-forming units (IFU) were quantified with a Cytation 5 automated microscope (Agilent, Santa Clara, CA, USA) using a 4 X objective, ex 377 nm, em 447 nm for DAPI and ex 628 nm and em 685 nm for Alexa fluor 647. All visual fields were also manually inspected to ensure valid enumerations and intact cell layers. MIC was defined as the concentration where the number of IFUs was reduced by 95% or more compared to the DMSO control. The results were confirmed in at least two experiments run on different days. Selected compounds were also tested with 200 µM Fe(III) citrate added to the cell culture medium. For determination of minimum bactericidal concentration (MBC) and bactericidal EC50, 22,000 HeLa cells were infected with mCherry expressing C. trachomatis at a MOI of 0.5, and compounds were tested in triplicate wells with a final concentration of 0.2% DMSO [36]. Chlamydia progenies were harvested 46 h post-infection through osmotic host cell lysis by the addition of cold Milli-Q water; to get a final concentration of 1X SPG, 4X SPG was then added. The harvested bacteria were diluted in HBSS in 10-fold serial dilutions, added to fresh HeLa cells and incubated at 37 °C (5% CO2). One hour post-infection, HBSS was replaced with cell culture medium. At 44 h post-infection, Hoechst 33342 (Thermo Scientific, Rockford, IL, USA), 0.1 µg per well, was added 20 min prior to fixation with 4% formaldehyde (Sigma-Aldrich) for 15 min. The 96-well plates were analyzed by Arrayscan automated microscopy (ArrayScan VTI HCS, Thermo Scientific). Images were acquired in 10 visual fields with the 10× objective (Hoechst-ex386/23 nm, mCherry: ex549/15 nm) and the built-in software was used to count IFUs. Small, underdeveloped inclusions and red fluorescent artefacts were removed with a size cut-off. The latter was determined based on Chlamydia inclusions in DMSO control wells. Manual image inspection made it possible to dismiss any field that had lost cells during the washing process. Relative infection was expressed as the percentage of IFUs compared to DMSO-treated controls. All experiments were performed three times (three technical replicates in each experiment). MBC was defined as the compound concentration that reduced the infection to <0.1% relative to the DMSO-treated control infection. EC50 was calculated using GraphPad Prism 5. Values from three individual experiments were normalized by setting DMSO-treated infections to 100% for each experiment and calculating the relative infection for each compound concentration (Figure S3). Transformation of the concentrations to the log scale provided a non-linear regression. Curve fit was then performed using log(inhibitor) vs. normalized response−variable slope.
  • Cell viability assay
HeLa 229 cells were seeded, 10,000 cells per well, in 96-well plates (Falcon) in RPMI, supplemented as above with 5% heat-inactivated FBS. After 24 h, the cell culture medium was replaced with 100 µL new cell culture medium containing test compounds with 0.4% DMSO. The cells were then incubated with test compounds in triplicate at 37 °C with 5% CO2 for 21 h before the cell culture medium was removed. Neutral red staining was performed essentially as previously described [37]. Neutral red (0.33%) in 200 µL pre-warmed and sterile-filtered neutral red medium was added for 3 h at 37 °C with 5% CO2 to stain the lysosomes of viable cells. The cells were washed with 200 µL DPBS, and 100 µL neutral red de-stain solution (51% deionized water, 48% ethanol (100%) and 1% glacial acetic acid) was added. The 96-well plates were covered in metal foil and placed on a shaker for 20–30 min; absorption was measured at 540 nm. The cell viability was expressed in percent relative to the DMSO control.

3.3.2. N. gonorrhoeae

N. gonorrhoeae, WHO-P and WHO-G [38], were subcultured on GC agar plates (BD Difco) and supplemented with 1% hemoglobin (Oxoid, Basingstoke, UK) and 1% IsoVitalex (BD BBL). MIC was determined in duplicates in conical 96-well plates (Sarstedt).
Colonies grown overnight on GC agar were suspended and diluted to a final optical density of 0.001, corresponding to 106 CFU/mL in modified fastidious broth [39,40]; Difco Columbia Broth Base (BD) was supplemented with 15 mg/L hematin 0.05% Tween 80.6 mg/L and 15 mg/L of β-NAD (supplements from Sigma-Aldrich). Compounds were tested in 200 µL volume in two-fold dilutions with vehicle (2.5% DMSO) as the growth control. After 48 h incubation at 37 °C (5% CO2), 96-well plates were visually inspected for bacterial growth to determine MIC and 100 µL culture was plated on GC agar and incubated another 24 h to determine MBC. Selected compounds were also tested with 200 µM Fe (III) citrate in the broth.

3.3.3. Susceptibility Testing for ESKAPE Pathogens

The MIC of the tested compounds was determined by the broth microdilution method in cation-adjusted Mueller Hinton broth (MHc, Becton Dickinson, Stockholm, Sweden). The susceptibilities of the six molecules, including ciprofloxacin (reference), was achieved according to Clinical and Laboratory Standards Institute 2020 2018 recommendations (CLSI. Methods for Dilution Antimicrobial Susceptibility Tests for Bacteria That Grow Aerobically. 11th ed. CLSI standard M07. Clinical and Laboratory Standards Institute; 2018). Briefly, from the subculture on non-selective agar medium of reference strains of S. aureus (ATCC®25923 and ATCC®700699), E. faecalis UCN41, E. faecium (BM4147, ATCC®19434T), E. coli (ATCC®25922), K. pneumoniae ATCC®700603, P. aeruginosa PAO1 and A. baumannii CIP7010, a bacterial suspension was elaborated to achieve a turbidity equivalent to the 0.5 McFarland turbidity standard. Then, the suspension was diluted 1:100 in MHc and 50 μL was used to inoculate the wells of a microplate to obtain 5.104 CFU/wells (5.105 CFU/mL). The compounds were directly diluted in MHc and transferred to the wells for a final volume of 100 μL. After 16 h incubation at 35 °C, the MIC was determined in comparison with the growth control wells. The measurements were performed in triplicate.

4. Conclusions

We reported here the synthesis and the antibacterial activity of new modified fluoroquinolone derivatives of ciprofloxacin. This new family of compounds presents the highest antibacterial activity against C. trachomatis with a potency on the nanomolar range for some derivatives. The activity against N. gonorrhoeae and ESKAPE pathogens is, however, lower than that of ciprofloxacin. The most potent compound against C. trachomatis has the greatest capacity to complex iron and its activity is markedly reduced in the presence of excess Fe (III). Iron chelation and the limitation of intracellular iron by this compound may, therefore, enhance its antichlamydial activity.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms23126741/s1. Reference [41] is cited in the supplementary materials.

Author Contributions

Conceptualization, N.-T.H.D., K.J., Å.G. and N.S.; Formal analysis, T.H.V., E.A., K.V., N.-T.H.D., G.A., K.J., S.H., Å.G. and N.S.; Funding acquisition, N.-T.H.D., K.J., P.V., Å.G. and N.S.; Investigation, T.H.V., E.A., K.V., N.-T.H.D., G.A., K.J., P.V., S.H., Å.G. and N.S.; Project administration, N.S.; Resources, T.H.V., E.A., K.V., N.-T.H.D., G.A., K.J., P.V. and N.S.; Supervision, N.-T.H.D., G.A., Å.G. and N.S.; Validation, T.H.V., E.A., K.V., N.-T.H.D., S.H., Å.G. and N.S.; Visualization, T.H.V., E.A., K.V., S.H., Å.G. and N.S.; Writing—original draft, T.H.V., E.A., K.V., N.-T.H.D., K.J., P.V., S.H., Å.G. and N.S.; Writing—review and editing, T.H.V., E.A., K.V., N.-T.H.D., G.A., K.J., P.V., Å.G. and N.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Ph.D. grants to E.A. from the Université Paris Cité (ED388) and to T.H.V. from the University of Science and Technology of Hanoi. The National Center for Scientific Research (CNRS) and the Université Paris Cité are gratefully thanked for financial support. ANR (Agence Nationale de la Recherche) and CGI (Commissariat à l’Investissement d’Avenir) are gratefully acknowledged for their financial support of this work through Labex SEAM (Science and Engineering for Advanced Materials and Devices) ANR 11 LABX 086, ANR 11 IDEX 05 02. Further support was provided to Å.G. by the Swedish Government Fund for Clinical Research, Umeå University and by the Institut Français de Suède.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Acknowledgments

Sébastien Bellynck, Lena Lindgren and Nitesh Mistry are acknowledged for their technical assistance. The Umeå Centre for Microbial Research (UCMR) and Laboratory for Molecular Infection Medicine Sweden (MIMS) are also acknowledged. This work has benefited from the facilities and expertise of the Small Molecule Mass Spectrometry platform of IMAGIF (Centre de Recherche de Gif—www.imagif.cnrs.fr. The APC was funded by ANR. John Lomas is also warmly thanked for proofreading this manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Fu, L.; Sun, Y.; Han, M.; Wang, B.; Xiao, F.; Zhou, Y.; Gao, Y.; Fitzpatrick, T.; Yuan, T.; Li, P.; et al. Incidence Trends of Five Common Sexually Transmitted Infections Excluding HIV From 1990 to 2019 at the Global, Regional, and National Levels: Results from the Global Burden of Disease Study 2019. Front. Med. 2022, 9, 851635. [Google Scholar] [CrossRef] [PubMed]
  2. Burton, M.J.; Ramke, J.; Marques, A.P.; Bourne, R.R.A.; Congdon, N.; Jones, I.; Ah Tong, B.A.M.; Arunga, S.; Bachani, D.; Bascaran, C.; et al. The Lancet Global Health Commission on Global Eye Health: Vision beyond 2020. Lancet Glob. Health 2021, 9, e489–e551. [Google Scholar] [CrossRef]
  3. Task Force for Global Health. Home | International Trachoma Initiative Accessed. Available online: https://www.trachoma.org (accessed on 24 April 2022).
  4. World Health Organization. WHO Guidelines for the Treatment of Chlamydia trachomatis. Available online: https://www.ncbi.nlm.nih.gov (accessed on 17 February 2022).
  5. Paradkar, P.N.; De Domenico, I.; Durchfort, N.; Zohn, I.; Kaplan, J.; Ward, D.M. Iron Depletion Limits Intracellular Bacterial Growth in Macrophages. Blood 2008, 112, 866–874. [Google Scholar] [CrossRef] [PubMed][Green Version]
  6. Raulston, J.E. Response of Chlamydia trachomatis Serovar E to Iron Restriction in Vitro and Evidence for Iron-Regulated Chlamydial Proteins. Infect. Immun. 1997, 65, 4539–4547. [Google Scholar] [CrossRef][Green Version]
  7. Dill, B.D.; Dessus-Babus, S.; Raulston, J.E. Identification of Iron-Responsive Proteins Expressed by Chlamydia trachomatis Reticulate Bodies during Intracellular Growth. Microbiology 2009, 155, 210–219. [Google Scholar] [CrossRef][Green Version]
  8. Miller, J.D.; Sal, M.S.; Schell, M.; Whittimore, J.D.; Raulston, J.E. Chlamydia trachomatis YtgA Is an Iron-Binding Periplasmic Protein Induced by Iron Restriction. Microbiology 2009, 155, 2884–2894. [Google Scholar] [CrossRef][Green Version]
  9. Slepenkin, A.; Enquist, P.-A.; Hägglund, U.; de la Maza, L.M.; Elofsson, M.; Peterson, E.M. Reversal of the Antichlamydial Activity of Putative Type III Secretion Inhibitors by Iron. Infect. Immun. 2007, 75, 3478–3489. [Google Scholar] [CrossRef] [PubMed][Green Version]
  10. Saka, H.A.; Thompson, J.W.; Chen, Y.-S.; Kumar, Y.; Dubois, L.G.; Moseley, M.A.; Valdivia, R.H. Quantitative Proteomics Reveals Metabolic and Pathogenic Properties of Chlamydia trachomatis Developmental Forms: Quantitative Proteomics Analysis of C. Trachomatis Developmental Forms. Mol. Microbiol. 2011, 82, 1185–1203. [Google Scholar] [CrossRef][Green Version]
  11. Abdelsayed, S.; Ha Duong, N.T.; Hai, J.; Hémadi, M.; El Hage Chahine, J.M.; Verbeke, P.; Serradji, N. Design and Synthesis of 3-Isoxazolidone Derivatives as New Chlamydia trachomatis Inhibitors. Bioorganic Med. Chem. Lett. 2014, 24, 3854–3860. [Google Scholar] [CrossRef]
  12. Enquist, P.-A.; Gylfe, Å.; Hägglund, U.; Lindström, P.; Norberg-Scherman, H.; Sundin, C.; Elofsson, M. Derivatives of 8-Hydroxyquinoline—Antibacterial Agents That Target Intra- and Extracellular Gram-Negative Pathogens. Bioorganic Med. Chem. Lett. 2012, 22, 3550–3553. [Google Scholar] [CrossRef]
  13. Vu, T.H.; Ha-Duong, N.-T.; Aubry, A.; Capton, E.; Fechter, P.; Plésiat, P.; Verbeke, P.; Serradji, N. In Vitro Activities of a New Fluoroquinolone Derivative Highly Active against Chlamydia trachomatis. Bioorganic Chem. 2019, 83, 180–185. [Google Scholar] [CrossRef] [PubMed]
  14. Chaudry, A.E.; Klausner, J.D. A Narrative Review of Clinical Treatment Outcomes of Neisseria gonorrhoeae Infection with Ciprofloxacin by Minimum Inhibitory Concentration and Anatomic Site. Sex. Transm. Dis. 2021, 48, 385–392. [Google Scholar] [CrossRef] [PubMed]
  15. Da Costa-Lourenço, A.P.R.; Barros dos Santos, K.T.; Moreira, B.M.; Fracalanzza, S.E.L.; Bonelli, R.R. Antimicrobial Resistance in Neisseria gonorrhoeae: History, Molecular Mechanisms and Epidemiological Aspects of an Emerging Global Threat. Braz. J. Microbiol. 2017, 48, 617–628. [Google Scholar] [CrossRef] [PubMed]
  16. Guruswamy, B.; Arul, R. Synthesis, Characterization, and Antimicrobial Activities of Novel N-Substituted β-Hydroxy Amines and β-Hydroxy Ethers That Contained 8-Methoxy Fluoroquinolones: Synthesis, Characterization, and Antimicrobial Activities of Novel N-Substituted β-Hydroxy Amines and β-Hydroxy Ethers That Contained 8-Methoxy Fluoro. J. Heterocycl. Chem. 2016, 53, 284–293. [Google Scholar] [CrossRef]
  17. Noël, S.; Gasser, V.; Pesset, B.; Hoegy, F.; Rognan, D.; Schalk, I.J.; Mislin, G.L.A. Synthesis and Biological Properties of Conjugates between Fluoroquinolones and a N3′′-Functionalized Pyochelin. Org. Biomol. Chem. 2011, 9, 8288. [Google Scholar] [CrossRef] [PubMed]
  18. Qu, T.; Qu, L.; Wang, X.; Xu, T.; Xiao, X.; Ding, M.; Deng, L.; Guo, Y. Design, Synthesis, and Antibacterial Activity of Novel 8-Methoxyquinoline-2-Carboxamide Compounds Containing 1,3,4-Thiadiazole Moiety. Z. Nat. C 2018, 73, 117–122. [Google Scholar] [CrossRef]
  19. Terazzi, E.; Guénée, L.; Bocquet, B.; Lemonnier, J.-F.; Favera, N.D.; Piguet, C. A Simple Chemical Tuning of the Effective Concentration: Selection of Single-, Double-, and Triple-Stranded Binuclear Lanthanide Helicates. Chem. Eur. J. 2009, 15, 12719–12732. [Google Scholar] [CrossRef]
  20. Jisha, B.; Resmi, M.R.; Maya, R.J.; Varma, R.L. Colorimetric Detection of Al(III) Ions Based on Triethylene Glycol Appended 8-Propyloxy Quinoline Ester. Tetrahedron Lett. 2013, 54, 4232–4236. [Google Scholar] [CrossRef]
  21. Huyen, V.T.; Serradji, N.; Seydou, M.; Brémond, É.; Ha-Duong, N.-T. Electronic Spectroscopic Characterization of the Formation of Iron(III) Metal Complexes: The 8-HydroxyQuinoline as Ligand Case Study. J. Inorg. Biochem. 2020, 203, 110864. [Google Scholar] [CrossRef]
  22. Wang, R.; Lu, Y.; Wang, S. Comparative Evaluation of 11 Scoring Functions for Molecular Docking. J. Med. Chem. 2003, 46, 2287–2303. [Google Scholar] [CrossRef]
  23. Yang, X.; Cai, P.; Liu, Q.; Wu, J.; Yin, Y.; Wang, X.; Kong, L. Novel 8-Hydroxyquinoline Derivatives Targeting β-Amyloid Aggregation, Metal Chelation and Oxidative Stress against Alzheimer’s Disease. Bioorganic Med. Chem. 2018, 26, 3191–3201. [Google Scholar] [CrossRef] [PubMed]
  24. Sanchez, J.P.; Gogliotti, R.D.; Domagala, J.M.; Gracheck, S.J.; Huband, M.D.; Sesnie, J.A.; Cohen, M.A.; Shapiro, M.A. The Synthesis, Structure-Activity, and Structure-Side Effect Relationships of a Series of 8-Alkoxy- and 5-Amino-8-Alkoxyquinolone Antibacterial Agents. J. Med. Chem. 1995, 38, 4478–4487. [Google Scholar] [CrossRef] [PubMed]
  25. Smythe, M.A.; Rybak, M.J. Ofloxacin: A Review. DICP Ann. Pharmacother. 1989, 23, 839–846. [Google Scholar] [CrossRef] [PubMed]
  26. Takahashi, S.; Yasuda, M.; Wada, K.; Matsumoto, M.; Hayami, H.; Kobayashi, K.; Miyazaki, J.; Kiyota, H.; Matsumoto, T.; Yotsuyanagi, H.; et al. Nationwide Surveillance of the Antimicrobial Susceptibility of Chlamydia trachomatis from Male Urethritis in Japan: Comparison with the First Surveillance Report. J. Infect. Chemother. 2022, 28, 1–5. [Google Scholar] [CrossRef]
  27. Bébéar, C.M.; de Barbeyrac, B.; Pereyre, S.; Renaudin, H.; Clerc, M.; Bébéar, C. Activity of Moxifloxacin against the Urogenital Mycoplasmas Ureaplasma Spp., Mycoplasma Hominis and Mycoplasma Genitalium and Chlamydia trachomatis. Clin. Microbiol. Infect. 2008, 14, 801–805. [Google Scholar] [CrossRef][Green Version]
  28. Mojica, S.A.; Eriksson, A.U.; Davis, R.A.; Bahnan, W.; Elofsson, M.; Gylfe, Å. Red Fluorescent Chlamydia trachomatis Applied to Live Cell Imaging and Screening for Antibacterial Agents. Front. Microbiol. 2018, 9, 3151. [Google Scholar] [CrossRef]
  29. Arnott, J.A.; Planey, S.L. The Influence of Lipophilicity in Drug Discovery and Design. Expert Opin. Drug Discov. 2012, 7, 863–875. [Google Scholar] [CrossRef]
  30. Jonsson, A.; Foester, S.; Golparian, D.; Hamasuna, R.; Jacobsson, S.; Lindberg, M.; Jensen, J.S.; Ohnishi, M.; Unemo, M. In Vitro Activity and Time-kill Curve Analysis of Sitafloxacin against a Global Panel of Antimicrobial-resistant and Multidrug-resistant Neisseria gonorrhoeae Isolates. Acta Pathol. Microbiol. Immunol. Scand. 2018, 126, 29–37. [Google Scholar] [CrossRef]
  31. Cornelissen, C.N. Subversion of Nutritional Immunity by the Pathogenic Neisseriae. Pathog. Dis. 2018, 76, ftx112. [Google Scholar] [CrossRef][Green Version]
  32. El Hage Chahine, J.-M.; Fain, D. The Mechanism of Iron Release from Transferrin. Slow-Proton-Transfer-Induced Loss of Nitrilotriacetatoiron(III) Complex in Acidic Media. Eur. J. Biochem. 1994, 223, 581–587. [Google Scholar] [CrossRef]
  33. Binstead, R.A.; Zuberbühler, A.D.; Jung, B. SPECFIT Global Analysis System, v3.04.34; Spectrum Software Associates: Chapel Hill, NC, USA, 2003. [Google Scholar]
  34. Caldwell, H.D.; Kromhout, J.; Schachter, J. Purification and Partial Characterization of the Major Outer Membrane Protein of Chlamydia trachomatis. Infect. Immun. 1981, 31, 1161–1176. [Google Scholar] [CrossRef] [PubMed][Green Version]
  35. Marwaha, S.; Uvell, H.; Salin, O.; Lindgren, A.E.G.; Silver, J.; Elofsson, M.; Gylfe, Å. N-Acylated Derivatives of Sulfamethoxazole and Sulfafurazole Inhibit Intracellular Growth of Chlamydia trachomatis. Antimicrob. Agents Chemother. 2014, 58, 2968–2971. [Google Scholar] [CrossRef][Green Version]
  36. Good, J.A.D.; Silver, J.; Nunez-Otero, C.; Bahnan, W.; Krishnan, K.S.; Salin, O.; Engström, P.; Svensson, R.; Artursson, P.; Gylfe, Å.; et al. Thiazolino 2-Pyridone Amide Inhibitors of Chlamydia trachomatis Infectivity. J. Med. Chem. 2016, 59, 2094–2108. [Google Scholar] [CrossRef] [PubMed]
  37. Stokes, W.S.; Casati, S.; Strickland, J.; Paris, M. Neutral Red Uptake Cytotoxicity Tests for Estimating Starting Doses for Acute Oral Toxicity Tests. Curr. Protoc. Toxicol. 2008, 36, 20.4.1–20.4.20. [Google Scholar] [CrossRef] [PubMed]
  38. Unemo, M.; Fasth, O.; Fredlund, H.; Limnios, A.; Tapsall, J. Phenotypic and Genetic Characterization of the 2008 WHO Neisseria gonorrhoeae Reference Strain Panel Intended for Global Quality Assurance and Quality Control of Gonococcal Antimicrobial Resistance Surveillance for Public Health Purposes. J. Antimicrob. Chemother. 2009, 63, 1142–1151. [Google Scholar] [CrossRef] [PubMed]
  39. Cartwright, C.P.; Stock, F.; Gill, V.J. Improved Enrichment Broth for Cultivation of Fastidious Organisms. J. Clin. Microbiol. 1994, 32, 1825–1826. [Google Scholar] [CrossRef] [PubMed][Green Version]
  40. Foerster, S.; Gustafsson, T.N.; Brochado, A.R.; Desilvestro, V.; Typas, A.; Unemo, M. The First Wide-Scale Drug Repurposing Screen Using the Prestwick Chemical Library (1200 Bioactive Molecules) against Neisseria gonorrhoeae Identifies High in Vitro Activity of Auranofin and Many Additional Drugs. Acta Pathol. Mircobiologica Immunol. Scand. 2020, 128, 242–250. [Google Scholar] [CrossRef] [PubMed]
  41. Anquetin, G.; Greiner, J.; Mahmoudi, N.; Santillana-Hayat, M.; Gozalbes, R.; Farhati, K.; Derouin, F.; Aubry, A.; Cambau, E.; Vierling, P. Design, Synthesis and Activity against Toxoplasma Gondii, Plasmodium Spp., and Mycobacterium Tuberculosis of New 6-Fluoroquinolones. Eur. J. Med. Chem. 2006, 41, 1478–1493. [Google Scholar] [CrossRef]

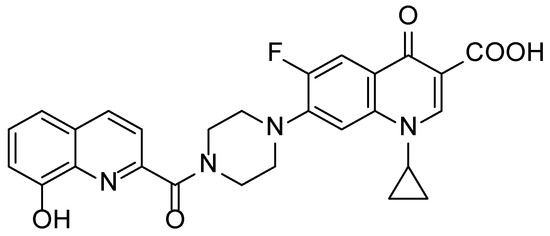

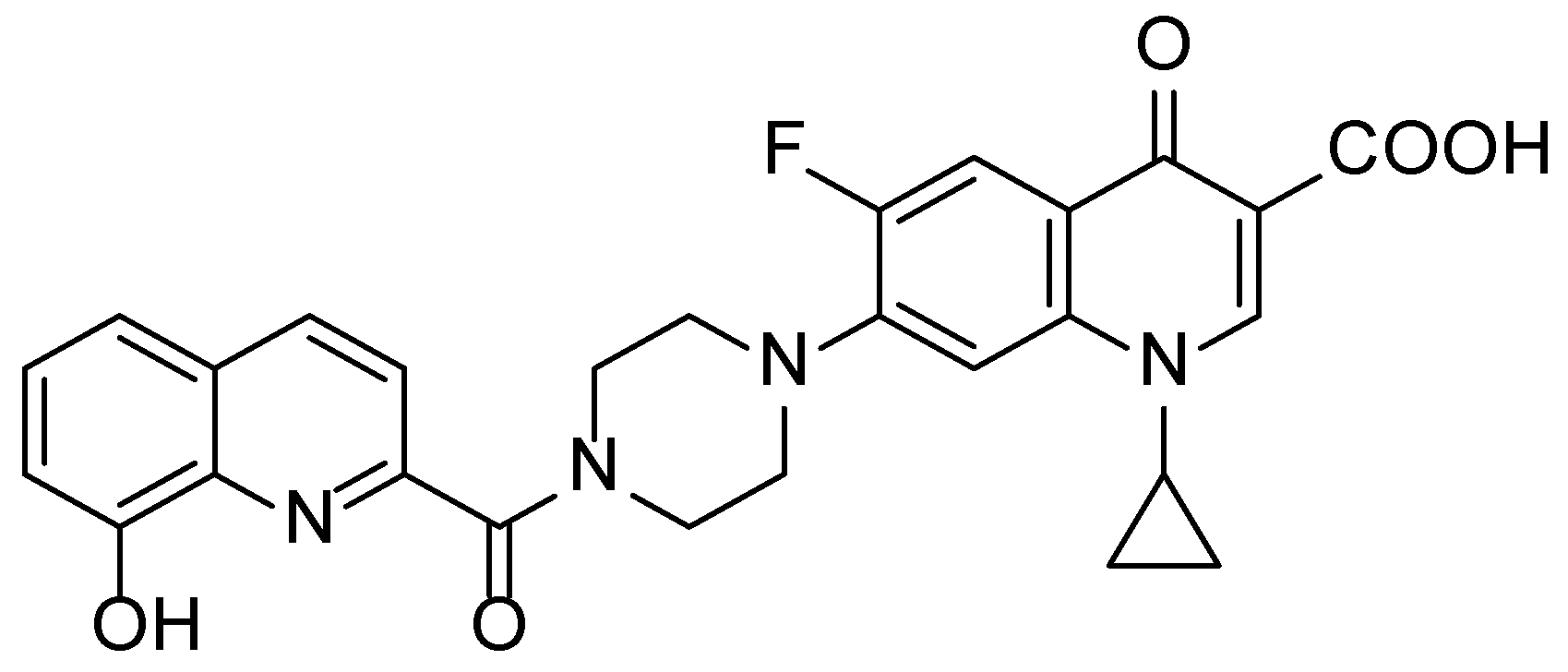

Figure 1. Compound 1.
Figure 1. Compound 1.
Ijms 23 06741 g001

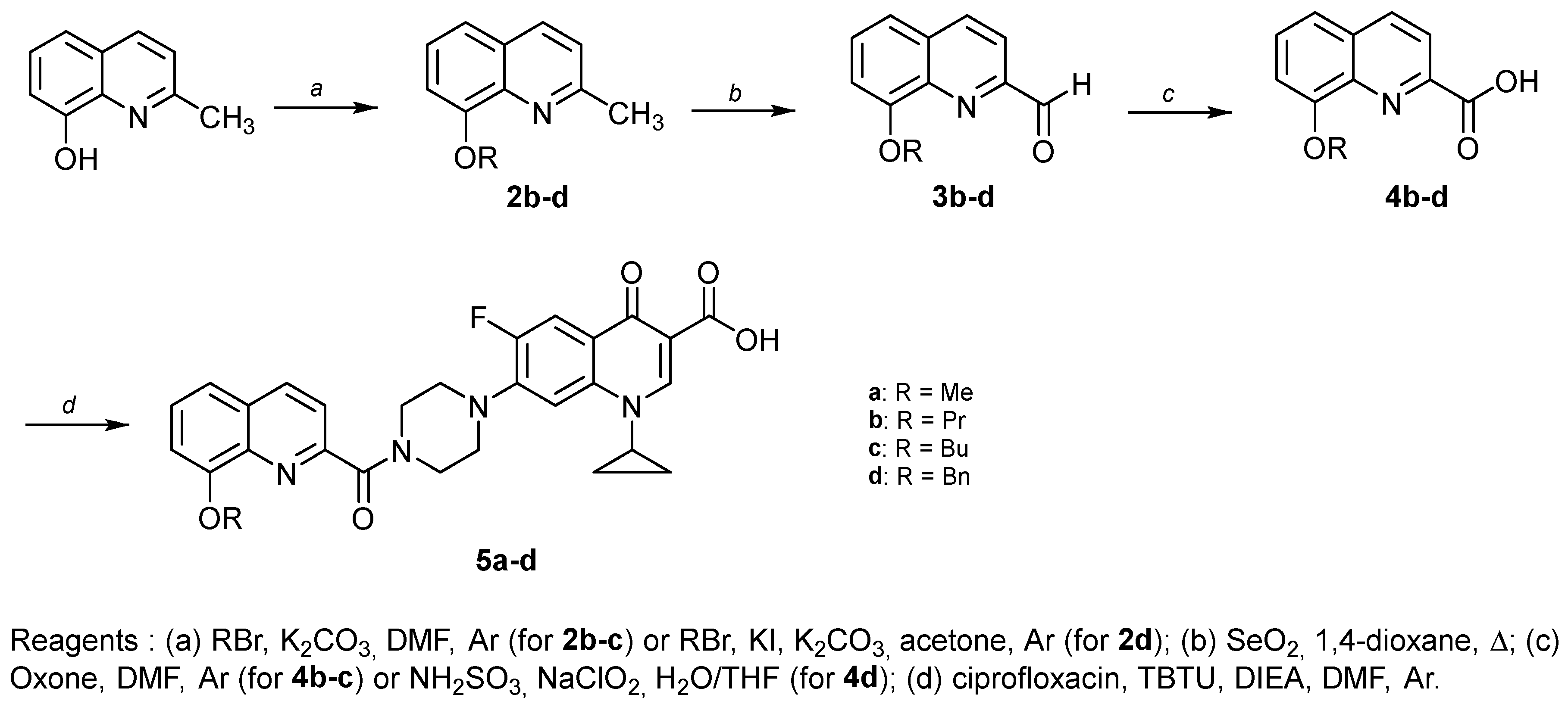

Scheme 1. Synthesis of compounds 5a–d.
Scheme 1. Synthesis of compounds 5a–d.
Ijms 23 06741 sch001

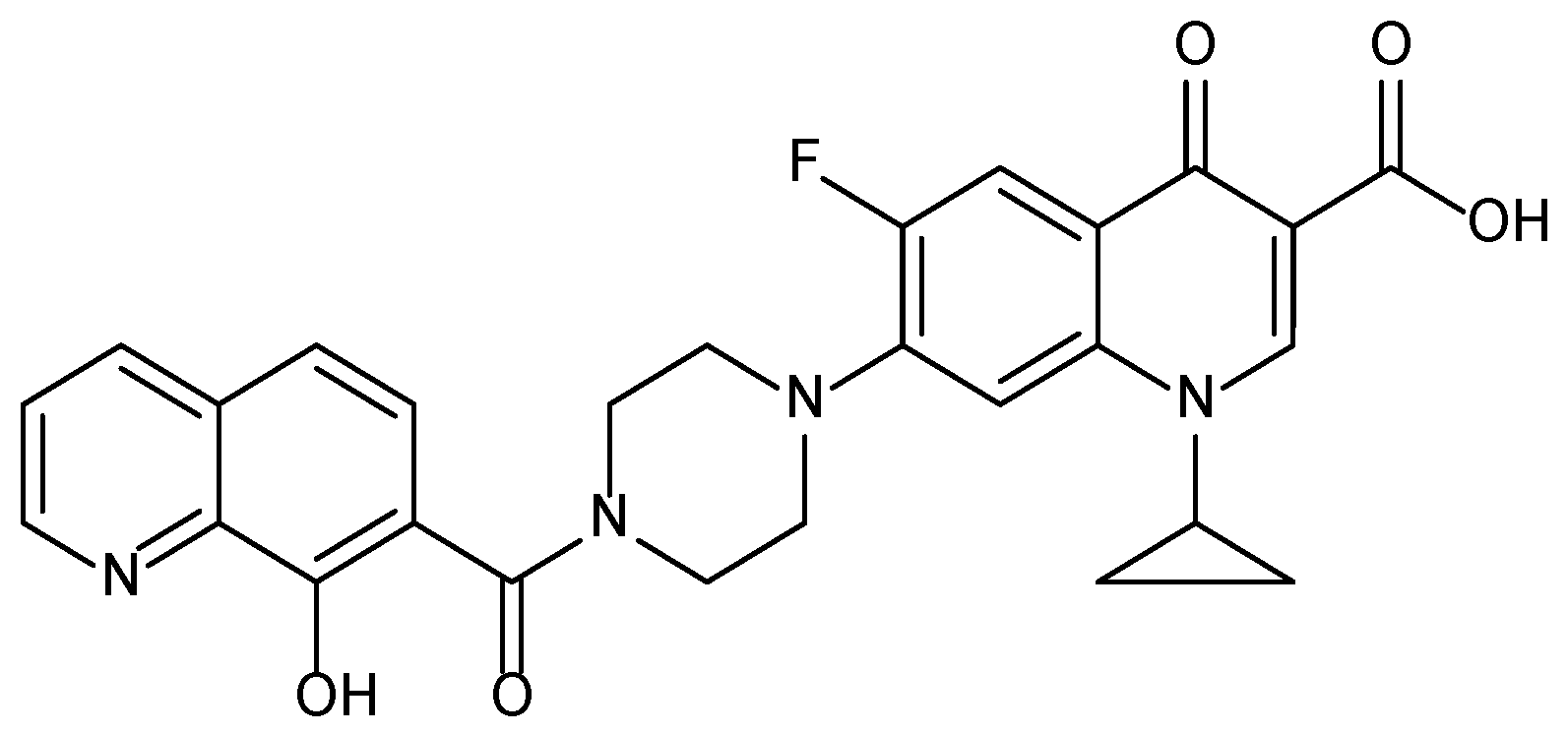

Figure 2. Compound 6.
Figure 2. Compound 6.
Ijms 23 06741 g002

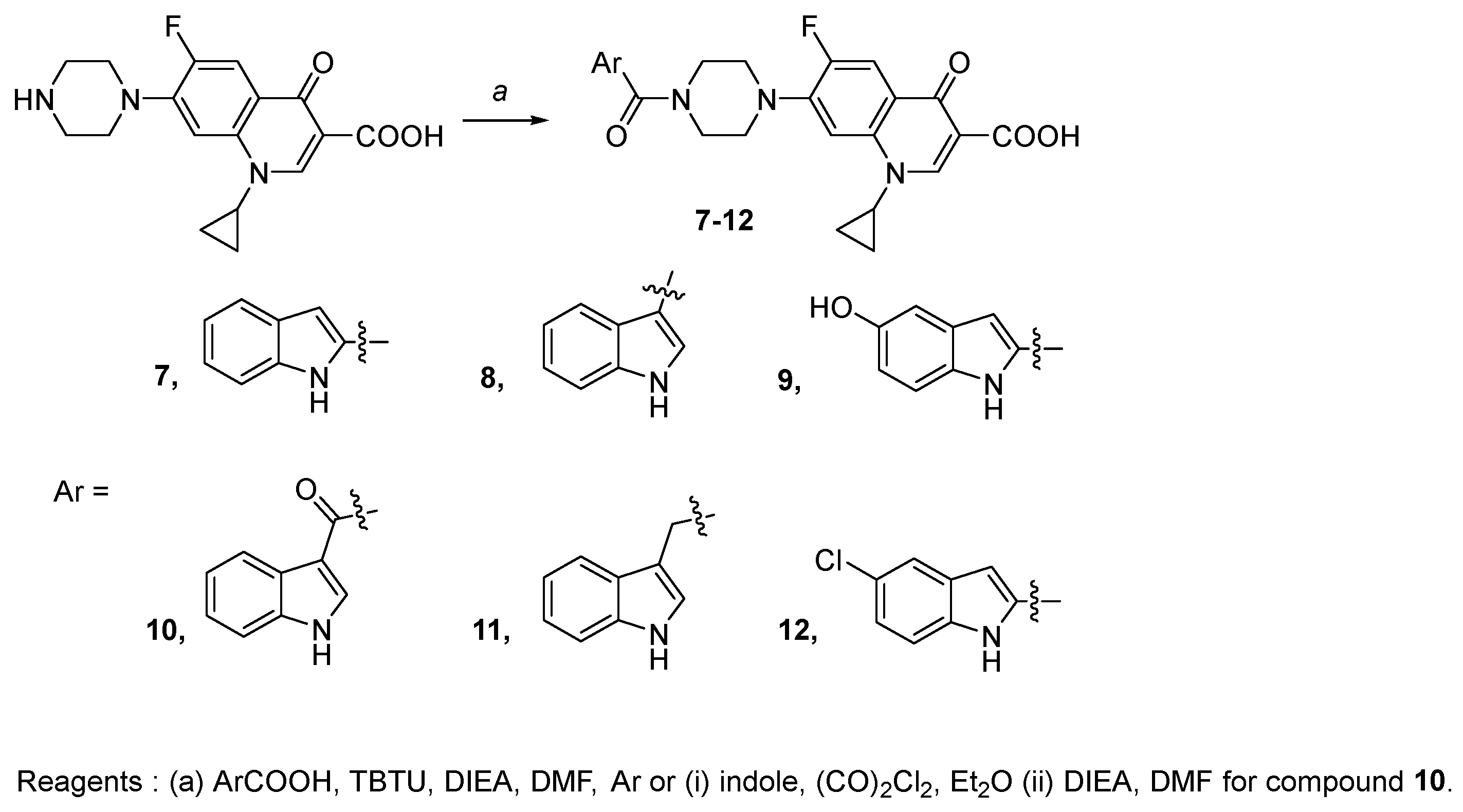

Scheme 2. Synthesis of the indole derivatives 7–12.
Scheme 2. Synthesis of the indole derivatives 7–12.
Ijms 23 06741 sch002

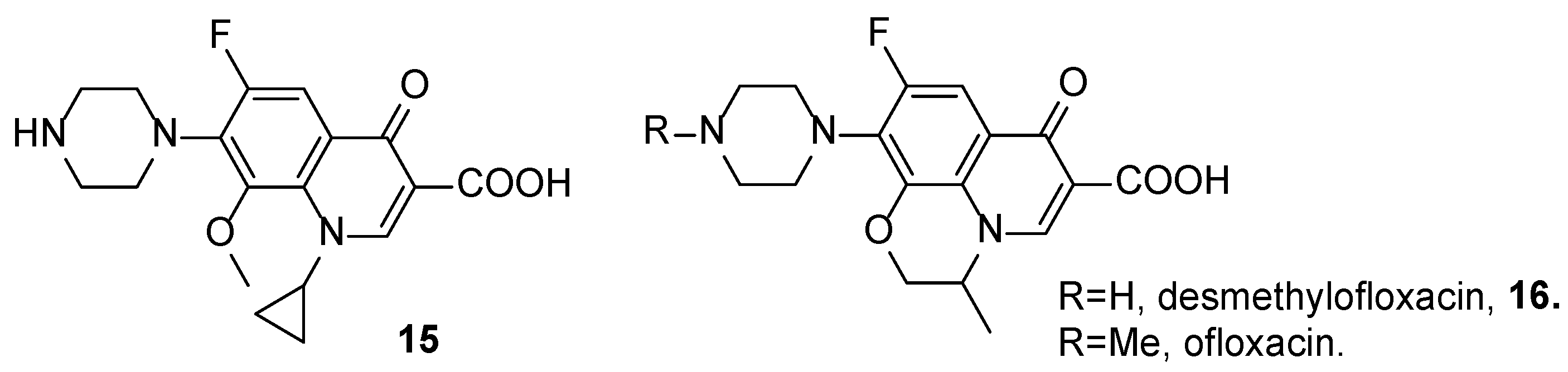

Figure 3. Structures of 15 (left) and 16 (right).
Figure 3. Structures of 15 (left) and 16 (right).
Ijms 23 06741 g003

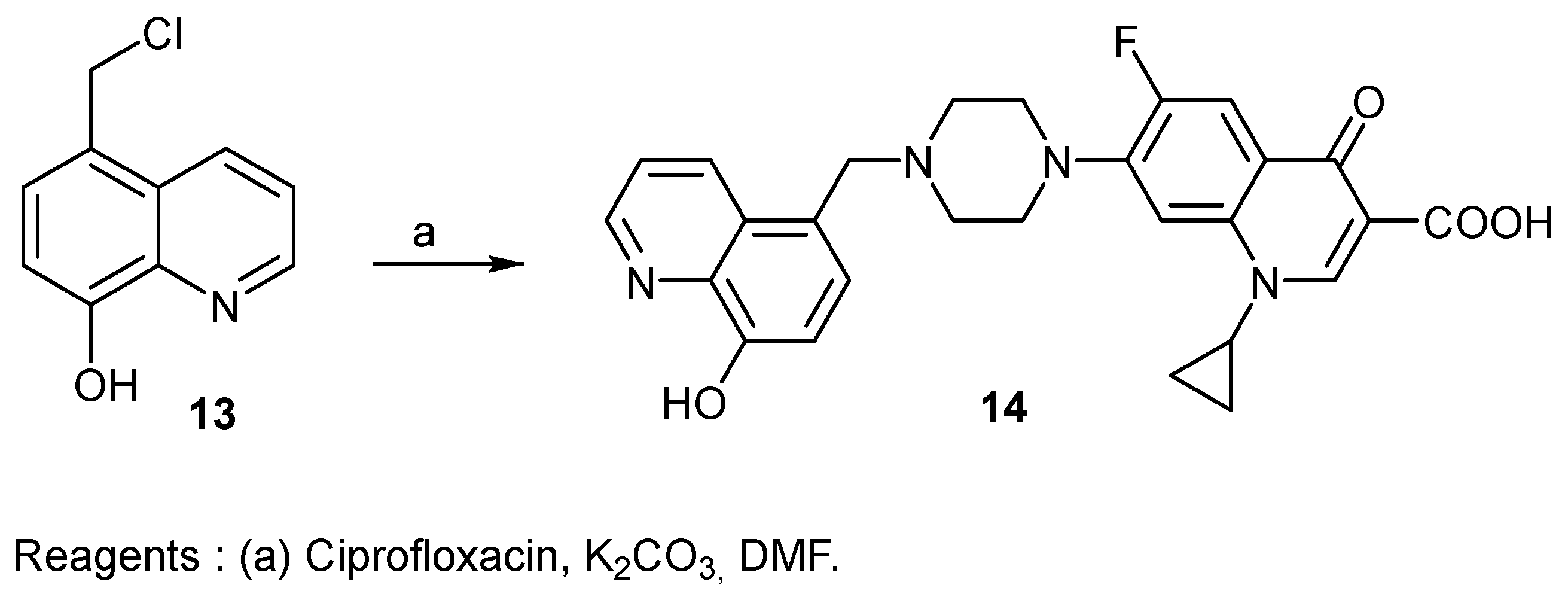

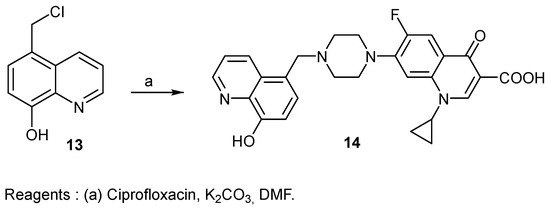

Scheme 3. Synthesis of compound 14.
Scheme 3. Synthesis of compound 14.
Ijms 23 06741 sch003

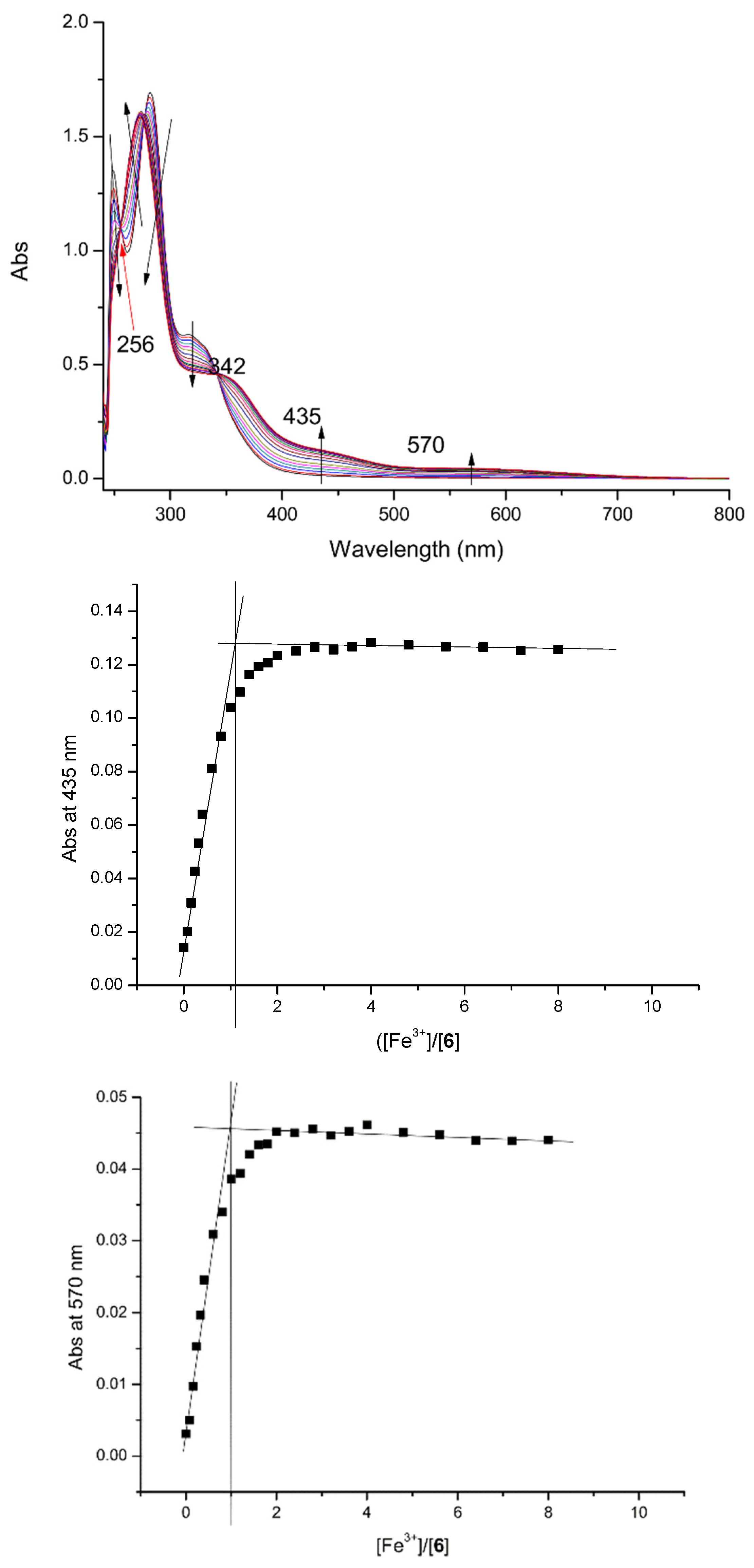

Figure 4. Absorption spectra in the presence of increasing concentrations of Fe-NTA (0–136 μM) at pH 7 and 25 ± 0.5 °C of compound 6 (5 × 10−5 M) (buffer: 50 mM HEPES—150 mM KCl, solvent: DMSO; buffer/solvent, 1:1, v/v). Absorbance at 435 nm and 570 nm plotted against [Fe3+]/[6].
Figure 4. Absorption spectra in the presence of increasing concentrations of Fe-NTA (0–136 μM) at pH 7 and 25 ± 0.5 °C of compound 6 (5 × 10−5 M) (buffer: 50 mM HEPES—150 mM KCl, solvent: DMSO; buffer/solvent, 1:1, v/v). Absorbance at 435 nm and 570 nm plotted against [Fe3+]/[6].
Ijms 23 06741 g004
Figure 5. Addition of excess iron (III) citrate reduces the growth inhibitory effect of 6 in Chlamydia. C. trachomatis (red inclusions) grown in HeLa cells (blue nuclei) with 0.125 µM 6 in absence (left panel) and presence (right panel) of 200 µM iron (III) citrate. Micrographs captured with Cytation 5 using the 20× objective.
Figure 5. Addition of excess iron (III) citrate reduces the growth inhibitory effect of 6 in Chlamydia. C. trachomatis (red inclusions) grown in HeLa cells (blue nuclei) with 0.125 µM 6 in absence (left panel) and presence (right panel) of 200 µM iron (III) citrate. Micrographs captured with Cytation 5 using the 20× objective.
Ijms 23 06741 g005

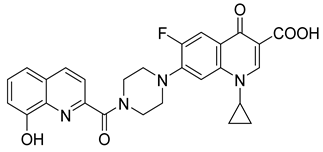

Table 1. LMCT bands at pH 7.
Table 1. LMCT bands at pH 7.
CompoundLMCT Bands (nm)
Ijms 23 06741 i001
1
430
Ijms 23 06741 i002
Ciprofloxacin
430–450
Ijms 23 06741 i003
6
435 and 570
Ijms 23 06741 i004
HQ
462 and 560
Table 2. MIC determination for different compounds against C. trachomatis and N. gonorrhoeae.
Table 2. MIC determination for different compounds against C. trachomatis and N. gonorrhoeae.
C. trachomatisN. gonorrhoeae
WHO-P
N. gonorrhoeae
WHO-G
CompoundMIC
(µM)
MIC/MBC
(µM)
MIC/MBC
(µM)
Ciprofloxacin0.50.008/0.0160.25/1
10.250.125/0.1252/4
5a0.250.25/14/8
5b0.252/2>12/>12
60.1250.5/2>12/>12
5d0.50.5/216/>25
140.250.031/0.0311/4
5c>1.25>4/>4>4/>4
70.50.25/0.52/4
82.50.125/0.252/4
9100.5/18/16
102.50.125/0.1252/4
1110.125/0.252/4
1210.5/0.54/8
150.1250.016/0.0311/1
16>2.50.125/0.252/4
Table 3. EC50 and MBC determination for different compounds against C. trachomatis.
Table 3. EC50 and MBC determination for different compounds against C. trachomatis.
C. trachomatis
Progeny
C. trachomatis
Progeny
cLog P a
CompoundEC50 (95% CI) (nM)MBC (nM)
132 (30–34)2503.09
5a47 (44–51)2503.24
5b46 (43–51)1254.24
5d130 (120–142)5005
613 (12–14)63-
1459 (56–62)500-
1528 (26–30)125-
a Computed with ChemBioDraw 13.0.0.3015.
Table 4. MIC determination for selected compounds with or without iron (III) citrate.
Table 4. MIC determination for selected compounds with or without iron (III) citrate.
Compounds≥95% Inhibition (μM)With 200 µM Fe(III) Citrate ≥95% Inhibition
(μM)
Compound Activity with Fe(III) Citrate
10.25 0.25Similar
Ciprofloxacin0.50.5Similar
140.250.5Similar
5a0.250.25Similar
60.1251Decreased
Table 5. Cell viability of HeLa 229 cells when incubated with antimicrobial compounds at 10 µM.
Table 5. Cell viability of HeLa 229 cells when incubated with antimicrobial compounds at 10 µM.
CompoundConcentration (µM)Cell Viability in
HeLa 229 Cells
% of DMSO Control ± SD
Ciprofloxacin1098.9 ± 4.5
110113.2 ± 2.9
5a10109.3 ± 1.2
5b10107.8 ± 3.6
5c10n.a.
5d10105.1 ± 3.9
61080.2 ± 3.1
71079.0 ± 3.3
81095.9 ± 6.8
910n.a.
101099.9 ± 3.5
111092.0 ± 6.6
121042.6 ± 3.1
141086.9 ± 4.8
15 *1.25102.6 ± 8.3
1610n.a.
* 15 was not soluble at 10 µM and was, therefore, tested separately at 1.25 µM. n.a. not analyzed.
Table 6. Susceptibilities of Gram-positive bacteria to the antimicrobials.
Table 6. Susceptibilities of Gram-positive bacteria to the antimicrobials.
Compounds
Tested
MIC (μM)
Staphylococcus aureusEnterococcus faecalis
UCN41
Enterococcus faecium
ATCC 25923ATCC 700699BM4147ATCC 19434T
Ciprofloxacin0.781000.2012.512.5
10.78>10012.5>100>100
5a0.20>1001.56100>100
5b25>100100>100>100
61.56>10012.5>100>100
5d>100>100>100>100>100
Table 7. Susceptibilities of Gram-negative bacteria to the antimicrobials.
Table 7. Susceptibilities of Gram-negative bacteria to the antimicrobials.
Compounds testedMIC (μM)
E. coliKlebsiella pneumoniaePseudomonas aeruginosaAcinetobacter baumannii
ATCC 25922ATCC 700603PAO1CIP7010
Ciprofloxacin≤0.100.39≤0.100.20
10.2012.503.123.12
5a0.781002525
5b12.50>100>100>100
66.25>100>10025
5d6.25>100>100>100
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Vu, T.H.; Adhel, E.; Vielfort, K.; Ha Duong, N.-T.; Anquetin, G.; Jeannot, K.; Verbeke, P.; Hjalmar, S.; Gylfe, Å.; Serradji, N. Modified Fluoroquinolones as Antimicrobial Compounds Targeting Chlamydia trachomatis. Int. J. Mol. Sci. 2022, 23, 6741. https://doi.org/10.3390/ijms23126741

AMA Style

Vu TH, Adhel E, Vielfort K, Ha Duong N-T, Anquetin G, Jeannot K, Verbeke P, Hjalmar S, Gylfe Å, Serradji N. Modified Fluoroquinolones as Antimicrobial Compounds Targeting Chlamydia trachomatis. International Journal of Molecular Sciences. 2022; 23(12):6741. https://doi.org/10.3390/ijms23126741

Chicago/Turabian Style

Vu, Thi Huyen, Erika Adhel, Katarina Vielfort, Ngûyet-Thanh Ha Duong, Guillaume Anquetin, Katy Jeannot, Philippe Verbeke, Sofia Hjalmar, Åsa Gylfe, and Nawal Serradji. 2022. "Modified Fluoroquinolones as Antimicrobial Compounds Targeting Chlamydia trachomatis" International Journal of Molecular Sciences 23, no. 12: 6741. https://doi.org/10.3390/ijms23126741

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
