Article

Altering the Sex Pheromone Cyclo(l-Pro-l-Pro) of the Diatom Seminavis robusta towards a Chemical Probe

by
Eli Bonneure
1,
Amber De Baets
1,
Sam De Decker
2,
Koen Van den Berge
3,
Lieven Clement
3,
Wim Vyverman
2 and
Sven Mangelinckx
1,*
1
Department of Green Chemistry and Technology—SynBioC, Faculty of Bioscience Engineering, Ghent University, Coupure Links 653, 9000 Ghent, Belgium
2
Department of Biology—Protistology and Aquatic Ecology, Faculty of Sciences, Ghent University, Krijgslaan 281/S8, 9000 Ghent, Belgium
3
Department of Applied Mathematics, Computer Science and Statistics, Faculty of Sciences, Ghent University, Krijgslaan 281/S9, 9000 Ghent, Belgium
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(3), 1037; https://doi.org/10.3390/ijms22031037
Submission received: 14 December 2020 / Revised: 18 January 2021 / Accepted: 19 January 2021 / Published: 21 January 2021
(This article belongs to the Special Issue Chemistry towards Biology)
Browse Figures
Review Reports Versions Notes

Abstract

:
As a major group of algae, diatoms are responsible for a substantial part of the primary production on the planet. Pennate diatoms have a predominantly benthic lifestyle and are the most species-rich diatom group, with members of the raphid clades being motile and generally having heterothallic sexual reproduction. It was recently shown that the model species Seminavis robusta uses multiple sexual cues during mating, including cyclo(l-Pro-l-Pro) as an attraction pheromone. Elaboration of the pheromone-detection system is a key aspect in elucidating pennate diatom life-cycle regulation that could yield novel fundamental insights into diatom speciation. This study reports the synthesis and bio-evaluation of seven novel pheromone analogs containing small structural alterations to the cyclo(l-Pro-l-Pro) pheromone. Toxicity, attraction, and interference assays were applied to assess their potential activity as a pheromone. Most of our analogs show a moderate-to-good bioactivity and low-to-no phytotoxicity. The pheromone activity of azide- and diazirine-containing analogs was unaffected and induced a similar mating behavior as the natural pheromone. These results demonstrate that the introduction of confined structural modifications can be used to develop a chemical probe based on the diazirine- and/or azide-containing analogs to study the pheromone-detection system of S. robusta.

Graphical Abstract

1. Introduction

Diatoms play a key role in the biosphere. As an important group of phytoplankton, they account for about one-fifth of the photosynthesis on earth and form the basis of many of the aquatic ecosystems that exist on our planet [1,2]. In addition, they present opportunities for biotechnological applications [3,4,5,6].
The benthic diatom Seminavis robusta is an experimental model organism for diatom research [7,8]. S. robusta has a typical diatom life cycle: the cell size declines during mitotic division and is restored after sexual reproduction, using a heterothallic mating system (Figure 1) [9]. Once the cell size reaches the sexual size threshold, both mating types start producing a sex inducing pheromone (SIP). The presence of SIP+ induces mating type – (MT−) to produce an attraction pheromone: the diketopiperazine cyclo(l-Pro-l-Pro) (1) (Figure 2) [10].
The diketopiperazine scaffold is present in a plethora of metabolites [12,13,14]. Regardless of the broad occurrence of these cyclopeptides, their receptors are not extensively characterized. Bilcke et al. [11] found that in S. robusta MT+ genes encoding for transmembrane proteins were upregulated in response to SIP−, suggesting that a G protein-coupled receptor (GPCR) is responsible for the perception of 1.
We evaluated the possibility of modifying the pheromone to a chemical probe, in order to identify the putative receptor. However, certain structural restrictions should be taken into account. Lembke et al. [15] described that the diketopiperazine structure of 1 can be modified while retaining its activity, but only if both of the flanking ring structures were present. The authors also tested a hydroxyl-substituted analog of 1 (cyclo(4-OH-Pro-4-OH-Pro) that proved to be inactive. This observation demonstrates the confined chemical space in which the pheromone is positioned.
Photoaffinity labeling has, since it was first reported in 1962 by Westheimer et al. [16], provided the scientific community with a broad array of tools to study ligand-protein interactions [17,18,19] and has proven to be useful for GPCR characterization [20,21,22,23]. In the case of diketopiperazine 1, the (alkyl) diazirine is an attractive photoreactive group. While having a lower cross-linking efficiency in comparison to other photoreactive groups, diazirines have a small footprint. Therefore, we deemed that the inclusion of an alkyl diazirine would be the best option to render a bioactive probe.
Photoaffinity labeling (PAL) probes are more useful if means are provided to conjugate a reporter group to the cross-linked target receptor. An elegant approach is the use of click chemistry, which has been widely adopted since its introduction by Sharpless et al. in 2001 [24,25,26,27]. The inclusion of a click-chemistry compatible moiety, such as an azide, could allow for an easy detection of the target.
A chemical probe derived from 1 could also be applied in other disciplines. The diketopiperazine was reported to be a constituent of pheromonal secretions in two other species, namely in the femoral gland of the Sceloporus virgatus lizard [28] and the mating plug of the Bombus terrestris bumblebee [29], and was also identified in the Aspergillus fumigatus fungus, the Lucilia sericata blowfly and the Antarctic Pseudoalteromonas haloplanktis bacterium [28]. Recently, 1 was also shown to be an effective induced resistance stimulus for rice plants [30], triggering a systemically enhanced defense against the root-knot nematode Meloidogyne graminicola.

2. Results

New pheromone analogs were synthesized according to literature protocols. We integrated chemical moieties that could be used for photo-cross-linking and click chemistry and evaluated the modifiability of the pheromone scaffold at the C-4 position of one of the two proline rings (Figure 2). Trans-4-hydroxy-l-proline (2, Figure 2) is an inexpensive commercial analog of l-proline and allows a straightforward modification at the C-4 position.
After synthesis and purification, the phytotoxicity of the analogs was examined and comparative studies were performed to assess the equivalence of the analogs and the natural pheromone. The comparative studies were based on an interference assay, an attraction assay and a short evaluation of the conformation of the diketopiperazines.

2.1. Diketopiperazine Synthesis

Seven diketopiperazines (3 to 9, Figure 3) were synthesized in close resemblance to 1. These pheromone analogs contain the same cyclo(l-Pro-l-Pro) backbone with an additional functional group attached onto the C-4 of one of the l-proline rings, consisting of a diazirine (3), an azide (4 and 5), a hydroxyl (6), a methoxy (7), and an acetal (8). In analog (9), one of the proline rings was substituted with its four-membered azetidine equivalent.
Prior to diketopiperazine synthesis, a small library of six l-proline analogs was synthesized, starting from commercial trans-4-hydroxy-l-proline 2 as shown in Scheme 1A. A Boc group was introduced [31] and oxoproline 11 and diazirinylproline 12 were subsequently synthesized according to Van der Meijden et al. [32]. Azidoprolines 16 and 18 were synthesized using a method adopted from Marusawa et al. [33]. Methyl ester 13 was synthesized using the method of Chalker et al. [34].
Diketopiperazines 1 and 3–9, presented in Figure 3, were synthesized with a method modified from Campbell et al. [35], of which a general overview is given in Scheme 1B. OxymaPure [46,47] was used as additive and DMF was used as solvent during the coupling step. Diketopiperazines 1 and 9 were synthesized by coupling H-Pro-OMe·HCl (Apollo Scientific) with respectively Boc-Pro-OH [31] and Boc-Aze-OH (ChemPur). Proline analogs 11 and 12 were coupled with H-Pro-OMe·HCl to their corresponding diketopiperazines 8 and 3, with analog 11 undergoing acetal formation during the acidic Boc-removal in methanol. Proline analogs 16 and 18 were coupled with Boc-Pro-OH after being treated with TFA in DCM or HCl in methanol, yielding respectively 5 and 4. H-Hyp-OMe·HCl (13) was coupled with Boc-Pro-OH and methylated using MeI towards 7 [36]. Proline analog 17 was coupled, after Boc-removal with hydrochloric acid, with Boc-Pro-OH, yielding 6.

2.2. Diketopiperazine Phytotoxicity

Diketopiperazines are a large class of compounds with a broad range of activities [12]. Recently, some diketopiperazines were reported to be algicidal [48,49]. For this reason, it was not implausible that small changes to the pheromone scaffold could induce algicidal effects and thereby could affect the physiology of S. robusta.
We determined the short-term phytotoxicity of the newly synthesized analogs, as the exposure time to the pheromone analogs during the bioassays is limited. Pulse Amplitude Modulation (PAM) fluorometry was used to measure the chlorophyll fluorescence of photosystem II (PSII), a parameter that is related to the overall fitness of algae [50]. The technique has been successfully exploited to assess toxic effects of herbicides [51,52], heavy metals [53], volatile organic compounds [54], pharmaceuticals [55], and quorum sensing related compounds [56] towards microalgae.
Cultures of S. robusta were treated with 10 µM of 1, 3–9 and with 1 µM of DCMU, a PSII inhibitor [57,58]. The quantum yield of PSII (YII) was measured for 30 min and the resulting data of the analogs was interpolated between 1 (set to 0% inhibition) and DCMU (100% inhibition) (Figure 4, see Supplementary Material S1 for original YII data).

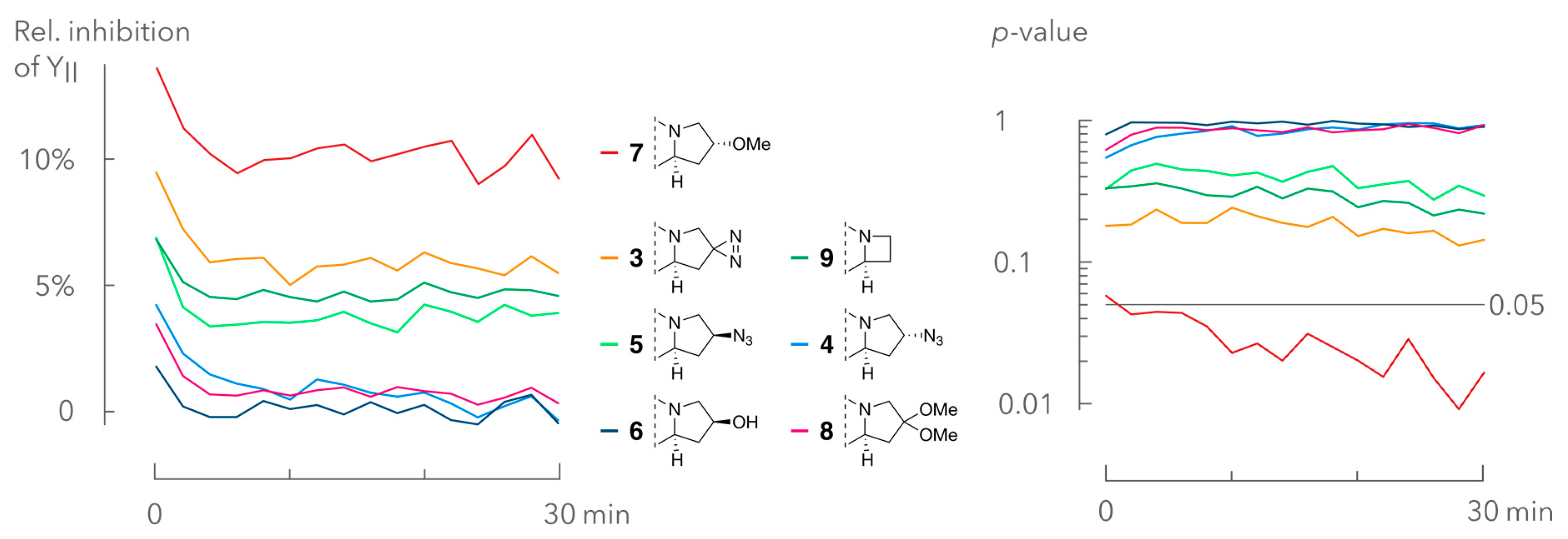

The inhibition of YII was significant for methoxy-substituted analog 7, with an average inhibition of 10%. The other pheromone analogs can be categorized in two groups. The first group comprising of compounds 3, 5, and 9 shows little phytotoxicity, with an average inhibition of 6, 3.9, and 4.8% respectively at 10 µM (p > 0.13, Figure 4). The second group, consisting of compounds 4, 6, and 8, shows an average inhibition of less than 1%.

2.3. Interference Assay

The pheromone potency of the analogs was evaluated according to an interference assay, in which the attraction of MT+ towards a point source of the natural pheromone is disturbed by the presence of a pheromone analog [10,15]. The MT+ cells were conditioned with spent medium from a MT− culture, that was evaluated for the presence of the SIP− conditioning factor [10].
Diketopiperazines 3 to 9 were tested in concentrations of 10 nM, 100 nM, and 10 µM in three independent experiments. Treatments with compound 1 were included in every experiment, allowing us to compare the outcome of the pheromone analogs interexperimentally. Oasis HLB beads, that were coated with a load of 2 nmol of 1 per mg of beads, were used as a pheromone point source.
Each experiment included two control treatments. In the first control treatment (positive control), no pheromone (analog) was added. The attraction towards the coated beads was not disturbed and maximal. For a second control treatment, blank beads were added (negative control) to measure coincidental contact of the algae with the beads. The total amount of treatments per experiment was 11 or 14, equaling to respectively three or four analogs at three concentrations and two control treatments. In the case of experiments A and B, two replicates were provided per multi-well plate, occupying 22 of the available 24 wells. In experiment C, every multi-well plate was provided with only one replicate (14 out of 24 wells). The activity screening of the pheromone analogs was spread over three independent experiments according to their availability.
The interference caused by adding 1 to the culture medium (Figure 5) was significant for all three of the tested concentrations, except in experiment C. A normal dose-response relationship, where a low concentration yields a limited interference and a high concentration yields an increased interference, was expected. However, it was noted that the dose-response trend of 1 was variable.
The pheromone analogs were also compared to 1 at 100 nM, the physiological concentration of the pheromone (Figure 6). The analogs’ estimated average fraction of attractive beads was interpolated between the positive control (no interference) and 1 at 100 nM (set as 100% interference). The interpolation makes it possible to compare the pheromonal potency of the analogs relative to the natural pheromone and irrespective of the experiment in which they were measured (see Supplementary Material S5.2).

2.4. Attraction Assay

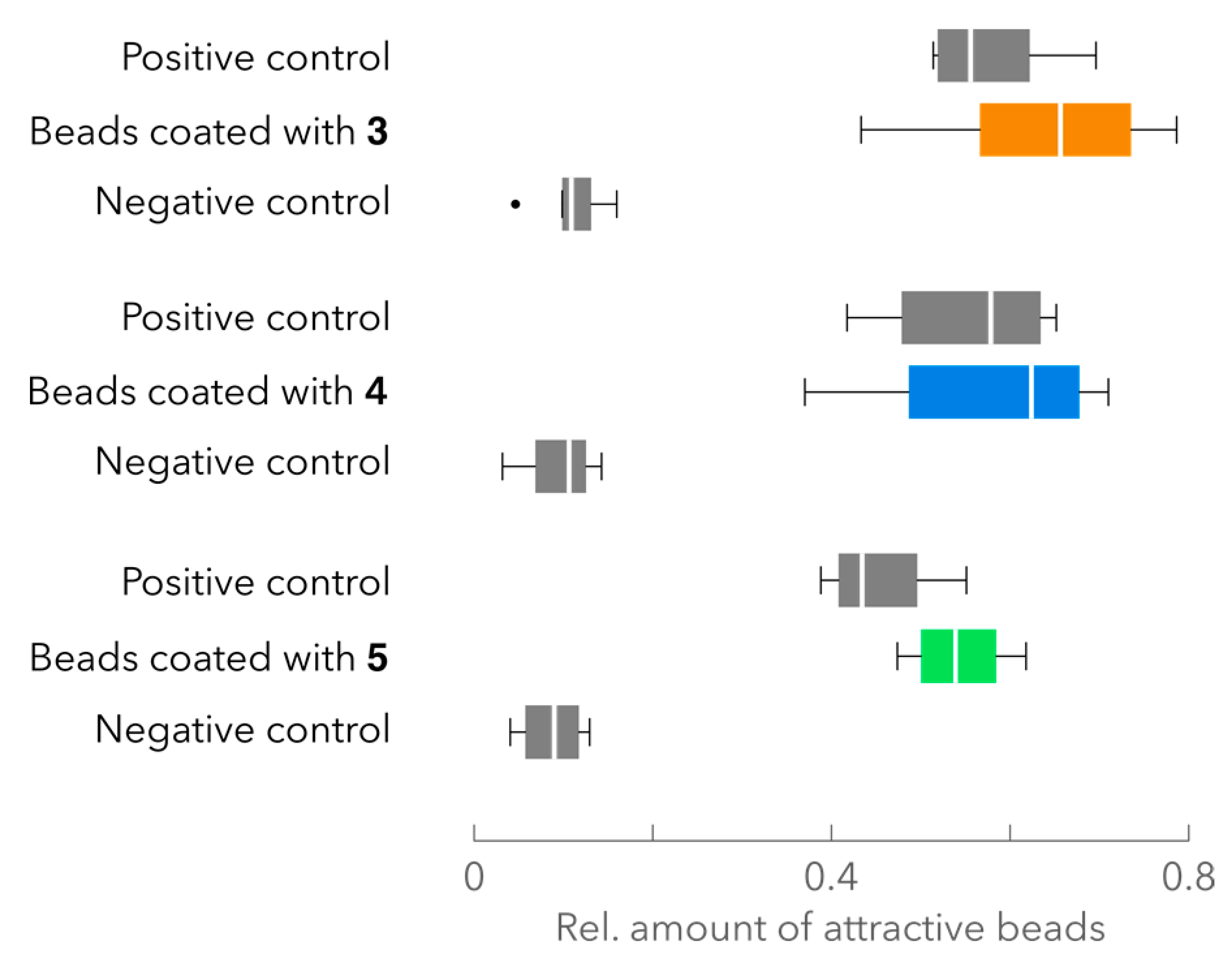

Diketopiperazines 3, 4, and 5 were also evaluated using an attraction assay, where the attraction towards pheromone-analog-coated beads was assessed (Figure 7). Beads were coated in the same manner as was previously done with diketopiperazine 1 (with a load of 2 nmol mg−1). As demonstrated by Figure 7, the beads coated with compounds 3–5 gave similar results as the positive control.

3. Discussion

The data from the PAM fluorometry measurements (Figure 4) showed that diketopiperazine 7 caused a significant 10% reduction of YII. Although it is unclear how compound 7 could affect the physiology of S. robusta, the results from the interference assay might be impaired due to the slightly toxic nature of 7. The other analogs showed a small but non-significant inhibition of YII. We therefore assumed that the use of these compounds would not alter the physiological behavior of S. robusta.
The impact of adding a diazirine (3) or an azide (4 and 5) to the cyclo(l-Pro-l-Pro) scaffold was rather limited. In case of the diazirine 3, the interference at 100 nM equals that of 1 (100 nM). This suggests that the small, though polar, symmetrical increase in molecular volume of 3% (or 5.9 Å3) at position C-4 does not affect its activity (see Supplementary Material S6 for molecular volumes and molecule models [59]). However, when the volume is further incremented, the activity of the compound decreases as demonstrated by acetal 8. The two methoxy substituents increase the molecular volume by 52.7 Å3, yielding an overall volume increase of 30% compared to 1.
In the case of the azides 4 and 5, a slight difference between both diastereomers was observed. Our interference data suggests that a substitution of the azide on the pseudo-axial position of the l-proline ring (compound 4), causes less steric hindrance between the ligand and its putative receptor than on the pseudo-equatorial position (compound 5). The significance of this difference could not be determined because the compounds were evaluated in two independent experiments. Moreover, an interaction between the treatment and experiment is to be expected due to differences in diatom cell size and density.
The limited impact of the diazirine and azide moieties is also reflected by the outcome of the attraction assay. Beads coated with compounds 3, 4, or 5 had an attractiveness that was comparable to diketopiperazine 1. The results of both assays demonstrate that these compounds could interact with the putative GPCR in the same manner as 1.
The interference caused by hydroxy analog 6 was less pronounced. Lembke et al. reported that a symmetrical hydroxy analog did not show any activity [15]. Here we observed a significant interference, albeit only at the highest concentration tested. The introduction of a polar hydroxy group clearly decreases the pheromonal activity, but the pseudo-equatorial positioning of the substituent could be a contributing factor. In comparison: the pseudo-axial positioning of the methoxy group (7) seems to have less impact on the pheromonal activity. Yet, it is not clear how much of the interference effect of 7 is caused by the toxic nature of this compound.
The remaining azetidine analog 9, with a two-carbon side-chain, showed a reduced activity compared to 1, though still significant at 10 µM. This result validates the structural restrictions defined by Lembke et al. and suggests a preference of a three-carbon side-chain over a two-carbon side-chain [15].
While Figure 6 shows that the negative impact of some of the substitutions can be quite pronounced, all analogs (3–9) cause significant interference at 10 µM, which suggests that the modifications can still be tolerated. We also tried to evaluate whether the substitutions on the flanking ring structures impacted the conformation of the analogs’ central diketopiperazine ring, possibly affecting the interaction with the receptor.
Siemion and coworkers found an empirical relationship between the torsion of the Cβ-Cα-C’=O fragment (θ) of the proline moiety and the difference between the 13C chemical shifts of Cβ and Cγ in proline-containing cyclic peptides (Δδβγ = 0.081 |θ| + 2.47) [60]. The authors were also able to use the established relationship to determine the equilibrium between the boat and planar conformation of several proline-containing diketopiperazines [61].
The calculated torsion values of the pheromone analogs are smaller or equal to 30° and within the Δδβγ prediction interval for the postulated torsion angle of diketopiperazine 1 (4.91 ppm ± 1.48, see Supplementary Material S6) [60]. Based on these calculations, there are no indications that the adopted conformation of the central diketopiperazine ring of the diketopiperazines deviates from the preferred boat conformation of 1. Additionally, there was no significant correlation found between the torsion angles and the bioactivity (data presented in Figure 6) of the analogs (Pearson correlation coefficient = 0.41, p = 0.3). These observations suggest that the introduced chemical moieties could have a minor to no effect on the diketopiperazine conformation.
Aside from the molecular dimensions and conformation, the substitutions also impact the lipophilic character of the pheromone analogs. The LogP values of the analogs were calculated (see Supplementary Material S6) and a positive correlation between these LogP values and the bioactivity (data presented in Figure 6) was found, however the correlation was not significant (Pearson correlation coefficient = 0.57, p = 0.14).
In conclusion, we have shown that it is possible to modify the pheromonal scaffold in an asymmetrical fashion, while retaining its pheromonal activity. Although structural restrictions demand hydrophobic ring flanking structures, nitrogen-containing substitutions, such as diazirines or azides, are tolerated as presented in the structure activity relationship map (Figure 8). The substitution with a hydroxy group seems to be less favored. The available space in the binding pocket of the putative pheromone receptor is limited, as demonstrated earlier by Lembke et al. [15], where a symmetrical variant of diketopiperazine 6 was found to be inactive. Though this could be a combined effect of the increased molecular volume and the less favored hydroxy substitution, the volumetric restriction reflects in our findings; the introduction of the acetal in diketopiperazine 8 largely reduces the bioactivity of the pheromone scaffold. The results of diazirine and azide analogs 3 to 5 demonstrate that these substituents can be incorporated into the cyclo(l-Pro-l-Pro) scaffold to probe the putative diatom pheromone receptor and to possibly characterize the action of 1 on other organisms as well.

4. Methods

4.1. Strain and Culture Conditions

Seminavis robusta DCG 0105 (85A, MT+) and DCG 0107 (85B, MT−) were used in this study. Both are available in the diatom culture collection of the Belgian Coordinated Collection of Microorganisms (BCCM/DCG, bccm.belspo.be/about-us/bccm-dcg) at Ghent University. Cultures were grown in artificial sea water: 34.5 g L−1 of Tropic Marin (Wartenberg, Germany), 0.08 g L−1 NaHCO3 (Sigma-Aldrich, St. Louis, Missouri, USA) enriched with Guillard’s F/2 solution (Sigma-Aldrich, St. Louis, Missouri, USA) at 20 mL L−1 inside a 250 mL cell culture flask. Light was provided in a 12 h:12 h light/dark cycle, using cool white fluorescent lamps (Philips, Amsterdam, Netherlands) with an intensity of 20 to 30 µmol m−2 s−1 and the temperature was held at 18 °C. Cultures were kept axenically by treating them regularly with antibiotics (0.5 g L−1 Penicillin, 0.5 g L−1 Ampicillin, 0.1 g L−1 Streptomycin and 0.05 g L−1 Gentamycin, Sigma-Aldrich, St. Louis, Missouri, USA). Stock cultures were kept at 4 °C with a light intensity of 2 to 5 µmol m−2 s−1. All cultures used in this study had a mean cell length between 20 and 35 µm.

4.2. Interference Assay

The interference assay was adopted from Lembke et al. [15] and a diagram of the assay is provided in the Supplementary Material S4. Oasis HLB beads were coated with cyclo(l-Pro-l-Pro) as described by Gillard et al., with a load of 2 nmol mg−1 [10]. In short, a 10 mg SPE cartridge was washed with methanol (1 mL) and Milli-Q water (2 mL). A 2 mL solution of cyclo(l-Pro-l-Pro) (20 nM) was eluted over the cartridge. The SPE material was suspended in 2 mL Milli-Q water and was stored as a stock solution at −20 °C in 50 µL aliquots. Before usage, a dilution was made by adding 20 µL of the stock suspension to 980 µL of Milli-Q water.
Axenic S. robusta 85A cultures were inoculated in a 24-well culture plate with a total of 1 mL medium per well and dark-synchronized for 40 h by wrapping the plate in aluminum foil. After synchronization, the cultures were conditioned by adding 1 mL 85B filtered medium (see Supplementary Material S2). Cyclo(l-Pro-l-Pro)–coated beads (50 µL of the diluted suspension) were added after 6 to 7 h and images were taken of the cell cultures with the BioTek Cytation3 Cell Imaging Multi-Mode Reader. For this study, pheromone (analogs) were applied in concentrations of 10 nM, 100 nM and 10 µM, starting from a 5 mM stock solution. After addition of the pheromone (analogs), the cell medium was mixed gently by pipetting the cell medium up and down.
In every interference experiment a positive and negative control is included. The positive control is the response of conditioned 85A cells towards cyclo(l-Pro-l-Pro)–coated beads, whereas the negative control assesses the attractiveness of non-coated beads.
Beads were assigned attractive or not attractive depending on a defined threshold, being a number of cells attached to a bead. In an effort to maximize the response difference between the positive control and the highest cyclo(l-Pro-l-Pro) 1 concentration tested (10 µM), an interference assay was set-up with 4 different cell densities. Aliquots of an exponentially growing stock culture were inoculated in a 24-well plate containing 2 mL of f/2 medium and incubated for 48 h. The cell medium was renewed with 1 mL of f/2 medium, cell densities were determined and the cultures were dark-adapted for 40 h. The interference test was carried out and the response towards the beads was assessed. The number of cells attached to every bead were evaluated after manual image capturing and categorized with the number attached cells varying from 1 to 9. The differences between both treatments, the positive control and 10 µM of cyclo(l-Pro-l-Pro) 1, for every density and threshold were calculated (see Supplementary Material S3).
The highest difference in response can be found at a density of 7 × 107 cells m−2 and a threshold of 1 cell per bead. The choice of a low threshold gives a higher difference between both treatments, but the downside is that the variance on the data is also higher (see Supplementary Material S3). This could explain the high variability in the interference test that was discussed in this study (Figure 5).

4.3. Attraction Assay

The attraction assay was adopted from Gillard et al. [10]. The procedure is similar to the interference assay described above, without the addition of (a) pheromone (analog) into the culture medium. Oasis HLB beads loaded with synthetic pheromone analogues 3–5 were made using the same procedure as for cyclo(l-Pro-l-Pro)–coated beads. Binding efficiencies were not determined.

4.4. Microscopy and Image Processing

4.4.1. Automatic Image Capturing

Images were captured using a Cell Imaging Multi-Mode Reader (Cytation3, BioTek, Winooski, Vermont, USA), mounted with a 10x objective and controlled using Gen5 software (3.03.14, BioTek, Winooski, Vermont, USA). For the interference assays, image montages (7 by 7 images) were captured using three image channels: bright field, Cyanine 5 (CY5), and Green Fluorescent Protein (GFP). The CY5-channel was used to image the cell chlorophyll while the GFP-channel was used to image the beads. The bright field was used to autofocus the image and as reference. An algorithm was written in Python 3.6 (Python Software Foundation, https://www.python.org/) to assess the attractiveness of the beads (visualized in Figure 9). In short: both CY5 and GFP images were converted to a binary image after applying a threshold (Otsu’s method [62]). Next, beads were identified in the GFP image and if there was overlap between a bead and a cell, the bead was assigned as attractive. This method was used by default, unless mentioned otherwise.

4.4.2. Manual Image Capturing

Images were captured on a Zeiss Observer A1 inverted microscope (Zeiss, Jena, Germany) equipped with a Zeiss EC plan-NEOFLUAR 10x or 4x lens (Zeiss, Jena, Germany) and coupled to a Nikon DS-Fi2 U3 camera (Nikon, Tokyo, Japan), operated by the NIS-elements software package (Nikon, Tokyo, Japan). Beads were classified attractive after manual evaluation.

4.5. Data Analysis

The statistical analysis of the interference assays was done in R 3.5 [63]. The number of attractive beads (summarized per well) were modeled as a Poisson generalized linear model in function of treatment (positive control, negative control and different compound effects) and a fixed plate effect that captures the variability between plates (replicates). The different treatment concentrations were modeled as separate treatment effects, effectively allowing for an interaction between the treatment and concentration. The total number of beads were added as offset to the model, thereby effectively modeling the fraction of attractive beads. In every experiment, one replicate per treatment was present per 24-well plate in a randomized fashion; four to six plates were used per experiment. Statistical inference was based on Wald tests using the asymptotic Chi-squared null distribution.

4.6. Phytotoxic Evaluation

The short-term phytotoxicity of the synthesized pheromone analogs was estimated using Pulse-Amplitude-Modulation fluorometry. Axenic S. robusta 85A cultures were inoculated in a 48-well plate (Greiner Bio-One, Kremsmünster, Austria). Diketopiperazine 1 and the seven analogs were added to a concentration of 10 µM. A treatment with PSII blocker DCMU (1 µM) was added as a control [57,58]. After addition of the compounds, the plate was incubated for 10 min at room temperature and YII was monitored with a MAXI Imaging PAM M-series fluorometer (Walz Mess- und Regeltechnik, Effeltrich, Germany) for 30 min, with a saturation pulse every 2 min and actinic light turned on (15 µmol photons m−2 s−1); sequential data were averaged over five replicates. The results are reported as relative inhibition of YII, after interpolating the YII values of the pheromone analogs between those of 1 and DCMU (DCMU is 100% inhibition). The statistical analysis was done in R 3.5.2 using the lm() function.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/22/3/1037/s1.

Author Contributions

Conceptualization, E.B., S.D.D., K.V.d.B., W.V. and S.M.; validation, E.B. and S.D.D.; formal analysis, E.B., K.V.d.B. and L.C.; investigation, A.D.B. and E.B.; resources, S.M. and W.V.; writing—original draft preparation, E.B.; writing—review and editing, W.V. and S.M.; visualization, E.B.; supervision, S.M. and W.V.; funding acquisition, S.M. and W.V. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Ghent University via a BOF-GOA grant (BOF-GOA No. 01G01715). Part of the research was carried out with infrastructure funded by EMBRC Belgium—FWO project GOH3817N. The computational resources and services used in this work were provided by the VSC (Flemish Supercomputer Center), funded by the Research Foundation—Flanders (FWO) and the Flemish Government—department EWI.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in Supplementary Material.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

CY5Cyanine 5
GFPGreen Fluorescent Protein
GPCRG protein-coupled receptor
MTMating type
PALPhotoaffinity labeling
PAMPulse amplitude modulation
PSIIPhotosystem II
SIPSex inducing pheromone
YIIQuantum yield of PSII

References

  1. Armbrust, E.V. The life of diatoms in the world’s oceans. Nature 2009, 459, 185–192. [Google Scholar] [CrossRef] [PubMed]
  2. Field, C.B. Primary Production of the Biosphere: Integrating Terrestrial and Oceanic Components. Science 1998, 281, 237–240. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Parkinson, J.; Gordon, R. Beyond micromachining: The potential of diatoms. Trends Biotechnol. 1999, 17, 190–196. [Google Scholar] [CrossRef]
  4. Lopez, P.J.; Descles, J.; Allen, A.E.; Bowler, C.; Desclés, J.; Allen, A.E.; Bowler, C. Prospects in diatom research. Curr. Opin. Biotechnol. 2005, 16, 180–186. [Google Scholar] [CrossRef] [PubMed]
  5. Daboussi, F.; Leduc, S.; Maréchal, A.; Dubois, G.; Guyot, V.; Perez-Michaut, C.; Amato, A.; Falciatore, A.; Juillerat, A.; Beurdeley, M.; et al. Genome engineering empowers the diatom Phaeodactylum tricornutum for biotechnology. Nat. Commun. 2014, 5, 3831. [Google Scholar] [CrossRef] [PubMed]
  6. Kroth, P.G.; Bones, A.M.; Daboussi, F.; Ferrante, M.I.; Jaubert, M.; Kolot, M.; Nymark, M.; Río Bártulos, C.; Ritter, A.; Russo, M.T.; et al. Genome editing in diatoms: Achievements and goals. Plant Cell Rep. 2018, 37, 1401–1408. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Chepurnov, V.A.; Mann, D.G.; von Dassow, P.; Vanormelingen, P.; Gillard, J.; Inzé, D.; Sabbe, K.; Vyverman, W. In search of new tractable diatoms for experimental biology. BioEssays 2008, 30, 692–702. [Google Scholar] [CrossRef]
  8. Osuna-Cruz, C.M.; Bilcke, G.; Vancaester, E.; De Decker, S.; Bones, A.M.; Winge, P.; Poulsen, N.; Bulankova, P.; Verhelst, B.; Audoor, S.; et al. The Seminavis robusta genome provides insights into the evolutionary adaptations of benthic diatoms. Nat. Commun. 2020, 11, 3320. [Google Scholar] [CrossRef]
  9. Chepurnov, V.A.; Mann, D.G.; Vyverman, W.; Sabbe, K.; Danielidis, D.B. Sexual Reproduction, Mating System, and Protoplast Dynamics of Seminavis (BAcillariophyceae). J. Phycol. 2002, 38, 1004–1019. [Google Scholar] [CrossRef]
  10. Gillard, J.; Frenkel, J.; Devos, V.; Sabbe, K.; Paul, C.; Rempt, M.; Inzé, D.; Pohnert, G.; Vuylsteke, M.; Vyverman, W. Metabolomics Enables the Structure Elucidation of a Diatom Sex Pheromone. Angew. Chem. Int. Ed. 2013, 52, 854–857. [Google Scholar] [CrossRef]
  11. Bilcke, G.; Van den Berge, K.; De Decker, S.; Bonneure, E.; Poulsen, N.; Bulankova, P.; Osuna-Cruz, C.M.; Dickenson, J.; Sabbe, K.; Pohnert, G.; et al. Mating type specific transcriptomic response to sex inducing pheromone in the pennate diatom Seminavis robusta. ISME J. 2020, 570. [Google Scholar] [CrossRef]
  12. Borthwick, A.D. 2,5-Diketopiperazines: Synthesis, Reactions, Medicinal Chemistry, and Bioactive Natural Products. Chem. Rev. 2012, 112, 3641–3716. [Google Scholar] [CrossRef]
  13. Huang, R.-M.; Yi, X.-X.; Zhou, Y.; Su, X.; Peng, Y.; Gao, C.-H. An Update on 2,5-Diketopiperazines from Marine Organisms. Mar. Drugs 2014, 12, 6213–6235. [Google Scholar] [CrossRef] [PubMed]
  14. Huang, R.; Zhou, X.; Xu, T.; Yang, X.; Liu, Y. Diketopiperazines from marine organisms. Chem. Biodivers. 2010, 7, 2809–2829. [Google Scholar] [CrossRef] [PubMed]
  15. Lembke, C.; Stettin, D.; Speck, F.; Ueberschaar, N.; De Decker, S.; Vyverman, W.; Pohnert, G. Attraction Pheromone of The Benthic Diatom Seminavis robusta: Studies on Structure-Activity Relationships. J. Chem. Ecol. 2018, 44, 354–363. [Google Scholar] [CrossRef] [PubMed]
  16. Singh, A.; Thornton, E.R.; Westheimer, F.H. The photolysis of diazoacetylchymotrypsin. J. Biol. Chem. 1962, 237, 3006–3008. [Google Scholar] [CrossRef]
  17. Kotzyba-Hibert, F.; Kapfer, I.; Goeldner, M. Recent Trends in Photoaffinity Labeling. Angew. Chem. Int. Ed. 1995, 34, 1296–1312. [Google Scholar] [CrossRef]
  18. Ge, S.-S.; Chen, B.; Wu, Y.-Y.; Long, Q.-S.; Zhao, Y.-L.; Wang, P.-Y.; Yang, S. Current advances of carbene-mediated photoaffinity labeling in medicinal chemistry. RSC Adv. 2018, 8, 29428–29454. [Google Scholar] [CrossRef] [Green Version]
  19. Dubinsky, L.; Krom, B.P.; Meijler, M.M. Diazirine based photoaffinity labeling. Bioorg. Med. Chem. 2012, 20, 554–570. [Google Scholar] [CrossRef]
  20. Soethoudt, M.; Stolze, S.C.; Westphal, M.V.; van Stralen, L.; Martella, A.; van Rooden, E.J.; Guba, W.; Varga, Z.V.; Deng, H.; van Kasteren, S.I.; et al. Selective Photoaffinity Probe That Enables Assessment of Cannabinoid CB 2 Receptor Expression and Ligand Engagement in Human Cells. J. Am. Chem. Soc. 2018, 140, 6067–6075. [Google Scholar] [CrossRef] [Green Version]
  21. Müskens, F.M.; Ward, R.J.; Herkt, D.; van de Langemheen, H.; Tobin, A.B.; Liskamp, R.M.J.; Milligan, G. Design, synthesis, and evaluation of a diazirine photoaffinity probe for ligand-based receptor capture targeting G protein–coupled receptors. Mol. Pharmacol. 2019, 95, 196–209. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Miyajima, R.; Sakai, K.; Otani, Y.; Wadatsu, T.; Sakata, Y.; Nishikawa, Y.; Tanaka, M.; Yamashita, Y.; Hayashi, M.; Kondo, K.; et al. Novel Tetrafunctional Probes Identify Target Receptors and Binding Sites of Small-Molecule Drugs from Living Systems. ACS Chem. Biol. 2020, 15, 2364–2373. [Google Scholar] [CrossRef] [PubMed]
  23. Muranaka, H.; Momose, T.; Handa, C.; Ozawa, T. Photoaffinity Labeling of the Human A 2A Adenosine Receptor and Cross-link Position Analysis by Mass Spectrometry. ACS Med. Chem. Lett. 2017, 8, 660–665. [Google Scholar] [CrossRef] [PubMed]
  24. Demko, Z.P.; Sharpless, K.B. A click chemistry approach to tetrazoles by Huisgen 1,3-dipolar cycloaddition: Synthesis of 5-acyltetrazoles from azides and acyl cyanides. Angew. Chem. Int. Ed. 2002, 41, 2113–2116. [Google Scholar] [CrossRef]
  25. MacKinnon, A.L.; Taunton, J. Target Identification by Diazirine Photo-Cross-Linking and Click Chemistry. In Current Protocols in Chemical Biology; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2009; pp. 55–73. ISBN 9780470559277. [Google Scholar]
  26. Murale, D.P.; Hong, S.C.; Haque, M.M.; Lee, J.-S. Photo-affinity labeling (PAL) in chemical proteomics: A handy tool to investigate protein-protein interactions (PPIs). Proteome Sci. 2016, 15, 14. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Blencowe, A.; Hayes, W. Development and application of diazirines in biological and synthetic macromolecular systems. Soft Matter 2005, 1, 178–205. [Google Scholar] [CrossRef]
  28. Romero-Diaz, C.; Campos, S.M.; Herrmann, M.A.; Lewis, K.N.; Williams, D.R.; Soini, H.A.; Novotny, M.V.; Hews, D.K.; Martins, E.P. Structural Identification, Synthesis and Biological Activity of Two Volatile Cyclic Dipeptides in a Terrestrial Vertebrate. Sci. Rep. 2020, 10, 4303. [Google Scholar] [CrossRef]
  29. Baer, B.; Maile, R.; Schmid-Hempel, P.; Morgan, E.D.; Jones, G.R. Chemistry of a mating plug in bumblebees. J. Chem. Ecol. 2000, 26, 1869–1875. [Google Scholar] [CrossRef]
  30. De Kesel, J.; Gómez-Rodríguez, R.; Bonneure, E.; Mangelinckx, S.; Kyndt, T. The Use of PTI-Marker Genes to Identify Novel Compounds that Establish Induced Resistance in Rice. Int. J. Mol. Sci. 2020, 21, 317. [Google Scholar] [CrossRef] [Green Version]
  31. Keller, O.; Keller, W.E.; van Look, G.; Wersin, G. tert-Butoxycarbonylation of amino acids and their derivatives: N-tert-butoxycarbonyl-l-phenylalanine. Org. Synth. 1985, 63, 160–170. [Google Scholar] [CrossRef]
  32. Van der Meijden, B.; Robinson, J.A. Synthesis and application of photoproline—A photoactivatable derivative of proline. Arkivoc 2011, 4, 130–136. [Google Scholar] [CrossRef] [Green Version]
  33. Marusawa, H.; Setoi, H.; Sawada, A.; Kuroda, A.; Seki, J.; Motoyama, Y.; Tanaka, H. Synthesis and Biological Activity of 1-Phenylsulfonyl-4-Phenylsulfonylaminopyrrolidine Derivatives as Thromboxane A2 Receptor Antagonists. Bioorg. Med. Chem. 2002, 10, 1399–1415. [Google Scholar] [CrossRef]
  34. Chalker, J.M.; Gunnoo, S.B.; Boutureira, O.; Gerstberger, S.C.; Fernández-González, M.; Bernardes, G.J.L.; Griffin, L.; Hailu, H.; Schofield, C.J.; Davis, B.G. Methods for converting cysteine to dehydroalanine on peptides and proteins. Chem. Sci. 2011, 2, 1666. [Google Scholar] [CrossRef]
  35. Campbell, J.; Lin, Q.; Geske, G.D.; Blackwell, H.E. New and Unexpected Insights into the Modulation of LuxR-Type Quorum Sensing by Cyclic Dipeptides. ACS Chem. Biol. 2009, 4, 1051–1059. [Google Scholar] [CrossRef] [PubMed]
  36. Chiba, J.; Takayama, G.; Takashi, T.; Yokoyama, M.; Nakayama, A.; Baldwin, J.J.; McDonald, E.; Moriarty, K.J.; Sarko, C.R.; Saionz, K.W.; et al. Synthesis, biological evaluation, and pharmacokinetic study of prolyl-1-piperazinylacetic acid and prolyl-4-piperidinylacetic acid derivatives as VLA-4 antagonists. Bioorg. Med. Chem. 2006, 14, 2725–2746. [Google Scholar] [CrossRef]
  37. Vičar, J.; Smolíková, J.; Bláha, K. Amino acids and peptides. CXV. 2,5-Piperazinediones with an anneled azetidine ring; Synthesis and infrared spectra. Collect. Czechoslov. Chem. Commun. 1973, 38, 1957–1970. [Google Scholar] [CrossRef]
  38. Ji, X.; Xia, C.; Wang, J.; Su, M.; Zhang, L.; Dong, T.; Li, Z.; Wan, X.; Li, J.; Li, J.; et al. Design, synthesis and biological evaluation of 4-fluoropyrrolidine-2-carbonitrile and octahydrocyclopenta[b]pyrrole-2-carbonitrile derivatives as dipeptidyl peptidase IV inhibitors. Eur. J. Med. Chem. 2014, 86, 242–256. [Google Scholar] [CrossRef]
  39. Abraham, D.J.; Mokotoff, M.; Sheh, L.; Simmons, J.E. Design, synthesis, and testing of antisickling agents. 2. Proline derivatives designed for the donor site. J. Med. Chem. 1983, 26, 549–554. [Google Scholar] [CrossRef]
  40. Chen, A.; Gomez, R.; Oballa, R.; Powell, D.; Roppe, J.; Seiders, T.; Sheng, T. Aliphatic prolinamide derivatives. WO2017222917A1, 28 December 2017. [Google Scholar]
  41. Wood, J.M.; Furkert, D.P.; Brimble, M.A. Total Synthesis and Stereochemical Revision of the 2-Formylpyrrole Alkaloid Hemerocallisamine I. J. Nat. Prod. 2017, 80, 1926–1929. [Google Scholar] [CrossRef]
  42. Anteunis, M.J.O.; Callens, R.; Asher, V.; Sleeckx, J. Ring Conformational Aspects of Proline and Hydroxyproline. High Conformational Purity of Pro in DKP’s and Hydantoïns. Bull. Sociétés Chim. Belg. 1978, 87, 41–60. [Google Scholar] [CrossRef]
  43. Sleeckx, J.J.M.; Anteunis, M.J.O. Revisited Conformational Aspects of Pro and Hyp Pyrrolidine Rings In Bicyclic Peptide Systems. Bull. Sociétés Chim. Belg. 1985, 94, 187–198. [Google Scholar] [CrossRef]
  44. Young, P.E.; Madison, V.; Blout, E.R. Cyclic peptides. VI. Europium-assisted nuclear magnetic resonance study of the solution conformations of cyclo(l-Pro-l-Pro) and cyclo(l-Pro-d-Pro). J. Am. Chem. Soc. 1973, 95, 6142–6144. [Google Scholar] [CrossRef] [PubMed]
  45. Haasnoot, C.A.G.; de Leeuw, F.A.A.M.; Altona, C. The relationship between proton-proton NMR coupling constants and substituent electronegativities–I. Tetrahedron 1980, 36, 2783–2792. [Google Scholar] [CrossRef]
  46. Subirós-Funosas, R.; Prohens, R.; Barbas, R.; El-Faham, A.; Albericio, F. Oxyma: An Efficient Additive for Peptide Synthesis to Replace the Benzotriazole-Based HOBt and HOAt with a Lower Risk of Explosion. Chem. A Eur. J. 2009, 15, 9394–9403. [Google Scholar] [CrossRef] [PubMed]
  47. Jad, Y.E.; Khattab, S.N.; de la Torre, B.G.; Govender, T.; Kruger, H.G.; El-Faham, A.; Albericio, F. EDC·HCl and Potassium Salts of Oxyma and Oxyma-B as Superior Coupling Cocktails for Peptide Synthesis. Eur. J. Org. Chem. 2015, 2015, 3116–3120. [Google Scholar] [CrossRef]
  48. Guo, X.; Liu, X.; Pan, J.; Yang, H. Synergistic algicidal effect and mechanism of two diketopiperazines produced by Chryseobacterium sp. strain GLY-1106 on the harmful bloom-forming Microcystis aeruginosa. Sci. Rep. 2015, 5, 14720. [Google Scholar] [CrossRef] [Green Version]
  49. Tan, S.; Hu, X.; Yin, P.; Zhao, L. Photosynthetic inhibition and oxidative stress to the toxic Phaeocystis globosa caused by a diketopiperazine isolated from products of algicidal bacterium metabolism. J. Microbiol. 2016, 54, 364–375. [Google Scholar] [CrossRef]
  50. Consalvey, M.; Perkins, R.G.; Paterson, D.M.; Underwood, G.J.C. PAM FLUORESCENCE: A BEGINNERS GUIDE FOR BENTHIC DIATOMISTS. Diatom Res. 2005, 20, 1–22. [Google Scholar] [CrossRef]
  51. Magnusson, M.; Heimann, K.; Quayle, P.; Negri, A.P. Additive toxicity of herbicide mixtures and comparative sensitivity of tropical benthic microalgae. Mar. Pollut. Bull. 2010, 60, 1978–1987. [Google Scholar] [CrossRef]
  52. Sjollema, S.B.; MartínezGarcía, G.; van der Geest, H.G.; Kraak, M.H.S.; Booij, P.; Vethaak, A.D.; Admiraal, W. Hazard and risk of herbicides for marine microalgae. Environ. Pollut. 2014, 187, 106–111. [Google Scholar] [CrossRef]
  53. Suresh Kumar, K.; Dahms, H.-U.; Lee, J.-S.; Kim, H.C.; Lee, W.C.; Shin, K.-H. Algal photosynthetic responses to toxic metals and herbicides assessed by chlorophyll a fluorescence. Ecotoxicol. Environ. Saf. 2014, 104, 51–71. [Google Scholar] [CrossRef]
  54. Podola, B.; Melkonian, M. A long-term operating algal biosensor for the rapid detection of volatile toxic compounds. J. Appl. Phycol. 2003, 15, 415–424. [Google Scholar] [CrossRef]
  55. Grzesiuk, M.; Wacker, A.; Spijkerman, E. Photosynthetic sensitivity of phytoplankton to commonly used pharmaceuticals and its dependence on cellular phosphorus status. Ecotoxicology 2016, 25, 697–707. [Google Scholar] [CrossRef] [PubMed]
  56. Stock, F.; Bilcke, G.; De Decker, S.; Osuna-Cruz, C.M.; Van den Berge, K.; Vancaester, E.; De Veylder, L.; Vandepoele, K.; Mangelinckx, S.; Vyverman, W. Distinctive Growth and Transcriptional Changes of the Diatom Seminavis robusta in Response to Quorum Sensing Related Compounds. Front. Microbiol. 2020, 11, 1–14. [Google Scholar] [CrossRef] [PubMed]
  57. Schreiber, U.; Quayle, P.; Schmidt, S.; Escher, B.I.; Mueller, J.F. Methodology and evaluation of a highly sensitive algae toxicity test based on multiwell chlorophyll fluorescence imaging. Biosens. Bioelectron. 2007, 22, 2554–2563. [Google Scholar] [CrossRef] [PubMed]
  58. Stock, F.; Syrpas, M.; Graff van Creveld, S.; Backx, S.; Blommaert, L.; Dow, L.; Stock, W.; Ruysbergh, E.; Lepetit, B.; Bailleul, B.; et al. N-acyl homoserine lactone derived tetramic acids impair photosynthesis in Phaeodactylum tricornutum. ACS Chem. Biol. 2019, 14, 198–203. [Google Scholar] [CrossRef]
  59. Benedetti, E.; Goodman, M.; Marsh, R.; Rapoport, H.; Musich, J. Cyclo-L-prolyl-L-prolyl, C10H14N2O2. Cryst. Struct. Commun. 1975, 4, 641–645. [Google Scholar]
  60. Siemion, I.Z.; Wieland, T.; Pook, K.-H. Influence of the Distance of the Proline Carbonyl from the β and γ Carbon on the 13C Chemical Shifts. Angew. Chem. Int. Ed. 1975, 14, 702–703. [Google Scholar] [CrossRef]
  61. Siemion, I.Z. Conformational investigations on cyclic dipeptides containing a proline residue by means of 13C n.m.r. spectroscopy. Org. Magn. Reson. 1976, 8, 432–435. [Google Scholar] [CrossRef]
  62. Otsu, N. A Threshold Selection Method from Gray-Level Histograms. IEEE Trans. Syst. Man. Cybern. 1979, 9, 62–66. [Google Scholar] [CrossRef] [Green Version]
  63. R Core Team. R: A Language and Environment for Statistical Computing (3.5); R Foundation for Statistical Computing: Vienna, Austria, 2013. [Google Scholar]
Ijms 22 01037 g001 550

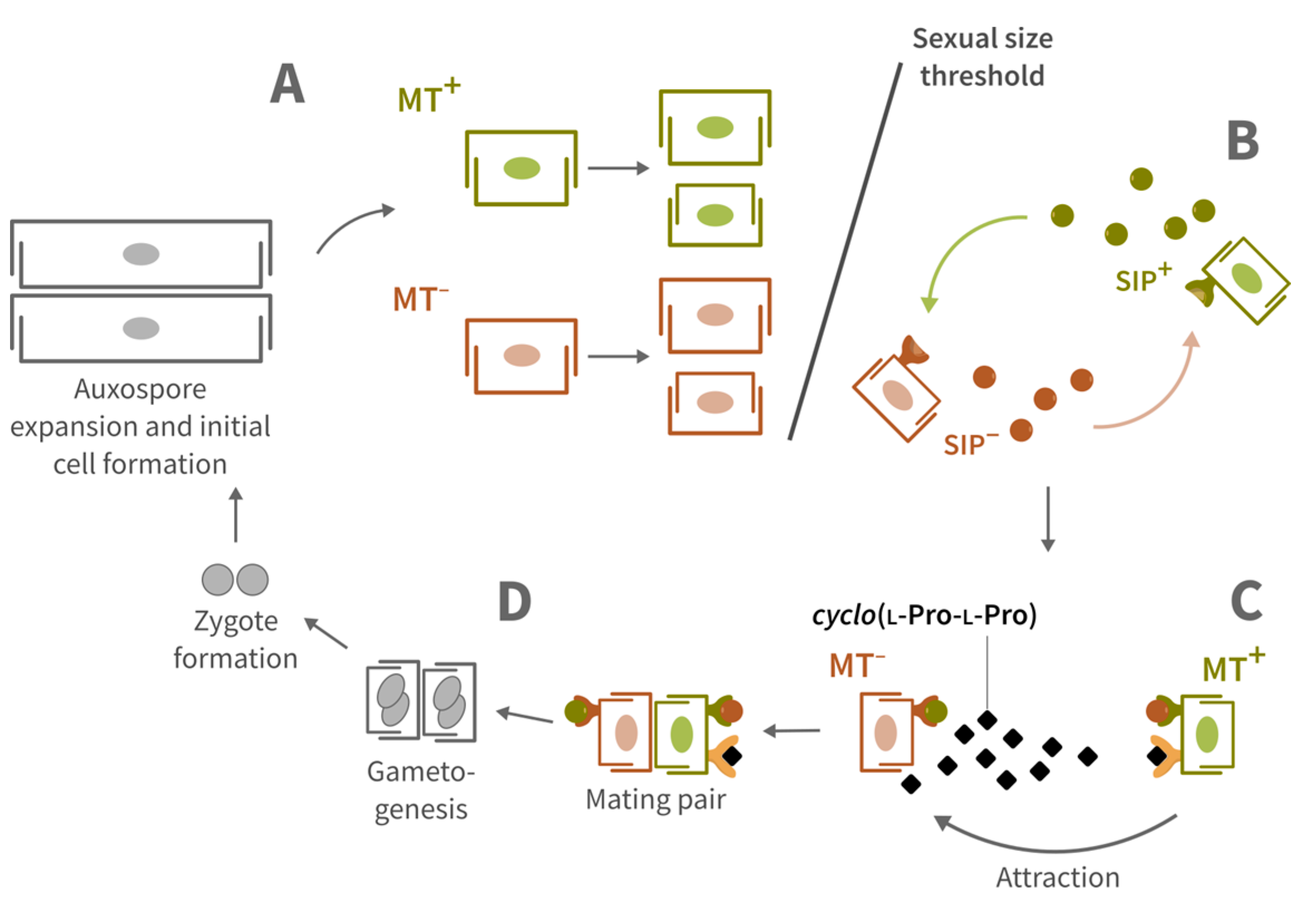

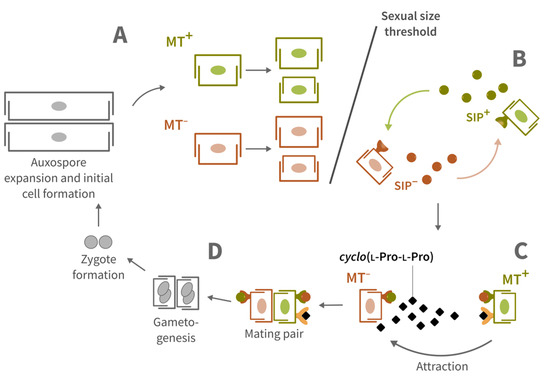

Figure 1. Lifecycle of Seminavis robusta. (A) Vegetative cell division leads to a diminution of the diatom’s cell size. (B) Once the cell size shrinks below the sexual size threshold of about 52 µm, both mating types (MT+ and MT−) start producing a sexual inducing pheromone (SIP). (C) MT− starts producing attraction pheromone cyclo(l-Pro-l-Pro) (1) when it detects SIP+. After sensing SIP−, MT+ becomes motile and is attracted to the pheromone producing MT−. The physiological concentration of the pheromone is 100 nM. (D) Cell size restitution: mating is followed by pairing of gametangial cells, gamete formation and fusion, followed by expansion of the zygotes into two auxospores which subsequently germinate to produce a large vegetative cell each [7,9,10,11].
Figure 1. Lifecycle of Seminavis robusta. (A) Vegetative cell division leads to a diminution of the diatom’s cell size. (B) Once the cell size shrinks below the sexual size threshold of about 52 µm, both mating types (MT+ and MT−) start producing a sexual inducing pheromone (SIP). (C) MT− starts producing attraction pheromone cyclo(l-Pro-l-Pro) (1) when it detects SIP+. After sensing SIP−, MT+ becomes motile and is attracted to the pheromone producing MT−. The physiological concentration of the pheromone is 100 nM. (D) Cell size restitution: mating is followed by pairing of gametangial cells, gamete formation and fusion, followed by expansion of the zygotes into two auxospores which subsequently germinate to produce a large vegetative cell each [7,9,10,11].
Ijms 22 01037 g001
Ijms 22 01037 g002 550

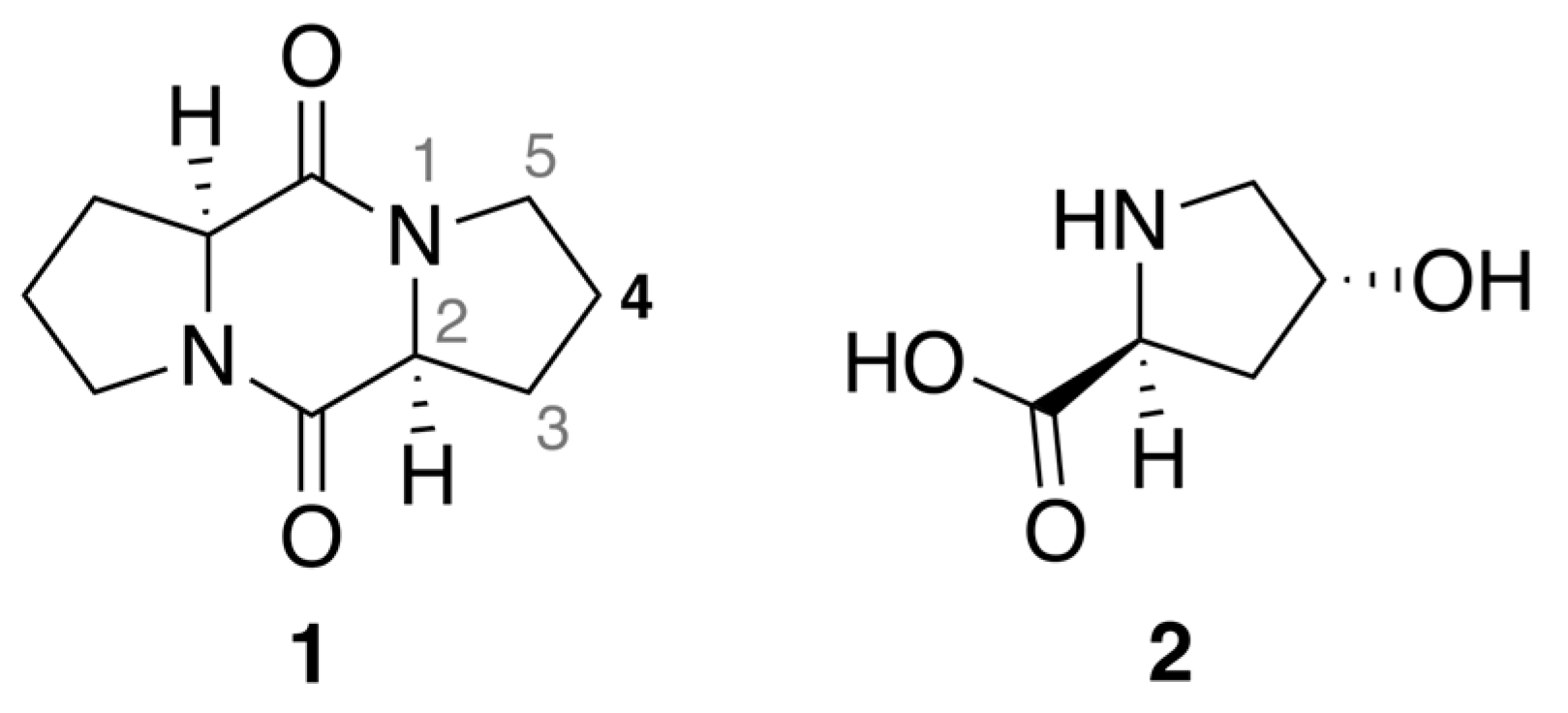

Figure 2. (left) Sex pheromone cyclo(l-Pro-l-Pro) (1) of S. robusta [10], a symmetrical cyclic dipeptide. (right) Trans-4-hydroxy-l-proline 2 was used to synthesize proline analogs with a C-4 modification. Modified compounds were then coupled with proline to create analogs of 1.
Figure 2. (left) Sex pheromone cyclo(l-Pro-l-Pro) (1) of S. robusta [10], a symmetrical cyclic dipeptide. (right) Trans-4-hydroxy-l-proline 2 was used to synthesize proline analogs with a C-4 modification. Modified compounds were then coupled with proline to create analogs of 1.
Ijms 22 01037 g002
Ijms 22 01037 g003 550

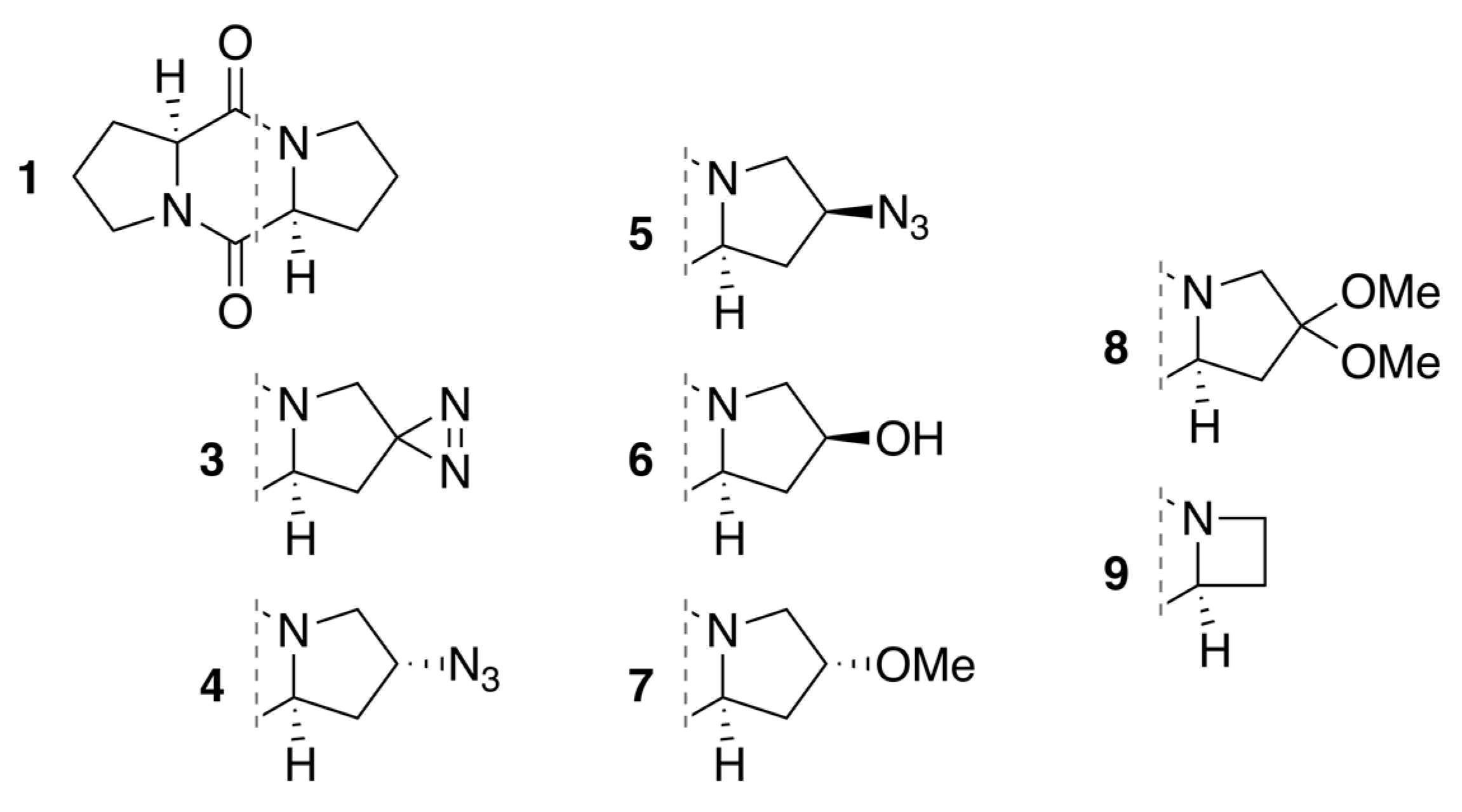

Figure 3. A library of pheromone analogs, which was used in this study. They were synthesized and evaluated for their pheromonal potency and phytotoxicity. The diazirine (3) was introduced as a photo-cross-linker and the azide (4 and 5) as a useful handle that is compatible with click chemistry. Analogs 6–9 allowed us to investigate the chemical space surrounding the hydrophobic ring structure.
Figure 3. A library of pheromone analogs, which was used in this study. They were synthesized and evaluated for their pheromonal potency and phytotoxicity. The diazirine (3) was introduced as a photo-cross-linker and the azide (4 and 5) as a useful handle that is compatible with click chemistry. Analogs 6–9 allowed us to investigate the chemical space surrounding the hydrophobic ring structure.
Ijms 22 01037 g003
Ijms 22 01037 sch001 550

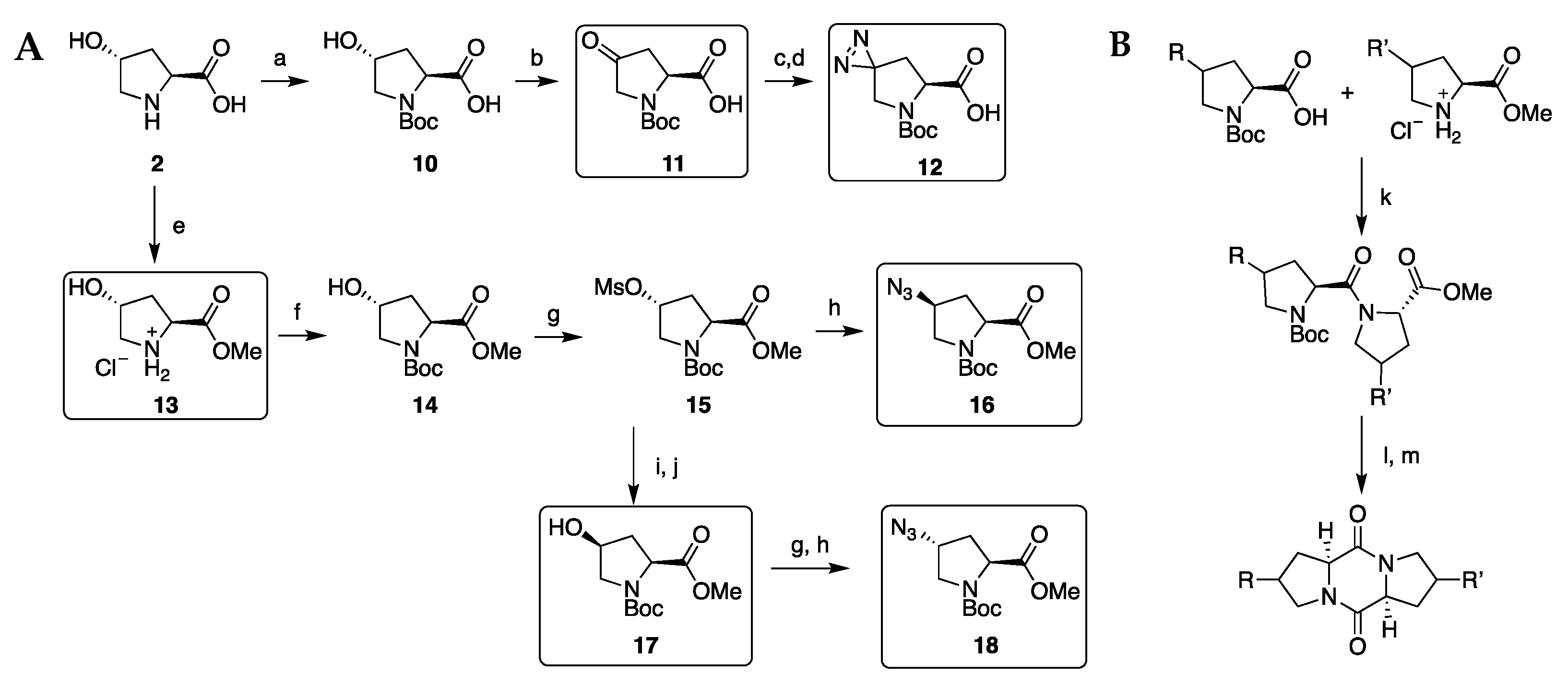

Scheme 1. A library of six proline analogs was synthesized and coupled with proline to their corresponding diketopiperazine. (A) Starting from l-Hyp-OH (2) several proline derivatives were synthesized. Compounds surrounded by a bracket were used for diketopiperazine synthesis. Compounds 16–18 underwent a N-Boc-deprotection step prior to the coupling reaction. Reagents and conditions: (a) Boc2O, NaOH, tBuOH/H2O, 16 h, 20 °C, 89%; (b) Jones reagent, acetone, 3 h, 0 °C to 20 °C, 50%; (c) H2NOSO3H, NH3, 6.5 h, ∆; (d) I2, Et3N, MeOH, 0 °C, 31%; (e) HCl, MeOH, 16 h, ∆, 90%; (f) Boc2O, Et3N, THF, 16 h, 20 °C, 79%; (g) MsCl, Et3N, THF, 16 h, 0 °C to 20 °C, 42%; (h) NaN3, DMF, 16 h, 70 °C, 94%; (i) BzONa, DMSO, 17 h, 90 °C, 91%; (j) K2CO3, MeOH, 1 h, 20 °C, 68% (see Supplementary Material S7 [31,32,33,34,35,36,37,38,39,40,41]). (B) Synthesis of diketopiperazine 1 was adopted from Campbell et al. [35]. The same procedure was applied for the synthesis of diketopiperazines 3–9 (see Supplementary Material S7.13 for an overview and Supplementary Material S8 for NMR data [42,43,44,45]). Reagents and conditions: (k) EDC·HCl, OxymaPure, DIPEA, DMF, 16 h, 20 °C; (l) HCl, MeOH, 16 h, 0 °C to 20 °C; (m) piperidine, DMF, 1 h, 20 °C, 29 to 70%.
Scheme 1. A library of six proline analogs was synthesized and coupled with proline to their corresponding diketopiperazine. (A) Starting from l-Hyp-OH (2) several proline derivatives were synthesized. Compounds surrounded by a bracket were used for diketopiperazine synthesis. Compounds 16–18 underwent a N-Boc-deprotection step prior to the coupling reaction. Reagents and conditions: (a) Boc2O, NaOH, tBuOH/H2O, 16 h, 20 °C, 89%; (b) Jones reagent, acetone, 3 h, 0 °C to 20 °C, 50%; (c) H2NOSO3H, NH3, 6.5 h, ∆; (d) I2, Et3N, MeOH, 0 °C, 31%; (e) HCl, MeOH, 16 h, ∆, 90%; (f) Boc2O, Et3N, THF, 16 h, 20 °C, 79%; (g) MsCl, Et3N, THF, 16 h, 0 °C to 20 °C, 42%; (h) NaN3, DMF, 16 h, 70 °C, 94%; (i) BzONa, DMSO, 17 h, 90 °C, 91%; (j) K2CO3, MeOH, 1 h, 20 °C, 68% (see Supplementary Material S7 [31,32,33,34,35,36,37,38,39,40,41]). (B) Synthesis of diketopiperazine 1 was adopted from Campbell et al. [35]. The same procedure was applied for the synthesis of diketopiperazines 3–9 (see Supplementary Material S7.13 for an overview and Supplementary Material S8 for NMR data [42,43,44,45]). Reagents and conditions: (k) EDC·HCl, OxymaPure, DIPEA, DMF, 16 h, 20 °C; (l) HCl, MeOH, 16 h, 0 °C to 20 °C; (m) piperidine, DMF, 1 h, 20 °C, 29 to 70%.
Ijms 22 01037 sch001
Ijms 22 01037 g004 550
Figure 4. One of the tested diketopiperazines (7) shows a significant phytotoxic effect at 10 µM, with an average inhibition of 10.2%. (left) The represented time-series are an interpolation between the two control treatments (see Supplementary Material S1 for original data) and are the average over five replicates. The slopes of the inhibition curves of compounds 3, 5, and 9 are positive (< 0.02% min−1, first 10 min not included) but not significant (p > 0.22). (right) The quantum yield of PSII (YII) of the pheromone analogs was compared with those of 1 using a two sample t-test. The p-value is shown for every pheromone analog, the gray line represents a p-value of 0.05. Only one analog, methoxy-substituted analog 7, shows a significant difference with 1. The data of analog 7 are significant (p < 0.05) for all time points, except the first (p = 0.058).
Figure 4. One of the tested diketopiperazines (7) shows a significant phytotoxic effect at 10 µM, with an average inhibition of 10.2%. (left) The represented time-series are an interpolation between the two control treatments (see Supplementary Material S1 for original data) and are the average over five replicates. The slopes of the inhibition curves of compounds 3, 5, and 9 are positive (< 0.02% min−1, first 10 min not included) but not significant (p > 0.22). (right) The quantum yield of PSII (YII) of the pheromone analogs was compared with those of 1 using a two sample t-test. The p-value is shown for every pheromone analog, the gray line represents a p-value of 0.05. Only one analog, methoxy-substituted analog 7, shows a significant difference with 1. The data of analog 7 are significant (p < 0.05) for all time points, except the first (p = 0.058).
Ijms 22 01037 g004
Ijms 22 01037 g005 550

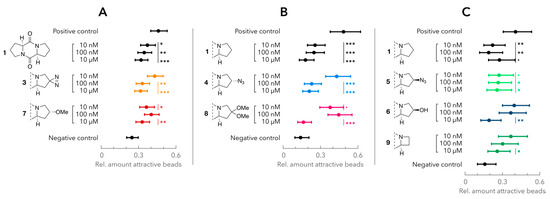

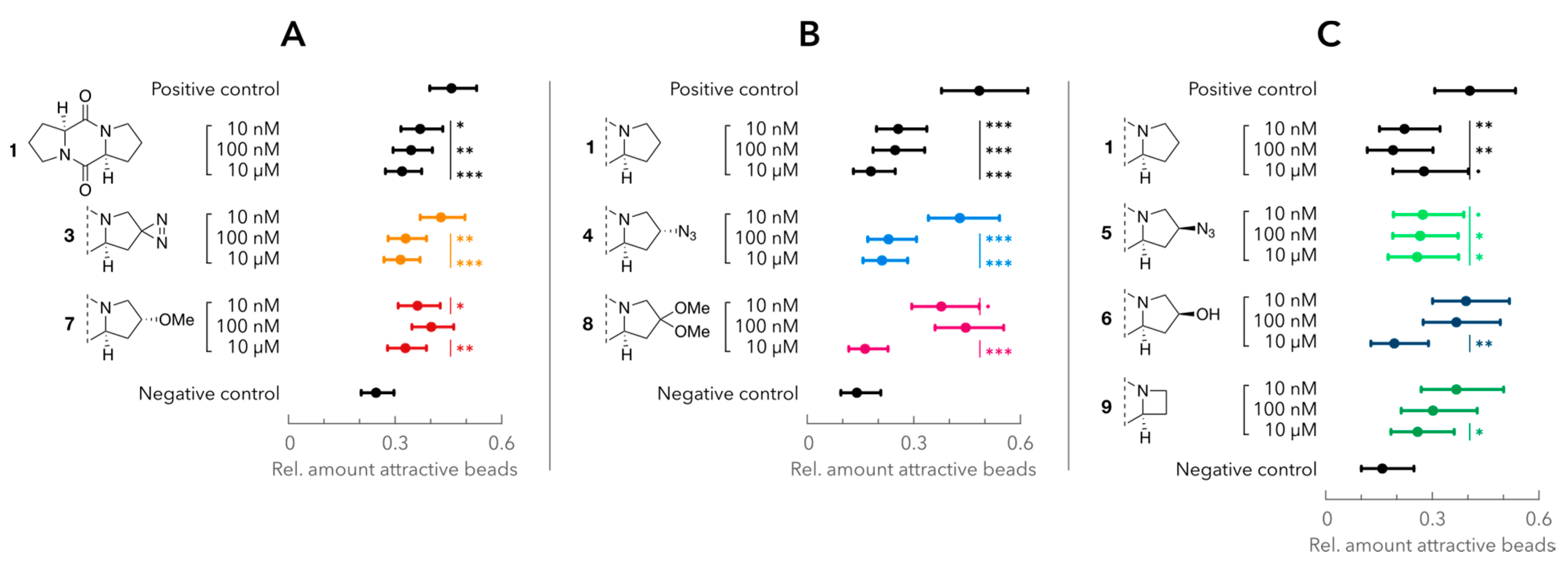

Figure 5. Interference assays performed on S. robusta with seven asymmetrical pheromone analogs. Numbers on top represent the different experiments that were carried out. The presented values are the estimated average fraction of attractive beads over 6 (experiments A and B) or 4 (experiment C) replicates, based on a Binomial generalized linear model (details can be found in the Supplementary Material S5.1). Error bars represent the 95% confidence interval of the estimates. Significance is expressed compared to the positive control. Significance levels: · (p < 0.1), * (p < 0.05), ** (p < 0.01), *** (p < 0.001).
Figure 5. Interference assays performed on S. robusta with seven asymmetrical pheromone analogs. Numbers on top represent the different experiments that were carried out. The presented values are the estimated average fraction of attractive beads over 6 (experiments A and B) or 4 (experiment C) replicates, based on a Binomial generalized linear model (details can be found in the Supplementary Material S5.1). Error bars represent the 95% confidence interval of the estimates. Significance is expressed compared to the positive control. Significance levels: · (p < 0.1), * (p < 0.05), ** (p < 0.01), *** (p < 0.001).
Ijms 22 01037 g005
Ijms 22 01037 g006 550

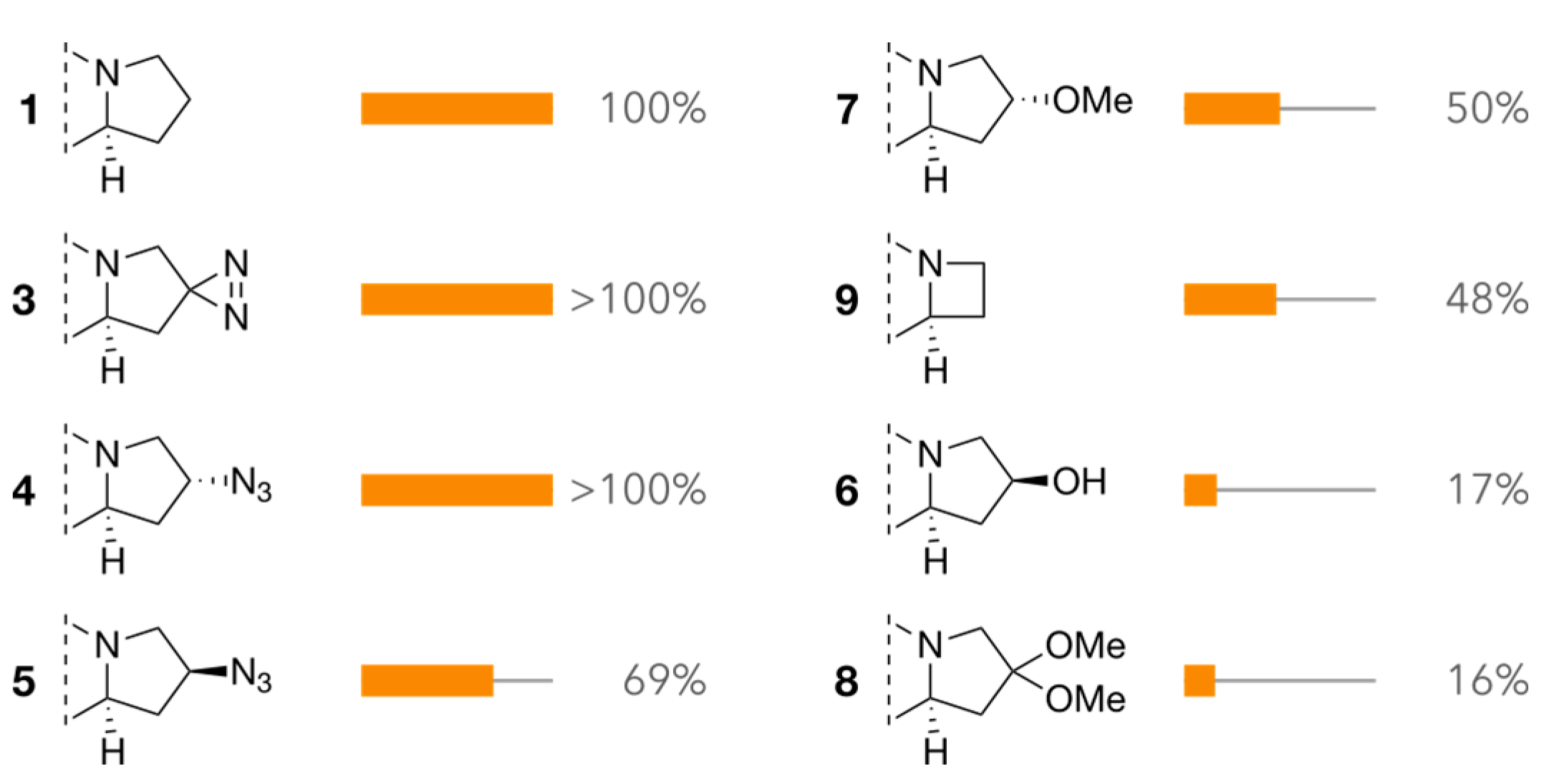

Figure 6. Chemical modifications alter the pheromonal affinity. The interference values of the analogs at 100 nM were interpolated between the positive control and the interference of 1 at 100 nM. The calculated 95% confidence intervals of the interpolated values can be found in Supplementary Material S5.3. The actual values of analogs 3 and 4 are 113% and 108%.
Figure 6. Chemical modifications alter the pheromonal affinity. The interference values of the analogs at 100 nM were interpolated between the positive control and the interference of 1 at 100 nM. The calculated 95% confidence intervals of the interpolated values can be found in Supplementary Material S5.3. The actual values of analogs 3 and 4 are 113% and 108%.
Ijms 22 01037 g006
Ijms 22 01037 g007 550
Figure 7. Asymmetrical pheromone analogs 3, 4, and 5 attract S. robusta MT+ in a similar fashion as the natural pheromone 1. The diketopiperazines were tested in three separate and independent experiments (n = 6 for diketopiperazine 3 and n = 4 for diketopiperazines 4 and 5). The beads were coated with a load of 2 nmol mg−1, · = outlier.
Figure 7. Asymmetrical pheromone analogs 3, 4, and 5 attract S. robusta MT+ in a similar fashion as the natural pheromone 1. The diketopiperazines were tested in three separate and independent experiments (n = 6 for diketopiperazine 3 and n = 4 for diketopiperazines 4 and 5). The beads were coated with a load of 2 nmol mg−1, · = outlier.
Ijms 22 01037 g007
Ijms 22 01037 g008 550

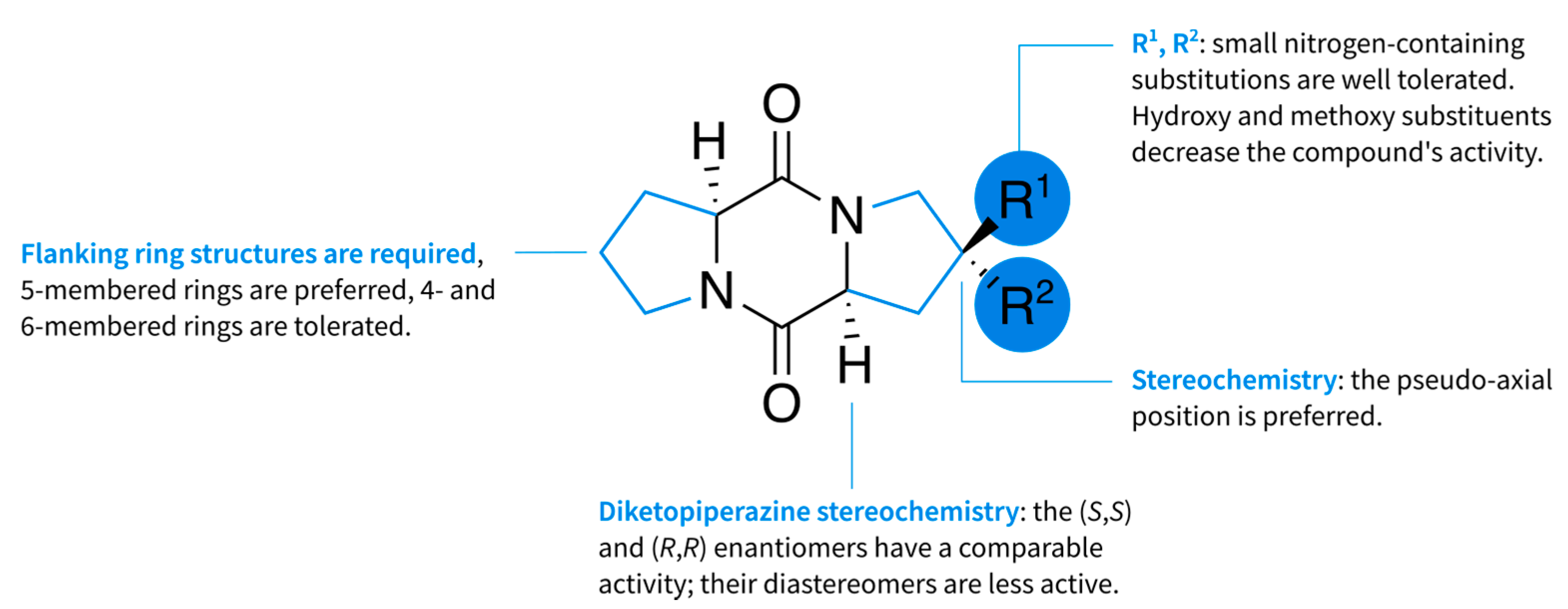

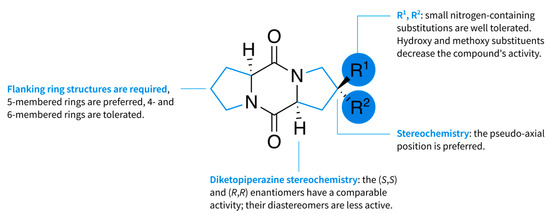

Figure 8. A structure activity relationship map for cyclo(l-Pro-l-Pro) analogs. This study reflects on the functionality and stereochemistry of both R groups and on the effect of the inclusion of a 4-membered flanking ring structure. The general requirement of the flanking ring structures was described by Lembke et al. The diketopiperazine stereochemistry was studied by Gillard et al. and Lembke et al. [10,15].
Figure 8. A structure activity relationship map for cyclo(l-Pro-l-Pro) analogs. This study reflects on the functionality and stereochemistry of both R groups and on the effect of the inclusion of a 4-membered flanking ring structure. The general requirement of the flanking ring structures was described by Lembke et al. The diketopiperazine stereochemistry was studied by Gillard et al. and Lembke et al. [10,15].
Ijms 22 01037 g008
Ijms 22 01037 g009 550

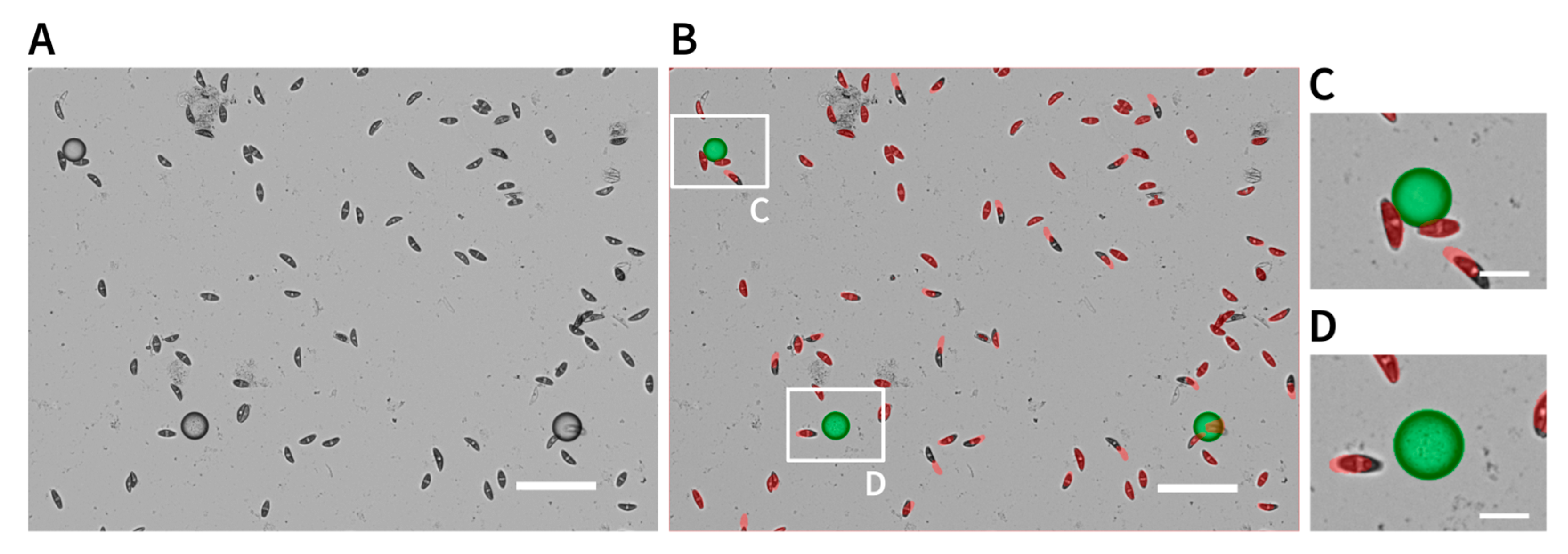

Figure 9. Assignment of (non-)attractive beads. (A) One bright field image of the 7 by 7 image montage that was recorded during a typical interference assay (bar = 100 µm). (B) An overlay of the bright field image and both Green Fluoreschent Protein (GFP, green) and Cyanine 5 (CY5, red) image channels. Some of the red areas are shifted due to motile nature of the algae (bar = 100 µm). (C) The bead is represented by a green disc on the GFP channel. In this particular case, the green area overlaps with two red areas and the bead is classified as attractive (bar = 25 µm). (D) The bead does not overlap with an alga and is classified as not attractive (bar = 25 µm).
Figure 9. Assignment of (non-)attractive beads. (A) One bright field image of the 7 by 7 image montage that was recorded during a typical interference assay (bar = 100 µm). (B) An overlay of the bright field image and both Green Fluoreschent Protein (GFP, green) and Cyanine 5 (CY5, red) image channels. Some of the red areas are shifted due to motile nature of the algae (bar = 100 µm). (C) The bead is represented by a green disc on the GFP channel. In this particular case, the green area overlaps with two red areas and the bead is classified as attractive (bar = 25 µm). (D) The bead does not overlap with an alga and is classified as not attractive (bar = 25 µm).
Ijms 22 01037 g009
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Bonneure, E.; De Baets, A.; De Decker, S.; Van den Berge, K.; Clement, L.; Vyverman, W.; Mangelinckx, S. Altering the Sex Pheromone Cyclo(l-Pro-l-Pro) of the Diatom Seminavis robusta towards a Chemical Probe. Int. J. Mol. Sci. 2021, 22, 1037. https://doi.org/10.3390/ijms22031037

AMA Style

Bonneure E, De Baets A, De Decker S, Van den Berge K, Clement L, Vyverman W, Mangelinckx S. Altering the Sex Pheromone Cyclo(l-Pro-l-Pro) of the Diatom Seminavis robusta towards a Chemical Probe. International Journal of Molecular Sciences. 2021; 22(3):1037. https://doi.org/10.3390/ijms22031037

Chicago/Turabian Style

Bonneure, Eli, Amber De Baets, Sam De Decker, Koen Van den Berge, Lieven Clement, Wim Vyverman, and Sven Mangelinckx. 2021. "Altering the Sex Pheromone Cyclo(l-Pro-l-Pro) of the Diatom Seminavis robusta towards a Chemical Probe" International Journal of Molecular Sciences 22, no. 3: 1037. https://doi.org/10.3390/ijms22031037

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
