Development of a PROTAC-Based Targeting Strategy Provides a Mechanistically Unique Mode of Anti-Cytomegalovirus Activity

by
Friedrich Hahn
1,*,
Stuart T. Hamilton
2,
Christina Wangen
1,
Markus Wild
1,
Jintawee Kicuntod
1,
Nadine Brückner
1,
Jasmine E. L. Follett
2,
Lars Herrmann
3,
Ahmed Kheimar
4,
Benedikt B. Kaufer
4,
William D. Rawlinson
2,
Svetlana B. Tsogoeva
3 and
Manfred Marschall
1,*
1
Institute for Clinical and Molecular Virology, Friedrich-Alexander University of Erlangen-Nürnberg (FAU), 91054 Erlangen, Germany
2
Serology and Virology Division, NSW Health Pathology Microbiology, Prince of Wales Hospital, Schools of Women’s and Children’s Health, Medicine and Biotechnology and Biomolecular Sciences, University of New South Wales, Sydney, NSW 2031, Australia
3
Institute of Organic Chemistry I, FAU, 91058 Erlangen, Germany
4
Institute of Virology, Freie Universität Berlin, 14163 Berlin, Germany
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(23), 12858; https://doi.org/10.3390/ijms222312858
Submission received: 20 October 2021 / Revised: 24 November 2021 / Accepted: 24 November 2021 / Published: 27 November 2021
(This article belongs to the Section Macromolecules)
Browse Figures
Versions Notes

Abstract

:
Human cytomegalovirus (HCMV) is a major pathogenic herpesvirus that is prevalent worldwide and it is associated with a variety of clinical symptoms. Current antiviral therapy options do not fully satisfy the medical needs; thus, improved drug classes and drug-targeting strategies are required. In particular, host-directed antivirals, including pharmaceutical kinase inhibitors, might help improve the drug qualities. Here, we focused on utilizing PROteolysis TArgeting Chimeras (PROTACs), i.e., hetero-bifunctional molecules containing two elements, namely a target-binding molecule and a proteolysis-inducing element. Specifically, a PROTAC that was based on a cyclin-dependent kinase (CDK) inhibitor, i.e., CDK9-directed PROTAC THAL-SNS032, was analyzed and proved to possess strong anti-HCMV AD169-GFP activity, with values of EC50 of 0.030 µM and CC50 of 0.175 µM (SI of 5.8). Comparing the effect of THAL-SNS032 with its non-PROTAC counterpart SNS032, data indicated a 3.7-fold stronger anti-HCMV efficacy. This antiviral activity, as illustrated for further clinically relevant strains of human and murine CMVs, coincided with the mid-nanomolar concentration range necessary for a drug-induced degradation of the primary (CDK9) and secondary targets (CDK1, CDK2, CDK7). In addition, further antiviral activities were demonstrated, such as the inhibition of SARS-CoV-2 replication, whereas other investigated human viruses (i.e., varicella zoster virus, adenovirus type 2, and Zika virus) were found insensitive. Combined, the antiviral quality of this approach is seen in its (i) mechanistic uniqueness; (ii) future options of combinatorial drug treatment; (iii) potential broad-spectrum activity; and (iv) applicability in clinically relevant antiviral models. These novel data are discussed in light of the current achievements of anti-HCMV drug development.

1. Introduction

Human cytomegalovirus (HCMV) is the prototype species of Betaherpesvirinae and a major opportunistic human pathogen that is prevalent worldwide. Seroprevalence ranges between 40% and 95% in the adult human population, and is dependent on sociogeographical factors. HCMV infection is typically asymptomatic or involves mild symptoms, i.e., of mononucleosis-like diseases in immunocompetent individuals, but could lead to high morbidity and mortality in immunocompromised individuals [1]. Symptomatic infections are seen in patients with conditions treated with immunosuppressive therapy, such as antitumoral chemotherapy, stem cell/organ transplantation, or coinfection with human immunodeficiency virus type 1 (HIV-1). Most importantly, congenital HCMV infection (cCMV) of the unborn is the main infection-based risk during pregnancy [2,3,4]. Thus, cCMV can cause a wide range of symptoms, from mild to severe, or even life-threatening in up to 25% of infected embryos or infants, mainly manifesting as acute or late-onset embryonal developmental defects, such as sensorineural hearing loss [5]. At present, a distinct repertoire of approved anti-HCMV drugs is available for the prevention and control of infection, mostly comprising nucleoside/nucleotide or pyrophosphate analogs that intervene with the activity of viral genome replication. These are ganciclovir (GCV), its oral prodrug valganciclovir (VGCV), foscarnet (FOS), cidofovir (CDV) and, to a lesser extent of efficacy, acyclovir, (ACV) [6,7]. In 2017, letermovir (LMV, Prevymis®) has been additionally approved for prophylactic use against HCMV infection in recipients of hematopoietic stem cell transplantation [8,9]. LMV represents the first approved, mechanistically novel terminase inhibitor, which targets the viral terminase complex to interfere with the processing and packaging of viral genomic DNA into mature capsids [10]. However, LMV and all currently approved anti-HCMV drugs, face limitations, such as viral drug resistance and, in many instances, severe side effects. These side effects can include nephrotoxicity, myelotoxicity, and anemia, which limit therapeutic compatibility, particularly in long-term treatments [11,12]. To address the issues of HCMV prevention and treatment, optimized drug application schemes and novel targeting strategies are essential. For this reason, researchers are looking into the development of mechanistically novel antiviral drug candidates and unexploited targeting strategies [13].
In particular, the kinase inhibitor maribavir (MBV) constitutes an anti-HCMV drug candidate that is in the advanced stages of development [14], recently being investigated in four phase III clinical trials (NCT02931539, NCT02927067, NCT00497796, NCT00411645). MBV targets the HCMV-encoded ortholog of cyclin-dependent kinases (CDKs), pUL97, which play important roles in viral replication, particularly the HCMV nuclear capsid [13,15,16,17,18,19,20,21]. This principle of introducing pharmaceutical kinase inhibitors (PKIs) as antivirals, so far well-known and positively experienced in antitumoral therapies, would be new in the entire field of antiviral therapy and is regarded by many investigators as a highly promising development. Nevertheless, it is very likely that (the soon expected) clinical approval of MBV will not resolve the problems of antiviral drug resistance. The resistance barrier of direct-acting antivirals (DAAs) is generally found at a relatively low level, i.e., due to the ease of drug-induced viral mutagenesis. This unfortunate weak point might stand in sharp contrast to the profoundly different targeting situation that host-directed antivirals (HDAs) would probably entail. Promising candidates for this host-directed approach, i.e., PKIs that selectively target human CDKs, already exist, or will be newly synthesized. In our previous studies, inhibitors of CDKs 7, 9, 1, 2, as well as pan-CDK inhibitory compounds, showed very pronounced anti-cytomegaloviral activities, both in vitro and in vivo [22,23,24,25,26,27,28,29]. Notably, these CDK-specific HDAs are proven to have broad-spectrum antiviral activity potential [26]; their usefulness for drug combination approaches has been demonstrated by others and our group [30,31] (for reviews, see Britt and Prichard, 2018 [11] and Steingruber and Marschall, 2020 [13], and references therein).
To increase the CDK-inhibitory properties and antiviral efficacies of these drugs, we favored the chemical coupling of moieties, termed PROteolysis TArgeting Chimeras (PROTACs), as a modification with potentially promising and drug-optimizing quality. The concept suggests that PROTAC-coupled HDAs might lead to a new type of antiviral possibly helping to overcome existing problems with conventional anti-HCMV drugs. PROTACs are hetero-bifunctional molecules containing two elements joined together by a linker, i.e., firstly, a target-binding molecule, and secondly, an e E3 ligase-recruiting unit that, by polyubiquitination induction, drives the target protein into proteasomal degradation. Our investigation of THAL-SNS032, a commercially available CDK9-directed PROTAC, provided first evidence that this strategy can yield drugs with a strong antiviral efficacy. Here, THAL-SNS032 revealed concentration-dependent anti-HCMV activity in a non-cytotoxic range. The antiviral activity coincided with the mid-nanomolar concentration range necessary for the drug-induced target degradation. Moreover, this PROTAC-CDK9 exerted some broadness of antiviral activity, including strains of HCMV, murine CMV, and even SARS-CoV-2, while other human viruses were not susceptible. On this basis, the antiviral potential of PROTAC-based experimental drugs is discussed, including questions of drug efficacy, mode of activity, and combination treatment options.

2. Results and Discussion

2.1. Assessment of PROTAC-Mediated Degradation of Target Proteins

Although PROTACs are generally considered to possess superior biological activities, their effects, including target protein degradation, have mostly been studied on in vitro cancer models. The vast majority of these PROTACs are derived from protein kinase inhibitors (PKIs). THAL-SNS032 (which primarily binds and, thereby, induces degradation of CDK9, but also of CDKs 1, 2, and 7, albeit at higher concentrations) is the PROTAC that was obtained by linking the E3-recruiting unit thalidomide to the PKI SNS032 (Figure 1A). Given the strong dependence of HCMV replication on host cell CDKs, THAL-SNS032 has been a promising candidate for a potential prototypic anti-HCMV PROTAC. To analyze whether THAL-SNS032 induces degradation of its target proteins in HFFs and to determine the kinetics of CDK depletion, cells were treated with increasing drug concentrations along a course of consecutive time points (Figure 1B). After 24 h of treatment, a drug removal and washout was performed to follow the reconstitution of CDK levels by sample collections during the respective time intervals. For all time points, total cellular lysates were prepared and levels of the primary target CDK9, as well as the secondary targets CDK1, 2, and 7, were determined by Western blot analysis (Figure 1C). Notably, CDK9 was most responsive to THAL-SNS032 at an applied 100 nM concentration, revealing decreased protein levels after 40 min. Beginning with 6 h—10 nM of THAL-SNS032 markedly reduced the CDK9 level. In addition, CDK2 and the larger variety of CDK7 revealed a decline in protein levels when treated with 100 nM THAL-SNS032 for 6 to 24 h. In contrast to CDKs 2, 7, and 9, CDK1 was apparently not affected by THAL-SNS032 treatment. After the washout step, reduced levels of CDK9, 2, and 7 were maintained for 6 h, while all CDKs reconstituted their initial protein levels after 24 h in the absence of the drug.
In general, HCMV induces upregulated or downregulated expression of several CDK-cyclin complexes, respectively, to build an intracellular environment, termed pseudomitosis, which promotes viral replication [32]. In this context, the addition of a CDK-targeting PROTAC may have striking consequences, theoretically ranging from a PROTAC-mediated abrogation of virus-induced CDK upregulation, associated with virus inhibition, to some moderate level of PROTAC resistance of HCMV-infected cells, based on the abundantly upregulated CDK pools. To address this question, an investigation of the THAL-SNS032-induced CDK degradation in HCMV-infected HFFs was performed in a similar Western blot-based kinetic experiment. Interestingly, with HCMV-infected HFFs, a reduction of CDK levels was observed at a lower concentration of THAL-SNS032 than that seen for uninfected HFFs. In infected cells, a concentration of 10 nM THAL-SNS032 was sufficient to deplete CDK9 levels at 3 h post-infection (h p.i.) and a very low concentration of 1 nM still imposed a partial reduction on CDK9 levels at 1 and 3 d p.i. (Figure 2). The levels of the three other CDKs monitored in this approach were markedly reduced at 1 d p.i. and completely lost at 3 d p.i. Notably, this reduction also applied for CDK2, which, in the previous setting, was completely inert towards degradation (Figure 2). During the 3-d period of experimental duration, representing one round of HCMV replication, a sustained degree of CDK suppression was observed, thereby demonstrating that the PROTAC effect completely counteracted the HCMV-driven CDK upregulation. As a non-CDK-degrading reference compound, the effect of R22, a specific CDK9 inhibitor with previously reported anti-HCMV activity, was analyzed in parallel [28]. As expected, R22 did not affect the levels of CDKs at 3 h or 1 d p.i., whereas at 3 d p.i., a slight reduction of CDKs 2, 7, and 9 was observed, in addition to a more pronounced effect seen for CDK1. This phenomenon represents a likely consequence of the anti-HCMV activity of R22, which in turn antagonizes the upregulation of CDKs by HCMV, an effect that became apparent in this setting at a later stage of the viral replication cycle. Since THAL-SNS032 affects the protein levels of its primary target CDK9 already after 3 h p.i., the PROTAC strategy seems to be exceptionally potent in interrupting the mutual feedback loop between HCVM-driven upregulation of CDKs and the CDK-mediated support of HCMV replication.

2.2. THAL-SNS032 and SNS032 Inhibit HCMV Replication in Primary Human Fibroblasts

To evaluate the anti-HCMV activity of THAL-SNS032 and the parental, non-PROTAC compound SNS032, both compounds were tested in a reporter-based HCMV multi-round replication assay using a green fluorescence protein (GFP)-expressing recombinant virus. Antiviral activity was defined as treatment-induced reduction of the GFP signal compared to solvent-treated cells. On this basis, the effective concentrations required for half-maximal reduction of viral replication (EC50) were calculated (Figure 3). For the in vitro anti-HCMV activity of THAL-SNS032, an EC50 value of 0.025 ± 0.001 µM was determined, which was reduced four-fold compared to SNS032 with 0.105 ± 0.004 µM. Noteworthy, these mid-nanomolar concentrations of THAL-SNS032 required for inhibition of viral replication coincided with those required for degradation of all target CDKs in HCMV-infected HFFs (Figure 2). This finding suggested that, in addition to the primary target CDK9, the degradation of at least one further CDK may have been responsible for antiviral activity. Cytotoxicity was determined in parallel by the Neutral Red uptake assay (NRA), using uninfected HFFs treated for the respective periods with either of the compounds. The CC50 values for THAL-SNS032 and SNS032 were 0.125 ± 0.014 µM or 0.240 ± 0.022 µM, respectively. Importantly, for THAL-SNS032, concentrations lower than 0.1 µM induced suppression of viral replication in the absence of detectable cytotoxicity. In comparison, SNS032 showed a considerable overlap in concentrations of antiviral and cytotoxic activity (Figure 3). This characteristic is also reflected by the SI values of 5.0 and 2.3 for THAL-SNS032 and SNS032, respectively.

2.3. Analysis of the THAL-SNS032 Drug Interaction with the CDK7 Inhibitor LDC4297 or with the CDK8 Inhibitor SEL 120 Using the Loewe Additivity Fixed-Dose Assay

Several inhibitors of protein kinases, especially CDKs, have exerted strong anti-HCMV activity in vitro [22,23,25,26,29,31]. In particular, the CDK7 inhibitor LDC4297 displayed potent anti-CMV activity in vitro as well as in vivo [22,26]. Thus, we hypothesized that simultaneous inhibition of CDK9 and CD7 will potentially exert exceptionally potent antiviral activity and, thus, reduce the effective doses and, consequently, mitigate cytotoxicity. To formally address this combinatorial antiviral drug interaction in vitro, the Loewe additivity was applied. Based on the preceding determination of the EC50 value for LDC4297 of 0.03 µM [22,26], which closely resembles the EC50 of THAL-SNS032, HCMV-infected HFFs were treated with identically concentrations of the single compounds centered on the respective EC50 values as well as a equimolar combination of both compounds (Figure 4A). The resulting raw data were analyzed using CompuSyn software (Version 1.0 [33]) based on the procedure developed by Chou and Talalay (1984, [34]). By this computational evaluation, the dose–effect curves for each drug or drug combination are converted to median effect plots, before CI values for the combinations are determined for 50% (CI50), 75% (CI75), 90% (CI90), and 95% (CI95) virus inhibition (Figure 4B). Here, a CI value of 1 implies additive interaction, <1 synergistic and >1 antagonistic. A weighted CI (CIwt) was calculated from the four aforementioned CI values, which uses a higher weighting for the desired strong inhibition. Synergy, antagonism, or additivity indicated by the CIwt were defined as follows: values <0.1 to 0.3, strongly synergistic; 0.3 to 0.7, synergistic; 0.7 to 0.85, moderately synergistic; 0.85 to 0.9, slightly synergistic; 0.90 to 1.10, (nearly) additive; 1.10 to 1.20, slightly antagonistic; 1.20 to 1.45, moderately antagonistic; 1.45 to 3.3, antagonistic; 3.3 to >10, strongly antagonistic. For the THAL-SNS032 and LDC4297 combination treatment, the CI50–90 values were centered at 1.2 indicating a slight to moderate antagonism. Consequently, the CIwt of 1.23 revealed an overall moderate antagonistic drug interaction. Although this result was unanticipated, it still can mechanistically be explained by the fact that, besides CDK9, THAL-SNS032 also degrades CDK7, the target of LDC4297, and thereby basically abrogates the antiviral effect of LDC4297. To address this issue in the absence of unwarranted antagonistic interference, the interaction of THAL-SNS032 with an inhibitor that targets CDKs outside the spectrum of SNS032 was additionally investigated. We employed the novel CDK8/19-specific PKI SEL120, which is currently being developed for treatment of acute myeloid leukemia [35], and so far has not been analyzed for anti-HCMV activity in vitro. Here, we specifically addressed the question of a putatively reinforcing interaction with THAL-SNS032 (Figure 4C). Since SEL120 revealed an EC50 value of 0.12 ± 0.07 µM, which was considerably higher than the EC50 of THAL-SNS032, ratios of 1:10 and 1:20 for THAL-SNS032 to SEL120 were analyzed. In contrast to LDC4297, SEL120 actually demonstrated synergistic potential in combination with THAL-SNS032, particularly at concentrations inducing at least 75% inhibition of viral replication, a finding that was consistent for all tested combination ratios. This synergistic interaction is also reflected by the corresponding CIwt of 0.68, indicating a moderate level of drug synergism.

2.4. THAL-SNS032 Inhibits HCMV Replication across Diverse Virus Strains and Cell Types

To further corroborate the anti-HCMV activity of THAL-SNS032, additional replication systems using two susceptible human cell lines infected with the genetically intact HCMV Merlin strain were employed. As a first replication model, we used MRC-5 cells inoculated with HCMV Merlin at a multiplicity of infection (MOI) of 0.02. Following infection, cells were subsequently treated with THAL-SNS032 and viral replication was assessed 7 d p.i. qPCR quantitation of released viral genomes. In this setting, THAL-SNS032 reduced HCMV replication with an EC50 value of 0.04 µM (Figure 5). The corresponding analysis of cytotoxicity in MRC-5 cells revealed a CC50 value of 4.65 µM with 11.6 as corresponding SI. Additional combinations of MOIs 0.2, 0.02, or 0.002 with replication periods of 4 to 10 days were analyzed (Figure S1). In these settings, the lower MOIs of 0.02 and 0.002 resulted in submicromolar EC50 values ranged from 0.34 to 0.94 µM, whereas an MOI of 0.2 led to increased EC50 values of 1.77 and 3.07 µM when determining 4 or 7 d p.i., respectively. As another virus-permissive system, the human first-trimester extravillous trophoblast cell line (TEV-1) was infected with HCMV, treated with THAL-SNS032, and viral replication was followed for 7 d. Quantitation of replication by HCMV-specific qPCR revealed a dose-dependent viral inhibition with a resulting EC50 of 0.075 µM (Figure 5), which was comparable to the value determined for HFF (Figure 3). Cell viability determined in parallel resulted in a CC50 value of 4.03 µM and, consequently, an SI of 53.7. Moreover, the concentration that achieved 90% inhibition of viral replication (EC90) did not impact cell viability (Figure S2, GCV used as a reference control drug). It is noteworthy to mention that, particularly when comparing this HCMV Merlin/TEV-1 system to the HCMV AD169-GFP/HFF system, antiviral activity was observed in a similar concentration range. However, the respective CC50 concentrations substantially differed, demonstrating that the cytotoxicity induction is strongly dependent on the cell type used. Moreover, transwell migration assays were performed to investigate the effects of THAL-SNS032 treatment in resolving HCMV-induced inhibition of trophoblast migration (Figure S3). As we have previously demonstrated, HCMV AD169 infection significantly inhibited trophoblast migration compared to mock-infected cells (p < 0.0001). Treating cells with 10 µM ganciclovir (GCV) showed no effect in resolving HCMV inhibition of migration compared with infected untreated cells (p = 0.999). Treating cells with 0.5 µM THAL-SNS032 almost completely abolished trophoblast migration consistent with the importance of CDK9 in cell migration [36,37,38]. Immunofluorescence analysis showed that there was no significant difference in levels of the HCMV immediate early protein expression between the treatment groups 24 h p.i. (data not shown).

2.5. THAL-SNS032 and SNS032 Reveal Comparable Activities against Murine CMV In Vitro

Next, we investigated whether the anti-cytomegaloviral activity of THAL-SNS032 and SNS032 was conserved between human and animal CMVs. For this purpose, the antiviral activity against the murine CMV (MCMV) was analyzed in mouse embryonic fibroblasts (MEFs). Titration of THAL-SNS032 and SNS032 exerted a dose-dependent reduction on MCMV replication (Figure 6). EC50 values for THAL-SNS032 and SNS032 were determined as 0.22 ± 0.08 µM or 0.29 ± 0.48 µM, respectively. The corresponding CC50 values were in the range around 1 µM for both compounds. It appears noteworthy that these EC50 and CC50 values were higher when compared to HCMV-infected HFFs, possibly due to lower binding affinities of THAL-SNS032 and SNS032 towards murine CDKs compared to human CDKs. Additionally, the biological activities of these two compounds, with or without PROTAC moiety, displayed no noticeable difference in this replication model. This is most likely explained by the fact that, contrary to the human CRBN, which serves as the receptor for thalidomide-related PROTAC moieties, its murine homolog fails to engage in this interaction [39,40]. Consequently, in context of murine host cells, the THAL-SNS032 obviously acts, like SNS032, as a plain CDK9 inhibitor without the additional benefit of target degradation.

2.6. THAL-SNS032 and SNS032 Potently Inhibit SARS-CoV-2 Replication in a Human Cell Line

We previously demonstrated that CDK inhibitors impair SARS-CoV-2 replication in human Caco-2 cells [41]. The effective compounds were comprised by the CDK1/2/5 inhibitor R25/alsterpaullone and SNS032, whereas the CDK7 inhibitor LDC4297 was inactive. Since the SNS032 exerted antiviral activity in this in vitro model in absence of cytotoxic effects, this system seemed particularly suited for a side-by-side comparison of THAL-SNS032 and SNS032. To this end, Caco-2 cells were infected with the YFP-expressing recombinant SARS-CoV-2 d6-YFP and treatment with THAL-SNS032 or SNS032 started concomitantly with virus addition. Quantitation of viral replication by measurement of the cell-associated YFP fluorescence 30 h p.i. revealed a dose-dependent inhibition with EC50 values of 0.110 ± 0.018 µM and 0.175 ± 0.25 µM for THAL-SNS032 and SNS032, respectively (Figure 7). Levels of cytotoxic concentrations were comparable for both compounds in Caco-2 cells, resulting in a slightly more favorable SI for THAL-SNS032 compared to SNS032. To better capitalize on the CDK-degrading activity of THAL-SNS032 for the antiviral activity, cells were 24 h pretreated with THAL-SNS032 or SNS032 and the infection and subsequent viral replication cycles were performed in the absence of any compound. Since the CDK9 levels in HFFs remained reduced even after withdrawal of THAL-SNS032 (Figure 1 and Figure 2), we hypothesized whether, in the context of pretreatment with the subsequent compound washout, THAL-SNS032 might have a sustained antiviral effect, whereas the SNS032-mediated inhibition might possibly be reversed. Surprisingly, however, not only were the antiviral activities of THAL-SNS032 and SNS032 found to be virtually indistinguishable, but also the dose–response in this pretreatment setting was very comparable to the conventional treatment scheme (Figure 7). A mean of three experimental replicates revealed EC50 ratios of 1.6 (conventional treatment) and 1.7 (pretreatment), respectively, when setting SNS032 in relation to THAL-SNS032 (Table 1). Thus, a tendency of lower EC50 values and more favorable SI values was noted for THAL-SNS032 compared to SNS032.

2.7. Conclusions: THAL-SNS032 Signifies the High Potential of a New Type of PROTAC-Based Antiviral Drugs

In the current study, we analyzed the in vitro activity of THAL-SNS032 against various viruses and additionally compared THAL-SNS032 to its non-PROTAC parental drug SNS032 (Table 1). THAL-SNS032 revealed antiviral activity for several DNA and RNA viruses, while other viruses behaved insensitive. Even comparing the three analyzed herpesviruses, including viral strains, only the CMVs were found sensitive to THAL-SNS032 treatment, but varicella zoster virus (VZV) remained unaffected. For HCMV, EC50 values ranged from 0.03 to 3.07 µM and this two-log stretch seems to strongly depend on the cell type and the viral MOI used for infection. Similarly, the CC50 values differed substantially between these analyzed primary cells and immortalized cell lines. This kind of variation appears plausible on the basis that the cellular target CDKs, as well as the E3 ligase CRBN, might possess cell type-dependent expression levels. Consequently, SI values for CMVs ranged from 5 to 13 in the viral replication systems analyzed, demonstrating that THAL-SNS032 has indeed a true anti-cytomegaloviral activity that is separable from the range of cytotoxicity. When comparing the anti-HCMV effect of THAL-SNS032 to its non-PROTAC counterpart SNS032, the THAL-SNS032 exerted a 3.7-fold stronger antiviral activity. This illustrates that this prototypic CDK9-targeted PROTAC, which exerts the intended degradative mechanism as experimentally verified, presents a measurable advantage over the non-PROTAC parental inhibitor. Notable, a similarly sized five-fold increase in activity was recently described for anti-coronaviral PROTACs based on indomethacin [42], indicating that this magnitude is easily achievable by converting an inhibitor to its corresponding PROTAC, an approach that is still open for optimization as a focus of our continued studies on antiviral options against human pathogenic viruses, including HCMV.
Concerning MCMV that represents an animal model candidate virus, the picture was quantitatively different to HCMV, since both drugs revealed comparable EC50 and CC50 values; thus, no evidence for the superiority of the PROTAC approach was given in this case. This appeared not unexpected, since thalidomide does not, or only poorly, binds murine CRBN, and for this reason can neither efficiently induce target ubiquitination nor degradation [39,40]. Consequently, although thalidomide as a building block for the synthesis of PROTACs is cheap and accessible, thalidomide-based PPOTACs may not be properly be evaluated in vivo using a murine/MCMV replication model. Concerning another human cell-based analysis system, the inhibitory potential of THAL-SNS032 onto SARS-CoV-2 replication in Caco-2 was analyzed. Since Caco-2 cells tolerate much higher concentrations of both THAL-SNS032 and SNS032, this system appeared particularly suited for a comparative characterization of antiviral activity. Surprisingly, both compounds revealed very similar antiviral activities, with only moderately increased efficacy of THAL-SNS032 versus SNS032, and this result was similarly obtained for conditions without or with drug pretreatment of cells (Table 1). Thus, further PROTAC-specific analysis of SARS-CoV-2 is required to illustrate this issue.
Additional DNA and RNA viruses were included, so that the effect of THAL-SNS032 towards Zika virus (ZIKV) replication in Vero cells was investigated, and here, surprisingly, even concentrations up to 10 µM did not affect virus replication in our system, although inhibition of ZIKV replication in the human astrocytoma cell line SNB-19 using micromolar concentrations of CDK inhibitors was reported elsewhere [43]. Moreover, an anti-adenoviral effect has been described for the CDK9 inhibitor FIT039 [44]. Thus, we investigated THAL-SNS032 and SNS032 on HFFs infected with human adenovirus type 2 (HAdV-2), but none of the drugs produced a measurable impact on the HAdV-2 plaque formation assay, at least at concentrations (0.03 µM) that in parallel produced anti-HCMV activity.
In comparison, the use of PROTACs in cancer models have shown major beneficial features, which might be promising for broader use, including antiviral therapy. In this field, evidence has been provided that PROTACs induce specific target degradation and, thus, act more efficiently as pharmaceutical inhibitors than their non-PROTAC counterparts [45,46,47]. Moreover, by converting conventional enzymatic inhibitors to PROTACs, even enzyme mutants, exhibiting resistance to the initial drug, were subject to degradation [48,49,50,51,52]. Concerning novel strategies of antiviral targeting, such benefits might likewise be provided for direct-acting antivirals as well as host-directed antivirals. PROTACs, based on their specific resistance-reducing qualities, represent a valuable option to deal with the rapid evasion of viruses driven by low-fidelity polymerases, large numbers of progeny viruses originating from one single infected cell, and short-term replication cycles. In addition, the potential of PROTACs is not restricted to enzymes, but can also be applied to non-enzymatic target proteins, i.e., by identification of small molecule ligands binding viral proteins, new PROTACs may be generated to extend the drug-accessible range of virus-encoded targets. Through the PROTAC-mediated degradation of viral proteins, either possessing regulatory or structural functions, previously inaccessible key steps of viral replication cycles may be exploited. Most importantly, PROTACs have the ability to degrade their targets in various subsequent cycles (substoichiometric mode of action) that are not restricted to the primary target, but might also involve binding partners in the context of multiprotein complexes [53,54]. As a direct consequence, highly ordered assemblies of virion structures composed of multiple copies of viral structural proteins may be subject to drug-targeted disruption. For this reason, our prioritized approach with currently synthesized PROTACs will be directed to multiprotein complexes essential for virus replication. Despite these potential benefits, only telaprevir-based PROTACs active against the hepatitis C virus and indomethacin-derived PROTACs with anti-coronavirus activity have been reported on so far [42,55]. Taken together, data of this study underline that PROTACs harbor untapped, possible game-changing potential in regard to antiviral drug development, so that skillful procedures of PROTAC synthesis and a structure–activity relationship may guarantee further success in the near future.

3. Materials and Methods

3.1. Cells and Viruses

Primary human foreskin fibroblasts (HFFs, derived from clinical samples, Children’s Hospital, Erlangen, Germany) were grown in Eagle’s Minimal Essential medium (MEM) supplemented with 1× GlutaMAXTM (both Thermo Fisher Scientific, Waltham, MA, USA), 10 μg/mL gentamicin and 10% fetal bovine serum (FBS, Capricorn, Ebsdorfergrund, Germany). Mouse embryonic fibroblasts (MEFs, ATCC, Manassas, VA, USA) were cultivated in Dulbecco’s Modified Eagle Medium (DMEM, Thermo Fisher Scientific), supplemented with 1× GlutaMAXTM, 10 μg/mL gentamicin and 10% FBS. Human Caco-2 cells were cultivated at 37 °C, 5% CO2 and 80% humidity using Dulbecco’s Modified Eagle Medium (DMEM, 11960044, Thermo Fisher Scientific, Waltham, MA, USA) supplemented with 2 mM GlutaMAXTM (35050038, Thermo Fisher Scientific), 10 µg/mL gentamycin (22185.03, SERVA, Heidelberg, Germany), 10% FBS and 1% MEM Non-Essential Amino Acids Solution (11140050, Thermo Fisher Scientific). Vero 76 were maintained in DMEM containing 1× GlutaMAXTM, 10 µg/mL gentamycin and 10% FBS. Primary human lung fibroblasts (MRC-5 cells) were maintained in MEM media, supplemented with 100 U/mL penicillin G, 100 µg/mL streptomycin and 29.2 µg/mL L-glutamine (1× PSG) and 10% FBS. Vero cells for Zika virus investigations were maintained in DMEM/F12+Gluta-MAX, 1× PSG and 10% FBS. TEV-1 cells were maintained in Ham’s F10 Nutrient mix, 1× PSG and 10% FBS. All cultured cells were maintained at 37 °C, 5% CO2 and 80% humidity and regularly monitored for absence of mycoplasma contamination (Lonza™ MycoAlert™, Thermo Fisher Scientific, Waltham, MA, USA). Recombinant HCMV strain AD169 expressing green fluorescent protein (AD169-GFP, [56]), and recombinant MCMV strain Smith (MCMV-GFP) were used for in vitro replication assays in HFFs or MEFs, respectively. Genetically intact HCMV strain Merlin (UL128+, RL13−) was derived from a Merlin-BAC recombinant, pAL1120, and propagated in RPE-1 cells, as previously reported [57]. The Asian lineage of Zika virus (PRVABC59) was propagated in Vero cells and plaque assays in Vero cells used to assess viral titer. Recombinant varicella zoster virus strain Oka (VZV-GFP) was generated by the use of bacmid technology, as described elsewhere [58], and virus propagation, including infection experiments for antiviral testing based on GFP fluorometry, was performed in a cell-associated manner on HFFs under standard conditions [26,59,60]. The generation and characterization of the recombinant SARS-CoV-2 virus d6-YFP in which viral ORF6 was replaced with EYFP has been described previously [41,61]. All SARS-CoV-2 infection experiments were performed under BSL-3 conditions.

3.2. Antiviral Compounds

Stock aliquots of THAL-SNS032 and SNS032 (both Tocris, Wiesbaden-Nordenstadt, Germany), SEL 120 (MedChemExpress, Monmouth Junction, NJ, USA), roscovitine (Millipore-Calbiochem) and R22 (GPC Biotech AG, Martinsried, Germany) were prepared in DMSO and stored at −20 °C.

3.3. Assays for Determination of Antiviral Activity of Test Compounds

The GFP-based HCMV replication assay was performed as described previously [26,56]. Briefly, parallel cultures of HFFs were inoculated with a virus stock dilution resulting in 25% GFP-positive cells at 7 d p.i. (i.e., 1× TCID257d). Viral inocula were replaced after 90 min with cell culture medium containing desired concentrations of test compounds. Antiviral activities were quantitatively determined as reduction of GFP fluorescence in cell lysates relative to the DMSO control 7 d p.i. Determination of anti-MCMV efficacy was based on a GFP-based approach similar to the HFF/HCMV setting by using MCMV-GFP to infect MEFs. MEFs seeded at 380,000 cells/well in 6-well plates the day before infection were inoculated with MCMV stock for 90 min and immediately treated after infection. Moreover, 5 d p.i. cells were lysed and viral replication was quantitated by automated fluorometry. For determination of anti-adenoviral activity, HFF 200,000 cells were seeded in 12-well plates the day before infection. Cells were inoculated with HAdV-2 for 90 min, before replacing viral inocula with MEM-agarose mixtures containing test compounds. After 10 days, agarose overlays were removed and plaque was detected by staining cell layers with crystal violet (1% dissolved in 20% ethanol), followed by several washing steps with PBS and, subsequently, counting under a microscope. The SARS-CoV-2 replication assay using human Caco-2 cells was performed as described earlier [41]. Briefly, Caco-2 cells were infected with the recombinant SARS-CoV-2 d6-YFP reporter strain at an MOI of 0.003 in the presence of test compounds. At 30 h p.i., cells were fixed with 10% formalin and viral replication was assessed by YFP quantitation in a Victor X4 microplate reader (PerkinElmer, Waltham, MA, USA). Viral replication was assessed quantitation of the cell-associated YFP fluorescence and is presented as mean values of biological quadruplicates ± SD. All SARS-CoV-2 infection experiments were performed under BSL-3 conditions. Analysis of anti-HCMV activity by qPCR was performed as previously described [57]. Briefly, cells were seeded in 24-well plates and inoculated with virus in triplicate at specified multiplicities of infection (MOI). Plates were centrifuged at 770× g for 30 min followed by 2 h of incubation at 37 °C with 5% CO2. Supernatant was removed and replaced with fresh medium with or without antivirals and incubated at 37 °C. Total nucleic acid from cell culture supernatant was extracted and qPCR for viral genome copies was performed. For Zika virus quantification, qPCR was performed with ZIKV specific primers 5′-CTGTGGCATGAACCCAATAG-3′, 5′-ATCCCATAGTGCACCACTCC-3′, and probe 5′-(6FAM)CCACGCTCCAGCTGCAAAGG-3′. Reactions were carried out under the following conditions: reverse transcription at 55 °C for 20 min, denaturation at 95 °C for 3 min, followed by 45 cycles of denaturation at 94 °C for 15 s, hybridization and elongation at 60 °C for 1 min using Superscript III OneStep RT-PCR System (Thermo Fisher Scientific). Transwell migration assays were performed as previously described [62]. TEV-1 cells were infected with AD169 at an MOI of 2 in the presence of test compounds (THAL-SNS032 at 0.5 µM and ganciclovir at 10 µM). At 24 h p.i., cells were transferred into transwell inserts in the presence of test compounds with 200 ng/mL wnt-5a protein to facilitate cell migration and cells allowed to migrate for 21 h. Cells were then fixed, stained with 1% crystal violet and analyzed as previously described [62]. Aliquots of infected cells were seeded in 8-well chamber slides and stained for CMV IE protein as previously described [63].

3.4. Determination of Cell Viability by Neutral Red Uptake and Lactate Release Assay

Drug induced cytotoxicity in HFF and other cell types was measured as a reduction of cell viability determined by Neutral Red uptake assay (NRA), as described previously [64,65]. Briefly, compound treated cells were incubated with a final concentration of 40 μg/mL Neutral Red (Sigma Aldrich, St. Louis, MO, USA) for 1 to 4 h, depending on the cell type. The amount of incorporated Neutral Red was released from the cells by incubation with destaining solution (50% ethanol, 49% H2O, 1% acetic acid), and subsequently quantitated in a microplate reader by fluorescence measurement using 560/630 nm for excitation/emission, respectively. For determination of lactate dehydrogenase release into the cell culture supernatant, the CytoTox 96® Non-Radioactive Cytotoxicity Assay (Promega, Madison, WI, USA) was used according to the manufacturer’s protocol. Values were normalized to maximal release of LDH by measuring lysates of solvent-treated control cells. Cell viability was defined as the absence of cytotoxicity.

3.5. Western Blot and Antibodies

Western blot analyses of infected and mock-infected HFFs were performed as previously described [27,66]. Antibodies specific for CDK9 (sc-484, Santa Cruz Biotechnology, Dallas, TX, USA), mAb-CDK1 (sc-54, Santa Cruz Biotechnology), pAb CDK2 (Sc-163, Santa Cruz Biotechnology), pAb-CDK7 (sc-723, Santa Cruz Biotechnology), and mAb β-actin (A5441, Sigma Aldrich, St. Louis, MO, USA) were used with an appropriate secondary antibody to detect the respective proteins.

3.6. Loewe Fixed-Dose Assay Adapted to HCMV-GFP In Vitro Infection

Loewe additivity analyses were performed to using the HCMV GFP-based replication assay, according to previously described protocols [26,56]. HFFs were seeded at 1.6 × 105 cells per well in 12-well culture plates and infected the next day with 1× TCID257d (i.e., 25% GFP-forming dose of a multi-round infection measured at 7 d p.i.) of HCMV AD169-GFP [56]. After 90 min of virus adsorption, inocula were exchanged for new media containing test compounds, as a single compound, a compound combination, or solvent control. The highest concentrations were chosen to approximately match 4× EC50 of the respective compounds, and 6 (for single compounds) or 8 (for compound combination) subsequent serial 1.5-fold dilutions thereof were analyzed. All infections were performed in biological duplicates. Cells were lysed, 7 d p.i., and viral replication quantitated by fluorometry in the cell lysates in a Victor X4 microplate reader (PerkinElmer, Waltham, MA, USA) as mean of duplicate measurements of biological duplicates. Antiviral efficacy was expressed as the percentage reduction compared to the solvent control. Resulting values were subsequently analyzed for drug interaction using CompuSyn software (Version 1.0 [33]; ComboSyn, Inc., Paramus, NJ, USA). Results were considered as valid if all r values were above 0.90 and EC50 values closely matched previously determined concentrations. CI values extrapolated at 50, 75, 90, and 95% virus inhibition.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms222312858/s1.

Author Contributions

Conceptualization, F.H., S.B.T. and M.M.; methodology, F.H., S.T.H., C.W., M.W., J.K., N.B., J.E.L.F., L.H., A.K., B.B.K., W.D.R., S.B.T. and M.M.; validation, F.H., S.T.H., C.W., M.W., J.K., N.B., J.E.L.F. and M.M.; investigation, F.H., S.T.H., C.W., M.W., J.K., N.B., J.E.L.F., L.H., A.K. and M.M.; resources, L.H., A.K., B.B.K. and S.B.T.; data curation, F.H., S.T.H., C.W., M.W., J.K., N.B., W.D.R. and M.M.; writing—original draft preparation, F.H., S.T.H. and M.M; writing—review and editing, F.H., S.T.H., W.D.R. and M.M.; visualization, F.H., S.T.H., M.W. and N.B.; supervision, F.H., S.T.H., B.B.K., W.D.R., S.B.T. and M.M.; project administration, M.M.; funding acquisition, M.M., S.T.H., W.D.R. and S.B.T. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by grants from the Bayerische Forschungsstiftung (grant DeeP-CMV/AP-5/MM and IMU-COVID/MM), Deutsche Forschungsgemeinschaft (DFG, German Research Foundation–401821119/GRK2504 Research Training Group), Wilhelm Sander-Stiftung (WSS MA/SBT 2018.121.1), DAAD-Go8 (grants 2017-18/MM-WDR-STH-JM, 2020-21/MM-WDR) and the Australian National Health and Medical Research Council (grant APP1127717-Hamilton).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Acknowledgments

We would like to thank Sabrina Wagner and Regina Müller for the excellent technical assistance.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study, in the collection, analyses, or interpretation of data, in the writing of the manuscript, or in the decision to publish the results.

References

  1. Griffiths, P.; Baraniak, I.; Reeves, M. The pathogenesis of human cytomegalovirus. J. Pathol. 2015, 235, 288–297. [Google Scholar] [CrossRef]
  2. Sever, J.L.; Rakusan, T.A.; Ellaurie, M.; Frenkel, N.; Wyatt, L.S.; Campos, J.M.; O’Donnell, R.M.; Price, M.V. Coinfection with herpesviruses in young children of HIV-infected women. Pediatr. AIDS HIV Infect. 1995, 6, 75–82. [Google Scholar]
  3. Meesing, A.; Razonable, R.R. Pharmacologic and immunologic management of cytomegalovirus infection after solid organ and hematopoietic stem cell transplantation. Expert Rev. Clin. Pharmacol. 2018, 11, 773–788. [Google Scholar] [CrossRef]
  4. Singh, P.; Neumann, D.M. Persistent HCMV infection of a glioblastoma cell line contributes to the development of resistance to temozolomide. Virus Res. 2020, 276, 197829. [Google Scholar] [CrossRef] [PubMed]
  5. Revello, M.G.; Gerna, G. Diagnosis and management of human cytomegalovirus infection in the mother, fetus, and newborn infant. Clin. Microbiol. Rev. 2002, 15, 680–715. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Marschall, M.; Stamminger, T. Molecular targets for antiviral therapy of cytomegalovirus infections. Future Microbiol. 2009, 4, 731–742. [Google Scholar] [CrossRef] [PubMed]
  7. Lurain, N.S.; Chou, S. Antiviral drug resistance of human cytomegalovirus. Clin. Microbiol. Rev. 2010, 23, 689–712. [Google Scholar] [CrossRef] [Green Version]
  8. Marty, F.M.; Ljungman, P.; Chemaly, R.F.; Maertens, J.; Dadwal, S.S.; Duarte, R.F.; Haider, S.; Ullmann, A.J.; Katayama, Y.; Brown, J.; et al. Letermovir Prophylaxis for Cytomegalovirus in Hematopoietic-Cell Transplantation. N. Engl. J. Med. 2017, 377, 2433–2444. [Google Scholar] [CrossRef]
  9. Gerna, G.; Lilleri, D.; Baldanti, F. An overview of letermovir: A cytomegalovirus prophylactic option. Expert Opin. Pharmacother. 2019, 20, 1429–1438. [Google Scholar] [CrossRef]
  10. Marschall, M.; Stamminger, T.; Urban, A.; Wildum, S.; Ruebsamen-Schaeff, H.; Zimmermann, H.; Lischka, P. In vitro evaluation of the activities of the novel anticytomegalovirus compound AIC246 (letermovir) against herpesviruses and other human pathogenic viruses. Antimicrob. Agents Chemother. 2012, 56, 1135–1137. [Google Scholar] [CrossRef] [Green Version]
  11. Britt, W.J.; Prichard, M.N. New therapies for human cytomegalovirus infections. Antivir. Res. 2018, 159, 153–174. [Google Scholar] [CrossRef]
  12. Krishna, B.A.; Wills, M.R.; Sinclair, J.H. Advances in the treatment of cytomegalovirus. Br. Med. Bull. 2019, 131, 5–17. [Google Scholar] [CrossRef] [PubMed]
  13. Steingruber, M.; Marschall, M. The Cytomegalovirus Protein Kinase pUL97: Host Interactions, Regulatory Mechanisms and Antiviral Drug Targeting. Microorganisms 2020, 8, 515. [Google Scholar] [CrossRef] [Green Version]
  14. Marty, F.M.; Ljungman, P.; Papanicolaou, G.A.; Winston, D.J.; Chemaly, R.F.; Strasfeld, L.; Young, J.A.; Rodriguez, T.; Maertens, J.; Schmitt, M.; et al. Maribavir prophylaxis for prevention of cytomegalovirus disease in recipients of allogeneic stem-cell transplants: A phase 3, double-blind, placebo-controlled, randomised trial. Lancet Infect. Dis. 2011, 11, 284–292. [Google Scholar] [CrossRef]
  15. Prichard, M.N. Function of human cytomegalovirus UL97 kinase in viral infection and its inhibition by maribavir. Rev. Med. Virol. 2009, 19, 215–229. [Google Scholar] [CrossRef]
  16. Prichard, M.N.; Gao, N.; Jairath, S.; Mulamba, G.; Krosky, P.; Coen, D.M.; Parker, B.O.; Pari, G.S. A recombinant human cytomegalovirus with a large deletion in UL97 has a severe replication deficiency. J. Virol. 1999, 73, 5663–5670. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Hamirally, S.; Kamil, J.P.; Ndassa-Colday, Y.M.; Lin, A.J.; Jahng, W.J.; Baek, M.-C.; Noton, S.; Silva, L.A.; Simpson-Holley, M.; Knipe, D.M.; et al. Viral mimicry of Cdc2/cyclin-dependent kinase 1 mediates disruption of nuclear lamina during human cytomegalovirus nuclear egress. PLoS Pathog. 2009, 5, e1000275. [Google Scholar] [CrossRef] [Green Version]
  18. Krosky, P.M.; Baek, M.-C.; Coen, D.M. The human cytomegalovirus UL97 protein kinase, an antiviral drug target, is required at the stage of nuclear egress. J. Virol. 2003, 77, 905–914. [Google Scholar] [CrossRef] [Green Version]
  19. Marschall, M.; Marzi, A.; aus dem Siepen, P.; Jochmann, R.; Kalmer, M.; Auerochs, S.; Lischka, P.; Leis, M.; Stamminger, T. Cellular p32 recruits cytomegalovirus kinase pUL97 to redistribute the nuclear lamina. J. Biol. Chem. 2005, 280, 33357–33367. [Google Scholar] [CrossRef] [Green Version]
  20. Milbradt, J.; Auerochs, S.; Sticht, H.; Marschall, M. Cytomegaloviral proteins that associate with the nuclear lamina: Components of a postulated nuclear egress complex. J. Gen. Virol. 2009, 90, 579–590. [Google Scholar] [CrossRef]
  21. Wolf, D.G.; Courcelle, C.T.; Prichard, M.N.; Mocarski, E.S. Distinct and separate roles for herpesvirus-conserved UL97 kinase in cytomegalovirus DNA synthesis and encapsidation. Proc. Natl. Acad. Sci. USA 2001, 98, 1895–1900. [Google Scholar] [CrossRef] [Green Version]
  22. Sonntag, E.; Hahn, F.; Bertzbach, L.D.; Seyler, L.; Wangen, C.; Muller, R.; Tannig, P.; Grau, B.; Baumann, M.; Zent, E.; et al. In vivo proof-of-concept for two experimental antiviral drugs, both directed to cellular targets, using a murine cytomegalovirus model. Antivir. Res. 2019, 161, 63–69. [Google Scholar] [CrossRef]
  23. Sonntag, E.; Milbradt, J.; Svrlanska, A.; Strojan, H.; Hage, S.; Kraut, A.; Hesse, A.M.; Amin, B.; Sonnewald, U.; Coute, Y.; et al. Protein kinases responsible for the phosphorylation of the nuclear egress core complex of human cytomegalovirus. J. Gen. Virol. 2017, 98, 2569–2581. [Google Scholar] [CrossRef] [PubMed]
  24. Hutterer, C.; Hamilton, S.; Steingruber, M.; Zeittrager, I.; Bahsi, H.; Thuma, N.; Naing, Z.; Orfi, Z.; Orfi, L.; Socher, E.; et al. The chemical class of quinazoline compounds provides a core structure for the design of anticytomegaloviral kinase inhibitors. Antivir. Res. 2016, 134, 130–143. [Google Scholar] [CrossRef] [PubMed]
  25. Graf, L.; Feichtinger, S.; Naing, Z.; Hutterer, C.; Milbradt, J.; Webel, R.; Wagner, S.; Scott, G.M.; Hamilton, S.T.; Rawlinson, W.D.; et al. New insight into the phosphorylation-regulated intranuclear localization of human cytomegalovirus pUL69 mediated by cyclin-dependent kinases (CDKs) and viral CDK orthologue pUL97. J. Gen. Virol. 2016, 97, 144–151. [Google Scholar] [CrossRef]
  26. Hutterer, C.; Eickhoff, J.; Milbradt, J.; Korn, K.; Zeittrager, I.; Bahsi, H.; Wagner, S.; Zischinsky, G.; Wolf, A.; Degenhart, C.; et al. A novel CDK7 inhibitor of the Pyrazolotriazine class exerts broad-spectrum antiviral activity at nanomolar concentrations. Antimicrob. Agents Chemother. 2015, 59, 2062–2071. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Hutterer, C.; Wandinger, S.K.; Wagner, S.; Muller, R.; Stamminger, T.; Zeittrager, I.; Godl, K.; Baumgartner, R.; Strobl, S.; Marschall, M. Profiling of the kinome of cytomegalovirus-infected cells reveals the functional importance of host kinases Aurora A, ABL and AMPK. Antivir. Res. 2013, 99, 139–148. [Google Scholar] [CrossRef] [PubMed]
  28. Feichtinger, S.; Stamminger, T.; Muller, R.; Graf, L.; Klebl, B.; Eickhoff, J.; Marschall, M. Recruitment of cyclin-dependent kinase 9 to nuclear compartments during cytomegalovirus late replication: Importance of an interaction between viral pUL69 and cyclin T1. J. Gen. Virol. 2011, 92, 1519–1531. [Google Scholar] [CrossRef]
  29. Rechter, S.; Scott, G.M.; Eickhoff, J.; Zielke, K.; Auerochs, S.; Muller, R.; Stamminger, T.; Rawlinson, W.D.; Marschall, M. Cyclin-dependent Kinases Phosphorylate the Cytomegalovirus RNA Export Protein pUL69 and Modulate Its Nuclear Localization and Activity. J. Biol. Chem. 2009, 284, 8605–8613. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Chou, S.; Ercolani, R.J.; Derakhchan, K. Antiviral activity of maribavir in combination with other drugs active against human cytomegalovirus. Antivir. Res. 2018, 157, 128–133. [Google Scholar] [CrossRef]
  31. Wild, M.; Kicuntod, J.; Seyler, L.; Wangen, C.; Bertzbach, L.D.; Conradie, A.M.; Kaufer, B.B.; Wagner, S.; Michel, D.; Eickhoff, J.; et al. Combinatorial Drug Treatments Reveal Promising Anticytomegaloviral Profiles for Clinically Relevant Pharmaceutical Kinase Inhibitors (PKIs). Int. J. Mol. Sci. 2021, 22, 575. [Google Scholar] [CrossRef] [PubMed]
  32. Hertel, L.; Chou, S.; Mocarski, E.S. Viral and cell cycle-regulated kinases in cytomegalovirus-induced pseudomitosis and replication. PLoS Pathog. 2007, 3, e6. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Chou, T.C.; Martin, N. CompuSyn for Drug Combinations: PC Soft-ware and User’s Guide: A Computer Program for Quantitation of Synergism and Antagonism in Drug Combinations, and the Determination of IC50 and ED50 and LD50 Values; ComboSyn Inc.: Paramus, NJ, USA, 2005; Available online: http://www.combosyn.com/ (accessed on 20 August 2018).
  34. Chou, T.-C.; Talalay, P. Quantitative analysis of dose-effect relationships: The combined effects of multiple drugs or enzyme inhibitors. Adv. Enzym. Regul. 1984, 22, 27–55. [Google Scholar] [CrossRef]
  35. Rzymski, T.; Mikula, M.; Zylkiewicz, E.; Dreas, A.; Wiklik, K.; Golas, A.; Wojcik, K.; Masiejczyk, M.; Wrobel, A.; Dolata, I.; et al. SEL120-34A is a novel CDK8 inhibitor active in AML cells with high levels of serine phosphorylation of STAT1 and STAT5 transactivation domains. Oncotarget 2017, 8, 33779–33795. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Ma, H.; Seebacher, N.A.; Hornicek, F.J.; Duan, Z. Cyclin-dependent kinase 9 (CDK9) is a novel prognostic marker and therapeutic target in osteosarcoma. EBioMedicine 2019, 39, 182–193. [Google Scholar] [CrossRef] [Green Version]
  37. He, S.; Fang, X.; Xia, X.; Hou, T.; Zhang, T. Targeting CDK9: A novel biomarker in the treatment of endometrial cancer. Oncol. Rep. 2020, 44, 1929–1938. [Google Scholar] [CrossRef]
  38. Cheng, S.; Yang, G.-J.; Wang, W.; Ma, D.-L.; Leung, C.-H. Discovery of a tetrahydroisoquinoline-based CDK9-cyclin T1 protein–protein interaction inhibitor as an anti-proliferative and anti-migration agent against triple-negative breast cancer cells. Genes Dis. 2021. [Google Scholar] [CrossRef]
  39. Fink, E.C.; McConkey, M.; Adams, D.N.; Haldar, S.D.; Kennedy, J.A.; Guirguis, A.A.; Udeshi, N.D.; Mani, D.R.; Chen, M.; Liddicoat, B.; et al. Crbn (I391V) is sufficient to confer in vivo sensitivity to thalidomide and its derivatives in mice. Blood 2018, 132, 1535–1544. [Google Scholar] [CrossRef] [Green Version]
  40. Kronke, J.; Fink, E.C.; Hollenbach, P.W.; MacBeth, K.J.; Hurst, S.N.; Udeshi, N.D.; Chamberlain, P.P.; Mani, D.R.; Man, H.W.; Gandhi, A.K.; et al. Lenalidomide induces ubiquitination and degradation of CK1alpha in del(5q) MDS. Nature 2015, 523, 183–188. [Google Scholar] [CrossRef]
  41. Hahn, F.; Häge, S.; Herrmann, A.; Wangen, C.; Kicuntod, J.; Jungnickl, D.; Tillmanns, J.; Müller, R.; Fraedrich, K.; Überla, K.; et al. Methodological Development of a Multi-Readout Assay for the Assessment of Antiviral Drugs against SARS-CoV-2. Pathogens 2021, 10, 1076. [Google Scholar] [CrossRef]
  42. Desantis, J.; Mercorelli, B.; Celegato, M.; Croci, F.; Bazzacco, A.; Baroni, M.; Siragusa, L.; Cruciani, G.; Loregian, A.; Goracci, L. Indomethacin-based PROTACs as pan-coronavirus antiviral agents. Eur. J. Med. Chem. 2021, 226, 113814. [Google Scholar] [CrossRef]
  43. Xu, M.; Lee, E.M.; Wen, Z.; Cheng, Y.; Huang, W.K.; Qian, X.; Tcw, J.; Kouznetsova, J.; Ogden, S.C.; Hammack, C.; et al. Identification of small-molecule inhibitors of Zika virus infection and induced neural cell death via a drug repurposing screen. Nat. Med. 2016, 22, 1101–1107. [Google Scholar] [CrossRef]
  44. Yamamoto, M.; Onogi, H.; Kii, I.; Yoshida, S.; Iida, K.; Sakai, H.; Abe, M.; Tsubota, T.; Ito, N.; Hosoya, T.; et al. CDK9 inhibitor FIT-039 prevents replication of multiple DNA viruses. J. Clin. Investig. 2014, 124, 3479–3488. [Google Scholar] [CrossRef] [PubMed]
  45. Raina, K.; Lu, J.; Qian, Y.; Altieri, M.; Gordon, D.; Rossi, A.M.; Wang, J.; Chen, X.; Dong, H.; Siu, K.; et al. PROTAC-induced BET protein degradation as a therapy for castration-resistant prostate cancer. Proc. Natl. Acad. Sci. USA 2016, 113, 7124–7129. [Google Scholar] [CrossRef] [Green Version]
  46. Lu, J.; Qian, Y.; Altieri, M.; Dong, H.; Wang, J.; Raina, K.; Hines, J.; Winkler, J.D.; Crew, A.P.; Coleman, K.; et al. Hijacking the E3 Ubiquitin Ligase Cereblon to Efficiently Target BRD4. Chem. Biol. 2015, 22, 755–763. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Winter, G.E.; Buckley, D.L.; Paulk, J.; Roberts, J.M.; Souza, A.; Dhe-Paganon, S.; Bradner, J.E. DRUG DEVELOPMENT. Phthalimide conjugation as a strategy for in vivo target protein degradation. Science 2015, 348, 1376–1381. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Buhimschi, A.D.; Armstrong, H.A.; Toure, M.; Jaime-Figueroa, S.; Chen, T.L.; Lehman, A.M.; Woyach, J.A.; Johnson, A.J.; Byrd, J.C.; Crews, C.M. Targeting the C481S Ibrutinib-Resistance Mutation in Bruton’s Tyrosine Kinase Using PROTAC-Mediated Degradation. Biochemistry 2018, 57, 3564–3575. [Google Scholar] [CrossRef]
  49. Salami, J.; Alabi, S.; Willard, R.R.; Vitale, N.J.; Wang, J.; Dong, H.; Jin, M.; McDonnell, D.P.; Crew, A.P.; Neklesa, T.K.; et al. Androgen receptor degradation by the proteolysis-targeting chimera ARCC-4 outperforms enzalutamide in cellular models of prostate cancer drug resistance. Commun. Biol. 2018, 1, 100. [Google Scholar] [CrossRef]
  50. Lai, A.C.; Toure, M.; Hellerschmied, D.; Salami, J.; Jaime-Figueroa, S.; Ko, E.; Hines, J.; Crews, C.M. Modular PROTAC Design for the Degradation of Oncogenic BCR-ABL. Angew. Chem. Int. Ed. 2016, 55, 807–810. [Google Scholar] [CrossRef] [Green Version]
  51. Sun, Y.; Zhao, X.; Ding, N.; Gao, H.; Wu, Y.; Yang, Y.; Zhao, M.; Hwang, J.; Song, Y.; Liu, W.; et al. PROTAC-induced BTK degradation as a novel therapy for mutated BTK C481S induced ibrutinib-resistant B-cell malignancies. Cell Res. 2018, 28, 779–781. [Google Scholar] [CrossRef]
  52. Sun, Y.; Ding, N.; Song, Y.; Yang, Z.; Liu, W.; Zhu, J.; Rao, Y. Degradation of Bruton’s tyrosine kinase mutants by PROTACs for potential treatment of ibrutinib-resistant non-Hodgkin lymphomas. Leukemia 2019, 33, 2105–2110. [Google Scholar] [CrossRef]
  53. Farnaby, W.; Koegl, M.; Roy, M.J.; Whitworth, C.; Diers, E.; Trainor, N.; Zollman, D.; Steurer, S.; Karolyi-Oezguer, J.; Riedmueller, C.; et al. BAF complex vulnerabilities in cancer demonstrated via structure-based PROTAC design. Nat. Chem. Biol. 2019, 15, 672–680. [Google Scholar] [CrossRef] [PubMed]
  54. Bondeson, D.P.; Smith, B.E.; Burslem, G.M.; Buhimschi, A.D.; Hines, J.; Jaime-Figueroa, S.; Wang, J.; Hamman, B.D.; Ishchenko, A.; Crews, C.M. Lessons in PROTAC Design from Selective Degradation with a Promiscuous Warhead. Cell Chem. Biol. 2018, 25, 78–87. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. de Wispelaere, M.; Du, G.; Donovan, K.A.; Zhang, T.; Eleuteri, N.A.; Yuan, J.C.; Kalabathula, J.; Nowak, R.P.; Fischer, E.S.; Gray, N.S.; et al. Small molecule degraders of the hepatitis C virus protease reduce susceptibility to resistance mutations. Nat. Commun. 2019, 10, 3468. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Marschall, M.; Freitag, M.; Weiler, S.; Sorg, G.; Stamminger, T. Recombinant green fluorescent protein-expressing human cytomegalovirus as a tool for screening antiviral agents. Antimicrob. Agents Chemother. 2000, 44, 1588–1597. [Google Scholar] [CrossRef] [Green Version]
  57. Hamilton, S.T.; Marschall, M.; Rawlinson, W.D. Investigational Antiviral Therapy Models for the Prevention and Treatment of Congenital Cytomegalovirus Infection during Pregnancy. Antimicrob. Agents Chemother. 2020, 65, e01627-20. [Google Scholar] [CrossRef]
  58. Goodwin, T.J.; McCarthy, M.; Osterrieder, N.; Cohrs, R.J.; Kaufer, B.B. Three-dimensional normal human neural progenitor tissue-like assemblies: A model of persistent varicella-zoster virus infection. PLoS Pathog. 2013, 9, e1003512. [Google Scholar] [CrossRef] [Green Version]
  59. Hutterer, C.; Milbradt, J.; Hamilton, S.; Zaja, M.; Leban, J.; Henry, C.; Vitt, D.; Steingruber, M.; Sonntag, E.; Zeittrager, I.; et al. Inhibitors of dual-specificity tyrosine phosphorylation-regulated kinases (DYRK) exert a strong anti-herpesviral activity. Antivir. Res. 2017, 143, 113–121. [Google Scholar] [CrossRef]
  60. Marschall, M.; Strojan, H.; Kiener, R.; Wangen, C.; Sonntag, E.; Muller, R.; Zeittrager, I.; Wagner, S.; Stamminger, T.; Milbradt, J.; et al. Differential upregulation of host cell protein kinases by the replication of alpha-, beta- and gamma-herpesviruses provides a signature of virus-specific signalling. J. Gen. Virol. 2020, 101, 284–289. [Google Scholar] [CrossRef]
  61. Herrmann, A.; Jungnickl, D.; Cordsmeier, A.; Peter, A.S.; Überla, K.; Ensser, A. Cloning of a Passage-Free SARS-CoV-2 Genome and Mutagenesis Using Red Recombination. Int. J. Mol. Sci. 2021, 22, 10188. [Google Scholar] [CrossRef]
  62. van Zuylen, W.J.; Ford, C.E.; Wong, D.D.; Rawlinson, W.D. Human Cytomegalovirus Modulates Expression of Noncanonical Wnt Receptor ROR2 To Alter Trophoblast Migration. J. Virol. 2016, 90, 1108–1115. [Google Scholar] [CrossRef] [Green Version]
  63. Hamilton, S.T.; Hutterer, C.; Egilmezer, E.; Steingruber, M.; Milbradt, J.; Marschall, M.; Rawlinson, W.D. Human cytomegalovirus utilises cellular dual-specificity tyrosine phosphorylation-regulated kinases during placental replication. Placenta 2018, 72–73, 10–19. [Google Scholar] [CrossRef] [PubMed]
  64. Repetto, G.; del Peso, A.; Zurita, J.L. Neutral red uptake assay for the estimation of cell viability/cytotoxicity. Nat. Protoc. 2008, 3, 1125–1131. [Google Scholar] [CrossRef]
  65. Hahn, F.; Hutterer, C.; Henry, C.; Hamilton, S.T.; Strojan, H.; Kraut, A.; Schulte, U.; Schutz, M.; Kohrt, S.; Wangen, C.; et al. Novel cytomegalovirus-inhibitory compounds of the class pyrrolopyridines show a complex pattern of target binding that suggests an unusual mechanism of antiviral activity. Antivir. Res. 2018, 159, 84–94. [Google Scholar] [CrossRef] [PubMed]
  66. Hahn, F.; Niesar, A.; Wangen, C.; Wild, M.; Grau, B.; Herrmann, L.; Capci, A.; Adrait, A.; Coute, Y.; Tsogoeva, S.B.; et al. Target verification of artesunate-related antiviral drugs: Assessing the role of mitochondrial and regulatory proteins by click chemistry and fluorescence labeling. Antivir. Res. 2020, 180, 104861. [Google Scholar] [CrossRef] [PubMed]
Ijms 22 12858 g001 550

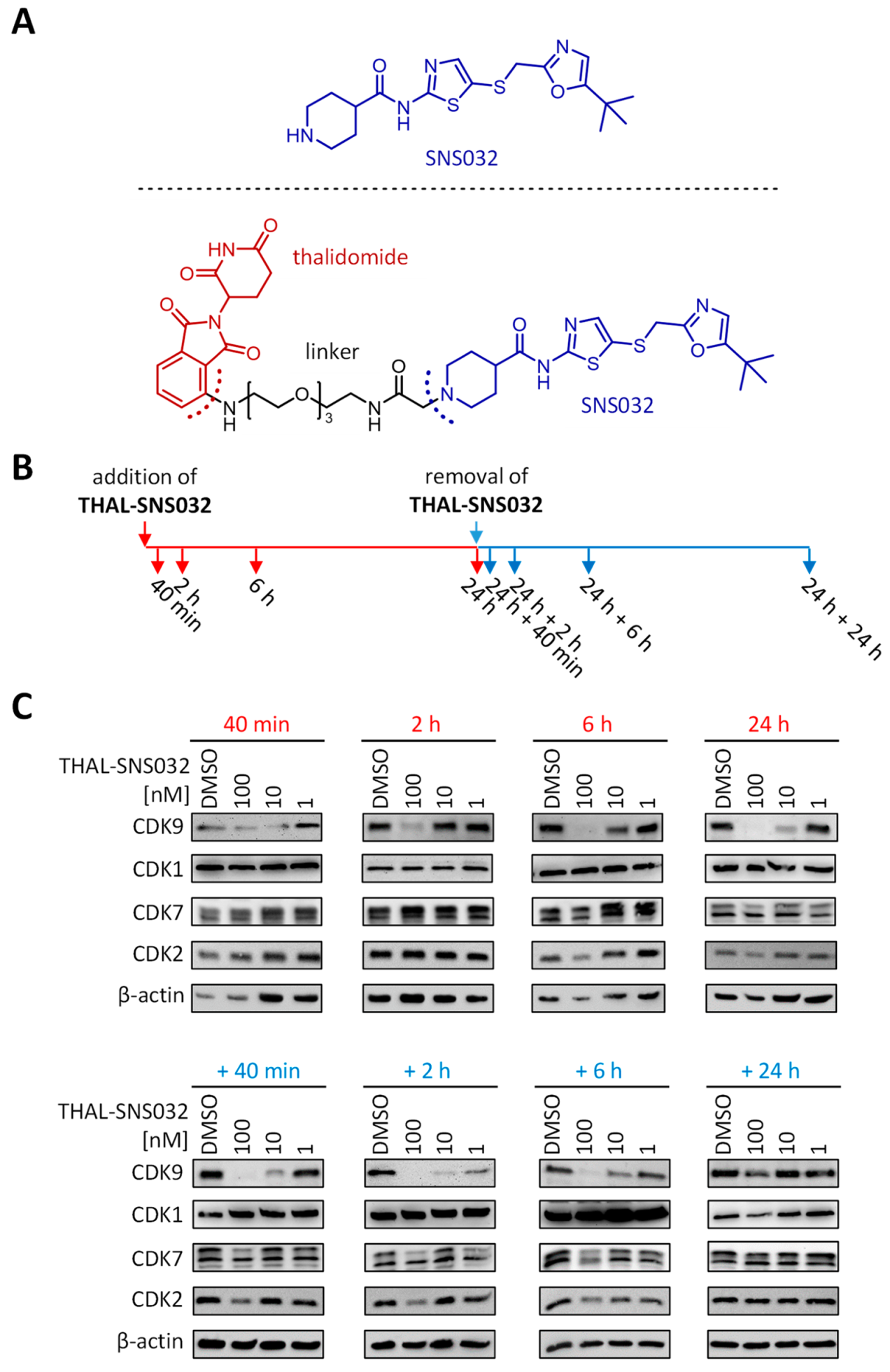

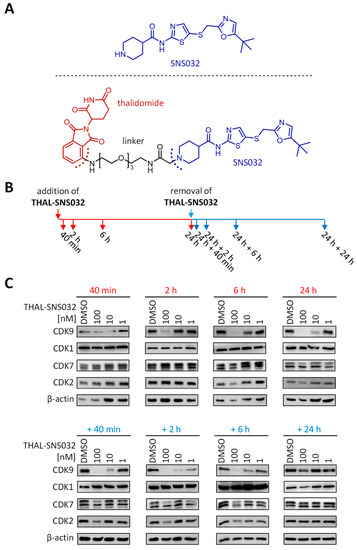

Figure 1. THAL-SNS032 induces degradation of CDKs in HFFs. (A) Chemical structures of SNS032 (upper panel) and THAL-SNS032 (lower panel). (B) Parallel cultures of HFFs were treated with 100, 10, or 1 nM of THAL-SNS032 and cells were harvested at 40 min, 2, 6, and 24 h. After 24 h of treatment, a removal and washout of THAL-SNS032 was performed and cells were then harvested at additional 40 min, 2, 6, and 24 h. (C) Cell lysates were used in Western blot analyses to detect the indicated CDKs; β-actin served as loading control.
Figure 1. THAL-SNS032 induces degradation of CDKs in HFFs. (A) Chemical structures of SNS032 (upper panel) and THAL-SNS032 (lower panel). (B) Parallel cultures of HFFs were treated with 100, 10, or 1 nM of THAL-SNS032 and cells were harvested at 40 min, 2, 6, and 24 h. After 24 h of treatment, a removal and washout of THAL-SNS032 was performed and cells were then harvested at additional 40 min, 2, 6, and 24 h. (C) Cell lysates were used in Western blot analyses to detect the indicated CDKs; β-actin served as loading control.
Ijms 22 12858 g001
Ijms 22 12858 g002 550

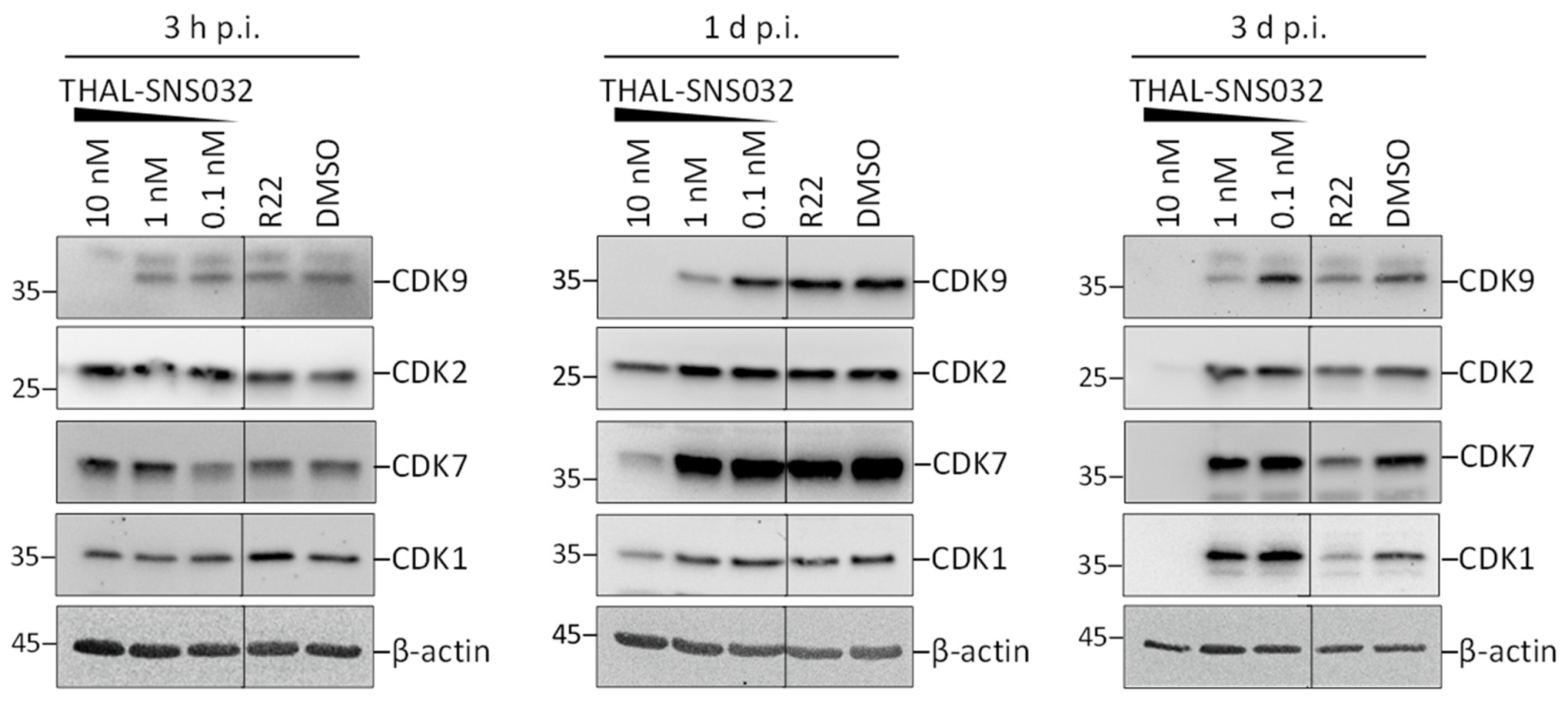

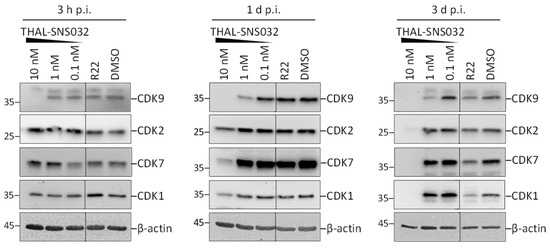

Figure 2. THAL-SNS032 induces degradation of CDKs in HCMV-infected HFFs. HFFs were inoculated with HCMV-AD169 at a multiplicity of infection (MOI) of 2, and treated with THAL-SNS032 or controls (CDK9 inhibitor R22 [1 µM], solvent control DMSO) immediately after infection. After 3 h, 1 day or 3 days, cells were harvested and subsequently analyzed for their CDK steady-state levels by Western blot stainings; β-actin served as loading control.
Figure 2. THAL-SNS032 induces degradation of CDKs in HCMV-infected HFFs. HFFs were inoculated with HCMV-AD169 at a multiplicity of infection (MOI) of 2, and treated with THAL-SNS032 or controls (CDK9 inhibitor R22 [1 µM], solvent control DMSO) immediately after infection. After 3 h, 1 day or 3 days, cells were harvested and subsequently analyzed for their CDK steady-state levels by Western blot stainings; β-actin served as loading control.
Ijms 22 12858 g002
Ijms 22 12858 g003 550

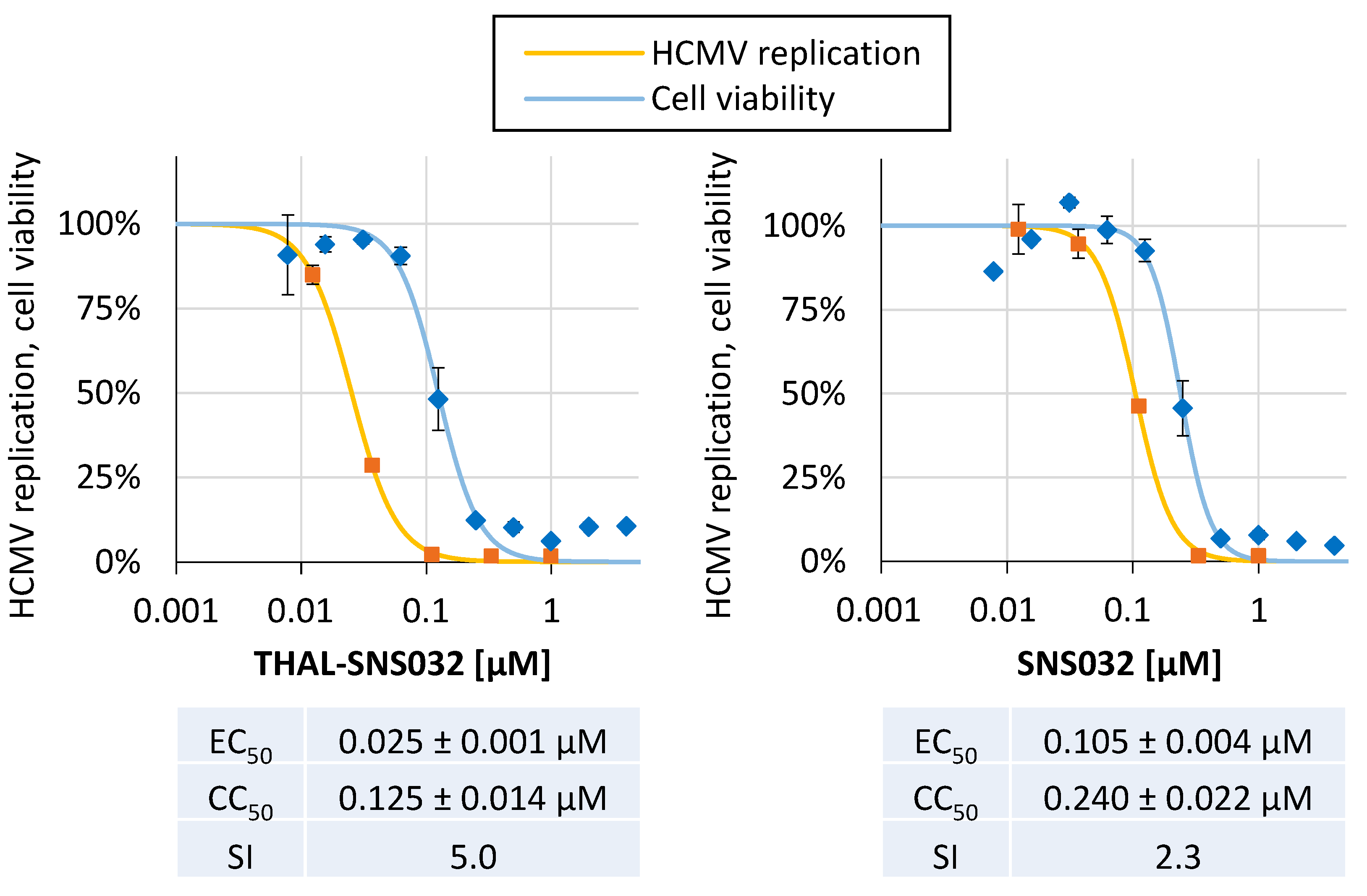

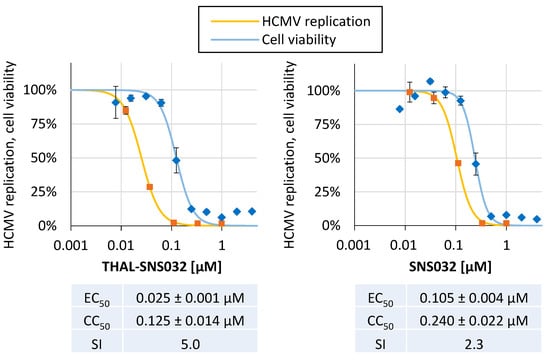

Figure 3. Comparative analysis of the anti-HCMV activity exerted by THAL-SNS032 and SNS032. THAL-SNS032 and SNS032 were assayed for their antiviral activity in a GFP-based replication assay using HCMV AD169-GFP for the infection of HFFs. Antiviral compounds were added immediately p.i., starting at 1 µM followed by five three-fold dilution steps. Cells were lysed; 7 d p.i. to perform quantitative GFP fluorometry. Cell viability was determined by performing NRA in parallel uninfected cells. Values represent mean ± SD of triplicate (NRA) or quadruplicate (GFP) determinations. One representative experiment of at least four independent replicates is depicted.
Figure 3. Comparative analysis of the anti-HCMV activity exerted by THAL-SNS032 and SNS032. THAL-SNS032 and SNS032 were assayed for their antiviral activity in a GFP-based replication assay using HCMV AD169-GFP for the infection of HFFs. Antiviral compounds were added immediately p.i., starting at 1 µM followed by five three-fold dilution steps. Cells were lysed; 7 d p.i. to perform quantitative GFP fluorometry. Cell viability was determined by performing NRA in parallel uninfected cells. Values represent mean ± SD of triplicate (NRA) or quadruplicate (GFP) determinations. One representative experiment of at least four independent replicates is depicted.
Ijms 22 12858 g003
Ijms 22 12858 g004 550

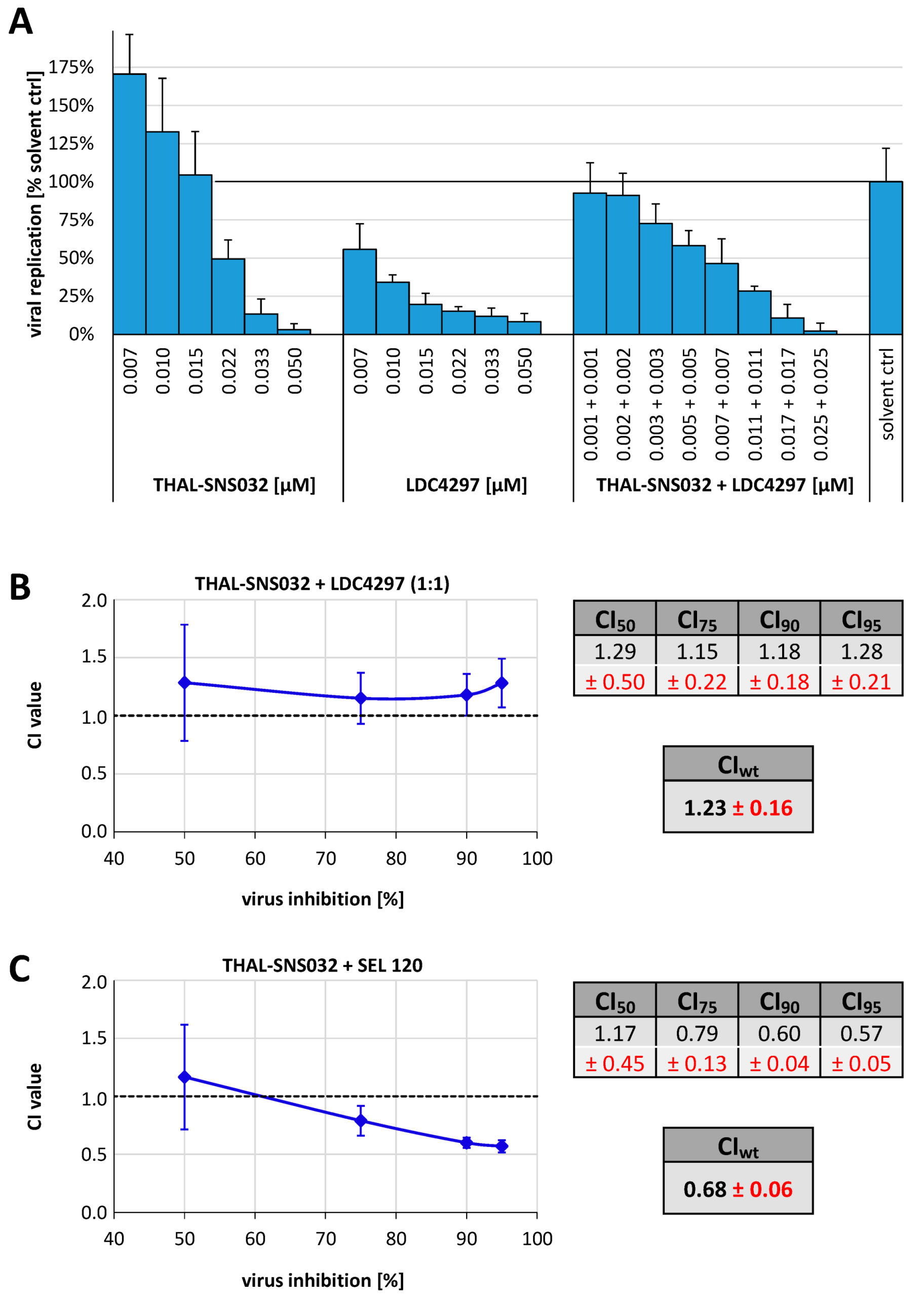

Figure 4. Analysis of the THAL-SNS032 drug interaction with LDC4297 using the Loewe additivity fixed-dose assay. (A) HCMV AD169-GFP-infected HFFs are treated with the indicated concentrations of THAL-SNS032 and LDC4297, either as a single-compound treatment or as a combination of both. Inhibition of viral replication was determined by quantitating the cell-associated GFP fluorescence of compound-treated cells relative to the solvent control (DMSO). (B) The generated data were used to determine CI values at 50%, 75%, 90%, and 95% of virus inhibition. Subsequently, the weighted CI value (CIwt) was calculated as: (1 × CI50 + 2 × CI75 + 3 × CI90 + 4 × CI95)/10. (C) The drug interaction between THAL-SNS032 and the CDK8 inhibitor SEL120 was analogously determined and the respective CI and CIwt values were calculated. Data represent means ± SD of three experimental replicates.
Figure 4. Analysis of the THAL-SNS032 drug interaction with LDC4297 using the Loewe additivity fixed-dose assay. (A) HCMV AD169-GFP-infected HFFs are treated with the indicated concentrations of THAL-SNS032 and LDC4297, either as a single-compound treatment or as a combination of both. Inhibition of viral replication was determined by quantitating the cell-associated GFP fluorescence of compound-treated cells relative to the solvent control (DMSO). (B) The generated data were used to determine CI values at 50%, 75%, 90%, and 95% of virus inhibition. Subsequently, the weighted CI value (CIwt) was calculated as: (1 × CI50 + 2 × CI75 + 3 × CI90 + 4 × CI95)/10. (C) The drug interaction between THAL-SNS032 and the CDK8 inhibitor SEL120 was analogously determined and the respective CI and CIwt values were calculated. Data represent means ± SD of three experimental replicates.
Ijms 22 12858 g004
Ijms 22 12858 g005 550

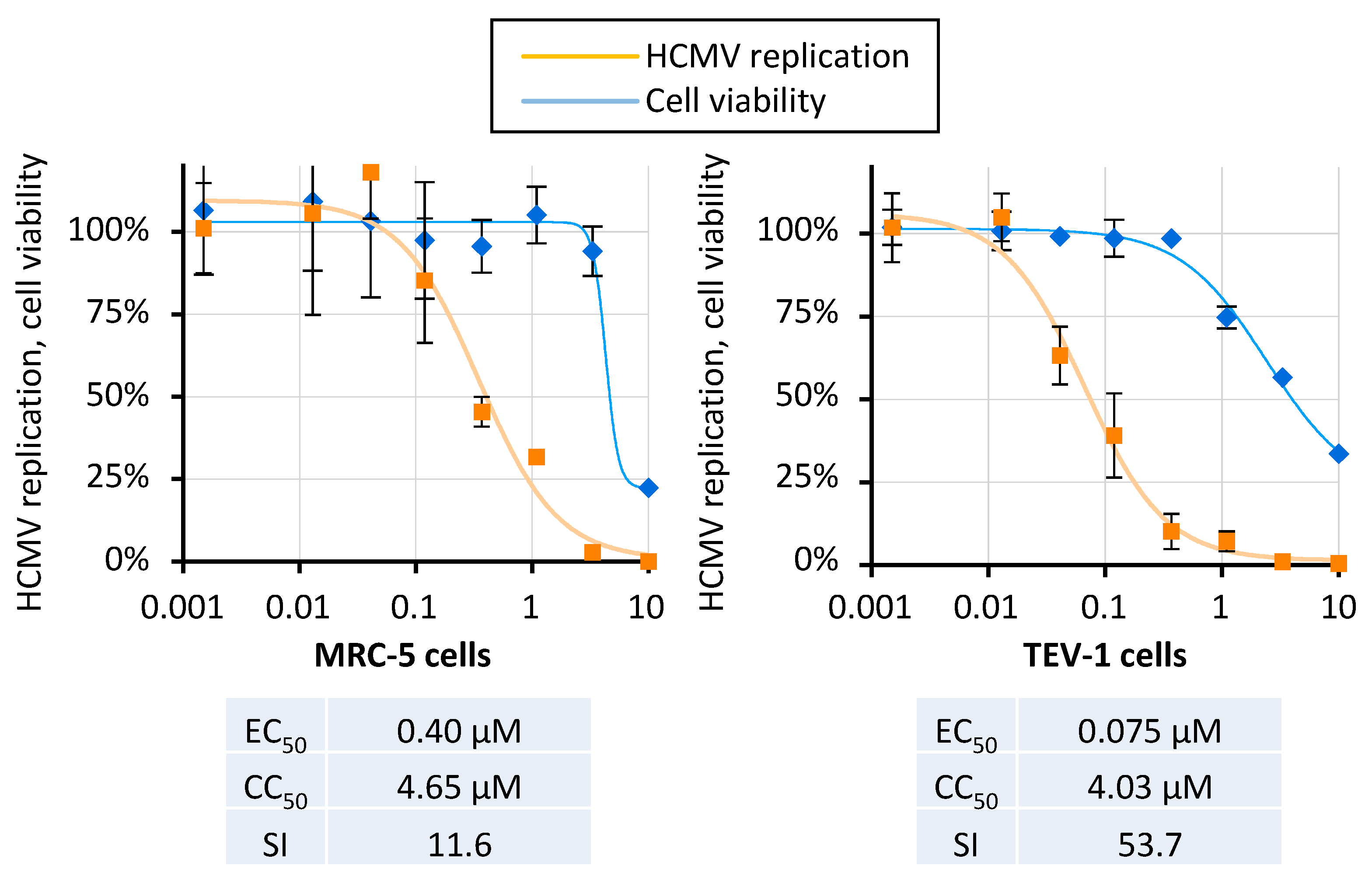

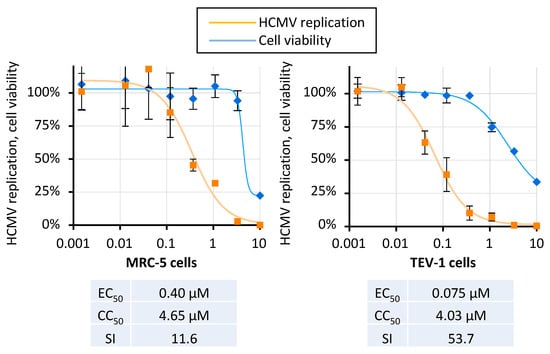

Figure 5. THAL-SNS032 inhibits HCMV replication in MRC-5 cells and human first-trimester extravillous trophoblast (TEV-1) cells. Merlin-infected MRC-2 and TEV-1 cells were with various concentrations of THAL-SNS032. Viral replication was quantitated by HCMV-specific qPCR using cell culture supernatants collected at 7 p.i. Cell viability was determined in parallel by a Neutral Red uptake assay using uninfected MRC-5 and TEV-1 cells.
Figure 5. THAL-SNS032 inhibits HCMV replication in MRC-5 cells and human first-trimester extravillous trophoblast (TEV-1) cells. Merlin-infected MRC-2 and TEV-1 cells were with various concentrations of THAL-SNS032. Viral replication was quantitated by HCMV-specific qPCR using cell culture supernatants collected at 7 p.i. Cell viability was determined in parallel by a Neutral Red uptake assay using uninfected MRC-5 and TEV-1 cells.
Ijms 22 12858 g005
Ijms 22 12858 g006 550

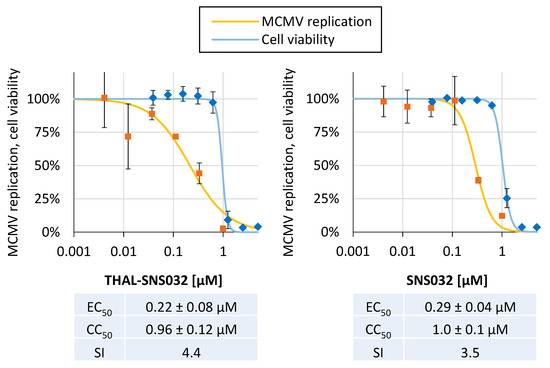

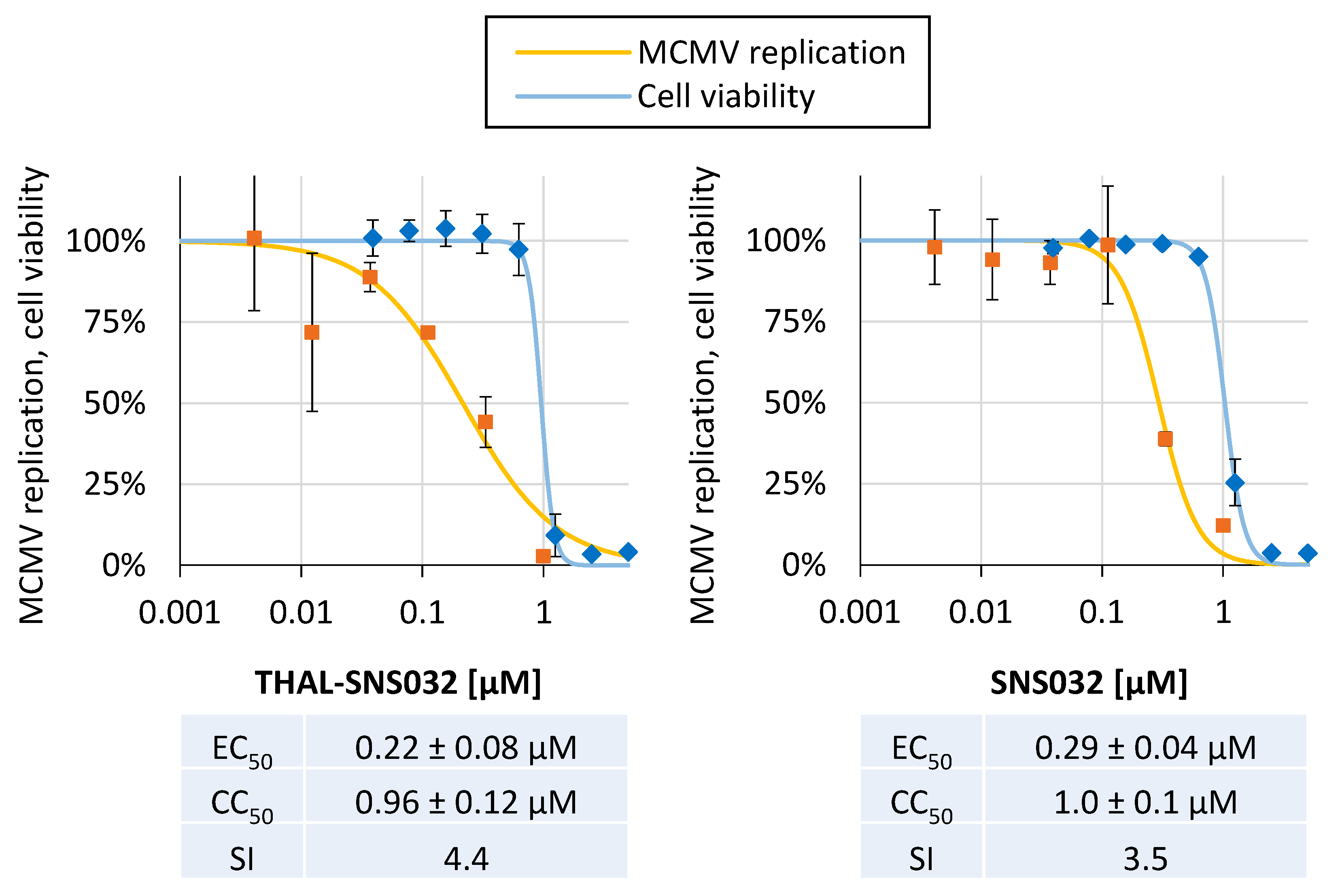

Figure 6. Comparable analysis of anti-MCMV activity of THAL-SNS032 and SNS032. Bot compounds were analyzed for their antiviral activity in a GFP-based replication assay by titration on MCMV Smith-GFP-infected MEFs. A concentration of 1 µM was used as the starting point followed by six three-fold dilution steps. The cell-associated GFP fluorescence was used to quantitate viral replication 5 d p.i. Cell viability was determined in parallel using uninfected MEFs incubated with a compound for 5 d. Values represent means ± SD of biological triplicates (NRA) or quadruplicates (GFP).
Figure 6. Comparable analysis of anti-MCMV activity of THAL-SNS032 and SNS032. Bot compounds were analyzed for their antiviral activity in a GFP-based replication assay by titration on MCMV Smith-GFP-infected MEFs. A concentration of 1 µM was used as the starting point followed by six three-fold dilution steps. The cell-associated GFP fluorescence was used to quantitate viral replication 5 d p.i. Cell viability was determined in parallel using uninfected MEFs incubated with a compound for 5 d. Values represent means ± SD of biological triplicates (NRA) or quadruplicates (GFP).
Ijms 22 12858 g006
Ijms 22 12858 g007 550

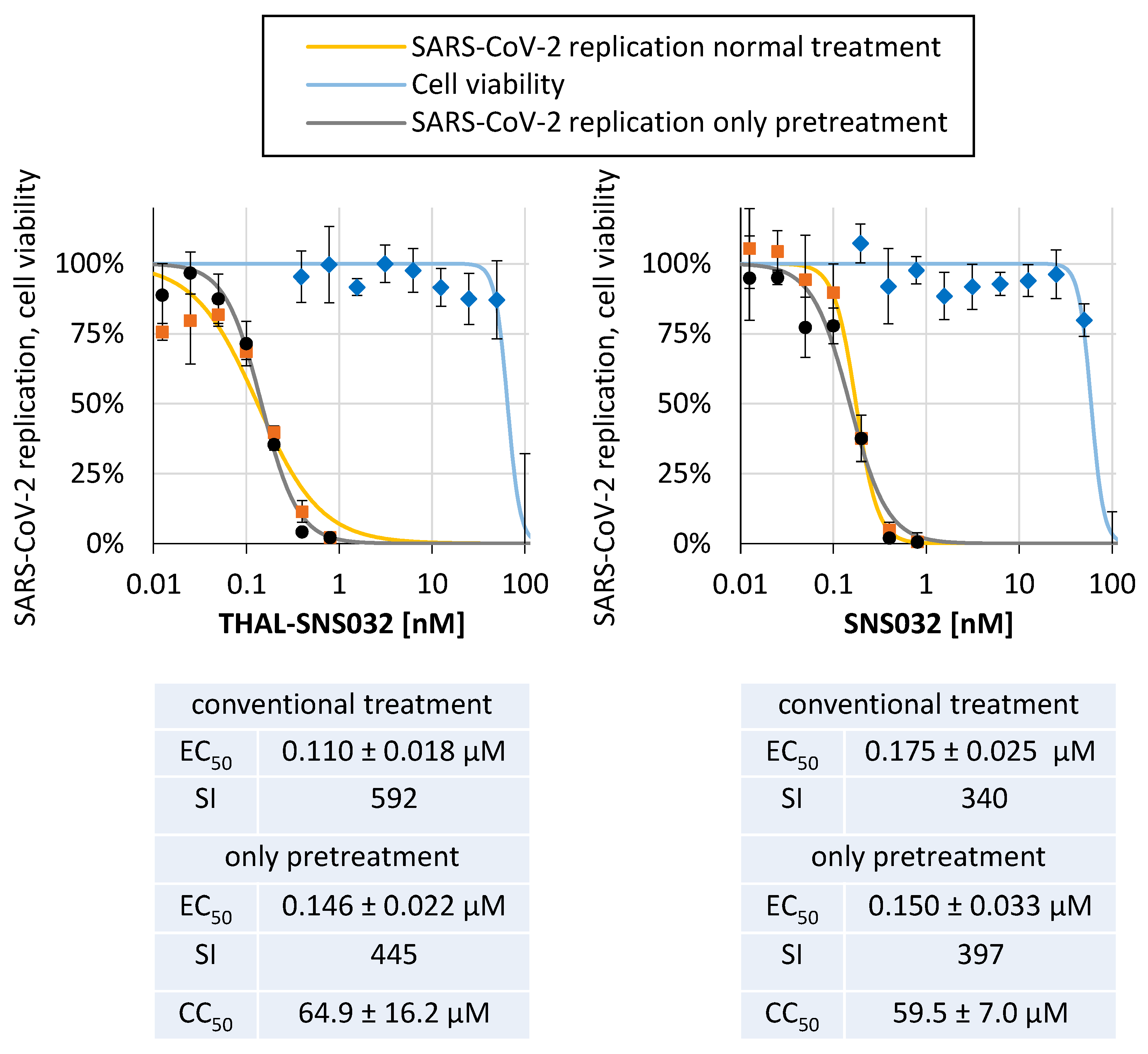

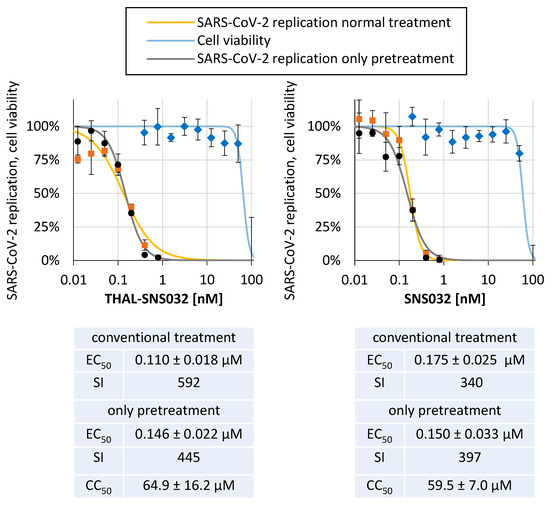

Figure 7. Anti-SARS-CoV-2 activity of THAL-SNS032 and SNS032 in a permissive human cell line. Caco-2 cells were cultivated in 96-well plates at 25,000 cells/well, infected with the recombinant SARS-CoV-2 d6-YFP reporter virus at an MOI of 0.003 and treated with the indicated concentrations of THAL-SNS032 and SNS032. At 30 h p.i., cells were harvested and viral replication was determined by quantitative fluorescence detection of virus-driven YFP expression using the fixed cells. Cell viability was determined from parallel cultures of uninfected Caco-2 cells by determination of release LDH after 48 h of treatment. Values represent means ± SD of biological quadruplicates (replication) or triplicates (LDH release). One representative experiment out of three is depicted.
Figure 7. Anti-SARS-CoV-2 activity of THAL-SNS032 and SNS032 in a permissive human cell line. Caco-2 cells were cultivated in 96-well plates at 25,000 cells/well, infected with the recombinant SARS-CoV-2 d6-YFP reporter virus at an MOI of 0.003 and treated with the indicated concentrations of THAL-SNS032 and SNS032. At 30 h p.i., cells were harvested and viral replication was determined by quantitative fluorescence detection of virus-driven YFP expression using the fixed cells. Cell viability was determined from parallel cultures of uninfected Caco-2 cells by determination of release LDH after 48 h of treatment. Values represent means ± SD of biological quadruplicates (replication) or triplicates (LDH release). One representative experiment out of three is depicted.
Ijms 22 12858 g007
Table
Table 1. Summary of antiviral activities in various virus replication models *.
Table 1. Summary of antiviral activities in various virus replication models *.
THAL-SNS032SNS032EC50 Ratio
SNS032/
THAL-SNS032
VirusStrain/
Type		MOId p.i.Cell TypeEC50 [µM]CC50 (µM)SIEC50 [µM]CC50 (µM)SI
HCMVAD169-GFP1× TCID257d7HFF0.03 ± 0.010.18 ± 0.115.70.11 ± 0.020.22 ± 0.042.03.7
HCMVMerlin 7TEV-10.0754.0354n.d.n.d.n.d.n.d.
HCMVMerlin0.24MRC-51.774.563n.d.n.d.n.d.n.d.
HCMVMerlin0.27MRC-53.074.562n.d.n.d.n.d.n.d.
HCMVMerlin0.024MRC-50.374.5613n.d.n.d.n.d.n.d.
HCMVMerlin0.027MRC-50.404.5612n.d.n.d.n.d.n.d.
HCMVMerlin0.0027MRC-50.574.568n.d.n.d.n.d.n.d.
HCMVMerlin0.00210MRC-50.944.565n.d.n.d.n.d.n.d.
MCMVSmith-GFP1× TCID255d5MEF0.21 ± 0.091.00 ± 0.224.70.29 ± 0.051.03 ± 0.053.51.4
VZVOka-GFP1× TCID257d6HFFinactive0.18 ± 0.11n.d.inactive0.22 ± 0.04n.d.n.d.
HAdV-2type 2 10HFFinactiven.d.n.d.inactiven.d.n.d.n.d.
SARS-CoV-2d6-YFP0.0031.25Caco-20.11 ± 0.0264.9 ± 16.25920.18 ± 0.0359.5 ± 7.03401.6
SARS-CoV-2
(pretreated)		d6-YFP0.0031.25Caco-20.15 ± 0.0264.9 ± 16.24440.15 ± 0.0359.5 ± 7.03971.7
ZIKVPRVABC590.021Veroinactiven.d.n.d.n.d.n.d.n.d.n.d.
ZIKVPRVABC590.022Veroinactiven.d.n.d.n.d.n.d.n.d.n.d.
ZIKVPRVABC590.023Veroinactiven.d.n.d.n.d.n.d.n.d.n.d.
ZIKVPRVABC590.024Veroinactive43.9n.d.n.d.n.d.n.d.n.d.
* n.d.; not determined.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Hahn, F.; Hamilton, S.T.; Wangen, C.; Wild, M.; Kicuntod, J.; Brückner, N.; Follett, J.E.L.; Herrmann, L.; Kheimar, A.; Kaufer, B.B.; et al. Development of a PROTAC-Based Targeting Strategy Provides a Mechanistically Unique Mode of Anti-Cytomegalovirus Activity. Int. J. Mol. Sci. 2021, 22, 12858. https://doi.org/10.3390/ijms222312858

AMA Style

Hahn F, Hamilton ST, Wangen C, Wild M, Kicuntod J, Brückner N, Follett JEL, Herrmann L, Kheimar A, Kaufer BB, et al. Development of a PROTAC-Based Targeting Strategy Provides a Mechanistically Unique Mode of Anti-Cytomegalovirus Activity. International Journal of Molecular Sciences. 2021; 22(23):12858. https://doi.org/10.3390/ijms222312858

Chicago/Turabian Style

Hahn, Friedrich, Stuart T. Hamilton, Christina Wangen, Markus Wild, Jintawee Kicuntod, Nadine Brückner, Jasmine E. L. Follett, Lars Herrmann, Ahmed Kheimar, Benedikt B. Kaufer, and et al. 2021. "Development of a PROTAC-Based Targeting Strategy Provides a Mechanistically Unique Mode of Anti-Cytomegalovirus Activity" International Journal of Molecular Sciences 22, no. 23: 12858. https://doi.org/10.3390/ijms222312858

APA Style

Hahn, F., Hamilton, S. T., Wangen, C., Wild, M., Kicuntod, J., Brückner, N., Follett, J. E. L., Herrmann, L., Kheimar, A., Kaufer, B. B., Rawlinson, W. D., Tsogoeva, S. B., & Marschall, M. (2021). Development of a PROTAC-Based Targeting Strategy Provides a Mechanistically Unique Mode of Anti-Cytomegalovirus Activity. International Journal of Molecular Sciences, 22(23), 12858. https://doi.org/10.3390/ijms222312858

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
