Garlic Volatile Diallyl Disulfide Induced Cucumber Resistance to Downy Mildew

by
Fan Yang
,
Hui Wang
,
Chengchen Zhi
,
Birong Chen
,
Yujie Zheng
,
Lijun Qiao
,
Jingcao Gao
,
Yupeng Pan
* and
Zhihui Cheng
*
College of Horticulture, Northwest A&F University, Xianyang 712100, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(22), 12328; https://doi.org/10.3390/ijms222212328
Submission received: 22 October 2021 / Revised: 10 November 2021 / Accepted: 11 November 2021 / Published: 15 November 2021
(This article belongs to the Collection Recent Advances in Plant Molecular Science in China 2021)
Browse Figures
Review Reports Versions Notes

Abstract

:
Allicin compositions in garlic are used widely as fungicides in modern agriculture, in which diallyl disulfide (DADS) is a major compound. Downy mildew, caused by Pseudoperonospora cubensis (P. cubensis), is one of the most destructive diseases and causes severe yield losses in cucumbers. To explore the potential mechanism of DADS-induced cucumber resistance to downy mildew, cucumber seedlings were treated with DADS and then inoculated with P. cubensis at a 10-day interval. Symptom observation showed that DADS significantly induced cucumber resistance to downy mildew. Furthermore, both lignin and H2O2 were significantly increased by DADS treatment to responding P. cubensis infection. Simultaneously, the enzyme activities of peroxidase (POD) in DADS-treated seedlings were significantly promoted. Meanwhile, both the auxin (IAA) and salicylic acid (SA) contents were increased, and their related differentially expressed genes (DEGs) were up-regulated when treated with DADS. Transcriptome profiling showed that many DEGs were involved in the biological processes of defense responses, in which DEGs on the pathways of ‘phenylpropanoid biosynthesis’, ‘phenylalanine metabolism’, ‘MAPK signaling’, and ‘plant hormone signal transduction’ were significantly up-regulated in DADS-treated cucumbers uninoculated with the pathogen. Based on the results of several physiological indices and transcriptomes, a potential molecular mechanism of DADS-induced cucumber resistance to downy mildew was proposed and discussed. The results of this study might give new insight into the exploration of the induced resistance mechanism of cucumber to downy mildew and provide useful information for the subsequent mining of resistance genes in cucumber.

1. Introduction

Garlic (Allium sativum L.), an important economic vegetable, contains various sulphureous volatile organic compounds (VOCs), including sulfides, disulfides, and trisulfides, all of which are formed by the decomposition of allicin and are released upon crushing garlic [1]. These sulphureous VOCs give garlic strong allelopathic effects, which makes garlic a popular targeted crop in rotation and intercropping systems. Until now, garlic has been rotated or intercropped with many other vegetable crops such as eggplant [2], pepper [3], tomato [4], and cucumber [5,6]. When garlic is used in the intercropping systems, several beneficial effects have been reported [7], such as improving the nutritional status of soil, reducing plant diseases and pests, alleviating continuous cropping obstacles, and increasing land use efficiency and net return. Wang et al. [2] reported that eggplant intercropped with garlic could be an ideal farming system to effectively improve soil nutrients and to partially alleviate soil-borne diseases. In the pepper–garlic intercropping system, garlic root exudates with lower concentrations can stimulate the protective enzyme systems and then promote the growth of pepper, while those with higher concentrations will show deleterious effects [3]. For the tomato–garlic intercropping system, the increased microorganism populations and enzyme activities in the substrates were observed, which further improved the fruit quality of tomato and produced higher economic benefits than the mono-cultivated tomatoes [4]. In addition, compared with the monoculture system, both the cucumber–garlic and cucumber–green garlic intercropping systems showed improving effects on the populations of microorganisms and the activities of soil enzymes, as well as the nutritional status of both soils and plants [5,6]. Our previous studies indicated that intercropping green garlic or garlic bulbs with cucumbers can significantly reduce the incidence and disease index of downy mildew in cucumber at the early stage of onset, and intercropping with green garlic had more significant effects. In the cultivation system of green garlic intercropped with cucumber, the VOCs released from green garlic might play important roles in reducing the incidence of downy mildew in cucumber; especially for the period of harvesting green garlics, more intense VOCs will be released. However, the regulating mechanism of these green garlic released VOCs in inducing cucumber downy mildew resistance is still unknown.
Diallyl disulfide (DADS) is a major allelochemical of the VOCs in garlic [1,8]. Previous studies found that DADS can promote root growth in tomato by affecting cell division, changing endogenous phytohormones, increasing expressions of expansion genes [8]. Additionally, the pathways of sulphate assimilation and glutathione (GSH) metabolism are also involved in the regulation of DADS-induced tomato root growth [9]. Recently, Cheng et al. reported that DADS might increase resistance and promote plant growth in tomato by increasing its root activity and photosynthetic capacity and development to reduce the autotoxicity of tomato [10]. In addition, lower concentrations of DADS can promote root growth and induce the elongation of main roots in cucumber [11]. Our previous work indicated that both the green garlic VOCs and DADS play vital roles in the reactive oxygen species (ROS) production and regulation of antioxidant enzymes in cucumber seedlings [1]. Moreover, DADS was also reported to have antifungal activity against several fungi (e.g., C. albicans, C. tropicalis, and Blastoschizomyces capitatus) [12]. Therefore, the DADS might also play an important role in the inducing of disease resistance in cucumber.
Downy mildew, caused by the obligate oomycete pathogen P. cubensis, is one of the most devastating diseases in cucumber [13]. Although some resistant germplasms have been identified, the regulating genes and the pathways involved in mediating downy mildew resistance in cucumber are still unclear [14]. Several quantitative trait loci associated with downy mildew resistance have been mapped onto five of the seven cucumber chromosomes, suggesting that downy mildew resistance in cucumber is likely due to the associative effects of multiple genes [15]. Recently, CsSGR was reported as a major-effect resistant gene for cucumber downy mildew. Loss-of-function of CsSGR gives cucumber durable and broad-spectrum disease resistance to several diseases including the downy mildew. This probably is due to the fact that CsSGR functions in the inhibitions of ROS over-accumulation and phytotoxic catabolite over-buildup in the chlorophyll degradation pathway [16]. Additionally, overexpression of CsWRKY50 also enhanced cucumber resistance to P. cubensis, probably, through upregulating the transcript levels of several phytohormone-related defense genes that include salicylic acid (SA)-responsive genes, jasmonic acid (JA) responsive genes, and SA biosynthesis genes [17]. Furthermore, transcriptome profiling in the context of P. cubensis infection also gives some insight into understanding the molecular mechanisms of host responses to downy mildew infection. In cucumber, transcriptome data revealed that resistance to downy mildew is associated with an earlier response to the pathogen, hormone signaling, and regulation of nutrient supply [14]. Additionally, the pathways of pathogen-associated molecular pattern (PAMP) recognition, signal transduction, ROS and lignin accumulation, and some transcription regulators are all involved in the resistance of cucumber to downy mildew [15]. Although some research on germplasm identification, regulatory genes, and pathways of cucumber resistance to downy mildew were performed, studies on the use of allelopathic substances to induce cucumber resistance to downy mildew are rarely reported, and its potential regulatory mechanism is also unknown.
Therefore, based on the previous studies, we speculate that DADS may play an important role in promoting the cucumber resistance to downy mildew. To explore the potential mechanism of DADS-induced cucumber resistance to downy mildew, phenotypic observation, physiological changes, and transcriptome analysis were performed to reveal the infection processes and cucumber resistance responding mechanisms to the infection of P. cubensis. Results of this study lay a foundation for research on the resistance mechanism of downy mildew and provide useful information for the subsequent mining of resistance genes in cucumber. Additionally, this work might provide an alternative environmentally friendly way for reducing the continuous cropping obstacles and controlling leaf diseases during the cultivation of vegetables.

2. Results

2.1. DADS-Induced Cucumber Resistance to Downy Mildew

To investigate the effect of DADS on P. cubensis infection, the phenotypic changes of cucumber seedlings under the inoculation of pathogens were observed and recorded. For the seedling of CK, the pathogen-inoculated area firstly showed a water-soaking phenotype and then developed chlorotic lesions (Figure 1A and Figure S1A). However, the DADS-treated seedlings showed smaller, less chlorotic lesions (Figure 1A and Figure S1A). Statistically, the disease index of DADS treatment (DI = 17.2) was significantly lower than that of CK (DI = 54.3) (p < 0.01) (Figure 1B). Additionally, although the leaves of DADS-treated seedlings developed typical disease spots and formed apparent necrotic areas, these symptoms did not continuously become larger or worse after 14 days post-inoculation (Figure S1B). In contrast, more disease spots and necrotic areas were observed on the leaves of CK seedlings, in which these symptoms continued to grow larger even after 14 days inoculation (Figure S1B). Briefly, compared with the CK seedlings, the DADS-treated cucumber seedlings showed better resistance to downy mildew based on the occurred symptoms.
Microscopic examination of the growth process of P. cubensis among the infected lesions also showed consistent results with the observed phenotypic changes. The sporangiophore occurred as early as 24 hpi (hours of post inoculation) in CK seedlings, while the DADS-treated seedlings had not shown sporangiophore at this time point (Figure 1C). At 96 hpi, many sporangiophores grew in CK seedlings, but it was not observed in DADS-treated seedlings. Sporangiophore development occurred with a lot of sporangium in CK seedlings at 168 hpi, but these phenomena had not occurred in DADS-treated seedlings. In general, the growth of P. cubensis in the DADS treated seedling were relatively slower and abnormal (less sporangiophore and rare sporangium) compared with that in the seedlings of CK, which might further result in the DADS-treated cucumber seedlings with resistance features to downy mildew.

2.2. DADS Induced More ROS and Lignin Accumulations and Defense Enzymes Divergences after P. cubensis Inoculation

The production of cellular ROS, including H2O2 and superoxide anion, can be induced by pathogen invasion [18]. To verify whether ROS accumulation was associated with the DADS induced cucumber resistance to P. cubensis, the contents of H2O2 and superoxide anion in the leaves of DADS-treated seedlings were checked. DADS-treated leaves showed a similar changing trend with CK for the content of superoxide anion, but the contents in DADS-treated leaves were higher than that in CK, especially for the time points of 24, 48, and 72 hpi (Figure 2A). Either inoculated or not, H2O2 was found in both DADS treatment and CK, as manifested by quantitative measurement and histochemical staining with DAB (Figure 2B,C). DADS-treated leaves accumulated significantly higher levels of H2O2 at 0, 4, and 12 hpi than those of CK leaves (Figure 2B,C). However, DADS-treated leaves accumulated significantly lower levels of H2O2 than those of CK leaves after 24 hpi (Figure 2C). In DADS-treated leaves, a dramatic increase in H2O2 content was observed at 4 hpi, while a second slight increase was detected between 24 hpi and 48 hpi (Figure 2C). In CK leaves, only a single increase was observed, peaking at 72 hpi (Figure 2C). At the final monitored time point of 168 hpi, H2O2 content in the DADS treated leaves was lower than that in CK (Figure 2C).
Since the biosynthesis of H2O2 was mainly controlled by SOD, and its degradation was regulated by POD and CAT, enzymatic assays were performed to firstly check the activities of these three enzymes (SOD, CAT, and POD). Additionally, the activities of PAL, the first enzyme in the phenylpropanoid metabolism pathway [19], were also examined. The results showed that the activity of SOD in DADS-treated leaves was significantly higher than that in CK leaves at 24 hpi, while significantly lower activities were shown in DADS treated leaves at both 48 and 168 hpi (Figure 2D). The activities of CAT in DADS-treated leaves were significantly higher and lower than those in CK leaves at both 48 and 168 hpi and both 12 and 24 hpi, respectively (Figure 2E). DADS-treated leaves showed continuously higher POD activities than those in CK leaves at 4, 12, 48, and 72 hpi (Figure 2F). The activities of PAL in DADS-treated leaves were lower than those in CK leaves, especially for the time points of 48, 72, 96, and 168 hpi (Figure 2G). Collectively, considering the enzyme corresponding functions, the enzyme activity changes of SOD, POD, and CAT were consistent with the changes of H2O2 content, and the DADS-treated leaves showed stronger ROS scavenging capabilities than the CK. This might suggest that the different accumulation of H2O2 may be a reason for the defense resistance difference between DADS treated and CK cucumber seedlings.
Previous studies reported that lignin protects cell wall polysaccharides from microbial degradation, and its biosynthesis was induced upon pathogen infection [20]. Therefore, we also check the lignin accumulations in the leaves of DADS-treated and CK cucumber seedlings after the infection of P. cubensis. The accumulations of lignin on the cell walls of cucumber leaves were truly induced when inoculated with downy mildew pathogens (Figure 2H), in which the leaf cells showed extension of lignification stained with toluidine blue (Figure 2H). During the infection process, the cell walls were gradually thickened, and their intensities were simultaneously deepened, especially at 4 hpi, and remained nearly unchanging since the 48 hpi (Figure 2H). However, the stained cell walls were not shown in CK leaves at 4 hpi (Figure 2H), and until the 96 hpi, the cell walls of CK leaves had similar performance with that of DADS-treated leaves at 48 hpi (Figure 2H). Therefore, DADS-treated leaves could accumulate lignin quicker than CK after the pathogen infection. Taken together, the activations of ROS and lignin accumulation pathways might take important roles in the DADS-induced cucumber resistance to P. cubensis.

2.3. DADS Induced Phytohormone Changes under the Infection of Downy Mildew

To determine whether phytohormone pathways were involved in the infection of P. cubensis, the contents of IAA, ABA, SA, and JA in cucumber leaves were measured by HPLC-ESI-MS/MS. The results showed that IAA levels in DADS-treated leaves were significantly increased and higher than those in CK leaves at 12, 48, and 72 hpi, while lower IAA content in DADS-treated leaves was detected at 0 hpi (Figure 3A). The contents of SA in DADS-treated leaves were significantly higher than those in CK leaves at 48, 72, and 96 hpi, and were significantly lower at both 12 and 168 hpi (Figure 3B). The SA content had a peak at 4 hpi for both the DADS-treated and CK leaves and then decreased and kept relatively steady until 96 hpi. Compared with the CK, the ABA content in DADS-treated leaves showed a significant fluctuation of higher to lower and then to higher levels (Figure 3C). The content of JA in DADS-treated leaves was significantly higher than that in CK leaves at 0 hpi, while, inversely, it showed significantly lower levels at both 24 and 48 hpi (Figure 3D). Similarly, when compared with the CK, the JA content in DADS-treated leaves also showed higher to lower and then higher levels from 0 to 168 hpi (Figure 3D).

2.4. DADS-Induced Significant DEGs in Cucumber to Improve its Downy Mildew Resistance

To obtain the potential related genes and pathways associated with the DADS induced resistance to P. cubensis, transcriptome profiling was performed with the P. cubensis-infected leaves that sampled at 0, 4, 24, and 48 hpi for both DADS-treated and CK cucumber seedlings. A total of approximately 97.7 GB clean reads were generated for 16 biological samples. The average GC content and Q30 values of the raw reads were 45.40% and 94.15%, respectively, indicating the high qualities of these reads, in which about 95% high-quality reads were successfully mapped onto the cucumber genome of Gy14_V2.0. (Table S2). Further correlation evaluation showed that the gene expression levels among samples were consistent with the overall quality of the RNA-Seq data, indicating the reliability of the samples and experimental design (Figure 4A). DEGs were checked between the DADS treated and CK groups, in which 886, 1254, 1141, and 1475 DEGs were found for samples at 0, 4, 24, and 48 hpi, respectively. To independently assess the quality of the RNA-seq data, qPCR was performed to analyze the expression patterns of 10 disease resistance-related genes selected from the obtained DEGs. The high correlations (r2 = 0.7375) between the qPCR and RNA-seq data further implied the reliability of this RNA-seq data (Figure 4B). For the DEGs, the group of 0 hpi, CK-0h-vs-DADS-0h, had 481 up-regulated and 405 down-regulated genes; there were 677 up-regulated genes and 577 down-regulated genes in CK-4h-vs-DADS-4h; 697 up-regulated genes and 444 down-regulated genes were shown in CK-24h-vs-DADS-24h; and there were 1219 up-regulated genes and 256 down-regulated genes in CK-48h-vs-DADS-48h (Figure 4C). This suggested that DADS induced more up-regulated genes in responding to the infection of P. cubensis.
To know the specifically expressed DEGs and their involved pathways before and after the inoculation of downy mildew pathogen, Venn analysis was first conducted between the DEGs at the 0 hpi and the combined DEGs at 4, 24, and 48 hpi. As shown in Figure 5A, 310 and 1859 up-regulated DEGs were specifically expressed in the DADS-treated samples before and after the inoculation. Additionally, 171 DEGs were continuously expressed in the DADS-treated leaves either inoculated or not with pathogens (Figure 5A). KEGG pathway enrichment analysis was, respectively, performed for these three sets of up-regulated DEGs, in which the ‘plant hormone transduction’ pathway was significantly enriched among the 310 uniquely up-regulated DEGs at 0 hpi; the ‘phenylpropanoid biosynthesis’, ‘phenylalanine metabolism’, ‘mitogen activated protein kinases (MAPK) signaling’, ‘glutathione metabolism’, and ‘plant–pathogen interaction’ pathways were significantly enriched for 1859 specifically expressed DEGs at 4, 24, and 48 hpi; the ‘phenylpropanoid biosynthesis’, ‘phenylalanine metabolism’, ‘MAPK signaling’, and ‘plant–pathogen interaction’ pathways were significantly enriched in the 171 continuously expressed DEGs (Figure 5A). Furthermore, Venn analysis and the KEGG pathway enrichment analysis were also conducted for the up-regulated DEGs at different time points (4, 24, and 48 hpi) after pathogen inoculation. As shown in Figure 5B–D, the above pathways were also significantly enriched at different time points. The pathways of ‘phenylpropanoid biosynthesis’, ‘phenylalanine metabolism’, ‘MAPK signaling’, and ‘plant–pathogen interaction’ were significantly enriched at 4, 24, and 48 hpi (Figure 5B,C), while the ‘glutathione metabolism’ pathway was especially enriched at 24 and 48 hpi (Figure 5C). Additionally, the ‘plant hormone signal transduction’ pathway was significantly enriched at 4 and 24 hpi but not at 48 hpi (Figure 5B,C). Furthermore, the 83 shared DEGs by the time points of 4, 24, and 48 hpi were enriched in the pathways of ‘phenylpropanoid biosynthesis’ and ‘glutathione metabolism’ (Figure 5D). Similarly, we found that the down-regulated DEGs in the DADS-treated leaves were mainly enriched for the pathways of ‘sulfur metabolism’, ‘plant hormone signal transduction’, and ‘phenylpropanoid biosynthesis’. Moreover, ‘sulfur metabolism’ was significantly down-regulated, expressed at 4 and 24 hpi (Figure S2A–D). Overall, DADS treatment can induce the expression of DEGs related to disease-resistance pathways in cucumber, which further improves the resistance of cucumber to the infection of pathogens.
Considering that the above-related pathways play vital roles in P. cubensis infection, the DEGs in these pathways were focused on checking their expressions between the DADS-treated and the CK leaves under pathogen infection. As the heatmaps show in Figure 6 and Table S3, the DEGs involved in plant–pathogen interaction, MAPK signaling, glutathione metabolism, and phenylpropanoid biosynthesis pathway were continuously upregulated from 0 hpi to 48 hpi. Based on their KEGG annotation, there were 55 plant–pathogen interaction DEGs (3 WRKY, 3 RBOH, 16 MYB, 6 HtpG, 6 CPK, 8 CML, 2 PR1, and others) (Figure 6A, Table S3), 25 MAPK signaling DEGs (3 WRKY, 2 RBOH, 3 PYL4, 2 ERF, 6 chitinase genes, and others) (Figure 6B, Table S3), 23 glutathione metabolism DEGs (15 GST and others) (Figure 6C, Table S3), 52 phenylpropanoid biosynthesis DEGs (6 β-glucosidase genes, 22 POD, 17 phenylalanine metabolism DEGs, and others) (Figure 6D, Table S3), and 17 phenylalanine metabolism DEGs (10 PAL, 4 4CL, and others) (Figure 6E, Table S3), respectively. Additionally, there were 16 DEGs related to sulfur metabolism (Figure 6F, Table S3), in which 5 DEGs (1 DIN1, 1 SULTR, 1 PDI, 1 yqjG, and others) and 7 DEGs (1 Apr1 gene, 1 THI1, and others) were, respectively, up–regulated and downregulated at 4 hpi and 3 DEGs (1 LSU, 1 TRX2, and 1 NIR1) were upregulated at 0 hpi. Moreover, DEGs involved in the plant hormone signal transduction were also obtained, including 16 IAA associated DEGs (9 IAAs, 3 GH3s, 2 ARFs, 1 SAUR, 1 TIR1) (Figure 6G, Table S3), 9 ABA associated DEGs (7 PYLs, 1 SnRK2, and 1 ABF) (Figure 6G, Table S3), 4 SA associated DEGs (1 transcription factor TGA genes, 1 EDS1, and 2 PR1 genes) (Figure 6I, Table S3), and 12 JA associated DEGs (2 MYC2, 1 JAR1, 3 AOS, and 5 JAZs) (Figure 6J, Table S3).

2.5. WGCNA Provides Insights into Cucumber Resistance to P. cubensis

To further explore the hub genes involved in cucumber resistance to P. cubensis, WGCNA was conducted for the DEGs between CK and DADS treatments. For the up-regulated DEGs, 15 modules of highly correlated genes were obtained based on their expression levels and their hierarchical clustering of the topological overlap matrix (Figure S3A,B). For the highlighted genes in the ‘turquoise’, ‘cyan’, ‘tan’, ‘blue’, ‘red’, ‘pink’, and ‘brown’ modules, the RPKM values were higher in the DADS-treated leaves at each sampling time point (Figure 7). RPKM values of genes in control samples were defined as their basal expression levels. Enrichment analyses of KO terms based on the seven modules revealed many genes that might be related to the resistance of DADS treated leaves. As shown in Figure 7, the KO terms enriched in the ‘turquoise’ module were ‘glutathione metabolism’ and ‘plant–pathogen interaction’ pathways; the ‘MAPK signaling’, ‘phenylalanine metabolism’, and ‘phenylpropanoid biosynthesis’ pathways were enriched in the KO terms of ‘blue’ module; the KO terms of ‘brown’ module were enriched with ‘MAPK signaling’ and ‘plant–pathogen interaction’ pathways; the KO terms of ‘pink’ module were enriched with the ‘MAPK signaling’ and ‘phenylpropanoid biosynthesis’ pathways; and the KO term enriched in ‘red’ module was ‘plant hormone signal transduction’ pathway (Figure 7). The correlations between the modules and the traits showed that the most positive correlation between gene significance (GS) and module membership (MM) of POD activity, H2O2, IAA, and SA content were corresponding to the ‘red’, ‘green’, and ‘black’ ‘magenta’ modules, respectively (Figure S4). Similarly, for the down-regulated DEGs, nine modules of highly correlated genes based on their expression levels were identified, in which the KO terms of the ‘phenylpropanoid biosynthesis’ pathway was enriched in the ‘pink’ module, and ‘plant hormone signal transduction’ pathway was enriched in ‘blue’, ‘green’, and ‘pink’ modules (Figure S5).
To determine the genes playing central roles in the regulating network, nine genes with high connectivity within each module, known as hub genes, were identified (Table 1). These hub genes were strongly enriched in metabolic process and plant–pathogen interaction pathways. Hub genes CsPOD (CsGy4G012800), CsPAT (CsGy4G000360), CsPAL (CsGy6G023900), CsGST (CsGy1G004050), and CsPYL4 (CsGy5G008430) were significantly related (*** p < 0.001) (Figure S6) and had the highest connectivity in the regulating network and all of them were in the ‘blue’ module (Table 1). Additionally, other hub genes in the plant–pathogen interaction pathway, including CsWRKY33 (CsGy1G004610), CsGH3.6 (CsGy6G010290), CsPR1 (CsGy7G006240), and CsEDS1 (CsGy1G001860) (Table 1), were also found. The transcript levels of CsGH3.6 (CsGy6G010290), CsGST (CsGy1G004050), CsPAL (CsGy6G023900), CsPAT (CsGy4G000360), and CsPOD (CsGy4G012800) were positively associated with that of CsWRKY33 (CsGy1G004610) (Figure S6).

3. Discussion

3.1. Possible PTI and ETI Defense Mechanisms

To understand the mechanism of DADS-induced cucumber resistance to downy mildew, morphological observations and microscopic examinations of pathogen-infected leaves were performed for both the CK and DADS treatments. The results showed that DADS promoted the resistance of cucumber to downy mildew (Figure 1). Previous studies indicated that garlic extracts have broad-spectrum fungicidal effects against a wide range of fungi, including Candida, Torulopsis, Trichophyton, Cryptococcus, Aspergillus, Trichosporon, and Rhodotorula species. Additionally, DADS and diallyl trisulfide (DATS) separated from garlic essential oil also showed antifungal activity against some fungi (C. albicans, C. tropicalis, and Blastoschizomyces capitatus) [12]. Therefore, DADS and DATS are probably the major compounds of garlic extracts showing fungi resistance. To explore the potential genes related to the DADS-induced cucumber resistance to downy mildew, RNA-Seq was employed at different time points after the P. cubensis inoculation. The results of transcriptome profiling revealed that plenty of DEGs were putatively related to the DADS-induced cucumber resistance to P. cubensis. Numerous DEGs were involved in various defense responses that might be mediated by PAL, ROS, MAPK, GSH, SA, and IAA signaling pathways (Figure 5). This suggested that multiple processes are involved in cucumber to defend against downy mildew infection, which is consistent with the fact that plants have complex defense mechanisms [21,22].
At the first stage of infection, fungal pathogens secrete PAMPs that are recognized by pattern recognition receptors on host cell surfaces, resulting in pattern-triggered immunity (PTI) that can halt further colonization [22]. The activation of PTI results in a series of cellular responses, including the generation of ROS, changes in cytosolic ion flux, cascade activation of calcium-dependent or MAPK, and enhancement of physical barriers [23]. In this study, the genes related to phenylpropanoid biosynthesis, MAPK signaling, and phenylpropanoid metabolism (Figure 5) were found to be up-regulated in the DADS-treated cucumbers in responding to the infection of P. cubensis. Furthermore, plants can encode R proteins to activate effector-triggered immunity (ETI), which produces HR at the site of infection, causing cell death to prevent the further spread of pathogens [24,25]. Here, our work indicated that DADS treatments could generate ROS and induce HR (Figure 2) and significantly increase the expressions of ROS metabolic pathway-related genes (Figure 6) after P. cubensis infection. These results suggest that the invasion of P. cubensis triggered both PTI and ETI in DADS-treated cucumbers. This is different from the previous study, which reported that DADS inhibited plant PTI but induced ETI [9].

3.2. DADS Induced H2O2 and Lignin Response to P. cubensis Infection

The PTI and ETI both can generate ROS. The production of cellular ROS, including H2O2 and superoxide anion, can be induced by pathogen invasion [18]. In plants, lignin plays important role in resistance to pathogen infection [15]. In the present study, lignin and H2O2 significantly accumulated at the early stages of P. cubensis infection in DADS treated cucumbers (Figure 2B,C). The H2O2 accumulation might be balanced by its increased synthesis or decreased degradation [15]. For H2O2, its biosynthesis is mainly controlled by SOD, while its degradation is primarily controlled by POD and CAT. In this study, the activity changes of these related enzymes were consistent with the changes in H2O2 content. Among them, the activity of POD was always higher in the DADS-treated cucumbers compared with that of the CK ones (Figure 2F). In tomato, the activities of POD, CAT, and SOD in leaf and root were also increased after DADS treatment for 24 and 48 h [9]. Through RNA-seq analysis, 12 POD genes were detected in the phenylpropanoid biosynthesis pathway, which were significantly up-regulated at 4 hpi (Figure 5D). Additionally, the POD gene (CsGy4G012800) was found as a hub gene by WGCNA (Table 1). Moreover, DADS treatment also increased the expressions of POD genes in tomato, which further increased tomato resistance, probably through inducing and enhancing the ROS scavenging [9]. POD genes are also key genes of regulated lignin synthesis through the ‘Phenylpropanoid biosynthesis’ pathway [20]. Significantly increased lignin content was also found in DADS treated cucumbers under the P. cubensis infection (Figure 2H). In tomato, H2O2 induced the expressions of PAL genes in the roots of tomato plants showing disease resistance [19]. Taken together, the expression of H2O2 and lignin-related genes were affected by P. cubensis infection, which resulted in the rapid enrichment of H2O2 and lignin to increase the resistance of DADS treated cucumber plants.

3.3. DADS Induced GST Response to P. cubensis Infection

A recognized function of GSTs is their participation in antioxidative reactions, together with the pivotal cellular antioxidant GSH to eliminate ROS and lipid hydroperoxides that accumulated in infected tissues [26]. Eighteen GSTs in the glutathione metabolism pathway were significantly up-regulated in the DADS-treated cucumbers (Figure 5C). Similarly, the ‘glutathione metabolism pathway’ is also the most significant pathway that was early induced by DADS in tomato roots, in which DADS increased the GSH content and GST activity [9]. Additionally, DADS could increase GST activity, GSH levels, and the expression of Mrp2, which mediates the transport of GSH-conjugates in male Sprague Dawley rats [27]. The expression of GSTs was functionally characterized in A. thaliana plants in response to treatments with herbicides, phytohormones, oxidative stress, and the inoculation with virulent and avirulent strains of the obligate biotrophic downy mildew [26]. Furthermore, a GST was reported for the powdery mildew resistance in tomato [28]. GSTs genes are strongly inducible by H2O2, SA, and IAA [29,30,31], in which some certain GST transcripts can be considered useful markers for increased intracellular availability of H2O2 [29], and some GSTs showing auxin-inducible can bind auxins as non-substrate ligands as well as participate in auxin transport [31].

3.4. DADS Induced Plant Hormone Response to P. cubensis Infection

Phytohormones play essential roles in the regulation of plant stress responses, which include drought stress [32,33], biotic stress [34], and so on. In general, synthesis and perception of different stress hormones, along with their relative contents and interactions, seem to be crucial for plant resistance against pathogens [35]. For example, SA-responding pathway is associated with plant resistance to biotrophic and hemibiotrophic pathogens, while the JA signaling pathway plays an important role in resisting the invasion of necrotrophic pathogens [36]. In this study, compared with the CK, DADS-treated cucumbers presented higher contents of SA and IAA but lower contents of ABA and JA (Figure 3A–D) under the infection of P. cubensis, a typical biotrophic pathogen. This might suggest that these hormones are involved in the basal resistance of cucumber against downy mildew. SA is known to be crucial in basal defenses and SAR [37]. A previous study suggested the function of SA in response to P. cubensis infection [38]. Here, SA content was significantly increased in DADS-treated leaves since the 24 hpi (Figure 6I). Based on the RNA-seq data, several SA-associated genes, including CsPAL, CsEDS1, CsTGA, and CsPRs (Figure 6J) were upregulated, and expressions of several key genes involved in the JA biosynthesis and signaling pathways, including CsJAR1, CsJAZ, and CsMYC2, were also increased (Figure 6). In tomato, the interaction between JA and SA promoting disease resistance has also been reported [39]. In basal and in ETI, the EDS1 gene promotes the accumulation of SA and is currently considered as the upstream gene in SA signaling [40]. This might inform us why the expression of EDS1 was significantly increased in the DADS treated cucumbers under downy mildew infection.
SA is mainly synthesized by two pathways, the PAL pathway and the isochorismate synthesis pathways [41]. In this study, CsPAL was upregulated under the P. cubensis infection, which might suggest that SA is mainly synthesized via the PAL pathway in DADS treated cucumbers. ROS signals are involved both the upstream and downstream of SA signaling in response to stresses [42]. SA may facilitate H2O2 accumulation during the oxidative burst induced by infections of avirulent pathogens [37]. Interestingly, the study indicates that SA not only plays a pro-oxidant role but also has an antioxidant role in concert with GSH in response to stresses [42]. Additionally, the transcriptional control of the class II TGAs mediated by SA and ROS signals also has an essential role in plant defense responses to stresses [42].
Regarding auxins, little is known about their roles in plant resistance to biotrophs. Auxin might interact with the JA to improve plant resistance to necrotrophic pathogens [43]. However, in this work, IAA levels of the DADS-treated cucumbers were constantly higher than those of the CK (Figure 3A). Transcriptome profiling data revealed that DADS treatment induced the up-regulation of 16 IAA related genes (nine IAAs, three GH3s, two ARFs, one SAUR, and one TIR1) (Figure 6G). Auxin signaling has been connected to innate immunity, PAMP-triggered susceptibility, and PTI [44]. However, previous studies also reported that several plant pathogens can directly synthesize auxin or induce plant auxin biosynthesis or modulate auxin signaling to stimulate susceptibility [35]. Additionally, SA has been reported to induce the transcriptions of genes coding for IAA-conjugating enzyme GH3.5 that converts free IAA into inactive auxin [45]. In general, higher SA content reduces active IAA and represses auxin signaling, leading to the enhanced defense, while SA-mediated defenses are also attenuated by auxin [43,44]. Considering the higher basal levels of IAA and SA in the leaves of DADS treated cucumbers, IAA and SA might synergistically function in the resistant processes of quick responses to pathogen infections.

3.5. DADS Induced WRKY33 Response to P. cubensis Infection

In this study, several WRKY transcription factors were up-regulated; in particular, CsWRKY33 was higher in the DADS-treated leaves at each sampling time point (Figure S6). Pathogen-induced WRKY33 is an important transcription factor that regulates the antagonistic relationship between defense pathways mediating responses to P. syringae and necrotrophic pathogens [46]. Genetic analyses demonstrated that induced resistance of GO5 (Arabidopsis plants overexpressing glycolate oxidase in chloroplasts) is dependent on WRKY33, but not on camalexin production [47]. For WRKY33, its role in plant resistance to biotrophs is poorly known. Moderate production of H2O2 in chloroplasts can initiate the signaling events leading to the induction of WRKY33 and its downstream target genes. The transcription levels of CsGH3.6, CsGST, CsPAL, CsPAT, and CsPOD were positively correlated with the expressions of CsWRKY33 (Figure S6).

3.6. Possible Resistance Pathways in DADS Induced Cucumber Resistance to Downy Mildew

Based on the results of this study, we proposed a hypothetical model for interpreting the DADS induced cucumber resistance to P. cubensis (Figure 8). This model includes regulating genes involved in the IAA signaling, SA signaling, GSH metabolism, and ROS. Firstly, DADS treatment mainly induced the up-regulates of DEGs related to plant–pathogen metabolism, MAPK signaling, phenylpropanoid biosynthesis, phenylalanine metabolism, and plant hormone signaling pathways. The increased expressions of these DEGs promoted cucumber resistance and its responding effectiveness to the infection of pathogens. Then, the pathways of plant–pathogen metabolism, MAPK signaling, glutathione metabolism, phenylpropanoid biosynthesis, phenylalanine metabolism, and plant hormone signaling were activated when the DADS–treated cucumbers were infected with P. cubensis. Specifically, DADS entered cucumber cells via sulfur transporter (SULTF) and induced the accumulation of H2O2. Meanwhile, DADS also induced the PTI and ETI in cucumber against the P. cubensis infection. The H2O2 initiated the signaling to the inducing the expressions of CsWRKY33 and its downstream target genes. H2O2 also triggered the SA, IAA, GST, and their related genes to defense against the infection of P. cubensis. Additionally, GSTs genes were strongly inducible by H2O2, SA, and IAA. Simultaneously, SA might be mainly synthesized via the PAL pathway in the DADS-treated cucumber. In addition, IAA and SA might synergistically function in the resistant processes of quick responses to pathogen infections. Taken together, DADS increased the contents of H2O2, GST, SA, IAA, and lignin and induced the expressions of their related genes to promote the resistance of cucumber to P. cubensis infection. This research might provide a foundation for further studies on the mechanism of cucumber resistance to P. cubensis by DADS induced.

4. Materials and Methods

4.1. Cucumber Plant and P. cubensis Preparation

Downy mildew-susceptible cucumber inbred line CCMC (changchunmici), a North China fresh market type cucumber, was sowed in pots (7 cm × 7 cm × 10 cm) and grown in a growth chamber with a 16 h day/8 h night temperature of 25/18°C and relative humidity of 80%. Cucumber seedlings at the two-true-leaf stage were used for the following experiments. The P. cubensis isolate used in this study was collected from infected cucumber leaves grown in a plastic tunnel of Northwest A&F University, Yangling (34°160 N, 108°40 E), China. Diseased leaves were incubated overnight in a moist container and washed with sterile water to collect sporangia (19.4~31.0 × 13.5~20.6 μm in size). Single sporangia were isolated and placed onto the whole leaves in a moist container for infection. After five to seven days of inoculation, propagated sporangia from the single sporangia-infected leaf tissues were collected. Subsequent pathogen propagation and maintenance were carried out by spraying a sporangia suspension (104 sporangia/mL) on the leaves of intact plants. Inoculated plants were kept in a plastic tray with lids covered to maintain 100% humidity and kept in dark for 24 h and then moved to the growth chamber with the same settings for growing healthy cucumber plants described above [48].

4.2. DADS Treatment and P. cubensis Inoculation

To prepare the DADS stock solution, laboratory-grade DADS (purity 80%) was ordered from Sigma–Aldrich Co. (St. Louis, MO, USA) and first dissolved in Tween–80 with a ratio of 1:2 (w/w); then, distilled water was added to obtain a 10 mmol/L stock solution, which was stored at 4oC for further use [49]. The DADS stock solution was diluted to 1 mmol/L in distilled water for use in the following treatments. DADS solutions (1 mmol/L, 5 mL) were sprayed twice on leaves of each cucumber seedling with a 5–day interval, while an equal volume of distilled water was sprayed as the control. Three replications were performed for each treatment with 12 cucumber plants. After ten days of the first DADS treatment, 1 mL 1 × 105 sporangia mL−1 solution of P. cubensis was sprayed onto the back of the second true leaf of each seedling for inoculation. The inoculated seedlings were first moved to the growth chamber under the following conditions: darkness 24 h, nearly 100% relative humidity, and with temperatures of 20 °C. Then, the light was provided in the growth chamber with a photoperiod of 16 h day/8 h night, while the day/night temperatures and the relative humidity were kept with 25/18 °C and 100%, respectively. The morphological changes of pathogen-inoculated seedlings were recorded by photography, in which the disease index was calculated based on the phenotypes (e.g., disease spots, yellowing) of each seedling after 7 days of inoculation. Leaf samples were, respectively, collected at 0 (DADS treated and uninoculated by P. cubensis), 4, 12, 24, 48, 72, 96, and 168 hpi (hours of post inoculation) for both the treatment and control. For each leaf sample, half was stored in the stationary liquids for histological observation of pathogen infection process and H2O2 and lignin accumulations, while the remaining half leaf was immediately frozen in liquid nitrogen and then stored at −80 °C for further biochemical assays and RNA sequencing analysis.

4.3. Histological Observation

To more clearly visualize the downy mildew infection process in cucumber, histological observations of the pathogenic sites and microscopic visualization of H2O2 and lignin accumulations or distributions were conducted with the DADS-treated and untreated cucumber leaves. For the observation of the pathogen infection process, as described by Savory et al. [50], leaf samples (1 cm2) were first decolored in 95% ethanol and then stained by trypan blue solution with a ratio of 1:1:1 for glycerol, lactic acid, and water. Visualizations were performed using an Olympus BX63 (Olympus, Tokyo, Japan) light microscope. H2O2 accumulations were checked by the 3,3-Diamino-benzidine (DAB)-staining method [51]. Briefly, cucumber leaf sections (1 cm2) were immersed in a 1 mg/mL DAB solution (pH 3.8) for 8 h under light conditions, and then the leaf samples were washed out with distilled water and observed under a microscope (Olympus BX63). For lignin accumulation analysis, cucumber leaf sections with an area of 1 cm2 were stained with toluidine blue solution (0.05%) for 10 min and then rinsed with distilled water for observation using a microscope (Olympus BX63) under white-light vision [52].

4.4. Biochemical Assays

Biochemical assays were conducted from the aspects of the contents of superoxide anion, H2O2, and phytohormones and the activities of defense enzymes using the frozen stored leaf samples at −80 °C. Measurement of superoxide anion content followed Wang et al. [53]. The content of H2O2 was checked with the method described by Gong et al. [54] using potassium iodide. To assay the activity of defense enzymes, cucumber leaves (0.5 g) were first weighed and ground together with 6 mL of 200 mmol/L phosphate buffer (pH 7.8) containing 1% (w/v) soluble polyvinyl pyrrolidone (PVP) under ice bath condition. Then, the homogenates were centrifuged at 12,000 rpm and 4 °C for 20 min, and the supernatants were collected to measure the activities of superoxide dismutase (SOD), catalase (CAT), peroxidase (POD), and phenylalanine ammonia lyase (PAL) [3]. Auxin (IAA), abscisic acid (ABA), SA, and JA were extracted and purified following the procedures described by previous studies [55,56]. Measurement of these purified phytohormones was conducted with the HPLC-ESI-MS/MS (QTRAP 5500, AB Sciex, Boston, MA, USA), as described by Liu et al. [57].

4.5. RNA Extraction, cDNA Library Construction and Sequencing

When cucumber seedlings were inoculated with downy mildew pathogens, leaf samples of both DADS-treated and water-treated (CK) seedlings were collected at the following time points of 0, 4, 24, and 48 hpi with 2 biological replicates. In total, 16 leaf samples were obtained and used for the RNA extraction and sequencing. Total RNA was extracted using a Trizol reagent kit (Invitrogen, Carlsbad, CA, USA) following the manufacturer’s protocol. The qualities of extracted RNA were assessed on an Agilent 2100 Bioanalyzer (Agilent Technologies, Palo Alto, CA, USA) and checked using RNase-free agarose gel electrophoresis. Then, the mRNA, enriched by Oligo (dT) beads, was fragmented into short fragments using fragmentation buffer and reversed transcript into cDNA with random primers. The second-strand cDNA was synthesized by DNA polymerase I, RNase H, dNTP, and buffer. Subsequently, the cDNA fragments were purified with QiaQuick PCR extraction kit (Qiagen, Venlo, The Netherlands), end-repaired, poly (A) added, and ligated to Illumina sequencing adapters. The ligation products were size selected by agarose gel electrophoresis, PCR amplified, and sequenced using Illumina HiSeq2500 by the Gene Denovo Biotechnology Co. (Guangzhou, China). All clean reads generated in this study were deposited in the NCBI Sequence Read Archive database (http://www.ncbi.nlm.nih.gov/sra/, accessed on 3 November 2021) under the project accession number PRJNA776553.

4.6. Differentially Expressed Genes (DEGs) Analysis

The obtained clean reads were mapped to the cucumber genome of Gy14_V2.0 (ftp://cucurbitgenomics.org/pub/cucurbit/genome/cucumber/Gy14/V2//, accessed on 14 May 2019) by the alignment program of HISAT2 [58]. For each transcription region, an FPKM (fragment per kilobase of transcript per million mapped reads) value was calculated to quantify its expression abundance and variations, using StringTie software. DEGs analysis was performed by the DESeq2 software, in which the false discovery rate (FDR) < 0.05 and |fold change (FC)| ≥ 2 were used as the cut-off for considering the significant DEGs.

4.7. Expression Analysis of Disease Resistance-Related Genes

To preliminarily verify the accuracies of the DEGs obtained by RNA-sequencing, 10 resistance-related genes were selected from the DEGs list for qPCR analysis, including 6 ROS metabolism-related genes (CsAPX, CsMDAR, CsGDX, CsSOD, CsPOD, and CsCAT), 2 DIR1 genes, and 2 major resistant genes of downy mildew (CsSGR and CsSGRL). The cDNA templates used for qPCR were the same as those used in the RNA sequencing. The qPCR analysis was conducted using 2 × SYBR Green III qPCR Mix (JIEYI Biotechnology Co., Ltd) on a QuantStudio®5 Real-Time PCR System (Life Technologies, Carlsbad, CA, USA). The cucumber Ubiquitin extension protein (UBI-ep) gene was used as the internal reference gene. Detailed sequence information of the primers used for qPCR were listed in Table S1. Gene expression levels were calculated based on the 2−ΔΔCt method [59]. Then, log2(FC) of the 10 genes were calculated and compared with RNA-sequencing.

4.8. Analysis of KEGG Enrichment of DEGs

Significant enrichment pathways were analyzed in the Kyoto Encyclopedia of Genes and Genomes (KEGG) database (http://www.genom e.jp/kegg/, accessed on 15 May 2019), in which a false discovery rate (FDR)-adjusted p-value ≤ 0.05 was used to indicate that the DEGs were significantly enriched in a pathway.

4.9. Weighted Gene Co-Expression Network Analysis (WGCNA)

Gene co-expression networks were constructed using the WGCNA analysis in the Omicsmart analysis platform of Gene Denovo Biotechnology (https://www.omicshare.com/WGCNA/home.html, accessed on 13 March 2021), in which the up-regulated and down-regulated DEGs were analyzed, respectively. Module–trait associations were estimated using the correlation between the module and the POD, H2O2, IAA, and SA of DADS/CK treatments.

4.10. Statistical Analysis

Randomized block design with three replications was for the involved experiments. Statistical analyses were performed using SPSS 13.0 (IBM, Armonk, New York, NY, USA). The significant differences were determined by one-way ANOVA, t-test, with * p < 0.05 and ** p < 0.01.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/ijms222212328/s1.

Author Contributions

The project was conceived and designed by F.Y., Y.P., and Z.C.; F.Y. and H.W. performed experiments; F.Y., B.C. and C.Z. analyzed the data; F.Y. and Y.P. wrote the manuscript. Y.P., Y.Z., L.Q. and J.G. revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (No. 31772293) and by the Natural Science Basic Research Program of Shaanxi (2020JQ-246).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The RNA-seq detail data in NCBI Sequence Read Archive database https://www.ncbi.nlm.nih.gov/bioproject/?term=PRJNA776553 (accessed on 22 October 2021).

Acknowledgments

The authors are grateful for the help provided by Yuhong Li from the College of Horticulture in the Northwest A&F University during the implementation of this research. We also appreciate Yiqun Weng from the Horticulture Department of the University of Wisconsin—Madison for the released Gy14 genome that was used in this study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Yang, F.; Liu, X.; Wang, H.; Deng, R.; Yu, H.; Cheng, Z. Identification and allelopathy of green garlic (Allium sativum L.) volatiles on scavenging of cucumber (Cucumis sativus L.) reactive oxygen species. Molecules 2019, 24, 3263. [Google Scholar] [CrossRef] [Green Version]
  2. Wang, M.Y.; Wu, C.N.; Cheng, Z.H.; Meng, H.W.; Zhang, M.R.; Zhang, H.J. Soil chemical property changes in eggplant/garlic relay intercropping systems under continuous cropping. PLoS ONE 2014, 9, e111040. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Ding, H.Y.; Cheng, Z.H.; Liu, M.L.; Hayat, S.; Feng, H. Garlic exerts allelopathic effects on pepper physiology in a hydroponic co-culture system. Biol. Open 2016, 5, 631–637. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Liu, T.; Cheng, Z.; Meng, H.; Ahmad, I.; Zhao, H. Growth, yield and quality of spring tomato and physicochemical properties of medium in a tomato/garlic intercropping system under plastic tunnel organic medium cultivation. Sci. Hortic. 2014, 170, 159–168. [Google Scholar] [CrossRef]
  5. Xiao, X.M.; Cheng, Z.H.; Meng, H.W.; Khan, M.A.; Li, H.Z. Intercropping with garlic alleviated continuous cropping obstacle of cucumber in plastic tunnel. Acta Agric. Scand. Sect. B Soil Plant Sci. 2012, 62, 696–705. [Google Scholar] [CrossRef]
  6. Xiao, X.M.; Cheng, Z.H.; Meng, H.W.; Liu, L.H.; Li, H.Z.; Dong, Y.X. Intercropping of green garlic (Allium sativum L.) induces nutrient concentration changes in the soil and plants in continuously cropped cucumber (Cucumis sativus L.) in a plastic tunnel. PLoS ONE 2013, 8, e62173. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Cheng, F.; Cheng, Z.H. Research progress on the use of plant allelopathy in agriculture and the physiological and ecological mechanisms of allelopathy. Front. Plant Sci. 2015, 6, 1020. [Google Scholar] [CrossRef]
  8. Cheng, F.; Cheng, Z.H.; Meng, H.W.; Tang, X.W. The garlic allelochemical diallyl disulfide affects tomato root growth by influencing cell division, phytohormone balance and expansin gene expression. Front. Plant Sci. 2016, 7, 512. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Cheng, F.; Cheng, Z.H.; Meng, H.W. Transcriptomic insights into the allelopathic effects of the garlic allelochemical diallyl disulfide on tomato roots. Sci. Rep. 2016, 6, 38902. [Google Scholar] [CrossRef] [PubMed]
  10. Cheng, F.; Ali, M.; Liu, C.; Deng, R.; Cheng, Z. Garlic allelochemical diallyl disulfide alleviates autotoxicity in the root exudates caused by long-term continuous cropping of tomato. J. Agric. Food Chem. 2020, 68, 11684–11693. [Google Scholar] [CrossRef]
  11. Ren, K.L.; Hayat, S.; Qi, X.F.; Liu, T.; Cheng, Z.H. The garlic allelochemical DADS influences cucumber root growth involved in regulating hormone levels and modulating cell cycling. Plant Physiol. 2018, 230, 51–60. [Google Scholar] [CrossRef]
  12. El-Saber Batiha, G.; Magdy Beshbishy, A.; Wasef, L.G.; Elewa, Y.H.A.; Al-Sagan, A.A.; Abd El-Hack, M.E.; Taha, A.E.; Abd-Elhakim, Y.M.; Prasad Devkota, H. Chemical constituents and pharmacological activities of garlic (Allium sativum L.): A review. Nutrients 2020, 12, 872. [Google Scholar] [CrossRef] [Green Version]
  13. Savory, E.A.; Granke, L.L.; Quesada-Ocampo, L.M.; Varbanova, M.; Hausbeck, M.K.; Day, B. The cucurbit downy mildew pathogen Pseudoperonospora cubensis. Mol. Plant Pathol. 2011, 12, 217–226. [Google Scholar] [CrossRef]
  14. Burkhardt, A.; Day, B. Transcriptome and small RNAome dynamics during a resistant and susceptible interaction between cucumber and downy mildew. Plant Genome 2016, 9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Gao, X.; Guo, P.; Wang, Z.; Chen, C.; Ren, Z. Transcriptome profiling reveals response genes for downy mildew resistance in cucumber. Planta 2021, 253, 1–18. [Google Scholar] [CrossRef] [PubMed]
  16. Wang, Y.H.; Tan, J.Y.; Wu, Z.M.; VandenLangenberg, K.; Wehner, T.C.; Wen, C.L.; Zheng, X.Y.; Owens, K.; Thornton, A.; Bang, H.H.; et al. STAYGREEN, STAY HEALTHY: A loss-of-susceptibility mutation in the STAYGREEN gene provides durable, broad-spectrum disease resistances for over 50 years of US cucumber production. New Phytol. 2019, 221, 415–430. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Luan, Q.; Chen, C.; Liu, M.; Li, Q.; Wang, L.; Ren, Z. CsWRKY50 mediates defense responses to Pseudoperonospora cubensis infection in Cucumis sativus. Plant Sci. 2019, 279, 59–69. [Google Scholar] [CrossRef]
  18. Cheng, D.D.; Liu, M.J.; Sun, X.B.; Zhao, M.; Chow, W.S.; Sun, G.Y.; Zhang, Z.S.; Hu, Y.B. Light suppresses bacterial population through the accumulation of hydrogen peroxide in tobacco leaves infected with Pseudomonas syringae pv. tabaci. Front. Plant Sci. 2016, 7, 512. [Google Scholar] [CrossRef]
  19. Gayoso, C.; Pomar, F.; Novo-Uzal, E.; Merino, F.; Martinez de Ilarduya, O. The Ve-mediated resistance response of the tomato to Verticillium dahliae involves H2O2, peroxidase and lignins and drives PAL gene expression. BMC Plant Biol. 2010, 10, 232. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  20. Vanholme, R.; Demedts, B.; Morreel, K.; Ralph, J.; Boerjan, W. Lignin biosynthesis and structure. Plant Physiol. 2010, 153, 895–905. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  21. Han, X.; Kahmann, R. Manipulation of phytohormone pathways by effectors of filamentous plant pathogens. Front. Plant Sci. 2019, 10, 822. [Google Scholar] [CrossRef] [Green Version]
  22. Jones, J.D.; Dangl, J.L. The plant immune system. Nature 2006, 444, 323–329. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Zhao, X.; Song, L.; Jiang, L.; Zhu, Y.; Gao, Q.; Wang, D.; Xie, J.; Lv, M.; Liu, P.; Li, M. The integration of transcriptomic and transgenic analyses reveals the involvement of the SA response pathway in the defense of chrysanthemum against the necrotrophic fungus Alternaria sp. Hortic. Res. 2020, 7, 1744–1757. [Google Scholar] [CrossRef] [PubMed]
  24. Zhou, J.; Yu, J.Q.; Chen, Z. The perplexing role of autophagy in plant innate immune responses. Mol. Plant Pathol. 2014, 15, 637–645. [Google Scholar] [CrossRef]
  25. Cui, H.; Tsuda, K.; Parker, J.E. Effector-triggered immunity: From pathogen perception to robust defense. Ann. Rev. Plant Biol. 2015, 66, 487–511. [Google Scholar] [CrossRef]
  26. Wagner, U.; Edwards, R.; Dixon, D.P.; Mauch, F. Probing the diversity of the Arabidopsis glutathione s-transferase gene family. Plant Mol. Biol. 2002, 49, 515–532. [Google Scholar] [CrossRef] [PubMed]
  27. Demeule, M.; Brossard, M.; Turcotte, S.; Regina, A.; Jodoin, J.; Beliveau, R. Diallyl disulfide, a chemopreventive agent in garlic, induces multidrug resistance-associated protein 2 expression. Biochem. Biophys. Res. Commun. 2004, 324, 937–945. [Google Scholar] [CrossRef]
  28. Pei, D.; Ma, H.; Zhang, Y.; Ma, Y.; Wang, W.; Geng, H.; Wu, J.; Li, C. Virus-induced gene silencing of a putative glutathione s-transferase gene compromised Ol-1-mediated resistance against powdery mildew in tomato. Plant Mol. Biol. Rep. 2011, 29, 972–978. [Google Scholar] [CrossRef]
  29. Noctor, G.; Mhamdi, A.; Chaouch, S.; Han, Y.; Neukermans, J.; Marquez-Garcia, B.; Queval, G.; Foyer, C.H. Glutathione in plants: An integrated overview. Plant Cell Environ. 2012, 35, 454–484. [Google Scholar] [CrossRef]
  30. Gullner, G.; Komives, T.; Kiraly, L.; Schroeder, P. Glutathione s-transferase enzymes in plant-pathogen interactions. Front. Plant Sci. 2018, 9, 1836. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Bilang, J.; Sturm, A. Cloning and Characterization of a glutathione s-transferase that can be photolabeled with 5-azido-indole-3-acetic acid. Plant Physiol. 1995, 109, 253–260. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Khaleghnezhad, V.; Yousefi, A.R.; Tavakoli, A.; Farajmand, B.; Mastinu, A. Concentrations-dependent effect of exogenous abscisic acid on photosynthesis, growth and phenolic content of Dracocephalum moldavica L. under drought stress. Planta 2021, 253, 127. [Google Scholar] [CrossRef] [PubMed]
  33. Naservafaei, S.; Sohrabi, Y.; Moradi, P.; Mac Sweeney, E.; Mastinu, A. Biological response of Lallemantia iberica to brassinolide treatment under different watering conditions. Plants 2021, 10, 496. [Google Scholar] [CrossRef] [PubMed]
  34. Caarls, L.; Pieterse, C.M.; Van Wees, S.C. How salicylic acid takes transcriptional control over jasmonic acid signaling. Front. Plant Sci. 2015, 6, 170. [Google Scholar] [CrossRef]
  35. Coelho, J.; Almeida-Trapp, M.; Pimentel, D.; Soares, F.; Reis, P.; Rego, C.; Mithöfer, A.; Fortes, A.M. The study of hormonal metabolism of Trincadeira and Syrah cultivars indicates new roles of salicylic acid, jasmonates, ABA and IAA during grape ripening and upon infection with Botrytis cinerea. Plant Sci. 2019, 283, 266–277. [Google Scholar] [CrossRef]
  36. Koornneef, A.; Leon-Reyes, A.; Ritsema, T.; Verhage, A.; Den Otter, F.C.; Van Loon, L.C.; Pieterse, C.M. Kinetics of salicylate-mediated suppression of jasmonate signaling reveal a role for redox modulation. Plant Physiol. 2008, 147, 1358–1368. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Vlot, A.C.; Dempsey, D.A.; Klessig, D.F. Salicylic Acid, a multifaceted hormone to combat disease. Annu. Rev. Phytopathol. 2009, 47, 177–206. [Google Scholar] [CrossRef] [Green Version]
  38. Yan, S.; Ning, K.; Wang, Z.; Liu, X.; Zhong, Y.; Ding, L.; Zi, H.; Cheng, Z.; Li, X.; Shan, H.; et al. CsIVP functions in vasculature development and downy mildew resistance in cucumber. PLoS Biol. 2020, 18, e3000671. [Google Scholar] [CrossRef] [PubMed]
  39. Blanco-Ulate, B.; Vincenti, E.; Powell, A.L.; Cantu, D. Tomato transcriptome and mutant analyses suggest a role for plant stress hormones in the interaction between fruit and Botrytis cinerea. Front. Plant Sci. 2013, 4, 142. [Google Scholar] [CrossRef] [Green Version]
  40. Wagner, S.; Stuttmann, J.; Rietz, S.; Guerois, R.; Brunstein, E.; Bautor, J.; Niefind, K.; Parker, J.E. Structural basis for signaling by exclusive EDS1 heteromeric complexes with SAG101 or PAD4 in plant innate immunity. Cell Host Microbe 2013, 14, 619–630. [Google Scholar] [CrossRef] [Green Version]
  41. Ding, P.; Ding, Y. Stories of salicylic acid: A plant defense hormone. Trends Plant Sci. 2020, 25, 549–565. [Google Scholar] [CrossRef] [PubMed]
  42. Herrera-Vasquez, A.; Salinas, P.; Holuigue, L. Salicylic acid and reactive oxygen species interplay in the transcriptional control of defense genes expression. Front. Plant Sci. 2015, 6, 171. [Google Scholar] [CrossRef] [Green Version]
  43. Qi, L.; Yan, J.; Li, Y.; Jiang, H.; Sun, J.; Chen, Q.; Li, H.; Chu, J.; Yan, C.; Sun, X.; et al. Arabidopsis thaliana plants differentially modulate auxin biosynthesis and transport during defense responses to the necrotrophic pathogen Alternaria brassicicola. New Phytol. 2012, 195, 872–882. [Google Scholar] [CrossRef]
  44. Naseem, M.; Kaltdorf, M.; Dandekar, T. The nexus between growth and defence signalling: Auxin and cytokinin modulate plant immune response pathways. J. Exp. Bot. 2015, 66, 4885–4896. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Wang, D.; Pajerowska-Mukhtar, K.; Culler, A.H.; Dong, X. Salicylic acid inhibits pathogen growth in plants through repression of the auxin signaling pathway. Curr. Biol. 2007, 17, 1784–1790. [Google Scholar] [CrossRef] [Green Version]
  46. Zheng, Z.; Abu Qamar, S.; Chen, Z.; Mengiste, T. Arabidopsis WRKY33 transcription factor is required for resistance to necrotrophic fungal pathogens. Plant J. 2006, 48, 592–605. [Google Scholar] [CrossRef] [PubMed]
  47. Schmidt, A.; Maechtel, R.; Ammon, A.; Engelsdorf, T.; Schmitz, J.; Maurino, V.G.; Voll, L.M. Reactive oxygen species dosage in Arabidopsis chloroplasts can improve resistance towards Colletotrichum higginsianum by the induction of WRKY33. New Phytol. 2020, 226, 189–204. [Google Scholar] [CrossRef] [Green Version]
  48. Tian, M.; Win, J.; Savory, E.; Burkhardt, A.; Held, M.; Brandizzi, F.; Day, B. 454 Genome sequencing of Pseudoperonospora cubensis reveals effector proteins with a QXLR translocation motif. Mol. Plant Microbe Interact. 2011, 24, 543–553. [Google Scholar] [CrossRef] [Green Version]
  49. Zho, Y.J.; Su, J.; Shi, L.; Liao, Q.J.; Su, Q. DADS downregulates the Rac1-ROCK1/PAK1-LIMK1-ADF/cofilin signaling pathway, inhibiting cell migration and invasion. Oncol Rep. 2013, 29, 605–612. [Google Scholar] [CrossRef]
  50. Savory, E.A.; Adhikari, B.N.; Hamilton, J.P.; Brieanne, V.; Robin, B.C.; Brad, D.; Rdam, A.M. mRNA-Seq analysis of the Pseudoperonospora cubensis transcriptome during cucumber (Cucumis sativus L.) infection. PLoS ONE 2012, 7, e35796. [Google Scholar] [CrossRef]
  51. Zhang, H.C.; Wang, C.F.; Cheng, Y.L.; Chen, X.M.; Han, Q.M.; Huang, L.L.; Wei, G.R.; Kang, Z.S. Histological and cytological characterization of adult plant resistance to wheat stripe rust. Plant Cell Rep. 2012, 31, 2121–2137. [Google Scholar] [CrossRef]
  52. Han, X.; Mao, L.; Wei, X.; Lu, W. Stimulatory involvement of abscisic acid in wound suberization of postharvest kiwifruit. Sci. Hortic. 2017, 224, 244–250. [Google Scholar] [CrossRef]
  53. Wang, B.; Zhu, S.J. Pre-storage cold acclimation maintained quality of cold-stored cucumber through differentially and orderly activating ROS scavengers. Postharvest Biol. Technol. 2017, 129, 1–8. [Google Scholar] [CrossRef]
  54. Gong, H.J.; Randall, D.P.; Flowers, T.J. Silicon deposition in the root reduces sodium uptake in rice (Oryza sativa L.) seedlings by reducing bypass flow. Plant Cell Environ. 2006, 29, 1970–1979. [Google Scholar] [CrossRef] [PubMed]
  55. Pan, X.; Welti, R.; Wang, X. Quantitative analysis of major plant hormones in crude plant extracts by high-performance liquid chromatography-mass spectrometry. Nat. Protoc. 2010, 5, 986–992. [Google Scholar] [CrossRef] [PubMed]
  56. Wang, H.; Sun, J.; Yang, F.; Weng, Y.; Chen, P.; Du, S.; Wei, A.; Li, Y. CsKTN1 for a katanin p60 subunit is associated with the regulation of fruit elongation in cucumber (Cucumis sativus L.). Theor. Appl. Genet. 2021, 134, 2429–2441. [Google Scholar] [CrossRef]
  57. Liu, X.; Pan, Y.; Liu, C.; Ding, Y.; Meng, H. Cucumber fruit size and shape variations explored from the aspects of morphology, histology, and endogenous hormones. Plants 2020, 9, 772. [Google Scholar] [CrossRef] [PubMed]
  58. Kim, D.; Paggi, J.M.; Park, C.; Bennett, C.; Salzberg, S.L. Graph-based genome alignment and genotyping with HISAT2 and HISAT-genotype. Nat. Biotechnol. 2019, 37, 907–915. [Google Scholar] [CrossRef] [PubMed]
  59. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2(T) (-Delta Delta C) method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
Ijms 22 12328 g001 550
Figure 1. Comparison of leaf morphology (A), disease index (B), and process of P. cubensis infection (C) between DADS treated and CK cucumber seedlings. The inserted box in the top corner is a magnified image of the selected area. Data are means ± standard errors (n = 3, three biological replicates). Asterisks indicate significant differences between DADS treatment and CK (** p < 0.01) based on a one-way ANOVA followed by a t-test. Scale bars: 5 cm (A), 100 μm, 20 μm (C).
Figure 1. Comparison of leaf morphology (A), disease index (B), and process of P. cubensis infection (C) between DADS treated and CK cucumber seedlings. The inserted box in the top corner is a magnified image of the selected area. Data are means ± standard errors (n = 3, three biological replicates). Asterisks indicate significant differences between DADS treatment and CK (** p < 0.01) based on a one-way ANOVA followed by a t-test. Scale bars: 5 cm (A), 100 μm, 20 μm (C).
Ijms 22 12328 g001
Ijms 22 12328 g002 550
Figure 2. Comparison of ROS (A–C), defense enzyme (D–G), and lignin (H) in DADS-treated and CK cucumber leaves with P. cubensis infection. (B) Histological observation of H2O2 by DAB dyed. (H) Histological observation of lignin by TB dyed. Data are means ± standard errors (n = 3, three biological replicates). Asterisks indicate significant differences between the DADS treatment and CK (* p < 0.05; ** p < 0.01) based on a one-way ANOVA followed by a t−test. Scale bars: 200 μm (B), 100 μm (H).
Figure 2. Comparison of ROS (A–C), defense enzyme (D–G), and lignin (H) in DADS-treated and CK cucumber leaves with P. cubensis infection. (B) Histological observation of H2O2 by DAB dyed. (H) Histological observation of lignin by TB dyed. Data are means ± standard errors (n = 3, three biological replicates). Asterisks indicate significant differences between the DADS treatment and CK (* p < 0.05; ** p < 0.01) based on a one-way ANOVA followed by a t−test. Scale bars: 200 μm (B), 100 μm (H).
Ijms 22 12328 g002
Ijms 22 12328 g003 550
Figure 3. Comparisons of the IAA (A), ABA (B), SA (C), and JA (D) content in DADS-treated and CK leaves with P. cubensis infection. Data are means ± standard errors (n = 3, three biological replicates). Asterisks indicate significant differences between the DADS treatment and CK (* p < 0.05; ** p < 0.01) based on a one-way ANOVA followed by a t−test.
Figure 3. Comparisons of the IAA (A), ABA (B), SA (C), and JA (D) content in DADS-treated and CK leaves with P. cubensis infection. Data are means ± standard errors (n = 3, three biological replicates). Asterisks indicate significant differences between the DADS treatment and CK (* p < 0.05; ** p < 0.01) based on a one-way ANOVA followed by a t−test.
Ijms 22 12328 g003
Ijms 22 12328 g004 550

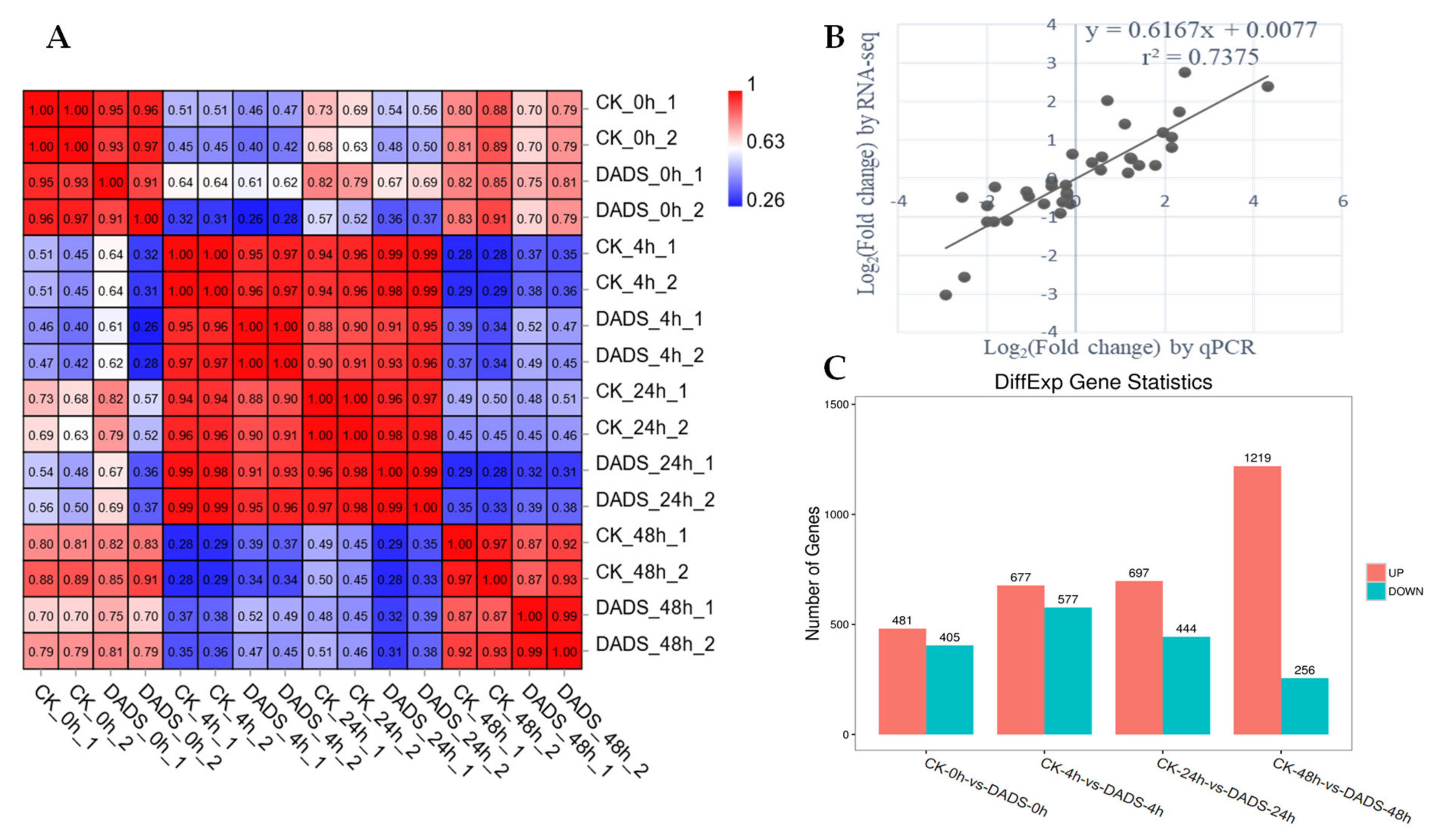

Figure 4. RNA−seq data and DEGs in DADS-treated and CK leaves with P. cubensis infection. (A) Pearson correlation of 16 samples based on the correlation coefficient (r2) between each sample. The color panel represents the r2 values. (B) Correlation of expression changes observed by RNA−seq (y−axis) and qPCR (x−axis). (C) Number of up− and down−regulated DEGs for each sampled time point. Up and downregulated DEGs are displayed in red and green bars, respectively.
Figure 4. RNA−seq data and DEGs in DADS-treated and CK leaves with P. cubensis infection. (A) Pearson correlation of 16 samples based on the correlation coefficient (r2) between each sample. The color panel represents the r2 values. (B) Correlation of expression changes observed by RNA−seq (y−axis) and qPCR (x−axis). (C) Number of up− and down−regulated DEGs for each sampled time point. Up and downregulated DEGs are displayed in red and green bars, respectively.
Ijms 22 12328 g004
Ijms 22 12328 g005 550

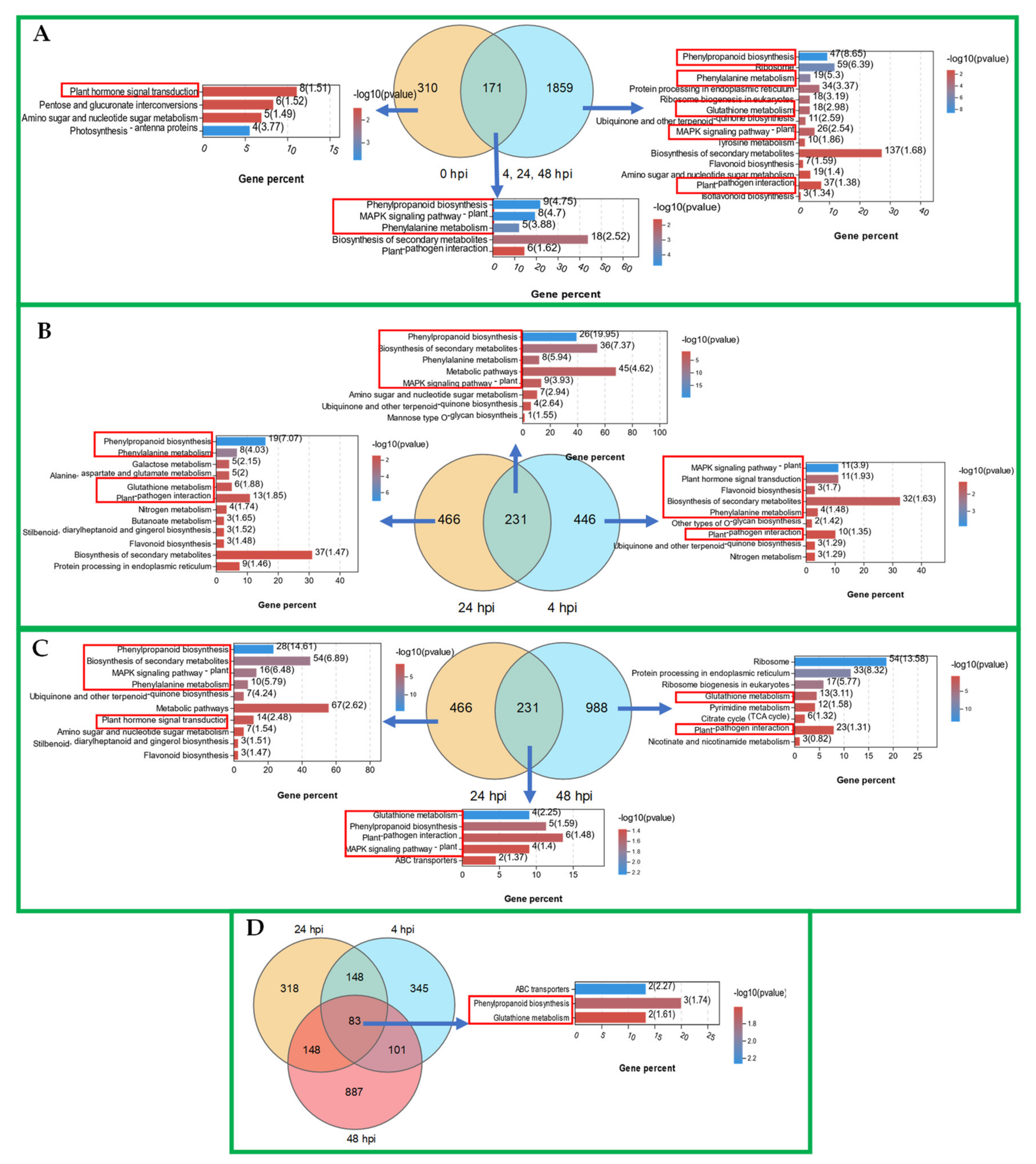

Figure 5. Venn analysis and KEGG enrichment analysis of up−regulated DEGs.
Figure 5. Venn analysis and KEGG enrichment analysis of up−regulated DEGs.
Ijms 22 12328 g005
Ijms 22 12328 g006 550

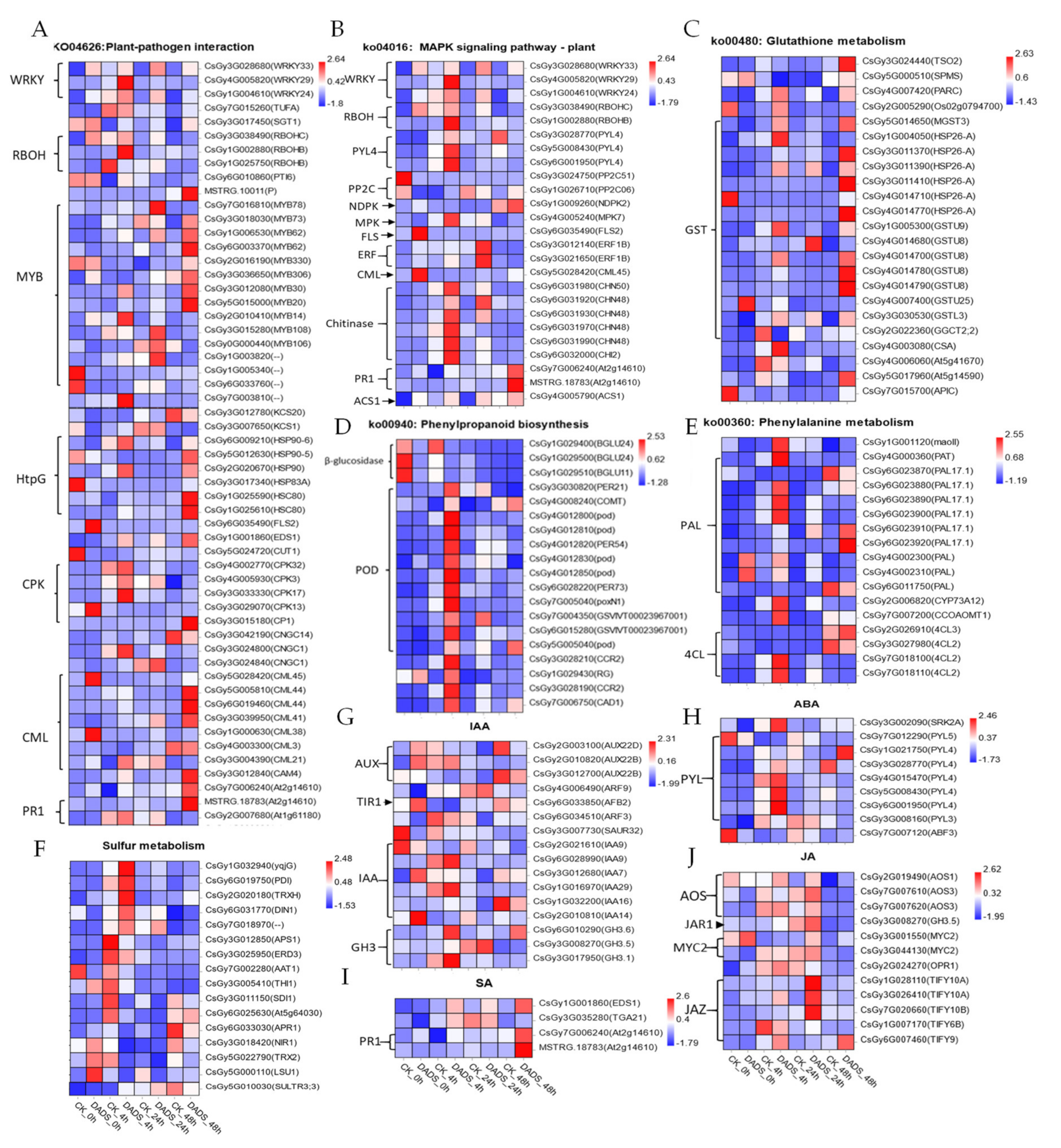

Figure 6. DEGs heatmap of DADS treated and CK leaves with P. cubensis infection. The bar represents the scale of the expression levels for each gene (FPKM) in the different treatments, as indicated by red/blue rectangles. Genes in red show upregulation, and those in blue show downregulation. (A) Plant–pathogen metabolism, (B) MAPK signaling pathway, (C) glutathione metabolism, (D) phenylpropanoid biosynthesis, (E) phenylalanine metabolism, (F) sulfur metabolism, (G) IAA genes, (H) ABA genes, (I) SA genes, and (J) JA genes.
Figure 6. DEGs heatmap of DADS treated and CK leaves with P. cubensis infection. The bar represents the scale of the expression levels for each gene (FPKM) in the different treatments, as indicated by red/blue rectangles. Genes in red show upregulation, and those in blue show downregulation. (A) Plant–pathogen metabolism, (B) MAPK signaling pathway, (C) glutathione metabolism, (D) phenylpropanoid biosynthesis, (E) phenylalanine metabolism, (F) sulfur metabolism, (G) IAA genes, (H) ABA genes, (I) SA genes, and (J) JA genes.
Ijms 22 12328 g006
Ijms 22 12328 g007 550

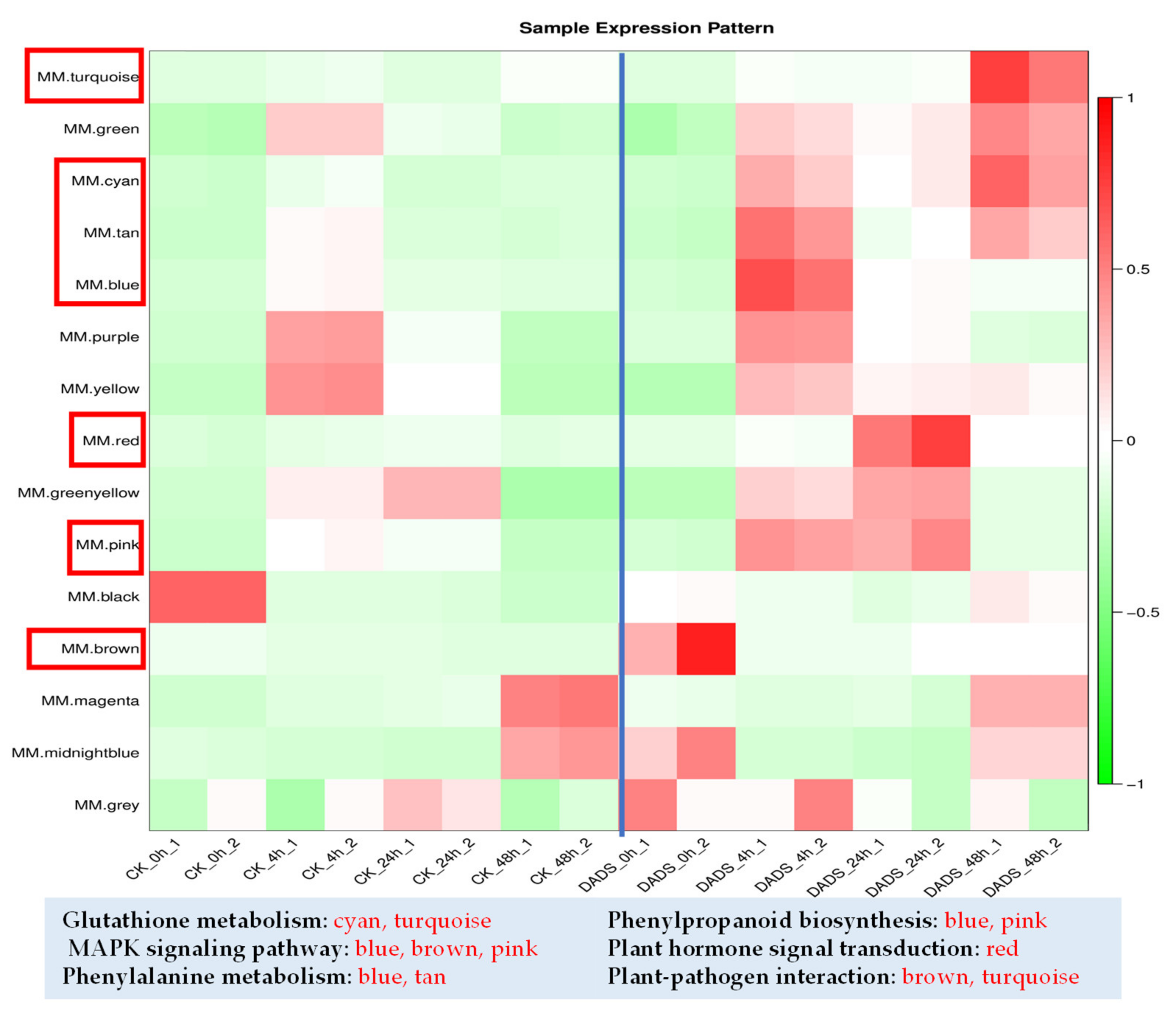

Figure 7. Expression modules constructed by WGCNA and associated KEGG of up–regulated DEGs in the ‘turquoise’, ‘cyan’, ‘tan’, ‘blue’, ‘red’, ‘brown’, and ‘pink’ modules.
Figure 7. Expression modules constructed by WGCNA and associated KEGG of up–regulated DEGs in the ‘turquoise’, ‘cyan’, ‘tan’, ‘blue’, ‘red’, ‘brown’, and ‘pink’ modules.
Ijms 22 12328 g007
Ijms 22 12328 g008 550
Figure 8. A potential model underlying the enhanced cucumber resistance to P. cubensis induced by DADS. Under the infection of P. cubensis, DADS-treated plants exhibit enhanced disease resistance in comparison with CK plants due to the activation of multifaceted defense machinery in leaves. Red arrows represent up-regulation, green arrows represent synthesis, black arrows represent facilitation, and dashed arrows represent unknown.
Figure 8. A potential model underlying the enhanced cucumber resistance to P. cubensis induced by DADS. Under the infection of P. cubensis, DADS-treated plants exhibit enhanced disease resistance in comparison with CK plants due to the activation of multifaceted defense machinery in leaves. Red arrows represent up-regulation, green arrows represent synthesis, black arrows represent facilitation, and dashed arrows represent unknown.
Ijms 22 12328 g008
Table
Table 1. Disease resistance-related hub genes revealed by WGCNA.
Table 1. Disease resistance-related hub genes revealed by WGCNA.
GeneDescriptionModule
Colors		All.k within
CsGy4G012800Peroxidaseblue179.41
CsGy4G000360Aminotransferaseblue178.46
CsGy6G023900Phenylalanine ammonia-lyaseblue146.39
CsGy1G004610probable WRKY transcription factor 33pink12.23
CsGy1G004050probable glutathione S-transferaseblue104.07
CsGy6G010290indole-3-acetic acid-amido synthetase GH3.6tan39.20
CsGy5G008430abscisic acid receptor PYL4blue111.72
CsGy7G006240PR1, Cysteine-rich venom proteinturquoise27.60
CsGy1G001860protein EDS1L-likecyan17.28
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Yang, F.; Wang, H.; Zhi, C.; Chen, B.; Zheng, Y.; Qiao, L.; Gao, J.; Pan, Y.; Cheng, Z. Garlic Volatile Diallyl Disulfide Induced Cucumber Resistance to Downy Mildew. Int. J. Mol. Sci. 2021, 22, 12328. https://doi.org/10.3390/ijms222212328

AMA Style

Yang F, Wang H, Zhi C, Chen B, Zheng Y, Qiao L, Gao J, Pan Y, Cheng Z. Garlic Volatile Diallyl Disulfide Induced Cucumber Resistance to Downy Mildew. International Journal of Molecular Sciences. 2021; 22(22):12328. https://doi.org/10.3390/ijms222212328

Chicago/Turabian Style

Yang, Fan, Hui Wang, Chengchen Zhi, Birong Chen, Yujie Zheng, Lijun Qiao, Jingcao Gao, Yupeng Pan, and Zhihui Cheng. 2021. "Garlic Volatile Diallyl Disulfide Induced Cucumber Resistance to Downy Mildew" International Journal of Molecular Sciences 22, no. 22: 12328. https://doi.org/10.3390/ijms222212328

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
