Common Pathogenic Mechanisms in Centronuclear and Myotubular Myopathies and Latest Treatment Advances

Abstract

Centronuclear myopathies (CNM) are rare congenital disorders characterized by muscle weakness and structural defects including fiber hypotrophy and organelle mispositioning. The main CNM forms are caused by mutations in: the MTM1 gene encoding the phosphoinositide phosphatase myotubularin (myotubular myopathy), the DNM2 gene encoding the mechanoenzyme dynamin 2, the BIN1 gene encoding the membrane curvature sensing amphiphysin 2, and the RYR1 gene encoding the skeletal muscle calcium release channel/ryanodine receptor. MTM1, BIN1, and DNM2 proteins are involved in membrane remodeling and trafficking, while RyR1 directly regulates excitation-contraction coupling (ECC). Several CNM animal models have been generated or identified, which confirm shared pathological anomalies in T-tubule remodeling, ECC, organelle mispositioning, protein homeostasis, neuromuscular junction, and muscle regeneration. Dynamin 2 plays a crucial role in CNM physiopathology and has been validated as a common therapeutic target for three CNM forms. Indeed, the promising results in preclinical models set up the basis for ongoing clinical trials. Another two clinical trials to treat myotubular myopathy by MTM1 gene therapy or tamoxifen repurposing are also ongoing. Here, we review the contribution of the different CNM models to understanding physiopathology and therapy development with a focus on the commonly dysregulated pathways and current therapeutic targets.

1. Introduction

Centronuclear myopathies (CNM) are a subgroup of congenital muscle disorders encompassing myotubular myopathy and are characterized by the abnormal nuclei position in the center of the myofibers in the absence of excessive regeneration, unlike what is commonly observed in dystrophies [1]. The first published patient description was in 1996 by Spiro et al. [2] and since then, major advances have been made in the identification of causative genes. Clinical presentation and inheritance are heterogenous and can be classified into three main groups: the most severe X-linked CNM (XLMTM, myotubular myopathy) caused by mutations in MTM1 encoding myotubularin (MTM1) [3]; autosomal dominant CNM (ADCNM) caused by dominant mutations in DNM2 encoding dynamin 2 (DNM2) [4] or in BIN1 encoding amphiphysin 2 (BIN1) [5]; and autosomal recessive CNM (ARCNM) caused by a mutation in BIN1 [6] or RYR1 encoding ryanodine receptor (RyR1) [7,8]. Around 16% of CNM cases have an unknown genetic cause [9]. Mutations in other genes including TTN [10], SPEG [11], CACNA1S [12], and ZAK [13] have been identified in congenital myopathies with a CNM-like phenotype combined with other features. In the present review we aim to provide an overview of the clinical and pathological aspects of CNM with a focus on the main genetic forms with mutations in MTM1, BIN1, DNM2, and RYR1 genes, and highlight common disease mechanisms. Finally, updates on novel therapeutic targets and a current translation of different treatment approaches to human clinical trials will be discussed.

2. MTM1 and Myotubular Myopathy

2.1. Disease Presentation and Genetics

X-linked centronuclear myopathy or myotubular myopathy (XLCNM, XLMTM, OMIM#310400) is caused by recessive mutations in the MTM1 gene encoding the 3′-phosphoinositide phosphatase myotubularin [3] (

Table 1. Phenotype in patients with MTM1, BIN1, DNM2, or RYR1 mutations.

CNM Form/ Mutated Gene	Incidence/ Prevalence [9,21]	Severity/ Age of Onset	Clinical Presentations (Common Findings) [1,21]	Muscle Histology [21,22]	Altered Pathways	Ref(s)
XLMTM/ MTM1	17 per mln births */ 57% CNM patients	+++/ Neonatal,20% moderate late-onset form	Severe neonatal hypotonia, generalized muscle weakness. 25% male die in the first year of life. In late-onset cases, slowly progressive weakness. Moderate ptosis and ophthalmoplegia. Respiratory failure and swallowing difficulties. Others: dolichocephaly, possible hepatobiliary disease	Fiber hypotrophy, rounded fibers, centralized nuclei, type 1 fiber predominance. Pale peripheral halo lacking of oxidative activity. Female and late-onset cases: necklaces and internalized nuclei.	Abnormal triads Satellite cell deficiency NMJ dysfunction Increased levels of PI(3)P Epigenetic dysregulation Defective autophagy Defective endosome recycling	[3,26,29,30,31,32,33,34,35,36]
ADCNM/ DNM2	2 per mln births */ 12% CNM patients	+ or ++/ Adulthood or adolescence, neonatal	Slowly progressive muscle weakness. Pediatric cases: generalized muscle weakness, hypotonia and breathing difficulties, improving over the time. Ophthalmoplegia and ptosis frequently present. Other: mild peripheral nerve involvement in some cases.	Hypotrophy of type 1 fibers, with some hypertrophic fibers, centralized or internalized nuclei, type 1 fiber predominance. Radiating sarcoplasmic strands, accumulation of oxidative activity around centralized nuclei.	Abnormal triad Defective autophagy NMJ dysfunction	[4,33,37,38,39]
ARCNM/ BIN1	1 per mln births */ 4% CNM patients	++/ Childhood	Diffuse muscle weakness from slowly to rapidly progressive and facial weakness. Ophthalmoplegia and ptosis (some cases).	Fiber hypotrophy, rounded fibers, centralized and clustered nuclei, type 1 fiber predominance. Central accumulation of oxidative activity.	Abnormal triads Abnormal nuclear shape	[6,33,40,41]
ADCNM/ BIN1		+/ Adulthood	Mildly progressive muscle weakness without facial involvement		Abnormal triads Defective autophagy	[5]
ARCNM/ RYR1	2 per mln births*/ 12% CNM patients	++/ Neonatal, childhood	Proximal muscle weakness and hypotonia, improving over time. Ophthalmoplegia with or without ptosis. Possible breathing difficulties.	Fiber hypotrophy with size heterogenicity, predominantly internalized nuclei (some centralized), type 1 fiber predominancy. Cores depleted of oxidative activity with undefined boundaries.	Defective calcium homeostasis Epigenetic dysregulation Oxidative stress	[7,8,42,43,44]

* Incidence is expressed as affected newborns per million (mln) births. It represents the overall cases estimated for Europe, the U.S., Japan, and Australia [9]. Particularities in clinical presentations or histological findings that differentiate from other CNM forms are highlighted in bold.

). The disease name comes from the resemblance of patient muscle fibers to fetal myotubes upon the analysis of muscle biopsies [2]. More than 300 loss-of-function mutations have been identified without specific hotspots [14,15,16,17,18], most resulting in a strong decrease in MTM1 protein levels [19,20].

XLMTM is a rare congenital myopathy that affects about 1/50,000 newborn males per year [21]. Recent estimations have proposed that it accounts for the largest proportion of CNM patients, representing around 57% of the prevalent population [9]. It is characterized by a severe neonatal or prenatal myopathy, constituting one of the most severe forms of CNM. It has a poor prognosis as 60% of patients died within the first two years of life, while some affected boys survived into childhood and even adulthood [14].

The general clinical picture is composed of severe hypotonia, muscle atrophy, and generalized weakness at birth. Most patients also present respiratory insufficiency, requiring immediate ventilatory assistance, and swallowing difficulties, needing a feeding tube. Moderate ptosis (drooping of the upper eyelid), ophthalmoplegia (weakness of eye muscles), and scoliosis are often observed [21,22]. Non-muscle phenotypes have been frequently reported. It is frequent to observe dolichocephaly (large head relative to its width). Pyloric stenosis and cavernous hemangiomas of the liver were reported as complications in long-term survivors [23]. Following the fatal death of three patients in the ASPIRO clinical study (MTM1 gene therapy, see therapy section) possibly linked to liver complications, hepatobiliary disease in XLMTM was further characterized in two recent studies [24,25]. Overall, it was shown that hepatobiliary disease, and in particular, cholestasis, is a common comorbidity in XLMTM patients that should be closely monitored. It can manifest from an early age, especially after infection or vaccination, and presents with an increase in liver enzymes (transaminases and bilirubin) and liver ultrasound abnormalities as hepatic peliosis or gallstones. It was not correlating clinical severity nor MTM1 mutation.

Most female XLMTM carriers were first assumed to be asymptomatic, but recent studies have shown they can have symptoms with a wide spectrum of clinical involvement from severe neonatal and generalized weakness with respiratory dysfunction to more commonly observed milder forms in adulthood [26,27]. Prevalence of manifesting XLMTM carriers may be higher than currently assumed as demonstrated with a new cohort of 76 female carriers published in 2021 with 51% manifesting carriers [28]. It is characteristic to observe asymmetric weakness and growth, facial involvement, ptosis, and skeletal and joint abnormalities [26,27]. The differences in severities are not explained by the MTM1 mutation. Skewed X-chromosome inactivation (XCI) was noted in some female carriers (six patients out of 32 with a ratio of 95:5) [26], although this was demonstrated to not be correlated with the severity of the phenotypes [27]. Severity in females may be explained by disease modifier genes or the susceptibility of the MTM1 gene to escape XCI.

Main morphological features observed in muscle biopsies from patients with XLMTM are smaller round myofibers with centralized nuclei, predominance of type 1 slowly contracting fibers and lack of oxidative activity in the periphery of the fibers. Centralized nuclei are surrounded by an area depleted of myofilaments containing mitochondria, glycogen, and some tubular structures [1]. Necklace fibers have been reported in late onset XLMTM cases [30] and female carriers [26]. Patients were mildly affected during childhood and worsening after the first and second decades of life. Necklace are basophilic rings located underneath the sarcolemma following the contour of the cell and composed of glycogen, mitochondria, and reticulum as observed with periodic acid–Schiff (PAS), oxidative staining, and electron microscopy. In those patients, myonuclei were usually aligned in the necklace.

2.2. Myotubularin Function and Animal Models for XLMTM

2.2.1. Myotubularin

Myotubularin (MTM1) is a ubiquitously expressed phosphosinositide (PI) phosphatase that regulates intracellular vesicle trafficking through the spatial and temporal regulation of PI phosphorylation. PIs are lipids that determine membrane identity and regulate protein recruitment [45,46]. MTM1 specifically dephosphorylates position 3 of phosphatidylinositol-3,5-bisphosphate (PI(3,5)P₂ to PI(5)P) and phosphatidylinositol-3-phosphate (PI(3)P to PI), second messenger lipids produced by PI 3-kinase (PI3K) and 5-kinase (PI5K), respectively [47,48,49]. These lipids are important to regulate intracellular processes such as autophagy or vesicle sorting within and through endosomal compartments [46]. MTM1 is part of a highly conserved protein family conserved throughout evolution in Eucaryotes [50,51] (Figure 1).

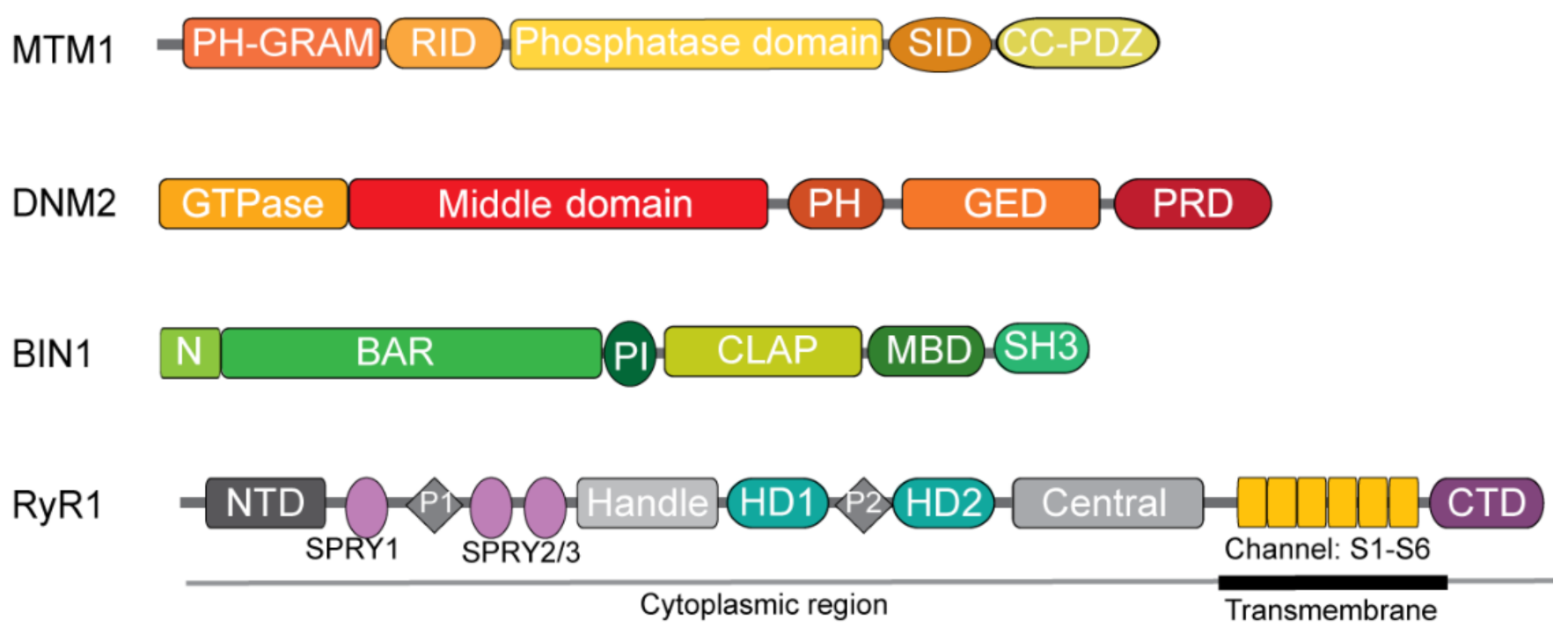

The MTM1 protein has the following protein domains (Figure 2), from the N-terminal to C-terminal [51]. The PH-GRAM domain (Pleckstrin homology-glucosyltransferase, Rab-like GTPase activator and myotubularin) can bind lipids, especially PI(3,5)P₂, which is enriched in early endosomes [52], and may also interact with effector proteins. The RID domain (Rac1-induced recruitment domain or myotubularin-related domain) regulates its recruitment to the plasma membrane [53] and interacts with the muscle intermediate filament desmin [31]. The phosphatase domain encompasses a signature motif conserved among phosphatases and is responsible for phosphoinositide dephosphorylation [48]. The SID (SET interacting domain) that interacts with SET domain proteins involved in epigenetic regulation [54]. A coiled coil domain is essential for homodimerization and/or heterodimerization of myotubularin. Finally, a PDZ (PSD95, disc large, ZO-1) binding site is localized at the C-terminal, mediating protein–protein interactions.

Mutations in MTM1 spread throughout all the different domains with no hotspots and no clear genotype–phenotype correlations [55,56,57].

2.2.2. Mouse Models for XLMTM

The development of animal models mimicking XLMTM have been essential to decipher the pathomechanisms and validate several therapeutic targets. Here, we focus on animal models for which specific orthologs of human MTM1 are found (mammals and fish) (

Table 2. Main fish and mammalian models for XLMTM.

Genotype and Specie	Skeletal Muscle Phenotypes		Altered Pathways in Muscle	Ref(s)
	Lifespan and Motor Phenotype	Muscle Histology
Mtm1−/y  (Mtm1KO, Mtm1δ4) mouse	Short lifespan (6–8 weeks), decreased body weight and progressive and generalized severe myopathy (from 3 weeks) with breathing difficulties.	Fiber hypotrophy, centralized and internalized nuclei, pale peripheral halo in oxidative staining.	Abnormal triads and defective ECC Deficient autophagy and UPS Dysfunctional mitochondria Abnormal NMJ Satellite cell deficiency and defective regeneration Increased levels of PI(3)P Defective endosome recycling	[31,35,59,63,66,67,68,69,70,71,72,73]
Mtm1gt/y (gene trap) mouse	Short lifespan (6 weeks), decreased body weight and progressive and generalized severe myopathy (from 3 weeks).	Fiber hypotrophy, centralized and internalized nuclei.	Defective autophagy mTORC1 overactivation Dysfunctional mitochondria Increased levels of PI(3)P	[61]
Mtm1Δ5/y, Mtm1Δ7/y mouse	Short lifespan (6–7 weeks) decreased body weight and generalized severe myopathy (from 3wks).	Fiber hypotrophy, centralized nuclei.	Defective muscular postnatal development and muscle maturation	[62]
Mtm1R69C/y  (Mtm1-KI) mouse	Reduced lifespan (median 66 weeks), non-progressive mild myopathy (from 8 weeks) and altered breathing.	Fiber hypotrophy, centralized nuclei. Central and peripheral accumulations of oxidative staining.	Abnormal triads NMJ dysfunction Satellite cell deficiency	[60,68,74]
mtm1  morphant zebrafish	Impaired motor function from 24 hpf.	Fiber hypotrophy, abnormal nuclei position and shape.	Abnormal triads and ECC Abnormal mitochondria (disrupted cristae) Increased levels of PI(3)P	[34]
mtm1-null (mtm1Δ8/Δ8) zebrafish	Reduced lifespan (7–9 dpf) and impaired motor function and phenotypic changes from 3 dpf. Enlarged, globular and fatty liver.	Not specified.	Abnormal triads	[63]
MTM1 N155K, Q384P dog	Reduced lifespan, generalized and progressive severe myopathy (from 2–3 month).	Fiber size variability, hypotrophy type 1 fibers, centralized nuclei, type 1 fiber predominance. Subsarcolemmal and central accumulations of oxidative staining.	Abnormal triads Increased levels of PI(3)P Defective autophagy with Q384P mutation Transcriptional dysregulation with N155K	[64,65,75]

Hpf: hours post fertilization, dpf: days post fertilization, ECC: excitation–contraction coupling, NMJ: neuromuscular junction, PI(3)P: phosphatidylinositol 3-phosphate.

).

A first XLMTM mouse model was generated through exon 4 deletion (Mtm1δ4 line, Mtm1 knockout Mtm1^−/y), leading to complete knockout of the MTM1 protein in all tissues [58,59]. Mtm1^−/y mice have a reduced lifespan of 1–3 months, probably dying due to respiratory failure. Males develop a progressive and generalized myopathy with severe muscle weakness and decrease in body weight starting at 3–4 weeks of age. No phenotype has been reported to date in heterozygous female mice (Mtm1^+/−). Conditional ablation of this exon only in skeletal muscle using a Cre recombinase expression driven by the HSA (human skeletal actin) promotor causes almost identical phenotypes, pointing to myotubularin loss in muscle as the main cause of the disease. Histopathological hallmarks in muscle biopsies resemble those observed in patients with high incidence of small fibers with centralized or internalized nuclei, and a peripheral halo depleted of oxidative activity underlying mitochondria mispositioning. The fact that mice, unlike patients, are not affected from birth can be explained due to the different timing of late myogenesis as muscle development is completed in human before birth but finalizes at two weeks of age in mice. Ultrastructural analysis showed Z-line misalignment, decreased number of triads, swollen sarcoplasmic reticulum, and accumulation of mitochondria and glycogen around centralized nuclei, as reported in XLMTM patients. These results point to myotubularin as a key player for muscle skeletal maintenance.

A Mtm1 knock-in (KI) mouse model was generated carrying the R69C mutation (Mtm1^R69C/y) previously identified in patients with a mild phenotype [60]. Analysis of this model revealed that this mutation causes the skipping of exon 4, leading to premature termination of myotubularin translation. However, some full-length Mtm1 mRNA with the missense mutation is expressed, resulting in a milder phenotype compared to Mtm1^−/y mice with a median survival of 66 weeks. Muscle weakness appears at eight weeks of age, but does not progress with age, with muscle fiber hypotrophy and nuclei centralization already present at four weeks. Interestingly, the central nuclei increase over time, but do not correlate with worsening of muscle force [60].

A third Mtm1 mouse model was developed by a gene trap strategy (Mtm1^gt/y) where a vector with the neomycin reporter was inserted into intron 1 of the Mtm1 gene, disrupting its expression [61]. Mtm1^gt/y mice survive for at least six weeks and develop a progressive myopathy from three weeks with histological defects as internalize nuclei, decreased myofiber size, and disorganized sarcomeres, similar to the Mtm1^−/y mouse.

Recently, novel Mtm1 knockout mouse models were generated using CRISPR technology by deletion of the 5-base pair (bp) (Mtm1^Δ5/y) or 7-bp (Mtm1^Δ7/y) in the exon 3 [62]. As in Mtm1^−/y mice, these mutant mice have a maximum lifespan of eight weeks, smaller body weight than the controls, and histopathological hallmarks similar to XLMTM patients [62].

2.2.3. Other Animal Models for XLMTM

Zebrafish: The morpholino antisense technology was used in zebrafish to reduce the level of myotubularin (mtm1 morphant) and resulted in impairment of motor function and histopathologic changes resembling those seen in patients with mispositioned nuclei, fiber hypotrophy, and abnormal triads [34] (Table 2). Similar phenotypes were found in a zebrafish mutant created using zinc finger nucleases to produce a deletion of 8-bp in exon 5 of the mtm1 gene (mtm1-null), leading to frameshift and early stop mutation [63].

Dogs: In addition, two spontaneous canine models have been identified for XLMTM (Table 2). First, a Labrador retriever dog harboring the mutation N155K (exon 7) in the MTM1 gene [64], followed by the identification of the mutation Q384P (exon 11) in a Rottweiler dog [65]. The affected dogs developed a progressive myopathy with generalized muscle weakness and atrophy, and mispositioned nuclei and mitochondria together with type 1 fiber predominancy in muscle biopsies.

3. DNM2 and Autosomal Dominant Centronuclear Myopathy

3.1. Disease Presentation and Genetics

DNM2-related autosomal dominant centronuclear myopathy (DNM2-related ADCNM, OMIM#160150) is caused by heterozygous mutations in DNM2, encoding the large ubiquitous GTPase dynamin 2 (Table 1) [4]. More than 15 different CNM mutations affecting mainly the stalk and PH domains (see below) have been reported [76]. They are suspected to be gain-of-function mutations that result in more stable oligomer structures and increased GTPase activity in vitro compared to wild-type dynamin 2 [77,78,79]. Different heterozygous DNM2 mutations have been found in patients with dominant intermediate and axonal forms of Charcot Marie Tooth neuropathy (CMTDIB and CMT2B OMIM#606482) affecting peripheral nerves. Of note, a homozygous mutation was also reported in a single family with lethal congenital contracture syndrome (OMIM#615368). In this review, we will only focus on DNM2 mutations causing CNM.

CNM, caused by DNM2 mutations, accounts for around 12% of CNM patients. The yearly incidence of DNM2-related ADCNM was estimated to be 21 newborns globally (including Europe, the United States, Japan, and Australia) per year [9]. It presents a large clinical variability ranging from severe and neonatal onset to milder forms, with adult onset [4,37,38] DNM2-related ADCNM patients generally having a better prognosis even in neonatal cases, in comparison with XLMTM.

Adult or adolescent cases present with delayed motor milestones during childhood, in particular, for walking and climbing stairs or running [22]. Severe pediatric cases, however, often present generalized muscle weakness and hypotonia together with moderate facial weakness, ophthalmoplegia, and ptosis. Most patients with early onset-severe form develop breathing complications at the end of the first decade [76]. Common to all DNM2 cases is hyporeflexia or areflexia [76]. Achilles tendon contractures are frequently reported for DNM2 patients [80]. Coexistence of typical CNM-features with peripheral neuropathy with mild axonal peripheral nerve involvement has been described in patients carrying a CNM mutation [81,82].

The analysis of muscle biopsies of DNM2-related ADCNM shows a significantly high proportion of muscle fibers with central and internal nuclei, predominance of type 1 fibers, and fiber size heterogeneity. The central internuclear space is depleted of sarcomeres and occupied by glycogen granules, mitochondria, endoplasmic reticulum, and Golgi apparatus [1]. As a discriminatory feature from other CNM forms, myofibers present characteristic radiating sarcoplasmic strands (RSS, also named “spokes of a wheel”), visible with oxidative reactions and easily observed in electron microscopy with a radial distribution of the intermyofibrillar sarcoplasmic reticulum around the centralized nuclei.

3.2. Dynamin 2 Function and Animal Models for ADCNM

3.2.1. Dynamin 2

Dynamin 2 (DNM2) is a large GTPase with membrane fission and tubulation activities. It is a key player during final steps of clathrin-mediated endocytosis to trigger the fission and release of vesicles. This mechanoenzyme is also implicated in membrane trafficking and recycling, cytoskeleton remodeling through interaction with actin and microtubules networks, apoptosis, and cytokinesis [83] (Figure 1).

In mammals, there are three genes encoding “classical” dynamins. While dynamin 2 is the only member ubiquitously expressed, dynamin 1 is mainly expressed in the brain, and dynamin 3 is particularly expressed in the brain, testis, and lung. Each dynamin has several splice isoforms. In the case of DNM2, exon 10a/b is mutually exclusive, while exons 12b and 13b are alternatively spliced [84,85]. Exon 12b was recently observed in mice and human tissues with predominant expression in skeletal muscle, which increased during muscle development [84]. In adult skeletal muscle, both Dnm2 isoforms including exon 12b as well as the ubiquitous Dnm2 isoforms (without exon 12b) are expressed.

Dynamin 2 is comprised of several functional domains (Figure 2) [83]. The N-terminal GTPase domain mediates the hydrolysis of GTP to GDP. GTP binding favors dynamin oligomerization, while GTP hydrolysis triggers dynamin oligomer disassembly [86]. The middle domain or stalk allows dynamin 2 dimerization in a cross-like fashion and is thus essential for its oligomerization. It may also bind to actin [87]. The Pleckstrin-homology (PH) domain binds to phosphoinositides such as PI(4,5)P₂ and its affinity increases with dynamin polymerization. Dynamin 2 may also bind other PIs such as PI(3,4)P₂, PI(3,4,5)P_3, and PI(3)P [88]. The GTPase effector domain (GED) (together with the middle domain) is involved in oligomerization and in regulating the GTPase activity through its interaction with the GTPase domain. The C-terminal proline-rich domain (PRD) mediates interaction with other proteins containing Src-homology domain 3 (SH3) such as endophilins, amphiphysins, sorting nexins, and syndapins. These interactions may regulate dynamin recruitment to the membrane or activity.

Dynamins oligomerize around tubular membrane templates, forming spiral structures before triggering membrane fission. Briefly, dynamin dimerizes through its middle/stalk domain, then dimers oligomerize to form a tetramer structure. This tetramer can have two conformations: open-active conformation or close-autoinhibited conformation. When the PH domain is flipped back on the middle/stalk domain, it forms an autoinhibitory state that is released upon binding to the lipid membrane by the PH domain [89]. Then, dynamin oligomerizes around membrane tubes, forming helicoidal structures, triggering membrane constriction upon GTP binding, and ultimately fission concomitant to GTP hydrolysis [83,90]. To date, several models have been proposed for the detailed mechanism of the action of dynamins [90].

DNM2 mutations have been associated with tissue-specific diseases and mainly concentrate in the middle/stalk and PH domains. A gain-of-function mechanism has been proposed for ADCNM mutations with a muscle-specific phenotype. Most ADCNM mutations linked to severe forms such as the common S619L missense are concentrated in the auto-inhibitory PH–stalk interface, while the common R465W mutation leading to a mild adult form is located in the tetramerization interface [89]. It is hypothesized that mutations in the PH–stalk interface open dynamin conformation and favors its oligomerization around membranes. In vitro studies have shown that ADCNM-mutants are hyperactive and form more stable oligomers [77,79,91]. More specifically, the S619L mutation behaves like a lipid unsensitized mutant, resulting in high GTPase activity independent of lipid binding [78,92].

3.2.2. Mouse Models for DNM2-Related ADCNM

The first in vivo model for ADCNM was generated by homologous recombination and expresses the most frequent DNM2 mutation observed in patients (Dnm2^R465W/+) [93] (

Table 3. Main fish and mammalian models for DNM2-related ADCNM.

Genotype and Specie		Skeletal Muscle Phenotypes		Altered Pathways in Muscle	Ref(s)
		Lifespan and Motor Phenotypes	Muscle Histology
Dnm2R465W/+ mouse (mild adult CNM form)		Homozygous: died at P1 (2% survived 3 weeks). Heterozygous: normal lifespan, normal body weight, progressive moderate myopathy, normal body weight. Progressive moderate myopathy (from 3 weeks).	Fiber hypotrophy, normal nuclei position, central accumulation of oxidative activity.	Defective ECC and calcium homeostasis Defective autophagy Defective actin organization and polymerization Defective GLUT4 trafficking Defective costamere Deficient satellite cells	[93,106,107,108,109,110,111,112,113,114]
Dnm2S619L/+ (Dnm2SL/+) mouse (severe neonatal CNM form)		Homozygous: none survived to P2. Heterozygous: partial mortality from E18.5 to P10. Normal lifespan after P10, decreased body weight, generalized severe myopathy.	Fiber hypotrophy, normal nuclei position, central accumulation of oxidative activity.	Abnormal mitochondria (swollen and disrupted cristae)	[94]
Transient expression of DNM2	Mouse hDNM2-WT, R465W, S619L	Decreased muscle force 2- and 4-weeks post-injection (higher impact of mutants).	Fiber hypotrophy, centralized and internalized nuclei Central and peripheral accumulations of oxidative activity.	Abnormal triads Abnormal mitochondria (enlarge and disrupted cristae with S619L mutant) Abnormal NMJ	[97,98]
	Zebrafish hDNM2-WT, S619L	Motor function impaired at 2dpf (higher impact mutant).	Fiber hypotrophy. Disorganized perinuclear material.	Abnormal triads and deficient ECC Swollen organelles Abnormal NMJ	[39,102]
	Zebrafish hDNM2-R522H	Motor function impaired Dose-dependent 24 dpf mortality.	Fiber size variability and increased central nuclei.	Abnormal NMJ	[104]
Stable expression of DNM2	Mouse Tg MCK-rat Dnm2 rat Dnm2-WT	Impaired motor function.	Fiber hypotrophy and centralized nuclei. Central accumulation of oxidative staining and radial strands.	Abnormal T-tubule	[99]
	Drosophila Tg hDNM2-WT R465W, S619L, A618T	Defects in the eclosion. Defective locomotor activity.	Fiber hypotrophy.	Abnormal T-tubule	[77]
	Zebrafish Tg(hDNM2-EGFP) WT,R465W,S619L	Impaired motor function (highest impact for S619L) from 2dpf.	Not specified.	Abnormal triad Abnormal NMJ	[103]
DNM2R465W/+  dog		Mildly progressive weakness.	Fiber size variability, central nuclei. Abnormal mitochondrial positioning: necklace fibers.	Not described yet	[105]

dpf: days post fertilization, E: embryonic day, P: postnatal day, ECC: excitation–contraction coupling, NMJ: neuromuscular junction, PI(3)P: Phosphatidylinositol 3-phosphate, Tg: transgenic.

). This model mimics adult-onset cases with a slowly progressive myopathy as in patients. Dnm2^R465W/+ mice have a normal lifespan and body weight. Impairment of contractile properties manifest from three weeks of age, while muscle atrophy progresses with age starting from two months. In muscle, a clear disorganization and central accumulation of mitochondria and reticulum is evidenced by oxidative staining from two months of age. Of note, centralized nuclei, sarcoplasmic strands, or type 1 fiber predominance characteristics of the human pathology were not seen. Mice homozygous for the mutation generally die on the first day of life; associated with mislocalized nuclei observed in 20% of fibers. Recently, a second ADCNM mouse model was described and reproduces the severe neonatal cases caused by the S619L mutation (Dnm2^S619L/+) [94]. Some heterozygous mice die between E18.5 and postnatal day 10. Survivors present a normal lifespan with decreased body weight perhaps due to feeding difficulties. Impairment in motor function is observed from three weeks, and at eight weeks, histology shows fiber hypotrophy, abnormal central accumulation of oxidative activity, and a very slight increase in centralized nuclei (around 5% vs. 2% in WT). The main ultrastructural defect observed is the presence of enlarged and rounded mitochondria devoid of most cristae, potentially underlying the impaired muscle performance. This mitochondria anomaly was also confirmed in a patient with the same mutation. Similar to the Dnm2^R465W/+ model, homozygous Dnm2^S619L/S619L mice do not survive past the first postnatal day. No defect in nerve conduction or structure was observed in both Dnm2 knock-in models, although more specific electrophysiological studies will be required to totally exclude possible nerve involvement in these models.

Importantly, Dnm2 homozygous knock-out is embryonically lethal [83], while specific knock-out in skeletal muscle leads to structural and metabolic defects of muscle unlike the CNM phenotypes [95]. Conversely, heterozygous Dnm2^+/− mice have a normal lifespan and do not display obvious phenotypes [96].

In addition to knock-in mouse models, transient exogenous overexpression of human DNM2 CNM mutations in wild type (WT) mouse muscle with adeno-associated virus (AAV) was performed and correlated with a reduction in muscle force and CNM-like histological defects including fiber hypotrophy, nuclei mislocalization, and altered mitochondrial staining [97,98]. In detail, sarcomere structures were altered, neuromuscular junction (NMJ) was disrupted, and triads were abnormal with rounder and longitudinally oriented T-tubules and swollen sarcoplasmic reticulum. The structural defects found correlate with clinical severity observed in patients and knock-in mouse models with increased severity with the S619L mutation compared to the R465W mutation [98]. Interestingly, overexpression of WT DNM2 in muscle, either through AAV [97,98] or transgenesis [99], resulted in a clear increase in myofibers with centralized nuclei, central accumulations of oxidative staining, and decreased muscle performance, recapitulating the CNM phenotypes, and thus suggesting DNM2-related ADCNM mutations are gain-of-function in vivo [99].

3.2.3. Other Animal Models for DNM2-Related ADCNM

The role of dynamin in endocytosis was first suggested through the study of the single dynamin ortholog, shibire gene drosophila mutants, presenting paralysis and depletion of vesicles in synaptic terminals at non-permissive temperatures [100,101]. Transgenic drosophila expressing human DNM2 CNM mutants in muscle were also studied [77]. Similarly to mice, overexpression of WT and CNM mutants led to impaired locomotion, fiber hypotrophy, and fragmentation of T-tubules (Table 3).

Zebrafish: In developing zebrafish larvae, DNM2 exogenous expression of human DNM2-S619L induces defective motor function as seen by weaker swimming patterns [39,102]. Muscle structure displays abnormally located nuclei, perinuclear disorganization, and abnormal triads. Stimulus-associated intracellular calcium release is impaired and NMJs are disorganized. These findings were confirmed with transgenic lines overexpressing human DNM2 fused to enhanced GFP (EGFP), Tg(DNM2-EGFP) for WT-DNM2, and CNM-mutants (R465W, S619L) [103]. Similar to overexpression in mice, WT and CNM mutants provoked major muscle defects and impairment of motor function. Bragato et al. overexpressed the human DNM2-R522H CNM mutant in zebrafish and noted locomotion was severely impaired, muscles presented with increased centralized nuclei and decreased fiber size, and NMJ were altered [104].

Dog: The most common R465W DNM2 mutation was recently identified in a Border collie (DNM2^R465W/+) with mildly progressive weakness and CNM histological hallmarks as myofiber hypotrophy, central nuclei, necklace fibers, and abnormal mitochondrial positioning (Table 3). Of note, histological anomalies preceded the clinical signs [105].

4. BIN1 and Autosomal CNM Forms

4.1. Disease Presentation and Genetics

BIN1-related centronuclear myopathy (BIN1-related CNM, OMIM#255200) is caused by mutations in BIN1 encoding amphiphysin 2, a ubiquitous protein implicated in membrane curvature and tubulation (Table 1) [6]. Autosomal recessive CNM with childhood onset is caused by BIN1 mutations that are probably loss-of-function [6,40,115,116,117] Autosomal dominant CNM cases caused by heterozygous BIN1 mutation have also been reported with adult-onset and mild CNM [5]. The prevalence of BIN1-related CNM cases is estimated to be around 4% of total CNM patients and its worldwide incidence predicted to be seven newborns per year [9]. However, the finding of a specific BIN1 mutation with a founder effect in Spanish Roma suggests that the incidence may be much higher in specific populations [116].

BIN1 patients present with a wide range of clinical presentations but are generally associated with a disease severity intermediate between the XLMTM severe neonatal form and the autosomal dominant adult-onset DNM2-ADCNM cases. Classical ARCNM cases have neonatal-childhood onset with more severe symptoms than ADCNM cases linked to BIN1 mutations, which present mild severity and adult onset. These are usually slowly progressive, and the prognosis is relatively good, even for neonatal cases in comparison with XLMTM. An exception is a few ARCNM cases with a splice mutation affecting the muscle-specific exon 11 of BIN1 and with childhood onset and highly progressive myopathy [40].

BIN1-related ARCNM patients present muscle atrophy with diffuse muscle weakness together with facial weakness, ptosis, and ophthalmoplegia. Delayed motor milestones during childhood are common antecedents. Patients generally do not need ventilatory assistance. BIN1-related ADCNM cases present mildly progressive muscle weakness without facial weakness [5]. Other non-muscle phenotypes found in some patients are cardiac arrhythmia [115].

4.2. Amphiphysin 2 Function and Animal Models for BIN1-Related ARCNM

4.2.1. Amphiphysin 2

Amphiphysin 2, also known as Bridging Interactor 1 (BIN1) or SH3P9, is a ubiquitous protein belonging to the BAR protein family of proteins that are involved in membrane trafficking and tubulation. It is implicated in several cellular functions including endocytosis, endosome recycling, cytoskeleton regulation, cell cycle progression, apoptosis, and DNA repair [118] (Figure 1).

In mammals, there are two different genes encoding for amphiphysins: amphiphysin1 (AMPH1), which is highly expressed in the brain, and amphiphysin 2 (BIN1), which is highly expressed in skeletal muscle (based on human GTEx data). BIN1 has 20 exons, some of them alternatively splice to produce at least 12 tissue-specific isoforms with diverse functions [118]. Isoforms 1–7 are mainly expressed in the brain, the muscle-specific isoform 8 contains a polybasic domain, and other isoforms are rather ubiquitously expressed.

BIN1 has the following domains that present differently depending on the isoform (Figure 2) [118]. The Bin1/Amphiphysin/Rsv (N-BAR) domain is present in all isoforms and is encoded by exon 1 to 10, although exon 7 is not always included. Its homo- or hetero-dimerization stabilizes BIN1 oligomerization, forming a positive concave face that binds to negatively charged lipids, and thus conveys membrane curvature sensing. The N-terminus amphipathic alpha helix inserts into the membrane and contributes to curvature generation [119,120]. The phosphoinositide (PI) binding domain is encoded by the muscle specific exon 11 (initially named exon 10 from cDNAs as it is never found with exon 7) [33,121] and corresponds to a short polybasic sequence that increases BIN1 affinity toward negatively charged lipids such as PI(4,5)P₂, PI(3)P, or PI(5)P [122,123]. It was shown to enhance membrane tubulation in cells [6,123] and also regulate BIN1 conformation by binding to the SH3 domain into a “folded” conformation, potentially preventing further access to the SH3 domain by interactors [124]. The clathrin and AP2 binding (CLAP) domain is encoded by exons 13–16, which is important for endocytosis and is specifically present in the brain but not in muscle isoforms [125,126]. The Myc binding domain (MBD) is encoded by exons 17–18 [127]. Exon 17 is not always present in adult skeletal muscle isoforms [33,121] The Src homology 3 (SH3) domain is present in all isoforms and encoded by the last exons 19–20. It is implicated in protein–protein interactions by binding to their proline rich domain (PRD) [128]. Protein binding partners include dynamin, synaptojanin, N-WASP, and Nesprin.

CNM homozygous missense mutations in the BAR domain were shown to impair its membrane tubulation properties. D151N and R154Q mutations are predicted to decrease the ability to form a dimer and bind phosphoinositides [6,117]. The K35N mutation decreases the number of positively charged amino acids of the N-terminal amphipathic helix, decreasing the ability of BIN1 to sense and generate membrane curvature [6]. Moreover, a splice site mutation skipping the muscle specific in-frame exon 11 removes the PI binding domain and decreases membrane tubulation [40]. This mis-splicing was also observed in patients with myotonic dystrophy 1 (DM1) due to alterations in splicing in the context of that disease [122]. Other ARCNM mutations truncate the SH3 domain (as K573X or K575X) and affect binding to DNM2, MTM1, and N-WASP, but do not impair membrane tubulation [6,129,130].

The heterozygous mutations causing ADCNM are different and encompass two mutations in the N-terminal amphipathic helix (K21del and R24C) and three stop-loss mutations causing the addition of 52 amino acids following the SH3 domain [5]. Of note, Bin1 heterozygous knock-out mice present no phenotype [131] and heterozygous carriers of BIN1 recessive mutations are not affected [5], suggesting dominant and recessive BIN1 mutations have a different functional impact. Further in cellulo studies were undertaken to understand the difference between dominant and recessive mutations in the N-BAR domain. Expression of BIN1 mutations in COS cells impaired the formation of BIN1-induced membrane tubules. However, co-expression of WT-BIN1 allowed for the recruitment of recessive mutants to the membrane tubules, but dominant mutants were not recruited. It was then hypothesized that recessive mutations induce a partial loss-of-function whereas dominant mutations lead to a full loss-of-function or a dominant-negative effect.

4.2.2. Mouse Models for BIN1-Related ARCNM

No animal models carrying the patients’ mutations have been described up to now. However, several animal models with the deletion of an in-frame exon or full knock-out of Bin1 have been generated. The first constitutive Bin1 KO (Bin1^−/−) was described in 2003, with partial deletion of exon 3 and no exons 4 and 5 [132] (

Table 4. Main fish and mammalian models for BIN1-related ARCNM.

Genotype and Specie	Skeletal Muscle Phenotypes		Altered Pathways in Muscle	Ref (s)
	Lifespan and Motor Phenotypes	Muscle Histology
Bin1−/− mouse (Bin1ex3-6 deletion)	Perinatal death at P0.	Skeletal muscle not examined in detail.	Non investigated	[132]
Bin1ex20−/− mouse (Bin1ex20 deletion)	Perinatal death at P0, feeding defect, no difference in body weight.	Centralized nuclei Central collapse of oxidative staining.	Abnormal triads	[84,131]
Bin1ex20hsa−/− mouse (Bin1ex20skm−/−, Bin1ex20 skeletal muscle deletion from E9)	Perinatal death at P0, feeding defect.	Not described.	Not described	[84,131]
Bin1ex20mck−/− mouse (Bin1ex20 skeletal muscle deletion from E17)	Normal lifespan, decreased body weight (from 4 months) and progressive moderate myopathy (from 8 weeks).	Fiber hypotrophy, normal nuclei position until 8 months. Central accumulation of oxidative staining.	Abnormal triads and defective ECC Defective autophagy	[135]
Bin1ex20hsa(i)−/− mouse (Bin1ex20skm(i)−/− deletion in adult skeletal muscle)	No impact on lifespan or body weight and normal motor function.	Muscle histology comparable to WT.	None	[131]
Bin1shRNA knock-down in adult muscle	Not described.	Not described.	Abnormal triads and defective ECC	[134]
Bin1ex11−/− mouse (splice switching from muscle-specific to ubiquitous isoform)	Normal lifespan and body weight and normal motor function.	Muscle histology comparable to WT. Slight, but significant, increased in mis-localized nuclei.	Satellite cell deficiency and defective muscle regeneration	[131]
Bin1ex11 transient skipping by U7-ex11 AS in mouse	Reduced muscle force.	Histology comparable with WT.	Abnormal T-tubule orientation	[122]
bin1morphant zebrafish	Defective motor function (from 17–26 hpf).	Mislocalized, rounded and grouped nuclei.	Abnormal triads and defective ECC	[136]
BIN1ex11 splice acceptor mutation in dog (decreased BIN1 expression)	Highly progressive myopathy.	Fiber hypotrophy, internalized nuclei. Central accumulation of oxidative staining and some radial strands.	Abnormal triads Defective autophagy	[40]

hpf: hours post fertilization, dpf: days post fertilization, E: embryonic day, P: postnatal day, ECC: excitation–contraction coupling, NMJ: neuromuscular junction, skm: skeletal muscle, MCK: muscle creatine kinase, HSA: human skeletal actin.

). This led to perinatal death during the first day of life. The cause of death was not completely clear, but defects in heart with aberrant sarcomere structure and ventricular cardiomyopathy were proposed. However, cardiomyocyte-specific loss of Bin1 causes a dilated cardiomyopathy beginning by 8–10 months of age [133]. More recently, a mouse model lacking the last exon 20 (Bin1ex20^−/−), causing truncation of the SH3 domain similarly to some CNM patients, has been described [84,131]. This deletion also leads to perinatal death, although no cardiac defects have been found. The pups probably die due to feeding problems as strong hypoglycemia was noted at day 1 [131]. Skeletal muscle-specific deletion of the same exon induced by a Cre recombinase under the control of the HSA promotor (Bin1ex20^hsa−/−) also causes perinatal death. Altogether, these data suggest BIN1 is necessary for perinatal maturation of skeletal muscle, but dispensable for cardiac muscle development [131]. The study of the skeletal muscle of Bin1ex20^−/− newborns showed centralized nuclei, central collapse of oxidative activity, and altered triad structures, reminiscent of CNM histopathology. Inducible deletion of BIN1 in adult skeletal muscle (Bin1ex20^{hsa(i)−/−}) with 80% reduction in BIN1 protein level does not cause histological defects, or abnormal muscle ultrastructure or triad structures, suggesting that BIN1 is mainly necessary for muscle maturation [131]. However, acute downregulation of Bin1 in the flexor digitorum brevis (FDB) muscle with shRNA promotes disruption of the T-tubule structure and alterations in intracellular Ca²⁺ release [134].

As skipping of the muscle-specific exon 11 of BIN1 causes ARCNM with highly progressive myopathy [40], a mouse model with deletion of Bin1 in-frame exon 11 (Bin1ex11^−/−) was generated, causing an isoform switching from the muscle-specific isoform 8 (with exon 11) to the ubiquitous isoform 9 (without exon 11) in skeletal muscle [131]. This switch does not alter normal muscle structure and function, but impaired muscle regeneration induced by injury. A slight decrease in T-tubule network was quantified with no impact on the excitation–contraction coupling (ECC). However, a similar Bin1 mis-splicing was reproduced in adult muscle by injection of U7-exon 11 antisense and this was sufficient to induce T-tubule alterations with an impact in muscle force [122]. Altogether, these mouse models lead to better understanding of the BIN1 function in muscle, pointing to BIN1 as a key player for muscle maturation, and is required for muscle function and regeneration in adulthood.

The disadvantages of these previously described models were the early lethality or absence of a clear muscle phenotype, preventing their use for testing therapies. Recently, a viable mouse model muscle-specific knock-out of Bin1 was described and faithfully reproduces CNM motor and histological phenotypes [135]. The ubiquitous exon 20 was deleted from 17 days post-coitum (dpc) in muscles with a Cre recombinase under the control of the muscle creatine kinase (MCK) promotor (Bin1ex20^mck−/−) [135]. In comparison, thasHSA promoter used to obtain perinatal lethal mice expresses from 9 dpc. Mice presented a normal lifespan and developed a progressive myopathy with decreased muscle force at eight weeks of age. In muscle sections, histological CNM-hallmarks were observed as abnormal mitochondrial distribution with central accumulation of oxidative activity and fiber hypotrophy. Bin1ex20^mck−/− muscle fibers present defects in the T-tubule network and impaired ECC, which are probably the main contributors to the muscle weakness observed in this mouse model. All CNM hallmarks had worsened by four months of age. However, no centralized nuclei were observed until 12 months of age (maximum age analyzed).

4.2.3. Other Animal Models for BIN1-Related ARCNM

Zebrafish: bin1 morphant zebrafish also revealed common features observed in muscle biopsies from CNM patients [136] (Table 4). They presented with dorsal curvature and S-shape (reminiscent to kyphosis/scoliosis seen in CNM patients) and a deficit in early motor function. Histology showed mis-localized and grouped nuclei and disorganized myofibers. Unusual membranous whorls, as observed in the dogs, were also observed by electron microscopy as well as abnormal triads. Interestingly, overexpression of BIN1 with or without exon 11 rescue abnormal triads, again supporting that exon 11 is not essential for muscle development.

Dogs: A spontaneous canine model with exon 11 mis-splicing was described in 2013 [40] (Table 4). A group of Great Danes presented a rapidly progressive myopathy named as Inherited Myopathy of Great Danes (IMGD), characterized by muscle atrophy and exercise intolerance with an onset at about six months of age [137,138,139]. They were affected by an homozygous BIN1 mutation at the exon 11 AG acceptor splice site that leads to exonization of part of intron 10 and loss of BIN1 protein [40]. The dogs reproduced the histopathological hallmarks found in patients, with increased internalized nuclei, muscle atrophy, and membrane abnormalities such as aberrant triads, and accumulation of membranous structures.

5. RYR1 and Autosomal Recessive Centronuclear Myopathy

5.1. Disease Presentation and Genetics

RYR1-related autosomal recessive centronuclear myopathy (RYR1-related ARCNM, OMIM#255320) is caused by mutations in the RYR1 gene encoding the ryanodine receptor, which is the main sarcoplasmic reticulum (SR) calcium release channel in skeletal muscle [8] (Table 1). Recessive mutations in RYR1 cause different albeit overlapping myopathies including multi-minicore disease (MmD), congenital fiber type disproportion, or CNM. Dominant mutations in this gene have been associated with central core disease (CDD, OMIM#117000), King–Denborough syndrome, and malignant hyperthermia (MHS, OMIM#145600). In the present review, we focused on recessive mutations causing CNM-like phenotypes. Recessive cases are normally caused by compound heterozygous mutations in RYR1, with one mutation causing premature termination that may reduce RyR1 protein expression and a second heterozygous RYR1 missense mutation, resulting in a dramatic decrease in the overall RYR1 protein levels. [7,8]. The prevalence of ARCNM cases associated with RYR1 mutations represents about 12% of CNM patients. The incidence of global is estimated in 21 newborns per year [9].

RYR1-related ARCNM patients generally present at birth or with childhood onset. Severity is usually intermediate between the severe form of XLMTM and mild DNM2-related ADCNM cases. Patients are profoundly weak and hypotonic at birth, but most improve over time, making the prognosis better than for XLMTM. It is clinically characterized by proximal muscle weakness, hypotonia, reduced or absent deep tendon reflexes, associated with ophthalmoplegia with or without ptosis [22]. Some patients require ventilatory assistance and generally suffer frequent respiratory tract infections. Other comorbidities commonly found are thoracic deformities and spinal involvement. The prognosis of the disease is relatively good in comparison with XLMTM, even in neonatal cases, as they showed improvements over time.

In the first described cohort of patients with RYR1-related ARCNM, muscle histology was characterized by fibers with centralized and internalized nuclei, but to a lower extent than other genetic forms of CNM [8]. Muscle biopsies presented predominance of hypotrophic type 1 fibers with hypertrophy of type 2 fibers. Oxidative staining showed abnormalities with central accumulations and some cases with peripheral halos depleted of oxidative activity resembling XLMTM histology. Most patients developed cores on follow-up biopsies [7]. In another cohort of seven unrelated patients with heterozygous compound mutations, muscle biopsies showed a significant number of fibers with internalized nuclei and core-like structures [7]. However, they were distinguishable from classical “cores”, because these areas with depleted oxidative staining were larger, more diffuse, and had no limited boundaries. Ultrastructural studies commonly reveal Z-disk streaming in those large areas with myofibrillar disorganization and accumulation of Z-disk proteins [7]. These main RYR1 disease features were confirmed more recently in other cohorts [42]. Overall, the clinic and histopathology of RYR1-related ARCNM mostly represent a continuum between classical CNM and core myopathies, with core-like structures and internal rather than central nuclei. Its diagnosis requires a muscle biopsy, apart from the genetic confirmation.

5.2. RyR1 Function and Animal Models for RYR1-Related ARCNM

5.2.1. Ryanodine Receptor 1

Ryanodine receptor 1 (RyR1) is a large transmembrane Ca²⁺ release channel, located at the terminal cisternae of the sarcoplasmic reticulum in close apposition with the T-tubules, in a specific structure of the muscle called the triad. It mediates excitation–contraction coupling (ECC) by releasing calcium from the SR into the cytosol in response to muscle fiber stimulation by the motor neuron at the neuromuscular junction (NMJ). RyR1 was described to mediate several cell functions as a regulator of calcium concentrations and redox homeostasis, and gene expression as an epigenetic modulator [140] (Figure 1).

In mammals, there are three different ryanodine receptors encoded by three different genes, with tissue-specific expression: RyR1 is predominantly expressed in skeletal muscle, while RyR2 encodes the cardiac ryanodine receptor and RyR3, originally identified in the brain, is expressed in many tissues including skeletal muscle at relatively low levels. RyRs are homotetramers with a total molecular weight higher than 2.2 MDa. Briefly, it consists of an ion conductive pore formed by its C-terminal transmembrane domain and is regulated by its large N-terminal cytoplasmic domain (for more details see [141,142], Figure 2). The cytoplasmic domain of RyR1 can interact with Ca²⁺ and Mg²⁺ ions, ligands such as caffeine, ATP, and ryanodine, and accessory proteins as calmodulin and STAC3 [142]. RyR1 also directly interacts with the voltage-gated Ca²⁺ channel (Ca_v1.1; DHPR) located at the T-tubule. In the SR lumen, it indirectly connects with the Ca²⁺ buffering protein calsequestrin. Most RyR1 mutations identified to date are located clustering in 3–4 different large hotspots along the gene, although new mutations are also increasingly being identified outside of those regions [142].

5.2.2. Mouse Models for RYR1-Related ARCNM

Both dominant (or de novo) and recessive mutations have been reported in RYR1-related myopathies. We focused here on models generated to reproduce recessive mutations, as in patients with ARCNM (

Table 5. Main fish and mammalian models for RYR1-related ARCNM.

Genotype and Specie	Skeletal Muscle Phenotypes		Altered Pathways in Muscle	Ref (s)
	Lifespan and Motor Phenotypes	Muscle Histology
Ryr1TM/Indel mouse (compound heterozygous mutation)	Short lifespan (6-8 weeks), decreased body weight, progressive and severe myopathy.	Fiber hypotrophy, some centralized nuclei. No cores.	Defective ECC	[144]
Ryr1Q1970fsX16+A4329D mouse (compound heterozygous mutation)	Normal lifespan, decreased body weight and moderate myopathy (from 3–4 months)/	Hypotrophy of type 2 fibers, nuclei position not described. Cores.	Abnormal triads and defective ECC Epigenetic dysregulation	[145]
skrm1/skrm1 mouse (Ryr1 null mutation, dyspedic mouse)	Perinatal death, respiratory failure.	Fiber hypotrophy.	Abnormal triads and defective ECC	[146,147]
Ryr1-Rec mouse (Ryr1 deletion in adult skeletal muscle)	Progressive myopathy, body weight reduction.	Fiber hypotrophy, normal nuclei position. Accumulation/depletion oxidative staining. “Dusty” cores.	Abnormal triads (multiple triads) and defective ECC Defective autophagy	[43]
ryr1bmi340 relatively relaxed zebrafish mutant	Decreased motor function (from 36 hpf) and lethality at 7–15 dpf.	Amorphous cores.	Abnormal triads and defective ECC Oxidative stress	[150,151]
ryr1a;ryr1b  zebrafish double-mutant	Complete paralysis and lethality at 7 dpf.	Not described.	Defective ECC	[152]

hpf: hours post fertilization, dpf: days post fertilization, E: embryonic day, P: postnatal day, ECC: excitation–contraction coupling, NMJ: neuromuscular junction, skm: skeletal muscle, MCK: muscle creatine kinase, has: human skeletal actin.

). The two main pathophysiological mechanisms of RyR1 diseases are either alteration of calcium channel permeability or reduction in the amount of protein. A comprehensive review of the different preclinical models available for RYR1-related myopathies was recently published [143]. Models described below for compound heterozygous RYR1 mutations carry one frameshift mutation together with a missense mutation in the other allele, resulting in low levels of RyR1 proteins with mono-allelic expression of the missense mutation.

A mouse model mimicking recessive cases of RYR1-related myopathy with early clinical onset was generated using the CRISPR/Cas9 gene-editing strategy [144]. One allele contains the patient point mutation T4706M and the second allele corresponds to a 16 base pair frame-shift deletion, resulting in a premature stop codon (Ryr1^TM/Indel). Ryr1^TM/+ and Ryr1^Indel/+ mice were phenotypically indistinguishable from WT mice, and the combination of both alleles resulted in a high reduction in RyR1 protein level (80%). Ryr1^TM/Indel mice present a motor phenotype from 14 days of age, with a decrease in body weight and a median survival of 42 days. At the end of their life, they exhibit reduced movement, muscle weakness, hindlimb paralysis, and severe scoliosis. The probable cause of death is respiratory failure caused by the combination of muscle weakness and spine curvature changes (commonly observed in patients). Muscle biopsies exhibited hypotrophy in type I and type II fibers without changes in fiber type and no evidence of cores in oxidative activity. There was a modest albeit significant increase in centralized nuclei (0.8%). Specific muscle force was reduced probably due to ECC defects as mice exhibited reduced twitch and tetanic calcium release.

In parallel, another mouse model carrying compound heterozygous recessive Ryr1 mutations was generated by homologous recombination [145] (Table 5). It harbors a frameshift mutation (Q1970fsX16 in exon 36) together with the missense mutation A4329D (in exon 91) and is named Ryr1 ^{Q1970fsX16/A4329D}. It recapitulates the main features found in multi-minicore patients. Mice had decreased body weight and spontaneous movement from 20 weeks of age. Specifically, muscle force was decreased, together with a reduction in electrically evoked Ca²⁺ transients. Skeletal muscle biopsies showed the presence of cores with myofibrillar disorganization and misplacement of mitochondria. The combination of these two mutations resulted in a reduced RyR1 protein level by around 65%.

As a common feature of diseases caused by recessive RYR1 mutations is a pronounced decrease in the RyR1 protein, several models were generated to shed light on the pathophysiological effect of the RyR1 protein level reduction. The full deletion of Ryr1 expression in mice (skr^m1/skr^m1) induces perinatal lethality, possibly because of respiratory failure due to the lack of ECC and muscle contraction [146]. A severe decline in muscle mass as well as skeletal muscle abnormalities including abnormal junctions between SR to T-tubules was observed [147]. Recently, inducible skeletal muscle specific Ryr1 deletion (Ryr1-Rec) at the adult stage was characterized [43]. Protein level was reduced to maximum 50% of the initial level, with more pronounced reduction in mRNA (80%). This correlates with progressive muscle weakness and atrophy together with defective ECC and reduced calcium fluxes. This mouse model recapitulates main features observed in a group of patients with central core disease and similar RyR1 protein reduction [148]. Main observed features were muscle atrophy, abnormal mitochondrial distribution, fiber remodeling, inhibition of autophagy, and increased protein expression of proteins implicated in calcium handling and muscle structure including STIM1 and desmin. Of note, the Ryr1^+/− mice did not present muscle weakness or reduced Ca²⁺ release, although only a 15% decrease in protein was achieved [149]. Overall, it seems that the reduction in RyR1 protein to at least 50% is necessary to observe functional defects in mice.

5.2.3. Other Models for RYR1-Related ARCNM

Zebrafish: A recessive zebrafish model of RYR1-related myopathy named relatively relaxed (ryr^mi340) was characterized in 2007 [150] with a mutation in ryr1b (expressed in slow and fast twitch muscles) (Table 5). The mutation (32-bp insertion) led to decreased mRNA of ryr1b, resulting in a slow swimming phenotype due to weak muscle contractions. The defect in contraction can be explained by defective ECC as Ca²⁺ transients induced by depolarization are decreased in fast muscles. The absence of RyR1 leads to defects in DHPR localization at T-tubule–SR junctions. Ultrastructural studies revealed small cores and swollen sarcoplasmic reticulum in fast muscle. Increased oxidative stress was also observed [151]. A ryr1a;ryr1b double-mutant zebrafish model have recently been generated, resulting in complete paralysis of embryos and early death [152].

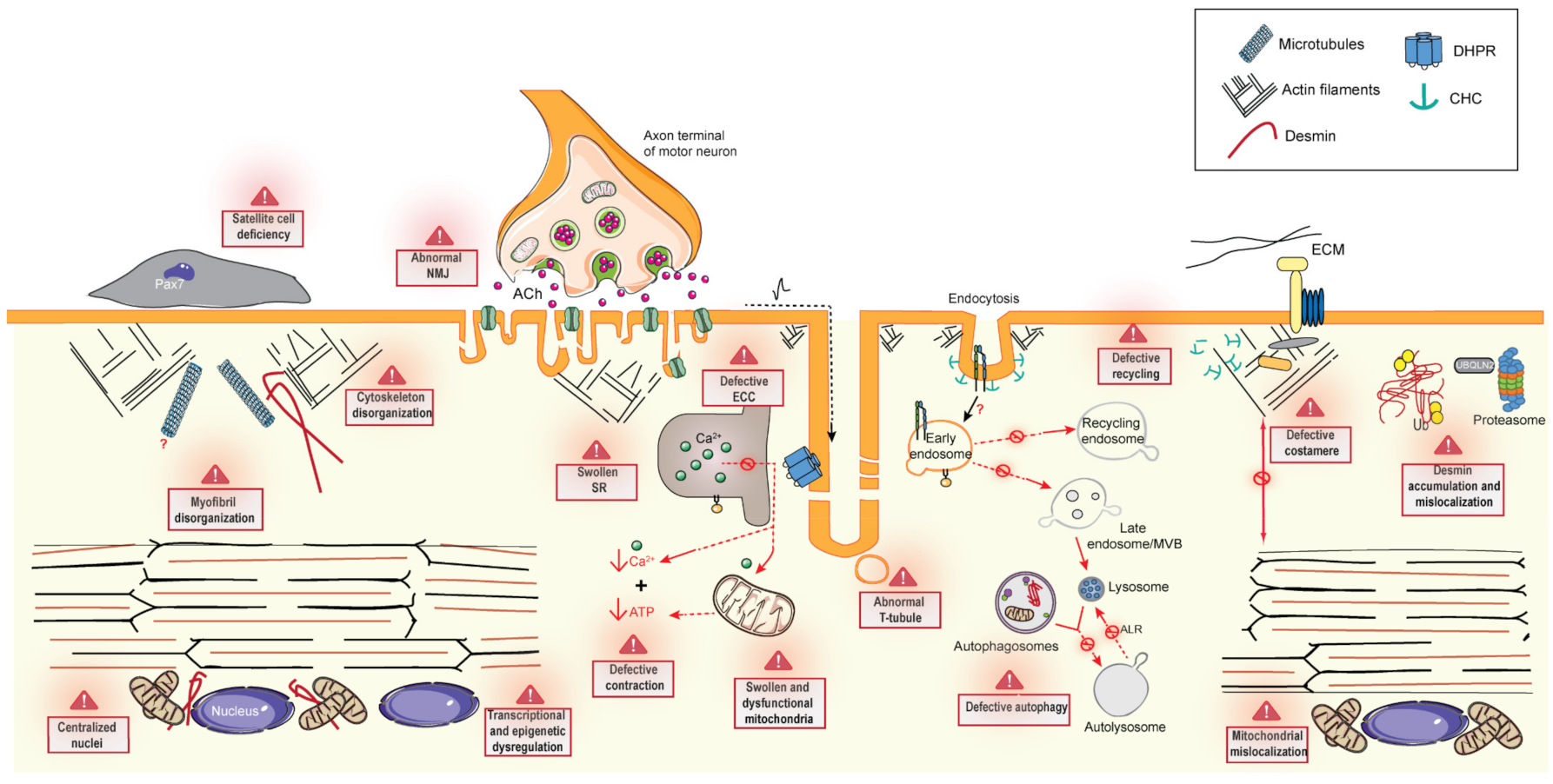

6. Common Pathomechanisms of CNMs

In the past years, in-depth studies of patients and cellular and animal models have led to a better understanding of the mechanisms involved in the different CNM forms, and highlighted common altered pathways (Figure 3). Moreover, transcriptomic studies of CNM mouse and dog models were able to underline a common disease signature and potential biomarkers [153,154]. A better understanding of the pathomechanisms is useful to identify therapeutic targets.

6.1. Excitation–Contraction Coupling and the Triad

Skeletal muscle contraction is triggered by excitation–contraction coupling (ECC) that occurs at the triad and is leading to increased cytosolic Ca²⁺ concentration. The triad is composed of the juxtaposition of a transversal invagination of the plasma membrane called a T-tubule and two sarcoplasmic reticulum (SR) cisternae [58]. ECC relies on the tight control of SR Ca²⁺ release via RyR1, which is directly activated by DHPR upon T-tubule depolarization. Defects in ECC and calcium homeostasis are a common feature of CNM and probably the main cause for the observed muscle weakness.

One of the first models showing amphiphysin is essential for the maturation of T-tubules is the amphiphysin null mutant in drosophila (amph^mut), ortholog for amphiphysin-1 (AMPH1) and amphiphysin-2 (BIN1) in mammals [155]. Flies were fertile and viable but flightless with T-tubule malformations. Triad alterations were also observed following a decrease in BIN1 in muscle in a spontaneous CNM dog model [40]. Interestingly, skipping of the skeletal muscle-specific exon 11 in patients promoted a progressive and severe CNM while this isoform switch from the muscle to the ubiquitous isoform in muscle in the Bin1ex11^−/− mouse correlated with a slight decrease in the T-tubule network without a detectable impact on ECC [40,131]. Defects in T-tubule formation were described in mice lacking BIN1, and Bin1ex20^−/− primary myotubes displayed no T-tubules connected to the plasma membrane [131]. Impairment of BIN1 in skeletal muscle, following deletion of exon 20, triggered during early embryogenesis at E9 (HSA-Cre; Bin1ex20^hsa−/−) or later from E17 (MCK-Cre; Bin1ex20^mck−/−) led to either perinatal lethality or viability, respectively [131,135]. This difference supports that BIN1 is important for T-tubule formation as T-tubules start to form from E15 [156]. Muscle fibers from Bin1ex20^mck−/− mice presented T-tubules, but at decreased density and impaired DHPR current and SR Ca²⁺ release (60% decrease), suggesting that BIN1 is also important for the late maturation of T-tubules [135]. Acute downregulation of Bin1 with shRNA in adult mice led to a defective T-tubule network linked to alterations in intracellular Ca²⁺ release [134], while no impact in triad structure was noted after the deletion of BIN1 by tamoxifen induction (Bin1ex20^{hsa(i)−/−}) [131]. Similarly, skipping of Bin1 exon 11 using a U7 small nuclear RNA significantly reduced muscle force, correlating with extensive T-tubule disorganization [122].

Mtm1 deficiency in mice leads to an abnormal triad shape, T-tubule orientation, and a reduced number of triads per sarcomere. Abnormal localization and expression of DHPR and RyR1 were also observed [67]. Abnormal triad structure and reduced DHPR and RyR1 expression are features also found in myotubular myopathy patients [29,34,157]. At the functional level, ECC was impaired with a reduced peak amplitude of voltage-activated SR Ca²⁺ release and delayed activation kinetics [67,70,71]. Abnormal triad and defective ECC was also found in zebrafish myotubularin morphants [34]. In addition, dilated SR at the triad was noted in Mtm1^−/y mice. Subcellular fractionation suggests MTM1 is mainly associated with SR membranes at the triad and that its enzymatic activity is necessary for SR remodeling [158]. PI(3)P was proposed to be important for promoting SR membrane curvature in skeletal muscle [158].

Similar investigations were conducted in the Dnm2^R465W/+ mouse model, where muscle weakness appeared before fiber hypotrophy and histological abnormalities were present [93]. Altered calcium homeostasis (abnormal cytosolic Ca²⁺ concentration) was observed with muscle weakness [93,110], although the T-tubule network appeared unaltered unlike in Mtm1^−/y mice. Muscle fibers exhibited alteration in the DHPR Ca²⁺ current and altered Ca²⁺ release by RyR1 to a lower extent than the Mtm1^−/y fibers (30% vs. 60% decrease), correlating with the lower force of Mtm1^−/y muscle. Spatial non-uniformity of Ca²⁺ release and spontaneous Ca²⁺ sparks were observed in both Dnm2^R465W/+ [112] and Mtm1^−/y fibers [70,71]. Spontaneous Ca²⁺ sparks are uncommon events in skeletal muscle, which occur when the RyR1 channel is opened by Ca²⁺ independently of the DHPR control (Ca²⁺⁻ induce Ca²⁺ release). The DNM2 mouse model (Dnm2^S619L/+) with a more severe reduction in muscle force showed only a slight triad misalignment [94]. Interestingly, overexpression of human DNM2 (WT or CNM mutants) in mice, drosophila, or zebrafish led to a decreased number of triads per sarcomere and swollen and longitudinally oriented T-tubules [77,97,98,102].

RyR1 heterozygous compound mutations in mice led to reduced RyR1 protein levels and muscle contraction defects due to defective ECC, resulting in reduced SR Ca²⁺ release. For example, the Ryr1^TM/Indel mouse presented a pronounced decrease in RYR1 protein level (80%) and decreased DHPR protein level. Detailed studies showed abnormal intracellular calcium dynamics, with significant reduction in twitch and tetanic evoked Ca²⁺ release, resulting in reduced specific force production [144]. Similarly, the recessive Ryr1^{Q1970fsX16/A4329D} mouse model showed reduced electrically evoked Ca²⁺ currents, although no changes in DHPR protein expression were found [145]. In Ryr1-Rec mouse (muscle-specific Ryr1 deletion), the current via DHPR and the calcium influx via RyR1 were both reduced, while no changes in DHPR expression or alterations in the T-tubule network and density were noted [43]. This apparent discrepancy may be explained by a “retrograde coupling” where RYR1 controls DHPR function [159]. RyR1 has no membrane remodeling action per se, but may control the triad structure and the correct positioning and localization of DHPR at the T-tubule. Its decrease leads to defects in DHPR expression and localization at the T-tubule [144,150] and total absence causes an abnormal junction between the SR and T-tubule [147]. The expression level of other proteins implicated in calcium handling may also be altered. For example, ORA1, STIM1, and CLIMP63 expression is increased after RYR1 depletion; as these proteins are known to be implicated in reticulum morphogenesis, it may explain the formation of abnormal multiple triads in RyR1 mouse models and in patients [148].

It is important to highlight that as Ca²⁺ is a second messenger, aberrant calcium homeostasis due to impaired ECC can also induce epigenetic and transcriptional changes as well as modulate intracellular pathways. Zebrafish ryr mutants with reduced expression of several ryr transcripts (ryr1a, ryr1b and ryr3) and complete loss of protein showed altered intracellular calcium that impacts on tissue patterning in embryos by blocking Shh signaling essential for normal development [160]. Epigenetic dysregulation with increased expression of histone deacetylases was previously found in patients and mouse models with RyR1 mutations [44,145]. Upregulation of histone deacetylase-4 was also observed in muscle biopsies from XLMTM patients [29].

While RyR1 is the main calcium channel of the SR, MTM1, DNM2, and BIN1 have been suspected to play a key role in T-tubule formation and maintenance. In muscle biopsies, MTM1 is enriched at the triads on both sides of the Z-line and associated with SR membranes [158]. BIN1 locates to or in the vicinity of T-tubules [118,125]. DNM2 is colocalizing with BIN1 longitudinally in immature muscle, but is mainly found at the Z-line in close proximity to the triad in mature muscle [84,97]. Mutations in these three proteins were shown to induce abnormal localization of BIN1, DHPR, and RYR1 in patients [22,33]. MTM1 may recruit BIN1 and DNM2 to specific muscle membranes. MTM1 can directly bind BIN1 and BIN1 binds DNM2. In cells, MTM1 directly binds BIN1 and enhances BIN1 membrane tubulation properties [130], while BIN1 appears to bind and negatively regulate DNM2 in vitro and probably in vivo [84,161]. Moreover, MTM1 and DNM2 can be recruited to membrane tubules induced by BIN1 overexpression, while DNM2-CNM mutations promote tubule fragmentation [6,77,102,123,161]. There is some evidence in cardiomyocytes and neurons that BIN1 and dynamin regulates CaV1.2 (DHPR) transport to the plasma membrane or T-tubule [162,163]. Finally, RyR1 was described to bind to phosphoinositides [164], while modulation of the phosphoinositide level with PI3K blockers such as wortmannin rescued the Ca²⁺ release defect of Mtm1^−/y fibers [70]. Overall, it is possible that the phosphoinositide substrates and product of MTM1 control both membrane remodeling and the activity of RyR1 at the triad.

6.2. Cytoskeleton Regulation and Organelle Positioning

6.2.1. Cytoskeleton Regulation

A highly organized intracellular network of membrane organelles and cytoskeletal systems are important for a proper sarcomere structure and muscle contraction. There are three main cytoskeletal components regulating spatial organization in the cell and regulating the position and movement of organelles in a dynamic way: microfilaments (MFs) or actin filaments, microtubules (MTs), and intermediate filaments (IFs).

Actin. Actin cytoskeleton is a key player for endocytosis, nuclei positioning, NMJ formation, costamere maintenance, and triad organization. MTM1, DNM2, and BIN1 have been reported to have direct or indirect impact on actin remodeling.

MTM1 can be recruited to plasma membrane “ruffles” or actin rich membrane protrusions induced by the activation of the Rho-GTPase RAC1 in HeLa cells. This was shown to be dependent on its RID domain [53]. RAC1 is a small GTPase involved in the regulation of actin dynamics, and is responsible for the activation of the regulator of actin polymerization, N-WASP [165]. In addition, the C. elegans ortholog mtm-1 was described to interact with the guanine nucleotide exchange factor (GEF) complex regulating RAC1 to control cytoskeleton rearrangements during apoptotic cell clearance [166]. Further implications of MTM1 in actin dynamics in muscle have not been described in detail to date. DNM2 directly binds actin filaments (F-actin) and regulates the actin cytoskeleton dynamics by interaction with proteins implicated in actin polymerization [167,168] or by bundling and organizing actin filaments [87]. Indeed, myofibers from Dnm2^R465W/+ presented altered actin organization and decreased polymerization [111]. Correct actin remodeling is important for endocytosis, NMJ development, but also essential for costamere organization. Costameres are the structural-functional component of striated muscle connecting the sarcomeres to the cell membrane and to the extracellular matrix through integrins [169,170]. Overall, costameres maintain sarcomere structure and adhesion to allow an efficient transmission of muscle force. It is composed of complexes of transmembrane proteins including the focal adhesion complex and dystrophin–glycoprotein complex together with the cytosolic proteins vinculin, FAK, or talin [170]. Vassilopoulos et al. characterized a new complex formed by clathrin plaques, anchoring desmin filaments, and regulated by the clathrin adaptor AP2 together with DNM2 and the actin nucleating-promoting factor N-WASP [109,171]. DNM2 was required to organize desmin and actin around those clathrin plaques and its depletion in myotubes led to costamere disorganization and desmin aggregation [109]. DNM2 was previously implicated, together with clathrin, in the regulation of actin dynamics for focal adhesion turnover and maintenance [172,173]. Costamere dysfunction is also linked to defective recycling as later described in the membrane trafficking section.

BIN1 was shown to regulate actin by direct binding to F-actin through its BAR domain [174] and by recruiting actin-regulating proteins as N-WASP through its SH3 domain [129]. This function appears to be involved in triad organization and maintenance and nuclei positioning [41,129]. Of note, N-WASP localization is disrupted in muscle biopsies from patients with DNM2 and BIN1 mutations and to a lesser extent in patients with MTM1 mutations [129]. More generally, BAR domain proteins have been shown to regulate cytoskeletal organization through the regulation of Rho GTPases [175].

Microtubules. Microtubules are implicated in the cell organization, intracellular transport, and nuclei positioning. In more detail, when myoblasts fused to form myotubes, nucleation of microtubules changes from the centrosome to the nuclear envelope. This event, together with other proteins, drives nuclear movements [176]. Dynamin was originally discovered in 1989 as a protein binding to microtubules [177]. It was then shown how microtubules activate dynamin GTPase activity, although the physiological impact of this regulation is still unknown [178]. DNM2 was suggested as a possible regulator of microtubule polymerization–depolymerization as DNM2 depletion in COS cells increased the level of the acetylated tubulin, stabilizing the formation of microtubules [179]. In COS-1 cells, overexpressed DNM2-CNM mutants showed decreased colocalization with microtubules, while no defects in microtubule dynamics and organization was observed in the DNM2-related ADCNM patients’ fibroblasts [180]. In addition, BIN1 was described to bind to CLIP170, a microtubule + end binding protein, to regulate nuclei positioning [41].

Intermediate filaments. Desmin is one of the major cytoplasmic intermediate filaments in the skeletal muscle and maintains mechanical integrity during contraction [181]. Mutations in desmin cause desmin-related myopathy (OMIM#601419) and cardiomyopathy (OMIM#604765). Desmin localizes to Z-disk, where it plays a key role in the integration and maintenance of the structure and function of striated muscle [181]. Specifically, desmin anchors several structures (mitochondria, nucleus, and Z-disk) to the sarcolemma cytoskeleton at the costamere and regulates peripheral nuclei positioning in myofibers [182]. Desmin localization and expression were found to be commonly dysregulated in patients with mutations in DNM2 [22,109], MTM1 [22,31,32], BIN1 [22], and RYR1 [43]. Desmin accumulated in the center of the myofibers.

MTM1 interacts with desmin specifically in skeletal muscle and regulates its assembly and proper localization [31]. Mtm1 depletion in muscle leads to increased levels of desmin that form insoluble aggregates. Expression and localization of desmin were reestablished after AAV-mediated MTM1 expression. Interestingly, this was also rescued by the overexpression of phosphatase-dead myotubularin (MTM1-C375S), suggesting that desmin aggregation is independent of the phosphatase activity of MTM1 [183]. Desmin protein level was found increased in another Mtm1 deficient mouse model and rescued by autophagy activation [61]. Desmin aggregation in Mtm1^−/y myofibers was also rescued by Dnm2 downregulation [184]. Slight desmin alterations have been observed in Dnm2^R465W/+ fibers and linked to defective costameres [109]. This abnormal desmin localization was also observed in muscle from Bin1ex20^mck−/− and also rescued after DNM2 reduction [135]. Finally, desmin protein increase and abnormal central accumulation were also found in muscle fibers from the Ryr1-Rec mouse line with adult deletion of Ryr1 [43].

6.2.2. Organelle Positioning

Nuclei position. Alteration of the cytoskeletal network correlates with organelle mispositioning. In particular, abnormal nuclei positioning is a key hallmark in CNM patients and does not correlate with excessive muscle regeneration, unlike that of dystrophies. Of note, nuclei misposition is not consistently reproduced in the different CNM mouse models.

During muscle development, following myoblast fusion, the nuclei initially moved to the center of the fiber (nuclear centralization), and then spread along its axis (nuclear spreading) to finally translocate to the periphery where it is distributed regularly along the sarcolemma (nuclear dispersion), defining a volume of cytoplasm controlled by gene transcription from a single nucleus called the myonuclear domain (MND). Following this step, some nuclei remained clustered under the NMJ (nuclear clustering) as described in detail in [176]. It was discovered that during this process, there is a switch from microtubule (MT)-driven to actin-driven nuclear positioning [176]. Interestingly, the role of BIN1 in nuclei positioning is conserved through evolution and in different tissues. Indeed, the Caenorhabditis elegans amph-1 (BIN1 ortholog) null mutant (amph-1(tm1060)) displays nuclear mispositioning in intestine and seam cells [41]. In this organism, amphiphysin has been proposed to link the nuclear envelope through direct binding to Nesprin with both actin and microtubule cytoskeletons through actin and CLIP-170 [41]. BIN1 mutations in the SH3 domain disrupt N-WASP interaction, participating in nuclei mispositioning [129]. Patient biopsies from BIN1 and DNM2-CNM, and to a lesser extent, XLMTM, showed impaired organization of N-WASP [129]. In addition, desmin has been described as a key player in the positioning of non-synaptic nuclei acting as a repellent between nuclei, leading to their proper distribution along the periphery of the fiber [185,186]. Desmin aggregation commonly observed in CNM could impact proper nuclei positioning.

In situations where nuclei are mispositioned such as in CNM, myonuclear domains can be disrupted, causing muscle dysfunction. In Dnm2^R465W/+ mouse myofibers, no major anomalies in myonuclear morphology and ultrastructure were described, while an impairment in the spatial distribution of nuclei was identified [108]. The number of myonuclei is decreased together with fiber size, contributing to the maintenance of the MNDs. On the other hand, in Mtm1 deficient mice, dogs, and human muscles, a smaller size of MND was found, together with myonuclei misposition [75]. These phenotypes correlated to decreased myofilament force production, most probably contributing to muscle weakness. Conversely, regenerating muscles with a high number of centralized nuclei displayed normal contractile function. The authors proposed that the decrease in global nuclear synthetic activity led to reduced expression of contractile protein (e.g., actin and myosin), contributing to muscle weakness [75].

It is thus still unclear if centralization of nuclei in CNM muscles is causing disease. In XLMTM patients, it was described that the percentage of centralized nuclei was highly variable and did not correlate to disease severity [187]. In addition, nuclei internalization was not reproduced in several CNM mouse models displaying muscle weakness [93,94,135].

Mitochondrial position and function. Mitochondrial mispositioning is a feature shared by all CNM forms and has been observed in patients as well as in different animal models. Mitochondrial shape defects were also reported. Mitochondrial enlargement was described in murine muscles expressing the DNM2-R465W mutant [93,97,98]. In the severe Dnm2^S619L/+ mouse model and patients with the same mutation, swollen mitochondria with disrupted cristae were noted in skeletal muscle, but not in liver or heart [94]. Similarly, enlarged mitochondria lacking cristae were observed in murine muscles overexpressing the DNM2-S619L mutant [98]. At the functional level, decreased COX (cytochrome c oxidase) enzyme activity, together with lower ATP content, was observed in Mtm1^−/y muscles [31]. In addition, decreased expression of oxidative phosphorylation genes and decreased COX activity was present in the Mtm1 gene trap model [61]. Zebrafish with ryr reduction displayed an increase in mitochondrial oxidative stress, possibly due to excessive calcium influx from overloaded SR to mitochondria [151]. Of note, DNM2 was recently proposed to mediate mitochondrial fission together with DRP1 [188], although this point is still controversial [189,190]. Enlarged mitochondria lacking cristae were observed in the muscle from the skeletal muscle specific DNM2-KO mouse [95], and reducing the level of DNM2 in Bin1ex20^mck−/− and Dnm2-KI (R465W and S619L) mouse models rescued mitochondrial anomalies [94,135,191]. Altogether, this suggests that the balance of DNM2 activity/expression is important for mitochondria homeostasis and positioning, directly or indirectly. MTM1 was also described to have a direct, non-desmin-dependent role in mitochondrial distribution, dynamics, and function [31]. As previously discussed, cytoskeleton and, in particular, desmin may be implicated in mitochondrial positioning, as loss of desmin induces defects in mitochondrial position and dynamics [192].

6.3. Membrane Trafficking

MTM1, DNM2, and BIN1 are proteins involved in membrane trafficking and all three bind phosphoinositides at membranes. Moreover, MTM1 dephosphorylates PIs, modifying the physico-chemical properties of membranes and the recruitment of proteins, while BIN1 and DNM2 induce membrane curvature and potentially fission.

6.3.1. Endocytosis

The function of dynamin in endocytosis was described for the first time with the characterization of the shibire gene (unique drosophila ortholog) implicated in synaptic vesicle recycling [193]. This role was more recently demonstrated in mammalian cells expressing dynamin mutants with reduced GTPase activity [194]. Dynamins catalyze membrane fission, promoting vesicle internalization. The recruitment of dynamin is dependent on interaction with SH3 containing proteins (such as amphiphysin 1, 2, and sorting nexin 9) through its PRD domain [195,196] and on binding to phosphoinositides such as PI (4,5)P2 through its PH domain [197]. The ability of dynamin to catalyze membrane fission is required for both clathrin mediated endocytosis (CME) and clathrin-independent endocytosis. The impact of CNM mutants in endocytosis was largely studied with contradictory findings, perhaps due to differences in experimental setup and cell lines. For example, COS cells overexpressing CNM mutants [180,198] and fibroblasts from R465W homozygous mice displayed impaired CME [93], while no effects were observed in patient and mouse DNM2^R465W/+ fibroblasts [180]. A stable cell line was established from Dnm2 knock-out mouse fibroblast expressing DNM2-CNM mutants to mimic the heterozygous and homozygous states. These CNM mutants fully rescued CME, even in the absence of WT-DNM2, although they impaired clathrin-independent endocytosis [199]. Transferrin (TfR) uptake was studied in myoblasts with endogenous levels of DNM2-R369Q and R465W mutations and in myoblasts from DNM2^R465W/+ mice [114]. An increased CME was noted, in agreement with in vitro results showing the hyperactivity of CNM mutants. Further studies will be needed to assess the involvement of the endocytic pathway alteration in skeletal muscle and in the pathophysiology of CNM. As this pathway is not muscle specific, the relevance in other tissues should also be considered, although non-muscle tissues may depend more on the activity of other dynamins such as dynamin 1 in the brain. It has been also described that the internalization of glucose transporter GLUT4, specifically expressed in muscle and adipose tissue, is mainly mediated by DNM2-mediated endocytosis [200,201]. DNM2^R465W/+ myofibers exhibited defective insulin induced GLUT4 translocation [111].

Concerning BIN1, its N-BAR domain binds membranes and promotes tubulation, a process necessary for endocytosis. Importantly, only the neuronal BIN1 isoform 1, and not the muscular BIN1 isoform 8, contains a CLAP domain that is able to bind clathrin and AP2 to mediate clathrin mediated endocytosis [117]. As knock-down of the ubiquitous BIN1 isoform, which does not contain the CLAP domain, did not affect transferrin uptake [201], a main impact of CNM mutations in BIN1 may not be on endocytosis, but probably on biogenesis of the T-tubule.

6.3.2. Endosome Recycling

The PI desphosphorylation activity of MTM1 plays a crucial role in membrane recycling from endosomes to the plasma membrane, which is dependent on phosphoinositide conversion [35]. MTM1 depletion leads to PI(3)P accumulation in endosomes, resulting in the accumulation of signaling receptors such as epidermal growth factor receptor in these compartments [202]. MTM1 is also implicated in integrin recycling, which forms the major component of focal adhesions at costameres [73]. In 2011, Ribeiro et al. observed that depletion of the MTM1 drosophila ortholog mtm promoted the accumulation of integrins in endosomes [36]. This defect in integrin localization was later confirmed in XLMTM cells and human and mouse muscle sections [35,36,73]. More specifically, MTM1 is involved in β-1 integrin recycling from endosomes to the plasma membrane as this process requires phosphoinositide conversion from PI(3)P to PI(4)P [35]. The accumulation of β-1 integrin in early endosomes in Mtm1^−/y cells and myofibers correlates with focal adhesion defects, and reduction in the cell migration and myoblast fusion [73]. In muscle, this alteration in the costamere and link to the extracellular matrix due to defective integrin recycling may explain the decreased fiber size, rounded fiber shape and increased interfiber space found in XLMTM. These histological defects and β-1 integrin accumulation were efficiently rescued when BIN1 was overexpressed [73], suggesting that BIN1 and MTM1 are functionally linked and participate together in the maintenance of focal adhesions in skeletal muscle. Indeed, amphiphysins are also involved in endosome recycling. BIN1 was described to localize with endosome markers such as EEA1, APPL1, CD63, Rab11, and EHD1 [203,204] and the C. elegans amph-1 (BIN1 ortholog) null mutant presented defective recycling endosome function and morphology [205]. BIN1 knock-out in HeLa and MEF cells did not impair transferrin uptake, however, recycling was impaired [132,205]. Less is known about the participation of DNM2 in endosome recycling in skeletal muscle. It was described to play a role in vesicle trafficking from the late endosome to Golgi compartment or in recycling pathways from early endosomes to the lysosome or plasma membrane in cultured cells [206]. Expression of the temperature sensitive mutant of DNM1 (dynamin 1^G273D, dyn^ts) in HeLa cells causes defects in transferring recycling [207]. Recently, DNM2 was shown to be a crucial player in a process relevant for muscle tissue: triggering the scission and release of autophagosome precursors from recycling endosomes [113], a critical step for autophagy described in more detail in the section on protein homeostasis.

6.4. Protein Homeostasis

Autophagy-lysosome, together with the ubiquitin-proteasome system (UPS), are the main catalytic pathways for protein degradation and organelle clearance. They coordinate in muscle to maintain protein homeostasis and its dysregulation has been shown to contribute to the pathogenesis of several neuromuscular disorders [208].

6.4.1. Autophagy

Autophagy is a natural mechanism in which dysfunctional organelles or protein aggregates are engulfed in specific structures called autophagosomes that fuse with lysosomes for cargo degradation. The autophagic flux can be measured by the amount of proteins such as LC3-II (membrane protein at the autophagosome) and p62 (specifically degraded by autophagy) [209]. Defects in autophagy have been associated with numerous diseases including myopathies. For example, the defect in fusion of lysosome to the autophagosome caused by mutations in the lysosomal protein LAMP-2 induces the accumulation of autophagosomes and contributes to X-linked vacuolar cardiomyopathy and myopathy [210]. The maintenance of muscle mass depends on the balance between protein synthesis and degradation. As autophagy flux dysregulation has been shown to induce muscle atrophy [211], it is proposed to be a main cause of muscle atrophy in CNM where it correlates with the accumulation of mitochondria, membrane structures, the disorganization of sarcomere, and enlargement of SR.

Myotubularin deficiency results in increased PI(3)P levels, a key lipid for endosomal trafficking (as previously mentioned), and also participates in autophagosome formation and autophagosome-lysosome fusion [212,213]. PI(3)P levels were found to be elevated in skeletal muscle from mtm1 morphant zebrafish [34], Mtm1 deficient and Mtm1 knock-in mouse models [60,61,63], and myotubes from XLMTM patients [29]. Mtm1 deficiency in mice results in defective autophagy with the accumulation of p62 aggregates and abnormal mitochondria together with mTORC1 overactivation (negative regulator of autophagy) [66]. Interestingly, this defect in autophagy was mainly detected in skeletal muscle tissues, thus contributing to the skeletal muscle-specificity of the disease [61]. Defective autophagy with the accumulation of autophagic vesicles was also found in MTM1-Q384P dogs [65]. Normalization of autophagy by either re-expression of MTM1 or the inactivation of the mTORC1 rescued muscle mass in Mtm1^−/y mice [61,66]. Thus, the autophagy defects may also contribute to muscle dysfunction due to the accumulation of dysfunctional mitochondria, ubiquitinated proteins, and aggregation of proteins such as desmin. Moreover, the early increased expression in genes related to atrophy, commonly named as atrogenes, may play a key role in the onset of the severe muscle atrophy in Mtm1^−/y mice [66]. It can be hypothesized that at the early stage of the disease, the high PI(3)P levels will activate autophagy, while also blocking autophagosome-lysosome fusion necessary for protein clearance [212]. At later stage autophagy, inhibition would be exacerbated by mTORC1 signaling. The relationship between MTM1 and mTORC1 is still not clear, but some studies have shown that PI(3)P levels may modulate mTORC1 activity [214].

Fiber hypotrophy has also been described in mouse models with DNM2 mutations [93,108]. This hypotrophy could be linked to an imbalance of anabolic/catabolic pathways as, similar to Mtm1^−/y mice, transcriptional activation of the ubiquitin-proteasome and autophagy pathways was found at two months in the Dnm2^R465W/+ mice [93,107]. Fasting Dnm2^R465W/+ mice led to an accumulation of immature autophagic structures [107]. An autophagy impairment in basal conditions was observed in Dnm2^R465W/+ immortalized mouse myoblasts, and rescued with allele-specific correction of this mutation by CRISPR/Cas9 [114]. The fact that Dnm2 expression is induced in cells under starvation conditions suggests a key implication of DNM2 in the autophagic process [107]. Indeed, the role of DNM2 in autophagic lysosome reformation (ALR) was described in 2013 in hepatocytes [215]. ALR is a process that aims to maintain lysosome homeostasis by generating new functional lysosomes from autolysosomes, where DNM2 may normally mediate the proto-lysosome scission [216]. Defective ALR have recently been associated with the cause of skeletal muscle disease [217]. DNM2 was also found to locate specifically on recycling endosomes where it binds LC3 and regulates the release of autophagosome precursors. This process is impaired with the R465W mutation, which sequesters DNM2 at the plasma membrane where it binds ISTN1 at endocytic sites [113]. BIN1 mutations and deficiency may also affect the autophagy pathway, as increased p62 staining was described in BIN1-related ADCNM muscles [5]. In addition, ultrastructural studies in Bin1ex20^mck−/− mice revealed the accumulation of autophagosomes confirmed by LC3 staining in muscle sections [135]. Concerning RYR1, increased LC3II and p62 protein levels, together with mTORC1 overactivation and inhibition of autophagy flux, were observed in the Ryr1-Rec mice [43]. Dysregulation of cytoplasmic calcium may affect autophagy [218]. DHPR downregulation in mice has also been reported to cause autophagy abnormalities [219].

6.4.2. Ubiquitin-Proteasome System

The ubiquitin-proteasome system (UPS) is also an important catalytic pathway involved in the clearance of unfolded and misfolding proteins. A direct link was described between MTM1 and UPS. MTM1 binds to UBQLN2, a protein that associates with both proteasomes and ubiquitin ligases [220], and mediates the proteasomal degradation of misfolded intermediate filaments such as desmin and vimentin [69]. Mtm1 KD in cells and mouse muscles causes the accumulation of desmin aggregates and poly-ubiquitinated conjugates as well as the activation of unfolded protein response (UPR). These defects were restored when MTM1-WT and a MTM1 phosphatase-dead mutant were expressed, while overexpression of the MTM1-K255A mutant, which abolishes binding to UBQLN2, did not restore these phenotypes [69].

As previously described, the DNM2-R465W mutant promotes autophagy defects in muscle fibers and cells, whereas the proteasome activity was found to be normal, together with unchanged levels of ubiquitinated proteins in MEF cells homozygous for that mutation [107]. However, it was recently proposed that DNM2 is degraded by the UPS in an ERα-dependent manner [221]. ERα is an estrogen receptor found in muscle and has been described to mediate the activation of UPS [222]. Tamoxifen may act as an agonist of ERα in muscle [221]. Activation of UPS or treatment with tamoxifen was found to decrease DNM2 protein levels in the context of Mtm1 deficiency [221]. Thus, defective UPS in Mtm1-deficient muscle would lead to the accumulation of cytoskeletal proteins and may contribute to the increased DNM2 expression observed in XLMTM.

While there is no reported link between protein homeostasis and BIN1, calcium (which is modulated by RyR1) has been described to directly induce muscle proteasome activity [223].

6.5. The Neuromuscular Junction

The signal triggering muscle contraction originates in the nervous system and is transmitted to the muscle at the neuromuscular junction (NMJ), which is a synaptic connection between the terminal end of a motor neuron and a muscle fiber.

There are some cases where CNM patients have been misdiagnosed with congenital myasthenic syndrome because they had abnormal neuromuscular transmission in neurophysiology studies. However, a diagnosis of CNM was suggested by histopathology. They presented fatigability, which favorably responded to acetyl cholinesterase (AChE) inhibitors (pyridostigmine) [224]. AChEs are enzymes responsible for the degradation of the acetylcholine neurotransmitter, so its inhibition will increase the duration of action of acetylcholine. These findings led to the study of NMJ in the mtm1 morphant zebrafish, showing defects in NMJ organization and improvement in motor function in response to the AChE inhibitor edrophonium [224]. A defective NMJ structure has also been observed in autosomal CNM and XLMTM patients [225,226,227]. NMJ defects and the potential of AChE inhibitors were further investigated in the Mtm1^−/y mouse model [68]. NMJs of Mtm1^−/y mice were more disorganized than in the control muscle and structurally abnormal, with increased size and lower complexity. Ultrastructural analysis revealed disorganized sarcoplasm at the post-synaptic junction, with increased vacuolar content that may be due to defective endosome trafficking at/to the NMJ. Dysfunction of NMJ transmission was also described in the Mtm1^R69C/y mouse with amelioration after pyridostigmine treatment [68].

Defects in NMJ transmission may also play a role in the pathogenesis of DNM2-CNM. A disorganized NMJ pattern was observed in a zebrafish model transiently overexpressing the human DNM2-S619L mutant, and treatment with AChE inhibitors rapidly alleviated the motor dysfunction observed in these animals [39]. Additionally, evidence of abnormal neuromuscular transmission was found in five patients with DNM2 mutations (S619L and E368K), with favorable response to pyridostigmine treatment. Accordingly, defects in NMJ number and fragmentation were found after intramuscular overexpression of DNM2-WT or DNM2-CNM mutants in mice, correlating with the decrease in muscle force observed [98]. Gain-of-function but also loss-of-function of DNM2 may cause defects in NMJ as a specific deletion of Dnm2 in skeletal muscle promotes irregular NMJs, resulting in degenerative intramuscular peripheral nerves [95]. However, no obvious NMJ defects were reported in Dnm2^S619L/+ and Dnm2^R465W/+ mouse models [93,94], although further studies will be required. Dynamin is known to regulate synaptic vesicle recycling at the presynaptic membrane [83]. Recently, DNM2 was shown to regulate postsynaptic development of NMJ via actin remodeling at the structures known as synaptic podosomes in mouse myotubes [228]. In this study, DNM2 was able to oligomerize around actin filaments forming bundles to regulate podosome maturation and turnover. CNM mutants affected this process and were linked with defects in the electrophysiological activity of drosophila NMJ [228].

Amphiphysin is also localized post-synaptically at the NMJ in drosophila larvae [155]. However, no defects in neurotransmission were found in the drosophila amph mutant, supporting that this protein is not essential for the development and synaptic vesicle recycling at NMJ, at least in flies [155]. It would be interesting to check whether BIN1 deficiency has any impact on NMJ formation and maintenance in other models and in CNM patients. We can expect to observe some defects as transcriptomic analysis of Dnm2^S619L/+, BIN1ex20^mck−/−, and Mtm1^−/y mice showed upregulation in the expression of acetylcholine receptor subunits (Chrna1, Chrna9, Chrnd) [153]. Dysregulation of these genes was also observed in XLMTM patients [229] and MTM1 dogs [154].

No role for RyR1 at the postsynaptic compartment of the NMJ has been proposed as of yet, and no NMJ defects were observed in the ryr1 relatively relaxed zebrafish model [150]. However, several studies have documented a role for RyR1 in presynaptic release at the NMJ [230,231].

6.6. Muscle Regeneration

Satellite cells (SCs) are resident stem cells of the muscle providing a source of nuclei for muscle growth and regeneration [232]. In response to injury, they proliferate intensely to repair the damaged tissue [233]. A decrease in Pax7+ SCs progressing with age was described in Mtm1^−/y myofibers [72]. Mtm1^−/y myoblasts displayed increased apoptosis, lower proliferation, and poor engraftment, resulting in a lower number of dividing cells and SCs during regeneration [72]. Fewer SCs were also detected in gastrocnemius and quadriceps from Mtm1^R69C/y mice [74]. Similarly, SCs were significantly lower in patients with MTM1 deficiency compared to the controls [32]. Inhibition of myostatin increases the number of SCs in Mtm1^R69C/y gastrocnemius [74]. Similarly, a decrease in SC content has been found in Dnm2^R465W/+ muscles [108]. Almeida et al. investigated the consequences of SC depletion in Dnm2^R465W/+ muscles and found that muscle regeneration was less efficient and slower in Dnm2^R465W/+ mice [106]. The Dnm2 mutation affects SC proliferation capacity and activation, with altered expression of myogenic factors in response to muscle injury. SC content and function was not studied in Bin1ex20^mck−/− muscles. However, it has been investigated in Bin1ex11^−/− mice, which displayed a slower regeneration after muscle damage, potentially due to the reduced pool of SCs found in this mouse [131]. A defective muscle regeneration pathway was also recently suggested from the common CNM transcriptomic signature (Mtm1^−/y, Dnm2^R465W/+ and Bin1ex20^mck−/−)[153] and may be related to the observed activation of the inflammatory pathway [234]. Further studies will be needed to determine the specific mechanism implicating the CNM genes in SC survival and functions.

7. Therapeutic Targets in CNM

In this section, we discuss an update of the potential therapies that may be applicable to treat one or more forms of CNM (

Table 6. List of therapeutic approaches and targets.

Approach	Purpose	CNM Form/Model	Therapeutic Effect Observed	Ref(s)	Status
DNM2 reduction with ASO	Normalization/reduction of DNM2	XLMTM/ Mtm1−/y mouse	Prevention and reversion of CNM phenotypes: lifespan prolongation and rescue of body weight, improvement/rescue of muscle mass, histology, force, motor function and histology.	[236]	Phase 1/2 clinical trial initiated in 2020 in MTM1 and DNM2 patients (UNITE-CNM: NCT04033159)
		AD-CNM/Dnm2 R465W/+ mouse	Rescue of muscle mass and histology.	[191]
		AD-CNM/Dnm2 S619L/+ mouse	Reversion force, motor function, fiber size and histology phenotypes.	[94]
		AR-CNM/ Bin1ex20mck−/− mouse	Improvement of force, fiber size and histology phenotypes.	[135]
DNM2 reduction with AAV-shRNA	Normalization/reduction of DNM2	XLMTM/ Mtm1−/y mouse	Improvement of muscle mass, force and rescue of histology.	[184]	Preclinical studies
		AD-CNM/Dnm2 R465W/+ mouse	Rescue of muscle mass and histology.	[191]
	Specific reduction of Dnm2-R465W transcript	AD-CNM/Dnm2 R465W/+ mouse	Rescue of muscle mass, force and histology.	[237]	Preclinical studies
Acetylcholine esterase inhibitor (AChEI: Edrophonium, pyridostigmine)	NMJ transmission improvement	XLMTM/ Mtm1R69C/y mouse	Improvement of motor function including exercise intolerance and fatigability.	[68]	FDA-approved drug. Use in clinic for myopathies as symptomatic treatment. Alleviated fatigability and improved strength in MTM1 and DNM2 patients [39,224]
		XLMTM/ mtm1 morphant zebrafish	Fast improvement in motor function.	[224]
		AD-CNM/hDNM2-S619L zebrafish (transient expression)	Rescue of the motor function.	[39]
MTM1 gene replacement (AAV-MTM1)	MTM1 expression	XLMTM/ Mtm1−/y mouse	Prevention and reversion of CNM phenotypes: lifespan prolongation, rescue of body weight and histology, improvement in muscle mass, force, and motor function.	[238,239]	Phase 1/2 clinical trial initiated in 2017 in MTM1 patients (ASPIRO: NCT03199469). First results showing striking muscular improvements. On hold due to fatal serious adverse events
		XLMTM/ XLMTM dog	Prolongation of survival, improve/rescue muscle mass, force, histology, and respiratory function	[238,240]
Myotubularin replacement (3E10Fv-MTM1)	MTM1 re-expression	XLMTM/ Mtm1−/y mouse	Intramuscular injection slightly improves muscle force. No amelioration of muscle histology.	[241]	Preclinical studies by Valerion Therapeutics
MTMR2 gene therapy (AAV-MTMR2)	MTMR2 expression	XLMTM/ Mtm1−/y mouse	Lifespan prolongation, improvement in body weight, muscle mass, force and histology. Better rescue with short isoform of MTMR2 (MTMR2-S).	[242,243]	Preclinical studies
BIN1 gene therapy (AAV-BIN1)	BIN1 expression	XLMTM/ Mtm1−/y mouse	Lifespan prolongation and rescue/improvement in muscle mass, force and histology.	[73]	Preclinical studies
Allele-specific RNA silencing (AAV-shRNA against Dnm2-R465W)	Reduction of mutated DNM2	AD-CNM/Dnm2 R465W/+ mouse	Rescued in muscle mass, specific force and histology.	[237]	Preclinical studies
Exon skipping (ASO to skip pseudo-exon)	Increase RyR1 protein level	AR-CNM/ Fetal primary muscle cells carrying RyR1 patient mutation	Restore of calcium release from SR.	[244]	Cell studies
Cell transplantation	Muscle regeneration	XLMTM/ Mtm1R69C/y mouse	Improvement in muscle strength and mass.	[245]	Preclinical studies
Myostatin inhibition (ActRIIB-mFC)	Muscle growth signaling pathway	XLMTM/ Mtm1−/y mouse	Slight prolongation of lifespan, increase in muscle weight and transient slight improvement of muscle force.	[246]	Preclinical studies
		XLMTM/ Mtm1R69C/y mouse	Increased gastrocnemius weight. No other improvements noted.	[74]
mTORC1 inhibition (AZD8055)	Autophagy activation	XLMTM/ Mtm1gt/y	Restoration of muscle mass.	[61]	Preclinical studies
PI3K inhibition (Wortmannin)	Decreased PI(3)P levels	XLMTM/ Mtm1−/y mouse	Lifespan prolongation and improvement of muscle histology. No improvement in body weight.	[63,70]	Preclinical studies
		XLMTM/ mtm1 morphant zebrafish	Lifespan prolongation and improved motor function.	[63]
p38MAPK inhibition	Drug repurposing, mechanism of action to be investigated	AR-CNM/ ryr relatively relaxed zebrafish	Not therapeutic improvement of motor function, although positive chemical-genetic interactions.	[247]	Preclinical studies
Antioxidant N-acetylcysteine (NAC)	Drug repurposing, decreased oxidative stress	AR-CNM/ ryr relatively relaxed zebrafish	Restore motor function and improve histology.	[151]	Phase 1/2 clinical trial initiated in 2015 and completed in 2018. Neither elevated oxidative stress nor exercise intolerance were rescued [248]
Tamoxifen (Estrogen receptor modulator)	Drug repurposing, pathways to be investigated.	XLMTM/ Mtm1−/y mouse	Lifespan prolongation and delay of disease progression: improvement in muscle force, histology and motor function. No rescue of body weight.	[221,249]	Phase 1/2 clinical trial initiated at the end of 2020 in MTM1 patients (TAM4MTM: NCT04915846)

). A more detailed description of most therapies tested in preclinical studies and a comparison between them can be found in the review by Tasfaout et al. [235].

7.1. Common Therapeutic Strategies

• Gene silencing: DNM2 reduction or normalization

The aim of this approach is to normalize or reduce DNM2 protein levels to compensate for the increase in DNM2 expression or activity in different CNM forms.

In vitro experiments have shown that DNM2-CNM mutations promote oligomerization and result in increased GTPase activity [77,78,79]. Overexpression of human WT DNM2 in mouse muscle induced CNM phenotypes [97,98] and its overexpression in other systems such as zebrafish, drosophila, or mouse myoblasts also led to muscle CNM phenotypes and excessive T-tubule fragmentation [77,102]. Altogether, these data support that DNM2-CNM mutations are gain-of-function. In addition, muscle biopsies from Mtm1^−/y mice and XLMTM patients displayed an increase of DNM2 protein. Altogether, these observations led to a ‘cross-therapy’ strategy whereby decreasing DNM2 expression was tested in CNM models linked to mutations in different CNM genes. [96]. A first proof-of-concept was achieved by genetic crossing of Mtm1^−/y with Dnm2^+/− mice and obtention of Mtm1^−/y Dnm2^−/+ males with rescued muscle histology, muscle force, and locomotor activity compared to Mtm1^−/y littermates [96]. Decrease or normalization of the total DNM2 levels could also be achieved by either AAV-mediated expression of shRNA targeting Dnm2 mRNA or using antisense oligonucleotides (ASO) against Dnm2 pre-mRNA and mRNA, which ameliorated the Mtm1^−/y phenotypes [184,236]. Systemic ASO delivery resulted in prevention and even reversion of the CNM phenotypes [236]. The concept of cross-therapy in CNM was then further expanded to other CNM forms. Bin1ex20^−/− mice normally die on the first day of life, whereas genetic reduction in DNM2 levels to 50% resulted in viable pups with normal survival (analyzed up to 18 months), muscle force, and triads [84]. Acute DNM2 downregulation with Dnm2 ASO was recently tested in the viable BIN1 mouse model (Bin1ex20^mck−/−), which displayed a slight increase in DNM2 protein level; DNM2 reduction improved muscle phenotypes with total correction of mitochondrial mislocalization [135]. Finally, ASO systemic injections positively rescued CNM phenotypes in the moderate Dnm2^R465W/+ and severe Dnm2^S619L/+ mouse models, respectively [94,191]. Of note, Dnm2^S619L/+ mouse muscles also presented increased DNM2 protein expression when untreated. In addition to providing a potential common therapeutic approach, these findings validate the epistasis between MTM1, BIN1, and DNM2.

Dynacure is a company leading further preclinical development of an ASO product targeting DNM2 (www.dynacure.com). After confirmation of safety and tolerability in preclinical models and non-human primates, the UNITE-CNM trial was launched as a phase 1/2 study (ClinicalTrials.gov Identifier: NCT04033159). This study aims to assess safety, tolerability, pharmacokinetics (PK) and pharmacodynamics (PD) as well as the preliminary efficacy of intravenous injection (IV) of an ASO against human DNM2 mRNA in male and female patients ≥16 years with confirmed DNM2 or MTM1 mutations. Another study is also planned in clinically symptomatic pediatric patients from two to 17 years (DyNaMic study, ClinicalTrials.gov Identifier: NCT04743557), pending the results of the first trial.

• Acetylcholinesterase inhibition

The rationale of this therapy is to improve the poor NMJ transmission observed in XLMTM and DNM2-CNM patients and animal models. The acetylcholinesterase inhibitors edrophonium (zebrafish) and pyridostigmine (mice and human) were tested. These drugs prevent the degradation of the acetylcholine neurotransmitter, prolonging its half-life at the NMJ. They were tested in mtm1 morphant zebrafish [224], zebrafish with transient expression of the DNM2-S619L mutation [39], and Mtm1^R69C/y mice [68], leading to motor function improvements. Pyridostigmine is a drug already approved by the FDA and used in patients to treat myasthenia gravis [250]. Pyridostigmine treatment in patients with DNM2 mutations resulted in reduced fatigability and improvement in muscle strength and motor function [39]. Acetylcholinesterase inhibitors also resulted in favorable responses in XLMTM patients [224].

7.2. Specific Therapeutic Strategies

• Gene replacement: MTM1 re-expression in XLMTM

The rational of this approach is to express MTM1 using AAV vectors in XLMTM patients as most patients lack MTM1 protein expression [19,20,238]. The preclinical studies were conducted on Mtm1^−/y mice and XLMTM dogs. In Mtm1^−/y mice, AAV-mediated Mtm1 intramuscular expression under the control of the ubiquitous CMV promoter resulted in the recovery of muscle mass, force, and histology [239]. Then, mice and dogs lacking MTM1 were treated with a single systemic or locoregional injection of AAV-Mtm1 (or canine MTM1) under the control of the desmin promoter for specific muscle expression [238,240,251]. Successful results were achieved, with muscle phenotypes rescued together with increase in lifespan and body weight. No safety issues were observed in dogs, in which long-term expression of myotubularin four years after injection was shown, corresponding with gait and respiratory functions comparable to age-matched healthy control dogs [251]. This therapy was then translated to human clinical studies after testing safety in non-human primates with tolerated doses up to 8 × 10¹⁴ vg/kg [252]. The initiation of a clinical trial for AAV-MTM1 gene therapy took place in 2017 by Audentes Therapeutics (acquired by Astellas Pharma in 2019, www.astellasgenetherapies.com). The ASPIRO Phase 1/2 Study (ClinicalTrials.gov Identifier NCT03199469) aims to evaluate the safety and efficacy of AT132 (resamirigene bilparvovec; rAAV-Des-hMTM1) in XLMTM male patients younger than five years old with mechanical ventilatory support. The first part of the study consists of a dose escalation phase where doses of 1.3 × 10¹⁴ vg/kg and 3.5 × 10¹⁴ vg/kg are tested, followed by a pivotal expansion to further confirm the efficacy and safety of the highest dose. Striking preliminary results showing the therapeutic efficacy of the study were presented in October 2019, with a robust expression of MTM1, 24 and 48 weeks after the single injection of AT132 [253]. Muscle biopsies showed improvements in fiber size and organelle mislocalization compared to baseline, although persistence of internal nuclei in many samples was observed. Significant improvements in neuromuscular function and respiratory strength were quantified, with some patients even able to sit or walk without any support or acquiring total ventilator independence. However, after this release, three patients treated with the higher dose and one patient treated with the low dose presented with hepatobiliary complications a few weeks after dosing and later died, likely due to treatment-related complications currently under study [254]. The three study participants in the high dose cohort had clinical evidence of cholestasis before dosing [252,254]. Recent studies suggest a subset of XLMTM patients may present with underlying hepatobiliary disease, and in particular, intermittent presentation of cholestasis [24,25].

• Enzyme replacement: MTM1 delivery in XLMTM

Similar to the rationale for gene replacement, here, the strategy is to directly replace the missing enzyme. It is based on the delivery of MTM1 fused to a mouse monoclonal antibody (3E10Fv) designed to increase uptake into muscle fibers (3E10Fv-MTM1 fusion protein). Preclinical studies were conducted on Mtm1^−/y mice by intramuscular injection of four doses of this fusion protein, with slight improvement in muscle force potentially linked with increased number of triads and T-tubules found after treatment [241]. Further development of this product was announced by Valerion (VAL-0620, www.valerion.com), which uses the 3E10 antibody technology to replace enzymes in other disorders such as Pompe disease.

• Gene transfer: MTMR2 expression in XLMTM

MTMR2 is a ubiquitously expressed homolog of MTM1 (65% amino acid sequence identity) with phosphatase activity [255]. Intramuscular and systemic injections of AAV expressing MTMR2 in Mtm1^−/y showed amelioration of all muscle phenotypes together with the normalization of PI(3)P levels [242,243]. In addition, a short isoform of MTMR2 that provides a better rescue was identified [243]. MTMR2 gene therapy may therefore be a possible alternative to MTM1 re-expression in XLMTM to restore PI(3)P levels while bypassing potential immunoreactivity toward MTM1 re-expression.

• Gene transfer delivery: BIN1 expression in XLMTM

Another gene therapy alternative was recently described by Lionello et al. based on the expression of BIN1 in the Mtm1^−/y mouse [73]. The genetic and AAV-mediated overexpression of human BIN1 rescued lifespan and improved muscle force and histological defects. It also led to a striking rescue of the Mtm1^−/y muscle transcriptome [153]. As with DNM2 downregulation, this study strengthens the “cross-therapy” rationale, where the modulation of one CNM gene (BIN1) can rescue the loss of another CNM gene (MTM1). BIN1 is a known interactor of MTM1 in skeletal muscle and MTM1 was described as a positive regulator of BIN1 membrane tubulation properties. Both are implicated in endosome recycling as previously described, and BIN1 expression was shown to rescue recycling of β1-integrin to [130] the plasma membrane [73]. In addition, BIN1 is a known interactor of DNM2 and several studies have shown that it can negatively regulate DNM2 activity in vitro [84,161].

• Allele-specific targeting of DNM2 mutations in DNM2-related ADCNM

Different approaches have been proposed to specifically target the transcript containing DNM2 mutations. The first approach, named spliceosome-mediated RNA trans-splicing (SMarT), consists in the correction of the mutation at the post-transcriptional level by modifying the mRNA sequence [256]. It was tested in vitro in fibroblast and in vivo in WT muscle and results in successful trans-splicing events [257]. A second strategy, allele-specific inactivation or correction of the heterozygous DNM2 R465W mutation directly in the DNA, was successfully achieve by CRISPR/Cas 9 in the patients’ fibroblasts and Dnm2^R465W/+ mouse myoblasts [114]. This approach rescued autophagy and transferrin uptake defects observed in the mutant mouse myoblasts. Finally, allele-specific RNA silencing has been achieved in patient-derived fibroblast and in DNM2^R465W/+ mice [237]. This approach is based on the design and validation of siRNA to specifically silence the mutated DNM2 transcript without affecting the WT transcript. This approach resulted in rescued muscle mass, specific force, and histology in young DNM2^R465W/+ mice. For these different approaches, potential toxicities, and off-targets, and sustained in vivo efficacy will have to be carefully investigated.

• Exon skipping for RYR1-related myopathy

A first proof-of-concept for exon skipping was carried out on cells from a patient with recessive RYR1 mutations associated with a congenital myopathy [244]. In this case, a deep intronic mutation results in the exonization of an intronic sequence, leading to a destabilized and decreased protein. U7-antisense oligonucleotides expressed from a lentiviral vector successfully allows for the skipping of the pseudo-exon in primary muscle cells, leading to an increase in the RYR1 protein and the restoration of calcium release of normal amplitude.

• Cell transplantation or cell therapy in XLMTM

Cell transplantation aims to compensate the satellite cell depletion observed in different CNM animal models and patients [32,72,74,106,108,131]. Moreover, satellite cells from Mtm1^−/y mice were defective and unable to “rebuild” damaged skeletal muscle. A cell therapy approach was tested in the mild Mtm1^R69C/y mouse model by the injection of skeletal muscle-derived WT myoblasts into the gastrocnemius [245]. This resulted in slight improvements in muscle strength and mass.

• Myostatin inhibition in XLMTM

This approach was designed to counteract hypotrophic signaling pathways in Mtm1^−/y mice. The product used for preclinical studies consisted of the soluble form of the myostatin receptor, activin type II receptor (ActRIIB-mFC) [246]. In Mtm1^−/y mice, the inhibition of myostatin action results in a small prolongation of lifespan (17%) and an increase in muscle weight with a slight and transient improvement in forelimb grip strength correlated with hypertrophy of type 2b fibers [246]. The same approach was tested in the less severe Mtm1^R69C/y mouse model with no clinical benefit, resulting in increased gastrocnemius weight but not quadricep weight [74]. This was potentially explained by the increase in satellite cell activation after treatment only in the gastrocnemius [74]. Myostatin inhibitors were also shown to be beneficial in DMD mouse models, but this positive impact has not been later translated in clinical studies [258]. Potentially, this low benefit in XLMTM could be due to the low myostatin plasma levels found in sick Mtm1^−/y mice and observed in XLMTM and ADCNM patients [259,260].

• Pharmacologic inhibition of mTORC1 in XLMTM

In this case, mTORC1, a main negative regulator of autophagy, was targeted to restore autophagy defects in the Mtm1^gt/y mouse model. Mice were treated for three days with oral administration of AZD8055, an ATP-competitive inhibitor of mTORC1 activity [61]. The treatment induces autophagy-mediated degradation in Mtm1 deficient muscles and results in the improvement of the muscle mass. This drug is already used in humans to treat cancer and prevent organ transplant rejection [261].

• Pharmacological inhibition of PI3K in XLMTM

PI3K inhibition aims to rebalance the elevated PI(3)P levels in muscles with myotubularin deficiency [34,60,63,158]. In mice, the class II kinase PIK3C2B was shown to be a modifier of Mtm1^−/y disease [63]. Its total genetic ablation in this mouse model resulted in a striking rescue of survival and muscle phenotypes, while partial PIK3C2B reduction had a milder impact. Conversely, the reduction in the class III kinase PIK3C3 worsened the muscle phenotypes. Wortmannin, a general PI3K inhibitor, ameliorated muscle phenotypes and slightly prolonged survival in mtm1 zebrafish and Mtm1^−/y mice [63,70], and rescued calcium release defects in isolated Mtm1^−/y myofibers [70]. However, the achieved amelioration was not complete, most likely because this drug is not specific for PIK3C2B and also targets PIK3C3. Specific inhibitors for class I and III PI3K did not show any rescue in mtm1 deficient zebrafish. Thus, the challenge of this therapy will be to develop specific and potent PIK3C2B inhibitors. Of note, expression of phosphatase-death MTM1 in Mtm1^−/y myofibers rescued its intracellular structure and improved the muscle performance, pointing to phenotypes independent of PI(3)P levels [183].

• Drug repurposing: Pharmacologic inhibition of p38 MAPK in RYR1-related AR myopathy

Several FDA-approved inhibitors of p38 MAPK were identified as potential therapeutic candidates for RYR1-related myopathies using a multi-species discovery pipeline [247]. First, these potential hits were uncovered in a screening conducted using the C. elegans RyR model [262]. However, none of those compounds were able to improve movement in the ryr1b single or ryr1a/ryr1b double mutant zebrafish model. These drugs were tested in muscle cells with opposing results depending on the RyR1 level: they inhibited calcium release in normal conditions, but they also enhanced calcium release in the absence of RyR1 [247]. However, the mechanism of action of p38 inhibitors needs to be further investigated and its efficacy should be tested in novel mouse models with a low RyR1 amount and/or RyR1 loss-of-function.

• Drug repurposing: antioxidant therapy in RYR1-related AR myopathy

The antioxidant N-acetylcysteine (NAC) was described to restore the motor function and improve the histology in the ryr relatively relaxed zebrafish mouse model [151]. This finding was confirmed in myotubes derived from RYR1-related myopathy patients, where this antioxidant reduces cell death induced by the oxidant H₂O₂ [151]. This treatment aims to counteract the downstream effects of calcium dysregulation on the mitochondria. NAC is a FDA-approved drug with a limited side effect profile. As no specific treatments exist for RYR1-related myopathies, it was decided to test whether NAC could decrease oxidative stress and increase muscle endurance in those patients in a phase1/2 clinical study (ClinicalTrials.gov Identifier: NCT02362425). The results of this study, initiated in 2015, were recently published, showing that NAC was unable to decrease the elevated oxidative stress in patients with no improvements in exercise tolerance [248].

• Drug repurposing: tamoxifen treatment in XLMTM

Tamoxifen is a selective estrogen receptor modulator that has been used in breast cancer treatment since the 1970s. It is an FDA-approved drug with a good safety profile including in pediatric patients. In 2013, Dorchies et al. used this drug to treat a Duchenne muscular dystrophy (DMD) mouse model, showing an anti-fibrotic effect in the heart and diaphragm as well as muscle force improvements [263,264]. This led to the initiation of a Phase 1 (ClinicalTrials.gov Identifier NCT02835079) and later a Phase 3 clinical trial on DMD boys (ClinicalTrials.gov Identifier NCT03354039) to test the safety and efficacy of tamoxifen to reduce disease progression [265]. Then, in 2018, two parallel independent studies showed the efficacy of tamoxifen treatment to prolong survival and improve muscle force and histology of Mtm1^−/y mice [221,249]. The exact mechanism of therapeutic rescue is not yet known, but it is not thought to be mediated by transcriptional modulation via an estrogen receptor as minimal transcriptional changes were observed after tamoxifen treatment [153,221]. Both studies showed normalization of the DNM2 protein levels, and as described in the UPS section, tamoxifen was proposed as a possible modulator of the DNM2 protein levels [221]. These positive data resulted in the initiation of a clinical trial, Phase 1/2, in male patients with MTM1 mutations older than two years (TAM4MTM, ClinicalTrials.gov Identifier NCT04915846). The objective is to test the efficacy and safety of tamoxifen therapy to improve respiratory and motor function in XLMTM males.

8. Conclusions and Perspectives

In the last few years, several advances in the understanding of the pathomechanisms have been made, which have led to the identification of novel therapeutic strategies, some of which are now in clinical trials. Current therapeutic development is mainly focused on the XLMTM form, although the DNM2 targeting approach was shown to be potentially applicable to other CNM forms; DNM2 and BIN1-related CNM. More therapeutic strategies have been tested in XLMTM models as this was the first form described, however, now there are faithful animal models available for all CNM forms including recessive RYR1-CNM. These laboratory models will allow for a better investigation of disease mechanisms in those CNM forms and drug screening. Potentially several altered pathways can be targeted, suggesting the potential for combined therapies to treat CNM. This will need to be further investigated over the next years.

It is still unclear why mutations in these proteins, most ubiquitously expressed except for RyR1, cause predominantly tissue-specific phenotypes generally restricted to skeletal muscle. This may be due to the implication of these proteins in muscle specific structures such as costameres, NMJs, and triads. One of the most common pathomechanisms found in CNM with mutations in RYR1, MTM1, DNM2, and BIN1 is a defective excitation–contraction coupling. This mechanism may be the main one underlying muscle weakness in CNM. Abnormal myonuclei and mitochondria position may be caused by cytoskeleton defects, while muscle atrophy might be explained by the dysregulation of protein homeostasis, transcription, and decrease in satellite cells. However, some non-muscle phenotypes have been described such as peripheral nerve involvement in some DNM2-CNM cases or liver dysfunction in XLMTM patients, calling for more investigation into non-muscle tissues.
