De Novo Transcriptome Sequencing of Rough Lemon Leaves (Citrus jambhiri Lush.) in Response to Plenodomus tracheiphilus Infection

Riccardo Russo
Angelo Sicilia
Marco Caruso
Carmen Arlotta
Silvia Di Silvestro
Frederick G. Gmitter, Jr.
Elisabetta Nicolosi
2 and
Angela Roberta Lo Piero
CREA, Research Centre for Olive, Fruit and Citrus Crops, Corso Savoia 190, 95024 Acireale, Italy
Department of Agriculture, Food and Environment, University of Catania, Via Santa Sofia 98, 95123 Catania, Italy
Citrus Research and Education Center, Institute of Food and Agricultural Sciences, University of Florida, Lake Alfred, FL 33809, USA
Author to whom correspondence should be addressed.
These authors equally contributed to the work.
Int. J. Mol. Sci. 2021, 22(2), 882;
Submission received: 2 December 2020 / Revised: 14 January 2021 / Accepted: 15 January 2021 / Published: 17 January 2021
(This article belongs to the Special Issue Plant Microbe Interaction 4.0)


Mal secco is one of the most severe diseases of citrus, caused by the necrotrophic fungus Plenodomus tracheiphilus. With the main aim of identifying candidate genes involved in the response of citrus plants to “Mal secco”, we performed a de novo transcriptome analysis of rough lemon seedlings subjected to inoculation of P. tracheiphilus. The analysis of differential expressed genes (DEGs) highlighted a sharp response triggered by the pathogen as a total of 4986 significant DEGs (2865 genes up-regulated and 2121 down-regulated) have been revealed. The analysis of the most significantly enriched KEGG pathways indicated that a crucial role is played by genes involved in “Plant hormone signal transduction”, “Phenylpropanoid biosynthesis”, and “Carbon metabolism”. The main findings of this work are that under fungus challenge, the rough lemon genes involved both in the light harvesting and the photosynthetic electron flow were significantly down-regulated, thus probably inducing a shortage of energy for cellular functions. Moreover, the systemic acquired resistance (SAR) was activated through the induced salicylic acid cascade. Interestingly, RPM1 interacting protein 4, an essential positive regulator of plant defense, and BIR2, which is a negative regulator of basal level of immunity, have been identified thus representing useful targets for molecular breeding.

1. Introduction

Citrus, one of the most important fruit crops in the world, is sensitive to many environmental stresses of both abiotic and biotic nature, often leading to poor tree growth and reductions in fruit yield and quality [1]. “Mal secco” disease (MSD) is a severe vascular disease of citrus caused by the mitosporic fungus Plenodomus tracheiphilus (Petri) Gruyter, Aveskamp and Verkley (syn. Phoma tracheiphila (Petri) Kantschaveli and Gikashvili). It appeared in the second half of 19th century (1894) in Chios and Poros, two Greek Aegean islands, from which it derived its first name (“Poros’s disease”). In Italy, MSD was first reported in 1918 in the district of Messina (eastern Sicily), probably following the introduction of infected plants from Greece [2]. The current geographical distribution of MSD comprises the east coast of the Black Sea (Georgia) and mainly all citrus-growing countries of the Mediterranean Basin, except for Morocco and Portugal [3].
The MSD pathogen infects mainly lemon (Citrus limon (L.) Burm. F.) [4]. Citron (C. medica L.) and other citrus species and hybrids having citron or lemon as parent, such as lime (C. aurantifolia Christ.), bergamot (C. bergamia Risso), Volkamer lemon (C. volkameriana Ten. et Pasq.), Alemow (C. macrophylla Wester), and rough lemon (C. jambhiri Lush) are also particularly susceptible to the disease [4,5]. Rough lemon is counted among the most “mal secco” susceptible species [6]. C. jambhiri Lush is native to northeastern India and is a mandarin × citron F1 natural hybrid [7]. Due to fruit typology, as the name implies, characterized by a very coarse exterior, it is unsuitable as a scion cultivar but it has been widely used in many countries as a rootstock [8].
The distinct symptomatology of the disease, characterized by desiccation of twigs, branches, or the whole plant, suggested its extant name “mal secco” meaning “dry disease” [9,10], a denomination ever since adopted internationally [5]. The first symptoms of the disease usually appear in spring on the leaves of the uppermost shoots, which display a slight discoloration of the primary and the secondary veins [11,12]. The leaves then turn yellow or sometimes brown and fall. Newly infected shoots show a yellow or pink-salmon to reddish discoloration of the wood, which occurs also in the wood of the main and secondary branches, as well as in the trunk, where the pathogen is advancing. A progressive basipetal desiccation of shoots, branches, and trunk follows and, finally, the whole plant may die [13]. Glycoproteins of 93 KDa and 60 KDa (called Pt60) belonging to the malseccin complex have been isolated from culture filtrates and host plants infected by P. tracheiphilus [14,15,16]. Both were able to reproduce all the symptoms of the disease when injected into different plants [16]. The toxic effects of the malseccin complex on citrus leaves are clearly visible only under illuminated conditions, suggesting that light plays a role in the toxin activity. In light conditions, the induction and formation of reactive oxygen species (ROS) can damage cellular structures as ROS induce lipid membrane peroxidation leading to the loss of membrane integrity, electrolyte leakage, and cell death. Oxidative stress in plant pathology has been a general subject of investigation and its ability to drive the metabolism of both host and pathogen during their interaction has been demonstrated [17]. It has been shown that the synchronous presence of hydrolytic enzymes, toxic compounds, oxidative stress inducers, and membrane transporters in the fungus, and the differential ability to modulate the lipoperoxidative pathway in the host can play a central function in P. tracheiphilus infection of C. limon [18].
The knowledge at the molecular level of the mechanisms that occur in plant–pathogen interaction, not only in tolerant but also in susceptible interactions, is the basis for the development of innovative tools for phytosanitary control and that may lead to eco-sustainable interventions to minimize or replace the massive use of agro-pharmaceuticals. Gene expression profiling by RNA-Seq provides an unprecedented high-resolution view of the global transcriptional landscape. A primary objective of many gene expression experiments is to detect transcripts showing differential expression across various conditions. In this context, next-generation high-throughput sequencing techniques have become an increasingly useful tool for exploring whole plant genomes, providing a means for analyzing plant molecular regulatory mechanisms in specific abiotic and biotic stress conditions. The identification of candidate genes is a prerequisite for the application of new genome editing techniques by which targeted genetic modifications can lead to the introduction of precise changes directly into the genome of commercial varieties, offering an alternative to traditional methods of genetic improvement [19,20,21]. Different authors in the last years conducted transcriptomic analysis to better understand Citrus plants response to biotic stress caused by pathogens [22,23,24,25,26,27]. Specifically, a study evaluated the transcriptional reprogramming of both rough lemon and sweet orange leaf tissue during the asymptomatic stage of infection caused by Candidatus Liberibacter asiaticus. Functional analysis of the differentially expressed genes (DEGs) indicated that genes involved in the mitogen activated protein kinase (MAPK) signaling pathway involving WRKY transcription factors were highly upregulated in rough lemon. Among the most biologically relevant transcripts in the gene set enrichment analysis were those related to several functional categories suggesting that DEGs with different functions were subjected to reprogramming. Therefore, using global transcriptome analysis approach, both a wide range of candidate genes and information that could be useful for genetic engineering to control Huanglongbing disease have been identified [25]. Considering the impact of mal secco in the Mediterranean citrus industry, the aim of this work was to unravel the transcriptomic reprogramming of a highly susceptible citrus species subjected to P. tracheiphilus infection by applying a de novo sequencing and assembly RNAseq approach. This is the first report concerning the transcriptome analysis of a susceptible Citrus species challenged by the causal agent of “mal secco” disease.

2. Results

2.1. Effect of Plenodomus tracheiphilus Infection on Citrus jambhiri Phenotype and Fungus Detection

The effectiveness of fungal inoculation was evaluated by both visual inspection of inoculated leaves and by detection of fungus genome by Taqman real time PCR. As shown in Figure S1A, the typical symptoms consisting of the midrib and main vein chlorosis were detected 15 days after inoculation. All the inoculated plants were chlorotic on the adaxial leaf surface (Figure S1B); that chlorosis symptom is different from the aforementioned vein chlorosis and more specifically indicates that a pathogen-induced micronutrient deficiency has occurred. As expected, the untreated plants appeared healthy (Figure S1B). As described in [28], quantitative detection of P. tracheiphilus was performed by real-time PCR assay. The fungus was detected in inoculated rough lemon plants, whereas no fluorescence emission was detected in the case of DNA extracted from healthy samples as well as from negative control (NTC, inoculated with water) (Table S1). The standard curve for fungal DNA quantification gave a coefficient of determination R2 = 0.98 (data not shown).

2.2. Transcript Assembly and Annotation

In this work, a comprehensive identification of the transcriptional response of rough lemon (Citrus jambhiri Lush) to P. tracheiphilus infection was carried out by RNAseq approach (see the experimental design in the “Material and Methods” section). The quality of RNA samples has been assessed before libraries preparation by RIN measurement. The mean RIN value was 8.2 (Table 1) indicating that very low level of RNA degradation occurred and that it was suitable for further downstream analysis.
After library construction and sequencing, reads containing adapters or reads of low quality were removed by filtering the raw reads, so that the downstream analyses are based on a total of 228 million clean reads with an average of ~38 million reads (~11.4 G) per sample, the average percentage of Q30 and GC being 92.8% and 44.2%, respectively. De novo assembly of clean reads resulted in 115,100 transcripts and 77,631 unigenes with N50 length of 2372 and 2060, respectively (Table 1), indicating that a good coverage of the transcriptome had been achieved. The assembly consistency was evaluated by mapping back the filtered unique reads to the final assembled leaf transcriptome and the average read mapping rate using the alignment software Bowtie2 was 83.40%. Both transcript and unigene length distributions are reported in Figure S2. These data showed that the throughput and sequencing quality were high enough to warrant further analysis. To achieve comprehensive gene functional annotation, all assembled unigenes were blasted against public databases, including National Center for Biotechnology Information (NCBI), Protein family (Pfam), Clusters of Orthologous Groups of proteins (KOG/COG), SwissProt, Ortholog database (KO), and Gene Ontology (GO) (Figure 1). The 80.89% of the obtained total unigenes were annotated in at least one searched database. Among them, 72.93% and 78.25% assembled unigenes showed identity with sequences in the Nr and Nt databases, respectively. The percentage of assembled unigenes homologous to sequences in KO, KEGG, Swiss-Prot, Pfam, GO, and KOG databases were 27.13%, 15.36%, 53.35%, 24.52%, 15.53%, and 23.59%, respectively (Figure 1).

2.3. Identification of Differentially Expressed Genes (DEGs)

The unigenes whose expression level changed upon pathogen infection were identified as differentially expressed genes (DEGs) and they were used to characterize the transcriptomic response of C. jambhiri to fungal attack. A total of 4986 differentially expressed genes were identified from the comparison Pt vs. CK (P. tracheiphilus sample set versus control sample set), of which 2865 were up-regulated and 2121 were down-regulated (Figure 2). Validation of expression levels for ten selected DEG candidates was carried out by quantitative real-time PCR (qRT-PCR). The results show high congruence between RNA-Seq results and qRT-PCR (coefficient of determination R2 = 0.92) indicating the reliability of RNA-Seq quantification of gene expression (Figure S3). Therefore, the selected genes could also constitute useful markers of pathogen infection in rough lemon.

2.4. Functional Classification of DEGs

Gene Ontology (GO) terms, Clusters of Orthologous Groups of proteins (KOG) classification and Kyoto Encyclopedia of Genes and Genomes (KEGG) pathway functional enrichments were performed to identify possible biological processes or pathways involved in the response of plant to pathogen. Considering the GO enrichment, “oxidoreductase activity” (GO:0016491) (104 up-regulated and 65 down-regulated), “transmembrane transporter activity” (GO:0022857) (75 up-regulated and 27 down-regulated) and “DNA-binding transcription factor activity” (GO:0003700) (37 up-regulated and 14 down-regulated) are the three most enriched terms in Molecular Function (MF) category, while “transport” (GO:0006810) (86 up-regulated and 36 down-regulated) and “transmembrane transport” (GO:0055085) (70 up-regulated and 27 down-regulated) are the two most enriched terms in Biological Process (BP) category (Figure 3).
To predict and classify possible functions, all the 77,631 unigenes were aligned to the KOG database and were assigned to the KOG categories (Figure S4). Among the KOG categories, the cluster for “General function prediction only” (15.8%) represented the largest group, followed by “Posttranslational modification, protein turnover, chaperones” (12.9%) and “Signal transduction mechanisms” (9.1%). “Translation, ribosomal structure and biogenesis” (7.3%) and “RNA processing and modification” (6.8%) were the largest next categories (Figure S4).
The main KEGG pathway terms were in the “Carbon metabolism” and “Phenylpropanoid biosynthesis” categories, followed by and “Biosynthesis of amino acids” indicating that a deep cellular rearrangement occurred in presence of the fungus (Figure 4). The reprogramming activity of the metabolic pathways is supported by the involvement of other important pathways such as “Plant hormone signal transduction” and “Starch and sucrose metabolism”. The strong involvement of “Plant hormone” category in the response to pathogen is also indicated by the presence of different pathways involved in amino acid biosynthesis and metabolism such as “Tyrosine metabolism”, “Phenylalanine metabolism”, “Phenylalanine, tyrosine and tryptophan biosynthesis”, and “Arginine biosynthesis”, known to be precursors of plant hormones (Figure 4).
Because of their fundamental involvement of “Plant hormone” (Table 2, Figure S5), “Transcription factors” (Figure 5) and “Defense and pathogenesis” related genes (Table 3) in host–pathogen interaction, we have analyzed them further. The following description of DEGs belonging to the above-mentioned pathways was carried out considering a log2foldchange threshold of ±2.32 (corresponding to a fold change = ±5). In the following tables, the coding sequence of each clusters were identified as orthologs of A. thaliana genes (, accessed on 23 November 2020). Congruously, tables report clusters whose % of identity was higher than 50 and the e value < 0.05.

2.4.1. Plant Hormone Related Genes

A significant deviation in the expression of genes involved in “Plant hormone” category was observed between the infected and control samples (Table 2, Figure S5). Considering auxin, known to be required for plant growth, the gene encoding one of the main biosynthetic enzymes, such as flavin-binding monooxygenase family protein YUC6 [29] was downregulated as well as the transmembrane amino acid transporter protein (AUX1) and three auxin-responsive IAA proteins (IAA32, IAA7, and IAA3) indicating that auxin biosynthesis and signaling are impaired in the inoculated plants. However, auxin-responsive transcription factors have been found up regulated suggesting that several pathways might be differently regulated. In this study, transcripts encoding several isoforms of the 1-amino-cyclopropane-1-carboxylate synthase, involved in the ethylene biosynthesis, were up-regulated. Moreover, many genes belonging to the ethylene signal transduction pathway and acting downstream of ethylene (signal transduction histidine kinase, hybrid-type, ethylene sensor (ETR2), mitogen-activated protein kinase 1 (MPK1), EIN3-binding F box protein 1 (EBF1/2), ethylene insensitive 3 family protein (EIN3), and ethylene response factor 1 (ERF1/2) were up-regulated (Table 2, Figure S5), clearly indicating an activation of ethylene signaling which might lead to the inhibition of plant growth and changes in a plant’s life cycle. Salicylic acid (SA) is synthesized via the shikimic acid pathway, with chorismic acid serving as an important precursor that can be converted to SA via two distinct branches. In one branch, chorismic acid is converted to SA via phenylalanine and cinnamic acid intermediates by the key enzyme phenylalanine ammonia lyase (PAL). In the other branch, chorismic acid is converted to SA via isochorismic acid by the enzyme isochorismate synthase (ICS1/SID2) [30]. Among the up-regulated transcripts, phenylalanine ammonia-lyase and 4-coumarate-CoA both implicated in one branch of salicylic acid biosynthesis have been found induced in the Pt vs. CK comparison. Moreover, genes encoding ICS1 were not among the DEGs suggesting that the main route for salicylic acid biosynthesis under biotic stress in rough lemon is that starting by phenylalanine and catalyzed by PAL.

2.4.2. Transcription Factors

Reprogramming of gene expression upon P. tracheiphilus infection is regulated by many transcription factors. In Figure 5 the most represented transcription factor (TF) families in terms of number of DEGs are reported. The results showed that 41 DEGs belong to MYB family (26 up-regulated and 15 down-regulated), 29 to both auxin responsive protein (AUX/IAA) and ethylene-responsive transcription factor (ERF) families, these latter already cited above (“Plant hormone related genes” section) indicating that they play a key role in regulating the transcriptional response induced by the pathogenic fungal infection (Figure 5). In addition, 32 genes encoding WRKY transcription factors were among the DEGs, most of which were over-expressed (31 up-regulated and 1 down-regulated). Due to their involvement in plant response to pathogenic fungi infection [31,32,33,34,35] the analysis of their role are included in the following paragraph (Table 3).

2.4.3. Defense and Pathogenesis Related Genes

In Table 3 differentially expressed genes involved in defense mechanisms and pathogenesis are summarized to provide a complete picture of the rough lemon response to pathogen attack. A plethora of genes encoding calmodulin-like protein, calcium-dependent protein kinase, mitogen-activated protein kinase 3, mitogen-activated protein kinase kinase kinase 15, mitogen-activated protein kinase kinase kinase 17, and GTPase activators were up-regulated in the Pt vs. CK sample set. These results clearly indicate that fungal infection triggers a wide reprogramming of the cellular signal transduction. Among the DEGs, several leucine rich repeat (LRR) domains, which might have a role as plant resistance (R) genes (IOS1, EIX2, and LECRK3) were up-regulated in the inoculated plants. However, the up-regulation of BIR2, which is negative regulator of basal level of immunity (namely PTI, pathogen-associated molecular patterns triggered immunity) strongly suggests that plant defense is already impaired at this first level [36]. Nevertheless, some of R genes are also known to activate prolonged resistance by inducing phytohormones and pathogenicity related genes (PR genes) that collectively give rise to broad spectrum systemic acquired resistance (SAR) against future infections [37]. Indeed, the members of the pathogenesis-related protein 1 (PR-1) family, which are among the most abundantly produced proteins in plants on pathogen attack, were up-regulated in rough lemon infected plants (Table 3). Concomitantly, genes encoding the positive regulator protein NPR1, which is involved in the induction of defense gene and PR-1 gene expression, and the TGA transcription factor that NPR1 interacts with in the nucleus, were up-regulated in the inoculated plants. These findings suggest that systemic acquired resistance (SAR) mechanism occurred in the rough lemon interaction with the pathogen, probably giving rise to broad-spectrum systemic protection against future infections. According to these results, another signal component of the SAR pathway BAD1, functioning upstream of NPR1 to regulate defense responses, was found to be induced by the pathogen in the Pt vs. CK comparison (Table 3). Finally, transcript encoding CERK1 Lysin motif (LysM) receptor kinase that functions as a cell surface receptor in chitin elicitor signaling involved in the resistance to pathogenic fungi [38] was up-regulated in the infected plants (Table 3). It probably acts by sensing microbe-associated molecular patterns (MAMP) and pathogen-associated molecular patterns (PAMP) as a component of the PTI. Finally, RPM1 interacting protein 4 is an essential regulator of plant defense, which plays a central role in resistance in case of infection; it acts in association with avirulence proteins with which it triggers a defense system including the hypersensitive response (HR) limiting the spread of disease. Interestingly, this transcript was found down-regulated in the inoculated plant (Table 3) suggesting that it might have a role in susceptibility of rough lemon which is not able to avoid the pathogen circulation inside the plant. Transcriptional regulation of defense related genes is crucial for defeating pathogens. The involvement of chitin elicitation that is suggested by the up-regulation of CERK1 appears to play a significant role in plant defense to fungal pathogens through the activity of transcription factors belonging to WRKY family [31]. Different genes encoding for WRKY DNA-binding protein were overexpressed in C. jambhiri infected plants. In detail, we observed the up-regulation of WRKY14, WRKY23, WRKY49, WRKY72, WRKY75, and WRKY71. Moreover, WRKY4, that is reported to have a positive role in resistance to necrotrophic pathogens [34], WRKY51, acts as positive regulator of salicylic acid (SA)-mediated signaling [33], WRKY40, WRKY18, and WRKY70 specifically that responds to chitin [31] were also induced by P. tracheiphilus attack (Table 3). Finally, in response to pathogen infection, the induction of the calcium-dependent respiratory burst oxidase homologues (RBOHB, RBOHC, RBOHD, and RBOHF), which represent the major sources of ROS production in plants induced by pathogen infection, was observed in inoculated rough lemon plants [39].

2.4.4. Main Processes or Pathways Affected by P. tracheiphilus Infection

In order to have a comprehensive view of the metabolic changes occurring in rough lemon infected by P. tracheiphilus, all the 4986 significant DEGs were mapped to the MapMan 3.6.0RC1 pathways, and the metabolism overview is shown in the Figure 6. Overall, the analysis indicates that the pathways which are more specifically involved in the response to P. tracheiphilus infection are “Reactive oxygen” (both up- and down- regulated genes), “Light reaction” (mostly down-regulated genes), “Nutrient homeostasis” (both up- and down- regulated genes), “Carbohydrate metabolism” (up-regulated genes), all of these will be singularly analyzed (Table 4).

Reactive Oxygen

Table 4 reports the DEGs related to “reactive oxygen” category. Two main gene sets were found to be strongly up-regulated in the Pt vs. CK comparison: Genes involved in the oxidoreductase activity and glutathione transferases. In particular, genes encoding copper/zinc superoxide dismutase, ascorbate peroxidase were induced by pathogen to overcome the damage induced by ROSs that play a central role during plant–necrotrophic fungus interactions through the stimulation of the plant’s defense responses [40]. The gene encoding allene oxide synthase, involved in the pathway of oxylipin biosynthesis starting from unsaturated fatty acids was found strongly up-regulated. Their chemical nature renders unsaturated fatty acids intrinsic antioxidants; that is, they can directly react with ROS and thus consume them. Their oxidation gives rise to various oxylipins that, in turn, modulates ROS levels and signaling [41]. Transcript of aldehyde dehydrogenase 3H1 involved in oxidative stress tolerance by detoxifying reactive aldehydes derived from lipid peroxidation was also found up-regulated in diseased rough lemon plants (Table 4). Interestingly, numerous genes encoding glutathione transferases (GSTs) belonging to different GST classes have been induced by the fungal infection. This gene family can positively contribute to antimicrobial resistance in host plants by mostly unknown mechanisms, although a recognized GST function is their participation in the elimination of ROSs and lipid hydroperoxides that accumulate in infected tissues [42,43].

Light Reactions

As shown in Table 4 and Figure S6, the light reactions of the photosynthetic pathway were strongly affected by P. tracheiphilus inoculation as most of the components of both light harvesting and photosynthetic electron flows (cyclic and non-cyclic) as well as subunits of the CF0F1-ATP synthase were down regulated in inoculated plants (Figure S6). In detail, the PSAE-2 photosystem I subunit E-2 and the PSBE photosystem II reaction center protein as well as thylakoid-associated phosphatase 38 (Table 4) were down regulated in seedlings the diseased plant. This last gene is involved in light-harvesting complex of photosystem II (LHCII) dephosphorylation, facilitating its relocation to photosystem I. The expression of NDH-dependent cyclic electron flow 1 complex, that is involved in the cyclic electron transport by accepting electrons from ferredoxin (Fd), was sharply repressed. Moreover, the expression of the CF1-ATP synthase subunit was downregulated suggesting that the photophosphorylation of ADP leading to the ATP synthesis is strongly impaired because of fungal infection. Considering that photosynthesis is the main metabolic pathway devoted to energy supply in the green part of the plants, these findings clearly indicate that inoculated plants were suffering of energy shortage.

Iron Homeostasis

As shown in Table 4, genes involved in iron uptake and reduction were differently regulated in the Pt vs. CK comparison. In particular, ferric reduction oxidase 6 (FRO6), FRO7 and FRO8 were repressed by the infection. These genes are proposed to be involved in iron transport across the membrane in green part of the plant, FRO6 being localized in the plasma membrane, FRO7 in the chloroplasts and FRO8 in mitochondria [44]. These results clearly indicate that the iron homeostasis is sharply impaired in the organelles of inoculated plants and in chloroplasts where it plays a crucial role in the heme biosynthesis and photosynthesis. Ferric reduction oxidase 2 (FRO 2) and 4 (FRO4) which normally are expressed in plant roots were upregulated by fungal infection, as well as the gene encoding 2-oxoglutarate (2OG) and Fe(II)-dependent oxygenase which are involved in sideretin biosynthesis, a metabolite exuded by roots in response to iron deficiency to facilitate iron uptake. The stress induced expression of genes, both FROs and 2OG, normally involved in iron uptake in roots might be explained as an ultimate attempt to cope with the shoot iron deficiency caused by the down regulation of leaf-specific FRO genes. Regarding other nutrients such as nitrogen and phosphate, the results show that gene involved in nitrate uptake was down-regulated, whereas glutamine synthase and aspartate aminotransferase involved in nitrogen fixation and in amino acid and Krebs cycle metabolisms were up-regulated. The high-affinity transporter for external inorganic phosphate functioning as H+: Phosphate symporter was also up-regulated (Table 4).

Carbohydrate Metabolism

The analysis of carbohydrate metabolism highlighted that several genes involved in sugar metabolism were clearly induced in response to fungal infection (Table 4). Specifically, sucrose-phosphate synthase 4, which plays a role in photosynthetic sucrose synthesis by catalyzing the rate-limiting step of sucrose biosynthesis from UDP-glucose and fructose- 6-phosphate, was down-regulated. On the contrary, transcripts encoding sucrose synthase, a cleaving enzyme that provides UDP-glucose and fructose for various metabolic pathways, were among the up-regulated genes. Table 4 also reports that transcripts encoding the acid beta-fructofuranosidase and alkaline/neutral invertase, respectively involved in the continued mobilization of sucrose to sink organs and in the cleavage of sucrose into glucose and fructose, were up-regulated. Overall, these data suggest that both sucrose synthesis and therefore the export of photo assimilates out of the leaf were impaired, whereas cleavage seems to be the favorite route undertaken by this metabolite. However, the fructose-bisphosphate aldolase 1 and hexokinase 1 were down-regulated in diseased plants indicating that glycolysis might be repressed in the inoculated plants (Table 4).

Cell Wall Modification and Degradation

During pathogen infections, the cell wall undergoes dramatic structural and chemical changes of cell wall constituents. Necrotrophic pathogens are sensed by a plasma membrane receptor, leading to activation of defense signaling cascades and eventual mounting of inducible defense responses [45]. In our study, several DEGs encoding pectin lyase-like superfamily protein and pectin acetylesterases were identified (Table 4). However, these transcripts were both up- and down-regulated, making it difficult to extrapolate unequivocal conclusions. Certainly, as expected, cell walls of inoculated plants underwent remodeling processes likely involved in the response to pathogen.

3. Discussion

Environmental stresses severely affect plant and crop growth and reproduction. Therefore, determining the critical molecular mechanisms and cellular processes in response to stresses will provide knowledge for identifying genes that might be target of modification, by knocking out or by knocking down procedures, especially in susceptible host–pathogen interactions. RNA sequencing (RNA-Seq) using next-generation sequencing (NGS) provides opportunity to isolate genes of interest, develop of functional markers, quantify of gene expression and carry out comparative genomic studies. It has been successfully applied to unravel the transcriptome profile of several Citrus varieties in response to Phytophtora parasitica infection [26] and to Candidatus Liberibacter [24,25] providing new insight into host responses to both pathogens. In this work, we described the results of RNA sequencing and de novo transcript assembly in rough lemon (C. jambhiri) leaves subjected to artificial inoculation by P. tracheiphilus, the causal agent of “mal secco” disease used as model of a compatible host–pathogen interaction. At harvest time (15 days after inoculation), infected plants showed the typical disease symptoms, and the pathogen was detected by molecular analysis. Globally, a deep reprogramming of the leaf transcriptome emerged as 4986 (2865 up-regulated and 2121 down regulated) DEGs have been identified confirming that the attempt of an active defense against microbial pathogens involved the induction of elaborate defense signaling pathways. In plants, some of these defense strategies can provide protection at the site of infection, whereas others provide systemic resistance throughout the plant including in non-infected tissue. Local resistance includes basal immunity, or PAMP/MAMP (pathogen/microbe associated molecular patterns)—triggered immunity (PTI) which is induced when pattern recognition receptors (PRRs) from the plant recognize pathogen-derived elicitors. To establish a successful infection, plant pathogens can suppress PTI by injecting effectors into the host cells [46]. To counter this virulence strategy, plants have evolved the so-called resistance (R) proteins, which can either directly detect the effectors or indirectly detect their activity. In plants where the activity of effectors is detected by the R proteins, effector-triggered immunity (ETI) is activated rendering the pathogen avirulent [47] ETI in plants is often associated with rapid, localized programmed cell death (PCD) at the infection site, a visible phenotype known as the hypersensitive response HR, to prevent the spread of the pathogen. HR is generally associated with race-specific resistance to biotrophic pathogens and it is less effective against necrotrophics which require dead host tissue to complete their life cycle [47]. Necrotrophic pathogens such as P. tracheiphilus are well able to block HR by initiating systemic signals for defense activation in distal parts of plant that ultimately results in the activation of systemic acquired resistance (SAR) [47]. Induction of SAR involves the generation of mobile signals at the site of primary infection, which translocate to distal tissue and prepare the plant against future infections. Several chemical inducers of SAR have been identified and some of these have been shown to translocate systemically. The SAR associated chemicals include salicylic acid (SA), free radicals, and reactive oxygen species (ROS), among others [48]. Upon SA accumulation, NPR1 monomers are transported into the nucleus. Here, NPR1 interacts with TGA proteins, which belong to the basic leucine zipper (bZIP) protein family of transcription factors and binds TGACG motifs to activate defense-related transcription [48]. The analysis of the transcriptomic data reported in this work unequivocally indicated that the entire gene set encoding the components of SAR from salicylic acid biosynthesis on was strongly up-regulated. In addition, P. tracheiphilus is able to overcome the basal immunity of rough lemon plants (PTI) as the essential regulator of plant defense (RPM1 interacting protein 4) was down-regulated, and the expression of BIR2, which is negative regulator of basal level of immunity was up-regulated in the diseased plants. In the inoculated plants, the observed repression of auxin signaling by the SA pathway might also contribute to increase rough lemon susceptibility to P. tracheiphilus as reported in Arabidopsis infected by the necrotrophic fungi Plectosphaerella cucumerina and Botrytis cinerea [49].
Chitin, found in the cell walls of true fungi, is a well-established elicitor of plant defense responses and it appears to play a significant role in plant defense to fungal pathogens [50]. The fact that chitin elicits de novo gene expression suggests the involvement of transcription factors (TFs) with WRKY TF family strongly represented [51,52,53]. To regulate gene expression, WRKY proteins bind specifically to a DNA sequence motif (T)(T)TGAC(C/T) known as the W box [54,55,56,57] which occurs in the promoters of genes under the control of WRKY proteins. A number of defense-related genes, including PR genes, contain a W box in their promoter regions [51,54,55]. The promoters of pathogen and/or salicylic acid (SA) regulated Arabidopsis WRKY genes [58] are substantially enriched in W boxes, suggesting that defense-regulated expression of WRKY genes involves transcriptional activation and repression through self-regulatory mechanisms mediated by transcription factors of the WRKY gene superfamily [32]. For example, expression of the Arabidopsis NPR1 is known to be controlled by WRKY factors [57]. In this study, transcription factors interacting specifically with the W box motif such as WRKY14, WRKY23, WRKY49, WRKY72, WRKY75, and WRKY71 were up-regulated in infected plants, indicating a strong activation of the defensive mechanism. The up-regulation of both WRKY4, that is reported to have a positive role in plant resistance to necrotrophic pathogens [34] and WRKY51, acting as positive regulator of salicylic acid (SA)-mediated signaling [33] confirms that the rough lemon plants tried to resist the P. tracheiphilus infection by the activation of salicylic acid-mediated signaling pathway, in accordance with the whole results of this study. Furthermore, the strong induction of WRKY40, WRKY18, and WRKY70 transcription factors accounts for a defense response specifically addressed towards fungi as they specifically respond to chitin [31]. P. tracheiphilus infection induced the expression of oxidative burst peroxidases (RBOHs) in rough lemon (Table 3). The apoplastic oxidative burst could directly kill pathogens by generating ROS with antimicrobial activity; otherwise, a second, stronger phase can occur, which is associated with the hypersensitive response [39]. However, the role of RBOHs is controversial as a relatively limited role for NADPH oxidases in the HR has been observed in tobacco (Nicotiana tabacum), where RBOHD-mediated hydrogen peroxide production does not seem to be essential for the development of the HR or systemic acquired resistance (SAR) [59,60]. More recently, these genes have been studied in detail in A. thaliana and are reported as the major component of PTI [39]. Considering that rough lemon plant is susceptible to P. tracheipilus, their effectiveness in overcoming the pathogen is not sufficient to block it, and probably they have a major role in transducing the signal of the “presence” of the pathogen by increasing ROS concentration.
Although important in biotic stress signal transduction, reactive oxygen species (ROS) such as hydrogen peroxide (H2O2), superoxide (O2−), and singlet oxygen (1O2) are highly reactive and could cause oxidative damage to DNA, proteins and other molecules of the cell. There are different cellular mechanisms in place to deactivate the excess of these damaging ROS molecules. These include enzymatic reactions through catalase, superoxide dismutase, glutathione peroxidase and ascorbate peroxidase but also small antioxidants such as ascorbic acid and glutathione [61]. This study revealed that a subset of these ROS-scavenging genes was induced in the infected plants (Table 4). Interestingly, a wide number of glutathione transferases belonging to phi and tau classes were also up-regulated by the infection in accordance with early studies on the role of GSTs in plant biotic stress [43]. Notably, the expression of multiple GSTs was massively activated by salicylic acid and some GST enzymes were demonstrated to be receptor proteins of salicylic acid [43]. Functional studies revealed that overexpression or silencing of specific GSTs can markedly modify disease symptoms and pathogen multiplication rates [62].
As reported in the case of other necrotrophic fungi such as B. cinerea [63], the main metabolic effect upon inoculated plants was the down-regulation of either light harvesting components or photosynthetic electron flows or CF1F0-ATPase. This might have led to an apparent, persistent “dark” or “shade” condition: Plants are in regular light/dark alternation but they cannot use light to provide energy. The sucrose mobilization suggested by the regulation of the two main genes involved in sucrose biosynthesis and cleavage is in accordance with this energy requirement. In the dark, plant mitochondria generate the required ATP molecules for basic cellular function [64]. However, two main genes involved in glucose catabolism were down-regulated (Table 4) indicating that sugars seem not be routed towards glycolysis and Krebs cycle. On the contrary, as fungal genes involved either in sugar fermentation or in mitochondrial synthesis of ATP were strongly expressed in rough lemon leaves, the plant sugar resources might be hijacked towards the fungus to feed it. This mode of nutrition is the rule for biotrophic pathogens, but also necrotrophics might exhibit a similar behavior [65]. In this study, we also show that FRO7 (chloroplast Fe(III) chelate reductase), involved in chloroplast iron homeostasis and required for survival under iron-limiting conditions, was down regulated. It has been shown that chloroplasts isolated from fro7 loss-of-function mutant plants have significantly reduced Fe(III) chelate reductase activity, reduced iron content, and altered photosynthetic complexes, providing genetic proof that chloroplasts do rely in part on a reductive strategy for iron acquisition [44]. Consequently, the lack of a regular input of reducing power from water photolysis induced by light might be in turn responsible for the iron deficiency observed in the apical part of the leaves of diseased rough lemon.

4. Materials and Methods

4.1. Plant Material and Inoculum

Seeds of rough lemon (C. jambhiri) were sowed on sterile peat in May 2019. After 6 months of growing in a chamber at 25 °C and 90% humidity, the plants were inoculated with the pathogen Plenodomus tracheiphilus PT10 strain (kindly provided by Professor Vittoria Catara, University of Catania). Rough lemon was chosen as plant material for the following reasons: (I) It was previously reported as very susceptible to the disease [6]; (II) it has a high degree of polyembryony, higher than true lemons or other citron hybrids [66], allowing the production of true-to-type seedlings; and (III) it is very vigorous, with seedlings growing faster than those of other citrus species. Moreover, our preliminary inoculation tests indicated that symptoms after artificial inoculations were easier to detect in rough lemon than in C. limon seedlings.
The inoculum was prepared according to a slight modification of the method described in [67]. Briefly, three pieces of young fungus grown at 21 °C ± 2 in Petri dishes containing potato dextrose agar medium (PDA) were placed in 7 different flasks containing 100 mL of carrot broth and incubated for 5 days in a heidolph unimax 2010 shaker at 22 °C. Successively, the growth medium was filtered and centrifugated at 8000 rpm × 20 min. The pellet was recovered and the phialoconidia were counted with a counting chamber to adjust the inoculum concentration at 106 mL−1. The inoculation was performed by depositing 10 µL on wounds obtained by cutting the midvein of three leaves for each plant with a sharp sterile blade. Overall, five plants were inoculated with the pathogen and five plants were inoculated with water as control. Both inoculated and control samples were collected 15 days after inoculation, considering that inoculated plants showed evident symptoms of the disease. Leaves were immediately frozen with liquid nitrogen and stored at −80 °C until both DNA and RNA extractions were performed.

4.2. DNA and RNA Extraction

DNA extraction was performed according to [68]. Briefly, samples were powdered using liquid nitrogen in mortar and pestle. Two hundred milligrams of grinded leaves were mixed approximately with 500 μL of CTAB buffer (2% CTAB, 20 mM EDTA, 1.44 mM NaCl, 100 mM Tris HCl, pH 8.0) and 0.2% β-mercaptoethanol. Samples were vortexed and incubated at 65 °C for 30 min, then the CTAB-plant extract mixture was transferred into a microfuge tube. After adding 300 µL of chloroform-isoamyl alcohol (24/1), the tubes were mixed by inversion and centrifuged at 14,000 rpm for 10 min. The supernatant was recovered into a clean microfuge tube and 7.5 M ammonium acetate (50 μL) followed by 1000 μL of ice cold 100% of ethanol were added to each tube. The tubes were mixed by inversion and then centrifuged at 10,000 rpm for 10 min. The pellet was rinsed twice with 1000 µL of ice cold 70% ethanol, resuspended in 50 µL of sterile distilled water and stored at 4 °C until analysis. The DNA concentration and purity were checked by a Nanodrop 2000 spectrophotometer (Thermo Scientific™, Waltham, MA, USA).
The RNA was extracted using the RNeasy® Plant Mini Kit (Qiagen, Venlo, The Netherlands) according to the manufacturer’s instructions. RNA degradation and contamination were monitored on 1% agarose gels. RNA purity and concentration were checked using the NanoDrop spectrophotometer (ThermoFisher Scientific, Waltham, MA, USA). Before sequencing, sample RNA integrity (RIN) was assessed using the Agilent Bioanalyzer 2100 system (Agilent Technologies, Santa Clara, CA, USA).

4.3. Real-Time Confirmation of Infected Plants

Taqman Real-time PCR was performed to reveal the presence of the pathogen within the inoculated plants using an ABI 7500 Real-Time PCR System (Applied Biosystems™, Foster City, CA, USA). The analysis was performed according to the method described in [28], using DNA extracted from both inoculated and control leaves as template. Forward primer GR70 (5′-GATCCGTACGCCTTGGGGAC-3′) and reverse primer, GL1 (5′-AGAAGC GTTTGGAGGAGAGAATG-3′), dual-labeled fluorogenic probe, PP1, (5′-FAM-CACGCAATCTTGGCGACTGTCGTT-TAMRA-3′) were used with the aim to amplify a 84-bp segment of the pathogen DNA. Each reaction contained 200 nΜ forward primer, 200 nM reverse primer, 100 nM fluorogenic probe, and 4 µL of genomic DNA in a final volume of 15-µL. Negative control contained the same mixture, with sterile water replacing the DNA template. The assay was performed on three biological replicates, each one repeated twice. The thermal cycling conditions for P. tracheiphilus DNA template amplification were 50 °C for 2 min (1 cycle), 95 °C for 30 s (1cycle), 95 °C for 10 s, 62 °C for 30 s (40 cycles). Standard curve for fungal DNA quantification was constructed using P. tracheiphilus DNA (100 µg mL−1) extracted from the Pt10 strain and serially diluted in sterile distilled water as described in [28].

4.4. Library Preparation and Sequencing

After the QC procedures, sequencing libraries were generated using NEBNext® Ultra™ RNA Library Prep Kit for Illumina® (New England Biolabs, Ipswich, MA, USA) following manufacturer’s recommendations and as reported in [69]. Briefly, mRNA was enriched using poly-T oligo-attached magnetic beads. Fragmentation was carried out using divalent cations under elevated temperature in NEBNext First Strand Synthesis Reaction Buffer (5X), followed by cDNA synthesis using random hexamers and M-MuLV Reverse Transcriptase (RNase H-). After first-strand synthesis, a custom second-strand synthesis buffer (Illumina) was added containing dNTPs, RNase H and Escherichia coli polymerase I to generate the second strand by nick-translation. After adenylation of 3′ ends of DNA fragments, NEBNext Adaptor with hairpin loop structure were ligated to prepare for hybridization. To select cDNA fragments preferentially 150~200 bp in length, the library fragments were purified with AMPure XP system (Beckman Coulter, Beverly, MA, USA). Then, 3 μL USER Enzyme by NEB was used with size-selected, adaptor-ligated cDNA at 37 °C for 15 min followed by 5 min at 95 °C before PCR. Successively, PCR was performed with Phusion High-Fidelity DNA polymerase, Universal PCR primers and Index (X) Primer. Library concentration was first quantified using a Qubit 2.0 fluorometer (Life Technologies, Carlsbad, CA, USA), and then diluted to 1 ng/µL before checking insert size on an Agilent Bioanalyzer 2100 system (Agilent Technologies, Santa Clara, CA, USA). Cluster generation and sequencing were performed by Novogene Bioinformatics Technology Co., Ltd. (Beijing, China). After cluster generation, the libraries were sequenced on Illumina HiSeq2000 platform to generate pair-end reads. Raw data (raw reads) of fastq format were firstly processed through in-house perl scripts. In this step, clean data were obtained by removing reads containing adapters, reads containing poly-N and low-quality reads. Sequences putatively belonging to pathogen in inoculated rough lemon samples were removed by filtering out the reads mapped to the fungus genome (, accessed on 18 November 2020). Then Q20, Q30, GC-content and sequence duplication level of the clean data were calculated. All the downstream analyses were based on clean data with high quality.

4.5. De novo Transcriptome Assembling and Gene Functional Annotation

De novo transcriptome assembly was accomplished using Trinity (r20140413p1 version) with min_kmer_cov:2 parameters (k = 25). Then Hierarchical Clustering was performed by Corset (v1.05 version, to remove redundancy (parameter -m 10) and the longest transcripts of each cluster were selected as Unigenes. The flow chart of the rough lemon de novo transcriptome assembly is stackable to that reported in [69]. The Citrus jambhiri transcriptome was uploaded to NCBI (, accessed on 29 December 2020) accession number GSE164096.
Gene function was annotated based on the following databases: National Center for Biotechnology Information (NCBI) non-redundant protein sequences (Nr), NCBI non-redundant nucleotide sequences (Nt), Protein family (Pfam), Clusters of Orthologous Groups of proteins (KOG/COG), Swiss-Prot, Kyoto Encyclopedia of Genes and Genomes (KEGG), Ortholog database (KO) and Gene Ontology (GO). A pathway analysis was conducted using MapMan3.6.0RC1 (, accessed on 19 October 2020). All the unigenes were annotated and mapped using Mercator4 V2.0, an on-line tool of MapMan (, accessed on 5 November 2020) which accurately assigns hierarchal ontology providing visual representation of genes in different plant processes. The significant DEGs (padj < 0.05), with the corresponding log2FoldChange values, were used as dataset to align with the Mercator map.

4.6. Quantification of Gene Expression and Differential Expression Analysis

Gene expression levels were estimated by RSEM (v1.2.26 version, with bowtie2 mismatch 0 parameters to map the Corset filtered transcriptome. For each sample, clean data were mapped back onto the assembled transcriptome and readcount for each gene was then obtained. Differential expression analysis between control (CK) and infected (Pt) samples was performed using the DESeq R package (1.12.0 version, padj < 0.05, The resulting p-values were adjusted using the Benjamini and Hochberg’s approach for controlling the false discovery rate [70]. Genes with an adjusted p-value < 0.05 found by DESeq were assigned as differentially expressed. A log2FoldChange threshold of 0.58 (1.5 fold change) was adopted. The GO enrichment analysis of the differentially expressed genes (DEGs) was implemented by the GOseq R packages (1.10.0, 2.10.0 version, corrected p value < 0.05 based) Wallenius non-central hyper-geometric distribution. Furthermore, all of the unigenes were submitted to the KEGG pathway database for the systematic analysis of gene functions. KOBAS software (v2.0.12 version, corrected p-Value < 0.05, was used to test the statistical enrichment of differential expression genes in KEGG pathways.

4.7. Real-Time Validation of Selected DEG Candidates Using qRT-PCR

Total RNA (2.5 μg) extracted from sample leaves as described above, was reversed transcribed using the SuperScript™ Vilo™ cDNA synthesis kit by ThermoFisher Scientific (Warrington WA1 4SR, UK), according to the manufacturer’s instructions. Real-time qRT-PCR was performed for a total of 10 DEGs with PowerUp SYBR Green Master mix by ThermoFisher Scientific and carried out in the Bio-Rad iQ5 Thermal Cycler detection system. All the genes were normalized with Citrus clementina actin (LOC18039075). All reactions were performed in triplicate and fold change measurements calculated with the 2−ΔΔCT method. The selected DEGs and their corresponding primer sequences are provided in Table S2.

5. Conclusions

The global transcriptome analysis of Pt vs. control plants led to the identification of genes and metabolic pathways involved in rough lemon response to P. tracheiphilus. As far as we know, this is the first manuscript that describes at molecular level the “mal secco” disease induced by P. tracheiphilus in citrus and makes C. jambhiri genetic resources available for the scientific community interested in citrus breeding.
The results highlight most of the events occurring during this compatible host–pathogen interaction, which now it is known relies on the activated SA signal cascade that, in turn, induces systemic acquired resistance (SAR). As the main scope of the work was the identification of putative target genes for genome editing experiments, a wide range of genes belonging to structural and transcription factors have been identified and they could be taken in consideration for targeted mutagenesis, RPM1 and BIR2 being only two of them. This strategy fits the increased demand for economical and environmentally friendly approaches to cope with plant diseases, while avoiding the use of agrochemicals.

Supplementary Materials

The following are available online at, Figure S1: Effect of P tracheiphilus on C. jambhiri phenotype, Figure S2: Overview of the number of transcripts and unigenes in different length intervals, Figure S3: Validation of DEGs in Pt vs. CK comparison by Real Time qRT-PCR, Figure S4: KOG function classification, Figure S5: Scheme of the metabolic pathways involved in the “Plant hormone” category, Figure S6: Scheme and components of the photosynthetic electron flow including CF0F1-ATP synthase, Table S1: Real-time detection of P. tracheiphilus in inoculated plants, Table S2: Primers used to validate the RNAseq experiment by real time PCR.

Author Contributions

R.R., M.C., A.R.L.P., S.D.S., A.S., and E.N. conceived and designed the experiments. R.R., A.S., and C.A. conducted the experiments. A.R.L.P., A.S., and R.R. elaborated RNAseq data. R.R., A.S., S.D.S., M.C., C.A., and E.N. elaborated phenotypic data of diseased plants. A.R.L.P., A.S., and R.R. wrote the manuscript. F.G.G.J. edited and reviewed the manuscript. All authors have read and agreed to the published version of the manuscript.


This research work was equally supported by the project “Sviluppo di induttori di resistenza a patogeni vascolari degli agrumi” (S.I.R.P.A.) Misura 1.1.5 del PO FESR Sicilia 2014/2020 and by FREECLIMB-Fruit Crops Resilience to Climate Change in the Mediterranean Basin, a project funded in framework of the Partnership for Research and Innovation in the Mediterranean Area (PRIMA).

Data Availability Statement

The data presented in this study are openly available in NCBI (, reference number GSE164096.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.


  1. Talon, M.; Gmitter, F.G. Citrus genomics. Int. J. Plant Genom. 2008, 2008, 1–17. [Google Scholar] [CrossRef] [PubMed]
  2. Ruggieri, G. L’attuale problema del “mal secco” degli Agrumi nelle sue immediate finalità pratiche. Annali Della Sperimentazione Agraria 1949, 3, 17–32. [Google Scholar]
  3. EPPO Global Database. Available online: (accessed on 12 October 2020).
  4. Russo, R.; Caruso, M.; Arlotta, C.; Lo Piero, A.R.; Nicolosi, E.; Di Silvestro, S. Identification of Field Tolerance and Resistance to Mal Secco Disease in a Citrus Germplasm Collection in Sicily. Agronomy 2020, 10, 1806. [Google Scholar] [CrossRef]
  5. Nigro, F.; Ippolito, A.; Salerno, M.G. Mal secco disease of citrus: A journey through a century of research. J. Plant Pathol. 2011, 93, 523–560. [Google Scholar]
  6. EFSA Panel Plant Health. Scientific Opinion on the risks to plant health posed by Phytophthora fragariae Hickman var. fragariae in the EU territory, with the identification and evaluation of risk reduction options. EFSA J. 2014, 12, 3539. [Google Scholar]
  7. Wu, G.A.; Terol, J.; Ibanez, V.; López-García, A.; Pérez-Román, E.; Borredá, C.; Domingo, C.; Tadeo, F.R.; Carbonell-Caballero, J.; Alonso, R.; et al. Genomics of the origin and evolution of Citrus. Nature 2018, 554, 311–316. [Google Scholar] [CrossRef] [Green Version]
  8. Bowman, K.; Joubert, J. Citrus Rootstocks. In The Genus Citrus; Talon, M., Caruso, M., Gmitter, F.G., Eds.; Elsevier: Amsterdam, The Netherlands, 2020; pp. 105–127. [Google Scholar]
  9. Savastano, L. La cura del “mal secco” negli alberi fruttiferi. Bollettino della Stazione Sperimentale di Agrumicoltura e Frutticoltura 1925, 51, 15. [Google Scholar]
  10. Catara, A.; Catara, V. Il “mal secco” degli agrumi, da un secolo in Sicilia. In Memorie e Rendiconti; USPI Associato all’Unione Stampa Periodica Italiana: Giovanni Battista RM, Italy, 2019; Volume 3, pp. 33–58. [Google Scholar]
  11. Migheli, Q.; Cacciola, S.O.; Balmas, V.; Pane, A.; Ezra, D.; di San Lio, G.M. Mal secco disease caused by Phoma tracheiphila: A potential threat to lemon production worldwide. Plant Dis. 2009, 93, 852–867. [Google Scholar] [CrossRef] [Green Version]
  12. Batuman, O.; Ritenour, M.; Vicent, A.; Li, H.; Hyun, J.-W.; Catara, V.; Ma, H.; Cano, L.M. Diseases caused by fungi and oomycetes. In The Genus Citrus; Talon, M., Caruso, M., Gmitter, F.G., Jr., Eds.; Elsevier: Amsterdam, The Netherlands, 2020; pp. 349–369. [Google Scholar]
  13. Ruggieri, G. “Mal secco” degli agrumi e attuali mezzi di lotta. Rivista Agrumicoltura 1956, 1, 201–206. [Google Scholar]
  14. Nachmias, A.; Barash, I.; Solel, Z.; Strobel, G.A. Translocation of mal secco toxin in lemons and its effect on electrolyte leakage, transpiration, and citrus callus growth. Phytoparasitica 1977, 5, 94–103. [Google Scholar] [CrossRef]
  15. Fogliano, V.; Graniti, A.; Marchese, A.; Ritieni, A.; Randazzo, G.; Visconti, A. Purification of a phytotoxic glycoprotein from the ‘malseccin’ complex produced in culture by Phoma tracheiphila. In Proceedings of the 9th Congress of the Mediterranean Phytopathological Union, Kusadasi-Aydin, Turkey, 18–24 September 1994; Kumari, S., Ed.; WJAS/AEJAES: Faisalabad, Pakistan, 1994; pp. 143–145. [Google Scholar]
  16. Fogliano, V.; Marchese, A.; Scaloni, A.; Ritieni, A.; Visconti, A.; Randazzo, G.; Graniti, A. Characterization of a 60 KDa phytotoxic glycoprotein produced by Phoma tracheiphila and its relation to malseccin. PMPP 1998, 53, 149–161. [Google Scholar]
  17. Fedoroff, N. Redox regulatory mechanisms in cellular stress responses. Ann. Bot. 2006, 98, 289–300. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Reverberi, M.; Betti, C.; Fabbri, A.A.; Zjalic, S.; Spadoni, S.; Mattei, B.; Fanelli, C. A role for oxidative stress in the Citrus limon/Phoma tracheiphila interaction. Plant Pathol. 2008, 57, 92–102. [Google Scholar] [CrossRef]
  19. Gentile, A.; La Malfa, S. New breeding techniques for sustainable agriculture. In Innov. Sustain. Agric., 1st ed.; Farooq, M., Pisante, M., Eds.; Springer: Cham, Switzerland, 2019. [Google Scholar]
  20. Salonia, F.; Ciacciulli, A.; Poles, L.; Pappalardo, H.D.; La Malfa, S.; Licciardello, C. New plant breeding techniques in citrus for the improvement of important agronomic traits. A Review. Front. Plant Sci. 2020, 11, 1234. [Google Scholar] [CrossRef] [PubMed]
  21. Poles, L.; Licciardello, C.; Distefano, G.; Nicolosi, E.; Gentile, A.; La Malfa, S.L. Recent advances of in vitro culture for the application of new breeding techniques in citrus. Plants 2020, 9, 938. [Google Scholar] [CrossRef]
  22. Fan, J.; Chen, C.; Yu, Q.; Brlansky, R.H.; Lia, Z.G.; Gmitter, F.G., Jr. Comparative iTRAQ proteome and transcriptome analyses of sweet orange infected by “Candidatus Liberibacter asiaticus”. Physiol. Plant 2011, 143, 235–245. [Google Scholar]
  23. Fan, J.; Chen, C.; Yu, Q.; Khalaf, A.; Achor, D.S.; Brlansky, R.H.; Moore, G.A.; Li, Z.G.; Frederick, G.; Gmitter, F.G., Jr. Comparative transcriptional and anatomical analyses of tolerant rough lemon and susceptible sweet orange in response to ‘Candidatus Liberibacter asiaticus’ infection. MPMI 2012, 25, 1396–1407. [Google Scholar] [CrossRef] [Green Version]
  24. Hu, Y.; Zhong, X.; Liu, X.; Lou, B.; Zhou, C.; Wang, X. Comparative transcriptome analysis unveils the tolerance mechanisms of Citrus hystrix in response to ‘Candidatus Liberibacter Asiaticus’ infection. PLoS ONE 2017, 12, e0189229. [Google Scholar] [CrossRef] [Green Version]
  25. Yu, Q.; Chen, C.; Du, D.; Huang, M.; Yao, J.; Yu, F.; Brlansky, R.H.; Gmitter, F.G., Jr. Reprogramming of a defense signaling pathway in rough lemon and sweet orange is a critical element of the early response to ‘Candidatus Liberibacter asiaticus’. Hortic. Res. 2017, 4, 1–15. [Google Scholar] [CrossRef] [Green Version]
  26. Naveed, Z.A.; Huguet-Tapia, J.C.; Ali, G.S. Transcriptome profile of Carrizo citrange roots in response to Phytophthora parasitica infection. J. Plant Interact. 2019, 14, 187–204. [Google Scholar] [CrossRef]
  27. Arce-Leal, A.P.; Bautista, R.; Rodríguez-Negrete, E.A.; Manzanilla-Ramírez, M.A.; Velázquez-Monreal, J.J.; Santos-Cervantes, M.E.; Méndez-Lozano, J.; Beuzón, C.R.; Bejarano, E.R.; Castillo, A.G.; et al. Gene expression profile of Mexican lime (Citrus aurantifolia) trees in response to Huanglongbing disease caused by Candidatus Liberibacter asiaticus. Microorganisms 2020, 8, 528. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Licciardello, G.; Grasso, F.M.; Bella, P.; Cirvilleri, G.; Grimaldi, V.; Catara, V. Identification and detection of Phoma tracheiphila, causal agent of citrus mal secco disease, by real-time polymerase chain reaction. Plant Dis. 2006, 90, 1523–1530. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Woodward, A.W.; Bartel, B. Auxin: Regulation, Action and Interaction. Ann. Bot. 2005, 95, 707–735. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  30. Dempsey, D.A.; Vlot, A.C.; Wildermuth, M.C.; Klessig, D.F. Salicylic acid biosynthesis and metabolism. Arab. Book 2011, 9, e0156. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Libault, M.; Wan, J.; Czechowski, T.; Udvardi, M.; Stacey, G. Identification of 118 Arabidopsis transcription factor and 30 ubiquitin-ligase genes responding to chitin, a plant-defense elicitor. MPMI 2007, 20, 900–911. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Ryu, H.S.; Han, M.; Lee, S.K.; Cho, J.I.; Ryoo, N.; Heu, S.; Lee, Y.H.; Bhoo, S.H.; Wang, G.L.; Hahn, T.R.; et al. A comprehensive expression analysis of the WRKY gene superfamily in rice plants during defense response. Plant Cell Rep. 2006, 25, 836–847. [Google Scholar] [CrossRef]
  33. Gao, Q.M.; Venugopal, S.; Navarre, D.; Kachroo, A. Low oleic acid-derived repression of jasmonic acid-inducible defense responses requires the WRKY50 and WRKY51 proteins. Plant Physiol. 2011, 155, 464–476. [Google Scholar] [CrossRef] [Green Version]
  34. Lai, Z.; Vinod, K.M.; Zheng, Z.; Fan, B.; Chen, Z. Roles of Arabidopsis WRKY3 and WRKY4 transcription factors in plant responses to pathogens. BMC Plant Biol. 2008, 8, 68. [Google Scholar] [CrossRef] [Green Version]
  35. Li, J.; Brader, G.; Palva, E.T. The WRKY70 transcription factor: A node of convergence for jasmonate-mediated and salicylate-mediated signals in plant defense. Plant Cell 2004, 16, 319–331. [Google Scholar] [CrossRef] [Green Version]
  36. Halter, T.; Imkampe, J.; Mazzotta, S.; Wierzba, M.; Postel, S.; Buecherl, C.; Kiefer, C.; Stahl, M.; Chinchilla, D.; Wang, X.; et al. The leucine-rich repeat receptor kinase BIR2 is a negative regulator of BAK1 in plant immunity. Curr. Biol. 2014, 24, 134–143. [Google Scholar] [CrossRef] [Green Version]
  37. Jones, J.; Dangl, J. The plant immune system. Nature 2006, 444, 323–329. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  38. Wan, J.; Zhang, X.-C.; Neece, D.; Ramonell, K.M.; Clough, S.; Kim, S.-Y.; Stacey, M.G.; Stacey, G. A LysM receptor-like kinase plays a critical role in chitin signaling and fungal resistance in Arabidopsis. Plant Cell 2008, 20, 471–481. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Daudi, A.; Cheng, Z.; O’Brien, J.A.; Mammarella, N.; Khan, S.; Ausubel, F.M.; Bolwella, G.P. The apoplastic oxidative burst peroxidase in Arabidopsis is a major component of pattern-triggered immunity. Plant Cell 2012, 24, 275–287. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  40. Barna, B.; Fodor, J.; Harrach, B.D.; Pogány, M.; Király, Z. The Janus face of reactive oxygen species in resistance and susceptibility of plants to necrotrophic and biotrophic pathogens. Plant Physiol. Biochem. 2012, 59, 37–43. [Google Scholar] [CrossRef] [PubMed]
  41. He, M.; Ding, N.-Z. Plant unsaturated fatty acids: Multiple roles in stress response. Front Plant Sci. 2020, 11, 562785. [Google Scholar] [CrossRef]
  42. Puglisi, I.; Lo Cicero, L.; Lo Piero, A.R. The glutathione S-transferase gene superfamily: An in silico approach to study the post translational regulation. Biodegradation 2013, 24, 471–485. [Google Scholar] [CrossRef]
  43. Gullner, G.; Komives, T.; Király, L.; Schröder, P. Glutathione S-transferase enzymes in plant-pathogen interactions. Front. Plant Sci. 2018, 9, 1836. [Google Scholar] [CrossRef] [Green Version]
  44. Jeong, J.; Cohu, C.; Kerkeb, L.; Pilon, M.; Connolly, E.L.; Guerinot, M.L. Chloroplast Fe(III) chelate reductase activity is essential for seedling viability under iron limiting conditions. Proc. Natl. Acad. Sci. USA 2008, 105, 10619–10624. [Google Scholar] [CrossRef] [Green Version]
  45. Nafisi, M.; Fimognari, L.; Sakuragi, Y. Interplays between the cell wall and phytohormones in interaction between plants and necrotrophic pathogens. Phytochemistry 2015, 112, 63–71. [Google Scholar] [CrossRef] [Green Version]
  46. Shine, M.B.; Xiao, X.; Kachroo, P.; Kachroo, A. Signaling mechanisms underlying systemic acquired resistance to microbial pathogens. Plant Sci. 2019, 279, 81–86. [Google Scholar] [CrossRef]
  47. Noman, A.; Aqeel, M.; Qari, S.H.; Al Surhanee, A.A.; Yasin, G.; Alamri, S.; Hashem, M.; Al-Saadi, A.M. Plant hypersensitive response vs pathogen ingression: Death of few gives life to others. Microb. Pathog. 2020, 145, 104224. [Google Scholar] [CrossRef] [PubMed]
  48. Fu, Z.Q.; Dong, X. Systemic acquired resistance: Turning local infection into global defense. Annu. Rev. Plant Biol. 2013, 64, 839–863. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Llorente, F.; Muskett, P.; Sánchez-Vallet, A.; López, G.; Ramos, B.; Sánchez-Rodríguez, C.; Jordá, L.; Parker, J.; Molina, A. Repression of the auxin response pathway increases Arabidopsis susceptibility to necrotrophic fungi. Mol. Plant 2008, 1, 496–509. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Gentile, A.; Deng, Z.; La Malfa, S.; Distefano, G.; Domina, F.; Vitale, A.; Polizzi, G.; Lorito, M.; Tribulato, E. Enhanced resistance to Phoma tracheiphila and Botrytis cinerea in transgenic lemon plants expressing a Trichoderma harzianum chitinase gene. Plant Breed. 2007, 126, 146–151. [Google Scholar] [CrossRef]
  51. Eulgem, T.; Rushton, P.J.; Robatzek, S.; Somssich, I.E. The WRKY superfamily of plant transcription factors. Plant Sci. 2000, 5, 199–206. [Google Scholar] [CrossRef]
  52. Ülker, B.; Somssich, I.E. WRKY transcription factors: From DNA binding towards biological function. Curr. Opin. Plant Biol. 2004, 7, 491–498. [Google Scholar] [CrossRef] [Green Version]
  53. Zhang, Y.; Wang, L. The WRKY transcription factor superfamily: Its origin in eukaryotes and expansion in plants. BMC Evol. Biol. 2005, 5, 1–12. [Google Scholar] [CrossRef] [Green Version]
  54. Du, L.; Chen, Z. Identification of genes encoding receptorlike protein kinases as possible targets of pathogen- and salicylic acid-induced WRKY DNA-binding proteins in Arabidopsis. Plant J. 2000, 24, 837–847. [Google Scholar] [CrossRef]
  55. Eulgem, T.; Rushton, P.J.; Schmelzer, E.; Hahlbrock, K.; Somssich, I.E. Early nuclear events in plant defence signalling: Rapid gene activation by WRKY transcription factors. EMBO 1999, 18, 4689–4699. [Google Scholar] [CrossRef] [Green Version]
  56. Turck, F.; Zhou, A.; Somssich, I.E. Stimulus-dependent, promoterspecific binding of transcription factor WRKY1 to its native promoter and the defense-related gene PcPR1-1 in Parsley. Plant Cell 2004, 16, 2573–2585. [Google Scholar] [CrossRef] [Green Version]
  57. Yu, D.; Chen, C.; Chen, Z. Evidence for an important role of WRKY DNA binding proteins in the regulation of NPR1 gene expression. Plant Cell 2001, 13, 1527–1540. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Dong, J.; Chen, C.; Chen, Z. Expression profiles of the Arabidopsis WRKY gene superfamily during plant defense response. Plant Mol. Biol. 2003, 51, 21–37. [Google Scholar] [CrossRef] [PubMed]
  59. Rouet, M.A.; Mathieu, Y.; Barbier-Brygoo, H.; Laurière, C. Characterization of active oxygen-producing proteins in response to hypo-osmolarity in tobacco and Arabidopsis cell suspensions: Identification of a cell wall peroxidase. J. Exp. Bot. 2006, 57, 1323–1332. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Lherminier, J.; Elmayan, T.; Fromentin, J.; Elaraqui, K.T.; Vesa, S.; Morel, J.; Verrier, J.L.; Cailleteau, B.; Blein, J.P.; Simon-Plas, F. NADPH oxidase-mediated reactive oxygen species production: Subcellular localization and reassessment of its role in plant defense. Mol. Plant Microbe Interact. 2009, 22, 868–881. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Chen, Q.; Yang, G. Signal function studies of ROS, especially RBOH-dependent ROS, in plant growth, development and environmental stress. J. Plant Growth Regul. 2020, 39, 157–171. [Google Scholar] [CrossRef]
  62. Liao, W.; Ji, L.; Wang, J.; Chen, Z.; Ye, M.; Ma, H.; An, X. Identification of glutathione S-transferase genes responding to pathogen infestation in Populus tomentosa. Funct. Integr. Genom. 2014, 14, 517–529. [Google Scholar] [CrossRef]
  63. Berger, S.; Papadopoulos, M.; Schreiber, U.; Kaiser, W.; Roitsch, T. Complex regulation of gene expression, photosynthesis and sugar levels by pathogen infection in tomato. Physiol. Plant 2004, 122, 419–428. [Google Scholar] [CrossRef]
  64. Braun, H.P. The Oxidative Phosphorylation system of the mitochondria in plants. Mitochondrion 2020, 53, 66–75. [Google Scholar] [CrossRef]
  65. Talbot, N.J. Living the sweet life: How does a plant pathogenic fungus acquire sugar from plants? PLoS Biol. 2010, 8, e1000308. [Google Scholar] [CrossRef]
  66. Barrett, H.C.; Rhodes, A.M. A numerical taxonomic study of affinity relationships in cultivated citrus and its close relatives. Syst. Bot. 1976, 1, 105–136. [Google Scholar] [CrossRef]
  67. Salerno, M.; Catara, A. Ricerche sul “mal secco” degli Agrumi (Deutero-phoma tracheiphila Petri). IV. Comportamento parassitario del fungo in ospiti diversi dagli Agrumi. Tecnica Agricola 1967, 19, 290–297. [Google Scholar]
  68. Springer, N.M. Isolation of plant DNA for PCR and genotyping using organic extraction and CTAB. Cold Spring Harb. Protoc. 2010, 5, pdb–prot5515. [Google Scholar] [CrossRef] [PubMed]
  69. Sicilia, A.; Testa, G.; Santoro, D.F.; Cosentino, S.L.; Lo Piero, A.R. RNASeq analysis of giant cane reveals the leaf transcriptome dynamics under long-term salt stress. BMC Plant Biol. 2019, 19, 355. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  70. Benjamini, Y.; Hochberg, Y. Controlling the false discovery rate: A practical and powerful approach to multiple testing. J. R. Stat. Soc. Ser. B-Methodol. 1995, 57, 289–300. [Google Scholar] [CrossRef]

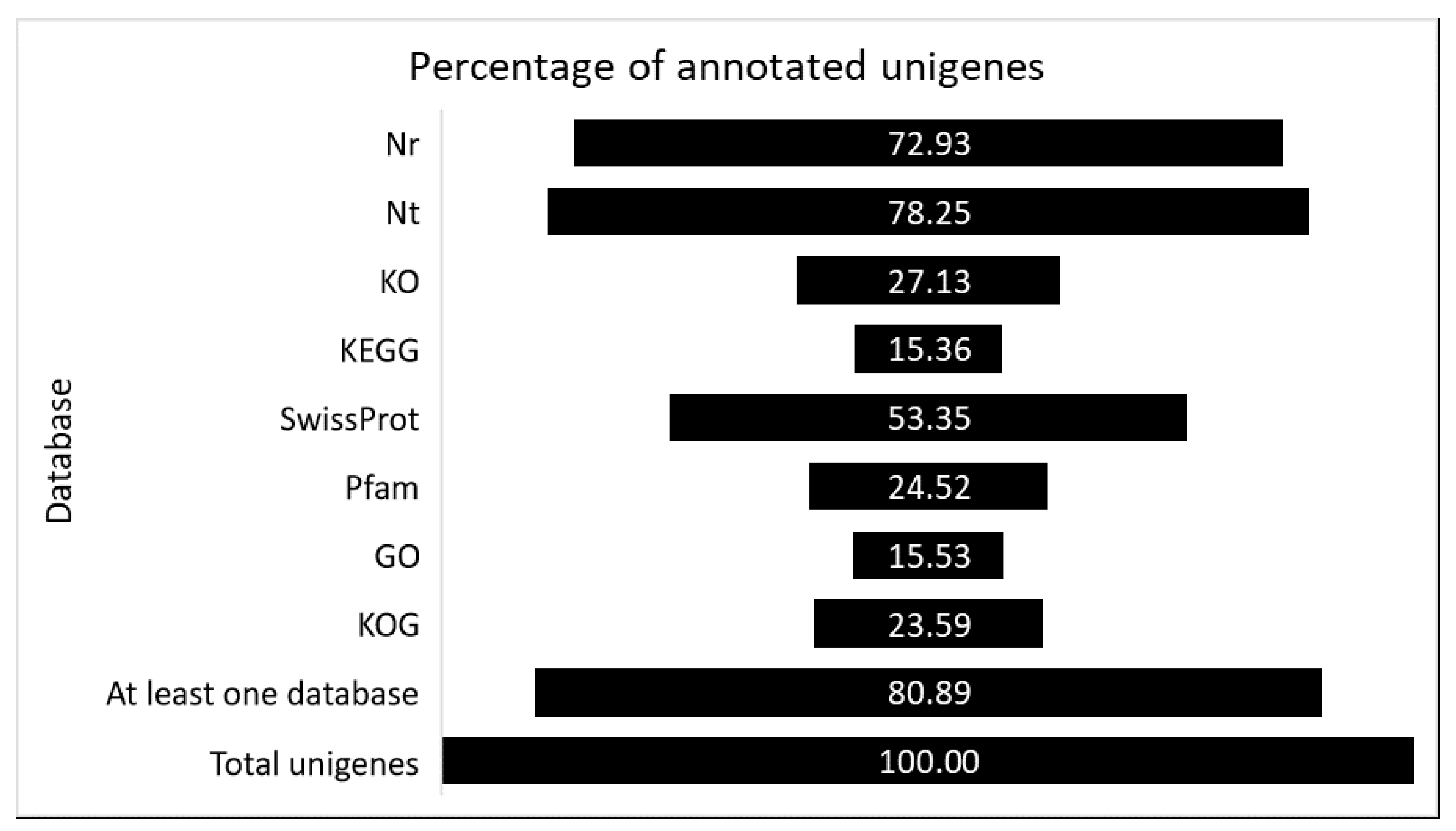

Figure 1. The percentage of successful annotated genes in several databases.
Figure 1. The percentage of successful annotated genes in several databases.
Ijms 22 00882 g001
Figure 2. Volcano plot showing the DEGs of Pt vs. CK comparison. The up-regulated genes with statistically significance are represented by blue dots, the green dots represent the down-regulated genes and the red dots are DEGs with -log10padj < 1.3, adopting log2FoldChange threshold of 0.58 (1.5 fold change). The X-axis is the gene expression change, and the Y-axis is the p value adjusted after normalization.
Figure 2. Volcano plot showing the DEGs of Pt vs. CK comparison. The up-regulated genes with statistically significance are represented by blue dots, the green dots represent the down-regulated genes and the red dots are DEGs with -log10padj < 1.3, adopting log2FoldChange threshold of 0.58 (1.5 fold change). The X-axis is the gene expression change, and the Y-axis is the p value adjusted after normalization.
Ijms 22 00882 g002
Figure 3. Gene Ontology (GO) enrichment analysis for the DEGs in Citrus jambhiri (Pt vs. CK comparison). The X-axis indicates the numbers related to the total number of GO terms, and the Y-axis indicates the subcategories. BP, biological processes; MF, molecular functions.
Figure 3. Gene Ontology (GO) enrichment analysis for the DEGs in Citrus jambhiri (Pt vs. CK comparison). The X-axis indicates the numbers related to the total number of GO terms, and the Y-axis indicates the subcategories. BP, biological processes; MF, molecular functions.
Ijms 22 00882 g003

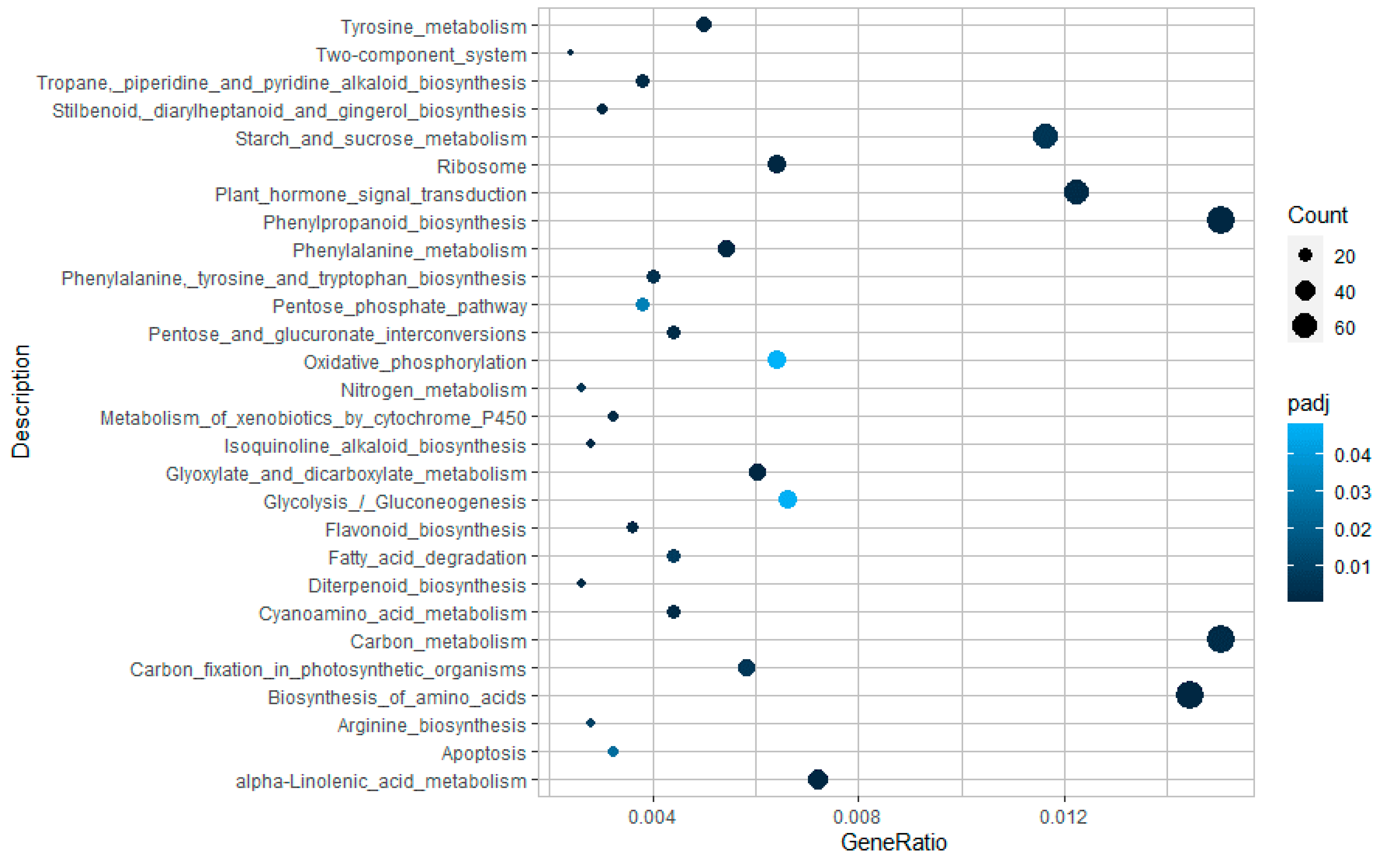

Figure 4. Distribution of Kyoto Encyclopedia of Genes and Genomes (KEGG) pathways for differential expressed genes (DEGs) in the Pt vs. CK sample set.
Figure 4. Distribution of Kyoto Encyclopedia of Genes and Genomes (KEGG) pathways for differential expressed genes (DEGs) in the Pt vs. CK sample set.
Ijms 22 00882 g004
Figure 5. Distribution of rough lemon transcription factors responsive to Plenodomus tracheiphilus infection. Each bar represents the number of DEGs belonging to a transcription factor family.
Figure 5. Distribution of rough lemon transcription factors responsive to Plenodomus tracheiphilus infection. Each bar represents the number of DEGs belonging to a transcription factor family.
Ijms 22 00882 g005

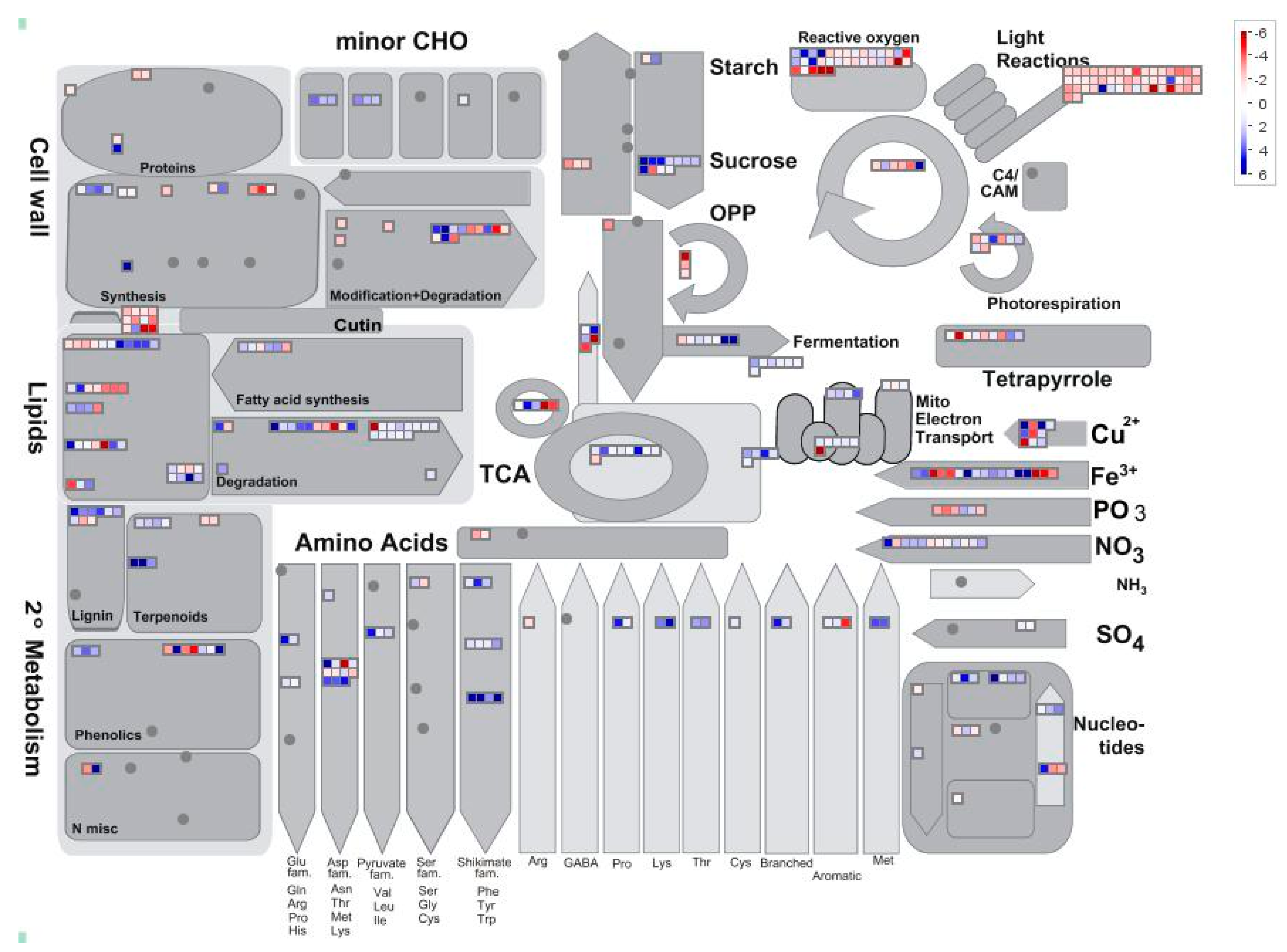

Figure 6. MapMan analysis of differentially expressed genes in C. jambhiri affected by P. tracheiphilus. Red dots represent up-regulated genes, blue dots represent down-regulated genes in the Pt vs. CK comparison.
Figure 6. MapMan analysis of differentially expressed genes in C. jambhiri affected by P. tracheiphilus. Red dots represent up-regulated genes, blue dots represent down-regulated genes in the Pt vs. CK comparison.
Ijms 22 00882 g006
Table 1. Summary statistics of the RNA quality and sequencing results.
Table 1. Summary statistics of the RNA quality and sequencing results.
Average RIN8.2
Clean reads228 million
N° of transcripts115,100
N° of Unigenes77,631
Average of read mapped rate83.40%
Transcripts N50 (bp)2372
Unigenes N50 (bp)2060
Q30 (%)92.82
GC content (%)44.22
Table 2. List of “Plant hormone” related DEGs identified in Pt vs. CK comparison.
Table 2. List of “Plant hormone” related DEGs identified in Pt vs. CK comparison.
ClusterSymbolAnnotationTAIR CodeLog2Fold ChangeIdentity Scoree-Value
5112,0YUC6Flavin-binding monooxygenase family proteinAT5G25620−4.2269%4 × 1069
15782,1AUX1Transmembrane amino acid transporter family proteinAT2G38120−5.1874%0.0
14701,68946TIR1F-box/RNI-like superfamily proteinAT3G62980−2.6266%2 × 1026
10078,0IAA18Indole-3-acetic acid inducible 18AT1G51950−3.1879%7 × 109
16281,1IAA4AUX/IAA transcriptional regulator family proteinAT5G43700−2.9175%3 × 1063
16862,0IAA32Indole-3-acetic acid inducible 32AT2G01200−3.3970%3 × 1020
14701,19495IAA7Indole-3-acetic acid 7AT3G23050−5.4283%5 × 1071
16281,0IAA3AUX/IAA transcriptional regulator family proteinAT1G04240−3.6181%0.001
14701,30415ARF3Auxin-responsive factor AUX/IAA-relatedAT2G33860+4.3073%2 × 10168
14701,26809GH3.3Auxin-responsive GH3 family proteinAT2G23170+3.4272%5 × 10-123
17976,0 SAUR-like auxin-responsive protein familyAT2G36210+3.4182%3 × 104
20624,0ACS21-amino-cyclopropane-1-carboxylate synthase 2AT1G01480+7.9468%2 × 10131
14701,32226ACO1ACC oxidase 1AT2G19590+6.3072%9 × 10133
17499,2ACS61-aminocyclopropane-1-carboxylic acid (acc) synthase 6AT4G11280+5.0969%4 × 10139
14701,57239ETR2Signal transduction histidine kinase, hybrid-type, ethylene sensorAT3G23150+3.4666%2 × 10170
14701,58523EBF1EIN3-binding F box protein 1AT2G25490+8.8666%2 × 1087
14701,46599EIN3Ethylene insensitive 3 family proteinAT3G20770+7.7276%0.0
6645,0ERF1Ethylene response factor 1AT3G23240+3.3272%6 × 1058
14701,24495ERF2 Ethylene responsive element binding factor 2AT5G47220+2.4976%3 × 1046
14701,21798ERF13Ethylene-responsive element binding factor 13AT2G44840+2.5378%1 × 1037
14701,35256ERF4Ethylene responsive element binding factor 4AT3G15210+2.4278%2 × 1036
14701,7830ERF110Ethylene response factor 110AT5G50080+4.2377%6 × 1028
Salicylic acid
14701,45136PAL1Phenylalanine ammonia lyase 1AT2G37040+3.8274%0.0
14701,678974CL4-coumarate–CoA ligase-like 5AT1G51680+3.8972%1 × 1030
Table 3. List of defense and pathogenesis related DEGs identified in Pt vs. CK comparison.
Table 3. List of defense and pathogenesis related DEGs identified in Pt vs. CK comparison.
ClusterSymbolAnnotationTAIR CodeLog2Fold ChangeIdentity Scoree-Value
Response to pathogen
14701,26919CPK33calcium-dependent protein kinase 33AT1G50700+3.1367%4 × 1022
14701,66288CRCK3calmodulin-binding receptor-like cytoplasmic kinase 3AT2G11520+2.3371%5 × 1059
17682,2CML11calmodulin-like 11AT3G22930+3.3376%2 × 1077
14701,33952MPK3mitogen-activated protein kinase 3AT3G45640+5.4276%2 × 1028
14701,16139MAPKKK15mitogen-activated protein kinase kinase kinase 15AT5G55090+2.4967%1 × 1058
20990,0MAPKKK17mitogen-activated protein kinase kinase kinase 17AT2G32510+3.4664%1 × 1033
14701,65619CERK1chitin elicitor receptor kinase 1AT3G21630+5.5675%3 × 1018
8490,0PR1pathogenesis-related gene 1AT2G14610+4.0968%8 × 1031
14701,26429PRB1basic pathogenesis-related protein 1AT2G14580+8.9668%2 × 1032
16905,0NPR1regulation of innate immune response +5.40
13144,0NPR1Citrus sinensis protein NIM1-INTERACTING 3 (LOC107177379) +4.21100%0.0
18290,0CF-9Citrus clementina receptor-like protein 9DC3 (LOC18042467) +5.7597%3 × 10121
6996,2BIR2Inactive LRR receptor-like serine/threonine-protein kinase AT3G47570+5.2298%0.0
14701,81960CES101lectin protein kinase family proteinAT3G16030+5.4977%7 × 1011
14701,15619IOS1Leucine-rich repeat transmembrane protein kinase proteinAT2G19230+5.1568%2 × 1016
14701,38537EIX2Citrus sinensis receptor-like protein EIX2 (LOC102609951) +4.7980%0.0
14701,79574LECRK3Citrus clementina G-type lectin S-receptor-like serine/threonine-protein kinase (LOC18049964) +4.2099%0.0
14701,84653RGS1 G-protein coupled receptors; GTPase activatorsAT3G26090+4.7670%4 × 1081
14701,13865TGA2transcription factor TGA2.3 isoform X1AT5G06950+3.4470%5 × 10102
14701,40930BAD1Ankyrin repeat family protein BAD1AT1G14500+3.1875%2 × 107
19125,1RIN4RPM1 interacting protein 4AT3G25070−4.2269%2 × 1014
14701,27598RBOHF respiratory burst oxidase protein FAT1G64060+2.4175%0.0
14701,78394RBOHBrespiratory burst oxidase homolog BAT1G09090+6.8972%4 × 10154
14701,77930RBOHCNADPH/respiratory burst oxidase protein DAT5G51060+3.5172%1 × 108
14701,55000RBOHDrespiratory burst oxidase homologue DAT5G47910+2.7472%0.0
WRKY transcription factors
16089,0WRKY35WRKY DNA-binding protein 35AT2G34830+2.3983%1 × 1092
15844,0WRKY49WRKY DNA-binding protein 49AT5G43290+2.8977%1 × 108
14701,6540WRKY23WRKY DNA-binding protein 23AT2G472602.7876%5 × 1080
14701,12356WRKY4WRKY DNA-binding protein 4AT1G13960+2.3577%5 × 1024
21223,0WRKY72WRKY DNA-binding protein 72AT5G15130+5.7582%7 × 1087
14701,60912WRKY50WRKY DNA-binding protein 50AT5G26170+5.3178%3 × 1036
14701,18458WRKY40WRKY DNA-binding protein 40AT1G80840+5.2874%5 × 1027
16962,0WRKY75WRKY DNA-binding protein 75AT5G13080+5.0776%4 × 1053
14701,3630WRKY71WRKY DNA-binding protein 71AT1G29860+4.7184%2 × 1024
14701,66972WRKY18WRKY DNA-binding protein 18AT4G31800+4.3477%2 × 1017
14701,51257WRKY70WRKY DNA-binding protein 70AT3G56400+4.0372%1 × 1018
14701,2889WRKY44WRKY family transcription factor family proteinAT2G37260−2.4380%2 × 1043
Table 4. List of DEGs identified in Pt vs. CK comparison.
Table 4. List of DEGs identified in Pt vs. CK comparison.
ClusterSymbolAnnotationTAIR CodeLog2Fold ChangeIdentity Scoree-Value
Reactive oxygen—Oxidoreductase activity
14701,18284CSD1Copper/zinc superoxide dismutase 1AT1G08830+9.3169%2 × 104
14701,15083APX2Ascorbate peroxidase 2AT3G09640+5.1178%2 × 10166
14701,14158PMP22Peroxisomal membrane 22 kDaAT4G04470−4.2880%2 × 1030
14701,8276AOSAllene oxide synthaseAT5G42650+9.5967%6 × 1026
14701,29676ALDH3H1Aldehyde dehydrogenase 3H1AT1G44170+3.7068%3 × 106
Reactive oxygen—Glutathione metabolism
14701,7488GSTU19Glutathione S-transferase TAU 19AT1G78380+7.5870%1 × 1056
14701,35413GSTU10Glutathione S-transferase TAU 10AT1G74590+5.2373%1 × 1017
14701,48103GSTF9Glutathione S-transferase PHI 9AT2G30860+5.2272%1 × 1053
14701,17358GSTU7Glutathione S-transferase TAU 7AT2G29420+4.5471%1 × 1033
14701,48102GSTF9Glutathione S-transferase PHI 9AT2G30860+4.3269%3 × 105
Light reaction
14701,61813PSAE-2Photosystem I subunit E-2AT2G20260−2.5877%1 × 106
14701,4480PSBEPhotosystem II reaction center protein EATCG00580−2.3195%9 × 10110
14701,34255ATPDATP synthase delta-subunit geneAT4G09650−3.1072%2 × 1059
14701,26690PSBSChlorophyll A-B binding family proteinAT1G44575−3.5076%2 × 1024
14701,72032TAP38Thylakoid-associated phosphatase 38AT4G27800−3.4268%5 × 1042
14701,83115FKBP16FK506-binding protein 16-2AT4G39710−5.5575%2 × 1090
14701,66882NDF4NDH-dependent cyclic electron flow 1 complexAT3G16250−7.1274%1 × 1061
14701,65295NDHB.2NADH-Ubiquinone/plastoquinone (complex I) protein (chloroplastic)ATCG01250−2.4498%0.0
14701,64497PPDKPyruvate orthophosphate dikinase (chloroplastic)AT4G15530−2.7977%0.0
Nutrient homeostasis
14701,19268 2-oxoglutarate (2OG) and Fe(II)-dependent oxygenase superfamily proteinAT1G55290+7.7768%2 × 1086
14701,28407FRO4Ferric reduction oxidase 4AT5G23980+7.1466%2 × 10120
19914,4FRO2Ferric reduction oxidase 2AT1G01580+3.9469%1 × 1036
14701,21908FRO7Ferric reduction oxidase 7 (chloroplastic)AT5G49740−3.9373%1 × 1081
14701,21905FRO6Ferric reduction oxidase 6AT5G49730−4.3375%3 × 10105
14701,82040FRO8Ferric reduction oxidase 8 (mithocondrial)AT5G50160−5.6569%9 × 10106
4412,0IREG2Iron regulated 2AT5G03570−5.7879%6 × 1040
14701,68697ASP3Aspartate aminotransferase 3 (chloroplastic)AT5G11520+2.7480%0.0
14701,45698GLN1;1Glutamine synthase clone R1 (cytosolic isozyme 1)AT5G37600+2.6677%0.0
20088,0NRT2:1Nitrate transporter 2:1AT1G08090−2.4173%2 × 10111
14701,24935PHT1;4Phosphate transporter 1;4AT2G38940+2.7873%0.0
Carbohydrate metabolism
14701,30461SUS2Sucrose synthase 2AT5G49190+5.5279%7 × 1063
14701,11795SUS6Sucrose synthase 6AT1G73370+2.3371%0.0
14701,60145SPS4FSucrose-phosphate synthase 4AT4G10120−2.3382%4 × 1029
14701,28539BETAFRUCT4Acid beta-fructofuranosidaseAT1G12240+8.6670%0.0
14701,71035INV-EAlkaline/neutral invertase (chloroplastic)AT5G22510+2.3672%6 × 10162
14701,25319FBA1Fructose-bisphosphate aldolase 1AT2G21330−3.2774%8 × 1010
14701,77303HXK1Hexokinase 1AT4G29130−3.8173%2 × 1097
Cell wall modification and degradation
11195,0QRT3Pectin lyase-like superfamily proteinAT4G20050+6.0767%2 × 1038
14701,45234 Pectinacetylesterase family proteinAT4G19420+5.4569%1 × 1075
8874,0 Pectin lyase-like superfamily proteinAT1G11920+3.1072%3 × 1064
13011,0 Pectate lyase family proteinAT1G67750−3.5577%0.0
14701,76034 Pectinacetylesterase family proteinAT3G05910−3.7573%1 × 10101
14701,45231 Pectinacetylesterase family proteinAT4G19420−4.8769%1 × 1075
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Russo, R.; Sicilia, A.; Caruso, M.; Arlotta, C.; Di Silvestro, S.; Gmitter, F.G., Jr.; Nicolosi, E.; Lo Piero, A.R. De Novo Transcriptome Sequencing of Rough Lemon Leaves (Citrus jambhiri Lush.) in Response to Plenodomus tracheiphilus Infection. Int. J. Mol. Sci. 2021, 22, 882.

AMA Style

Russo R, Sicilia A, Caruso M, Arlotta C, Di Silvestro S, Gmitter FG Jr., Nicolosi E, Lo Piero AR. De Novo Transcriptome Sequencing of Rough Lemon Leaves (Citrus jambhiri Lush.) in Response to Plenodomus tracheiphilus Infection. International Journal of Molecular Sciences. 2021; 22(2):882.

Chicago/Turabian Style

Russo, Riccardo, Angelo Sicilia, Marco Caruso, Carmen Arlotta, Silvia Di Silvestro, Frederick G. Gmitter, Jr., Elisabetta Nicolosi, and Angela Roberta Lo Piero. 2021. "De Novo Transcriptome Sequencing of Rough Lemon Leaves (Citrus jambhiri Lush.) in Response to Plenodomus tracheiphilus Infection" International Journal of Molecular Sciences 22, no. 2: 882.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
