Review

Points of View on the Tools for Genome/Gene Editing

by
Chin-Kai Chuang
* and
Wei-Ming Lin
Animal Technology Research Center, Division of Animal Technology, Agricultural Technology Research Institute, No. 52, Kedong 2nd Rd., Zhunan Township, Miaoli County 35053, Taiwan
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(18), 9872; https://doi.org/10.3390/ijms22189872
Submission received: 10 August 2021 / Revised: 26 August 2021 / Accepted: 9 September 2021 / Published: 13 September 2021
(This article belongs to the Special Issue Advances in Genome Editing)
Browse Figure
Review Reports Versions Notes

Abstract

:
Theoretically, a DNA sequence-specific recognition protein that can distinguish a DNA sequence equal to or more than 16 bp could be unique to mammalian genomes. Long-sequence-specific nucleases, such as naturally occurring Homing Endonucleases and artificially engineered ZFN, TALEN, and Cas9-sgRNA, have been developed and widely applied in genome editing. In contrast to other counterparts, which recognize DNA target sites by the protein moieties themselves, Cas9 uses a single-guide RNA (sgRNA) as a template for DNA target recognition. Due to the simplicity in designing and synthesizing a sgRNA for a target site, Cas9-sgRNA has become the most current tool for genome editing. Moreover, the RNA-guided DNA recognition activity of Cas9-sgRNA is independent of both of the nuclease activities of it on the complementary strand by the HNH domain and the non-complementary strand by the RuvC domain, and HNH nuclease activity null mutant (H840A) and RuvC nuclease activity null mutant (D10A) were identified. In accompaniment with the sgRNA, Cas9, Cas9(D10A), Cas9(H840A), and Cas9(D10A, H840A) can be used to achieve double strand breakage, complementary strand breakage, non-complementary strand breakage, and no breakage on-target site, respectively. Based on such unique characteristics, many engineered enzyme activities, such as DNA methylation, histone methylation, histone acetylation, cytidine deamination, adenine deamination, and primer-directed mutation, could be introduced within or around the target site. In order to prevent off-targeting by the lasting expression of Cas9 derivatives, a lot of transient expression methods, including the direct delivery of Cas9-sgRNA riboprotein, were developed. The issue of biosafety is indispensable in in vivo applications; Cas9-sgRNA packaged into virus-like particles or extracellular vesicles have been designed and some in vivo therapeutic trials have been reported.

1. Preface

Besides the common gene knockout purpose, a major goal of genome/gene editing experiments is to precisely convert a selected DNA sequence into a new desired one in the native context of the whole genome. Before the advent of programmable nucleases, most of the cases of the site-specific changes by homology-directed repair (HDR) were executed under the single agent gene editing strategy utilizing single-stranded DNA oligonucleotide templates [1]. The efficiency of HDR could be highly improved when DNA cleavage occurred at or near the recombination site [2,3]. As a comparison of the ranges of genome sizes, those for amphibians and flowering plants are from 1E9 to 1E11 and from 1E8 to 1E11 bp, those of birds and mammals are quite narrow, being around 1E9 and 3E9 bp per ploidy, respectively [4,5]. If we want to precisely operate the genomes of livestock, such as cows, pigs, sheep, and chickens, a nuclease which is able to recognize DNA sequences of equal to or more than 16 bp, theoretically, is indispensable. (let 4n ≥ 3E9, then n ≥ 16). Natural or engineered site-specific nucleases suitable for these purposes and their applications on genome/gene editing are described in this paper.

2. Endonucleases for Genome Editing

2.1. Homing Endonuclease and Meganuclease

Since the original study in 1971 to determine the “ω” self-splicing intervening sequence, it was later recognized as a group I intron [6] located within the mitochondrial gene-encoding large ribosomal RNA of yeast, Saccharomyces cerevisiae [7]. Additionally, the inheritance of this intron was induced by a site-specific endonuclease (now termed I-SceI) encoded within the intron sequence [8]. Such nucleases which can recognize a unique DNA target site among the whole genome are now nomenclatured as Homing Endonucleases, defined as microbial DNA-cleaving enzymes that mobilize their own reading frames by generating double-strand breaks at specific genomic invasion sites. These proteins display an economy of size and yet recognize long DNA sequences (typically 20 to 30 base pairs) [9]. Based on the specific amino acid motif in the catalytic core, HEs were categorized into at least six families, with each being associated with a particular host range. HNH, GIY-YIG, and EDxHD families are largely constrained to phage hosts. PD-(D/E)xK, His-Cys Box, and LAGLIDADG families are encoded in bacterial, protistic, and archaeal/eukaryotic hosts, respectively [10,11,12]. The endonucleases of the LAGLIDADG HE family are often referred to as “meganucleases (MN)” [13]. The LAGLIDADG endonucleases exist both as homodimers (where the two identical protein subunits are each typically 160 to 200 residues in size with a αββαββα core fold in which a long anti-parallel pair of β strands are fitted into the major groove of recognition site), and as monomeric proteins, where a tandem repeat of two LAGLIDADG domains is connected by a variable peptide linker. Compared with their homodimeric cousins, the monomeric proteins are rather small; their individual domains are often only 100 to 120 residues in size and can recognize fully asymmetric DNA target sites. In addition to the benefits that the recognition site of MNs are quite long (18–24 bp) and highly specific and the sizes are small so as to be prepared and engineered [14,15] easily, the richest natural sources are another advantage. For the full spectrum of the mammalian genome, a bank of 3 billion MNs is theoretically needed to cover all possible recognition sites, or hundreds of thousands to overlay all genes. That is a tremendous task.

2.2. Zinc Finger Nuclease (ZFN)

In comparison to a typical type II restriction enzyme, whose recognition site is overlapped with a cutting site, in the type IIS, where “S” means shifted cleavage, the enzyme contains independent modules for a separated recognition site and cutting site, e.g., FokI contains a 382 a.a. N-terminal DNA recognition domain and a 196 a.a. C-terminal nuclease domain (FN) [16]. After the proof-of-concept work prepared chimeric restriction endonuclease by linking the site-specific DNA-binding homeodomain of Ubx with FN [17], the primitive concept of combining the site-specific DNA-binding zinc finger domains with FN, termed as ZFN hereafter, to be an editable hybrid restriction enzyme was launched by Dr. Srinivasan Chandrasegaran’s group at Johns Hopkins [18]. The zinc finger is a big superfamily of domains and C2H2 is the most common type of it. A β sheet-turn-β sheet-turn-α helix has a rigid structure, where two cysteine residues located within the first turn and two histidine residues at the C-terminus of the α helix are coordinated to chelate a zinc ion. The α helix is fitted into the major groove of the DNA double helix and the -1, 3, and 6 a.a. residues interact with three consecutive nucleotides of the sense strand in the 3′ to 5′ orientation, respectively [19]. The C2H2 zinc fingers can be recognized as independent trinucleotide binding modules and linked into a polypeptide to distinguish longer DNA binding. In theory, one can design a zinc finger for each of the 64 possible combinations of trinucleotides, and one can arrange such zinc fingers to compose a sequence-specific artificial protein for any segment of DNA [20]. Because the nuclease activity of FN is stringently present in a dimer form [21], a pair of ZFNs with recognition sites in a tail-to-tail orientation was demonstrated necessary to perform effective double-strand cutting activity, which was essential to enhance the probability of homologous recombination a thousand-fold in vivo [22]. The D483 and R487 residues of FokI were involved in the FN dimer formation by interacting with each other between the two subunits. FN carried a D483R mutation which led both of the 483 and 487 residues of FokI to be positively charged, termed as FNRR. On the other hand, FN carried a R487D mutation, which led both the 483 and 487 residues of FokI to be negatively charged, termed as FNDD. Unlike the wild-type FN, FNRR and FNDD cannot form homodimers themselves; however, they can form heterodimers efficiently [23]. Such phenomena were utilized to improve the cutting specificity by using a pair of complementary FNs for the up-stream and down-stream recognition arm, respectively, as well as to reduce the toxicity caused by the off-targeting by unwanted homo-dimer [24]. Although ZFN seems a powerful tool for genome editions, some drawbacks should be noted. Firstly, there are still no perfect matches between zinc finger proteins and DNA triplexes. The specificity between GC-rich triplexes and zinc fingers was calculated to be 73%, whereas it was only 50% for AT-rich triplexes and their zinc finger partners [25]. The DNA-binding specificity of a C2H2 zinc finger was also revealed to be influenced by neighboring ones [26].

2.3. Transcription Activator-Like Effector Nuclease (TALEN)

Since the isolation of the avrBs3 gene in the bacterial plant pathogen Xanthomonas campestris pv. Versicatoria [27], AvrBs3 protein was found to be injected into plant cells via a type III secretion system [28,29] and to act as a site-specific transcription activator-like effector (TALE) to reprogram host cells. The AvrBs3 protein is composed of 1163 a.a. with a translocation domain at the most N-terminal end of a 287 a.a. N-terminal region, a middle part which contains 17 units of 34 a.a. complete repeats following with a 20 a.a. half repeat, and a 278 a.a. C-terminal region containing nuclear localization signals (NLSs) and an acidic transcriptional activation domain (AD) [30]. The sequences of the 34 a.a. repeats performing an α helix-random coil-α helix structure are nearly identical, except the polymorphic 12th and 13th residues, which are known as the repeat variable di-residue (RVD) and specifically specify a single binding site nucleotide through direct interactions [31,32,33,34]. The specificity and affinity for each RVD to a nucleotide were systemically studied [35,36]. Theoretically, merely four kinds of repeat, each with RVDs recognizing G, A, T, and C, respectively, are necessary to construct a DNA-binding domain specific to any given sequence. The N-terminus 152 a.a. and C-terminus 215 a.a. of AvrBs3 protein could be removed to leave a core region with intrinsic DNA-binding activity, and this core region was used as a fundamental framework for TAL effector nuclease (TALEN) designation [37,38,39,40]. X-ray crystal data revealed that the amino acid residues 162 to 288 of AvrBs4 perform four cryptic repeats of helical bundles to interact with a nucleotide T on the sense strand of a DNA double helix immediately in front of the nucleotides recognized by the canonical repeats, and this region provides the majority of the energy required for high-affinity target binding [41].The RVDs of complete repeat modules bind consecutive nucleotides of sense strands in the 5′ to 3′ direction. The first residue in each RVD (the 12th of the repeat) orients away from DNA to interact with the backbone of the eighth residue of the repeat to stabilize the interhelical loop and allow the second residue of the RVD to project into the major groove of the DNA and make sequence-specific contact with a single nucleotide of the sense strand [42]. The most common RVDs are HD, NG, NN, and NI for C, T, G > A, and A, respectively, in which NN can be replaced by NH for NH is more specific to G but has less affinity [34,35,36,43]. Online tools for custom TALEs and TALENs, such as TALE-NT 2.0, designation and modular assembly methods relying on Golden Gate cloning have been developed, enabling researchers to make constructs in a few days [44,45,46,47,48]. Besides the FN nuclease domain, transcription regulatory domains and DNA modification enzymes can be engineered to the C-terminus of the sequence-specific TALE-core structure to create artificial gene regulatory factors [49,50].

2.4. CRISPR/Cas Nucleases

It was identified that the spacer sequences between identical repeats of the clustered regularly interspaced short palindromic repeat (CRISPR) loci of bacterial genomes might originate from plasmid and phage [51,52]. The CRISPR RNA and CRISPR-associated protein (Cas) systems are now confessed as key components governing bacterial adaptive immune response which consists of three main stages: adaptation, expression, and interference. When a bacterium was attacked by an invader, a short DNA fragment, termed a protospacer, which is neighbored by a protospacer-adjacent motif (PAM) of the invader, was processed by adaptation Cas members, such as Cas1 and Cas2, to be inserted into the 5′ end of a spacer-repeat CRISPR array embedded in the host genome as stored memory. Memory was retrieved as the CRISPR array was transcribed to produce a long precursor CRISPR RNA (pre-crRNA), which was processed by an expression factor, such Cas6 or RNase III, within the repeat region to create mature crRNA, which was incorporated with Cas effectors, such as Cas5, Cas7, Cas8, and Cas11, to yield an RNA-guided sequence-specific endonuclease in the interference stage [53,54]. According to the number of Cas protein subunits included in the effector endonuclease complex, the CRISPR-Cas systems belong to two classes, with multi-subunit effector complexes in class 1, which can be further divided into three types: type I, type III and type IV, and single-protein effectors in class 2, including type II, type V and type VI [55,56,57]. Besides crRNA and Cas9 protein, a trans-activating CRISPR RNA (tracrRNA) whose 5′ region is complemented with the repeat sequence of crRNA is critical to perform endonuclease activity in the type II CRISPR systems. The crRNA and tracrRNA could be engineered into one single-guided RNA (sgRNA) in accompaniment with Cas9 to restore full and specific endonuclease activity [58]. The best-characterized and applied Cas9 enzyme was originally isolated from Steptococcus pyrogenes, and was referred to as SpCas9, or even simply as Cas9. SpCas9 is a large 1368 a.a. multidomain protein with two distinct lobes: the recognition (REC) lobe and the nuclease (NUC) lobe, connected through an arginine-rich bridge helix (residue 56 to 93) and a disordered loop (residue 712 to 717). The REC lobe is composed of three α-helical domains (Hel-I, Hel-II, and Hel-III) and the NUC lobe contains HNH and RuvC-like nuclease domains, as well as a PAM-interacting (PI) C-terminal domain [59,60] (Figure 1A,B). The apo-Cas9 protein should be assembled with guide RNA (native crRNA-tracrRNA hybrid or sgRNA) to achieve site-specific DNA recognition and cleavage activities. The 20 nt spacer sequence of crRNA provided DNA target specificity and the tracrRNA conferred a crucial role in Cas9 protein recruitment. Once the PAM (NGG for SpCas9) directly adjacent to a protospacer target site was trapped by R1333 and R1335 of the Cas9-guide RNA complex, it triggered local DNA melting at the PAM-adjacent site. The PAM-proximal 10–12 nucleotides (nt), 3′-end of the 20 nt spacer sequence is absolutely critical for site specificity, and was referred to as seed region. The DNA cleavage activity of CRISPR-Cas9 was excited by the conformational change induced by the R-loop formation between target DNA and spacer RNA [61,62]. The target DNA strand complementary to spacer RNA was cut by the HNH nuclease domain and the non-target DNA strand by the RuvC nuclease domain to produce a blunt-ended double-strand breakage at 3 bp upstream to PAM [63,64]. Either D10A [58] or H983A [65] mutation destroyed the RuvC nuclease activity. On the other hand, D839A [66], H840A [58], and N863A [67] mutations could eliminate the HNH nuclease activity. These mutations did not influence the target site binding affinity of Cas9-sgRNA. Cas9 carrying the D10A mutation and D10A/H840A double mutations were termed nickase (nCas9) and dead enzyme (dCas9), respectively (Table 1). The dCas9 could be taken as a guide RNA-derived sequence-specific DNA-binding protein, like TALE described above, and coupled with DNA manipulation enzymes or transcriptional activating/inhibitory domains to be harnessed for various applications [64]. The amino acid residues interacting with the PAM bases could be engineered to generate new PAM so as to broaden the spectrum of target sites. Based on the structure-guided rational design, the wild-type D1135, R1335, and T1337 were converted to E, Q, and R, respectively; the PAM was shifted from NGG to NGA. Additionally, as D1135, G1218, R1335, and T1337 were converted to V, R, E, and R, respectively; the PAM became NGC [68]. An engineered SpCas9 bearing D1135L/S1136W/G1218Q/E1219Q/R1335Q/T1337R substitutions in PI domain (SpG) targeted NGN PAM. SpG was further engineered to carry A61R/L1111R/N1317R/A1322R/R1333P substitutions to near-PAMless (NRN > NYN) variants, termed SpRY, with full endonuclease activities [69] (Table 1).
Besides Cas9, which recognized G-rich PAM at 3′ end of protospacer, class 2 type V Cas12a (originally called Cpf1) effector enzymes also became attractive [73]. The long pre-crRNA was bound and processed by an intrinsic RNase activity of Cas12a protein to mature crRNA, which was composed of a repeat sequence at the 5′ end and spacer at the 3′ end. This characteristic was utilized to design multiple crRNA in a single RNA transcript [73,74]. A canonical TTTV PAM was at the 5′ end of a 23 bp protospacer. Only a short 42–44 nt crRNA, which was composed of 19 nt repeat and 23–25 nt spacers, was necessary to guide the Cas12a’s RNA-dependent endonuclease activity, of which DNA was cut at the PAM-distal end to leave 5′ protruding staggered ends. Like Cas9, the RuvC nuclease domain was involved in non-complementary strand cleavage, while a new Nuc domain, instead of the HNH domain, was used in Cas12a for complementary strand cleavage [75]. The size of Lachnospiraceae bacterium MA2020 Cas12a (LbCas12a) was merely 1206 a.a. and as active as the most widely used Cas12a isolated from Acidaminococcus sp. (AsCas12a, 1307 a.a.). Engineered LbCas12a with Q571K and C1003Y mutations, referred to as Lb2Cas12a, was more active and could recognize both TTTV and CTTV PAM motives [76].
Unlike ZFN and TALEN, which utilize interactions between amino acid residues and nucleotides for DNA target sites recognition, CRISPR-Cas effectors use absolutely specific nucleotides–nucleotides base pairing. Besides PAM and the seed region, where completely precise Watson–Crick base pairing is necessary between guide RNA and the DNA target site, no more than three mispairings are permitted in the non-seed region of the spacer. Although off-targeting concerns became less criticized, engineered Cas9 variants with higher DNA target specificity are still an ongoing issue. Reagrding the structure-guided aspect, positively charged residues in the non-target strand binding groove were changed to alanine to interrupt their interactions with the negatively charged deoxynucleic acid backbone. The combination of K848A, K1003A, and R1060A mutations were chosen to obtain eSpCas9(1.1), which displayed efficient and precise genome editing in human cells in a series of two successive nucleotide mismatches of a 20 nt guide by replacing the wild-type SpCas9 with the eSpCas9(1.1) [70] (Table 1). Another approach aimed to decrease the affinity between the Cas9-sgRNA complex and target DNA by changing the polar residues contacting the phosphate backbone of the target DNA strand to alanine. On a variant carrying N497A, R661A, Q695A, and Q926A, SpCas9-HF1, substitutions were performed with high on-target activity and reduced off-target editing. The times of off-targeting detected on the VEGFA site 2 and 3 were reduced from 144 to 21 and from 32 to 1, respectively, by the HF1 counterpart [71,72] (Table 1). On the other hand, the spacer of the guide RNA was engineered to reduce the off-target activity. In truncated sgRNA, Tru-Greene, utilizing a spacer sequence shorter than 20 nt complementary to a protospacer target could reduce the off-target efficiency for up to three orders and maintain a high level of on-target editing [77]. Adding a short hairpin (hp) RNA on the 5′ end of the spacer was an alternative method for increasing editing specificity. The 5′ end of spacer involved in hp formation had a stronger influence on the mismatched base pairing in off-target sites than in the matched on-target site [78].

3. Precise Genome Editing

3.1. With Double-Strand Breaks

Precise and efficient genome editing is urgently required in many fields, such as modern breeding and genetic disease therapy [79]. An important step in genome editing was achieved when a site-specific endonuclease against the genomic site of interest could be manufactured. However, the generation of DNA breakage did not directly lead to DNA editing, which took place in the processes of cellular responses to the breakage. The DNA breaks created by such endonuclease could be processed by the DNA repair system of the host cell in two pathways. Most frequently, the breaks were joined by an error-prone non-homologous end-joining (NHEJ) pathway in which modification enzymes, such as exonuclease, deoxynucleotide terminal transferase, single-stranded DNA specific endonuclease, DNA polymerase I, and DNA ligase, as well as DNA-binding factor Ku70/80 heterodimer, were recruited [80,81]. A few template-independent or random base pairs could have been deleted or inserted at the break (indel mutations). On the other hand, a donor template DNA was necessary for the less frequently occurring homology-directed repair (HDR) pathway, which was largely restricted to the G2 and S phases of the cell cycle [82]. A long 3′ protruding single strand was produced at first from the broken end and it would hybrid with the donor template DNA to form an extending D-loop. In addition to exonuclease and DNA polymerase, single-strand DNA-binding proteins and DNA translocase were involved in this process. The extending single strand crossed back to the other end of the break so as to repair the break with donor template sequence [83,84]. Many Cas9-based strategies were reported to enhance the probability of HDR, such as using a pair of nickases to create long 3′ overhang ends [85].
The error-prone NHEJ pathway is not restricted to dividing cells and it has been conveniently and effectively applied to gene targeting experiments in accompaniment with programmable endonucleases. The HDR is restricted to the G2 and S phases of dividing cells; therefore, gene knock-in methods utilizing the characteristics of NHEJ and programmable endonucleases were developed for quiescent cells. The precise integration into target chromosome (PITCh) system was assisted by microhomology-mediated-end-joining (MMEJ), which harnessed independent machinery from homologous recombination (HR) and required an extremely short homologous sequence of 5–25 bp for DSB repair, resulting in precise gene knock-in [86,87]. Another robust NHEJ-based method, homology-independent targeted integration (HITI), used one programmable endonuclease site on target DNA and two sites flanking the inserted DNA fragment in order to remove the insertion of unwanted orientation [88,89].

3.2. Without Double-Strand Breaks

For the aspect of safety, DNA editing methods without double-strand breaks (DSBs) and additional donor template DNA were developed. The characteristic R-loop structure of target DNA-guided RNA created in complex with Cas9 was applied to establish the DNA Base Editor systems. Since the sense (or non-target) strand of protospacer DNA was cut by the RuvC domain and the non-sense strand (or the target strand hybrid with guide RNA) was cut by the HNH domain, a single-stranded DNA specific cytidine deaminase, such as apolipoprotein B mRNA editing enzyme, catalytic polypeptide-like 1 (APOBEC1), coupled to the N-terminus of nCas9 which carried a D10A (RuvC-) mutation, could facilitate the deamination of the cytidines to uracils, which were taken as thymidines in DNA on the sense strand of a protospacer in a window of 3 to 6 nt, depending on the length of the linker between these two proteins. For example, a 16 a.a. XTEN linker [90] offered an efficient deamination window of 5 nt, corresponding to positions 4 to 8 of the protospacer (the positions were numbered as 1 to 20 for the protospacer and 21 to 23 for PAM). The uracil bases were removed by uracil DNA glycosylase (UDG) by the cellular DNA repairing system to avoid unwanted error-prone substitutions or indels [91]. Therefore, an 83 a.a. strong UDG inhibitor (UGI) from the bacterial phage PBS1 of Bacillus subtilis was fused to the C-terminus of the previous APOBEC1-XTEN-nCas9(D10A) through a 4 a.a. linker to obtain APOBEC1-XTEN-Cas9(D10A)-UGI, the third generation of cytidine base editor (CBD3). The nick created by the HNH domain enhanced the conversion of the corresponding G on the non-sense strand to A with the U on the sense strand as the template by the cellular DNA repairing system [92]. Other single-stranded DNA-specific cytidine deaminases, AID and CDA1, were found to be more effective to converse the C directly following G to U and two successive copies of linker-UGI provided better specificity [93]. A Cpf1 BE system was established as well. Dead LbCpf1(D832A/E1106A/D1125A) (dCpf1), the 16 a.a. XTEN linker, SGGS linker (l4), engineered rat APOBEC1(W90Y/R126E)(ApobecYE), SV40 NLS (NLS), and UGI were used to construct dCpf1-BE0: Apobec1-XTEN-dCpf1-NLS-l4-UGI-NLS and dCpf1-BE-YE: NLS-ApobecYE-XTEN-dCpf1-NLS-l4-UGI-NLS with high editing efficiencies and specificities [94] (Figure 1C).
Besides the CBDs, the adenine base editors (ABDs) were also developed. Because no natural enzyme with adenosine deaminase activity on ssDNA was known, Gaudelli et al. used a 167 a.a. E. coli tRNA adenine deaminase, TadA1, which was able to convert adenine to inosine (I) in the single-stranded anti-codon loop of tRNAArg as starting material to evolve a DNA adenine deaminase. TadA, which had been fused to the N-terminus of a dead Cas9(D10A/H840A) with a crRNA directing a CamR(H193Y) mutation region, was artificially evolved in E. coli carrying this inactivated antibiotic-resistant gene. TadA mutants in the colonies that survived after antibiotic selection were isolated. After seven rounds of selection, a TadA1 mutant, termed as TadA-7.10 or TadA*, which carried W23R, H36L, P48A, R51L, L84F, A106V, D108N, H123Y, S146C, D147V, R152P, E155V, I156F, and K157N mutations with deoxyadenosine deaminase activity, was obtained. A bpNLS-TadA1-TadA*-nCas9(D10A)-bpNLS adenine base editor (ABE7.10) was demonstrated to work in mammalian cells [95,96]. The TadA-7.10 was further evolved to broaden its applicability. A bacterial phage M13 system, in which the essential capsid pIII gene expression was regulated under T7 promoter, and a T7 RNAP that carried R57* and Q58* stop codon mutations was installed in a helper plasmid. The TadA-7.10-dCas9 was taken as the initiator of evolution, with a greater ability to reverse the stop codon mutations back to normal ones, indicated by the infectious M13 phage package. A much more active deoxyadenosine deaminase clone, TadA-8e, carrying further A109S, T111R, D119N, H122N, Y147D, F149Y, T166I, and D167N substitutions, was sequenced. In contrast to ABE7.10, a wild TadA1 was not necessary to help TadA-8e folding in mammalian cells. The DNA deamination activity of bpNLS-TadA-8e-nCas9(D10A)-bpNLS adenine base editor (ABE8e) was about 590-fold higher than that of ABE7.10 [97,98]. Efforts to develop base editors for the simultaneous catalyzation of both cytosine and adenine base conversion, ACBEs, were reported recently [99,100,101].
Since the CBEs and ABEs could only resolve the C to T (G to A) and A to G (T to C) conversions, more versatile DNA editing tools are still required for all twelve transition and transversion mutations. The initial prototype prime editor (PE) included an M-MLV reverse transcriptase fused to the 3′ end of Cas9(H840A) nickase through a flexible linker, nCas9(H840A)-RT, as well as a prime editing guide RNA, pegRNA, a template RNA fused to the 3′ end of sgRNA (Figure 1D). The sense (or target) strand of protospacer was cleaved by RuvC domain between positions 17 and 18 to leave a 17 nt 3′ overhang ssDNA, which could be hybridized with the template part of the pegRNA as a primer and extended for 7–22 nt by the fused RT. To optimize the transversion efficiency, the length of the primer binding sequence was set to about 13 nt, with a template region for an extension of 10–20 nt, and three substitution mutations, D200N, L603W, and T330P, were introduced into RT. The addition of another Cas9(H840A) nickase with a nicking sgRNA (ngRNA) made a nick at the non-edited strand of the previous nCas9/pegRNA and recognizing an edited sequence in the second protospacer could increase the conversion specificities [102,103]. A user-friendly open software for pegRNA and ngRNA, PrimeDesign, is now available online [104].

4. Forms and Delivery Methods of Programmable Site-Specific Endonucleases/DNA Editors

The use of Genetically Modified Organisms (GMOs) is a seriously criticized issue in animal, botany, and environmental fields; therefore, genome/gene editing techniques without the risk of exogenous DNA integration were pursued. Gene delivery vehicles that would integrate into the host genome, such as retro/lenti-viral and transposon vectors, were prevented as possible. The forms of programmable endonucleases and the methods (routes) to deliver them into cells provide different performances. The programmable endonucleases, for example, Cas9 hereafter, or gene editors can be delivered in the forms of DNA, mRNA, and protein (RNP complex). Plasmid DNA can be prepared easily and cost-effectively. A time lag before the onset of an edition is unpreventable for transcription and translation when Cas9 is expressed in the format of plasmid DNA after transfection; however, as DNA is quite stable, the expression can be sustained for several days. However, the prolonged expression of CRISPR/Cas9 might increase the risk of off-target effects. In vitro transcribed Cas9 mRNA and sgRNA have a narrower window of expression because of the instability of RNA after delivery. Such characteristics are preferred to be applied in mammal breeding, since embryos of the 1-cell stage without de novo RNA transcription [105] were usually operated by microinjection. The delivered Cas9 mRNA and sgRNA were translated and assembled in the cytosol, enabling faster onset of gene editing than the plasmid form. Like the RNA form, the protein format of Cas9 could prevent the risk of foreign gene integration and it could achieve immediate and transient gene editing after delivery. The recombinant Cas9 protein produced by E. coli and Cas9/sgRNA RNP could be bulkily delivered into cells physically by conventional electroporation in vitro [106]. Some devices designed for single-cell electroporation with high efficiency and cell viability under low voltage have been developed [107]. In the nanofountain probe system, a cell was attached to a horizontal flat electrode. A hollow pyramidal electrode, with an aperture of 500 nm in diameter, which was filled with electrolyte and macro-molecules to be delivered, was controlled by a closed-loop micromanipulator to downwardly approach the upper cell membrane. Then, a short electric pulse was applied across the cell membrane to create a nanopore to let the macro-molecules transfer into the cell before it resealed [108,109,110]. Another case, the nanostraw system, which was built on vertical alumina nanostraws extending from a horizontal track-etched cell culture membrane, formed an array of hollow nanowires connected to an underlying microfluidic channel. Cellular engulfment of the nanostraws provided an intimate contact, significantly reducing the necessary electroporation voltage and increasing homogeneity over a large area [111]. The diameter of the nanostraws was 150 nm, the height by the amount of membrane etched was 1.5 to 2.5 μm and the surface density was 1 × 108/cm2 to provide sufficient nanostraws per cell [112]. In the third example, the nanopore system, a track-etched polycarbonate filter membrane with nanopores of 100 nm in diameter on top of the delivery reagent was used to let cells settle on it. The local electric field was enhanced through the nanopores, and close contact between the cell membrane and the nanopores was determinant for efficient localized electroporation. Surface coatings for the polycarbonate filter membrane facilitated the tight cell membrane/nanopore contact [113].

5. Strategies for In Vivo Genome Editing

5.1. Delivery of Cas9/sgRNA RNP with Virus-Like Particles

The strategies to deliver the Cas9/sgRNA ribonucleoprotein (RNP) for in vivo genome editing are another challenge, as Gag polypeptide is the only retro/lenti-viral protein required for the assembly and release of the immature virus particles and the viral genome RNA is not necessary for capsid assembly and entry to host cells. An immature capsid consists of about 1500 to 3000 Gag precursor proteins, which are hydrolyzed by a protease encoded by the Pol gene to produce matrix protein (MA, p19), capsid protein (CA, p24), and nucleocapsid protein (NC, p7), as well as small peptides (SP1, SP2, and p6) [114,115]. The formation of virus-derived extracellular vesicles (EVs) are based on the self-assembly of the viral envelope protein, such as vesicular stomatitis virus glycoprotein (VSV-G), and the term virus-like particles (VLPs) is defined as both viral envelope proteins and viral structural proteins assembled together into EVs [116]. Cas9 protein could be incorporated into VLP by direct fusion with the Gag polyprotein, either at the 5′-end of HIV MA [117] or 3′-end of MLV NC [118] or p6 [119], with a peptidyl linker which was recognized by the viral protease encoded by the viral Pol gene. Plasmid vectors expressing Cas9-Gag/Pol accompanied by vectors expressing VSV-G and sgRNA were cotransfected into 293T cells to prepare Cas9/sgRNA RNP packaged in VLP. In the cases of Gag-Cas9 fusion, one more Gag/Pol expression vector was needed to provide viral protease required for the process of maturation. The Cas9/sgRNA RNP also could be incorporated into VLP indirectly by noncovalent interactions with an adaptor or bridge system. The interactions between aptamer, a sequence-specific oligonucleotide, and aptamer binding protein were utilized as adaptor systems. An RNA segment of the mom gene of bacteriophage Mu (com) was strongly and specifically associated with a phage Com protein (COM) [120,121]. The com sequence inserted into the tetraloop of sgRNA had little or no influence on the package and activity of the Cas9-sgRNA RNP complex and interacted with the COM protein fused to the Gag polyprotein in the 3′-part of NC [122,123,124]. Besides Gag polyprotein, the G3C, V153L, and G177E gene-modified NEF protein (1100 copies per capsid) [125,126] and VPR protein (550 copies per capsid) [127,128] could be used as a carrier for the aptamer binding proteins [129]. Rapamycin, which was found to bind the 12 kDa FK506 binding protein (FKBP12) with high affinity (dissociation constant, Kd = 0.2 to 0.4 nM) [130,131], and the FKBP12-rapamycin complex could strongly associate with the FKBP12-rapamycin binding (FRB) domain (a.a. 2025 to 2114) of FKBP12-rapamycin associated protein (FRAP, also known as mTOR) (dissociation constant, Kd = 4.2 to 12 nM) [130,132]. The FKBP12–rapamycin–FRB ternary complex [133] could be used as a bridge to link Gag and Cas9-sgRNA together, e.g., the recombinant protein of FKBP12 fused to the 5′-end of Gag could help the incorporation of the engineered Cas9-sgRNA RNP complex where the 5′-end of Cas9 was fused with an FRB(T2098L) domain, which specifically bound the rapamycin analog AP21967 with high affinity into the capsid of a VLP in the presence of AP21967 [134] (Figure 1E).

5.2. Delivery of Cas9/sgRNA RNP with Extracellular Vesicles

Extracellular vesicles (EVs), which are secreted by nearly all types of healthy cells, were initially described as releasing unneeded compounds from cells, whilst now they are recognized as signaling vesicles that exchange components between cells [135,136]. Based on the routes of biogenesis, EVs can be separated into two main categories: exosomes and microvesicles. The exosomes are known as membrane vesicles (50 to 150 nm in diameter) which are generated in the endosomal system. The membrane of the early endosome, with the aid of endosomal sorting complex required for transport (ESCRT) machinery, begins to invaginate to generate intraluminal vesicles (ILVs), whose numbers are accumulated during endosome maturation. The late endosomes, also known as multivesicular bodies (MVBs), could be transported and fused with the plasma membrane to let the ILVs release to extracellular space as exosomes do [137]. CD63, as well as CD9, CD81, and Syntenin-1, were found to be highly enriched in exosomes [138]. Taking advantage of tetraspanin member CD63, which has four hydrophobic transmembrane domains and short intracellular N- and C-termini [139], CD63 was engineered to carry each COM aptamer binding domain at both N- and C-ends in order to trap the Cas9/sgRNA complex, where the tetraloop of sgRNA was replaced by the com aptamer RNA into exosomes [140] (Figure 1F). CD63-GFP also could enhance the incorporation of the Cas9/sgRNA complex, where the C-terminus of Cas9 was fused with a nanobody against GFP into exosomes [141].
Microvesicles (MVs), also referred to as shedding vesicles, ectosomes, oncosomes, shedding bodies, and microparticles, on the other hand, are formed by direct budding from the plasma membrane. During the biogenesis of microvesicles, vertical trafficking of molecular cargoes to the plasma membrane, redistribution of membrane lipids, and the recruitment of the contractile machinery at the surface to allow for vesicle pinching are involved. The sorting of molecular cargo components is tightly regulated by small GTPases, such as ARF6 and Rab22a [142]. Ectopically expressed reporter proteins, mRNA and siRNA, are efficiently incorporated into microvesicles [143], as the stimuli that cause plasma membrane budding are heterogenously reflected by the wide distribution of the diameter of MVs from 50 to 1000+ nm [135]. A subtype of MVs, the arrestin domain-containing protein-1 (ARRDC1)-mediated microvesicles (ARMMs), with a more even diameter around 50 nm was engineered as a platform for the delivery of macromolecules [144].

6. Concluding Remarks and Perspectives

Since the publication of the seminal paper that showed that simply a fused sgRNA is enough for Cas9 to obtain full ability to recognize a target site, the Cas9-sgRNA system has become the most popular genome-editing tool. Tremendous efforts to broaden the versatilities of applications and to improve the recognition accuracy of Cas9 have been made. To decrease the off-target risk by prolonged expression, methods to transiently express Cas9-sgRNA RNP or to directly use it are being accumulated. Besides the biosafety and effectivity concerns, convenience and cost are other criteria to be overcome for the future novel concept of delivering Cas9-sgRNA for in vivo treatments. Vesicles to precisely deliver Cas9-sgRNA to selected tissues or even cells of interest are goals to be pursued.

Author Contributions

C.-K.C. and W.-M.L. wrote and edited the manuscript. Both authors have read and agreed to the published version of the manuscript.

Funding

The APC was funded by Ministry of Science and Technology, Taiwan: MOST 110-2313-B-866-003.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sansbury, B.M.; Kmiec, E.B. On the Origins of Homology Directed Repair in Mammalian Cells. Int. J. Mol. Sci. 2021, 22, 3348. [Google Scholar] [CrossRef]
  2. Ramirez, C.L.; Certo, M.T.; Mussolino, C.; Goodwin, M.J.; Cradick, T.J.; McCaffrey, A.P.; Cathomen, T.; Scharenberg, A.M.; Joung, J.K. Engineered zinc finger nickases induce homology-directed repair with reduced mutagenic effects. Nucleic Acids Res. 2012, 40, 5560–5568. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Urnov, F.D.; Miller, J.C.; Lee, Y.-L.; Beausejour, C.M.; Rock, J.M.; Augustus, S.; Jamieson, A.C.; Porteus, M.H.; Gregory, P.D.; Holmes, M.C. Highly efficient endogenous human gene correction using designed zinc-finger nucleases. Nature 2005, 435, 646–651. [Google Scholar] [CrossRef]
  4. Gregory, T.R.; Nicol, J.A.; Tamm, H.; Kullman, B.; Kullman, K.; Leitch, I.J.; Murray, B.G.; Kapraun, D.F.; Greilhuber, J.; Bennett, M.D. Eukaryotic genome size databases. Nucleic Acids Res. 2007, 35, D332–D338. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Redi, C.; Capanna, E. Genome size evolution: Sizing mammalian genomes. Cytogenet. Genome Res. 2012, 137, 97–112. [Google Scholar] [CrossRef]
  6. Bos, J.; Heyting, C.; Borst, P.; Arnberg, A.; Van Bruggen, E. An insert in the single gene for the large ribosomal RNA in yeast mitochondrial DNA. Nature 1978, 275, 336–338. [Google Scholar] [CrossRef] [PubMed]
  7. Bolotin, M.; Coen, D.; Deutsch, J.; Dujon, B.; Netter, P.; Petrochilo, E.; Slonimski, P. Recombination of mitochondria in saccharomyces-cerevisiae. Bull. de l Inst. Pasteur 1971, 69, 215–239. [Google Scholar]
  8. Jacquier, A.; Dujon, B. An intron-encoded protein is active in a gene conversion process that spreads an intron into a mitochondrial gene. Cell 1985, 41, 383–394. [Google Scholar] [PubMed]
  9. Stoddard, B.L. Homing endonucleases: From microbial genetic invaders to reagents for targeted DNA modification. Structure 2011, 19, 7–15. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Stoddard, B.L. Homing endonuclease structure and function. Q. Rev. Biophys. 2005, 38, 49–95. [Google Scholar] [CrossRef]
  11. Taylor, G.K.; Stoddard, B.L. Structural, functional and evolutionary relationships between homing endonucleases and proteins from their host organisms. Nucleic Acids Res. 2012, 40, 5189–5200. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Hafez, M.; Hausner, G. Homing endonucleases: DNA scissors on a mission. Genome 2012, 55, 553–569. [Google Scholar] [CrossRef] [Green Version]
  13. Pâques, F.; Duchateau, P. Meganucleases and DNA double-strand break-induced recombination: Perspectives for gene therapy. Curr. Gene Ther. 2007, 7, 49–66. [Google Scholar] [CrossRef] [PubMed]
  14. Li, H.; Pellenz, S.; Ulge, U.; Stoddard, B.L.; Monnat, R.J., Jr. Generation of single-chain LAGLIDADG homing endonucleases from native homodimeric precursor proteins. Nucleic Acids Res. 2009, 37, 1650–1662. [Google Scholar] [CrossRef] [Green Version]
  15. Arnould, S.; Delenda, C.; Grizot, S.; Desseaux, C.; Paques, F.; Silva, G.; Smith, J. The I-CreI meganuclease and its engineered derivatives: Applications from cell modification to gene therapy. Protein Eng. Des. Sel. 2011, 24, 27–31. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Li, L.; Wu, L.P.; Chandrasegaran, S. Functional domains in Fok I restriction endonuclease. Proc. Natl. Acad. Sci. USA 1992, 89, 4275–4279. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Kim, Y.-G.; Chandrasegaran, S. Chimeric restriction endonuclease. Proc. Natl. Acad. Sci. USA 1994, 91, 883–887. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Kim, Y.-G.; Cha, J.; Chandrasegaran, S. Hybrid restriction enzymes: Zinc finger fusions to Fok I cleavage domain. Proc. Natl. Acad. Sci. USA 1996, 93, 1156–1160. [Google Scholar] [CrossRef] [Green Version]
  19. Persikov, A.V.; Wetzel, J.L.; Rowland, E.F.; Oakes, B.L.; Xu, D.J.; Singh, M.; Noyes, M.B. A systematic survey of the Cys2His2 zinc finger DNA-binding landscape. Nucleic Acids Res. 2015, 43, 1965–1984. [Google Scholar] [CrossRef] [Green Version]
  20. Chandrasegaran, S.; Smith, J. Chimeric restriction enzymes: What is next? Biol. Chem. 1999, 380, 841–848. [Google Scholar] [CrossRef] [Green Version]
  21. Smith, J.; Bibikova, M.; Whitby, F.G.; Reddy, A.; Chandrasegaran, S.; Carroll, D. Requirements for double-strand cleavage by chimeric restriction enzymes with zinc finger DNA-recognition domains. Nucleic Acids Res. 2000, 28, 3361–3369. [Google Scholar] [CrossRef]
  22. Bibikova, M.; Carroll, D.; Segal, D.J.; Trautman, J.K.; Smith, J.; Kim, Y.-G.; Chandrasegaran, S. Stimulation of homologous recombination through targeted cleavage by chimeric nucleases. Mol. Cell. Biol. 2001, 21, 289–297. [Google Scholar] [CrossRef] [Green Version]
  23. Şöllü, C.; Pars, K.; Cornu, T.I.; Thibodeau-Beganny, S.; Maeder, M.L.; Joung, J.K.; Heilbronn, R.; Cathomen, T. Autonomous zinc-finger nuclease pairs for targeted chromosomal deletion. Nucleic Acids Res. 2010, 38, 8269–8276. [Google Scholar] [CrossRef] [PubMed]
  24. Doyon, Y.; Vo, T.D.; Mendel, M.C.; Greenberg, S.G.; Wang, J.; Xia, D.F.; Miller, J.C.; Urnov, F.D.; Gregory, P.D.; Holmes, M.C. Enhancing zinc-finger-nuclease activity with improved obligate heterodimeric architectures. Nat. Methods 2011, 8, 74–79. [Google Scholar] [CrossRef] [PubMed]
  25. Persikov, A.V.; Singh, M. De novo prediction of DNA-binding specificities for Cys2His2 zinc finger proteins. Nucleic Acids Res. 2014, 42, 97–108. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Garton, M.; Najafabadi, H.S.; Schmitges, F.W.; Radovani, E.; Hughes, T.R.; Kim, P.M. A structural approach reveals how neighbouring C2H2 zinc fingers influence DNA binding specificity. Nucleic Acids Res. 2015, 43, 9147–9157. [Google Scholar] [CrossRef] [PubMed]
  27. Bonas, U.; Stall, R.E.; Staskawicz, B. Genetic and structural characterization of the avirulence gene avrBs3 from Xanthomonas campestris pv. vesicatoria. Mol. Gen. Genet. MGG 1989, 218, 127–136. [Google Scholar] [CrossRef]
  28. Deng, W.; Marshall, N.C.; Rowland, J.L.; McCoy, J.M.; Worrall, L.J.; Santos, A.S.; Strynadka, N.C.; Finlay, B.B. Assembly, structure, function and regulation of type III secretion systems. Nat. Rev. Microbiol. 2017, 15, 323–337. [Google Scholar] [CrossRef]
  29. Dey, S.; Chakravarty, A.; Guha Biswas, P.; De Guzman, R.N. The type III secretion system needle, tip, and translocon. Protein Sci. 2019, 28, 1582–1593. [Google Scholar] [CrossRef]
  30. Boch, J.; Bonas, U. Xanthomonas AvrBs3 family-type III effectors: Discovery and function. Annu. Rev. Phytopathol. 2010, 48, 419–436. [Google Scholar] [CrossRef] [PubMed]
  31. Boch, J.; Scholze, H.; Schornack, S.; Landgraf, A.; Hahn, S.; Kay, S.; Lahaye, T.; Nickstadt, A.; Bonas, U. Breaking the code of DNA binding specificity of TAL-type III effectors. Science 2009, 326, 1509–1512. [Google Scholar] [CrossRef] [PubMed]
  32. Deng, D.; Yan, C.; Pan, X.; Mahfouz, M.; Wang, J.; Zhu, J.-K.; Shi, Y.; Yan, N. Structural basis for sequence-specific recognition of DNA by TAL effectors. Science 2012, 335, 720–723. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Bradley, P. Structural modeling of TAL effector–DNA interactions. Protein Sci. 2012, 21, 471–474. [Google Scholar] [CrossRef] [PubMed]
  34. Moore, R.; Chandrahas, A.; Bleris, L. Transcription activator-like effectors: A toolkit for synthetic biology. ACS Synth. Biol. 2014, 3, 708–716. [Google Scholar] [CrossRef] [Green Version]
  35. Streubel, J.; Blücher, C.; Landgraf, A.; Boch, J. TAL effector RVD specificities and efficiencies. Nat. Biotechnol. 2012, 30, 593–595. [Google Scholar] [CrossRef]
  36. Richter, A.; Streubel, J.; Boch, J. TAL effector DNA-binding principles and specificity. In TALENs; Springer: Berlin/Heidelberg, Germany, 2016; pp. 9–25. [Google Scholar]
  37. Carlson, D.F.; Tan, W.; Lillico, S.G.; Stverakova, D.; Proudfoot, C.; Christian, M.; Voytas, D.F.; Long, C.R.; Whitelaw, C.B.A.; Fahrenkrug, S.C. Efficient TALEN-mediated gene knockout in livestock. Proc. Natl. Acad. Sci. USA 2012, 109, 17382–17387. [Google Scholar] [CrossRef] [Green Version]
  38. Miller, J.C.; Tan, S.; Qiao, G.; Barlow, K.A.; Wang, J.; Xia, D.F.; Meng, X.; Paschon, D.E.; Leung, E.; Hinkley, S.J. A TALE nuclease architecture for efficient genome editing. Nat. Biotechnol. 2011, 29, 143–148. [Google Scholar] [CrossRef] [PubMed]
  39. Mussolino, C.; Morbitzer, R.; Lütge, F.; Dannemann, N.; Lahaye, T.; Cathomen, T. A novel TALE nuclease scaffold enables high genome editing activity in combination with low toxicity. Nucleic Acids Res. 2011, 39, 9283–9293. [Google Scholar] [CrossRef]
  40. Schreiber, T.; Sorgatz, A.; List, F.; Blüher, D.; Thieme, S.; Wilmanns, M.; Bonas, U. Refined requirements for protein regions important for activity of the TALE AvrBs3. PLoS ONE 2015, 10, e0120214. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  41. Gao, H.; Wu, X.; Chai, J.; Han, Z. Crystal structure of a TALE protein reveals an extended N-terminal DNA binding region. Cell Res. 2012, 22, 1716–1720. [Google Scholar] [CrossRef] [Green Version]
  42. Doyle, E.L.; Stoddard, B.L.; Voytas, D.F.; Bogdanove, A.J. TAL effectors: Highly adaptable phytobacterial virulence factors and readily engineered DNA-targeting proteins. Trends Cell Biol. 2013, 23, 390–398. [Google Scholar] [CrossRef] [Green Version]
  43. Cong, L.; Zhou, R.; Kuo, Y.-c.; Cunniff, M.; Zhang, F. Comprehensive interrogation of natural TALE DNA-binding modules and transcriptional repressor domains. Nat. Commun. 2012, 3, 1–6. [Google Scholar] [CrossRef] [Green Version]
  44. Cermak, T.; Doyle, E.L.; Christian, M.; Wang, L.; Zhang, Y.; Schmidt, C.; Baller, J.A.; Somia, N.V.; Bogdanove, A.J.; Voytas, D.F. Efficient design and assembly of custom TALEN and other TAL effector-based constructs for DNA targeting. Nucleic Acids Res. 2011, 39, e82. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Cermak, T.; Starker, C.G.; Voytas, D.F. Efficient design and assembly of custom TALENs using the Golden Gate platform. In Chromosomal Mutagenesis; Springer: Berlin/Heidelberg, Germany, 2015; pp. 133–159. [Google Scholar]
  46. Morbitzer, R.; Elsaesser, J.; Hausner, J.; Lahaye, T. Assembly of custom TALE-type DNA binding domains by modular cloning. Nucleic Acids Res. 2011, 39, 5790–5799. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Weber, E.; Gruetzner, R.; Werner, S.; Engler, C.; Marillonnet, S. Assembly of designer TAL effectors by Golden Gate cloning. PLoS ONE 2011, 6, e19722. [Google Scholar] [CrossRef] [Green Version]
  48. Zhang, F.; Cong, L.; Lodato, S.; Kosuri, S.; Church, G.M.; Arlotta, P. Efficient construction of sequence-specific TAL effectors for modulating mammalian transcription. Nat. Biotechnol. 2011, 29, 149–153. [Google Scholar] [CrossRef] [Green Version]
  49. Deng, P.; Carter, S.; Fink, K. Design, Construction, and Application of Transcription Activation-Like Effectors. In Viral Vectors for Gene Therapy; Springer: Berlin/Heidelberg, Germany, 2019; pp. 47–58. [Google Scholar]
  50. Nitsch, S.; Mussolino, C. Generation of TALE-based designer epigenome modifiers. In Epigenome Editing; Springer: Berlin/Heidelberg, Germany, 2018; pp. 89–109. [Google Scholar]
  51. Bolotin, A.; Quinquis, B.; Sorokin, A.; Ehrlich, S.D. Clustered regularly interspaced short palindrome repeats (CRISPRs) have spacers of extrachromosomal origin. Microbiology 2005, 151, 2551–2561. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  52. Pourcel, C.; Salvignol, G.; Vergnaud, G. CRISPR elements in Yersinia pestis acquire new repeats by preferential uptake of bacteriophage DNA, and provide additional tools for evolutionary studies. Microbiology 2005, 151, 653–663. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Hille, F.; Charpentier, E. CRISPR-Cas: Biology, mechanisms and relevance. Philos. Trans. R. Soc. B Biol. Sci. 2016, 371, 20150496. [Google Scholar] [CrossRef] [PubMed]
  54. Hille, F.; Richter, H.; Wong, S.P.; Bratovič, M.; Ressel, S.; Charpentier, E. The biology of CRISPR-Cas: Backward and forward. Cell 2018, 172, 1239–1259. [Google Scholar] [CrossRef] [Green Version]
  55. Koonin, E.V.; Makarova, K.S.; Zhang, F. Diversity, classification and evolution of CRISPR-Cas systems. Curr. Opin. Microbiol. 2017, 37, 67–78. [Google Scholar] [CrossRef]
  56. Koonin, E.V.; Makarova, K.S. Origins and evolution of CRISPR-Cas systems. Philos. Trans. R. Soc. B 2019, 374, 20180087. [Google Scholar] [CrossRef] [PubMed]
  57. Makarova, K.S.; Wolf, Y.I.; Iranzo, J.; Shmakov, S.A.; Alkhnbashi, O.S.; Brouns, S.J.; Charpentier, E.; Cheng, D.; Haft, D.H.; Horvath, P. Evolutionary classification of CRISPR–Cas systems: A burst of class 2 and derived variants. Nat. Rev. Microbiol. 2020, 18, 67–83. [Google Scholar]
  58. Jinek, M.; Chylinski, K.; Fonfara, I.; Hauer, M.; Doudna, J.A.; Charpentier, E. A programmable dual-RNA–guided DNA endonuclease in adaptive bacterial immunity. Science 2012, 337, 816–821. [Google Scholar] [CrossRef] [PubMed]
  59. Anders, C.; Niewoehner, O.; Duerst, A.; Jinek, M. Structural basis of PAM-dependent target DNA recognition by the Cas9 endonuclease. Nature 2014, 513, 569–573. [Google Scholar] [CrossRef] [PubMed]
  60. Jinek, M.; Jiang, F.; Taylor, D.W.; Sternberg, S.H.; Kaya, E.; Ma, E.; Anders, C.; Hauer, M.; Zhou, K.; Lin, S. Structures of Cas9 endonucleases reveal RNA-mediated conformational activation. Science 2014, 343. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Josephs, E.A.; Kocak, D.D.; Fitzgibbon, C.J.; McMenemy, J.; Gersbach, C.A.; Marszalek, P.E. Structure and specificity of the RNA-guided endonuclease Cas9 during DNA interrogation, target binding and cleavage. Nucleic Acids Res. 2015, 43, 8924–8941. [Google Scholar] [CrossRef] [Green Version]
  62. Sternberg, S.H.; LaFrance, B.; Kaplan, M.; Doudna, J.A. Conformational control of DNA target cleavage by CRISPR–Cas9. Nature 2015, 527, 110–113. [Google Scholar] [CrossRef] [PubMed]
  63. Jiang, F.; Doudna, J.A. CRISPR–Cas9 structures and mechanisms. Annu. Rev. Biophys. 2017, 46, 505–529. [Google Scholar] [CrossRef] [Green Version]
  64. Le Rhun, A.; Escalera-Maurer, A.; Bratovič, M.; Charpentier, E. CRISPR-Cas in Streptococcus pyogenes. RNA Biol. 2019, 16, 380–389. [Google Scholar] [CrossRef] [Green Version]
  65. Furuhata, Y.; Kato, Y. Asymmetric Roles of Two Histidine Residues in Streptococcus pyogenes Cas9 Catalytic Domains upon Chemical Rescue. Biochemistry 2021, 60, 194–200. [Google Scholar] [CrossRef] [PubMed]
  66. Zuo, Z.; Zolekar, A.; Babu, K.; Lin, V.J.; Hayatshahi, H.S.; Rajan, R.; Wang, Y.-C.; Liu, J. Structural and functional insights into the bona fide catalytic state of Streptococcus pyogenes Cas9 HNH nuclease domain. Elife 2019, 8, e46500. [Google Scholar] [CrossRef] [PubMed]
  67. Nishimasu, H.; Ran, F.A.; Hsu, P.D.; Konermann, S.; Shehata, S.I.; Dohmae, N.; Ishitani, R.; Zhang, F.; Nureki, O. Crystal structure of Cas9 in complex with guide RNA and target DNA. Cell 2014, 156, 935–949. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  68. Kleinstiver, B.P.; Prew, M.S.; Tsai, S.Q.; Topkar, V.V.; Nguyen, N.T.; Zheng, Z.; Gonzales, A.P.; Li, Z.; Peterson, R.T.; Yeh, J.-R.J. Engineered CRISPR-Cas9 nucleases with altered PAM specificities. Nature 2015, 523, 481–485. [Google Scholar] [CrossRef] [Green Version]
  69. Walton, R.T.; Christie, K.A.; Whittaker, M.N.; Kleinstiver, B.P. Unconstrained genome targeting with near-PAMless engineered CRISPR-Cas9 variants. Science 2020, 368, 290–296. [Google Scholar] [CrossRef] [PubMed]
  70. Slaymaker, I.M.; Gao, L.; Zetsche, B.; Scott, D.A.; Yan, W.X.; Zhang, F. Rationally engineered Cas9 nucleases with improved specificity. Science 2016, 351, 84–88. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  71. Chen, J.S.; Dagdas, Y.S.; Kleinstiver, B.P.; Welch, M.M.; Sousa, A.A.; Harrington, L.B.; Sternberg, S.H.; Joung, J.K.; Yildiz, A.; Doudna, J.A. Enhanced proofreading governs CRISPR–Cas9 targeting accuracy. Nature 2017, 550, 407–410. [Google Scholar] [CrossRef] [Green Version]
  72. Kleinstiver, B.P.; Pattanayak, V.; Prew, M.S.; Tsai, S.Q.; Nguyen, N.T.; Zheng, Z.; Joung, J.K. High-fidelity CRISPR–Cas9 nucleases with no detectable genome-wide off-target effects. Nature 2016, 529, 490–495. [Google Scholar] [CrossRef] [Green Version]
  73. Zetsche, B.; Gootenberg, J.S.; Abudayyeh, O.O.; Slaymaker, I.M.; Makarova, K.S.; Essletzbichler, P.; Volz, S.E.; Joung, J.; Van Der Oost, J.; Regev, A. Cpf1 is a single RNA-guided endonuclease of a class 2 CRISPR-Cas system. Cell 2015, 163, 759–771. [Google Scholar] [CrossRef] [Green Version]
  74. Zhong, G.; Wang, H.; Li, Y.; Tran, M.H.; Farzan, M. Cpf1 proteins excise CRISPR RNAs from mRNA transcripts in mammalian cells. Nat. Chem. Biol. 2017, 13, 839–841. [Google Scholar] [CrossRef] [Green Version]
  75. Yamano, T.; Nishimasu, H.; Zetsche, B.; Hirano, H.; Slaymaker, I.M.; Li, Y.; Fedorova, I.; Nakane, T.; Makarova, K.S.; Koonin, E.V. Crystal structure of Cpf1 in complex with guide RNA and target DNA. Cell 2016, 165, 949–962. [Google Scholar] [CrossRef]
  76. Tran, M.H.; Park, H.; Nobles, C.L.; Karunadharma, P.; Pan, L.; Zhong, G.; Wang, H.; He, W.; Ou, T.; Crynen, G. A more efficient CRISPR-Cas12a variant derived from Lachnospiraceae bacterium MA2020. Mol. Ther. -Nucleic Acids 2021, 24, 40–53. [Google Scholar] [CrossRef]
  77. Fu, Y.; Sander, J.D.; Reyon, D.; Cascio, V.M.; Joung, J.K. Improving CRISPR-Cas nuclease specificity using truncated guide RNAs. Nat. Biotechnol. 2014, 32, 279–284. [Google Scholar] [CrossRef] [Green Version]
  78. Kocak, D.D.; Josephs, E.A.; Bhandarkar, V.; Adkar, S.S.; Kwon, J.B.; Gersbach, C.A. Increasing the specificity of CRISPR systems with engineered RNA secondary structures. Nat. Biotechnol. 2019, 37, 657–666. [Google Scholar] [CrossRef] [PubMed]
  79. Janik, E.; Niemcewicz, M.; Ceremuga, M.; Krzowski, L.; Saluk-Bijak, J.; Bijak, M. Various Aspects of a Gene Editing System—CRISPR–Cas9. Int. J. Mol. Sci. 2020, 21, 9604. [Google Scholar] [CrossRef] [PubMed]
  80. Grundy, G.J.; Moulding, H.A.; Caldecott, K.W.; Rulten, S.L. One ring to bring them all—the role of Ku in mammalian non-homologous end joining. DNA Repair 2014, 17, 30–38. [Google Scholar] [CrossRef]
  81. Fell, V.L.; Schild-Poulter, C. The Ku heterodimer: Function in DNA repair and beyond. Mutat. Res./Rev. Mutat. Res. 2015, 763, 15–29. [Google Scholar] [CrossRef]
  82. Chapman, J.R.; Taylor, M.R.; Boulton, S.J. Playing the end game: DNA double-strand break repair pathway choice. Mol. Cell 2012, 47, 497–510. [Google Scholar] [CrossRef] [Green Version]
  83. San Filippo, J.; Sung, P.; Klein, H. Mechanism of eukaryotic homologous recombination. Annu. Rev. Biochem. 2008, 77, 229–257. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  84. Ranjha, L.; Howard, S.M.; Cejka, P. Main steps in DNA double-strand break repair: An introduction to homologous recombination and related processes. Chromosoma 2018, 127, 187–214. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  85. Trevino, A.E.; Zhang, F. Genome editing using Cas9 nickases. Methods Enzymol. 2014, 546, 161–174. [Google Scholar] [PubMed]
  86. Nakade, S.; Tsubota, T.; Sakane, Y.; Kume, S.; Sakamoto, N.; Obara, M.; Daimon, T.; Sezutsu, H.; Yamamoto, T.; Sakuma, T. Microhomology-mediated end-joining-dependent integration of donor DNA in cells and animals using TALENs and CRISPR/Cas9. Nat. Commun. 2014, 5, 1–8. [Google Scholar] [CrossRef]
  87. Sakuma, T.; Nakade, S.; Sakane, Y.; Suzuki, K.-I.T.; Yamamoto, T. MMEJ-assisted gene knock-in using TALENs and CRISPR-Cas9 with the PITCh systems. Nat. Protoc. 2016, 11, 118–133. [Google Scholar] [CrossRef] [PubMed]
  88. Suzuki, K.; Tsunekawa, Y.; Hernandez-Benitez, R.; Wu, J.; Zhu, J.; Kim, E.J.; Hatanaka, F.; Yamamoto, M.; Araoka, T.; Li, Z. In vivo genome editing via CRISPR/Cas9 mediated homology-independent targeted integration. Nature 2016, 540, 144–149. [Google Scholar] [CrossRef] [PubMed]
  89. Bloomer, H.; Smith, R.H.; Hakami, W.; Larochelle, A. Genome editing in human hematopoietic stem and progenitor cells via CRISPR-Cas9-mediated homology-independent targeted integration. Mol. Ther. 2021, 29, 1611–1624. [Google Scholar] [CrossRef] [PubMed]
  90. Schellenberger, V.; Wang, C.-w.; Geething, N.C.; Spink, B.J.; Campbell, A.; To, W.; Scholle, M.D.; Yin, Y.; Yao, Y.; Bogin, O. A recombinant polypeptide extends the in vivo half-life of peptides and proteins in a tunable manner. Nat. Biotechnol. 2009, 27, 1186–1190. [Google Scholar] [CrossRef] [PubMed]
  91. Eid, A.; Alshareef, S.; Mahfouz, M.M. CRISPR base editors: Genome editing without double-stranded breaks. Biochem. J. 2018, 475, 1955–1964. [Google Scholar] [CrossRef]
  92. Komor, A.C.; Kim, Y.B.; Packer, M.S.; Zuris, J.A.; Liu, D.R. Programmable editing of a target base in genomic DNA without double-stranded DNA cleavage. Nature 2016, 533, 420–424. [Google Scholar] [CrossRef] [Green Version]
  93. Komor, A.C.; Zhao, K.T.; Packer, M.S.; Gaudelli, N.M.; Waterbury, A.L.; Koblan, L.W.; Kim, Y.B.; Badran, A.H.; Liu, D.R. Improved base excision repair inhibition and bacteriophage Mu Gam protein yields C: G-to-T: A base editors with higher efficiency and product purity. Sci. Adv. 2017, 3, eaao4774. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  94. Li, X.; Wang, Y.; Liu, Y.; Yang, B.; Wang, X.; Wei, J.; Lu, Z.; Zhang, Y.; Wu, J.; Huang, X. Base editing with a Cpf1–cytidine deaminase fusion. Nat. Biotechnol. 2018, 36, 324–327. [Google Scholar] [CrossRef] [PubMed]
  95. Gaudelli, N.M.; Komor, A.C.; Rees, H.A.; Packer, M.S.; Badran, A.H.; Bryson, D.I.; Liu, D.R. Programmable base editing of A• T to G• C in genomic DNA without DNA cleavage. Nature 2017, 551, 464–471. [Google Scholar] [CrossRef]
  96. Rees, H.A.; Liu, D.R. Base editing: Precision chemistry on the genome and transcriptome of living cells. Nat. Rev. Genet. 2018, 19, 770–788. [Google Scholar] [CrossRef] [PubMed]
  97. Richter, M.F.; Zhao, K.T.; Eton, E.; Lapinaite, A.; Newby, G.A.; Thuronyi, B.W.; Wilson, C.; Koblan, L.W.; Zeng, J.; Bauer, D.E. Phage-assisted evolution of an adenine base editor with improved Cas domain compatibility and activity. Nat. Biotechnol. 2020, 38, 883–891. [Google Scholar] [CrossRef] [PubMed]
  98. Lapinaite, A.; Knott, G.J.; Palumbo, C.M.; Lin-Shiao, E.; Richter, M.F.; Zhao, K.T.; Beal, P.A.; Liu, D.R.; Doudna, J.A. DNA capture by a CRISPR-Cas9–guided adenine base editor. Science 2020, 369, 566–571. [Google Scholar] [CrossRef]
  99. Grünewald, J.; Zhou, R.; Lareau, C.A.; Garcia, S.P.; Iyer, S.; Miller, B.R.; Langner, L.M.; Hsu, J.Y.; Aryee, M.J.; Joung, J.K. A dual-deaminase CRISPR base editor enables concurrent adenine and cytosine editing. Nat. Biotechnol. 2020, 38, 861–864. [Google Scholar] [CrossRef] [PubMed]
  100. Sakata, R.C.; Ishiguro, S.; Mori, H.; Tanaka, M.; Tatsuno, K.; Ueda, H.; Yamamoto, S.; Seki, M.; Masuyama, N.; Nishida, K. Base editors for simultaneous introduction of C-to-T and A-to-G mutations. Nat. Biotechnol. 2020, 38, 865–869. [Google Scholar] [CrossRef] [PubMed]
  101. Zhang, X.; Zhu, B.; Chen, L.; Xie, L.; Yu, W.; Wang, Y.; Li, L.; Yin, S.; Yang, L.; Hu, H. Dual base editor catalyzes both cytosine and adenine base conversions in human cells. Nat. Biotechnol. 2020, 38, 856–860. [Google Scholar] [CrossRef]
  102. Anzalone, A.V.; Randolph, P.B.; Davis, J.R.; Sousa, A.A.; Koblan, L.W.; Levy, J.M.; Chen, P.J.; Wilson, C.; Newby, G.A.; Raguram, A. Search-and-replace genome editing without double-strand breaks or donor DNA. Nature 2019, 576, 149–157. [Google Scholar] [CrossRef]
  103. Marzec, M.; Brąszewska-Zalewska, A.; Hensel, G. Prime editing: A new way for genome editing. Trends Cell Biol. 2020, 30, 257–259. [Google Scholar] [CrossRef]
  104. Hsu, J.Y.; Grünewald, J.; Szalay, R.; Shih, J.; Anzalone, A.V.; Lam, K.C.; Shen, M.W.; Petri, K.; Liu, D.R.; Joung, J.K. PrimeDesign software for rapid and simplified design of prime editing guide RNAs. Nat. Commun. 2021, 12, 1–6. [Google Scholar] [CrossRef]
  105. Vastenhouw, N.L.; Cao, W.X.; Lipshitz, H.D. The maternal-to-zygotic transition revisited. Development 2019, 146, dev161471. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  106. DeWitt, M.A.; Corn, J.E.; Carroll, D. Genome editing via delivery of Cas9 ribonucleoprotein. Methods 2017, 121, 9–15. [Google Scholar] [CrossRef] [PubMed]
  107. Chau, C.; Actis, P.; Hewitt, E. Methods for protein delivery into cells: From current approaches to future perspectives. Biochem. Soc. Trans. 2020, 48, 357–365. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  108. Loh, O.Y.; Ho, A.M.; Rim, J.E.; Kohli, P.; Patankar, N.A.; Espinosa, H.D. Electric field-induced direct delivery of proteins by a nanofountain probe. Proc. Natl. Acad. Sci. USA 2008, 105, 16438–16443. [Google Scholar] [CrossRef] [Green Version]
  109. Yang, R.; Lemaître, V.; Huang, C.; Haddadi, A.; McNaughton, R.; Espinosa, H.D. Monoclonal cell line generation and CRISPR/Cas9 manipulation via single-cell electroporation. Small 2018, 14, 1702495. [Google Scholar] [CrossRef] [PubMed]
  110. Espinosa, H.D.; Mukherjee, P.; Patino, C. Nanofountain Probe Electroporation for Monoclonal Cell Line Generation. In Electroporation Protocols; Springer: Berlin/Heidelberg, Germany, 2020; pp. 59–68. [Google Scholar]
  111. Xie, X.; Xu, A.M.; Leal-Ortiz, S.; Cao, Y.; Garner, C.C.; Melosh, N.A. Nanostraw–electroporation system for highly efficient intracellular delivery and transfection. ACS Nano 2013, 7, 4351–4358. [Google Scholar] [CrossRef] [PubMed]
  112. Cao, Y.; Chen, H.; Qiu, R.; Hanna, M.; Ma, E.; Hjort, M.; Zhang, A.; Lewis, R.; Wu, J.; Melosh, N. Universal intracellular biomolecule delivery with precise dosage control. Sci. Adv. 2018, 4, eaat8131. [Google Scholar] [CrossRef] [Green Version]
  113. Cao, Y.; Ma, E.; Cestellos-Blanco, S.; Zhang, B.; Qiu, R.; Su, Y.; Doudna, J.A.; Yang, P. Nontoxic nanopore electroporation for effective intracellular delivery of biological macromolecules. Proc. Natl. Acad. Sci. USA 2019, 116, 7899–7904. [Google Scholar] [CrossRef] [Green Version]
  114. Briggs, J.A.; Simon, M.N.; Gross, I.; Kräusslich, H.-G.; Fuller, S.D.; Vogt, V.M.; Johnson, M.C. The stoichiometry of Gag protein in HIV-1. Nat. Struct. Mol. Biol. 2004, 11, 672–675. [Google Scholar] [CrossRef]
  115. Lingappa, J.R.; Reed, J.C.; Tanaka, M.; Chutiraka, K.; Robinson, B.A. How HIV-1 Gag assembles in cells: Putting together pieces of the puzzle. Virus Res. 2014, 193, 89–107. [Google Scholar] [CrossRef] [Green Version]
  116. Yip, B.H. Recent advances in CRISPR/Cas9 delivery strategies. Biomolecules 2020, 10, 839. [Google Scholar] [CrossRef] [PubMed]
  117. Choi, J.; Dang, Y.; Abraham, S.; Ma, H.; Zhang, J.; Guo, H.; Cai, Y.; Mikkelsen, J.; Wu, H.; Shankar, P. Lentivirus pre-packed with Cas9 protein for safer gene editing. Gene Ther. 2016, 23, 627–633. [Google Scholar] [CrossRef] [PubMed]
  118. Mangeot, P.E.; Risson, V.; Fusil, F.; Marnef, A.; Laurent, E.; Blin, J.; Mournetas, V.; Massouridès, E.; Sohier, T.J.; Corbin, A. Genome editing in primary cells and in vivo using viral-derived Nanoblades loaded with Cas9-sgRNA ribonucleoproteins. Nat. Commun. 2019, 10, 1–15. [Google Scholar] [CrossRef] [Green Version]
  119. Montagna, C.; Petris, G.; Casini, A.; Maule, G.; Franceschini, G.M.; Zanella, I.; Conti, L.; Arnoldi, F.; Burrone, O.R.; Zentilin, L. VSV-G-enveloped vesicles for traceless delivery of CRISPR-Cas9. Mol. Ther. Nucleic Acids 2018, 12, 453–462. [Google Scholar] [CrossRef] [Green Version]
  120. Wulczyn, F.G.; Bölker, M.; Kahmann, R. Translation of the bacteriophage Mu mom gene is positively regulated by the phage com gene product. Cell 1989, 57, 1201–1210. [Google Scholar] [CrossRef] [Green Version]
  121. Wulczyn, F.G.; Kahmann, R. Translational stimulation: RNA sequence and structure requirements for binding of Com protein. Cell 1991, 65, 259–269. [Google Scholar] [CrossRef]
  122. Lyu, P.; Javidi-Parsijani, P.; Atala, A.; Lu, B. Delivering Cas9/sgRNA ribonucleoprotein (RNP) by lentiviral capsid-based bionanoparticles for efficient ‘hit-and-run’genome editing. Nucleic Acids Res. 2019, 47, e99. [Google Scholar] [CrossRef] [Green Version]
  123. Lyu, P.; Wang, L.; Lu, B. Virus-like particle mediated CRISPR/Cas9 delivery for efficient and safe genome editing. Life 2020, 10, 366. [Google Scholar] [CrossRef]
  124. Lu, Z.; Yao, X.; Lyu, P.; Yadav, M.; Yoo, K.; Atala, A.; Lu, B. Lentiviral Capsid-Mediated Streptococcus pyogenes Cas9 Ribonucleoprotein Delivery for Efficient and Safe Multiplex Genome Editing. CRISPR J. 2021. [Google Scholar] [CrossRef] [PubMed]
  125. Muratori, C.; Bona, R.; Federico, M. Lentivirus-based virus-like particles as a new protein delivery tool. In Lentivirus Gene Engineering Protocols; Springer: Berlin/Heidelberg, Germany, 2010; pp. 111–124. [Google Scholar]
  126. Peretti, S.; Schiavoni, I.; Pugliese, K.; Federico, M. Cell death induced by the herpes simplex virus-1 thymidine kinase delivered by human immunodeficiency virus-1-based virus-like particles. Mol. Ther. 2005, 12, 1185–1196. [Google Scholar] [CrossRef] [PubMed]
  127. Müller, B.; Tessmer, U.; Schubert, U.; Kräusslich, H.-G. Human immunodeficiency virus type 1 Vpr protein is incorporated into the virion in significantly smaller amounts than gag and is phosphorylated in infected cells. J. Virol. 2000, 74, 9727–9731. [Google Scholar] [CrossRef] [Green Version]
  128. Wu, X.; Liu, H.; Xiao, H.; Kim, J.; Seshaiah, P.; Natsoulis, G.; Boeke, J.D.; Hahn, B.H.; Kappes, J.C. Targeting foreign proteins to human immunodeficiency virus particles via fusion with Vpr and Vpx. J. Virol. 1995, 69, 3389–3398. [Google Scholar] [CrossRef] [Green Version]
  129. Lu, B.; Javidi-Parsijani, P.; Makani, V.; Mehraein-Ghomi, F.; Sarhan, W.M.; Sun, D.; Yoo, K.W.; Atala, Z.P.; Lyu, P.; Atala, A. Delivering SaCas9 mRNA by lentivirus-like bionanoparticles for transient expression and efficient genome editing. Nucleic Acids Res. 2019, 47, e44. [Google Scholar] [CrossRef] [Green Version]
  130. Banaszynski, L.A.; Liu, C.W.; Wandless, T.J. Characterization of the FKBP.Rapamycin.FRB ternary complex. J. Am. Chem. Soc. 2005, 127, 4715–4721. [Google Scholar] [PubMed]
  131. Choi, J.; Chen, J.; Schreiber, S.L.; Clardy, J. Structure of the FKBP12-rapamycin complex interacting with binding domain of human FRAP. Science 1996, 273, 239–242. [Google Scholar] [CrossRef] [PubMed]
  132. Chen, J.; Zheng, X.-F.; Brown, E.J.; Schreiber, S.L. Identification of an 11-kDa FKBP12-rapamycin-binding domain within the 289-kDa FKBP12-rapamycin-associated protein and characterization of a critical serine residue. Proc. Natl. Acad. Sci. USA 1995, 92, 4947–4951. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  133. Liang, J.; Choi, J.; Clardy, J. Refined structure of the FKBP12–rapamycin–FRB ternary complex at 2.2 Å resolution. Acta Crystallogr. Sect. D Biol. Crystallogr. 1999, 55, 736–744. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  134. Gee, P.; Lung, M.S.; Okuzaki, Y.; Sasakawa, N.; Iguchi, T.; Makita, Y.; Hozumi, H.; Miura, Y.; Yang, L.F.; Iwasaki, M. Extracellular nanovesicles for packaging of CRISPR-Cas9 protein and sgRNA to induce therapeutic exon skipping. Nat. Commun. 2020, 11, 1–18. [Google Scholar]
  135. Van Niel, G.; d’Angelo, G.; Raposo, G. Shedding light on the cell biology of extracellular vesicles. Nat. Rev. Mol. Cell Biol. 2018, 19, 213–228. [Google Scholar] [CrossRef]
  136. Ratajczak, M.Z.; Ratajczak, J. Extracellular microvesicles/exosomes: Discovery, disbelief, acceptance, and the future? Leukemia 2020, 34, 3126–3135. [Google Scholar] [CrossRef]
  137. Hessvik, N.P.; Llorente, A. Current knowledge on exosome biogenesis and release. Cell. Mol. Life Sci. 2018, 75, 193–208. [Google Scholar] [CrossRef] [Green Version]
  138. Jeppesen, D.K.; Fenix, A.M.; Franklin, J.L.; Higginbotham, J.N.; Zhang, Q.; Zimmerman, L.J.; Liebler, D.C.; Ping, J.; Liu, Q.; Evans, R. Reassessment of exosome composition. Cell 2019, 177, 428–445.e18. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  139. Pols, M.S.; Klumperman, J. Trafficking and function of the tetraspanin CD63. Exp. Cell Res. 2009, 315, 1584–1592. [Google Scholar] [CrossRef]
  140. Yao, X.; Lyu, P.; Yoo, K.; Yadav, M.K.; Singh, R.; Atala, A.; Lu, B. Engineered extracellular vesicles as versatile ribonucleoprotein delivery vehicles for efficient and safe CRISPR genome editing. J. Extracell. Vesicles 2021, 10, e12076. [Google Scholar] [CrossRef] [Green Version]
  141. Ye, Y.; Zhang, X.; Xie, F.; Xu, B.; Xie, P.; Yang, T.; Shi, Q.; Zhang, C.-Y.; Zhang, Y.; Chen, J. An engineered exosome for delivering sgRNA: Cas9 ribonucleoprotein complex and genome editing in recipient cells. Biomater. Sci. 2020, 8, 2966–2976. [Google Scholar] [CrossRef]
  142. Tricarico, C.; Clancy, J.; D'Souza-Schorey, C. Biology and biogenesis of shed microvesicles. Small GTPases 2017, 8, 220–232. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  143. Kanada, M.; Bachmann, M.H.; Hardy, J.W.; Frimannson, D.O.; Bronsart, L.; Wang, A.; Sylvester, M.D.; Schmidt, T.L.; Kaspar, R.L.; Butte, M.J. Differential fates of biomolecules delivered to target cells via extracellular vesicles. Proc. Natl. Acad. Sci. USA 2015, 112, E1433–E1442. [Google Scholar] [CrossRef] [Green Version]
  144. Wang, Q.; Yu, J.; Kadungure, T.; Beyene, J.; Zhang, H.; Lu, Q. ARMMs as a versatile platform for intracellular delivery of macromolecules. Nat. Commun. 2018, 9, 960. [Google Scholar] [CrossRef] [PubMed]
Ijms 22 09872 g001 550

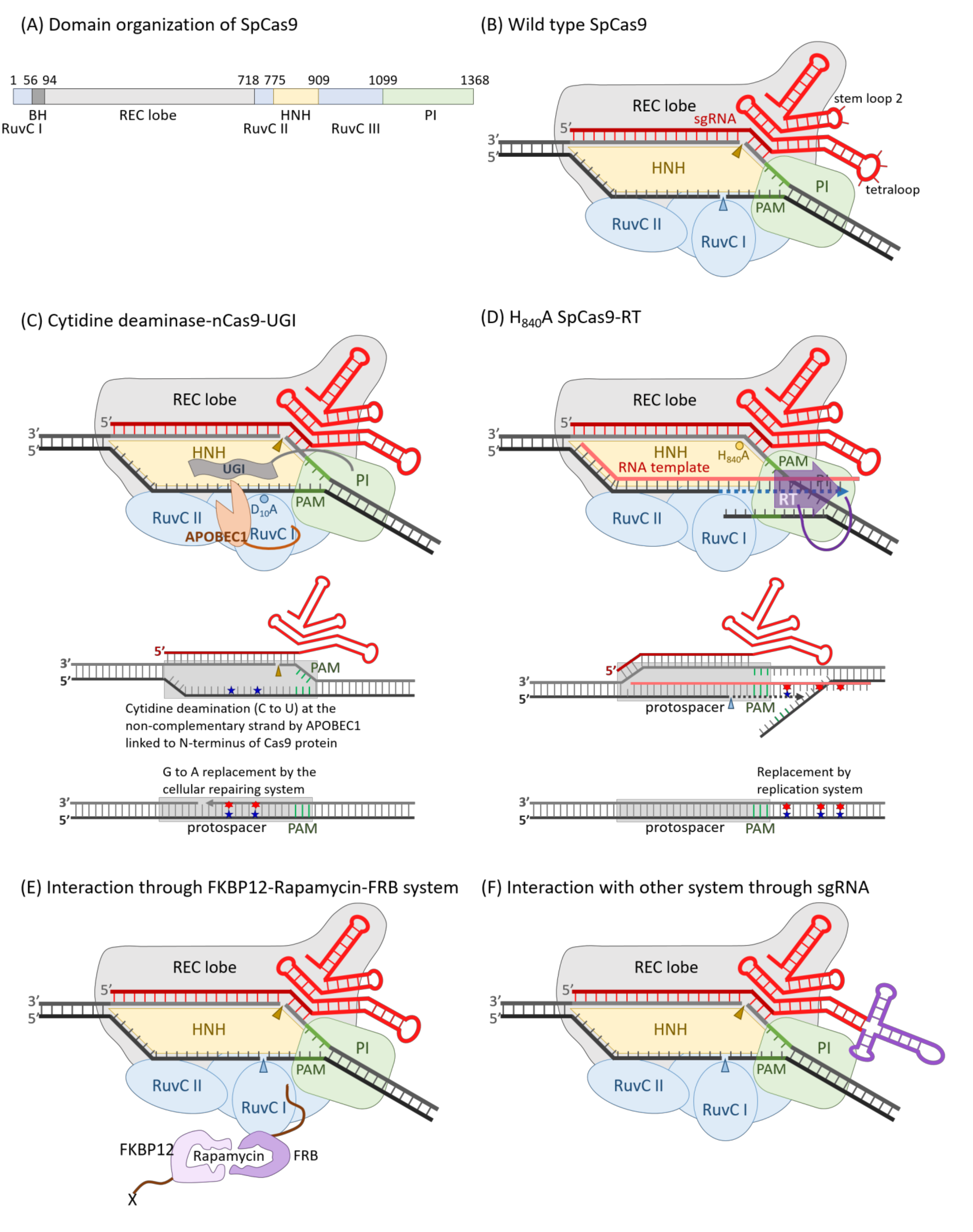

Figure 1. Diagrams of SpCas9 and its derivatives for various applications. The domain organization of SpCas9 (A) and a schematic diagram of wild-type SpCas9 associated with a sgRNA (B) was illustrated. The non-complementary strand is cut by the RuvC nuclease domain, and this nuclease activity was blocked in D10A mutant. On the other hand, the complementary strand was digested by the HNH nuclease domain, and such nuclease activity was destroyed in H840A mutant. (C) The D10A mutant, also named Cas9 nickase (nCas9), was engineered as a C to T nucleotide editor by linking a cytidine deaminase, APOBEC1, on the N-terminus of it and the switching probability could be elevated by the fusion of a uracil glycosylase inhibitor (UGI) on the C-terminus of nCas9. Like TALE, dCas9 could be guided by a sgRNA as a sequence-specific DNA-binding riboprotein. Transcriptional regulators, DNA modification enzymes, or histone modification enzymes could be fused to either or both of the N- and C-termini. In case of reverse transcriptase, it was fused to the C-terminus of Cas9, accompanied by an RNA template with 3′-end complementary to the non-complementary strand of protospacer, which could alter the nearby nucleotides downstream the RuvC cutting site (D). The localization of the Cas9-sgRNA also could be guided to an X-protein through an FKBP12–rapamycin–FRB bridge (E). The localization of the Cas9-sgRNA could also be guided via certain specific interactions, such as those between aptamer RNA and ABP. The tetraloop was replaced by an RNA aptamer of unique secondary structure, which can be recognized by a specific aptamer binding protein (F).
Figure 1. Diagrams of SpCas9 and its derivatives for various applications. The domain organization of SpCas9 (A) and a schematic diagram of wild-type SpCas9 associated with a sgRNA (B) was illustrated. The non-complementary strand is cut by the RuvC nuclease domain, and this nuclease activity was blocked in D10A mutant. On the other hand, the complementary strand was digested by the HNH nuclease domain, and such nuclease activity was destroyed in H840A mutant. (C) The D10A mutant, also named Cas9 nickase (nCas9), was engineered as a C to T nucleotide editor by linking a cytidine deaminase, APOBEC1, on the N-terminus of it and the switching probability could be elevated by the fusion of a uracil glycosylase inhibitor (UGI) on the C-terminus of nCas9. Like TALE, dCas9 could be guided by a sgRNA as a sequence-specific DNA-binding riboprotein. Transcriptional regulators, DNA modification enzymes, or histone modification enzymes could be fused to either or both of the N- and C-termini. In case of reverse transcriptase, it was fused to the C-terminus of Cas9, accompanied by an RNA template with 3′-end complementary to the non-complementary strand of protospacer, which could alter the nearby nucleotides downstream the RuvC cutting site (D). The localization of the Cas9-sgRNA also could be guided to an X-protein through an FKBP12–rapamycin–FRB bridge (E). The localization of the Cas9-sgRNA could also be guided via certain specific interactions, such as those between aptamer RNA and ABP. The tetraloop was replaced by an RNA aptamer of unique secondary structure, which can be recognized by a specific aptamer binding protein (F).
Ijms 22 09872 g001
Table
Table 1. The engineered mutations of SpCas9 on target site recognition and nuclease activities.
Table 1. The engineered mutations of SpCas9 on target site recognition and nuclease activities.
Domain Where Mutations EngineeredFunctional ChangesReference
MutantsRuvC-I
(1–55)		BH
(56–93)		REC Lobe
(94–717)		RuvC-II
(718–774)		HNH
(775–908)		RuvC-III
(909–1098)		PI
(1099–1368)
SpG D1135L, S1136W,
G1218Q, E1219Q,
R1335Q, T1337R		The recognition sequence of PAM changed from NGG to NGN.[69]
SpRY A61R L1111R, D1135L
S1136W, G1218Q
E1219Q, N1317R,
A1322R, R1333P,
R1335Q, T1337R		The recognition sequence of PAM changed from NGG to PAMless (NRN > NYN).
eSpCas9(1.1) K848AK1003A
R1060A		 eSpCas9(1.1) displayed efficient and precise genome editing in human cells.[70]
SpCas9-HF1 N497A
R661A
Q695A		 Q926A SpCas9-HF1 performed with high on-target activity and reduced off-target editing.[71,72]
nSpCas9D10A RuvC nuclease activity was eliminated. (nickase)[58]
SpCas9(H840A) H840A HNH nuclease activity was diminished.
dSpCas9D10A H840A Dead SpCas9 lost both of the RuvC and HNH nuclease activities.
SpCas9(N863A) N863A HNH nuclease activity was eliminated.[67]
SpCas9(D839A) D839A HNH nuclease activity was diminished.[66]
SpCas9(H983A) H983A RuvC nuclease activity was eliminated.[65]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Chuang, C.-K.; Lin, W.-M. Points of View on the Tools for Genome/Gene Editing. Int. J. Mol. Sci. 2021, 22, 9872. https://doi.org/10.3390/ijms22189872

AMA Style

Chuang C-K, Lin W-M. Points of View on the Tools for Genome/Gene Editing. International Journal of Molecular Sciences. 2021; 22(18):9872. https://doi.org/10.3390/ijms22189872

Chicago/Turabian Style

Chuang, Chin-Kai, and Wei-Ming Lin. 2021. "Points of View on the Tools for Genome/Gene Editing" International Journal of Molecular Sciences 22, no. 18: 9872. https://doi.org/10.3390/ijms22189872

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
