Review

Pannexins and Connexins: Their Relevance for Oocyte Developmental Competence

by
Paweł Kordowitzki
1,2,
Gabriela Sokołowska
3,
Marta Wasielak-Politowska
4,
Agnieszka Skowronska
5 and
Mariusz T. Skowronski
2,*
1
Institute of Animal Reproduction and Food Research of Polish Academy of Sciences, Bydgoska Street 7, 10-243 Olsztyn, Poland
2
Department of Basic and Preclinical Sciences, Faculty of Biological and Veterinary Sciences, Nicolaus Copernicus University, Gagarina Street 7, 87-100 Torun, Poland
3
Department of Reproduction and Gynecological Endocrinology, Medical University of Bialystok, Jana Kilińskiego Street 1, 15-089 Białystok, Poland
4
Center of Gynecology, Endocrinology and Reproductive Medicine—Artemida, Jagiellońska Street 78, 10-357 Olsztyn, Poland
5
Department of Human Physiology and Pathophysiology, School of Medicine, Collegium Medicum, University of Warmia and Mazury, Warszawska Street 30, 10-357 Olsztyn, Poland
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2021, 22(11), 5918; https://doi.org/10.3390/ijms22115918
Submission received: 13 April 2021 / Revised: 23 May 2021 / Accepted: 28 May 2021 / Published: 31 May 2021
(This article belongs to the Special Issue Connexin and Pannexin Signaling in Health and Disease 2.0)
Browse Figures
Review Reports Versions Notes

Abstract

:
The oocyte is the major determinant of embryo developmental competence in all mammalian species. Although fundamental advances have been generated in the field of reproductive medicine and assisted reproductive technologies in the past three decades, researchers and clinicians are still trying to elucidate molecular factors and pathways, which could be pivotal for the oocyte’s developmental competence. The cell-to-cell and cell-to-matrix communications are crucial not only for oocytes but also for multicellular organisms in general. This latter mentioned communication is among others possibly due to the Connexin and Pannexin families of large-pore forming channels. Pannexins belong to a protein group of ATP-release channels, therefore of high importance for the oocyte due to its requirements of high energy supply. An increasing body of studies on Pannexins provided evidence that these channels not only play a role during physiological processes of an oocyte but also during pathological circumstances which could lead to the development of diseases or infertility. Connexins are proteins that form membrane channels and gap-junctions, and more precisely, these proteins enable the exchange of some ions and molecules, and therefore they do play a fundamental role in the communication between the oocyte and accompanying cells. Herein, the role of Pannexins and Connexins for the processes of oogenesis, folliculogenesis, oocyte maturation and fertilization will be discussed and, at the end of this review, Pannexin and Connexin related pathologies and their impact on the developmental competence of oocytes will be provided.

1. Introduction

A breakthrough in human reproductive medicine was the birth of world’s first in vitro fertilized (IVF) baby, Louise Joy Brown, who was born in 1978. Today, there is widespread use of various assisted reproductive technologies. It is generally accepted that human oocytes have reduced developmental competence and increased aneuploidy with advancing maternal age. Therefore, the outstanding need for adequate biomarkers of oocyte developmental competence has become a high priority for research and fertility clinics around the globe since women’s first attempt at childbearing has increased in the last three decades [1]. One possible pathway, that is worth having a closer look at when intending to find such biomarkers, could be the cellular communication between the oocyte and surrounding cells inside of a follicle. The cell-to-cell and cell-to-matrix communications are crucial not only for oocytes but also for multicellular organisms in general. This latter mentioned communication is among others possible due to the Connexin and Pannexin families of large-pore forming channels. Connexin and Pannexin have a comparable 3D structure, although there is no sequence homology. Furthermore, six Connexins form a connexon and six Pannexins form a pannexon, both of which are hemichannels (Figure 1A). The Connexin family constitutes a group of homologous proteins (21 in humans), encoded by different genes [2]. The protein’s size in the members of the Connexin family is different, ranging from the smallest size of 23 kD (Connexin 23) to the largest protein size of this family at 62 kD (Connexin62) [3]. As previously mentioned Connexins are membrane channels forming gap-junctions, and more precisely, these intercellular proteins enable the exchange of some ions and molecules and therefore playing a crucial role in the communication between cells [4]. For the cellular osmoregulation, volume-regulated anion channels (VRACs) appear to be relevant. As Connexins and Pannexins, these VRACs are assembled in hexamers which are formed by the protein family named LRRC8 [5]. So far five members of the LRRCA family are described, namely LRRC8 A-E [6].
The unique gating and permeability of gap-junction channels is defined by their Connexin alignment [3,7], where channels can be (1) homomeric-homotypic, (2) homomeric-heterotypic, or (3) heteromeric-heterotypic (Figure 1B). Noteworthy, heterotypic channels are mainly built by two homomeric hexamers and only some Connexins are compatible for interrelation [8]. However, gap junction channels can also be formed by two heteromeric hexamers but so far there are no reports available which could describe heteromeric-homotypic gap-junctions in oocytes or surrounding cells, although gap junction channels can be formed containing more than one Connexin isoforms [9,10]. Interestingly, Connexins can be further divided according to their amino acid sequence homology into three groups, namely alpha Connexins and beta Connexins, whereas the third group consists of gamma, delta and epsilon Connexins [11,12,13]. Consequently, these differences in the Connexin composition imply the multi-faceted task for the physiology and developmental competence of an oocyte.
Two decades ago, Panchin and co-workers [14] discovered the Pannexin family, which constitutes a group of three glycoproteins, Pannexin 1, Pannexin 2 and Pannexin 3 [15,16]. Expression of Panx1 was confirmed in the male and female reproductive tract, but its role in reproductive cells, especially in the oocyte, still needs further elucidation. Numerous studies have been dedicated to Pannexin 1, which is encoded by the gene PANX1 [17] and has a wide range of involvement in several physiological and pathophysiological functions [18,19]. Therefore, acquiring a deeper knowledge of Pannexin’s and Connexin’s importance for the mammalian oocyte is of high interest for the research field of reproductive medicine and for assisted reproductive technologies. This review provides an overview of current evidence on the link between oocyte developmental competence and the intercellular communication upon the Pannexin and Connexin channel proteins. Herein, their role for the processes of oogenesis, folliculogenesis, oocyte maturation and fertilization will be discussed, and at the end of this review, Pannexin and Connexin related pathologies and their impact on the oocyte’s viability and fertility will be provided.

2. Pannexin and Connexin Involvement in Oogenesis and Folliculogenesis

Oogenesis in mammalian species is defined as the formation and maturation of female gametes during embryogenesis and starts on the first days of the embryonic period [20]. Primordial germ cells differentiate into oogonia which proliferate to form primary oocytes. At the end of the fetal period, they begin the meiosis which is arrested at the prophase stage in many mammalian species and humans. In this state, the oocyte of women can remain even until reaching menopause. Just before each ovulation, the first meiotic division resumes [21]. Successful oogenesis requires full cooperation of oocytes and those cells surrounding them, namely granulosa and cumulus cells [21,22]. Differentiated cumulus cells are essential for oocyte nuclear and cytoplasmic maturation. They supply oocytes with the nutrients and regulatory signals needed for further development [22,23].
There are conserved homologies of up to 94% between human and murine Pannexins, and PANX1 knockout mice have shown to be viable and fertile [17,24]. Furthermore, Pannexin 1 has been recently described to be involved in oocyte development and growth [25]. It has been shown that Pannexin 1 is localized in cumulus cells with ubiquitous expression pattern. The expression of the PANX1 gene in bovine oocytes and cumulus cells is differential with higher expression in smaller antral follicles compared to larger antral follicles, which suggests that the expression of Pannexin 1 decreases in vivo during antral follicle development [25]. The role of Pannexin 2 and Pannexin 3 in oogenesis needs to be elucidated. The involvement of Pannexins in oocyte development is not precisely described, while the involvement of Connexins has been investigated widely.
The most well-studied Connexins in oocyte-cumulus-complexes (COCs) are Connexin 43 and 37 (Cx43 and 37, respectively) [3,16]. Both of them have a pivotal role in all stages of folliculogenesis and oocyte maturation [26,27] (Table 1). Granulosa cells express Cx43, whereas Cx37 is present in both cumulus cells and oocytes at all stages of follicular development [3,28]. Due to their differential localization (Figure 2), they are responsible for slightly different functions. Cx43 enables the communication among granulosa cells, and its lack leads to the arrest of oocyte development at primary stages. Cx37 is essential for the gap–junctional communication between oocyte and cumulus cells (Figure 2) [29,30]. Previous research provided evidence that the lack of Cx37 in female mice led to diminished follicular development at early antral stages, as well as to a reduced meiotic competence [31]. Furthermore, the deletion of the Gja4 gene, which encodes for Cx37, resulted in a lack of gap-junctions between oocytes and cumulus cells, and additionally, in the granulosa cells, characteristics of a premature luteinization were observed [31]. Consequently, it can be assumed that Cx37 might be also involved in the signal transduction responsible for the prevention of granulosa cell luteinization prior to ovulation [3]. The knockout of Cx43 in mice was lethal, therefore it was necessary to transplant the ovaries lacking Cx43 into a kidney of another adult wild-type mouse to follow up its further postnatal development [30,32]. Loss of Cx43 led to an arrest of follicle development before antrum formation. Moreover, the absence of Cx43 impaired the follicle growth and decreased the sensitivity of granulosa cells upon growth differentiation factor 9 (GDF9) [33]. Cx43 also facilitates oogenesis by providing connexons for the plasma membranes of granulosa cells [34]. These hemichannels regulate the release of molecules and ions from cells to interact with receptors on surrounding cells. This pathway may also be supportive and crucial for folliculogenesis [34].
Interestingly, when a wild-type murine oocyte was fused with granular cells bearing a mutation of Cx43 no intercellular gap-junction could be formed, although hemichannels were present in the plasma membrane (Table 1). Additionally, folliculogenesis was diminished suggesting the pivotal role of Cx43 in forming gap-junctions in murine granulosa cells [35]. Noteworthy, the PDZ-binding domain of Cx43 may play an important role in oogenesis, and it was reported that PDZ-binding domain deletion homozygote mice rarely survive, were infertile, and their follicles were morphologically impaired [31,36].
The Follicle-stimulating hormone (FSH) secreted by the posterior lobe of the pituitary gland has its receptors among other localizations on granulosa cells [37]. FSH is required for the proper growth of more advanced follicular stages (antral follicles) which during their development become responsive to FSH [38]. It was demonstrated that FSH regulates the Cx43 protein expression (Figure 2), and its encoding mRNA (GJA1) expression (Figure 2) [39]. It is worth noting that the stimulation of GJA1 mRNA abundance upon FSH in granulosa cells appears to be regulated by protein kinase A (PKA) and through the Wnt/β-catenin pathway, which suggests that FSH may upregulate steady-state levels of these mRNAs by increasing their transcription [33]. Granulosa cell communication in a cumulus-oocyte-complex (COC) is increased by FSH through the phosphorylation and translocation of Cx43 (Figure 2) [40,41]. The gene GJA4 which encodes for Cx37 is also upregulated in oocytes upon FSH, thereby their gap-junctional communication with cumulus cells is increased [42]. Studies on the FSH dependent regulation of Connexins suggest that free Connexins form new gap-junctions once the hormone is present, and presumably the direct effect of FSH on GJA1 expression in granulosa cells is responsible for the increase of Cx43. A recently published study revealed that the aberrant GJA1 gene appears to provoke an arrest of follicular development in women suffering from polycystic ovary syndrome (PCOS) [22]. This female endocrine disorder may lead to infertility due to ovulatory dysfunction and polycystic ovary morphology. These data demonstrated that GJA1 is downregulated in oocytes in women with PCOS. Another research showed impaired endothelin-1 (ET-1) expression in granulosa cells from patients with PCOS. ET-1 can promote the oocyte maturation but more research about the importance of this protein in PCOS patients is needed [43,44].

3. Pannexin and Connexin Involvement in Oocyte Maturation

Oocyte maturation reflects the process which is mandatory for the mammalian female gamete to be fertilized by the male gamete [21]. Oocyte maturation can be divided into four main steps, namely: (1) the nuclear maturation; (2) the cytoplasmic molecular maturation; (3) the cytoplasmic organelle maturation [45]; and (4) the epigenetic maturation [46]. In perinatal stages, oocytes of the most mammalian species are arrested at the prophase of meiosis I (prophase I). The first step of oocyte maturation contains the resumption triggered naturally by the luteinizing hormone (LH) [20]. The second step of oocyte maturation is the cytoplasmic molecular maturation where recruitment of specific transcripts for translation takes place. The aim of the third step is cytoplasmic organelles’ maturation, meaning the adequate distribution of among others cortical granules, and mitochondria, during the transition to metaphase II (MII) [21]. The epigenetic maturation step is crucial for the regulation of gene expression, nuclear architecture, and chromosome stability [20]. All in all, oocyte maturation is a precisely orchestrated process in which an undisturbed communication between the oocyte and surrounding cumulus cells as well as among granulosa cells is necessary.
Recent studies have shown that PANX1 expression in human oocytes and eight-cell embryos is higher in comparison with cells of somatic tissues [19]. The localization of Pannexin 1, taking into consideration only localizations related to oocytes, was detected mainly on the cell membrane of human oocytes, zygotes, and at cell-cell interfaces in early embryos (Table 2) [19]. Pannexin 1 may form three variants, the no glycosylated protein (GLY0), a high-mannose glycoprotein (GLY1), and a fully mature glycoprotein (GLY2) (Figure 1A) [16]. Four independent families suffering from female infertility, in which mutations of PANX1 were detected, were recently analyzed (Sang et al., 2019). A different PANX1 gene mutation has been identified in each family. All four mutations (Figure 3) altered glycosylation of pannexin 1 resulting in a lack of GLY2, whereas GLY1 was maintained. Furthermore, the localization of the mutation of Pannexin 1 was in all investigated cases on the cytoplasmic side of the protein (Figure 3). This study also revealed that the cause of oocyte death phenotype was due to alternations in Pannexin 1 channel activity and led to aberrant ATP release followed by oocyte death [19]. This research suggests that changes in the degree of Panx1 channel activity may lead to oocyte death even at a stage before fertilization. These findings clearly demonstrated the pivotal role of Pannexin 1 in human oocyte development.
The Pannexin 1 inhibition with the help of an inhibitor named 10Panx was conducted during in vitro maturation of bovine COCs [25]. This study revealed that Pannexin 1 inhibition decreased cumulus cell expansion when compared to the untreated (without 10Panx) control. In the same study, it was reported that after six hours of 10Panx treatment significantly more oocytes remained at the germinal vesicle (GV) stage with significantly higher cAMP concentrations when compared to untreated counterparts, whereas after 22 h of treatment no changes in the number of oocytes reaching MII was observed [25]. This study demonstrated clearly that oocyte maturation can be delayed upon the inhibition of the Pannexin 1 hemichannel. These effects seemed to be temporary, but a higher proportion of treated oocytes reached the blastocyst stage suggesting that this delay, related to maintaining elevated cAMP levels, improves in vitro oocyte developmental competence. Finally, they demonstrated that during the maturation of oocytes with inhibited Pnx1 channels significantly fewer reactive oxygen species (ROS) were produced in comparison with the untreated control oocytes [25]. Consequently, the in vitro development of the embryo was protected against the negative effects of ROS. The role of Pannexins in oocyte maturation is crucial but not clearly defined, whereas Connexins have been well studied. An adequate cellular exchange between oocyte and follicular cells is important for oocyte maturation and development. The loss or reduction of these membrane proteins negatively affects fertility in various mammalian species [26,35,36,47,48,49,50,51]. Several Connexins were identified as playing a role in the functioning of the female reproductive tract, including Cx26, Cx32, Cx37, Cx43 and Cx45 [3,52,53]. Cumulus cells tightly surround oocytes forming a cumulus-oocyte-complex, as mentioned before. Signals from the microenvironment of the ovary have to be transferred to oocytes through communication channels. Besides providing nutrients, Connexins enable the exchange of molecules, and thereby gap-junctions are responsible for maintaining a stable pH inside the oocyte and promote chromatin structure remodeling during oocyte maturation [54]. This is mandatory for proper proliferation of the oocyte and its survival. Moreover, Connexins are required to regulate cGMP concentration in oocytes which is relevant for the meiotic arrest and later for the resumption of meiosis (Figure 2) [55].
Molecules and signals essential for molecular maturation of most mammalian oocytes are presumably transferred between cells during the first four hours of in vitro maturation (IVM) [56]. It is well documented that the meiosis arrest depends on the level of cAMP in mammalian oocytes. However, endothelin-1 (ET-1) may downregulate cAMP transfer from cumulus cells to the oocyte through Cx26, which is fundamental for the initiation of oocyte maturation [44]. Recent studies suggest that ET-1 determines oocyte maturation via endothelin receptor type B (ETRB) by downregulation Cx26 expression in cumulus cells [44]. Whole genome transcriptome microarray analyses of cumulus cells were performed. The study reported significantly lower Cx26 protein expression upon ET-1 treatment. This effect could be reversed due to a co-treatment with an ETRB antagonist [44]. The same study revealed that ET-1 affects cAMP levels in oocytes. Treatment with ET-1 significantly increased cAMP concentration in cumulus cells, whereas a decreased cAMP level in oocytes [44]. Interestingly, ET-1 did not affect Cx43 and Cx37. Moreover, Cx26 in oocytes may be involved in local cellular mechanisms during the peri-ovulation time. The expression of Cx26 is upregulated during the luteinizing hormone (LH) surge in bovine follicles but the exact mechanism is not fully understood yet [57]. After the LH surge, progesterone production is upregulated and the gap-junctions start to reduce the passage of cyclic nucleotides, which contributes to initiation of the meiotic resumption [56,58]. In porcine oocytes, it was demonstrated that Cx43 is highly controlled by gonadotropins [59,60]. Thereby, the decrease in the concentration of cGMP in oocytes induces hydrolysis of cAMP, which promotes the meiotic process and maturation of oocytes [61].

4. Pannexin and Connexin Involvement in Oocyte Fertilization

It was found that the interruption of gap-junctional communication within COCs is gonadotropin-dependent and decreases after germinal vesicle break-down (GVBD). The resumption of meiosis was associated with the reduction of Cx43 protein level in porcine and rat cumulus cells [58,60,62]. Analogical findings were made in bovine. The expression of Cx43 mRNA in cumulus cells was down-regulated six hours after LH release [63]. Disappearance of small Cx43-positive gap junctions, interconnecting the corona radiata cells with the oocyte, was related to GVBD as revealed by immunofluorescence and electron microscopy [64]. In humans, Cx43 gene expression was decreased in cumulus cells surrounding mature oocytes, comparing to their counterparts surrounding immature ones [65]. In case of embryonic development, there was no correlation between Cx43 expression in cumulus cells and fertilization or cleavage rate [49]. However, it was revealed that lower expression of Cx43 in cumulus cells was related to better embryo morphology on day 3 of the in vitro culture and improved blastocyst development [49,66]. Similar results were obtained with regard to Panx1. Its protein expression was decreased in cumulus cells enclosing the oocytes more competent for embryo development, when compared to the less competent oocytes [25].
In the study of Zhou and co-workers [67], removal of cumulus cells before insemination of the in vitro matured murine oocytes led to a decrease of the fertilization rate, whereas this effect could be reversed upon the supplementation of dispersed cumulus cells to the insemination medium. These results show that gap junctions are not essential during fertilization, confirming at the same time that cumulus cells can be an important source of chemotactic factors guiding the spermatozoa to the oocyte [68,69]. There are findings in Caenorhabditis elegans, indicating the role of innexins (gap junction proteins in invertebrates) [70], particularly innexin-14, in the sperm recruitment to the site of sperm storage [71,72]. Cumulus cells support the fertilizing ability of the spermatozoa by creating the specific microenvironment around the oocyte. Preovulatory LH surge induces the extensive production of hyaluronic acid (HA) in cumulus cells through the increase in hyaluronan synthase 2 (HAS2) expression, which leads to the deposition of a large amount of hyaluronan in their extracellular matrix and expansion [73]. It was revealed that the interaction between HA and its main surface receptor CD44 may act on tyrosine phosphorylation of Cx43—found predominantly in cumulus cells, which results in the closure of gap junctions and the activation of meiosis resumption [74].

5. Pannexin and Connexin Related Pathologies Which Impact Oocyte Developmental Competence

Connexins are known to play an important role in a variety of biological processes and disturbances in their functioning may cause different pathologies. Several disorders in humans were classified as related to Connexin mutations (reviewed in [75]). The most studied are mutations of Connexin 26 (Cx26) associated with hearing loss [76,77]. In this paragraph, we will concentrate on the Connexin and Pannexin linked pathologies impacting developmental competence of the female gamete. As it was described earlier in this review, gap-junctions between granulosa cells and granulosa cells and the oocyte, regulate cellular communication required for the proper oocyte maturation and ovulation. Connexin-43 and -37 seem to have predominant role in follicular development. Lack of Cx43 in mice ovaries resulted in abnormal folliculogenesis and as a consequence in developmentally incompetent oocytes with morphological anomalies such as poorly developed zona or vacuolated cytoplasm, which failed to be fertilized [26]. Similar observations were made in case of Cx37 deficiency. Targeted deletion of the Cx37 gene was associated with arrested follicle and oocyte growth and ovulation failure [31,78]. It was revealed that down-regulation of Cx43 was implicated in follicular growth arrest in women with polycystic ovary syndrome (PCOS), who are known to suffer from subfertility [22,79]. Connexin-43 gene expression was decreased in GV-stage oocytes obtained from PCOS ovaries, in relation to the oocytes recovered from the ovaries of healthy women [22,80]. Parallel findings were made regarding Cx43 protein—it was very low in oocytes obtained from PCOS patients [22]. Androstenedione dependent up-regulation of Cx43 and gap junctional communication in granulosa cells was suggested to contribute to the pathogenesis of PCOS in rat [81]. Both Cx43 protein and Cx37 mRNA expression was found to be affected in COCs of diabetic mice [82]. This could generate negative consequences such as delay in follicular growth, oocyte maturation, and higher apoptosis rate in ovarian follicles, which were observed previously as linked to diabetes [83,84]. Connexin-43 knockdown in parthenogenetically activated porcine embryos was responsible for the reduction of the membrane permeability, mitochondrial membrane potential and ATP production, and for the enhanced level of reactive oxygen species. Additionally, blastocyst developmental rate, and the total cell number were decreased [85]. The importance of Cx43 for the oocyte quality was also confirmed in bovine. High expression of Cx43 in COCs was correlated with superior developmental competence of the resulting embryos [86]. Connexins not only form gap junctions enabling intercellular communication but may also participate in transmembrane communication through formation of unopposed hemichannels. Connexons are involved in release of small metabolites and ions into the extracellular environment thus taking part in paracrine signaling [75]. However, this process has to be precisely regulated because abnormal opening of hemichannels usually leads to uncontrolled efflux of ions and metabolites, which may result in cell death. As was shown in the studies on oocyte vitrification in cat, Cx43 and Cx37 hemichannels may open during vitrification and warming, which ends with the serious injury of the oocytes [87]. In case of ovine, Cx43 mRNA was found to be also affected by vitrification and in vitro culture [88].
As mentioned previously, the main role of pannexin channels is ATP transfer from the intra- into the extracellular environment in response to activation by calcium or purinergic receptors [89]. Pannexins have been known to participate in many physiological processes such as cell differentiation [17], apoptotic cell clearance [90], initiation of inflammation [91], HIV infection [92] or neurological functions [93]. There is limited information concerning pannexin channels dysfunctions with regards to the oocyte developmental competence. In bovine, COCs Panx1 expression decreased as follicular growth progressed, that is, the protein was higher in COCs isolated from small antral follicles in comparison to its levels in large follicles. The oocytes of high developmental potential characterized with lower expression of Panx1 than their less developmentally competent counterparts. In humans, Panx1 channelopathy associated with changes in Panx1 glycosylation pattern and subcellular localization, resulted in abnormal channel activity and ATP release, and oocyte death as previously mentioned [19]. The majority of oocytes collected from these Panx1 mutated patients dedicated to intra-cytoplasmatic sperm injection (ICSI) were immature and all degenerated or did not show further development very shortly after ICSI (Figure 3B). Interestingly, the mutations showed pattern of paternal inheritance with no negative effect on male fertility, assuming that mutant Panx1 has a specific pathophysiological role during oogenesis [19].

6. Conclusions and Future Directions

Pannexins and Connexins act as essential channel proteins enabling the communication in oocytes to support the processes of oogenesis, folliculogenesis, maturation, fertilization, and embryonic development. As oocytes age, their number, quality, and fertilization outcomes decrease. An increasing number of studies showed that the communication as well as the exchange of molecules and ions via the Pannexin and Connexin pore-forming hemichannels and gap-junctions, are a critical determinant of oocyte developmental competence and fitness. This sparked interest within the reproductive molecular medicine field to better understand how both earlier mentioned channel proteins contribute to the determination of the competence related to oocytes’ growth, development inside of a follicle, and oocytes’ ability to be fertilized. Once the impact of Pannexins and Connexin will be fully elucidated, there will be the possibility of new technologies or treatments to modulate or restore oocyte viability. Technical advances in the three past decades have led to increasingly sophisticated assisted reproductive technologies. Nevertheless, the safe and ethical modulation of channel proteins and oocyte quality requires more comprehensive understanding of their interplay. Taken together, elucidating the molecular mechanisms that contribute to the maturation and fertilization of oocytes, the unique role of Pannexins and Connexins herein, and careful identification of therapeutic targets to improve their function and thereby oocyte health, can contribute to new strategies to enhance and prolong reproductive fitness. Importantly though, our review aimed to stimulate new research ideas on this interesting topic of cell to cell communication, which could aid in the design of novel studies and animal models.

Author Contributions

P.K.: writing the review and editing, creation of figures; G.S.: writing the review and editing; M.W.-P.: writing the review and editing; A.S.: funding acquisition, review, and editing, M.T.S.: funding acquisition, review, and editing. All authors have read and agreed to the published version of the manuscript.

Funding

A.S. is recipient of the Statutory Fund of the School of Medicine, Collegium Medicum (61.610.001-300), University of Warmia and Mazury in Olsztyn. MTS is recipient of the Grant 2016/21/B/NZ9/03535 from the National Science Center (NSC).

Acknowledgments

Figures were created with BioRender.com, access date 04.04.2021.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Te Velde, E.R.; Pearson, P.L. The variability of female reproductive ageing. Hum. Reprod. Update 2002, 8, 141–154. [Google Scholar] [CrossRef] [PubMed]
  2. Söhl, G.; Willecke, K. An update on connexin genes and their nomenclature in mouse and man. Cell Commun. Adhes. 2003, 10, 173–180. [Google Scholar] [CrossRef] [PubMed]
  3. Winterhager, E.; Kidder, G.M. Gap junction connexins in female reproductive organs: Implications for women’s reproductive health. Hum. Reprod. Update 2015, 21, 340–352. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Harris, A.L.; Contreras, J.E. Motifs in the permeation pathway of connexin channels mediate voltage and Ca2+ sensing. Front. Physiol. 2014, 5, 113. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Jentsch, T.J. VRACs and other ion channels and transporters in the regulation of cell volume and beyond. Nat. Rev. Mol. Cell Biol. 2016, 17, 293–307. [Google Scholar] [CrossRef] [PubMed]
  6. Voss, F.K.; Ullrich, F.; Münch, J.; Lazarow, K.; Lutter, D.; Mah, N.; Andrade-Navarro, M.A.; von Kries, J.P.; Stauber, T.; Jentsch, T.J. Identification of LRRC8 heteromers as an essential component of the volume-regulated anion channel VRAC. Science. 2014, 344, 634–638. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  7. Harris, A.L. Connexin channel permeability to cytoplasmic molecules. Prog. Biophys. Mol. Biol. 2007, 94, 120–143. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Koval, M.; Molina, S.A.; Burt, J.M. Mix and match: Investigating heteromeric and heterotypic gap junction channels in model systems and native tissues. FEBS Lett. 2014, 588, 1193–1204. [Google Scholar] [CrossRef] [Green Version]
  9. Cottrell, G.T.; Burt, J.M. Functional consequences of heterogeneous gap junction channel formation and its influence in health and disease. Biochim. Biophys. Acta 2005, 1711, 126–141. [Google Scholar] [CrossRef] [Green Version]
  10. Koval, M. Pathways and control of connexin oligomerization. Trends Cell Biol. 2006, 16, 159–166. [Google Scholar] [CrossRef]
  11. Abascal, F.; Zardoya, R. Evolutionary analyses of gap junction protein families. Biochim. Biophys. Acta 2013, 1828, 4–14. [Google Scholar] [CrossRef]
  12. Söhl, G.; Willecke, K. Gap junctions and the connexin protein family. Cardiovasc. Res. 2004, 62, 228–232. [Google Scholar] [CrossRef] [Green Version]
  13. Beyer, E.C.; Berthoud, V.M. Gap junction gene and protein families: Connexins, innexins, and pannexins. Biochim. Biophys. Acta Biomembr. 2018, 1860, 5–8. [Google Scholar] [CrossRef]
  14. Panchin, Y.; Kelmanson, I.; Matz, M.; Lukyanov, K.; Usman, N.; Lukyanov, S. A ubiquitous family of putative gap junction molecules. Curr. Biol. 2000, 10, R473–R474. [Google Scholar] [CrossRef] [Green Version]
  15. Baranova, A.; Ivanov, D.; Petrash, N.; Pestova, A.; Skoblov, M.; Kelmanson, I.; Shagin, D.; Nazarenko, S.; Geraymovych, E.; Litvin, O.; et al. The mammalian pannexin family is homologous to the invertebrate innexin gap junction proteins. Genomics 2004, 83, 706–716. [Google Scholar] [CrossRef]
  16. Penuela, S.; Bhalla, R.; Gong, X.Q.; Cowan, K.N.; Celetti, S.J.; Cowan, B.J.; Bai, D.; Shao, Q.; Laird, D.W. Pannexin 1 and pannexin 3 are glycoproteins that exhibit many distinct characteristics from the connexin family of gap junction proteins. J. Cell Sci. 2007, 120 Pt 21, 3772–3783. [Google Scholar] [CrossRef] [Green Version]
  17. Penuela, S.; Gehi, R.; Laird, D.W. The biochemistry and function of pannexin channels. Biochim. Biophys. Acta 2013, 1828, 15–22. [Google Scholar] [CrossRef] [Green Version]
  18. Qu, Y.; Misaghi, S.; Newton, K.; Gilmour, L.L.; Louie, S.; Cupp, J.E.; Dubyak, G.R.; Hackos, D.; Dixit, V.M. Pannexin-1 is required for ATP release during apoptosis but not for inflammasome activation. J. Immunol. 2011, 186, 6553–6561. [Google Scholar] [CrossRef] [Green Version]
  19. Sang, Q.; Zhang, Z.; Shi, J.; Sun, X.; Li, B.; Yan, Z.; Xue, S.; Ai, A.; Lyu, Q.; Li, W.; et al. A pannexin 1 channelopathy causes human oocyte death. Sci. Transl. Med. 2019, 11, eaav8731. [Google Scholar] [CrossRef]
  20. Schall, P.Z.; Latham, K.E. Essential shared and species-specific features of mammalian oocyte maturation-associated transcriptome changes impacting oocyte physiology. Am. J. Physiol. Physiol. 2021. [Google Scholar] [CrossRef]
  21. Sánchez, F.; Smitz, J. Molecular control of oogenesis. Biochim. Biophys. Acta (BBA) Mol. Basis Dis. 2012, 1822, 1896–1912. [Google Scholar] [CrossRef] [Green Version]
  22. Liu, Q.; Kong, L.; Zhang, J.; Xu, Q.; Wang, J.; Xue, Z.; Wang, J. Involvement of GJA1 and gap junctional intercellular communication between cumulus cells and oocytes from women with PCOS. Biomed. Res. Int. 2020, 28, 5403904. [Google Scholar] [CrossRef]
  23. Kordowitzki, P.; Hamdi, M.; Derevyanko, A.; Rizos, D.; Blasco, M. The effect of rapamycin on bovine oocyte maturation success and metaphase telomere length maintenance. Aging 2020, 12, 7576–7584. [Google Scholar] [CrossRef]
  24. Lee, V.R.; Barr, K.J.; Kelly, J.J.; Johnston, D.; Brown, C.F.C.; Robb, K.P.; Sayedyahossein, S.; Huang, K.; Gros, R.; Flynn, L.E.; et al. Pannexin 1 regulates adipose stromal cell differentiation and fat accumulation. Sci. Rep. 2018, 8, 16166. [Google Scholar] [CrossRef]
  25. Dye, Z.T.; Rutledge, L.W.; Penuela, S.; Dyce, P.W. Pannexin 1 inhibition delays maturation and improves development of Bos taurus oocytes. J. Ovarian Res. 2020, 13, 98. [Google Scholar] [CrossRef]
  26. Ackert, C.L.; Gittens, J.E.I.; O’Brien, M.J.; Eppig, J.J.; Kidder, G.M. Intercellular communication via connexin43 gap junctions is required for ovarian folliculogenesis in the mouse. Dev. Biol. 2001, 233, 258–270. [Google Scholar] [CrossRef] [Green Version]
  27. Kidder, G.M.; Mhawi, A.A. Gap junctions and ovarian folliculogenesis. Reproduction 2002, 123, 613–620. [Google Scholar] [CrossRef]
  28. Johnson, M.L.; Redmer, D.A.; Reynolds, L.P.; Grazul-Bilska, A.T. Expression of gap junctional proteins connexin 43, 32, and 26 throughout follicular development and atresia in cows. Endocrine 1999, 10, 43–51. [Google Scholar] [CrossRef]
  29. Itahana, K.; Morikazu, Y.; Takeya, T. Differential expression of four connexin genes, Cx-26, Cx-30.3, Cx-32, and Cx-43, in the porcine ovarian follicle. Endocrinology 1996, 137, 5036–5044. [Google Scholar] [CrossRef] [Green Version]
  30. Gittens, J.E.; Kidder, G.M. Differential contributions of connexin37 and connexin43 to oogenesis revealed in chimeric reaggregated mouse ovaries. J. Cell Sci. 2005, 118 Pt 21, 5071–5078. [Google Scholar] [CrossRef] [Green Version]
  31. Simon, A.M.; Goodenough, D.A.; Li, E.; Paul, D.L. Female infertility in mice lacking connexin 37. Nature 1997, 385, 525–529. [Google Scholar] [CrossRef] [PubMed]
  32. Tong, D.; Gittens, J.E.I.; Kidder, G.M.; Bai, D. Patch-clamp study reveals that the importance of connexin43-mediated gap junctional communication for ovarian folliculogenesis is strain specific in the mouse. Am. J. Physiol. Physiol. 2006, 290, C290–C297. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Wang, H.-X.; Gillio-Meina, C.; Chen, S.; Gong, X.-Q.; Li, T.Y.; Bai, D.; Kidder, G.M.; Saccary, L.; She, Y.-M.; Oko, R.; et al. The Canonical WNT2 Pathway and FSH Interact to Regulate Gap Junction Assembly in Mouse Granulosa Cells1. Biol. Reprod. 2013, 89, 38. [Google Scholar] [CrossRef] [PubMed]
  34. Leybaert, L.; Braet, K.; Vandamme, W.; Cabooter, L.; Martin, P.E.; Evans, W.H. Connexin channels, connexin mimetic peptides and ATP release. Cell Commun. Adhes. 2003, 10, 251–257. [Google Scholar] [CrossRef] [Green Version]
  35. Tong, D.; Li, T.Y.; Naus, K.E.; Bai, D.; Kidder, G.M. In vivo analysis of undocked connexin43 gap junction hemichannels in ovarian granulosa cells. J. Cell Sci. 2007, 120, 4016–4024. [Google Scholar] [CrossRef] [Green Version]
  36. Gershon, E.; Plaks, V.; Dekel, N. Gap junctions in the ovary: Expression, localization and function. Mol. Cell Endocrinol. 2008, 282, 18–25. [Google Scholar] [CrossRef]
  37. Erickson, G.F.; Wang, C.; Hsueh, A.J. FSH induction of functional LH receptors in granulosa cells cultured in a chemically defined medium. Nature 1979, 24, 336–338. [Google Scholar] [CrossRef]
  38. Kumar, T.R.; Wang, Y.; Lu, N.; Matzuk, M.M. Follicle stimulating hormone is required for ovarian follicle maturation but not male fertility. Nat. Genet. 1997, 15, 201–204. [Google Scholar] [CrossRef]
  39. Wiesen, J.F.; Midgley, A.R. Expression of Connexin 43 Gap Junction Messenger Ribonucleic Acid and Protein during Follicular Atresia. Biol. Reprod. 1994, 50, 336–348. [Google Scholar] [CrossRef] [Green Version]
  40. Sommersberg, B.; Bulling, A.; Salzer, U.; Frohlich, U.; Garfield, R.E.; Amsterdam, A.; Mayerhofer, A. Gap Junction Communication and Connexin 43 Gene Expression in a Rat Granulosa Cell Line: Regulation by Follicle-Stimulating Hormone1. Biol. Reprod. 2000, 63, 1661–1668. [Google Scholar] [CrossRef]
  41. Johnson, M.L.; Redmer, D.A.; Reynolds, L.P.; Bilski, J.J.; Grazul-Bilska, A.T. Gap junctional intercellular communication of bovine granulosa and thecal cells from antral follicles: Effects of luteinizing hormone and follicle-stimulating hormone. Endocrine 2002, 18, 261–270. [Google Scholar] [CrossRef]
  42. El-Hayek, S.; Clarke, H.J. Follicle-Stimulating Hormone Increases Gap Junctional Communication Between Somatic and Germ-Line Follicular Compartments During Murine Oogenesis. Biol. Reprod. 2015, 93, 47. [Google Scholar] [CrossRef]
  43. Rashad, N.M.; Ateya, M.A.; Saraya, Y.S.; Elnagar, W.M.; Helal, K.F.; Lashin, M.E.; Abdelrhman, A.A.; Alil, A.E.; Yousef, M.S. Association of miRNA- 320 expression level and its target gene endothelin-1 with the susceptibility and clinical features of polycystic ovary syndrome. J. Ovarian Res. 2019, 12, 39. [Google Scholar] [CrossRef] [Green Version]
  44. Cui, L.; Shen, J.; Fang, L.; Mao, X.; Wang, H.; Ye, Y. Endothelin-1 promotes human germinal vesicle-stage oocyte maturation by downregulating connexin-26 expression in cumulus cells. Mol. Hum. Reprod. 2018, 24, 27–36. [Google Scholar] [CrossRef]
  45. Trebichalská, Z.; Kyjovská, D.; Kloudová, S.; Otevřel, P.; Hampl, A.; Holubcová, Z. Cytoplasmic maturation in human oocytes: An ultrastructural study. Biol. Reprod. 2021, 104, 106–116. [Google Scholar] [CrossRef]
  46. He, M.; Zhang, T.; Yang, Y.; Wang, C. Mechanisms of Oocyte Maturation and Related Epigenetic Regulation. Front. Cell Dev. Biol. 2021, 9, 654028. [Google Scholar] [CrossRef]
  47. Gabriel, H.D.; Jung, D.; Bützler, C.; Temme, A.; Traub, O.; Winterhager, E.; Willecke, K. Transplacental uptake of glucose is decreased in embryonic lethal connexin26-deficient mice. J Cell Biol. 1998, 23, 1453–1461. [Google Scholar] [CrossRef] [Green Version]
  48. Krüger, O.; Plum, A.; Kim, J.S.; Winterhager, E.; Maxeiner, S.; Hallas, G.; Kirchhoff, S.; Traub, O.; Lamers, W.H.; Willecke, K. Defective vascular development in connexin 45-deficient mice. Development 2000, 127, 4179–4193. [Google Scholar] [CrossRef]
  49. Hasegawa, J.; Yanaihara, A.; Iwasaki, S.; Mitsukawa, K.; Negishi, M.; Okai, T. Reduction of connexin 43 in human cumulus cells yields good embryo competence during ICSI. J. Assist. Reprod. Genet. 2007, 24, 463–466. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  50. Dobrowolski, R.; Willecke, K. Connexin-caused genetic diseases and corresponding mouse models. Antioxid. Redox Signal. 2009, 11, 283–295. [Google Scholar] [CrossRef]
  51. Santiquet, N.W.; Develle, Y.; Laroche, A.; Robert, C.; Richard, F.J. Regulation of Gap-Junctional Communication Between Cumulus Cells During In Vitro Maturation in Swine, a Gap-FRAP Study1. Biol. Reprod. 2012, 87, 46. [Google Scholar] [CrossRef] [PubMed]
  52. Grazul-Bilska, A.T.; Reynolds, L.P.; Redmer, D.A. Gap junctions in the ovaries. Biol. Reprod. 1997, 57, 947–957. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  53. Wang, H.-X.; Tong, D.; El-Gehani, F.; Tekpetey, F.R.; Kidder, G.M. Connexin expression and gap junctional coupling in human cumulus cells: Contribution to embryo quality. J. Cell. Mol. Med. 2009, 13, 972–984. [Google Scholar] [CrossRef]
  54. Wigglesworth, K.; Lee, K.-B.; O’Brien, M.J.; Peng, J.; Matzuk, M.M.; Eppig, J.J. Bidirectional communication between oocytes and ovarian follicular somatic cells is required for meiotic arrest of mammalian oocytes. Proc. Natl. Acad. Sci. USA 2013, 110, E3723–E3729. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Norris, R.P.; Ratzan, W.J.; Freudzon, M.; Mehlmann, L.M.; Krall, J.; Movsesian, M.A.; Wang, H.; Ke, H.; Nikolaev, V.O.; Jaffe, L.A. Cyclic GMP from the surrounding somatic cells regulates cyclic AMP and meiosis in the mouse oocyte. Development 2009, 136, 1869–1878. [Google Scholar] [CrossRef] [Green Version]
  56. Santiquet, N.; Robert, C.; Richard, F.J. The Dynamics of Connexin Expression, Degradation and Localisation Are Regulated by Gonadotropins during the Early Stages of In Vitro Maturation of Swine Oocytes. PLoS ONE 2013, 8, e68456. [Google Scholar] [CrossRef] [Green Version]
  57. Berisha, B.; Bridger, P.; Toth, A.; Kliem, H.; Meyer, H.H.; Schams, D.; Pfarrer, C. Expression and localization of gap junctional connexins 26 and 43 in bovine periovulatory follicles and in corpus luteum during different functional stages of oestrous cycle and pregnancy. Reprod. Domest. Anim. 2009, 44, 295–302. [Google Scholar] [CrossRef]
  58. Shimada, M.; Maeda, T.; Terada, T. Dynamic changes of connexin-43, gap junctional protein, in outer layers of cumulus cells are regulated by PKC and PI 3-kinase during meiotic resumption in porcine oocytes. Biol. Reprod. 2001, 64, 1255–1263. [Google Scholar] [CrossRef] [Green Version]
  59. Granot, I.; Dekel, N. Phosphorylation and expression of connexin-43 ovarian gap junction protein are regulated by luteinizing hormone. J. Biol. Chem. 1994, 269, 30502–30509. [Google Scholar] [CrossRef]
  60. Sasseville, M.; Gagnon, M.-C.; Guillemette, C.; Sullivan, R.; Gilchrist, R.; Richard, F.J. Regulation of Gap Junctions in Porcine Cumulus-Oocyte Complexes: Contributions of Granulosa Cell Contact, Gonadotropins, and Lipid Rafts. Mol. Endocrinol. 2009, 23, 700–710. [Google Scholar] [CrossRef] [Green Version]
  61. Shinohara, T.; Ohta, Y.; Kawate, N.; Takahashi, M.; Sakagami, N.; Inaba, T.; Tamada, H. Treatment with the MAPK kinase in-hibitor U0126 during the first two hours of in vitro maturation improves bovine oocyte developmental competence. Reprod. Domest. Anim. 2018, 53, 270–273. [Google Scholar] [CrossRef] [Green Version]
  62. Kalma, Y.; Granot, I.; Galiani, D.; Barash, A.; Dekel, N. Luteinizing hormone-induced connexnin 43 down-regulation: Inhibition of translation. Endocrinology 2004, 145, 1617–1624. [Google Scholar] [CrossRef] [Green Version]
  63. Assidi, M.; Dieleman, S.J.; Sirard, M.-A. Cumulus cell gene expression following the LH surge in bovine preovulatory follicles: Potential early markers of oocyte competence. Reproduction 2010, 140, 835–852. [Google Scholar] [CrossRef] [Green Version]
  64. Šutovský, P.; Fléchon, J.E.; Fléchon, B.; Motlik, J.; Peynot, N.; Chesné, P.; Heyman, Y. Dynamic Changes of Gap Junctions and Cytoskeleton during in Vitro Culture of Cattle Oocyte Cumulus Complexes1. Biol. Reprod. 1993, 49, 1277–1287. [Google Scholar] [CrossRef] [Green Version]
  65. Li, S.-H.; Lin, M.-H.; Hwu, Y.-M.; Lu, C.-H.; Yeh, L.-Y.; Chen, Y.-J.; Lee, R.K.-K. Correlation of cumulus gene expression of GJA1, PRSS35, PTX3 and SERPINE2 with oocyte maturation, fertilization, and embryo development. Reprod. Biol. Endocrinol. 2015, 13, 93. [Google Scholar] [CrossRef] [Green Version]
  66. Feuerstein, P.; Cadoret, V.; Dalbies-Tran, R.; Guerif, F.; Bidault, R.; Royere, D. Gene expression in human cumulus cells: One approach to oocyte competence. Hum. Reprod. 2007, 22, 3069–3077. [Google Scholar] [CrossRef] [Green Version]
  67. Zhou, C.-J.; Wu, S.-N.; Shen, J.-P.; Wang, D.-H.; Kong, X.-W.; Lu, A.; Li, Y.-J.; Zhou, H.-X.; Zhao, Y.-F.; Liang, C.-G. The beneficial effects of cumulus cells and oocyte-cumulus cell gap junctions depends on oocyte maturation and fertilization methods in mice. PeerJ 2016, 4, e1761. [Google Scholar] [CrossRef]
  68. Sun, F.; Bahat, A.; Gakamsky, A.; Girsh, E.; Katz, N.; Giojalas, L.; Tur-Kaspa, I.; Eisenbach, M. Human sperm chemotaxis: Both the oocyte and its surrounding cumulus cells secrete sperm chemoattractants. Hum. Reprod. 2005, 20, 761–767. [Google Scholar] [CrossRef] [Green Version]
  69. Guidobaldi, H.A.; Teves, M.E.; Unates, D.R.; Anastasia, A.; Giojalas, L.C. Progesterone from the cumulus cells is the sperm chemoattractant secreted by the rabbit oocyte cumulus complex. PLoS ONE 2008, 3, e3040. [Google Scholar] [CrossRef]
  70. Phelan, P. Innexins: Members of an evolutionarily conserved family of gap-junction proteins. Biochim. Biophys. Acta 2005, 1711, 225–245. [Google Scholar] [CrossRef] [Green Version]
  71. Whitten, S.J.; Miller, M.A. The role of gap junctions in Caenorhabditis elegans oocyte maturation and fertilization. Dev. Biol. 2007, 301, 432–446. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. Edmonds, J.W.; McKinney, S.L.; Prasain, J.K.; Miller, M.A. The gap junctional protein INX-14 functions in oocyte precursors to promote C. elegans sperm guidance. Dev. Biol. 2011, 359, 47–58. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Fouladi-Nashta, A.A.; Raheem, K.A.; Marei, W.F.; Ghafari, F.; Hartshorne, G.M. Regulation and roles of the hyaluronan system in mammalian reproduction. Reproduction 2017, 153, R43–R58. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Sato, E.; Yokoo, M. Morphological and biochemical dynamics of porcine cumulus-oocyte complexes: Role of cumulus ex-pansion in oocyte maturation. Ital. J. Anat. Embryol. 2005, 110 (Suppl. S1), 205–217. [Google Scholar]
  75. Pfenniger, A.; Wohlwend, A.; Kwak, B.R. Mutations in connexin genes and disease. Eur. J. Clin. Investig. 2011, 41, 103–116. [Google Scholar] [CrossRef]
  76. Xu, J.; Nicholson, B.J. The role of connexins in ear and skin physiology—Functional insights from disease-associated mutations. Biochim. Biophys. Acta (BBA) Biomembr. 2013, 1828, 167–178. [Google Scholar] [CrossRef] [Green Version]
  77. Ambrosi, C.; Walker, A.E.; Depriest, A.D.; Cone, A.C.; Lu, C.; Badger, J.; Skerrett, I.M.; Sosinsky, G.E. Analysis of trafficking, stability and function of human connexin 26 gap junction channels with deafness-causing mutations in the fourth transmembrane helix. PLoS ONE 2013, 15, e70916. [Google Scholar] [CrossRef]
  78. Carabatsos, M.J.; Sellitto, C.; Goodenough, D.A.; Albertini, D.F. Oocyte-granulosa cell heterologous gap junctions are required for the coordination of nuclear and cytoplasmic meiotic competence. Dev. Biol. 2000, 226, 167–179. [Google Scholar] [CrossRef] [Green Version]
  79. Jiang, L.; Huang, H.; Qian, Y.; Li, Y.; Chen, X.; Di, N.; Yang, D. miR-130b regulates gap junctional intercellular communication through connexin 43 in granulosa cells from patients with polycystic ovary syndrome. Mol. Hum. Reprod. 2020, 26, 576–584. [Google Scholar] [CrossRef]
  80. Liu, Q.; Li, Y.; Feng, Y.; Liu, C.; Ma, J.; Li, Y.; Xiang, H.; Ji, Y.; Cao, Y.; Tong, X.; et al. Single-cell analysis of differences in transcriptomic profiles of oocytes and cumulus cells at GV, MI, MII stages from PCOS patients. Sci. Rep. 2016, 6, 39638. [Google Scholar] [CrossRef] [Green Version]
  81. Talhouk, R.; Tarraf, C.; Kobrossy, L.; Shaito, A.; Bazzi, S.; Bazzoun, D.; El-Sabban, M. Modulation of C×43 and gap junc-tional intercellular communication by androstenedione in rat polycystic ovary and granulosa cells in vitro. J. Reprod. Infertil. 2012, 13, 21–32. [Google Scholar]
  82. Chang, A.S.; Dale, A.N.; Moley, K.H. Maternal diabetes adversely affects preovulatory oocyte maturation, development, and granulosa cell apoptosis. Endocrinology 2005, 146, 2445–2453. [Google Scholar] [CrossRef] [Green Version]
  83. Ratchford, A.M.; Esguerra, C.R.; Moley, K.H. Decreased oocyte-granulosa cell gap junction communication and connexin expression in a type 1 diabetic mouse model. Mol. Endocrinol. 2008, 22, 2643–2654. [Google Scholar] [CrossRef] [Green Version]
  84. Colton, S.A.; Pieper, G.M.; Downs, S. Altered meiotic regulation in oocytes from diabetic mice. Biol. Reprod. 2002, 67, 220–231. [Google Scholar] [CrossRef] [Green Version]
  85. Shin, K.-T.; Nie, Z.-W.; Zhou, W.; Zhou, D.; Kim, J.-Y.; Ock, S.A.; Niu, Y.-J.; Cui, X.-S. Connexin 43 Knockdown Induces Mitochondrial Dysfunction and Affects Early Developmental Competence in Porcine Embryos. Microsc. Microanal. 2020, 26, 287–296. [Google Scholar] [CrossRef] [PubMed]
  86. Read, C.C.; Willhelm, G.; Dyce, P.W. Connexin 43 coupling in bovine cumulus cells, during the follicular growth phase, and its relationship to in vitro embryo outcomes. Mol. Reprod. Dev. 2018, 85, 579–589. [Google Scholar] [CrossRef]
  87. Snoeck, F.; Szymanska, K.J.; Sarrazin, S.; Ortiz-Escribano, N.; Leybaert, L.; Van Soom, A. Blocking connexin channels during vitrification of immature cat oocytes improves maturation capacity after warming. Theriogenology 2018, 122, 144–149. [Google Scholar] [CrossRef]
  88. Sampaio da Silva, A.M.; Bruno, J.B.; Lima, L.F.; Ribeiro de Sá, N.A.; Osmarini Lunardi, F.; Accioly Ferreira, A.C.; Vieira Correia, H.H.; Nascimentode Aguiar, F.L.; Rocha Araújo, V.; Lobo, C.H.; et al. Connexin 37 and 43 gene and protein expression and developmental competence of isolated ovine secondary follicles cultured in vitro after vitrification of ovarian tissue. Theriogenology 2016, 85, 1457–1467. [Google Scholar] [CrossRef]
  89. Locovei, S.; Wang, J.; Dahl, G. Activation of pannexin 1 channels by ATP through P2Y receptors and by cytoplasmic calcium. FEBS Lett. 2006, 580, 239–244. [Google Scholar] [CrossRef] [Green Version]
  90. Chekeni, F.B.; Elliott, M.R.; Sandilos, J.K.; Walk, S.F.; Kinchen, J.M.; Lazarowski, E.R.; Armstrong, A.J.; Penuela, S.; Laird, D.W.; Salvesen, G.S.; et al. Pannexin 1 channels mediate ‘find-me’ signal release and membrane permeability during apoptosis. Nature 2010, 467, 863–867. [Google Scholar] [CrossRef] [Green Version]
  91. Lohman, A.W.; Leskov, I.L.; Butcher, J.T.; Johnstone, S.R.; Stokes, T.A.; Begandt, D.; DeLalio, L.J.; Best, A.K.; Penuela, S.; Leitinger, N.; et al. Pannexin 1 channels regulate leukocyte emigration through the venous endothelium during acute inflammation. Nat. Commun. 2015, 6, 7965. [Google Scholar] [CrossRef] [PubMed]
  92. Orellana, J.A.; Velasquez, S.; Williams, D.W.; Saez, J.C.; Berman, J.W.; Eugenin, E.A. Pannexin1 hemichannels are critical for HIV infection of human primary CD4+ T lymphocytes. J. Leukoc. Biol. 2013, 94, 399–407. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  93. Gulbransen, B.D.; Bashashati, M.; Hirota, S.A.; Gui, X.; Roberts, J.A.; MacDonald, J.A.; Muruve, D.A.; McKay, D.M.; Beck, P.L.; Mawe, G.M.; et al. Activation of neuronal P2X7 receptor-pannexin-1 mediates death of enteric neurons during colitis. Nat Med. 2012, 18, 600–604. [Google Scholar] [CrossRef] [Green Version]
Ijms 22 05918 g001 550

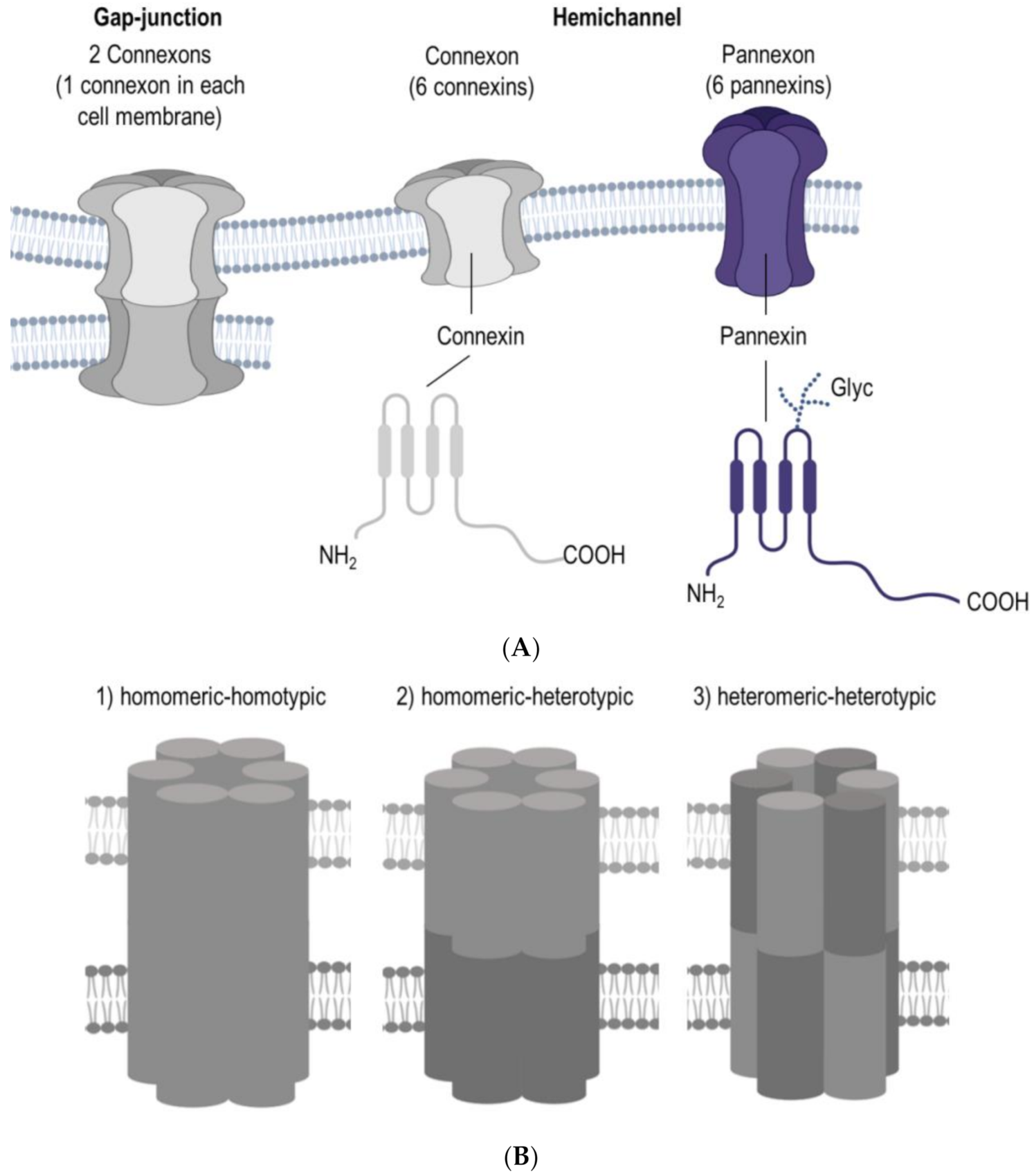

Figure 1. (A) Connexin and pannexin share a similar structure, despite the absence of sequence homology. Connexin and pannexin form functional connexon and pannexon hemichannels, re-spectively. Connexins and pannexins are transmembrane proteins with four transmembrane do-mains, two extracellular loops, one cytoplasmic loop, and cytoplasmic N- and C-terminal domains. Connexin channels can assemble into a gap junction that mediates intercellular communication, while pannexin’s extracellular loop can have different degrees of glycosylation in mammalian cells, which prevent the formation of gap junctions, three variants of glycosylation are known: GLY0, GLY1, and GLY2. (B) The permeability properties of gap junction channels depend on their con-nexin composition: channels can be (1) homomeric-homotypic, (2) homomeric-heterotypic, or (3) heteromeric-heterotypic. Abbreviation: Glyc = glycosylation.
Figure 1. (A) Connexin and pannexin share a similar structure, despite the absence of sequence homology. Connexin and pannexin form functional connexon and pannexon hemichannels, re-spectively. Connexins and pannexins are transmembrane proteins with four transmembrane do-mains, two extracellular loops, one cytoplasmic loop, and cytoplasmic N- and C-terminal domains. Connexin channels can assemble into a gap junction that mediates intercellular communication, while pannexin’s extracellular loop can have different degrees of glycosylation in mammalian cells, which prevent the formation of gap junctions, three variants of glycosylation are known: GLY0, GLY1, and GLY2. (B) The permeability properties of gap junction channels depend on their con-nexin composition: channels can be (1) homomeric-homotypic, (2) homomeric-heterotypic, or (3) heteromeric-heterotypic. Abbreviation: Glyc = glycosylation.
Ijms 22 05918 g001
Ijms 22 05918 g002 550

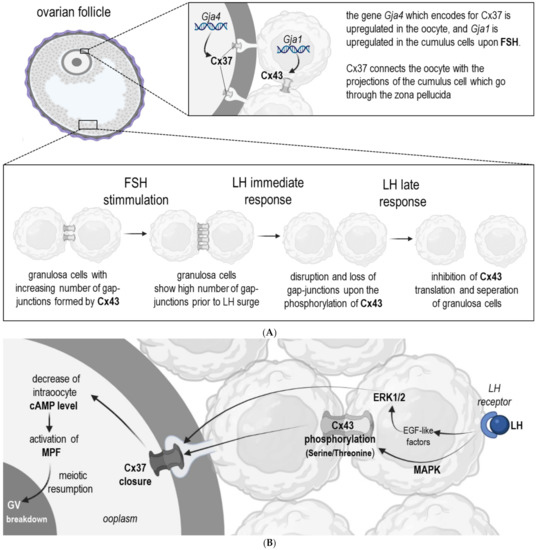

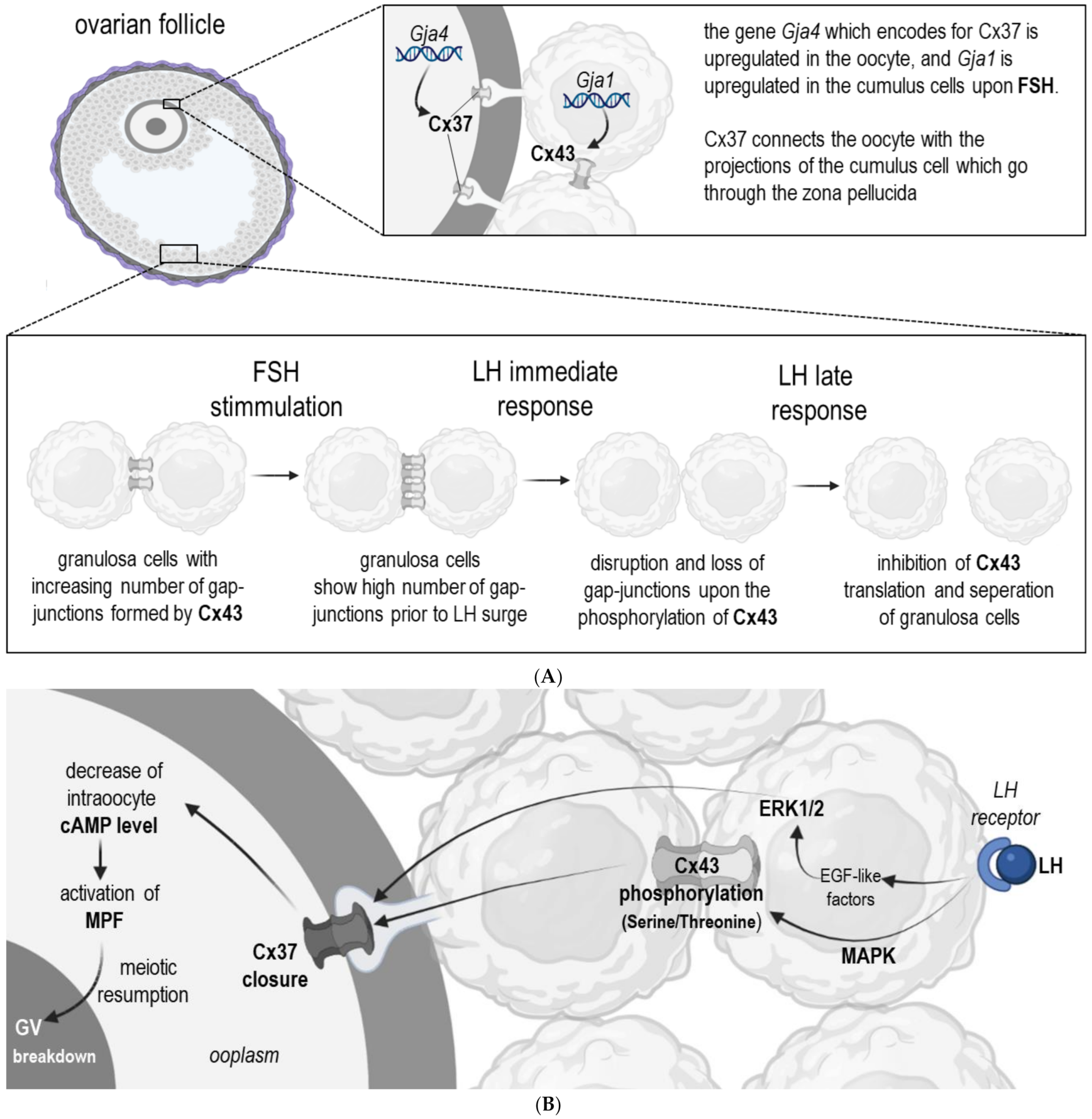

Figure 2. Scheme showing the regulation of gap-junctional communication (Cx43, Cx37) during the development of antral follicles prior to ovulation (A) and during meiotic resumption (B). (A) FSH hormone stimulates mRNA expression that codifies the Cx43/Cx37 synthesis of the gap-junctions, the amplification of functional channels, and consequently the integration to the metabolic activity. Mediated by the family mitogen-activated protein kinases, pre-ovulatory LH levels interrupt cell-cell communications by means of phosphorylation and modification of Cx43 protein conformation. This leads to interruption of the intercellular channels. The primary effect of the immediate response to LH is accompanied by elimination of the Cx43 protein, disappearance of gap-junction separation of the GCs from the oocyte. (B) LH stimulates the MAPK-dependent phosphorylation of Cx43, which induces the closure of Cx37and a decrease of cAMP inside the oocyte. In consequence, the maturation promoting factor (MPF) is activated and leads to resumption of meiosis and germinal vesicle (GV) breakdown. Abbreviations: Cx = Connexin, FSH = follicle stimulating Hormone, GJA = gene en-coding for connexins, LH = luteinizing hormone, ERK1/2 = extracellular signal-regulated kinases 1 and 2, MAPK = mitogen activated protein kinase, EGF = epidermal growth factor.
Figure 2. Scheme showing the regulation of gap-junctional communication (Cx43, Cx37) during the development of antral follicles prior to ovulation (A) and during meiotic resumption (B). (A) FSH hormone stimulates mRNA expression that codifies the Cx43/Cx37 synthesis of the gap-junctions, the amplification of functional channels, and consequently the integration to the metabolic activity. Mediated by the family mitogen-activated protein kinases, pre-ovulatory LH levels interrupt cell-cell communications by means of phosphorylation and modification of Cx43 protein conformation. This leads to interruption of the intercellular channels. The primary effect of the immediate response to LH is accompanied by elimination of the Cx43 protein, disappearance of gap-junction separation of the GCs from the oocyte. (B) LH stimulates the MAPK-dependent phosphorylation of Cx43, which induces the closure of Cx37and a decrease of cAMP inside the oocyte. In consequence, the maturation promoting factor (MPF) is activated and leads to resumption of meiosis and germinal vesicle (GV) breakdown. Abbreviations: Cx = Connexin, FSH = follicle stimulating Hormone, GJA = gene en-coding for connexins, LH = luteinizing hormone, ERK1/2 = extracellular signal-regulated kinases 1 and 2, MAPK = mitogen activated protein kinase, EGF = epidermal growth factor.
Ijms 22 05918 g002
Ijms 22 05918 g003 550

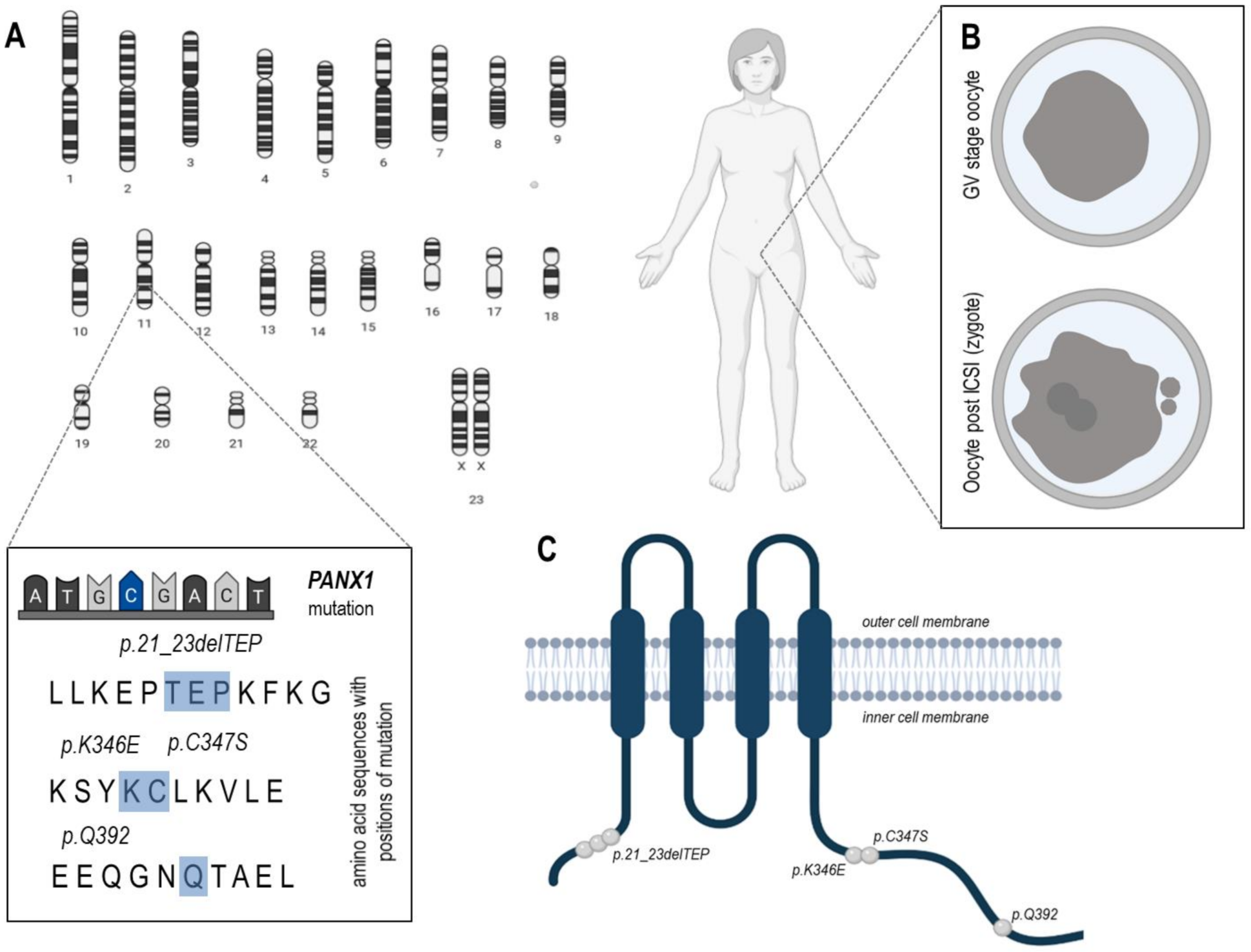

Figure 3. Mutation distribution of PANX1 and morphological appearance of oocytes retrieved from PANX1 channelopathy patients. (A) The gene Panx1 which encodes for PANX1 is located on chromosome 11 in humans. In four investigated families, four different mutations loci have been identified which led to a change in the amino acid sequence (highlighted in blue). (B) The upper part shows an exemplary degenerated oocyte in the germinal vesicle (GV) stage with shrunken ooplasm (dark grey), directly after oocyte retrieval; the lower part shows an exemplary degenerated zygote (fertilized oocyte) 30 h after Intra-Cytoplasmic-Sperm-Injection = ICSI, with the two pronuclei and extruded polar-bodies visible, but all specimens died at this stage. (C) Distribution of four disease-causing mutations in PANX1. All mutations were located in the cytoplasmic region and are highlighted as grey dots (according to [19]).
Figure 3. Mutation distribution of PANX1 and morphological appearance of oocytes retrieved from PANX1 channelopathy patients. (A) The gene Panx1 which encodes for PANX1 is located on chromosome 11 in humans. In four investigated families, four different mutations loci have been identified which led to a change in the amino acid sequence (highlighted in blue). (B) The upper part shows an exemplary degenerated oocyte in the germinal vesicle (GV) stage with shrunken ooplasm (dark grey), directly after oocyte retrieval; the lower part shows an exemplary degenerated zygote (fertilized oocyte) 30 h after Intra-Cytoplasmic-Sperm-Injection = ICSI, with the two pronuclei and extruded polar-bodies visible, but all specimens died at this stage. (C) Distribution of four disease-causing mutations in PANX1. All mutations were located in the cytoplasmic region and are highlighted as grey dots (according to [19]).
Ijms 22 05918 g003
Table
Table 1. Connexins involved in oocyte development and female fertility. See text for references.
Table 1. Connexins involved in oocyte development and female fertility. See text for references.
Channel ProteinEncoding GeneReported Function in FemalesLocalization
Connexin 26
(Cx26)		GJB2Knockout female mice died 11 days post coitum. Cx26 may be involved in local cellular mechanisms in oocytes among the peri-ovulation time. The expression of Cx26 is upregulated during the LH surge in the bovine follicle but the exact mechanism is not fully understood. Endothelin-1 (ET-1) may downregulate cAMP transfer from cumulus cells to oocyte via Cx26 to induce oocyte maturation. Mutations may lead to implantation failure.Oocytes, granulosa cells, theca cells of several species.
Connexin 32 (Cx32)GJB1Knockout females remained viable and fertile.Porcine ovary, especially theca cells. In cattle in granulosa cells of arthritic but not healthy follicles.
Connexin 37 (Cx37)GJA4Cx37 is essential for the gap-junctional communication between granulosa cells and oocyte. Cx37 localizes to gap junctions at the oocyte surface and is thereby responsible for oocyte-granulosa cell metabolic coupling. It has been shown that in mice ovaries lacking Cx37 folliculogenesis is impaired at early antral stages, as well as meiotic competence. Mutations may lead to complication with conceiving due to impaired folliculogenesis.In murine oocytes, cumulus cells, in cumulus cells of corona radiata. Cx37 is present on oocytes at all stages of follicle forming.
Connexin 43 (Cx43)GJA1Cx43 provides communication among granulosa cells and its lack leads to arrest oocyte development at the primary stages. Marker potentially associated with oocyte maturation. Mutations may lead to complications with conceiving due to deficiency of oogonia and/or impaired oocyte/follicle development. Within the follicles of numerous species. Strongly expressed in cumulus cells.
Connexin 45 (Cx45)GJA7Knockout females mice died in utero.In pig, mouse and rat oocytes, granulosa cells and cumulus cells.
Connexin 62 (Cx62)GJA10Mice lacking CX57, a mouse orthologue of porcine CX60 and human CX62, did not exhibit any changes in oogenesis/folliculogenesisExpressed in porcine cumulus cells and oocytes, expressed at low levels in mouse ovaries.
Table
Table 2. Pannexins involved in oocyte development and female fertility. See text for references.
Table 2. Pannexins involved in oocyte development and female fertility. See text for references.
Channel ProteinEncoding GeneReported Function for Female FertilityLocalization
Pannexin 1PANX1Expression of PANX1 in bovine oocyte cumulus cells is differential with higher expression in smaller antral follicles compared to larger antral follicles. The expression of PANX1 is downregulated in vivo during folliculogenesis and oocyte maturation. PANX1 channel inhibition during in vitro maturation resulted in temporarily delayed meiotic maturation and improved in vitro developmental outcomes while decreasing intercellular reactive oxygen species. PANX1 inhibition during in vitro maturation led to maintaining elevated cAMP levels and modulation of ATP release, which delayed maturation and improved developmental competence. The mutation in PANX1 appeared to affect maturation potential in the oocytes—very few oocytes were mature, with the majority being immature and all degenerated or died very shortly after fertilization. The mutation in PANX1 led to an altered PANX1 glycosylation pattern and influenced the subcellular localization of PANX1in cultured cells. The result was the aberrant PANX1 channel activity and abnormal ATP release in oocytes. Oocytes having the mutation of PANX1, degenerated soon after retrieval due to the release of more adenosine 5′-triphosphate (ATP) to the extracellular space.Oocytes, zygotes, early embryonic cleavage stages
Pannexin 2 PANX2unknownunknown
Pannexin 3 PANX3unknownunknown
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kordowitzki, P.; Sokołowska, G.; Wasielak-Politowska, M.; Skowronska, A.; Skowronski, M.T. Pannexins and Connexins: Their Relevance for Oocyte Developmental Competence. Int. J. Mol. Sci. 2021, 22, 5918. https://doi.org/10.3390/ijms22115918

AMA Style

Kordowitzki P, Sokołowska G, Wasielak-Politowska M, Skowronska A, Skowronski MT. Pannexins and Connexins: Their Relevance for Oocyte Developmental Competence. International Journal of Molecular Sciences. 2021; 22(11):5918. https://doi.org/10.3390/ijms22115918

Chicago/Turabian Style

Kordowitzki, Paweł, Gabriela Sokołowska, Marta Wasielak-Politowska, Agnieszka Skowronska, and Mariusz T. Skowronski. 2021. "Pannexins and Connexins: Their Relevance for Oocyte Developmental Competence" International Journal of Molecular Sciences 22, no. 11: 5918. https://doi.org/10.3390/ijms22115918

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
