Modeling Cardiovascular Diseases with hiPSC-Derived Cardiomyocytes in 2D and 3D Cultures

Department of Molecular Genetics, University of Maastricht, Universiteitssingel 50, 6229ER Maastricht, The Netherlands
Department of Biology, University of Padova, via Ugo Bassi 58B, 35131 Padova, Italy
Interuniversity Institute of Myology (IIM), Administrative headquarters University of Perugia, Piazza Lucio Severi 1, 06132 Perugia, Italy
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Int. J. Mol. Sci. 2020, 21(9), 3404;
Original submission received: 21 April 2020 / Revised: 5 May 2020 / Accepted: 6 May 2020 / Published: 11 May 2020
(This article belongs to the Special Issue Disease Modeling Using Human Induced Pluripotent Stem Cells 2.0)


In the last decade, the generation of cardiac disease models based on human-induced pluripotent stem cells (hiPSCs) has become of common use, providing new opportunities to overcome the lack of appropriate cardiac models. Although much progress has been made toward the generation of hiPSC-derived cardiomyocytes (hiPS-CMs), several lines of evidence indicate that two-dimensional (2D) cell culturing presents significant limitations, including hiPS-CMs immaturity and the absence of interaction between different cell types and the extracellular matrix. More recently, new advances in bioengineering and co-culture systems have allowed the generation of three-dimensional (3D) constructs based on hiPSC-derived cells. Within these systems, biochemical and physical stimuli influence the maturation of hiPS-CMs, which can show structural and functional properties more similar to those present in adult cardiomyocytes. In this review, we describe the latest advances in 2D- and 3D-hiPSC technology for cardiac disease mechanisms investigation, drug development, and therapeutic studies.

1. Introduction

Cardiovascular diseases (CVDs) are a major cause of morbidity and the first cause of death worldwide, and no decline in this trend is expected in the foreseeable future [1]. At present, the treatments of most cardiac disorders are still palliative and not really curative. Besides, in patients sharing similar symptoms, and hence classified as suffering from the same disease, the underlying molecular mechanisms can actually be different. For these reasons, the creation of new, human-relevant disease models is a task of paramount importance, as they would allow a better understanding of the onset, progression, and molecular mechanisms of the various diseases, paving the way for new therapeutic approaches.
Animal models have so far greatly contributed to the present knowledge on cardiac pathogenic mechanisms. Mice have played a key role in this field, thanks to the availability of ever more sophisticated methods of genetic manipulation, besides their ease of breeding compared to other mammalian models such as pigs. However, the murine heart exhibits important differences if compared with the human heart. Besides discrepancies in ion channel roles, calcium handling, and the development of cardiomyocytes, mice and humans present relevant difference in terms of cardiac electrophysiological properties, such as resting heart rate, repolarization phase of action potential, response to exercise, and duration of ventricular action potential [2,3]. These differences represent an obstacle to the creation of accurate models for human diseases and explain why many treatments proved inefficient when translated from murine preclinical studies to human clinical trials.
Primary cell lines derived from patients have been an important means to study cardiac diseases in vitro, and the above-mentioned issues related to animal models can be prevented by using human cardiomyocytes. However, heart primary cells show clear limitations, related to the invasive procedures required for their collection from patients and their limited survival and proliferation potential.
In the last decade, research focus has turned to strategies based on induced pluripotent stem cells (iPSCs) obtained from somatic cells. Human iPSCs (hiPSCs) were first described in 2007, when Takahashi and Yamanaka’s seminal work demonstrated the possibility to reprogram adult somatic cells to a pluripotent condition by overexpressing four transcription factors—OCT3/4, SOX2, KLF4, and c-MYC [4]. Due to their ability to potentially differentiate into cells of all three embryonic germ layers, hiPSCs showed soon their potential in the area of in vitro disease modeling, potentially offering numerous desirable features. First and foremost, thanks to their self-renewal capability, patient-derived hiPSCs could provide a potentially unlimited source of precursors carrying the genetic background of the patient, which could then be differentiated into a number of different tissues. Besides, as they can be obtained from somatic tissues, their use would allow us to bypass the ethical conundrums linked to the use of embryonic stem cells (ESCs).
In this review, we will focus on the application of hiPSCs in the context of two-dimensional (2D) and three-dimensional (3D) cardiac culture models for disease mechanisms investigation, drug development, and therapeutic studies.

2. Human iPSC-Derived Cardiomyocytes

After the reprogramming of somatic cells and the validation of their pluripotent condition [5,6], hiPSCs can be differentiated into cells of mesodermal germ layer; this in turn can allow the generation of cardiac cell lineages, including cardiomyocytes (Figure 1). Floating embryoid bodies (EBs) or monolayer cultures on Matrigel are the two most commonly used methods to induce cardiac differentiation of hiPSCs [7]. In both cases, cells are placed in culture media containing defined sets of signaling molecules, specifically designed to induce cardiomyocytes (hiPS-CMs) generation.

2.1. 2D Cultures of hiPS-CMs for Disease Mechanisms Investigation

In the area of CVDs, hiPS-CMs have already shown a wide range of possible applications; important parameters like morphology, calcium handling, and contractility have been successfully analyzed in such systems. Studying hypertrophic cardiomyopathy (HCM), Lan et al. described the generation of patient-derived hiPS-CMs that displayed specific HCM-related alterations, such as abnormal sarcomere organization, cellular hypertrophy, and altered calcium handling [8]. In a different disease context, arrhythmogenic cardiomyopathy (ACM), transmission electron microscopy allowed to detect alterations of cell structure and morphology in hiPS-CMs obtained from patients carrying a plakophilin-2 (PKP2) gene mutation [9]. In these cells, the authors observed larger cardiomyocytes, altered Z-bands, and less organized desmosomes, hence recapitulating some typical ACM features [9]. Still in the context of ACM, abnormal plakoglobin nuclear localization was reported in patient-derived hiPS-CMs, together with decreased β-catenin activity in cardiogenic conditions [10]. In this work, the mutant hiPS-CMs showed increased lipogenesis and apoptosis as well as calcium-handling defects, once again recapitulating the disease phenotype and confirming that the hiPS-CM system could play a pivotal role in discovering ACM pathogenic mechanism(s) [10].
hiPS-CMs also offer an invaluable system for understanding the genetic basis of human CVDs and are being used as a model to test the pathological relevance of specific gene mutations. During the past few years, gene-editing approaches, such as TALENs and CRISPR/Cas9, have been used to correct suspected causative mutations in hiPSCs from patients [11,12,13]. This allowed not only the generation of proper experimental controls, i.e., isogenic hiPSC lines, but also the observation of a potential rescue of the defect caused by the mutation, thus suggesting its pathological relevance [14,15,16,17]. The opposite approach, i.e., the introduction of a mutation of interest in control hiPSC lines, has also been used [18,19,20,21,22,23,24]. Mosqueira and colleagues used CRISPR/Cas9 technology in three independent hiPSC wild-type lines to produce 11 variants of a suspected HCM-causing mutation, which they showed to promote severe and penetrant pathophysiology regardless of the genetic background [18]. Although Mendelian cardiac diseases are best suited for modeling through hiPS-CMs, Wei et al. recently reported interesting advances in recapitulating ischemic conditioning, suggesting the possibility to move toward the use of hiPS technology to also model non-Mendelian CVDs, such as myocardial infarction (MI) [25].
Human iPS-CMs have also allowed the investigation of the molecular pathways underlying CVDs [26,27,28]. The first example of such approach dates back to 2010, when Carvajal-Vergara and colleagues reported the generation of cardiomyocytes from patients suffering from “LEOPARD,” a complex syndrome that includes electrocardiographic abnormalities and hypertrophic cardiomyopathy [29]. In these cells, bFGF failed to activate MAPK, leading to an alteration of the RAS-MAPK signaling that in turn led to a HCM phenotype [29]. In another study, using hiPS-CMs from a patient with dilated cardiomyopathy (DCM) harboring a TNNT2 mutation, the authors showed that an altered epigenetic regulation of key β-adrenergic signaling genes in mutant cardiomyocytes was the cause of contractile dysfunctions [30]. More recently, Lee et al. reported that the platelet-derived growth factor (PDGF) signaling pathway was abnormally activated in a patient-derived hiPS-CMs model of Lamin A/C-related DCM compared to isogenic controls, identifying a new potential target for therapeutic approaches [31]. Also, using patient-specific hiPS-CMs to model Duchenne muscular dystrophy (DMD) cardiomyopathy, single-cell RNA-seq analysis showed significant activation of fibrosis program in DMD hiPS-CMs compared to controls [32]. Moreover, combining DMD hiPS-CMs and human DMD left ventricle RNA-seq datasets, the authors found shared dysregulated pathways, suggesting the importance of this model for investigating cardiomyopathic mechanisms of DMD [32].
HiPS-CMs have also been used in electrophysiology studies based on patch clamp, calcium flux assays, and multielectrode arrays to describe aberrant features in genetic arrhythmic diseases, such as long QT syndrome (LQTS), catecholaminergic polymorphic ventricular tachycardia (CPVT), short QT syndrome (SQTS), sick sinus syndrome (SSS), as well as atrial fibrillation (AF) and Brugada syndrome (BrS) [33]. One of the first studies in which electrophysiological recording techniques have been used on hiPS-CMs was reported by Moretti at al., who found typical electrophysiological features of LQTS type 1 in patient-specific hiPS-CMs carrying a mutation in KCNQ1 gene, which encodes the alpha subunits of the channels responsible for IKs generation [34]. More recently, electrophysiological studies were performed on hiPS-CMs derived from a SQTS patient carrying a mutation in the hERG potassium channel (KCNH2) responsible for the generation of the IKr current. This model recapitulated the disease phenotype, including shortened action potential duration and potassium current abnormalities [35]. The characterization of KCNH2 mutant hiPS-CMs was recently performed also in another study, confirming the ability of hiPSCs technology to provide important insights into arrhythmia mechanisms in SQTS [36].

2.2. 2D Cultures of hiPS-CMs as a Platform for Investigating CVDs Therapies

Another use of hiPS-CMs is the creation of disease models suitable for drug testing, as well as for drug discovery and development (Table 1) [37,38,39,40,41]. Particularly, hiPS-CM technology could be used to evaluate efficacy of drugs in a mutation-specific or even in a patient-specific context. One of the great opportunities provided by hiPS-CM is to establish large-scale, high-throughput screens for drug safety testing and discovery in large cohorts of patients. The validation and the use of these approaches for drug development is extremely attractive, as it could greatly reduce the costs resulting from animal disease models. One of the first studies demonstrating the reliability of hiPS-CM as a platform for drug evaluation was reported by Itzhaki et al. in the context of type-2 LQTS [42]. The authors assessed the effect of existing and novel pharmacological agents that could aggravate or ameliorate the disease phenotype, confirming the ability of the hiPS-CM model to recapitulate the expected drug response [42]. Studying the same cardiac disorder, Matsa et al. showed a proper response of LQT2 hiPS-CMs to clinically relevant pharmacology [43]. However, the two groups reported different responses to isoprenaline, likely because of different underlying mutations [42,43]. This discrepancy could support the potential use of hiPS-CMs from patients harboring different mutations in personalized medicine studies. More recently, Mehta et al. found that Lumacaftor, a drug acting as chaperone during protein folding, can correct the hERG trafficking defects in LQT2 hiPS-CMs, thus preventing arrhythmias in mutant cells [44]. These promising findings recently led to the realization of the first in-human study, highlighting the translational strength of this in vitro platform [45]. In the context of drug safety testing, Liang and colleagues for the first time recapitulated in hiPS-CMs drug-induced cardiotoxicity profiles for healthy subjects as well as for LQTS, HCM, and DCM patients, at the single cell level [46]. Not only healthy and diseased cells exhibited different susceptibilities to known cardiotoxic compounds, but hiPS-CMs could also accurately predict adverse drug responses [46].
Besides testing the effect of a specific compound, hiPS-CMs might be used also as a platform to develop new therapeutic strategies, including targeted genome editing [47], transgene overexpression [48], and RNA interference for either knockdown [49] or exon-skipping [50,51] in mutant genes.
The use of hiPS-CMs has been proposed in another, highly appealing research area, namely cell therapy for CVDs (Table 1). Considering the limited regenerative ability of the myocardium upon an adverse event such as a heart attack, hiPS-CMs may represent a potential solution to repopulate the damaged area. In this context, several studies have already been performed on small animals [60,61,62,63]. In 2015, hiPS-CMs transplanted into a mouse model after MI improved left ventricular (LV) function and attenuated cardiac remodeling [60]. Although engraftment was limited, transplanted hiPS-CMs provided pro-angiogenic and anti-apoptotic paracrine factors in an ischemic microenvironment [60]. The beneficial paracrine effects of hiPS-CMs on a murine injured myocardium have also been described by Tachibana et al., who observed no myocardial regeneration but cardio-protective paracrine effects on the damaged tissue [61]. Other studies reported grafting of transplanted hiPS-CMs. Transplantation of hiPS-CMs overexpressing the cell cycle regulator CCND2 in mice that underwent MI successfully improved the cardiac phenotype. Fifty percent of the myocardial scar was replaced over the following six months and LV function improved due to the electrical integration of the hiPS-CMs graft [62]. Large animals have also been used to test the potential of hiPSC technology in cell therapy for cardiac disorders [64,65,66,67]. Kawamura et al. generated hiPS-CMs sheets for transplantation over the MI areas in a porcine model of ischemic cardiomyopathy [64]. The authors observed attenuated LV remodeling and improved cardiac performance; however, very few hiPS-CMs survived long term [64]. In a more recent work, intra-myocardial injection of iPS-CMs in monkeys subjected to MI promoted cardiac contraction improvement for at least 12 weeks due to integrated graft survival [66]. As suggested by the above-mentioned works, cells survival in the host tissue is one of the main issues of hiPSC technology in cell therapy, and further studies will be needed to improve the hiPS-CMs engraftment efficiency and duration. In this context, the quality of the delivered cells can influence the efficacy of the treatment after hiPS-CMs transplantation. Current protocols used to prepare the cells for therapy consist of accelerated growth conditions, which lead to cell stress, including DNA damage. The quality of the cells can be selectively improved by activating transcription factor p53, which leads to apoptosis in DNA-damaged cells while not affecting DNA damage-free (DdF) cells [68]. This approach was used to prepare hiPS-CMs to treat heart failure caused by coronary artery ligation in mice. Cells were injected into the LV, and a significantly higher engraftment rate was found in murine hearts that received DdF hiPS-CMs when compared to controls, suggesting that the selected cells would better repopulate the ischemic myocardium of a failing heart [68].

2.3. Limits of hiPSC-Derived 2D Models and Current Strategies to Enhance hiPS-CMs Maturation

Despite the many progresses that have characterized the hiPSC field in recent years, such as the optimization of culture conditions allowing to obtain hiPS-derived cardiomyocytes with >90% purity [69], the use of hiPSCs in cardiac disease models still presents two major issues: the immaturity of hiPS-CMs and the inability of a 2D system to reproduce the complex 3D-structure of the heart tissue.
Van den Berg et al. showed that hiPS-CMs were comparable to first trimester gestational stage CMs in terms of structure, function and gene expression [70]. Indeed, hiPS-CMs are known to exhibit typical fetal-like features, such as reduced cellular size, immature myofibril alignment, lack of T-tubules, depolarized resting membrane potential, decreased ion channels expression and reduced upstroke velocity, fetal-like mitochondria, and metabolism [71]. Several approaches have been attempted to overcome the issue of hiPS-CMs immaturity; one of them is long-term culture. Kamakura et al. reported interesting ultrastructural sarcomeric changes in 180-day-old EB-contained cardiomyocytes compared to 14-day-old hiPS-CMs [72]. Specifically, in long-term culture, they observed myofibrils becoming more tightly packed and forming parallel arrays, together with the appearance of mature Z-, A-, H-, and I- bands; M-bands were also detected, but only in 360-day-old EBs [72]. The same structural improvements were observed by another group, who in addition performed electrophysiological assessments and found differences in AP amplitude, maximum diastolic potential, and upstroke velocity amongst 20/40-day-old and 80/120-day-old hiPS-CMs [73]. These findings suggest that hiPS-CMs are capable of maturing, albeit slowly, and better mimic the adult CMs phenotype. However, long-term culture is a cumbersome and expensive approach, which would be unsuitable for many experimental settings, such as high throughput screenings. Other strategies to promote hiPS-CMs maturation rely on the use of specific adult-like metabolic substrates, such as insulin and fatty acids [10,54,74], and of hormones and small molecules, including Tri-iodo-L-thyronine (T3) [75,76], GSKA [77], Wnt pathway modulators [78], or microRNAs [79,80,81]. Recently, inhibition of mTOR pathway has been found to enhance hiPS-CMs maturation [82]. Transient treatment during late differentiation with Torin1, a mTOR inhibitor, promoted a significant increased expression of mature cardiomyocyte markers in hiPS-CMs, as well as enhanced metabolic, contractile, and electrophysiological properties toward values observed in adult CMs [82]. Also, the modulation of the extracellular matrix (ECM) surrounding hiPS-CMs was reported to promote increased maturity in hiPS-CMs [83,84,85,86,87]. Matrix sandwiches combined with specific growth factors [83], as well as synthetic culture matrices engineered from combinatorial polymers [85], have been shown to enhance hiPS-CMs maturation and promote improvements in sarcomeric dimensions, mitochondrial function, electrophysiology, and contractility. However, there are still conflicting data about the optimal substrate properties. It was first reported that ESC- and hiPS-derived CMs maturation increased with substrate stiffness [86,88]. On the other hand, Herron et al. showed that culturing hiPS-CMs on Matrigel, and polydimethylsiloxane (PDMS), their softest experimental ECM condition, led to a higher expression and functional maturation levels compared to hiPS-CMs cultured on fibronectin and glass, their stiffest experimental ECM condition [87]. Another promising approach for hiPS-CMs maturation comes from the application of electric or mechanical stimulation, which can promote an appropriate physical modulation of the cellular microenvironment. Recently, physiological cyclic pulsatile hemodynamic forces were found to enhance hiPS-CMs maturation within a microfluidic system [89]. Particularly, the authors observed more elongated and rod-like-shaped hiPS-CMs with increased cell size, sarcomere length and alignment, contractility, and mitochondrial density, indicating an improved maturation of the cells when compared to static cultures [89]. Finally, the co-culture of hiPS-CMs with other cardiac cell types (e.g., fibroblasts or endothelial cells) has been also described as possible strategy to support cardiomyocytes maturation [90,91]. Yoshida et al. showed that co-culturing hiPS-CMs with mesenchymal stem cells (MSCs) can induce structural and functional maturation of hiPS-CMs in 2D culture [90]. MSCs were found to release soluble factors, including cytokines and exosomes, that promote the cardiomyocyte-specific markers expression impacting the maturation of hiPS-CMs [90].
The heart is characterized by a specific architecture in which cells are in contact with each other and the ECM. Despite the improved maturation protocols developed in the last few years, hiPS-CMs in 2D cultures are placed in a physiological and structural context that does not mimic the in vivo condition.

3. 3D Cultures of hiPS-CMs

In an effort to overcome the intrinsic limitations 2D cell cultures in terms of spatial architecture, recent years have seen a burgeoning development of three-dimensional culture models. Such phenomenon has also involved the field of heart diseases and many groups have developed 3D models of both healthy and pathological cardiac tissues. Once again, given the lack of bona fide adult precursors of cardiomyocytes, many of these systems have relied on hiPS-CMs. Importantly, several studies report that culturing hiPS-CMs within 3D constructs better recreates adult cardiomyocyte physiological, contractile, and electrical function, particularly when compared to 2D cultures [71,92,93,94,95,96,97,98,99] (Table 2). However, re-creating in vitro a reliable 3D tissue is undoubtedly more complex than using standard cell cultures, and several new aspects have to be considered simultaneously. Besides the source of cardiomyocytes, which has been discussed so far, at least three more elements must be considered for the creation of a 3D heart tissue model: the type of supporting scaffold, when present, the external stimuli that need to be applied and, last but not least, the role played by the non-contractile cell population(s) (Figure 2).

3.1. 3D Scaffolds

The peculiar organization of cardiac muscle fibers along specific directions, which define myocardial mechanical and physiological properties, is intrinsically linked to the ECM. Although present day in vitro 3D constructs cannot recreate anything similar to a whole heart, they do aim at reproducing as best as possible the in vivo cardiac tissue architecture; in this sense, scaffolds play a fundamental role in regulating cell adhesion, migration, proliferation and differentiation [115]. The molecular composition of the scaffold is a crucial feature in any 3D system, and the most obvious choice would then be to use the tissue’s own ECM. In 2013, Lu et al. generated a 3D heart model by combining functional hiPSC-derived cardiac progenitor cells and mouse decellularized heart matrix [116]. This 3D model exhibited the typical myocardium structure, the expected electrophysiological characteristics, and spontaneous contractions with a rate of 40–50 beats per minute, thus generating mechanical force [116]. Also, the engineered heart tissue showed normal response to various pharmaceutical agents that are known to affect cardiomyocyte physiology [116]. Importantly, the study reported the ability of ECM to promote hiPS-CMs differentiation, proliferation, and myofilament organization [116].
Another approach for fabricating in vitro 3D constructs relies on loading the desired cells into natural (e.g., gelatin, collagen, fibrin, alginate) [104,117] or artificial (e.g., polycaprolactone, poly D,L-lactic-co-glycolic acid) [118,119] polymers, which are sometimes combined together in hydrogel mixtures [120,121] and organized in oriented fibers [122,123] or in well-defined shapes [109,112]. Using hiPS-CMs from patients with Barth syndrome–related cardiomyopathy, Wang et al. succeeded in creating an engineered BTHS “heart-on-chip” tissue to simulate human myocardium, generating sheets of spontaneously beating cardiomyocytes [124]. Seeding hiPS-CMs onto thin elastomers micropatterned with fibronectin lines, hiPS-CMs self-organized into laminar myocardium that featured aligned sarcomeres [124]. Using a similar strategy, Zhao et al. generated a novel and open-access heart-on-a-chip system, in which hiPS-CM tissue contraction could be continuously monitored [125]. A “contactless” hydrodynamic approach, based on Faraday waves, has been used by Serpooshan et al. to promote rapid aggregation in a fibrin-based suspension of hiPS-CMs [102]. Such approach allowed the authors to reach cell packing densities that approximate native myocardium (108–109 cells/mL); further in vitro culture gave rise to formation of self-organized, closely packed, and symmetric 3D constructs, showing improved cell viability and maturation, intercellular connections, and contractile function when compared to constructs with random cell distribution [102]. The evidence that cell culture in 3D scaffolds promotes the maturation of hiPS-CMs has been recently confirmed by Silbernagel et al., who demonstrated for the first time that shaping iPSC-derived CMs in 3D micro-scaffolds can induce T-tubules formation, normally absent in 2D cultures, improving the structural and functional maturation of the cells [103].
In recent times, 3D bio-printing has also been used to recreate functional cardiac tissues based on stem-cell-derived CMs [105,114,126]. For example, Noor and colleagues succeeded in printing functional vascularized patches that matched the immunological, cellular, biochemical, and anatomical properties of the cell donor [114]. Specifically, after taking a biopsy of fatty tissue from patients, cells were extracted from part of the sample, while the remaining material was decellularized and processed to generate a fully personalized hydrogel, which served as a bioink for 3D printing [114]. Computerized tomography (CT) of a patient’s heart was used to identify the three-dimensional structure and orientation of the major blood vessel in the LV [114]. Afterward, anatomical data obtained from the CT images were used to design patch dimensions and blood vessel geometry, in order to generate a personalized scaffold [114]. hiPSC-derived cardiomyocytes and endothelial cells from patients were separately combined with the personalized hydrogel to form a bioink for the parenchymal cardiac tissue and blood vessels [114]. Moreover, since the patient-specific hydrogel could not sustain the weight of a whole printed organ, the authors used a printing strategy based on a support material composed of alginate microparticles in xanthan gum–supplemented growth medium, which maintained high cell viability and to print accurate, high resolution thick structures from the personalized hydrogel [114].

3.2. External Stimuli

Another limit of standard 2D hiPS-CM models is the difficulty to reproduce the in vivo–like condition in which stimuli coming from the external environment influence cardiac tissue development and maintenance. Indeed, a proper modeling of the myocardium should include not only electrical [125,127] but also mechanical [108] stimuli, such as those derived from fluid flow and hydrostatic pressure. Nunes and colleagues described an innovative platform for engineered heart construct in which a 3D cardiac tissue was generated by the self-assembly of hESC- and hiPSC-derived cardiomyocytes seeded into a template PDMS channel, around a surgical suture in type I collagen gels [100]. In this system, named “biowires,” cells were subjected to geometric electrical stimulation inducing highly organized cardiac structure and cell maturation. Indeed, their 3D constructs exhibited increased myofibril ultrastructural organization, enhanced calcium handling properties, and improved conduction velocity and electrophysiological properties compared to non-stimulated controls [100]. Thavandiran et al. generated aligned and functional 3D-hiPSC-derived cardiac microtissues, also defined as cardiac microwires (CMWs) [120]. In this work, pacing with point stimulation electrodes was found to promote cardiac maturation–associated gene expression and electrical signal propagation similar to in vivo conditions [120]. More recently, the Biowire II platform was used to generate 3D engineered cardiac tissues from hiPS-CMs and cardiac fibroblasts, employing long term electrical stimulation [128]. Thanks to the electrical conditioning, the engineered tissue expressed an adult-like human myocardium phenotype, including contractile properties and expected responses to therapeutic and to cardiotoxic agents affecting contractility [128].
Mechanical stimulation has also been proven to benefit 3D culturing of hiPS-CMs. Ruan et al. demonstrated that electric and mechanical stimulation could lead to the creation of advanced hiPS-derived cardiac microtissues, promoting the maturation of their structural, mechanical, and force generation properties after two weeks of electric pacing combined with static stress conditioning, achieved by maintaining constructs at a fixed static length [104]. Moreover, considering the positive effect on cardiac maturation of the increased mechanical loading during development, Leonard et al. tested the effect of moderate afterload on the maturation of hiPS-CMs in engineered heart muscles [129]. In this model, mechanical loading promoted increased hiPS-CM area and elongation, sarcomere length, and mRNA expression of maturation markers, as well as improved calcium handling and auxotonic contraction [129]. Similarly, Tsuruyama et al. found increased maturation in cardiac tubular 3D tissues in which hiPS-CMs were subjected to electrical and mechanical stimulation [112]. The authors observed increased expression of CM markers, including myosin light chain 2 (MYL2) and myosin light chain 7 (MYL7) when compared with hiPS-CMs cultured in static cultures [112].

3.3. Multi-Cellular Composition

Several lines of evidence showed the importance of multi-cellular interactions in promoting prolonged cell survival in 3D models [108,125]. As expected, the cellular composition of 3D cardiac tissues also plays a key role in better mimicking the physiology and the beating behaviour of native cardiac tissue [130,131,132]. Besides, mixed cell types composition in 3D cardiac constructs may improve drug testing, considering that different compounds can either act directly on CMs or indirectly, through the surrounding cells [133]. In recent years, various reports described methods to derive cardiac fibroblasts [134], smooth muscle [135,136], endothelial [137], and epicardial [138,139] cells from hiPSCs. However, primary cell lines might also be used in combination with hiPS-derived CMs. The possibility to generate different cardiac cell types offers the opportunity to model also those conditions in which the interaction between different cell types become decisive to exhibit the pathological phenotype [140], particularly characterized by the disruption of paracrine signals and cell-cell interactions. The combination of hiPS-CMs with fibroblasts has been reported to improve synchronised beating [141,142,143]. Jang and colleagues developed 3D cardiac macrotissues (CMTs) using a Layer-by-Layer (LbL) technique [144], based on deposition and centrifugation of hiPS-CMs and cardiac fibroblasts [145]. In this instance, the authors found that the incorporation of cardiac fibroblasts into the cardiomyocyte layer was a prerequisite for maturation and synchronized beating of CMTs, suggesting that the paracrine effects of fibroblasts could improve the functional properties of the CMT, compared to the mono-culture constructs [145]. Similarly, the introduction of endothelial cells in combination with hiPS-CMs has shown important advantages in the creation of advanced 3D cardiac constructs. For example, Giacomelli et al. generated human cardiac microtissues composed of hiPS-CMs and endothelial cells, finding increased expression of genes encoding cardiac ion channels and calcium handling proteins, which are considered evidences of advanced maturation when compared to hiPS-CM monoculture constructs [146].
Several groups described the generation of 3D cardiac constructs consisting on more than two cell types. Burridge et al. showed that in a 3D hydrogel tri-culture with hiPS-derived endothelial cells and human amniotic mesenchymal stem cells spontaneous synchronous contractility of hiPS-CMs was significantly increased when compared to hiPS-CM monoculture [147]. Amano and colleagues developed a vascularized 3D hiPS-CMs tissue by using a filtration layer-by-layer (LbL) technique for cells, showing that the introduction of cardiac microvascular endothelial cells together with human cardiac fibroblasts into the 3D hiPS-CM tissue modulated CMs organization and synchronous beating in 3D constructs; of notice, they also showed the formation of blood capillary-like networks [148]. Characterization of hiPS-CMs in tri-culture has been recently reported by Pitaktong et al., who observed improved microvasculature and increased contraction rate in 3D microtissue spheroids consisting of hiPS-CMs, adult cardiac fibroblasts, and hiPSC-derived early vascular cells, when compared with control 3D spheroids [149].
Importantly, hiPSC technology is also making progress toward the differentiation of cardiomyocyte subtypes: i.e., atrial, ventricular and nodal [150,151,152,153,154]. These CM subtypes are distinguished by electrophysiological properties and specific gene expression patterns [155,156]. Several groups have tried to modulate the latter to derive the different CMs subtypes, since early protocols for cardiac differentiation of hiPSCs resulted in heterogeneous populations of CMs, predominantly ventricular-like cells with a small percentage of atrial-like and nodal-like cells [155]. By combining stem-cell-derived CM differentiation protocols with electrical field conditioning, Zhao et al. were able to successfully model polygenic left ventricular hypertrophy, generating heteropolar cardiac tissues containing distinct atrial and ventricular ends [111]. These latter expressed chamber-specific genes and showed the expected drug responses [111]. Similarly, subtype-specific CMs differentiation protocols have been recently used to develop an engineered cardiac tissue that comprised chamber-specific human pluripotent stem-cell-derived cardiomyocytes (hPS-CMs) [109]. Ventricular and atrial hPS-CMs were embedded in a collagen-based hydrogel to generate ring-shaped 3D constructs showing proper atrial and ventricular phenotypes at gene and protein expression levels, as well as in terms of electrophysiological and contractile parameters [109]. However, none the above-described models recreated Purkinje fibers, the conduction system that electrically connect the atrial and ventricular chambers of the heart. The generation of an integrated cardiac tissue, including atrial and ventricular chambers, as well as vasculature network and electric conduction system, will likely further improve physiological-relevant drug response studies.

4. 3D Models for CVDs

4.1. 3D Cultures for Investigating CVDs Pathogenic Mechanisms

In some cardiac diseases the pathological phenotype is fully discernible only at a tissue/organ level [157], which makes 3D hiPS-CM models indispensable to avoid the use of animal models. For this reason, such systems are expected to soon become commonplace tools in the characterization of molecular mechanisms underlying cardiac diseases, as well as in preliminary testing and screening of drugs. In this regard, some brilliant works already succeeded in recapitulating cardiac organ functions and properties in a 3D model, both in healthy and pathological conditions (Table 3) [158,159,160,161]. Hinson and colleagues generated cardiac microtissues engineered from hiPS-CMs carrying different titin-truncating variants (TTNtvs), introduced by CRISPR/Cas9 technology [162]. The authors showed that some of the missense TTNtvs are pathogenic, leading to decrease contractile force in cardiac microtissues, whereas other variants promoted contractile function impairment only when genetic modifiers were also present [162]. Also, they observed that some of these variants produced a stable truncated protein unable to assemble with sarcomeric components, resulting in typical DCM patient features [162]. Stillitano and co-workers generated a 3D model starting from hiPS-CMs obtained from a patient harbouring a mutation in the phospholamban gene (PLN), shown to be causative of DCM [163]. A study performed by the same group in 2D hiPS-CMs from the same patient had already showed some features of DCM, such as calcium handling abnormalities and irregular electrical activity [14]; however, the 3D model demonstrated that the PLN mutation impaired cardiac contractility and that genetic correction restored contractile function [163]. In another study performed by Streckfuss-Bömeke et al., the authors obtained in parallel 2D hiPS-CM cultures and 3D cardiac constructs from a DCM patient, showing that the latter exhibited not only impaired force of contraction but also reduced passive stress of the tissue in response to gradual increase in strain, hence suggesting increased visco-elasticity of the mutated constructs [164]. The advantage of 3D cultures over monolayers in recapitulating disease features was also shown by Prondzynski and colleagues, who were able to detect some of the functional consequences of a α-actinin 2 (ACTN2) mutation only when hiPS-CMs derived from an HCM patient were cast in a 3D format [165]. The mutant hiPS-CMs embedded in the 3D construct showed increased contractility, relaxation deficit, higher myofilament Ca2+ sensitivity, and prolonged action potential duration when compared to controls, providing an in vitro model subsequently used to test personalized treatments for the patient [165].
Beside modeling inherited cardiomyopathies, 3D models could represent an attractive approach to study disease mechanisms underlying non-Mendelian cardiovascular disorders. This is made possible mostly by the introduction of advanced systems that manipulate specific parameters, e.g., oxygen content and medium composition, thus mimicking pathological conditions typical of disorders in which the genetic component is not the driving cause. Tiburcy et al. described an in vitro engineered human myocardium that showed structural and functional properties of postnatal tissue and could reproduce the typical hallmarks of heart failure upon chronic catecholamine overstimulation [99]. Recently, Sebastião et al. generated and characterized a new human in vitro 3D model of myocardial ischemia/reperfusion (I/R) injury using hiPS-CM aggregates and stirred tank bioreactors [166]. The extracellular microenvironment of I/R phases of acute myocardial infarction (MI) was recreated by finely controlling and monitoring critical process parameters, such as pO2 and pH [166]. The authors were able to mimic specific hallmarks of MI, including loss of CMs, cellular ultrastructure disruption, increased angiogenesis, and secretion of proinflammatory cytokines, suggesting that this model could serve as novel platform to investigate the disease mechanisms of MI [166]. Recently, Richards et al. recently generated 3D microtissues to mimic MI, establishing a model that combined an oxygen diffusion system with chronic adrenergic stimulation to create an apoptotic gradient in human cardiac organoids, which recapitulated the organotypic response of myocardium after infarction [167]. In this model, typical features of MI were recreated, including pathological calcium handling, metabolic shifts, and fibrosis [167]. Also, detrimental effects were observed in the 3D microtissues upon treatment with known cardiotoxic drugs, supporting the translational strength of this 3D model [167]. Moreover, in order to generate an in vitro model to study ventricular tachycardia, Lemme et al. investigated the effect of chronic tachypacing on hiPS-CMs embedded in a 3D engineered heart tissue [168]. The authors demonstrated a high vulnerability to tachycardia of tachypaced hiPS-CMs, terminated by ryanodine receptor stabilization or sodium or hERG potassium channel inhibition, hence indicating this new model as a potential tool to test anti-arrhythmic drugs to treat ventricular tachycardia [168].

4.2. 3D Models as a Platform for Developing Therapies for CVDs

In recent years, 3D cardiac models have been used in the context of drug screening and toxicity screening (Table 3). One of the many advantages of 3D models is the possibility to independently modulate molecular factors suspected of being involved in disease onset and progression by controlling, and measuring, the functional parameters of the tissue [177]. Huebsch et al. successfully developed miniaturized 3D cardiac tissues with the aim to perform physiologically relevant drug response analyses, once again showing that 3D constructs yielded more reliable results compared to 2D cultures [169]. Intriguingly, machine learning has been used by Lee et al. to analyze several different functional parameters obtained from force readouts of hiPSC-derived ventricular cardiac tissue strips embedded in a 3D collagen-based matrix and exposed to a library of compounds [170]. This way, the authors were able to generate a promising system for automated drug classification using a model capable of predicting the mechanistic action of an unknown drug [170]. Three-dimensional cardiac tissues derived from hiPS-CMs were also used as a platform for in vitro drug-induced cardiotoxicity assay [173]. Takeda et al. investigated the electrophysiological and contractile responses of the cardiac constructs challenged with cardiotoxic drugs known to promote different effects on CMs [173]. Dose-dependent cytotoxicity caused by doxorubicin was confirmed in the 3D cardiac tissues, as well as decreased hERG channel blocker-dependent beating rate, which instead was increased after isoproterenol treatment [173]. Importantly, the authors also reported that their model showed greater drug sensitivity than animal studies with the same compounds [173]. In yet another study, 3D human cardiac organoids were used to screen a panel of environmental toxins by assessing cell viability, ATP activity and organoid beating activity [113]. More recently, Mills et al. performed functional screening of more than 100 small molecules with presumed cardiac pro-regenerative potential using a high-throughput human cardiac organoid system [175]. This approach allowed to uncover detrimental side effects in many active molecules and led to the identification of two highly promising pro-proliferative molecules, as well as to the characterization of their mechanism(s) of action [175].
Altogether, these lines of evidence indicate that 3D models based on hiPSCs represent a viable alternative to at least part of the animal studies for the near future, thereby reducing research-related costs and potential failures in human clinical trials.
Last but not least, the idea of using 3D constructs based on hiPSCs for cell therapy in CVDs has been gaining traction for some years now. In the study by Shadrin and colleagues, smooth muscle cells and fibroblasts were combined with hiPS-CMs in a fibrin-matrigel scaffold, generating cardiopatches with clinically relevant size (4 × 4 cm) that exhibited electrical and mechanical functions similar to those observed in the adult human myocardium, including evidence for T-tubules and M-bands [171]. When implanted in nude mice via dorsal window chambers, cardiopatches underwent proper vascularization; when implanted onto rat epicardium, the same patches showed robust engraftment and maintained electrical function without increasing the incidence of arrhythmias [171]. Introducing the vascular component, Narita and co-workers also reported a hiPS-CM 3D tissue for therapeutic studies [172]. In their system they observed tubular structures consisting of endothelial cells organized around the hiPS-CMs, which provided a capillary network capable of supplying nutrients and oxygen throughout the tissue upon implantation on the LV of experimentally-infarcted rat hearts [172]. Besides leading to an overall higher survival rate, the presence of the engrafted tissues led to a significant increase in wall thickness and to a wide distribution in the implanted area of functional blood vessels, comprising both host and implanted endothelial cells [172]. Driven by the same aim, Mattapally et al. produced hiPS-CM spheroids, embedded in a fibrin patch, for transplantation in mice after experimentally-induced MI [174]. Patch-receiving mice showed a higher engraftment rate and improved cardiac function compared to non-treated mice [174]. More recently, Wanjare et al. generated spatially patterned myocardial tissues combining hiPSC-derived cardiomyocytes and endothelial cells seeded in microfibrous polycaprolactone scaffolds [176]. When transplanted in a rat myocardial injury model, the engineered tissues promoted pro-survival and pro-angiogenic effects [176]. Interestingly, the authors found that randomly oriented scaffolds promoted microvessel formation and higher arteriole density compared to engineered tissues with aligned scaffolds, underlying how scaffold topography can play a key role in promoting differential effects on cellular survival and revascularization [176].

5. Conclusions and Perspectives

In the last decade, the emergence and growth of hiPSC technology has led to countless progress in the medical field and the generation of diseased hiPS-CMs has already provided many advances in the understanding of the genetic and molecular pathophysiology of cardiac disorders.
However, differentiation of hiPS-CMs in 2D cultures yields inadequate cell maturation, representing a major obstacle to disease modeling and clinical translations of cell therapies. More efforts should be dedicated to fine-tuning hiPS-CMs maturation, e.g., by applying combinatorial approaches and coordinating the timing and the intensity of a specific intervention to recreate the natural cardiac developmental program. On the other hand, development of 3D cardiac models is already showing improvements in hiPS-CMs maturation due to the multi-cellularity of these systems and to their ability to reproduce the physical and environmental cues necessary for the physiological maturation process from postnatal stages into adulthood. However, a fully mature cardiac tissue that recapitulates all the properties of an adult heart has not yet been generated, and this gap might be filled only by uncovering the molecular mechanisms that govern postnatal maturation of the human heart, including those deriving from postnatal inter-organ communication. Mature hiPS-CMs are essential to model typical adult-onset disorders or conditions in which the pathogenic mechanisms involve mechanisms or cellular components that are observed only in mature cells. However, while the presence of hiPS-CMs with an embryonic or fetal phenotype is considered to be a limitation in most cases, such cells might be required for cell therapy applications, in which a partially differentiated phenotype is conducive to better engraftment and proliferation of hiPS-CMs delivered in infracted myocardium [178]. So far, several approaches have been used in the generation of cardiac 3D models—namely, bioreactors, biomimetic scaffolds, 3D bioprinting technologies, and organ-on-a-chip micro-physiological systems. Each technique allowed the implementation of specific features, such as electrical stimulation, mechanical loading, fine-tuning of medium composition, and oxygen content. However, the increased complexity of these 3D systems could make them less widely accessible. In terms of scalability, different applications require constructs of different size; larger formats are mostly necessary for heart regeneration, whereas miniaturized 3D systems are mainly needed for basic research or large-scale drug screening. Different sizes then imply different levels of complexity; for example, large formats also require systems that provide sufficient nutrient and oxygen supply to avoid the formation of necrotic areas. The number of cells required for a 3D construct is another important factor to consider, as an average of 0.5–2 million cardiomyocytes per tissue are usually necessary for 3D systems. Such requirement explains the work being carried out toward cell number optimization and the creation of smaller functional tissues comprised of fewer cells, thus reducing time and costs of production. Therefore, depending on the required application, the challenge will be to generate advanced 3D hiPS-CM platforms capable of providing relevant microenvironment cues combined with a relative ease of use.
Although technology of 3D models is still in its infancy and further advances in hiPSC culture systems will be necessary (e.g., in biomaterial, microfluidics and mechanical engineering, as well as in microfabrication methods), the new platforms based on 3D models are already leading to better high-throughput screening of new molecules for therapeutics. In turn, these approaches are generating larger multidimensional datasets, which will require the development of new methods to fully characterize drug responses. Importantly, 3D humanized in vitro platforms could acquire a pivotal role in the area of personalized medicine, potentially providing patient-specific in vitro drug screening and therapeutic approaches, once technological advances will have reduced the time and cost factors to manageable scales. Finally, despite the achievement of crucial goals in hiPS-CMs differentiation and maturation, as well as in 3D construct generation, it should be noticed that the growing body of work we are now witnessing at times shows conflicting data, likely due to the lack of hiPS-CMs quality control and standardized experimental conditions among different studies. In this regard, a fitting example is represented by electrophysiology studies; in this context, there are examples of hiPS-CMs showing a lack of ion currents normally observed in adult cells [87,179], but also of hiPS-CMs expressing ion channels that are absent in adult cardiomyocytes [110,180]. This consideration underlines the importance of carefully evaluating the expression of cardiomyocyte-specific ion channels in hiPS-CMs before considering a particular model for electrophysiology and/or therapeutic studies. Therefore, a major challenge now is to develop standardized protocols for reproducible production of high-quality hiPS-CMs, to be used for studying CVD and for possible clinical applications. Considering the advances obtained within the last decade, these goals might not be too far in the future.

Author Contributions

Conceptualization M.C. and A.R.; Collection and analysis of bibliography, C.S. and L.V.; Writing original draft, C.S., L.V., M.C., L.J.d.W. and A.R. All authors have read and agreed to the published version of the manuscript.


L.J.d.W. and M.C. acknowledge support from the Netherlands CardioVascular Research Initiative (CVON ARENA-PRIME). L.J.D.W. was further supported by grant 311549 from the European Research Council (ERC) and a VICI award 918-156-47 from The Netherlands Organisation for Scientific Research (NWO). AR acknowledges support from TRANSAC Strategic Research Grant CPDA133979/13, University of Padua, Italy.

Conflicts of Interest

The authors declare no conflict of interest.


  1. Laslett, L.J.; Alagona, P.; Clark, B.A.; Drozda, J.P.; Saldivar, F.; Wilson, S.R.; Poe, C.; Hart, M. The worldwide environment of cardiovascular disease: Prevalence, diagnosis, therapy, and policy issues: A report from the American College of Cardiology. J. Am. Coll. Cardiol. 2012, 60, S1–S49. [Google Scholar] [CrossRef] [PubMed][Green Version]
  2. Nerbonne, J.M. Studying cardiac arrhythmias in the mouse--a reasonable model for probing mechanisms? Trends Cardiovasc. Med. 2004, 14, 83–93. [Google Scholar] [CrossRef] [PubMed]
  3. Kaese, S.; Verheule, S. Cardiac electrophysiology in mice: A matter of size. Front. Physiol. 2012, 3, 345. [Google Scholar] [CrossRef] [PubMed][Green Version]
  4. Takahashi, K.; Tanabe, K.; Ohnuki, M.; Narita, M.; Ichisaka, T.; Tomoda, K.; Yamanaka, S. Induction of pluripotent stem cells from adult human fibroblasts by defined factors. Cell 2007, 131, 861–872. [Google Scholar] [CrossRef] [PubMed][Green Version]
  5. Marti, M.; Mulero, L.; Pardo, C.; Morera, C.; Carrio, M.; Laricchia-Robbio, L.; Esteban, C.R.; Izpisua Belmonte, J.C. Characterization of pluripotent stem cells. Nat. Protoc. 2013, 8, 223–253. [Google Scholar] [CrossRef] [PubMed]
  6. Baghbaderani, B.A.; Syama, A.; Sivapatham, R.; Pei, Y.; Mukherjee, O.; Fellner, T.; Zeng, X.; Rao, M.S. Detailed Characterization of Human Induced Pluripotent Stem Cells Manufactured for Therapeutic Applications. Stem Cell Rev. Rep. 2016, 12, 394–420. [Google Scholar] [CrossRef][Green Version]
  7. Mummery, C.L.; Zhang, J.; Ng, E.S.; Elliott, D.A.; Elefanty, A.G.; Kamp, T.J. Differentiation of human embryonic stem cells and induced pluripotent stem cells to cardiomyocytes: A methods overview. Circ. Res. 2012, 111, 344–358. [Google Scholar] [CrossRef]
  8. Lan, F.; Lee, A.S.; Liang, P.; Sanchez-Freire, V.; Nguyen, P.K.; Wang, L.; Han, L.; Yen, M.; Wang, Y.; Sun, N.; et al. Abnormal calcium handling properties underlie familial hypertrophic cardiomyopathy pathology in patient-specific induced pluripotent stem cells. Cell Stem Cell 2013, 12, 101–113. [Google Scholar] [CrossRef][Green Version]
  9. Ma, D.; Wei, H.; Lu, J.; Ho, S.; Zhang, G.; Sun, X.; Oh, Y.; Tan, S.H.; Ng, M.L.; Shim, W.; et al. Generation of patient-specific induced pluripotent stem cell-derived cardiomyocytes as a cellular model of arrhythmogenic right ventricular cardiomyopathy. Eur. Heart J. 2013, 34, 1122–1133. [Google Scholar] [CrossRef][Green Version]
  10. Kim, C.; Wong, J.; Wen, J.; Wang, S.; Wang, C.; Spiering, S.; Kan, N.G.; Forcales, S.; Puri, P.L.; Leone, T.C.; et al. Studying arrhythmogenic right ventricular dysplasia with patient-specific iPSCs. Nature 2013, 494, 105–110. [Google Scholar] [CrossRef][Green Version]
  11. Liu, J.; Gaj, T.; Yang, Y.; Wang, N.; Shui, S.; Kim, S.; Kanchiswamy, C.N.; Kim, J.S.; Barbas, C.F., III. Efficient delivery of nuclease proteins for genome editing in human stem cells and primary cells. Nat. Protoc. 2015, 10, 1842–1859. [Google Scholar] [CrossRef] [PubMed]
  12. Ding, Q.; Regan, S.N.; Xia, Y.; Oostrom, L.A.; Cowan, C.A.; Musunuru, K. Enhanced efficiency of human pluripotent stem cell genome editing through replacing TALENs with CRISPRs. Cell Stem Cell 2013, 12, 393–394. [Google Scholar] [CrossRef][Green Version]
  13. Karakikes, I.; Termglinchan, V.; Cepeda, D.A.; Lee, J.; Diecke, S.; Hendel, A.; Itzhaki, I.; Ameen, M.; Shrestha, R.; Wu, H.; et al. A Comprehensive TALEN-Based Knockout Library for Generating Human-Induced Pluripotent Stem Cell-Based Models for Cardiovascular Diseases. Circ. Res. 2017, 120, 1561–1571. [Google Scholar] [CrossRef] [PubMed]
  14. Karakikes, I.; Stillitano, F.; Nonnenmacher, M.; Tzimas, C.; Sanoudou, D.; Termglinchan, V.; Kong, C.W.; Rushing, S.; Hansen, J.; Ceholski, D.; et al. Correction of human phospholamban R14del mutation associated with cardiomyopathy using targeted nucleases and combination therapy. Nat. Commun. 2015, 6, 1–10. [Google Scholar] [CrossRef] [PubMed]
  15. Liang, P.; Sallam, K.; Wu, H.; Li, Y.; Itzhaki, I.; Garg, P.; Zhang, Y.; Vermglinchan, V.; Lan, F.; Gu, M.; et al. Patient-Specific and Genome-Edited Induced Pluripotent Stem Cell-Derived Cardiomyocytes Elucidate Single-Cell Phenotype of Brugada Syndrome. J. Am. Coll. Cardiol. 2016, 68, 2086–2096. [Google Scholar] [CrossRef]
  16. Ma, N.; Zhang, J.Z.; Itzhaki, I.; Zhang, S.L.; Chen, H.; Haddad, F.; Kitani, T.; Wilson, K.D.; Tian, L.; Shrestha, R.; et al. Determining the Pathogenicity of a Genomic Variant of Uncertain Significance Using CRISPR/Cas9 and Human-Induced Pluripotent Stem Cells. Circulation 2018, 138, 2666–2681. [Google Scholar] [CrossRef]
  17. Garg, P.; Oikonomopoulos, A.; Chen, H.; Li, Y.; Lam, C.K.; Sallam, K.; Perez, M.; Lux, R.L.; Sanguinetti, M.C.; Wu, J.C. Genome Editing of Induced Pluripotent Stem Cells to Decipher Cardiac Channelopathy Variant. J. Am. Coll. Cardiol. 2018, 72, 62–75. [Google Scholar] [CrossRef]
  18. Mosqueira, D.; Mannhardt, I.; Bhagwan, J.R.; Lis-Slimak, K.; Katili, P.; Scott, E.; Hassan, M.; Prondzynski, M.; Harmer, S.C.; Tinker, A.; et al. CRISPR/Cas9 editing in human pluripotent stem cell-cardiomyocytes highlights arrhythmias, hypocontractility, and energy depletion as potential therapeutic targets for hypertrophic cardiomyopathy. Eur. Heart J. 2018, 39, 3879–3892. [Google Scholar] [CrossRef]
  19. Mesquita, F.C.P.; Arantes, P.C.; Kasai-Brunswick, T.H.; Araujo, D.S.; Gubert, F.; Monnerat, G.; Silva Dos Santos, D.; Neiman, G.; Leitao, I.C.; Barbosa, R.A.Q.; et al. R534C mutation in hERG causes a trafficking defect in iPSC-derived cardiomyocytes from patients with type 2 long QT syndrome. Sci. Rep. 2019, 9, 1–9. [Google Scholar] [CrossRef]
  20. McDermott-Roe, C.; Lv, W.; Maximova, T.; Wada, S.; Bukowy, J.; Marquez, M.; Lai, S.; Shehu, A.; Benjamin, I.; Geurts, A.; et al. Investigation of a dilated cardiomyopathy-associated variant in BAG3 using genome-edited iPSC-derived cardiomyocytes. JCI Insight 2019, 4. [Google Scholar] [CrossRef]
  21. Bellin, M.; Casini, S.; Davis, R.P.; D’Aniello, C.; Haas, J.; Ward-van Oostwaard, D.; Tertoolen, L.G.; Jung, C.B.; Elliott, D.A.; Welling, A.; et al. Isogenic human pluripotent stem cell pairs reveal the role of a KCNH2 mutation in long-QT syndrome. EMBO J. 2013, 32, 3161–3175. [Google Scholar] [CrossRef] [PubMed]
  22. Wang, Y.; Liang, P.; Lan, F.; Wu, H.; Lisowski, L.; Gu, M.; Hu, S.; Kay, M.A.; Urnov, F.D.; Shinnawi, R.; et al. Genome editing of isogenic human induced pluripotent stem cells recapitulates long QT phenotype for drug testing. J. Am. Coll. Cardiol. 2014, 64, 451–459. [Google Scholar] [CrossRef] [PubMed][Green Version]
  23. Lv, W.; Qiao, L.; Petrenko, N.; Li, W.; Owens, A.T.; McDermott-Roe, C.; Musunuru, K. Functional Annotation of TNNT2 Variants of Uncertain Significance With Genome-Edited Cardiomyocytes. Circulation 2018, 138, 2852–2854. [Google Scholar] [CrossRef] [PubMed]
  24. Deacon, D.C.; Happe, C.L.; Chen, C.; Tedeschi, N.; Manso, A.M.; Li, T.; Dalton, N.D.; Peng, Q.; Farah, E.N.; Gu, Y.; et al. Combinatorial interactions of genetic variants in human cardiomyopathy. Nat. Biomed. Eng. 2019, 3, 147–157. [Google Scholar] [CrossRef] [PubMed]
  25. Wei, H.; Wang, C.; Guo, R.; Takahashi, K.; Naruse, K. Development of a model of ischemic heart disease using cardiomyocytes differentiated from human induced pluripotent stem cells. Biochem. Biophys. Res. Commun. 2019, 520, 600–605. [Google Scholar] [CrossRef]
  26. Dorn, T.; Kornherr, J.; Parrotta, E.I.; Zawada, D.; Ayetey, H.; Santamaria, G.; Iop, L.; Mastantuono, E.; Sinnecker, D.; Goedel, A.; et al. Interplay of cell-cell contacts and RhoA/MRTF-A signaling regulates cardiomyocyte identity. EMBO J. 2018, 37. [Google Scholar] [CrossRef]
  27. Chang, A.C.Y.; Chang, A.C.H.; Kirillova, A.; Sasagawa, K.; Su, W.; Weber, G.; Lin, J.; Termglinchan, V.; Karakikes, I.; Seeger, T.; et al. Telomere shortening is a hallmark of genetic cardiomyopathies. Proc. Natl. Acad. Sci. USA 2018, 115, 9276–9281. [Google Scholar] [CrossRef][Green Version]
  28. Seeger, T.; Shrestha, R.; Lam, C.K.; Chen, C.; McKeithan, W.L.; Lau, E.; Wnorowski, A.; McMullen, G.; Greenhaw, M.; Lee, J.; et al. A Premature Termination Codon Mutation in MYBPC3 Causes Hypertrophic Cardiomyopathy via Chronic Activation of Nonsense-Mediated Decay. Circulation 2019, 139, 799–811. [Google Scholar] [CrossRef]
  29. Carvajal-Vergara, X.; Sevilla, A.; D’Souza, S.L.; Ang, Y.S.; Schaniel, C.; Lee, D.F.; Yang, L.; Kaplan, A.D.; Adler, E.D.; Rozov, R.; et al. Patient-specific induced pluripotent stem-cell-derived models of LEOPARD syndrome. Nature 2010, 465, 808–812. [Google Scholar] [CrossRef][Green Version]
  30. Wu, H.; Lee, J.; Vincent, L.G.; Wang, Q.; Gu, M.; Lan, F.; Churko, J.M.; Sallam, K.I.; Matsa, E.; Sharma, A.; et al. Epigenetic Regulation of Phosphodiesterases 2A and 3A Underlies Compromised beta-Adrenergic Signaling in an iPSC Model of Dilated Cardiomyopathy. Cell Stem Cell 2015, 17, 89–100. [Google Scholar] [CrossRef][Green Version]
  31. Lee, J.; Termglinchan, V.; Diecke, S.; Itzhaki, I.; Lam, C.K.; Garg, P.; Lau, E.; Greenhaw, M.; Seeger, T.; Wu, H.; et al. Activation of PDGF pathway links LMNA mutation to dilated cardiomyopathy. Nature 2019, 572, 335–340. [Google Scholar] [CrossRef] [PubMed]
  32. Kamdar, F.; Das, S.; Gong, W.; Klaassen Kamdar, A.; Meyers, T.A.; Shah, P.; Ervasti, J.M.; Townsend, D.; Kamp, T.J.; Wu, J.C.; et al. Stem Cell-Derived Cardiomyocytes and Beta-Adrenergic Receptor Blockade in Duchenne Muscular Dystrophy Cardiomyopathy. J. Am. Coll. Cardiol. 2020, 75, 1159–1174. [Google Scholar] [CrossRef] [PubMed]
  33. Van den Brink, L.; Grandela, C.; Mummery, C.L.; Davis, R.P. Inherited cardiac diseases, pluripotent stem cells, and genome editing combined-the past, present, and future. Stem Cells 2020, 38, 174–186. [Google Scholar] [CrossRef] [PubMed][Green Version]
  34. Moretti, A.; Bellin, M.; Welling, A.; Jung, C.B.; Lam, J.T.; Bott-Flugel, L.; Dorn, T.; Goedel, A.; Hohnke, C.; Hofmann, F.; et al. Patient-specific induced pluripotent stem-cell models for long-QT syndrome. N. Eng. J. Med. 2010, 363, 1397–1409. [Google Scholar] [CrossRef][Green Version]
  35. Guo, F.; Sun, Y.; Wang, X.; Wang, H.; Wang, J.; Gong, T.; Chen, X.; Zhang, P.; Su, L.; Fu, G.; et al. Patient-Specific and Gene-Corrected Induced Pluripotent Stem Cell-Derived Cardiomyocytes Elucidate Single-Cell Phenotype of Short QT Syndrome. Circ. Res. 2019, 124, 66–78. [Google Scholar] [CrossRef]
  36. Shinnawi, R.; Shaheen, N.; Huber, I.; Shiti, A.; Arbel, G.; Gepstein, A.; Ballan, N.; Setter, N.; Tijsen, A.J.; Borggrefe, M.; et al. Modeling Reentry in the Short QT Syndrome With Human-Induced Pluripotent Stem Cell-Derived Cardiac Cell Sheets. J. Am. Coll. Cardiol. 2019, 73, 2310–2324. [Google Scholar] [CrossRef]
  37. Jung, C.B.; Moretti, A.; Mederos y Schnitzler, M.; Iop, L.; Storch, U.; Bellin, M.; Dorn, T.; Ruppenthal, S.; Pfeiffer, S.; Goedel, A.; et al. Dantrolene rescues arrhythmogenic RYR2 defect in a patient-specific stem cell model of catecholaminergic polymorphic ventricular tachycardia. EMBO Mol. Med. 2012, 4, 180–191. [Google Scholar] [CrossRef]
  38. Zhang, M.; D’Aniello, C.; Verkerk, A.O.; Wrobel, E.; Frank, S.; Ward-van Oostwaard, D.; Piccini, I.; Freund, C.; Rao, J.; Seebohm, G.; et al. Recessive cardiac phenotypes in induced pluripotent stem cell models of Jervell and Lange-Nielsen syndrome: Disease mechanisms and pharmacological rescue. Proc. Natl. Acad. Sci. USA 2014, 111, E5383–E5392. [Google Scholar] [CrossRef][Green Version]
  39. Rohani, L.; Machiraju, P.; Sabouny, R.; Meng, G.; Liu, S.; Zhao, T.; Iqbal, F.; Wang, X.; Ravandi, A.; Wu, J.C.; et al. Reversible Mitochondrial Fragmentation in iPSC-Derived Cardiomyocytes From Children with DCMA, a Mitochondrial Cardiomyopathy. Can. J. Cardiol. 2019. [Google Scholar] [CrossRef]
  40. Sharma, A.; McKeithan, W.L.; Serrano, R.; Kitani, T.; Burridge, P.W.; Del Alamo, J.C.; Mercola, M.; Wu, J.C. Use of human induced pluripotent stem cell-derived cardiomyocytes to assess drug cardiotoxicity. Nat. Protoc. 2018, 13, 3018–3041. [Google Scholar] [CrossRef]
  41. Kussauer, S.; David, R.; Lemcke, H. hiPSCs Derived Cardiac Cells for Drug and Toxicity Screening and Disease Modeling: What Micro-Electrode-Array Analyses Can Tell Us. Cells 2019, 8, 1331. [Google Scholar] [CrossRef] [PubMed][Green Version]
  42. Itzhaki, I.; Maizels, L.; Huber, I.; Zwi-Dantsis, L.; Caspi, O.; Winterstern, A.; Feldman, O.; Gepstein, A.; Arbel, G.; Hammerman, H.; et al. Modelling the long QT syndrome with induced pluripotent stem cells. Nature 2011, 471, 225–229. [Google Scholar] [CrossRef] [PubMed]
  43. Matsa, E.; Rajamohan, D.; Dick, E.; Young, L.; Mellor, I.; Staniforth, A.; Denning, C. Drug evaluation in cardiomyocytes derived from human induced pluripotent stem cells carrying a long QT syndrome type 2 mutation. Eur. Heart J. 2011, 32, 952–962. [Google Scholar] [CrossRef] [PubMed][Green Version]
  44. Mehta, A.; Ramachandra, C.J.A.; Singh, P.; Chitre, A.; Lua, C.H.; Mura, M.; Crotti, L.; Wong, P.; Schwartz, P.J.; Gnecchi, M.; et al. Identification of a targeted and testable antiarrhythmic therapy for long-QT syndrome type 2 using a patient-specific cellular model. Eur. Heart J. 2018, 39, 1446–1455. [Google Scholar] [CrossRef]
  45. Schwartz, P.J.; Gnecchi, M.; Dagradi, F.; Castelletti, S.; Parati, G.; Spazzolini, C.; Sala, L.; Crotti, L. From patient-specific induced pluripotent stem cells to clinical translation in long QT syndrome Type 2. Eur. Heart J. 2019, 40, 1832–1836. [Google Scholar] [CrossRef]
  46. Liang, P.; Lan, F.; Lee, A.S.; Gong, T.; Sanchez-Freire, V.; Wang, Y.; Diecke, S.; Sallam, K.; Knowles, J.W.; Wang, P.J.; et al. Drug screening using a library of human induced pluripotent stem cell-derived cardiomyocytes reveals disease-specific patterns of cardiotoxicity. Circulation 2013, 127, 1677–1691. [Google Scholar] [CrossRef][Green Version]
  47. Limpitikul, W.B.; Dick, I.E.; Tester, D.J.; Boczek, N.J.; Limphong, P.; Yang, W.; Choi, M.H.; Babich, J.; DiSilvestre, D.; Kanter, R.J.; et al. A Precision Medicine Approach to the Rescue of Function on Malignant Calmodulinopathic Long-QT Syndrome. Circ. Res. 2017, 120, 39–48. [Google Scholar] [CrossRef]
  48. Stroik, D.R.; Ceholski, D.K.; Bidwell, P.A.; Mleczko, J.; Thanel, P.F.; Kamdar, F.; Autry, J.M.; Cornea, R.L.; Thomas, D.D. Viral expression of a SERCA2a-activating PLB mutant improves calcium cycling and synchronicity in dilated cardiomyopathic hiPSC-CMs. J. Mol. Cell Cardiol. 2020, 138, 59–65. [Google Scholar] [CrossRef]
  49. Matsa, E.; Dixon, J.E.; Medway, C.; Georgiou, O.; Patel, M.J.; Morgan, K.; Kemp, P.J.; Staniforth, A.; Mellor, I.; Denning, C. Allele-specific RNA interference rescues the long-QT syndrome phenotype in human-induced pluripotency stem cell cardiomyocytes. Eur. Heart J. 2014, 35, 1078–1087. [Google Scholar] [CrossRef][Green Version]
  50. Gramlich, M.; Pane, L.S.; Zhou, Q.; Chen, Z.; Murgia, M.; Schotterl, S.; Goedel, A.; Metzger, K.; Brade, T.; Parrotta, E.; et al. Antisense-mediated exon skipping: A therapeutic strategy for titin-based dilated cardiomyopathy. EMBO Mol. Med. 2015, 7, 562–576. [Google Scholar] [CrossRef]
  51. Sato, M.; Shiba, N.; Miyazaki, D.; Shiba, Y.; Echigoya, Y.; Yokota, T.; Takizawa, H.; Aoki, Y.; Takeda, S.; Nakamura, A. Amelioration of intracellular Ca(2+) regulation by exon-45 skipping in Duchenne muscular dystrophy-induced pluripotent stem cell-derived cardiomyocytes. Biochem. Biophys. Res. Commun. 2019, 520, 179–185. [Google Scholar] [CrossRef] [PubMed]
  52. Guo, L.; Abrams, R.M.; Babiarz, J.E.; Cohen, J.D.; Kameoka, S.; Sanders, M.J.; Chiao, E.; Kolaja, K.L. Estimating the risk of drug-induced proarrhythmia using human induced pluripotent stem cell-derived cardiomyocytes. Toxicol. Sci. 2011, 123, 281–289. [Google Scholar] [CrossRef] [PubMed]
  53. Harris, K.; Aylott, M.; Cui, Y.; Louttit, J.B.; McMahon, N.C.; Sridhar, A. Comparison of electrophysiological data from human-induced pluripotent stem cell-derived cardiomyocytes to functional preclinical safety assays. Toxicol. Sci. 2013, 134, 412–426. [Google Scholar] [CrossRef][Green Version]
  54. Drawnel, F.M.; Boccardo, S.; Prummer, M.; Delobel, F.; Graff, A.; Weber, M.; Gerard, R.; Badi, L.; Kam-Thong, T.; Bu, L.; et al. Disease modeling and phenotypic drug screening for diabetic cardiomyopathy using human induced pluripotent stem cells. Cell Rep. 2014, 9, 810–821. [Google Scholar] [CrossRef] [PubMed][Green Version]
  55. Doherty, K.R.; Talbert, D.R.; Trusk, P.B.; Moran, D.M.; Shell, S.A.; Bacus, S. Structural and functional screening in human induced-pluripotent stem cell-derived cardiomyocytes accurately identifies cardiotoxicity of multiple drug types. Toxicol. Appl. Pharmacol. 2015, 285, 51–60. [Google Scholar] [CrossRef] [PubMed]
  56. Kitaguchi, T.; Moriyama, Y.; Taniguchi, T.; Maeda, S.; Ando, H.; Uda, T.; Otabe, K.; Oguchi, M.; Shimizu, S.; Saito, H.; et al. CSAHi study: Detection of drug-induced ion channel/receptor responses, QT prolongation, and arrhythmia using multi-electrode arrays in combination with human induced pluripotent stem cell-derived cardiomyocytes. J. Pharmacol. Toxicol. Methods 2017, 85, 73–81. [Google Scholar] [CrossRef]
  57. Blinova, K.; Dang, Q.; Millard, D.; Smith, G.; Pierson, J.; Guo, L.; Brock, M.; Lu, H.R.; Kraushaar, U.; Zeng, H.; et al. International Multisite Study of Human-Induced Pluripotent Stem Cell-Derived Cardiomyocytes for Drug Proarrhythmic Potential Assessment. Cell Rep. 2018, 24, 3582–3592. [Google Scholar] [CrossRef][Green Version]
  58. Kirby, R.J.; Divlianska, D.B.; Whig, K.; Bryan, N.; Morfa, C.J.; Koo, A.; Nguyen, K.H.; Maloney, P.; Peddibhotla, S.; Sessions, E.H.; et al. Discovery of Novel Small-Molecule Inducers of Heme Oxygenase-1 That Protect Human iPSC-Derived Cardiomyocytes from Oxidative Stress. J. Pharmacol. Exp. Ther. 2018, 364, 87–96. [Google Scholar] [CrossRef]
  59. Fiedler, L.R.; Chapman, K.; Xie, M.; Maifoshie, E.; Jenkins, M.; Golforoush, P.A.; Bellahcene, M.; Noseda, M.; Faust, D.; Jarvis, A.; et al. MAP4K4 Inhibition Promotes Survival of Human Stem Cell-Derived Cardiomyocytes and Reduces Infarct Size In Vivo. Cell Stem Cell 2019, 24, 579–591 e512. [Google Scholar] [CrossRef][Green Version]
  60. Ong, S.G.; Huber, B.C.; Lee, W.H.; Kodo, K.; Ebert, A.D.; Ma, Y.; Nguyen, P.K.; Diecke, S.; Chen, W.Y.; Wu, J.C. Microfluidic Single-Cell Analysis of Transplanted Human Induced Pluripotent Stem Cell-Derived Cardiomyocytes After Acute Myocardial Infarction. Circulation 2015, 132, 762–771. [Google Scholar] [CrossRef][Green Version]
  61. Tachibana, A.; Santoso, M.R.; Mahmoudi, M.; Shukla, P.; Wang, L.; Bennett, M.; Goldstone, A.B.; Wang, M.; Fukushi, M.; Ebert, A.D.; et al. Paracrine Effects of the Pluripotent Stem Cell-Derived Cardiac Myocytes Salvage the Injured Myocardium. Circ. Res. 2017, 121, e22–e36. [Google Scholar] [CrossRef]
  62. Fan, C.; Fast, V.G.; Tang, Y.; Zhao, M.; Turner, J.F.; Krishnamurthy, P.; Rogers, J.M.; Valarmathi, M.T.; Yang, J.; Zhu, W.; et al. Cardiomyocytes from CCND2-overexpressing human induced-pluripotent stem cells repopulate the myocardial scar in mice: A 6-month study. J. Mol. Cell Cardiol. 2019, 137, 25–33. [Google Scholar] [CrossRef] [PubMed]
  63. Guan, X.; Xu, W.; Zhang, H.; Wang, Q.; Yu, J.; Zhang, R.; Chen, Y.; Xia, Y.; Wang, J.; Wang, D. Transplantation of human induced pluripotent stem cell-derived cardiomyocytes improves myocardial function and reverses ventricular remodeling in infarcted rat hearts. Stem Cell Res. Ther. 2020, 11, 1–11. [Google Scholar] [CrossRef][Green Version]
  64. Kawamura, M.; Miyagawa, S.; Miki, K.; Saito, A.; Fukushima, S.; Higuchi, T.; Kawamura, T.; Kuratani, T.; Daimon, T.; Shimizu, T.; et al. Feasibility, safety, and therapeutic efficacy of human induced pluripotent stem cell-derived cardiomyocyte sheets in a porcine ischemic cardiomyopathy model. Circulation 2012, 126, S29–S37. [Google Scholar] [CrossRef] [PubMed][Green Version]
  65. Ye, L.; Chang, Y.H.; Xiong, Q.; Zhang, P.; Zhang, L.; Somasundaram, P.; Lepley, M.; Swingen, C.; Su, L.; Wendel, J.S.; et al. Cardiac repair in a porcine model of acute myocardial infarction with human induced pluripotent stem cell-derived cardiovascular cells. Cell Stem Cell 2014, 15, 750–761. [Google Scholar] [CrossRef] [PubMed][Green Version]
  66. Shiba, Y.; Gomibuchi, T.; Seto, T.; Wada, Y.; Ichimura, H.; Tanaka, Y.; Ogasawara, T.; Okada, K.; Shiba, N.; Sakamoto, K.; et al. Allogeneic transplantation of iPS cell-derived cardiomyocytes regenerates primate hearts. Nature 2016, 538, 388–391. [Google Scholar] [CrossRef]
  67. Liu, Y.W.; Chen, B.; Yang, X.; Fugate, J.A.; Kalucki, F.A.; Futakuchi-Tsuchida, A.; Couture, L.; Vogel, K.W.; Astley, C.A.; Baldessari, A.; et al. Human embryonic stem cell-derived cardiomyocytes restore function in infarcted hearts of non-human primates. Nat. Biotechnol. 2018, 36, 597–605. [Google Scholar] [CrossRef]
  68. Kannappan, R.; Turner, J.F.; Miller, J.M.; Fan, C.; Rushdi, A.G.; Rajasekaran, N.S.; Zhang, J. Functionally Competent DNA Damage-Free Induced Pluripotent Stem Cell-Derived Cardiomyocytes for Myocardial Repair. Circulation 2019, 140, 520–522. [Google Scholar] [CrossRef]
  69. Palpant, N.J.; Pabon, L.; Friedman, C.E.; Roberts, M.; Hadland, B.; Zaunbrecher, R.J.; Bernstein, I.; Zheng, Y.; Murry, C.E. Generating high-purity cardiac and endothelial derivatives from patterned mesoderm using human pluripotent stem cells. Nat. Protoc. 2017, 12, 15–31. [Google Scholar] [CrossRef][Green Version]
  70. Van den Berg, C.W.; Okawa, S.; Chuva de Sousa Lopes, S.M.; van Iperen, L.; Passier, R.; Braam, S.R.; Tertoolen, L.G.; del Sol, A.; Davis, R.P.; Mummery, C.L. Transcriptome of human foetal heart compared with cardiomyocytes from pluripotent stem cells. Development 2015, 142, 3231–3238. [Google Scholar] [CrossRef][Green Version]
  71. Karbassi, E.; Fenix, A.; Marchiano, S.; Muraoka, N.; Nakamura, K.; Yang, X.; Murry, C.E. Cardiomyocyte maturation: Advances in knowledge and implications for regenerative medicine. Nat. Rev. Cardiol. 2020. [Google Scholar] [CrossRef] [PubMed]
  72. Kamakura, T.; Makiyama, T.; Sasaki, K.; Yoshida, Y.; Wuriyanghai, Y.; Chen, J.; Hattori, T.; Ohno, S.; Kita, T.; Horie, M.; et al. Ultrastructural maturation of human-induced pluripotent stem cell-derived cardiomyocytes in a long-term culture. Circ. J. 2013, 77, 1307–1314. [Google Scholar] [CrossRef] [PubMed][Green Version]
  73. Lundy, S.D.; Zhu, W.Z.; Regnier, M.; Laflamme, M.A. Structural and functional maturation of cardiomyocytes derived from human pluripotent stem cells. Stem Cells Dev. 2013, 22, 1991–2002. [Google Scholar] [CrossRef] [PubMed][Green Version]
  74. Yang, X.; Rodriguez, M.L.; Leonard, A.; Sun, L.; Fischer, K.A.; Wang, Y.; Ritterhoff, J.; Zhao, L.; Kolwicz, S.C., Jr.; Pabon, L.; et al. Fatty Acids Enhance the Maturation of Cardiomyocytes Derived from Human Pluripotent Stem Cells. Stem Cell Rep. 2019, 13, 657–668. [Google Scholar] [CrossRef][Green Version]
  75. Yang, X.; Rodriguez, M.; Pabon, L.; Fischer, K.A.; Reinecke, H.; Regnier, M.; Sniadecki, N.J.; Ruohola-Baker, H.; Murry, C.E. Tri-iodo-l-thyronine promotes the maturation of human cardiomyocytes-derived from induced pluripotent stem cells. J. Mol. Cell Cardiol. 2014, 72, 296–304. [Google Scholar] [CrossRef][Green Version]
  76. Parikh, S.S.; Blackwell, D.J.; Gomez-Hurtado, N.; Frisk, M.; Wang, L.; Kim, K.; Dahl, C.P.; Fiane, A.; Tonnessen, T.; Kryshtal, D.O.; et al. Thyroid and Glucocorticoid Hormones Promote Functional T-Tubule Development in Human-Induced Pluripotent Stem Cell-Derived Cardiomyocytes. Circ. Res. 2017, 121, 1323–1330. [Google Scholar] [CrossRef]
  77. Hu, D.; Linders, A.; Yamak, A.; Correia, C.; Kijlstra, J.D.; Garakani, A.; Xiao, L.; Milan, D.J.; van der Meer, P.; Serra, M.; et al. Metabolic Maturation of Human Pluripotent Stem Cell-Derived Cardiomyocytes by Inhibition of HIF1alpha and LDHA. Circ. Res. 2018, 123, 1066–1079. [Google Scholar] [CrossRef][Green Version]
  78. Burridge, P.W.; Matsa, E.; Shukla, P.; Lin, Z.C.; Churko, J.M.; Ebert, A.D.; Lan, F.; Diecke, S.; Huber, B.; Mordwinkin, N.M.; et al. Chemically defined generation of human cardiomyocytes. Nat. Methods 2014, 11, 855–860. [Google Scholar] [CrossRef][Green Version]
  79. Miklas, J.W.; Clark, E.; Levy, S.; Detraux, D.; Leonard, A.; Beussman, K.; Showalter, M.R.; Smith, A.T.; Hofsteen, P.; Yang, X.; et al. TFPa/HADHA is required for fatty acid beta-oxidation and cardiolipin re-modeling in human cardiomyocytes. Nat. Commun. 2019, 10, 4671. [Google Scholar] [CrossRef][Green Version]
  80. Kuppusamy, K.T.; Jones, D.C.; Sperber, H.; Madan, A.; Fischer, K.A.; Rodriguez, M.L.; Pabon, L.; Zhu, W.Z.; Tulloch, N.L.; Yang, X.; et al. Let-7 family of microRNA is required for maturation and adult-like metabolism in stem cell-derived cardiomyocytes. Proc. Natl. Acad. Sci. USA 2015, 112, E2785–E2794. [Google Scholar] [CrossRef][Green Version]
  81. Fu, J.D.; Rushing, S.N.; Lieu, D.K.; Chan, C.W.; Kong, C.W.; Geng, L.; Wilson, K.D.; Chiamvimonvat, N.; Boheler, K.R.; Wu, J.C.; et al. Distinct roles of microRNA-1 and -499 in ventricular specification and functional maturation of human embryonic stem cell-derived cardiomyocytes. PLoS ONE 2011, 6, e27417. [Google Scholar] [CrossRef][Green Version]
  82. Garbern, J.C.; Helman, A.; Sereda, R.; Sarikhani, M.; Ahmed, A.; Escalante, G.O.; Ogurlu, R.; Kim, S.L.; Zimmerman, J.F.; Cho, A.; et al. Inhibition of mTOR Signaling Enhances Maturation of Cardiomyocytes Derived From Human-Induced Pluripotent Stem Cells via p53-Induced Quiescence. Circulation 2020, 141, 285–300. [Google Scholar] [CrossRef] [PubMed]
  83. Zhang, J.; Klos, M.; Wilson, G.F.; Herman, A.M.; Lian, X.; Raval, K.K.; Barron, M.R.; Hou, L.; Soerens, A.G.; Yu, J.; et al. Extracellular matrix promotes highly efficient cardiac differentiation of human pluripotent stem cells: The matrix sandwich method. Circ. Res. 2012, 111, 1125–1136. [Google Scholar] [CrossRef] [PubMed]
  84. Patel, A.K.; Celiz, A.D.; Rajamohan, D.; Anderson, D.G.; Langer, R.; Davies, M.C.; Alexander, M.R.; Denning, C. A defined synthetic substrate for serum-free culture of human stem cell derived cardiomyocytes with improved functional maturity identified using combinatorial materials microarrays. Biomaterials 2015, 61, 257–265. [Google Scholar] [CrossRef] [PubMed]
  85. Chun, Y.W.; Balikov, D.A.; Feaster, T.K.; Williams, C.H.; Sheng, C.C.; Lee, J.B.; Boire, T.C.; Neely, M.D.; Bellan, L.M.; Ess, K.C.; et al. Combinatorial polymer matrices enhance in vitro maturation of human induced pluripotent stem cell-derived cardiomyocytes. Biomaterials 2015, 67, 52–64. [Google Scholar] [CrossRef][Green Version]
  86. Weber, N.; Schwanke, K.; Greten, S.; Wendland, M.; Iorga, B.; Fischer, M.; Geers-Knorr, C.; Hegermann, J.; Wrede, C.; Fiedler, J.; et al. Stiff matrix induces switch to pure beta-cardiac myosin heavy chain expression in human ESC-derived cardiomyocytes. Basic Res. Cardiol. 2016, 111, 68. [Google Scholar] [CrossRef]
  87. Herron, T.J.; Rocha, A.M.; Campbell, K.F.; Ponce-Balbuena, D.; Willis, B.C.; Guerrero-Serna, G.; Liu, Q.; Klos, M.; Musa, H.; Zarzoso, M.; et al. Extracellular Matrix-Mediated Maturation of Human Pluripotent Stem Cell-Derived Cardiac Monolayer Structure and Electrophysiological Function. Circ. Arrhythm. Electrophysiol. 2016, 9, e003638. [Google Scholar] [CrossRef][Green Version]
  88. Hazeltine, L.B.; Simmons, C.S.; Salick, M.R.; Lian, X.; Badur, M.G.; Han, W.; Delgado, S.M.; Wakatsuki, T.; Crone, W.C.; Pruitt, B.L.; et al. Effects of substrate mechanics on contractility of cardiomyocytes generated from human pluripotent stem cells. Int. J. Cell Biol. 2012, 2012. [Google Scholar] [CrossRef]
  89. Kolanowski, T.J.; Busek, M.; Schubert, M.; Dmitrieva, A.; Binnewerg, B.; Poche, J.; Fisher, K.; Schmieder, F.; Grunzner, S.; Hansen, S.; et al. Enhanced structural maturation of human induced pluripotent stem cell-derived cardiomyocytes under a controlled microenvironment in a microfluidic system. Acta Biomater. 2020, 102, 273–286. [Google Scholar] [CrossRef]
  90. Yoshida, S.; Miyagawa, S.; Fukushima, S.; Kawamura, T.; Kashiyama, N.; Ohashi, F.; Toyofuku, T.; Toda, K.; Sawa, Y. Maturation of Human Induced Pluripotent Stem Cell-Derived Cardiomyocytes by Soluble Factors from Human Mesenchymal Stem Cells. Mol. Ther. 2018, 26, 2681–2695. [Google Scholar] [CrossRef][Green Version]
  91. Dunn, K.K.; Reichardt, I.M.; Simmons, A.D.; Jin, G.; Floy, M.E.; Hoon, K.M.; Palecek, S.P. Coculture of Endothelial Cells with Human Pluripotent Stem Cell-Derived Cardiac Progenitors Reveals a Differentiation Stage-Specific Enhancement of Cardiomyocyte Maturation. Biotechnol. J. 2019, 14, e1800725. [Google Scholar] [CrossRef] [PubMed]
  92. Correia, C.; Koshkin, A.; Duarte, P.; Hu, D.; Carido, M.; Sebastiao, M.J.; Gomes-Alves, P.; Elliott, D.A.; Domian, I.J.; Teixeira, A.P.; et al. 3D aggregate culture improves metabolic maturation of human pluripotent stem cell derived cardiomyocytes. Biotechnol. Bioeng. 2018, 115, 630–644. [Google Scholar] [CrossRef] [PubMed]
  93. Zhang, D.; Shadrin, I.Y.; Lam, J.; Xian, H.Q.; Snodgrass, H.R.; Bursac, N. Tissue-engineered cardiac patch for advanced functional maturation of human ESC-derived cardiomyocytes. Biomaterials 2013, 34, 5813–5820. [Google Scholar] [CrossRef] [PubMed][Green Version]
  94. Daily, N.J.; Yin, Y.; Kemanli, P.; Ip, B.; Wakatsuki, T. Improving Cardiac Action Potential Measurements: 2D and 3D Cell Culture. J. Bioeng. Biomed. Sci. 2015, 5. [Google Scholar] [CrossRef] [PubMed][Green Version]
  95. Lemoine, M.D.; Mannhardt, I.; Breckwoldt, K.; Prondzynski, M.; Flenner, F.; Ulmer, B.; Hirt, M.N.; Neuber, C.; Horvath, A.; Kloth, B.; et al. Human iPSC-derived cardiomyocytes cultured in 3D engineered heart tissue show physiological upstroke velocity and sodium current density. Sci. Rep. 2017, 7, 1–11. [Google Scholar] [CrossRef]
  96. Hirt, M.N.; Hansen, A.; Eschenhagen, T. Cardiac tissue engineering: State of the art. Circ. Res. 2014, 114, 354–367. [Google Scholar] [CrossRef][Green Version]
  97. Ronaldson-Bouchard, K.; Ma, S.P.; Yeager, K.; Chen, T.; Song, L.; Sirabella, D.; Morikawa, K.; Teles, D.; Yazawa, M.; Vunjak-Novakovic, G. Advanced maturation of human cardiac tissue grown from pluripotent stem cells. Nature 2018, 556, 239–243. [Google Scholar] [CrossRef]
  98. Ulmer, B.M.; Stoehr, A.; Schulze, M.L.; Patel, S.; Gucek, M.; Mannhardt, I.; Funcke, S.; Murphy, E.; Eschenhagen, T.; Hansen, A. Contractile Work Contributes to Maturation of Energy Metabolism in hiPSC-Derived Cardiomyocytes. Stem Cell Rep. 2018, 10, 834–847. [Google Scholar] [CrossRef][Green Version]
  99. Tiburcy, M.; Hudson, J.E.; Balfanz, P.; Schlick, S.; Meyer, T.; Chang Liao, M.L.; Levent, E.; Raad, F.; Zeidler, S.; Wingender, E.; et al. Defined Engineered Human Myocardium With Advanced Maturation for Applications in Heart Failure Modeling and Repair. Circulation 2017, 135, 1832–1847. [Google Scholar] [CrossRef]
  100. Nunes, S.S.; Miklas, J.W.; Liu, J.; Aschar-Sobbi, R.; Xiao, Y.; Zhang, B.; Jiang, J.; Masse, S.; Gagliardi, M.; Hsieh, A.; et al. Biowire: A platform for maturation of human pluripotent stem cell-derived cardiomyocytes. Nat. Methods 2013, 10, 781–787. [Google Scholar] [CrossRef][Green Version]
  101. Archer, C.R.; Sargeant, R.; Basak, J.; Pilling, J.; Barnes, J.R.; Pointon, A. Characterization and Validation of a Human 3D Cardiac Microtissue for the Assessment of Changes in Cardiac Pathology. Sci. Rep. 2018, 8, 1–15. [Google Scholar] [CrossRef] [PubMed]
  102. Serpooshan, V.; Chen, P.; Wu, H.; Lee, S.; Sharma, A.; Hu, D.A.; Venkatraman, S.; Ganesan, A.V.; Usta, O.B.; Yarmush, M.; et al. Bioacoustic-enabled patterning of human iPSC-derived cardiomyocytes into 3D cardiac tissue. Biomaterials 2017, 131, 47–57. [Google Scholar] [CrossRef] [PubMed][Green Version]
  103. Silbernagel, N.; Korner, A.; Balitzki, J.; Jaggy, M.; Bertels, S.; Richter, B.; Hippler, M.; Hellwig, A.; Hecker, M.; Bastmeyer, M.; et al. Shaping the heart: Structural and functional maturation of iPSC-cardiomyocytes in 3D-micro-scaffolds. Biomaterials 2020, 227, 119551. [Google Scholar] [CrossRef] [PubMed]
  104. Ruan, J.L.; Tulloch, N.L.; Razumova, M.V.; Saiget, M.; Muskheli, V.; Pabon, L.; Reinecke, H.; Regnier, M.; Murry, C.E. Mechanical Stress Conditioning and Electrical Stimulation Promote Contractility and Force Maturation of Induced Pluripotent Stem Cell-Derived Human Cardiac Tissue. Circulation 2016, 134, 1557–1567. [Google Scholar] [CrossRef]
  105. Gao, L.; Kupfer, M.E.; Jung, J.P.; Yang, L.; Zhang, P.; Da Sie, Y.; Tran, Q.; Ajeti, V.; Freeman, B.T.; Fast, V.G.; et al. Myocardial Tissue Engineering With Cells Derived From Human-Induced Pluripotent Stem Cells and a Native-Like, High-Resolution, 3-Dimensionally Printed Scaffold. Circ. Res. 2017, 120, 1318–1325. [Google Scholar] [CrossRef][Green Version]
  106. Jackman, C.P.; Carlson, A.L.; Bursac, N. Dynamic culture yields engineered myocardium with near-adult functional output. Biomaterials 2016, 111, 66–79. [Google Scholar] [CrossRef]
  107. Gao, L.; Gregorich, Z.R.; Zhu, W.; Mattapally, S.; Oduk, Y.; Lou, X.; Kannappan, R.; Borovjagin, A.V.; Walcott, G.P.; Pollard, A.E.; et al. Large Cardiac Muscle Patches Engineered From Human Induced-Pluripotent Stem Cell-Derived Cardiac Cells Improve Recovery From Myocardial Infarction in Swine. Circulation 2018, 137, 1712–1730. [Google Scholar] [CrossRef]
  108. Tulloch, N.L.; Muskheli, V.; Razumova, M.V.; Korte, F.S.; Regnier, M.; Hauch, K.D.; Pabon, L.; Reinecke, H.; Murry, C.E. Growth of engineered human myocardium with mechanical loading and vascular coculture. Circ. Res. 2011, 109, 47–59. [Google Scholar] [CrossRef]
  109. Goldfracht, I.; Protze, S.; Shiti, A.; Setter, N.; Gruber, A.; Shaheen, N.; Nartiss, Y.; Keller, G.; Gepstein, L. Generating ring-shaped engineered heart tissues from ventricular and atrial human pluripotent stem cell-derived cardiomyocytes. Nat. Commun. 2020, 11, 1–15. [Google Scholar] [CrossRef][Green Version]
  110. Uzun, A.U.; Mannhardt, I.; Breckwoldt, K.; Horvath, A.; Johannsen, S.S.; Hansen, A.; Eschenhagen, T.; Christ, T. Ca(2+)-Currents in Human Induced Pluripotent Stem Cell-Derived Cardiomyocytes Effects of Two Different Culture Conditions. Front. Pharmacol. 2016, 7, 300. [Google Scholar] [CrossRef][Green Version]
  111. Zhao, Y.; Rafatian, N.; Feric, N.T.; Cox, B.J.; Aschar-Sobbi, R.; Wang, E.Y.; Aggarwal, P.; Zhang, B.; Conant, G.; Ronaldson-Bouchard, K.; et al. A Platform for Generation of Chamber-Specific Cardiac Tissues and Disease Modeling. Cell 2019, 176, 913–927 e918. [Google Scholar] [CrossRef] [PubMed][Green Version]
  112. Tsuruyama, S.; Matsuura, K.; Sakaguchi, K.; Shimizu, T. Pulsatile tubular cardiac tissues fabricated by wrapping human iPS cells-derived cardiomyocyte sheets. Regen. Ther. 2019, 11, 297–305. [Google Scholar] [CrossRef] [PubMed]
  113. Forsythe, S.D.; Devarasetty, M.; Shupe, T.; Bishop, C.; Atala, A.; Soker, S.; Skardal, A. Environmental Toxin Screening Using Human-Derived 3D Bioengineered Liver and Cardiac Organoids. Front. Public Health 2018, 6, 103. [Google Scholar] [CrossRef] [PubMed][Green Version]
  114. Noor, N.; Shapira, A.; Edri, R.; Gal, I.; Wertheim, L.; Dvir, T. 3D Printing of Personalized Thick and Perfusable Cardiac Patches and Hearts. Adv. Sci. (Weinh.) 2019, 6, 1900344. [Google Scholar] [CrossRef][Green Version]
  115. Causa, F.; Netti, P.A.; Ambrosio, L. A multi-functional scaffold for tissue regeneration: The need to engineer a tissue analogue. Biomaterials 2007, 28, 5093–5099. [Google Scholar] [CrossRef]
  116. Lu, T.Y.; Lin, B.; Kim, J.; Sullivan, M.; Tobita, K.; Salama, G.; Yang, L. Repopulation of decellularized mouse heart with human induced pluripotent stem cell-derived cardiovascular progenitor cells. Nat. Commun. 2013, 4, 2307. [Google Scholar] [CrossRef]
  117. Abbasgholizadeh, R.; Islas, J.F.; Navran, S.; Potaman, V.N.; Schwartz, R.J.; Birla, R.K. A Highly Conductive 3D Cardiac Patch Fabricated Using Cardiac Myocytes Reprogrammed from Human Adipogenic Mesenchymal Stem Cells. Cardiovasc. Eng. Technol. 2020, 11, 205–218. [Google Scholar] [CrossRef]
  118. Liu, Q.; Tian, S.; Zhao, C.; Chen, X.; Lei, I.; Wang, Z.; Ma, P.X. Porous nanofibrous poly(L-lactic acid) scaffolds supporting cardiovascular progenitor cells for cardiac tissue engineering. Acta Biomater. 2015, 26, 105–114. [Google Scholar] [CrossRef][Green Version]
  119. Liu, B.H.; Yeh, H.Y.; Lin, Y.C.; Wang, M.H.; Chen, D.C.; Lee, B.H.; Hsu, S.H. Spheroid formation and enhanced cardiomyogenic potential of adipose-derived stem cells grown on chitosan. Biores. Open Access 2013, 2, 28–39. [Google Scholar] [CrossRef]
  120. Thavandiran, N.; Dubois, N.; Mikryukov, A.; Masse, S.; Beca, B.; Simmons, C.A.; Deshpande, V.S.; McGarry, J.P.; Chen, C.S.; Nanthakumar, K.; et al. Design and formulation of functional pluripotent stem cell-derived cardiac microtissues. Proc. Natl. Acad. Sci. USA 2013, 110, E4698–E4707. [Google Scholar] [CrossRef][Green Version]
  121. Dahlmann, J.; Krause, A.; Moller, L.; Kensah, G.; Mowes, M.; Diekmann, A.; Martin, U.; Kirschning, A.; Gruh, I.; Drager, G. Fully defined in situ cross-linkable alginate and hyaluronic acid hydrogels for myocardial tissue engineering. Biomaterials 2013, 34, 940–951. [Google Scholar] [CrossRef] [PubMed]
  122. Fleischer, S.; Feiner, R.; Shapira, A.; Ji, J.; Sui, X.; Daniel Wagner, H.; Dvir, T. Spring-like fibers for cardiac tissue engineering. Biomaterials 2013, 34, 8599–8606. [Google Scholar] [CrossRef] [PubMed]
  123. Yang, K.C.; Breitbart, A.; De Lange, W.J.; Hofsteen, P.; Futakuchi-Tsuchida, A.; Xu, J.; Schopf, C.; Razumova, M.V.; Jiao, A.; Boucek, R.; et al. Novel Adult-Onset Systolic Cardiomyopathy Due to MYH7 E848G Mutation in Patient-Derived Induced Pluripotent Stem Cells. JACC Basic Transl. Sci. 2018, 3, 728–740. [Google Scholar] [CrossRef] [PubMed]
  124. Wang, G.; McCain, M.L.; Yang, L.; He, A.; Pasqualini, F.S.; Agarwal, A.; Yuan, H.; Jiang, D.; Zhang, D.; Zangi, L.; et al. Modeling the mitochondrial cardiomyopathy of Barth syndrome with induced pluripotent stem cell and heart-on-chip technologies. Nat. Med. 2014, 20, 616–623. [Google Scholar] [CrossRef] [PubMed]
  125. Zhao, Y.; Rafatian, N.; Wang, E.Y.; Feric, N.T.; Lai, B.F.L.; Knee-Walden, E.J.; Backx, P.H.; Radisic, M. Engineering microenvironment for human cardiac tissue assembly in heart-on-a-chip platform. Matrix Biol. 2020, 85–86, 189–204. [Google Scholar] [CrossRef]
  126. Liu, J.; He, J.; Liu, J.; Ma, X.; Chen, Q.; Lawrence, N.; Zhu, W.; Xu, Y.; Chen, S. Rapid 3D bioprinting of in vitro cardiac tissue models using human embryonic stem cell-derived cardiomyocytes. Bioprinting 2019, 13. [Google Scholar] [CrossRef]
  127. Hirt, M.N.; Boeddinghaus, J.; Mitchell, A.; Schaaf, S.; Bornchen, C.; Muller, C.; Schulz, H.; Hubner, N.; Stenzig, J.; Stoehr, A.; et al. Functional improvement and maturation of rat and human engineered heart tissue by chronic electrical stimulation. J. Mol. Cell Cardiol. 2014, 74, 151–161. [Google Scholar] [CrossRef][Green Version]
  128. Feric, N.T.; Pallotta, I.; Singh, R.; Bogdanowicz, D.R.; Gustilo, M.; Chaudhary, K.; Willette, R.N.; Chendrimada, T.; Xu, X.; Graziano, M.P.; et al. Engineered Cardiac Tissues Generated in the Biowire II: A Platform for Human-Based Drug Discovery. Toxicol. Sci. 2019. [Google Scholar] [CrossRef][Green Version]
  129. Leonard, A.; Bertero, A.; Powers, J.D.; Beussman, K.M.; Bhandari, S.; Regnier, M.; Murry, C.E.; Sniadecki, N.J. Afterload promotes maturation of human induced pluripotent stem cell derived cardiomyocytes in engineered heart tissues. J. Mol. Cell Cardiol. 2018, 118, 147–158. [Google Scholar] [CrossRef]
  130. Masumoto, H.; Nakane, T.; Tinney, J.P.; Yuan, F.; Ye, F.; Kowalski, W.J.; Minakata, K.; Sakata, R.; Yamashita, J.K.; Keller, B.B. The myocardial regenerative potential of three-dimensional engineered cardiac tissues composed of multiple human iPS cell-derived cardiovascular cell lineages. Sci. Rep. 2016, 6, 1–10. [Google Scholar] [CrossRef]
  131. Nakane, T.; Masumoto, H.; Tinney, J.P.; Yuan, F.; Kowalski, W.J.; Ye, F.; LeBlanc, A.J.; Sakata, R.; Yamashita, J.K.; Keller, B.B. Impact of Cell Composition and Geometry on Human Induced Pluripotent Stem Cells-Derived Engineered Cardiac Tissue. Sci. Rep. 2017, 7, 45641. [Google Scholar] [CrossRef] [PubMed][Green Version]
  132. Heras-Bautista, C.O.; Katsen-Globa, A.; Schloerer, N.E.; Dieluweit, S.; Abd El Aziz, O.M.; Peinkofer, G.; Attia, W.A.; Khalil, M.; Brockmeier, K.; Hescheler, J.; et al. The influence of physiological matrix conditions on permanent culture of induced pluripotent stem cell-derived cardiomyocytes. Biomaterials 2014, 35, 7374–7385. [Google Scholar] [CrossRef] [PubMed]
  133. Ravenscroft, S.M.; Pointon, A.; Williams, A.W.; Cross, M.J.; Sidaway, J.E. Cardiac Non-myocyte Cells Show Enhanced Pharmacological Function Suggestive of Contractile Maturity in Stem Cell Derived Cardiomyocyte Microtissues. Toxicol. Sci. 2016, 152, 99–112. [Google Scholar] [CrossRef] [PubMed]
  134. Zhang, J.; Tao, R.; Campbell, K.F.; Carvalho, J.L.; Ruiz, E.C.; Kim, G.C.; Schmuck, E.G.; Raval, A.N.; da Rocha, A.M.; Herron, T.J.; et al. Functional cardiac fibroblasts derived from human pluripotent stem cells via second heart field progenitors. Nat. Commun. 2019, 10, 1–15. [Google Scholar] [CrossRef] [PubMed][Green Version]
  135. Iyer, D.; Gambardella, L.; Bernard, W.G.; Serrano, F.; Mascetti, V.L.; Pedersen, R.A.; Sinha, S.; Talasila, A. Robust derivation of epicardium and its differentiated smooth muscle cell progeny from human pluripotent stem cells. Development 2016, 143, 904. [Google Scholar] [CrossRef] [PubMed][Green Version]
  136. Majesky, M.W.; Mummery, C.L. Smooth muscle diversity from human pluripotent cells. Nat. Biotechnol. 2012, 30, 152–154. [Google Scholar] [CrossRef][Green Version]
  137. Orlova, V.V.; van den Hil, F.E.; Petrus-Reurer, S.; Drabsch, Y.; Ten Dijke, P.; Mummery, C.L. Generation, expansion and functional analysis of endothelial cells and pericytes derived from human pluripotent stem cells. Nat. Protoc. 2014, 9, 1514–1531. [Google Scholar] [CrossRef][Green Version]
  138. Zhao, J.; Cao, H.; Tian, L.; Huo, W.; Zhai, K.; Wang, P.; Ji, G.; Ma, Y. Efficient Differentiation of TBX18(+)/WT1(+) Epicardial-Like Cells from Human Pluripotent Stem Cells Using Small Molecular Compounds. Stem Cells Dev. 2017, 26, 528–540. [Google Scholar] [CrossRef][Green Version]
  139. Witty, A.D.; Mihic, A.; Tam, R.Y.; Fisher, S.A.; Mikryukov, A.; Shoichet, M.S.; Li, R.K.; Kattman, S.J.; Keller, G. Generation of the epicardial lineage from human pluripotent stem cells. Nat. Biotechnol. 2014, 32, 1026–1035. [Google Scholar] [CrossRef][Green Version]
  140. Moretti, A.; Laugwitz, K.L.; Dorn, T.; Sinnecker, D.; Mummery, C. Pluripotent stem cell models of human heart disease. Cold Spring Harb. Perspect. Med. 2013, 3. [Google Scholar] [CrossRef]
  141. Cartledge, J.E.; Kane, C.; Dias, P.; Tesfom, M.; Clarke, L.; McKee, B.; Al Ayoubi, S.; Chester, A.; Yacoub, M.H.; Camelliti, P.; et al. Functional crosstalk between cardiac fibroblasts and adult cardiomyocytes by soluble mediators. Cardiovasc. Res. 2015, 105, 260–270. [Google Scholar] [CrossRef] [PubMed]
  142. Saini, H.; Navaei, A.; Van Putten, A.; Nikkhah, M. 3D cardiac microtissues encapsulated with the co-culture of cardiomyocytes and cardiac fibroblasts. Adv. Healthc. Mater. 2015, 4, 1961–1971. [Google Scholar] [CrossRef] [PubMed]
  143. Beauchamp, P.; Jackson, C.B.; Ozhathil, L.C.; Agarkova, I.; Galindo, C.L.; Sawyer, D.B.; Suter, T.M.; Zuppinger, C. 3D Co-culture of hiPSC-Derived Cardiomyocytes With Cardiac Fibroblasts Improves Tissue-Like Features of Cardiac Spheroids. Front. Mol. Biosci. 2020, 7, 14. [Google Scholar] [CrossRef] [PubMed]
  144. Matsusaki, M.; Ajiro, H.; Kida, T.; Serizawa, T.; Akashi, M. Layer-by-layer assembly through weak interactions and their biomedical applications. Adv. Mater. 2012, 24, 454–474. [Google Scholar] [CrossRef] [PubMed]
  145. Jang, Y.; Choi, S.C.; Lim, D.S.; Kim, J.H.; Kim, J.; Park, Y. Modulating cardiomyocyte and fibroblast interaction using layer-by-layer deposition facilitates synchronisation of cardiac macro tissues. Soft Matter 2020, 16, 428–434. [Google Scholar] [CrossRef]
  146. Giacomelli, E.; Bellin, M.; Sala, L.; van Meer, B.J.; Tertoolen, L.G.; Orlova, V.V.; Mummery, C.L. Three-dimensional cardiac microtissues composed of cardiomyocytes and endothelial cells co-differentiated from human pluripotent stem cells. Development 2017, 144, 1008–1017. [Google Scholar] [CrossRef][Green Version]
  147. Burridge, P.W.; Metzler, S.A.; Nakayama, K.H.; Abilez, O.J.; Simmons, C.S.; Bruce, M.A.; Matsuura, Y.; Kim, P.; Wu, J.C.; Butte, M.; et al. Multi-cellular interactions sustain long-term contractility of human pluripotent stem cell-derived cardiomyocytes. Am. J. Transl. Res. 2014, 6, 724–735. [Google Scholar]
  148. Amano, Y.; Nishiguchi, A.; Matsusaki, M.; Iseoka, H.; Miyagawa, S.; Sawa, Y.; Seo, M.; Yamaguchi, T.; Akashi, M. Development of vascularized iPSC derived 3D-cardiomyocyte tissues by filtration Layer-by-Layer technique and their application for pharmaceutical assays. Acta Biomater. 2016, 33, 110–121. [Google Scholar] [CrossRef]
  149. Pitaktong, I.; Lui, C.; Lowenthal, J.; Mattson, G.; Jung, W.H.; Bai, Y.; Yeung, E.; Ong, C.S.; Chen, Y.; Gerecht, S.; et al. Early Vascular Cells Improve Microvascularization Within 3D Cardiac Spheroids. Tissue Eng. Part C Methods 2020, 26, 80–90. [Google Scholar] [CrossRef]
  150. Zhang, Q.; Jiang, J.; Han, P.; Yuan, Q.; Zhang, J.; Zhang, X.; Xu, Y.; Cao, H.; Meng, Q.; Chen, L.; et al. Direct differentiation of atrial and ventricular myocytes from human embryonic stem cells by alternating retinoid signals. Cell Res. 2011, 21, 579–587. [Google Scholar] [CrossRef][Green Version]
  151. Devalla, H.D.; Schwach, V.; Ford, J.W.; Milnes, J.T.; El-Haou, S.; Jackson, C.; Gkatzis, K.; Elliott, D.A.; Chuva de Sousa Lopes, S.M.; Mummery, C.L.; et al. Atrial-like cardiomyocytes from human pluripotent stem cells are a robust preclinical model for assessing atrial-selective pharmacology. EMBO Mol. Med. 2015, 7, 394–410. [Google Scholar] [CrossRef] [PubMed]
  152. Lee, J.H.; Protze, S.I.; Laksman, Z.; Backx, P.H.; Keller, G.M. Human Pluripotent Stem Cell-Derived Atrial and Ventricular Cardiomyocytes Develop from Distinct Mesoderm Populations. Cell Stem Cell 2017, 21, 179–194 e174. [Google Scholar] [CrossRef] [PubMed]
  153. Birket, M.J.; Ribeiro, M.C.; Verkerk, A.O.; Ward, D.; Leitoguinho, A.R.; den Hartogh, S.C.; Orlova, V.V.; Devalla, H.D.; Schwach, V.; Bellin, M.; et al. Expansion and patterning of cardiovascular progenitors derived from human pluripotent stem cells. Nat. Biotechnol. 2015, 33, 970–979. [Google Scholar] [CrossRef] [PubMed]
  154. Schweizer, P.A.; Darche, F.F.; Ullrich, N.D.; Geschwill, P.; Greber, B.; Rivinius, R.; Seyler, C.; Muller-Decker, K.; Draguhn, A.; Utikal, J.; et al. Subtype-specific differentiation of cardiac pacemaker cell clusters from human induced pluripotent stem cells. Stem Cell Res. Ther. 2017, 8, 229. [Google Scholar] [CrossRef] [PubMed][Green Version]
  155. Zhang, J.Z.; Termglinchan, V.; Shao, N.Y.; Itzhaki, I.; Liu, C.; Ma, N.; Tian, L.; Wang, V.Y.; Chang, A.C.Y.; Guo, H.; et al. A Human iPSC Double-Reporter System Enables Purification of Cardiac Lineage Subpopulations with Distinct Function and Drug Response Profiles. Cell Stem Cell 2019, 24, 802–811. [Google Scholar] [CrossRef]
  156. Zhang, J.; Wilson, G.F.; Soerens, A.G.; Koonce, C.H.; Yu, J.; Palecek, S.P.; Thomson, J.A.; Kamp, T.J. Functional cardiomyocytes derived from human induced pluripotent stem cells. Circ. Res. 2009, 104, e30–e41. [Google Scholar] [CrossRef][Green Version]
  157. Passier, R.; Orlova, V.; Mummery, C. Complex Tissue and Disease Modeling using hiPSCs. Cell Stem Cell 2016, 18, 309–321. [Google Scholar] [CrossRef][Green Version]
  158. Hinson, J.T.; Chopra, A.; Lowe, A.; Sheng, C.C.; Gupta, R.M.; Kuppusamy, R.; O’Sullivan, J.; Rowe, G.; Wakimoto, H.; Gorham, J.; et al. Integrative Analysis of PRKAG2 Cardiomyopathy iPS and Microtissue Models Identifies AMPK as a Regulator of Metabolism, Survival, and Fibrosis. Cell Rep. 2016, 17, 3292–3304. [Google Scholar] [CrossRef]
  159. Park, S.J.; Zhang, D.; Qi, Y.; Li, Y.; Lee, K.Y.; Bezzerides, V.J.; Yang, P.; Xia, S.; Kim, S.L.; Liu, X.; et al. Insights Into the Pathogenesis of Catecholaminergic Polymorphic Ventricular Tachycardia From Engineered Human Heart Tissue. Circulation 2019, 140, 390–404. [Google Scholar] [CrossRef]
  160. Cashman, T.J.; Josowitz, R.; Johnson, B.V.; Gelb, B.D.; Costa, K.D. Human Engineered Cardiac Tissues Created Using Induced Pluripotent Stem Cells Reveal Functional Characteristics of BRAF-Mediated Hypertrophic Cardiomyopathy. PLoS ONE 2016, 11, e0146697. [Google Scholar] [CrossRef]
  161. Ma, Z.; Huebsch, N.; Koo, S.; Mandegar, M.A.; Siemons, B.; Boggess, S.; Conklin, B.R.; Grigoropoulos, C.P.; Healy, K.E. Contractile deficits in engineered cardiac microtissues as a result of MYBPC3 deficiency and mechanical overload. Nat. Biomed. Eng. 2018, 2, 955–967. [Google Scholar] [CrossRef] [PubMed]
  162. Hinson, J.T.; Chopra, A.; Nafissi, N.; Polacheck, W.J.; Benson, C.C.; Swist, S.; Gorham, J.; Yang, L.; Schafer, S.; Sheng, C.C.; et al. HEART DISEASE. Titin mutations in iPS cells define sarcomere insufficiency as a cause of dilated cardiomyopathy. Science 2015, 349, 982–986. [Google Scholar] [CrossRef] [PubMed][Green Version]
  163. Stillitano, F.; Turnbull, I.C.; Karakikes, I.; Nonnenmacher, M.; Backeris, P.; Hulot, J.S.; Kranias, E.G.; Hajjar, R.J.; Costa, K.D. Genomic correction of familial cardiomyopathy in human engineered cardiac tissues. Eur. Heart J. 2016, 37, 3282–3284. [Google Scholar] [CrossRef] [PubMed][Green Version]
  164. Streckfuss-Bomeke, K.; Tiburcy, M.; Fomin, A.; Luo, X.; Li, W.; Fischer, C.; Ozcelik, C.; Perrot, A.; Sossalla, S.; Haas, J.; et al. Severe DCM phenotype of patient harboring RBM20 mutation S635A can be modeled by patient-specific induced pluripotent stem cell-derived cardiomyocytes. J. Mol. Cell Cardiol. 2017, 113, 9–21. [Google Scholar] [CrossRef][Green Version]
  165. Prondzynski, M.; Lemoine, M.D.; Zech, A.T.; Horvath, A.; Di Mauro, V.; Koivumaki, J.T.; Kresin, N.; Busch, J.; Krause, T.; Kramer, E.; et al. Disease modeling of a mutation in alpha-actinin 2 guides clinical therapy in hypertrophic cardiomyopathy. EMBO Mol. Med. 2019, 11, e11115. [Google Scholar] [CrossRef]
  166. Sebastiao, M.J.; Gomes-Alves, P.; Reis, I.; Sanchez, B.; Palacios, I.; Serra, M.; Alves, P.M. Bioreactor-based 3D human myocardial ischemia/reperfusion in vitro model: A novel tool to unveil key paracrine factors upon acute myocardial infarction. Transl. Res. 2020, 215, 57–74. [Google Scholar] [CrossRef]
  167. Richards, D.J.; Li, Y.; Kerr, C.M.; Yao, J.; Beeson, G.C.; Coyle, R.C.; Chen, X.; Jia, J.; Damon, B.; Wilson, R.; et al. Human cardiac organoids for the modelling of myocardial infarction and drug cardiotoxicity. Nat. Biomed. Eng. 2020, 4, 446–462. [Google Scholar] [CrossRef]
  168. Lemme, M.; Braren, I.; Prondzynski, M.; Aksehirlioglu, B.; Ulmer, B.M.; Schulze, M.L.; Ismaili, D.; Meyer, C.; Hansen, A.; Christ, T.; et al. Chronic intermittent tachypacing by an optogenetic approach induces arrhythmia vulnerability in human engineered heart tissue. Cardiovasc. Res. 2019. [Google Scholar] [CrossRef][Green Version]
  169. Huebsch, N.; Loskill, P.; Deveshwar, N.; Spencer, C.I.; Judge, L.M.; Mandegar, M.A.; Fox, C.B.; Mohamed, T.M.; Ma, Z.; Mathur, A.; et al. Miniaturized iPS-Cell-Derived Cardiac Muscles for Physiologically Relevant Drug Response Analyses. Sci. Rep. 2016, 6, 24726. [Google Scholar] [CrossRef][Green Version]
  170. Lee, E.K.; Tran, D.D.; Keung, W.; Chan, P.; Wong, G.; Chan, C.W.; Costa, K.D.; Li, R.A.; Khine, M. Machine Learning of Human Pluripotent Stem Cell-Derived Engineered Cardiac Tissue Contractility for Automated Drug Classification. Stem Cell Rep. 2017, 9, 1560–1572. [Google Scholar] [CrossRef][Green Version]
  171. Shadrin, I.Y.; Allen, B.W.; Qian, Y.; Jackman, C.P.; Carlson, A.L.; Juhas, M.E.; Bursac, N. Cardiopatch platform enables maturation and scale-up of human pluripotent stem cell-derived engineered heart tissues. Nat. Commun. 2017, 8, 1–15. [Google Scholar] [CrossRef] [PubMed][Green Version]
  172. Narita, H.; Shima, F.; Yokoyama, J.; Miyagawa, S.; Tsukamoto, Y.; Takamura, Y.; Hiura, A.; Fukumoto, K.; Chiba, T.; Watanabe, S.; et al. Engraftment and morphological development of vascularized human iPS cell-derived 3D-cardiomyocyte tissue after xenotransplantation. Sci. Rep. 2017, 7, 1–9. [Google Scholar] [CrossRef] [PubMed][Green Version]
  173. Takeda, M.; Miyagawa, S.; Fukushima, S.; Saito, A.; Ito, E.; Harada, A.; Matsuura, R.; Iseoka, H.; Sougawa, N.; Mochizuki-Oda, N.; et al. Development of In Vitro Drug-Induced Cardiotoxicity Assay by Using Three-Dimensional Cardiac Tissues Derived from Human Induced Pluripotent Stem Cells. Tissue Eng. Part C Methods 2018, 24, 56–67. [Google Scholar] [CrossRef] [PubMed][Green Version]
  174. Mattapally, S.; Zhu, W.; Fast, V.G.; Gao, L.; Worley, C.; Kannappan, R.; Borovjagin, A.V.; Zhang, J. Spheroids of cardiomyocytes derived from human-induced pluripotent stem cells improve recovery from myocardial injury in mice. Am. J. Physiol. Heart Circ. Physiol. 2018, 315, H327–H339. [Google Scholar] [CrossRef] [PubMed][Green Version]
  175. Mills, R.J.; Parker, B.L.; Quaife-Ryan, G.A.; Voges, H.K.; Needham, E.J.; Bornot, A.; Ding, M.; Andersson, H.; Polla, M.; Elliott, D.A.; et al. Drug Screening in Human PSC-Cardiac Organoids Identifies Pro-proliferative Compounds Acting via the Mevalonate Pathway. Cell Stem Cell 2019, 24, 895–907 e896. [Google Scholar] [CrossRef] [PubMed]
  176. Wanjare, M.; Kawamura, M.; Hu, C.; Alcazar, C.; Wang, H.; Woo, Y.J.; Huang, N.F. Vascularization of Engineered Spatially Patterned Myocardial Tissue Derived From Human Pluripotent Stem Cells in vivo. Front. Bioeng. Biotechnol. 2019, 7, 208. [Google Scholar] [CrossRef]
  177. Benam, K.H.; Dauth, S.; Hassell, B.; Herland, A.; Jain, A.; Jang, K.J.; Karalis, K.; Kim, H.J.; MacQueen, L.; Mahmoodian, R.; et al. Engineered in vitro disease models. Annu. Rev. Pathol. 2015, 10, 195–262. [Google Scholar] [CrossRef][Green Version]
  178. Funakoshi, S.; Miki, K.; Takaki, T.; Okubo, C.; Hatani, T.; Chonabayashi, K.; Nishikawa, M.; Takei, I.; Oishi, A.; Narita, M.; et al. Enhanced engraftment, proliferation, and therapeutic potential in heart using optimized human iPSC-derived cardiomyocytes. Sci. Rep. 2016, 6, 1–14. [Google Scholar] [CrossRef][Green Version]
  179. Doss, M.X.; Di Diego, J.M.; Goodrow, R.J.; Wu, Y.; Cordeiro, J.M.; Nesterenko, V.V.; Barajas-Martinez, H.; Hu, D.; Urrutia, J.; Desai, M.; et al. Maximum diastolic potential of human induced pluripotent stem cell-derived cardiomyocytes depends critically on I(Kr). PLoS ONE 2012, 7, e40288. [Google Scholar] [CrossRef]
  180. Horvath, A.; Christ, T.; Koivumaki, J.T.; Prondzynski, M.; Zech, A.T.L.; Spohn, M.; Saleem, U.; Mannhardt, I.; Ulmer, B.; Girdauskas, E.; et al. Case Report on: Very Early Afterdepolarizations in HiPSC-Cardiomyocytes-An Artifact by Big Conductance Calcium Activated Potassium Current (Ibk,Ca). Cells 2020, 9, 253. [Google Scholar] [CrossRef][Green Version]

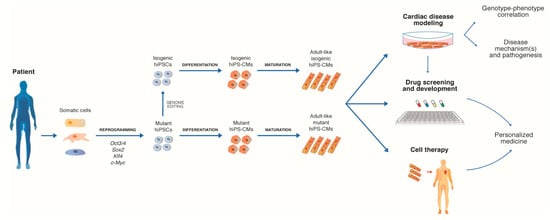

Figure 1. Schematic overview of patient-derived human-induced pluripotent stem cells–derived cardiomyocytes (hiPS-CMs) generation. The process consists of the following three main steps: reprogramming of somatic cells in human induced pluripotent stem cells (hiPSCs); hiPSCs differentiation in hiPSC-derived CMs; and maturation approaches to obtain adult-like hiPS-CMs. The resulting hiPS-CMs are ultimately used for research studies and clinical applications.
Figure 1. Schematic overview of patient-derived human-induced pluripotent stem cells–derived cardiomyocytes (hiPS-CMs) generation. The process consists of the following three main steps: reprogramming of somatic cells in human induced pluripotent stem cells (hiPSCs); hiPSCs differentiation in hiPSC-derived CMs; and maturation approaches to obtain adult-like hiPS-CMs. The resulting hiPS-CMs are ultimately used for research studies and clinical applications.
Ijms 21 03404 g001
Figure 2. Generation of three-dimensional (3D) hiPSC-based cardiac constructs. Human iPSC-derived cardiac cells, scaffolds, and physical and environmental stimuli are the three main elements required for the generation of a 3D cardiac construct. Examples of 3D-hiPSC formats are reported from published studies. Figures reprinted from: (A) [93] Zhang et al., Tissue-engineered Cardiac Patch For Advanced Functional Maturation Of Human ESC-derived Cardiomyocytes, Biomaterials 34(23), 5813-20 (2013). With permission from Elsevier (Copyright 2013, Elsevier LTD.); (B) [111] Zhao et al., A Platform for Generation of Chamber-Specific Cardiac Tissues and Disease Modeling, Cell 176(4), 913-927 (2019). With permission from Elsevier (Copyright 2018, Elsevier Inc); (C) [109] Goldfracht et al., Generating ring-shaped engineered heart tissues from ventricular and atrial human pluripotent stem cell-derived cardiomyocytes, Nat Commun 11(1), 75 (2020). Licensed under the terms of the Creative Commons CC BY License (Copyright 2020, Springer Nature); (D) [112] Tsuruyama et al., Pulsatile tubular cardiac tissues fabricated by wrapping human iPS cells-derived cardiomyocyte sheets, Regen Ther 11, 297-305 (2019). With permission from Elsevier (Copyright 2019, The Japanese Society for Regenerative Medicine); (E) [113] Forsythe et al., Environmental Toxin Screening Using Human-Derived 3D Bioengineered Liver and Cardiac Organoids, Front Public Health 6, 13 (2018). Licensed under the terms of the Creative Commons Attribution License (CC BY) (Copyright 2018, Authors); (F) [114] Noor et al., 3D Printing of Personalized Thick and Perfusable Cardiac Patches and Hearts, Adv Sci (Weinh) 6(11), 1900344 (2019). Licensed under the terms of the Creative Common Attribution Licence (CC BY) (Copyright 2019, Authors).
Figure 2. Generation of three-dimensional (3D) hiPSC-based cardiac constructs. Human iPSC-derived cardiac cells, scaffolds, and physical and environmental stimuli are the three main elements required for the generation of a 3D cardiac construct. Examples of 3D-hiPSC formats are reported from published studies. Figures reprinted from: (A) [93] Zhang et al., Tissue-engineered Cardiac Patch For Advanced Functional Maturation Of Human ESC-derived Cardiomyocytes, Biomaterials 34(23), 5813-20 (2013). With permission from Elsevier (Copyright 2013, Elsevier LTD.); (B) [111] Zhao et al., A Platform for Generation of Chamber-Specific Cardiac Tissues and Disease Modeling, Cell 176(4), 913-927 (2019). With permission from Elsevier (Copyright 2018, Elsevier Inc); (C) [109] Goldfracht et al., Generating ring-shaped engineered heart tissues from ventricular and atrial human pluripotent stem cell-derived cardiomyocytes, Nat Commun 11(1), 75 (2020). Licensed under the terms of the Creative Commons CC BY License (Copyright 2020, Springer Nature); (D) [112] Tsuruyama et al., Pulsatile tubular cardiac tissues fabricated by wrapping human iPS cells-derived cardiomyocyte sheets, Regen Ther 11, 297-305 (2019). With permission from Elsevier (Copyright 2019, The Japanese Society for Regenerative Medicine); (E) [113] Forsythe et al., Environmental Toxin Screening Using Human-Derived 3D Bioengineered Liver and Cardiac Organoids, Front Public Health 6, 13 (2018). Licensed under the terms of the Creative Commons Attribution License (CC BY) (Copyright 2018, Authors); (F) [114] Noor et al., 3D Printing of Personalized Thick and Perfusable Cardiac Patches and Hearts, Adv Sci (Weinh) 6(11), 1900344 (2019). Licensed under the terms of the Creative Common Attribution Licence (CC BY) (Copyright 2019, Authors).
Ijms 21 03404 g002
Table 1. List of 2D cardiac disease models for pharmacological studies described in this review.
Table 1. List of 2D cardiac disease models for pharmacological studies described in this review.
Ref.ObjectivePharmacological Approach and Outcome of the Study
[42]LQTS type 2 treatment- E-4031 and cisapride → pro-arrhythmic effect
- Nifedipine → shortened APD90, elimination of EAD events, abolished arrhythmic events, long-term treatment associated with toxicity
- Pinacidil → APD90 shortening, abolished EADs, potentially pro-arrhythmic
- Ranolazine → anti-arrhythmic effect
[43]LQTS type 2 treatment- E-4031 → APD/FPD prolongation, EADs (only in mutant CMs)
- Nicorandil and PD-118057 → shortened APD, abolished EADs
[52]Drug safety studyConfirmed effect of 25 known cardioactive compounds
[37]CPVT- Dantrolene → rescue of the arrhythmogenic defect (normal Ca2+ spark properties)
[46]Cardiotoxicity study for LQTS, HCM, and DCM- Cisapride → pro-arrhythmic effects (particularly in LQTS and HCM)
- Nicorandil → normalized APD and abolished EADs (LQTS). Dose-dependent pro-arrhythmic effect
[53]Drug safety study (10 compounds)- E-4031 and Cisapride → prolonged FPD and pro-arrhythmic effect
- Nifedipine and Verapamil → dose-dependent FPD shortening, increased beat rate
- Terfenadine → dose-dependent effect on FPD, no pro-arrhythmic effect
- Quinidine, Mexiletine → reduced spike amplitude
- Flecainide → reduced spike amplitude and pro-arrhythmic potential
- GSK A → dose-dependent FPD prolongation
- GSK B → increased heart rate
[38]JLNS treatment- Noradrenaline → Increased APD90 and PlaA
- Cisapride → genotype-dependent pro-arrhythmic effect
- NS1643 → reduced FPD and protection from cisapride-induced arrhythmias
[22]LQTS treatment- Nifedipine → APD90 shortening
- Pinacidil → APD90 shortening
[54]Diabetic cardiomyopathy treatmentScreening of 480 compound for CM phenotype preservation during diabetic stress:
- Thapsigargin and Fluspirilene → Identified as most-effective compounds
[55]Drug safety study (24 compounds)16 of 18 compound with known clinical cardiac risk showed drug-induced effect in hiPS-CMs upon structural and functional evaluation
[56]Drug safety studyBay K8644, Mibefradil, NS1643, Levcromakalim, Ouabain → Repolarization effects
Isoproterenol, ZD7288, BaCl2 → Chronotropic effects
Quinidine, Cisapride, Thioridazine, Astemizole, Bepridil, Pimozide → Arrhythmogenic effect
Amiodarone, Tolterodine, Vanoxerine, Alfuzosin, Ranolazine → FPD prolongation (clinical QT prolongation)
[44]LQTS type 2 treatment-Lumacaftor → shortened FPD, genotype-dependent hERG membrane localization, increased IKr current density, reduced Ca2+-handling abnormalities
[57]Drug safety studyScreening of 28 known pro-arrhythmic drugs: all the analysed compounds confirmed pro-arrhythmic effect
[58]Preventing oxidative injury post MIScreening of 48,649 protective molecules preventing peroxide-induced cell death:
- Cardioprotectant 312 (CP-312) → increased antioxidant response
[39]DCMA syndrome treatmentSS-31 → reduced mitochondrial fragmentation
[59]Cardiomyocyte protection in MIScreening of 1800 active compounds:
- F1386-0303 → suppressed hiPS-CMs death
APD, action potential duration; APD90, action potential duration at 90% repolarization; CM, cardiomyocyte; CPVT, catecholaminergic polymorphic ventricular tachycardia; DCM, dilated cardiomyopathy; DCMA, dilated cardiomyopathy with ataxia; EAD, early after depolarization; FPD, field potential duration; HCM, hypertrophic cardiomyopathy; hiPSC; human induced pluripotent stem cell; hiPS-CM, human induced pluripotent stem cell-derived cardiomyocyte; JLNS, Jervell and Lange-Nielsen syndrome; LQTS, long QT syndrome; LVEF, left ventricular ejection fraction; MI; myocardial infarction; PlaA, plateau amplitude.
Table 2. Improved maturation of hiPS-derived cardiomyocytes within 3D constructs.
Table 2. Improved maturation of hiPS-derived cardiomyocytes within 3D constructs.
FeaturePhenotype of hiPS-CMs in 3D SystemReferences
ProliferationDecreased proliferation capacity[100,101]
MorphologySwitch from a round/polygonal to a more rod-shaped morphology[95,100,102,103]
Cell sizeIncreased cell area and volume[92,100,103,104,105,106]
Number of nucleiMultinucleation[105,106]
Cell aggregationhiPS-CMs are robustly interconnected by electrical and mechanical junctions[93,100,102,104,106,107]
Contractile apparatusIncreased sarcomere organization, length, and alignment

Early-stage t-tubules formation
MitochondriaIncreased number of mitochondria close to the contractile apparatus[100,103,108]
Gene expressionDecreased expression of:
- fetal cardiac genes
Increased expression of:
- ion channel genes of mature CMs
- cardiac contractile function and sarcomere-related genes

Cardiac contractionIncreased contraction force[93,102,104,106,107]
Cardiac conductionIncreased conduction velocity[93,100,102,106,107,109]
Calcium handlingIncreased expression of calcium-handling genes
Improved calcium transient amplitude

Electrophysiological propertiesResting membrane potential (Vrest) closer to adult CMs
Increased APD50 and APD90
Increased maximum upstroke velocity (higher INa density)
Response to β-adrenergic stimulationIncreased adrenergic response to catecholamine stimulation[93,107,109,110]
MetabolismHigher oxygen consumption rate (OCR)
Increased expression of fatty acid oxidation-related genes
Decreased expression of glycolytic genes
APD50, action potential duration at 50% repolarization; APD90, action potential duration at 90% repolarization; CM, cardiomyocyte; hiPSC, human induced pluripotent stem cell; hiPS-CM, human induced pluripotent stem cell-derived cardiomyocyte.
Table 3. List of 3D hiPSC-based cardiac constructs reported in this review.
Table 3. List of 3D hiPSC-based cardiac constructs reported in this review.
Ref.ScaffoldCell TypesPhysical StimulationDisease ModelingTherapeutic Studies
[108]Type I Collagen-based
3D scaffold
- hESC-/hiPS-CMs (2 × 106)
- HUVEC (1 × 106)
- human MSCs/MEFs (1 × 106)
Uniaxal cyclic stress conditioning (mechanical)N/AImplantation in athymic rats
[93]3D cardiac patches
(PDMS + fibrinogen, Matrigel, thrombin)
hESC-CMs (1 × 106)Patches cultured on a rocking platformN/AN/A
[116]Decellularized mouse hearthiPSC-derived MCPs (CMs, SMCs, ECs) (Tot. 1 × 107)N/AN/ADrug responsiveness
[120]Collagen master mix (Collagen I and Matrigel)- hESC-CMs
- hiPS-derived FBs
(Tot. 0.5 × 106)
Uniaxial mechanical stress and electrical point stimulationTachycardic model of arrhythmiasDrug responsiveness
[100]Type I collagen gelhESC-/hiPS-derived MCPs (CMs, ECs, FBs, SMCs)Electrical stimulationN/AN/A
[124]Elastomers micropatterned with fibronectin lineshiPS-CMs (1 × 105 cells/cm2)N/ABarth syndrome cardiomyopathy caused by TAZ mutationsN/A
[147]3D Hydrogel platform
- hESC-CMs (2.5 × 105)
- hiPSC-derived ECs (5 × 104)
- hAMSCs (5 × 104)
[162]PDMS substrate + collagen I and human fibrinogen- hiPS-CMs
- Human MSCs
(Tot. 1.1 × 106)
Electrical field stimulationDCM caused by TTN mutationsN/A
[104]Collagen (I)-based 3D scaffoldhiPS-CMs (2 × 106)Electric pacing and static stress conditioningN/AN/A
[130]Matrigel +
collagen type I matrix
- hiPS-CMs
- hiPSC-derived ECs
- hiPSC-derived MCs
(Tot. 3 × 106)
N/AN/AImplantation in a rat MI model
[148]Fabricated fibronectin and gelatin nanofilms (LbL assembly)- hiPS-CMs
- Human cardiac FBs
(Tot. 1–50 × 105)
N/AN/AResponsiveness to cardiotoxic drugs
[158]Micropatterned wells (PDMS substrate + collagen type I and fibrinogen)- hiPS-CMs
- human mesenchymal stem cells
(Tot. 1.1 × 106)
N/APRKAG2 cardiomyopathyN/A
[160]PDMS template + Matrigel/collagen I matrix- hiPS-CMs
- stromal cells
(Tot. 1 × 106)
N/AHCM caused by BRAF mutationN/A
[163]PDMS template + Matrigel/collagen I matrixhiPS-CMs (1 × 106)N/ADCM caused by PLN mutationN/A
[169]PDMS stencils containing rectangular through-holes (hydrogel-free)- hiPS-CMs
- hiPSC-derived FBs
(Tot. 2 × 107)
N/AN/AClinically relevant responsiveness to isoproterenol treatment
[95]Agarose casting molds + fibrin matrix (Matrigel, fibrinogen, thrombin)hiPS-CMs (1 × 106)N/AN/AN/A
[99]Circular casting molds + Matrigel/collagen matrix- hESC-/hiPS-CMs
- human FBs
(Tot. 1 × 104–15 × 106)
Dynamic stretch conditioningModel of heart failureImplantation in athymic rats
[102]Fibrin hydrogel suspension
(fibrinogen, thrombin)
hiPS-CMs (1.7 × 106)Hydrodynamic drag force fields (Faraday waves)N/AN/A
[105]3D-MPE printed scaffold (methacrylated gelatin-based)- hiPS-CMs (25 × 103)
- hiPSC-derived ECs (12.5 × 103)
- hiPSC-derived SMCs (12.5 × 103)
N/AN/AImplantation in a murine model of MI
[131]PDMS template + Matrigel/collagen I matrix- hiPS-CMs
- hiPSC-derived ECs
- hiPSC-derived MCs
(Tot. 6 × 106)
N/AN/AImplantation in rat model of MI
[146]Scaffold-free (spheroids)- hESC-/hiPS-CMs
- hESC-/hiPSC-derived ECs
(Tot. 5 × 103)
N/AN/ADrug responsiveness
[164]Circular casting molds + Matrigel/collagen matrixhiPS-CMs (1 × 106)Mechanical stress conditioningDCM caused by RBM20 mutationN/A
[170]PDMS elastomer molds + Matrigel/collagen I matrix- hESC-CMs (1 × 105)
- human FBs (1 × 105)
N/AN/AResponsiveness to cardioactive drugs
[171]PDMS square molds + Hydrogel matrix (fibrinogen, Matrigel, thrombin)hiPS-CMs (0.5–1 × 106)Patches cultured on a rocking platformN/AImplantation in nude mice (skin) and nude rats (epicardium)
[172]Fabricated fibronectin and gelatin nanofilms (LbL assembly)- hiPS-CMs
- human cardiac FBs
(Tot. 1.1–3.7 × 106)
N/AN/AImplantation in rat infarcted hearts
[97]PDMS elastomeric pillars + fibrin hydrogel (fibrinogen, thrombin)- hiPS-CMs
- human dermal FBs
(Tot. 2 × 106)
Mechanical loading and electrical conditioningN/AResponsiveness to isoproterenol treatment
[123]PDMS elastomer molds + collagen I matrix- hiPS-CMs (1 × 106)
- human MSCs (0.2 × 106)
Static stress conditioningSystolic cardiomyopathy (MYH7 mutation)N/A
[129]Rectangular agarose/PDMS casting molds + fibrinogen/thrombin matrix- hiPS-CMs (5 × 105)
- human MSCs (5 × 104)
Mechanical loading (afterload)N/AN/A
[161]Cell-encapsulation gel-free filamentous matrix (OrmoClear®polymer)- hiPS-CMs
- hiPSC-derived FBs
- hiPSC-derived stromal cells
(Tot. 3 × 106)
Mechanical conditioningContractile dysfunctions caused by MYBPC3 deficitN/A
[173]Fibronectin/gelatin nanofilms (LbL assembly)- hiPS-CMs
- hiPSC-derived FBs
- hiPSC-derived SMCs
(Tot. 5 × 105)
N/AN/ADrug-induced cardiotoxicity assay
[113]Scaffold-free (organoids)- hiPS-CMs
- human cardiac FBs
(Tot. 1 × 103)
N/AN/AEnvironmental toxin screening
[174]Fibrin matrix (patch) containing spheroids (spheroid fusions)hiPS-CMs (2.5 × 103–3 × 105)N/AN/AImplantation in a murine model of MI
[112]Cell sheets wrapped around a hollow octagonal tubular column (fibrin and collagen gels to seal the extremities)- hiPS-CMs (6 × 106 cells/sheet)
- human dermal FBs
(6 × 106 cells/sheet)
Electrical stimulation and mechanical stretch (provided by a circulation system)N/AN/A
[114]Personalized hydrogel from decellularized human ECM- hiPS-CMs (1 × 108)
- hiPSC-derived ECs (1.5 × 107)
- human neonatal dermal FBs (3 × 106)
[128]Parallel POMaC wires + hydrogel matrix (collagen, Matrigel, fibrin)- hiPS-CMs (1 × 105)
- human cardiac FBs (1 × 104)
Long-term electrical field stimulationN/ACanonical responses to cardiotherapeutic and cardiotoxic agents
[111]Flexible POMaC wires + hydrogel matrix (collagen, Matrigel)- hESC-/hiPS-CMs (7.47 × 104)
- human cardiac FBs (3.5 × 104)
Electrical field stimulationLeft ventricular hypertrophyChamber-specific responsiveness to serotonin and ranolazine
[159]Micromolded gelatin muscular thin film substrate + fibronectin and gelatin matrixhiPS-CMs (1 × 106)N/ACPVT caused by RYR2 mutationN/A
[165]Flexible PDMS posts + fibrin matrix (Matrigel, fibrinogen, thrombin)hiPS-CMs (8 × 105)N/AHCM caused by ACTN2 mutationAmeliorated phenotype upon diltiazem treatment
[168]Agarose/PDMS-casting molds + fibrin matrix (Matrigel, fibrinogen, thrombin)hiPS-CMs (1 × 106)Chronic optical tachypacingVentricular tachycardiaResponsiveness to antiarrhythmic compounds
[175]PDMS molds + Matrigel/Collagen I mixture
(to form cardiac organoids)
- hESC-CMs
- hESC-derived stromal cells
(Tot. 5 × 104)
N/AN/AFunctional screening of 105 compounds with pro-regenerative potential
[176]Circular microfibrous polycaprolactone sheets
+ Geltrex
- hiPS-CMs (1 × 106)
- hiPSC-derived ECs (4 × 104)
N/AN/ASubcutaneous transplantation in SCID mice and epicardial transplantation onto rat MI model
[109]Ring-shaped casting molds + Collagen-based hydrogel matrix- hESC-CMs (atrial and ventricular differentiation)
(Tot. 2 × 106)
Passive stretch conditioningAtrial arrhythmia model (AF-like)Arrhythmic phenotype rescued after electrical cardioversion or after treatment with anti-arrhythmic agents
[125]Polystrene chip with two parallel POMaC wires + collagen hydrogel (with Matrigel) or collagen/fibrin hydrogel (with fibrinogen)- hESC-/hiPS-CMs (atrial and ventricular)
- mesenchymal stem cells
- human cardiac FBs
(Tot. 25–150 × 106)
Electrical conditioningN/AN/A
[103]3D-printed cuboids and hexagons micro-scaffolds (PETA monomer)-iPSC-derived CMs (murine) (2 × 104)N/AN/AN/A
[145]PDMS support + collagen I mixture (LbL assembly)- hESC-/hiPS-CMs (1 × 106)
- human cardiac FBs (2 × 105)
[149]Scaffold-free (3D-bioprinted spheroids)- hiPS-CMs
- human cardiac FBs
- HUVEC or hiPSC-derived vascular cells
(Tot. 3.3 × 104)
[166]Scaffold-free aggregates (3D self-organization)hiPS-CMs (1.5 × 103)3D aggregates cultured with controlled pO2 and pH in stirred-tank bioreactorsMyocardial ischemia-reperfusion injury modelN/A
[167]Scaffold-free self-assembled organoids- hiPS-CMs
- human cardiac FBs
- human adipose-derived stem cells
(Tot. 1.5 × 105)
Oxygen-diffusion gradientModel of MIFibrotic phenotype ameliorated upon treatment with HF drug candidate and canonical cardiotoxic response to doxorubicin
+, combined with; 3D, three-dimensional; ACTN2, alpha actinin 2; AF, atrial fibrillation; CM, cardiomyocyte; CMPC, cardiomyocyte progenitor cell; DCM, dilated cardiomyopathy; EC, endothelial cell; ESC, embryonic stem cell; FB, fibroblast; hAMSC, human amniotic mesenchymal stem cell; HCMVEC, human cardiac microvascular endothelial cells; hESC-CM, human ESC-derived cardiomyocyte; HCM, hypertrophic cardiomyopathy; HF, heart failure; hiPSC, human induced pluripotent stem cell; hiPS-CM, human induced pluripotent stem cell-derived cardiomyocytes; HUVEC, human umbilical vein endothelial cell; LbL, Layer-by-Layer; MC, mural cell; MCP, multipotential cardiovascular progenitor; MEF, mouse embryonic fibroblast; MI, myocardial infraction; MPE, multiphoton excited; MSC, marrow stromal cells; MYBPC3, myosin binding protein C3; MYH7, myosin heavy chain 7; PDMS, polydimethylsiloxane; PETA, pentaerythritol triacrylate; pO2, partial pressure of oxygen; PLN, phospholamban; POMaC, poly (octa-methylene maleate (anhydride) citrate); PRKAG2, protein kinase AMP-activated non-catalytic subunit Gamma 2; RBM20, RNA-binding motif protein 20; RYR2, ryanodine receptor 2; SCID, severe combined immunodeficiency; SMC, smooth muscle cell; TAZ, tafazzin; Tot., total number of cells; TTN, titin.

Share and Cite

MDPI and ACS Style

Sacchetto, C.; Vitiello, L.; de Windt, L.J.; Rampazzo, A.; Calore, M. Modeling Cardiovascular Diseases with hiPSC-Derived Cardiomyocytes in 2D and 3D Cultures. Int. J. Mol. Sci. 2020, 21, 3404.

AMA Style

Sacchetto C, Vitiello L, de Windt LJ, Rampazzo A, Calore M. Modeling Cardiovascular Diseases with hiPSC-Derived Cardiomyocytes in 2D and 3D Cultures. International Journal of Molecular Sciences. 2020; 21(9):3404.

Chicago/Turabian Style

Sacchetto, Claudia, Libero Vitiello, Leon J. de Windt, Alessandra Rampazzo, and Martina Calore. 2020. "Modeling Cardiovascular Diseases with hiPSC-Derived Cardiomyocytes in 2D and 3D Cultures" International Journal of Molecular Sciences 21, no. 9: 3404.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
