Elevated CLOCK and BMAL1 Contribute to the Impairment of Aerobic Glycolysis from Astrocytes in Alzheimer’s Disease

by
Ik Dong Yoo
1,
Min Woo Park
2,
Hyeon Woo Cha
2,
Sunmi Yoon
3,
Napissara Boonpraman
3,
Sun Shin Yi
3,* and
Jong-Seok Moon
2,*
1
Department of Nuclear Medicine, Soonchunhyang University Hospital Cheonan, Cheonan 31151, Chungcheongnam-do, Korea
2
Department of Integrated Biomedical Science, Soonchunhyang Institute of Medi-bio Science (SIMS), Soonchunhyang University, Cheonan 31151, Chungcheongnam-do, Korea
3
Department of Biomedical Laboratory Science, College of Medical Sciences, Soonchunhyang University, Asan 31538, Chungcheongnam-do, Korea
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2020, 21(21), 7862; https://doi.org/10.3390/ijms21217862
Submission received: 5 October 2020 / Revised: 20 October 2020 / Accepted: 22 October 2020 / Published: 23 October 2020
(This article belongs to the Special Issue Neurogenesis and Neural Plasticity)
Browse Figures
Review Reports Versions Notes

Abstract

:
Altered glucose metabolism has been implicated in the pathogenesis of Alzheimer’s disease (AD). Aerobic glycolysis from astrocytes is a critical metabolic pathway for brain energy metabolism. Disturbances of circadian rhythm have been associated with AD. While the role of circadian locomotor output cycles kaput (CLOCK) and brain muscle ARNT-like1 (BMAL1), the major components in the regulation of circadian rhythm, has been identified in the brain, the mechanism by which CLOCK and BMAL1 regulates the dysfunction of astrocytes in AD remains unclear. Here, we show that the protein levels of CLOCK and BMAL1 are significantly elevated in impaired astrocytes of cerebral cortex from patients with AD. We demonstrate that the over-expression of CLOCK and BMAL1 significantly suppresses aerobic glycolysis and lactate production by the reduction in hexokinase 1 (HK1) and lactate dehydrogenase A (LDHA) protein levels in human astrocytes. Moreover, the elevation of CLOCK and BMAL1 induces functional impairment by the suppression of glial fibrillary acidic protein (GFAP)-positive filaments in human astrocytes. Furthermore, the elevation of CLOCK and BMAL1 promotes cytotoxicity by the activation of caspase-3-dependent apoptosis in human astrocytes. These results suggest that the elevation of CLOCK and BMAL1 contributes to the impairment of astrocytes by inhibition of aerobic glycolysis in AD.

1. Introduction

Alzheimer’s disease (AD) is a progressive neurodegenerative disease characterized by impairment of memory and cognitive function [1]. Recent studies suggest that AD is a metabolic neurodegenerative disease [2,3,4]. The impairment in cerebral glucose metabolism is an invariant pathophysiological feature in AD [5,6]. The reduction in cerebral glucose metabolism is linked to AD progression and cognitive dysfunction [7,8,9]. Recent studies showed that the alteration of aerobic glycolysis is linked to the pathogenesis of AD [10,11].
Astrocytes are the most numerous subtypes of glial cell population in the central nervous system (CNS) [12,13]. The roles of astrocytes have been linked to brain development and function such as synapse formation and function, control of neurotransmitters release and uptake, production of trophic factors and control of neuronal survival [14,15,16,17,18]. In brain energy metabolism, the interaction of astrocytes with neuron and endothelial cells of the blood–brain barrier (BBB) plays a critical role in metabolic support to neurons through neurometabolic coupling including aerobic glycolysis, glutamate and Na–K-ATPase activation, and lactate release [19,20,21,22,23]. As a hub for neurometabolic and neurovascular coupling, astrocytes provide the function as gatekeepers of neuronal energy supply [24,25,26,27,28,29].
Glucose metabolism is an important metabolic pathway for growth and survival in many types of cells [30,31]. Previously, we have shown that the impairment of glycolysis induces apoptotic cell death [32]. Aerobic glycolysis from astrocytes is a critical metabolic pathway that processes the utilization of glucose to generate lactate as a metabolic intermediate which is used as a primary energy source for neurons [33]. In the aerobic glycolysis pathway, hexokinase 1 (HK1) is a first key enzyme for the initiation of glycolysis [34,35,36]. As the final step of anaerobic glycolysis, lactate is produced by conversion of pyruvate to lactate by lactate dehydrogenase (LDH) [37,38,39]. LDH is composed of four subunits. The two different subunits are LDHA (the M (muscle type) subunit of LDH) and LDHB (the H (heart type) subunit of LDH), which both retain the same active site and amino acids participating in the enzyme reaction [39,40]. Astrocytes express the protein of LDHA in the human brain [27,39,41,42].
Previous studies suggest that lactate production and transport between astrocytes and neurons is required for long-term memory formation [43,44]. In addition, lactate has also been identified as a novel metabolite that induces expression of genes associated with synaptic plasticity in the brain [45,46]. Disturbances of circadian rhythm have been associated with AD [47]. Recent evidence demonstrates that sleep–wake and circadian rhythm disturbances often occur early in the progress of AD [48,49]. Additionally, the disruption of circadian rhythm is linked to metabolic imbalance [50]. Circadian rhythm is mediated by the transcriptional–translational feedback loop of core clock genes (TTLs) including circadian locomotor output cycles kaput (CLOCK), brain muscle ARNT-like1 (BMAL1), period1 (PER1), PER2, cryptochrome1 (CRY1), and CRY2 [51,52,53,54]. CLOCK and BMAL1 proteins play in a positive feedback loop to regulate the expression of TTLs which are involved in diverse physiological process including major components of energy homeostasis like feeding behavior, locomotor activity, sleep–wake cycle and glucose utilization [55,56]. However, the mechanisms by which CLOCK/BMAL1 regulates aerobic glycolysis from astrocytes in AD remain unclear.
Here, we show that the protein levels of CLOCK and BMAL1 are significantly elevated in impaired astrocytes of cerebral cortex from patients with AD. We demonstrate that the overexpression of CLOCK and BMAL1 significantly suppresses aerobic glycolysis and lactate production by a reduction in HK1 and LDHA protein levels in human astrocytes. Moreover, the over-expression of CLOCK and BMAL1 induces the functional impairment by suppression of GFAP-positive filaments levels in human astrocytes. Furthermore, the elevation of CLOCK and BMAL1 promotes cytotoxicity by the activation of caspase-3-dependent apoptosis in human astrocytes. These results suggest that the elevated CLOCK and BMAL1 contribute to the impairment of aerobic glycolysis from astrocytes in AD.

2. Results

2.1. The Levels of CLOCK and BMAL1 Are Elevated in Impaired Astrocytes on Cortex Region from Patients with Alzheimer’s Disease

To investigate the role of CLOCK and BMAL1 in the dysfunction of astrocytes in patients with AD, we analyzed whether the protein levels of CLOCK and BMAL1 were elevated in the astrocytes surrounding the BBB of brains from patients with AD (Table S1). We measured the protein levels of CLOCK and BMAL1 in GFAP-positive astrocytes surrounding the BBB on brain temporal cortex tissues from patients with AD or non-AD donor (normal) using immunofluorescence staining (Figure 1A,B). Immunofluorescence staining revealed that the intensity of CLOCK-positive staining in GFAP-positive astrocytes surrounding the BBB were increased in the molecular layer (ML) on the cortex region of patients with AD (AD) relative to non-AD donor (normal) (Figure 1A and Figure S1). Moreover, the number of GFAP-positive astrocytes surrounding the BBB was significantly less in ML on the cortex region of patients with AD (AD) relative to non-AD donor (Normal) (Figure 1A and Figure S1). Furthermore, the length of GFAP-positive filaments was shorter, and the shape of GFAP-positive filaments was more shrunk with AD (AD) compared to non-AD donor (Normal) (Figure 1A and Figure S1). Notably, the number of impaired astrocytes that have the positive subcellular co-localization between CLOCK and GFAP were significantly increased in patients with AD (AD) (Figure 1C). Consistent with CLOCK protein levels, the intensity of BMAL1-positive staining in GFAP-positive astrocytes surrounded BBB were increased in ML on cortex region of patients with AD (AD) relative to the non-AD donor (normal) (Figure 1B and Figure S1). The number of impaired astrocytes that have the positive subcellular co-localization between BMAL1 and GFAP were significantly increased in patients with AD (AD) (Figure 1D). The levels of CLOCK and BMAL1 were generally higher in every individual patient with AD. These results suggest that the CLOCK and BMAL1 protein levels in impaired astrocytes surrounding the BBB were elevated in patients with AD.

2.2. The Elevation of CLOCK and BMAL1 Suppresses Aerobic Glycolysis and Lactate Production by Reduction in HK1 and LDHA Protein Levels in Human Astrocytes

We investigated the underlying molecular mechanism by which the elevation of CLOCK and BMAL1 induces the impairment of astrocytes during AD. We examined whether the elevation of CLOCK and BMAL1 could suppress aerobic glycolysis in human astrocytes. We analyzed the changes of aerobic glycolysis activity by over-expression of CLOCK and BMAL1 in human astrocytes. We measured the extracellular acidification rate (ECAR) as the parameter of aerobic glycolysis activity by the quantification of lactate production. The glycolytic activity was measured by the sequential addition of glucose, which is the substrate of glycolysis, oligomycin, a selective inhibitor for mitochondrial respiration, and 2-deoxyglucose (2-DG), a specific inhibitor of glycolysis. We first examined the change of ECAR levels by CLOCK over-expression in human astrocytes (Figure 2A,B). The levels of ECAR in response to glucose were significantly suppressed by CLOCK over-expression relative to control (Figure 2A,B). We next investigated the molecular target in the regulation of aerobic glycolysis pathway by CLOCK over-expression in human astrocytes. We analyzed the levels of hexokinase 1 (HK1), which is a first key enzyme for the initiation of glycolysis, and LDHA, which is a critical enzyme to produce lactate, in human astrocytes (Figure 2C,F). Consistent with the reduction in glycolytic activity, HK1 and LDHA protein levels were significantly suppressed by CLOCK over-expression compared to control (Figure 2C). Similarly, BMAL1 over-expression significantly suppressed the levels of ECAR in response to glucose relative to control (Figure 2D,E). Moreover, the protein levels of HK1 and LDHA were suppressed by BMAL1 over-expression compared to control (Figure 2F). These results suggest that the elevation of CLOCK and BMAL1 suppresses aerobic glycolysis and lactate production by reduction in HK1 and LDHA protein levels in human astrocytes.

2.3. The Elevation of CLOCK and BMAL1 Contributes to the Functional Impairment by Reduction in GFAP-Positive Filaments in Human Astrocytes

Next, we investigated the role of CLOCK and BMAL1 in the functional impairment of astrocytes in AD. We examined whether the elevation of CLOCK and BMAL1 could induce the functional impairment by reduction in GFAP-positive filaments, which plays a role in astrocyte–neuron interactions as well as cell–cell communication, in human astrocytes. We first analyzed the changes of GFAP-positive filaments and cellular morphology by CLOCK and BMAL1 over-expression using immunofluorescence staining (Figure 3A,B and Figure S2). Notably, immunofluorescence staining revealed that the intensity of GFAP-positive filaments was significantly reduced by CLOCK over-expression compared to control (Figure 3A). Moreover, the length of GFAP-positive filaments in cytosol was shorter, and the shape of GFAP-positive filaments was shrunk by CLOCK over-expression relative to control (Figure 3A). Similarly, BMAL1 over-expression suppressed the intensity of GFAP-positive filaments (Figure 3B). BMAL1 over-expression induced the shortness and shrinkage of GFAP-positive filaments relative to control (Figure 3B). Consistent with immunofluorescence staining, the protein levels of GFAP were significantly reduced by CLOCK and BMAL1 over-expression compared to control (Figure 3C,D). These results suggest that the elevation of CLOCK and BMAL1 induces the functional impairment by reduction in GFAP-positive filaments in human astrocytes.

2.4. The Elevation of CLOCK and BMAL1 Induces Cytotoxicity in Human Astrocytes

We next investigated the role of CLOCK and BMAL1 in cytotoxicity of astrocytes in AD. Since the elevation of CLOCK and BMAL1 resulted in the impairment of aerobic glycolysis and GFAP-positive filaments in human astrocytes, we examined whether the elevation of CLOCK and BMAL1 could induce the cell death. We analyzed the morphological changes of cytotoxicity by over-expression of CLOCK and BMAL1 using 3D analyzer in human astrocytes. Notably, CLOCK over-expression increased the morphological features of cytotoxicity including shrinkage and blebbing relative to the control (Figure 4A). Moreover, the compartment of cytosolic organelles such as mitochondria was disrupted by over-expression of CLOCK relative to the control (Figure 4A). Furthermore, the number of morphological dead cells by CLOCK over-expression was significantly increased compared to the control (Figure 4C). Consistent with the morphological analysis, the over-expression of CLOCK significantly increased the levels of cytotoxicity relative to the control (Figure 4C). Similarly, BMAL1 over-expression increased the morphological features of cytotoxicity compared to the control (Figure 4B). The number of morphological dead cells and the levels of cytotoxicity were significantly increased by BMAL1 over-expression relative to the control (Figure 4D). These results suggest that the elevation of CLOCK and BMAL1 induces the cytotoxicity in human astrocytes.

2.5. The Elevation of CLOCK and BMAL1 Induces Caspase-3-Dependent Apoptosis in Human Astrocytes

Next, we investigated the molecular mechanism by which the elevation of CLOCK and BMAL1 promotes cell death of astrocytes in AD. We examined whether the over-expression of CLOCK and BMAL1 could induce caspase-3-dependent apoptosis in human astrocytes. We measured the levels of cleaved caspase-3 as an active form of capase-3 in the apoptosis pathway. Notably, the over-expression of CLOCK significantly increased the protein levels of cleaved caspase-3 compared to control (Figure 5A). Consistently, the over-expression of BMAL1 significantly increased the levels of cleaved caspase-3 relative to control (Figure 5B). These results suggest that the elevation of CLOCK and BMAL1 induces caspase-3-dependent apoptosis in human astrocytes. In summary, our results demonstrate that elevated CLOCK and BMAL1 induce the dysfunction and cytotoxicity of astrocytes via the impairment of aerobic glycolysis in Alzheimer’s disease (Figure 5C).

3. Discussion

Here, we demonstrate that elevation of CLOCK and BMAL1 contributes to the impairment of astrocytes in AD. We suggest that the elevation of CLOCK and BMAL1 induces the impairment of aerobic glycolysis and GFAP-positive filaments in human astrocytes. Our findings provide a molecular mechanism by which the elevation of CLOCK and BMAL1 is critical for the metabolic and functional dysfunction of astrocytes in the pathogenesis of AD.
Disturbances of circadian rhythm have been associated with AD [57,58,59]. Recent study suggests that disturbances of circadian rhythm often occur at an early stage in the progress of AD as an important clinical feature [60,61]. However, the underlying molecular mechanism by which disturbances of circadian rhythm affect the metabolic and functional impairment of astrocytes in AD is still not fully understood. Our results suggest that the elevation of CLOCK/BMAL1 in astrocytes represents the disruption of interactions of astrocytes with neurons and BBB by disturbances of circadian rhythm during AD. Similarly, BMAL1 gene expression in suprachiasmatic nucleus (SCN) of hypothalamus, which is the principal circadian pacemaker, was significantly increased in 18-month-old AD mice compared to 18-month-old non-AD mice in response to 12 h exposure to darkness in light and dark cycle test [62]. Consistent with previous study, our results indicate that the abnormal expression of BMAL1 was observed in brain of patients with AD. Since the previous study showed the alteration of circadian rhythm gene expression in AD mice [62], further study for the changes in CLOCK/BMAL1 protein expression in brain tissues of AD mice would need to be studied.
As the most important energy regulator, astrocytes are well known in the brain [20]. Aerobic glycolysis from astrocytes is a critical metabolic pathway for lactate production and supply of lactate to neurons using glucose in blood vessels [41,63,64]. Although the role of aerobic glycolysis and lactate production in astrocytes has been demonstrated, the molecular targets that trigger the impairment of aerobic glycolysis and lactate production in astrocytes during AD are not well understood. Our results suggest that CLOCK/BMAL1 could be a critical molecule in the regulation of aerobic glycolysis and lactate production in astrocytes during AD. Similarly, the analysis by fluorodeoxyglucose (FDG)-positron emission tomography (PET) (FDG-PET) imaging revealed that the glucose utilization was reduced in the brains of patients with AD [65,66]. These previous studies suggest that FDG-PET imaging might be an important diagnostic tool that increases diagnostic accuracy and confidence for AD [65,66]. Consistent with previous study, our findings indicate that the dysfunction of aerobic glycolysis from astrocytes might be linked to the lower glucose uptake in FDG-PET imaging of patients with AD. In addition to FDG-PET imaging, the sleep test, which measures both sleep quality and sleep quantity, would need to be a diagnostic tool of AD. We anticipate the sleep test to be more appealing for use as a diagnostic tool in human AD in the future.
As well as the metabolic function, astrocytes have important roles, such as physical support, biochemical support and repair and scarring of injury for the BBB and neurons [19,20,67,68,69]. In these functions of astrocytes, GFAP is proposed to play a role in astrocyte–neuron interactions and cell–cell communication [70]. In addition, GFAP has been shown to be important in repair after injury in brain [70]. Our results show that the reduction in GFAP-positive filaments is linked to the morphological dysfunction of astrocytes, which have the high levels of CLOCK/BMAL1, in AD patients and human astrocytes. Our findings indicate that the elevation of CLOCK/BMAL1 could be a potential mechanism of the disruption of GFAP-mediated interaction of astrocytes with BBB and neurons in AD. Although we showed the reduction in GFAP levels by CLOCK/BMAL1 over-expression in human astrocytes, there is a limitation to support whether the elevation of CLOCK/BMAL1 can directly affect the impairment of GFAP-mediated interaction of astrocytes in patients with AD. Further study for the role of CLOCK/BMAL1 elevation on the GFAP-mediated interaction of astrocytes in patients with AD would need to be studied.
In the function of astrocytes, the role of reactive astrocytes in the contribution to plaque formation and maturation or to amyloid-beta (Aβ) clearance and plaque growth restriction is still unclear [71,72]. Our results indicate that the impaired astrocytes, which have the short and shrunk GFAP-positive filaments, have the high levels of CLOCK/BMAL1 expression in the brains of patients with AD. Although we found the morphological impairment of astrocyte in patients with AD, it is unclear whether these impaired astrocytes play a role as reactive astrocytes or dysfunctional astrocytes in AD. Further study for the regulation and role of CLOCK/BMAL1 expression in reactive astrocytes in vitro would need to be studied.
The astrocytic apoptosis is associated with both senile plaques and neurofibrillary tangles (NFTs) in AD [73]. Consistent with this previous study, our results suggest that the elevation of CLOCK/BMAL1 contributes to the activation of caspase-3-dependent apoptosis in astrocytes. Since the inhibition of glycolysis induces apoptotic cell death [74,75], our results indicate that the impairment of aerobic glycolysis by CLOCK/BMAL1 over-expression could be a potential upstream mechanism of caspase-3-dependent apoptosis in astrocytes.
In our study, we demonstrate that the elevation of CLOCK/BMAL1 could be an important molecular mechanism in the dysfunction of astrocytes during the pathogenesis of AD.

4. Materials and Methods

4.1. Human Subject Study

Our human subject study was conducted in accordance with the Helsinki Declaration. The protocol was approved by the Institutional Review Board of Soonchunhyang University Hospital Cheonan (SCHCA 2020-03-030-001). A total of 12 paraffin embedded brain tissues including frontal cortex, occipital cortex, temporal cortex and parietal cortex from 3 donors with Alzheimer’s disease were obtained from the Netherlands Brain Bank. A total of 4 paraffin embedded adult normal brain tissues including frontal cortex (NBP2-77761), occipital cortex (NBP2-77766), temporal cortex (NBP2-77774) and parietal cortex (NBP2-77769) were obtained from Novus Biologicals (Minneapolis, MN, USA).

4.2. Reagents and Antibodies

The following antibodies were used: polyclonal rabbit anti-CLOCK (ab3517, Abcam, (Cambridge, UK)), polyclonal rabbit anti-BMAL1 antibody (NB100-2288, Novus Biologicals), monoclonal mouse anti-GFAP (#3670, Cell signaling technology (Danvers, MA, USA)), polyclonal rabbit anti-Caspase-3 (#9662, Cell signaling Technology (Danvers, MA, USA)), and monoclonal mouse anti-β-actin (A5316, Sigma-Aldrich (St Louis, MO, USA)). Fluoroshield™ with DAPI (F6057, Sigma-Aldrich (St Louis, MO, USA)) was used for nuclear staining and mounting. Sections were mounted onto gelatin-coated slides with Canada Balsam (Wako, Tokyo, Japan) following dehydration.

4.3. Human Astrocytes

Human astrocytes were obtained from N7805100 (Thermo Fisher Scientific (Waltham, MA, USA)) and #1800 (ScienCell Research Laboratories (Carlsbad, CA, USA)). Human astrocytes are normal human cells derived from human brain tissue. Human astrocytes were cultured in Gibco™ Astrocyte Medium containing N-2 Supplement, Dulbecco’s modified Eagle medium (DMEM), 10% (vol/vol) One Shot™ Fetal Bovine Serum (FBS), 100 units/mL penicillin and 100 mg/mL streptomycin (A1261301, Thermo Fisher Scientific (Waltham, MA, USA)). For overexpression of human CLOCK or BMAL1, human astrocytes were seeded and transduced with pCMV6-AC-GFP constructs against human CLOCK (NM_004898) (RG221408, Origene (Rockville, MD, USA)), pCMV6-AC-GFP constructs against human BMAL1 (ARNTL) (NM_001178) (RG207870, Origene (Rockville, MD, USA)) or pCMV6-AC-GFP vector (PS100010, Origene).

4.4. Immunofluorescence Analysis

For immunofluorescence analysis, brain tissues were sectioned from paraffin embedded tissue blocks at a thickness of 4 μm. Sections were permeabilized in 0.5% Triton-X (T8787, Sigma-Aldrich (St Louis, MO, USA)), blocked in CAS-Block™ Histochemical Reagent (008120, Thermo Fisher Scientific (Waltham, MA, USA)), and then stained with the following antibodies: polyclonal rabbit anti-CLOCK (1:100) (ab3517, Abcam (Cambridge, U.K.)), polyclonal rabbit anti-BMAL1 antibody (1:100) (NB100-2288, Novus Biologicals (Minneapolis, MN, USA)), monoclonal mouse anti-GFAP (1:100) (#3670, Cell signaling technology (Danvers, MA, USA)). The secondary antibody was goat anti-rabbit IgG (H+L) Alexa Fluor 488 (A11008, Thermo Fisher Scientific (Waltham, MA, USA)), and goat anti-mouse IgG H&L Texas Red (ab6787, Abcam (Cambridge, U.K.)) for 2 h at 25 °C, respectively. Fluoroshield™ with DAPI (F6057, Sigma-Aldrich (St Louis, MO, USA)) was used for nuclear staining. Stained brain sections were analyzed by THUNDER Imager Tissue (Leica Microsystems Ltd. (Wetzlar, Germany)). Stained brain sections were quantified by LAS X image-processing software (Leica Microsystems Ltd. (Wetzlar, Germany)) and ImageJ software v1.52a (Bethesda, MD, USA). To ensure objectivity, all measurements were performed under blind conditions by two observers per experiment under identical conditions. Cells were plated and treated on autoclaved glass coverslips placed in 6-well cell culture plates. Cells were fixed in 4% PFA, permeabilized in 0.5% Triton-X (T8787, Sigma-Aldrich (St Louis, MO, USA)), blocked in CAS-Block™ Histochemical Reagent (008120, Thermo Fisher Scientific (Waltham, MA, USA)), and then stained as detailed above.

4.5. Glycolysis Activity Assay

For the glycolytic function assay, human astrocytes (5 × 104 cells/well) were plated on XF96 cell culture microplates (101085-004, Agilent Technologies, Inc. (Santa Clara, CA, USA)). The ECAR, which is a parameter of glycolytic flux and activity, was measured by a Seahorse XF96e bioanalyzer using the XF Glycolysis Stress Test Kit (102194-100, Agilent Technologies, Inc. (Santa Clara, CA, USA)) according to the manufacturer’s instructions. The ECAR levels were monitored and measured in cells that were treated with glucose (10 mM), oligomycin (2 μM) and 2-deoxyglucose (2DG) (10 mM).

4.6. 3D Images

Human astrocytes (2 × 104 cells) were seeded in FluoroDishTM (FD35-100, World Precision Instruments (Sarasota, FL, USA)). Cell were transduced with pCMV6-AC-GFP constructs against human CLOCK (NM_004898) (RG221408, Origene (Rockville, MD, USA)), pCMV6-AC-GFP constructs against human BMAL1 (ARNTL) (NM_001178) (RG207870, Origene (Rockville, MD, USA)) or pCMV6-AC-GFP vector (PS100010, Origene). Cells were incubated for 24 h or 48 h. Three-dimensional images were analyzed by 3D Cell Explorer (NANOLIVE (Ecublens, Switzerland)). The images were representative images from a total of 100 cells in ten individual images per group.

4.7. Immunoblot Analysis

Cells were harvested and lysed in NP40 Cell Lysis Buffer (FNN0021, Thermo Fisher Scientific (Waltham, MA, USA)). Lysates were centrifuged at 15,300× g for 10 min at 4 °C, and the supernatants were obtained. The protein concentrations of the supernatants were determined by using the Bradford assay (500-0006, Bio-Rad Laboratories (Hercules, CA, USA)). Proteins were electrophoresed on NuPAGE 4–12% Bis-Tris gels (Thermo Fisher Scientific (Waltham, MA, USA)) and transferred to Protran nitrocellulose membranes (10600001, GE Healthcare Life science (Pittsburgh, PA, USA)). Membranes were blocked in 5% (w/v) bovine serum albumin (BSA) (9048-46-8, Santa Cruz Biotechnology (Dallas, TX, USA)) in TBS-T (TBS (170-6435, Bio-Rad Laboratories (Hercules, CA, USA)) and 1% (v/v) Tween-20 (170-6531, Bio-Rad Laboratories) for 30 min at 25 °C. Membranes were incubated with primary antibody (1:1000) as detailed above diluted in 1% (w/v) BSA in TBS-T for 16 h at 4 °C and then with the horseradish peroxidase (HRP)-conjugated secondary antibody (goat anti–rabbit IgG–HRP (SC-2004) (1:2500) and goat anti-mouse IgG–HRP (SC-2005) (1:2500) from Santa Cruz Biotechnology (Dallas, TX, USA)) diluted in TBS-T for 0.5 h at room temperature. The immunoreactive bands were detected by the SuperSignal West Pico Chemiluminescent Substrate (34078, Thermo Scientific (Waltham, MA, USA)).

4.8. Cell Cytotoxicity Assay

Cell cytotoxicity was measured from culture medium of human astrocytes by LDH-Cytotoxicity Colorimetric Assay Kit II (#K313-500, BioVision (Milpitas, CA, USA)) following the manufacturer’s instructions. Human astrocytes (2 × 105 cells in 6-well cell culture plate) were seeded and transduced with pCMV6-AC-GFP constructs against human CLOCK (NM_004898) (RG221408, Origene (Rockville, MD, USA)), pCMV6-AC-GFP constructs against human BMAL1 (ARNTL) (NM_001178) (RG207870, Origene (Rockville, MD, USA)) or pCMV6-AC-GFP vector (PS100010, Origene). Cells were incubated for 24 h.

4.9. Statistical Analysis

All data are represented as mean ± standard deviation (SD) or standard error of the mean (SEM). All statistical tests were analyzed using a two-tailed Student’s t-test for comparison of two groups, and analysis of variance (ANOVA) (with post hoc comparisons using Dunnett’s test) using a statistical software package (GraphPad Prism version 8.0, GraphPad Software Inc. (San Diego, CA, USA)) for comparison of multiple groups. p values (*, p < 0.05, **, p < 0.01, ***, p < 0.001) were considered statistically significant.

5. Conclusions

Consequently, we found the role of CLOCK/BMAL1 elevation in the impairment of astrocytes in AD. Particularly, we showed that the elevation of CLOCK/BMAL1 contributes to the reduction in aerobic glycolysis and GFAP-positive filaments in human astrocytes. Our results suggest that the elevation of CLOCK/BMAL1 could be a critical molecular mechanism in the dysfunction of astrocytes in the pathogenesis of AD.

Supplementary Materials

The following are available online at https://www.mdpi.com/1422-0067/21/21/7862/s1. Figure S1: The levels of CLOCK and BMAL1 are elevated in impaired astrocytes in cerebral cortex region from patients with Alzheimer’s disease, Figure S2: The elevation of CLOCK and BMAL1 contributes to the functional impairment by reduction of GFAP-positive filaments in human astrocytes, Table S1: The characteristics of patients with AD and non-AD donor (normal).

Author Contributions

I.D.Y., S.S.Y. and J.-S.M. conceived the study. I.D.Y. contributes to all experiments. I.D.Y., M.W.P. and H.W.C. performed the IF images and 3D images analysis. I.D.Y., S.Y. and N.B. performed cytotoxicity analysis. I.D.Y., M.W.P. and H.W.C. performed immune blot analysis. I.D.Y., S.S.Y. and J.-S.M. participated in data acquisition, and interpretation of the results. I.D.Y., S.S.Y. and J.-S.M. wrote the paper. J.-S.M. supervised the entire project. All authors read, revised, and approved the final manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the National Research Foundation of Korea (NRF) grant (NRF-2019M3E5D1A02069062) (to I.D.Y.), (NRF-2018R1D1A3B07047960) (to S.S.Y.), (NRF-2018R1C1B6003686) (to J.-S.M.) and Soonchunhyang University Research Fund.

Acknowledgments

We thank Ji Hun Jeong for technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

CLOCKCircadian locomotor output cycles kaput
BMAL1Brain muscle ARNT-like1
ADAlzheimer’s disease
HK1Hexokinase 1
LDHALactate dehydrogenase A
ECARExtracellular acidification rate
GFAPGlial fibrillary acidic protein
BBBBlood–Brain barrier
CNSCentral nervous system
2-DG2-Deoxyglucose

References

  1. Selkoe, D.J. Alzheimer’s disease: Genes, proteins, and therapy. Physiol. Rev. 2001, 81, 741–766. [Google Scholar] [CrossRef] [PubMed]
  2. Craft, S. The role of metabolic disorders in Alzheimer disease and vascular dementia: Two roads converged. Arch. Neurol. 2009, 66, 300–305. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. de la Monte, S.M. Insulin resistance and Alzheimer’s disease. BMB Rep. 2009, 42, 475–481. [Google Scholar] [CrossRef]
  4. Luchsinger, J.A. Adiposity, hyperinsulinemia, diabetes and Alzheimer’s disease: An epidemiological perspective. Eur. J. Pharmacol. 2008, 585, 119–129. [Google Scholar] [CrossRef] [Green Version]
  5. Tamashiro-Duran, J.H.; Squarzoni, P.; de Souza Duran, F.L.; Curiati, P.K.; Vallada, H.P.; Buchpiguel, C.A.; Lotufo, P.A.; Wajngarten, M.; Menezes, P.R.; Scazufca, M.; et al. Cardiovascular risk in cognitively preserved elderlies is associated with glucose hypometabolism in the posterior cingulate cortex and precuneus regardless of brain atrophy and apolipoprotein gene variations. Age 2013, 35, 777–792. [Google Scholar] [CrossRef]
  6. Tomi, M.; Zhao, Y.; Thamotharan, S.; Shin, B.C.; Devaskar, S.U. Early life nutrient restriction impairs blood-brain metabolic profile and neurobehavior predisposing to Alzheimer’s disease with aging. Brain Res. 2013, 1495, 61–75. [Google Scholar] [CrossRef] [Green Version]
  7. Chen, Z.; Zhong, C. Decoding Alzheimer’s disease from perturbed cerebral glucose metabolism: Implications for diagnostic and therapeutic strategies. Prog. Neurobiol. 2013, 108, 21–43. [Google Scholar] [CrossRef] [Green Version]
  8. Mosconi, L.; Andrews, R.D.; Matthews, D.C. Comparing brain amyloid deposition, glucose metabolism, and atrophy in mild cognitive impairment with and without a family history of dementia. J. Alzheimers Dis. 2013, 35, 509–524. [Google Scholar] [CrossRef] [Green Version]
  9. Winkler, E.A.; Nishida, Y.; Sagare, A.P.; Rege, S.V.; Bell, R.D.; Perlmutter, D.; Sengillo, J.D.; Hillman, S.; Kong, P.; Nelson, A.R.; et al. GLUT1 reductions exacerbate Alzheimer’s disease vasculo-neuronal dysfunction and degeneration. Nat. Neurosci. 2015, 18, 521–530. [Google Scholar] [CrossRef] [Green Version]
  10. Harris, R.A.; Tindale, L.; Lone, A.; Singh, O.; Macauley, S.L.; Stanley, M.; Holtzman, D.M.; Bartha, R.; Cumming, R.C. Aerobic Glycolysis in the Frontal Cortex Correlates with Memory Performance in Wild-Type Mice But Not the APP/PS1 Mouse Model of Cerebral Amyloidosis. J. Neurosci. 2016, 36, 1871–1878. [Google Scholar] [CrossRef] [Green Version]
  11. Mosconi, L.; Sorbi, S.; de Leon, M.J.; Li, Y.; Nacmias, B.; Myoung, P.S.; Tsui, W.; Ginestroni, A.; Bessi, V.; Fayyazz, M.; et al. Hypometabolism exceeds atrophy in presymptomatic early-onset familial Alzheimer’s disease. J. Nucl. Med. 2006, 47, 1778–1786. [Google Scholar] [PubMed]
  12. Ricci, G.; Volpi, L.; Pasquali, L.; Petrozzi, L.; Siciliano, G. Astrocyte-neuron interactions in neurological disorders. J. Biol. Phys. 2009, 35, 317–336. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Rocchi, A.; Valensin, D.; Aldinucci, C.; Giani, G.; Barbucci, R.; Gaggelli, E.; Kozlowski, H.; Valensin, G. NMR metabolomic investigation of astrocytes interacted with Aβ₄₂ or its complexes with either copper(II) or zinc(II). J. Inorg. Biochem. 2012, 117, 326–333. [Google Scholar] [CrossRef] [PubMed]
  14. Figley, C.R.; Stroman, P.W. The role(s) of astrocytes and astrocyte activity in neurometabolism, neurovascular coupling, and the production of functional neuroimaging signals. Eur. J. Neurosci. 2011, 33, 577–588. [Google Scholar] [CrossRef]
  15. Ishibashi, T.; Dakin, K.A.; Stevens, B.; Lee, P.R.; Kozlov, S.V.; Stewart, C.L.; Fields, R.D. Astrocytes promote myelination in response to electrical impulses. Neuron 2006, 49, 823–832. [Google Scholar] [CrossRef] [Green Version]
  16. Parri, R.; Crunelli, V. An astrocyte bridge from synapse to blood flow. Nat. Neurosci. 2003, 6, 5–6. [Google Scholar] [CrossRef]
  17. Pascual, O.; Casper, K.B.; Kubera, C.; Zhang, J.; Revilla-Sanchez, R.; Sul, J.Y.; Takano, H.; Moss, S.J.; McCarthy, K.; Haydon, P.G. Astrocytic purinergic signaling coordinates synaptic networks. Science 2005, 310, 113–116. [Google Scholar] [CrossRef]
  18. Walz, W. Role of astrocytes in the clearance of excess extracellular potassium. Neurochem. Int. 2000, 36, 291–300. [Google Scholar] [CrossRef]
  19. Dutly, F.; Schwab, M.E. Neurons and astrocytes influence the development of purified O-2A progenitor cells. Glia 1991, 4, 559–571. [Google Scholar] [CrossRef]
  20. Escartin, C.; Valette, J.; Lebon, V.; Bonvento, G. Neuron-astrocyte interactions in the regulation of brain energy metabolism: A focus on NMR spectroscopy. J. Neurochem. 2006, 99, 393–401. [Google Scholar] [CrossRef] [Green Version]
  21. Itoh, Y.; Esaki, T.; Shimoji, K.; Cook, M.; Law, M.J.; Kaufman, E.; Sokoloff, L. Dichloroacetate effects on glucose and lactate oxidation by neurons and astroglia in vitro and on glucose utilization by brain in vivo. Proc. Natl. Acad. Sci. USA 2003, 100, 4879–4884. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Li, G.; Simon, M.J.; Cancel, L.M.; Shi, Z.D.; Ji, X.; Tarbell, J.M.; Morrison, B., 3rd; Fu, B.M. Permeability of endothelial and astrocyte cocultures: In vitro blood-brain barrier models for drug delivery studies. Ann. Biomed. Eng. 2010, 38, 2499–2511. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Tran, N.D.; Schreiber, S.S.; Fisher, M. Astrocyte regulation of endothelial tissue plasminogen activator in a blood-brain barrier model. J. Cereb. Blood Flow Metab. 1998, 18, 1316–1324. [Google Scholar] [CrossRef]
  24. Allaman, I.; Bélanger, M.; Magistretti, P.J. Astrocyte-neuron metabolic relationships: For better and for worse. Trends Neurosci. 2011, 34, 76–87. [Google Scholar] [CrossRef]
  25. Gordon, G.R.; Choi, H.B.; Rungta, R.L.; Ellis-Davies, G.C.; MacVicar, B.A. Brain metabolism dictates the polarity of astrocyte control over arterioles. Nature 2008, 456, 745–749. [Google Scholar] [CrossRef] [Green Version]
  26. Nortley, R.; Attwell, D. Control of brain energy supply by astrocytes. Curr. Opin. Neurobiol. 2017, 47, 80–85. [Google Scholar] [CrossRef] [PubMed]
  27. Pellerin, L.; Magistretti, P.J. Glutamate uptake into astrocytes stimulates aerobic glycolysis: A mechanism coupling neuronal activity to glucose utilization. Proc. Natl. Acad. Sci. USA 1994, 91, 10625–10629. [Google Scholar] [CrossRef] [Green Version]
  28. Stobart, J.L.; Anderson, C.M. Multifunctional role of astrocytes as gatekeepers of neuronal energy supply. Front. Cell Neurosci. 2013, 7, 38. [Google Scholar] [CrossRef] [Green Version]
  29. Wang, D.D.; Bordey, A. The astrocyte odyssey. Prog. Neurobiol. 2008, 86, 342–367. [Google Scholar] [CrossRef]
  30. DeBerardinis, R.J.; Lum, J.J.; Hatzivassiliou, G.; Thompson, C.B. The biology of cancer: Metabolic reprogramming fuels cell growth and proliferation. Cell Metab. 2008, 7, 11–20. [Google Scholar] [CrossRef] [Green Version]
  31. Vander Heiden, M.G.; Cantley, L.C.; Thompson, C.B. Understanding the Warburg effect: The metabolic requirements of cell proliferation. Science 2009, 324, 1029–1033. [Google Scholar] [CrossRef] [Green Version]
  32. Kang, H.; Choi, S.J.; Park, K.H.; Lee, C.K.; Moon, J.S. Impaired Glycolysis Promotes AlcoholExposure-Induced Apoptosis in HEI-OC1 Cells via Inhibition of EGFR Signaling. Int. J. Mol. Sci. 2020, 21, 476. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Magistretti, P.J.; Allaman, I. A cellular perspective on brain energy metabolism and functional imaging. Neuron 2015, 86, 883–901. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Arora, K.K.; Fanciulli, M.; Pedersen, P.L. Glucose phosphorylation in tumor cells. Cloning, sequencing, and overexpression in active form of a full-length cDNA encoding a mitochondrial bindable form of hexokinase. J. Biol. Chem. 1990, 265, 6481–6488. [Google Scholar] [PubMed]
  35. Greiner, E.F.; Guppy, M.; Brand, K. Glucose is essential for proliferation and the glycolytic enzyme induction that provokes a transition to glycolytic energy production. J. Biol. Chem. 1994, 269, 31484–31490. [Google Scholar]
  36. Regenold, W.T.; Pratt, M.; Nekkalapu, S.; Shapiro, P.S.; Kristian, T.; Fiskum, G. Mitochondrial detachment of hexokinase 1 in mood and psychotic disorders: Implications for brain energy metabolism and neurotrophic signaling. J. Psychiatr. Res. 2012, 46, 95–104. [Google Scholar] [CrossRef]
  37. Allison, S.J.; Knight, J.R.; Granchi, C.; Rani, R.; Minutolo, F.; Milner, J.; Phillips, R.M. Identification of LDH-A as a therapeutic target for cancer cell killing via (i) p53/NAD(H)-dependent and (ii) p53-independent pathways. Oncogenesis 2014, 3, e102. [Google Scholar] [CrossRef]
  38. Arseneault, R.; Chien, A.; Newington, J.T.; Rappon, T.; Harris, R.; Cumming, R.C. Attenuation of LDHA expression in cancer cells leads to redox-dependent alterations in cytoskeletal structure and cell migration. Cancer Lett. 2013, 338, 255–266. [Google Scholar] [CrossRef]
  39. Valvona, C.J.; Fillmore, H.L.; Nunn, P.B.; Pilkington, G.J. The Regulation and Function of Lactate Dehydrogenase A: Therapeutic Potential in Brain Tumor. Brain Pathol. 2016, 26, 3–17. [Google Scholar] [CrossRef] [Green Version]
  40. Read, J.A.; Winter, V.J.; Eszes, C.M.; Sessions, R.B.; Brady, R.L. Structural basis for altered activity of M- and H-isozyme forms of human lactate dehydrogenase. Proteins 2001, 43, 175–185. [Google Scholar] [CrossRef]
  41. Barros, L.F. Metabolic signaling by lactate in the brain. Trends Neurosci. 2013, 36, 396–404. [Google Scholar] [CrossRef] [PubMed]
  42. Hertz, L. The astrocyte-neuron lactate shuttle: A challenge of a challenge. J. Cereb. Blood Flow Metab. 2004, 24, 1241–1248. [Google Scholar] [CrossRef]
  43. Steinman, M.Q.; Gao, V.; Alberini, C.M. The Role of Lactate-Mediated Metabolic Coupling between Astrocytes and Neurons in Long-Term Memory Formation. Front. Integr. Neurosci. 2016, 10, 10. [Google Scholar] [CrossRef] [Green Version]
  44. Suzuki, A.; Stern, S.A.; Bozdagi, O.; Huntley, G.W.; Walker, R.H.; Magistretti, P.J.; Alberini, C.M. Astrocyte-neuron lactate transport is required for long-term memory formation. Cell 2011, 144, 810–823. [Google Scholar] [CrossRef] [Green Version]
  45. Margineanu, M.B.; Mahmood, H.; Fiumelli, H.; Magistretti, P.J. L-Lactate Regulates the Expression of Synaptic Plasticity and Neuroprotection Genes in Cortical Neurons: A Transcriptome Analysis. Front. Mol. Neurosci. 2018, 11, 375. [Google Scholar] [CrossRef]
  46. Yang, J.; Ruchti, E.; Petit, J.M.; Jourdain, P.; Grenningloh, G.; Allaman, I.; Magistretti, P.J. Lactate promotes plasticity gene expression by potentiating NMDA signaling in neurons. Proc. Natl. Acad. Sci. USA 2014, 111, 12228–12233. [Google Scholar] [CrossRef] [Green Version]
  47. Coogan, A.N.; Schutová, B.; Husung, S.; Furczyk, K.; Baune, B.T.; Kropp, P.; Häßler, F.; Thome, J. The circadian system in Alzheimer’s disease: Disturbances, mechanisms, and opportunities. Biol. Psychiatry 2013, 74, 333–339. [Google Scholar] [CrossRef] [PubMed]
  48. Cronin, P.; McCarthy, M.J.; Lim, A.S.P.; Salmon, D.P.; Galasko, D.; Masliah, E.; De Jager, P.L.; Bennett, D.A.; Desplats, P. Circadian alterations during early stages of Alzheimer’s disease are associated with aberrant cycles of DNA methylation in BMAL1. Alzheimers Dement 2017, 13, 689–700. [Google Scholar] [CrossRef]
  49. Musiek, E.S.; Xiong, D.D.; Holtzman, D.M. Sleep, circadian rhythms, and the pathogenesis of Alzheimer disease. Exp. Mol. Med. 2015, 47, e148. [Google Scholar] [CrossRef] [Green Version]
  50. Eckel-Mahan, K.; Sassone-Corsi, P. Metabolism and the circadian clock converge. Physiol. Rev. 2013, 93, 107–135. [Google Scholar] [CrossRef] [PubMed]
  51. Kume, K.; Zylka, M.J.; Sriram, S.; Shearman, L.P.; Weaver, D.R.; Jin, X.; Maywood, E.S.; Hastings, M.H.; Reppert, S.M. mCRY1 and mCRY2 are essential components of the negative limb of the circadian clock feedback loop. Cell 1999, 98, 193–205. [Google Scholar] [CrossRef] [Green Version]
  52. Shearman, L.P.; Sriram, S.; Weaver, D.R.; Maywood, E.S.; Chaves, I.; Zheng, B.; Kume, K.; Lee, C.C.; van der Horst, G.T.; Hastings, M.H.; et al. Interacting molecular loops in the mammalian circadian clock. Science 2000, 288, 1013–1019. [Google Scholar] [CrossRef] [PubMed]
  53. Vitaterna, M.H.; Selby, C.P.; Todo, T.; Niwa, H.; Thompson, C.; Fruechte, E.M.; Hitomi, K.; Thresher, R.J.; Ishikawa, T.; Miyazaki, J.; et al. Differential regulation of mammalian period genes and circadian rhythmicity by cryptochromes 1 and 2. Proc. Natl. Acad. Sci. USA 1999, 96, 12114–12119. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  54. Zheng, B.; Larkin, D.W.; Albrecht, U.; Sun, Z.S.; Sage, M.; Eichele, G.; Lee, C.C.; Bradley, A. The mPer2 gene encodes a functional component of the mammalian circadian clock. Nature 1999, 400, 169–173. [Google Scholar] [CrossRef] [PubMed]
  55. Marcheva, B.; Ramsey, K.M.; Buhr, E.D.; Kobayashi, Y.; Su, H.; Ko, C.H.; Ivanova, G.; Omura, C.; Mo, S.; Vitaterna, M.H.; et al. Disruption of the clock components CLOCK and BMAL1 leads to hypoinsulinaemia and diabetes. Nature 2010, 466, 627–631. [Google Scholar] [CrossRef] [Green Version]
  56. Richards, J.; Gumz, M.L. Mechanism of the circadian clock in physiology. Am. J. Physiol. Regul. Integr. Comp. Physiol. 2013, 304, R1053–R1064. [Google Scholar] [CrossRef]
  57. Bliwise, D.L. Sleep disorders in Alzheimer’s disease and other dementias. Clin. Cornerstone 2004, 6 (Suppl. 1A), S16–S28. [Google Scholar] [CrossRef]
  58. McCurry, S.M.; Ancoli-Israel, S. Sleep Dysfunction in Alzheimer’s Disease and Other Dementias. Curr. Treat. Options Neurol. 2003, 5, 261–272. [Google Scholar] [CrossRef]
  59. Vitiello, M.V.; Borson, S. Sleep disturbances in patients with Alzheimer’s disease: Epidemiology, pathophysiology and treatment. CNS Drugs 2001, 15, 777–796. [Google Scholar] [CrossRef]
  60. Phan, T.X.; Malkani, R.G. Sleep and circadian rhythm disruption and stress intersect in Alzheimer’s disease. Neurobiol. Stress 2019, 10, 100133. [Google Scholar] [CrossRef]
  61. Schmitt, K.; Grimm, A.; Eckert, A. Amyloid-β-Induced Changes in Molecular Clock Properties and Cellular Bioenergetics. Front. Neurosci. 2017, 11, 124. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  62. Bellanti, F.; Iannelli, G.; Blonda, M.; Tamborra, R.; Villani, R.; Romano, A.; Calcagnini, S.; Mazzoccoli, G.; Vinciguerra, M.; Gaetani, S.; et al. Alterations of Clock Gene RNA Expression in Brain Regions of a Triple Transgenic Model of Alzheimer’s Disease. J. Alzheimers Dis. 2017, 59, 615–631. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Dienel, G.A.; Cruz, N.F. Aerobic glycolysis during brain activation: Adrenergic regulation and influence of norepinephrine on astrocytic metabolism. J. Neurochem. 2016, 138, 14–52. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Halim, N.D.; McFate, T.; Mohyeldin, A.; Okagaki, P.; Korotchkina, L.G.; Patel, M.S.; Jeoung, N.H.; Harris, R.A.; Schell, M.J.; Verma, A. Phosphorylation status of pyruvate dehydrogenase distinguishes metabolic phenotypes of cultured rat brain astrocytes and neurons. Glia 2010, 58, 1168–1176. [Google Scholar] [CrossRef] [Green Version]
  65. Hoffman, J.M.; Welsh-Bohmer, K.A.; Hanson, M.; Crain, B.; Hulette, C.; Earl, N.; Coleman, R.E. FDG PET imaging in patients with pathologically verified dementia. J. Nucl. Med. 2000, 41, 1920–1928. [Google Scholar]
  66. Foster, N.L.; Heidebrink, J.L.; Clark, C.M.; Jagust, W.J.; Arnold, S.E.; Barbas, N.R.; DeCarli, C.S.; Turner, R.S.; Koeppe, R.A.; Higdon, R.; et al. FDG-PET improves accuracy in distinguishing frontotemporal dementia and Alzheimer’s disease. Brain 2007, 130, 2616–2635. [Google Scholar] [CrossRef]
  67. Abbott, N.J. Astrocyte-endothelial interactions and blood-brain barrier permeability. J. Anat. 2002, 200, 629–638. [Google Scholar] [CrossRef]
  68. Goldstein, G.W. Endothelial cell-astrocyte interactions. A cellular model of the blood-brain barrier. Ann. N. Y. Acad. Sci. 1988, 529, 31–39. [Google Scholar] [CrossRef] [Green Version]
  69. Willis, C.L.; Nolan, C.C.; Reith, S.N.; Lister, T.; Prior, M.J.; Guerin, C.J.; Mavroudis, G.; Ray, D.E. Focal astrocyte loss is followed by microvascular damage, with subsequent repair of the blood-brain barrier in the apparent absence of direct astrocytic contact. Glia 2004, 45, 325–337. [Google Scholar] [CrossRef]
  70. Paetau, A.; Elovaara, I.; Paasivuo, R.; Virtanen, I.; Palo, J.; Haltia, M. Glial filaments are a major brain fraction in infantile neuronal ceroid-lipofuscinosis. Acta Neuropathol. 1985, 65, 190–194. [Google Scholar] [CrossRef]
  71. Perez-Nievas, B.G.; Serrano-Pozo, A. Deciphering the Astrocyte Reaction in Alzheimer’s Disease. Front. Aging Neurosci. 2018, 10, 114. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  72. Chun, H.; Lee, C.J. Reactive astrocytes in Alzheimer’s disease: A double-edged sword. Neurosci. Res. 2018, 126, 44–52. [Google Scholar] [CrossRef] [PubMed]
  73. Kobayashi, K.; Hayashi, M.; Nakano, H.; Shimazaki, M.; Sugimori, K.; Koshino, Y. Correlation between astrocyte apoptosis and Alzheimer changes in gray matter lesions in Alzheimer’s disease. J. Alzheimers Dis. 2004, 6, 623–632, discussion 673–681. [Google Scholar] [CrossRef] [PubMed]
  74. Mason, E.F.; Rathmell, J.C. Cell metabolism: An essential link between cell growth and apoptosis. Biochim Biophys. Acta 2011, 1813, 645–654. [Google Scholar] [CrossRef] [Green Version]
  75. Pradelli, L.A.; Bénéteau, M.; Chauvin, C.; Jacquin, M.A.; Marchetti, S.; Muñoz-Pinedo, C.; Auberger, P.; Pende, M.; Ricci, J.E. Glycolysis inhibition sensitizes tumor cells to death receptors-induced apoptosis by AMP kinase activation leading to Mcl-1 block in translation. Oncogene 2010, 29, 1641–1652. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Ijms 21 07862 g001 550
Figure 1. The levels of circadian locomotor output cycles kaput (CLOCK) and brain muscle ARNT-like1 (BMAL1) are elevated in impaired astrocytes in cerebral cortex region from patients with Alzheimer’s disease (AD). (A) Representative immunofluorescence images of CLOCK expression in cerebral cortex region from patients with AD (AD) or non-AD (normal) showing CLOCK (green) in astrocytes expressing the astrocytes marker GFAP (red) around blood vessels (V) (n = 3 per group, n = 6 images per individual subject). DAPI-stained nuclei are shown in blue. Outer surface (OS); molecular layer (ML); external granular layer (EGL). Scale bars, 20 μm. (B) Representative immunofluorescence images of BMAL1 expression in cerebral cortex region from patients with AD (AD) or non-AD (normal) showing BMAL1 (green) in astrocytes expressing the astrocytes’ marker GFAP (red) around blood vessels (V) (n = 3 per group, n = 6 images per individual subject). DAPI-stained nuclei are shown in blue. Outer surface (OS); molecular layer (ML); external granular layer (EGL). Scale bars, 20 μm. DAPI-stained nuclei are shown in blue. (C) Quantification of CLOCK positive astrocytes from immunofluorescence images in cerebral cortex region from patients with AD (AD) or non-AD (normal) (n = 3 per group, n = 6 images per individual subject). Data are mean ± standard deviation (SD). **, p < 0.01 by Student’s two-tailed t-test. (D) Quantification of BMAL1 positive astrocytes from immunofluorescence images in cerebral cortex region from patients with AD (AD) or non-AD (normal) (n = 3 per group, n = 6 images per individual subject). Data are mean ± standard deviation (SD). Symbols, which are expressed by white dotted line, indicate the outline of BBB. **, p < 0.01 by Student’s two-tailed t-test.
Figure 1. The levels of circadian locomotor output cycles kaput (CLOCK) and brain muscle ARNT-like1 (BMAL1) are elevated in impaired astrocytes in cerebral cortex region from patients with Alzheimer’s disease (AD). (A) Representative immunofluorescence images of CLOCK expression in cerebral cortex region from patients with AD (AD) or non-AD (normal) showing CLOCK (green) in astrocytes expressing the astrocytes marker GFAP (red) around blood vessels (V) (n = 3 per group, n = 6 images per individual subject). DAPI-stained nuclei are shown in blue. Outer surface (OS); molecular layer (ML); external granular layer (EGL). Scale bars, 20 μm. (B) Representative immunofluorescence images of BMAL1 expression in cerebral cortex region from patients with AD (AD) or non-AD (normal) showing BMAL1 (green) in astrocytes expressing the astrocytes’ marker GFAP (red) around blood vessels (V) (n = 3 per group, n = 6 images per individual subject). DAPI-stained nuclei are shown in blue. Outer surface (OS); molecular layer (ML); external granular layer (EGL). Scale bars, 20 μm. DAPI-stained nuclei are shown in blue. (C) Quantification of CLOCK positive astrocytes from immunofluorescence images in cerebral cortex region from patients with AD (AD) or non-AD (normal) (n = 3 per group, n = 6 images per individual subject). Data are mean ± standard deviation (SD). **, p < 0.01 by Student’s two-tailed t-test. (D) Quantification of BMAL1 positive astrocytes from immunofluorescence images in cerebral cortex region from patients with AD (AD) or non-AD (normal) (n = 3 per group, n = 6 images per individual subject). Data are mean ± standard deviation (SD). Symbols, which are expressed by white dotted line, indicate the outline of BBB. **, p < 0.01 by Student’s two-tailed t-test.
Ijms 21 07862 g001
Ijms 21 07862 g002 550

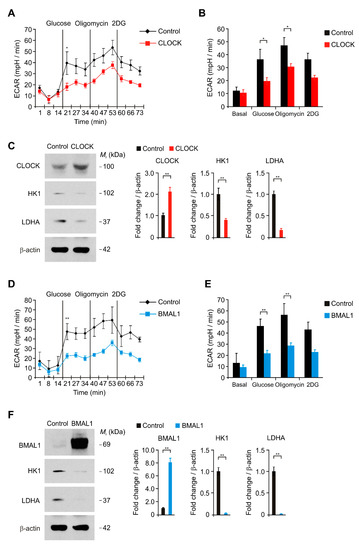

Figure 2. The elevation of CLOCK and BMAL1 suppresses aerobic glycolysis and lactate production by reduction in hexokinase 1 (HK1) and lactate dehydrogenase A (LDHA) protein levels in human astrocytes. (A) The levels of extracellular acidification rate (ECAR) for glycolysis of glucose and (B) quantification of ECAR levels in control and CLOCK-overexpressing (CLOCK) human astrocytes. Data are representative of three independent experiments. Data are mean ± SEM. * p < 0.05 using the two-tailed Student’s t-test. (C) Representative immunoblot analysis for CLOCK, HK1, LDHA (left) and quantification for CLOCK, HK1, LDHA protein levels (right) in control and CLOCK-overexpressing (CLOCK) human astrocytes. For immunoblots, β-actin was used as loading control. Data are representative of three independent experiments. Data are mean ± SEM. ** p < 0.01 using the two-tailed Student’s t-test. (D) The levels of extracellular acidification rate (ECAR) for glycolysis of glucose and (E) quantification of ECAR levels in control and BMAL1-overexpressing (BMAL1) human astrocytes. Data are representative of three independent experiments. Data are mean ± SEM. * p < 0.05 using the two-tailed Student’s t-test. (F) Representative immunoblot analysis for BMAL1, HK1, LDHA (left) and quantification for BMAL1, HK1, LDHA protein levels (right) in control and BMAL1-overexpressing (BMAL1) human astrocytes. For immunoblots, β-actin was used as loading control. Data are representative of three independent experiments. Data are mean ± SEM. ** p < 0.01 using the two-tailed Student’s t-test.
Figure 2. The elevation of CLOCK and BMAL1 suppresses aerobic glycolysis and lactate production by reduction in hexokinase 1 (HK1) and lactate dehydrogenase A (LDHA) protein levels in human astrocytes. (A) The levels of extracellular acidification rate (ECAR) for glycolysis of glucose and (B) quantification of ECAR levels in control and CLOCK-overexpressing (CLOCK) human astrocytes. Data are representative of three independent experiments. Data are mean ± SEM. * p < 0.05 using the two-tailed Student’s t-test. (C) Representative immunoblot analysis for CLOCK, HK1, LDHA (left) and quantification for CLOCK, HK1, LDHA protein levels (right) in control and CLOCK-overexpressing (CLOCK) human astrocytes. For immunoblots, β-actin was used as loading control. Data are representative of three independent experiments. Data are mean ± SEM. ** p < 0.01 using the two-tailed Student’s t-test. (D) The levels of extracellular acidification rate (ECAR) for glycolysis of glucose and (E) quantification of ECAR levels in control and BMAL1-overexpressing (BMAL1) human astrocytes. Data are representative of three independent experiments. Data are mean ± SEM. * p < 0.05 using the two-tailed Student’s t-test. (F) Representative immunoblot analysis for BMAL1, HK1, LDHA (left) and quantification for BMAL1, HK1, LDHA protein levels (right) in control and BMAL1-overexpressing (BMAL1) human astrocytes. For immunoblots, β-actin was used as loading control. Data are representative of three independent experiments. Data are mean ± SEM. ** p < 0.01 using the two-tailed Student’s t-test.
Ijms 21 07862 g002
Ijms 21 07862 g003 550
Figure 3. The elevation of CLOCK and BMAL1 contributes to the functional impairment by reduction in GFAP-positive filaments in human astrocytes. (A) Representative immunofluorescence images of CLOCK expression in control and CLOCK-overexpressing (CLOCK) human astrocytes showing CLOCK (green) and GFAP (red) (n = 10 per group). DAPI-stained nuclei are shown in blue. The shortness and shrinkage of GFAP-positive filaments were indicated (white arrows). Scale bars, 20 μm. (B) Representative immunofluorescence images of BMAL1 expression in control and BMAL1-overexpressing (BMAL1) human astrocytes showing BMAL1 (green) and GFAP (red) (n = 10 per group). DAPI-stained nuclei are shown in blue. The shortness and shrinkage of GFAP-positive filaments were indicated (white arrows). Scale bars, 20 μm. (C) Representative immunoblot analysis for GFAP (left) and quantification for GFAP protein levels (right) in control and CLOCK-overexpressing (CLOCK) human astrocytes. For immunoblots, β-actin was used as loading control. Data are representative of three independent experiments. Data are mean ± SEM. * p < 0.05 using the two-tailed Student’s t-test. (D) Representative immunoblot analysis for GFAP (left) and quantification for GFAP protein levels (right) in control and BMAL1-overexpressing (BMAL1) human astrocytes. For immunoblots, β-actin was used as loading control. Data are representative of three independent experiments. Data are mean ± SEM. * p < 0.05, ** p < 0.01 using the two-tailed Student’s t-test.
Figure 3. The elevation of CLOCK and BMAL1 contributes to the functional impairment by reduction in GFAP-positive filaments in human astrocytes. (A) Representative immunofluorescence images of CLOCK expression in control and CLOCK-overexpressing (CLOCK) human astrocytes showing CLOCK (green) and GFAP (red) (n = 10 per group). DAPI-stained nuclei are shown in blue. The shortness and shrinkage of GFAP-positive filaments were indicated (white arrows). Scale bars, 20 μm. (B) Representative immunofluorescence images of BMAL1 expression in control and BMAL1-overexpressing (BMAL1) human astrocytes showing BMAL1 (green) and GFAP (red) (n = 10 per group). DAPI-stained nuclei are shown in blue. The shortness and shrinkage of GFAP-positive filaments were indicated (white arrows). Scale bars, 20 μm. (C) Representative immunoblot analysis for GFAP (left) and quantification for GFAP protein levels (right) in control and CLOCK-overexpressing (CLOCK) human astrocytes. For immunoblots, β-actin was used as loading control. Data are representative of three independent experiments. Data are mean ± SEM. * p < 0.05 using the two-tailed Student’s t-test. (D) Representative immunoblot analysis for GFAP (left) and quantification for GFAP protein levels (right) in control and BMAL1-overexpressing (BMAL1) human astrocytes. For immunoblots, β-actin was used as loading control. Data are representative of three independent experiments. Data are mean ± SEM. * p < 0.05, ** p < 0.01 using the two-tailed Student’s t-test.
Ijms 21 07862 g003
Ijms 21 07862 g004 550
Figure 4. The elevation of CLOCK and BMAL1 induces cytotoxicity in human astrocytes. (A) Representative 3D images of control and CLOCK-overexpressing (CLOCK) human astrocytes (n = 10 images per group). The morphological features of cytotoxicity were indicated (white arrows). Scale bars, 20 μm. (B) Representative 3D images of control and BMAL1-overexpressing (BMAL1) human astrocytes (n = 10 images per group). The morphological features of cytotoxicity were indicated (white arrows). Scale bars, 20 μm. (C) Quantification of the morphological dead cells (left) in control and CLOCK-overexpressing (CLOCK) human astrocytes (the percent of morphological dead cells in total 100 cells in 10 individual images per group). Cytotoxicity assay (right) in control and CLOCK-overexpressing (CLOCK) human astrocytes using lactate dehydrogenase (LDH) levels. Data are representative of three independent experiments, and each was performed in triplicate. Data are mean ± SEM. ** p < 0.01 using the two-tailed Student’s t-test. (D) Quantification of the morphological dead cells (left) in control and BMAL1-overexpressing (BMAL1) human astrocytes (the percent of morphological dead cells in total 100 cells in 10 individual images per group). Cytotoxicity assay (right) in control and BMAL1-overexpressing (BMAL1) human astrocytes using lactate dehydrogenase (LDH) levels. Data are representative of three independent experiments, and each was performed in triplicate. Data are mean ± SEM. ** p < 0.01 using the two-tailed Student’s t-test.
Figure 4. The elevation of CLOCK and BMAL1 induces cytotoxicity in human astrocytes. (A) Representative 3D images of control and CLOCK-overexpressing (CLOCK) human astrocytes (n = 10 images per group). The morphological features of cytotoxicity were indicated (white arrows). Scale bars, 20 μm. (B) Representative 3D images of control and BMAL1-overexpressing (BMAL1) human astrocytes (n = 10 images per group). The morphological features of cytotoxicity were indicated (white arrows). Scale bars, 20 μm. (C) Quantification of the morphological dead cells (left) in control and CLOCK-overexpressing (CLOCK) human astrocytes (the percent of morphological dead cells in total 100 cells in 10 individual images per group). Cytotoxicity assay (right) in control and CLOCK-overexpressing (CLOCK) human astrocytes using lactate dehydrogenase (LDH) levels. Data are representative of three independent experiments, and each was performed in triplicate. Data are mean ± SEM. ** p < 0.01 using the two-tailed Student’s t-test. (D) Quantification of the morphological dead cells (left) in control and BMAL1-overexpressing (BMAL1) human astrocytes (the percent of morphological dead cells in total 100 cells in 10 individual images per group). Cytotoxicity assay (right) in control and BMAL1-overexpressing (BMAL1) human astrocytes using lactate dehydrogenase (LDH) levels. Data are representative of three independent experiments, and each was performed in triplicate. Data are mean ± SEM. ** p < 0.01 using the two-tailed Student’s t-test.
Ijms 21 07862 g004
Ijms 21 07862 g005 550

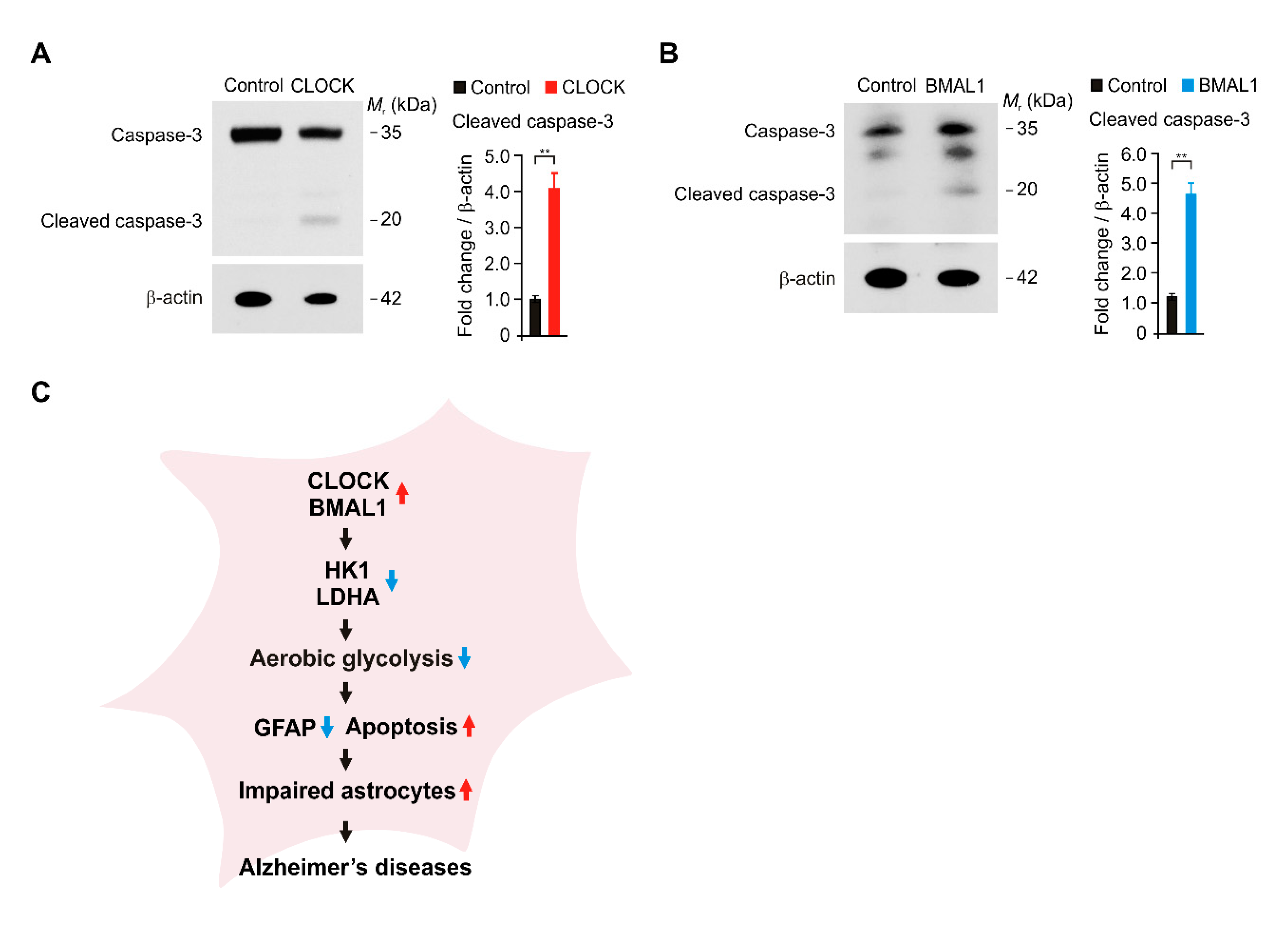

Figure 5. The elevation of CLOCK and BMAL1 induces caspase-3-dependent apoptosis in human astrocytes. (A) Representative immunoblot analysis for cleaved caspase-3 and total caspase-3 (left) and quantification for cleaved caspase-3 protein levels (right) in control and CLOCK-overexpressing (CLOCK) human astrocytes. For immunoblots, β-actin was used as loading control. Data are representative of three independent experiments. Data are mean ± SEM. ** p < 0.01 using the two-tailed Student’s t-test. (B) Representative immunoblot analysis for cleaved caspase-3 and total caspase-3 (left) and quantification for cleaved caspase-3 protein levels (right) in control and BMAL1-overexpressing (BMAL1) human astrocytes. For immunoblots, β-actin was used as loading control. Data are representative of three independent experiments. Data are mean ± SEM. ** p < 0.01 using the two-tailed Student’s t-test. (C) A schematic diagram to summarize our new findings. Red arrow means the increase. Blue arrow means the decrease in a diagram.
Figure 5. The elevation of CLOCK and BMAL1 induces caspase-3-dependent apoptosis in human astrocytes. (A) Representative immunoblot analysis for cleaved caspase-3 and total caspase-3 (left) and quantification for cleaved caspase-3 protein levels (right) in control and CLOCK-overexpressing (CLOCK) human astrocytes. For immunoblots, β-actin was used as loading control. Data are representative of three independent experiments. Data are mean ± SEM. ** p < 0.01 using the two-tailed Student’s t-test. (B) Representative immunoblot analysis for cleaved caspase-3 and total caspase-3 (left) and quantification for cleaved caspase-3 protein levels (right) in control and BMAL1-overexpressing (BMAL1) human astrocytes. For immunoblots, β-actin was used as loading control. Data are representative of three independent experiments. Data are mean ± SEM. ** p < 0.01 using the two-tailed Student’s t-test. (C) A schematic diagram to summarize our new findings. Red arrow means the increase. Blue arrow means the decrease in a diagram.
Ijms 21 07862 g005
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Yoo, I.D.; Park, M.W.; Cha, H.W.; Yoon, S.; Boonpraman, N.; Yi, S.S.; Moon, J.-S. Elevated CLOCK and BMAL1 Contribute to the Impairment of Aerobic Glycolysis from Astrocytes in Alzheimer’s Disease. Int. J. Mol. Sci. 2020, 21, 7862. https://doi.org/10.3390/ijms21217862

AMA Style

Yoo ID, Park MW, Cha HW, Yoon S, Boonpraman N, Yi SS, Moon J-S. Elevated CLOCK and BMAL1 Contribute to the Impairment of Aerobic Glycolysis from Astrocytes in Alzheimer’s Disease. International Journal of Molecular Sciences. 2020; 21(21):7862. https://doi.org/10.3390/ijms21217862

Chicago/Turabian Style

Yoo, Ik Dong, Min Woo Park, Hyeon Woo Cha, Sunmi Yoon, Napissara Boonpraman, Sun Shin Yi, and Jong-Seok Moon. 2020. "Elevated CLOCK and BMAL1 Contribute to the Impairment of Aerobic Glycolysis from Astrocytes in Alzheimer’s Disease" International Journal of Molecular Sciences 21, no. 21: 7862. https://doi.org/10.3390/ijms21217862

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
