Article

Chiral Cyclobutane-Containing Cell-Penetrating Peptides as Selective Vectors for Anti-Leishmania Drug Delivery Systems

1
Departament de Química, Universitat Autònoma de Barcelona, 08193 Cerdanyola del Vallès, Spain
2
Departament de Biologia Cel·lular, Fisiologia i Immunologia, Universitat Autònoma de Barcelona, 08193 Cerdanyola del Vallès, Spain
3
Centro de Investigaciones Biológicas Margarita Salas, CSIC, c/Ramiro de Maeztu, 9, 28040 Madrid, Spain
4
Institut de Química Avançada de Catalunya (IQAC-CSIC), c/Jordi Girona, 18–26, 08034 Barcelona, Spain
5
Centro de Investigación Biomédica en Red Bioingeniería, Biomateriales y Nanomedicina (CIBER-BBN), c/Jordi Girona, 18–26, 08034 Barcelona, Spain
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2020, 21(20), 7502; https://doi.org/10.3390/ijms21207502
Received: 21 September 2020 / Revised: 6 October 2020 / Accepted: 8 October 2020 / Published: 12 October 2020
(This article belongs to the Collection Feature Papers in Molecular Pharmacology)

Abstract

:
Two series of new hybrid γ/γ-peptides, γ-CC and γ-CT, formed by (1S,2R)-3-amino-2,2,dimethylcyclobutane-1-carboxylic acid joined in alternation to a Nα-functionalized cis- or trans-γ-amino-l-proline derivative, respectively, have been synthesized and evaluated as cell penetrating peptides (CPP) and as selective vectors for anti-Leishmania drug delivery systems (DDS). They lacked cytotoxicity on the tumoral human cell line HeLa with a moderate cell-uptake on these cells. In contrast, both γ-CC and γ-CT tetradecamers were microbicidal on the protozoan parasite Leishmania beyond 25 μM, with significant intracellular accumulation. They were conjugated to fluorescent doxorubicin (Dox) as a standard drug showing toxicity beyond 1 μM, while free Dox was not toxic. Intracellular accumulation was 2.5 higher than with Dox-TAT conjugate (TAT = transactivator of transcription, taken as a standard CPP). The conformational structure of the conjugates was approached both by circular dichroism spectroscopy and molecular dynamics simulations. Altogether, computational calculations predict that the drug-γ-peptide conjugates adopt conformations that bury the Dox moiety into a cavity of the folded peptide, while the positively charged guanidinium groups face the solvent. The favorable charge/hydrophobicity balance in these CPP improves the solubility of Dox in aqueous media, as well as translocation across cell membranes, making them promising candidates for DDS.

Graphical Abstract

1. Introduction

Novel drug delivery systems (DDS) have been developed to achieve a more effective and specific delivery of the drugs to the target organ or cell. One of the major advantages of this approach is to avoid, or at least decrease, the side-effects associated with conventional drugs [1]. In this regard, DDS, together with imaging techniques, are key tools in theranostics or personalized medicine [2,3].
Cell penetrating peptides (CPP) [4,5,6] are potential carriers for DDS. They consist of 5–30 amino acid-long peptides which are capable of transporting the cargo molecule into the intracellular space in the absence of a cognate transporter. At a higher specificity level, the inclusion of an import motif in the CPP may even make it possible to direct the cargo into specific organelles. Either covalent or noncovalent bonding between the cargo molecule and the CPP underlies their use as DDS [7,8,9]. CPP possess appealing features such as good biocompatibility, the potential to fine tune their stability and solubility in biological environments, and potential to create new multifunctional DDS [10]. As such, CPP were implemented as a new tool in the therapeutics of a variety of diseases, with special relevance for cancer [11].
Optimization of the performance of CPP aims to improve both their proteolytic resilience and cell uptake, as well as to achieve minimal toxicity. Endosomal escape ability is also an important characteristic of optimal CPP. Imperviousness to peptidases can be tackled by the inclusion of non-natural or stereochemically modified amino acids, as well as of peptide bond surrogates, in the peptide sequence [12]. Otherwise, this can also be addressed by the introduction of conformational constraints to obtain a more stable secondary structure in the CPP, which is sometimes associated with better cell uptake [12]. For cationic CPP, uptake and toxicity are highly dependent on the number and spatial distribution throughout their sequence. With these two goals in mind, CPP were designed with the inclusion of cyclic amino acids, mainly proline and γ-aminoproline [13,14], helical peptide foldamers [15,16,17], and cyclic peptide backbones [18,19,20].
In recent years, two diastereomeric series of short cell-penetrating hybrid γ/γ-peptides were efficiently prepared through convergent synthesis in solution. These peptides were formed by repetition of a dimeric unit constituted by cis-γ-amino-l-proline, 3, combined with a protected derivative of either (1S,3R)- or (1R,3S)-3-amino-2,2-dimethylcyclobutane-1-carboxylic acid, namely (1S,3R)-γ-CBAA, 1, or (1R,3S)-γ-CBAA, 2, (Figure 1). By high-resolution NMR, these peptides displayed very rigid and compact structures due to the intra- and inter-residue hydrogen-bonded ring formation [21].
Their uptake by HeLa cells increased with the length of the peptide; a five-carbon spacer between the proline Nα atom and the terminal guanidinium group of the side chain was optimal for cell uptake, while the stereochemistry of the γ-CBAA was largely irrelevant. A good polar-hydrophobicity balance was achieved by the alternation of the guanidinium groups and the hydrophobicity of the (gem-dimethyl)cyclobutane ring [21,22]. These cyclobutane-containing CPP showed lower toxicity but similar cell uptake to those made exclusively of γ-amino proline residues [23], likely due to their halved number of guanidinium groups compared with the γ-aminoproline peptides of the same length.
Nowadays, the therapeutic use of CPP-based DDS is mainly focused on cancer, running far beyond examples involving infectious diseases and their causative agents [24]. Nevertheless, infective bacteria, fungi and protozoa are an appealing test for CPP. The cell membrane of these pathogens shows an external anionic hemilayer, in contrast to the zwitterionic one of mammalian cells, privileging interactions of cationic CPP with such pathogens [25]. Furthermore, pathogenic organisms are frequently endowed with a high proteolytic armamentarium as part of their virulence program [26].
A case in point is the human protozoan parasite Leishmania, the causative agent for the wide clinical spectrum of leishmaniasis, a disease with a significant impact on global human health [27]. There is an urgent need for new chemotherapy alternatives for leishmaniasis [28,29,30] to reduce the side effects associated with current chemotherapy, despite the existence of some drugs such as paromomycin [31] or miltefosine [32]. Furthermore, Leishmania is a challenging organism for membrane active peptides [33], including CPP. All the endocytic traffic, a common pathway for CPP uptake, is carried out through the flagellar pocket [34], a specialized region accounting for only 5% of the total surface of the parasite [35]. In addition, the promastigote, responsible for the primary infection in the mammalian host, displays a highly anionic glycocalyx [36], and its main plasma membrane protein is leishmaniolysin, a Zn2+-metalloprotease of broad substrate specificity [37]. The aflagellated amastigote is the pathological form of the parasite in vertebrates, dwelling in the parasitophorus vacuole of the macrophage, a strong proteolytic and nutrient-demanding environment.
There are few examples of the use of CPP in the treatment of Leishmania [38,39,40]. Even so, the use of CPP as DDS on Leishmania parasites has been reported for the delivery of cargoes which are noncovalently complexed with CPP [41,42,43], or as covalent conjugates [44,45,46,47,48].
The anthraquinone doxorubicin (Dox) is broadly used in cancer chemotherapy, and its biological activity is preserved once conjugated to CPP through its amino group [11,49]. As doxorubicin also has leishmanicidal activity [50,51,52] and is a fluorescent compound, it is an excellent molecular beacon to test the functional performance of CPP as functional DDS, but also for an easy track down of intracellular fate and the accumulation of the conjugate.
The aim of the current work is the validation of [(1S,3R)-γ-CBAA]-based peptides as vectors in DDS for Leishmania chemotherapy, with two major advantages. The first one comprises circumventing the high proteolytic environment associated with this parasite throughout its life cycle; the second is the ability to take advantage of the anionic surface of Leishmania to achieve a higher specific recognition by cationic peptides compared to mammalian cells. To this end, two series of diastereomeric peptides of variable length, formed by the alternation of 1 with Nα-substituted cis- or trans-γ-amino-l-proline, respectively (Chart 1), were synthesized in order to define the length and stereochemistry as the main descriptors for their toxicity and internalization, both on Leishmania and HeLa cells, as well as their ability as DDS by conjugation of Dox.
Moreover, the rationale of their cell-transfection ability was examined by studying their structural features through a combination of circular dichroism (CD) spectroscopy and computational calculations.
In all, ((1S,3R)-γ-CBAA)-based peptides afforded better results than TAT (transactivator of transcription) as vectors for anti-Leishmania DDS, opening a new avenue for the implementation of CPP in the chemotherapy against this important protozoan disease.

2. Results and Discussion

2.1. Design and Synthesis of Peptides and Conjugates

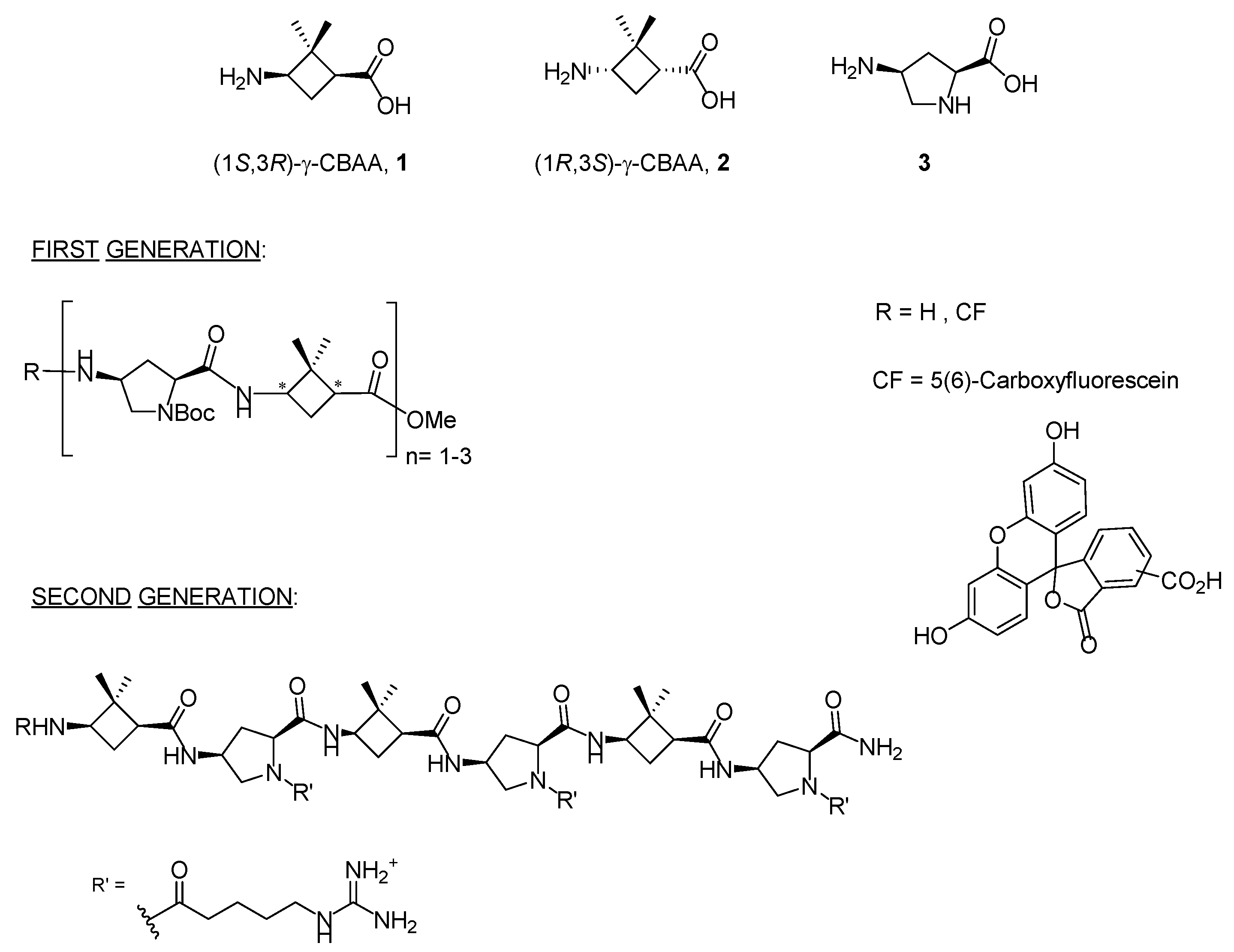

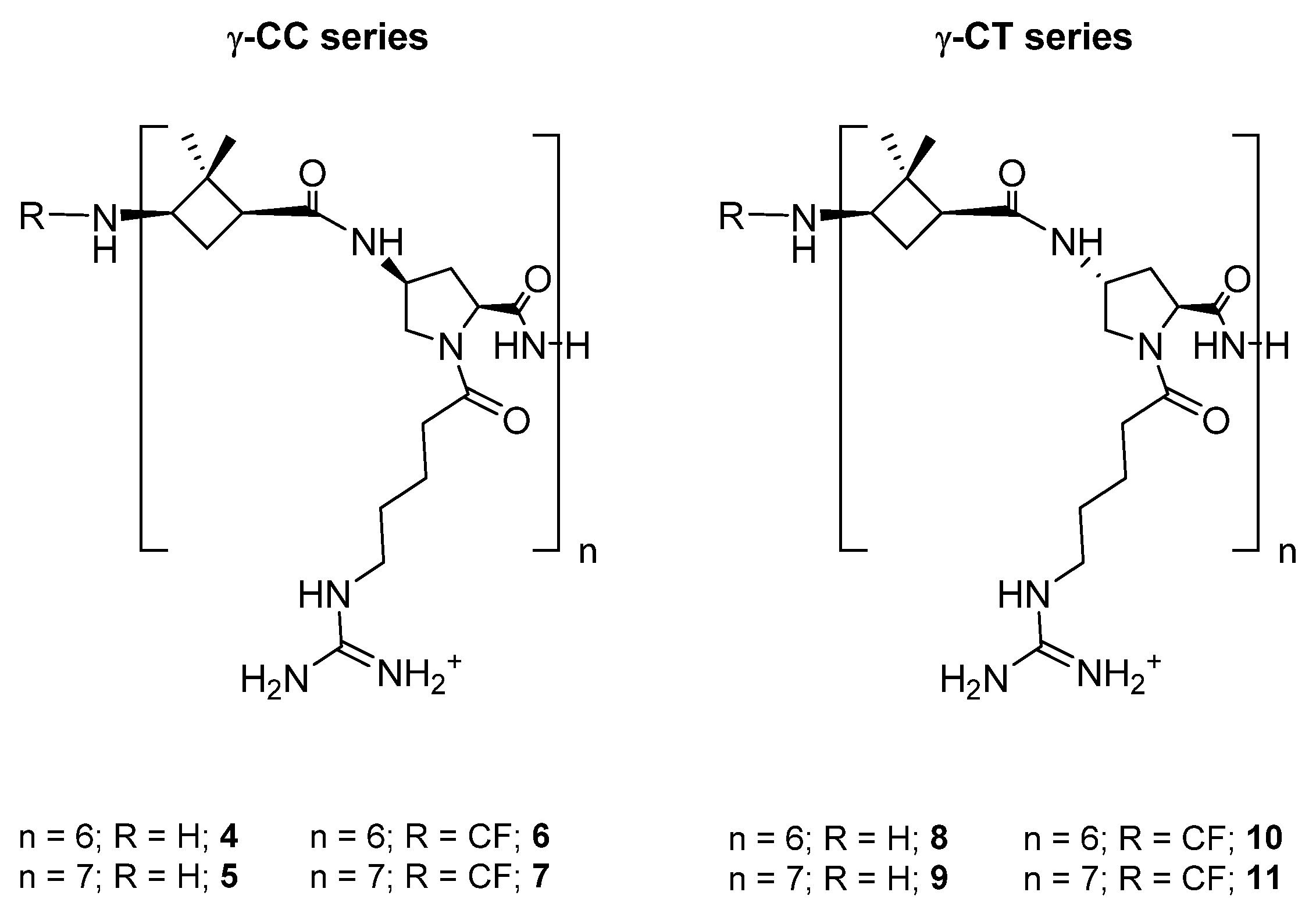

Two series of dodecameric and tetradecameric hybrid oligomers (411) were synthesized. They were formed by the repetition of a dipeptide motif made up by (1S,3R)-γ-CBAA, 1, [21] linked to a conveniently functionalized cis- or trans-γ-amino-l-proline (γ-CC series and γ-CT series, respectively), (Chart 1). All of them were prepared using standard protocols of solid phase peptide synthesis (SPPS), either in their free N-terminus form or functionalized with a carboxyfluorescein (CF) fluorescent group, as detailed at the Section 3 and the Supplementary Materials (SM).
TAT48–57 (TAT) [53,54,55] was also synthesized as a reference CPP, either with a free or carboxyfluoresceinated N-terminus (see Supplementary Materials).

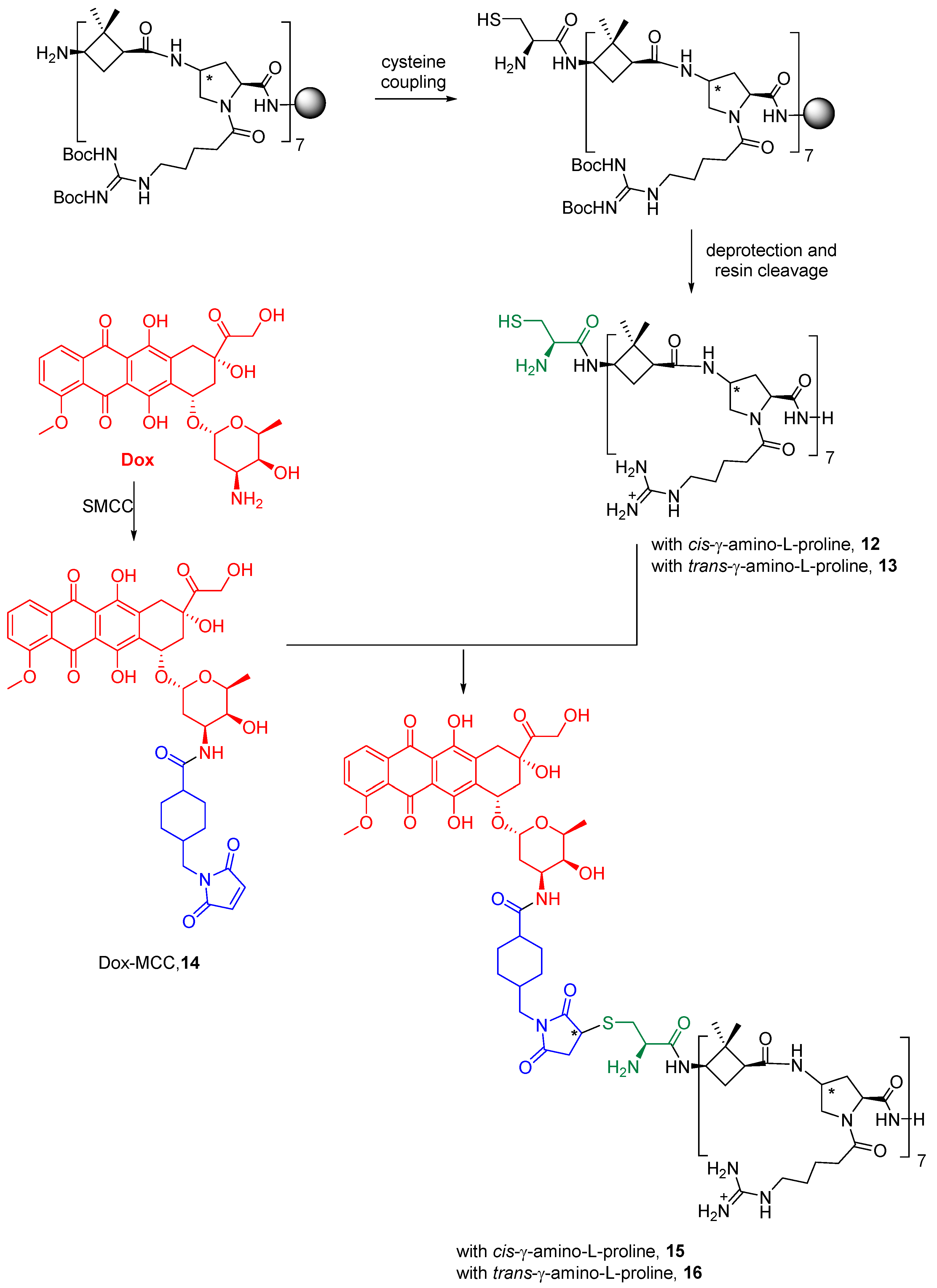

Dox was covalently conjugated to γ-CC and γ-CT tetradecameric peptides (Scheme 1), due to their higher internalization rates in Leishmania (Section 2.3). For this purpose (Scheme 1), a cysteine was added to the N-terminal end of the peptides to obtain 12 and 13. Then, they were conjugated to doxorubicin, previously functionalized as 4-(N-maleimidomethyl)cyclohexane-1-carboxylate (MCC), 14, (conjugates 15 and 16). The same conjugation procedure was applied to TAT (see Supplementary Materials for details). To note, a new stereogenic center (marked with an asterisk) was created in the succinimide ring of the linker in the last synthetic step of Dox conjugates, giving two epimers that were used as a mixture. Their influence on the preferred conformations of these conjugates is discussed in Section 2.5 and in the Supplementary Materials.

2.2. Cytotoxicity and Cellular Uptake in HeLa Cells

As a first step to establish the soundness of γ-CC and γ-CT peptides as therapeutic CPP for Leishmania, peptides 411 were assayed for their toxicity on HeLa cells, used as a model of mammalian cells. The cellular viability after 24 h incubation with the respective peptide was assessed by the reduction of 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) [56] (Figure 2).

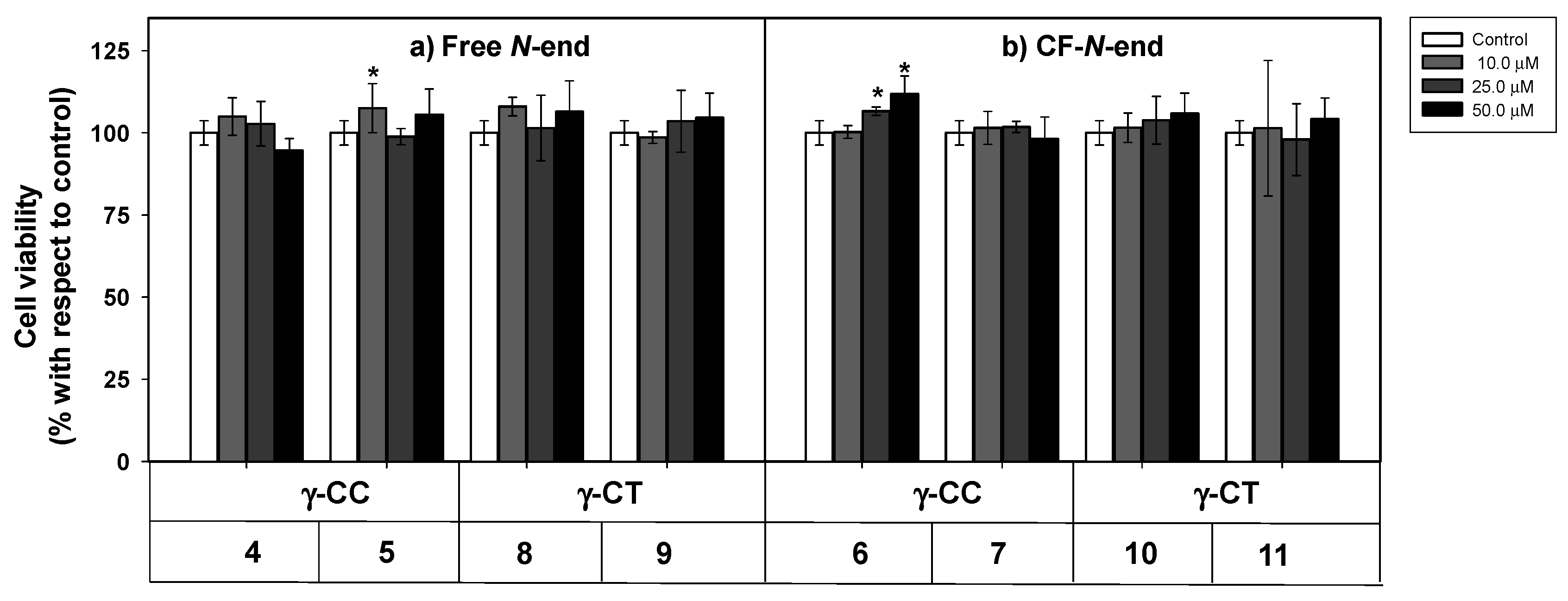

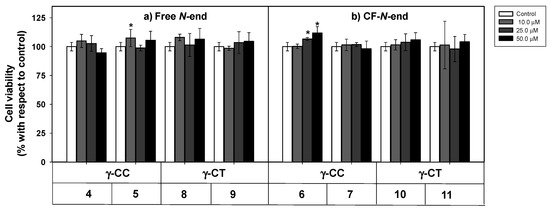

Even at the highest concentration assayed (50 µM), viability was over 90%, regardless of the peptide stereochemistry (Figure 2). Peptide toxicity was not dependent either on the number of guanidinium groups in the sequence, or on the carboxyfluoresceination of the terminal amino group. In this sense, these results agree with the low toxicity of polyarginine peptides (R)n, up to n ≤ 10 [57].

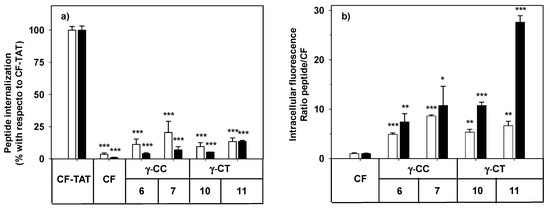

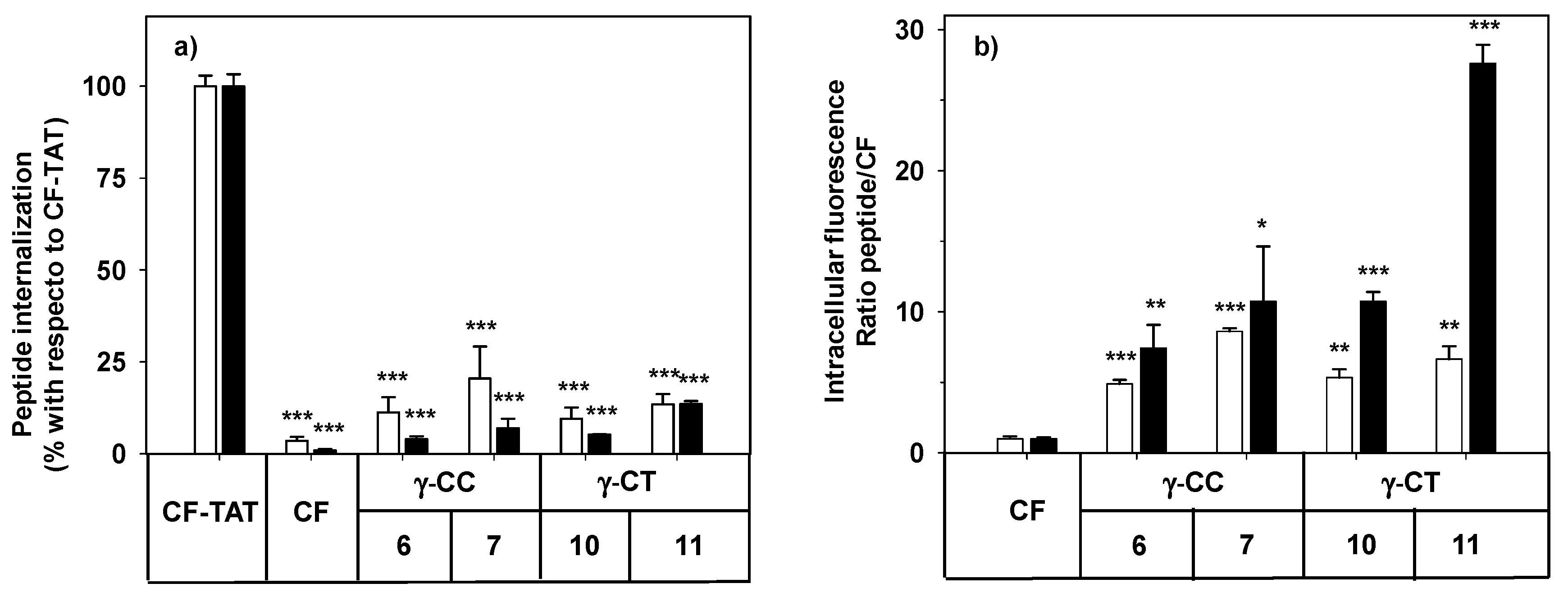

By flow cytometry, more than 98% of the HeLa cells increased their respective cell-associated fluorescence after incubation with peptides 6, 7, 10 and 11 at the range of concentrations tested (Figure 3). The mean of the population represented in Figure 3 refers either to CF-TAT as a standard CPP, or to CF as an endocytosis marker.
The facts that the performance of TAT on HeLa cells does not increase linearly with peptide concentration (10 μM and higher), and that the cell population becomes heterogeneous with respect to peptide uptake [58], could explain the apparently anomalous results obtained when CF-TAT was used as a reference (Figure 3a). In contrast, the cellular fluorescence for both the γ-CT and γ-CC peptide series increased with concentration and with the length of the peptide when using CF as a control of endocytosis (Figure 3b). Interestingly, in all cases, the fluorescence values for the γ-CT peptides were higher than those of the respective γ-CC homologues.

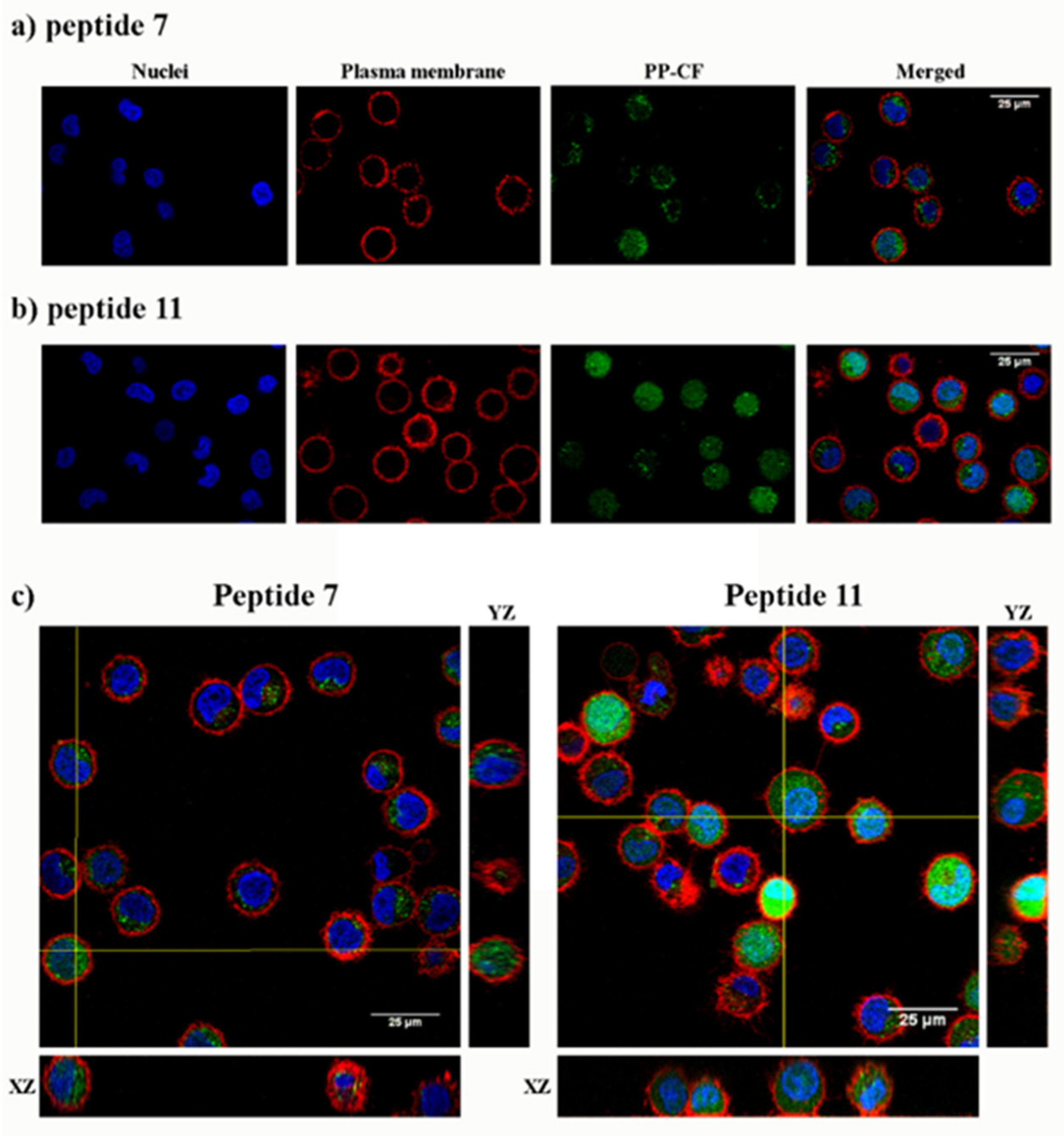

The cell internalization of peptides 7 and 11 in HeLa cells was evidenced by confocal microscopy under identical conditions to flow cytometry. The intracellular fluorescence showed a spotted cytoplasmic pattern after incubation with the peptides at 25 μM peptide (Figure 4). Confocal 3D ruled out their mere association with the plasma membrane.

2.3. Uptake, Microbicidal Activity and Intracellular Location of Peptides on Leishmania Parasites

Once the lack of toxicity of γ-CPP and their low uptake in mammalian cells compared to TAT had been demonstrated, their performance in Leishmania was examined as a model of microorganisms with anionic plasma and endowed with a high proteolytic level. To this end, peptides were assayed for viability, uptake and location on the protozoan Leishmania parasites.
The cellular viability in the presence of the peptides was assessed by the MTT reduction at both stages of the parasite after 4 h incubation (Figure 5).

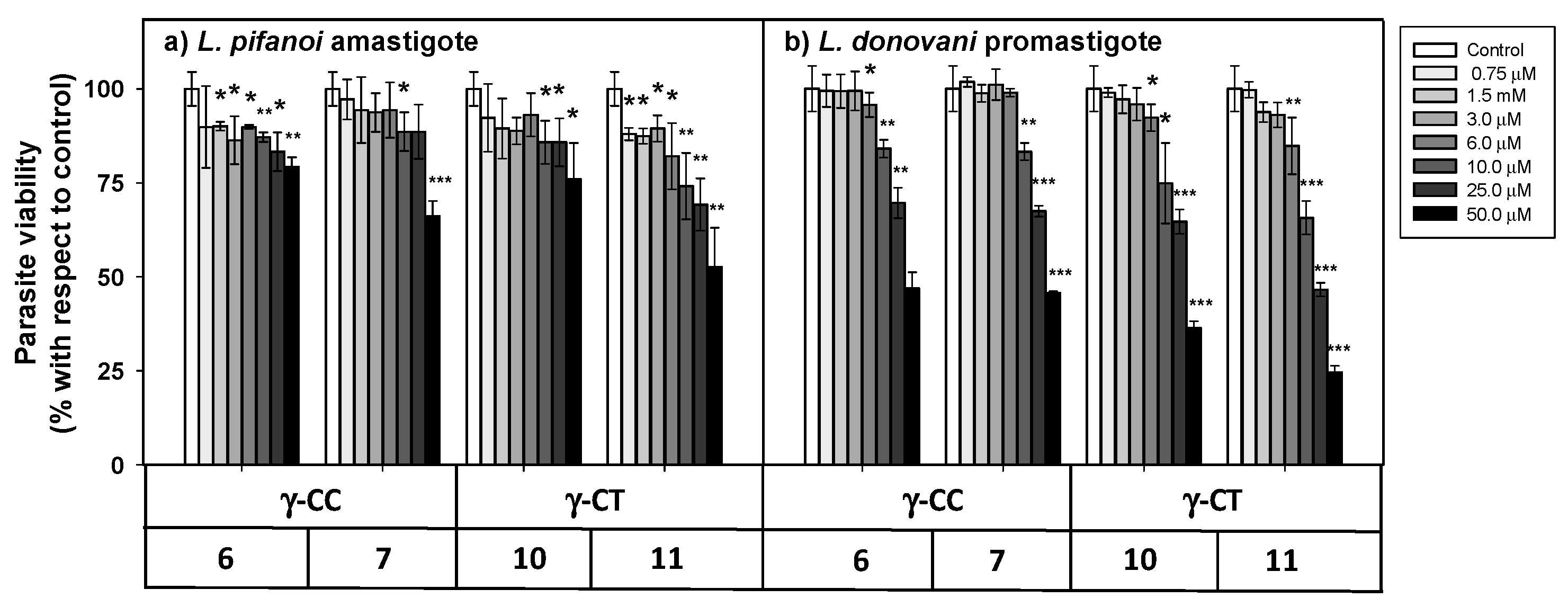

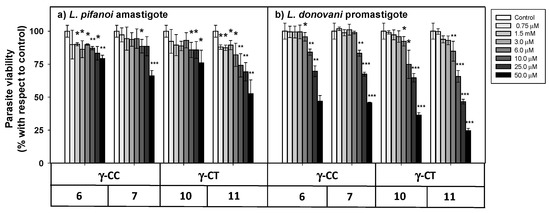

The loss of parasite viability due to peptides was concentration-dependent, with promastigotes (Figure 5b) being more susceptible than amastigotes (Figure 5a). The γ-CT series showed higher toxicity than its respective γ-CC counterparts. This trend was especially noticeable for peptide concentrations over 25 μM. Concerning toxicity, the tetradecapeptides (7 and 11) were slightly more toxic than the corresponding dodecamers (6 and 10), likely due to the increase of their cationic character [59]. Thus, these γ-CPP behave as mild leishmanicidal agents.
Next, the internalization of the carboxyfluoresceinated CPP into promastigotes and amastigotes was measured by flow cytometry, and their values compared to that of CF-TAT (100%). As shown in Figure 6, a similar trend was observed for both parasite systems. The fluorescence values of dodecamers 6 and 10 were relatively similar or up to 30% lower than that of CF-TAT, while parasites incubated with tetradecamers 7 and 11 showed higher fluorescence than CF-TAT.
Under the same conditions, the intensity of the fluorescence was much higher in promastigotes than in amastigotes (data not shown), likely due to their much smaller cellular size; consequently, the promastigotes were chosen for the studies with confocal microscopy.
Thus, these γ-CPP are potential cargo carriers at concentrations ≤ 25 μM; over this value, they behave as leishmanicidal agents on their own. This, together with their nil toxicity and poor uptake in mammalian cells, makes them amenable as DDS systems.
The internalization of these peptides in Leishmania donovani promastigotes was assessed by confocal microscopy on those peptides with the best results in flow cytometry. Thus, promastigotes were incubated with peptides 6, 7, 10 and 11 as well as TAT (Figure 7) at a final concentration of 10 μM for 2 h at 26 °C. DAPI was used as a nucleic acid dye to stain the nucleus and the kinetoplast (blue fluorescence) (Figure 7).

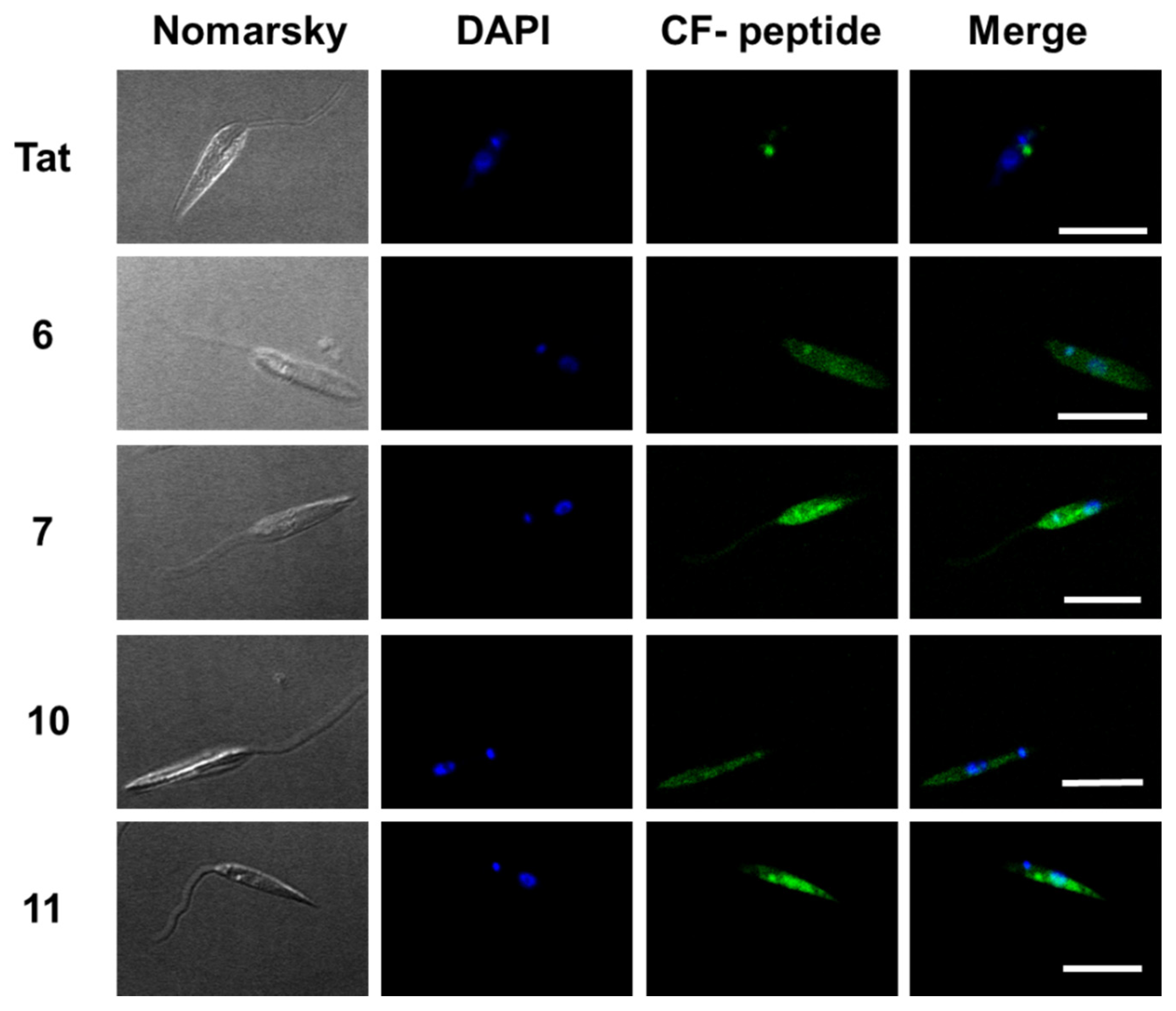

According to Figure 7, the peptides accumulated inside the promastigote. The pattern was not homogenous. Some dotted areas showed higher fluorescence intensity, with a special relevance near the flagellar pocket, the specialized area of Leishmania in charge of all endocytic and exocytic traffic, indicating endocytic CPP uptake. Under these conditions, the nucleus excluded peptides.

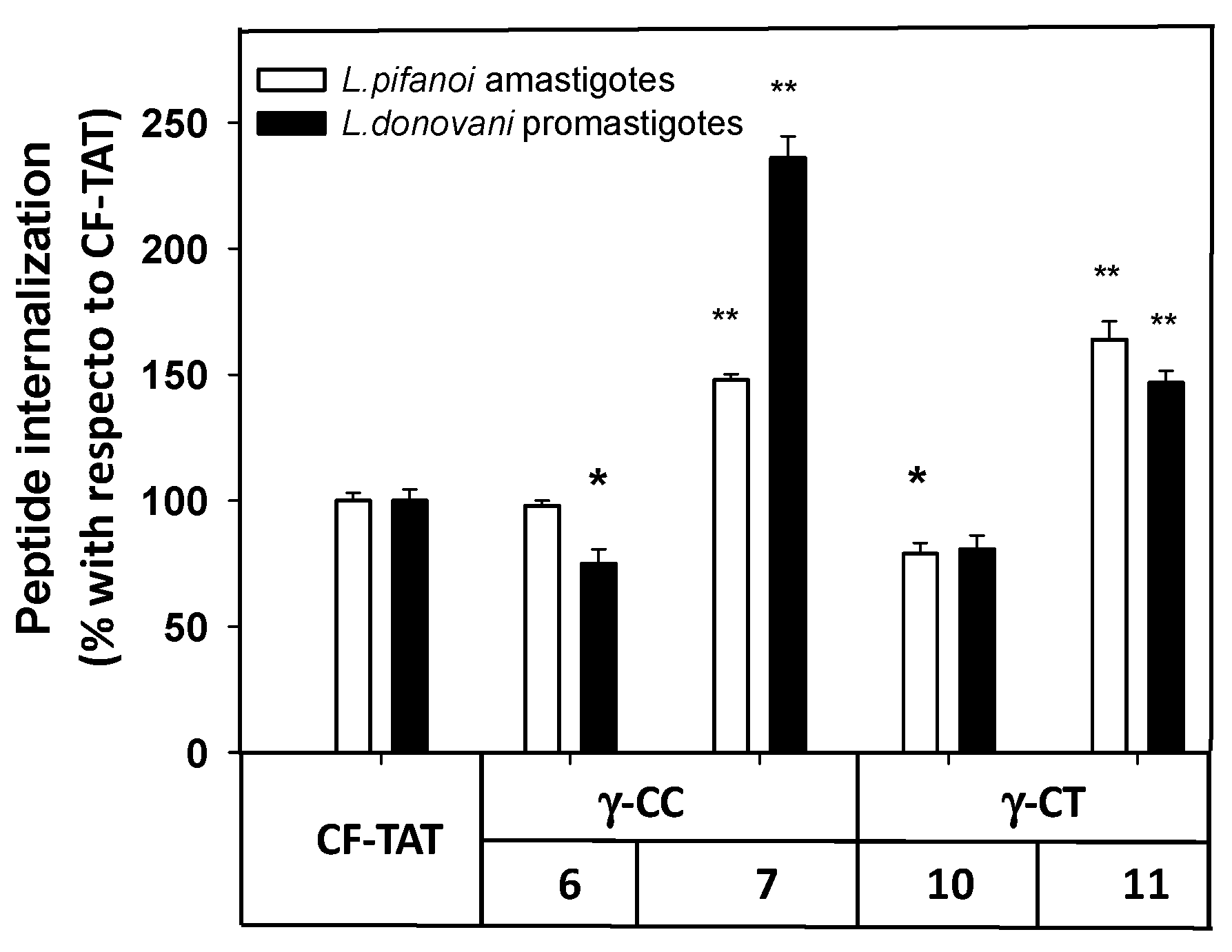

In contrast to HeLa uptake, γ-CPP exceeded TAT uptake on Leishmania. In other words, an unexpected selectivity towards the parasite was found for these peptides, which supports their potential as selective vectors in DSS for this protozoan in its vertebrate host. A higher selectivity threshold for DSS against the parasite is of special relevance, due to the feasible avoidance of side-effects associated with the current leishmanicidal drugs in Leishmania [60], and the probable lowering of the selectivity index for the payload with respect to its administration as free drug.
Due to their higher accumulation both in Leishmania and HeLa cells, tetradecamers 7 and 11 were selected as vehicles for Dox-conjugation (conjugates 15 and 16, respectively), in order to be applied as DDS on Leishmania. Figure 8 shows the viability of the parasites when treated with these conjugates.
Free doxorubicin did not show any toxicity towards Leishmania donovani promastigotes at the full range of concentrations assayed, which avoided the leishmanicidal effect caused by free doxorubicin at longer incubation times (<12 h).

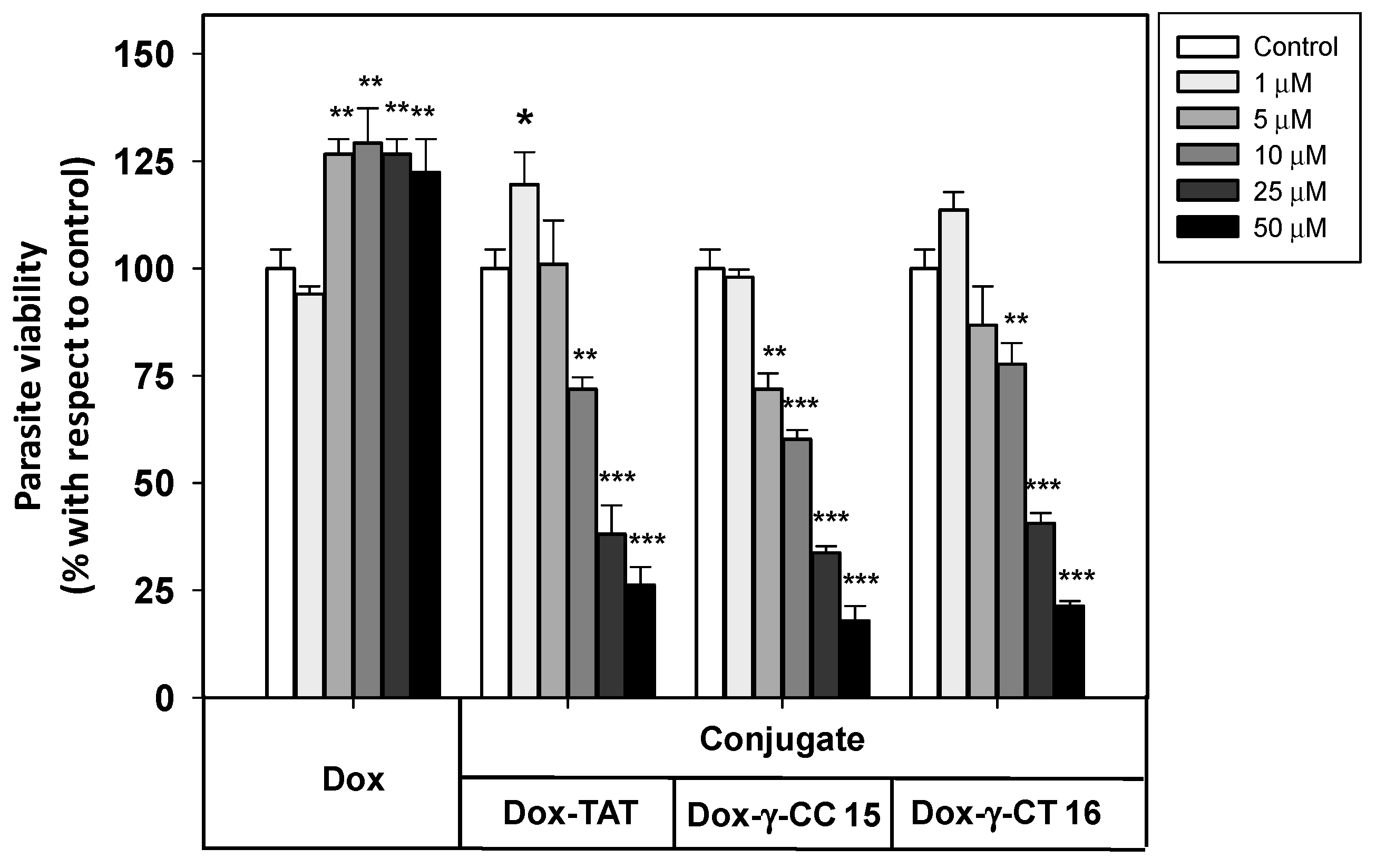

In contrast, the Dox-conjugates 15 and 16 showed an increasing toxicity at concentrations ≥ 1 μM. The peptide γ-CC 15 was shown to be slightly more toxic than γ-CT 16 at 5, 10 and 25 μM. MD simulations could account for such a difference (see below). In addition, Dox-TAT toxicity was like that of 15 and 16.
The uptake of free doxorubicin and of their peptide conjugates in L. donovani promastigotes was quantified by flow cytometry at 5 and 10 μM, measured at 2 and 4 h incubations (Figure 9).

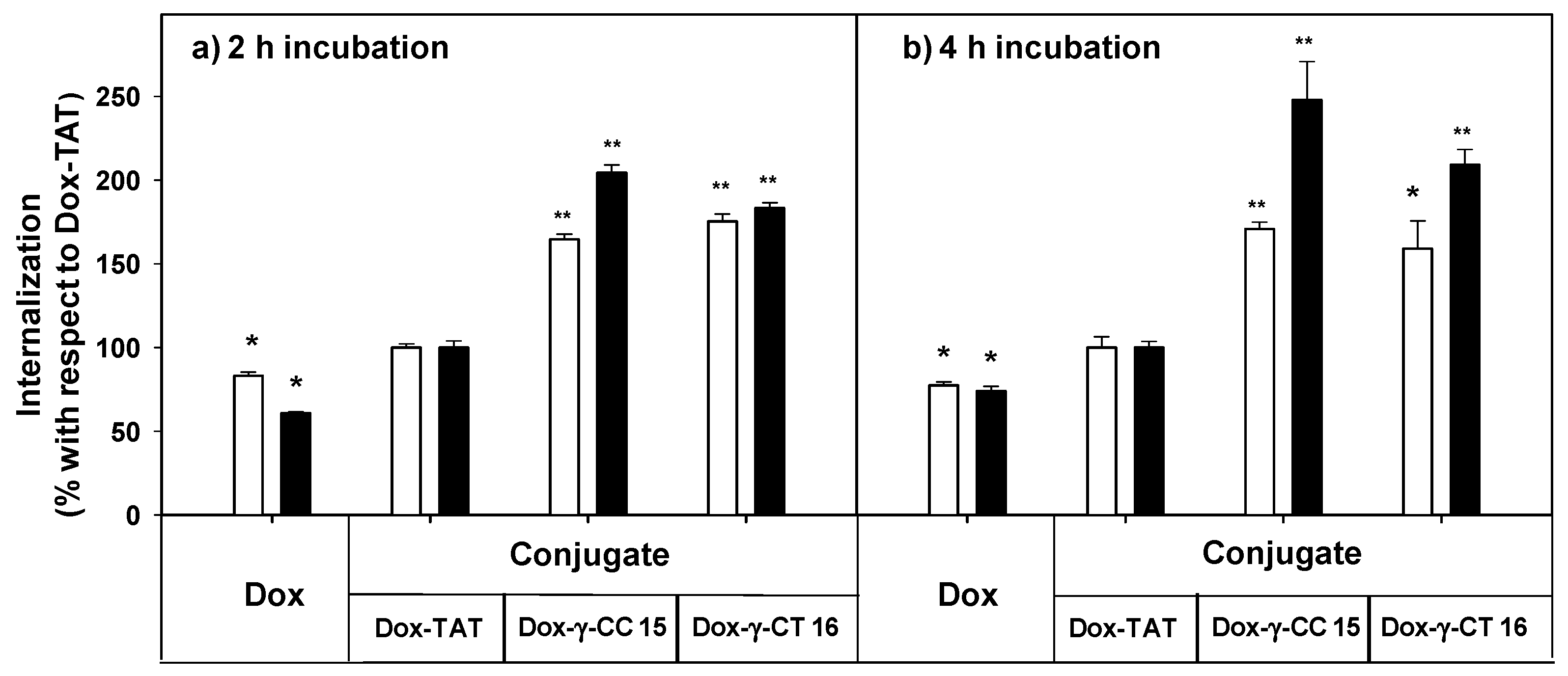

Dox-conjugates 15 and 16 showed better internalization than Dox-TAT, a trend that was observed with parent peptides 7 and 11 (see Figure 6) despite the modifications introduced (doxorubicin conjugation plus the additional cysteine). Longer incubation did not substantially improve the uptake for 15 and 16 at 5 μM, but it did at 10 μM. Under these conditions, the accumulation of 15 was 2.5-fold higher than that of Dox-TAT.

2.4. CD Spectroscopy

The CD of γ-CC 5 and γ-CT 9 conjugates showed respective monosignated spectra with λmax at 215 and 212 nm (see Figure S1 in Supplementary Materials); nevertheless, an accurate insight into their folding from these data was insufficient, even when some defined conformational bias for oligomers consisting of γ-amino acids was published [61]. To make these aspects clear, molecular modeling studies were undertaken.

2.5. Molecular Modeling

The hydrophobicity of amphipathic CPP [62,63] is crucial for their high affinity binding to lipid membranes, including those from internalized vesicles [64,65]. In addition, the creation of high-density positive areas in amphipatic cationic peptides favors their specific binding into anionic biopolymers, such as the cell membranes of pathogens [66].
Therefore, molecular dynamics (MD) simulations were carried out on γ-CC 5 and γ-CT 9 peptides under an explicit solvent scenario. The goals were to shed light on the folding of peptides in aqueous solution and to determine how the arrangement of positive charges could be involved in cellular binding. In addition, the role of their respective cargo molecules (doxorubicin and carboxyfluorescein) in the conformation of the conjugates was also examined. For doxorubicin conjugates, both (R) and (S) epimers were considered (see Supplementary Materials for details).

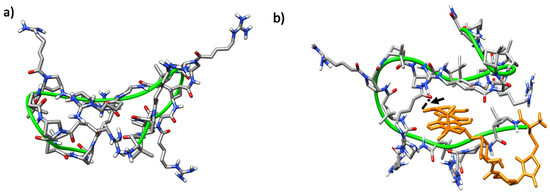

The trajectories of both CC and CT diastereomeric peptides converged into defined folded states after ~40 ns. In all of them, a hydrophobic core was formed and the polar guanidinium groups of the positively charged residues faced the solvent. A double hairpin motif was predominant for γ-CC 5 (Figure 10a), promoted mostly by diverse inter-residue hydrogen-bonds (Figure S7a). These hairpins, and also β-sheet-like structures, have been observed for similar peptides based on cis-γ-amino-l-proline [67]. For the conjugate (R)-Dox-γ-CC, (R)-15, a stable conformation occurred after ~75 ns, with the Dox moiety being partially buried in the main peptide scaffold (Figure 10b). This perturbation of the original double hairpin by the presence of Dox is the consequence of long-range hydrogen-bonding between the primary hydroxyl group of the cyclohexane side-chain in the Dox moiety and Nα-side-chain CO in proline residue i = 8 (Figure S7b).
A related conformation was the most stable for epimer (S)-Dox-γ-CC, (S)-15; the Dox moiety was folded towards the peptide backbone cavity with the establishment of a long-range hydrogen bond between the hydroxyl group of the amino sugar ring of the Dox-moiety and proline residue i = 12 (Figures S6 and S7c). The hairpin-like conformation was also obtained, along with a laminar one, when the conjugate CF-γ-CC 7 was considered (Figures S8 and S9).

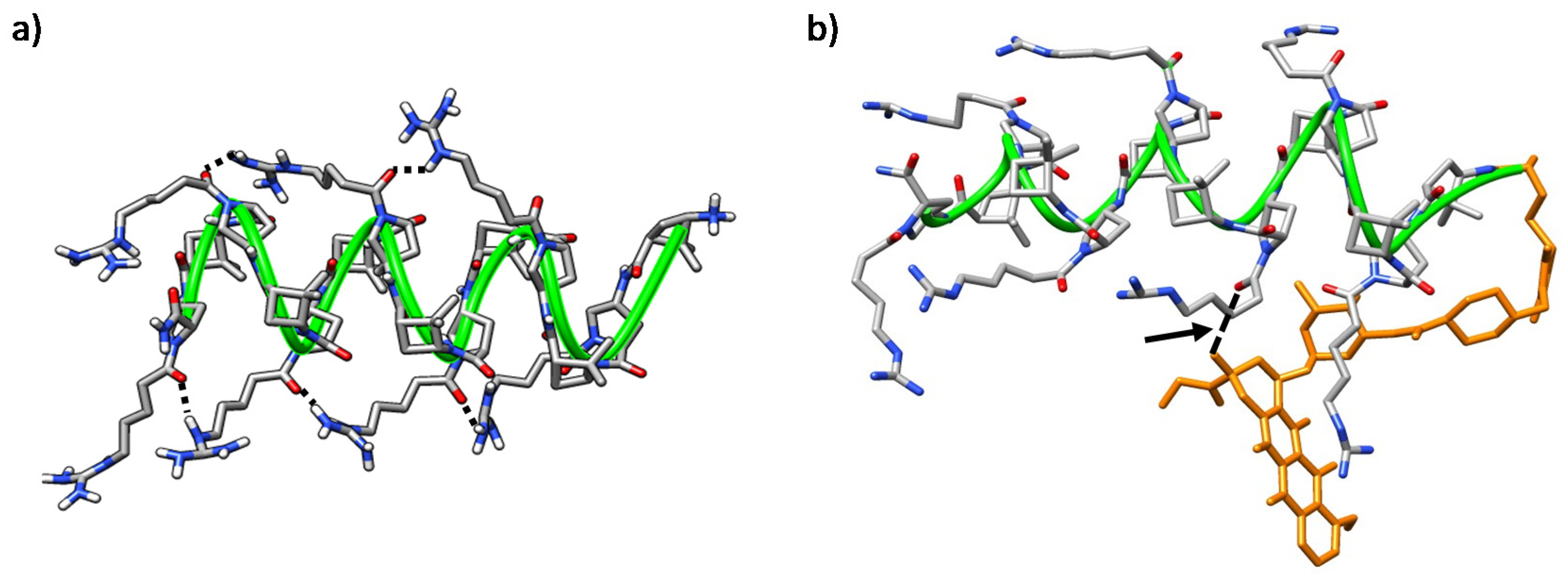

On the other hand, peptide γ-CT 9 adopted a stable right-handed helix structure that was massively occupied (77%) along the trajectory (Figure 11a herein and Figure S10). This folding was driven by intra-residue hydrogen bonds formed by the NH and the carbonyl group in the γ-CBAA units, and inter-residue ones formed between the protons of the guanidinium group in an i residue and the proline Nα-side-chain C=O at I + 4 (Figure 11a).
Helical conformations were also predominant in both (R) and (S) isomers of conjugate Dox-γ-CT 16; in both cases, the Dox moiety faced the peptide backbone, becoming partially hidden. Nevertheless, this interaction is dependent on the configuration at the epimeric center of the linker. In the (R) epimer, a relevant long-range hydrogen bond between the hydroxyl group of the Dox cyclohexane moiety with the Nα-side-chain C=O in proline residue i = 6 was established (Figure 11b and Figure S11b). In contrast, this hydrogen bond was not relevant for the (S) epimer (Figure S11a,c), and doxorubicin was buried in the core of the peptide, probably to minimize its hydrophobic interactions with the aqueous medium. This feature could account for the slight difference of toxicity observed for both conjugates Dox-γ-CC 15 and Dox-γ-CT 16, as noted in Section 2.3.
Moreover, the stability of the helical structure of CF-γ-CT 11 was maintained along 450 ns in the simulation, despite its CF terminal moiety, located at the periphery of the peptide backbone (Figure S12).
Therefore, MD highlights the critical role of the cis/trans stereochemistry of the γ-amino-l-proline monomer for the folding of γ-CC and γ-CT peptide series. Although a specific conformation is not unequivocally associated with a better uptake, good cellular uptake has been reported for helical, hairpin and sheet-like peptides [34,68]. In addition, it is well documented that the delocalized charge of the guanidinium group endows a high membrane-translocation efficiency upon a variety of arginine-rich CPP [68,69,70]. In our case, the conjugation of doxorubicin to the N-terminus of the peptide induced the hydrophobic collapse of the skeleton around the drug, which become buried, regardless of the diastereomeric series or the configuration of epimeric center. As this folding exposes the guanidinium group of the side-chains to the external aqueous medium, better membrane translocation is assumed.

3. Materials and Methods

3.1. Synthesis of the γ-CC Peptides (47), γ-CT Peptides (811) and TAT48–57 Peptides

Resin H-rink amide ChemMatrix® (Sigma Aldrich, Barcelona, Spain) with 0.47 mmol/g functionalization was used, previously conditioned by several washes with DMF (dimethylformamide) and DCM (dichloromethane) (Sigma Aldrich, Barcelona, Spain). The synthesis of both hybrid peptide series and TAT58–57 was performed by using the Fmoc/Alloc strategy, although monomers for TAT48–57 contained other protecting groups. See the Supplementary Materials for more details.

3.2. Synthesis of Cysteine Elongated Peptides (12) and (13)

The peptides were prepared following the protocol outlined for peptides 5 and 9. The peptides were elongated with a Cys(Trt) residue as detailed in the Supplementary Materials.

3.3. Synthesis of Doxorubicin-MCC (14)

Doxorubicin·HCl salt (3 mg, 5.17 µmol), succinimidyl 4-(N-maleimidomethyl)cyclohexane-1-carboxylate (SMCC) (2.1 mg, 6.60 µmol) and diisopropylethylamine (5 µL, 7.75 µmol) were added to 450 µL DMF in a 2 mL round-bottomed flask. The reaction was allowed to run in the dark at room temperature. The reaction was followed by RP-HPLC-MS. After 1.5 h, 450 µL of PBS were added and the pH was lowered to 6–7 with 1 M HCl. m/z (ESI): Ms Calcd for C39H42N2O14 [M+H]+: 763.4; Experimental: 763.1.

3.4. Synthesis of Conjugates Dox-γ-CC (15) and Dox-γ-CT (16)

1.2 Equivalents of peptide 12 or 13, respectively, were added to the reaction mixture containing 14, and the reaction was stirred at room temperature until the reactants were consumed (determined by RP-HPLC-MS). After the reaction, the crude product was immediately purified by RP-HPLC.

3.5. Peptide and Conjugate Purification

Semiprep-RP-HPLC-MS was used to purify the peptides, formed by a binary gradient Waters 2545, a Waters Alliance 2767 sample manager module and an automatic fraction collector coupled to a dual UV-vis λ Absorbance Detector 2487 and a mass spectrometer Micromass ZQ. An XBridge® Prep BEH C18 (19 × 100 mm, 5 μm) column (Waters, Cerdanyola del Vallès, Spain) was used. The eluents were A: ACN/HCOOH (99.93:0.07, v/v) and B: H2O/HCOOH (99.9:0.10, v/v). The column was preconditioned by washing with buffer A for 10 min. Gradient conditions are described below.

3.6. Peptide Characterization

For the analysis and determination of the retention times (tR) of each peptide, a linear gradient of 0% to 50% of B was used for 15 min in the column XBridge™ BEH 130 C18 (4.6 × 100 mm, 3.5 μM) (Waters, Cerdanyola del Vallès, Spain) with a 1 mL/min flow. For peptide 7, a linear gradient of 0% to 100% of A for 15 min was used. The elution system used was A: H2O/TFA (99.90:0.10, v/v) and B: ACN/HCOOH (99.90:0.10, v/v). The purity of the compounds was determined at λ = 220 nm

3.6.1. Peptide γ-CC (4)

Purification: RP-HPLC-MS gradient: Increase from 7% to 10% of ACN/HCOOH in 7 min; from 10% to 100% of ACN/HCOOH in 0.5 min (maintained for 2 min). Then, initial conditions were reestablished after 0.5 min. Characterization: RP-HPLC Purity >95% and retention time: 6.0 min. m/z (ESI): Ms Calcd for C108H188N37O18 [(M+5H)/5]+: 458.5; Experimental: 458.6. Ms Calcd for C108H189N37O18 [(M+6H)/6]+: 382.3; Experimental: 382.3; Ms Calcd for C108H190N37O18 [(M+7H)/7]+: 327.8; Experimental: 327.8.

3.6.2. Peptide γ-CC (5)

Purification: RP-HPLC-MS gradient: Increased from 5 to 12% ACN/HCOOH in 7 min, increased from 12% to 100% in 0.5 min, then maintained for 2 min. Then the initial conditions were reestablished. Characterization: RP-HPLC. Purity >97% and retention time: 6.2 min. m/z (ESI): Ms Calcd for C126H219N43O21 [(M+6H)/6]+: 445.4; Experimental: 445.4. Ms Calcd for C126H220N43O21 [(M+7H)/7]+: 381.9; Experimental: 381.9. Ms Calcd for C126H221N43O21 [(M+8H)/8]+: 334.3; Experimental: 334.3.

3.6.3. Peptide CF-γ-CC (6)

Purification: RP-HPLC-MS gradient: from 10% to 20% ACN/HCOOH in 7 min; and to 100% of ACN/HCOOH in 0.5 min, kept for 2 min, and returned to starting conditions after 0.5 min. Characterization: RP-HPLC. Purity >95% and retention time: 7.7 min. m/z (ESI): Ms Calcd for C129H198N37O24 [(M+5H)/5]+: 530.2; Experimental: 530.3. Ms Calcd for C129H199N37O24 [(M+6H)/6]+: 442.0; Experimental: 442.0; Ms Calcd for C129H200N37O24 [(M+7H)/7]+: 379.0; Experimental: 379.0.

3.6.4. Peptide CF-γ-CC (7)

Purification: RP-HPLC-MS gradient: Increase from 12 to 20% ACN/HCOOH in 7 min, and to 100% after an additional 0.5 min, then kept for 2 min. Afterwards, starting conditions were reestablished. Characterization: RP-HPLC. Purity >98% and retention time: 5.1 min. m/z (ESI): Ms Calcd for C147H230N43O27 [(M+6H)/6]+: 505.1; Experimental: 505.1. Ms Calcd for C147H231N43O27 [(M+7H)/7]+: 433.1; Experimental: 433.1. Ms Calcd for C147H232N43O27 [(M+8H)/8]+: 379.0; Experimental: 379.0.

3.6.5. Peptide γ-CT (8)

Purification: RP-HPLC-MS gradient: Increase from 7 to 10% ACN/HCOOH in 7 min, and to 100% in 0.5 min, then kept for 2 min, and initial conditions restored. Characterization: RP-HPLC. Purity >96% and retention time: 5.8 min. m/z (ESI): Ms Calcd for C108H188N37O18 [(M+5H)/5]+: 458.5; Experimental: 458.5. Ms Calcd for C108H189N37O18 [(M+6H)/6]+: 382.3; Experimental: 382.3. Ms Calcd for C108H190N37O18 [(M+7H)/7]+: 327.8; Experimental: 327.8.

3.6.6. Peptide γ-CT (9)

Purification: RP-HPLC-MS gradient: Increase from 5 to 12% ACN/HCOOH in 7 min, and to 100% in 0.5 min, kept for 2 min, and then, initial conditions were reestablished. Characterization: RP-HPLC. Purity >96% and retention time: 5.9 min. m/z (ESI): Ms Calcd for C126H219N43O21 [(M+6H)/6]+: 445.4; Experimental: 445.3. Ms Calcd for C126H220N43O21 [(M+7H)/7]+: 381.9; Experimental: 381.9. Ms Calcd for C126H221N43O21 [(M+8H)/8]+: 334.3; Experimental: 334.2.

3.6.7. Peptide CF-γ-CT (10)

Purification: RP-HPLC-MS gradient: Increase from 10 to 20% ACN/HCOOH in 7 min, and to 100% in 0.5 min, then kept for 2 min. Then, the initial conditions are reestablished. Characterization: RP-HPLC. Purity >97% and retention time: 8.0 min. m/z (ESI): Ms Calcd for C129H196N37O24 [(M+3H)/3]+: 883.0; Experimental: 883.4. Ms Calcd for C129H198N37O24 [(M+5H)/5]+: 530.2; Experimental: 530.3. Ms Calcd for C129H199N37O24 [(M+6H)/6]+: 442.0; Experimental: 442.1. Ms Calcd for C129H200N37O24 [(M+7H)/7]+: 379.0; Experimental: 379.0.

3.6.8. Peptide CF-γ-CT (11)

Purification: RP-HPLC-MS gradient: Increased from 12 to 20% ACN/HCOOH in 7 min, and to 100% in 0.5 min, then kept for 2 min and initial conditions were reestablished. Characterization: RP-HPLC. Purity >99% and retention time: 7.9 min. m/z (ESI): MS Calcd for C147H230N43O27 [(M+6H)/6]+: 505.1; Experimental: 505.1. Ms Calcd for C147H231N43O27 [(M+7H)/7]+: 433.1; Experimental: 433.2. Ms Calcd for C147H232N43O27 [(M+8H)/8]+: 379.0; Experimental: 379.0.

3.6.9. TAT48–57

Purification: RP-HPLC-MS gradient: 0% ACN/HCOOH for 4 min, from 0% to 4% ACN/HCOOH in 3 min; and to 100% ACN/HCOOH in 0.5 min, then kept for 2 min. Then, the initial conditions were reestablished. Characterization: RP-HPLC. Purity >97% and retention time: 4.7 min. m/z (ESI): Ms Calcd for C55H114N32O11 [(M+4H)/4]+: 349.7; Experimental: 349.9. Ms Calcd for C55H115N32O11 [(M+5H)/5]+: 279.9; Experimental: 280.0. Ms Calcd for C55H116N32O11 [(M+6H)/6]+: 233.4; Experimental: 233.5.

3.6.10. TAT48–57-CF

Purification: RP-HPLC-MS gradient using from 0% to 7% ACN/HCOOH in 7 min; from 7% to 100% ACN/HCOOH in additional 0.5 min, then kept for 2 min. Then the initial conditions were reestablished. Characterization: RP-HPLC. Purity >99% and retention time: 7.0 min. m/z (ESI): Ms Calcd for C76H124N32O17 [(M+4H)/4]+: 439.2; Experimental: 439.4. Ms Calcd for C76H125N32O17 [(M+5H)/5]+: 351.6; Experimental: 351.8. Ms Calcd for C76H126N32O17 [(M+6H)/6]+: 293.2; Experimental: 293.2.

3.6.11. Peptide (12)

Purification: RP-HPLC-MS gradient: Increase from 5 to 12% ACN/HCOOH in 7 min, and from 12 to 100% in 0.5 min, then kept for 2 min, and return to initial conditions. Characterization: RP-HPLC. Purity >85% and retention time: 6.7 min. m/z (ESI): Ms Calcd for C131H224N44O23S [(M+4H)/4]+: 703.7; Experimental: 703.7. Ms Calcd for C131H225N44O23S [(M+5H)/5]+: 563.2; Experimental: 563.2. Ms Calcd for C131H226N44O23S [(M+6H)/6]+: 469.4; Experimental: 469.4. Ms Calcd for C131H227N44O23S [(M+7H)/7]+: 402.5; Experimental: 402.5.

3.6.12. Peptide (13)

Purification: RP-HPLC-MS gradient: from 5 to 12% ACN/HCOOH in 7 min, from 12 to 100% in additional 0.5 min, then kept for 2 min, and initial conditions were reestablished. Characterization: RP-HPLC. Purity >96% and retention time: 6.2 min. m/z (ESI): Ms Calcd for C131H224N44O23S [(M+4H)/4]+: 703.7; Experimental: 703.6. Ms Calcd for C131H225N44O23S [(M+5H)/5]+: 563.2; Experimental: 563.2. Ms Calcd for C131H226N44O23S [(M+6H)/6]+: 469.4; Experimental: 469.4. Ms Calcd for C131H227N44O23S [(M+7H)/7]+: 402.5; Experimental: 402.6

3.6.13. TAT48–57-Cys

Purification: RP-HPLC-MS gradient: 0% ACN/HCOOH for 4 min, from 0 to 4% in 3 min, and at 100% in additional 0.5 min, then kept for 2 min. Then, initial conditions were reestablished. Characterization: RP-HPLC. Purity >78% and retention time: 4.8 min. m/z (ESI): MS Calcd for C60H119N33O13S [(M+2H)/2]+: 771.3; Experimental: 771.2. Ms Calcd for C60H120N33O13S [(M+3H)/3 ]+: 514.4; Experimental: 514.4. Ms Calcd for C60H121N33O13S [(M+4H)/4]+: 386.1; Experimental: 386.1. Ms Calcd for C60H122N33O13S [(M+5H)/5]+: 309.1; Experimental: 309.1.

3.6.14. Conjugate Dox- γ-CC (15)

Peptide 12 was coupled to Dox-MCC 14. The purification was performed using RP-HPLC with a gradient: from 0% to 50% ACN/HCOOH in 11 min, and to 100% of ACN/HCOOH in 0.5 min, kept for 2 min; finally, initial conditions were recovered after 0.5 min. The purified peptide was characterized by RP-HPLC and RP-HPLC-MS. Purity >95% pure and retention time: 8.9 min. m/z (ESI): Ms Calcd for C170H266N46O37S [(M+4H)/4]+: 894.0; Experimental: 894.1. Ms Calcd for C170H267N46O37S [(M+5H)/5]+: 715.7, Experimental: 715.7; Ms Calcd for C170H268N46O37S [(M+6H)/6]+: 596.8, Experimental: 596.8; Ms Calcd for C170H269N46O37S [(M+7H)/7]+: 511.5, Experimental: 511.5.

3.6.15. Conjugate Dox- γ-CT (16)

Peptide 13 was coupled to Dox-MCC 14. The purification was performed using RP-HPLC with a gradient from 0% to 50% ACN/HCOOH in 11 min, and to 100% ACN/HCOOH in 0.5 min, kept for 2 min; finally, initial conditions were recovered after 0.5 mini. The purified peptide was characterized by RP-HPLC and RP-HPLC-MS. Purity > 95% pure and retention time: 9.0 min. m/z (ESI): Ms Calcd for C170H267N46O37S [(M+5H)/5]+: 715.7, Experimental: 715.7; Ms Calcd for C170H268N46O37S [(M+6H)/6]+: 596.8, Experimental: 596.7; Ms Calcd for C170H269N46O37S [(M+7H)/7]+: 511.5, Experimental: 511.5.

3.6.16. Dox-TAT48–57

Cysteine-elongated TAT48–57 was coupled to Dox-MCC 14. The purification of the peptide was performed by RP-HPLC with a gradient from 0% to 50% ACN/HCOOH in 11 min, and to 100% in additional 0.5 min, then kept for 2 min); finally, initial conditions reached after 0.5 min. The purified peptide was characterized by RP-HPLC and RP-HPLC-MS. Purity >95% pure and retention time: 8.8 min. m/z (ESI): Ms Calcd for C99H162N35O27S [(M+3H)/3]+: 768.7, Experimental: 764.7; Ms Calcd for C99H163N35O27S [(M+4H)/4]+: 576.8, Experimental: 576.6; Ms Calcd for C99H163N35O27S [(M+5H)/5]+: 461.6, Experimental: 461.6.

3.7. Cellular Viability, Internalization, and Localization Experiments with HeLa Cells

The HeLa cell line, derived from a human cervical cancer, was used to perform the biological assays. CPP dissolved in nonsupplemented Minimum Essential Medium (MEM) at their final concentration were sterilized by filtration through a 0.2 µm polycarbonate filter (Whatman® Puradisc, Sigma Aldrich, Barcelona, Spain) filters.

3.7.1. HeLa Cells Culture

Cells were cultured in 25 cm2 flasks in MEM (Gibco, Thermo Fisher Scientific, Cornellà de Llobregat, Spain) culture media supplemented with 10% of heat inactivated fetal bovine serum (FBS, Gibco) plus 2 mM l-glutamine (Biowest, Labclinics, Barcelona, Spain) at 37 °C, saturated humidity and 5% CO2 (standard conditions).

3.7.2. Cellular Viability

The MTT assay (Sigma Aldrich, Barcelona, Spain) was used to analyze the cellular viability. This method is based on the ability of living cells to reduce the MTT to formazan salts, as a measure of their viability. HeLa cells were seeded into 24-microwell plates at 6 × 104 cells/mL (30,000 cells/well). After 24 h of incubation, the medium was replaced with the respective peptide concentration and incubated for 24 h. Then, the cells were washed three times with Hanks buffered saline solution (HBSS) (Biowest, Labclinics, Barcelona, Spain), and 500 μL of 0.1 mg/mL MTT in HBSS was added to the cell suspension and incubated for 3 h at 37 °C in darkness. The cell layer was dried in darkness, and the resulting formazan solubilized in pure DMSO. The absorbance was measured at 540 nm in an X3 Multilabel Plate Reader coupled to Perkin Elmer 2030 Manager control software. At least three independent experiments with four different replicates of each peptide and concentration were performed. Controls, nontreated cells or cells incubated with CF were included at identical concentrations. The absorbance values of nontreated cells were taken as 100% cellular viability.

3.7.3. Peptide Internalization

For flow cytometry experiments, HeLa cells were seeded into 35 mm culture dishes (2 × 105 cells/dish). After 24 h incubation under standard conditions, culture medium was removed, and cells were incubated for 2 h with the corresponding peptides at 10 and 25 μM. Next, the culture medium was removed, the cells were washed twice with HBSS and trypsinized with 0.5 mL of 0.25% trypsin-EDTA (Gibco, Thermo Fisher Scientific, Cornellà de Llobregat, Spain). After 5 min incubation at 37 °C, 2 mL of MEM + 10% FCS was added to the cells to stop trypsinization and the mixture was centrifuged (5 min, 300× g). Cells were then additionally washed with 2 mL of HBSS under the same conditions. Finally, the cell pellet was resuspended in 200 μL of PBS at pH = 6 to detach any peptide adhering to the plasma membrane. To exclude dead cells from gating, 5 µg/mL propidium iodide (PI, Sigma-Aldrich, Barcelona, Spain) was added to the cells immediately before the flow cytometric analysis, carried out in a BD FACSCanto cytometer (Bio-Rad, Alcobendas, Spain) coupled to FACSDiva v7.0 software using 488 nm and 635 nm lasers to excite the peptides and PI, respectively.
A total of 10,000 single cells were analyzed per sample, and at least three independent experiments were performed with each peptide and concentration. Untreated cells (autofluorescence control) and cell cultures incubated with TAT as positive reference CPP, and CF as negative reference, were included in every experiment. The fluorescence intensity of cells treated with CF was taken as one arbitrary unit for experiment normalization. For confocal microscopy, HeLa cells were seeded into glass bottom culture dishes (MatTek, Bratislava, Slovakia) at a density of 2 × 105 cell/dish. After 24 h of incubation, the culture medium was removed, and the cells were incubated for an extra 2 h in the presence of peptides at 25 µM. Then, cells were rinsed three times with PBS, and nuclei and plasma membrane were counterstained with 1 µl/mL of Hoechst 33342 (10 mg/mL, Thermo Fisher, Scientific, Cornellà de Llobregat, Spain) and 1 µl/mL CellMask™ deep red plasma membrane stain (5 mg/mL, Thermo Fisher Scientific, Cornellà de Llobregat, Spain), respectively. Finally, cells were washed with PBS prior to be resuspended in PBS pH = 6.0. The experiments were performed using an Olympus Fluoview FV1000 confocal laser scanning microscope (Olympus Iberia, Hospitalet de Llobregat, Spain) equipped with Olympus Fluoview as control software. The excitation wavelengths used were 405, 488 and 658 nm to visualize the nuclei, the peptides and the plasma membrane, respectively; the wavelength of emission was 460, 510 and 690 nm, respectively. A 3D reconstruction was generated to obtain orthogonal projections using the ImageJ/fiji software.

3.8. Cellular Viability, Internalization and Localization Experiments with Leishmania Parasites

The experiments were carried out with Leishmania donovani promastigotes (MHOM/SI/00/1S-2D strain) and Leishmania pifanoi amastigotes (MHOM/VE/60/Ltrod strain), respectively. Promastigotes were grown at 26 °C in RPMI medium supplemented with 10% of FCS, 2 mM l-glutamine, 20 U/mL unicillin 20 plus 48 µg/mL gentamicin.

3.8.1. Cellular Viability

The viability assays were carried out using the reduction of MTT as described. The parasites were aliquoted into 96-microwell plates at a final concentration of 20 × 106 cells/mL in HBSS supplemented with 10 mM D-glucose. The peptides were incubated for 4 h at the corresponding peptide concentration at 26 °C or 32 °C for promastigotes and axenic amastigotes, respectively. Afterwards, 0.5 mg/mL MTT in HBSS + 10 mM D-glucose was added and cells were incubated for two additional hours. The resulting formazan was solubilized with DMSO (1% final concentration) and read at 595 nm in a Bio-Rad 640 microplate reader.

3.8.2. Peptide Uptake for Leishmania donovani Promastigotes

Parasites were resuspended in HBSS + Glc and dispensed in 24-microwell plates (2 mL/well) at a final concentration of 20 × 106 cells/mL. After incubation with the peptides for 4 h at 26 °C, parasites were washed twice with 2 mL of HBSS + Glc plus 1% fatty-acid free bovine seroalbumin in order to remove the noninternalized peptides, and resuspended in the same medium at 1 × 106 cells/mL. Propidium iodide (PI) at a final concentration of 5 µg/mL was added immediately to the flow cytometric analysis to gate the viable cells exclusively. Flow cytometry was carried out in a FC500 flow cytometer, using λEXC = 488 nm and λEM = 525 nm for fluoresceinated peptides and λEXC = 488 nm and λEM = 515 nm for free- and conjugated doxorubicin.

3.8.3. Intracellular Localization of the Internalized Peptides in Leishmania donovani Promastigotes

Parasites (2 × 106 cells/mL in HBSS + Glc, 200 μL) were incubated with the corresponding peptides (2 h, 26 °C). Afterwards, they were collected from the well and washed twice with 2 mL of HBSS + Glc plus 1% bovine seroalbumin fatty-acid free. Prior to carrying out confocal microscopy, parasites were incubated with 10 µL/mL of DAPI (4′,6-diamidine-2′-phenylindole dihydrochloride) for 10 min at 26 °C and washed twice with 2 mL of HBSS + Glc. Living parasites were observed using a Leica SP2 confocal microscope (Leica Microsistemas, S.A., Barcelona, Spain) at λEXC = 358 nm/λEM = 461nm.

3.9. Circular Dichroism (CD) Spectroscopy Details

CD spectra were recorded on a JASCO-715 spectropolarimeter (Jasco, Madrid, Spain). For all CD analyses, 50 μM solutions of the peptides in PBS were prepared and the CD spectra were measured after 24 h equilibration at room temperature. A quartz cuvette of 0.1 mm optical path length was used. Spectra were recorded from 195 to 260 nm with 1 nm spectral bandwidth, at room temperature, with a time constant of 4 s, a step resolution of 1 nm and 5 repetitions per experiment. Before each measurement, a blank measurement with pure PBS was performed. CD data are given as mean residual molar ellipticities in deg cm2 dmol-1.

3.10. Computational Details

The geometries of the unnatural amino acids were optimized with Gaussian09 revision D01 [71] at the DFT level of theory using the B3LYP functional combined with the 6-31G(d,p) basis set. Frequency calculations were carried out for all the structures in order to characterize them as minima in the potential energy surface (PES). Atomic charges were computed with the restrained electrostatic potential (RESP) protocol [72]. The atom types and force field parameters were assigned through antechamber and parmchk2 included in AmberTools18 [73].
Semi-empirical calculations at PM6 theory level, using G09, were carried out on the peptide structures before running MD minimizations in order to obtain an initial structure avoiding steric clashes.
Molecular Dynamics (MD) simulations were set up solvating the peptide with a cubic box of TIP3P water molecules and neutralizing the total charge with chloride ions (ions94.lib). The AMBER99SB force field [74] was used for the standard residues, while the GAFF force field [75] was adopted for the remaining atoms. MD simulations were carried under periodic boundary conditions with the OpenMM [76] engine using the OMM Protocol [77]. The trajectories convergence was analyzed by RMSD, RMSF, Counting Clustering Method and PCA analysis, considering the full exploration of the conformational space as criterion of convergence (see the Supplementary Materials) [78]. In particular, for the γ-CC (5) and γ-CT (9) peptides the simulations were carried out along 200 ns. From a structural point of view, the trajectories were analyzed using CPPTraj implemented in AmberTools18.

4. Conclusions

Two diastereomeric series of new dodecameric and tetradecameric hybridd γ/γ-peptides, γ-CC and γ-CT, were synthesized and evaluated as CPP, focusing on their toxicity and cell penetrating activity. These series were formed by repetition of a dipeptide unit constituted by a chiral cyclobutane amino acid and either a cis- or trans-γ-amino-l-proline, respectively. In preliminary studies, they were shown to be innocuous to HeLa cells and to effect moderate cellular uptake. In contrast, the toxicity of both peptide series both on Leishmania pifanoi amastigotes and Leishmania donovani promastigotes was concentration dependent. Only full viability was preserved under 10 μM. Therefore, these peptides behave as mild leishmanicidal agents at higher concentrations. There is a thin red line separating the CPP from membrane-active antimicrobial peptides. Only their affinity towards the targeted membrane separates both concepts: either they form a stable disruption of the membrane, with irreversible and lethal outcome, or they provoke a mild and reversible distortion to ensure the peptide translocation. In other words, the polarization towards one of these two stages is based on quantitative factors; as such, a continuous spectrum of intermediate stages must be expected. Among these factors, the nature of the peptide and the phospholipid composition of the membrane are crucial to tip the balance towards one phenotype or the other. These subtleties are further highlighted with cationic cell penetrating peptides acting on prokaryotes or lower eukaryotes with a strongly anionic membrane, as happens with Leishmania, and especially with the promastigote. This presents a strong anionic glycocalyx and a high percentage of anionic phospholipids in its plasma membrane, which accounts for a higher γ/γ-peptide internalization than in the amastigote. The relevance of this interaction is endorsed by the higher activity of the tetradecamer over the dodecamer for both peptide series. This specific toxicity of the γ/γ-peptides towards Leishmania is a “must” for their use as CPP against the parasite; the deleterious effect of the doxorubicin on the parasite will be synergic with the leishmanicidal activity of the peptidic vehicle on its own. The tetradecameric Dox-γ-CC conjugate delivered a significant and faster leishmanicidal blow than the free drug. In addition, their Leishmania/mammalian cell selectivity index was higher than that of TAT, opening new avenues for the implementation of CPP-based therapies against the parasite. The molecular modeling stresses that the adoption of a well-defined conformation for the tetradecamers is highly influenced by the choice of the diastereomeric unit, even when the impact of the conformation on the leishmanicidal activity is not dramatic. It must be kept in mind that the importance of the peptide conformation relies on that adopted when in contact with the membrane. This is a well-documented effect on natural α-helical antimicrobial peptides, which are mostly devoid of a defined structure in solution, but are capable of forming a stable α-helix when in contact with the biological membranes or in membrane-mimicking solvents. Nevertheless, it must be highlighted that these γ/γ-peptides are much more conformationally restrained than those made of α-amino acids; hence, simulation with membranes will be performed in future. In our case, the CD results point to a defined conformational preference in solution of the free peptides. Moreover, an important fact from MD is that the doxorubicin moiety becomes wrapped by the peptide chain, regardless of the diastereomerism of the peptides employed, hidden from the aqueous environment while exposing the polar guanidinium groups at the periphery of the peptide, and improving the solubility of the drug.

Supplementary Materials

The following are available online at https://www.mdpi.com/1422-0067/21/20/7502/s1, Scheme S1: Schematic protocol for the SPPS of the γ-CC and the γ-CT series; Table S1: General protocol for the solid phase synthesis of hybrid γ,γ-cyclobutane-proline peptides by Fmoc/Alloc strategy; Table S2: General protocol for the derivatization of the α-amine function using the solid phase synthesis; Table S3: General protocol for the incorporation of the 5(6)-carboxyfluorescein; Table S4: General protocol for the preparation of Tat48-57 and Tat48-57-CF; Table S5: Protocol for the additional Cys residue elongation of the peptides; Table S6: Peptide specifications for MD; Chart S1: Protecting groups used in the synthesis of TAT48-57; Figure S1: CD spectra (mean residual molar ellipticities) of peptides γ-CC 5 and γ-CT 9; Figure S2: Main folding states identified during the simulation of: a) γ-CC 5 and b) γ-CT 9 isomers; Figure S3: Main folding states identified during the simulation of epimeric conjugates: a) (R)-Dox-γ-CC, (R)-15 and b) (S)-Dox-γ-CC, (S)-15; Figure S4: Main folding states identified during the simulation of epimeric conjugates: a) (R)-Dox-γ-CT, (R)-16 and b) (S)-Dox-γ-CT, (S)-16; Figure S5: Main folding states identified during the simulation of isomers: a) CF-γ-CC 7 and b) CF-γ-CT 11; Figure S6: Representative MD conformation of conjugate (S)-Dox-γ-CC, (S)-15; Figure S7: Hydrogen bonding pattern as predicted by MD simulations for a) γ-CC 5, b) (R)-Dox-γ-CC, (R)-15, and c) (S)-Dox-γ-CC, (S)-15; Figure S8: a) Hairpin conformation, and b) hydrogen bonding pattern as predicted by MD simulations for CF-CC 7; Figure S9: a) Laminar conformation, and b) and c) hydrogen bonding pattern as predicted by MD simulations for CF-CC 7; Figure S10: Hydrogen bonding pattern suggested by MD simulations for γ-CT 9; Figure S11: a) Helical conformation for (S)-Dox-CT, (S)-16, and MD predicted hydrogen bonding pattern for b) (R)-Dox-CT, (R)-16, and c) (S)-Dox-CT, (S)-16; Figure S12: a) Conformation, and b) and c) hydrogen bonding pattern as predicted by MD simulations for CF-CT 11; Synthesis and 1H and 13C NMR spectra of the new monomers; SPPS peptide synthesis procedures; cellular internalization of carboxyfluoresceinated peptides 6, 7, 10, 11 and TAT-CF in HeLa cells; CD spectra of γ-CC 5 and γ-CT 9, main folding state MD studies; hydrogen bonding patterns predicted by MD simulations for γ-CC 5, γ-CT 9, Dox-γ-CC 15 and Dox-γ-CT 16; conformations and associated hydrogen bonding patterns predicted by MD simulations for CF-γ-CC 7 and CF-γ-CT 11; HPLC chromatograms and mass spectra of the purified peptides, and CF- and Dox-conjugates

Author Contributions

Conceptualization, O.I., C.N., M.R., L.R. and R.M.O.; Funding acquisition, O.I., J.-D.M., C.N., M.R., L.R. and R.M.O.; Investigation, J.-A.O., N.G., L.M.-C., J.O., M.-Á.A., G.S., J.-D.M. and L.R.; Methodology, N.G., C.N., M.R. and L.R.; Supervision, O.I., G.S., J.-D.M., M.R. and R.M.O.; Writing—Original draft, R.M.O.; Writing—Review & editing, O.I., G.S., J.-D.M., C.N., L.R. and R.M.O. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Spanish Ministry of Economy, Industry and Competitivity (Grants CTQ2016-77978-R, MAT2017-86357-C3-3-R and SAF2014-60138-R), Generalitat de Catalunya (2017-SGR-503 and 2017-SGR-1439), Subdirección General de Redes y Centros de Investigación Cooperativa-FEDER (RICET RD16/0027/0010) and CSIC (PIE 201620E038) and CIBER BBN (CB/06/01/0074). J. A. Olivares thanks the UAB for a predoctoral PIF fellowship.

Acknowledgments

The authors would like to thank the staff at the Servei de Microscòpia de la Universitat Autònoma de Barcelona for technical assistance. Peptide syntheses were performed at the ICTS “NANBIOSIS”, specifically at the unit of synthesis of peptides (U3/IQAC-CSIC).

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

Abbreviations

ACNAcetonitrile
AllocAllyloxycarbonyl
CBAACyclobutane Amino Acid
CF5(6)-Carboxyfluorescein
CPPCell Penetrating Peptide
DAPI4′,6-Diamidino-2-phenylindole
DCMDichloromethane
DDSDrug Delivery Systems
DFTDensity Functional Theory
DIPEADiisopropylethylamine
DMFDimethylformamide
DMSODimethyl Sulfoxide
DoxDoxorubicin
EDTAEthylenediaminetetraacetic Acid
ESIElectrospray Ionization
FBSFetal Bovine Serum
GlcGlucose
HBSSHanks Buffered Saline Solution
FmocFluorenylmethyloxycarbonyl
HPLCHigh-Performance Liquid Chromatography
LPGLipophosphoglycan
MCC4-(N-maleimidomethyl)cyclohexane-1-carboxylate
MDMolecular Dynamics
MEMMinimum Essential Medium
MTT3-(4,5-Dimethylthiazol-2-yl)-2,5-diphenyltetrazolium Bromide
NMRNuclear Magnetic Resonance
PBSPhosphate-Buffered Saline
PCAPrincipal Component Analysis
PESPotential Energy Surface
PIPropidium Iodide
RESPRestrained Electrostatic Potential
RMSDRoot-Mean-Square Deviation
RMSFRoot-Mean-Square Fluctuation
RPReverse Phase
SDStandard Deviation
SMSupplementary Materials
SMCCSuccinimidyl-4-(N-maleimidomethyl)cyclohexane-1-carboxylate
SPPSSolid Phase Peptide Synthesis

References

  1. Hossen, S.; Hossain, M.; Basher, M.K.; Mia, M.N.H.; Rahman, M.T.; Uddin, M.J. Smart nanocarrier-based drug delivery systems for cancer therapy and toxicity studies: A review. J. Adv. Res. 2019, 15, 1–18. [Google Scholar] [CrossRef] [PubMed]
  2. Liu, D.; Yang, F.; Xiong, F.; Gu, N. The smart drug delivery system and its clinical potential. Theranostics 2016, 6, 1306–1323. [Google Scholar] [CrossRef] [PubMed]
  3. Schmitt, J.; Heitz, V.; Sour, A.; Bolze, F.; Kessler, P.; Flamigni, L.; Ventura, B.; Bonnet, C.S.; Toth, E. A Theranostic agent combining a two-photon-absorbing photosensitizer for photodynamic therapy and a gadolinium(III) complex for MRI detection. Chem. Eur. J. 2016, 22, 2775–2786. [Google Scholar] [CrossRef] [PubMed]
  4. Lindgren, M.; Hällbrink, M.; Prochiantz, A.; Langel, Ü. Cell-penetrating Peptides. Trends Pharmacol. Sci. 2000, 21, 99–103. [Google Scholar] [CrossRef]
  5. Langel, Ü. Cell-Penetrating Peptides in Processes and Applications; CRC Press Pharmacology and Toxicology Series: Boca Raton, FL, USA, 2002. [Google Scholar]
  6. Lundberg, P.; Langel, Ü. A brief introduction to cell-penetrating peptides. J. Mol. Recognit. 2003, 16, 227–233. [Google Scholar] [CrossRef]
  7. Vivès, E.; Schmidt, J.; Pèlegrin, A. Cell-penetrating and cell-targeting peptides in drug delivery. Biochim. Biophys. Acta 2008, 1786, 126–138. [Google Scholar] [CrossRef][Green Version]
  8. Koren, E.; Torchillin, V.P. Cell-penetrating peptides: Breaking through to the other side. Trends Mol. Med. 2012, 18, 385–393. [Google Scholar] [CrossRef]
  9. Copolovici, D.M.; Langel, K.; Eriste, E.; Langel, Ü. Cell-penetrating peptides: Design, synthesis, and applications. ACS Nano 2014, 8, 1972–1994. [Google Scholar] [CrossRef]
  10. Zhang, D.; Wang, J.; Xu, D. Cell penetrating peptides as noninvasive transmembrane vectors for the development of new functional drug delivery systems. J. Control. Release 2016, 229, 130–139. [Google Scholar] [CrossRef][Green Version]
  11. Dissanayake, S.; Denny, W.A.; Gamage, S.; Sarojini, V. Recent developments in anticancer drug delivery using cell penetrating and tumor targeting peptides. J. Control. Release 2017, 250, 62–76. [Google Scholar] [CrossRef]
  12. Fominaya, J.; Bravo, J.; Rebollo, A. Strategies to stabilize cell penetrating peptides for in vivo applications. Ther. Del. 2015, 6, 1171–1194. [Google Scholar] [CrossRef] [PubMed]
  13. Pujals, S.; Giralt, E. Proline-rich, amphipathic cell-penetrating peptides. Adv. Drug Deliv. Rev. 2008, 60, 473–484. [Google Scholar] [CrossRef] [PubMed]
  14. Dobitz, S.; Aronoff, M.R.; Wennemers, H. Oligoprolines as molecular entities for controlling distance in biological and material sciences. Acc. Chem. Res. 2017, 50, 2420–2428. [Google Scholar] [CrossRef] [PubMed]
  15. Potocky, T.B.; Menon, A.K.; Gellman, S.H. Effects of conformational stability and geometry of guanidinium display on cell entry by β-peptides. J. Am. Chem. Soc. 2005, 127, 3686–3687. [Google Scholar] [CrossRef]
  16. Nagel, Y.A.; Raschle, P.S.; Wennemers, H. Effect of preorganized charge-display on the cell-penetrating properties of cationic peptides. Angew. Chem. 2017, 56, 122–126. [Google Scholar] [CrossRef]
  17. Tian, Y.; Zeng, X.; Li, J.; Jiang, Y.; Zhao, H.; Wang, D.; Huang, X.; Li, Z. Achieving enhanced cell penetration of short conformationally constrained peptides through amphiphilicity tuning. Chem. Sci. 2017, 8, 7576–7581. [Google Scholar] [CrossRef][Green Version]
  18. Lättig-Tünnemann, G.; Prinz, M.; Hoffmann, D.; Behlke, J.; Palm-Apergi, C.; Morano, I.; Herce, H.D.; Cardoso, M.C. Backbone rigidity and static presentation of guanidinium groups increases cellular uptake of arginine-rich cell-penetrating peptides. Nat. Commun. 2011, 2, 453. [Google Scholar] [CrossRef]
  19. Nischan, N.; Herce, H.D.; Natale, F.; Bohlke, N.; Budisa, N.; Cardoso, M.C.; Hackenberger, C.P.R. Covalent attachment of cyclic TAT peptides to GFP results in protein delivery into live cells with immediate bioavailability. Angew. Chem. 2015, 54, 1950–1953. [Google Scholar] [CrossRef]
  20. Qian, Z.; Martyna, A.; Hard, R.L.; Wang, J.; Appiah-Kubi, G.; Coss, C.; Phelps, M.A.; Rossman, J.S.; Pei, D. Discovery and mechanism of highly efficient cyclic cell-penetrating peptides. Biochemistry 2016, 55, 2601–2612. [Google Scholar] [CrossRef]
  21. Gutiérrez-Abad, R.; Carbajo, D.; Nolis, P.; Acosta-Silva, C.; Cobos, J.A.; Illa, O.; Royo, M.; Ortuño, R.M. Synthesis and structural study of highly constrained hybrid cyclobutane-proline γ,γ-peptides. Amino Acids 2011, 41, 673–686. [Google Scholar] [CrossRef]
  22. Gorrea, E.; Carbajo, D.; Gutiérrez-Abad, R.; Illa, O.; Branchadell, V.; Royo, M.; Ortuño, R.M. Searching for new cell-penetrating agents: Hybrid cyclobutane–proline γ,γ-peptides. Org. Biomol. Chem. 2012, 10, 4050–4057. [Google Scholar] [CrossRef]
  23. Farrera-Sinfreu, J.; Giralt, E.; Castel, S.; Albericio, F.; Royo, M. Cell-penetrating cis-γ-amino-l-proline-derived peptides. J. Am. Chem. Soc. 2005, 127, 9459–9468. [Google Scholar] [CrossRef] [PubMed]
  24. Gomes, B.; Augusto, M.T.; Felício, M.R.; Hollmann, A.; Franco, O.L.; Gonçalves, S.; Santos, N.C. Designing improved active peptides for therapeutic approaches against infectious diseases. Biotechnol. Adv. 2018, 36, 415–429. [Google Scholar] [CrossRef] [PubMed]
  25. Rivas, L.; Nácher-Vázquez, M.; Andreu, D. The Physical Matrix of the Plasma Membrane as a Target: The Charm of Drugs with Low Specificity. In Drug Discovery for Leishmaniasis; Rivas, L., Gil, C., Eds.; The Royal Society of Chemistry: London, UK, 2018; pp. 248–281. [Google Scholar]
  26. Agbowuro, A.A.; Huston, W.M.; Gamble, A.B.; Tyndall, J.D.A. Proteases and protease inhibitors in infectious diseases. Med. Res. Rev. 2018, 38, 1295–1331. [Google Scholar] [CrossRef]
  27. World Health Organization. Available online: http://www.who.int/leishmaniasis/en/ (accessed on 7 September 2020).
  28. Chakravarty, J.; Sundar, S. Drug resistance in leishmaniasis. J. Glob. Infect. Dis. 2010, 2, 167–176. [Google Scholar] [CrossRef] [PubMed]
  29. Nagle, A.S.; Khare, S.; Kumar, A.B.; Supek, F.; Buchynskyy, A.; Mathison, C.J.N.; Chennamaneni, N.K.; Pendem, N.; Buckner, F.S.; Gelb, M.H.; et al. Recent developments in drug discovery for leishmaniasis and human african trypanosomiasis. Chem. Rev. 2014, 114, 11305–11347. [Google Scholar] [CrossRef] [PubMed][Green Version]
  30. Hefnawy, A.; Berg, M.; Dujardin, J.-C.; De Muylder, G. Exploiting knowledge on Leishmania drug resistance to support the quest for new drugs. Trends Parasitol. 2017, 33, 162–174. [Google Scholar] [CrossRef][Green Version]
  31. Paromomycin SULFATE. Available online: https://www.webmd.com/drugs/2/drug-5160/paromomycin-oral/details#side-effects (accessed on 4 September 2020).
  32. Drugs and Supplements Miltefosine (Oral Route). Available online: htpps://www.mayoclinic.org/drugs-supplements/miltefosine-oral-route/side-effects/drg-20095231 (accessed on 4 September 2020).
  33. Naderer, T.; Vince, J.E.; McConville, M.J. Surface determinants of Leishmania parasites and their role in infectivity in the mammalian host. Curr. Mol. Med. 2004, 4, 649–665. [Google Scholar] [CrossRef]
  34. Walrant, A.; Cardon, S.; Burlina, F.; Sagan, S. Membrane crossing and membranotropic activity of cell-penetrating peptides: Dangerous liaisons? Acc. Chem. Res. 2017, 50, 2968–2975. [Google Scholar] [CrossRef]
  35. Morgan, G.W.; Hall, B.S.; Denny, P.W.; Carrington, M.; Field, M.C. The Kinetoplastida endocytic apparatus. Part I: A dynamic system for nutrition and evasion of host defences. Trends Parasitol. 2002, 18, 491–496. [Google Scholar] [CrossRef]
  36. Forestier, C.L.; Gao, Q.; Boons, G.J. Leishmania lipophosphoglycan: How to establish structure-activity relationships for this highly complex and multifunctional glycoconjugate? Front. Cell. Infect. Microbiol. 2015, 4, 193. [Google Scholar] [CrossRef] [PubMed][Green Version]
  37. Olivier, M.; Atayde, V.D.; Isnard, A.; Hassani, K.; Shio, M.T. Leishmania virulence factors: Focus on the metalloprotease GP63. Microbes Infect. 2012, 14, 1377–1389. [Google Scholar] [CrossRef] [PubMed]
  38. Luque-Ortega, J.R.; Rivas, L. Characterization of the Leishmanicidal Activity of Antimicrobial Peptides. In Antimicrobial Peptides. Methods in Molecular Biology (Methods and Protocols); Giuliani, A., Rinaldi, A., Eds.; Humana Press: Totowa, NJ, USA, 2010; Volume 618, pp. 393–420. [Google Scholar]
  39. Silva, T.; Abengózar, M.A.; Fernández-Reyes, M.; Andreu, D.; Nazmi, K.; Bolscher, J.G.M.; Bastos, M.; Rivas, L. Enhanced leishmanicidal activity of cryptopeptide chimeras from the active N1 domain of bovine lactoferrin. Amino Acids 2012, 43, 2265–2277. [Google Scholar] [CrossRef] [PubMed]
  40. Ruiz-Santaquiteria, M.; Sánchez-Murcia, P.A.; Toro, M.A.; de Lucio, H.; Gutiérrez, K.J.; de Castro, S.; Carneiro, F.A.C.; Gago, F.; Jiménez-Ruiz, A.; Camarasa, M.-J.; et al. First example of peptides targeting the dimer interface of Leishmania infantum trypanothione reductase with potent in vitro antileishmanial activity. Eur. J. Med. Chem. 2017, 135, 49–59. [Google Scholar] [CrossRef]
  41. Keller, A.-A.; Mussbach, F.; Breitling, R.; Hemmerich, P.; Schaefer, B.; Lorkowski, S.; Reissmann, S. Relationships between cargo, cell penetrating peptides and cell type for uptake of non-covalent complexes into live cells. Pharmaceuticals 2013, 6, 184–203. [Google Scholar] [CrossRef][Green Version]
  42. Keller, A.A.; Breitling, R.; Hemmerich, P.; Kappe, K.; Braun, M.; Wittig, B.; Schaefer, B.; Lorkowski, S.; Reissmann, S. Transduction of proteins into Leishmania tarentolae by formation of non-covalent complexes with cell-penetrating peptides. J. Cell. Biochem. 2014, 115, 243–252. [Google Scholar] [CrossRef]
  43. Keller, A.A.; Scheiding, B.; Breitling, R.; Licht, A.; Hemmerich, P.; Lorkowski, S.; Reissmann, S. Transduction and transfection of difficult-to-transfect cells: Systematic attempts for the transfection of protozoa Leishmania. J. Cell. Biochem. 2019, 120, 14–27. [Google Scholar] [CrossRef][Green Version]
  44. Kóczán, G.; Ghose, A.C.; Mookerjee, A.; Hudecz, F. Methotrexate conjugate with branched polypeptide influences Leishmania donovani infection in vitro and in experimental animals. Bioconjug. Chem. 2002, 13, 518–524. [Google Scholar] [CrossRef]
  45. Luque-Ortega, J.R.; de la Torre, B.G.; Hornillos, V.; Bart, J.-M.; Rueda, C.; Navarro, M.; Amat-Guerri, F.; Ulises Acuña, A.; Andreu, D.; Rivas, L. Defeating Leishmania resistance to miltefosine (hexadecylphosphocholine) by peptide-mediated drug smuggling: A proof of mechanism for trypanosomatid chemotherapy. J. Control. Release 2012, 161, 835–842. [Google Scholar] [CrossRef]
  46. Torre, B.G.; Hornillos, V.; Luque-Ortega, J.R.; Abengozar, M.A.; Amat-Guerri, F.; Ulises Acuna, A.; Rivas, L.; Andreu, D. A BODIPY-embedding miltefosine analog linked to cell-penetrating TAT(48-60) peptide favors intracellular delivery and visualization of the antiparasitic drug. Amino Acids 2014, 46, 1047–1058. [Google Scholar] [CrossRef][Green Version]
  47. de Lucio, H.; Gamo, A.M.; Ruiz-Santaquiteria, M.; de Castro, S.; Sánchez-Murcia, P.A.; Toro, M.A.; Gutiérrez, K.J.; Gago, F.; Jiménez-Ruiz, A.; Camarasa, M.-J.; et al. Improved proteolytic stability and potent activity against Leishmania infantum trypanothione reductase of α/β-peptide foldamers conjugated to cell-penetrating peptides. Eur. J. Med. Chem. 2017, 140, 615–623. [Google Scholar] [CrossRef] [PubMed][Green Version]
  48. Defaus, S.; Gallo, M.; Abengózar, M.A.; Rivas, L.; Andreu, D. A synthetic strategy for conjugation of paromomycin to cell-penetrating TAT(48-60) for delivery and visualization into Leishmania parasites. Int. J. Pept. 2017, 2017. [Google Scholar] [CrossRef] [PubMed][Green Version]
  49. Hua, Q.; Quiang, Z.; Chu, M.; Shi, D.; Ren, J. Polymeric drug delivery system with actively targeted cell penetration and nuclear targeting for cancer therapy. ACS Appl. Bio Mater. 2019, 2, 1724–1731. [Google Scholar] [CrossRef]
  50. Sett, R.; Basu, N.; Ghosh, A.K.; Das, P.K. Potential of doxorubicin as an antileishmanial agent. J. Parasitol. 1992, 78, 350–354. [Google Scholar] [CrossRef] [PubMed]
  51. Mukherjee, S.; Das, L.; Kole, L.; Karmakar, S.; Datta, N.; Das, P.K. Targeting of parasite-specific immunoliposome-encapsulated doxorubicin in the treatment of experimental visceral leishmaniasis. J. Infect. Dis. 2004, 189, 1024–1034. [Google Scholar] [CrossRef][Green Version]
  52. Sundar, S.; Chakravarty, J. Investigational drugs for visceral leishmaniosis. Expert Opin. Investig. Drugs 2015, 24, 43–59. [Google Scholar] [CrossRef] [PubMed][Green Version]
  53. Green, M.; Loewenstein, P.M. Autonomous functional domains of chemically synthesized human immunodeficiency virus TAT trans-activator protein. Cell 1988, 55, 1179–1188. [Google Scholar] [CrossRef]
  54. Frankel, A.D.; Pabo, C.O. Cellular uptake of the TAT protein from human immunodeficiency virus. Cell 1988, 55, 1189–1193. [Google Scholar] [CrossRef]
  55. Vivès, E.; Brodin, P.; Lebleu, B. A truncated HIV-1 TAT protein basic domain rapidly translocates through the plasma membrane and accumulates in the cell nucleus. J. Biol. Chem. 1997, 272, 16010–16017. [Google Scholar] [CrossRef][Green Version]
  56. Mosnann, T. Rapid Colorimetric Assay for Cellular Growth and Survival: Application to Proliferation and Cytotoxicity Assays. J. Immunol. Methods 1983, 65, 55–63. [Google Scholar] [CrossRef]
  57. Futaki, S. Membrane-permeable arginine-rich peptides and the translocation mechanisms. Adv. Drug. Deliv. Rev. 2005, 57, 547–558. [Google Scholar] [CrossRef] [PubMed]
  58. Duchardt, F.; Fotin-Mleczek, M.; Schwarz, H.; Fischer, R.; Brock, R. A comprehensive model for the cellular uptake of cationic cell-penetrating peptides. Traffic 2007, 8, 848–866. [Google Scholar] [CrossRef] [PubMed]
  59. Aguilera, T.A.; Timmers, M.M.; Olson, E.S.; Jiang, T.; Tsien, R.Y. Systemic in vivo distribution of activatable cell penetrating peptides is superior to cell penetrating peptides. Integr. Biol. 2009, 1, 371–381. [Google Scholar] [CrossRef] [PubMed][Green Version]
  60. WHO Technical report series. In Proceedings of the Control of the leishmaniases: Report of a Meeting of the WHO Expert Commitee on the Control of Leishmaniases, Geneva, Switzerland, 22–26 March 2010.
  61. Seebach, D.; Brenner, M.; Rueping, M.; Jaun, B. γ2-, γ 3-, and γ 2,3,4-Amino acids, coupling to γ-hexapeptides: CD spectra, NMR solution and X-ray Crystal structures of γ -peptides. Chem. Eur. J. 2002, 8, 573–584. [Google Scholar] [CrossRef]
  62. Deshayes, S.; Plénat, T.; Aldrian-Herrada, G.; Divita, G.; Le Grimellec, C.; Heitz, F. Primary amphipathic cell-penetrating peptides:  structural requirements and interactions with model membranes. Biochemistry 2004, 43, 7698–7706. [Google Scholar] [CrossRef]
  63. Ziegler, A. Thermodynamic studies and binding mechanisms of cell-penetrating peptides with lipids and glycosaminoglycans. Adv. Drug Deliv. Rev. 2008, 60, 580–597. [Google Scholar] [CrossRef]
  64. Zaro, J.L.; Vekich, J.E.; Tran, T.; Shen, W.-C. Nuclear localization of cell-penetrating peptides is dependent on endocytosis rather than cytosolic delivery in CHO cells. Mol. Pharm. 2009, 6, 337–344. [Google Scholar] [CrossRef][Green Version]
  65. Jiao, C.Y.; Delaroche, D.; Durlina, F.; Alves, I.D.; Chassaing, G.; Sagan, S. Translocation and endocytosis for cell-penetrating peptide internalization. J. Biol. Chem. 2009, 284, 33957–33965. [Google Scholar] [CrossRef][Green Version]
  66. Pae, J.; Liivamägi, L.; Lubenets, D.; Arukuusk, P.; Langel, Ü.; Pooga, M. Glycosaminoglycans are required for translocation of amphipathic cell-penetrating peptides across membranes. Biochim. Biophys. Acta 2016, 1858, 1860–1867. [Google Scholar] [CrossRef]
  67. Farrera-Sinfreu, J.; Zaccaro, L.; Vidal, D.; Salvatella, X.; Giralt, E.; Pons, M.; Albericio, F.; Royo, M. A new class of foldamers based on cis-γ-amino-l-proline. J. Am. Chem. Soc. 2004, 126, 6048–6057. [Google Scholar] [CrossRef]
  68. Nakase, I.; Takeuchi, T.; Tanaka, G.; Futaki, S. Methodological and cellular aspects that govern the internalization mechanisms of arginine-rich cell-penetrating peptides. Adv. Drug Deliv. Rev. 2008, 60, 598–607. [Google Scholar] [CrossRef] [PubMed]
  69. Izawa, H.; Kinai, M.; Ifuku, S.; Morimoto, M.; Saimoto, H. Guanidinylated chitosan inspired by arginine-rich cell-penetrating peptides. Int. J. Biol. Macromol. 2019, 125, 901–905. [Google Scholar] [CrossRef] [PubMed]
  70. Vazdar, M.; Heyda, J.; Mason, P.E.; Tesei, G.; Allolio, C.; Lund, M.; Jungwirth, P. Arginine “magic”: Guanidinium Like-Charge Ion Pairing from Aqueous Salts to Cell Penetrating Peptides. Acc. Chem. Res. 2018, 51, 1455–1464. [Google Scholar] [CrossRef][Green Version]
  71. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Gaussian 09, Revision D.01; Gaussian, Inc.: Wallingford, CT, USA, 2010. [Google Scholar]
  72. Bayly, C.I.; Cieplak, P.; Cornell, W.; Kollman, P.A. A well behaved electrostatic potential based method using charge restraints for deriving atomic charges: The RESP model. J. Phys. Chem. 1993, 97, 10269–10280. [Google Scholar] [CrossRef]
  73. Case, D.A.; Ben-Shalom, I.Y.; Brozell, S.R.; Cerutti, D.S.; Cheatham, T.E., III; Cruzeiro, V.W.D.; Darden, T.A.; Duke, R.E.; Ghoreishi, D.; Gilson, M.K.; et al. AMBER 2018; University of California: San Francisco, CA, USA, 2018. [Google Scholar]
  74. Hornak, V.; Abel, R.; Okur, A.; Strockbine, B.; Roitberg, A.; Simmerling, C. Comparison of multiple Amber force fields and development of improved protein backbone parameters. Proteins Struct. Funct. Bioinform. 2006, 65, 712–725. [Google Scholar] [CrossRef][Green Version]
  75. Wang, J.; Wolf, R.M.; Caldwell, J.W.; Kollman, P.A.; Case, D.A. Development and testing of a general amber force field. J. Comput. Chem. 2004, 25, 1157–1174. [Google Scholar] [CrossRef]
  76. Eastman, P.; Swails, J.; Chodera, J.; McGibbon, R.; Zhao, Y.; Beauchamp, K.; Wang, L.; Simmonett, A.; Harrigan, M.; Stern, C.; et al. OpenMM 7: Rapid development of high performance algorithms for molecular dynamics. PLoS Comput. Biol. 2017, 13, e1005659. [Google Scholar] [CrossRef]
  77. Rodríguez-Guerra Pedregal, J.; Alonso-Cotchico, L.; Velasco-Carneros, L.; Mareéchal, J.-D. OMM Protocol: A command line application to launch molecular dynamics simulations with openMM. ChemRxiv 2018. [Google Scholar] [CrossRef]
  78. Sciortino, G.; Sánchez-Aparicio, J.-E.; Rodríguez-Guerra Pedregal, J.; Garribba, E.; Maréchal, J.-D. Computational insight into the interaction of oxaliplatin with insulin. Metallomics 2019, 11, 765–773. [Google Scholar] [CrossRef]
Figure 1. Monomers used in the first and second generations of hybrid cyclobutane/proline γ/γ-peptides labelled with 5(6)-carboxyfluorescein (CF).
Figure 1. Monomers used in the first and second generations of hybrid cyclobutane/proline γ/γ-peptides labelled with 5(6)-carboxyfluorescein (CF).
Ijms 21 07502 g001
Chart 1. Hybrid peptides of the γ-CC and γ-CT series constituted by repetition of the dipeptide unit γ-CBAA (1)/(cis- or trans)-γ-amino-l-proline, respectively.
Chart 1. Hybrid peptides of the γ-CC and γ-CT series constituted by repetition of the dipeptide unit γ-CBAA (1)/(cis- or trans)-γ-amino-l-proline, respectively.
Ijms 21 07502 ch001
Scheme 1. Conjugation of doxorubicin to γ-CC 15 and γ-CT 16 peptides. The Dox moiety is highlighted in red, the cysteine residue in green, and the linker in blue.
Scheme 1. Conjugation of doxorubicin to γ-CC 15 and γ-CT 16 peptides. The Dox moiety is highlighted in red, the cysteine residue in green, and the linker in blue.
Ijms 21 07502 sch001
Figure 2. Cytotoxicity of peptides 411 on HeLa cells. Peptides with (a) terminal free amino group; (b) terminal amino group conjugated with CF. Cells were incubated with the respective peptide for 24 h and their viability assayed by 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) reduction. Cell viability was expressed as the percentage of MTT reduction with respect to control cells ± SD. Statistical significance with respect to control cells: p ≤ 0.05 (*). Samples were made in quadruplicate, and experiments were repeated thrice independently.
Figure 2. Cytotoxicity of peptides 411 on HeLa cells. Peptides with (a) terminal free amino group; (b) terminal amino group conjugated with CF. Cells were incubated with the respective peptide for 24 h and their viability assayed by 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) reduction. Cell viability was expressed as the percentage of MTT reduction with respect to control cells ± SD. Statistical significance with respect to control cells: p ≤ 0.05 (*). Samples were made in quadruplicate, and experiments were repeated thrice independently.
Ijms 21 07502 g002
Figure 3. Cellular internalization of carboxyfluoresceinated peptides 6, 7, 10, and 11 normalized (a) with respect to CF-TAT (100%), and (b) as a fluorescence ratio of the peptides with respect to CF as a control of endocytosis (CF fluorescence = 1 a.u.). HeLa cells were incubated with the respective peptide at 10 (empty column), or 25 µM (black column) for 24 h, and the level of fluorescence associated with the cells was assessed by flow cytometry (λEXC = 488 nm and λEM = 530 nm). Results were expressed as mean ± SD. Samples were made in triplicate (p ≤ 0.05, (*); p ≤ 0.01, (**); p ≤ 0.001, (***)). Three independent experiments were carried out.
Figure 3. Cellular internalization of carboxyfluoresceinated peptides 6, 7, 10, and 11 normalized (a) with respect to CF-TAT (100%), and (b) as a fluorescence ratio of the peptides with respect to CF as a control of endocytosis (CF fluorescence = 1 a.u.). HeLa cells were incubated with the respective peptide at 10 (empty column), or 25 µM (black column) for 24 h, and the level of fluorescence associated with the cells was assessed by flow cytometry (λEXC = 488 nm and λEM = 530 nm). Results were expressed as mean ± SD. Samples were made in triplicate (p ≤ 0.05, (*); p ≤ 0.01, (**); p ≤ 0.001, (***)). Three independent experiments were carried out.
Ijms 21 07502 g003
Figure 4. Confocal microscopy of HeLa cells incubated with the carboxyfluoresceinated γ-CC 7 and γ-CT 11 tetradecameric peptides. (a) Peptide γ-CC 7. (b) Peptide γ-CT 11. (c) Orthogonal projections highlight the internalization (XZ and YZ) of both peptides. HeLa cells were incubated with the respective CF peptides (2 h, 37 °C; 25 µM), (green fluorescence λEXC = 488 nm; λEM = 510 nm), and additionally stained with CellMask, deep red (red fluorescence, λEXC = 658 nm; λEM = 690 nm) and Hoechst (blue fluorescence, λEXC = 405 nm; λEM = 460 nm) as a plasma membrane and nucleic acids markers, respectively. Magnification bar: 25 µm.
Figure 4. Confocal microscopy of HeLa cells incubated with the carboxyfluoresceinated γ-CC 7 and γ-CT 11 tetradecameric peptides. (a) Peptide γ-CC 7. (b) Peptide γ-CT 11. (c) Orthogonal projections highlight the internalization (XZ and YZ) of both peptides. HeLa cells were incubated with the respective CF peptides (2 h, 37 °C; 25 µM), (green fluorescence λEXC = 488 nm; λEM = 510 nm), and additionally stained with CellMask, deep red (red fluorescence, λEXC = 658 nm; λEM = 690 nm) and Hoechst (blue fluorescence, λEXC = 405 nm; λEM = 460 nm) as a plasma membrane and nucleic acids markers, respectively. Magnification bar: 25 µm.
Ijms 21 07502 g004
Figure 5. Viability of Leishmania sp. parasites after 4 h incubation with peptides 6, 7, 10 and 11. (a) L. pifanoi axenic amastigotes. (b) L. donovani promastigotes. Axenic Leishmania parasites (20 × 106 cells/mL) were incubated with the peptides, and MTT reduction measured immediately after 4 h incubation. Viability was represented as the percentage of MTT reduction (mean ± SD). Statistical significance with respect to control parasites: p ≤ 0.05, (*); p ≤ 0.01, (**); p ≤ 0.001, (***). Results are representative of one out of three independent experiments. Samples were made in triplicate.
Figure 5. Viability of Leishmania sp. parasites after 4 h incubation with peptides 6, 7, 10 and 11. (a) L. pifanoi axenic amastigotes. (b) L. donovani promastigotes. Axenic Leishmania parasites (20 × 106 cells/mL) were incubated with the peptides, and MTT reduction measured immediately after 4 h incubation. Viability was represented as the percentage of MTT reduction (mean ± SD). Statistical significance with respect to control parasites: p ≤ 0.05, (*); p ≤ 0.01, (**); p ≤ 0.001, (***). Results are representative of one out of three independent experiments. Samples were made in triplicate.
Ijms 21 07502 g005
Figure 6. Flow cytometry of carboxyfluoresceinated 6, 7, 10 and 11 and TAT48–57 peptides associated with Leishmania pifanoi amastigotes and Leishmania donovani promastigotes. Parasites (20 × 106 cells/mL) were incubated for 4 h with the respective CF-peptides at 10 μM. Afterwards, peptide association to parasites was assessed by flow cytometry (λEXC = 488 nm, λEM = 519 nm) and represented as the percentage with respect to TAT-CF ± SD. White bars: Leishmania pifanoi axenic amastigotes; black bar: Leishmania donovani promastigotes. Statistical significance was referred with respect to the uptake of carboxyfluoresceinated TAT: p ≤ 0.05, (*); p ≤ 0.01, (**). Results are representative of one out of three independent experiments. Samples were made in triplicate.
Figure 6. Flow cytometry of carboxyfluoresceinated 6, 7, 10 and 11 and TAT48–57 peptides associated with Leishmania pifanoi amastigotes and Leishmania donovani promastigotes. Parasites (20 × 106 cells/mL) were incubated for 4 h with the respective CF-peptides at 10 μM. Afterwards, peptide association to parasites was assessed by flow cytometry (λEXC = 488 nm, λEM = 519 nm) and represented as the percentage with respect to TAT-CF ± SD. White bars: Leishmania pifanoi axenic amastigotes; black bar: Leishmania donovani promastigotes. Statistical significance was referred with respect to the uptake of carboxyfluoresceinated TAT: p ≤ 0.05, (*); p ≤ 0.01, (**). Results are representative of one out of three independent experiments. Samples were made in triplicate.
Ijms 21 07502 g006
Figure 7. Confocal microscopy of Leishmania donovani promastigotes incubated with the selected γ/γ-peptides and TAT. Parasites were incubated with the corresponding peptides (10 μM final concentration, 2 h, 26 °C). Afterwards, they were observed without further fixation. CF-peptides (green fluorescence: λEXC = 488 nm/λEM = 519 nm). DAPI (DNA probe, blue fluorescence: λEXC = 358 nm/λEM = 461 nm). Magnification bar = 10 μm.
Figure 7. Confocal microscopy of Leishmania donovani promastigotes incubated with the selected γ/γ-peptides and TAT. Parasites were incubated with the corresponding peptides (10 μM final concentration, 2 h, 26 °C). Afterwards, they were observed without further fixation. CF-peptides (green fluorescence: λEXC = 488 nm/λEM = 519 nm). DAPI (DNA probe, blue fluorescence: λEXC = 358 nm/λEM = 461 nm). Magnification bar = 10 μm.
Ijms 21 07502 g007
Figure 8. Viability of Leishmania donovani promastigotes treated with Dox-conjugates 15 and 16 along with Dox and Dox-TAT. Parasites were incubated with the respective reagents (20 × 106 cells/mL, 4 h, 26 °C), and MTT reduction measured afterwards. Parasite viability was represented as the percentage of MTT reduction ± SD with respect to untreated parasites. Statistical significance with respect to control parasites: p ≤ 0.05 (*); p ≤ 0.01 (**); p ≤ 0.001 (***). Samples were made in triplicate. Results from one out of three independent experiments were represented.
Figure 8. Viability of Leishmania donovani promastigotes treated with Dox-conjugates 15 and 16 along with Dox and Dox-TAT. Parasites were incubated with the respective reagents (20 × 106 cells/mL, 4 h, 26 °C), and MTT reduction measured afterwards. Parasite viability was represented as the percentage of MTT reduction ± SD with respect to untreated parasites. Statistical significance with respect to control parasites: p ≤ 0.05 (*); p ≤ 0.01 (**); p ≤ 0.001 (***). Samples were made in triplicate. Results from one out of three independent experiments were represented.
Ijms 21 07502 g008
Figure 9. Uptake of free- and peptide-conjugated doxorubicin by Leishmania donovani promastigotes at (a) 2 h incubation, (b) 4 h incubation. Doxorubicin uptake was quantified by flow cytometry using the doxorubicin fluorescence setting (λEXC = 488 nm; λEM = 515 nm) after incubation of the parasites (20 × 106 cells/mL, 26 °C in HBSS-Glc) for (a) 2 h, and (b) 4 h. Data were represented as percentage ± SD with respect to the uptake of the Dox-TAT conjugate. Reagent concentration: 5 μM (white columns); 10 µM (black columns). Samples were made by duplicate (p ≤ 0.05, (*); p ≤ 0.01, (**)). Dox: doxorubicin; HBSS-Glc: Hanks buffered saline solution and glucose.
Figure 9. Uptake of free- and peptide-conjugated doxorubicin by Leishmania donovani promastigotes at (a) 2 h incubation, (b) 4 h incubation. Doxorubicin uptake was quantified by flow cytometry using the doxorubicin fluorescence setting (λEXC = 488 nm; λEM = 515 nm) after incubation of the parasites (20 × 106 cells/mL, 26 °C in HBSS-Glc) for (a) 2 h, and (b) 4 h. Data were represented as percentage ± SD with respect to the uptake of the Dox-TAT conjugate. Reagent concentration: 5 μM (white columns); 10 µM (black columns). Samples were made by duplicate (p ≤ 0.05, (*); p ≤ 0.01, (**)). Dox: doxorubicin; HBSS-Glc: Hanks buffered saline solution and glucose.
Ijms 21 07502 g009
Figure 10. Representative MD conformations for (a) peptide γ-CC 5 and (b) conjugate (R)-Dox-γ-CC, (R)-15. The peptide scaffold is highlighted by the green ribbon; Dox is represented in orange; the arrow points out long-range hydrogen-bonding between the primary hydroxyl group of the cyclohexane side-chain in Dox moiety and the Nα-side chain CO in proline residue i = 8.
Figure 10. Representative MD conformations for (a) peptide γ-CC 5 and (b) conjugate (R)-Dox-γ-CC, (R)-15. The peptide scaffold is highlighted by the green ribbon; Dox is represented in orange; the arrow points out long-range hydrogen-bonding between the primary hydroxyl group of the cyclohexane side-chain in Dox moiety and the Nα-side chain CO in proline residue i = 8.
Ijms 21 07502 g010
Figure 11. Representative MD conformations for (a) peptide γ-CT 9, inter-residue interactions are marked; and (b) conjugate (R)-Dox-γ-CT, (R)-16. The peptide scaffold is highlighted by the green ribbon; Dox is represented in orange; the arrow points out long-range hydrogen-bonding between the tertiary hydroxyl group of the cyclohexane ring in the Dox-moiety and the Nα-side chain CO in proline residue i = 6.
Figure 11. Representative MD conformations for (a) peptide γ-CT 9, inter-residue interactions are marked; and (b) conjugate (R)-Dox-γ-CT, (R)-16. The peptide scaffold is highlighted by the green ribbon; Dox is represented in orange; the arrow points out long-range hydrogen-bonding between the tertiary hydroxyl group of the cyclohexane ring in the Dox-moiety and the Nα-side chain CO in proline residue i = 6.
Ijms 21 07502 g011

Share and Cite

MDPI and ACS Style

Illa, O.; Olivares, J.-A.; Gaztelumendi, N.; Martínez-Castro, L.; Ospina, J.; Abengozar, M.-Á.; Sciortino, G.; Maréchal, J.-D.; Nogués, C.; Royo, M.; Rivas, L.; Ortuño, R.M. Chiral Cyclobutane-Containing Cell-Penetrating Peptides as Selective Vectors for Anti-Leishmania Drug Delivery Systems. Int. J. Mol. Sci. 2020, 21, 7502. https://doi.org/10.3390/ijms21207502

AMA Style

Illa O, Olivares J-A, Gaztelumendi N, Martínez-Castro L, Ospina J, Abengozar M-Á, Sciortino G, Maréchal J-D, Nogués C, Royo M, Rivas L, Ortuño RM. Chiral Cyclobutane-Containing Cell-Penetrating Peptides as Selective Vectors for Anti-Leishmania Drug Delivery Systems. International Journal of Molecular Sciences. 2020; 21(20):7502. https://doi.org/10.3390/ijms21207502

Chicago/Turabian Style

Illa, Ona, José-Antonio Olivares, Nerea Gaztelumendi, Laura Martínez-Castro, Jimena Ospina, María-Ángeles Abengozar, Giuseppe Sciortino, Jean-Didier Maréchal, Carme Nogués, Míriam Royo, Luis Rivas, and Rosa M. Ortuño. 2020. "Chiral Cyclobutane-Containing Cell-Penetrating Peptides as Selective Vectors for Anti-Leishmania Drug Delivery Systems" International Journal of Molecular Sciences 21, no. 20: 7502. https://doi.org/10.3390/ijms21207502

Note that from the first issue of 2016, MDPI journals use article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
