Article

Cadmium-Related Effects on Cellular Immunity Comprises Altered Metabolism in Earthworm Coelomocytes

1
Institute of Zoology, Center for Molecular Biosciences Innsbruck, University of Innsbruck, 25 6020 Technikerstraße, Austria
2
Department of Cell Biology, Adaptive Biology Laboratory, Universidade Federal do Paraná, Curitiba, Paraná 82590-300, Brazil
3
Institute for Biomedical Aging Research, University of Innsbruck, 6020 Innsbruck, Austria
4
Environmental Proteomics Laboratory, Department of Biological Sciences, Center for Coastal Marine Studies, California Polytechnic State University, 1 Grand Ave., San Luis Obispo, CA 93407-0401, USA
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2020, 21(2), 599; https://doi.org/10.3390/ijms21020599
Received: 23 December 2019 / Revised: 9 January 2020 / Accepted: 13 January 2020 / Published: 17 January 2020
(This article belongs to the Special Issue Advances in Metal Metabolism Research)

Abstract

:
The heavy metal cadmium (Cd) is known to modulate the immune system, challenging soil-dwelling organisms where environmental Cd pollution is high. Since earthworms lack adaptive immunity, we determined Cd-related effects on coelomocytes, the cellular part of innate immunity, which is also the site of detoxification processes. A proteomics approach revealed a set of immunity-related proteins as well as gene products involved in energy metabolism changing in earthworms in response to Cd exposure. Based on these results, we conducted extracellular flux measurements of oxygen and acidification to reveal the effect of Cd on coelomocyte metabolism. We observed a significantly changing oxygen consumption rate, extracellular acidification, as well as metabolic potential, which can be defined as the response to an induced energy demand. Acute changes in intracellular calcium levels were also observed, indicating impaired coelomocyte activation. Lysosomes, the cell protein recycling center, and mitochondrial parameters did not change. Taken together, we were able to characterize coelomocyte metabolism to reveal a potential link to an impaired immune system upon Cd exposure.

Graphical Abstract

1. Introduction

The earthworm immune system consists of cellular and humoral factors that are all part of innate immunity, as earthworms lack an adaptive immune system. However, it has to be mentioned that borders between innate and adaptive immunity are fluid, revealing many categories in between [1,2]. So-called coelomocytes execute the functions of cellular immunity in earthworms [3]. They are found in the coelomic fluid of the body cavity and are released through dorsal pores to fight pathogens and help cope with environmental stress. Coelomocytes are comprised of different cell types like amoebocytes and eleocytes. Amoebocytes are phagocytes, involved in reactive oxygen species (ROS) production that possess natural killer (NK) cell-like activity and express Toll-like receptors. Eleocytes maintain the pH of the coelomic fluid, and store glycogen, lipids and, moreover, riboflavin [4]. Riboflavin, the homolog of mammalian vitamin B2, acts as antinociceptive, anti-inflammatory agent, and chemoattractant [5]. Importantly, coelomocyte activity is mediated via calcium, which is, depending on the earthworm species and coelomocyte subtype, released from intracellular calcium stores and/or increased by calcium influx [6].
Coelomocytes are specific sites of the cellular stress response, which includes the expression of metallothioneins (MTs) [5]. MTs can bind heavy metals like Cadmium (Cd) to their cysteine residues. The heavy metal protein complex is then stored in lysosomes as shown in the mouse kidney [7]. Cd is classified as a carcinogen by the WHO and is brought into the environment mainly through industry and agriculture. The chemical and structural similarity of Cd to calcium and zinc, which is called ionic mimicry, is the main pathway by which Cd exerts its toxicity [8]. Therefore, soil-dwelling organisms like earthworms face challenging conditions in Cd-polluted habitats.
In general, Cd causes coelomocyte numbers to decrease in earthworms [5,9]. Cd exposure also leads to a decreased number of hemocytes in a clam species [10] and in freshwater crab [11]. Cd showed immunosuppressive effects in mammals [12], several fish species [13,14,15,16], amphibians [17] and invertebrates [10,11]. A study in mouse monocytes, which are phagocytes of the innate immune system, suggested that Cd-induced ROS production leads to ER stress and calcium-mediated calpain activation that in turn triggers autophagy and apoptosis via caspases [12]. Caspase 3, a mediator of cell death, was activated in earthworm coelomocytes upon Cd exposure [9].
Cd treatment also leads to lysosomal membrane permeabilization [18] and a decrease of acidic organelles in hemocytes of the zebra mussel [19]. Quite recently, the lysosome function was extended from just being the cell’s “trash can” to an important regulator of cellular metabolism [20]. The authors of the latter study suggested that lysosomes control the turnover of metabolic building blocks, e.g., amino acids, and communicate the metabolic state of the cell through so-called nutrient sensing modules.
What is still largely unknown are the mechanisms behind Cd-induced immunomodulatory effects. A proteomic study on Cd-exposed earthworms provided data on several functional protein classes, like immunity, calcium signaling, and energy metabolism. Therefore, we focus on the metabolic profile of earthworm immune cells when exposed to Cd in vivo and in vitro to reveal the functional context of Cd-induced immunodeficiency and energy homeostasis.

2. Results

After exposure of earthworms to 50 mg CdCl2/ kg dry soil for 2 weeks, a proteomics approach revealed that proteins from several functional classes changed significantly compared to controls.
We observed the most prominent results in immunity-related proteins, which all showed less abundance in the Cd exposure group. Due to high individual variability, only β-glucuronidase revealed a statistically significant decrease (Figure 1). We detected a Lumbrokinase protein, which is a fibrinolytic enzyme [21], that was lower in abundance with Cd exposure. Hypercoagulability has already been shown to occur in women with myeloma and endometrial cancer in response to Cd exposure [22]. We found a thrombospondin type 3 repeat family protein, which is a mediator of the inflammatory response. Thrombospondin increased in rats after 8 h of a hepatotoxic dose of Cd [23], which could, however, be a time-dependent effect. We identified a clavaminate synthase (CAS)-like gene product, which belonged to the non-heme iron, α-ketoglutarate-dependent oxygenase, and was responsible for the production of antibiotic compounds [24]. β-glucuronidase was observed in basophils and neutrophils of earthworm coelomocytes in vesicles, which were suggested to be lysosomes [25]. As a consequence, we measured the number of lysosomes, since reduced levels of β-glucuronidase could reflect a decreasing lysosome number [26]. Although a slight trend of decreasing lysosome numbers was observed, flow cytometry experiments did not confirm significant differences in coelomocytes derived from Cd-exposed earthworms (Figure 2).
The proteomics approach revealed a significant change of neuronal calcium sensor 2, a protein involved in calcium signaling (Figure 3A). Intracellular calcium levels did not significantly change after 2 weeks of earthworm exposure in Cd-spiked soil, in contrast to a significant decrease after 1 week. In vitro Cd exposure for 1 h revealed a significant increase of intracellular calcium levels (Figure 3B).
Several proteins involved in energy metabolism revealed a statistically significant increase in abundance upon Cd exposure (Figure 4A). Higher expression levels of pyruvate dehydrogenase (PDH) hint towards an increasing production of acetyl-CoA, which feeds into the citric acid cycle for energy and substrate production. The detection of increasing levels of NADH ubiquinone reductase (NADH dehydrogenase), the first enzyme of the electron transport chain further confirmed the potential increase in aerobic metabolism (Figure 4A).
The immune system, as well as energy metabolism, is affected by Cd. We therefore used coelomocytes, earthworm immune cells, to measure oxygen consumption and extracellular acidification after in vivo Cd exposure. Whether a shift of glucose into the pentose phosphate pathway (PPP) can lead to decreased extracellular acidification was tested by measuring Glucose-6-Phosphate Dehydrogenase (G6PDH) activity, which, however, did not reveal a significant increase in coelomocytes derived from earthworms exposed to Cd (Figure 4B). We showed that around 70% of total extracellular acidification in coelomocytes derives from glycolysis, and this did not change after Cd exposure, similar to the other parameters measured in the glycolytic rate assay (Figure 4C). The metabolic potential describes the maximum ability to meet an energy demand via mitochondrial respiration and glycolysis. The metabolic potential can also be referred to as the response to an induced energy demand. Both the oxygen consumption rate (OCR) (Figure 5B) and extracellular acidification rate (ECAR) (Figure 5C) of this induced (stressed) state were measured. In coelomocytes derived from Cd-exposed earthworms, the OCR metabolic potential did not significantly change, in contrast to the metabolic potential, as indicated by the ECAR (Figure 5). The timeline of OCR and ECAR before and after the addition of the uncoupling agent FCCP and oligomycin—an ATPase inhibitor—are given in Supplementary Figure S1 When measuring the OCR and ECAR over a period of 12 h, Cd caused decreased rates in both cases (Figure 6). In vitro Cd exposure experiments of coelomocytes confirmed the results from the in vivo studies, namely that Cd leads to a decreased metabolic potential regarding ECAR. The same as in the in vivo experiments, the OCR metabolic potential did not significantly change (Figure 7). Details of the in vitro energy phenotype test of coelomocytes regarding OCR and ECAR are shown in Supplementary Figure S2. Furthermore, we characterized coelomocytes according to their oxygen consumption and calculated aerobic capacity, ATP production, proton leak, maximum mitochondrial respiration and non-mitochondrial respiration. Aerobic capacity can be calculated by subtracting the basal respiration from maximum respiration (Figure S3). Inhibition of mitochondrial function by Rotenone and Antimycin A (Rot/AA) enables calculation of mitochondrial-associated acidification (Figure S3). In vitro coelomocyte exposure to Cd revealed no significant changes (Figure 8).

3. Discussion

The present study focuses on coelomocytes to study the response to Cd on the innate immune system and energy metabolism. It is already known that the heavy metal Cd affects the immune system, but the actual biochemical and physiological mechanisms of these effects are largely unexplored. A proteomics approach identified several proteins related to immunity, confirming the effect on the immune system, and revealing a slight down-regulation when earthworms were exposed to Cd for two weeks. In contrast, proteins involved in energy metabolism showed a Cd-dependent increase. We suggest that higher levels of PDH and NADH dehydrogenase hint towards an increased energy demand due to the activation of stress-responsive mechanisms for heavy metal detoxification and for scavenging reactive oxygen species (ROS) in earthworm tissue [27] and coelomocytes [4]. A previous study on earthworms showed that lipid storage was primarily depleted due to Cd, followed by complete consumption of carbohydrates [28], supporting our conclusion that Cd exposure is energetically expensive.
We focused on the analysis of coelomocytes, to reveal mechanistic details of an impaired immune system and altered energy metabolism.
The metabolic ECAR potential of coelomocytes that derived from Cd-challenged earthworms decreased (determined by measuring ECAR after inhibition of ATP synthase and decoupling of the proton gradient using oligomycin and FCCP, respectively). This indicates that the response to an induced energy demand is impaired and may limit an organism’s ability to cope with any additional environmental stress. We conclude that immune cells of Cd-exposed earthworms perform worse than controls in case of an acute requirement of energy resources. Cd did not, on the other hand, affect the metabolic potential of oxygen consumption rate (metabolic OCR potential). We conclude from these results that Cd interferes with the anaerobic rather than the aerobic branch of cellular metabolism during an induced energy demand. Results from in vitro exposure experiments of coelomocytes without the use of inhibitors showed reduced oxygen consumption and reduced extracellular acidification due to Cd in a time- and dose-dependent manner.
In general, extracellular acidification results from the production of lactate in glycolysis, the production of CO2 in the citric acid cycle followed by the reaction with water to bicarbonate and protons, but also oxidative phosphorylation in the mitochondria leads to the release of protons. We found that around 70% of acidification results from glycolysis in coelomocytes. We therefore assumed that the decreased metabolic ECAR potential upon Cd exposure is due to Cd-based interference with glycolysis. However, when we measured the glycolytic rate in coelomocytes from control or Cd-exposed earthworms, we did not discover a difference. To investigate whether the PPP plays a role in altering extracellular acidification, we determined the activity of Glucose-6-Phosphate Dehydrogenase, which did not change in the Cd exposure groups. The PPP is involved in producing reduction equivalents during Cd exposure. G6PDH activity increased in the hepatopancreas and ovary upon Cd exposure in a freshwater crab in a time-dependent manner and the produced reduction equivalents were used to recycle GSH [29]. This may suggest that the PPP is not a limiting factor for the production of reducing agents to scavenge ROS in earthworms.
We did not observe differences in the glycolytic rate, and there was no change of G6PDH activity. We know from the literature that Cd affects malate and succinate in the TCA cycle, which should, however, not affect acidification, since CO2 is produced by alpha-ketoglutarate dehydrogenase. Previous studies have shown an inhibitory effect of Cd on LDH in rats [30]. LDH catalyzes the reaction of pyruvate to lactate and protons. Inhibition of LDH could indeed lead to reduced levels of protons. LDH is also responsible for lysosome acidification in cancer cells [31].
Quite recently, lysosomes have been addressed as a master regulator of cellular energy metabolism via the mTOR pathway [20]. In human endothelial cells, Cd-induced lysosomal disruption has been studied as part of the autophagy signaling [18]. The proteomics approach revealed that peptidyl-prolyl cis-trans isomerase like protein (PPI) slightly decreased upon Cd exposure. PPIs are involved in regulation of the mTOR pathway and of immunosuppressive reactions [32]. However, we could not show that the number of lysosomes changed in coelomocytes upon Cd treatment. Cd-induced inhibition of mTOR has been shown previously leading to autophagy, suggesting that autophagy plays an important role in Cd-induced immune deficiency [12]. Independent of the lysosome number, the lysosomal function might be impaired, which has, however, not been investigated herein.
Calcium mediates the activation of coelomocytes [6] and it has been shown to be involved in the response to Cd in yeast [33]. In freshwater crab, Cd induces apoptosis via calcium signaling [34]. We found an acute effect of Cd on the intracellular calcium level in coelomocytes, which increased after 1h of exposure, suggesting that calcium plays a role in the acute response to Cd and probably immune cell activation. Interestingly, when we looked at coelomocytes derived from 1 week Cd-exposed earthworms, we observed a decrease in [Ca2+]I, which was still slightly but not significantly reduced after two weeks of Cd exposure. Calcium signaling might therefore play an important role in Cd-dependent immune deficiency.
When we measured parameters of mitochondrial metabolism in coelomocytes, we did not find any Cd-dependent effects. We observed around 30% proton leak (in relation to basal respiration). The expression of uncoupling proteins (UCPs) is responsible for decoupling of the proton gradient in mitochondria. In the past years the crucial role of UCPs in redox signaling of immune cells has been indicated [35]. Activation of UCP2, and the resulting proton leak, negatively regulates ROS formation and ROS signaling [35]. In contrast to results found in the present study, Cd has been shown to lead to partial uncoupling of the proton gradient in oyster mitochondria [36]. Cd exposure also increases proton conductance in the hemocytes of clams [37].

4. Materials and Methods

4.1. Earthworm Maintenance

For the proteomics approach, the earthworm species L. rubellus was used due to the availability of the L. rubellus genome (Supplementary Material Section S1). However, since only L. terrestris is commercially available, further studies were carried out using this species, which was ordered from Wurmwelten.de (Stadtoldendorf, Germany). Earthworms for coelomocyte harvesting were kept in tanks containing commercially available feeding soil (Wurmwelten.de, Stadtoldendorf, Germany) at 15 °C with a 12/12 light/dark cycle. The soil used for the acclimation and exposure was heat-treated (120 °C, 12 h). A water content of 50% was maintained, and the earthworms were fed weekly with horse manure (1.2 g manure per individual). Following 4 weeks of acclimation, earthworms were exposed either to control soil or to 50 mg/kg CdCl2 for 3 weeks. The exposure concentration was chosen according to an environmentally relevant impact of Cd in highly polluted areas [38].

4.2. Proteomics Approach

In short, proteins were isolated from the whole tissue parts of the posterior region behind the clitellum, separated using 2D gel electrophoresis, and stained with colloidal Coomassie Blue reagent following published protocols [39]. The proteome map was analyzed using Delta2D software (version 4.3; Decodon, Greifswald, Germany) and significantly changed protein spots were then picked and analyzed using MALDI-MS/MS. Proteins were subsequently identified by blasting against a L. rubellus genome database (http://badger.bio.ed.ac.uk/earthworm/, last access date: 18 November 2013; this site has closed down since the data analysis was completed). The control and Cd-exposed group consisted each of three biological replicates. Detailed information on the proteomics approach can be found in the Supplementary Material, Section S1.

4.3. Harvesting of Coelomocytes

Earthworms (L. terrestris) were washed in water to remove excess soil and placed into a petri dish containing 1xPBS including 50 mM guaiacol glyceryl ether (GGE) (extrusion buffer). Earthworms were stimulated to extrude coelomocytes using a 9V battery and the cell suspension was centrifuged for 10 min at 1500 rpm at room temperature. Cells were resuspended in assay media (for details on the assay media please refer to the respective methodical sections).

4.4. Extracellular Flux Measurements

Coelomocytes were non-invasively harvested as described above. Cell number was measured with a Countess II automated cell counter (ThermoFisher, Waltham, MA, USA). Using the seahorse XFp analyzer (Agilent Technologies, Santa Clara, California, United States), the oxygen consumption rate (OCR) as well as the extracellular acidification rate (ECAR) was measured. 40,000 cells were seeded to cell cartridges in assay media as described in the user manual. For characterizing the metabolic potential, the Agilent Seahorse XFp Cell Energy Phenotype Test Kit was used according to manufacturer’s instructions. The metabolic potential can be defined as the response, e.g., the rate of increase or magnitude reached in metabolic rate, to an induced energy demand. Also, the glycolytic rate assay as well as the Mito stress test was applied for metabolic measurements (Agilent Technologies, Santa Clara, CA, USA). Data were normalized to the last measurement before application of inhibitors used in the respective assay to account for putative differences in cell numbers. Due to the complex nature of the assays, we provide more detailed information in the Supplementary Material (Section S3, Figures S3–S5).

4.5. Glucose-6 Phosphate Dehydrogenase Activity

G6PDH was measured using the glucose-6 phosphate dehydrogenase assay kit (Sigma-Aldrich, St. Louis, MO, USA) according to the user manual in coelomocytes derived from 1, 2, and 3 weeks Cd-exposed (50 mg CdCl2/kg dry soil) and control earthworms.

4.6. Lysosome Quantification

Coelomocytes were harvested from Cd-exposed and control earthworms after 1 and 2 weeks. Coelomocytes derived from control earthworms were also exposed to 200 µM CdCl2 for 1 h in vitro to measure the acute responses to Cd exposure. Cells were stained for 45 min with 1 mL LysoTracker® Green DND-26 (Thermo Fisher Scientific, Waltham, MA, USA) at 15 °C. Fluorescence was detected by flow cytometry using a BD FACSCanto™ II instrument (Becton Dickinson, Franklin Lakes, NJ, USA). Coelomocyte subpopulations were not separately analyzed. A minimum of 10,000 cells were acquired in each experiment for flow cytometric analysis.

4.7. Calcium Measurements

Coelomocytes were harvested from Cd-exposed and control earthworms after 1 and 2 weeks (see above), and coelomocytes derived from control earthworms were also in vitro exposed to 200 µM CdCl2 for 1 h. Cells were stained with Fluo-3-am for 45 min at 15 °C (Sigma-Aldrich, St. Louis, MO, USA). Fluorescence was detected by flow cytometry using a BD FACSCanto™ II instrument (Becton Dickinson, Franklin Lakes, NJ, USA). Coelomocyte subpopulations were not separately analyzed. A minimum of 18,000 cells were acquired in each experiment for flow cytometric analysis.

4.8. Statistics

Statistical analyses were performed using SigmaPlot (version 14.0, Systat Software GmbH Erkrath, Germany). In cases where the data were normally distributed and passed the equal variance test, a t-test or ANOVA was conducted. In cases where normality or equal variance tests failed, a Mann–Whitney Rank Sum Test was applied. Multiple comparisons were performed using post-hoc Tukey tests. All data are presented as mean values ± SEM.

5. Conclusions

Based on our results, we conclude that the effects of Cd leading to an impaired immune system in earthworms might in part be due to an altered metabolism, as well as impaired calcium signaling in coelomocytes. We could not show changing numbers of lysosomes in coelomocytes when earthworms were challenged with Cd and mitochondrial parameters also did not change upon acute Cd exposure. Further studies are needed to elucidate the specific mechanism behind compromised immunity due to Cd exposure.
We know from previous studies that the adverse effects of Cd are highly variable, so we assume that adverse effects of Cd are tissue-specific and largely time- and dose-dependent [40].

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/21/2/599/s1.

Author Contributions

Conceptualization, M.H.; methodology, L.T., M.H. and B.F.; validation, L.T. and M.H.; investigation, M.H.; resources, L.T. and M.H.; data curation, M.H., B.W. and B.F.; writing—original draft preparation, M.H.; writing—review and editing, M.H., L.T., B.W. and C.A.P.; visualization, M.H.; supervision, L.T. and M.H.; project administration, M.H.; funding acquisition, M.H. and L.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by Fulbright Austria awarding Martina Höckner with a visiting scholarship at California Polytechnic State University.

Acknowledgments

We thank Katja Zanchetta and Michelle Loudon for their contribution to FACS measurements as well as Nico Walzthöni for his contribution to extracellular flux measurements, and Marcus Zuzow for his help with mass spectrometry.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

ATPAdenosine triphosphate
[Ca2+]IIntracellular Calcium concentration
CdCadmium
CdCl2Cadmiumchloride
CO2Carbon dioxide
ECARExtracellular acidification rate
FCCPCarbonyl cyanide-4-(trifluoromethoxy)phenylhydrazone
GGEGuaiacol glyceryl ether
G6PDHGlucose-6-phosphate dehydrogenase
LDHLactatedehydrogenase
MTMetallothionein
NADNicotinamide adenine dinucleotide
OCROxygen consumption rate
PDHPyruvate dehydrogenase
PPPPentose phosphate pathway
PPIPeptidyl-prolyl cis-trans isomerase-like protein
ROSReactive oxygen species
TCATricarboxylic acid cycle
UCPUncoupling protein

References

  1. Cooper, E.L. Commentary: Blurring Borders: Innate Immunity with Adaptive Features. Front. Microbiol. 2016, 7, 358. [Google Scholar] [CrossRef] [PubMed]
  2. Criscitiello, M.F.; de Figueiredo, P. Fifty shades of immune defense. PLoS Pathog. 2013, 9, e1003110. [Google Scholar] [CrossRef] [PubMed][Green Version]
  3. Engelmann, P.; Cooper, E.L.; Opper, B.; Németh, P. Earthworm Innate Immune System. In Biology of Earthworms; Springer: Berlin/Heidelberg, Germany, 2011; pp. 229–245. [Google Scholar]
  4. Homa, J. Earthworm coelomocyte extracellular traps: Structural and functional similarities with neutrophil NETs. Cell Tissue Res. 2018, 371, 407–414. [Google Scholar] [CrossRef] [PubMed][Green Version]
  5. Homa, J.; Klimek, M.; Kruk, J.; Cocquerelle, C.; Vandenbulcke, F.; Plytycz, B. Metal-specific effects on metallothionein gene induction and riboflavin content in coelomocytes of Allolobophora chlorotica. Ecotoxicol. Environ. Saf. 2010, 73, 1937–1943. [Google Scholar] [CrossRef]
  6. Opper, B.; Németh, P.; Engelmann, P. Calcium is required for coelomocyte activation in earthworms. Mol. Immunol. 2010, 47, 2047–2056. [Google Scholar] [CrossRef]
  7. Dorian, C.; Gattone, V.H.; Klaassen, C.D. Accumulation and degradation of the protein moiety of cadmium-metallothionein (CdMT) in the mouse kidney. Toxicol. Appl. Pharmacol. 1992, 117, 242–248. [Google Scholar] [CrossRef]
  8. Bridges, C.C.; Zalups, R.K. Molecular and ionic mimicry and the transport of toxic metals. Toxicol. Appl. Pharmacol. 2005, 204, 274–308. [Google Scholar] [CrossRef][Green Version]
  9. Homa, J.; Stürzenbaum, S.R.; Morgan, A.J.; Plytycz, B. Disrupted homeostasis in coelomocytes of Eisenia fetida and Allolobophora chlorotica exposed dermally to heavy metals. Eur. J. Soil Biol. 2007, 43, S273–S280. [Google Scholar] [CrossRef]
  10. Shi, W.; Guan, X.; Han, Y.; Guo, C.; Rong, J.; Su, W.; Zha, S.; Wang, Y.; Liu, G. Waterborne Cd 2+ weakens the immune responses of blood clam through impacting Ca 2+ signaling and Ca 2+ related apoptosis pathways. Fish Shellfish Immunol. 2018, 77, 208–213. [Google Scholar] [CrossRef]
  11. Qin, Q.; Qin, S.; Wang, L.; Lei, W. Immune responses and ultrastructural changes of hemocytes in freshwater crab Sinopotamon henanense exposed to elevated cadmium. Aquat. Toxicol. 2012, 106, 140–146. [Google Scholar] [CrossRef]
  12. So, K.-Y.; Lee, B.-H.; Oh, S.-H. The critical role of autophagy in cadmium-induced immunosuppression regulated by endoplasmic reticulum stress-mediated calpain activation in RAW264.7 mouse monocytes. Toxicology 2018, 393, 15–25. [Google Scholar] [CrossRef] [PubMed]
  13. Giri, S.S.; Sen, S.S.; Jun, J.W.; Sukumaran, V.; Park, S.C. Immunotoxicological effects of cadmium on Labeo rohita, with emphasis on the expression of HSP genes. Fish Shellfish Immunol. 2016, 54, 164–171. [Google Scholar] [CrossRef] [PubMed]
  14. Yuan, S.-S.; Lv, Z.-M.; Zhu, A.-Y.; Zheng, J.-L.; Wu, C.-W. Negative effect of chronic cadmium exposure on growth, histology, ultrastructure, antioxidant and innate immune responses in the liver of zebrafish: Preventive role of blue light emitting diodes. Ecotoxicol. Environ. Saf. 2017, 139, 18–26. [Google Scholar] [CrossRef] [PubMed]
  15. Zhang, Z.; Zheng, Z.; Cai, J.; Liu, Q.; Yang, J.; Gong, Y.; Wu, M.; Shen, Q.; Xu, S. Effect of cadmium on oxidative stress and immune function of common carp (Cyprinus carpio L.) by transcriptome analysis. Aquat. Toxicol. 2017, 192, 171–177. [Google Scholar] [CrossRef]
  16. Zhao, Y.; Li, R.; Lin, Y. Allograft inflammatory factor-1 in grass carp (Ctenopharynogodon idella): Expression and response to cadmium exposure. Fish Shellfish Immunol. 2015, 47, 444–449. [Google Scholar] [CrossRef]
  17. Priyadarshani, S.; Madhushani, W.A.N.; Jayawardena, U.A.; Wickramasinghe, D.D.; Udagama, P.V. Heavy metal mediated immunomodulation of the Indian green frog, Euphlyctis hexadactylus (Anura:Ranidae) in urban wetlands. Ecotoxicol. Environ. Saf. 2015, 116, 40–49. [Google Scholar] [CrossRef]
  18. Messner, B.; Ploner, C.; Laufer, G.; Bernhard, D. Cadmium activates a programmed, lysosomal membrane permeabilization-dependent necrosis pathway. Toxicol. Lett. 2012, 212, 268–275. [Google Scholar] [CrossRef][Green Version]
  19. Evariste, L.; Rioult, D.; Brousseau, P.; Geffard, A.; David, E.; Auffret, M.; Fournier, M.; Betoulle, S. Differential sensitivity to cadmium of immunomarkers measured in hemocyte subpopulations of zebra mussel Dreissena polymorpha. Ecotoxicol. Environ. Saf. 2017, 137, 78–85. [Google Scholar] [CrossRef]
  20. Lim, C.-Y.; Zoncu, R. The lysosome as a command-and-control center for cellular metabolism. J. Cell Biol. 2016, 214, 653–664. [Google Scholar] [CrossRef]
  21. Cho, I.H.; Choi, E.S.; Lim, H.G.; Lee, H.H. Purification and characterization of six fibrinolytic serine-proteases from earthworm Lumbricus rubellus. J. Biochem. Mol. Biol. 2004, 37, 199–205. [Google Scholar] [CrossRef][Green Version]
  22. Nasiadek, M.; Kilanowicz, A.; Darago, A.; Lazarenkow, A.; Michalska, M. The effect of cadmium on the coagulation and fibrinolytic system in women with uterine endometrial cancer and myoma. Int. J. Occup. Med. Environ. Health 2013, 26, 291–301. [Google Scholar] [CrossRef] [PubMed]
  23. Liu, J.; Qu, W.; Saavedra, J.E.; Waalkes, M.P. The Nitric Oxide Donor, O2-Vinyl 1-(Pyrrolidin-1-yl) diazen-1-ium-1,2-diolate (V-PYRRO/NO), Protects against Cadmium-Induced Hepatotoxicity in Mice. J. Pharmacol. Exp. Ther. 2004, 310, 18–24. [Google Scholar] [CrossRef] [PubMed][Green Version]
  24. Zhang, Z.; Ren, J.; Stammers, D.K.; Baldwin, J.E.; Harlos, K.; Schofield, C.J. Structural origins of the selectivity of the trifunctional oxygenase clavaminic acid synthase. Nat. Struct. Biol. 2000, 7, 127–133. [Google Scholar] [PubMed]
  25. Stein, E.; Cooper, E.L. Cytochemical observations of coelomocytes from the earthworm, Lumbricus terrestris. Histochem. J. 1978, 10, 675–678. [Google Scholar] [CrossRef] [PubMed]
  26. Izagirre, U.; Angulo, E.; Wade, S.C.; Ap Gwynn, I.; Marigómez, I. Beta-glucuronidase and hexosaminidase are marker enzymes for different compartments of the endo-lysosomal system in mussel digestive cells. Cell Tissue Res. 2009, 335, 441–454. [Google Scholar] [CrossRef] [PubMed]
  27. Höckner, M.; Dallinger, R.; Stürzenbaum, S.R. Metallothionein gene activation in the earthworm (Lumbricus rubellus). Biochem. Biophys. Res. Commun. 2015, 460, 537–542. [Google Scholar] [CrossRef][Green Version]
  28. Novais, S.C.; Soares, A.M.V.M.; De Coen, W.; Amorim, M.J.B. Exposure of Enchytraeus albidus to Cd and Zn—Changes in cellular energy allocation (CEA) and linkage to transcriptional, enzymatic and reproductive effects. Chemosphere 2013, 90, 1305–1309. [Google Scholar] [CrossRef]
  29. Yang, J.; Liu, D.; Jing, W.; Dahms, H.-U.; Wang, L. Effects of Cadmium on Lipid Storage and Metabolism in the Freshwater Crab Sinopotamon henanense. PLoS ONE 2013, 8, e77569. [Google Scholar] [CrossRef][Green Version]
  30. Karthikeyan, J.; Bavani, G. Effect of cadmium on lactate dehyrogenase isoenzyme, succinate dehydrogenase and Na(+)-K(+)-ATPase in liver tissue of rat. J. Environ. Biol. 2009, 30, 895–898. [Google Scholar]
  31. Brisson, L.; Bański, P.; Sboarina, M.; Dethier, C.; Danhier, P.; Fontenille, M.-J.; Van Hée, V.F.; Vazeille, T.; Tardy, M.; Falces, J.; et al. Lactate Dehydrogenase B Controls Lysosome Activity and Autophagy in Cancer. Cancer Cell 2016, 30, 418–431. [Google Scholar] [CrossRef][Green Version]
  32. Powell, J.D.; Pollizzi, K.N.; Heikamp, E.B.; Horton, M.R. Regulation of immune responses by mTOR. Annu. Rev. Immunol. 2012, 30, 39–68. [Google Scholar] [CrossRef] [PubMed][Green Version]
  33. Ruta, L.L.; Popa, V.C.; Nicolau, I.; Danet, A.F.; Iordache, V.; Neagoe, A.D.; Farcasanu, I.C. Calcium signaling mediates the response to cadmium toxicity in Saccharomyces cerevisiae cells. FEBS Lett. 2014, 588, 3202–3212. [Google Scholar] [CrossRef] [PubMed][Green Version]
  34. Wang, J.; Zhang, P.; Liu, N.; Wang, Q.; Luo, J.; Wang, L. Cadmium Induces Apoptosis in Freshwater Crab Sinopotamon henanense through Activating Calcium Signal Transduction Pathway. PLoS ONE 2015, 10, e0144392. [Google Scholar] [CrossRef] [PubMed]
  35. Ježek, P.; Holendová, B.; Garlid, K.D.; Jabůrek, M. Mitochondrial Uncoupling Proteins: Subtle Regulators of Cellular Redox SignalingReviewing Editors: Jerzy Beltowski, Joseph Burgoyne, Gabor Csanyi, Sergey Dikalov, Frank Krause, Anibal Vercesi, and Jeremy Ward. Antioxid. Redox Signal. 2018, 29, 667–714. [Google Scholar] [CrossRef][Green Version]
  36. Kurochkin, I.O.; Etzkorn, M.; Buchwalter, D.; Leamy, L.; Sokolova, I.M. Top-down control analysis of the cadmium effects on molluscan mitochondria and the mechanisms of cadmium-induced mitochondrial dysfunction. Am. J. Physiol. Integr. Comp. Physiol. 2011, 300, R21–R31. [Google Scholar] [CrossRef][Green Version]
  37. Ivanina, A.V.; Hawkins, C.; Sokolova, I.M. Immunomodulation by the interactive effects of cadmium and hypercapnia in marine bivalves Crassostrea virginica and Mercenaria mercenaria. Fish Shellfish Immunol. 2014, 37, 299–312. [Google Scholar] [CrossRef]
  38. Nahmani, J.; Hodson, M.E.; Black, S. Effects of metals on life cycle parameters of the earthworm Eisenia fetida exposed to field-contaminated, metal-polluted soils. Environ. Pollut. 2007, 149, 44–58. [Google Scholar] [CrossRef]
  39. Tomanek, L.; Zuzow, M.J.; Hitt, L.; Serafini, L.; Valenzuela, J.J. Proteomics of hyposaline stress in blue mussel congeners (genus mytilus): Implications for biogeographic range limits in response to Climate change. J. Exp. Biol. 2012, 215, 3905–3916. [Google Scholar] [CrossRef][Green Version]
  40. Strydom, C.; Robinson, C.; Pretorius, E.; Whitcutt, J.M.; Marx, J.; Bornman, M.S. The effect of selected metals on the central metabolic pathways in biology: A review. Water SA 2006, 32, 543–554. [Google Scholar] [CrossRef][Green Version]

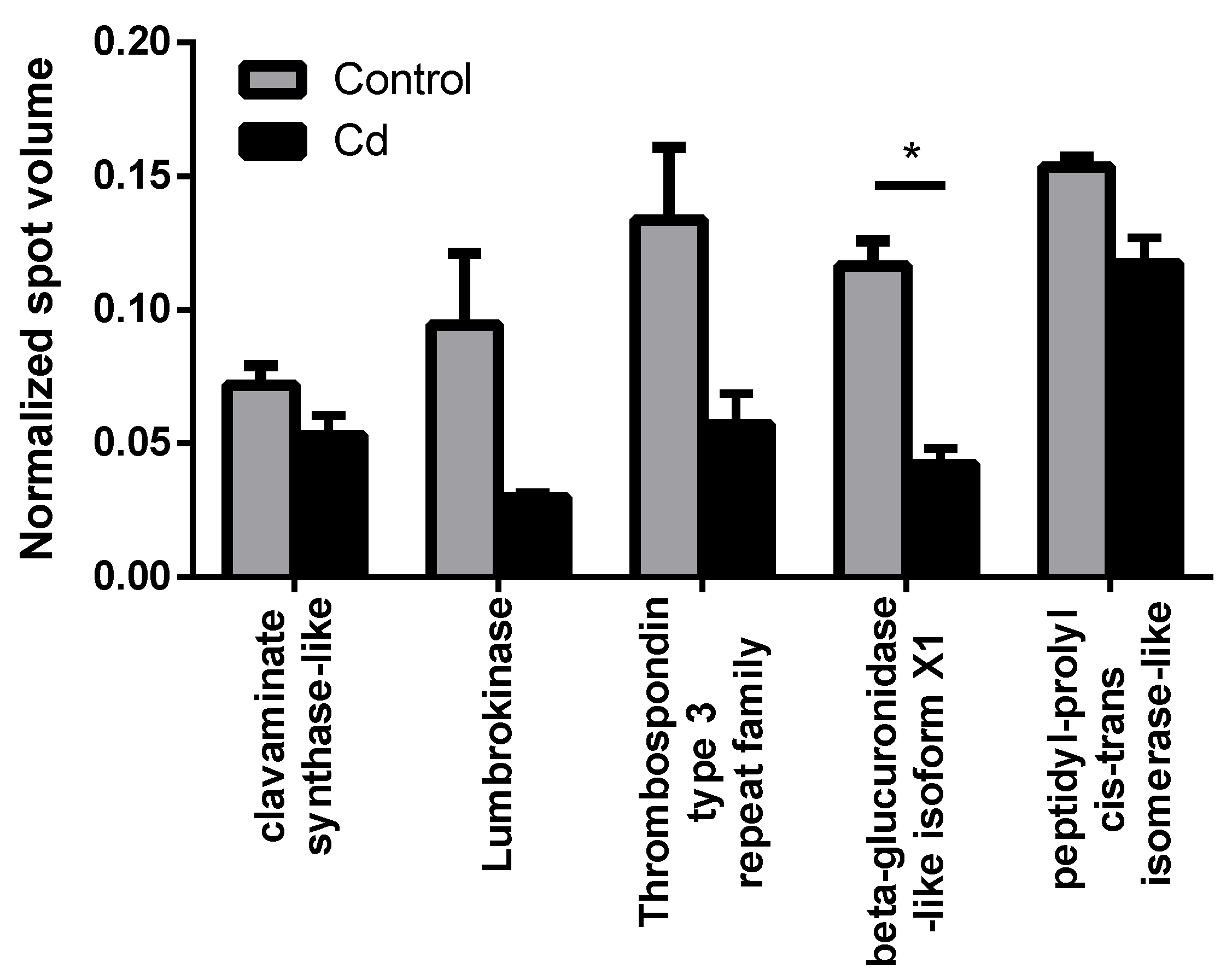

Figure 1. Immunity-related proteins, which were detected in the proteomics approach in controls and after two weeks of Cd exposure (50 mg/kg dry soil). * t-test indicates significant differences at p ≤ 0.05.
Figure 1. Immunity-related proteins, which were detected in the proteomics approach in controls and after two weeks of Cd exposure (50 mg/kg dry soil). * t-test indicates significant differences at p ≤ 0.05.
Ijms 21 00599 g001

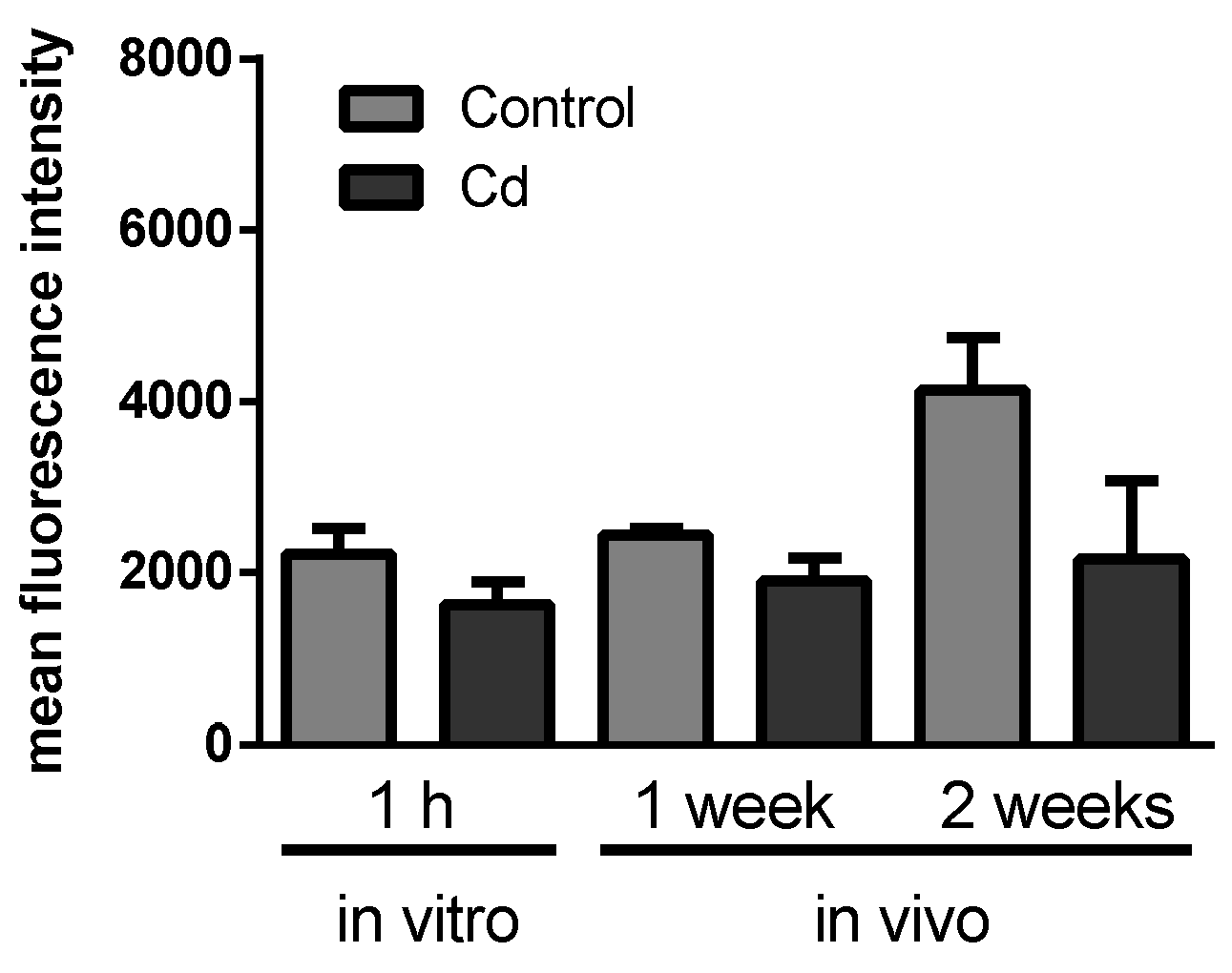

Figure 2. Flow cytometry of coelomocytes derived from Cd-exposed (50 mg/kg dry soil) and control earthworms stained with LysoTracker® Green to determine lysosome numbers. In vitro exposures were accomplished using 200 µM CdCl2. t-tests did not indicate any significant differences.
Figure 2. Flow cytometry of coelomocytes derived from Cd-exposed (50 mg/kg dry soil) and control earthworms stained with LysoTracker® Green to determine lysosome numbers. In vitro exposures were accomplished using 200 µM CdCl2. t-tests did not indicate any significant differences.
Ijms 21 00599 g002

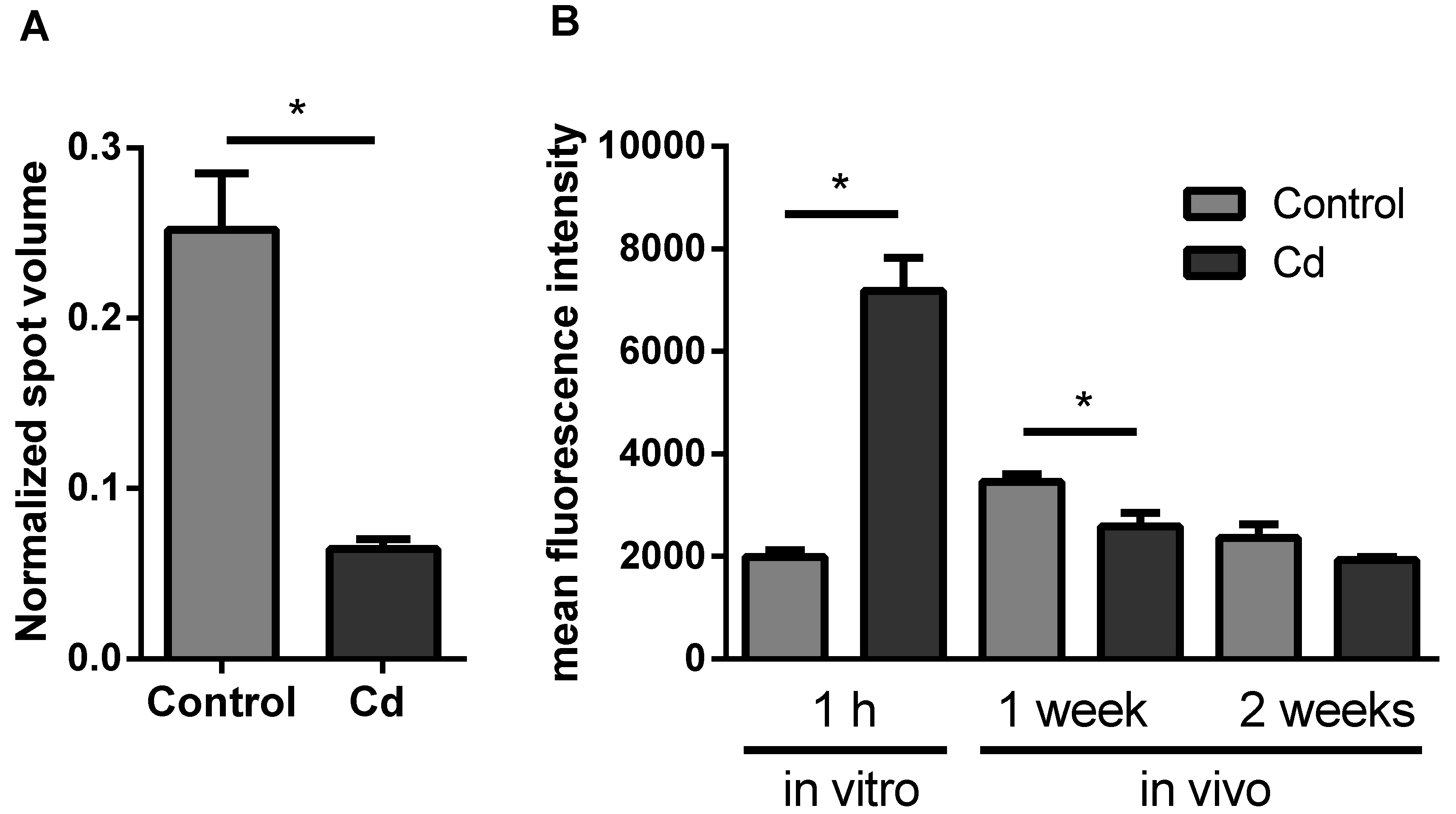

Figure 3. (A) Protein expression of Neuronal Calcium Sensor 2. Data derived from the proteomics approach. (B) Flow cytometric measurements to determine the intracellular calcium level using Fluo-3-am in coelomocytes from in vitro and vivo experiments. CdCl2 concentration in the soil was 50 mg/kg dry soil. * t-test indicates significant differences at p ≤ 0.05.
Figure 3. (A) Protein expression of Neuronal Calcium Sensor 2. Data derived from the proteomics approach. (B) Flow cytometric measurements to determine the intracellular calcium level using Fluo-3-am in coelomocytes from in vitro and vivo experiments. CdCl2 concentration in the soil was 50 mg/kg dry soil. * t-test indicates significant differences at p ≤ 0.05.
Ijms 21 00599 g003

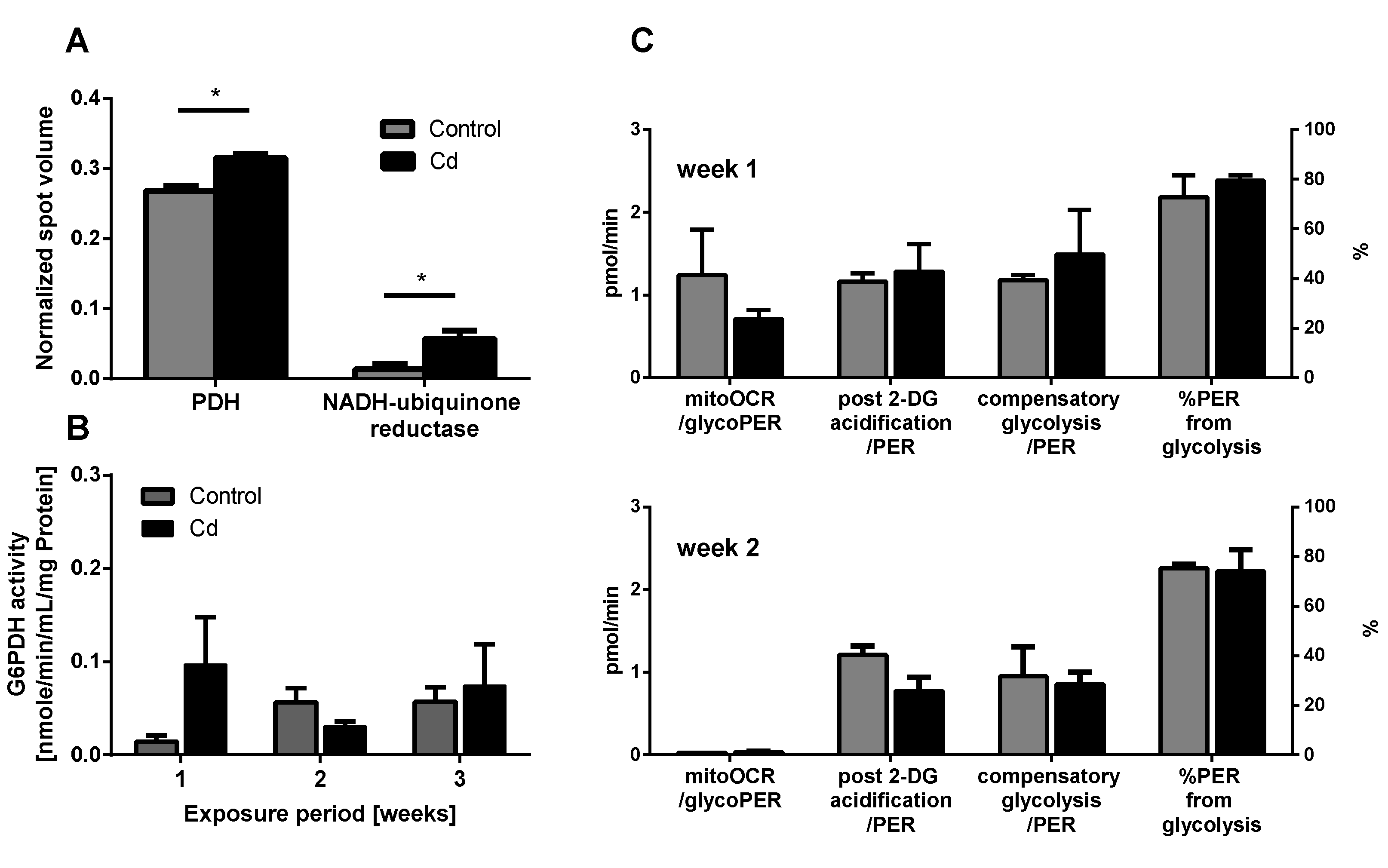

Figure 4. Energy metabolism. (A) Proteins related to energy metabolism detected in the proteomics approach. (B) Glucose-6-Phosphate Dehydrogenase (G6PDH) activity measurement using coelomocytes derived from control and Cd-exposed earthworms. (C) Glycolytic rate assay using coelomocytes from earthworms exposed to control or Cd-spiked soil (50 mg/kg dry soil). * t-test indicates significant differences at p ≤ 0.05.
Figure 4. Energy metabolism. (A) Proteins related to energy metabolism detected in the proteomics approach. (B) Glucose-6-Phosphate Dehydrogenase (G6PDH) activity measurement using coelomocytes derived from control and Cd-exposed earthworms. (C) Glycolytic rate assay using coelomocytes from earthworms exposed to control or Cd-spiked soil (50 mg/kg dry soil). * t-test indicates significant differences at p ≤ 0.05.
Ijms 21 00599 g004

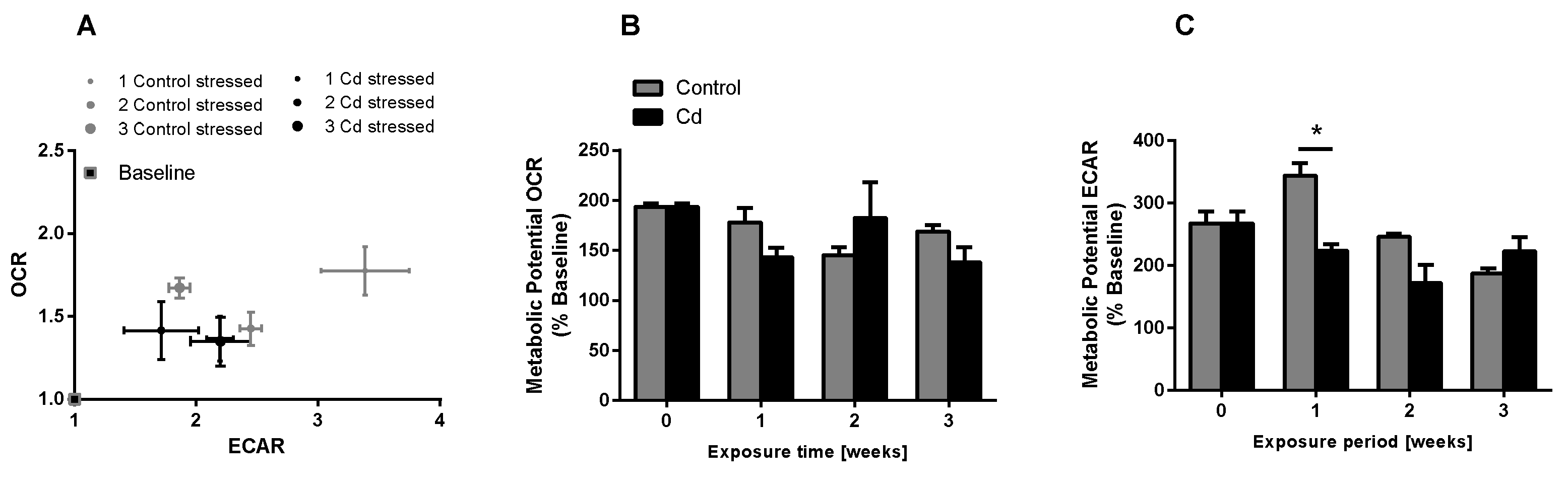

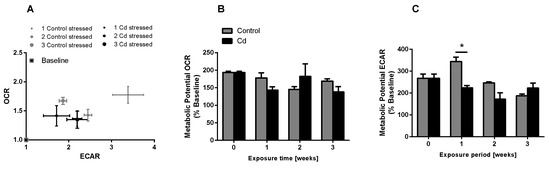

Figure 5. Energy phenotype assay of coelomocytes derived from control and Cd-exposed earthworms (50 mg/kg dry soil). (A) Oxygen consumption rate (OCR) vs extracellular acidification rate (ECAR). The term stressed refers to the state after Oligo/FCCP addition. (B,C) Metabolic ECAR and OCR potential. * ANOVA and multiple comparisons of Cd treatment using the Tukey test indicates significant differences at p ≤ 0.05.
Figure 5. Energy phenotype assay of coelomocytes derived from control and Cd-exposed earthworms (50 mg/kg dry soil). (A) Oxygen consumption rate (OCR) vs extracellular acidification rate (ECAR). The term stressed refers to the state after Oligo/FCCP addition. (B,C) Metabolic ECAR and OCR potential. * ANOVA and multiple comparisons of Cd treatment using the Tukey test indicates significant differences at p ≤ 0.05.
Ijms 21 00599 g005

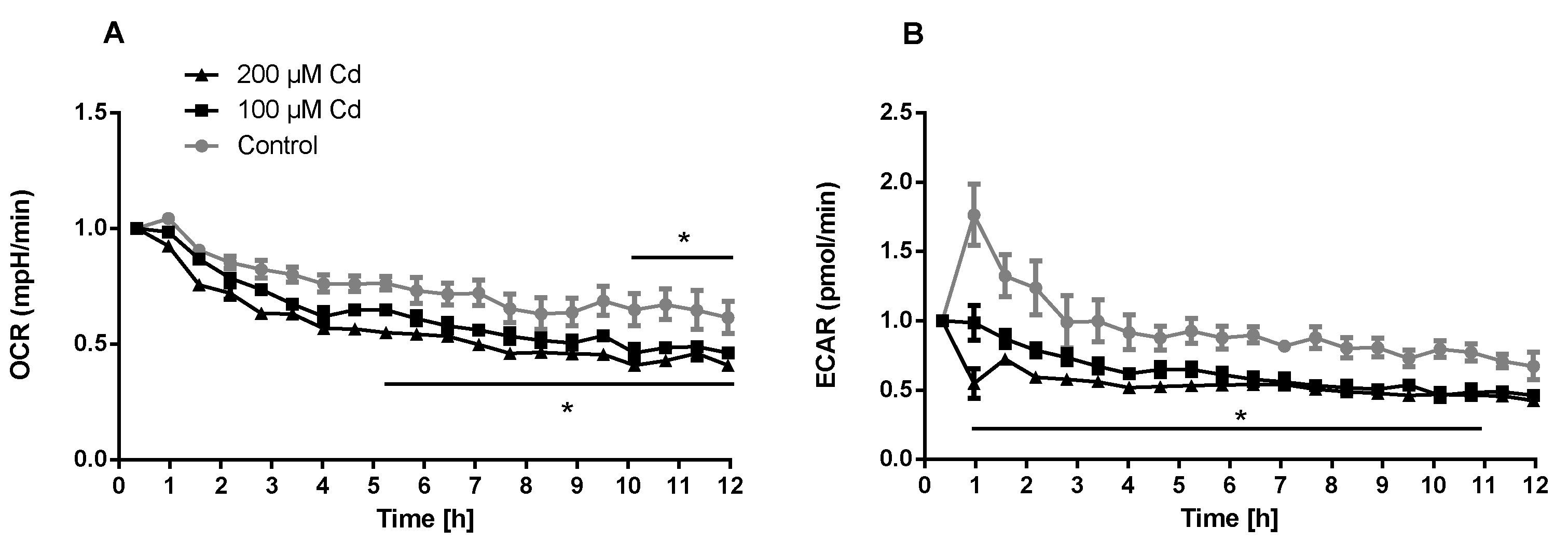

Figure 6. Extracellular flux measurements of oxygen (OCR) and protons (ECAR) of coelomocytes exposed in vitro to different concentrations of Cd. * Two-way ANOVA and Tukey’s multiple comparisons test indicates statistical significance at p ≤ 0.05.
Figure 6. Extracellular flux measurements of oxygen (OCR) and protons (ECAR) of coelomocytes exposed in vitro to different concentrations of Cd. * Two-way ANOVA and Tukey’s multiple comparisons test indicates statistical significance at p ≤ 0.05.
Ijms 21 00599 g006

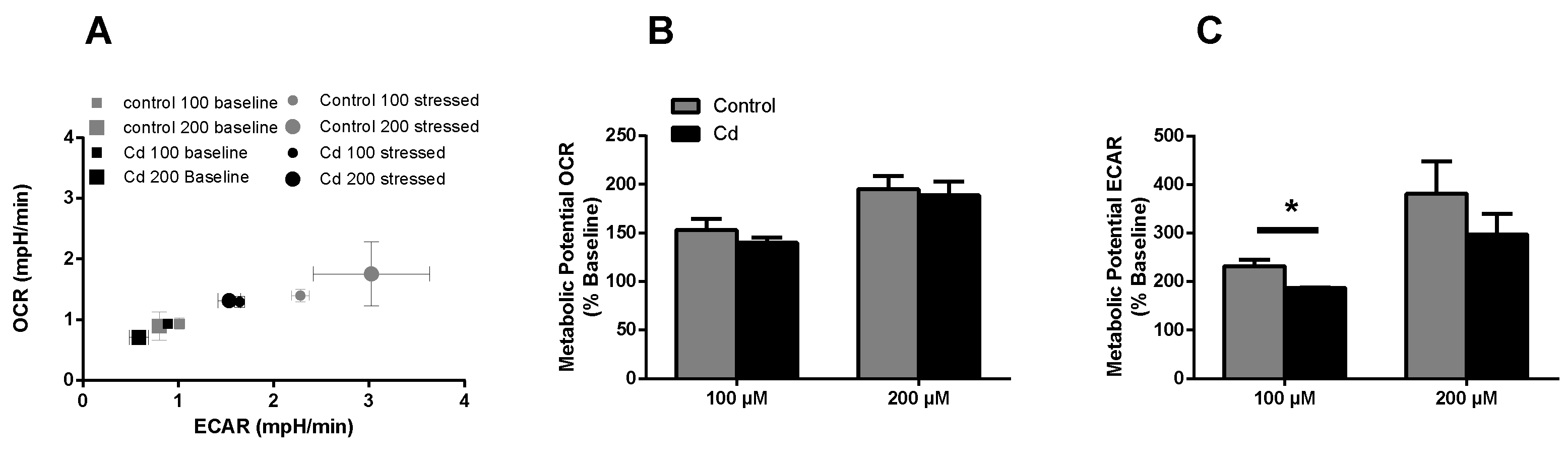

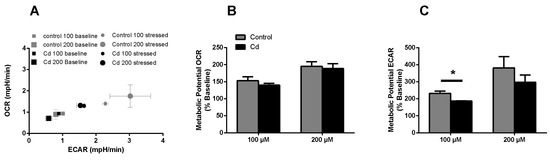

Figure 7. Energy phenotype assay (in vitro). (A) OCR vs ECAR of control and Cd-exposed coelomocytes. The term stressed refers to the state after Oligo/FCCP addition. (B,C) Metabolic ECAR and OCR potential of in vitro Cd exposed coelomocytes. * ANOVA on ranks and post-hoc Tukey test revealed significant differences at p ≤ 0.05.
Figure 7. Energy phenotype assay (in vitro). (A) OCR vs ECAR of control and Cd-exposed coelomocytes. The term stressed refers to the state after Oligo/FCCP addition. (B,C) Metabolic ECAR and OCR potential of in vitro Cd exposed coelomocytes. * ANOVA on ranks and post-hoc Tukey test revealed significant differences at p ≤ 0.05.
Ijms 21 00599 g007

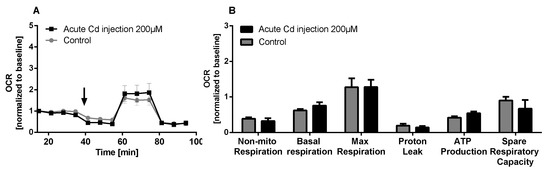

Figure 8. Mito stress test of coelomocytes. (A) OCR of coelomocytes including an acute injection of 200 µM CdCl2 indicated by the arrow. (B) Mito stress test parameters. ANOVA did not detect any significant differences.
Figure 8. Mito stress test of coelomocytes. (A) OCR of coelomocytes including an acute injection of 200 µM CdCl2 indicated by the arrow. (B) Mito stress test parameters. ANOVA did not detect any significant differences.
Ijms 21 00599 g008
