Relevance of Porcine Stroke Models to Bridge the Gap from Pre-Clinical Findings to Clinical Implementation

Cellular and Molecular Neurobiology Research Group, Department of Neurosciences, Germans Trias i Pujol Research Institute, 08916 Badalona, Catalonia, Spain
Neurointerventional Radiology Unit, Department of Neurosciences, Hospital Germans Trias i Pujol, 08916 Badalona, Catalonia, Spain
Stroke Unit, Department of Neurology, Hospital Germans Trias i Pujol, 08916 Badalona, Catalonia, Spain
Department of Cellular Biology, Physiology and Immunology, Universitat Autònoma de Barcelona, 08916 Bellaterra, Catalonia, Spain
Fundació Institut d’Investigació en Ciències de la Salut Germans Trias i Pujol (IGTP), Carretera del Canyet, Camí de les Escoles s/n, Edifici Mar, 08916 Badalona, Catalonia, Spain
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2020, 21(18), 6568;
Submission received: 18 August 2020 / Revised: 3 September 2020 / Accepted: 7 September 2020 / Published: 8 September 2020


In the search of animal stroke models providing translational advantages for biomedical research, pigs are large mammals with interesting brain characteristics and wide social acceptance. Compared to rodents, pigs have human-like highly gyrencephalic brains. In addition, increasingly through phylogeny, animals have more sophisticated white matter connectivity; thus, ratios of white-to-gray matter in humans and pigs are higher than in rodents. Swine models provide the opportunity to study the effect of stroke with emphasis on white matter damage and neuroanatomical changes in connectivity, and their pathophysiological correlate. In addition, the subarachnoid space surrounding the swine brain resembles that of humans. This allows the accumulation of blood and clots in subarachnoid hemorrhage models mimicking the clinical condition. The clot accumulation has been reported to mediate pathological mechanisms known to contribute to infarct progression and final damage in stroke patients. Importantly, swine allows trustworthy tracking of brain damage evolution using the same non-invasive multimodal imaging sequences used in the clinical practice. Moreover, several models of comorbidities and pathologies usually found in stroke patients have recently been established in swine. We review here ischemic and hemorrhagic stroke models reported so far in pigs. The advantages and limitations of each model are also discussed.

1. Introduction

Stroke is a life-threatening disease that causes neuronal loss and subsequent high rates of mortality or permanent disability. Around 17 million stroke cases occur each year worldwide, causing 6 million fatalities and leaving around 6 million patients with serious disabilities. There are two major types of strokes: The ischemic type, which is associated with the occlusion of a cerebral artery and accounts for 85% of all strokes, and the hemorrhagic stroke, which results from blood spill because of an arterial wall rupture. Clinically, stroke treatment is limited to interventions that restore blood flow in the ischemic stroke type, either pharmacologically or via mechanical thrombectomy, and only a small 15% of all stroke patients might benefit from these therapies. Many of the pathophysiological mechanisms of stroke (e.g., excitotoxicity, the core and penumbra concepts, cortical spreading depolarization, excess of free radical production, or inflammation) have been primarily identified as drivers of neuronal death in rodent models with gray matter (GM)-rich brains before being confirmed in human stroke. In contrast, the pathways that contribute to the complex pathology of neuronal soma-devoid areas of white matter (WM) following a stroke event are relatively understudied, and mostly use rodent models or perinatal hypoxic models of cerebral palsy. However, damage to the WM areas is increasingly recognized as a cause of long-term cognitive and motor disabilities in most stroke survivors. This is why research, development, and characterization of swine models of stroke, which combine both the mechanistic knowledge gained in rodent research and a greater degree of neuroanatomical and connectivity similarities with humans, may play a key role to bridge the gap from pre-clinical findings to clinical implementation.

2. Pig Brain to Model Human Stroke Pathophysiology

Pigs are big mammals with interesting characteristics for their use in biomedical translational research as compared to dogs and non-human primates (NHPs) [1]. There are ethical challenges associated with the fact that NHPs are highly close to humans, and canine models are not as socially accepted as other models due to their setting as companion animals in western cultures [1,2]. Conversely, due to their generalized use in the meat industry, pigs are higher-order animals that do not arise the same ethical issues as other animals do in a vast majority of the population [3].
In contrast with lissencephalic brains of rodents—and some commonly used NHPs like the marmoset [1,4]—pigs have human-like highly gyrencephalic brains (Figure 1), resembling lobes, gyri, and sulci/fissures of the human brain anatomy [5,6,7] with a comparable organization of motor and somatosensory areas to other mammals [8]. This resemblance with humans has also been found in several brain structures such as the limbic system, the brainstem, as well as other subcortical and diencephalic nuclei [5]. Swine brain mass is comparable to or greater than that of commonly used NHP models [5,9] with a well-developed prefrontal cortex in terms of cytoarchitecture and connectivity [10]. The development of the brain is remarkably similar to that in humans, including the myelination process [6,10,11,12], showing remarkable similarities in the resting-state networks and connectivity [13]. Due to fibrous dura mater, the increase in intracranial pressure (ICP) in large animal models of stroke is similar to that observed in humans suffering stroke [14]. Importantly, swine models allow a trustworthy tracking of brain damage evolution using the same non-invasive multimodal imaging sequences and instruments used in clinical practice [15,16] (Figure 1). Pigs also display complex individual behaviors and social interactions that can be analyzed using a number of validated tests [17,18]. Additionally, pigs have some neurovascular characteristics [19,20], including the diameter of their cerebrals vessels, which make them suitable for pre-first-in-human validation of endovascular devices or new neurosurgical techniques [15].
As a general rule, larger brains require longer fibers to connect distant cerebral areas. Across species, brain connectivity through white matter increases more rapidly than brain size [1,21]. The ratios of white-to-gray matter in humans and pigs are similar and much higher than those of mice and rats: Rodents have a WM brain composition of 10% compared to the >60% of both humans and swine [1,22,23] (Figure 1). The failure in stroke clinical trials of many neuroprotectants that are beneficial in rodents is thought to be in part due to the fact that the study of treatments with potential protection against ischemic axonal damage in the preclinical phase are seldom considered [24,25]. Hence, using larger gyrencephalic animals with a WM volume similar to that in humans could be pivotal in the preclinical study of stroke pathophysiology and of new clinically effective treatments [26,27].
Another aspect of the swine that should not be disregarded in stroke research is its size (Figure 1), as large animal species offer some advantages compared to smaller species. To begin with, depending on the strain and at sexual maturity, pigs can have a weight similar to that of humans, allowing the use of equipment and procedures specialized for humans in the clinical arena [2,3,28]. Additionally, their size allows repeated sampling of body fluids with minimal physiological disturbance, which eases performing longitudinal studies [3,29]. Moreover, pigs are much closer genetically to humans than mice [30,31], and have the potential to offer a better modeling of human gene regulation and function [32]; also, several models of pathologies and comorbidities usually found in stroke patients, such as obesity or atherosclerosis, have been established in swine [33]. The shorter the phylogenetic distance between the model and the modeled species, the better inference of the results obtained is anticipated [2]; moreover, animal models with comorbidities could potentially improve that inference. In sum, all these features make the pig an excellent research animal to obtain results with more translation to the clinic.
In this article we review adult swine stroke models only, not the neonatal hypoxic-ischemic encephalopathy model, as they better mimic the more prevalent human stroke pathology. In Figure 2, we show a world map with the locations where some of the main ischemic and hemorrhagic stroke models in swine mentioned in this review have been developed.

3. Importance of White Matter Injury in Stroke

WM injuries are normally found in elderly people in the general population [34,35]. In strokes caused by the occlusion of large cerebral vessels, WM axonal fibers are often affected [36,37,38]. WM damage with axon degeneration has been found in post-mortem human brains from ischemic stroke patients [39,40]. Additionally, lacunar stroke, a stroke subtype that involves WM damage caused by the impairment of small vessels supplying subcortical areas of the brain, accounts for 20–30% of all acute ischemic strokes [41,42]. Despite being potentially silent at the beginning, lacunar stroke causes progressive and cumulative damage, and increases the risk of stroke recurrence [42]. The presence and progression of WM injuries have been correlated with a worse clinical outcome in stroke [43,44], as well as with cognitive [37,40,45,46,47,48] and motor deficits caused by this disease [40,46,49,50].
In adult swine models of experimental ischemic stroke and intracerebral hemorrhage (ICH) significant damage and/or edema in the WM have been reported [16,27,51]. In fact, a recent study with a pig model of ischemic stroke causing deterioration of tracts from the internal capsules showed impaired motor function [16]. Moreover, a lacunar stroke pig model showed progressive WM damage, including the corticospinal tract [52]. These effects occur partly due to the differential composition of WM as compared to GM. While GM mainly consists of neuronal somas, dendrites, and axons for local signaling, supported by glial cells, WM lacks neuronal bodies and is composed of long-tract axons and the axon-supportive glial cells (singularly oligodendrocytes and fibrous astrocytes). These tracts associate different cortical areas within the same hemisphere or between hemispheres, and interconnect cortical and subcortical structures [37]. The water content is lower in the WM compared with the GM, whereas the lipid composition is higher, mostly due to myelin. Oligodendrocytes (OLs) in the CNS are in charge of wrapping axons to form segments of myelin sheath along the axon length, thus allowing the saltatory conduction of action potentials [53] and providing metabolic support to axons [54]. OL precursor cells (OPCs) are ubiquitous in the adult brain parenchyma, and proliferate to maintain a fairly constant density of mature OLs [55,56].
Most of the in vivo studies addressing the effect of ischemia on WM brain damage and its pathophysiological mechanisms have been performed in rodent models of perinatal hypoxic/ischemic cerebral palsy that do not describe the mechanisms of stroke in the adult brain. Especially in the neonatal period, the brain is consolidating the myelination process with most of the OPCs switching to myelin-synthesizing mature OLs and, thus, perinatal damage in WM results mainly from the impairment of the perinatal myelination process. Moreover, recent evidence suggests that fetal OPCs are more vulnerable than adult ones to oxygen and glucose deprivation [57].
Regarding the differential mechanisms involved in GM and WM damage, peri-infarct depolarizations and spreading depolarization have been observed to propagate in the GM but not through the WM [58]. In addition, it is well known that WM, especially deep WM, receives less blood flow and less collateral circulation compared to GM, in both humans and swine [47,59]. Despite GM has been traditionally considered to have lower tolerability to infarction in ischemic stroke patients [60,61,62], WM is found injured in most strokes, and there are studies reporting the high sensitivity to ischemia of the latter, possibly due to its reduced collateral blood supply [22,37]. In addition, differential expression of relevant receptors (e.g., glutamate receptors of NMDA or AMPA subtype, or hemoglobin receptors) in the specific cell types of GM (e.g., neurons) or WM (e.g., OLs) has an impact on their differential susceptibility to excitotoxicity in ischemic stroke [25,45,63,64,65,66,67] or to cytotoxicity by hemoglobin or heme iron molecules in hemorrhagic stroke [68,69,70].
Notwithstanding WM susceptibility to ischemic damage, this structure also has singular mechanisms of repair. There are reports of an increase of OPCs in ischemic brains of mice [71,72], maturing into OLs and migrating in response to demyelination or injury [56,60,73] to repair myelin around axons [72,74,75], restoring to some extent neurological function, but failing to reach a complete WM regeneration [76,77,78,79].
Studies of WM injury after stroke should be a research priority as they would help to develop strategies for neuroprotection and repair [80]. In fact, the Stroke Treatment Academic Industry Roundtable (STAIR) recommends that in order to obtain clinically relevant therapeutic agents, not only should these protect all the cellular components of the WM in addition to neurons in the GM, but also that their testing in large gyrencephalic animals with increased WM connectivity should be considered [26,81].

4. Interventions to Induce Ischemic Strokes in Pigs

According to the American Heart Association, 87% of all strokes are ischemic [82], caused mainly by the obstruction of major cerebral arteries, especially the middle cerebral artery (MCA) or its branches [83]. Typically, the study of ischemic stroke in rodent models has focused in the MCA territory [84]. The modeling of middle cerebral artery occlusion (MCAO) in larger animals has implied some additional complications. To start with, several large mammals typically used in research, in contrast to humans, have a network of small vessels at the base of the brain prior to the internal carotid artery (ICA), termed the rete mirabile, which has reportedly impeded the occlusion of intracranial vessels such as the MCA through endovascular approaches [85,86]. The attempts to circumvent this hindrance through the occlusion of the major vessels irrigating towards the rete mirabile, such as the common carotid or the pharyngeal artery, have so far rarely been successful due to the well-established collateral flow in the brain [85,87]. Additionally, compared to the single MCA in each brain hemisphere of humans, pigs have between two and up to four MCAs on each side, with anatomical variations found even within the same breeds [7,88,89] (Figure 1). Therefore, these differences between animals could complicate infarction reproducibility.
As mentioned above, for this section we excluded the neonatal piglet models of hypoxia/ischemia that have been commonly used for decades [2]. These piglet models achieve global cerebral ischemia through different mechanisms. Usually, it is performed by blocking carotid artery blood flow bilaterally, either by external compression [90] or through a surgical approach [91]. There are other strategies such as performing a generalized circulatory arrest [92,93] or obstructing brain blood flow by increasing ICP [94]. However, these approaches in neonatal or very immature piglets are more useful as models of cerebral palsy, which is caused by prenatal hypoxic-ischemic events that damage the brain’s WM and is the most frequent birth disorder [95].
Here we address the different techniques that have achieved generating partial ischemic strokes in pigs. In total, five different approaches (Table 1), including electrocoagulation, clip/ligature occlusion, endovascular embolization, photothrombosis, and endothelin-1 (ET-1) injection, have been used so far to prevent the blood supply, especially to the MCA territory, and to induce focal brain ischemia in adult/pediatric swine.

4.1. Electrocoagulation

Whereas the general term of electrocautery is the use of electricity to generate enough heat to destroy tissue, electrocoagulation is the use of this technique on blood vessels to achieve its permanent occlusion [138]. This method, together with microvascular clipping, was the first used to produce MCAO in swine in 2000. It was likewise the first model achieving a focal cerebral infarction reported in pigs. Sakoh et al. used a transorbital approach to reach the left MCAs, who reported that there are generally two, and occluded them proximally together with the ICA distally [111]. They used the same model in subsequent studies [112,113,114,115]. Interestingly, in one of such studies they described inter-individual differences in the model in terms of collateral blood flow to the MCA territory, and correlated differences in blood flow with the infarct size [112]. The same method has also been used by Zhang et al., also occluding the proximal MCAs unilaterally [89]. Subsequently, Imai et al. were the first to use craniotomy instead of a transorbital approach to expose the left MCAs, and then occluded their 2 branches from the origin of the lenticulostriate artery to past the olfactory tract, as well as the ICA by electrocoagulation in miniature pigs [139]. Since that first use, craniotomy has been the surgical procedure of choice to expose MCA area prior to electrocoagulation, probably to avoid potential complications related to the removal of an eyeball. Particularly, West’s group has used this swine model in multiple studies, reportedly occluding the distal MCA [16,101,102,103,104,105,106]. This method has allowed the production of consistent strokes with high survival rates in minipig strains after occluding different intracranial arteries [52,101,102,107,139].
With electrocoagulation, vessels of interest can be accurately targeted, which translates into a higher reproducibility of the focal brain ischemia models generated. On the other hand, this technique causes an irreversible occlusion of the vessels, impeding the reperfusion of the infarcted tissue and there is still the need to use invasive surgical interventions to expose intracranial vessels prior to the electrocoagulation. Particularly, eye enucleation is considered more severe due to the obvious loss in the field of vision of the animal and possible post-surgical complications as the infection of the orbital cavity [140]. However, a less invasive approach as craniotomy is also mediated by a surgical approach that could have additional effects on the brain such as increased blood-brain barrier permeability due to ICP changes [141].

4.2. Microvascular Clip

As mentioned above, Sakoh et al. used this technique in the first pig model of MCAO in a complementary manner to electrocoagulation. This method allowed a transient arterial occlusion as reperfusion was performed simply by removing the micro-clips occluding the target arteries [111]. As with electrocoagulation, arterial clipping also requires the exposure of the MCA surgically, which can be performed either with a transorbital approach or craniotomy. The first case of the combination of craniotomy and microvascular clipping was performed by Mattingly et al., in which only one of the 2 to 3 branches of the MCA running beneath the posterior frontal lobe was clipped for 3 h using the Imai et al. procedure, generating variable and small strokes [108]. This combination has been used in further studies to induce malignant strokes in domestic swine, showing that larger infarct volumes are generated if the occlusion of the 2 unilateral MCAs is maintained for longer periods [86]. The transorbital approach has persisted in recent papers for experimental procedures not requiring post-surgical recovery [7,116]. In this latter study, they observed the variability in the MCAs between pigs from the same breed, finding between 2 and 4 MCAs in each hemisphere, and proposed that variability of infarct size in previous studies that report the occlusion of all the MCAs could be explained by the ineffective occlusion of some of such arteries. They also suggested that the frontotemporal craniotomy to expose the MCA area, despite being less invasive, could be the reason for missing some of the MCA branches in previous studies, a problem that is not seen with the transorbital approach [7].
The use of microvascular clips to achieve MCAO has the added benefit of allowing the infarction to be temporary. However, the drawback of the need of surgery to allow its use is still present.

4.3. Endovascular Embolization

With the development of thrombolytic therapies, and particularly of thrombectomy devices, pigs have been used as models due to the anatomical and physiological similarities of their cardiovascular system with that of humans [3]. However, the objective of these studies has generally not been to generate a cerebral infarction, but to occlude extracranial vessels anatomically similar to human intracranial arteries and to study thrombolytic techniques instead [130]. The main reason is the presence of the previously mentioned rete mirabile in pigs, which has impeded reaching intracranial vessels with endovascular approaches to date [85,86].
The main method to achieve endovascular embolization of arteries in pigs has been the injection of autologous blood clots to extracranial vessels [118,119,120,121,122,123,124,125,126,127,128,129,130,131]. The embolization of an artery implies the reduction of its blood flow [142]. For instance, bilateral thromboembolism to reduce blood flow in both ascending pharyngeal arteries caused multiple and variable focal areas of stroke damage, although consistent temporo-parietal infarcts were not generated as seen by diffusion-weighted imaging [127]. Other methods of endovascular embolism used in this species are mechanical embolization [117], through diverse embolic agents including collagen microbeads [132], dimethyl sulfoxide (DMSO) [137], air [136], CO2 [135], Eudagrit polymer [133], and sodium alginate [134]. The use of embolic agents in pigs arose from the use of the rete mirabile as an arteriovenous malformation model. Arteriovenous malformations are an abnormal formation of blood vessels that shunt arterial blood directly into veins without passing through the capillaries. These malformations are clinically treated through endovascular embolization [142]. Nevertheless, using embolic agents as a method to produce brain ischemia in pigs has seldom been performed. Unilateral embolization of brain-irrigating arteries produced little ischemic damage to the brain. The only study that reports achieving infarcted areas in the brain this way is with the injection of sodium alginate into the ascending pharyngeal artery in Bama minipigs through the unilateral occlusion of the rete mirabile [134]. This embolization caused scattered damage throughout the brain, infarcted areas being mainly observed at the temporal and parietal lobes, and/or basal ganglia, one week after the injection.
Endovascular embolization is a minimally invasive technique used to achieve ischemia in target regions. Additionally, depending on the method used, transient ischemia with its consequent reperfusion can be performed. However, despite the study of Cui et al. [134], the presence of the rete mirabile seems to avoid the possibility of reaching intracranial vessels through an endovascular approach.

4.4. Photothrombosis

This method was first used in swine in 2007 as a model of acute ischemic stroke in pediatric animals, and required enucleation of the eye to reach the MCAs [88]. Since then, similar models have been generated by Armstead et al. [96,97,100,143], but to our knowledge, it has not been replicated in mature pigs and it is not as widely used as in other species such as NHPs and rats. Photothrombosis is the formation of a stable thrombus of aggregating platelets, fibrin, erythrocytes, and other blood components, due to endothelial peroxidative damage. This is generated with the photochemical reaction caused by the interaction of intravenous photosensitizing dye erythrosine B and the focused beam of a laser [88,96]. When used in pigs, photothrombosis of all the MCAs unilaterally, with reportedly 2–3 main and 1–3 smaller arteries supplying the MCA territory, produced a moderate infarct affecting both GM and WM [88].
In rodents, photothrombosis of the MCA can be generated without craniotomy due to the thinness of their cranial bones [144], differently from the markedly thick ones in pigs [28]. Thus, photothrombosis of intracranial arteries in pigs requires exposure of the target vessels by transorbital access or craniotomy [1], which implies a more invasive surgery. Overall, this model permits the occlusion of intracranial vessels with its exposure to reperfusion by using common thrombolytic methods.

4.5. Endothelin-1 Injection

This is the most recent model of porcine focal ischemic stroke, used for the first time by Elliott et al. and published in the year 2014 [109]. In this study, ET-1 was pumped into the cortical tissue to achieve cerebral ischemia, but infarction was not completely generated in the whole region of interest. ET-1 was firstly described as a vasoconstrictor factor present in the conditioned media of cultured bovine endothelial cells in 1985. For that reason, it was used primarily in rats as a novel method to achieve MCAO [145]. Although it was not used to cause a stroke, the effect of ET-1 on the vasoconstriction of intracranial vessels had been assessed in pigs [146] as a consequence to the observation that the levels of this molecule increased upon ICH in patients, and that this event entailed vasoconstriction in the affected area [147].
ET-1 injection is a method with which transient focal ischemia can be achieved; it is reproducible in terms of the possibility of accurate positioning of the injection and volume/concentration injected. Studies in rodents and NHPs show that infarction severity can be modulated through the concentration of injected ET-1 [23,148]. Despite it having been performed without approaches as invasive as craniotomy or eye enucleation, it still requires a surgical exposure of the target area, the common approach being through a computer tomography (CT)-guided burr hole [59,109,110], allowing the administration to virtually any cerebral region. For instance, the anatomically-driven location of the MCA through a craniotomy between the zygoma and orbit allows the occlusion of the MCA branches resulting in significant brain parenchyma lesion [89]. The use of invasive surgery might further affect the animal’s overall well-being in a stroke-independent manner. Additionally, the post-mortem analysis of human brains showed the expression of ET-1 receptors in non-endothelial cell types such as neurons [149], and the cerebral expression of ET-1 and its receptors seem to be altered in ischemic conditions [150,151]. Thus, the injection of ET-1 to induce ischemia through vasoconstriction could have unwanted effects that do not occur in the human pathology [152]. In addition, a study using this pig model reported variations between animals in the cerebral blood flow in response to ET-1 injection to the MCA territory, and in some of the animals, ischemia was not extended for enough time to generate an irreversibly infarcted region [110]. Finally, it is unclear if this model allows the control of the exact duration of ischemia and, thus, to set up reperfusion with as much control as other mechanisms of arterial occlusion.

5. Interventions to Induce Hemorrhagic Strokes in Pigs

Around 10–15% of all strokes are non-traumatic intracranial hemorrhages [153,154], which are classified according to the intracranial compartment in which the bleeding occurs. Within the meninges, hemorrhage can be subarachnoid, subdural, and epidural [154], the former being the most common of the three and accounting for 3% of all strokes [82]. Subdural and epidural bleeding are more typically caused by trauma [154] and the existent pig models of hemorrhage within these spaces are generally used to model traumatic brain injury [155,156] rather than spontaneously occurring hemorrhagic stroke. Most ICH events, accounting for 10% of all strokes [82], occur directly in the brain parenchyma, whereas hemorrhages into the ventricular system are less common [154].
The subarachnoid space of the meninges surrounding the swine brain resembles that of humans [157]. The porcine brain allows for the accumulation of larger amounts of blood and clots in subarachnoid and intracranial hemorrhage models compared to rodents due to its morphological features [153,157,158], mimicking better what happens in the clinical arena. As explained above, blood accumulates in the brain parenchyma after the onset of the bleeding, disrupting the local brain anatomy and increasing local pressure rapidly. In a second phase, compounds and blood cells entrapped in the brain parenchyma promote cytotoxicity. Accordingly, blood experimentally injected either into the subarachnoid sulcal spaces or intracerebrally has been reported to mediate cortical spreading depolarizations (CSD) in swine as well as to induce ischemic cascades and perihematomal cortical infarcts [157,159]. Importantly, swine models allow a trustworthy tracking of hemorrhage volume and brain damage evolution using the same non-invasive multimodal imaging sequences used in the clinical practice [15].
As with ischemic stroke models, we excluded neonatal piglet models of ICH in this section. However, we found it convenient to include models in immature pigs, especially considering that some techniques have only been reported in such models. These techniques include the intracerebral injection of collagenase and the more recent sonographic disruption of brain vessels (see Table 2). To better mimic specific types of hemorrhagic stroke, the injection of blood can be performed in different intracranial regions.

5.1. Autologous Blood Injection in Meningeal Spaces

The first studies using pigs as models of hemorrhagic strokes were performed in the 1980s, in which subarachnoid hemorrhage (SAH) was achieved through the injection of autologous blood in the pontine subarachnoid cistern after exposing it through a C-2 laminectomy [227,228,229]. Similarly to the occurrence of hemorrhagic stroke, the subarachnoid space has been the preferred target within the porcine meninges to model hemorrhagic stroke. The use of epidural injections was reported shortly thereafter [221], but this model is unusual today. The subdural space has been targeted to inject autologous blood; however, this approach is used as a traumatic brain injury model [155]. New models were developed to expose the subarachnoid space and infuse it with autologous blood to simulate SAH (Table 2). Besides the aforementioned laminectomy of the C-2, autologous blood has been injected directly to the cisterna magna, with a puncturing technique also used to obtain cerebrospinal fluid [223,224,225,226]. Likewise, craniotomy has been used to reach the MCA territory [216,217], the suprasellar subarachnoid cistern [218,219,220], and between the crests of the superior frontal and motor gyri [157]. Basal subarachnoid cisterns have also been reached through burr holes directed to the anterior skull base [214,215], in studies that exhibit the impact of transient ischemia derived from the SAH. Finally, a recent study showed that the subarachnoid space could be achieved precluding craniotomy, through the direct transorbital injection of blood into the interpeduncular cistern, without eye enucleation [213].

5.2. Intracerebral Autologous Blood Injection

ICH was first modeled in pigs by Farstad et al. in 1994. In this study, they injected autologous blood in the lateral ventricles of neonatal piglets [230]. An analogous technique was used in juvenile pigs in 1997 [195], but intraventricular hemorrhage models remain rarely used. The approach used to access the ventricles to inject blood has been the cannulation of the lateral ventricles through a stereotaxically- [195,196] or magnetic resonance imaging (MRI)-guided [198] cranial burr hole.
The first reported parenchymal hemorrhage porcine model using autologous blood injection was performed in piglets in 1996 [158]. In that model, the blood was slowly infused into the WM of the frontal lobe of the brain through a catheter inserted by stereotaxic surgery. The following ICH models of autologous blood injection are based on that first study. In the year 2000 the technique was refined: A balloon catheter was introduced through a cranial burr hole to generate a space in order to prevent reflux from the intraparenchymal injection of autologous blood in the frontal lobe of pigs [183]. Subsequently, the same group adapted a double-injection method from rats to pigs, together with the balloon catheter technique, to further avoid the reflux effect of the injection [172,173,176,177]. This model has also been replicated by other groups [174,175,179,180,181,182], as well as using the double injection method without the previous balloon catheter [168,170]. A similar method has been used by Bimpis et al.; in their approach a balloon is inflated and, while decompressed, the autologous blood is injected [184,185,186]. In a recent study, injection of blood to the target region of the brain was performed after a craniotomy, but this was only performed to apply focused ultrasounds to liquefy induced intracerebral blood clots [165]. However, the main method remains to be the surgical access to the target area and direct injection of the blood through a catheter or needle [158,159,187,188,189,190,191,192,193,194,197,199,200,201,202,203,204,205,206,207,208,209,210,211,212].

5.3. Intracerebral Collagenase Injection

The first study using collagenase as an ICH model in juvenile pigs was done by Mun-Bryce et al. in 2001 [161]. The authors injected this compound, capable of disrupting the blood-brain barrier, into the primary somatosensory cortex after exposing it through a craniotomy, and reported recurring episodes of spreading depolarization. The first in vivo use of this enzyme was performed in rats by the same group. In that study, collagenase was injected in the caudate nucleus with the aim of degrading the collagen from the basal lamina of blood vessels to cause ICH [231]. To our knowledge, only this group has used the collagenase (juvenile) swine model to induce hemorrhagic stroke in successive studies. Interestingly, in such studies Mun-Bryce et al. show a rapid depression of cortical excitability in the ipsilesional hemisphere accompanied by a gradual depression in the functionally-related contralateral region, whereas callotomized animals—lacking multiple interhemispheric axonal connections—showed a gradual increase in the excitability of the contralesional site within the acute phase. This could be indicative that the ICH damages brain areas connected to the injured region [163]. Furthermore, they observed a depressed cortical excitability in functionally-related areas of the contralesional hemisphere after this acute phase, and this impairment was preceded by a rise of the inflammatory and extracellular matrix remodeling marker MMP-9 in the ipsilesional and contralesional regions, especially in the WM [162]. However, a subsequent study reported spreading transient depolarizations during acute ICH in disperse brain areas including the contralateral hemisphere, but with no differences caused by callosotomy [164]. All these observations are indicative of the consequences of WM damage in brain connectivity caused by ICH, and the translational advantages of using the pig in neuroscience research due to the higher development of its WM. Therefore, it would be of interest to further study the WM connectivity in a collagenase adult pig model.

5.4. Sonographic Blood-Brain Barrier Disruption

The initial report of sonographic disruption of the blood-brain barrier in swine was performed by Aviv et al. in 2014. In this study, they targeted the vessels within the basal ganglia of young swine using MRI-guided sonography with the objective of generating a model of ICH that allowed them to quantify hematoma through the MRI detection of extravasated contrast [166]. Rupture of intracerebral vessels is thus performed with the magnetic resonance-guided focused ultrasound (MRgFUS), a technique used to perform minimally invasive targeted tissue surgeries based on the thermal ablation caused by focused ultrasounds at determined frequencies. The low invasiveness is due to both the precise ablation of the target tissue and the possibility of a transcranial approach, i.e., without removal of skull bones [232]. MRgFUS was applied in pigs by the same group in a following study to further characterize this ICH model [167]. Finally, hemorrhagic lesions were caused in the swine brain using the same technique, not to generate an ICH model per se, but to determine the non-lesional frequencies and durations of the ultrasound pulses to the brain [160]. Curiously, this technique has been used as a potential therapy for ICH in swine models. Using intracerebral autologous blood injection models in pigs, MRgFUS can be directed to the blood clots within the brain to cause its thrombolysis, showing positive results [165,198,212].
Overall, MRgFUS is a minimally invasive technique with which a targeted ICH can be precisely generated. Nonetheless, it has not been widely implemented so far, perhaps due to the lack of access to this relatively modern technology. Another problem of this technique is that its transcranial use can be intricate. Firstly, as the swine skull thickness is variable and generally big, transmission of the different ultrasound beams through this structure can make deep brain structures impossible to target. Secondly, lesions directed to regions excessively near the skull bones can cause regional overheating [232]. Actually, in the study of Xu et al. a craniotomy is performed to prevent these issues [160]. As with the collagenase model, more research needs to be performed using this promising model, although this might be hampered until a refinement of the technique is achieved.

6. Neurological Function Assessment in Pigs

Using in vivo models of stroke pathology gives the advantageous possibility of evaluating the neurological outcomes associated with the disease and, with more complex organisms, more detailed resemblance to the human pathology is expected. The cognition of pigs has been studied throughout the decades using different approaches. Several tasks and maze-based tests have been developed and adapted to pigs to assess distinct cognitive and behavioral aspects such as memory and learning, affective behavior, or social interactions, among others (reviewed in [18]). Despite this, there is not a current consensus about the assessment of neurological deficits in pig stroke models. In the clinical arena, there are different scales and scoring systems validated to determine neurological function, but none has been established as ideal. The first assessment performed in a stroke clinical trial was the modified Rankin scale and is the most commonly used for functional evaluation [233]. This scoring system has shown to correlate with other measures of stroke pathology as the infarct volume, as well as other neurological function scales [233,234]. In swine, the modified Rankin score has been recently adapted to the species in a study from West’s group [106], which has developed numerous studies using MCAO swine models. However, a validated scale adapted to the swine is still needed to better assess the neurological outcome. So far, the first studies that evaluated neurological function in ischemic and hemorrhagic stroke swine models adapted scales from the dog, such as Purdy et al.’s [235] and Tibbs et al.’s [236] canine stroke models.
The first neurological examination used in a pig model of focal ischemic stroke was performed by Imai et al. in 2006. They observed that permanent MCAO caused hemiparesis in the forelimbs and hindlimbs, whereas ICA occlusion caused less severe deficits with occasional hemiparesis 24 h after the surgery [139]. Subsequently, Tanaka et al. adapted a modification of the scale used for the neurologic evaluation of dogs by Tibbs et al. to their pig model of lacunar stroke, which was generated to target subcortical WM [52]. Their 25-point scoring system remains the more widely used in pig stroke models. This scale has been used in the ET-1 MCAO model of Zhang et al. [87] and—with variations—in the bipolar coagulation of the MCA model by Lau et al. from West’s group [105]. Cui et al. developed a 100-point neurological assessment scale for their ET-1 injection model, based on Purdy et al.’s system [134]. Similarly, Platt et al., also from West’s group, mention the use of a standardized neurological examination adapted from canine models to evaluate pigs after bipolar coagulation of the MCA [102]. These scales analyze different aspects of the general neurologic function of the animals including the level of consciousness (e.g., response to stimuli), motor function (e.g., limb paralysis), sensorial capacity (e.g., visual field defects), and behavior (e.g., utterance). On the other hand, a totally different approach was used almost simultaneously by the same group in the same model. In this case, they analyzed various gait parameters by video recording the animals after provoking their walk, and found a dysfunction in the limbs contralateral to the MCAO using parameters as step height (i.e., maximum height reached by the hoof when walking), swing time (i.e., time the hoof does not touch the ground when walking), and stance time (i.e., time the hoof is touching the ground when walking) [101]. This method of gait analysis has been used again recently in the same model together with the open field test to assess exploratory behavior and motor activity. In this task, the animal enters a relatively wide area and several aspects of its exploratory behavior and motor activity can be recorded by a tracking software [16,104]. Finally, the same group recently adapted the modified Rankin scale to their pig model [106].
Many of the studies with pig hemorrhagic stroke models have obviated the use of neurological tests to assess the impact of the damage generated. Rohde et al. mention that they observe the general neurological status and behavior of the pigs to rule out anomalies caused by the intracerebral autologous blood injection surgery [173]. However, it was not until 2013 that Zhu et al. used an adaptation of the previously mentioned scale from Purdy et al. to assess the evolution of neurological damage after intracerebral autologous blood injection [168], and again in 2015 [170]. Together with the latter, only the recently published article by Gerhardson et al. clearly describes the use of a scaling system to evaluate the neurological state of pigs after ICH. Specifically, they use the Tanaka et al. 25-point scale previous to and daily after the lobar WM injection of autologous blood [165].
Neurological assessment in pigs has been performed in other disease models different than stroke. The relation of such models with stroke models is that damage is caused to the brain either directly or indirectly, e.g., in models of traumatic brain injury (reviewed in [237]) or in generalized circulatory arrest [238]. Whereas circulatory arrest models have mainly used neurological scoring systems similar to stroke models, traumatic brain injury models have used varied tests and tasks to assess the impairment of different cognitive processes in pigs. One of such tests used somewhat repeatedly is the open field testing, which has also been used in the pig MCAO model [16,104,237].

7. Evaluation of Stroke Damage in Swine by Neuroimaging

Non-invasive in vivo imaging techniques allow a longitudinal estimation of the brain damage location and extent and contribute to our understanding of the evolution of damage after stroke. Although the extent of damage is a critical determinant, the functions served by the brain areas damaged (e.g., language, motor, or cognition) and the nature of damage (e.g., necrosis, edema, axonal damage) determine the final disabilities [239].
Magnetic resonance (MR)-based diffusion and perfusion imaging, positron emission tomography (PET), computed tomography perfusion (CTP), or a combination of them, have been used to characterize animal stroke models. These imaging techniques allow to observe parameters in the models such as post-stroke acute midline shift, which is associated with decreased survival and recovery [16,103,104,106]. Moreover, early reports allowed to assess hypoperfusion of the brain areas affected using either: (1) Apparent diffusion of water or apparent diffusion coefficient (ADC) obtained from diffusion-weighted imaging (DWI) MR combined with metabolic parameters of oxygen and glucose obtained by PET, showing that ADC below 75% of the normal tissue value indicates irreversible infarction in a transient MCAO model [113], or (2) CTP and/or PET to determine cerebral blood flow and the hypoperfusion threshold to develop infarct [59,110], or determining areas of infarct core, penumbra, or oligemia [109], as used in the swine model of induced cerebral ischemia by endothelin injection.
Conventional MRI/T2 images were used to depict infarct volume in the basal ganglia infarct model [134] and early infarct volume and neuroprotection by hypothermia [108] in an MCA model. ADC maps have been used to reveal cerebral swelling and cytotoxic edema. Reduced territorial signal intensity on ADC maps were consistently observed with the restricted diffusion that is typical of infarctions at 24 h and hydrocephalus ex vacuo at 90 days in a permanent ischemic model [101,102]. Infarct in the MCA territory is hyperintense in T2-weighted imaging (T2WI) and T2 fluid-attenuation inversion recovery (FLAIR) relative to normal GM and hyperintense in DWI [139], with corresponding hypointensity in the ADC map, indicative of cytotoxic edema [104,105]. T1, T2, and DWI hyperintensities were observed at 24 and 72 h in the ET-1 model [59,87].
WM and GM can also be accurately characterized using conventional MRI sequences as T1-weighted imaging (T1WI), T2WI, and FLAIR, based on their differences in water and lipid content. In vivo imaging tools to detect WM abnormalities, axonal loss, and demyelination are still underexplored, but new advanced MRI techniques, including quantitative susceptibility mapping (QSM) and DTI have been used recently in humans and rodents. Only a few studies have evaluated so far these MRI parameters in swine stroke. Fractional anisotropy (FA) maps obtained by DTI analysis showed loss of WM integrity in the ipsilateral hemisphere (in the internal capsule and corpus callosum) [16,240] in a pig model of stroke. In addition, a stem cell vesicle-based treatment was found to preserve the integrity and functionality of WM [103,104].When focusing on the effects of hemorrhagic stroke, leakage of blood into the brain parenchyma of swine has been mostly measured using CT [180,206,208,214] or MRI FLAIR images or in T2*-weighted images [165,173,174,178,187,213,214,241]. To overcome possible artefacts, the iron from hemoglobin can be indirectly measured using the rate of transverse magnetization relaxation, R2*(1/T2*). A recent work shows multi-contrast anatomical and quantitative parametric maps using FLAIR, T1WI, gradient echo (GRE), R2*, QSM sequences that allowed to determine the edema and hematoma areas in a swine ICH model, providing longitudinal information of the heterogeneity and evolution of the damage [191]. A dynamic contrast-enhanced (DCE) sequence allowed a real-time MRI model to study the extravasation and the acute hematoma growth [59,193]. Metabolic evaluation of the perihematoma areas by non-invasive MR spectroscopy to find salvageable tissue within the perihematoma has been recently published [193].
The imaging of other structural biomarkers, which are currently used mostly at research level, have a huge potential in the future development of personalized medicine. Precisely, characteristics of the peri-infarct structural integrity of brain around the ischemic areas as microstructural damage measured by magnetization transfer imaging (MTI) or the identification of different metabolites (e.g., glutamate/lactate/N-acetylaspartate) by MR spectroscopy will provide significant information about the pathophysiology and final outcome of stroke. Moreover, MRI signatures such as the existence of chronic old brain lesions, leukoencephalopathy, dilated perivascular spaces, microbleeds, post-stroke iron accumulation, deep infarcts, remote structural changes in WM, or cortical atrophy should be considered in swine stroke models.

8. Conclusions and Future Perspectives

The existing animal models of focal cerebral ischemia or ICH are only imperfect representations of human stroke. Most current stroke models are induced in healthy, adult rodents instead of in elderly individuals with comorbidities, which are the stars in human stroke pathology (for a summary of the characteristics of rodent and swine stroke models, see Table 3). Of note, the complex organization of the WM tracts that connect specific brain areas in large size brains, as swine and human brains, is not comparable with that observed in rodents. Specifically, the WM proportion in swine and human accounts for around 60%, whereas the estimation for rodents approximates 10%. Considering the differential general composition of WM compared to GM and that WM damage can be seen in the different stroke subtypes associated with clinical deficits, swine ischemic and hemorrhagic stroke models could be considered more translational due to their superior cerebral connectivity through WM and neurological behavior complexity. In preclinical studies, neuroprotection assessment has relied heavily on the evaluation of infarct volume and other short-term outcomes, preferentially studying damage and/or protection for the GM, whereas the effects on the WM connectivity or functional outcomes are usually neglected. In addition, the study of the relationship between an initial ischemia/reperfusion damage and subsequent development of hemorrhagic transformation, or of an initial hemorrhagic event and a subsequent ischemic effect in the brain neighboring areas of large gyrencephalic brains are scarce. Addressing these aspects of the pathology could be important to preclinical translatability.
The pig brain resemblance to the human brain provides a unique opportunity to study structural brain damage by non-invasive imaging techniques used in humans and to compare with acute histological and metabolic measurements not available in human studies unless in fatal cases. In addition, new gene-manipulation procedures and comorbidity models in pigs can provide in the years to come the opportunity to experimentally assess the roles of specific molecules and pathways in the pathophysiology of stroke.
The main limitations of swine brain to model human stroke are: (1) The presence of the rete mirabile, that handicaps endovascular access to intracranial arteries to produce focal brain ischemia; (2) the fact that pig plasminogen has resistance to tissue plasminogen activator (tPA)-mediated activation; (3) the significant contribution of both posterior and anterior cerebral arteries to the circulation through the circle of Willis; and that (4) pigs take longer than rodents to reach sexual maturity, adult animal models are interesting due to the relationship between ageing and the disease, but mature pigs of conventional strains can be difficult to manage considering their size. The size issue can be solved by using adult miniature pigs, which in turn are more stable strains adapted for their use in biomedical research. However, studies using aged animals are still lacking. Stroke incidence is notably affected by age and aged brains are in an enhanced inflammatory and oxidative state that renders them more vulnerable to ischemia. Concerning the rete mirabile, the study of Cui et al. mentioned above reports achieving focal cerebral ischemia by an endovascular embolization of the rete unilaterally. The replication of these results would translate into models in which a much less severe surgery is needed to induce the pathology, thus leading to a refinement of the current techniques according to the 3 Rs principle. Even so, new techniques and/or new stroke-inducing paradigms in swine (adapted from rodent stroke models, for instance clot induction by ferrous chloride or by thrombin or innovative approaches) will foster the role of porcine stroke models to bridge the gap from pre-clinical findings to clinical implementation.

Author Contributions

Conceptualization, A.D. and T.G.; literature search and selection of the state of the art publications, M.M.-S.; writing-original draft preparation, M.M.-S., O.M.-S., and T.G.; investigations to obtain brain images, M.M.-S. (ex vivo and in vivo MRI), N.D.-R. (ex vivo), C.C. (in vivo MRI acquisition and curation), L.R.-E. (in vivo MRI) and O.M.-S. (ex vivo and in vivo MRI); writing-review and editing, L.R.-E., O.M.-S., A.D., and T.G.; supervision, C.C., N.D.-R., O.M.-S., and T.G.; funding acquisition, A.D. and T.G. All authors have read and agreed to the published version of the manuscript.


This research is supported by grants from the Fondo de Investigaciones Sanitarias-Instituto de Salud Carlos III (ISCIII) FIS PI18/01813 and INVICTUS PLUS RD16/0019/0020 to A.D. that was susceptible to be co-financed by FEDER funds, and a grant from Agència de Gestió d’Ajuts Universitaris i de Recerca 2017 SGR 1520 to A.D. and 2019PROD00120 to T.G. The group has received funding from “la Caixa Foundation” CI15-00009, from the European Institute of Innovation and Technology (EIT) PoC-2016-SPAIN-04, which receives support from the European Union’s Horizon 2020 research and innovation programme, from the Fundación para la Innovación y la Prospectiva en Salud en España (FIPSE) program 3594-18. M.M.-S. is a recipient of a PFIS contract FI19/00174.


We are grateful to the Comparative Medicine and Bioimage Centre of Catalonia (CMCiB) for the hemodynamic surgical theater for interventionist surgery and magnetic resonance imaging 3T facilities, and the technical support to work with swine and rats. We acknowledge Canon Medical Systems for the Vantage Galan 3T MRI system, the Infinix-i-core and dedicated software, and the assistance of their MRI product experts Alberto Heredia and Teresa Almandoz. We acknowledge Olea for Olea SDK software. We are deeply grateful to Josep Puig, Sara Capdevila and all the CMCiB staff, especially to Jordi Grífols, Osvaldo Pino, and Alba Iruela for their expertise and excellent technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.


GMGray matter
WMWhite matter
NHPNon-human primate
ICPIntracranial pressure
DTIDiffusion tensor imaging
CMCiBComparative Medicine and Bioimage Centre of Catalonia
ICHIntracranial hemorrhage
OPCOligodendrocyte precursor cell
STAIRStroke Treatment Academic Industry Roundtable
MCAMiddle cerebral artery
MCAOMiddle cerebral artery occlusion
ICAInternal carotid artery
AChAAnterior choroidal artery
APAAscending pharyngeal artery
CCACommon carotid artery
DMSODimethyl sulfoxide
CTComputer tomography
CSDCortical spreading depolarizations
SAHSubarachnoid hemorrhage
MRgFUSMagnetic resonance-guided focused ultrasound
MRIMagnetic resonance imaging
MRMagnetic resonance
PETPositron emission tomography
CTPComputed tomography perfusion
ADCApparent diffusion coefficient
DWIDiffusion-weighted imaging
T2WIT2-weighted imaging
FLAIRFluid attenuation inversion recovery
T1WIT1-weighted imaging
QSMQuantitative susceptibility mapping
FAFractional anisotropy
GREGradient echo
DCEDynamic contrast enhanced
MTIMagnetization transfer imaging
tPATissue plasminogen activator


  1. Sorby-adams, A.J.; Vink, R.; Turner, R.J. Large animal models of stroke and traumatic brain injury as translational tools. Am. J. Physiol. Regul. Integr. Comp. Physiol. 2019. [Google Scholar] [CrossRef]
  2. Gieling, E.T.; Schuurman, T.; Nordquist, R.E.; Van der Staay, F.J. The pig as a model animal for studying cognition and neurobehavioral disorders. In Molecular and Functional Models in Neuropsychiatry; Springer Science & Business Media: Berlin, Germany, 2011; Volume 7, pp. 359–383. ISBN 9783642287190. [Google Scholar]
  3. Schomberg, D.T.; Tellez, A.; Meudt, J.J.; Brady, D.A.; Dillon, K.N.; Arowolo, F.K.; Wicks, J.; Rousselle, S.D.; Shanmuganayagam, D. Miniature swine for preclinical modeling of complexities of human disease for translational scientific discovery and accelerated development of therapies and medical devices. Toxicol. Pathol. 2016, 44, 299–314. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Walker, J.; MacLean, J.; Hatsopoulos, N.G. The marmoset as a model system for studying voluntary motor control. Dev. Neurobiol. 2017, 77, 273–285. [Google Scholar] [CrossRef] [PubMed]
  5. Lind, N.M.; Moustgaard, A.; Jelsing, J.; Vajta, G.; Cumming, P.; Hansen, A.K. The use of pigs in neuroscience: Modeling brain disorders. Neurosci. Biobehav. Rev. 2007, 31, 728–751. [Google Scholar] [CrossRef] [PubMed]
  6. Sauleau, P.; Lapouble, E.; Val-Laillet, D.; Malbert, C.H. The pig model in brain imaging and neurosurgery. Animal 2009, 3, 1138–1151. [Google Scholar] [CrossRef] [Green Version]
  7. Kentar, M.; Mann, M.; Sahm, F.; Olivares-Rivera, A.; Sanchez-Porras, R.; Zerelles, R.; Sakowitz, O.W.; Unterberg, A.W.; Santos, E. Detection of spreading depolarizations in a middle cerebral artery occlusion model in swine. Acta Neurochir. (Wien) 2020, 162, 581–592. [Google Scholar] [CrossRef] [PubMed]
  8. Craner, S.L.; Ray, R.H. Somatosensory cortex of the neonatal pig: I. Topographic organization of the primary somatosensory cortex (SI). J. Comp. Neurol. 1991, 306, 24–38. [Google Scholar] [CrossRef]
  9. Roth, G.; Dicke, U. Evolution of the brain and intelligence. Trends Cogn. Sci. 2005, 9, 250–257. [Google Scholar] [CrossRef]
  10. Jelsing, J.; Hay-Schmidt, A.; Dyrby, T.; Hemmingsen, R.; Uylings, H.B.M.; Pakkenberg, B. The prefrontal cortex in the Göttingen minipig brain defined by neural projection criteria and cytoarchitecture. Brain Res. Bull. 2006, 70, 322–336. [Google Scholar] [CrossRef]
  11. Conrad, M.S.; Dilger, R.N.; Johnson, R.W. Brain growth of the domestic pig (Sus scrofa) from 2 to 24 weeks of age: A longitudinal MRI study. Dev. Neurosci. 2012, 34, 291–298. [Google Scholar] [CrossRef] [Green Version]
  12. Ryan, M.C.; Sherman, P.; Rowland, L.M.; Wijtenburg, S.A.; Acheson, A.; Fieremans, E.; Veraart, J.; Novikov, D.S.; Hong, L.E.; Sladky, J.; et al. Miniature pig model of human adolescent brain white matter development. J. Neurosci. Methods 2018, 296, 99–108. [Google Scholar] [CrossRef]
  13. Simchick, G.; Shen, A.; Campbell, B.; Park, H.J.; West, F.D.; Zhao, Q. Pig brains have homologous resting-state networks with human brains. Brain Connect. 2019, 9, 566–579. [Google Scholar] [CrossRef]
  14. Gabrielian, L.; Willshire, L.W.; Helps, S.C.; Van Den Heuvel, C.; Mathias, J.; Vink, R. Intracranial pressure changes following traumatic brain injury in rats: Lack of significant change in the absence of mass lesions or hypoxia. J. Neurotrauma 2011, 28, 2103–2111. [Google Scholar] [CrossRef] [PubMed]
  15. Cai, B.; Wang, N. Large animal stroke models vs. Rodent stroke models, pros and cons, and combination? In Brain Edema XVI; Springer: Cham, Switzerland, 2016; Volume 121, pp. 77–81. [Google Scholar]
  16. Kaiser, E.E.; Waters, E.S.; Fagan, M.M.; Scheulin, K.M.; Platt, S.R.; Jeon, J.H.; Fang, X.; Kinder, H.A.; Shin, S.K.; Duberstein, K.J.; et al. Characterization of tissue and functional deficits in a clinically translational pig model of acute ischemic stroke. Brain Res. 2020, 1736. [Google Scholar] [CrossRef] [PubMed]
  17. Mendl, M.; Held, S.; Byrne, R.W. Pig cognition. Curr. Biol. 2010, 20, 796–798. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  18. Kornum, B.R.; Knudsen, G.M. Cognitive testing of pigs (Sus scrofa) in translational biobehavioral research. Neurosci. Biobehav. Rev. 2011, 35, 437–451. [Google Scholar] [CrossRef]
  19. Swindle, M.M.; Smith, A.C. Comparative anatomy and physiology of the pig. Scand. J. Lab. Anim. Sci. 1998, 25, 11–21. [Google Scholar] [CrossRef]
  20. Ashwini, C.; Shubha, R.; Jayanthi, K. Comparative anatomy of the circle of Willis in man, cow, sheep, goat, and pig. Neuroanatomy 2008, 7, 54–65. [Google Scholar]
  21. Zhang, K.; Sejnowski, T.J. A universal scaling law between gray matter and white matter of cerebral cortex. Proc. Natl. Acad. Sci. USA 2000, 97, 5621–5626. [Google Scholar] [CrossRef] [Green Version]
  22. Baltan, S.; Besancon, E.F.; Mbow, B.; Ye, Z.C.; Hamner, M.A.; Ransom, B.R. White matter vulnerability to ischemic injury increases with age because of enhanced excitotoxicity. J. Neurosci. 2008, 28, 1479–1489. [Google Scholar] [CrossRef] [Green Version]
  23. Sommer, C.J. Ischemic stroke: Experimental models and reality. Acta Neuropathol. 2017, 133, 245–261. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Gladstone, D.J.; Black, S.E.; Hakim, A.M. Toward wisdom from failure: Lessons from neuroprotective stroke trials and new therapeutic directions. Stroke 2002, 33, 2123–2136. [Google Scholar] [CrossRef] [PubMed]
  25. Matute, C.; Ransom, B.R. Roles of white matter in central nervous system pathophysiologies. ASN Neuro 2012, 4, 89–101. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Fisher, M.; Feuerstein, G.; Howells, D.W.; Hurn, P.D.; Kent, T.A.; Savitz, S.I.; Lo, E.H. Update of the stroke therapy academic industry roundtable preclinical recommendations. Stroke 2009, 40, 2244–2250. [Google Scholar] [CrossRef] [PubMed]
  27. Hainsworth, A.H.; Allan, S.M.; Boltze, J.; Cunningham, C.; Farris, C.; Head, E.; Ihara, M.; Isaacs, J.D.; Kalaria, R.N.; Lesnik Oberstein, S.A.M.J.; et al. Translational models for vascular cognitive impairment: A review including larger species. BMC Med. 2017, 15. [Google Scholar] [CrossRef]
  28. Swindle, M.M.; Makin, A.; Herron, A.J.; Clubb, F.J.; Frazier, K.S. Swine as models in biomedical research and toxicology testing. Vet. Pathol. 2012, 49, 344–356. [Google Scholar] [CrossRef]
  29. Bassols, A.; Costa, C.; Eckersall, P.D.; Osada, J.; Sabrià, J.; Tibau, J. The pig as an animal model for human pathologies: A proteomics perspective. Proteom. Clin. Appl. 2014, 8, 715–731. [Google Scholar] [CrossRef]
  30. Wernersson, R.; Schierup, M.H.; Jørgensen, F.G.; Gorodkin, J.; Panitz, F.; Stærfeldt, H.H.; Christensen, O.F.; Mailund, T.; Hornshøj, H.; Klein, A.; et al. Pigs in sequence space: A 0.66X coverage pig genome survey based on shotgun sequencing. BMC Genom. 2005, 6, 1–7. [Google Scholar] [CrossRef] [Green Version]
  31. Jørgensen, F.G.; Hobolth, A.; Hornshøj, H.; Bendixen, C.; Fredholm, M.; Schierup, M.H. Comparative analysis of protein coding sequences from human, mouse and the domesticated pig. BMC Biol. 2005, 3. [Google Scholar] [CrossRef] [Green Version]
  32. Robert, C.; Kapetanovic, R.; Beraldi, D.; Watson, M.; Archibald, A.L.; Hume, D.A. Identification and annotation of conserved promoters and macrophage-expressed genes in the pig genome. BMC Genom. 2015, 16, 1–17. [Google Scholar] [CrossRef] [Green Version]
  33. Renner, S.; Blutke, A.; Clauss, S.; Deeg, C.A.; Kemter, E.; Merkus, D.; Wanke, R.; Wolf, E. Porcine models for studying complications and organ crosstalk in diabetes mellitus. Cell Tissue Res. 2020. [Google Scholar] [CrossRef]
  34. De Leeuw, F.; De Groot, J.; Achten, E.; Oudkerk, M.; Ramos, L.; Heijboer, R.; Hofman, A.; Jolles, J.; Van Gijn, J.; Breteler, M. Prevalence of cerebral white matter lesions in elderly people: A population based magnetic resonance imaging study: The Rotterdam Scan Study. J. Neurol. Neurosurg. Psychiatry 2001, 70, 2–3. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Das, A.S.; Regenhardt, R.W.; Vernooij, M.W.; Blacker, D.; Charidimou, A.; Viswanathan, A. Asymptomatic cerebral small vessel disease: Insights from population-based studies. J. Stroke 2019, 21, 121–138. [Google Scholar] [CrossRef] [PubMed]
  36. Wessels, T.; Wessels, C.; Ellsiepen, A.; Reuter, I.; Trittmacher, S.; Stolz, E.; Jauss, M. Contribution of diffusion-weighted imaging in determination of stroke etiology. Am. J. Neuroradiol. 2006, 27, 35–39. [Google Scholar] [PubMed]
  37. Wang, Y.; Liu, G.; Hong, D.; Chen, F.; Ji, X.; Cao, G. White matter injury in ischemic stroke. Prog. Neurobiol. 2016, 141, 45–60. [Google Scholar] [CrossRef] [Green Version]
  38. Egorova, N.; Dhollander, T.; Khlif, M.S.; Khan, W.; Werden, E.; Brodtmann, A. Pervasive white matter fiber degeneration in ischemic stroke. Stroke 2020, 1–7. [Google Scholar] [CrossRef]
  39. Bailey, E.L.; Smith, C.; Sudlow, C.L.M.; Wardlaw, J.M. Pathology of lacunar ischemic stroke in humans—A systematic review. Brain Pathol. 2012, 22, 583–591. [Google Scholar] [CrossRef]
  40. Wardlaw, J.M.; Valdés Hernández, M.C.; Muñoz-Maniega, S. What are white matter hyperintensities made of? Relevance to vascular cognitive impairment. J. Am. Heart Assoc. 2015, 4, 001140. [Google Scholar] [CrossRef] [Green Version]
  41. Bamford, J.; Sandercock, P.; Dennis, M.; Warlow, C.; Burn, J. Classification and natural history of clinically identifiable subtypes of cerebral infarction. Lancet 1991, 337, 1521–1526. [Google Scholar] [CrossRef]
  42. Regenhardt, R.W.; Das, A.S.; Ohtomo, R.; Lo, E.H.; Ayata, C.; Gurol, M.E. Pathophysiology of lacunar stroke: History’s mysteries and modern interpretations. J. Stroke Cerebrovasc. Dis. 2019, 28, 2079–2097. [Google Scholar] [CrossRef]
  43. Fu, J.H.; Lu, C.Z.; Hong, Z.; Dong, Q.; Luo, Y.; Wong, K.S. Extent of white matter lesions is related to acute subcortical infarcts and predicts further stroke risk in patients with first ever ischaemic stroke. J. Neurol. Neurosurg. Psychiatry 2005, 76, 793–796. [Google Scholar] [CrossRef] [Green Version]
  44. Schaapsmeerders, P.; Tuladhar, A.M.; Arntz, R.M.; Franssen, S.; Maaijwee, N.A.M.; Rutten-Jacobs, L.C.A.; Schoonderwaldt, H.C.; Dorresteijn, L.D.A.; Van Dijk, E.J.; Kessels, R.P.C.; et al. Remote lower white matter integrity increases the risk of long-term cognitive impairment after ischemic stroke in young adults. Stroke 2016, 47, 2517–2525. [Google Scholar] [CrossRef] [Green Version]
  45. Lo, E.H.; Dalkara, T.; Moskowitz, M.A. Neurological diseases: Mechanisms, challenges and opportunities in stroke. Nat. Rev. Neurosci. 2003, 4, 399–414. [Google Scholar] [CrossRef]
  46. Sozmen, E.G.; Hinman, J.D.; Carmichael, S.T. Models that matter: White matter stroke models. Neurotherapeutics 2012, 9, 349–358. [Google Scholar] [CrossRef] [Green Version]
  47. Ladecola, C. The pathobiology of vascular dementia. Neuron 2013, 80, 844–866. [Google Scholar] [CrossRef] [Green Version]
  48. Wu, O.; Cloonan, L.; Mocking, S.J.; Bouts, M.J.; Copen, W.A.; Cougo-Pinto, P.; Fitzpatrick, K.; Kanakis, A.; Schaefer, P.W.; Rosand, J.; et al. The role of acute lesion topography in initial ischemic stroke severity and long-term functional outcomes. Stroke 2015, 46, 2438–2444. [Google Scholar] [CrossRef] [Green Version]
  49. Srikanth, V.; Beare, R.; Blizzard, L.; Phan, T.; Stapleton, J.; Chen, J.; Callisaya, M.; Martin, K.; Reutens, D. Cerebral white matter lesions, gait, and the risk of incident falls: A prospective population-based study. Stroke 2009, 40, 175–180. [Google Scholar] [CrossRef] [Green Version]
  50. Hedna, V.S.; Jain, S.; Rabbani, O.; Nadeau, S.E. Mechanisms of arm paresis in middle cerebral artery distribution stroke: Pilot study. J. Rehabil. Res. Dev. 2013, 50, 1113–1121. [Google Scholar] [CrossRef] [Green Version]
  51. Xie, Q.; Gu, Y.; Hua, Y.; Liu, W.; Keep, R.F.; Xi, G. Deferoxamine attenuates white matter injury in a piglet intracerebral hemorrhage model. Stroke 2014, 45, 290–292. [Google Scholar] [CrossRef]
  52. Tanaka, Y.; Imai, H.; Konno, K.; Miyagishima, T.; Kubota, C.; Puentes, S.; Aoki, T.; Hata, H.; Takata, K.; Yoshimoto, Y.; et al. Experimental model of lacunar infarction in the gyrencephalic brain of the miniature pig: Neurological assessment and histological, immunohistochemical, and physiological evaluation of dynamic corticospinal tract deformation. Stroke 2008, 39, 205–212. [Google Scholar] [CrossRef] [Green Version]
  53. Baumann, N.; Pham-Dinh, D. Biology of oligodendrocyte and myelin in the mammalian central nervous system. Physiol. Rev. 2001, 81, 871–927. [Google Scholar] [CrossRef]
  54. Hinman, J.D. The back and forth of axonal injury and repair after stroke. Curr. Opin. Neurol. 2014, 27, 615–623. [Google Scholar] [CrossRef] [Green Version]
  55. Dawson, M.R.L.; Polito, A.; Levine, J.M.; Reynolds, R. NG2-expressing glial progenitor cells: An abundant and widespread population of cycling cells in the adult rat CNS. Mol. Cell. Neurosci. 2003, 24, 476–488. [Google Scholar] [CrossRef]
  56. Kang, S.H.; Fukaya, M.; Yang, J.K.; Rothstein, J.D.; Bergles, D.E. NG2+ CNS glial progenitors remain committed to the oligodendrocyte lineage in postnatal life and following neurodegeneration. Neuron 2010, 68, 668–681. [Google Scholar] [CrossRef] [Green Version]
  57. Baldassarro, V.A.; Marchesini, A.; Giardino, L.; Calzà, L. Differential effects of glucose deprivation on the survival of fetal versus adult neural stem cells-derived oligodendrocyte precursor cells. Glia 2020, 68, 898–917. [Google Scholar] [CrossRef]
  58. Chapuisat, G.; Dronne, M.A.; Grenier, E.; Hommel, M.; Gilquin, H.; Boissel, J.P. A global phenomenological model of ischemic stroke with stress on spreading depressions. Prog. Biophys. Mol. Biol. 2008, 97, 4–27. [Google Scholar] [CrossRef]
  59. D’Esterre, C.D.; Aviv, R.I.; Morrison, L.; Fainardi, E.; Lee, T.Y. Acute multi-modal neuroimaging in a porcine model of endothelin-1-induced cerebral ischemia: Defining the acute infarct core. Transl. Stroke Res. 2015, 6, 234–241. [Google Scholar] [CrossRef]
  60. Pantoni, L.; Garcia, J.H.; Gutierrez, J.A. Cerebral white matter is highly vulnerable to ischemia. Stroke 1996, 27, 1641–1647. [Google Scholar] [CrossRef]
  61. Bristow, M.S.; Simon, J.E.; Brown, R.A.; Eliasziw, M.; Hill, M.D.; Coutts, S.B.; Frayne, R.; Demchuk, A.M.; Mitchell, J.R. MR perfusion and diffusion in acute ischemic stroke: Human gray and white matter have different thresholds for infarction. J. Cereb. Blood Flow Metab. 2005, 25, 1280–1287. [Google Scholar] [CrossRef] [Green Version]
  62. Arakawa, S.; Wright, P.M.; Koga, M.; Phan, T.G.; Reutens, D.C.; Lim, I.; Gunawan, M.R.; Ma, H.; Perera, N.; Ly, J.; et al. Ischemic thresholds for gray and white matter: A diffusion and perfusion magnetic resonance study. Stroke 2006, 37, 1211–1216. [Google Scholar] [CrossRef] [Green Version]
  63. Mcdonald, J.W.; Althomsons, S.P.; Hyrc, K.L.; Choi, D.W.; Goldberg, M.P. Oligodendrocytes from forebrain are highly vulnerable to AMPA/kainate receptor-mediated excitotoxicity. Nat. Med. 1998, 4, 291–297. [Google Scholar] [CrossRef] [PubMed]
  64. Salter, M.G.; Fern, R. NMDA receptors are expressed in developing oligodendrocyte processes and mediate injury. Nature 2005, 438, 1167–1171. [Google Scholar] [CrossRef] [PubMed]
  65. Micu, I.; Jiang, Q.; Coderre, E.; Ridsdale, A.; Zhang, L.; Woulfe, J.; Yin, X.; Trapp, B.D.; McRory, J.E.; Rehak, R.; et al. NMDA receptors mediate calcium accumulation in myelin during chemical ischaemia. Nature 2006, 439, 988–992. [Google Scholar] [CrossRef] [PubMed]
  66. Domercq, M.; Perez-Samartin, A.; Aparicio, D.; Alberdi, E.; Pampliega, O.; Matute, C. P2X7 receptors mediate ischemic damage to oligodendrocytes. Glia 2010, 58, 730–740. [Google Scholar] [CrossRef]
  67. Doyle, S.; Hansen, D.B.; Vella, J.; Bond, P.; Harper, G.; Zammit, C.; Valentino, M.; Fern, R. Vesicular glutamate release from central axons contributes to myelin damage. Nat. Commun. 2018, 9. [Google Scholar] [CrossRef] [Green Version]
  68. Aronowski, J.; Zhao, X. Molecular pathophysiology of cerebral hemorrhage: Secondary brain injury. Stroke 2011, 42, 1781–1786. [Google Scholar] [CrossRef]
  69. Liu, R.; Cao, S.; Hua, Y.; Keep, R.F.; Huang, Y.; Xi, G. CD163 expression in neurons after experimental intracerebral hemorrhage. Stroke 2017, 48, 1369–1375. [Google Scholar] [CrossRef] [Green Version]
  70. Shao, Z.; Tu, S.; Shao, A. Pathophysiological mechanisms and potential therapeutic targets in intracerebral hemorrhage. Front. Pharmacol. 2019, 10, 1–8. [Google Scholar] [CrossRef] [Green Version]
  71. Mandai, K.; Matsumoto, M.; Kitagawa, K.; Matsushita, K.; Ohtsuki, T.; Mabuchi, T.; Colman, D.R.; Kamada, T.; Yanagihara, T. Ischemic damage and subsequent proliferation of oligodendrocytes in focal cerebral ischemia. Neuroscience 1997, 77, 849–861. [Google Scholar] [CrossRef]
  72. Sozmen, E.G.; Kolekar, A.; Havton, L.A.; Carmichael, S.T. A white matter stroke model in the mouse: Axonal damage, progenitor responses and MRI correlates. J. Neurosci. Methods 2009, 180, 261–272. [Google Scholar] [CrossRef] [Green Version]
  73. Itoh, K.; Maki, T.; Lok, J.; Arai, K. Mechanisms of cell-cell interaction in oligodendrogenesis and remyelination after stroke. Brain Res. 2015, 1623, 135–149. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  74. Nait-Oumesmar, B.; Picard-Riéra, N.; Kerninon, C.; Baron-Van Evercooren, A. The role of SVZ-derived neural precursors in demyelinating diseases: From animal models to multiple sclerosis. J. Neurol. Sci. 2008, 265, 26–31. [Google Scholar] [CrossRef] [PubMed]
  75. Jablonska, B. Chordin-induced lineage plasticity of adult SVZ neuroblasts after demyelination. Nat. Neurosci 2010, 13, 541–550. [Google Scholar] [CrossRef] [Green Version]
  76. Gensert, J.A.M.; Goldman, J.E. Endogenous progenitors remyelinate demyelinated axons in the adult CNS. Neuron 1997, 19, 197–203. [Google Scholar] [CrossRef] [Green Version]
  77. Sozmen, E.G.; Rosenzweig, S.; Llorente, I.L.; DiTullio, D.J.; Machnicki, M.; Vinters, H.V.; Havton, L.A.; Giger, R.J.; Hinman, J.D.; Carmichael, S.T. Nogo receptor blockade overcomes remyelination failure after white matter stroke and stimulates functional recovery in aged mice. Proc. Natl. Acad. Sci. USA 2016, 113, E8453–E8462. [Google Scholar] [CrossRef] [Green Version]
  78. Carmichael, S.T.; Kathirvelu, B.; Schweppe, C.A.; Nie, E.H. Molecular, cellular and functional events in axonal sprouting after stroke. Exp. Neurol. 2017, 287, 384–394. [Google Scholar] [CrossRef] [Green Version]
  79. Xu, M.; Wang, M.M.; Gao, Y.; Keep, R.F.; Shi, Y. The effect of age-related risk factors and comorbidities on white matter injury and repair after ischemic stroke. Neurobiol. Dis. 2019, 126, 13–22. [Google Scholar] [CrossRef]
  80. Modo, M.M.; Jolkkonen, J.; Zille, M.; Boltze, J. The Future of Animal Modeling for Post-Stroke Tissue Repair. Stroke 2018, 49, 1099–1106. [Google Scholar] [CrossRef]
  81. Savitz, S.I.; Baron, J.C.; Fisher, M. Stroke treatment academic industry roundtable X: Brain cytoprotection therapies in the reperfusion era. Stroke 2019, 50, 1026–1031. [Google Scholar] [CrossRef]
  82. Benjamin, E.J.; Muntner, P.; Alonso, A.; Bittencourt, M.S.; Callaway, C.W.; Carson, A.P.; Chamberlain, A.M.; Chang, A.R.; Cheng, S.; Das, S.R.; et al. Heart disease and stroke statistics-2019 update: A report from the American Heart Association. Circulation 2019, 139, e56–e528. [Google Scholar] [CrossRef]
  83. Boodt, N.; Compagne, K.C.J.; Dutra, B.G.; Samuels, N.; Tolhuisen, M.L.; Alves, H.C.B.R.; Kappelhof, M.; Lycklama à Nijeholt, G.J.; Marquering, H.A.; Majoie, C.B.L.M.; et al. Stroke etiology and thrombus computed tomography characteristics in patients with acute ischemic stroke. Stroke 2020. [Google Scholar] [CrossRef] [PubMed]
  84. Wang, J.; Zhang, P.; Tang, Z. Animal models of transient ischemic attack: A review. Acta Neurol. Belg. 2020, 120, 267–275. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  85. Burbridge, B.; Matte, G.; Remedios, A. Complex intracranial arterial anatomy in swine is unsuitable for cerebral infarction projects. Can. Assoc. Radiol. J. 2004, 55, 326–329. [Google Scholar] [PubMed]
  86. Arikan, F.; Martínez-Valverde, T.; Sánchez-Guerrero, Á.; Campos, M.; Esteves, M.; Gandara, D.; Torné, R.; Castro, L.; Dalmau, A.; Tibau, J.; et al. Malignant infarction of the middle cerebral artery in a porcine model. A pilot study. PLoS ONE 2017, 12, e0172637. [Google Scholar] [CrossRef] [Green Version]
  87. Zhang, R.; Bertelsen, L.B.; Flø, C.; Wang, Y.; Stødkilde-Jørgensen, H. Establishment and characterization of porcine focal cerebral ischemic model induced by endothelin-1. Neurosci. Lett. 2016, 635, 1–7. [Google Scholar] [CrossRef]
  88. Kuluz, J.W.; Prado, R.; He, D.; Zhao, W.; Dietrich, W.D.; Watson, B. New pediatric model of ischemic stroke in infant piglets by photothrombosis: Acute changes in cerebral blood flow, microvasculature, and early histopathology. Stroke 2007, 38, 1932–1937. [Google Scholar] [CrossRef] [Green Version]
  89. Zhang, L.; Cheng, H.; Shi, J.; Chen, J. Focal epidural cooling reduces the infarction volume of permanent middle cerebral artery occlusion in swine. Surg. Neurol. 2007, 67, 117–121. [Google Scholar] [CrossRef]
  90. Odden, J.P.; Stiris, T.; Hansen, T.W.R.; Bratlid, D. Cerebral blood flow during experimental hypoxaemia and ischaemia in the newborn piglet. Acta Paediatr. Scand. Suppl. 1989, 78, 13–19. [Google Scholar] [CrossRef]
  91. Laptook, A.R.; Corbett, R.J.T.; Nunnally, R.L. Effect of Plasma Glucose Concentration on Cerebral Metabolism During Partial Ischemia in Neonatal Piglets. Stroke 1990, 21, 435–440. [Google Scholar] [CrossRef] [Green Version]
  92. Fisk, G.C.; Wright, J.S.; Turner, B.B.; Baker, W.C.; Hicks, R.G.; Lethlean, A.K.; Stacey, R.B.; Lawrence, J.C.; Lawrie, G.M.; Kalnins, I.; et al. Cerebral effects of circulatory arrest at 20°C in the infant pig. Anaesth. Intensive Care 1974, 2, 33–42. [Google Scholar] [CrossRef]
  93. Maningas, P.A.; DeGuzman, L.R.; Hollenbach, S.J.; Volk, K.A.; Bellamy, R.F. Regional blood flow during hypothermic arrest. Ann. Emerg. Med. 1986, 15, 390–396. [Google Scholar] [CrossRef]
  94. Armstead, W.M.; Mirro, R.; Busija, D.W.; Leffler, C.W. Postischemic generation of superoxide anion by newborn pig brain. Am. J. Physiol. Hear. Circ. Physiol. 1988, 255, 401–403. [Google Scholar] [CrossRef] [PubMed]
  95. Fern, R.; Möller, T. Rapid ischemic cell death in immature oligodendrocytes: A fatal glutamate release feedback loop. J. Neurosci. 2000, 20, 34–42. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  96. Armstead, W.M.; Riley, J.; Kiessling, J.W.; Cines, D.B.; Higazi, A.A.R. Novel plasminogen activator inhibitor-1-derived peptide protects against impairment of cerebrovasodilation after photothrombosis through inhibition of JNK MAPK. Am. J. Physiol. Regul. Integr. Comp. Physiol. 2010, 299, 480–485. [Google Scholar] [CrossRef] [Green Version]
  97. Armstead, W.M.; Ganguly, K.; Riley, J.; Kiessling, W.J.; Cines, D.B.; Higazi, A.A.R.; Zaitsev, S.; Muzykantov, V.R. RBC-coupled tissue plasminogen activator prevents impairment of cerebral vasodilatory responses through inhibition of JNK and potentiation of p38 MAPK after cerebral photothrombosis in the newborn pig. Pediatr. Crit. Care Med. 2011, 12, 369–375. [Google Scholar] [CrossRef] [Green Version]
  98. Armstead, W.M.; Ganguly, K.; Riley, J.; Zaitsev, S.; Cines, D.B.; Higazi, A.A.R.; Muzykantov, V.R. RBC-coupled tPA prevents whereas tPA aggravates JNK MAPK-mediated impairment of ATP- and Ca-sensitive K channel-mediated cerebrovasodilation after cerebral photothrombosis. Transl. Stroke Res. 2012, 3, 114–121. [Google Scholar] [CrossRef] [Green Version]
  99. Armstead, W.M.; Riley, J.; Yarovoi, S.; Higazi, A.A.; Cines, D.B. tPA-A296-299 prevents impairment of cerebral autoregulation after stroke through LRP dependent increase in cAMP and p38. Stroke 2016, 47, 2096–2102. [Google Scholar] [CrossRef] [Green Version]
  100. Armstead, W.M.; Hekierski, H.; Pastor, P.; Yarovoi, S.; Higazi, A.A.R.; Cines, D.B. Release of IL-6 after stroke contributes to impaired cerebral autoregulation and hippocampal neuronal necrosis through NMDA receptor activation and upregulation of ET-1 and JNK. Transl. Stroke Res. 2019, 10, 104–111. [Google Scholar] [CrossRef]
  101. Duberstein, K.J.; Platt, S.R.; Holmes, S.P.; Dove, C.R.; Howerth, E.W.; Kent, M.; Stice, S.L.; Hill, W.D.; Hess, D.C.; West, F.D. Gait analysis in a pre- and post-ischemic stroke biomedical pig model. Physiol. Behav. 2014, 125, 8–16. [Google Scholar] [CrossRef]
  102. Platt, S.R.; Holmes, S.P.; Howerth, E.W.; Duberstein, K.J.J.; Dove, C.R.; Kinder, H.A.; Wyatt, E.L.; Linville, A.V.; Lau, V.W.; Stice, S.L.; et al. Development and characterization of a Yucatan miniature biomedical pig permanent middle cerebral artery occlusion stroke model. Exp. Transl. Stroke Med. 2014, 6, 1–14. [Google Scholar] [CrossRef] [Green Version]
  103. Baker, E.W.; Platt, S.R.; Lau, V.W.; Grace, H.E.; Holmes, S.P.; Wang, L.; Duberstein, K.J.; Howerth, E.W.; Kinder, H.A.; Stice, S.L.; et al. Induced pluripotent stem cell-derived neural stem cell therapy enhances recovery in an ischemic stroke pig model. Sci. Rep. 2017, 7, 1–15. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  104. Webb, R.L.; Kaiser, E.E.; Jurgielewicz, B.J.; Spellicy, S.; Scoville, S.L.; Thompson, T.A.; Swetenburg, R.L.; Hess, D.C.; West, F.D.; Stice, S.L. Human neural stem cell extracellular vesicles improve recovery in a porcine model of ischemic stroke. Stroke 2018, 49, 1248–1256. [Google Scholar] [CrossRef] [PubMed]
  105. Lau, V.W.; Platt, S.R.; Grace, H.E.; Baker, E.W.; West, F.D. Human iNPC therapy leads to improvement in functional neurologic outcomes in a pig ischemic stroke model. Brain Behav. 2018, 8, 1–11. [Google Scholar] [CrossRef]
  106. Spellicy, S.E.; Kaiser, E.E.; Bowler, M.M.; Jurgielewicz, B.J.; Webb, R.L.; West, F.D.; Stice, S.L. Neural stem cell extracellular vesicles disrupt midline shift predictive outcomes in porcine ischemic stroke model. Transl. Stroke Res. 2019. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  107. Nakamura, M.; Imai, H.; Konno, K.; Kubota, C.; Seki, K.; Puentes, S.; Faried, A.; Yokoo, H.; Hata, H.; Yoshimoto, Y.; et al. Experimental investigation of encephalomyosynangiosis using gyrencephalic brain of the miniature pig: Histopathological evaluation of dynamic reconstruction of vessels for functional anastomosis—Laboratory investigation. J. Neurosurg. Pediatr. 2009, 3, 488–495. [Google Scholar] [CrossRef]
  108. Mattingly, T.K.; Denning, L.M.; Siroen, K.L.; Lehrbass, B.; Lopez-Ojeda, P.; Stitt, L.; Pelz, D.M.; Das, S.; Ang, L.C.; Lee, D.H.; et al. Catheter based selective hypothermia reduces stroke volume during focal cerebral ischemia in swine. J. Neurointerv. Surg. 2016, 8, 418–422. [Google Scholar] [CrossRef] [Green Version]
  109. Elliott, J.T.; Diop, M.; Morrison, L.B.; D’Esterre, C.D.; Lee, T.Y.; St. Lawrence, K.S. Quantifying cerebral blood flow in an adult pig ischemia model by a depth-resolved dynamic contrast-enhanced optical method. Neuroimage 2014, 94, 303–311. [Google Scholar] [CrossRef]
  110. Wright, E.A.; D’Esterre, C.D.; Morrison, L.B.; Cockburn, N.; Kovacs, M.; Lee, T.Y. Absolute cerebral blood flow infarction threshold for 3-hour ischemia time determined with CT perfusion and 18F-FFMZ-PET imaging in a porcine model of cerebral ischemia. PLoS ONE 2016, 11, e0158157. [Google Scholar] [CrossRef]
  111. Sakoh, M.; Røhl, L.; Gyldensted, C.; Gjedde, A.; Østergaard, L. Cerebral blood flow and blood volume measured by magnetic resonance imaging bolus tracking after acute stroke in pigs: Comparison with [15O]H2O positron emission tomography. Stroke 2000, 31, 1958–1964. [Google Scholar] [CrossRef] [Green Version]
  112. Sakoh, M.; Østergaard, L.; Røhl, L.; Smith, D.F.; Simonsen, C.Z.; Sørensen, J.C.; Poulsen, P.V.; Gyldensted, C.; Sakaki, S.; Gjedde, A. Relationship between residual cerebral blood flow and oxygen metabolism as predictive of ischemic tissue viability: Sequential multitracer positron emission tomography scanning of middle cerebral artery occlusion during the critical first 6 hours after st. J. Neurosurg. 2000, 93, 647–657. [Google Scholar] [CrossRef]
  113. Sakoh, M.; Østergaard, L.; Gjedde, A.; Røhl, L.; Vestergaard-Poulsen, P.; Smith, D.F.; Le Bihan, D.; Sakaki, S.; Gyldensted, C. Prediction of tissue survival after middle cerebral artery occlusion based on changes in the apparent diffusion of water. J. Neurosurg. 2001, 95, 450–458. [Google Scholar] [CrossRef] [PubMed]
  114. Røhl, L.; Sakoh, M.; Simonsen, C.Z.; Vestergaard-Poulsen, P.; Sangill, R.; Sørensen, J.C.; Bjarkam, C.R.; Gyldensted, C.; Østergaard, L. Time evolution of cerebral perfusion and apparent diffusion coefficient measured by magnetic resonance imaging in a porcine stroke model. J. Magn. Reson. Imaging 2002, 15, 123–129. [Google Scholar] [CrossRef] [PubMed]
  115. Watanabe, H.; Sakoh, M.; Andersen, F.; Rodell, A.; Sørensen, J.C.; Østergaard, L.; Mouridsen, K.; Cumming, P. Statistical mapping of effects of middle cerebral artery occlusion (MCAO) on blood flow and oxygen consumption in porcine brain. J. Neurosci. Methods 2007, 160, 109–115. [Google Scholar] [CrossRef] [PubMed]
  116. Schöll, M.J.; Santos, E.; Sanchez-Porras, R.; Kentar, M.; Gramer, M.; Silos, H.; Zheng, Z.; Gang, Y.; Strong, A.J.; Graf, R.; et al. Large field-of-view movement-compensated intrinsic optical signal imaging for the characterization of the haemodynamic response to spreading depolarizations in large gyrencephalic brains. J. Cereb. Blood Flow Metab. 2017, 37, 1706–1719. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  117. Mangla, S.; Choi, J.H.; Barone, F.C.; Novotney, C.; Libien, J.; Lin, E.; Pile-Spellman, J. Endovascular external carotid artery occlusion for brain selective targeting: A cerebrovascular swine model. BMC Res. Notes 2015, 8, 4–9. [Google Scholar] [CrossRef] [Green Version]
  118. Yang, J.K.; Cote, A.M.; Jordan, C.D.; Kondapavulur, S.; Losey, A.D.; McCoy, D.; Chu, A.; Yu, J.F.; Moore, T.; Stillson, C.; et al. Interventional magnetic resonance imaging guided carotid embolectomy using a novel resonant marker catheter: Demonstration of preclinical feasibility. Biomed. Microdevices 2017, 19. [Google Scholar] [CrossRef]
  119. Srinivasan, V.M.; Chen, S.R.; Camstra, K.M.; Chintalapani, G.; Kan, P. Development of a recalcitrant, large clot burden, bifurcation occlusion model for mechanical thrombectomy. Neurosurg. Focus 2017, 42, 1–6. [Google Scholar] [CrossRef] [Green Version]
  120. Brekenfeld, C.; Schroth, G.; El-Koussy, M.; Nedeltchev, K.; Reinert, M.; Slotboom, J.; Gralla, J. Mechanical thromboembolectomy for acute ischemic stroke: Comparison of the catch thromboectomy device and the Merci Retriever in vivo. Stroke 2008, 39, 1213–1219. [Google Scholar] [CrossRef]
  121. Ringer, A.J.; Guterman, L.R.; Hopkins, L.N. Site-specific thromboembolism: A novel animal model for stroke. Am. J. Neuroradiol. 2004, 25, 329–332. [Google Scholar]
  122. Culp, W.C.; Erdem, E.; Roberson, P.K.; Husain, M.M. Microbubble potentiated ultrasound as a method of stroke therapy in a pig model: Preliminary findings. J. Vasc. Interv. Radiol. 2003, 14, 1433–1436. [Google Scholar] [CrossRef] [Green Version]
  123. Gao, S.; Zhang, Y.; Wu, J.; Shi, W.T.; Lof, J.; Vignon, F.; Drvol, L.; Xie, F.; Muirhead, D.; Powers, J.E.; et al. Improvements in cerebral blood flow and recanalization rates with transcranial diagnostic ultrasound and intravenous microbubbles after acute cerebral Emboli. Investig. Radiol. 2014, 49, 593–600. [Google Scholar] [CrossRef] [PubMed]
  124. Peschillo, S.; Diana, F.; Berge, J.; Missori, P. A comparison of acute vascular damage caused by ADAPT versus a stent retriever device after thrombectomy in acute ischemic stroke: A histological and ultrastructural study in an animal model. J. Neurointerv. Surg. 2017, 9, 743–749. [Google Scholar] [CrossRef] [PubMed]
  125. Gory, B.; Bresson, D.; Kessler, I.; Perrin, M.L.; Guillaudeau, A.; Durand, K.; Ponsonnard, S.; Couquet, C.; Yardin, C.; Mounayer, C. Histopathologic evaluation of arterial wall response to 5 neurovascular mechanical thrombectomy devices in a swine model. Am. J. Neuroradiol. 2013, 34, 2192–2198. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  126. Mordasini, P.; Frabetti, N.; Gralla, J.; Schroth, G.; Fischer, U.; Arnold, M.; Brekenfeld, C. In vivo evaluation of the first dedicated combined flow-restoration and mechanical thrombectomy device in a swine model of acute vessel occlusion. Am. J. Neuroradiol. 2011, 32, 294–300. [Google Scholar] [CrossRef] [Green Version]
  127. Mordasini, P.; Brekenfeld, C.; Byrne, J.V.; Fischer, U.; Arnold, M.; Jung, S.; Schroth, G.; Gralla, J. Experimental evaluation of immediate recanalization effect and recanalization efficacy of a new thrombus retriever for acute stroke treatment in vivo. Am. J. Neuroradiol. 2013, 34, 153–158. [Google Scholar] [CrossRef] [Green Version]
  128. Roth, C.; Junk, D.; Papanagiotou, P.; Keuler, A.; Körner, H.; Schumacher, M.; Reith, W. A comparison of 2 stroke devices: The new aperio clot-removal device and the solitaire AB/FR. Am. J. Neuroradiol. 2012, 33, 1317–1320. [Google Scholar] [CrossRef] [Green Version]
  129. Gralla, J.; Schroth, G.; Remonda, L.; Fleischmann, A.; Fandino, J.; Slotboom, J.; Brekenfeld, C. A dedicated animal model for mechanical thrombectomy in acute stroke. Am. J. Neuroradiol. 2006, 27, 1357–1361. [Google Scholar]
  130. Gralla, J.; Schroth, G.; Remonda, L.; Nedeltchev, K.; Slotboom, J.; Brekenfeld, C. Mechanical thrombectomy for acute ischemic stroke: Thrombus-device interaction, efficiency, and complications in vivo. Stroke 2006, 37, 3019–3024. [Google Scholar] [CrossRef] [Green Version]
  131. Gralla, J.; Burkhardt, M.; Schroth, G.; El-Koussy, M.; Reinert, M.; Nedeltchev, K.; Slotboom, J.; Brekenfeld, C. Occlusion length is a crucial determinant of efficiency and complication rate in thrombectomy for acute ischemic stroke. Am. J. Neuroradiol. 2008, 29, 247–252. [Google Scholar] [CrossRef] [Green Version]
  132. Turjman, F.; Massoud, T.F.; Vinters, H.V.; Ji, C.; Tardy, M.; Guglielmi, G.; Vinuela, F. Collagen microbeads: Experimental evaluation of an embolic agent in the rete mirabile of the swine. Am. J. Neuroradiol. 1995, 16, 1031–1036. [Google Scholar]
  133. Arakawa, H.; Murayama, Y.; Davis, C.R.; Howard, D.L.; Baumgardner, W.L.; Marks, M.P.; Do, H.M. Endovascular embolization of the swine rete mirabile with Eudragit-E 100 polymer. Am. J. Neuroradiol. 2007, 28, 1191–1196. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  134. Cui, Y.C.; Tian, Y.; Tang, Y.; Jia, L.J.; Wu, A.L.; Peng, P.; Yang, J.Z.; Du, H.; Wang, X.J.; Wu, L.K. Application of sodium alginate microspheres in ischemic stroke modeling in miniature pigs. Neural Regen. Res. 2013, 8, 1473–1480. [Google Scholar] [CrossRef] [PubMed]
  135. Kozlov, D.B.; Lang, E.V.; Barnhart, W.; Gossler, A.; De Girolami, U. Adverse cerebrovascular effects of intraarterial CO2 injections: Development of an in vitro/in vivo model for assessment of gas-based toxicity. J. Vasc. Interv. Radiol. 2005, 16, 713–726. [Google Scholar] [CrossRef] [PubMed]
  136. Medby, C.; Rø, H.; Koteng, S.; Juul, R.; Krossnes, B.K.; Brubakk, A.O. Microdialysis in cisterna magna during cerebral air embolism in swine. Undersea Hyperb. Med. 2002, 29, 226–234. [Google Scholar]
  137. Chaloupka, J.C.; Huddle, D.C.; Alderman, J.; Fink, S.; Hammond, R.; Vinters, H.V. A reexamination of the angiotoxicity of superselective injection of DMSO in the swine rete embolization model. Am. J. Neuroradiol. 1999, 20, 401–410. [Google Scholar]
  138. Sheski, F.D.; Mathur, P.N. Cryotherapy, electrocautery, and brachytherapy. Clin. Chest Med. 1999, 20, 123–138. [Google Scholar] [CrossRef]
  139. Imai, H.; Konno, K.; Nakamura, M.; Shimizu, T.; Kubota, C.; Seki, K.; Honda, F.; Tomizawa, S.; Tanaka, Y.; Hata, H.; et al. A new model of focal cerebral ischemia in the miniature pig. J. Neurosurg. 2006, 104, 123–132. [Google Scholar] [CrossRef]
  140. Crowell, R.M.; Marcoux, F.W.; Degirolami, U. Variability and reversibility of focal cerebral ischemia in unanesthetized monkeys. Neurology 1981, 31, 1295–1302. [Google Scholar] [CrossRef]
  141. Hudgins, W.R.; Garcia, J.H. The effect of electrocautery, atmospheric exposure, and surgical retraction on the permeability of the blood-brain-barrier. Stroke 1970, 1, 375–380. [Google Scholar] [CrossRef] [Green Version]
  142. Hu, J.; Albadawi, H.; Chong, B.W.; Deipolyi, A.R.; Sheth, R.A.; Khademhosseini, A.; Oklu, R. Advances in biomaterials and technologies for vascular embolization. Adv. Mater. 2019, 31, 1–52. [Google Scholar] [CrossRef]
  143. Armstead, W.M.; Hekierski, H.; Yarovoi, S.; Higazi, A.A.R.; Cines, D.B. tPA variant tPA-A296–299 Prevents impairment of cerebral autoregulation and necrosis of hippocampal neurons after stroke by inhibiting upregulation of ET-1. J. Neurosci. Res. 2018, 96, 128–137. [Google Scholar] [CrossRef] [PubMed]
  144. Fan, J.; Li, Y.; Fu, X.; Li, L.; Hao, X.; Li, S. Nonhuman primate models of focal cerebral ischemia. Neural Regen. Res. 2017, 12, 321–328. [Google Scholar] [CrossRef] [PubMed]
  145. Macrae, I.M.; Robinson, M.J.; Graham, D.I.; Reid, J.L.; McCulloch, J. Endothelin-1-induced reductions in cerebral blood flow: Dose dependency, time course, and neuropathological consequences. J. Cereb. Blood Flow Metab. 1993, 13, 276–284. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  146. Yakubu, M.A.; Leffler, C.W. Role of endothelin-1 in cerebral hematoma-induced modification of cerebral vascular reactivity in piglets. Brain Res. 1996, 734, 149–156. [Google Scholar] [CrossRef]
  147. Hatake, K.; Wakabayashi, I.; Kakishita, E.; Hishida, S. Impairment of endothelium-dependent relaxation in human basilar artery after subarachnoid hemorrhage. Stroke 1992, 23, 1111–1117. [Google Scholar] [CrossRef] [Green Version]
  148. Virley, D.; Hadingham, S.J.; Roberts, J.C.; Farnfield, B.; Elliott, H.; Whelan, G.; Golder, J.; David, C.; Parsons, A.A.; Hunter, A.J. A new primate model of focal stroke: Endothelin-1-induced middle cerebral artery occlusion and reperfusion in the common marmoset. J. Cereb. Blood Flow Metab. 2004, 24, 24–41. [Google Scholar] [CrossRef] [Green Version]
  149. Naidoo, V.; Naidoo, S.; Mahabeer, R.; Raidoo, D.M. Cellular distribution of the endothelin system in the human brain. J. Chem. Neuroanat. 2004, 27, 87–98. [Google Scholar] [CrossRef]
  150. Ziv, I.; Fleminger, G.; Djaldetti, R.; Achiron, A.; Melamed, E.; Sokolovsky, M. Increased plasma endothelin-1 in acute ischemic stroke. Stroke 1992, 23, 1014–1016. [Google Scholar] [CrossRef] [Green Version]
  151. Stenman, E.; Malmsjö, M.; Uddman, E.; Gidö, G.; Wieloch, T.; Edvinsson, L. Cerebral ischemia upregulates vascular endothelin ETB receptors in rat. Stroke 2002, 33, 2311–2316. [Google Scholar] [CrossRef] [Green Version]
  152. Marin, M.A.; Carmichael, S.T. Mechanisms of demyelination and remyelination in the young and aged brain following white matter stroke. Neurobiol. Dis. 2019, 126, 5–12. [Google Scholar] [CrossRef]
  153. Ma, Q.; Khatibi, N.H.; Chen, W.; Tang, J.; Zhang, J.H. History of preclinical models of intracerebral hemorrhage. Acta Neurochir. Suppl. 2011, 111, 3–8. [Google Scholar] [CrossRef] [PubMed]
  154. Vilela, P.; Wiesmann, M. Nontraumatic intracranial hemorrhage. In Diseases of the Brain, Head and Neck, Spine 2020–2023; Springer: Berlin, Germany, 2020; pp. 45–57. ISBN 9783030384906. [Google Scholar]
  155. Orlin, J.R.; Osen, K.K.; Hovig, T. Subdural compartment in pig: A morphologic study with blood and horseradish peroxidase infused subdurally. Anat. Rec. 1991, 230, 22–37. [Google Scholar] [CrossRef] [PubMed]
  156. Durham, S.R.; Duhaime, A.C. Maturation-dependent response of the immature brain to experimental subdural hematoma. J. Neurotrauma 2007, 24, 5–14. [Google Scholar] [CrossRef] [PubMed]
  157. Hartings, J.A.; York, J.; Carroll, C.P.; Hinzman, J.M.; Mahoney, E.; Krueger, B.; Winkler, M.K.L.; Major, S.; Horst, V.; Jahnke, P.; et al. Subarachnoid blood acutely induces spreading depolarizations and early cortical infarction. Brain 2017, 140, 2673–2690. [Google Scholar] [CrossRef]
  158. Wagner, K.R.; Xi, G.; Hua, Y.; Kleinholz, M.; De Courten-Myers, G.M.; Myers, R.E.; Broderick, J.P.; Brott, T.G. Lobar intracerebral hemorrhage model in pigs: Rapid edema development in perihematomal white matter. Stroke 1996, 27, 490–497. [Google Scholar] [CrossRef]
  159. Orakcioglu, B.; Uozumi, Y.; Kentar, M.M.; Santos, E.; Unterberg, A.; Sakowitz, O.W. Evidence of spreading depolarizations in a porcine cortical intracerebral hemorrhage model. In Intracranial Pressure and Brain Monitoring XIV; Springer: Vienna, Austria, 2012; Volume 114, pp. 369–372. ISBN 9783709109564. [Google Scholar]
  160. Xu, Z.; Carlson, C.; Snell, J.; Eames, M.; Hananel, A.; Lopes, M.B.; Raghavan, P.; Lee, C.; Yen, C.; Schlesinger, D.; et al. Intracranial inertial cavitation threshold and thermal ablation lesion creation using MRI-guided 220-kHz focused ultrasound surgery: Preclinical investigation. J. Neurosurg. 2015, 122, 152–161. [Google Scholar] [CrossRef] [Green Version]
  161. Mun-Bryce, S.; Wilkerson, A.C.; Papuashvili, N.; Okada, Y.C. Recurring episodes of spreading depression are spontaneously elicited by an intracerebral hemorrhage in the swine. Brain Res. 2001, 888, 248–255. [Google Scholar] [CrossRef]
  162. Mun-Bryce, S.; Wilkerson, A.; Pacheco, B.; Zhang, T.; Rai, S.; Wang, Y.; Okada, Y. Depressed cortical excitability and elevated matrix metalloproteinases in remote brain regions following intracerebral hemorrhage. Brain Res. 2004, 1026, 227–234. [Google Scholar] [CrossRef]
  163. Mun-Bryce, S.; Roberts, L.J.M.; Curtis Hunt, W.; Bartolo, A.; Okada, Y. Acute changes in cortical excitability in the cortex contralateral to focal intracerebral hemorrhage in the swine. Brain Res. 2004, 1026, 218–226. [Google Scholar] [CrossRef]
  164. Mun-Bryce, S.; Roberts, L.; Bartolo, A.; Okada, Y. Transhemispheric depolarizations persist in the intracerebral hemorrhage swine brain following corpus callosal transection. Brain Res. 2006, 1073–1074, 481–490. [Google Scholar] [CrossRef]
  165. Gerhardson, T.; Sukovich, J.R.; Chaudhary, N.; Chenevert, T.L.; Ives, K.; Hall, T.L.; Camelo-Piragua, S.; Xu, Z.; Pandey, A.S. Histotripsy clot liquefaction in a porcine intracerebral hemorrhage model. Clin. Neurosurg. 2020, 86, 429–436. [Google Scholar] [CrossRef] [PubMed]
  166. Aviv, R.I.; Huynh, T.; Huang, Y.; Ramsay, D.; Van Slyke, P.; Dumont, D.; Asmah, P.; Alkins, R.; Liu, R.; Hynynen, K. An in vivo, MRI-integrated real-time model of active contrast extravasation in acute intracerebral hemorrhage. Am. J. Neuroradiol. 2014, 35, 1693–1699. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  167. Liu, R.; Huynh, T.J.; Huang, Y.; Ramsay, D.; Hynynen, K.; Aviv, R.I. Modeling the pattern of contrast extravasation in acute intracerebral hemorrhage using dynamic contrast-enhanced MR. Neurocrit. Care 2015, 22, 320–324. [Google Scholar] [CrossRef] [PubMed]
  168. Zhu, H.; Li, F.; Zou, M.; Xue, X.; Yuan, J.; Feng, H.; Lin, J. Experimental high-altitude intracerebral hemorrhage in minipigs: Histology, behavior, and intracranial pressure in a double-injection model. Acta Neurochir. (Wien) 2013, 155, 655–661. [Google Scholar] [CrossRef]
  169. Zhou, X.; Xie, Q.; Xi, G.; Keep, R.F.; Hua, Y. Brain CD47 expression in a swine model of intracerebral hemorrhage. Brain Res. 2014, 1574, 70–76. [Google Scholar] [CrossRef] [Green Version]
  170. Zhu, H.T.; Bian, C.; Yuan, J.C.; Liao, X.J.; Liu, W.; Zhu, G.; Feng, H.; Lin, J.K. Hyperbaric oxygen therapy ameliorates acute brain injury after porcine intracerebral hemorrhage at high altitude. Crit. Care 2015, 19, 1–10. [Google Scholar] [CrossRef] [Green Version]
  171. Cao, S.; Zheng, M.; Hua, Y.; Chen, G.; Keep, R.F.; Xi, G. Hematoma changes during clot resolution after experimental intracerebral hemorrhage. Stroke 2016, 47, 1626–1631. [Google Scholar] [CrossRef] [Green Version]
  172. Rohde, V.; Rohde, I.; Thiex, R.; Küker, W.; Ince, A.; Gilsbach, J.M. The role of intraoperative magnetic resonance imaging for the detection of hemorrhagic complications during surgery for intracerebral lesions an experimental approach. Surg. Neurol. 2001, 56, 266–274. [Google Scholar] [CrossRef]
  173. Rohde, V.; Rohde, I.; Thiex, R.; Ince, A.; Jung, A.; Dückers, G.; Gröschel, K.; Röttger, C.; Küker, W.; Müller, H.D.; et al. Fibrinolysis therapy achieved with tissue plasminogen activator and aspiration of the liquefied clot after experimental intracerebral hemorrhage: Rapid reduction in hematoma volume but intensification of delayed edema formation. J. Neurosurg. 2002, 97, 954–962. [Google Scholar] [CrossRef]
  174. Keric, N.; Kantelhardt, S.R.; Neulen, A.; Dechent, P.; Henning, A.; Vollmer, F.C.; Thiemann, I.; Giese, A. Image-guided intracranial endosonography. J. Neurosurg. Anesthesiol. 2013, 25, 317–323. [Google Scholar] [CrossRef]
  175. Thiex, R.; Küker, W.; Müller, H.D.; Rohde, I.; Schröder, J.M.; Gilsbach, J.M.; Rohde, V. The long-term effect of recombinant tissue-plasminogen-activator (rt-PA) on edema formation in a large-animal model of intracerebral hemorrhage. Neurol. Res. 2003, 25, 254–262. [Google Scholar] [CrossRef] [PubMed]
  176. Thiex, R.; Küker, W.; Jungbluth, P.; Kayser, C.; Müller, H.D.; Rohde, I.; Gilsbach, J.M.; Rohde, V. Minor inflammation after surgical evacuation compared with fibrinolytic therapy of experimental intracerebral hemorrhages. Neurol. Res. 2005, 27, 493–498. [Google Scholar] [CrossRef] [PubMed]
  177. Thiex, R.; Weis, J.; Krings, T.; Barreiro, S.; Yakisikli-Alemi, F.; Gilsbach, J.M.; Rohde, V. Addition of intravenous N-methyl-D-aspartate receptor antagonists to local fibrinolytic therapy for the optimal treatment of experimental intracerebral hemorrhages. J. Neurosci. Methods 2007, 106, 314–320. [Google Scholar] [CrossRef] [PubMed]
  178. Gu, Y.; Hua, Y.; Keep, R.F.; Morgenstern, L.B.; Xi, G. Deferoxamine reduces intracerebral hematoma-induced iron accumulation and neuronal death in piglets. Stroke 2009, 40, 2241–2243. [Google Scholar] [CrossRef]
  179. Shi, Y.H.; Li, Z.W.; Zhang, S.M.; Xie, M.J.; Meng, X.W.; Xu, J.Z.; Liu, N.; Tang, Z.P. Establishing a model of supratentorial hemorrhage in the piglet. Tohoku, J. Exp. Med. 2010, 220, 33–40. [Google Scholar] [CrossRef] [Green Version]
  180. Gu, Y.; Hua, Y.; He, Y.; Wang, L.; Hu, H.; Keep, R.F.; Xi, G. Iron accumulation and DNA damage in a pig model of intracerebral hemorrhage. Acta Neurochir. (Wien) 2011, 111, 123–128. [Google Scholar] [CrossRef]
  181. Tong, J.; Latzman, J.M.; Rauch, J.; Zagzag, D.S.; Huang, J.H.; Samadani, U. Sonic hedgehog agonist fails to induce neural stem cell precursors in a porcine model of experimental intracranial hemorrhage. In Intracerebral Hemorrhage Research; Springer: Vienna, Austria, 2011; Volume 111, pp. 151–154. ISBN 9783709106938. [Google Scholar]
  182. Keric, N.; Maier, G.S.; Samadani, U.; Kallenberg, K.; Dechent, P.; Brueck, W.; Heuer, J.; Rohde, V. Tissue plasminogen activator induced delayed edema in experimental porcine intracranial hemorrhage: Reduction with plasminogen activator inhibitor-1 administration. Transl. Stroke Res. 2012, 3, 88–93. [Google Scholar] [CrossRef] [Green Version]
  183. Küker, W.; Thiex, R.; Rohde, I.; Rohde, V.; Thron, A. Experimental acute intracerebral hemorrhage. Value of MR sequences for a safe diagnosis at 1.5 and 0.5 T W. Acta Radiol. 2000, 41, 544–552. [Google Scholar] [CrossRef]
  184. Bimpis, A.; Papalois, A.; Tsakiris, S.; Zarros, A.; Kalafatakis, K.; Botis, J.; Stolakis, V.; Zissis, K.M.; Liapi, C. Activation of acetylcholinesterase after U-74389G administration in a porcine model of intracerebral hemorrhage. Metab. Brain Dis. 2012, 27, 221–225. [Google Scholar] [CrossRef]
  185. Bimpis, A.; Papalois, A.; Tsakiris, S.; Kalafatakis, K.; Zarros, A.; Gkanti, V.; Skandali, N.; Al-Humadi, H.; Kouzelis, C.; Liapi, C. Modulation of crucial adenosinetriphosphatase activities due to U-74389G administration in a porcine model of intracerebral hemorrhage. Metab. Brain Dis. 2013, 28, 439–446. [Google Scholar] [CrossRef]
  186. Bimpis, A.; Papalois, A.; Voumvourakis, K.; Oláh, O.; Tiszlavicz, L.; Liapi, C. Neuronal tumour necrosis factor-α and interleukin-1β expression in a porcine model of intracerebral haemorrhage: Modulation by U-74389G. Brain Res. 2015, 1615, 98–105. [Google Scholar] [CrossRef] [PubMed]
  187. Loftspring, M.C.; Clark, J.F.; Wagner, K.R. A novel duplex ELISA method for quantitation of plasma proteins in areas of brain edema. Brain Res. 2007, 1162, 130–132. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  188. Arakawa, H.; Marks, M.P.; Do, H.M.; Bouley, D.M.; Strobel, N.; Moore, T.; Fahrig, R. Experimental study of intracranial hematoma detection with flat panel detector C-arm CT. Am. J. Neuroradiol. 2008, 29, 766–772. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  189. Clark, J.F.; Loftspring, M.; Wurster, W.L.; Beiler, S.; Beiler, C.; Wagner, K.R.; Pyne-Geithman, G.J. Bilirubin oxidation products, oxidative stress, and intracerebral hemorrhage. Acta Neurochir. Suppl. 2008, 105, 7–12. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  190. Xu, C.H.; Wang, L.; Shi, X.T.; You, F.S.; Fu, F.; Liu, R.G.; Dai, M.; Zhao, Z.W.; Gao, G.D.; Dong, X.Z. Real-time imaging and detection of intracranial haemorrhage by electrical impedance tomography in a piglet model. J. Int. Med. Res. 2010, 38, 1596–1604. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  191. Hvas, C.L.; Nielsen, T.K.; Barklin, A.; Sørensen, J.C.H.; Pedersen, M.; Andersen, G.; Tønnesen, E. Brain death induced by cerebral haemorrhage A new porcine model evaluated by CT angiography. Acta Anaesthesiol. Scand. 2012, 56, 995–1005. [Google Scholar] [CrossRef] [PubMed]
  192. Santos, E.; Orakcioglu, B.; Kentar, M.M.; Diedler, J.; Uozumi, Y.; Schöll, M.; Unterberg, A.; Sakowitz, O.W. Pressure reactivity index correlates with metabolic dysfunction in a porcine model of intracerebral hemorrhage. In Acta Neurochirurgica Supplementum; Springer: Vienna, Austria, 2012; Volume 114, pp. 363–367. ISBN 9783709109564. [Google Scholar]
  193. Hvas, C.L.; Fenger-Eriksen, C.; Høyer, S.; Sørensen, B.; Tønnesen, E. Hypercoagulation following brain death cannot be reversed by the neutralization of systemic tissue factor. Thromb. Res. 2013, 132, 300–306. [Google Scholar] [CrossRef]
  194. Monteith, S.J.; Harnof, S.; Medel, R.; Popp, B.; Wintermark, M.; Lopes, M.B.S.; Kassell, N.F.; Elias, W.J.; Snell, J.; Eames, M.; et al. Minimally invasive treatment of intracerebral hemorrhage with magnetic resonance-guided focused ultrasound: Laboratory investigation. J. Neurosurg. 2013, 118, 1035–1045. [Google Scholar] [CrossRef]
  195. Harnof, S.; Zibly, Z.; Hananel, A.; Monteith, S.; Grinfeld, J.; Schiff, G.; Kulbatski, I.; Kassell, N. Potential of magnetic resonance-guided focused ultrasound for intracranial hemorrhage: An in vivo feasibility study. J. Stroke Cerebrovasc. Dis. 2014, 23, 1585–1591. [Google Scholar] [CrossRef]
  196. Kandadai, M.A.; Korfhagen, J.J.; Beiler, S.; Beiler, C.; Wagner, K.; Adeoye, O.M.; Shaw, G.J. In vivo testing of a non-invasive prototype device for the continuous monitoring of intracerebral hemorrhage. J. Neurosci. Methods 2014, 235, 117–122. [Google Scholar] [CrossRef] [Green Version]
  197. Wagner, K.R.; Xi, G.; Hua, Y.; Kleinholz, M.; De Courten-Myers, G.M.; Myers, R.E. Early metabolic alterations in edematous perihematomal brain regions following experimental intracerebral hemorrhage. J. Neurosurg. 1998, 88, 1058–1065. [Google Scholar] [CrossRef] [PubMed]
  198. Orakcioglu, B.; Kentar, M.M.; Schiebel, P.; Uozumi, Y.; Unterberg, A.; Sakowitz, O.W. Perihemorrhagic ischemia occurs in a volume-dependent manner as assessed by multimodal cerebral monitoring in a porcine model of intracerebral hemorrhage. Neurocrit. Care 2015, 22, 133–139. [Google Scholar] [CrossRef] [PubMed]
  199. Haque, M.E.; Gabr, R.E.; Zhao, X.; Hasan, K.M.; Valenzuela, A.; Narayana, P.A.; Ting, S.M.; Sun, G.; Savitz, S.I.; Aronowski, J. Serial quantitative neuroimaging of iron in the intracerebral hemorrhage pig model. J. Cereb. Blood Flow Metab. 2018, 38, 375–381. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  200. Sidyakin, A.A.; Kaysheva, A.L.; Kopylov, A.T.; Lobanov, A.V.; Morozov, S.G. Proteomic analysis of cerebral cortex extracts from Sus scrofa with induced hemorrhagic stroke. J. Mol. Neurosci. 2018, 65, 28–34. [Google Scholar] [CrossRef]
  201. Haque, M.E.; Gabr, R.E.; George, S.D.; Zhao, X.; Boren, S.B.; Zhang, X.; Ting, S.M.; Sun, G.; Hasan, K.M.; Savitz, S.; et al. Serial metabolic evaluation of perihematomal tissues in the intracerebral hemorrhage pig model. Front. Neurosci. 2019, 13, 1–8. [Google Scholar] [CrossRef] [Green Version]
  202. Walsh, K.B.; Zhang, X.; Zhu, X.; Wohleb, E.; Woo, D.; Lu, L.; Adeoye, O. Intracerebral hemorrhage induces monocyte-related gene expression within six hours: Global transcriptional profiling in swine ICH. Metab. Brain Dis. 2019, 34, 763–774. [Google Scholar] [CrossRef]
  203. Mayfrank, L.; Kissler, J.; Raoofi, R.; Delsing, P.; Weis, J.; Küker, W.; Gilsbach, J.M. Ventricular dilatation in experimental intraventricular hemorrhage in pigs: Characterization of cerebrospinal fluid dynamics and the effects of fibrinolytic treatment. Stroke 1997, 28, 141–148. [Google Scholar] [CrossRef]
  204. Mayfrank, L.; Kim, Y.; Kissler, J.; Delsing, P.; Gilsbach, J.M.; Schröder, J.M.; Weis, J. Morphological changes following experimental intraventricular haemorrhage and intraventricular fibrinolytic treatment with recombinant tissue plasminogen activator. Acta Neuropathol. 2000, 100, 561–567. [Google Scholar] [CrossRef]
  205. Looi, T.; Piorkowska, K.; Mougenot, C.; Waspe, A.; Hynynen, K.; Drake, J. An MR-based quantitative intraventricular hemorrhage porcine model for MR-guided focused ultrasound thrombolysis. Child’s Nerv. Syst. 2018, 34, 1643–1650. [Google Scholar] [CrossRef]
  206. Xi, G.; Wagner, K.R.; Keep, R.F.; Hua, Y.; De Courten-Myers, G.M.; Broderick, J.P.; Brott, T.G.; Hoff, J.T. Role of blood clot formation on early edema development after experimental intracerebral hemorrhage. Stroke 1998, 29, 2580–2586. [Google Scholar] [CrossRef] [Green Version]
  207. Wagner, K.R.; Xi, G.; Hua, Y.; Zuccarello, M.; De Courten-Myers, G.M.; Broderick, J.P.; Brott, T.G. Ultra-early clot aspiration after lysis with tissue plasminogen activator in a porcine model of intracerebral hemorrhage: Edema reduction and blood-brain barrier protection. J. Neurosurg. 1999, 90, 491–498. [Google Scholar] [CrossRef] [PubMed]
  208. Wagner, K.R.; Packard, B.A.; Hall, C.L.; Smulian, A.G.; Linke, M.J.; De Courten-Myers, G.M.; Packard, L.M.; Hall, N.C. Protein oxidation and heme oxygenase-1 induction in porcine white matter following intracerebral infusions of whole blood or plasma. Dev. Neurosci. 2002, 24, 154–160. [Google Scholar] [CrossRef] [PubMed]
  209. Hemphil, J.C.I.; Morabito, D.; Farrant, M.; Manley, G.T. Brain tissue oxygen monitoring in intracerebral hemorrhage. Neurocrit. Care 2005, 3, 260–270. [Google Scholar] [CrossRef]
  210. Loftspring, M.C.; Beiler, S.; Beiler, C.; Wagner, K.R. Plasma proteins in edematous white matter after intracerebral hemorrhage confound immunoblots: An ELISA to quantify contamination. J. Neurotrauma 2006, 23, 1904–1911. [Google Scholar] [CrossRef]
  211. Wagner, K.R.; Beiler, S.; Beiler, C.; Kirkman, J.; Casey, K.; Robinson, T.; Larnard, D.; De Courten-Myers, G.M.; Linke, M.J.; Zuccarello, M. Delayed profound local brain hypothermia markedly reduces interleukin-1β gene expression and vasogenic edema development in a porcine model of intracerebral hemorrhage. Acta Neurochir. Suppl. 2006, 177–182. [Google Scholar] [CrossRef]
  212. Yin, X.; Zhang, X.; Wang, W.; Chang, L.; Jiang, Y.; Zhang, S. Perihematoma damage at different time points in experimental intracerebral hemorrhage. J. Huazhong Univ. Sci. Technol. 2006, 26, 59–62. [Google Scholar] [CrossRef]
  213. Backer-Grøndahl, A.; Lindal, S.; Lorentzen, M.A.; Eldevik, P.; Vorren, T.; Kristiansen, B.; Vangberg, T.; Ytrebø, L.M. A new non-craniotomy model of subarachnoid hemorrhage in the pig: A pilot study. Lab. Anim. 2016, 50, 379–389. [Google Scholar] [CrossRef] [Green Version]
  214. Nyberg, C.; Karlsson, T.; Hillered, L.; Engstrӧm, E.R. Metabolic pattern of the acute phase of subarachnoid hemorrhage in a novel porcine model: Studies with cerebral microdialysis with high temporal resolution. PLoS ONE 2014, 9, e0099904. [Google Scholar] [CrossRef]
  215. Nyberg, C.; Karlsson, T.; Hillered, L.; Stridsberg, M.; Engström, E.R. The early endocrine stress response in experimental subarachnoid hemorrhage. PLoS ONE 2016, 11, e0151457. [Google Scholar] [CrossRef]
  216. Mayberg, M.R.; Okada, T.; Bark, D.H. The role of hemoglobin in arterial narrowing after subarachnoid hemorrhage. J. Neurosurg. 1990, 72, 634–640. [Google Scholar] [CrossRef]
  217. Mayberg, M.R.; Okada, T.; Bark, D.H. The significance of morphological changes in cerebral arteries after subarachnoid hemorrhage. J. Neurosurg. 1990, 72, 626–633. [Google Scholar] [CrossRef] [PubMed]
  218. Ebel, H.; Semmelmann, G.; Friese, M.; Volz, M.; Lee, J.Y.; Dück, M.; Schomäcker, K.; Varga, J.; Furka, I.; Schröder, R.; et al. Effects of electrical stimulation of the Gasserian ganglion on regional cerebral blood flow after induced subarachnoid hemorrhage in pigs evaluated by 99mTc-HMPAO-SPECT. Minim. Invasive Neurosurg. 2001, 44, 50–57. [Google Scholar] [CrossRef] [PubMed]
  219. Dueck, M.; Ebel, H.; Volz, M.; Lee, J.Y.; Semmelmann, G. Triple “H” therapy does not increase cerebral blood flow after induced subarachnoid hemorrhage in pigs. Results of a pilot 99mTC-HMPAO-single photon emission computed tomography study. Acta Neurochir. Suppl. 2001, 77, 243–246. [Google Scholar] [CrossRef] [PubMed]
  220. Wang, F.; Yin, Y.H.; Jia, F.; Jiang, J.Y. Effects of topical administration of nimodipine on cerebral blood flow following subarachnoid hemorrhage in pigs. J. Neurotrauma 2013, 30, 591–596. [Google Scholar] [CrossRef]
  221. Ganz, J.C.; Zwetnow, N.N. A quantitative study of some factors affecting the outcome of experimental epidural bleeding in swine. Acta Neurochir. (Wien) 1990, 102, 164–172. [Google Scholar] [CrossRef]
  222. Ganz, J.C.; Hall, C.; Zwetnow, N.N. Cerebral blood flow during experimental epidural bleeding in swine. Acta Neurochir. (Wien) 1990, 103, 148–157. [Google Scholar] [CrossRef]
  223. Edwards, D.H.; Byrne, J.V.; Griffith, T.M. The effect of chronic subarachnoid hemorrhage on basal endothelium-derived relaxing factor activity in intrathecal cerebral arteries. J. Neurosurg. 1992, 76, 830–837. [Google Scholar] [CrossRef]
  224. Salar, G.; Ori, C.; Lob, I.; Costella, G.B.; Battaggia, C.; Peserico, L. Cerebral blood flow changes induced by electrical stimulation of the Gasserian ganglion after experimentally induced subarachnoid haemorrhage in pigs. Acta Neurochir. (Wien) 1992, 119, 115–120. [Google Scholar] [CrossRef]
  225. Dai, M.; Wang, L.; Xu, C.; Li, L.; Gao, G.; Dong, X. Real-time imaging of subarachnoid hemorrhage in piglets with electrical impedance tomography. Physiol. Meas. 2010, 31, 1229–1239. [Google Scholar] [CrossRef]
  226. Xu, H.; Chen, X.; Qin, Z.; Gu, Y.; Zhou, P. Effect of recombinant streptokinase on the development of chronic cerebral vasospasm after subarachnoid hemorrhage in a swine model. Acta Neurochir. (Wien) 2011, 153, 1333–1338. [Google Scholar] [CrossRef]
  227. Takemae, T.; Branson, P.J.; Alksne, J.F. Intimal proliferation of cerebral arteries after subarachnoid blood injection in pigs. J. Neurosurg. 1984, 61, 494–500. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  228. Alksne, J.F.; Branson, P.J.; Bailey, M. Modification of experimental post-subarachnoid hemorrhage vasculopathy with intracisternal plasmin. Neurosurgery 1986, 19, 20–25. [Google Scholar] [CrossRef]
  229. Alksne, J.F.; Branson, P.J.; Bailey, M. Modification of experimental post-subarachnoid hemorrhage vasculopathy with intracisternal plasmin. Neurosurgery 1988, 23, 335–337. [Google Scholar] [CrossRef] [PubMed]
  230. Farstad, T.; Odden, J.P.; Bratlid, D. Effect of intraventricular hemorrhage on pulmonary function in newborn piglets. Biol. Neonate 1994, 66, 238–246. [Google Scholar] [CrossRef] [PubMed]
  231. Rosenberg, G.A.; Mun-Bryce, S.; Wesley, M.; Komfeld, M. Collagenase-induced intracerebral hemorrhage in rats. Stroke 1990, 21, 801–807. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  232. Ghanouni, P.; Pauly, K.B.; Elias, W.J.; Henderson, J.; Sheehan, J.; Monteith, S.J.; Wintermark, M. Transcranial MR-guided focused ultrasound: A review of the technology and neuro applications. AJR Am. J. Roentgenol 2015, 205, 150–159. [Google Scholar] [CrossRef] [Green Version]
  233. Taylor-Rowan, M.; Wilson, A.; Dawson, J.; Quinn, T.J. Functional assessment for acute stroke trials: Properties, analysis, and application. Front. Neurol. 2018, 9, 1–10. [Google Scholar] [CrossRef]
  234. Broderick, J.P.; Adeoye, O.; Elm, J. The evolution of the modified rankin scale and its use in future stroke trials. Stroke 2017, 48, 2007–2012. [Google Scholar] [CrossRef]
  235. Purdy, P.D.; Devous, M.D.; Batjer, H.H.; White, C.L.; Meyer, Y.; Samson, D.S. Microfibrillar collagen model of canine cerebral infarction. Stroke 1989, 20, 1361–1367. [Google Scholar] [CrossRef] [Green Version]
  236. Tibbs, R.; Zubkov, A.; Aoki, K.; Meguro, T.; Badr, A.; Parent, A.; Zhang, J. Effects of mitogen-activated protein kinase inhibitors on cerebral vasospasm in a double-hemorrhage model in dogs. J. Neurosurg. 2000, 93, 1041–1047. [Google Scholar] [CrossRef]
  237. Kinder, H.A.; Baker, E.W.; West, F.D. The pig as a preclinical traumatic brain injury model: Current models, functional outcome measures, and translational detection strategies. Neural Regen. Res. 2019, 14, 413–424. [Google Scholar] [CrossRef] [PubMed]
  238. Allen, B.S.; Veluz, J.S.; Buckberg, G.D.; Aeberhard, E.; Ignarro, L.J.; Verrier, E.D. Deep hypothermic circulatory arrest and global reperfusion injury: Avoidance by making a pump prime reperfusate—A new concept. J. Thorac. Cardiovasc. Surg. 2003, 125, 625–632. [Google Scholar] [CrossRef] [Green Version]
  239. Sagnier, S.; Sibon, I. The new insights into human brain imaging after stroke. J. Neurosci. Res. 2019. [Google Scholar] [CrossRef] [PubMed]
  240. Kaiser, E.E.; West, F.D. Large animal ischemic stroke models: Replicating human stroke pathophysiology. Neural Regen. Res. 2020, 15, 1377–1387. [Google Scholar] [CrossRef] [PubMed]
  241. MacDonell, J.; Patel, N.; Fischer, G.; Burdette, E.C.; Qian, J.; Chumbalkar, V.; Ghoshal, G.; Heffter, T.; Williams, E.; Gounis, M.; et al. Robotic assisted MRI-guided interventional interstitial MR-guided focused ultrasound ablation in a swine model. Neurosurgery 2019, 84, 1138–1147. [Google Scholar] [CrossRef] [PubMed]
Figure 1. (A) Dorsal view of pig and rat brain hemispheres showing differences in size and gyrencephaly. Coronal (B) pig and (C) rat sections showing differences in white matter. (D1) Ventral view of pig brain (without cerebellum) injected unilaterally i.a. ex vivo a blue dye, (D2) ventrolateral view of the same brain, (E1) and (E2) magnifications of the insets in (D1) and (D2), respectively, showing three main middle cerebral arteries. (F) Horizontal pig brain section obtained by magnetic resonance T2 sequence, (G) tractography using diffusion tensor imaging (DTI) and (H,I) sagittal pig brain tractography, with colors denoting directionality. Images were obtained at the Comparative Medicine and Bioimage Centre of Catalonia (CMCiB).
Figure 1. (A) Dorsal view of pig and rat brain hemispheres showing differences in size and gyrencephaly. Coronal (B) pig and (C) rat sections showing differences in white matter. (D1) Ventral view of pig brain (without cerebellum) injected unilaterally i.a. ex vivo a blue dye, (D2) ventrolateral view of the same brain, (E1) and (E2) magnifications of the insets in (D1) and (D2), respectively, showing three main middle cerebral arteries. (F) Horizontal pig brain section obtained by magnetic resonance T2 sequence, (G) tractography using diffusion tensor imaging (DTI) and (H,I) sagittal pig brain tractography, with colors denoting directionality. Images were obtained at the Comparative Medicine and Bioimage Centre of Catalonia (CMCiB).
Ijms 21 06568 g001

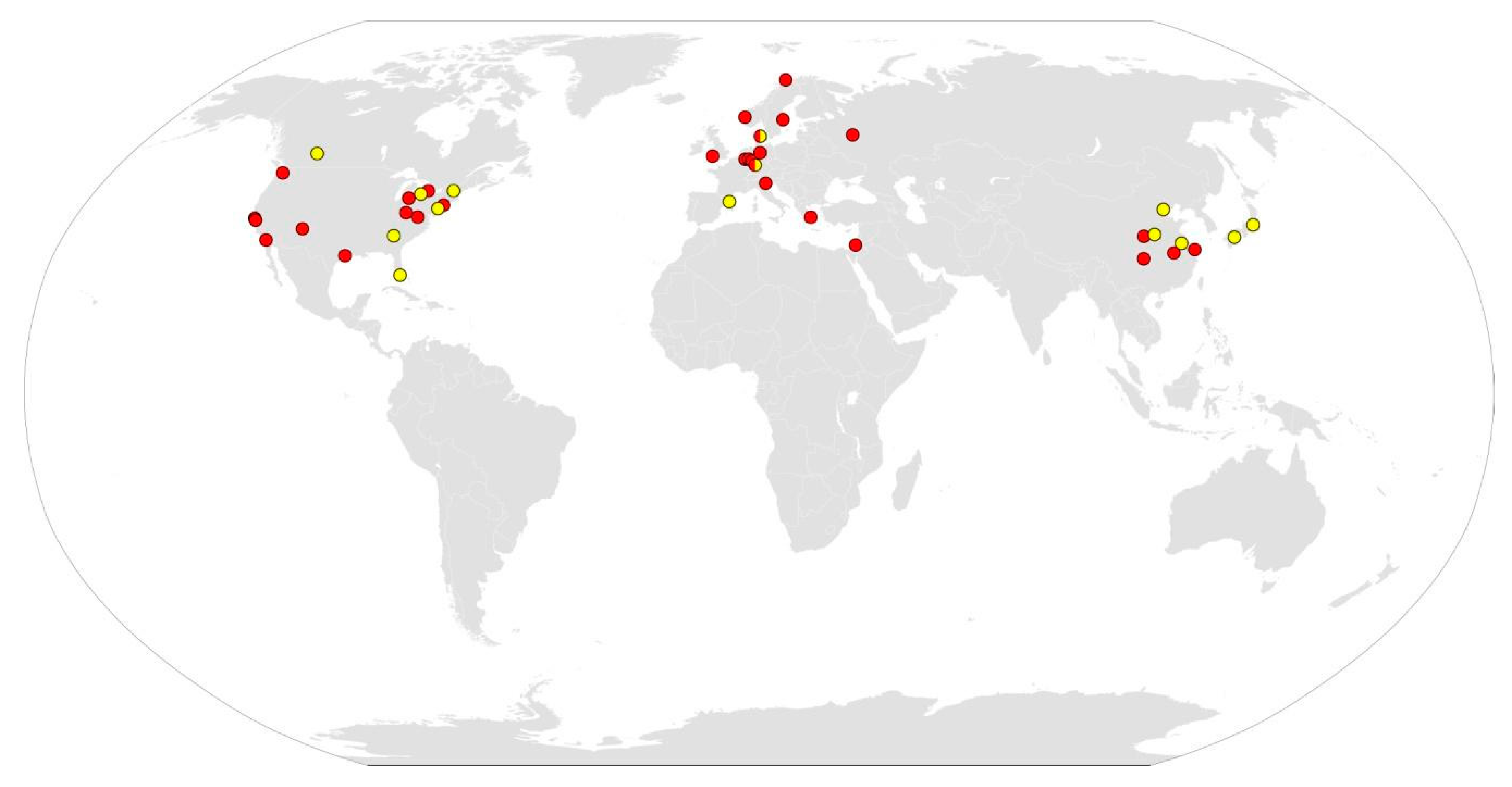

Figure 2. World map showing the locations where some of the main ischemic (yellow) and hemorrhagic (red) stroke models in swine mentioned in this review have been developed.
Figure 2. World map showing the locations where some of the main ischemic (yellow) and hemorrhagic (red) stroke models in swine mentioned in this review have been developed.
Ijms 21 06568 g002
Table 1. Models tested to generate ischemic stroke in swine. Abbreviation; ET-1, endothelin-1; MCA, middle cerebral artery; ICA, internal carotid artery; AChA, anterior choroidal artery; APA, ascending pharyngeal artery; CCA, common carotid artery.
Table 1. Models tested to generate ischemic stroke in swine. Abbreviation; ET-1, endothelin-1; MCA, middle cerebral artery; ICA, internal carotid artery; AChA, anterior choroidal artery; APA, ascending pharyngeal artery; CCA, common carotid artery.
Type of ApproachApproachMethodTargetAdvantagesDisadvantagesReferences
SurgicalCraniotomyET-1 injectionMCA(1) Temporary ischemia(1) Invasive approach[87]
(2) Partial ischemia
PhotothrombosisMCA(1) Temporary
(2) Partial ischemia
(1) Invasive approach[88,96,97,98,99,100]
(2) Reproducible
ElectrocoagulationMCA(1) Partial ischemia
(2) Reproducible
(1) Invasive approach
(2) Not temporary
Arterial clipMCA(1) Temporary
(2) Partial ischemia
(1) Invasive approach[86,108]
(3) Reproducible
Cranial burr holeET-1 injectionMCA(1) Temporary
(2) Partial ischemia
(1) Relatively invasive approach[59,109,110]
TransorbitalElectrocoagulationMCA(1) Partial ischemia
(2) Reproducible
(1) Very invasive approach
(2) Not temporary
Arterial clipMCA(1) Temporary
(2) Partial ischemia
(1) Very invasive approach[7,111,113,116]
(3) Reproducible
EndovascularEndovascularMechanical embolizationExtracranial arteries(1) Minimally invasive
(2) Temporary
(1) No infarction[117]
Blood clot injectionExtracranial arteries(1) Minimally invasive
(2) Temporary
(1) Difficult infarction[118,119,120,121,122,123,124,125,126,127,128,129,130,131]
Polymer injectionAPA-rete mirabile(1) Minimally invasive(1) Difficult infarction[132,133,134]
(2) Not temporary
CO2 injectionCCA(1) Minimally invasive(1) No infarction[135]
(2) Temporary
Air injectionICA(1) Minimally invasive(1) No infarction[136]
(2) Temporary
DMSO injectionRete
(1) Minimally invasive(1) No infarction[137]
(2) Temporary
Table 2. Models of hemorrhagic stroke generated in swine. Abbreviation; MRgFUS, magnetic resonance-guided focused ultrasound.
Table 2. Models of hemorrhagic stroke generated in swine. Abbreviation; MRgFUS, magnetic resonance-guided focused ultrasound.
Type of ApproachApproachMethodTargetAdvantagesDisadvantagesReferences
Intracranial hemorrhageCraniotomyMRgFUSBrain parenchyma(1) Reproducible(1) Invasive[160]
Collagenase injectionBrain parenchyma(1) Reproducible(1) Invasive[161,162,163,164]
(2) Only used
in juvenile pigs
Single blood injectionBrain parenchyma(1) Reproducible(1) Invasive[165]
TranscranialMRgFUSBrain parenchyma(1) Reproducible
(2) Minimally invasive
(1) Target limitation[166,167]
Cranial burr holeDouble blood injectionBrain parenchyma(1) Reproducible(1) Relatively invasive[51,69,168,169,170,171]
Balloon catheter dilation and double blood injectionBrain parenchyma(1) Reproducible(1) Relatively invasive[172,173,174,175,176,177,178,179,180,181,182]
Balloon catheter dilation and single blood injectionBrain parenchyma(1) Reproducible(1) Relatively invasive[183,184,185,186]
Single blood injectionVentricle(1) Reproducible(1) Relatively invasive[158,159,187,188,189,190,191,192,193,194,195,196,197,198,199,200,201,202,203,204,205,206,207,208,209,210,211,212]
Brain parenchyma
Meningeal hemorrhageTransorbitalSingle blood injectionSubarachnoid space(1) Reproducible
(2) Minimally invasive
(1) Technically difficult[213]
Cranial burr holeSingle blood injectionSubarachnoid space(1) Reproducible(1) Relatively invasive[214,215]
CraniotomySingle blood injectionSubarachnoid space(1) Reproducible(1) Invasive[157,216,217,218,219,220]
Balloon catheter dilation and single blood injectionEpidural space(1) Reproducible(1) Invasive[221,222]
IntrathecalSingle blood injectionCisterna magna (subarachnoid space)(1) Reproducible [223,224,225,226]
(2) Minimally invasive
LaminectomySingle blood injectionPontine cistern (subarachnoid space)(1) Reproducible(1) Invasive[227,228,229]
Table 3. Characteristics of swine and rodent stroke models. Abbreviations; MCA, middle cerebral artery; ICA, internal carotid artery; NHP, non-human primate.
Table 3. Characteristics of swine and rodent stroke models. Abbreviations; MCA, middle cerebral artery; ICA, internal carotid artery; NHP, non-human primate.
Brain mass80–180 g (depending on strain and age), roughly 10x smaller than human [5,9]0.3 g (mice), roughly 4500x smaller than human; 2 g (rat), roughly 700x smaller than human [9]
Cortex morphologyGyrencephalic [5,6,7]Lissencephalic [1]
Myelination timelineSimilar to human, from birth to early adulthood [6,12]Ends a few days after birth [10]
White matter proportion60%, same as humans [1,22,23], with similar connectivity [13]10% [1,22,23]
Intracerebral vessel diameterLarge, human-like enough to allow the use of human endovascular devices [15,20]Much smaller, complicating surgeries [15,20]
Cerebral irrigationHigh collateralization, complicates stable infarction generation [85,87], with 2–4 MCAs per side [7,88,89]. Rete mirabile to access ICA [85,86]Lower collateralization, more stable infarction [15], with 1 MCA per side [23], and without a rete [85,86].
Dura matterFibrous in swine, due to brain swelling generates a human-like ICP increase [14]Delicate in rodents, rudimentary, and underdeveloped [14]
Neurological behaviorMore sophisticated and inferable to human [3]Simpler and less generalizable to human [3]
GeneticsShorter phylogenetic distance with human [30,31]Extended phylogenetic distance with human [30,31]
SizeHuman-like depending on strain and age, allowing multimodal imaging sequences and instruments used in human [15,16], repeated and larger biological sample collection [3,29], and procedures and equipment from humans [2,3,8]Much smaller, different imaging instruments [15,16], limited sample extraction [3,29], and different procedures and equipment [2,3,8]
CostsHigher [15], but lower than NHP [12]Lower [15]
Care and useDifficult [15]Easier [15]
Time to sexual maturityProlonged, but shorter than NHP [12]Much shorter [15]

Share and Cite

MDPI and ACS Style

Melià-Sorolla, M.; Castaño, C.; DeGregorio-Rocasolano, N.; Rodríguez-Esparragoza, L.; Dávalos, A.; Martí-Sistac, O.; Gasull, T. Relevance of Porcine Stroke Models to Bridge the Gap from Pre-Clinical Findings to Clinical Implementation. Int. J. Mol. Sci. 2020, 21, 6568.

AMA Style

Melià-Sorolla M, Castaño C, DeGregorio-Rocasolano N, Rodríguez-Esparragoza L, Dávalos A, Martí-Sistac O, Gasull T. Relevance of Porcine Stroke Models to Bridge the Gap from Pre-Clinical Findings to Clinical Implementation. International Journal of Molecular Sciences. 2020; 21(18):6568.

Chicago/Turabian Style

Melià-Sorolla, Marc, Carlos Castaño, Núria DeGregorio-Rocasolano, Luis Rodríguez-Esparragoza, Antoni Dávalos, Octavi Martí-Sistac, and Teresa Gasull. 2020. "Relevance of Porcine Stroke Models to Bridge the Gap from Pre-Clinical Findings to Clinical Implementation" International Journal of Molecular Sciences 21, no. 18: 6568.

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
