Surfactin as a Green Agent Controlling the Growth of Porous Calcite Microstructures

by
Anna Bastrzyk
1,*,
Marta Fiedot-Toboła
2,*,
Halina Maniak
3,
Izabela Polowczyk
1 and
Grażyna Płaza
4
1
Department of Process Engineering and Technology of Polymer and Carbon Materials, Faculty of Chemistry, Wrocław University of Science and Technology, Wybrzeże Wyspiańskiego 27, 50-370 Wrocław, Poland
2
Łukasiewicz Research Network-PORT Polish Center for Technology Development, Stabłowicka 147, 54-066 Wrocław, Poland
3
Department of Micro, Nano and Bioprocess Engineering, Faculty of Chemistry, Wrocław University of Science and Technology, Wybrzeże Wyspiańskiego 27, 50-370 Wrocław, Poland
4
Department of Environmental Microbiology, Institute for Ecology of Industrial Areas, Kossutha 6, 40-844 Katowice, Poland
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2020, 21(15), 5526; https://doi.org/10.3390/ijms21155526
Submission received: 8 July 2020 / Revised: 27 July 2020 / Accepted: 31 July 2020 / Published: 1 August 2020
(This article belongs to the Special Issue Microbial Biosurfactants, Current Research Trends and Applications)
Browse Figures
Versions Notes

Abstract

:
This study presents a new, simple way to obtain mesoporous calcite structures via a green method using an eco-friendly surface-active compound, surfactin, as a controlling agent. The effects of synthesis time and surfactin concentration were investigated. The obtained structures were characterized by X-ray powder diffraction (XRD), scanning electron microscopy (SEM), thermogravimetric analysis (TGA), and differential scanning calorimetry (DSC) coupled with gas mass spectrometry (QMS) analysis. The experimental data showed that surfactin molecules significantly changed the morphology of the calcite crystals, roughening and deforming the surface and creating a greater specific surface area, even at low biosurfactant concentrations (10 ppm). The size of the crystals was reduced, and the zeta potential value of calcium carbonate was more negative when more biosurfactant was added. The XRD data revealed that the biomolecules were incorporated into the crystals and slowed the transformation of vaterite into calcite. It has been shown that as long as vaterite is present in the medium, the calcite surface will be less deformed. The strong influence of surfactin molecules on the crystal growth of calcium carbonate was due to the interaction of surfactin molecules with free calcium ions in the solution as well as the biomolecules adsorption at the formed crystal surface. The role of micelles in crystal growth was examined, and the mechanism of mesoporous calcium carbonate formation was presented.

1. Introduction

Calcium carbonate (CaCO3) is a common biomaterial produced by living organisms for building shells and exoskeletons such as seashells, avian eggshells, and bones to support and protect their bodies [1]. This biomaterial possesses unique properties (high surface area, high porosity, high mechanical strength, and non-toxicity) that can offer wide potential applications in industry as filler materials for paints, pigments, coatings, paper and plastics, carriers of active compounds and nanoparticles for drug delivery, and matrices for polymeric capsules [2,3,4,5,6,7]. CaCO3 occurs in different crystalline polymorphs: anhydrous phases of aragonite, vaterite and calcite, and hydrated phases of calcium carbonate monohydrate, calcium carbonate hexahydrate and amorphous calcium carbonate [8]. Each of these crystalline forms is characterized by various morphologies and physicochemical properties. For instance, spherical hexagonal vaterite exhibits higher porosity and can decompose rapidly under relatively mild conditions compared with rhombohedral calcite [2]. Aragonite, on the other hand, forms thin needles and has a strong tendency to form spherulitic clusters with high porosity and density [9]. In biology, biomineralization can occur at specific sites on the cell wall, in spaces between closely packed cells, inside enclosed compartments within a cell or in spaces outside a cell. The specific mineralization sites can include phospholipid vesicles, protein vesicles, cellular assemblies, and molecular frameworks [10]. The formation of crystalline polymorphs with desired properties is controlled by different and occasionally synergic processes, such as the regulation of respective ion concentrations, the formation of initial amorphous and other metastable precursor phases, and the presence of specific biomolecular additives [11]. Extensive research has shown that living organisms require biomolecular additives such as proteins and polysaccharides with carboxyl, phosphate and sulfate groups to control the hierarchical structure and the mechanical properties of calcium carbonate [10,12]. These biomolecules can act as templates and control the polymorphs, orientation and morphology of calcium carbonate. Thus, research has been focused for many years on learning and mimicking the biosynthesis of calcium carbonate. The ability to control the particle shape, size and morphology is fundamental from the viewpoint of technical applications [13]. Therefore, finding a way to obtain calcium carbonate with specific properties remains a challenge, especially with the use of “green additives”. These “green compounds” include biosurfactants, the surface-active molecules produced by living cells. Compared to synthetic surfactants, biosurfactants are non-toxic, easily biodegradable and can be synthesized from renewable waste with an appropriate ratio of carbohydrates and lipids to support optimal bacterial growth [14].
Surfactin (C53H93N7O13) is an anionic lipopeptide biosurfactant with two carboxyl groups that has been widely used in the “green synthesis” of silver and gold nanoparticles [15]. Our previous research has shown that surfactin can also be used effectively as a calcium carbonate growth controlling agent. CaCO3 structures obtained in the presence of surfactin were characterized by large irregularities (terraces and depressions) on the surface of the crystals during a short ageing period [16]. To better understand the mechanism of crystal growth, this study investigated how surfactin concentration can affect the morphology, polymorphs and properties of calcium carbonate precipitated in an aqueous solution after prolonged ageing. The kinetics of crystal growth in the presence of surfactin molecules were also examined. As a result, we identified a new role of surfactin in the biosynthesis of porous calcite. The porous calcite formed and modified by biosurfactants can offer many new possibilities in biomedical and environmental applications.

2. Results and Discussion

The calcium carbonate particles were synthesized in a spontaneous, rapid reaction in which calcium chloride and sodium carbonate were used as sources of calcium and carbonate ions, respectively. In the control test (without biosurfactant), turbidity appeared immediately after the Na2CO3 solution (pH 11.3) was poured into the CaCl2 solution without biosurfactant (pH 8.0), indicating the precipitation of CaCO3 particles. After 5 min of reaction, the sample vial was inserted into the measuring cell of the Turbiscan apparatus, and changes in the value of light passing through and reflected from the sample were recorded. Over time, the light transmittance value (T) increased significantly from 20 to approximately 75, reaching a plateau after approximately 15 min (Figure 1A). A high value of T (%) indicates very unstable systems [17], in this case due to the formation of larger calcium carbonate particles that sediment. Similar results were observed where Ca2+ ions were in contact with biosurfactant particles for 24 h. However, in the samples with surfactin, the T (%) value increased much more slowly, reaching a value of approximately 70 after 1 h (see Figure 1A). This is the result of the interaction of biomolecules during the process (nucleation and further growth of particles).
To better understand the process, the ageing time was extended to 24 h, different surfactin concentrations were applied, and the polymorphic form of the crystals and morphology of the structures were analysed. Physicochemical and thermal properties of the biomineral were also measured.

2.1. Particle Size Distribution and Zeta Potential of Calcium Carbonate after 24 H of Ageing

The particle size distributions and the diameters of CaCO3 particles obtained in the control system and with surfactin after 24 h of ageing are shown in Figure S1 and Table 1, respectively. The addition of surfactin to the reaction system resulted in a significant particle size reduction. The median diameter (d50) of CaCO3 formed without the biosurfactant was 24.4 μm. Increasing the concentration of surfactin molecules up to 20 ppm decreased the value of d50 to 10.6 μm, and more particles with diameters lower than 5 μm were formed. Comparing the data obtained with 10 and 20 ppm surfactin, one can see that the difference in the size of the resulting particles was not significant. This means that surfactin effectively blocked the growth of CaCO3 crystals, even at 10 ppm.
The presence of surfactin molecules in the reaction system changes not only the size but also the zeta potential value of CaCO3 particles. Based on the data presented in Figure 1B, it can be seen that the zeta potential value of particles in the control sample changed from −8.1 to −21.1 mV in a pH range from 7 to 9.8. The addition of surfactin at concentrations of 10 and 20 ppm increased the negative value of the zeta potential to −30 and −36.1 mV, respectively, at a pH of approximately 10 ± 0.3. The changes in zeta potential value were also observed by other researchers using polypeptides, fulvic acid or stearic acid [18,19]. From previous data in the literature, it is known that biomolecules can adsorb on solid faces formed as a result of the crystallization process and change the interfacial energy [20,21]. This may explain the decrease in particle size in the presence of surfactin, as shown in Figure S1 and Table 1. The high negative value of zeta potential of crystals obtained in the presence of surfactin proves that biosurfactant particles are present on the surface of particles.

2.2. XRD Analysis of Calcium Carbonate after 24 H of Ageing

Crystalline calcium carbonate polymorphs obtained after 24 h of ageing were determined by XRD analysis. From Figure 2, it can be seen that in the control sample (without surfactin) and in the presence of 5 ppm surfactin, only calcite crystals were obtained. This means the complete transformation of the metastable phase, vaterite, into a thermodynamically stable phase, calcite, under these conditions. A further increase in surfactin concentration up to 20 ppm resulted in a mixture of calcite and vaterite particles, which was revealed by the characteristic peaks in Figure 2.
For 10 and 20 ppm surfactin in the reaction system, the vaterite content was found to be 1.4% and 14.9%, respectively (Table 2). This means that the higher concentrations of surfactin molecules can effectively delay the transformation of vaterite to calcite. In all investigated samples, a trace amount of Na2CO3 (0.1%, at 2Ө = 28°) was found. On the basis of the calculated unit cell parameters of the polymorphs (Table 2), a possible incorporation of surfactin into the crystal structure of calcite was found. For that purpose, the relative changes (Δl, ΔV, %) in the lengths of a and c edges and volume in the elemental cell for pure calcite without surfactin (l0, V0) and for systems with varied amounts of surfactin (ls, Vs) were calculated: Δl = (ls − l0)/l0·100. In all cases studied, a slight elongation of 0.046–0.054% and 0–0.04% for the a and c edges of the calcite elemental cell, respectively, was observed. Nevertheless, the increase in the edge dimensions did not correspond directly to an increment of surfactin concentration added to the reaction medium and seemed to become rather independent of its higher values (10 and 20 ppm). This small elongation of the edges, however, influences the volume of the calcite elemental cell (Table 2). For the subsequent concentrations of 5, 10 and 20 ppm surfactin, the calculated relative changes in the volume of calcite were 0.085, 0.142 and 0.144%, respectively. Similar results were observed for biogenic calcite and for calcite obtained in the presence of amino acids and proteins [22,23]. The changes in the elemental cell parameters seem to indicate that surfactin may induce anisotropic positive lattice distortion due to the possible incorporation of biomolecules into the crystal lattice. This phenomenon may influence the crystal structure of calcite in all studied systems. The effect of surfactin on the changes in the edge length and volume of the vaterite elemental cell is difficult to determine, as Table 2 shows, the increase in the values of particular parameters is in the range of standard deviation.

2.3. Morphology of Calcium Carbonate Crystals after 24 H of Ageing

The morphology of the obtained calcium carbonate crystals was analysed using scanning electron microscopy, and the images are presented in Figure 3. In Figure 3A, it can be seen that without biomolecules, rhombohedral structures with a smooth surface and sharp edges characteristic of calcite were formed. The morphology changed when the biosurfactant was added to the reaction medium (Figure 3B–F). The surface of the crystal formed in the presence of 5 ppm surfactin was deformed as some irregularities appeared (Figure 3B). By analysing the images in Figure 3, with higher biosurfactant concentrations, the presence of spherical structures characteristic of vaterite was observed, which was also confirmed by XRD analysis (Figure 2). However, the most interesting morphology was observed for calcite. Increased surfactin concentration resulted in a greater surface roughness of the calcite crystals, with spherical and oval cavities on the surface. Moreover, the edges of the crystals were not so sharp and were significantly deformed (Figure 3C–F). The deformation of calcite crystal microstructures after adding compounds of biological origin has been widely described in the literature [24,25,26,27,28]. Biomolecules, especially anionic molecules, can bind calcium ions in solution as well as on the surface of created crystals, changing the direction of growth or blocking the growth of the crystal surface [2]. Surfactin is a surfactant that reduces the surface tension of water to 28 mNm−1 at a critical micellization concentration (CMC) in the range of 10–20 ppm, depending on pH and ionic strength [29]. Our previous studies showed that in a 5 mM aqueous solution of CaCl2 at pH 8, the CMC value for surfactin was 4.6 ppm [16]. Thus, the porosity of the calcite surface was a result of the formation of biosurfactant micelles in the reaction medium at surfactin concentrations above the CMC value. Similar results were obtained in the presence of nanosized spherules and worms of polymers and casein micelles [27,30].
In our studies, it was noted that more micelles present in the system lead to more porous calcite crystals. Comparing these results with previous results [16], it was observed that by extending the reaction time to 24 h, porous crystals are formed at twice the biosurfactant concentration. These structures may have great potential for use as inorganic matrices or carriers of active compounds or nanoparticles. It can be assumed that micelle concentration and ageing time play a crucial role in the formation of porous calcite structures.

2.4. BET Analysis of Calcium Carbonate after 24 H of Ageing

One of the most important parameters describing inorganic matrices is the value of specific surface area (SSA) as well as the size and volume of pores. The hysteresis loops observed in Figure S2 indicate the mesoporous structure of CaCO3. It was observed that particles obtained without biomolecules had a small SSA value of 0.18 m2g−1 (Table 3). This is the result of rhombohedral calcite formation with a smooth surface, as shown in Figure 3A. The increase in surfactin concentration to 10 ppm and 20 ppm significantly increased the value of SSA to 1.67 and 4.87 m2g−1, respectively. A higher value of the SSA arises from the roughness of the calcite surface formed in the presence of biosurfactant (Figure 3E,F). A larger specific surface area was obtained when a higher concentration of biosurfactant was added to the reaction mixture. From the data in Table 3, it can be seen that the average pore diameter increased from 8.7 to 11.7 nm when surfactin at higher concentrations was added. Moreover, the average pore volume doubled with increasing biosurfactant concentration. This may be due to the formation of more micelles in the solution as well as the fact that at a 20 ppm concentration of biosurfactant, more vaterite was formed (Table 2). It is known from the literature that vaterite has a higher SSA than calcite [31].
Comparing these data with our previous results [16], one can say that after 24 h of ageing, the specific surface area and average pore volume slightly decreased from 7.11 to 4.87 m2g−1 and from 0.0202 to 0.0123 cm3g−1, respectively. This was related to the reduction of vaterite content and the incorporation of more biosurfactant molecules into calcite crystals.

2.5. Thermogravimetric Characteristics of Calcium Carbonate Structures

Thermogravimetric analysis of calcium carbonate samples with 5 Kmin−1 heating rate was also performed. To show the effect of surfactin on the thermal behaviour of CaCO3, samples with the most differing surfactin content were selected, namely, without and with 20 ppm surfactin. It was observed that in both samples, with and without biosurfactant, the main degradation process started above 690°C, which was related to the conversion of calcite into calcium oxide (Figure 4A). Despite the fact that two additional weight losses were detected at lower temperatures (Figure 4A). The first loss had no specified maximum on the DTG curve. The second loss was observed only for the sample with surfactin and had a broad DTG peak with maximum about 510 °C (Figure 4B). From the literature, it is known that the first weight loss is related to the evaporation of moisture contained in the samples, and the second weight loss is related to the evaporation of water bound in the CaCO3 structure and/or transformation of vaterite to calcite [32,33]. To compare the chemical composition of the sample with and without surfactin, the weight loss observed during this two recesses was determined. The temperature ranges was selected according to DTG results. It was shown that in the first range (25–400 °C), the weight of the material with surfactin decreased by 0.95%. Continued heating resulted in a further decrease in material weight to the same value. For a sample without surfactin, it was not possible to divide this temperature region for two processes, as any DTG maximum in this area was observed. For this reason, the weight loss of this material in one temperature range from 25 to 566 °C was measured. Its value was approximately 0.71%. The higher weight loss value in this temperature range (25–566 °C) for the sample with surfactin could be connected with better moisture adsorption and surfactin molecule degradation. Also, these differences were visible in the total weight loss of the samples, which was higher for the sample with surfactin by approximately 1%. The maximum DTG associated with calcite conversion was also higher for this sample with surfactin, which could demonstrate obstruction of this process by the use of biosurfactant (Figure 4 and Table 4).
In addition, model-free kinetics were used to determine activation energy values as a function of material conversion [34]. To achieve this, both samples were analysed by the thermogravimetric method with four different heating rates (5, 10, 15, and 20 Kmin−1) and presented as a conversion curve (Figure S3). The activation energy value was calculated as follows (1):
d α d t = A e x p ( − E a R T ) f ( α )
where, α is conversion, t—time, A—frequency factor, R—gas constant, Ea—activation energy, T—temperature. A comparison of the obtained results for samples without and with 20 ppm surfactin showed that they differed from each other. For a material without surfactin, the Ea value was almost constant over the entire conversion range (~160 kJmol−1). This means that only one process was observed during thermal degradation of the control sample—calcite conversion to calcium oxide. While analysing the sample with surfactin, it was observed that the first Ea value was very low at the beginning of the experiment. Then, it increased rapidly to 250 kJmol−1. Further activation energy decreased to a similar value as for the sample without surfactin. Three processes can be defined during the thermal degradation of this sample. The first was assumed to be moisture release, the second was the conversion of vaterite to calcite or bonded water evaporation, and the third was the decomposition of calcite to CaO (Figure 5A).
During the TG results interpretation, the thesis was put forward that the first degradation process was related to water evaporation and the second one to bound water evaporation and/or vaterite transformation to calcite. To verify this mass spectrometry, analysis was performed. In QMS studies, changes in ionic current as a function of temperature were investigated for specific m/z values for water (18) and carbon dioxide (44). The obtained curves demonstrated that in both samples (with and without surfactin), water was released during the first thermal degradation (till about 400 °C). These results excluded the thesis about the evaporation of bound water from the samples at approximately 510 °C (Figure 5B). For this reason, it was concluded that this process is most likely related to the transformation of vaterite to calcite. Such broad temperatures range for water release from the samples could indicate that their molecules are not only physically but also chemically adsorbed on the material surface, for which desorption higher temperatures are needed [35,36]. The changes in m/z 44 related to CO2 confirmed that this gas is evolving during the thermal degradation of CaCO3. It can also be seen that this process occurs in a higher temperature range for the sample with surfactin (Figure 5B). This is consistent with the results of the TG analysis (Figure 4 and Figure 5A). Additionally, another important conclusion can be drawn from these studies. It has been noted that at temperatures below 200 °C, CO2 was derived from the sample with surfactin, which was not indicated for the reference sample. This confirms the incorporation or adsorption of surfactin on the CaCO3 surface (Figure 5B). All observations were consistent with the XRD data (Table 2) and SEM images (Figure 3), which revealed vaterite in the sample precipitated with a surfactin concentration of 20 ppm.

2.6. Effect of Ageing Time on Crystal Growth

To describe more in detail how the porous structures of calcium carbonate were formed, as shown in Figure 3, the effect of ageing time on the crystalline structure and morphology of crystals was studied. The experiments were carried out in a reaction system containing 10 ppm surfactin. It was observed that in the system without the biosurfactant, pure calcite was precipitated in all studied processes during the time periods (Figure S4A). The presence of biosurfactant molecules led to the formation of a mixture of calcite and vaterite even after 24 h (Figure S4B). The mass fraction of the resulting phases is given in Table 5. As expected, the amount of vaterite decreased with extending reaction time. The highest concentration of vaterite was 40.5% after 30 min of ageing, and the lowest (1.4%) was after 24 h of ageing. As shown in the control sample, pure calcite was formed just after 30 min of ageing (Figure S4A). Therefore, this proves that biosurfactant molecules slow down the conversion of vaterite into calcite. When analysing the SEM images (Figure 6A–F), it was noted that more surface irregularities appeared during longer reaction times. More cavities were visible, and the edges of calcite were significantly deformed, showing a multilayered structure after 24 h of ageing. Thirty minutes of ageing led to the formation of calcite with slightly deformed edges. Few cavities were visible on the calcite surface. This may be due to the large amount of vaterite that was formed in this process, which was 40.5% (Table 5).
Additionally, the changes in the average crystallite size (D) and microstrain (ε) of vaterite and calcite in samples as a function of time were calculated according to the Williamson-Hall method (W-H method) [37]. It was observed that the size of calcite crystallite in both samples increased with the progress of the reaction. The values of D and ε in the control sample were higher than those in the sample with surfactin. The crystallite size in the control sample increased sharply after 24 h (Figure 7A), which is characteristic for the crystallization process. By analysing the microstrain results, it was observed that their values were at similar levels for both samples. The only change was noticed in the control sample after 24 h (Figure 7B). This shows that surfactin molecules influenced the crystallization process of calcium carbonate. An increase in the size of crystallites and microstrains of calcite results from the clasical ion by ion attachment as well as the oriented aggregation. The increase in the microstrain is due to formation of crystal-crystal interface [38]. The lower value of D and ε after 24 h results from the incorporation of organic additivities into the crystals as well as decreasing the crystals boundary density [39].
Crystallites of vaterite were found only in the sample with surfactin. Their size and microstrain values decreased as a function of time due to dissolution/recrystallization reactions (Figure 7C,D).
To understand the observed phenomenon, the mechanism of CaCO3 crystallization in the presence of surfactin should be analysed. According to the literature, the mixing of Ca2+ with CO32- ions results in the formation of nuclei and the synthesis of amorphous calcium carbonate (ACC) nanoparticles [28]. The precursor phase is highly hydrated and the most unstable phase of calcium carbonate. The ACC nanoparticles are equilibrated in solution quickly (within seconds) and transformed into a calcium carbonate polymorph (vaterite). The transformation of ACC to vaterite can occur through a direct solid-state transformation, and it is experimentally difficult to capture [40]. ACC nanoparticles aggregate into larger particles, and dehydration of the precursor phase takes place. This leads to the formation of spherical vaterite particles, a metastable phase. Vaterite is quickly combined in surface-mediated dissolution-reprecipitation reactions, leading to the formation of pure rhombohedral calcite. This leads to a reduction in the number of crystals and an increase in particle diameter, as shown in Figure 1A.
Based on the obtained results and literature data, it can be assumed that surfactin molecules act in the biomineralization of calcium carbonate at two different stages, which are mutually dependent:
(a)
in solution during the nucleation stage (formation of Ca-surfactin complexes),
(b)
on the surface of formed CaCO3 crystallites.
Surfactin is a lipopeptide biosurfactant composed of a cyclic ring of amino acids linked to hydroxylic fatty acids by a lactone bond [41,42]. The cyclic peptide part contains two hydrophilic residues of Glu and Asp acid because of free groups of COO− at a pH above pKa = 5.8 [43,44]. These two negatively charged groups in the surfactin molecule are considered to form complexes with Ca2+ ions at pH 8 and enhanced the intermicellar aggregates formation in β-sheet conformation, as discussed in detail in the literature [45,46]. This can slightly reduce the concentration of free Ca2+ during the nucleation stage (Figure 8), because in the system an excess of calcium and carbonate ions compared to surfactin molecules was used. Moreover, the life span of this bond is short, and when carbonate ions are added, the released and free Ca2+ ions interact with CO32− ions [16] and form hydrated nuclei and vaterite-calcite mixture in the subsequent step. The free surfactin molecules can be adsorbed onto the selected crystals phase. It is known from the literature that during crystallization, vaterite particles may have a positive charge on the surface [28]. Surfactin molecules can adsorb on the vaterite surface via electrostatic interactions as well as via hydrogen bonds between protonated amino groups and oxygen in the carbonate group on the crystal surface [47,48]. The presence of surfactin molecules on the solid/liquid interface changed the solubility of vaterite [18]. As a result, further conversion of crystals into calcite slowed down (Table 5), followed by gradual changes in morphology (Figure 6), crystallite size (Figure 7C) and microstrain (Figure 7D). Additionally, changes in the T(%) value (Figure 1A) prove that the small particles are dispersed in the system. This inhibiting effect of surfactin intensifies as the biomolecule concentration increases. More vaterite remained in the system after 24 h of ageing when more biosurfactant was added (Table 2). A similar mechanism was proposed by Wu et al. (2018) [49], where citrate anions were used as a modifying agent. However, in this case, the surface morphology of calcite was significantly deformed (Figure 3D,E and Figure 6F). Some slight cavities appeared on the surface of calcite crystals obtained in the presence of 10 ppm surfactin after 24 h of ageing. Moreover, the edges of calcite particles obtained after 24 h were blunted, and micelles embedded in crystals were observed (Figure S5.), which was also confirmed by the lattice parameter values (Table 2), where positive distortion was observed. Additionally, TGA and QMS analyses (Figure 5B) prove the occlusion of the surfactin molecules. Our results confirm the hypothesis that the deformation of the crystals results from the existence of micelles in the reaction medium. Prolonging the time of reaction up to 24 h, the percentage of vaterite in the sample decreased and more calcite is formed (Table 5) due to the dissolution of the metastable phase. The released inorganic ions as well as the aggregates of micelles may accumulate (according to the diffusion gradient) near the surface of large crystals formed earlier (Figure 8). The ions interact with the external functional group of the surfactin, and the new calcite grains are crystallized. The clusters formed are attached to the calcite surface, and finally, mesoporous calcite crystals with a small diameter and larger specific surface area are produced after 24 h of ageing. The mechanism of calcite formation in the presence of surfactin is similar to that which occurs in nature [50]. The presence of micelles at the surface of crystals formed can block further growth due to the decrease in the zeta potential value of crystals formed. This has reduced crystal aggregation via electrostatic repulsion between the crystals. This was confirmed by zeta potential and T changes (Figure 1A,B), SEM images (Figure 6), crystallite size (Figure 7A), and the size distribution of CaCO3 particles (Figure S1). The higher the concentration of biosurfactant in the solution, the more micelles were incorporated on the crystal surface, as confirmed by SEM images (Figure 3), the zeta potential values (Figure 2) and TGA (Figure 5B). Additionally, the size of pores (cavities) on the surface is close to the size of a single micelle of biosurfactant, ca. 10 nm [51]. It is characteristic that the surface roughness increases with time (Figure 6). Additionally, the size of crystallites in the sample with surfactin after 24 h of ageing is significantly lower than in the control sample (Figure 7A). This results from oval and spherical depletions on the calcite crystal surface [52]. On the calcite surface, the edges are more rounded and truncated, indicating the presence of micelles on the edges of the crystals. The surface of calcite was less deformed when there was more vaterite in the system. Since calcite has a negative zeta potential value (Figure 1B), negatively charged micelles prefer to adsorb on a positively charged vaterite surface. This explains why more vaterite than calcite was produced in the presence of surfactin molecules. Thus, as long as vaterite particles are present in the system, the calcite surface will not be significantly distorted, as shown in Figure 6.

3. Materials and Methods

Calcium chloride from Fluka (Bucharest, Romania) and sodium carbonate (p.a.) from Avantor Performance Materials Poland S.A. (Gliwice, Poland) were used as reactants. Surfactin (purity 91%) was purchased from Lipofabrik (France). The procedure of calcium carbonate microstructure synthesis was described in Bastrzyk et al. (2019) [16]. First, the calcium chloride solution was conditioned with surfactin at various concentrations at pH 8. Then, the CaCO3 crystals were obtained by mixing two 0.01 M equimolar solutions of CaCl2 (without and with the biosurfactant) and Na2CO3 at constant stirring intensity using a magnetic stirrer. After adding Na2CO3, the pH of the reaction medium was increased to 10.5. The reaction times were 30 min, 1 h, 3 h, and 24 h. After the mixing time, the precipitate was separated, dried and characterized. The concentrations of biosurfactant were 5, 10 and 20 ppm. The control sample was synthesized without the biosurfactant. All experiments were carried out at room temperature (25 °C), and three separate experiments were performed.
The precipitate was characterized after drying using scanning electron microscopy (SEM), Brunauer-Emmett-Teller (BET) analysis and thermogravimetry (TG) coupled with gas mass spectrometry (QMS) analysis. The particle size distribution and zeta potential value of CaCO3 were also measured. All procedures for characterizing the CaCO3 particles are included in the Supplementary Materials (please see Section S1.1).
All reagents were used without further purification. Water was provided from a WG-LHP purification system (WIGO, Poland) with a conductivity of 0.055 μScm−1.

4. Conclusions

Based on the research carried out, it can be concluded that surfactin can effectively affect the properties of precipitated calcium carbonate. Light transmittance value changes confirmed the hypothesis that biosurfactant molecules delayed the growth of calcium carbonate crystals. The presence of biosurfactant in the reaction system significantly changed the precipitate morphology, especially for calcite. The structure of the crystals was deformed, and after 24 h of reaction, mesoporous calcium carbonate was obtained at a low biosurfactant concentration (10 ppm). The specific surface area of the porous calcite was 10 times larger than that of the control sample without surfactin. The porous structure of calcium carbonate results from the adsorption and occlusion of micelles in the crystals during growth. The pore size was similar to the size of a single micelle, indicating the adsorption of micelles on calcite crystals during crystallization, which was proven by zeta potential measurements, lattice parameter calculations and TGA. The incorporation of micelles did not change the thermal properties of the particles. Moreover, the biomolecules can be removed from the crystals by heating at temperatures below 200 °C. These studies provided valuable information on the formation of inorganic matrices with unique morphologies and surface properties, which can be of great benefit for biomedical and environmental applications.
In addition, this is the first report on the study of calcite growth over time in a micelle system of an environmentally friendly surfactant.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/21/15/5526/s1.

Author Contributions

Conceptualization, A.B.; methodology, A.B. and M.F.-T.; investigation, A.B. and M.F.-T.; data curation, A.B., M.F.-T., H.M. and I.P.; writing-original draft preparation, A.B. and M.F.-T.; writing-review and editing, A.B., M.F.-T., H.M., I.P. and G.P.; visualization, A.B. and M.F.-T.; supervision, G.P.; project administration, A.B.; funding acquisition, A.B. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Science Centre of Poland grant no. 2014/15/D/ST8/00544. The APC was funded by subsidy from the Polish Ministry of Science and Higher Education for the Faculty of Chemistry of Wroclaw University of Science and Technology.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Xu, A.W.; Ma, Y.; Cölfen, H. Biomimetic mineralization. J. Mater. Chem. 2007, 17, 415–449. [Google Scholar] [CrossRef]
  2. Boyjoo, Y.; Pareek, V.K.; Liu, J. Synthesis of micro and nano-sized calcium carbonate particles and their application. J. Mater. Chem. A 2014, 2, 14270–14288. [Google Scholar] [CrossRef]
  3. Xiang, Y.; Han, J.; Zhang, G.; Zhan, F.; Cai, D.; Wu, Z. Efficient synthesis of starch-regulated porous calcium carbonate microspheres as a carrier for slow-release herbicide. ACS Sustain. Chem. Eng. 2018, 6, 3649–3658. [Google Scholar] [CrossRef]
  4. Petrov, A.I.; Volodkin, D.V.; Sukhorukov, G.B. Protein-calcium carbonate coprecipitation: A tool for protein encapsulation. Biotechnol. Prog. 2005, 21, 918–925. [Google Scholar] [CrossRef]
  5. Trochimov, A.D.; Ivanova, A.A.; Zyuzin, M.V.; Tymin, A.S. Porous inorganic carriers based on silica, calcium carbonate and calcium phosphate for controlled/modulated drug delivery: Fresh outlook and future perspectives. Pharmaceutics 2018, 10, 1–36. [Google Scholar]
  6. Svenskaya, Y.; Parakhonskiy, B.; Haase, A.; Atkin, V.; Lukyanets, E.; Gorin, D.; Antolini, R. Anticancer drug delivery system based on calcium carbonate particles loaded with a photosensitizer. Biophys. Chem. 2013, 182, 11–15. [Google Scholar] [CrossRef] [Green Version]
  7. Yang, H.; Wang, Y.; Liang, T.; Deng, Y.; Qi, X.; Jiang, H.; Wu, Y.; Gao, H. Hierarchical porous calcium carbonate microspheres as drug delivery vector. Proc. Nat. Sci. Mater. 2017, 27, 674–677. [Google Scholar] [CrossRef]
  8. Zhou, G.T.; Guan, Y.B.; Yao, Q.Z.; Fu, S.Q. Biomimetic mineralization of prismatic calcite mesocrystals: Relevance to biomineralization. Chem. Geol. 2010, 279, 63–72. [Google Scholar] [CrossRef]
  9. Weiner, S.; Addadi, L. Design strategies in mineralized biological materials. J. Mater. Chem. 1997, 77, 689–702. [Google Scholar] [CrossRef]
  10. Mann, S. Biomineralization: Principles and Concepts in Bioinorganic Materials Chemistry; Oxford University Press Inc.: New York, NY, USA, 2001. [Google Scholar]
  11. Njegic-Džakula, B.; Reggi, M.; Falini, G.; Weber, I.; Brecevic, L.; Kralj, D. The influence of a protein fragment extracted from abalone shell green layer on the precipitation of calcium carbonate polymorphs in aqueous media. Croat. Chem. Acta 2013, 86, 39–47. [Google Scholar] [CrossRef]
  12. Pastero, L.; Aquilano, D. Calcium carbonate polymorphs growing in the presence of sericin: A new composite mimicking the hierarchic structure of nacre. Crystals 2018, 8, 263. [Google Scholar] [CrossRef] [Green Version]
  13. Jimoh, O.A.; Okoye, P.U.; Ariffin, K.S.; Hussin, H.B.; Baharun, N. Continuous synthesis of precipitated calcium carbonate using a tubular reactor with the aid of aloe vera (Aloe barbadensis Miller) extract as a green morphological modifier. J. Clean. Prod. 2017, 150, 104–111. [Google Scholar] [CrossRef]
  14. Akbari, S.; Abdurahman, N.H.; Yunus, R.M.; Fayaz, F.; Alara, O.R. Biosurfactants-a new frontier for social and environmental safety: A mini review. Biotechnol. Res. Innov. 2018, 22, 81–90. [Google Scholar] [CrossRef]
  15. Płaza, G.A.; Chojniak, J.; Banat, I.B. Biosurfactant mediated biosynthesis of selected metallic nanoparticles. Int. J. Mol. Sci. 2014, 15, 13720–13737. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Bastrzyk, A.; Fiedot-Toboła, M.; Polowczyk, I.; Legawiec, K.; Płaza, G. Effect of a lipopeptide biosurfactant on the precipitation of calcium carbonate. Colloids Surf. B Biointerfaces 2019, 174, 145–152. [Google Scholar] [CrossRef]
  17. Wiśniewska, M.; Terpiłowski, K.; Chibowski, S.; Urban, T.; Zarko, V.I.; Gun’ko, V.M. Investigation of stabilization and destabilization possibilities of water alumina suspension in polyelectrolyte presence. Int. J. Min. Proc. 2014, 132, 34–42. [Google Scholar] [CrossRef]
  18. Konopacka-Łyskawa, D. Synthesis methods and favorable conditions for spherical vaterite precipitation: A review. Crystals 2019, 9, 223. [Google Scholar] [CrossRef] [Green Version]
  19. Dang, H.; Xu, Z.; Chen, Z.; Wu, W.; Feng, J.; Sun, Y.; Jin, F.; Li, J.; Ge, F. A facile and controllable method to in situ synthesize stable hydrophobic vaterite particles. Crys. Res. Technol. 2019, 54, 1–7. [Google Scholar] [CrossRef]
  20. Zheng, L.; Hu, Y.; Ma, Y.; Zhou, Y.; Nie, F.; Liu, X.; Pei, C. Egg-white-mediated crystallization of calcium carbonate. J. Cryst. Growth 2012, 361, 217–224. [Google Scholar] [CrossRef]
  21. Szcześ, A.; Sternik, D. Properties of calcium carbonate precipitated in the presence of DPPC liposomes modified with phospholipase A2. J. Therm. Anal. Calorim. 2016, 123, 2357–2365. [Google Scholar] [CrossRef]
  22. Pokroy, B.; Fitch, A.; Zolotoyabko, E. The microstructure of biogenic calcite: A view by high-resolution synchrotron powder diffraction. Adv. Mater. 2006, 18, 2363–2368. [Google Scholar] [CrossRef]
  23. Borukhin, S.; Bloch, L.; Radlauer, T.; Hill, A.H.; Fitch, A.N.; Porkroy, B. Screening the incorporation of amino acids into an inorganic crystalline host: The case of calcite. Adv. Funct. Mater. 2012, 22, 4216–4224. [Google Scholar] [CrossRef]
  24. Różycka, M.; Coronado, I.; Brach, K.; Olesiak-Bańska, J.; Samoć, M.; Zarębski, M.; Dobrucki, J.; Ptak, M.; Weber, E.; Polishchuck, I.; et al. Lattice shrinkage by incorporation of recombinant Starmarker-like protein within bioinspired calcium carbonate crystals. Chem. Eur. J. 2019, 25, 12740–12750. [Google Scholar] [CrossRef] [PubMed]
  25. Štainer, L.; Kontrec, J.; Njegic- Džakula, B.; Maltar-Strmečki, N.; Plodinec, M.; Lyons, D.M.; Kralj, D. The effect of different amino acids on spontaneous precipitation of calcium carbonate polymorphs. J. Cryst. Growth 2018, 486, 71–81. [Google Scholar] [CrossRef] [Green Version]
  26. Polowczyk, I.; Bastrzyk, A.; Fiedot, M. Protein-mediated precipitation of calcium carbonate. Materials 2016, 99, 944. [Google Scholar] [CrossRef] [Green Version]
  27. Zhang, A.; Xie, H.; Liu, N.; Chen, B.L.; Ping, H.; Fu, Z.Y.; Su, B.L. Crystallization of calcium carbonate under the influences of casein and magnesium ions. RSC Adv. 2016, 6, 110362–110366. [Google Scholar] [CrossRef]
  28. Wang, X.; Kong, R.; Pan, X.; Xu, H.; Xia, D.; Shan, H.; Lu, J.R. Role of ovalbumin in the stabilization of metastable vaterite in calcium carbonate mineralization. J. Phys. Chem. B 2009, 113, 8975–8982. [Google Scholar] [CrossRef]
  29. Abdel-Mawgoud, A.M.; Aboulwafa, M.M.; Hassouna, N.A.-H. Characterization of surfactin produced by Bacillus subtilis isolate BS5. Appl. Biochem. Biotechnol. 2008, 150, 289–303. [Google Scholar] [CrossRef]
  30. Kim, Y.Y.; Semsarilar, M.; Carloni, J.D.; Rae Cho, K.; Kulak, A.N.; Polishchuk, I.; Hendley, C.T., IV; Smeets, P.J.M.; Fielding, L.A.; Pokroy, B.; et al. Structure and properties of nanocomposites formed by the occlusion of block copolymer worms and vesicles within calcite crystals. Adv. Funct. Mater. 2016, 26, 1382–1392. [Google Scholar] [CrossRef] [Green Version]
  31. Juhasz-Bortuzzo, J.A.; Myszka, B.; Silva, R.; Boccaccini, A.R. Sonosynthesis of vaterite-type calcium carbonate. Cryst. Growth Des. 2017, 17, 2351–2356. [Google Scholar] [CrossRef]
  32. Siva, T.; Muralidharan, S.; Sathiyanarayanan, S.; Manikanadan, E.; Jayachandran, M. Enhanced polymer induced precipitation of polymorphous in calcium carbonate: Calcite aragonite vaterite phases. J. Inorg. Organomet. Polym. Mater. 2017, 27, 770–778. [Google Scholar] [CrossRef]
  33. Shafiu Kamba, A.; Ismail, M.; Tengku Ibrahim, T.A.; Bakar Zakaria, Z.A. Synthesis and characterisation of calcium carbonate aragonite nanocrystals from Cockle Shell Powder (Anadara granosa). J. Nanomater. 2013. [Google Scholar] [CrossRef] [Green Version]
  34. Vyazovkin, S. Model free kinetics. J. Therm. Anal. Calorim. 2006, 83, 45–61. [Google Scholar] [CrossRef]
  35. Traversa, E. Ceramic sensors for humidity detection: The state-of-the-art and future developments. Sens. Actuators. B Chem. 1995, 23, 135–156. [Google Scholar] [CrossRef]
  36. Fiedot, M.; Rac-Rumijowska, O.; Suchorska-Woźniak, P.; Teterycz, H. Chlorine gas sensor to work in high humidity atmosphere. In Proceedings of the 40th International Spring Seminar on Electronics Technology (ISSE), Sofia, Bulgaria, 10–14 May 2017; pp. 1–4. [Google Scholar]
  37. Williamson, G.K.; Hall, W.H. X-ray line broadening from filed aluminium and wolfram. Acta Metall. 1953, 1, 22–31. [Google Scholar] [CrossRef]
  38. Akdogan, E.K.; Leonard, M.R.; Safari, A. Size effects in ferroelectric ceramics. In Handbook of Low and High Dielectric Constant Materials and Their Application; Nalwa, H.S., Ed.; Academic Press: San Diego, CA, USA, 1999; Volume 2, pp. 60–112. [Google Scholar]
  39. Kim, Y.; Schenk, A.S.; Ihli, J.; Kulak, A.N.; Hetherington, N.B.J.; Tang, C.C.; Schmahl, W.W.; Griesshaber, E.; Hyett, G.; Meldrum, F.C. A critical analysis of calcium carbonate mesocrystals. Nat. Commun. 2014, 5, 1–14. [Google Scholar] [CrossRef] [Green Version]
  40. Rodriguez-Blanco, J.D.; Sand, K.K.; Benning, L.G. Chapter 5. ACC and vaterite as intermediates in the solution-based crystallization of CaCO3. In New Perspectives on Mineral Nucleation and Growth: From Solution Precursors to Solid Material; Van Driessche, A.E.S., Kellermeier, M., Benning, L.G., Gebauer, D., Eds.; Springer: Berlin/Heidelberg, Germany, 2017; pp. 93–111. [Google Scholar]
  41. Dhali, D.; Coutte, F.; Arias, A.A.; Auger, S.; Bidnenko, V.; Chataigné, G.; Lalk, M.; Neihren, J.; De Sousa, J.; Versari, C.; et al. Genetic engineering of the branched fatty acid metabolic pathway of Bacillus subtilis for the overproduction of surfactin C14 isoform. Biotechnol. J. 2017, 12, 1–10. [Google Scholar] [CrossRef]
  42. Nogueira Felix, A.K.; Martins, J.J.L.; Lima Almeida, J.G.; Giro, M.E.A.; Cavalcante, K.F.; Maciel Melo, V.M.; Loiola Pessoa, O.D.; Valderez Ponte Rocha, M.; Rocha Barros Gonҫalves, L.; Saraiva de Santiago Aguiar, R. Purification and characterization of a biosurfactant produced by Bacillus subtilis in cashew apple juice and its application in the remediation of oil-contaminated soil. Colloids Surf. B Biointerfaces 2019, 175, 256–263. [Google Scholar] [CrossRef]
  43. Ishigami, Y.; Osman, M.; Nakahara, H.; Sano, Y.; Ishiguro, R.; Matsumoto, M. Significance of β-sheet formation for micellization and surface adsorption of surfactin. Colloids Surf. B Biointerfaces 1995, 4, 341–348. [Google Scholar] [CrossRef]
  44. Shao, C.; Liu, L.; Gang, H.; Yang, S.; Mu, B. Structural diversity of the microbial surfactin derivatives from selective esterification approach. Int. J. Mol. Sci. 2015, 16, 1855–1872. [Google Scholar] [CrossRef] [Green Version]
  45. Li, Y.; Zou, A.H.; Ye, R.Q.; Mu, B.Z. Counterion-induced changes to the micellization of surfactin-C-16 aqueous solution. J. Phys. Chem. B 2009, 113, 15272–15277. [Google Scholar] [CrossRef] [PubMed]
  46. Dhanarajan, G.; Patra, P.; Rangarajan, V.; Samosundaran, P.; Sen, R. Modeling and analysis of micellar and microbubble dynamics to derive new insight in molecular interactions impacting the packing behavior of a green surfactant for potential engineering application. ACS Sustain. Chem. Eng. 2018, 6, 4046–4055. [Google Scholar] [CrossRef]
  47. Heerklotz, H.; Seeling, J. Detergent-like action of antibiotic peptide surfactin on lipid membranes. Biophys. J. 2001, 81, 1547–1554. [Google Scholar] [CrossRef] [Green Version]
  48. Carrillo, C.; Cejas, S.; Huber, A.; González, N.S.; Algranati, I.D. Lack of arginine decarboxylase in Trypanosoma cruzi epimastigotes. J. Eukaryot. Microbiol. 2003, 50, 312–316. [Google Scholar] [CrossRef]
  49. Wu, Z.G.; Wang, J.; Guo, Y.; Jia, Y.R. Exploring the influence of reaction parameters on the preparation of calcium carbonate by spontaneous precipitation. Cryst. Res. Technol. 2018, 53, 1–4. [Google Scholar] [CrossRef]
  50. De Yoreo, J.J.; Gilbert, P.U.P.A.; Sommerdijk, N.A.J.M.; Leen Penn, R.; Whitelam, S.; Joester, D.; Zhang, H.; Rimer, J.D.; Navrotsky, A.; Banfield, J.F.; et al. Crystallization by particle attachment in synthethic, biogenic, and geologic environments. Science 2015, 349, 498–507. [Google Scholar] [CrossRef]
  51. Jauregi, P.; Coutte, F.; Catiau, L.; Lecouturier, D.; Jacques, P. Micelles size characterization of lipopeptides produced by B. subtilis and their recovery by the two-step ultrafiltration process. Sep. Purif. Technol. 2013, 104, 175–182. [Google Scholar] [CrossRef]
  52. Shih, S.J.; Lin, Y.C.; Posma Panjaitan, L.V.; Rahayu, D.; Sari, M. The correlation of surfactant concentration on the properties of mesoporous bioactive glass. Materials 2016, 99, 58. [Google Scholar] [CrossRef] [Green Version]
Ijms 21 05526 g001 550

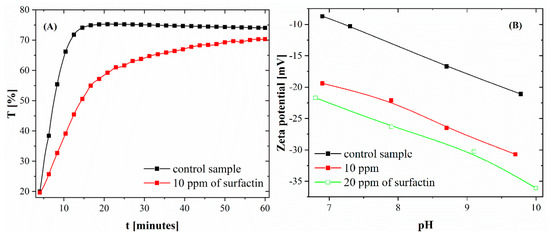

Figure 1. (A) T (%) value changes during the time of reaction. (B) Zeta potential of calcium carbonate precipitated at various surfactin concentrations after 24 h of ageing (NaCl concentration was 1 mM, standard deviation for zeta potential values was lower than 1 mV).
Figure 1. (A) T (%) value changes during the time of reaction. (B) Zeta potential of calcium carbonate precipitated at various surfactin concentrations after 24 h of ageing (NaCl concentration was 1 mM, standard deviation for zeta potential values was lower than 1 mV).
Ijms 21 05526 g001
Ijms 21 05526 g002 550

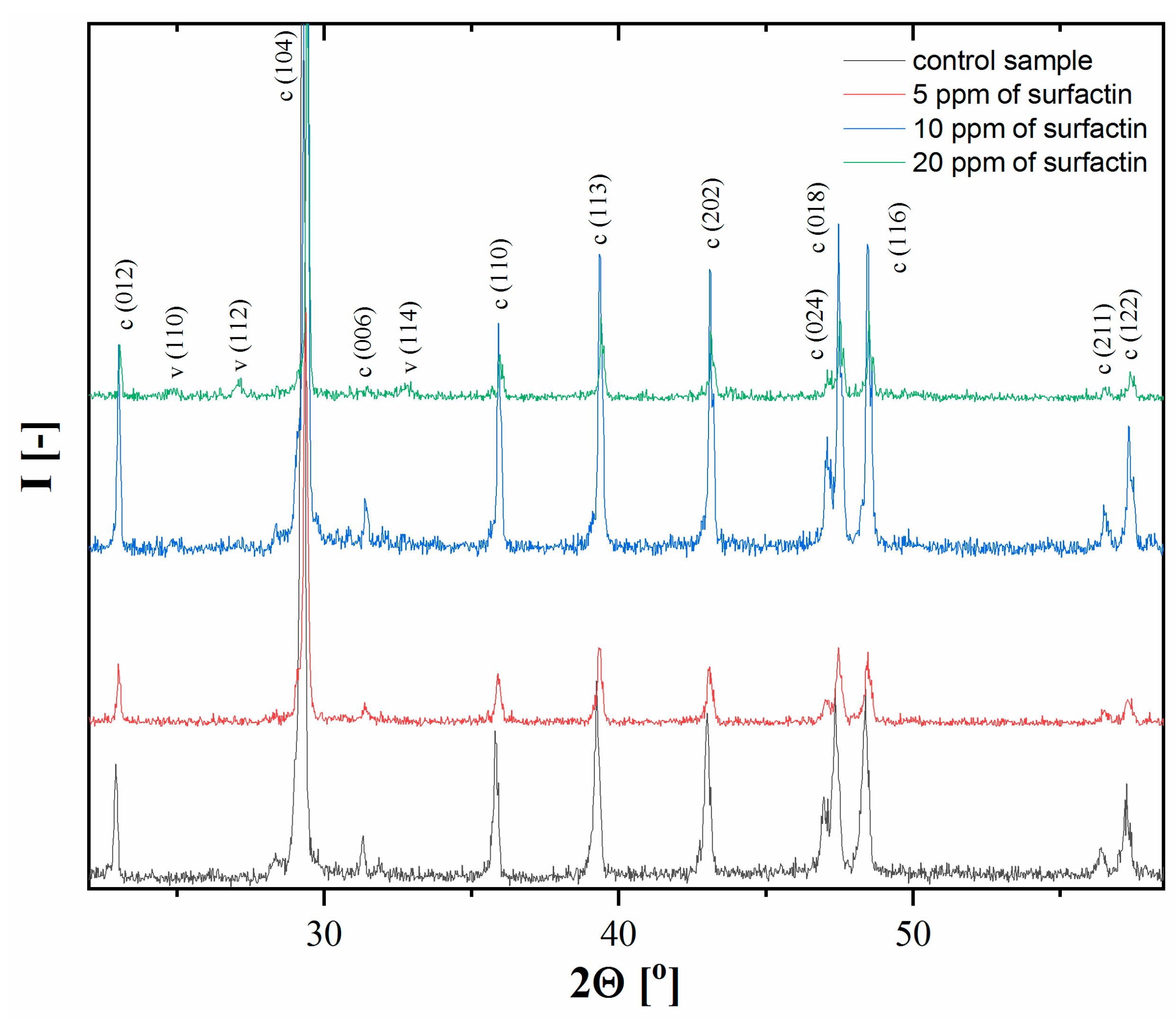

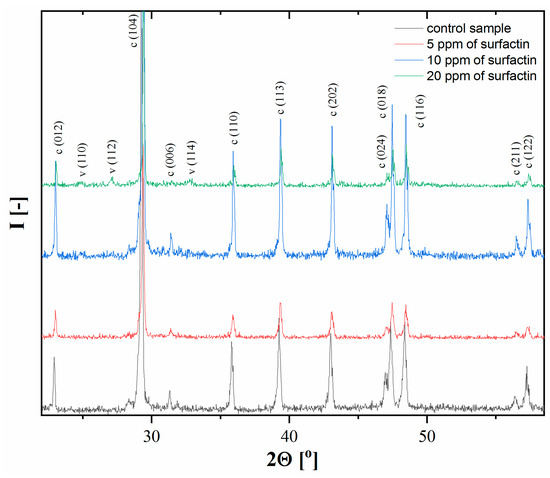

Figure 2. XRD patterns of calcium carbonate precipitated at different surfactin concentrations after 24 h of ageing. The concentration of CaCl2 and Na2CO3 was 5 mM (c-calcite, v-vaterite).
Figure 2. XRD patterns of calcium carbonate precipitated at different surfactin concentrations after 24 h of ageing. The concentration of CaCl2 and Na2CO3 was 5 mM (c-calcite, v-vaterite).
Ijms 21 05526 g002
Ijms 21 05526 g003 550

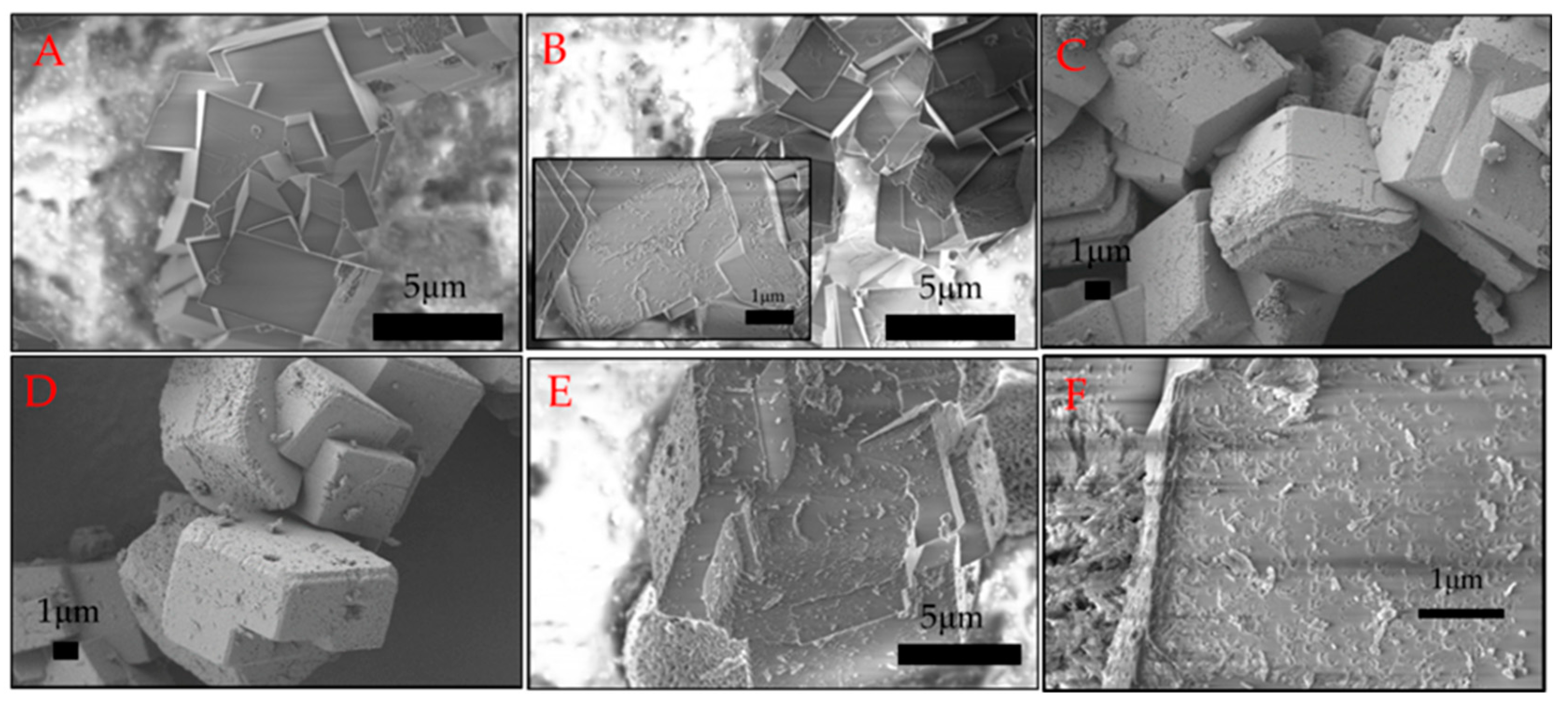

Figure 3. SEM images of calcium carbonate precipitation at various surfactin concentrations after 24 h of ageing. (A) control sample, (B) 5 ppm, (C,D) 10 ppm, (E,F) 20 ppm of surfactin. The concentration of CaCl2 and Na2CO3 was 5mM.
Figure 3. SEM images of calcium carbonate precipitation at various surfactin concentrations after 24 h of ageing. (A) control sample, (B) 5 ppm, (C,D) 10 ppm, (E,F) 20 ppm of surfactin. The concentration of CaCl2 and Na2CO3 was 5mM.
Ijms 21 05526 g003
Ijms 21 05526 g004 550

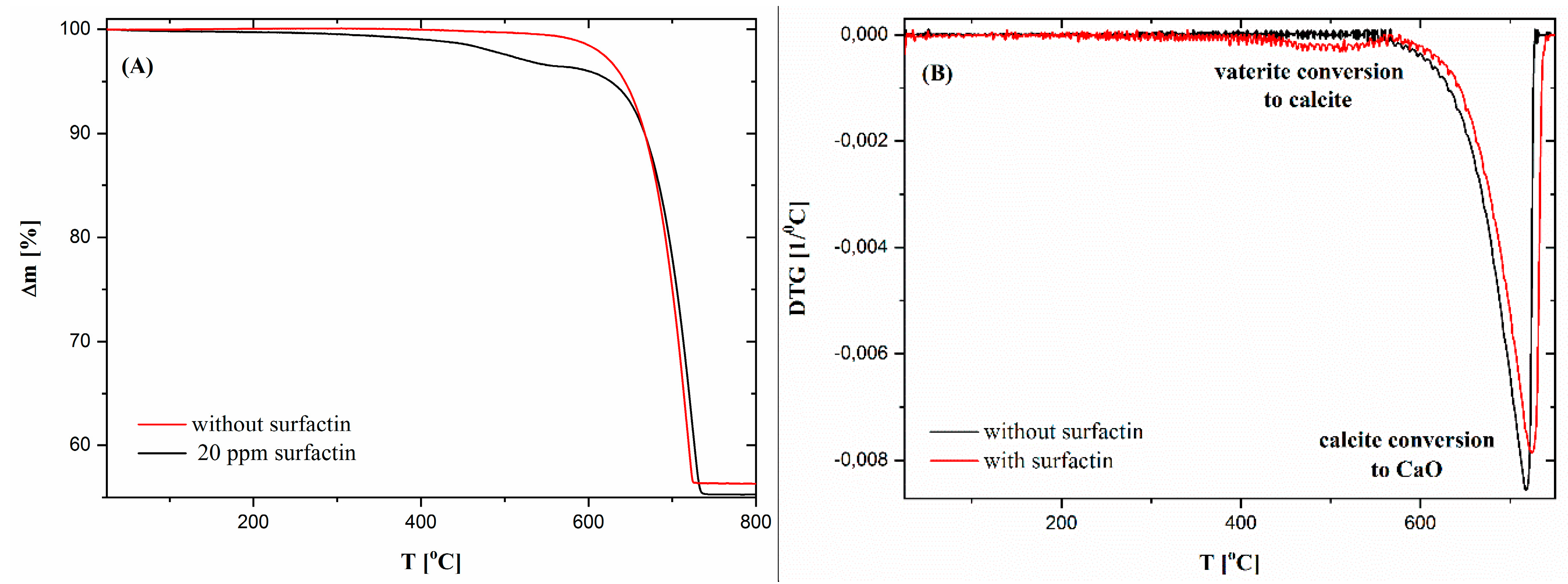

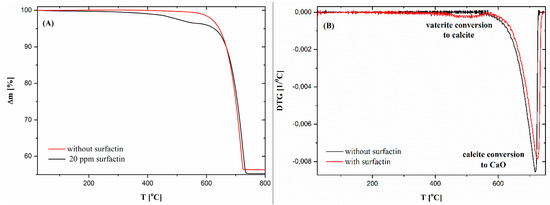

Figure 4. TG and DTG curves of the calcium carbonate structures obtained without and with 20 ppm of biosurfactant. Time of reaction was 24 h. The concentration of CaCl2 and Na2CO3 was 5 mM. (A) TG; (B) DTG.
Figure 4. TG and DTG curves of the calcium carbonate structures obtained without and with 20 ppm of biosurfactant. Time of reaction was 24 h. The concentration of CaCl2 and Na2CO3 was 5 mM. (A) TG; (B) DTG.
Ijms 21 05526 g004
Ijms 21 05526 g005 550

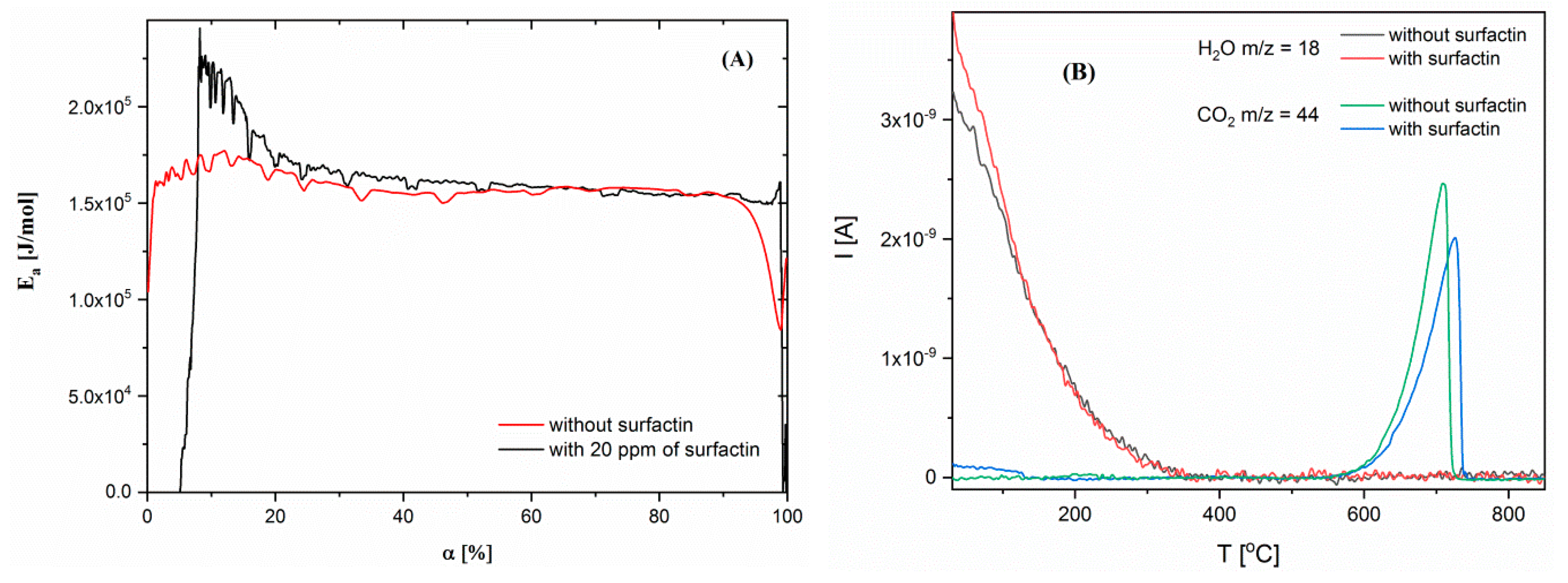

Figure 5. (A) Ea changes as a function of materials conversion. (B) QMID (Quasi Multiple Ion Detection) value for m/z 18 (water) and 44 (CO2).
Figure 5. (A) Ea changes as a function of materials conversion. (B) QMID (Quasi Multiple Ion Detection) value for m/z 18 (water) and 44 (CO2).
Ijms 21 05526 g005
Ijms 21 05526 g006 550

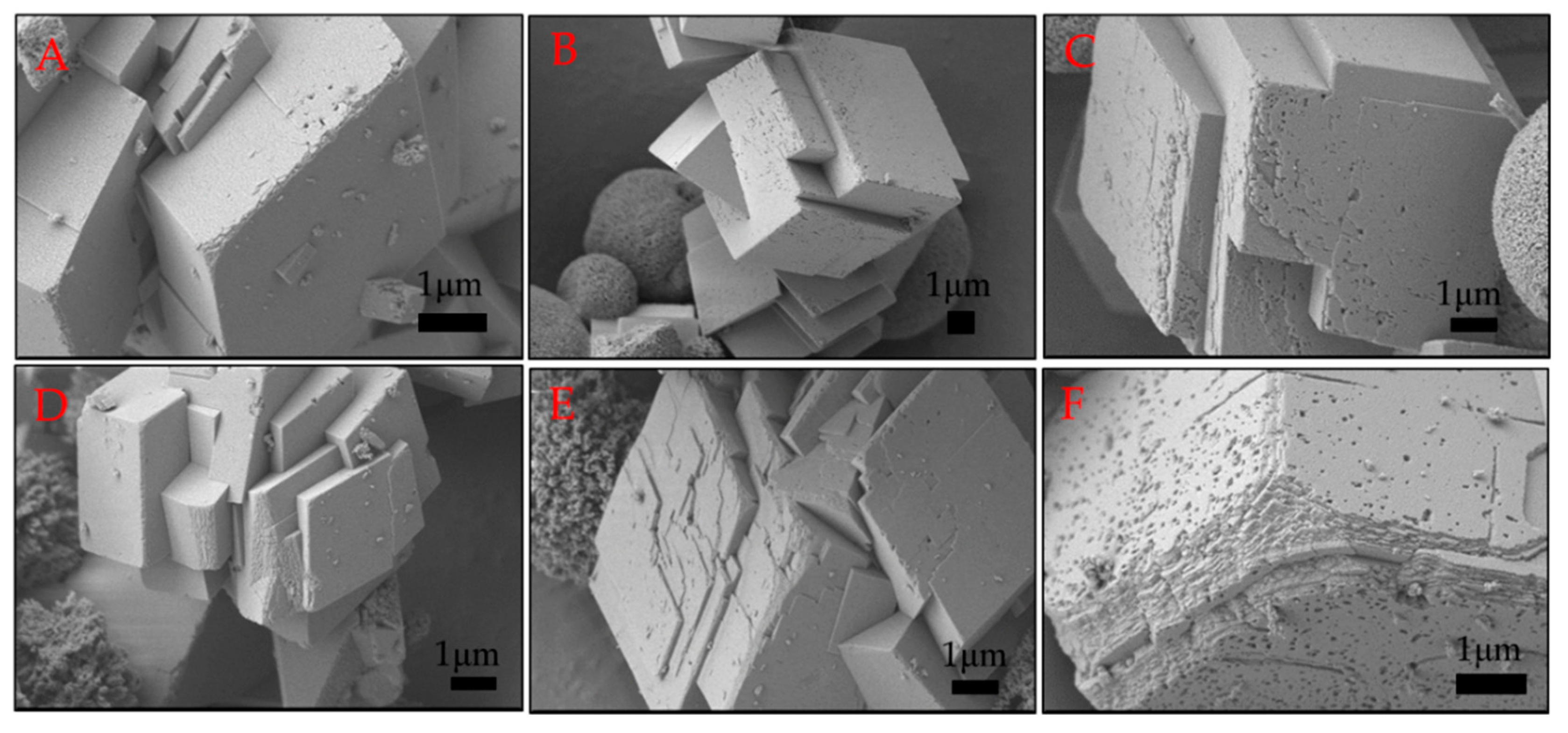

Figure 6. SEM images of calcium carbonate precipitated in 10 ppm of surfactin. (A–C) 30 min of aging, (D) 1 h of aging, (E) 3 h of aging, (F) 24 h of aging. The concentration of CaCl2 and Na2CO3 was 5 mM.
Figure 6. SEM images of calcium carbonate precipitated in 10 ppm of surfactin. (A–C) 30 min of aging, (D) 1 h of aging, (E) 3 h of aging, (F) 24 h of aging. The concentration of CaCl2 and Na2CO3 was 5 mM.
Ijms 21 05526 g006
Ijms 21 05526 g007 550

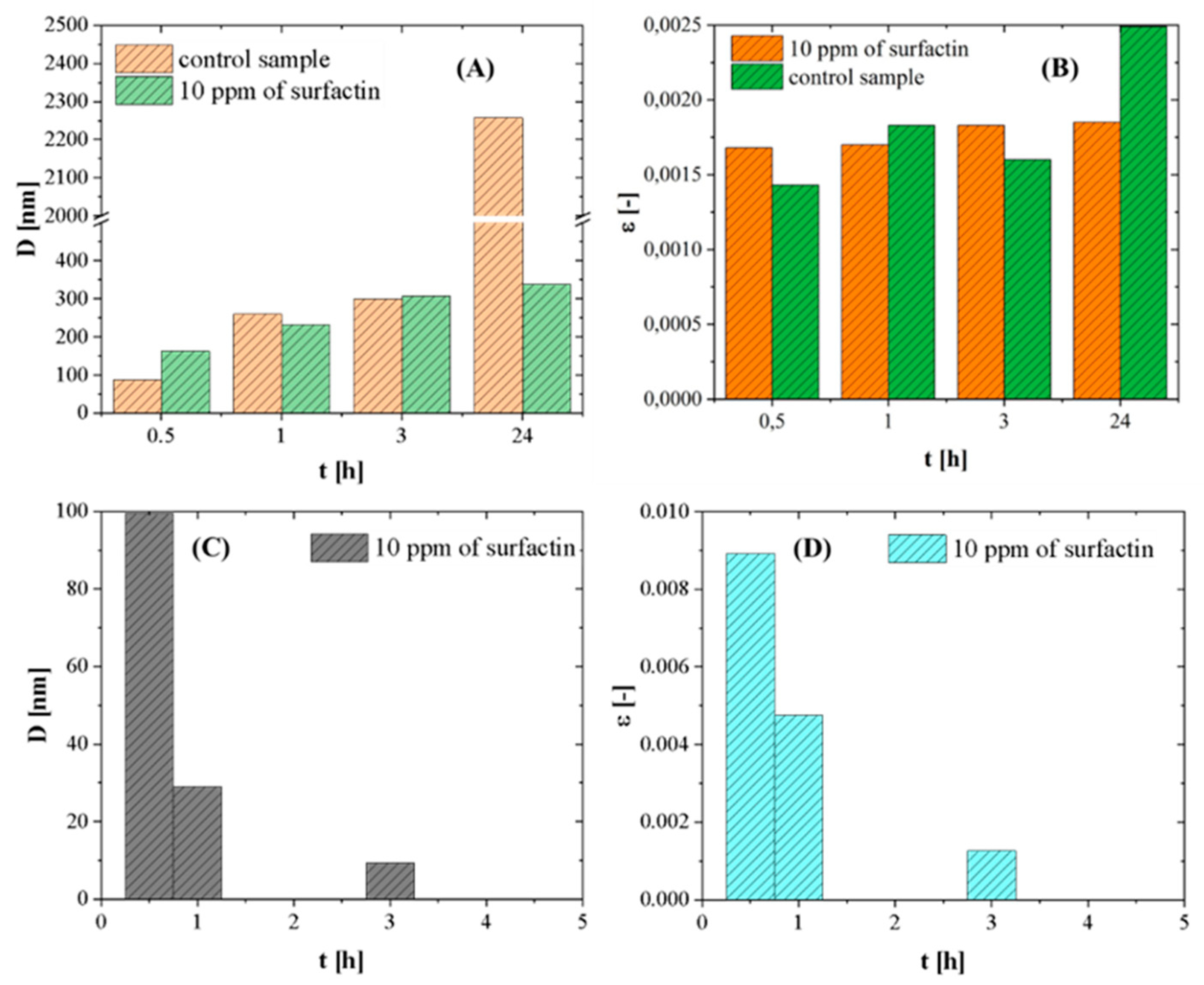

Figure 7. Changes in crystallite size (D) and microstrains (ε) of CaCO3 crystals obtained with and without surfactin. Calcite (A,B); vaterite (C,D).
Figure 7. Changes in crystallite size (D) and microstrains (ε) of CaCO3 crystals obtained with and without surfactin. Calcite (A,B); vaterite (C,D).
Ijms 21 05526 g007
Ijms 21 05526 g008 550

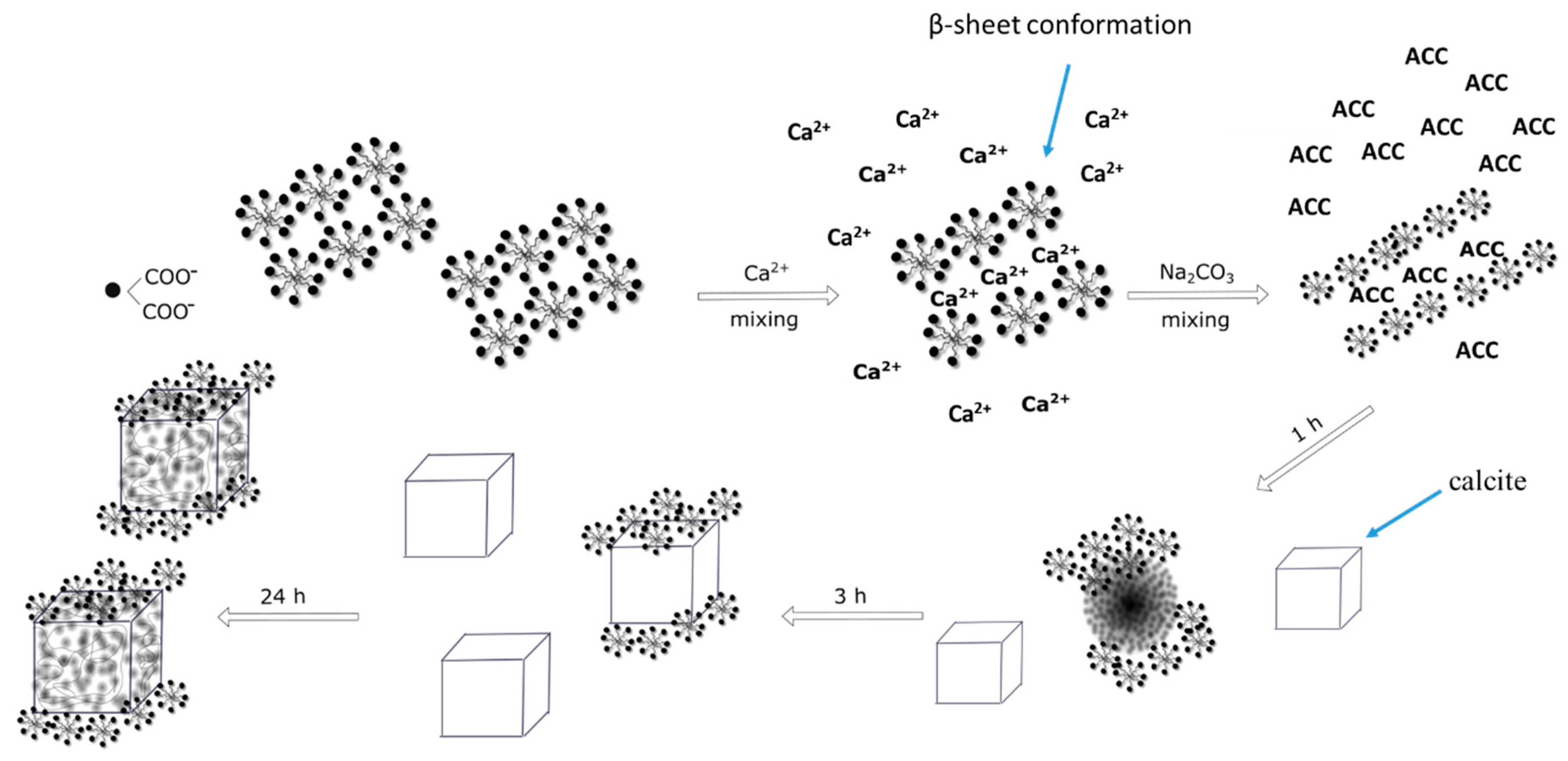

Figure 8. Mechanism of mesoporous calcite formation.
Figure 8. Mechanism of mesoporous calcite formation.
Ijms 21 05526 g008
Table
Table 1. Median diameter (d50), lower (d10) and upper (d90) deciles of calcium carbonate particles obtained in the presence of biosurfactant after 24 h of ageing. (Standard deviation for d values was lower than 1 µ).
Table 1. Median diameter (d50), lower (d10) and upper (d90) deciles of calcium carbonate particles obtained in the presence of biosurfactant after 24 h of ageing. (Standard deviation for d values was lower than 1 µ).
Surfactin Concentration [ppm]d10 [µm]d50 [µm]d90 [µm]
012.524.444.6
58.415.426.0
106.312.421.6
205.010.619.6
Table
Table 2. Phase composition and the elemental cell parameters of the precipitated calcium carbonate calculated from the diffraction patterns. (Standard deviation for calcite or vaterite content was lower than 2%. Standard deviation for calcite cell parameters a, c and V were 0.003–0.008%, 0.001−0.006%, 0.006−0.013%, respectively. Standard deviation for vaterite cell parameters a, c and V were 0.011–0.013%, 0.025–0.029%, 0.23–0.34%, respectively).
Table 2. Phase composition and the elemental cell parameters of the precipitated calcium carbonate calculated from the diffraction patterns. (Standard deviation for calcite or vaterite content was lower than 2%. Standard deviation for calcite cell parameters a, c and V were 0.003–0.008%, 0.001−0.006%, 0.006−0.013%, respectively. Standard deviation for vaterite cell parameters a, c and V were 0.011–0.013%, 0.025–0.029%, 0.23–0.34%, respectively).
Surfactin Concentration [ppm]CalciteVaterite
Content [%]Structural ParametersContent [%]Structural Parameters
0100a = b = 4.9900(2) Å--
c = 17.0550(7) Å
α = β = 90°, γ = 120°
V = 367.776 (Å)3
5100a = b = 4.9923(3) Å--
c = 17.0537(14) Å
α = β = 90°, γ = 120°
V = 368.087 (Å)3
1098.6a = b = 4.9927(1) Å1.4a = b = 4.1268(4) Å
c = 17.0608(6) Åc = 8.4791(20) Å
α = β = 90°, γ = 120°α = β = 90°, γ = 120°
V = 368.299 (Å)3V = 125.057 (Å)3
2085.1a = b = 4.9926(2) Å14.9a = b = 4.1299(5) Å
c = 17.0619(9) Åc = 8.4699(25) Å
α = β = 90°, γ = 120°α = β = 90°, γ = 120°
V = 368.308 (Å)3V = 125.109 (Å)3
Table
Table 3. The characteristic surface parameters of CaCO3 precipitate.
Table 3. The characteristic surface parameters of CaCO3 precipitate.
Surfactin Concentration [ppm]SSA
[m2g−1]		Average Pores Volume
[cm3g−1]		Average Pores Diameter
[nm]
00.18 ± 0.05--
101.67 ± 0.10.00513 ± 0.00028.7 ± 1.0
204.87 ± 0.090.0123 ± 0.00111.7 ± 1.2
Table
Table 4. Thermogravimetry results of the samples (Δm–weight loss, T–maximum on the DTG curve, onset-temperature- of main degradation start).
Table 4. Thermogravimetry results of the samples (Δm–weight loss, T–maximum on the DTG curve, onset-temperature- of main degradation start).
Surfactin Concentration
[ppm]		∆m1 (25–400 °C) [%]∆m2 (400–566 °C) [%]T1
[°C]		T2
[°C]		∆mtotal
[%]
00.71-71743.69
200.950.9551072444.71
Table
Table 5. Phase composition of precipitated calcium carbonate calculated from the diffraction patterns. (Standard deviation for calcite/vaterite content was lower than 1%). Surfactin concentration was 10 ppm. pH was 8.
Table 5. Phase composition of precipitated calcium carbonate calculated from the diffraction patterns. (Standard deviation for calcite/vaterite content was lower than 1%). Surfactin concentration was 10 ppm. pH was 8.
Time
[hours]		Calcite [%]Vaterite [%]
0.559.640.5
167.832.2
390.59.5
2498.61.4

Share and Cite

MDPI and ACS Style

Bastrzyk, A.; Fiedot-Toboła, M.; Maniak, H.; Polowczyk, I.; Płaza, G. Surfactin as a Green Agent Controlling the Growth of Porous Calcite Microstructures. Int. J. Mol. Sci. 2020, 21, 5526. https://doi.org/10.3390/ijms21155526

AMA Style

Bastrzyk A, Fiedot-Toboła M, Maniak H, Polowczyk I, Płaza G. Surfactin as a Green Agent Controlling the Growth of Porous Calcite Microstructures. International Journal of Molecular Sciences. 2020; 21(15):5526. https://doi.org/10.3390/ijms21155526

Chicago/Turabian Style

Bastrzyk, Anna, Marta Fiedot-Toboła, Halina Maniak, Izabela Polowczyk, and Grażyna Płaza. 2020. "Surfactin as a Green Agent Controlling the Growth of Porous Calcite Microstructures" International Journal of Molecular Sciences 21, no. 15: 5526. https://doi.org/10.3390/ijms21155526

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
